Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
SKU Number: 356-9426
356-9427
Model Number: E9404-2BZ
E9404-1WH
A
B
3-LIGHT OUTDOOR SENSOR LIGHT
Page 1 of 4
201015
HARDWARE CONTENTS Note: Hardware not shown actual size.
PACKAGE CONTENTS
Decorative cover
X1
AA
BB
DD EE FF
CC
Mounting Screw
X2
Wire Connector
X3
Mounting Strap
X1
Fixture Mounting Screw
X1
Gasket
X1
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Slotted Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire
Cutters, Safety Glasses, Ladder, Wire Stripper.
PREPARATION
Important to know
Page 2 of 4
201015
ASSEMBLY INSTRUCTIONS
This fixture requires a 120 VAC, 60 Hz power source.
Note: Fixture can be wall mounted or eave mounted.
Wall Mounted
Eave Mounted
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
● Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching
off circuit breaker).
●
Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
● LED electronics can be damaged by electro static discharge (ESD)shock. Before installation, discharge yourself by
touching a grounded bare metal surface to remove this hazard. To avoid damage, do not touch the LED module.
NOTICE: Do not connect this light fixture to a dimmer switch or timer.
CAUTION
● All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
● Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation
● Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means, do
not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
● Only general ON/OFF wall switch applies for this fixture, the dimmable wall switch shouldn’t be required.
Rated Wattage: 30W
Work Temperature: -4°F~113°F
ASSEMBLY INSTRUCTIONS (continued)

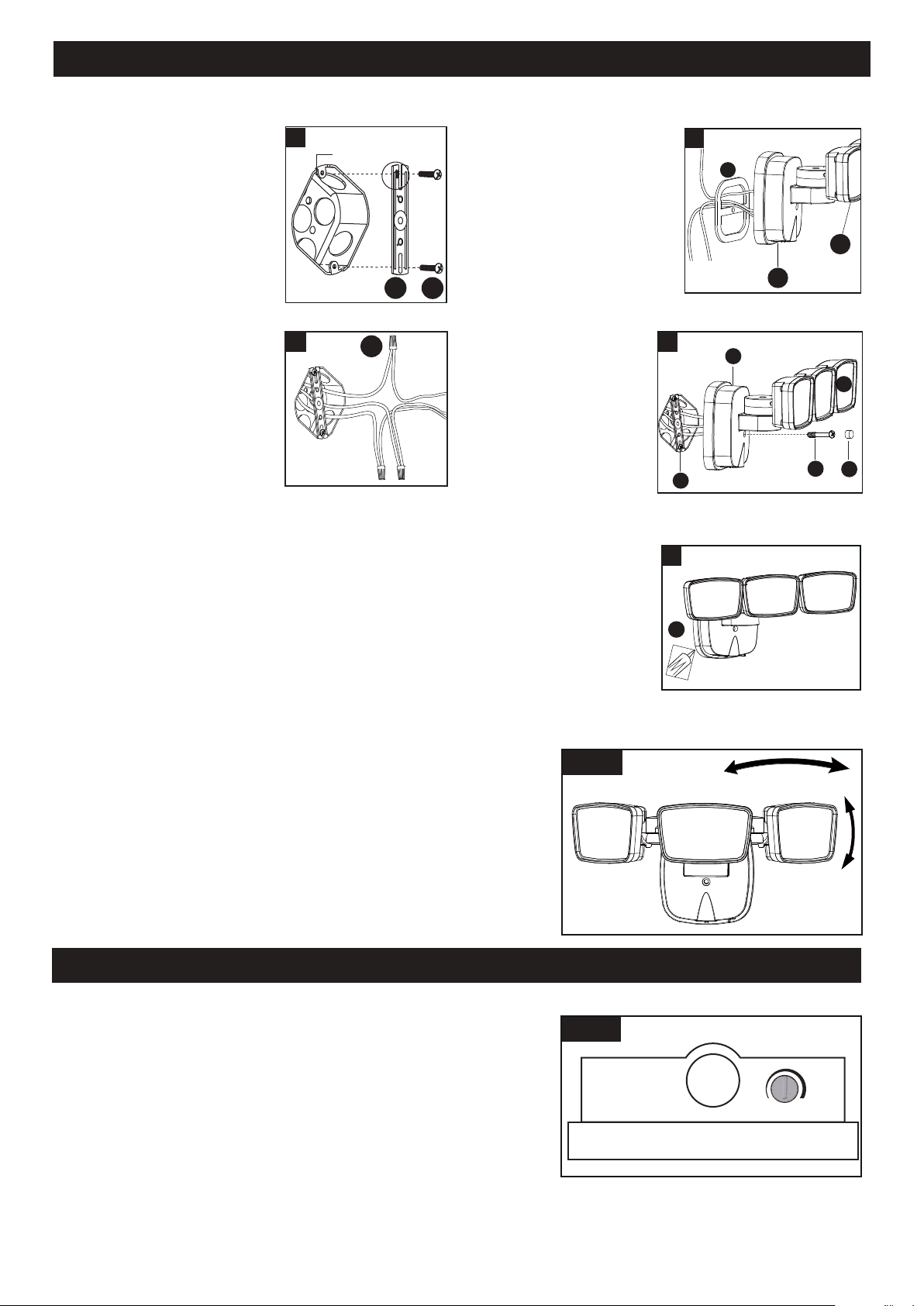

1. Install the mounting strap (BB)
to the outlet box with the
stamped word “FRONT” facing
away from the outlet box,
using two mounting screws
(AA) that best fit the outlet box.
(Choose one matching pair of
suitable mounting screws (AA)
from the 3 pairs provided).
2. Thread the fixture wires
through gasket (FF), then
attach the gasket (FF) into
backplate (A) of the light
fixture.
4. Attach the backplate (A)
of the light fixture to the
mounting strap (BB), then
secure it with the fixture
mounting screw (DD).
Push the decorative
cover (CC) firmly into the
fixture mounting screw
hole on the light fixture.
Page 3 of 4
201015
Outlet Box
1
BB
AA
5. With silicone caulking compound (not included), caulk completely around where the
backplate (A) meets the wall surface.
CAUTION: Be sure to caulk completely where the backplate meets the wall
surface to prevent water from seeping into the outlet box and light fixture.
Adjusting the Light Head:
A
5
1. Gently grasp the light heads and move them up or down, left or right
to adjust the light coverage area.
Keep the light heads face down around 30 degrees angle to avoid
water damage and electrical shock (See Fig.1) .
Fig.1
Fig.2
CCT
2700K 5000K
Turn off the power at fuse or circuit box.
Turn on the power at fuse or circuit box.
4
B
A
DD
BB
CC
FUNCTION AND OPERATION
A
2
B
FF
EE
3
3. Connect the house grounding
wire and the fixture grounding
wire (green) using the wire
connector (EE).
Connect the fixture black wire
to the house black wire and
the fixture white wire to the
house white wire using wire
connector (EE) provided.
Carefully tuck the wires back into the outlet box.
1. Wall switch control.
Turn on the wall switch to switch on the light.
2. CCT color
You can adjust the “CCT color” (2700K~5000K) by CCT color switch
on the backplate.
3. Low level Brightness Setting
Turn the wall switch "OFF" and turn it "ON" twice within 3 seconds, the
light will go into low-level brightness and predetermined CCT color.
To revert back to default,turn the wall switch "OFF"and then turn it "ON" over 5 seconds again.
Page 4 of 4
201015
ASSEMBLY INSTRUCTIONS (continued)
ASSEMBLY INSTRUCTIONS (continued)
ASSEMBLY INSTRUCTIONS (continued)
If unable to fix any of the above issues, please consult a certified electrician.
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails due
to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this lighting
fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
R
R
R
R
Assembly Kit
6322MM (1 SET) for 356-9426
6327MM (1 SET) for 356-9427
The following parts are available for re-order if damaged or missing. Call our toll free at 1-800-887-6326.
Spare Parts List:
TROUBLE SHOOTING
CARE AND MAINTENANCE
● To clean, turn off and wipe with a damp, non-abrasive cloth.
● Do not use paints, solvents or other chemicals on this light fixture .They could cause a premature deterioration of the
finish. This is not a defect in the finish and will not be covered by the warranty.
---The light does not come on at all:
1. Make sure the wall switch and circuit breaker are on.
2. Make sure the wiring is correct.
Decorative cover
X1
AA
BB
DD EE FF
CC
Mounting Screw
X2
Wire Connector
X3
Mounting Strap
X1
Fixture Mounting Screw
X1
Gasket
X1
