User Manual Rockford Fosgate PMX-2 Punch Marine Compact AM/FM/WB Digital Media Receiver 2.7" Display

• Owner's manual - (English, French, Spanish, German, Italian)

User manual Media Receiver for Rockford Fosgate PMX-2

Table of contents

• Introduction
• Specifications
• Design Features
• Wiring
• Installation/Mounting
• Operation

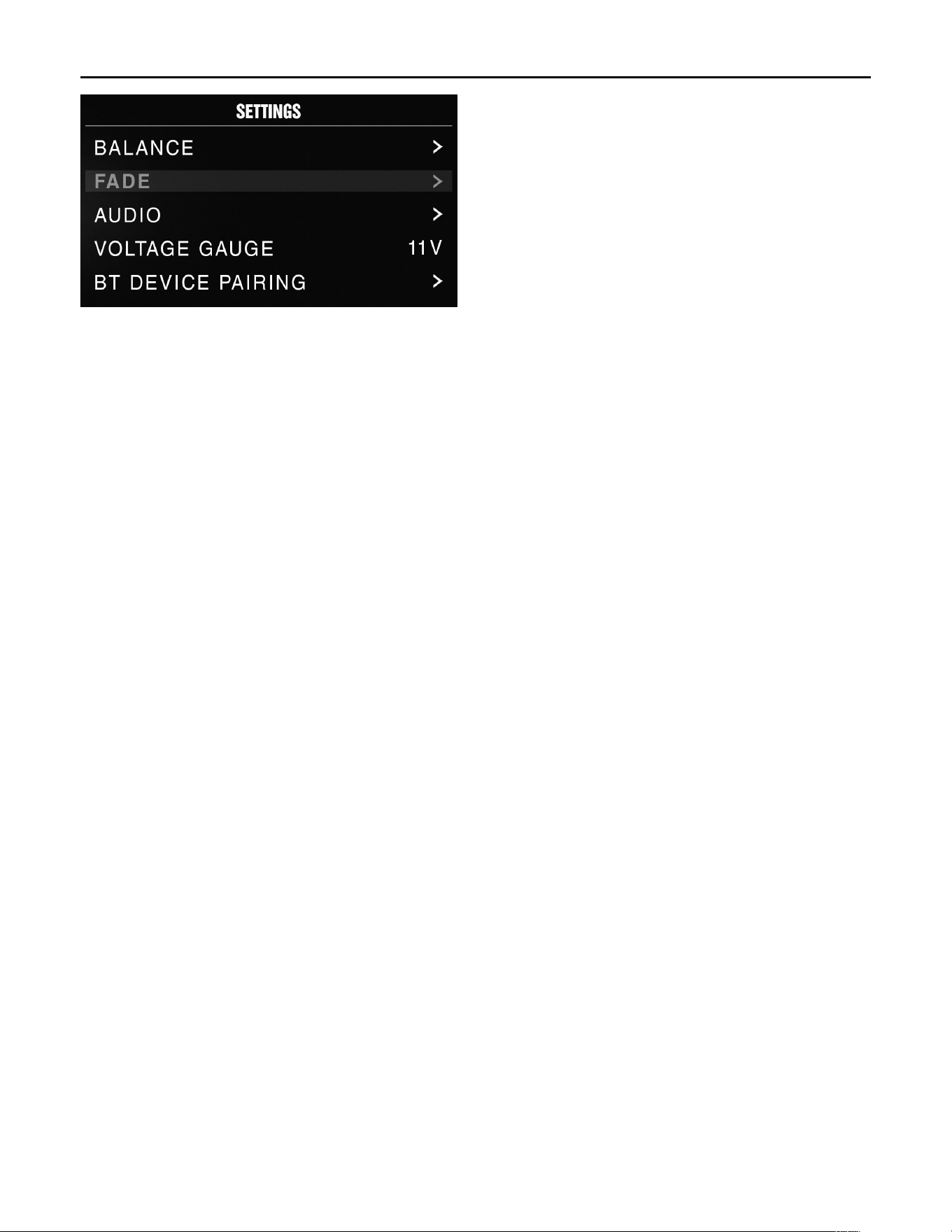

• Settings
• Tuner (AM/FM/WB)
• USB-iPod
• AUX (Auxiliary Input)
• Bluetooth®
• Pandora®
• Troubleshooting
• French, Spanish, German and Italian
• Limited Warranty Information

Mounting (Using Mounting Plate)

To mount the unit, you will need to find a flat surface with adequate clearance behind it that provides enough clearance for the unit and all it’s necessary wiring.

• Once you have determined a mounting location, you will need to cut a circular hole 3” (77mm) in diameter.
• After the hole is cut slide the unit and wiring through the hole.
• Slide the mounting plate over the backside of the unit and secure with the supplied screws.
• Press on the trim bezel to the front side of the unit.
• Plug in all wiring harnesses and cables. Refer to the wiring diagram for wire harness connection types.

Mounting (Using U Bracket)

To mount the unit, you will need to find a flat surface with adequate clearance behind it that provides enough clearance for the unit and all it’s necessary wiring.

• Once you have determined a mounting location, you will need to cut a circular hole 3” (77mm) in diameter.
• After the hole is cut slide the unit and wiring through the hole.
• Take the U bracket and slide over the two studs on the back of the unit. Tighten down with supplied nuts.
• Press on the trim bezel to the front side of the unit.
• Plug in all wiring harnesses and cables. Refer to the wiring diagram for wire harness connection types.

USB (iPod) Operation

• After your device is connected to the source unit, this feature allows you to control playback from your device directly from the unit. Select the USB source option on the source unit.
• To play or pause a song, short press the PLAY/PAUSE button.
• To skip a track forward, short press the FWD button. To skip a track backwards, short press the REV button.
• To access USB specific settings, short press the MENU button for the list of settings (BROWSER>REPEAT>SHUFFLE). Use the encoder to select the option to change.

Bluetooth® Operation

• After your device is paired to the source unit, this feature allows you to control playback from your device directly from the unit. Select the BLUETOOTH source option on the source unit.
• To play or pause a song, short press the PLAY/PAUSE button.
• To skip a track forward, short press the FWD button. To skip a track backwards, short press the REV button.
• To access BLUETOOTH specific settings, short press the MENU button for the list of settings (BROWSER>REPEAT>SHUFFLE). Use the encoder to select the option to change.

TURNING THE UNIT ON / OFF

• Long press the SRC (Power) button to turn the unit ON or OFF

ADJUSTING THE VOLUME

• Rotate encoder knob left or right to desired volume level (0-40). The current volume level will be displayed during adjustment.

ADJUSTING THE SUBWOOFER OUTPUT

• Press the SUB + or SUB- buttons to adjust the output level (0-20).

ADJUSTING THE SCREEN BRIGHTNESS

• Short press the SCREEN BRIGHTNESS button to adjust the brightness level. There are two brightness levels.

FM BAND SETTINGS

• To access the FM BAND SETTINGS, short press the MENU when using the FM TUNER source. This will give you access to the settings specific to the FM TUNER (FM>PRESETS>ADD PRESETS>REMOVE PRESETS>AUTO STORE>LOCAL).
