USER GUIDE
12-Cycle
Electric and Gas Dryers
NS-TDRE67W1/NS-TDRG67W1/NS-TDRE67W1-C
Before using your new product, please read these instructions to prevent any damage.
www.insigniaproducts.com
2
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

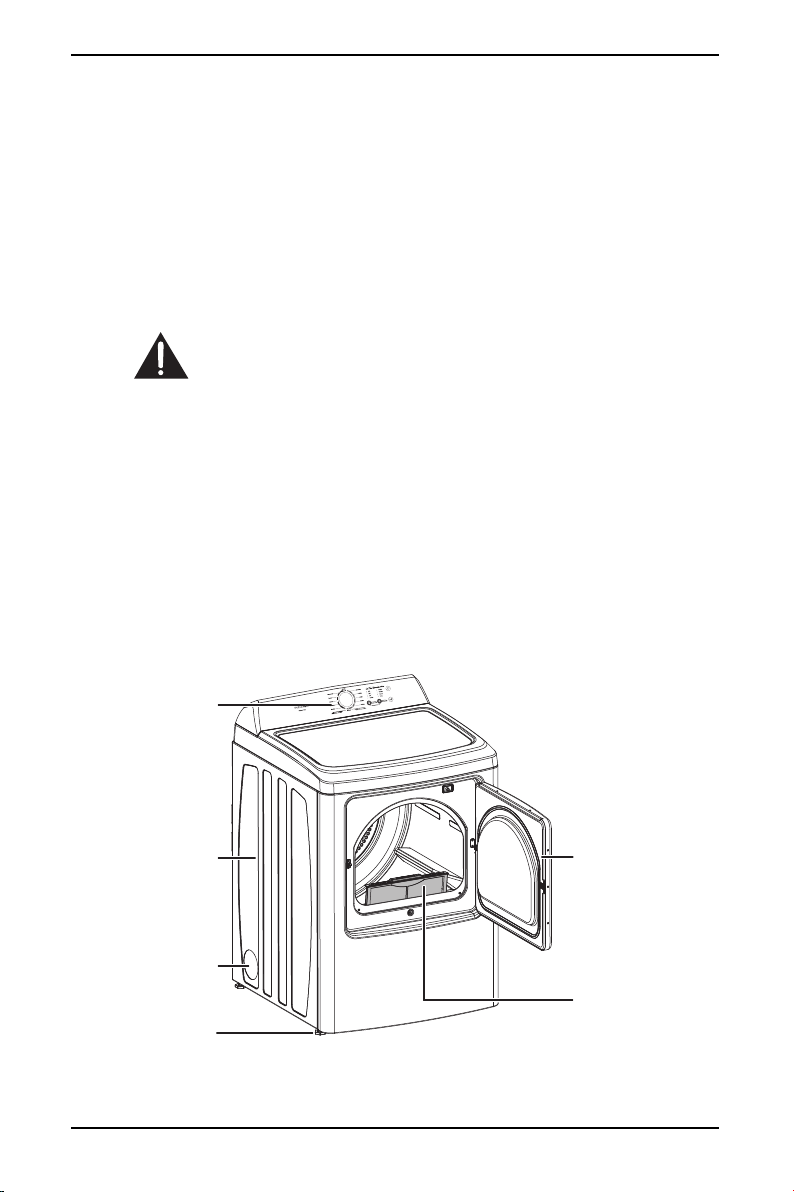

Front components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

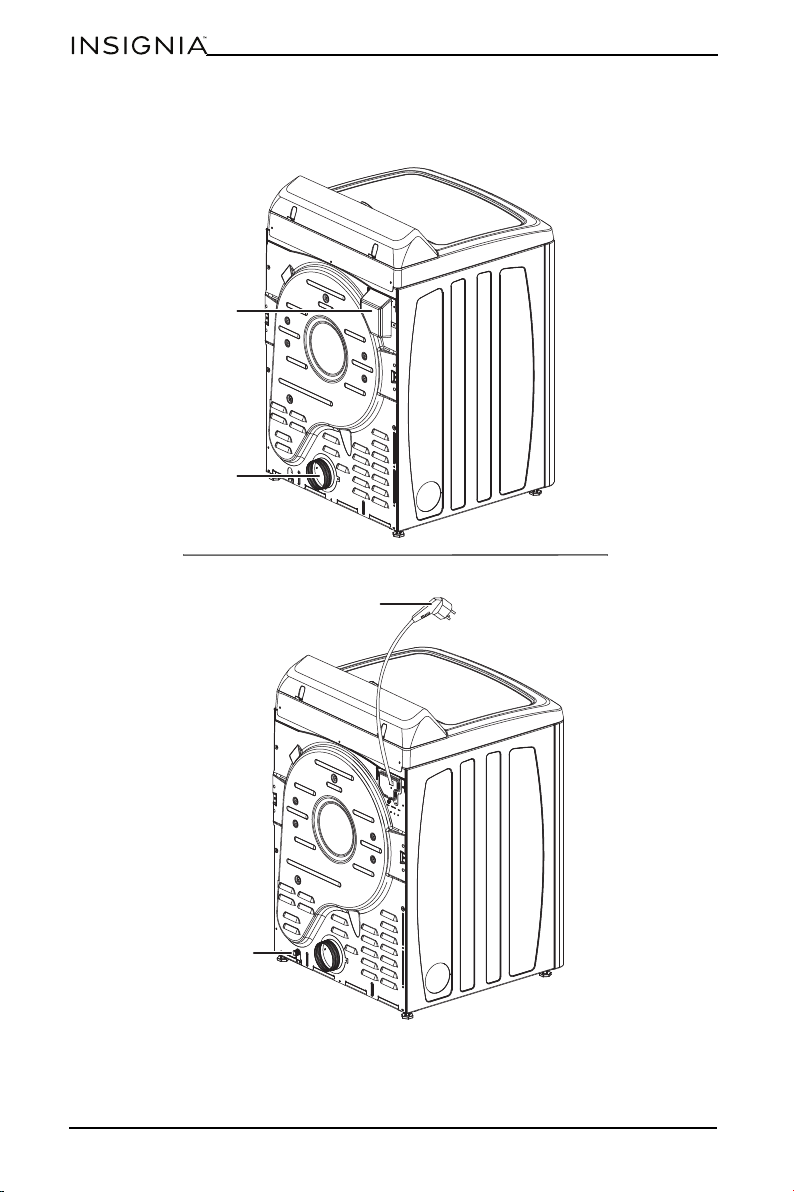

Back components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

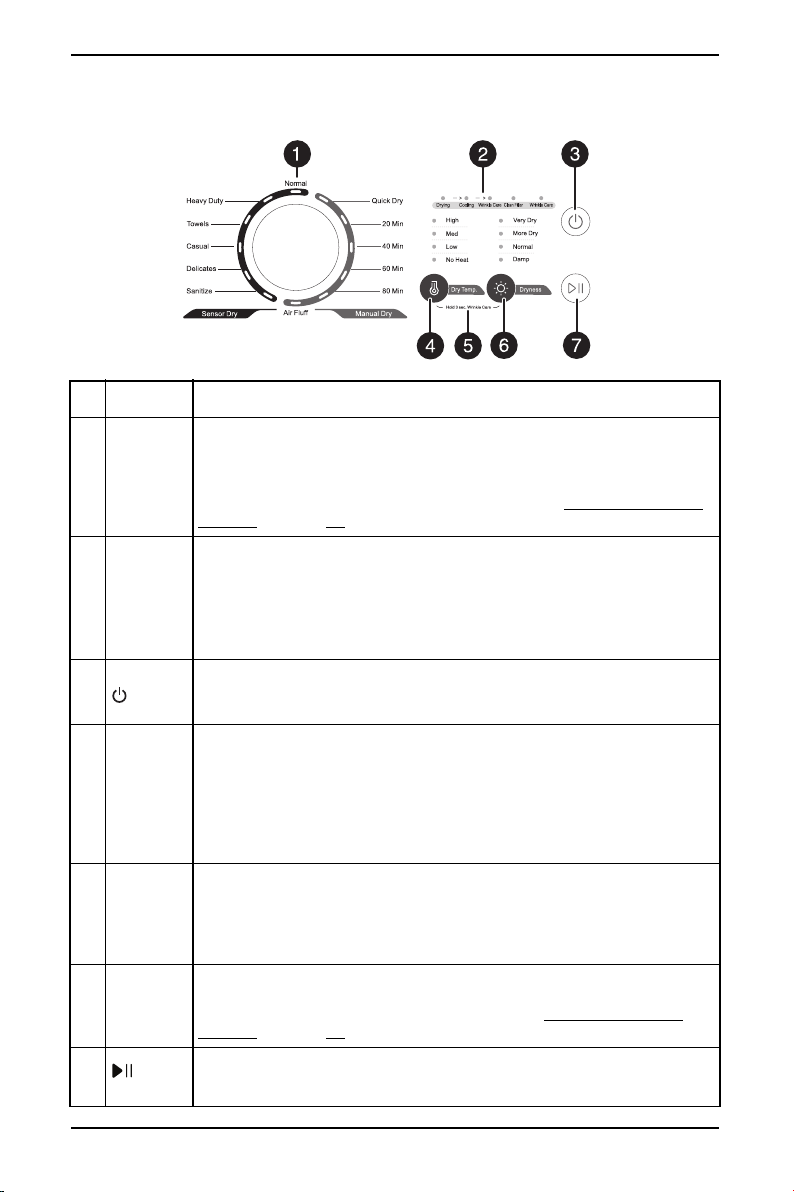

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Unpacking your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

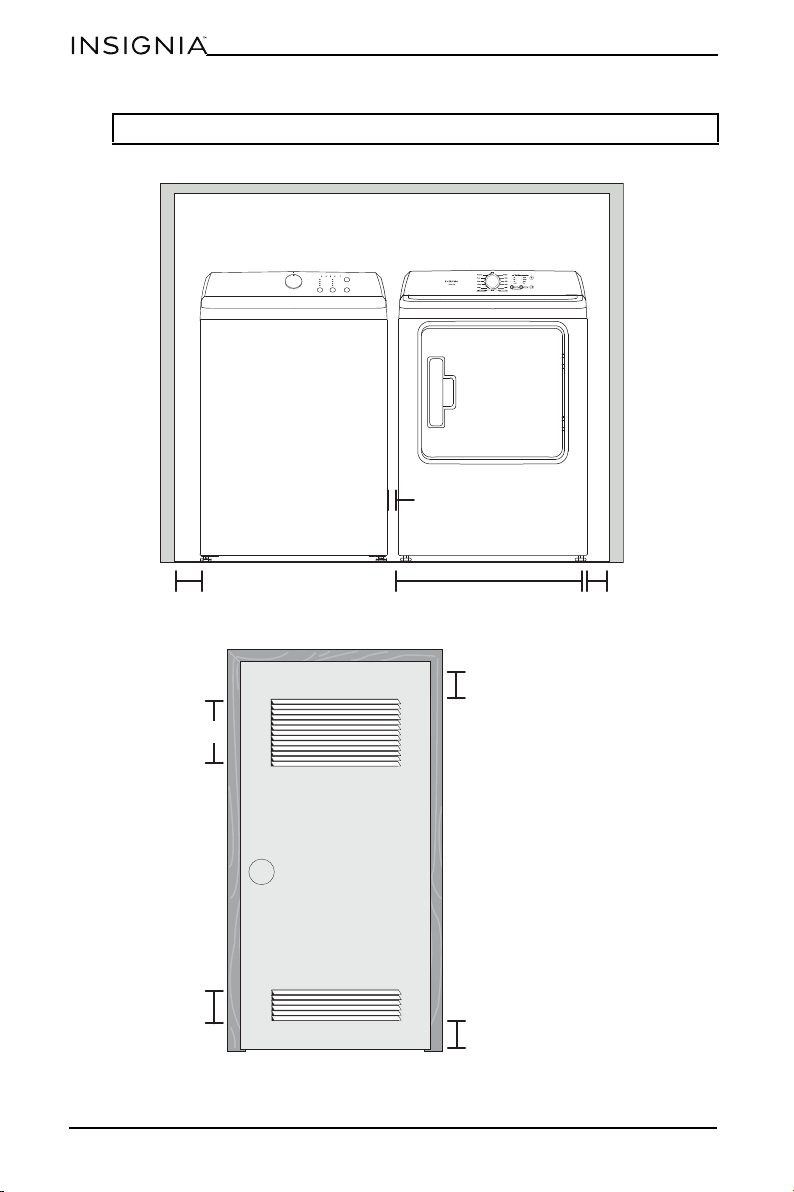

Choosing a location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Exhausting requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Duct requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Electric requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Gas requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Grounding requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

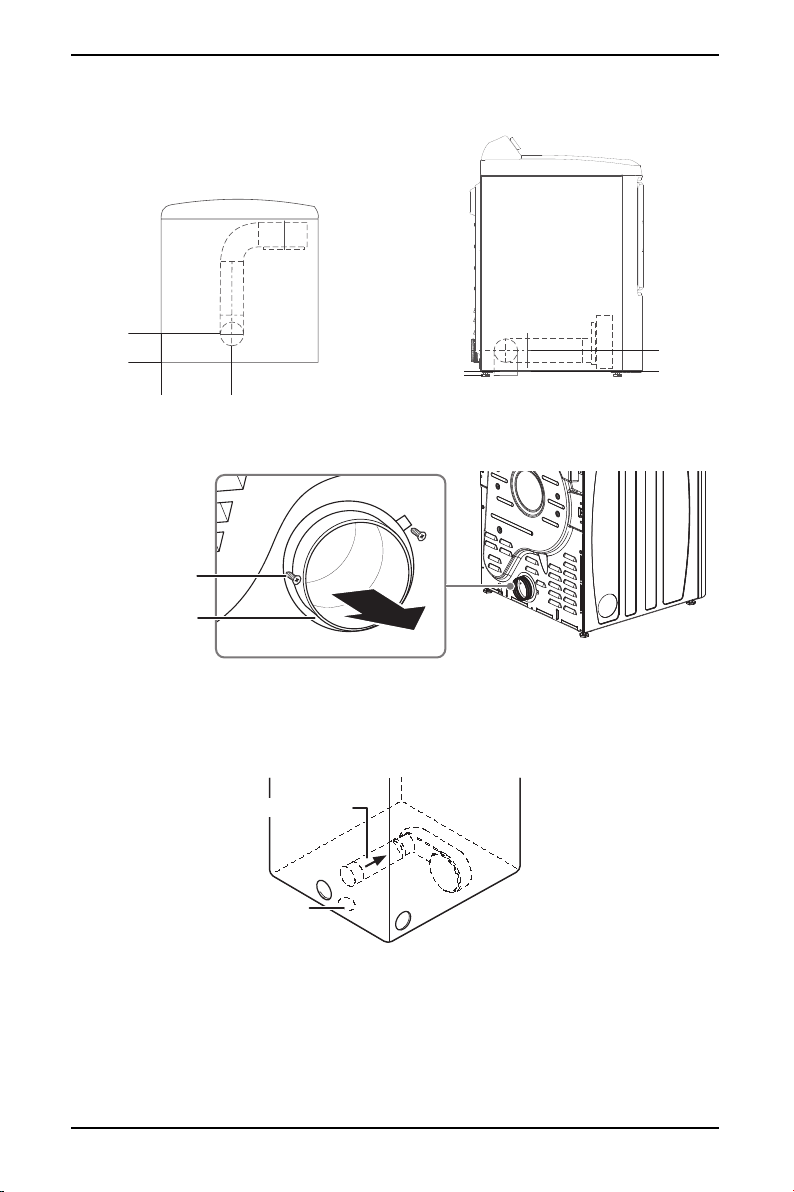

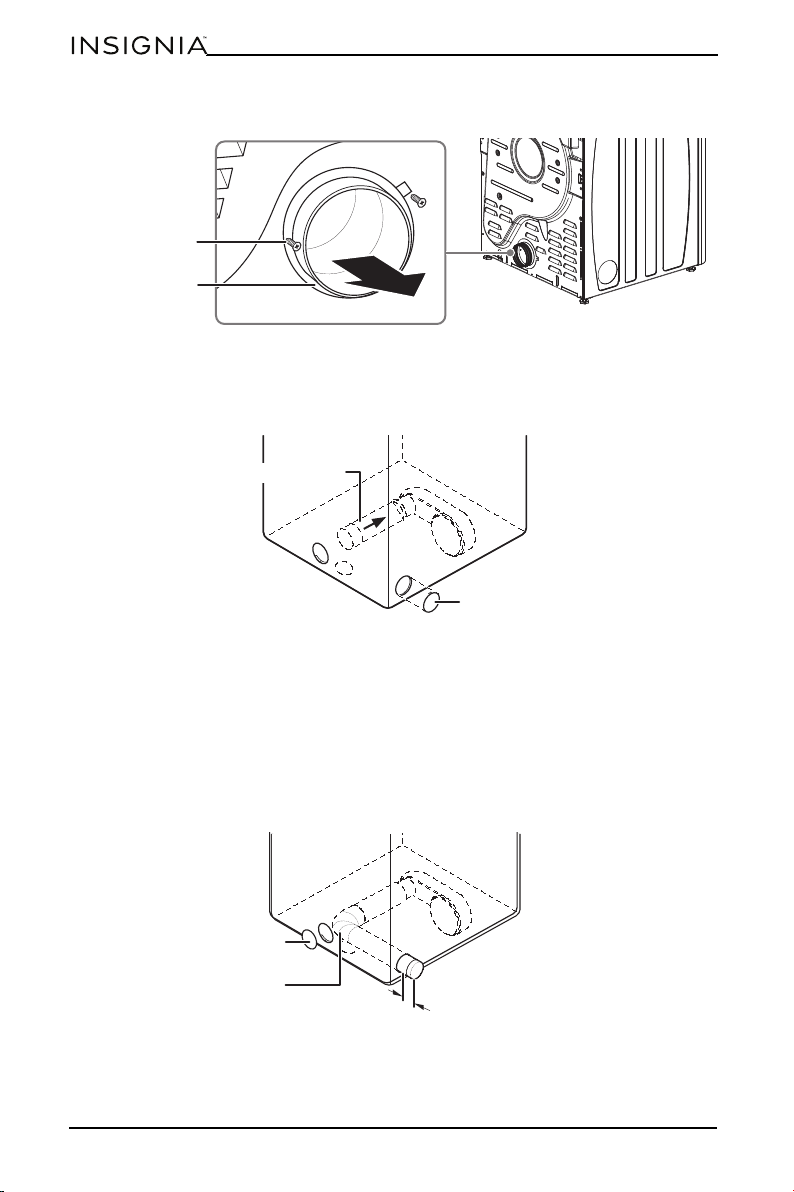

Changing the dryer vent location (optional). . . . . . . . . . . . . . . . . . . . . . . . .21
Installing your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Tools you will need. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Materials you will need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Before you start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Step-by-step instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

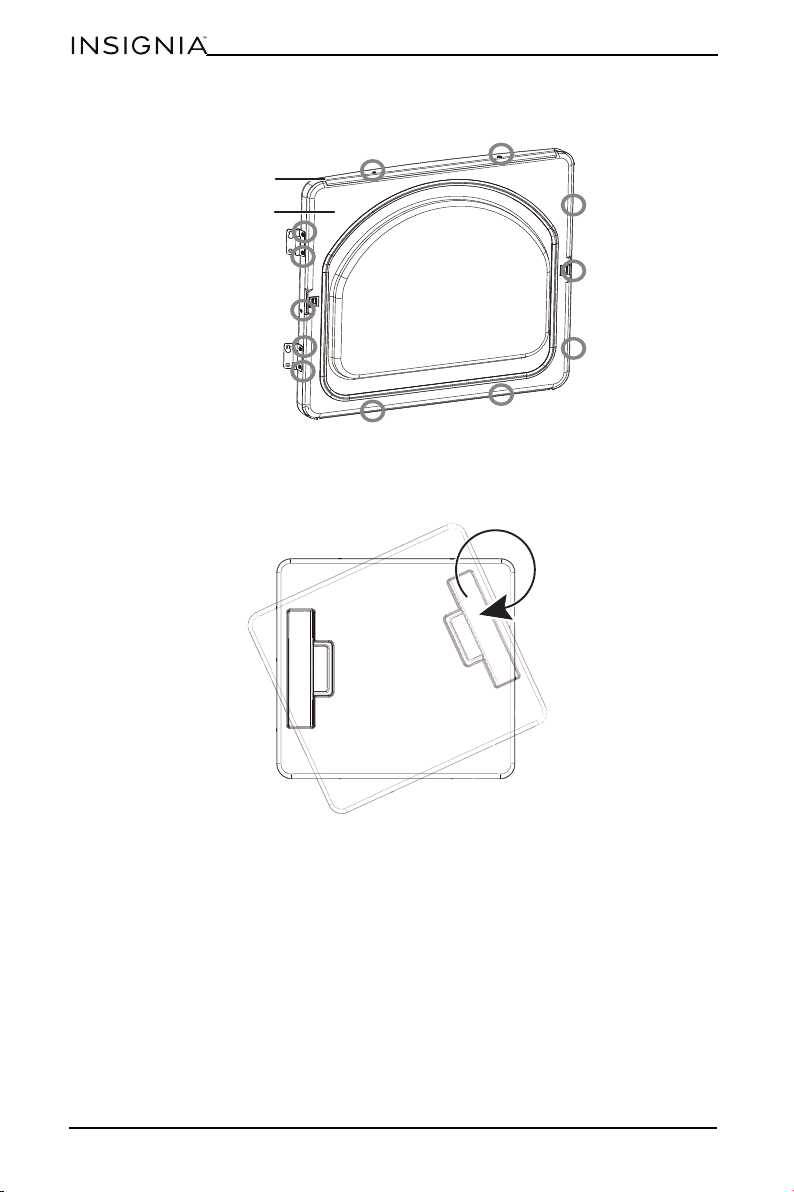

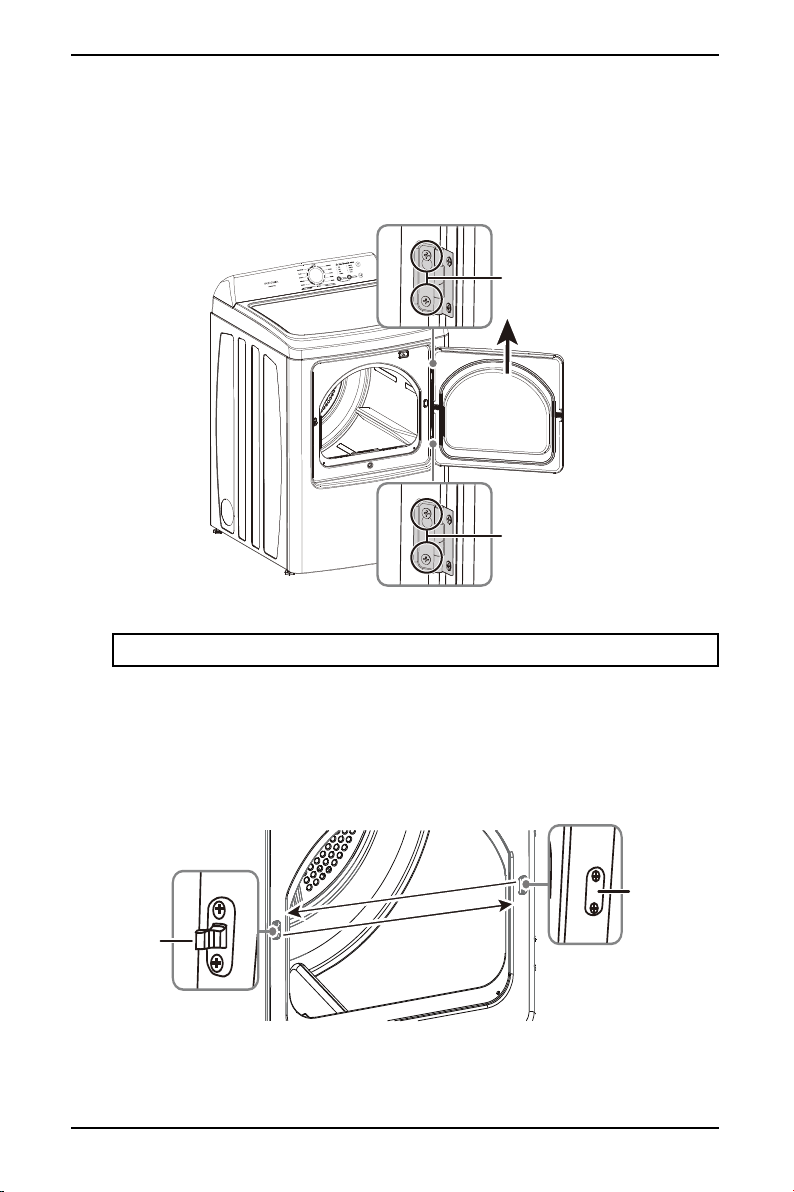

Reversing the dryer door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Using your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Drying a load of clothes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Unloading your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Cleaning the lint filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Dryer options and settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Special laundry tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Fabric Care Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Maintaining your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Cleaning the exterior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Cleaning the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Cleaning the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Cleaning and inspecting the exhaust system . . . . . . . . . . . . . . . . . . . . . . . .41
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Understanding the error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
3
12-Cycle Electric and Gas Dryers
www.insigniaproducts.com
SAFETY & PRECAUTIONS
Introduction
Congratulations on the purchase of your new Insignia dryer. Insignia dryers
feature the latest in design and capabilities and will provide reliable and
trouble-free performance.
IMPORTANT SAFETY
INSTRUCTIONS
READ AND KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE
This manual contains important information on the installation, use, and care of
your appliance. Please read this manual carefully before installation and operation
of this machine to prevent injury and property damage.
Warnings and Important Safety Instructions in this manual DO NOT cover all
possible conditions and situations that may occur. It is your responsibility to use
common sense, caution, and care when installing, maintaining, and operating
your dryer.
DRYER SAFETY
YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT
To prevent injury to the user or other people and property damage, the
instructions shown here must be followed. Incorrect operation due to ignoring of
instructions may cause harm or damage, including death.
4
NS-TDRE67W1/NS-TDRG67W1/NS-TDRE67W1
www.insigniaproducts.com
SAFETY & PRECAUTIONS
The level of risk is shown by the following indications.
WARNING
This symbol indicates the possibility of death or serious injury.
CAUTION
This symbol indicates the possibility of injury or damage to
property.
WARNING
This symbol indicates the possibility of dangerous voltage
constituting a risk of electrical shock is present that could
result in death or serious injury.
WARNING
For your safety the information in this manual must be followed to
minimize the risk of fire or explosion, or to prevent property damage,
personal injury, or death.
• Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
• Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
WARNING
Fire Hazard
• Failure to follow safety warnings exactly could result in serious injury,
death, or property damage.
• Do not install a booster fan in the exhaust duct.
• Install all clothes dryers in accordance with the installation instructions
of the manufacturer of the dryer.
WARNING
What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch. Do not use any phone in your
building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
5
12-Cycle Electric and Gas Dryers
www.insigniaproducts.com
SAFETY & PRECAUTIONS
To reduce the risk of fire, electric shock, or injury to persons when using your
appliance, follow basic precautions, including the following:
• Read all instructions before using the appliance.
• Use this appliance only for its intended purpose as described in this User
Guide.
• Before use, the dryer must be properly installed as described in this User Guide.
• ALWAYS follow the fabric care instructions supplied by the garment
manufacturer.
• Do not dry articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, other flammable or explosive
substances as they give off vapors that could ignite or explode.
• Do not use the dryer to dry clothes which have traces of any flammable
substance, such as vegetable oil, cooking oil, machine oil, flammable
chemicals, thinner, etc., or anything containing wax or chemicals, such as
mops and cleaning clothes. Flammable substances may cause the fabric to
catch fire by itself.
• Do not store or use gasoline or other flammable vapors and liquids near this or
any other appliance.
• Do not allow children to play on or in the appliance. Close supervision of
children is necessary when the appliance is used near children.
• Before the appliance is removed from service or discarded, remove the door of
the drying compartment.
• Do not reach into the appliance if the drum is moving.
• Do not install or store this appliance where it will be exposed to the weather
or freezing temperatures below 33° F.
• Do not tamper with the controls and latch.
• Do not install a booster fan in the exhaust duct.
• Do not repair or replace any part of the appliance or attempt any servicing
unless it is specifically recommended in the user maintenance instructions or
in published user-repair instructions that you understand and have the skills
to carry out.
• Keep the area underneath and around your appliances free of combustible
materials (lint, paper, rags, etc.), gasoline, chemicals, and other flammable
vapors and liquids.
• Do not place items exposed to cooking oils in your dryer. Items contaminated
with cooking oils may contribute to a chemical reaction that could cause a
load to catch fire. To reduce the risk of fire due to contaminated loads, the final
part of a tumble dryer cycle occurs without heat (cool down period). Avoid
stopping a tumble dryer before the end of the drying cycle unless all items are
quickly removed and spread out so that the heat is dissipated.
• Unplug the dryer if the machine is to be left for an extended period of time,
such as during vacations
• Packaging material can be dangerous for children. There is a risk of
suffocation! Keep all packaging from children.
• Always check the inside of the dryer for foreign objects before loading
laundry. Keep the door closed when not in use.
• Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or product
manufacture.
WARNING
6
NS-TDRE67W1/NS-TDRG67W1/NS-TDRE67W1
www.insigniaproducts.com
SAFETY & PRECAUTIONS
• Clean the lint screen before or after each load.
• Keep the area around the exhaust opening and surrounding areas free from
lint, dust, and dirt.
• The interior of the dryer and exhaust duct should be cleaned periodically by
qualified service personnel.
• Do not place items exposed to cooking oils in your dryer. Items contaminated
with cooking oils may contribute to a chemical reaction that could cause a
load to catch fire.
• This appliance must be grounded. See “Electric requirements
” on page 17 and
“Grounding requirements” on page 20.
• This appliance must be properly grounded. Never plug the power cord into a
receptacle that is not grounded adequately and in accordance with local and
national codes. Refer to installation instructions for grounding this appliance.
• Ensure pockets are free from small irregularly shaped hard objects and foreign
material, i.e. coins, knives, pins, etc. These objects could damage your dryer.
• Do not use heat to dry articles containing foam rubber or similarly textured
rubber like - materials.
To reduce the risk of fire or explosion:
• Do not dry items that have been previously cleaned, washed, soaked, or
spotted with gasoline, dry cleaning solvents, or other flammable or explosive
substances. They emit vapors that could ignite or explode. Any material that
has been in contact with a cleaning solvent or flammable liquids or solids
should not be placed in the dryer until all traces of these flammable liquids or
solids and their fumes have been removed.
• There are many highly flammable items used in homes, such as acetone,
denatured alcohol, gasoline, kerosene, some liquid household cleaners, some
spot removers, turpentine, waxes, and wax removers.
• Do not dry items containing foam rubber (may be labeled latex foam) or
similarly textured rubber-like materials on a heat setting. Heated foam rubber
materials can, under certain circumstances, produce fire by spontaneous
combustion.
• Do not sit on top of the dryer.
• Because of continuing product improvements, Insignia reserves the right of
change specifications without notice. For complete details, see the Installation
Instructions packed with your product before selecting cabinetry, making
cutouts, or beginning installation.
• Do not dry clothing with large buckles, buttons, or other heavy metal or solid
things.
• Install and use in accordance with the manufacturer’s instructions.
• Do not place items in your dryer that have been spotted or soaked with
vegetable oil or cooking oil. Even after being washed, these items may contain
significant amounts of these oils.
• Residual oil on clothing can ignite spontaneously. The potential for
spontaneous combustion increases when items containing vegetable oil or
cooking oil are exposed to heat. Heat source such as your dryer can warm
these items, allowing an oxidation reaction in the oil to occur.
WARNING
CAUTION
7
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
• Oxidation creates heat. If this heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking, or storing these kinds of items may
prevent heat from escaping and can create a fire hazard.
• Take care that children’s fingers are not caught in door when closing it. This
may result in injury.
• Gas leaks may occur in your system, resulting in a dangerous situation.
• Gas leaks may not be detected by smell alone.
• Gas suppliers recommend you purchase and install a UL approved gas
detector.
State of California Proposition 65 Warnings:
SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY.
Features
Package contents
• 12-Cycle Electric or Gas Dryer
• User Guide
Front components
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Door
Filter
Control panel
Cabinet
Optional left venting hole
Adjustable legs (4)
8
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Back components
Wiring box
Back venting hole
Power cord (gas dryer only)

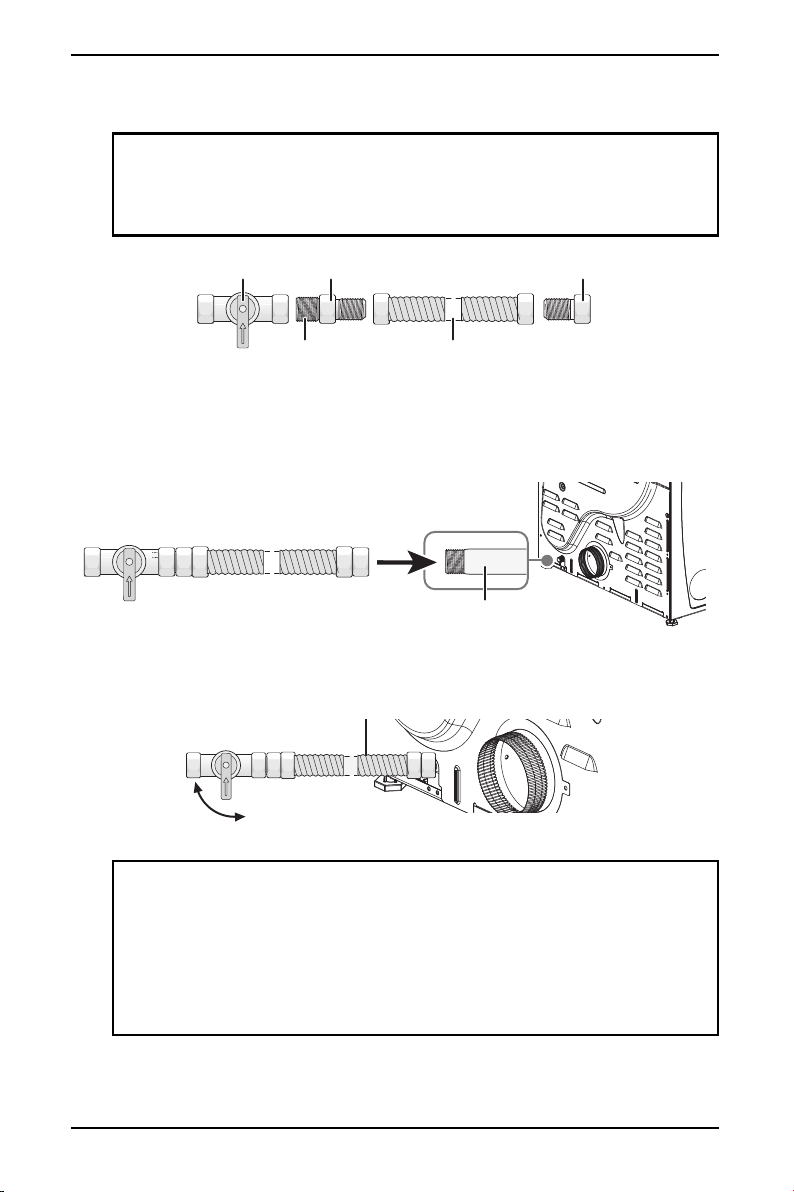

Gas inlet
Gas Dryer
Electric Dryer
9
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Control panel
# ITEM DESCRIPTION
1
Cycle
selector
Turn to select the cycle for the type of load. The cycle you select
determines the heat control for the cycle. The Normal, Heavy Duty,
Tow els, Casual, Delicates, and Sanitize cycles are Sensor Dry cycles.
The Quick Dry, Time Dry (20M, 40M, 60M, 80M), and Air fluff cycles
are Manual Dry cycles. For more information, see Dryer options and
settings on page 36.
2
Cycle
status
display

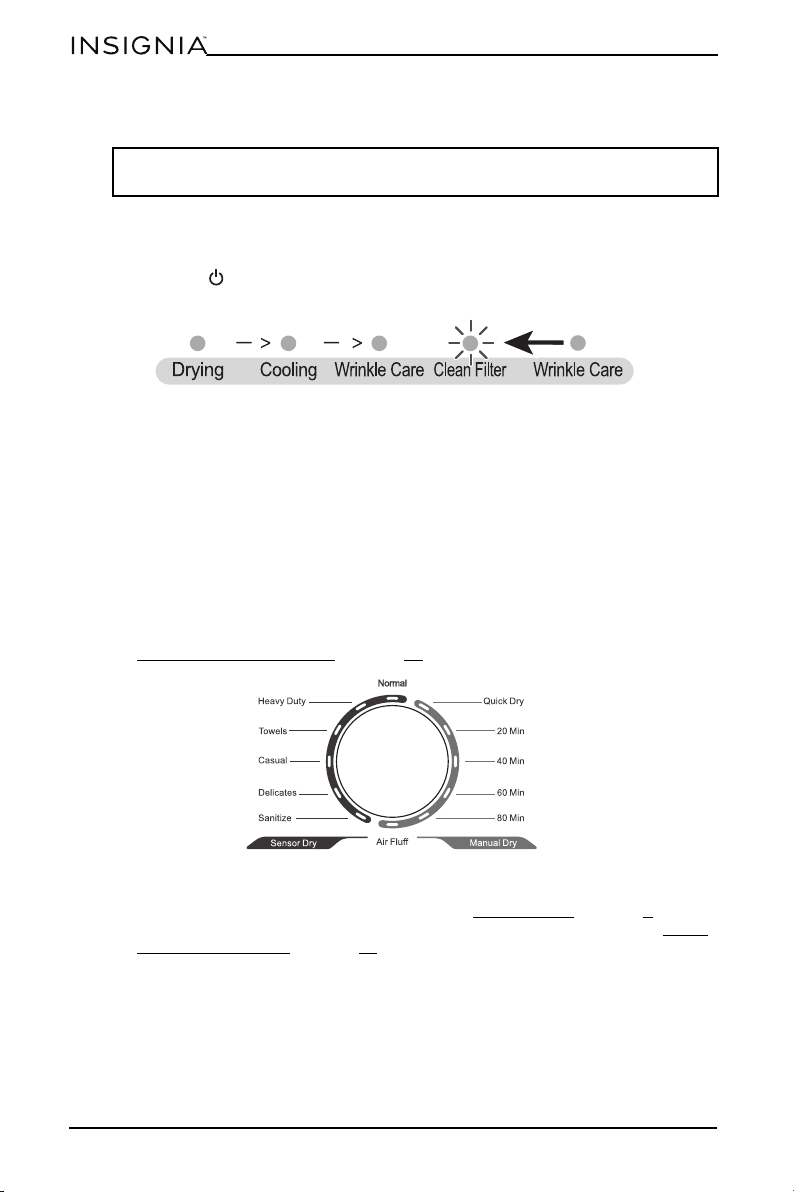

The Drying, Cooling, and Wrinkle Care (process) indicators flash to
show which step of the dry cycle you are in.

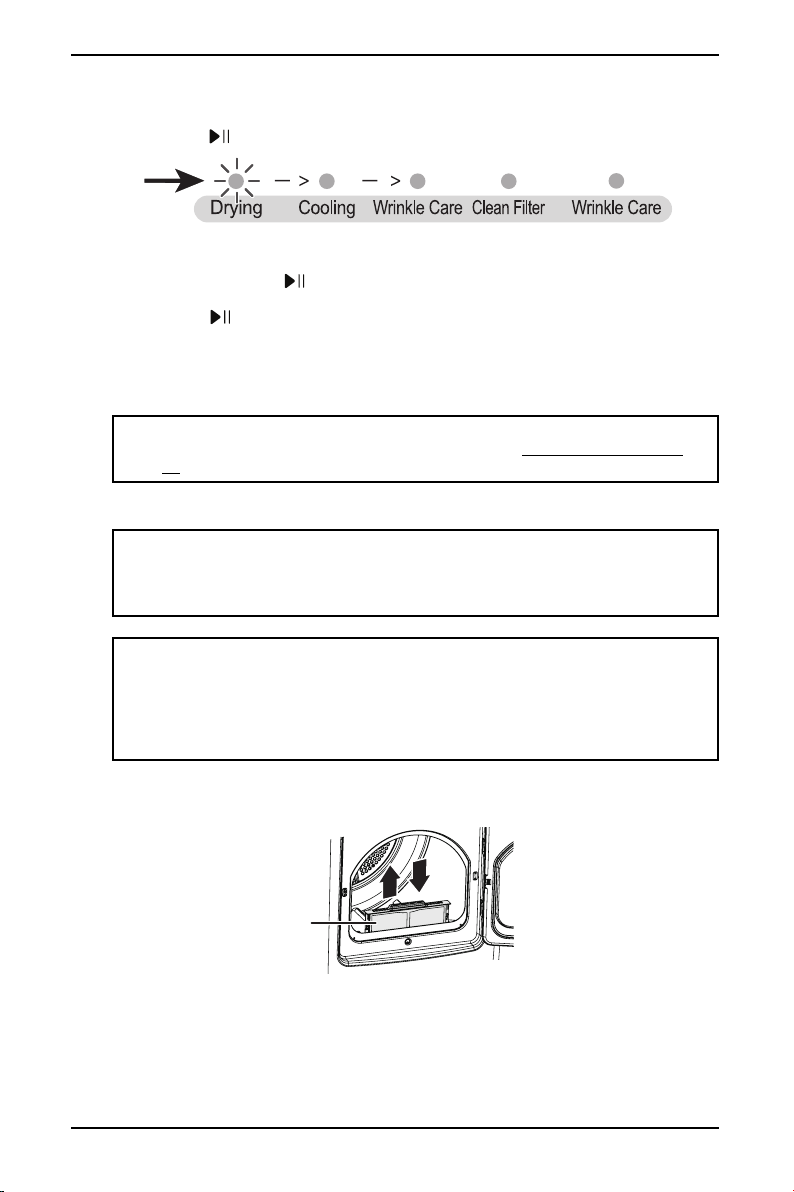

The Clean Filter indicator flashes 10 times when the dryer is turned
on to remind you to clean the filter.
The Wrinkle Care (option) indicator lights up when you turn on the
setting.
3
Power
Press to turn your dryer on or off. If your dryer is on and idle for more
than 10 minutes without any buttons being pressed, it automatically
turns off.
4
Dry
Temp.
Press repeatedly to select the drying temperature.
• High: For sturdy cottons or those labeled Tumble Dry.
• Med: For permanent press, synthetics, lightweight cottons, or
items labeled Tumble Dry Medium.
• Low: For lower heat than Medium to dry synthetic or washable
knit fabrics.
• No Heat: Provides just the air cycle without any heat.
5
Wrinkle
Care
Press and hold Dry Temp. and Dryness for three seconds to add the
Wrinkle Care step. Press again to cancel. Wrinkle Care provides
approximately 90 minutes of intermittent tumbling in unheated air at
the end of the cycle to reduce wrinkling. The load is already dry and
can be removed at any time during the Wrinkle Care cycle.
6
Dryness
Press to select the dryness level. Different dryness levels result in
different drying times. For clothes to be ironed manually, select a
lower dryness level. For more information, see Dryer options and
settings on page 36.
7
Start/
Pause
Press to start or pause the drying cycle. When you pause the cycle,
you can add items to the dryer, but your cannot change any settings.
10
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Unpacking your dryer
• Unpack your dryer and inspect it for shipping damage. Make sure that you
have received all the items shown in Package contents on page 7.
• To prevent personal injury or strain, wear protective gloves and use a furniture
mover whenever lifting or carrying your dryer.
Choosing a location
• You should locate your dryer where there is enough space at the front for
loading the dryer and enough space behind for the exhaust system.
• Your dryer is factory-ready for the rear exhaust option. If you want to change
the vent location, see Changing the dryer vent location (optional)
on page 21
• Make sure that the room you install your dryer in has enough fresh air and that
there are no air-flow obstructions. The ambient temperature should not be
lower than 33° F (.6° C).
• For gas dryers, adequate clearance must be maintained as noted on the data
plate to ensure adequate air for combustion and the proper dryer operation.
WARNING:
• Packing materials can be dangerous to children. Keep all packing materials
(such as plastic bags and polystyrene) out of the reach of children.
WARNING
Fire Hazard
• Clothes dryer installation must be performed by a qualified installer.
• Install the clothes dryer according to the manufacturer’s instructions
and local codes.
• Do not install a clothes dryer with flexible plastic venting materials. If
flexible metal (foil type) duct is installed, it must be of a specific type
identified by the appliance manufacturer as suitable for use with
clothes dryer. Flexible venting materials are known to collapse, be easily
crushed, and trap lint. These conditions will obstruct the clothes dryer’s
airflow and increase the risk of fire.
• To reduce the risk of severe injury or death, follow all installation
instructions
• Save these instructions.
CAUTION
Important to installer
Read the following instructions carefully before installing the dryer.
These instructions should be kept for future reference.
• The dryer is not suitable for installation in a mobile home.
• Remove the door from all discarded appliances to avoid the danger of a
child being trapped and suffocating.
WARNING: Your dryer must be exhausted to the outside to reduce the risk of
fire when installed any place inside the house.
11
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
• Do not install or store your dryer in an area where it will be exposed to water
or weather. Keep the dryer area clear of combustible materials, gasoline, and
other flammable vapors and liquids. Your dryer produces combustible lint.
Keep the area around the dryer lint-free.
27 in.
68.6 cm
4
1
.
7
i
n
.
(
1
0
5
.
9
c
m
)
12
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Installing side-by-side, or in an alcove, closet, or other recessed area
WARNING:
• You must exhaust your dryer to the outside to reduce the risk of fire when
installed any place inside the house.
• Do NOT install another fuel-burning appliance in the same closet as your
dryer.
• For information about how to select and install exhaust ducts, see Exhausting
requirements on page 15.
30.0 in.
76.3 cm
4
1
.
7
i
n
.
(
1
0
5
.
9
c
m
)
49.2 in.
125.0 cm
13
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Installing in a closed cabinet
Minimum clearances between your dryer and adjacent walls or other surfaces are:
• Either side: 1 in. (2.5 cm)
• Rear: 5 in. (12.7 cm)
• Top: 24 in. (61 cm)
• Front: 2 in. (5.1 cm)
1 in.
(2.5 cm)
27 in. (68.6 cm)
1 in.
(2.5 cm)
24.0 in. (61.0 cm)
2.0 in. (5.1 cm)
5 in. (12.7 cm)
30.0 in. (76.3 cm)
14
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Note: The dryer can be installed in either the left or right side of the cabinet.
1.0 in. (2.5 cm)
1.0 in. (2.5 cm)
27.0 in. (68.6 cm)
1 in. (2.5 cm)
48
2
in. (310
2
cm)
3 in. (7.6 cm)
3 in. (7.6 cm)
24
2
in. (155
2
cm)
15
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS

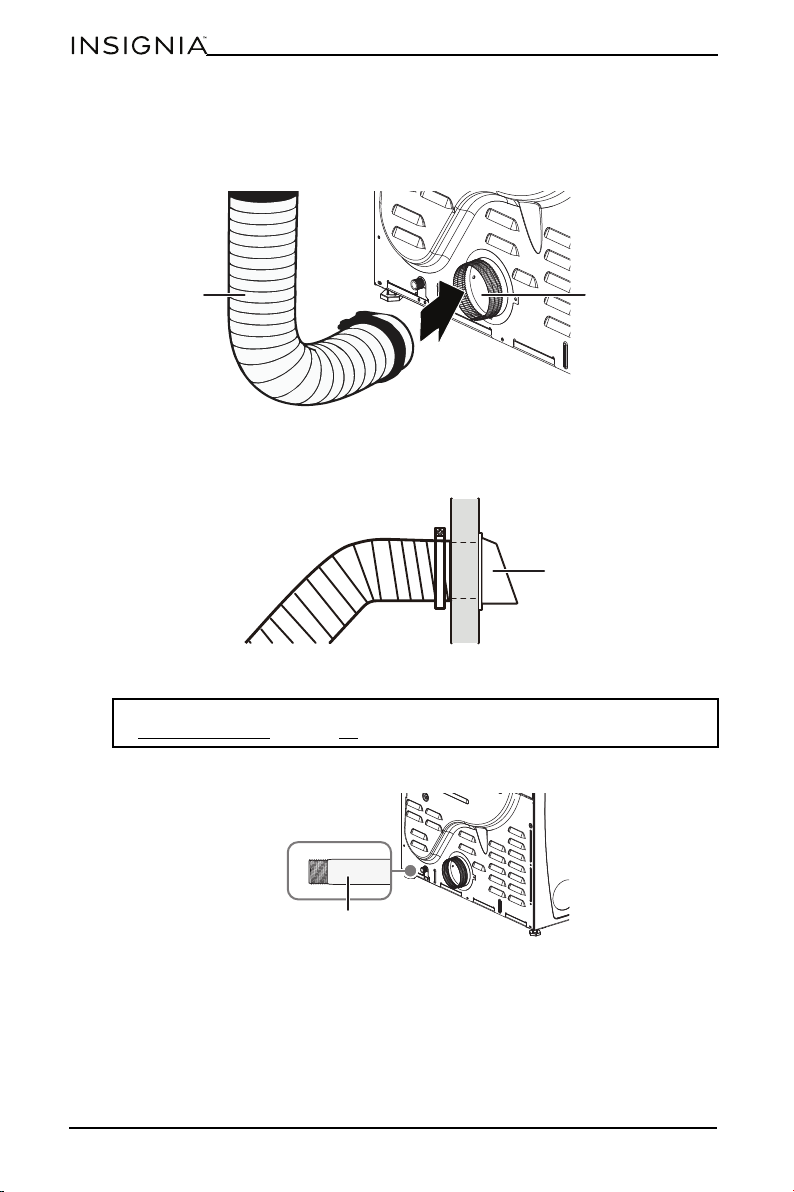

Exhausting requirements
• All dryers must be exhausted outside.
• Do not assemble the duct with screws or other fasteners that extend into the
duct or that catch lint.
• The exhaust duct should be 4 in. (10.2 cm) in diameter.
• The total length of flexible metal duct should not exceed 7.8 ft. (2.4 m).
See Duct requirements
on page 16 for the maximum duct length and number of
elbows.
WARNING:
• Do not exhaust your dryer into a chimney, a wall, a ceiling, an attic, a crawl
space, or a concealed space in a building.
• Your dryer must be exhausted to the outside to reduce the risk of fire when
installed in an alcove or closet.
WARNING:
NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT
• If your existing duct work is plastic, non-metal, or combustible, replace it with
metal.
• Use only a metal exhaust duct that is non-flammable to ensure containment
of the exhaust air heat and lint.
16
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Duct requirements
Exhaust hood types
If you install your dryer into an existing exhaust system you must make sure that:
• The exhaust system meets all local, state, and national codes.
• You do not use a flexible plastic duct.
• You inspect and clean all lint buildup from inside the existing duct.
• The duct is not dented or crushed.
• The exhaust hood damper opens and closes freely.
WARNING:
You are responsible for correctly installing the exhaust system.
• Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.
Do not use a smaller duct.
• Ducts larger than 4 inches (10.2 cm) in diameter can result in increased
accumulation of lint and changes in performance.
• Lint should be removed regularly (from the internal filter every cycle and
from ducts).
• If you must use a flexible metal duct, use the type with a stiff sheet metal wall.
Do not use a flexible duct with a thin foil wall. A serious blockage can result if
the flexible metal duct is bent too sharply.
• Never install any type of flexible duct in walls, ceilings, or other concealed
spaces.
• Keep the exhaust duct as straight and short as possible.
• Secure joints with aluminum tape. Do not use screws.
• Plastic, flexible ducts can kink, sag, be punctured, reduce airflow, extend
drying times, and affect your dryer’s operation.
• Exhaust systems longer than the recommended 90 ft. (27.4 m) can extend
drying times, affect dryer operations, and collect lint.
• The exhaust duct should end with an exhaust hood that has a swing-out
damper to prevent back drafts and entry of wildlife. Never use an exhaust
hood with a magnetic damper.
• The hood should have at least 12 inches (30.5 cm) of clearance between the
bottom of the hood and the ground or other obstruction. The hood opening
should point down.
• Never install a screen over the exhaust outlet.
• To avoid lint buildup, do not exhaust the dryer directly into a window well.
• Do not exhaust under a house or porch.
• If the exhaust duct must run through an unheated area, the duct should be
insulated and slope slightly down towards the exhaust hood to reduce
condensation and lint buildup.
• Inspect and clean the interior of the exhaust system at least once a year.
• Unplug the power cord before cleaning.
• Check frequently to make sure that the exhaust hood damper opens and
closes freely.
• Check the condition of the exhaust vent system once per month, and clean at
least once per year.
Note: If your clothes are not getting dry, check the ducting for obstructions.
• Do not exhaust the dryer into a wall, ceiling, crawl space, or concealed space
of a building, gas vent, or any other common duct or chimney. This could
create a fire hazard from the lint expelled by the dryer.
• Do not use non-metallic flexible ducting.
• To reduce the risk of fire, your dryer MUST BE EXHAUSTED OUTDOORS.
17
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
For best results, the static pressure in any exhaust system should be between 0.3
to 0.8 inches of water column, and it cannot be less than 0 under any
circumstances with an installed duct with a four inch diameter. Measurement
must be done with the empty dryer working with a manometer at the point where
the exhaust duct connects to the dryer. A no-heat setting should be used. Lint
filter must be clean.
Electric requirements
WEATHER HOOD TYPES
Recommended Use only for short-run
installation
# of 90°
elbows
Rigid Metallic Rigid Metallic
0 90 ft. (27.4 m) 60 ft. (18.3 m)
1 60 ft. (18.3 m) 45 ft. (13.7 m)
2 45 ft. (13.7 m) 35 ft. (10.7 m)
3 35 ft. (10.7 m) 25 ft. (7.6 m)
WARNING:
The wiring diagram is located on the back panel of your dryer.
• Incorrectly connecting your dryer’s grounding conductor can result in electric
shock. Check with a qualified electrician or serviceman if you are in doubt as
to whether your dryer is correctly grounded. Do not modify the plug
provided with your dryer. If the plug does not fit the outlet, have the correct
type outlet installed by a qualified electrician.
• To prevent unnecessary risk of fire, electrical shock, or personal injury, all
wiring and grounding must be done in accordance with local codes, or in the
absence of local codes, with the National Electrical Code, ANSI/NFPA No. 70 -
Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1-Latest
Revisions and local codes and ordinances (for Canada). You are responsible
for providing adequate electrical services for your dryer.
• All gas installations must be done in accordance with the latest revision of
National Fuel Code ANSI Z223.1/NFPA 54 (for US) or CSA B149.1 (for Canada)
and local codes and ordinances.
4
i
n
.
(
1
0
.
2
c
m
)
4 in.
(10.2 cm)
4
i
n
.
(
1
0
.
2
c
m
)
4
i
n
.
(
1
0
.
2
c
m
)
2.5 inch. (6.4
cm)
18
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Electrical connections
An individual branch (or separate) circuit serving only your dryer is recommended.
DO NOT USE AN EXTENSION CORD.
Gas models - U.S. and Canada
A 120-volt, 60Hz AC approved electrical service, with a 15 ampere fuse or circuit
breaker is required.
Electric models - U.S. only
The dryers require a 120/240 volt, 60 Hz AC approved electrical service. The
electric service requirements can be found on the data label located behind the
door. A 30-ampere fuse or circuit breaker on both sides of the line is required.
• If you use a power cord, you should plug the cord into a 30-ampere receptacle.
• A power cord is NOT provided with U.S. electric model dryers.
Electric models - Canada only
You need a 120/240 volt, 60Hz AC approved electrical service fused through a
30-ampere fuse or circuit breaker on both sides of the line.
All Canadian models are shipped with the power cord attached. The power cord
should be plugged into a 30-ampere receptacle.
Power outlet types
WARNING: RISK OF ELECTRIC SHOCK
When local codes allow, the electrical supply of your dryer may be connected
by means of a new power supply cord kit, marked for use with a dryer, that is UL
listed and rated at a minimum of 120/240 volts, 30-ampere with three No. 10
copper wire conductors terminated with closed loop terminals, open-end
spade lugs with turned up ends, or with tinned leads.
• Do not reuse a power supply cord from an old dryer. The power cord electric
supply wiring must be retained at the dryer cabinet with a suitable UL-listed
strain relief.
• Grounding through the neutral conductor is prohibited for (1) new
branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and
(4) areas where local codes prohibit grounding through the neutral
conductor. (Use a four-prong plug for four-wire receptacles, NEMA type
14-30R.)
Three-wire outlet (10-30R) Four-wire outlet (14-30R)
19
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Using a three-wire outlet
If your outlet is a three-wire (three-prong) outlet, choose a three-wire power
supply cord with ring or spade terminals and UL listed strain relief. The three-wire
power supply cord must:
• Be at least 4 ft. (1.2 m) long.
• Have three 10-gauge solid copper wires.
• Match a three-wire outlet of NEMA Type 10-30R.
See Three-wire outlet - for electric dryers:
on page 28 for instructions on how to
connect a power cord to your dryer.
Using a four-wire outlet
If your outlet is a four-wire (four-prong) outlet, choose a four-wire power supply
cord with ring or spade terminals and UL listed strain relief. The four-wire power
supply cord must:
• Be at least 4 ft. (1.2 m) long.
• Have four 10-gauge solid copper wires.
• Match a four-wire outlet of NEMA Type 14-30R. The ground wire (ground
conductor) may be either green or bare. The neutral conductor must be
identified by a white color.
See Four-wire outlet - for electric dryers:
on page 29 for instructions on how to
connect a power cord to your dryer.
Gas requirements
Use only natural or LP (liquid propane) gases.
THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF
LOCAL CODES, WITH THE NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54,
LATEST REVISION (FOR THE UNITED STATES), OR THE NATURAL GAS AND PROPANE
INSTALLATION CODE, CSA B149.1, LATEST REVISION (FOR CANADA).
Gas dryers are equipped with a burner vent for use with natural gas. If you plan to
use your dryer with LP (liquid propane) gas, it must be converted for safe and
proper performance by a qualified service technician.
A ½ in. (1.27 cm) gas supply line is recommended and must be reduced to connect
to the 3/8 in. (1 cm) gas line on your dryer. The National Fuel Gas Code requires
that an accessible, approved manual gas shut-off valve be installed within 6 in. (15
cm) of your dryer.
Gas dryers installed in residential garages must be raised 18 in. (46 cm)
above the floor.
Additionally, a 1/8 in. (0.3 cm) N.P.T. (National Pipe Thread) plugged tapping,
accessible for test gauge connection, must be installed immediately upstream of
your dryer’s gas supply connection.
Your dryer must be disconnected from the gas supply pipe system during any
pressure testing of the system.
Your dryer must be connected to the gas supply piping with a listed flexible gas
connector that complies with the standard for connectors for gas appliances, ANSI
Z21.24 or CSA 6.10.
DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design
certified by the American Gas Association (CGA in Canada).
• Any pipe joint compound used must be resistant to the action of any liquefied
petroleum gas.
• As a courtesy, most local gas utilities will inspect a gas appliance installation.
20
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Gas ignition: Your dryer uses an automatic ignition system to ignite the burner.
There is no constant burning pilot.
COMMONWEALTH OF MASSACHUSETTS INSTALLATION
INSTRUCTIONS
Your dryer must be installed by a licensed plumber or gas fitter. A “T” handle
manual gas valve must be installed in the gas supply line to the installed dryer at
the location of operation.
If a flexible gas connector is used to connect the dryer, the connector may not be
longer than 3 ft. (91.5 cm).
Grounding requirements
Your dryer must be grounded. If a malfunction or breakdown occurs, the
grounding reduces the risk of electrical shock by providing a path of least
resistance for the electrical current.
Gas models
Electric models
WARNING:
Gas leaks may occur in your system, creating a dangerous situation.
• Gas leaks may not be detected by smell alone.
• Gas suppliers recommend that you purchase and install a UL-approved gas
detector.
• Install and use it in accordance with the manufacturer’s instructions.
WARNING:
• Your dryer has a three-prong power cord with grounding conductor (120 V,
60 Hz).
• The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
• Certain internal parts are intentionally not grounded and may present a risk
of electric shock only during servicing. Service Personnel – Do not contact the
following parts while the appliance is energized: inlet valve, control board,
and temperature-regulating thermistor (located on blower housing).
WARNING:
• Dryer must be grounded with three- or four-wire cord power cord with a
grounding conductor and a grounding plug, which is sold separately.
• The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
• Do not modify the plug provided with your dryer - if it doesn’t fit the outlet,
have a proper outlet installed by a qualified electrician.
• If a power cord is not used and the electric dryer is to be permanently wired,
the dryer must be connected to a permanently grounded metal wiring
system, or an equipment grounding conductor must be run with the circuit
conductors and connected to the equipment grounding terminal or lead on
the dryer.
• Certain internal parts are intentionally not grounded and may present a risk
of electric shock only during servicing. Service Personnel – Do not contact the
following parts while the appliance is energized: inlet valve, control board
and temperature-regulating thermistor (located on blower housing).
21
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Changing the dryer vent location (optional)
This dryer is shipped to vent from the back. It can also be configured to vent to the
bottom or left side.
Tools you will need
Adapter kits are standard components and can be purchased from any retailer.
Materials you will need
• 4 in. (10.2 cm) duct (rigid or UL-listed flexible metal) (not included)
• 4 in. (10.2 cm) elbow (not included)
• Adapter duct (not included)
Side venting
BACK VIEW
3.6 in. (9.3 cm)
12.1 in. (30.8 cm)
Phillips screwdriver
Aluminum tape
Gloves
SIDE VIEW
1.5 in. (3.8 cm)
TOP VIEW
14.9 in. (37.9 cm)
3.6 in. (9.3 cm)
5.3 in. (13.4 cm)
22
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
1 Remove the two rear exhaust retaining screws, then pull out the exhaust duct.
2 Press the tabs on the knockout, then carefully remove the knockout for the
desired vent opening.
3 Push the adapter duct onto the blower housing of the dryer.
4 Connect a 4 in. (10.2cm) elbow to the 4 in. (10.2cm) duct section, and secure
all joints with aluminum tape. Make sure that the male end of the elbow faces
away from the dryer.
5 Insert the elbow/duct assembly through the side opening and press it onto
the adapter duct. Secure in place with aluminum tape. The male end of the
duct should protrude 1.5 in. (3.8 cm) out of the dryer to connect the remaining
ductwork.
6 Attach aluminum tape to the back of the dryer to seal the original dryer vent
hole.
Retaining screw
Rear exhaust duct
Adapter duct
Knockout
DRYER SIDE/BACK VIEW
Elbow
Aluminum tape
1.5 in. (3.8 cm)
23
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Bottom venting
1 Remove the two rear exhaust retaining screws, then pull out the exhaust duct.
2 Press the tabs on the knockout, then carefully remove the knockout for the
desired vent opening.
3 Push the adapter duct onto the blower housing of the dryer.
4 Connect a 4 in. (10.2 cm) elbow to the 4 in. (10.2cm) duct section, and secure
all joints with aluminum tape. Make sure that the male end of the elbow faces
down through the hole in the bottom from the dryer.
5 Insert the elbow/duct assembly through the rear opening and press it onto
the adapter duct. Secure in place with aluminum tape. The male end of the
duct should protrude 1.5 in. (3.8 cm) out of the dryer to connect the remaining
ductwork.
SIDE VIEW
1.5 in. (3.8 cm)
TOP VIEW
4.5 in. (11.4 cm)
3.5 in. (9.3 cm)
12.1 in. (30.8 cm)
Retaining screw
Rear exhaust duct
DRYER SIDE/BACK VIEW
Adapter duct
Knockout
24
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
6 Attach aluminum tape to the back of the dryer to seal the original dryer vent
hole.
Installing your dryer
Tools you will need
Materials you will need
• 3/8" gas dryer gas line (Gas model only)
• Three- or four-prong (dependent on owner’s house) electric power cord
(electric model only)
•Exhaust dryer vent kit
Before you start
Before you start installing your dryer, make sure that:
• The location you selected has a grounded electrical outlet. See Grounding
requirements on page 20.
• For U.S. models, you have the correct type power cord (not included). See
Electric requirements
on page 17.
Note: For Canadian models, the power cord comes pre-installed.
• Your dryer vent is in the correct location. See “Changing the dryer vent
location (optional)” on page 21 to change where your dryer vents.
• Your exhaust ducting (not included) is made of rigid metal or semi-rigid metal.
See Duct requirements
on page 16.
• You have a 3/8 in. (1 cm) gas dryer gas line (if you are installing a gas dryer)
that meets all national and local codes. Before you connect the gas line, review
the gas line requirements in Gas requirements
on page 19.
Important: We recommend that you use a qualified installer to install your
dryer.
Aluminum tape
Elbow
Pliers
Phillips screwdriver
Level
Aluminum tape
Adjustable wrench that opens
to 1" (2.5 cm)
Cutting knife
Flat-head screwdriver
Pipe wrench
25
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Step-by-step instructions
Step 1: Make sure that the floor is a solid, level surface
• Use a level to make sure that the floor where you are installing your dryer is
level. This helps minimize vibration, noise, and unwanted movement.
Step 2: Move your dryer to the location you selected
• Move your dryer to the location you selected, but do not push your dryer all
the way back into the location. You need to connect the power cord and
ducting before you move your dryer into its final position.
Step 3: Connect the exhaust ducting
WARNING:
• Make sure that your dryer is installed properly so it exhausts air easily.
• Keep ducts as straight as possible.
• DO NOT restrict your dryer with a poor exhaust system.
• DO NOT use unnecessarily long ducts that have many elbows.
• Use a 4 in. (10.2 cm) diameter rigid metal duct. Tape all joints, including at the
dryer. Never use lint-trapping screws.
• Clean all old ducts before installing your new dryer. Be sure the vent flap
opens and closes freely. Inspect and clean the exhaust system annually.
• DO NOT use a plastic, thin foil, or non-metal flexible duct.
• DO NOT use sheet metal screws that can accumulate lint when assembling the
ducting. Joints should be taped.
• DO NOT let the aluminum tape cover the ventilation slots on the back of your
dryer.
• DO NOT use dented or clogged ducts and vent.
1 Make sure that the exhaust hood flapper or louvers move freely.
If you do not have an exhaust hood installed, see Exhaust hood types on page
16 for information about recommended hood types. We recommend that
you have a professional install the exhaust hood.
Note: If a gas dryer is being installed, you will need to call a licensed
professional to do the installation.
Notes:
• If the front of the dryer is higher than the rear by more than one degree, it
may take longer to dry small loads. You can adjust the dryer feet to level your
dryer (Step 3: Connect the exhaust ducting
on page 25).
• If the floor is not perfectly level, the legs can be adjusted to make the dryer
level and stable. The dryer must be leveled after it is set in place.
Tip: For information about space requirements for a side-by-side installation,
see Installing side-by-side, or in an alcove, closet, or other recessed area
on
page 12.
Important: Before you connect the exhaust ducting, review ducting
requirements in Duct requirements on page 16.
26
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
2 Connect one end of the exhaust ducting to the venting hole on the back of
your dryer, then use aluminum tape to secure the ducting to your dryer. The
crimped ends of the duct sections must point away from your dryer. Use a 4 in.
(10.2 cm) diameter rigid metal duct.
3 Connect the other end of the ducting to the exhaust hood, then tighten the
duct strap to secure it in place. Tape all joints, including at the dryer.
Step 4: Connect the gas line (for gas models only)
1 Remove the pipe thread protective cap from the gas inlet.
Important: Before you connect the gas line, review the gas line requirements
in Gas requirements
on page 19.
Exhaust ducting
Back venting hole
Exhaust hood
Inlet pipe on back of dryer
27
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
2 Connect all the pipe joints and tighten with a wrench.
3 Apply a pipe joint compound or about 1.5 in. wraps of teflon tape over all
threaded connections. The pipe joint compound must be resistant to the
actions of any liquefied petroleum gas.
4 Connect the gas supply to your dryer.
5 Securely tighten the gas line fitting over the threads.
6 Turn on the gas supply.
Note: An additional fitting is required to connect the 3/4 in. (1.9 cm) female
thread end of a flexible connector to the 3/8 in. (1 cm) male threaded end on
the dryer. Use only new AGA or CSA certified gas supply line with SS flexible
connectors. The National Fuel Gas Code requires that an accessible, approved
manual gas shutoff valve be installed within 6 in. (15 cm) of your dryer.
WARNING:
• All gas installations of the dryer must be equipped with Manual Shut-Off
valve.
• Uncoated copper tubing will corrode when subjected to natural gas, causing
gas leaks. Use ONLY black iron, stainless steel, or plastic-coated brass piping
for gas supply.
• Check all gas connections for leaks using a soap solution.
• If bubbles appear, tighten the connections and recheck. DO NOT use an
open flame to check for gas leaks.
Nipple Flexible connector
Flare unionFlare unionManual shutoff valve
Inlet pipe on back of dryer
Open
28
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Step 5: Connect the power cord (U.S. models only)
• Determine whether your electric outlet is a three-wire or four-wire outlet. See
Power outlet types on page 18.
Three-wire outlet - for electric dryers:
1 On your dryer, remove the center terminal block screw.
2 Connect the neutral wire (white or center wire) of the power cord to the center
terminal screw of the terminal block. Be sure to cross the screw through the
ring of the power cord terminal and tighten the screw.
3 Connect the other wires to the outer terminal block screws. Be sure to cross
the screw through the terminal ring and tighten the screw.
4 Tighten the strain relief screws.
5 Insert the tab of the terminal block cover into your dryer’s rear panel slot, then
secure the cover with a screw.
Important:
• Before you connect the power cord, review the electric requirements in
Electric requirements
on page 17.
• Before testing or operating your dryer, make sure that your dryer is grounded.
See Grounding requirements on page 20.
WARNING: If your are converting from a four-wire electrical system to a
three-wire, you must reconnect the ground strap to the terminal block support
to ground the dryer frame to the neutral conductor. Ring-type terminals are
recommended. If using strap terminals, make sure that they are tightened.
Center terminal block screw
Black wire
External ground connector
Neutral wire (white
or center wire
Red wire
Neutral wire (white or
center wire
3/4" (1.9 cm) UL-listed
strain relief
29
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Four-wire outlet - for electric dryers:
1 Remove the center terminal block screw.
2 Connect the ground wire (green or unwrapped) of the power cord to the
external ground conductor screw.
3 Connect the neutral wire (white wire) of the power cord and the appliance
ground wire (white) under the center screw of the terminal block. Be sure to
cross the screw through the ring of the power cord terminal and tighten the
screw.
4 Connect the other wires to the outer terminal block screws. Be sure to cross
the screw through the terminal ring and tighten the screw.
5 Tighten the strain relief screws.
6 Insert the tab of the terminal block cover into your dryer’s rear panel slot, then
secure the cover with a screw.
WARNING: Electrical Shock Hazard
• All U.S. models are produced for a THREE-WIRE SYSTEM CONNECTION.
• The dryer frame is grounded to the neutral conductor at the terminal block.
A FOUR-WIRE SYSTEM CONNECTION is required for new or remodeled
construction, mobile homes, or if local codes do not permit grounding
through neutral conductor. If the four-wire system is used, the dryer frame
cannot be grounded to the neutral conductor at the terminal block. See
“Electric requirements
” on page 17 for three-wire or four-wire system
connections.
Center terminal block screw
Black wire
External ground connector
Green or bare copper
wire of the power cord
Red wire
Neutral wire (white or
center wire)
3/4" (1.9 cm) UL-listed
strain relief
Neutral grounding wire
(white)
30
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Step 6: Level your dryer
• If your dryer is not level, carefully tilt your dryer just enough to adjust the
leveling feet on the bottom of your dryer. Extend the feet only as much as is
necessary. If the feet are extended too much, your dryer may vibrate.
Step 7: Plug in your dryer
Make sure that all exhaust and electrical connections are complete, then plug
your dryer into the electrical outlet.
Step 8: Check the final installation
• Before you use your dryer, make sure that:
• The dryer is plugged into an electrical outlet and is properly grounded.
• Rigid or semi-rigid metal vent material is installed. Do not use a plastic
flexible ducting.
• The exhaust duct work is hooked up and the joints are taped.
• The dryer is level and sits firmly on the floor.
• Gas models: the gas is turned on with no gas leakage.
• Start your dryer to confirm that it runs, heats, and shuts off.
Note for GAS MODELS ONLY: The burner may not ignite initially due to air in
the gas line. Allowing your dryer to operate on a heat setting will purge the line.
If the gas does not ignite within five minutes, turn your dryer off and wait five
minutes. Be sure the gas supply to your dryer has been turned on. To confirm
gas ignition, check the exhaust for heat.
Level
Tighten
Loosen
Adjustable leg
31
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Reversing the dryer door
1 Make sure that the power cord is unplugged.
2 While supporting the door, remove the four hinge screws from the
door, then lift the door to remove it and set the door aside.
3 Remove the screws for the locker cover on the right side of the
dryer and the screws for the locker cover on the left side of the
dryer.
4 Install the locker onto the right side of the dryer with the screws you
just removed, then install the locker cover on the left side of the
dryer.
CAUTION: Be careful not to drop the door when removing the screws.
Remove two screws
Remove two screws
Remove the
locker cover
screws
Remove the
locker screws
32
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
5 Remove the 12 screws around the door.
6 Pull the inside door board from the outside door board.
7 Rotate the outside door board 180°, then reassemble it with the
inside door board with the screws you removed previously.
Inside door board
Outside door board
33
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
8 Install the hinges onto the left side of the dryer.
9 Align the hinges on the door with the hinge screw holes on the
front of your dryer, then secure the door with the four screws you
previously removed.
Install two screws
Install two screws
34
www.insigniaproducts.com
OPERATING INSTRUCTIONS
Using your dryer
Drying a load of clothes
Step 1: Turn on your dryer
• Press the (power) to turn on your dryer. The Clean Filter indicator flashes 10
times when your dryer is powered on. Clean the filter before loading the dryer.
Step 2: Load your dryer
• Place only one wash load in your dryer at a time.
• Heavy and light weight fabrics take different amounts of time to dry. If you mix
heavy and light weight fabrics in a load, lightweight fabrics may be dry at the
end of the cycle while heavy fabrics may still be damp.
• If you only need to dry one or two items, you can improve the tumbling action
and drying efficiency by adding a couple of similar items to the load.
• Overloading restricts tumbling action which results in uneven drying and
excessive wrinkling of some fabrics.
Step 3: Select the dryer cycle and options
1 Turn the Cycle Selector to select a drying cycle. For more information, see
Dryer options and settings on page 36.
2 Optional: Use the control panel buttons (like Dry Temp.) to customize the
drying cycle. For descriptions of buttons, see Control panel on page 9. For
information about which buttons are available for each cycle type, see Dryer
options and settings on page 36.
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read
the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.
35
12-Cycle Electric and Gas Dryers
www.insigniaproducts.com
OPERATING INSTRUCTIONS
Step 4: Start your dryer
1 Press the (start/pause) button. The Drying indicator illuminates.
2 If you need to pause the cycle (for example to add or remove items or adjust
the load), press the (start/pause) button, then open the door. Your dryer
stops tumbling. When you are ready to start drying again, close the door, then
press the (start/pause) button.
Unloading your dryer
1 When the drying cycle is over, your dryer beeps six times and then turns off.
2 Open the door and remove the items.
Cleaning the lint filter
• Gently pull the lint filter out of the slot at the bottom of the drum. Remove
the accumulated lint, then insert the filter back into the slot.
Note: You should clean the lint filter after every load to avoid lint buildup and
to make sure that your dryer is running efficiently. See Cleaning the lint filter
on
page 35.
CAUTION:
• Do not operate your dryer without the lint filter in place.
• Do not use a damaged or broken lint filter. This may reduce performance or
cause a fire.
Note:
• You should clean the lint filter before every load to shorten the drying time
and to make sure that your dryer is running efficiently.
• If the lint is difficult to wipe away, you can gently wash the filter in mild,
soapy water. Make sure that you rinse all the soap off the filter and that the
filter is dry before you put it back into your dryer.
Lint filter
36
www.insigniaproducts.com
OPERATING INSTRUCTIONS
Dryer options and settings
•Settings in bold are initial settings. The • (dot) indicates optional functions
you can select.
• For best results, follow the wet load size recommendations noted for each
cycle:
• Small load: Fill the dryer drum with three to four items, not more than
1/4 full.
• Medium load: Fill the dryer drum up to about 1/2 full.
• Large load: Fill the dryer drum up to about 3/4 full. Do not overload.
Items need to tumble freely.
CYCLE
FABRIC
TYPE
TEMP DRYNESS
MAX
AMOUNT
Normal
•Cotton
•Underwear
•Linen
High
Very Dry
More Dry
Normal
Damp
Heavy Duty
•Jeans
• Corduroys
•Work clothes
High
Very Dry
More Dry
Normal
Damp
Towels
•Towels
•Heavy cottons
High
Very Dry
More Dry
Normal
Damp
Casual
•Wrinkle-free
cottons
• Synthetic fabrics
•Knits
Medium
Very Dry
More Dry
Normal
Damp
Delicates
•Sensitive items
Low
Very Dry
More Dry
Normal
Damp
Sanitize
•Bedding
•Curtains
High Very Dry
Quick Dry
High
Med
Low
No Heat
n/a
20 Min
High
Med
Low
No Heat
n/a
40 Min
High
Med
Low
No Heat
n/a
37
12-Cycle Electric and Gas Dryers
www.insigniaproducts.com
OPERATING INSTRUCTIONS
60 Min
High
Med
Low
No Heat
n/a
80 Min
High
Med
Low
No Heat
n/a
Air Fluff No Heat n/a
CYCLE
FABRIC
TYPE
TEMP DRYNESS
MAX
AMOUNT
38
www.insigniaproducts.com
OPERATING INSTRUCTIONS
Special laundry tips
ITEMS DRYING GUIDE
Bedspreads and
comforters
• Follow the care label instructions or dry using the 60 Min or
80 Min cycle (Medium Temp).
• Make sure that the item is thoroughly dry before using or
storing.
• During the drying cycle, you may need to reposition the
item to make sure that it is completely dried.
Blankets
•Use the Normal cycle and dry only one blanket at a time for
best tumbling action.
• Make sure that the item is thoroughly dry before using or
storing.
• During the drying cycle, you may need to reposition the
item to make sure that it is completely dried.
Curtains and
draperies
• Use the cycle recommended on the care instructions or the
Casual cycle. Medium temperature and Normal dry to help
minimize wrinkling
• Dry these in small loads for best results and remove as soon
as possible.
Cloth diapers
•Use the Normal cycle on the High temperature setting for
soft fluffy diapers.
Down filled items
(like jackets,
sleeping bags, or
comforters)
•Use the Delicates cycle or a Timed dry cycle with low
temperature.
• Add a couple of dry towels to absorb moisture and shorten
drying time.
Foam rubber (like
rug backs, stuffed
toys, or shoulder
pads,)
• DO NOT dry on a temperature setting. Use the Air Fluff
cycle (no heat).
WARNING: Drying a rubber item with heat may damage it
or create a fire hazard.
Pillows
•Use the Normal cycle.
• Add a couple of dry towels and a pair of clean sneakers or
tennis balls to help the tumbling action and to fluff the item.
DO NOT dry kapok or foam pillows in the dryer.
Plastics (like
shower curtains or
outdoor furniture
covers)
•Use the Air Fluff or a Manual Dry cycle on the Low
temperature setting depending on the care label
instructions.
CAUTION:
Items NOT to dry:
• Fiberglass items (curtains, draperies, etc.)
• Woolens, unless recommended on the label.
• Items spotted or soaked with vegetable or cooking oils.
39
12-Cycle Electric and Gas Dryers
www.insigniaproducts.com
OPERATING INSTRUCTIONS
Fabric Care Chart
Follow the cleaning and care labels on clothes and other fabrics.
Wash Cycle
Water Temperature
Bleach
Normal
Normal
Permanent Press /
Wrinkle Resistant /
Wrinkle Control
Gentle/Delicates
Hand wash
Hot
Warm
Cold
Any bleach (when needed)
Only non-chlorine
(color-safe) bleach (when
needed)
Tumble dry cycle
Permanent Press /
Wrinkle Resistant /
Wrinkle Control
40
www.insigniaproducts.com
OPERATING INSTRUCTIONS
Special Instructions
Heat Setting
Iron-dry or steam temperatures
Warning symbols for laundering
Dry clean
Gentle/Delicates
Line dry/ Hang to dry
Drip dry
Dry flat
High
Medium
Low
Any heat
No heat/air
High
Medium
Low
For machine washable
wool. Loads should be
under 8 lbs. (3.6 kg)
Do not wash
Do not wring
Do not bleach
Do not tumble dry
No steam (added to iron)
Do not iron
Dry clean
Do not dry clean
Line dry/Hang to dry
Drip dry
Dry flat
41
12-Cycle Electric and Gas Dryers
www.insigniaproducts.com
OPERATING INSTRUCTIONS
Maintaining your dryer
Cleaning the exterior
• Clean with a soft, damp cloth. Do not use abrasive substances.
• Protect the surface from sharp objects.
• Do not place any heavy or sharp objects or a detergent box on the dryer.
Keep them in a separate storage area. These items may scratch or damage
the top cover of the dryer.
• Because the entire dryer has a high-gloss finish, the surface can be scratched
or damaged. Avoid scratching or damaging the surface when using the dryer.
Cleaning the drum
• Clean with a damp cloth dampened with a mild, non-abrasive cleaner
suitable for stainless steel and anodized surfaces.
• Remove the cleaner residue and dry with a clean cloth.
Cleaning the control panel
• Clean with a soft, damp cloth. Do not use abrasive substances.
• Do not spray cleaners directly on the panel. The control panel finish may be
damaged by some laundry pre-treatment soil and stain remover products.
Apply such products away from your dryer and wipe up any spills or
over-spray immediately.
Cleaning and inspecting the exhaust system
Inspect and clean the exhaust yearly to maintain optimum performance.
1 Disconnect the exhaust duct from the dryer and from the exhaust hood (at the
exhaust outlet) outside of the building.
2 Check the interior of the duct and remove any lint accumulation.
3 Make sure that lint is removed from the exhaust hood. Lint may collect in the
exhaust hood so that the flappers or louvers will not open or close completely.
4 After cleaning the exhaust hood, make sure that the flapper or louvers move
freely.
5 Reassemble the exhaust duct and hood, making sure that the joints are secure
and sealed.
6 Operate your dryer and make sure that the exhaust air is not obstructed in the
vent and that there are no leaks in the system.
Note: Check and clean the outside exhaust hood frequently to ensure a proper
air flow.
WARNING
Certain internal parts are intentionally not grounded and
may present a risk of electric shock only during servicing.
Service Personal: Do not contact the following parts while
the appliance is energized: Control Board and
Temperature-Regulating Thermistor (located on the Blower
Housing).
42
www.insigniaproducts.com
USER MAINTENANCE INSTRUCTIONS
Troubleshooting
CAUTION: Do not try to repair your dryer yourself. Doing so invalidates the
warranty.
PROBLEM SOLUTION
Dryer does
not start.
• Make sure that the dryer door is closed completely.
• If you opened the door during the drying cycle, press the
(start/pause) button again.
• Make sure that the power cord is plugged into a working electrical
outlet.
• Check the circuit breaker and fuses for your dryer’s electrical
connection.
Dryer does
not heat or
does not dry.
• Your dryer may have moved into the cool-down process of the
cycle. This is normal.
• Select a cycle other than Air Fluff and a temperature setting that is
not “No Heat.”
• Do not overload your dryer. Depending on the size of your washer,
one wash load should equal one dry load.
• Dry heavy items and lightweight items separately.
• If you are drying large, bulky items, like blankets or comforters, try
repositioning the load to ensure even drying. This may need to be
done a few times througout the cycle.
• The load may be too small to tumble correctly. Add a few towels or
use the Manual Dry cycles.
• Clean the lint filter and exhaust duct.
• Check the circuit breaker and fuses for your dryer’s electrical
connection.
• Make sure that the outside exhaust hood opens and closes freely.
• Check the exhaust system for lint buildup. Ducting should be
inspected and cleaned annually.
• Make sure that your exhaust duct is a 4 in. (10.2 cm) rigid or
semi-rigid metal duct.
Dryer is noisy. • It is normal for your dryer to hum due to the high velocity of air
moving through the dryer drum and exhaust system.
• It is normal to hear the dryer gas valve or heating element cycle on
and off during the drying cycle.
• Check the load for objects, like coins, loose buttons, nails, or
broken zippers. Remove these items.
• Make sure that your dryer is level.
Clothes are
unevenly
dried.
• Seams, pockets, and other similarly heavy areas may not be
completely dry when the rest of the load has reached the selected
dryness level. This is normal. Select the More Dry or Very Dry
dryness level if desired.
• If you dry one heavy item with a lightweight load (such as one
towel with sheets), the heavy item may not be completely dry
when the rest of the load has reached the selected dryness level.
For best drying results, dry heavy items and lightweight items
separately.
43
12-Cycle Electric and Gas Dryers
www.insigniaproducts.com
USER MAINTENANCE INSTRUCTIONS
Dryer shuts
off before the
clothes are
dried.
• The dryer load is too small. Add more items or a few towels and
restart the cycle.
• The dryer load is too large. Remove some items and restart the
cycle.
• Consider using a Manual Dry cycle.
Dryer has an
odd odor.
• Your dryer draws air from the surrounding room air. Household
odors from paint, varnish, strong cleaners, and so forth, may enter
your dryer with the surrounding room air. This is normal. When
these odors linger in the air, ventilate the room completely before
using your dryer.
Clothing is
still wrinkled
after using
the Wrinkle
Care setting.
• Small loads of one to four items work best.
• If the dryer load is too large, items cannot tumble freely. Try
loading fewer items.
• Make sure that the items in the dryer load are similar. The Wrinkle
Care setting works best when the items in the dryer load are
similar-type items.
There is lint
on the
clothing.
• Check pockets thoroughly before washing and drying clothes.
Things like paper or tissue can break up into small pieces that turn
into lint.
• Clean the lint filter before every cycle. Some loads that produce
high amounts of lint can clog the filter.
• Some fabrics are lint producers (like a fuzzy white cotton towel)
and they should be dried separately from clothes that are lint
trappers (like a pair of black linen pants).
• Divide larger loads into smaller loads for drying.
PROBLEM SOLUTION
44
www.insigniaproducts.com
USER MAINTENANCE INSTRUCTIONS
Understanding the error codes
Your dryer is equipped with an automatic error-monitoring system to
detect and diagnose problems at an early stage. When an error occurs,
the dryer beeps for five seconds every 15 minutes. After 24 hours, the
dryer turns off automatically.
Specifications
ERROR CODE POSSIBLE CAUSE SOLUTIONS
The Drying, Cooling,
and Wrinkle Care
(option) indicators
blink.
A control circuit board
malfunction has
occurred.
Contact authorized service
personnel for help. DO NOT use
your dryer.
The Cooling, Wrinkle
Care (process), and
Wrinkle Care
(option) indicators
blink.
The humidity sensor
failed.
Your dryer will complete the current
operating cycle but items could be
over dried. Your dryer can still
operate under the Manual Dry
cycles.
Contact authorized service
personnel for help.
The Wrinkle Care
(process), Clean
Filter, and Wrinkle
Care (option)
indicators blink.
The temperature
sensor failed.
Contact authorized service
personnel for help. DO NOT use
your dryer.
Dimensions
(H × W × D)
41.7 x 27.0 x 30.0 in
(105.9 x 68.6 x 76.2 cm)
Weight Net: 121.3 lbs. (55 kg)
Gross: 136.7 lbs. (62 kg)
Capacity 6.7 cu. ft.
Power 120 V/240 V AC, 60 Hz
Heating rating Electric: 4800 W
Gas: 16000 BTU/hr
45
www.insigniaproducts.com
12-Cycle Electric and Gas Dryers
ONE-YEAR LIMITED WARRANTY
Definitions:
The Distributor* of Insignia branded products warrants to you, the original purchaser of this new
Insignia-branded product (“Product”), that the Product shall be free of defects in the original
manufacturer of the material or workmanship for a period of one (1) year from the date of your
purchase of the Product (“Warranty Period”).
For this warranty to apply, your Product must be purchased in the United States or Canada from a
Best Buy branded retail store or online at www.bestbuy.com or www.bestbuy.ca
and is packaged
with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your
purchase date is printed on the receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the
Product is determined to be defective by an authorized Insignia repair center or store personnel,
Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the
Product at no charge with new or rebuilt comparable products or parts. Products and parts
replaced under this warranty become the property of Insignia and are not returned to you. If
service of Products or parts are required after the Warranty Period expires, you must pay all labor
and parts charges. This warranty lasts as long as you own your Insignia Product during the
Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website
(www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any
Best Buy store. Make sure that you place the Product in its original packaging or packaging that
provides the same amount of protection as the original packaging.
To obtain warranty service, in the United States and Canada call 1-877-467-4289. Call agents may
diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or
websites to the original purchaser of the product in the country where the original purchase was
made.
What does the warranty not cover?
This warranty does not cover:
• Food loss/spoilage due to failure of refrigerator or freezer
• Customer instruction/education
•Installation
•Set up adjustments
• Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
• Accidental damage
•Misuse
•Abuse
•Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in
communal areas of a multiple dwelling condominium or apartment complex, or
otherwise used in a place of other than a private home.
• Modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods
(burn-in).
46
NS-TDRE67W1/NS-TDRG67W1/NS-TDRE67W1-C
www.insigniaproducts.com
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia to service the Product
• Products sold “as is” or “with all faults”
•Consumable
• s, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly
illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to
five (5) pixel failures throughout the display. (Pixel based displays may contain a limited
number of pixels that may not function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or
pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY
FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR
PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER
EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED
WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY
PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
*Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2021 Best Buy. All rights reserved.
www.insigniaproducts.com
1-877-467-4289 (U.S. and Canada)
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2021 Best Buy. All rights reserved.
V2 ENGLISH
21-0665
