USER GUIDE
10-Cycle
Electric and Gas Dryers
NS-TDRE75W1/NS-TDRG75W1/NS-TDRE75W1-C
Before using your new product, please read these instructions to prevent any damage.
www.insigniaproducts.com
2
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

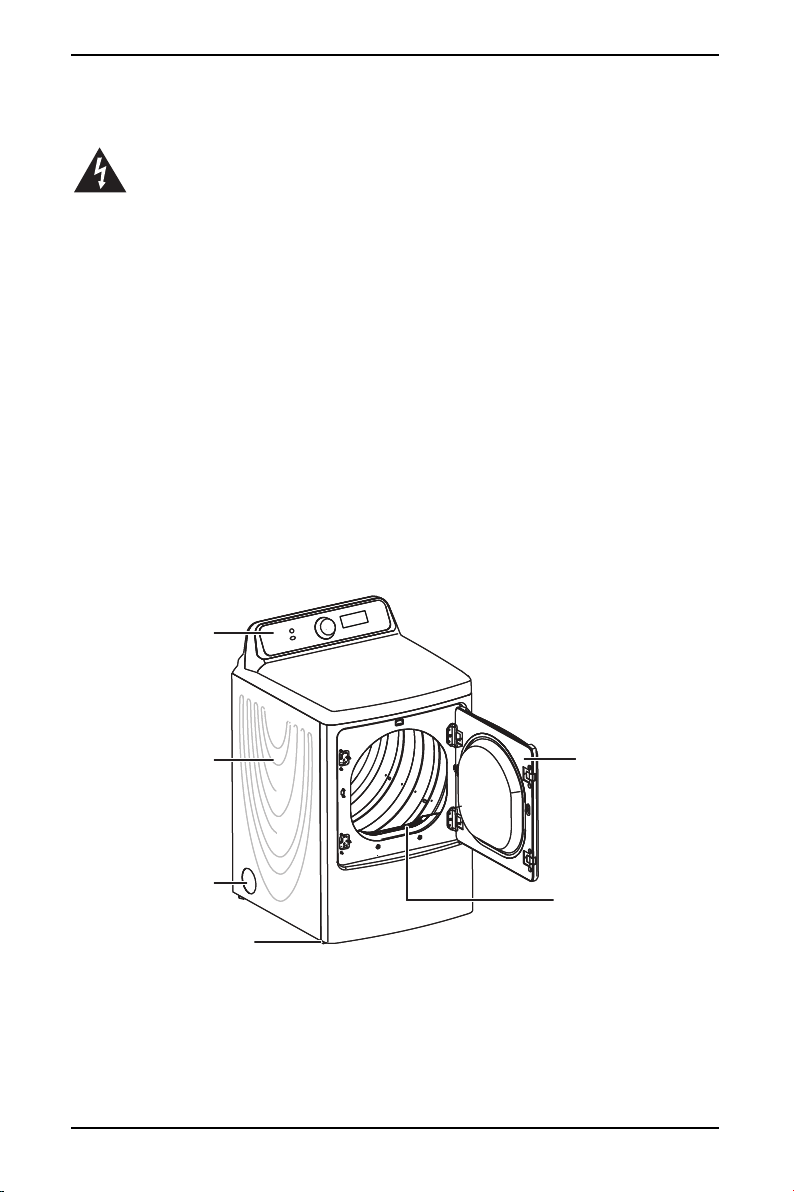

Front components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

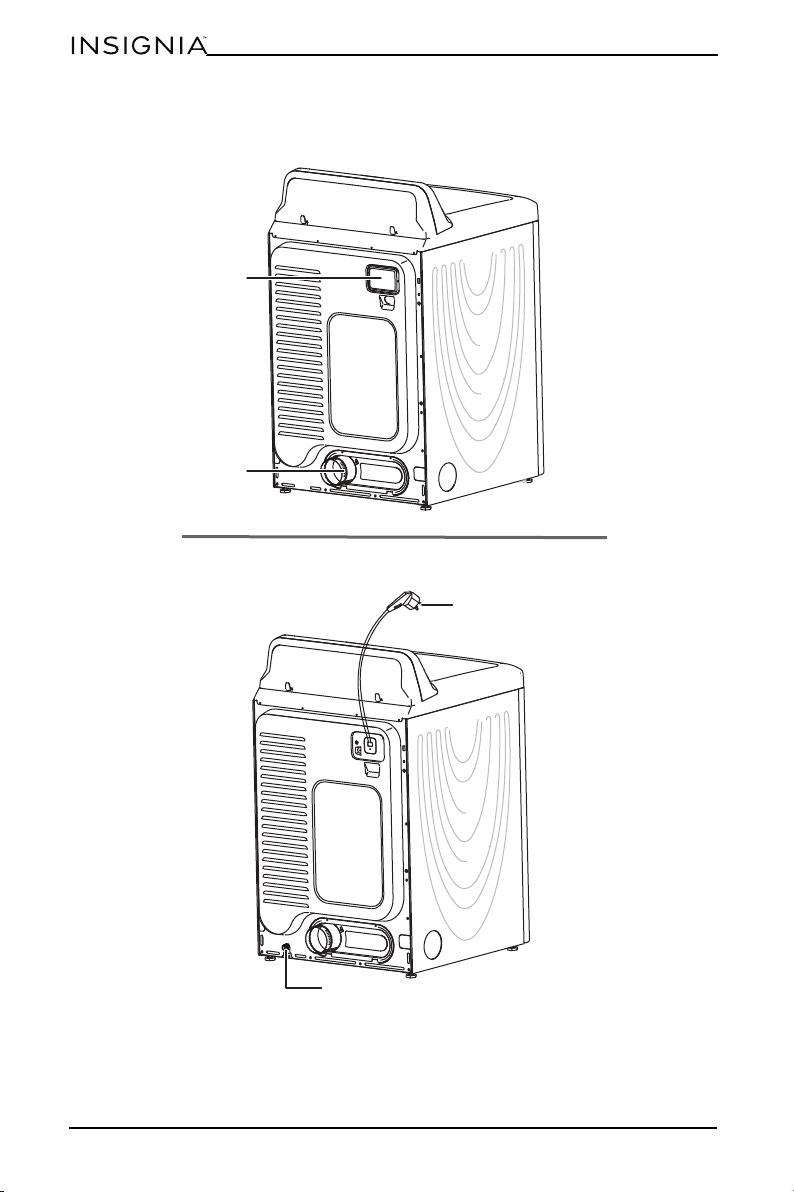

Back components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

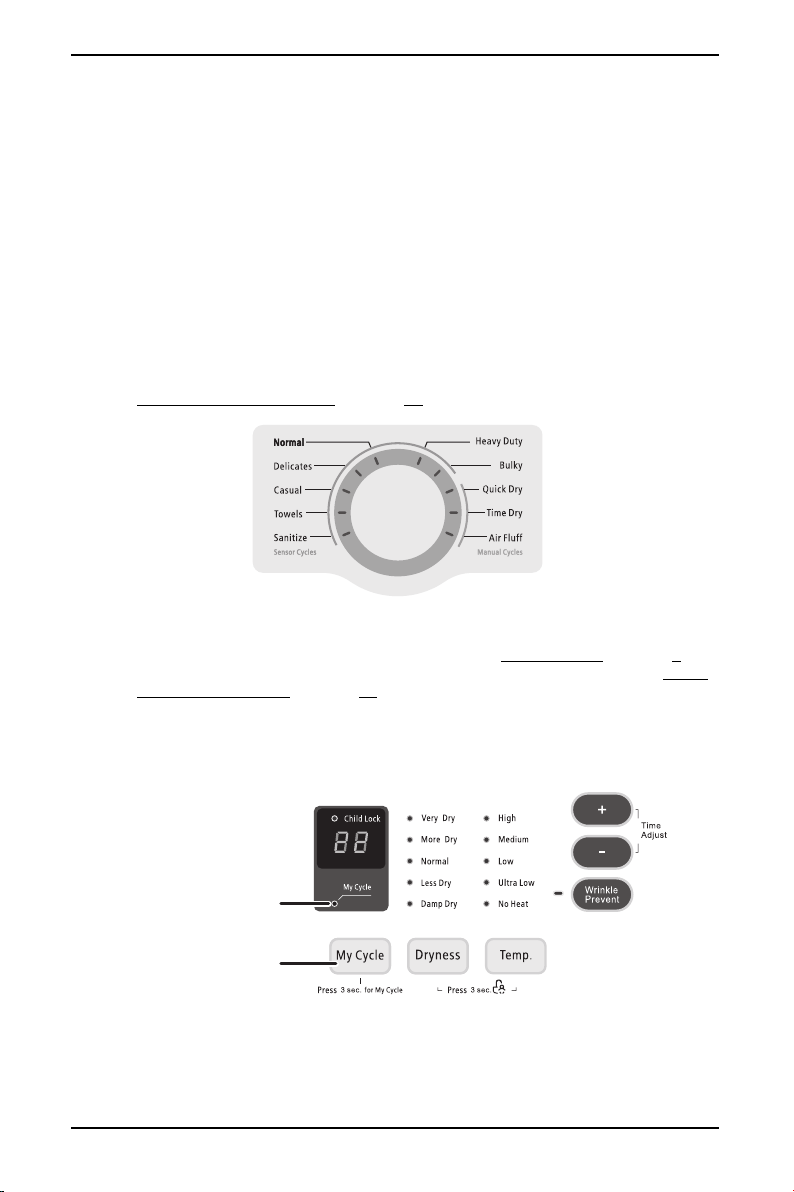

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Unpacking your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Choosing a location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Exhausting requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Duct requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Electric requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Grounding requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Installing your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Tools you will need. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Tools you will need. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Before you start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Step-by-step instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

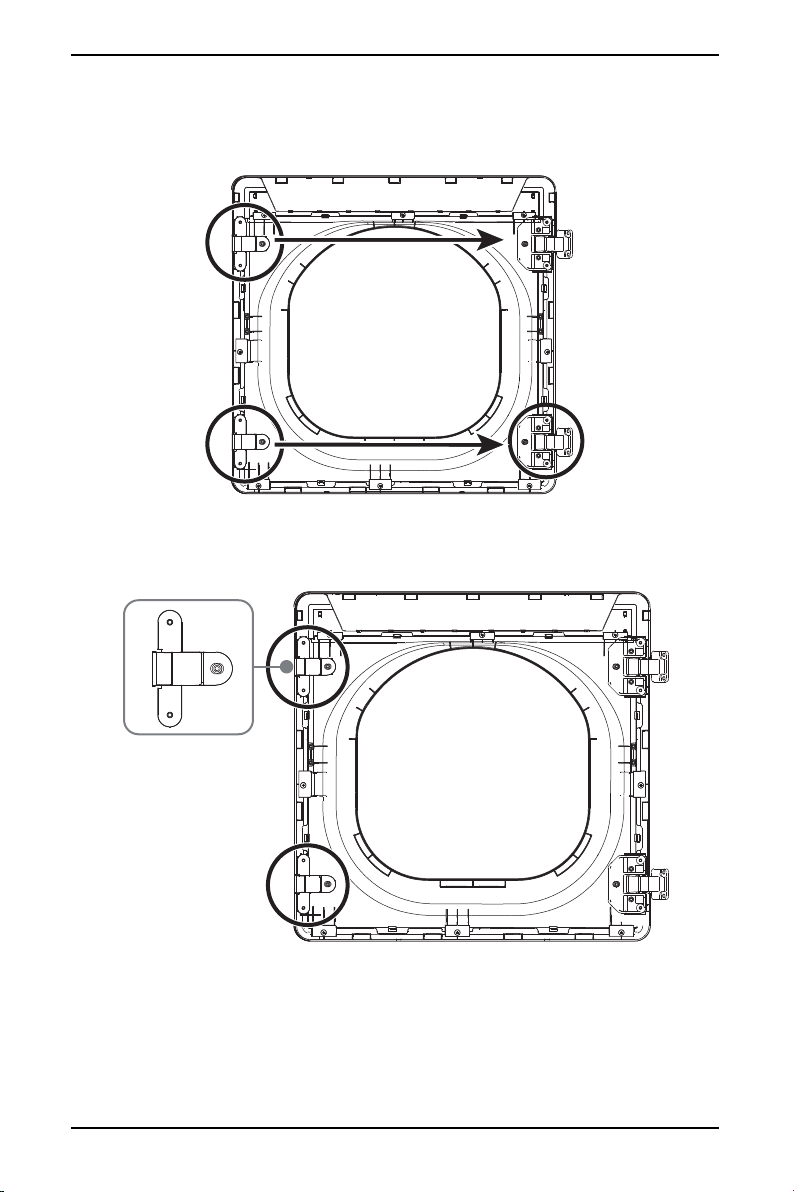

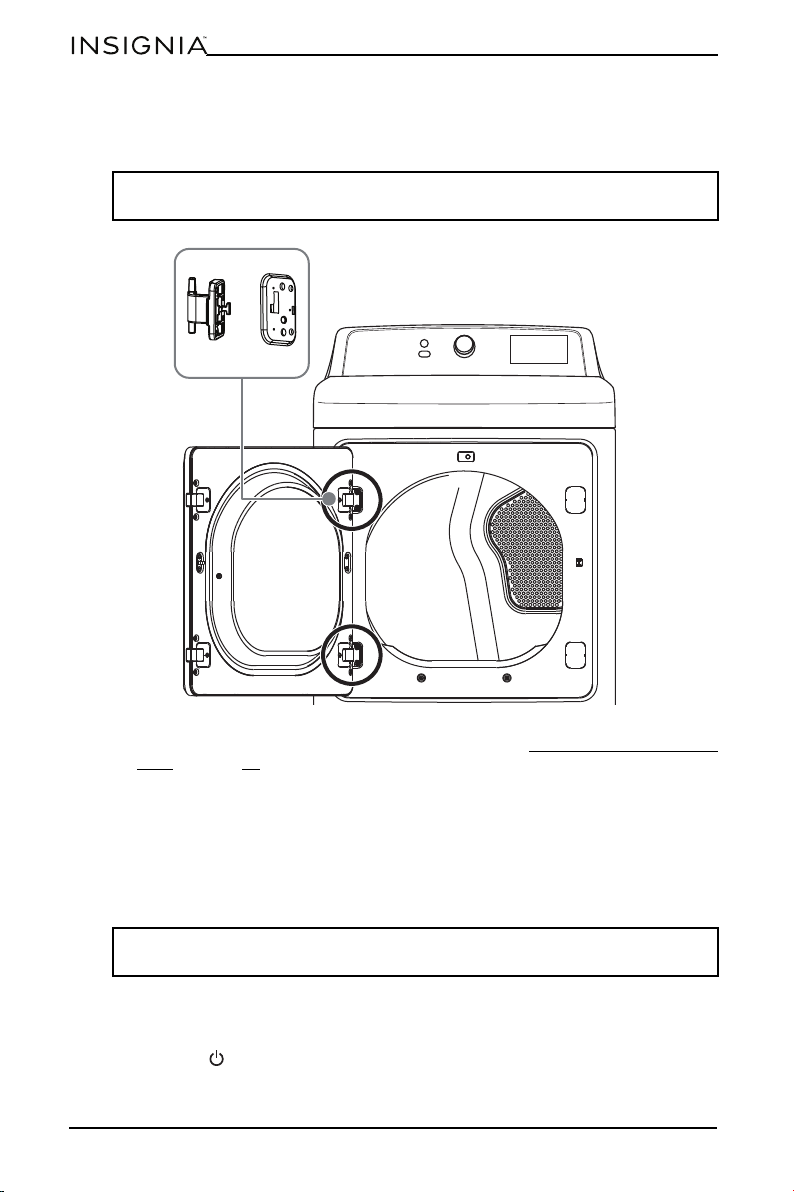

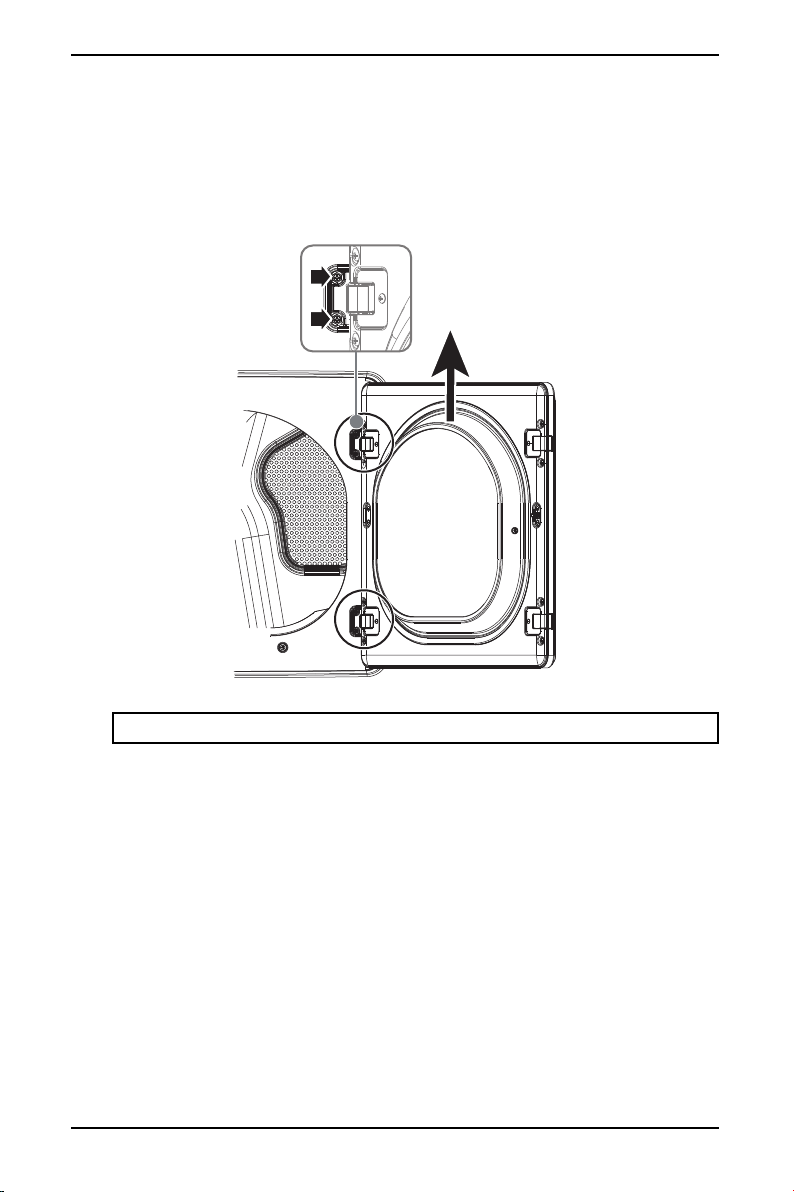

Reversing the dryer door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Using your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Drying a load of clothes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Unloading your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Setting the child lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Cleaning the lint filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Dryer options and settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Special laundry tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Maintaining your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Cleaning the exterior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Cleaning the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Cleaning the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Cleaning and inspecting the exhaust system . . . . . . . . . . . . . . . . . . . . . . . .39
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Understanding the error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Introduction
Congratulations on the purchase of your new Insignia dryer. Insignia dryers
feature the latest in design and capabilities and will provide reliable and
trouble-free performance.
3
10-Cycle Electric and Gas Dryers
www.insigniaproducts.com
SAFETY & PRECAUTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This User Guide contains important information on the installation, use, and care of
your dryer. Please read this guide carefully before installing and operating your
dryer to prevent injury and property damage.
The Warnings and Important Safety Instructions in this guide do not cover all
possible conditions and situations that may occur. You are responsible for using
common sense, caution, and care when you install, operate, and maintain your
dryer.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This indicates that hazards or unsafe practices may cause serious personal injury or
death.
To reduce the risk of fire, explosion, electric shock, or personal injury when using your
dryer, you SHOULD follow these basic safety precautions.
This indicates that hazards or unsafe practices may cause minor personal injury or
property damage.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying
your dryer.
WARNING
CAUTION
4
NS-TDRE75W1/NS-TDRG75W1/NS-TDRE75W1
www.insigniaproducts.com
SAFETY & PRECAUTIONS
State of California Proposition 65 Warnings
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov.
WARNING
FIRE OR EXPLOSION HAZARD
• Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
• Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
WARNING
• Do not try to light any appliance.
• Do not touch any electrical switch. Do not use any phone in your
building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
• Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
WARNING
FIRE HAZARD
• Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
• Do not install a booster fan in the exhaust duct.
• Install all clothes dryers in accordance with the installation
instructions of the manufacturer of your dryer.
WARNING
To reduce the risk of fire or explosion
• Do not dry items that have been previously cleaned, washed, soaked, or
spotted with gasoline, dry cleaning solvents, or other flammable or
explosive substances. They emit vapors that could ignite or explode. Any
material that has been in contact with a cleaning solvent or flammable
liquids or solids should not be placed in your dryer until all traces of
these flammable liquids or solids and their fumes have been removed.
• There are many highly flammable items used in homes, such as acetone,
denatured alcohol, gasoline, kerosene, some liquid household cleaners,
some spot removers, turpentine, waxes, and wax removers.
• Do not dry items containing foam rubber (may be labeled latex foam) or
similarly textured rubber-like materials on a heat setting. Heated foam
rubber materials can, under certain circumstances, produce fire by
spontaneous combustion.
5
10-Cycle Electric and Gas Dryers
www.insigniaproducts.com
SAFETY & PRECAUTIONS
Basic Precautions
IMPORTANT SAFETY INSTRUCTIONS
1 Read all instructions before using the appliance.
2 Use this appliance only for its intended purpose as described in this User
Guide.
3 Before use, your dryer must be properly installed as described in this guide.
4 Always follow the fabric care instructions supplied by the garment
manufacturer.
5 Do not dry articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other flammable or
explosive substances as they give off vapors that could ignite or explode.
6 Do not use your dryer to dry clothes which have traces of any flammable
substance, such as vegetable oil, cooking oil, machine oil, flammable
chemicals, paint thinner, etc., or anything containing wax or chemicals, such as
mops and cleaning clothes. Flammable substances may cause the fabric to
catch fire by itself.
7 Do not store or use gasoline or other flammable vapors and liquids near this or
any other appliance.
8 Do not allow children to play on or in the appliance. Close supervision of
children is necessary when the appliance is used near children.
9 When discarding or storing your old clothes dryer, remove the door.
10 Do not reach into the appliance if the drum is moving.
11 Do not install or store this appliance where it will be exposed to the weather
or freezing temperatures.
12 Do not tamper with the controls.
13 Do not repair or replace any part of the appliance or attempt any servicing
unless it is specifically recommended in the user-maintenance instructions or
in published user-repair instructions that you understand and have the skills
to carry out.
14 Do not place items exposed to cooking oils in your dryer. Items contaminated
with cooking oils may contribute to a chemical reaction that could cause a
load to catch fire. To reduce the risk of fire due to contaminated loads, the final
part of a tumble dryer cycle occurs without heat (cool down period). Avoid
stopping a tumble dryer before the end of the drying cycle unless all items are
quickly removed and spread out so that the heat is dissipated.
15 To avoid the risk of fire, unplug the power cord if your dryer is to be left for an
extended period of time, such as during vacations.
16 Packaging material can be dangerous for children. There is a risk of
suffocation! Keep all packaging away from children.
17 Always check the inside of the dryer for foreign objects before loading
laundry. Keep the door closed when not in use.
18 Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or product.
WARNING
6
NS-TDRE75W1/NS-TDRG75W1/NS-TDRE75W1
www.insigniaproducts.com
SAFETY & PRECAUTIONS
19 Clean the lint screen before or after each load.
20 Keep the area around the exhaust opening and surrounding areas free from
lint, dust, and dirt.
21 The interior of your dryer and the exhaust duct should be cleaned periodically
by qualified service personnel.
22 This appliance must be properly grounded. Never plug the power cord into a
receptacle that is not grounded adequately and in accordance with local and
national codes. See Electric requirements on page 17, Gas requirements on
page 19, or Grounding requirements on page 20.
23 Make sure that pockets are free from small irregularly shaped hard objects and
foreign material (such as coins, knives, and pins). These objects could damage
your dryer.
24 Do not use heat to dry articles containing foam rubber or similarly textured
rubber-like materials.
25 Gas leaks may occur in your system, resulting in a dangerous situation.
26 Gas leaks may not be detected by smell alone.
27 Gas suppliers recommend that you purchase and install a UL approved gas
detector.
28 Before the appliance is removed from service or discarded, remove the door to
the drying compartment.
29 Do not tamper with controls.
30 Clean lint screen before or after each load.
31 Keep area around the exhaust opening and adjacent surrounding areas free
from theaccumulation of lint, dust, and dirt.
32 The interior of the appliance and exhaust duct should be cleaned periodically
by qualified service personnel.
1 Do not sit on top of the dryer.
2 Because of continuing product improvements, we reserve the right to change
specifications without notice. For complete details, see the installation
instructions in this User Guide before selecting cabinets, making cutouts, or
beginning installation.
3 Do not dry clothing with large buckles, buttons, or other heavy metal or solid
things.
4 Install and use in accordance with the manufacturer’s instructions.
5 Take care that children’s fingers are not caught in the door when closing it.
This may result in injury.
CAUTION
7
www.insigniaproducts.com
10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
SAVE THESE INSTRUCTIONS
1 Clothes dryer installation must be performed by a qualified installer.
2 Install the clothes dryer according to the manufacturer’s instructions and local
codes.
3 Do not install a clothes dryer with flexible plastic venting materials.
4 If flexible metal (foil type) duct is installed, it must be of a specific type
identified by the appliance manufacturer as suitable for use with clothes dryer.
Flexible venting materials are known to collapse, be easily crushed, and trap
lint. These conditions will obstruct with the clothes dryer’s airflow and
increase the risk of fire.
5 To reduce the risk of severe injury or death, follow all installation instructions.
Features
Package contents
• 10-Cycle Electric or Gas Dryer
• User Guide
Front components
WARNING
Door
Filter
Control panel
Cabinet
Optional left venting hole
Adjustable legs (4)
8
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Back components
Wiring box
Back venting hole
Power cord (gas dryer only)
Gas inlet
Gas Dryer
Electric Dryer
9
www.insigniaproducts.com
10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Control panel
# ITEM DESCRIPTION
1
/POWER
button
Press to turn your dryer on or off. If your dryer is on for more
than 10 minutes without any buttons being pressed, it
automatically turns off.
2
Cycle selector
Turn to select the cycle for the type of load. The cycle you select
determines the heat control for the cycle. The Normal,
Delicates, Casual, Towels, Sanitize, Heavy Duty, and Bulky
cycles are Sensor Dry cycles. The Quick Dry, Time Dry, and Air
fluff cycles are Manual Dry cycles. For more information, see
Dryer options and settings on page 36.
3
Digital
display
Displays the time while you are pressing the – Time Adjust +
buttons to set the time for the Quick Dry, Time Dry, or Air fluff
cycle.
Displays the remaining cycle time while your dryer is running.
4
Time Adjust
buttons (–/+)
Press repeatedly to select the drying time. These buttons only
works for the Quick Dry, Time Dry, and Air fluff cycles.
5
Wrinkle
Prevent
button
Press once to add the Wrinkle Prevent step to the drying cycle.
Press again to cancel. Wrinkle Prevent provides approximately
90 minutes of intermittent tumbling in unheated air at the end
of the cycle to reduce wrinkling. The load is already dry and can
be removed at any time during the Wrinkle Prevent cycle.
6
/START
PAUSE
button
Press to start or pause the drying cycle. When you pause the
cycle, you can add items to the dryer, but your cannot change
any settings.
7
Cycle status
indicators
Indicate what stage in the drying cycle your dryer is in. For
example, when your dryer is in the cooling down stage of the
cycle, the Cooling indicator lights. When the cycle is complete,
the Clean Filter indicator flashes to remind you to clean the
filter.
10
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Unpacking your dryer
• Unpack your dryer and inspect it for shipping damage. Make sure that you
have received all the items shown in Package contents on page 7.
• To prevent personal injury or strain, wear protective gloves and use a furniture
mover whenever lifting or carrying your dryer.
8
My Cycle
button
Press and hold for three seconds to save your favorite drying
cycle. Press once to load your favorite cycle setting.
9
Dryness
button
Press to select the dryness level. Different dryness levels result
in different drying times. For clothes to be ironed manually,
select a lower dryness level. For more information, see Dryer
options and settings on page 36.
10
Child lock
Press and hold the Dryness and Temp. buttons at the same
time for three seconds to turn on the child lock function. Press
and hold for three seconds to turn off the function. When the
child lock function is turned on, the only button that works is
the (power) button.
11
Temp.
button
Press to select the drying temperature. Your can select High,
Medium, Low, Ultra Low, or No Heat. Temperature changes
are only available on Quick Dry and Time Dry settings. For more
information, see Dryer options and settings on page 36.
WARNING:
• Packing materials can be dangerous to children. Keep all packing materials
(such as plastic bags and polystyrene) out of the reach of children.
• Do not operate your dryer on the styrofoam base. Doing so will result in
serious vibration, which could cause equipment damage or result in physical
injury.
# ITEM DESCRIPTION
11
www.insigniaproducts.com
10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Choosing a location
You should locate your dryer where there is enough space at the front for loading
the dryer and enough space behind for the exhaust system.
Your dryer is factory-ready for the rear exhaust option.
Make sure that the room you install your dryer in has enough fresh air and that
there are no air-flow obstructions.
Do not install or store your dryer in an area where it will be exposed to water or
weather. Keep the dryer area clear of combustible materials, gasoline, and other
flammable vapors and liquids. Your dryer produces combustible lint. Keep the
area around the dryer lint-free.
Important to installer:
Read the following instructions carefully before installing the dryer. These
instructions should be kept for future reference.
• The dryer is not suitable for installation in a mobile home.
• Remove the door from all discarded appliances to avoid the danger of a child
being trapped and suffocating.
• After unplugging a discarded appliance, cut off the power cord.
• Provisions for introduction of outside air into the dryer room. The free area of
any opening for the introduction of outside air shall not be less than twice the
area of the dryer exhaust outlet.
WARNING: Your dryer must be exhausted to the outside to reduce the risk of
fire when installed any place inside the house.
27 in.
68.6 cm
4
5
.
8
i
n
.
1
1
6
.
3
c
m
12
www.insigniaproducts.com

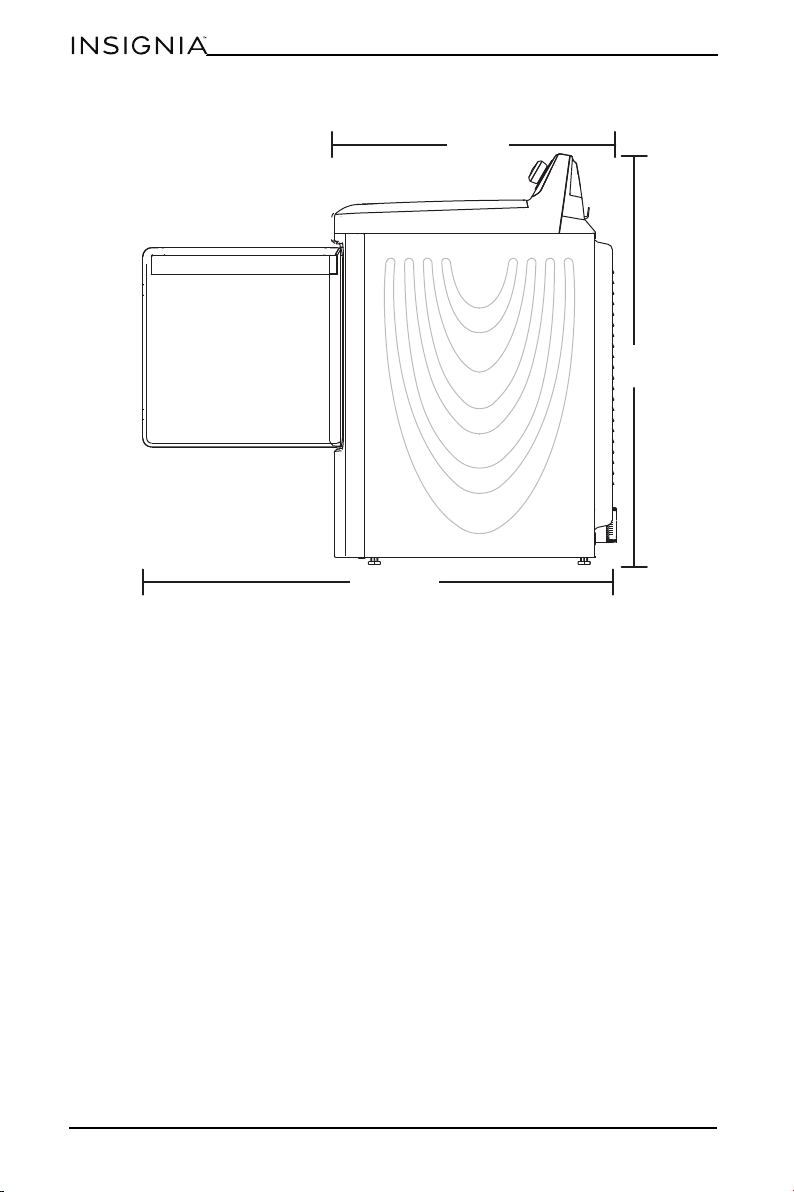

INSTALLATION INSTRUCTIONS
31.5 in.
80.0 cm
4
5
.
8
i
n
.
1
1
6
.
3
c
m
52.5 in.
133.3 cm
13
www.insigniaproducts.com
10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Installing your dryer and washer side-by-side
Leave at least one inch between your appliances and from any
surrounding walls. If your washer is a top-loading washer, make sure
that you have enough room to open the washer lid.
24 in.
61 cm
5 in.
(12.7 cm)
1 in.
(2.5 cm)
27 in. (68.6 cm)
31.5 in. (80 cm)
1 in.
(2.5 cm)
1 in.
(2.5 cm)
14
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Installing in an alcove, closet, or wall insert/recessed
If you install your dryer in an alcove, closet, or wall insert/recessed, the front of the
closet must have two unobstructed air openings for a combined minimum total
area of 72 sq.in. (465 sq. cm) with a minimum clearance of 3 in. (7.6 cm) at the top
and bottom. A slatted door with equivalent space clearance is acceptable.
Minimum clearances between your dryer and adjacent walls or other surfaces are:
• Either side: 1 in. (2.5 cm)
• Rear: 5 in. (12.7 cm)
• Top: 24 in. (61 cm)
• Front: 2 in. (5.1 cm)
WARNING:
• You must exhaust your dryer to the outside to reduce the risk of fire when
installed any place inside the house.
• Do NOT install another fuel-burning appliance in the same closet as your
dryer.
• For information about how to select and install exhaust ducts, see Exhausting
requirements on page 15.
48 in.²
310 cm²
24 in.²
155 cm²
3 in.
7.6 cm
3 in.
7.6 cm
15
www.insigniaproducts.com
10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Exhausting requirements
• Do not assemble the duct with screws or other fasteners that extend into the
duct or that catch lint.
• The exhaust duct should be 4 in. (10.2 cm) in diameter.
• The total length of flexible metal duct should not exceed 7.8 ft. (2.4 m).
• Use only those foil-type flexible ducts, if any, specifically identified for use
with your dryer by the manufacturer.
• In the U.S., make sure that the ducts comply with the outline for Clothes
Dryer Transition Ducts, Subject 2158A.
See Duct requirements
on page 16 for the maximum duct length and number of
bends.
WARNING:
Do not exhaust your dryer into a chimney, a wall, a ceiling, an attic, a crawl
space, or a concealed space in a building.
Your dryer must be exhausted to the outside to reduce the risk of fire when
installed in an alcove or closet.
Exhausting the dryer to the outside prevents large amounts of lint and
moisture from being blown into the room.
WARNING:
NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT
• If your existing duct work is plastic, non-metal, or combustible, replace it with
metal.
• Use only a metal exhaust duct that is non-flammable to ensure containment
of the exhaust air heat and lint.
16
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Duct requirements
Exhaust hood types
If you install your dryer into an existing exhaust system you must make
sure that:
• The exhaust system meets all local, state, and national codes.
• You do not use a flexible plastic duct.
• You inspect and clean all lint buildup from inside the existing duct.
• The duct is not dented or crushed.
• The exhaust hood damper opens and closes freely.
WARNING:
You are responsible for correctly installing the exhaust system.
• Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.
Do not use a smaller duct.
• Ducts larger than 4 inches (10.2 cm) in diameter can result in increased
accumulation of lint.
• Lint should be removed regularly.
• If you must use a flexible metal duct, use the type with a stiff sheet metal wall.
Do not use a flexible duct with a thin foil wall. A serious blockage can result if
the flexible metal duct is bent too sharply.
• Never install any type of flexible duct in walls, ceilings, or other concealed
spaces.
• Keep the exhaust duct as straight and short as possible.
• Secure joints with duct tape. Do not use screws.
• Plastic, flexible ducts can kink, sag, be punctured, reduce airflow, extend
drying times, and affect your dryer’s operation.
• Exhaust systems longer than recommended can extend drying times, affect
dryer operations, and collect lint.
• The exhaust duct should end with an exhaust hood that has a swing-out
damper to prevent back drafts and entry of wildlife. Never use an exhaust
hood with a magnetic damper.
• The hood should have at least 12 inches (30.5 cm) of clearance between the
bottom of the hood and the ground or other obstruction. The hood opening
should point down.
• Never install a screen over the exhaust outlet.
• To avoid lint buildup, do not exhaust the dryer directly into a window well.
• Do not exhaust under a house or porch.
• If the exhaust duct must run through an unheated area, the duct should be
insulated and slope slightly down towards the exhaust hood to reduce
condensation and lint buildup.
• Inspect and clean the interior of the exhaust system at least once a year.
• Unplug the power cord before cleaning.
• Check frequently to make sure that the exhaust hood damper opens and
closes freely.
• Check once per month, and clean at least once per year.
Note: If your clothes are not getting dry, check the ducting for obstructions.
• Do not exhaust the dryer into a wall, ceiling, crawl space, or concealed space
of a building, gas vent, or any other common duct or chimney. This could
create a fire hazard from the lint expelled by the dryer.
• Do not use non-metallic flexible ducting.
• To reduce the risk of fire, your dryer MUST BE EXHAUSTED OUTDOORS.
17
www.insigniaproducts.com
10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
For best results, the static pressure in any exhaust system should be between 0.3
to 0.8 inches of water column, and it cannot be less than 0 under any
circumstances with an installed duct with a four inch diameter.
Electric requirements
Electrical connections
An individual branch (or separate) circuit serving only your dryer is recommended.
DO NOT USE AN EXTENSION CORD.
WEATHER HOOD TYPES
Recommended Use only for short-run
installation
# of 90°
elbows
Rigid Metallic Rigid Metallic
0 90 ft. (27.4 m) 60 ft. (18.3 m)
1 60 ft. (18.3 m) 45 ft. (13.7 m)
2 45 ft. (13.7 m) 35 ft. (10.7 m)
3 35 ft. (10.7 m) 25 ft. (7.6 m)
WARNING:
The wiring diagram is located on the back panel of your dryer.
• Incorrectly connecting your dryer’s grounding conductor can result in electric
shock. Check with a qualified electrician or serviceman if you are in doubt as to
whether your dryer is correctly grounded.
• Do not modify the plug provided with your dryer. If the plug does not fit the
outlet, have the correct type outlet installed by a qualified electrician.
• To prevent unnecessary risk of fire, electrical shock, or personal injury, all
wiring and grounding must be done in accordance with local codes, or in the
absence of local codes, with the National Electrical Code, ANSI/NFPA No. 70 -
Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1-Latest
Revisions and local codes and ordinances (for Canada).
• You are responsible for providing adequate electrical services for your dryer.
• All gas installations must be done in accordance with the latest revision of
National Fuel Code ANSI Z223.1/NFPA 54 (for US) or CSA B149.1 (for Canada)
and local codes and ordinances.
4
i
n
.
(
1
0
.
2
c
m
)
4 in.
(10.2 cm)
4
i
n
.
(
1
0
.
2
c
m
)
4
i
n
.
(
1
0
.
2
c
m
)
2.5 inch. (6.4
cm)
18
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Gas models - U.S. and Canada
A 120-volt, 60Hz AC approved electrical service, with a 15 ampere fuse or circuit
breaker is required.
Electric models - U.S. only
The dryers require a 120/240 volt, 60Hz AC approved electrical service. The electric
service requirements can be found on the data label located behind the door. A
30-ampere fuse or circuit breaker on both sides of the line is required.
• If you use a power cord, you should plug the cord into a 30-ampere receptacle.
• A power cord is NOT provided with U.S. electric model dryers.
Electric models - Canada only
You need a 120/240 volt, 60Hz AC approved electrical service fused through a
30-ampere fuse or circuit breaker on both sides of the line.
All Canadian models are shipped with the power cord attached. The power cord
should be plugged into a 30-ampere receptacle.
Power outlet types
Using a three-wire outlet
If your outlet is a three-wire (three-prong) outlet, choose a three-wire power
supply cord with ring or spade terminals and UL listed strain relief. The three-wire
power supply cord must:
• Be at least 4 ft. (1.22 m) long.
• Have three 10-gauge solid copper wires.
• Match a three-wire outlet of NEMA Type 10-30R.
See Step-by-step instructions
on page 22 for instructions on how to connect a
power cord to your dryer.
WARNING: RISK OF ELECTRIC SHOCK
When local codes allow, the electrical supply of your dryer may be connected
by means of a new power supply cord kit, marked for use with a dryer, that is UL
listed and rated at a minimum of 120/240 volts, 30-ampere with three No. 10
copper wire conductors terminated with closed loop terminals, open-end
spade lugs with turned up ends, or with tinned leads.
• Do not reuse a power supply cord from an old dryer. The power cord electric
supply wiring must be retained at the dryer cabinet with a suitable UL-listed
strain relief.
• Grounding through the neutral conductor is prohibited for (1) new
branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and
(4) areas where local codes prohibit grounding through the neutral
conductor. (Use a four-prong plug for four-wire receptacles, NEMA type
14-30R.)
Three-wire outlet (10-30R) Four-wire outlet (14-30R)
19
www.insigniaproducts.com
10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Using a four-wire outlet
If your outlet is a four-wire (four-prong) outlet, choose a four-wire power supply
cord with ring or spade terminals and UL listed strain relief. The four-wire power
supply cord must:
• Be at least 4 ft. (1.22 m) long.
• Have four 10-gauge solid copper wires.
• Match a four-wire outlet of NEMA Type 14-30R. The ground wire (ground
conductor) may be either green or bare. The neutral conductor must be
identified by a white color.
See Step-by-step instructions
on page 22 for instructions on how to connect a
power cord to your dryer.
Gas requirements
Use only natural or LP (liquid propane) gases.
Gas dryers are equipped with a burner vent for use with natural gas. If you plan to
use your dryer with LP (liquid propane) gas, it must be converted for safe and
proper performance by a qualified service technician.
A ½" (1.27cm) gas supply line is recommended and must be reduced to connect to
the 3/8" (1cm) gas line on your dryer. The National Fuel Gas Code requires that an
accessible, approved manual gas shut-off valve be installed within 6" of your
dryer.
Gas dryers installed in residential garages must be raised 18" (46cm) above the
floor.
• Additionally, a 1/8" (0.3cm) N.P.T. (National Pipe Thread) plugged tapping,
accessible for test gauge connection, must be installed immediately upstream
of your dryer’s gas supply connection.
• Your dryer must be disconnected from the gas supply pipe system during any
pressure testing of the system.
• Your dryer must be connected to the gas supply piping with a listed flexible
gas connector that complies with the standard for connectors for gas
appliances, ANSI Z21.24 or CSA 6.10.
DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design
certified by the American Gas Association (CGA in Canada).
• Any pipe joint compound used must be resistant to the action of any liquefied
petroleum gas.
• As a courtesy, most local gas utilities will inspect a gas appliance installation.
GAS IGNITION - Your dryer uses an automatic ignition system to ignite the burner.
There is no constant burning pilot.
20
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
COMMONWEALTH OF MASSACHUSETTS INSTALLATION
INSTRUCTIONS
Your dryer must be installed by a licensed plumber or gas fitter. A “T” handle
manual gas valve must be installed in the gas supply line to the installed dryer at
the location of operation.
If a flexible gas connector is used to connect the dryer, the connector may not be
longer than 3 ft. (36 in./91.5 cm).
Grounding requirements
Your dryer must be grounded. If a malfunction or breakdown occurs, the
grounding reduces the risk of electrical shock by providing a path of least
resistance for the electrical current.
Gas models
For GAS MODELS ONLY: The burner may not ignite initially due to air in the gas
line. Allowing your dryer to operate on a heat setting will purge the line. If the gas
does not ignite within 5 minutes, turn your dryer off and wait 5 minutes. Be sure
the gas supply to your dryer has been turned on. To confirm gas ignition, check
the exhaust for heat.
WARNING:
Gas leaks may occur in your system, creating a dangerous situation.
• Gas leaks may not be detected by smell alone.
• Gas suppliers recommend that you purchase and install a UL-approved gas
detector.
• Install and use it in accordance with the manufacturer’s instructions.
WARNING:
• This appliance is equipped with a cord having an equipment-grounding
conductor and a grounding plug.
• The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
• Never connect the ground wire to the plastic plumbing lines, gas lines, or hot
water pipes.
21
www.insigniaproducts.com
10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Electric models
Installing your dryer
Tools you will need
Materials you will need
• 3/8” gas dryer gas line (Gas model only)
• 3- or 4-prong (dependent on owner’s house) electric power cord (electric
model only)
• Phillips screwdriver
•Exhaust dryer vent kit
WARNING:
• For products sold in the U.S., your dryer has an optional cord with an
equipment-grounding conductor and a grounding plug, which is sold
separately.
• For products sold in Canada, your dryer is equipped with a cord having an
equipment-grounding conductor and a grounding plug.
• The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
• If a power cord is not used and the electric dryer is to be permanently wired,
this appliance must be connected to a grounded metal, permanent wiring
system, or an equipment-grounding conductor must be run with the circuit
conductors and connected to the equipment-grounding terminal or lead on
the appliance.
WARNING:
• Improper connection of the equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or service
representative or personnel, if you are in doubt as to whether the appliance is
properly grounded.
• Certain internal parts are intentionally not grounded and may present a risk
of electric shock only during servicing. Service Personnel - Do not contact the
following parts while the appliance is energized: Control Board and
Temperature-Regulating Thermistor (Located on the Blower Housing ).
Important: We recommend that you use a qualified installer to install your
dryer.
Pliers
Phillips screwdriver
Level
Duct tape
Adjustable wrench that opens
to 1" (2.5 Cm)
Cutting knife
Flat-head screwdriver
Pipe wrench
22
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Before you start
Before you start installing your dryer, make sure that:
• The location you selected has a grounded electrical outlet. See Grounding
requirements on page 20.
• For U.S. models, you have the correct type power cord (not included). See
Electric requirements
on page 17.
Note: For Canadian models, the power cord comes pre-installed.
• Your exhaust ducting (not included) is made of rigid metal or semi-rigid
metal. See Duct requirements
on page 16.
• You have a 3/8” gas dryer gas line (if you are installing a gas dryer) that meets
all national and local codes.
Step-by-step instructions
Step 1: Make sure that the floor is a solid, level surface
• Use a level to make sure that the floor where you are installing your dryer is
level. This helps minimize vibration, noise, and unwanted movement.
Step 2: Move your dryer to the location you selected
• Move your dryer to the location you selected, but do not push your dryer all
the way back into the location. You need to connect the power cord and
ducting before you move your dryer into its final position.
Note: If a gas dryer is being installed, you will need to call a licensed
professional to do the installation.
Note: If the front of the dryer is higher than the rear by more than one degree,
it may take longer to dry small loads. You can adjust the dryer feet to level your
dryer (Step 3: Connect the exhaust ducting
on page 23).
Tip: For information about space requirements for a side-by-side installation,
see Installing your dryer and washer side-by-side
on page 13.
23
www.insigniaproducts.com
10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Step 3: Connect the exhaust ducting
WARNING:
• Make sure that your dryer is
installed properly so it exhausts
air easily.
• Keep ducts as straight as
possible.
• DO NOT restrict your dryer with
a poor exhaust system.
• DO NOT use unnecessarily long
ducts that have many elbows.
• DO NOT use plastic flexible
exhaust material.
• Use a 4 in. (10.2 cm) diameter
rigid or semi-rigid metal duct.
Tape all joints, including at the
dryer.
• DO NOT use sheet metal screws
that can accumulate lint when
assembling the ducting. Joints
should be taped.
• DO NOT let the duct tape cover
the ventilation slots on the back
of your dryer.
• Clean all old ducts before
installing your new dryer. Be
sure the vent flap opens and
closes freely. Inspect and clean
the exhaust system annually.
• DO NOT use a plastic, thin foil,
or non-metal flexible duct.
• DO NOT use dented or clogged
ducts and vent.
Important: Before you connect the exhaust ducting, review ducting
requirements in Duct requirements
on page 16.
Dryer
Wall
Duct exhaust
4”
Wall
Duct
24
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
1 Make sure that the exhaust hood flapper or louvers move freely.
If you do not have an exhaust hood installed, see Exhaust hood types
on page
16 for information about recommended hood types. We recommend that
you have a professional install the exhaust hood.
2 Connect one end of the exhaust ducting to your dryer, then use duct tape to
secure the ducting to your dryer. The crimped ends of the duct sections must
point away from your dryer. Use a 4 in. (10.2 cm) diameter rigid metal duct.
3 Connect the other end of the ducting to the exhaust hood. Tape all joints,
including at the dryer.
Step 4: Level your dryer
• If your dryer is not level, carefully tilt your dryer just enough to adjust the
leveling feet on the bottom of your dryer. Extend the feet only as much as is
necessary. If the feet are extended too much, your dryer may vibrate.
Step 5: Connect the power cord (U.S. models only)
• Determine whether your electric outlet is a three-wire or four-wire outlet. See
Power outlet types
on page 18.
Important: Before you connect the power cord, review the electric
requirements in Electric requirements o
n page 17.
Before testing or operating your dryer, make sure that your dryer is grounded.
See Grounding requirements on page 20.
Level
Tighten
Loosen
Adjustable leg
25
www.insigniaproducts.com
10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Three-wire outlet:
1 On your dryer, remove the center terminal block screw (A).
2 Connect the neutral wire (white or center wire) of the power cord to the center
terminal screw of the terminal block. Be sure to cross the screw through the
ring of the power cord terminal and tighten the screw.
3 Connect the other wires to the outer terminal block screws. Be sure to cross
the screw through the terminal ring and tighten the screw.
4 Tighten the strain relief screws.
5 Insert the tab of the terminal block cover into your dryer’s rear panel slot, then
secure the cover with a screw.
Four-wire outlet:
WARNING: If your are converting from a 4-wire electrical system to a 3-wire,
you must reconnect the ground strap to the terminal block support to ground
the dryer frame to the neutral conductor.
A Center terminal block screw
B External ground connector
C Neutral grounding wire (white)
D Neutral wire (white or center wire)
E 3/4" (1.9 cm) UL-listed strain relief
A Center terminal block screw
B External ground connector
C Green or bare copper wire of the power cord
D Neutral grounding wire (white)
E Neutral wire (white or center wire)
F 3/4" (1.9 cm) UL-listed strain relief
26
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
1 Remove the center terminal block screw.
2 Connect the ground wire (green or unwrapped) of the power cord to the
external ground conductor screw.
3 Connect the neutral wire (white or center wire) of the power cord and the
appliance ground wire (white) under the center screw of the terminal block.
4 Connect the other wires to the outer terminal block screws. Be sure to cross
the screw through the terminal ring and tighten the screw.
5 Tighten the strain relief screws.
6 Insert the tab of the terminal block cover into your dryer’s rear panel slot, then
secure the cover with a screw.
Step 6: Plug in your dryer
Make sure that all exhaust and electrical connections are complete, then plug
your dryer into the electrical outlet.
Step 7: Check the final installation
• Before you use your dryer, make sure that:
• The dryer is plugged into an electrical outlet and is properly grounded.
• Rigid or semi-rigid metal vent material is installed. Do not use a plastic
flexible ducting.
• The exhaust duct work is hooked up and the joints are taped.
• The dryer is level and sits firmly on the floor.
• Start your dryer to confirm that it runs, heats, and shuts off.
27
www.insigniaproducts.com
10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Reversing the dryer door
Step 1: Remove the dryer door
1 Make sure that the power cord is unplugged.
2 While supporting the door, remove the four hinge screws on the body of the
dryer, then lift the door to remove it.
3 Place your dryer door on a blanket or other soft surface to prevent scratches.
4 Remove the two screws securing the door latch.
CAUTION: Be careful not to drop the door when removing the screws.
28
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
5 Remove the remaining 14 screws that secure the inside door cover to your
dryer door.
6 To remove the inside door cover, insert a putty knife next to each of the five
tabs (three at the top and two at the bottom) and pry the cover off.
Note: If you don’t have a putty knife, you can use a flathead screwdriver. Be
careful: a screwdriver may scratch your dryer door. Consider wrapping your
screwdriver with a thin cloth.
Dryer door
Door latch
Tabs
29
www.insigniaproducts.com
10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Step 2: Move the hinges
1 Lift off each hinge, turn it around (180°), and place it on the other side of the
dryer door. Make sure that the hinge is aligned with the holes in the door.
2 Remove the two hinge plugs from the inside door cover, then place them in
the dryer door where the hinges used to be. Make sure that the hinge plugs
are aligned with the holes in the door.
30
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Step 3: Replace the door cover
1 Rotate the door cover 180° and align it with the door. Squeeze the door cover
back onto the dryer door.
2 Place the latch on the side opposite the hinges and secure with two screws.
3 Secure the door cover using the remaining 14 screws you removed in Step 1:
Remove the dryer door on page 27.
Door latch
31
www.insigniaproducts.com
10-Cycle Electric and Gas Dryers
INSTALLATION INSTRUCTIONS
Step 4: Move the hinge plates
1 On the main body of your dryer, use a putty knife to remove the two hinge
plates.
2 Align the two hinge plates on the opposite side, then press them onto the
dryer to secure.
Note: If you don’t have a putty knife, you can use a flathead screwdriver. Be
careful: a screwdriver may scratch your dryer. Consider wrapping your
screwdriver with a thin cloth.
32
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Step 5: Install the dryer door on the other side
1 Align the hinges on the door with the hinge screw holes on the front of your
dryer.
2 Secure the door with the four screws you removed in Step 1: Remove the dryer
door on page 27.
3 Carefully peel off “open door” sticker, then move it to the other side of the
door.
4 Plug in your dryer.
Using your dryer
Drying a load of clothes
Step 1: Turn on your dryer
• Press the /POWER button to turn on your dryer.
Tip: The T-points on the door hinges slot into the body of the dryer to help with
alignment and hold the door upright.
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read
the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.
33
10-Cycle Electric and Gas Dryers
www.insigniaproducts.com
OPERATING INSTRUCTIONS
Step 2: Load your dryer
• Place only one wash load in your dryer at a time.
• Heavy and light weight fabrics take different amounts of time to dry. If you mix
heavy and light weight fabrics in a load, lightweight fabrics may be dry at the
end of the cycle while heavy fabrics may still be damp.
• If you only need to dry one or two items, you can improve the tumbling action
and drying efficiency by adding a couple of similar items to the load.
• Overloading restricts tumbling action which results in uneven drying and
excessive wrinkling of some fabrics.
• If you dry bulky clothes, such as a comforter or blanket, use the time dry cycle
if the Bulky Cycle doesn’t work well. Reposition the load during the drying
cycle.
Step 3: Select the dryer cycle and options
1 Turn the Cycle Selector to select a drying cycle. For more information, see
Dryer options and settings on page 36.
2 Optional: Use the control panel buttons (like Wrinkle Prevent) to customize
the drying cycle. For descriptions of buttons, see Control panel on page 9. For
information about which buttons are available for each cycle type, see Dryer
options and settings on page 36.
3 Optional: After you select a drying cycle and customize the cycle, press and
hold the My Cycle button for three seconds to save your settings. The My
Cycle light flashes and your dryer beeps three times to confirm that your
settings are saved.
When you want to use your saved cycle and settings again, press the MY
CYCLE button.
Press for three seconds
My Cycle light
34
www.insigniaproducts.com
OPERATING INSTRUCTIONS
Step 4: Start your dryer
1 Press the START PAUSE button. The Drying indicator illuminates.
2 If you need to pause the cycle (for example to add or remove items or adjust
the load), press the START PAUSE button, then open the door. Your dryer
stops tumbling. When you are ready to start drying again, close the door, then
press the START PAUSE button.
Note: During the initial use of your new gas or electric dryer, you may notice an
odor that has an oily or burning smell. This odor is considered normal and may
be emitted as the natural oils deposited from human hands during product
assembly or dust accumulated on various mechanical parts burns off during
initial operation.
35
10-Cycle Electric and Gas Dryers
www.insigniaproducts.com
OPERATING INSTRUCTIONS
Unloading your dryer
1 When the drying cycle is over, your dryer beeps six times and the Clean Filter
indicator lights.
2 Open the door and remove the items.
Setting the child lock
Your dryer has a child lock feature to prevent children from playing with your
dryer. When you turn on the child lock, the only button that works is /POWER.
1 Press and hold both the Dryness and Temp. buttons for three seconds. The
blue child lock light turns on.
2 To turn off the child lock, press and hold both the Dryness and Temp. buttons
for three seconds.
Note: You should clean the lint filter after every load to avoid lint buildup and
to make sure that your dryer is running efficiently. See Cleaning the lint filter on
page 36.
Note: After you set the child lock, it remains active even if you turn off or
unplug the dryer. When dryer is turned back on, you cannot start it until the
Child Lock is turned off.
Child Lock light
36
www.insigniaproducts.com
OPERATING INSTRUCTIONS
Cleaning the lint filter
• Gently pull the lint filter out of the slot at the bottom of the drum. Remove
the accumulated lint, then insert the filter back into the slot.
Dryer options and settings
•Settings in bold are initial settings. The • (dot) indicates optional functions
you can select.
• For best results, follow the wet load size recommendations noted for each
cycle.
• Small load: Fill the dryer drum with three to four items, not more than
1/4 full.
• Medium load: Fill the dryer drum up to about 1/2 full.
• Large load: Fill the dryer drum up to about 3/4 full. Do not overload.
Items need to tumble freely.
WARNING: Do not operate your dryer without the lint filter in place.
Note:
• You should clean the lint filter after every load to shorten the drying time
and to make sure that your dryer is running efficiently.
• If the lint is difficult to wipe away, you can gently wash the filter in mild,
soapy water. Make sure that you rinse all the soap off the filter and that the
filter is dry before you put it back into your dryer.
CYCLE
FABRIC
TYPE
TEMP DRYNESS
WRINKLE
PREVENT
MY
CYCLE
TIME
ADJUST
DEFAULT
TIME
MAX
AMOUNT
Normal
•Cotton
•Underwear
•Linen
High
Very
More
Normal
Less
Damp
••
63 min.
Delicates
•Sensitive
items
Low
Very
More
Normal
Less
Damp
••
23 min.
Lint filter
Lint filter
37
10-Cycle Electric and Gas Dryers
www.insigniaproducts.com
OPERATING INSTRUCTIONS
*For the Bulky cycle, the dryer adjusts the display time according to the load. “A”
means “10" and “b” means “11.” For example, “A5" means “105 minutes” and “b5"
means “115 minutes.”
Casual
•Wrinkle-free
cottons
•Synthetic
fabrics
•Knits
Medium
Very
More
Normal
Less
Damp
••
31 min.
Towels
•Towels
•Heavy
cottons
High
Very
More
Normal
Less
Damp
••
55 min.
Sanitize
•Towels
• Bedding
• Children’s
clothing
High Very
••
65 min.
Heavy
duty
•Jeans
• Corduroys
•Work
clothes
High
Very
More
Normal
Less
Damp
••
68 min.
Bulky*
•Blankets
•Sheets
•Comforters
Medium
Very
More
Normal
Less
Damp
••
58 min.
Quick dry
High
Medium
Low
Ultra low
No heat
•••
30 min.
Time dry
High
Medium
Low
Ultra low
No heat
•••
40 min.
Air fluff No heat
•••
20 min.
CYCLE
FABRIC
TYPE
TEMP DRYNESS
WRINKLE
PREVENT
MY
CYCLE
TIME
ADJUST
DEFAULT
TIME
MAX
AMOUNT
38
www.insigniaproducts.com
OPERATING INSTRUCTIONS
Special laundry tips
ITEMS DRYING GUIDE
Bedspreads and
comforters
• Follow the care label instructions or dry using the Bulky
cycle.
• Make sure that the item is thoroughly dry before using or
storing.
• During the drying cycle, you may need to reposition the
item to make sure that it is completely dried.
Blankets
•Use the Normal cycle and dry only one blanket at a time for
best tumbling action.
• Make sure that the item is thoroughly dry before using or
storing.
• During the drying cycle, you may need to reposition the
item to make sure that it is completely dried.
Curtains and
draperies
• Use the cycle recommend on the care instructions or the
Casual cycle, Medium temperature setting, and Less
dryness level to help minimize wrinkling.
• Dry these in small loads for best results and remove as soon
as possible.
Cloth diapers
•Use the Normal cycle on the High temperature setting for
soft fluffy diapers.
Down filled items
(like jackets,
sleeping bags, or
comforters)
•Use the Delicates or Normal cycle on the low temperature.
• Add a couple of dry towels to absorb moisture and shorten
drying time.
Foam rubber (like
rug backs, stuffed
toys, or shoulder
pads,)
• DO NOT dry on a temperature setting. Use the Air Fluff
cycle (no heat).
WARNING: Drying a rubber item with heat may damage it
or create a fire hazard.
Pillows
•Use the Normal cycle.
• Add a couple of dry towels and a pair of clean sneakers to
help the tumbling action and to fluff the item. DO NOT dry
kapok or foam pillows in the dryer.
Plastics (like
shower curtains or
outdoor furniture
covers)
•Use the Air Fluff or Time Dry cycle on the Low or Ultra Low
temperature setting depending on the care label
instructions.
CAUTION:
Items NOT to dry:
• Fiberglass items (curtains, draperies, etc.)
• Woolens, unless recommended on the label.
• Items spotted or soaked with vegetable or cooking oils.
39
10-Cycle Electric and Gas Dryers
www.insigniaproducts.com
USER MAINTENANCE INSTRUCTIONS
Maintaining your dryer
Cleaning the exterior
• Clean with a soft, damp cloth. Do not use abrasive substances.
• Protect the surface from sharp objects.
• Do not place any heavy or sharp objects or a detergent box on the dryer.
Keep them in a separate storage area. These items may scratch or damage
the top cover of the dryer.
• Because the entire dryer has a high-gloss finish, the surface can be scratched
or damaged. Avoid scratching or damaging the surface when using the dryer.
Cleaning the drum
• Clean with a damp cloth dampened with a mild, non-abrasive cleaner
suitable for stainless steel and anodized surfaces.
• Remove the cleaner residue and dry with a clean cloth.
Cleaning the control panel
• Clean with a soft, damp cloth. Do not use abrasive substances.
• Do not spray cleaners directly on the panel. The control panel finish may be
damaged by some laundry pre-treatment soil and stain remover products.
Apply such products away from your dryer and wipe up any spills or
over-spray immediately.
Cleaning and inspecting the exhaust system
Inspect and clean the exhaust yearly to maintain optimum performance.
1 Disconnect the exhaust duct from the dryer and from the exhaust hood (at the
exhaust outlet) outside of the building.
2 Check the interior of the duct and remove any lint accumulation.
3 Make sure that lint is removed from the exhaust hood. Lint may collect in the
exhaust hood so that the flappers or louvers will not open or close completely.
4 After cleaning the exhaust hood, make sure that the flapper or louvers move
freely.
5 Reassemble the exhaust duct and hood, making sure that the joints are secure
and sealed.
6 Operate your dryer and make sure that the exhaust air is not obstructed in the
vent and that there are no leaks in the system.
Note: Check and clean the outside exhaust hood frequently to ensure a proper
air flow.
WARNING
Certain internal parts are intentionally not grounded and
may present a risk of electric shock only during servicing.
Service Personal: Do not contact the following parts while
the appliance is energized: Control Board and
Temperature-Regulating Thermistor (located on the Blower
Housing).
40
www.insigniaproducts.com
USER MAINTENANCE INSTRUCTIONS
Troubleshooting
CAUTION: Do not try to repair your dryer yourself. Doing so invalidates the
warranty.
PROBLEM SOLUTION
Dryer does
not start.
• Make sure that the Child Lock is not on.
• Make sure the dryer door is closed completely.
• If you opened the door during the drying cycle, press the
/START PAUSE button again.
• Make sure that the power cord is plugged into a working electrical
outlet.
• Check the circuit breaker and fuses for your dryer’s electrical
connection.
Dryer does
not heat or
does not dry.
• Your dryer may have moved into the cool-down process of the
cycle. This is normal.
• Select a cycle other than Air Fluff and a temperature setting that is
not “no heat.”
• Do not overload your dryer. Depending on the size of your washer,
one wash load should equal one dry load.
• Dry heavy items and lightweight items separately.
• If you are drying large, bulky items, like blankets or comforters, try
repositioning the load to ensure even drying. This may need to be
done a few times througout the cycle.
• The load may be too small to tumble correctly. Add a few towels or
use the Time dry cycles.
• Clean the lint filter and exhaust duct.
• Check the circuit breaker and fuses for your dryer’s electrical
connection.
• Make sure that the outside exhaust hood opens and closes freely.
• Check the exhaust system for lint buildup. Ducting should be
inspected and cleaned annually.
• Make sure that your exhaust duct is a 4 in. (10.2 cm) rigid or
semi-rigid metal duct.
Dryer is noisy. • It is normal for your dryer to hum due to the high velocity of air
moving through the dryer drum and exhaust system.
• Check the load for objects, like coins, loose buttons, nails, or
broken zippers. Remove these items.
• Make sure that your dryer is level.
Clothes are
unevenly
dried.
• Seams, pockets, and other similarly heavy areas may not be
completely dry when the rest of the load has reached the selected
dryness level. This is normal. Select the More Dry or Very Dry
dryness level if desired.
• If you dry one heavy item with a lightweight load (such as one
towel with sheets), the heavy item may not be completely dry
when the rest of the load has reached the selected dryness level.
For best drying results, dry heavy items and lightweight items
separately.
41
10-Cycle Electric and Gas Dryers
www.insigniaproducts.com
USER MAINTENANCE INSTRUCTIONS
Understanding the error codes
Your dryer is equipped with an automatic error-monitoring system to
detect and diagnose problems at an early stage.
Dryer shuts
off before the
clothes are
dried.
• The dryer load is too small. Add more items or a few towels and
restart the cycle.
• The dryer load is too large. Remove some items and restart the
cycle.
• Consider using a Time dry cycle.
Dryer has an
odd odor.
• Your dryer draws air from the surrounding room air. Household
odors from paint, varnish, strong cleaners, and so forth, may enter
your dryer with the surrounding room air. This is normal. When
these odors linger in the air, ventilate the room completely before
using your dryer.
Clothing is
still wrinkled
after using
the Wrinkle
Prevent
setting.
• Small loads of one to four items work best.
• If the dryer load is too large, items cannot tumble freely. Try
loading fewer items.
• Make sure that the items in the dryer load are similar. The Wrinkle
Prevent setting works best when the items in the dryer load are
similar-type items.
There is lint
on the
clothing.
• Check pockets thoroughly before washing and drying clothes.
Things like paper or tissue can break up into small pieces that turn
into lint.
• Clean the lint filter before every cycle. Some loads that produce
high amounts of lint can clog the filter.
• Some fabrics are lint producers (like a fuzzy white cotton towel)
and they should be dried separately from clothes that are lint
trappers (like a pair of black linen pants).
• Divide larger loads into smaller loads for drying.
ERROR CODE POSSIBLE CAUSE SOLUTIONS
C9 The PCBs failed. Contact authorized service
personnel for help. DO NOT use
your dryer.
E4 The humidity sensor failed. Your dryer will complete the current
operating cycle but items could be
over dried. Your dryer can still
operate under the Time cycles.
Contact authorized service
personnel for help.
E5 The temperature sensor failed. Contact authorized service
personnel for help. DO NOT use
your dryer.
PROBLEM SOLUTION
42
www.insigniaproducts.com
USER MAINTENANCE INSTRUCTIONS
Specifications
Dimensions
(H × W × D)
45.8 in. × 27 in. × 31.5 in.
(116.3 cm × 68.6 cm × 80.0 cm)
Weight Gross: 150 Ibs. (68 kg)
Net: 135.8 lbs. (61.6 kg)
Power Electric: 120 V/240 V AC 60 Hz
Gas: 120 V AC 60 Hz
Heating rating Electric: 5,230 W
Gas: 20,000 BTU/hr.
43
www.insigniaproducts.com
10-Cycle Electric and Gas Dryers
ONE-YEAR LIMITED WARRANTY
Definitions:
The Distributor* of Insignia branded products warrants to you, the original purchaser of this new
Insignia-branded product (“Product”), that the Product shall be free of defects in the original
manufacturer of the material or workmanship for a period of one (1) year from the date of your
purchase of the Product (“Warranty Period”).
For this warranty to apply, your Product must be purchased in the United States or Canada from a
Best Buy branded retail store or online at www.bestbuy.com or www.bestbuy.ca
and is packaged
with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your
purchase date is printed on the receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the
Product is determined to be defective by an authorized Insignia repair center or store personnel,
Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the
Product at no charge with new or rebuilt comparable products or parts. Products and parts
replaced under this warranty become the property of Insignia and are not returned to you. If
service of Products or parts are required after the Warranty Period expires, you must pay all labor
and parts charges. This warranty lasts as long as you own your Insignia Product during the
Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website
(www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any
Best Buy store. Make sure that you place the Product in its original packaging or packaging that
provides the same amount of protection as the original packaging.
To obtain warranty service, in the United States and Canada call 1-877-467-4289. Call agents may
diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or
websites to the original purchaser of the product in the country where the original purchase was
made.
What does the warranty not cover?
This warranty does not cover:
• Food loss/spoilage due to failure of refrigerator or freezer
• Customer instruction/education
•Installation
•Set up adjustments
• Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
• Accidental damage
•Misuse
•Abuse
•Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in
communal areas of a multiple dwelling condominium or apartment complex, or
otherwise used in a place of other than a private home.
• Modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods
(burn-in).
44
NS-TDRE75W1/NS-TDRG75W1/NS-TDRE75W1-C
www.insigniaproducts.com
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia to service the Product
• Products sold “as is” or “with all faults”
•Consumable
• s, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly
illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to
five (5) pixel failures throughout the display. (Pixel based displays may contain a limited
number of pixels that may not function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or
pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY
FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR
PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER
EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED
WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY
PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
*Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2021 Best Buy. All rights reserved.
www.insigniaproducts.com
1-877-467-4289 (U.S. and Canada)
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2021 Best Buy. All rights reserved.
V3 ENGLISH
21-0667
