USER GUIDE
16-Cycle 4.4 Cu. Ft.
Front Load Electric Dryer
NS-FDRE44W1/NS-FDRE44W1-C
Before using your new product, please read these instructions to prevent any damage.
www.insigniaproducts.com
2
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SAFETY AND PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Front components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Back components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Unpacking your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Choosing a location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Electric requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Grounding requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Installing your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Tools you will need. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Materials you will need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Before you start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Step-by-step instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Stacking your washer and dryer (optional) . . . . . . . . . . . . . . . . . . . . . . . . . .26
Using your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Drying a load of clothes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Unloading your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Setting the child lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Cleaning the lint filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Emptying the water reservoir. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Dryer options and settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Special laundry tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Maintaining your dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Cleaning the heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Cleaning the exterior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Cleaning the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Cleaning the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Cleaning the moisture sensors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Understanding the error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Introduction
Congratulations on the purchase of your new Insignia dryer. Insignia dryers
feature the latest in design and capabilities and will provide reliable and
trouble-free performance.
3
NS-FDRE44W1/NS-FDRE44W1-C
www.insigniaproducts.com
SAFETY & PRECAUTIONS
SAFETY AND PRECAUTIONS
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
This manual contains important information on the installation, use, and care of
your appliance. Please read this manual carefully before installation and operation
of this machine to prevent injury and property damage.
Warnings and Important Safety Instructions in this manual DO NOT cover all
possible conditions and situations that may occur. You are responsible for using
common sense, caution, and care when you install, operate, and maintain your
dryer.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
For your safety the information in this manual must be followed to minimize
the risk of fire or explosion, or to prevent property damage, personal injury,
or death.
• Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
• Installation and service must be performed by a qualified installer, service
agency, or the gas supplier.
WARNING
This indicates that hazards or unsafe practices
may cause serious personal injury or death.
To reduce the risk of fire, explosion, electric
shock, or personal injury when using your
dryer, these basic safety precautions SHOULD
be followed.
CAUTION
This indicates that hazards or unsafe practices
may cause minor personal injury or
property damage.
WARNING
4
www.insigniaproducts.com
SAFETY & PRECAUTIONS
IMPORTANT SAFETY
INSTRUCTIONS
WARNING: To reduce the risk of fire, electric
shock, or injury to persons when using your
appliance, follow basic precautions, including
the following:
1 Read all instructions before using the appliance.
2 Use this appliance only for its intended purpose as described in this User
Guide.
3 Before use, the dryer must be properly installed as described in this manual.
4 ALWAYS follow the fabric care instructions supplied by the garment
manufacturer.
5 Do not dry articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, other flammable or explosive
substances as they give off vapors that could ignite or explode.
6 Do not use the dryer to dry clothes which have traces of any flammable
substance, such as vegetable oil, cooking oil, machine oil, flammable
chemicals, thinner, etc., or anything containing wax or chemicals, such as
mops and cleaning cloths. Flammable substances may cause the fabric to
catch fire by itself.
7 Do not store or use gasoline or other flammable vapors and liquids near this or
any other appliance.
8 Do not allow children to play on or in the appliance. Close supervision of
children is necessary when the appliance is used near children.
9 Before the appliance is removed from service or discarded, remove the door of
the drying compartment.
10 Do not reach into the appliance if the drum is moving.
11 Do not install or store this appliance where it will be exposed to the weather
or freezing temperatures.
12 Do not tamper with the controls.
13 Do not repair or replace any part of the appliance or attempt any servicing
unless it is specifically recommended in the user-maintenance instructions or
in published user-repair instructions that you understand and have the skills
to carry out.
14 Keep the area underneath and around your appliances free of combustible
materials (lint, paper, rags, etc.), gasoline, chemicals and other flammable
vapors and liquids.
15 Do not place items exposed to cooking oils in your dryer. Items contaminated
with cooking oils may contribute to a chemical reaction that could cause a
load to catch fire. To reduce the risk of fire due to contaminated loads, the final
part of a tumble dryer cycle occurs without heat (cool down period). Avoid
stopping a tumble dryer before the end of the drying cycle unless all items are
quickly removed and spread out so that the heat is dissipated.
5
NS-FDRE44W1/NS-FDRE44W1-C
www.insigniaproducts.com
SAFETY & PRECAUTIONS
16 Packaging material can be dangerous for children. There is a risk of
suffocation! Keep all packaging from children.
17 Always check the inside of the dryer for foreign objects before loading
laundry. Keep the door closed when not in use.
18 Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or product.
19 Clean the lint screen before or after each load.
20 Keep the area around the exhaust opening and surrounding areas free from
lint, dust, and dirt.
21 The interior of the dryer and exhaust duct should be cleaned periodically by
qualified service personnel.
22 This appliance must be grounded. See Electric requirements on page 18 and
Grounding requirements in the INSTALLATION REQUIREMENTS on page 11.
23 This appliance must be properly grounded. Never plug the power cord into a
receptacle that is not grounded adequately and in accordance with local and
national codes. Refer to installation instructions for grounding this appliance.
24 Ensure pockets are free from small irregularly shaped hard objects and foreign
material, i.e. coins, knives, pins, etc. These objects could damage your dryer.
25 Do not use heat to dry articles containing foam rubber or similarly textured
rubber-like materials.
26 Do not place the items exposed to cooking oils in your dryer. Items
contaminated with cooking oils may contribute to a chemical reaction that
could cause a load to catch fire.
27 To reduce the risk of fire due to contaminated loads, the final part of a tumble
dryer cycle occurs without heat (cool down period). Avoid stopping a tumble
dryer before the end of the drying cycle unless all items are quickly removed
and spread out so that the heat is dissipated.
SAVE THESE INSTRUCTIONS
To reduce the risk of fire or explosion
• Do not dry items that have been previously cleaned, washed, soaked, or
spotted with gasoline, dry cleaning solvents, or other flammable or explosive
substances. They emit vapors that could ignite or explode. Any material that
has been in contact with a cleaning solvent or flammable liquids or solids
should not be placed in the dryer until all traces of these flammable liquids or
solids and their fumes have been removed.
• There are many highly flammable items used in homes, such as acetone,
denatured alcohol, gasoline, kerosene, some liquid household cleaners, some
spot removers, turpentine, waxes, and wax removers.
• Do not dry items containing foam rubber (may be labeled latex foam) or
similarly textured rubber-like materials on a heat setting. Heated foam rubber
materials can under certain circumstances, produce fire by spontaneous
combustion.
WARNING
6
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
1 Do not sit on top of the dryer.
2 Because of continuing product improvements, Best Buy reserves the right to
change specifications without notice. For complete details, see the Installation
Instructions packed with your product before selecting cabinetry, making
cutouts, or beginning installation.
3 Do not dry clothing with large buckles, buttons, or other heavy metal or solid
things.
4 Install and use in accordance with the manufacturer’s instructions.
5 Do not place items in your dryer that have been spotted or soaked with
vegetable oil or cooking oil. Even after being washed, these items may contain
significant amounts of these oils.
6 Residual oil on clothing can ignite spontaneously. The potential for
spontaneous combustion increases when items containing vegetable oil or
cooking oil are exposed to heat. Heat source such as your dryer can warm
these items, allowing an oxidation reaction in the oil to occur.
7 Oxidation creates heat. If this heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking, or storing these kinds of items may
prevent heat from escaping and can create a fire hazard.
8 Take care that children’s fingers are not caught in door when closing it. This
may result in injury.
• Clothes dryer installation must be performed by a qualified installer.
• Install the clothes dryer according to the manufacturer’s instructions and local
codes.
• To reduce the risk of severe injury or death, follow all installation instructions.
• Save these instructions.
Features
Package contents
• 16-Cycle Electric Dryer
• Stacking kit (compatible with NS-FWM27W1 washer)
•Drain hose
• User Guide
CAUTION
WARNING
7
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
Front components
Back components
Water reservoir
Side plate
Maintenance cover
Adjustable legs (2)
Control panel
Door
Filter
Fan cover
Wiring box
Drain hose
8
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS

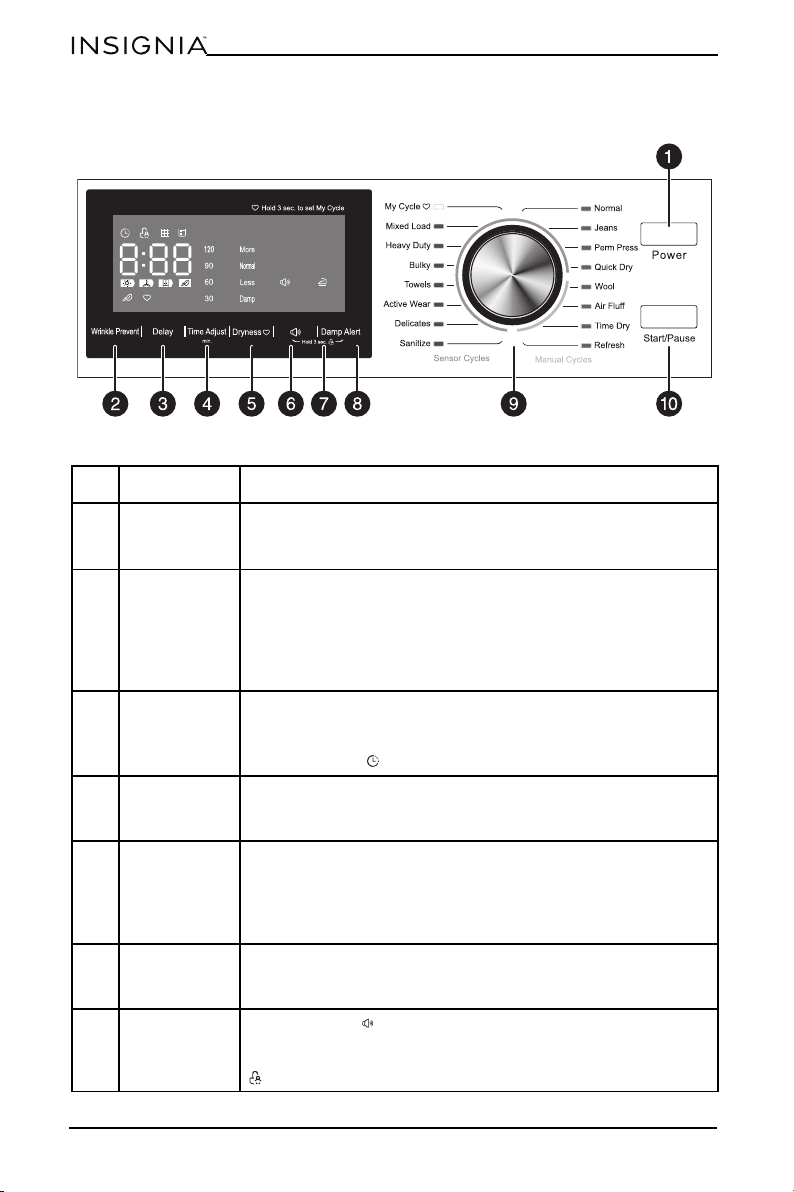

Control panel
# ITEM DESCRIPTION
1
Power Press to turn your dryer on.
If your dryer is on for more than 10 minutes without any
buttons being pressed, it automatically goes into stand-by.
2
Wrinkle
Prevent
Press once to add the wrinkle prevent step into the operating
program. Press again to cancel selection.
When active, Wrinkle Prevent provides about 90 minutes of
intermittent tumbling in unheated air at the end of the cycle to
reduce wrinkling. The load is already dry, and can be removed
at any time during the wrinkle care cycle.
3
Delay Press to delay your clothes drying time within 24 hours. The
program starts after the number of hours you have set.
When the delay program starts, the time counts down on the
display and the delay icon blinks.
4
Time Adjust Press repeatedly to change your cycle’s drying time to 120
minutes, 90 minutes, 60 minutes, or 30 minutes. For manual
cycles only.
5
Dryness Press to select the dryness level, including More, Normal, Less,
or Damp. Different dry levels have different drying time. For
clothes to be ironed manually, select a lower dry level.
Press and hold for three seconds to save your favorite drying
cycle. This cycle will be “My Cycle.”
6
Signal Press once to turn off the buzzer sound. Press again to turn on
the sound. Your selection is saved until the button is pressed
again.
7
Child lock Press and hold (signal) and Damp Alert together for three
seconds to turn the child lock function on or off. The child lock
indicator lights. All buttons except Power are locked when the
child lock is activated.
9
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
Understanding control panel indicators
8
Damp Alert Press to turn the Damp Alert function on or off. An iron
indicator appears on the right side of the display. The dryer
beeps for 10 seconds when the moisture in the clothes is ideal
for ironing. At this time, you can take those garments out and
continue drying the remaining clothes by pressing
Start/Pause.
Note: The dryer will not stop drying if you don't take garments
out.
9

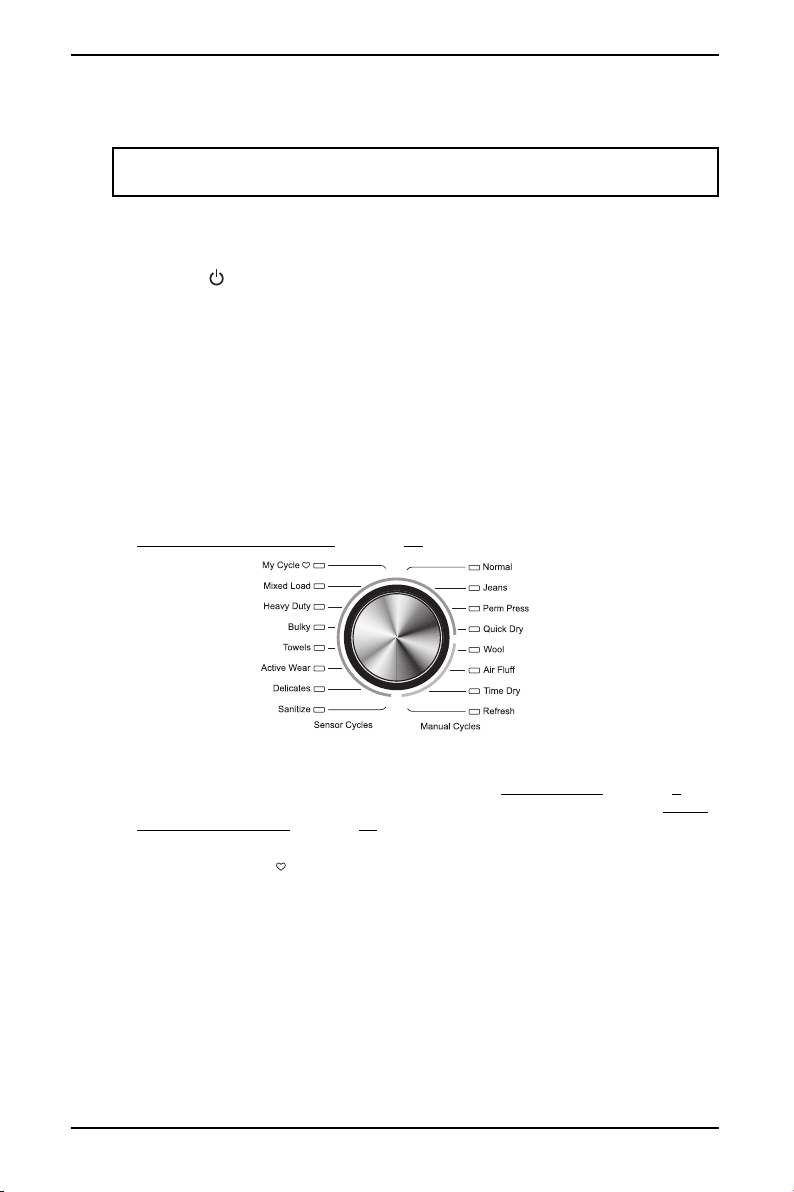

Cycle selector Turn the knob to select the ideal cycle for your type of load. The
cycle you select determines the heat control for the cycle.
Normal, Jeans, Perm Press, Quick Dry, My Cycle, Mixed Load,
Heavy Duty, Bulky, Towels, Active Wear, Delicates, and Sanitize
are Sensor cycles. Your cycle’s drying time is determined by the
moisture in your clothes.
Wool, Air Fluff, Time Dry, and Refresh are Manual cycles.
10
Start/Pause Press to start or pause the program. You can't change any
setting except add a garment.
# ITEM DESCRIPTION
1
Delay start
indicator
Displays when your dryer’s delay start setting is turned on.
The cycle time shows how long until your dryer starts
running.
2
Child lock
indicator
Displays when the child lock is turned on. Press (signal)
and Damp Alert together for three seconds to turn the
child lock function on or off.
3
Empty lint filter
indicator
Appears when the lint filter needs to be cleaned. See
“Cleaning the lint filters
” on page 35 for more information.
4
Empty water
reservoir indicator
Displays when the water reservoir needs to be emptied.

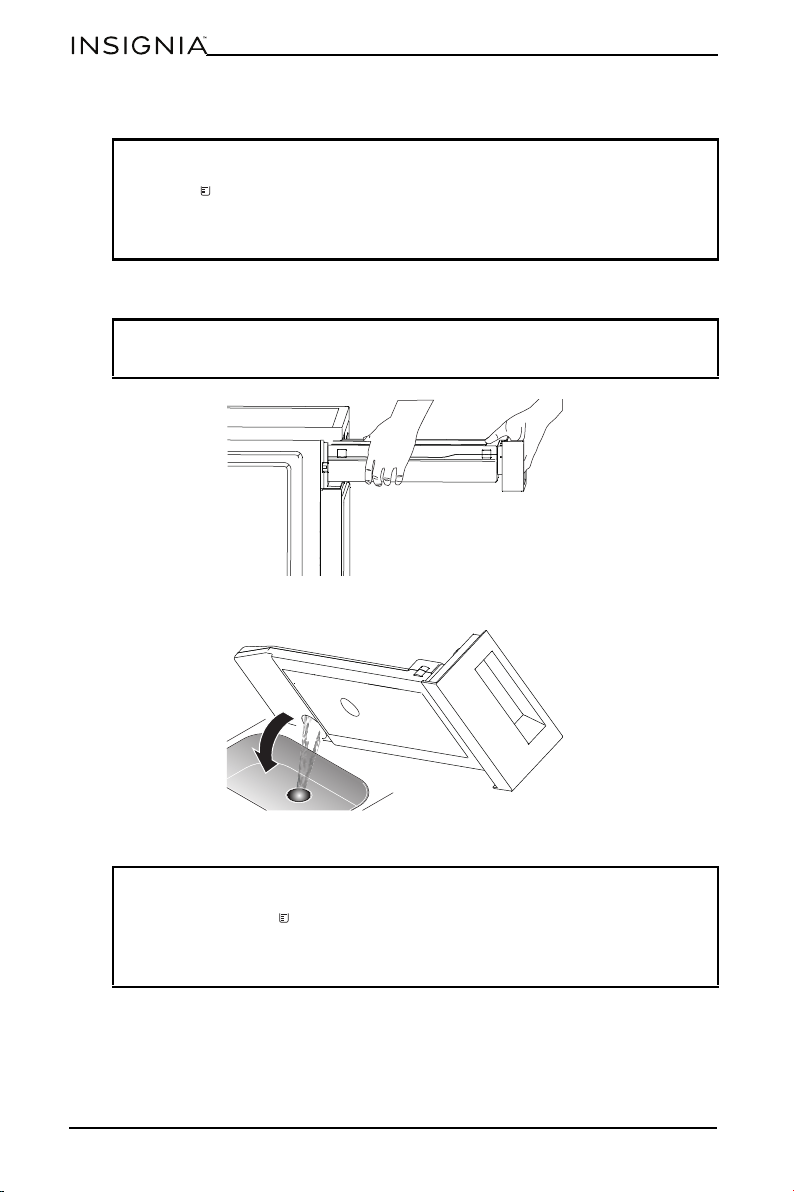

See “Emptying the water reservoir
” on page 38 for more
information.
# ITEM DESCRIPTION
10
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
5
Cycle time Displays how much time is remaining in your drying cycle.
If you’re using a Manual cycle (Wool, Air Fluff, Time Dry, or
Refresh), press Time Adjust to change the remaining time.
Notes:
• You cannot adjust the time when using a Sensor cycle.
The dryer automatically adjusts the display time while
drying. It is normal for the time to increase suddenly
because the dryer senses that the clothes are still too
wet and more time is needed to dry your clothes.
• When the Delay start indicator is lit, it displays how
long until your dryer starts running.
6
Heating air
indicator
Flashes when drying with heated air.
7
Wrinkle prevent
indicator
Flashes when the Wrinkle Prevent function is running.
8
My Cycle
indicator
Lights when you select My Cycle with the cycle selector.
9
Cooling air
indicator
Flashes when drying with cooling (non-heated) air.
10
Cycle finished
indicator
Flashes when the cycle is finished and it is time to open
the dryer door.
11
Wrinkle prevent Displays when the Wrinkle Prevent function is turned on.
12
Manual drying time
selection
Displays your time options (120, 90, 60, or 30 minutes)
when using a Manual cycle (Wool, Air Fluff, Time Dry, or
Refresh). Press Time Adjust to change the time selection.
Note: This function is not available for the Wool cycle.
13
Dryness level
selection
Displays the dryness level options (More, Normal, Less, or
Damp) for the cycle that you selected. Press Dryness to
select a level.
14
Signal indicator Displays when the dryer signal is turned on.
15
Damp alert
indicator
Displays when the Damp alert function is turned on.
# ITEM DESCRIPTION
11
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
Unpacking your dryer
• Unpack your dryer and inspect it for shipping damage. Make sure that you
have received all the items shown in Package contents on page 6.
• To prevent personal injury or strain, wear protective gloves and use a furniture
mover whenever lifting or carrying your dryer.
Choosing a location
INSTALLATION REQUIREMENTS
IMPORTANT TO THE INSTALLER
Read the following instructions carefully before installing the dryer. These
instructions should be kept for future reference.
•The dryer is not suitable for installation in a mobile home.
•This may stay in for reference for the dryer being replaced.
•Remove the door from all discarded appliances to avoid the danger
of a child being trapped and suffocating. After unplugging, cut off
power cord.
BASIC REQUIREMENTS
Make sure you have everything necessary for the proper installation.
• GROUNDED ELECTRICAL OUTLET is required. Refer to the Electric
requirements on page 18.
• POWER CORD for electric dryer (except for Canada).
LOCATION REQUIREMENTS
• The dryer should be located where there is enough space at the front for
loading the dryer, and enough space behind for the exhaust system and the
drain hose to be used.
• Make sure that the room in which the dryer is located has enough fresh air.
The dryer must be located where there are no air-flow obstructions.
• The dryer must not be installed or stored in an area where it will be exposed to
water or weather. The dryer area must be kept clear of combustible materials,
gasoline, and other flammable vapors and liquids. A dryer produces
combustible lint. The area around the dryer should be kept lint-free.
• If your dryer needs to be connected to an external drain hose, find a place for
the dryer to drain the water out.
WARNING:
• Packing materials can be dangerous to children. Keep all packing materials
(such as plastic bags and polystyrene) out of the reach of children.
• Do not operate your dryer on the styrofoam base. Doing so will result in
serious vibration, which could cause equipment damage or result in physical
injury.
CAUTION
12
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Do not install or store your dryer in an area where it will be exposed to water or
weather. Keep the dryer area clear of combustible materials, gasoline, and other
flammable vapors and liquids. Your dryer produces combustible lint. Keep the
area around the dryer lint-free.
33.5 in.
(85.1 cm)
2
3
.
4
i
n
.
5
9
.
5
c
m
42.2 in. (107.2 cm)
3
3
.
5
i
n
.
(
8
5
.
1
c
m
)
25.7 in.
65.3 cm
13
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
Installing side-by-side, or in an alcove, closet, or other recessed area
If you install your dryer in an alcove, closet, or wall insert/recessed, the front of the
closet must have two unobstructed air openings for a combined minimum total
area of 72 sq.in. (465 sq. cm) with a minimum clearance of 3 in. (7.6 cm) at the top
and bottom. A slatted door with equivalent space clearance is acceptable.
Minimum clearances between your dryer and adjacent walls or other surfaces are:
• Either side: 1 in. (2.5 cm)
• Rear: 2 in. (5.1 cm)
• Top: 2 in. (5.1 cm)
WARNING:
No other fuel-burning appliance should be installed in the same closet as the
dryer.
14
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
• Front: 2 in. (5.1 cm)
48 in.² (310 cm²)
24 in.² (155 cm²)
3 in. (7.6 cm)
3 in. (7.6 cm)
15
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
1 in.
(2.5 cm)
1 in.
(2.5 cm)
1 in. (2.5 cm)
2 in. (5.1 cm)
23.4 in. (59.5 cm)
23.4 in. (59.5 cm)
25.7 in. (65.3 cm)
2 in.
(5.1 cm)
2 in.
(5.1 cm)
16
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Installing under a counter
WARNING: No other fuel-burning appliance should be installed in the same
closet as the dryer.
≥35.5 in.
(≥90.1 cm)
1 in.
2.5 cm
1 in.
2.5 cm
23.4 in.
59.5 cm
42.2 in. (107.2 cm)
3
3
.
5
i
n
.
(
8
5
.
1
c
m
)
25.7 in.
(65.3 cm)
17
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
Installing your dryer and washer vertically
Your dryer can be stacked on top of the NS-FWM27W1 washing
machine, using the included stacking kit. See “Stacking your washer
and dryer (optional)” on page 26 for stacking instructions.
Leave at least two inches between your appliances’ sides and any
surrounding walls. Position the back of your appliances at least 2 in. (5.1
cm) away from the wall. If there’s a door in front of your appliances,
make sure that it is vented properly and at least 3 in. (7.6 cm) from the
front of your appliances.
66.9 in. (170 cm)
2 in. (5.1 cm)
1 in. (2.5 cm)
1 in. (2.5 cm)
23.4 in. (59.5 cm)
3 in. (7.6 cm)
25.7 in. (65.3 cm)
2 in. (5.1 cm)
48 in.² (310 cm²)
24 in.² (155 cm²)
3 in. (7.6 cm)
3 in. (7.6 cm)
Dryer
Washer
18
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Electric requirements
Electrical connections
An individual branch (or separate) circuit serving only your dryer is recommended.
DO NOT USE AN EXTENSION CORD.
Electric models - U.S. only
The dryers require a 120/240 volt, 60Hz AC approved electrical service. The electric
service requirements can be found on the data label located on the back of your
dryer.
A 30-ampere fuse or circuit breaker on both sides of the line is required.
• You should plug the power cord into a 30-ampere receptacle.
• A power cord is NOT provided with U.S. electric model dryers.
Electric models - Canada only
You need a 120/240 volt, 60Hz AC approved electrical service fused through a
30-ampere fuse or circuit breaker on both sides of the line.
All Canadian models are shipped with the power cord attached. The power cord
should be plugged into a 30-ampere receptacle.
WARNING:
The wiring diagram is located on the back panel of your dryer.
• Incorrectly connecting your dryer’s grounding conductor can result in
electric shock. Check with a qualified electrician or serviceman if you are in
doubt as to whether your dryer is correctly grounded. Do not modify the
plug provided with your dryer. If the plug does not fit the outlet, have the
correct type outlet installed by a qualified electrician.
• To prevent unnecessary risk of fire, electrical shock, or personal injury, all
wiring and grounding must be done in accordance with local codes, or in
the absence of local codes, with the National Electrical Code, ANSI/NFPA No.
70 - Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 -
Latest Revisions and local codes and ordinances. It is your responsibility to
provide adequate electrical services for your dryer.
WARNING: RISK OF ELECTRIC SHOCK
• When local codes allow, the electrical supply of the dryer may be connected
by means of a new power supply cord kit, marked for use with a dryer, that is
UL listed and rated at a minimum of 120/240 volts, 30-ampere with three
No. 10 copper wire conductors terminated with closed loop terminals,
open-end spade lugs with turned up ends, or with tinned leads.
• Do not reuse a power supply cord from an old dryer. The power cord electric
supply wiring must be retained at the dryer cabinet with a suitable UL-listed
strain relief.
• Grounding through the neutral conductor is prohibited for (1) new
branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and
(4) areas where local codes prohibit grounding through the neutral
conductor. (Use a four-prong plug for four-wire receptacles, NEMA type
14-30R.)
19
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
Power outlet types
Using a three-wire outlet
If your outlet is a three-wire (three-prong) outlet, choose a three-wire power
supply cord with ring or spade terminals and UL listed strain relief. The three-wire
power supply cord must:
• Be at least 4.9 ft. (1.5 m) long.
• Have three 10-gauge solid copper wires.
• Match a three-wire outlet of NEMA Type 10-30R.
• Be rated 120/240 V, minimum 10 A.
See Step-by-step instructions
on page 21 for instructions on how to connect a
power cord to your dryer.
Using a four-wire outlet
If your outlet is a four-wire (four-prong) outlet, choose a four-wire power supply
cord with ring or spade terminals and UL listed strain relief. The four-wire power
supply cord must:
• Be at least 4.9 ft. (1.5 m) long.
• Have four 10-gauge solid copper wires.
• Match a four-wire outlet of NEMA Type 14-30R. The ground wire (ground
conductor) may be either green or bare. The neutral conductor must be
identified by a white color.
See Step-by-step instructions
on page 21 for instructions on how to connect a
power cord to your dryer.
Grounding requirements
Your dryer must be grounded. If a malfunction or breakdown occurs, the
grounding reduces the risk of electrical shock by providing a path of least
resistance for the electrical current.
• For products sold in the U.S., your dryer has an optional cord with an
equipment-grounding conductor and a grounding plug, which is sold
separately. For products sold in Canada, your dryer is equipped with a cord
having an equipment-grounding conductor and a grounding plug.
• The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
• Do not modify the plug provided with the appliance: if it will not fit the outlet,
have a proper outlet installed by a qualified electrician.
Three-wire outlet (10-30R) Four-wire outlet (14-30R)
20
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
• If a power cord is not used and the electric dryer is to be permanently wired,
this appliance must be connected to a grounded metal, permanent wiring
system, or an equipment-grounding conductor must be run with the circuit
conductors and connected to the equipment-grounding terminal or lead on
the appliance.
Installing your dryer
Tools you will need
Materials you will need
• 3- or 4-prong (dependent on owner’s house) electric power cord
Before you start
Before you start installing your dryer, make sure that:
• The location you selected has a grounded electrical outlet. See Grounding
requirements on page 19.
• For U.S. models, you have the correct type power cord (not included). See
Electric requirements
on page 18.
Note: For Canadian models, the power cord comes pre-installed.
WARNING:
• Improper connection of the equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electrician or service
representative or personnel, if you are in doubt as to whether the appliance
is properly grounded.
• Certain internal parts are intentionally not grounded and may present a risk
of electric shock only during servicing. Service Personnel - Do not contact
the following parts while the appliance is energized: main motor and
cooling fan (located on blower housing).
Important: We recommend that you use a qualified installer to install your
dryer.
Pliers
Phillips screwdriver
Level
Adjustable wrench that opens
to 1" (2.5 cm)
Cutting knife
Flat-head screwdriver
Tape measure
21
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
Step-by-step instructions
Step 1: Move your dryer to the location you selected
• Move your dryer to the location you selected, but do not push your dryer all
the way back into the location. You need to connect the power cord before
you move your dryer into its final position.
Step 2: Connect the power cord (U.S. models only)
• Determine whether your electric outlet is a three-wire or four-wire outlet. See
Power outlet types
on page 19.
Three-wire outlet
1 Connect the power cord grounding wire to the external screw. If there is no
power cord grounding wire, remove the neutral wire from the center terminal
block screw on your dryer, then connect it to the external ground conductor
screw and connect the neutral wire to the center terminal block.
2 Remove the two side terminal block screws, then connect the other wires to
the outer terminal screws. Make sure that you cross the screw through the
terminal ring, then tighten the screw.
Note: For information about space requirements see “Choosing a location” on
page 11.
Center
terminal
block screw
External ground connector
Neutral wire (white or
center wire)
Neutral grounding
wire (white)
3/4" (1.9 cm) UL-listed
strain relief
22
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
3 Tighten the strain relief screws.
4 Insert the tab on the terminal block cover into your dryer's rear panel slot,
then secure the cover with a screw.
Four-wire outlet
1 Remove the center terminal block screw.
2 Connect the power cord ground wire (green or unwrapped) to the external
ground conductor screw.
3 Connect the power cord neutral wire (white or center wire) and your dryer's
ground wire (white) under the center screw on the terminal block. Make sure
that you cross the screw through the power cord terminal ring, then tighten
the screw.
WARNING: We recommend ring-type terminals. If using strap terminals, make
sure that they are tightened.
WARNING:
We recommend using ring-type terminals. If you use strap terminals, make
sure that they are tightened.
Center
terminal block
screw
External ground connector
Neutral wire (white or center wire)
Neutral grounding
wire (white)
3/4" (1.9 cm)
UL-listed strain
relief
Green
Black
White
Red
23
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
4 Connect the other wires to the outer terminal block screws. Make sure that
you cross the screws through the terminal rings, then tighten the screws.
5 Tighten the strain relief screws.
6 Insert the tab on the terminal block cover into your dryer's rear panel slot,
then secure the cover with a screw.
WARNING:
We recommend using ring-type terminals. If you use strap terminals, make
sure that they are tightened.
WARNING:
• Risk Of Electric Shock - All U.S. models are produced for a 3-WIRE SYSTEM
CONNECTION.
• The dryer frame is grounded to the neutral conductor at the terminal block.
A 4-WIRE SYSTEM CONNECTION is required for new or remodeled
construction, mobile homes, or if local codes do not permit grounding
through neutral conductor.
• If the 4-wire system is used, the dryer frame cannot be grounded to the
neutral conductor at the terminal block. See to the “Electric requirements”
on page 18 for 3-wire or 4-wire system connections.
• Remove the terminal block cover plate. Insert the power cord with a
UL-listed strain relief through the hose provided in the cabinet near the
terminal block. A strain relief must be used. Do not loosen the nuts already
installed on the terminal block. Be sure they are tight. Use a 3/8 in. (1 cm)
deep well socket.
24
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS

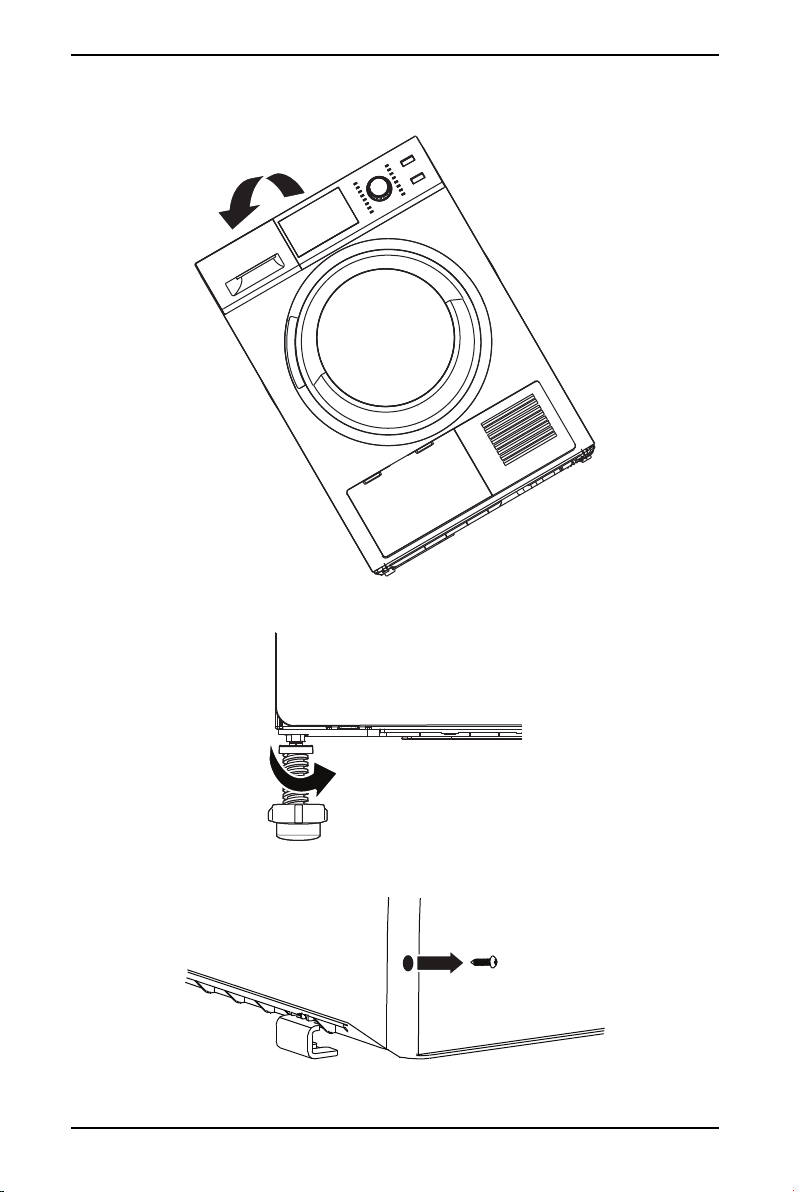

Step 3: Level your dryer
• To minimize vibration, noise, and unwanted movement, the floor must be a
level, solid surface.
• If your dryer is not level, carefully tilt your dryer just enough to adjust the
leveling feet on the bottom of your dryer. Extend the feet only as much as is
necessary. If the feet are extended too much, your dryer may vibrate.
Step 4: Installing the drain hose (optional)
You can set up your dryer to automatically drain water with the included drain
hose. If you don’t want to connect the drain hose, water will collect in the water
reservoir and you’ll need to empty it after each use.
1 Remove the drain hose from the holder.
Note: If extending the legs isn’t enough to level your dryer, use a flat, wooden
board to make your dryer level.
Level
TightenLoosen
Adjustable leg
Drain hose
25
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS

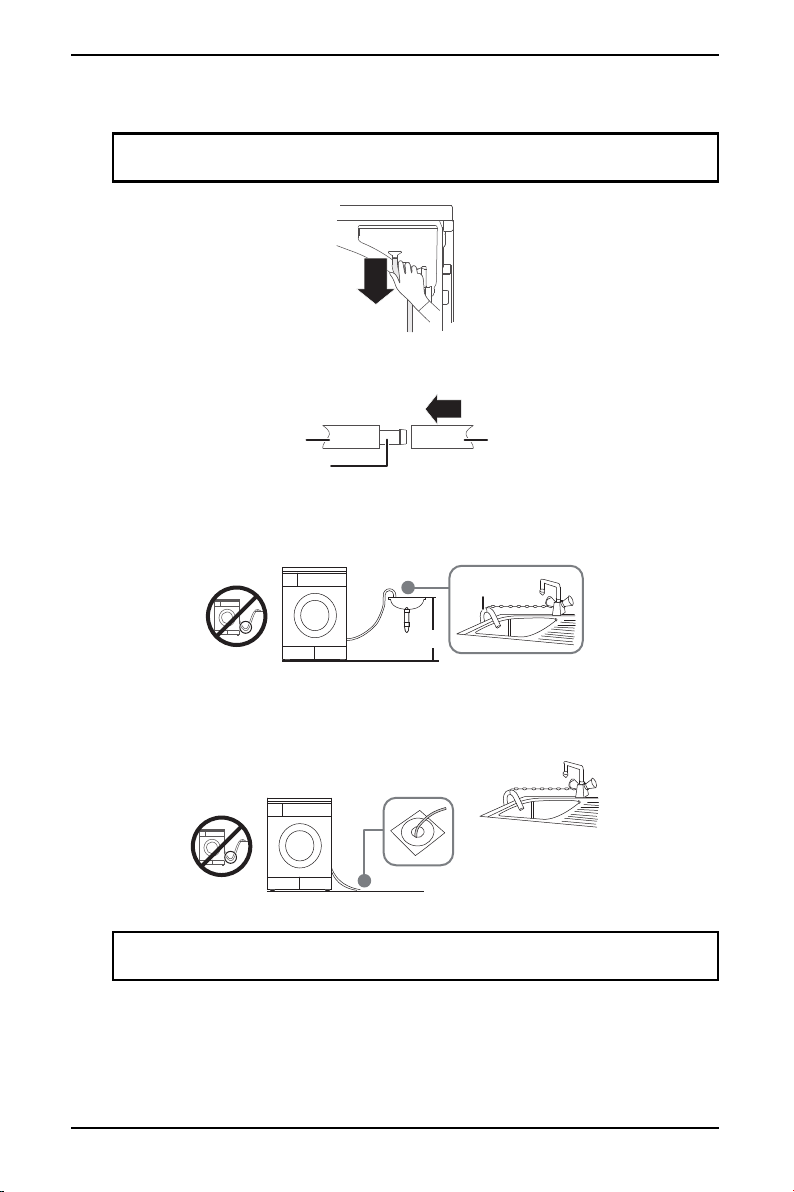

2 Disconnect the hose from the water reservoir inflow.
3 Insert the drain hose and the external drain hose into the connector.
4 To drain the water:
A Put the hose in a sink.
OR
B Put the hose in a floor drain.
Note: To prevent leakage, there is tension between the hose and inflow. You
may need to exert force to disconnect the hose.
Note: When you put the hose in the washing basin or floor drain. make sure
that the hose is not bent because it can slow the drainage.
External drain hose
Connector
Drain hose
Condensing
drain hose
33" (2.5 cm max.
26
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Step 5: Plug in your dryer
Make sure that all exhaust and electrical connections are complete, then plug your
dryer into the electrical outlet.
Step 6: Check the final installation
• Before you use your dryer, make sure that:
• The dryer is plugged into an electrical outlet and is properly grounded.
• The dryer is level and sits firmly on the floor.
• Start your dryer to confirm that it runs, heats, and shuts off.
Stacking your washer and dryer (optional)
With the included stacking kit, your dryer can be stacked on top of your
NS-FWM27W1 2.7 cu. ft. washer. This kit is not approved for stacking with other
models.
Before you begin, make sure that you have the correct washer model and a drill.
Important: Before you connect the power cord, review the electric
requirements in Electric requirements
on page 18.
Before testing or operating your dryer, make sure that your dryer is grounded.
See Grounding requirements on page 19.
WARNING:
• This stacking kit only works with the Insignia brand washer (NS-FWM27W1)
and dryer (NS-FDRE44W1/NS-FDRE44W1-C).
• Installation must be performed by a qualified installer.
• More than two people are required to lift the dryer into position because of
its weight and size. Failure to do so could result in personal injury or death.
• DANGER: Incorrect installation may lead to a safety accident. Keep kids, the
elderly, and pets away from the installation area.
• Both washer and dryer must be powered off during stacking kit installation.
• The dryer must be stacked on top of a washer. Do NOT place a washer on top
of your dryer.
27
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
Stacking parts
1 With two people, tip the dryer to one side.
PART QUANTITY PART QUANTITY
22
24
410
Right-angle rubber pad
Connecting bracket
Connecting bracket rubber
pad
Support piece
Support piece rubber pad
Screw
28
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS

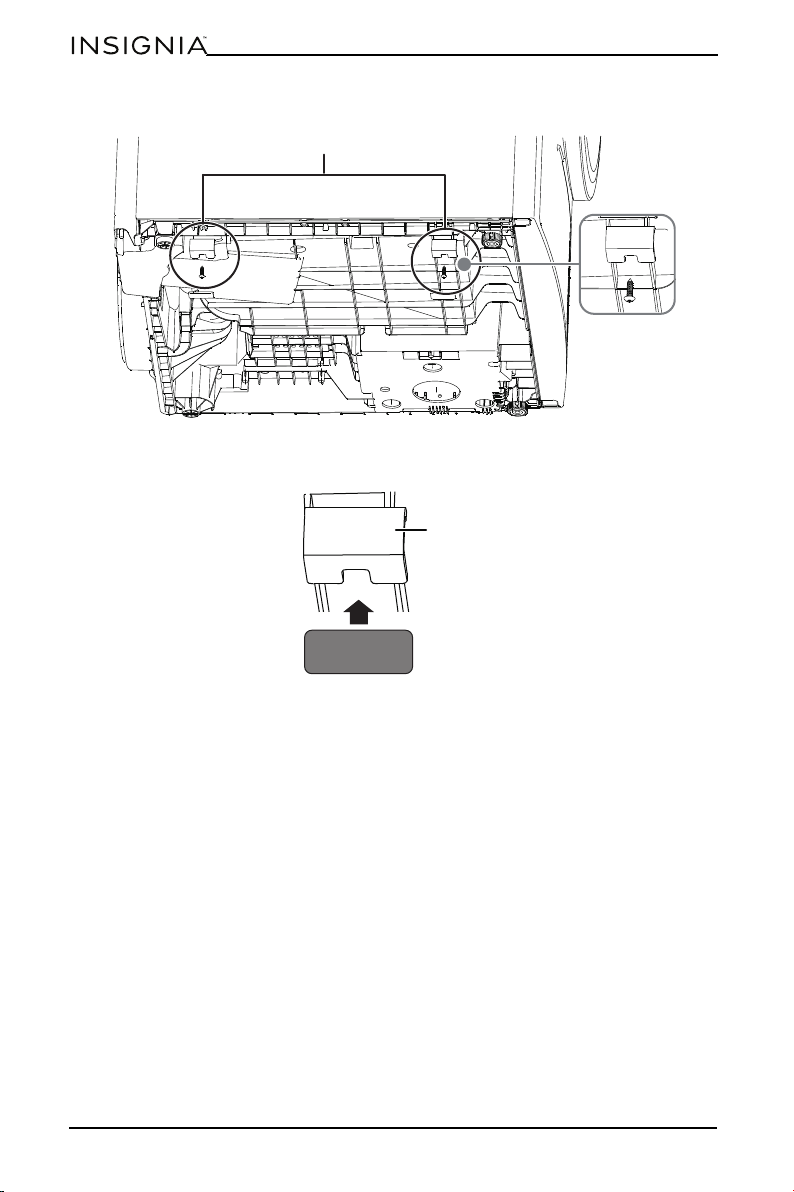

2 Attach two support pieces with two of the provided screws.
3 Peel and stick one support piece rubber pad to each of the support pieces on
the surface that will touch the washer top.
Support pieces
Support piece
Support piece rubber pad
29
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
4 Tip the dryer to the other side to attach two support pieces and rubber pads.
5 Turn the dryer feet counter-clockwise to retract them.
6 Remove the two screws from the back of your dryer.
30
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
7 Attach the connecting bracket rubber pads to the inside face of the two
connecting brackets.
8 Using the two connecting brackets as guides, use a 3 mm drill bit to drill holes
into the washer to connect the brackets (two holes per bracket). Use the left
bracket on the left side and the right bracket on the right side.
Note: There are no pilot screw holes in the washer. You must drill directly into
the washer cover. Make sure that you use a 3 mm drill bit.
Note: The connecting brackets are labeled L (left) and R (right).
Bracket holes
31
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
9 Mount the connecting brackets to the back of the washer.
10 Attach right angle rubber pads to front of washer where the front feet of the
dryer will sit.
Note: Hand tighten the screws. Don't use an electric screwdriver, and don't
over-tighten the screws.
32
www.insigniaproducts.com
OPERATING INSTRUCTIONS
11 With two people, one on each side, lift the dryer up and place on top of the
washer.
12 Use the provided screws (one screw per bracket) to attach the connecting
brackets to your dryer. You installed the brackets on the washer in step 9.
13 Turn the dryer feet clockwise to tighten them until the four metal support
brackets come in contact with the top of the washer and your dryer is stable in
position.
Note: We recommend that you use a lifting harness (not included).
33
NS-FDRE44W1/NS-FDRE44W1-C
www.insigniaproducts.com
OPERATING INSTRUCTIONS
Using your dryer
Drying a load of clothes
Step 1: Turn on your dryer
• Press the /POWER button to turn on your dryer.
Step 2: Load your dryer
• Place only one wash load in your dryer at a time.
• Heavy and lightweight fabrics take different amounts of time to dry. If you mix
heavy and lightweight fabrics in a load, lightweight fabrics may be dry at the
end of the cycle while heavy fabrics may still be damp.
• If you only need to dry one or two items, you can improve the tumbling action
and drying efficiency by adding a couple of similar items to the load.
• Overloading restricts tumbling action which results in uneven drying and
excessive wrinkling of some fabrics.
Step 3: Select the dryer cycle and options
1 Turn the cycle selector to select a drying cycle. For more information, see
Dryer options and settings on page 38.
2 Optional: Use the control panel buttons (like Wrinkle Prevent) to customize
the drying cycle. For descriptions of buttons, see Control panel on page 8. For
information about which buttons are available for each cycle type, see Dryer
options and settings on page 38.
3 Optional: After you select a drying cycle and customize the cycle, press and
hold the Dryness button for three seconds to save your settings. The My
Cycle light flashes and your dryer beeps three times to confirm that your
settings are saved.
When you want to use your saved cycle and settings again, select the My
Cycle option with the cycle selector.
Step 4: Start your dryer
1 Press Start/Pause to start the selected cycle.
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read
the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.
34
www.insigniaproducts.com
OPERATING INSTRUCTIONS
2 If you need to pause the cycle (for example to add or remove items or adjust
the load), press Start/Pause, then open the door. Your dryer stops tumbling.
When you are ready to start drying again, close the door, then press
Start/Pause.
Unloading your dryer
1 When the drying cycle is over, your dryer beeps three times and the Clean
Filter indicator flashes for 10 seconds.
2 Open the door and remove the items.
Setting the child lock
Your dryer has a child lock feature to prevent children from changing the settings
on your dryer. When you turn on the child lock, the only button that works is
Power (and the buttons to deactivate the lock).
1 Press and hold both the (volume) and Damp Alert buttons for three
seconds. The child lock light turns on.
2 To turn off the child lock, press and hold both the (volume) and Damp
Alert buttons for three seconds. The child lock light turns off.
Note: Opening the door while the dryer is running immediately stops the dryer.
You must press Start/Pause to resume.
Note: You should clean the lint filter after every load to avoid lint buildup and
to make sure that your dryer is running efficiently. See Cleaning the lint filters
on page 35.
Note:
• After you set the child lock, it remains active when you turn off the dryer.
When the dryer is turned back on, you cannot start it until the child lock is
turned off.
• If your dryer loses power, for example if you unplug it or your home’s power
goes out, the child lock is deactivated.
35
NS-FDRE44W1/NS-FDRE44W1-C
www.insigniaproducts.com
OPERATING INSTRUCTIONS
Cleaning the lint filters
• Gently pull the lint filter out of the slot at the bottom of the drum. Remove the
accumulated lint, then insert the filter back into the slot. Discard the lint.
WARNING:
• Do not operate your dryer without the lint filter in place.
• Do not use a damaged or broken lint filter. This may reduce performance
and/or cause a fire.
Note:
• You should clean the lint filter after every load to shorten the drying time
and to make sure that your dryer is running efficiently.
• If the lint is difficult to wipe away, you can gently wash the filter in mild,
soapy water. Make sure that you rinse all the soap off the filter and that the
filter is dry before you put it back into your dryer.
Note: When you turn on the power and before you start your dryer, the lint
filter indicator automatically flashes for10 seconds to remind you to check the
filter.
Lint filter
36
www.insigniaproducts.com
USER MAINTENANCE INSTRUCTIONS
Cleaning the base filter
1 Push down on both tabs simultaneously, then tilt the base filter cover forward
and remove it.
2 Unlock three locking levers that hold the filter in place.
3 Pull the handle to remove the base filter.
4 Clean the base filter. If there is too much lint, clean the filter in water and dry it
filter thoroughly before reinstalling. Clean the rubber sealing, both at the filter
and handle.
Filter base
37
NS-FDRE44W1/NS-FDRE44W1-C
www.insigniaproducts.com
USER MAINTENANCE INSTRUCTIONS
5 Replace the base filter and lock the three locking levers.
6 Close the cover until you hear a clicking sound.
Note:
• Clean the base filter at least once every three months to prevent lint
accumulation inside the dryer.
• Lint accumulated on the base filter blocks the air circulation.If you don't
clean the filter regularly, it increases drying time and energy consumption.
• Unplug the power cord before cleaning.
• Do not operate your dryer without the filter.
38
www.insigniaproducts.com
USER MAINTENANCE INSTRUCTIONS
Emptying the water reservoir
1 Grasp the water reservoir handle, then pull out and hold the water reservoir
with two hands.
2 Tilt the water reservoir and pour out the water into a sink or other drain.
3 Reinstall the water reservoir.
Dryer options and settings
•Settings in bold are initial settings. The • (dot) indicates optional functions
you can select.
• For best results, follow the wet load size recommendations noted for each
cycle.
Notes:
• Empty the water reservoir after each use. Otherwise, the drying cycle pauses
and the empty water reservoir indicator lights up. After the reservoir is
emptied, press Start/Pause to restart the cycle.
• Do not use the reservoir water for human or animal consumption.
• Do not use the dryer without the water reservoir in place.
Note: Pull out the water reservoir horizontally. Make sure not to spill water out
of the reservoir. Make sure that you keep the reservoir level to avoid spilling
water.
WARNING:
• Empty the water reservoir after each washing cycle. Otherwise, the program
will pause and the icon light. After the reservoir is emptied, press
Start/Pause to restart the dryer.
• Do not use the reservoir water for human or animal consumption.
• Do not use the dryer without the water reservoir.
39
NS-FDRE44W1/NS-FDRE44W1-C
www.insigniaproducts.com
USER MAINTENANCE INSTRUCTIONS
• Small load: Fill the dryer drum with three to four items, not more than
1/4 full.
• Medium load: Fill the dryer drum up to about 1/2 full.
• Large load: Fill the dryer drum up to about 3/4 full. Do not overload.
Items need to tumble freely.
CYCLE
RECOMMENDED
LOAD
DRYNESS
WRINKLE
PREVENT
TIME
ADJUST
MAX.
AMOUNT
DAMP ALERT
Normal
•Cotton
Damp
Less
Normal
More
•
Yes
Jeans
•Denim/Jeans
Damp
Less
Normal
More
•
Yes
Perm
Press
•Chemical fiber
(easy care)
Damp
Less
Normal
More
•
Yes
Quick
Dry
• Small amounts
of clothing
Damp
Less
Normal
More
•
Yes
Wool
• Wool
/
•
No
Air Fluff /
••
No
Time Dry /
••
No
Refresh /
••
No
Sanitize
•Cotton
More
•
No
Delicates
• Sensitive items
Damp
Less
Normal
More
•
Yes
Active
Wear
•Sports clothes
•Chemical fiber
Damp
Less
Normal
More
•
Yes
40
www.insigniaproducts.com
For the best results, follow these load size recommendations for each cycle:
Towel
•Towels
•Heavy cottons
Damp
Less
Normal
More
•
Yes
Bulky
•Blankets
• Sheets
•Comforters
Damp
Less
Normal
More
•
Yes
Heavy
Duty
•Jeans
• Corduroys
• Work clothes
•Sports clothes
Damp
Less
Normal
More
•
Yes
Mixed
Load
•Chemical fiber
Damp
Less
Normal
More
•
Yes
My Cycle Varies based on your personalized settings.
Note:
• The Wool cycle is not drying cycle. It is normally used to make woolens
regain their full shape.
• The Refresh cycle is not a heating cycle. It is normally used to refresh
clothing that has become wrinkled.
CYCLE MAX. LOAD WEIGHT RECOMMENDED LOAD
Normal 8 lbs. (3.6 kg) Cotton
Jeans 8 lbs. (3.6 kg) Jeans
Perm Press 7.5 lbs. (3.4 kg)
Chemical fiber (easy
care)
Quick Dry 2 lbs. (.9 kg)
Small amounts of
clothing
Wool 3 lbs. (1.4 kg) Wool
Air Fluff 2 lbs. (.9 kg) n/a
Time Dry 8 lbs. (3.6 kg) n/a
Refresh 3 lbs. (1.4 kg) n/a
Sanitize 5 lbs. (2.3 kg) Cotton
Delicates 3 lbs. (1.4 kg) Delicates
CYCLE
RECOMMENDED
LOAD
DRYNESS
WRINKLE
PREVENT
TIME
ADJUST
MAX.
AMOUNT
DAMP ALERT
41
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
Active Wear 5 lbs. (2.3 kg)
Sports clothes, chemical
fiber
Towel 8 lbs. (3.6 kg) Towels
Bulky 4 lbs. (1.8 kg) Bedsheets, comforters
Heavy Duty
8 lbs. (3.6 kg)
Jeans, skirts, thick
clothes
Mixed Load
8 lbs. (3.6 kg)
Chemical fiber
CYCLE MAX. LOAD WEIGHT RECOMMENDED LOAD
42
www.insigniaproducts.com
Special laundry tips
ITEMS DRYING GUIDE
Bedspreads and
comforters
• Follow the care label instructions or dry using the Bulky
cycle.
• Make sure that the item is thoroughly dry before using or
storing.
• During the drying cycle, you may need to reposition the
item to make sure that it is completely dried.
Blankets • Use the Normal cycle and dry only one blanket at a time for
best tumbling action.
• Make sure that the item is thoroughly dry before using or
storing.
• During the drying cycle, you may need to reposition the
item to make sure that it is completely dried.
Curtains and
draperies
• Use the cycle recommend on the care instructions or the
Casual cycle and Less dryness level to help minimize
wrinkling.
• Dry these in small loads for best results and remove as soon
as possible.
Cloth diapers • Use the Normal cycle.
Down filled items
(like jackets,
sleeping bags, or
comforters)
•Use the Bulky cycle on the low temperature.
• Add a couple of dry towels to absorb moisture and shorten
drying time.
Foam rubber (like
rug backs, stuffed
toys, or shoulder
pads,)
• DO NOT dry on a temperature setting. Use the Air Fluff
cycle (no heat).
WARNING: Drying a rubber item with heat may damage it
or create a fire hazard.
Pillows • Use the Normal cycle.
• Add a couple of dry towels and a pair of clean sneakers to
help the tumbling action and to fluff the item. DO NOT dry
kapok or foam pillows in the dryer.
Plastics (like shower
curtains or outdoor
furniture covers)
•Use the Air Fluff (no heat) cycle.
CAUTION:
Items NOT to dry:
• Fiberglass items (curtains, draperies, etc.)
• Woolens, unless recommended on the label.
• Items spotted or soaked with vegetable or cooking oils.
43
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
Maintaining your dryer
For information about cleaning your lint filters, see “Cleaning the lint filters” on
page 35.
Cleaning the heat exchanger
• Clean the heat exchanger approximately once every two months.
• Remove the lint from the heat exchanger using a vacuum cleaner with a
dusting brush attached.
• Do not apply any pressure or the heat exchanger may be damaged. The
dryer will not dry if the cooling fins are damaged or bent.
• Follow the instructions on the label on the heat exchanger cover.
The heat exchanger is behind the base filter. See Cleaning the base filter
on
page 36.
Cleaning the exterior
• Clean with a soft, damp cloth. Do not use abrasive substances.
• Protect the surface from sharp objects.
• Do not place any heavy or sharp objects or a detergent box on the dryer. Keep
them in a separate storage area. These items may scratch or damage the top
cover of the dryer.
• Because the entire dryer has a high-gloss finish, the surface can be scratched
or damaged. Avoid scratching or damaging the surface when using the dryer.
Cleaning the drum
• Clean with a damp cloth dampened with a mild, non-abrasive cleaner suitable
for stainless steel and anodized surfaces.
• Remove the cleaner residue and dry with a clean cloth.
Cleaning the control panel
• Clean with a soft, damp cloth. Do not use abrasive substances.
• Do not spray cleaners directly on the panel.
WARNING: Do not touch the heat exchanger with your hand. This may cause
an injury.
44
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
• The control panel finish may be damaged by some laundry pre-treatment soil
and stain remover products. Apply such products away from your dryer and
wipe up any spills or over-spray immediately.
Cleaning the moisture sensors
The moisture sensors are the two bars located inside the dryer drum. To clean the
sensors:
1 Scrub the sensors with a fine sandpaper to remove debris that may interfere
with the sensor.
2 Wipe the sensors with a dry cloth.
3 Select a sensor cycle when drying your next load of laundry to test your
sensors. If your sensor is working correctly, the cycle ends when your clothes
are dry.
WARNING
Certain internal parts are intentionally not grounded and
may present a risk of electric shock only during servicing.
Service Personal: Do not contact the following parts while
the appliance is energized: main motor and cooling fan.
Note:
• If your clothes are not dry, you may need to replace your sensors. Contact
Customer Service for more information.
• You should clean the sensors once a month.
Moisture sensors
Filter
Drum
45
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
Troubleshooting
CAUTION: Do not try to repair your dryer yourself. Doing so invalidates the
warranty.
PROBLEM SOLUTION
Dryer does
not start.
• Make sure that the control (child) lock is not on.
• Make sure the dryer door is closed completely.
• If you opened the door during the drying cycle, press the
Start/Pause button again.
• Make sure that the power cord is plugged into a working electrical
outlet.
• Check the circuit breaker and fuses for your dryer’s electrical
connection.
Dryer does
not heat or
does not dry.
• Your dryer may have moved into the cool-down process of the
cycle. This is normal.
• Select a cycle other than Air Fluff and a temperature setting that is
not “no heat.”
• Do not overload your dryer. Depending on the size of your washer,
one wash load should equal one dry load.
• Dry heavy items and lightweight items separately.
• If you are drying large, bulky items, like blankets or comforters, try
repositioning the load to ensure even drying. This may need to be
done a few times throughout the cycle.
• The load may be too small to tumble correctly. Add a few towels.
• Clean the lint filter and exhaust duct.
• Check the circuit breaker and fuses for your dryer’s electrical
connection.
Dryer is noisy. • It is normal for your dryer to hum due to the high velocity of air
moving through the dryer drum and exhaust system.
• Check the load for objects, like coins, loose buttons, nails, or
broken zippers. Remove these items.
• Make sure that your dryer is level.
Clothes are
unevenly
dried.
• Seams, pockets, and other similarly heavy areas may not be
completely dry when the rest of the load has reached the selected
dryness level. This is normal. Select the More dryness level or Time
Dry setting if desired.
• If you dry one heavy item with a lightweight load (such as one
towel with sheets), the heavy item may not be completely dry
when the rest of the load has reached the selected dryness level.
For best drying results, dry heavy items and lightweight items
separately.
The
remaining
time changes
abnormally.
• The sensor cycle automatically measures the dampness of your
clothes and adjusts the remaining time accordingly. This is normal.
46
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
Dryer shuts
off before the
clothes are
dried.
• The dryer load is too small. Add more items or a few towels and
restart the cycle.
• The dryer load is too large. Remove some items and restart the
cycle.
• Consider using a Time dry cycle.
Clothing is
still wrinkled
after using
the Wrinkle
Prevent
setting.
• Small loads of one to four items work best.
• If the dryer load is too large, items cannot tumble freely. Try
loading fewer items.
• Make sure that the items in the dryer load are similar. The Wrinkle
Prevent setting works best when the items in the dryer load are
similar-type items.
There is lint
on the
clothing.
• Check pockets thoroughly before washing and drying clothes.
Things like paper or tissue can break up into small pieces that turn
into lint.
• Clean the lint filter before every cycle. Some loads that produce
high amounts of lint can clog the filter.
• Some fabrics are lint producers (like a fuzzy white cotton towel)
and they should be dried separately from clothes that are lint
trappers (like a pair of black linen pants).
• Divide larger loads into smaller loads for drying.
The
indicator is
lighting
• Clean the lint filter.
• When you turn on the power and before you start your dryer, the
lint filter indicator automatically flashes for10 seconds to remind
you to check the filter.
The
indicator is
lighting
• When the cycle is finished, flashes and the dryer beeps for five
seconds. Check the water reservoir:
• If it is full, pour out the condensate water and restart the dryer.
• If the reservoir is not full, you can restart the dryer.
• If the water full indicator is still on, contact Customer Service.
Clothing is
not dry
enough or the
drying time is
too long
• Clean the lint filters.
•Empty the water reservoir.
• Make sure that the drain hose (if connected) is draining properly.
• Make sure that your dryer has enough ventilation.
• Clean the moisture sensors.
• Make sure that the air inlet is clear and clean.
• Select a higher drying intensity or time cycle.
PROBLEM SOLUTION
47
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
Understanding the error codes
Your dryer is equipped with an automatic error-monitoring system to
detect and diagnose problems at an early stage.
Specifications
ERROR CODE POSSIBLE CAUSE SOLUTIONS
E32 Moisture sensor error
Please contact your local service
center if the problem occurs.
E33 Temperature sensor error
E64 Motor communication error
E82 PCB communication error
Dimensions
(H × W × D)
33.5 × 23.4 in. × 25.7 in.
(85.1 × 59.5 × 65.3 cm)
Weight Gross: 128 Ibs. (58.1 kg)
Net: 121 lbs. (54.9 kg)
Voltage 120 V/240 V AC, 60 Hz
Max power
consumption
800 W
48
www.insigniaproducts.com
INSTALLATION INSTRUCTIONS
ONE-YEAR LIMITED WARRANTY
Definitions:
The Distributor* of Insignia branded products warrants to you, the original purchaser of this
new Insignia-branded product (“Product”), that the Product shall be free of defects in the
original manufacturer of the material or workmanship for a period of one (1) year from the
date of your purchase of the Product (“Warranty Period”).
For this warranty to apply, your Product must be purchased in the United States or Canada
from a Best Buy branded retail store or online at www.bestbuy.com or www.bestbuy.ca and
is packaged with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product.
Your purchase date is printed on the receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of
the Product is determined to be defective by an authorized Insignia repair center or store
personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or
(2) replace the Product at no charge with new or rebuilt comparable products or parts.
Products and parts replaced under this warranty become the property of Insignia and are
not returned to you. If service of Products or parts are required after the Warranty Period
expires, you must pay all labor and parts charges. This warranty lasts as long as you own your
Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or
otherwise transfer the Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online
website (www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the
Product to any Best Buy store. Make sure that you place the Product in its original packaging
or packaging that provides the same amount of protection as the original packaging.
To obtain warranty service, in the United States and Canada call 1-877-467-4289. Call agents
may diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores
or websites to the original purchaser of the product in the country where the original
purchase was made.
What does the warranty not cover?
This warranty does not cover:
• Customer instruction/education
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
• Accidental damage
•Misuse
•Abuse
•Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in
communal areas of a multiple dwelling condominium or apartment complex, or
otherwise used in a place of other than a private home.
• Modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods
(burn-in).
• Damage due to incorrect operation or maintenance
49
www.insigniaproducts.com
NS-FDRE44W1/NS-FDRE44W1-C
INSTALLATION INSTRUCTIONS
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia to service the Product
• Products sold “as is” or “with all faults”
• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly
illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to
five (5) pixel failures throughout the display. (Pixel based displays may contain a limited
number of pixels that may not function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or
pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY
FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON
THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR
PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER
EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED
WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY
PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
*Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2020 Best Buy. All rights reserved.
www.insigniaproducts.com
1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico)
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2020 Best Buy. All rights reserved.
V1 ENGLISH
19-0726
