16" Power Drawer
CAUTION:
To Reduce The Risk Of Injury, User Must Read
And Understand Operator’s Manual. Save These Instructions
For Future Reference.
OPERATOR’S MANUAL
Actual product may differ
slightly from image shown
EACH UNIT SOLD SEPERATELY
Power Drawer Model #: 245-1997/245-2001/245-2003
Page 1
TABLE OF CONTENTS
Safety Symbols ......................................................................... 2
Safety Instructions ..................................................................... 3
Parts List ................................................................................... 4
Assembly and Operation ........................................................... 5
Maintenance and Safety ............................................................ 7
Page 2
SAFETY SYMBOLS
Model #: ________________________________
Place of purchase: _______________________
Date of purchase: _______________________
Receipt # of purchase: ___________________
CAUTION:
1. Read and follow all safety and assembly
instructions before using this product for the
first time.
2. Fill in the following information and retain
the manual for future reference:
Do not step on the drawer.
Do not allow children near the unit.
Lock drawer before moving the unit.
Do not lift unit by yourself.
Page 3
SAFETY INSTRUCTIONS
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols, and the explanations with them, deserve your careful attention and understanding.
The symbol warnings do not by themselves eliminate any danger. The instructions and warnings
they give are no substitute for proper accident prevention measures.
WARNING:
Be sure to read and understand all safety instructions in this
manual, including all safety alert symbols such as “DANGER,” “WARNING,” and
“CAUTION,” before using this product. Failure to follow all instructions listed below may
result in electric shock, re and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION. May be
used in conjunction with other symbols or pictographs.
DANGER:
Failure to obey this warning WILL result in death or serious injury to
yourself or to others. Always follow the safety precautions to reduce the risk of personal
injury.
WARNING:
Failure to obey this safety warning CAN result in death or serious
injury to yourself or to others. Always follow the safety precautions to reduce the risk
of personal injury.
CAUTION:
Failure to obey this safety warning MAY result in personal injury to
yourself or others or property damage. Always follow the safety precautions to reduce
the risk of personal injury.
WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Page 4

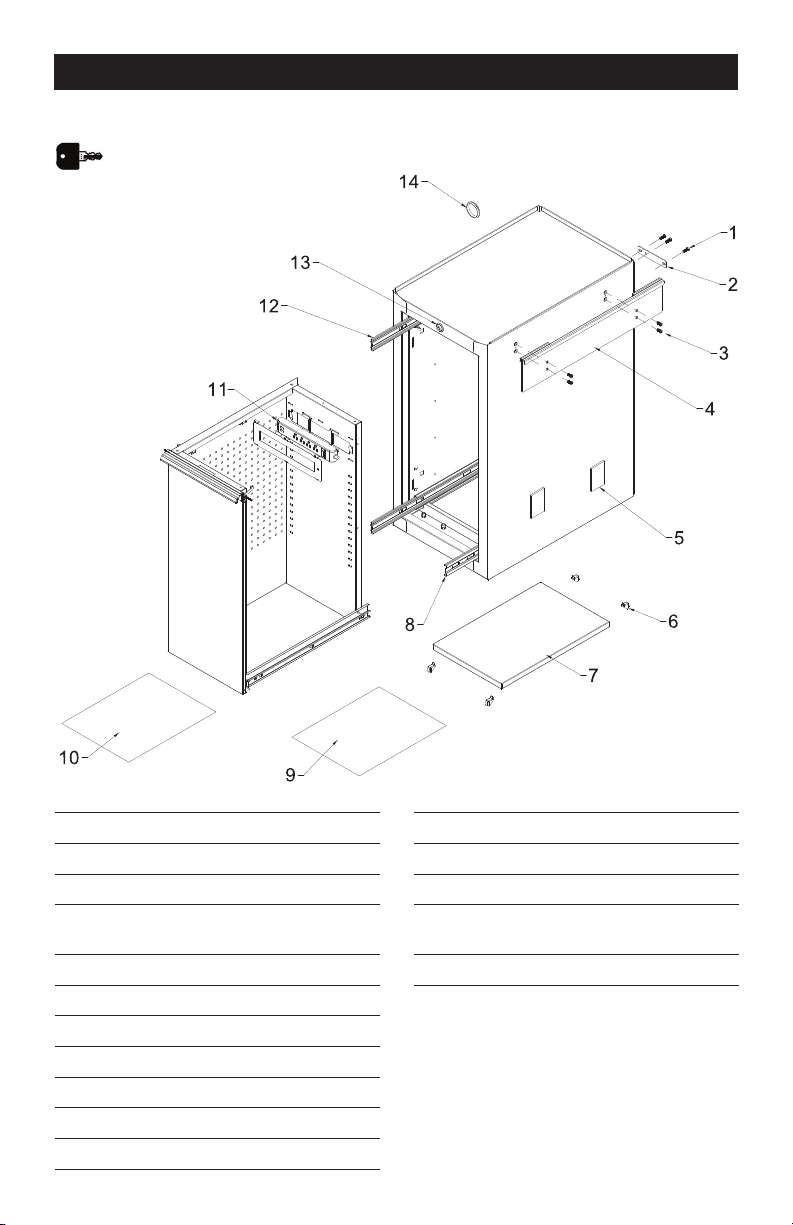

PARTS LIST
For service regarding parts, assembly or warranty information, please call: 1-800-459-4409.
The keys are taped
inside the drawer.
Ref# Description Part# Qty
1 M6 x 16 Hex Bolt 321023 3 pcs
2 Connector 236365 1 pc
3 M6 x 16 Counter
Sink Screw
320052 4 pcs
4 Hanger 11810 2 1 pc
5 EVA Pad 600100 2 pcs
6 Shelf Bracket 203902 4 pcs
7 Shelf 241997 1 pc
8 Right Slide 300381 1 pc
9 Shelf Liner 552243 1 pc
10 Drawer Liner 552242 1 pc
Ref# Description Part# Qty
11 Power Strip 333059 1 pc
12 Left Slide 300380 2 pcs
13 Lock and Key
(1201–1210)
304054 1 pc
14 Grommet 314027 1 pc
NOTE:
1. Replacement keys may be ordered, using
the required code which appears on the
face of the lock.
2. Give the information for service parts:
part number and quantity.
Page 5
NECESSARY TOOLS REQUIRED
FOR ASS EMBLY
• 10 mm socket
• Extension ratchet
• Phillips screwdriver

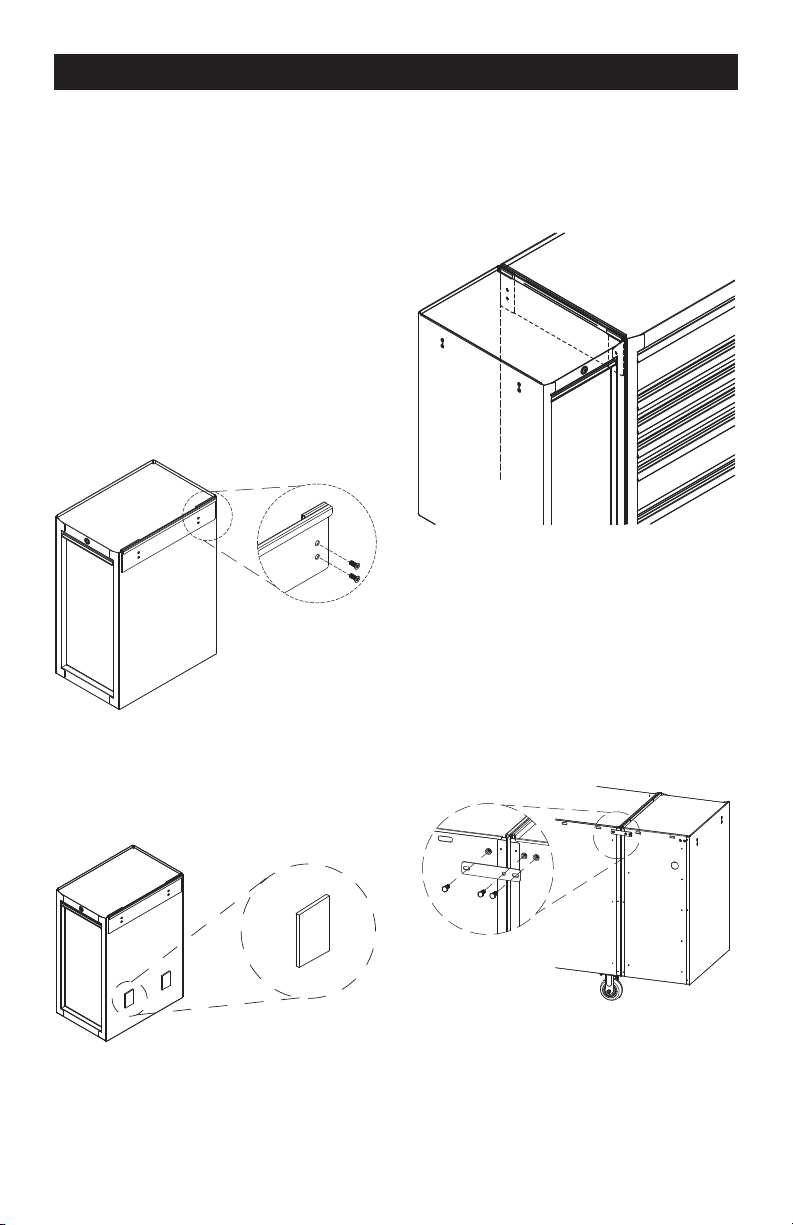

INSTALL HANGER
The hanger can be mounted on either side of
a tool cabinet. If necessary, remove the side
handles from the tool cabinet.
To install the hanger, position it over the holes
in the tool cabinet and attach using four
M6 x 16 counter sink screws. Tighten
securely.
ATTACH EVA PADS
Attach two EVA pads to the power drawer in
the locations indicated.
HANG POWER
DRAWER
Hang the power drawer on your tool cabinet.
CONNECT POWER
DRAWER TO CABINET
NOTE: Two or more people may be required
to complete this step.
Position the connector on the back of the
power drawer and tool cabinet. Attach to the
power drawer using two M6 x 16 hex bolts
and to the tool cabinet using one M6 x 16
hex bolt.
ASSEMBLY AND OPERATION
Page 6

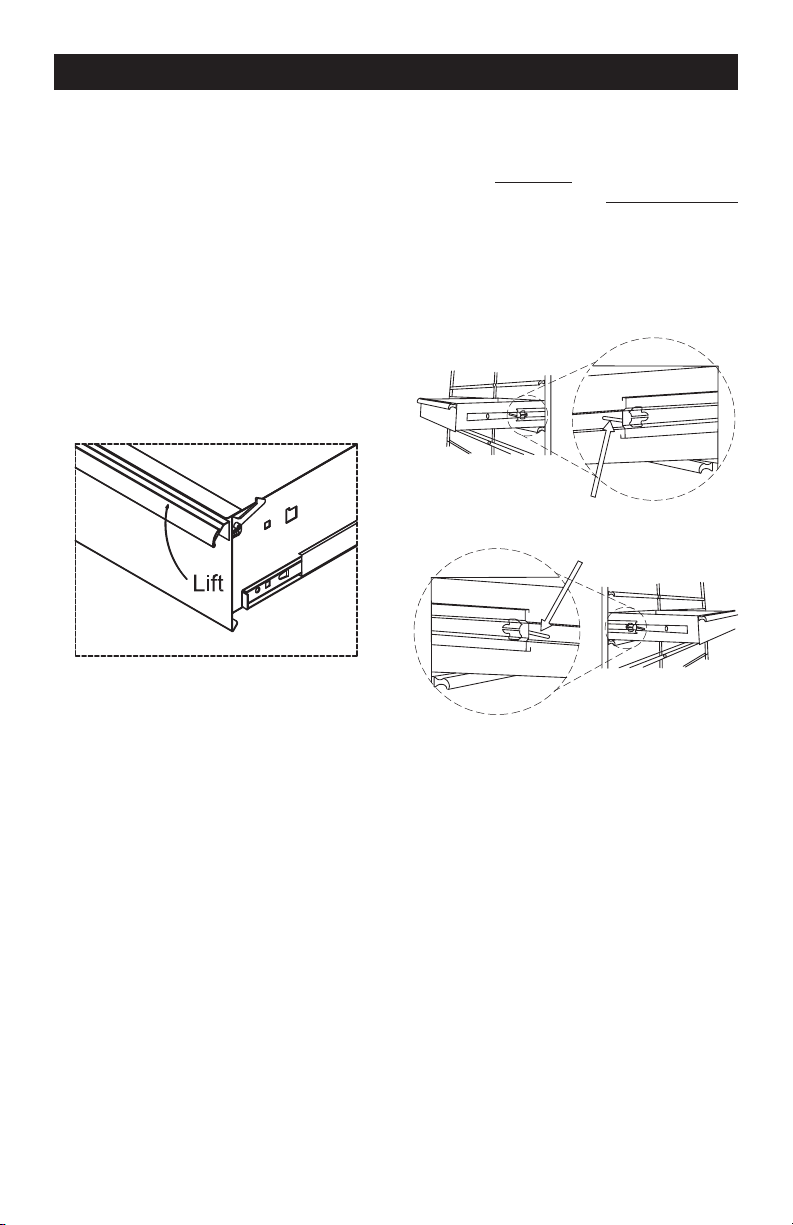

RAISE AND RELEASE
DRAWER FRONT
This unit is equipped with a raise and release
drawer front.
To open, lift up on the drawer front while
pulling towards you.
To close, shut the drawer firmly until the latch
engages.
If the drawer does not stay closed, the drawer
contents may be the obstruction, or the hook
may be bent or it may rub against the drawer
slides. To fix this problem, lightly bend the
hook until the drawer engages in the slide.
TO REMOVE DRAWER
Pull the drawer out so it is almost fully
extended. PUSH UP on the black release
lever on one side, while PULLING DOWN
on the black release lever on the other side.
While holding the levers in the positions as
instructed above, pull the drawer outward
until it is released from the drawer slide.
PUSH UP (ONE SIDE)
PULL DOWN (OTHER SIDE)
TO REPLACE DRAWER
Extend the drawer slides from the tool chest
or cabinet. Insert the brackets on each side
of the drawer into the slots in the chest or
cabinet slides, being careful that they are
positioned properly. Once properly inserted,
completely close the drawer / work top to set
the slides in their proper positions.
ASSEMBLY AND OPERATION
Page 7
MAINTENANCE AND SAFETY
MAINTENANCE
Periodically clean the drawer fronts, trim,
and other surfaces with mild detergent and
water.
Lubricate the slides (twice a year) with
a product like WD40 or other quality
lubricant. This is especially important in low
temperatures, which can cause the bearing
to become stiff.
Grease and oil can be removed with most
standard cleaning fluids. For safety, use a
nonflammable cleaning fluid.
SAFETY
WARNING:
Close and
lock the drawer before moving this
product. The drawer could come
open and make the product unstable
and tip, which may cause personal
injury or product damage.
WARNING:
DO NOT stand or lean
on this product.
WARNING:
WEAR SAFETY
GLASSES when removing or repositioning
the slides. The tool could slip, which may
cause personal injury.
WARNING:
DO NOT mount this
product on a truck bed or any other moving
object. This may cause personal injury or
product damage.
CAUTION:
Secure this product
properly before moving it with a forklift.
WARNING:
DO NOT alter this
product in any manner. For example, do not
weld external lockbars or attach electrical
equipment. This may cause product damage
or personal injury.
CAUTION:
Keep the product on
level surfaces. The product may become
unstable and tip if stored or moved on an
uneven surface, which may cause personal
injury or product damage.
WARNING:
To prevent the hutch
from easily tipping over, fasten the screws to
connect the hutch and cabinet.
CAUTION:
The maximum weight
on the drawer should be no more than
150 lbs.
CAUTION:
The maximum weight
on the shelf should be no more than
50 lbs.
CAUTION:
The maximum product
weight, including contents, should be no
more than 200 lbs.
POWER STRIP
MODEL: LTS-04C / CH-04C
SURGE PROTECTIVE DEVICES
RATING: 120V AC 15A 60Hz 1875W
USB: TOTAL 2.1 A
USB O/P: IT EQUIPMENT ONLY
VPR: 500-1000V (L-N) TYPE 3 SPD
CONFORMS TO UL STD. NO. 1363 AND
ANSI/UL STD. NO. 1449
CERTIFIED TO CSA STD. C22.2 NO. 308&8
Standard 2.1 A USB – Check your device
for compatibility.
WARNING:
RISK OF ELECTRIC
SHOCK. To reduce the risk of electric shock,
use indoors in a dry location only. Do not
plug into another power strip. Not for use for
a permanent installation.
WARNING:
Changes or
modifications to this unit not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
Page 8
NOTE: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct
the interference by one or more the following
measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
MAINTENANCE AND SAFETY
