User Guide
10" Digital Picture Frame
NS-DPF10WW-09/NS-DPF10WW-09CA
08-1320 NS-DPF10WW-09 - ENG.fm Page -1 Monday, May 19, 2008 8:13 PM
08-1320 NS-DPF10WW-09 - ENG.fm Page 0 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
1
www.insignia-products.com
NS-DPF10WW-09/
NS-DPF10WW-09CA
Digital Picture Frame
Contents
Introduction. . . . . . . . . . . . . . . . . . . . . . . 1
Safety information . . . . . . . . . . . . . . . . . . 2
Features . . . . . . . . . . . . . . . . . . . . . . . . . 3
Setting up your frame . . . . . . . . . . . . . . . .10
Using your frame . . . . . . . . . . . . . . . . . . .12
Maintaining. . . . . . . . . . . . . . . . . . . . . . .37
Troubleshooting. . . . . . . . . . . . . . . . . . . .38
Specifications . . . . . . . . . . . . . . . . . . . . .39
Legal notices. . . . . . . . . . . . . . . . . . . . . .40
Six-month limited warranty . . . . . . . . . . . .41
Introduction
Congratulations on your purchase of a
high-quality Insignia product. Your new digital
picture frame represents the state of the art in
digital picture frame design and is designed
for reliable and trouble-free performance.
08-1320 NS-DPF10WW-09 - ENG.fm Page 1 Monday, May 19, 2008 8:13 PM
2
NS-DPF10WW-09
www.insignia-products.com
Safety information
Always follow these basic safety precautions when using
your digital picture frame. This will reduce the risk of fire,
electric shock, and injury.
Placement—To prevent fire or electric shock, do not
expose this digital picture frame to rain or moisture. To
prevent it from falling do not place it on an unstable cart,
stand, tripod, bracket, or table. Keep the unit away from
strong magnets, heat sources, direct sunlight, and
excessive dust.
Installation—Make sure that the digital picture frame is
used in accordance with the instructions and illustrations
provided in this manual.
Objects and liquids—Do not push objects of any kind into
the digital picture frame through openings. Do not spill or
spray liquid of any kind on or in the digital picture frame
(this may result in a fire or electric shock). Do not place
anything heavy on the unit. To ensure proper ventilation
and proper operation, never cover or block the slots and
openings with a cloth or other material.
Disassembly—Do not attempt to disassemble the frame.
There is a risk of electric shock. Contact qualified service
personnel if your digital picture frame is in need of repair.
Warnings
To reduce the risk of fire or shock hazard, do not
expose the frame to rain or moisture and unplug
the digital picture frame during lightning storms.
To prevent the risk of electric shock, do not
remove the cover. There are no user-serviceable
parts inside. Refer all servicing to qualified
personnel.
There is a risk of explosion if the battery is
incorrectly replaced. Replace only with the same
or equivalent type of battery.
08-1320 NS-DPF10WW-09 - ENG.fm Page 2 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
3
www.insignia-products.com
Cleaning the digital picture frame—When cleaning, make
sure the frame is unplugged from the power source. Use
only cleaners specifically designed to clean LCD panels,
or a cloth slightly dampened with water for cleaning the
exterior of the frame only.
Features
• Displays digital pictures (JPG/JPEG format) and
digital slideshows without a computer.
• Plays music (MP3 or WAV formats) alone or with
a picture slideshow.
• Display pictures directly from a memory card or
USB drive (not included).
• Bright, clear TFT LCD screen.
• Compatible with a wide variety of memory cards,
including SD, MMC, MS, CF, and xD.
• Compatible with USB flash drives.
• Multi-image mode displays multiple pictures at
the same time in a slideshow.
• On-frame button controls and infrared remote
control.
• 256 MB internal memory.
Package contents
• 10” Digital picture frame
• AC power adapter
• User Guide
• Quick Start Guide
• Remote control with battery (CR2025)
• Remote control holder
• Cleaning cloth
•USB cable
• Black and white picture mats
• Two interchangeable wood frames
• MS Pro Duo adapter
08-1320 NS-DPF10WW-09 - ENG.fm Page 3 Monday, May 19, 2008 8:13 PM
4
NS-DPF10WW-09
www.insignia-products.com
Connectors
# Description
1 Power On/Off switch
2 DC 9 V power connector. Plug the AC adapter in here.
3 Memory card slot. Supports: Memory Stick, Memory Stick
Duo, Memory Stick PRO, Memory Stick PRO Duo,
Memory Stick Micro, Multimedia Card (MMC), Secure
Digital (SD), microSD, miniSD, and xD.
4 Mini USB port
5 CF card slot
6 Standard USB slot
ON
OFF
08-1320 NS-DPF10WW-09 - ENG.fm Page 4 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
5
www.insignia-products.com

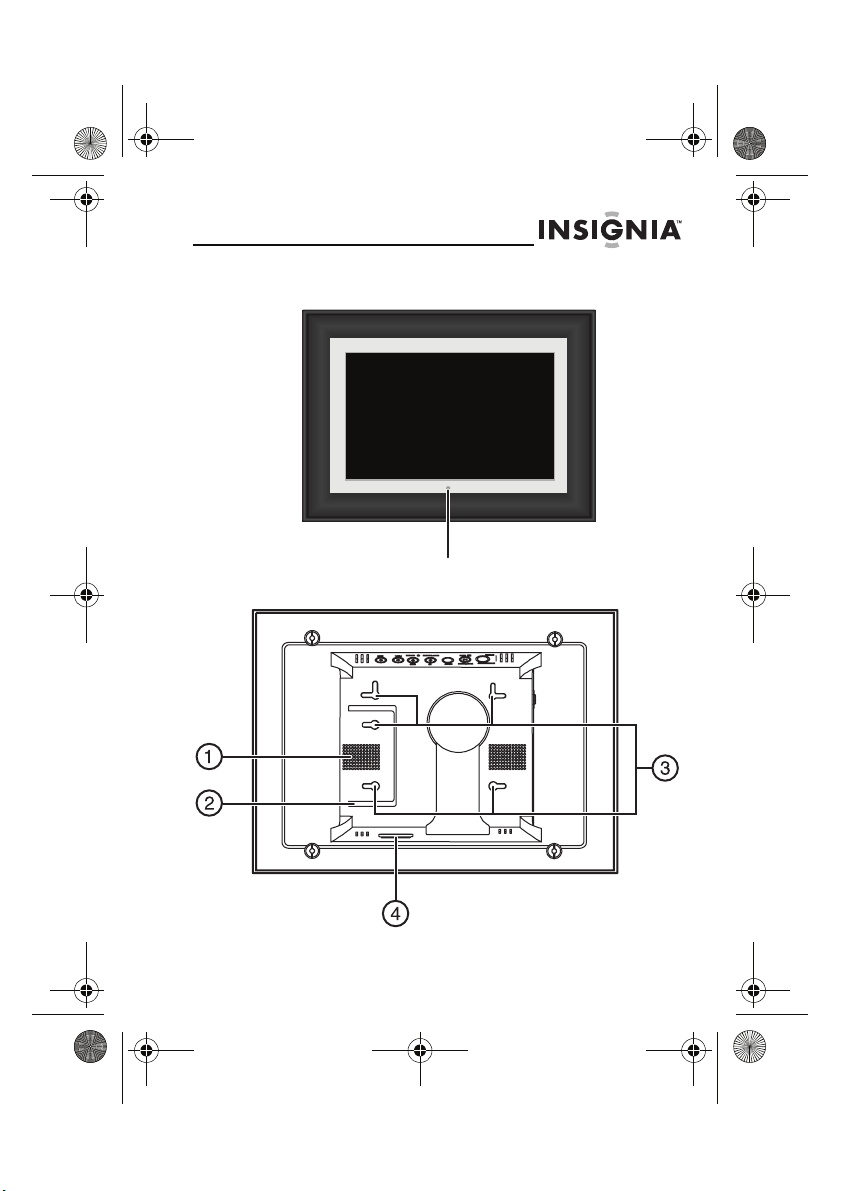

Front and back
IR sensor
08-1320 NS-DPF10WW-09 - ENG.fm Page 5 Monday, May 19, 2008 8:13 PM
6
NS-DPF10WW-09
www.insignia-products.com
Top
You can use most of the frame’s features by using either
the buttons on top of the frame or by using the remote
control. Selecting files for copying, deleting, or viewing
requires the remote control, and the instructions in this
guide refer to remote control buttons (except where
noted).
# Description
1 Speaker
2 Remote control dock
3 Holes for mounting holder
4 Slot for clock backup battery (CR2025)

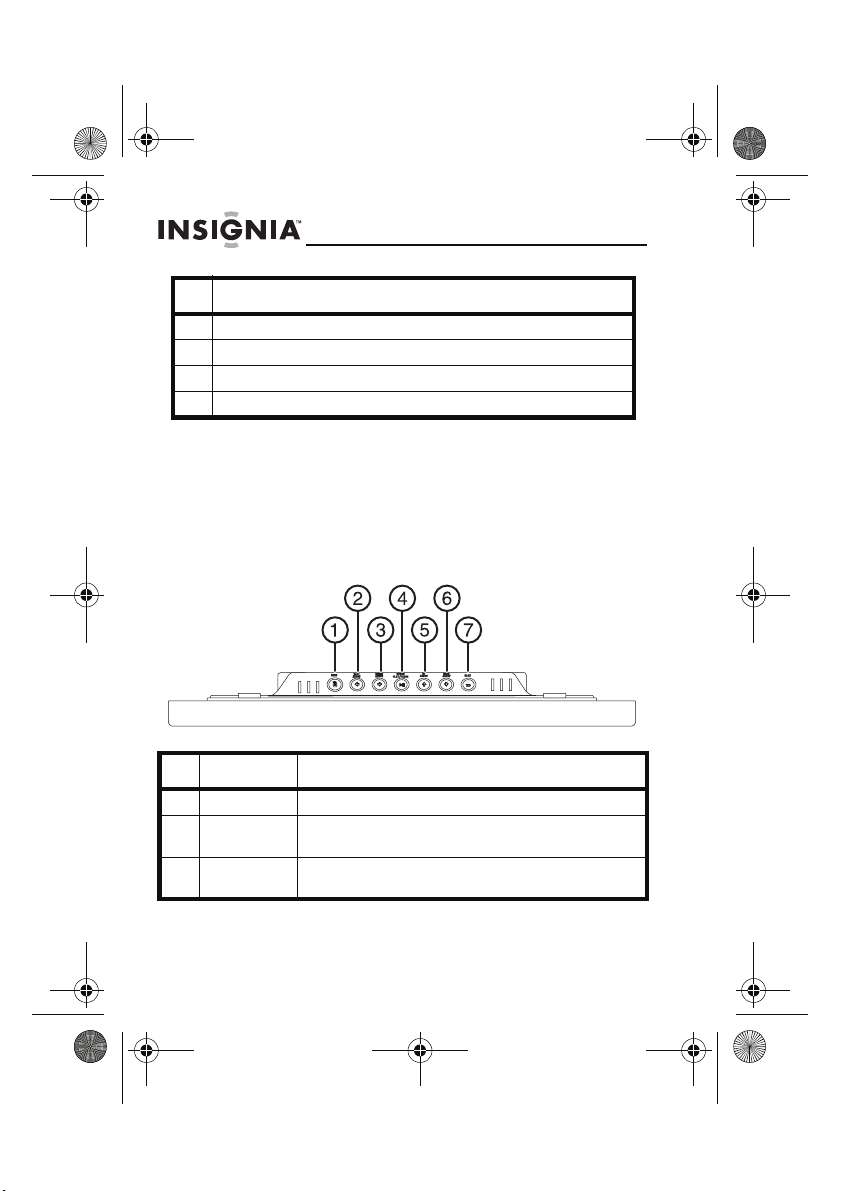

# Button Description
1 MENU Press to open the Setup menu.
2 Left arrow Press to move the menu selection left or to
display the previous picture.
3 Right arrow Press to move the menu selection right or to
display the next picture.
08-1320 NS-DPF10WW-09 - ENG.fm Page 6 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
7
www.insignia-products.com
4 Enter/
Play/Pause
Press to select menu items. During a slideshow,
press to pause or resume.
5 Up arrow Press to navigate up.
6 Down arrow Press to navigate down.
7 Back Go back to previous selection or screen.
# Button Description
08-1320 NS-DPF10WW-09 - ENG.fm Page 7 Monday, May 19, 2008 8:13 PM
8
NS-DPF10WW-09
www.insignia-products.com

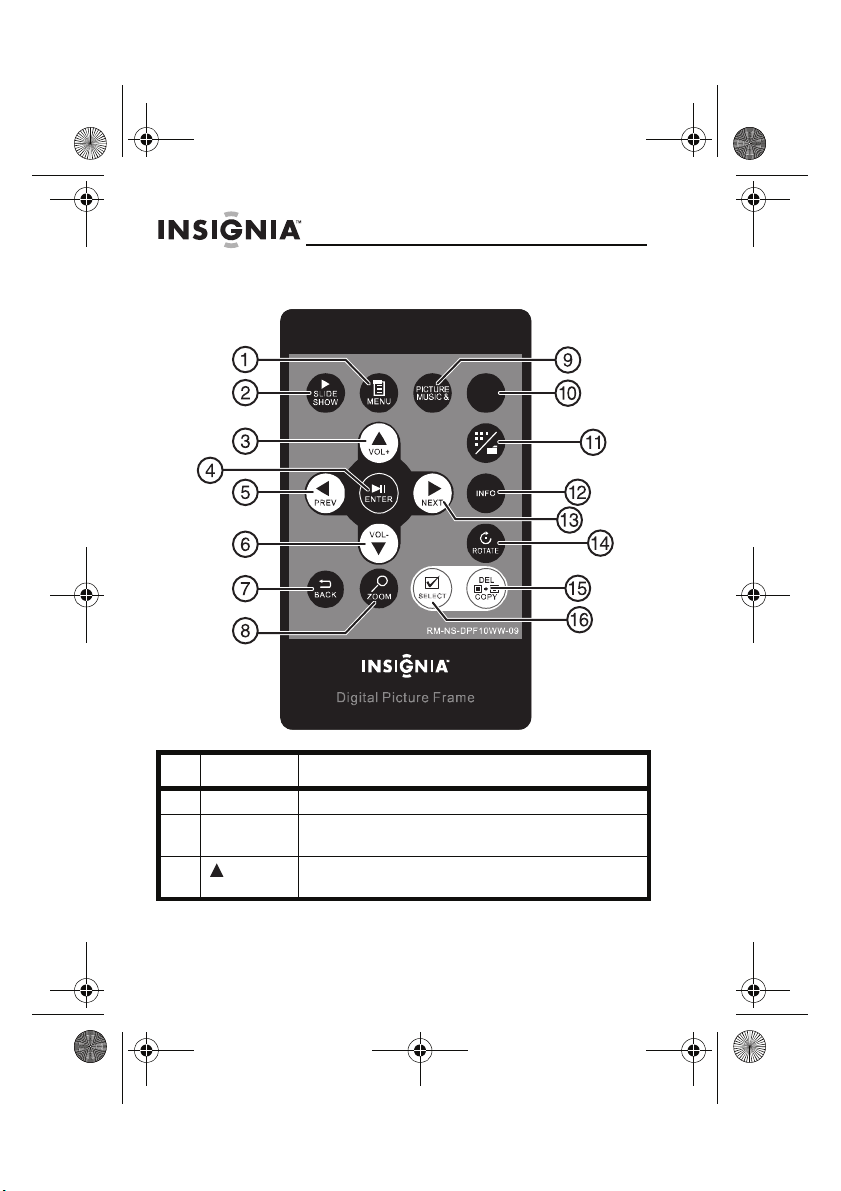

Remote control
# Button Description
1 MENU Press to display the Setup menu.
2SLIDE
SHOW
Press to start a slideshow or toggle the
multi-image Display mode.
3 (Up)
VOL+
Press to move the selection up or to raise the
volume.
CLOCK
/CAL
08-1320 NS-DPF10WW-09 - ENG.fm Page 8 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
9
www.insignia-products.com
4 ENTER Press to select the highlighted option or to
pause and resume the slideshow.
5 (Left)
PREV
Press to move the menu selection up or left,
display the previous picture, or select the
previous file.
6 (Down)
VOL-
Press to move the menu selection down or to
lower the volume.
7 BACK Press to go back a screen.
8 ZOOM Press to magnify the picture.
9 Picture &
Music
Press to open the
Picture & Music
screen, or to
play pictures and music together.
10 CLOCK/
CAL
Press to display the clock, calender, and
pictures (if available).
11
(Thumbnail/
Folder)
Press to enter Thumbnail mode, or to display
files and folders.
12 INFO Press to display picture information in Pause
mode.
13 (Right)
NEXT
Press to move the menu section right, display
the next picture, or select the next file.
14 ROTATE Press to rotate the picture.
15 DEL/
COPY
Press to delete selected pictures from internal
memory or to copy selected pictures from the
connected memory card to internal memory.
16 SELECT Press to select a picture or file to copy or delete.
# Button Description
08-1320 NS-DPF10WW-09 - ENG.fm Page 9 Monday, May 19, 2008 8:13 PM
10
NS-DPF10WW-09
www.insignia-products.com
Setting up your frame
Setting up the remote control
To set up the remote control:
• Remove the plastic tab that extends past the
bottom edge of the remote control. This tab
protects the battery. The remote control will not
work until it is removed.
CLOCK
/CAL
08-1320 NS-DPF10WW-09 - ENG.fm Page 10 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
11
www.insignia-products.com
Setting up the frame
To set up the frame:
1
Pull out the stand to place the frame.
2 Rotate the stand to position the frame vertically or
horizontally. Adjust the stand's length to obtain the
vertical or horizontal viewing angle you want.
3 Plug the AC power adapter into the frame’s DC
power connector and into an AC power outlet.
Frame stand
08-1320 NS-DPF10WW-09 - ENG.fm Page 11 Monday, May 19, 2008 8:13 PM
12
NS-DPF10WW-09
www.insignia-products.com
4 Slide the Power On/Off switch to the ON position
to turn on the frame. The INSIGNIA logo is displayed
for several seconds, then the frame automatically
shows the picture stored in internal memory (when
no memory card is present). If a memory card is
present, the frame shows the picture stored on the
memory card.
Using your frame
You can use your digital picture frame to:
• Play a slideshow of pictures on a memory card
• Play a slideshow of pictures in internal memory
• Adjust a picture’s view
• Change display settings
• Copy pictures or files to internal memory
• Delete pictures or files from internal memory
• Play music alone or with pictures
• Display a clock and calendar with pictures
08-1320 NS-DPF10WW-09 - ENG.fm Page 12 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
13
www.insignia-products.com
Playing slideshows
To play a slideshow from a memory card
or internal memory - automatic playback:
1
Insert a memory card or USB device into one of the
available memory slots or the USB port. A slideshow
of pictures from the memory card or USB device
automatically starts to play.
2 Press (ENTER/PLAY/PAUSE) to pause the
slideshow on a particular picture. Press
(ENTER/PLAY/PAUSE) again to resume the
slideshow.
To play a slideshow from a memory card
or internal memory - manual playback (to
start the slideshow from a specific picture
or file):
1
Insert a memory card (or USB drive) into one of the
available memory slots or the USB port. A slideshow
of pictures from the memory card or USB device
automatically starts to play.
Caution
Memory cards fit into the card slots in only one
direction. Do not force a memory card into a
slot. The card should fit snugly when inserted
correctly. Some cards require an adapter to fit
correctly. For more information on supported
memory cards, see “Specifications” on
page 39.
08-1320 NS-DPF10WW-09 - ENG.fm Page 13 Monday, May 19, 2008 8:13 PM
14
NS-DPF10WW-09
www.insignia-products.com
2 Press (BACK) repeatedly until the
Home
menu
opens.
3 Press or to select the card (or internal
memory) that you want. Your selection turns green.
Press (ENTER/PLAY/PAUSE) or to enter
the Main menu. The
Select Media
menu opens.
4 Press or to select the PICTURE icon. The icon
turns green. Press (ENTER/PLAY/PAUSE) or
to enter the Thumbnail mode. The thumbnail
images appear on the screen in a table.

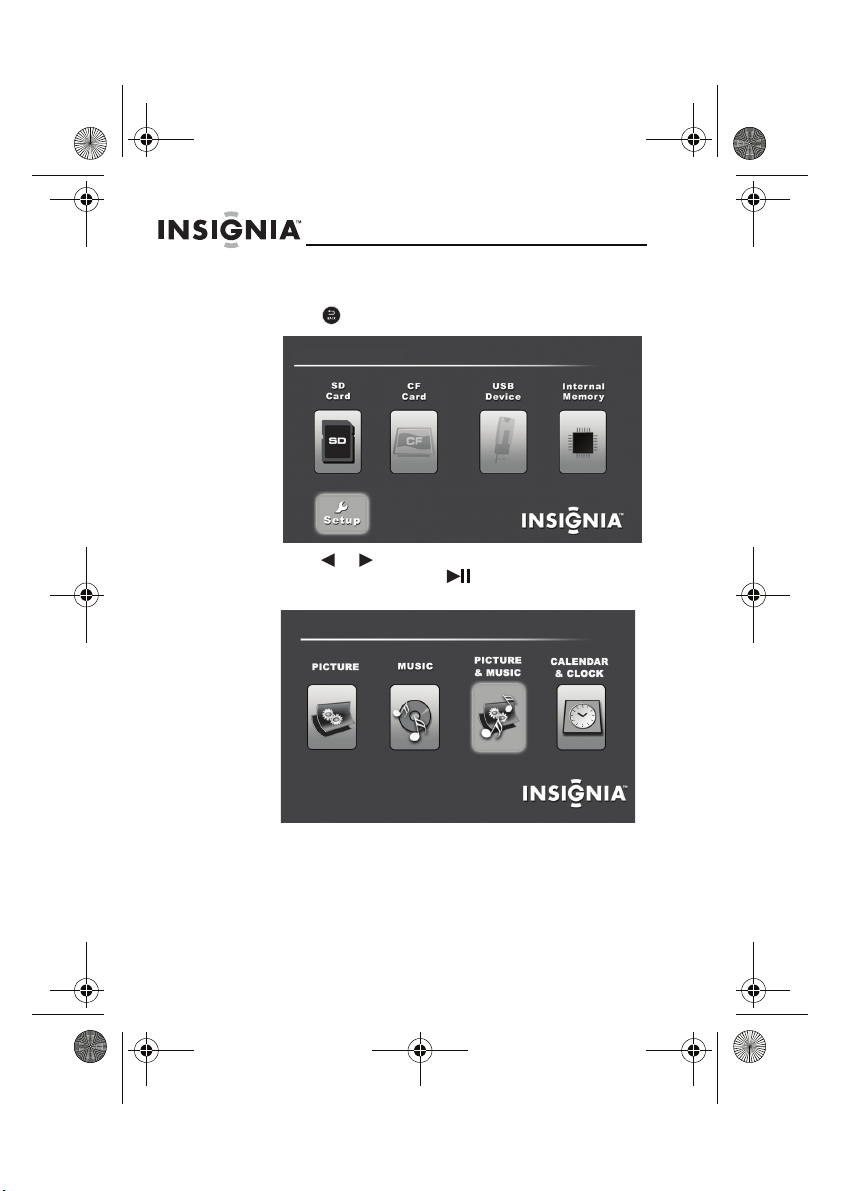

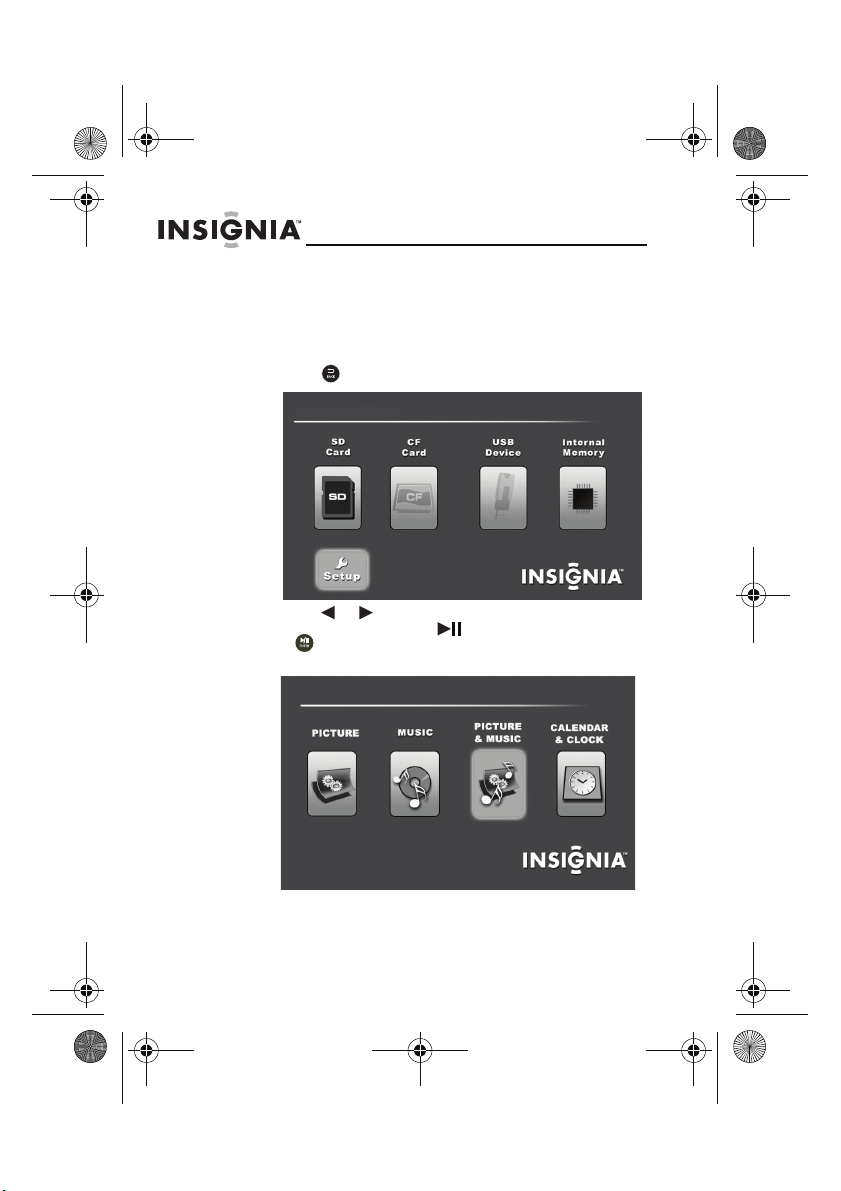

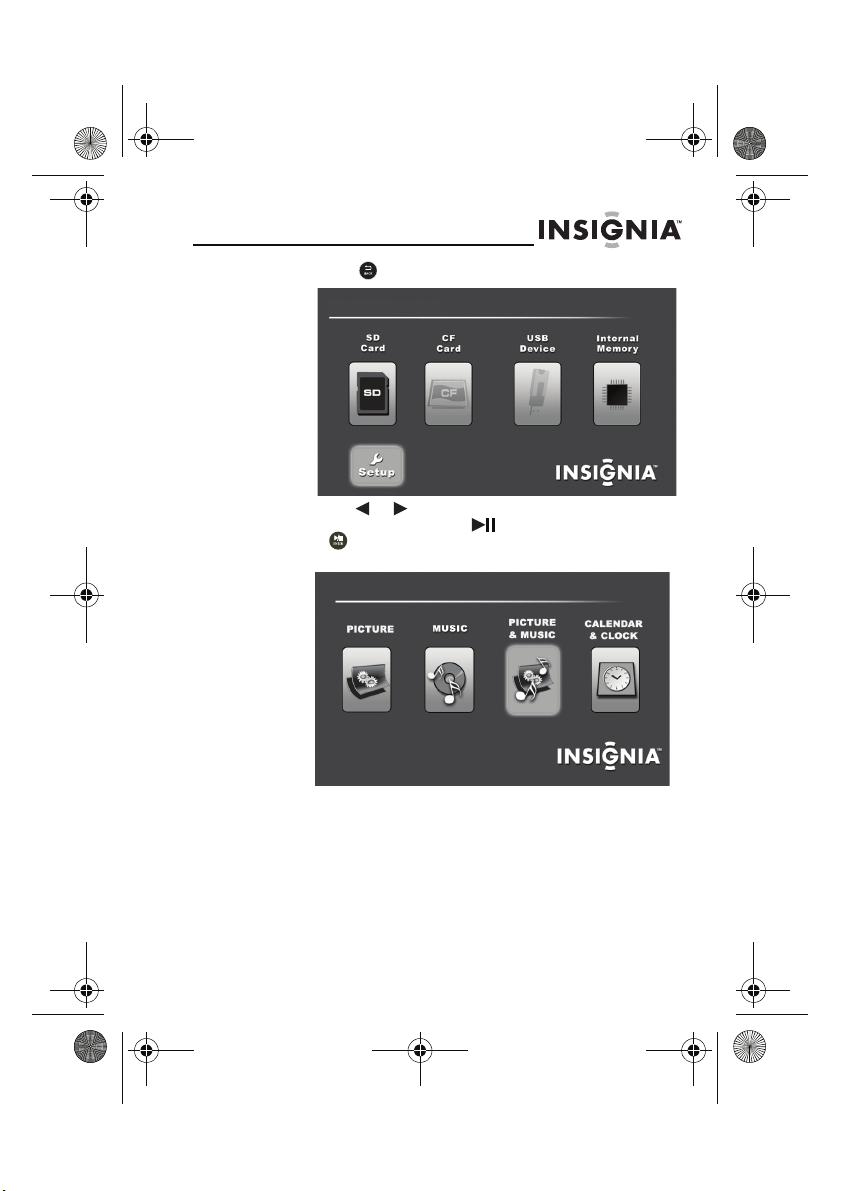

Home
Home
Select Media
Select Media
08-1320 NS-DPF10WW-09 - ENG.fm Page 14 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
15
www.insignia-products.com
5
Press or to select a picture, then press
SLIDESHOW on the remote control. The slideshow
starts from the picture you selected.
6 Press (ENTER/PLAY/PAUSE) or to pause
the slideshow on a particular picture. Press
(ENTER/PLAY/PAUSE) again to resume the
slideshow.
7 Press (ENTER/PLAY/PAUSE) or once more
to enter Slide Show mode. The pictures
automatically display one after another. Press ZOOM
to zoom in on the picture displayed.
Copying pictures to internal memory
You can copy a single picture, multiple pictures, or all
pictures from an attached memory card to the frame’s
internal memory.
Notes
You cannot copy pictures from the internal
memory to an attached memory card, and you
cannot copy pictures between attached
memory cards.
Because you cannot copy pictures back from
the frame to a memory card, the frame should
not be treated as your primary picture storage
method. Make sure that you have the pictures
stored elsewhere (such as a memory card).
If you want to copy pictures from the internal
memory to an attached memory card, you can
use a USB cable to connect the frame to a PC.
Then you can copy pictures between the
memory card, internal memory, and the PC.
08-1320 NS-DPF10WW-09 - ENG.fm Page 15 Monday, May 19, 2008 8:13 PM
16
NS-DPF10WW-09
www.insignia-products.com
To copy selected pictures to internal
memory:
1
Press (BACK) until the
Home
screen opens.
2 Press or to highlight the memory card you want
to play from, then press (ENTER/PLAY/PAUSE)
to open the
Select Media
menu.
Home
Home
Select Media
Select Media
08-1320 NS-DPF10WW-09 - ENG.fm Page 16 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
17
www.insignia-products.com
3
Press or to highlight the PICTURE icon, then
press (ENTER/PLAY/PAUSE). The Thumbnail
screen opens with the pictures displayed.
4 Press / / / to highlight each picture you want
to copy, then press (SELECT) to mark it. A check
mark appears in the upper-right corner of each
marked thumbnail. Mark as many pictures as you
want to copy.
5 Press (DEL/COPY), the
Copy
screen opens.
6 Press / to select Copy Selected or Copy All,
then press (ENTER/PLAY/PAUSE) or .
08-1320 NS-DPF10WW-09 - ENG.fm Page 17 Monday, May 19, 2008 8:13 PM
18
NS-DPF10WW-09
www.insignia-products.com
7 Press / to select YES, then press (ENTER/
PLAY/PAUSE) or again. The selected pictures
are transferred to internal memory (256 MB).
Deleting pictures from internal
memory
To delete pictures from internal memory:
1
Press (BACK) until the
Home
screen opens.
Notes
You cannot delete pictures from an attached
memory card.
Because you cannot copy pictures back from
the frame to a memory card, the frame should
not be treated as your primary picture storage
method. Make sure that you have the pictures
stored elsewhere (such as a memory card).
Home
Home
08-1320 NS-DPF10WW-09 - ENG.fm Page 18 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
19
www.insignia-products.com
2
Press or to highlight the Internal Memory card,
then press (ENTER/PLAY/PAUSE) or to
open the Main menu. The
Select Media
menu opens.
3 Press or to highlight the Picture icon, then
press (ENTER/PLAY/PAUSE) or . The
Thumbnail screen opens with the pictures displayed.
4 Press / / / to highlight each picture you want
to delete, then press (SELECT) to mark it. A
check mark appears in the upper-right corner of
each marked thumbnail. Mark as many pictures as
you want to delete.
Select Media
Select Media
08-1320 NS-DPF10WW-09 - ENG.fm Page 19 Monday, May 19, 2008 8:13 PM
20
NS-DPF10WW-09
www.insignia-products.com

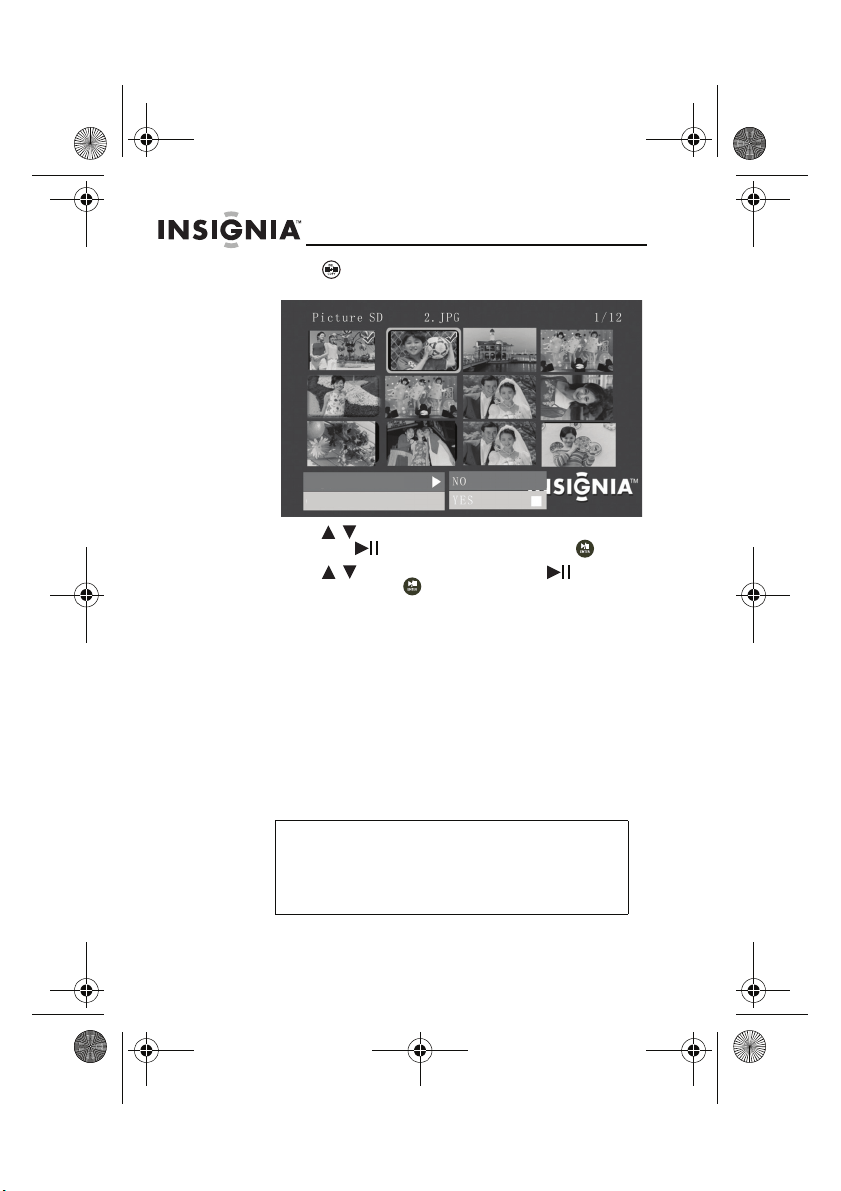

5 Press (DEL/COPY), the
Delete
screen opens.
6 Press / to select Delete Selected or Delete All,
then press (ENTER/PLAY/PAUSE) or .
7 Press / to select YES, then press (ENTER/
PLAY/PAUSE) or again. The selected pictures
are deleted.
Playing music
Your digital picture frame can play music as you view
your pictures.
To play music on your digital picture
frame:
1
Insert a memory card or USB device that contains
music files.
Note
For best results, use a 128 KB bit-rate or
lower. Playing high bit-rate music files may
result in slower music or slideshow
performance.
Delete Selected
Delete All
08-1320 NS-DPF10WW-09 - ENG.fm Page 20 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
21
www.insignia-products.com
2
Press (BACK) until the
Home
screen opens.
3 Press or to highlight the memory card you want
to access, then press (ENTER/PLAY/PAUSE)
or to enter the Main menu. The
Select Media
menu opens.
Home
Home
Select Media
Select Media
08-1320 NS-DPF10WW-09 - ENG.fm Page 21 Monday, May 19, 2008 8:13 PM
22
NS-DPF10WW-09
www.insignia-products.com
4 Press or to select the MUSIC icon. The icon
turns green. Press (ENTER/PLAY/PAUSE) or
to enter the Songs Folder List screen. The
Songs
Folder List
screen opens.
5 Press / to select a song from the list, then press
(ENTER/PLAY/PAUSE) or to begin playback.
Information about the song appears on the screen
while it is playing.
6 Press Vol + or Vol - to adjust the volume.
7 Press (ENTER/PLAY/PAUSE) or to pause
the song, then press it again to resume playback.
8 To copy a song from the memory card to the frame,
see “Copying pictures to internal memory” on page
15.
Playing pictures and music together
To play pictures and music together -
automatic playback:
1
Insert a memory card or USB device containing both
pictures and music into one of the available memory
slots or the USB port.
File name: oh lala
Size: 1567 KB
Bit-Rate: 64 kb/s
Artist: Enya
08-1320 NS-DPF10WW-09 - ENG.fm Page 22 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
23
www.insignia-products.com
2
Press (BACK) until the
Home
screen opens.
3 Press or to highlight the memory card you want
to access, then press the PICTURE & MUSIC button
on the remote control. A slideshow of all the pictures
and songs on the memory card starts automatically
and repeats.
4 Press VOL+ or VOL- to adjust the volume.
5 Press (ENTER/PLAY/PAUSE) or to pause
the song or picture, then press it again to resume
playback.
Home
Home
08-1320 NS-DPF10WW-09 - ENG.fm Page 23 Monday, May 19, 2008 8:13 PM
24
NS-DPF10WW-09
www.insignia-products.com
To play pictures and music together -
manual playback (selecting a specific file
or folder):
1
Insert a memory card or USB device into the
appropriate slot on the frame.
2 Press (BACK) until the
Home
screen opens.
3 Press or to highlight the memory card you want
to access, then press (ENTER/PLAY/PAUSE)
or to enter the Main menu. The
Select Media
menu opens.
Home
Home
Select Media
Select Media
08-1320 NS-DPF10WW-09 - ENG.fm Page 24 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
25
www.insignia-products.com
4
Press or to select the PICTURE & MUSIC
icon. The icon turns green. Press (ENTER/
PLAY/PAUSE) or to open the Songs and
Pictures List screen. The
Songs and Pictures List
screen opens.
5 Press / to select a folder or an individual picture
from the list, then press (ENTER/PLAY/PAUSE)
or to begin playback of the highlighted song or
picture. A slideshow begins playing with the selected
picture and first song in the list. Songs from the list
play in order, then repeat.
6 Press Vol + or Vol - to adjust the volume.
7 Press (ENTER/PLAY/PAUSE) or to pause
the song or picture, then press it again to resume
playback.
Note
If you select a folder that contains pictures
and songs, the slideshow displays and
repeats these files only.
File name: oh lala
Size: 1567 KB
Bit-Rate: 64 kb/s
Artist: Enya
08-1320 NS-DPF10WW-09 - ENG.fm Page 25 Monday, May 19, 2008 8:13 PM
26
NS-DPF10WW-09
www.insignia-products.com
Customizing picture display
You can rotate, magnify, and display information about
any picture that the frame displays.
To rotate a picture:
1
While a picture is displayed full screen (not as a
thumbnail), press (ROTATE). The picture is
rotated 90° clockwise with each press of the button.
2 Press (ENTER/PLAY/PAUSE) or to continue
the slideshow.
To magnify a picture:
1
While a picture is displayed full screen (not a
thumbnail), press (ZOOM). The picture is
magnified in size each time you press the button,
until it returns to the normal size.
2 Press (ENTER/PLAY/PAUSE) or to continue
the slideshow.
To view information about a picture:
1
While a picture is displayed full screen (not a
thumbnail), press INFO. An information screen will
appear for five seconds that contains the file name,
file size, resolution, and date and time the picture
was taken.
Tip
When you rotate a picture stored in internal
memory, the rotation information is saved.
Tip
While the picture is magnified, press the arrow
buttons to pan the picture so you can see the
parts that are off the screen.
08-1320 NS-DPF10WW-09 - ENG.fm Page 26 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
27
www.insignia-products.com
2
Press (ENTER/PLAY/PAUSE) to continue the
slideshow.
Using the calendar and clock
To use the calendar and clock:
1
Press (BACK) until the
Home
screen opens, or
press CLOCK/CAL on the remote control.
2 Press or to highlight Internal Memory, then
press (ENTER/PLAY/PAUSE) or to enter
the Main menu. The
Select Media
menu opens.
Home
Home
Select Media
Select Media
08-1320 NS-DPF10WW-09 - ENG.fm Page 27 Monday, May 19, 2008 8:13 PM
28
NS-DPF10WW-09
www.insignia-products.com

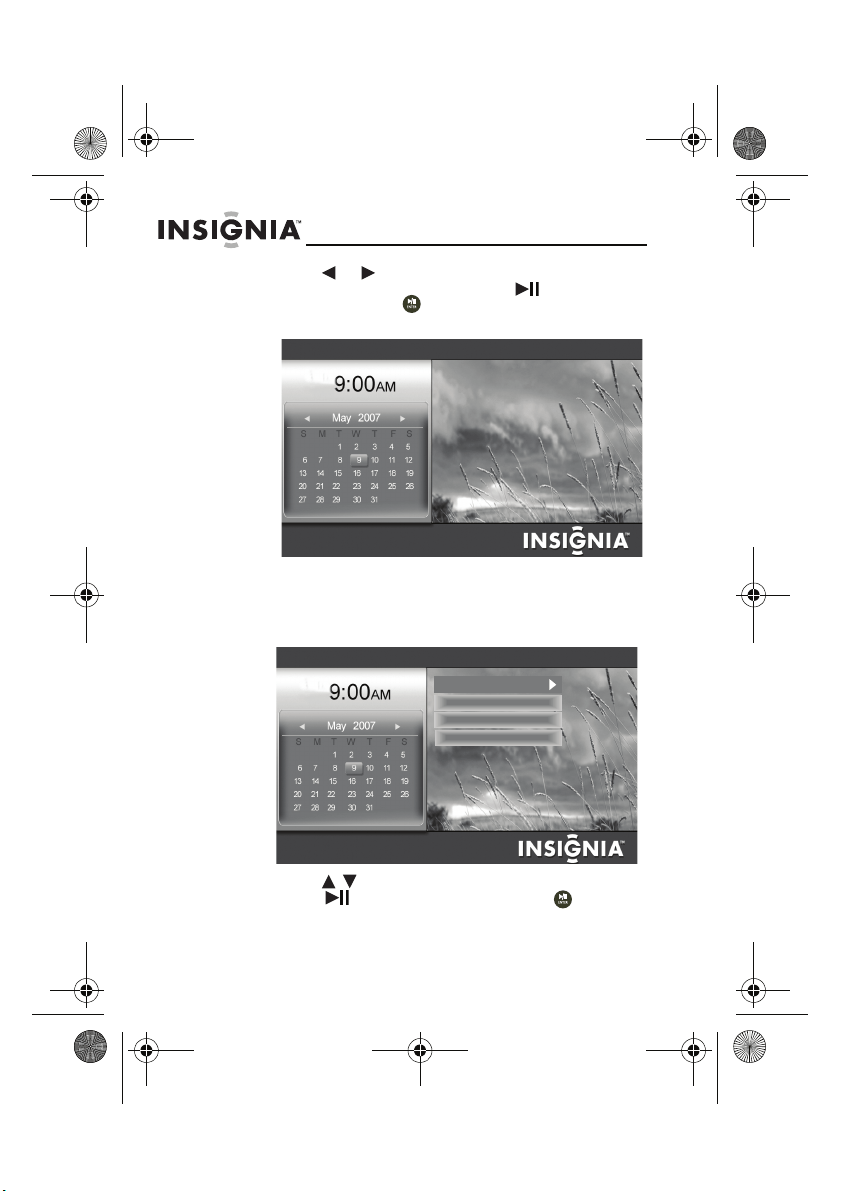

3 Press or to select the CALENDAR & CLOCK
icon. The icon turns green. Press (ENTER/
PLAY/PAUSE) or . The calendar, clock, and
pictures are displayed.
To adjust the calendar and clock:
1 With the
Clock/Calendar
screen open, press MENU.
The setup menu opens on the screen.
2 Press / to select Date & Time Setting, then
press (ENTER/PLAY/PAUSE) or .
Slide show
Slide s how Interval
Mu sic Play
Date Time Setting
08-1320 NS-DPF10WW-09 - ENG.fm Page 28 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
29
www.insignia-products.com

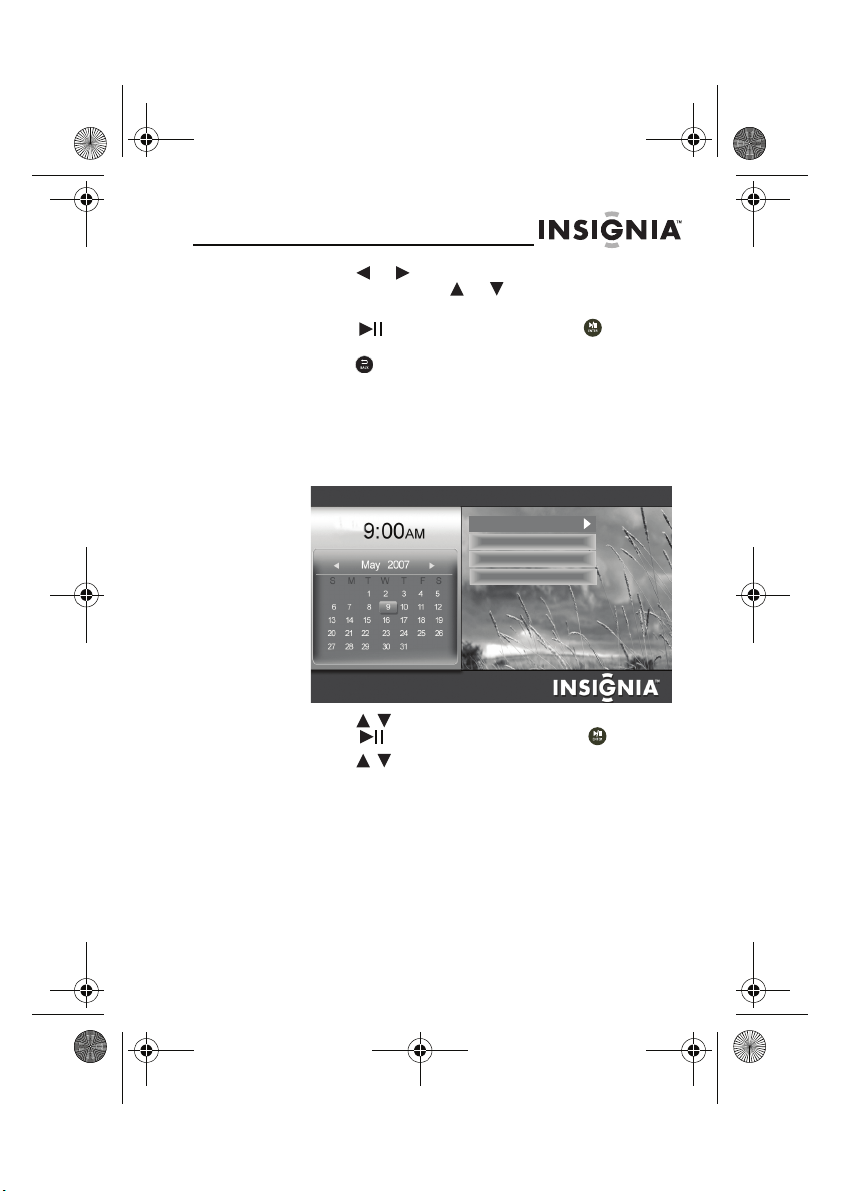

3
Press or to highlight the Year, Day, Hour, or
Minute, then press or to change the setting.
4 Continue until all settings have been changed, then
press (ENTER/PLAY/PAUSE) or to confirm
your changes.
5 Press (BACK) to close the setup menu.
To display pictures and music on the
clock/calendar screen:
1
While in the clock/calendar screen, press MENU. A
drop-down setup menu appears.
2 Press / to select the MUSIC PLAY setting, then
press (ENTER/PLAY/PAUSE) or .
3 Press / to select ON. Songs from the memory
card or USB device will play in order, and then
repeat.
Slide show
Slide s how Interval
Mu sic Play
Date Time Setting
08-1320 NS-DPF10WW-09 - ENG.fm Page 29 Monday, May 19, 2008 8:13 PM
30
NS-DPF10WW-09
www.insignia-products.com

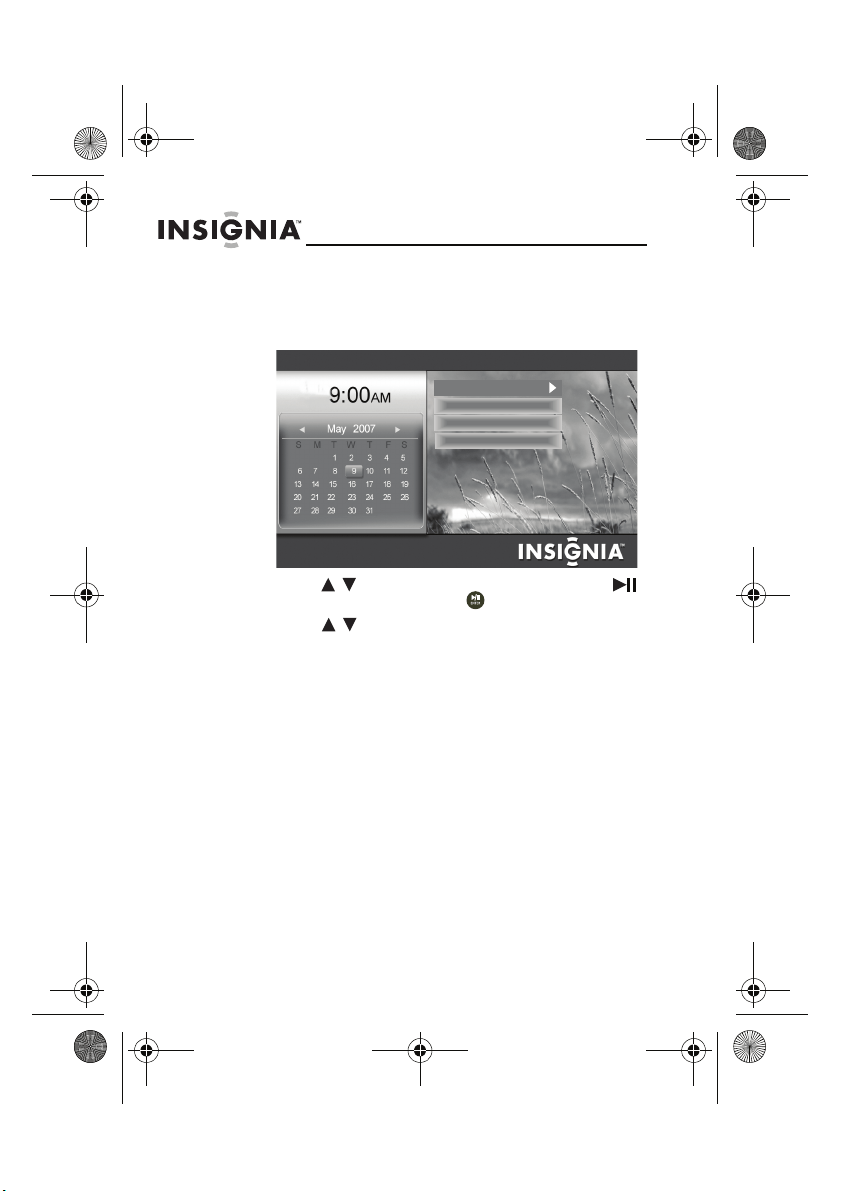

To display a single picture on the clock/
calendar screen:
1
While in the clock/calendar screen, press MENU. A
drop-down setup menu appears.
2 Press / to select SLIDESHOW, then press
(ENTER/PLAY/PAUSE) or .
3 Press / to select OFF. The clock/calendar
screen will display only the picture you select from
the Thumbnail screen.
Setting viewing options
You can change all of the viewing options in the
Setup
menu using the buttons on the top of the frame or on the
remote control. You can display the
Setup
menu at any
time by pressing MENU. Only the available setup options
are displayed for each menu.
Slide show
Slide s how Interval
Mu sic Play
Date Time Setting
08-1320 NS-DPF10WW-09 - ENG.fm Page 30 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
31
www.insignia-products.com
To set viewing options:
1
Press (BACK) until the
Home
screen opens.
2 Press the arrow keys to highlight the SETUP icon,
then press ENTER. The
Setup
menu opens.
3 Press / to highlight a display option, then press
ENTER to select the option. A second menu opens,
listing the available settings.
4 Press ENTER again to open a third menu. A square
icon ( ) to the right of an option shows the current
setting.
5 Press / to highlight a setting, then press ENTER
to select the setting.
6 When you are finished, press (BACK) to close
the
Setup
menu and return to the previous screen.
Home
Home
08-1320 NS-DPF10WW-09 - ENG.fm Page 31 Monday, May 19, 2008 8:13 PM
32
NS-DPF10WW-09
www.insignia-products.com
Setup options
The following table lists and describes
Setup
menu
options:
Menu
option
Settings Description
Slideshow
interval
5 Seconds
10 Seconds
30 Seconds
1 Minute
1 Hour
24 Hours
Sets the interval between
each picture transition in a
slideshow.
Slideshow
transition
Normal
Random
Fade
Curtain Left-Right
Curtain Top-Bottom
Open Door
Cross Comb
Sets the special effects used
to transition from one picture
to the next in a slideshow.
Slideshow
shuffle
On
Off
Displays pictures in a different
(random) order than they
appear on the memory
source.
Picture date/
time stamp
On
Off
Displays the date and time
that a picture was taken. This
does not work in multi-image
display mode.
Music
settings
Repeat single
Repeat all
No repeat
Sets the repeat option for
music playback.
08-1320 NS-DPF10WW-09 - ENG.fm Page 32 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
33
www.insignia-products.com
display
format
Normal
Zoom (default)
Wide
Cinema
Adjusts how the picture is
sized to fit the screen. Zoom
(default setting) fills the screen
without black bars.
Copy type Normal Maintains the picture’s original
resolution while copying.
Resize Optimizes (compresses) the
picture while copying to save
space in the internal memory.
Schedule of
power on
Power on time Sets a time for your digital
picture frame to turn on.
Power off time Sets a time for your digital
picture frame to turn off.
Power
saving
Off
15 Minutes
30 Minutes
1 Hour
2 Hours
6 Hours
Sets the power save option. If
the buttons on the frame or
remote control are not used for
the specified time, the frame
enters Power Saving
(Standby) mode.
To turn the frame back on,
press on the frame.
Language English
Spanish
French
Sets the language used in the
setup menus.
Factory
settings -
demo mode
On
Off
Displays pictures from internal
memory for demo purposes.
Factory
settings -
reset all
settings
No
Ye s
Resets all settings to factory
default values.
Menu
option
Settings Description
08-1320 NS-DPF10WW-09 - ENG.fm Page 33 Monday, May 19, 2008 8:13 PM
34
NS-DPF10WW-09
www.insignia-products.com
Connecting your digital picture
frame to your computer
Pictures can be transferred to your digital picture frame
using your personal computer. To connect to a PC you
need a USB cable (supplied) that has a mini USB
connector on one end and a large USB connector on the
other end.
To connect your digital picture frame to
your computer:
1
With your digital picture frame turned off, plug the
small end of the USB cable into the small connector
on the frame, then plug the large USB connector into
a USB port on your PC.
Factory
settings -
erase
internal
memory
No
Ye s
Erases all files from the
internal memory.
Factory
settings -
software
version
Firmware Version Displays the firmware version.
Date and
time setting
Year-Month-Date
Time
Lets you set the date and time
displayed on your digital
picture frame.
Note
Your digital picture frame may not work with all
versions of Microsoft Windows.
Menu
option
Settings Description
08-1320 NS-DPF10WW-09 - ENG.fm Page 34 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
35
www.insignia-products.com
2
Turn on your digital picture frame.
3 The computer recognizes the picture frame as a
drive and the following dialog box opens.
Note
When your digital picture frame is connected
to the PC with the USB cable, the large USB
slot cannot be used at the same time.
08-1320 NS-DPF10WW-09 - ENG.fm Page 35 Monday, May 19, 2008 8:13 PM
36
NS-DPF10WW-09
www.insignia-products.com

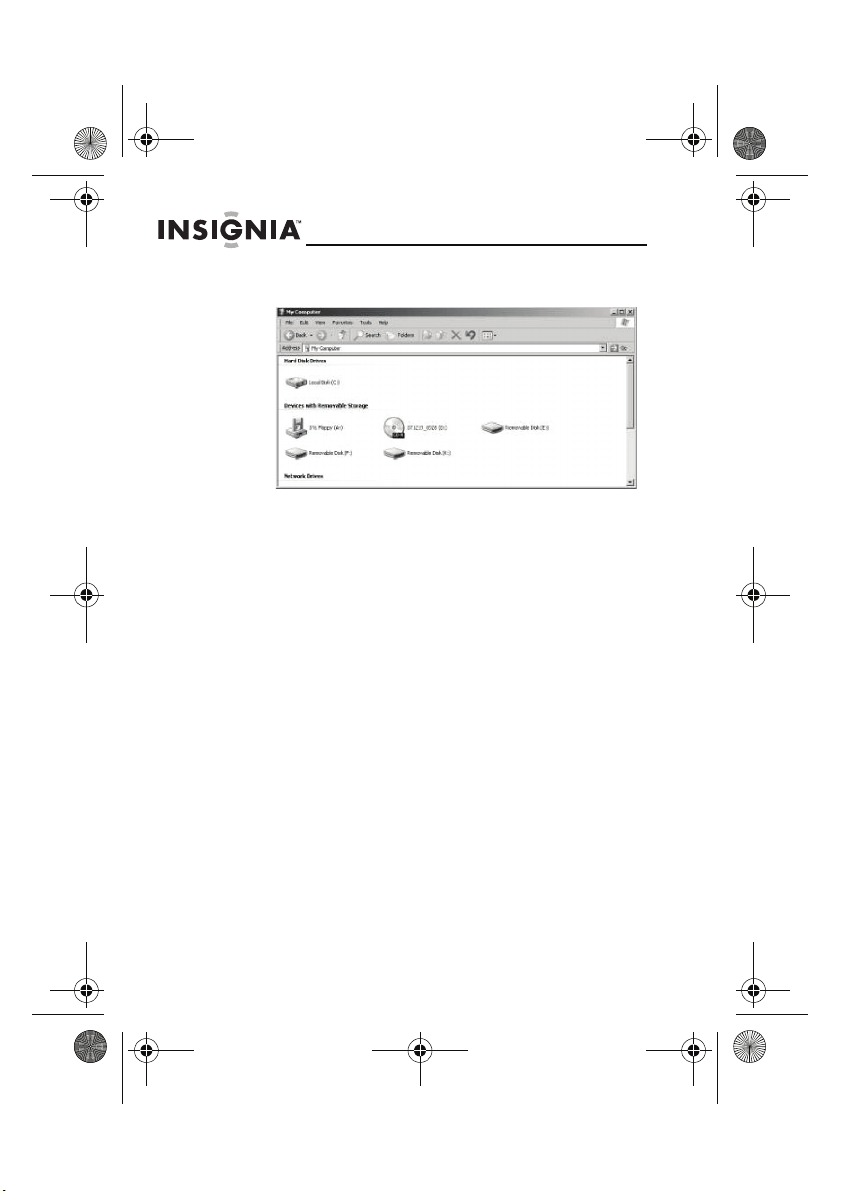

4 Click OK. A
My Computer
window (similar to the one
below) will open.
Your digital picture frame shows up as a removable
drive. The letters of the drives may be different on
your computer, depending on how many drives
already exist. The figure above shows the internal
memory of the unit and the two card slots (SD/MMC/
MS/xD and Compact Flash) as removable drives E:,
F:, and K:.
5 Click on the drives to show the contents of the
internal memory and any memory cards inserted into
the card slots. All three drives can be opened into
separate windows. Files can be transferred from
your computer to your digital picture frame by
dragging the files from a folder on your computer to
any of the three drives on the unit. The internal
memory is 256M.
Installing the extra interchangeable
frame cover
To install the interchangeable frame
cover:
1
Remove the four screws that are in the unit, then
take out the frame cover.
08-1320 NS-DPF10WW-09 - ENG.fm Page 36 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
37
www.insignia-products.com
2
Place the other frame cover on the frame, then align
the IR sensor with the IR sensor hole on the frame
cover to ensure that the remote control will operate.

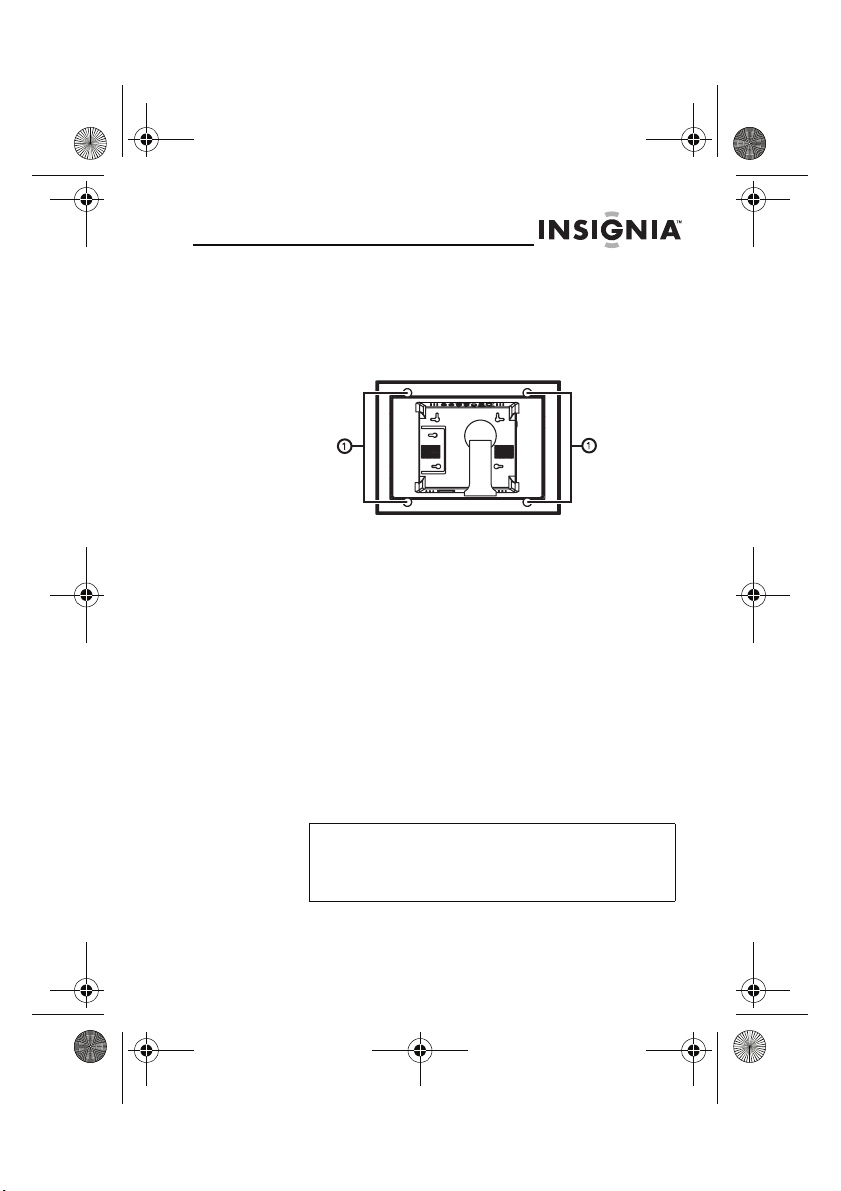

3 Install the four screws (supplied) into the screw holes
(1) to hold the frame cover in place. Please refer to
the illustration below:
Maintaining
Cleaning the LCD screen
Treat the LCD screen carefully. The screen is made of
glass and can be scratched or broken. To clean
fingerprints or dust from the LCD screen, we recommend
using the cloth provided (or a soft, non-abrasive cloth
such as a camera lens cloth) or an LCD cleaning kit.
Cleaning the digital picture frame
Clean the outer surface of the digital picture frame
(excluding the screen) with a soft cloth dampened with
water.
Caution
The front of the frame is made of glass. Use
caution when cleaning or replacing the frame
cover.
08-1320 NS-DPF10WW-09 - ENG.fm Page 37 Monday, May 19, 2008 8:13 PM
38
NS-DPF10WW-09
www.insignia-products.com
Replacing the remote control battery
To replace the remote control battery:
1
Turn the remote control over.
2 While pressing down on the ridged area of the
battery cover, slide the battery tray out and remove
the old battery.
3 Place a new CR2025 (or equivalent) lithium battery
in the tray, with the positive (+) side facing up.
4 Slide the battery tray back into the remote control.
Troubleshooting
Problem Solution
The frame will not
turn on.
The power adapter is not securely connected to
the picture frame, or the power switch is not on.
Check power adapter connections, then press
the power button.
A memory card is
inserted in the
frame, but you can’t
view your pictures.
• Make sure that the memory card is one of
the supported formats and that the files on
the card are JPG/JPEG image files.
• Turn the digital picture frame off and make
sure that the memory card is inserted all
the way into the card slot and is inserted
correctly, then turn it back on. After a few
seconds, you should see your first picture.
• This digital picture frame does not support
flash cards larger than 2 GB.
• Try formatting the card.
• Some digital cameras save images in
formats other than JPEG. Refer to your
camera’s manual for details.
08-1320 NS-DPF10WW-09 - ENG.fm Page 38 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
39
www.insignia-products.com
Specifications
The frame displays
some pictures
slower than others.
Higher resolution pictures load more slowly. Try
using lower resolution pictures or down-sampling
(compressing or resizing) them. See your
camera’s user guide for instructions on
down-sampling your pictures.
Screen size NS-DPF10WW-09: 10" (254 mm)
Screen format Widescreen (15:9)
Memory card formats • Compact Flash
®
• Memory Stick
®
• Multimedia Card (MMC™)
• Secure Digital™ (SD)
•xD™
Compatible cards which require adapter:
• Memory Stick Duo™
• Memory Stick PRO™
• Memory Stick PRO Duo™
• Memory Stick Micro™
•microSD™
• miniSD™
File format Standard JPG/JPEG, MP3, and WMA
Power input 100V~240V AC, 50~60 Hz
9 V DC
Power consumption
13 W
Operating
temperature
41~95°F (5~35°C)
Weight 2.86 lb. (1.30 kg)
Dimensions (W×D×H) 12.60 × 9.17 × 1.42 inches (320 × 233 × 36 mm)
Internal memory 256 MB
Problem Solution
08-1320 NS-DPF10WW-09 - ENG.fm Page 39 Monday, May 19, 2008 8:13 PM
40
NS-DPF10WW-09
www.insignia-products.com
Legal notices
FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation of
this product is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that
may cause undesired operation.
FCC warning
Changes or modifications not expressly approved by the party
responsible for compliance with the FCC Rules could void the
user’s authority to operate this equipment.
Canada ICES-003 statement
This Class B digital apparatus complies with Canadian
ICES-003.
Image use restrictions
Use of the images pre-loaded on the digital picture frame is
limited to personal, non-commercial use. Consumer may not
modify, duplicate, distribute, retransmit, republish, reproduce, or
create derivative works from the pre-loaded images.
08-1320 NS-DPF10WW-09 - ENG.fm Page 40 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
41
www.insignia-products.com
Six-month limited warranty
Insignia Products (“Insignia”) warrants to you, the original
purchaser of this new NS-DPF10WW-09/NS-DPF10WW-09CA
(“Product”), that the Product shall be free of defects in the original
manufacture of the material or workmanship for a period of 6
months from the date of your purchase of the Product (“Warranty
Period”). This Product must be purchased from an authorized
dealer of Insignia brand products and packaged with this
warranty statement. This warranty does not cover refurbished
Product. If you notify Insignia during the Warranty Period of a
defect covered by this warranty that requires service, terms of
this warranty apply.
How long does the coverage last?
The Warranty Period lasts for 6 months from the date you
purchased the Product. The purchase date is printed on the
receipt you received with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the
material or workmanship of the Product is determined to be
defective by an authorized Insignia repair center or store
personnel, Insignia will (at its sole option): (1) repair the Product
with new or rebuilt parts; or (2) replace the Product at no charge
with new or rebuilt comparable products or parts. Products and
parts replaced under this warranty become the property of
Insignia and are not returned to you. If service of Products or
parts are required after the Warranty Period expires, you must
pay all labor and parts charges. This warranty lasts as long as
you own your Insignia Product during the Warranty Period.
Warranty coverage terminates if you sell or otherwise transfer the
Product.
08-1320 NS-DPF10WW-09 - ENG.fm Page 41 Monday, May 19, 2008 8:13 PM
42
NS-DPF10WW-09
www.insignia-products.com
How to obtain warranty service?
If you purchased the Product at a retail store location, take your
original receipt and the Product to the store you purchased it
from. Make sure that you place the Product in its original
packaging or packaging that provides the same amount of
protection as the original packaging. If you purchased the
Product from an online web site, mail your original receipt and the
Product to the address listed on the web site. Make sure that you
put the Product in its original packaging or packaging that
provides the same amount of protection as the original
packaging.
To obtain in-home warranty service for a television with a screen
25 inches or larger, call 1-888-BESTBUY. Call agents will
diagnose and correct the issue over the phone or will have an
Insignia-approved repair person dispatched to your home.
Where is the warranty valid?
This warranty is valid only to the original purchaser of the product
in the United States and Canada.
What does the warranty not cover?
This warranty does not cover:
• Customer instruction
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to acts of God, such as lightning strikes
• Accident
•Misuse
•Abuse
• Negligence
• Commercial use
• Modification of any part of the Product, including the
antenna
• Plasma display panel damaged by static (non-moving)
images applied for lengthy periods (burn-in).
This warranty also does not cover:
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage supply
• Attempted repair by anyone other than a facility authorized
by Insignia to service the Product
• Products sold as is or with all faults
08-1320 NS-DPF10WW-09 - ENG.fm Page 42 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
43
www.insignia-products.com
• Consumables, such as fuses or batteries
• Products where the factory applied serial number has been
altered or removed
REPAIR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS YOUR EXCLUSIVE REMEDY. INSIGNIA SHALL
NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR THE BREACH OF ANY EXPRESS OR
IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT
NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR
PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA
PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES
WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND
IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF AND
CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE
WARRANTY PERIOD SET FORTH ABOVE AND NO
WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL
APPLY AFTER THE WARRANTY PERIOD. SOME STATES,
PROVINCES AND JURISDICTIONS DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH
VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
For customer service please call 1-877-467-4289
www.insignia-products.com
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, Minnesota, U.S.A.
55423-3645
© 2008 Best Buy Enterprise Services, Inc.
All rights reserved. INSIGNIA is a trademark of Best Buy
Enterprise Services, Inc. Registered in some countries. All other
products and brand names are trademarks of their respective
owners.
08-1320 NS-DPF10WW-09 - ENG.fm Page 43 Monday, May 19, 2008 8:13 PM
44
NS-DPF10WW-09
www.insignia-products.com
08-1320 NS-DPF10WW-09 - ENG.fm Page 44 Monday, May 19, 2008 8:13 PM
NS-DPF10WW-09
45
www.insignia-products.com
08-1320 NS-DPF10WW-09 - ENG.fm Page 45 Monday, May 19, 2008 8:13 PM
ENGLISH
08-1320
www.insignia-products.com (877) 467-4289
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richfield, MN USA 55423-3645
© 2008 Best Buy Enterprise Services, Inc.
All rights reserved. INSIGNIA is a trademark of Best Buy Enterprise Services, Inc. Registered in
some countries.
All other products and brand names are trademarks of their respective owners.
08-1320 NS-DPF10WW-09 - ENG.fm Page 46 Monday, May 19, 2008 8:13 PM
