• How This Manual Is Organized4
• Safety5
• Proper Installation and Maintenance5
• Fire Safety5
  • 1) You know you have a CLASS ABC extinguisher and you already know how to operate it.6
  • 2) The fire is small and contained in the area where it started.6
  • 3) The fire department is being called.6
• Burn Prevention6
  • Use this appliance only for its intended use as described in this manual. NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating the appliance. Never use the appliance for...7
• Child Safety7
• Cleaning Safety7
  • 1) Providing good ventilation when cooking with gas.7
  • 2) Providing good ventilation during and immediately after self-cleaning the oven.7
  • 3) Operating the unit according to the instructions in this manual.7
• Cookware Safety8
• Food Safety8
  • 1) DO NOT use a warming drawer to heat cold food (exception: it is safe to use the drawer to crisp crackers, chips or dry cereal and to warm plates.8
  • 2) Be sure to maintain proper food temperature. The USDA recommends holding hot food at 140° F or warmer.8
  • 3) DO NOT warm food for longer than one hour.8
• Getting Started9
• Parts and Accessories9
  • Radiant Elements9
  • Single Element10
  • Double Element (some models)10
  • The dual element consists of two (a small and a large) radiant element within the same heating area. Either the small element, or both elements may be selected for use.10
  • Triple Element (some models)10
  • Power Element (some models)10
  • Warming Zone10
  • Retained Heat10
  • Temperature Limiter10
  • Hot Surface Indicator10
    • Oven Features10
    • Cooling Fan10
  • Convection Fan10
    • Oven Bottom10
    • Note:10
  • Oven Vent10
  • Automatic Shutoff10
  • Self-Cleaning10
  • Indicators and Other Features11
  • Standby Mode11
    • Accessories11
      • Inserting Racks11
      • Flat Rack11
      • To insert the flat rack into the oven:11
        • 1. Grasp rack firmly on both sides.11
        • 2. Insert rack (see picture).11
        • 3. Tilt rack up (A) to allow the upwardly sloped rear of the rack to slide under the stop molded into the front portion of the rack guide above.11
        • 4. When the back of the rack is past this stop, lower the front of the rack to a horizontal position (B) and push it the rest of the way in.11
      • To remove the flat rack from the oven:12
        • 1. Grasp rack firmly on both sides and pull rack toward you.12
        • 2. When the stop is reached, tilt rack up so that the upwardly sloped back of the rack can pass under the stop. Pull the rack the rest of the way out.12
      • Telescopic Rack (some models)12
      • To insert the telescopic rack into the oven:12
        • 1. Slide the rack in evenly until the rear of the rack is about 2 inches from the back of the oven.12
        • 2. Tilt the front of the rack up about 3/4’s of an inch (A) and finish pushing the rack all the way back (B)12
        • 3. The back of the telescopic rack drops into place.12
        • 4. Pull the rack forward to engage the bottom of the rack onto the rear of the rack position guide.12
        • 5. Lower the front of the rack to finish seating it on the rack guide. The rack should feel stable when properly seated.12
        • 6. Slide the movable part of the telescopic rack in and out a few times to make sure it is able to move freely and that the non-moving part of the telescopic rack is securely anchored.12
      • To remove the telescopic rack from the oven:12
        • 1. Lift the front of the telescopic rack assembly about 1/2 inch and push the rack to the rear about 3/4 inch. This allows the rack to disengage from the rack position guide.12
        • 2. Lift the rear of the telescopic rack assembly so it clears the rack position guide and gently pull the rack from the oven.12
• Before Using the Appliance for the First Time12
  • Operation - Cooktop13
    • About the Cooktop13
  • Setting the Element Heat Level13
    • Single Element Control Knob13
    • Double Element Control Knob13
    • Power Element Control Knob (some models)13
    • Triple Element Control Knob (some models)13
    • Warming Zone14
      • 1. Press the Warming Zone button.14
      • 2. Press Enter.14
      • 1. Press the Warming Zone button.14
    • Surface Element On/Hot Indicators14
    • Cooktops with a triple front element14
    • Cooktops with a double front element14
    • Surface Elements Disabled During Self Clean14
    • Operation - Oven15
      • Oven Control Panel15
        • Buttons15
        • Button Descriptions15
        • More Modes16
        • Display Symbols16
        • About the Oven16
        • Basic Features16
      • Setting the Clock16
        • To set the clock17
          • 1. The oven must be in Standby mode (oven is powered on, but no cooking mode or timer in operation).17
          • 2. To access the clock set mode:17
          • 3. Use the numeric keypad to enter the desired time. Each number pressed is entered at the right and moving previously entered digits to the left. To set “12:45 pm”, press 1, 2, 4, 5.17
          • 4. When the desired time is entered, set the time by pressing Enter.17
      • Setting the Cooking Mode and Temperature17

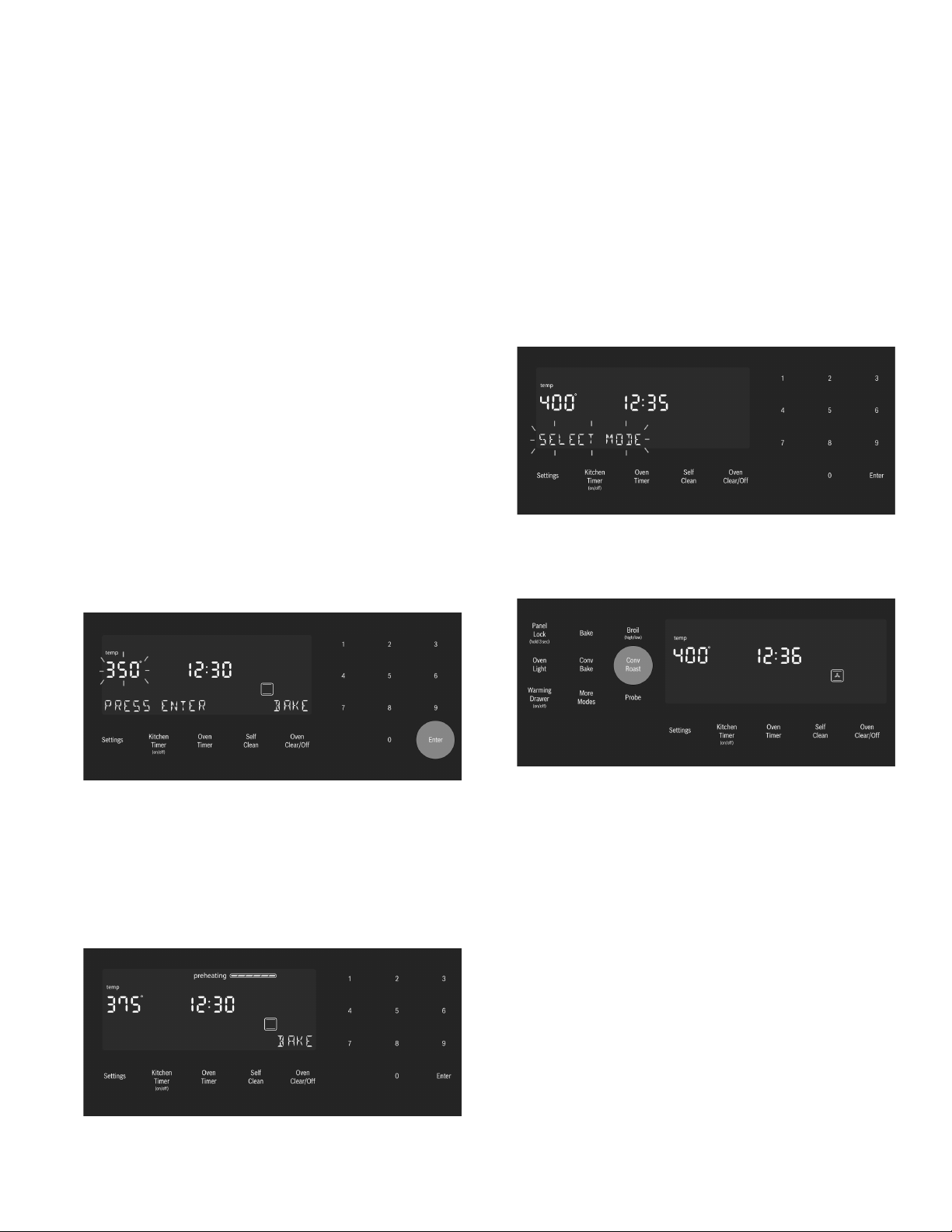

        • 1. Press the desired Cooking Mode button. The cooking mode and default temperature are displayed. The temperature flashes to show it can be edited.17
        • 2. Press Enter to start the mode using the default temperature.17
        • 3. To change the temperature, enter the new temperature using the numeric buttons. 375° is used for this example. Press Enter to set the updated temperature.17
        • 4. Preheating starts.17
        • 1. Press the numeric keys to enter the desired temperature setting. The temperature entered is displayed beside the current time.17
        • 2. Select a cooking mode that is compatible with the temperature entered. If no cooking mode is selected within 5 seconds of setting the temperature, an error tone sounds and a SELECT MODE message is displayed and blinks.17
        • 3. Press a Mode Selection button to select a cooking mode.17
        • 1. Press the Cooking Mode button.17
        • 2. The current temperature flashes. Use the numeric buttons to enter a new temperature. Press Enter.17
      • Timer18
        • To set a kitchen timer18
          • 1. Press the Kitchen Timer On/Off button.18
          • 2. Press Enter.18
          • 3. When the kitchen timer has counted down to zero an alarm tone sounds every 10 seconds for 2 minutes and the message “TIMER END” is displayed.18
        • Cancel the kitchen timer - by pressing the Kitchen Timer On/Off button.18
        • Note18
          • To edit a kitchen timer18
            • 1. Press the Kitchen Timer On/Off button.18
            • 2. The current time value blinks and can be edited.18
          • To set an oven timer18
            • 1. Press the Oven Timer button.18
            • 2. Select mode, press Enter.18
            • 3. When the timer reaches :00 the cooking mode ends and the message “OVEN TIMER FINISHED” is displayed. The oven alarm tone sounds every 10 seconds for 2 minutes.18
            • 1. If the oven timer is running and the time remaining needs to be changed, enter the oven timer mode by pressing the Oven Timer button.19
            • 2. The temperature blinks, indicating it can be edited. Input a new temperature or press Enter for no change.19
            • 3. The timer value blinks, indicating it can be edited. Input the new time and restart the timer by pressing the Enter button.19
      • Fast Preheat19
        • 1. Press Fast Preheat.19
        • 2. Press Start.19
        • Special Features19
      • Probe (some models)19
        • 1. Insert the probe into the meat as described above. The probe symbol is displayed.19
        • 2. Connect the probe to the oven. If the probe is not connected to the oven prior to starting Probe mode, an error tone sounds and the message “INSERT PROBE” is displayed.19
        • 3. Set the cooking mode and temperature.19
        • 4. The Set Probe Temp screen is displayed. A three digit input prompt “- - -” blinks in the lower right corner. Use the numeric keypad to enter the desired probe temperature and press Enter.19
        • 5. The probe current temperature and target temperature are both displayed in the format “105 / 180” at the lower right corner of the display. The actual temperature will display < 80 until the food temperature reaches 80° F.20
        • 6. When the probe temperature reaches the set temperature, the cooking mode turns off. The current time is displayed and the message “COOKING COMPLETE” blinks at the bottom left of the display. An alarm tone sounds every 10 seconds for 2 minutes.20
        • Note:20
      • Sabbath Mode20

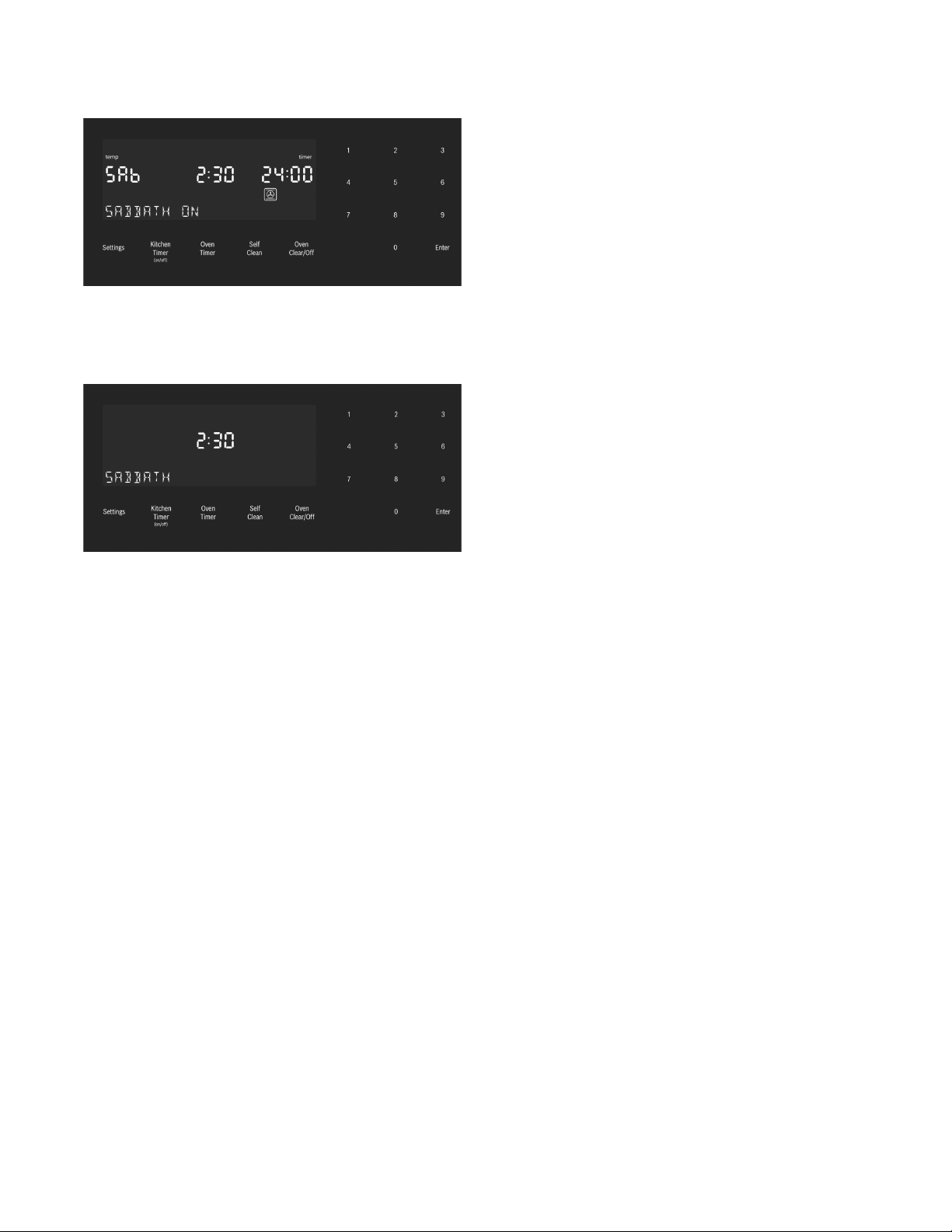

        • 1. Begin a Bake operation. While Bake is running, press and hold the Oven Timer button for five seconds.20
        • 2. Press Enter to accept the default 74:00 hours and start Sabbath Mode, or use the numeric keypad to enter the desired Sabbath Mode timer value. Timer values between 0:01 and 74:00 can be entered.20
        • 3. Once Sabbath Mode has begun, the display changes to show the message “SABBATH ON”.21
        • 4. After the Sabbath Mode countdown reaches zero, the oven displays the current time and the message “SABBATH”. No changes can be made at this point. To end the Sabbath Mode and return to normal function, press the Oven Clear/Off button.21
        • Note:21
          • 1. Press the Bake button.21
          • 2. Enter the new desired set temperature.21
          • 3. Press Enter.21
      • Panel Lock21
        • 1. To enable Panel Lock, press and hold the Panel Lock button for 3 seconds (in Standby mode).21
        • 2. To disable Panel Lock, press and hold the Panel Lock button for 3 seconds. The display returns to Standby mode.21
      • Sabbath Mode21
        • 1. Press the Settings button.21
        • 2. The first setup item is displayed. The display shows “SET CLOCK”. Press Settings again to access the settings menu.21
        • 3. To display a different setup item, press the number corresponding to that setting (see table following or press the Settings button to cycle through available options).21
        • 4. To change the value for the displayed setting press the Enter button to enter the edit mode. Use the numeric keypad to change the setting value. The corresponding setting value is shown in the table following.21
        • Oven Temperature Offset21
      • Settings Menu Options22
    • Operation - Warming Drawer23
• About the Warming Drawer23
  • Warming Drawer Specifications23
• Operation23
  • Preheating23
    • Preheat Times23
  • Turning Warming Drawer On and Off23
    • 1. Press the Warming Drawer button.23
    • 2. “WARMING DRAWER” will be displayed with the default setting “MED”. The warming drawer amber icon is displayed below the clock.23
    • 3. To accept the “MED” setting, press Enter. The setting is accepted and the warming drawer icon remains illuminated. If enter is not pressed, the warming drawer setting is not accepted and the warming drawer turns off.23
    • 4. To change the setting, when “MED” is displayed, press the Warming Drawer button again. The setting changes to “HIGH”. Press the Warming Drawer button again to change the setting to “LOW”. To accept a setting, press Enter. The displayed...23
    • 5. To turn the warming drawer off, press the Warming Drawer button and the warming drawer will turn off. The warming drawer icon will no longer appear under the clock.23
  • Warming Empty Serving Bowls and Plates23
    • Getting the Most Out of Your Cooktop24
  • Cooktop Cooking Guide24
    • Boiling Water24
    • Recommended Settings24

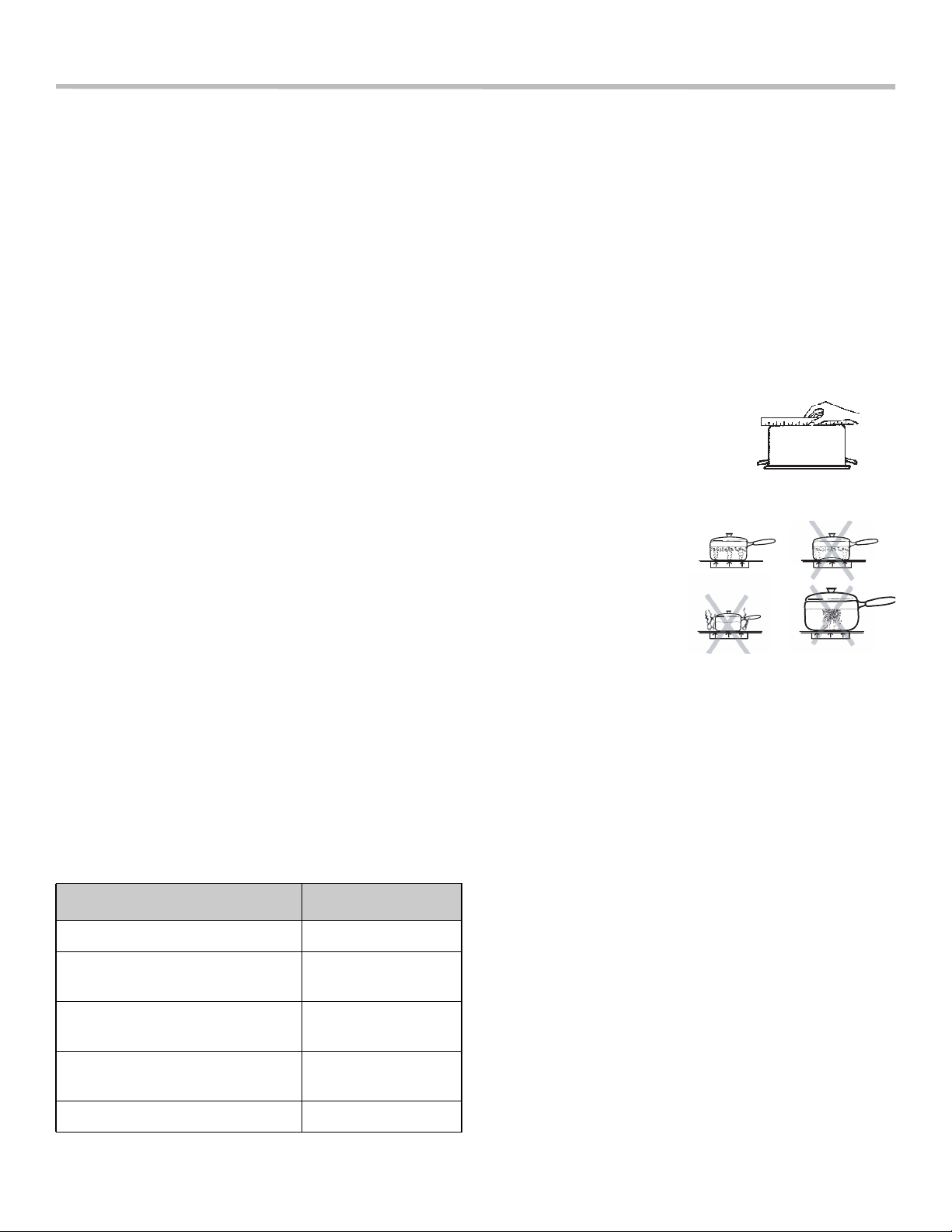

      • Table 1: Cooking Guide24
  • Cookware Selection Guide24
    • Cookware Characteristics24
    • To Test the Flatness of Your Pans24
    • Cookware Tips24
    • Specialty Pans25
    • Getting the Most Out of Your Oven25
      • General Tips25
        • Pan Placement25
        • Rack Position25
        • Aluminum Foil25
        • Preheating the Oven25
        • Preheat Reminders25
        • For Best Results26
        • Baking Pans and Dishes26
        • Opening the Oven Door26
        • High Altitude Baking26
        • Condensation26
        • Temperature Range (°F) by Cooking Mode26
      • Bake26
        • Tips26
        • Auto Convection Conversion27
      • Convection Bake27
        • Tips27

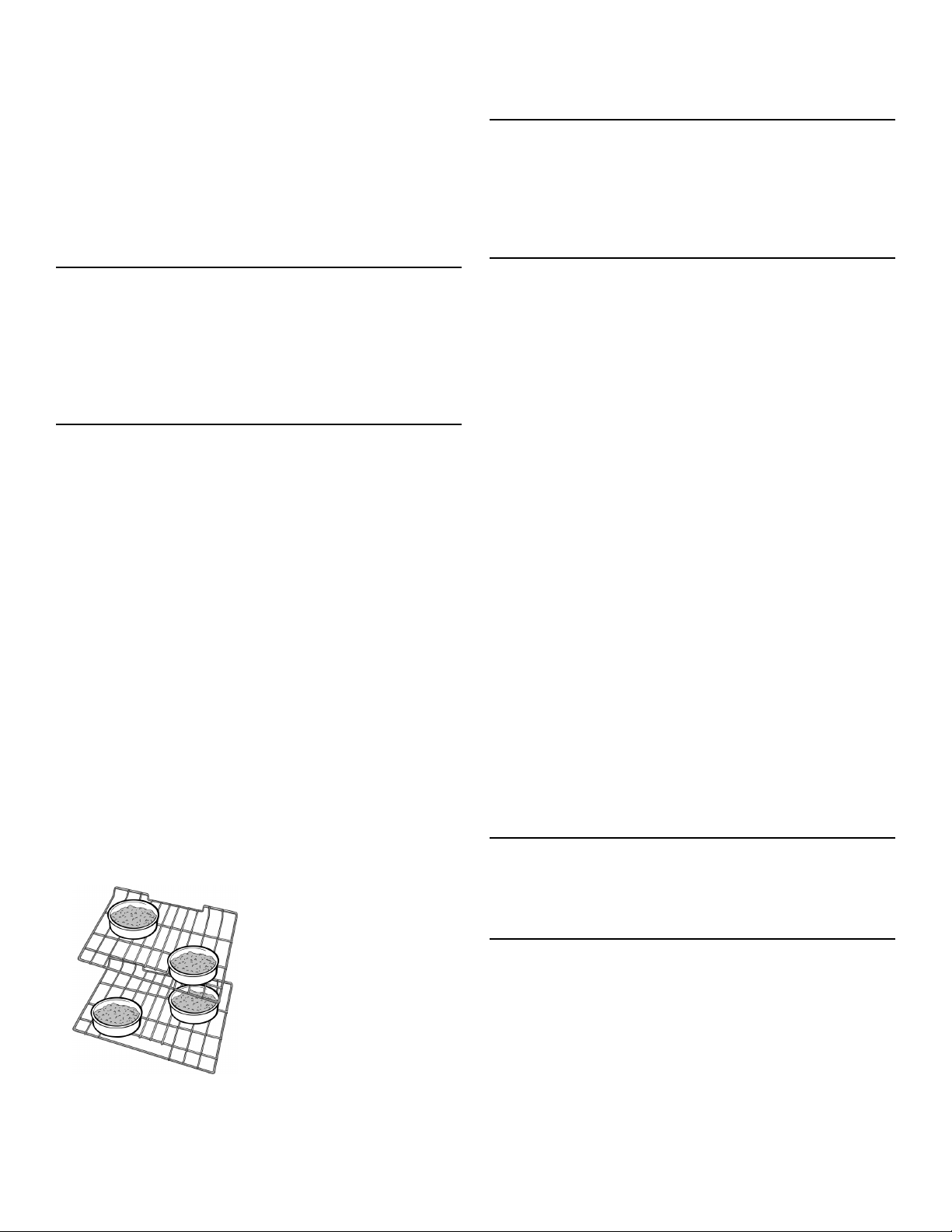

      • Convection Multi-Rack27
        • Tips27
      • Pizza27
        • Tips27
      • Roast28
        • Tips:28
      • Convection Roast28
        • Tips:28
      • Broil28
        • Tips:28
      • Convection Broil29
        • Tips:29
      • Proof29
      • Warm29
    • Getting the Most Out of Your Warming Drawer30
      • About the Appliance30
  • General Tips30
    • Use of Your Appliance30
      • IMPORTANT:30
        • Note:30
          • Preheating the Warming Drawer30
          • Warming Food30
            • 1. Preheat warming drawer.30
            • 2. Place cooked, hot food in the drawer.30
          • Warming Plates and Bowls30
          • Crisping Stale Items30
            • 1. Press LOW.30
            • 2. Preheat for 10 minutes, then place dish in drawer.30
            • 3. Set the warming timer.30
            • 4. Check crispness after 45 minutes. Add time as needed.30
          • Temperature Recommendations31
    • Cleaning and Maintenance32
• Care and Cleaning32
  • Cleaning the Cooktop32
    • Precautions for Long Life and Good Appearance of the Surface32
    • Before Use Care32
    • Daily Cleaning Techniques32
      • 1. Clean the surface when completely cool with the glass ceramic cooktop cleaner. Exception: Remove dry sugar, sugar syrup, tomato products and milk immediately with the razor blade scraper (See Cooktop Care Chart, next page).32
      • 2. Wipe off spatters with a clean, damp sponge or paper towel. Rinse and dry. Use white vinegar if smudge remains; rinse.32
      • 3. Apply a small amount of the glass ceramic cooktop cleaner. When dry, buff surface with a clean paper towel or cloth.32
    • Using the Razor Blade Scraper32
      • Figure 1: Scraper32
    • Cleaning the Control Knobs32
      • 1. Pull out and off to remove both knob. Wipe with hot, soapy cloth, rinse and dry. Do not soak.32
      • 2. To replace, push knob straight onto shaft.32
    • Do Not Use the Following Cleaners32
      • Cooktop Care Chart33
      • Cleaning the Oven34
      • Self Clean34
        • NOTICE:34
          • To set the Self Clean mode34
            • 1. Remove all accessories and racks from the oven.34
            • 2. If there is a cooking mode on, press Oven Clear/Off to end the running mode.34
            • 3. Press the Self Clean button below the display.34
            • 4. When the desired Self Clean time is displayed, press Enter.34

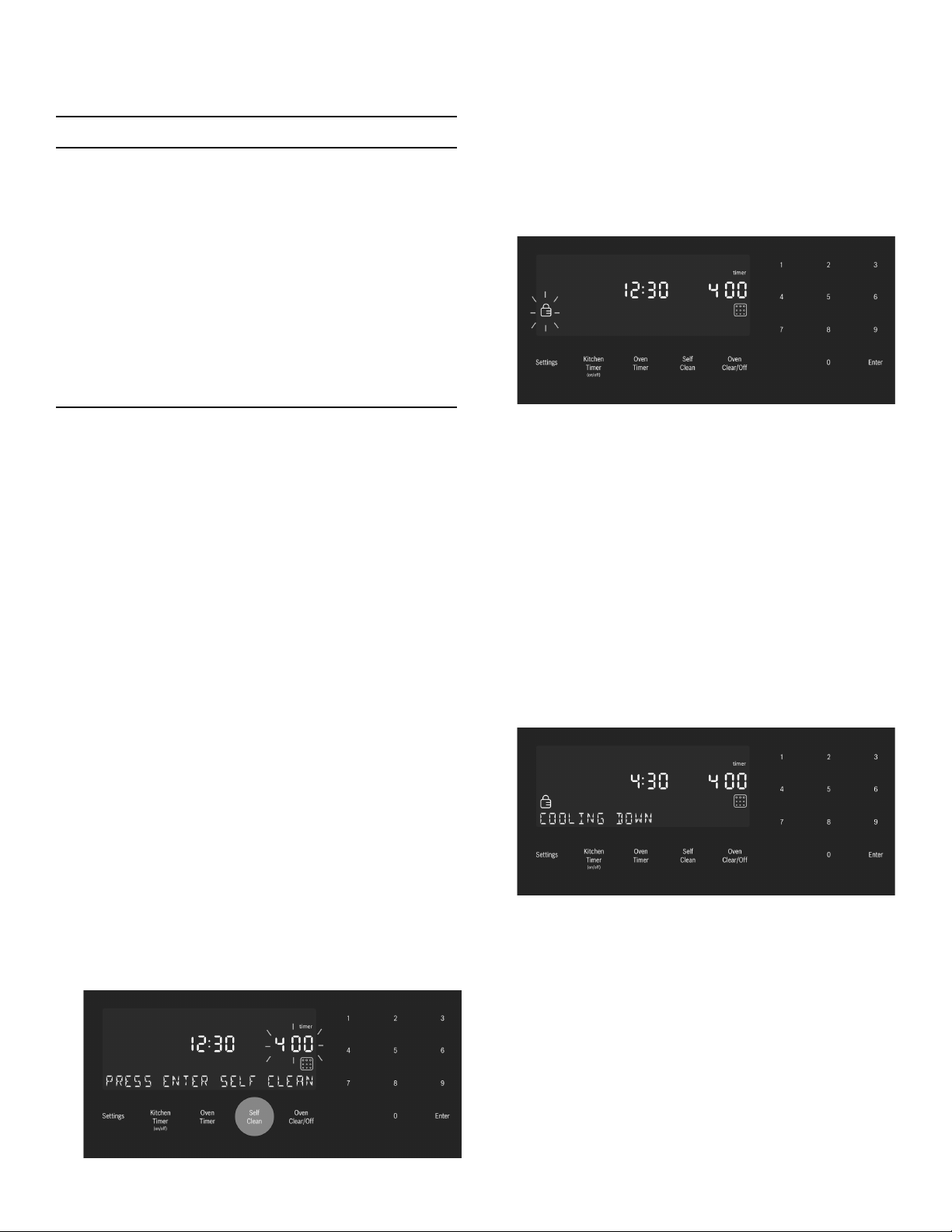

            • 5. Self Clean starts and the oven Self Clean timer begins its countdown.34
          • To Cancel Self Clean34
            • 6. When the cool down is complete, the message “SELF CLEAN FINISHED” is displayed. Continue to use caution when opening the oven door.35
            • 7. Press Oven Clear/Off to clear the display when Self Clean is finished.35
            • 8. After the oven has cooled down and the door is unlocked, wipe remaining ash from the oven using a moist cloth.35
          • Note:35
      • Avoid These Cleaners35
      • Oven Cleaning Guide35
        • Cleaning the Warming Drawer36
        • Maintenance37
  • Cooktop Maintenance37
    • Glass Ceramic Cooktop Models37
      • Oven Maintenance37
      • Replacing an Oven Light37

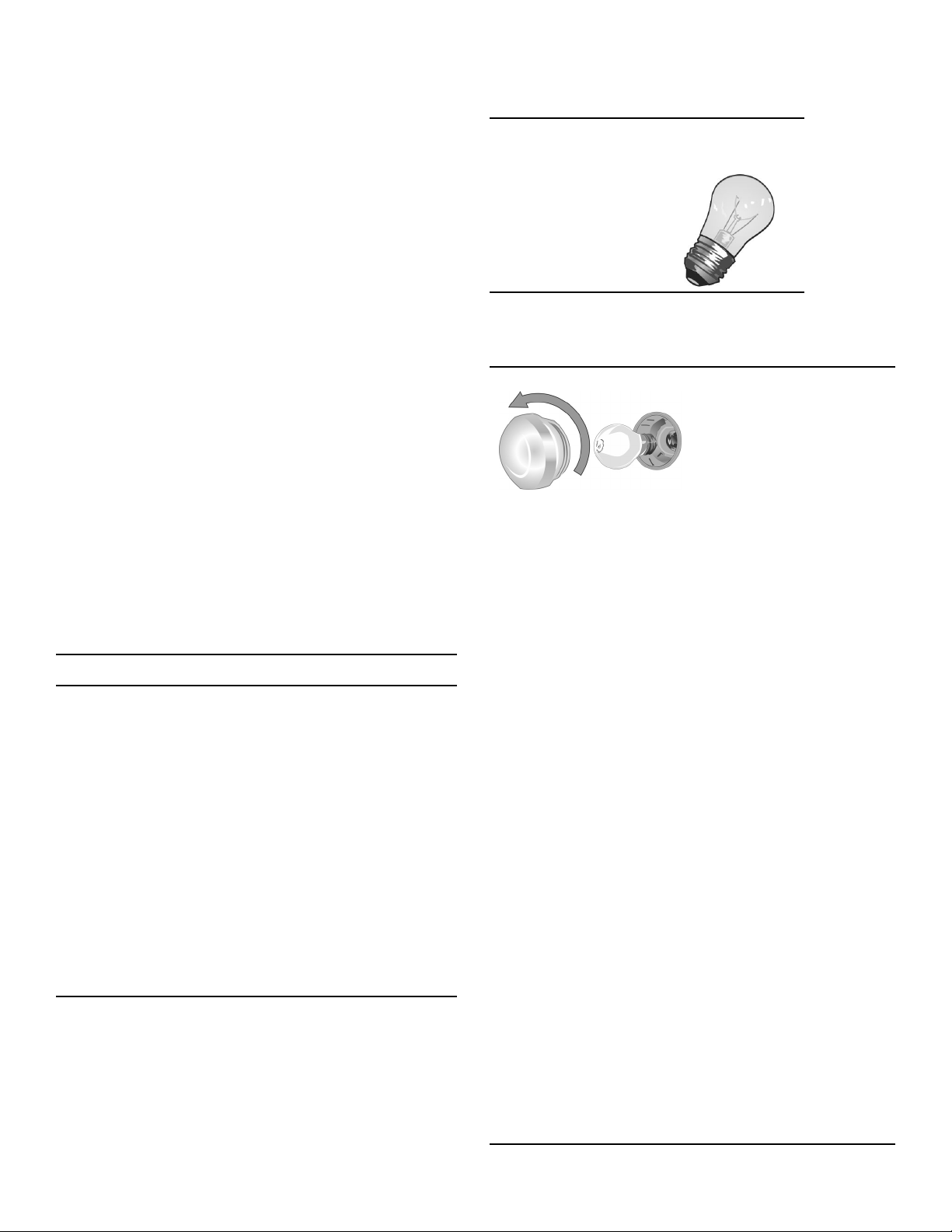

        • To change the bulb37
          • 1. Turn off power to the oven at the main power supply (fuse or breaker box).37
          • 2. Remove the glass cover by unscrewing it. Turn the glass counterclockwise to remove it.37
          • 3. Remove the bulb. The bulb unscrews counterclockwise.37
          • 4. Grasp the new bulb with a clean, dry cloth to prevent depositing skin oils on the glass which could lead to premature bulb failure. Replace the bulb by screwing it in turning the bulb clockwise.37
          • 5. Screw the glass cover back on.37
          • 6. Turn power back on at the main power supply (fuse or breaker box).37
      • Removing the Oven Door38
        • 1. Open the oven door to its fully open, horizontal position.38
        • 2. Flip levers on hinges toward you.38
        • Note: It may be necessary to use a tool, such as a screwdriver, to gently pry the upper part of the lever away from the housing. Take care to avoid scratching the housing.38
          • 3. Bring both door hinge levers to their fullest down position as shown in the illustration. The left and right door hinges may differ slightly but operate in the same manner.38
          • 4. Close the oven door until it catches on the hinge stop levers, locking the hinges at the proper angle for door removal. The door will be open about 7 inches at the top. This takes the spring tension off the hinges so the door can be easily lifted out38
          • 5. The door is heavy. Use both hands to firmly grip it by the sides. Do not grip the door by the handle. Maintaining the door angle, lift the door straight up approximately 3/4" to unhook the hinges from the slots and then pull it out towards you unt...38
          • 6. Place the door in a convenient and stable location for cleaning.38
          • To replace the oven door39
            • 1. Holding the door firmly in both hands, grip it on either side, not by the handle.39
            • 2. Tilt the door back slightly towards you until it opens about 7" at the top.39
            • 3. Slide the hinges into the slots as far as they will go and then lower the door straight down. The angle of the door may need to be adjusted slightly to allow the hinges to engage properly and the door to lower into place. The door should lower abo...39
            • 4. Once both hinges are fully engaged as described in Step 3, gently open the door until it is fully open.39
            • 5. Push the levers on both the hinges up and forward until they are locked into the slot, flush with the front of the oven body.39
            • 6. Close and open door slowly to be sure it is correctly and securely in place.39
        • Warming Drawer Maintenance39
      • Removing the Drawer39
        • 1. Pull drawer to fully open position.39
        • 2. Press down right drawer clip.39
        • 3. Lift up left drawer clip.39
        • 4. Firmly pull the drawer straight out. Retract cabinet rails while drawer is removed.39
      • Replacing the Drawer39
        • 1. Be sure housing slides are pushed inside housing.39
        • 2. Align the drawer rails with the housing slides attached to the drawer housing.39
        • 3. Firmly push the drawer straight into the drawer housing until the drawer clicks into place. Note: The drawer has a “push-to-open” operation. Pressing the lower center front of the drawer causes the drawer to self-open.39
        • 4. Open and close drawer to test operation. Note: if the drawer will not close, verify that the rails on the drawer are properly aligned to housing slides and that the rail release levers are properly positioned.39
    • Service40
    • How to Obtain Service or Parts40
    • Product Data Plate40
• Self Help40
  • Cooktop Troubleshooting40
  • Oven Troubleshooting41
  • Use these suggestions before calling for service to avoid service charges.41
    • Statement of Limited Product Warranty43
      • What this Warranty Covers & Who it Applies to43
      • How Long the Warranty Lasts43
      • Repair/Replace as Your Exclusive Remedy43
      • Out of Warranty Product44
      • Warranty Exclusions44
    • How to Obtain Warranty Service:44
    • Cooking Charts45
• Leere Seite2
• Leere Seite103
