Models: 795.7131*
Bottom Freezer Refrigerator
* = color number
P/N MFL67851501
Sears Brands Management Corporation
Hoff man Estates, IL 60179 U.S.A.
www.kenmore.com
Sears Canada Inc.
Toronto, Ontario, Canada M5B 2C3
www.sears.com
www.sears.ca
®
Use & Care Guide
English
2
TABLE OF CONTENTS
Warranty .............................................................. 3
Protection Agreements ..................................... 4
Important Safety Instructions ......................5-7
Electrical & Grounding Requirements ........... 7

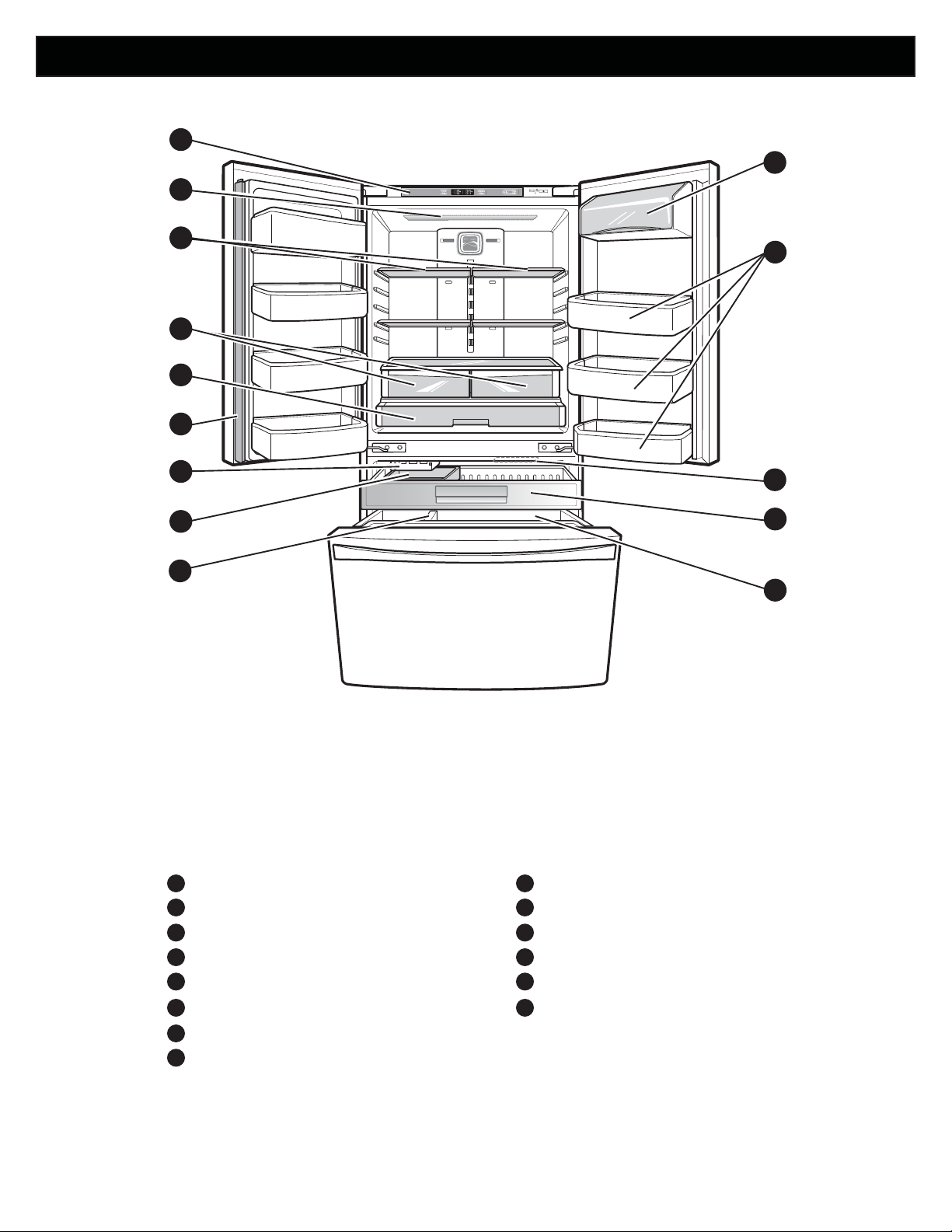

Parts and Features .............................................8
Refrigerator Installation .............................. 9-16
Unpacking Your Refrigerator ..........................9
Installation .......................................................10
Removing/Replacing Your Refrigerator and

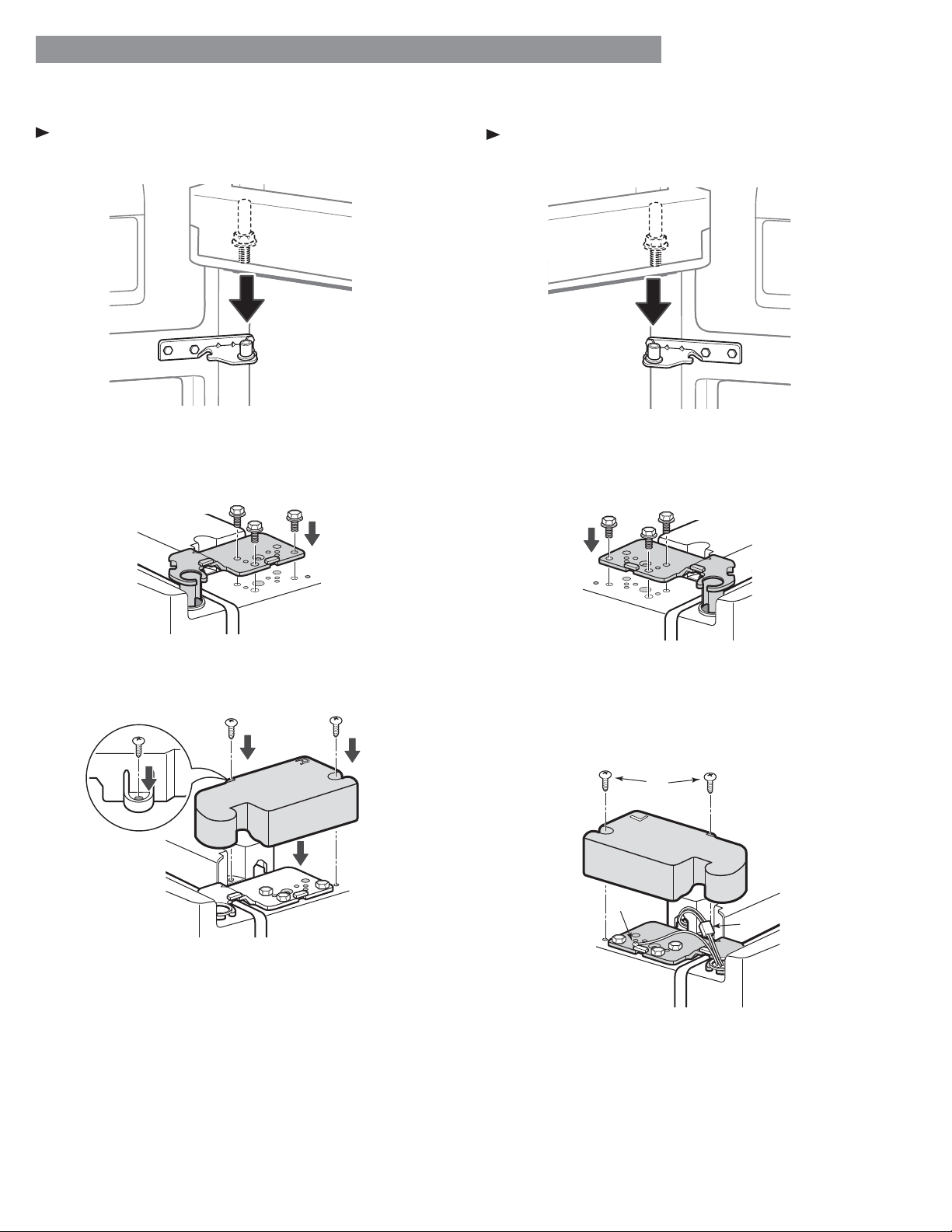

Freezer Handles, Doors and Drawers......11-15

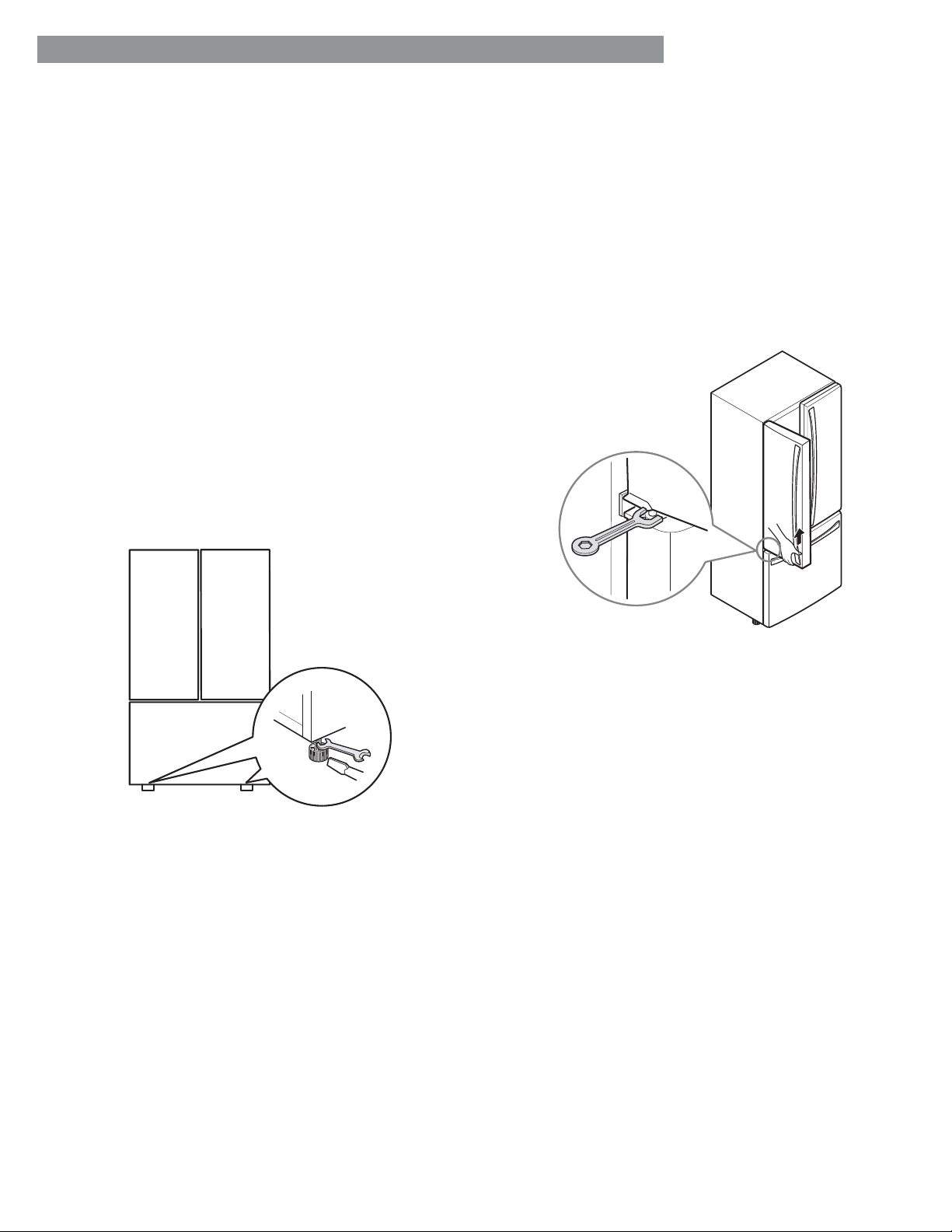

Leveling and Door Alignment ......................16
Using Your Refrigerator ............................17-24

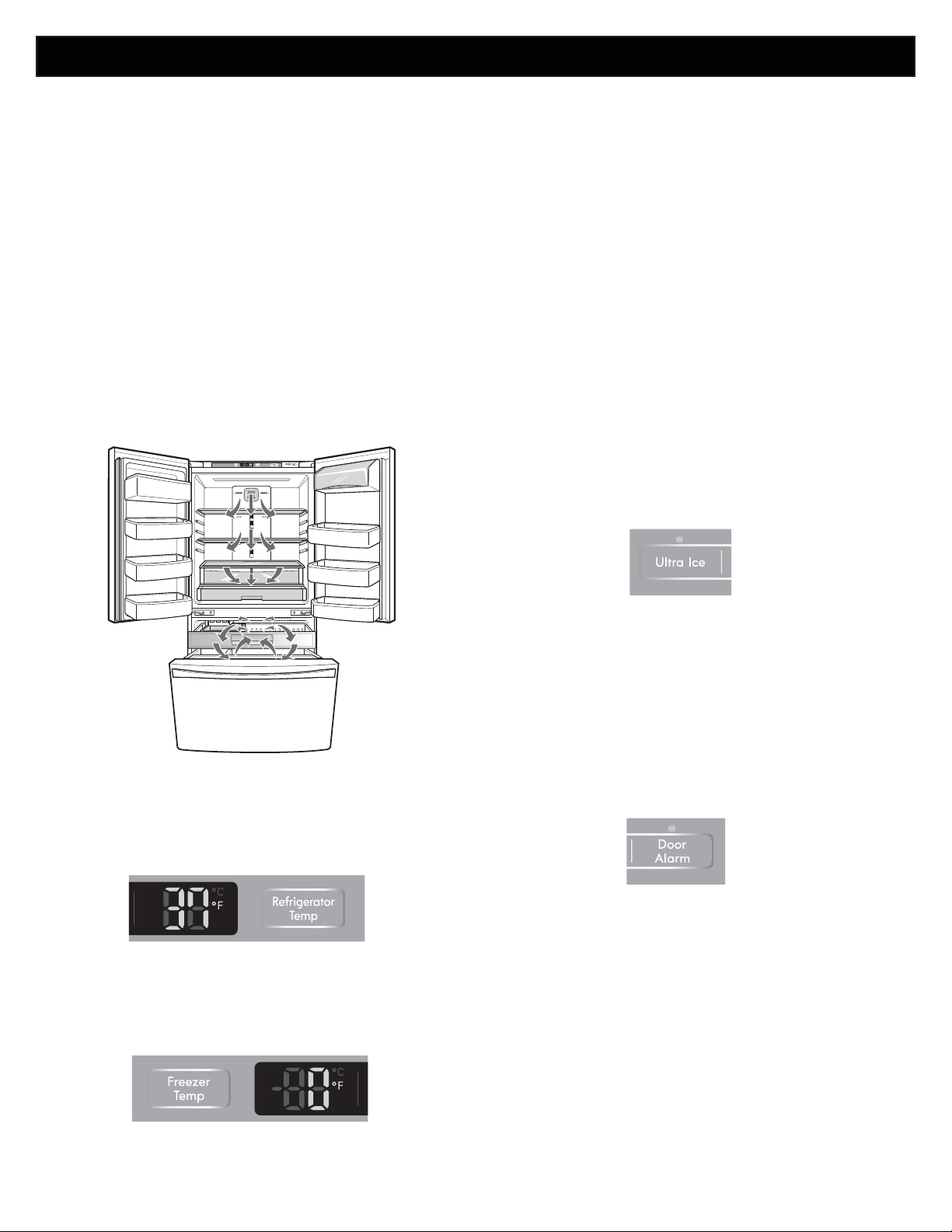

Setting the Controls ..................................17-18
Automatic Icemaker......................................19
Food Storage Guide .................................... 20
Refrigerator Section

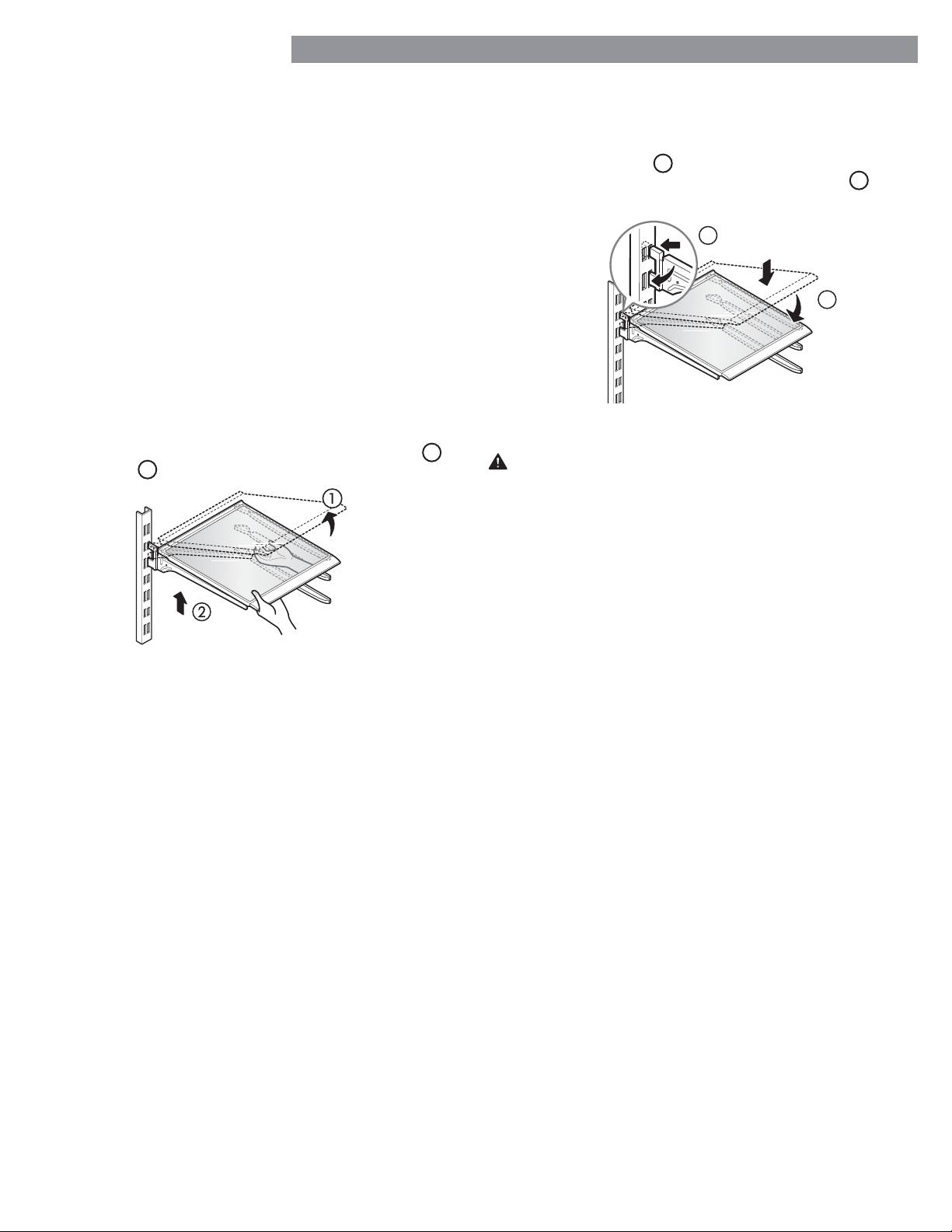

Refrigerator Shelves ....................................... 21
Humidity Controlled Crisper ........................ 22
Pantry Drawer ...................................................22
Dairy Bin ...........................................................23
Door Bins ..........................................................23
Freezer Section
Ice Bin ............................................................. 24
Durabase ....................................................... 24
Durabase Divider .......................................... 24
Pullout Drawer ............................................... 24
Care And Cleaning ................................... 25-29
General Cleaning Tips ................................ 25
Outside ........................................................... 25
Inside Walls ................................................... 25
Door Liner And Gaskets ............................... 25
Plastic Parts .................................................... 25
Condenser Coils ............................................. 25
Light Replacement ........................................ 26
Power Interruptions ....................................... 26
When You Go On Vacation ........................ 26
When You Move ............................................ 26
Connecting the Water Line ......................27-29
Troubleshooting Guide ............................. 30-35
Kenmore Connect ..................................... 36
Service ...............................................Back Cover
3
WARRANTY
REFRIGERATOR WARRANTY
Kenmore One Year Limited Warranty
When installed, operated and maintained according to all supplied instructions, if this appliance fails due
to a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-
HOME® to arrange for free repair.
If this appliance is ever used for other than private family purposes, this warranty applies for only 90
days from the date of purchase.
This warranty covers only defects in material and workmanship, and will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to fi lters, belts,
incandescent light bulbs and bags.
2. A service technician to instruct the user in correct product installation, operation
or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to
all instructions supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its
intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils
other than those recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifi cations made
to this product.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided
herein. Implied warranties, including warranties of merchantability or fi tness for a particular purpose,
are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or
consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or
consequential damages, or limitation on the duration of implied warranties of merchantability or fi tness, so
these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada*.
This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to
state.
* In-home repair service is not available in all Canadian geographical areas, nor will this warranty cover
user or servicer travel and transportation expenses if this product is located in a remote area (as defi ned by
Sears Canada Inc.) where an authorized servicer is not available.
Sears Brands Management Corporation, Hoff man Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3
®
4
PROTECTION AGREEMENTS
PRODUCT RECORD
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore Elite
®
product is designed and manufactured
for years of dependable operation. But like all products,
it may require preventive maintenance or repair from
time to time. That’s when having a Master Protection
Agreement can save you money and aggravation.
The Master Protection Agreement also helps extend
the life of your new product. Here’s what the
Agreement* includes:
• Parts and labor needed to help keep products
operating properly under normal use, not just defects.
Our coverage goes well beyond the product warranty.
No deductibles, no functional failure excluded from
coverage—real protection.
• Expert service by a force of more than 10,000
authorized Sears service technicians, which means
someone you can trust will be working on your product.
• Unlimited service calls and nationwide service, as
often as you want us, whenever you want us.
• “No-lemon” guarantee – replacement of your covered
product if four or more product failures occur within
twelve months.
• Product replacement if your covered product can’t be
fi xed.
• Annual Preventive Maintenance Check at your request
– no extra charge.
• Fast help by phone – we call it Rapid Resolution
– phone support from a Sears representative on all
products. Think of us as a “talking owner’s manual.”
• Power surge protection against electrical damage due
to power fl uctuations.
• $250 Food Loss Protection annually for any food
spoilage that is the result of mechanical failure of any
covered refrigerator or freezer.
• Rental reimbursement if repair of your covered
product takes longer than promised.
• 25% discount off the regular price of any non-covered
repair service and related installed parts.
Once you purchase the Agreement, a simple phone call
is all that it takes to schedule service. You can call at
any time day or night, or schedule a service appointment
online.
The Master Protection Agreement is a risk free purchase.
If you cancel for any reason during the product warranty
period, we will provide a full refund or a prorated refund
anytime after the product warranty period expires.
Purchase your Master Protection Agreement today!
Some limitations and exclusions apply.
For prices and additional information in the
U.S.A. call 1-800-827-6655.
* Coverage in Canada varies on some items. For full
details call Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. or Canada call
1-800-4-MY-HOME
®
.
In the space below, record the date of purchase, model and serial number of your product. You will fi nd the model and
serial number printed on an identifi cation label located on the interior liner of the refrigerator compartment. Have these
items of information available whenever you contact Sears concerning your product.
Model No.___________________ Date of Purchase ___________________
Serial No.___________________
Save these instructions and attach your sales receipt for future reference.
5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
SAVE THESE INSTRUCTIONS
To reduce the risk of fi re, electric shock, or personal
injury when using your product, basic safety precautions
should be followed, including the following.
Read all instructions before using this appliance.
• NEVER unplug your refrigerator by pulling on the
power cord. Always grip the plug fi rmly and pull it
straight out from the outlet.
• Immediately repair or replace all power cords that
have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either the plug or connector end.
• Do not modify or extend the power cord length. Doing
so could cause electric shock or fi re.
• When moving your refrigerator away from the wall, be
careful not to roll over or damage the power cord.
BASIC SAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill
or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word DANGER, WARNING or CAUTION. These words mean:
You will be killed or seriously injured if you do not follow instructions.
You can be killed or seriously injured if you do not follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may result in minor or moderate injury, or product damage.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen
if the instructions are not followed.
• DO NOT store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any other
appliance.
• DO NOT allow children to climb, stand, or hang on the
refrigerator doors or shelves in the refrigerator. They
could damage the refrigerator and seriously injure
themselves.
• Keep fi ngers out of pinch point areas; clearances
between the doors and cabinets are necessarily small.
Be careful closing doors when children are in the area.
• Unplug your refrigerator before cleaning or making
any repairs.
NOTE: It is strongly recommended that any service be
performed by a qualifi ed technician.
DANGER
WARNING
CAUTION
6
WARNING
DANGER: RISK OF CHILD ENTRAPMENT
SAVE THESE INSTRUCTIONS
• Before replacing a burned-out or broken light bulb,
unplug the refrigerator or turn off power at the circuit
breaker or fuse box in order to avoid contact with a live
wire fi lament. (A burned-out light bulb may break when
being replaced, exposing the wire fi lament.)
NOTE: Some models have LED interior lighting, and
service should be performed by a qualifi ed technician.
WARNING: Setting either or both controls to the OFF
position does not remove power to the light circuit.
• When you are fi nished, reconnect the refrigerator to
the electrical source and reset the controls (Thermostat,
Refrigerator Control, and or Freezer Control, depending
on the model) to the desired setting.
• This refrigerator must be properly installed in
accordance with the Attention Installer Instructions that
were taped to the front of the refrigerator.
• After your refrigerator is in operation, do not touch the
cold surfaces in the freezer compartment when hands
are damp or wet. Skin may adhere to the extremely cold
surfaces.
Junked or abandoned refrigerators are dangerous, even
if they are sitting for only a few days. If you are getting
rid of your old refrigerator, please follow the instructions
at right to help prevent accidents (child entrapment and
suff ocation).
• DO NOT touch the automatic ice making mechanism
while the refrigerator is plugged in.
• DO NOT refreeze frozen foods which have thawed
completely. The United States Department of
Agriculture in Home and Garden Bulletin No. 69 says:
…You may safely refreeze frozen foods that have
thawed if they still contain ice crystals or if they are
still cold—below 39°F (4°C).
…Thawed ground meats, poultry or fi sh that have any
off -odor or off -color should not be refrozen and should
not be eaten. Thawed ice cream should be discarded.
If the odor or color of any food is poor or questionable,
dispose of it. The food may be dangerous to eat.
Even partial thawing and refreezing reduces the
eating quality of foods, particularly fruits, vegetables
and prepared foods. The eating quality of red meats
is aff ected less than that of many other foods. Use
refrozen foods as soon as possible to save as much of
their quality as you can.
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER:
• Take off the doors.
• Leave the shelves in place so that
children may not easily climb inside
.
7
CFC/HCFC DISPOSAL
ELECTRICAL & GROUNDING REQUIREMENTS
WARNING
Your old refrigerator may have a cooling system
that used CFCs or HCFCs (chlorofl uorocarbons or
hydrochlorofl uorocarbons). CFCs and HCFCs are
believed to harm stratospheric ozone if released to the
atmosphere. Other refrigerants may also cause harm to
the environment if released to the atmosphere.
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fi re
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
Use a receptacle that cannot be turned off with a switch
or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have
it replaced with a properly grounded three-prong wall
outlet.
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the circuit
checked by a qualifi ed electrician to make sure the
outlet is properly grounded.
If you are throwing away your old refrigerator, make
sure the refrigerant is removed for proper disposal
by a qualifi ed technician. If you intentionally release
refrigerant, you may be subject to fi nes and imprisonment
under provisions of environmental legislation.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, the use of an extension cord is not
recommended. However, if you still elect to use an
extension cord, it is absolutely necessary that it be a UL-
listed (USA), 3-wire grounding type appliance extension
cord having a grounding type plug and outlet, and that
the electrical rating of the cord be 15 amperes (minimum)
and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle
Ensure proper
ground exists
before use.
8
PARTS AND FEATURES
Use this page to become more familiar with the parts and features of your refrigerator.
NOTE: This guide covers several diff erent models. The refrigerator you have purchased may have some or all of the items
listed below. The locations of the features shown below may not match your model.
Temperature Control
Refrigerator Light
Refrigerator Shelves
Humidity Controlled Crispers
Pantry
Articulating Mullion
Ice Maker
Ice Bin
Durabase Divider
Durabase
Pull Out Drawer
Freezer Light
Door Bins
Dairy Bin
A
I
B
J
CK
DL
EM
FN
G
H
A
B
C
F
G
H
I
N
M
L
K
J
D
E
9
REFRIGERATOR INSTALLATION
WARNING WARNING
WARNING
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-
type labels, the model and serial number label, or
the Tech Sheet that is located under the front of the
refrigerator.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fi ngers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, fl ammable
fl uids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
Excessive Weight Hazard:
Use two or more people to move and install the
refrigerator. Failure to do so can result in back or
other injury.
Excessive Weight Hazard:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the fl oor. Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as fl oor damage could occur.
Explosion Hazard:
Keep fl ammable materials and vapors, such as
gasoline, away from the refrigerator. Failure to do so
can result in fi re, explosion, or death.
10
INSTALLATION (continued)
1. To avoid noise and vibration, the unit must be leveled
and installed on a solidly constructed fl oor. If required,
adjust the leveling legs to compensate for unevenness
of the fl oor. The front should be slightly higher than the
rear to aid in door closing. Leveling legs can be turned
easily by tipping the cabinet slightly. Turn the leveling
legs clockwise to raise the unit or counterclockwise to
lower it. (See LEVELING AND DOOR ALIGNMENT.)
NOTE: Installing on carpeting, soft tile surfaces,
a platform or weakly supported structure is not
recommended.
2. Install this appliance in an area where the temperature
is between 55°F (13°C) and 110°F (43°C). If the
temperature around the appliance is too low or high,
cooling ability may be adversely aff ected.
3. Select a place where a water supply can be easily
connected for the automatic icemaker.
NOTE: The water pressure must be between 20 and
120 psi on models without a water fi lter and between
40 and 120 psi on models with a water fi lter.
4. Too small of a distance from adjacent items may
result in lowered freezing capability and increased
electricity consumption charges. Allow at least 24
inches (61 cm) in front of the refrigerator to open the
doors.
5. If a reverse osmosis water fi ltration system is
connected to your cold water supply, the water pressure
to the reverse osmosis system needs to be a minimum
of 40 to 60 psi (2.8 kgf/cm
2
~ 4.2 kgf/cm
2
, less than
2.0~3.0 sec. to fi ll a cup of 7 oz capacity).
Please refer to Connecting the Water Line section
for more information on a reverse osmosis fi ltration
system.
PRIOR TO USE
1. Clean your refrigerator thoroughly and wipe off all
dust that accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3. Allow your refrigerator to run for at least two to three
hours before putting food in it. Check the fl ow of
cold air in the freezer compartment to ensure proper
cooling. Your refrigerator is now ready for use.
INSTALLATION
The refrigerator should always be plugged into its own
individual, properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fi re
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
REFRIGERATOR INSTALLATION
(
5.08 cm
)
2”
2” (5.08)
Shock Hazard:
To reduce the risk of electric shock, do not install the
refrigerator in a wet or damp area.
WARNING
11
HOW TO REMOVE REFRIGERATOR
DOOR HANDLE
NOTE: Handle appearance may vary from
the illustrations on this page.
Removing the Refrigerator Handle
Loosen the set screws with a 3/32 in. (2.5 mm)
Allen wrench and remove the handle.
NOTE: If the handle mounting fasteners need
to be tightened or removed, use a ¼ in.
(6.4 mm) Allen wrench.
NOTE: Removing the doors is the recommended procedure when it is necessary to move the refrigerator through a
narrow opening. If it is necessary to remove the handles, follow the directions below.
REFRIGERATOR INSTALLATION
HOW TO REPLACE REFRIGERATOR
DOOR HANDLE
NOTE: Handle appearance may vary from
the illustrations on this page.
Replacing the Refrigerator Door Handle
Place the handle on the door by fi tting
the handle footprints over the mounting
fasteners and tightening the set screws
with a 3/32 in (2.5 cm) Allen wrench.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a
¼ in. (6.4 mm) Allen wrench.
0RXQWLQJ
)DVWHQHUV
0RXQWLQJ
)DVWHQHUV
6HW6FUHZ
$OOHQ
:UHQFK
12
HOW TO REPLACE FREEZER DOOR HANDLE
NOTE: Handle appearance may vary from the illustrations
on this page.
Replacing the Freezer Drawer Handle
Place the handle on the door by fi tting the handle
footprints over the mounting fasteners and tightening
the set screws with a ⅛ in. (3.1 mm) Allen wrench.
NOTE: If the handle mounting fasteners need to be
tightened or removed, use a ¼ in. (6.4 mm) Allen
wrench.
REFRIGERATOR INSTALLATION
HOW TO REMOVE FREEZER DOOR HANDLE
NOTE: Handle appearance may vary from the illustrations
on this page.
Removing the Freezer Drawer Handle
Loosen the set screws located on the lower side of the
handle with a ⅛ in. (3.1 mm) Allen wrench and remove
the handle.
NOTE: If the handle mounting fasteners need to be
tightened or removed, use a ¼ in. (6.4 mm) Allen
wrench.
NOTE: Removing the doors is the recommended procedure when it is necessary to move the refrigerator through a
narrow opening. If it is necessary to remove the handles, follow the directions below.
WARNING
When assembling or disassembing the handle:
• Grasp the handle fi rmly to ensure it will not drop or
cause injury.
• Prevent the handle from swinging toward nearby
people or animals.
• Insert the bracket hole of the handle into the stopper
bolt of the door exactly, then assemble the set
screws to fi x the handle in place.
• Check for any gap between the door and handle
after the handle is fi xed in place.
13

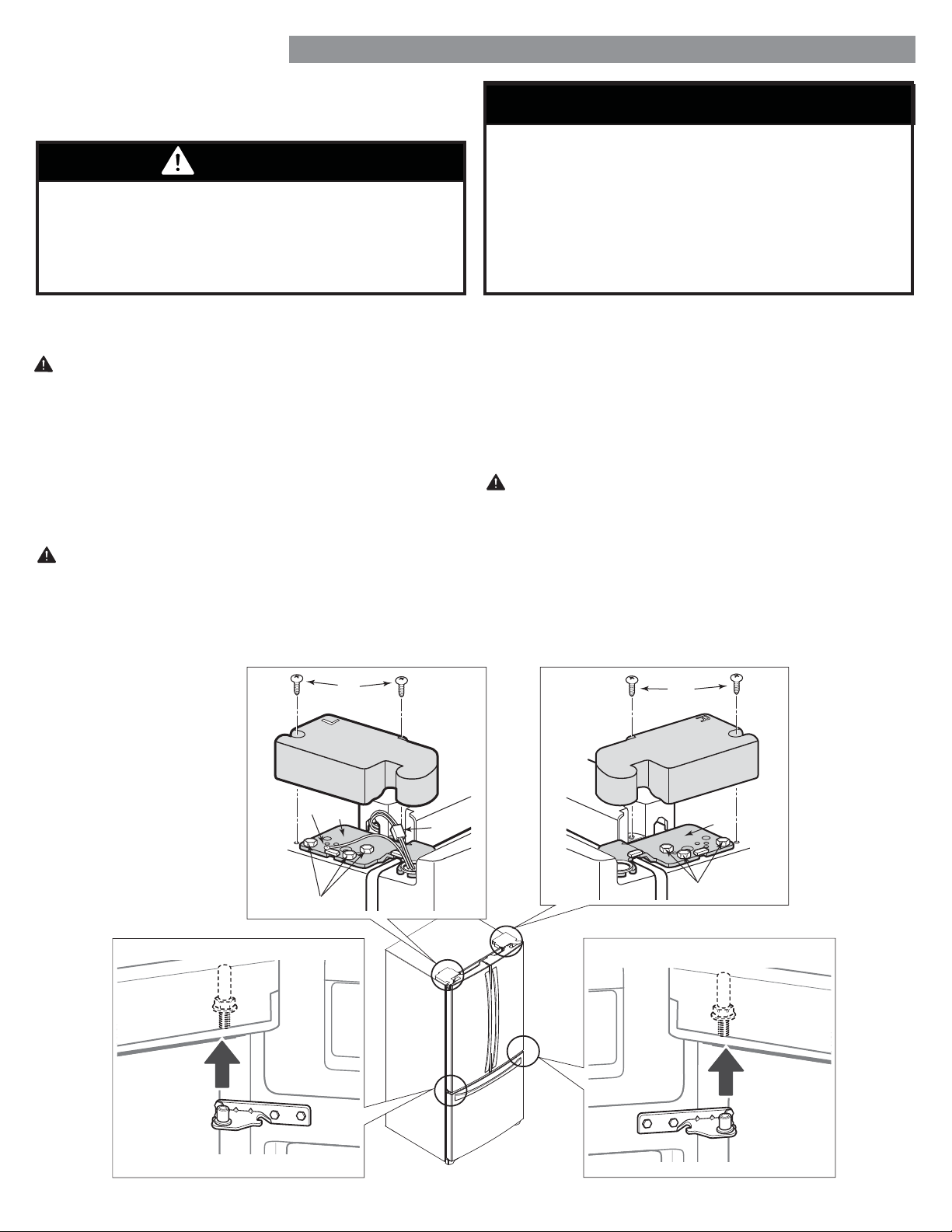

1. Open the door. Remove the top hinge cover screws (1).
2. Lift up the cover (2) and remove it.
3. Disconnect the wire harness (3).
4. Remove the grounding screw (4).
5. Remove the three bolts (5) using a 10mm socket
wrench. Lift off the top hinge (6).
CAUTION: When lifting the hinge, be careful that the
door does not fall forward.
6. Lift the door from the middle hinge pin and remove
the door.
7. Place the door, inside facing up, on a non-scratching
surface.
1. Open the door. Remove the top hinge cover screws (7).
2. Lift up the cover (8) and remove it.
3. Remove the three bolts (9) using a 10mm socket
wrench. Lift off the top hinge (10)
CAUTION: When lifting the hinge, be careful that the
door does not fall forward.
4. Lift the door from the middle hinge pin and remove
the door.
5. Place the door, inside facing up, on a non-scratching
surface.
WARNING
Electrical Shock Hazard
• Disconnect the electrical supply to the refrigerator
before installing. Failure to do so could result in
serious injury or death.
• Do not put hands, feet or other objects into the air
vents, base grille, or bottom of the refrigerator. You
may be injured or receive an electrical shock.
REFRIGERATOR INSTALLATION
To remove the right refrigerator door:
REMOVING AND REPLACING
REFRIGERATOR DOORS
CAUTION: Before you begin, remove food and bins
from the doors.
WARNING
Excessive Weight Hazard:
Use two or more people to remove and install the
refrigerator doors. Failure to do so can result in back or
other injury.
(7)
(8)
(9)
(10)
middle
hinge pin
middle
hinge pin
(1)
(2)
(3)
(4)
(5)
(6)
To remove the left refrigerator door:
14
Left Door
1. Lower the door onto the middle hinge pin.
2. Align the door with the cabinet.
3. Line up the holes in the top hinge with the holes in the
top of the refrigerator. Insert and tighten the three
bolts in the hinge. (Wire harness not shown for clarity.)
4. Replace the grounding screw (3).
5. Reconnect the wire harness (4).
6. Replace the hinge cover (5). Insert and tighten the
cover screws (6).
Reinstalling the Refrigerator Door
Right Door (install right door fi rst)
1. Lower the door onto the middle hinge pin.
2. Align the door with the cabinet.
3. Line up the holes in the top hinge with the holes in the
top of the refrigerator. Insert and tighten the three
bolts in the hinge.
4. Replace the hinge cover (1). Insert and tighten the
cover screws (2).
REFRIGERATOR INSTALLATION
middle
hinge pin
(2)
(2)
(1)
middle
hinge pin
(6)
(5)
(4)
(3)
15
Pull the drawer open to full extension. Remove the
lower basket
1
by lifting the basket from the rail
system.
Remove the screw
2
from the rail on both sides.
Grasp the drawer on each side and pull it up to
separate it from the rails.
Using two hands, slide both bars in simultaneously.
CAUTION: Do not hold the handle when removing or
replacing the drawer. The handle may come off , causing
personal injury.
REFRIGERATOR INSTALLATION
2
Pull out each rail to full extension.
Lower the door into its fi nal position and tighten the
screws
3
located on both sides.
With the drawer pulled out to full extension, insert the
lower basket
4
in the rail assembly.
Grasp the drawer on each side and hook door
supports
1
into the rail tabs
2
located on both
sides.
WARNING: If the Durabase divider is removed, there is
enough open space for children or pets to crawl inside.
To prevent accidental child and pet entrapment or
suff ocation risk, DO NOT allow them to touch or go
near the freezer drawer.
WARNING: DO NOT step or sit down on the freezer
drawer.
3
HOW TO REMOVE THE FREEZER DRAWER
HOW TO INSTALL THE FREEZER DRAWER
2
1
WARNING: Use two or more people to remove and
install the freezer drawer. Failure to do so can result in
back or other injury.
NOTE: In the following fi gures, the Pullout Drawer
located above the freezer drawer is not shown for
clarity.
4
1
16
LEVELING AND DOOR ALIGNMENT
Leveling
After installing, plug the refrigerator’s power cord into a
3-prong grounded outlet and push the refrigerator into the
fi nal position.
Your refrigerator has two front leveling legs—one on the
right and one on the left. Adjust the legs to alter the tilt
from front-to-back or side-to-side. If your refrigerator
seems unsteady, or you want the doors to close more
easily, adjust the refrigerator’s tilt using the instructions
below:
NOTE: Tools Required: 11/16” (18mm) wrench or fl at blade
screwdriver, and level.
1. Turn the leveling leg counterclockwise (to the left)
to raise that side of the refrigerator or clockwise (to
the right) to lower it. It may take several turns of the
leveling leg to adjust the tilt of the refrigerator.
NOTE: Having someone push backward against the top of
the refrigerator takes some weight off of the leveling legs.
This makes it easier to adjust the legs.
Place a level on top of the cabinet to check if the
refrigerator is level from side to side.
2. Open both doors again and check to make sure that
they close easily. If the doors do not close easily, tilt
the refrigerator slightly more to the rear by turning
both leveling legs counterclockwise (to the left). It
may take several more turns, and you should turn both
leveling legs the same amount.
NOTE: Your refrigerator is uniquely designed with
two fresh food doors. Either door can be opened or
closed independently of the other. You may have to
exert slight pressure on the doors to get them to close
completely.
Door Alignment
If the space between your doors is uneven, follow the
instructions below to align the doors.
1. With one hand, lift up the door that you would like to
raise at the middle hinge.
2. With your other hand, use pliers to insert a snap ring
as shown.
3. Insert additional snap rings until the doors are aligned.
(Three snap rings are provided with the refrigerator in
the Use & Care Guide packet.)
REFRIGERATOR INSTALLATION
17
USING YOUR REFRIGERATOR
SETTING THE CONTROLS
The refrigerator control functions as the thermostat for the
entire appliance (refrigerator and freezer sections). The
colder the setting, the longer the compressor will run to
keep the temperature colder. The freezer control adjusts
the cold air fl ow from the freezer to the refrigerator.
Setting the freezer control to a lower temperature keeps
more cold air in the freezer compartment to make it
colder.
• The Refrigerator Temp. Control ranges from 33°F to
46°F (0°C to 8°C). Press the Refrigerator Temp button
to cycle through the available temperature settings one
increment at a time.
• The Freezer Temp. Control range is from -6°F to 8°F
(-21°C to -13°C). Press the Freezer Temp button to
cycle through the available temperature settings one
increment at a time.
Ultra Ice
• When you press the Ultra Ice button, the LED will
illuminate in the display and will continue for 24 hours.
The function will automatically shut off after 24 hours.
• You can stop this function manually by pressing the
button one more time.
• This function increases both ice making and freezing
capabilities.
Airfl ow
Cold air circulates from the freezer to the fresh food
section and back again through air vents in the wall
dividing the two sections. Be sure not to block vents while
packing your refrigerator. Doing so will restrict airfl ow
and may cause the refrigerator temperature to become
too warm or cause interior moisture buildup. (See the air
fl ow diagram below.)
Temperature
NOTE: When changing control settings, wait 24 hours
before making additional adjustments. The controls are set
correctly when milk or juice is as cold as you would like
and when ice cream is fi rm. If the temperature in either
compartment is too cold or too warm, change the setting
one increment at a time. Wait 24 hours for the change to
stabilize before adjusting again.
Temperature Mode Switch Function (°F <->°C)
If you want to convert °F to °C or vice versa, press and
hold the Freezer Temp and Refrigerator Temp buttons at
the same time for approximately fi ve seconds.
Door Alarm
• When power is connected to the refrigerator, the door
alarm is initially set to ON. When you press the Door
Alarm button, the display will change to OFF and the
Door Alarm function will deactivate.
• When either the refrigerator or the freezer door is left
open for more than 60 seconds, the alarm tone will
sound to let you know that the door is open.
• When you close the door, the door alarm will stop.
18
Demo Mode (For Store Use Only)
Demo Mode disables all cooling in the refrigerator and
freezer sections to conserve energy while on display in
a retail store. When activated, OFF will display on the
control panel.
To deactivate:
With either refrigerator door opened, press and hold the
Refrigerator Temp. and Ultra Ice buttons at the same
time for fi ve seconds. The control panel will beep and the
temperature settings will display to confi rm that Demo
Mode is deactivated. Use the same procedure to activate
Demo Mode.
USING YOUR REFRIGERATOR
CAUTION
To reduce the risk of scratching the door or breaking the
door mullion, please make sure that the refrigerator door
mullion is always folded in.
Articulating Mullion
This feature is a metal strip attached to the left door
that articulates (rotates) 90 degrees as the door is
closed, forming a mullion (base) for the left and right
door gaskets to seal against.
19

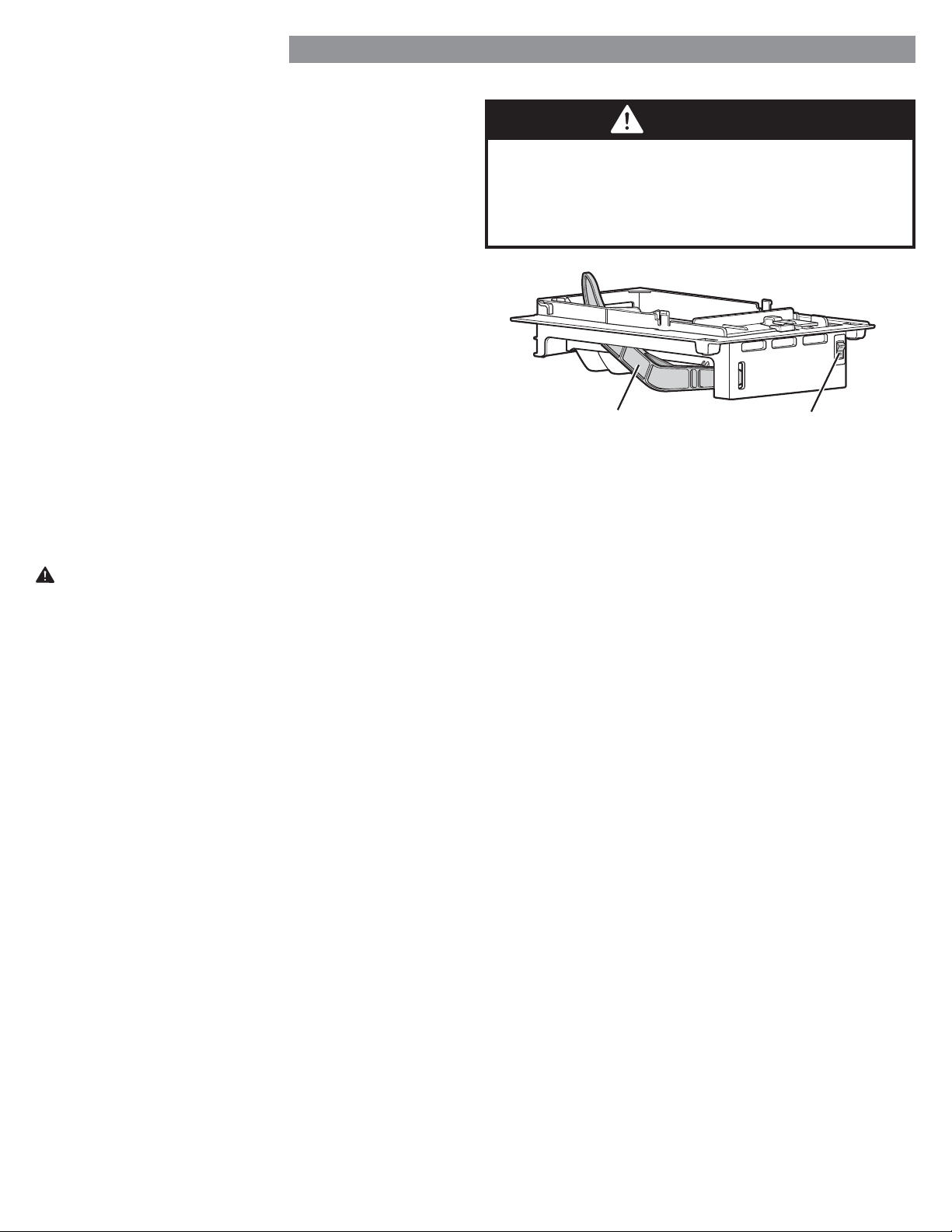

AUTOMATIC ICEMAKER
The icemaker will produce approximately 70-210 cubes
in a 24-hour period, depending on freezer compartment
temperature, room temperature, number of door openings
and other operating conditions.
• It takes about 12 to 24 hours for a newly installed
refrigerator to begin making ice. Wait 72 hours for full
ice production to occur.
• Ice making stops when the in-door ice bin is full. When
full, the in-door ice bin holds approximately 6-8 (12-16
oz) glasses of ice.
• To turn off the automatic icemaker, set the icemaker
switch to OFF (O). To turn on the automatic icemaker,
set the switch to ON (I).
• The water pressure must be between 20 and
120 psi on models without a water fi lter and between
40 and 120 psi on models with a water fi lter to
produce the normal amount and size of
ice cubes.
• Foreign substances or frost on the ice-detecting sensor
can interrupt ice production. Make sure the sensor area
is clean at all times for proper operation.
CAUTION
• The fi rst ice produced after installation may include
particles or odor from the water supply line or the
water tank. Throw away the fi rst few batches of
ice (about 24 cubes). This is also necessary if the
refrigerator has not been used for a long time.
• If discolored ice is produced, check the water supply.
If the problem continues, contact a Sears or other
qualifi ed service center. Do not use the ice or water
until the problem is corrected.
• Be sure nothing interferes with the sweep of the
Automatic Shut Off Arm.
• When the bin fi lls to the level of the Automatic Shut
Off Arm, the icemaker will stop producing ice.
• It is normal for some cubes to be stuck together.
• If ice is not used frequently, old ice cubes will become
cloudy, tase stale, and shrink.
• Never store beverage cans or other items in the ice
bin for the purpose of rapid cooling. Doing so may
damage the icemaker or the containers may burst.
• Never use thin crystal glass or crockery to collect ice.
Such containers may chip or break resulting in glass
fragments in the ice.
WARNING
Personal Injury Hazard
DO NOT place fi ngers or hands on the automatic ice
making mechanism while the refrigerator is plugged in.
USING YOUR REFRIGERATOR
WHEN YOU SHOULD SET THE ICEMAKER
POWER SWITCH TO OFF (O)
• When the water supply will be shut off for several
hours.
• When the ice bin is removed for more than one or two
minutes.
• When the refrigerator will not be used for several days.
NOTE: The ice bin should be emptied when the
icemaker ON/OFF switch is turned to the OFF position.
NORMAL SOUNDS YOU MAY HEAR
• The icemaker water valve will buzz as the icemaker fi lls
with water. If the power switch is in the ON (I) position,
it will buzz even if it has not yet been hooked up to
water. To stop the buzzing, move the power switch to
OFF (O).
NOTE: Keeping the power switch in the ON (I) position
before the water line is connected can damage the
icemaker.
• You will hear the sound of cubes dropping into the bin
and water running in the pipes as the icemaker refi lls.
PREPARING FOR VACATION
Set the icemaker power switch to OFF (O) and shut off
the water supply to the refrigerator.
NOTE: The ice bin should be emptied anytime the
icemaker ON/OFF switch is turned to the OFF (O)
position.
If the ambient temperature will drop below freezing, have
a qualifi ed technician drain the water supply system to
prevent serious property damage due to fl ooding caused
by ruptured water lines or connections.
Automatic
Shut Oç Arm
Power Switch
20
FOOD STORAGE GUIDE
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
STORING FROZEN FOOD
NOTE: Check a freezer guide or a reliable cookbook
for further information about preparing food for
freezing or food storage times.
Freezing
Your freezer will not quick-freeze a large quantity of
food. Do not put more unfrozen food into the freezer
than will freeze within 24 hours (no more than 2 to 3
lbs. of food per cubic foot of freezer space). Leave
enough space in the freezer for air to circulate around
packages. Be careful to leave enough room at the
front so the door can close tightly.
Storage times will vary according to the quality and
type of food, the type of packaging or wrap used
(how airtight and moisture-proof) and the storage
temperature. Ice crystals inside a sealed package are
normal. This simply means that moisture in the food
and air inside the package have condensed, creating
ice crystals.
NOTE: Allow hot foods to cool at room temperature
for 30 minutes, then package and freeze. Cooling hot
foods before freezing saves energy.
Packaging
Successful freezing depends on correct packaging.
When you close and seal the package, it must not
allow air or moisture in or out. If it does, you could
have food odor and taste transfer throughout the
refrigerator and could also dry out frozen food.
Packaging recommendations:
• Rigid plastic containers with tight-fi tting lids
• Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
• Plastic-coated paper
• Non-permeable plastic wraps
• Specifi ed freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use:
• Bread wrappers
• Non-polyethylene plastic containers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
CAUTION: Do not keep beverage cans or plastic
food containers in the freezer compartment. They may
break or burst if they freeze.
Items How to
Butter or
margarine
Cheese
Milk
Eggs
Fruit
Leafy
vegetables
Vegetables
with skins
(carrots,
peppers)
Fish
Leftovers
Keep opened butter in a covered
dish or closed compartment.
When storing an extra supply,
wrap in freezer packaging and
freeze.
Store in the original wrapping
until you are ready to use it. Once
opened, rewrap tightly in plastic
wrap or aluminum foil.
Wipe milk cartons. For best
storage, place milk on interior
shelf, not on door shelf.
Store in original carton on interior
shelf, not on door shelf.
Do not wash or hull the fruit
until you are ready to use it.
Sort and keep fruit in its original
container, in a crisper, or store in a
completely closed paper bag on a
refrigerator shelf.
Remove store wrapping and trim
or tear off bruised and discolored
areas. Wash in cold water and
drain. Place in plastic bag or
plastic container and store in
crisper.
Place in plastic bags or plastic
container and store in crisper.
Store fresh fi sh and shellfi sh in
the freezer section if they are not
being consumed the same day
of purchase. Use fresh fi sh and
shellfi sh the same day purchased.
Cover leftovers with plastic wrap
or aluminum foil, or store in plastic
containers with tight lids.
USING YOUR REFRIGERATOR
21
USING YOUR REFRIGERATOR
REFRIGERATOR SHELVES
The shelves in your refrigerator are adjustable to meet
your individual storage needs. Your model may have full
or split shelves.
Adjusting the shelves to fi t diff erent heights of items will
make fi nding the exact item you want easier. Doing so will
also reduce the amount of time the refrigerator door is
open which will save energy.
IMPORTANT: Do not clean glass shelves with warm water
while they are cold. Shelves may break if exposed to
sudden temperature changes or impact.
NOTE: Glass shelves are heavy. Use special care when
removing them.
Adjusting Shelves (Split Shelf)
Remove shelves from the shipping position and replace
shelves in the position you want.
To remove a shelf—Tilt up the front of the shelf
1
and lift it
2
. Pull the shelf out.
CAUTION:
• Make sure that shelves are level from one side to the
other.
• Make sure that the shelf stopper is completely inserted
between the wall ribs.
• Make sure that hooks are inserted in the correct
position. (Left shelf to left hole, right shelf to right hole
only.)
Failure to do so may result in the shelf falling or spilling
food.
3
4
To reinstall a shelf—Tilt the front of the shelf
up and guide the shelf hooks into the slots at a
desired height
3
. Then, lower the front of the
shelf so that the hooks drop into the slots
4
.
22
HUMIDITY CONTROLLED CRISPER
The crispers provide fresher tasting fruit and vegetables by
letting you easily control humidity inside the drawer.
You can control the amount of humidity in the moisture-
sealed crispers by adjusting the control to any setting
between VEGETABLE and FRUIT.
• VEGETABLE keeps moist air in the crisper for best
storage of fresh, leafy vegetables.
• FRUIT lets moist air out of the crisper for best storage
of fruit.
To remove the glass
1. Lift up the glass under the crisper cover.
2. Pull the glass up and out.
NOTE: Pantry drawer not shown for clarity.
PANTRY DRAWER
This drawer can be used for large party trays, deli items
and beverages. (Do not use this drawer for vegetables or
items that require high humidity.)
Pull forward to open. Lift slightly and pull out to remove.
REMOVING THE HUMIDITY CONTROLLED CRISPER
1. To remove, pull the drawer out to full extension.
2. Lift the front of the crisper up, then pull it straight out.
3. To install, slightly tilt up the front, insert the drawer into
the frame and push it back into place.
USING YOUR REFRIGERATOR
Fruit Vegetable
FruitVegetable
23
USING YOUR REFRIGERATOR

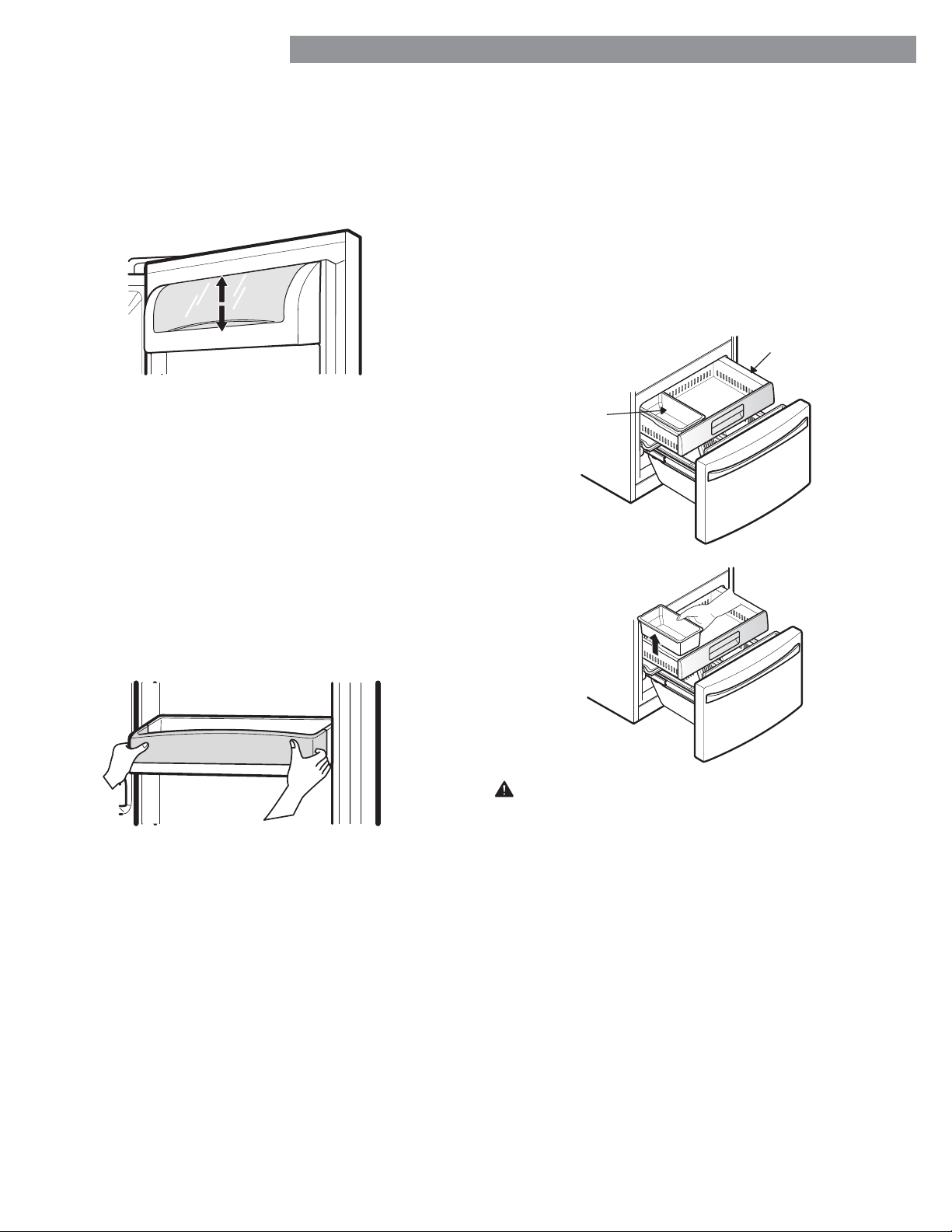

DOOR BINS
The door bins are removable for easy cleaning and
adjustment.
1. To remove the bin, simply lift the bin up and pull
straight out.
2. To replace the bin, slide it in above the desired support
and push down until it snaps into place.
NOTE: Some bins may vary in appearance and will
only fi t in one location.
FREEZER SECTION
ICE BIN
1. Pull the Freezer Drawer and the Pullout Drawer out as
far as possible to remove the Extra Ice Bin.
2. Gently lift and pull out the ice bin.
3. To replace, pull both drawers out as far as possible,
and set the bin in its correct position in the Pullout
Drawer. Close the Pullout Drawer and then the Freezer
Drawer.
CAUTION: Pinch hazard! Keep hands and feet clear
of the bottom of the freezer drawer when opening
and closing.
DAIRY BIN
1. To remove the dairy bin, simply lift it and pull straight out.
2. To replace the dairy bin, slide it above the desired
location and push down until it stops.
Extra Ice Bin
Pullout Drawer
24
USING YOUR REFRIGERATOR
DURABASE REMOVAL AND REPLACEMENT
1. To remove the Durabase, open the drawer to full
extension
1
. Push the Durabse to the back as much as
possible, tilt the front of the Durabase up, and then lift
it up and out
2
.
2. To replace, tilt the back of the Durabase into the
drawer, then lower it down and into the rail assembly.
DURABASE DIVIDER
The Durabase divider allows you to organize the
Durabase area into sections. It can be adjusted from side
to side to accommodate items of diff erent sizes.
WARNING: If the Durabase divider is removed, there is
enough open space for children or pets to crawl inside.
To prevent accidental child and pet entrapment or
suff ocation risk, DO NOT allow children or pets to
touch or go near the drawer.
1
2
PULLOUT DRAWER
1. To remove, pull the drawer out to full extension. Lift
the drawer up and out, making sure to clear the rail
system.
2. To replace, with the drawer pulled out to full
extension, insert the drawer in the rail assembly.
NOTE: Assemble the Durabase before assembling
the pullout drawer. The pullout drawer needs
clearance in order to properly seat its rollers. If the
items are assembled improperly, the freezer door
may not close.
25
CARE AND CLEANING
WARNING
Explosion Hazard
Use non-fl ammable cleaner. Failure to do so can result
in fi re, explosion, or death.
Both the refrigerator and freezer sections defrost
automatically; however, clean both sections about once a
month to prevent odors. Wipe up spills immediately.
GENERAL CLEANING TIPS
• Unplug the refrigerator or disconnect power.
• Remove all removable parts, such as shelves, crispers,
etc. Refer to sections in Using Your Refrigerator for
removal instructions.
• Use a clean sponge or soft cloth and a mild detergent
in warm water. Do not use abrasive or harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly.
• Plug in the refrigerator or reconnect power.
OUTSIDE
Waxing external painted metal surfaces helps provide
rust protection. Do not wax plastic parts. Wax painted
metal surfaces at least twice a year using appliance wax
(or auto paste wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior, use a clean
sponge or soft cloth and a mild detergent in warm water.
Do not use abrasive or harsh cleaners. Dry thoroughly
with a soft cloth.
INSIDE WALLS (allow the freezer to warm up so
the cloth will not stick)
To help remove odors, you can wash the inside of the
refrigerator with a mixture of baking soda and warm
water. Mix 2 tablespoons of baking soda to 1 quart of
water (26 g soda to 1 liter water). Be sure the baking soda
is completely dissolved so it does not scratch the surfaces
of the refrigerator.
DOOR LINERS AND GASKETS
Use a clean sponge or soft cloth and a mild detergent
in warm water. Do not use cleaning waxes, concentrated
detergents, bleaches, or cleaners containing petroleum on
plastic refrigerator parts.
PLASTIC PARTS (Covers and Panels)
Use a clean sponge or soft cloth and a mild detergent
in warm water. Do not use window sprays, abrasive
cleansers, or fl ammable fl uids. These can scratch or
damage the material.
CONDENSER COILS
Use a vacuum cleaner with
an attachment to clean the
condenser cover and vents.
Do not remove the panel
covering the condenser
coil area.
CAUTION: While cleaning the inside of the refrigerator,
do not spray water.
26
LIGHT REPLACEMENT
NOTE: The refrigerator and freezer compartment lights
are LED interior lighting, and service should be performed
by a qualifi ed technician.
POWER INTERRUPTIONS
1. If the power will be out for 24 hours or less, keep all
refrigerator doors closed to help foods stay cold and
frozen.
2. If the power will be out for more than 24 hours, remove
all frozen food and store it in a frozen food locker.
WHEN YOU GO ON VACATION
If you choose to leave the refrigerator on while you are
away, follow these steps to prepare your refrigerator
before you leave.
1. Use up any perishables and freeze other items.
2. Turn off the icemaker and empty the ice bin.
If you choose to turn the refrigerator off before you leave,
follow these steps.
1. Remove all food from the refrigerator.
2. Depending on your model, set the thermostat control
(refrigerator control) to OFF. See the Setting the
Controls section.
3. Clean the refrigerator, wipe it and dry well.
4. Tape rubber or wood blocks to the tops of both doors
to prop them open far enough for air to get in. This
stops odor and mold from building up.
WARNING
Electrical Shock Hazard
Before replacing a Compartment Lamp, either unplug
the refrigerator or turn off power at the circuit breaker
or fuse box.
WHEN YOU MOVE
When you are moving your refrigerator to a new home,
follow these steps to prepare it for the move.
1. Remove all food from the refrigerator and pack all
frozen food in dry ice.
2. Unplug the refrigerator.
3. Clean, wipe and dry thoroughly.
4. Take out all removable parts, wrap them well and
tape them together so they do not shift and rattle
during the move. Refer to the Using your Refrigerator
section for removal instructions.
5. Depending on the model, raise the front of the
refrigerator so it rolls more easily OR screw in the
leveling legs all the way so they do not scrape the
fl oor. See the Door Closing section.
6. Tape the doors shut and tape the power cord to the
refrigerator cabinet.
When you get to your new home, put everything back and
refer to the Refrigerator Installation section for preparation
instructions.
CARE AND CLEANING
27
CONNECTING THE WATER LINE
BEFORE YOU BEGIN
This water line installation is not covered by the refrigerator
warranty. Follow these instructions carefully to minimize the
risk of expensive water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and can
lead to water leakage or fl ooding. Call a qualifi ed plumber
to correct water hammer before installing the water supply
line to the refrigerator.
To prevent burns and product damage, only connect the
refrigerator water line to a cold water supply.
If you use your refrigerator before connecting the water
line, make sure the icemaker power switch is in the OFF (O)
position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
WATER PRESSURE
A cold water supply. The water pressure must be between
20 and 120 psi on models without a water fi lter and
between 40 and 120 psi on models with a water fi lter.
If a reverse osmosis water fi ltration system is connected
to your cold water supply, this water line installation is not
covered by the refrigerator warranty. Follow the following
instructions carefully to minimize the risk of expensive water
damage.
If a reverse osmosis water fi ltration system is connected
to your cold water supply, the water pressure to the reverse
osmosis system needs to be a minimum of 40 to 60 psi (2.8
kgf/cm
2
~ 4.2 kgf/cm
2
, less than 2.0~3.0 sec. to fi ll a cup
of 7 oz capacity).
If the water pressure from the reverse osmosis system is less
than 21 psi or 1.5 kgf/cm2 (takes more than 4.0 sec to fi ll a
cup of 7 oz capacity):
• Check to see if the sediment fi lter in the reverse osmosis
system is blocked. Replace the fi lter if necessary.
• Allow the storage tank on the reverse osmosis system to
refi ll after heavy usage.
• If the issue concerning water pressure from reverse
osmosis remains, call a licensed, qualifi ed plumber.
• All installations must be in accordance with local
plumbing code requirements.
CAUTION: Wear eye protection during installation to
prevent injury.
WHAT YOU WILL NEED
• Copper Tubing, ¼ in. outer
diameter, to connect the refrigerator
to the water supply. Be sure both
ends of the tubing are cut square.
• To determine how much tubing you
need: measure the distance from the water valve on the
back of the refrigerator to the water supply pipe. Then,
add 8 feet (2.4 m). Be sure there is suffi cient extra tubing
(about 8 feet [2.4 m] coiled into 3 turns of about 10 in.
[25 cm] diameter) to allow the refrigerator to move out
from the wall after installation.
• Power drill.
• ½ in. or adjustable wrench.
• Flat blade and Phillips head screwdrivers.
• Two ¼ in. outer diameter
compression nuts and
2 ferrules (sleeves) to
connect the copper tubing
to the shutoff valve and the
refrigerator water valve.
• If your existing copper water
line has a fl ared fi tting at the
end, you will need an adapter
(available at plumbing supply
stores) to connect the water line
to the refrigerator OR you can
cut off the fl ared fi tting with
a tube cutter and then use a
compression fi tting.
• Shutoff valve to connect
to the cold water line. The
shutoff valve should have a water inlet with a minimum
inside diameter of 5/32 in. at the point of connection
to the COLD WATER LINE.
Saddle-type shutoff valves
are included in many water
supply kits. Before purchasing,
make sure a saddle-type
valve complies with your local
plumbing codes.
NOTE: A Self Piercing Saddle Type Water Valve should
not be used.
WARNING
Electrical Shock Hazard
When using any electrical device (such as a power
drill) during installation, be sure the device is battery
powered, double insulated or grounded in a manner that
will prevent the hazard of electric shock.
28
INSTALLATION INSTRUCTIONS
Install the shutoff valve on the nearest frequently used
drinking water line.
1. SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the pressure on the
line.
2. CHOOSE THE VALVE LOCATION
Choose a location for the valve that is
easily accessible. It is best to connect
into the side of a vertical water pipe.
When it is necessary to connect into
a horizontal water pipe, make the
connection to the top or side, rather
than at the bottom, to avoid drawing
off any sediment from the water pipe.
3. DRILL THE HOLE FOR THE VALVE
Drill a ¼ in. hole in the water pipe using a sharp bit.
Remove any burrs resulting from
drilling the hole in the pipe. Be
careful not to allow water to
drain into the drill. Failure to
drill a ¼ in. hole may result
in reduced ice production or
smaller cubes.
NOTE: The hookup line cannot be white, plastic
tubing. Licensed plumbers must use only copper
tubing (NDA tubing #49595 or #49599) or Cross Link
Polyethylene (PEX) tubing.
4. FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves are
illegal and their use is not permitted in Massachusetts.
Consult with your licensed plumber.
5. TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten the clamp or you may crush
the tubing.
6. ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
fl oor (behind the refrigerator or adjacent base cabinet)
as close to the wall as possible.
NOTE: Be sure there is suffi cient extra tubing (about
8 feet coiled into 3 turns of about 10 in. diameter) to
allow the refrigerator to move out from the wall after
installation.
7. CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve) for the
copper tubing onto the end of the tubing and connect
it to the shutoff valve. Make sure the tubing is fully
inserted into the valve. Tighten the compression nut
securely.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves are
illegal and their use is not permitted in
Massachusetts. Consult with your licensed plumber.
Pipe Clamp
Saddle-Type
Shutoff Valve
Vertical Cold
Water Pipe
Pipe Clamp
Clamp Screw
Washer
Inlet End
Saddle-Type
Shutoff Valve
Packing Nut
Outlet Valve
Compression Nut
Ferrule (sleeve)
CONNECTING THE WATER LINE
29
CONNECTING THE WATER LINE
8. FLUSH OUT THE TUBING
Turn the main water supply on and
fl ush out the tubing until the water
is clear.
Shut the water off at the water
valve after about one quart of
water has been fl ushed through the
tubing.
9. CONNECT THE TUBING TO THE
REFRIGERATOR
NOTE: Before making the connection to the
refrigerator, be sure that the refrigerator power cord is
not plugged into the wall outlet.
a. Remove the plastic fl exible cap from the water valve.
b. Place the compression nut and ferrule (sleeve) onto the
end of the tubing as shown.
c. Insert the end of the copper tubing into the connection
as far as possible. While holding the tubing, tighten the
fi tting.
10. TURN THE WATER ON AT THE SHUTOFF VALVE
Tighten any connections that leak.
11. PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it does not vibrate
against the back of the refrigerator or against the wall.
Push the refrigerator back to the wall.
12. START THE ICEMAKER
Set the icemaker power switch to the ON position.
The icemaker will not begin to operate until it reaches
its operating temperature of 15°F (–9°C) or below. It
will then begin operation automatically if the icemaker
power switch is in the ON (I) position.
Tubing Clamp
¼ in. Tubing
¼ in.
Compression
Nut
Refrigerator
Connection
Ferrule
(sleeve)
CAUTION: Check to see if leaks occur at the water line
connections.
30
TROUBLESHOOTING GUIDE
Before conducting troubleshooting, make sure that the following basic requirements are met:
Service Flow 0.5 gpm (1.9 lpm)
Water Supply Potable Water
Water Pressure 40-120 psi (138 - 827 kPa)
Operating Ambient
Temperature Limits
55°F - 110°F
Electrical Ratings
115 Volts, 60 Hz, AC only, and
fused at 15 or 20 amperes.
COOLING
Problem Possible Causes Solutions
Refrigerator and
Freezer section are
not cooling.
The refrigerator control is set to OFF
(some models).
Turn the control ON. Refer to the Setting the Controls
section for proper temperature settings.
Refrigerator is set to demo mode. Demo Mode allows the lights and control display to
work normally while disabling cooling to save energy
while on the showroom fl oor. Refer to the Setting the
Controls section for instructions on how to disable
Demo Mode.
Refrigerator is in the defrost cycle. During the defrost cycle, the temperature of each
compartment may rise slightly. Wait 30 minutes and
confi rm the proper temperature has been restored
once the defrost cycle has completed.
Refrigerator was recently installed. It may take up to 24 hours for each compartment to
reach the desired temperature.
Refrigerator was recently relocated. If the refrigerator was stored for a long period of time
or moved on its side, it is necessary for the refrigerator
to stand upright for 24 hours before connecting it to
power.
Cooling System runs
too much.
Refrigerator is replacing an older
model.
Modern refrigerators require more operating time but
use less energy due to more effi cient technology.
Refrigerator was recently plugged in
or power restored.
The refrigerator will take up to 24 hours to cool
completely.
Door opened often or a large amount
of food / hot food was added.
Adding food and opening the door warms the
refrigerator, requiring the compressor to run longer in
order to cool the refrigerator back down. In order to
conserve energy, try to get everything you need out of
the refrigerator at once, keep food organized so it is
easy to fi nd, and close the door as soon as the food is
removed. (Refer to the Food Storage Guide.)
Doors are not closed completely. Firmly push the doors shut. If they will not shut all the
way, see the Doors will not close completely or pop
open section in Parts & Features Troubleshooting.
Refrigerator is installed in a hot
location.
The compressor will run longer under warm conditions.
At normal room temperatures (70°F) expect your
compressor to run about 40% to 80% of the time.
Under warmer conditions, expect it to run even more
often. The refrigerator should not be operated above
110°F.
Condenser / back cover is clogged. Use a vacuum cleaner with an attachment to clean the
condenser cover and vents. Do not remove the panel
covering the condenser coil area.
31
TROUBLESHOOTING GUIDE
COOLING
Problem Possible Causes Solutions
Refrigerator or
Freezer section is too
warm.
Refrigerator was recently installed. It may take up to 24 hours for each compartment to
reach the desired temperature.
The air vents are blocked. Cold air
circulates from the freezer to the
fresh food section and back again
through air vents in the wall dividing
the two sections.
Locate air vents by using your hand to sense airfl ow
and move all packages that block vents and
restrict airfl ow. Rearrange items to allow air to fl ow
throughout the compartment. (Refer to the Airfl ow
diagram in the Using Your Refrigerator section.)
Doors are opened often or for long
periods of time.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment.
This raises the temperature and moisture level within
the compartment. To lessen the eff ect, reduce the
frequency and duration of door openings.
Unit is installed in a hot location. The refrigerator should not be operated in
temperatures above 110°F.
A large amount of food or hot food
was added to either compartment.
Adding food warms the compartment requiring the
cooling system to run. Allowing hot food to cool to
room temperature before putting it in the refrigerator
will reduce this eff ect.
Doors not closed correctly. See the Doors will not close correctly or pop open
section in Parts & Features Troubleshooting.
Temperature control is not set
correctly.
If the temperature is too warm, adjust the control one
increment at a time and wait for the temperature to
stabilize. Refer to the Setting the Controls section for
more information.
Defrost cycle has recently completed. During the defrost cycle, the temperature of each
compartment may rise slightly and condensation may
form on the back wall. Wait 30 minutes and confi rm
the proper temperature has been restored once the
defrost cycle has completed.
Interior moisture
buildup.
Doors are opened often or for long
periods of time.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment.
This raises the temperature and moisture level within
the compartment. To lessen the eff ect, reduce the
frequency and duration of door openings.
Doors not closed correctly. See the Doors will not close correctly section in the
Troubleshooting section.
Weather is humid. Humid weather allows additional moisture to enter the
compartments when the doors are opened leading to
condensation or frost. Maintaining a reasonable level
of humidity in the home will help to control the amount
of moisture that can enter the compartments.
Defrost cycle recently completed. During the defrost cycle, the temperature of each
compartment may raise slightly and condensation may
form on the back wall. Wait 30 minutes and confi rm
that the proper temperature has been restored once
the defrost cycle has completed.
Food is not packaged correctly. Food stored uncovered or unwrapped, and damp
containers can lead to moisture accumulation within
each compartment. Wipe all containers dry and store
food in sealed packaging to prevent condensation and
frost.
32
TROUBLESHOOTING GUIDE
COOLING/ICE & WATER
Problem Possible Causes Solutions
Food is freezing
in the refrigerator
compartment.
Food with high water content was
placed near an air vent.
Rearrange items with high water content away from
air vents.
Refrigerator temperature control is set
incorrectly.
If the temperature is too cold, adjust the control one
increment at a time and wait for the temperature to
stabilize. Refer to the Setting the Controls section for
more information.
Refrigerator is installed in a cold
location.
When the refrigerator is operated in temperatures
below 41°F (5°C), food can freeze in the refrigerator
compartment. The refrigerator should not be operated
in temperatures below 55°F (13°C).
Frost or ice crystals
form on frozen food
(outside of package).
Door is opened frequently or for long
periods of time.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment. This
raises the temperature and moisture level within the
compartment. Increased moisture will lead to frost
and condensation. To lessen the eff ect, reduce the
frequency and duration of door openings.
Door is not closing properly. Refer to the Doors will not close correctly or pop
open section in the Troubleshooting section.
Refrigerator or
Freezer section is too
cold.
Incorrect temperature control settings. If the temperature is too cold, adjust the control one
increment at a time and wait for the temperature to
stabilize. Refer to the Setting the Controls section for
more information.
Frost or ice crystals
on frozen food
(inside of sealed
package).
Condensation from food with a high
water content has frozen inside of the
food package.
This is normal for food items with a high water
content.
Food has been left in the freezer for
a long period of time.
Do not store food items with high water content in the
freezer for a long period of time.
Icemaker is not
making enough ice.
Demand exceeds ice storage
capacity.
The icemaker will produce approximately 70-210
cubes in a 24 hour period.
House water supply is not connected,
valve is not turned on fully, or valve is
clogged.
Connect the refrigerator to a cold water supply with
adequate pressure and turn the water shutoff valve
fully open.
If the problem persists, it may be necessary to contact
a plumber.
Water fi lter has been exhausted. It is recommended that you replace the water fi lter:
• Approximately every six months.
• When the water fi lter indicator turns on.
• When the water dispenser output decreases.
• When the ice cubes are smaller than normal.
Low house water supply pressure. The water pressure must be between 20 and 120 psi
on models without a water fi lter and between 40 and
120 psi on models with a water fi lter.
If the problem persists, it may be necessary to contact
a plumber.
Reverse Osmosis fi ltration system is
used.
Reverse osmosis fi ltration systems can reduce the
water pressure below the minimum amount and result
in icemaker issues. (Refer to Water Pressure section.)
Tubing connecting refrigerator to
house supply valve is kinked.
The tubing can kink when the refrigerator is moved
during installation or cleaning resulting in reduced
water fl ow. Straighten or repair the water supply line
and arrange it to prevent future kinks.
33
TROUBLESHOOTING GUIDE
ICE & WATER
Problem Possible Causes Solutions
Icemaker is not
making enough ice
(continued).
Doors are opened often or for long
periods of time.
If the doors of the unit are opened often, ambient
air will warm the refrigerator which will prevent the
unit from maintaining the set temperature. Lowering
the refrigerator temperature can help, as well as not
opening the doors as frequently.
Doors are not closed completely. If the doors are not properly closed, ice production
will be aff ected. See the Doors will not close
completely or pop open section in Parts & Features
Troubleshooting for more information.
The temperature setting for the
freezer is too warm.
The recommended temperature for the freezer
compartment for normal ice production is 0°F. If the
freezer temperature is warmer, ice production will be
aff ected.
Refrigerator was recently installed or
icemaker recently connected.
It may take up to 24 hours for each compartment to
reach the desired temperature and for the icemaker to
begin making ice.
Icemaker not turned on. Locate the icemaker ON/OFF switch and confi rm that
it is in the ON (I) position.
The ice detecting sensor is obstructed. Foreign substances or frost on the ice-detecting sensor
can interrupt ice production. Make sure that the sensor
area is clean at all times for proper operation.
The refrigerator is not connected to
a water supply or the supply shutoff
valve is not turned on.
Connect the refrigerator to the water supply and turn
the water shutoff valve fully open.
Icemaker shutoff (arm or sensor)
obstructed.
If your icemaker is equipped with an ice shutoff arm,
make sure that the arm moves freely. If your icemaker
is equipped with the electronic ice shutoff sensor,
make sure that there is a clear path between the two
sensors.
Reverse osmosis water fi ltration
system is connected to your cold
water supply.
Reverse osmosis fi ltration systems can reduce the water
pressure below the minimum amount and result in
icemaker issues. (Refer to the Water Pressure section.)
Ice has bad taste or
odor.
Water supply contains minerals such
as sulfur.
A water fi lter may need to be installed to eliminate
taste and odor problems. NOTE: In some cases, a fi lter
may not help. It may not be possible to remove all
minerals/odor/taste in all water supplies.
Icemaker was recently installed. Ice that has been stored for too long will shrink,
become cloudy, and may develop a stale taste. Throw
away old ice and make a new supply.
The food has not been stored
properly in either compartment.
Rewrap the food. Odors may migrate to the ice if
food is not wrapped properly.
The interior of the refrigerator needs
to be cleaned.
See the Care and Cleaning section for more
information.
The ice storage bin needs to be
cleaned.
Empty and wash the bin (discard old cubes). Make
sure that the bin is completely dry before reinstalling
it.
Icemaker is making
too much ice.
Icemaker shutoff (arm/sensor) is
obstructed
Empty the ice bin. If your icemaker is equipped with
an ice shutoff arm, make sure that the arm moves
freely. If your icemaker is equipped with the electronic
ice shutoff sensor, make sure that there is a clear path
between the two sensors. Reinstall the ice bin and wait
24 hours to confi rm proper operation.
34
TROUBLESHOOTING GUIDE
NOISE
Problem Possible Causes Solutions
Clicking The defrost control will click when
the automatic defrost cycle begins
and ends. The thermostat control (or
refrigerator control on some models)
will also click when cycling on and
off .
Normal Operation
Rattling Rattling noises may come from the
fl ow of refrigerant, the water line on
the back of the unit, or items stored
on top of or around the refrigerator.
Normal Operation
Refrigerator is not resting solidly on
the fl oor.
Floor is weak or uneven or leveling legs need to be
adjusted. See the Door Alignment section.
Refrigerator with linear compressor
was jarred while running.
Normal Operation
Whooshing Evaporator fan motor is circulating
air through the refrigerator and
freezer compartments.
Normal Operation
Air is being forced over the condenser
by the condenser fan.
Normal Operation
Gurgling Refrigerant fl owing through the
cooling system.
Normal Operation
Popping Contraction and expansion of the
inside walls due to changes in
temperature.
Normal Operation
Sizzling Water dripping on the defrost heater
during a defrost cycle.
Normal Operation
Vibrating If the side or back of the refrigerator
is touching a cabinet or wall, some of
the normal vibrations may make an
audible sound.
To eliminate the noise, make sure that the sides and
back cannot vibrate against any wall or cabinet.
Dripping Water running into the drain pan
during the defrost cycle.
Normal Operation
Pulsating or High-
Pitched Sound
Your refrigerator is designed to run
more effi ciently to keep your food
items at the desired temperature. The
high effi ciency compressor may cause
your new refrigerator to run longer
than your old one, but it is still more
energy effi cient than previous models.
While the refrigerator is running, it is
normal to hear a pulsating or high-
pitched sound.
Normal Operation
35
TROUBLESHOOTING GUIDE
Problem Possible Causes Solutions
Doors will not close
correctly or pop
open.
Food packages are blocking the door
open.
Rearrange food containers to clear the door and door
shelves.
Ice bin, crisper cover, pans, shelves,
door bins, or baskets are out of
position.
Push bins all the way in and put crisper cover, pans,
shelves and baskets into their correct positions. See the
Using Your Refrigerator section for more information.
The doors were removed during
product installation and not properly
replaced.
Remove and replace the doors according to the
Removing and Replacing Refrigerator Handles and
Doors section.
Refrigerator is not leveled properly. See Door Alignment in the Refrigeration Installation
section to level refrigerator.
Doors are diffi cult to
open.
The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they touch.
Rub a thin coat of appliance polish or kitchen wax on
the gaskets after cleaning.
Door was recently closed. When you open the door, warmer air enters the
refrigerator. As the warm air cools, it can create a
vacuum. If the door is hard to open, wait one minute
to allow the air pressure to equalize, then see if it
opens more easily.
Refrigerator wobbles
or seems unstable.
Leveling legs are not adjusted
properly.
Refer to the Leveling and Door Alignment section.
Floor is not level. It may be necessary to add shims under the leveling
legs or rollers to complete installation.
Lights do not work. LED interior lighting failure. The refrigerator compartment lamp is LED interior
lighting, and service should be performed by
a qualifi ed technician. Refer to the Light Bulb
Replacement section.
Refrigerator has an
unusual odor.
The Air Filter may need to be set to
the MAX setting or replaced.
Set the Air Filter to the MAX setting. If the odor does
not go away within 24 hours, the fi lter may need to be
replaced. See the Replacing the Air Filter section for
replacement instructions.
The interior of
the refrigerator is
covered with dust or
soot.
The refrigerator is located near a fi re
source, such as a fi replace, chimney
or candle.
Make sure that the refrigerator is not located near a
fi re source, such as a fi replace, chimney or candle.
PARTS & FEATURES
36

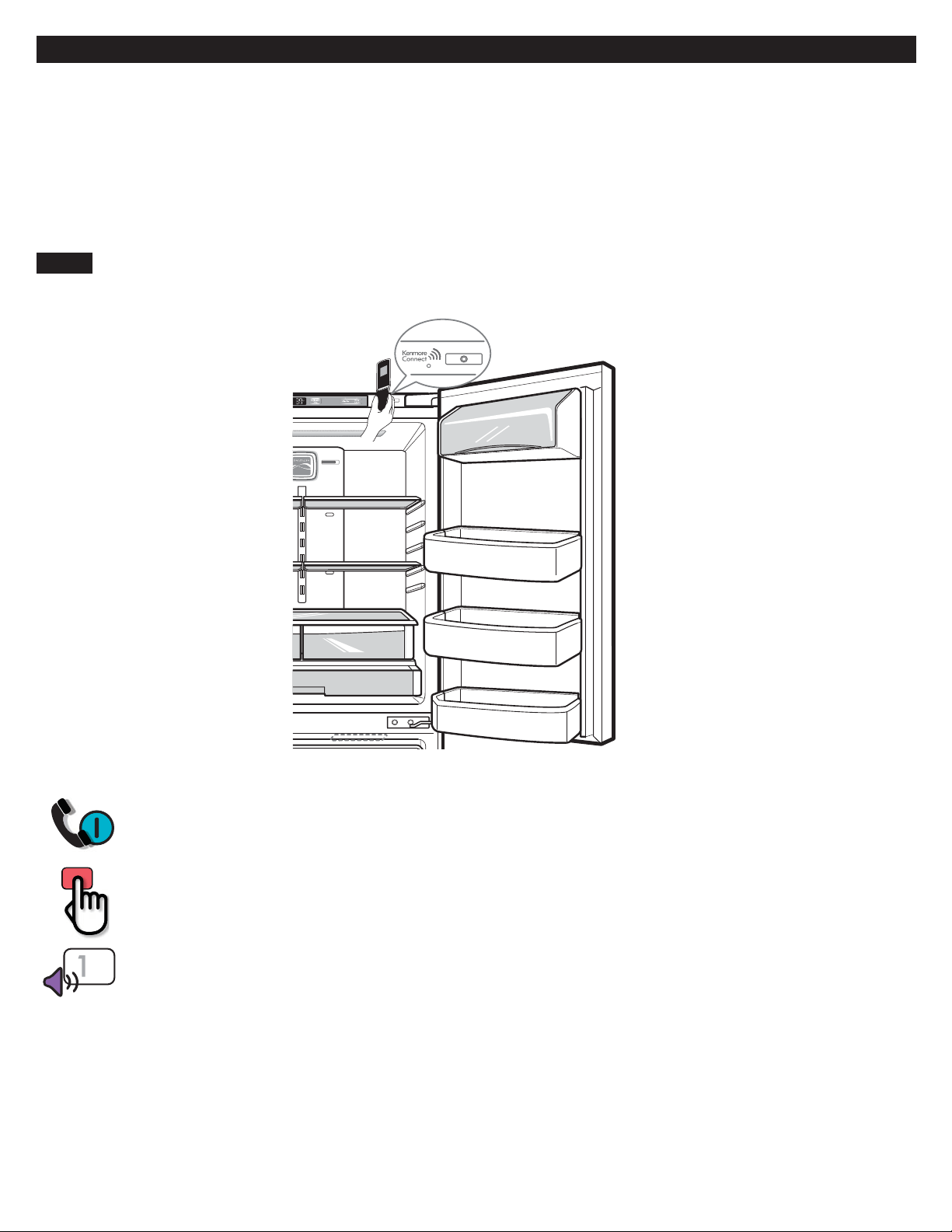

Kenmore Connect™ System
HOLD the mouthpiece of your phone in front of the speaker that is located on the right hinge of the
refrigerator door, when instructed to do so by the call center. Hold the phone no more than one inch from
(but not touching) the speaker.
PUSH and hold the Freezer Temp button for three seconds while continuing to hold your phone to the
speaker. NOTE: Push the Freezer Temp button within 1 minute of opening the refrigerator door.
LISTEN for three beeps. After you hear the three beeps, release the Freezer Temp button. Keep the
phone in place until the tone transmission has fi nished. This takes about 15 seconds, and the display will
count down the time. Once the countdown is over and the tones have stopped, resume your conversation
with the specialist, who will then be able to assist you in using the information transmitted for analysis.
Should you experience any problems with your
refrigerator, it has the capability of transmitting data via
your telephone to the Kenmore Connect Team. This gives
you the capability of speaking directly to our trained
specialists. The specialist records the data transmitted
from your machine and uses it to analyze the issue,
providing a fast and eff ective diagnosis.
If you experience problems with your refrigerator, call
1-800-4-MY-HOME
®
. Only use the Kenmore Connect
System feature when instructed to do so by the Kenmore
Connect Team. The transmission sounds that you will hear
are normal and sound similar to a fax machine.
Kenmore Connect cannot be activated unless your
refrigerator is connected to power. If your refrigerator
is unable to turn on, then troubleshooting must be done
without using Kenmore Connect.
NOTE:
• For best results, do not move the phone while the tones are being transmitted.
• If the call center agent is not able to get an accurate recording of the data, you may be asked to
try again.
• Call quality diff erences by region may aff ect the Kenmore Connect function.
• For best results, use Kenmore Connect with a landline phone.
• Bad call quality may result in poor data transmission from your phone to the machine, which could
cause Kenmore Connect to not work properly.
Using the Kenmore Connect™ System
NOTE: For best results, use Kenmore Connect with a landline phone.
5
OPEN the right door of your refrigerator.
37
NOTES
® Registered Trademark /
TM
Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada /
TM
Marca de Fábrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros países
MC
Marque de commerce /
MD
Marque déposée de Sears Brands, LLC
Get it fixed, at your home or ours!
Your Home
For troubleshooting, product manuals and expert advice:
www.managemylife.com
For repair – in your home – of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME
®
(1-800-469-4663)
Call anytime, day or night(U.S.A. and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR
®
(1-888-784-6427)
www.sears.com
Au Canada pour service en français:
1-800-LE-FOYER
MC
(1-800-533-6937)
www.sears.ca
