E-MANUAL
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Model _____________ Serial No. _____________
Contents
Channel Setting
•
Using the INFO button (Now & Next guide) 1
• Using Channel menu (Watch TV) 2
• Schedule Manager 5
• Channel List 7
• Channel Manager 11
• Retuning Channels 17
Basic Features
•
Changing the Preset Picture Mode 23
• Adjusting Picture Settings 24
• Changing the Picture Options 30
• Changing the Preset Sound Mode 37
• Adjusting Sound Settings 38
• Selecting the Sound Mode 46
Preference Features
•
Setting the Time 47
• Using the Sleep Timer 49
• Setting the On / Off Timer 50
• Locking Programs 54
• Picture In Picture (PIP) 56
• Economical Solutions 58
• Other Features 60
• Support Menu 65
Advanced Features
•
Using the My Downloads 72
• Connecting a USB Device 73
• Screen Display 79
• Music 80
• Photos 82
• My Downloads - Additional Functions 83
Other Information
•
Analogue Channel Teletext Feature 86
• Troubleshooting 90
• Anti-theft Kensington Lock 92
• Licence 108
▶
❑❑ Using❑the❑INFO❑button❑(Now❑&❑Next❑guide)
The display identifies the current channel and the status of certain audio-video
settings.
The Now & Next guide shows daily TV programme information for each channel
according to the broadcasting time.
●
Scroll ◄, ► to view information for a desired programme while watching the
current channel.
●
Scroll ▲, ▼ to view information for other channels. If you want to move to the
currently selected channel, press the ENTERE button.
*
It may differ depending on the model.
All
Information
English
◀ ▶
◀
❑❑ Using❑Channel❑menu❑(Watch❑TV)
❑
O
MENU
m
❑
→
❑Support❑
→
❑Contents❑Home❑
→
ENTER
E

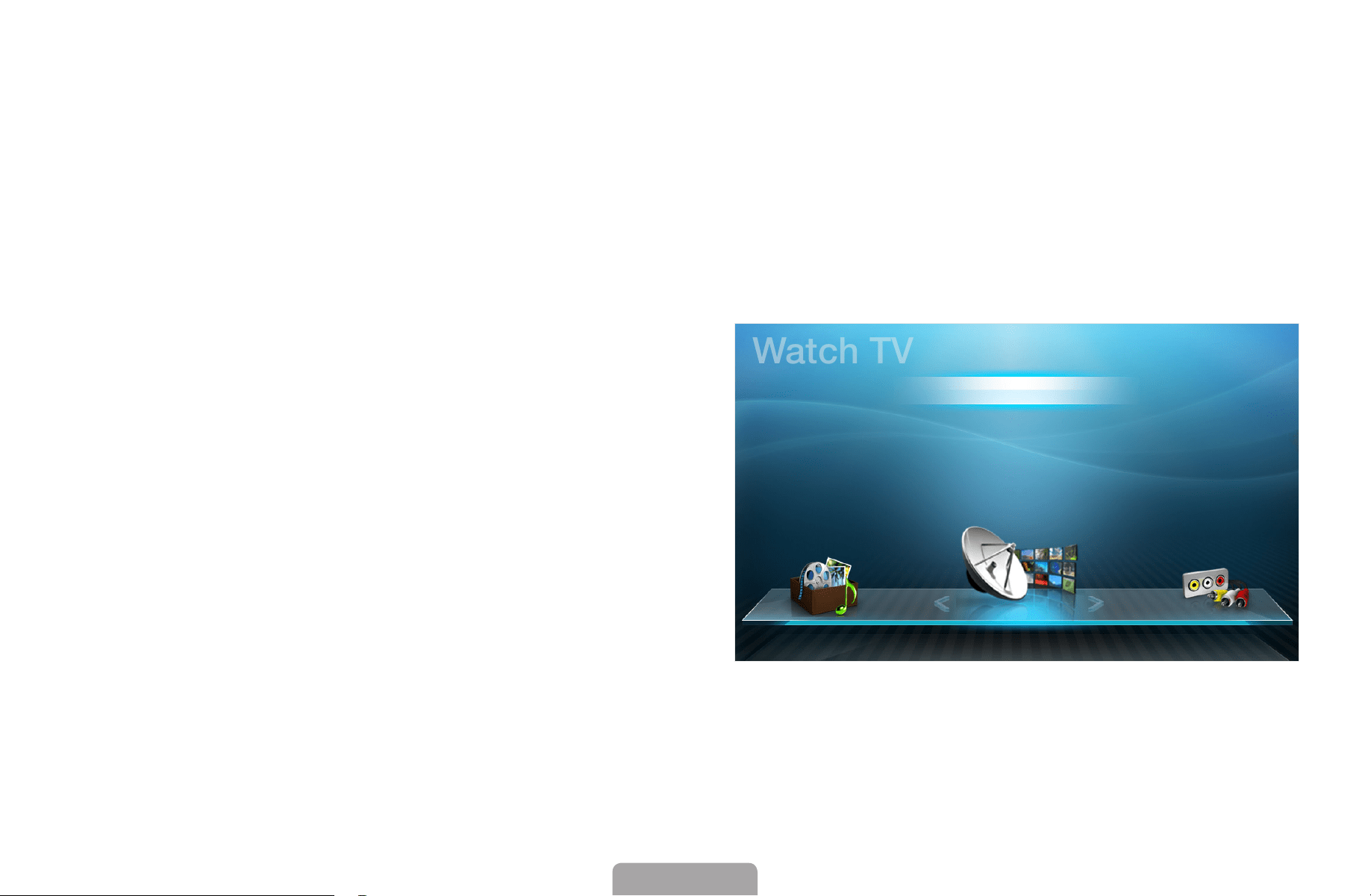

Press the CONTENT button to select Watch❑TV, then select the desired menu.
Each screen will be displayed.
❑
■
Guide❑
(The option may differ depending on country)
The EPG (Electronic Programme
Guide) information is provided by
broadcasters. Using programme
schedules provided by broadcasters,
you can specify programmes you want
to watch in advance so that the channel
automatically changes to the selected
programme channel at the specified
time. Programme entries may appear
blank or out of date depending on a
channel status.
- In New Zealand, if Digital Text is set to Enable, the EPG (Electronic Programme
Guide) will work.
Guide
Schedule❑Manager
Channel❑List
Channel❑Manager
My❑Downloads
Watch TV
Source
English
English
▶
◀ ▶
Using❑Guide
AC B D
Sche.Mgr
AC
B
D
-24❑Hours
AC B D
+24❑Hours
AC B D
Ch.❑Mode
; Information k Page E Schedule
DTV Air 800 five
Home and Away
19:00 - 19:30
Drama
Dani is devastated when scott makes clear his views on marriage...
Today
19:00 19:30 20:00 20:30
Tsunami❑Pri...
No❑Information
No❑Information
No❑Information
No❑Information
1❑❑❑❑❑❑❑❑❑Discovery
2❑❑❑❑❑❑❑❑❑DiscoveryH&L
3❑❑❑❑❑❑❑❑❑five
4❑❑❑❑❑❑❑❑❑price-drop.tv
5❑❑❑❑❑❑❑❑❑QVC
6❑❑❑❑❑❑❑❑❑R4DTT
▼
Tine❑Team
Fiv...
The❑Curious... Dark❑Angel
American❑Chopper
800 five
Guide
❑19:10❑Tue❑1❑Jun
Channel❑View❑-❑All
Home and...
*
It may differ depending on the model.
1 32 4 5 6 7
English
English
◀ ▶
◀
1
A
C B D
Red (Sche.Mgr): Moves to the reserved programmes in Schedule❑Manager.
2
AC
B
D
Green (-24❑Hour): Viewing the list of programmes to be broadcasted before 24
hours.
3
AC B D
Yellow (+24❑Hours): Viewing the list of programmes to be broadcasted after 24
hours.
4
AC B
D
Blue (Ch.❑Mode): Select the type of channels you want to display on the Channel❑
List window. (All,❑TV,❑Radio,❑Data/Other,❑Favourites❑1-5)
5 ; (Information): Displays details of the selected programme.
6 k (Page): Move to previous or next page.
7 E (Watch❑/❑Schedule)
●
When selecting the current programme, you can watch the selected
programme.
●
When selecting the future programme, you can reserve to watch the selected
programme. To cancel the schedule, press the ENTERE button again and
select Cancel❑Schedules.
English
English
▶
◀ ▶
❑
■
Schedule❑Manager
Cancel or set the Timer❑Viewing to display the channel you want at the intended
time.
Using❑Timer❑Viewing
You can set a desired channel to be displayed automatically at the intended time.
Set the current time first to use this function.
1. Press the ENTER
E
button to add programme to schedule manually.
2. Press the
◄/►/▲/▼
button to set the Antenna, Channel, Repeat, Date,
Start❑Time.
●
Antenna: DTV❑or ATV will be displayed depending on the Antenna
setting.
●
Channel: Select the desired channel.
English
English
◀ ▶
◀
●
Repeat: Select Once, Manual, Sat~Sun,❑Mon~Fri or Everyday to set at
your convenience. If you select Manual, you can set the day you want.
N
The (
c
) mark indicates the day you’ve selected.
●
Date: You can set the desired date.
N
It is available when you select Once in Repeat.
●
Start❑Time: You can the set the start time you want.
N
If you want to edit or cancel the schedule, select the reserved schedule on
the Schedule❑List, and select the Edit or Cancel❑Schedules.
English
English
▶
◀ ▶
❑
■
Channel❑List
You can view channel information, All,
TV, Radio, Data/Other,❑Analogue❑or
Favourites❑1-5.
N
When you press the CH❑LIST
button on the remote control,
Channel❑List screen will be
displayed at once.
●
All: Shows all currently available
channels.
●
TV: Shows all currently available TV channels.
●
Radio: Shows all currently radio channels.
●
Data/Other: Shows all currently available MHP or other channels.
●
Analogue: Shows all currently available analogue channels.
●
Favourites❑1-5: Shows all favourite channels.
AC B D
Programme❑View
L
❑CH❑Mode
E
Watch
k
Page
Channel❑List
All
1
TV#6
2
The❑Spo...
BBC❑ONE❑glogal❑News
3
Pardon...
4
Real❑Sp...
6
The❑Daily
7
Pros❑vs.
8
Today
9
Pardon...
English
English
◀ ▶
◀
N
Favourites❑1-5 will be displayed when you set Add❑to❑Favourites.
N
If you want to view favourite channels you added, press the CH❑LIST button
and use
L
(Ch.Mode) button to move Favourites❑1-5.
N
Using the remote control buttons with the Channel❑List.
●
AC B D
Yellow (Programme❑View❑/❑Channel❑View): Displays the programme
when digital channel is selected. Returns to the channel view.
●
L
(Ch.Mode❑/❑Channel): Move to the All,❑TV,❑Radio,❑Data/Other❑or❑
Favourites❑1-5 / Change channels.
N
When you press the
A
C
B D
(Programme❑View) button, you can move to
other channels using
L
(Channel) button.
English
English
▶
◀ ▶
●
●
E
(Watch❑/❑Information): Watches the channel you select. / Displays
details of the selected programme.
●
k●
(Page): Move to next or previous page.
Channel❑Status❑Display❑Icons
Icon Operations
a
An analogue channel.
)
A reserved programme.
\
A locked channel.
English
English
◀ ▶
◀
How❑to❑use❑Timer❑Viewing❑in❑Channel❑List❑(digital❑channels❑only)❑
When you set the Timer❑Viewing in Channel❑List, you can only set the programme in
Programme❑View.
1. Press the CH❑LIST button, then select a desired digital channel.
2. Press the
A
C
B D
(Programme❑View) button.
3. Press the
▲
/
▼
buttons to select the desired programme, then press the
ENTER
E●
(Information) or INFO button.
4. Select Timer❑Viewing, then press the ENTER
E
button when done.
N
If you want to cancel Timer❑Viewing, follow steps 1 through 3. Select Cancel❑
Schedules.
English
English
▶
◀ ▶
❑
■
Channel❑Manager
You can edit the channel to your preference.
●
( ) Channels: Shows the channel
list according to the channel type.
●
( ) Favourites❑1-5: Shows
favourite channels.
N
Using the colour buttons with the
Channel❑Manager.
●
AC B
D
Blue (Sorting): Changes the
list ordered by channel number
or channel name.
❑ ❑
AC B D
❑Sorting❑❑❑
k
❑Page❑❑❑
E
❑Select❑❑❑
T
❑Tools❑❑❑
R
❑Return
Channel❑Manager
All
Selected❑items:❑4❑ Channel❑number
1/2❑page❑
*
It may differ depending on the model.
English
English
◀ ▶
◀
Channel❑Status❑Display❑Icons
Icon Operations
a
An analogue channel.
c
A channel selected.
F
A channel set as a favourite.
\
A locked channel.
T
Displays the Channel❑Manager option menu.
English
English
▶
◀ ▶
Channel❑Manager❑Option❑Menu❑
t
Set each channel using the Channel❑Manager menu options (Watch, Add❑to❑
Favourites/Edit❑Favourites,❑Lock/Unlock,❑Edit❑Channel❑Name,❑Edit❑Channel❑
Number,❑Delete,❑Select❑All/Deselect❑All). Option menu items may differ depending
on the channel status.
1. Select a channel and press the TOOLS button.
2. Select a function and change its settings.
English
English
◀ ▶
◀
●
Watch: Watch the selected channel.
●
Add❑to❑Favourites/Edit❑Favourites: Set channels you watch frequently as
favourites. / Add or Delete the selected channel in Favourites❑1-5.
1. Select the Add❑to❑Favourites/Edit❑Favourites, then press the ENTER
E
button. Add or Delete the selected channel in Favourites❑1-5.
N
If the channel is already added to favourite channel, Edit❑Favourites will
be shown.
2. Press the ENTER
E
button to select Favourites❑1-5, then press the OK
button.
N
One favourite channel can be added in several of Favourites among
Favourites❑1-5.
English
English
▶
◀ ▶
●
Lock/Unlock: Lock a channel so that the channel cannot be selected and viewed.
N
NOTE
●
This function is available only when the Channel❑Lock is set to On.
●
The PIN input screen appears. Enter your 4-digit PIN, the default of which
is “0-0-0-0”. Change the PIN using the Change❑PIN option.
●
Edit❑Channel❑Name (analogue channels only): Assign your own channel name.
●
Edit❑Channel❑Number: Edit the number by pressing the number buttons desired.
N
Some area may not be able to support Edit❑Channel❑Name and Edit❑
Channel❑Number function.
English
English
◀ ▶
◀
●
Delete: You can delete a channel to display the channels you want.
●
Deselect❑All: Deselect all the selected channels.
N
You can only select Deselect❑All when one or more channels are selected.
●
Select❑All: Select all the channels in the channel list
English
English
▶
◀ ▶
❑❑ Retuning❑Channels
❑
O
MENU
m
❑
→
❑Channel❑
→
❑ENTER
E
❑
■
Country❑(Australia❑/❑New❑Zealand❑/❑Singapore)
Select your country so that the TV can correctly auto-tune the broadcasting
channels.
N
The PIN input screen appears. Enter your 4 digit PIN number. The default PIN
number is “0-0-0-0.”
English
English
◀ ▶
◀
❑
■
Auto❑Tuning
(depending on the country)
Scans for a channel automatically and stores in the TV.
N
Automatically allocated programme numbers may not correspond to actual
or desired programme numbers. If a channel is locked, the PIN input window
appears.
●
Digital❑&❑Analogue❑/❑Digital❑/❑Analogue : Select the channel source to
memorise.
English
English
▶
◀ ▶
❑■ Manual❑Tuning
Scans for a channel manually and stores in the TV.
N
If a channel is locked, the PIN input window appears.
N
According to the channel source, Manual❑Tuning may be supported.
●
Digital❑Channel❑Tuning❑(Channel, Frequency, Bandwidth(depending on the
country)): When scanning has finished, channels are updated in the channel
list.
●
Analogue❑Channel❑Tuning❑(Programme,❑Colour❑System,❑Sound❑System,❑
Channel,❑Search,❑Store): Press the
A
C B D
(New) button. If there is abnormal
sound or no sound, reselect the sound standard required.
English
English
◀ ▶
◀
N
Channel mode
●
C (aerial channel mode) / S (cable channel mode): These two modes allow
you to select a channel by entering the assigned number for each aerial
broadcasting station or cable channel.
❑
■
Edit❑Channel❑Number❑(Disable❑/❑Enable)
(New Zealand only)
When this option is enabled, you can edit channel number. But you cannot
update channel information.
English
English
▶
◀ ▶
❑■ Fine❑Tune❑
(analogue channels only)
If the signal is weak or distorted, fine tune the channel manually.
N
Fine tuned channels are marked with an asterisk “*”.
N
To reset the fine-tuning, select Reset.
English
English
◀ ▶
◀
❑
■
Transfer❑Channel❑List❑
(depending on the country)
Imports or exports the channel map. You should connect a USB storage to use
this function.
N
The PIN number input screen appears. Enter your 4 digit PIN number.
N
The default PIN number of a new TV set is ‘0-0-0-0’.
●
Import❑from❑USB: Import channel list from USB.
●
Export❑to❑USB: Export channel list to USB.
English
English
▶
◀ ▶
❑❑ Changing❑the❑Preset❑Picture❑Mode
❑
O
MENU
m
❑
→
❑Picture❑
→
❑Picture❑Mode❑
→
❑ENTER
E
❑
■
Picture❑Mode❑
t
Select your preferred picture type.
N
When connecting a PC, you can only make changes to the Entertain and
Standard.
●
Dynamic: Suitable for a bright room.
●
Standard: Suitable for a normal environment.
●
Natural❑
for LCD and LED 5 series 32-40 inches
: Suitable for reducing eye strain.
●
Movie: Suitable for watching movies in a dark room.
●
Entertain: Suitable for watching movies and games.
N
It is only available when connecting a PC.
English
English
◀ ▶
◀
❑❑ Adjusting❑Picture❑Settings
❑
■
Samsung❑MagicAngle❑
for LED 4 series 22 inches, 5 series 22 inches
❑
O
MENU
m
❑
→
❑Picture❑
→
❑Samsung❑MagicAngle❑
→
❑ENTER
E
Adjust screen viewing Angle to optimize screen quality according to your viewing
position.
●
Samsung❑MagicAngle: When viewing the screen at an angle from below or
above by setting the appropriate mode for each position you can obtain a
similar picture quality as viewing the screen directly from the front.
Off: Select when viewing from the front position.
Lean❑Back❑Mode: Select when viewing from a slightly lower position.
Standing❑Mode: Select when viewing from the upper position.
●
Mode: Adjust screen viewing angle.
N
When Samsung MagicAngle is set to Lean❑Back❑Mode or Standing❑Mode,
Gamma is not available.
English
English
▶
◀ ▶
❑
■
Backlight❑/❑Contrast❑/❑Brightness❑/❑Sharpness❑/❑Colour❑/❑Tint❑(G/
R)
Your television has several setting options for picture quality control.
N
NOTE
●
In analogue TV modes of the PAL system, the Tint❑(G/R) function is not
available.
●
When connecting a PC, you can only make changes to Backlight,❑Con-
trast, Brightness❑and❑Sharpness.
●
Settings can be adjusted and stored for each external device connected
to the TV.
●
Lowering picture brightness reduces power consumption.
English
English
◀ ▶
◀
❑
■
Screen❑Adjustment
❑
O
MENU
m
❑
→
❑Picture❑
→
❑Screen❑Adjustment❑
→
❑ENTER
E
Set the various picture options such as picture size and aspect ratio.
●
Picture❑Size: Your cable box/satellite receiver may have its own set of screen
sizes as well. However, we highly recommend you use 16:9 mode most of the
time.
Auto❑Wide: Automatically adjusts the picture size to the 16:9 aspect ratio.
16:9: Sets the picture to 16:9 wide mode.
Wide❑Zoom: Magnifies the picture size more than 4:3.
N
Adjusts the Position by using
▲
,
▼
buttons.
Zoom: Magnifies the 16:9 wide pictures vertically to fit the screen size.
N
Adjusts the Zoom or Position by using
▲
,
▼
button.
English
English
▶
◀ ▶
4:3: Sets the picture to basic (4:3) mode.
N
Do not watch in 4:3 format for a long time. Traces of borders displayed
on the left, right and centre of the screen may cause image retention
(screen burn) which are not covered by the warranty.
Screen❑Fit: Displays the full image without any cut-off when HDMI (720p /
1080i / 1080p) or Component (1080i / 1080p) signals are input.
Smart❑View1❑
for LED 5 series 40 inches and LCD 5 series
: Reduces original screen by
50%.
Smart❑View2❑
for LED 5 series 40 inches and LCD 5 series
: Reduces original screen by
25%.
N
NOTE
●
Smart❑View1 is enabled only in HDMI mode.
●
Smart❑View2 is enabled only in DTV and HDMI modes.
English
English
◀ ▶
◀
●
Position: Adjust the picture position. It is only available in Wide❑Zoom.
●
Zoom/Position : Adjust the picture size and position. It is only available in
Zoom.
N
NOTE
●
After selecting Screen❑Fit in HDMI (1080i / 1080p) or Component
(1080i/1080p) mode, you may need to centre the picture:
1. Press the
▲
or
▼
button to select Position.
2. Press the ENTER
E
button.
3. Press the
▲
,
▼
,
◀
,
▶
button to move the picture.
●
Depending on the input source, the picture size options may vary.
●
If you want to reset the position you adjusted, select Reset in the
Position screen. The picture will be set to its default position.
English
English
▶
◀ ▶
●
The available items may differ depending on the selected mode.
●
When❑connecting a PC, only 16:9❑and 4:3 modes can be adjusted.
●
Settings can be adjusted and stored for each external device connected
to an input on the TV.
●
If you use the Screen❑Fit function with HDMI 720p input, 1 line will be cut
at the top, bottom, left and right as in the overscan function.
●
4:3❑Screen❑Size❑(16:9❑/❑Wide❑Zoom❑/❑Zoom❑/❑4:3)❑(New Zealand / Singapore
only): Available only when picture size is set to Auto❑Wide. You can determine
the desired picture size at the 4:3 WSS (Wide Screen Service) size or the
original size. Each country requires different picture size.
English
English
◀ ▶
◀
❑❑ Changing❑the❑Picture❑Options
❑
■
Advanced❑Settings
❑
O
MENU
m
❑
→
❑Picture❑
→
❑Advanced❑Settings❑
→
❑ENTER
E
(available in Standard❑/❑Movie mode)
You can adjust the detailed setting for the
screen including colour and contrast.
N
When❑connecting a PC, you can
only make changes to Gamma and❑
White❑Balance.
●
Black❑Tone❑(Off❑/❑Dark❑/❑Darker❑/❑
Darkest): Select the black level to
adjust the screen depth.
U
Move
E
Enter
R
Return
Advanced❑Settings
Black Tone : Off
►
Dynamic Contrast : Medium
Shadow Detail : 0
Gamma : 0
RGB Only Mode : Off
Colour Space : Native
White Balance
▼
English
English
•
The displayed image may diifer depending on the
model.
▶
◀ ▶
●
Dynamic❑Contrast❑(Off❑/❑Low❑/❑Medium❑/❑High): Adjust the screen contrast.
●
Shadow❑Detail: Increase the brightness of dark images.
●
Gamma: Adjust the primary colour intensity.
●
RGB❑Only❑Mode❑(Off❑/❑Red❑/❑Green❑/❑Blue): Displays the Red, Green and
Blue colour for making fine adjustments to the hue and saturation.
●
Colour❑Space❑(Auto❑/❑Native): Adjust the range of colours available to create
the image.
English
English
◀ ▶
◀
●
White❑Balance: Adjust the colour temperature for a more natural picture.
R-Offset❑/❑G-Offset❑/❑B-Offset: Adjust each colour’s (red, green, blue)
darkness.
R-Gain❑/❑G-Gain❑/❑B-Gain: Adjust each colour’s (red, green, blue) brightness.
Reset: Resets the White❑Balance to its default settings.
●
Flesh❑Tone: Emphasize pink “Flesh Tone.”
●
Edge❑Enhancement❑(Off❑/❑On): Emphasize object boundaries.
●
Motion❑Lighting❑(Off❑/❑On): Reduce power consumption by brightness
control adapted motion.
N
When changing a setting value of Backlight,❑Contrast,❑Brightness,❑
Motion❑Lighting will be set to Off.
●
LED❑Motion❑Plus❑(Off❑/❑On)❑
for LED 5 series 40 inches
: Reduce power
consumption by brightness control adapted motion.
English
English
▶
◀ ▶
❑
■
Picture❑Options
❑
O
MENU
m
❑
→
❑Picture❑
→
❑Picture❑Options❑
→
❑ENTER
E
N
When❑connecting a PC, you can only
make changes to the Colour❑Tone.
●
Colour❑Tone❑(Cool❑/❑Standard❑/❑
Warm1❑/❑Warm2)
N
Warm1 or Warm2 will be
deactivated when the picture
mode is Dynamic.
N
Settings can be adjusted and
stored for each external device
connected to an input on the TV.
U
Move
E
Enter
R
Return
Picture❑Options
Colour Tone : Standard
►
Digital Noise Filter : Auto
MPEG Noise Filter : Auto
HDMI Black Level : Normal
Film Mode : Off
English
English
•
The displayed image may diifer depending on the
model.
◀ ▶
◀
●
Digital❑Noise❑Filter❑(Off❑/❑Low❑/❑Medium❑/❑High❑/❑Auto❑/❑Auto❑Visualisation):
If the broadcast signal received by your TV is weak, you can activate the
Digital❑Noise❑Filter feature to reduce any static and ghosting that may appear
on the screen.
N
When the signal is weak, try other options until the best picture is
displayed.
Auto❑Visualisation: When changing analogue channels, displays signal
strength.
N
Only available for analogue channels.
N
When the INFO button is pressed, the signal strength bar is displayed.
N
When bar is green, you are receiving the best possible signal.
●
MPEG❑Noise❑Filter❑(Off❑/❑Low❑/❑Medium❑/❑High❑/❑Auto): Reduces MPEG
noise to provide improved picture quality.
English
English
▶
◀ ▶
●
HDMI❑Black❑Level❑(Low❑/❑Normal): Selects the black level on the screen to
adjust the screen depth.
N
Available only in HDMI mode (RGB signals).
●
Film❑Mode❑(Off❑/❑Auto1❑/❑Auto2): Sets the TV to automatically sense and
process film signals from all sources and adjust the picture for optimum
quality.
N
Available in TV mode, AV, COMPONENT (1080i) and HDMI (1080i).
N
If you do not feel comfortable viewing the screen, switch the Film❑mode
to Off, Auto1, or Auto2.
English
English
◀ ▶
◀
❑
■
Reset❑Picture❑(OK❑/❑Cancel)
Resets your current picture mode to its default settings.
English
English
▶
◀ ▶
❑❑ Changing❑the❑Preset❑Sound❑Mode
❑
O
MENU
m
❑
→
❑Sound❑
→
❑Sound❑Mode❑
→
❑ENTER
E
❑■ Sound❑Mode❑t
●
Standard: Selects the normal sound mode.
●
Music: Emphasizes music over voices.
●
Movie: Provides the best sound for movies.
●
Clear❑Voice: Emphasizes voices over other sounds.
●
Amplify: Increase the intensity of high-frequency sound to allow a better
listening experience for the hearing impaired.
English
English
◀ ▶
◀
❑❑ Adjusting❑Sound❑Settings
❑
O
MENU
m
❑
→
❑Sound❑
→
ENTER
E
❑
■
Sound❑Effect
(standard sound mode only)
Use the up and down arrow keys to select an option, and then press ENTER
E
.
●
SRS❑TruSurround❑HD❑(Off❑/❑On)
This function provides a virtual 5.1 channel surround sound experience
through a pair of speakers using HRTF (Head Related Transfer Function)
technology.
●
SRS❑TruDialog❑(Off❑/❑On)
This function allows you to increase the intensity of a voice over background
music or sound effects so that dialog can be heard more clearly.
English
English
▶
◀ ▶
●
Equalizer
Use Equalizer to customize sound setting for each speaker.
Balance: Adjusts the balance between the right and left speaker.
100Hz❑/❑300Hz❑/❑1kHz❑/❑3kHz❑/❑10kHz (Bandwidth Adjustment): Adjusts the
level of specific bandwidth frequencies.
Reset: Resets the equalizer to its default settings.
English
English
◀ ▶
◀
❑
■
Broadcast❑Audio❑Options
●
Audio❑Language❑
t
(digital channels only)
Change the default value for audio languages.
N
The available language may differ depending on the broadcast.
●
Audio❑Format
(digital channels only)
Select the audio format.
English
English
▶
◀ ▶
●
Audio❑Description
(not available in all locations) (digital channels only)
This function handles the Audio Stream for the AD (Audio Description) which
is sent along with the Main audio from the broadcaster.
N
Audio❑Description❑(Off❑/❑On): Turn the audio description function on or
off.
N
Volume: Adjust the audio description volume.
English
English
◀ ▶
◀
❑■ Additional❑Setting
●
DTV❑Audio❑Level❑(MPEG❑/❑HE-AAC): (digital channels only) This function
allows you to reduce the disparity of a voice signal (which is one of the signals
received during a digital TV broadcast) to a desired level.
N
According to the type of broadcast signal, MPEG❑/❑HE-AAC can be
adjusted between -10dB and 0dB.
N
To increase or decrease the volume, adjust between the range 0 and -10
respectively.
English
English
▶
◀ ▶
●
Dolby❑Digital❑Comp❑(Line❑/❑RF): This function minimizes signal disparity
between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC,
ATV Sound).
N
Select Line to obtain dynamic sound, and RF to reduce the difference
between loud and soft sounds at night time.
Line: Set the output level for signals greater or less than -31dB (reference) to
either -20dB or -31dB.
RF: Set the output level for signals greater or less than -20dB (reference) to
either -10dB or -20dB.
English
English
◀ ▶
◀
❑
■
Speaker❑Settings
●
Auto❑Volume❑(Off❑/❑Normal❑/❑Night)
To equalize the volume level on each channel, set to Normal.
Night: This mode provides an improved sound experience compared to Normal
mode, making almost no noise. It is useful at night.
N
To use the volume control on the source device connected to the TV,
set Auto❑Volume to Off on the TV. Otherwise, a change to the volume
control of the source device may not be applied.
English
English
▶
◀ ▶
❑
■
Reset❑Sound❑(OK❑/❑Cancel)
Resets your current sound mode to its default settings.
English
English
◀ ▶
◀
❑❑ Selecting❑the❑Sound❑Mode❑t
When you set to Dual I-II, the current sound mode is displayed on the screen.
Audio Type Dual I-II Default
A2 Stereo
Mono Mono
Automatic change
Stereo
Stereo❑↔❑Mono
Dual
Dual I❑↔❑Dual II
Dual I
NICAM Stereo
Mono Mono
Automatic change
Stereo
Mono❑↔❑Stereo
Dual
Mono❑→❑Dual I
❑Dual II❑
Dual I
N
If the stereo signal is weak and an automatic switching, occurs, then switch to
the mono.
N
Only activated in stereo sound signal.
N
Only available when the Source is set to TV.
N
Dual❑I-II is only available when pressing TOOLS button(digital channels only).
English
English
▶
◀ ▶
❑❑ Setting❑the❑Time
❑
O
MENU
m
❑
→
❑System❑
→
❑Time❑
→
❑ENTER
E
❑■ Time❑
N
The current time will appear every time you press the INFO button.
●
Clock: Setting the clock is for using various timer features of the TV.
N
If you disconnect the power cord, you have to set the clock again.
Clock❑Mode: Set up the current time manually or automatically.
–
Auto: Set the current time automatically using the time from a digital
channel.
N
The antenna must be connected in order to set the time automatically.
English
English
◀ ▶
◀
–
Manual: Set the current time manually.
N
Depending on the broadcast station and signal, the auto time set up may
not be correct. In this case, set the time manually.
Clock❑Set: Set the Day,❑Month,❑Year,❑Hour and Minute manually.
N
Available only when Clock❑Mode is set to Manual.
Time❑Zone❑(depending on the country): Select your time zone.
N
This function is only available when the Clock❑Mode is set to Auto.
English
English
▶
◀ ▶
❑❑ Using❑the❑Sleep❑Timer
❑
O
MENU
m
❑
→
❑System❑
→
❑Time❑
→
❑Sleep❑Timer❑
→
❑ENTER
E
●
Sleep❑Timer t: Automatically shuts off the TV after a preset period of
time. (30, 60, 90, 120, 150 and 180 minutes).
N
To cancel Sleep❑Timer, select Off.
English
English
◀ ▶
◀
❑❑ Setting❑the❑On❑/❑Off❑Timer
❑
O
MENU
m
❑
→
❑System❑
→
❑Time❑
→
❑On❑Timer❑<or>❑Off❑Timer❑
→
ENTER
E
●
On❑Timer❑1❑/❑On❑Timer❑2❑/❑On❑Timer❑
3: Three different on timer settings
can be made. You must set the clock
first.
English
English
L
❑Move❑❑
●U
❑Adjust❑❑❑
E
❑Enter❑❑❑
R
❑Return
On❑Timer❑1
Setup
❑
Once
Source
VolumeOn❑Time
Antenna Channel
TV
2004 00
ATV 3
Sun Mon Tue Wed Thu Fri Sat
•
The displayed image may diifer depending on the
model.
▶
◀ ▶
–
Setup: Select Off,❑Once,❑Everyday,❑Mon~Fri,❑Mon~Sat,❑Sat~Sun or
Manual to set at your convenience. If you select Manual, you can set up
the day you want to activate the timer.
N
The c mark indicates the day you’ve selected.
–
On❑Time: Set the hour and minute.
–
Volume: Set the desired volume level.
–
Source: Select TV or USB content to be played when the TV is turned
on automatically. (USB can be selected only when a USB device is
connected to the TV)
–
Antenna (when the Source is set to TV): Select ATV or DTV.
–
Channel (when the Source is set to TV): Select the desired channel.
–
Music❑/❑Photo (when the Source is set to USB): Select a folder in the
USB device containing music or photo files to be played when the TV is
turned on automatically.
English
English
◀ ▶
◀
N
NOTE
●
If there is no music file on the USB device or the folder containing
a music file is not selected, the Timer function does not operate
correctly.
●
When there is only one photo file in the USB device, the Slide
Show will not play.
●
If a folder name is too long, the folder cannot be selected.
●
Each USB you use is assigned its own folder. When using
more than one of the same type of USB, make sure the folders
assigned to each USB have different names.
●
It is recommended that you use a USB memory stick and a multi
card reader when using On❑Timer.
●
The On❑Timer function may not work with USB devices with
a built-in battery, MP3 players, or PMPs made by some
manufacturers because these devices take a long time to be
recognized.
English
English
▶
◀ ▶
●
Off❑Timer❑1❑/❑Off❑Timer❑2❑/❑Off❑Timer❑
3: Three different off timer settings
can be made. You must set the clock
first.
Setup: Select Off,❑Once,❑Everyday,❑
Mon~Fri,❑Mon~Sat,❑Sat~Sun or
Manual to set at you convenience.
If you select Manual, you can set
up the day you want to activate the
timer.
N
The
c
mark indicates the day
you’ve selected.
Off❑Time: Set the hour and minute.
L
❑Move❑❑
●U
❑Adjust❑❑❑
E
❑Enter❑❑❑
R
❑Return
Off❑Timer❑1
Setup
❑
Once
Off❑Time
04 00
Sun Mon Tue Wed Thu Fri Sat
English
English
•
The displayed image may diifer depending on the
model.
◀ ▶
◀
❑❑ Locking❑Programme
❑
O
MENU
m
❑
→
❑System❑
→
❑Security❑
→
❑ENTER
E
❑
■
Security
N
The PIN input screen appears before the setup screen.
N
Enter your 4-digit PIN, the default of which is “0-0-0-0”. Change the PIN
using the Change❑PIN option.
●
Channel❑Lock❑(Off❑/❑On): Lock channels in Channel Manager, to prevent
unauthorized users, such as children, from watching unsuitable programme.
English
English
▶
◀ ▶
●
Only available when the Input source is set to TV.
●
Program❑Rating❑Lock (depending on the country): Prevent unauthorized
users, such as children, from watching unsuitable programme with a user-
defined 4-digit PIN code. If the selected channel is locked, the “
\
” symbol will
be displayed.
–
Allow❑All: Unlock all TV ratings.
–
The items of Program❑Rating❑Lock differs depending on the country.
●
Change❑PIN: Change your password required to set up the TV.
N
If you forget the PIN code, press the remote control buttons in the
following sequence in Standby mode, which resets the PIN to “0-0-0-0”:
MUTE
→
8
→
2
→
4
→
POWER❑(on).
English
English
◀ ▶
◀
❑❑ Picture❑In❑Picture❑(PIP)
❑
O
MENU
m
❑
→
❑System❑
→
❑PIP❑
→
❑ENTER
E
❑■ PIP❑t
You can watch the TV tuner and one external video source simultaneously. PIP
(Picture-in-Picture) does not function in the same mode.
N
NOTE
●
For PIP sound, refer to the Sound❑Select instructions.
●
If you turn the TV off while watching in PIP mode, the PIP window will
disappear.
●
You may notice that the picture in the PIP window becomes slightly
unnatural when you use the main screen to view a game or karaoke.
English
English
▶
◀ ▶
●
PIP settings
Main picture Sub picture
Component, HDMI/DVI TV
●
PIP❑(Off❑/❑On): Activate or deactivate the PIP function.
●
Channel: Select the channel for the sub-screen.
●
Size (
Õ
/
Ã
): Select a size for the sub-picture.
●
Position (
Ã
/
–
/
—
/
œ
): Select a position for the sub-picture.
●
Sound❑Select❑(Main❑/❑Sub): You can choose the desired sound (Main /
Sub) in PIP mode.
English
English
◀ ▶
◀
❑❑ Economical❑Solutions
❑
O
MENU
m
❑
→
❑System❑
→
❑ENTER
E
❑❑ Eco❑Solution
●
Energy❑Saving❑(Off❑/❑Low❑/❑Medium❑/❑High❑/❑Picture❑Off)
t
: This
adjusts the brightness of the TV in order to reduce power consumption. If you
select Picture❑Off, the screen is turned off, but the sound remains on. Press
any button except volume button to turn on the screen.
●
Eco❑Sensor❑(Off❑/❑On)❑
for LED 5 series 40 inches and LCD 5 series
: To enhance your
power savings; the picture settings will automatically adapt to the light in the
room.
N
If you adjust the Backlight, the Eco❑Sensor will be set to Off.
Min❑Backlight: When Eco❑sensor is On, the minimum screen brightness can
be adjusted manually.
N
If Eco❑Sensor is On, the display brightness may change (become slightly
darker or brighter) depending on the surrounding light intensity.
English
English
▶
◀ ▶
●
No-Signal❑Power❑Off❑(Off❑/❑15❑min❑/❑30❑min❑/❑60❑min):
To avoid unnecessary energy consumption, set how long you want the TV to
remain on if it’s not receiving a signal.
●
Auto❑Power❑Off❑(Off❑/❑On): The TV will be automatically turned off when no
user operation is received for 4 hours.
English
English
◀ ▶
◀
❑❑ Other❑Features
❑
O
MENU
m
❑
→
❑System❑
→
❑ENTER
E
❑
■
Language
●
Teletext❑Language: Set a desired language for teletext.
N
English is the default in cases where the selected language is unavailable
in the broadcast.
●
Preference❑(Primary❑Audio❑Language❑/❑Secondary❑Audio❑Language❑/❑
Primary❑Subtitle❑Language❑/❑Secondary❑Subtitle❑Language❑/❑Primary❑
Teletext❑Language❑/❑Secondary❑Teletext❑Language): Select a language,
which will be the default language when a channel is selected.
English
English
▶
◀ ▶
❑■ Subtitle
Use this menu to set the Subtitle mode.
N
The subtitle feature does not work in Component or HDMI modes.
●
Subtitle❑(Off❑/❑On): Switches subtitles on or off.
●
Subtitle❑Mode❑(Normal❑/❑Hearing❑Impaired): Sets the subtitle mode.
●
Subtitle❑Language: Sets the subtitle language.
N
If the programme you are watching does not support the Hearing❑
Impaired function, Preferred automatically activates even if the Hearing❑
Impaired mode is selected.
N
English is the default in cases where the selected language is unavailable
in the broadcast.
❑
■
Digital❑Text❑(Disable❑/❑Enable)❑
(The option may differ depending on country)
If the programme broadcasts with digital text, this feature is enabled.
English
English
◀ ▶
◀
❑
■
Auto❑Protection❑Time
●
Auto❑Protection❑Time❑(Off❑/❑2❑hours❑/❑4❑hours❑/❑8❑hours❑/❑10❑hours): If the
screen remains idle with a still image for a certain period of time defined by the
user, the screen saver is activated to prevent the formation of ghost images
on the screen.
English
English
▶
◀ ▶
❑
■
General
●
Game❑Mode❑(Off❑/❑On): When connecting to a game console such as
PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by
selecting game mode.
N
NOTE
●
Precautions and limitations for game mode
–
To disconnect the game console and connect another external
device, set Game❑Mode❑to Off in the setup menu.
–
If you display the TV menu in Game❑Mode, the screen shakes
slightly.
●
Game❑Mode is not available when the input source is set to TV or
HDMI/DVI(connecting a PC).
English
English
◀ ▶
◀
●
After connecting the game console, set Game❑Mode to On to
prevent poor picture quality.
●
If Game❑Mode is On:
–
Picture❑Mode is set to Standard and Sound❑Mode is set to
Movie.
●
Menu❑Transparency❑(Bright❑/❑Dark): Set the Transparency of the menu.
●
Boot❑Logo❑(Off❑/❑On): Display Samsung logo when the TV is turned on.
English
English
▶
◀ ▶
❑❑ Support❑Menu
❑
O
MENU
m
❑
→
❑Support❑
→
❑ENTER
E
❑
■
e-Manual
You can read the introduction and instructions about the TV features stored in
your TV.
N
For the detailed information about e-Manual Screen, refer to “How to use the
e-Manual” in User Manual.
English
English
◀ ▶
◀
❑
■
Self❑Diagnosis
N
Self❑Diagnosis might take few seconds, this is part of the normal operation
of the TV.
●
Picture❑Test❑(Yes❑/❑No): Use to check for picture problems.
Yes: If the test picture does not appear or there is noise in the test pattern,
select Yes. There may be a problem with the TV. Contact Samsung’s Call
Centre for assistance.
No: If the test picture is properly displayed, select No. There may be a
problem with your external equipment. Please check your connections. If the
problem persists, refer to the external device’s user manual.
English
English
▶
◀ ▶
●
Sound❑Test❑(Yes❑/❑No): Use the built-in melody sound to check for sound
problems.
Yes: If you can hear sound only from one speaker or not at all during the
sound test, select Yes. There may be a problem with the TV. Contact
Samsung’s Call Centre for assistance.
No: If you can hear sound from the speakers, select No. There may be a
problem with your external equipment. Please check your connections. If the
problem persists, refer to the external device’s user manual.
●
Signal❑Information: (digital channels only) HDTV channel’s reception quality is
either perfect or the channels are unavailable. Adjust your antenna to increase
signal strength.
●
Troubleshooting: If the TV seems to have a problem, refer to this description.
N
If none of these troubleshooting tips apply, contact the Samsung
customer service centre.
English
English
◀ ▶
◀
❑■ Software❑Upgrade
Software❑Upgrade can be performed
by downloading the latest firmware from
“www.samsung.com,” to a USB memory
device.
Current❑Version the software already
installed in the TV.
N
Software is represented as “Year/
Month/Day_Version”.
U
❑Move❑❑❑❑
E
❑Enter❑❑❑❑
R
❑Return
Software❑Upgrade
Current❑Version 2011/01/18_000001
By❑USB
Alternative❑Software ----/--/--_------
Standby❑Mode❑Upgrade :❑Off
*
It may differ depending on the model.
English
English
▶
◀ ▶
Installing❑the❑Latest❑Version
●
By❑USB: Insert a USB drive containing the
firmware upgrade file, downloaded from
“www.samsung.com,” into the TV. Please
be careful not to disconnect the power
or remove the USB drive until upgrades
are complete. The TV will be turned off
and on automatically after completing
the firmware upgrade. When software
is upgraded, video and audio settings
you have made will return to their default
settings. We advise you to write down your settings so that you can easily
reset them after the upgrade.
TV Rear Panel
*
It may differ depending on the model.
English
English
◀ ▶
◀
●
By❑Channel: Upgrade the software using the broadcasting signal.
N
If the function is selected during the software transmission period,
software will be automatically searched and downloaded.
N
The time required to download the software is determined by the signal
status.
●
Alternative❑Software❑(backup): If there is an issue with the new firmware and
it is affecting operation, you can change the software to the previous version.
N
If the software was changed, existing software is displayed.
●
Standby❑Mode❑Upgrade❑(Off❑/❑1❑hour❑later❑/❑2❑hours❑later/❑00:00❑/❑02:00❑/❑
12:00❑/❑14:00): A manual upgrade will be automatically performed at selected
time. Since the power of the unit is turned on internally, the screen may be
turned on slightly for the product. This phenomenon may continue for more
than 1 hour until the software upgrade is complete.
English
English
▶
◀ ▶
❑
■
Contact❑Samsung
View this information when your TV does not work properly or when you want to
upgrade the software. You can find information regarding our call centres, and
how to download products and software.
❑
■
Contents❑Home
You can enjoy useful and various contents.
English
English
◀ ▶
◀
❑❑ Using❑the❑My❑Downloads
Enjoy photos, music files saved on a USB Mass Storage Class (MSC) device PC.
1. Press the CONTENT button to
select My❑Downloads.
2. Press
▲
/
▼
button to select
desired menu (Photos, Music),
then press the ENTER
E
button.
Photos
Music
Source Watch❑TV
My Downloads
*
It may differ depending on the model.
English
English
▶
◀ ▶
❑❑ Connecting❑a❑USB❑Device
1. Turn on your TV.
2. Connect a USB device containing photo,
music files to the USB❑jack on the back
of the TV.
3. When USB is connected to the TV,
popup window appears. Then you can
select New❑device❑connected.
TV Rear Panel
*
It may differ depending on the model.
English
English
◀ ▶
◀
N
It might not work properly with unLicenced multimedia files.
N
Need-to-Know List before using My❑Downloads.
●
MTP (Media Transfer Protocol) is not supported.
●
The file system supports FAT16, FAT32 and NTFS.
●
Certain types of USB Digital camera may not be compatible with this TV.
●
My❑Downloads only supports USB Mass Storage Class (MSC) devices.
MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC
are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not
supported). Devices should be connected directly to the TV’s USB port.
●
Before connecting your device to the TV, please back up your files to prevent
them from damage or loss of data. SAMSUNG is not responsible for any data
file damage or data loss.
English
English
▶
◀ ▶
●
USB (HDD) is not supported.
●
Do not disconnect the USB device while it is loading.
●
The higher the resolution of the image, the longer it takes to display on the
screen.
●
The maximum supported JPEG resolution is 15360X8640 pixels.
●
For unsupported or corrupted files, the “Not Supported File Format” message
is displayed.
●
If the files are sorted by Folder❑View, up to 1000 files can be displayed in
each folder.
English
English
◀ ▶
◀
●
MP3 files with DRM that have been downloaded from a non-free site cannot
be played. Digital Rights Management (DRM) is a technology that supports
the creation, distribution and management of the content in an integrated and
comprehensive way, including the protection of the rights and interests of the
content providers, the prevention of the illegal copying of contents, as well as
managing billings and settlements.
●
If more than 2 PTP devices are connected, you can only use one at a time.
●
If more than two MSC devices are connected, some of them may not be
recognized. A USB device that requires high power (more than 500mA or 5V)
may not be supported.
English
English
▶
◀ ▶
●
If an over-power warning message is displayed while you are connecting or
using a USB device, the device may not be recognized or may malfunction.
●
If the TV has been no input during time set in Auto❑Protection❑Time, the
Screensaver will run.
●
The power-saving mode of some external hard disk drives may be released
automatically when connected to the TV.
English
English
◀ ▶
◀
●
If a USB extension cable is used, the USB device may not be recognised or
the files on the device may not be read.
●
If a USB device connected to the TV is not recognised, the list of files on the
device is corrupted or a file in the list is not played, connect the USB device to
the PC, format the device and check the connection.
●
If a file deleted from the PC is still found when My❑Downloads is run, use the
“Empty the Recycle Bin” function on the PC to permanently delete the file.
●
My❑Downloads only supports sequential jpeg format.
●
If the number of files and folders saved on a USB storage device is
approximately over 4000, the files and folders may not appear and some
folders may not be opened.
English
English
▶
◀ ▶
❑❑ Screen❑Display
Move to the desired file using the
◄
/
►
/
▲
/
▼
buttons and then press the
ENTER
E
. The file is played. My❑Downloads❑screen may differ depending on
the way to enter the screen.
Information:
You can ascertain the
selected device name,
contents mode, folder/
file name, page and
sorting list.
Contents❑mode❑/❑Device❑name:
You can select the desired
Contents mode or Device name.
Operation❑Buttons:
-
A
C
B D
Yellow (Edit❑Mode): Selects the desired music. The check box is
shown in the screen to check the music you want. It is only available in
Music.
-
T
Tools: Displays the option menu.
-
R
Retur n: Move to the previous step.
-
E
Select: Select the contents in Edit❑Mode.
File❑List❑Section:
You can confirm the
files and groups that are
sorted by category.
A
C
B D
●
Edit Mode
T
Tools
R
Return
1/1 page
Folder View
Music
English
English
◀ ▶
◀
❑
■
Music
Playing❑Music
1.❑ Press the
◄
/
►
/
▲
/
▼
button to
select the desired Music in the file
list.
2. Press the ENTER
E
button.
N
Only displays the files with MP3
file extension. Other file extensions
are not displayed, even if they are
saved on the same USB device.
N
If the sound is abnormal when
playing MP3 files, adjust the Equalizer in the Sound menu. (An over-
modulated MP3 file may cause a sound problem.)
E
Enter
L
Pages
T
Tools
R
Return
Music
E
Enter
L
Pages
T
Tools
R
Return
English
English
▶
◀ ▶
Playing❑the❑selected❑music
1. Press the
A
C
B D
(Edit❑Mode) button.
2. Select the desired music.
N
The check box appears to the left of the selected files.
3. Press the TOOLS button and select Play❑Selected❑Contents.
N
You can select or deselect all music by pressing the Select❑All/Deselect❑
All.
English
English
◀ ▶
◀
❑
■
Photos
Viewing❑a❑Photo❑(or❑Slide❑Show)
1.❑ Press the
◄
/
►
/
▲
/
▼
button to
select the desired photo in the file
list.
2. Press the ENTER
E
button.
●
When a selected photo
is displayed, press the
ENTER
E
button to start the
slide show.
●
During the slide show, all files in the file list will be displayed in order.
N
Music files can be automatically played during the Slide Show if the
Background❑Music is set to On.
E
Pause
L
Previous/Next
T
Tools
R
Return
Normal
English
English
▶
◀ ▶
❑❑ My❑Downloads❑-❑Additional❑Functions
Music/Photos❑Play❑Option❑menu
During playing a file, press the TOOLS button.
Category Operation Music Photos
Shuffle❑Mode You can play the music randomly.
c
Repeat❑Mode You can play music files repeatedly.
c
Picture❑Mode You can adjust the picture setting.
c
English
English
◀ ▶
◀
Category Operation Music Photos
Sound❑Mode You can adjust the sound setting.
c c
Start❑Slide❑Show❑/❑
Pause❑Slide❑Show
You can start or pause a Slide Show.
c
Slide❑Show❑Speed
You can select the slide show speed
during the slide show.
c
Background❑Music
You can on/off background music when
watching a Slide Show.
c
English
English
▶
◀ ▶
Category Operation Music Photos
Background❑Music❑
Setting
You can select background music when
watching a Slide Show.
c
Zoom You can zoom into images in full screen mode.
c
Rotate You can rotate images in full screen mode.
c
Information
You can see detailed information about the
played file.
c c
English
English
◀ ▶
◀
❑❑ Analogue❑Channel❑Teletext❑Feature
The index page of the Teletext service gives you information on how to use the service.
For Teletext information to be displayed correctly, channel reception must be stable.
Otherwise, information may be missing or some pages may not be displayed.
You can change Teletext pages by pressing the numeric buttons on the remote
control.
●
0●
(mode): Selects the Teletext mode (LIST/ FLOF). If pressed during LIST
mode, switches the mode to List save mode. In List save mode, you can save
a Teletext page into a list using the 8(store) button.
●
/●
(Teletext on/mix/off): Activates the Teletext mode for the current
channel. Press the button twice to overlap the Teletext mode with the current
broadcasting screen. Press it one more time to exit teletext.
English
English
▶
◀ ▶
●
1●
(sub-page): Displays the available sub-page.
●
8
(store): Stores the Teletext pages.
●
6●
(index): Displays the index (contents) page at any time while you are
viewing Teletext.
●
4●
(size): Displays the teletext on the upper half of the screen in double-size.
To move the text to the lower half of the screen, press it again. For normal
display, press it once again.
●
9
(hold): Holds the display at the current page, in the case that there are
several secondary pages that follow automaticially. To undo, press it again.
●
2●
(page up): Displays the next Teletext page.
●
3●
(page down): Displays the previous Teletext page.
English
English
◀ ▶
◀
●
5
(reveal): Displays the hidden text (answers to quiz games, for example). To
display the normal screen, press it again.
●
7●
(cancel): Shrinks the Teletext display to overlap with the current broadcast.
●
Colour buttons (red, green, yellow, blue): If the FASTEXT system is used by
the broadcasting company, the different topics on a Teletext page are colour-
coded and can be selected by pressing the coloured buttons. Press the
colour corresponding to the topic of your choice. A new colourcoded page is
displayed. Items can be selected in the same way. To display the previous or
next page, press the corresponding coloured button.
English
English
▶
◀ ▶
The❑Teletext❑pages❑are❑organized❑according❑to❑six❑categories:
Part Contents
A Selected page number.
B Broadcasting channel identity.
C Current page number or search indications.
D Date and time.
E Text.
F Status information. FASTEXT information.
A B C D
E
F
English
English
◀ ▶
◀
❑❑ Anti-theft❑Kensington❑Lock
(depending on the model)
The Kensington Lock is not supplied by Samsung. It is a device used to physically
fix the system when using it in a public place. The appearance and locking
method may differ from the illustration depending on the manufacturer. Refer
to the manual provided with the Kensington Lock for additional information on
proper use.
N
Please find a “
K
” icon on the
rear of the TV. A Kensington slot
is beside the “K” icon.
N
The position and colour may
differ depending on the model.
1
TV Rear
Optional
English
English
▶
◀ ▶
To lock the product, follow these steps:
1. Wrap the Kensington lock cable around a large, stationary object such as
desk or chair.
2. Slide the end of the cable with the lock attached through the looped end of
the Kensington lock cable.
3. Insert the locking device into the Kensington slot on the product
1
.
4. Lock the lock.
N
NOTE
●
These are general instructions. For exact instructions, see the User
manual supplied with the locking device.
●
The locking device has to be purchased separately.
●
The location of the Kensington slot may be different depending on the TV
model.
English
English
◀ ▶
◀
❑❑ Troubleshooting
If you have any questions about the TV, first refer to this list. If none of these
troubleshooting tips apply, please visit “www.samsung.com”, then click on
Support.
Issues Solutions❑and❑Explanations
Picture Quality First of all, please perform the Picture❑Test and confirm that
your TV is properly displaying test image. (go to MENU -
Support - Self❑Diagnosis - Picture❑Test) If the test image
is properly displayed, the poor picture may caused by the
source or signal.
English
English
▶
◀ ▶
Issues Solutions❑and❑Explanations
The TV image does
not look as good as it
did in the store.
●
If you have an analogue cable/set top box, upgrade to a
digital set top box. Use HDMI or Component cables to
deliver HD (high definition) picture quality.
●
Cable/Satellite subscribers: Try HD stations from the
channel line up.
●
Antenna connection: Try HD stations after performing
Auto programme.
N
Many HD channels are up scaled from
SD(Standard Definition) contents.
●
Adjust the Cable/Set top box video output resolution to
1080i or 720p.
●
Make sure you are watching the TV at the minimum
recommended distance based on the size and definition
of the signal.
English
English
◀ ▶
◀
Issues Solutions❑and❑Explanations
The picture is
distorted: macroblock
error, small block,
dots, pixelization
●
Compression of video contents may cause picture
distortion, especially in fast moving pictures such as
sports and action movies.
●
Low signal level or bad quality can cause picture
distortion. This is not a TV issue.
●
Mobile phones used close to the TV (cca up to 1m) may
cause noise in picture on analogue and digital TV.
English
English
▶
◀ ▶
Issues Solutions❑and❑Explanations
There is poor colour
or brightness.
●
Adjust the Picture options in the TV menu. (go to
Picture❑Mode / Colour❑/❑Brightness❑/❑Sharpness)
●
Adjust Energy❑Saving option in the TV menu. (go to
MENU - System❑-❑Eco❑Solution❑-❑Energy❑Saving)
●
Try resetting the picture to view the default picture
settings. (go to MENU - Picture❑-❑Picture❑Reset)
There is a dotted line
on the edge of the
screen.
●
If the picture size is set to Screen❑Fit, change it to 16:9.
●
Change cable/satellite box resolution.
The picture is black
and white.
●
If you are using an AV composite input, connect the
video cable (yellow) to the Green jack of component
input 1 on the TV.
English
English
◀ ▶
◀
Issues Solutions❑and❑Explanations
When changing
channels, the picture
freezes or is distorted
or delayed.
●
If connected with a cable box, please try to reset the
cable box. Reconnect the AC cord and wait until the
cable box reboots. It may take up to 20 minutes.
●
Set the output resolution of the cable box to 1080i or
720p.
Sound Quality First of all, please perform the Sound❑Test to confirm
that your TV audio is properly operating. (go to MENU -
Support❑-❑Self❑Diagnosis❑-❑Sound❑Test)
If the audio is OK, the sound problem may caused by the
source or signal.
There is no sound or
the sound is too low
at maximum volume.
●
Please check the volume the of external device
connected to your TV.
English
English
▶
◀ ▶
Issues Solutions❑and❑Explanations
The picture is good
but there is no sound.
●
If you are using a DVI to HDMI cable, TV set not support
audio.
●
If your TV has a headphone jack, make sure there is
nothing plugged into it.
The speakers
are making an
inappropriate noise.
●
For antenna or cable connections, check the signal
strength. Low signal level may cause sound distortion.
English
English
◀ ▶
◀
Issues Solutions❑and❑Explanations
No Picture, No Video
The TV will not turn
on.
●
Make sure the AC power cord is securely plugged in to
the wall outlet and the TV.
●
Make sure the wall outlet is working.
●
Try pressing the POWER button on the TV to make sure
the problem is not the remote. If the TV turns on, refer to
“The remote control does not work” below.
English
English
▶
◀ ▶
Issues Solutions❑and❑Explanations
The TV turns off
automatically.
●
Ensure the Sleep❑Timer is set to Off in the System
menu.
●
Make sure the AC power cord is plugged in securely to
the wall outlet and the TV.
●
When watching TV from an antenna or cable connection,
the TV will turn off after 10 ~ 15 minutes if there is no
signal.
English
English
◀ ▶
◀
Issues Solutions❑and❑Explanations
There is no picture/
video.
●
Check cable connections (remove and reconnect all
cables connected to the TV and external devices).
●
Set your external devices’ (Cable/Set top Box, DVD,
Blu-ray etc) video outputs to match the connections to
the TV input. For example, if an external device’s output
is HDMI, it should be connect to an HDMI input on the
TV.
●
Make sure your connected devices are powered on.
●
Be sure to select the TV’s correct source by pressing the
SOURCE button on the TV remote.
●
Reboot the connected device by reconnecting the
device’s power cable.
English
English
▶
◀ ▶
Issues Solutions❑and❑Explanations
RF(Cable/Antenna) Connection
The TV is not receiving
all channels.
●
Make sure the Antenna cable is connected securely.
●
Please try Plug❑&❑Play (Initial setup) to add available
channels to the channel list. Go to MENU - System❑
-❑Plug❑&❑Play (Initial setup) and wait for all available
channels to be stored.
●
Verify the Antenna is positioned correctly.
English
English
◀ ▶
◀
Issues Solutions❑and❑Explanations
The picture is
distorted: macro block
error small block,
dots, pixelization
●
Compression of video contents may cause picture
distortion. especially on fast moving pictures such as
sports and action movies.
●
A low signal can cause picture distortion. This is not a
TV issue.
Others
The picture will not
display in full screen.
●
HD channels will have black bars on either side of the
screen when displaying up scaled SD (4:3) contents.
●
Black bars on the top and bottom will appear during
movies that have aspect ratios different from your TV.
●
Adjust the picture size options on your external device or
TV to full screen.
English
English
▶
◀ ▶
Issues Solutions❑and❑Explanations
The remote control
does not work.
●
Replace the remote control batteries with the poles (+/–)
in the right direction.
●
Clean the sensor’s transmission window on the remote.
●
Try pointing the remote directly at the TV from 5~6 feet
away.
The cable/set top box
remote control doesn’t
turn the TV on or off,
or adjust the volume.
●
Programme the Cable/Set top box remote control to
operate the TV. Refer to the Cable/Set user manual for
the SAMSUNG TV code.
English
English
◀ ▶
◀
Issues Solutions❑and❑Explanations
A “Mode❑Not❑
Supported” message
appears.
●
Check the supported resolution of the TV, and adjust the
external device’s output resolution accordingly.
There is a plastic smell
from the TV.
●
This smell is normal and will dissipate over time.
The TV Signal❑
Information is
unavailable in the Self❑
Diagnosis Test menu.
●
This function is only available with digital channels from
an Antenna / RF / Coax connection.
TV is tilted to the right
or left side.
●
Remove the base stand from the TV and reassemble it.
There are difficulties
assembling the stand
base.
●
Make sure the TV is placed on a flat surface. If you
can not remove the screws from the TV, please use a
magnetized screw driver.
English
English
▶
◀ ▶
Issues Solutions❑and❑Explanations
The Channel menu is
grey out (unavailable).
●
The Channel menu is only available when the TV source
is selected.
Your settings are lost
after 30 minutes or
every time the TV is
turned off.
●
If the TV is in the Store❑Demo mode, it will reset audio
and picture settings every 30 minutes. Change the
settings from Store❑Demo mode to Home❑Use mode
in the Plug❑&❑Play (Initial setup) procedure. Press the
SOURCE button to select TV mode, and go to MENU
→
System
→
Plug❑&❑Play (Initial setup)
→
ENTER
E
.
You have intermittent
loss of audio or video.
●
Check the cable connections and reconnect them.
●
Loss of audio or video can be caused by using overly
rigid or thick cables. Make sure the cables are flexible
enough for long term use. If mounting the TV to the wall,
we recommend using cables with 90 degree connectors.
English
English
◀ ▶
◀
Issues Solutions❑and❑Explanations
You see small particles
when you look closely
at the edge of the
frame of the TV.
●
This is part of the product’s design and is not a defect.
The PIP menu is not
available.
●
PIP functionality is only available when you are using a
HDMI or Components source.
You turned the TV off
45 minutes ago, and it
turned on again.
●
It is normal. The TV operates the OTA (Over The Aerial)
function itself to upgrade firmware downloaded whilst
your watching TV.
There are recurrent
picture/sound issues.
●
Check and change the signal/source.
English
English
▶
◀ ▶
Issues Solutions❑and❑Explanations
A reaction may occur
between the rubber
cushion pads on the
base stand and the
top finish of some
furniture.
●
To prevent this, use felt pads on any surface of the TV
that comes in direct contact with furniture.
English
English
◀
❑❑ Licence
Manufactured under licence from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
TheaterSound, SRS and symbol are trademarks of SRS Labs, Inc.
TheaterSound technology is incorporated under licence from SRS Labs, Inc.
Open❑Source❑Licence❑Notice
In the case of using open source software, Open Source Licences are available on the
product menu. Open Source Licence Notice is written only English.
English
