Installation and operating instructions
Tumble dryer
WTA79200GB
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WTA79200GB:
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
â / -
2
Contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Environmental protection 11
3
5 Installation and connection 12
3
Y The main points in brief 20
3
* Getting to know your appliance 21
3
Z Laundry 24
3
/ Programs and buttons 25
3
1 Operating the appliance 28
3
M Signal setting 30
3
D Cleaning 31
3
3 Faults and what to do about them 33
3
J After-sales service 35
3
[ Consumption values 36
3
J Technical data 37
3
8 Intended use
4
Intended use
4
â This appliance is intended for private domestic use only.
4
â Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.
4
â This appliance must only be used for drying and freshening up domestic laundry, consisting of items that have been washed with water and are suitable for tumble drying (see label on item). Using the appliance for any other purpose is outside of t...
4
â This appliance is intended for use up to a maximum height of 4000 metres above sea level.
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
â The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how...
4
â Children must not play with this appliance.
4
â Do not allow children to clean or maintain this appliance unsupervised.
5
â Keep children under 3 years and pets away from this appliance.
5
â Do not leave the appliance unattended when children or other people who are unable to assess the risks are in the vicinity.
5
: Warning
5
Risk of death!
5
â Do not position the appliance behind a door, as this may obstruct the appliance door or prevent it from opening completely.
5
â Once an appliance has reached the end of its life, pull the mains plug from the socket before severing the mains cable, and then destroy the lock on the appliance door.
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
5
: Warning
5
Risk of electric shock/fire/ material damage/damage to the appliance!
5
â The mains voltage on your power socket matches the rated voltage specified on the appliance (identification plate). The connected loads and the required fuse protection are specified on the identification plate.
6
â The appliance is only connected to a source of alternating current via a nationally recognized and grounded outlet that has been correctly installed.
6
â The mains plug and the grounded socket match and the earthing system has been correctly installed.
6
â The cross section of the cable is sufficiently large enough.
6
â The mains plug is accessible at all times.
6
â If using a residual current circuit breaker, only use one that bears the following mark: z. The presence of this mark is the only way to be sure that it fulfils all the applicable regulations.
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of fire/poisoning!
6
: Warning
6
Risk of fire/material damage/ damage to the appliance!
6
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Operation
7
: Warning
7
Risk of explosions/fire!
7
â Rinse the laundry thoroughly with warm water and detergent before drying it in the machine.
8
â Do not place laundry in this appliance to be dried if the laundry has not been washed first.
8
â Do not use the appliance if industrial chemicals have been used to clean the laundry.
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
â During the last part of the drying cycle, the laundry in the drum is not heated (cooling cycle). This is to ensure that it remains at a temperature at which it will not be damaged.
8
â Do not switch off the appliance before the drying cycle has finished unless you remove all items of laundry from the drum immediately and spread them out (to dissipate the heat).
8
: Warning
8
Risk of poisoning!
8
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
Caution!
9
Material damage/damage to the appliance
9
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
â Switch off the appliance. Disconnect the appliance from the power supply (pull out the plug).
10
â Never take hold of the mains plug with wet hands.
10
â When removing the mains plug from the socket, always take hold of the plug itself and never the mains cable, otherwise this may damage the mains cable.
10
â Do not make any technical modifications to the appliance or its features.
10
â Repairs and any other work on the appliance must only be conducted by our customer service or by an electrician. The same applies for replacing the mains cable (when necessary).
10
â Spare mains cables can be ordered from our customer service.
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
â Do not allow these agents to come into contact with the surfaces of the appliance.
11
â Clean the appliance with nothing but water and a soft, damp cloth.
11
â Remove any detergent, spray or other residues immediately.
11
7 Environmental protection
11
Environmental protection
11
Packaging/old appliance
11
Energy-saving tips
12
â Spin the laundry before drying. The drier the laundry, the shorter the drying time will be, thus consuming less energy.
12
â Load the dryer with the maximum load.
12
Note:
12
â Ventilate the room and keep the air inlet on the dryer free to ensure air exchange.
12
â Clean the fluff filter after each drying cycle. If the fluff filter is dirty, the drying time is prolonged and energy consumption is increased.
12
â Energy-saving mode: If the dryer is not operated for a prolonged period, it automatically switches off before the program starts and when the program has ended to save energy. The display panel and indicator lamps go off after a few minutes and t...
12
5 Installation and connection
12
Installation and connection
12
Scope of delivery
12
â Dryer
12
â Installation and operating instructions
12
â Basket for woollens
12
Installing and connecting the dryer
12
: Warning
12
Risk of death!
12
: Warning
12
Children may lock themselves in the dryer, putting their lives at risk!
12
Caution!
12
Risk of injury
12
Caution!
13
Risk of material damage to the dryer or fabrics.
13
â The dryer is placed on a clean, level and firm surface,
13
â The mains plug can be accessed at all times,
13
â The air inlet on the dryer is kept clear and there is sufficient ventilation,
13
â The area around the dryer is kept clean and
13
â The dryer is levelled using the threaded feet.
13
Note:
13
Note:
13
If in doubt, have the appliance connected by a specialist.
13
Installation for the exhaust air duct
13
Caution!
13
Damage to the appliance
13
Notes
13
When operating the dryer without an exhaust air duct, the following must also be observed:
13
â Ensure that the room is well ventilated, otherwise energy consumption and drying time will increase. Bad ventilation of the room may lead to the increase of moisture which may cause damages, e.g. to walls or furniture.
13
â Do not cover the exhaust air opening. Leave approx. 1 m of free space around the exhaust air opening.
13
Connections on the dryer
14
â on the back panel
14
â on the left side panel
14

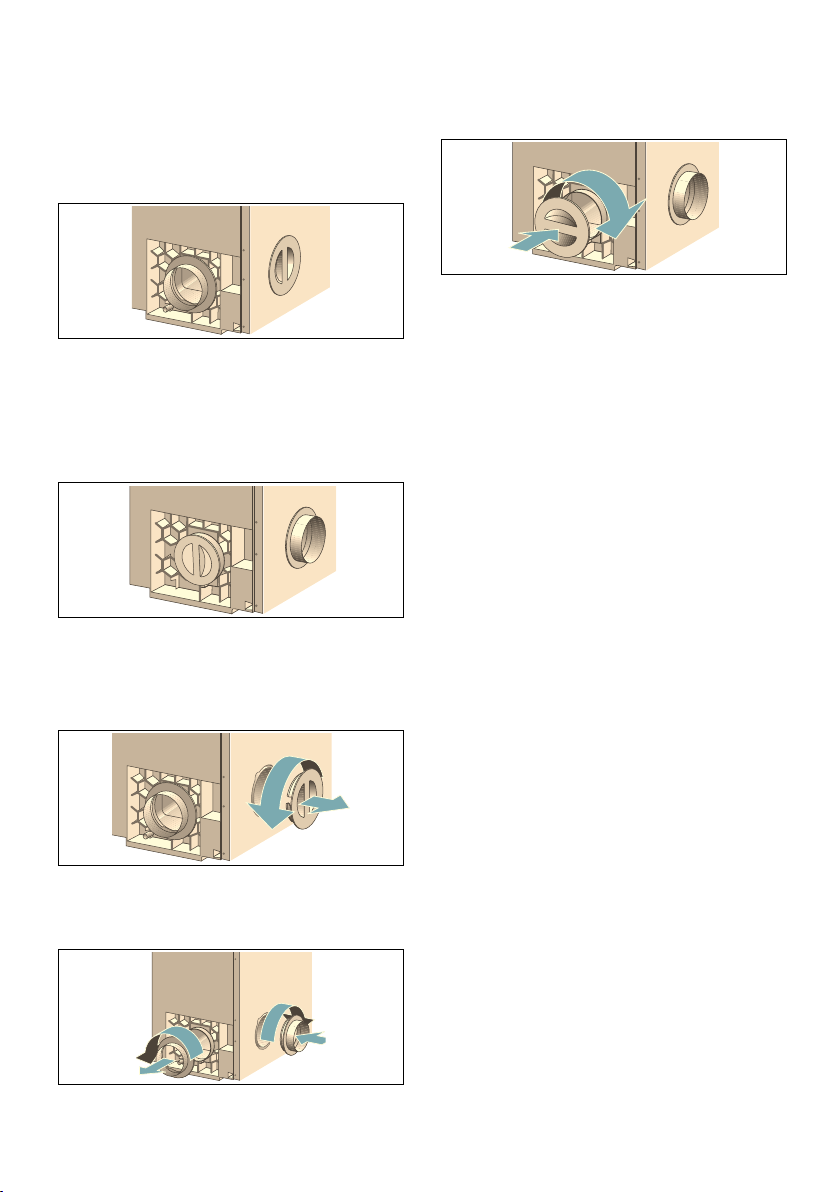

1. Remove the cover on the side panel.
14
2. Remove the bayonet ring from the back panel and attach it to the opening on the side panel.
14
3. Seal the opening in the back panel with the cover.
14
Note:
14
If there is a high level of condensation in the exhaust air duct, it is advisable to fix a condensation collector (standard) or a drain hole with a diameter of approximately 3 mm to the lowest part of the exhaust air duct.
14
Exhaust air duct
14
â flexible pipes
14
â galvanised metal ducts or pipes
14
â connectors, adapters and diverters for flat duct systems and pipe systems
14
â wall boxes for evaporation into the open air or into a ventilation shaft
14
â adapters on rectangular ducts
14
â rectangular ducts or plastic pipes
14
â back pressure flap
14
Note:
14
The material must be heat resistant up to 80 °C and moisture resistant.
14
Pressure losses
14
Note:
14
The type and length of the exhaust air duct, particularly elbows or bends with small radii, can impede the air flow. Keep diameter reductions and pressure losses (resistance) to a minimum.
14
â long exhaust air ducts
15
â exhaust air ducts with small diameters
15
â exhaust air ducts with many bends and elbows.
15
Pressure losses through friction
15
â the smoother the internal wall
15
â the larger the diameter of the internal wall
15
â the shorter the pipe
15
Installation for pipe connection
15
â inside diameter = 100 mm
15
Note:
15
â inside diameter > 100 mm
15
Individual pressure loss values
16
Pipe connection diameter > 100 mm
16
Flat duct connection
16
Internal wall
16
Pipe, smooth
16
Flexible pipe, grooved
16
Flexible pipe, corrugated
16
110 x 54 smooth
16
220 x 54 smooth
16
Model variant
16
straight piece per 1 m length
16
3
16
5
16
7
16
6
16
3
16
4
16
7
16
8
16
8
16
4
16
6
16
9
16
10
16
12
16
6
16
14
16
28
16
7
16
6
16
13
16
3
16
Total pressure loss values
16
Total pressure loss
16
Pipe connection
16
0 - 50
16
100
16
0 - 80
16
110
16
120
16
130
16
Installation option
17
Notes
17
Installation options for the exhaust air duct:
17
â Through a wall box into the open air
17
â Directly into the open air
17
â Through a wall box into chimneys or ventilation shafts
17
Notes
17
Caution!
18
Risk of poisoning
18
Note:
18
Installing more than one dryer
18
Note:
18
The following points must be observed:
18
When connecting to the interception pipe, avoid the following:
18
â mutual interference between dryers
18
â discharge of moisture in the washing and drying room
18
â higher pressure losses (increase in energy consumption and time)
18
â The exhaust air ducts of the individual dryers (DT = R >= 100 mm) should already be extended to the dimension of the interception pipe upstream of the drain check valves.
18
â Possible backpressure (e.g. caused by wind ingress) can be minimised by using a 90° bend, facing down.
18
Optional accessories
19
â Washer-dryer stack connection set:
19
â Platform:
19
â Exhaust air duct:
19

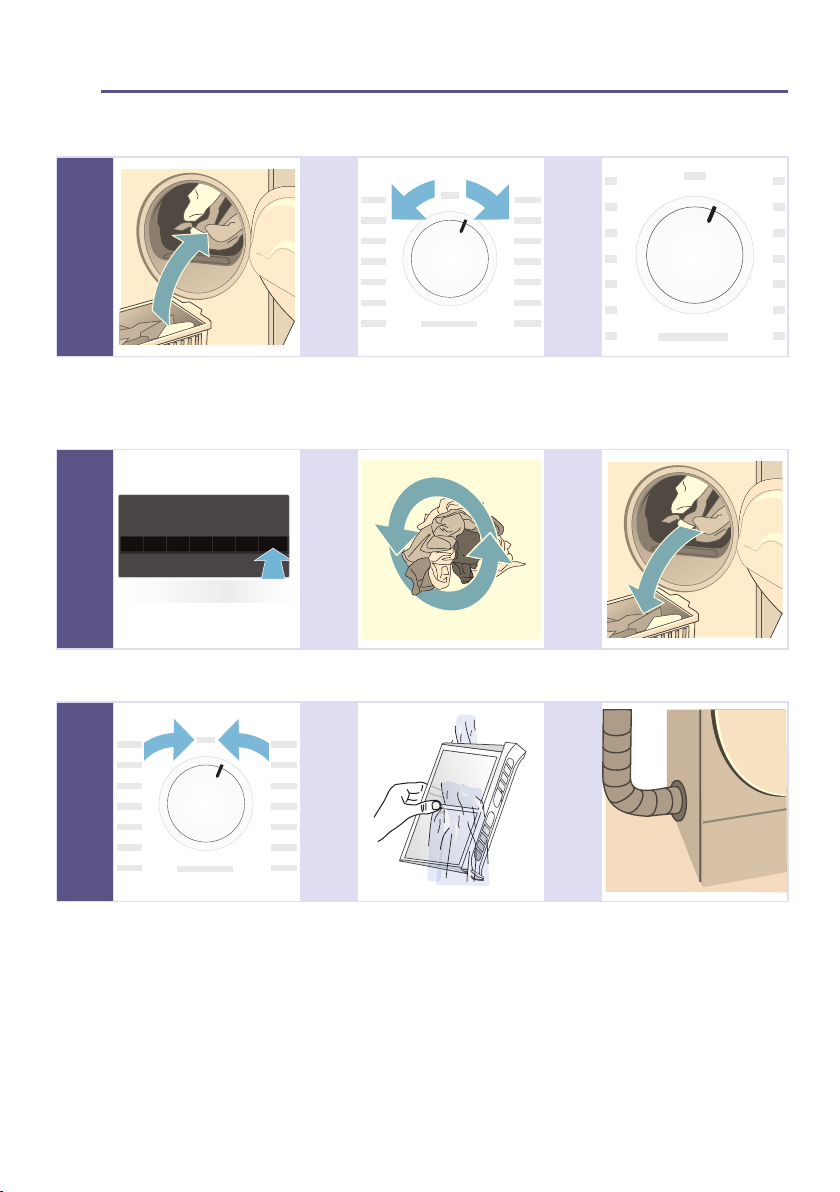

Y The main points in brief
20
The main points in brief
20
* Getting to know your appliance
21
Getting to know your appliance
21
Dryer
21
Control panel
22
Display panel
23
Buttons in the display panel
23
Display panel
23
Z Laundry
24
Laundry
24
Preparing the laundry
24
: Warning
24
Risk of explosion or fire!
24
Caution!
24
The dryer drum and fabrics may be damaged.
24
Notes
24
Sorting laundry according to:
24
Note:
24
Do not load laundry from the washing machine directly into the tumble dryer. Sort the spun laundry before placing it in the dryer drum.
24
Caution!
24
Possibility of material damage to the dryer or laundry.
24
Do not tumble-dry the following fabrics:
24
/ Programs and buttons
25
Programs and buttons
25
Programs
25
Program and fabrics
25
Maximum load and program settings/info
25
Notes
26
Notes
26
Buttons
27
Buttons
27
Explanations and notes
27
Note:
27
Note:
27
1 Operating the appliance
28
Operating the appliance
28
Loading laundry and switching on the dryer
28
Note:
28
The dryer must be correctly positioned and connected, ~ Page 12.
28
1. Place the laundry in the drum.
28
2. To switch the dryer on, turn the program selector to any program.
28
3. Close the dryer door.
28
Caution!
28
Risk of material damage to the dryer or laundry.
28
Setting a program
28
Note:
28
If you have activated the childproof lock, you must deactivate it before you can set a program, see ~ Page 27.
28
1. Select the required program; detailed information on the programs can be found from ~ Page 25 onwards.
28
2. Use the program selector to set the required program. The default program settings for the selected program appear in the display panel.
28
Note:
28
3. If required, adjust the default program settings. You can find detailed information on this from ~ Page 25 onwards.
28
Starting the program
28
Note:
28
If you want to lock the program to prevent it from being inadvertently adjusted, you can select the childproof lock, see ~ Page 27.
28
Program sequence
28
Note:
28
When a programme is selected, the expected drying time for the recommended load is displayed. During drying moisture sensors detect the remaining moisture in the load and adjust the programme length (except timed programmes). This is visible via the ...
28
Changing the program or adding laundry
29
1. To pause the program, open the dryer door or press the Start button.
29
2. Add or remove laundry.
29
3. Select another program or an additional function, if required.
29
4. Close the dryer door.
29
5. Press the Start button.
29
Note:
29
The program duration in the display panel is updated depending on the load and residual moisture in the laundry. The values displayed may change after the program is changed or the load is adapted.
29
Program interruption
29
Caution!
29
Risk of fire. Laundry may catch fire.
29
Program end
29
Removing laundry and switching off the dryer
29
1. Remove the laundry.
29
2. Turn the program selector to the "off" position.
29
Clean the fluff filter
29
Note:
29
During drying, fluff and hair from the laundry is trapped by the fluff filter. If the fluff filter is blocked or dirty, this reduces the flow of air, which prevents the dryer from achieving its maximum performance. Clean fluff filters also reduce ene...
29
1. Open the dryer door and remove all fluff from the door.
29
2. Remove the fluff filter.
29
3. Remove the fluff from the recess in the fluff filter.
30
Note:
30
4. Open the fluff filter and remove all the fluff.
30
5. Rinse away the fluff under running water or clean the fluff filter in the dishwasher.
30
6. Dry the fluff filter, close it and reinsert the fluff filter.
30
Caution!
30
The dryer may be damaged.
30
M Signal setting
30
Signal setting
30
â The spin speed that is used for spinning your laundry before it is dried,
30
â The volume of the audible signal at the end of the program,
30
â The volume of the audible button signals.
30
Activating setting mode
30
1. Switch the dryer on.
30
2. Select the "Cottons" programme in position 1 and wait for five seconds.
30
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
30
2. The spin speed is shown in the display.
30
3. Press the "Finish in" time button or the drying time button to change the spin speed.
30
4. Turn the program selector clockwise to position 3.
30
5. The volume of the audible signal at the end of the program is shown in the display.
31
6. Press the "Finish in" time button or the drying time button to change the volume.
31
7. Turn the program selector clockwise to position 4.
31
8. The volume for the audible button signal is shown in the display.
31
9. Press the "Finish in" time button or the drying time button to change the volume.
31
D Cleaning
31
Cleaning
31
Cleaning the dryer and the control panel
31
: Warning
31
Risk of death!
31
Cleaning the moisture sensor
32
Note:
32
The dryer is equipped with a stainless-steel moisture sensor. The moisture sensor measures how damp the laundry is.
32
After long periods of usage the moisture sensor may become covered by a fine layer of limescale or residues of detergents and care products. Such residues must be removed regularly as the sensor function and in consequence the drying result may be im...
32
Caution!
32
Moisture sensor may be damaged.
32
Cleaning the exhaust air duct
32
Notes
32
1. Switch off the dryer and allow it to cool down.
32
2. Disconnect the mains plug.
32
3. Remove the exhaust air duct.
32
4. Clean the exhaust air duct.
32
5. Refit the exhaust air duct ~ Page 17.
32
3 Faults and what to do about them
33
Faults and what to do about them
33
Faults
33
Cause/remedy
33
Note:
33
Note:
34
Note:
34
If you cannot rectify the fault yourself by turning the dryer off and on, please contact our after-sales service.
34
J After-sales service
35
After-sales service
35
[ Consumption values
36
Consumption values
36
Consumption values table
36
Program
36
Spin speed which is used for spinning the laundry
36
Duration**
36
Energy consumption**
36
Most efficient programme for cotton fabrics
36
Standard programmes for cottons in accordance with current EU regulation 932/2012
36
Programme
36
Load
36
Energy consumption
36
Programme length
36
J Technical data
37
Technical data
37
File type: PDF
File name: Bosch WTA79200GB Dryer.pdf
File size: 1.91 MB
File Language: English
Pages: 40
Author: Bosch
Published: 2018-07-31 17:00:00
Updated: 2023-08-08
Download File
Specifications
Brand:
Bosch
Model: WTA79200GB
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
WTN85200GB
WTG86402GB
WTH85200GB
WTM85230GB
WTW85492GB
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WTA74100GB
Bosch WTW85492GB
Bosch WTH85200GB
Bosch WTN85200GB
Bosch WTA74200AU
Bosch WTH84000GB
Bosch WTH83000GB
Bosch WTB84200GB
Bosch WTA73200ES/01
Bosch WTH83000GB/04
Bosch WTX87M00
Bosch WTW85400
Bosch WTR85T00
Bosch WTR85400
Bosch WTR83V00
Table of Contents
×
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
â / -
2
Contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Environmental protection 11
3
5 Installation and connection 12
3
Y The main points in brief 20
3
* Getting to know your appliance 21
3
Z Laundry 24
3
/ Programs and buttons 25
3
1 Operating the appliance 28
3
M Signal setting 30
3
D Cleaning 31
3
3 Faults and what to do about them 33
3
J After-sales service 35
3
[ Consumption values 36
3
J Technical data 37
3
8 Intended use
4
Intended use
4
â This appliance is intended for private domestic use only.
4
â Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.
4
â This appliance must only be used for drying and freshening up domestic laundry, consisting of items that have been washed with water and are suitable for tumble drying (see label on item). Using the appliance for any other purpose is outside of t...
4
â This appliance is intended for use up to a maximum height of 4000 metres above sea level.
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
â The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how...
4
â Children must not play with this appliance.
4
â Do not allow children to clean or maintain this appliance unsupervised.
5
â Keep children under 3 years and pets away from this appliance.
5
â Do not leave the appliance unattended when children or other people who are unable to assess the risks are in the vicinity.
5
: Warning
5
Risk of death!
5
â Do not position the appliance behind a door, as this may obstruct the appliance door or prevent it from opening completely.
5
â Once an appliance has reached the end of its life, pull the mains plug from the socket before severing the mains cable, and then destroy the lock on the appliance door.
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
5
: Warning
5
Risk of electric shock/fire/ material damage/damage to the appliance!
5
â The mains voltage on your power socket matches the rated voltage specified on the appliance (identification plate). The connected loads and the required fuse protection are specified on the identification plate.
6
â The appliance is only connected to a source of alternating current via a nationally recognized and grounded outlet that has been correctly installed.
6
â The mains plug and the grounded socket match and the earthing system has been correctly installed.
6
â The cross section of the cable is sufficiently large enough.
6
â The mains plug is accessible at all times.
6
â If using a residual current circuit breaker, only use one that bears the following mark: z. The presence of this mark is the only way to be sure that it fulfils all the applicable regulations.
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of fire/poisoning!
6
: Warning
6
Risk of fire/material damage/ damage to the appliance!
6
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Operation
7
: Warning
7
Risk of explosions/fire!
7
â Rinse the laundry thoroughly with warm water and detergent before drying it in the machine.
8
â Do not place laundry in this appliance to be dried if the laundry has not been washed first.
8
â Do not use the appliance if industrial chemicals have been used to clean the laundry.
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
â During the last part of the drying cycle, the laundry in the drum is not heated (cooling cycle). This is to ensure that it remains at a temperature at which it will not be damaged.
8
â Do not switch off the appliance before the drying cycle has finished unless you remove all items of laundry from the drum immediately and spread them out (to dissipate the heat).
8
: Warning
8
Risk of poisoning!
8
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
Caution!
9
Material damage/damage to the appliance
9
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
â Switch off the appliance. Disconnect the appliance from the power supply (pull out the plug).
10
â Never take hold of the mains plug with wet hands.
10
â When removing the mains plug from the socket, always take hold of the plug itself and never the mains cable, otherwise this may damage the mains cable.
10
â Do not make any technical modifications to the appliance or its features.
10
â Repairs and any other work on the appliance must only be conducted by our customer service or by an electrician. The same applies for replacing the mains cable (when necessary).
10
â Spare mains cables can be ordered from our customer service.
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
â Do not allow these agents to come into contact with the surfaces of the appliance.
11
â Clean the appliance with nothing but water and a soft, damp cloth.
11
â Remove any detergent, spray or other residues immediately.
11
7 Environmental protection
11
Environmental protection
11
Packaging/old appliance
11
Energy-saving tips
12
â Spin the laundry before drying. The drier the laundry, the shorter the drying time will be, thus consuming less energy.
12
â Load the dryer with the maximum load.
12
Note:
12
â Ventilate the room and keep the air inlet on the dryer free to ensure air exchange.
12
â Clean the fluff filter after each drying cycle. If the fluff filter is dirty, the drying time is prolonged and energy consumption is increased.
12
â Energy-saving mode: If the dryer is not operated for a prolonged period, it automatically switches off before the program starts and when the program has ended to save energy. The display panel and indicator lamps go off after a few minutes and t...
12
5 Installation and connection
12
Installation and connection
12
Scope of delivery
12
â Dryer
12
â Installation and operating instructions
12
â Basket for woollens
12
Installing and connecting the dryer
12
: Warning
12
Risk of death!
12
: Warning
12
Children may lock themselves in the dryer, putting their lives at risk!
12
Caution!
12
Risk of injury
12
Caution!
13
Risk of material damage to the dryer or fabrics.
13
â The dryer is placed on a clean, level and firm surface,
13
â The mains plug can be accessed at all times,
13
â The air inlet on the dryer is kept clear and there is sufficient ventilation,
13
â The area around the dryer is kept clean and
13
â The dryer is levelled using the threaded feet.
13
Note:
13
Note:
13
If in doubt, have the appliance connected by a specialist.
13
Installation for the exhaust air duct
13
Caution!
13
Damage to the appliance
13
Notes
13
When operating the dryer without an exhaust air duct, the following must also be observed:
13
â Ensure that the room is well ventilated, otherwise energy consumption and drying time will increase. Bad ventilation of the room may lead to the increase of moisture which may cause damages, e.g. to walls or furniture.
13
â Do not cover the exhaust air opening. Leave approx. 1 m of free space around the exhaust air opening.
13
Connections on the dryer
14
â on the back panel
14
â on the left side panel
14
1. Remove the cover on the side panel.
14
2. Remove the bayonet ring from the back panel and attach it to the opening on the side panel.
14
3. Seal the opening in the back panel with the cover.
14
Note:
14
If there is a high level of condensation in the exhaust air duct, it is advisable to fix a condensation collector (standard) or a drain hole with a diameter of approximately 3 mm to the lowest part of the exhaust air duct.
14
Exhaust air duct
14
â flexible pipes
14
â galvanised metal ducts or pipes
14
â connectors, adapters and diverters for flat duct systems and pipe systems
14
â wall boxes for evaporation into the open air or into a ventilation shaft
14
â adapters on rectangular ducts
14
â rectangular ducts or plastic pipes
14
â back pressure flap
14
Note:
14
The material must be heat resistant up to 80 °C and moisture resistant.
14
Pressure losses
14
Note:
14
The type and length of the exhaust air duct, particularly elbows or bends with small radii, can impede the air flow. Keep diameter reductions and pressure losses (resistance) to a minimum.
14
â long exhaust air ducts
15
â exhaust air ducts with small diameters
15
â exhaust air ducts with many bends and elbows.
15
Pressure losses through friction
15
â the smoother the internal wall
15
â the larger the diameter of the internal wall
15
â the shorter the pipe
15
Installation for pipe connection
15
â inside diameter = 100 mm
15
Note:
15
â inside diameter > 100 mm
15
Individual pressure loss values
16
Pipe connection diameter > 100 mm
16
Flat duct connection
16
Internal wall
16
Pipe, smooth
16
Flexible pipe, grooved
16
Flexible pipe, corrugated
16
110 x 54 smooth
16
220 x 54 smooth
16
Model variant
16
straight piece per 1 m length
16
3
16
5
16
7
16
6
16
3
16
4
16
7
16
8
16
8
16
4
16
6
16
9
16
10
16
12
16
6
16
14
16
28
16
7
16
6
16
13
16
3
16
Total pressure loss values
16
Total pressure loss
16
Pipe connection
16
0 - 50
16
100
16
0 - 80
16
110
16
120
16
130
16
Installation option
17
Notes
17
Installation options for the exhaust air duct:
17
â Through a wall box into the open air
17
â Directly into the open air
17
â Through a wall box into chimneys or ventilation shafts
17
Notes
17
Caution!
18
Risk of poisoning
18
Note:
18
Installing more than one dryer
18
Note:
18
The following points must be observed:
18
When connecting to the interception pipe, avoid the following:
18
â mutual interference between dryers
18
â discharge of moisture in the washing and drying room
18
â higher pressure losses (increase in energy consumption and time)
18
â The exhaust air ducts of the individual dryers (DT = R >= 100 mm) should already be extended to the dimension of the interception pipe upstream of the drain check valves.
18
â Possible backpressure (e.g. caused by wind ingress) can be minimised by using a 90° bend, facing down.
18
Optional accessories
19
â Washer-dryer stack connection set:
19
â Platform:
19
â Exhaust air duct:
19
Y The main points in brief
20
The main points in brief
20
* Getting to know your appliance
21
Getting to know your appliance
21
Dryer
21
Control panel
22
Display panel
23
Buttons in the display panel
23
Display panel
23
Z Laundry
24
Laundry
24
Preparing the laundry
24
: Warning
24
Risk of explosion or fire!
24
Caution!
24
The dryer drum and fabrics may be damaged.
24
Notes
24
Sorting laundry according to:
24
Note:
24
Do not load laundry from the washing machine directly into the tumble dryer. Sort the spun laundry before placing it in the dryer drum.
24
Caution!
24
Possibility of material damage to the dryer or laundry.
24
Do not tumble-dry the following fabrics:
24
/ Programs and buttons
25
Programs and buttons
25
Programs
25
Program and fabrics
25
Maximum load and program settings/info
25
Notes
26
Notes
26
Buttons
27
Buttons
27
Explanations and notes
27
Note:
27
Note:
27
1 Operating the appliance
28
Operating the appliance
28
Loading laundry and switching on the dryer
28
Note:
28
The dryer must be correctly positioned and connected, ~ Page 12.
28
1. Place the laundry in the drum.
28
2. To switch the dryer on, turn the program selector to any program.
28
3. Close the dryer door.
28
Caution!
28
Risk of material damage to the dryer or laundry.
28
Setting a program
28
Note:
28
If you have activated the childproof lock, you must deactivate it before you can set a program, see ~ Page 27.
28
1. Select the required program; detailed information on the programs can be found from ~ Page 25 onwards.
28
2. Use the program selector to set the required program. The default program settings for the selected program appear in the display panel.
28
Note:
28
3. If required, adjust the default program settings. You can find detailed information on this from ~ Page 25 onwards.
28
Starting the program
28
Note:
28
If you want to lock the program to prevent it from being inadvertently adjusted, you can select the childproof lock, see ~ Page 27.
28
Program sequence
28
Note:
28
When a programme is selected, the expected drying time for the recommended load is displayed. During drying moisture sensors detect the remaining moisture in the load and adjust the programme length (except timed programmes). This is visible via the ...
28
Changing the program or adding laundry
29
1. To pause the program, open the dryer door or press the Start button.
29
2. Add or remove laundry.
29
3. Select another program or an additional function, if required.
29
4. Close the dryer door.
29
5. Press the Start button.
29
Note:
29
The program duration in the display panel is updated depending on the load and residual moisture in the laundry. The values displayed may change after the program is changed or the load is adapted.
29
Program interruption
29
Caution!
29
Risk of fire. Laundry may catch fire.
29
Program end
29
Removing laundry and switching off the dryer
29
1. Remove the laundry.
29
2. Turn the program selector to the "off" position.
29
Clean the fluff filter
29
Note:
29
During drying, fluff and hair from the laundry is trapped by the fluff filter. If the fluff filter is blocked or dirty, this reduces the flow of air, which prevents the dryer from achieving its maximum performance. Clean fluff filters also reduce ene...
29
1. Open the dryer door and remove all fluff from the door.
29
2. Remove the fluff filter.
29
3. Remove the fluff from the recess in the fluff filter.
30
Note:
30
4. Open the fluff filter and remove all the fluff.
30
5. Rinse away the fluff under running water or clean the fluff filter in the dishwasher.
30
6. Dry the fluff filter, close it and reinsert the fluff filter.
30
Caution!
30
The dryer may be damaged.
30
M Signal setting
30
Signal setting
30
â The spin speed that is used for spinning your laundry before it is dried,
30
â The volume of the audible signal at the end of the program,
30
â The volume of the audible button signals.
30
Activating setting mode
30
1. Switch the dryer on.
30
2. Select the "Cottons" programme in position 1 and wait for five seconds.
30
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
30
2. The spin speed is shown in the display.
30
3. Press the "Finish in" time button or the drying time button to change the spin speed.
30
4. Turn the program selector clockwise to position 3.
30
5. The volume of the audible signal at the end of the program is shown in the display.
31
6. Press the "Finish in" time button or the drying time button to change the volume.
31
7. Turn the program selector clockwise to position 4.
31
8. The volume for the audible button signal is shown in the display.
31
9. Press the "Finish in" time button or the drying time button to change the volume.
31
D Cleaning
31
Cleaning
31
Cleaning the dryer and the control panel
31
: Warning
31
Risk of death!
31
Cleaning the moisture sensor
32
Note:
32
The dryer is equipped with a stainless-steel moisture sensor. The moisture sensor measures how damp the laundry is.
32
After long periods of usage the moisture sensor may become covered by a fine layer of limescale or residues of detergents and care products. Such residues must be removed regularly as the sensor function and in consequence the drying result may be im...
32
Caution!
32
Moisture sensor may be damaged.
32
Cleaning the exhaust air duct
32
Notes
32
1. Switch off the dryer and allow it to cool down.
32
2. Disconnect the mains plug.
32
3. Remove the exhaust air duct.
32
4. Clean the exhaust air duct.
32
5. Refit the exhaust air duct ~ Page 17.
32
3 Faults and what to do about them
33
Faults and what to do about them
33
Faults
33
Cause/remedy
33
Note:
33
Note:
34
Note:
34
If you cannot rectify the fault yourself by turning the dryer off and on, please contact our after-sales service.
34
J After-sales service
35
After-sales service
35
[ Consumption values
36
Consumption values
36
Consumption values table
36
Program
36
Spin speed which is used for spinning the laundry
36
Duration**
36
Energy consumption**
36
Most efficient programme for cotton fabrics
36
Standard programmes for cottons in accordance with current EU regulation 932/2012
36
Programme
36
Load
36
Energy consumption
36
Programme length
36
J Technical data
37
Technical data
37
Search:
×
Search
