Owner's Manual
IPS LED MONITOR
(LED LCD MONITOR)
29EA93
29EB93
Please read the safety information carefully before using the product.
IPS LED Monitor (LED LCD Monitor) Model List
ENGLISH
2
ENG
ENGLISH
Contents
3 LICENSE
4 ASSEMBLING AND
PREPARING
4 Product Components
5 Component and Button Description
7 Moving and Lifting the Monitor
7 Installing the Monitor
7 - Assembling the stand base
9 - Detaching the stand base
11 - Installing onto a table
12 - Adjusting the stand height
13 - Adjusting the angle
14 - Tidying cables
15 - Using the Kensington lock
15 - Installing the wall mount plate
16 - Installing to a wall
17 USING THE MONITOR
17 Connecting to a PC
17 - DVI connection
18 - Display port connection
19 - HDMI connection
20 Connecting to AV Devices
20 - HDMI connection
21 Connecting to External Devices
21 - Smartphone (MHL) connection
22 - USB cable-PC connection
23 - Headphone port connection
24 INSTALLING TUSB3410
DRIVER
25 INSTALLING TRUE COLOR
FINDER
27 INSTALLING SCREEN SPLIT
29 CUSTOMIZING SETTINGS
29 Activating the Main Menu
30 Customizing settings
30 - Menu Settings
31 - Ratio Settings
32 - Func. Settings
33 - PIP settings
34 - Picture
35 - Color
36 - Settings
37 TROUBLESHOOTING
39 SPECIFICATIONS
40 Factory support mode
(Preset Mode, DVI-D/HDMI/PC Display
Port)
40 HDMI/MHL Timing (Video)
40 Power Indicator
41 PROPER POSTURE
41 Proper Posture for Using the Monitor
3
ENG
ENGLISH
LICENSE
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
VESA, VESA logo, Display Port Compliance Logo and Display Port
Compliance Logo for dual-mode source are all registered trademarks of the
Video Electronics Standards Association.
4
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Product Components
Please check whether all the components are included in the box before using the product. If there are
missing components, contact the retail store where you purchased the product. Note that the product and
components may look different from those shown here.
y
Always use genuine components to ensure safety and product performance.
y
The product warranty will not cover damage or injury caused by the use of counterfeit components.
y
Note that the components may look different from those shown here.
y
Without prior notice, all information and specifications in this manual are subject to change to im-
prove the performance of the product.
y
To purchase optional accessories, visit an electronics store or online shopping site or contact the
retail store where you purchased the product.
CAUTION
NOTE

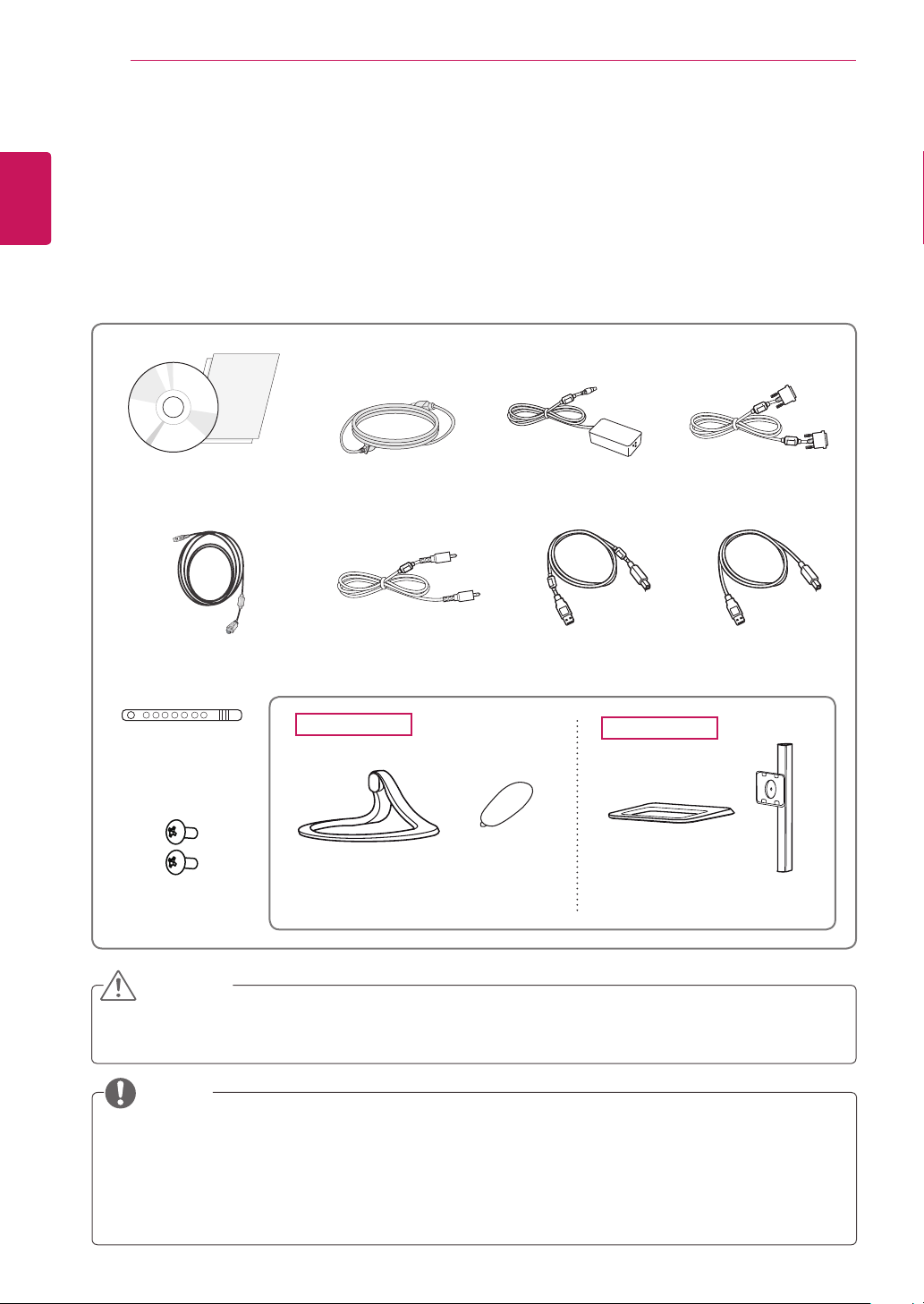

Power Cord
Cable Tie
Audio Cable A-B Type USB 3.0 Cable
or
User Manual/Card
Stand Base Stand Base
Stand Body
Screw Cover
Two Screws
AC/DC Adapter DVI-D Dual Cable
MHL Signal Cable
29EA93
29EB93
5
ENG
ENGLISH
ASSEMBLING AND PREPARING

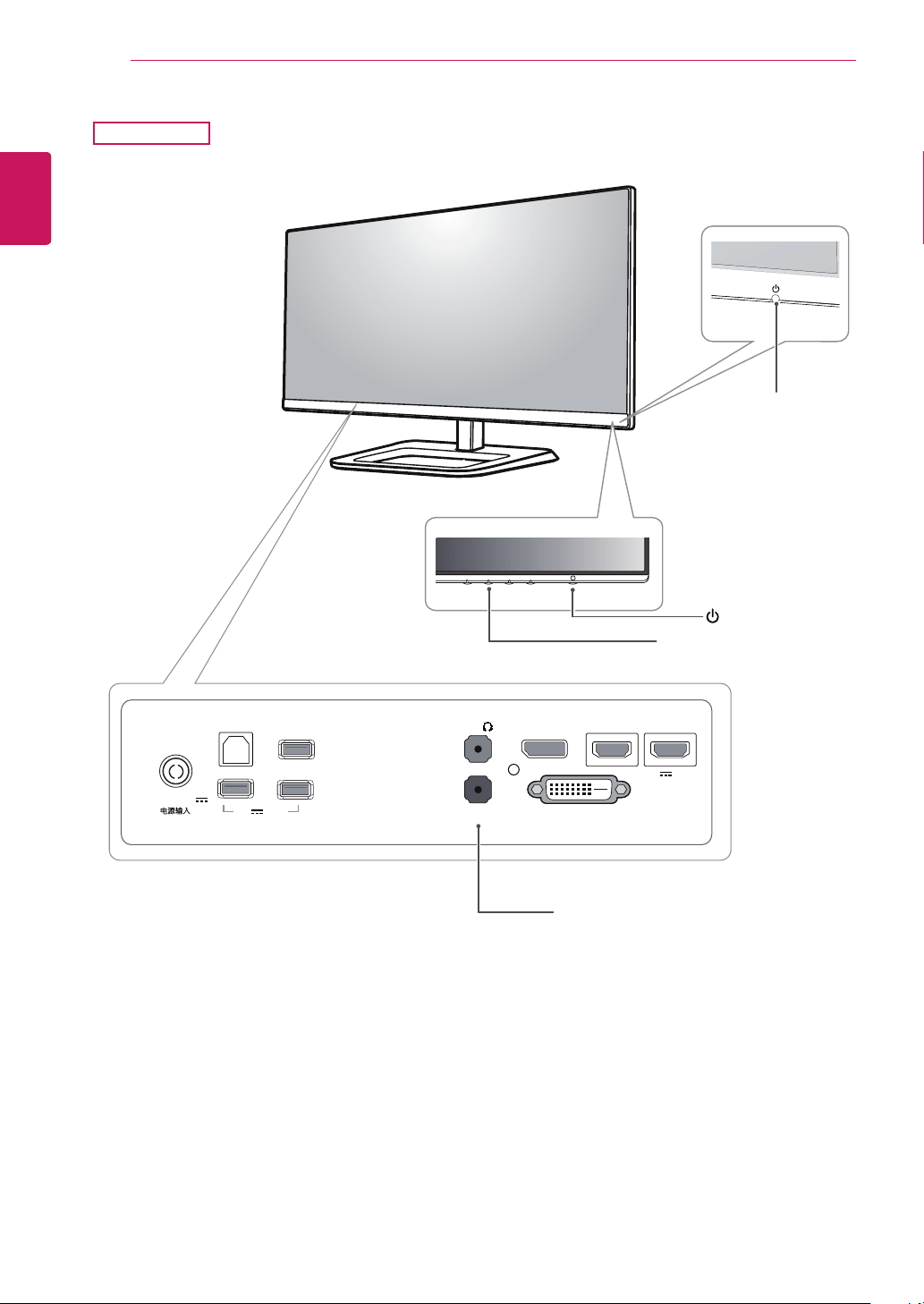

Component and Button Description
DVI-D IN
DP IN
HDMI 1 HDMI 2/MHL
USB IN 1 USB IN 2 USB IN 3
H/PAUDIO IN(PC)USB UP
5 V 0.9 A
5 V 0.9 A
DC-IN (19.5 V )
Power Indicator
y
On: power is on
y
Off: power is off
Touch buttons on the bottom
of the monitor
Ports
(Power Button)
29EA93
6
ENG
ENGLISH
ASSEMBLING AND PREPARING
DVI-D IN
DP IN
HDMI 1
HDMI 2/MHL
USB IN 1
USB IN 2
USB IN 3
H/P
AUDIO IN(PC)
USB UP
5 V 0.9 A
5 V 0.9 A
DC-IN (19.5 V )
Power Indicator
y
On: power is on
y
Off: power is off
Touch buttons on the bottom
of the monitor
Ports
(Power Button)
29EB93
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing the Monitor

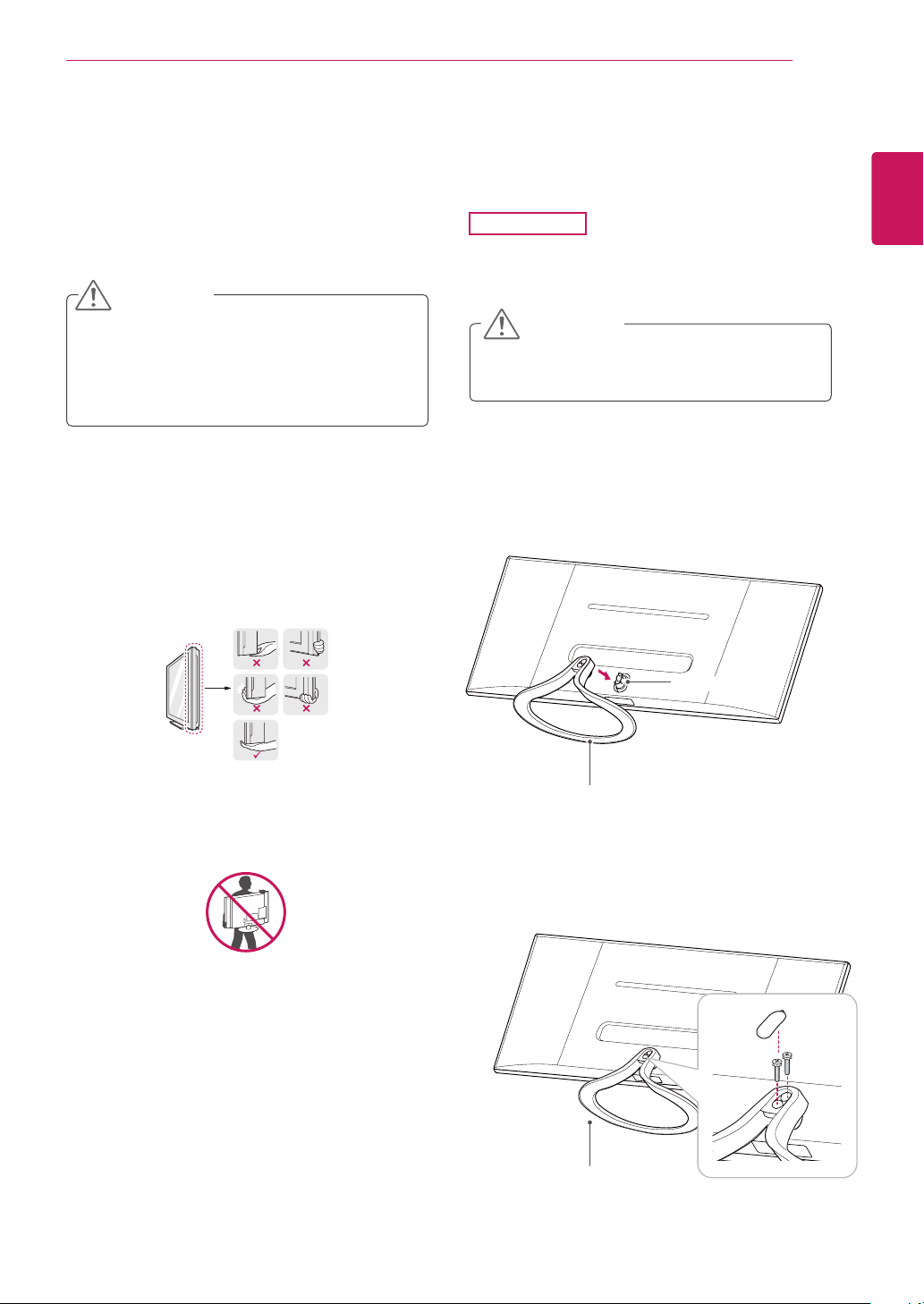

Assembling the stand base
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
3
Fix two screws into the back of the stand base
and close the screw cover.
2
Check the orientation (front and rear) of the
stand base and mount the stand base to the
stand hinge as shown in the figure.
Stand Base
Stand Base
Stand Hinge
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation regardless of its shape or size.
y
As far as possible, avoid touching the moni-
tor screen. This may result in damage to the
screen or some of the pixels used to create
images.
CAUTION
y
It is advisable to place the monitor in the
original box or packing material before at-
tempting to move it.
y
Before moving or lifting the monitor, discon-
nect the power cord and all cables.
y
Hold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
y
When holding the monitor, the screen should
face away from you to prevent it being
scratched.
y
When moving the monitor, avoid any strong
shock or vibrations to the product.
y
When moving the monitor, keep it upright,
never turn the monitor on its side or tilt it
sideways.
1
Place the screen face down.
29EA93
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
Stand Base
1
Place the screen face down.
29EB93
3
Insert the stand base into the hook of the
stand body.
4
Fix by turning the screw to the right with a coin.
Stand Body
Stand Body
2
Put the stand body on the monitor aligning
with holes for fixing screws and fix two screws
to the holes to assemble the stand body and
the monitor together.
9
ENG
ENGLISH
ASSEMBLING AND PREPARING
Detaching the stand base
2
Open the screw cover on the back of the stand
base and use a screwdriver to remove the two
screws.
Detach the stand base from the stand hinge
as shown in the figure.
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
Stand Base
Stand Hinge
y
The components in the illustrations may dif-
fer from the actual product.
y
Do not carry the monitor upside down, as this
may cause it to fall off its stand and result in
damage or injury.
y
To avoid damaging the screen when lifting
or moving the monitor, only hold the stand or
the plastic cover. This avoids putting unnec-
essary pressure on the screen.
CAUTION
1
Place the screen face down.
29EA93
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
Stand Base
Stand Body
Stand Body
y
To protect the screen from scratches, cover
the surface with a soft cloth.
CAUTION
1
Place the screen face down.
29EB93
y
The components in the illustrations may dif-
fer from the actual product.
y
Do not carry the monitor upside down, as this
may cause it to fall off its stand and result in
damage or injury.
y
To avoid damaging the screen when lifting
or moving the monitor, only hold the stand or
the plastic cover. This avoids putting unnec-
essary pressure on the screen.
CAUTION
2
Turn the screw to the left using a coin.
Detach the stand base.
1
2
3
Remove the two screws from the stand body.
11
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing onto a table
1
Lift the monitor and place it on the table in an
upright position.
Place at least 10 cm away from the wall to
ensure sufficient ventilation.
2
Connect the adapter to the monitor, then plug
the power cord into the power outlet.
3
Press the (Power) button on the bottom of
the monitor to turn it on.
y
Unplug the power cord prior to moving or
installing the monitor. There is risk of electric
shock.
CAUTION
10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
29EA93
29EA93
29EB93
29EB93
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
Once the pin is removed, it is not neces-
sary to re-insert it to adjust the height.
Adjusting the stand height
2
Remove the tape attached at the bottom rear
of the stand body, then pull out the locking
pin.
4
The height can be adjusted up to 110.0 mm.
y
Do not put your fingers or
hand between the screen
and the base (chas-
sis) when adjusting the
screen's height.
Tape
Locking Pin
Stand Body
CAUTION
WARNING
110.0 mm
3
Push the Head downward and pull out the
Locking Pin.
Head
Locking pin
1
Place the monitor mounted on the stand base
in an upright position.
29EB93
13
ENG
ENGLISH
ASSEMBLING AND PREPARING
Adjusting the angle
1
Place the monitor in an upright position, mount-
ed on the stand base.
2
Adjust the angle of the screen. The angle of
the screen can be adjusted forwards or back-
wards from -5° to 20° for a comfortable viewing
experience.
y
To avoid injury to the fingers when adjusting
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
y
Be careful not to touch or press the screen
area when adjusting the angle of the monitor.
WARNING
-520
-520
y
As shown in the picture, be careful not to
let the USB bump into the stand when you
adjust the monitor's angle with the USB
inserted.
NOTE
Front Side
Front Side
Rear Side
Rear Side
-520
29EB93
-520
-520
-520
29EA93
29EA93
29EA93
29EB93
29EB93
14
ENG
ENGLISH
ASSEMBLING AND PREPARING

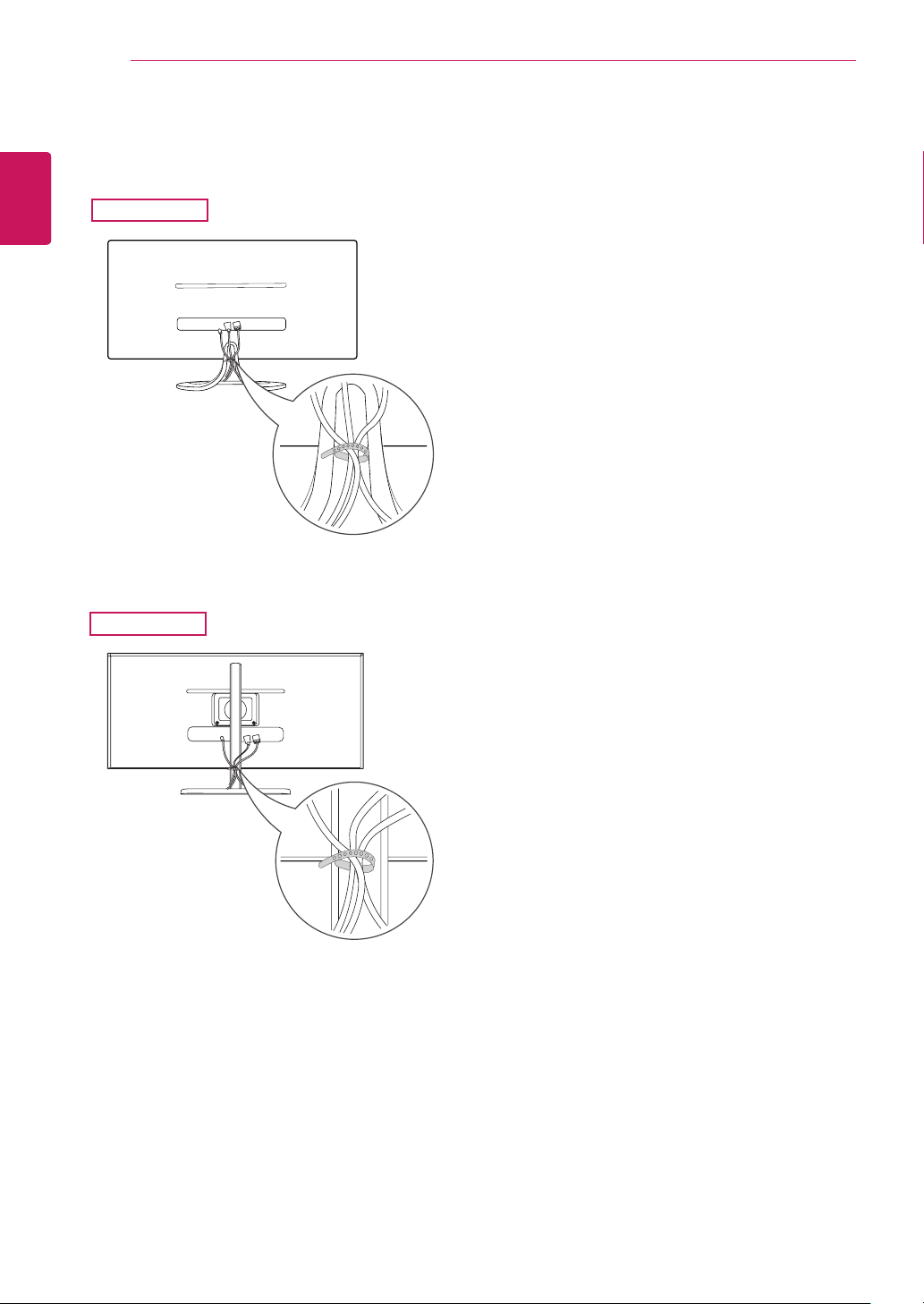

Tidying cables
Gather and bind the cables with the supplied cable tie.
29EA93
29EB93
15
ENG
ENGLISH
ASSEMBLING AND PREPARING
Installing the wall mount plate
This monitor supports the specification of the stan-
dard wall mount plate or compatible device.
1
Place the screen face down. To protect the
screen from scratches, cover the surface with a
soft cloth.
2
Place the wall mount plate onto the monitor
and align it with the screw holes.
3
Using a screwdriver, tighten the four screws to
fix the plate onto the monitor.
y
The wall mount plate is sold separately.
y
For more information on installation, refer to
the wall mount plate's installation guide.
y
Be careful not to use excessive force when
mounting the wall mount plate, as this can
damage the monitor's screen.
Wall Mount Plate
NOTE
Using the Kensington lock
The connector for the Kensington lock is located at
the rear of the monitor.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
Connect the monitor to the table with the Kensing-
ton lock cable.
y
Use of the Kensington lock is optional. The
accessories can be purchased at your local
electronics store.
NOTE
29EA93
29EB93
16
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
Unplug the power cord before moving or in-
stalling the monitor to avoid electric shocks.
y
Installing the monitor on the ceiling or on a
slanted wall may result in the monitor falling
off, which could lead to injury. Please use
the genuine LG wall mounting bracket. For
more information, contact your local retail
store or a qualified installer.
y
Applying excessive force when fastening
screws may cause damage to the moni-
tor. Damage caused in this way will not be
covered by the product warranty.
y
Use the wall mounting bracket and screws
that conform to the VESA standard. Dam-
age caused by the use or misuse of inap-
propriate components will not be covered
by the product warranty.
y
Use the screws specified by the VESA stan-
dard.
y
The wall mount kit includes the installation
guide and all necessary parts.
y
The wall mounting bracket is optional. The
accessories can be purchased at your local
retail store.
y
The length of the screw may differ for each
wall mounting bracket. Ensure the correct
length screw is used.
y
For more information, please refer to the
user manual for the wall mounting bracket.
CAUTION
NOTE
VESA (A x B)
100 x 100
Stand Screw
M4
Required Screws
4
Wall Mount Plate
(Optional)
RW120
To install the monitor to a wall, attach a wall mount-
ing bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely
fixed to the monitor and to the wall.
1 Use the screws and wall mounting bracket that
comply with the VESA standard.
2 Screws which are longer than the standard
length may damage the inside of the monitor.
3 A non-VESA standard screw may damage the
product and cause the monitor to fall. LG Elec-
tronics is not liable for any accidents relating to
the use of non-standard screws.
4 The monitor is VESA standard compliant.
5 Use it according to the VESA standard as speci-
fied below.
y
784.8 mm or less
* Thickness of the wall mount plate: 2.6 mm
* Fastening screw: Diameter 4.0 mm x Pitch 0.7
mm x Length 10 mm
y
787.4 mm or greater
*
Use the wall mount plate and screws that con-
form to the VESA standard
.
Installing to a wall
Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation. De-
tailed installation instructions can be obtained from
your local retail store. Please refer to the manual
to install and set up a tilting wall mounting bracket.
10 cm
10 cm
10 cm
10 cm
17
ENG
ENGLISH
USING THE MONITOR
USING THE MONITOR
Connecting to a PC
y
This monitor supports the *Plug and Play
feature.
*Plug and Play: A feature that allows you to
add a device to your computer without having
to reconfigure anything or install any manual
drivers.

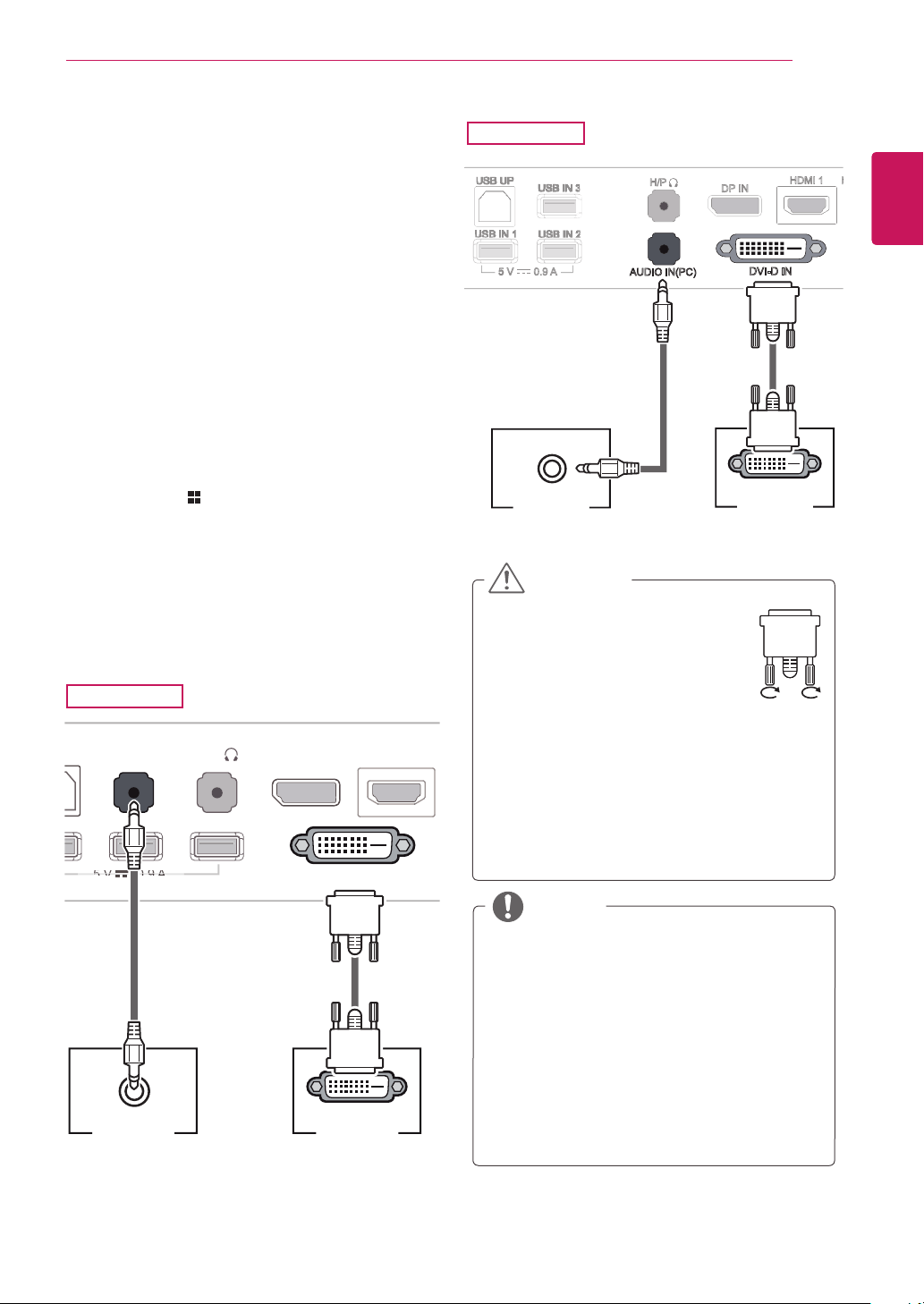

DVI connection
Transmits digital video signals to the monitor. Con-
nect the monitor using the DVI cable as illustrated
below.
Press the menu ( ) button and then select the
input option from the input menu.
To hear the sound in DVI input mode, connect the
PC's AUDIO OUT port to the monitor's AUDIO IN
(PC) port using the audio cable that came with the
product.
y
Connect the input signal cable and
turn in the direction of the arrow.
To prevent disconnection secure
the cable tightly.
y
Do not press on the screen for a prolonged
period of time. This may cause image dis-
tortion.
y
Do not display a still image on the screen
for a prolonged period of time. This may
cause image retention. If possible, use the
screen saver.
CAUTION
y
When connecting the power cord to the out-
let, use a grounded (3-hole) multi-socket or a
grounded power outlet.
y
The monitor may flicker when turned on in an
area of low temperature. This is normal.
y
Sometimes red, green, or blue spots may ap-
pear on the screen. This is normal.
y
Using a DVI to HDMI cable may cause com-
patibility issues.
NOTE
DVI-I(D) OUT
AUDIO OUT
PC
PC
DVI
-
D
IN
DP IN
HDMI 1
HDMI 2/MHL
US
B IN
1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI-D IN
DP IN
HDMI 1
H
DMI 2
/
MH
L
US
B IN
1
US
B IN
2
US
B IN
3
H/P
AUDIO IN(PC)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
D
VI-D IN
DP IN
HDMI
1
H
DMI 2
/
MH
L
US
B IN 1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI
-
D
IN
DP
IN
HDMI 1
H
DMI 2
/
MHL
USB IN 1 USB IN 2 USB IN 3
H/
P
A
UDIO IN
(
PC
)
USB UP
5 V 0.9 A
5 V 0.9 A
DVI
-
D
IN
DP IN
HDMI 1 HDMI 2/MHL
US
B IN 1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI
-
D
IN
DP IN
HDMI 1
H
DMI 2
/
MHL
US
B IN
1
US
B IN
2
US
B IN
3
H/
P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DP OUT
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
USB IN 3
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
USB IN 2
USB IN 3
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
PC
DP OUT
DVI-D IN
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
DP IN
HDMI 2 / MHL
5 V 0.9 A
USB IN 2
USB IN 3
DVI-I(D) OUT
AUDIO OUT
PC
29EA93
29EB93
18
ENG
ENGLISH
USING THE MONITOR
y
Sound may not be available depending on
the DP version of your PC.
Display port connection
Transmits the digital video and audio signals from
your PC to the monitor. Connect your PC to the
monitor using the display port cable as illustrated
below.
Press the menu ( ) button and then select the
input option from the input menu.
NOTE
DVI-I(D) OUT
AUDIO OUT
PC
PC
DVI
-
D
IN
DP IN
HDMI 1
HDMI 2/MHL
US
B IN
1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI-D IN
DP IN
HDMI 1
H
DMI 2
/
MH
L
US
B IN
1
US
B IN
2
US
B IN
3
H/P
AUDIO IN(PC)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
D
VI-D IN
DP IN
HDMI
1
H
DMI 2
/
MH
L
US
B IN 1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI
-
D
IN
DP
IN
HDMI 1
H
DMI 2
/
MHL
USB IN 1 USB IN 2 USB IN 3
H/
P
A
UDIO IN
(
PC
)
USB UP
5 V 0.9 A
5 V 0.9 A
DVI
-
D
IN
DP IN
HDMI 1 HDMI 2/MHL
US
B IN 1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI
-
D
IN
DP IN
HDMI 1
H
DMI 2
/
MHL
US
B IN
1
US
B IN
2
US
B IN
3
H/
P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DP OUT
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
USB IN 3
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
USB IN 2
USB IN 3
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
PC
DP OUT
DVI-D IN
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
DP IN
HDMI 2 / MHL
5 V 0.9 A
USB IN 2
USB IN 3
DVI-I(D) OUT
AUDIO OUT
PC
29EA93
29EB93
(sold separately)
(sold separately)
19
ENG
ENGLISH
USING THE MONITOR
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
USB IN 3
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
USB IN 2
USB IN 3
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
PC
DP OUT
DVI-D IN
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
DP IN
HDMI 2 / MHL
5 V 0.9 A
USB IN 2
USB IN 3
DVI-I(D) OUT
AUDIO OUT
PC
y
HDMI PC may cause device compatibility
issues.
y
Using a DVI to HDMI cable may cause com-
patibility issues.
HDMI connection
Transmits the digital video and audio signals from
your PC and A/V devices to the monitor. Connect
your PC and AV device to the monitor with the
HDMI cable as illustrated below.
Press the menu ( ) button and then select the
input option from the input menu.
NOTE
DVI-I(D) OUT
AUDIO OUT
PC
PC
DVI
-
D
IN
DP IN
HDMI 1
HDMI 2/MHL
US
B IN
1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI-D IN
DP IN
HDMI 1
H
DMI 2
/
MH
L
US
B IN
1
US
B IN
2
US
B IN
3
H/P
AUDIO IN(PC)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
D
VI-D IN
DP IN
HDMI
1
H
DMI 2
/
MH
L
US
B IN 1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI
-
D
IN
DP
IN
HDMI 1
H
DMI 2
/
MHL
USB IN 1 USB IN 2 USB IN 3
H/
P
A
UDIO IN
(
PC
)
USB UP
5 V 0.9 A
5 V 0.9 A
DVI
-
D
IN
DP IN
HDMI 1 HDMI 2/MHL
US
B IN 1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI
-
D
IN
DP IN
HDMI 1
H
DMI 2
/
MHL
US
B IN
1
US
B IN
2
US
B IN
3
H/
P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DP OUT
(sold separately)
29EA93
29EB93
(sold separately)
20
ENG
ENGLISH
USING THE MONITOR
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
USB IN 3
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
USB IN 2
USB IN 3
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
PC
DP OUT
DVI-D IN
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
DP IN
HDMI 2 / MHL
5 V 0.9 A
USB IN 2
USB IN 3
DVI-I(D) OUT
AUDIO OUT
PC
Connecting to AV Devices
HDMI connection
Transmits the digital video and audio signals from
your PC and A/V devices to the monitor. Connect
your PC and AV device to the monitor with the
HDMI cable as illustrated below.
Press the menu ( ) button and then select the
input option from the input menu.
y
Using a DVI to HDMI cable may cause com-
patibility issues.
NOTE
DVI-I(D) OUT
AUDIO OUT
PC
PC
DVI
-
D
IN
DP IN
HDMI 1
HDMI 2/MHL
US
B IN
1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI-D IN
DP IN
HDMI 1
H
DMI 2
/
MH
L
US
B IN
1
US
B IN
2
US
B IN
3
H/P
AUDIO IN(PC)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
D
VI-D IN
DP IN
HDMI
1
H
DMI 2
/
MH
L
US
B IN 1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI
-
D
IN
DP
IN
HDMI 1
H
DMI 2
/
MHL
USB IN 1 USB IN 2 USB IN 3
H/
P
A
UDIO IN
(
PC
)
USB UP
5 V 0.9 A
5 V 0.9 A
DVI
-
D
IN
DP IN
HDMI 1 HDMI 2/MHL
US
B IN 1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI
-
D
IN
DP IN
HDMI 1
H
DMI 2
/
MHL
US
B IN
1
US
B IN
2
US
B IN
3
H/
P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DP OUT
29EA93
29EB93
(sold separately)
(sold separately)
21
ENG
ENGLISH
USING THE MONITOR
y
This function only works for smartphones
that support MHL.
- There may be compatibility issues with
other mobile phones.
NOTE
Connecting to External Devices
Smartphone (MHL) connection
Mobile High-definition Link (MHL) is an inter-
face that allows you to play video and audio from
your smartphone on the monitor by connecting the
monitor to your smartphone. Connect the smart-
phone to the HDMI2/MHL port of the monitor using
the supplied MHL signal cable and switch the
input by pressing the input button on the monitor.
DVI-I(D) OUT
AUDIO OUT
PC
PC
DVI
-
D
IN
DP IN
HDMI 1
HDMI 2/MHL
US
B IN
1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI-D IN
DP IN
HDMI 1
H
DMI 2
/
MH
L
US
B IN
1
US
B IN
2
US
B IN
3
H/P
AUDIO IN(PC)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
D
VI-D IN
DP IN
HDMI
1
H
DMI 2
/
MH
L
US
B IN 1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI
-
D
IN
DP
IN
HDMI 1
H
DMI 2
/
MHL
USB IN 1 USB IN 2 USB IN 3
H/
P
A
UDIO IN
(
PC
)
USB UP
5 V 0.9 A
5 V 0.9 A
DVI
-
D
IN
DP IN
HDMI 1 HDMI 2/MHL
US
B IN 1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI
-
D
IN
DP IN
HDMI 1
H
DMI 2
/
MHL
US
B IN
1
US
B IN
2
US
B IN
3
H/
P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DP OUT
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
USB IN 3
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
USB IN 2
USB IN 3
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
PC
DP OUT
DVI-D IN
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
DP IN
HDMI 2 / MHL
5 V 0.9 A
USB IN 2
USB IN 3
DVI-I(D) OUT
AUDIO OUT
PC
29EA93
29EB93
22
ENG
ENGLISH
USING THE MONITOR
USB cable-PC connection
The USB 3.0 function acts as a USB hub on the
product.
To use USB 3.0, connect the A-B type USB 3.0
cable included with the product to the PC.
Peripheral devices connected to the USB IN port
can be controlled from the PC.
y
Please install the latest Windows service
pack before use.
y
Peripheral devices are sold separately.
y
The USB ports can be used to connect the
keyboard, mouse, and other USB devices.
NOTE
DVI-I(D) OUT
AUDIO OUT
PC
PC
DVI
-
D
IN
DP IN
HDMI 1
HDMI 2/MHL
US
B IN
1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI-D IN
DP IN
HDMI 1
H
DMI 2
/
MH
L
US
B IN
1
US
B IN
2
US
B IN
3
H/P
AUDIO IN(PC)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
D
VI-D IN
DP IN
HDMI
1
H
DMI 2
/
MH
L
US
B IN 1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI
-
D
IN
DP
IN
HDMI 1
H
DMI 2
/
MHL
USB IN 1 USB IN 2 USB IN 3
H/
P
A
UDIO IN
(
PC
)
USB UP
5 V 0.9 A
5 V 0.9 A
DVI
-
D
IN
DP IN
HDMI 1 HDMI 2/MHL
US
B IN 1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI
-
D
IN
DP IN
HDMI 1
H
DMI 2
/
MHL
US
B IN
1
US
B IN
2
US
B IN
3
H/
P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DP OUT
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
USB IN 3
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
USB IN 2
USB IN 3
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
PC
DP OUT
DVI-D IN
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
DP IN
HDMI 2 / MHL
5 V 0.9 A
USB IN 2
USB IN 3
DVI-I(D) OUT
AUDIO OUT
PC
<Cautions When Using a USB Device>
y
A USB storage device with an automatic recognition program installed or using its own driver may not be
recognized.
y
Some USB devices may not be supported or may not work properly.
y
It is recommended to use an external USB hard disk with rated voltage of 5V or less and rated current of
900mA or less.
y
It is recommended to use a USB hub or hard disk drive with power supplied. (If the power supply is not
enough, the USB storage device may not be recognized properly.)
NOTE
29EA93
29EB93
(sold separately)
(sold separately)
23
ENG
ENGLISH
USING THE MONITOR
Headphone port connection
Use the headphone port to connect a peripheral
device to the monitor. Connect as illustrated.
y
Depending on the audio settings of the PC
and external device, headphone and speaker
functions may be limited.
NOTE
y
For an angle plug earphone, it is difficult
connect it with a peripheral device, so use a
straight type.
NOTE
Angle Type Straight Type
DVI-I(D) OUT
AUDIO OUT
PC
PC
DVI
-
D
IN
DP IN
HDMI 1
HDMI 2/MHL
US
B IN
1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI-D IN
DP IN
HDMI 1
H
DMI 2
/
MH
L
US
B IN
1
US
B IN
2
US
B IN
3
H/P
AUDIO IN(PC)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
D
VI-D IN
DP IN
HDMI
1
H
DMI 2
/
MH
L
US
B IN 1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI
-
D
IN
DP
IN
HDMI 1
H
DMI 2
/
MHL
USB IN 1 USB IN 2 USB IN 3
H/
P
A
UDIO IN
(
PC
)
USB UP
5 V 0.9 A
5 V 0.9 A
DVI
-
D
IN
DP IN
HDMI 1 HDMI 2/MHL
US
B IN 1
US
B IN
2
US
B IN
3
H/P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DVI
-
D
IN
DP IN
HDMI 1
H
DMI 2
/
MHL
US
B IN
1
US
B IN
2
US
B IN
3
H/
P
A
UDI
O
IN
(
P
C)
US
B
UP
5 V 0.9 A
5 V 0 9 A
5 V 0 9 A
5 V 0.9 A
DP OUT
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
USB IN 3
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
USB IN 2
USB IN 3
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
PC
DP OUT
DVI-D IN
AUDIO IN(PC)
5 V 0.9 A
DP IN
HDMI 1
HDMI 2 / MHL
5 V 0.9 A
H/P
DVI-D IN
USB IN 1
AUDIO IN(PC)
USB UP
5 V 0.9 A
DP IN
HDMI 2 / MHL
5 V 0.9 A
USB IN 2
USB IN 3
DVI-I(D) OUT
AUDIO OUT
PC
29EA93
29EB93
(sold separately)
(sold separately)
24
ENG
ENGLISH
INSTALLING TUSB3410 DRIVER
INSTALLING TUSB3410 DRIVER
2

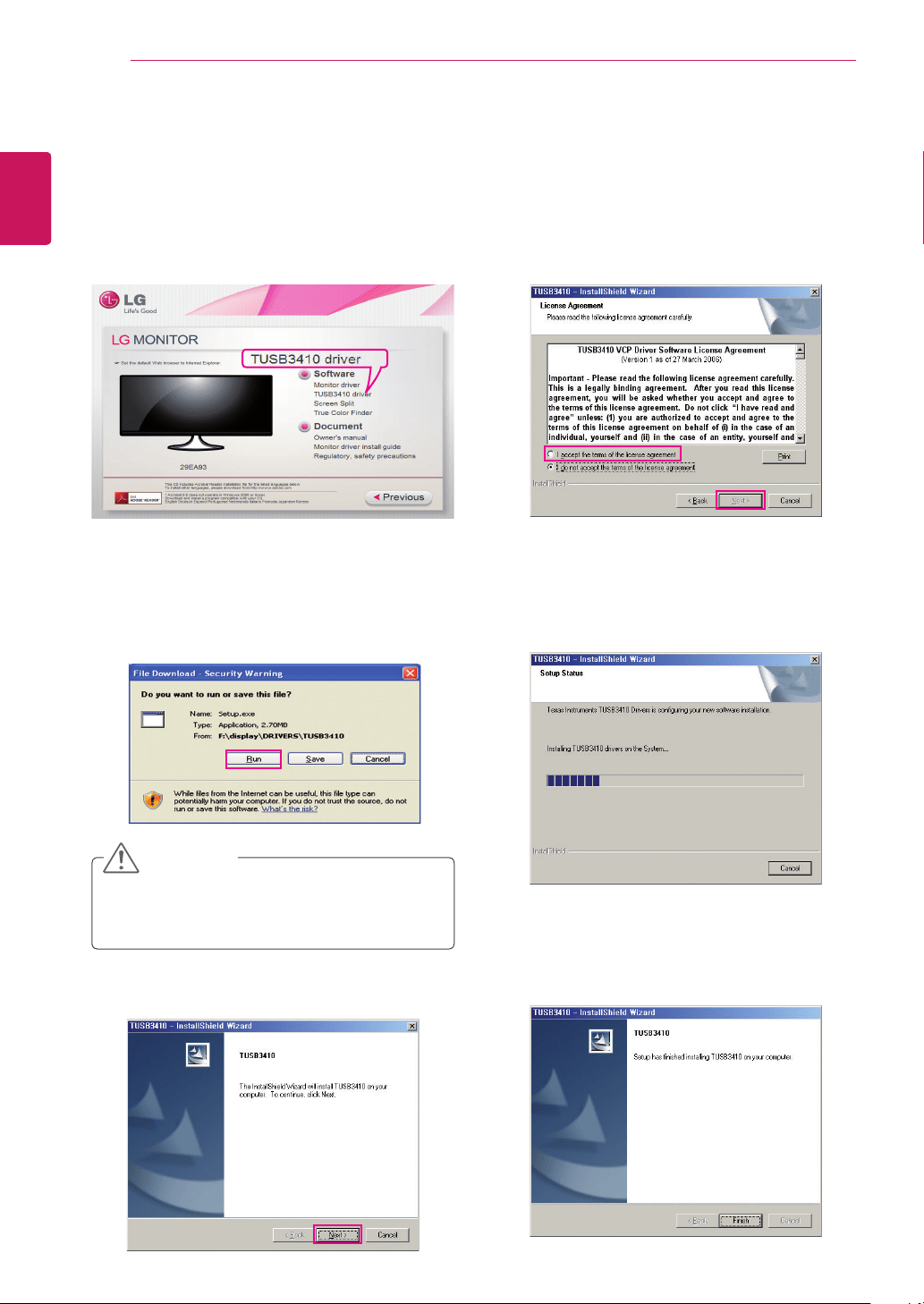

Click the TUSB3410 driver.
1
Set the default Web browser to Internet Explorer.
6
The installation proceeds as described below.
7
Complete the installation.
4
When the TUSB3410 driver installer starts, click
[Next].
5
Check "I Agree" on the License Agreement
screen and then click [Next].
Insert the the owner's manual CD included in the product package into your PC's CD driver and install the
TUSB3410 driver.
3
Click the TUSB3410 Driver on the CD's main
screen. When the file download window ap-
pears, click the Run button. (The file download
window may vary depending on the operating
system and the Internet Explorer version, but
the installation procedures are same.)
y
Click "Run" to proceed the drive installation.
If you click "Save", the installation will not
continue.
CAUTION
25
ENG
ENGLISH
INSTALLING TRUE COLOR FINDER
INSTALLING TRUE COLOR FINDER
1
When the
True Color Finder installer starts,
the window appears as shown below. Select a
language and click [Next].
Insert the the owner's manual CD included in the product packaging into your PC's CD driver and install the
True Color Finder software.
2
Click
[Next]
.
4
Enter your User Name and Company Name,
and click [Next].
3
Check "I accept...." on the License Agreement
screen and then click [Next].
5
Click
[Change] to change the installation path.
Click
[Next]
.
6
Click
[Install]
to start the installation process.
26
ENG
ENGLISH
INSTALLING TRUE COLOR FINDER
y
If an incompatible calibration application is
installed on your PC, a warring message ap-
pears asking you to remove the application
during the installation.
CAUTION
8
When you run the True Color Finder soft-
ware, the True Color Finder icon [ ] ap-
pears in the system tray at the right bottom
of the PC screen.
Right-click the True Color Finder icon and
select "Start Program" to start the program.
y
If any third-party calibration application is
installed on your PC, the calibrator may not
work properly and you are advised to remove
it.
CAUTION
y
To be able to use the True Color Finder
function, you need to purchase a supported
calibrator. After installing True Color Finder
which is provided with the product, perform
calibration.
y
For details on supported calibrators and
graphic cards, see the True Color Finder
user guide.
y
If you have changed the input port, we
recommend that you calibrate the monitor's
picture quality again.
NOTE
7
When the
installation is complete, restart the
system.
27
ENG
ENGLISH
INSTALLING SCREEN SPLIT
INSTALLING SCREEN SPLIT
1
When the Screen Split installer starts, the
window appears as shown below.
Select a
language and click [Next].
2
Click
[Next]
.
4
Enter your User Name and Company Name,
and click [Next].
3
Check "I accept...." on the License Agreement
screen and then click [Next].
5
Click
[Change] to change the installation path.
Click
[Next]
.
6
Click
[Install]
to start the installation process.
Insert the owner's manual CD included in the product packaging into your PC's CD Driver and install the
Screen Split software.
28
ENG
ENGLISH
INSTALLING SCREEN SPLIT
7
When the
installation is complete, restart the
system.
8

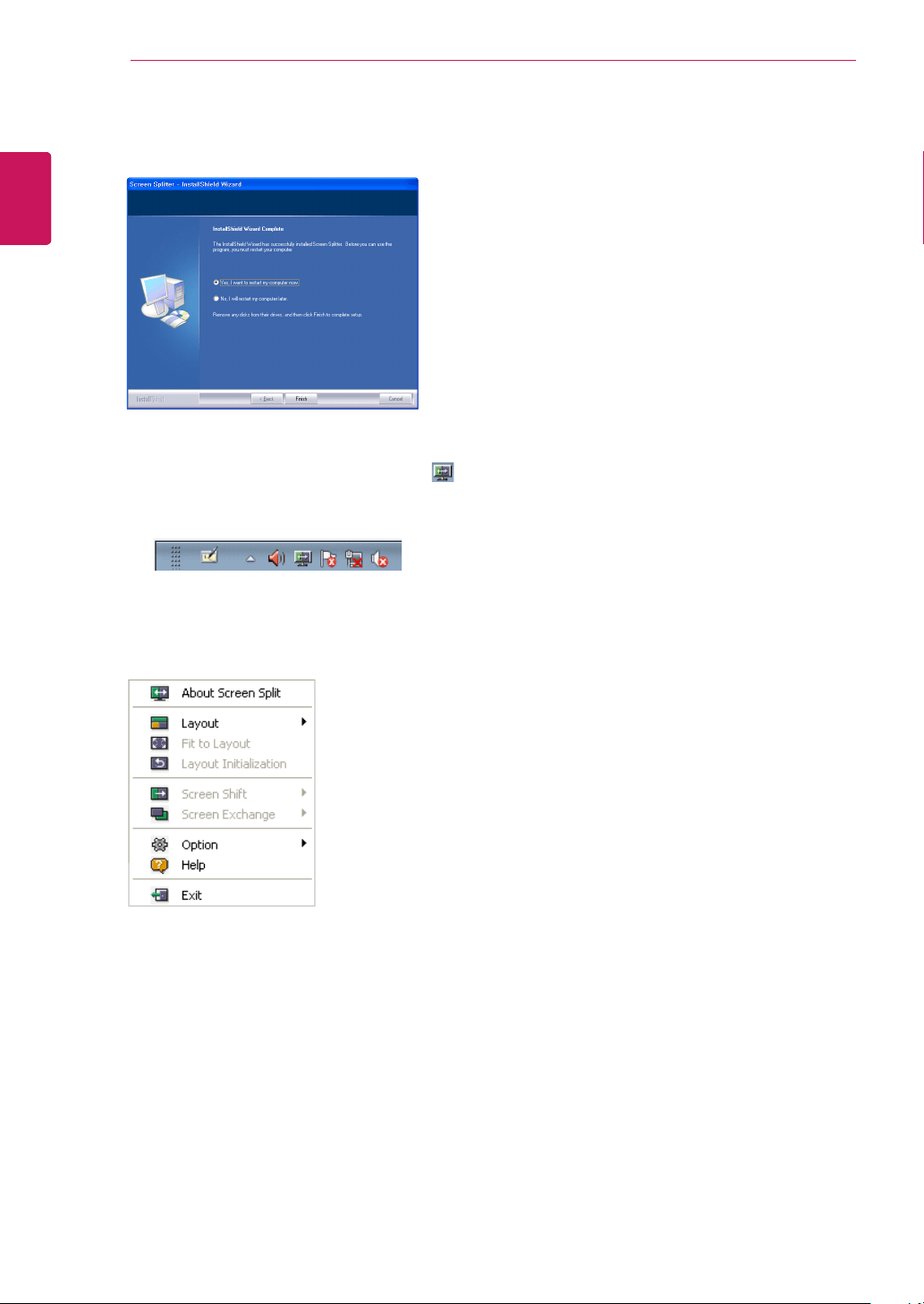

If you run Screen Split, the Screen Split icon [
] appears in the system tray at the right bottom
of the PC screen.
Right-click the Screen Split icon and select
a layout you want.
29
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Activating the Main Menu
1
Press the Menu ( ) button.
2
Use the <, > buttons to adjust the options.
To return to the upper menu or set other menu items, use the Menu ( ) button.
3
Press and hold the Menu ( ) button to exit the OSD menu.
Button Description
Menu ( )
If the menu is inac-
tive
Activates the main menu.
If the menu is active Goes to the previous screen when the button is pressed;
exits the OSD menu when the button is pressed and held for over 3 sec-
onds.
If the menu is inac-
tive
Adjusts the volume level of the monitor.
If the menu is active Left directional key
If the menu is inac-
tive
Adjusts the volume level of the monitor.
If the menu is active Right directional key
OK If the menu is active: pressing OK selects the function.
If the menu is inactive: pressing OK shows the resolution of the current signal (only when there is
input signal).
(Power Button)
Powers on or off.
Power Indicator When the monitor is in operating mode, the power indicator will turn red (on
mode).
When the monitor is in power-saving mode, the power indicator will blink red.
Monitor buttons
NOTE
All of the buttons are touch sensitive and can be operated by simply touching the bottom of the
monitor with your finger.
30
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is described below.
Brightness
Contrast Volume Input Ratio Func. PIP
Menu Description
Brightness
Adjusts the brightness and contrast of the screen.
Contrast
Volume Adjusts the volume.
NOTE
y
Selecting the Menu button in the Volume menu will enable/disable the Mute
function.
Input Selects the current input mode.
Ratio Adjusts the screen ratio.
Func.
Adjusts ECO, calibration, and picture mode.
PIP Displays the screens of two input modes on one monitor.
Picture Adjusts the sharpness, black level, and response time of the screen.
Color Adjusts the gamma, color temperature and color balance of the screen.

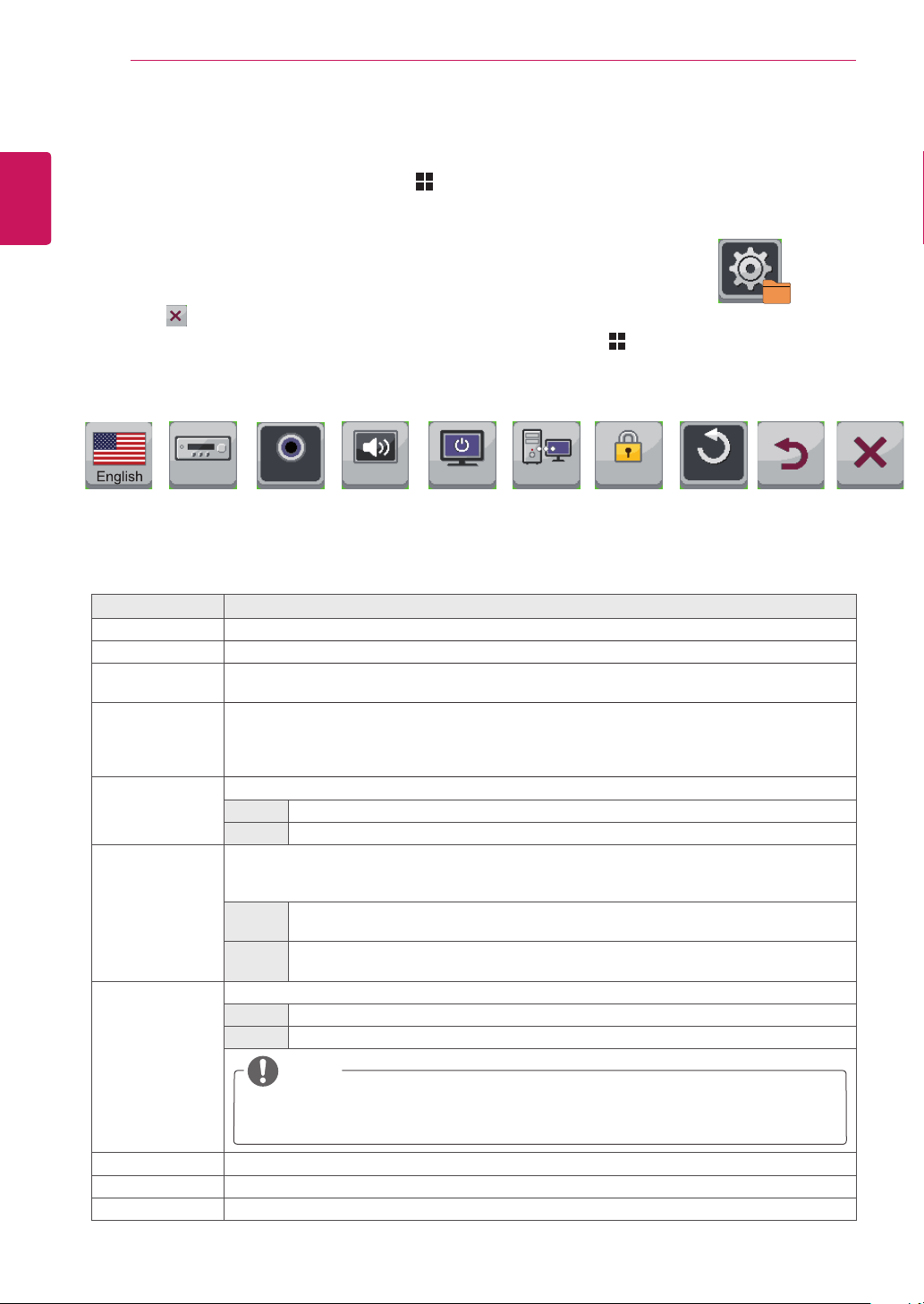

Settings Sets the Language, PC/AV mode, Main Audio, Button Sound, Power LED, DDC/CI and OSD
Lock.
Reset Resets to the default settings as of the day of purchase. Press the <, > buttons to reset immedi-
ately.
Exit Exits the OSD menu.
Customizing settings
Menu Settings
1
To view the Menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Use the < or > buttons to set the options.
3
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Picture Color Settings Reset Exit
100 70 30 DVI Wide
All
31
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is described below.
Menu > Ratio Description
Wide Displays the video in wide-screen, regardless of the video signal input.
Cinema1 Enlarges the screen with an aspect ratio of 21:9. (at 1080p)
Cinema2 Enlarges the screen with an aspect ratio of 21:9 including the black box area at the bottom for
subtitles. (at 1080p)
Original Displays a video according to the input video signal aspect ratio.
1:1
The aspect ratio is not adjusted from the original.
Back
Moves to the previous OSD screen.
Exit
Exits the OSD menu.
Ratio Settings
1
To view the Menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to Ratio.
3
Press OK to select Ratio.
4
Use the < or > buttons to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Sub Menu
Wide Original 1:1Cinema1 Cinema2 Back Exit
Ratio
NOTE
y
The display may look the same for Wide, Original and 1:1 options at the recommended resolution
(2560 x 1080).
y
The ratio is disabled in the interlaced signal.
32
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is described below.
Menu > Func. Description
ECO On Enables the ECO function, which allows you to save energy according to the ECO
efficiency level.
Off Disables the ECO function.
Reset Resets the ECO data.
Calibration On Enables the calibration applied to the monitor.
Off If it is set to Off, the monitor reverts back to the picture quality set before calibration.
Picture Mode Changes depending on the value of PC/AV Mode in Menu > Settings.
PC Mode
Custom Allows the user to adjust each element. The color mode of the main menu can be ad-
justed.
Text Optimizes the screen for document processing.
Photo Optimizes the screen to view photos.
Cinema Optimizes the screen to improve the visual effects of a video.
Game Optimizes the screen for gameplay.
AV Mode
Custom Allows the user to adjust each element. The color mode of the main menu can be
adjusted.
Standard Optimizes the screen to display normal picture quality.
VIVID 1 Optimizes the screen for vivid visual effects.
VIVID 2 Optimizes the screen for more vivid visual effects.
Cinema Optimizes the screen to improve the visual effects of a video.
Reset Func. Resets the monitor to its original factory settings.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
Func. Settings
1
To view the Menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to Func.
3
Press OK to select Func.
4
Use the < or > buttons to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
NOTE
Run the True Color Finder program.
Sub Menu
ECO
Calibration
Mode
Reset Back Exit
Off Off Custom
Func.
Func.
33
ENG
ENGLISH
CUSTOMIZING SETTINGS
Sub Menu
PIP Size Position
BalancedOff Bottom R
PIP
Reset Back Exit
Each option is described below.
PIP settings
1
To view the Menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to PIP.
3
Press OK to select PIP.
4
Use the < or > buttons to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Menu > PIP Description
PIP Displays the screens of two input modes on one monitor.
(DVI+DP, HDMI1+DP, HDMI2+DP, DP+DVI, DP+HDMI1, DP+HDMI2)
Size Adjusts the size of the secondary screen.
Balanced Uses a balanced size for the secondary screen.
Small
Shows the secondary screen in a small size display.
Medium Shows the secondary screen in a normal size display.
Large
Shows the secondary screen in a large size display.
Position Adjusts the position of the secondary screen.
The default value is Bottom Right.
Bottom
Right
Shows the secondary screen in the bottom right of the display.
Bottom
Left
Shows the secondary screen in the bottom left of the display.
Top Left Shows the secondary screen in the top left of the display.
Top
Right
Shows the secondary screen in the top right of the display.
Reset Resets the PIP function to the default settings.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
PIP
NOTE
y
If the PIP mode is off, Position is disabled.
y
If Size is set to Balance, Position is disabled.
34
ENG
ENGLISH
CUSTOMIZING SETTINGS
1
To view the Menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to Picture.
3
Press OK to select Picture.
4
Use the < or > buttons to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Each option is described below.
Sub Menu
Sharpness Black Level Response
Time
Low5 Middle
Reset Back Exit
Menu > Picture Description
Sharpness Adjusts the sharpness of the screen.
Black Level Sets the offset level (for HDMI only).
Offset: as a reference for a video signal, this is the darkest color the monitor can display.
High
The picture of the screen gets brighter.
Low The picture of the screen gets darker.
Response Time Sets a response time for displayed pictures based on the speed of the screen. For a normal en-
vironment, it is recommended that you use Normal. For a fast-moving picture, it is recommended
that you use High.
Setting to High may cause image sticking.
High Sets the response time to High.
Middle Sets the response time to Middle.
Low Sets the response time to Low.
Reset Resets the Picture function to the default settings.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
35
ENG
ENGLISH
CUSTOMIZING SETTINGS
Color
1
To view the Menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or >to go to Color.
3
Press OK to select Color.
4
Use the < or > buttons to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Each option is described below.
Menu > Color Description
Gamma Custom gamma setting: When using the gamma 0, gamma 1, and gamma 2 monitor settings,
higher gamma settings mean a brighter image is displayed and vice versa.
Color Temp Custom
Red
Green
Blue
You can customize the picture color using Red, Green, and Blue colors.
Selects the factory default picture color.
Warm: Sets the screen color to a reddish tone.
Medium: Sets the screen color between a red and blue tone.
Cool: Sets the screen color to a bluish tone.
Six Color Meets the user requirements for colors through adjusting the color and saturation of the six colors
(red, green, blue, cyan, magenta, yellow) and saving the settings.
Hue Adjusts tone of the screen.
Satura-
tion
Adjusts the saturation of the screen colors. The lower the value, less saturated and
bright the colors become. The higher the value, the more saturated and dark the colors
become.
Reset Returns the color settings to the default settings.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
Color
Sub Menu
Gamma
Color Temp
Red Green Blue
Six Color
CustomGamma 1 50 50 50
Color
Reset Back Exit
36
ENG
ENGLISH
CUSTOMIZING SETTINGS
Settings
1
To view the Menu OSD, press the Menu ( ) button at the bottom of the monitor.
2
Press < or > to go to Settings.
3
Press OK to select Settings.
4
Use the < or > buttons to set the options.
5
Select to exit the OSD menu.
To return to the upper menu or set other menu items, use the Menu ( ) button.
Each option is described below.
Menu > Settings Description
Language Sets the menu screen to the desired language.
PC/AV Mode Enabled in HDMI mode only.
Main Audio The sound coming through the Audio In port of the digital input signal (HDMI, HDMI2/MHL, Display
Port) can be heard through the monitor's speakers.
Button Sound Controls the button tone.
The button tone is heard for the following actions.
DC Power On/Off
Menu OSD On/Off
Power LED Turns the power indicator on the front side of the monitor on/off.
On The power indicator is automatically turned on.
Off The power indicator is turned off.
DDC/CI This is the protocol for communications between the PC and the monitor. This allows the detailed
function adjustments and settings performed through the OSD menu on the monitor to be con-
trolled from the PC.
On Communication between the PC and the monitor allows you to adjust the monitor using
the PC.
Off The monitor cannot be controlled using the PC as the communication between the PC
and the monitor is disabled.
OSD Lock Prevents incorrect key input.
On Key input is disabled.
Off Key input is enabled.
Reset Resets the settings to default.
Back Moves to the previous OSD screen.
Exit Exits the OSD menu.
Settings
Sub Menu
Language
PC/AV
Mode
Button
Sound
Power LED
DDC/CI
OSD Lock
AV On On On Off
Settings
Reset Back Exit
NOTE
All functions except for the OSD Lock mode and the Exit button for Brightness, Contrast,
Volume, Input, and Settings are disabled.
Main Audio
Audio-In
37
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord plugged
in?
y
Check if the power cord is correctly plugged in to the power outlet.
Is the power indicator on?
y
Check the power cable connection and press the power button.
Is the power indicator displaying
red?
y
Check that the connected input is enabled (Menu - Input).
Is the power indicator blinking?
y
If the monitor is in power-saving mode, move the mouse or press any
key on the keyboard to switch the display on.
y
Check if the computer is turned on.
Is the "OUT OF RANGE" message
displayed?
y
This occurs when signals transferred from the PC (video card) are out
of the horizontal or vertical frequency range of the monitor. Please see
the "Product Specification" section of this manual to set the appropri-
ate frequency.
Is the "CHECK SIGNAL CONNEC-
TION" message is displayed?
y
This is displayed when the signal cable between the PC and the moni-
tor is missing or disconnected. Check the cable and reconnect.
The "OSD LOCKED" message is displayed.
Are some functions unavailable
when pressing the Menu button?
y
The OSD is locked. Go to Menu > Settings and set "OSD Lock" to
Unlock.
The screen retains an image.
Does image sticking occur even
when the monitor is turned off?
y
Displaying a still image for a prolonged time may cause damage to the
screen, resulting in the retention of the image.
y
Use a screen saver to protect the screen when using the monitor for a
prolonged period of time.
y
Vertical Frequency: In order to display an image, the screen must be refreshed dozens of times per
second like a fluorescent lamp.
The number of times the screen is refreshed per second is called vertical frequency or refresh rate
and is represented by Hz.
y
Horizontal Frequency: The time it takes to display one horizontal line is called the horizontal cycle.
The number of horizontal lines displayed in one second
can be calculated by dividing one by the horizontal cycle. This is called horizontal frequency and is
represented by kHz.
NOTE
38
ENG
ENGLISH
TROUBLESHOOTING
y
Check if the video card's resolution or frequency is within the range allowed by the monitor and set to
the recommended (optimal) resolution in Control Panel > Display > Settings.
y
Failing to set the video card to the recommended (optimal) resolution may result in blurred text, a
dimmed screen, a truncated display area or misalignment of the display.
y
The configuration procedure may differ depending on your computer and/or operating system. Also,
some video cards may not support certain resolutions. If this is the case, contact the manufacturer of
the computer or video card for assistance.
y
Some video cards may not support the 2560x1080 resolution.
If the resolution cannot be displayed, contact the manufacturer of your video card.
NOTE
The display color is abnormal.
Does the display appear discolored
(16 color)?
y
Set the color to 24 bit (true color) or higher. In Windows, go to Control
Panel > Display > Settings > Color Quality.
Does the display color appear un-
stable or in monochrome?
y
Check if the signal cable is connected properly. Reconnect the cable
or reinsert the PC's video card.
Are there spots on the screen?
y
When using the monitor, pixilated spots (red, green, blue, white or
black) may appear on the screen. This is normal for the LCD screen.
It is not an error nor is it related to the monitor's performance.
39
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
29EA93 29EB93
LCD Screen Type 73.025 cm TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Diagonal length of the screen: 73.025 cm
Pixel Pitch 0.0876 mm x 0.2628 mm
Resolution Maximum Resolution 2560 x 1080 @ 60 Hz
Recommended Resolution 2560 x 1080 @ 60 Hz
Video Signal
Horizontal Frequency 30 kHz to 90 kHz
Vertical Frequency 56 Hz to 75 Hz
Synchronization Separate Sync.
Input Connector DVI-D, HDMI 1, HDMI 2(MHL), Display Port, Audio In(PC), H/P Out, USB Up,
USB In 1, 2, 3
Power Voltage 19.5 V 3.8 A
Power consumption (Typ.) On mode: 48 W (Typ, without USB)
68 W (Max, with USB, Audio 50%)
Power Saving Mode ≤ 1.2 W
Off Mode ≤ 0.5 W
AC/DC adaptor AAM-00 type, manufactured by AMPOWER Technology., Co.Ltd.
Output: 19.5 V 5.65 A
Stand Angle
Adjustment
Forwards/Backwards: -5° to 20° (Head)
Environmental
Conditions
Operating Condition Temperature: 10°C to 35°C; Humidity: 10% to 80%
Storing Condition Temperature: -20°C to 60°C; Humidity: 5% to 90%
Speaker Wattage 7W + 7W
29EA93
Dimension Monitor Size (Width x Height x Depth)
With Stand 699.7 mm x 387.0 mm x 208.5 mm
Without Stand 699.7 mm x 318.0 mm x 68.5 mm
Weight (Without
Packaging)
5.65 kg
29EB93
Dimension Monitor Size (Width x Height x Depth)
With Stand 699.7 mm x 395.3 mm x 225 mm
Without Stand 699.7 mm x 318.0 mm x 68.5 mm
Weight (Without
Packaging)
6.84 kg
The specifications are subject to change without notice.
40
ENG
ENGLISH
SPECIFICATIONS
Factory support mode
(Preset Mode, DVI-D/HDMI/PC Display Port)
Preset Mode
Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Polarity (H/V) Remarks
720 x 400 31.468 70.08 -/+
640 x 480 31.469 59.94 -/-
640 x 480 37.5 75 -/-
800 x 600 37.879 60.317 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.123 75.029 +/+
1152 x 864 67.5 75 +/+
1280 x 720 45 60 +/+
1280 x 1024 63.981 60.02 +/+
1280 x 1024 79.976 75.025 +/+
1600 x 900 60 60 +/+
1680 x 1050 65.290 59.954 -/+
1920 x 1080 67.5 60 +/-
2560 x 1080 66.7 60 -/+
HDMI/MHL Timing (Video)
Preset Mode
Horizontal Fre-
quency (kHz)
Vertical Fre-
quency (Hz)
480P 31.50 60
576P 31.25 50
720P 37.50 50
720P 45.00 60
1080i 28.12 50
1080i 33.75 60
1080P 56.25 50
1080P 67.50 60
Power Indicator
Mode LED Color
On Mode Red
Power-saving Blinking in red
Off Mode Off
41
ENG
ENGLISH
PROPER POSTURE
PROPER POSTURE
Proper Posture for Using the Monitor
Adjust the screen so that you can comfortably view at a slight downward angle from your natural eye level.
y
Take a break for approximately ten minutes every hour to reduce any fatigue caused by long-time us-
age.
y
The stand of the touch monitor allows the product to be used in the optimum position.
Adjust the stand angle from -5° to 20° to obtain the best view of the screen.
You should be looking
slightly down at the screen.
Place your hands gently on
the keyboard, keeping your
arms bent at the elbows and
extended horizontally in front
of you.
Adjust the angle
-5° to 20°
So that there is no reflection
or glare from the screen.
Make sure to read the Safety Precautions
before using the product.
Keep the Owner's Manual(CD) in an
accessible place for future reference.
The model and serial number of the SET
is located on the back and one side of the
SET. Record it below should you ever need
service.
MODEL
SERIAL
