Owner’s Manual Color Security System
Important Safety Information
Installation Safety
1. Keep children and bystanders away while installing the cameras. Distractions can cause you to lose control.
2. Do not overreach when installing this product. Keep proper footing and balance at all times. This enables better control in unexpected situations.
3. Wear ANSI-approved safety goggles during installation.
4. This product is not a toy. Mount it out of reach of children.
Operation Safety
1. Do not operate electrically powered products in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Electrically powered products create sparks which may ignite the dust or fumes.
2. The adapter must match the outlet. Never modify the plug in any way. Unmodified plugs and matching outlets will reduce risk of electric shock.
3. Do not expose the Power Adapter of this product to rain or wet conditions. Water entering the Power Adapter will increase the risk of electric shock.
4. Do not abuse the Power Cord. Never use the cord for unplugging the plug from the outlet. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
5. WARNING: The cord of this product contains lead and/or di (2-ethylhexyl) phthalate (DEHP), chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. (California Health & Safety Code § 25249.5, et seq.)
6. The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS.
TO PREVENT ELECTRIC SHOCK AND DEATH FROM INCORRECT GROUNDING WIRE CONNECTION: Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the power cord plug provided with the system. Never remove the grounding prong from the plug. Do not use the system if the power cord or plug is damaged. If damaged, have it repaired by a service facility before use. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.
1. The included adapter does not require grounding.
2. The adapter may be used in either of the 120 volt outlets shown in the preceding illustration. (See Figure A.)
Grounding (continued)
Extension Cords
Note: Do not use an extension cord with this item’s adapter.
Symbology
Specifications
Setup

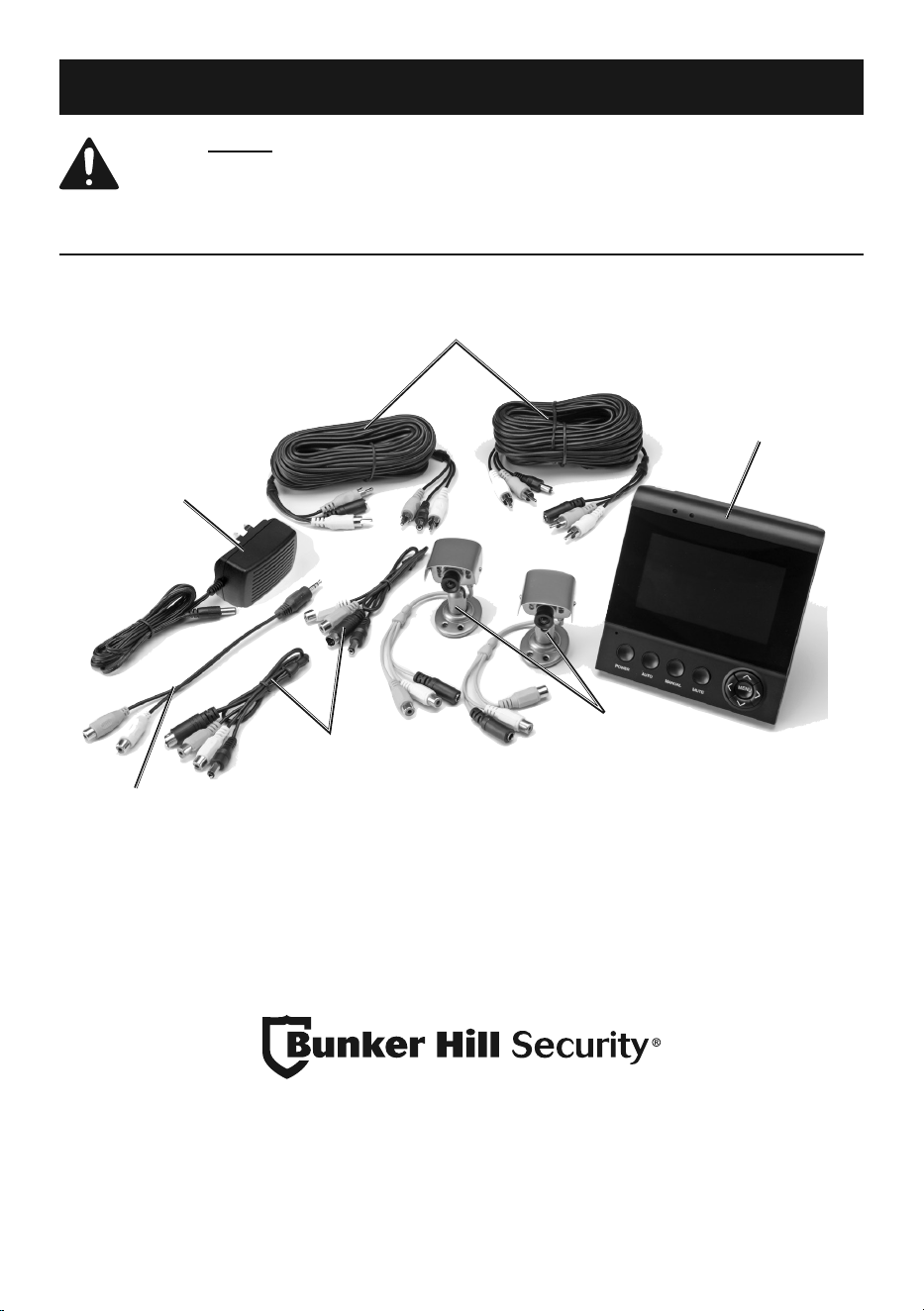

Components

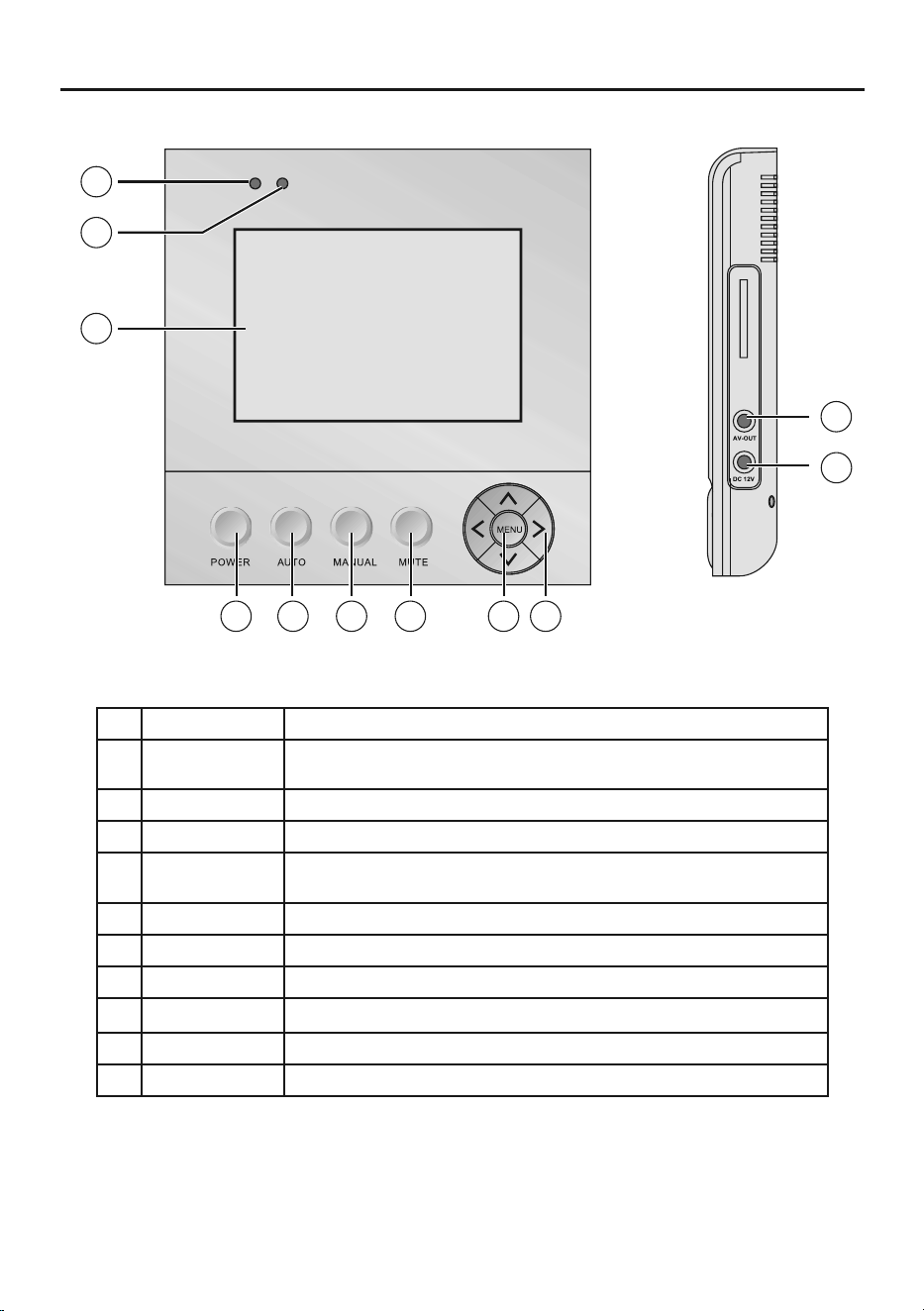

Controls
- A => Power Indicator => Red light indicates the system has power
- B => System On/ Off => Indicator Blue light indicates the system is turned on
- C => 4.3" LCD => Monitor Screen
- B => POWER => Power On/Off button
- E => AUTO => Automatic continuous switching between the two camera views at preset intervals
- F => MANUAL => Manual switching between the two camera views
- G => MUTE => Audio On/Off Button
- H => MENU => Scroll through and access Menus
- I => < / > ˄ / ˅ => Left/Right and Up/Down buttons for navigating Menus
- J => AV-OUT => Audio/Video Output to Monitor or Recording Device (not included)
- K => DC 12V => 12VDC Input

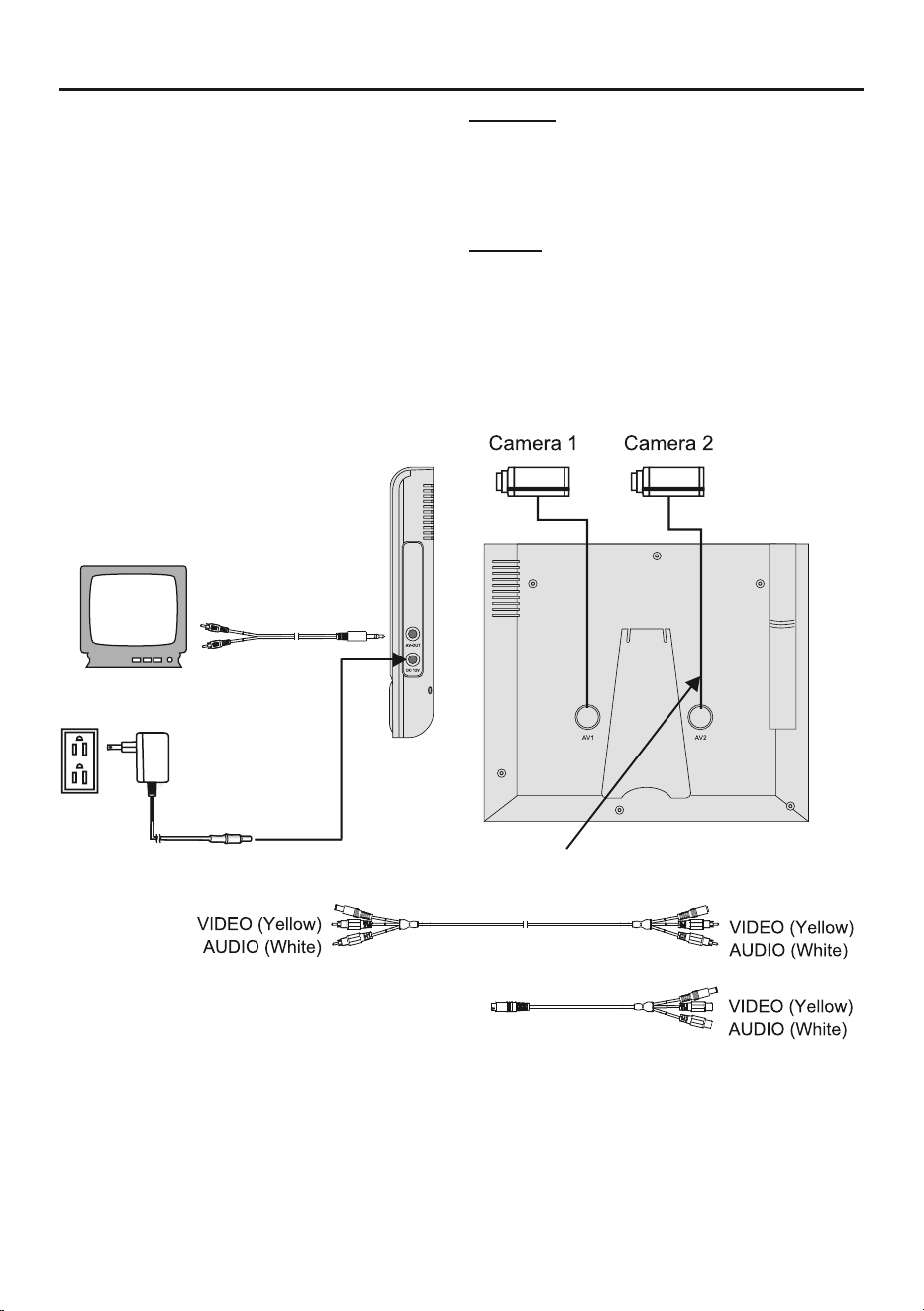

Connections
1. Connect Cameras to Monitor:
a. Connect the cables on the Camera to the Extension cables.
b. Connect the Extension cables to the Connection cables.
c. Connect the Connection cables to AV1 and AV2 sockets on Monitor.
2. Connect the Power Adapter to the DC 12V input socket on Monitor. Plug the Power Adapter into a 120V grounded electrical outlet.
CAUTION! The Monitor and Power Adapter MUST be used indoors in a clean, dry location.
3. Connect to Monitor or Recording Device: Use AV-OUT cable to connect unit to another device (not included).
NOTICE: CHECK FEDERAL, STATE AND LOCAL SURVEILLANCE LAWS BEFORE INSTALLING VIDEO AND/OR AUDIO SURVEILLANCE EQUIPMENT.
Camera Installation
IMPORTANT: Before mounting the cameras, connect all the cables and test the system to ensure unit and cameras are working properly. Test the cameras for the best location before installing.
NOTICE: When installing outdoors, mount Cameras under eaves, cameras are not weather proof. Protect connections from moisture with electrical tape.
1. When planning the mounting location and angle of the Cameras, consider the following:
a. Do not mount the Cameras in bright or direct sunlight.
b. At night windows can reflect back into the Camera, interfering with the image. Test the Cameras in their intended location before mounting.
c. Choose locations high enough so that the Cameras are out of reach of children and others who might tamper with the units, but still cover the desired viewing areas adequately.
d. Take into consideration the length of the cables and the need to place the Monitor in a safe, dry location. Do not expose the Monitor to weather.
2. Route the AC/DC Adapter power cord and all cabling along a safe route without creating a tripping hazard or exposing the cord and cables to possible damage.
3. Mount the Cameras to the chosen locations as follows:
a. Place the Bracket Base against the mounting surface and use mounting holes in the base as a template to mark the three points for drilling pilot holes.
WARNING! Verify that installation surface has no hidden utility lines or other wiring before drilling or driving screws.
b. Drill the pilot holes.
c. Mount the Cameras using three appropriate fasteners through the three holes in the Bracket Base of each Camera.
d. After the Cameras are mounted, run the cables to the Monitor.
e. Adjust the Cameras to cover the desired areas.
f. Once Cameras are installed, plug the cables into the Monitor
Operating Instructions
General Operating Instructions
1. Peel off protective film covering monitor screen.
2. Press the POWER switch on the Monitor to turn on the system. The camera’s view should appear on the screen.
3. Press the AUTO button to select automatic switching from one camera view to the other.
4. Press the MANUAL button to manually select between one camera view and the other.
5. Press the MUTE button to turn the audio on or off.
6. Use the MENU button and Left/Right () or Up/Down (˄/˅) buttons to make adjustments or change settings following guidelines in the MENU Settings section on page 9.
7. The system will operate continuously (day and night) while the AC/DC Power Adapter is plugged in and the system is turned on.
8. When not using the system, unplug the Power Adapter from the electrical outlet.
MENU Settings
1. Press the POWER switch to turn on the system. Press the MENU button to scroll through and access menus. (See Figure C on page 6 for control layout).
2. To adjust picture quality:
- a. Select the PICTURE menu using the MENU button.
- b. Use the Up (˄) or Down (˅) buttons to select BRIGHT, CONTRAST, or COLOR.
- c. Use the Left () buttons to adjust to the desired settings.
3. To adjust volume:
- a. Select the VOLUME menu using the MENU button.
- b. Use the Left () buttons to adjust volume to the desired level.
4. To adjust time interval in AUTO switch mode:
- a. Select the OPTION menu using the MENU button.
- b. Select the desired setting by using the Left () buttons to adjust the time interval from 5 to 99 seconds for automatic switching from one camera view to the other.
5. To select system video standard:
- a. Select the SYSTEM menu using the MENU button.
- b. Use the Left () buttons to select AUTO, PAL, NTSC, or SECAM.
6. To apply preset timer options:
- a. Select the PRESET menu using the MENU button.
- b. Use the Up (˄) or Down (˅) buttons to select SLEEP, TIME, OFF-TIME, or ON-TIME.
- c. Use the Left () buttons to adjust to the desired settings.
Note: If power to the Monitor is cut off or the system is shut off any settings previously entered in the PRESET menu will be lost and the information will need to be re-entered.
Inspection, Maintenance, and Cleaning
Monitor
1. PERIODICALLY, inspect the general condition of the DVR. Check for:
• loose hardware,
• damaged cord/electrical wiring,
• cracked or broken parts, and
• any other condition that may affect its safe operation.
2. PERIODICALLY, wipe external surfaces with clean cloth
Camera
1. PERIODICALLY, inspect the general condition of the Camera. Check for:
• loose hardware,
• damaged cord/electrical wiring,
• cracked or broken parts, and
• any other condition that may affect its safe operation.
2. PERIODICALLY:
• Wipe external surfaces with clean cloth.
• Clean Camera lenses by applying lens cleaning solution to scratch-free cloth, then wiping lens. Do not apply solution directly to lenses.
3. Maintain area surrounding Camera, making sure obstacles don’t interfere with visibility, such as overgrown bushes.
