Delonghi DEL6038D 60cm Electric Built-In Double Oven

User Manual

For DEL6038D.

PDF File Manual, 44 pages, Read Online | Download pdf file

DEL6038D photo
background
DE’LONGHI
COOKING
INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
DEL6038D
BUILT-IN DOUBLE OVEN
distributed by
DeLonghi Australia Pty Ltd
DeLonghi New Zealand Ltd
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...
Loading page 25...
Loading page 26...
Loading page 27...
Loading page 28...
Loading page 29...
Loading page 30...
Loading page 31...
Loading page 32...
Loading page 33...
Loading page 34...
Loading page 35...
Loading page 36...
Loading page 37...
Loading page 38...
Loading page 39...
Loading page 40...
Loading page 41...
Loading page 42...
Loading page 43...
Loading page 44...

Other documents for Delonghi DEL6038D

The following documents are available:
User Manual Other Documents Photos

Specifications

Delonghi DEL6038D Questions and Answers


#1 Can you fit a double oven under a countertop?

As this is a built-in oven, it cannot be fit under a countertop
- it would need to be built into kitchen units or installed into
cabinetary.

User Manual - Transcript

  • Page 1 - English - : DELONGHI COOKING INSTALLATION and SERVICE INSTRUCTIONS USE and CARE INSTRUCTIONS DEL6038D BUILTIN DOUBLE OVEN distributed by DeLonghi Australia Pty Ltd DeLonghi New Zealand Ltd
  • Page 2 - English - : Dear Customer Thank you for having purchased and given your preference to our product The safety precautions and recommendations reported below are for your own safety and that of others They will also provide a means by which to make full use of the features offered by your appliance Please keep this booklet in a safe place It may be useful in future either to yourself or to others in the event that doubts should arise relating to its operation This appliance must be used only for the task it has explicitly been designed for that is for cooking foodstuffs Any other form of usage is to be considered as inappropriate and therefore dangerous The manufacturer declines all responsibility in the event of damage caused by improper incorrect or illogical use of the appliance or be faulty installation PRODUCT LABEL This appliance has been designed and constructed in accordance with the following codes and specications ASNZS 603351 General Requirements for Domestic electrical appliances ASNZS 6033526 Particular Requirements for Domestic electrical cooking appliances ASNZS CISPR 141 Electromagnetic Compatibility Requirements
  • Page 3 - English - : IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS IMPORTANT This appliance is designed and manufactured solely for the cooking of domestic household food and is not suitable for any non domestic application and therefore should not be used in a commercial environment The appliance guarantee will be void if the appliance is used within a non domestic environment ie a semi commercial commercial or communal environment Read the instructions carefully before installing and using the appliance After having unpacked the appliance check to ensure that it is not damaged and that the oven door closes correctly In case of doubt do not use it and consult your supplier or a professionally qualied technician Packing elements ie plastic bags polystyrene foam nails packing straps etc should not be left around within easy reach of children as these may cause serious injuries Some appliances are supplied with a protective lm on steel and aluminium parts This lm must be removed before using the appliance IMPORTANT The use of suitable protective clothinggloves is recommended when handling or cleaning this appliance Do not attempt to modify the technical characteristics of the appliance as this may become dangerous to use The manufacturer declines all responsibility for any inconvenience resulting from the inobservance of this condition Do not operate your appliance by means of an external timer or separate remotecontrol system Do not carry out cleaning or maintenance operations on the appliance without having previously disconnected it from the electric power supply WARNING Ensure that the appliance is switched off before replacing the oven lamp to avoid the possibility of electric shock
  • Page 4 - English - : Do not use a steam cleaner because the moisture can get into the appliance therefore making it unsafe Do not touch the appliance with wet or damp hands or feet Do not use the appliance whilst in bare feet If you should decide not to use this appliance any longer or decide to substitute another model before disposing of it it is recommended that it be made inoperative in an appropriate manner in accordance to health and environmental protection regulations ensuring in particular that all potentially hazardous parts be made harmless especially in relation to children who could play with unused appliances The various components of the appliance are recyclable Dispose of them in accordance with the regulations in force in your country If the appliance is to be scrapped remove the power cord After use ensure that the knobs are in the off position Children less than 8 years of age shall be kept away unless continuously supervised This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance Cleaning and user maintenance shall not be made by children without supervision The manufacturer declines all liability for injury to persons or damage to property caused by incorrect or improper use of the appliance WARNING During use the appliance and its accessible parts become hot they remain hot for some time after use Care should be taken to avoid touching heating elements inside the oven The door is hot use the handle To avoid burns and scalds young children should be kept away Make sure that electrical cables connecting other appliances in the proximity of the oven cannot become entrapped in the oven door
  • Page 5 - English - : WARNING When correctly installed your product meets all safety requirements laid down for this type of product category However special care should be taken around the rear or the underneath of the appliance as these areas are not designed or intended to be touched and may contain sharp or rough edges that may cause injury FIRST USE OF THE OVEN it is advised to follow these instructions Furnish the interior of the oven as described in the chapter CLEANING AND MAINTENANCE Switch on the empty oven on max to eliminate grease from the heating elements Disconnect the appliance from the electrical power supply let the oven cool down and clean the interior of the oven with a cloth soaked in water and neutral detergent then dry carefully CAUTION Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface which may result in shattering of the glass Do not line the oven walls with aluminium foil Do not place baking trays or the drip tray on the base of the oven chamber FIRE RISK Do not store ammable material in the oven Always use oven gloves when removing the shelves and food trays from the oven whilst hot Do not hang towels dishcloths or other items on the appliance or its handle as this could be a re hazard Clean the oven regularly and do not allow fat or oils to build up in the oven base or tray Remove spillages as soon as they occur Do not stand on the open oven door Always stand back from the appliance when opening the oven door to allow steam and hot air to escape before removing the food SAFE FOOD HANDLING Leave food in the oven for as short a time as possible before and after cooking This is to avoid contamination by organisms which may cause food poisoning Take particular care during warmer weather WARNING Take care NOT to lift the appliance by the door handle
  • Page 6 - English - : INSTALLATION CAUTION This appliance must be installed in accordance with these installation instructions This appliance shall only be serviced by authorised personnel This appliance is to be installed only by an authorised person in compliance with the current electrical regulations and in observation of the instructions supplied by the manufacturer Failure to comply with this condition will render the guarantee invalid Incorrect installation for which the manufacturer accepts no responsibility may cause personal injury of damage Always disconnect the appliance from mains power supply before carrying out any maintenance operations or repairs FITTING REQUIREMENTS The double oven can be tted in standard units 60 cm width and depth Installation requires a compartment as illustrated in gure 1 The double oven can be built in the kitchen units but you must ensure that it is properly ventilated On the lower side the double oven must lay on supports standing the oven weight Remember the housing should not be free standing but be secured to the wall andor adjacent ttings We would point out that the adhesive which bonds the plastic laminate to the furniture must withstand temperatures not less than 150 C to avoid delamination The walls of the units must be capable of resisting temperatures of 75 C above room temperature Do not seal the double oven into the cabinetry with silicone or glue this makes future servicing difcult Delonghi will not cover the costs of removing the double oven or of damage caused by this removal The walls surrounding the double oven must be made of heatresistant material WARNING Taking care NOT to lift the double oven by the door handles WARNING When correctly installed your product meets all safety requirements laid down for this type of product category However special care should be taken around the rear or the underneath of the appliance as these areas are not designed or intended to be touched and may contain sharp or rough edges that may cause injury IMPORTANT Some environmental factors and cooking habits can cause condensation in and around the ovens during use To protect surrounding cabinetry from possible damage caused by frequent or excessive condensation we recommend moisture proong the oven cavities
  • Page 7: min Dimensions mm Oven Housing Height 888 877 Width 595 560 Depth 564 555 min Figure 1
  • Page 8 - English - : FIXING THE DOUBLE OVEN Introduce the double oven into the furniture opening and x it with 8 screws not supplied as gure 2 It is essential that the double oven rests on a surface which will support its weight as the screw xing is only complementary Note It is essential that when installing your double oven adequate air circulation is allowed for within the installation Inadequate air circulation may greatly impair the performance of your double oven and may effect adjacent cabinets due to an increase in temperature Caution Do not lift this double oven by the door handles Adjust the hinges of furniture doors adjacent to the double oven to allow a 45 mm gap between the furniture door and the double oven frame Figure 2
  • Page 9 - English - : OVEN DOOR LOWER TRIM AIR FLOW Figure 3 IMPORTANT Please take extra care not to damage the lower trim of the double oven Ensure the double oven sits on wooden blocks or similar supports when it is removed from the carton as shown in above diagram This will prevent any damage to the lower trim Should the lower trim become damaged straighten the trim and ensure the double oven bottom door opens fully without obstruction from the lower trim After installation check the lower trim is still undamaged The space between the bottom of the bottom door amp the lower trim is important to allow proper air circulation into the double oven The double oven bottom door should be opened slowly to its fully open position ensuring there is adequate clearance between the bottom of the door and the lower trim The manufacturer does not accept responsibility for any damage to the oven resulting from incorrect installation
  • Page 10 - English - : ELECTRICAL REQUIREMENTS The appliance must be connected to the mains checking that the voltage corresponds to the value given in the rating plate and that the electrical cable sections can withstand the load specied on the plate A suitable isolating switch providing full disconnection from the mains power supply shall be incorporated in the permanent wiring mounted and positioned to comply with the local wiring rules and regulations The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles or in all active phase conductors if the local wiring rules allow for this variation of the requirements The isolating switch shall be easily accessible to the customer with the oven installed The power supply cable must not touch the hot parts and must be positioned so that it does not exceed 75C above ambient To connect the appliance to the mains electricity supply do not use adapters reducers or branching devices as they can cause overheating and burning If the supply cord is damaged it must be replaced by the manufacturer or its Service Agent or a similarly qualied person in order to avoid a hazard NB The connection of the appliance to earth is mandatory If the installation requires alterations to the domestic electrical system call a qualied electrician He should also check that the domestic electrical system is suitable for the power drawn by the appliance Connecting replacing the power cord must be done by a qualied electrician in accordance with the instructions supplied by the manufacturer and in compliance with established electrical regulations CONNECTING THE POWER SUPPLY CABLE Important This appliance must be connected to the electricity supply only by an authorised person To connect the supply cable Unscrew the screw A securing the cover plate B behind the oven g 4 Remove the cover plate B Remove the screws C from the cable clamp g 5 Insert the mains cable type V105 3 x 25 mm section into the cable protector P Connect the phase neutral and earth wires to the mains terminal connection block D The wires of this appliance must be coloured in accordance with the following code GREEN AND YELLOW EARTH BLUE NEUTRAL N BROWN LIVE L
  • Page 11 - English - : The wire which is coloured GREEN AND YELLOW must be connected to terminal which is marked with the letter E or by the Earth symbol or coloured GREEN or GREEN AND YELLOW The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED Ret the cable clamp so that it clamps the outer sleeving of the cable and screw the screws C Ret the cover plate B and x it with the screw A NB The earth conductor must be left about 3 cm longer than the others VOLTAGE AND POWER CONSUMPTION 220240 V ac 4450 W 1934 A FEEDER CABLE SECTION This double oven must be connected to electrical supply using V105 insulated cable 3 x 25 mm Connection with wall box connection Figure 5Figure 4 A B Green amp Yellow Earth Brown Live Blue Neutral N L C P D PEN L L2 L1 N L2 E
  • Page 12 - Catalan, Valencian - : PR T M L N TL S1 F1 1a 6a 4a 9a 3a 8a 2a 7a 5a 10a 11a C1 G1 S1 V1 CIR1 TM1 C2 G2 S2 V2 CIR2 CF LF TL S2 F2 1a 6a 4a 9a 3a 8a 2a 7a 5a 10a 11a TM2 LF2 TL TL LF1 N7 L8 1a WIRING DIAGRAM Figure 6
  • Page 13 - English - : ELECTRIC DIAGRAM KEY CF Cooling fan motor TL Thermal overload M Terminal block T Earth connection MAIN OVEN F1 Oven switch TM1 Oven thermostat LFLF1 Oven lamps S1 Thermostat pilot lamp PR Oven programmer V1 Oven fan motor C1 Oven top element G1 Oven grill element S1 Oven bottom element CIR1 Oven circular element TOP OVEN F2 Oven switch TM2 Oven thermostat LF2 Oven lamp S2 Thermostat pilot lamp V2 Oven fan motor C2 Oven top element G2 Oven grill element S2 Oven bottom element CIR2 Oven circular element
  • Page 14 - English - : USE AND CARE USING THE OVENS FOR THE FIRST TIME Operate as follows Top oven Assemble the wire racks on the oven walls using the 2 screws g 7a Bottom main oven Assemble the wire racks on the oven walls using the 2 screws interposing the catalytic panels A with the arrow up g 7b The catalytic panel with the hole for the side oven lamp must be positioned on the left oven wall DO NOT INTERPOSE THE CATALYTIC PANEL WITHOUT THE HOLE ON THE LEFT OVEN WALL Slide in the grease lter on the back of the ovens as in g 9 Slide into the guides the shelf and the tray gs 8a 8b The rack must be tted so that the safety notch which stops it sliding out faces the inside of the oven the guard rail shall be at the back The tray must be tted so that the safety notch which stops it sliding out faces the inside of the oven Note The oven accessories can be tted indifferently in the top or in the bottom oven One tray only is supplied with the appliance To eliminate traces of grease in manufacture it is necessary to preheat the ovens at the maximum temperature For 60 minutes in the position for 30 minutes in the position and for another 15 minutes in the position Unscrew the xing screws and slide off the wire racks and the catalytic liners for the bottom main oven only to the oven wall as in gs 7a 7b Bottom main oven only The grill is secured to the rear wall of the oven on a hinge system that allows it to be lowered to allow proper access when cleaning the oven ceiling see next chapter TILTING GRILL Let the oven cool down switch off the electrical supply then clean the inside of the oven with a cloth soaked in water and neutral detergent and dry thoroughly CAUTION This appliance must be used only for the task it has explicitly been designed for that is for domestic cooking of foodstuffs Any other form of usage is to be considered as inappropriate and therefore dangerous Do NOT place combustible materials or products on this appliance at any time
  • Page 15: A A Figure 7b Figure 8b Stop notch Stop notch Guard rail TOP OVEN BOTTOM MAIN OVEN Stop notch Guard rail Stop notch Figure 8a Figure 7a
  • Page 16 - English - : Fixing screw Stud Figure 10 Figure 11 Figure 9 TILTING GRILL BOTTOM MAIN OVEN ONLY The grill is secured to the rear wall of the ovens on a hinge system that allows it to be lowered to allow proper access when cleaning the oven ceiling g 11 To lower the grill element use a athead screwdriver or a small coin to loosen the element xing screw g 10 When you have nished cleaning the oven ceiling raise the grill element and screw the element xing screw back onto the stud Make sure that the xing screw is tightened and the element is held securely in place The grill element itself is selfcleaning GREASE FILTER A special screen is provided at the back of the ovens to catch grease particles mainly when meat is being roasted g 9 Clean the lters after any cooking The grease lters can be removed for cleaning and should be washed regularly in hot soapy water g 9 Always dry the lters properly before tting it back into the ovens CAUTION When baking pastry etc this lter should be removed
  • Page 17 - English - : Left Right TELESCOPIC SLIDING SHELF SUPPORTS The telescopic sliding shelf supports make it safer and easier to insert and remove the oven shelves and trays They stop when they are pulled out to the maximum position Important When tting the sliding shelf supports make sure that you t The slides to the top wire of a rack They do not t on the lower wire The slides so that they run out towards the oven door Both sides of each pair of shelf slides Both sides on the same level To x the sliding shelf supports onto the side racks Screw the side racks onto the oven wall interposing the catalytic panels g 7b Fit the sliding shelf supports onto the top wire of a rack and press g 12 You will hear a click as the safety locks clip over the wire Figure 12
  • Page 18 - English - : Figure 14 Figure 13 To remove the telescopic sliding shelf supports Remove the side racks and the catalytic liners by unscrewing the xing screws g 13 Lay down the telescopic sliding shelf support and side racks with the telescopic sliding shelf support underneath Find the safety locks These are the tabs that clip over the wire of the side rack arrow 1 in g 14 Pull the safety locks away from the wire to release the wire arrow 2 in g 14 Cleaning the sliding shelf supports Wipe the supports with a damp cloth and a mild detergent only Do not wash them in the dishwasher immerse them in soapy water or use oven cleaner on them
  • Page 19 - English - : 1 2 3 4 5 8 7 6 Please Note Your appliance has been tted with a cooling fan to achieve optimum efciency of the controls and to ensure lower surface temperatures are maintained When the top oven is operating the cooling fan motor is always ON When only the bottom main oven is operating the cooling fan motor switches ONOFF depending on temperature Depending on cooking temperatures and times the cooling fan may run on even after appliance oven has been switched off The duration of this time is dependent on previous cooking temperature and duration Figure 15 Controls description 1 Oven temperature control knob Top oven 2 Function selector control knob Top oven 3 Digital electronic programmer Bottom main oven only 4 Function selector control knob Bottom main oven 5 Oven temperature control knob Bottom main oven Pilot lamps 6 Main oven temperature indicator light 7 Line pilot light Main oven 8 Line pilot light Top oven 9 Top oven temperature indicator light CONTROL PANEL
  • Page 20 - English - : COOKING WITH MULTIFUNCTION OVENS Attention The oven door becomes very hot during operation Keep children away GENERAL FEATURES As its name indicates this is an oven that presents particular features from an operational point of view In fact it is possible to insert 7 different programs to satisfy every cooking need The 7 positions thermostatically controlled are obtained by 4 heating elements Top oven Bottom element 1000 W 230V Top element 700 W 230V Grill element 2000 W 230V Circular element 1300 W 230V Bottom main oven Bottom element 1300 W 230V Top element 1000 W 230V Grill element 2000 W 230V Circular element 2200 W 230V OPERATING PRINCIPLES Heating and cooking in the MULTIFUNCTION oven are obtained in the following ways a by normal convection The heat is produced by the upper and lower heating elements b by forced convection A fan sucks in the air contained in the oven mufe which sends it through the circular heating element and then sends it back through the mufe Before the hot air is sucked back again by the fan to repeat the described cycle it envelops the food in the oven provoking a complete and rapid cooking It is possible to cook several dishes simultaneously c by semiforced convection The heat produced by the upper and lower heating elements is distributed throughout the oven by the fan d by radiation The heat is irradiated by the infra red grill element e by radiation and ventilation The irradiated heat from the infra red grill element is distributed throughout the oven by the fan f by ventilation The food is defrosted by using the fan only function without heat WARNING The door is hot use the handle During use the appliance becomes hot Care should be taken to avoid touching heating elements inside the oven

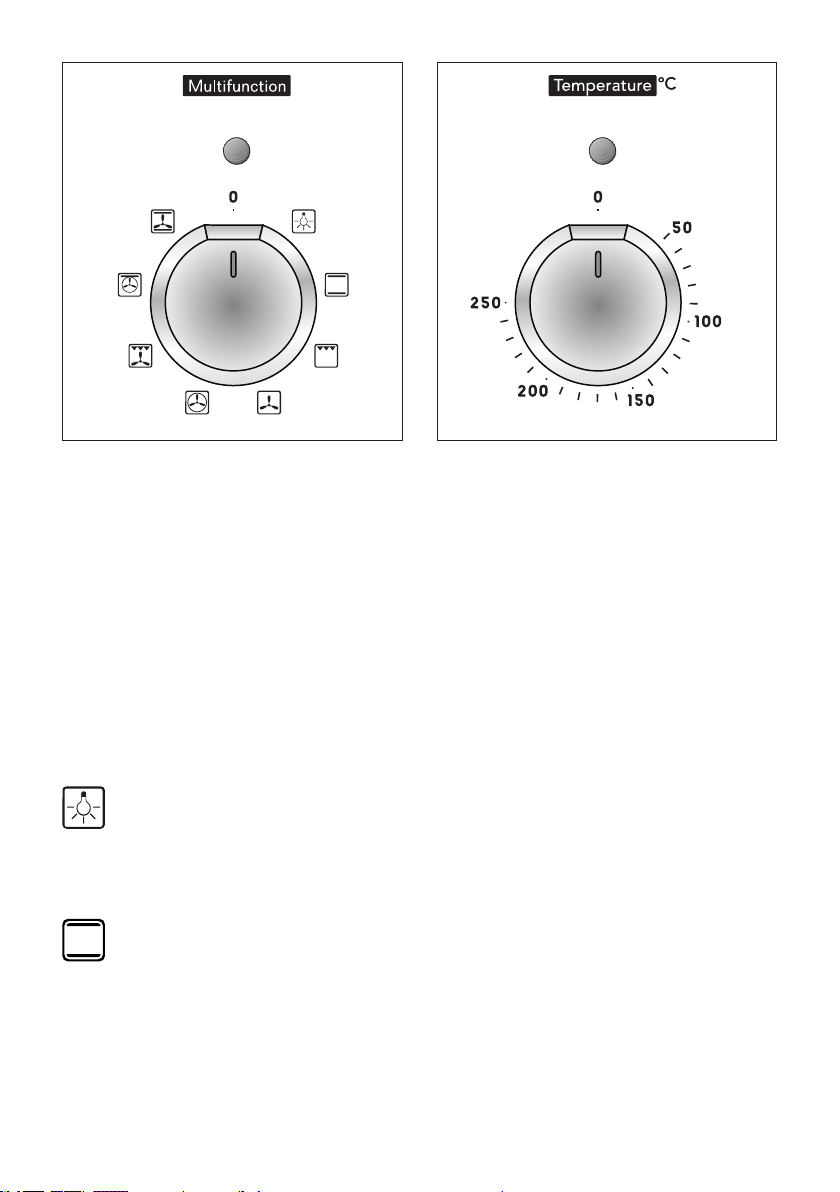

  • Page 21 - English - : THERMOSTAT KNOB To turn on the heating elements of the oven set function selector knob to the required position and the thermostat knob to the desired temperature To set the temperature turn the thermostat control knob indicator mark to the required temperature The elements will turn on or off automatically which is determined by the thermostat The operation of the heating elements is signalled by a light placed above the knob FUNCTION SELECTOR KNOB Rotate the knob clockwise to set the oven for one of the following functions OVEN LIGHT By turning the knob onto this setting we light the oven cavity The oven remains alight while any of the functions is on TRADITIONAL CONVECTION COOKING The upper and lower heating elements are switched on The heat is diffused by natural convection and the temperature must be regulated between 50C and the maximum position with the thermostat knob It is necessary to preheat the oven before introducing the foods to be cooked Recommended for For foods which require the same cooking temperature both internally and externally i e roasts spare ribs meringue etc Figure 16 Figure 17
