Haier HL40XSL2 Television

User Manual

For HL40XSL2. Additionally, the document applies to other Haier models: LE32A300, LE42A300, LE55A300, LB32R3A, LB42R3A, LB46R3A, LB55R3A, LE32H300, LE42H300, L32K3, L42K3

PDF File Manual, 28 pages, Read Online | Download pdf file

HL40XSL2 photo
background
Please READ this manual carefully before
operating your TV, and retain it for future
reference.
OWNER’S MANUAL
LED-LCD TELEVISION
LE32A300/LE42A300/LE55A300
LB32R3A/LB42R3A/LB46R3A/LB55R3A
LE32H300/LE42H300/L32K3/L42K3
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...
Loading page 25...
Loading page 26...
Loading page 27...
Loading page 28...

Other documents for Haier HL40XSL2

The following documents are available:
User Manual Photos

Specifications

User Manual - Transcript

  • Page 2 - English - : Contents 2 LED LCD television Owners Manual Contents Warning 3 Important Safety Instructions 4 Introduction 6 Panel Control 6 Connection Options 7 Remote Control 8 Battery loading 8 Precautions 8 Remote Control Function 9 Function introduction 9 External Equipment Connections 10 Antenna Connection 10 Choose Your Connection 11 VCR Connection 11 External AV Source Setup 11 Connecting a DVD player 11 HDMI or DVI Setup 12 PC Setup 12 Monitor Out Setup 13 Power source 13 Basic Receiving and Playing Operations 14 Switching ONOFF the TV set 14 Switching ONOFF the TV set 14 Choose the Menu Language 14 Choose the Input source 14 Picture Menu 14 How to select the picture mode 14 How to customize your own picture status 15 Sound Menu 15 How to select the sound mode 15 How to customize your own sound status 16 Channel Menu 16 Programme Edit 16 Auto Tuning 17 Exchange 17 Function Menu 18 Function Menu Set 18 Adjust Menu 19 Time Menu 19 Lock Setup 20 How to use the password function 20 Streaming Media Playing System 21 StartExit Streaming Media Playing system 22 Operating Method of Streaming Media Menu 22 Playing a Picture 22 Playing a Movie 23 Playing Music 23 Text 23 Settings 23 Maintenance 24 Troubleshooting 24 Specification 25 Format 25
  • Page 3 - English - : Warning LED LCD television Owners Manual 3 WARNING WARNING TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER OR BACK NO USER SERVICEABLE PARTS INSIDE REFER TO QUALIFIED SERVICE PERSONNEL To avoid electric hazards it is strongly suggested that the back cover not be opened as there is no any accessory inside the casing lf necessary please contact authorized aftersales services A lighting ash mark in a triangle A potentially hazardous situation which if not avoided could result in serious injury by high voltage An exclamation mark in a triangle Major part or accessory of which technical specications must be followed if it is to be replaced RISK ELECTRIC SHOCK DO NOT OPEN WARNING To avoid fire or electric hazards never place your television receiver in an area with heavy moisture Attention should be paid to avoid accidental scratches or impacts onto the screen CAUTION Please read this manual carefully before using your television and keep this manual in a good place for future reference To achieve the best performance of your television read this Users Manual carefully and properly store it for future reference Information of screen displays and figures in the Users Manual may vary due to technical innovations CAUTION Unauthorized disassembly of this product is prohibited Warning
  • Page 4: Important Safety Instructions 4 LED LCD television Owners Manual Important Safety Instructions
  • Page 5: Important Safety Instructions LED LCD television Owners Manual 5
  • Page 6 - English - : Panel Control 6 LED LCD television Owners Manual This is a simplified representation of front panel Here shown may be somewhat dierent from your TV Panel Control Introduction TVAV Press this key to openclose signal source options menu MENU Menu display Press to access the onscreen menu display VOL Press to adjust the volume In the MENU screen these buttons serve as rightleft buttons CH Press to scan through channels To scan quickly through channels press and hold down either In the MENU screen these buttons serve as updown buttons POWER Press to turn on and o the TV USB jack Connect a USB ash drive to view videosimages or listen music Mini USB Connect a USB ash drive to view videosimages or listen music SPDIF Digital Audio Optical output AV OUT Connect the audio LR and video cables to your other video equipment ANT IN Connect cable pr antenna signal to the TV either directly or through your cable box A AV1 IN Connect the video signal from a video device B HDMI IN Connect a HDMI device to receive digital audio and uncompressed digital video C SVIDEO Connect the SVIDEO cable from an external signal source to this jack D Headphone Headphone audio output terminal
  • Page 7 - English - : Connection Options LED LCD television Owners Manual 7 HDMI 3 IN COMPONENT AV2 IN Y VIDEO P b P r L AUDIO R PC IN PCDVI AUDIOPC DSMB Y Pb Pr L R AUDIO PC AV2 IN COMPONENT IN ANT IN HDMI 3 INPC IN AV OUT VIDEO L R AUDIO PCDVI AUDIO VIDEO L R AUDIO Connection Options Back panel connections PC Video In Connect a video cable from a computer to this jack PCDVI Audio In Connect the audio LR cables from a computer to this jack Component Video In Connect a component video device to these jacks AV2 In Connect the video signal from a video device DSMB MoBox jack ANT In Connect cable pr antenna signal to the TV either directly or through your cable box HDMI 3 IN Connect a HDMI device to receive digital audio and uncompressed digital video AV OUT Connect the audio LR and video cables to your other video equipment
  • Page 8 - English - : Remote Control 8 LEDLCD television Owners Manual Remote Control Battery loading 1 Slide open the cover of the battery compartment on the back of the remote controller 2 Load two 7 AAA alkaline batteries in the compartment plus and minus poles to respective mark 3 Replace the cover of the battery compartment Precautions As strong light may interfere the signals change your position to operate the remote controller if the television cannot be turned on or o as you expect Keep the remote controller away from heat source or humid area to ensure eective performance of the remote controller Make sure that two AAA alkaline batteries are loaded The batteries must be of the same type The batteries must be located properly The batteries are not rechargeable Make sure that there is no obstacle between the remote controller and television set
  • Page 9 - English - : Remote Control Function LED LCD television Owners Manual 9 The remote control cannot be operated unless the batteries are properly loaded When using the remote control aim it at the remote control sensor on the TV Function introduction POWER Press this key to start TV from standby mode press it again to return to standby mode USB Press this key for quick switching of streaming media H LOCK Refer to the Functional Description on Page 20 SOURCE Press this key to openclose signal source options menu DSMB Press this key for quick switching of MOCar STILL Press this key to freeze the image Press it again to return to normal screen Note Do not display a still picture for a long time to prevent the screen from burns ARC Press this key to select the screen display proportion MUTE Press this key to mute the sound press it again to activate the sound The sound may be activated by turning the TV on again or increasing the volume 09 These keys are used to select a channel Q VIEW Press this key to return to the previous TV programonly work in the TV mode A VOL Used to adjust the volume when the screen menu is closed B CH Used to select a TV channel when the screen options menu is closed specically press P to decrease the channel and press Pto increase the channel C Sound Mode Press this key continuously to select the sound mode D Picture Mode Press this key continuously to select the picture mode E TVMENU Press this key to display or exit the main menu F DMENU Press this key to display the Special Function Menu it functions when special modules are inserted G THUMBSTICK Up DownLeftRight Allows you to navigate the onscreen menus and adjust the system settings to your preference H OK Press this key to conrm the selection I EXIT Clears all onscreen displays and returns to TV viewing from any menu J USB Control the USB System Backward Forward PlayPause BACK Back REC no available ZOOM Press to magnifyminify an image DCALL Press to display program information K TVCALL Display ono L TIMESHIFT No available M VOD No available N AUDIO No available O PAGE No available P GUIDE No available Q TVFM No available R INFO No available S PAGE No available T CHLIST No available U FAV Press this key to display the favorite program list menu V STOCK No available W SLEEP Displaying the sleep time X INTERACTION No available Y Fn No available Z DDS No available BUSINESS No available GAME No available Remote Control Function

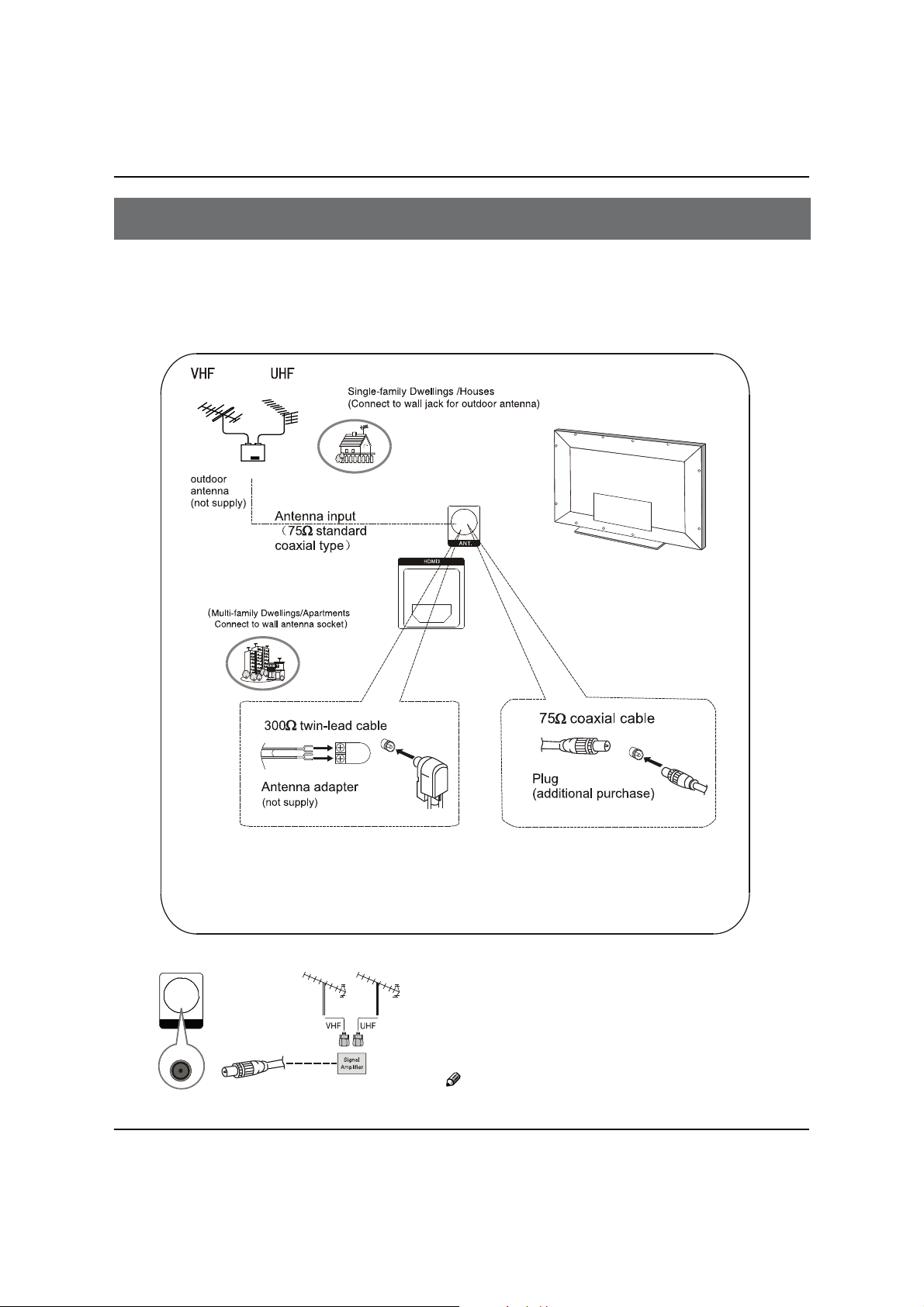

  • Page 10 - English - : External Equipment Connections 10 LED LCD television Owners Manual Antenna Connection Antenna or Cable Service without a Cable Box Connections For optimum picture quality adjust antenna direction if needed Note It is recommended that youd better use 757 coaxial cable to remove the disturbance caused by airwave Dont bind antenna cable and electric wire together To improve picture quality in a poor signal area purchase and install a signal amplifier If the antenna needs to be split for two Tvs install a quot2WaySignal Splitterquot in the connections If the antenna is not installed properly contact your dealer for assistance Note All cables shown are not included with the TV ANT External Equipment Connections
  • Page 11 - English - : External Equipment Connections LED LCD television Owners Manual 11 Choose Your Connection There are several ways to connect your television depending on the components you want to connect and the quality of the signal you want to achieve The following are examples of someways to connect your TV Take LE32A300 as an example Choose the connection which is best for you VCR Connection To avoid picture noise interference leave an adequate select the source press the OK button to confirm External AV Source Setup How to connect Connect the audio and video cables from the external equipments output jacks to the TV input jacks as shown in the figure When connecting the TV to external equipment match the jack colors Video yellow Audio Left white and Audio Right red HDMI 3 IN COMPONENT AV2 IN Y VIDEO P b P r L AUDIO R PC IN PCDVI AUDIOPC DSMB HDMI 2 IN ANT INHDMI 1 IN AV1 IN VIDEO LR AUDIO How to use Select the input source with using the A SOURCE button on the remote control Press B button to select the desired source Press C OK button to confirm Operate the corresponding external equipment D Connecting a DVD player How to connect Connect the DVD video outputs Y PA b C b P r C r to the COMPONENT Y P b C b P r C r input jacks on the TV and connect the DVD audio outputs to the AUDIO jacks on the TV as shown in the figure distance between the VCR and TV HDMI 2 IN ANT IN Mini USB HDMI 1 IN AV1 IN VIDEO LR AUDIO AV OUT L VIDEO AUDIO R SPDIF USB Connection Option 1 Set VCR output switch to channel 3 or 4 and then tune the TV to the same channel number Connection Option 2 Connect the audio and video cables from the VCRs A output jacks to the TV input jacks as shown in the figure When connecting the TV to VCR match the jack colors Video yellow Audio Left white and Audio Right red Insert a video tape into the VCR and press B PLAY on the VCR Refer to the VCR owners manual Select the input source with using the C SOURCE button on the remote control and then press button to
  • Page 12 - English - : External Equipment Connections 12 LED LCD television Owners Manual HDMI 3 IN COMPONENT AV2 IN Y VIDEO P b P r L AUDIO R PC IN PCDVI AUDIOPC DSMB How to use Turn on the DVD player insert a DVDA Use the B SOURCE button on the remote control and then press button to to select COMPONENT mode press the OK button to confirm PressC Play button on external equipment for program play Refer to the DVD players manual for operating D instructions HDMI or DVI Setup To watch digitally broadcast programs purchase and connect a digital settop box How to connect Use the TVs COMPONENT Y P b C b P r C r INPUT jacks VGA or HDMI port for video connections depending on your settop box connections available Then make the corresponding audio connections How to use Turn on the digital settop box A Refer to the owners manual for the digital settop box Use SOURCE on the remote contralto select PC or B HDMI Y P b C b P r C r mode Press C Play button on external equipment for program play HDMI 3 IN COMPONENT AV2 IN Y VIDEO P b P r L AUDIO R PC IN PCDVI AUDIOPC DSMB HDMI 2 IN ANT IN Mini USB HDMI 1 IN AV1 IN VIDEO LR AUDIO AV OUT L VIDEO AUDIO R SPDIF USB PC Setup How to connect Use the TVs PC IN port for video connectionsA Then make the corresponding audio connection If B using a sound card adjust the PC sound as required How to use Turn on the PC and the TVA Turn on the display by pressing the B POWER button on the TVs remote control Use SOURCE on the remote control to select PC sourceC Check the image on your TV There may be noise D associated with the resolution vertical pattern contrast or brightness in PC mode If noise is present change the PC mode to another resolution change the refresh rate to another rate or adjust the brightness and contrast on the menu until the picture is clear If the refresh rate of the PC graphic card can not be changed change the PC graphic card or consult the manufacturer of the PC graphic card
  • Page 13 - English - : External Equipment Connections LED LCD television Owners Manual 13 HDMI 3 IN COMPONENT AV2 IN Y VIDEO P b P r L AUDIO R DSMBPC IN PCDVI AUDIOPC Note Avoid keeping a fixed image on the TVs screen for along period of Time The fixed image may become permanently imprinted on the screen The synchronization input form for Horizontal and Vertical frequencies is separate To obtain the best picture do not play the USB YP b P r HDMI or PC source at the same time Monitor Out Setup The TV has a special signal output capability which allows you to hook up a second TV or monitor Connect the second TV or monitor to the TVs AV OUT by the tie line See the Operating Manual of the second TV or monitor for further details regarding that devices input settings ANT IN Mini USBAV OUT L VIDEO AUDIO R SPDIF USB Note Component PC HDMI input sources cannot be used for Monitor out When connecting with external audio equipments such as amplifiers or speakers please turn the TV speakers o Power source TO USE AC POWER SOURCE Use the AC polarized line cord provided for operation on AC Insert the AC cord plug into a standard polarized AC outlet Note Never connect the AC line cord plug to other than the specified voltage Use the attached power cord only If the polarized AC cord does not fit into a non polarized AC outlet do not attempt to file or cut the blade It is the users responsibility to have an electrician replace the obsolete outlet If you cause a static discharge when touching the unit and the unit fails to function simply unplug the unit from the AC outlet and plug it back in The unit should return to normal operation Polarized AC Cord Plug
  • Page 14 - English - : Basic Receiving and Playing Operations 14 LED LCD television Owners Manual Playing Operations Switching ONOFF the TV set In the manual the OSD on screen display may be dierent from your TVs because it is just an example to help you with the TV operation Switching ONOFF the TV set First connect power cord correctly and the power A indicator will light Press B POWER on the remote control again If you want to exchange to standing by status C please press down POWER on the remote control Disconnect the power supply or unplug the D television if it is intended to completely cease the television performance Choose the Menu Language When you satisfied with your set for the first time you must select the language which will be used for displaying menus and indications Press A MENU and to select Function menu Press B button to select language option Select a particular language by pressing C OK repeatedly When you satisfied with your choice press D MENU to return to normal viewing Choose the Input source Change the picture source so you can watch your TV VCR Cable or any other devices that are connected to your TV Press A SOURCE button to enter the Input Source menu and then use button to select the desired items TV AV1 AV2 Component PC HDMI1 HDMI2 HDMI3 Multimedia Press B OK button to confirm Picture Menu The TV menu gives you an overview of the menus you can select Note Depending on the input signal one or more menu items may not be selectable How to select picture mode The picture mode provides the predefined images settings Standard Mild User Dynamic and EyeGuard You can press PMODE button on the remote control to select the option Standard Mild User Dynamic and EyeGuard Basic Receiving and Playing Operations
  • Page 15 - English - : Basic Receiving and Playing Operations LED LCD television Owners Manual 15 How to customize your own picture status Press A MENU button and then use button to select Picture menu Press B button to select the desired items press OK to enter its submenu Press C button to adjust the setting Contrast This will adjust the intensity of bright parts in the picture but keep the dark parts unchanged Brightness This will adjust the light output of the complete picture which will mainly aect the darker areas of the picture Color This will adjust the saturation level of the colors to suit your personal preference Sharpness This will adjust the sharpness of fine details in the picture Note The picture options can only be adjusted in the User mode The other picture modes are preset Tint Allows you to select the color mix Tint of the picture Backlight press to adjust the backlight010 3DDIM Select the 3DDIM Demo or 3DDIM Calibration Press OK to set Palette Press to select the Palette option and then press OK to enter its submenu and finally press to select a toner pattern from six patterns Cool2 Cool1 Standard Warm1 Warm2 User to your color preference Normally the Standard mode is selected If the User mode is selected press to enter the palette menu as shown in the below figure and then press to select a benchmark in the range of 2500K15000K from warm color to cold color afterwards press to adjust if a dierent benchmark is selected for adjustment the original adjustment data will be automatically cleared Picture Sound Channel Function Adjust Timer Language Menu Time out Programe Auto Tun Exchange Volume Balance Digital SRS AVL MAXX Bass Reset Current Off Time Off Time On Channel Remind T Remind C Image Po Horizont Wertical Auto Clock Phase Reset Picture MEMC DSM Background OPC Eye Guard Reset Optimize Mode Reset Press to select OK or Cancel Sound menu How to select sound mode Press A MENU button and then use button to select Sound menu Press B button to select Digital tone Mode press OK to enter its submenu PressC button to select the option Standard Music Movie and User
  • Page 16 - English - : Basic Receiving and Playing Operations 16 LED LCD television Owners Manual You can also press SMODE button on the remote control to select the Audio Mode Standard Music Movie and User How to Customize your own sound status Press A MENU button and then use button to select Sound menu Press B button to select the desired items press OK to enter its submenu Press C button to adjust the setting Volume Press to adjust the volume of a TV Program Balance This will adjust the output of the right and left speakers to obtain the best stereo reproduction for your listening position The intermediate value is 0 When indication value of Balance increases toward 50 sound of the right and left speakers becomes stronger and weaker respectively When indication value of Balance decreases toward 50 sound of the right and left speakers becomes weaker and stronger Digital tone This select the modes for sound reproduction dependent on the broadcast signals or signals from external inputs received Select the mode of sound UserStandardMusicMovie If the User mode is selected press to select a benchmark in the range of 5015K from bass to treble afterwards press to adjust if a dierent benchmark is selected for adjustment the original adjustment data will be automatically cleared Surround The surround sound feature expands the audio listening field wider and deeper to create exceptional sound quality from the TVs speakers AVL Automatic Volume Limit This will reduces the dierences in volume level among broadcasters Woofer To adjust the super bass Press to select super bass o low high or Middle Reset Return to factory default settings Channel menu Display channel menu by pressing SOURCE button then use button to select the source of TV item Press A MENU button and then use button to select Channel menu Press B button to select the desired items press OK to enter its submenu Programme Edit You can add a label to a channel to make it easier to nd Press A MENU button and then use button to select Channel menu Press B button to select the Programme Edit and then press OK to enter submenu
  • Page 17 - English - : Basic Receiving and Playing Operations LED LCD television Owners Manual 17 Manual Search Press to select the Search option and finally press to start manual search Upon finding a program the search will automatically stop and the program will be stored onto the current channel You may stop the search by pressing OK or MENU Fine Tune Press to select the Fine Tune option and then press to start UP or DOWN fine tuning until obtaining a relatively good picture effect The fine tuning function is for the purpose of improving picture effect through fine tuning when that of a certain program is not good enough Normally the optimal picture effect can be obtained without fine tuning when watching TV programs and fine tuning is to meet the need of adjusting a certain program Color system Press to select the Color Systems option and then press to select correct color system The TV is designed with three systems for your choice ie Auto PAL SECAM and NTSC Generally the system is set as Auto and it is not necessary to make an adjustment The system is normally set as Auto during auto search Sound system The TV is designed with four systems for your choice ie DK M BG and I Generally it is not necessary to adjust the system The system is normally set as DK during auto search Skip When the skip is set ON the channel will be skipped when pressing CH or CH and only can be selected by pressing 09 numerical keys If you want to recover the skipped channel 1 Use Directdigit Choosing button to select the number of the channel to be recovered 2 Do the above steps again 3 Press to set Skip as Off Auto Tuning Press A MENU button and then use button to select Channel menu Press B button to select Auto Tuning then press OK the menu opens PressC button to select OK press OK button on the remote to start to scan Press MENU button to return to the previous menu press EXIT button to EXIT the menu screen All channels now available will be automatically preset in order After the search has nished the rst program number will display on the screen This search automatically adds only the active channels in your area to the TVs memory It deletes any channels on which there is no broadcast or a poor signal The channels found are automatically saved Exchange Press A MENU on the remote control unit or MENU on the TVs front panel to display main menu and then press to select Channel menu Press B to select the Prog Exchange option and then press OK to enter its submenu Press C to select the To Channel option and then press to set the found to be exchanged to
  • Page 18 - English - : Basic Receiving and Playing Operations 18 LED LCD television Owners Manual After adjusting the current channel and the found to D be exchanged to press to move the cursor to the Exchange option and then press OK to start exchange and exchange the program on current channel to the channel you set for exchange Function Menu Function Menu Set Press A MENU on the remote control unit or MENU on the TVs front panel to display the main menu and then press to select the Function menu Press B to select the option to be adjusted and then press to adjust it Language Two languages ie Simplified Chinese and English are available for your choice Menu Timeout The option is for adjusting the menu display time Press to set the desired time 515s Picture Optimize Press to select the Picture Optimize option Press OK to enter the submenu Press to select theDCDIColor Management to be adjusted and then press to select ON or OFF Press to select the DNR to be adjusted and then press to select LowMiddleHigh O MEMC Press to set ON Demo1Demo2 or OFF the moving picture will be better when MEMC is on function This function is only available for LE55A300 LB55R3 DSM Press to select DEMO OFF DEMO1 DEMO2 DEMO3 Blackground Press to set ON or OFF if you select ON the TV screen will be blue if no signals are available OPC Press to select the OPC t hen press OK and to select UesrDynamicDaylight NormnalNight Press to select the Adjust t hen press to set 010 Press to select theDynamic Contral to be adjusted and then press to select ON or OFF Eye guard Mode Press to select the Eye guard Mode option Press OK to enter the submenu Press to select the Power EGMode t hen press to select StandardEye GuardCurtain Press to select the Change ChEGI Watching EGWatching EGDelay to be adjusted and then press to select ON or OFF
  • Page 19 - English - : Basic Receiving and Playing Operations LED LCD television Owners Manual 19 Reset Press to select OK or Cancel which with Do you want to reset option values Adjust Menu The TV can be used as a display and you may adjust relevant settings Press SOURCE to switch the signal input to PC mode Press A MENU to display the screen main menu and then press to select the Adjust menu as shown in the below figure On Time Press B to select the option to be adjusted Press C to adjust it Image Position This is used to adjusting HPosition and VPosition HSize Horizontal size of picture can be adjusted in this item VSize Vertical size of picture can be adjusted in this item Auto Adjust Vertical and Horizontal position of picture can be adjusted in this item Clock This is used for adjusting the phase of pixel clock in PC mode Phase This is used for adjusting H Position and V Position as well as relative parameters in PC modes Reset Return to factory default settings Time Menu Press A MENU button and then use button to select Time menu Press B to select the desired option press OK to enter its submenu Current Time The current time is calculated from the moment upon turning the TV on At first check whether the time indicated on the TVs clock is consistent with the standard time of your time zone if not adjust the clock as follows Press MENU on the remote control unit or MENU on the TVs front panel to display the main menu and then press to select the Timer menu afterwards press to select the Current Time option press OK to enter the submenu Press to set hour and minute Press to adjust the time After finishing time setting press OK or MENU to confirm O TimeOn Time Set a time for the TV to turn o or on This function allows the TV to automatically turn on or enter standby mode upon reaching the preset time Press OK to enter the setting screen and then press to select ON or OFF if you select ON press to set hour and minute ON indicates
  • Page 20 - English - : Basic Receiving and Playing Operations 20 LED LCD television Owners Manual the OnO Time function is enabled while OFF indicates the function is disabled After finishing time setting press OK or MENU to confirm Note After setting the OnO Time function if the TV is AC o or forcible DC o the function will be automatically cleared On channel This function is used in combination with the OnO Time function When the TV turns on upon reaching the On time it automatically enters the preset channel Press OK rst and then press to set the On Channel or OFF Remind TimeRemind channel The remind time and remind channel functions allow the TV to automatically enter the preset channel at preset time If the TV is AC o or forcible DC o the preset time will be cleared Press MENU on the remote control unit or MENU on the TVs front panel to display the main menu and then press to select the Timer menu afterwards press to select the Remind Time option Press OK to enter the setting screen and then press to select ON or OFF if you select ON press to set hour and minute and then press to adjust time After finishing time setting press OK or MENU to confirm Press to select the Remind Channel option and press OK rst and then press to set the found Lock Setup The television has the function of security default lock Password needs to be entered when the program lock mode is to be set How to use the password function Press H LOCK the TV screen will display Enter Password to prompt the user to enter password by pressing corresponding numerical keys if the password is correct the user enters the Lock Set menu if incorrect the user is required to enter a password again If there is no operation for a few seconds the display will automatically disappear The Lock Set menu is as follows Change Password OK Tuning Lock Preset Source Preset Prog Source Lock OK Child Lock Max Volume 100 Power On Volume off Unlock OK off off off off Lock Set Change Password After entering the Lock Set menu press to select the Change Password option and then press OK to display the Change Password menu afterwards enter a new 4digit password by pressing numerical keys and repeat entering this password once again If the user does not want to change the password in halfway he may press MENU to exit from this menu Note The initial password is 0000 and the password setting will not be changed after executing the Unlock option Tuning Lock Press to select the Tuning Lock option and then press to set ON or OFF If set ON the Tuning Menu is not available in TV mode To make any operation related to the Tuning Menu it need to enter the Lock Set menu to set Tuning Lock OFF or execute the Unlock option Preset Source Setting Preset Source may be set as O TV AVComponent HDMI PC and USB When the Preset Source is set as TV after entering the Preset Channel menu press to select the preset channel and the channel will be forcibly switched to the preset one upon turning the TV on when the Preset Source is set as other signal sources the TV will be forcibly switched to the preset source upon turning on For example when the Preset Source is set as YP b P r YC b C r the TV will be switched to YP b P r YC b C r upon turning on when set as OFF the preset function will be closed Preset Prog
  • Page 21 - English - : Basic Receiving and Playing Operations LED LCD television Owners Manual 21 Only when the Preset Source is set as TV can the Preset Channel option be available Press to select preset channels from 0254 Source Lock This function is used to prohibit watching a program from various external inputs eg AV and PC etc Press to select a certain option and then press OK to enter the submenu press to set an external input lock ON or OFF If an external input lock is set ON after entering this mode the screen will display blue background with muting and a prompt Source Lock during Source Lock prompt Source Lock will remain if there is no other display on the screen To watch a program from a locked external input just enter Source Lock submenu to set corresponding status as OFF or execute the Unlock option in the Lock Set menu Child Lock Setting Press to select the Child Lock option and then press to set ON or OFF If set ON this control key will not respond and the screen will display Child Lock when the key is pressed if no other operation is made the display will automatically disappear later To resume Child Lock function just enter the Lock Set menu to set Child Lock OFF or execute the Unlock option Max Volume Setting Press to select the Max Volume option and then press to freely adjust the max volume within the range of 0100 After finishing the setting the max volume in the Volume menu will not exceed the preset max volume for example if the preset max volume is 30 the volume in the Volume menu can not be increased any longer upon reaching 30 if the preset max volume is less than the value in the Volume menu the latter will decrease along with the decrease of preset max volume Power on Volume Press to select the Power on Volume option and then press to freely adjust the volume within the range of 0100 Unlock Setting Press to select the Unlock option and then press OK to clear all the lock settings namely set all the lock setting options as OFF the Preset Channel is set as OFF and max volume returns to 100 except password Streaming Media Playing System Note The diagrams in the following section are schematic and only for your reference Please see the actual product if necessary Supported file formats A Picture JPEG PNG BMP Music Mp38320kbps WMA32192kbps AAC16576kbps Movie MPEG4 avi files in accordance with Div4 x5 x Protocol MPEG2 some mpeg files MPEG1 dat and some mpeg files RealVideo Text Txt Note Due to the particularity of file coding some files may be unable to be read Supported equipment B Support the equipment that supports Mass Storage Protocol and whose file system is FATNTFSFAT16 FAT32 such as some USB disks mobile hard disks card readers MP3 players and digital cameras If USB equipment could not be identified due to unsupported file system please format the equipment to the abovementioned file system The external card reader supports most of the digital C cards in the current market the types of digital cards that can be read are relevant to the performance of selected card reader you may attach standard mobile hard disks working voltage 50V working current not higher than 500mA during media playing do not pull out storage media otherwise it may cause system halt damage the files in storage media or damage USB equipment sometimes the TV may halt due to overhigh information error rate in which case you should restart the system there are a lot of nonstandard USB mobile equipment in the market they may not be identified when connected to the streaming media playing system the above phenomena may also occur on computers and are not the TVs fault
  • Page 22 - English - : Basic Receiving and Playing Operations 22 LED LCD television Owners Manual To achieve smooth playing ensure the followingD The file code rate should be lower than 300KBS Due to the limitation of USB signal transmission distance it is recommended not to use USB patch cord in case of using the cord make sure that its length is not over 1m Use highspeed USB equipment in conformity with USB20 Interface Standard if USB equipment in conformity with USB11 Interface Standard is used the playing may be unsmooth Although many movie files are with such postfixes as E avi and mpeg actually there are several formats in the files however the TV can only play some files in avi and mpeg formats Some files with the postfix quotdatquot are not movie files but data files commonly used in computers and they can not be played as movies StartExit Streaming Media Playing System Press A USB on the remote control unit to select the streaming media function Insert USB equipment into corresponding USB B interface 2s after starting the system After entering the system menu press C on the remote control unit to select the required USB equipment and then press on the remote control unit to select the required file Press D OK to enter the selected file To exit the streaming media playing system and E watch a TV program you must return to the streaming media main menu at first to protect equipment and then press SOURCE to select TV or directly press USB to return to the TV mode Operating Method of Streaming Media Menu Press A to scroll through main menu or submenu and select your desired option Press B OK to confirm your selection Press C REVFWD to achieve the FF fast forward and FB fast back of the movie or music being played Press D PLAYPAUSE to pause playing and press it again or press OK to continue playing Press E ZOOM to magnify pictures in zoom mode press and to move the picture Press F OK to display and press EXIT to exit the screen display information while playing Press G BACK to stop playing or return to the previous menu and press BACK repeatedly to return to the main menu Playing a Picture After entering USB main interface press A to select a harddisk partition and then press to select the Picture option Press B OK to confirm the selection and enter the picture playing interface Press C to change page and press to select the picture you want to play and then press OK to enter the playing display interface Press ZOOM to magnify the picture and then press T to move the picture Press to select the last or next picture Press to rotate the picture
  • Page 23 - English - : Basic Receiving and Playing Operations LED LCD television Owners Manual 23 To exit playing just press D BACK repeatedly Playing a Movie After entering USB main interface press A to select a harddisk partition and then press to select the quotMoviequot option Press B OK to confirm the selection and enter the movie playing interface Press C to change page and press to select the movie you want to play and then press OK to enter the playing display interface Press to select the last or next movie To exit playing just press D BACK repeatedly Note The menu display varies with the number and names of files in your equipment Playing Music After entering USB main interface press A to select a harddisk partition and then press to select the Music option Press B OK to confirm the selection and enter the music playing interface Press C to change page and press to select the music you want to play and then press OK to play the music To exit music playing just press D BACK repeatedly Tex t After entering USB main interface press A to select a harddisk partition and then press to select the Text option Press B OK to confirm the selection and enter the text playing interface Press C to select the text you want to read and then press OK to play the text reading interface Press to change page and press BACK to exit the reading interface To exit the Text mode just press D BACK repeatedly Settings After entering USB main interface press A to select the Settings option Press B OK to confirm the selection and enter the settings selection interface and then press to select the required options
  • Page 24 - English - : MaintenanceTroubleshooting 24 LED LCD television Owners Manual Photo Slide Time Set the scan speed of pictures to be scanned in slide form There are three options MiddleSlowfast Press to select the desired option Movie Subtitle Select quotONquot or quotOFFquot Maintenance Maintenance Early malfunctions can be prevented Careful and regular cleaning can extend the amount of time you will have your new TV Be sure to turn the power o and unplug the power cord before you begin any cleaning Cleaning the Screen Heres a great way to keep the dust o your screen A for a while Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent Wring the cloth until its almost dry and then use it to wipe the screen Make sure the excess water is o the screen and B then let it airdry before you turn on your TV Cleaning the Cabinet To remove dirt or dust wipe the cabinet with a soft dry lintfree cloth Please be sure not to use a wet cloth Extended Absence If you expect to leave your TV dormant for a long time such as a vacation its a good idea to unplug the power cord to protect against possible damage from lightning or power surges Troubleshooting For the sake of time and cost it is strongly recommended that you checkout the problem by yourself according to the instructions listed hereunder before contacting the aftersales service for technical assistance Problem Possible remedies No picture no sound Turn onthe power supply Properly plug theTV setto the powersocket Check to see if the power cable of other appliance is plugged in the TV set Make sure that the power cable of the TV set is properly connected Problem Possible remedies Good picture no sound Depress the volume button Check out theaudio frequency input signals Failure of remote controller Check to see if the remote controller display receiving window are blocked by other objects and if batteries are properly loaded No color weak color or poor picture Designate the item of color from the Picture menu and depress the volume button Keep the display and VCR separate a reasonable space Activate some functions to store picture brightness Make sure that the display and signal source are available and turned on Excessive brightness or darkness Adjust brightness or contrast Picture too big or small Adjust the setup of sizes One speaker failure Balance the sound in the menu Slight sound from display It is a normal phenomenon
  • Page 25 - English - : SpecicationsFormat LED LCD television Owners Manual 25 Note Do not leave the television with static picture in an extended period as it may result in residual image on your television screen Note Production of the screen requires high and precision technologies However there might be some dank or bright red blue or green spots or some anomalistic stripes or spots This is not defect If the TV set is used in an area 2400 meters above the sea level where the air pressure is below 750hpa the picture on the screen maybe aected and a mued sound might be produced These phenomena might happen in the area 1500 meters above the sea level This is resulted from dierence between air pressures inside and outside the display This is not a defect covered by the limited warranty Specification Basic specification and parameter Power 150240V 5060Hz Color System PAL SECAMNTSC Standby Consumption DK BG I M Video Input USBAV Component HDMI or PC Environmental condition Operating temperature range 5C 35C Operating humidity range 2080 Storage Temperature 15C45C Storage Humidity 590 noncondensing If the storage temperature is lower than 0 C please first lays the machine aside after in the operating temperature environment carries on restores 2 hours then electrifies the use again protects your television not to receive the damage Accessories Owners manual x1 Remote Control x1 Alkaline battery x2 This is only available for certain modelsplease refer to actual products Product main size contain stand MODEL Power Consumption Net SizeLxWxH Net Weight LE32A300 60W 788x210x559mm 87Kg LE42A300 110W 1019x265x705mm 195Kg LE55A300 160W 1315x280x689mm 285Kg LB32R3A 100W 796x230x590mm 118Kg LB42R3A 160W 1020x290x724mm 275Kg LB46R3A 180W 1122x330x789mm 290Kg LB55R3A 300W 1328x365x895mm 390Kg LE32H300 60W 782x160x557mm 108Kg LE42H300 110W 1019x265x705mm 195Kg L32K3 100W 798x230x575mm 126Kg L42K3 160W 1021x290x704mm 205Kg Note Design and specifications are subject to change without notice The dimension in this manual is a approximation Format Recommendatory HDTV SDTVYP b P r YC b C r format Sequence Number Format Refresh Frequency Hz 1 480i480p 60 2 576i576p 50 3 720p 5060 4 1080i1080p 5060 Recommendation PC connection input format
  • Page 26 - English - : Format 26 LED LCD television Owners Manual sequence number Format HFrequency KHz VFrequency Hz 1 64048060Hz 315 60 2 80060060Hz 3788 60 102476860Hz Recommendatory 4836 60 Recommendation DVI connection input format Sequence Number Resolution Refresh Frequency Hz 1 640480 60 2 800600 60 3 1024768 60 Recommendation HDMI connection input format Sequence Number Format Refresh Frequency Hz 1 480i480p 60 2 576i576p 50 3 720p 5060 4 1080i1080p 5060
  • Page 27: LED LCD television Owners Manual 27 Maintenance TroubleshootingSpecication
  • Page 28: LED LCD television Owners Manual 28 Specication Format
