2 English

Important Safety Instructions 3

Installation Requirements 5

Electrical Requirements 5

Venting Requirements 5

Venting Methods 5

Tools and Parts 6

Dimensions and Clearances 6

Installation 7

Installation Instructions 7

Wall Installation 8

Mounting the hood 9

Install Range Hood Internal Blower Motor 9

Electrical Connection 10

Complete Installation 10

Range Hood Use 11

Range Hood Description 11

Range Hood Controls 11

Range Hood Care 13

Cleaning 13

Metal lters and drip tay 13

Replacing LED lamp 13

Warranty (USA) 14

Warranty (Canada) 15

Table of Contents

English 3

APPROVED FOR RESIDENTIAL APPLIANCES

FOR RESIDENTIAL USE ONLY

READ AND SAVE THESE INSTRUCTIONS

PLEASE READ ENTIRE INSTALLATION GUIDE BEFORE PROCEEDING.

INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.

IMPORTANT: Save these Instructions for the Local Electrical

Inspector’s use.

INSTALLER: Please leave these Instructions with this unit for

the owner.

OWNER: Please retain these instructions for future

reference.

Symbols used in this manual

WARNING

Hazards or unsafe practices that may result in severe personal injury or

death.

CAUTION

Hazards or unsafe practices that may result in electric shock, personal

injury, or property damage.

NOTE

Useful tips and instructions

These warning icons and symbols are here to prevent injury to you and

others.

Please follow them explicitly. After reading this section, keep it in a safe

place for future reference.

WARNING

Turn off power circuit at service panel and lock

out panel before wiring this appliance.

Requirement 120 VAC, 60 Hz. 15 or 20 A Branch Circuit

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

1. FCC Notice

CAUTION

FCC CAUTION: Any changes or modications not expressly approved

by the party responsible for compliance could void the user’s authority to

operate the equipment.

This device complies with Part 15 of FCC Rules. Operation is Subject to

following two conditions:

1) This device may not cause harmful interference, and

2) This device must accept any interference received including

interference that cause undesired operation.

For products sold in the US and Canadian markets, only channels 1~11

are available. You cannot select any other channels.

Important Safety Instructions

FCC STATEMENT:

This equipment has been tested and found to comply within the limits

for a Class B digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorienting or relocating the receiving antenna

• Increasing the separation between the equipment and receiver

• Connecting the equipment to an outlet that is on a different circuit than

the radio or TV.

• Consulting the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for

an uncontrolled environment. This equipment should be installed and

operated so there is at least 8 inches (20 cm) between the radiator and

your body. This device and its antenna(s) must not be co-located or

operated in conjunction with any other antenna or transmitter.

2. IC Notice

The term “IC” before the radio certication number only signies

that Industry Canada technical specications were met. Operation is

subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003. For

products sold in the US and Canadian markets, only channels 1~11 are

available. You cannot select any other channels.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set

forth for an uncontrolled environment. This equipment should be installed

and operated so there is at least 8 inches (20 cm) between the radiator

and your body. This device and its antenna(s) must not be co-located or

operated in conjunction with any other antenna or transmitter.

4 English

Important Safety Instructions

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO

PERSONS, OBSERVE THE FOLLOWING PRECAUTIONS:

■ Use this unit only in the manner intended by the manufacturer. If you

have questions, contact the manufacturer.

■ Before servicing or cleaning the unit, switch the power off at the

service panel and lock the service panel to prevent power from being

switched on accidentally. If the service panel cannot be locked,

securely fasten a prominent warning device, such as a tag to the

service panel.

■ Installation work and electrical wiring must be done by qualied

person(s) in accordance with all applicable codes and standards,

including re-rated construction.

■ Sufcient air is needed for proper combustion and exhausting of

gases through the ue (chimney) of fuel burning equipment to

prevent backdrafting. Follow the heating equipment manufacturer’s

guideline and safety standards such as those published by the

National Fire Protection Association (NFPA), the American Society

for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE),

and the local code authorities.

■ When cutting or drilling into the wall or ceiling; do not damage

electrical wiring and other hidden utilities.

■ Ducted fans must always be vented outdoors.

CAUTION

For general ventilating use only. Do not use to exhaust hazardous or

explosive materials and vapors.

CAUTION

To reduce the risk of re and to properly exhaust air, be sure to duct air

outside - do not vent exhaust air into spaces within walls or ceilings, attics

or into crawl spaces, or garages.

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

■ Never leave surface units unattended at high settings. Boilovers

cause smoking and greasy spillovers that may ignite. Heat oils slowly

on low or medium settings.

■ Always turn the hood ON when cooking at high heat or when ambeing

food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).

■ Clean ventilating fans frequently. Grease should not be allowed to

accumulate on the fan or lter.

■ Use proper pan sizes. Always use cookware appropriate for the size

of the surface element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF

A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING

PRECAUTIONS:

■ SMOTHER FLAMES with a close tting lid, cookie sheet, or metal

tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS.

If the ames do not go out immediately, EVACUATE AND CALL THE

FIRE DEPARTMENT.

■ NEVER PICK UP A FLAMING PAN - you may get burned.

■ DO NOT USE WATER, including wet dishcloths or towels -

a violent steam explosion can result.

■ Use an extinguisher ONLY if:

- You know you have a class ABC extinguisher, and you already know

how to operate it.

– The re is small and contained in the area where it started.

– The re department is being called.

– You can ght the re with your back to an exit.

Based on “Kitchen Fire Safety Tips” published by NFPA.

WARNING

To reduce the risk of re or electrical shock, do not use this fan with any

solid-state speed control device.

WARNING

Do not let children near this appliance. Do not let children play with this

appliance.

Keep all packaging materials out of children’s reach. Properly dispose the

packaging materials after this appliance is unpacked.

Important Safety Instructions

Read and save these instructions

English 5

Electrical Requirements

IMPORTANT

Observe all governing codes and ordinances.

It is the customer’s responsibility:

To contact a qualied electrical installer.

If codes permit and a separate ground wire is used, it is recommended

that a qualied electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

■ A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.

■ If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid copper wire to the pigtail leads.

2. Connect the aluminum wiring to the added section of

copper wire using special connectors and/or tools designed

and UL listed for joining copper to aluminum.

■ Follow the electrical connector manufacturer’s recommended

procedure. Aluminum/copper connection must conform with local

codes and industry accepted wiring practices.

■ Wire sizes and connections must conform with the rating of the

appliance as specied on the model/serial rating plate. The model

serial plate is located behind the lter on the rear wall of the range hood.

■ Wire sizes must conform to the requirements of the National Electrical

Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94,

Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition)

and all local codes and ordinances.

Venting Requirements (ducted models only)

• Vent system must terminate outdoors.

• Do not terminate the vent system in an attic or other enclosed area.

• Do not use a 4” (10.2 cm) laundry-type wall cap.

• Use metal vent only. Rigid metal vent is recommended.

Plastic or metal foil vent is not recommended.

• The length of the vent system and the number of elbows should

be kept to a minimum to provide efcient performance.

For the most efcient and quiet operation:

• Use no more than three 90° elbows.

• Make sure there is a minimum of 30” (76.2 cm) of straight vent

between the elbows if more than 1 elbow is used.

• Do not install 2 elbows together.

• Use clamps to seal all joints in the vent system.

• The vent system must have a damper. If the roof or wall cap

has a damper, do not use the damper supplied with the range

hood.

• Use caulking to seal the exterior wall or roof opening around the cap.

• The size of the vent should be uniform.

Venting Methods

To use the hood’s top outlet to vent your hood, a 10” (25.4 cm) round

vent system is required.This vent systems are not included and must be

purchased separately.

NOTE

Flexible vent is not recommended. Flexible vent creates back pressure

and air turbulence that greatly reduce performance. The vent system can

terminate either through the roof or wall. To vent through a wall, a 90°

elbow is needed.

Mounting Height

Mount the hood no less than 30” (76.2 cm) above an electric cooking

surface, no less than 32” (81.2 cm) above a gas cooking surface, and no

higher than 36” (91.4 cm) above either surface.

Horizontal discharge

A 90° elbow may be installed immediately above the hood.

Horizontal Discharge Vertical Discharge

A. 10” (25.4 cm) round vent

B. 10” (25.4 cm) round transition

C. 90º elbow

A. 10” (25.4 cm) round transition

B. 10” (25.4 cm) duct

C. Cabinet

Installation Requirements

6 English

Tools and Parts

Removing the packaging

CAUTION

Remove the carton carefully. Wear gloves to protect against sharp edges.

WARNING

Remove the protective lm covering the product before putting into

operation.

Parts supplied

• Hood assembly with blower and LED lamps already installed.

• Hardware bag with:

Part Qty Part Qty

6x80 mm

Torx 20 adapter

6x16 mm

Ø 6.4x11 mm washers

4.2x19 mm

Ø 5.3x20 mm washers

Drip tray screws

Drip tray bracket

10x60 mm

6- 9 wire blower con-

nector

10” (25.4 cm) round air

transition

Drip tray

3.5x9.5 mm

Tools/Materials required

• Level

• Drill with 1¼” (3.0 cm),

⁄8” (3.0 mm) and

⁄8” (15.8 mm) drill bits

• Pencil

• Wire stripper or utility knife

• Tape measure or ruler

• Pliers

• Caulking gun and weatherproof caulking compound

• Vent clamps

• Saber or keyshole saw

• Flat-blade screwdriver

• Metal snips

• Screwdrivers:

• Phillips

• Flat - blade

Parts needed

• Home power supply cable

• ½” (12.7 mm) UL listed or CSA approved strain relief

• 3 UL listed wire connectors

• 1 wall or roof cap

• Metal vent system

Dimensions and Clearances

NK36R9600CS

NK36R9600CM

A 36″ (91.2 cm)

B 25″ (63.5 cm)

C 18″ (45.7 cm)

D 12″ (30.5 cm)

E 2

⁄4″ (7 cm)

F 35

⁄8″ (89.2 cm)

G 7

⁄2″ (19 cm)

H 2

⁄16″ (6.5 cm)

⁄8″ (1 cm)

Optional accessories and consumables

MODEL NK36R9600CS NK36R9600CM

Duct Cover Kit NK-AE907LCS/AA NK-AE907LCM/AA

Installation Requirements

English 7

Installation

Installation Instructions

We recommend that a qualied technician install the range hood. It is the

installer’s responsibility to ensure the range hood complies with the instal-

lation clearances specied for the product.

• It is recommended that the vent system be installed before the hood is

installed.

• If possible, disconnect and move freestanding or slide-in ranges from

cabinet openings to provide easier access to the rear wall.

• Before making cutouts, make sure there is proper clearance within the

ceiling or wall for the exhaust vent.

• Conrm that all installation parts have been removed from the

shipping carton.

1. Turn off the power at the circuit breaker panel or fuse box.

2. Determine which venting method to use: roof or wall exhaust.

NOTE: This hood is factory set to vent through the top air exit.

3. Select a at surface for assembling the range hood.

Place a covering over that surface.

Venting Methods

Outside Top exhaust

Vertical Duct Ø 10″ (25.4 cm)

Use the diagram or the hood as a template and mark the locations for the

door ductwork, electrical wiring and keyhole screw slots.

FRONT OF THE HOOD

⁄4”

(13.3 cm)

WALL

⁄4”

(13.3 cm)

⁄4” (19 mm)

⁄2”

(26.6 cm)

NK36R9600CS

NK36R9600CM

A 36″ (91.2 cm)

B 12″ (30.5 cm)

C 1″ (2.54 cm)

D 2

⁄8″ (6.5 cm)

E 7

⁄2″ (19 cm)

Rear Installation Diagram

Use the diagram or the hood as a template and mark the locations on the

wall for electrical wiring and keyhole screws slots.

Ø 1”

2.5 cm

B B

TOP OF THE

HOOD

NK36R9600CS

NK36R9600CM

A 36″ (91.2 cm)

B 9

⁄8″ (25 cm)

C 4″ (10 cm)

D 3

⁄16″ (9.3 cm)

E 3

⁄16″ (8.69 cm)

F 2” (5 cm)

G 3

⁄16″ (8.55 cm)

H 3

⁄16″ (9.6 cm)

I 11

⁄16″ (29.32 cm)

J 12

⁄16″ (32 cm)

Installation

8 English

Wall Installation

WARNING

USE TWO OR MORE PEOPLE TO MOVE AND INSTALL THE RANGE

HOOD. FAILURE TO DO SO CAN RESULT IN BACK OR OTHER

INJURY.

The hood is attached to the wall with a wood support that is attached to

the inside back of the hood. To support the hood safely, the wood support

must be xed rmly to at least 2 vertical wooden studs that are located

behind the sheetrock that makes up the wall.

NOTE: These instructions are not applicable to masonary (brick,

concrete, etc.) walls. If you have a masonary wall, consult a professional

installer.

IMPORTANT: The studs (or wall if you have a masonary wall) must be

capable of supporting up to 150 lbs.

NOTE: If your kitchen has wood framing, at least 2 screws provided for

mounting this range hood must be fastened into solid wood studs. Do not

fasten into sheetrock only.

NOTE: Mark the Range Hood knockouts on the wall and make the

necessary cutouts before installing the hood.

Installation Instructions if you have wood framing:

1. Determine and mark the centerline on the wall where the hood will

be installed.

2. Select a mounting height “X” (See D below).

• For gas cooktop & range installations: Mount the hood so the

bottom is at least 32” (81.2 cm) above the cooking surface.

• For electric/induction cooktop & range installations: Mount the

hood so the bottom is at least 30” (76.2 cm) above the cooking

surface.

3. Mark a horizontal reference line on the wall (B below) for the bottom

of the hood. Use a level to conrm that the line is level.

4. Find and mark the location of the wood studs or wood supports

behind the wall.

5. Draw a line 15 3⁄8” (39.1cm) above the reference line for the bottom

of the hood to mark the wood support location on the wall.

Use a level to conrm that the line is level.

“x”

⁄8”

(39 cm)

Ø 1”

2.5 cm

A. Wood support

B.Bottom of range hood

C. Center Line

D. Dimension “x” = range

hood mounting height

E. Knockout wiring holes

6. Remove the wood support from the back of the hood by loosening

the 2 screws from the inside.

7. Line the top of the wood support up with the wood support location

line on the wall, and then center it on the center line.

8. Locate the marks for the studs, and then draw two vertical lines

on the wood support marking where the studs intersect with the

wood support.

9. Mark the center of each line, remove the wood support from the

wall, and then drill a pilot hole at each mark.

10. Again, line the top of the wood support up with the wood support

location line, and then center it on the center line.

11. Push a pencil point or awl through the holes you just drilled in the

wood support (A) to mark the location of the pilot holes for two screws

that will go into the studs.

12. Also mark the locations of two additional pilot holes (B) by pushing a

pencil point or awl through pre-drilled holes in the center of the wood

support. These holes are for the supplied wall anchors. See the

diagram below.

⁄16”

(3 cm)

⁄16”

(3 cm)

1 ”

(2.5 cm)

1 ”

(2.5 cm)

A. Screw holes

B. Screw holes (already made)

C.Wood Support

13. Remove the wood support, and then drill four pilot holes into the wall.

14. Push two of the supplied wall anchors into the two pilot holes at the

center.

15. Fasten the wood support to the wall by screwing 2 xing screws

6 x 80 mm (.25 x 3.15 in) through the wood support into the pilot

holes you drilled in the studs.

16. Using the rear installation diagram as a guide (See page 7), cut the

knockout wiring holes in the wall.

17. Screw two 6 x 80 mm (.25 x 3.15 in) screws screws into the holes (B)

in the center of the wood support. Screw them through the support

into the anchors underneath.

Leave a 1⁄4”(6.4mm) gap between the wall and the back of the

screw head to slide range the hood into place.

⁄4”

(6.4 mm)

⁄16”

(38.5 cm)

NOTE: Once the hood is mounted you must tighten these screws.

Complete Preparation

1. Determine and make all necessary cuts in the wall or roof for the vent

system. Install the vent system before installing the range hood. See

the “Venting Methods” section.

2. Determine the location where the power supply cable will be run

through the wall.

Installation

English 9

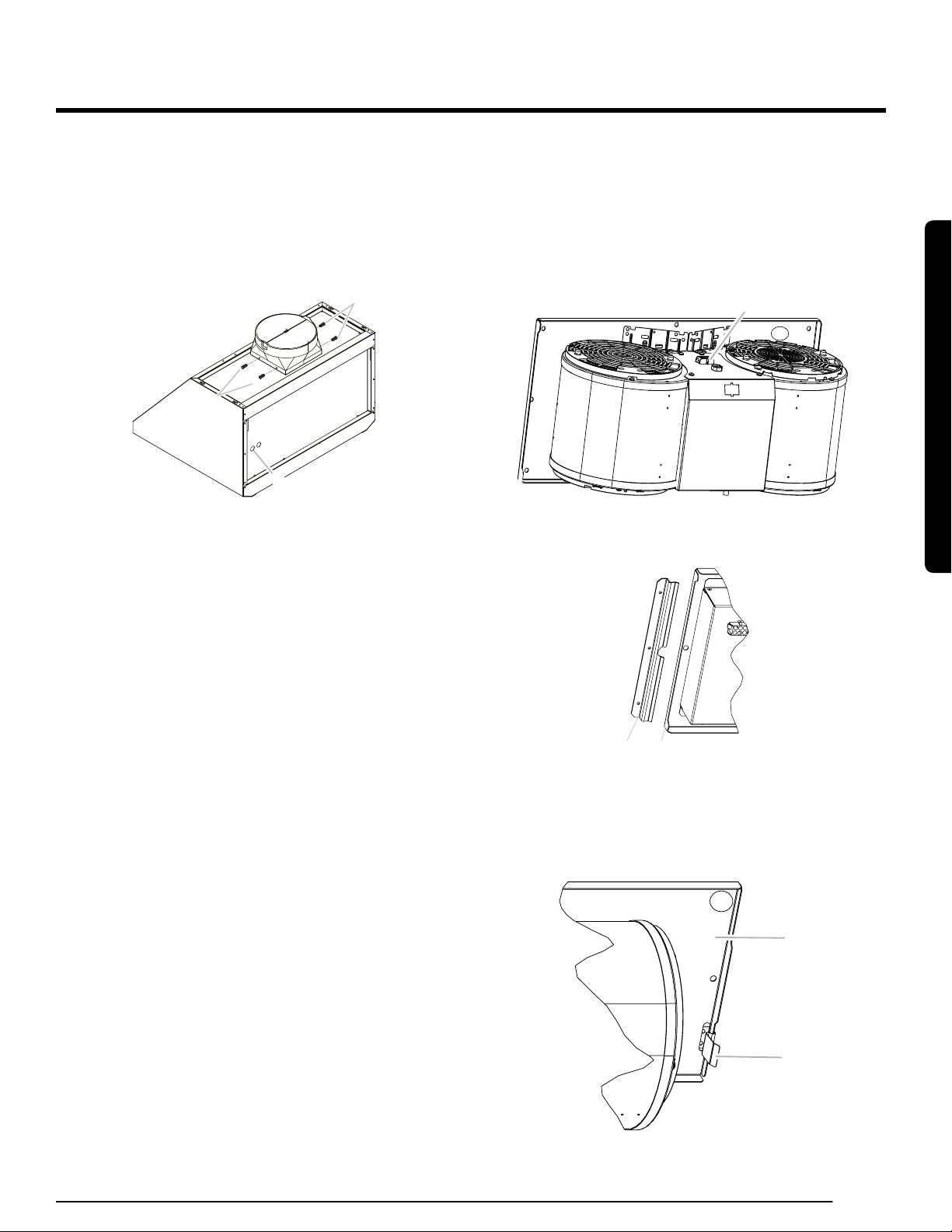

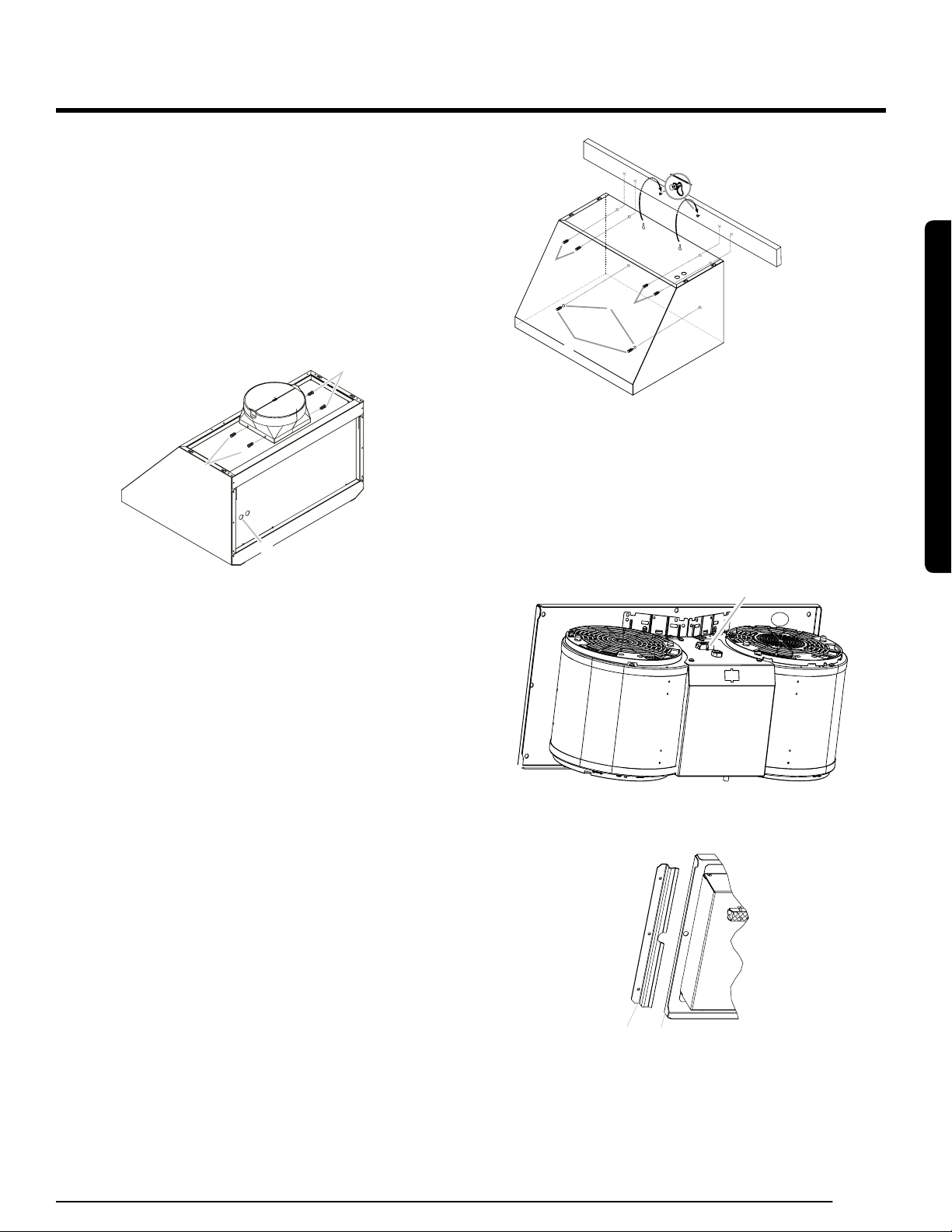

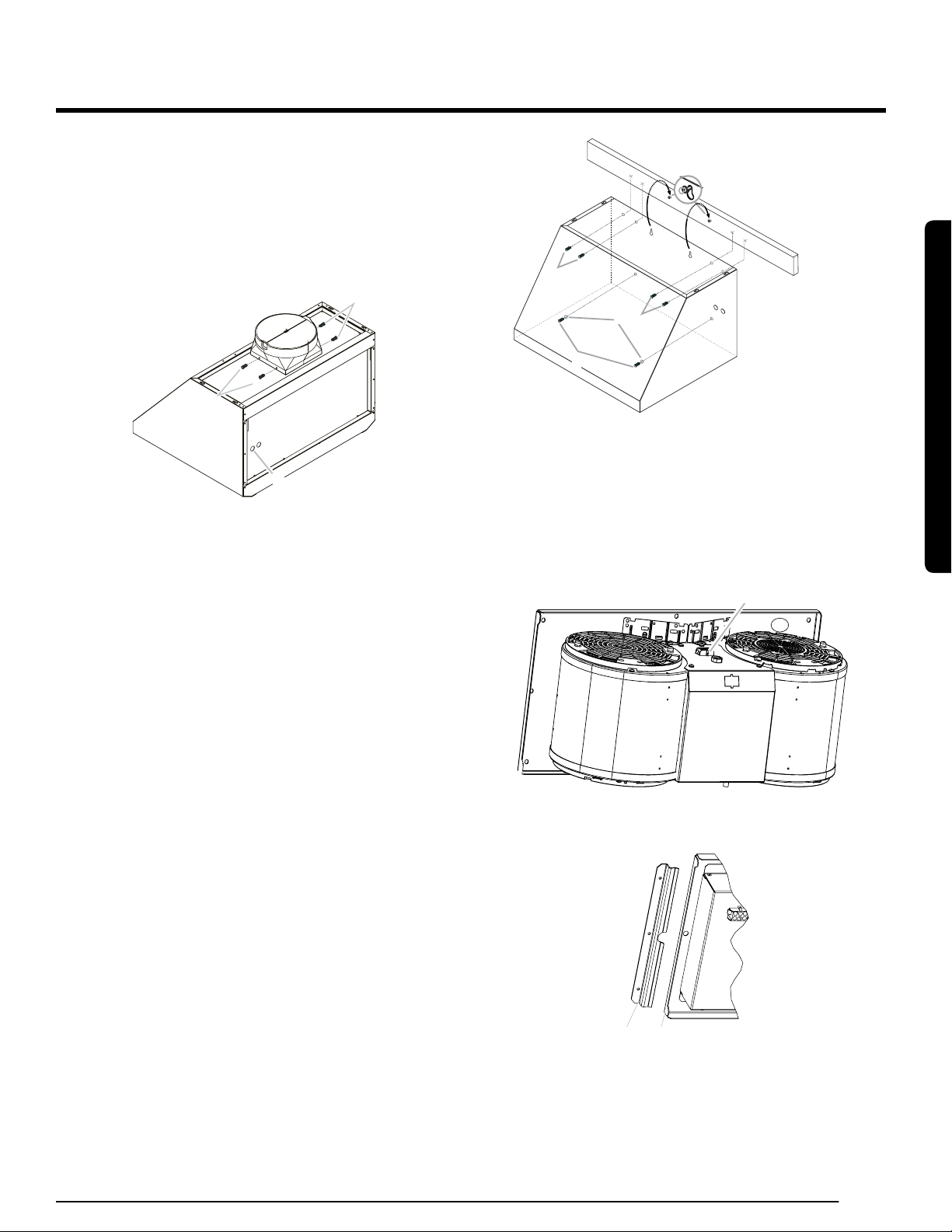

3. Drill a 1

⁄4” (3.2 cm) hole at this location.

4. Pull enough power supply cable through the wall to allow for easy

connection to the terminal box.

5. Remove the terminal box cover and set aside.

6. Install the 10” (25.4 cm) square x 10” (25.4 cm) round vent transition

with damper to the top of the range hood (depending on your

installation), using 4- 3.5 x 9.5 (.15 x.37 in) mm screws.

7. Remove the knockout from the back of the range hood and install a

UL listed or CSA approved

⁄2” (1.3 cm) strain relief.

A. 4 - 3.5x9.5 mm screws

B. Knockout

NOTE: The exhaust adaptor/damper can be installed up to 1 inch

on either side of the hood center to accomodate off-center ductwork.

In extreme off-center installations, one end of the duct connector may

need to be trimmed to clear the electrical cable clamp.

8. Place the range hood near its mounting position and run the power

supply cable through the strain relief into the terminal box (enough to

make connection).

9. Tighten the strain relief screws.

10. Make the electrical connection. See the “Electrical connection”

section.

Mounting the hood

NOTE: Mark the Range Hood knockouts on the wall, and then make

the necessary cutouts before the installation.

NOTE: The range hood attaches to the wall by the 6 mounting screws in

the wood support mounted to the wall.

To mount the hood, follow these steps:

1. Using 2 or more people, hang the range hood on the wall by placing

the 2 screws mounted in the wood support attached to the wall

through the wide portion of the slotted holes in the back of the range

hood.

NOTE: If your installation uses the optional duct cover, the vent

system needs to be connected to the range hood and the duct cover

mounted to the top of the range hood before you tighten the mounting

screws.

2. Pull the range hood down so the screws protrude through the narrow

portions of the slots, align the bottom of the hood with the horizontal

line marking the hood bottom, level the hood, and then tighten the 2

mounting screws.

3. Mark 2 lower mounting hole locations. Drill

⁄8” (0.32 cm) pilot holes

if the holes will be drilled into wood studs or framing. If the holes will

not be drilled into wood, drill two

⁄8” (0.95 cm) pilot holes and insert

10 x 50 mm (.4 x 2 in) wall anchors. Install 2 - 6 x 80 mm (.25 x 3.15

in) screws with 5.3 x 20 mm (.21 x .8 in) washers (D and C) into the

lower mounting holes, and then tighten.

A. Mounting screws

B. 4 screws - 4.2 x19 mm

C. 2 D5.3 x 20 mm washers

D. 2 screws - 6 x 80 mm

4. Install the 4 - 4.2 x 19 mm (.17 x .75 in) screws (B) through the back

of the hood into the wood support, and then tighten.

5. Connect the vent system to the hood. Seal all joint with clamps.

Install Range Hood Internal Blower Motor

1. Place the range hood blower motor assembly inside the range hood

Blower motor assembly

A. Wiring connection

2. Slide the left mounting plate ange under the motor mounting

bracket.

A. Motor mounting bracket

B. Mounting plate left ange

Installation

10 English

3. Push the right end of the motor mounting plate up, and then snap it

into the spring tab.

NOTE: The spring tab should be outside the slot in the mounting

plate.

A. Motor mounting plate

B. Spring clip

4. Align the mounting holes and then install 6 x 16 mm screws and 6.4 x

11 mm lock washers.

A. Screw with lock washer

B. Mounting hole

5. Make the connection between the blower and the junction box with

the supplied wire blower connector.

A. Motor mounting plate

B. Power supply wire connector

Electrical Connection

WARNING

ELECTRICAL SHOCK HAZARD.

DISCONNECT POWER BEFORE SERVICING. REPLACE ALL PARTS

AND PANELS BEFORE OPERATING. FAILURE TO DO SO CAN

RESULT IN DEATH OR ELECTRICAL SHOCK.

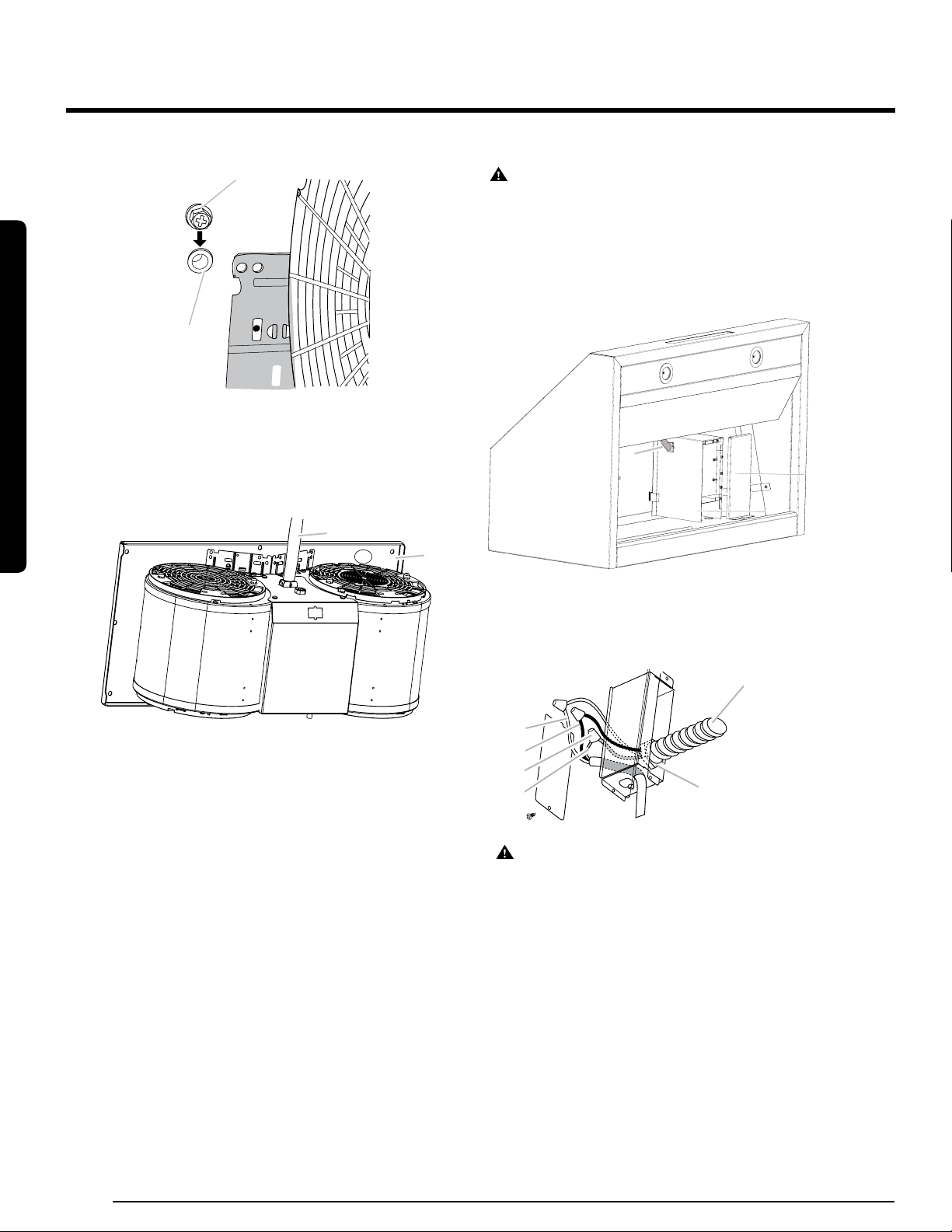

1. Remove the knockout and the Junction box cover, and then install

the conduit connector (cULus listed) in the junction box.

A. Junction box cover

B. Knockout

C. Power supply wire connector

2. Run 3 wires - black, white, and green - according to the National

Electrical Code and local codes and ordinances, in

⁄2″ conduit from

the service panel to the junction box.

A. White wires

B. Black wires

C.UL listed wire connector

D. Green (or bare) and

yellow-green ground wire

E. Homepower supply cable

F. UL listed or CSA

approved

⁄2″ strain relief.

WARNING

ELECTRICALLY GROUND THE BLOWER. CONNECT THE GROUND

WIRE TO THE GREEN AND YELLOW GROUND WIRES IN THE

TERMINAL BOX. FAILURE TO DO SO CAN RESULT IN DEATH OR

ELECTRICAL SHOCK.

• Connect the black wire from the service panel to the black or the

red in the junction box. Connect the white to white and green

to green-yellow.

• Close and secure the junction box cover.

Completing the installation

Replace the lters and check the operation of the hood.

If the range hood does not operate:

• Conrm that the circuit breaker is not tripped or the house fuse

blown.

• Disconnect the power supply, and then check if the wiring is correct.

• To get the most efcient use from your new range hood, read the

“Range Hood Use” section.

• Keep these Installation Instructions and Use and Care Guide close to

range hood for easy reference.

Installation

English 11

Range Hood Use

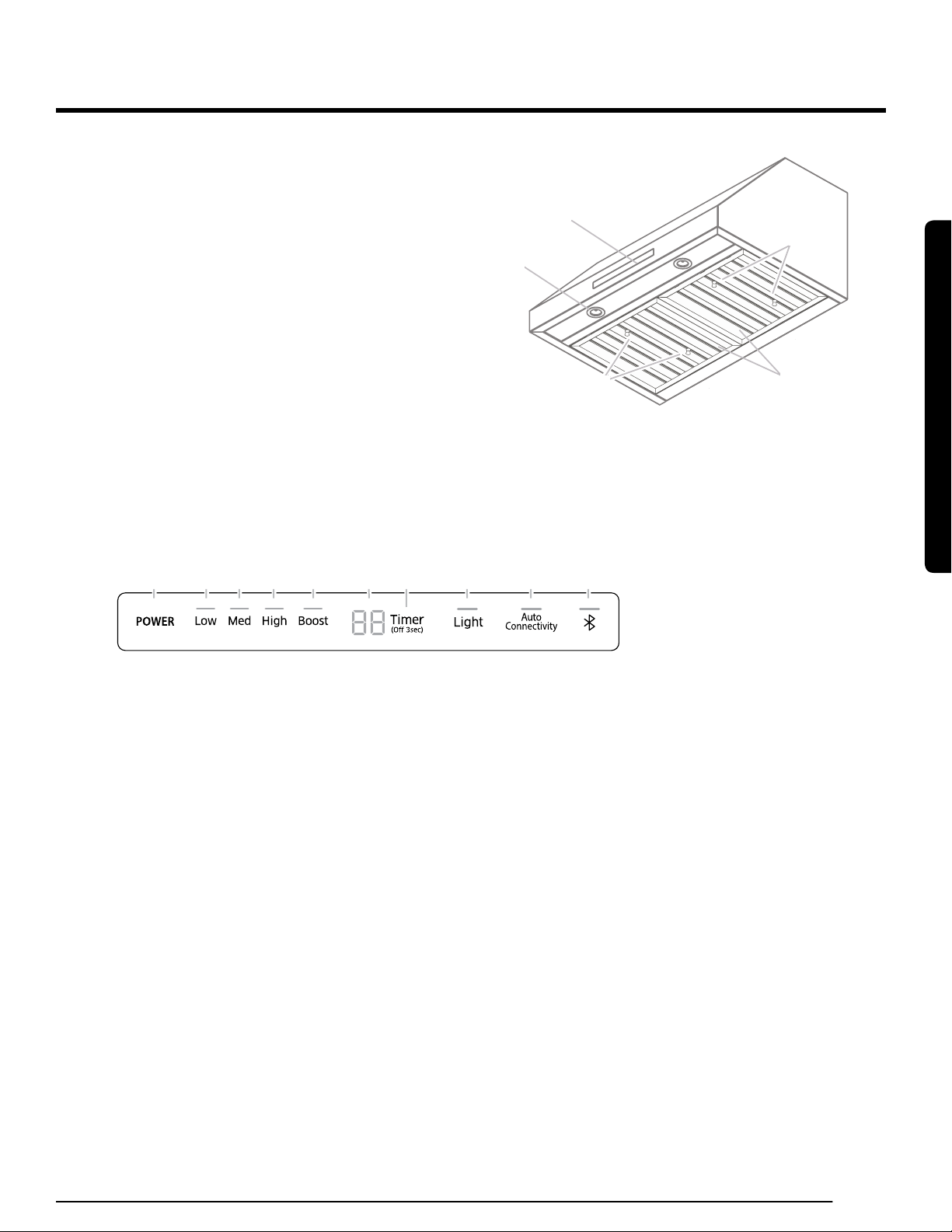

Range Hood Description

1. LED lamps

2. Bafe lter handle

3.Bafe lter

4. Control

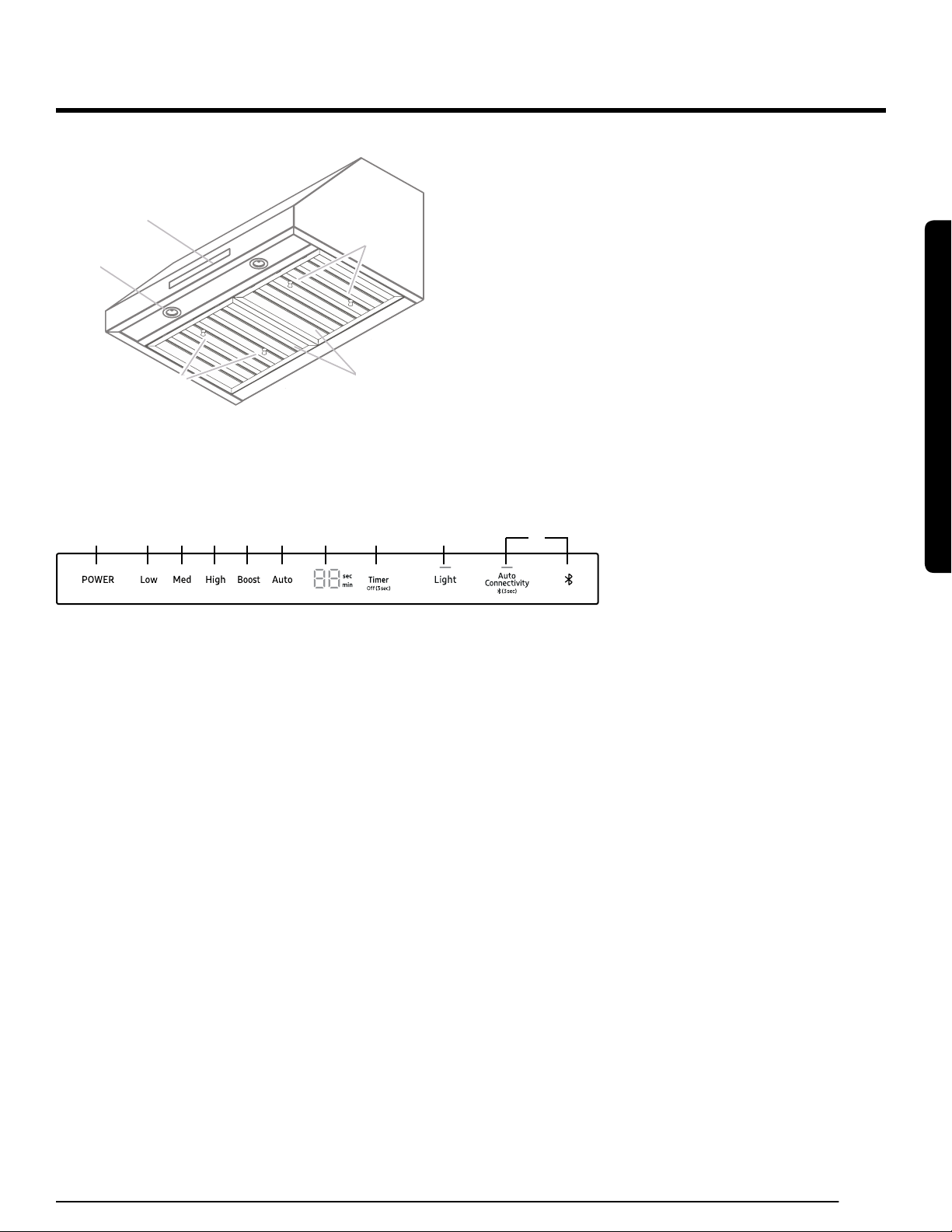

Range Hood Controls

A B C D E F G H I J

A. Power

B. Low Speed

C. Medium Speed

D. High Speed

E. Boost Speed

F. Auto

G. Timer Display

H. Timer

I. Light

J. Auto

Connectivity

Bluetooth

A. POWER

• Press the POWER button and the hood will turn on at the

default speed (Default Speed: Low).

• Press again and the hood fan will return to sleep mode.

B. LOW

• Press the LOW button and the hood will be turn on at Low speed.

C. MED

• Press the MED button and the hood will be turn on at Medium

speed.

D. HIGH

• Press the HIGH button and the hood will be turn on at High

speed.

E. BOOST

• Press the BOOST button and the hood will be activated at

Maximum speed for 10 minutes.

After 10 minutes, the hood fan will slow to High speed.

F. AUTO

• Press the Auto button to activate the Auto Heat-Sensing feature.

When Auto is activated, the fan speed will increase as the cooktop

heat increases and decrease as the cooktop heat decreases.

• To turn off Auto Heat-Sensing, press one of the hood speed buttons

(Low, Medium, High or Boost). This will disable the Auto

Heat-Sensing feature. To re-enable Auto Heat-Sensing feature,

press the Auto button.

If there is minimal heat produced from the cooktop (even when the

cooktop is off or not connected via Bluetooth), the hood will operate at

low speed until heat is no longer sensed by the hood.

The Auto Heat-Sensing feature does not require the hood to be con-

nected via Bluetooth with a compatible Samsung cooktop.

G. Timer Display

Shows the timer settings.

H. Timer

Setting the timer ON

• Press the Timer button to set the working time.

• Each time you press the Timer, you add 10 minutes to the

displayed time, up to a maximum of 99 minutes. The hood fan will

stay on for the amount of time you have set.

After the Timer counts down to zero, the Timer LED light will

start to blink. The Timer LED will blink for 5 seconds, and then

the hood fan will turn off automatically.

I. Light

• Press the Light button. The lights comes on at the high setting.

• Press the Light button a second time. The lights become dimmer.

• Press the Light button a third time, The lights turn off.

Sound

Muting / Unmuting the hood.

• Press and hold the Light button for 3 seconds to turn off the hood

sounds.

• Press and hold again to turn on the sounds.

Range Hood Use

12 English

Range Hood Use

COOKTOP AND RANGE HOOD CONNECTIVITY

This appliance has a feature which allows you to pair compatible Samsung

cooktops and your hood via Bluetooth.

After you enable this function and pair your hood and a compatible

cooktop, the hood fan will automatically come on at Low speed when you

turn on a cooktop element. The hood fan will also shut off automatically

when you turn off the cooktop elements.

In addition, after the hood and compatible cooktop are paired, you can

download the Smart Things app to a mobile device, and then use the

Smart Things app to:

• Monitor and control the On/Off status of the hood.

• Monitor and control the fan speed.

• Monitor and control the lights.

• Set the hood shut-off timer with the time-up alarm.

For more information about downloading the Smart Thing app to your

mobile device and using it to control your hood, visit:

www.samsung.com.

Bluetooth connection (Pairing)

1. Press the Auto Connectivity button on the hood for 3 seconds. The

pairing mode will be activated and the Bluetooth icon will blink.

2. Press the Auto Connectivity button on the cooktop.

NOTE

For a detailed description of the pairing method, see the user manual of a

compatible Samsung cooktop.

3. After the pairing process nishes, the Bluetooth light will stay lit and

appears in the display.

Bluetooth disconnection (pairing reset)

1. Press and hold the Auto Connectivity button and Light button on the

hood for 3 seconds.

2. The Bluetooth connection disconnects.

J. Auto Connectivity

The Auto Connectivity function lets you quickly connect the hood via

Bluetooth with a compatible Samsung cooktop after the hood and

cooktop have been paired. To turn the function on, press the Auto

Connectivity button. To turn the function off and disconnect the hood and

cooktop, press the Auto Connectivity button again.

While the hood and cooktop are connected, the hood fan will automatically

turn on when you turn on the cooktop.

The hood fan will also turn off automatically when you turn off the cooktop

You will also be able to control the hood with the Smart Things app as

described above.

Note that the hood fan speed will turn on at:

• Auto speed (if the Auto button was last enabled)

• Low speed (if the Auto button was last disabled)

1. Press the Auto Connectivity button to activate the function.

2. The hood will turn on/off automatically when you turn cooktop

elements on or off.

3. Press again to deactivate the function.


Remote Control

by Smart Things

App

Auto

Connectivity

Hood

Function

O X O

O O O

NOTE

These functions are only available if you have installed a compatible

Samsung Bluetooth cooktop.

Reset the lter alarm

• Press the POWER button for 3 seconds to reset the lter alarm.

NOTE

Every 50 hours of fan use, the lter alarm light (low button) will blink,

indicating the lters may need to be cleaned.

CAUTION

• Do not activate the Boost function unless your hood’s ventilation

system has been designed to handle the increased airow created by

the Boost function and has been installed by a qualied technician.

We recommend that a qualied technician install the range hood.

It is the installer’s responsibility to ensure the range hood complies

with the installation specications for the product.

To activate Power mode, a professionally installed Make-up air

system is required.

Makeup Air

• When using ventilation systems with greater than specied CFM of

air movement, review local building codes as they may require

makeup air systems. Consult a HVAC professional for specic

requirements for your area as CFM requirements can vary

between locales.

• Consult an HVAC professional to select the correct CFM capacity

range hood for your application. The CFM capacity depends on

the range or cooktop BTU rating, size and location, size of the

kitchen and the range hood ductwork in the kitchen.

Range Hood Use

English 13

Range Hood Care

Cleaning

Exterior surfaces:

To avoid damage to the exterior surface, do not use steel wool or soap-

lled scouring pads. Do not use chlorine based cleaners. Rub in the

direction of the grain line to avoid scratching the surface.

• For a thorough cleaning, us Stainless Steel Cleaner and Polish.

• For everyday cleaning, use a mild liquid detergent and water. Dry

thoroughly.

• For a quick cleaning, wipe with a damp soft cloth or nonabrasive

sponge, then rinse with clean water and wipe dry.

NOTE: Always wipe dry to avoid water marks.

Metal lters and drip tray:

1. Use 2 hands to remove the lters. Grasp the lter handles, pull to-

ward the front of the range hood, and then pull down on rear handle

to remove. Repeat for each lter.

A. Bafe lter

2. Remove the grease drip tray.

A. Drip tray

Range Hood Care

3. Remove the drip tray from the drip tray bracket.

A. Drip tray

B. Drip tray bracket

C. Drip tray bracket screws

4. Wash metal lters and grease trays as needed in a dishwasher or hot

detergent solution to clean.

5. Replace the grease drip tray.

6. To reinstall the lters, grasp the lter handles with both hands and

then place the front edge of the lter into the hood.

7. Push up on the back the handle, and then set rear of lter into the

drip tray to secure. Repeat for each lter

A. Bafe lter

Replacing the LED Lamp

LED lights are replaceable by a service technician only.

See the contact information in the Warranty section.

warranty (USA)

SAMSUNG RANGE HOOD

Limited warranty to original purchaser

This SAMSUNG brand product, as supplied and distributed by

Samsung Electronics America, Inc. (SAMSUNG) and delivered

new, in the original carton to the original consumer purchaser, is

warranted by SAMSUNG against manufacturing defects in mate-

rials and workmanship for a limited warranty period of:

ONE (1) YEAR PARTS AND LABOR

This limited warranty begins on the original date of purchase,

and is valid only on products purchased and used in the United

States. To receive warranty service, the purchaser must contact

SAMSUNG for problem determination and service procedures.

Warranty service can only be performed by a SAMSUNG au-

thorized service center. The original dated bill of sale must be

presented upon request as proof of purchase to SAMSUNG or

SAMSUNG’s authorized service center.

SAMSUNG will repair or replace this product, at our option and

at no charge as stipulated herein, with new or reconditioned

parts or products if found to be defective during the limited

warranty period specied above. All replaced parts and prod-

ucts become the property of SAMSUNG and must be returned

to SAMSUNG. Replacement parts and products assume the

remaining original warranty, or ninety (90) days, whichever is

longer.

In-home service will be provided during the warranty labor

period subject to availability within the contiguous United States.

In-home service is not available in all areas. To receive in-home

service, the product must be unobstructed and accessible to

service personnel. If during in-home service repair can not be

completed, it may be necessary to remove, repair and return the

product.

This limited warranty covers manufacturing defects in materials

and workmanship encountered in normal, noncommercial use of

this product and shall not apply to the following, including, but

not limited to: damage which occurs in shipment; delivery and

installation; applications and uses for which this product was not

intended; altered product or serial numbers; cosmetic damage

or exterior nish; accidents, abuse, neglect, re, water, lightning

or other acts of nature; use of products, equipment, systems,

utilities, services, parts, supplies, accessories, applications,

installations, repairs, external wiring or connectors not supplied

or authorized by SAMSUNG which damage this product or result

in service problems; incorrect electrical line voltage, uctuations

and surges; customer adjustments and failure to follow operating

instructions, cleaning, maintenance and environmental instruc-

tions that are covered and prescribed in the instruction book;

problems caused by pest infestations, and overheating by user.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE

LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES

WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANT-

ABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL

APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED

ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUAR-

ANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION

WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON

SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF

REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR

OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR

CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE

OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF

THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND

EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY

OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND

AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE

PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG

AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING

THE FOREGOING, PURCHASER ASSUMES ALL RISK AND

LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER

AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR

PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY

TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED

DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED

WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN

THE ORIGINAL PURCHASER OF THIS PRODUCT IS NON-

TRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some provinces or territories may or may not allow limitations on

how long an implied warranty lasts, or the exclusion or limitation

of incidental or consequential damages, so the above limitations

or exclusions may not apply to you. This warranty gives you

specic legal rights, and you may also have other rights which

vary from state to state.

To obtain warranty service, please contact SAMSUNG at:

1-800-SAMSUNG (726-7864) or

www.samsung.com/us/support

warranty (Canada)

SAMSUNG RANGE HOOD

Limited warranty to original purchaser

This SAMSUNG brand product, as supplied and distributed by

Samsung Electronics Canada, Inc. (SAMSUNG) and delivered

new, in the original carton to the original consumer purchaser, is

warranted by SAMSUNG against manufacturing defects in mate-

rials and workmanship for a limited warranty period of:

ONE (1) YEAR PARTS AND LABOR

This limited warranty begins on the original date of purchase,

and is valid only on products purchased and used in Canada. To

receive warranty service, the purchaser must contact SAMSUNG

for problem determination and service procedures. Warranty ser-

vice can only be performed by a SAMSUNG authorized service

center. The original dated bill of sale must be presented upon

request as proof of purchase to SAMSUNG or SAMSUNG’s

authorized service center.

SAMSUNG will repair or replace this product, at our option and

at no charge as stipulated herein, with new or reconditioned

parts or products if found to be defective during the limited

warranty period specied above. All replaced parts and prod-

ucts become the property of SAMSUNG and must be returned

to SAMSUNG. Replacement parts and products assume the

remaining original warranty, or ninety (90) days, whichever is

longer.

In-home service will be provided during the warranty labor

period subject to availability within the contiguous Canada.
