XOVD DESIGNER CANOPY
MODELS XOVD136, XOVD148
models covered in this manual
MODELS COVERED IN THIS MANUAL ARE:
XOVD136__, XOVD148__

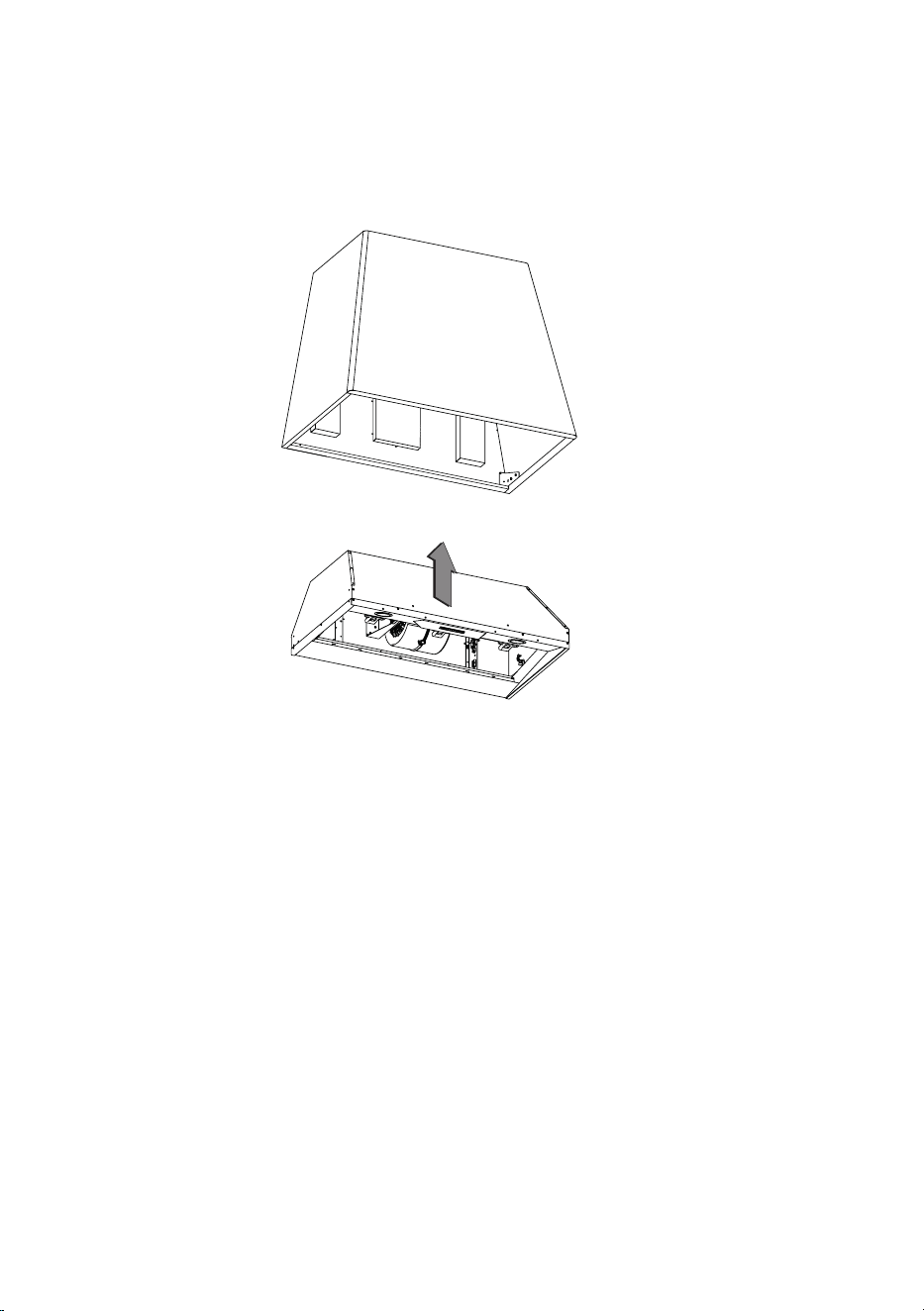

XOVD Designer Canopies are engineered to work with XOIL Combination Blower/Liners.
USE OF AN XOIL BLOWER/LINER IS REQUIRED AND UNITS ARE SOLD SEPARATELY.
Shown below are the appropriate XOIL models to t each size XOVD Canopy.
XOVD136__ Use:
XOIL3619SC (395 - 600 CFM model) - or - XOIL3619KSE (1000 CFM model)
XOVD148__ Use:
XOIL4819SC (395 - 600 CFM model) - or - XOIL4819KSE (1000 CFM model)
XOIL Blower/Liner
Sold Separately
- 3 -
When buying any XO appliance
you can be confident you have chosen a
high quality, innovative and stylish product
from a company that cares about you!
If you require service or have questions,
there are 2 ways to contact our ventilation experts;
Online @ https://xoappliance.com/priority-service-for-your-xo-product/
Or by phone 973-403-8900
CONGRATULATIONS
on purchasing your XO.
Before you proceed, take just a
moment to register your XO at:
www.xoappliance.com/register-your-product/
REGISTRATION HELPS YOU BY -
Ensuring warranty coverage should you need service
Providing ownership verification for insurance purposes
Let’s XO notify you in the event of product changes or
recalls.
- 4 -
It’s for your
own good...
Honest.
GETTING READY
Safety and Precautions
Planning Ductwork
Install Examples
Dimensions
THE INSTALL
Mounting Height
Top or Rear Exhaust
Cut Out Dimensions
Installing
Electrical Connections
MAINTENANCE

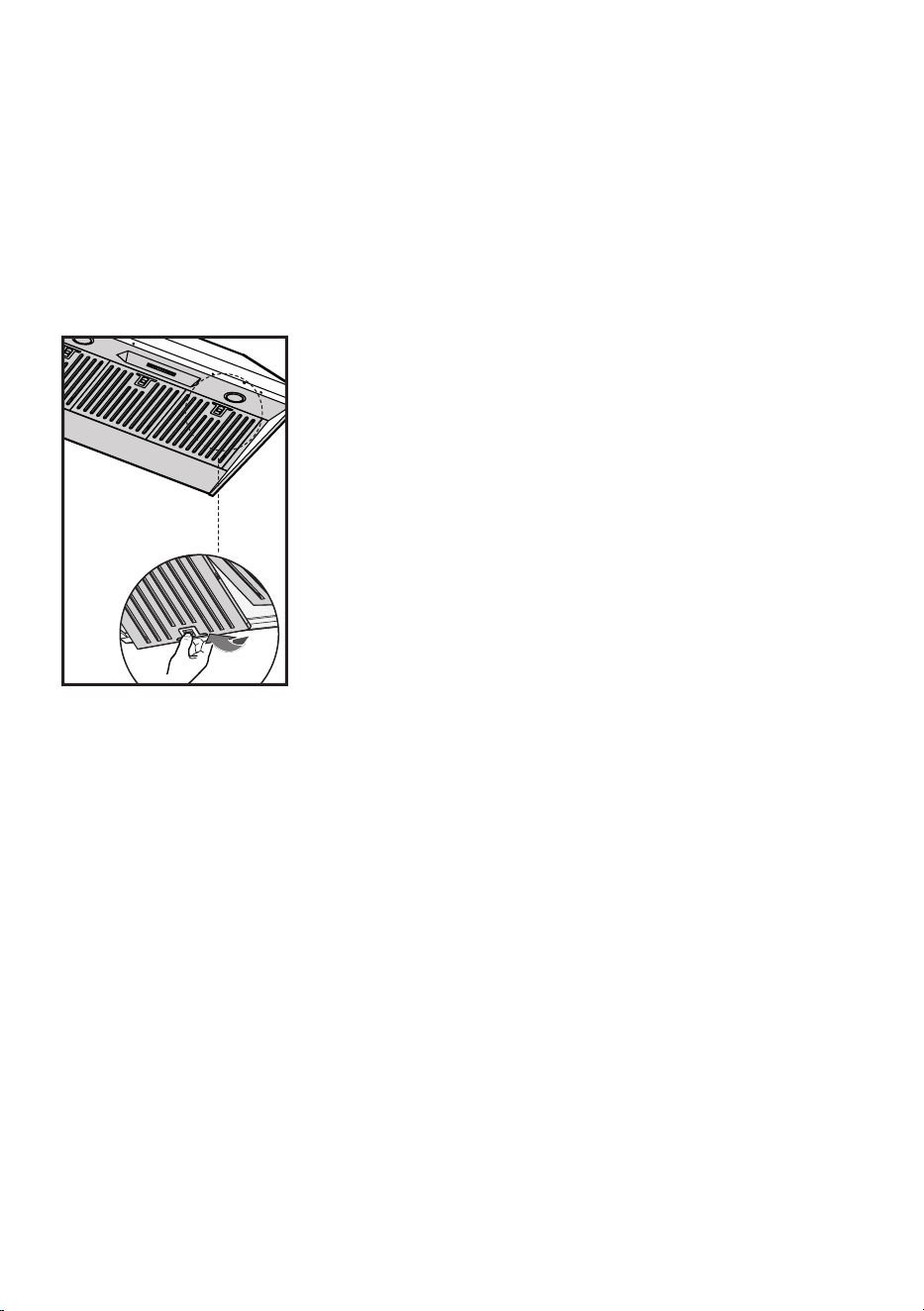

Filters
Cleaning
Recirculation
Light Replacement
OPERATING
The Push Button Controls
Synchronizing the Remote
CCC Make Up Air Conversion
PARTS & WARRANTY
please read and follow
all safety instructions
20 - 21
22 - 23
where things are
5 - 11
12 - 17
18 - 19
- 5 -
safety first
IMPORTANT SAFETY INSTRUCTIONS
FOR RESIDENTIAL USE ONLY
READ AND SAVE THESE INSTRUCTIONS
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
IMPORTANT: Save these Instructions for the Local Electrical Inspectors use.
INSTALLER: Please leave these Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Take care when using cleaning agents or detergents.
Suitable for use in household cooking area.
WARNING - To reduce the risk of fire or electric shock, do not use this fan with any
Solid-State Speed Control Device.
CAUTION - To reduce risk of fire and to properly exhaust air, be sure to duct air out-
side – Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl
spaces, or garages.
CAUTION - For general ventilating use only. Do not use to exhaust hazardous or ex-
plosive materials and vapors.
CAUTION - To avoid motor bearing damage and noisy and/or unbalanced impellers,
keep drywall spray, construction dust, etc. off power unit.
CAUTION - Please read specification label on product for further information and
requirements.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended by the manufacturer. If you have questions,
contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service panel and lock the ser-
vice disconnecting means to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a promi-
nent warning device, such as a tag, to the service panel.
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause smoking and
- 6 -
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking with high heat.
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on
fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface
element.
E. Keep fan, filters and grease laden surface clean.
F. Use high range setting on range only when necessary.Heat oil slowly on low to me-
dium setting.
G. Don’ t leave range unattended when cooking.
H. Always use cookware and utensils appropriate for the type and amount off food be-
ing prepared.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE
TOP GREASE FIRE, OBSERVE THE FOLLOWING:
A. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off
the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN – You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion
will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
a
Based on “kitchen firesafety tips” published by NFPA.
Proper maintenance of the Range Hood will assure proper performance of the
unit.
INSTALLATION INSTRUCTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by qualified person(s) in accord-
ance with all applicable codes and standards, including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of gases through the
flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heat-
ing equipment manufacturer’s guideline and safety standards such as those pub
- 7 -
lished by the National Fire Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code
authorities.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and
other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
E. This unit must be grounded.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
WARNING - UNDER CERTAIN CIRCUMSTANCES DOMESTIC APPLIANCES MAY BE
DANGEROUS.
A. Do not check filters with hood working.
B. Do not touch the lamps after a prolonged use of the appliance.
C. No food must be cooked flambè underneath the hood.
D. The use of an unprotected flame is dangerous for the filters and could cause fires.
E. Watch constantly the fried food in order to avoid the cooking oil flares up.
F. Before performing any mainteinance operation, disconnect the hood from the
electrical service.
The manufacturers will not accept any responsability for possible damages, because
of failure to observe the above instructions.
- 8 -
THIS HOOD IS DESIGNED TO USE A 6” ROUND DUCT -
IT MAY BE TRANSITIONED TO A 3-1/4” X 10” RECTANGULAR DUCT
NEVER REDUCE DUCT SIZE. UNDERSIZED DUCTING SEVERELY RESTRICTS AIR
FLOW AND HARMS PERFORMANCE.
(Example: the area of a 6” Duct is more than TWICE that of a 4” Duct)
KEEP DUCT RUNS AS SHORT AND STRAIGHT AS POSSIBLE.
AVOID USING FLEXIBLE METAL DUCTING IF RUN IS LONGER THAN 6’.
NEVER USE PLASTIC DUCTING.
USE SMOOTH BORE METAL DUCTING.
MINIMIZE THE NUMBER OF FITTINGS (see chart).
WHEN YOU MUST USE FITTINGS, TRY TO SEPARATE THEM WITH SECTIONS OF
3’ OR MORE OF STRAIGHT DUCT.
ALWAYS FOLLOW THE MANUFACTURER’S GUIDELINES FOR THE COOKING
EQUIPMENT YOU ARE VENTING.
IF MAKE UP AIR CONTROL DAMPERS ARE REQUIRED, POSITION THE SENSOR
IN A STRAIGHT RUN OF DUCT IDEALLY WITH 3’ OF STRAIGHT DUCT BETWEEN
EACH SIDE OF THE SENSOR AND A DUCT FITTING. REMEMBER TO INCLUDE
POWER AND CONTROL WIRING FOR THIS IN YOUR PLANS.
ADHERE TO ALL LOCAL BUILDING CODES AND ORDINANCES.
USE THE WORKSHEET THAT FOLLOWS TO HELP CALCULATE THE
TOTAL EQUIVILENT FEET OF YOUR DUCT RUN.
TOTAL EQUIVILENT FEET SHOULD BE LESS THAN 100’.
a few simple rules to plan your
ductwork
1
1
12
7
14
8
33
2
4
24
24
33
- 9 -
1
1
12
7
14
8
33
2
4
24
24
33
CAUSING AIR TO CHANGE DIRECTION CAUSES TURBULENCE AND RESTRICTS FLOW IN
A SYSTEM.
IF USING FLEXIBLE METAL DUCT - INCREASE ALL MULTIPLIERS BY 50% (12 BECOMES
18 - ETC.)
THIS EASY TO USE WORKSHEET IS FOR 600 CFM OR LESS.
UNDER “QTY USED” ENTER HOW OF EACH SECTION YOU WILL BE USING.
IN THE FIRST TWO ROWS - ENTER HOW MANY FEET OF EACH TYPE OF STRAIGHT DUCT
YOU WILL BE USING (I.E. FOR 20 FT ENTER 20, FOR 30FT ENTER 30).
ENTER THE NUMBER OF EACH TYPE OF TURN YOU ARE USING AND THE TYPE OF END CAP.
MULTIPLY ACROSS EACH ROW THE “MULTIPLIER” x “QTY USED” TO GET THE EQUIVALENT
FEET FOR THOSE COMPONENTS.
ADD UP ALL THE VALUES IN THE “EQUIVALENT FEET” COLUMN.

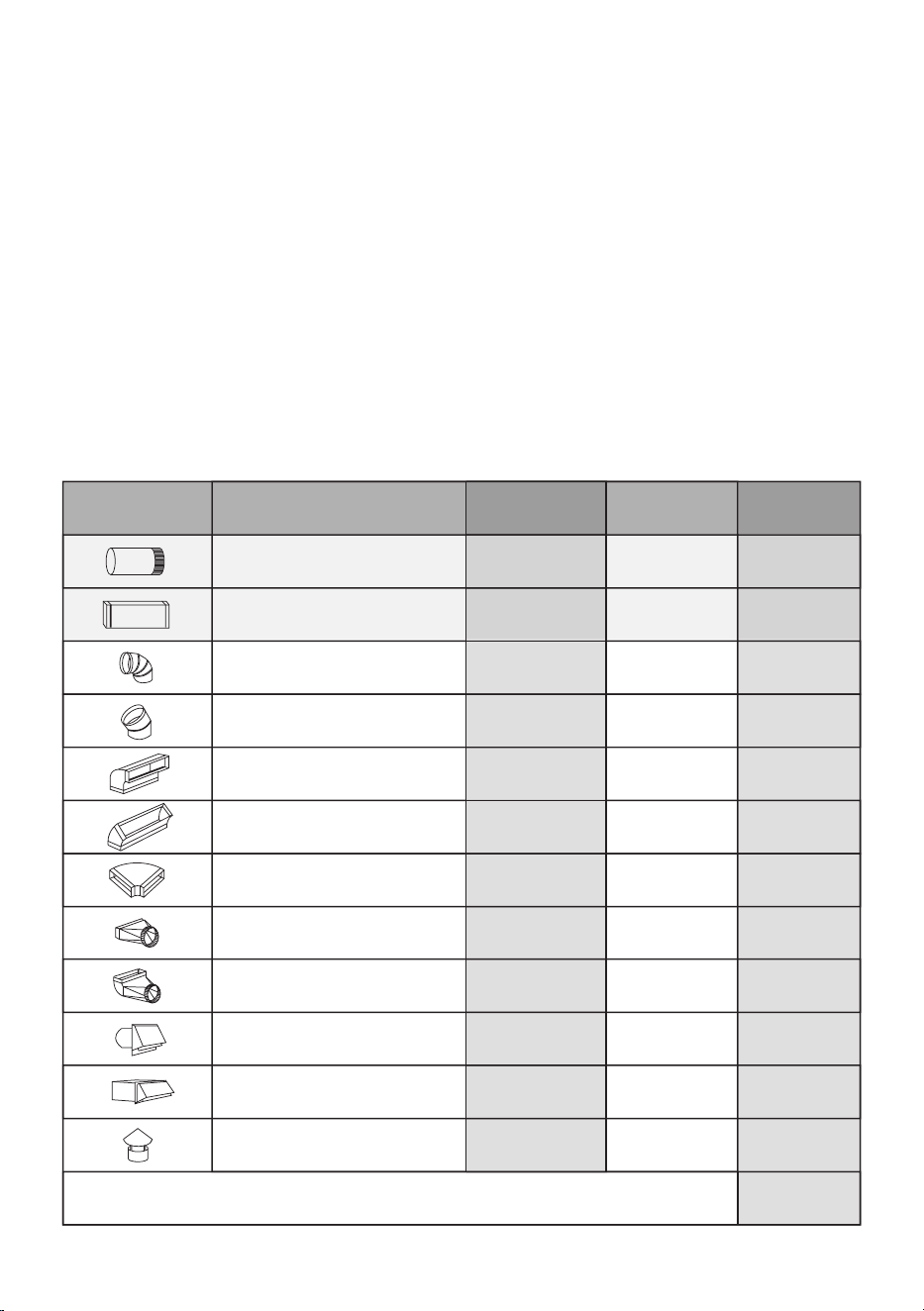

DUCT PIECE DESCRIPTION MULTIPLIER QTY USED
EQUIVALENT
FEET
1’ of 6” Round Duct
1’ of 3 1/4“ x 10” Rect. Duct
6” 90 Degree Elbow
6” 45 Degree Elbow
3 1/4” x 10” 90 Degree
3 1/4” x 10” 45 Degree
3 1/4” x 10” Side 90 Degree
3 1/4” x 10” x 6” Round
3 1/4” x 10” x 6” 90 Degree
6” Round Wall Cap w Damper
3 1/4” x 10” Wall Cap w Damper
6” Round Roof Cap
TOTAL EQUIVALENT FEET SHOULD BE LESS THAN 100
estimating total equivalent feet in
a duct
- 10 -

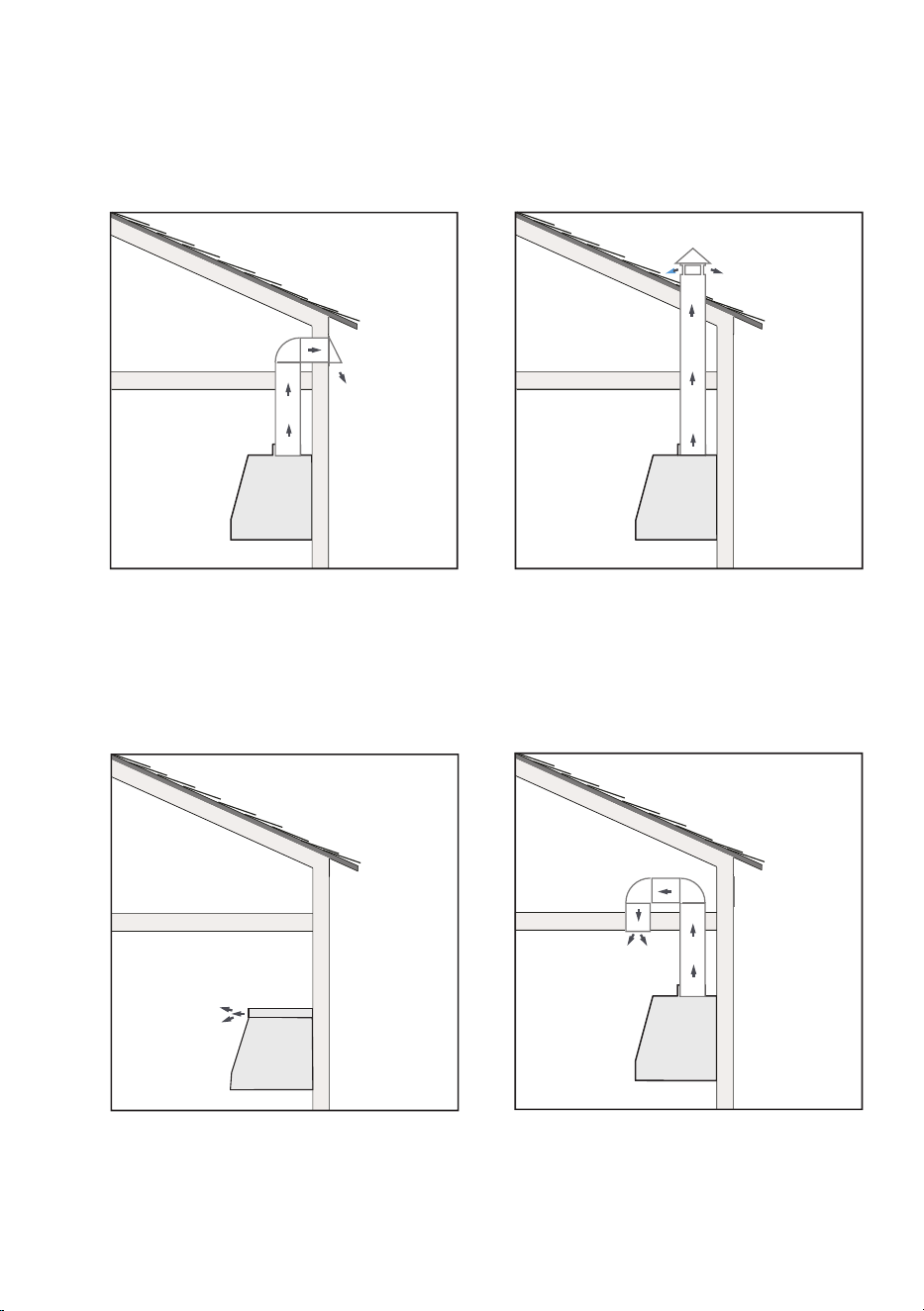

VENTEDRECIRCULATION
WALL EXHAUST ROOF EXHAUST
FRONT EXHAUST
RECIRCULATION EXHAUST MUST BE RETURNED TO THE
SPACE
typical installation examples
CEILING EXHAUST
- 11 -
17”
30”
22”
“A”
“B”
ø 6” - 8"
ø 6"
ø 6” - 8"
› Front of hood › Side of hood
› Top of hood

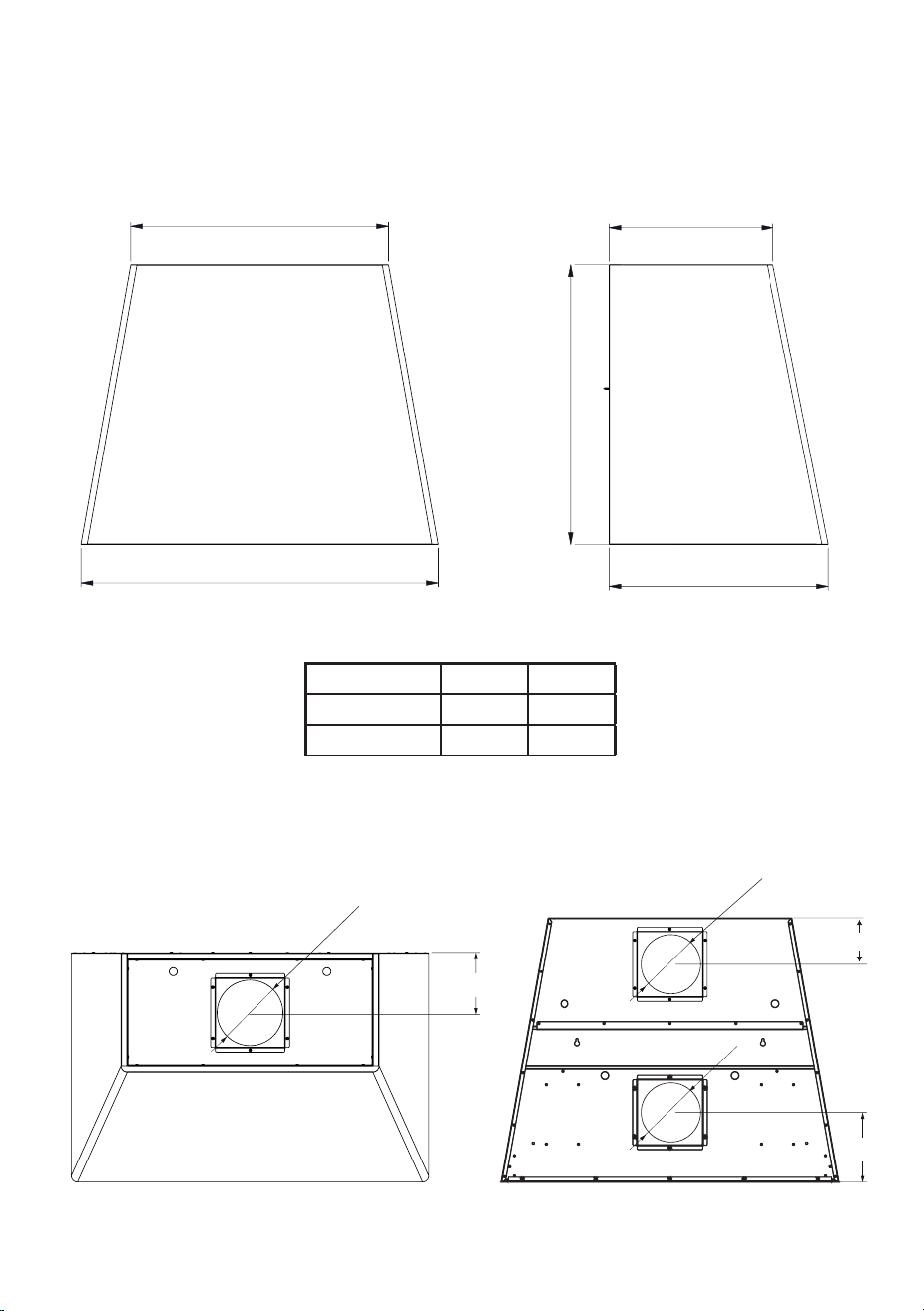

dimensions
MODEL A B
XOVD136 __
26” 36”
XOVD148 __
38” 48”
5 9/16”
6”
7 3/8”
- 12 -
27”to32”
RECOMMENDED
MOUNTING HEIGHT
ABOVE GAS AND
ELECTRIC COOKTOPS
highs and lows
All range hoods have a recommended range of installation height over the cooking
surface.
It is important to install the hood at the proper mounting height. Hoods mounted too
low could result in heat damage and fire hazard; while hoods mounted too high will
be hard to reach and will lose its performance and efficiency.
- 13 -
180°
27”to32”

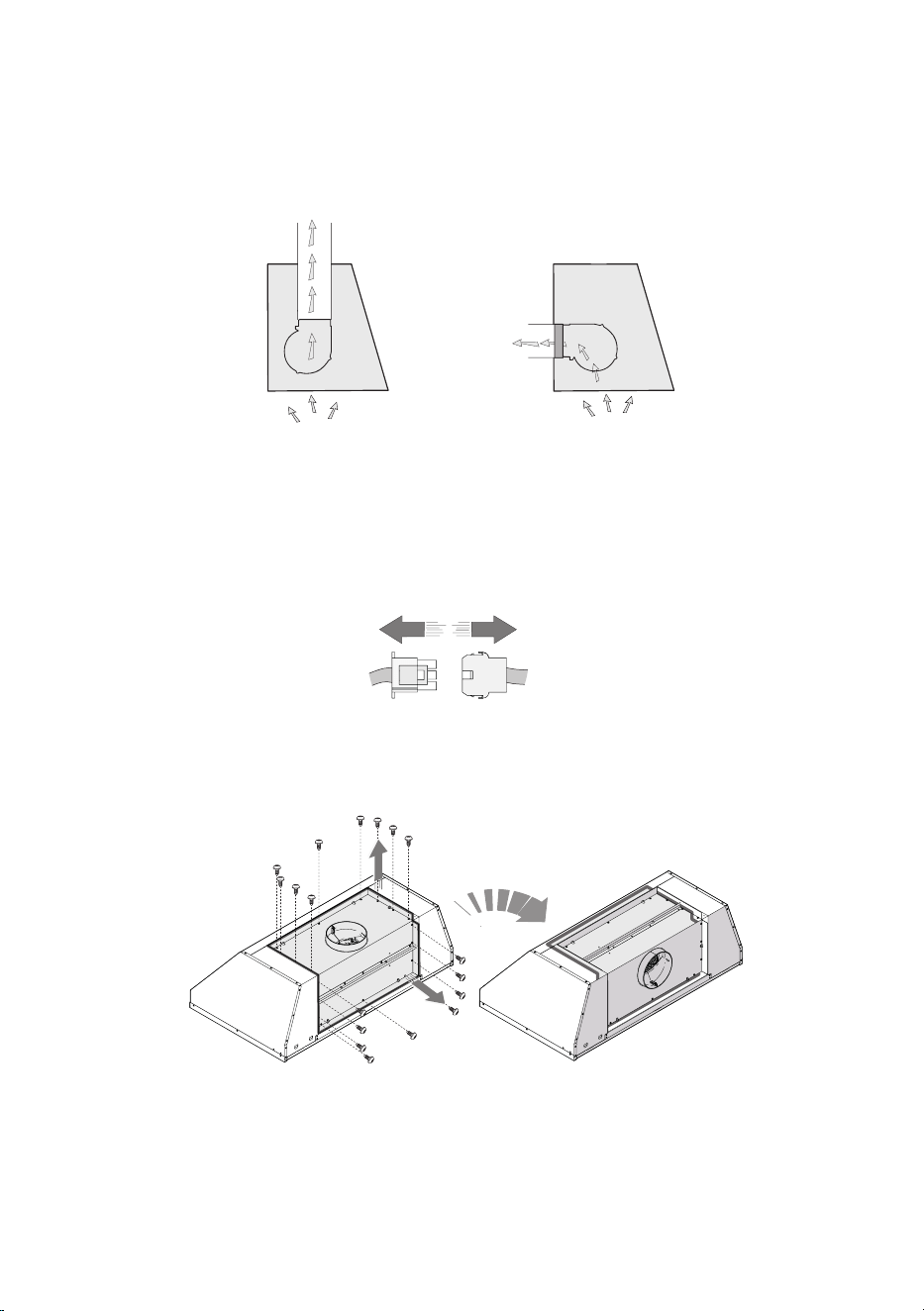

TO CONVERT THE UNIT FROM TOP EXHAUST TO REAR EXHAUST
FOLLOW THESE SIMPLE STEPS:
1. Unplug the quick disconnect coupling that supplies power to the motor.
2. Remove the eighteen (18) screws that fasten the blower assembly and filler plate to the hood.
3. Remove the blower assembly and filler plate, invert 180° as shown and fasten in place
using the eighteen (18) screws previously removed.
4. Reconnect the quick disconnect plug.
switching top and rear venting
- 14 -

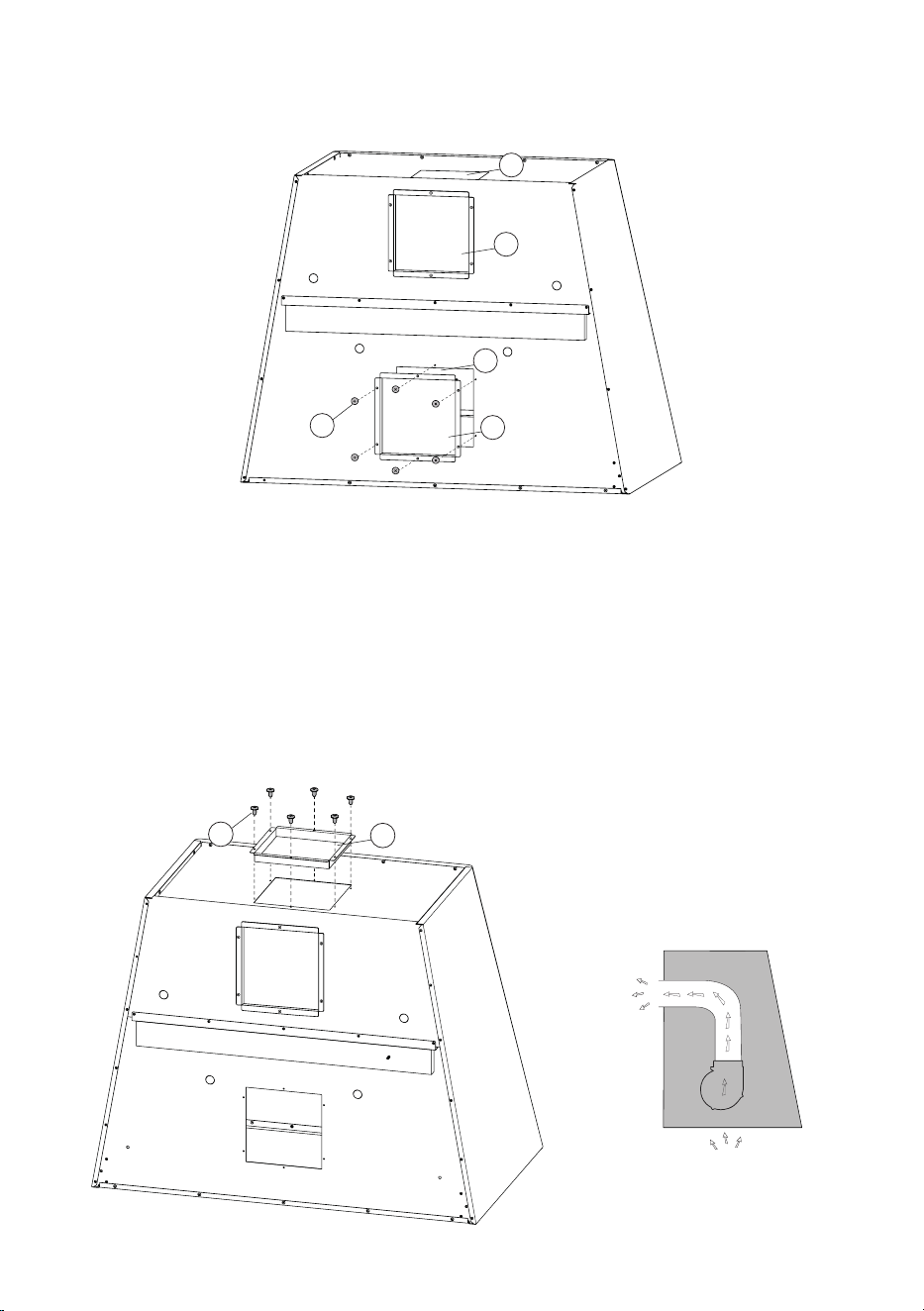

switching top and rear venting
G
X
X
G
E
D
F
4. If the hood is a 1-motor hood, depending on your requirements, you can use the
hole at the bottom F or at the top rear E of the hood. if the hood is a 2-motor hood,
use the hole at the top rear E or the hole at the top D.
5. If you decide to vent the air from the rear, remove bracket G by means of screws
X and position it at the top and secure it with screws X (see figure below).
6. Reconnect the quick disconnect plug.
- 15 -
16”
2 - 3/8”

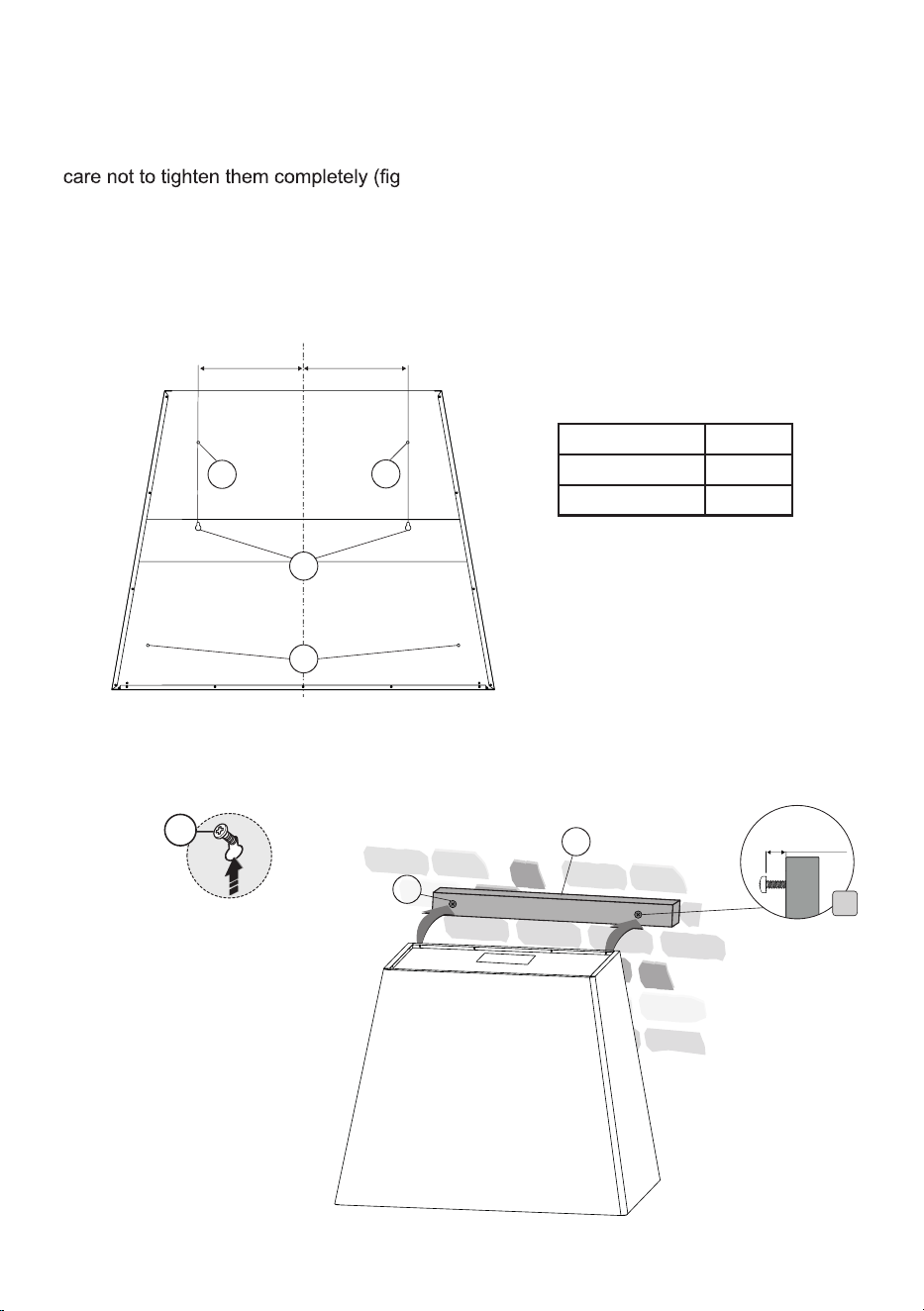

installation
- Check that the screws to be used for mounting the hood are suitable for the type of wall on
which it is to be mounted.
- Position the wooden bracket on the wall according to the measurements in the gure below
and fasten it with the appropriate screws.
IMPORTANT NOTE: Ensure that the wall is suitable to support the weight of the hood. If
necessary, create a reinforcement structure before installation.
NOTE: This structure must be strong enough to support the weight of 120 lb (54.5 kg).
!
- 16 -
A
Y
installation

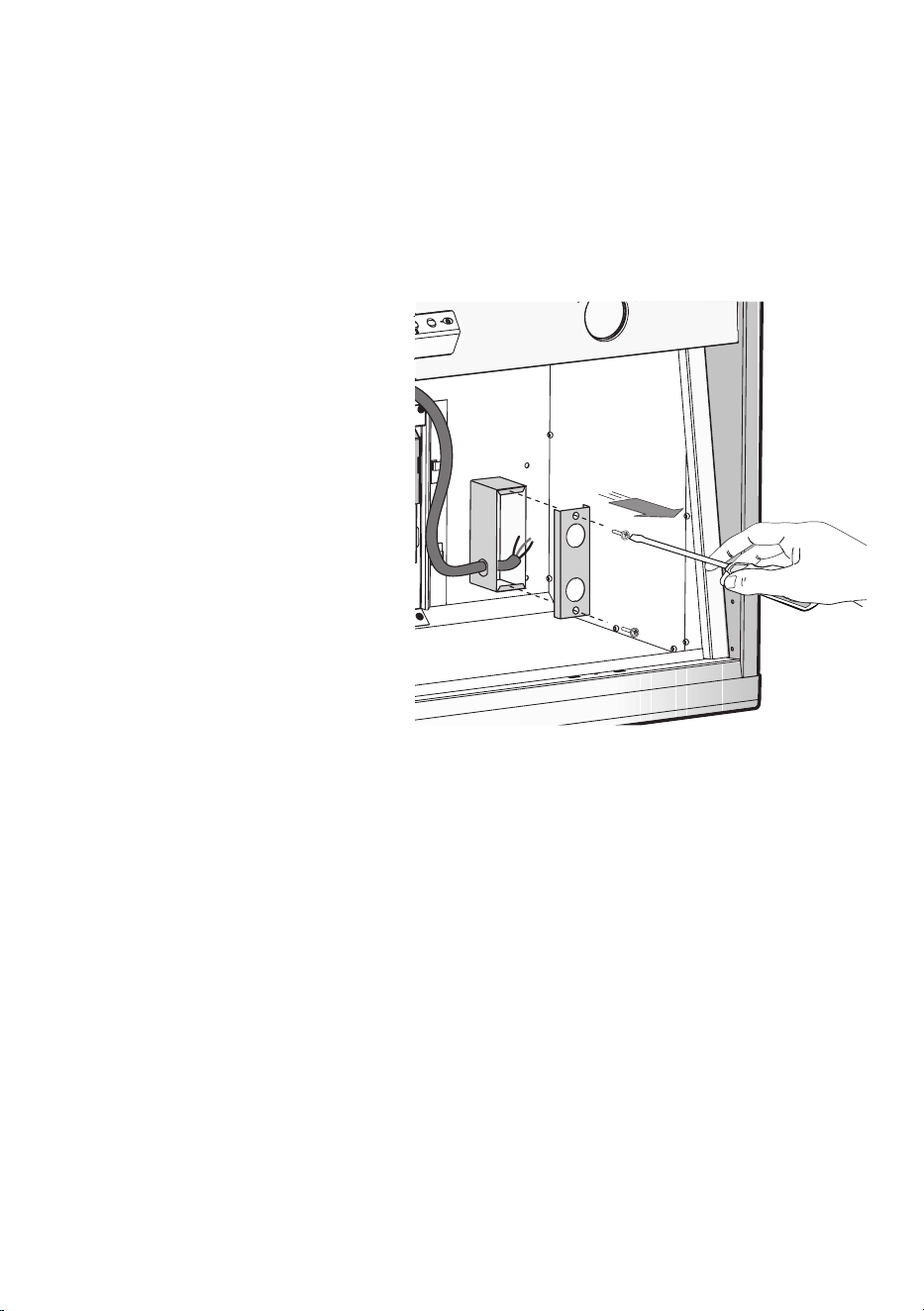

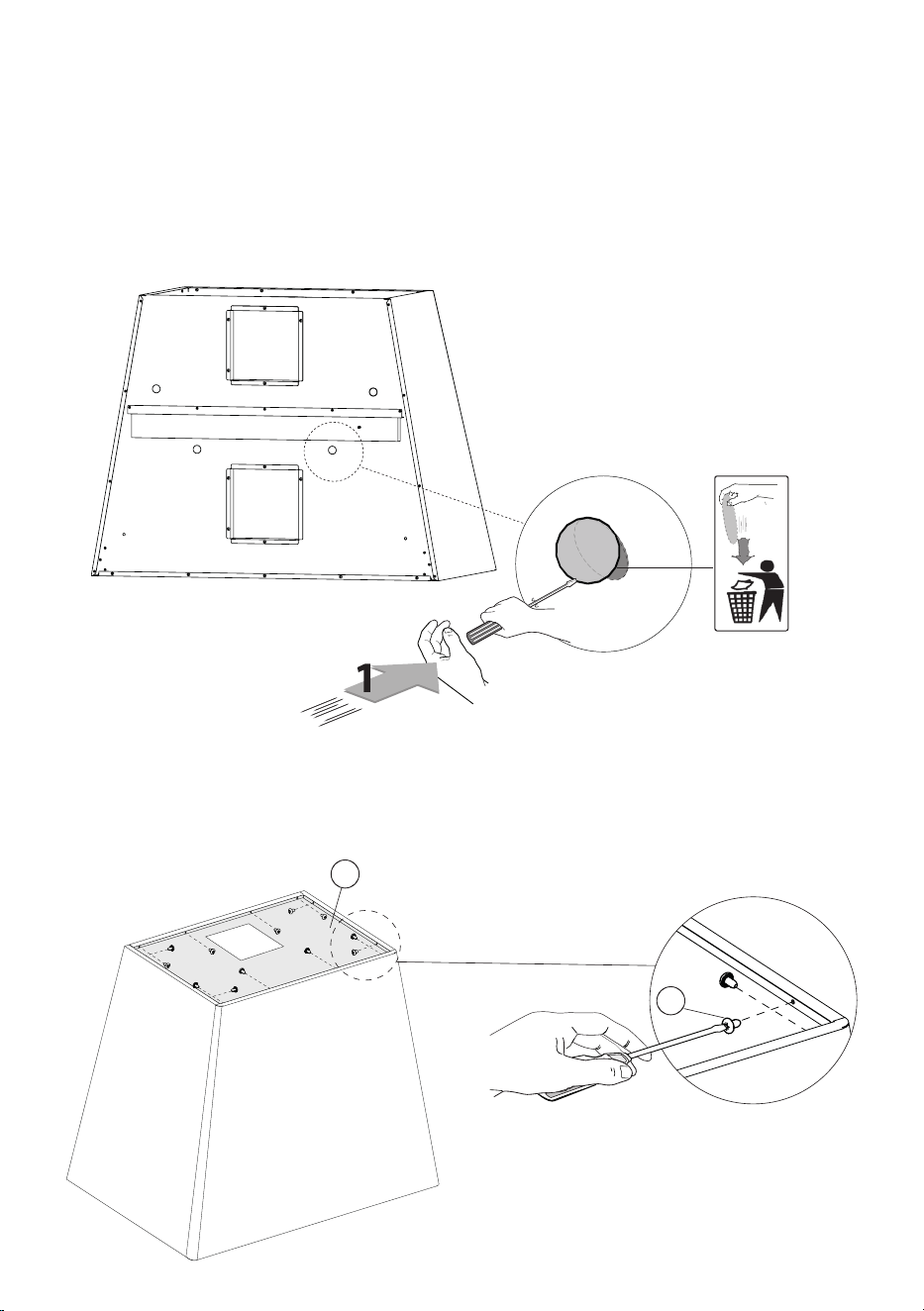

If the domestic mains supply is provided at the rear of the appliance, it is possible to break 1
of the 6 holes, which are provided for the power cable, with a screwdriver.
To proceed with the installation, remove screws Y and remove panel A.
- 17 -

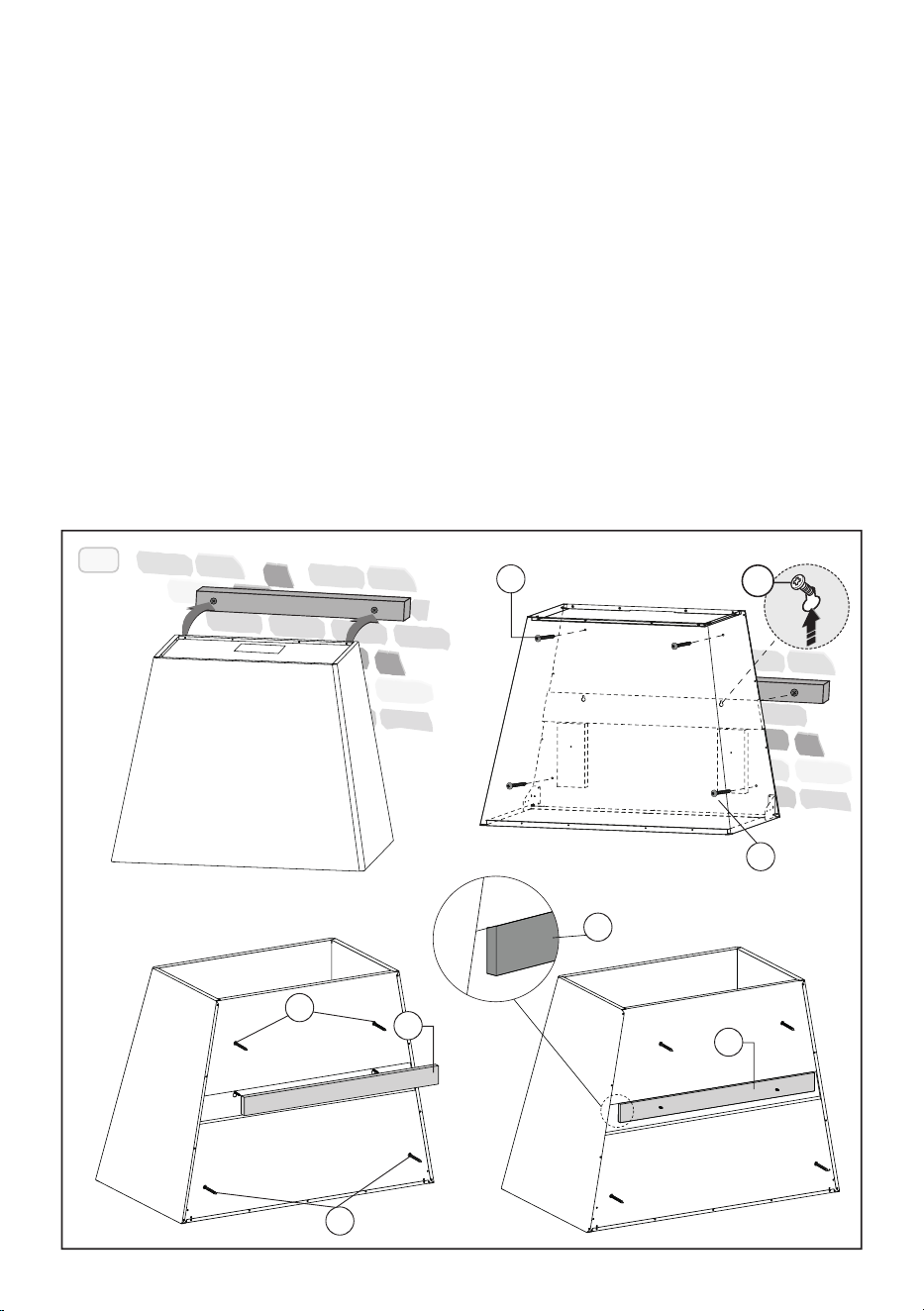

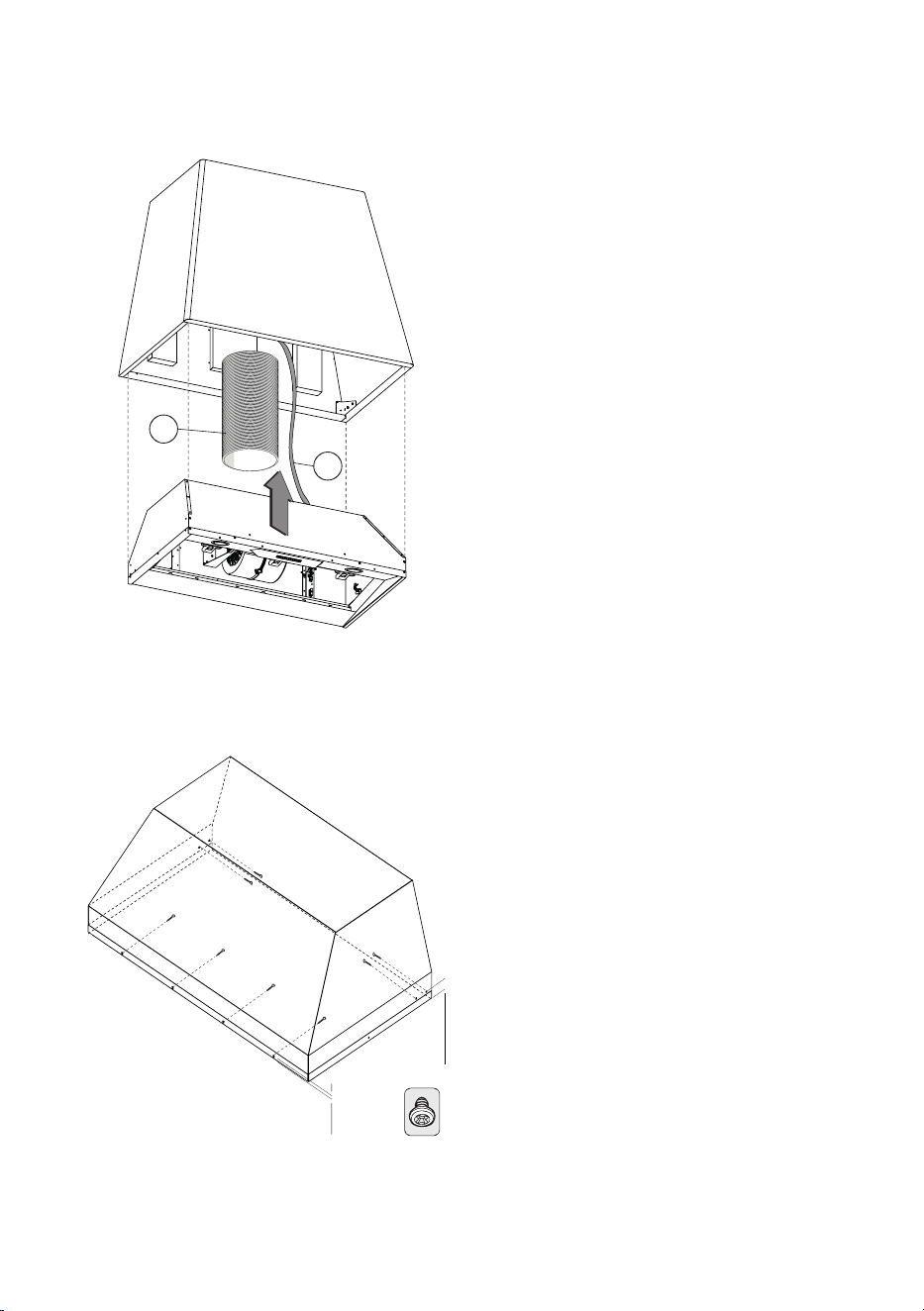

installation
0-3/16”
A
A
X
B
==
D
D
A
C
T
- Insert screws “A” into bracket “B” according to the measurements shown in the table, taking
X).
- Attach bracket “B” to the wall with screws suitable for the type of wall not supplied.
- Place the appliance on the wall by hooking it onto the previously inserted screws “A”.
- Secure the hood permanently with the safety screws “C”. Fully tighten the screws “A”.
MODEL
T
XOVD136 __
19 11/16”
XOVD148 __
31 11/16”
- 18 -
A
A
1
A
B
B
C
A
B
installation
- Before installing the wall shell, remove the hood inside it..
- Place the hood in front of the wooden bracket B, screw A and C as shown in the gure and
x it permanently.
- For the various installations use screws and screw anchors suited to the type of wall (e.g.
reinforced concrete, plasterboard, etc.). If the screws and screw anchors are provided with
the product, check that they are suitable for the type of wall on which the hood is to be xed.
• Limited to installation on plasterboard walls: make sure that the screws are xed to the wall
support elements. If this is not the case, install a support structure made up from 2 by 4 inch
cross members in correspondence with the screw anchorage points.
- Having xed the shell to the wall, we can proceed with xing the hood.
4x
B
B
H
H
2x
- 19 -
A
A
1
A
B
B
C
A
B
4x
B
B
H
H
2x

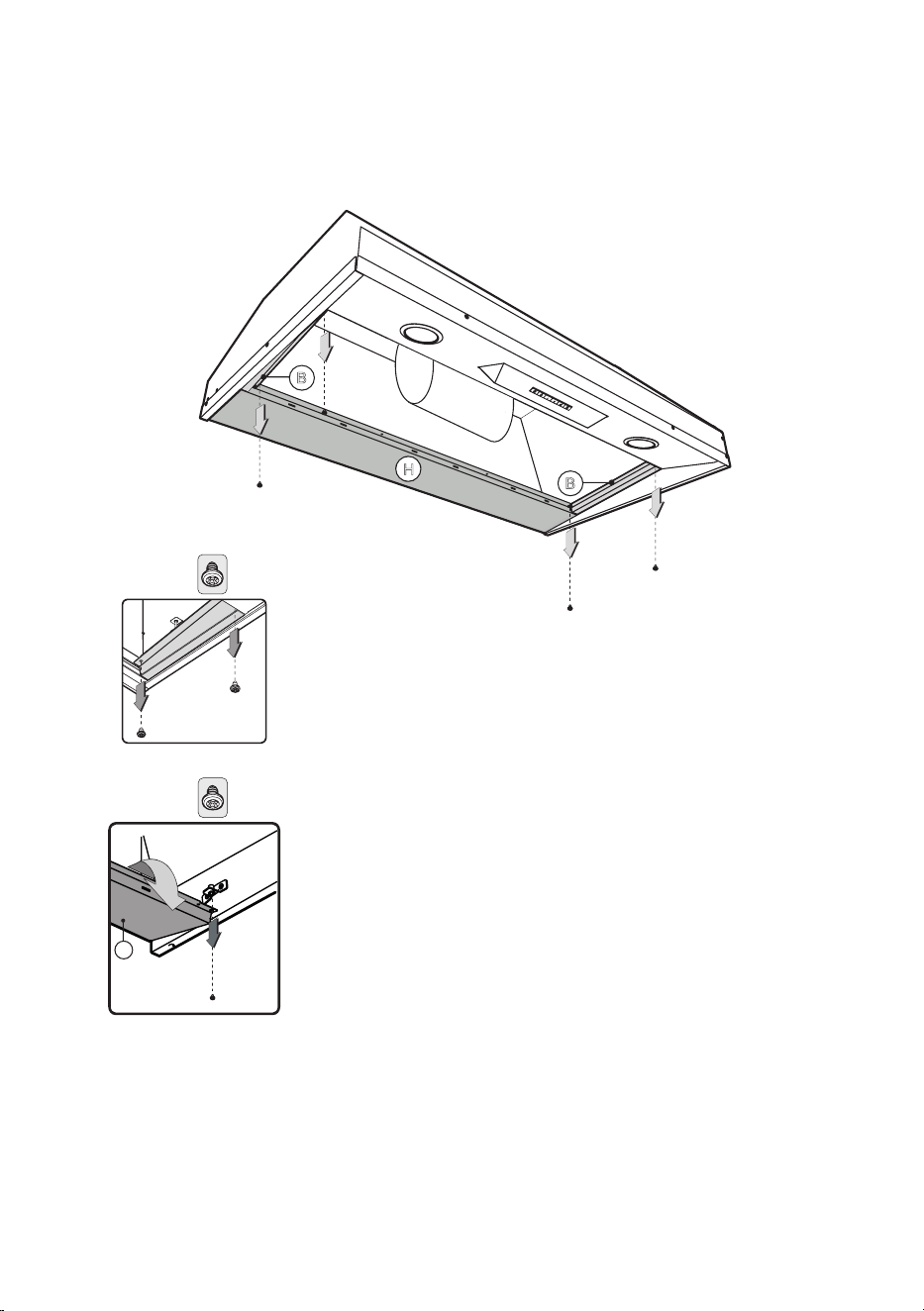

BEFORE FITTING THE HOOD INTO THE CABINET:
1. Remove the four (4) screws holding the side bra-
cket (B) in place. Remove the brackets and set aside.
2. Remove the two (2) screws holding the bracket
(H) in place and tilt down.
installation
- 20 -
1/4”
1-
1/8
”
8x
Q
W
Before inserting the hood into the opening,
make the electrical connection via cable W
and insert the air outlet hose Q supplied.
Then we can proceed with the installation
of the hood.
FASTEN THE HOOD IN PLACE
Using four (4) screws along the inside front
edge and four (4) screws in the back corners
as shown
installation continued
- 21 -
1. Route the power cord to the junction box inside the hood.
2. Using listed conduit fittings and connectors, connect the power supply to the box and each
line to the appropriate wire following this color convention:
BLACK = HOT LEG
WHITE = NEUTRAL
GREEN/YELLOW = GROUND
Polarity must be observed.
Unit must be properly grounded.
Use a double throw disconnect switch.
3. Replace the box cover
4. Replace the Anti-grease Baffles.
All wiring must be in compliance with national electrical code, ANSI/NFPA 70-1999 and all
local codes and regulations.
electrical connection
- 22 -
Regular cleaning and maintenance is the key to long life and peak performance of any
equipment.
ANTI-GREASE BAFFLE FILTERS: Your XO hood is equipped with stainless steel pro-style
baffle filters designed to capture grease from cooking. The baffles are easily removed for
cleaning either by soaking in a warm, mild dish detergent solution, rinsing thoroughly and
drying - or - by washing in your dishwasher.
TO REMOVE THE BAFFLES:
1. Pull down on the release latch (shown left)
2. Lower the front edge of the baffle
3. Pull forward and remove
4. To replace, insert the rear of the baffle, holding the latch open,
swing the the front up into place and release the latch.
The importance of this simple process is essential for two rea-
sons. First to help keep your kitchen clean and healthy, but it is
also critical to minimize the risk of fire.
Baffle filters should be cleaned at least once every 2 months, more frequently depending on
the type of cooking performed and the build up of grease.
CLEANING STAINLESS STEEL:
Do not use corrosive detergents, abrasive detergents or oven cleaners.
Do not use any product containing chlorine bleach or any product containing chloride.
Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.
Cleaning Stainless Steel Clean periodically with warm soapy water and clean cotton cloth or
micro fiber cloth. Always rub in the direction of the stainless steel grain. To remove heavier
grease build up use a liquid degreaser detergent. After cleaning use a non-abrasive stainless
steel polish/cleaners, to polish and buff out the stainless luster and grain. Always rub lightly, with
a clean cotton cloth or a micro fiber cloth and buff in the direction of the stainless steel grain.
Any painted surfaces should be cleaned with warm water and detergent only.
maintenance
- 23 -
maintenance continued
XORFND
FOR UNITS USED IN RECIRCULATION MODE ONLY:
This refers to hoods which are not ducted outside but rely instead on carbon filter elements
to help purify the air before it is exhausted back into the room.
The carbon element filters gradually lose efficiency and cannot be cleaned or regenerated.
These must be replaced at least 4 times a year, more frequently if needed based on the
amount of use and style of cooking.

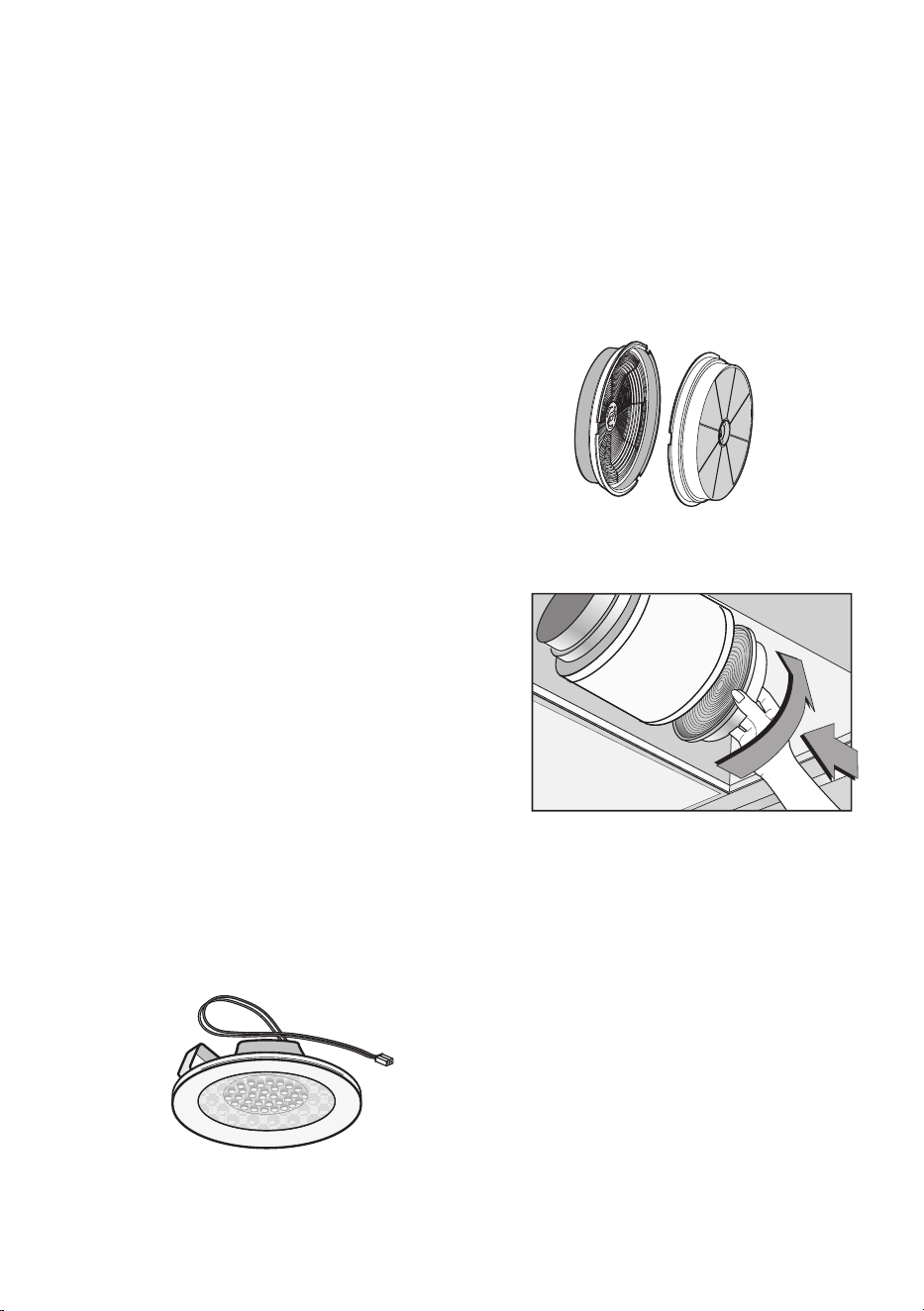

CHANGING THE CARBON FILTERS:
Changing the filters is easy.
To Reduce the Risk of Fire and Shock use only
conversion Kit Model XORFND
(ACK00059) Filters.
The XORFND filters are sold in pairs.
To replace the filters, unlatch and remove the
Anti-Grease Baffles.
This will expose the blower.
One Carbon Filter attaches to each side of the
blower.
Remove the old filter by rotating one quarter turn
counter-clockwise and pull straight away
from the blower.
To install the new filter simply align, push into pla-
ce and rotate one quarter turn clockwise to lock.
LED LIGHT REPLACEMENT
The LED light modules are held in place by
spring clips which must be squeezed in be-
fore the lamp can be pushed down through
the fascia.
Unplug the plastic molex connector.
Plug in the new fixture and snap back into
place.
XOPSPK6602
(UL REFERENCE ACK00059)
- 24 -
BUTTON : Controls the LED lights. There are three illumination levels.
Press the button Once for HIGH; Twice for MEDIUM; Three times for LOW; Four times for OFF.
BUTTON 0: Turns both the Blower and Lights On and Off
BUTTON 1: Blower motor operates on LOW speed.
BUTTON 2: Blower motor operates on MEDIUM speed.
BUTTON 3: Blower motor operates on HIGH speed.
POWER BOOST
Press and Hold BUTTON 3 for 2 seconds.
This will increase airflow to a fourth and even higher speed for 10 minutes.
When activated the button will blink to alert you it is running.
After 10 minutes the blower speed will return to its last setting.
To manually stop the POWER BOOST before 10 minutes has elapsed:
Press BUTTON 3 and it will revert to HIGH speed, or
Press BUTTON 0 to shut the blower off completely
NOTE: The POWER BOOST function will operate even when the hood is off.
BUTTON T: Activates and Deactivates the TIMER Function
Pressing BUTTON T (whether the blower is off or running) will cause the motor to run at LOW
speed for 5 minutes before shutting off the blower and lights automatically.
While the TIMER is activated, you can change speed or engage POWER BOOST, the hood
will still shut off after 5 minutes.
To manually turn the unit off before 5 minutes has elapsed:
Press BUTTON T or BUTTON 0.
Your XO range hood is controlled by these
electronic push buttons which illuminate when
activated.
OPTIONAL REMOTE CONTROL (purchased separately)
The remote control must be synchronized prior to use.
To synchronize the remote control with the hood follow these simple
steps:
1. Standing near the hood, while it is not running, press and hold
BUTTON
on the hood for 4 seconds -the button should start to
blink for 5 seconds.
2. When the button on the hood starts to blink, Press any button on
the remote. The hood and remote are now synchronized.
3. If the synchronization fails for any reason, repeat steps 1 and 2.
XOVREMOTE1
easy to operate
Code Compliance Control
- 25 -
Code Compliance Control
New!
Some local codes limit the maximum exhaust airflow of range hoods to 400 CFM
before a Make Up Air System is required.
The XOIL3019SC - XOIL3619SC - XOIL4219SC models are supplied with 600 CFM
capacity.
The CCC system allows you to limit the hood from 600CFM to 395 CFM.
To set up for 395 CFM Operation - follow the procedure below:
1. After the hood has been powered up initially, disconnect the power supply by shutting
off the circuit breaker.
2. VERY IMPORTANT, after turning power back on to the unit, you must press and hold
both the
and “0” buttons simultaneously within 5 seconds of re-powering the unit.
NOTE: If you do not press the buttons within the first 5 seconds after turning power back
on to the hood - the CCC function will not engage and you must repeat from Step 1.
3. The control blinks 3 times
4. The hood is now configured at 395 CFM - the POWER BOOST function is also
disabled.
5. Affix the sticker supplied to indicate the unit has been reconfigured to a maximum
air flow of 395 CFM.
6. Once reconfigured for 395 CFM, the unit cannot be reset to 600 CFM.
make up air conversion
- 26 -

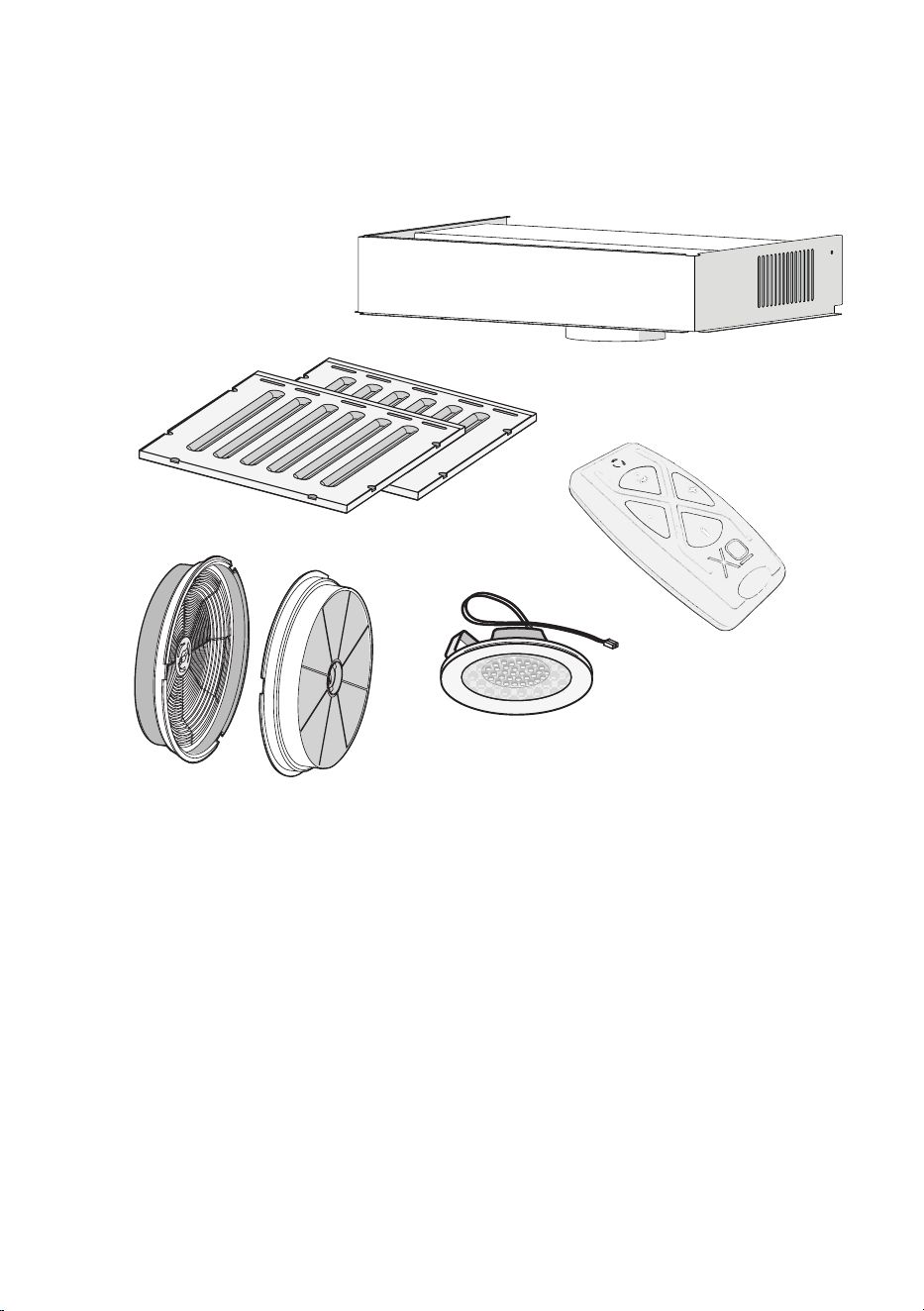

RECIRCULATION KITS
FILTERS
REPLACEMENT LIGHTS
REMOTE CONTROLS
DUCT COVERS
REPLACEMENT SWITCHES
BLOWER MOTORS
FAN WHEELS
ALL OF THESE PARTS AND MORE ARE AVAILABLE, SIMPLY
VISIT WWW.XOAPPLIANCE.COM and click on PARTS STORE
OR CALL US AT 973-403-8900
access parts & accessories
- 27 -
YEAR
WARRANTY
2
PARTS + LABOR
YEAR
WARRANTY
2
PARTS + LABOR
90 DAY LOVE IT or LEAVE IT. For 90 Days all our products are backed by our unique Love it or Leave it Guarantee.
TWO-YEAR PARTS & LABOR LIMITED WARRANTY. XO warrants to the original purchaser of every new XO ventilation
unit, the cabinet and all parts thereof, to be free from defects in material or workmanship under normal and proper use and
maintenance as specified by XO and upon proper installation and start-up in accordance with the instruction packet supplied
with each XO unit. XO’s obligation under this warranty is limited to a period of two (2) years from the date of original purchase.
WARRANTY CLAIMS. All claims for labor or parts must be made directly through XO. All claims should include: model number
and serial number of cabinet, proof of purchase, and date of installation. In case of warranted compressor, the compressor
model tag must be returned to XO along with the above listed information.
WHAT IS NOT COVERED BY THIS WARRANTY. XO’s sole obligation under this warranty is limited to either repair
or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person
to assume obligations other than those expressly covered by this warranty. Open box, factory seconds, scratch and dent, floor
models and commercial applications are excluded from these warranties.
WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the original purchaser/
user at the original installation location. Any such assignment or transfer shall void the warranties herein made and shall void
all warranties, express or implied, including any warranty or merchantability or fitness for a particular purpose.
IMPROPER USAGE. XO assumes no liability for parts or labor coverage for component failure or other damages resulting from
improper usage or installation or failure to clean and/or maintain product as set forth in the warranty packet provided with the unit.
ALTERATION OR NEGLECT. XO is not responsible for the repair or replacement of any parts that XO determines have been
subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation,
fire, flood, or act of God.
IMPROPER ELECTRICAL CONNECTIONS. XO is not responsible for the repair or replacement of failed or damaged
components resulting from electrical power failure, high or low voltage, use of extension cords, or improper grounding of the unit.
YOUR RIGHTS UNDER STATE LAW. This warranty gives you specific legal rights and you may have other rights that
vary from state to state. Some states do not allow the exclusion or limitation of consequential damages or a limitation on how
long an implied warranty lasts, so the above exclusion or limitation may not apply to you.
OUTSIDE U.S. This warranty does not apply to, and XO is not responsible for, any warranty claims made on products sold
or used outside the 48 continental United States.
To obtain service:
Call 973-403-8900 |email ser[email protected] | or submit a request on our website
www.xoappliance.com
we’ve got your back
