Installation and operating instructions
Tumble dryer
WTW85492GB
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WTW85492GB:
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Environmental protection 12
3
5 Installation and connection 13
3
Œ Draining the condensation water 15
3
Y The main points in brief 18
3
* Getting to know your appliance 19
3
Z Laundry 22
3
/ Programmes and buttons 23
3
1 Operating the appliance 26
3
M Signal setting 30
3
> Noises 31
3
D Cleaning 32
3
3 Faults and what to do about them 33
3
J After-sales service 35
3
[ Consumption values 36
3
J Technical data 37
3
8 Intended use
4
Intended use
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
9
Risk of poisoning/material damage!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
12
Environmental protection
12
Packaging/old appliance
12
Coolant
12
Greenhouse gas:
12
R134a
12
Energy-saving tips
12
Note:
12
5 Installation and connection
13
Installation and connection
13
Scope of delivery
13
Installing and connecting the dryer
13
: Warning
13
Risk of death!
13
: Warning
13
Children could lock themselves in the dryer, putting their lives at risk!
13
Caution!
13
Risk of injury
13
Caution!
13
Risk of material damage to the dryer or fabrics
13
Note:
13
Note:
13
Optional accessories
14
Transport and frost protection
14
1. Empty the condensate container.
14
2. Select any programme using the programme selector.
14
3. Press the Start button.
14
4. Wait for 5 minutes.
14
Note:
14
5. Empty the condensate container again.
14
6. Switch off the dryer.
14
Note:
14
Caution!
14
Any residual water may leak out and cause material damage.
14
Caution!
14
The dryer contains coolant and may be damaged.
14
Œ Draining the condensation water
15
Draining the condensation water
15
1. Remove the accessories from the dryer drum.
15
2. When the dryer is delivered from the factory, the hose for discharging the condensation into the condensation container is fastened to the connecting piece.
15
3. Disconnect the hose from the connecting piece and put it in the "parked" position.
15

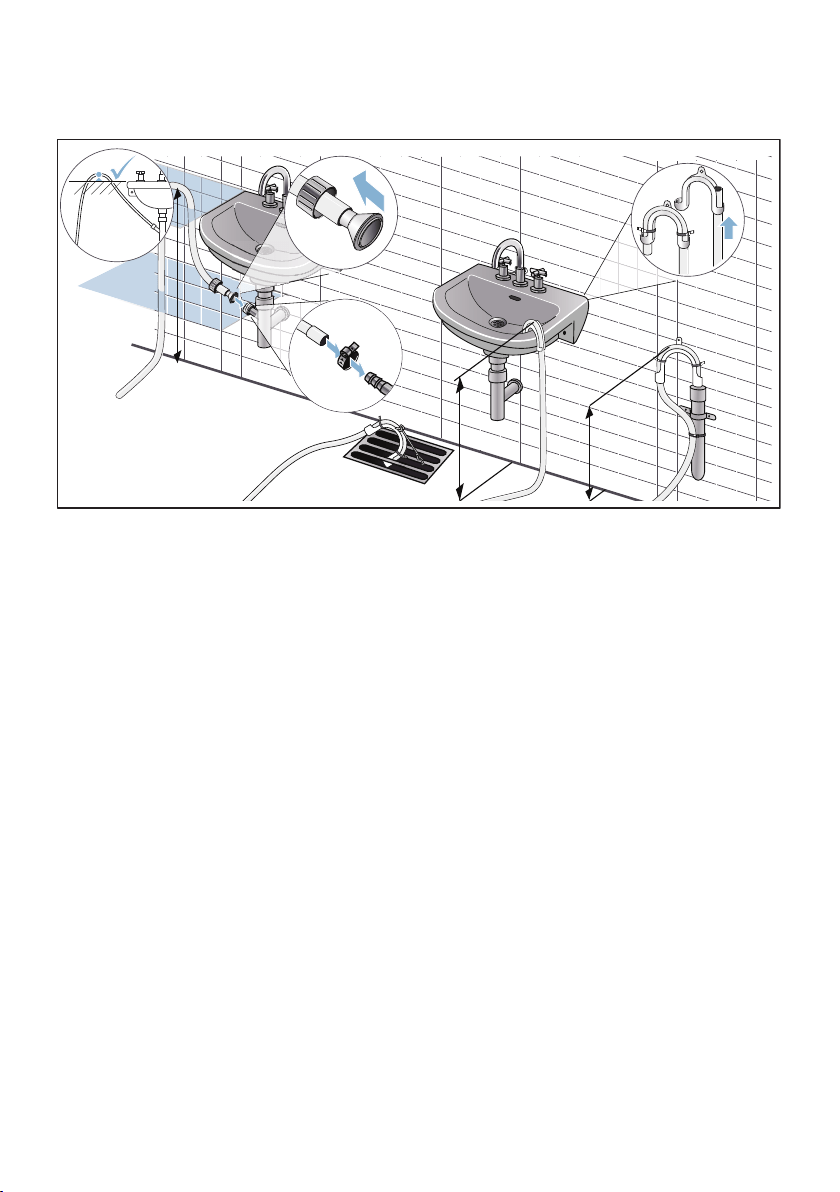

4. Take the drain hose from the accessories and secure it to the free connecting piece.
15
5. Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C).
16
Caution!
16
Accumulated water can be drawn back into the dryer and may cause material damage.
16
Caution!
16
Material damage due to leaks or draining water.
16
6. Pull out the condensation container fully.
17
7. Turn the condensation container 180° onto its underside and remove the stopper that is fitted.Turn the condensation container back over and insert the stopper into the recess in the top of the condensation container.
17
8. Pull the filter out of the lock-in slot and place it into the recess in the top of the condensation container.
17
9. Slide in the condensation container until it clicks into place.
17
Note:
17
Y The main points in brief
18
The main points in brief
18
* Getting to know your appliance
19
Getting to know your appliance
19
Dryer
19
Control panel
20
Display panel
21
Buttons in the display panel
21
Display panel
21
Z Laundry
22
Laundry
22
Preparing the laundry
22
: Warning
22
Risk of explosion/fire!
22
Caution!
22
The dryer drum and fabrics could be damaged.
22
Notes
22
Sorting washing according to:
22
Note:
22
Caution!
22
Possibility of material damage to the dryer or laundry.
22
Do not tumble-dry the following fabrics:
22
/ Programmes and buttons
23
Programmes and buttons
23
Programmes
23
Programme and fabrics
23
Maximum load and programme settings/info
23
Notes
24
Buttons
25
Buttons
25
Explanations and notes
25
Note:
25
Note:
25
1 Operating the appliance
26
Operating the appliance
26
Loading laundry and switching on the dryer
26
Note:
26
1. Place the laundry in the drum.
26
2. Turn the programme selector to any programme to switch the dryer on.
26
3. Close the dryer door.
26
Caution!
26
Possibility of material damage to the dryer or laundry.
26
Setting a programme
26
Note:
26
1. Select the required programme; detailed information on the programmes can be found from ~ Page 23 onwards.
26
2. Use the programme selector to set the required programme. The default programme settings for the selected programme appear in the display panel.
26
Note:
26
3. If required, adjust the default programme settings. You can find detailed information on this from ~ Page 23 onwards.
26
Starting the programme
26
Note:
26
Programme sequence
27
Note:
27
Changing the programme or adding laundry
27
1. To pause the programme, open the dryer door or press the Start button.
27
2. Add or remove laundry.
27
3. Select another programme or an additional function, if required.
27
4. Close the dryer door.
27
5. Press the Start button.
27
Note:
27
Cancelling the programme
27
Caution!
27
Risk of fire. Laundry may catch fire.
27
Programme end
27
Removing laundry and switching off the dryer
27
1. Remove the laundry.
27
2. Turn the programme selector to the "off" position.
27
Clean the fluff filter
27
Note:
27

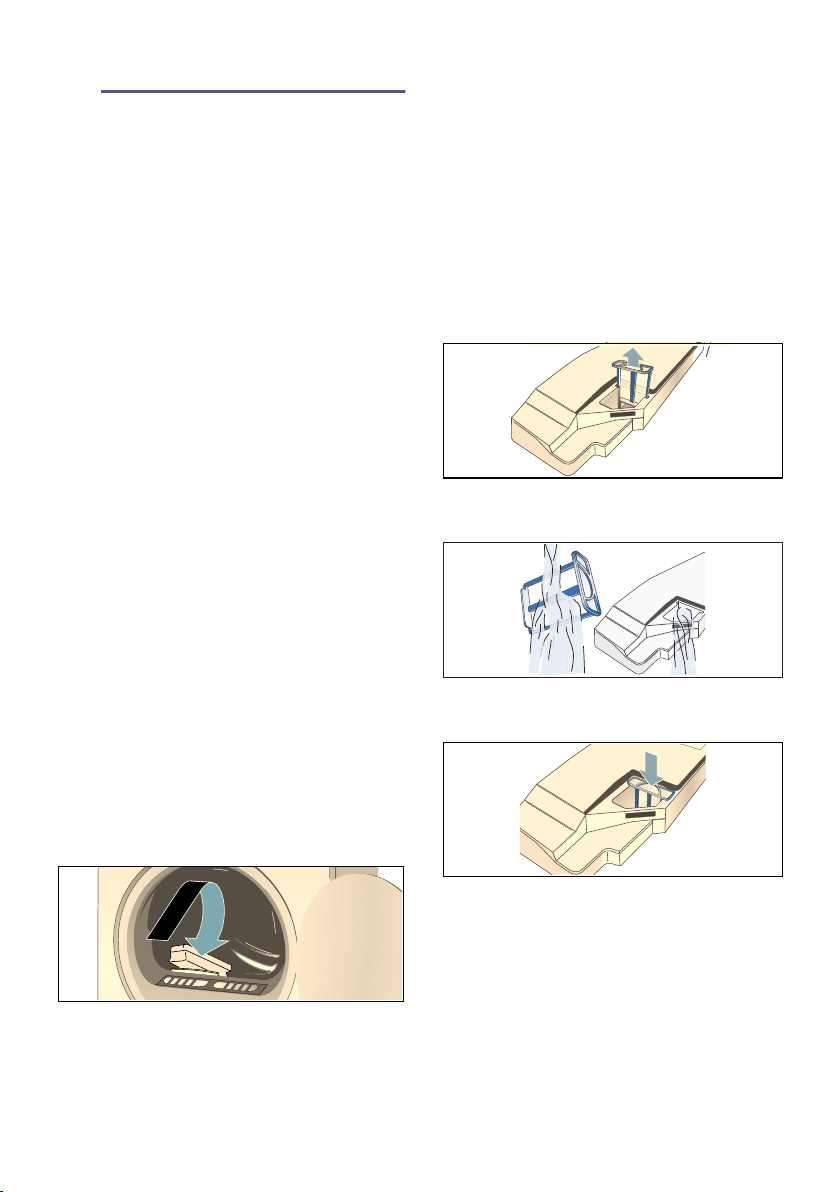

1. Open the dryer door and remove all fluff from the door.
28
2. Pull out the two-part fluff filter.
28
3. Remove the fluff from the recess in the fluff filter.
28
Note:
28
4. Pull apart the two-part fluff filter.
28
5. Open both filters and remove all the fluff.
28
6. Rinse away the fluff under warm, running water.
28
7. Dry the fluff filter, close it and reinsert the two-part fluff filter.
28
Caution!
28
The dryer may be damaged.
28
Emptying the condensate container
28
1. Pull out the condensate container horizontally.
29
2. Pour out the condensation water.
29
Caution!
29
Dirty condensation water may be harmful to your health and cause material damage.
29
3. Push in the condensate container until you feel it lock back into place in the dryer.
29
Note:
29
M Signal setting
30
Signal setting
30
Activating setting mode
30
1. Switch the dryer on.
30
2. Select the "Cottons" programme in position 1 and wait for five seconds.
30
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
30
2. The spin speed is shown in the display.
30
3. Press the "Ready in" time button or the drying time button to change the spin speed.
30
4. Turn the programme selector clockwise to position 3.
30
5. The volume of the audible signal at the end of the programme is shown in the display.
30
6. Press the "Ready in" time button or the drying time button to change the volume.
30
7. Turn the programme selector clockwise to position 4.
30
8. The volume for the audible button signal is shown in the display.
30
9. Press the "Ready in" time button or the drying time button to change the volume.
30
> Noises
31
Noises
31
Note:
31
D Cleaning
32
Cleaning
32
Cleaning the dryer and the control panel
32
: Warning
32
Risk of death!
32
Cleaning the moisture sensor
32
Note:
32
Caution!
32
Moisture sensor may be damaged.
32
Cleaning the filter in the condensate container
32
Note:
32
1. Pull out the condensate container horizontally.
32
2. Pour out the condensation water.
32
3. Remove the filter.
32
4. Clean the filter under warm, running water or in the dishwasher.
32
5. Push in the filter until you feel it lock into place.
32
Caution!
32
The dryer may be contaminated with fluff and thus become damaged.
32
6. Push in the condensate container until you feel it lock into place.
32
3 Faults and what to do about them
33
Faults and what to do about them
33
Faults
33
Cause/remedy
33
Note:
33
Note:
34
J After-sales service
35
After-sales service
35
[ Consumption values
36
Consumption values
36
Consumption values table
36
Programme
36
8 kg
36
4 kg
36
8 kg
36
4 kg
36
1400 rpm
36
179 min
36
111 min
36
1.57 kWh
36
0.93 kWh
36
1000 rpm
36
203 min
36
122 min
36
1.80 kWh
36
1.04 kWh
36
800 rpm
36
227 min
36
143 min
36
2.04 kWh
36
1.25 kWh
36
1400 rpm
36
125 min
36
75 min
36
1.10 kWh
36
0.66 kWh
36
1000 rpm
36
150 min
36
90 min
36
1.36 kWh
36
0.82 kWh
36
800 rpm
36
176 min
36
106 min
36
1.64 kWh
36
0.98 kWh
36
3.5 kg
36
3.5 kg
36
800 rpm
36
55 min
36
0.51 kWh
36
600 rpm
36
71 min
36
0.66 kWh
36
Most efficient programme for cotton fabrics
36
The following "standard cottons programme" (identified with ü) is suitable for drying normal, wet cotton laundry and is most efficient in terms of its combined energy consumption for drying wet cotton laundry.
36
Standard programmes for cottons in accordance with current EU regulation 932/2012
36
Programme
36
Load
36
Energy consumption
36
Programme length
36
J Technical data
37
Technical data
37
File type: PDF
File name: Bosch WTW85492GB Dryer.pdf
File size: 2.35 MB
File Language: English
Pages: 40
Author: Bosch
Updated: 2023-08-08
Download File
Specifications
Brand:
Bosch
Model: WTW85492GB
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
WTWH7660GB
WTW87561GB
WAN24108GB
WAN28108GB
WAN28201GB
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WTW85480GB
Bosch WTW85451GB
Bosch WTW85470GB
Bosch WTW85450GB
Bosch WTW854W1
Bosch WTW854KA
Bosch WTW854H2
Bosch WTW854F2
Bosch WTW854E2
Bosch WTW85460
Bosch WTW85433
Bosch WTW85400
Bosch WTW854V3
Bosch WTW85462
Bosch WTW85493GB/08
Table of Contents
×
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Environmental protection 12
3
5 Installation and connection 13
3
Œ Draining the condensation water 15
3
Y The main points in brief 18
3
* Getting to know your appliance 19
3
Z Laundry 22
3
/ Programmes and buttons 23
3
1 Operating the appliance 26
3
M Signal setting 30
3
> Noises 31
3
D Cleaning 32
3
3 Faults and what to do about them 33
3
J After-sales service 35
3
[ Consumption values 36
3
J Technical data 37
3
8 Intended use
4
Intended use
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
8
Risk of injury!
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
9
Risk of poisoning/material damage!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
Caution!
10
Material damage/damage to the appliance
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
12
Environmental protection
12
Packaging/old appliance
12
Coolant
12
Greenhouse gas:
12
R134a
12
Energy-saving tips
12
Note:
12
5 Installation and connection
13
Installation and connection
13
Scope of delivery
13
Installing and connecting the dryer
13
: Warning
13
Risk of death!
13
: Warning
13
Children could lock themselves in the dryer, putting their lives at risk!
13
Caution!
13
Risk of injury
13
Caution!
13
Risk of material damage to the dryer or fabrics
13
Note:
13
Note:
13
Optional accessories
14
Transport and frost protection
14
1. Empty the condensate container.
14
2. Select any programme using the programme selector.
14
3. Press the Start button.
14
4. Wait for 5 minutes.
14
Note:
14
5. Empty the condensate container again.
14
6. Switch off the dryer.
14
Note:
14
Caution!
14
Any residual water may leak out and cause material damage.
14
Caution!
14
The dryer contains coolant and may be damaged.
14
Œ Draining the condensation water
15
Draining the condensation water
15
1. Remove the accessories from the dryer drum.
15
2. When the dryer is delivered from the factory, the hose for discharging the condensation into the condensation container is fastened to the connecting piece.
15
3. Disconnect the hose from the connecting piece and put it in the "parked" position.
15
4. Take the drain hose from the accessories and secure it to the free connecting piece.
15
5. Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C).
16
Caution!
16
Accumulated water can be drawn back into the dryer and may cause material damage.
16
Caution!
16
Material damage due to leaks or draining water.
16
6. Pull out the condensation container fully.
17
7. Turn the condensation container 180° onto its underside and remove the stopper that is fitted.Turn the condensation container back over and insert the stopper into the recess in the top of the condensation container.
17
8. Pull the filter out of the lock-in slot and place it into the recess in the top of the condensation container.
17
9. Slide in the condensation container until it clicks into place.
17
Note:
17
Y The main points in brief
18
The main points in brief
18
* Getting to know your appliance
19
Getting to know your appliance
19
Dryer
19
Control panel
20
Display panel
21
Buttons in the display panel
21
Display panel
21
Z Laundry
22
Laundry
22
Preparing the laundry
22
: Warning
22
Risk of explosion/fire!
22
Caution!
22
The dryer drum and fabrics could be damaged.
22
Notes
22
Sorting washing according to:
22
Note:
22
Caution!
22
Possibility of material damage to the dryer or laundry.
22
Do not tumble-dry the following fabrics:
22
/ Programmes and buttons
23
Programmes and buttons
23
Programmes
23
Programme and fabrics
23
Maximum load and programme settings/info
23
Notes
24
Buttons
25
Buttons
25
Explanations and notes
25
Note:
25
Note:
25
1 Operating the appliance
26
Operating the appliance
26
Loading laundry and switching on the dryer
26
Note:
26
1. Place the laundry in the drum.
26
2. Turn the programme selector to any programme to switch the dryer on.
26
3. Close the dryer door.
26
Caution!
26
Possibility of material damage to the dryer or laundry.
26
Setting a programme
26
Note:
26
1. Select the required programme; detailed information on the programmes can be found from ~ Page 23 onwards.
26
2. Use the programme selector to set the required programme. The default programme settings for the selected programme appear in the display panel.
26
Note:
26
3. If required, adjust the default programme settings. You can find detailed information on this from ~ Page 23 onwards.
26
Starting the programme
26
Note:
26
Programme sequence
27
Note:
27
Changing the programme or adding laundry
27
1. To pause the programme, open the dryer door or press the Start button.
27
2. Add or remove laundry.
27
3. Select another programme or an additional function, if required.
27
4. Close the dryer door.
27
5. Press the Start button.
27
Note:
27
Cancelling the programme
27
Caution!
27
Risk of fire. Laundry may catch fire.
27
Programme end
27
Removing laundry and switching off the dryer
27
1. Remove the laundry.
27
2. Turn the programme selector to the "off" position.
27
Clean the fluff filter
27
Note:
27
1. Open the dryer door and remove all fluff from the door.
28
2. Pull out the two-part fluff filter.
28
3. Remove the fluff from the recess in the fluff filter.
28
Note:
28
4. Pull apart the two-part fluff filter.
28
5. Open both filters and remove all the fluff.
28
6. Rinse away the fluff under warm, running water.
28
7. Dry the fluff filter, close it and reinsert the two-part fluff filter.
28
Caution!
28
The dryer may be damaged.
28
Emptying the condensate container
28
1. Pull out the condensate container horizontally.
29
2. Pour out the condensation water.
29
Caution!
29
Dirty condensation water may be harmful to your health and cause material damage.
29
3. Push in the condensate container until you feel it lock back into place in the dryer.
29
Note:
29
M Signal setting
30
Signal setting
30
Activating setting mode
30
1. Switch the dryer on.
30
2. Select the "Cottons" programme in position 1 and wait for five seconds.
30
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
30
2. The spin speed is shown in the display.
30
3. Press the "Ready in" time button or the drying time button to change the spin speed.
30
4. Turn the programme selector clockwise to position 3.
30
5. The volume of the audible signal at the end of the programme is shown in the display.
30
6. Press the "Ready in" time button or the drying time button to change the volume.
30
7. Turn the programme selector clockwise to position 4.
30
8. The volume for the audible button signal is shown in the display.
30
9. Press the "Ready in" time button or the drying time button to change the volume.
30
> Noises
31
Noises
31
Note:
31
D Cleaning
32
Cleaning
32
Cleaning the dryer and the control panel
32
: Warning
32
Risk of death!
32
Cleaning the moisture sensor
32
Note:
32
Caution!
32
Moisture sensor may be damaged.
32
Cleaning the filter in the condensate container
32
Note:
32
1. Pull out the condensate container horizontally.
32
2. Pour out the condensation water.
32
3. Remove the filter.
32
4. Clean the filter under warm, running water or in the dishwasher.
32
5. Push in the filter until you feel it lock into place.
32
Caution!
32
The dryer may be contaminated with fluff and thus become damaged.
32
6. Push in the condensate container until you feel it lock into place.
32
3 Faults and what to do about them
33
Faults and what to do about them
33
Faults
33
Cause/remedy
33
Note:
33
Note:
34
J After-sales service
35
After-sales service
35
[ Consumption values
36
Consumption values
36
Consumption values table
36
Programme
36
8 kg
36
4 kg
36
8 kg
36
4 kg
36
1400 rpm
36
179 min
36
111 min
36
1.57 kWh
36
0.93 kWh
36
1000 rpm
36
203 min
36
122 min
36
1.80 kWh
36
1.04 kWh
36
800 rpm
36
227 min
36
143 min
36
2.04 kWh
36
1.25 kWh
36
1400 rpm
36
125 min
36
75 min
36
1.10 kWh
36
0.66 kWh
36
1000 rpm
36
150 min
36
90 min
36
1.36 kWh
36
0.82 kWh
36
800 rpm
36
176 min
36
106 min
36
1.64 kWh
36
0.98 kWh
36
3.5 kg
36
3.5 kg
36
800 rpm
36
55 min
36
0.51 kWh
36
600 rpm
36
71 min
36
0.66 kWh
36
Most efficient programme for cotton fabrics
36
The following "standard cottons programme" (identified with ü) is suitable for drying normal, wet cotton laundry and is most efficient in terms of its combined energy consumption for drying wet cotton laundry.
36
Standard programmes for cottons in accordance with current EU regulation 932/2012
36
Programme
36
Load
36
Energy consumption
36
Programme length
36
J Technical data
37
Technical data
37
Search:
×
Search
