The trimmer you purchased may not have all of these heads, but
they will all work with your trimmer if you wish to purchase them.
You may order additional heads online at WahlUSA.com.
Self-sharpening blades are high compression, high-carbon
steel, made to maintain their shape and sharpness for extended
periods.
NOW YOU CAN KEEP ON SHAVING
WHILE CLEANING UP INGROWN
WHISKERS
Men with very curly facial hair have a special problem with
shaving. Specifically, ingrown whiskers. Their whiskers curl back
toward the skin — and grow in many different directions.
Electric razors can’t pick them up through their slotted or mesh
heads. And safety razors slice them off at a sharp angle. Either
way, the stubble is left in an ideal condition to cause ingrown hair
problems. Continued shaving over the bumps and irritated skin, of
course, makes the condition worse.
But you don’t have to stop shaving altogether. With this Wahl
trimmer and its specially designed T-blade, you can maintain a
neat, shaved appearance while getting help with ingrown whiskers.
Its open-tooth comb action picks up and straightens curly
whiskers for cutting — while its high-speed blades move across at
a flat angle to the whiskers, clipping them off evenly.
SHAVING WITH THE T-BLADE
Wash Up
1. Make sure your hands and fingernails are scrubbed as clean as
possible before touching your face. Irritated skin is very easily
infected by germs.
trimming guard is locked solidly into the desired position before
you start to trim.
3. To cut the outline of your beard, remove the trimming guard.
Starting under your chin and working back toward your jawbone
and ears, cut the outer perimeter of your beard underneath
the jawbone. Continue the line all the way up to the ears and
hairline.
4. Accentuate your beard line by using the trimmer in a downward
motion. Start at the line you’ve created and, working from the
chin back toward the ears, trim the area right under your beard
line.
5. Define the upper part of your beard using the same technique.
USE YOUR WAHL TRIMMER ON HAIR,
TOO
That’s part of its job. You can use it to keep expensive hairstyles
trimmed—shaping hairlines, fading defining parts and trimming
around neck and ears. You can use it to style hair, too, if you wish.
To trim or style hair, first shampoo and dry hair thoroughly.
Holding the Wahl trimmer with toothed edge pointed down, trim
off a little at a time, carefully. It may be best to have someone else
help you.
Your trimmer comes with three blade guards: #1, #2, and #3. For
fading, use the attachment you desire; #1 for shortest length, #2 for
medium length, and #3 for longest length. Attach the guard to the
trimmer, making sure it is secure. Hold trimmer toward the temple
line; begin to cut hair in an upward motion, staying below temple
line for high, tight fades. For high, tight fade or military style fades,
use the trimmer with a guard. Cut hair past temple line, working
your way around the head from one side to the other. For blending
techniques, use #2 and #3 guards to remove bulky hairline.
Eventually, you should develop the skills to stay well groomed by a
quick trim around neck, ears and sideburns.
FADE CUT
1. Start at the temple and cut all the way around the head to
establish the ultimate location of the fade line. Always cut against
brushing.
MUSTACHE TRIMMING
1. Comb your mustache. Looking into a well-lit mirror, comb your
mustache in the direction that it grows. This will help reveal
stray hairs and achieve an even, balanced trim.
2. Cut the outline of your mustache. Holding the trimmer in a
vertical position, with the nameplate side facing you, define the
line of your mustache. The extended tips on the blades let you
achieve a clean, well-defined mustache line.
3. Defining. As a finishing step, hold the trimmer with the name-
plate facing you. Using only the bare blades, make a definitive
line at the bottom of your mustache.
4. Tapering. Hold the trimmer with the nameplate facing away from
you. Again starting with the middle of your mustache, follow
the lip line and taper out the mustache until a gentle shape is
created on the bottom portion of your mustache.
5. Defining. As a finishing step, hold the trimmer with nameplate
facing make a definitive line at the bottom of your mustache.
TRIMMING AND EDGING YOUR
BEARD
The following are suggested trimming steps and trimmer positions.
You may find different procedures work better for you.
1. Comb your beard in the direction that it grows to help reveal
stray hairs that may be longer than the others.
2. Attach the longest trimming guard to trim and taper your beard.
Start at each sideburn and stroke downward toward your neck.
Trim toward your chin in smooth, overlapping strokes, following
the lay of your beard. If you trim against the way your beard
naturally lays, the trimmer will cut the hair much shorter and the
result may be patchy.
Use to progressively shorter trimming guides until you reach
the desired length of beard. You may wish to use the shortest
trimming guard attachment to cut closer near the ear and down
under the chin, changing to a longer trimming guide toward
the front of the face and point of your chin. Always be sure the
SAVE THESE
INSTRUCTIONS
For Household Use Only
RECHARGING
1. This trimmer is conveniently designed for household use. It
should be allowed to charge overnight before first use.
2. Remove the trimmer, recharging transformer and accessories
from the packing material.
3. Connect the transformer to the trimmer. BE SURE TRIMMER IS
IN THE “OFF - 0” POSITION WHEN CHARGING.
4. Plug the recharging transformer into any convenient electrical
outlet at the correct voltage.
5. When trimmer is low in power, it should be connected to the
transformer and plugged into an outlet to assure maximum
power is available when it is next used. This transformer
is designed to continuously charge the battery without
overcharging.
6. Ni-MH battery life may be extended with the following
procedure: Once every month, let the trimmer run until the
motor stops. Move the switch to the “OFF - 0” position and
recharge fully overnight.
7. Insert only recharging transformer plug supplied by the
manufacturer into charger receptacle.
TROUBLESHOOTING
If your trimmer does not seem to take a charge, check the
following before returning it for repair:
1. Check outlet to make sure it is working by plugging in another
appliance.
2. Make sure the outlet simply is not connected to a light switch
which turns the power at the outlet off when lights are turned
off.
SPECIAL FEATURES:
Your trimmer has been designed with several advanced features
to help you get perfect results every time you trim. Your trimmer
may be used to neatly trim goatees, beards, mustaches, neckline,
sideburns around the ears and eyebrows, or anywhere you may
need grooming. It also makes a great all-around family trimmer for
mini haircuts and touch ups between trips to the barber or to clean
up the shape of the neck.
Soft-Touch Grip allows you to hold the trimmer in a comfortable
position for precision trimming.
A Detachable Blade System enables you to quickly change
from a standard-width blade for full grooming to a narrow-width
blade for detail trimming around a mustache, goatee, or anywhere
to define the hair line and clip any stray whiskers.
To remove attachment, simply pull top edge of blade away from
body unit. To attach, align back tab of attachment head to cavity on
the inner edge of trimmer unit and
push down on top of blade.
Should blades become damaged
or dull or if you want additional attachment heads for your
trimmer, you may purchase them from Wahl. It is also possible
to purchase other heads for your groomer. Be sure to ask for the
following attachment with part number from our service and repair
department (see last page for contact information):
Attachment Head: Wahl Part Number
Trimmer: #59300-800
Detailer: #59301 (Included)
T-Blade: #02141-101 (Included)
Shaver: #59303 (Included)
Rotary: #59306 (Included)
WahlUSA.com
CARING FOR YOUR TRIMMER
OILING BLADES
For best results, use Wahl Clipper Oil on the blades only when
necessary, or approximately once a month. Motor bearings are
permanently lubricated—do not
attempt to oil.
When oiling your trimmer, turn the
trimmer “ON - I,” hold the unit with
the blades facing DOWN and squeeze
three drops across the front of the blade and one drop on each
side on the heel of the blade. Wipe off excess oil with soft cloth.
NOTICE—DO NOT OVER OIL!
Excessive oiling or application of liquids will cause damage if
allowed to seep back into motor.
BLADE CARE
Trimmer blades have precision-hardened, ground and lapped
cutting teeth. Blades should be handled carefully and never
bumped or used to cut dirty or abrasive material. Never rinse the
blades with water, or the blades may rust. Clean with the included
brush.
CLEANING/STORAGE
Before storing your trimmer, use the cleaning brush to whisk any
loose hairs from the unit and the blades. For units with a soft-
touch grip, use a damp cloth to wipe down the
body of the trimmer, taking care not to get the
blades wet. Store unit in such a manner so
that blades are protected from damage.
When the trimmer is not in use, the trimmer
blade guard attachment should be in place to
protect the blades.
This appliance should be stored in a manner
where it is not subjected to crushing, heating
above 100°C (212°F), or incineration.
3. Be sure the trimmer is properly connected to the recharging
transformer, all connections are secure and the switch on the
trimmer is turned “OFF - 0.”
4. If your electricity is connected to a master power switch, we
suggest the trimmer be disconnected from the charger anytime
the master switch is off. Leaving the unit plugged into a dead
outlet or an unplugged charger will drain the battery.
5. If trimmer does not run and it is completely charged, turn the
unit “ON - I” and pinch or push the blades manually. (Oil may
have dried out between the blades, so they may be temporarily
stuck together.)

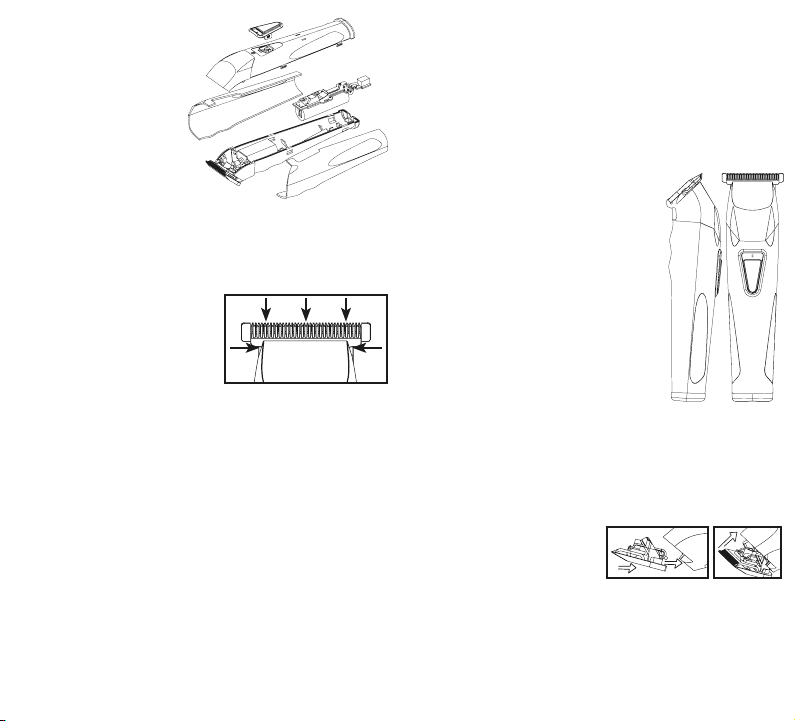

BATTERY REMOVAL AND DISPOSAL
Under normal use, the rechargeable Ni-MH battery in your trimmer
will last from three to five years. At the end of its life, when it will
no longer take a full charge, the Ni-MH battery must be removed
and recycled or disposed of properly. Do not attempt to replace the
battery. All servicing or battery replacement should be performed
by an Authorized WAHL Service Location. To remove the batttery
for recycling or disposal, follow these steps:
1. Make sure the on/off switch is in the “0” (OFF) position and that
the cord is NOT plugged into the trimmer or any electrical outlet.
2. Cut open rubberized grip pad.
3. Pry the trimmer housing apart.
4. Locate circuit board and
battery.
5. Pry battery off of
circuit board.
6. Apply tape to both
ends of the battery
before recycling
or properly
disposing of it.
7. Discard the entire
clipper.
2. Wash and dry your face thoroughly to unclog pores and
whisker follicles. Use a rough towel to help remove dead skin
and invigorate the skin. Also, consider using an antiseptic
lotion.
Brush Up - Use of Beard Brush
3. Brush your beard thoroughly every day with a good scrubbing
action. This is important because it frees ingrown whiskers
and moves the rest around so they don’t take hold and start
growing in. Use the special beard brush provided or any other
small, stiff-bristle brush that can be sanitized (a toothbrush is
fine). Keep the brush clean.
4. Brush your face as often as possible to start training your beard
to grow in one direction. This goes a long way to ensuring a
clean, close shave without skin irritation (you may even want
to stop shaving altogether long enough to establish a brushing
pattern). Most people can expect good results following these
brushing strokes:
• Brush down from each ear, across the cheek and along the
jawbone toward the chin.
• Brush away from the point of the chin on each side, back
along the lines just under the jawbone.
• Brush up from the lower hairline, all around the neck, up to
the lines of the previous stroke.
• Brush from the lower lip down over the chin.
• Brush down from the nose to the upper lip.
5. Shave with Wahl trimmer following the SAME STROKES and
going in the SAME DIRECTION you brushed. Stretch a section
of skin with the fingers of one hand, while holding the shaver
blade head flat against the face with the other hand. Push it
forward with slight pressure in a stroking action across the
skin. You may want to go over the same area several times.
Just be sure you always shave in the same direction each time.
6. Continue this program as long as ingrown hairs and bumps
are a problem. Later, you may wish to switch back to a razor-
close shaving method. But return to use of the Wahl trimmer
at the first sign of the problem coming back. And never stop
the grain for the shortest cut. Don’t force the blade through the hair.
Let the trimmer do the work.
2. Next, cut around the head again and up the nape of the neck to
the fade line, brushing away the cut hair as you go. Pull the scalp
taut with the thumb for the closest cut. Turn the trimmer upside
down when necessary to keep cutting against the grain. Make sure
both sides of the head are even.
3. For the top of the head, cut with the grain using the individual
blade guards. The smaller the number of the guard, the shorter the
cut. Comb or brush the hair as you cut for an even end result.
4. To complete the fade, blend the hair at the fade line by trimming
up and out across the line and against the grain all the way around
the head. Then, repeat all around, turning the trimmer upside down
and cutting downward. The final objective is to blend the hair so
there is no real line, just a perfect fade from bald to very short
hair. You can achieve this by using the #1 blade guard. Continue
combing and cutting until you achieve the desired effect.
5. To create a part, pick a spot off-center. Pull the scalp tight and
with the end of the blade perpendicular to the head,
move the trimmer back and forth to cut a line. Comb
through it and cut again to make sure the cut is
precise.
For a smooth shave
, attach the shaver
head. The shaver makes for the perfect tool to groom
the total body. Using the same technique, as mentioned prior, you
can groom wherever you feel a need. Shave against hair growth
while stretching the skin. After every use,
remove the shaver foil by pressing both
side buttons and carefully using cleaning
brush provided. If you have problems
with razor bumps, it is recommended to
not use the foil shaver head frequently.
© 2018 Wahl Clipper Corporation
Part No. 94489-001
Printed in U.S.A.
For more information or Product Registration, visit WahlUSA.com
5-YEAR LIMITED WARRANTY
Valid in U.S.A. Only
If your Wahl product fails to operate satisfactorily within five
(5) years from the date of original purchase or receipt as a gift,
Wahl will, at our option, repair or replace it and return it to you
FREE OF CHARGE. Do not return this product to store where
purchased. Products needing repair under this warranty should
be returned with postage prepaid to:
Wahl Clipper Corp.
Attn: Repair Department
3001 Locust Street
Sterling, Illinois 61081
Include a note describing the defect and the date of original
purchase or receipt as a gift (if in warranty). Products out of
warranty will be repaired at our standard repair charges.
This warranty is void and no repair or replacement will be made
under this warranty or otherwise if: (1) The product is modified
in any manner or repaired by anyone other than Wahl Clipper
Corporation or Wahl authorized service center. (2) The product
has been used commercially or subjected to unreasonable use.
This warranty gives you specific legal rights and you may
also have other rights which may vary from state to state. No
other written express warranty is given. Any implied warranty,
including any warranty of merchantability which may arise from
purchase or use, is limited to the year period provided in this
express warranty. Some states may not allow such limitation,
so it may not apply to you. No responsibility is assumed for
incidental or consequential damages of any type, or for the use
of unauthorized attachments. Some states may not allow the
exclusion or limitation of incidental or consequential damages, so
the limitation or exclusion may not apply to you. Outside U.S.A.,
check with store for Wahl authorized distributor’s warranty.
WahlUSA.com
Operating Instructions for
The All-In-One Grooming Kit
Instrucciones de operación
de la recortadora recargable
T-BLADE GUARDS:
The trimmer you purchased may not have all of these guards, but
they will all work with your trimmer if you wish to purchase them.
USING GUARDS:
To attach guards, hold with the teeth up. Snap
guard firmly to the bottom of the blade.
Groomsman
T- P r o
™
SERVICE AND REPAIR
If you have problems with your trimmer, send it prepaid with a note
explaining the problem to:
Wahl Clipper Corporation
Attn: Repair Department
3001 Locust Street
Sterling, IL 61081
Telephone (800) 767-9245
For products purchased outside the United States, contact your distributor.
If for any reason within 60 days of purchase of your Wahl
®
trimmer you are not satisfied with your trimmer and would like a
refund, just return your trimmer, together with the sales receipt, to
the retailer from whom you purchased it. Wahl will reimburse all
retailers who accept trimmers within 60 days of purchase. If you
have any questions regarding this money-back guarantee, please
call 1-800-767-9245 in the United States.
60 Day Money Back Guarantee!
1 2 3
#1/2 #1 #1 1/2 #2
#59300-800 #59301 #02141-101 #59306#59303
Loading ...
Loading ...
Loading ...
