brush provided.
TRIMMING PRIVATE AREAS WITH THE
TRIMMER & DETAILER HEAD
1. Volume reduction using trimmer head. Attach guide comb and
select a long trimming length. Begin trimming, starting at the
top and working down. Use progressively closer settings to get
the “look” and length you prefer.
2. For hard to reach or tight areas, use the detailer head. Always
pull skin taut. Then slowly move the detailer through area to trim
until desired look is accomplished.
3. Shave in your private areas by gently shaving in the desired area
and always keep the skin taut.
TRIMMING NOSE HAIR USING
DETAILER HEAD
Make sure the nasal passages are clean. Slowly move the detailer in
and out of each nostril, no more than 1/4-inch deep.
TRIMMING EAR HAIR USING
DETAILER HEAD
Make sure the outer areas of the ears do not contain any wax. Hold
the ear flat with one hand and carefully insert detailer no more than
1/4-inch into the outer ear.
CAUTION:
Do not insert the detailer or any other foreign
object into the inner ear. For hair growing on the outside of the ear,
simply move the detailer slowly along the edges of the ear.
TRIMMING EYEBROWS USING
DETAILER HEAD
Slowly move detailer to neatly trim stray hairs. For precise, even
trimming, slowly move the detailer closer or farther away from
eyebrows to achieve desired length. Do not press against brow as it
may remove too much hair.
SPECIAL
FEATURES:
Your trimmer has been
designed with several
advanced features to help
you get perfect results
every time you trim. Your
trimmer may be used
to neatly trim goatees,
beards, mustaches,
neckline, sideburns
around the ears and
eyebrows, or anywhere
you may need grooming.
It also makes a great all-around family trimmer for mini haircuts
and touch ups between trips to the barber or to clean up the shape
of the neck.
Soft-Touch Grip allows you to hold the trimmer in a comfortable
position for precision trimming.
A Multi-Position Trimming Guide (not included in all kits)
makes achieving a consistent trim easy every time. The guide can
be removed and reattached without changing the preset cutting
length, so once you have found the perfect length, there’s no
guesswork in achieving it every trim. The trimming guide is a two-
piece assembly, consisting of a base and a comb. It should not be
disassembled.
To attach the guide, simply slide it on at a
slight angle and press the release tab down
to secure in position. To remove the guide,
gently push up on the release tab and slide
the assembly away from the trimmer. Adjust
the trimming length by pressing on the
thumb lever and moving the comb forward
or backward to the desired setting.
A Detachable Blade System enables you to quickly change
from a standard-width blade for full grooming to a narrow-width
blade for detail trimming around a mustache, goatee, or anywhere
to define the hair line and clip any stray whiskers.
To remove attachment, simply pull
top edge of blade away from body
unit. To attach, align back tab of
attachment head to cavity on the
inner edge of trimmer unit and push down on top of blade.
Should blades become damaged or dull or if you want additional
attachment heads for your trimmer, you may purchase them
from Wahl. See the ACCESSORY SHEET in this kit for ordering
information.
Self-Sharpening Blades are high compression, high-carbon
steel, made to maintain their shape and sharpness for extended
periods.
TRIMMING WITH ATTACHMENT
COMBS
These attachments are ideal for blending,
tapering and defining beards, as well as for
achieving a “close trim” stubble look around
the face. To use the attachments, go with the
hair direction. To achieve closer looks, go
against the hair direction.
To attach guide combs, hold comb with the teeth up. Snap guide
comb attachment firmly to the bottom of the trimmer blade.
SAVE THESE INSTRUCTIONS
For Household Use Only
RECHARGING
1. This trimmer is conveniently designed for household use. It
should be allowed to charge overnight before first use.
2. Remove the trimmer, recharging transformer and accessories
from the packing material.
3. Connect the transformer to the trimmer. BE SURE TRIMMER IS
IN THE “OFF - 0” POSITION WHEN CHARGING.
4. Plug the recharging transformer into any convenient electrical
outlet at the correct voltage.
5. When trimmer is low in power, it should be connected to the
transformer and plugged into an outlet to assure maximum
power is available when it is next used. This transformer
is designed to continuously charge the battery without
overcharging.
6. Ni-MH battery life may be extended with the following
procedure: Once every month, let the trimmer run until the
motor stops. Move the switch to the “OFF - 0” position and
recharge fully overnight.
CARING FOR YOUR TRIMMER
OILING BLADES
For best results, use Wahl Clipper Oil on the blades only when
necessary, or approximately once a month. Motor bearings are
permanently lubricated—do not
attempt to oil.
When oiling your trimmer, turn the
trimmer “ON - I,” hold the unit with
the blades facing DOWN and squeeze
three drops across the front of the
blade and one drop on each side on the heel of the blade. Wipe off
excess oil with soft cloth.
NOTICE—DO NOT OVER OIL!
Excessive oiling or application of liquids will cause damage if
allowed to seep back into motor.
BLADE CARE
Trimmer blades have precision-hardened, ground and lapped
cutting teeth. Blades should be handled carefully and never
bumped or used to cut dirty or abrasive material. Never rinse the
blades with water, or the blades may rust. Clean with the included
brush.
CLEANING/STORAGE
Before storing your trimmer, use the cleaning brush to whisk
any loose hairs from the unit and the blades. For units with a
soft-touch grip, use a damp cloth to wipe down the body of the
trimmer, taking care not to get the blades wet. Store unit in such a
manner so that blades are protected from damage.
When the trimmer is not in use, the trimmer blade guard
attachment should be in place to protect the blades.
This appliance should be stored in a manner where it is not
subjected to crushing, heating above 100°C (212°F), or
incineration.

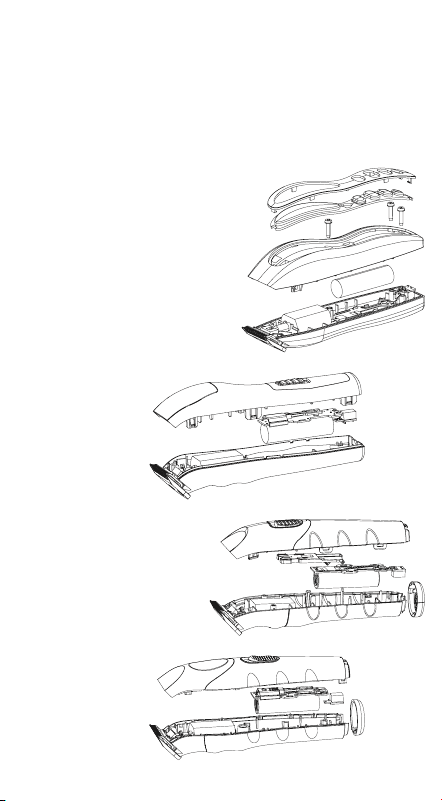

BATTERY REMOVAL AND DISPOSAL
Under normal use, the rechargeable Ni-MH battery in your trimmer
will last from three to five years. At the end of its life, when it will
no longer take a full charge, the Ni-MH battery must be removed
and recycled or disposed of properly. Do not attempt to replace the
battery. All servicing or battery replacement should be performed
by an Authorized WAHL Service Location. To remove
the batttery for recycling or disposal,
follow these steps:
1. Make sure the on/off switch is in the
“0” (OFF) position and that the cord
is NOT plugged into the trimmer
or any electrical outlet.
2. Pry off front plate (5598).
Cut open rubberized grip pad
(9855).
Remove endcap (9893, 9894).
3. Remove the screws
under the front
chrome piece
(5598, 9893).
4. Pry the trimmer
housing apart.
5. Locate circuit board
and battery.
6. Pry battery off of circuit
board.
7. Apply tape to both ends of the
battery before recycling or
properly disposing of it.
8. Discard the entire trimmer.
TROUBLESHOOTING
If your trimmer does not seem to take a charge, check the
following before returning it for repair:
1. Check outlet to make sure it is working by plugging in another
appliance.
2. Make sure the outlet simply is not connected to a light switch
which turns the power at the outlet off when lights are turned
off.
3. Be sure the trimmer is properly connected to the recharging
transformer, all connections are secure and the switch on the
trimmer is turned “OFF - 0.”
4. If your electricity is connected to a master power switch, we
suggest the trimmer be disconnected from the charger anytime
the master switch is off. Leaving the unit plugged into a dead
outlet or an unplugged charger will drain the battery.
5. If trimmer does not run and it is completely charged, turn the
unit “ON - I” and pinch or push the blades manually. (Oil may
have dried out between the blades, so they may be temporarily
stuck together.)
working from the chin back toward
the ears, trim the area right under
your beard line.
5. Define the upper part of your beard
using the same technique.
6. For a neater finished look, replace
attachment blade to the detail blade forward. Use this blade
for fine, detail trimming anywhere it is needed, such as at the
sideburns near the ears, goatees, etc.
DETAILING NECKLINES, SIDEBURNS,
MUSTACHES & BEARDS USING
TRIMMER HEAD
Slowly move trimmer downward on desired areas to neatly
trim and shape.
TRIMMING ARM & LEG HAIR USING
TRIMMER HEAD
Simply glide the trimmer over your arm or leg until desired hair
length is achieved. The first time you trim the hair, start by using
a longer setting on the guide comb on the trimmer, then use
progressively shorter settings if a shorter length is preferred.
TRIMMING CHEST & STOMACH
USING TRIMMER HEAD
Glide the trimmer over your torso region, in an upward motion
until desired hair length is achieved. For tight, scratch-free
trimming, use the #1 guide comb.

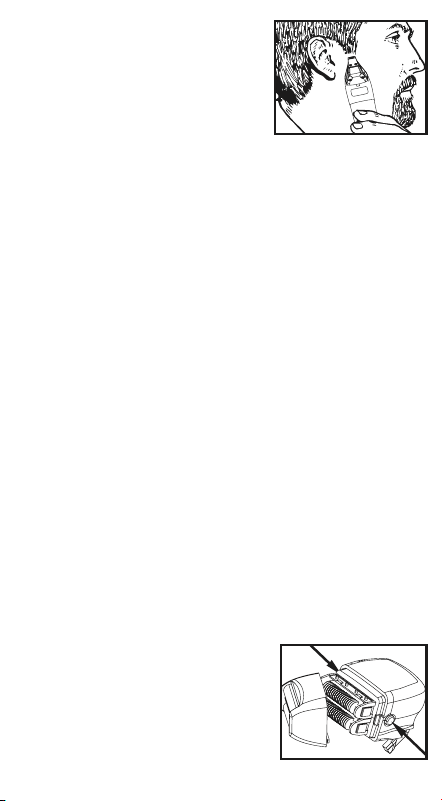

For the closest look
, after trimming, attach the
shaver head. The shaver makes for the perfect tool to groom the
total body. Using the same technique, as
mentioned prior, you can groom wherever
you feel a need. Shave against hair growth
while stretching the skin. After every use,
remove the shaver foil by pressing both
side buttons and carefully using cleaning

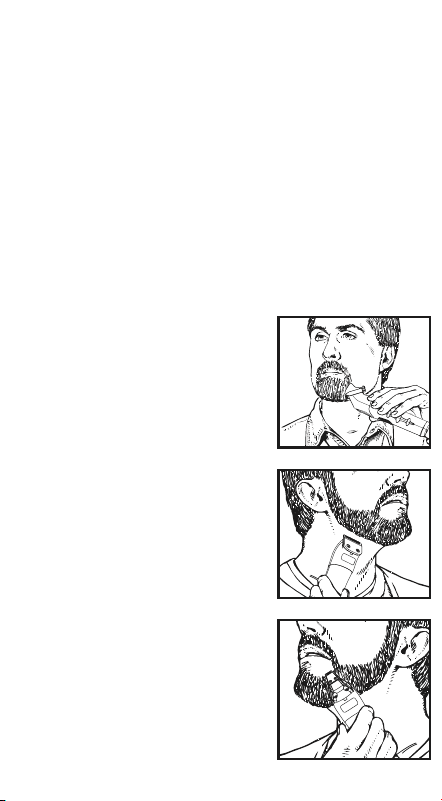

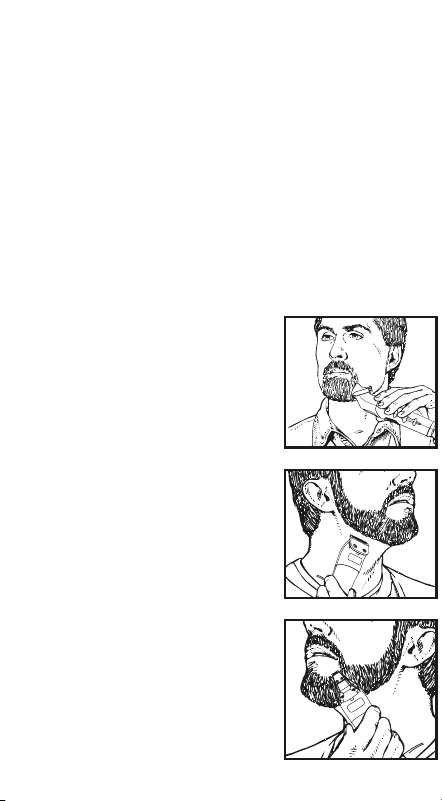

TRIMMING AND EDGING YOUR
BEARD
The following are suggested trimming steps and trimmer
positions. You may find different procedures work better for you.
1. Comb your beard in the direction that it grows to help reveal
stray hairs that may be longer than the others.
2. Attach the trimming guide to trim and taper your beard. Begin
with the guide set at a long trimming length. Trim toward your
chin in smooth, overlapping strokes, following the lay of your
beard. If you trim against the way your beard naturally lays, the
trimmer will cut the hair much shorter than the marked length.
Adjust the trimming guide to progressively shorter settings
until you reach the desired length of beard. You may wish to
set the trimming guide attachment to
cut closer near the ear and down under
the chin, changing to a longer setting
toward the front of the face and point
of your chin. When the trimming guide
is removed, it will remain at its last
length setting until you change it.
Always be sure the trimming guide is
locked solidly into the desired position
before you start to trim.
3. To cut the outline of your beard,
remove the trimming guide. Starting
under your chin and working back
toward your jawbone and ears, cut
the outer perimeter of your beard
underneath the jawbone. Continue
the line all the way up to the ears and
hairline.
4. Accentuate your beard line by using
the trimmer in a downward motion.
Start at the line you’ve created and,
WahlUSA.com
GroomsMan
®
Detachable Blade Trimmer
Recortadora con Láminas
Desmontable
Operating Instructions for
Rechargeable Grooming Kits
Instrucciones de Operación
de la Recortadora Recargable
Models 5598, 9855, 9893, 9894
SERVICE AND REPAIR
If you have problems with your shaver, send it prepaid with a note
explaining the problem to:
Wahl Clipper Corporation
Attn: Repair Department
3001 Locust Street
Sterling, IL 61081
Telephone (800) 767-9245
For products purchased outside the United States, contact your distributor.
If for any reason within 60 days of purchase of your Wahl
®
trimmer you are not satisfied with your trimmer and would like a
refund, just return your trimmer, together with the sales receipt, to
the retailer from whom you purchased it. Wahl will reimburse all
retailers who accept trimmers within 60 days of purchase. If you
have any questions regarding this money-back guarantee, please
call 1-800-767-9245 in the United States.
60 Day Money Back Guarantee!
© 2019 Wahl Clipper Corporation
Part No. 91646-502
Printed in China
For more information or Product Registration, visit WahlUSA.com
5-YEAR LIMITED WARRANTY
Valid in U.S.A. Only
If your Wahl product fails to operate satisfactorily within five (5)
years from the date of original purchase or receipt as a gift, Wahl
will, at our option, repair or replace the product and return it to
you FREE OF CHARGE. Do not return this product to store where
purchased. Products needing repair under this warranty should
be returned with postage pre-paid to the following address or call
1-800-767-9245 for assistance:
Wahl Clipper Corp.
Attn: Repair Department
3001 Locust Street
Sterling, Illinois 61081
When mailing, please include a note describing the defect and
the date of original purchase or receipt as a gift. Products out of
warranty will be repaired at our standard repair charges.
This warranty does not cover products damaged by:
1. Modification or repair by anyone other than Wahl Clipper
Corporation or a Wahl authorized service center;
2. Commercial (non-consumer) use or unreasonable use.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. No other written
express warranty is given. No responsibility is assumed for
incidental or consequential damages of any type or for the use
of unauthorized attachments. Some states may not allow the
exclusion or limitation of incidental or consequential damages, so
the limitation may not apply to you. Warranty valid in U.S.A. only.
Outside U.S.A., check with store for Wahl authorized distributor’s
warranty.
CONTAINS SEALED, RECHARGEABLE NICKEL-
CADMIUM BATTERY. MUST BE RECYCLED OR
DISPOSED OF PROPERLY.
The RBRC Battery Recycling Seal on the nickel-cadmium (Ni-Cd) battery
contained in this product indicates Wahl is voluntarily participating in an
industry program to collect and recycle these batteries at the end of their useful
life, when taken out of service in the United States or Canada. The RBRC
program provides a convenient alternative to placing used Ni-Cd batteries into
the trash or the municipal waste stream, which is illegal in some areas. Please
call 1-800-8-BATTERY for information on Ni-Cd battery recycling in your area.
Wahl’s involvement in this program is part of our commitment to preserving
our environment and conserving our natural resources.
9855
5598
9894
9893
9894
9855
5598
9893
Loading ...
