Service Manual

This is the main product document for model CD-M10000V. Additionally, the document applies to other Sharp models: CP-M10000

The file format is pdf, 68 pages, you can download this manual here .

background
– 1 –
CD-M10000W/CP-M10000
No. SY183CDM1000W
CONTENTS
Page
SAFETY PRECAUTION FOR SERVICE MANUAL ........................................................................................................... 2
VOLTAGE SELECTION ..................................................................................................................................................... 2
AC POWER SUPPLY CORD AND AC PLUG ADAPTOR ................................................................................................. 2
SPECIFICATIONS ............................................................................................................................................................. 3
NAMES OF PARTS ........................................................................................................................................................... 4
OPERATION MANUAL ...................................................................................................................................................... 6

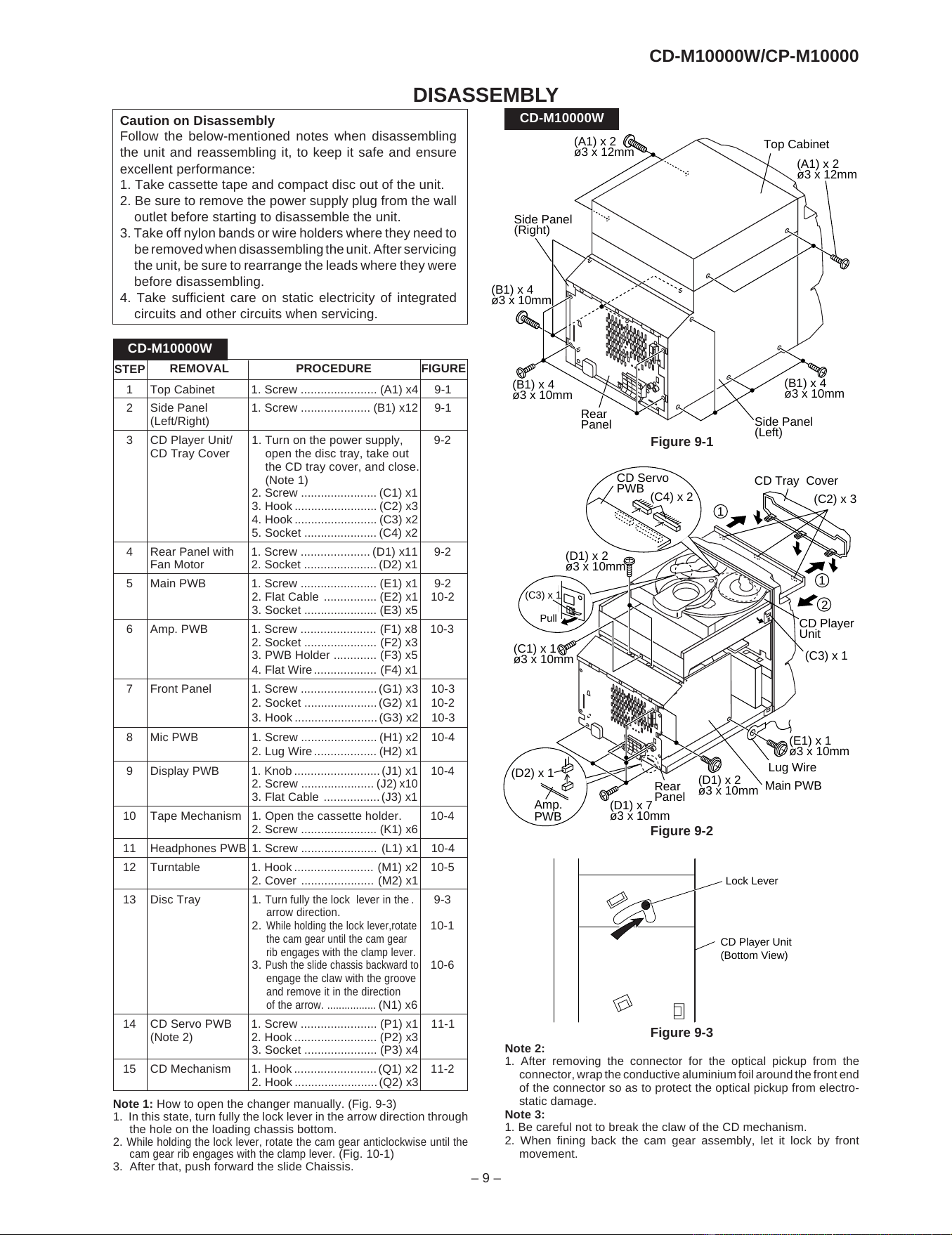

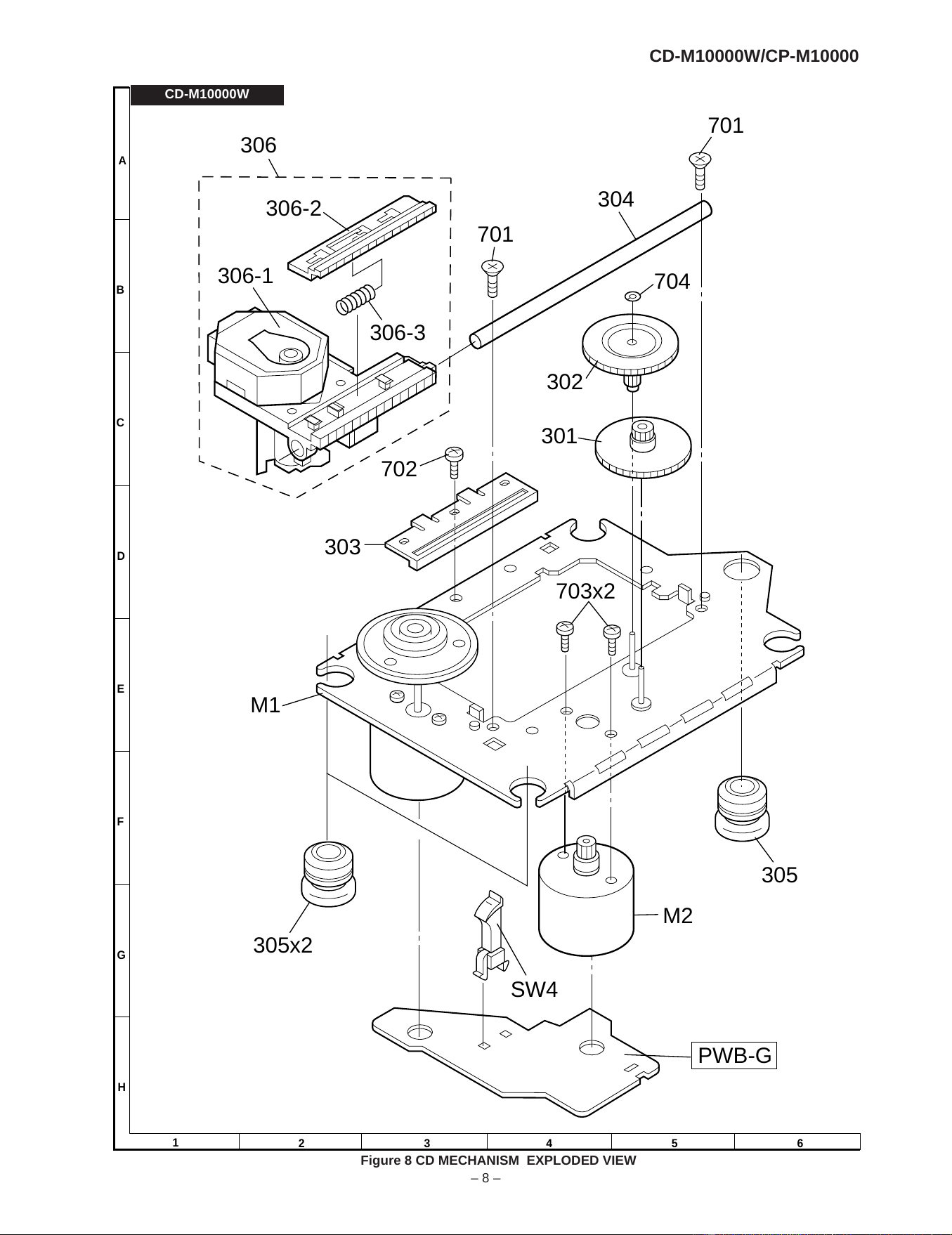

DISASSEMBLY .................................................................................................................................................................. 9

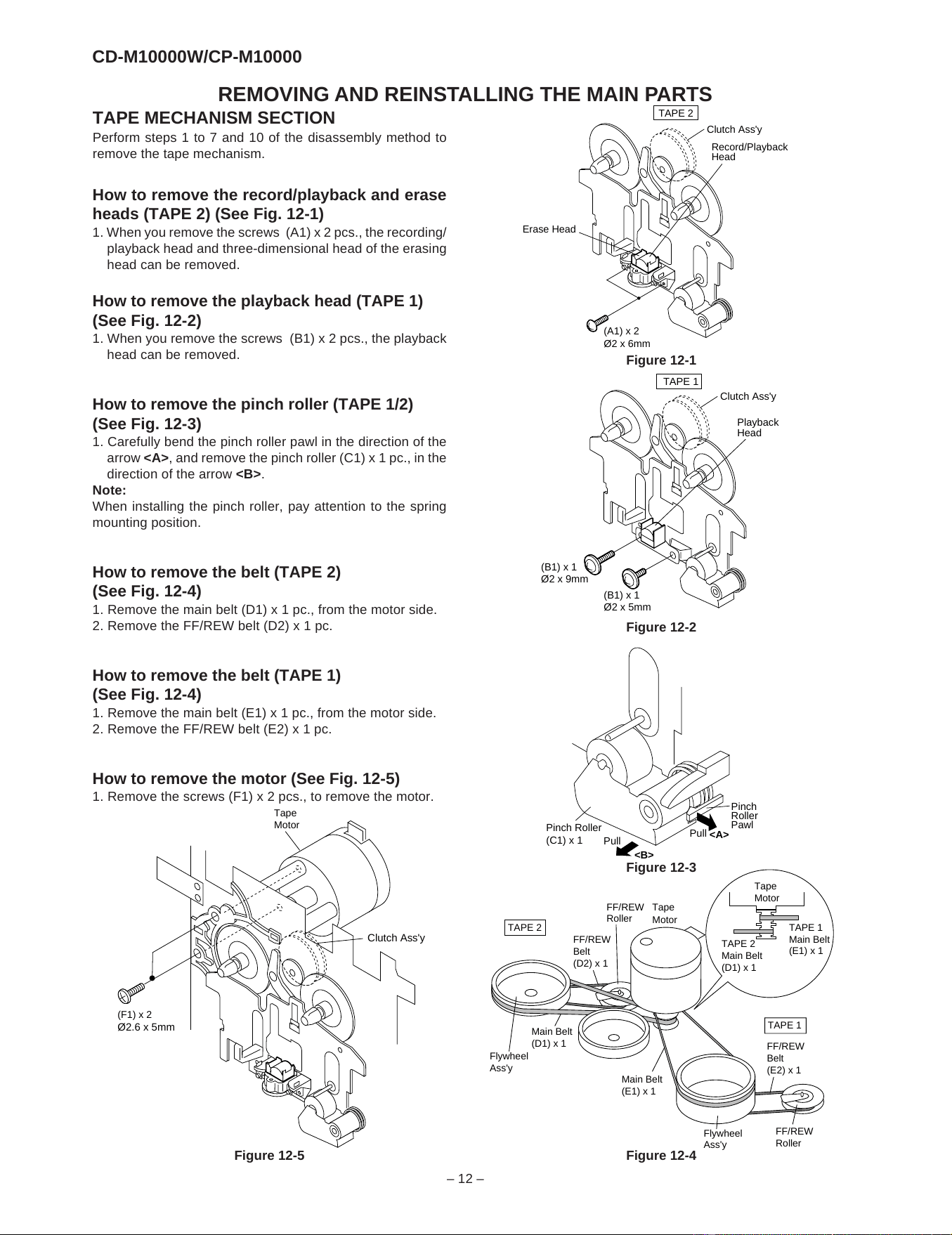

REMOVING AND REINSTALLING THE MAIN PARTS ................................................................................................... 12
ADJUSTMENT ................................................................................................................................................................. 13

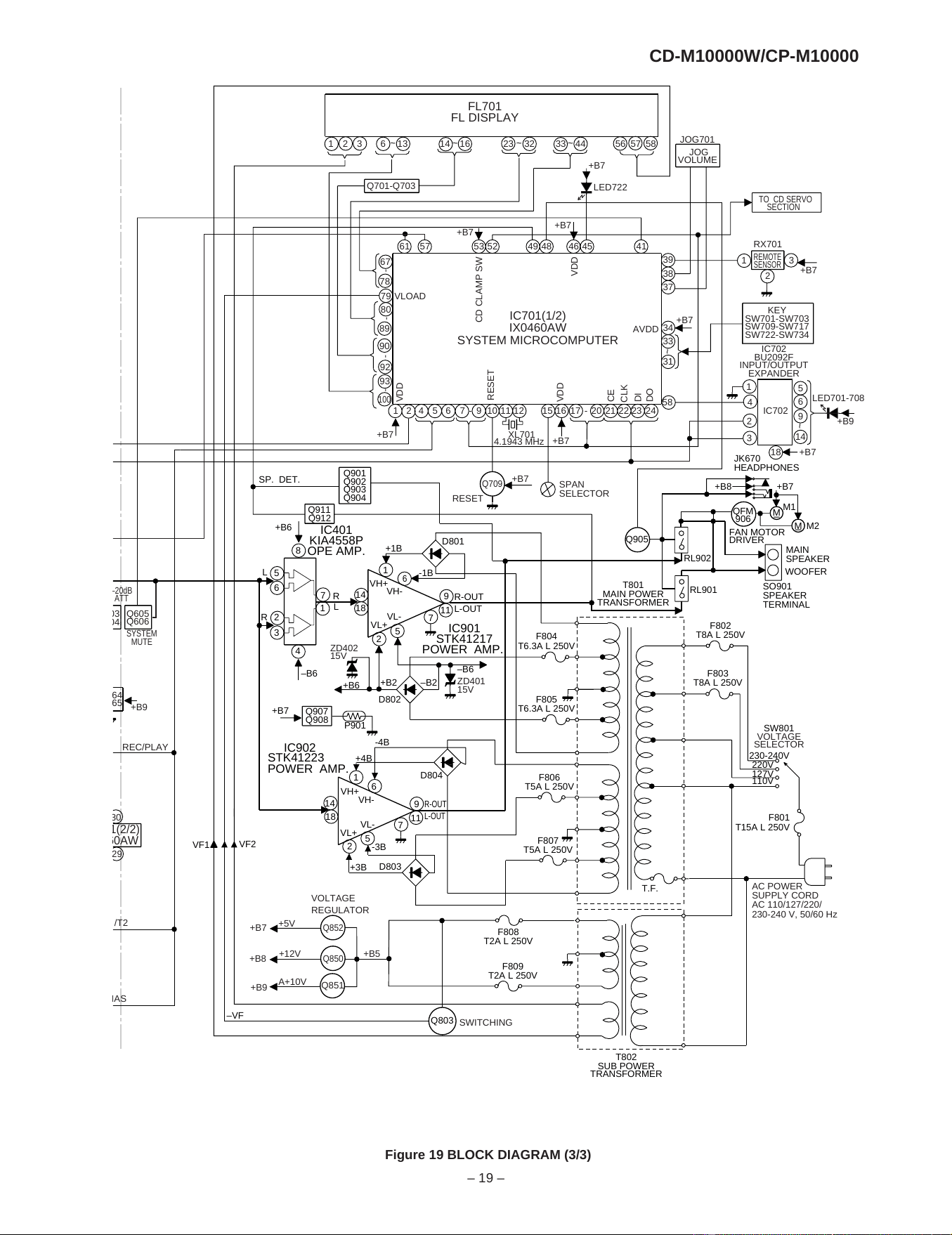

BLOCK DIAGRAM ........................................................................................................................................................... 17

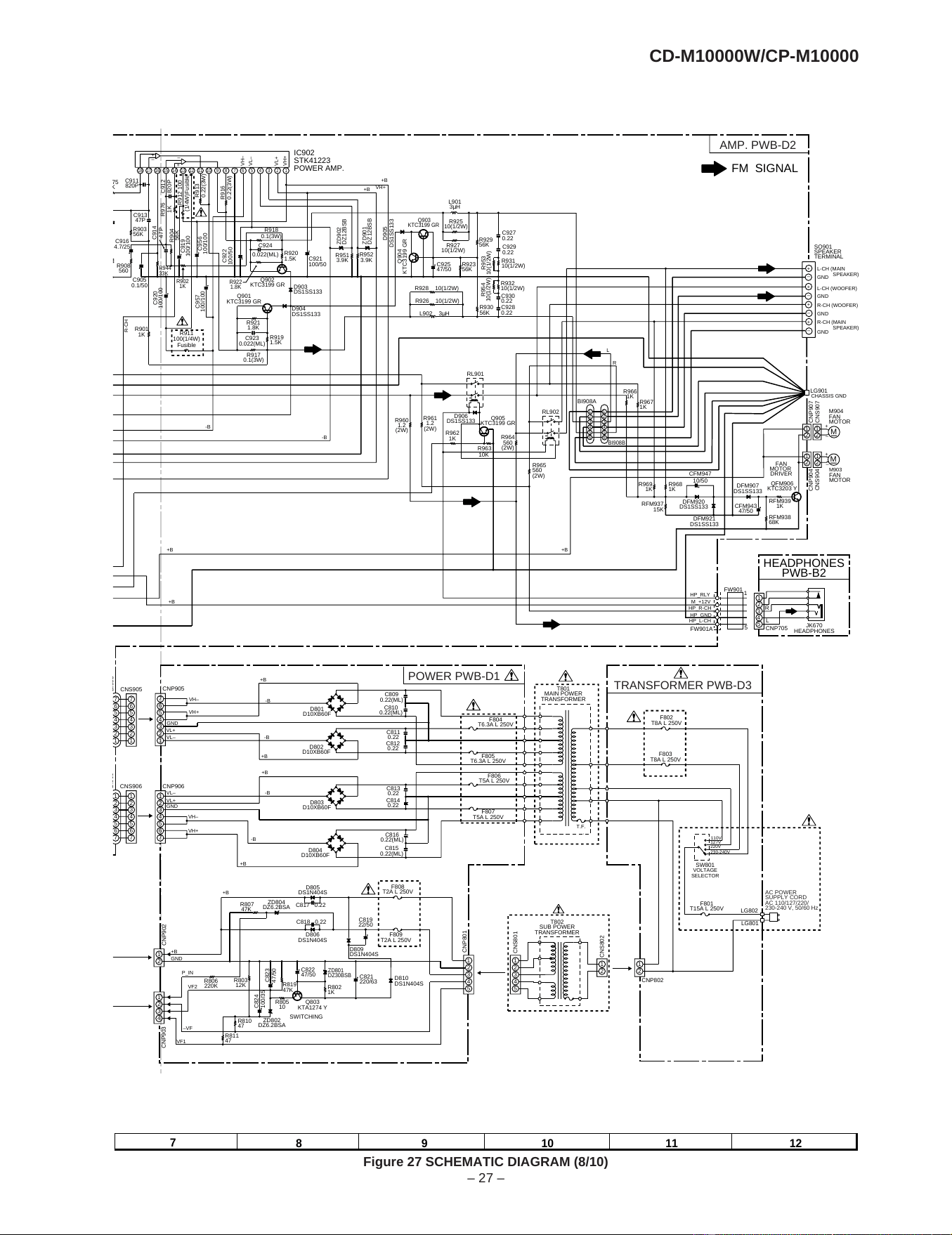

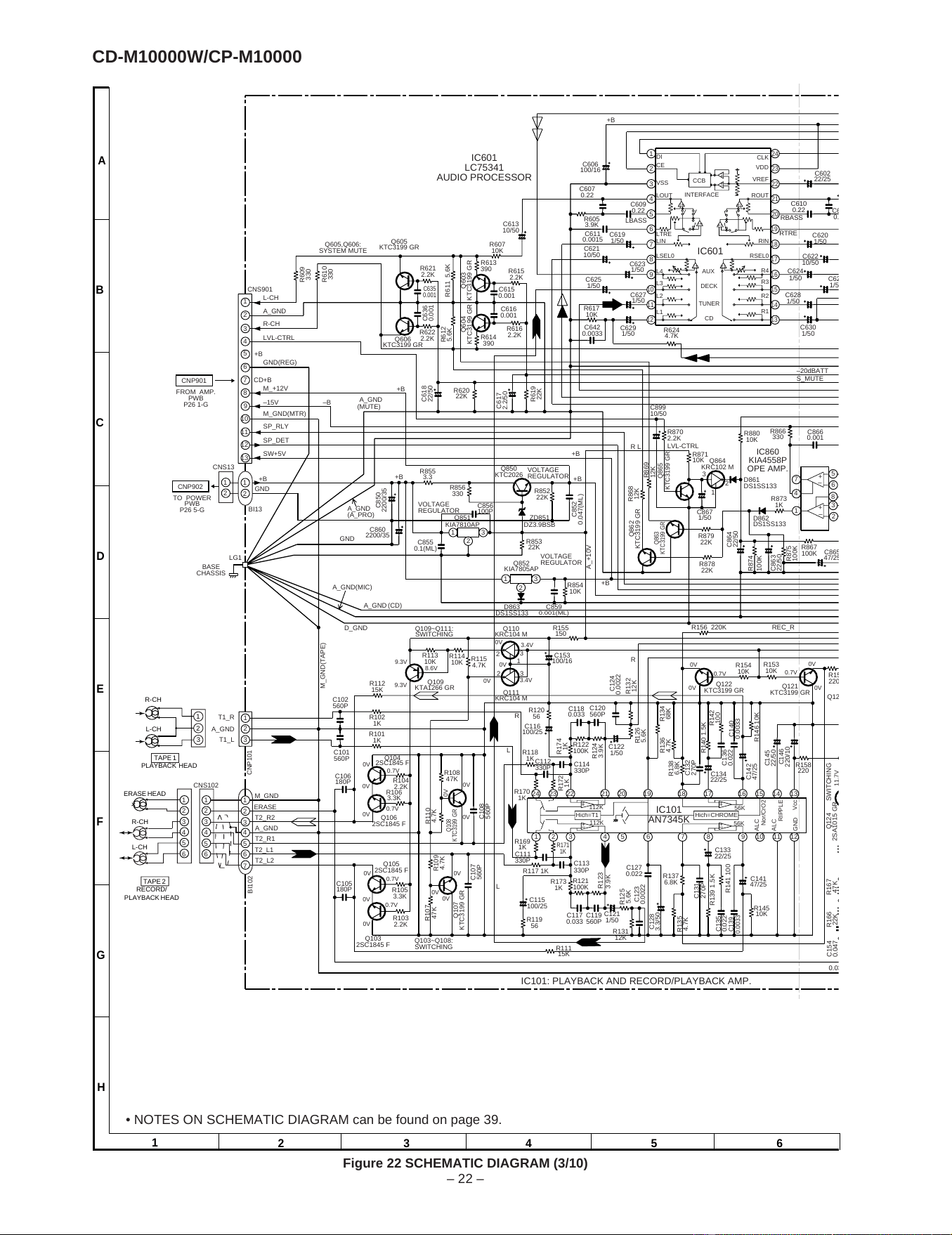

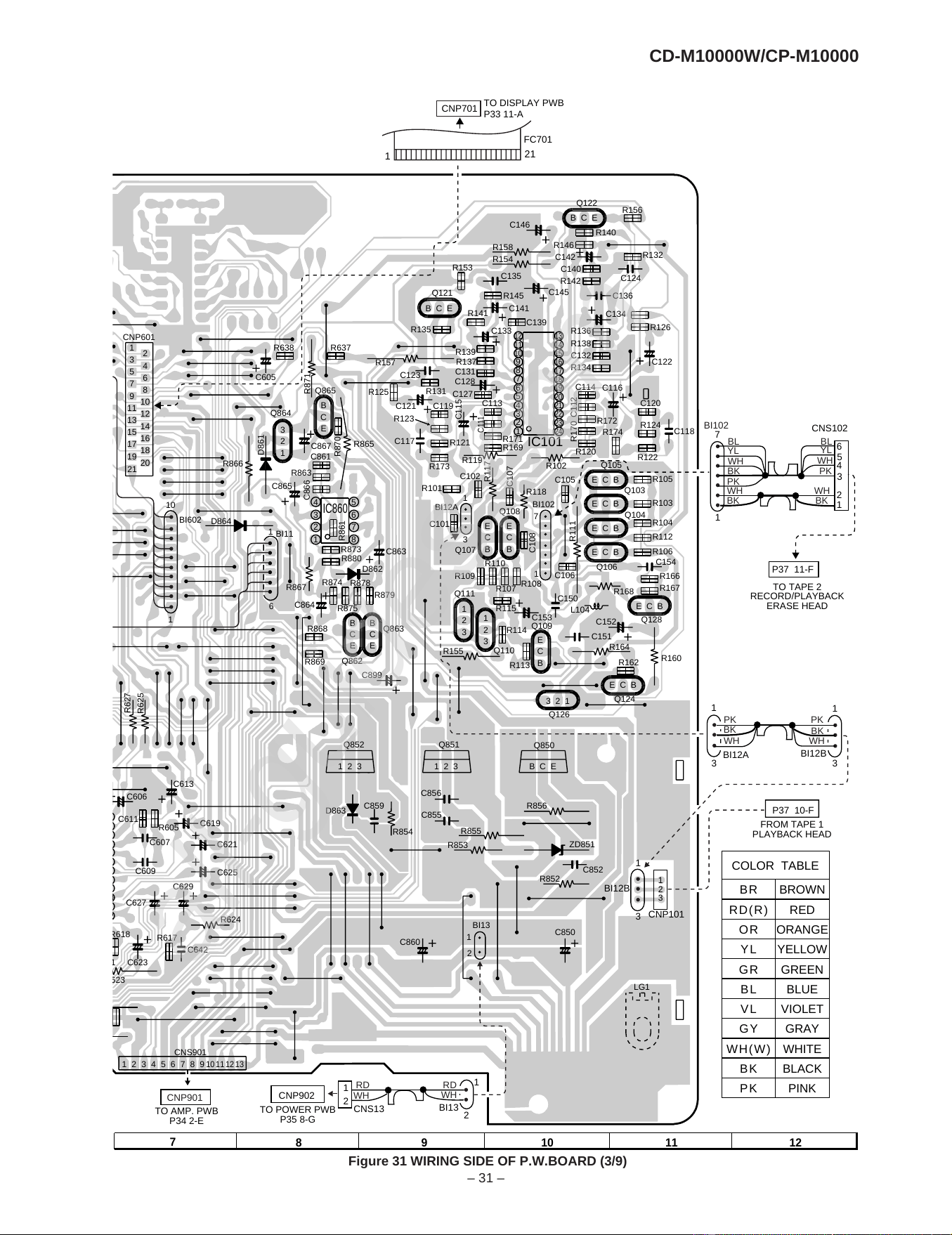

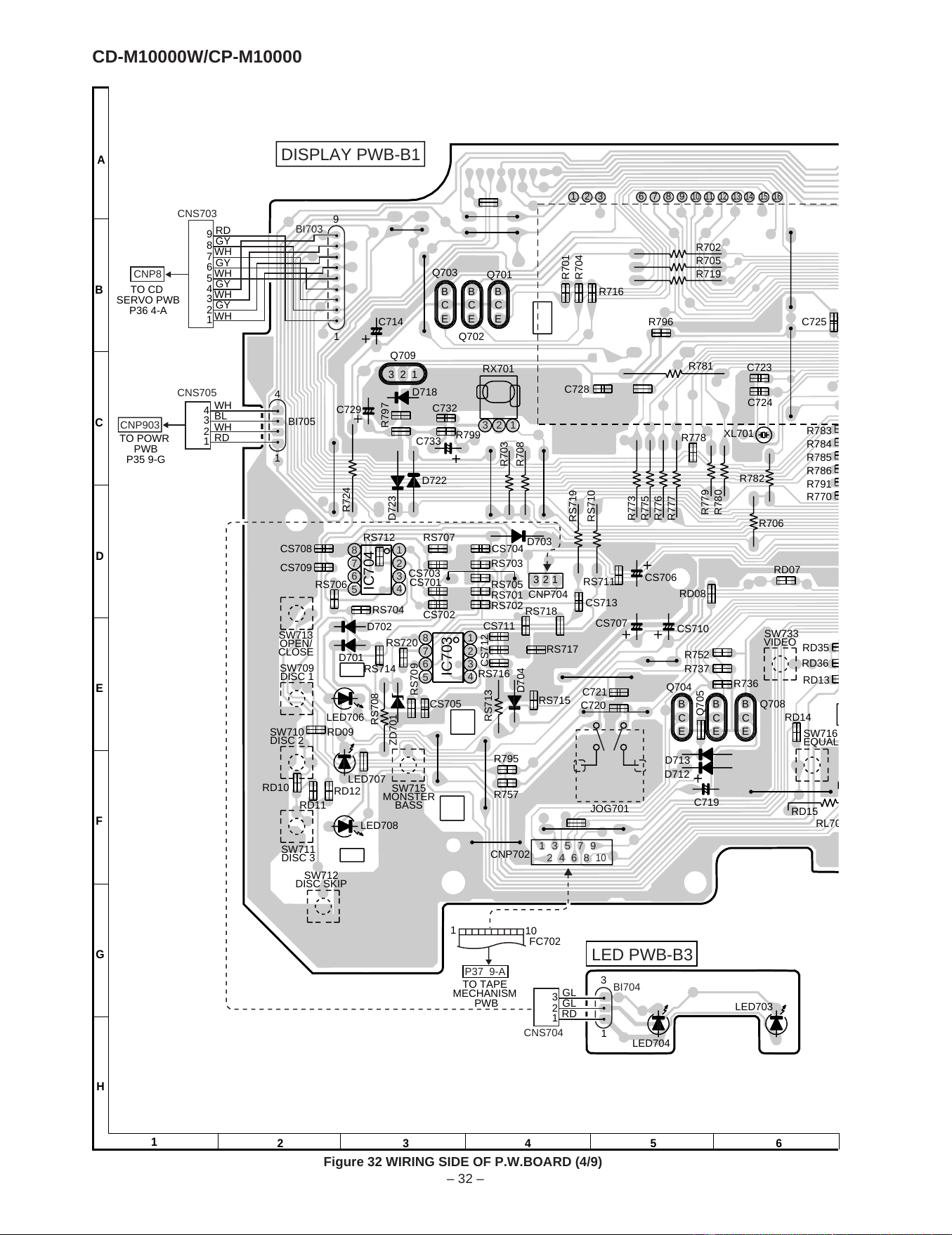

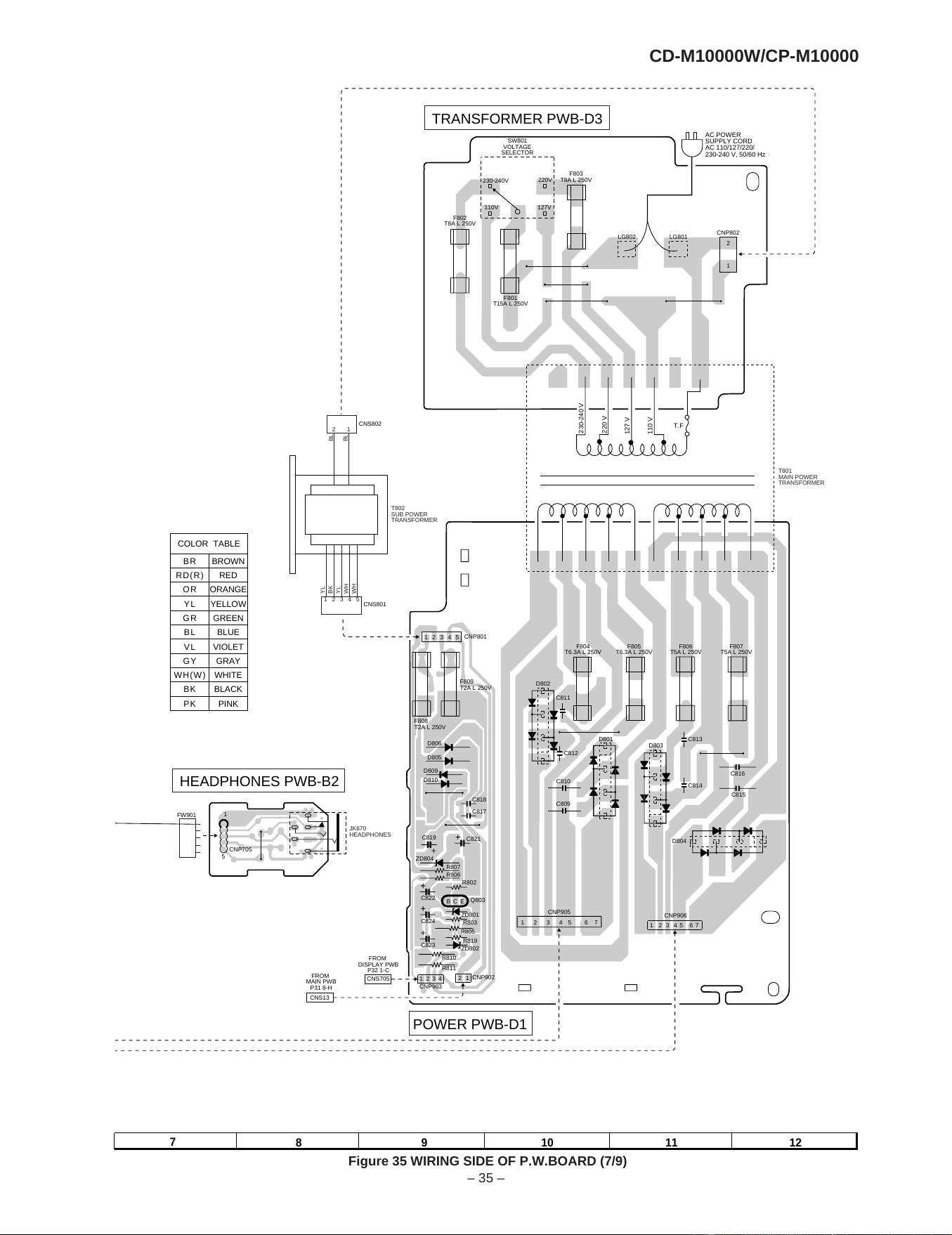

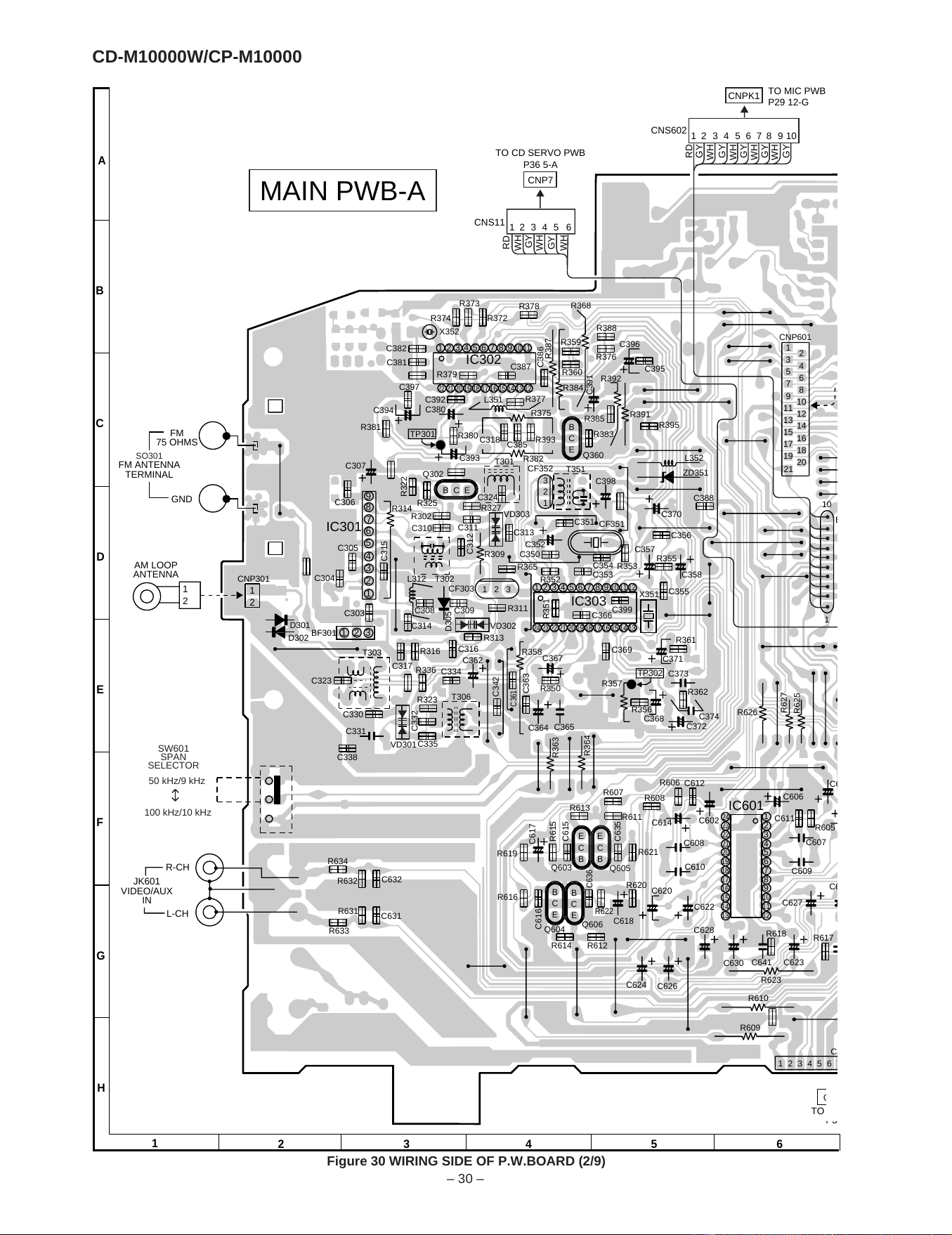

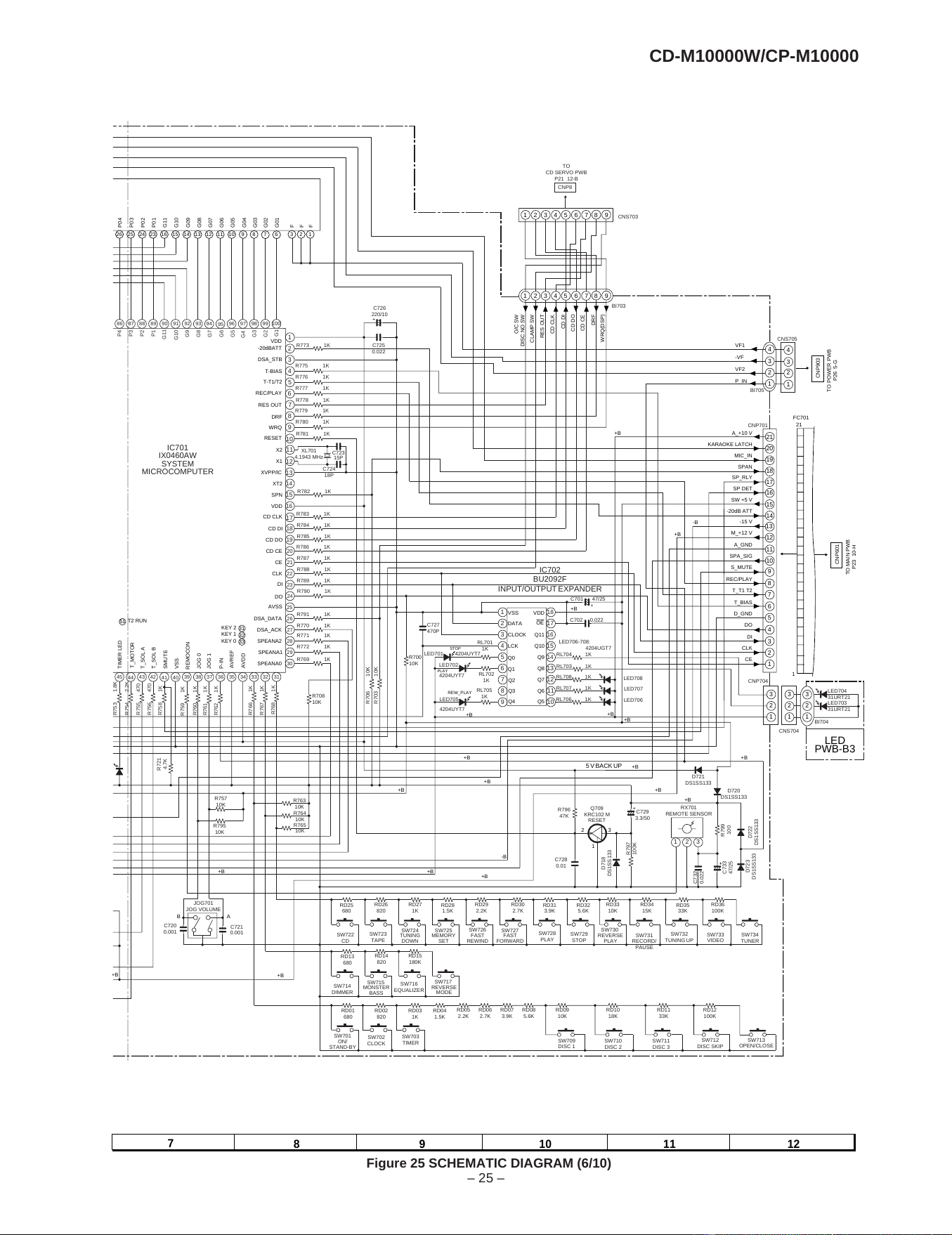

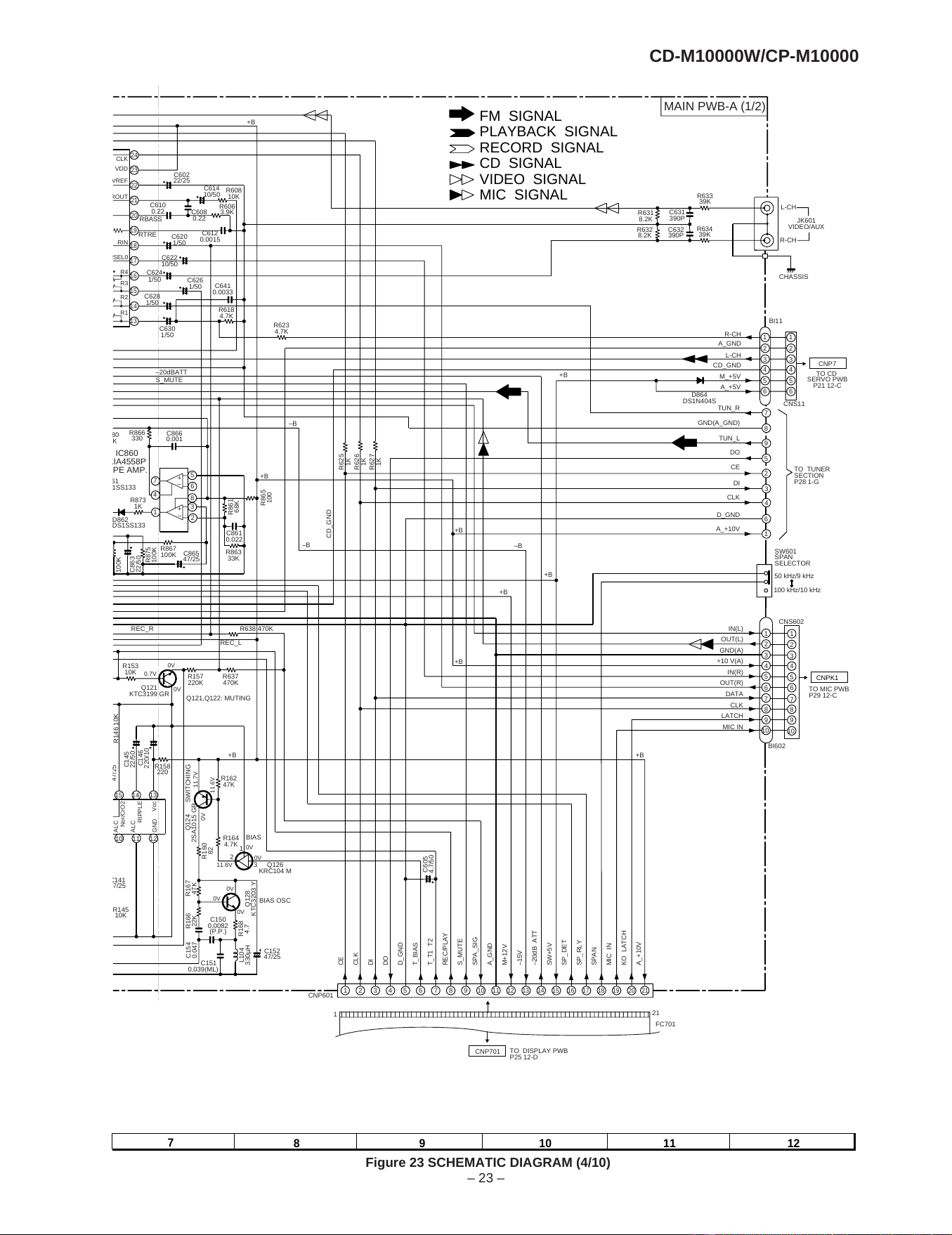

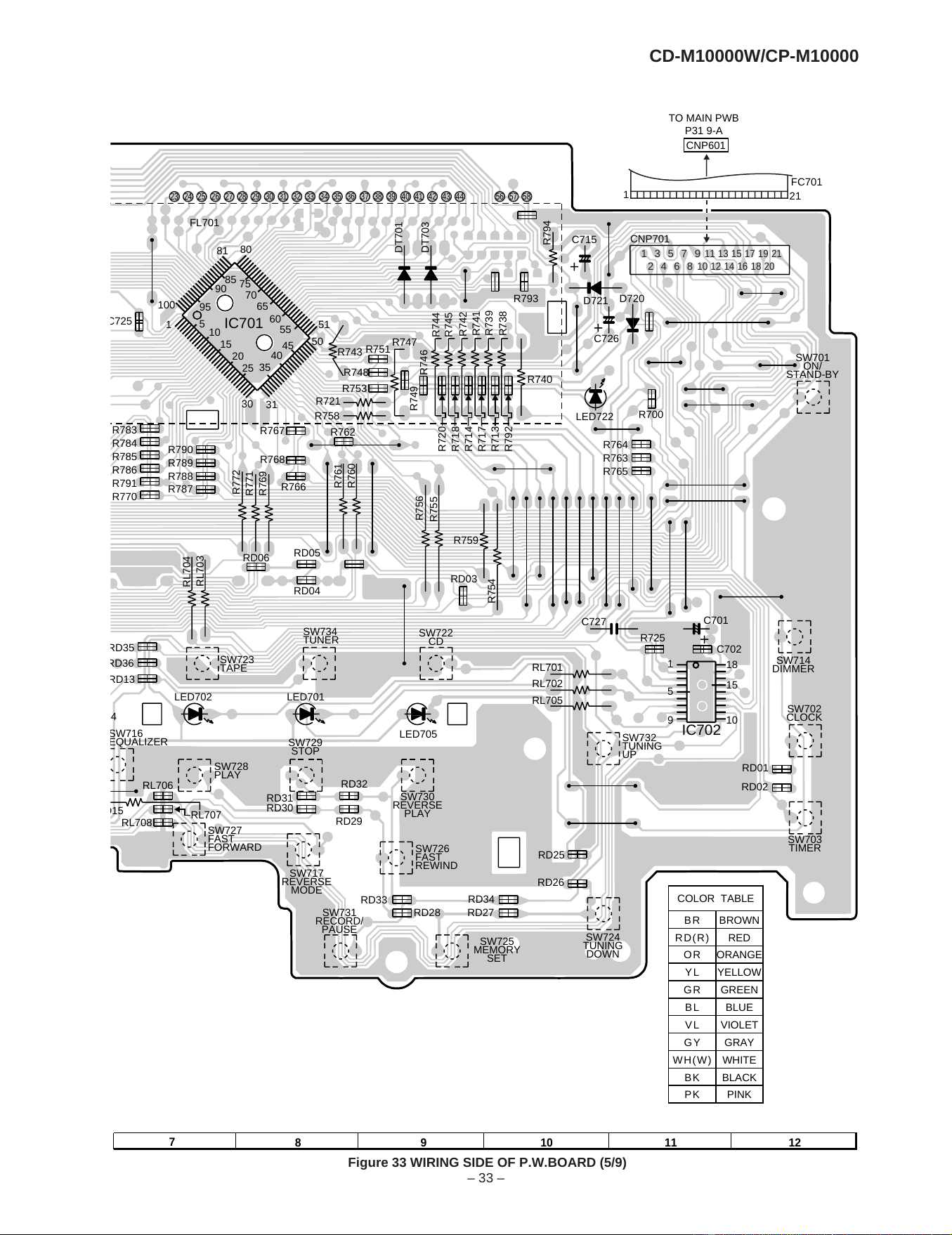

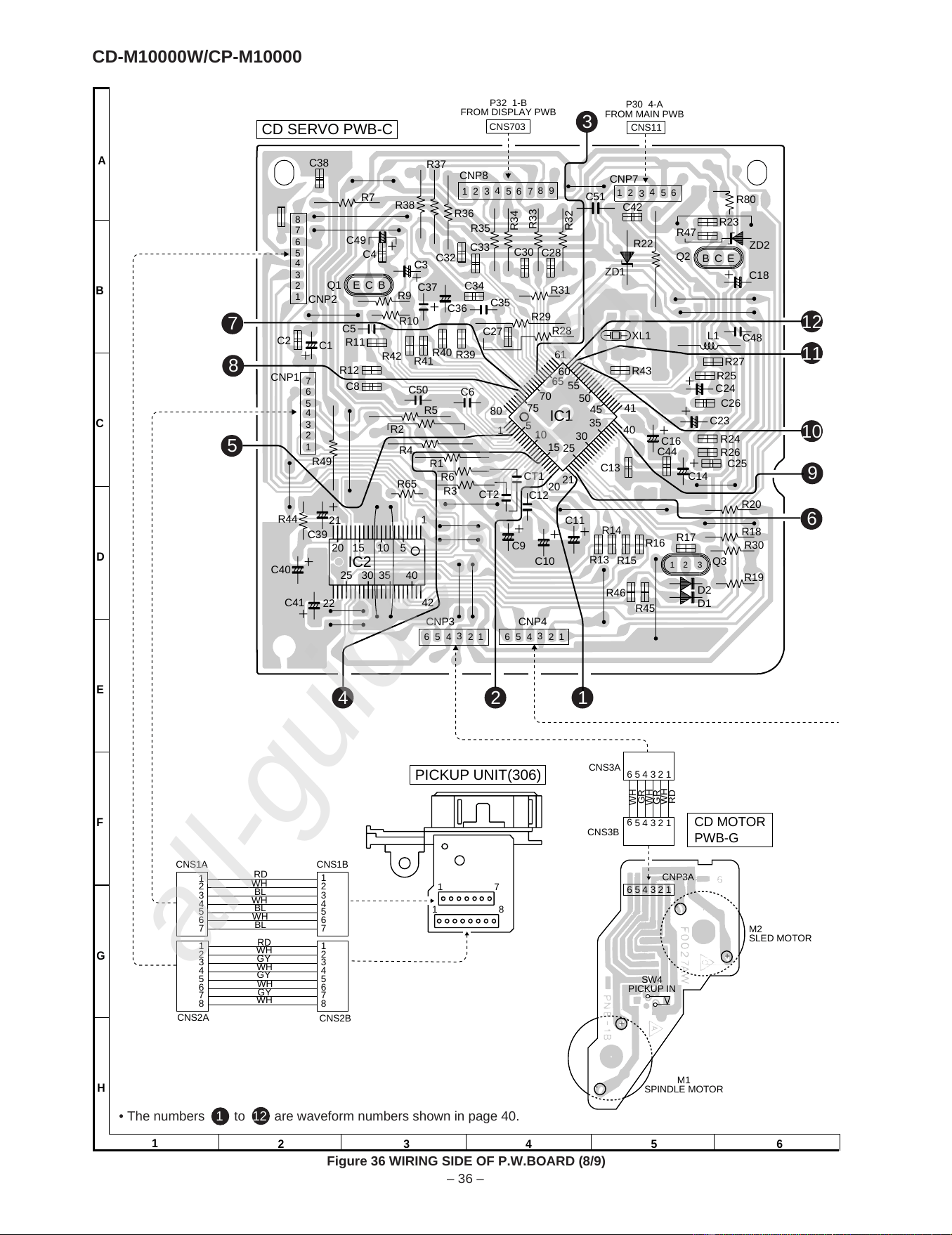

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD .............................................................................................. 20

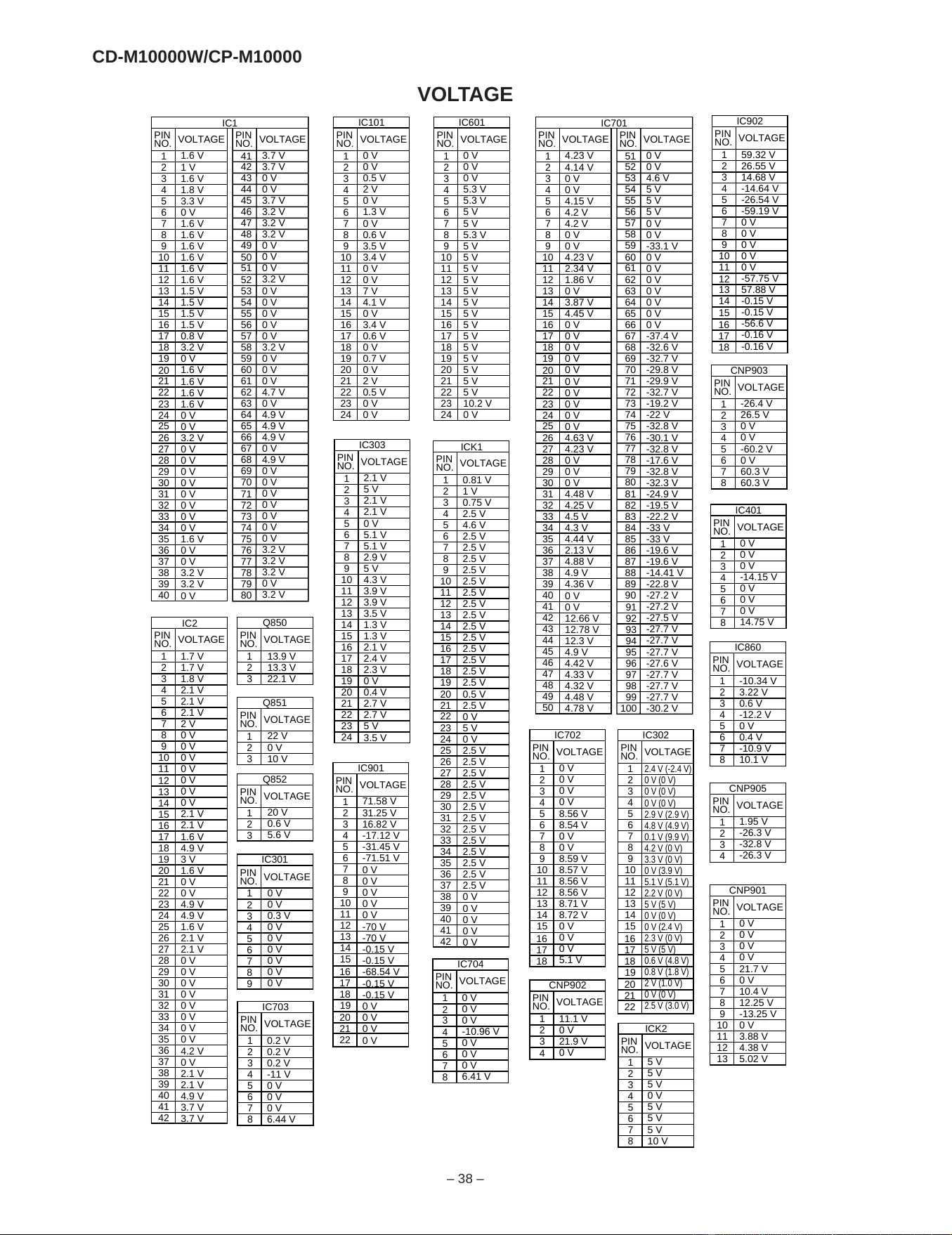

VOLTAGE ........................................................................................................................................................................ 38

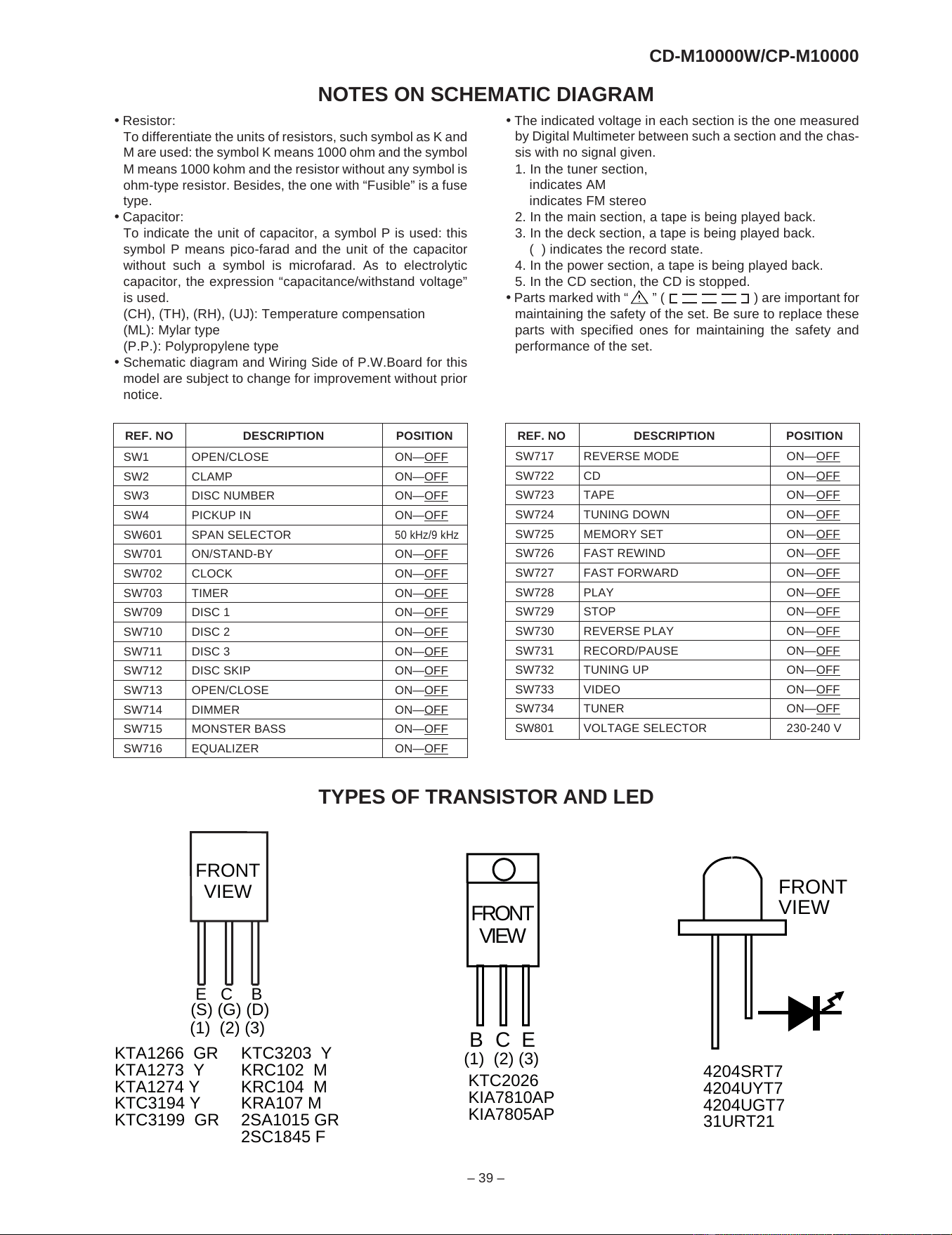

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 39
TYPES OF TRANSISTOR AND LED................................................................................................................................39
WAVEFORMS OF CD CIRCUIT ...................................................................................................................................... 40

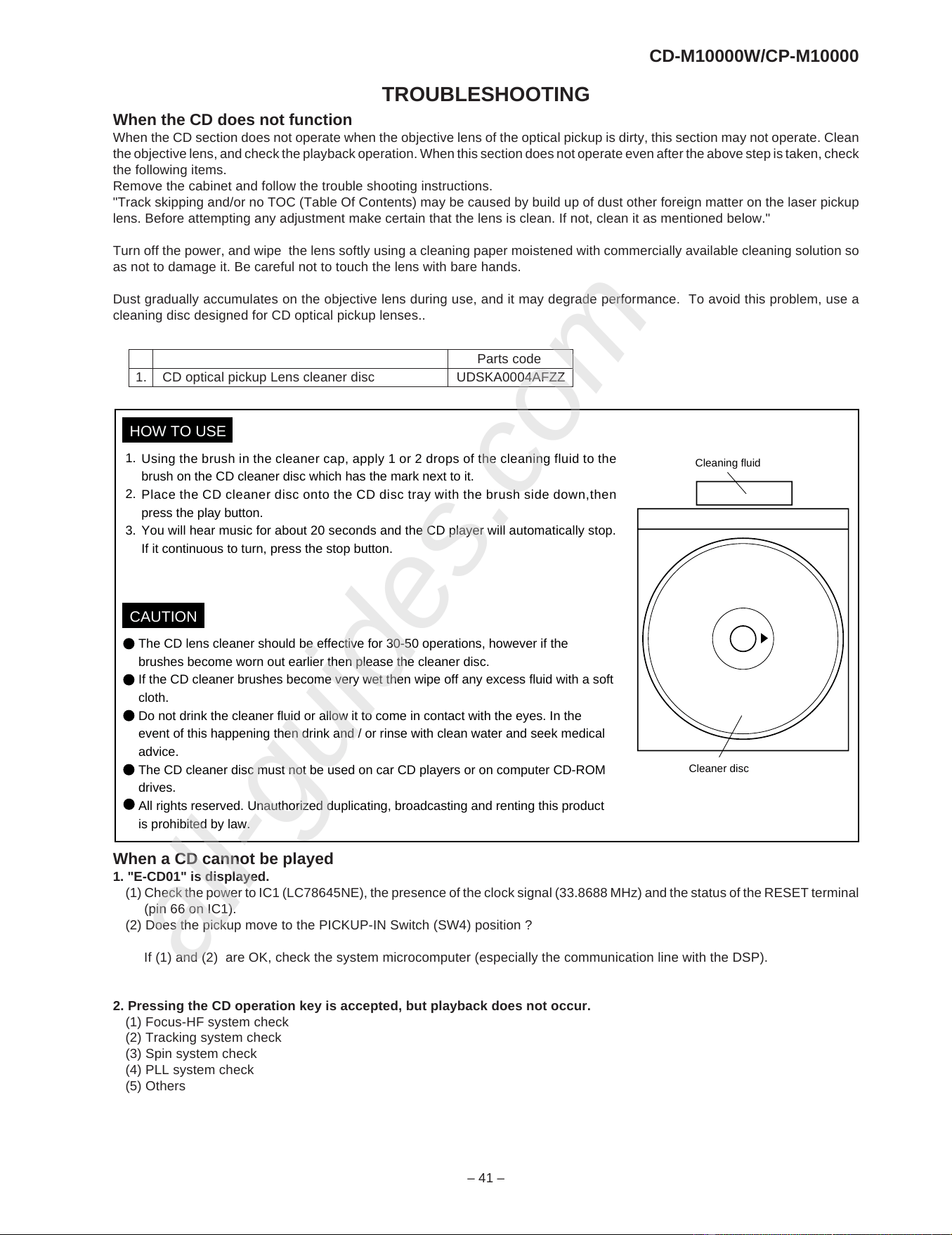

TROUBLESHOOTING ..................................................................................................................................................... 41

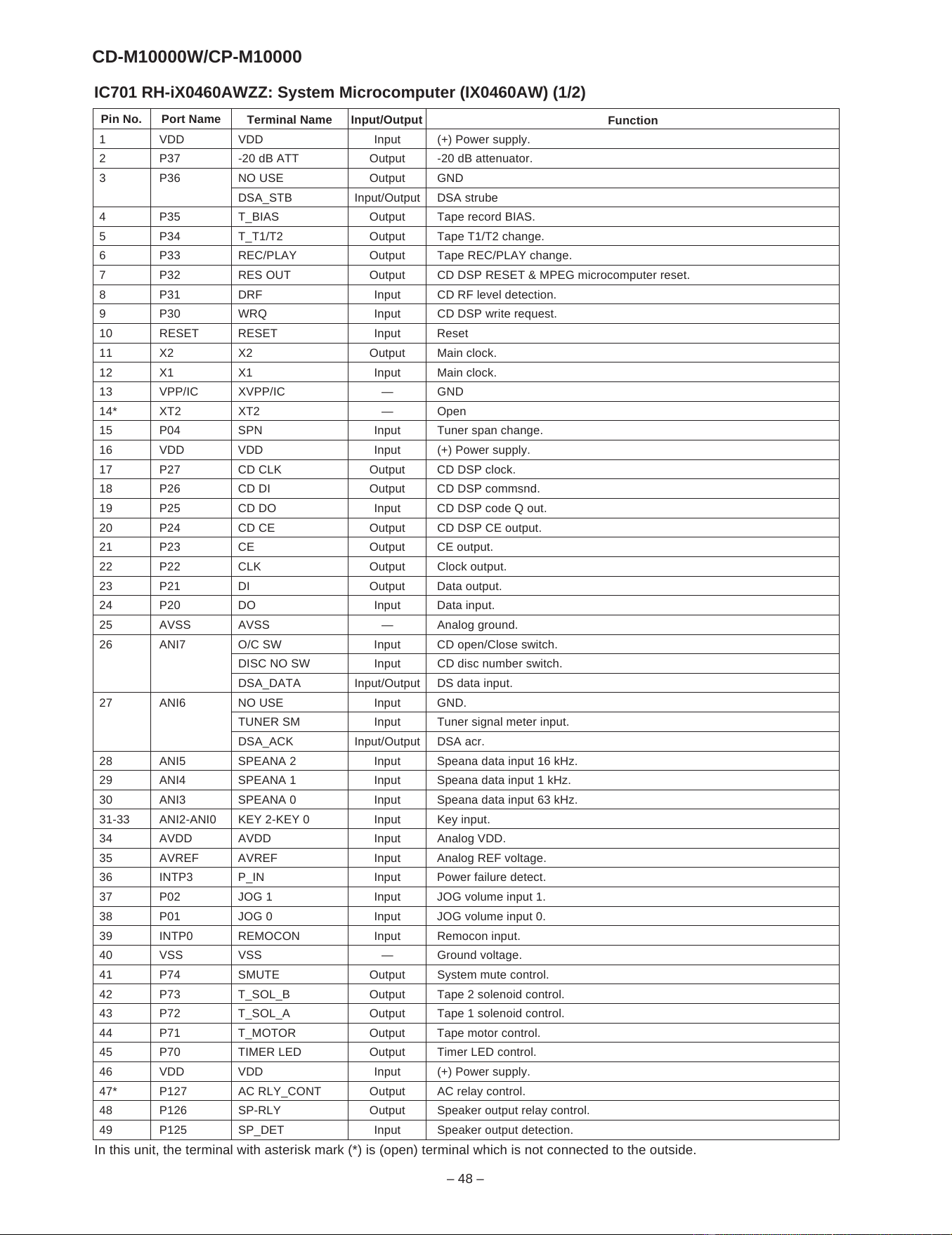

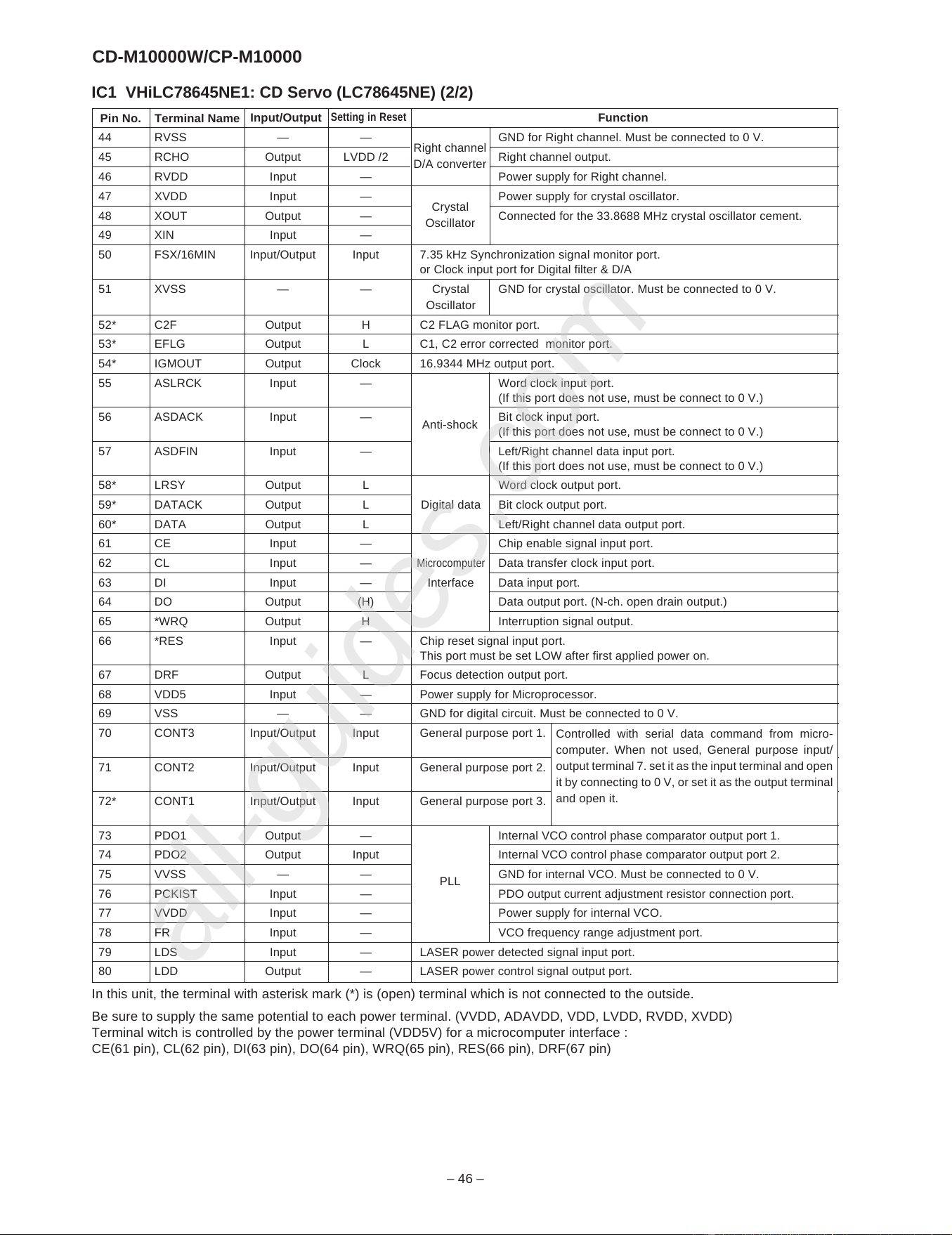

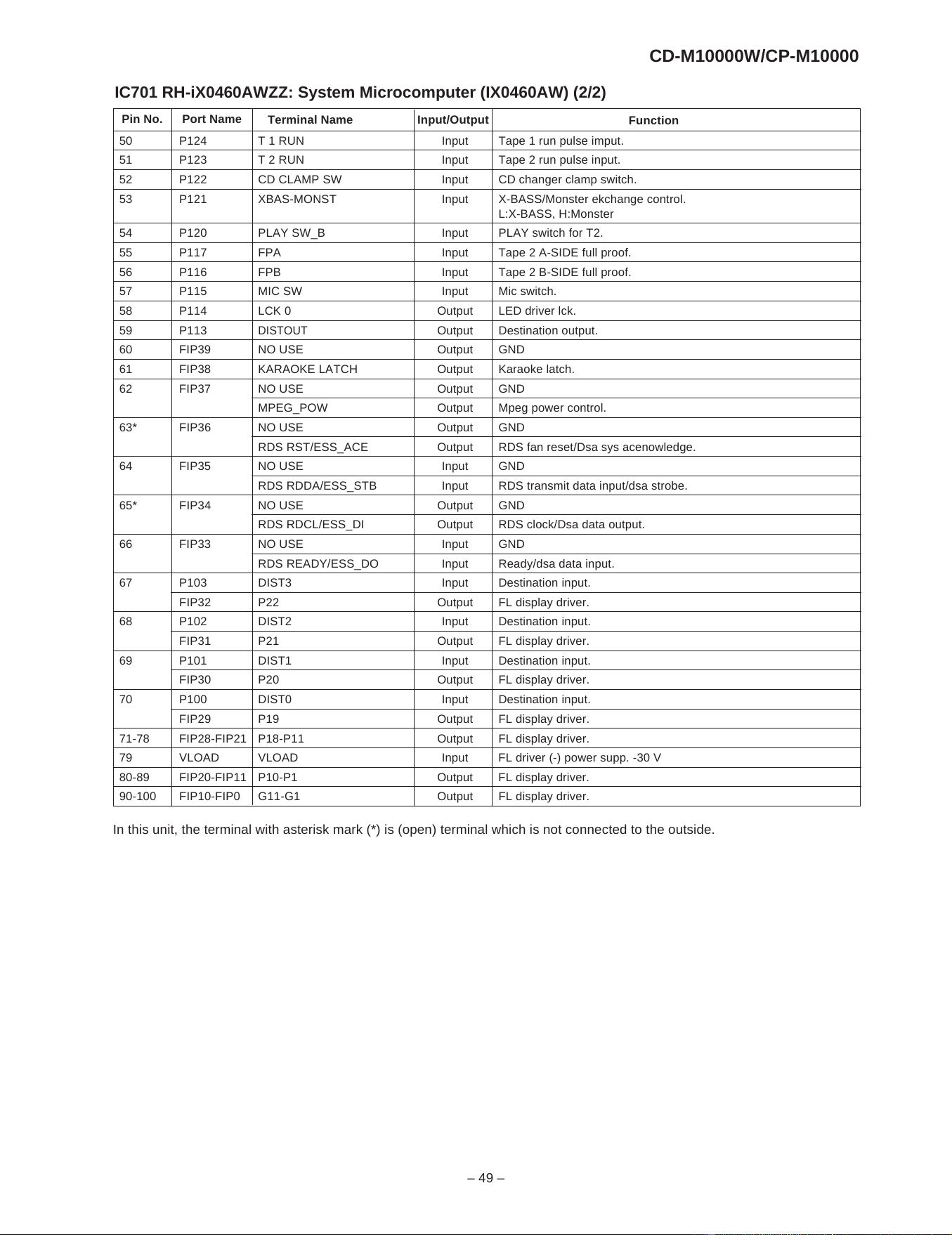

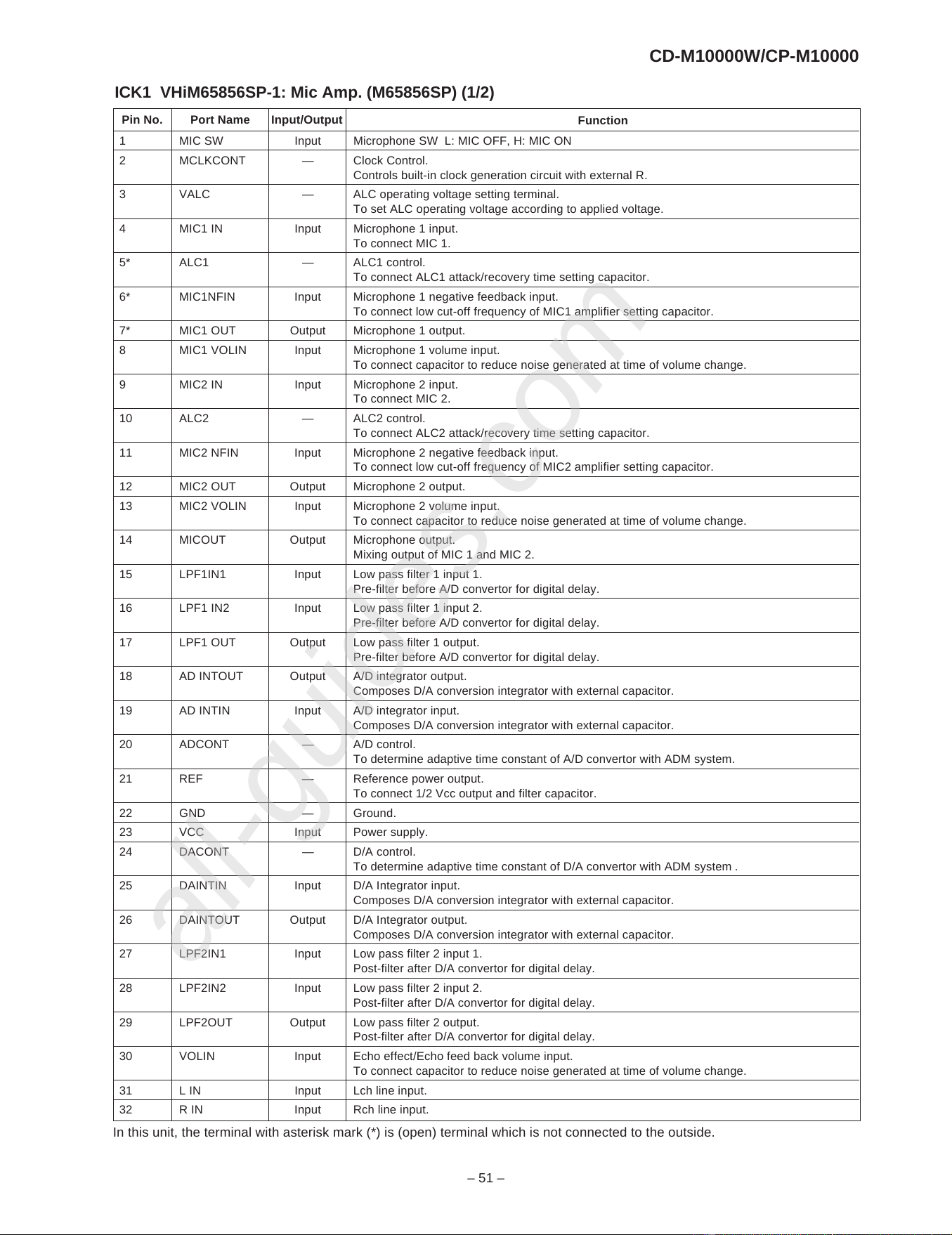

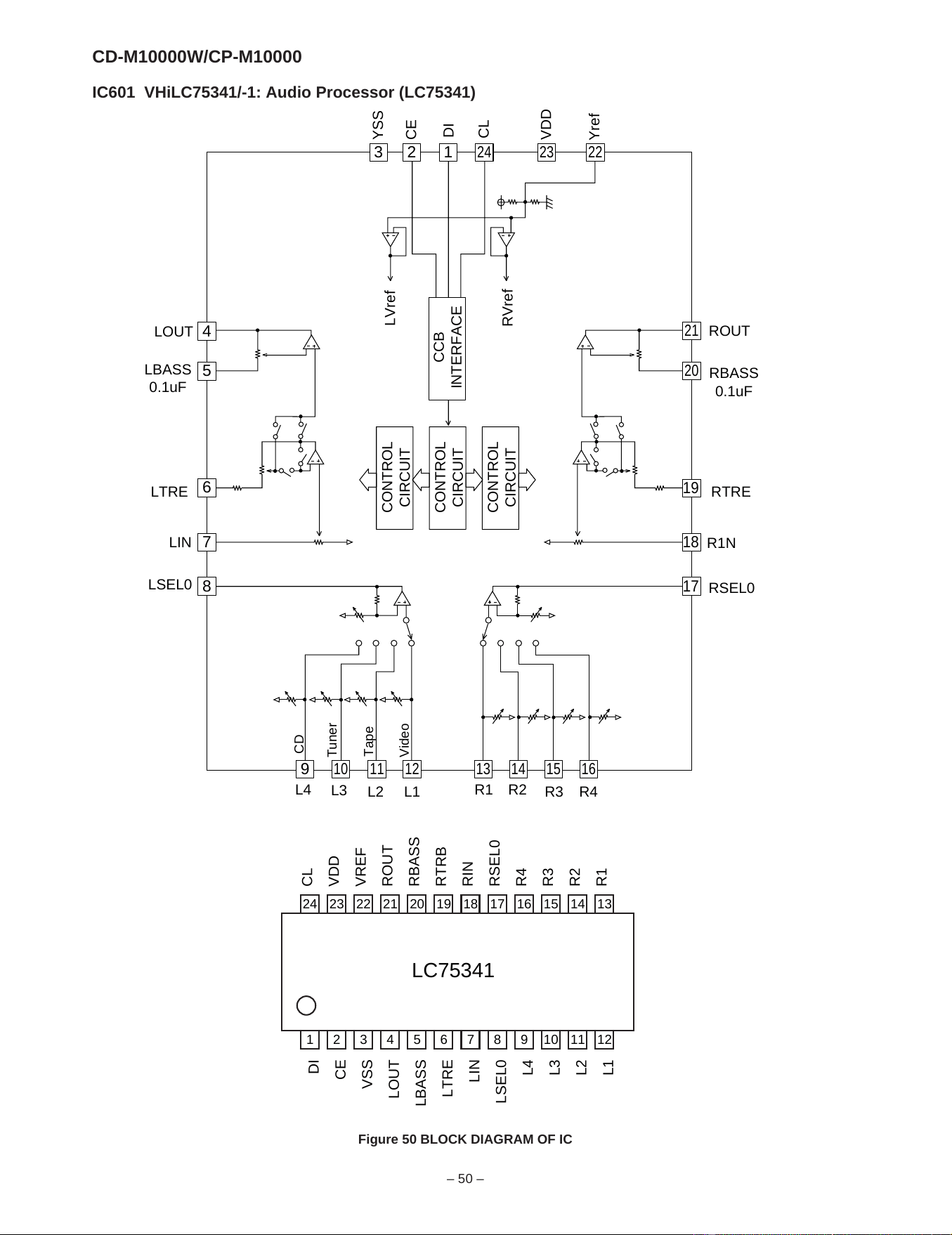

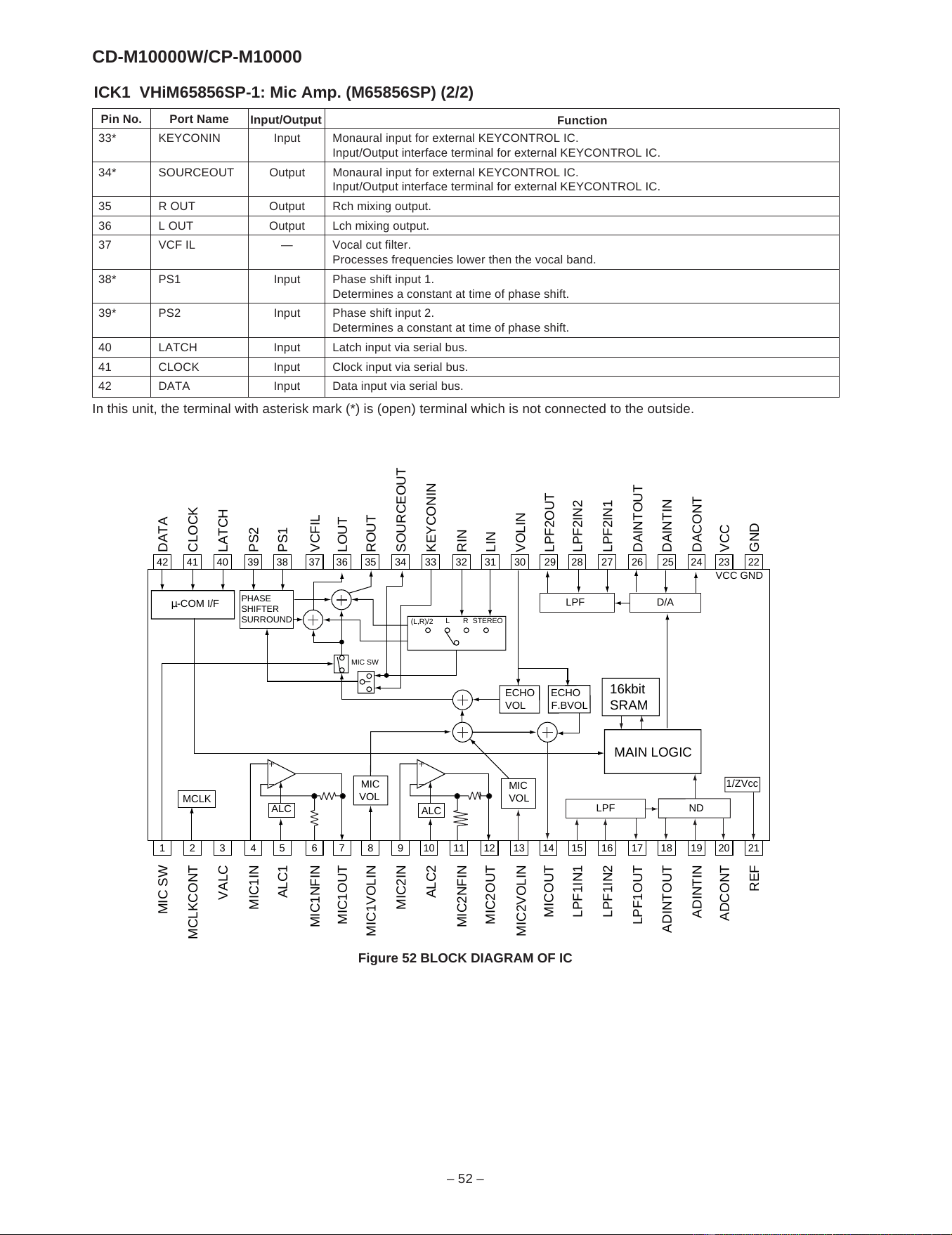

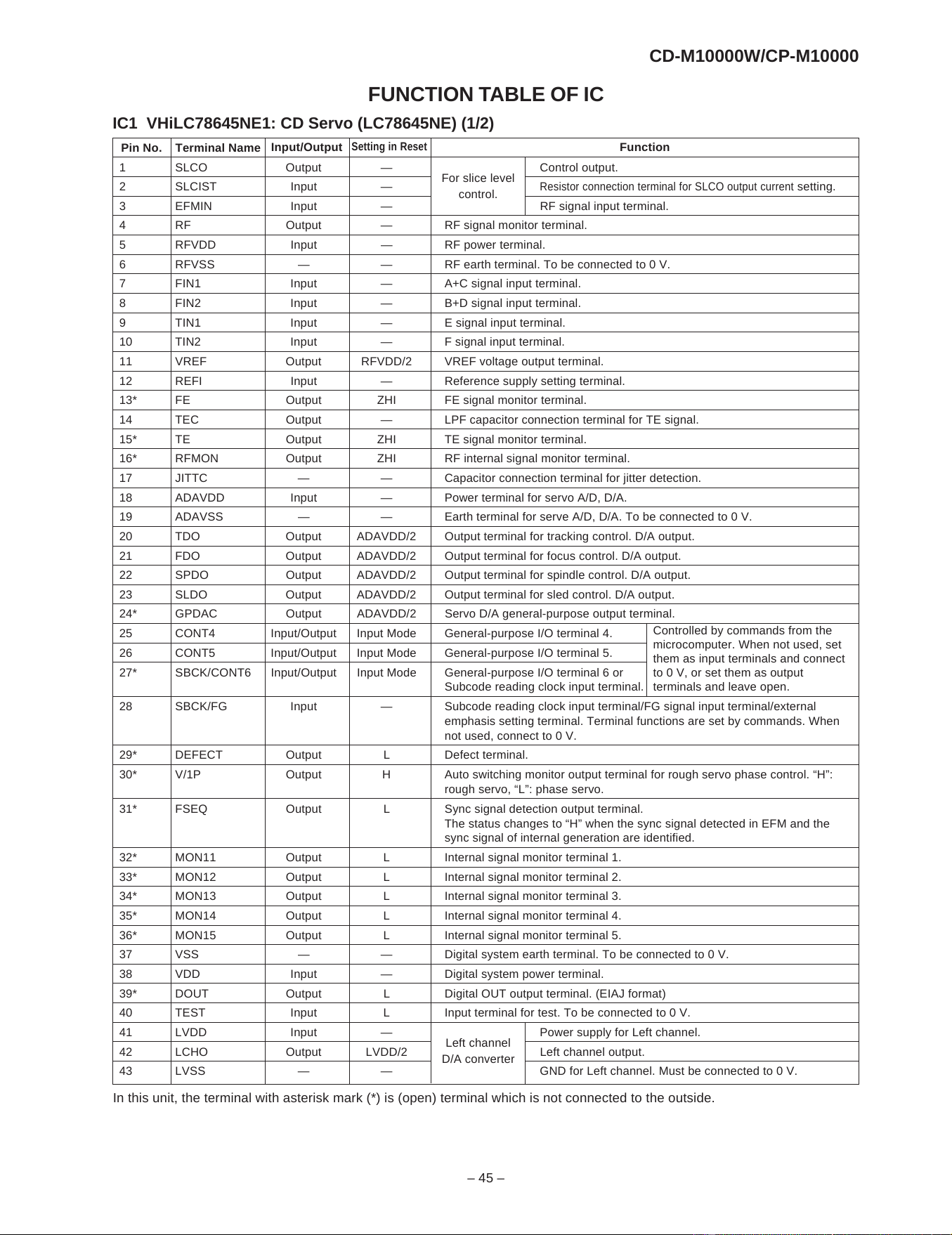

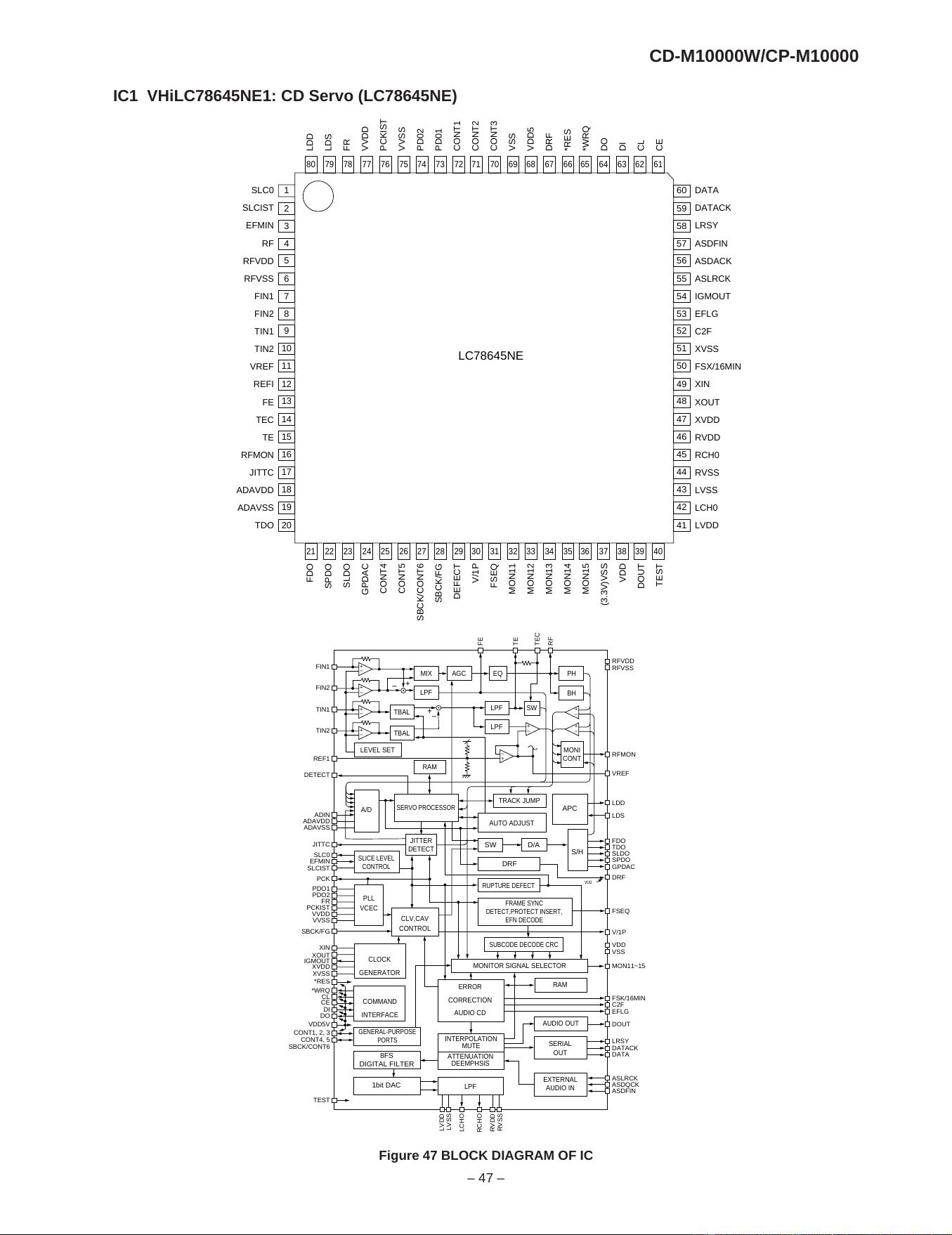

FUNCTION TABLE OF IC................................................................................................................................................ 45

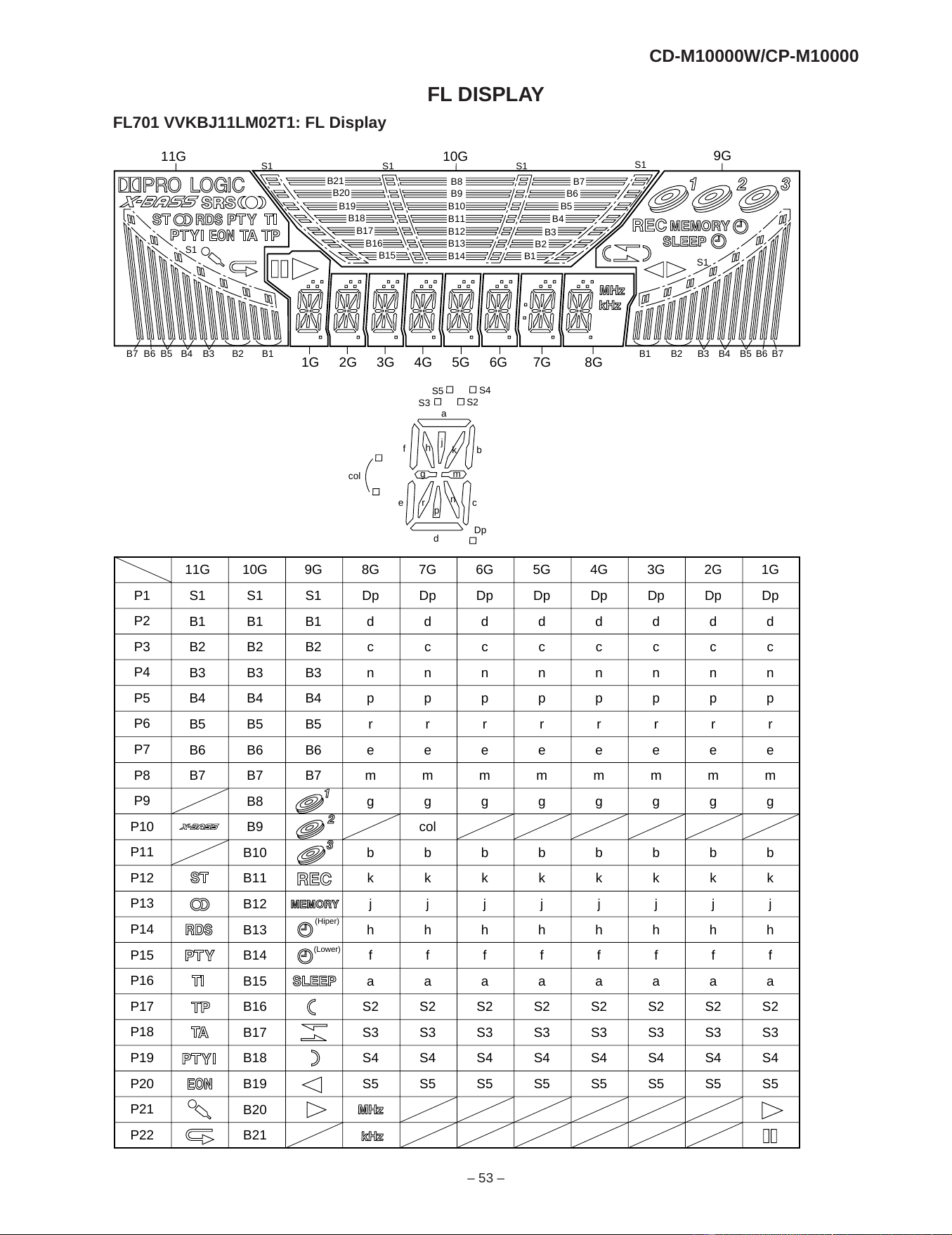

FL DISPLAY ...................................................................................................................................................................... 53

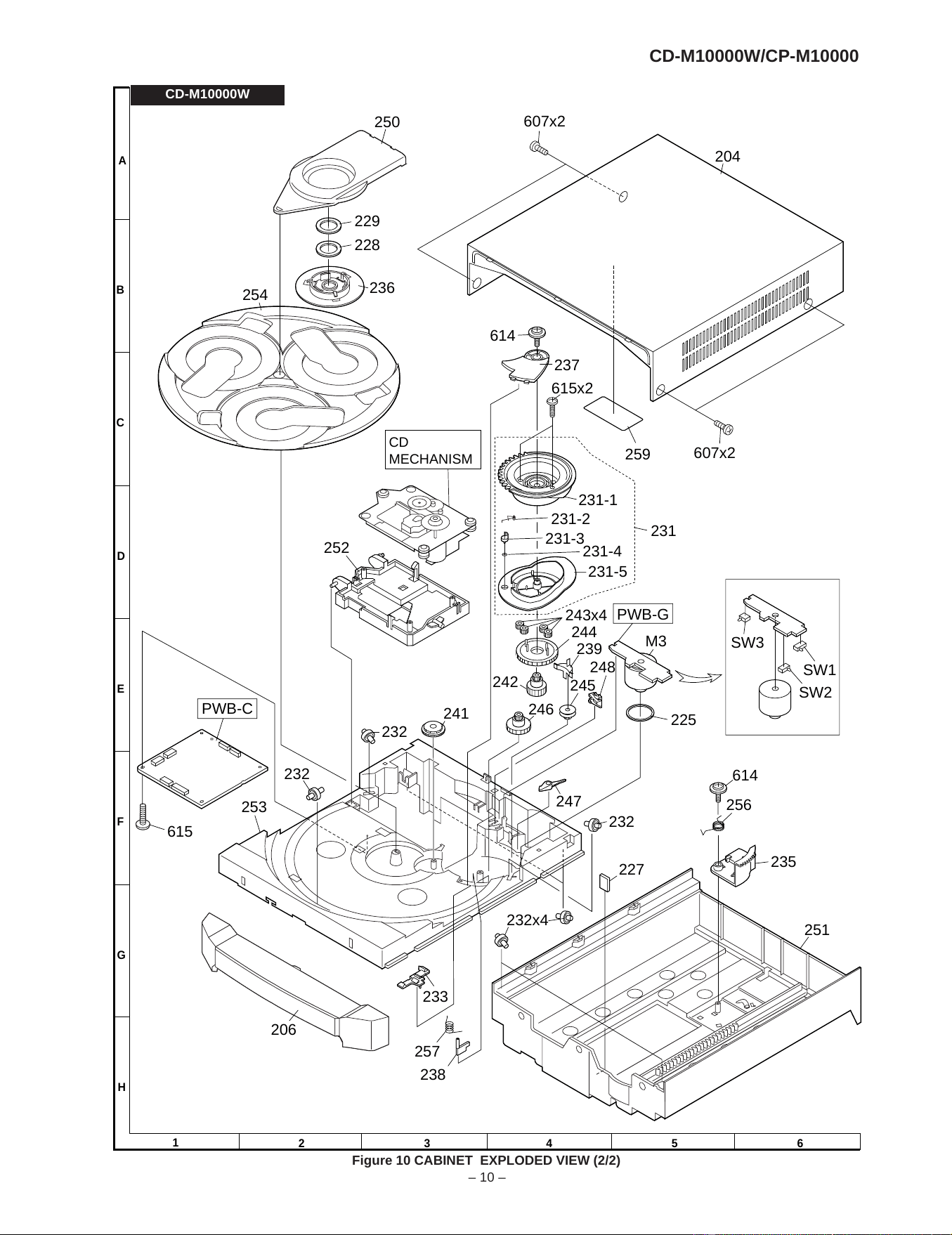

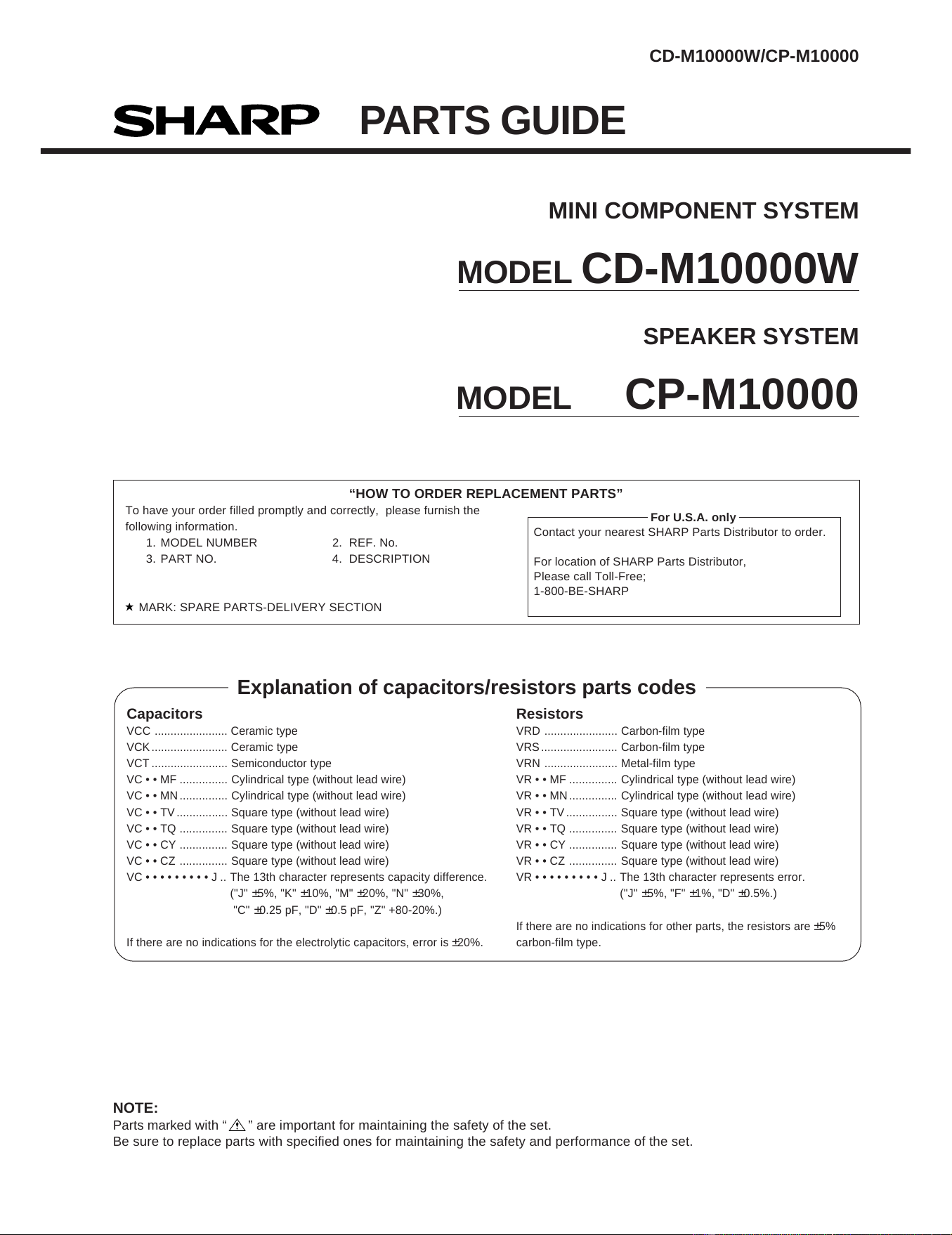

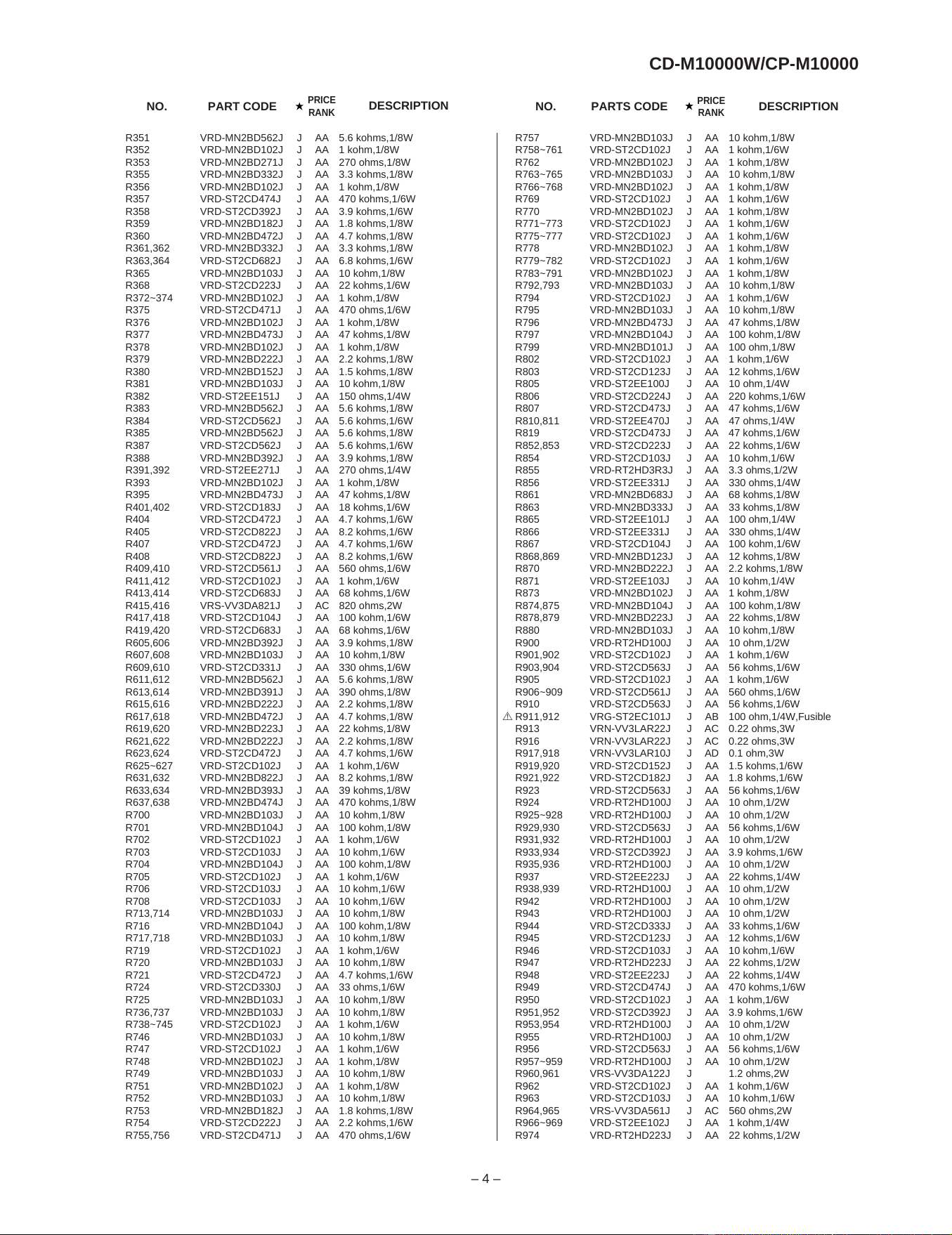

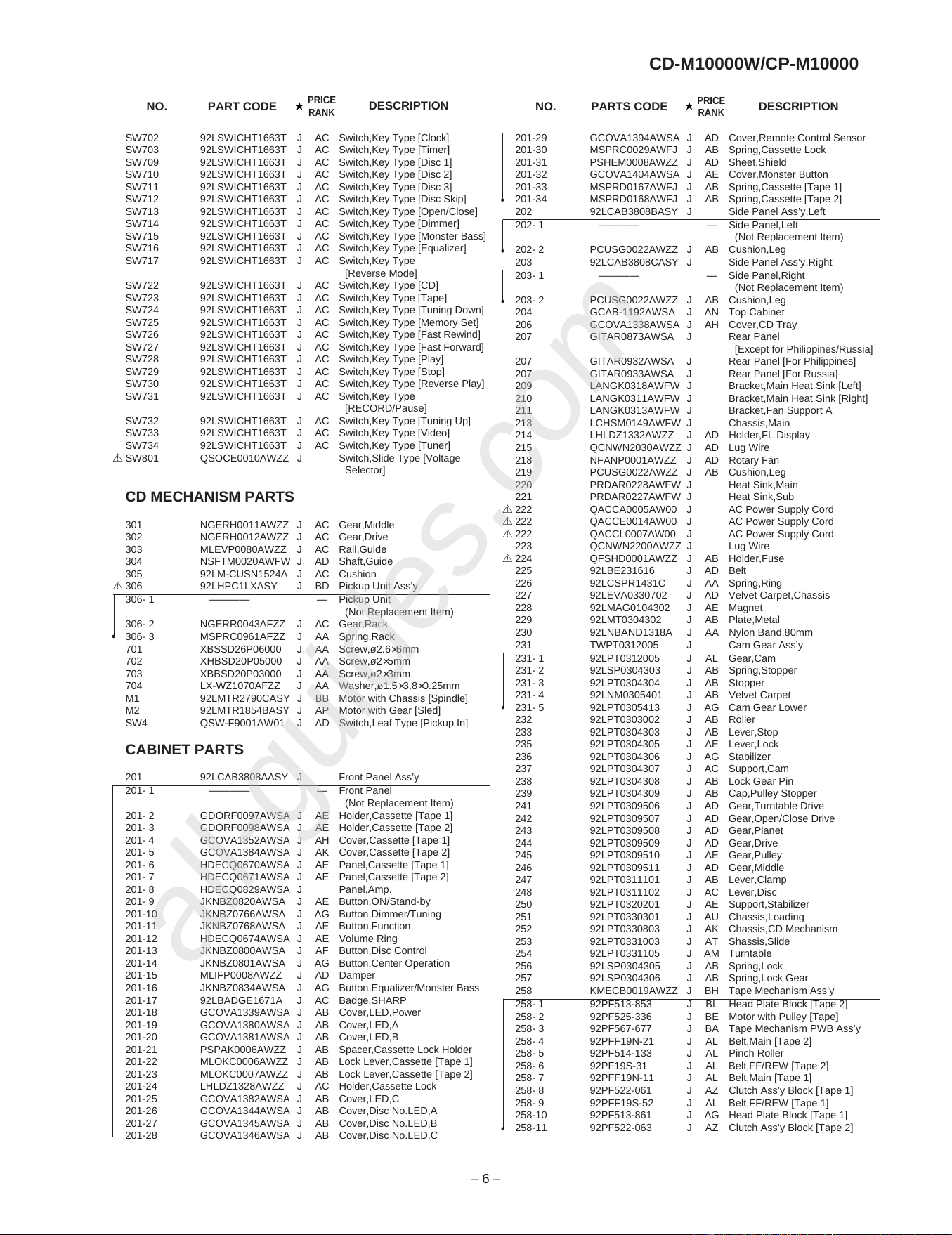

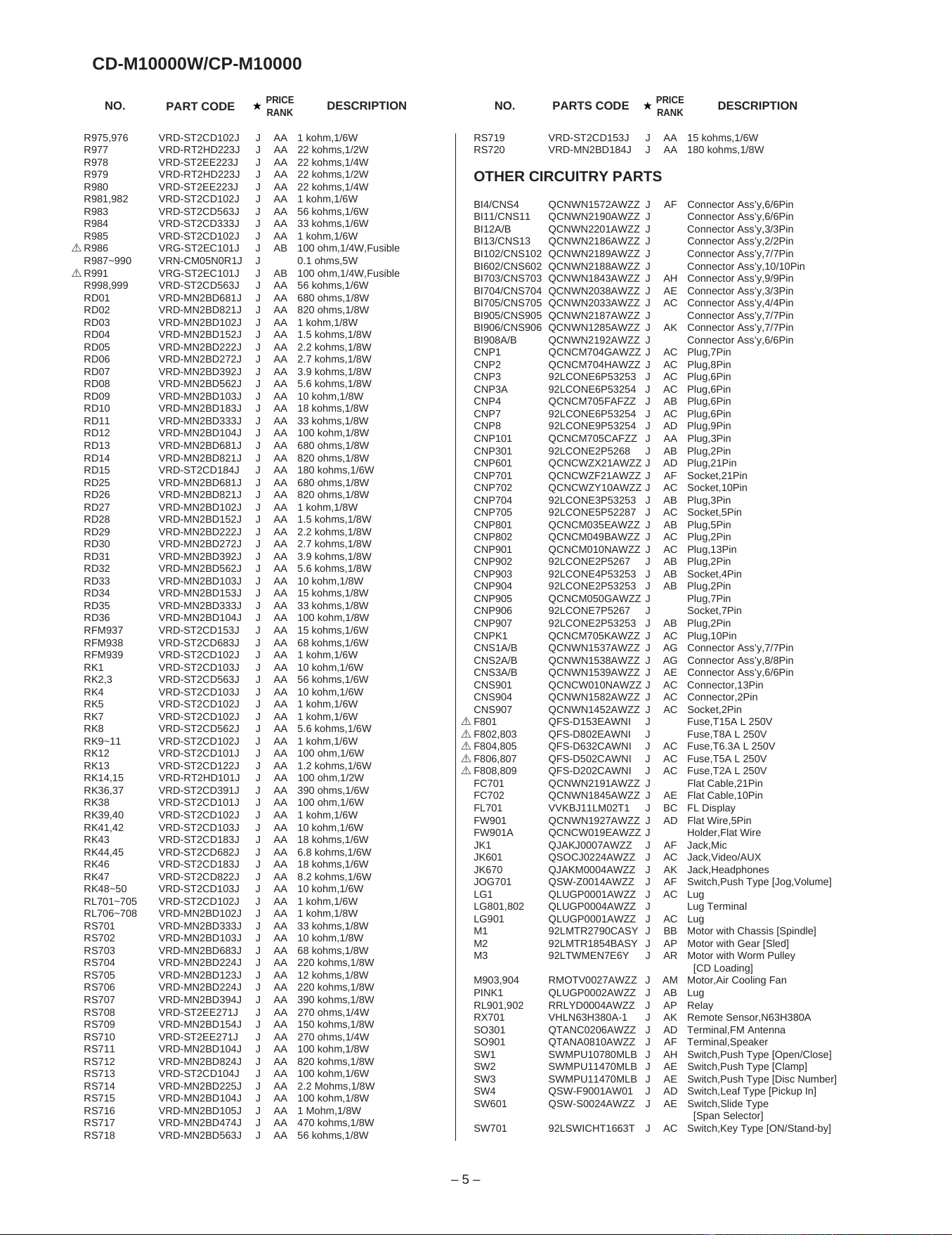

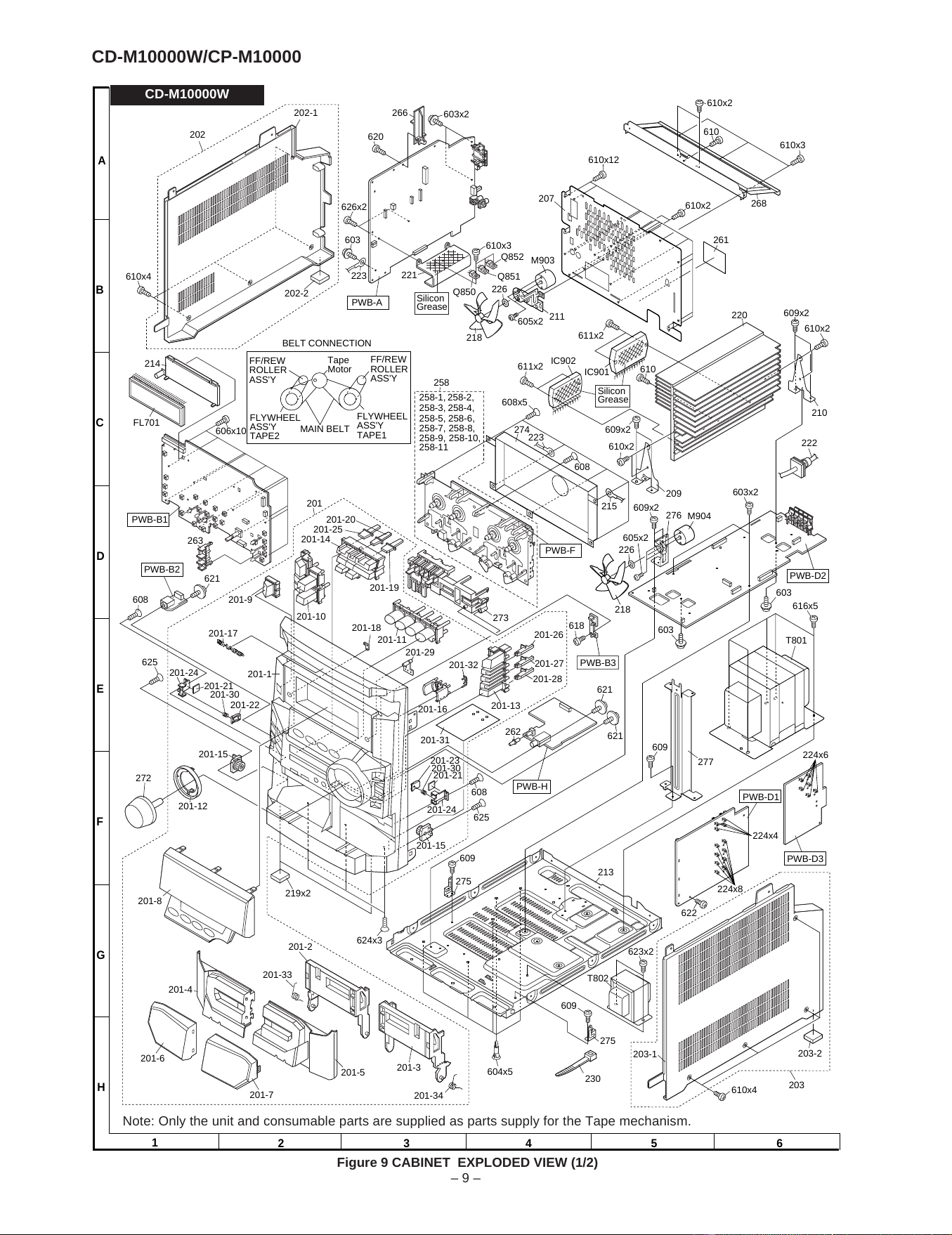

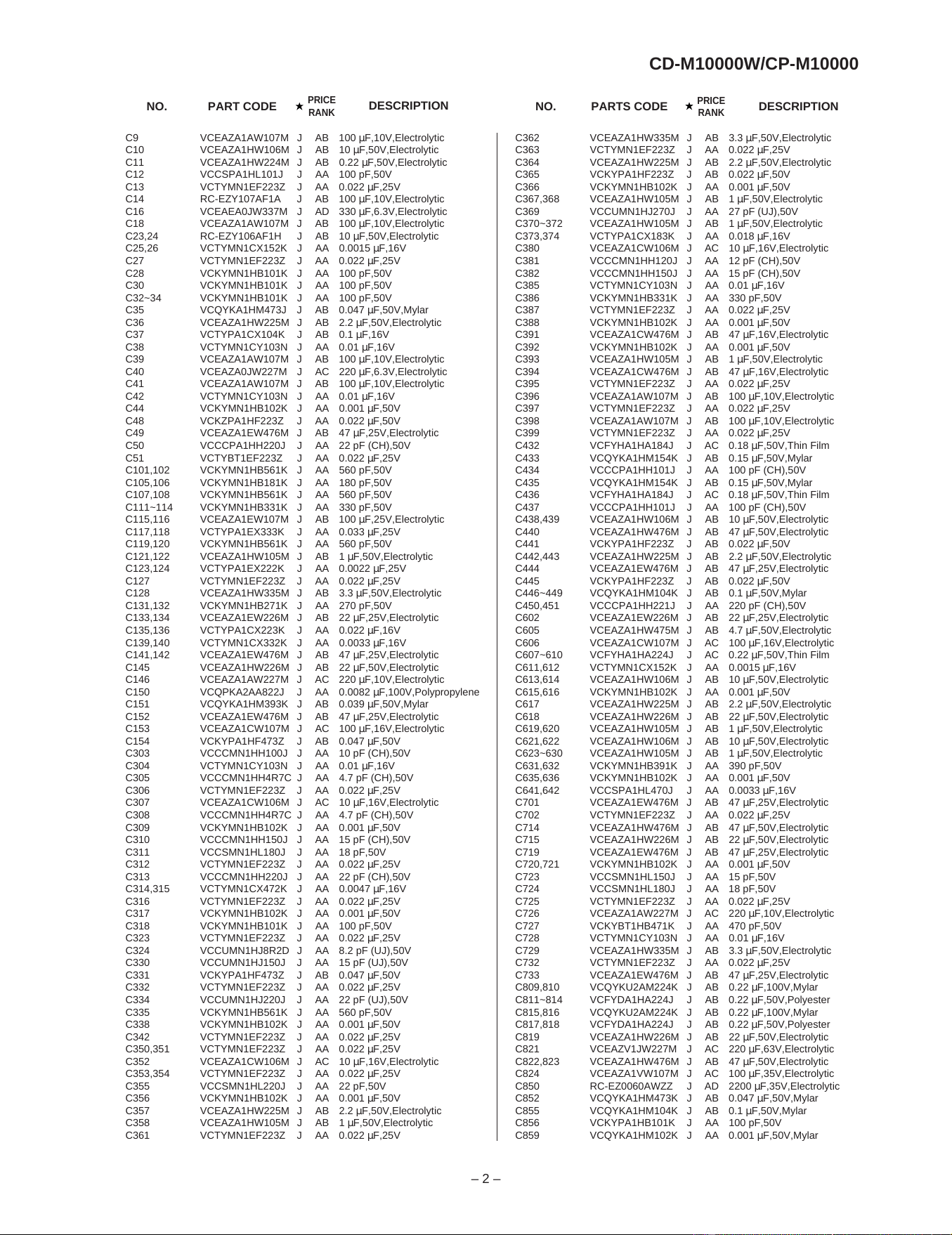

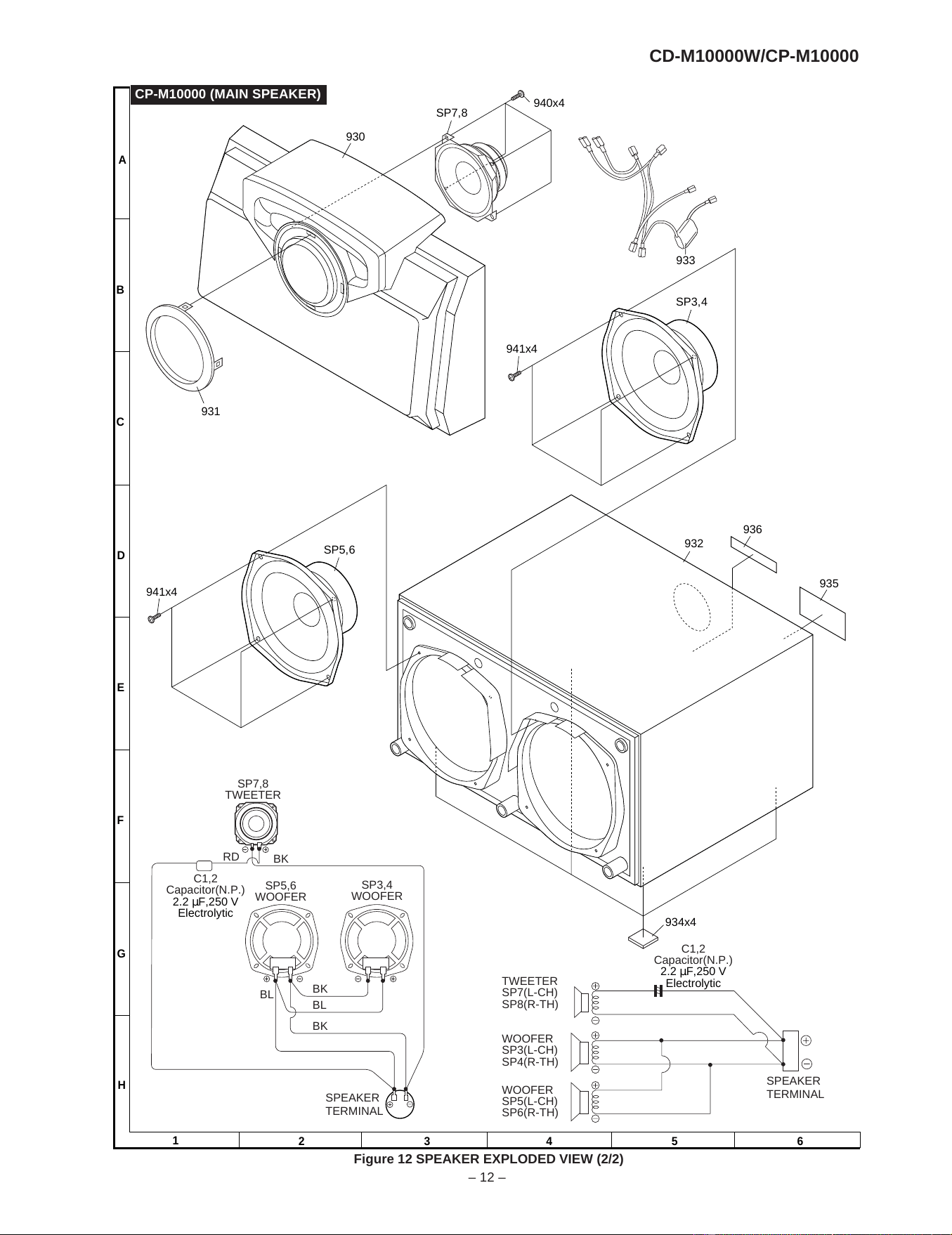

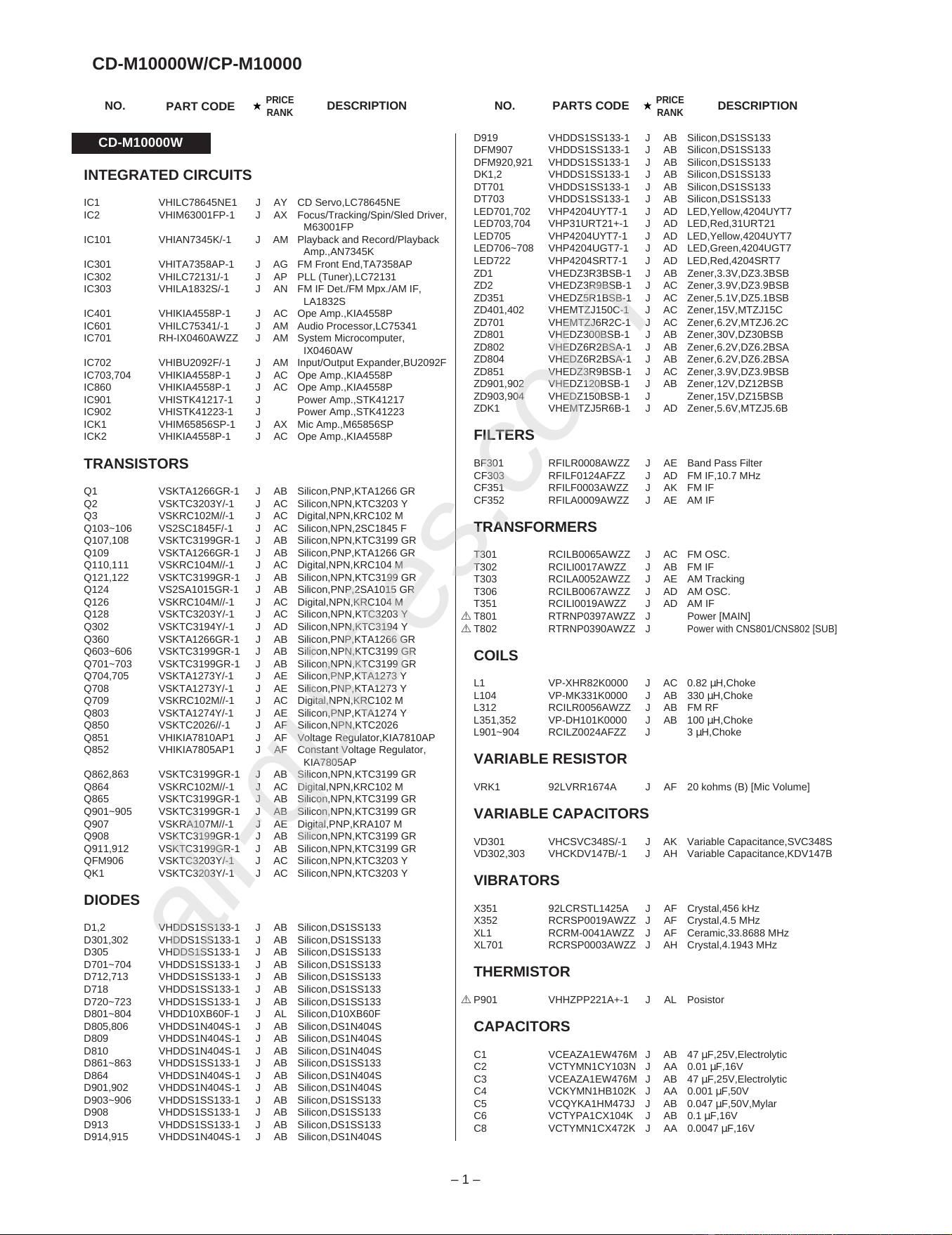

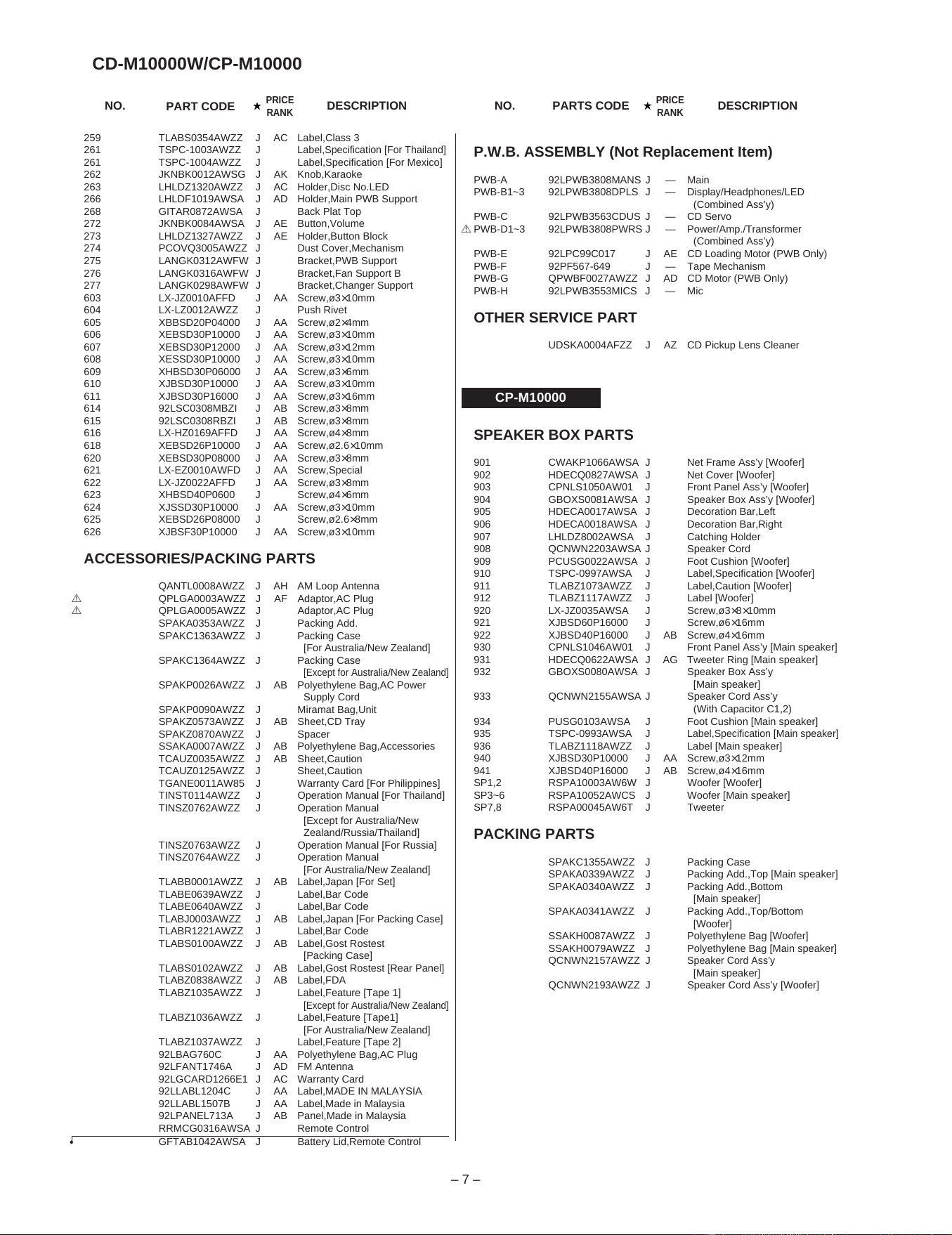

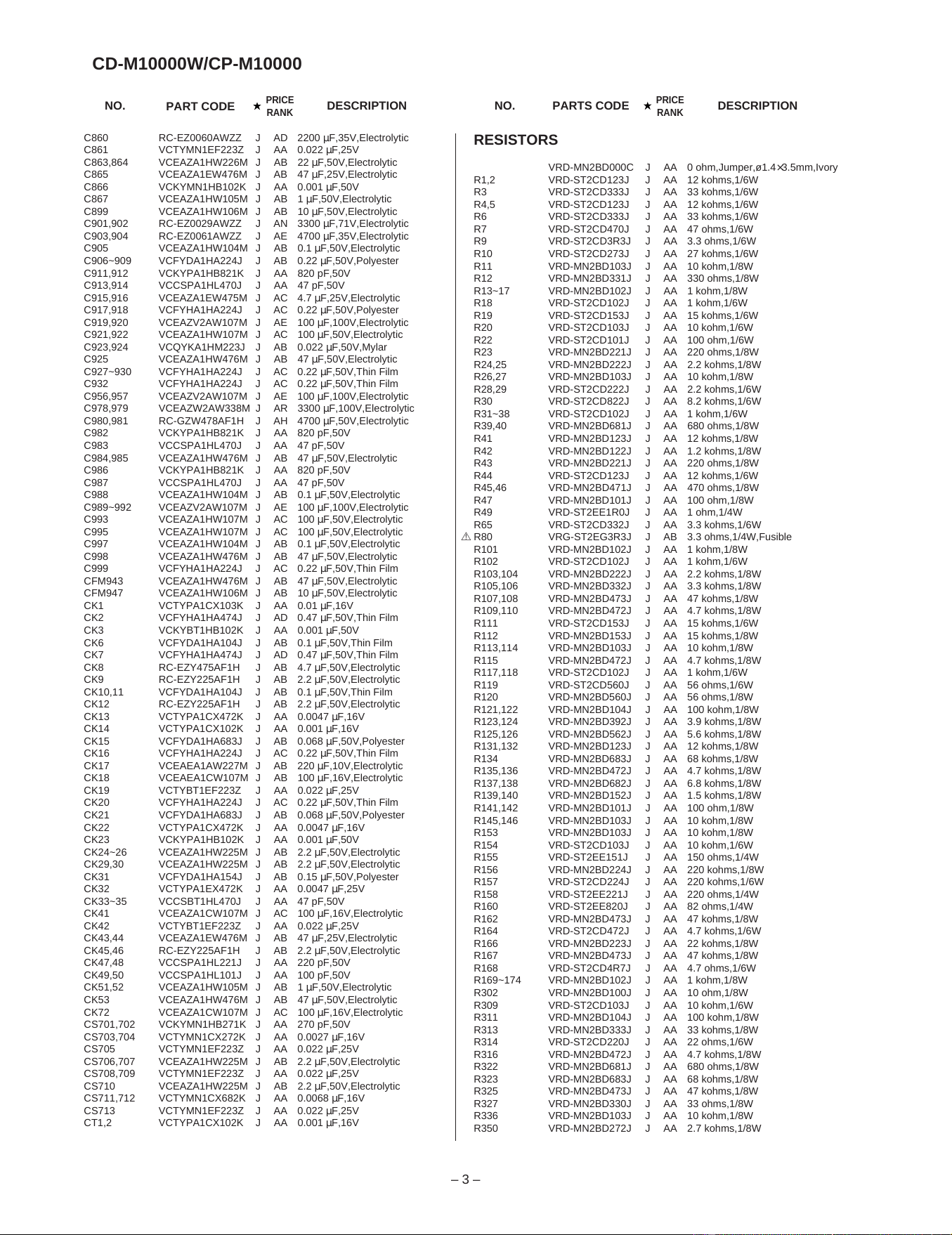

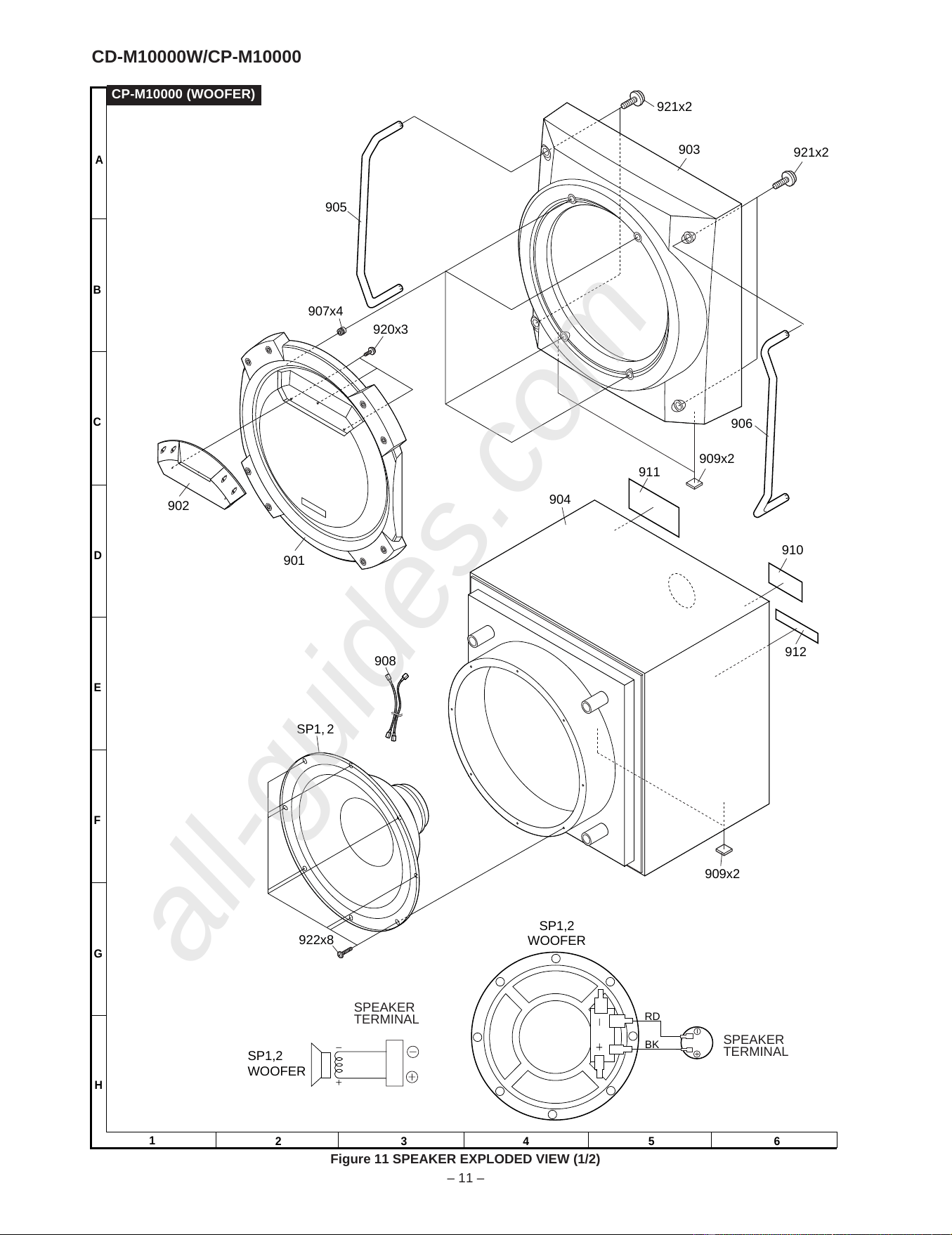

REPLACEMENT PARTS LIST/EXPLODED VIEW
MINI COMPONENT SYSTEM
MODEL CD-M10000W
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
SERVICE MANUAL
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
SHARP CORPORATION
SPEAKER SYSTEM
MODEL
CP-M10000
All manuals and user guides at all-guides.com
all-guides.com
background
CD-M10000W/CP-M10000
– 2 –
SAFETY PRECAUTION FOR SERVICE MANUAL
WARNINGS
THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER
COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. THEREFORE IT IS
IMPORTANT THAT THE FOLLOWING PRECAUTIONS ARE OBSERVED DURING SERVICING TO PROTECT YOUR EYES
AGAINST EXPOSURE TO THE LASER BEAM.
1-WHEN THE CABINET IS REMOVED, THE POWER IS TURNED ON WITHOUT A COMPACT DISC IN POSITION AND THE
PICKUP IS ON THE OUTER EDGE THE LASER WILL LIGHT FOR SEVERAL SECONDS TO DETECT A DISC. DO NOT
LOOK INTO THE PICKUP LENS.
2-THE LASER POWER OUTPUT OF THE PICKUP UNIT AND REPLACEMENT SERVICE PARTS ARE ALL FACTORY
PRESET BEFORE SHIPMENT.
DO NOT ATTEMPT TO READJUST THE LASER PICKUP UNIT DURING REPLACEMENT OR SERVICING.
3-UNDER NO CIRCUMSTANCES STARE INTO THE PICKUP LENS AT ANY TIME.
4-CAUTION-USE OF CONTROLS OR ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage
as follows.
Turn the selector with a screwdriver until the appropriate voltage number appears in the window (110 V, 127 V, 220 V or 230 V-240 V AC).
AC POWER SUPPLY CORD AND AC PLUG ADAPTOR
QACCA0005AW00 QACCL0007AW00
QACCE0014AW00
QPLGA0003AWZZ
QPLGA0005AWZZ
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
VOLTAGE SELECTION
All manuals and user guides at all-guides.com
background
– 3 –
CD-M10000W/CP-M10000
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
Specifications for this model are subject to change without
prior notice.
SPECIFICATIONS
CD-M10000W
CP-M10000
General
Amplifier
CD player
Tuner
Cassette deck
Power source
AC 110/127/220/230 - 240 V, 50/60 Hz
Power consumption
260 W
Dimensions
Width: 270 mm (10-5/8")
Height: 330 mm (13")
Depth: 458 mm (18")
Weight
14.3 kg (31.5 lbs.)
Output power
Main speakers:
MPO: 580 W (290 W + 290 W) (10 % T.H.D.)
MPO: 900 W (450 W + 450 W) (10 % T.H.D.)
RMS: 300 W (150 W + 150 W) (10 % T.H.D.)
RMS: 220 W (110 W + 110 W) (0.9 % T.H.D.)
RMS: 400 W (200 W + 200 W) (10 % T.H.D.)
RMS: 280 W (140 W + 140 W) (0.9 % T.H.D.)
Woofers:
Output terminals
Main speakers: 6 ohms
Woofers: 6 ohms
Headphones: 16 - 50 ohms (recommended: 32 ohms)
Input terminals
Video/Auxiliary (audio signal): 500 mV/47 kohms
Microphone: 1 mV/600 ohms
Type
3-disc multi-play compact disc player
Signal readout
Non-contact, 3-beam semiconductor laser pickup
D/A converter
1-bit D/A converter
Frequency response
20 - 20,000 Hz
Dynamic range
90 dB (1 kHz)
Frequency range
FM: 88 - 108 MHz
AM: 531 - 1,602 kHz
Frequency response
50 - 14,000 Hz (Normal tape)
Signal/noise ratio
55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter
0.3 % (WRMS)
Main speaker
Woofer
Type
2-way 3-speaker system
13 cm (5-1/4") Woofer 2
8 cm (3-1/8") Tweeter
Maximum input power
(Total)
300 W
Rated input power
(Total)
150 W
Impedance
6 ohms
Dimensions
Width: 330 mm (13")
Height: 197 mm (7-13/16")
Depth: 322 mm (12-11/16")
Width: 330 mm (13")
Height: 330 mm (13")
Depth: 378 mm (14-7/8")
Weight
4.8 kg (10.6 lbs.)/each
8.6 kg (19.0 lbs.)/each
Type
Woofer
25 cm (10") Woofer
Maximum input power
(Total)
400 W
Rated input power
(Total)
200 W
Impedance
6 ohms
Dimensions
Weight
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 4 –
NAMES OF PARTS
CD-M10000W
Display
1. FM Stereo Mode Indicator
2. FM Stereo Receiving Indicator
3. Karaoke Mode Indicator
4. CD Repeat Play Indicator
5. CD Pause Indicator
6. CD Play Indicator
7. Tape 2 Record Indicator
8. Tape Reverse Mode Indicator
9. Disc Number Indicators
10. Timer Play Indicator
11. Memory Indicator
12. Tape 2 Reverse Play Indicator
13. Tape 1 Play or Tape 2 Forward Play Indicator
14. Sleep Indicator
15. Timer Recording Indicator
16. Spectrum Analyser/Volume Level Indicator
1
23 5
7
16
16
16
8
12 13 14 15
6
9
10
11
4
Front panel
1. Disc Tray
2. Timer Set Indicator
3. On/Stand-by Button
4. Tape 2 Cassette Compartment
5. Tape 1 Cassette Compartment
6. Equaliser Mode Select Button
7. Volume Control
8. Monster Bass/Demo Mode Button (with Indicator)
9. Disc Tray Open/Close Button
10. Disc Number Select Buttons (with Indicator)
11. Disc Skip Button
12. Tuning and Time Up Button
13. Tape 2 Reverse Play Button (with Indicator)
14. CD Button
15. Tuner (Band) Button
16. Tape (1 2) Button
17. Video/Auxiliary Button
18. Dimmer Button
19. Clock Button
20. Timer/Sleep Button
21. Headphone Socket
22. CD or Tape Stop Button (with Indicator)
23. CD Play or Repeat, Tape 1 Play, Tape 2 Forward Play Button
(with Indicator)
24. Tape 2 Reverse Mode Select Button
25. CD Track Up or Fast Forward, Tape 2 Fast Wind,
Tuner Preset Up Button
26. Tuning and Time Down Button
27. Memory/Set Button
28. Tape 2 Record Pause Button
29. CD Track Down or Fast Reverse, Tape 2 Fast Wind,
Tuner Preset Down Button
30. Microphone Level Control
31. Microphone Socket
678
9
10
11
18
23
22
171615141312
26 27 28
30 3129
24
25
19
20
21
4
5
1
2
3
All manuals and user guides at all-guides.com
background
– 5 –
CD-M10000W/CP-M10000
CD-M10000W
Rear panel
1. Cooling Fan
2. FM 75 Ohms Aerial Terminal
3. FM Aerial Earth Terminal
4. AM Loop Aerial Socket
5. Span Selector Switch
6. Video/Auxiliary (Audio Signal) Input Sockets
7. Main Speaker Terminals
8. Woofer Terminals
9. AC Voltage Selector
10. AC Power Lead
1
2
1
4
3
5
6
7
87
9
10
Remote control
1. Remote Control Transmitter
2. Disc Number Select Buttons
3. CD Random Button
4. CD Memory Button
5. CD Track Up or Fast Forward, Tape 2 Fast Wind Button
6. Tuner Preset Up Button
7. Tape 2 Reverse Play Button
8. Tape 2 Record Pause Button
9. Tuner Preset Down Button
10. CD Button
11. Tuner (Band) Button
12. Equaliser Mode Select Button
13. Monster Bass Button
14. On/Stand-by Button
15. Karaoke Mode Button
16. Echo Level Up and Down Buttons
17. CD Clear Button
18. CD Track Down or Fast Reverse, Tape 2 Fast Wind Button
19. CD Play or Repeat, Tape 1 Play
Tape 2 Forward Play Button
20. CD Pause Button
21. CD or Tape Stop Button
22. Video/Auxiliary Button
23. Tape (1 2) Button
24. Volume Up and Down Buttons
Buttons with mark in the illustration can be operated on the remote control
only.
Other buttons can be operated both on the main unit and the remote control.
""
1
2
15
16
17
18
19
21
24
5
3
6
7
8
9
12
11
10
13
4
14
20
22
23
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 6 –

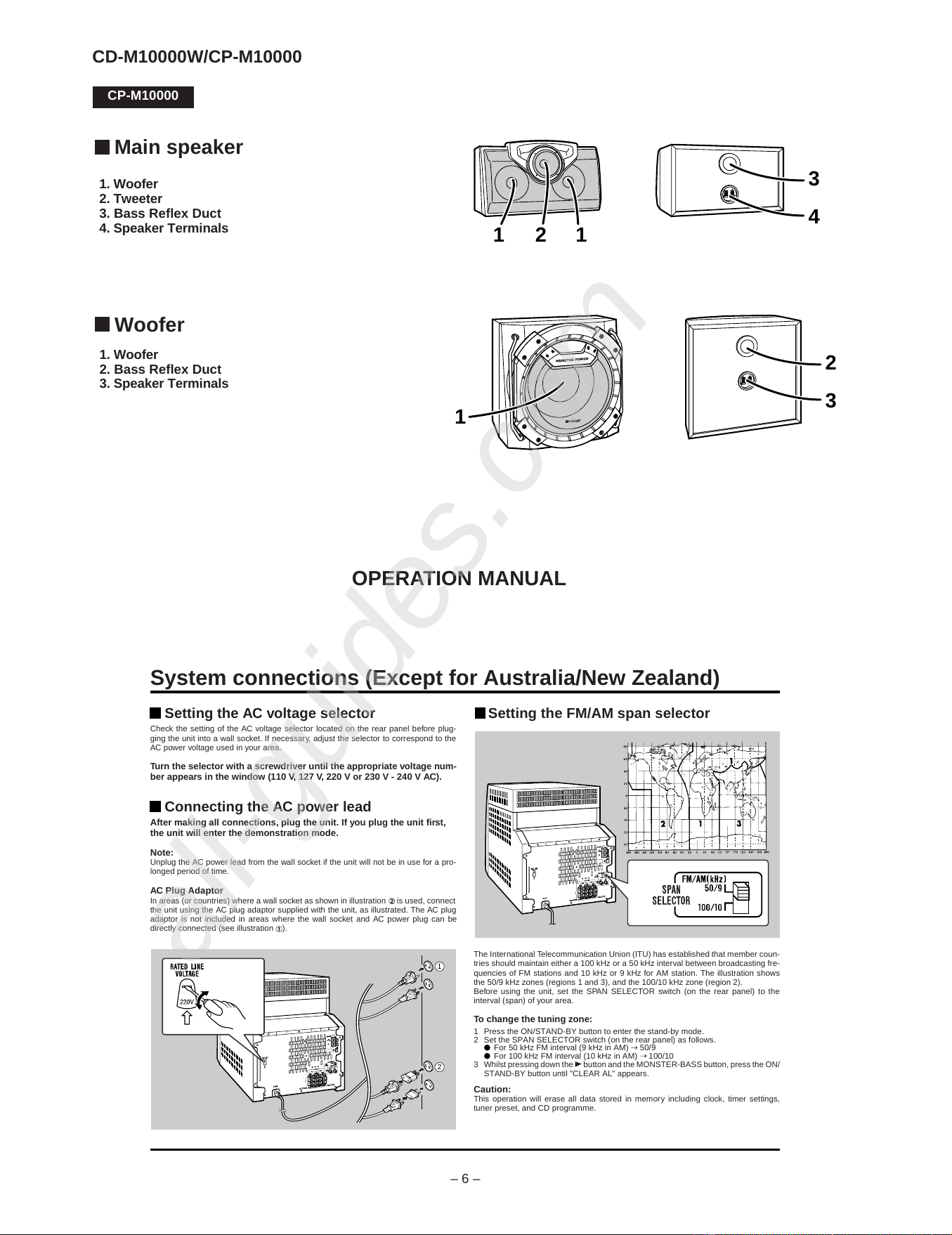

OPERATION MANUAL
CP-M10000
Main speaker
1. Woofer
2. Tweeter
3. Bass Reflex Duct
4. Speaker Terminals
211
3
4
1
2
3
Woofer
1. Woofer
2. Bass Reflex Duct
3. Speaker Terminals
System connections (Except for Australia/New Zealand)
Setting the AC voltage selector
Check the setting of the AC voltage selector located on the rear panel before plug-
ging the unit into a wall socket. If necessary, adjust the selector to correspond to the
AC power voltage used in your area.
Turn the selector with a screwdriver until the appropriate voltage num-
ber appears in the window (110 V, 127 V, 220 V or 230 V - 240 V AC).
Connecting the AC power lead
After making all connections, plug the unit. If you plug the unit first,
the unit will enter the demonstration mode.
Note:
Unplug the AC power lead from the wall socket if the unit will not be in use for a pro-
longed period of time.
AC Plug Adaptor
In areas (or countries) where a wall socket as shown in illustration is used, connect
the unit using the AC plug adaptor supplied with the unit, as illustrated. The AC plug
adaptor is not included in areas where the wall socket and AC power plug can be
directly connected (see illustration ).
Setting the FM/AM span selector
The International Telecommunication Union (ITU) has established that member coun-
tries should maintain either a 100 kHz or a 50 kHz interval between broadcasting fre-
quencies of FM stations and 10 kHz or 9 kHz for AM station. The illustration shows
the 50/9 kHz zones (regions 1 and 3), and the 100/10 kHz zone (region 2).
Before using the unit, set the SPAN SELECTOR switch (on the rear panel) to the
interval (span) of your area.
To change the tuning zone:
Caution:
This operation will erase all data stored in memory including clock, timer settings,
tuner preset, and CD programme.
1
2
1 Press the ON/STAND-BY button to enter the stand-by mode.
2 Set the SPAN SELECTOR switch (on the rear panel) as follows.
For 50 kHz FM interval (9 kHz in AM) 50/9
For 100 kHz FM interval (10 kHz in AM) 100/10
3 Whilst pressing down the button and the MONSTER-BASS button, press the ON/
STAND-BY button until "CLEAR AL" appears.
All manuals and user guides at all-guides.com
all-guides.com
background
– 7 –
CD-M10000W/CP-M10000
System connections (For Australia/New Zealand)
Setting the AC voltage selector
Check the setting of the AC voltage selector located on the rear panel before plug-
ging the unit into a wall socket. If necessary, adjust the selector to correspond to the
AC power voltage used in your area.
Turn the selector with a screwdriver until the appropriate voltage num-
ber appears in the window (110 V, 127 V, 220 V or 230 V - 240 V AC).
Connecting the AC power lead
After making all connections, plug the unit. If you plug the unit first,
the unit will enter the demonstration mode.
Note:
Unplug the AC power lead from the wall socket if the unit will not be in use for a pro-
longed period of time.
Setting the FM/AM span selector
The International Telecommunication Union (ITU) has established that member coun-
tries should maintain either a 100 kHz or a 50 kHz interval between broadcasting fre-
quencies of FM stations and 10 kHz or 9 kHz for AM station. The illustration shows
the 50/9 kHz zones (regions 1 and 3), and the 100/10 kHz zone (region 2).
Before using the unit, set the SPAN SELECTOR switch (on the rear panel) to the
interval (span) of your area.
To change the tuning zone:
Caution:
This operation will erase all data stored in memory including clock, timer settings,
tuner preset, and CD programme.
(230 - 240 V, 50/60 Hz)
Wall socket
230V
240V
1 Press the ON/STAND-BY button to enter the stand-by mode.
2 Set the SPAN SELECTOR switch (on the rear panel) as follows.
For 50 kHz FM interval (9 kHz in AM) 50/9
For 100 kHz FM interval (10 kHz in AM) 100/10
3 Whilst pressing down the button and the MONSTER-BASS button, press the ON/
STAND-BY button until "CLEAR AL" appears.
Setting the clock
In this example, the clock is set for the 24-hour (0:00) display.
Note:
The "CLOCK" or time will flash at the push of the CLOCK button when the AC power
supply is restored after a power failure or unplugging the unit.
Readjust the clock as follows.
To readjust the clock:
Perform "Setting the clock" from the beginning. If the time display is flashing, step 3
(for selecting the 24-hour or 12-hour display) will be skipped.
To change the 24-hour or 12-hour display:
1
Press the ON/STAND-BY button to turn the power on.
2
Press the CLOCK button and within 5 seconds, press the MEMO-
RY/SET button.
3
Press the TUNING/TIME ( or ) button to select 24-hour or 12-
hour display and then press the MEMORY/SET button.
"0:00" The 24-hour display will appear.
(0:00 - 23:59)
"AM 12:00" The 12-hour display will appear.
(AM 12:00 - PM 11:59)
"AM 0:00" The 12-hour display will appear.
(AM 0:00 - PM 11:59)
Note that this can only be set when the unit is first installed or it has been reset.
4
Press the TUNING/TIME ( or ) button to adjust the hour and then
press the MEMORY/SET button.
Press the TUNING/TIME ( or ) button once to advance the time by 1 hour.
Hold it down to advance continuously.
When the 12-hour display is selected, "AM" will change automatically to "PM".
5
Press the TUNING/TIME ( or ) button to adjust the minutes and
then press the MEMORY/SET button.
Press the TUNING/TIME ( or ) button once to advance the time by 1
minute. Hold it down to change the time in 5-minute intervals.
The hour will not advance even if minutes advance from "59" to "00".
The clock begins counting from "0" seconds. (Seconds are not displayed.)
The time display will disappear after a few seconds.
To confirm the time display:
Press the CLOCK button.
The time display will appear for about 5 seconds.
1 Clear all the programmed contents.
2 Perform "Setting the clock" from the beginning.
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 8 –
Troubleshooting chart
Many potential problems can be resolved by the owner without calling a service tech-
nician.
If something is wrong with this product, check the following before calling your autho-
rised SHARP dealer or service centre.
General
CD player
Tune r
Cassette deck
Karaoke
Remote control
Symptom Possible cause
The clock is not on time. Did a power failure occur? Reset the
clock.
When a button is pressed, the unit
does not respond.
Set this unit to the power stand-by mode
and then turn it back on.
If the unit still malfunctions, reset it.
No sound is heard. Is the volume level set to "0"?
Are the headphones connected?
Are the speaker wires disconnected?
Is the karaoke mode set to "L-CH", "R-CH"
or "V-CANCEL"?
Symptom Possible cause
Playback does not start. Is the disc loaded upside down?
Playback stops in the middle or is
not performed properly.
Does the disc satisfy the standards?
Is the disc distorted or scratched?
Playback sounds are skipped, or
stopped in the middle of a track.
Is the unit located near excessive vibra-
tions?
Is the disc very dirty?
Has condensation formed inside the unit?
Symptom Possible cause
Radio makes unusual noise con-
secutively.
Is the unit placed near the TV or comput-
er?
Is the FM aerial or AM loop aerial placed
properly? Move the AC power lead away
from the aerial if located near.
Symptom Possible cause
Cannot record. Is the erase-prevention tab removed?
Cannot record tracks with proper
sound quality.
Is it a normal tape? (You cannot record on
a metal or CrO tape.)
Cannot erase completely.
Sound skipping. Is there any slack?
Is the tape stretched?
Cannot hear treble. Are the capstans, pinch rollers, or heads
dirty?
Sound fluctuation.
Cannot remove the tape. If a power failure occurs during playback,
the heads remain engaged with the tape.
Do not open the compartment forcibly.
Wait until electricity resumes.
Symptom Possible cause
The vocal part of a multiplexed
disc is not heard.
Is the karaoke mode set to "L-CH", "R-CH"
or "V-CANCEL"?
Symptom Possible cause
The remote control does not oper-
ate.
Is the AC power lead of the unit plugged
in?
Is the battery polarity respected?
Are the batteries dead?
Is the distance or angle incorrect?
Does the remote control sensor receive
strong light?
If trouble occurs
When this product is subjected to strong external interference (mechanical shock,
excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is
operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and plug in the unit,
and then turn the power on.
Note:
If neither operation above restores the unit, clear all the memory by resetting it.
Clearing all the memory (reset)
1 Press the ON/STAND-BY button to enter the power stand-by mode.
2 Whilst pressing down the button and the MONSTER-BASS button, press the
ON/STAND-BY button until "CLEAR AL" appears.
Caution:
This operation will erase all data stored in memory including clock, timer settings,
tuner preset, and CD programme.
Before transporting the unit
1 Press the ON/STAND-BY button to tu rn the power on.
2 Press the CD butto n.
3 Press the OPEN/CLOSE butto n to open the disc tray.
Remove all CDs inserted in the unit.
4 Press the OPEN/CLOSE butto n to close the disc tray.
Make sure that "NO DISC" is displayed.
5 Press the ON/STAND-BY butto n to enter the stand-by mode,and then unplug
the AC power lead fro m the wall so cket.
Troubleshooting chart
Remote control
Test of the remote control
Check the remote control after checking all connections have been made correctly.
Face the remote control directly to the remote sensor on the unit.
The remote control can be used within the range shown below:
Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy the
music.
.
0.2 m - 6 m
(8" - 20')
Remote sensor
All manuals and user guides at all-guides.com
background
– 9 –
CD-M10000W/CP-M10000
1 Top Cabinet 1. Screw ....................... (A1) x4 9-1
2 Side Panel 1. Screw ..................... (B1) x12 9-1
(Left/Right)
3 CD Player Unit/ 1. Turn on the power supply, ... 9-2
CD Tray Cover open the disc tray, take out
the CD tray cover, and close.
(Note 1)
2. Screw ....................... (C1) x1
3. Hook ......................... (C2) x3
4. Hook ......................... (C3) x2
5. Socket ...................... (C4) x2
4 Rear Panel with 1. Screw ..................... (D1) x11 9-2
Fan Motor 2. Socket ...................... (D2) x1
5 Main PWB 1. Screw ....................... (E1) x1 9-2
2. Flat Cable ................ (E2) x1 10-2
3. Socket ...................... (E3) x5
6 Amp. PWB 1. Screw ....................... (F1) x8 10-3
2. Socket ...................... (F2) x3
3. PWB Holder ............. (F3) x5
4. Flat Wire................... (F4) x1
7 Front Panel 1. Screw .......................(G1) x3 10-3
2. Socket ......................(G2) x1 10-2
3. Hook ......................... (G3) x2 10-3
8
Mic PWB
1. Screw ....................... (H1) x2 10-4
2. Lug Wire................... (H2) x1
9 Display PWB 1. Knob .......................... (J1) x1 10-4
2. Screw ...................... (J2)
x10
3. Flat Cable .................(J3) x1
10 Tape Mechanism 1. Open the cassette holder. 10-4
2. Screw ....................... (K1) x6
11
Headphones PWB
1. Screw ....................... (L1) x1 10-4
12 Turntable 1. Hook ........................ (M1) x2 10-5
2. Cover ...................... (M2) x1
13 Disc Tray 1.
Turn fully the lock lever in the .
9-3
arrow direction
.
2.
While holding the lock lever,rotate
10-1
the cam gear until the cam gear
rib engages with the clamp lever.
3.
Push the slide chassis backward to
10-6
engage the claw with the groove
and remove it in the direction
of the arrow. .................
(N1) x6
14 CD Servo PWB 1. Screw ....................... (P1) x1 11-1
(Note 2) 2. Hook ......................... (P2) x3
3. Socket ...................... (P3) x4
15 CD Mechanism 1. Hook .........................(Q1) x2 11-2
2. Hook ......................... (Q2) x3
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 9-2
Figure 9-3
CD-M10000W
STEP
REMOVAL
PROCEDURE
FIGURE
Figure 9-1
CD-M10000W
Note 1: How to open the changer manually. (Fig. 9-3)
1. In this state, turn fully the lock lever in the arrow direction through
the hole on the loading chassis bottom.
2.
While holding the lock lever, rotate the cam gear anticlockwise until the
cam gear rib engages with the clamp lever.
(Fig. 10-1)
3. After that, push forward the slide Chaissis.
Note 2:
1. After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the front end
of the connector so as to protect the optical pickup from electro-
static damage.
Note 3:
1. Be careful not to break the claw of the CD mechanism.
2. When fining back the cam gear assembly, let it lock by front
movement.
Lock Lever
CD Player Unit
(Bottom View)
(B1) x 4
ø3 x 10mm
(B1) x 4
ø3 x 10mm
(B1) x 4
ø3 x 10mm
Rear
Panel
Side Panel
(Right)
Side Panel
(Left)
(A1) x 2
ø3 x 12mm
(A1) x 2
ø3 x 12mm
Top Cabinet
(E1) x 1
ø3 x 10mm
(C3) x 1
(D1) x 2
ø3 x 10mm
CD Player
Unit
CD Tray Cover
Pull
(C3) x 1
(C4) x 2
(C2) x 3
1
1
2
CD Servo
PWB
Amp.
PWB
(D2) x 1
(D1) x 2
ø3 x 10mm
Rear
Panel
Main PWB
Lug Wire
(D1) x 7
ø3 x 10mm
(C1) x 1
ø3 x 10mm
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 10 –
Figure 10-1
Figure 10-2
Figure 10-3
Figure 10-4
Figure 10-5
Figure 10-6
Clamp Lever
CD Player Unit
(Top View)
Cam Gear Rib
Turntable
Slide
Chassis
(M2) x 1
CD Player Unit
(M1) x 2
1
3
2
(N1) x 3
(N1) x 3
Slide Chassis
CD Player Unit
Main PWB
Main PWB
Amp.
PWB
Transformer
PWB
(E2) x 1
Power PWB
(G2) x 1
(E3) x 1
(E3) x 1
(E3) x 1
(E3) x 1
Mic PWB
(E3) x 1
Tape
Mechanism
Amp. PWB
Front
Panel
(F4) x 1
(F3) x 4
Push
(G1) x 3
ø3 x 10mm
Amp.
PWB
(F3) x 1
Push
(F2) x 1
(F2) x 2
(F1) x 4
ø3 x 6mm
(F1) x 2
ø3 x 10mm
(F1) x 2
ø3 x 6mm
Headphones
PWB
(G3) x 1
(G3) x 1
Front
Panel
(J3) x 1
(J2) x 10
ø3 x 10mm
(K1) x 6
ø3 x 10mm
(J1) x 1
Display PWB
Headphones
PWB
Open
Cassette
Holder
Tape
Mechanism
(L1) x 1
ø3 x 10mm
Mic
PWB
(H1) x 2
ø3 x 10mm
Lug Wire
Lug Wire
(H2) x 1
Front
Panel
Mechanism
Dust Cover
All manuals and user guides at all-guides.com
background
– 11 –
CD-M10000W/CP-M10000
1 Woofer 1. Front Panel ............ (A1) x1 11-3
(Woofer) 2. Screw ..................... (A2) x8 11-4
2 Super Tweeter 1. Front Panel ............ (B1) x1 11-5
2. Screw ..................... (B2) x4 11-6
3 Woofer 1. Screw ..................... (C1) x8 11-6
(Main speaker)
STEP
REMOVAL PROCEDURE
FIGURE
Figure 11-3
Figure 11-1
Figure 11-2
CP-M10000
Figure 11-5
Figure 11-6
(P3) x 2
(P2) x 3
(P3) x 2
CD Servo
PWB
Slide
Chassis
(P1) x 1
ø3 x 8mm
(Q2) x 3
(Q1) x 1
(Q1) x 1
CD
Mechanism
CD
Mechanism
Chassis
Slide
Chassis
Speaker Box Ass'y
(A1) x 1
Screwdriver
Driver should
be pried away
from Speaker Box.
(A2) x 8
ø4 x 16mm
Woofer
Speaker Box Ass'y
Speaker Box Ass'y
(B1) x 1
Screwdriver
Driver should
be pried away
from Speaker Box.
(C1) x 4
ø4 x 16mm
Speaker Box Ass'y
Woofer
(C1) x 4
ø4 x 16mm
Woofer
(B2) x 4
ø3 x 12mm
Tweeter
Front Panel
Figure 11-4
All manuals and user guides at all-guides.com
all-guides.com
background
CD-M10000W/CP-M10000
– 12 –
REMOVING AND REINSTALLING THE MAIN PARTS
TAPE MECHANISM SECTION
Perform steps 1 to 7 and 10 of the disassembly method to
remove the tape mechanism.
How to remove the record/playback and erase
heads (TAPE 2) (See Fig. 12-1)
1. When you remove the screws (A1) x 2 pcs., the recording/
playback head and three-dimensional head of the erasing
head can be removed.
How to remove the playback head (TAPE 1)
(See Fig. 12-2)
1. When you remove the screws (B1) x 2 pcs., the playback
head can be removed.
How to remove the pinch roller (TAPE 1/2)
(See Fig. 12-3)
1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (C1) x 1 pc., in the
direction of the arrow <B>.
Note:
When installing the pinch roller, pay attention to the spring
mounting position.
How to remove the belt (TAPE 2)
(See Fig. 12-4)
1. Remove the main belt (D1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (D2) x 1 pc.
How to remove the belt (TAPE 1)
(See Fig. 12-4)
1. Remove the main belt (E1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (E2) x 1 pc.
How to remove the motor (See Fig. 12-5)
1. Remove the screws (F1) x 2 pcs., to remove the motor.
Figure 12-1
Figure 12-2
Figure 12-3
Figure 12-4Figure 12-5
(A1) x 2
Ø2 x 6mm
TAPE 2
Record/Playback
Head
Erase Head
Clutch Ass'y
(B1) x 1
Ø2 x 9mm
(B1) x 1
Ø2 x 5mm
TAPE 1
Playback
Head
Clutch Ass'y
Pinch Roller
(C1) x 1
<A>
Pull
<B>
Pull
Pinch
Roller
Pawl
TAPE 2
TAPE 1
Main Belt
(E1) x 1
TAPE 2
Main Belt
(D1) x 1
TAPE 1
FF/REW
Belt
(D2) x 1
FF/REW
Belt
(E2) x 1
Tape
Motor
Tape
Motor
Main Belt
(D1) x 1
Main Belt
(E1) x 1
FF/REW
Roller
FF/REW
Roller
Flywheel
Ass'y
Flywheel
Ass'y
(F1) x 2
Ø2.6 x 5mm
Tape
Motor
Clutch Ass'y
All manuals and user guides at all-guides.com
background
– 13 –
CD-M10000W/CP-M10000
(A1) x 2
(A1) x 1
CD Loading Motor
CD Loading
Motor PWB
Slide
Chassis
(A1) x 2
Pulley
Drive Belt
(A2) x 1
CD Loading
Motor
How to remove the pickup (See Fig. 13-2)
1. Remove the stop washer (B1) x 1 pc., to remove the gear
(B2) x 1 pc.
2. Remove the screws (B3) x 2 pcs., to remove the shaft (B4).
3. Remove the pickup.
Note
After removing the connector for the optical pickup from the
connector wrap the conductive aluminium foil around the front
end of connector so as to protect the optical pickup from
electrostatic damage.
Figure 13-2
CD MECHANISM SECTION
Perform steps 1, 2, 3, 12, 13, 14 and 15 of the disassembly
method to remove the CD mechanism.
How to remove the CD loading motor
(See Fig. 13-1)
1. Bend the hooks (A1) x 5 pcs., to remove the CD loading
motor.
2. Remove the drive belt (A2) x 1 pc.
Figure 13-1
ADJUSTMENT
MECHANISM SECTION
• Driving Force Check
Torque Meter Specified Value
Play: TW-2111 Tape 1: Over 80 g
Tape 2: Over 80 g
• Torque Check
Torque Meter
Tape 2
Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm
Fast forward: TW-2231 — 70 to 180 g.cm
Rewind: TW-2231 — 70 to 180 g.cm
Specified Value
Tape 1
Specified
Value
Adjusting
Point
Instrument
Connection
Test Tape
Normal MTT-111 Variable 3,000 ± 30 Hz Speaker
speed Resistor in terminal
motor. (Load
resistance:
6 ohms)
• Tape Speed
Figure 13-3
(B3) x 2
ø2.6 x 6mm
Shaft
(B4) x 1
Stop Washer
(B1) x 1
Gear
(B2) x 1
CD Mechanism
Pickup
TAPE MECHANISM
Tape
Motor
Variable Resistor in motor
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 14 –
Test Stage
Frequency Frequency
Display
Setting/
Adjusting
Parts
Instrument
Connection

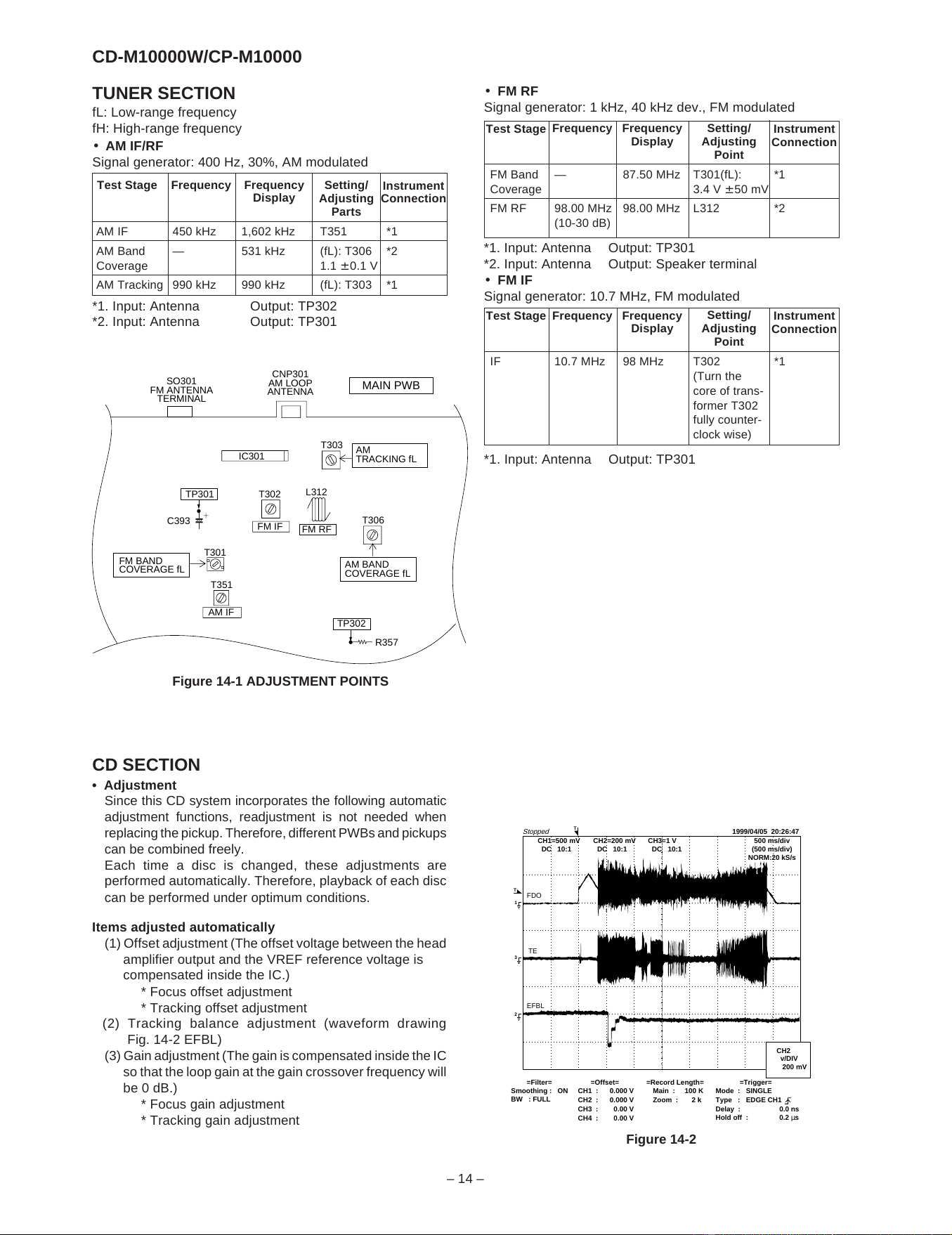

CD SECTION
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
*1. Input: Antenna Output: TP302
*2. Input: Antenna Output: TP301
TUNER SECTION
fL: Low-range frequency
fH: High-range frequency
AM IF 450 kHz 1,602 kHz T351 *1
AM Band — 531 kHz (fL): T306 *2
Coverage 1.1 ± 0.1 V
AM Tracking 990 kHz 990 kHz (fL): T303 *1
*1. Input: Antenna Output: TP301
*2. Input: Antenna Output: Speaker terminal
• FM IF
Signal generator: 10.7 MHz, FM modulated
• FM RF
Signal generator: 1 kHz, 40 kHz dev., FM modulated
FM Band — 87.50 MHz T301(fL): *1
Coverage 3.4 V ± 50 mV
FM RF 98.00 MHz 98.00 MHz L312 *2
(10-30 dB)
Test Stage
Instrument
Connection
Frequency Frequency
Display
Setting/
Adjusting
Point
Figure 14-1 ADJUSTMENT POINTS
Figure 14-2
Items adjusted automatically
(1) Offset adjustment (The offset voltage between the head
amplifier output and the VREF reference voltage is
compensated inside the IC.)
* Focus offset adjustment
* Tracking offset adjustment
(2) Tracking balance adjustment (waveform drawing
Fig. 14-2 EFBL)
(3) Gain adjustment (The gain is compensated inside the IC
so that the loop gain at the gain crossover frequency will
be 0 dB.)
* Focus gain adjustment
* Tracking gain adjustment
• Adjustment
Since this CD system incorporates the following automatic
adjustment functions, readjustment is not needed when
replacing the pickup. Therefore, different PWBs and pickups
can be combined freely.
Each time a disc is changed, these adjustments are
performed automatically. Therefore, playback of each disc
can be performed under optimum conditions.
IC301
AM IF
FM IF
FM RF
T303
T306
T302
L312
AM
TRACKING fL
AM BAND
COVERAGE fL
T301
T351
FM BAND
COVERAGE fL
MAIN PWB
CNP301
AM LOOP
ANTENNA
SO301
FM ANTENNA
TERMINAL
TP302
R357
C393
TP301
T
T
EFBL
FDO
TE
Stopped
CH1=500 mV
DC 10:1
CH2=200 mV
DC 10:1
CH3=1 V
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.000 V
Main : 100 K
Zoom : 2 k
Mode : SINGLE
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH2
v/DIV
200 mV
1999/04/05 20:26:47
IF 10.7 MHz 98 MHz T302 *1
(Turn the
core of trans-
former T302
fully counter-
clock wise)
Test Stage
Instrument
Connection
Frequency Frequency
Display
Setting/
Adjusting
Point
*1. Input: Antenna Output: TP301
All manuals and user guides at all-guides.com
background
– 15 –
CD-M10000W/CP-M10000

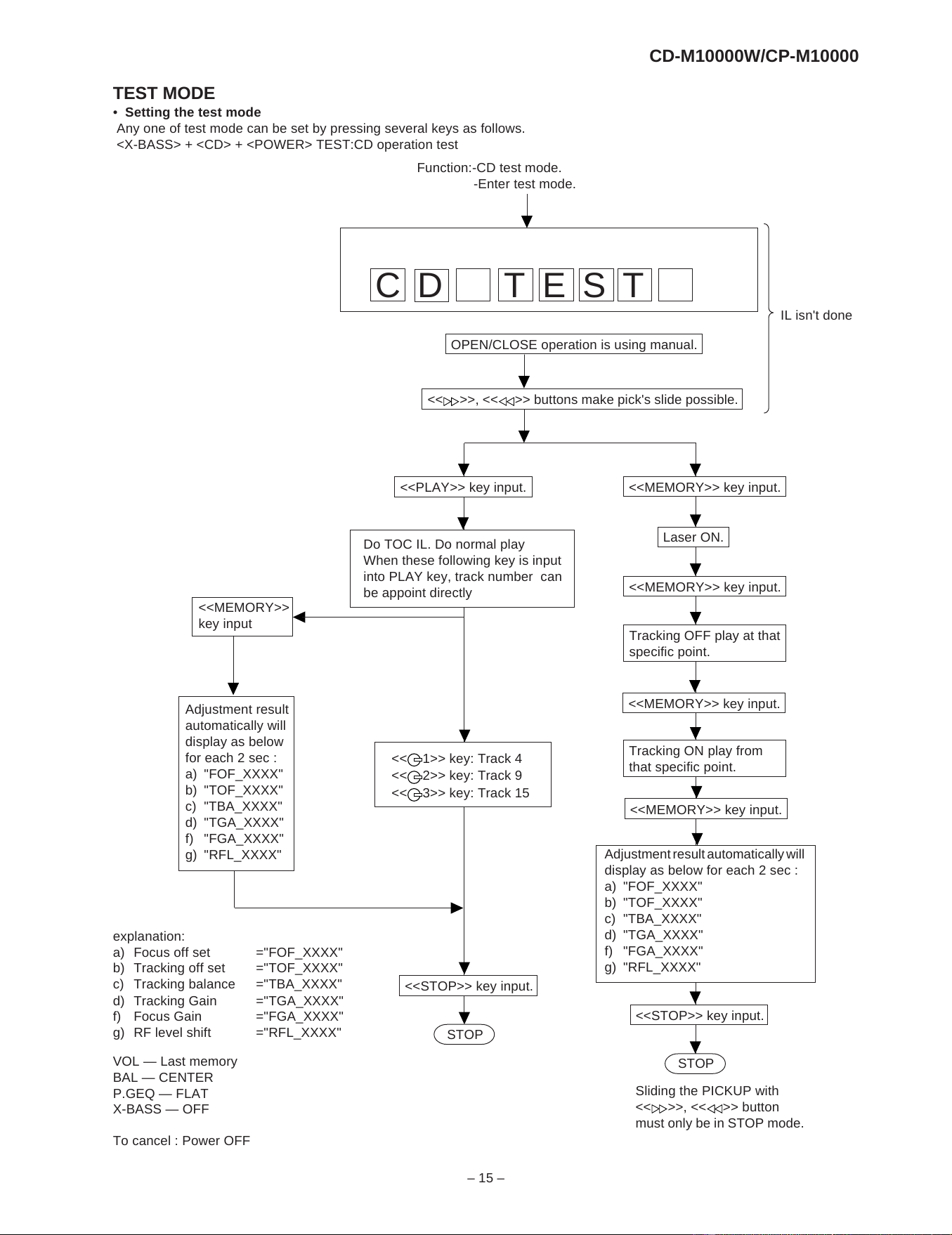

TEST MODE
• Setting the test mode
Any one of test mode can be set by pressing several keys as follows.
<X-BASS> + <CD> + <POWER> TEST:CD operation test
Function:-CD test mode.
-Enter test mode.
C D T E S T
OPEN/CLOSE operation is using manual.
<< >>, << >> buttons make pick's slide possible.
Do TOC IL. Do normal play
When these following key is input
into PLAY key, track number can
be appoint directly
<<PLAY>> key input.
<<MEMORY>> key input.
<< 1>> key: Track 4
<< 2>> key: Track 9
<< 3>> key: Track 15
<<STOP>> key input.
STOP
Laser ON.
<<MEMORY>> key input.
Tracking OFF play at that
specific point.
<<MEMORY>> key input.
Tracking ON play from
that specific point.
<<STOP>> key input.
STOP
IL isn't done
VOL — Last memory
BAL — CENTER
P.GEQ — FLAT
X-BASS — OFF
To cancel : Power OFF
Sliding the PICKUP with
<<
>>, << >> button
must only be in STOP mode.
<<MEMORY>>
key input
Adjustment result
automatically will
display as below
for each 2 sec :
a) "FOF_XXXX"
b) "TOF_XXXX"
c) "TBA_XXXX"
d) "TGA_XXXX"
f) "FGA_XXXX"
g) "RFL_XXXX"
explanation:
a) Focus off set ="FOF_XXXX"
b) Tracking off set ="TOF_XXXX"
c) Tracking balance ="TBA_XXXX"
d) Tracking Gain ="TGA_XXXX"
f) Focus Gain ="FGA_XXXX"
g) RF level shift ="RFL_XXXX"
Adjustment result automatically will
display as below for each 2 sec :
a) "FOF_XXXX"
b) "TOF_XXXX"
c) "TBA_XXXX"
d) "TGA_XXXX"
f) "FGA_XXXX"
g) "RFL_XXXX"
<<MEMORY>> key input.
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 16 –

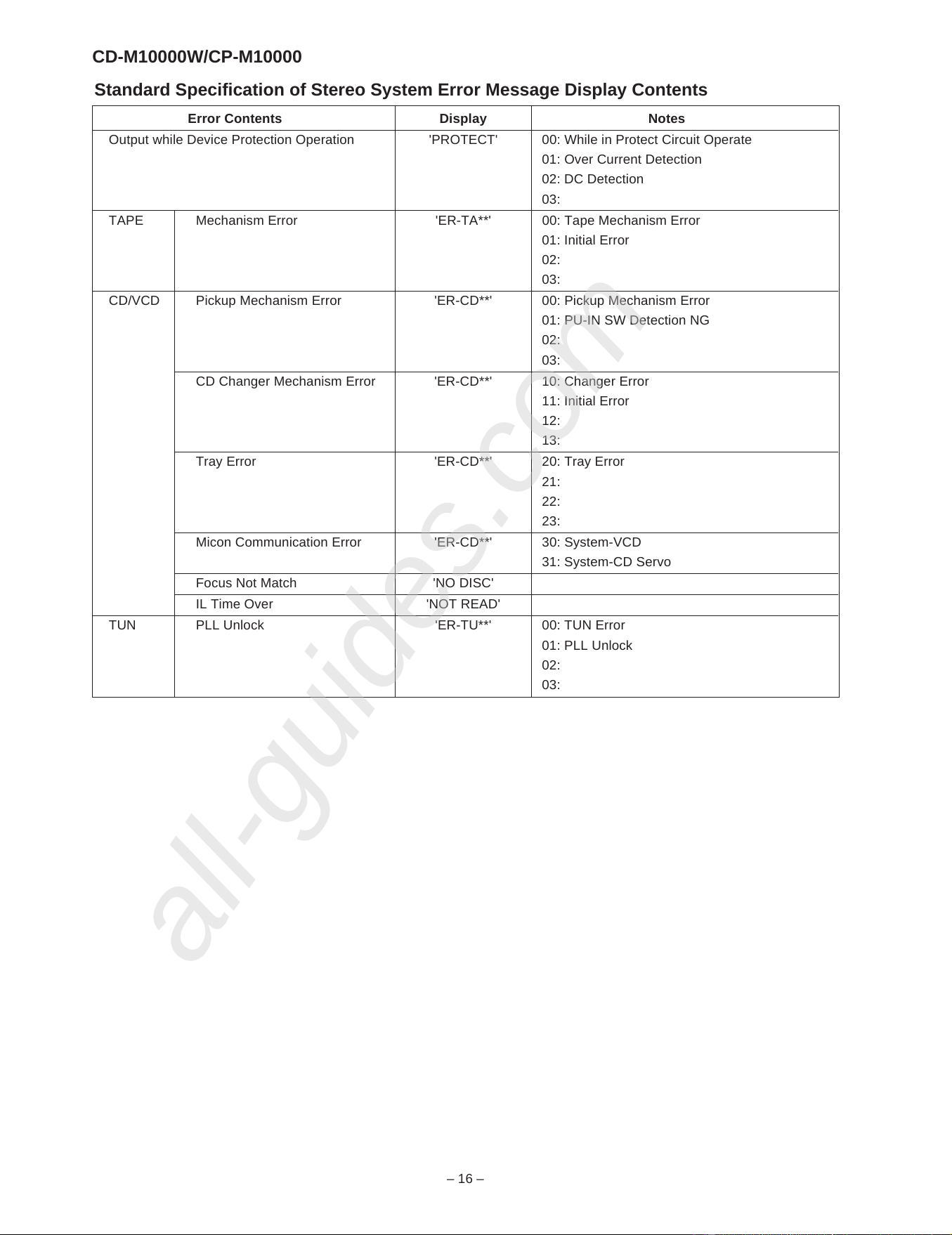

Standard Specification of Stereo System Error Message Display Contents
Error Contents Display Notes
Output while Device Protection Operation 'PROTECT' 00: While in Protect Circuit Operate
01: Over Current Detection
02: DC Detection
03:
TAPE Mechanism Error 'ER-TA**' 00: Tape Mechanism Error
01: Initial Error
02:
03:
CD/VCD Pickup Mechanism Error 'ER-CD**' 00: Pickup Mechanism Error
01: PU-IN SW Detection NG
02:
03:
CD Changer Mechanism Error 'ER-CD**' 10: Changer Error
11: Initial Error
12:
13:
Tray Error 'ER-CD**' 20: Tray Error
21:
22:
23:
Micon Communication Error 'ER-CD**' 30: System-VCD
31: System-CD Servo
Focus Not Match 'NO DISC'
IL Time Over 'NOT READ'
TUN PLL Unlock 'ER-TU**' 00: TUN Error
01: PLL Unlock
02:
03:
All manuals and user guides at all-guides.com
all-guides.com
background
– 17 –
CD-M10000W/CP-M10000
Figure 17 BLOCK DIAGRAM (1/3)
-
+
+5V
(+B7)
CNS4
BI4
CNP4
M3
CD LOADING
+3.3V
(+B11)
TO DISPLAY SECTION
TO MAIN SECTION
CONSTANT
VOLTAGE
Q2
LASER
DRIVER
+3.3V
(+B11)
Q1
+5V
(+B7)
PICKUP UNIT
IC1
LC78645NE
CD SERVO
VVDD
LDD
LDS
M
SW3
DISC
NUMBER
SW2
CLAMP
SW1
OPEN/
CLOSE
CNP8
CNP7
TRACKING COIL
FOCUS COIL
SW4
PICKUP IN
M2
SLED
MOTOR
M1
SPINDLE
MOTOR
M
M
R-CH
Q3
VDD
RVDD
LVDD
ADAVDD
RFVDD
XL1
33.8688 MHz
O/C, DISC NO
CLAMP SW
CD RES
CL
DI
DO
CE
DRF
WRQ
+5V (+B7 )
+5V (+B7)
DGND
L-CH
AGND
VCC3
VCC2
VCC4
VCC1
IC2
M63001FP
FOCUS/TRACKING/
SPIN/SLED
DRIVER
XIN
XOUT
VRES
VWRQ
DO
DI
CL
CE
TIN2 F
TIN1 E
FIN2 B
FIN1 A
TDO
FDO
SPDO
SLDO
CONT5
CONT2
CONT3
CONT4
RCHO
RVSS
LVSS
LCHO
80
42
79
75
20
5
40
18
24
23
14
8
21
22
29
35
41
38
XVDD
47
46
77
10
987
15
12
17 25
42
41 3839
4765
16
28
26 27
316452
316452
316452
54
71
61
62
63
69
57
56
55
51
50
40
37
19
28
26
23
22
21
3271689
615432
4543 44 25 70
64
65
66
DRF
67
48
49
18
TO
FD
SLDO
SPO
+3.3V
(+B11)
+ -
6
+
-
ZD1
3.3V
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 18 –
Figure 18 BLOCK DIAGRAM (2/3)
24
MOTOR
DRIVER
Q708
SOLENOID
DRIVER
Q704
Q705
+B8
28
IC860
KIA4558P
OPE AMP.
8
1
3
Q864
Q865
+
B
Q862
Q863
R-CH
L-CH
R
L
R
L
R
L
R
L
L R
JK601
VIDEO/AUX
FM
+B
+B9
CL
+B9
AM IF
OSC BUFF
AM LOOP
ANTENNA
FM IF
FM
OSC
B.P.F
SO301
FM ANTENNA
TERMINAL
CNS11
–20dB
ATT
Q103-
Q106
–B5
+B9
IC701(2/2)
IX0460AW
IC703,IC704
KIA4558P
OPE AMP.
Q121
Q122
Q603
Q604
Q6
0
Q6
0
10.7 MHz
450 kHz
RE
C
CLK
CE
DI
SY
S
M
U
DO
DI
CE
MO/ST
CONSTANT
VOLTAGE
+B9
FM/AM
IC303
LC72131
PLL(TUNER)
FM/AM
OUT
L
R
BIAS
T1/T2
MUTING
P.B.
REC
AC BIAS
TAPE
TUNER
CD
MIC
PB
FROM CD
SERVO SECTION
CNP7
ERASE
HEAD
SWITCHING
SWITCHING
BIAS
Q109
Q110
Q126
SWITCHING
Q124
OSC
BIAS
Q128
L104
Q107
Q108
Q111
RECORD
PLAYBACK
HEAD
TAPE 2
PLAYBACK
HEAD
TAPE 1
L-CH
R-CH
L-CH
R-CH
IC601
LC75341
AUDIO PROCESSOR
H/N
P.B
+B9
R
L
REC
R
L
L NF
R NF
ALC
REC
T1/T2
T1/T2
NOR/
CRO2
REF
R REC
L REC
POP REDUCE
R NF
L NF
SWITCHING
L(T2)
R(T2)
R(T1)
L(T1)
IC101
AN7345K
PLAYBACK AND
RECORD/PLAYBACK AMP.
R
L
PHASE(FM/AM)
MPX IN
STEREO
AM RF IN
AM OSC IN
FM/AM
Q360
VT
OSC
X352
4.5 MHZ
AM BAND
COVERAGE
AM TRACKING
T303
T306
Q302
X351
456 kHz
MO/ST
MPX
VCO
FM
DET
VCCGNDAM IF
IN
CF351
IC302
LA1832S
FM IF DET./
FM MPX./
AM IF
AM
MIX
OUT
CF352
T351
FM
RF
OSC
FM
L312 T301
CF303
T302
IC301
TA7358AP
FM FRONT END
BF301
7
8
4
1
30
29
3
1
CNP301
JK1
MIC
2
1
2
1
24
2
23
3
22
6
9
16
14
12
15 19
10
17
18
8
7
20
5
21
13
4
3
4
578
9
6
2
1
12 4598 1713
14
15
1216182123
20 1 22 15 16 11
17
2110
16
10
15
11
14
12
13
7
3
79
9
7 18 8 17 3
1
23
2
24
21
4
456
L
R
ICK1
M65856SP
MIC AMP.
ICK2
KIA4558P
OPE AMP.
LATCH
MIC IN
VRK1
MIC
VOLUME
CLOCK
DATA
L OUT
R OUT
L IN
R IN
VCC
MCLKCONT
VACL
+B9
+B9
9
8
1
5
6
2
3
7
12
13
23
2
QK1
32
31
35
36
42
41
40
L
R
+B9 +B9
TAPE
MECHANISM
ASS'Y
L R
FM
ANTENNA
+B9
+B9
+B9
3
ZD351
5.1V
ZD701
6.2V
All manuals and user guides at all-guides.com
background
– 19 –
CD-M10000W/CP-M10000
Figure 19 BLOCK DIAGRAM (3/3)
+B7
IC702
IC702
BU2092F
INPUT/OUTPUT
EXPANDER
4
18
1
2
3
4
5
+B9
5
6
9
14
+B9
LED701-708
+B7
LED722
+B7
-
-
-
JOG
VOLUME
JOG701
-
Q701-Q703
20dB
ATT
+B7
RX701
REMOTE
SENSOR
(2/2)
0AW
SPAN
SELECTOR
RESET
Q709
3
4
Q605
Q606
CLK
REC/PLAY
VLOAD
RESET
+B7
+B7
+B7
+B7
VDD
VDD
CD CLAMP SW
VDD
SYSTEM
MUTE
CE
DI
DO
XL701
4.1943 MHz
--
AS
/T2
AVDD
KEY
SW701-SW703
SW709-SW717
SW722-SW734
TO CD SERVO
SECTION
IC701(1/2)
IX0460AW
SYSTEM MICROCOMPUTER
FL701
FL DISPLAY
13613 1416 23323344 5657582
3
2
1
0
9
26541 7 9 101112 151617 20212223
58
24
31
33
34
37
38
39
414546484952535761
67
78
79
80
89
90
92
93
100
~~ ~
~
+B7
AC POWER
SUPPLY CORD
AC 110/127/220/
230-240 V, 50/60 Hz
Q852
VH-
VH+
+3B
+1B
+B6
VH-
VH+
R
L
P901
T802
SUB POWER
TRANSFORMER
F807
T5A L 250V
F806
T5A L 250V
F804
T6.3A L 250V
–B6
Q911
Q912
R
L
Q908
Q907
Q904
SO901
SPEAKER
TERMINAL
WOOFER
RL901
M
M2
IC901
STK41217
POWER AMP.
VL+
VL-
L-OUT
R-OUT
D801
D802
Q901
MAIN
SPEAKER
F803
T8A L 250V
F801
T15A L 250V
F802
T8A L 250V
110V
127V
220V
230-240V
SW801
VOLTAGE
SELECTOR
–VF
VF2
VF1
Q803
+B6
+B2
–B6
+B7
D803
D804
RL902
JK670
HEADPHONES
M1
M
QFM
906
Q905
STK41223
POWER AMP.
Q903
Q902
F809
T2A L 250V
F808
T2A L 250V
F805
T6.3A L 250V
R-OUT
L-OUT
SP. DET.
VL-
VL+
IC902
T.F.
7
9
11
6
1
5
2
14
18
2
1
6
5
3
7
8
4
2
14
18
5
1
6
9
11
7
IC401
KIA4558P
OPE AMP.
T801
MAIN POWER
TRANSFORMER
+B7
FAN MOTOR
DRIVER
VOLTAGE
REGULATOR
+B9
+B8
Q851
Q850
A+10V
+12V
+B7
+5V
+B5
-3B
+4B
-4B
-1B
+B8
~
~
–B2
ZD401
15V
ZD402
15V
SWITCHING
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 20 –
Figure 20 SCHEMATIC DIAGRAM (1/10)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 39.
CD SIGNAL
CD MOTOR PWB-G
CD SERVO PWB-C
4
1
9
101112131415161718192021
22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41
8
7
6
5
432
9
1
0
1
1
1
2
1
3
1
4
1
5
1
6
1
7
1
8
1
9
2
0
8
7
6
5
4
3
2
1
TP3
TP2
TP1
L
VCC4
M–
M+
VCC3
SPO
VCC2
SLDO
VCC1
STANDBY
VREF
MUTE
FD
SP–
SL–
SL+
SP+
TR–
TR+
FO+
FO–
GND
GND
GND
FO–
FO–
LD
VR
PD
FO+
TR+
TR–
C
F
B
A
E
GND
PUIN
SL+
SL–
SP–
SP+
VREF
VCC
PICKUP UNIT
TR–
TR–
TR+
TR+
FO+
FO+
FO–
PD
VR
LD
F
C
B
A
E
VCC
VREF
SLED
SPIN
+
+
–
–
PU-IN
5
3
6
2
7
1
4
5
3
6
2
7
1
4
5
3
6
2
7
1
4
5
3
6
2
7
1
4
4
1
3
6
5
2
4
1
3
6
5
2
M
M
4
8
5
2
1
7
3
6
4
8
5
2
1
7
3
6
4
8
5
2
1
7
3
6
4
8
5
2
1
7
3
6
+
+
–
–
+
–
+
+
–
–
+
–
+
–
+
–
2
LASER
DRIVER
4
1
3
6
5
2
4
1
3
6
5
2
CNP1
CNS1A
CNS1B
R6
33K
R5
12K
R4
12K
R3
33K
R1
12K
R2
12K
C1
47/25
C2
0.01
CNP2
CNS2A
CNS2B
C38
0.01
C39
100/10
R44
12K
C41
100/10
CNP3
CNS3A
CNS3B
R13
1K
R14
C12
100P
C11
0.22/50
C10
10/50
C9
100/10
C50
22P
(CH)
R12
330
R10
27K
C5
0.047(ML)
R11
10K
R9
3.3
Q1
KTA1266 GR
C4
0.001
C49
47/25
C3
47/25
C8
0.0047
C6
0.1
IC2
M63001FP
FOCUS/TRACKING/
SPIN/SLED DRIVER
C40
220/6.3
R7
47
M1
SPINDLE
MOTOR
M2
SLED
MOTOR
SW4
PICKUP IN
R65
3.3
CT1
0.001
CT2
0.001
CNP3A
All manuals and user guides at all-guides.com
background
– 21 –
CD-M10000W/CP-M10000
Figure 21 SCHEMATIC DIAGRAM (2/10)
7
8 9 10 11 12
• The numbers 1 to 12 are waveform numbers shown in page 40.
CD RES
O/C, DISC NO
CLAMP SW
FROM
DISPLAY PWB
P25 10-A
CL
DI
DO
CE
DRF
WRQ
FROM
MAIN PWB
P23 12-C
8
3
5
7
12
11
10
9
6
4
1
R80
3.3
(1/4W)
Fusible
3
9404142
4321
9
10
11
12
13
14
15
16
17
18
19
20
212223242526272829303132333435363738 39 40
807978777675747372717069686766656463 62 61
41
42
43
44
45
46
47
48
49
50
51
52
53
55
56
57
58
59
60
54
8
7
6
5
4
3
2
1
TP1
LD_M+
LD_M–
VCC4
M+
TO
FD
FO+
M
+5V
LDD
LDS
FR
VVDD
PCKIST
VVSS
PDO2
PDO1
CONT2
CONT3
VSS
VDD5
DRF
VRES
VWRQ
DO
DI
CL
CE
DATA
DATACK
LRSY
ASDFIN
ASDACK
ASLRCK
IGMOUT
EFLG
C2F
XVSS
FSX/16MIN
XIN
XOUT
XVDD
RVDD
RCHO
RVSS
LVSS
LCHO
LVDD
TEST
DOUT
VDD
VSS
MON15
MON14
MON13
MON12
MON11
FSEQ
V/1P
DEFECT
SBCK/FG
CONT5
CONT4
GPDAC
SLDO
SPDO
FDO
TDO
REF1
VREF
ADAVSS
ADAVDD
JITTC
RFMON
TE
TEC
FE
TIN2 F
TIN1 E
FIN2 B
FIN1 A
RSVSS
RFVDD
RF
EFMIN
SLCIST
SLCO
+5V
DGND
L-CH
AGND
R-CH
6
3
5
4
2
6
1
3
5
4
2
6
1
3
5
4
2
6
1
9
8
7
6
2
4
5
3
1
5
4
3
2
1
3
1
2
CNS703
CNS11
CD LOADING
MOTOR PWB-E
2
CONSTANT
VOLTAGE
41
42
43
18
19
20
3
2
1
+
–
R49
1
D2
DS1SS133
D1
DS1SS133
Q3
KRC102 M
R45
470
R46
470
R20
10K
R13
1K
R14
1K
R15
1K
R16
1K
R18
1K
R17
1K
P
C11
0
.22/50
C10
10/50
C5
4
7(ML)
R11
10K
C33
100P
C32
100P
C30
100P
C28
100P
C27
0.022
R42
1.2K
R41 12K
C37
0.1
C36
2.2/50
R40
680
R31
1K
R29
2.2K
R28
2.2K
R43
220
XL1
33.8688 MHz
R22
100
C51
0.022
L1
0.82µH
C24
10/50
R25
2.2K
R27
10K
ZD1 DZ3.3BSB
C13
0.022
R26
10K
C25
0.0015
C23
10/50
C44
0.001
R24
2.2K
C16
330/6.3
C48
0.022
R23
220
ZD2
DZ3.9BSB
R30
8.2K
R19
15K
CNP4
CNS4
BI4
CNP8
IC1
LC78645NE
CD SERVO
R47
100
C18
100/10
Q2
KTC3203 Y
C26
0.0015
C14
100/10
R32 1K
R37 1K
R36 1K
R35 1K
R34 1K
R33 1K
R38 1K
C
8
0
47
R39
680
C35
0.047
(ML)
C34
100P
CNP7
M3
CD LOADING
MOTOR
SW1
OPEN/CLOSE
SW2
CLAMP
SW3
DISC
NUMBER
C42
0.01
All manuals and user guides at all-guides.com
all-guides.com
background
CD-M10000W/CP-M10000
– 22 –
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 39.
Figure 22 SCHEMATIC DIAGRAM (3/10)
0V
0V
0V
0.7V
0.7V
0V
11.7V
0V
0V
0V
0.7V
0V
0V
0V
0.7V
9.3V
9.3V
0V
0V
0.7V
0V
0.7V
0V
0V
0V
8.6V
0V
3.4V
3.4V
0V
0V
1
2
3
R-CH
L-CH
R-CH
L-CH
TAPE 1
PLAYBACK HEAD
TAPE 2
RECORD/
PLAYBACK HEAD
ERASE HEAD
6
3
4
5
2
1
5
3
4
2
1
6
R855
3.3
2
1
2
1
3
2
1
3
2
1
12 13
14
15
16
17
18
19
20
21
22
23
24
11
10
9
8
7
6
5
4
3
2
1
24 23 22 21 20 19 18 17 16 15 14 13
12 11 10
9 8 7 6 5 4 3 2 1
BASE
CHASSIS
SW+5V
(CD)
A_GND
(A_PRO)
A_GND
GND(REG)
GND
CD+B
REC_R
LVL-CTRL
LVL-CTRL
R L
M_GND(TAPE)
L
+B
A_GND
(MUTE)
A_GND(MIC)
A_+10V
S_MUTE
–20dBATT
A_GND
L
M_+12V
SP_RLY
SP_DET
D_GND
–15V
+B
M_GND(MTR)
A_GND
R-CH
L-CH
LBASS
RBASS
RTRE
R
R
FROM AMP.
PWB
P26 1-G
TO POWER
PWB
P26 5-G
T1_R
T1_L
A_GND
M_GND
ERASE
T2_R2
T2_R1
T2_L1
T2_L2
12
13
1
2
3
4
5
6
7
8
9
10
11
6
3
4
5
2
1
7
1
3
2
8
7
6
5
4
3
2
1
Vcc
ALC
GND
ALC
RIPPLE
Nor/CrO2
–
+
+
–
+
Hich=T1
+
–
–
Hich=CHROME
56K
112K
56K
112K
–
+
+
–
CD
TUNER
DECK
AUX
DI
CE
VSS
LOUT
LTRE
LIN
L4
L3
L2
L1
CLK
VDD
VREF
ROUT
RIN
RSEL0
R4
R3
R2
R1
INTERFACE
CCB
+
–
+
–
+
–
+
–
+
–
+
–
+
–
+
–
LSEL0
1
3
2
1
3
2
3
2
+B
+B
+B
+B
+B
–B
GND
+B
C602
22/25
C610
0.22
C
6
0.
C620
1/50
C622
10/50
C624
1/50
C6
2
1/5
CNS901
R609
330
R610
330
LG1
R102
1K
C106
180P
R101
1K
C101
560P
R112
15K
Q606
KTC3199 GR
Q605
KTC3199 GR
BI102
CNP101
BI13
CNS13
C102
560P
Q105
2SC1845 F
R105
3.3K
R103
2.2K
C105
180P
Q103
2SC1845 F
R108
47K
Q108
KTC3199 GR
Q104
2SC1845 F
Q106
2SC1845 F
R104
2.2K
R106
3.3K
R110
4.7K
R109
4.7K
C108
560P
Q107
KTC3199 GR
R107
47K
C107
560P
R170
1K
R172
1K
C118
0.033
R122
100K
R174
1K
R124
3.9K
C116
100/25
C120
560P
C114
330P
C112
330P
R118
1K
R120
56
R155
150
Q110
KRC104 M
R114
10K
R115
4.7K
Q851
KIA7810AP
Q111
KRC104 M
C153
100/16
Q109
KTA1266 GR
R113
10K
C860
2200/35
R854
10K
C859
0.001(ML)
C852
0.047(ML)
R852
22K
R853
22K
C856
100P
C855
0.1(ML)
Q852
KIA7805AP
Q850
KTC2026
R856
330
ZD851
DZ3.9BSB
C850
2200/35
R612
5.6K
R611 5.6K
C613
10/50
C616
0.001
C615
0.001
R622
2.2K
C635
0.001
R621
2.2K
C636
0.001
R619
22K
C617
2.2/50
R620
22K
C618
22/50
Q604
KTC3199 GR
R616
2.2K
R614
390
R615
2.2K
Q603
KTC3199 GR
R613
390
R607
10K
C609
0.22
C607
0.22
R605
3.9K
C611
0.0015
C619
1/50
C621
10/50
C625
1/50
C606
100/16
C642
0.0033
R624
4.7K
R870
2.2K
Q865
KTC3199 GR
Q862
KTC3199 GR
Q863
KTC3199 GR
C623
1/50
C627
1/50
C629
1/50
R617
10K
R868
12K
R869
12K
C864
22/50
C867
1/50
Q864
KRC102 M
D861
DS1SS133
R880
10K
R866
330
R154
10K
Q122
KTC3199 GR
Q121
KTC3199 GR
R153
10K
D862
DS1SS133
R873
1K
R156 220K
R871
10K
R878
22K
R879
22K
R875
100K
C863
22/50
R874
100K
R867
100K
C86
5
47/2
5
C866
0.001
IC860
KIA4558P
OPE AMP.
R1
5
22
0
C630
1/50
C628
1/50
0.0
3
Q124
2SA1015 GR
R167
47K
R166
22K
C154
0.047
R137
6.8K
C131
270P
C128
3.3/50
R135
4.7K
R139 1.5K
R141 100
C135
0.022
C139
0.0033
R145
10K
C141
47/25
C133
22/25
C113
330P
C117
0.033
R173
1K
R119
56
R171
1K
C115
100/25
R169
1K
C111
330P
R117 1K
R111
15K
C121
1/50
R125
5.6K
R131
12K
C123
0.0022
C127
0.022
C119
560P
R121
100K
R123
3.9K
C122
1/50
R126
5.6K
R146 10K
C142
47/25
C140
0.0033
R140 1.5K
R136
4.7K
R142
100
R138
6.8K
C136
0.022
C134
22/25
C132
270P
R132
12K
C145
22/50
C146
220/10
R158
220
R134
68K
C124
0.0022
IC101
AN7345K
CNS102
IC601
LC75341
AUDIO PROCESSOR
IC601
Q605,Q606:
SYSTEM MUTE
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
Q109~Q111:
SWITCHING
Q103~Q108:
SWITCHING
Q1
2
SWITCHING
VOLTAGE
REGULATOR
IC101: PLAYBACK AND RECORD/PLAYBACK AMP.
CNP901
CNP902
D863
DS1SS133
C899
10/50
All manuals and user guides at all-guides.com
background
– 23 –
CD-M10000W/CP-M10000
Figure 23 SCHEMATIC DIAGRAM (4/10)
7
8 9 10 11 12
0V
0.7V
0V
0V
11.7V
11.6V
11.6V
0V
0V
0V
0V
0V
3
9
5
8
1
4
7
2
6
10
1
21
FM SIGNAL
PLAYBACK SIGNAL
RECORD SIGNAL
CD SIGNAL
VIDEO SIGNAL
MIC SIGNAL
13
14
15
16
17
18
19
20
21
22
23
24
15 14 13
12 11 10
GND(A_GND)
TUN_R
TUN_L
DO
A_+10V
CLK
CE
DI
A_+5V
IN(L)
OUT(L)
GND(A)
+10 V(A)
IN(R)
OUT(R)
DATA
CLK
LATCH
MIC IN
TO MIC PWB
P29 12-C
100 kHz/10 kHz
50 kHz/9 kHz
CD_GND
REC_L
REC_R
CHASSIS
S_MUTE
–20dBATT
D_GND
CE
CLK
DI
DO
D_GND
T_BIAS
T_T1 T2
REC/PLAY
S_MUTE
SPA_SIG
A_GND
M+12V
–15V
–20dB ATT
SW+5V
SP_DET
SP_RLY
SPAN
MIC IN
KO LATCH
A_+10V
RBASS
RTRE
TO DISPLAY PWB
P25 12-D
TO TUNER
SECTION
P28 1-G
CNP7
TO CD
SERVO PWB
P21 12-C
M_+5V
CD_GND
L-CH
A_GND
R-CH
MAIN PWB-A (1/2)
R-CH
L-CH
3
9
5
8
1
4
7
2
6
10
21 14 15 17 19 11 16 18
8
7
6
5
4
3
2
1
5
2
1
3
4
5
1
2
4
3
6
6
20
1 2 3 4 5 6 7 8 9
10 12 13
Vcc
ALC
GND
ALC
RIPPLE
Nor/CrO2
–
+
+
–
CLK
VDD
V
REF
R
OUT
RIN
R
SEL0
R4
R3
R2
R1
1
2
3
+B
+B
+B
+B
+B
+B +B
+B
+B
–B
–B
–B
9
8
7
6
5
4
3
2
1
CNPK1
C602
22/25
C610
0.22
C612
0.0015
C608
0.22
R606
3.9K
R608
10K
C620
1/50
C622
10/50
C624
1/50
C626
1/50
6
1
1SS133
8
0
K
R866
330
Q121
KTC3199 GR
R153
10K
D862
DS1SS133
R873
1K
R875
100K
C863
22/50
100K
R867
100K
C865
47/25
C866
0.001
R638 470K
IC860
K
IA4558P
PE AMP.
C861
0.022
R863
33K
R861
68K
R157
220K
R637
470K
R865
100
C630
1/50
C641
0.0033
R623
4.7K
C614
10/50
R618
4.7K
C628
1/50
R627
1K
R626
1K
R625
1K
C151
0.039(ML)
R160
82
C152
47/25
Q124
2SA1015 GR
R162
47K
L104
330µH
Q128
KTC3203 Y
C150
0.0082
(P.P.)
R167
47K
R164
4.7K
Q126
KRC104 M
R166
22K
C154
0.047
R145
10K
C
141
7/25
R146 10K
47/25
C145
22/50
C146
220/10
R158
220
R631
8.2K
R632
8.2K
C631
390P
C632
390P
R634
39K
R633
39K
JK601
VIDEO/AUX
SW601
SPAN
SELECTOR
BI11
BI602
CNP601
C605
4.7/50
R168
4.7
CNS602
Q121,Q122: MUTING
SWITCHING
BIAS
BIAS OSC
CNS11
FC701
CNP701
D864
DS1N404S
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 24 –
Figure 24 SCHEMATIC DIAGRAM (5/10)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 39.
9
0
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
PLAY SW_B
FPA (F-REC)
FPB (R-REC)
MIC SW
LCK 0
DISTOUT/SW OUT
NO USE
HSS_ACK
HSS_STB
HSS_DI
HSS_DO
NO USE
NO USE/MPEG_POW
P22/DIST3
P21/DIST2
P20/DIST1
P19/DIST0
P18
P17
P15
P14
P13
P12
P11
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
G11
VLOAD
P16
CD CLAMP SW
45
44
43
42
41
1
4
8
2
3
5
6
7
2
3
5
6
1
4
8
7
10
1
+
-
M
TAPE MECHANISM
PWB-F
9
10
8
7
6
5
4
3
2
1
DISPLAY PWB-B1
9
10
8
7
6
5
4
3
2
1
0V
10V
10V
10V
T2 RUN
51
SMUTE
T_SOL B
T_SOL A
T_MOTOR
TIMER LED
SP_RLY
VDD
SP_DET
T1 RUN
16
2325 2426272829303132333435363738394041424344
565758
G11
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
F
F
F
R_REC
N.C.
N.C.
T1 RUN
F_REC
SOLA
SOLB
+MTR
T2 RUN
GND
T2 PLAY
TAPE
MOTOR
PLAY
F. PLAY
CASSETTE
SOLENOID
SOLENOID
PH
+B
-B
-B
-B
+B
+B
+B
+B
+B
R716
100K
IX
0
S
Y
MICR
O
R725
10K
R720
10K
R718
10K
R714
10K
R717
10K
R713
10K
D704
DS1SS133
R740 1K
R746
10K
R749
10K
LED722
R721
4.7K
CS709 0.022
CS708 0.022
ZD701
MTZJ6.2C
RS708 270
CS706
2.2/50
CS707
2.2/50
CS710 2.2/50
RS713 100K
RS711
100K
RS715
100K
RS703
68K
RS701
33K
RS720
180K
RS717
470K
RS709
150K
D702
DS1SS133
RS718
56K
RS714
2.2M
RS702
10K
CS704
0.0027
CS712
0.0068
CS701
270P
CS713
0.022
RS710
270
CS702
270P
IC704
KIA4558P
OPE AMP.
CS711
0.0068
RS712
820K
RS716
1M
RS706
220K
RS704
220K
RS719
15K
RS707
390K
D701
DS1SS133
RS705
12K
CS703
0.0027
D703
DS1SS133
CS705
0.022
IC703
KIA4558P
OPE AMP.
R738 1K
R739 1K
R741 1K
R742 1K
R743 1K
R745 1K
R744 1K
DT701
DS1SS133
DT703
DS1SS133
C715
22/50
C714
47/50
R794
1K
CNP702
C719
47/25
D712
DS1SS133
D713
DS1SS133
R792
10K
R793
10K
R724
33
R736
10K
Q704
KTA1273 Y
R752
10K
Q708
KTA1273 Y
R737
10K
Q705
KTA1273 Y
C
0
Q701
KTC3199 GR
R701
100K
R702
1K
Q702
KTC3199 GR
R704
100K
R705
1K
R719
1K
R758 1K
R756 470
R755 470
R754 2.2K
R753 1.8K
R751 1K
R748 1K
R747 1K
Q703
KTC3199 GR
FL701
FL DISPLAY
FC702
MOTOR
DRIVER
Q704,Q705:
SOLENOID DRIVER
All manuals and user guides at all-guides.com
background
– 25 –
CD-M10000W/CP-M10000
Figure 25 SCHEMATIC DIAGRAM (6/10)
7
8 9 10 11 12
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
3
21
100
99
98
97
96
95
9493
92
91
90
89
88
87
86
4
3
2
1
P4
P3
P2
P1
G11
G10
G9
G8
G7
G6
G5
G4
G3
G2
G1
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
12
11
10
9
8
7
6
5
5 V BACK UP
5
21
16
15
9
4
3
2
1
10
11
13
14
17
6
7
8
12
18
20
19
1
2
3456789
1
2
3456789
1
21
TO MAIN PWB
P23 10-H
FC701
4
1
3
2
4
1
3
2
TO POWER PWB
P26 5-G
1
3
2
1
3
2
1
3
2
LED
PWB-B3
CNP903
CNP601
BA
REW_PLAY
STOP
PLAY
T2 RUN
KEY 2
KEY 1
KEY 0
31
51
32
33
VDD
-20dBATT
DSA_STB
T-BIAS
T-T1/T2
REC/PLAY
RES OUT
DRF
WRQ
RESET
X2
X1
XVPP/IC
XT2
SPN
VDD
CD CLK
CD DI
CD DO
CD CE
CE
CLK
DI
DO
AVSS
DSA_ACK
SPEANA2
AVDD
AVREF
P-IN
JOG 1
JOG 0
REMOCON
VSS
SMUTE
T_SOL B
T_SOL A
T_MOTOR
TIMER LED
SPEANA1
SPEANA0
DSA_DATA
123
67
8910111213141516
2325 2426
F
F
F
G01
G02
G03
G04
G05
G06
G07
G08
G09
G10
G11
P01
P02
P03
P04
WRQ(DSP)
DRF
CD CE
CD DO
CD DI
CD CLK
RES OUT
CLAMP SW
O/C SW
DISC NO SW
A_+10 V
KARAOKE LATCH
MIC_IN
SPAN
SP_RLY
SP DET
SW +5 V
-20dB ATT
-15 V
M_+12 V
A_GND
SPA_SIG
S_MUTE
REC/PLAY
T_T1 T2
T_BIAS
D_GND
DO
DI
CLK
CE
VDD
OE
Q11
Q10
Q9
Q8
Q4
Q3
Q2
Q1
Q0
LCK
CLOCK
DATA
VSS
Q7
Q6
Q5
CNP8
+B
+B
+B
+B
+B
+
B
+B
+B
+B
+B
+B
+B
+B
-B
-B
+B
+B
+B
+B+B
2
1
3
TO
CD SERVO PWB
P21 12-B
VF1
-VF
VF2
P_IN
R700
10K
RD12
100K
SW712
DISC SKIP
SW711
DISC 3
RD11
33K
RD10
18K
SW710
DISC 2
SW709
DISC 1
RD09
10K
RD08
5.6K
RD07
3.9K
RD06
2.7K
RD05
2.2K
RD04
1.5K
R770 1K
IC701
IX0460AW
SYSTEM
MICROCOMPUTER
IC702
BU2092F
INPUT/OUTPUT EXPANDER
D718
DS1SS133
C728
0.01
Q709
KRC102 M
RESET
R796
47K
C729
3.3/50
R797
100K
SW703
TIMER
SW713
OPEN/CLOSE
SW734
TUNER
SW733
VIDEO
RD36
100K
SW732
TUNING UP
RD35
33K
SW731
RECORD/
PAUSE
RD34
15K
RD33
10K
SW717
REVERSE
MODE
SW730
REVERSE
PLAY
RD15
180K
SW724
TUNING
DOWN
RD26
820
RD28
1.5K
RD27
1K
SW722
CD
RD25
680
SW725
MEMORY
SET
SW726
FAST
REWIND
RD30
2.7K
SW723
TAPE
RD32
5.6K
SW728
PLAY
RD29
2.2K
SW727
FAST
FORWARD
RD31
3.9K
SW729
STOP
SW701
ON/
STAND-BY
RD03
1K
SW702
CLOCK
RD02
820
RD01
680
SW714
DIMMER
SW715
MONSTER
BASS
RD14
820
RD13
680
SW716
EQUALIZER
R703 10K
R706 10K
R721
4.7K
R757
10K
R795
10K
R763
10K
R764
10K
R765
10K
C702 0.022
C701 47/25
LED708
RL706 1K
LED706
RL707 1K
LED707
RL705
1K
LED705
4204UYT7
LED702
4204UYT7
LED701 4204UYT7
RL701
1K
RL702
1K
C726
220/10
C725
0.022
C724
18P
XL701
4.1943 MHz
R773 1K
R775 1K
R776 1K
R777 1K
R778 1K
R779 1K
R780 1K
R781 1K
R782 1K
R783 1K
R784 1K
R785 1K
R786 1K
R787 1K
R788 1K
R789 1K
R790 1K
R791 1K
R771 1K
R772 1K
R769 1K
BI703
CNS703
C733
47/25
R799
100
D720
DS1SS133
CNP701
RX701
REMOTE SENSOR
C732
0.022
D722
DS1SS133
D723
DS1SS133
JOG701
JOG VOLUME
C720
0.001
C721
0.001
R768 1K
R767 1K
R766 1K
R762 1K
R761 1K
R760 1K
R759 1K
R758 1K
R756 470
R755 470
R754 2.2K
R753 1.8K
D721
DS1SS133
RL708 1K
C723
15P
R708
10K
C727
470P
BI705
CNS705
RL704 1K
RL703 1K
CNP704
LED704
31URT21
LED703
31URT21
CNS704
BI704
LED706-708:
4204UGT7
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 26 –
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 39.
Figure 26 SCHEMATIC DIAGRAM (7/10)
7
6
5
3
2
1
22 21 20 19 18 17 16 15 14 13 12 11 10 9
8
7
6
1234
5
18 17 16 15 14 13
8
4
VH+
VH+
R-CH
L-CH
R-CH
L-CH
R-CH
L-CH
R-CH
VH–
VL–
VL+
L-CH
SP DET
VL+
VL–
VH–
VH+
FROM DISPLAY PWB
P25 12-C
CNS705
VL–
GND
VL+
V
VL–
GND
VL+
V
GND
+B
VF1
–
V
V
P_
I
VL+
GND
VH–
VH+
VL–
VL–
VH+
VH–
GND
VL+
CD+B
LVL_CTRL
+B
GND
+5V
SP_DET
M_+12V
M_GND
SP_RLY
–15V
R-CH
A_GND
L-CH
9
10 11 12 13
1
8
7
65
4
3
2
+
–
+
–
–
–
+
+
VL+
VL–
VH+
VH–
–
+
–
+
32
1
1
2
1
2
3
4
5
6
7
7
6
5
4
3
2
1
1
2
3
4
5
6
7
1
2
3
4
5
6
7
7
6
5
4
3
2
1
7
6
5
4
3
2
1
1
2
3
4
FROM MAIN PWB
P22 1-D
CNS13
FROM MAIN PWB
P22 1-D
CNS901
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
-B
-B
-B
-B
-B
-B
C982
820P
R905
1K
R910
56K
C984
47/50
R909
560
R906
560
C988
0.1/50
C985
47/50
R981
1K
R982
1K
C986
820P
R985
1K
C989
100/100
C990
100/100
C992
100/100
R991
100
(1/4W)
Fusible
C432
0.18
R404
4.7K
C434
100P(CH)
C433 0.15(ML)
R405
8.2K
R408
8.2K
C435 0.15(ML)
R402
18K
R401
18K
R407 4.7K
C436
0.18
C437
100P
(CH)
R409
560
C438
10/50
C439
10/50
R410
560
C450
220P(CH)
C451
220P(CH)
R419
68K
R420
68K
C449
0.1(ML)
R418
100K
R417
100K
C448
0.1(ML)
R416
820(2W)
C446
0.1
(ML)
C442
2.2/50
C443
2.2/50
R411
1K
ZD402
MTZJ15C
C444 47/25
C445 0.022
R415
820(2W)
R412
1K
IC401
KIA4558P
OPE AMP.
R414
68K
R413
68K
C441
0.022
C440
47/50
ZD401
MTZJ15C
C447
0.1(ML)
R986 100
(1/4W)
Fusible
R990 0.1(5W)
R987 0.1(5W)
R988 0.1(5W)
R989 0.1(5W)
C991
100/100
C993
100/50
C995
100/50
R998
56K
R934
3.9K
ZD904
DZ15BSB
ZD903
DZ15BSB
R933
3.9K
Q911
KTC3199 GR
C908
0.22
C909
0.22
R924
10
(1/2W)
R943
10(1/2W)
C998
47/50
R939
10(1/2W)
R938
10(1/2W)
C906
0.22
C907
0.22
R942
10(1/2W)
R955
10(1/2W)
L904
3µH
R956
56K
R959
10
(1/2W)
R900
10
(1/2W)
C917
0.22
C932
0.22
R945
12K
R946
10K
Q908
KTC3199 GR
P901
Q907
KRA107 M
D908
DS1SS133
R975
1K
C911
820P
C915 4.7/25
R907 560
R908
560
C916
4.7/25
R901
1K
C913
47P
C905
0.1/50
R904
56K
C919
100/100
R976
1K
R912 100
(
1
/
4W
)
Fusible
CNP903
CNP902
CNP901
D913
DS1SS133
R950
1K
R949
470K
R937
22K
R948
22K
C980
4700/50
C981
4700/50
D915
DS1N404S
R947
22K
(1/2W)
R974
22K(1/2W)
D914
DS1N404S
C978
3300/100
C979
3300/100
L903
3µH
R936
10(1/2W)
R935
10(1/2W)
R940
56K
C999
0.22
C918
0.22
R958
10
(1/2W)
R957
10
(1/2W)
R941
56K
R903
56K
IC901
STK41217
POWER AMP.
D919
DS1SS133
Q912
KTC3199 GR
R999
56K
R902
1K
R944
33K
C920
100/100
R9
1
100(1
/
Fusi
b
C914
47P
BI905
R984
33K
R983
56K
C987
47P
C983
47P
C997
0.1/50
R980
22K
C904
4700/35
C903
4700/35
C902
3300/71
D902
DS1N404S
R979
22K
(1/2W)
R977
22K
(1/2W)
R978
22K
C901
3300/71
D901
DS1N404S
CNP906
BI906
CNS906
CNP905
CNS905
C912
820P
All manuals and user guides at all-guides.com
all-guides.com
background
– 27 –
CD-M10000W/CP-M10000
7
8 9 10 11 12
Figure 27 SCHEMATIC DIAGRAM (8/10)
HEADPHONES
PWB-B2
R
L
4
5
1
2
3
18 17 16 15 14 13 12 11 10 9
8
7
6
1234
5
R
FAN
MOTOR
DRIVER
L
GND
–
–
–
–
+
+
+
+
–
L-CH (MAIN
SPEAKER)
R-CH (MAIN
SPEAKER)
GND
R-CH
VH+
CHASSIS GND
GND
GND
HP_RLY
HP_GND
HP_R-CH
HP_L-CH
M_+12V
+
R-CH (WOOFER)
L-CH (WOOFER)
+
6
5
4
3
2
1
6
5
4
3
2
1
2
M
M
1
5
1
2
1
2
1
2
1
VH–
VL–
GND
VL+
VH+
VH–
VL–
GND
VL+
VH+
T.F.
GND
+B
VF1
–VF
VF2
P_IN
+
–
+
–
VH–
VH+
VL–
VL+
–
1
2
1
2
1
2
1
2
3
4
5
6
7
7
6
5
4
3
2
1
1
2
3
4
5
6
7
1
2
3
4
5
6
7
7
6
5
4
3
2
1
7
6
5
4
3
2
1
1
2
3
4
1
2
3
4
5
1
2
3
4
5
110V
220V
127V
230-240V
POWER PWB-D1
TRANSFORMER PWB-D3
AC POWER
SUPPLY CORD
AC 110/127/220/
230-240 V, 50/60 Hz
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
-B
-B
-B
-B
-B
-B
D904
DS1SS133
7
5
K
C911
820P
R908
560
C916
4.7/25
R901
1K
C913
47P
C905
0.1/50
R904
56K
C919
100/100
R976
1K
C956
100/100
R912 100
(1/4W)Fusible
R913
0.22(3W)
R916
0.22(3W)
C922
100/50
R918
0.1(3W)
R920
1.5K
C921
100/50
Q902
KTC3199 GR
R922
1.8K
C924
0.022(ML)
R921
1.8K
C923
0.022(ML)
R919
1.5K
R917
0.1(3W)
ZD804
DZ6.2BSA
R807
47K
D806
DS1N404S
D805
DS1N404S
C817 0.22
C818 0.22
D809
DS1N404S
C819
22/50
D810
DS1N404S
C821
220/63
R802
1K
ZD801
DZ30BSB
Q803
KTA1274 Y
ZD802
DZ6.2BSA
C822
47/50
R819
47K
C823
47/50
C824
100/35
R803
12K
R810
47
R811
47
R806
220K
CNP903
CNP902
R903
56K
IC902
STK41223
POWER AMP.
ZD902
DZ12BSB
ZD901
DZ12BSB
R952
3.9K
R951
3.9K
Q904
KTC3199 GR
D905
DS1SS133
L901
3µH
R925
10(1/2W)
R927
10(1/2W)
R929
56K
C927
0.22
C929
0.22
R931
10(1/2W)
R953
10(1/2W)
R954
10(1/2W)
R932
10(1/2W)
C930
0.22
C928
0.22
R930
56K
R928 10(1/2W)
R926 10(1/2W)
L902 3µH
C925
47/50
R923
56K
RL901
D906
DS1SS133
Q905
KTC3199 GR
R964
560
(2W)
R963
10K
R962
1K
R965
560
(2W)
RL902
BI908A
BI908B
R902
1K
R944
33K
C920
100/100
R911
100(1/4W)
Fusible
C914
47P
R961
1.2
(2W)
R960
1.2
(2W)
LG901
M904
FAN
MOTOR
QFM906
KTC3203 Y
RFM939
1K
DFM907
DS1SS133
RFM938
68K
FW901
JK670
HEADPHONES
CNP705
CFM947
10/50
DFM920
DS1SS133
DFM921
DS1SS133
R968
1K
R969
1K
RFM937
15K
BI905
F803
T8A L 250V
F802
T8A L 250V
T801
MAIN POWER
TRANSFORMER
F806
T5A L 250V
F805
T6.3A L 250V
F804
T6.3A L 250V
F807
T5A L 250V
C810
0.22(ML)
C809
0.22(ML)
D801
D10XB60F
D802
D10XB60F
C811
0.22
C812
0.22
D803
D10XB60F
C814
0.22
C813
0.22
LG801
LG802
CNP801
CNS801
T802
SUB POWER
TRANSFORMER
CNS802
CNP802
SW801
VOLTAGE
SELECTOR
C816
0.22(ML)
F808
T2A L 250V
F809
T2A L 250V
C815
0.22(ML)
D804
D10XB60F
R805
10
D903
DS1SS133
R967
1K
R966
1K
Q903
KTC3199 GR
CNP906
BI906
CNS906
CNP905
CNS905
CNP907
CNP904
CNS907
CNS904
C912
820P
C957
100/100
Q901
KTC3199 GR
M903
FAN
MOTOR
CFM943
47/50
F801
T15A L 250V
FM SIGNAL
AMP. PWB-D2
SO901
SPEAKER
TERMINAL
FW901A
SWITCHING
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 28 –
Figure 28 SCHEMATIC DIAGRAM (9/10)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 39.
AM IF
AM ANT.
FM SIGNAL
AM SIGNAL
MAIN PWB-A (2/2)
AM TRACKING
AM BAND
COVERAGE fL
AM OSC.
FM RF
FM OSC.
FM IF
TO MAIN SECTION
P23 12-C
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
1
2
3
1
2
3
4
5
6
7
8
9
2 1
TP301
22
1
2
3
20
21
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
24
23
22
21
20
19
18
17
16
15
14
13
MO/ST
REG
AM IF IN
GND
SD
STEREO
FM DET
VCC
IF OUT
PHASE
(FM/AM)
PHASE
L-CH OUT
R-CH OUT
MPX IN
MPX VCO
FM/AM OUT
VSM
AM LOW CUT
AM RF IN
AM OSC IN
FM AFC
AM OSC OUT
AM MIX OUT
FM IF IN
1
2
3
4
5
6
12
11
10
9
8
7
CONT
IF
FM/AM
FM/AM
SD
ST IND
MO/ST
VSS
AOUT
AIN
PD
VDD
FM IN
AM IN
DO
CL
DI
CE
X IN X OUT
IF IN
A_GND
DI
CE
DO
CLK
D_GND
TUN_L
TUN_R
+B
AM LOOP
ANTENNA
TP302
2 1
1
2
3
1
2
3
9
8
7
6
5
4
3
2
1
SO301
FM ANTENNA
TERMINAL
BF301
B.P.F.
C303
10P(CH)
R363
6.8K
R364
6.8K
C388
0.001
CNP301
T301
T302
R322
680
Q302
KTC3194 Y
R327
33
C366 0.001
C365 0.022
C364 2.2/50
C363 0.022
C361 0.022
C362 3.3/50
ZD351
DZ5.1BSB
C396 100/10
C395 0.022
R365
10K
CF303
C310
15P
(CH)
C334
22P
(UJ)
R323
68K
T306
C323
0.022
T303
D302 DS1SS133
D301 DS1SS133
C330
15P(UJ)
C338 0.001
C331
0.047
C332
0.022
C381
12P
(CH)
R380
1.5K
R313
33K
C317
0.001
C316 0.022
C373
0.018
C374 0.018
R395
47K
R385
5.6K
Q360
KTA1266 GR
R384
5.6K
C391
47/16
X352
4.5 MHz
C307
10/16
R381
10K
R352
1K
C355
22P
C356
0.001
C311
18P
C305
4.7P
(CH)
R302
10
C372
1/50
R351
5.6K
C342
0.022
D305 DS1SS133
C352 10/16
C351 0.022
C393
1/50
R379
2.2K
R374 1K
CF351
R353
270
C350 0.022
R311 100K
R383
5.6K
R392
270
C306
0.022
IC302
LC72131
PLL(TUNER)
C315 0.0047
C312
0.022
R375
470
C313
22P
(CH)
R325
47K
C318
100P
R316
4.7K
R309
10K
VD303
KDV147B
C392
0.001
C387 0.022
C308 4.7P(CH)
C309
0.001
R358
3.9K
R391
270
C353 0.022
C354 0.022
C382
15P
(CH)
C397
0.022
C394
47/16
IC301
TA7358AP
FM FRONT END
R336
10K
R356
1K
R357
470K
VD302
KDV147B
C371
1/50
R361
3.3K
R372 1K
C398
100/10
C399
0.022
R373 1K
R368
22K
C314
0.0047
C304
0.01
L352
100µH
C380
10/16
C385
0.01
C335
560P
C369 27P(UJ)
C368
1/50
X351
456 kHz
R360
4.7K
C386
330P
R378 1K
L351
100µH
R377
47K
R376
1K
R350
2.7K
C367
1/50
R314
22
C324
8.2P(UJ)
L312
R362
3.3K
C357
2.2/50
R388
3.9K
R355
3.3K
C358
1/50
R387
5.6K
R359
1.8K
R393
1K
C370
1/50
R382
150
VD301
SVC348S
CF352
T351
IC303
LA1832S
FM IF DET./FM
MPX./AM IF
IC303
CONSTANT
VOLTAGE
OSC BUFF
All manuals and user guides at all-guides.com
background
– 29 –
CD-M10000W/CP-M10000
7
8 9 10 11 12
1
2
3
4
5
6
7
8
9
10
MICSW
DATA
CLOCK
LATCH
PS2
PS1
VCF IL
L OUT
R OUT
SOURCEOUT
KEYCONIN
R IN
L IN
VOL IN
LPF2OUT
LPF2IN2
LPF2IN1
DAINTOUT
DAINTIN
DACONT
VCC
GND
MCLKCONT
VACL
MIC1 IN
ALC1
ALC2
MIC1NF IN
MIC2NF IN
MIC1 OUT
MIC2 OUT
MIC1VOL IN
MIC2VOL IN
MICOUT
LPF1 IN1
LPF2 IN2
LPF1 OUT
AD INTIN
ADCONT
REF
AD INTOUT
MIC2 IN
MIC SIGNAL
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
12
11
10
9
8
7
6
5
4
3
2
1
21
20
19
18
17
16
15
14
13
8
7
6
5
4
3
2
1
MIC IN
DATA
CLOCK
MIC LATCH
MIC IN(R)
MIC OUT(R)
A_+10V
A_GND
MIC IN(L)
MIC OUT(L)
CHASSIS
GND
ICK2
MIC PWB-H
CNS602
FROM
MAIN PWB
P23 12-E
+B
+B
+B
RK40
1K
RK37
390
RK39
1K
CK2
0.47
CK6 0.1
CK41
100/16
CK10 0.1
CK11 0.1
CK7 0.47
CK44
47/25
CK72
100/16
RK42 10K
VRK1
20K(B)
MIC
VOLUME
CK53
47/50
RK48
10K
RK50
10K
CK47
220P
RK43
18K
CK48 220P
RK46 18K
CK45
2.2/50
CK46
2.2/50
RK49
10K
RK41 10K
CK51
1/50
CK52
1/50
RK47
8.2K
RK45
6.8K
RK44
6.8K
CK49
100P
CK50
100P
RK5
1K
CNPK1
CK42
0.022
RK38
100
RK14
100
RK15
100
RK36
390
CK19
0.022
RK8 5.6K
CK23 0.001
CK1 0.01
RK11 1K
RK10 1K
RK9 1K
CK43
47/25
ZDK1
MTZJ5.6B
RK12
100
RK13
1.2K
QK1
KTC3203 Y
ICK1
M65856SP
MIC AMP.
RK2 56K
RK3
56K
RK4 10K
RK7
1K
JK1
MIC
CK9 2.2/50
CK8 4.7/50
CK13
0.0047
CK17 220/10
CK18
100/16
CK16 0.22
CK15 0.068
CK25 2.2/50
CK26 2.2/50
CK12
2.2/50
CK14 0.001
CK21 0.068
CK24 2.2/50
CK33 47P
CK30 2.2/50
CK29 2.2/50
CK31 0.15
CK35 47P
CK34 47P
CK22 0.0047
CK20 0.22
DK1
DS1SS133
PINK1
DK2
DS1SS133
RK1
10K
ICK2
KIA4558P
OPE AMP.
CK3 0.001
CK32
0.0047
MIC PWB-H
B
C
E
CNS602
FROM
MAIN PWB
P30 6-A
JK1
MIC
VRK1
MIC VOLUME
RK39
CK72
RK37
RK36
RK38
RK40
CNPK1
RK15
RK14
ZDK1
RK13
RK12
QK1
RK9
RK10
RK11
CK35
CK34
CK31
DK1
DK2
CK3
CK29
CK26CK25
CK24
CK30
CK19
CK42
CK20
CK18
CK33
ICK1
CK17
RK2
1
1
2
3
4
5
6
7
8
9
10
23456789
101112131415161718192021
33
32313029 383736
35
42414039
34
28272625242322
CK16
RK3
CK14
RK1
CK2
CK6
CK7
CK15
CK13
CK8
CK12
CK11
CK9
CK1
RK4
RK5
RK8
RK7
CK10
CK41
CK52
CK53
CK44
CK43
RK50
RK48
1
2
3
4
8
7
6
5
RK44
CK51
RK49
ICK2
CK49
RK45
RK47
CK50
CK48
RK46
CK47
RK43
CK45
RK41
RK42
CK46
CK23
CK21
CK22
CK32
Figure 29 SCHEMATIC DIAGRAM (10/10)
Figure 29 WIRING SIDE OF P.W.BOARD (1/9)
• NOTES ON SCHEMATIC DIAGRAM can be found on page 39.
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 30 –
Figure 30 WIRING SIDE OF P.W.BOARD (2/9)
A
B
C
D
E
F
G
H
1
23456
SW601
SPAN
SELECTOR
50 kHz/9 kHz
100 kHz/10 kHz
JK601
VIDEO/AUX
IN
R-CH
L-CH
AM LOOP
ANTENNA
1
2
SO301
FM ANTENNA
TERMINAL
FM
75 OHMS
GND
TO CD SERVO PWB
P36 5-A
CNP7
CNS11
GY
WH
RD
GY
WH
GY
WH
GY
WH
GY
GY
WH
GY
RD
WH
WH
1234 5 6
TO MIC PWB
P29 12-G
CNS602
1234 56 89107
MAIN PWB-A
1
2
3
TO A
M
P3
CNPK1
CN
1
2
TP302
TP301
R617
R605
C611
R618
C612
R606
R608
R620
R621
C635
R611
R607
R622
C636
R612
R613
C615
R614
R615
C616
R616
R619
C335
C631
C632
R631
R632
C338
R633
R634
C323
C306
C305
C330
C303
C315
C317
C314
R322
R316
C308
C332
R323
R336
R325
C310
R302
C334
C309
C316
C312
C311
R327
R313
R311
C342
R365
C324
C313
C361
C363
R352
R350
C350
R351
C351
C366
C353
C354
C369
C399
R353
R356
C356
R355
C355
R361
R362
C388
R395
C395
R385
R376
R388
R383
R360
R359
C386
R393
R378
C385
R377
C318
C387
R372
R373
R379
R374
R380
C392
C381
C382
C397
R381
C304
1
2
3
4
5
6
7
8
9
C624
C626
R609
R610
C
123456
7
C
6
C
6
C627
C623
C609
C607
C606
C641
R623
IC601
C630
C602
C628
C622
C610
C608
C614
C620
C618
Q605
Q603
R364
Q606
Q604
R363
C617
VD301
C331
CNP301
D302
D301
BF301
T303
IC301
R314
L312
T302
D305
T306
VD302
C362
R309
CF303
VD303
R358
C364
C367
C352
CF352
C365
T351
IC303
CF351
C398
123456789
10 11 12
123456789
10 11
15 141318 1716
21 20
19
24 23 22
14 131217 1615
20
1819
22 21
R357
C370
C357
X351
C368
C372
C373
C371
C358
C374
R626
R627
R625
B
1
10
CNP601
L352
ZD351
C396
R391
R392
C391
R368
Q360
R384
R387
R382
T301
R375
L351
IC302
Q302
C393
C380
X352
C394
C307
20
18
16
14
12
10
8
6
4
2
19
17
15
13
11
9
7
5
3
1
1
2
3
4
5
6
7
8
9
10
11
1213
14
15
16
17
18
19
20
21
22
23
24
3
2
1
B
C
E
B C E
1 2 3
B
C
E
B
C
E
E
C
B
E
C
B
21
All manuals and user guides at all-guides.com
background
– 31 –
CD-M10000W/CP-M10000
Figure 31 WIRING SIDE OF P.W.BOARD (3/9)
7
8 9 10 11 12
BI102
7
6
5
4
3
2
1
1
CNS102
TO TAPE 2
RECORD/PLAYBACK
ERASE HEAD
FROM TAPE 1
PLAYBACK HEAD
P37 10-F
GY
WH
T
O MIC PWB
P29 12-G
8
910
FC701
TO DISPLAY PWB
P33 11-A
1
21
P37 11-F
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
TO AMP. PWB
P34 2-E
CNP701
CNP901
WH
WH
BK
PK
WH
YL
BL
BK
PK
BK
WH
YL
BL
1
WH
PK
BK
WH
BK
PK
3
BI12B
BI12A
1
3
BI12B
3
1
CNP101
1
RD
WH
WH
RD
2
CNS13
BI13
1
2
TO POWER PWB
P35 8-G
CNP902
R101
R617
R605
C611
R
618
R869
R868
C866
R880
R873
R874
R861
R875
R878
R879
C101
C102
R109
R110
R115
R114
R107
C107
R108
C108
R113
C106
1
7
C105
R162
R106
R112
R104
R103
R167
R166
R122
R124
C120
R105
R126
R174
R134
C132
R138
R136
R120
R170
R172
C112
C114
C139
R169
R171
C111
C113
R145
C131
R137
R139
C127
R141
R153
R135
R173
R121
R123
C119
R131
R125
R870
R637
R863
C861
R638
CNS901
123456789
10 11 12 13
LG1
C852
1
2
3
C850
R852
R856
ZD851
Q850
BI13
1
2
R855
R853
C855
C856
Q851
C860
R854
C859
D863
Q852
R624
C625
C621
C629
C642
C619
C613
C627
C623
C609
C607
C606
1
6
23
R627
R625
BI602
D864
1
6
1
10
BI11
C865
R867
C864
IC860
D862
Q862
Q863
C863
C899
R155
Q111
BI12A
1
3
Q110
Q107
R117
Q108
C153
R118
Q109
BI102
Q126
C150
C151
R111
L104
R164
R168
Q106
Q104
Q103
C152
Q124
Q128
C154
R160
C118
C122
C124
R132
R142
C140
R146
R140
C116
Q105
C134
C136
C142
R102
IC101
C145
R156
R154
R158
C135
C141
R119
C133
C128
C115
Q121
C117
C123
C121
R157
R865
Q865
R871
C867
Q864
D861
C605
R866
CNP601
20
18
16
14
12
10
8
6
4
2
19
17
15
13
11
9
7
5
3
1
C146
Q122
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
8
7
6
5
0
2
B
C
E
B
C
E
E C B
E C B
E C B
E C B
E C B
E C B
E
C
B
E
C
B
E
C
B
1
2
3
1
2
3
3 2 1
B
C
E
3
2
1
B C E
B C E
B C E
1 2 31 2 3
21
All manuals and user guides at all-guides.com
all-guides.com
background
CD-M10000W/CP-M10000
– 32 –
Figure 32 WIRING SIDE OF P.W.BOARD (4/9)
A
B
C
D
E
F
G
H
1
23456
DISPLAY PWB-B1
RD
GY
WH
GY
WH
GY
WH
GY
WH
1
2
3
4
5
6
7
8
9
1
2
3
4
1
10
FC702
123 6789
10 11 12 13 14 15 16
1
2
3
3
1
LED PWB-B3
TO CD
SERVO PWB
P36 4-A
WH
BL
WH
RD
TO POWR
PWB
P35 9-G
GL
GL
RD
TO TAPE
MECHANISM
PWB
BI703
CNS703
1 3 5 7 9
2 4 6 8
10
3 2 1
CNS704
CNP8
CNP903
P37 9-A
CNS705
1
2
3
4
8
7
6
5
1
2
3
4
8
7
6
5
B
C
E
B
C
E
B
C
E
B
C
E
B
C
E
B
C
E
3 2 1
C725
R796
C723
C724
R783
R784
R785
R778
R786
R791
R770
RD07
RD08
RD35
R752
RD36
R737
RD13
R736
RD14
R
RL7
0
R757
R795
CS705
RS709
RS715
C720
C721
RS720
RS714
RS716
RS717
CS712
RS718
CS711
CS713
RS702
CS702
RS701
CS701
RS711
RS705
RS712
RS703
CS703
CS704
RS707
R799
C732
R797
CS708
CS709
RS704
RS706
RD09
R702
R705
R719
R781
XL701
R780
R779
R782
R777
R776
R775
R706
CS710
SW733
VIDEO
Q708
Q705
Q704
D713
SW716
EQUA
L
D712
C719
RD15
LED703
LED704
BI704
CNP702
SW715
MONSTER
BASS
JOG701
RS708
RS713
ZD701
D704
IC703
CS707
CS706
CNP704
IC704
RS710
RS719
D703
R708
R703
D722
D723
R773
C733
RX701
D718
Q709
C714
Q701
Q702
Q703
1
9
C729
BI705
R724
SW713
OPEN/
CLOSE
D702
D701
LED706
SW709
DISC 1
SW710
DISC 2
LED707
LED708
SW711
DISC 3
SW712
DISC SKIP
123
1
4
R716
R704
R701
C728
RD10
RD12
RD11
All manuals and user guides at all-guides.com
background
– 33 –
CD-M10000W/CP-M10000
Figure 33 WIRING SIDE OF P.W.BOARD (5/9)
7
8 9 10 11 12
29 30 31 32 332423 25 26 27 28 34 35 36 37 38 39 40 41 42 43 44 56 57 58
1
FC701
21
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
CNP601
TO MAIN PWB
P31 9-A
1 3 5 7 9
11
13
15
17
19
21
2 4 6 8
10
12
14
16
18
20
RD02
RD01
R793
R792
R713
R717
R700
R764
R763
R765
C702
R725
IC702
RD25
RD26
RD34
RD27
RD28
RD33
RD29
RD30
RD32
RD31
RD03
RD04
RD06
RD05
R787
R766
R788
R789
R768
R790
R762
R767
R714
R718
R720
R746
R749
R753
R748
R751
IC701
C
725
1
5
10
15
20
25
30
31
35
40
45
50
51
55
60
65
70
75
80
81
85
95
100
90
R783
R784
R785
R786
R791
R770
R
D35
R
D36
R
D13
4
RL706
RL707
RL708
SW703
TIMER
SW702
CLOCK
SW714
DIMMER
910
18
15
1
5
SW701
ON/
STAND-BY
CNP701
R794
C715
D721
C726
D720
R740
LED722
R759
R754
C727
C701
RL701
RL702
RL705
SW732
TUNING
UP
SW724
TUNING
DOWN
SW725
MEMORY
SET
SW731
RECORD/
PAUSE
SW726
FAST
REWIND
SW717
REVERSE
MODE
SW730
REVERSE
PLAY
SW729
STOP
LED705
LED701
SW722
CD
SW734
TUNER
SW723
TAPE
R755
R756
R769
R771
R772
R760
R761
R758
R721
R747
R738
R739
R741
R742
R745
R744
R743
DT703
DT701
FL701
RL703
RL704
LED702
S
W716
E
QUALIZER
SW728
PLAY
D
15
SW727
FAST
FORWARD
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 34 –
A
B
C
D
E
F
G
H
1
23456
Figure 34 WIRING SIDE OF P.W.BOARD (6/9)
L-CH L-CH R-CHR-CH
AMP. PWB-D2
1
2
RD
BR
M903
FAN MOTOR
1
2
RD
BR
M904
FAN MOTOR
SO901
SPEAKER TERMINAL
CNS901
TO MAIN PWB
P31 7-H
RD
WH
GY
WH
GY
WH
1
2
3
4
5
6
7
CNS905
RD
WH
RD
WH
RD
WH
RD
7
6
5
4
3
2
1
CNS906
GY
WH
GY
WH
GY
WH
RD
1
2
1
2
1
6
1
6
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
B C E
3 2 1
B C E
E C B
B C E
E C B
B C E
E C B
E
C
B
E
C
B
R974
BI905
1
7
R947
R937
LG901
C902
R977
C901
C903
R980
R978
C904
R950
D913
R949
1
5
Q903
D905
R902
Q904
D903
D904
Q902
Q901
C925
R922
R921
C924
C923
R923
R920
R919
R901
R913
R916
R932
R954
R929
R931
R930
R953
R918
R917
R928
R927
R925
R926
C929
C930
L901
L902
C928
C927
R979
D902
D901
R939
R938
R924
R943
C988
C989
R984
R986
C990
C980
R991
C993
D914
R948
ZD904
R934
C981
R933
ZD903
C995
C979
C992
D915
C991
D906
RL902
R967
R966
R969
DFM920
RFM937
DFM907
DFM921
CNS904
R968
CFM947
RFM939
RFM938
R963
QFM906
CFM943
Q905
R965
RL901
R964
R958
R957
R959
R960
R961
C999
C918
C932
L903
L904
R940
R935
R956
R936
R942
R998
R955
R999
C998
R941
D919
Q912
Q911
C997
C440
R415
R416
ZD401
ZD402
IC901
C445
C444
R982
C442
R408
C986
C438
C443
C987
R411
C982
R409
R905
C435
C437
R985
R402
R412
R983
R404
C436
C983
C433
C432
R407
R981
R910
C434
R418
IC401
C908
R410
R401
C984
C985
12
3
4
8765
C907
C448
R405
C909
C441
C450
C906
R417
R906
R909
R419
C446
C447
C439
C449
Q907
R414
R413
C451
Q908
R420
C956
D908
R912
R946
R945
C921
C957
ZD901
R952
R951
C919
ZD902
R911
IC902
R944
C920
C922
R976
C905
C912
C916
C911
R975
R908
R907
C913
C915
R903
R904
C914
CNP901
13
12
11
10
9
8
7
6
5
4
3
2
1
C917
R900
R962
BI908B
BI908A
1
6
BI908A
6
1
BI906
1
7
FW901A
CNS907
CNP907
R987
R988
R989
R990
CNP904
BI908B
P901
C978
All manuals and user guides at all-guides.com
background
– 35 –
CD-M10000W/CP-M10000
Figure 35 WIRING SIDE OF P.W.BOARD (7/9)
7
8 9 10 11 12
1
5
HEADPHONES PWB-B2
TRANSFORMER PWB-D3
POWER PWB-D1
AC POWER
SUPPLY CORD
AC 110/127/220/
230-240 V, 50/60 Hz
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
230-240V
127V
220V
110V
1 2 3 4 5
YL
BK
YL
WH
WH
2 1
BL
BL
2
1
220 V
127 V
110 V
T.F
230-240 V
CNS705
FROM
DISPLAY PWB
P32 1-C
CNS13
FROM
MAIN PWB
P31 8-H
JK670
HEADPHONES
B C E
D804
C815
C816
LG801
SW801
VOLTAGE
SELECTOR
LG802
C811
D802
C813
C812
C810
D801
C814
D803
C809
CNP905
1
1
1234
2
2345 67
CNP902
R811
R810
ZD802
C823
R819
R805
R803
C824
ZD801
Q803
C822
R802
R806
R807
ZD804
C819
C821
C817
C818
D810
D809
D805
D806
CNP906
12345 76
CNP903
CNP801
12345
T801
MAIN POWER
TRANSFORMER
CNP705
F804
T6.3A L 250V
F807
T5A L 250V
F806
T5A L 250V
F805
T6.3A L 250V
F808
T2A L 250V
F809
T2A L 250V
F803
T8A L 250V
F802
T8A L 250V
F801
T15A L 250V
T802
SUB POWER
TRANSFORMER
CNS801
CNS802
CNP802
FW901
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 36 –
Figure 36 WIRING SIDE OF P.W.BOARD (8/9)
A
B
C
D
E
F
G
H
1
23456
• The numbers 1 to 12 are waveform numbers shown in page 40.
12 3
CD SERVO PWB-C
CNS703
P32 1-B
FROM DISPLAY PWB
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
CNS1B
CNS1A
CNS2B
BL
WH
BL
WH
BL
WH
RD
RD
WH
GY
WH
GY
WH
GY
WH
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
3
4
1
2
5
6
7
17
1
8
PICKUP UNIT(306)
CNS3B
CNS3A
RD
WH
GR
WH
GR
WH
CD MOTOR
PWB-G
12345
6
12345
6
-
M1
SPINDLE MOTOR
SW4
PICKUP IN
M2
SLED MOTOR
+
-
+
12345
6
65
4
3
2165
4
3
21
CNS11
P30 4-A
FROM MAIN PWB
12
3
4
56
CNS2A
CNP3A
12
3
4
567
89
IC2
IC1
R13
R14
R15
C13
R46
R16
R45
C44
R17
R26
R24
R27
R47
R23
C26
R25
C42
R43
C28
C30
C27
C33
C34
R39
C32
R40
R41
R42
C4
R11
C8
R12
C38
C2
R80
E C B
B C E
C25
CNP1
C40
R44
C41
C39
R49
R5
R2
R4
CNP3
R1
R6
R3
1
5101520
25 30 35 40
42
22
21
C9
CNP4
C12
C10
C11
C16
D1
D2
Q3
C14
C23
R18
R20
R30
R19
C48
C18
Q2
ZD2
L1
C24
R22
CNP7
ZD1
XL1
C51
R32
R33
R31
R28
R29
R34
CNP8
R35
C35
C6
1
20
21
25
30
35
40
41
45
50
55
60
61
65
70
75
80
5
10
15
R36
C36
R37
C37
R38
C50
C3
R10
R9
C49
C5
Q1
R7
C1
CNP2
R65
CT1
CT2
4 2 1
5
7
8
6
9
10
11
12
3
All manuals and user guides at all-guides.com
all-guides.com
background
– 37 –
CD-M10000W/CP-M10000
Figure 37 WIRING SIDE OF P.W.BOARD (9/9)
7
8 9 10 11 12
1 2 3 4 5 6
CNS102
-
+
16
123
456
BI4
RD
WH
BK
WH
BK
WH
CNS4
SW3
DISC
NUMBER
CD LOADING MOTOR
PWB-E
M3
CD LOADING
MOTOR
SW2
CLAMP
SW1
OPEN/
CLOSE
–
+
CNP101
P31 12-F
TO MAIN PWB
TAPE 1
PLAYBACK HEAD
PK
BK
BK
WH
WH
PK
GR
23
1
TAPE
MOTOR
1
1
2
3
2
4
5
6
79
8
1
10
CNP702
SOLENOID
PH
SW
SWSW
SW
SOLENOID
TAPE MECHANISM PWB-F
TAPE MECHANISM
ASSEMBLY
P32 4-B
TO DISPLAY PWB
FC702
10
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
P31 12-D
FROM MAIN PWB
TAPE 2
RECORD/PLAYBACK/ERASE HEAD
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 38 –
VOLTAGE
1.6 V
1 V
1.6 V
1.8 V
3.3 V
0 V
1.6 V
1.6 V
1.6 V
1.6 V
1.6 V
1.6 V
1.5 V
1.5 V
1.5 V
1.5 V
0.8 V
3.2 V
0 V
1.6 V
1.6 V
1.6 V
1.6 V
0 V
0 V
3.2 V
0 V
0 V
0 V
0 V
0 V
0 V
0 V
0 V
1.6 V
0 V
0 V
3.2 V
3.2 V
0 V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
40
39
38
37
36
35
34
33
32
31
PIN
NO.
VOLTAGE
IC1
3.7 V
3.7 V
0 V
0 V
3.7 V
3.2 V
3.2 V
3.2 V
0 V
0 V
0 V
3.2 V
0 V
0 V
0 V
0 V
0 V
3.2 V
0 V
0 V
0 V
4.7 V
0 V
4.9 V
4.9 V
4.9 V
0 V
4.9 V
0 V
0 V
0 V
0 V
0 V
0 V
0 V
3.2 V
3.2 V
3.2 V
0 V
3.2 V
PIN
NO.
VOLTAGE
41
54
53
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
52
51
50
49
48
47
46
45
44
43
42
75
74
76
77
78
79
80
73
72
71
4.23 V
4.14 V
0 V
0 V
4.15 V
4.2 V
4.2 V
0 V
0 V
4.23 V
2.34 V
1.86 V
0 V
3.87 V
4.45 V
0 V
0 V
0 V
0 V
0 V
0 V
0 V
0 V
0 V
0 V
4.63 V
4.23 V
0 V
0 V
0 V
4.48 V
4.25 V
4.5 V
4.3 V
4.44 V
2.13 V
4.88 V
4.9 V
4.36 V
0 V
0 V
12.66 V
12.78 V
12.3 V
4.9 V
4.42 V
4.33 V
4.32 V
4.48 V
4.78 V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
40
39
38
37
36
35
34
33
32
31
PIN
NO.
VOLTAGE
IC701
0 V
0 V
4.6 V
5 V
5 V
5 V
0 V
0 V
-33.1 V
0 V
0 V
0 V
0 V
0 V
0 V
0 V
-37.4 V
-32.6 V
-32.7 V
-29.8 V
-29.9 V
-32.7 V
-19.2 V
-22 V
-32.8 V
-30.1 V
-32.8 V
-17.6 V
-32.8 V
-32.3 V
-24.9 V
-19.5 V
-22.2 V
-33 V
-33 V
-19.6 V
-19.6 V
-14.41 V
-22.8 V
-27.2 V
-27.2 V
-27.5 V
-27.7 V
-27.7 V
-27.7 V
-27.6 V
-27.7 V
-27.7 V
-27.7 V
-30.2 V
PIN
NO.
VOLTAGE
51
64
63
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
62
61
60
59
58
57
56
55
54
53
52
85
84
86
87
88
89
90
83
82
81
1.7 V
1.7 V
1.8 V
2.1 V
2.1 V
2.1 V
2 V
0 V
0 V
0 V
0 V
0 V
0 V
0 V
2.1 V
2.1 V
1.6 V
4.9 V
3 V
1.6 V
0 V
0 V
4.9 V
4.9 V
1.6 V
2.1 V
2.1 V
0 V
0 V
0 V
0 V
0 V
0 V
0 V
0 V
4.2 V
0 V
2.1 V
2.1 V
4.9 V
3.7 V
3.7 V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
40
39
38
42
41
37
36
35
34
33
32
31
PIN
NO.
VOLTAGE
IC2
0 V
0 V
0 V
5.3 V
5.3 V
5 V
5 V
5.3 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
5 V
10.2 V
0 V
9
8
7
6
5
4
3
2
1
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC601
0 V
0 V
0.5 V
2 V
0 V
1.3 V
0 V
0.6 V
3.5 V
3.4 V
0 V
0 V
7 V
4.1 V
0 V
3.4 V
0.6 V
0 V
0.7 V
0 V
2 V
0.5 V
0 V
0 V
9
8
7
6
5
4
3
2
1
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC101
2.1 V
5 V
2.1 V
2.1 V
0 V
5.1 V
5.1 V
2.9 V
5 V
4.3 V
3.9 V
3.9 V
3.5 V
1.3 V
1.3 V
2.1 V
2.4 V
2.3 V
0 V
0.4 V
2.7 V
2.7 V
5 V
3.5 V
9
8
7
6
5
4
3
2
1
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC303
71.58 V
31.25 V
16.82 V
-17.12 V
-31.45 V
-71.51 V
0 V
0 V
0 V
0 V
0 V
-70 V
-70 V
-0.15 V
-0.15 V
-68.54 V
-0.15 V
-0.15 V
0 V
0 V
0 V
0 V
9
8
7
6
5
4
3
2
1
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC901
3
2
1
PIN
NO.
VOLTAGE
Q850
13.9 V
13.3 V
22.1 V
3
2
1
PIN
NO.
VOLTAGE
Q851
22 V
0 V
10 V
3
2
1
PIN
NO.
VOLTAGE
Q852
20 V
0.6 V
5.6 V
8
9
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC301
0 V
0 V
0.3 V
0 V
0 V
0 V
0 V
0 V
0 V
0.81 V
1 V
0.75 V
2.5 V
4.6 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
0.5 V
2.5 V
0 V
5 V
0 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
2.5 V
0 V
0 V
0 V
0 V
0 V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
40
39
38
42
41
37
36
35
34
33
32
31
PIN
NO.
VOLTAGE
ICK1
0 V
0 V
0 V
-10.96 V
0 V
0 V
0 V
6.41 V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC704
0.2 V
0.2 V
0.2 V
-11 V
0 V
0 V
0 V
6.44 V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC703
-10.34 V
3.22 V
0.6 V
-12.2 V
0 V
0.4 V
-10.9 V
10.1 V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC860
1.95 V
-26.3 V
-32.8 V
-26.3 V
4
3
2
1
PIN
NO.
VOLTAGE
CNP905
11.1 V
0 V
21.9 V
0 V
4
3
2
1
PIN
NO.
VOLTAGE
CNP902
18
17
16
19
22
21
20
0 V
0 V
0 V
0 V
8.56 V
8.54 V
0 V
0 V
8.59 V
8.57 V
8.56 V
8.56 V
8.71 V
8.72 V
0 V
0 V
0 V
5.1 V
9
8
7
6
5
4
3
2
1
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC702
18
17
16
50
49
48
47
46
45
44
43
42
41
95
94
96
97
98
99
100
93
92
91
0 V
0 V
0 V
0 V
21.7 V
0 V
10.4 V
12.25 V
-13.25 V
0 V
3.88 V
4.38 V
5.02 V
9
8
7
6
5
4
3
2
1
13
12
11
10
PIN
NO.
VOLTAGE
CNP901
-26.4 V
26.5 V
0 V
0 V
-60.2 V
0 V
60.3 V
60.3 V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
CNP903
59.32 V
26.55 V
14.68 V
-14.64 V
-26.54 V
-59.19 V
0 V
0 V
0 V
0 V
0 V
-57.75 V
57.88 V
-0.15 V
-0.15 V
-56.6 V
-0.16 V
-0.16 V
9
8
7
6
5
4
3
2
1
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC902
18
17
16
0 V
0 V
0 V
-14.15 V
0 V
0 V
0 V
14.75 V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
IC401
9
8
7
6
5
4
3
2
1
15
14
13
12
11
10
PIN
NO.
VOLTAGE
IC302
18
17
16
19
22
21
20
5 V
5 V
5 V
0 V
5 V
5 V
5 V
10 V
8
7
6
5
4
3
2
1
PIN
NO.
VOLTAGE
ICK2
2.4 V (-2.4 V)
0 V (0 V)
0 V (0 V)
0 V (0 V)
2.9 V (2.9 V)
4.8 V (4.9 V)
0.1 V (9.9 V)
4.2 V (0 V)
3.3 V (0 V)
0 V (3.9 V)
5.1 V (5.1 V)
2.2 V (0 V)
5 V (5 V)
0 V (0 V)
0 V (2.4 V)
2.3 V (0 V)
5 V (5 V)
0.6 V (4.8 V)
0.8 V (1.8 V)
2 V (1.0 V)
0 V (0 V)
2.5 V (3.0 V)
All manuals and user guides at all-guides.com
background
– 39 –
CD-M10000W/CP-M10000
• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
indicates AM
indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means pico-farad and the unit of the capacitor
without such a symbol is microfarad. As to electrolytic
capacitor, the expression “capacitance/withstand voltage”
is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
REF. NO
DESCRIPTION
POSITION POSITION
SW717 REVERSE MODE ON—OFF
SW722 CD ON—OFF
SW723 TAPE ON—OFF
SW724 TUNING DOWN ON—OFF
SW725 MEMORY SET ON—OFF
SW726 FAST REWIND ON—OFF
SW727 FAST FORWARD ON—OFF
SW728 PLAY ON—OFF
SW729 STOP ON—OFF
SW730 REVERSE PLAY ON—OFF
SW731 RECORD/PAUSE ON—OFF
SW732 TUNING UP ON—OFF
SW733 VIDEO ON—OFF
SW734 TUNER ON—OFF
SW801 VOLTAGE SELECTOR 230-240 V
REF. NO
DESCRIPTION
SW1 OPEN/CLOSE ON—OFF
SW2 CLAMP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW601 SPAN SELECTOR
50 kHz/9 kHz
SW701 ON/STAND-BY ON—OFF
SW702 CLOCK ON—OFF
SW703 TIMER ON—OFF
SW709 DISC 1 ON—OFF
SW710 DISC 2 ON—OFF
SW711 DISC 3 ON—OFF
SW712 DISC SKIP ON—OFF
SW713 OPEN/CLOSE ON—OFF
SW714 DIMMER ON—OFF
SW715 MONSTER BASS ON—OFF
SW716 EQUALIZER ON—OFF
TYPES OF TRANSISTOR AND LED
(1) (2) (3)
(S) (G) (D)
E C B
FRONT
VIEW
KTA1266 GR
KTA1273 Y
KTA1274 Y
KTC3194 Y
KTC3199 GR
KTC3203 Y
KRC102 M
KRC104 M
KRA107 M
2SA1015 GR
2SC1845 F
KTC2026
KIA7810AP
KIA7805AP
4204SRT7
4204UYT7
4204UGT7
31URT21
BCE
FRONT
VIEW
FRONT
VIEW
(1) (2) (3)
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 40 –
T
T
DATA
DATACK
LRSY
Stopped
CH1=2 V
DC 10:1
CH2=2 V
DC 10:1
CH3=2 V
DC 10:1
5 µs/div
(5 µs/div)
NORM:100 kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.00 V
CH2 : 0.00 V
Main : 5 K
Zoom : 100
Mode : AUTO
Type : EDGE CH3
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH3
v/DIV
2 V
1999/04/05 20:50:17
10
IC1 58
IC1 59
IC1 60
11
12
T
T
DOUT
Stopped
CH1=2 V
DC 10:1
500 ns/div
1999/04/07 09:25:28
(500 ns/div)
NORM:200 MS/s
1
=Record Length=
Smoothing : ON CH1 : 0.00 V
CH2 : 0.00 V
Main : 1 K
Zoom : 100
Mode : NORMAL
Type : EDGE CH1
Delay : 2.887 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger=
=Filter= =Offset=
9
IC1 39
T
FDO
PDO2
PDO1
Stopped
CH1=500 mV
DC 10:1
CH3=1 V
DC 10:1
CH4=1 V
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
4
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH2
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500 mV
1999/04/05 17:33:17
1
IC1 21
7
IC1 73
8
IC1 74
T
T
FDO
SPDO
Stopped
CH1=200 mV
DC 10:1
CH2=500 mV
DC 10:1
500 ms/div
1999/04/07 09:51:15
(500 ms/div)
NORM:20 kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.000 V
Main : 100 K
Zoom : 2 K
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
1
IC1 21
6
IC1 22
T
T
TE
DRF
Stopped
CH1=10 V
DC 10:1
CH2=1 V
DC 10:1
100 ms/div
(100 ms/div)
NORM:100 kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.0 V
CH2 : 0.00 V
Main : 100 K
Zoom : 2 K
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger=
=Filter= =Offset=
3
IC1 67
4
IC1 15
Vp-p=1.0 V~1.3 V
0.5 mV/div,0.5 µsec/div
5
IC1 4
T
FDO
DRF
TE
Stopped
CH1=500 mV
DC 10:1
CH2=10 V
DC 10:1
CH3=1 V
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
-3 div -1 div 0 div +1 div +3 div
CH Position To
CH2
Position
0.20 div
1
IC1 21
3
IC1 67
4
IC1 15
T
FDO
TDO
Stopped
CH1=500 mV
DC 10:1
CH3=500 mV
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.000 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500 mV
1
IC1 21
2
IC1 20
WAVEFORMS OF CD CIRCUIT
All manuals and user guides at all-guides.com
background
– 41 –
CD-M10000W/CP-M10000
HOW TO USE
CAUTION
Cleaning fluid
Cleaner disc
Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the
brush on the CD cleaner disc which has the mark next to it.
Place the CD cleaner disc onto the CD disc tray with the brush side down,then
press the play button.
You will hear music for about 20 seconds and the CD player will automatically stop.
If it continuous to turn, press the stop button.
1.
2.
3.
The CD lens cleaner should be effective for 30-50 operations, however if the
brushes become worn out earlier then please the cleaner disc.
If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft
cloth.
Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the
event of this happening then drink and / or rinse with clean water and seek medical
advice.
The CD cleaner disc must not be used on car CD players or on computer CD-ROM
drives.
All rights reserved. Unauthorized duplicating, broadcasting and renting this product
is prohibited by law.
TROUBLESHOOTING
When the CD does not function
When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean
the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check
the following items.
Remove the cabinet and follow the trouble shooting instructions.
"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup
lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."
Turn off the power, and wipe the lens softly using a cleaning paper moistened with commercially available cleaning solution so
as not to damage it. Be careful not to touch the lens with bare hands.
Dust gradually accumulates on the objective lens during use, and it may degrade performance. To avoid this problem, use a
cleaning disc designed for CD optical pickup lenses..
When a CD cannot be played
1. "E-CD01" is displayed.
(1) Check the power to IC1 (LC78645NE), the presence of the clock signal (33.8688 MHz) and the status of the RESET terminal
(pin 66 on IC1).
(2) Does the pickup move to the PICKUP-IN Switch (SW4) position ?
If (1) and (2) are OK, check the system microcomputer (especially the communication line with the DSP).
2. Pressing the CD operation key is accepted, but playback does not occur.
(1) Focus-HF system check
(2) Tracking system check
(3) Spin system check
(4) PLL system check
(5) Others
Parts code
1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ
All manuals and user guides at all-guides.com
all-guides.com
background
CD-M10000W/CP-M10000
– 42 –

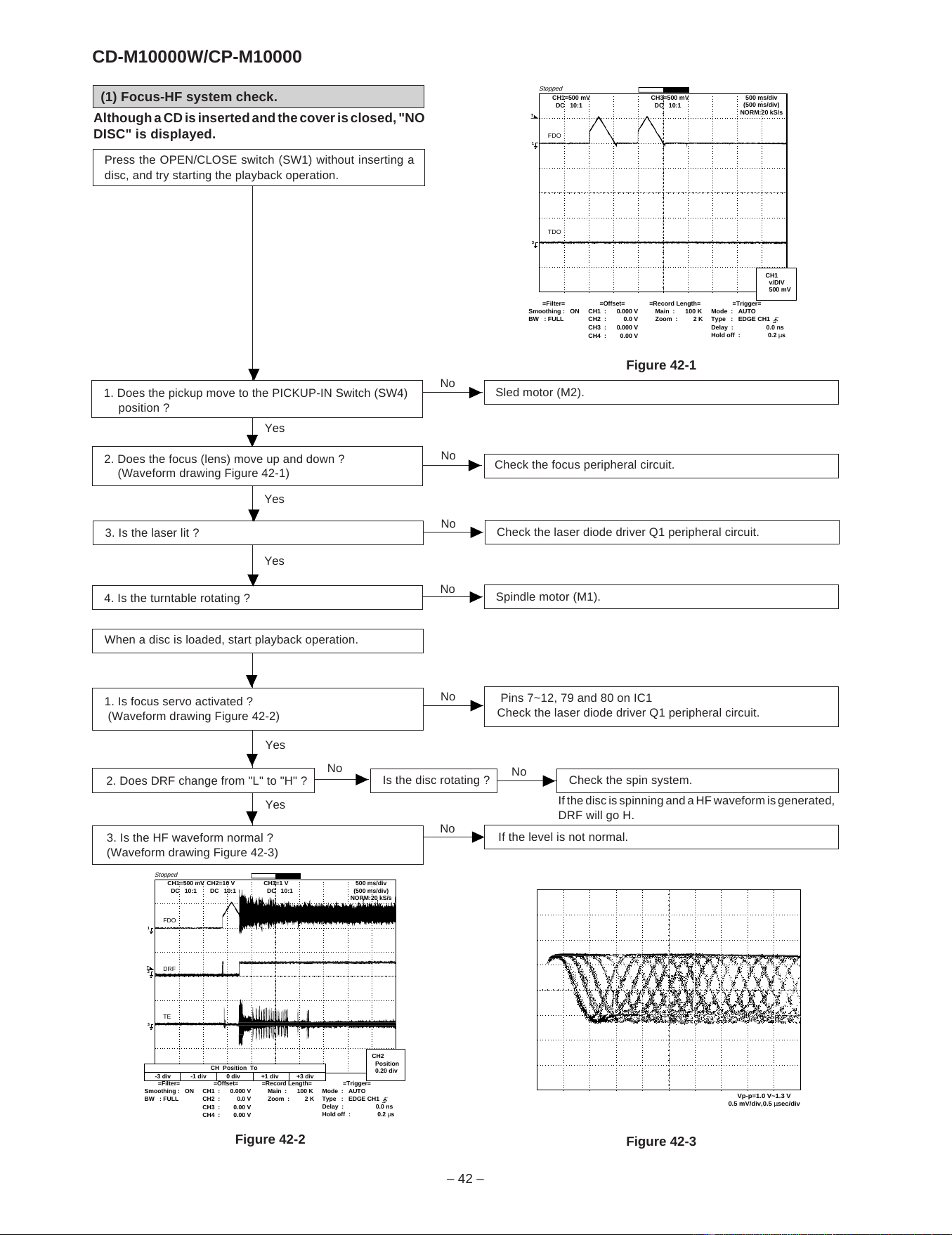

Vp-p=1.0 V~1.3 V
0.5 mV/div,0.5 µsec/div
T
FDO
DRF
TE
Stopped
CH1=500 mV
DC 10:1
CH2=10 V
DC 10:1
CH3=1 V
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
-3 div -1 div 0 div +1 div +3 div
CH Position To
CH2
Position
0.20 div
T
FDO
TDO
Stopped
CH1=500 mV
DC 10:1
CH3=500 mV
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.000 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500 mV
If the level is not normal.
1. Is focus servo activated ?
(Waveform drawing Figure 42-2)
Pins 7~12, 79 and 80 on IC1
Check the laser diode driver Q1 peripheral circuit.
When a disc is loaded, start playback operation.
2. Does DRF change from "L" to "H" ?
Is the disc rotating ?
3. Is the HF waveform normal ?
(Waveform drawing Figure 42-3)
Check the spin system.
If the disc is spinning and a HF waveform is generated,
DRF will go H.
Figure 42-1
Check the laser diode driver Q1 peripheral circuit.
(1) Focus-HF system check.
Although a CD is inserted and the cover is closed, "NO
DISC" is displayed.
1. Does the pickup move to the PICKUP-IN Switch (SW4)
position ?
Sled motor (M2).
Press the OPEN/CLOSE switch (SW1) without inserting a
disc, and try starting the playback operation.
2. Does the focus (lens) move up and down ?
(Waveform drawing Figure 42-1)
Check the focus peripheral circuit.
3. Is the laser lit ?
Spindle motor (M1).
4. Is the turntable rotating ?
Figure 42-2
Figure 42-3
Yes
Yes
Yes
No
No
No
No
No
No
No
Yes
Yes
No
All manuals and user guides at all-guides.com
background
– 43 –
CD-M10000W/CP-M10000

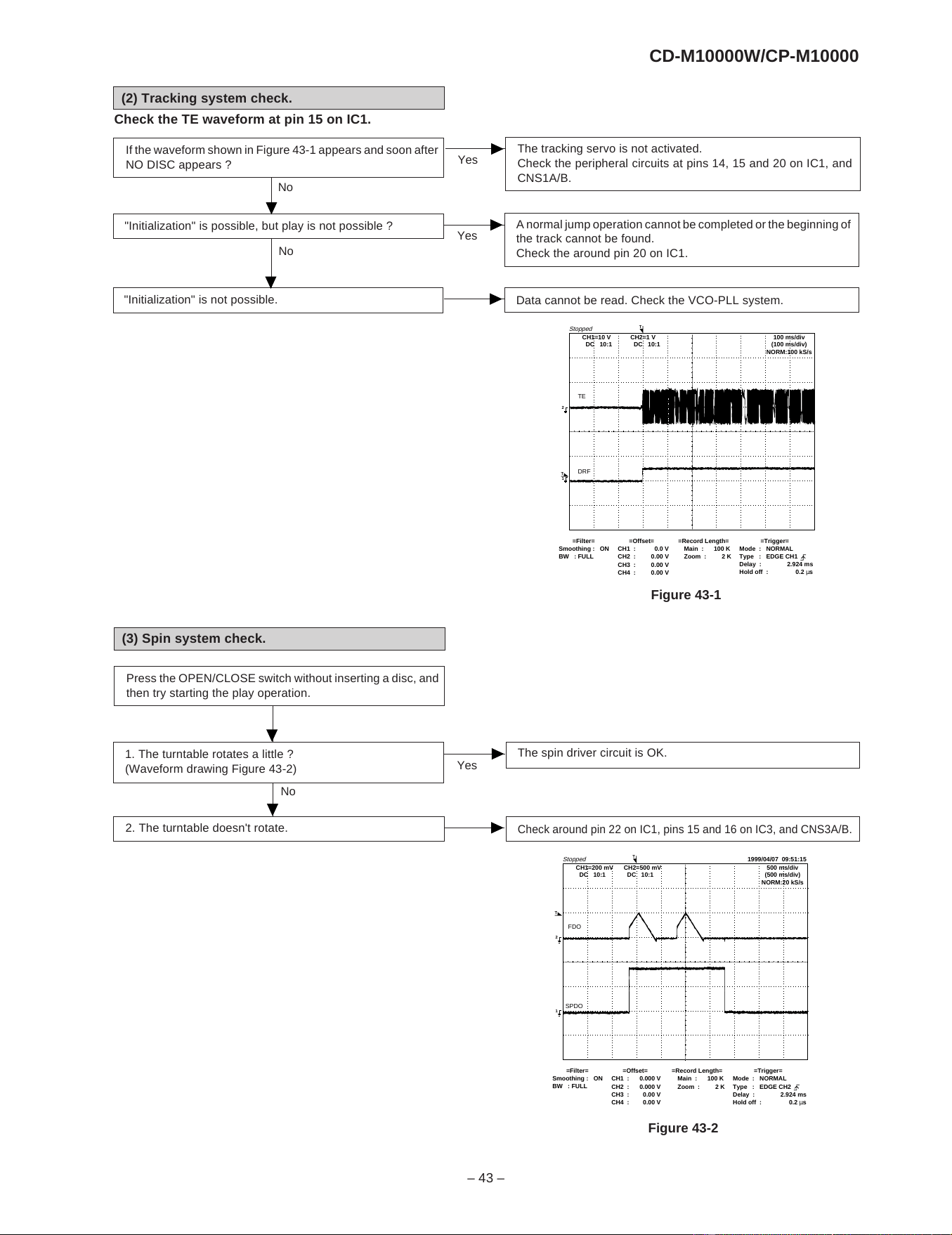

T
T
FDO
SPDO
Stopped
CH1=200 mV
DC 10:1
CH2=500 mV
DC 10:1
500 ms/div
1999/04/07 09:51:15
(500 ms/div)
NORM:20 kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.000 V
Main : 100 K
Zoom : 2 K
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger=
=Filter= =Offset=
T
T
TE
DRF
Stopped
CH1=10 V
DC 10:1
CH2=1 V
DC 10:1
100 ms/div
(100 ms/div)
NORM:100 kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.0 V
CH2 : 0.00 V
Main : 100 K
Zoom : 2 K
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger=
=Filter= =Offset=
The tracking servo is not activated.
Check the peripheral circuits at pins 14, 15 and 20 on IC1, and
CNS1A/B.
If the waveform shown in Figure 43-1 appears and soon after
NO DISC appears ?
(2) Tracking system check.
Check the TE waveform at pin 15 on IC1.
A normal jump operation cannot be completed or the beginning of
the track cannot be found.
Check the around pin 20 on IC1.
"Initialization" is possible, but play is not possible ?
Data cannot be read. Check the VCO-PLL system.
"Initialization" is not possible.
Figure 43-1
Figure 43-2
Press the OPEN/CLOSE switch without inserting a disc, and
then try starting the play operation.
(3) Spin system check.
The spin driver circuit is OK.
1. The turntable rotates a little ?
(Waveform drawing Figure 43-2)
Check around pin 22 on IC1, pins 15 and 16 on IC3, and CNS3A/B.
2. The turntable doesn't rotate.
No
Yes
No
Yes
Yes
No
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 44 –
T
T
DOUT
Stopped
CH1=2 V
DC 10:1
500 ns/div
1999/04/07 09:25:28
(500 ns/div)
NORM:200 MS/s
1
=Record Length=
Smoothing : ON CH1 : 0.00 V
CH2 : 0.00 V
Main : 1 K
Zoom : 100
Mode : NORMAL
Type : EDGE CH1
Delay : 2.887 ms
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger=
=Filter= =Offset=
T
FDO
PDO2
PDO1
Stopped
CH1=500 mV
DC 10:1
CH3=1 V
DC 10:1
CH4=1 V
DC 10:1
500 ms/div
(500 ms/div)
NORM:20 kS/s
1
4
3
=Record Length=
Smoothing : ON CH1 : 0.000 V
CH2 : 0.0 V
Main : 100 K
Zoom : 2 K
Mode : AUTO
Type : EDGE CH2
Delay : 0.0 ns
Hold off : 0.2 µs
CH3 : 0.00 V
CH4 : 0.00 V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500 mV
1999/04/05 17:33:17
Is pin 52 (C2F) on IC1 "L" ?
Yes
No
The HF waveform is normal and the time is displayed
normally, but no sound is produced. Or the sound
has dropouts.
(5) Others.
There are too many error flags on a damaged disc which
makes error correction impossible.
Check again using a known good disc.
1. When playing at normal speed.
Check the peripheral circuit at pin 39 (DOUT) on IC1 and
the waveform (Figure 44-2).
If OK, Check the unit.
When a disc is loaded, start play operation.
(4) PLL system check.
The HF waveform is normal, but the TOC data cannot be
read.
Check the PDO waveform. (Figure 44-1)
Check around pins 73~78 on IC1.
Figure 44-1
Figure 44-2
All manuals and user guides at all-guides.com
background
– 45 –
CD-M10000W/CP-M10000
FUNCTION TABLE OF IC
IC1 VHiLC78645NE1: CD Servo (LC78645NE) (1/2)
1 SLCO Output — Control output.
2 SLCIST Input —
Resistor connection terminal for SLCO output current
setting.
3 EFMIN Input — RF signal input terminal.
4 RF Output — RF signal monitor terminal.
5 RFVDD Input — RF power terminal.
6 RFVSS — — RF earth terminal. To be connected to 0 V.
7 FIN1 Input — A+C signal input terminal.
8 FIN2 Input — B+D signal input terminal.
9 TIN1 Input — E signal input terminal.
10 TIN2 Input — F signal input terminal.
11 VREF Output RFVDD/2 VREF voltage output terminal.
12 REFI Input — Reference supply setting terminal.
13* FE Output ZHI FE signal monitor terminal.
14 TEC Output — LPF capacitor connection terminal for TE signal.
15* TE Output ZHI TE signal monitor terminal.
16* RFMON Output ZHI RF internal signal monitor terminal.
17 JITTC — — Capacitor connection terminal for jitter detection.
18 ADAVDD Input — Power terminal for servo A/D, D/A.
19 ADAVSS — — Earth terminal for serve A/D, D/A. To be connected to 0 V.
20 TDO Output ADAVDD/2 Output terminal for tracking control. D/A output.
21 FDO Output ADAVDD/2 Output terminal for focus control. D/A output.
22 SPDO Output ADAVDD/2 Output terminal for spindle control. D/A output.
23 SLDO Output ADAVDD/2 Output terminal for sled control. D/A output.
24* GPDAC Output ADAVDD/2 Servo D/A general-purpose output terminal.
25 CONT4 Input/Output Input Mode General-purpose I/O terminal 4.
26 CONT5 Input/Output Input Mode General-purpose I/O terminal 5.
27* SBCK/CONT6 Input/Output Input Mode General-purpose I/O terminal 6 or
Subcode reading clock input terminal.
28 SBCK/FG Input — Subcode reading clock input terminal/FG signal input terminal/external
emphasis setting terminal. Terminal functions are set by commands. When
not used, connect to 0 V.
29* DEFECT Output L Defect terminal.
30* V/1P Output H Auto switching monitor output terminal for rough servo phase control. “H”:
rough servo, “L”: phase servo.
31* FSEQ Output L Sync signal detection output terminal.
The status changes to “H” when the sync signal detected in EFM and the
sync signal of internal generation are identified.
32* MON11 Output L Internal signal monitor terminal 1.
33* MON12 Output L Internal signal monitor terminal 2.
34* MON13 Output L Internal signal monitor terminal 3.
35* MON14 Output L Internal signal monitor terminal 4.
36* MON15 Output L Internal signal monitor terminal 5.
37 VSS — — Digital system earth terminal. To be connected to 0 V.
38 VDD Input — Digital system power terminal.
39* DOUT Output L Digital OUT output terminal. (EIAJ format)
40 TEST Input L Input terminal for test. To be connected to 0 V.
41 LVDD Input — Power supply for Left channel.
42 LCHO Output LVDD/2 Left channel output.
43 LVSS — — GND for Left channel. Must be connected to 0 V.
Pin No.
Function
Terminal Name
Input/Output
Setting in Reset
Controlled by commands from the
microcomputer. When not used, set
them as input terminals and connect
to 0 V, or set them as output
terminals and leave open.
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Left channel
D/A converter
For slice level
control.
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 46 –
44 RVSS — — GND for Right channel. Must be connected to 0 V.
45 RCHO Output LVDD /2 Right channel output.
46 RVDD Input — Power supply for Right channel.
47 XVDD Input — Power supply for crystal oscillator.
48 XOUT Output — Connected for the 33.8688 MHz crystal oscillator cement.
49 XIN Input —
50 FSX/16MIN Input/Output Input 7.35 kHz Synchronization signal monitor port.
or Clock input port for Digital filter & D/A
51 XVSS — — Crystal GND for crystal oscillator. Must be connected to 0 V.
Oscillator
52* C2F Output H C2 FLAG monitor port.
53* EFLG Output L C1, C2 error corrected monitor port.
54* IGMOUT Output Clock 16.9344 MHz output port.
55 ASLRCK Input — Word clock input port.
(If this port does not use, must be connect to 0 V.)
56 ASDACK Input — Bit clock input port.
(If this port does not use, must be connect to 0 V.)
57 ASDFIN Input —
Left/Right channel data input port.
(If this port does not use, must be connect to 0 V.)
58* LRSY Output L Word clock output port.
59* DATACK Output L Digital data Bit clock output port.
60* DATA Output L Left/Right channel data output port.
61 CE Input — Chip enable signal input port.
62 CL Input —
Microcomputer
Data transfer clock input port.
63 DI Input — Interface Data input port.
64 DO Output (H) Data output port. (N-ch. open drain output.)
65 *WRQ Output H Interruption signal output.
66 *RES Input — Chip reset signal input port.
This port must be set LOW after first applied power on.
67 DRF Output L Focus detection output port.
68 VDD5 Input — Power supply for Microprocessor.
69 VSS — — GND for digital circuit. Must be connected to 0 V.
70 CONT3 Input/Output Input General purpose port 1.
71 CONT2 Input/Output Input General purpose port 2.
72* CONT1 Input/Output Input General purpose port 3.
73 PDO1 Output — Internal VCO control phase comparator output port 1.
74 PDO2 Output Input Internal VCO control phase comparator output port 2.
75 VVSS — — GND for internal VCO. Must be connected to 0 V.
76 PCKIST Input — PDO output current adjustment resistor connection port.
77 VVDD Input — Power supply for internal VCO.
78 FR Input — VCO frequency range adjustment port.
79 LDS Input — LASER power detected signal input port.
80 LDD Output — LASER power control signal output port.
IC1 VHiLC78645NE1: CD Servo (LC78645NE) (2/2)
Pin No.
Function
Terminal Name
Input/Output
Setting in Reset
Right channel
D/A converter
Crystal
Oscillator
Anti-shock
Controlled with serial data command from micro-
computer. When not used, General purpose input/
output terminal 7. set it as the input terminal and open
it by connecting to 0 V, or set it as the output terminal
and open it.
PLL
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Be sure to supply the same potential to each power terminal. (VVDD, ADAVDD, VDD, LVDD, RVDD, XVDD)
Terminal witch is controlled by the power terminal (VDD5V) for a microcomputer interface :
CE(61 pin), CL(62 pin), DI(63 pin), DO(64 pin), WRQ(65 pin), RES(66 pin), DRF(67 pin)
All manuals and user guides at all-guides.com
all-guides.com
background
– 47 –
CD-M10000W/CP-M10000
Figure 47 BLOCK DIAGRAM OF IC
IC1 VHiLC78645NE1: CD Servo (LC78645NE)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
SLC0
SLCIST
EFMIN
RF
RFVDD
RFVSS
FIN1
FIN2
TIN1
TIN2
VREF
REFI
FE
TEC
TE
RFMON
JITTC
ADAVDD
ADAVSS
TDO
FDO
SPDO
SLDO
GPDAC
CONT4
CONT5
SBCK/CONT6
SBCK/FG
DEFECT
V/1P
FSEQ
MON11
MON12
MON13
MON14
MON15
(3.3V)VSS
VDD
DOUT
TEST
LDD
LDS
FR
VVDD
PCKIST
VVSS
PD02
PD01
CONT1
CONT2
CONT3
VSS
VDD5
DRF
*RES
*WRQ
DO
DI
CL
CE
DATA
DATACK
LRSY
ASDFIN
ASDACK
ASLRCK
IGMOUT
EFLG
C2F
XVSS
FSX/16MIN
XIN
XOUT
XVDD
RVDD
RCH0
RVSS
LVSS
LCH0
LVDD
LC78645NE
+
–
+
–
+
–
+
–
–
–
+
+
MIX
LPF
LPF
LPF
TBAL
TBAL
RAM
LEVEL SET
AGC EQ
SW
PH
BH
+
–
+
–
+
–
+
–
MONI
CONT
A/D
SERVO PROCESSOR
TRACK JUMP
AUTO ADJUST
JITTER
DETECT
1bit DAC
8FS
DIGITAL FILTER
GENERAL-PURPOSE
PORTS
COMMAND
INTERFACE
CLOCK
GENERATOR
CLV,CAV
CONTROL
PLL
VCEC
SLICE LEVEL
CONTROL
APC
S/H
D/A
SW
DRF
RUPTURE DEFECT
FRAME SYNC
DETECT,PROTECT INSERT,
EFN DECODE
VDD
SUBCODE DECODE CRC
MONITOR SIGNAL SELECTOR
RAM
ERROR
CORRECTION
AUDIO CD
AUDIO OUT
SERIAL
OUT
EXTERNAL
AUDIO IN
INTERPOLATION
MUTE
ATTENUATION
DEEMPHSIS
LPF
FIN1
FIN2
TIN1
TIN2
REF1
DETECT
ADIN
ADAVDD
ADAVSS
JITTC
SLC0
EFMIN
SLCIST
PCK
PDO1
PDO2
FR
PCKIST
VVDD
VVSS
SBCK/FG
XIN
XOUT
IGMOUT
XVDD
XVSS
*RES
*WRQ
CL
CE
DI
DO
VDD5V
CONT1, 2, 3
TEST
CONT4, 5
SBCK/CONT6
LVDD
LVSS
LCHO
RCHO
RVDD
RVSS
ASDFIN
ASDQCK
ASLRCK
DATA
DATACK
LRSY
DOUT
EFLG
C2F
FSK/16MIN
MON11~15
VSS
VDD
V/1P
FSEQ
DRF
GPDAC
SPDO
SLDO
TDO
FDO
LDS
LDD
VREF
RFMON
RFVSS
RFVDD
RF
TEC
TE
FE
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 48 –
1 VDD VDD Input (+) Power supply.
2 P37 -20 dB ATT Output -20 dB attenuator.
3 P36 NO USE Output GND
DSA_STB Input/Output DSA strube
4 P35 T_BIAS Output Tape record BIAS.
5 P34 T_T1/T2 Output Tape T1/T2 change.
6 P33 REC/PLAY Output Tape REC/PLAY change.
7 P32 RES OUT Output CD DSP RESET & MPEG microcomputer reset.
8 P31 DRF Input CD RF level detection.
9 P30 WRQ Input CD DSP write request.
10 RESET RESET Input Reset
11 X2 X2 Output Main clock.
12 X1 X1 Input Main clock.
13 VPP/IC XVPP/IC — GND
14* XT2 XT2 — Open
15 P04 SPN Input Tuner span change.
16 VDD VDD Input (+) Power supply.
17 P27 CD CLK Output CD DSP clock.
18 P26 CD DI Output CD DSP commsnd.
19 P25 CD DO Input CD DSP code Q out.
20 P24 CD CE Output CD DSP CE output.
21 P23 CE Output CE output.
22 P22 CLK Output Clock output.
23 P21 DI Output Data output.
24 P20 DO Input Data input.
25 AVSS AVSS — Analog ground.
26 ANI7 O/C SW Input CD open/Close switch.
DISC NO SW Input CD disc number switch.
DSA_DATA Input/Output DS data input.
27 ANI6 NO USE Input GND.
TUNER SM Input Tuner signal meter input.
DSA_ACK Input/Output DSA acr.
28 ANI5 SPEANA 2 Input Speana data input 16 kHz.
29 ANI4 SPEANA 1 Input Speana data input 1 kHz.
30 ANI3 SPEANA 0 Input Speana data input 63 kHz.
31-33 ANI2-ANI0 KEY 2-KEY 0 Input Key input.
34 AVDD AVDD Input Analog VDD.
35 AVREF AVREF Input Analog REF voltage.
36 INTP3 P_IN Input Power failure detect.
37 P02 JOG 1 Input JOG volume input 1.
38 P01 JOG 0 Input JOG volume input 0.
39 INTP0 REMOCON Input Remocon input.
40 VSS VSS — Ground voltage.
41 P74 SMUTE Output System mute control.
42 P73 T_SOL_B Output Tape 2 solenoid control.
43 P72 T_SOL_A Output Tape 1 solenoid control.
44 P71 T_MOTOR Output Tape motor control.
45 P70 TIMER LED Output Timer LED control.
46 VDD VDD Input (+) Power supply.
47* P127 AC RLY_CONT Output AC relay control.
48 P126 SP-RLY Output Speaker output relay control.
49 P125 SP_DET Input Speaker output detection.
IC701 RH-iX0460AWZZ: System Microcomputer (IX0460AW) (1/2)
Port Name
Terminal Name
Pin No.
Input/Output
Function
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
All manuals and user guides at all-guides.com
background
– 49 –
CD-M10000W/CP-M10000
50 P124 T 1 RUN Input Tape 1 run pulse imput.
51 P123 T 2 RUN Input Tape 2 run pulse input.
52 P122 CD CLAMP SW Input CD changer clamp switch.
53 P121 XBAS-MONST Input X-BASS/Monster ekchange control.
L:X-BASS, H:Monster
54 P120 PLAY SW_B Input PLAY switch for T2.
55 P117 FPA Input Tape 2 A-SIDE full proof.
56 P116 FPB Input Tape 2 B-SIDE full proof.
57 P115 MIC SW Input Mic switch.
58 P114 LCK 0 Output LED driver lck.
59 P113
DISTOUT
Output Destination output.
60 FIP39 NO USE Output GND
61 FIP38 KARAOKE LATCH Output Karaoke latch.
62 FIP37 NO USE Output GND
MPEG_POW Output Mpeg power control.
63* FIP36 NO USE Output GND
RDS RST/ESS_ACE Output RDS fan reset/Dsa sys acenowledge.
64 FIP35 NO USE Input GND
RDS RDDA/ESS_STB Input RDS transmit data input/dsa strobe.
65* FIP34 NO USE Output GND
RDS RDCL/ESS_DI Output RDS clock/Dsa data output.
66 FIP33 NO USE Input GND
RDS READY/ESS_DO Input Ready/dsa data input.
67 P103 DIST3 Input Destination input.
FIP32 P22 Output FL display driver.
68 P102 DIST2 Input Destination input.
FIP31 P21 Output FL display driver.
69 P101 DIST1 Input Destination input.
FIP30 P20 Output FL display driver.
70 P100 DIST0 Input Destination input.
FIP29 P19 Output FL display driver.
71-78 FIP28-FIP21 P18-P11 Output FL display driver.
79 VLOAD VLOAD Input FL driver (-) power supp. -30 V
80-89 FIP20-FIP11 P10-P1 Output FL display driver.
90-100 FIP10-FIP0 G11-G1 Output FL display driver.
IC701 RH-iX0460AWZZ: System Microcomputer (IX0460AW) (2/2)
Port Name
Terminal Name
Pin No.
Input/Output
Function
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 50 –
IC601 VHiLC75341/-1: Audio Processor (LC75341)
Figure 50 BLOCK DIAGRAM OF IC
19
20
21
222324
123
4
5
6
7
8
9
10 11 12 13 14 15 16
18
17
LVref
RVref
CONTROL
CIRCUIT
CONTROL
CIRCUIT
CONTROL
CIRCUIT
LOUT
LBASS
0.1uF
LIN
LSEL0
L4
L3
L2 L1
R1 R2
R3 R4
RSEL0
R1N
RTRELTRE
RBASS
0.1uF
ROUT
Yref
VDD
CL
DI
CE
YSS
CCB
INTERFACE
CD
Tuner
Tape
Video
24 23 22 21 20 19 18 17 16 15 14 13
123456789101112
LC75341
DI
CE
VSS
LOUT
LBASS
LTRE
LIN
LSEL0
L4
L3
L2
L1
CL
VDD
VREF
ROUT
RBASS
RTRB
RIN
RSEL0
R4
R3
R2
R1
All manuals and user guides at all-guides.com
background
– 51 –
CD-M10000W/CP-M10000
1 MIC SW Input Microphone SW L: MIC OFF, H: MIC ON
2 MCLKCONT — Clock Control.
Controls built-in clock generation circuit with external R.
3 VALC — ALC operating voltage setting terminal.
To set ALC operating voltage according to applied voltage.
4 MIC1 IN Input Microphone 1 input.
To connect MIC 1.
5* ALC1 — ALC1 control.
To connect ALC1 attack/recovery time setting capacitor.
6* MIC1NFIN Input Microphone 1 negative feedback input.
To connect low cut-off frequency of MIC1 amplifier setting capacitor.
7* MIC1 OUT Output Microphone 1 output.
8 MIC1 VOLIN Input Microphone 1 volume input.
To connect capacitor to reduce noise generated at time of volume change.
9 MIC2 IN Input Microphone 2 input.
To connect MIC 2.
10 ALC2 — ALC2 control.
To connect ALC2 attack/recovery time setting capacitor.
11 MIC2 NFIN Input Microphone 2 negative feedback input.
To connect low cut-off frequency of MIC2 amplifier setting capacitor.
12 MIC2 OUT Output Microphone 2 output.
13 MIC2 VOLIN Input Microphone 2 volume input.
To connect capacitor to reduce noise generated at time of volume change.
14 MICOUT Output Microphone output.
Mixing output of MIC 1 and MIC 2.
15 LPF1IN1 Input Low pass filter 1 input 1.
Pre-filter before A/D convertor for digital delay.
16 LPF1 IN2 Input Low pass filter 1 input 2.
Pre-filter before A/D convertor for digital delay.
17 LPF1 OUT Output Low pass filter 1 output.
Pre-filter before A/D convertor for digital delay.
18 AD INTOUT Output A/D integrator output.
Composes D/A conversion integrator with external capacitor.
19 AD INTIN Input A/D integrator input.
Composes D/A conversion integrator with external capacitor.
20 ADCONT — A/D control.
To determine adaptive time constant of A/D convertor with ADM system.
21 REF — Reference power output.
To connect 1/2 Vcc output and filter capacitor.
22 GND — Ground.
23 VCC Input Power supply.
24 DACONT — D/A control.
To determine adaptive time constant of D/A convertor with ADM system .
25 DAINTIN Input D/A Integrator input.
Composes D/A conversion integrator with external capacitor.
26 DAINTOUT Output D/A Integrator output.
Composes D/A conversion integrator with external capacitor.
27 LPF2IN1 Input Low pass filter 2 input 1.
Post-filter after D/A convertor for digital delay.
28 LPF2IN2 Input Low pass filter 2 input 2.
Post-filter after D/A convertor for digital delay.
29 LPF2OUT Output Low pass filter 2 output.
Post-filter after D/A convertor for digital delay.
30 VOLIN Input Echo effect/Echo feed back volume input.
To connect capacitor to reduce noise generated at time of volume change.
31 L IN Input Lch line input.
32 R IN Input Rch line input.
ICK1 VHiM65856SP-1: Mic Amp. (M65856SP) (1/2)
Port NamePin No. Input/Output
Function
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
All manuals and user guides at all-guides.com
all-guides.com
background
CD-M10000W/CP-M10000
– 52 –
ICK1 VHiM65856SP-1: Mic Amp. (M65856SP) (2/2)
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Function
33* KEYCONIN Input Monaural input for external KEYCONTROL IC.
Input/Output interface terminal for external KEYCONTROL IC.
34* SOURCEOUT Output Monaural input for external KEYCONTROL IC.
Input/Output interface terminal for external KEYCONTROL IC.
35 R OUT Output Rch mixing output.
36 L OUT Output Lch mixing output.
37 VCF IL — Vocal cut filter.
Processes frequencies lower then the vocal band.
38* PS1 Input Phase shift input 1.
Determines a constant at time of phase shift.
39* PS2 Input Phase shift input 2.
Determines a constant at time of phase shift.
40 LATCH Input Latch input via serial bus.
41 CLOCK Input Clock input via serial bus.
42 DATA Input Data input via serial bus.
42
DATA
41
CLOCK
40
LATCH
39
PS2
38
PS1
37
VCFIL
36
LOUT
35
ROUT
34
SOURCEOUT
33
KEYCONIN
32
RIN
31
LIN
30
VOLIN
29
LPF2OUT
28
LPF2IN2
27
LPF2IN1
26
DAINTOUT
25
DAINTIN
24
DACONT
23
VCC
22
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
GND
MIC SW
MCLKCONT
VALC
MIC1IN
ALC1
MCLK
MIC
VOL
MIC SW
(L,R)/2
L R STEREO
MIC1NFIN
MIC1OUT
MIC1VOLIN
MIC2IN
ALC2
MIC2NFIN
MIC2OUT
MIC2VOLIN
MICOUT
LPF1IN1
LPF1IN2
LPF1OUT
ADINTOUT
ADINTIN
ADCONT
REF
µ-COM I/F
PHASE
SHIFTER
SURROUND
ALC
ALC
MIC
VOL
ECHO
VOL
ECHO
F.BVOL
LPF
16kbit
SRAM
MAIN LOGIC
LPF D/A
VCC GND
ND
1/ZVcc
Figure 52 BLOCK DIAGRAM OF IC
Port NamePin No.
Input/Output
All manuals and user guides at all-guides.com
background
– 53 –
CD-M10000W/CP-M10000
FL701 VVKBJ11LM02T1: FL Display
FL DISPLAY
S1
9G
B1 B2 B3 B4 B5 B6 B7
B7 B6 B5 B4 B3 B2 B1
S5
1G 2G 3G 4G 5G 6G 7G 8G
11G 10G
S1
B8
B9
B10
B11
B12
B13
B14
S1S1
S1
S1
S4
S3
S2
col
f
a
bk
j
h
mg
c
n
e
r
p
Dp
d
B21
B20
B19
B18
B17
B16
B15
B1
B2
B3
B4
B5
B6
B7
11G
S1
B1
B2
B3
B4
B5
B6
B7
10G
S1
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
9G
S1
B1
B2
B3
B4
B5
B6
B7
8G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
7G
Dp
d
c
n
p
r
e
m
g
col
b
k
j
h
f
a
S2
S3
S4
S5
6G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
5G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
4G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
3G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
2G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
1G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
(Hiper)
(Lower)
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
– 54 –
–– MEMO ––
All manuals and user guides at all-guides.com
background
– 55 –
CD-M10000W/CP-M10000
PARTS GUIDE
NOTE:
Parts marked with “ ” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.
“HOW TO ORDER REPLACEMENT PARTS”
To have your order filled promptly and correctly, please furnish the
following information.
1. MODEL NUMBER 2. REF. No.
3. PART NO. 4. DESCRIPTION
MARK: SPARE PARTS-DELIVERY SECTION
For U.S.A. only
Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP
Explanation of capacitors/resistors parts codes
Capacitors
VCC ....................... Ceramic type
VCK........................ Ceramic type
VCT ........................ Semiconductor type
VC • • MF ............... Cylindrical type (without lead wire)
VC • • MN............... Cylindrical type (without lead wire)
VC • • TV................ Square type (without lead wire)
VC • • TQ ............... Square type (without lead wire)
VC • • CY ............... Square type (without lead wire)
VC • • CZ ............... Square type (without lead wire)
VC • • • • • • • • • J .. The 13th character represents capacity difference.
("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)
If there are no indications for the electrolytic capacitors, error is ±20%.
Resistors
VRD ....................... Carbon-film type
VRS........................ Carbon-film type
VRN ....................... Metal-film type
VR • • MF ............... Cylindrical type (without lead wire)
VR • • MN............... Cylindrical type (without lead wire)
VR • • TV................ Square type (without lead wire)
VR • • TQ ............... Square type (without lead wire)
VR • • CY ............... Square type (without lead wire)
VR • • CZ ............... Square type (without lead wire)
VR • • • • • • • • • J .. The 13th character represents error.
("J" ±5%, "F" ±1%, "D" ±0.5%.)
If there are no indications for other parts, the resistors are ±5%
carbon-film type.
MINI COMPONENT SYSTEM
MODEL CD-M10000W
SPEAKER SYSTEM
MODEL
CP-M10000
All manuals and user guides at all-guides.com
background
PRICE
RANK
DESCRIPTION
NO.
PART CODE
NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-M10000W/CP-M10000
– 1 –
INTEGRATED CIRCUITS
IC1 VHILC78645NE1 J AY CD Servo,LC78645NE
IC2 VHIM63001FP-1 J AX Focus/Tracking/Spin/Sled Driver,
M63001FP
IC101 VHIAN7345K/-1 J AM Playback and Record/Playback
Amp.,AN7345K
IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP
IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131
IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,
LA1832S
IC401 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P
IC601 VHILC75341/-1 J AM Audio Processor,LC75341
IC701 RH-IX0460AWZZ J AM System Microcomputer,
IX0460AW
IC702 VHIBU2092F/-1 J AM Input/Output Expander,BU2092F
IC703,704 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P
IC860 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P
IC901 VHISTK41217-1 J Power Amp.,STK41217
IC902 VHISTK41223-1 J Power Amp.,STK41223
ICK1 VHIM65856SP-1 J AX Mic Amp.,M65856SP
ICK2 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P
TRANSISTORS
Q1 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q2 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q3 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q103~106 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F
Q107,108 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q109 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q110,111 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q121,122 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q124 VS2SA1015GR-1 J AB Silicon,PNP,2SA1015 GR
Q126 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q128 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q302 VSKTC3194Y/-1 J AD Silicon,NPN,KTC3194 Y
Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q603~606 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q701~703 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q704,705 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y
Q708 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y
Q709 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q803 VSKTA1274Y/-1 J AE Silicon,PNP,KTA1274 Y
Q850 VSKTC2026//-1 J AF Silicon,NPN,KTC2026
Q851 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP
Q852 VHIKIA7805AP1 J AF Constant Voltage Regulator,
KIA7805AP
Q862,863 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q864 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q865 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q901~905 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q907 VSKRA107M//-1 J AE Digital,PNP,KRA107 M
Q908 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q911,912 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
QFM906 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
QK1 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
DIODES
D1,2 VHDDS1SS133-1 J AB Silicon,DS1SS133
D301,302 VHDDS1SS133-1 J AB Silicon,DS1SS133
D305 VHDDS1SS133-1 J AB Silicon,DS1SS133
D701~704 VHDDS1SS133-1 J AB Silicon,DS1SS133
D712,713 VHDDS1SS133-1 J AB Silicon,DS1SS133
D718 VHDDS1SS133-1 J AB Silicon,DS1SS133
D720~723 VHDDS1SS133-1 J AB Silicon,DS1SS133
D801~804 VHDD10XB60F-1 J AL Silicon,D10XB60F
D805,806 VHDDS1N404S-1 J AB Silicon,DS1N404S
D809 VHDDS1N404S-1 J AB Silicon,DS1N404S
D810 VHDDS1N404S-1 J AB Silicon,DS1N404S
D861~863 VHDDS1SS133-1 J AB Silicon,DS1SS133
D864 VHDDS1N404S-1 J AB Silicon,DS1N404S
D901,902 VHDDS1N404S-1 J AB Silicon,DS1N404S
D903~906 VHDDS1SS133-1 J AB Silicon,DS1SS133
D908 VHDDS1SS133-1 J AB Silicon,DS1SS133
D913 VHDDS1SS133-1 J AB Silicon,DS1SS133
D914,915 VHDDS1N404S-1 J AB Silicon,DS1N404S
D919 VHDDS1SS133-1 J AB Silicon,DS1SS133
DFM907 VHDDS1SS133-1 J AB Silicon,DS1SS133
DFM920,921 VHDDS1SS133-1 J AB Silicon,DS1SS133
DK1,2 VHDDS1SS133-1 J AB Silicon,DS1SS133
DT701 VHDDS1SS133-1 J AB Silicon,DS1SS133
DT703 VHDDS1SS133-1 J AB Silicon,DS1SS133
LED701,702 VHP4204UYT7-1 J AD LED,Yellow,4204UYT7
LED703,704 VHP31URT21+-1 J AD LED,Red,31URT21
LED705 VHP4204UYT7-1 J AD LED,Yellow,4204UYT7
LED706~708 VHP4204UGT7-1 J AD LED,Green,4204UGT7
LED722 VHP4204SRT7-1 J AD LED,Red,4204SRT7
ZD1 VHEDZ3R3BSB-1 J AB Zener,3.3V,DZ3.3BSB
ZD2 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB
ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB
ZD401,402 VHEMTZJ150C-1 J AC Zener,15V,MTZJ15C
ZD701 VHEMTZJ6R2C-1 J AC Zener,6.2V,MTZJ6.2C
ZD801 VHEDZ300BSB-1 J AB Zener,30V,DZ30BSB
ZD802 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA
ZD804 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA
ZD851 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB
ZD901,902 VHEDZ120BSB-1 J AB Zener,12V,DZ12BSB
ZD903,904 VHEDZ150BSB-1 J Zener,15V,DZ15BSB
ZDK1 VHEMTZJ5R6B-1 J AD Zener,5.6V,MTZJ5.6B
FILTERS
BF301 RFILR0008AWZZ J AE Band Pass Filter
CF303 RFILF0124AFZZ J AD FM IF,10.7 MHz
CF351 RFILF0003AWZZ J AK FM IF
CF352 RFILA0009AWZZ J AE AM IF
TRANSFORMERS
T301 RCILB0065AWZZ J AC FM OSC.
T302 RCILI0017AWZZ J AB FM IF
T303 RCILA0052AWZZ J AE AM Tracking
T306 RCILB0067AWZZ J AD AM OSC.
T351 RCILI0019AWZZ J AD AM IF
1 T801 RTRNP0397AWZZ J Power [MAIN]
1 T802 RTRNP0390AWZZ J
Power with CNS801/CNS802 [SUB]
COILS
L1 VP-XHR82K0000 J AC 0.82 µH,Choke
L104 VP-MK331K0000 J AB 330 µH,Choke
L312 RCILR0056AWZZ J AB FM RF
L351,352 VP-DH101K0000 J AB 100 µH,Choke
L901~904 RCILZ0024AFZZ J 3 µH,Choke
VARIABLE RESISTOR
VRK1 92LVRR1674A J AF 20 kohms (B) [Mic Volume]
VARIABLE CAPACITORS
VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S
VD302,303 VHCKDV147B/-1 J AH Variable Capacitance,KDV147B
VIBRATORS
X351 92LCRSTL1425A J AF Crystal,456 kHz
X352 RCRSP0019AWZZ J AF Crystal,4.5 MHz
XL1 RCRM-0041AWZZ J AF Ceramic,33.8688 MHz
XL701 RCRSP0003AWZZ J AH Crystal,4.1943 MHz
THERMISTOR
1 P901 VHHZPP221A+-1 J AL Posistor
CAPACITORS
C1 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C2 VCTYMN1CY103N J AA 0.01 µF,16V
C3 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C4 VCKYMN1HB102K J AA 0.001 µF,50V
C5 VCQYKA1HM473J J AB 0.047 µF,50V,Mylar
C6 VCTYPA1CX104K J AB 0.1 µF,16V
C8 VCTYMN1CX472K J AA 0.0047 µF,16V
CD-M10000W
All manuals and user guides at all-guides.com
all-guides.com
background
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PART CODE
PRICE
RANK
DESCRIPTION
CD-M10000W/CP-M10000
– 2 –
C9 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C10 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C11 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic
C12 VCCSPA1HL101J J AA 100 pF,50V
C13 VCTYMN1EF223Z J AA 0.022 µF,25V
C14 RC-EZY107AF1A J AB 100 µF,10V,Electrolytic
C16 VCEAEA0JW337M J AD 330 µF,6.3V,Electrolytic
C18 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C23,24 RC-EZY106AF1H J AB 10 µF,50V,Electrolytic
C25,26 VCTYMN1CX152K J AA 0.0015 µF,16V
C27 VCTYMN1EF223Z J AA 0.022 µF,25V
C28 VCKYMN1HB101K J AA 100 pF,50V
C30 VCKYMN1HB101K J AA 100 pF,50V
C32~34 VCKYMN1HB101K J AA 100 pF,50V
C35 VCQYKA1HM473J J AB 0.047 µF,50V,Mylar
C36 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C37 VCTYPA1CX104K J AB 0.1 µF,16V
C38 VCTYMN1CY103N J AA 0.01 µF,16V
C39 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C40 VCEAZA0JW227M J AC 220 µF,6.3V,Electrolytic
C41 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C42 VCTYMN1CY103N J AA 0.01 µF,16V
C44 VCKYMN1HB102K J AA 0.001 µF,50V
C48 VCKZPA1HF223Z J AA 0.022 µF,50V
C49 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C50 VCCCPA1HH220J J AA 22 pF (CH),50V
C51 VCTYBT1EF223Z J AA 0.022 µF,25V
C101,102 VCKYMN1HB561K J AA 560 pF,50V
C105,106 VCKYMN1HB181K J AA 180 pF,50V
C107,108 VCKYMN1HB561K J AA 560 pF,50V
C111~114 VCKYMN1HB331K J AA 330 pF,50V
C115,116 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic
C117,118 VCTYPA1EX333K J AA 0.033 µF,25V
C119,120 VCKYMN1HB561K J AA 560 pF,50V
C121,122 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C123,124 VCTYPA1EX222K J AA 0.0022 µF,25V
C127 VCTYMN1EF223Z J AA 0.022 µF,25V
C128 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C131,132 VCKYMN1HB271K J AA 270 pF,50V
C133,134 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C135,136 VCTYPA1CX223K J AA 0.022 µF,16V
C139,140 VCTYMN1CX332K J AA 0.0033 µF,16V
C141,142 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C145 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C146 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C150 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene
C151 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar
C152 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C153 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C154 VCKYPA1HF473Z J AB 0.047 µF,50V
C303 VCCCMN1HH100J J AA 10 pF (CH),50V
C304 VCTYMN1CY103N J AA 0.01 µF,16V
C305 VCCCMN1HH4R7C J AA 4.7 pF (CH),50V
C306 VCTYMN1EF223Z J AA 0.022 µF,25V
C307 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C308 VCCCMN1HH4R7C J AA 4.7 pF (CH),50V
C309 VCKYMN1HB102K J AA 0.001 µF,50V
C310 VCCCMN1HH150J J AA 15 pF (CH),50V
C311 VCCSMN1HL180J J AA 18 pF,50V
C312 VCTYMN1EF223Z J AA 0.022 µF,25V
C313 VCCCMN1HH220J J AA 22 pF (CH),50V
C314,315 VCTYMN1CX472K J AA 0.0047 µF,16V
C316 VCTYMN1EF223Z J AA 0.022 µF,25V
C317 VCKYMN1HB102K J AA 0.001 µF,50V
C318 VCKYMN1HB101K J AA 100 pF,50V
C323 VCTYMN1EF223Z J AA 0.022 µF,25V
C324 VCCUMN1HJ8R2D J AA 8.2 pF (UJ),50V
C330 VCCUMN1HJ150J J AA 15 pF (UJ),50V
C331 VCKYPA1HF473Z J AB 0.047 µF,50V
C332 VCTYMN1EF223Z J AA 0.022 µF,25V
C334 VCCUMN1HJ220J J AA 22 pF (UJ),50V
C335 VCKYMN1HB561K J AA 560 pF,50V
C338 VCKYMN1HB102K J AA 0.001 µF,50V
C342 VCTYMN1EF223Z J AA 0.022 µF,25V
C350,351 VCTYMN1EF223Z J AA 0.022 µF,25V
C352 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V
C355 VCCSMN1HL220J J AA 22 pF,50V
C356 VCKYMN1HB102K J AA 0.001 µF,50V
C357 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C358 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C361 VCTYMN1EF223Z J AA 0.022 µF,25V
C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C363 VCTYMN1EF223Z J AA 0.022 µF,25V
C364 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C365 VCKYPA1HF223Z J AB 0.022 µF,50V
C366 VCKYMN1HB102K J AA 0.001 µF,50V
C367,368 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C369 VCCUMN1HJ270J J AA 27 pF (UJ),50V
C370~372 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C373,374 VCTYPA1CX183K J AA 0.018 µF,16V
C380 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C381 VCCCMN1HH120J J AA 12 pF (CH),50V
C382 VCCCMN1HH150J J AA 15 pF (CH),50V
C385 VCTYMN1CY103N J AA 0.01 µF,16V
C386 VCKYMN1HB331K J AA 330 pF,50V
C387 VCTYMN1EF223Z J AA 0.022 µF,25V
C388 VCKYMN1HB102K J AA 0.001 µF,50V
C391 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C392 VCKYMN1HB102K J AA 0.001 µF,50V
C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C394 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C395 VCTYMN1EF223Z J AA 0.022 µF,25V
C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C397 VCTYMN1EF223Z J AA 0.022 µF,25V
C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C399 VCTYMN1EF223Z J AA 0.022 µF,25V
C432 VCFYHA1HA184J J AC 0.18 µF,50V,Thin Film
C433 VCQYKA1HM154K J AB 0.15 µF,50V,Mylar
C434 VCCCPA1HH101J J AA 100 pF (CH),50V
C435 VCQYKA1HM154K J AB 0.15 µF,50V,Mylar
C436 VCFYHA1HA184J J AC 0.18 µF,50V,Thin Film
C437 VCCCPA1HH101J J AA 100 pF (CH),50V
C438,439 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C440 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C441 VCKYPA1HF223Z J AB 0.022 µF,50V
C442,443 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C444 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C445 VCKYPA1HF223Z J AB 0.022 µF,50V
C446~449 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C450,451 VCCCPA1HH221J J AA 220 pF (CH),50V
C602 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C605 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic
C606 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C607~610 VCFYHA1HA224J J AC 0.22 µF,50V,Thin Film
C611,612 VCTYMN1CX152K J AA 0.0015 µF,16V
C613,614 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C615,616 VCKYMN1HB102K J AA 0.001 µF,50V
C617 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C618 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C619,620 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C621,622 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C623~630 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C631,632 VCKYMN1HB391K J AA 390 pF,50V
C635,636 VCKYMN1HB102K J AA 0.001 µF,50V
C641,642 VCCSPA1HL470J J AA 0.0033 µF,16V
C701 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C702 VCTYMN1EF223Z J AA 0.022 µF,25V
C714 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C715 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C719 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C720,721 VCKYMN1HB102K J AA 0.001 µF,50V
C723 VCCSMN1HL150J J AA 15 pF,50V
C724 VCCSMN1HL180J J AA 18 pF,50V
C725 VCTYMN1EF223Z J AA 0.022 µF,25V
C726 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C727 VCKYBT1HB471K J AA 470 pF,50V
C728 VCTYMN1CY103N J AA 0.01 µF,16V
C729 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C732 VCTYMN1EF223Z J AA 0.022 µF,25V
C733 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C809,810 VCQYKU2AM224K J AB 0.22 µF,100V,Mylar
C811~814 VCFYDA1HA224J J AB 0.22 µF,50V,Polyester
C815,816 VCQYKU2AM224K J AB 0.22 µF,100V,Mylar
C817,818 VCFYDA1HA224J J AB 0.22 µF,50V,Polyester
C819 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C821 VCEAZV1JW227M J AC 220 µF,63V,Electrolytic
C822,823 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C824 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic
C850 RC-EZ0060AWZZ J AD 2200 µF,35V,Electrolytic
C852 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C855 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C856 VCKYPA1HB101K J AA 100 pF,50V
C859 VCQYKA1HM102K J AA 0.001 µF,50V,Mylar
All manuals and user guides at all-guides.com
background
PRICE
RANK
DESCRIPTION
NO.
PART CODE
NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-M10000W/CP-M10000
– 3 –
C860 RC-EZ0060AWZZ J AD 2200 µF,35V,Electrolytic
C861 VCTYMN1EF223Z J AA 0.022 µF,25V
C863,864 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C865 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C866 VCKYMN1HB102K J AA 0.001 µF,50V
C867 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C899 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C901,902 RC-EZ0029AWZZ J AN 3300 µF,71V,Electrolytic
C903,904 RC-EZ0061AWZZ J AE 4700 µF,35V,Electrolytic
C905 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic
C906~909 VCFYDA1HA224J J AB 0.22 µF,50V,Polyester
C911,912 VCKYPA1HB821K J AA 820 pF,50V
C913,914 VCCSPA1HL470J J AA 47 pF,50V
C915,916 VCEAZA1EW475M J AC 4.7 µF,25V,Electrolytic
C917,918 VCFYHA1HA224J J AC 0.22 µF,50V,Polyester
C919,920 VCEAZV2AW107M J AE 100 µF,100V,Electrolytic
C921,922 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C923,924 VCQYKA1HM223J J AB 0.022 µF,50V,Mylar
C925 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C927~930 VCFYHA1HA224J J AC 0.22 µF,50V,Thin Film
C932 VCFYHA1HA224J J AC 0.22 µF,50V,Thin Film
C956,957 VCEAZV2AW107M J AE 100 µF,100V,Electrolytic
C978,979 VCEAZW2AW338M J AR 3300 µF,100V,Electrolytic
C980,981 RC-GZW478AF1H J AH 4700 µF,50V,Electrolytic
C982 VCKYPA1HB821K J AA 820 pF,50V
C983 VCCSPA1HL470J J AA 47 pF,50V
C984,985 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C986 VCKYPA1HB821K J AA 820 pF,50V
C987 VCCSPA1HL470J J AA 47 pF,50V
C988 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic
C989~992 VCEAZV2AW107M J AE 100 µF,100V,Electrolytic
C993 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C995 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C997 VCEAZA1HW104M J AB 0.1 µF,50V,Electrolytic
C998 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C999 VCFYHA1HA224J J AC 0.22 µF,50V,Thin Film
CFM943 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
CFM947 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
CK1 VCTYPA1CX103K J AA 0.01 µF,16V
CK2 VCFYHA1HA474J J AD 0.47 µF,50V,Thin Film
CK3 VCKYBT1HB102K J AA 0.001 µF,50V
CK6 VCFYDA1HA104J J AB 0.1 µF,50V,Thin Film
CK7 VCFYHA1HA474J J AD 0.47 µF,50V,Thin Film
CK8 RC-EZY475AF1H J AB 4.7 µF,50V,Electrolytic
CK9 RC-EZY225AF1H J AB 2.2 µF,50V,Electrolytic
CK10,11 VCFYDA1HA104J J AB 0.1 µF,50V,Thin Film
CK12 RC-EZY225AF1H J AB 2.2 µF,50V,Electrolytic
CK13 VCTYPA1CX472K J AA 0.0047 µF,16V
CK14 VCTYPA1CX102K J AA 0.001 µF,16V
CK15 VCFYDA1HA683J J AB 0.068 µF,50V,Polyester
CK16 VCFYHA1HA224J J AC 0.22 µF,50V,Thin Film
CK17 VCEAEA1AW227M J AB 220 µF,10V,Electrolytic
CK18 VCEAEA1CW107M J AB 100 µF,16V,Electrolytic
CK19 VCTYBT1EF223Z J AA 0.022 µF,25V
CK20 VCFYHA1HA224J J AC 0.22 µF,50V,Thin Film
CK21 VCFYDA1HA683J J AB 0.068 µF,50V,Polyester
CK22 VCTYPA1CX472K J AA 0.0047 µF,16V
CK23 VCKYPA1HB102K J AA 0.001 µF,50V
CK24~26 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CK29,30 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CK31 VCFYDA1HA154J J AB 0.15 µF,50V,Polyester
CK32 VCTYPA1EX472K J AA 0.0047 µF,25V
CK33~35 VCCSBT1HL470J J AA 47 pF,50V
CK41 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
CK42 VCTYBT1EF223Z J AA 0.022 µF,25V
CK43,44 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
CK45,46 RC-EZY225AF1H J AB 2.2 µF,50V,Electrolytic
CK47,48 VCCSPA1HL221J J AA 220 pF,50V
CK49,50 VCCSPA1HL101J J AA 100 pF,50V
CK51,52 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
CK53 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
CK72 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
CS701,702 VCKYMN1HB271K J AA 270 pF,50V
CS703,704 VCTYMN1CX272K J AA 0.0027 µF,16V
CS705 VCTYMN1EF223Z J AA 0.022 µF,25V
CS706,707 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CS708,709 VCTYMN1EF223Z J AA 0.022 µF,25V
CS710 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
CS711,712 VCTYMN1CX682K J AA 0.0068 µF,16V
CS713 VCTYMN1EF223Z J AA 0.022 µF,25V
CT1,2 VCTYPA1CX102K J AA 0.001 µF,16V
RESISTORS
VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory
R1,2 VRD-ST2CD123J J AA 12 kohms,1/6W
R3 VRD-ST2CD333J J AA 33 kohms,1/6W
R4,5 VRD-ST2CD123J J AA 12 kohms,1/6W
R6 VRD-ST2CD333J J AA 33 kohms,1/6W
R7 VRD-ST2CD470J J AA 47 ohms,1/6W
R9 VRD-ST2CD3R3J J AA 3.3 ohms,1/6W
R10 VRD-ST2CD273J J AA 27 kohms,1/6W
R11 VRD-MN2BD103J J AA 10 kohm,1/8W
R12 VRD-MN2BD331J J AA 330 ohms,1/8W
R13~17 VRD-MN2BD102J J AA 1 kohm,1/8W
R18 VRD-ST2CD102J J AA 1 kohm,1/6W
R19 VRD-ST2CD153J J AA 15 kohms,1/6W
R20 VRD-ST2CD103J J AA 10 kohm,1/6W
R22 VRD-ST2CD101J J AA 100 ohm,1/6W
R23 VRD-MN2BD221J J AA 220 ohms,1/8W
R24,25 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R26,27 VRD-MN2BD103J J AA 10 kohm,1/8W
R28,29 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R30 VRD-ST2CD822J J AA 8.2 kohms,1/6W
R31~38 VRD-ST2CD102J J AA 1 kohm,1/6W
R39,40 VRD-MN2BD681J J AA 680 ohms,1/8W
R41 VRD-MN2BD123J J AA 12 kohms,1/8W
R42 VRD-MN2BD122J J AA 1.2 kohms,1/8W
R43 VRD-MN2BD221J J AA 220 ohms,1/8W
R44 VRD-ST2CD123J J AA 12 kohms,1/6W
R45,46 VRD-MN2BD471J J AA 470 ohms,1/8W
R47 VRD-MN2BD101J J AA 100 ohm,1/8W
R49 VRD-ST2EE1R0J J AA 1 ohm,1/4W
R65 VRD-ST2CD332J J AA 3.3 kohms,1/6W
1 R80 VRG-ST2EG3R3J J AB 3.3 ohms,1/4W,Fusible
R101 VRD-MN2BD102J J AA 1 kohm,1/8W
R102 VRD-ST2CD102J J AA 1 kohm,1/6W
R103,104 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R105,106 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R107,108 VRD-MN2BD473J J AA 47 kohms,1/8W
R109,110 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R111 VRD-ST2CD153J J AA 15 kohms,1/6W
R112 VRD-MN2BD153J J AA 15 kohms,1/8W
R113,114 VRD-MN2BD103J J AA 10 kohm,1/8W
R115 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R117,118 VRD-ST2CD102J J AA 1 kohm,1/6W
R119 VRD-ST2CD560J J AA 56 ohms,1/6W
R120 VRD-MN2BD560J J AA 56 ohms,1/8W
R121,122 VRD-MN2BD104J J AA 100 kohm,1/8W
R123,124 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R125,126 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R131,132 VRD-MN2BD123J J AA 12 kohms,1/8W
R134 VRD-MN2BD683J J AA 68 kohms,1/8W
R135,136 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R137,138 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R139,140 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R141,142 VRD-MN2BD101J J AA 100 ohm,1/8W
R145,146 VRD-MN2BD103J J AA 10 kohm,1/8W
R153 VRD-MN2BD103J J AA 10 kohm,1/8W
R154 VRD-ST2CD103J J AA 10 kohm,1/6W
R155 VRD-ST2EE151J J AA 150 ohms,1/4W
R156 VRD-MN2BD224J J AA 220 kohms,1/8W
R157 VRD-ST2CD224J J AA 220 kohms,1/6W
R158 VRD-ST2EE221J J AA 220 ohms,1/4W
R160 VRD-ST2EE820J J AA 82 ohms,1/4W
R162 VRD-MN2BD473J J AA 47 kohms,1/8W
R164 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R166 VRD-MN2BD223J J AA 22 kohms,1/8W
R167 VRD-MN2BD473J J AA 47 kohms,1/8W
R168 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W
R169~174 VRD-MN2BD102J J AA 1 kohm,1/8W
R302 VRD-MN2BD100J J AA 10 ohm,1/8W
R309 VRD-ST2CD103J J AA 10 kohm,1/6W
R311 VRD-MN2BD104J J AA 100 kohm,1/8W
R313 VRD-MN2BD333J J AA 33 kohms,1/8W
R314 VRD-ST2CD220J J AA 22 ohms,1/6W
R316 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R322 VRD-MN2BD681J J AA 680 ohms,1/8W
R323 VRD-MN2BD683J J AA 68 kohms,1/8W
R325 VRD-MN2BD473J J AA 47 kohms,1/8W
R327 VRD-MN2BD330J J AA 33 ohms,1/8W
R336 VRD-MN2BD103J J AA 10 kohm,1/8W
R350 VRD-MN2BD272J J AA 2.7 kohms,1/8W
All manuals and user guides at all-guides.com
background
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PART CODE
PRICE
RANK
DESCRIPTION
CD-M10000W/CP-M10000
– 4 –
R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R352 VRD-MN2BD102J J AA 1 kohm,1/8W
R353 VRD-MN2BD271J J AA 270 ohms,1/8W
R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R356 VRD-MN2BD102J J AA 1 kohm,1/8W
R357 VRD-ST2CD474J J AA 470 kohms,1/6W
R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R361,362 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R363,364 VRD-ST2CD682J J AA 6.8 kohms,1/6W
R365 VRD-MN2BD103J J AA 10 kohm,1/8W
R368 VRD-ST2CD223J J AA 22 kohms,1/6W
R372~374 VRD-MN2BD102J J AA 1 kohm,1/8W
R375 VRD-ST2CD471J J AA 470 ohms,1/6W
R376 VRD-MN2BD102J J AA 1 kohm,1/8W
R377 VRD-MN2BD473J J AA 47 kohms,1/8W
R378 VRD-MN2BD102J J AA 1 kohm,1/8W
R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R381 VRD-MN2BD103J J AA 10 kohm,1/8W
R382 VRD-ST2EE151J J AA 150 ohms,1/4W
R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R384 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R385 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R388 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R391,392 VRD-ST2EE271J J AA 270 ohms,1/4W
R393 VRD-MN2BD102J J AA 1 kohm,1/8W
R395 VRD-MN2BD473J J AA 47 kohms,1/8W
R401,402 VRD-ST2CD183J J AA 18 kohms,1/6W
R404 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R405 VRD-ST2CD822J J AA 8.2 kohms,1/6W
R407 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R408 VRD-ST2CD822J J AA 8.2 kohms,1/6W
R409,410 VRD-ST2CD561J J AA 560 ohms,1/6W
R411,412 VRD-ST2CD102J J AA 1 kohm,1/6W
R413,414 VRD-ST2CD683J J AA 68 kohms,1/6W
R415,416 VRS-VV3DA821J J AC 820 ohms,2W
R417,418 VRD-ST2CD104J J AA 100 kohm,1/6W
R419,420 VRD-ST2CD683J J AA 68 kohms,1/6W
R605,606 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R607,608 VRD-MN2BD103J J AA 10 kohm,1/8W
R609,610 VRD-ST2CD331J J AA 330 ohms,1/6W
R611,612 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R613,614 VRD-MN2BD391J J AA 390 ohms,1/8W
R615,616 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R617,618 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R619,620 VRD-MN2BD223J J AA 22 kohms,1/8W
R621,622 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R623,624 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R625~627 VRD-ST2CD102J J AA 1 kohm,1/6W
R631,632 VRD-MN2BD822J J AA 8.2 kohms,1/8W
R633,634 VRD-MN2BD393J J AA 39 kohms,1/8W
R637,638 VRD-MN2BD474J J AA 470 kohms,1/8W
R700 VRD-MN2BD103J J AA 10 kohm,1/8W
R701 VRD-MN2BD104J J AA 100 kohm,1/8W
R702 VRD-ST2CD102J J AA 1 kohm,1/6W
R703 VRD-ST2CD103J J AA 10 kohm,1/6W
R704 VRD-MN2BD104J J AA 100 kohm,1/8W
R705 VRD-ST2CD102J J AA 1 kohm,1/6W
R706 VRD-ST2CD103J J AA 10 kohm,1/6W
R708 VRD-ST2CD103J J AA 10 kohm,1/6W
R713,714 VRD-MN2BD103J J AA 10 kohm,1/8W
R716 VRD-MN2BD104J J AA 100 kohm,1/8W
R717,718 VRD-MN2BD103J J AA 10 kohm,1/8W
R719 VRD-ST2CD102J J AA 1 kohm,1/6W
R720 VRD-MN2BD103J J AA 10 kohm,1/8W
R721 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R724 VRD-ST2CD330J J AA 33 ohms,1/6W
R725 VRD-MN2BD103J J AA 10 kohm,1/8W
R736,737 VRD-MN2BD103J J AA 10 kohm,1/8W
R738~745 VRD-ST2CD102J J AA 1 kohm,1/6W
R746 VRD-MN2BD103J J AA 10 kohm,1/8W
R747 VRD-ST2CD102J J AA 1 kohm,1/6W
R748 VRD-MN2BD102J J AA 1 kohm,1/8W
R749 VRD-MN2BD103J J AA 10 kohm,1/8W
R751 VRD-MN2BD102J J AA 1 kohm,1/8W
R752 VRD-MN2BD103J J AA 10 kohm,1/8W
R753 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R754 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R755,756 VRD-ST2CD471J J AA 470 ohms,1/6W
R757 VRD-MN2BD103J J AA 10 kohm,1/8W
R758~761 VRD-ST2CD102J J AA 1 kohm,1/6W
R762 VRD-MN2BD102J J AA 1 kohm,1/8W
R763~765 VRD-MN2BD103J J AA 10 kohm,1/8W
R766~768 VRD-MN2BD102J J AA 1 kohm,1/8W
R769 VRD-ST2CD102J J AA 1 kohm,1/6W
R770 VRD-MN2BD102J J AA 1 kohm,1/8W
R771~773 VRD-ST2CD102J J AA 1 kohm,1/6W
R775~777 VRD-ST2CD102J J AA 1 kohm,1/6W
R778 VRD-MN2BD102J J AA 1 kohm,1/8W
R779~782 VRD-ST2CD102J J AA 1 kohm,1/6W
R783~791 VRD-MN2BD102J J AA 1 kohm,1/8W
R792,793 VRD-MN2BD103J J AA 10 kohm,1/8W
R794 VRD-ST2CD102J J AA 1 kohm,1/6W
R795 VRD-MN2BD103J J AA 10 kohm,1/8W
R796 VRD-MN2BD473J J AA 47 kohms,1/8W
R797 VRD-MN2BD104J J AA 100 kohm,1/8W
R799 VRD-MN2BD101J J AA 100 ohm,1/8W
R802 VRD-ST2CD102J J AA 1 kohm,1/6W
R803 VRD-ST2CD123J J AA 12 kohms,1/6W
R805 VRD-ST2EE100J J AA 10 ohm,1/4W
R806 VRD-ST2CD224J J AA 220 kohms,1/6W
R807 VRD-ST2CD473J J AA 47 kohms,1/6W
R810,811 VRD-ST2EE470J J AA 47 ohms,1/4W
R819 VRD-ST2CD473J J AA 47 kohms,1/6W
R852,853 VRD-ST2CD223J J AA 22 kohms,1/6W
R854 VRD-ST2CD103J J AA 10 kohm,1/6W
R855 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W
R856 VRD-ST2EE331J J AA 330 ohms,1/4W
R861 VRD-MN2BD683J J AA 68 kohms,1/8W
R863 VRD-MN2BD333J J AA 33 kohms,1/8W
R865 VRD-ST2EE101J J AA 100 ohm,1/4W
R866 VRD-ST2EE331J J AA 330 ohms,1/4W
R867 VRD-ST2CD104J J AA 100 kohm,1/6W
R868,869 VRD-MN2BD123J J AA 12 kohms,1/8W
R870 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R871 VRD-ST2EE103J J AA 10 kohm,1/4W
R873 VRD-MN2BD102J J AA 1 kohm,1/8W
R874,875 VRD-MN2BD104J J AA 100 kohm,1/8W
R878,879 VRD-MN2BD223J J AA 22 kohms,1/8W
R880 VRD-MN2BD103J J AA 10 kohm,1/8W
R900 VRD-RT2HD100J J AA 10 ohm,1/2W
R901,902 VRD-ST2CD102J J AA 1 kohm,1/6W
R903,904 VRD-ST2CD563J J AA 56 kohms,1/6W
R905 VRD-ST2CD102J J AA 1 kohm,1/6W
R906~909 VRD-ST2CD561J J AA 560 ohms,1/6W
R910 VRD-ST2CD563J J AA 56 kohms,1/6W
1 R911,912 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible
R913 VRN-VV3LAR22J J AC 0.22 ohms,3W
R916 VRN-VV3LAR22J J AC 0.22 ohms,3W
R917,918 VRN-VV3LAR10J J AD 0.1 ohm,3W
R919,920 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R921,922 VRD-ST2CD182J J AA 1.8 kohms,1/6W
R923 VRD-ST2CD563J J AA 56 kohms,1/6W
R924 VRD-RT2HD100J J AA 10 ohm,1/2W
R925~928 VRD-RT2HD100J J AA 10 ohm,1/2W
R929,930 VRD-ST2CD563J J AA 56 kohms,1/6W
R931,932 VRD-RT2HD100J J AA 10 ohm,1/2W
R933,934 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R935,936 VRD-RT2HD100J J AA 10 ohm,1/2W
R937 VRD-ST2EE223J J AA 22 kohms,1/4W
R938,939 VRD-RT2HD100J J AA 10 ohm,1/2W
R942 VRD-RT2HD100J J AA 10 ohm,1/2W
R943 VRD-RT2HD100J J AA 10 ohm,1/2W
R944 VRD-ST2CD333J J AA 33 kohms,1/6W
R945 VRD-ST2CD123J J AA 12 kohms,1/6W
R946 VRD-ST2CD103J J AA 10 kohm,1/6W
R947 VRD-RT2HD223J J AA 22 kohms,1/2W
R948 VRD-ST2EE223J J AA 22 kohms,1/4W
R949 VRD-ST2CD474J J AA 470 kohms,1/6W
R950 VRD-ST2CD102J J AA 1 kohm,1/6W
R951,952 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R953,954 VRD-RT2HD100J J AA 10 ohm,1/2W
R955 VRD-RT2HD100J J AA 10 ohm,1/2W
R956 VRD-ST2CD563J J AA 56 kohms,1/6W
R957~959 VRD-RT2HD100J J AA 10 ohm,1/2W
R960,961 VRS-VV3DA122J J 1.2 ohms,2W
R962 VRD-ST2CD102J J AA 1 kohm,1/6W
R963 VRD-ST2CD103J J AA 10 kohm,1/6W
R964,965 VRS-VV3DA561J J AC 560 ohms,2W
R966~969 VRD-ST2EE102J J AA 1 kohm,1/4W
R974 VRD-RT2HD223J J AA 22 kohms,1/2W
All manuals and user guides at all-guides.com
background
PRICE
RANK
DESCRIPTION
NO.
PART CODE
NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-M10000W/CP-M10000
– 5 –
R975,976 VRD-ST2CD102J J AA 1 kohm,1/6W
R977 VRD-RT2HD223J J AA 22 kohms,1/2W
R978 VRD-ST2EE223J J AA 22 kohms,1/4W
R979 VRD-RT2HD223J J AA 22 kohms,1/2W
R980 VRD-ST2EE223J J AA 22 kohms,1/4W
R981,982 VRD-ST2CD102J J AA 1 kohm,1/6W
R983 VRD-ST2CD563J J AA 56 kohms,1/6W
R984 VRD-ST2CD333J J AA 33 kohms,1/6W
R985 VRD-ST2CD102J J AA 1 kohm,1/6W
1 R986 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible
R987~990 VRN-CM05N0R1J J 0.1 ohms,5W
1 R991 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible
R998,999 VRD-ST2CD563J J AA 56 kohms,1/6W
RD01 VRD-MN2BD681J J AA 680 ohms,1/8W
RD02 VRD-MN2BD821J J AA 820 ohms,1/8W
RD03 VRD-MN2BD102J J AA 1 kohm,1/8W
RD04 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RD05 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RD06 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RD07 VRD-MN2BD392J J AA 3.9 kohms,1/8W
RD08 VRD-MN2BD562J J AA 5.6 kohms,1/8W
RD09 VRD-MN2BD103J J AA 10 kohm,1/8W
RD10 VRD-MN2BD183J J AA 18 kohms,1/8W
RD11 VRD-MN2BD333J J AA 33 kohms,1/8W
RD12 VRD-MN2BD104J J AA 100 kohm,1/8W
RD13 VRD-MN2BD681J J AA 680 ohms,1/8W
RD14 VRD-MN2BD821J J AA 820 ohms,1/8W
RD15 VRD-ST2CD184J J AA 180 kohms,1/6W
RD25 VRD-MN2BD681J J AA 680 ohms,1/8W
RD26 VRD-MN2BD821J J AA 820 ohms,1/8W
RD27 VRD-MN2BD102J J AA 1 kohm,1/8W
RD28 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RD29 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RD30 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RD31 VRD-MN2BD392J J AA 3.9 kohms,1/8W
RD32 VRD-MN2BD562J J AA 5.6 kohms,1/8W
RD33 VRD-MN2BD103J J AA 10 kohm,1/8W
RD34 VRD-MN2BD153J J AA 15 kohms,1/8W
RD35 VRD-MN2BD333J J AA 33 kohms,1/8W
RD36 VRD-MN2BD104J J AA 100 kohm,1/8W
RFM937 VRD-ST2CD153J J AA 15 kohms,1/6W
RFM938 VRD-ST2CD683J J AA 68 kohms,1/6W
RFM939 VRD-ST2CD102J J AA 1 kohm,1/6W
RK1 VRD-ST2CD103J J AA 10 kohm,1/6W
RK2,3 VRD-ST2CD563J J AA 56 kohms,1/6W
RK4 VRD-ST2CD103J J AA 10 kohm,1/6W
RK5 VRD-ST2CD102J J AA 1 kohm,1/6W
RK7 VRD-ST2CD102J J AA 1 kohm,1/6W
RK8 VRD-ST2CD562J J AA 5.6 kohms,1/6W
RK9~11 VRD-ST2CD102J J AA 1 kohm,1/6W
RK12 VRD-ST2CD101J J AA 100 ohm,1/6W
RK13 VRD-ST2CD122J J AA 1.2 kohms,1/6W
RK14,15 VRD-RT2HD101J J AA 100 ohm,1/2W
RK36,37 VRD-ST2CD391J J AA 390 ohms,1/6W
RK38 VRD-ST2CD101J J AA 100 ohm,1/6W
RK39,40 VRD-ST2CD102J J AA 1 kohm,1/6W
RK41,42 VRD-ST2CD103J J AA 10 kohm,1/6W
RK43 VRD-ST2CD183J J AA 18 kohms,1/6W
RK44,45 VRD-ST2CD682J J AA 6.8 kohms,1/6W
RK46 VRD-ST2CD183J J AA 18 kohms,1/6W
RK47 VRD-ST2CD822J J AA 8.2 kohms,1/6W
RK48~50 VRD-ST2CD103J J AA 10 kohm,1/6W
RL701~705 VRD-ST2CD102J J AA 1 kohm,1/6W
RL706~708 VRD-MN2BD102J J AA 1 kohm,1/8W
RS701 VRD-MN2BD333J J AA 33 kohms,1/8W
RS702 VRD-MN2BD103J J AA 10 kohm,1/8W
RS703 VRD-MN2BD683J J AA 68 kohms,1/8W
RS704 VRD-MN2BD224J J AA 220 kohms,1/8W
RS705 VRD-MN2BD123J J AA 12 kohms,1/8W
RS706 VRD-MN2BD224J J AA 220 kohms,1/8W
RS707 VRD-MN2BD394J J AA 390 kohms,1/8W
RS708 VRD-ST2EE271J J AA 270 ohms,1/4W
RS709 VRD-MN2BD154J J AA 150 kohms,1/8W
RS710 VRD-ST2EE271J J AA 270 ohms,1/4W
RS711 VRD-MN2BD104J J AA 100 kohm,1/8W
RS712 VRD-MN2BD824J J AA 820 kohms,1/8W
RS713 VRD-ST2CD104J J AA 100 kohm,1/6W
RS714 VRD-MN2BD225J J AA 2.2 Mohms,1/8W
RS715 VRD-MN2BD104J J AA 100 kohm,1/8W
RS716 VRD-MN2BD105J J AA 1 Mohm,1/8W
RS717 VRD-MN2BD474J J AA 470 kohms,1/8W
RS718 VRD-MN2BD563J J AA 56 kohms,1/8W
RS719 VRD-ST2CD153J J AA 15 kohms,1/6W
RS720 VRD-MN2BD184J J AA 180 kohms,1/8W
OTHER CIRCUITRY PARTS
BI4/CNS4 QCNWN1572AWZZ J AF Connector Ass’y,6/6Pin
BI11/CNS11 QCNWN2190AWZZ J Connector Ass’y,6/6Pin
BI12A/B QCNWN2201AWZZ J Connector Ass’y,3/3Pin
BI13/CNS13 QCNWN2186AWZZ J Connector Ass’y,2/2Pin
BI102/CNS102 QCNWN2189AWZZ J Connector Ass’y,7/7Pin
BI602/CNS602 QCNWN2188AWZZ J Connector Ass’y,10/10Pin
BI703/CNS703 QCNWN1843AWZZ J AH Connector Ass’y,9/9Pin
BI704/CNS704 QCNWN2038AWZZ J AE Connector Ass’y,3/3Pin
BI705/CNS705 QCNWN2033AWZZ J AC Connector Ass’y,4/4Pin
BI905/CNS905 QCNWN2187AWZZ J Connector Ass’y,7/7Pin
BI906/CNS906 QCNWN1285AWZZ J AK Connector Ass’y,7/7Pin
BI908A/B QCNWN2192AWZZ J Connector Ass’y,6/6Pin
CNP1 QCNCM704GAWZZ J AC Plug,7Pin
CNP2 QCNCM704HAWZZ J AC Plug,8Pin
CNP3 92LCONE6P53253 J AC Plug,6Pin
CNP3A 92LCONE6P53254 J AC Plug,6Pin
CNP4 QCNCM705FAFZZ J AB Plug,6Pin
CNP7 92LCONE6P53254 J AC Plug,6Pin
CNP8 92LCONE9P53254 J AD Plug,9Pin
CNP101 QCNCM705CAFZZ J AA Plug,3Pin
CNP301 92LCONE2P5268 J AB Plug,2Pin
CNP601 QCNCWZX21AWZZ J AD Plug,21Pin
CNP701 QCNCWZF21AWZZ J AF Socket,21Pin
CNP702 QCNCWZY10AWZZ J AC Socket,10Pin
CNP704 92LCONE3P53253 J AB Plug,3Pin
CNP705 92LCONE5P52287 J AC Socket,5Pin
CNP801 QCNCM035EAWZZ J AB Plug,5Pin
CNP802 QCNCM049BAWZZ J AC Plug,2Pin
CNP901 QCNCM010NAWZZ J AC Plug,13Pin
CNP902 92LCONE2P5267 J AB Plug,2Pin
CNP903 92LCONE4P53253 J AB Socket,4Pin
CNP904 92LCONE2P53253 J AB Plug,2Pin
CNP905 QCNCM050GAWZZ J Plug,7Pin
CNP906 92LCONE7P5267 J Socket,7Pin
CNP907 92LCONE2P53253 J AB Plug,2Pin
CNPK1 QCNCM705KAWZZ J AC Plug,10Pin
CNS1A/B QCNWN1537AWZZ J AG Connector Ass’y,7/7Pin
CNS2A/B QCNWN1538AWZZ J AG Connector Ass’y,8/8Pin
CNS3A/B QCNWN1539AWZZ J AE Connector Ass’y,6/6Pin
CNS901 QCNCW010NAWZZ J AC Connector,13Pin
CNS904 QCNWN1582AWZZ J AC Connector,2Pin
CNS907 QCNWN1452AWZZ J AC Socket,2Pin
1 F801 QFS-D153EAWNI J Fuse,T15A L 250V
1 F802,803 QFS-D802EAWNI J Fuse,T8A L 250V
1 F804,805 QFS-D632CAWNI J AC Fuse,T6.3A L 250V
1 F806,807 QFS-D502CAWNI J AC Fuse,T5A L 250V
1 F808,809 QFS-D202CAWNI J AC Fuse,T2A L 250V
FC701 QCNWN2191AWZZ J Flat Cable,21Pin
FC702 QCNWN1845AWZZ J AE Flat Cable,10Pin
FL701 VVKBJ11LM02T1 J BC FL Display
FW901 QCNWN1927AWZZ J AD Flat Wire,5Pin
FW901A QCNCW019EAWZZ J Holder,Flat Wire
JK1 QJAKJ0007AWZZ J AF Jack,Mic
JK601 QSOCJ0224AWZZ J AC Jack,Video/AUX
JK670 QJAKM0004AWZZ J AK Jack,Headphones
JOG701 QSW-Z0014AWZZ J AF Switch,Push Type [Jog,Volume]
LG1 QLUGP0001AWZZ J AC Lug
LG801,802 QLUGP0004AWZZ J Lug Terminal
LG901 QLUGP0001AWZZ J AC Lug
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
M3 92LTWMEN7E6Y J AR Motor with Worm Pulley
[CD Loading]
M903,904 RMOTV0027AWZZ J AM Motor,Air Cooling Fan
PINK1 QLUGP0002AWZZ J AB Lug
RL901,902 RRLYD0004AWZZ J AP Relay
RX701 VHLN63H380A-1 J AK Remote Sensor,N63H380A
SO301 QTANC0206AWZZ J AD Terminal,FM Antenna
SO901 QTANA0810AWZZ J AF Terminal,Speaker
SW1 SWMPU10780MLB J AH Switch,Push Type [Open/Close]
SW2 SWMPU11470MLB J AE Switch,Push Type [Clamp]
SW3 SWMPU11470MLB J AE Switch,Push Type [Disc Number]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]
SW601 QSW-S0024AWZZ J AE Switch,Slide Type
[Span Selector]
SW701 92LSWICHT1663T J AC Switch,Key Type [ON/Stand-by]
All manuals and user guides at all-guides.com
background
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PART CODE
PRICE
RANK
DESCRIPTION
CD-M10000W/CP-M10000
– 6 –
SW702 92LSWICHT1663T J AC Switch,Key Type [Clock]
SW703 92LSWICHT1663T J AC Switch,Key Type [Timer]
SW709 92LSWICHT1663T J AC Switch,Key Type [Disc 1]
SW710 92LSWICHT1663T J AC Switch,Key Type [Disc 2]
SW711 92LSWICHT1663T J AC Switch,Key Type [Disc 3]
SW712 92LSWICHT1663T J AC Switch,Key Type [Disc Skip]
SW713 92LSWICHT1663T J AC Switch,Key Type [Open/Close]
SW714 92LSWICHT1663T J AC Switch,Key Type [Dimmer]
SW715 92LSWICHT1663T J AC Switch,Key Type [Monster Bass]
SW716 92LSWICHT1663T J AC Switch,Key Type [Equalizer]
SW717 92LSWICHT1663T J AC Switch,Key Type
[Reverse Mode]
SW722 92LSWICHT1663T J AC Switch,Key Type [CD]
SW723 92LSWICHT1663T J AC Switch,Key Type [Tape]
SW724 92LSWICHT1663T J AC Switch,Key Type [Tuning Down]
SW725 92LSWICHT1663T J AC Switch,Key Type [Memory Set]
SW726 92LSWICHT1663T J AC Switch,Key Type [Fast Rewind]
SW727 92LSWICHT1663T J AC Switch,Key Type [Fast Forward]
SW728 92LSWICHT1663T J AC Switch,Key Type [Play]
SW729 92LSWICHT1663T J AC Switch,Key Type [Stop]
SW730 92LSWICHT1663T J AC Switch,Key Type [Reverse Play]
SW731 92LSWICHT1663T J AC Switch,Key Type
[RECORD/Pause]
SW732 92LSWICHT1663T J AC Switch,Key Type [Tuning Up]
SW733 92LSWICHT1663T J AC Switch,Key Type [Video]
SW734 92LSWICHT1663T J AC Switch,Key Type [Tuner]
1 SW801 QSOCE0010AWZZ J Switch,Slide Type [Voltage
Selector]
CD MECHANISM PARTS
301 NGERH0011AWZZ J AC Gear,Middle
302 NGERH0012AWZZ J AC Gear,Drive
303 MLEVP0080AWZZ J AC Rail,Guide
304 NSFTM0020AWFW J AD Shaft,Guide
305 92LM-CUSN1524A J AC Cushion
1 306 92LHPC1LXASY J BD Pickup Unit Ass’y
306- 1 ———— — Pickup Unit
(Not Replacement Item)
306- 2 NGERR0043AFZZ J AC Gear,Rack
306- 3 MSPRC0961AFZZ J AA Spring,Rack
701 XBSSD26P06000 J AA Screw,ø2.6×6mm
702 XHBSD20P05000 J AA Screw,ø2×5mm
703 XBBSD20P03000 J AA Screw,ø2×3mm
704 LX-WZ1070AFZZ J AA Washer,ø1.5×3.8×0.25mm
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]
CABINET PARTS
201 92LCAB3808AASY J Front Panel Ass’y
201- 1 ———— — Front Panel
(Not Replacement Item)
201- 2 GDORF0097AWSA J AE Holder,Cassette [Tape 1]
201- 3 GDORF0098AWSA J AE Holder,Cassette [Tape 2]
201- 4 GCOVA1352AWSA J AH Cover,Cassette [Tape 1]
201- 5 GCOVA1384AWSA J AK Cover,Cassette [Tape 2]
201- 6 HDECQ0670AWSA J AE Panel,Cassette [Tape 1]
201- 7 HDECQ0671AWSA J AE Panel,Cassette [Tape 2]
201- 8 HDECQ0829AWSA J Panel,Amp.
201- 9 JKNBZ0820AWSA J AE Button,ON/Stand-by
201-10 JKNBZ0766AWSA J AG Button,Dimmer/Tuning
201-11 JKNBZ0768AWSA J AE Button,Function
201-12 HDECQ0674AWSA J AE Volume Ring
201-13 JKNBZ0800AWSA J AF Button,Disc Control
201-14 JKNBZ0801AWSA J AG Button,Center Operation
201-15 MLIFP0008AWZZ J AD Damper
201-16 JKNBZ0834AWSA J AG Button,Equalizer/Monster Bass
201-17 92LBADGE1671A J AC Badge,SHARP
201-18 GCOVA1339AWSA J AB Cover,LED,Power
201-19 GCOVA1380AWSA J AB Cover,LED,A
201-20 GCOVA1381AWSA J AB Cover,LED,B
201-21 PSPAK0006AWZZ J AB Spacer,Cassette Lock Holder
201-22 MLOKC0006AWZZ J AB Lock Lever,Cassette [Tape 1]
201-23 MLOKC0007AWZZ J AB Lock Lever,Cassette [Tape 2]
201-24 LHLDZ1328AWZZ J AC Holder,Cassette Lock
201-25 GCOVA1382AWSA J AB Cover,LED,C
201-26 GCOVA1344AWSA J AB Cover,Disc No.LED,A
201-27 GCOVA1345AWSA J AB Cover,Disc No.LED,B
201-28 GCOVA1346AWSA J AB Cover,Disc No.LED,C
201-29 GCOVA1394AWSA J AD Cover,Remote Control Sensor
201-30 MSPRC0029AWFJ J AB Spring,Cassette Lock
201-31 PSHEM0008AWZZ J AD Sheet,Shield
201-32 GCOVA1404AWSA J AE Cover,Monster Button
201-33 MSPRD0167AWFJ J AB Spring,Cassette [Tape 1]
201-34 MSPRD0168AWFJ J AB Spring,Cassette [Tape 2]
202 92LCAB3808BASY J Side Panel Ass’y,Left
202- 1 ———— — Side Panel,Left
(Not Replacement Item)
202- 2 PCUSG0022AWZZ J AB Cushion,Leg
203 92LCAB3808CASY J Side Panel Ass’y,Right
203- 1 ———— — Side Panel,Right
(Not Replacement Item)
203- 2 PCUSG0022AWZZ J AB Cushion,Leg
204 GCAB-1192AWSA J AN Top Cabinet
206 GCOVA1338AWSA J AH Cover,CD Tray
207 GITAR0873AWSA J Rear Panel
[Except for Philippines/Russia]
207 GITAR0932AWSA J Rear Panel [For Philippines]
207 GITAR0933AWSA J Rear Panel [For Russia]
209 LANGK0318AWFW J Bracket,Main Heat Sink [Left]
210 LANGK0311AWFW J Bracket,Main Heat Sink [Right]
211 LANGK0313AWFW J Bracket,Fan Support A
213 LCHSM0149AWFW J Chassis,Main
214 LHLDZ1332AWZZ J AD Holder,FL Display
215 QCNWN2030AWZZ J AD Lug Wire
218 NFANP0001AWZZ J AD Rotary Fan
219 PCUSG0022AWZZ J AB Cushion,Leg
220 PRDAR0228AWFW J Heat Sink,Main
221 PRDAR0227AWFW J Heat Sink,Sub
1 222 QACCA0005AW00 J AC Power Supply Cord
1 222 QACCE0014AW00 J AC Power Supply Cord
1 222 QACCL0007AW00 J AC Power Supply Cord
223 QCNWN2200AWZZ J Lug Wire
1 224 QFSHD0001AWZZ J AB Holder,Fuse
225 92LBE231616 J AD Belt
226 92LCSPR1431C J AA Spring,Ring
227 92LEVA0330702 J AD Velvet Carpet,Chassis
228 92LMAG0104302 J AE Magnet
229 92LMT0304302 J AB Plate,Metal
230 92LNBAND1318A J AA Nylon Band,80mm
231 TWPT0312005 J Cam Gear Ass’y
231- 1 92LPT0312005 J AL Gear,Cam
231- 2 92LSP0304303 J AB Spring,Stopper
231- 3 92LPT0304304 J AB Stopper
231- 4 92LNM0305401 J AB Velvet Carpet
231- 5 92LPT0305413 J AG Cam Gear Lower
232 92LPT0303002 J AB Roller
233 92LPT0304303 J AB Lever,Stop
235 92LPT0304305 J AE Lever,Lock
236 92LPT0304306 J AG Stabilizer
237 92LPT0304307 J AC Support,Cam
238 92LPT0304308 J AB Lock Gear Pin
239 92LPT0304309 J AB Cap,Pulley Stopper
241 92LPT0309506 J AD Gear,Turntable Drive
242 92LPT0309507 J AD Gear,Open/Close Drive
243 92LPT0309508 J AD Gear,Planet
244 92LPT0309509 J AD Gear,Drive
245 92LPT0309510 J AE Gear,Pulley
246 92LPT0309511 J AD Gear,Middle
247 92LPT0311101 J AB Lever,Clamp
248 92LPT0311102 J AC Lever,Disc
250 92LPT0320201 J AE Support,Stabilizer
251 92LPT0330301 J AU Chassis,Loading
252 92LPT0330803 J AK Chassis,CD Mechanism
253 92LPT0331003 J AT Shassis,Slide
254 92LPT0331105 J AM Turntable
256 92LSP0304305 J AB Spring,Lock
257 92LSP0304306 J AB Spring,Lock Gear
258 KMECB0019AWZZ J BH Tape Mechanism Ass’y
258- 1 92PF513-853 J BL Head Plate Block [Tape 2]
258- 2 92PF525-336 J BE Motor with Pulley [Tape]
258- 3 92PF567-677 J BA Tape Mechanism PWB Ass’y
258- 4 92PFF19N-21 J AL Belt,Main [Tape 2]
258- 5 92PF514-133 J AL Pinch Roller
258- 6 92PF19S-31 J AL Belt,FF/REW [Tape 2]
258- 7 92PFF19N-11 J AL Belt,Main [Tape 1]
258- 8 92PF522-061 J AZ Clutch Ass’y Block [Tape 1]
258- 9 92PFF19S-52 J AL Belt,FF/REW [Tape 1]
258-10 92PF513-861 J AG Head Plate Block [Tape 1]
258-11 92PF522-063 J AZ Clutch Ass’y Block [Tape 2]
All manuals and user guides at all-guides.com
all-guides.com
background
PRICE
RANK
DESCRIPTION
NO.
PART CODE
NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-M10000W/CP-M10000
– 7 –
259 TLABS0354AWZZ J AC Label,Class 3
261 TSPC-1003AWZZ J
Label,Specification [For Thailand]
261 TSPC-1004AWZZ J Label,Specification [For Mexico]
262 JKNBK0012AWSG J AK Knob,Karaoke
263 LHLDZ1320AWZZ J AC Holder,Disc No.LED
266 LHLDF1019AWSA J AD Holder,Main PWB Support
268 GITAR0872AWSA J Back Plat Top
272 JKNBK0084AWSA J AE Button,Volume
273 LHLDZ1327AWZZ J AE Holder,Button Block
274 PCOVQ3005AWZZ J Dust Cover,Mechanism
275 LANGK0312AWFW J Bracket,PWB Support
276 LANGK0316AWFW J Bracket,Fan Support B
277 LANGK0298AWFW J Bracket,Changer Support
603 LX-JZ0010AFFD J AA Screw,ø3×10mm
604 LX-LZ0012AWZZ J Push Rivet
605 XBBSD20P04000 J AA Screw,ø2×4mm
606 XEBSD30P10000 J AA Screw,ø3×10mm
607 XEBSD30P12000 J AA Screw,ø3×12mm
608 XESSD30P10000 J AA Screw,ø3×10mm
609 XHBSD30P06000 J AA Screw,ø3×6mm
610 XJBSD30P10000 J AA Screw,ø3×10mm
611 XJBSD30P16000 J AA Screw,ø3×16mm
614 92LSC0308MBZI J AB Screw,ø3×8mm
615 92LSC0308RBZI J AB Screw,ø3×8mm
616 LX-HZ0169AFFD J AA Screw,ø4×8mm
618 XEBSD26P10000 J AA Screw,ø2.6×10mm
620 XEBSD30P08000 J AA Screw,ø3×8mm
621 LX-EZ0010AWFD J AA Screw,Special
622 LX-JZ0022AFFD J AA Screw,ø3×8mm
623 XHBSD40P0600 J Screw,ø4×6mm
624 XJSSD30P10000 J AA Screw,ø3×10mm
625 XEBSD26P08000 J Screw,ø2.6×8mm
626 XJBSF30P10000 J AA Screw,ø3×10mm
ACCESSORIES/PACKING PARTS
QANTL0008AWZZ J AH AM Loop Antenna
1 QPLGA0003AWZZ J AF Adaptor,AC Plug
1 QPLGA0005AWZZ J Adaptor,AC Plug
SPAKA0353AWZZ J Packing Add.
SPAKC1363AWZZ J Packing Case
[For Australia/New Zealand]
SPAKC1364AWZZ J Packing Case
[Except for Australia/New Zealand]
SPAKP0026AWZZ J AB Polyethylene Bag,AC Power
Supply Cord
SPAKP0090AWZZ J Miramat Bag,Unit
SPAKZ0573AWZZ J AB Sheet,CD Tray
SPAKZ0870AWZZ J Spacer
SSAKA0007AWZZ J AB Polyethylene Bag,Accessories
TCAUZ0035AWZZ J AB Sheet,Caution
TCAUZ0125AWZZ J Sheet,Caution
TGANE0011AW85 J Warranty Card [For Philippines]
TINST0114AWZZ J Operation Manual [For Thailand]
TINSZ0762AWZZ J Operation Manual
[Except for Australia/New
Zealand/Russia/Thailand]
TINSZ0763AWZZ J Operation Manual [For Russia]
TINSZ0764AWZZ J Operation Manual
[For Australia/New Zealand]
TLABB0001AWZZ J AB Label,Japan [For Set]
TLABE0639AWZZ J Label,Bar Code
TLABE0640AWZZ J Label,Bar Code
TLABJ0003AWZZ J AB Label,Japan [For Packing Case]
TLABR1221AWZZ J Label,Bar Code
TLABS0100AWZZ J AB Label,Gost Rostest
[Packing Case]
TLABS0102AWZZ J AB Label,Gost Rostest [Rear Panel]
TLABZ0838AWZZ J AB Label,FDA
TLABZ1035AWZZ J Label,Feature [Tape 1]
[Except for Australia/New Zealand]
TLABZ1036AWZZ J Label,Feature [Tape1]
[For Australia/New Zealand]
TLABZ1037AWZZ J Label,Feature [Tape 2]
92LBAG760C J AA Polyethylene Bag,AC Plug
92LFANT1746A J AD FM Antenna
92LGCARD1266E1 J AC Warranty Card
92LLABL1204C J AA Label,MADE IN MALAYSIA
92LLABL1507B J AA Label,Made in Malaysia
92LPANEL713A J AB Panel,Made in Malaysia
RRMCG0316AWSA J Remote Control
GFTAB1042AWSA J Battery Lid,Remote Control
P.W.B. ASSEMBLY (Not Replacement Item)
PWB-A 92LPWB3808MANS J — Main
PWB-B1~3 92LPWB3808DPLS J — Display/Headphones/LED
(Combined Ass’y)
PWB-C 92LPWB3563CDUS J — CD Servo
1 PWB-D1~3 92LPWB3808PWRS J — Power/Amp./Transformer
(Combined Ass’y)
PWB-E 92LPC99C017 J AE CD Loading Motor (PWB Only)
PWB-F 92PF567-649 J — Tape Mechanism
PWB-G QPWBF0027AWZZ J AD CD Motor (PWB Only)
PWB-H 92LPWB3553MICS J — Mic
OTHER SERVICE PART
UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner
SPEAKER BOX PARTS
901 CWAKP1066AWSA J Net Frame Ass’y [Woofer]
902 HDECQ0827AWSA J Net Cover [Woofer]
903 CPNLS1050AW01 J Front Panel Ass’y [Woofer]
904 GBOXS0081AWSA J Speaker Box Ass’y [Woofer]
905 HDECA0017AWSA J Decoration Bar,Left
906 HDECA0018AWSA J Decoration Bar,Right
907 LHLDZ8002AWSA J Catching Holder
908 QCNWN2203AWSA J Speaker Cord
909 PCUSG0022AWSA J Foot Cushion [Woofer]
910 TSPC-0997AWSA J Label,Specification [Woofer]
911 TLABZ1073AWZZ J Label,Caution [Woofer]
912 TLABZ1117AWZZ J Label [Woofer]
920 LX-JZ0035AWSA J Screw,ø3×8×10mm
921 XJBSD60P16000 J Screw,ø6×16mm
922 XJBSD40P16000 J AB Screw,ø4×16mm
930 CPNLS1046AW01 J Front Panel Ass’y [Main speaker]
931 HDECQ0622AWSA J AG Tweeter Ring [Main speaker]
932 GBOXS0080AWSA J Speaker Box Ass’y
[Main speaker]
933 QCNWN2155AWSA J Speaker Cord Ass’y
(With Capacitor C1,2)
934 PUSG0103AWSA J Foot Cushion [Main speaker]
935 TSPC-0993AWSA J
Label,Specification [Main speaker]
936 TLABZ1118AWZZ J Label [Main speaker]
940 XJBSD30P10000 J AA Screw,ø3×12mm
941 XJBSD40P16000 J AB Screw,ø4×16mm
SP1,2 RSPA10003AW6W J Woofer [Woofer]
SP3~6 RSPA10052AWCS J Woofer [Main speaker]
SP7,8 RSPA00045AW6T J Tweeter
PACKING PARTS
SPAKC1355AWZZ J Packing Case
SPAKA0339AWZZ J Packing Add.,Top [Main speaker]
SPAKA0340AWZZ J Packing Add.,Bottom
[Main speaker]
SPAKA0341AWZZ J Packing Add.,Top/Bottom
[Woofer]
SSAKH0087AWZZ J Polyethylene Bag [Woofer]
SSAKH0079AWZZ J Polyethylene Bag [Main speaker]
QCNWN2157AWZZ J
Speaker Cord Ass’y
[Main speaker]
QCNWN2193AWZZ J Speaker Cord Ass’y [Woofer]
CP-M10000
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
A
B
C
D
E
F
G
H
1
23456
Figure 8 CD MECHANISM EXPLODED VIEW
– 8 –
CD-M10000W
306-1
701
304
701
302
301
702
303
M1
703x2
305x2
SW4
M2
305
PWB-G
306-2
306-3
306
704
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
Figure 9 CABINET EXPLODED VIEW (1/2)
A
B
C
D
E
F
G
H
1
23456
– 9 –
CD-M10000W
Note: Only the unit and consumable parts are supplied as parts supply for the Tape mechanism.
608
625
201-23
201-30
202
610x4
620
266
202-1
202-2
PWB-A
223
626x2
603x2
603
Silicon
Grease
Tape
Motor
MAIN BELT
FLYWHEEL
ASS'Y
TAPE1
FLYWHEEL
ASS'Y
TAPE2
FF/REW
ROLLER
ASS'Y
FF/REW
ROLLER
ASS'Y
BELT CONNECTION
207
610x12
610
268
610x3
610x2
610x2
PWB-F
223
215
274
608x5
608
PWB-B1
201-10
214
FL701
263
606x10
PWB-B2
621
201-15
201-17
201
201-1
201-24
201-22
201-21
201-21
201-30
608
625
201-9
273
201-18
201-29
201-16
201-32
201-11
T801
609
201-31
622
209
618
IC902
210
T802
277
222
PWB-D2
220
609x2
609x2
IC901
Silicon
Grease
611x2
611x2
610
224x6
224x8
224x4
PWB-D3
PWB-D1
230
604x5
201-15
272
201-12
201-8
201-4
201-2
201-33
219x2
201-34
201-24
610x4
201-6
201-7
201-5
201-3
213
203
203-2
203-1
M903
226
211
605x2
218
M904
226
276
605x2
218
221
Q851
Q850
Q852
PWB-H
PWB-B3
201-13
201-26
201-27
201-28
610x3
610x2
621
201-14
201-25
201-19
201-20
621
262
261
258
258-1, 258-2,
258-4,
258-9, 258-10,
258-11
603
603
603x2
610x2
609x2
623x2
609
275
609
616x5
624x3
275
258-3,
258-5, 258-6,
258-7, 258-8,
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
Figure 10 CABINET EXPLODED VIEW (2/2)
A
B
C
D
E
F
G
H
1
23456
– 10 –
CD-M10000W
231
250
229
236
254
CD
MECHANISM
252
204
607x2
607x2
615x2
231-1
231-2
231-3
231-4
237
614
614
259
SW3
SW2
SW1
232
225
M3
PWB-G
247
235
251
256
246
248
245
244
243x4
242
239
231-5
227
232x4
232
232
PWB-C
253
615
241
233
206
238
257
228
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
A
B
C
D
E
F
G
H
1
23456
CP-M10000 (WOOFER)
Figure 11 SPEAKER EXPLODED VIEW (1/2)
– 11 –
920x3
901
902
907x4
909x2
903
921x2
921x2
905
906
922x8
SP1, 2
908
911
909x2
904
910
912
BK
SP1,2
WOOFER
SP1,2
WOOFER
RD
SPEAKER
TERMINAL
SPEAKER
TERMINAL
All manuals and user guides at all-guides.com
all-guides.com
background
CD-M10000W/CP-M10000
CP-M10000 (MAIN SPEAKER)
A
B
C
D
E
F
G
H
1
23456
– 12 –
Figure 12 SPEAKER EXPLODED VIEW (2/2)
931
932
935
930
940x4
941x4
SP7,8
SP3,4
SP5,6
941x4
934x4
933
936
BK
BK
BL
BK
BL
RD
SP3,4
WOOFER
SP5,6
WOOFER
SP7,8
TWEETER
SPEAKER
TERMINAL
TWEETER
SP7(L-CH)
SP8(R-TH)
WOOFER
SP5(L-CH)
SP6(R-TH)
WOOFER
SP3(L-CH)
SP4(R-TH)
SPEAKER
TERMINAL
C1,2
Capacitor(N.P.)
2.2 µF,250 V
Electrolytic
C1,2
Capacitor(N.P.)
2.2 µF,250 V
Electrolytic
All manuals and user guides at all-guides.com
background
CD-M10000W/CP-M10000
SHARP CORPORATION
AV Systems Group
Audio Systems Division
Higashihiroshima, Hiroshima 739-0192, Japan
Printed in Japan
SA • SZ • EX
A0112-1281DS•HA•M
COPYRIGHT 2001 BY SHARP CORPORATION
ALL RIGHTS RESERVED.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
©
All manuals and user guides at all-guides.com

Specifications

Indexed Terms: Audio System, Cd Player

Sharp CD-M10000V Questions and Answers

Find answers or ask new question.
Questions and Answers

Related Products

Product Sharp XL BH250 image
Sharp XL-BH250 Audio
2021-11-23 1 docs
Product Sharp GX BT7 image
Sharp GX-BT7 Audio
2021-03-10 1 docs
Product Sharp CD BA150 image
Sharp CD-BA150 Audio
2018-12-29 2 docs
Product Sharp CD C401H image
Sharp CD-C401H Audio Mini Componet System
2018-12-29 1 docs
Product Sharp CD ES111H image
Sharp CD-ES111H Audio
2018-12-29 2 docs
Product Sharp CD ES222E image
Sharp CD-ES222E Audio
2018-12-29 2 docs
