Delonghi ICM17270 3-in-1 Specialty Coffee Brewer

User Manual

For ICM17270. Series: ICM17

PDF File Manual, 9 pages, Read Online | Download pdf file

ICM17270 photo
background
5713245311_01_0819 printed in China
www.delonghi.com
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...

User Manual - Transcript

  • Page 1: 5713245311010819 printed in China wwwdelonghicom
  • Page 2 - English - : ICM17 series COFFEE MAKER MACHINE À CAFÉ CAFETERA ELECTRIC CHARACTERISTICS CARACTÉRISTIQUES ÉLECTRIQUES CARACTERISTICAS ELECTRICAS 120V 60 Hz 1200 Watts
  • Page 3: EN FR ES page 6 page 9 pág 12
  • Page 5: M E A C F G B I H N D L

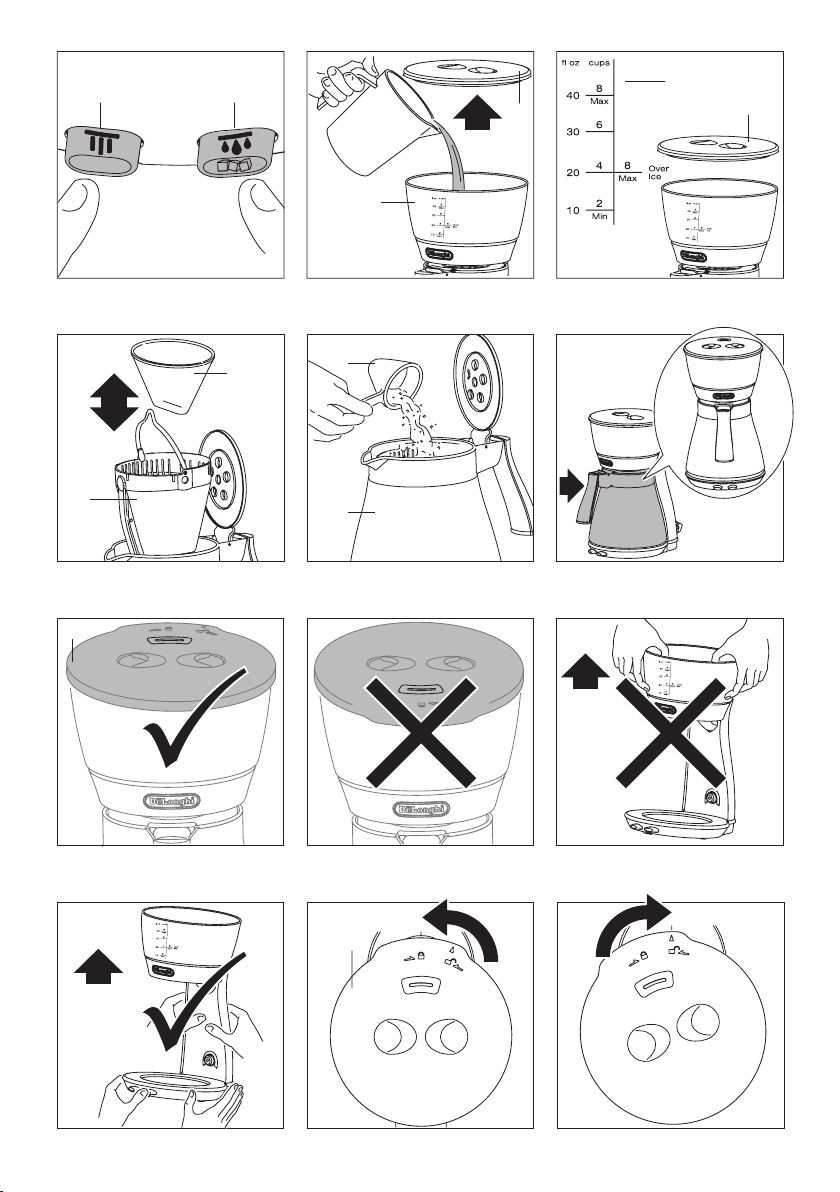

  • Page 6: F G 10 11 12 A E L E M I D H E E
  • Page 7 - English - : IMPORTANT SAFEGUARDS When using any electrical appliance some basic safety precau tions should be observed Specically Read all instructions carefully Make sure the voltage of your electrical system corresponds to the voltage shown on the bottom of the machine Do not touch hot surfaces Use handles or knobs To protect against re electrical shock and personal injury do not immerse cord plug or appliance in water or other liquid Keep the appliance out of the reach of children and do not leave appliance unattended while in operation Disconnect the plug from the power outlet when the ma chine is not in use and before cleaning Do not operate the machine with a damaged cord or plug after faulty operation or when it has been damaged in any way Contact DeLonghi Customer Service The use of accessories not recommended by the manufac turer may result in re electrical shock or personal injury Do not use the machine outdoors Make sure the power cord does not hang over the edge of the table or countertop to avoid getting accidentally caught or entangled Do not place the machine or its electrical parts on or near electric stoves cooking surfaces or gas burners To disconnect the appliance turn appliance OFF then remove plug from wall outlet Do not use this machine for any purpose other than its in tended use This appliance is for household use only The manufacturer declines all responsibility for any damage caused by improper incorrect or irresponsible use For machines with glass carafe A The carafe is an accessory to be used exclusively with this appliance Never use it on a cooking surface B Do not set the hot container on a damp or cold surface C Do not use the carafe if it is cracked or the handle is not completely sturdy D Do not use abrasive detergents or sponges to clean E Scalding may occur if the lid is opened during the brewing cycles WARNING To prevent the risk of re or electric shock never remove the lower part of the appliance There are no elements inside that the user needs to access Any necessary repairs must be made by an authorized service center SAVE THESE INSTRUCTIONS THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY DESCRIPTION OF APPLIANCE A Water Tank B Warming Plate C Carafe Sensor D Measuring Scoop E Lid F SCA Golden Cup Button G Overice and pour over brew button H Glass Carafe I Filter holder L Water level indicator M Paper Filter Cone Size 4 N Filter holder base This model has been certied by the SCA Specialty Coee Association to meet their rigorous technical requirements when using the Golden Cup Function F FIRST USE In order to prime the machine for rst time use you will need to perform two full brewing cycles without coee using fresh cold water only as follows Plug into outlet Turn the lid counterclockwise to unlock lid and remove g 11 Pour fresh water into water tank up to the MAX level 40 oz g 23 Put the LID and turn clockwise to lock in g 12 Push the SCA Golden Cup button F to prime the machine At the end empty the carafe and do again the cycle SPECIALTY COFFEE ASSOCIATION SCA GOLDEN CUP STANDARDS Requirements for SCA Certied Home Brewers Infusion temperature 1975 2048F 9296C Saturation time 4 to 8 minutes Coee to Water Ratio 1 measuring scoop 825 g per Cup 5 oz The DeLonghi 3 in 1 Specialty Brewer meets these requirements and has earned the certications of the Specialty Coee Association SCA SCA GOLDEN CUP FUNCTION Thanks to a high precision brewing technology DeLonghi 3 in 1 Specialty Brewer provides optimum avor extraction and has earned the approval from the Specialty Coee Association SCA brewing lter coee with a precise temperature 1975 2048F 92C 96C and infusion time control for a perfect and tasty coee cup after cup
  • Page 8 - English - : POUR OVER BREWING FUNCTION A specically designed shower head and automatic waterow control ensures an evenly saturated coee powder for a more intense and aromatic avour at the touch of a button OVER ICE BREWING FUNCTION Our SCA certied machine delivers bold rich taste that is never watered down even over ice HOW TO MAKE SCA GOLDEN CUP COFFEE OR POUR OVER When using this function it is recommended to use the coee to water ratio of 1 measuring scoop per cup To remove the lid turn counterclockwise to unlock g 11 Pour fresh water into the water tank A g 2 up to the level indicated for the number of cups of coee you want to make L g 3 Position the paper lter M in the lter holder I g 4 Use only paper cone lter 4 Place the ground coee in the lter using the measuring scoop D provided and level evenly g 5 See the table for recommended quantities Use high quality ground coee for drip coee makers Recommended quantities No cups No measuring scoop 1 measuring scoop 03 oz 825 g The quantities given in the table are suggested and should be adapted to your personal taste and the type of coee The type of blend has a considerable inuence on the coee you make You should therefore try various types of coee to nd the one best suited to your taste To lock the lid align the symbol with the indicator line on the back of the machine g 12 Then turn the lid clockwise to lock in place aligning the lock symbol with indicator line on the back of the machine Make sure the carafe is correctly placed on the warming plate To select SCA Golden Cup function push button F To select Pour Over function push button G twice quickly Once you have selected your desired coee function there will be one beep sound and the corresponding button will light up When the brewing cycle ends there will be three beeps To stop the brewing cycle before completion push the illuminated button once Please note throughout the brewing cycle it is normal for steam to be released HOW TO MAKE OVER ICE COFFEE Fill carafe with ice cubes up to the max indicated on the carafe Pour four cups of water into the water tank and eight measuring scoops of ground coee into lter to produce 8 cups of Over Ice Coee Do not exceed these recommended quantities To select Over Ice function press button G Once the Over Ice function has been activated there will be one beep sound and a blue light will be illuminated on the button To stop the brewing cycle before completion push the illuminated button Please note Before pouring coee from the carafe re move the lter holder and place it on the lter base N ANTIDRIP SYSTEM This coee maker has an automatic antidrip system Carafe Sensor C that stops brewing when the glass carafe has been removed from the warming plate To continue the brewing cycle place the carafe back onto the warming plate WARMING PLATE Once the brewing cycle has nished the warming plate will stay on for one hour in order to keep the coee at the ideal temperature If you want to turn o the warming plate before one hour then push the illuminated button F or G Please note When using the Over Ice function the warming plate will automatically turn o and remain o CLEANING AND MAINTENANCE Before maintenance or cleaning of the appliance turn o unplug and allow to cool Do not use solvents or abrasive detergents to clean the coee maker Just wipe with a soft damp cloth Never immerse the coee maker in water It is an electrical appliance The water ll compartment A can be reached through the lid E Clean when necessary Do not wash the jug and accessories in the dishwasher
  • Page 9 - English - : DESCALING If the water in your area is hard limescale builds up over time These deposits may aect correct operation of the appliance You are recommended to descale the coeemaker when two buttons F and G ash simultaneously which is approximately every 60 cycles If limescale visibly builds up in the water tank prior to the buttons ashing and you would like to activate the descaling process yourself you will need to push and hold both buttons F amp G simultaneously for 2 seconds To descale always use DeLonghi descaler available at Delonghicom Pour 34 oz 100 ml DeLonghi descaler in the water tank and add fresh water up to 8 cup max level Place the empty carafe on the warming plate and hold for 2 seconds both the buttons F amp G simultaneously The descaling process will begin Once the descaling cycle is complete the lights on the two buttons will turn o Rinse the machine by following the instructions in the First Use section on page 6 Failure to clean as described above invalidates the War ranty TECHNICAL DATA Mains voltage 120V 60Hz Absorbed power ICM17270 1200W Weight 538 lbs TROUBLESHOOTING Problem Probable cause Solution Continuous blinking of SCA Golden Cup light button F Empty tank error To reset the alarm unplug the appliance for at least 30 minutes Water overowing from lter holder to the carafe Ground Coee is too ne or too much Use a coarser grind size or reduce the amount of coee used Coee residue in the carafe Ground coee is too ne or there is too much or missing paper lter Use a coarser grind size or reduce the amount of coee used Always use a 4 cone lter inside the lter holder
