CD-DV999W
SERVICE MANUAL
NTSC/PAL
No. S6447CDDV777W
SHARP CORPORATION
CONTENTS
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for
maintaining the safety and performance of the set.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
CHAPTER 1. GENERAL DESCRIPTION
[1] Specifications ................................................. 1-1
[2] Names of parts............................................... 1-2
CHAPTER 2. ADJUSTMENTS
[1] Mechanism section ........................................ 2-1
[2] Tuner section ................................................. 2-1
[3] DVD/CD section ............................................. 2-2
[4] TEST Mode .................................................... 2-2

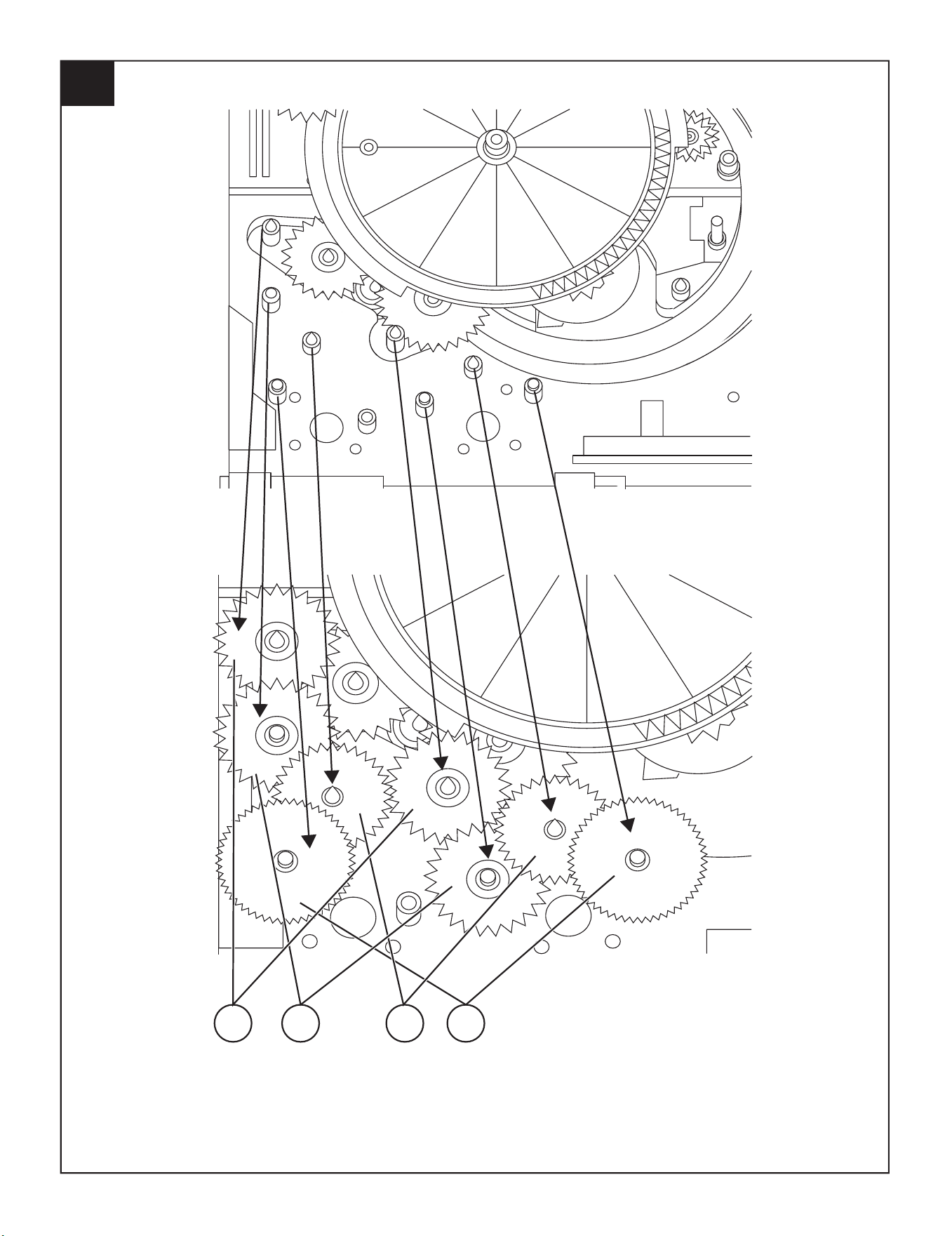

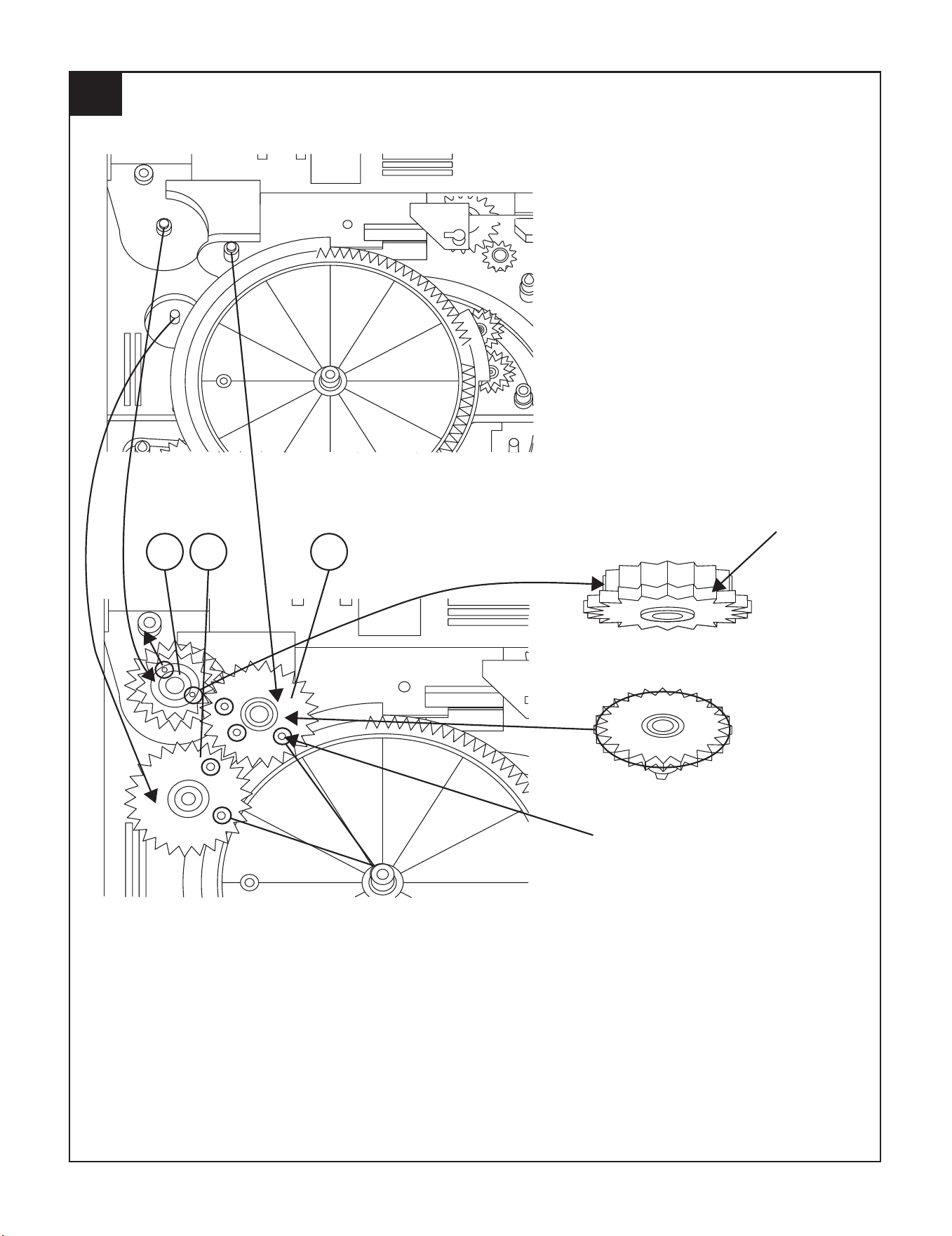

[5] CD Changer mechanism section ................. 2-10
CHAPTER 3. MECHANISM BLOCKS
[1] Caution on diassembly................................... 3-1

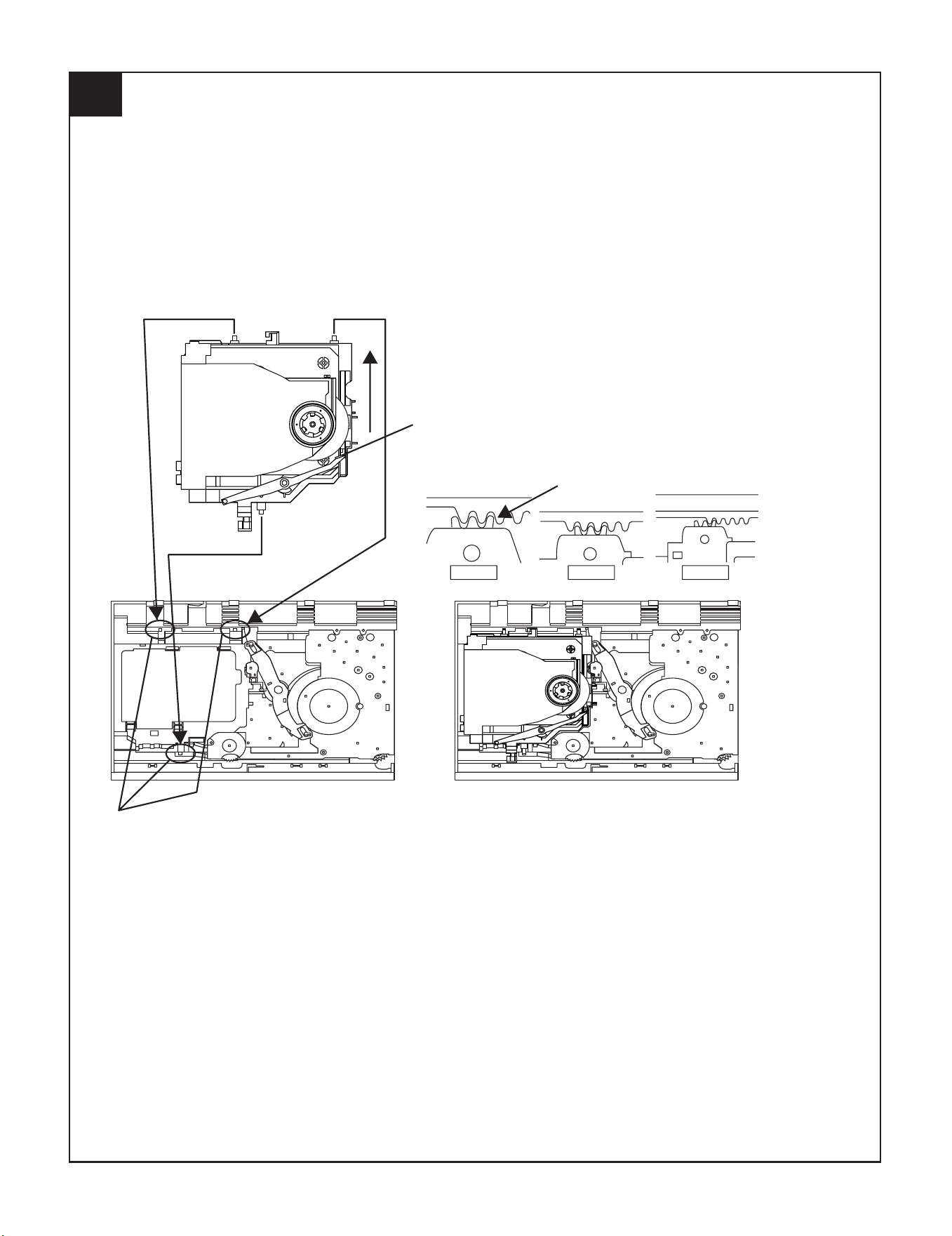

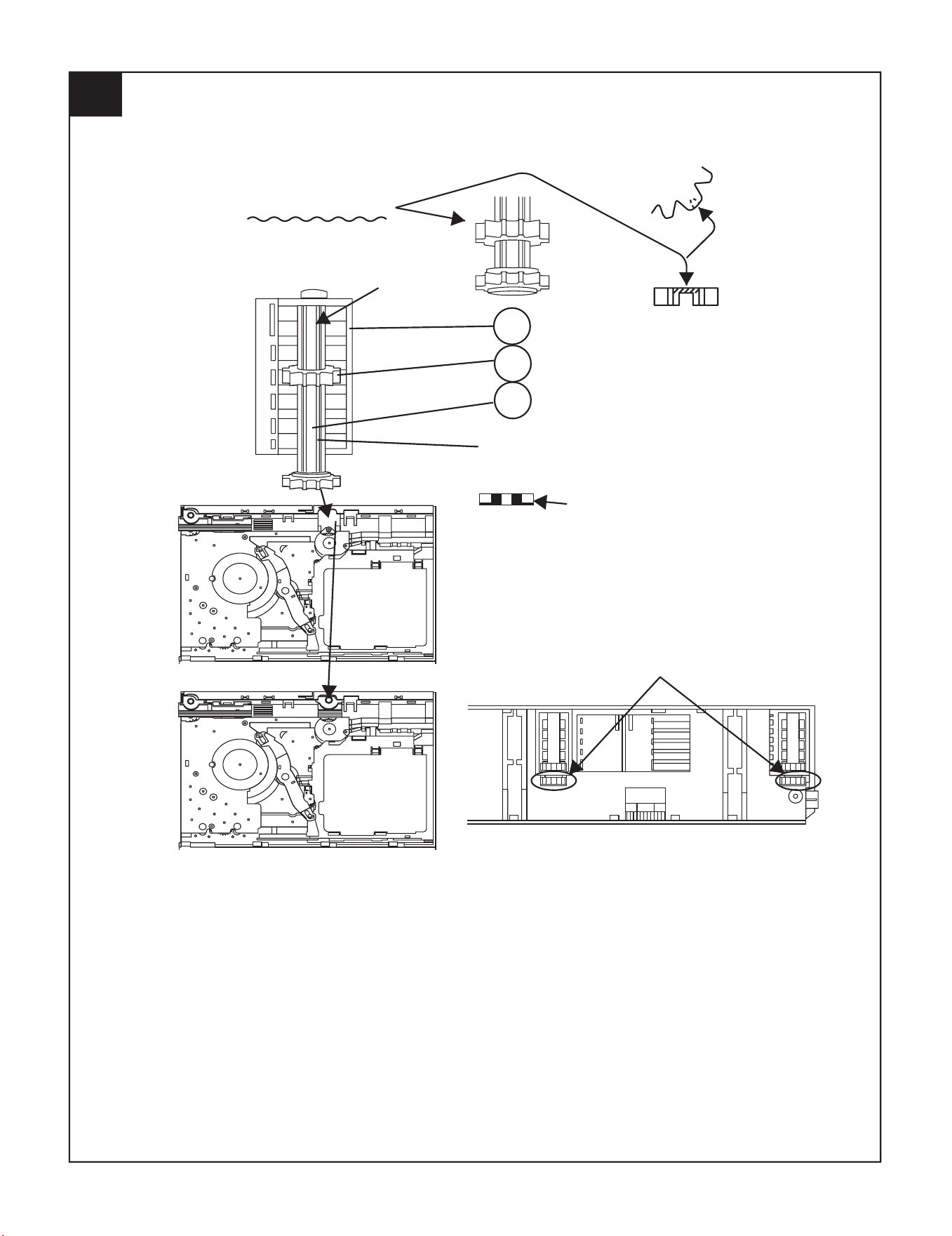

[2] Removing and reinstalling the main parts ........ 3-4
CHAPTER 4. DIAGRAMS
[1] Block diagrams............................................... 4-1
CHAPTER 5. CIRCUIT DESCRIPTION
[1] Notes on schematic diagram .........................5-1
[2] Types of transistor and LED ..........................5-1
[3] Waveforms of DVD circuit..............................5-2
[4] Voltage...........................................................5-3
CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS
LAYOUT

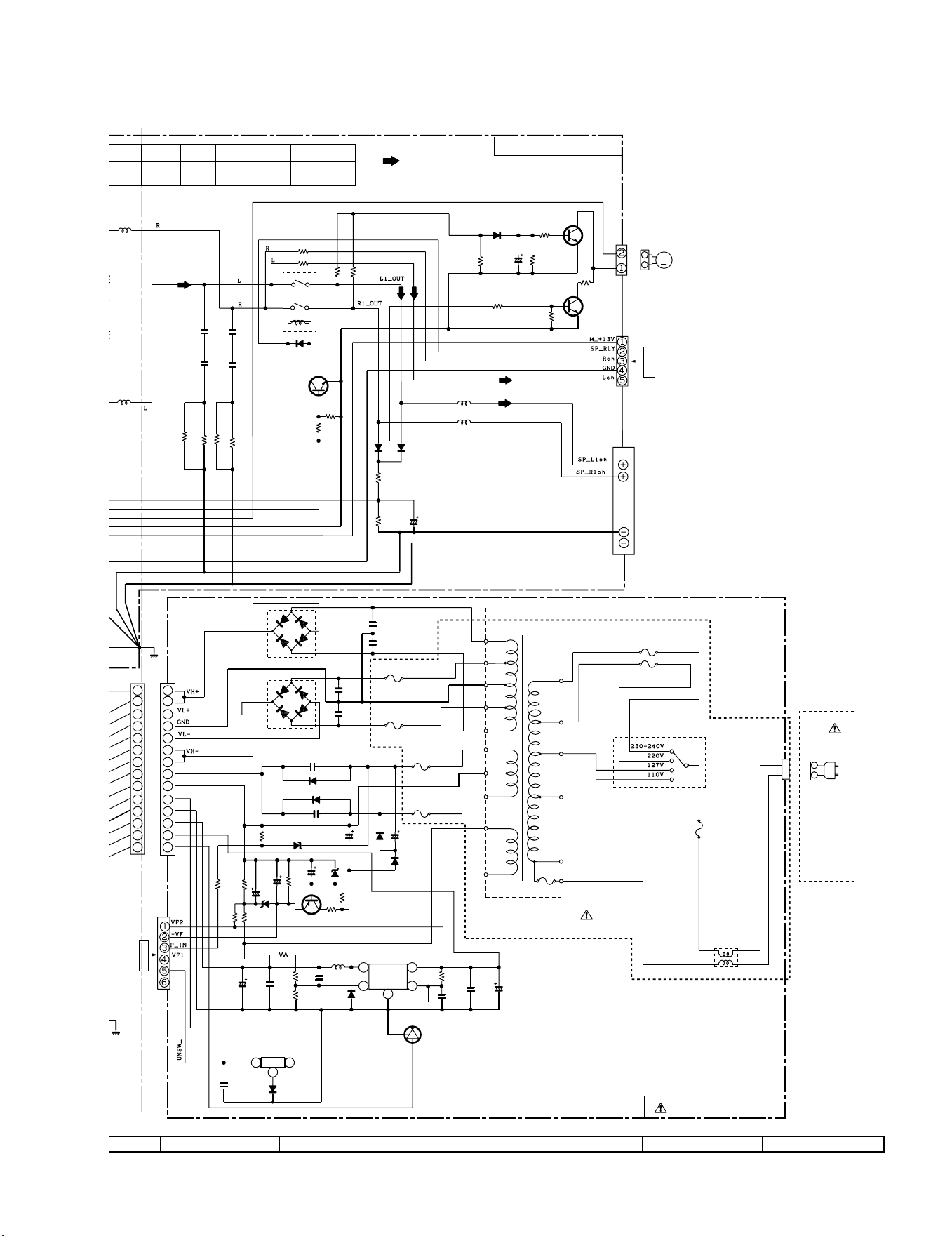

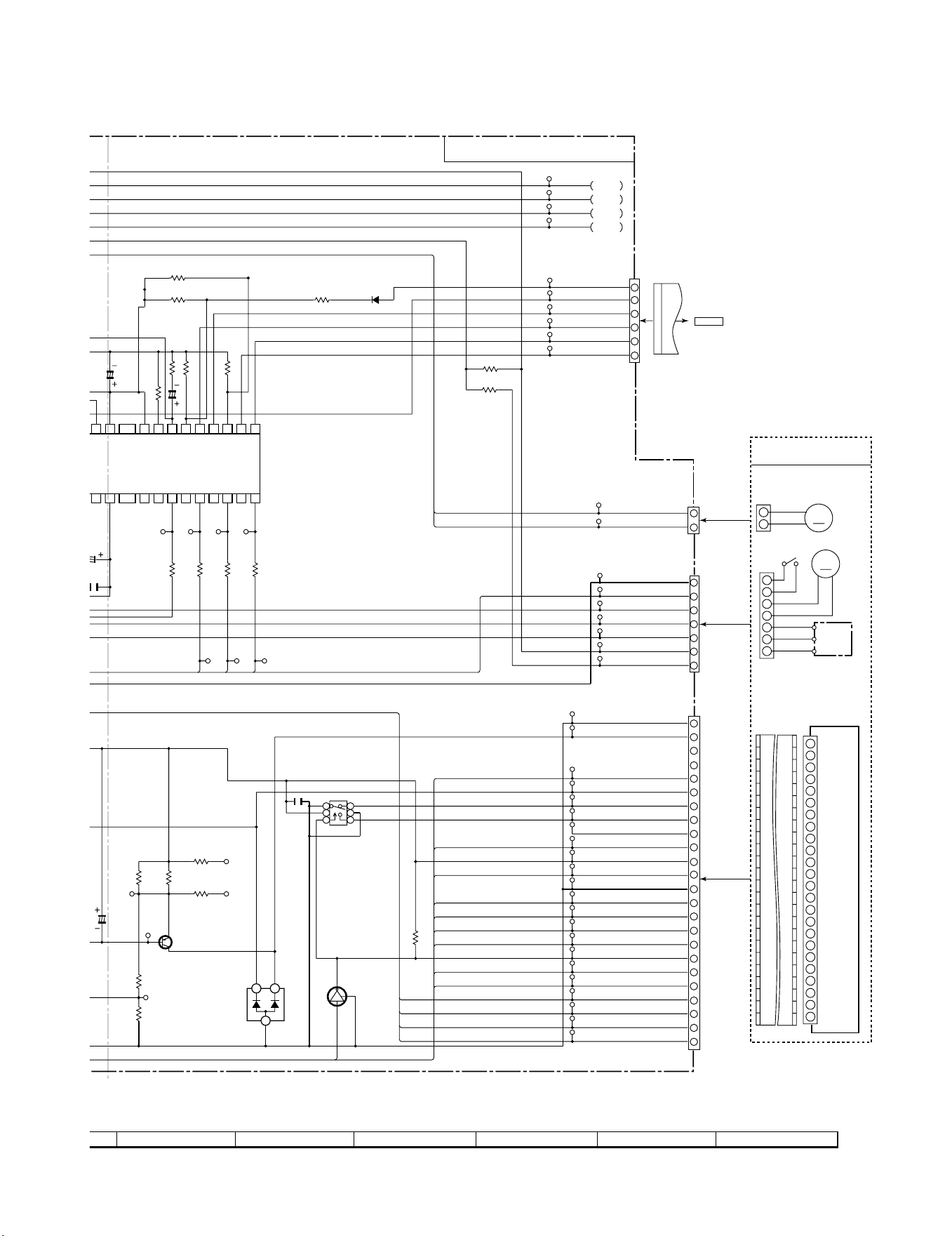

[1] Schematic diagram........................................6-1

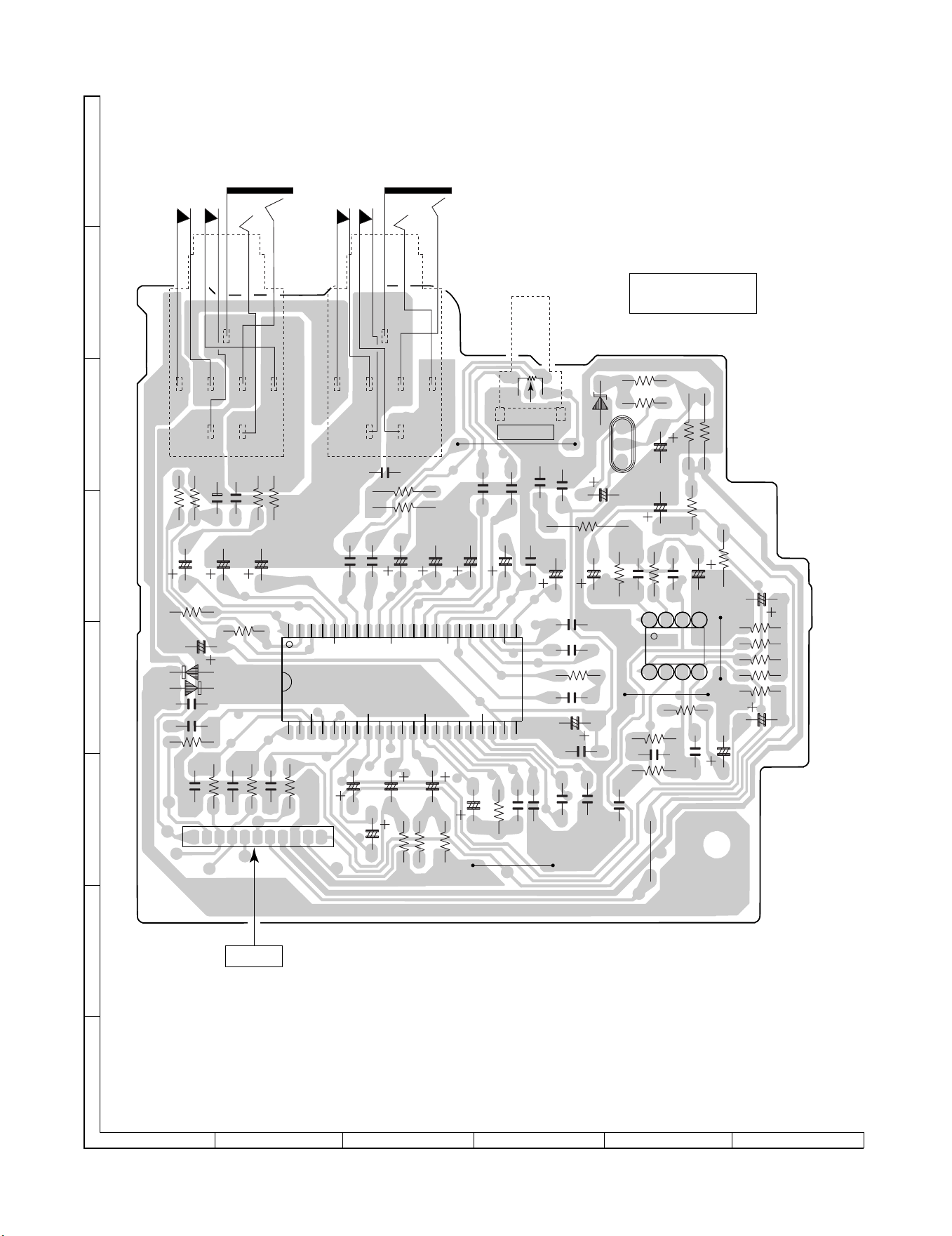

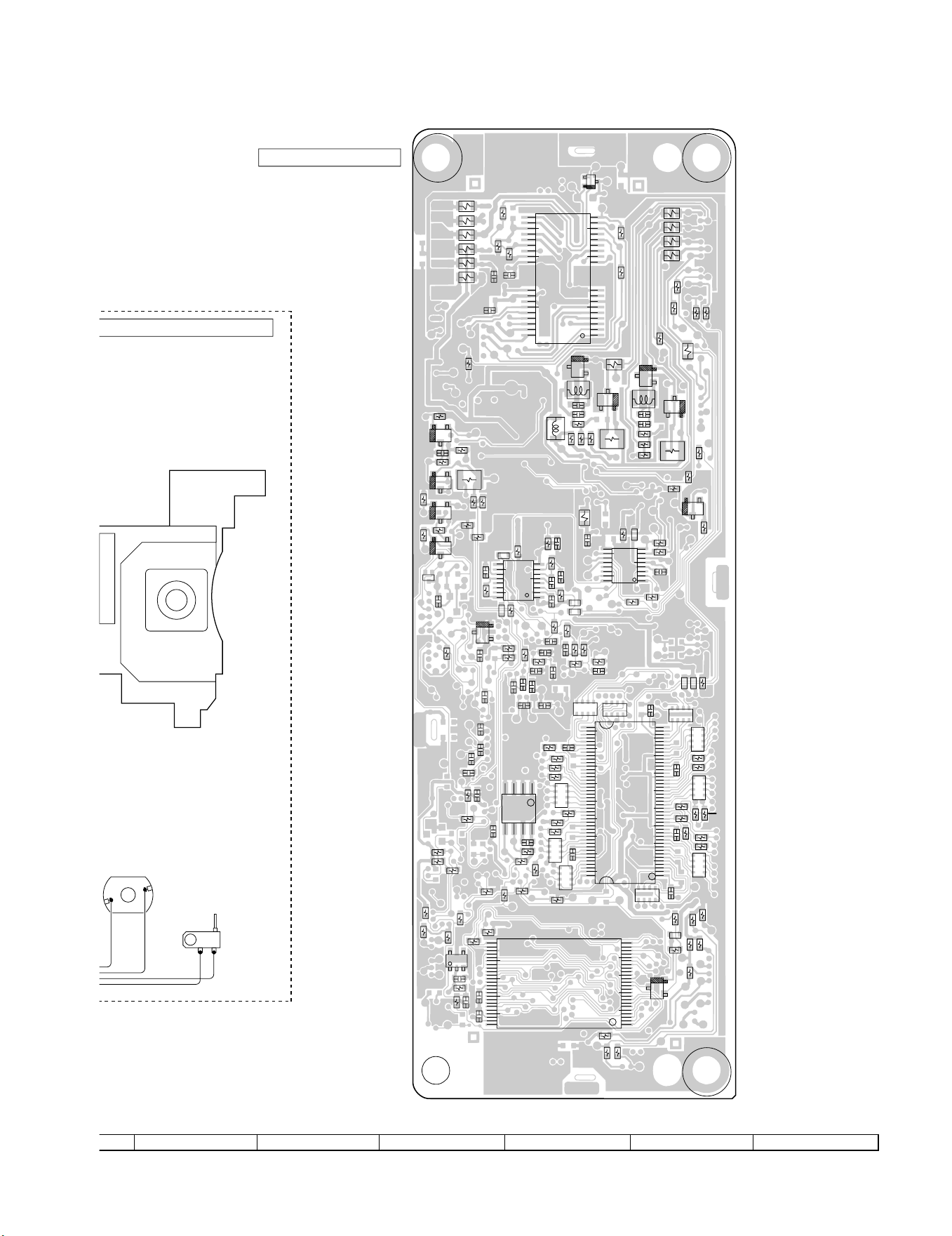

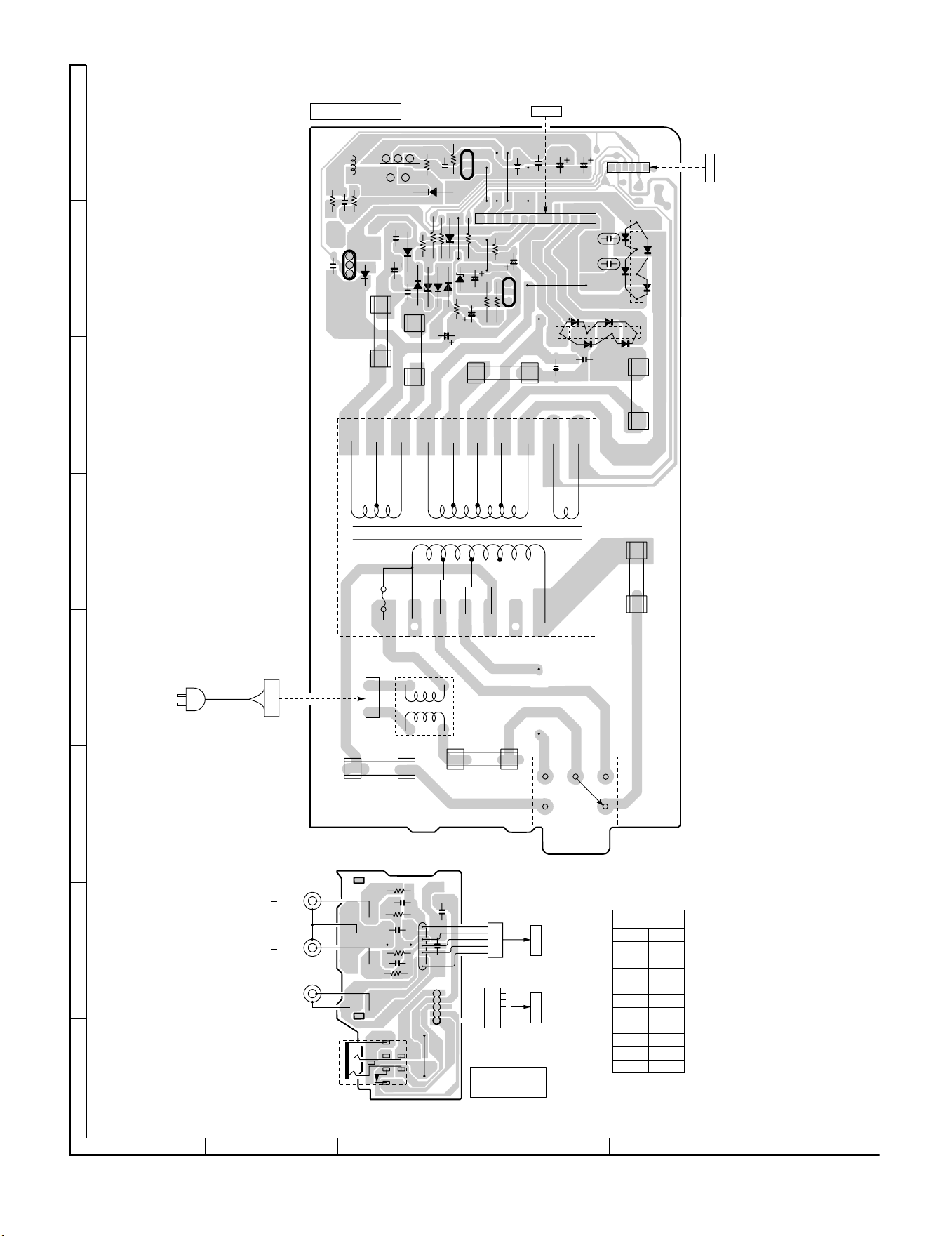

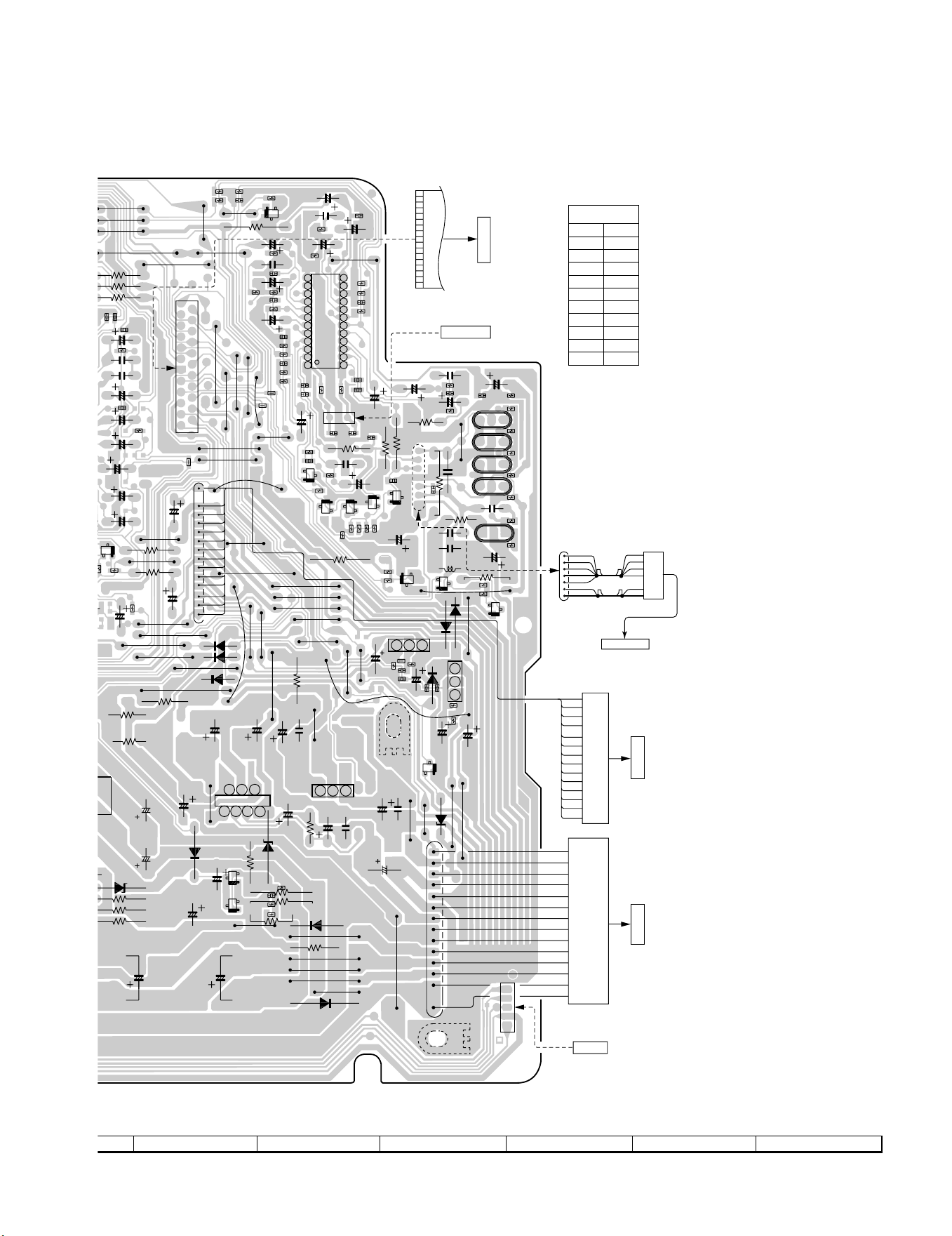

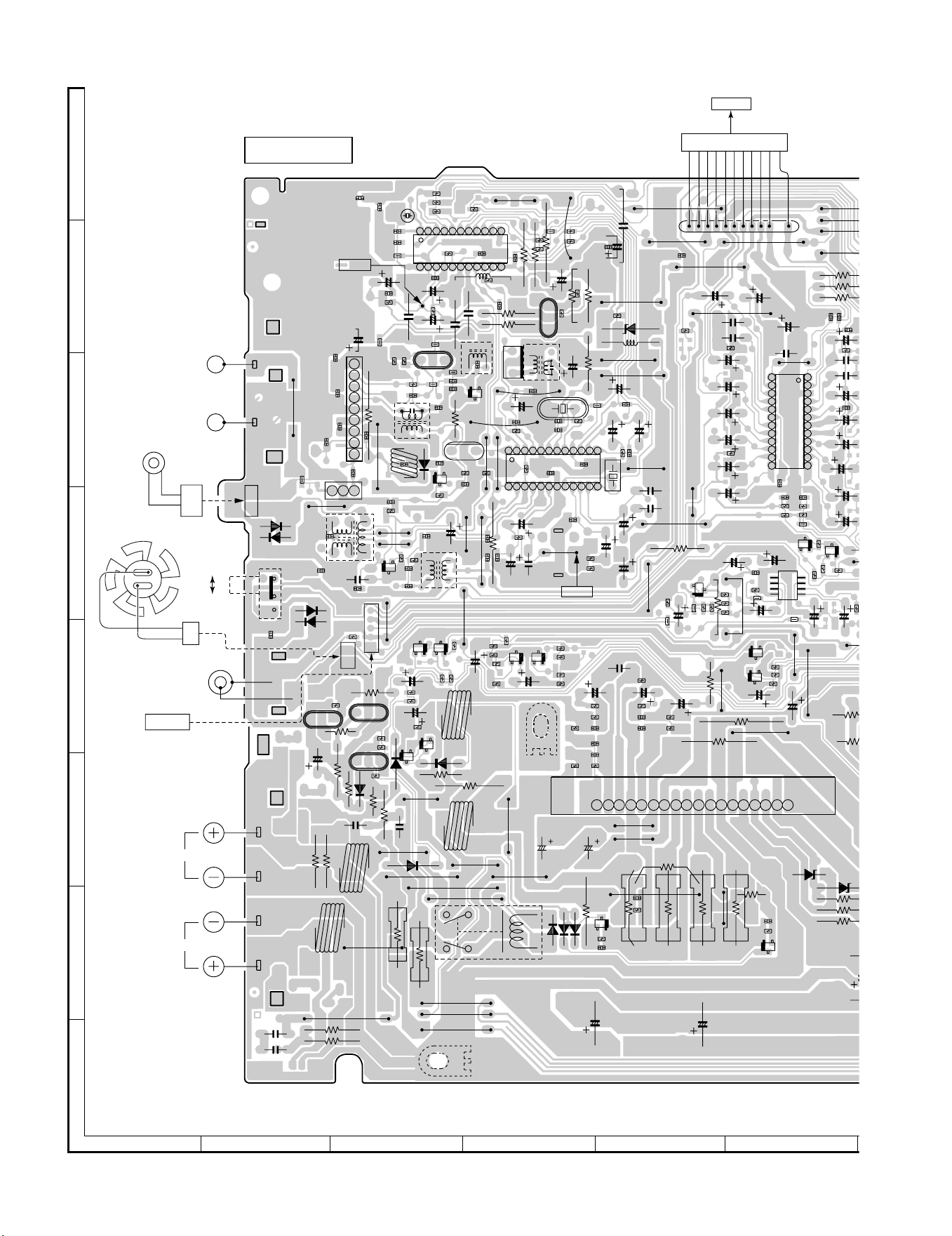

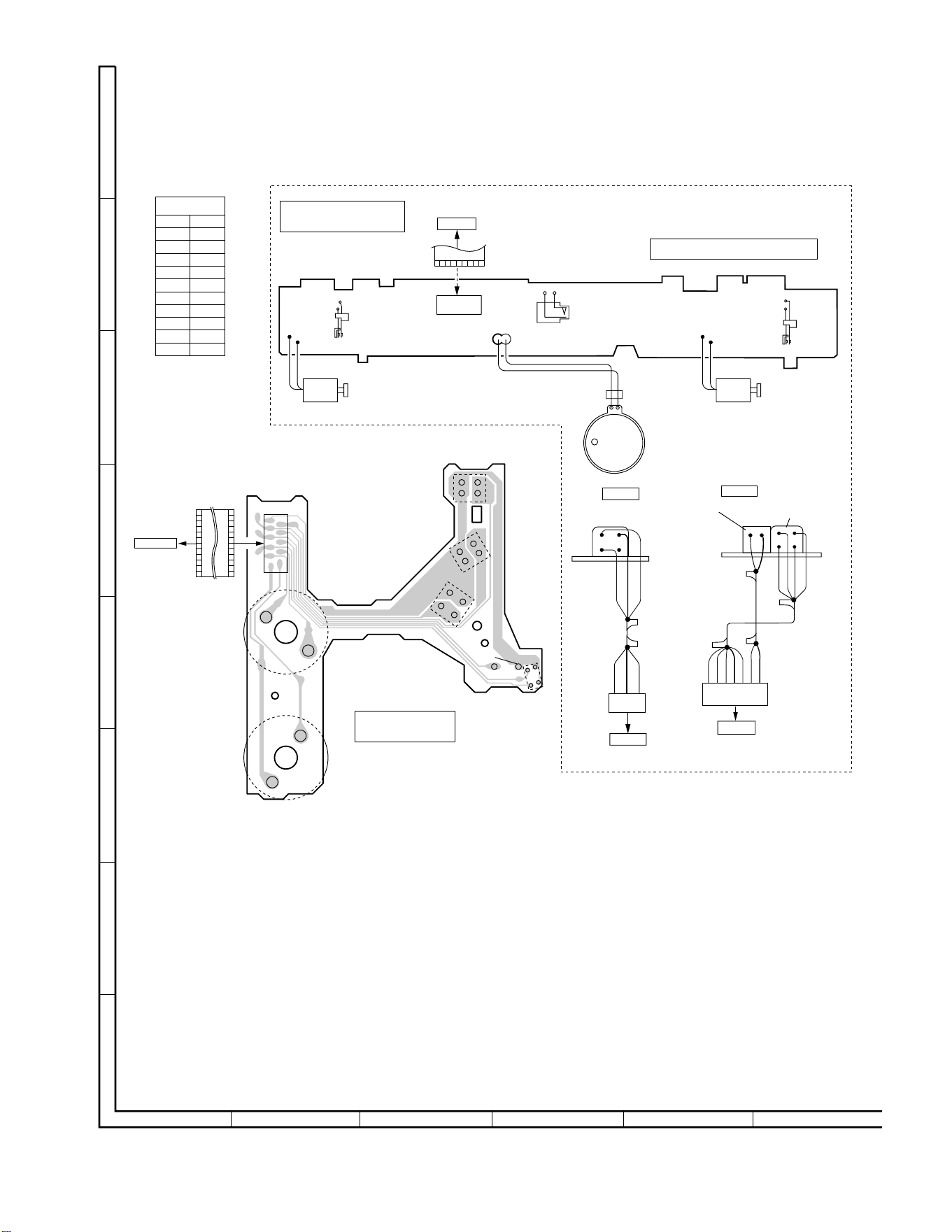

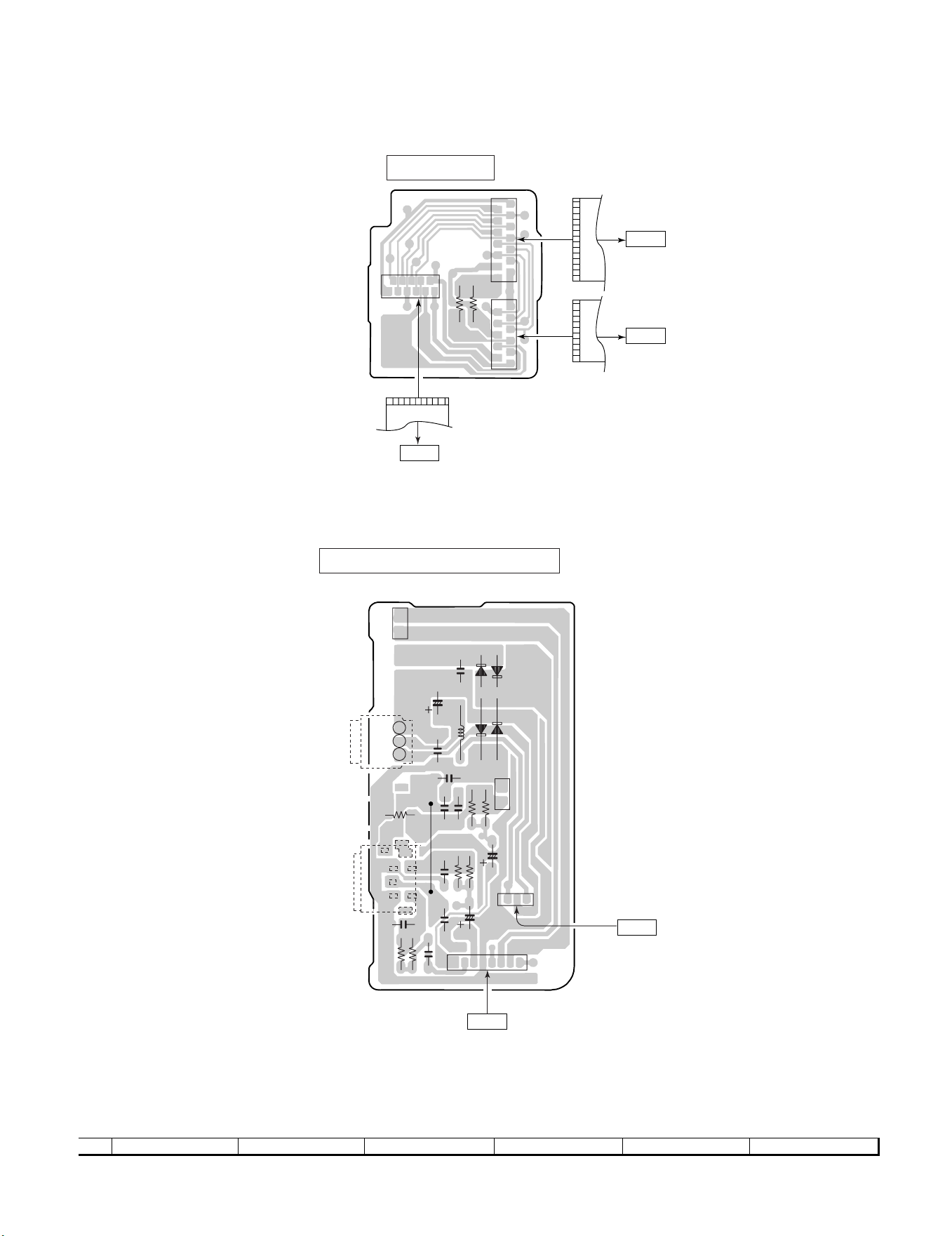

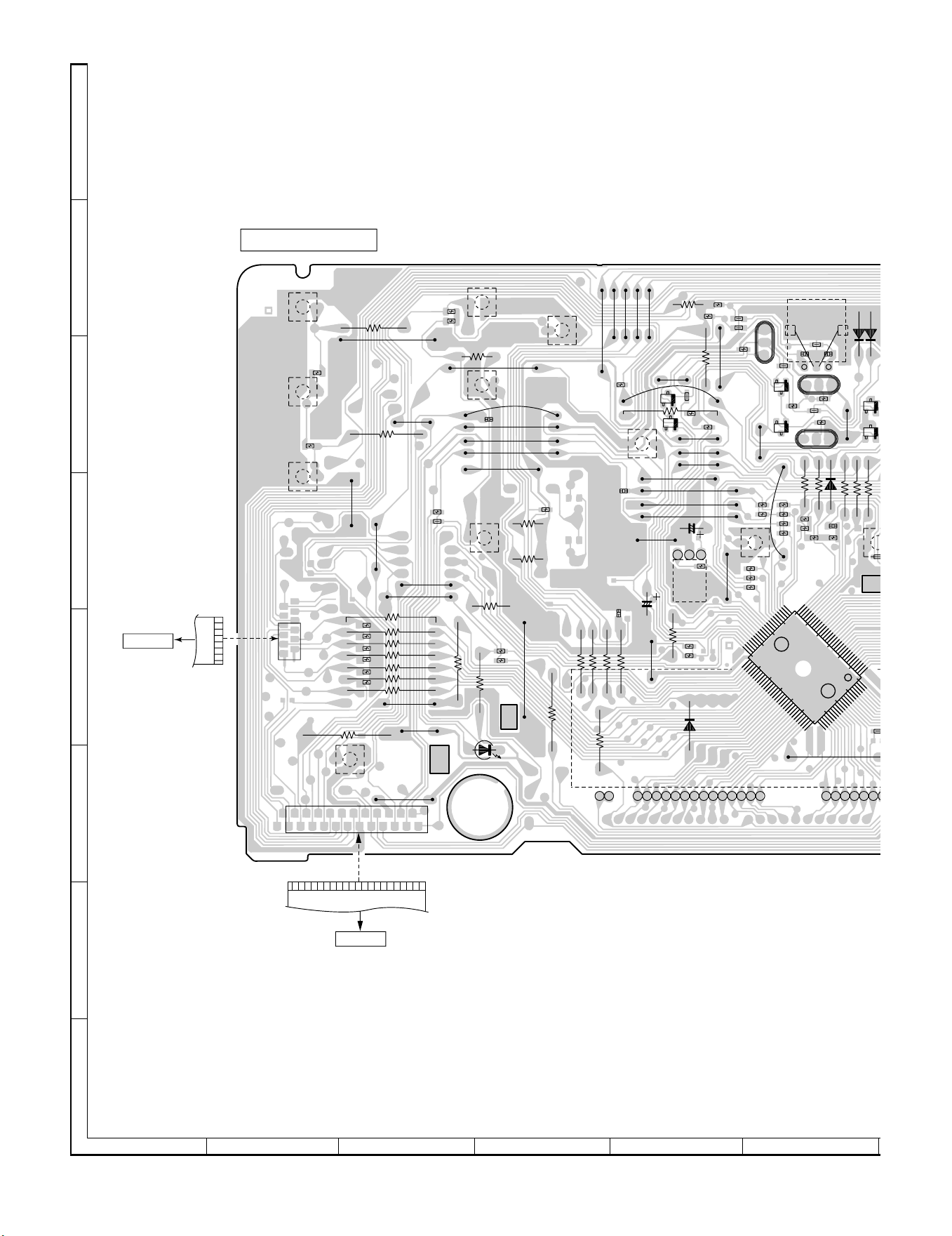

[2] Wiring side of PWB......................................6-16
CHAPTER 7. FLOWCHART
[1] Troubleshooting .............................................7-1
CHAPTER 8. OTHERS

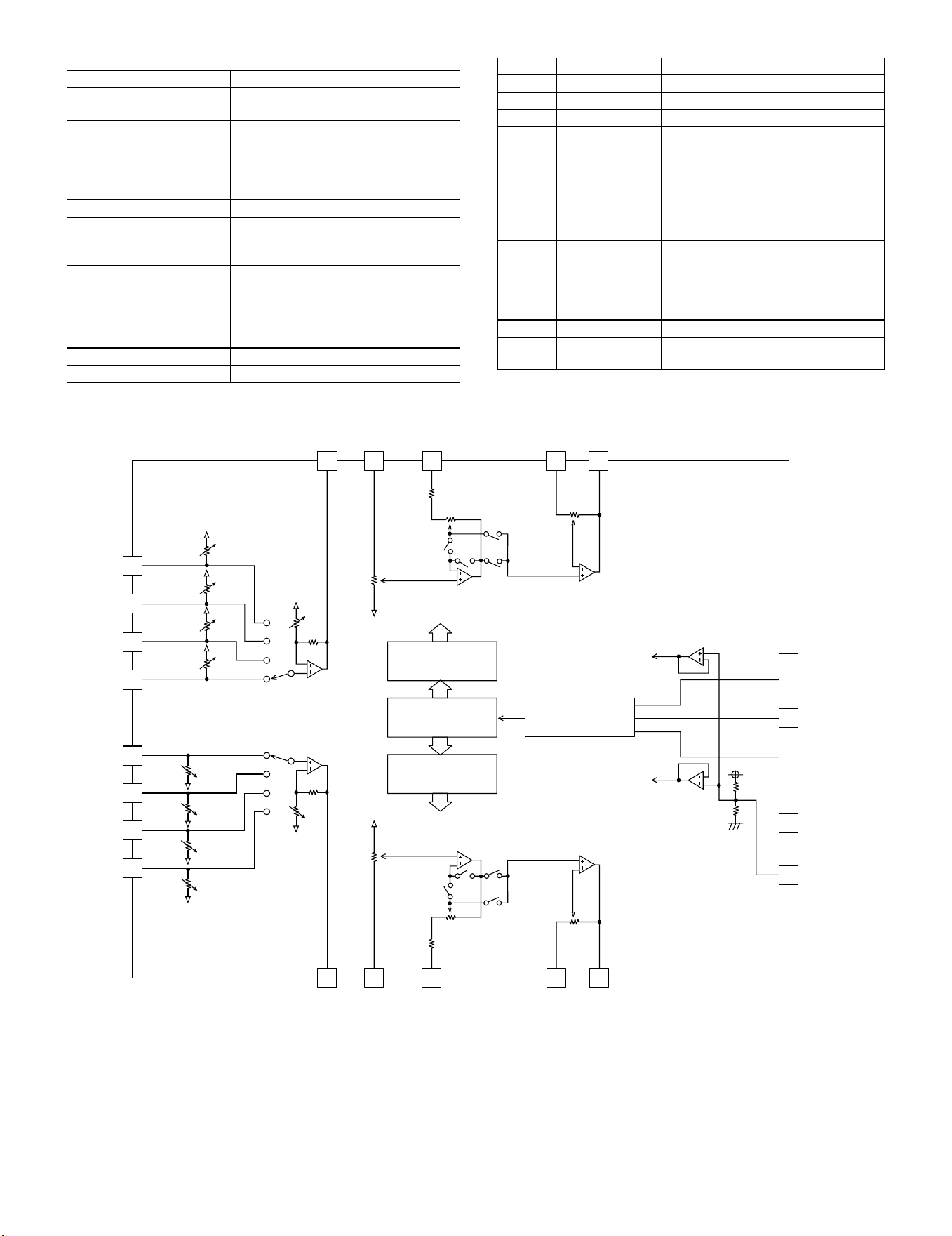

[1] Function table of IC .......................................8-1

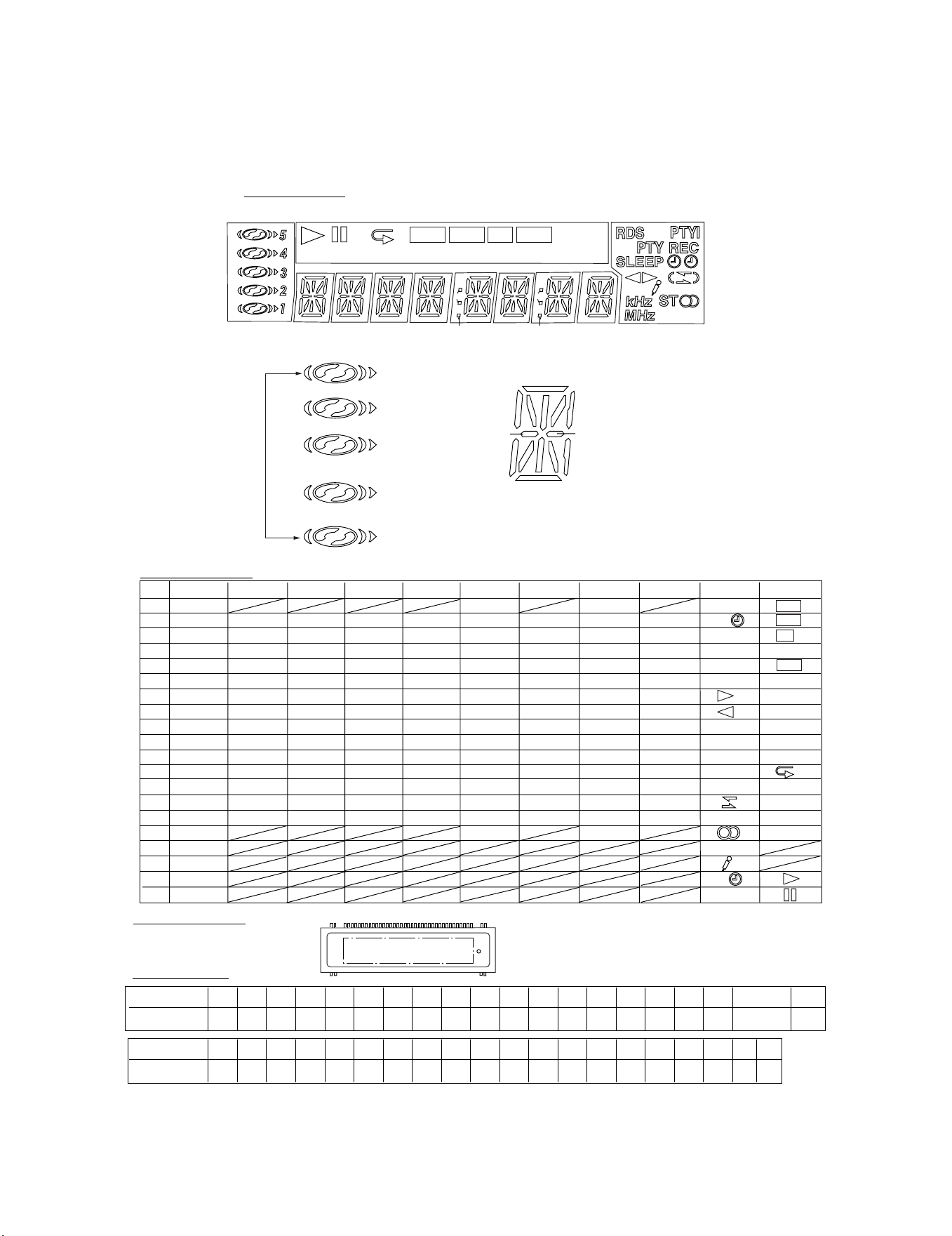

[2] FL Display....................................................8-16

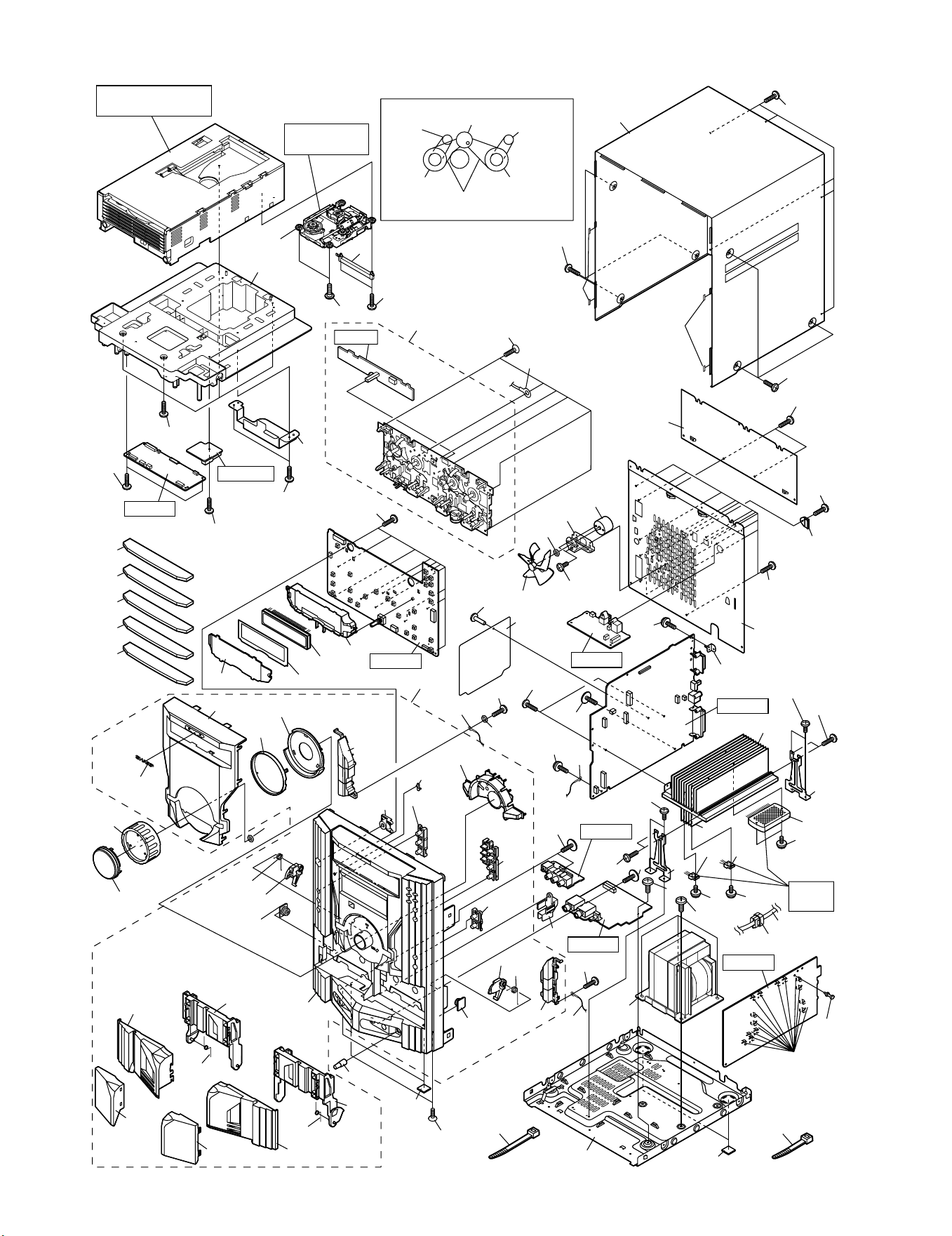

Parts Guide
In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
MINI COMPONENT SYSTEM
CD-DV777W
MODEL
CD-DV777W DVD Mini System consisting of CD-DV777W
(main unit)
and CP-DV777 (speaker system).
DVD MINI SYSTEM
CD-DV999W
MODEL
CD-DV999W DVD Mini System consisting of CD-DV999W
(main unit)
and CP-DV999 (speaker system).
DVD MINI SYSTEM
Illustration: CD-DV777W
Illustration: CD-DV999W
CD-DV999W
– i –
SAFETY PRECAUTION FOR SERVICE MANUAL
WARNINGS
THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1 BUT THE LASER
COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR CLASS 1. THEREFORE IT IS
IMPORTANT THAT THE FOLLOWING PRECAUTIONS ARE OBSERVED DURING SERVICING TO PROTECT YOUR EYES
AGAINST EXPOSURE TO THE LASER BEAM.
1-WHEN THE CABINET IS REMOVED, THE POWER IS TURNED ON WITHOUT A COMPACT DISC IN POSITION AND THE
PICKUP IS ON THE OUTER EDGE THE LASER WILL LIGHT FOR SEVERAL SECONDS TO DETECT A DISC. DO NOT
LOOK INTO THE PICKUP LENS.
2-THE LASER POWER OUTPUT OF THE PICKUP UNIT AND REPLACEMENT SERVICE PARTS ARE ALL FACTORY
PRESET BEFORE SHIPMENT.
DO NOT ATTEMPT TO READJUST THE LASER PICKUP UNIT DURING REPLACEMENT OR SERVICING.
3-UNDER NO CIRCUMSTANCES STARE INTO THE PICKUP LENS AT ANY TIME.
4-CAUTION-USE OF CONTROLS OR ADJUSTMENTS, OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
AC POWER SUPPLY CORD AND AC PLUG ADAPTOR
VOLTAGE SELECTION
Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage
as follows.
Turn the selector with a screwdriver until the appropriate voltage number appears in the window (110 V, 127 V, 220 V or 230 V - 240 V AC).
QACCE0015AW00
CD-DV999W/CD-DV777W
1 – 1
AudioCD-DV999W/CD-DV777WService ManualCD-DV999W/CD-DV777WMarketE
CHAPTER 1. GENERAL DESCRIPTION
[1] Specifications
DVD/VCD/CD player
Signal system NTSC/PAL
Supported disc types DVD, audio CD, CD-R, CD-RW, VCD, MP3/
WMA
Video output Output socket: Pin socket x 1
Output level: 1 Vp-p (75 ohms)
S-video output Y output level: 1 Vp-p (75 ohms)
C output level: 0.628 Vp-p (75 ohms)
Output socket: S-video connector x 1
Video signal Horizontal resolution: 500 lines
S/N ratio: 60 dB
Audio signal Frequency characteristics:
Linear PCM DVD:
4 Hz to 22 kHz (48 kHz sampling)
4 Hz to 44 kHz (96 kHz sampling)
CD: 4 Hz to 20 kHz
S/N ratio: 96 dB, 1 kHz (CD)
Dynamic range:
96 dB (Linear PCM DVD)
96 dB (CD)
Total harmonic distortion ratio:
0.006 % maximum
Tuner
Frequency range FM: 88.0 - 108.0 MHz
AM: 531 - 1,602 kHz
Type 3-way type speaker system
with passive radiator
Super tweeter x 2
5 cm (2") tweeter x 1
16 cm (6-1/2") woofer x 1
10 cm (4") passive radiator
Maximum input power
400 W
Rated input power 200 W
Impedance 6 ohms
Dimensions Width: 277 mm (10-7/8")
Height: 330 mm (13")
Depth: 279 mm (11")
Weight 4.8 kg (10.6 lbs.)/each
General
Power source AC 110/127/220/230-240 V , 50/60 Hz
Power consumption 170 W
Dimensions Width: 260 mm (10-1/4")
Height: 330 mm (13")
Depth: 326 mm (12-7/8")
Weight 10.5 kg (23.1 lbs.)
Amplifier
Output power MPO: 740 W (370 W + 370 W) (10 % T.H.D.)
RMS: 400 W (200 W + 200 W) (10 % T.H.D.)
RMS: 290 W (145 W + 145 W) (0.9 % T.H.D.)
Output terminals Speakers: 6 ohms
Headphones: 16 - 50 ohms (recommended:
32 ohms)
Video output: 1 Vp-p (75 ohms)
Input terminals
Game/Auxiliary (audio signal): 500 mV/ 47 k ohms
Game/Video: 1 Vp-p
Microphone 1/2: 1 mV/600 ohms
Cassette deck
Frequency response 50 - 14,000 Hz (normal tape)
Signal/noise ratio 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter 0.3 % (WRMS)
CP-DV999
CP-DV777
Specifications for this model are subject to change without
prior notice.
General
Power source AC 110/127/220/230-240 V , 50/60 Hz
Power consumption 140 W
Dimensions Width: 260 mm (10-1/4")
Height: 330 mm (13")
Depth: 326 mm (12-7/8")
Weight 8.9 kg (19.6 lbs.)
Amplifier
Output power MPO: 600 W (300 W + 300 W) (10 % T.H.D.)
RMS: 300 W (150 W + 150 W) (10 % T.H.D.)
RMS: 150 W (75 W + 75 W) (0.9 % T.H.D.)
Output terminals Speakers: 6 ohms
Headphones: 16 - 50 ohms (recommended:
32 ohms)
Video output: 1 Vp-p (75 ohms)
Input terminals
Game/Auxiliary (audio signal): 500 mV/ 47 k ohms
Game/Video: 1 Vp-p/75 ohms
Microphone 1/2: 1 mV/600 ohms
Cassette deck
Frequency response 50 - 14,000 Hz (normal tape)
Signal/noise ratio 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter 0.3 % (WRMS)
DVD/VCD/CD player
Signal system NTSC/PAL
Supported disc types DVD, audio CD, CD-R, CD-RW, VCD, MP3/
WMA
Video output Output socket: Pin socket x 1
Output level: 1 Vp-p (75 ohms)
S-video output Y output level: 1 Vp-p (75 ohms)
C output level: 0.628 Vp-p (75 ohms)
Output socket: S-video connector x 1
Video signal Horizontal resolution: 500 lines
S/N ratio: 60 dB
Audio signal Frequency characteristics:
Linear PCM DVD:
4 Hz to 22 kHz (48 kHz sampling)
4 Hz to 44 kHz (96 kHz sampling)
CD:4Hzto20kHz
S/N ratio: 96 dB, 1 kHz (CD)
Dynamic range:
96 dB (Linear PCM DVD)
96 dB (CD)
Total harmonic distortion ratio:
0.006 % maximum
Tuner
Frequency range FM: 88.0 - 108.0 MHz
AM: 531 - 1,602 kHz
Type 3-way type speaker system
with passive radiator
Super tweeter x 2
5 cm (2") tweeter x 1
16 cm (6-1/2") woofer x 1
10 cm (4") passive radiator
Maximum input power
300 W
Rated input power 150 W
Impedance 6 ohms
Dimensions Width: 277 mm (10-7/8")
Height: 330 mm (13")
Depth: 279 mm (11")
Weight 3.9 kg (8.6 lbs.)/each
CD-DV999W/CD-DV777W
1 – 2
[2] Names of parts
Front panel
1. Disc Trays
2. Timer Set Indicator
3. On/Stand-by Button
4. DVD/Video CD/CD/MP3/WMA Track Up or Fast Forward, Tape 2
Fast Wind, Tuner Preset Up, Time Up Button
5. Clock/Timer Button
6. Tuning Up Button
7. Tuning Down Button
8. Tape 2 Reverse Mode Select Button
9. DVD/Video CD/CD/MP3/WMA Track Down or Fast Reverse, Tape 2
Fast Wind, Tuner Preset Down, Time Down Button
10. Equalizer Mode Select Button
11.
Tape 1 Cassette Compartment
12.
Game/Video Input Sockets
13. Headphone Socket
14. Disc Number Select Buttons
15. DVD/Video CD/CD/MP3/WMA Direct Play Button
16. Disc Tray Open/Close Button
17.
DVD/Video CD/CD/MP3/WMA Play, Tape 1 Play,
Tape 2 Forward Play Button
18. Memory/Set Button
19. Tape 2 Record Pause Button
20. Tape 2 Reverse Play Button
21. DVD/Video CD/CD/MP3/WMA or Tape Stop Button
22. Extra Bass/Demo Mode Button
23. Volume Control
24.
Tape 2 Cassette Compartment
25. Tuner (Band) Button
26. DVD/Video CD/CD/MP3/WMA Button
27. Tape (1
2) Button
28. Game/Video Button
29.
Mic 1
Socket
30.
Mic 2
Socket
31.
Mic Level
Display
1. Disc Number Indicators
2. DVD/Video CD/CD/MP3/WMA Play Indicator
3. DVD/Video CD/CD/MP3/WMA Pause Indicator
4. DVD/Video CD/CD/MP3/WMA Repeat Indicator
5. DVD Indicator
6. VCD Indicator
7. CD Indicator
8. MP3 Indicator
9. Extra Bass Indicator
10. Memory Indicator
11. DVD Angle Indicator
12. DVD Chapter Indicator
13. DVD Title Indicator
14. WMA Indicator
15. Virtual Surround Indicator
16. Tape 2 Record Indicator
17. Timer Recording Indicator
18. Timer Play Indicator
19. Sleep Indicator
20. Tape 2 Reverse Play Indicator
21. Tape 1 Play or Tape 2 Forward Play Indicator
22. Tape Reverse Mode Indicator
23. FM Stereo Mode Indicator
24. FM Stereo Receiving Indicator
25. Daily Timer Indicator
26. Tuner Receiving Frequency Indicators
27. Karaoke Mode Indicator
CD-DV999W/CD-DV777W
CD-DV999W/CD-DV777W
1 – 3

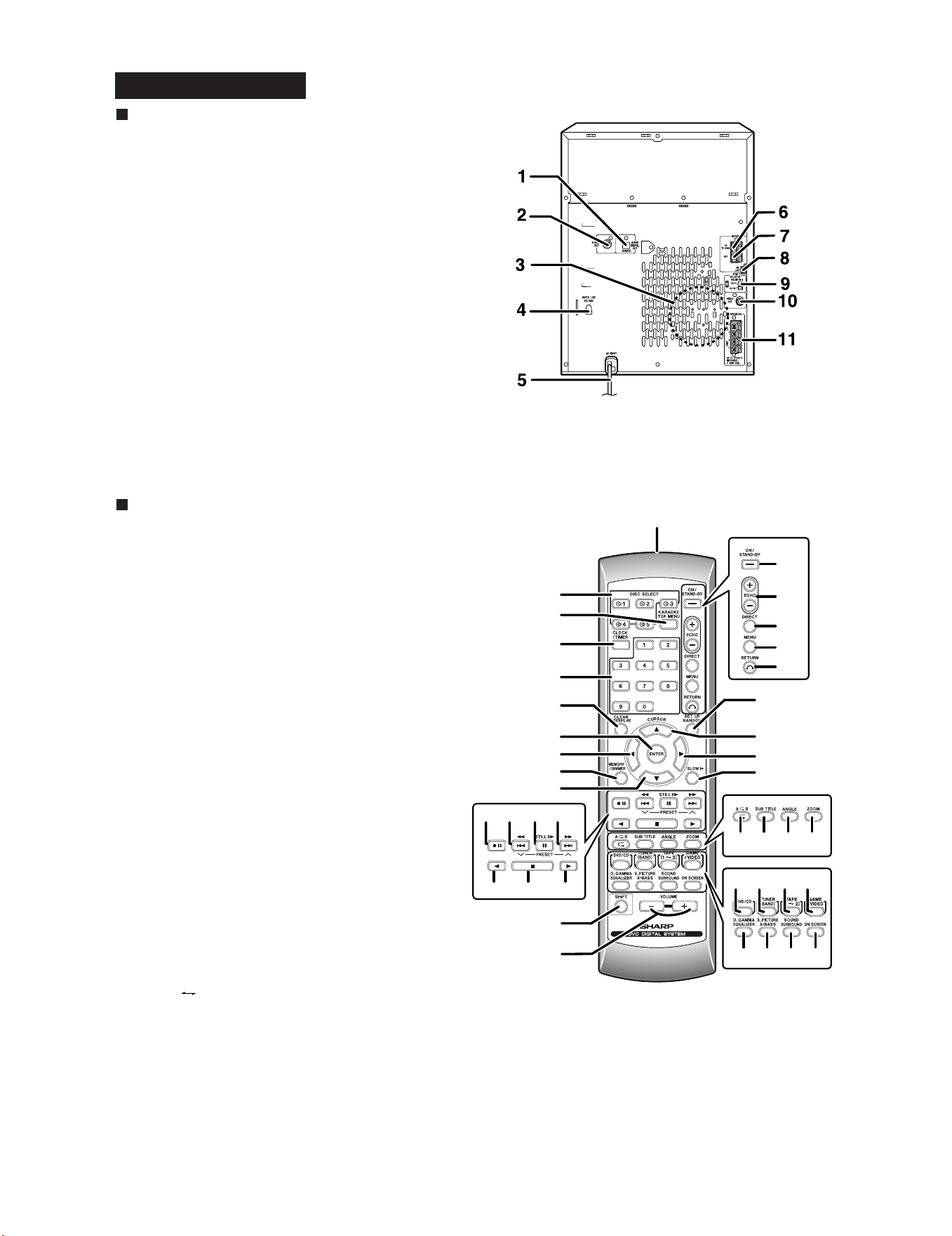

Rear panel
1. Audio Digital Output Socket
2. S-Video Output Socket
3. Cooling Fan
4. AC Voltage Selector
5. AC Power Lead
6. FM 75 Ohm Aerial Terminal
7. FM Aerial Earth Terminal
8. AM Loop Aerial Socket
9. Span Selector Switch
10. Video Output Socket
11. Speaker Terminals
1
2
20
21
22
23
24
25
26
27
28
3
4
5
6
7
8
9
10
18
19
11
15 16 17
12 13 14
33 34
37 38 39 40
29 30 31 32
35 36
Remote control
1. Remote Control Transmitter
2. Disc Number Select Buttons
3. DVD Top Menu Button
4. Clock/Timer Button
5. Direct Search Buttons
6. Clear/Display Button
7. Enter Button
8. Cursor Left Button
9. Memory/Dimmer Button
10. Cursor Down Button
11. Tape 2 Record Pause Button
12.
DVD Chapter Skip, DVD/Video CD/CD/MP3/WMA Fast Reverse,
Video CD/CD/MP3/WMA Track Down, Tape 2 Fast Wind and
Tuner Preset Down, Time Down Button
13. DVD/Video CD/CD/MP3/WMA Pause Button
14.
DVD Chapter Skip, DVD/Video CD/CD/MP3/WMA Fast Forward,
Video CD/
CD/MP3/WMA Track Up, Tape 2 Fast Wind and
Tuner Preset Up, Time Up Button
15. Tape 2 Reverse Play Button
16. DVD/Video CD/CD/MP3/WMA/Tape Stop Button
17. DVD/Video CD/CD/MP3/WMA/Tape 1 Play,
Tape 2 Forward Play Button
18. Shift Button
19. Volume Up/Down Buttons
20. On/Stand-by Button
21. Echo Level Up/Down Buttons
22. DVD Direct Button
23. DVD Menu Button
24. Return Button
25. CD Random Button
26. Cursor Up Button
27. Cursor Right Button
28. DVD/Video CD Slow Button
29. DVD/Video CD/CD/MP3/WMA Repeat Button
30. DVD Subtitle Button
31. DVD Angle Button
32. DVD Zoom Button
33. DVD/Video CD/CD/MP3/WMA Button
34. Tuner (Band) Button
35. Tape (1
2) Button
36. Game/Video Button
37. Equalizer Mode Select Button
38. Extra Bass Button
39. DVD 3-D Virtual Surround Button
40. DVD On Screen Button
CD-DV999W/CD-DV777W
CD-DV999W/CD-DV777W
1 – 4
1
2
3
4
5
6

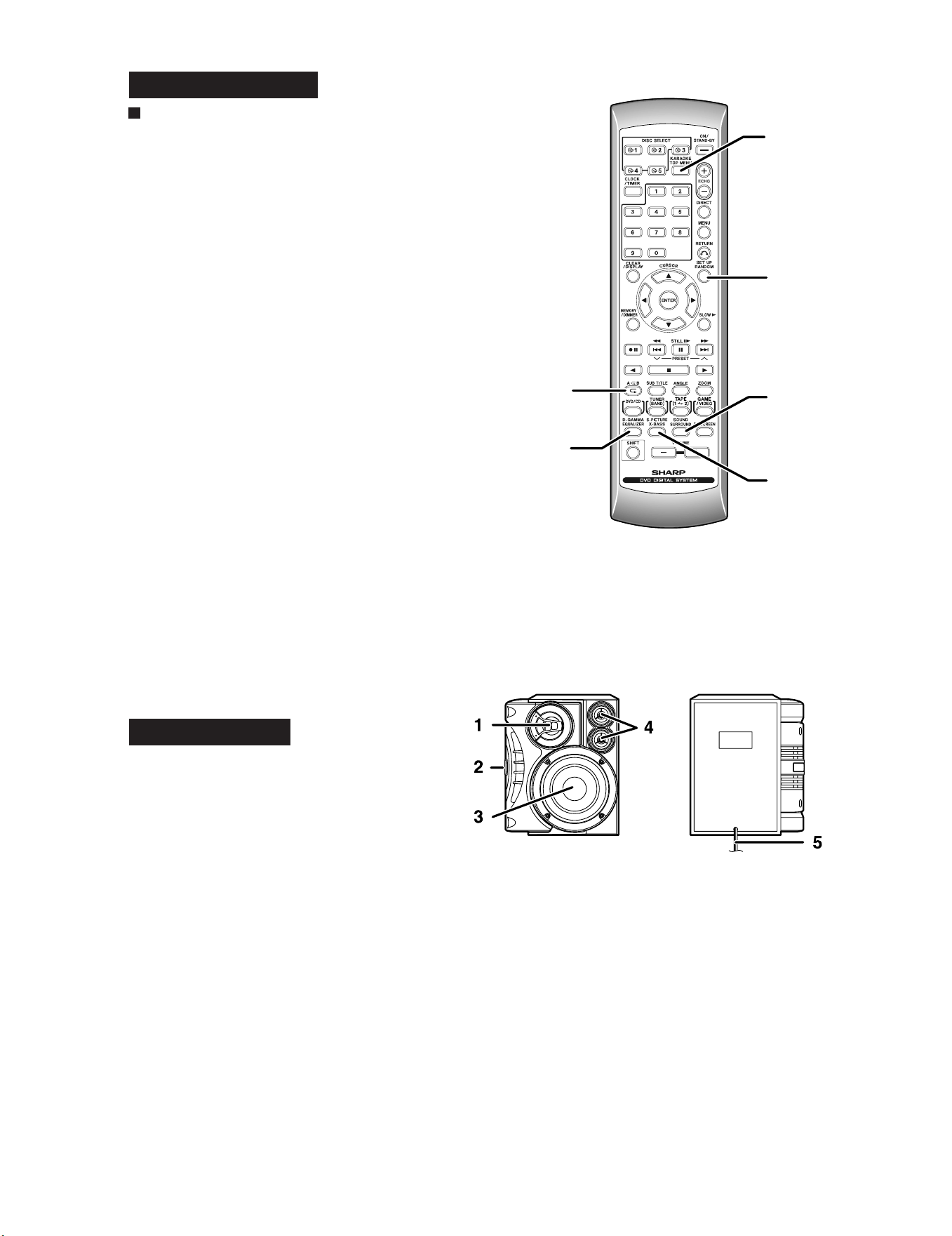

Remote control with shift button
1. Karaoke/Audio Mode Button
2. DVD Setup Button
3. DVD Sound Button
4. DVD Super Picture Button
5. DVD/Video CD/CD A-B Repeat Button
6. DVD Digital Gamma Button
1. Tweeter
2. Passive Radiator
3. Woofer
4. Super Tweeters
5. Speaker Wire
CD-DV999W/CD-DV777W
CP-DV999/CP-DV777
CD-DV999W/CD-DV777W
2 – 1
AudioCD-DV999W/CD-DV777WService ManualCD-DV999W/CD-DV777WMarketE

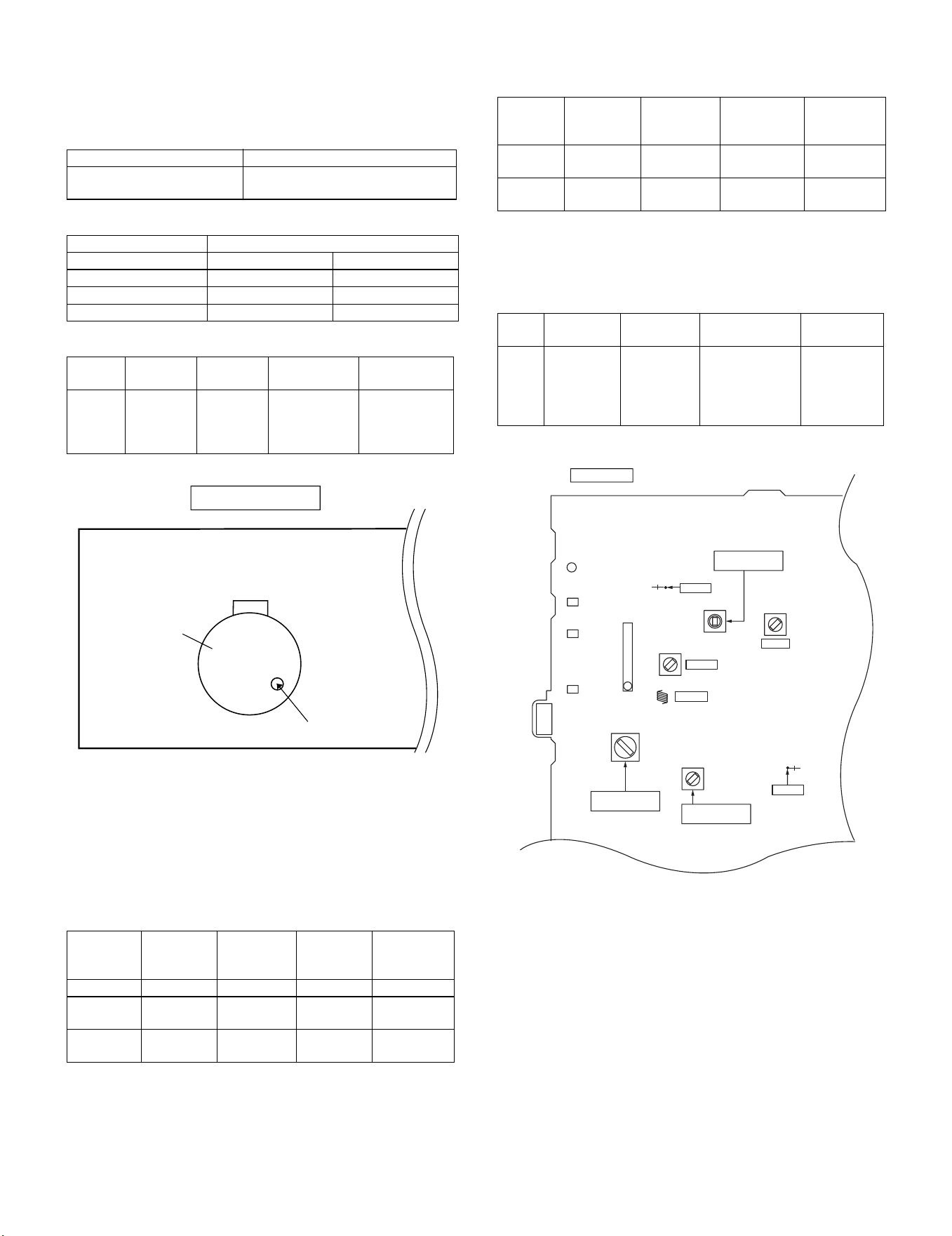

CHAPTER 2. ADJUSTMENTS
[1] Mechanism section
• Driving Force Check
• Torque Check
• Tape Speed
Figure 1
[2] Tuner section
fL: Low-range frequency
fH: High-range frequency
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
•FM RF
Signal generator: 1 kHz, 40 kHz dev., FM modulated
•FM IF
Signal generator: 10.7 MHz, FM modulated
Figure 2 Adjustment Points
Torque Meter Specified Value
Play: TW-2111 Tape 1: Over 80 g
Tape 2: Over 80 g
Torque Meter Specified Value
Tape 1 Tape 2
Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm
Fast forward: TW-2231 — 70 to 180 g.cm
— 70 to 180 g.cm
Test Tape Adjust-
ing Point
Specified
Value
Instrument
Connection
Normal
speed
MTT-111 Variable
Resistor in
motor.
3,000 ± 30 Hz
Speaker
Speaker Ter-
minal (Load
resistance: 6
ohms)
Test Stage Frequency Frequency
Display
Setting/
Adjusting
Parts
Instrument
Connection
AM IF 450 kHz 1,602 kHz T351 *1
AM Band
Coverage
— 531 kHz (fL): T306
1.1 ± 0.1 V
*2
AM
Tracking
990 kHz 990 kHz (fL): T303 *1
*1. Input: Antenna Output: TP302
*2. Input: Antenna Output: TP301

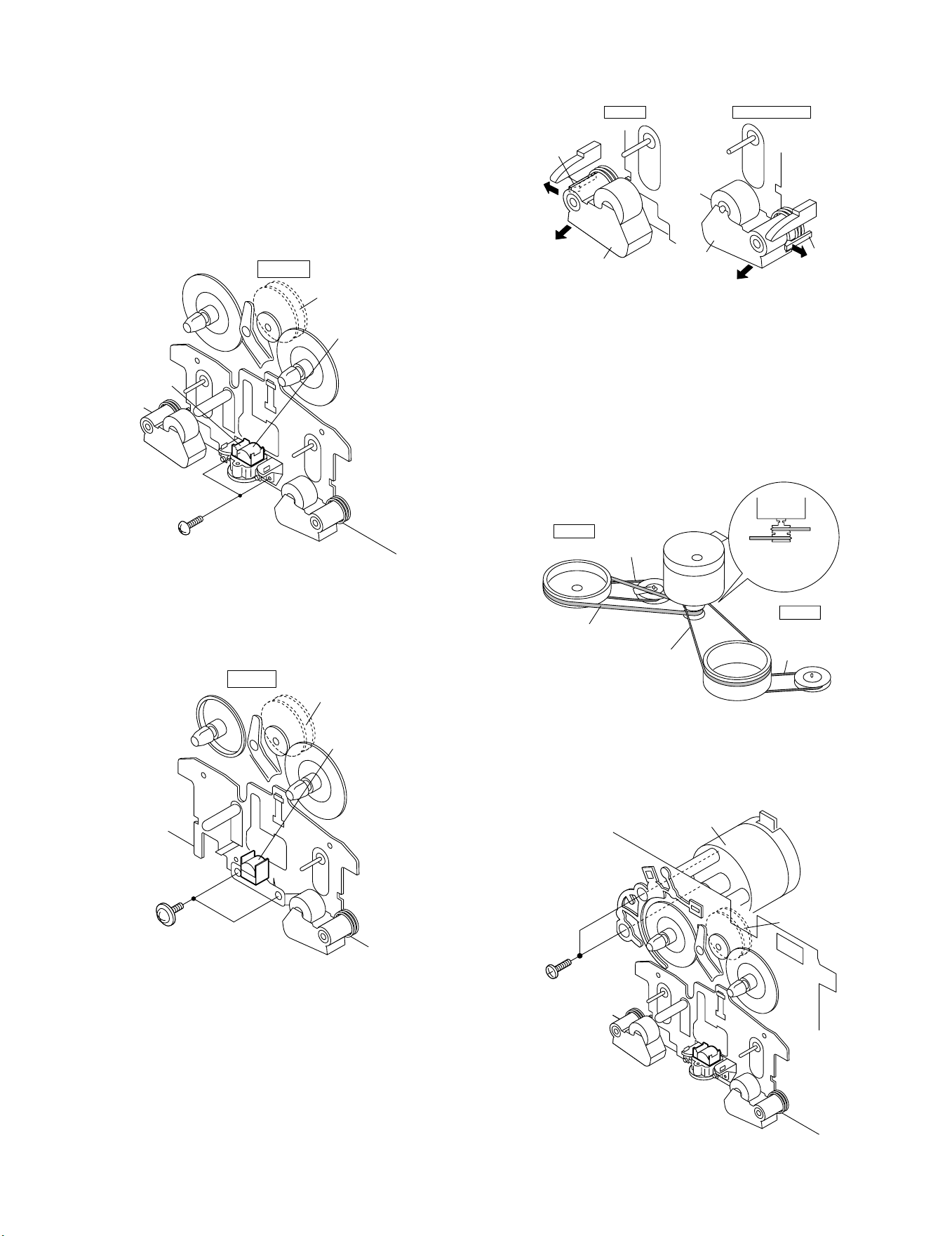

TAPE MECHANISM
Tape
Motor
Variable Resistor in motor
Test
Stage
Frequency Frequency
Display
Setting/
Adjusting
Point
Instrument
Connection
FM Band
Coverage
— 87.50 MHz T301 (fL):
1.3 V ± 0.1 V
*1
FM RF 98.00 MHz
(10-30 dB)
98.00 MHz L312 *2
*1. Input: Antenna Output: TP301
*2. Input: Antenna Output: Speaker terminal
Test
Stage
Frequency Frequency
Display
Setting/Adjust-
ing Point
Instrument
Connection
IF 10.7 MHz 98 MHz T302 (Turn the
core of trans-
former T302
fully counter
clockwise)
*1
AM IF
FM RF
TP301
TP302
FM IF
T301
T302
R356
R381
T303
T306
IC301
L312
T351
CNP301
AM/FM LOOP ANTENNA
FM BAND
COVERAGE fL
AM BAND
COVERAGE fL
AM TRACKING
fL
MAIN PWB
1
CD-DV999W/CD-DV777W
2 – 2
[3] DVD/CD section
1. DVD SECTION
• Adjustment
Since this DVD system incorporates the following automatic adjust-
ment functions, readjustment is not needed when replacing the
pickup. Therefore, different PWBs and pickups can be combined
freely.
Each time a disc is changed, these adjustments are performed
automatically. Therefore, playback of each disc can be performed
under optimum conditions.
Items adjusted automatically
1) Offset adjustment (The offset voltage between the head amplifier
output and the VREF reference voltage is compensated inside the
IC.)
* Focus offset adjustment
* Tracking offset adjustment
2) Tracking balance adjustment
3) Gain adjustment (The gain is compensated inside the IC so that the
loop gain at the gain crossover frequency will be 0 dB.)
* Focus gain adjustment
* Tracking gain adjustment
DVD/CD Error code description
*'CHECKING'
If Error is detected, 'CHECKING' will be displayed instead of 'ER-
CD**'. 'ER-CD**' display will only be displayed when error had been
detected for the 5th times.
[4] TEST Mode
1. TEST Mode Functions
1.1. Entering the TEST Mode
While holding down both the button and the X-BUSS button of the
main unit from the power-off state, press the POWER button to enter
the Test Menu Mode.
1.2. Test mode processing
• When entering the TEST Mode, the ROM version are displayed as
follows.
Version on the FL display: UD***** (****: Version No.)
1.3. TEST Mode button
• Press direct designation button during the version display to enter
the specified TEST Mode as shown below.
TEST MODE
1.4. Canceling TEST Mode
1. Press the POWER button in each TEST Mode to display
“CLEARAL” except SHIPPING TEST. Then reset and start.(Clear
RAM.)
2. It is necessary to play-off the A/C cord after “FINISHED” is dis-
played on the FL for SHIPPING TEST
2. Shipping TEST Mode
2.1. Outline
• ID command for initialization is sent to the DVD unit and E2PROM
in the unit is initialized.
• System Microcomputer and DVD changer initializerd
2.2. TEST Mode Operation
When entering the Shipping TEST Mode:
1. “WAIT” is displayed on the FL display.
2. “FINISHED” shall be kept displaying after Initiation is completed.
Manually play off the A/C cord to get out of the TEST Mode.
When lnitialization is failed, “INIT ERR” remains to be shown on the
FL display until play off the A/C cord.
2.3. Supplementary Note
1. When entering this TEST Mode, it is prohibited to press any key
until the above processing is completed.
3. DVD TEST Mode
3.1. Outline
• To send key codes of the TEST Mode 1 to the DVD unit to start the
TEST Mode.
• Thereafter the system’s microcomputer only sends key codes to
the DVD unit.
• The main unit operation is started in the same way as the normal
startup of the DVD/CD Function.
• Only monitor (video) output is normally controlled. “MUTE ON”
remained.
• During this TEST Mode, “DVD TEST” is shown on the FL display
and change to “DVD ****” (****: DVD version).
(Display is shown by OSD. Main unit display not available.)
3.2. TEST Mode Operation
1. The TEST Mode is started in the same way as the normal startup of
the DVD/CD Function. Then the DVD unit is normally started. Dur-
ing the TEST Mode, “DVD****” is continuously displayed.
Error Explanation
10* CAM error. Can't detect CAM switch when CAM is moving.
11* When it detect cam operation error during initialize pro-
cess.
20* TRAY error. Can't detect TRAY switch when TRAY is mov-
ing.
21* When it detect TRAY operation error during initialize pro-
cess.
30 When it change to DVD/CD function, DVD cannot read ini-
tial data.
No. TEST Mode Direct Designation Button
1 SHIPPING TEST open/close
2 DVD TEST DVD/CD
3 DVD DISPLAY TEST disc 2
CD-DV999W/CD-DV777W
2 – 3
2. DVD TEST Mode
1. Press the DVD/CD button on the main unit from the TEST mode
initial condition to enter "DVD TEST".
(Press the "1" key of the remote control.)
(TEST Mode initial screen)
Press the "PLAY" key of the remote control 8 times.
TEST MODE
TEST Mode initial screen returns.
Model name (MODEL)
CPRM key code
(CPRM)
Microcode
version (UCODE)
Servo program version
(SODCV)
Source code
version (CSTMV)
RO*: Region No.
CPRM Serial No.
(S/N)
Program version/
Creation date
F0000000 00000000
FFFF FFFF
1. Press the DVD/CD button on the main unit from the TEST mode
initial condition to enter "DVD TEST".
LASER TEST Mode
(TEST MODE initial screen)
The screen display as shown on the left.
The spin rotates
approx. 1 sec.
The pick slightly moves
in the circumference
direction.
DYNAMIC TEST
LASER TEST
DVD LD ON
DVD laser lights off and
CD laser lights on.
The spin rotates approx.
1 sec.
The pick slightly moves in
the circumference direction.
LASER TEST
CD LD ON
MENU:SPIN OFFSET ADJUST
1 : LASER TEST
2 : STEP TEST
3 : PLAY TEST
3 : PLAY TEST NO TRAY
Press the (3) key.
F0000000 00000000
Press the (1) key. Press the (1) key.
Press the (1) key.
Laser lights off.
The spin rotates approx.
1 sec.
The pick slightly moves in
the circumference direction.
LASER TEST
LD OFF
Press the (1) key to shift to "DVD LD ON".
Press the "STOP" key to return to the "DYNAMIC TEST" screen.
the tray opens and DVD
laser lights on.
CD-DV999W/CD-DV777W
2 – 4
1. Press the DVD/CD button on the main unit from the TEST mode
initial condition to enter "DVD TEST".
(TEST MODE initial screen).
Step Execute Mode
F0000000 00000000
The screen display as shown on the left.
DYNAMIC TEST
MENU : SPIN OFFSET ADJUST
1:LASER TEST
2:STEP TEST
3:PLAY TEST
9:PLAY TEST NO TRAY
Press the (3) key.
The tray opens. Put the disc on the tray.
STEP TEST
TRAY OPEN
Press the (2) key.
Focus On.
Tracking On.
" ": 4-digit alphanumeric also
displayed for DVD double deck disc.
STEP TEST
FOCUS ON
Press the "PLAY" key.
DVD CD
STEP TEST
TRACK ING ON
0000
0000
0000
4-digit alphanumeric
4-digit alphanumeric
ASAGC
TEAGC
TBAL1
FBAL1
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
0000
ASMAX
FEPP
0000
0000
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
ASMAX
FEPP
ASAGC
TEAGC
TBAL0
FBAL0
Press the "PLAY" key.
Focus balance adjustment values displayed.
" ": 4-digit alphanumeric also displayed for
DVD double deck disc.
STEP TEST
FBAL STUDY
0000
0000
4-digit alphanumeric
4-digit alphanumeric
ASAGC
TEAGC
TBAL1
FBAL1
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
ASMAX
FEPP
ASAGC
TEAGC
TBAL0
FBAL0
Press the "PLAY" key.
Focus tracking gain adjustment values displayed.
4-digit alphanumeric also displayed for "****"
in the case of DVD double deck disc.
STEP TEST
GAIN STUDY
0000
0000
4-digit alphanumeric
4-digit alphanumeric
ASAGC
TEAGC
TKGA1
FCGA1
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
ASMAX
FEPP
ASAGC
TEAGC
TKGA0
FCGA0
TBAL1
FBAL1
4-digit alphanumeric
4-digit alphanumeric
TBAL0
FBAL0
Press the "PLAY" key.
Equalizer adjustment values and Off-track Level
adjustment values displayed. 8-digit numeric of
DVD ID grows.
" ": 4-digit alphanumeric also displayed
for DVD double deck disc.
STEP TEST
D V D I D 8-digit numeric
0000
0000
4-digit alphanumeric
4-digit alphanumeric
ASAGC
TEAGC
OFTR1
FCBT1
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
ASMAX
FEPP
ASAGC
TEAGC
OFTR0
FCBT0
TKGA1
FCGA1
4-digit alphanumeric
4-digit alphanumeric
TKGA0
FCGA0
TBAL1
FBAL1
4-digit alphanumeric
4-digit alphanumeric
TBAL0
FBAL0
Press the "PLAY" key.
Press the "STOP" key to return to the DYNAMIC TEST screen.
Turn the power from off to on to clear the Step Execute Mode.
Tracking On.
"0000": 4-digit alphanumeric
also displayed for CD-RW.
"0000": 4-digit alphanumeric
also displayed for CD-RW.
STEP TEST
TRACK ING ON
0000
0000
4-digit alphanumeric
4-digit alphanumeric
ASAGC
TEAGC
TBAL1
FBAL1
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
0000
ASMAX
FEPP
ASAGC
TEAGC
TBAL0
FBAL0
Press the "PLAY" key.
"0000": 4-digit alphanumeric
also displayed for CD-RW.
"0000": 4-digit alphanumeric
also displayed for CD-RW.
Focus balance adjustment
values displayed.
STEP TEST
FBAL STUDY
0000
0000
4-digit alphanumeric
4-digit alphanumeric
ASAGC
TEAGC
TBAL1
FBAL1
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
ASMAX
FEPP
ASAGC
TEAGC
TBAL0
FBAL0
Press the "PLAY" key.
Focus tracking gain adjustment
values displayed.
STEP TEST
GAIN STUDY
0000
0000
4-digit alphanumeric
4-digit alphanumeric
ASAGC
TEAGC
TKGA1
FCGA1
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
ASMAX
FEPP
ASAGC
TEAGC
TKGA0
FCGA0
TBAL1
FBAL1
4-digit alphanumeric
4-digit alphanumeric
TBAL0
FBAL0
Press the "PLAY" key.
Equalizer adjustment value and
TES signal offset displayed.
6-digit numeric of the TIME counter grows.
STEP TEST
C D N O 2-digit numeric T I M E 6-digit numeric
0000
0000
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
ASAGC
TEAGC
TEOFS
FCBT1
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
4-digit alphanumeric
ASMAX
FEPP
ASAGC
TEAGC
TEOFS
FCBT0
TKGA1
FCGA1
4-digit alphanumeric
4-digit alphanumeric
TKGA0
FCGA0
TBAL1
FBAL1
4-digit alphanumeric
4-digit alphanumeric
TBAL0
FBAL0
Press the "PLAY" key.
Press the "STOP" key to return to the DYNAMIC TEST screen.
Turn power from off to on to clear the Step Execute Mode.
CD-DV999W/CD-DV777W
2 – 5
Note 1: After replacing the DVD main PWB unit and the DVD mechanism chassis unit,
be sure to adjust spin offset.
Start from "NO DISC" (the tray closed).
Spin Offset Adjustment Mode
The screen display as
shown on the left
The screen display as
shown on the left
Tray opens.
Adjustment started
4-digit alphanumeric
displayed
Turn off the power and clear the Spin Offset Adjustment
Mode to try again from the start.
Failure
DYNAMIC TEST
SPIN OFFSET ADJUST
SPIN AD OFFSET
M E N U:SPIN OFFSET ADJUST
1:LASER TEST
2:STEP TEST
3:PLAY TEST
3:PLAY TEST NO TRAY
Press the "3" key.
F0000000 00000000
SPIN OFFSET TEST
ADJUST COMPLETE
SPIN 4-digit alphanumeric
SPIN OFFSET TEST
ADJUST FAILED
Press the "MENU" key.
CD-DV999W/CD-DV777W
2 – 6
3.3. DVD Display Test
To display servo adjustment values, error rates, laser current, etc. during DVD playback.
1. Press the DISC 2 button on the main unit from the TEST Mode initial condition.
2. DVD starts up with “DVD” blinking on the FL display.
3. Press the Tuner/Band button to display DVD adjustment values, etc. Press it again and the display disappears and the normal screen returns.
The error rates displayed are for reference; they are not the judging criteria.
4. Press the “Power” button to cancel this mode.
DVD
Average error rate
Audio buffer space Video buffer space Number of error occurrence
Maximum error rate Laser output
FG0 TG0 TG1FG1 FBL0 TBL0 TBL1FBL1
TitleNo ChapNo
CD
When the Spin Offset Mode is never executed
Audio buffer space Video buffer space Number of error occurrence
TrNo TIME
CD
Audio buffer space Video buffer space Number of error occurrence
TrNo TIME
Sector ID
DVD
Average error rate
Audio buffer space Video buffer space Number of error occurrence
Maximum error rat Laser output
FG0
SPIN READ NG
TG0 TG1FG1 FBL0 TBL0 TBL1FBL1
TitleNo ChapNo Sector ID
CD-DV999W/CD-DV777W
2 – 7
3.4. ROM Rewrite Mode
1. Creating version upgrade disc
• Write the following three files on CD-R/CD-RW.
• !$#%&’().@{}
• D-combo3.cdr
• ********.bin
(********: Names differ according to versions)
• Write the files at lowest possible speed.
• Do not mix other data.
2. During normal power-on, insert the version upgrade disc.
3. After the version upgrade disc is normally determined, the mes-
sage, “VERSION UP DISC IS DETECTED” and the version are dis-
played on OSD. Then ROM data read is started.
OSD display (Example)
4. When the data read is completed, “NOW FLASH WRITE START…”
is displayed on OSD. Then the Flash Rom rewrite is entered.
OSD display (Example)
5. When rewrite is normally completed, “FL W: END” is displayed on
the main unit. Eject the disc automatically coming out from the tray.
Then turn the power off.
6. If “FL W: ERR” or “CANT READ” is displayed on the main unit or
“FL W: END” is not displayed after 10 minutes, turn the power off to
try again from the start.
7. Confirming the version
• A few moments after entering the DVD TEST Mode, “DVD ****”
is displayed on the main unit.
(****: 4-digit numeric version code)
• To confirm the detailed version information, press the “1” key of
the remote control.
The system information is displayed on the OSD display.
(“********”: Version name) Check that the version name con-
forms to the write data.
8. Press the POWER button to display “CLEARAL”
• Reset and start the system microcomputer to control the TEST
MODE.
VERSION UP DISC
ROM DATA READING
0905
956
IS DETECTED
VERSION UP DISC
READ COMPLETE
0905
NOW FLASH WRITE START...
IS DETECTED
Description of version name
Example: VER: VXW0223A
From the left:
V : Video model
X : CD-DV***W
W : Southeast Asia
0223A:Version
* The format may be changed.
ex)VXW0223A
2 Destination
1 Model
V: Video model/A: Audio/Model for SACD
X : CD-DV***W
1 Model
J : Japan
H : Europe
U : USA
K : Korea/Philippines
W : Southeast Asia
A : Australia
Z : Middle East
C : China
M : Mexico
2 Destination
CD-DV999W/CD-DV777W
2 – 8
3.5. List of Keys Used for DVD TEST Mode and Transmit Key Codes to the Unit
Buttons used for the TEST Mode are shown above. When pressing the following DVD-related buttons, corresponding button codes are transmitted.
ON SCREEN, SURROUND, CUE, REVIEW, Curser ↑, ↓, ←, →, RETURN, ZOOM, TOP-MENU, CLEAR, RANDOM subtitle, angle, sound, DVD
MENU, Gamma, S-picture, DIRECT, DISPLAY, SET-UP.
3.6. Supplementary Note
1. Do not press buttons other than the DVD-related buttons, except for the Power button. Do not switch functions; do not control volumes.
For the electronic volume IC and the monitor output control, constantly fix the setting to DVD/CD function.
Button for System
Communication
Button Code Button Code
HEX Value
Remarks
C-PLAY Play 26h
C-PAUSE/STILL
(Remote Control)
Pause/still 29h
C-STOP (Remote control) Stop 27h
C-STOP (Main Unit) Stop 27h
SKIP-UP/CUE Skip+ 2Ch In this TEST Mode Skip+/Next button code (2Ch) is constantly transferred.
SKIP-DWN/REV Skip- 2Bh In this TEST Mode Skip-/Prev button code (2Bh) is constantly transferred.
SKIP-UP
(Remote Control)
Skip+ 2Ch
SKIP-DWN
(Remote Control)
Skip- 2Bh
REPEAT (Remote Control) Repeat 32h
A-B repeat
(Remote Control)
A-B Repeat 49h
PROGRAM
(Remote Control)
Program 1Fh
“1” key (Remote Control) 1 01h
“2” key (Remote Control) 2 02h
“3” key (Remote Control) 3 03h
“4” key (Remote Control) 4 04h
“5” key (Remote Control) 5 05h
“6” key (Remote Control) 6 06h
“7” key (Remote Control) 7 07h
“8” key (Remote Control) 8 08h
“9” key (Remote Control) 9 09h
“0” key (Remote Control) 0 0Ah
ENTER (Remote Control) Enter 70h
MENU (Remote Control) MENU 68h
SLOW> (Remote Control) SLOW> 72h
CD-DV999W/CD-DV777W
2 – 9
4. CD-ROM Write Mode
4.1. Outline
DVD-ROM can be upgraded from CD-ROM. The write mode is
entered from the normal mode.
1. When any CD-ROM for version upgrade DVD is detected, the sta-
tus informs that the version upgrade ROM is being read.
When DVD microcomputer is changed to System microcomputer
and byte 24 status data detects 0Fh:
• The TEST Mode is entered by the status reception. (Required to
be internally recognized.)
• The Power button /Function switching is prohibited.
(Power supply is necessary until write is completed.)
• It is prohibited to accept any button input until write is com-
pleted.
• Change the display as follows:
TOC READ
2. To expand into RAM, DVD performs read-operation.
3. When reading ends, transmission stops for writing.
(Ignore stoppage of transmission during write.)
When transmission stops, the transmission port receives write
states, which are displayed according to port states.
4. The DVD/CD tray will automatically open when end of rewrite is
detected.
(The DVD status is not relevant since there is no communication.)
5. To close the DVD/CD door, cancel the TEST Mode and reset when
the Power button is pressed.
6. To initialze the E2PROM, do the shipping TEST mode.
Standard Specification of Stereo System Error Message Display Contents
(*) CHECKING:
If CD changer mechanism error is detected, 'CHECKING' will be dis-
play instead of 'ER-CD**'. 'ER-CD**' display will only be display when
error had been detected for the 5 th times.
Speaker abnormal detection and +B PROTECTION display
In case speaker abnormal detection or +B PROTECTION had
occurred, it can be check by pressing 'POWER', ' ' and 'X-BASS'
button. MicroComputer version number will displayed as "UD".
Press ‘GAME/VIDEO’ button during version number display and then
press ‘POWER’, ‘MEMORY/SET’ and ‘GAME/VIDEO’ button. Display
will show "S** B**". S is referring to speaker abnormal detection and B
is referring to +B PROTECTION. ** is in hex valve.
+B PROTECTION is condition when irregular process occur on power
supply line.
BEFORE TRANSPORTING THE UNIT
The following process need to be taken after set tapering/parts
replacement.
7. Press the ON/STAND-BY button to enter stand-by mode.
8. While pressing down the button and the X-BASS/DEMO but-
ton, press the ON/STAND-BY button. The Micro Computer version
number will be displayed as "UD".
9. Press OPEN/CLOSE button until "WAIT"→ "FINISHED" appears.
10.Unplug the AC cord and the unit is ready for transporting.
DVD DATA DVD CLK State Unit display
1 L H During read FLASH WR
2 H L During write FL W : S T R
3 H H Write ended FL W : E N D
4 L L Write error FL W : E R R
Error Contents Display Notes
CD CD Changer Mechanism Error. 'ER-CD**' (*) 10: CAM SW Detection NG during normal operation
11: CAM SW Detection NG during initialize process
20:TRAY SW Detection NG during normal operation
21:TRAY SW Detection NG during initialize process
DVD Communication Error. 'ER-CD30' DVD COMMUNICATION ERROR.
Focus Not Match/IL Time Over. 'NO DISC'
TUNER PLL Unlock. PLL Unlock.
F
M 87.50 MH
z
CD-DV999W/CD-DV777W
2 – 10

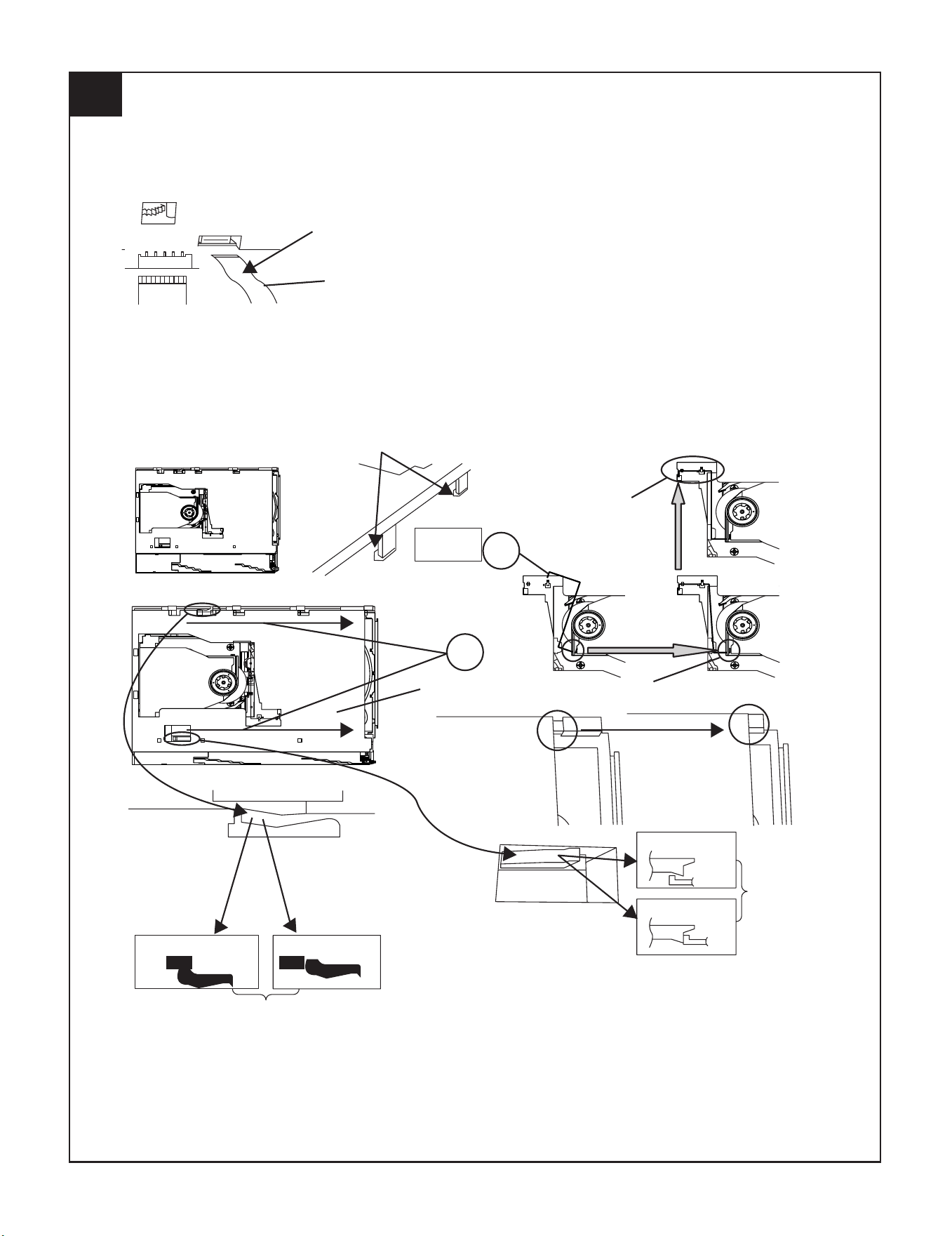

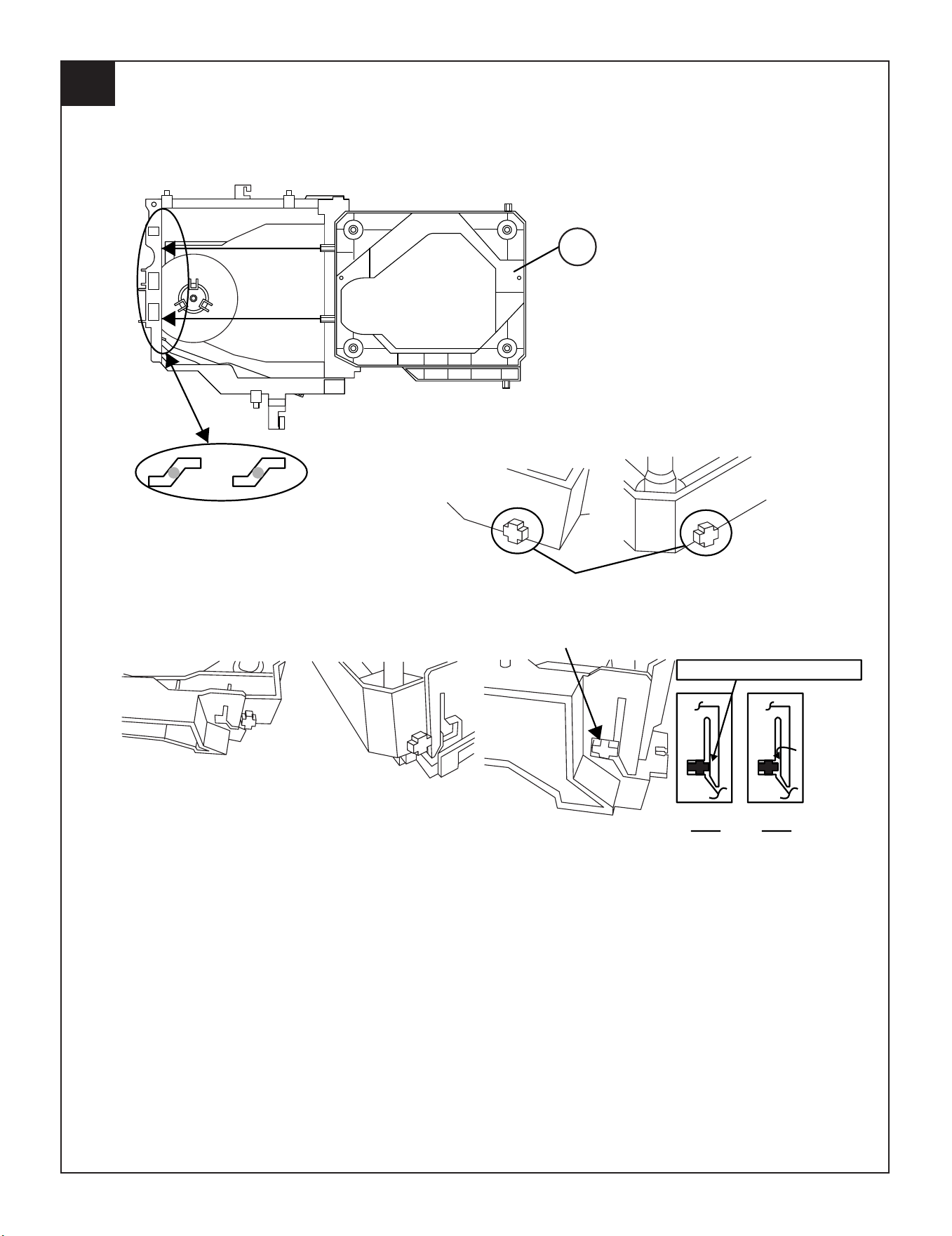

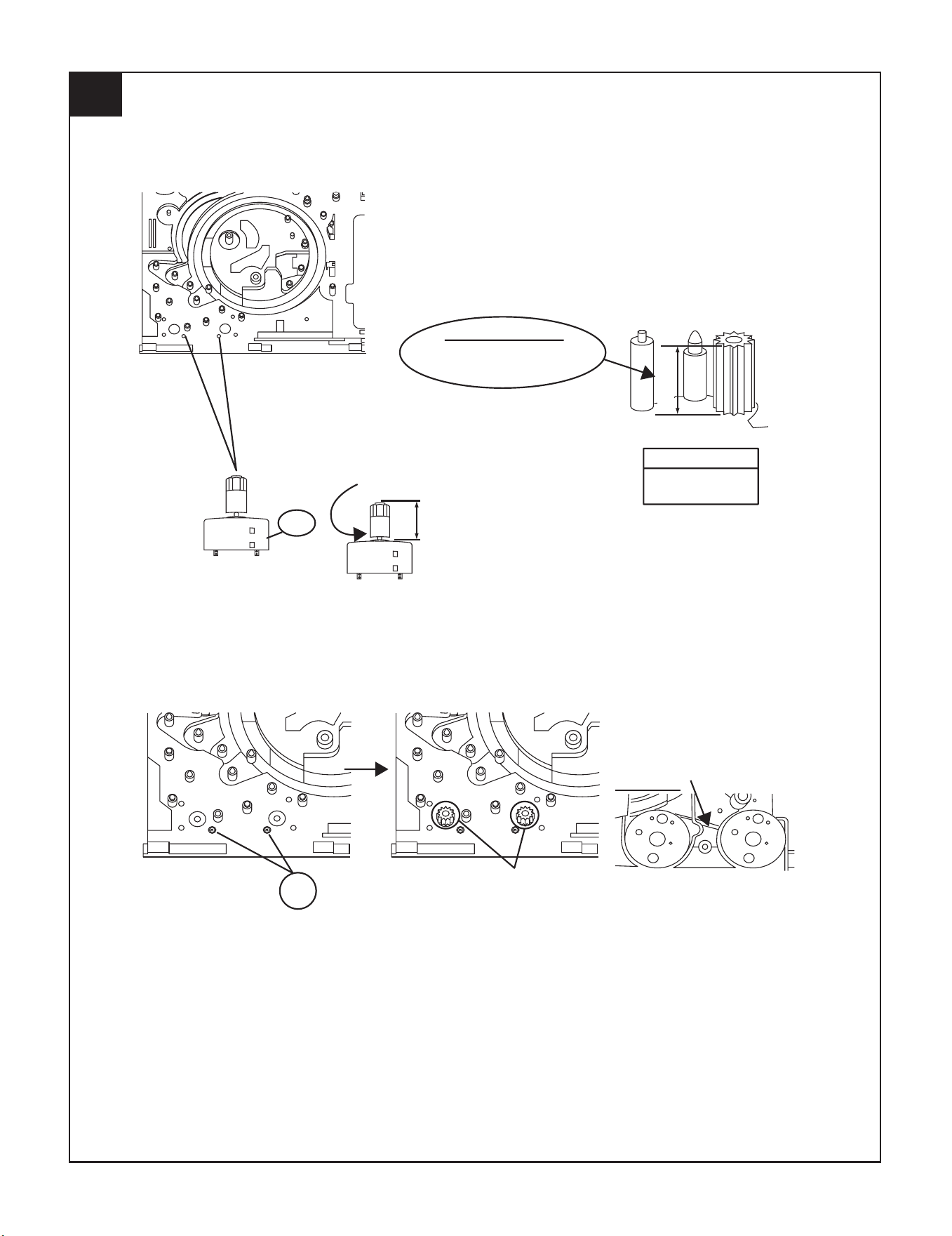

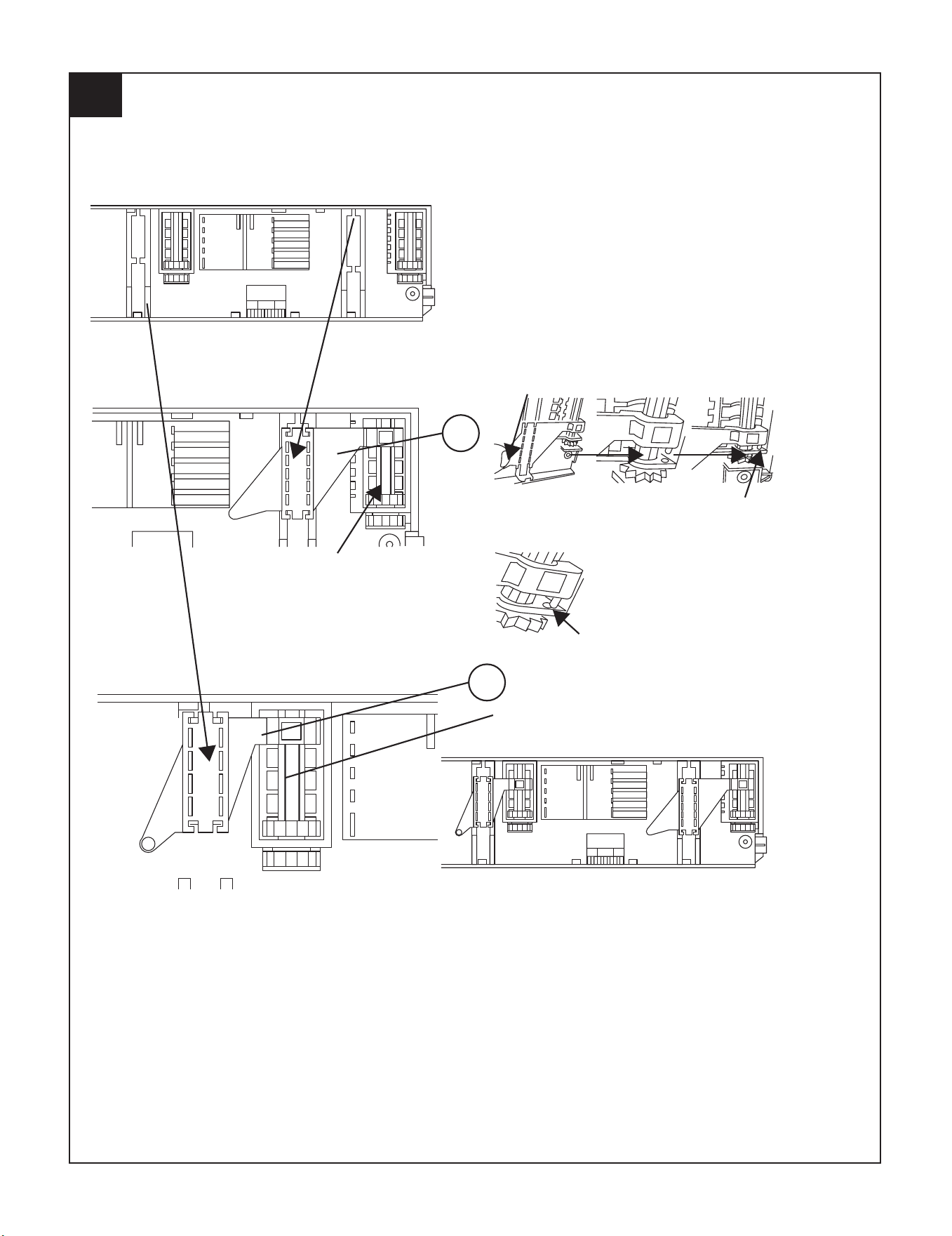

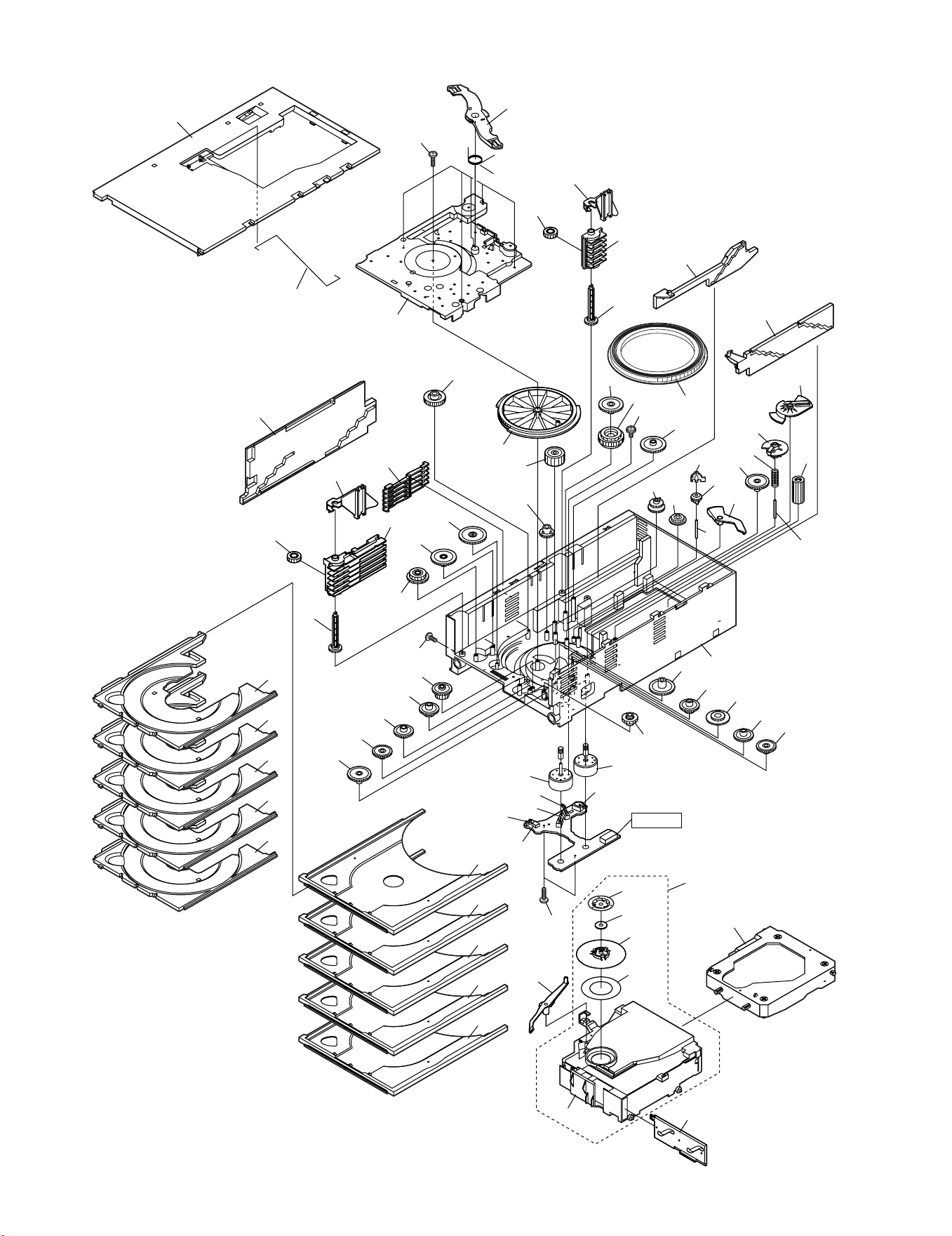

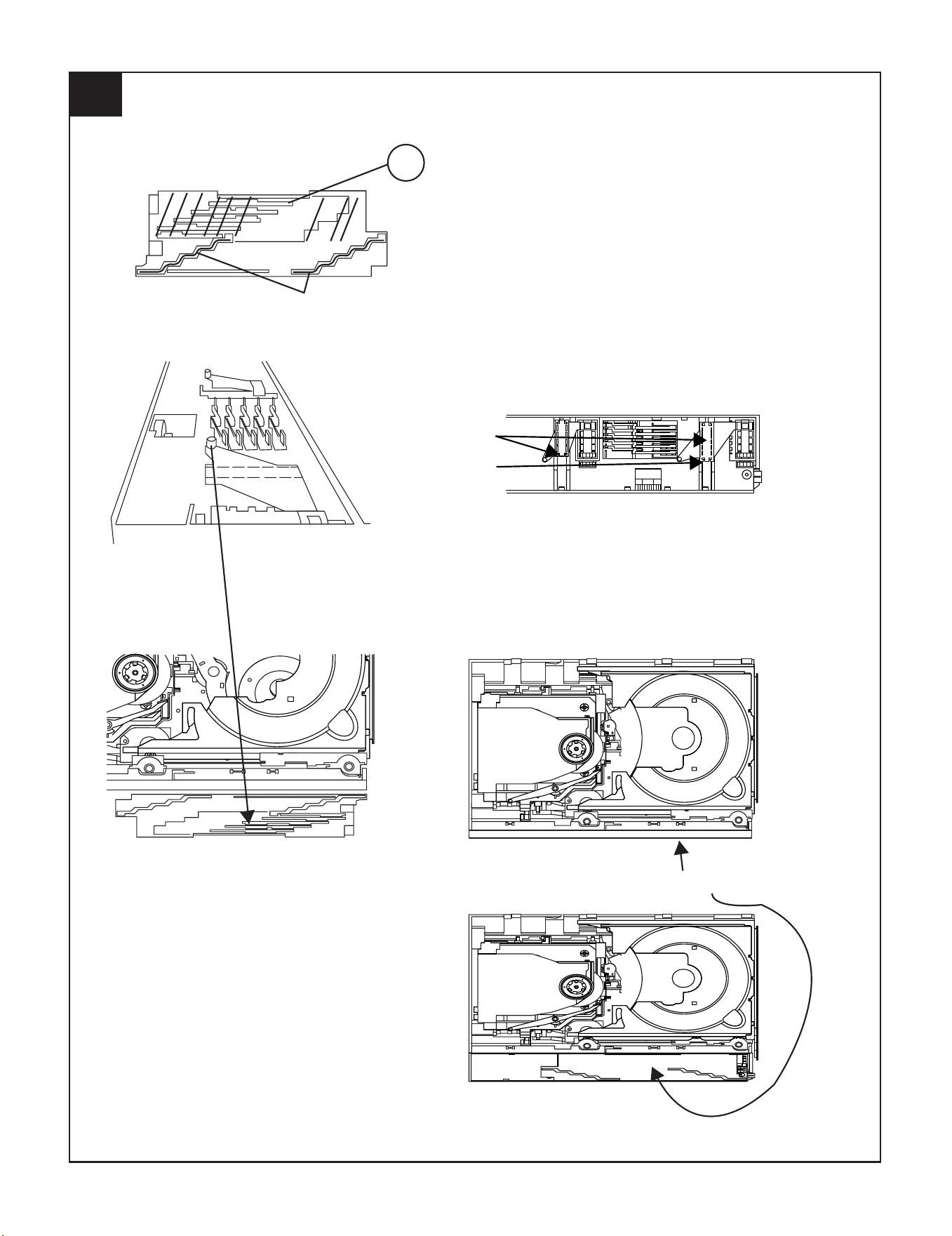

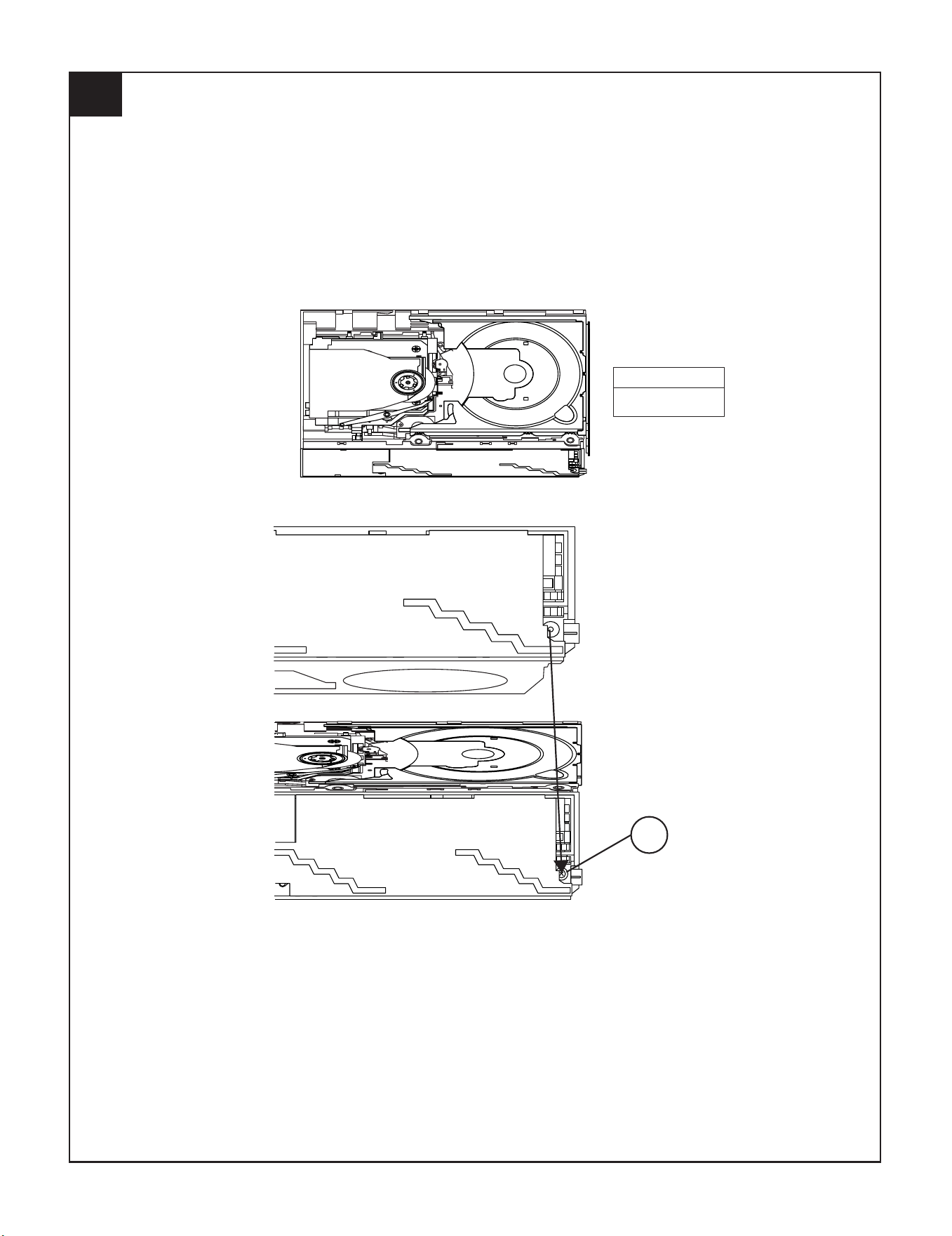

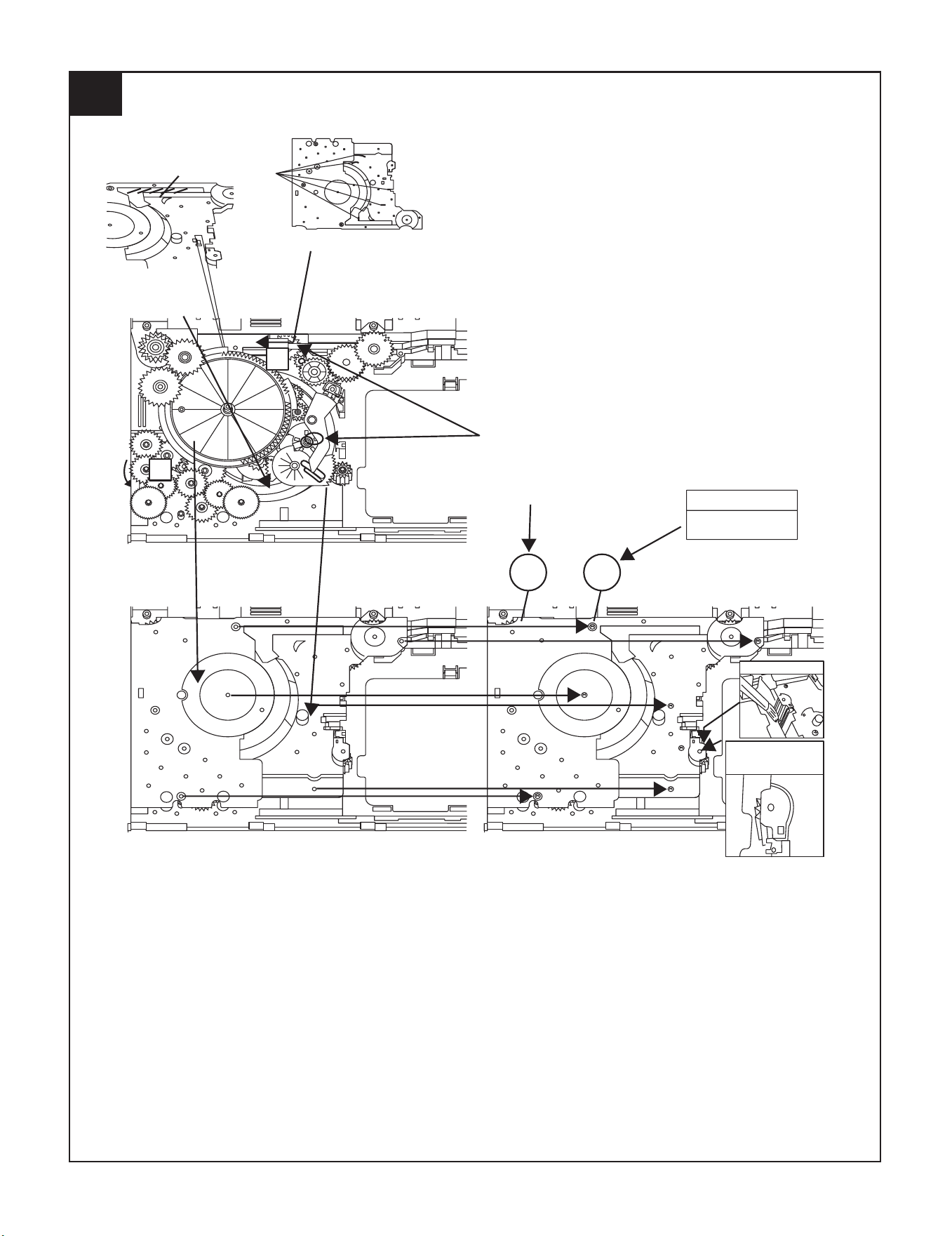

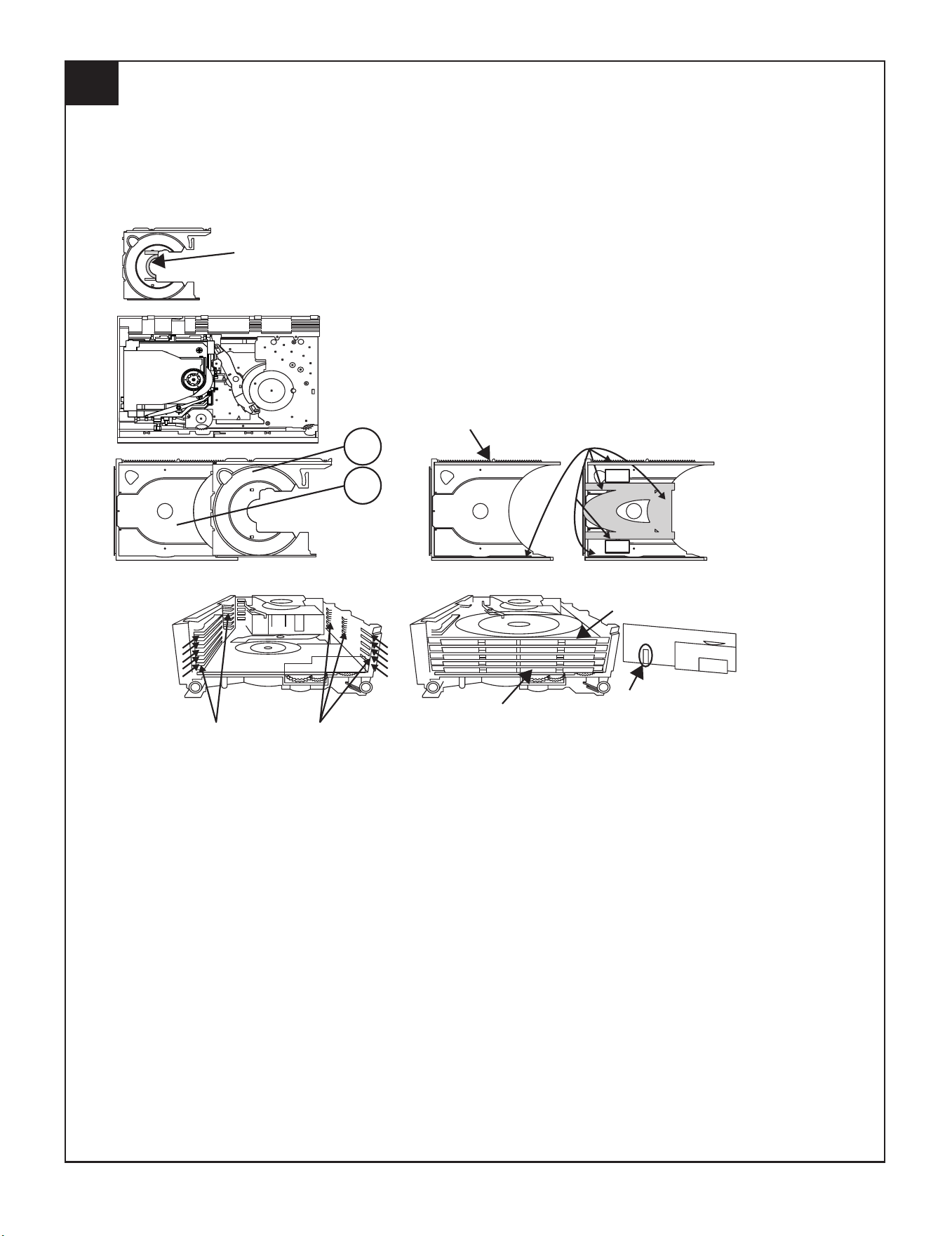

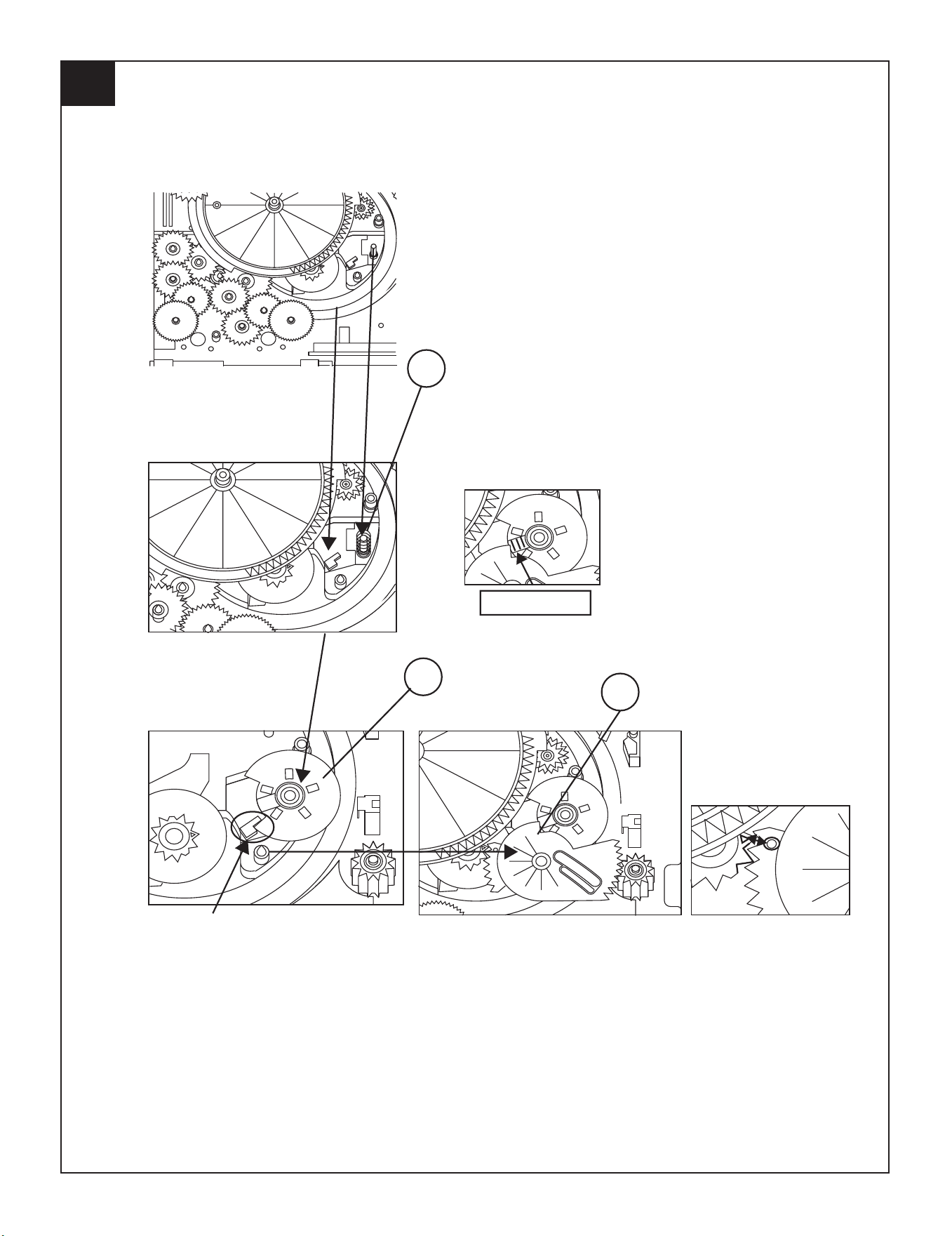

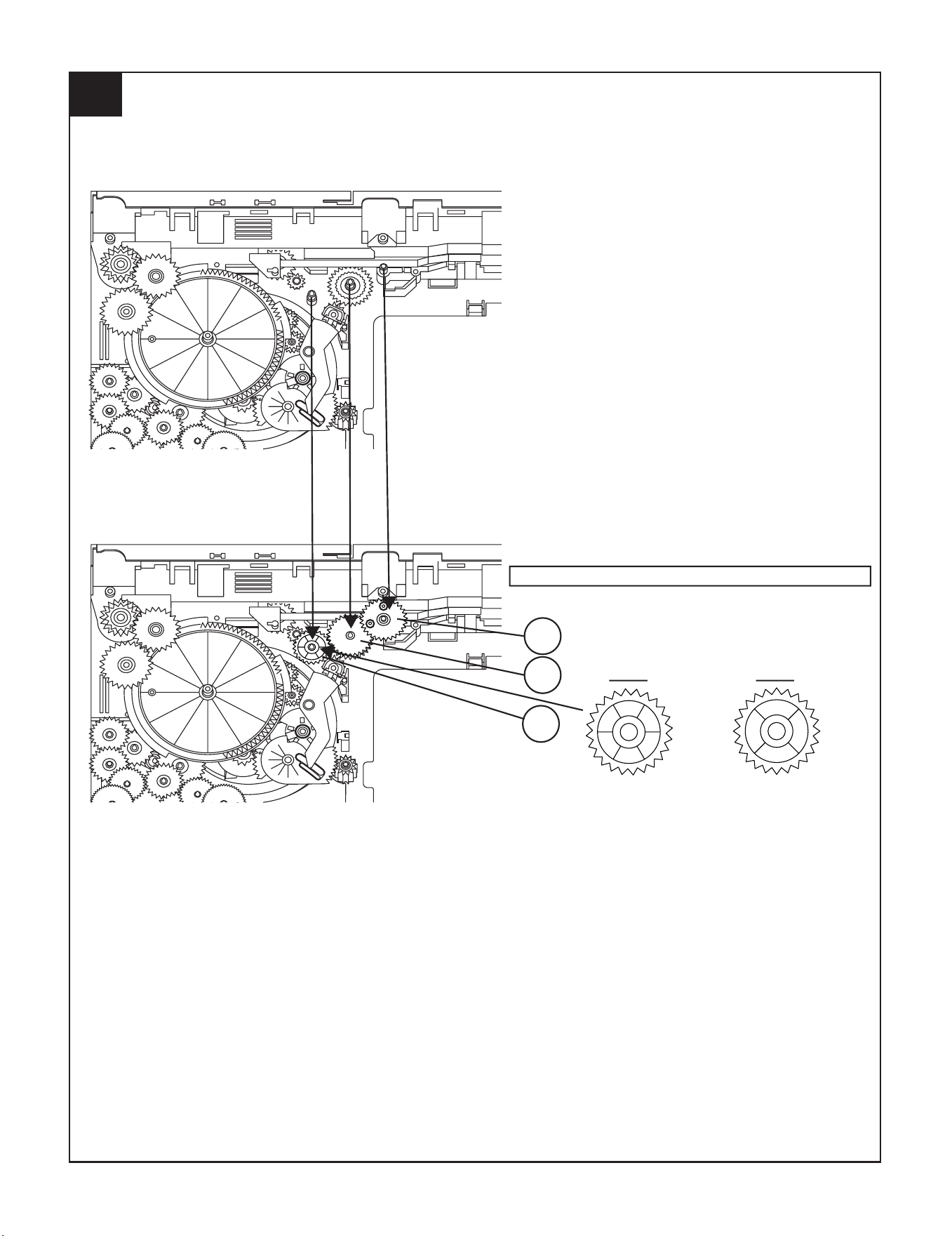

[5] CD Changer mechanism section
• A number in the drawing sheet is the number of the parts guide
(CHANGER MECHANISM PARTS).
140
141

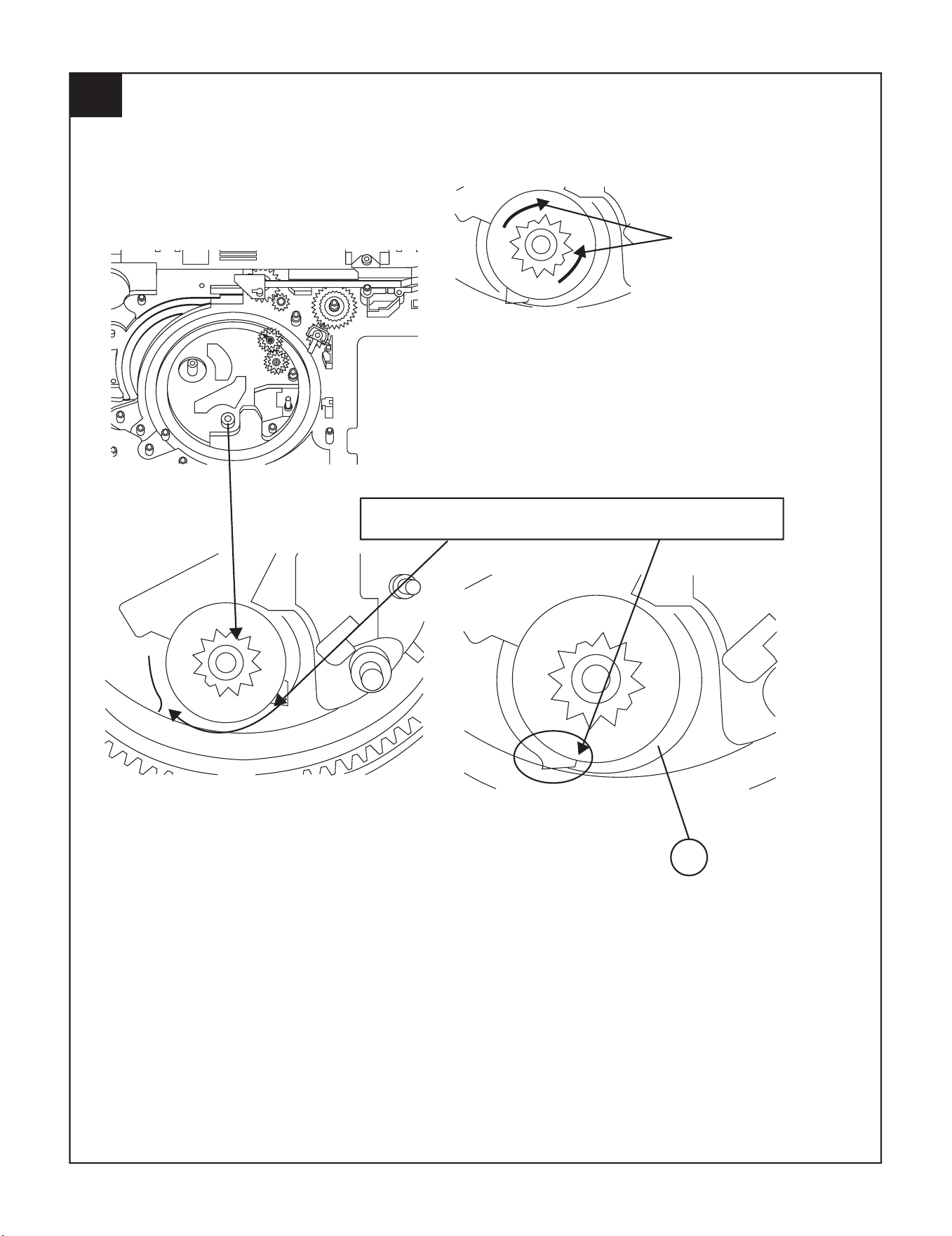

HALF GEAR
MUST ARRANGE AS SHOWN
1
CD-DV999W/CD-DV777W
2 – 11
139
2
APPLY SANKOL BEFORE FIX
FIX ITEM 1 ACCORDING TO THE
SHOWN PICTURE ABOVE
ROTATE MODE BIG GEAR UNTIL REACH AS SHOWN IN PICTURE
CD-DV999W/CD-DV777W
2 – 12
APPLY GREASE
PULL THE LEVER UNITIL
REACH THE ARROW MARK
143
112
3
CD-DV999W/CD-DV777W
2 – 13
FIGURE 1
FIGURE 2
APPLY GREASE
SLOT CLAMP SW ARM INSIDE BASE SLOT
152
142
118
4
CD-DV999W/CD-DV777W
2 – 14
127
128
5
APPLY GREASE AT BOTTOM SIDE
OF GEAR FOLLOW MARKING
NO NEED APPLY GREASE AT BOTTOM
SIDE
O.K
BLACK MARK
FIGURE 1
N.G
OTHER THAN FIGURE 1 DIRECTION ALL N.G
APPLY GREASE AT
TOP SIDE OF GEAR
FOLLOW MARKING
CD-DV999W/CD-DV777W
2 – 15
APPLY GREASE AT
HALF GEAR AREA
ROTATE CLOCKWISE UNTIL REACH HERE (MAXIMUM)
6
129
CD-DV999W/CD-DV777W
2 – 16
CHANGE COLOR TO BLACK
150151148
7
CD-DV999W/CD-DV777W
2 – 17
124
131
TRAY BIG GEAR
CHANGE COLOR
TO BLACK
TRAY BIG GEAR
CHANGE COLOR
TO BLACK
GREASE APPLICATION LENGTH
GREASE APPLICATION PORTION
MUST FREE FROM GREASE THE SHOWN AREA
O.K
N.G
SHOWN HOLE MUST FACING ARROW DIRECTION
8
CD-DV999W/CD-DV777W
2 – 18
TR-RE JOINT GEAR C
APPLY GREASE AT
BOTTOM SIDE ONLY
APPLY GREASE ONLY AT TOP SIDE GEAR
MUST FIX ACCORDING TO THE HOLE'S
138 126 125
9
CD-DV999W/CD-DV777W
2 – 19
10
148 147 146 145
CD-DV999W/CD-DV777W
2 – 20
APPLY GREASE
WHEN FIXING ITEM 2 MUST FOLLOW AS SHOWN
121
144
130
11
CD-DV999W/CD-DV777W
2 – 21
FIGURE 1
FIGURE 3
FIGURE 2
APPLY GREASE SC141
APPLY GREASE
117
12
CD-DV999W/CD-DV777W
2 – 22
ITEM 2 , 3 MUST APPLY GREASE ON TOP SIDE GEAR ONLY
O.K
N.G
TOP VIEW AFTER
ASSY
FIX REVERSE N.G
GEAR 112 GEAR 112
134
133
132
13
CD-DV999W/CD-DV777W
2 – 23
APPLY GREASE BEFORE FIX
MOVE 112 UNTIL TOUCH THE WALL
DURING GEAR A ROTATE
MUST PRESS SHOWN AREA
AND LEVER B WILL MOVE
ARROW DIRECTION THEN
FIX PART 108
SCREW TORQUE
A
B
APPLY GREASE
CONFIRM WHETHER
FIXED
PROPELY OR NOT
108 803 x6
14
2 kgf-cm
+0.5
-0
CD-DV999W/CD-DV777W
2 – 24
APPLY GREASE
BEHIND THE LEVER NEED TO APPLY GREASE
PULL IT THEN LEVER WILL
MOVE IN
115
15
CD-DV999W/CD-DV777W
2 – 25
APPLY GREASE
AT BOSS
APPLY GREASE
APPLY GREASE BEFORE FIX
SPRING MUST ARRANGE UNDER THE HOOK
O.K LR JOINT LEV
LR JOINT LEV
BOARD R
BOARD R
N.G
123
115
16
CD-DV999W/CD-DV777W
2 – 26
APPLY GREASE
ASSY REVERSELY N.G
BIG SLOT MUST FACING OUT
WHEN FIX & AFTER FIX TO BASE CHASSIS
AFTER ASSY CONFIRM THE FREE DROP
GEAR POSITION DURING FIXING
103 137 136
17
CD-DV999W/CD-DV777W
2 – 27
ASSY REVERSELY N.G
WHEN FIX & AFTER FIX TO BASE CHASSIS
AFTER ASSY CONFIRM THE FREE DROP
APPLY GREASE
BIG SLOT MUST FACING OUT
GEAR POSITION DURING FIXING
CONFIRM BOTH GEAR SIT PROPELY & LOCKED
18
114
135
136
CD-DV999W/CD-DV777W
2 – 28
BIGGER SLOT FACING OUT
BIGGER SLOT FACING OUT
AFTER FIX OUTER UP/DOWN LEVER HOLD SHOWN PORTION AND
MOVE UP/DOWN THEN CONFIRM LEVER GO INSIDE THE HOLE OR NOT
IF NO GO INSIDE HOLE IS N.G
IF GO INSIDE HOLE
IS O.K
120
119
19
CD-DV999W/CD-DV777W
2 – 29
BIG SLOT FACING OUT
110
20
CD-DV999W/CD-DV777W
2 – 30
PUSH THE LEVER ACCORDING TO ARROW
DIRECTION THEN FIX
WHEN FIX MAIN BASE ASSY FOLLOW ACCORDING TO O.K PICTURE
O.K
N.G
N.G
MAKE SURE MECHA HOLDER SHAFT FIX PROPELY TO LEVER
21
CD-DV999W/CD-DV777W
2 – 31
APPLY SANKOL ON TOP
APPLY SANKOL
APPLY SANKOL INSIDE THE SLOT
& OTHER SHOWN PORTION
RIB
RIB
APPLY SANKOL AT TRAY SLIDING PORTION
FIX TRAY NO 1 FIRST THAN
FOLLOW OTHER
COSMO GUIDE TRAY HAVE
MARKING AS SHOWN
101
102
22
CD-DV999W/CD-DV777W
2 – 32
AFTER ASSY GEAR UP/DOWN BOARD
APPLY GREASE AT INNER & OUTER GEAR SLIDING PORTION
WHEN FIX GEAR UP/
DOWN BOARD THE
TWO LEVER MUST AT
PARALLEL LINE &
POSITION AT TOP
MAX SIDE
111
23
GEAR UP/DOWN BOARD
CD-DV999W/CD-DV777W
2 – 33
804
24
SCREW TORQUE
3 kgf-cm
+0.5
-0
CD-DV999W/CD-DV777W
2 – 34
AFTER ASSY TOP PLATE
FIX THE FFC
AFTER FIX PUSH FOLLOW ARROW DIRECTION
AFTER PUSH MAKE SURE SNAP PROPELY
BACK
PORTION
PRESS IN
SLOT IN
BEFORE LOCK
BEFORE LOCK
BEFORE LOCK
AFTER LOCK
AFTER LOCK
AFTER LOCK
MUST CONFIRM
MUST CONFIRM
FFC4
122
107
25
CD-DV999W/CD-DV777W

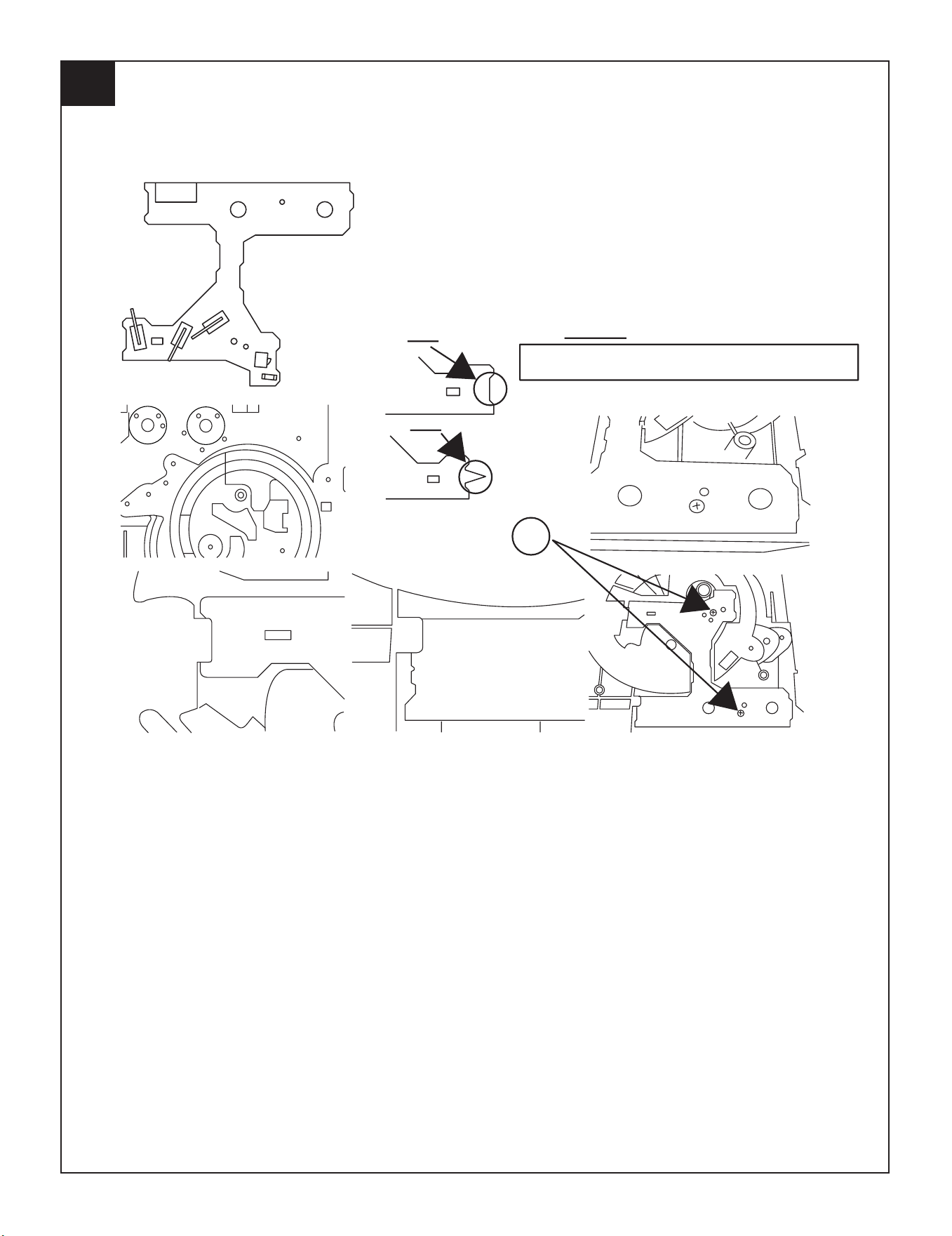

2 – 35
803
26
O.K
N.G
CAUTION
1. MAKE SURE NO PWB CHIP INSIDE SET .( BEFORE
FIX MAKE SURE PWB NO DUST , GREASE & ETC )
CD-DV999W/CD-DV777W
2 – 36
THE TWO SLOT
MUST FREE FROM GREASE
APPLY GREASE BELOW
THE MARKING FOR
BOTH PORTION
ASSEMBLY SEQUENCE
1. APPLY GREASE TO MAIN BASE
GREASE APPLICATION AREA
ALL BOSS
APPLY GREASE
APPLY GREASE
1 RIB ONLY
APPLY GREASE
APPLY GREASE
APPLY GREASE AT 3 HALF MOON
CAUTION
TRAY SLIDING
AREA MUST
FREE FROM
GREASE
APPLY GREASE
APPLY GREASE
APPLY GREASE
AT BOTH SLOT
APPLY GREASE
INSIDE SLOT
APPLY GREASE AT WALL
105
27
CD-DV999W/CD-DV777W
2 – 37
MOTOR SCREWING HOLE
13.8 + 0.2
-0
12.2
APPLY GREASE
MUST HAVE GAP
REFERENCE ONLY
MOTOR GEAR HEIGHT FROM
MAIN BASE 12.2
1.5 + 0.5
-0
SCREW TORQUE
AFTER SCREW MOTOR,CONFIRM THE
ARRANGEMENT AS IN FIGURE 2
FIGURE 2
M1,2
801
28
+
-
0.1
+
-
0.1
CD-DV999W/CD-DV777W
2 – 38
APPLY SANKOL
3.1 + 0.1
SHAFT X 3 DIM AFTER INSERTION
MUST CONFIRM EVERYDAY
SANKOL APPLICATION AREA
APPLY GREASE
APPLY GREASE AT THE SLIDING PORTION
UP / DOWN
HOLDER CHANGE
TO NATURE
COLOR
109-2
29
114
116
CD-DV999W/CD-DV777W
2 – 39
BEFORE MELT IT
AFTER MELT IT ( MUST FLAT )
CHANGE COLOR
TO NATURE
WHEN FITTING STABILIZER PLATE TO STABILIZER,
ROTATE STABILIZER ANTI CLOCKWISE BY JIG
( BY HAND CANNOT X )
AFTER ASSY TO HOLDER
STABILIZER NEED CLEAN
WITH ALCOHOL DISC
TOUCHING SURFACE
BELOW
30
CD-DV999W/CD-DV777W
2 – 40
GAP
N.G
O.K N.G
APPLY GREASE
MUST MAKE SURE SNAP PROPELY BOTH SIDE
ALL SURFACE MUST TOUCH
104
31
CD-DV999W/CD-DV777W
2 – 41
NO GAP HAVE GAP
O.K N.G
32
CD-DV999W/CD-DV777W
3 – 1
AudioCD-DV999W/CD-DV777WService ManualCD-DV999W/CD-DV777WMarketE

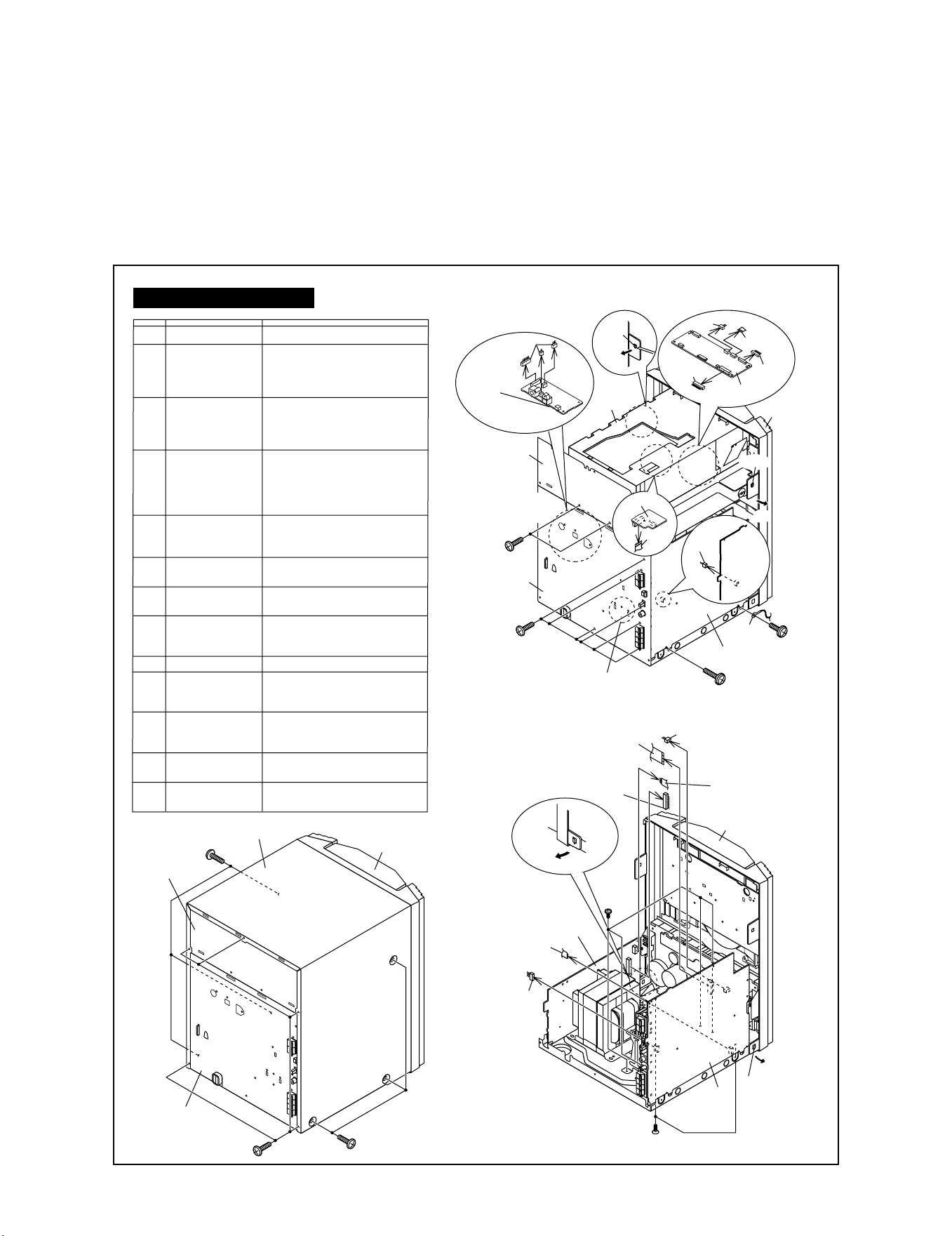

CHAPTER 3. MECHANISM BLOCKS
[1] Caution on diassembly
Caution on Disassembly
Follow the below-mentioned notes when disassembling the unit and reassembling it, to keep it safe and ensure excellent performance:
1. Take cassette tape, and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need to be removed when disassembling the unit. After servicing the unit, be sure to rearrange
the leads where they were before disassembling.
Rear Panel A
(A1)x3
φ3x10mm
Rear Panel B
Top/Side Cabinet
Front Panel
(A1)x3
φ3x10mm
(A1)x5
φ3x10mm
(E2)x1
(D3)x1
(E3)x1
(E1)x2
φ3x8mm
Main
PWB
(E3)x1
Front Panel
(D5)x4
φ3x6mm
Power PWB
(D3)x1
(D4)x1
(D3)x1
(D2)x1
1 Top/Side Cabinet 1. Screw .................... (A1) x11
2 Changer Unit/ 1. Screw ...................... (B1) x2
Rear Panel B 2. Hook ........................ (B2) x2
3. Flat Cable................ (B3) x2
4. Socket ..................... (B4) x3
3
Rear Panel A/
1. Screw ...................... (C1) x6
S-Video/Audio Out
PWB with
2. Socket ..................... (C2) x4
4 Main PWB 1. Screw ...................... (D1) x2
2. Flat Cable ............... (D2) x1
3. Socket ..................... (D3) x5
4. Flat Wire .................. (D4) x1
5. Screw ...................... (D5) x4
5 Front Panel 1. Screw ...................... (E1) x2
2. Flat Wire .................. (E2) x1
3. Hook ........................
........................
(E3) x2
6 Tape Mechanism 1. Screw .......................(F1) x6
2. Flat Cable ................(F2) x1
7 Mic PWB 1. Knob .......................(G1) x1
2. Screw ..................... (G2) x1
10 Sub PWB 1. Screw .......................(K1) x1
2. Flat Cable ................ (K2) x1
3. Hook (H3) x5
8 Display PWB 1. Knob ........................ (H1) x1
2. Screw .................... (H2) x10
9 Game Input PWB 1. Screw...................... (J1) x2
11 DVD Servo PWB 1. Screw ....................... (L1) x3
2. Flat Cable ................ (L2) x1
3. Socket ...................... (L3) x2
3. Hook ........................ (K3) x1
12 Changer 1. Screw ...................... (M1) x4
Mechanism Unit 2. Changer Chassis .... (M2) x1
13 DVD Mechanism 1. Screw ....................... (N1) x4
2. Bracket ..................... (N2) x1
STEP
REMOVAL PROCEDURE
CD-DV999W/CD-DV777W
Changer
Mechanism
Unit
Pull
(B2)x1
(B3)x1
(B4)x1
(B4)x1
(B4)x1
DVD SERVO
PWB
Front
Panel
(B2)x1
Pull
Lug Wire
(D1)x1
φ3x10mm
Main PWB
(D1)x1
φ3x18mm
Fan Motor
(C1)x6
φ3x10mm
Rear
Panel A
(B1)x2
φ3x10mm
Rear
Panel B
(B3)x1
Main PWB
(C2)x1
(C2)x3
S-VIDEO/ AUDIO
OUT PWB
SUB PWB
Fan motor

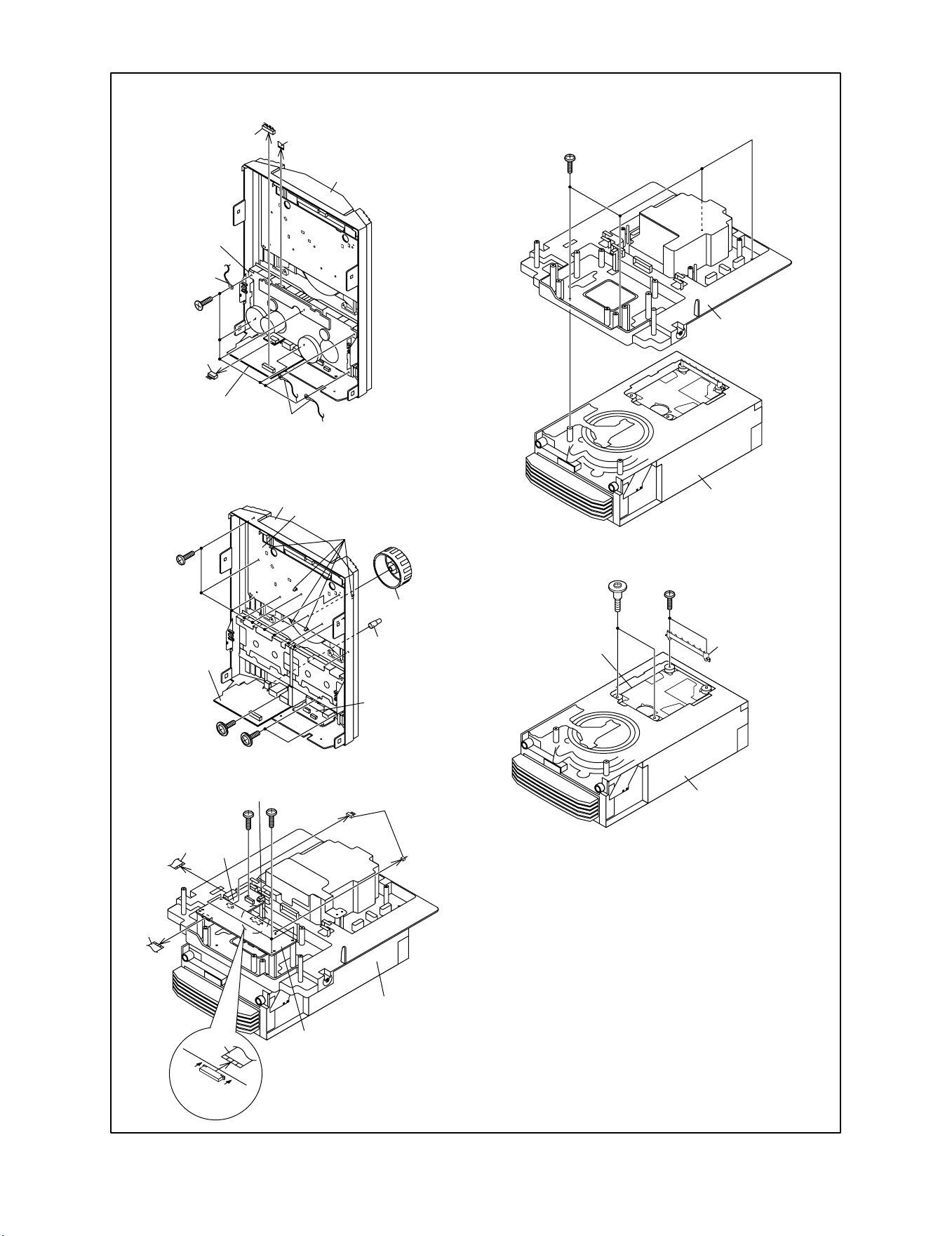

CD-DV999W/CD-DV777W
3 – 2
(D3)x1
(H3)x5

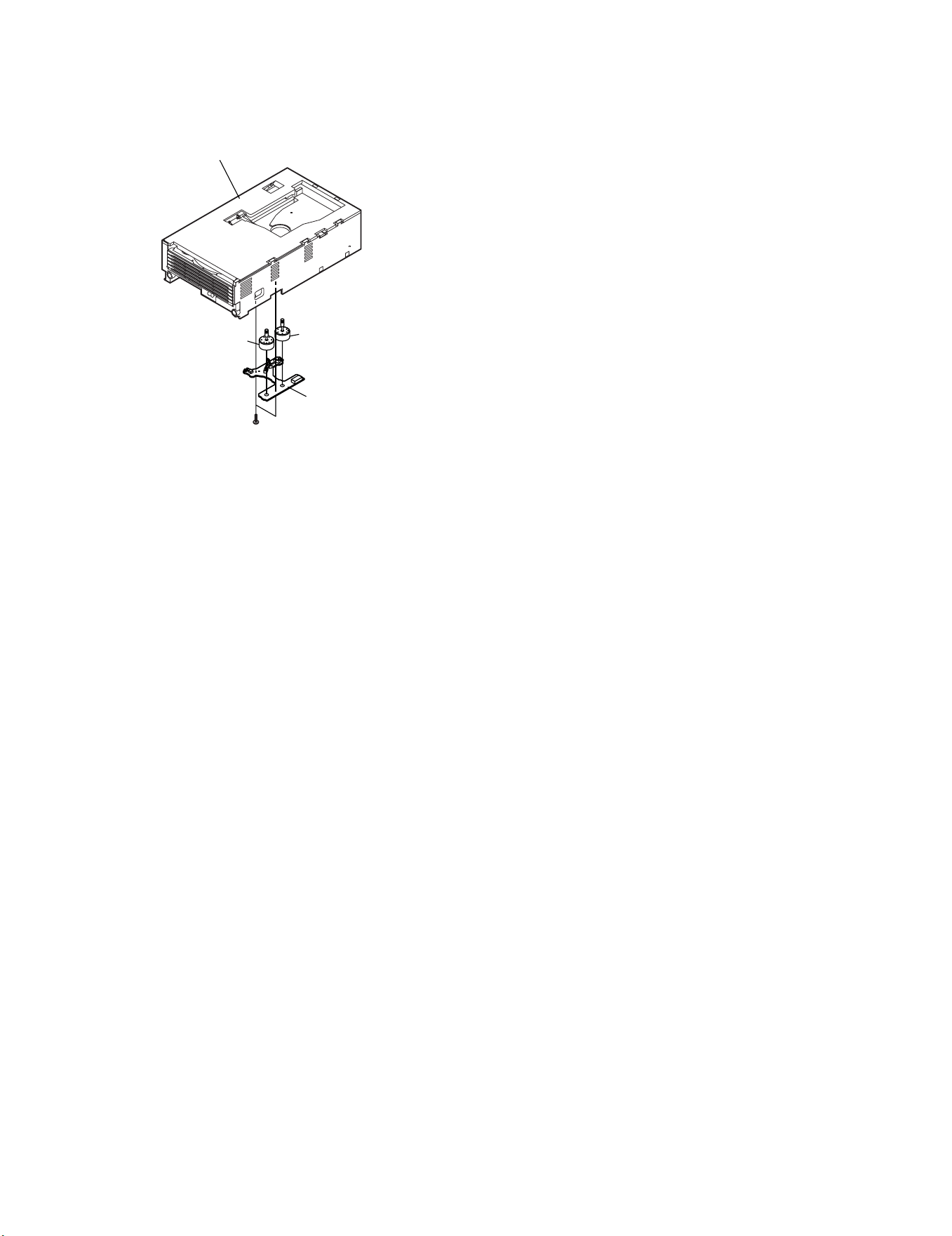

DVD Mechanism
Unit
Changer
Mechanism
Unit
(N2)x1
(N1)x2
φ2x12mm
(N1)x2
φ2.6x10mm
Changer
Mechanism
Unit
(M2)x1
(M1)x4
φ3x10mm
Changer
Mechanism
Unit
Pull
Pull
(K3)x1
Sub PWB
(K2)x1
(L2)x1
(L3)x2
(K1)x1
φ3x10mm
(L1)x3
φ2.6x10mm
DVD Servo
PWB
DVD Servo
PWB
(L2)x1
Front Panel
Display PWB
(H1)x1
(G1)x1
Game Input
PWB
(J1)x2
φ3x10mm
(G2)x1
φ3x10mm
(H2)x10
φ2.6x10mm
(F2)x1
Front Panel
Lug Wire
Mic PWB
Mic PWB
(D3)x1
(F1)x6
φ3x10mm
Lug Wire
Tape
Mechanism
CD-DV999W/CD-DV777W
3 – 3
1 Passive Radiator 1. Screw ...................... (A1) x4
2. Side Panel .............. (A2) x1
3. Screw ...................... (A3) x4
2 Woofer 1. Front Panel ............. (B1) x1
2. Screw ...................... (B2) x4
3 Tweeter 1. Screw ...................... (C1) x2
4 Super Tweeter 1. Screw ...................... (D1) x4
STEP
REMOVAL PROCEDURE
CP-DV999/CP-DV777
(A1)x4
φ4x35mm
(A2)x1
Speaker Box
Passive Radiator
Front Panel
Speaker Box
(B1)x1
Screwdriver
Driver should
be pried away
from Speaker Box.
(A3)x4
φ4x16mm
(B2)x4
φ4x16mm
(D1)x2
φ3x12mm
Passive Radiator
Woofer
Speaker Box
Super Tweeter
Tweeter
(D1)x2
φ3x12mm
(C1)x2
φ3x12mm
Super Tweeter
CD-DV999W/CD-DV777W
3 – 4
[2] Removing and reinstalling the main parts
1. TAPE MECHANISM SECTION
Perform steps 1 to 5 and 6 of the disassembly method to remove the
tape mechanism.
1.1. How to remove the record/playback and erase heads
(TAPE 2) (See Fig. 1)
1. When you remove the screws (A1) x 2 pcs., the recording/play-
back head and three-dimensional head of the erasing head can be
removed.
Figure 1
1.2. How to remove the playback head (TAPE 1)(See Fig. 2)
1. When you remove the screws (B1) x 2 pcs., the playback head can
be removed.
Figure 2
1.3. How to remove the pinch roller (TAPE 1/2) (See Fig. 3)
1. Carefully bend the pinch roller pawl in the direction of the arrow
<A>, and remove the pinch roller (C1) x 1 pc., in the direction of the
arrow <B>.
Note:
When installing the pinch roller, pay attention to the spring mounting
position.
Figure 3
1.4. How to remove the belt (TAPE 2) (See Fig. 4)
1. Remove the main belt (D1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (D2) x 1 pc.
1.5. How to remove the belt (TAPE 1) (See Fig. 4)
1. Remove the main belt (E1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (E2) x 1 pc.
Figure 4
1.6. How to remove the motor (See Fig. 5)
1. Remove the screws (F1) x 2 pcs., to remove the motor.
Figure 5
(A1)x2
¯2x6mm
TAPE 2
Record/Playback
Head
Erase Head
Clutch Ass'y
(B1)x2
¯2x9mm
TAPE 1
Playback
Head
Clutch Ass'y
Pinch Roller
(C1)x1
<A>
<B>
Pinch
Roller
Pawl
Pull
TAPE 1/TAPE 2
Pinch Roller
(C1)x1
<A>
<B>
Pinch
Roller
Pawl
Pull
TAPE 2
TAPE 2
TAPE 1
Main Belt
(E1)x1
TAPE 2
Main Belt
(D1)x1
TAPE 1
Main Belt
(D1)x1
Main Belt
(E1)x1
FF/REW
Belt
(D2)x1
FF/REW
Belt
(E2)x1
Tape
Motor
Tape
Motor
(F1)x2
¯2.6x5mm
Tape
Motor
Clutch Ass'y
CD-DV999W/CD-DV777W
3 – 5

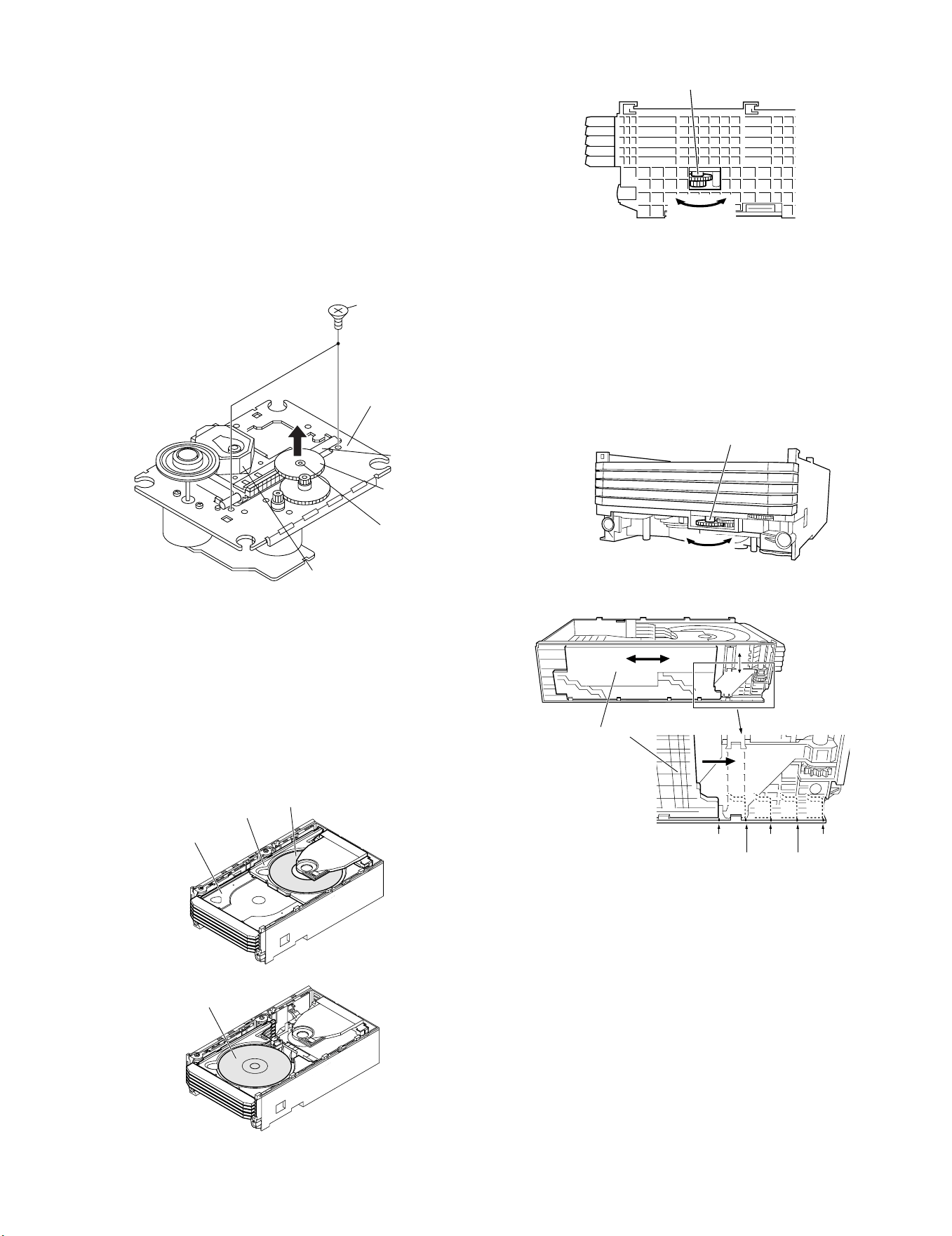

2. CD MECHANISM SECTION
Perform steps 1, 2, 11, 12 and 13 of the disassembly method to
remove the CD mechanism.
2.1. Remove the pickup. (See Fig. 1)
1. Remove the stop washer (A1) x 1 pc., to remove the gear (A2) x 1
pc.
2. Remove the screws (A3) x 2 pcs., to remove the shaft (A4) x 1 pc.
3. Remove the pickup.
Note
After removing the connector for the optical pickup from the connector
wrap the conductive aluminium foil around the front end of connector
so as to protect the optical pickup from electrostatic damage.
Figure 1
3. CHANGER MECHANISM SECTION
Perform steps 1, 2, 11, 12 and 13 of the disassembly method to
remove the CD changer mechanism.
3.1. How to remove CD Disc (See Fig. 2~5)
1. When CD is at play position (Figure 2), rotate reduction gear C
clock-wise as shown in Figure 3 Until disc tray is at stock position,
then rotate further to eject the disc tray so that CD can be removed
from the tray.
Figure 2
Figure 3
2. In another case, if CD mechanism is at tray No.1 play position and
to remove CD located in tray No.3, the procedure is as follows:
If the gear up down board is located at tray No.1 position, then
rotate gear clock-wise until it at stock position. Rotate reduction
gear D clockwise (Figure 4) to move the CD mechanism to tray
No.3 position.This is confirmed by checking the gear up down
board position by the marking as indicated on the main chassis as
shown in Figure 5.
Figure 4
Figure 5
Pickup Unit
(A3)x2
φ2.6x6mm
CD Mechanism
Shaft
(A4)x1
Gear
(A2)x1
Stop Washer
(A1)x1
CD Disc
CD At play position.
Disc Tray
Guide Tray
CD Disc
CD At stalk position.
Reduction gear C
Front Rear
Reduction gear D
Up Down
Mark 1
(DISC 1)
(DISC 2)
(DISC 3)
(DISC 4)
(DISC 5)
Gear up down board
Mark 3 Mark 5
Mark 2 Mark 4
CD-DV999W/CD-DV777W
3 – 6
3.2. How to Remove the tray motor/main cam motor/5-
Changer Motor PWB (See Fig. 6)
1. Remove the screws (A1)x 2 pcs., to remove tray motor/main cam
motor/5-Changer Motor PWB.
Figure 6
NOTE: There are 2 more screws tighten the motors at the bottom of
main chassis. Before performing procedure 1 above, disc stop
spring, top plate sear up down board and trays must be
removed, then only the 2 screws can be untighten.
5-Changer
Motor PWB
Tray Motor
Changer Mechanism Unit
Main Cam Motor
(A1)x2
φ2x10mm
CD-DV999W/CD-DV777W
4 – 1
AudioCD-DV999W/CD-DV777WService ManualCD-DV999W/CD-DV777WMarketE
CHAPTER 4. DIAGRAMS
[1] Block diagrams
Figure 4-1 BLOCK DIAGRAM (1/4)
M
M
1,12D3.3V
D_GND
NRST
68
ADAC_CK
ADAC_L
ADAC_DA
768FS
A5V
D3.3V
GND
DGNDAUDIO
94
14
15
16
13
974817296
7
8
IC3801
PCM1748E
D/A CONVERTER
5
181
IECOUT
D3.3V
RXD
DAC1OUT
DAC4OUT
DAC5OUT
164
163
158
52
1,7,8
D3.3V
DVD_CS
S_CLK
S_DIN
S_DOUT
AMUTE
RXD_CLT_IN
IC3003
TC7WT126
BUFFER
60
53
55
54
94
59
CN3003
CN3201
CN3203
D3.3V
RESET
BD4825G
IC3002
A0-A15
D3.3V
D3.3V
D3.3V
Q3501
Q3100
Q3101
Q3102
P15(RXD_CLT)
47
NEXOENEXCENEXWEFADT(0-20)
1,10
20
8 bit LATCH IC
TCLV573T
IC3503,IC3504
27,46
131412
FLASH ROM
IXA173WJ
IC3501
+8V
A_5V
S_5V
D3.3V
D1.5V
A3.3V
FROM MAIN PWB
FROM MAIN PWB
CN3004
D3.3V
M_GND
A3.3V
S_5V
A_5V
D_1.5V
AUDIO_GND
LÐCH
S_5V
RÐCH
A_GND
D_GND
+8V
TR+
DVD A_MUTE
DVD_CS
RXD_CTL_IN
CAM+
TR-
DVD_DATA
CAM-
M1
TRAY
MOTOR
M2
JK7002
VIDEO
OUT
SO7001
S-VIDEO
OUT
MAIN CAM
MOTOR
RESET
DVD_CLK
SYS_DATA
MUTE
Py_OUT
DGND
VGND
ASPECT
Pr_OUT
PROGRESSIVE
Pb_OUT
RXD
C_OUT
TXD
VGND
V_OUT
DGND
SPDIF
IC501
AUDIO
DIGITAL
OUT
DVD/CD
D_3.3V
D_3.3V
8
4K
b
B
R
I
49,92,170
X3601
15
14
10
873
2,11
GENERATOR
CLOCK
BU2363FV
IC3601
D_GND
6,12,32,38,44,46,52
43,49,55,75,81
1,3,9,15,29,35,41
BA(0-1)
DQM(0-3)
MA(0-11)
MDQ(0-31)
MCK
NWE
NCAS
NRAS
NCSM
64M SD-RAM
IX0614AW
IC3401
IC30
IXA46
4
DVD ED
C
1
2
3
3
2
1
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
6
58,72,78,84,86
CD-DV999W/CD-DV777W
4 – 2
Figure 4-2 BLOCK DIAGRAM (2/4)
A3.3V
104,118,145,149
153,157,165
236,241,245,248,254
211,215,221,224,230
177,183,194,198,206
218,226,233,240,250
189,195,202,209
D3.3V
1,7,14,23,29,42
56,79,91,171,182
58,69,80,93,99,169
4,11,16,24,30,43
D_GND
D1.5V
213,222,244
15,67,98,186
A_GND
106,119,138
151,155,159,167
66
146
31-34
UNIT ASS'Y
DVD MECHANISM
DVD_H
Q3307
M_GND
LPCO2
LPCO1
A_GND
121-131
134,136
133,135
Q3304
Q3303
Q3306
Q3305
PD_CD
H
L
S_5V
S_5V
ANALOG
SWITCH
7SB3157P
IC3301
D3301
FG
FG
VHALF
SPIN
SPIN
1
VCC
S_5V
7
8
5,6
A_GND
4
SPIN-
SPIN+
SPIN-
SPIN+
2,3
OPE.AMP.
NJM12904
IC3702
SLED
MOTOR
SPINDLE
D_GND
IN SW
SL+
SL-
MOTOR
M
74
152,150
137
73,71,70
VCC
M_8V
VHALF
9,27,28
25
3,4
5,6
7,26
1,2
35,36
18
12
16
14
29
SPIN/SLED DRIVER
FOCUS/TRACKING
LA6261
IC3704
M
A_3.3V
LED
FG
AGND
PWB
SENSOR
UNIT ASSY
PICKUP
FO-
FO+
TR+
TR-
VC
VD
CD/DVD
RF
VA
VB
VF
G(PDIC)
Vref
VCC
VE
NC
VR(CD)
VR(DVD)
LD(CD)
PDMON
VOSC
NC
LD_DVD
GND
CN3301
P3(SCL)
P2(SDA)
62
63
3
V
6
5
1-4,7
8
4K bit EEPROM
BR24L04F
IC3602
49,92,170
IC3001
IXA464AW
DVD EDCODER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
A_GND
CD-DV999W/CD-DV777W
4 – 3
Figure 4-3 BLOCK DIAGRAM (3/4)
7
ICK1
M65856SP
MIC AMP.
ICK2
KIA4558P
OPE AMP.
VCC
RIN
LIN
LOUT
ROUT
DATA
CLOCK
LATCH
VRK1
MIC LEVEL
JK1
MIC
+B4QK1
41
22
5
6
2
3
1
7
40
42
9
12
13
23
31
32
35
36
JK2
MIC
4
IC101
AN7345K
PLAYBACK AND RECORD/
PLAYBACK AMP.
VF1
AUX
VIDEO
R
L
R
L
JK690
GAME INPUT
JK691
VIDEO OUT
-20dB
ATT
Q101~
Q104
Q107
Q108
Q601
Q602
Q603
Q604
REC/PLAY
CLK
CE
DI
+B4
L
R
BIAS
T1/T2
MUTING
P.B.
REC.
AC BIAS
L
L
R
R
R
L
TAPE
TUNER
DVD
PB
CN3004
FROM DVD SECTION
HEAD
ERASE
SWITCHING
SWITCHING
SWITCHING
BIAS
Q113
Q114
Q112
Q110
LED
DRIVER
Q710
Q706
Q711
Q712
Q707
Q708
Q714~
Q717
SWITCHING
Q109
BIAS
OSC
Q111
L103
Q105
Q106
REC./P.B.
HEAD
TAPE 2
P.B. HEAD
TAPE 1
R-CH
L-CH
R-CH
L-CH
IC601
LC75341
AUDIO PROCESSOR
IC602
NJM2533
VIDEO
SWITCH
+B4
R
L
REC
R
L
ALC
RREC
LREC
POP REDUCE
SWITCHING
L(T2)
R(T2)
R(T1)
L(T1)
21
4
24
2
1
18
11
16
3
15
10
9
7
7
3
17
8
23
14
12
13
19
7
18
10
58
30
13
21
4
2
24
23
6
9
16
12
11
15
1
H/N
P.B
REC
T1/T2
T1/T2
NOR/
HIGH
+B4
+B4
+B4
SYSTEM
MUTE
TAPE
MECHANISM
ASS'Y
MOTOR
DRIVER
SOLENOID
DRIVER
+B7
+B7
LED703
JOG701
VOLUME
IC701
IXA023AW
SYSTEM
MICROCOMPUTER
(2/2)
FM+B
+B4
SWITCHING
IC302
LC72131
PLL(TUNER)
FM
Q360
9
10
21
17
7
MO/ST
FM/AM
OSC
+B4
5436
22 111615
CLK
DO
DI
CE
1
20
VT
X352
4.5 MHz
IC303
LA1832S
FM IF DET./
FM MPX./
AM IF
STEREO
AM RF IN
AM OSC IN
AM OSC OUT
1821 12162324
FM/AM
OUT
R
L
FM/AM
MPXIN
MO/ST
VCO
FM
DET
FM+B
GND
AM IF
AM MIX
985
17
21
13
14
15
4
AM IF
450 kHz
CF352
T351
CF303
+B4
10.7 MHz
X351
456 kHz
ZD351
5.1V
CF351
OSC BUFF
FM
OSC
AM BAND
COVERAGE
AM TRACKING
T303 T306
Q302
FM RF
OSC
FM
L312 T301
8
4
3
5
7
FM IF
T302
9
6
IC301
TA7358AP
FM FRONT END
B.P.F
BF301
AM LOOP
ANTENNA
CNP301
FM
ANTENNA
SO302
FM ANTENNA
TERMINAL
2
+B11
DVD1.7
V
+B10
DVD3.7
1
2
1
BI601CNS601
1
3
4
1
3
2
CD-DV999W/CD-DV777W
4 – 4
SW801
VOLTAGE
SELECTOR
110V
127 V
220 V
230-240 V
AC POWER SUPPLY COR
D
AC 110/127/220/230-240 V,
50/60 Hz
1
2
1
2
SW601
SPAN
SELECTOR
L841
LINE FILTER
F805
T5A L 250V
Q905
-VF
VF2
VF1
Q801
+B2
-B1
+B1
-B2
+B8
+B7
+B5
26
R
L
+B5
RX701
REMOTE
SENSOR
D803,
D804
D802
D801
RL914
JK701
HEADPHONES
M901
FAN
MOTOR
M
Q906
Q709
3
4
IC901
STK41244
POWER AMP.
F803
T2A L250V
VOLTAGE
REGULATOR
F804
T2A L 250V
F801
T5A L 250V
F802
T5A L250V
R-OUT
L-OUT
Q901~
Q904
D905~D907
CLK
SO902
SPEAKER
TERMINAL
47
VLOAD
RESET
+B5
+B5
+B5
+B5
VDD
VDD
VDD
~~
CE
DI
DO
XL701
4.19 MHz
~
A
S
T
2
AVDD
SW701-SW708
SW712-SW716
SW724-SW735
KEY
TO CD
SECTION
IC701
IXA004AW
SYSTEM
MICROCOMPUTER
(1/2)
FL701
FL DISPLAY
27
5150
80
12345 67
14
18
2
78
58
812 45
1
2
3
11
6
7
1
5
8
97
100
99
33
31
53
56
15
46
11 1210 16 21 24 20 17 18 19
41
79
3850 27 28 26
59
40
47
25 13 27
39
34
T.F.
PT801
POWER
TRANSFORMER
SYSTEM
MUTE
~
~
~
~
TAPE
MECHANISM
ASS'Y
RESET
SP DET.
SP RELAY
ON-OFF
FAN MOTOR
DRIVER
F807
2.5A L250V
F806
T2.5A L 250V
.
/
IC854
AN78L05
311
1
12
2
2
1
3
VOLTAGE REGULATOR
IC856
LD1117V33
VOLTAGE
REGULATOR
IC856
LD1117V
VOLTAGE
REGULATOR
+B5
UNSW_5.6V
IC851
AN80T53
MULTI REGULATOR
IC852
KIA7808AP
VOLTAGE REGULATOR
IC853
BD9701T
1-CH DC-DC
CONVERTER
+B6
+B3
+B7
+B4
+B8
+B11
DVD1.7V
+B10
DVD3.7V
A_+5V
3
7
2
6
1
LD+8V
M+13V
A+10V
+5V
+B9
SW5V
D+5V
D870D871
IC901
CD-DV777W STK41242
STK41244
CD-DV999W

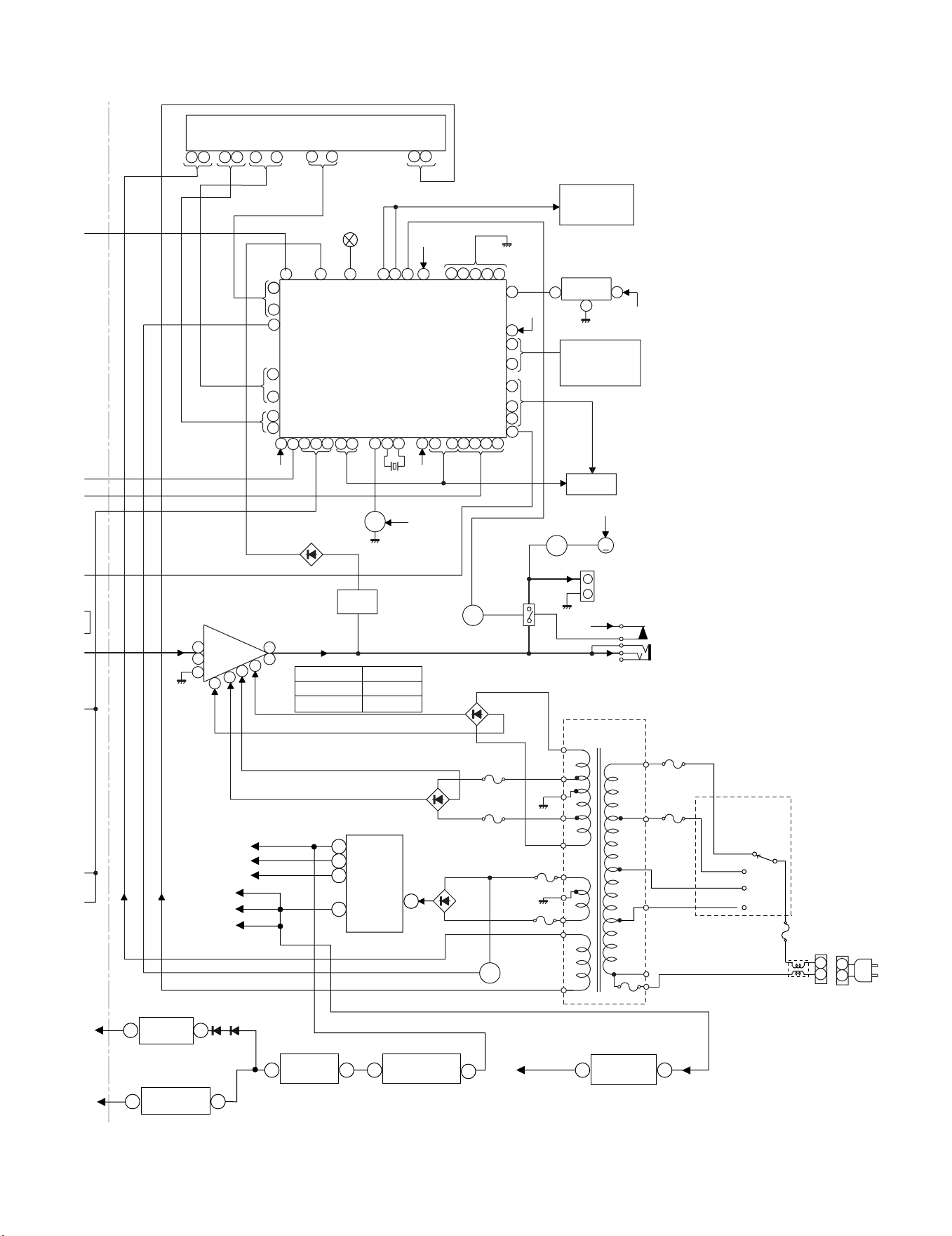

Figure 4-4 BLOCK DIAGRAM (4/4)
CD-DV999W/CD-DV777W
5 – 1
AudioCD-DV999W/CD-DV777WService ManualCD-DV999W/CD-DV777WMarketE
CHAPTER 5. CIRCUIT DESCRIPTION
[1] Notes on schematic diagram
•Resistor:
To differentiate the units of resistors, such symbol as K and M are
used: the symbol K means 1000 ohm and the symbol M means
1000 kohm and the resistor without any symbol is ohm-type resis-
tor. Besides, the one with “Fusible” is a fuse type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this symbol P
means pico-farad and the unit of the capacitor without such a sym-
bol is microfarad. As to electrolytic capacitor, the expression
“capacitance/withstand voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this model are
subject to change for improvement without prior notice.
• The indicated voltage in each section is the one measured by Digi-
tal Multimeter between such a section and the chassis with no sig-
nal given.
1. In the tuner section,
indicates AM
indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ “ ( ) are important for main-
taining the safety of the set. Be sure to replace these parts with
specified ones for maintaining the safety and performance of the
set.
[2] Types of transistor and LED
REF. NO DESCRIPTION POSITION
JOG701 VOLUME ON—OFF
NSW1 PICKUP IN ON—OFF
SW1 CLAMP ON—OFF
SW2 TRAY SW1 ON—OFF
SW3 TRAY SW2 ON—OFF
SW4 DISC ON—OFF
SW601 SPAN SELECTOR 100 kHz/
10 kHz
SW701 POWER ON/STAND-BY ON—OFF
SW702 CLOCK/TIMER ON—OFF
SW703 TUNING UP ON—OFF
SW704 TUNING DOWN ON—OFF
SW705 FAST REWIND/PRESET DOWN ON—OFF
SW706 EQUALIZER ON—OFF
SW707 FAST FORWARD/PRESET UP ON—OFF
SW708 REVERSE MODE ON—OFF
SW712 TUNER (BAND) ON—OFF
SW713 CD ON—OFF
SW714 TAPE ON—OFF
SW715 GAME/VIDEO ON—OFF
SW716 X-BASS/DEMO ON—OFF
SW724 REVERSE PLAY ON—OFF
SW725 PLAY/REPEAT ON—OFF
SW726 STOP ON—OFF
SW727 REC/PAUSE ON—OFF
SW728 MEMORY/SET ON—OFF
SW729 OPEN/CLOSE ON—OFF
SW730 DIRECT PLAY ON—OFF
SW731 DISC2 ON—OFF
SW732 DISC4 ON—OFF
SW733 DISC5 ON—OFF
SW734 DISC3 ON—OFF
SW735 DISC1 ON—OFF
SW801 VOLTAGE SELECTOR 230-240 V
REF. NO DESCRIPTION POSITION
KRA107 S
KRC102 S
KRC104 S
KTA1504 Y
KTA1298 Y
KTC3875 GR
2SB709 AR
2SD601 AR
DS1SS133
B
(3)
E
(1)
C
(2)
TOP
VIEW
TOP VIEWTOP VIEW
KRC107 M
KTA1266 GR
KTC3265 Y
KTA1273 Y
KTA1274 Y
VIEW
FRONT
ECB
(S)(G)(D)
(1)(2)(3)
1N4004S
D10XB60F
AC AC
VIEW
FRONT
FRONT
VIEW
304VT2H3
SDPB50CD
KTC3194 Y
KTC3199 GR
KTC3200 GR
KTC3203 Y
CD-DV999W/CD-DV777W
5 – 2
[3] Waveforms of DVD circuit
DVD_CS IN1
S_DIN2
S_DOUT3
SCLK OUT4
2003/10/16 13:19:45
Stopped
Normal
20 MS/s 50 µs/div786
CH1 10:1
0.500 V/div
DC 10kHz
CH2 10:1
0.500 V/div
DC Full
CH3 10:1
0.500 V/div
DC Full
CH4 10:1
0.500 V/div
DC Full
Edge CH1
Auto
0.400 V
SIMPLE
Level
1.000 V
CD-DV999W/CD-DV777W
5 – 3
[4] Voltage
3.20 V
1.61V
1.61 V
1.60 V
1.61 V
3.08 V
1.65 V
1.65 V
1.65 V
1.65 V
1.48 V
0V
1.65 V
0V
1.65 V
1.47 V
1.48 V
0V
0V
0V
1.60 V
0V
1.61 V
1.61 V
0V
0V
3.20 V
0V
3.20 V
0V
0V
1.59 V
1.60 V
3.20 V
0V
0V
0V
0V
0V
0V
3.61 V
0V
0V
1.80 V
3.60 V
0V
1.45 V
1.49 V
3.19 V
3.79 V
0V
0V
0V
0V
0V
0V
0V
0V
0V
3.20 V
0V
0V
0.63 V
0V
5.16 V
5.18 V
4.68 V
0V
0V
0V
0V
0V
0V
4.86 V
4.86 V
3.01 V
0V
1.12 V
0V
3.20 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
PIN
NO.
VOLTAGE
IC1
2.10 V
2.20 V
2.10 V
2.20 V
2.10 V
2.20 V
0V
4.37 V
5.02 V
3.20 V
1.62 V
1.65 V
1.62 V
1.65 V
1.62 V
0V
1.62 V
1.64 V
4.71 V
4.71 V
3.92 V
3.11 V
3.10 V
2.50 V
1.65 V
0V
5.02 V
8.68 V
5.02 V
0.59 V
0.71 V
0V
0V
0V
2.11 V
2.20 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
PIN
NO.
VOLTAGE
IC2
0V
0V
0.57 V
2.03 V
0.44 V
0V
0V
0.58 V
3.45 V
3.35 V
0V
0V
6.97 V
4.16 V
0V
3.42 V
0.57 V
0V
0V
0.41 V
2.03 V
0.57 V
0V
0V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
PIN
NO.
VOLTAGE
IC101
1.97 V
5.15 V
1.97 V
1.96 V
0V
0V
5.21 V
3.59 V
5.15 V
0V
2.01 V
1.25 V
2.27 V
1.13 V
1.10 V
1.96 V
0V
1.29 V
2.08 V
1.29 V
1.95 V
1.95 V
5.15 V
3.65 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
PIN
NO.
VOLTAGE
IC303
0V
0V
0V
5.10 V
5.10 V
5.10 V
5.10 V
5.11 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
5.10V
5.10 V
5.10 V
5.10 V
5.10 V
5.10 V
10.20 V
0V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
PIN
NO.
VOLTAGE
IC601
2.57 V
0V
0V
0V
0V
5.22 V
10.18 V
4.76 V
0V
0V
5.23 V
0V
5.23 V
0V
0V
2.59 V
5.24 V
0V
0V
10.18 V
0V
2.57 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
PIN
NO.
VOLTAGE
IC302
0V
0V
0.29 V
0.20 V
0V
0.29 V
0.26 V
0.29 V
0.29 V
1
2
3
4
5
6
7
8
9
PIN
NO.
VOLTAGE
IC301
5.22 V
13.11 V
20.66 V
0V
19.72 V
10.22 V
8.67 V
1
2
3
4
5
6
7
PIN
NO.
VOLTAGE
IC851
4.74 V
4.65 V
0V
4.70 V
4.72V
4.72 V
0V
0V
0V
4.83 V
2.27 V
1.99 V
0V
4.73 V
0V
4.74 V
0V
0V
5.22 V
0V
0V
4.68 V
0V
0V
0V
5.20 V
0V
5.01 V
5.01 V
2.64 V
5.01 V
5.01 V
0V
0V
5.01 V
1.67 V
5.20 V
5.01 V
4.87 V
0V
2.02 V
0V
13.10 V
0V
0V
4.74 V
0V
4.61 V
0V
0V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
PIN
NO.
VOLTAGE
IC701
0V
0V
0V
0V
5.17 V
5.17 V
-29.70 V
0V
-0.26 V
-0.24 V
-0.22 V
-0.20 V
-0.19 V
-0.19 V
-0.18 V
-0.17 V
-0.16 V
0V
-29.90 V
-29.90 V
-29.90 V
-29.90 V
-29.90 V
-19.76 V
-27.40 V
-24.87 V
-22.29 V
-22.30 V
-30.13 V
-27.43 V
-14.50 V
-27.20 V
-19.30 V
-6.08 V
-21.85 V
-27.22 V
-21.89 V
-17.00 V
-27.38 V
-27.10 V
-27.07 V
-27.00 V
-27.00 V
-27.35 V
-26.27 V
-27.11 V
-27.00 V
-27.07 V
-27.07 V
-26.83 V
PIN
NO.
VOLTAGE
51
64
63
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
62
61
60
59
58
57
56
55
54
53
52
85
84
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
83
82
81
52.80 V
21.60 V
9.60 V
-9.70 V
-21.60V
-48.80 V
0V
-19.70 V
-22.90 V
-22.10 V
-18.60 V
-51.30 V
51.40V
-0.14 V
-0.13 V
-50.04 V
-0.14 V
-0.14 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
PIN
NO.
VOLTAGE
IC901
CD-DV999W/CD-DV777W
5 – 4
0.4 V
0.5 V
2.6 V
2.8 V
0.7 V
0.5 V
0.7 V
2.7 V
0V
0V
3.5 V
3.1 V
0V
3.5 V
0V
0V
0V
2.7 V
2.9 V
2.6 V
0.8 V
0.7 V
0.7 V
2.8 V
2.9 V
2.9 V
0V
2.9 V
2.8 V
2.6 V
2.8 V
0.6 V
0.7 V
0.5 V
0.7 V
0.7 V
3.5 V
0.7 V
2.7 V
2.6 V
2.6 V
2.8 V
0.5 V
2.7 V
0.5 V
0V
3.5 V
2.7 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
PIN
NO.
VOLTAGE
IC3501
1.2 V
1.2 V
0V
0V
1.4 V
1.7 V
0V
0V
0V
7.6 V
0V
0V
1.3 V
1.3 V
0V
0V
0.7 V
0.7 V
7.6 V
1.3 V
1.3 V
7.6 V
1.3 V
7.6 V
1.2 V
1.2 V
0V
1.2 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
PIN
NO.
VOLTAGE
IC3704
0V
2.8 V
2.8 V
0.7 V
0.7 V
0.7 V
2.8 V
2.8 V
2.0 V
0V
1
2
3
4
5
6
7
8
9
10
PIN
NO.
VOLTAGE
IC3504
1.7 V
1.7 V
1.7 V
0V
2.8 V
3.1 V
0V
4.8 V
1
2
3
4
5
6
7
8
PIN
NO.
VOLTAGE
IC3702
0V
0V
0V
0V
3.5 V
3.5 V
0V
3.5 V
1
2
3
4
5
6
7
8
PIN
NO.
VOLTAGE
IC3602
0V
2.6 V
0.6 V
0.5 V
0.7 V
2.7 V
2.7 V
0.5 V
0.5 V
0V
1
2
3
4
5
6
7
8
9
10
PIN
NO.
VOLTAGE
IC3503
3.5 V
2.5 V
2.5 V
0V
2.7 V
2.3 V
3.5 V
3.5 V
2.3 V
2.3 V
0V
2.6 V
2.6 V
3.5 V
1.3 V
0V
0V
3.5 V
2.7 V
0.8 V
2.7 V
2.7 V
3.5 V
0V
3.1 V
0V
0.5 V
0.5 V
3.5 V
0V
2.8 V
0.7 V
2.9 V
2.7 V
2.6 V
0.7 V
2.6 V
0V
0V
0.5 V
0.7 V
3.5 V
0V
2.7 V
0.7 V
2.9 V
3.4 V
0V
0V
0V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
PIN
NO.
VOLTAGE
IC3001
0V
3.4 V
3.3 V
3.3 V
2.7 V
3.5 V
0V
0V
0V
2.4 V
3.4 V
3.4 V
3.4 V
1.7 V
0V
2.9 V
1.3 V
3.8 V
0V
1.7 V
1.7 V
0V
0V
3.4 V
3.4 V
3.4 V
3.4 V
1.7 V
3.5 V
0V
3.5 V
0V
3.4 V
0V
0V
0V
0V
0V
0V
0V
3.5 V
1.7 V
0V
0V
3.4 V
0V
0V
1.3 V
0V
0V
PIN
NO.
VOLTAGE
51
64
63
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
62
61
60
59
58
57
56
55
54
53
52
85
84
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
83
82
81
3.4 V
0V
0V
3.4 V
0.9 V
0V
0.8 V
0.6 V
2.1 V
2.6 V
2.1 V
1.2 V
2.0 V
1.6 V
1.6 V
1.6 V
1.0 V
3.5 V
0V
1.0 V
1.7 V
2.1 V
2.1 V
2.1 V
2.1 V
2.1 V
2.1 V
2.1 V
2.1 V
2.1 V
2.1 V
0V
0V
0V
0V
2.1 V
1.7 V
0V
1.7 V
1.7 V
1.7 V
1.7 V
0V
1.4 V
3.4 V
1.7 V
2.3 V
2.3 V
3.4 V
1.7 V
109
108
107
106
105
104
103
102
101
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
132
131
PIN
NO.
VOLTAGE
0V
1.7 V
1.3 V
0V
2.2 V
3.4 V
0.7 V
0V
3.4 V
3.4 V
3.4 V
0.7 V
1.7 V
3.4 V
1.4 V
0V
2.2 V
0V
1.6 V
3.4 V
1.7 V
3.4 V
1.7 V
2.7 V
1.7 V
1.7 V
0V
0V
0V
0V
1.7 V
3.5 V
0V
2.6 V
2.5 V
1.3 V
2.2 V
1.3 V
3.5 V
2.3 V
2.3 V
2.3 V
2.8 V
0V
3.5 V
2.8 V
2.3 V
0V
2.2 V
2.3 V
PIN
NO.
VOLTAGE
151
164
163
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
162
161
160
159
158
157
156
155
154
153
152
185
184
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
183
182
181
2.2 V
3.5 V
2.3 V
2.5 V
2.6 V
0V
2.0 V
2.0 V
3.4 V
1.7 V
0V
1.6 V
1.3 V
0V
0V
1.7 V
0V
3.4 V
1.6 V
0V
0V
1.3 V
1.8 V
0V
1.0 V
3.5 V
0V
0V
0V
0V
0V
3.4 V
3.4 V
0V
0V
0V
3.5 V
3.5 V
3.5 V
3.5 V
0V
3.5 V
3.5 V
1.5 V
0V
3.5 V
3.5 V
0V
3.5 V
3.5 V
209
208
207
206
205
204
203
202
201
230
229
228
227
226
225
224
223
222
221
220
219
218
217
216
215
214
213
212
211
210
250
249
248
247
246
245
244
243
242
241
240
239
238
237
236
235
234
233
232
231
PIN
NO.
VOLTAGE
3.5 V
3.5 V
3.5 V
0V
3.5 V
3.5 V
PIN
NO.
VOLTAGE
251
256
255
254
253
252
1.7 V
0V
1.7 V
0V
3.5 V
4.7 V
2.3 V
2.3 V
0V
2.3 V
3.5 V
3.5 V
0V
0V
3.5 V
1.7 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PIN
NO.
VOLTAGE
IC3801
3.5 V
0V
0.7 V
1.7 V
3.5 V
0V
1.7 V
1.7 V
1.7 V
1.7 V
0V
3.5 V
1.7 V
0V
1.7 V
3.5 V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PIN
NO.
VOLTAGE
IC3601
3.5 V
2.6 V
3.5 V
2.3 V
2.3 V
0V
2.3 V
2.8 V
3.5 V
2.2 V
2.2 V
0V
2.5 V
2.4 V
3.5 V
2.0 V
3.4 V
3.4 V
3.3 V
3.1 V
0V
1.6 V
1.6 V
0V
0V
0V
2.0 V
3.5 V
0.6 V
2.6 V
0V
2.3 V
2.3 V
3.5 V
2.3 V
2.8 V
0V
2.2 V
2.2 V
3.5 V
2.5 V
3.5 V
9
8
7
6
5
4
3
2
1
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
42
41
40
39
38
37
36
35
34
33
32
31
PIN
NO.
VOLTAGE
IC3401
0V
2.6 V
0V
2.3 V
2.3 V
3.5 V
2.3 V
2.8 V
0V
2.2 V
2.2 V
3.5 V
2.5 V
0V
0V
2.0 V
1.7 V
1.6 V
1.8 V
1.7 V
2.9 V
0V
0V
3.5 V
1.8 V
0V
0V
2.0 V
0V
0V
2.6 V
3.5 V
2.3 V
0V
2.3 V
2.8 V
3.5 V
2.2 V
2.2 V
0V
2.5 V
0V
PIN
NO.
VOLTAGE
43
56
55
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
54
53
52
51
50
49
48
47
46
45
44
77
76
78
79
80
81
82
83
84
75
74
73
CD-DV999W/CD-DV777W
6 – 1
AudioCD-DV999W/CD-DV777WService ManualCD-DV999W/CD-DV777WMarketE
CHAPTER 6. CIRCUIT SCHEMATICS AND PARTS LAYOUT
[1] Schematic diagram

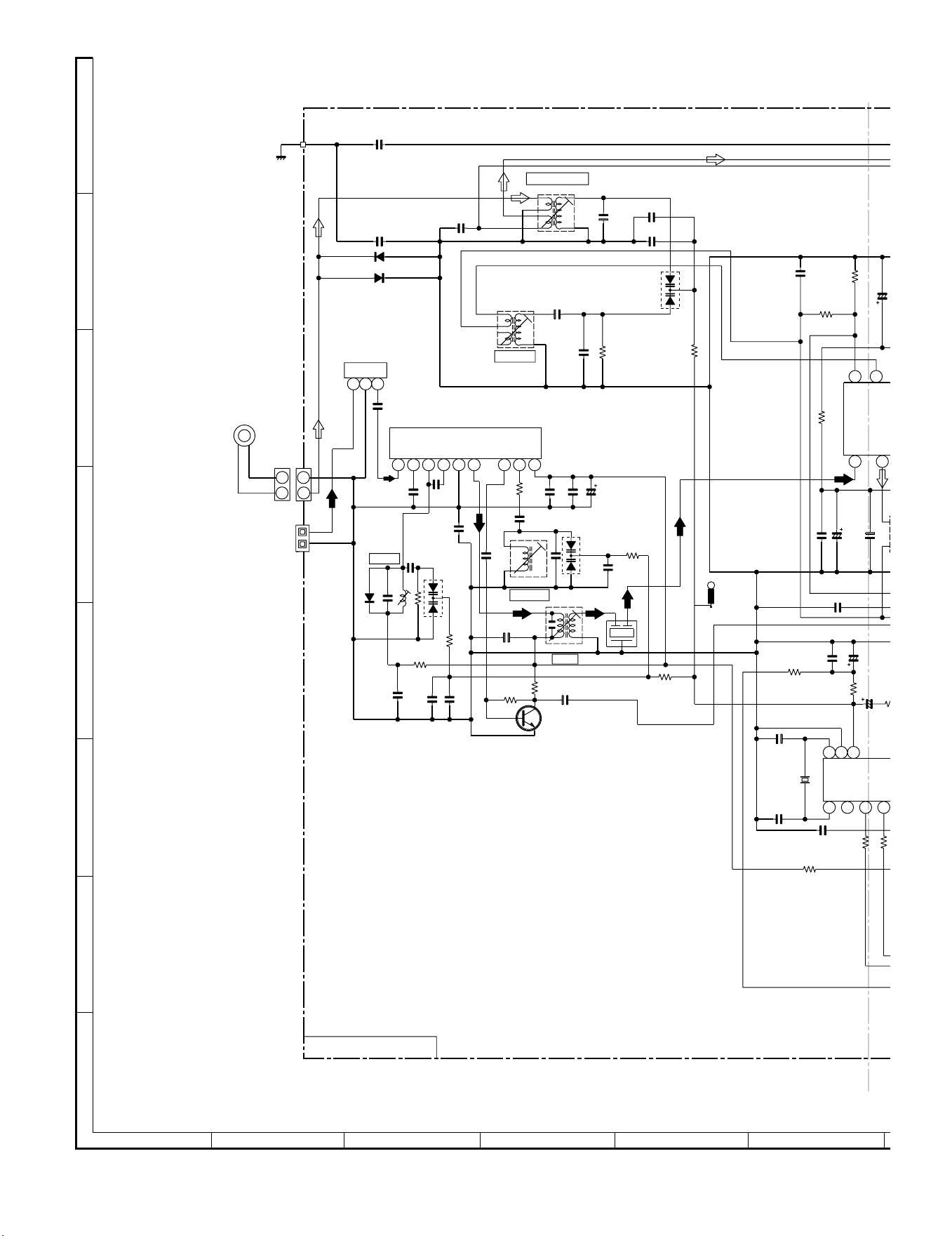

Figure 6-1 SCHEMATIC DIAGRAM (1/15)
0.7V
0V
0V
0V
0.7V
0V
0V
0V
0V
0V
0V
9.3V
8.6V
9.3V
0V
3.4V
3.4V
0V
0V
0V
0.7V
0.7V
0V
0V
0V
0.7V
0.7V
50 kHZ/9 kHz
100 kHZ/10 kHz
ERASE HEAD
RECORD/
PLAYBACK HEAD
R-CH
L-CH
TAPE 2
6
5
4
3
2
1
6
5
4
3
2
1
2
1
3
5
4
6
7
1/50
1/50
180P(CH)
47/25
1K
560P
1.5K
22/50
100
0.0033
KTC3875 GR
2.2K
390
KTC3875 GR
KTC3875 GR
2.2K
8.2K
8.2K
1K
1/50
1/50
1/50
1/50
4.7/50
1/50
0.0022
0.
0
220/16
0.022
1/50
10K
1K
3
0.
0
220/10
220/10
22/25
KTC3200 GR
KTC3200 GR
KTC3200 GR
SWITCHING
SWITCHING
SWITCHING
SWITCHING
SWITCHING
SWITCHING
KTC3200 GR
KTA1504 Y
220K
22/50
22K
1/50
22K
0.0022
8.2K
0.0022
8.2K
220P
220P
220P
LC75341
AUDIO PROCESSOR
9
10
11
12 13
14
15
16
17
18
19
20
21
22
23
24
8
7
6
5
4
3
2
1
68K
47/50
150
100/16
10K
0.022
47/25
5.6K
3.3/50
5.6K
KRC104 S
1K
0.0033
0.022
0.1
0.082
3.9K
1/
5
0.082
0.1
1/50
4.7/50
1/50
56
10K
KTC3875 GR
330P
330P
1K
4.7K
10K
KTC3875 GR
330P
4.7K
0.0015
100K
3.9K
47/25
560P
47/25
0.039
15K
KRC104 S
10K
KTC3875 GR
10K
KTC3875 GR
10K
100K
3.9K
3.3K
2.2K
3.3K
2.2K
330P
15K
1.5K
0.0015
2.2K
2.2K
KTC3875 GR
KTC3875 GR
390
1/50
47K
4.7K
1K
270P
AN7345K
PLAYBACK
AND
RECORD/
PLAYBACK
AMP.
560P
47K
180P
22/50
270P
0.022
100
4.7K
0.0022
0.0022
4.7K
47/25
56
47/25
560P
0.039
543216
7
8
9101112
131415161718192021222324
330
330
REC_R
L
L
R
R
T1_R
T1_L
A_GND
TAPE 1
PLAYBACK HEAD
R-CHL-CH
1
2
3
1
2
3
LD+8V
A_5V
D+5V
DVD S5V
DVD S5V
DVD_FUNC
DVD D1.7V
DVD PROTECT
CD_GND
L-CH
A_GND
R-CH
AGC LINE
CD_D_GND
CD_A_GND
AC RLY
DVD A+5V
LD +8V
DVD S5V
DVD S5V
DVD IN
DVD A3.7V
DVD D3.7V
DVD D1.7V
DVD AGND
DVD M_GND
DVD L-CH
DVD A_GND
DVD R-CH
8
9
7
6
5
4
14
15
13
12
11
10
9
14
13
12
11
10
3
1
1
8
7
6
5
4
3
2
DVD D_GND
P6-5 1-F
TO POWER SECTION
Ð
+
Ð
+
Ð
+
Ð
+
Ð
+
Ð
+
Ð
+
Ð
+
CCB
INTERFACE
AUX
DECK
TUNER
CD
112K
56K
112K
56K
Hich=CHROME
Ð
Ð
+
+
Hich=T1
+
Ð
+
Ð
Nor/CrO2
RIPPLE
ALC
ALC
Vcc
LSEL0
R1
R2
R3
R4
RSEL0
RIN
RTRE
RBASS
ROUT
VREF
VDD
CLK
L1
L2
L3
L4
LIN
LTRE
LBASS
LOUT
VSS
CE
DI
CN3004
P6-10 12-H
TO DVD SERVO PWB
1
2
3
4
5
7
8
9
13
14
15
16
11
12
10
6
1
1
2
2
3
3
+B
+B
+B
+B
+B
+B
+B
+B
+B
SWITCHING
SWITCHING
SWITCHING
MUTING
MUTING
Q603, Q604: SYSTEM MUTE
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
10K
1/50
10K
1/50
T2_R2
M_GND
A_GND
ERASE
T2_R1
T2_L1
T2_L2
CNS601
BI601
CNP101
Q103
Q101
R103
R105
C103
Q105
C105
R109
R107
R111
R101
Q106
C106
R110
R108
R102
R112
Q112
R146
R665
4.7K
R148
R147
Q114
Q113
C141
R149
C639
R621
C625
R609
R612
R666
4.7K
R614
R615
R616
R617
Q604
Q603
R619
R618
Q601
Q605
KTC3875 GR
R611
Q602
Q909
R610
R613
R601
R602
C652
C651
C619
C617
C615
C613
C611
C609
R605
C605
C607
R607
C621
C623
C
6
C601
C653
C603
C608
C6
R
C606
C
C624
C620
C622
C614
C616
C618
C626
R608
R136
R137
Q107
R139
Q108
R138
R150
R116
C108
C110
R114
C112
C116
C118
R124
6.8K
C114
R118
R120
C120
R122
15K
R130
R132
C130
C150
C132
R134
C124
C128
R126
C135
C134
C133
C131
C143
R129
C129
C127
R135
R131
C123
C125
R133
R127
C121
R123
6.8K
C119
R121
15K
R117
R119
C111
R115
C117
C115
C113
C109
C107
R113
C126
R128
IC101
IC101
C640
R620
C104
C102
Q104
Q102
R106
R104
C101
IC601
R680
C670
R681
C671
SW601
SPAN SELECTOR
BI102
CNS102
DVD SIGNALFM SIGNAL
PLAYBACK SIGNAL
RECORD SIGNAL
VIDEO SIGNAL
AUX SIGNAL
MIC SIGNAL
KTC3875 GR
2.2K
2.2K
Q908
R988
R987
R985
5.6K
R986
5.6K
A
B
C
D
E
F
G
H
1
23456
CD-CV777W
R121
R122
CD-CV999W
18K
5.6K
R123
R124
15K 6.8K
33K
R692
R693
39K
8.2K
R985
R986
5.6K
CD-DV999W/CD-DV777W
6 – 2

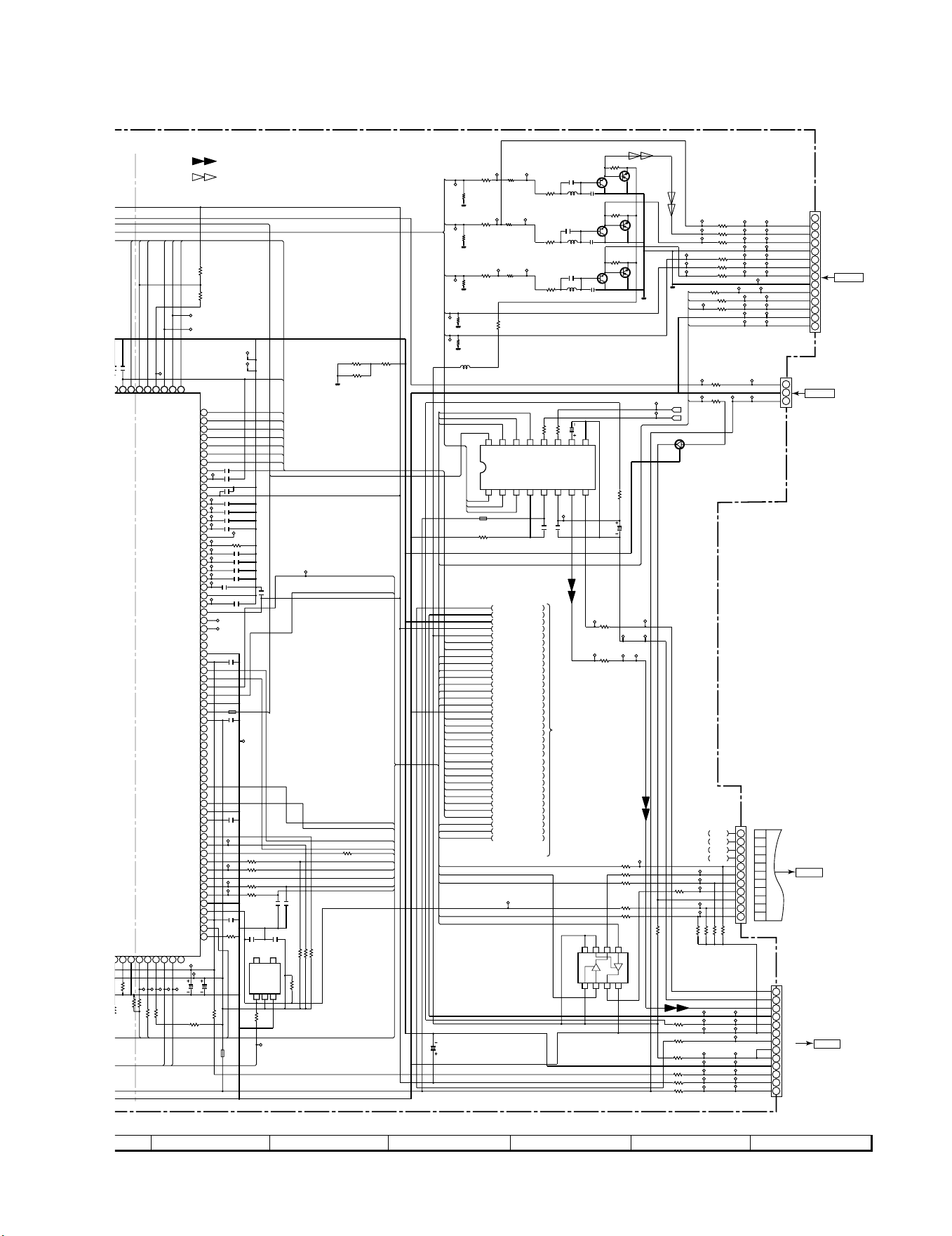

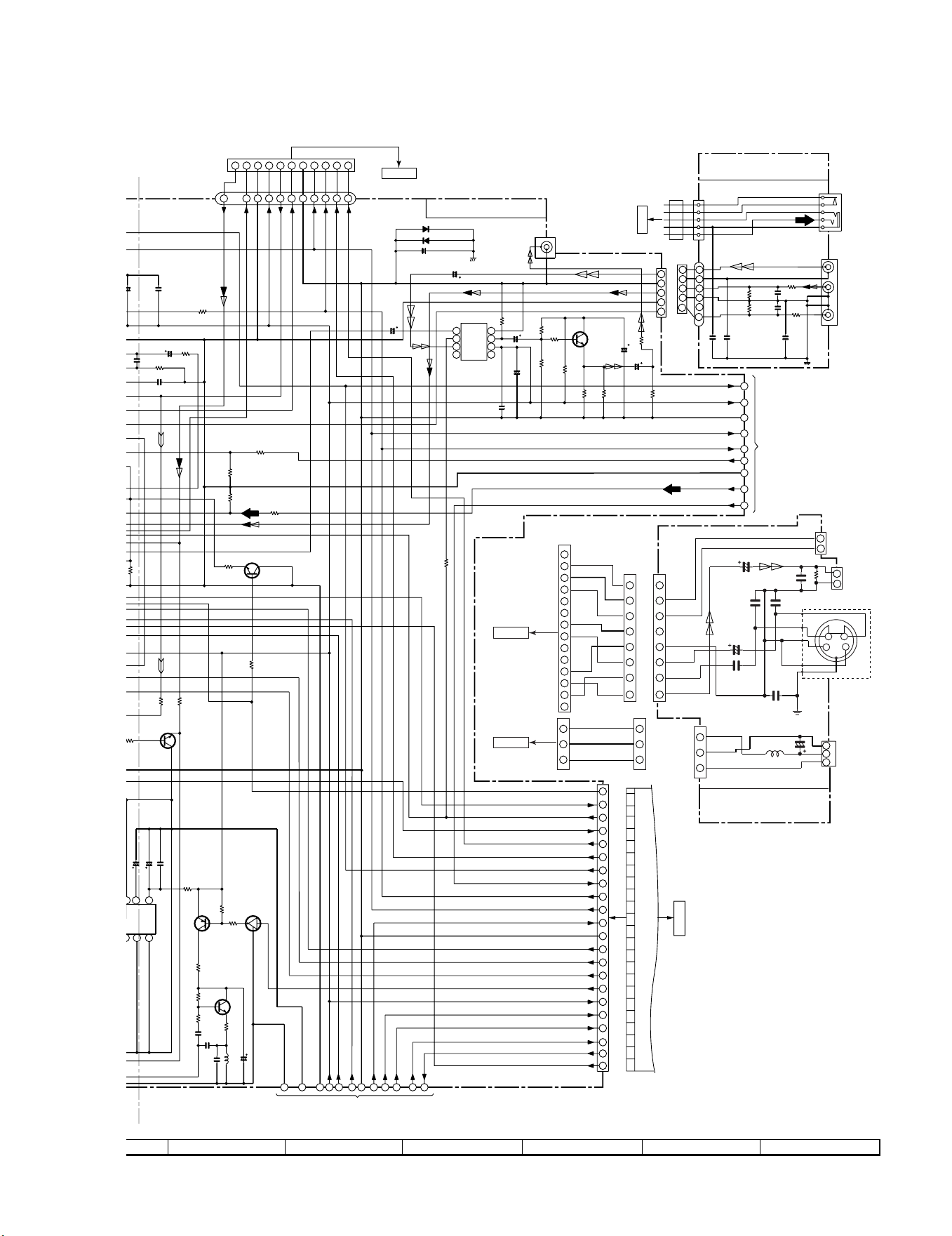

Figure 6-2 SCHEMATIC DIAGRAM (2/15)
0.7V
0V
0V
11.6V
0V
11.6V
0V
0V
0V
CY
CNP7002
D3.3V
D3.3V
D_GND
D_GND
D_OUT
D_OUT
VOUT
VOUT
COUT
COUT
YOUT
VGND
VGND
VGND
RXD
RXD
DGND
DGND
TXD
PY-OUT
S-VIDEO/AUDIO
OUT PWB-F1
D690 DS1SS133
D691 DS1SS133
C693 100P
6.8K
390P
6.8K
390P
1
2
3
4
5
1
2
3
4
5
6
VIDEO IN
CHASSIS
AUX/VIDEO
R-CH
L-CH
HEADPHONES
5
5
1
1
GAME INPUT
PWB-B2
M_+13V
SP_RLY
R-CH
GND
L-CH
P6-6 11-B
TO POWER AMP.
PWB
CNP901
WTM901
FW901
CNS603
BI603
R690 C690
R691
C691
C696 0.01
C695 0.001
C694 0.001
R693
5.6K
JK690
GAME
VIDEO INPUT
R692
5.6K
JK692
1/50
1/50
1K
0.022
220/16
0.022
3.9K
0.0022
2
20/10
220/10
22/25
10K
6.8K
6.8K
4.7K
220
82(1/2W)
47K
22K
0.047(ML)
0.0082
0.039(ML)
KTC3203 Y
4.7
330 µH
47/25
KRC104S
220K
220K
8.2K
10K
1
2
3
4
8
7
6
5
10K
KTA1504 Y
1/50
0.082
1/50
4.7/50
1/50
10K
10K
KTC3875 GR
0K
47K
0
11 12
13145
CE
SW_5V
A+10V
A GND
DVD D3.7V
DVD D3.7V
TAPE_A_GND
+B_PROTECT
M_+13
SP_DET
SP_RLY
C
_R
VIDEO OUT
REC_L
D_GND
M_GND
1
2
3
4
5
P6-5 1-F
TO POWER SECTION
AGND
TUN_L
DO
TUN_R
CLK
DI
DGND
A+10V
2
1
1
1
2
1
2
1
2
CNP7004
3
3
2
1
3
2
1
3
2
1
4
5
6
7
8
1
1
2
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2
3
4
5
6
7
8
3
SP_DET
SW_5V
4
M_+13V
5
REC/PLAY
T_BIAS
A+10V
8
7
6
T_T1/T2
S_MUTE
D_GND
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
CLK
DI
+B_PROTECT
CE
DVD_FUNC
KARAOKE
MIC
SPAN
DVD PROTECT
DISC TYPE
DO
SP_RLY
-20dB
P6-8 10-H
TO TUNER SECTION
Nor/CrO2
RIPPLE
ALC
Vcc
1
23
17 18 19 24 25 26 27 2820 21 22 23
CNP701A
P6-3 1-F
TO DISPLAY PWB
37
36
35
34
33
32
31
30
29
MAIN PWB-A1 (1/3)
+B
+B
+B
+B
+B
+B
+B
+B
KOK OUT L
KOK OUT R
KOK IN L
KOK IN R
A_GND
D_GND
DI
CLK
KOK LATCH
MIC IN
A_+10V
+B
+B
+B
MUTING
SWITCHING
BIAS
BIAS OSC
470/10
CN3201
P6-10 12-B
TO
DVD SERVO PWB
CN3203
P6-10 12-C
TO
DVD SERVO PWB
47P
470/10
47P
0.01
47/10
10µH
0.022
S-VIDEO
OUT
1K
2.2K
100
1 3456789
10 11
123456789
10 11
12
R603
C602
C601
C
603
C608
R604
C610
R606
C612
4
C620
C622
C614
C616
C618
R642
R644
R643
R641
R608
R136
R667
4.7K
R668
4.7K
R137
Q107
Q606
KTC3875 GR
R
139
C135
C134
C133
R141
R158
Q110
Q109
R140
R142
R143
R144
C137
C138
C139
Q111
R145
L103
C140
JK691
BIK1
CNSK1
CNPK1
P6-15 3-H
TO
MIC PWB
CNP602
CNP701B
IC602
NJM2533
VIDEO
SWITCH
CNP7003
CNS7003B
CNS7003A
FFC701
CNP7001
CNS7001A
CNS7001B
C7011
C7003
C7002
C7004
47P
L7001
SO7001
C7001
C7005
C7008
AUDIO DIGITAL
OUT
IC501
C7009
10/16
C663
10/16
C662
C664 100/16
C667
1000/6.3
C666
0.01
C669
100/16
C665
10/16
C674
220
R660A
Q661
KTC3265 Y
R662
R663
3.3K
R688
330
R675
220
R664
220
R677
2.2K
R7004
33K
R679
68
R661
7
8 9 10 11 12
CD-DV999W/CD-DV777W
6 – 3

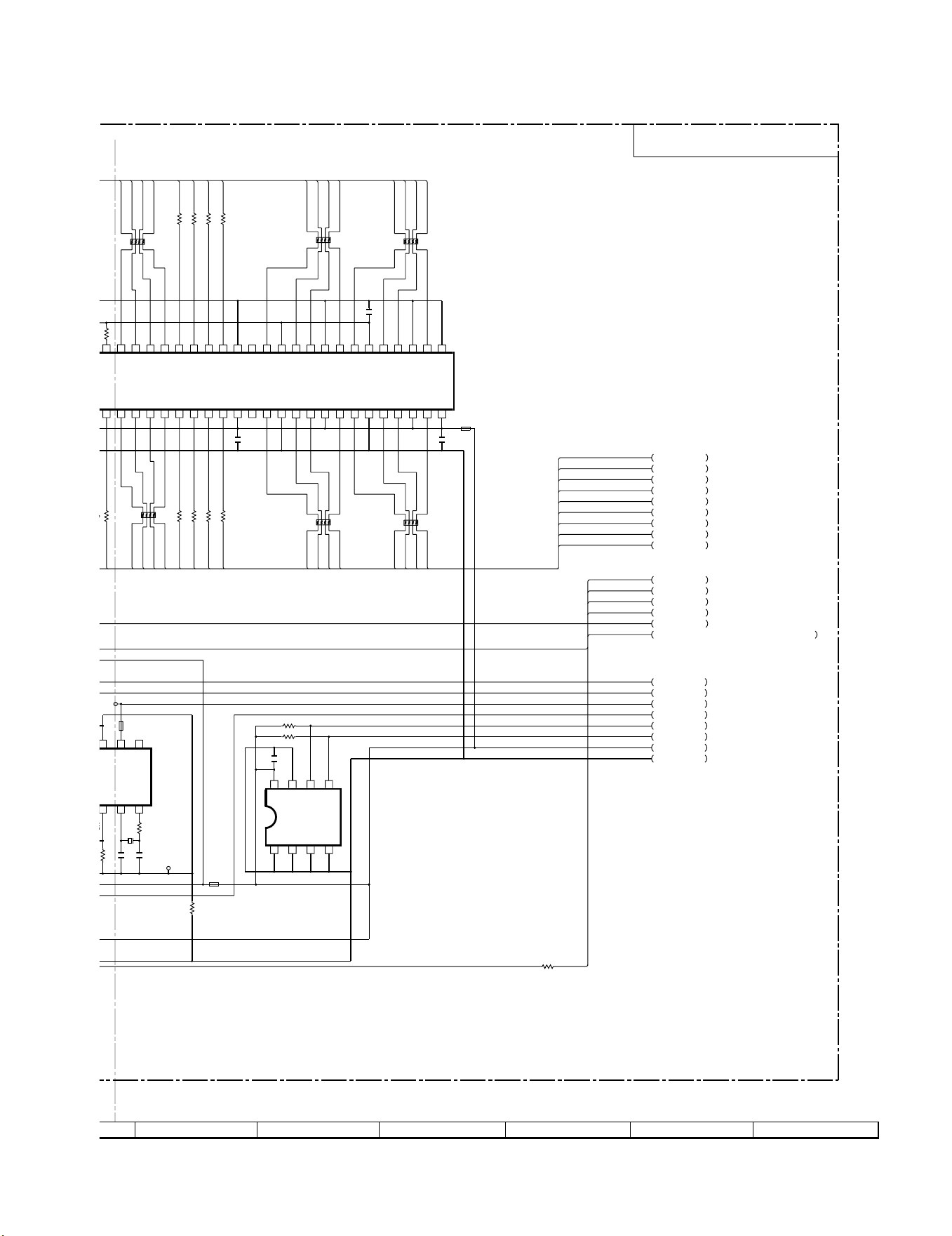

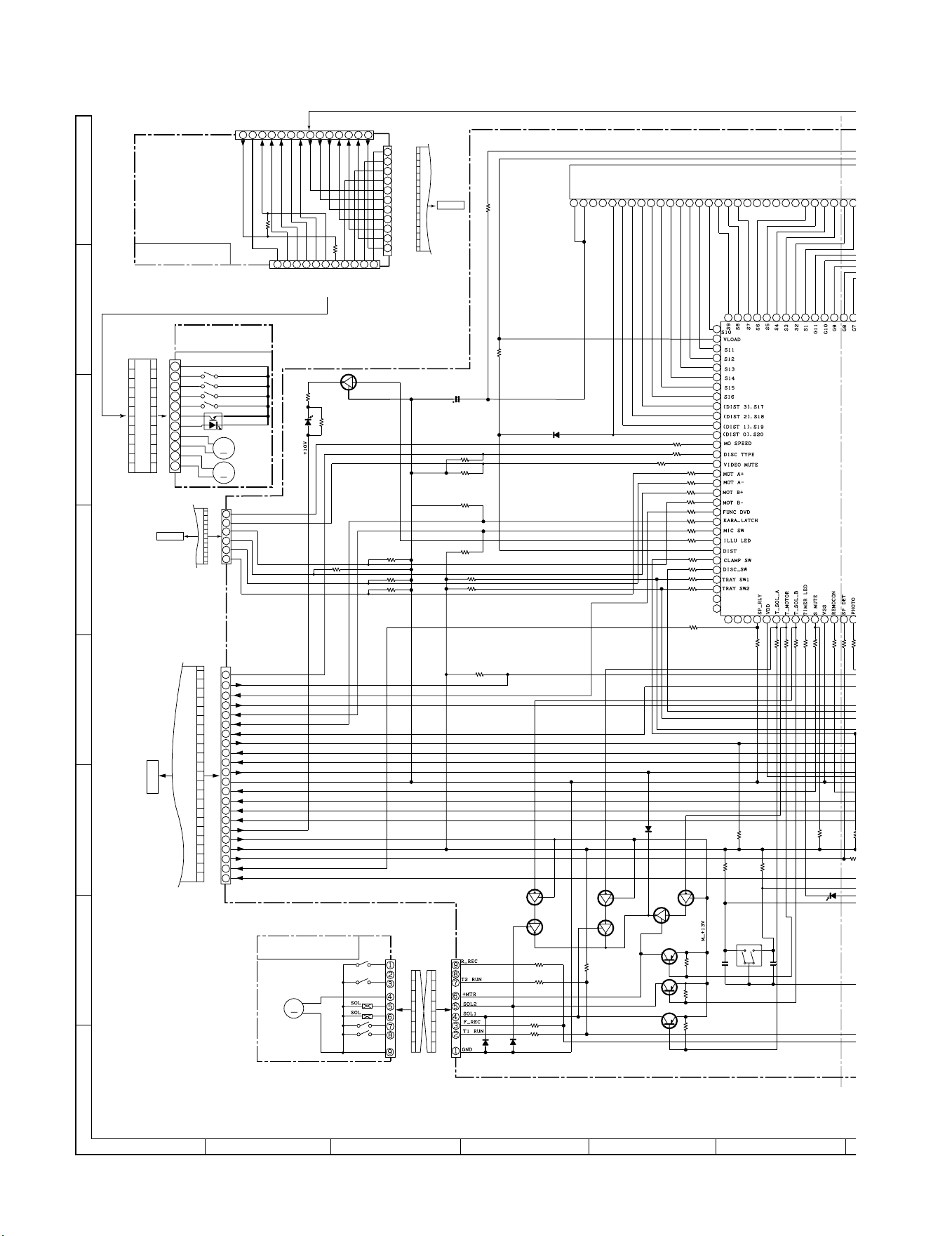

Figure 6-3 SCHEMATIC DIAGRAM (3/15)
TR-
TR+
GND
+5V
CAM+
CAM-
CLAMP
SW1
DISC
SW2
CNTIN
DATA
DATA
CLK
DVD
TR+
TR-
CAM+
CAM-
+5V
GND
TRAY SW2
TRAY SW1
CLAMP
DISC
DVD CS
DVD CLK
DVD SYS DATA
DVD DATA
DVD AMUTE
DVD RESET
RXD_
CNTIN
CS
DVD
SYS
DVD
DVD
AMUTE
RESET
RXD_
TRAY
TRAY
SUB PWB-F2
+
-
R7081
270
CNP7081
CNP7082
CNP7083
CN3003
FFC7083
P6-10 12-F
TO
DVD SERVO
PWB
R7082
33K
R589
10K
CNP703
FFC703
CN3704
P6-14 11-B
TO
DVD SERVO
PWB
R760
8.2K
Q717
KRA107 S
Q716
KRC104 S
Q714
KRC104 S
Q712
KRC104 S
D716
DS1SS133
Q715
KRA107 S
Q711
KRA107 S
R588
10K
R745
10K
R751
330
LED703
SDPB50CD
R799
10K
R796
10K
R797
10K
R798
10K
R731
10K
R728 680
R727 680
R726
2.2K
R771
4.7K
R729
560
R725
1K
R724
1K
R733
1K
R736
1K
R576
1K
R732
1K
D701
DS1SS133
R750
47K
R794
1.5
R788
4.7K
R789
4.7K
R780
10K
R574 4.7K
R757
10K
R755
4.7K
R754
10K
R748
1K
R579
1K
R578
1K
R577
1K
R753
1K
R738
1K
R730
1K
R741
1K
R772 1K
CNP702A
R787
4.7K
D709
DS1SS133
R786
4.7K
D710
DS1SS133
R770
5.6K
R775
10K
C707
1/50
Q710
KRC102 S
R790
8.2K
R746
1K
C710
0.047
C709
0.047
R742
1K
R743
1K
R744
1K
R740 100
R7
6
10
K
JOG701
VOLUME
LED701
304V
T
R779
10K
Q708
KTA1273 Y
Q706
KTA1273 Y
Q707
KTA1273 Y
R777
10K
R778
10K
50 49 48 47 46 45 44 43 42 41 40 39 38 3
7
81 82 83 84 85 86 87 88 89 90 91 92 93 94
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
IC701
IXA004AW
SYSTEM
MICROCOMPUTE
NX
F2
F2
NP
NP
NX
NX
NX
NX
NX
P20
P19
P18
P17
P16
P15
P14
P13
P12
P11
P10
P09
P08
P07
P06
P05
P04
P03
P02
P01
45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 1
6
FL701
FL DISPLAY
A+10V
S_MUTE
SW_5V
M_+13V
+B_PROTECT
SP_RLY
D_GND
REC/PLAY
T_T1/T2
T_BIAS
DI
CE
KOK LATCH
MIC
DVD FUNC
DISC TYPE
DVD PROTECT
SPAN
CLK
DO
SP_DET
Ð20dB
15
2
3
4
7
1
5
6
9
8
10
12
11
13
14
16
21
18
17
19
20
22
22
1
CNP701B
P6-2 11-G
TO MAIN PWB
CNP701A
FFC701
MO SPEED
VIDEO MUTE
MOT B-
MOT B+
MOT A-
MOT A+
2
3
4
1
1234567891011
1
1
2
3
4
5
6
7
8
9
10
11
234567891011121314
5
6
6
1
M
1
9
9
1
TAPE MECHANISM
PWB-D
FFC702
TAPE
MOTOR
3
1
2
3
3
3
1
2
3
2
1
1
2
3
1
2
2
1
32
1
1
11
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
A
B
C
D
E
F
G
H
1
23456
+B +B
+B
+B
+B
+B
+B
+B
+B
+B
+B
M
M
11
1
1
1
2
3
4
5
6
7
8
9
10
11
11
+
+
-
-
TRAY
MOTOR
MAIN CAM
MOTOR
5-CHANGER
MOTOR PWB-E
CNP6A
SW4 DISC
SW1 CLAMP
SW2 TRAY SW1
SW3 TRAY SW2
RX1
M1
M2
FFC7081
CD-DV999W/CD-DV777W
6 – 4

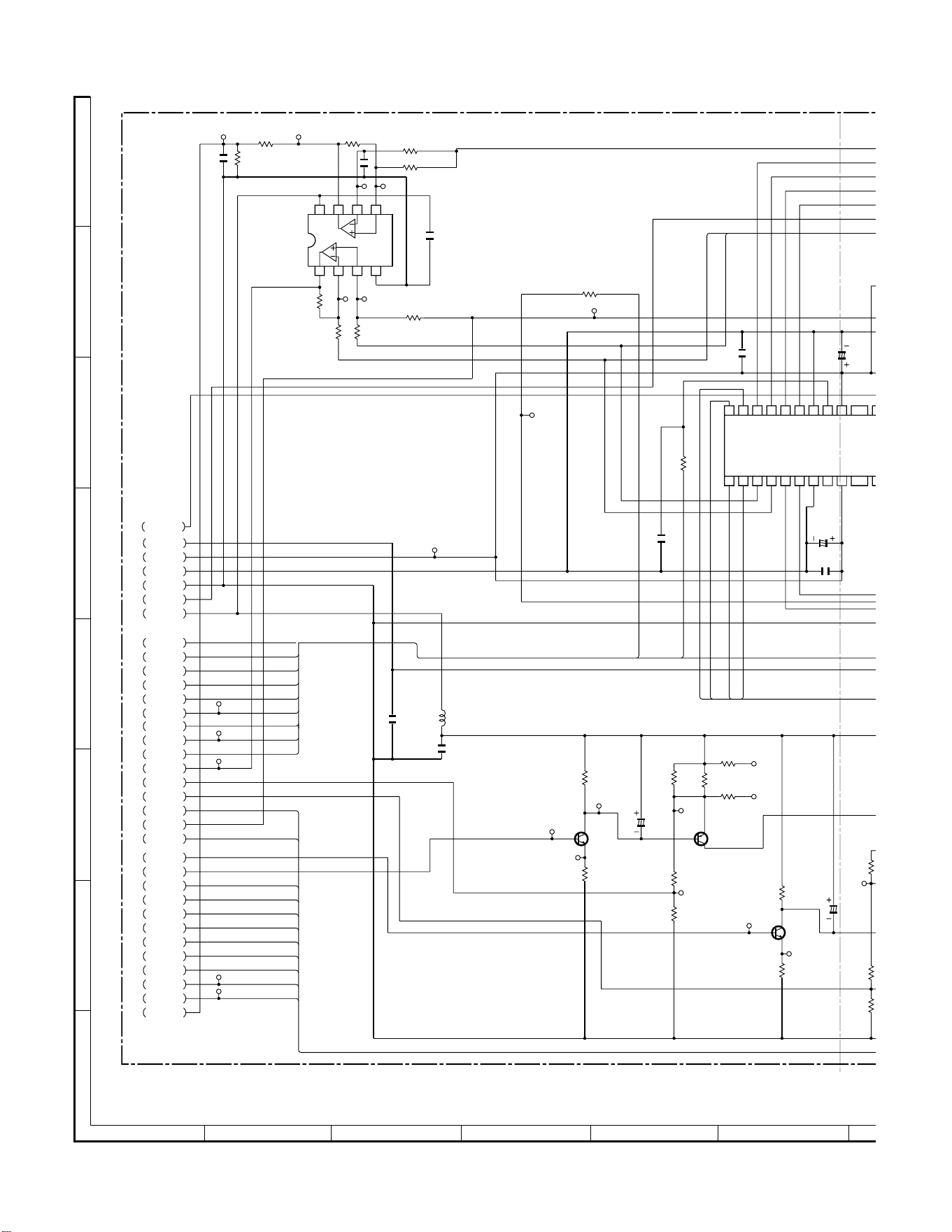

Figure 6-4 SCHEMATIC DIAGRAM (4/15)
DVD+BPRT
R774
10K
RD22
33K
SW724
RD07
3.9K
SW708
Q713
C723
0.047
KRC104 S
R573
C727
0.047
10K
R759
5.6K
RD32
15K
SW735
SW716
R771
4.7K
R729
560
R725
1K
R724
1K
R593
4.7K
R733
1K
R736
1K
R721
1K
R768
10K
R767
10K
R766
C732
0.047
10K
R720 1K
R719
1K
R718
1K
L701
100µH
C722
0.01
R773
10K
R791
4.7K
SW707
RD29
3.9K
SW731
SW706
SW730
RD06
2.7K
RD28
2.7K
SW705
RD05
2.2K
RD27
2.2K
RD26
1.5K
SW704
SW715
RD04
1.5K
RD14
1.5K
RD03
1K
RD13
1K
RD25
1K
SW703
SW714
SW702
SW713
RD02
820
SW701
SW712
RD11
680
RD01
680
C702
1000/6.3
C701
1/50
R795
1.5
R723
1K
D714
DS1SS133
R781
47K
R712 1K
C720
0.022
R714 1K
R769
1K
RD24
820
RD23
680
SW727
SW725
SW726
RD31
10K
SW734
SW733
SW732
RD30
5.6K
RD12
820
R701 1K
R709 1K
R710 1K
R711 1K
R739
1K
R722
1K
D713
DS1SS133
C721
0.022
C730
0.047
SW729SW728
R737
1K
R707 1K
R761
10K
C714
3.3/50
RX701
REMOTE SENSOR
321
C717
47/25
D712
DS1SS133
D711
SD1SS133
R783
100
Q709
KRC102 S
R782
100K
D715
DS1SS133
C715
0.01
LED701
304VT2H3
R706
1K
R763 1K
C704
15P(CH)
XL701
R713 1K
R715 2.2K
R716 1K
R702 1K
R703 100K
R717
1K
R705
1K
R708
1K
R704 2.2K
C705
18P(CH)
3424140393837363534333231
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
8
88990919293949596979899
100
IC701
IXA004AW
SYSTEM
M
ICROCOMPUTER
F1
NP
G11
G10
NX
NP
P06
P05
P04
P03
P02
P01
G01
G02
G03
G04
G05
G06
G07
G08
G09
F1
2212019181716151413121110987654321
CLOCK/
TIMER
FAST REWIND/
PRESET DOWN
FAST FORAWRD/
PRESET UP
REVERSE
MODE
TUNING
UP
POWER
ON/STAND-BY
EQUALIZER
TUNING
DOWN
X-BASS/
DEMO
TAPE
GAME/
VIDEO
DVD
TUNER
(BAND)
STOP
PLAY/
REPEAT
DIRECT
PLAY
DISC 5
DISC 3
DISC 2
DISC 1
REVERSE
PLAY
DISC 4
OPEN/
CLOSE
MEMORY/
SET
REC/
PAUSE
2
1
3
VF2
ÐVF
VF1
P_IN
UNSW5.6
CNP802
P6-6 6-G
TO POWER AMP. PWB
1
6
WTM705
FW705
DVD RESET
DVD MUTE
RXD_CNT_IN
1
1
2
3
4
5
7
8
6
9
10
11
12
13
14
14
DVD DATA
SYS DATA
DVD CLK
DVD CS
CLAMP SW
DISC SW
TRAY SW1
TRAY SW2
GND
+5V
CNP704
FFC704
2
1
3
4.19MHz
DISPLAY PWB-A2
7
8 9 10 11 12
+B
+B
+B
+B
+B
+B
+B
+B
+B
KEY 2
KEY 1
KEY 0
CD-DV999W/CD-DV777W
6 – 5

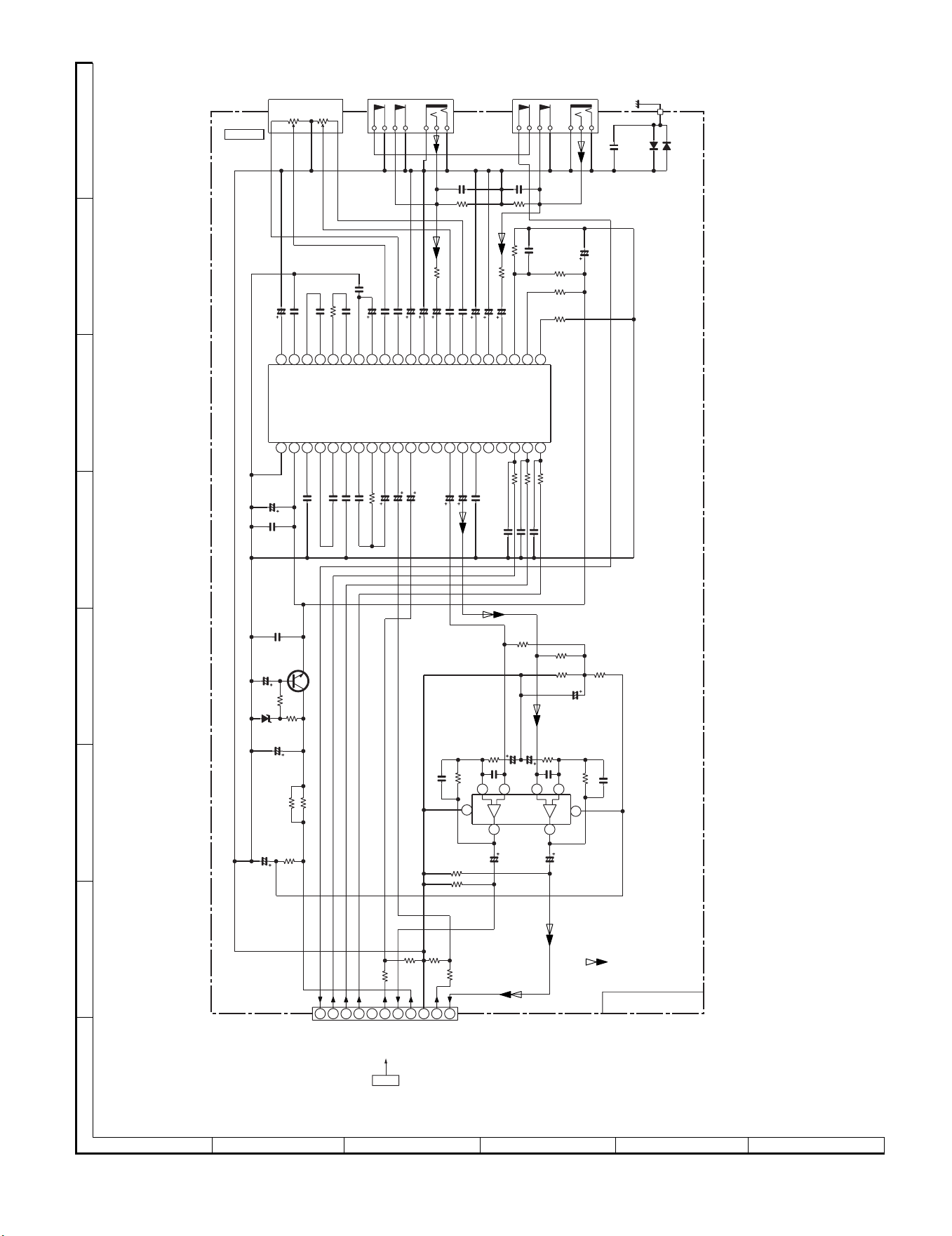

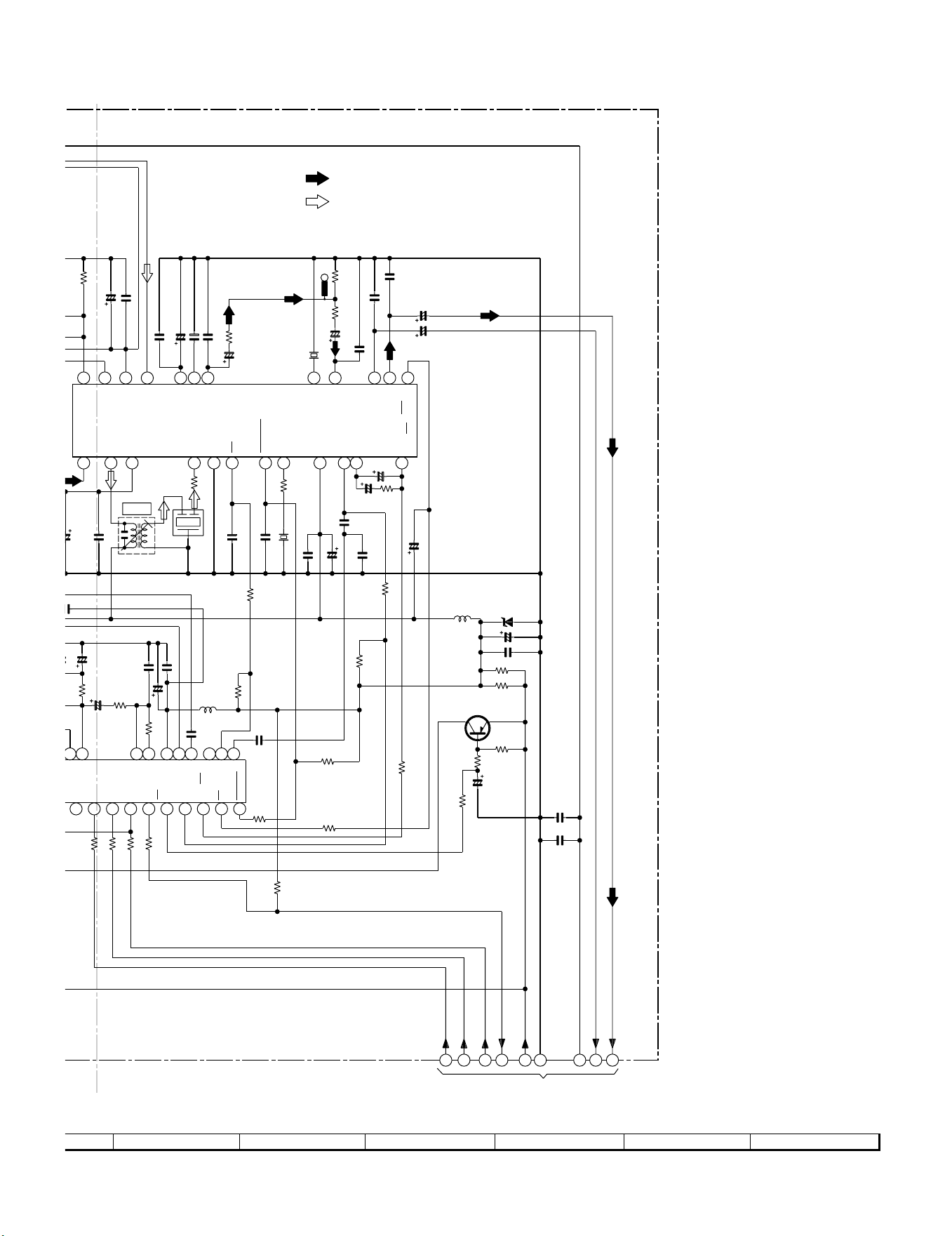

Figure 6-5 SCHEMATIC DIAGRAM (5/15)
2
1
ZD805
ZD804
DZ6.8BSB
DZ12BSB
C920
3900/85
C866
47/25
C850
6800/35
C817
22/25
C852
0.1(ML)
C851
0.1(ML)
C871A
10/50
C875
0.1
C876
0.1
R871A
27
R872
330
IC852
KIA7805AP
VOLTAGE REGULATOR
R854
3.3K
R864
22K
R859
Q888
KRC104 S
10K
C854
220/25
R857
22K
C864
22/25
C859
22/50
C855
10/50
C865
22/25
R853
22K
BI801
CNS801
CHASSIS
C856
0.1
(ML)
R886
22K
R885
680
C885
0.1
Q886
KTC3875 GR
Q885
KTC3875 GR
R887
22K
R888
47K
R889
47K
D862
DS1SS133
D861
DS1SS133 DS1SS133
D865
DS1SS133
D860
C946
0.1/50
D885
DS1SS133
R928
39K
C915
100/100
C914
100/100
C912
100/100
R908
1K
R905
560
R922
2.2K
C909
0.1(ML)
CNP802
R929
47K
R930
47K
C923
3900/85
D910
1N4004S
ZD903
DZ12BSB
R909
33K
C925
47/50
R934
56K
R935
56K
L901
3µH
3µH
L902
R927
39K
D907
DS1SS133
D909
1N4004S
R920
1.5K
C918
100/50
C916
100/50
R921
2.2K
Q904
KTC3875 GR
C919
0.01
C922
4700/50
D906
DS1SS133
Q902
KTC3875 GR
R902
56K
C908
3P(CH)
R907
56K
C921
4700/50
ZD902
DZ12BSB
R926
R925
1.5K(1/2W)
1.5K(1/2W)
C905
47/50
C913
100P(CH)
R906
560
R918
2.2K
C904
0.001
C903
0.001
R937
56K
R910
1K
C906
47/50
R911
56K
C917
0.01
Q903
KTC3875 GR
R917
0.1(5W)
R919
1.5K
D905
DS1SS133
Q901
KTC3875 GR
R913
0.22(5W)
0.22(5W)
R903
1K
C911
100/100
C901
2.2/50
R904
1K
C902
2.2/50
R901
56K
R916
C907
100P(CH)
C910
3P(CH)
2
1
3
IC855
LD1117V33
VOLTAGE REGULATOR
IC856
LD1117V
VOLTAGE REGULATOR
6
5
4
3
7
1
8
9
11
10
12
13
14
6
5
4
3
7
1
2
8
9
11
10
12
13
14
6
5
4
3
7
1
2
8
9
1
1
1
1
1
15
C873
10/50
D870
RL204F
D871
RL204F
C872
47/25
C877
0.1
C878
0.1
R873
47
R874
120
2
1
3
C874
47/25
R-CH
AGC
DVD A_5V
SP_DET
SP_RLY
L_CH
A_GND
SW_5V
D+5V
+B_PROTECT
DVD_PROTECT
DVD_FUNC
A+10V
LD+8V
M_+13V
5
7
27
28
13
25
1
3
2
26
11
12
21
22
16
20
14
6
DVD 3.7V
DVD 3.7V
DVD 1.7V
2124
21
15
DVD S5V
DVD S5V
TAPE_A_GND
DVD_A_GND
DVD_A_GND
DVD_D_GND
D_GND
DVD M_GND
AGND(AUDIO PRO)
19
4
8
9
18
10
23
3
2
1
1
2
3
IC851
AN80T53
MULTI
REGULATOR
7654 213
100
Fusible
(1/4W)
R958
100
Fusible
(1/4W)
R912
18 17 16 15 14 13 12 7891011 234561
GND
VL+
VL-
VH-
VH+
-
+
-
+
IC901
STK41244
POWER AMP.
CHASSIS
P6-4 12E
FROM DISPLAY PWB
FW705
P6-1 1-C
P6-2 8-H
TO MAIN SECTION
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
A
B
C
D
E
F
G
H
1
23456
CD-CV777W
IC901
CD-CV999W
STK41242
4.7/50
C901
C902
STK41244 2.2/50
3300/71
C920
3900/85
3300/71
C923
3900/85
0.22(3W)
R913
0.22(5W)
0.22(3
R916
0.22(5
820
R885
680
4700/35
C921
C922
4700/50
CD-DV999W/CD-DV777W
6 – 6
Figure 6-6 SCHEMATIC DIAGRAM (6/15)
5.6V
4.4
0.2
L921
0.29µH
0.29µH
L920
C926
0.22
C927
0.22
C928
0.1
C929
0.1
D856
DS1SS133
C861
0.022
C804
220/63
Q801
C812
470/10
C813
0.1
(ML)
KTA1274 Y
R808
2.2K (1/2W)
R891
R865 2.2K
L801
100µH
100
CNP901
R959
220
R956
1K
R957
4.7K
R951
1K
Q907
KTC3203 Y
Q906
KTC3203 Y
R949
1K
D912
DS1SS133
R801
100K
CNP801
CNS801
CHASSIS
R803
12K
C801
100/35
ZD801
DZ6.2BSA
C802
47/50
R806
R892
1.8K
R893
10K
R871B
1K
47K
R805
47
D806
D867
2SM124
Q842
KRC107 M
1N4004S
C805
22/100
D805
1N4004S
PT801
CNP971
R947
15K
C931
10/50
R950
68K
ZD803
DZ30BSB
C803
47/50
CNP805
F807
T2.5A L 250V
SW801
VOLTAGE
SELECTOR
F806
T2.5A L 250V
R802
47K
ZD802
DZ7.5BSB
D802
D10XB60F
R804
47
CNP802
R938
10 (1/2W)
R939
10 (1/2W)
10 (1/2W)
C811
0.22
C810
0.22
C807
0.1 (ML)
0.1 (ML)
R934
56K
R935
56K
L901
3µH
3µH
L902
R941
R940
10 (1/2W)
R944
1.5K
R945
1.5K
R942
660(2W)
R943
RL914
D911
DS1SS133
Q905
KTC3199S GR
R946
47K
D801
D10XB60F
C809
0.1
(ML)
C808
0.1
(ML)
D804
1N4004S
D803
1N4004S
C806
L841
LINE FILTER
AC POWER SUPPLY CORD
AC 110/127/ 220/230-240 V
50/60 Hz
CNS805
1
2
6
5
4
3
7
1
2
8
9
11
10
12
13
14
6
5
4
3
7
1
2
8
9
11
10
12
13
14
MOTOR
FAN
-
+
M
2
1
CNS971
M901
P6-2 10-A
TO GAME INPUT PWB
FW901
SP_L1-CH
SP_R1-CH
SP_L1-CH_GND
SP_R1-CH_GND
6 OHMS MIN
SO902
SPEAKER
TERMINAL
T.F.
F802
T5A L 250V
F801
T5A L 250V
F804
T2A L 250V
F803
T2A L 250V
F805
T5A L 250V
POWER TRANSFORMER
AN78L05
VOLTAGE
REGULATOR
3
4
3
2
5
1
1
2
IC854
C
HASSIS
C814
0.1(ML)
C871B
0.1(ML)
C815
0.1(ML)
C816 220/35
IC853
BD9701T
1-CH DC-DC
CONVERTER
1
2
3
P6-4 12-E
FROM DISPLAY PWB
FW705
33K
47/25
DS1SS133
R983
R984
1.5K
C944
DS1SS133
D914
D913
FM SIGNAL
MAIN PWB-A1 (3/3)
POWER PWB-B1
7
8 9 10 11 12
0
.22(3W)
R913
0
.22(5W)
0.22(3W)
R916
0.22(5W)
470(2W)
R942
R943
680(2W)
0.1(3W)
R917
0.1(5W)
1.5K
R918
2.2K
1.5K
R922
2.2K
1.8K
R984
1.5K
1.8K
R919
R920
1.5K
CD-DV999W/CD-DV777W
6 – 7
Figure 6-7 SCHEMATIC DIAGRAM (7/15)
0.022
0.022
10/50
10K
100P
470
0.022
4.7P
(CH)
18P(CH)
10P(CH)
0.022
22P
KTC3194 Y
0.001
0.001
15P(CH)
10
4.7K
47K
10K
4.7P
(CH)
33K
0.001
100K
0.01
0.01
22
4.7P(CH)
DS1SS133
TA7358AP
680
47P
0.001
68K
15P
0.022
150
SVC347S
2.2/50
DS1SS133
DS1SS133
0.001
15P
0.047
0.022
10K
LC7
2
0.001
1K
1K
1.
1/50
0.022
560P
22P
(CH)
0.022
3.9K
0.022
5.6K
10K
12P(CH)
0.022
10/50
47/25
12
2324
1234
202122
123
1234
5
6
7
8
9
SVC230C
SVC230C
FM 75 OHMS
GND
(CH)
AM LOOP
ANTENNA
4.5 MHz
TP301
(CH)
(CH)
VSS
AOUT
DI
CE
XIN
XOUT
AM OSC IN
AM OSC OUT
AM MIX OUT
FM IF IN
1
2
1
2
FM ANTENNA
TERMINAL
FM RF
B.P.F
FM OSC.
FM IF
2
1
3
AM OSC.
AM ANTENNA
FM FRONT END
MAIN PWB-A1 (2/3)
+B
+B
+B
OSC BUFF
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
D302
D301
C338
C302
C323
BF301
CNP301
C303
C304
C320
C305
IC301
C347
C306
C311
R302
C324
C307
VD303
C313
R309
T301
CF303
C312
C310
C309
L312
VD302
C308
R311
D305
R313
R314
C315
C316
C317
C318
Q302
R325
R322
R316
R336
C342
T303
C331
C332
C330
R365
C362
C361
R358
R381
R
3
C394
C393
C397
R382
C381
X352
C382
R375
C383
R374
R373
IC3
0
R351
C389
C351
C350
C352
VD301
T306
R323
C335
C334
T302
SO302
A
B
C
D
E
F
G
H
1
23456
CD-DV999W/CD-DV777W
6 – 8
Figure 6-8 SCHEMATIC DIAGRAM (8/15)
0.01
10K
22K
0.001
0.001
0.001
270
330P
47K
5.6K
47/25
5.6K
470K
2.7K
0.001
0.015
0.022
0.022
2.2/50
0.022
1K
1/50
2.2/50
0.001
100/10
1/50
1K
1K
22P(CH)
270
5.6K
KTA1266 GR
SWITCHING
270
0.022
10K
0.022
100/10
DZ5.1BSB
0.015
27P(CH)
1.8K
3.3K
1K
1K
1/50
5.6K
2.2/50
LC72131
1K
3.9K
100 µH
0.001
0.022
1K
1K
1/50
1/50
1.5K
1/50
R379
2.2K
10/50
100 µH
47K
4.7K
1/50
0.022
0.022
0.022
47/25
123
LA1832S
456 78 9
10 11 12
131415161718192021222324
234567891011
12131415161718192021
DO
A+10V
CLK
DI
CE
10.7 MHz
TP302
CONT
IF
FM/AM
FM/AM
SD
TP
MO/ST
ST IND
MO/ST
VSS
AOUT
AIN
PD
VDD
FM IN
AM IN
DO
CL
DI
CE
IF IN
REG
AM IF IN
GND
SD
STEREO
FM DET
VCC
IF OUT
PHASE
(FM/AM)
PHASE
L-CH OUT
R-CH OUT
MPX IN
MPX VCO
FM/AM OUT
VSM
AM LOW CUT
AM RF IN
AM OSC IN
FM AFC
AM OSC OUT
AM MIX OUT
FM IF IN
AGND
DGND
TUN_R
TUN_L
P6-2 12-C
TO MAIN SECTION
AM IF
1
2
3
PLL (TUNER)
456 kHz
FM IF DET./FM MPX./AM IF
29 32 33 37 30 35 31 34 36
+B
+B
+B
+B
+B
R365
C362
C361
R350
C366
C363
C364
C367
C365
X351
R357
C373
C368
R356
C374
C369
C371
C372
C358
C357
C356
C355
R355
C370
R353
CF351
C353
C354
CF352
T351
R352
C399
C398
R393
R388
L352
ZD351
C395
C396
R392
R391
Q360
C391
R383
R385
R384
C388
C384
R395
R359
R387
R360
C385
C386
R376
L351
R377
R381
C392
C387
R380
C380
C394
C393
R378
R372
R374
R373
R386
IC302
IC303
C389
C350
FM SIGNAL
AM SIGNAL
7
8 9 10 11 12
CD-DV999W/CD-DV777W
6 – 9
Figure 6-9 SCHEMATIC DIAGRAM (9/15)
+B
+B
+B
+B
MA[0-11]
DQM[0-3]
BA[0-1]
NCSM
NRAS
NCAS
NWE
D_3.3V
MCK
MDQ[0-31]
NEXCE
NEXOE
NEXWE
RXD_CTL
FADT[0-20]
DGND
CLK33M
FSSEL
768FS
CLK54M
FROM_RESET
SCL
SDA
15K
8.2K
15K
15K
15K
F
15K
100
100
100
100
0
0
0
0
0
0
0
1K
0
8.2K
10K
0
22
F
10K
F
15K
1K
15K
68K
0
0.1
0.0015
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.001
820P
0.001
0.001
0.001
1
1
1
1
1
0.1
0.1 0.1
0.1
0.1
0.1
0.1
0.01
0.1
220P
0.1
0.1
0.1
0
1
2
3
4
5
6
7
8
0
1
2
3
4
5
6
7
8
0
1
2
3
4
5
67
8
0
1
2
3
4
5
6
7
8
10K
0
TP1
TP2
TP3
TP4
TP5
TP6
TP7
TP8
TP9
TP10
TP11
TP12
TP13
TP14
TP15
TP16
TP17
TP19
TP18
TP20
TP21
TP23
TP24
TP25
TP26
TP27
TP28
TP29
TP30
TP31
TP32
1
VDD33
2
MDQ11
3
MDQ3
4
VSS
5
MDQ12
6
MDQ2
7
VDD33
8
MDQ13
9
MDQ1
10
MDQ14
11
VSS
12
MDQ0
13
MDQ15
14
VDD33
15
VDD15
16
VSS
17
EXADR20
18
NEXWE
19
EXADT0
20
EXADT4
21
EXADT8
22
EXADT12
23
VDD33
24
VSS
25
EXADR16
26
EXADR18
27
EXADT14
28
EXADT10
29
VDD33
30
VSS
31
EXADT6
32
EXADT2
33
NEXCE
34
EXADT1
35
EXADT5
36
EXADT9
37
EXADT13
38
EXADR17
39
EXADR19
40
EXADT15
41
EXADT11
42
VDD33
43
VSS
44
EXADT7
45
EXADT3
46
NEX0E
47
P15(RXD_CTL)
48
P14(ADAC_L)
49
P13(FSSEL)
50
P12(PCON)
51
P11(EMPHA/TXD)
52
P10(RXD)
53
P9(S_CLK)
54
P8(S_DOUT)
55
P7(S_DIN)
56
VDD33
57
MMOD
58
VSS
59
P6(RXD_CTL_IN)
60
P5(DVD_CS)
PRO
M
M
133
LPC01
134
LPC2
135
LPC02
136
VREFH
137
VHALF
138
AVS SB
139
CTKC
140
CSLFLT
141
CWBLOUT
142
CWBLIN
143
VCOF
144
RVI
145
AVD DB
146
AD2
147
AD1
148
AD0
149
AVD DA
150
DAC1
151
AVS SA
152
DAC0
153
AVD DE
154
IREF1
155
AVS SE
156
COMP1
157
AVDDF
158
DAC1OUT
159
AVS SF
160
DAC2OUT
161
DAC3OUT
162
VREF
163
DAC4OUT
164
DAC5OUT
165
AVD DG
166
IREF2
167
AVSSG
168
COMP2
169
VSS
170
BECLK
171
VDD3
172
EXTCK
173
PHCOMPO
174
LRCK
175
SRCK
176
ADOUT3
177
VSS
178
ADOUT2
179
ADOUT1
180
ADOUT0
181
IECOUT
182
VDD33
183
VSS
184
MDQ24
185
MDQ23
186
VDD15
187
MDQ22
188
MDQ25
189
VDD33
190
MDQ26
191
MDQ21
192
MDQ27
193
MDQ20
194
VSS
195
VDD33
196
MDQ28
197
MDQ19
198
VSS
199
MDQ29
200
MDQ18
201
MDQ30
202
VDD33
203
MDQ17
204
MDQ31
205
MDQ16
206
VSS
207
DQM3
208
DQM2
209
VDD33
210
MA3
211
VSS
212
MA4
213
VDD15
214
MA2
215
VSS
216
MA5
217
MA1
218
VDD33
219
MA6
220
MA0
221
VSS
222
VDD15
223
MCKI
224
VSS
225
MCK
226
VDD33
227
MA7
228
MA10
229
MA8
230
VSS
231
MA11
232
NWE
233
VDD33
234
BA0
235
MA9
236
VSS
237
BA1
238
NCSM
239
NRAS
240
VDD33
241
VSS
242
NCAS
243
DQMO
244
VDD15
245
VSS
246
DQM1
247
MDQ7
248
VSS
249
MDQ8
250
VDD33
251
MDQ6
252
MDQ9
253
MDQ5
254
VSS
255
MDQ10
256
MDQ4
0
680
LPCO2
MCK
CDLDC
DVDLDC
SPIN
DAC5OUT
DAC4OUT
DAC3OUT
DAC2OUT
DAC1OUT
MDQ[27]
MDQ[21]
MDQ[26]
MDQ[25]
MDQ[22]
MDQ[23]
MDQ[24]
MDQ[20]
MDQ[28]
MDQ[19]
MDQ[29]
MDQ[18]
MDQ[30]
DQM[2]
DQM[3]
MDQ[16]
MDQ[31]
MDQ[17]
MA[3]
MA[4]
MA[2]
MA[5]
MA[1]
MA[6]
MA[0]
MA[7]
MA[10]
MA[8]
MA[11]
NWE
BA[0]
MA[9]
BA[1]
NCSM
NRAS
NCAS
DQM[0]
DQM[1]
MDQ[7]
MDQ[8]
MDQ[6]
MDQ[9]
MDQ[5]
MDQ[10]
MDQ[4]
MDQ[11]
MDQ[3]
MDQ[12]
MDQ[2]
MDQ[15]
MDQ[0]
MDQ[14]
MDQ[1]
MDQ[13]
NEXWE
FADT[20]
FADT[18]
FADT[ 19]
FADT[17]
VHALF
LPCO1
TRKIN
NEXCE
FCSIN
FADT[16]
PCON
S_CLK
S_DOUT
S_DIN
DVD_CS
NEXOE
ADAC_L
RXD
RXD_CTL
PD_CD
FADT[12]
FADT[8]
FADT[4]
FADT[0]
FADT[ 2]
FADT[6]
FADT[10]
FADT[14]
FADT[13]
FADT[ 9]
FADT[ 5]
FADT[ 1]
FADT[ 3]
FADT[ 7]
FADT[ 11]
FADT[ 15]
ALRCK/SSD6
ABCLK/SSD5
AOUT0/SSD1
RXD_CTL_IN
EMPHA_TXD
768FS
TO MEMORY
+B +B
R3027
C3034
C3033
C3032
C3031
R3019
R3025
R3026
C3027
C3026
C3039
C3040
C3041
C3036
R3030
R3031
C3037
C3038
C3035
R3020
R3022
R3021
C3028
C3023
C3025
C3020
R3013
R3014
C3019
R3008
R3009
R3111
FB3002
R3003
R3004
C3015
C3014
C3009
C3010
C3007
R3001
R3002
C3006
C3003
C3004
C3001
C3017 C3018
R3015
R3016
C3022
R3018
R3024
C3030
R3032
R3033
R3037
R3052
R3035
R3010
R3038
R3039
R3043
R3049
R3044
R3045
R3090
C3013
R3011
R3012
R3088
IC3001
IXA464WJ
DVD DECODER
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
A
B
C
D
E
F
G
H
1
23456
CD-DV999W/CD-DV777W
6 – 10
Figure 6-10 SCHEMATIC DIAGRAM (10/15)
+B
+B
+B
+B
+B
+B +B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
11
11
10
9
8
7
6
5
4
3
2
1
P6-3 3-A
TO SUB PWB
CNP7083
1
FFC7083
A_3.3V
S_5V
FCSIN
AGND
MGND
M_8V
LD_SW
NMUTE
EJ_SW
IN_SW
SPIN
SLDDRV
VA
LOAD
LPCO2
VB
PD_CD
CHOP
LPCO1
SPNDRV
VHALF
TRKIN
VC
VD
VE
VF
RF
CDLDC
HFM
DVDLDC
DVD_H
3.3M
0
1K
0
0
3.3K
3.3K
3.3K
10K
FB3003
220/6.3
6.3
220/
0
3.9K
0
6.8K
6.8K
150K
1K
0.1
0.1
0.018
0.01
0.1
33P(CH)
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
1
0.033
1
1
0.1
0.1
0.1
0.1
0
00
0.1
PCM1748E
12345678
910111213141516
00
220/6.3
0.1
47
0
DGND
TP3032
TP3033
TP3034
TP3035
TP3036
TP3037
TP3038
TP3039
TP3040
TP3018
TP3017
TP3016
TP3015
TP3014
FG
33
1K
220
220
10K
TP_F_A
TP_E_A
TP_GND_A
TP_GND_B
TP_RF2_B
VREFH
TP3015_A
TP3017_A
TP3018_A
TP3036_A
TP3035_A
TP3034_A
TP3039_A
TP3038_A
TP3037_A
TP3033_A
TP3032_A
TP
TP_DAC5V
TP_C3058
TP_C3059
TP3005
TP3003
TP3001
TP3002
75
75
75
VGND
100
150
75
VGND
VGND
75
TP3004_A
TP3001_A
TP3005_A
TP3002_A
TP3006_A
TP3007_A
TP3012_A
TP3003_A
TP3011_A
150
VGND
75
VGND
TP3012
75
TP3011
TP3008
4.7µH
75
FV10_N.U
VGND
150
TP3007
TP3006
TP3004
10K
0
TP3054
TP3055
0
0
0
0
0
0
TPSPCK
GND_A
TP52
TP53
TP22
TP31
TP32
TP33
TP34
TP35
TP37
TP39
TP40
TP42
TP43
TP44
TP46
TP47
TP48
TP49
TP50
TP45
TP51
TP54
TP55
TP57
TP58
TP63
TP64
TP67
TP68
TP69
TP77
TP78
TP79
TP80
TP81
TP82
TP85
TP88
TP129
TP130
TP128
BD4825G
123
45
3.3K
6
VDD33
57
MMOD
58
VSS
59
P6(RXD_CTL_IN)
60
P5(DVD_CS)
61
P4(R/C_PULSE)
62
P3(SCL)
63
P2(SDA)
64
P1(CHOP)
65
P0
66
FG
67
VDD15
68
NRST
69
VSS
70
DRV0(SLDDRV)
71
DRV1(SPNDRV)
72
DRV2(HFM)
73
DRV3(NMUTE)
74
DRV(IN_SW)
75
DRV5(DVD_H)
76
DRV6(LD-SW)
77
DRV7(EJ-SW)
78
DRV8(LOAD)
79
VDD33
80
VSS
81
PROGRESSIVE/SCLOCK
82
MSRDY/EXTRGO
83
ASPECT/SDATA
84
MSLAT/EXTRG1
85
MSCK/TRCCLK
86
MSDATAO/TRCDATA0
87
MSDATAI/TRCDATA1
88
SRESET/TRCDATA2
89
SMUTE/TRCDATA3
90
WCK/TRCST
91
VDD33
92
OSCI
93
VSS
94
MONI7(AMUTE)
95
MONI6(VMUTE)
96
ADAC_DA/MONI5
97
ADAC_CK/MONI4
98
VDD15
99
VSS
100
ST-ID/MONI3
101
SERCH/MONI2
102
SSDEF
103
SXSHD
104
AVDDD
105
PLFIL1
106
AVSSD
107
PLFIL2
108
VREFA
109
VREFB
110
VREFC
111
VCO
112
RESI
113
ANAMONI
114
POFLT
115
CDATA
116
CCAPA
117
CGD
118
AVDDC
119
AVSSC
120
RFINN
121
RFINP
122
VIN5
123
VIN6
124
VIN7
125
VIN8
126
VIN1
127
VIN2
128
VIN3
129
VIN4
130
VIN9
131
VIN10
132
LPC1
133
LPC01
134
LPC2
135
LPC02
136
VREFH
3
7
VHALF
0
VGND
120
TP82
VGND
KTA1298 Y
18P
10P
TP77
0
2.2µH
TP3002_A
2.2µH
0
2.2µH
0
120
120
18P
18P
10P
KTA1298 Y
0
TP3001_A
0
KTA1298 Y
TP3007A
TP78
0
10P
CAM-
CAM+
TR-
TR+
TP3201
0
0
0
470
0
0
TP3024
TP3022
TP3015
TP3045
TP3025
TP94
220/6.3
TP3013
TP
TP3010_A
TP3010
TP3009_A
TP3009
TP3013_A
1K
1K
NC
NC
3.9K
3.9K
10K
3.9K
1.8K
KRC104 S
TC7WT126
1
G1
2
S_CLK
3
D_DATA
4
DGND
5
S_DOUT
6
D_CLK
7
G2
8
VCC
0
0
0
0
KDS226
KDS226
KDS226
510
510
510
APF
10/10
330P(CH)
0.0056
VC
VB
VA
VD
VC
VB
VA
RF
VD
LPCO2
ADAC_L
ADAC_CK
ADAC_DA
VREFH
LPCO1
HFM
SCL
SDA
SPNDRV
DVD_CS
DVD_H
FROM_RESET
PD_CD
ABCLK/
SSD5
AOUT0/SSD1
ALRCK/SSD6
768FS
IN_SW
FG
FG
ADAC_CK
VF
VE
DAC2OUT
DAC3OUT
RXD_CTL_IN
ADAC_DA
SLDDRV
AMUTE
VMUTE
PROGRE
NMUTE
AMUTE
DVD_H
DAC5OUT
DAC4OUT
DAC1OUT
EMPHA_TXDEMPHA_TXD
ASPECT
PROGRE
RXD
ASPECT
RXD_CTL_IN
DVD_CS
S_DIN
S_CLK
S_DOUT
AUDIO-R
AUDIO-L
ZERO-R
ZERO-L
TO FRONT END
V_OUT
Y_OUT
Pb_OUT
Pr_OUT
C_OUT
OVG
NC NC
R-CH
A_GND
L-CH
M_GND
A_5V
D_GND
+8V
S_5V
S_5V
A_GND
D1.5V
A3.3V
D3.3V
BCK
DATA
LRCK
DGND
VDD
Vcc
VoutL
VoutR
SCK
ML
MC
MD
ZEROL
ZEROR
Vcom
AGND
+B
+B
+B
2
1
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
VGND
VGND
V_OUT
C_OUT
TXD
RXD
VMUTE
P6-2 9-D
FROM
VIDEO/AUDIO OUT
PWB
CNS7001A
P6-2 9-E
FROM
VIDEO/AUDIO OUT
PWB
CNS7003A
Y_OUT
Pb_OUT
Pr_OUT
PROGRESSIVE
DGND
ASPECT
CN3201
1
2
3
SPDIF
DGND
D3.3V
CN3203
1
2
3
4
5
6
7
8
9
10
11
12
13
R3062
C3061
C3042
C3043
C3046
C3045
C3060
C3047
C3044
C3048
C3049
C3052
C3050
C3051
R3050
R3116
C3041
R3147
R3091
R3005
R3006
R3007
IC3002
IC3002
BD4825G
RESET
R3077
R3010
R3049
R3044
R3045
R3046
R3090
C3108
L3102
C3109
R3115
R3206
R3117
C3110
Q3102
R3110
D3102
R3109
Q3101
C3111
D3101
L3101
R3112
R3202
R3207
R3118
Q3105
R3137
R3136
R3135
R3142
R3143
L3201
R3204
R3205
R3167
R3203
R3208
R3106
R3103
Q3100
D3100
C3107
C3100
C3058
C3059
R3076
C3062
C3063
R3063
C3057
R3071
R3075
R3074
R3072
C3056
FB3001
C3055
C3054
CN3004
CNS601
P6-1 1-A
FROM
MAIN PWB
CN3003
R3156
R3157
R3158
R3159
R3160
R3161
C3068
R3085
IC3003
IC3003
TC7WT126
BUFFER
R3126
R3155
R3162
R3151
R3154
R3152
R3164
R3163
R3166
R3165
R3153
R3144
R3145
C3805
R3806
C3803
FB3801
R3803
IC3801
IC3801
PCM1748E
D/A CONVERTER
R3802
R3801
C3801
C3065
C3066
C3053
C3804
R3201
L3100
R3107
R3140
R3139
R3138
R3133
R3134
R3132
R3171
R3172
R3211
7
8 9 10 11 12
DVD SIGNAL
VIDEO SIGNAL
CD-DV999W/CD-DV777W
6 – 11
Figure 6-11 SCHEMATIC DIAGRAM (11/15)
1
VDD
2
DQ0
3
VDDQ
4
DQ1
5
DQ2
6
VSSQ
7
DQ 3
8
DQ 4
9
VDDQ
10
DQ5
11
DQ6
12
VSSQ
13
DQ 7
14
NC
15
VDD
16
DQM 0
17
WE #
18
CAS#
19
RAS#
20
CS#
21
A1 1
2
2
BA 0
6
5
A8
66
A9
67
CKE
68
CLK
69
NC
70
NC
71
DQM1
72
VSS
73
NC
74
DQ8
75
VDDQ
76
DQ9
77
DQ10
78
VSSQ
79
DQ11
80
DQ12
81
VDDQ
82
DQ13
83
DQ14
84
VSSQ
85
DQ15
86
VSS
1
A15
2
A14
3
A13
4
A12
5
A11
6
A10
7
A9
8
A8
9
A19
10
NC
11
WE#
12
RP#
13
VCCW
14
WP#
15
RY/BY#
16
A18
17
A17
18
A7
19
A6
20
A5
21
A4
22
A3
23
A2
24
A1
25
A0
26
CE#
27
GND
28
OE#
29
DQ0
30
DQ8
31
DQ1
32
DQ9
33
DQ2
34
DQ10
35
DQ3
36
DQ11
37
VCC
38
DQ4
39
DQ12
40
DQ5
41
DQ13
42
DQ6
43
DQ14
44
DQ7
45
DQ15/A-1
46
GND
47
BYTE#
48
A16
1
VDD2
2
VSS2
3
CLK54M
4
CLK27M
5
AVDD
6
AVSS
7
XIN
10
768FS
11
DVSS
12
DVDD
13
CLK16M
14
FSEL
15
CLK33M
16
OE
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
9P(CH)
0.1
2.2K
0
0
0
0
0
0
0
0
10K
0
0
4.7K
33K
R3413
100/6.3
123456789
10
11 12 13 14 15 16 17 18 19 20
123456789
10
11121314151617181920
NC
NC
NC
NC
NC
NC
N.C.
2SB709 AR
82
1
23
4
5
6
7
8
82
1
23
5
4
6
7
8
82
1
23
4
5
67
8
82
1
23
4
5
6
7
8
1
2
7
8
0
TP_33M
TP_768
F
TP_54M
TP_C3606Ð
TP_C3606+
FADT[16]
FADT[13]
FADT[5]
FADT[12]
FADT[4]
NEXOE
DQM[1]
MCK
NCAS
NW E
DQM[0]
NRAS
NCSM
FADT[17]
FADT[18]
FROM_RESET
NEXWE
FADT[20]
FADT[19]
FADT[15]
FADT[7]
FADT[14]
FADT[6]
FADT[11]
FADT[3]
FADT[10]
FADT[2]
FADT[8]
FADT[9]
FADT[10]
FADT[11]
FADT[12]
FADT[13]
FADT[14]
FADT[15]FADT[0]
FADT[1]
FADT[2]
FADT[3]
FADT[4]
FADT[5]
FADT[6]
FADT[7]
NEXCE
NEXCE
FADT[0]
FADT[8]
FADT[1]
FADT[9]
MDQ[15]
MDQ[14]
MDQ[13]
MDQ[12]
MDQ[11]
MDQ[10]
MDQ[9]
MDQ[8]MDQ[7]
MDQ[6]
MDQ[5]
MDQ[4]
MDQ[3]
MDQ[2]
MDQ[1]
MDQ[0]
MA[9]
MA[8]
MA[7]BA[0]
MA[11]
C3504
IC3503
TCLV573T
8-BIT LATCH
C3501
IC3504
TCLV573T
8-BIT LATCH
C3502
C3503
IC3501
IXA173WJ
FLASH ROM
C3606
C3603
R3604
R3603
FB3602
FB3402
C3601
IC3601
BU2363FV
CLOCK
GENERATOR
C3602
R3602
R3601
FB3601
R3523
Q3501
R3522
R3402
R3404
C3406
C3402
C3401
R3401
R3403
R3405
R3406
R3415
R3414
R3410
R3409
R3408
R3407
C3604
FB
3
+B
+B
+B
+B
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
A
B
C
D
E
F
G
H
1
23456
CD-DV999W/CD-DV777W
6 – 12
Figure 6-12 SCHEMATIC DIAGRAM (12/15)
20
CS#
21
A1 1
22
BA 0
23
BA1
24
A10
25
A0
26
A1
27
A2
28
DQM 2
29
VDD
30
NC
31
DQ16
32
VSSQ
33
DQ17
34
DQ18
35
VDDQ
36
DQ19
37
DQ20
38
VSSQ
39
DQ21
40
DQ22
41
VDDQ
42
DQ23
43
VD D
44
VSS
45
DQ24
46
VSSQ
47
DQ25
48
DQ26
49
VDDQ
50
DQ27
51
DQ28
52
VSSQ
53
DQ29
54
DQ30
55
VDDQ
56
DQ31
57
NC
58
VSS
59
DQM3
60
A3
61
A4
62
A5
63
A6
64
A7
65
A8
66
A9
67
CKE
MDQ[0-31]
MA[0-11]
DQM[0-3]
NCSM
NRAS
NCAS
NW E
MC K
BA[0-1]
NEXCE
FROM_RESET
RXD_CTL
FADT[0-20],FROM_RESET,NEXCE,NEXOE,NEXWE
CLK33M
FSSEL
768FS
CLK54M
SCL
SDA
6
AVSS
7
XIN
8
XOUT
9
384FS
10
768FS
11
DVSS
0.1
0.1
0.1
0.1
0.1
9P(CH)
9P(CH)
1
A0
2
A1
3
A2
4
GND
5
SDA
6
SCL
7
WP
8
VCC
1K
1K
0
0
0
0
0
0
0
0
0
0
0
220
0
33K
R
3413
DGND
D_3.3V
0
NC
NC
0
1
23
4
5
6
7
8
82
1
23
4
5
6
7
8
82
1
23
4
5
6
7
8
82
1
23
4
5
6
7
8
82
1
23
4
5
67
8
0
1
23
4
5
67
8
NEXWE
TP_768FS
TP_CLKGND
NEXOE
0
N.C.
MA[3]
MA[4]
MA[5]
DQM[3]
MA[0]
NCSM
MA[1]
MA[2]
DQM[2]
MA[9]
MA[8]
MA[7]
MA[6]
MDQ[31]
MDQ[30]
MDQ[29]
MDQ[28]
MDQ[27]
MDQ[26]
MDQ[25]
MDQ[24]MDQ[23]
MDQ[22]
MDQ[21]
MDQ[20]
MDQ[19]
MDQ[18]
MDQ[17]
MDQ[16]
MA[10]
BA[1]
BA[0]
MA[11]
NEXW E
NEXOE
NEXCE
TO MAIN
DVD SERVO PWB-C(2/3)
X3601
36.864 MHz
C3605
R3605
FB3606
R3606
0
2
C3408
C3412
R3426
R3424
IC3401
IX0614AW
64M SD-RAM
R3406
R3411
R3419
R3418
R3417
R3412
R3423
C3409
R3425
R3531
R3547
R3548
C3906
IC3602
BR24L04F
EEPROM
R3422
R3421
R3420
R3416
R3415
R3414
C3604
FB3603
FB3401
+B
+B
+B
+B
+B
+B
+B
7
8 9 10 11 12
CD-DV999W/CD-DV777W
6 – 13
Figure 6-13 SCHEMATIC DIAGRAM (13/15)
82K 82K
15K
1K
47
47
33
1K
47K
47K
0.1
0.1
0.1
1234
GND
5678
VCC
4.7µH
15K
10K
10K
M_8V
MGND
AGND
LD_SW
EJ_SW
IN_SW
FCSIN
TRKIN
PD_CD
VA
VB
VC
VD
VE
VF
RF
LPCO2
LPCO1
VHALF
SPIN
A_3.3V
S_5V
NMUTE
SPNDRV
CHOP
SLDDRV
HFM
CDLDC
DVDLDC
DVD_H
100/10
47/6.3
47/6.3
2SD601 AR
KTA1298 Y
2SD601 AR
TP3301_A
TP3302_A
TP_VREF
0.01
8.2K
1.8K
47K
10K
0.1
470K
FG
VREFH
DGND
TP99
TP100
TP101
TP102
TP103
TP104
TP114
TP115
TP116
TP117
TP118
TP121
TP123
TP122
TP124
TP126
TP127
TP62
TP_FG1
0.1
LA6261
IC3704
1
VO3+
2
VO3-
3
VO2+
4
VO2-
5
VO1+
6
VO1-
7
PGND1
8
REGIN
9
PVCC1
1
REGOUT
2
SVCC
28
PVCC2
29
MUTE
30
PGND2
31
VO6+
32
VO6-
33
VO5+
34
VO5-
35
VO4+
36
VO4-
100/10
V_MUTE
TP131
0.022
0
0.1
470
680
2.7K
PD_CD
VREFH
SLDDRV
FO+
FOÐ
SPIN+
SPIN-
TR+
TRÐ
NMUTE
TO MAIN
TP125
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
C3707
R3726
R3727
R3730
R3729
C3708
R3728
R3733
C3703
R3704
R3701
IC3702
NJM12904
OPE AMP.
R3702
R3703
C3706
C3705
R3706
C3709
C3711
C3710
C3301
L3301
C3305
R3311
R3306
R3307
R3312
C3302
Q3304
R3303
Q3303
R3304
R3309
R3310
R3313
C3303
R3316
R
Q3305
R3314
+B
+B +B
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
A
B
C
D
E
F
G
H
1
23456
CD-DV999W/CD-DV777W
6 – 14
Figure 6-14 SCHEMATIC DIAGRAM (14/15)
CN3702
CNS3702
DVD SERVO PWB-C(3/3)
47K
47K
47
47
10K
8.2K
27K
10K
22K
0
.1
10K
10K
0
/10
47/6.3
0.1
TP3701
TP3702
TP3703
TP3708
TP3305
TP3306
TP3309
TP3310
TP3311
TP3312
TP3313
TP3314
TP3315
TP3316
TP3317
TP3318
TP3319
TP3320
TP3321
TP3322
TP3323
TP3324
TP3325
TP3327
TP3328
TP3329
TP3303_A
TP3304_A
KTA1298 Y
TP_SPIN
TP_FO
33K
220
TP_FG
TP_LED
1
2
3
4
5
6
7
TP3705
TP3704
DAP222
1
2
3
TP3709
10K
KRC104 S
TP110
TP60
TP62
TP61
1
2
3
4
5
6
1
2
LA6261
IC3704
8
REGIN
9
PVCC1
10
REGOUT
11
VIN1
12
VIN1G
13
VIN2
14
VIN2G
15
VIN3
16
VIN3G
17
VIN4
18
VIN4G
19
FWD5
20
REV5
21
VCONT5
22
FWD6
23
REV6
24
VCONT6
25
VREFIN
26
SGND
27
SVCC
28
PVCC2
29
MUTE
100/10
CAM+
CAM-
TR-
TR+
TP
TP
TP
TP
0
4.7K
12K
TP112
TP111
TP113
TP110
TP3050
TP3049
TP3052
TP3051
6
5
4
3
2
1
TP
TP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
MA111
0
100/10
0
8.2K
PD_CDPD_CD
VEVE
VREFHVREFH
VFVF
VBVB
VAVA
RFRF
VDVD
VCVC
FO+FO+
TR-
TR+TR+
LD_CD
LD_DVD
IN_SW
DVD_H
FO-
TRKIN
FCSIN
SPNDRV
SPIN+
SPINÐ
GND
LD_DVD
PDMON
LD(CD)
VR(DVD)
VR(CD)
NC
VE
VCC
Vref
G(PDIC)
VF
VB
VA
RF
CD/DVD
VD
VC
TR-
TR+
FO+
FO-
SPIN+
SPIN-
DGND
IN_SW
SL-
SL+
AGND
FG
LED
L
H
MO_SPEED
VMUTE
MOT B-
MOT B+
MOT A-
MOT A+
+B
+B
+B
3
1
2
P6-3 1-D
TO
DISPLAY PWB
CNP703
6
1
FFC703
CN3740
R3711
D3002
R3734
R3735
C3705
R3717
R3707
C3712
R3712
R3732
R3731
R3718
3
711
3
710
R3716
R3715
R3714
R3722
CN3701
CNS3701
CN3301
FFC3301
IC3301
7SB3157P
ANALOG SWITCH
C3304
C3303
R3317
R3316
R3321
Q3306
R3320
R3322
D3301
Q3307
R3318
R3319
+B
IC3704
LA6261
FOCUS/ TRACKING/
SPIN/SLED DRIVER
SPINDLE
MOTOR
SLED
MOTOR
SWITCH
SENSOR
PWB
1
2
3
5
6
7
4
8
9
10
12
13
14
11
15
16
17
19
20
21
18
22
23
24
1
2
3
5
6
7
4
1
2
PICKUP UNIT A'SSY
M
M
11
24 24
DVD MECHANISM UNIT
A'SSY(235)
7
8 9 10 11 12
CD-DV999W/CD-DV777W
6 – 15
Figure 6-15 SCHEMATIC DIAGRAM (15/15)
220P
CK3
47/25
8.2K
10K
10K
10K
4.7K
4.7K
0.1
5.6K
0.1
5.6K
DS1SS133
DS1SS133
0.1
0.1
2.2/50
4.7/50
1K
0.47/50
0.47/50
220P
1K
2.2/50
2.2/50
390
1K
100/16
0.1
0.1
47/25
100/16
10K
18K
220P
18K
2.2/50
2.2/50
10K
47/50
47/50
6.8K
6.8K
100P
100P
KIA4558P
OPE AMP.
7
6
5
3
2
1
0.022
100
100
100
390
0.022
0.001
0.01
1K
1K
1K
47/25
MTZJ5.6B
100
1.2K
KTC3203 Y
M65856SP
MIC AMP.
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
56K
56K
10K
1K
2.2/50
4.7/50
0.0047
220/10
100/16
0.22
0.068
2.2/50
2.2/50
2.2/50
0.001
0.068
2.2/50
47P
0.15
47P
47P
0.0047
0.22
10K
4
8
D_GND
CHASSIS
GND
LPF2IN1
LPF2IN2
VOLIN
SOURCEOUT
DATA
MCLKCONT
DACONT
VCC
GND REF
DAINTIN
ADCONT
DAINTOUT
ADINTOUT
LPF2IN2
ADINTIN
LIN
LPF2OUT
LPF1OUT
LPF1IN1
KEYCONIN
MICOUT
RIN
MIC1VOLIN
ROUT
MIC1OUT
LOUT
MIC1NFIN
PS1
ALC2
MICSW
MIC1IN
CLOCK
PS2
LATCH
VALC
VCFIL
MIC2VOLIN
MIC2OUT
MIC2NFIN
ALC1
MIC2IN
MIC IN
DATA
CLOCK
MIC LATCH
MIC IN(R)
MIC OUT(R)
A_+10V
A_GND
MIC IN(L)
MIC OUT(L)
11
7
1
2
5
6
3
4
8
9
10
+
+
Ð
Ð
MIC LEVEL
CNSK1
P6-2 8-A
FROM MAIN PWB
MIC PWB-G
20K(B)
+B
+B
+B
+B
+B
+B
DK1
DK2
CK41
LUG1
RK2
RK3
RK1
ICK1
RK11
CK35
CK53
RK47
RK48
RK50
CK48
RK46
RK45
CK50
CK46
RK37
RK39
RK42
RK41
CK47
RK43
CK51
CK52
RK44
CK49
ICK2
RK49
CK30
CK29
RK10
RK9
CK33
CK31
CK34
CK74
CK73
CK72
CK71
CK70
CK7
CK10
CK11
CK9
CK8
RK70
RK4
RK7
CK54
RK8
CK75
RK71
JK1
MIC1
RK72
CK13
CK16
CK15
CK12
CK14
CK17
RK73
CK23
CK25
CK26
CK21
CK24
CK22
CK20
CK19
CK18
CK44
CK42
RK14
RK15
CK43
ZDK1
RK12
RK13
QK1
CK40
RK38
RK40
RK36
VRK1
CK1
CK45
CNPK1
JK2
MIC2
MIC SIGNAL
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 5-1.
CD-DV999W/CD-DV777W
6 – 16
[2] Wiring side of PWB
Figure 6-16 WIRING SIDE OF PWB (1/10)
1
5
10 15 20
21
22
25303540
42
1234
8765
FROM
MAIN PWB
P6-19 5-A
CNS602
11109876543
21
CK33
RK9
CK3
DK2
DK1
CK34
RK10
CK35
RK11
CK31
RK40
CK30
CK29
CK26
RK36
RK39
CK25
RK37
CK24
RK73
CK23
CK22
CK14
CK21
CK18
RK72
CK19
CK20
CK77
RK75
CK47
RK43
RK44
CK49
CK52
RK41
RK49
CK45
CK53
RK47
RK50
RK48
RK42
RK15
CK51
RK38
RK14
ICK2
CK50
CK44
CK40
RK45
CK48
RK12
RK13
QK1
RK46
ZDK1
CK46
CK43
RK74
CK42
CK15
CK16
CK17
CK76
CK13
CK11
CK12
CK10
CK9
CK8
CK7
RK8
RK7
JK2
MIC2
JK1
MIC1
CK54
CK74
CK73
RK71
CK72
RK70
RK2
CK75
CK71
CK1
RK4
CK41
CK70
RK1
RK3
CNPK1
ICK1
A
B
C
D
E
F
G
H
1
23456
VRK1
MIC LEVEL
MIC PWB-G
CD-DV999W/CD-DV777W
6 – 17
Figure 6-17 WIRING SIDE OF PWB (2/10)
IC701
R733
R736
R721
R722
R773
R720
R718
C720
R766
R768
R719
RD11
R767
RD12
Q714
R777
Q712
R779R728
Q715
C710
C709
R778
R588
R775
Q716
R726
Q717
R727
R593
C732
R724
R731
R732
R761
RD02
RD03
RD06
RD05
D701
15
10
15
20
25
3031
35
40
45
55
60
65
70
75
80 81
85
90
95
10
0
50
51
1
1
1
3
5
2
4
6
6
1
3579
111315
2468
10121416182022
171921
22
CNP701B
P6-20 10-B
TO MAIN PWB
CN3740
FFC703
P6-23 1-C
TO
DVD SERVO PWB
DISPLAY PWB-A2
12
3
B
BCE
BCE
C
E
1
16171819202128293031323334353637383940414445
FL701
SW714
TAPE
SW713
CD
R717
R739
R737
D716
R723
R759
Q706
Q708
Q707
JOG701
VOLUME
D709
D710
SW705
FAST REWIND/
PRESET DOWN
R780
RD07
SW706
EQUALIZER
SW708
REVERSE
MODE
R771
R725
R774
SW712
TUNER
(BAND)
R789
C717
C722
SW707
FAST FORWARD/
PRESET UP
R788
R754
R579
R742
R743
R744
R738
R755
R578
R577
R576
R748
R772
R753
R589
R797
R796
R799
R798
R757
R574
RX701
C702
C727
R729
R741
R740
R746
R730
R750
LED701
CNP701A
CNP703
SW701
POWER
ON/STAND-BY
SW702
CLOCK/TIMER
RD01
SW703
TUNING
UP
RD04
SW704
TUNING
DOWN
FFC701
A
B
C
D
E
F
G
H
1
23456
CD-DV999W/CD-DV777W
6 – 18

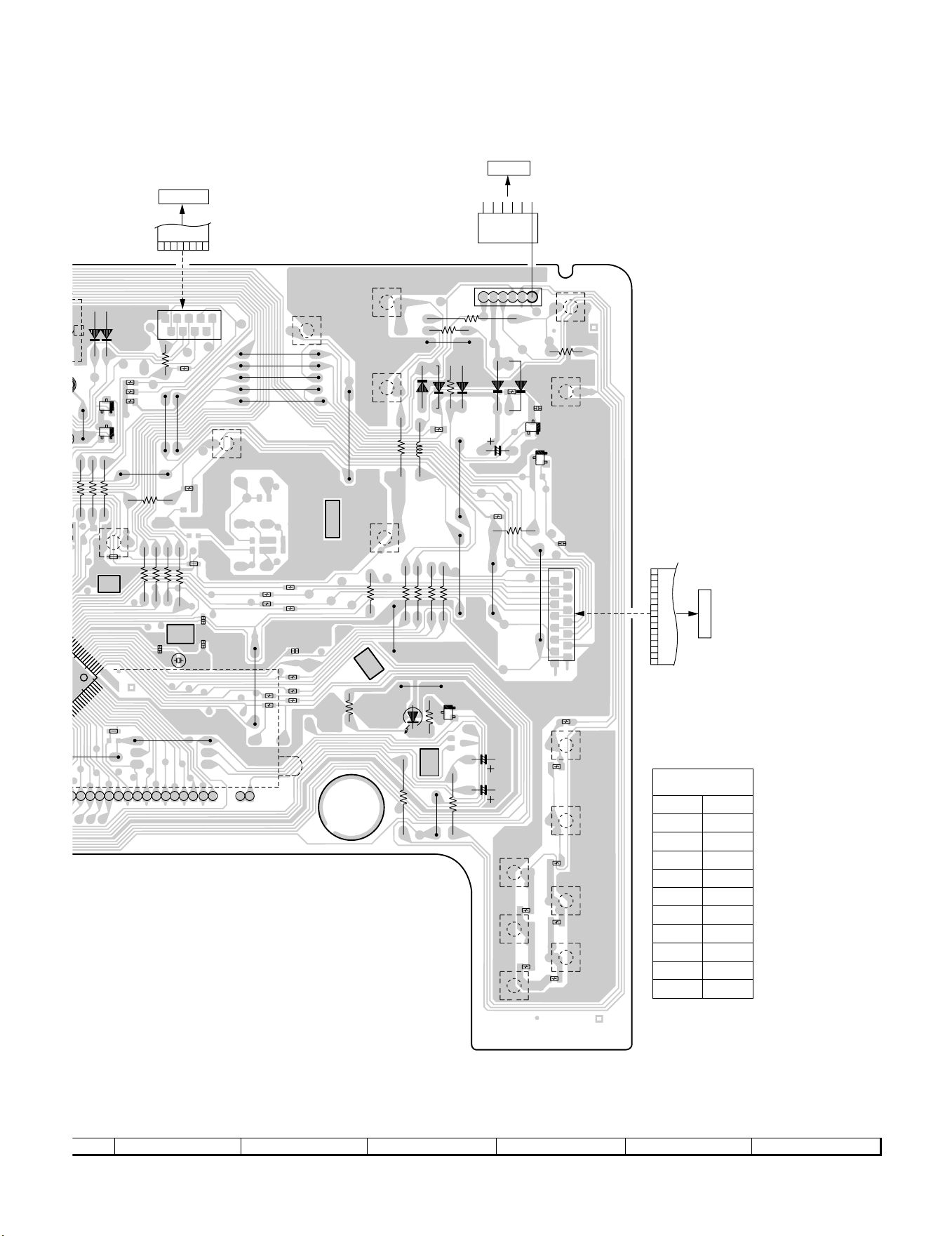

Figure 6-18 WIRING SIDE OF PWB (3/10)
RD30
RD31
RD29
RD32
RD28
RD27
RD26
Q710
R791
Q713
Q709
R783
C715
R781
RD14
R716
R715
R714
R713
C721
C705
C704
R703
R706
C730
R702
R701
R763
C720
Q711
Q712
R770
7
79
R786
R790
R760
C710
15
0
9
5
100
1
1
3579
9
2468
P6-25 3-B
TO TAPE MECHANISM PWB
CNP802
P6-21 5-A
TO POWER PWB
1
1
6
6
1
1
3
5
7
9
11
13
2
4
6
8
10
12
14
14
CNP7082
P6-22 11-B
TO CD SERVO PWB
1256789
10111213141516171819
0
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
SW733
DISC5
SW732
DISC4
SW734
DISC3
SW731
DISC2
SW735
DISC1
SW730
DIRECT PLAY
R795
C707
C701
SW729
OPEN/
CLOSE
R751
CNP704
R704
R705
R707
R573
C723
L701
C714
D715
R782
D712
D711
D713
D714
SW728
MEMORY/
SET
RD25
RD22
RD24
SW727
REC/
PAUSE
WTM705
SW726
STOP
SW724
REVERS
PLAY
CNP702A
SW716
X-BASS/
DEMO
SW715
GAME/
VIDEO
RD23
SW725
PLAY/
REPEAT
R708
R769
XL701
R745
LED703
R794
0
1
R710
R709
R711
R712
SW714
TAPE
RD13
R717
R
7
39
R737
Q708
R787
E
D709
D710
FW705
FFC7082
FFC702
7
8 9 10 11 12
CD-DV999W/CD-DV777W
6 – 19
Figure 6-19 WIRING SIDE OF PWB (4/10)
R607
C611
Q902
R919
C917
R911
C910
R904
C913
R902
C904
R906
Q603
R620
R909
R617
R616
Q604
R609
R
R666
R688
R608
R641
C625
C666
C665
C669
C626
R662
R643
C612
R644
C355
R355
R606
C
C6
5
C356
C653
C388
R604
R395
R374
R373
R378
R372
R388
C382
R359
R376
C381
C395
R360
C387
R379
C386
C392
R377
R385
C385
R380
R383
R325
C324
C311
R302
C313
C351
C310
VD303
C312
R353
C353
C350
C354
R352
C309
C399
C308
C366
R365
R311
R351
C316
VD302
R313
C317
R316
C369
R336
C334
R350
C361
R356
R323
C363
C342
R357
C332
C335
R619
R613
R614
R986
R615
R612
Q601
Q602
R611
R621
R610
R905
R901
R937
C903
R903
C907
C908
Q903
Q904
R907
R908
Q901
R920
C919
R947
R946
R956
R983
R984
Q909
Q908
R987
R985
R988
R959
R957
C330
C693
VD301
C338
C323
C303
C304
C315
C305
C347
R322
C306
R381
C397
C384
C302
1
2
3
4
5
6
7
8
9
SW601
SPAN
SELECTOR
100 kHz/10 kHz
50 kHz/9 kHz
R601
BIK1
CNSK1
CNPK1
R603
R602
C609
C607
C605
C615
C613
C617
C61
C
6
C6
2
C644
C662
C667
C663
R853
R6
R86
ZD903
R926
R925
R927
C923
R916
R917
R913
R922
R918
R910
ZD902
IC901
R912
R958
C902
C640
C946
C906
R618
C909
C624
C372
C622
R642
R663
R674
R661
Q661
Q606
Q605
C620
C371
R677
R664
R668
R667
R665
R675
IC601
C618
C374
C373
C616
C614
C602
C358
C606
C601
C608
C603
C610
C370
L352
ZD351
C383
X352
IC302
R386
C396
R384
R387
L351
C391
C380
R391
R392
R375
C393
C318
R382
C320
Q360
C389
Q302
T301
T351
R393
CF352
C398
C352
CF351
T302
R309
C357
CF303
IC303
D305
L312
X351
C367
C362
R358
C368
C365
C364
T306
CNP602
CNP971
C901
C639
C944
C905
C925
L902
LG4
R934
D907
D914
R935
L901
C911
C912
D913
R921
RL914
D905
D906
D911
R943
R942
C920
LG2
C929
C927
R939
R941
L920
L921
R938
R940
C928
C926
R945
R944
D912
R950
R949
C931
Q905
Q907
Q906
R951
R679
D691
D690
C331
T303
D302
D301
CNP301
BF301
R314
IC301
C307
C394
M901
FAN MOTOR
CNS971
SO902
SPEAKER
TERMINAL
JK691
VIDEO OUT
IC602
S0302
FM ANTENNA
TERMINAL
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
CNS603
P6-21 4-G
FROM
GAME INPUT PWB
1
2
1
2
AM LOOP
ANTENNA
RD
BR
1
2
MAIN PWB-A1
L-CH
R-CH
ECB
BCE
BCE
2
5
4
3
2
1
1
123456789
101112131415161718
123
123
BCE
3
2
1
B
C
E
FM 75 OHMS
GND
TP301
TP302
1
12
1110 9 8 7 6 5 4 3
21
BK
BL
BK
BL
BK
BL
BK
BL
BK
BL
RD
P6-16 2-G
TO
MIC PWB
1
4
8
5
A
B
C
D
E
F
G
H
1
23456
CD-DV999W/CD-DV777W
6 – 20
Figure 6-20 WIRING SIDE OF PWB (5/10)
Q109
Q110
R140
Q112
R141
R147
R873
C878
C876
R874
R872
R146
R143
R148
R108
C875
D865
D870
D871
R871A
C877
R107
R110
R109
R144
Q114
Q105
C104
R106
Q106
C106
R112
R104
C105
C102
C101
R103
R118
R105
R102
R134
C130
C116
C110
R120
C108
R128
C124
R126
R150
C135
R122R124
R138
C120
R136
Q108
R132
R135
R130
C129
R131R133
C121
R129
C123
R127
R137
C119
R121
R123
C107
C109
R101
6
07
R119
C115
R117
Q107
R139
6
11
Q113
Q885
R887
C885
R885
Q886
R886
Q888
0
9
R605
R666
2
5
4
3
C652
C651
5
3
FROM
TAPE2 RECORD/PLAYBACK
HEAD
7
1
WH
BK
PK
BK
WH
YL
BL
WH
BK
BR
GY
PK
WH
YL
BL
6
5
4
3
2
1
BI102
CNS102
P6-25 5-F
LG1
CNP901
BI801
C850
C856
C852
C851
LG3
R142
L103
R149
C140
C139
C141
Q111
C138
R145
C137
R111
BI102
Q104
C111
C103
Q102
C113
R115
R114
R113
Q101
R116
Q103
CNP101
C150
C112
C118
C132
C114
C133
C134
C128
R158
C126
C131
C127
C125
C143
IC101
6
01
CNP701B
6
03
6
02
C117
6
09
6
07
6
05
6
15
6
13
6
17
BI601
C619
C621
C623
C670
C662
C671
D860
D862
D861
R859
R857
R853
R680
R681
C865
C817
C859
R864
C864
C866
C871A
C872
C873
C874
C915
C854
C855
R854
ZD805
ZD804
D885
C914
R889
D
903
C918
R888
9
26
R930
9
25
R928
9
27
C916
D909
R929
C922
C921
D910
2
Q605
R668
R665
R660
CNS601
CNS801
IC851
IC852
IC856
IC855
FFC701
12
11
10
9
8
7
6
5
4
3
2
1
18
17
16
15
14
13
19
20
21
22
23
24
123
FROM
TAPE 1 PLAYBACK HEAD
1
2
3
4
5
6
7
1
1
3
5
7
9
11
13
15
2
4
6
8
10
12
14
16
18
20
22
17
19
21
22
CNP701A
P6-17 3-G
TO DISPLAY PWB
1
15
RD
GY
GY
GY
GY
WH
GY
WH
WH
WH
GY
WH
WH
WH
1
2
3
4
5
6
7
14
GY
WH
WH
WH
RD
GY
8
9
10
11
12
13
GY
GY
WH
WH
WH
GY
WH
GY
CN3004
P6-23 5-B
TO
DVD SERVO PWB
CNP801
P6-21 4-A
TO POWER PWB
1
2
3
4
5
FW901
P6-21 4-G
FROM
GAME INPUT PWB
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
BL
BL
BL
BL
BL
RD
WH
WH
BL
BL
WH
WH
WH
WH
1
2
3
4
5
6
1
1
2
3
23
123
7
ECB
ECB
ECB
ECB
ECB
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
P6-21 5-F
7
8 9 10 11 12
CD-DV999W/CD-DV777W
6 – 21
Figure 6-21 WIRING SIDE OF PWB (6/10)
CNS805
CNP805
AC POWER
SUPPLY CORD
AC 110/127/220/230-240 V,
50/60 Hz
1
2
BL
BR
1
2
BL
BR
SW801
VOLTAGE SELECTOR
230-240 V
220 V
127 V 110 V
230-240 V
220 V
127 V
110 V
L841
WTM901
R693
C691
JK690
GAME INPUT
R691
BI603
R690
C690
C695
C694
C696
R692
PT801
POWER TRANSFORMER
D802
C808
C809
Q801
Q842
R891
R808
C802
R806
C804
C807
D856
C861
IC854
IC853
C805
C816
C812
C806
C814
C815
C813
C871B
D804
D867
D803
R802
ZD802
R801
D805
R805
D806
ZD801
ZD803
R804
C803
R803
R892
L801
R865
R871B
R893
C801
CNP801
CNP802
D801
C810
C811
CNS603
FW901
JK692
HEADPHONES
F807
T2.5A L 250V
F801
T5A L 250V
F802
T5A L 250V
F805
T5A L 250V
F806
T2.5A L 250V
F803
T2A L 250V
F804
T2A L 250V
BK
BK
BK
BK
BK
1
2
3
4
5
CNP602
P6-19 1-E
TO MAIN PWB
CNP901
P6-20 10-H
TO MAIN PWB
1
5
1
5
GAME INPUT
PWB-B2
FW701
CNS801
P6-20 11-G
FROM MAIN PWB
P6-18 10-A
FROM DISPLAY PWB
1
123456
23456789
1011121314
POWER PWB-B1
1
6
R-CH
AUX/VIDEO
VIDEO IN
L-CH
T.F.
B
C
E
1
2
3
1
531
24
2
3
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
A
B
C
D
E
F
G
H
1
23456
CD-DV999W/CD-DV777W
6 – 22
Figure 6-22 WIRING SIDE OF PWB (7/10)
SUB PWB-F2
D7002
C7007
R7003
R7003A
C7009
D7004
R7002
D7003
R7002A
L7001
C7012
C7003
C7013
C7006
C7001
R7004
CNP7083
FFC7082
FFC7081
FFC7083
R7082
R7081
CNP7081
CNP7082
SO7001
S-VIDEO
OUT
IC501
AUDIO DIGITAL
C7005
C7002
C7004
C7011
CNP7003
R7001
R7001A
C7008
CNP7001
D7001
CNP7002
1
3
5
7
9
11
13
2
4
6
8
10
12
14
14
11
1
CNP704
P6-18 11-E
TO
DISPLAY PWB
CNPA6
P6-25 1-D
TO
PICKUP UNIT
11
9
7
5
3
1
10
8
6
4
2
13579
11
2468
10
111
CN3003
P6-23 1-G
TO
DVD SERVO PWB
1
2
2
1
CNP7004
231
23156487
S-VIDEO/AUDIO OUT PWB-F1
3
2
1
CN7003B
P6-23 10-D
TO
DVD SERVO PWB
CN7001B
P6-23 1-B
TO
DVD SERVO PWB
7
8 9 10 11 12
1
CD-DV999W/CD-DV777W
6 – 23

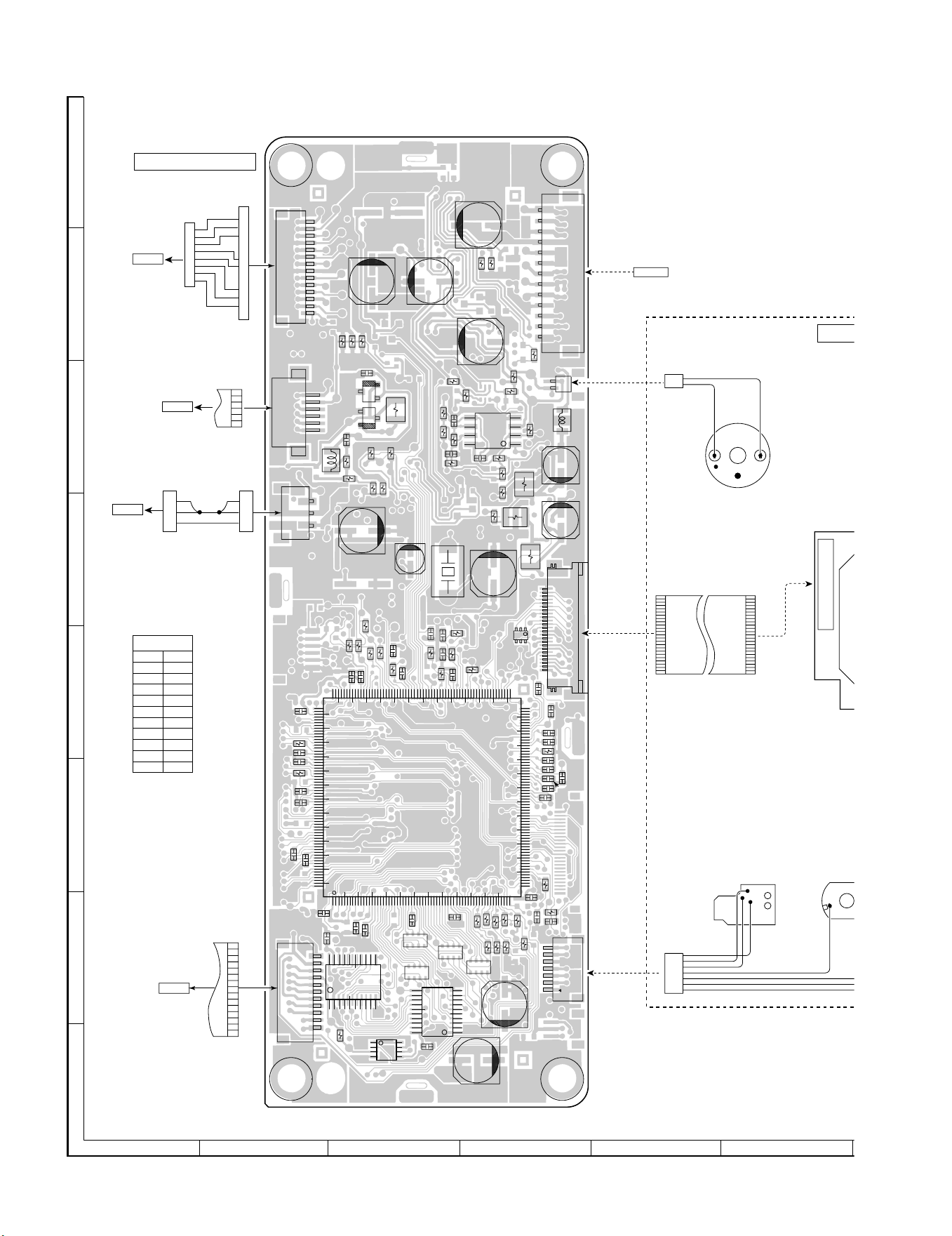

Figure 6-23 WIRING SIDE OF PWB (8/10)
R3030
C3058
C3059
L3301
R3037
C3061
C3066
C3068
R3045
R3046
R3062
C3302
CN3301
FFC3301
C3303
CN3701
CNS3701
C3501
C3504
C3703
C3705
C3707
C3708
R3306
IC3503
IC3504
R3701
R3702
R3703
R3704
IC3702
R3716
R3726
R3727
R3729
R3730
C3009
C3010
C3013
C3014
C3015
C3017
C3018
C3019
C3020
C3022
C3028
C3606
R3003
R3004
C3030
IC3001
R3009
C3032
C3033
R3014
R3015
R3016
R3018
R3019
C3042
C3044
R3211
C3045
C3046
R3020
C3048
R3022
R3024
R3025
C3052
C3053
C3054
1
7
1
2
1
2
3
4
5
6
7
8
9
10
11
12
13
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
4
5
6
7
8
2
3
4
5
6
7
8
9
10
11
12
13
14
1
2
3
C3049
R3316
IC3301
R3311
R3321
C3026
R3008
1
24
X3601
R3074
R3075
R3111
R3733
R3728
C3801
1
45
8
13
46
1
R3044
R3049
C3057
C3065
R3153
C3710
C3712
R3734
R3735
CN3004
CN3702
CNS3702
R3106
C3805
R3201
R3202
R3203
R3208
C3100
Q3100
C3107
D3100
R3103
R3107
L3100
CN3203
R3010
R3090
R3043
R3038
R3422
C3001
C3003
C3004
C3006
C3007
R3416
1
2
3
4
5
6
CN3201
RD
WH
BKGY
GYGY
GY
WH
BL
WH
GR
BL
RD
WH
CNS7001A
CNS7001B
CN3704
CN3003
R3171
R3172
IC3003
1
4
5
8
R3307
R3706
1
2
3
4
5
6
7
8
9
10
11
5
10 15 20 25 30 35 40 45 50 55 60
64
65
70
75
80
85
90
95
100
105
110
115
120
125
128
129
130135140145150155160165170175180185190
192
193
195
200
205
210
215
220
225
230
235
240
245
250
255
256
1
5
10
11
15
20
1
5
15
1011
20
1
1
BR
RD
OR
YL
BK
GY
WH
2
3
4
5
6
7
RD
SPINDLE
MOTOR
SLE
D
MOTO
SENSOR
PWB
BR
24
1
24
1
24
P6-20 11-F
FROM MAIN PWB
CNS601
DVD PWB-D (TOP VIEW)
DVD M
E
1
2
P6-22 11-G
TO
S-VIDEO/AUDIO
OUT PWB
CNP7001
P6-22 9-C
TO
SUB PWB
CNP7083
1
11
FFC7083
6
1
FFC703
CNS7003B CNS7003A
P6-22 11-G
TO
S-VIDEO/AUDIO
OUT PWB
CNP7003
P6-17 1-E
TO
DISPLAY PWB
CNP703
3
2
1
3
2
1
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
A
B
C
D
E
F
G
H
1
23456
CD-DV999W/CD-DV777W
6 – 24
Figure 6-24 WIRING SIDE OF PWB (9/10)
R3419
R3031
R3032
R3033
R3035
R3420
C3060
R3039
C3062
R3423
C3063
R3424
R3425
R3426
R3050
R3063
R3076
R3077
R3085
C3301
C3502
C3503
FB3003
C3706
D3301
FB3401
C3906
R3303
R3304
R3309
R3116
FB3601
R3310
FB3606
R3313
R3314
IC3501
R3318
R3319
R3126
R3132
R3134
R3522
R3717
R3523
R3140
R3722
R3147
R3531
R3731
R3547
R3548
C3401
C3406
C3408
C3409
C3601
C3025
C3602
C3603
C3027
C3412
C3034
C3035
C3037
C3038
C3039
R3013
C3040
R3401
C3041
R3402
R3403
C3043
R3404
R3405
R3406
R3407
C3047
R3408
IC3401
R3409
R3021
R3601
R3602
R3603
R3410
R3411
C3051
R3412
R3413
R3414
IC3601
R3415
IC3602
C3056
1
4
5
8
1
5
10
15
8
9
16
C3050
R3005
R3007
R3071
C3036
R3317
R3006
L3201
C3031
R3026
R3088
R3011
R3012
C3023
R3715
R3027
R3417
R3418
FB3603
R3606
1
5
10
15
20
24
25
30
35
40
45
48
C3402
R3421
R3002
R3001
R3142
R3143
R3806
C3804
R3803
FB3801
IC3801
R3144
R3145
C3803
R3802
R3801
R3322
R3052
1
5
8
9
10
15
16
1
5
10
15
20
25
30
35
40
43
44
45
50
55
60
65
70
75
80
85
86
13
45
R3605
C3605
R3604
C3604
FB3602
R3312
Q3304
Q3306
R3161
R3160
R3159
R3158
R3157
R3156
R3137
C3709
R3152
R3151
R3154
R3732
C3304
Q3307
Q3501
R3155
Q3305
C3055
R3072
R3091
Q3101
R3110
C3109
C3108
R3115
R3117
R3206
1
5
10
15
1718
20
25
26
27
30
35
8
9
IC3704
R3718
R3714
R3711
R3135
R3136
R3138
R3139
R3205
Q3102
D3102
R3133
L3102
D3101
R3204
C3110
C3111
R3109
R3112
R3118
R3207
C3711
FB3402
R3164
R3165
R3166
R3163
IC3002
Q3105
R3162
L3101
Q3303
R3320
R3167
D3002
SLED
MOTOR
SWITCH
1
24
DVD PWB-D (BOTTOM VIEW)
DVD MECHANISM UNIT A'SSY2353)
PICKUP UNIT A'SSY
7
8 9 10 11 12
CD-DV999W/CD-DV777W
6 – 25
Figure 6-25 WIRING SIDE OF PWB (10/10)
-
+
CNP7081
FFC702
CNP6A
FFC7081
M1
TRAY
MOTOR
P6-22 11-C
TO
SUB PWB
M2
MAIN CAM
MOTOR
SW1
CLAMP
SW2
TRAY SW1
SW3
TRAY SW2
SW4
DISC
RX1
5-CHANGER
MOTOR PWB-E
BK
YL
WH
BK
RD
WH
BK
RD
BK
WH
23
1
P6-20 10-E
TO MAIN PWB
CNS102
CNP101
P6-20 9-B
TO MAIN PWB
TAPE 2
ERASE HEAD
RECORD/PLAYBACK
HEAD
TAPE 1
WH
BK
GR
GR
BL
YL
WH
PK
BK
WH
PK
GR
1
2
SW
TAPE
MOTOR
SOLENOID
TAPE MECHANISM PWB-D
SW
SOLENOID
SW
TAPE MECHANISM
ASSEMBLY
1
2
3
4
5
68
79
1
9
CNP702
P6-18 7-A
TO DISPLAY PWB
1234567
11 11
11
1
3
5
7
9
11
2
4
6
8
10
+
+
-
-
PLAYBACK HEAD
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
A
B
C
D
E
F
G
H
1
23456
CD-DV999W/CD-DV777W
7 – 1
AudioCD-DV999W/CD-DV777WService ManualCD-DV999W/CD-DV777WMarketE
CHAPTER 7. FLOWCHART
[1] Troubleshooting
1. When the CD does not function
The CD section may not operate when the objective lens of the optical pickup is dirty. Clean the objective lens, and check the playback operation.
When this section does not operate even after the above step is taken, check the following items.
Remove the cabinet and follow the trouble shooting instructions.
"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup lens. Before attempting
any adjustment make certain that the lens is clean. If not, clean it as mentioned below."
Turn the power off.
Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.
Do not touch the lens with the bare hand.
Parts code

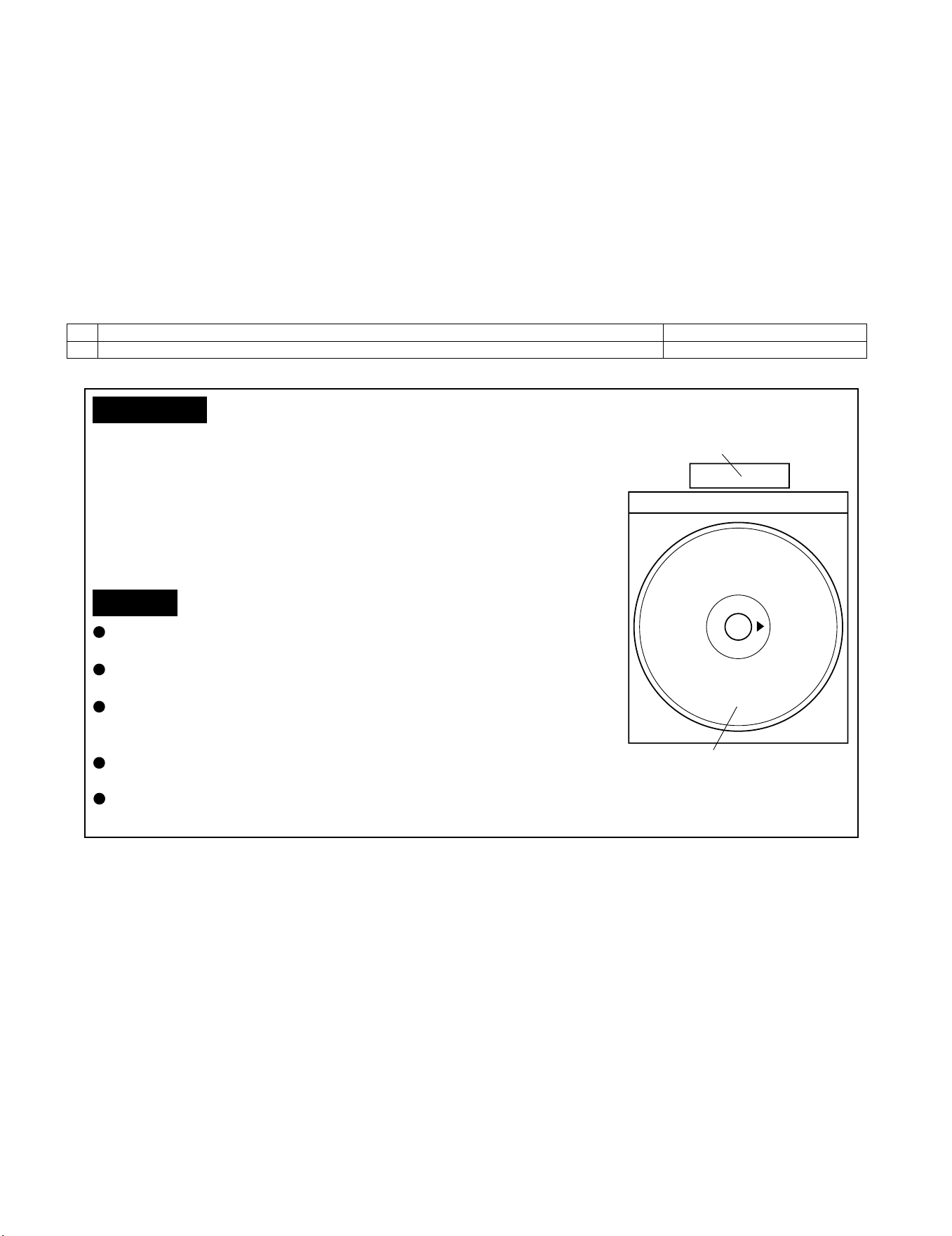

1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ
HOW TO USE
CAUTION
Cleaning fluid
Cleaner disc
Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the
brush on the CD cleaner disc which has the mark next to it.
Place the CD cleaner disc onto the CD disc tray with the brush side down,then
press the play button.
You will hear music for about 20 seconds and the CD player will automatically stop.
If it still play continuously, press the stop button.
1.
2.
3.
The CD lens cleaner should be effective for 30-50 operations, however if the
brushes become worn out earlier then please replace the cleaner disc.
If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft
cloth.
Do not drink the cleaner fluid or allow it contact with the eyes. In the event of this
happening then drink and / or rinse with clean water and seek medical advice.
The CD cleaner disc must not be used on car CD players or on computer CD-ROM
drives.
All rights reserved. Unauthorized duplicating, broadcasting and renting this product
is prohibited by law.
CD-DV999W/CD-DV777W
7 – 2
2. DVD section
• “No Disc” is displayed. (Focus error)
Does the objective lens move up and down after the disc is
removed ? (Check the following items.)
No “No Disc” is displayed.
Refer to “When the focus servo does not function”.
Yes
Is signal input to pins 122 - 125 of IC3001 ? No Check connection of optical pickup cables.
If no abnormality is detected, replace optical pickup.
Yes
Is focus control signal output to pin 152 of IC3001 ? No Check circuits around the power supply for pin 149 of IC3001.
If no abnormality is detected, replace IC3001.
Yes
Is focus control signal output from pin 152 of IC3001 to pin 23 of
IC3704 ?
No Check focus control signal line between IC3001 and IC3704.
Check M8V line.
Yes No
Is focus control drive voltage output from pins 1 and 28 of
IC3704 ?
No Is voltage of 8 V applied to pin 22 of IC3704 ?
Yes
Check that pin 16 of IC3704 is “H” and replace IC3704.
If pin 16 of IC3704 is “L”, check pin 73 of IC3001.
Yes
Is focus control drive voltage applied to the focus actuator termi-
nal ?
No Check line between IC3704 and focus actuator terminal. Check
CN3301.
Yes
Check connection of optical pickup cables.
If no abnormality is detected, replace the traverse chassis.
• “No Disc” is displayed during DVD playback (when CD is playable) ... When DVD laser does not light up.
Is control signal output from pin 133 of IC3001 ? No Check and replace IC3001.
Yes
Is voltage of 5 V applied to emitter of Q3306 ? No Check S5V line.
Yes
Is voltage of approx. 2 V supplied to pin 2 of CN3301 ? No Check around Q3305 and Q3306.
Yes
Check connection of optical pickup cables.
If no abnormality is detected, replace traverse chassis.
Note: The laser diode is easily damaged by static electricity.
Carefully check static electricity and electric leak of the measuring
instrument.
CD-DV999W/CD-DV777W
7 – 3
• “No Disc” is displayed during CD playback (when DVD is playable) ... When CD laser does not light up.
Is control signal output from pin 135 of IC3001 ? No Check and replace IC3001.
Yes
Is voltage of 5 V applied to the emitter of Q3304 ? No Check S5V line.
Yes
Is voltage of approx. 2 V supplied to pin 6 of CN3301 ? No Check around Q3303 and Q3304.
Yes
Check connection of optical pickup cables.
If no abnormality is detected, replace traverse chassis.
Note: The laser diode is easily damaged by static electricity.
Carefully check static electricity and electric leak of the measuring
instrument.
Put a disc on the DISC tray.
Yes
Disc normally loaded?
Yes
Check loading switch.
No
Is RF signal level output from pin 17 of
CN3301 normal ?
Yes
Is objective lens of optical pickups clean?
No
Yes
Replace main PWB.
Replace traverse chassis.
No
Refer to "Video is not output normally" and
"Audio is not output normally".
Yes
Both video and audio do not operate normally.
CD-DV999W/CD-DV777W
7 – 4
• Video is not output normally.
Put a disc on the DISC tray.
Yes
Is video signal input to each pin of IC3201 as shown below ?
IC3201 2 pin S-C
IC3201 6 pin S-Y
IC3201 10 pin Py
IC3201 12 pin Pb
IC3201 14 pin Pr
No Check the main unit. (Circuits around IC3001 and IC3201.)
Check S5V line.
Yes No
Video signals input to each pin of IC3201 as shown below ?
IC3201 26 pin S-C
IC3201 23 pin COMP
IC3201 21 pin S-Y
IC3201 20 pin Py
IC3201 18 pin Pb
IC3201 16 pin Pr
No Is voltage of approx. 5 V supplied to pins 1 and 28 of IC3201 ?
Yes
Yes
Do V-MUTE line for pins 3 and 13 of IC3201 reach “H” level ?
Yes
Replace IC3201.
No
Check V-MUTE line.
Is video signal output to each pin of main unit connector
CNP601 as shown below?
CNP601 1 pin V
CNP601 2 pin S-C
CNP601 3 pin S-Y
CNP601 5 pin Pr
CNP601 6 pin Pb
CNP601 7 pin Py
No Check between CN3201 and CNP601.
Yes
Is each video signal output to the specified output terminal ?
Is combined video signal output to VIDEO OUT terminal (JK601)
?
No Check line from pin 1 of CNP601 to VIDEO OUT terminal (JK601)
and VIDEO OUT terminal (JK601).
Is brightness signal output to S-OUT terminal (SO602) ? No Check line from pin 3 of CNP601 to S-OUT terminal (SO602) and
S-OUT terminal (SO602).
Is chrominance signal output to S-OUT terminal (SO602) ? No Check line from pin 2 of CNP601 to S-OUT terminal (SO602) and
S-OUT terminal (SO602).
Is brightness signal output to pin 1 of D terminal (SO601) ? No Check line from pin 7 of CNP601 to pin 1 of D terminal (SO601)
and the D terminal (SO601).
Is chrominance difference signal (Pb) output to pin 3 of D termi-
nal (SO601) ?
No Check line from pin 6 of CNP601 to pin 3 of D terminal (SO601)
and D terminal (SO601).
Is chrominance difference signal (Pr) output to pin 5 of D termi-
nal (SO601) ?
No Check line from pin 5 of CNP601 to pin 5 of D terminal (SO601)
and D terminal (SO601).
CD-DV999W/CD-DV777W
7 – 5
• Audio is not output normally.
Put a disc on the DISC tray.
Yes
Is audio signal output to each pin of main unit connector CN4002
?
CN4002 1 pin LOUT
CN4002 3 pin ROUT
No Check main unit. (Circuits around IC4101.)
Yes
Is audio signal output to each pin of IC413?
IC413 11 pin LIN1
IC413 12 pin RIN1
No Check line from CNP401 to each pin of IC413.
Yes
Is audio signal output to each terminal of IC413?
IC413 54 pin L-OUT
IC413 47 pin R-OUT
No Check circuits around IC413 or replace IC413.
CD-DV999W/CD-DV777W
8 – 1
AudioCD-DV999W/CD-DV777WService ManualCD-DV999W/CD-DV777WMarketE
CHAPTER 8. OTHERS
[1] Function table of IC
IC3001 RH-iXA464WJZZ: DVD Decoder LSI (IXA464WJ) (1/5)
Pin No. Terminal Name Input/Output Function
1 VDD33 Input IO power supply.
2 MDQ11 Input/Output SDRAM data 11.
3 MDQ3 Input/Output SDRAM data 3.
4 VSS — GND.
5 MDQ12 Input/Output SDRAM data 12.
6 MDQ2 Input/Output SDRAM data 2.
7 VDD33 Input IO power supply.
8 MDQ13 Input/Output SDRAM data 13.
9 MDQ1 Input/Output SDRAM data 1.
10 MDQ14 Input/Output SDRAM data 14.
11 VSS — GND.
12 MDQ0 Input/Output SDRAM data 0.
13 MDQ15 Input/Output SDRAM data 15.
14 VDD33 Input IO power supply.
15 VDD15 Input Internal logic power supply.
16 VSS — GND.
17 EXADR20 Input/Output External memory address 20/General purpose port 20.
18 NEXWE Output External memory write enable.
19 EXADT0 Input/Output External memory address data 0.
20 EXADT4 Input/Output External memory address data 4.
21 EXADT8 Input/Output External memory address data 8.
22 EXADT12 Input/Output External memory address data 12.
23 VDD33 Input IO power supply.
24 VSS — GND.
25 EXADR16 Input/Output External memory address 16/General purpose port 16.
26 EXADR18 Input/Output External memory address 18/General purpose port 18.
27 EXADT14 Input/Output External memory address data 14.
28 EXADT10 Input/Output External memory address data 10.
29 VDD33 Input IO power supply.
30 VSS — GND.
31 EXADT6 Input/Output External memory address data 6.
32 EXADT2 Input/Output External memory address data 2.
33 NEXCE Output External memory chip selection.
34 EXADT1 Input/Output External memory address data 1.
35 EXADT5 Input/Output External memory address data 5.
36 EAXADT9 Input/Output External memory address data 9.
37 EXADT13 Input/Output External memory address data 13.
38 EXADR17 Input/Output External memory address 17/General purpose port 17.
39 EXADR19 Input/Output External memory address 19/General purpose port 19.
40 EXADT15 Input/Output External memory address data 15.
41 EXADT11 Input/Output External memory address data 11.
42 VDD33 Input IO power supply.
43 VSS — GND.
44 EXADT7 Input/Output External memory address data 7.
45 EXADT3 Input/Output External memory address data 3.
46 NEXOE Output External memory output (read) enable.
47 P15 Input/Output General purpose port/Chip selection/External memory address 21/Stream enable input/Remote
control reception/External interruption 3.
48 P14 Input/Output General purpose port/Serial 3 sending complete flag.
49 P13 Input/Output General purpose port/Serial 3 reception start flag.
50 P12 Input/Output General purpose port/Serial 3 clock.
51 P11 Input/Output General purpose port/Serial 3 output data.
52 P10 Input/Output General purpose port/Serial 3 input data.
53 P9 Input/Output General purpose port/Serial 2 clock.
54 P8 Input/Output General purpose port/Serial 2 output data.
55 P7 Input/Output General purpose port/Serial 2 input data.
56 VDD33 Input IO power supply.
57 MMOD Input Test mode setting.
58 VSS — GND.
CD-DV999W/CD-DV777W
8 – 2
IC3001 RH-iXA464WJZZ: DVD Decoder LSI (IXA464WJ) (2/5)
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Pin No. Terminal Name Input/Output Function
59 P6 Input/Output General purpose port/Serial 1 clock/16-bit timer external count source B.
60 P5 Input/Output General purpose port/Serial 1 output data/16-bit timer external count source A/External interrup-
tion 2.
61 P4 Input/Output General purpose port/Serial 1 input data/External interruption 1/Remote control reception.
62 P3 Input/Output General purpose port/Serial 0 clock/External interruption 0.
63 P2 Input/Output General purpose port/Serial 0 output data/8-bit timer external count source 1.
64* P1 Input/Output General purpose port/Serial 0 input data/8-bit timer external count source 0.
65 P0 Input/Output General purpose port/Stream valid output.
66 FG Input Motor FG.
67 VDD15 Input Internal logic power supply.
68 NRST Input Master reset.
69 VSS — GND.
70 DRV0 Input/Output Servo general purpose port 0.
71 DRV1 Input/Output Servo general purpose port 1.
72 DRV2 Input/Output Servo general purpose port 2.
73 DRV3 Input/Output Servo general purpose port 3.
74 DRV4 Input/Output Servo general purpose port 4.
75 DRV5 Input/Output Servo general purpose port 5.
76 DRV6 Input/Output Servo general purpose port 6.
77 DRV7 Input/Output Servo general purpose port 7.
78* DRV8 Input/Output Servo general purpose port 8.
79 VDD33 Input IO power supply.
80 VSS — GND.
81 SCLOCK Input/Output Input clock for debug/General purpose port 21/Stream sector header output.
82* EXTRG0 Input/Output Input and output trigger 0 for debug/External memory data 15/General purpose port 27/Mode
setting data.
83 SDATA Input/Output Input and output data for debug/General purpose port 22/Stream error indicator output.
84* EXTRG1 Input/Output Input and output trigger 1 for debug/External memory data 14/General purpose port 28/Mode
setting clock.
85* TRCCLK Input/Output Output trace clock for debug/External memory data 13/General purpose port 29.
86* TRCDATA0 Input/Output Input and output trace data 0 for debug/External memory data 12/General purpose port 23.
87* TRCDATA1 Input/Output Input and output trace data 1 for debug/External memory data 11/General purpose port 24.
88* TRCDATA2 Input/Output Input and output trace data 2 for debug/External memory data 10/General purpose port 25.
89* TRCDATA3 Input/Output Input and output trace data 3 for debug/External memory data 9/General purpose port 26.
90* TRCST Input/Output Input and output trace status for debug/External memory data 8/General purpose port 30.
91 VDD33 Input IO power supply.
92 OSCI Input Front-end section clock input.
93 VSS — GND.
94 MONI7 Input/Output Internal monitor 7/External memory data 7/General purpose port 38/Digital video output 7.
95 MONI6 Input/Output Internal monitor 6/External memory data 6/General purpose port 37/Digital video output 6.
96 MONI5 Input/Output Internal monitor 5/External memory data 5/General purpose port 36/Digital video output 5.
97 MONI4 Input/Output Internal monitor 4/External memory data 4/General purpose port 35/Digital video output 4.
98 VDD15 Input Internal logic power supply.
99 VSS — GND.
100* MONI3 Input/Output Internal monitor 3/External memory data 3/General purpose port 34/Digital video output 3.
101* MONI2 Input/Output Internal monitor 2/External memory data 2/General purpose port 33/Digital video output 2.
102* MONI1 Input/Output Internal monitor 1/External memory data 1/General purpose port 32/Digital video output 1/
Stream error indicator output.
103* MONI0 Input/Output Internal monitor 0/External memory data 0/General purpose port 31/Digital video output 0/
Stream sector header output.
104 AVDDD Input Analog power supply.
105 PLFIL1 Output DRCVCO capacitance connection.
106 AVSSD — Analog GND.
107 PLFIL2 Output DRCVCO capacitance connection.
108 VREFA Output DRC reference power supply capacitance connection.
109 VREFB Output DRC reference power supply capacitance connection.
110 VREFC Output DRC reference power supply capacitance connection.
111 VC0 Input gm-cEQ external capacitance connection.
112 RESI Input gm-cEQ external capacitance connection.
113* ANAMONI Output Internal analog monitor 0.
114 POFLT Output DPDOFTR capacitance connection.
115 CDATA Output INLINE DATA capacitance connection.
CD-DV999W/CD-DV777W
8 – 3
IC3001 RH-iXA464WJZZ: DVD Decoder LSI (IXA464WJ) (3/5)
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Pin No. Terminal Name Input/Output Function
116 CCAPA Output INLINE CAPA capacitance connection.
117 CGD Output BGR reference voltage capacitance connection.
118 AVDDC Input Analog power supply.
119 AVSSC — Analog GND.
120 RFINN Input RF input -.
121 RFINP Input RF input +.
122 VIN5 Input CD head input.
123 VIN6 Input CD head input.
124 VIN7 Input DVD head input.
125 VIN8 Input DVD head input.
126 VIN1 Input DVD head input.
127 VIN2 Input DVD head input.
128 VIN3 Input DVD head input.
129 VIN4 Input DVD head input.
130 VIN9 Input CD head input.
131 VIN10 Input CD head input.
132 LPC1 Input DVD LPC input.
133 LPCO1 Output DVD LPC output.
134 LPC2 Input CD LPC input.
135 LPCO2 Output CD LPC output.
136 VREFH Output Reference voltage 2.20 [V] output.
137 VHALF Output Reference voltage 1.65 [V] output.
138 AVSSB — Analog GND.
139 CTKC Output TEO capacitance connection.
140 CSLFLT Input CPDET capacitance connection.
141 CWBLOUT Input DC cut capacitance connection for wobble.
142 CWBLIN Input DC cut capacitance connection for wobble.
143 VCOF Input JFVCO control voltage.
144 RV1 Input Resistance connection for VREFH reference current.
145 AVDDB Input Analog power supply.
146 AD2 Input General purpose AD input.
147 AD1 Input General purpose AD input/Internal analog monitor.
148 AD0 Input General purpose AD input.
149 AVDDA Input Analog power supply.
150 DAC1 Output Tracking drive output.
151 AVSSA — Analog GND.
152 DAC0 Output Focus drive output.
153 AVDDE Input Analog power supply.
154 IREF1 Input Resistance for setting internal DAC bias current.
155 AVSSE — Analog GND.
156 COMP1 Input Internal DAC stabilization capacitance.
157 AVDDF Input Analog power supply.
158 DAC1OUT Output Y (brightness)/G (green) analog signals.
159 AVSSF — Analog GND.
160 DAC2OUT Output Cb (color difference)/B (blue) analog signals.
161 DAC3OUT Output Cr (color difference)/R (red) analog signals.
162 VREF Input Internal DAC reference voltage.
163 DAC4OUT Output Y (brightness)/Comp (composite) analog signals.
164 DAC5OUT Output C (color) analog signal.
165 AVDDG Input Analog power supply.
166 IREF2 Output Resistance for setting internal DAC bias current.
167 AVSSG — Analog GND.
168 COMP2 Input Internal DAC stabilization capacitance.
169 VSS — GND.
170 BECLK Input Back-end section clock input.
171 VDD33 Input IO power supply.
172 EXTCK Input External audio clock/Stream clock output.
173* PHCOMPO Output Audio clock phase difference/Stream data output 7.
174 LRCK Output LR channel clock/Stream data output 6.
175 SRCK Output Bit clock/Stream data output 5
176* ADOUT3 Output Audio down mix/Stream data output 4.
177 VSS — GND.
CD-DV999W/CD-DV777W
8 – 4
IC3001 RH-iXA464WJZZ: DVD Decoder LSI (IXA464WJ) (4/5)
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Pin No. Terminal Name Input/Output Function
178* ADOUT2 Output Audio data/Internal monitor 11/Stream data output 3.
179* ADOUT1 Output Audio data/Internal monitor 10/Stream data output 2.
180 ADOUT0 Output Audio data/Internal monitor 9/Stream data output 1.
181 IECOUT Output IEC958 digital audio out/Internal monitor 8/Stream data output 0.
182 VDD33 Input IO power supply.
183 VSS — GND.
184 MDQ24 Input/Output SDRAM data 24.
185 MDQ23 Input/Output SDRAM data 23.
186 VDD15 Input Internal logic power supply.
187 MDQ22 Input/Output SDRAM data 22.
188 MDQ25 Input/Output SDRAM data 25.
189 VDD33 Input IO power supply.
190 MDQ26 Input/Output SDRAM data 26.
191 MDQ21 Input/Output SDRAM data 21.
192 MDQ27 Input/Output SDRAM data 27.
193 MDQ20 Input/Output SDRAM data 20.
194 VSS — GND.
195 VDD33 Input IO power supply.
196 MDQ28 Input/Output SDRAM data 28.
197 MDQ19 Input/Output SDRAM data 19.
198 VSS — GND.
199 MDQ29 Input/Output SDRAM data 29.
200 MDQ18 Input/Output SDRAM data 18.
201 MDQ30 Input/Output SDRAM data 30.
202 VDD33 Input IO power supply.
203 MDQ17 Input/Output SDRAM data 17.
204 MDQ31 Input/Output SDRAM data 31.
205 MDQ16 Input/Output SDRAM data 16.
206 VSS — GND.
207 DQM3 Output SDRAM data mask 3.
208 DQM2 Output SDRAM data mask 2.
209 VDD33 Input IO power supply.
210 MA3 Output SDRAM address 3.
211 VSS — GND.
212 MA4 Output SDRAM address 4.
213 VDD15 Input Internal logic power supply.
214 MA2 Output SDRAM address 2.
215 VSS — GND.
216 MA5 Output SDRAM address 5.
217 MA1 Output SDRAM address 1.
218 VDD33 Input IO power supply.
219 MA6 Output SDRAM address 6.
220 MA0 Output SDRAM address 0.
221 VSS — GND.
222 VDD15 Input Internal logic power supply.
223 MCKI Input SDRAM output clock.
224 VSS — GND.
225 MCK Output SDRAM input clock.
226 VDD33 Input IO power supply.
227 MA7 Output SDRAM address 7.
228 MA10 Output SDRAM address 10.
229 MA8 Output SDRAM address 8.
230 VSS — GND.
231 MA11 Output SDRAM address 11.
232 NWE Output SDRAM write enable.
233 VDD33 Input IO power supply.
234 BA0 Output SDRAM bank address 0.
235 MA9 Output SDRAM address 9.
236 VSS — GND.
237 BA1 Output SDRAM bank address 1.
238 NCSM Output SDRAM chip selection.
239 NRAS Output SDRAM row address strobe.
CD-DV999W/CD-DV777W
8 – 5
IC3001 RH-iXA464WJZZ: DVD Decoder LSI (IXA464WJ) (5/5)
Pin No. Terminal Name Input/Output Function
240 VDD33 Input IO power supply.
241 VSS — GND.
242 NCAS Output SDRAM column address strobe.
243 DQM0 Output SDRAM data mask 0.
244 VDD15 Input Internal logic power supply.
245 VSS — GND.
246 DQM1 Output SDRAM data mask 1.
247 MDQ7 Input/Output SDRAM data 7.
248 VSS — GND.
249 MDQ8 Input/Output SDRAM data 8.
250 VDD33 Input IO power supply.
251 MDQ6 Input/Output SDRAM data 6.
252 MDQ9 Input/Output SDRAM data 9.
253 MDQ5 Input/Output SDRAM data 5.
254 VSS — GND.
255 MDQ10 Input/Output SDRAM data 10.
256 MDQ4 Input/Output SDRAM data 4.
178
177
176
175
174
173
172
171
170
169
168
167
166
165
164
163
162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
132
131
130
129
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
27
28
29
26
192
191
190
189
188
187
186
185
184
183
182
181
180
179
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
VDD33
MDQ11
MDQ3
VSS
MDQ12
MDQ2
VDD33
MDQ13
MDQ1
MDQ14
VSS
MDQ0
MDQ15
VDD33
VDD15
VSS
EXADR20
NEXWE
EXADT0
EXADT4
EXADT8
EXADT12
VDD33
VSS
EXADR16
EXADR18
EXADT14
EXADT10
VDD33
VSS
EXADT6
EXADT2
NEXCE
EXADT1
EXADT5
EXADT9
EXADT13
EXADR17
EXADR19
EXADT15
EXADT11
VDD33
VSS
EXADT7
EXADT3
NEXOE
P15
P14
P13
P12
P11
P10
P9
P8
P7
VDD3
MMOD
VSS
P6
P5
P4
P3
P2
P1
P0
FG
VDD15
NRST
VSS
DRV0
DRV1
DRV2
DRV3
DRV4
DRV5
DRV6
DRV7
DRV8
VDD33
VSS
SCLOCK
EXTRG0
SDATA
EXTRG1
TRCCLK
TRCDATA0
TRCDATA1
TRCDATA2
TRCDATA3
TRCST
VDD33
OSCI
VSS
MONI7
MONI6
MONI5
MONI4
VDD15
VSS
MONI3
MONI2
MONI1
MONI0
AVDDD
PLFIL1
AVSSD
PLFIL2
VREFA
VREFB
VREFC
VC0
RESI
ANAMONI
POFLT
CDATA
CCAPA
CGD
AVDDC
AVSSC
RFINN
RFINP
VIN5
VIN6
VIN7
VIN8
VIN1
VIN2
VIN3
241
240
239
238
237
236
235
234
233
232
231
230
229
228
227
226
225
224
223
222
221
220
219
218
217
216
215
214
213
212
211
210
209
208
207
206
205
204
203
202
201
200
199
198
197
196
195
194
193
256
255
254
253
252
251
250
249
248
247
246
245
244
243
242
MDQ27
MDQ21
MDQ26
VDD33
MDQ25
MDQ22
VDD15
MDQ23
MDQ24
VSS
VDD33
IECOUT
ADOUT0
ADOUT1
ADOUT2
VSS
ADOUT3
SRCK
LRCK
PHCOMPO
EXTCK
VDD33
BECLK
VSS
COMP2
AVSSG
IREF2
AVDDG
DAC5OUT
DAC4OUT
VREF
DAC3OUT
DAC2OUT
AVSSF
DAC1OUT
AVDDF
COMP1
AVSSE
IREF1
AVDDE
DAC0
AVSSA
DAC1
AVDDA
AD0
AD1
AD2
AVDDB
RVI
VCOF
CWBLIN
CWBLOUT
CSLFLT
CTKC
AVSSB
VHALF
VREFH
LPCO2
LPC2
LPCO1
LPC1
VIN10
VIN9
VIN4
MDQ4
MDQ10
VSS
MDQ5
MDQ9
MDQ6
VDD33
MDQ8
VSS
MDQ7
DQM1
VSS
VDD15
DQM0
NCAS
VSS
VDD33
NRAS
NCSM
BA1
VSS
MA9
BA0
VDD33
NWE
MA11
VSS
MA8
MA10
MA7
VDD33
MCK
VSS
MCKI
VDD15
VSS
MA0
MA6
VDD33
MA1
MA5
VSS
MA2
VDD15
MA4
VSS
MA3
VDD33
DQM2
DQM3
VSS
MDQ16
MDQ31
MDQ17
VDD33
MDQ30
MDQ18
MDQ29
VSS
MDQ19
MDQ28
VDD33
VSS
MDQ20
IC3001
TOPVIEW

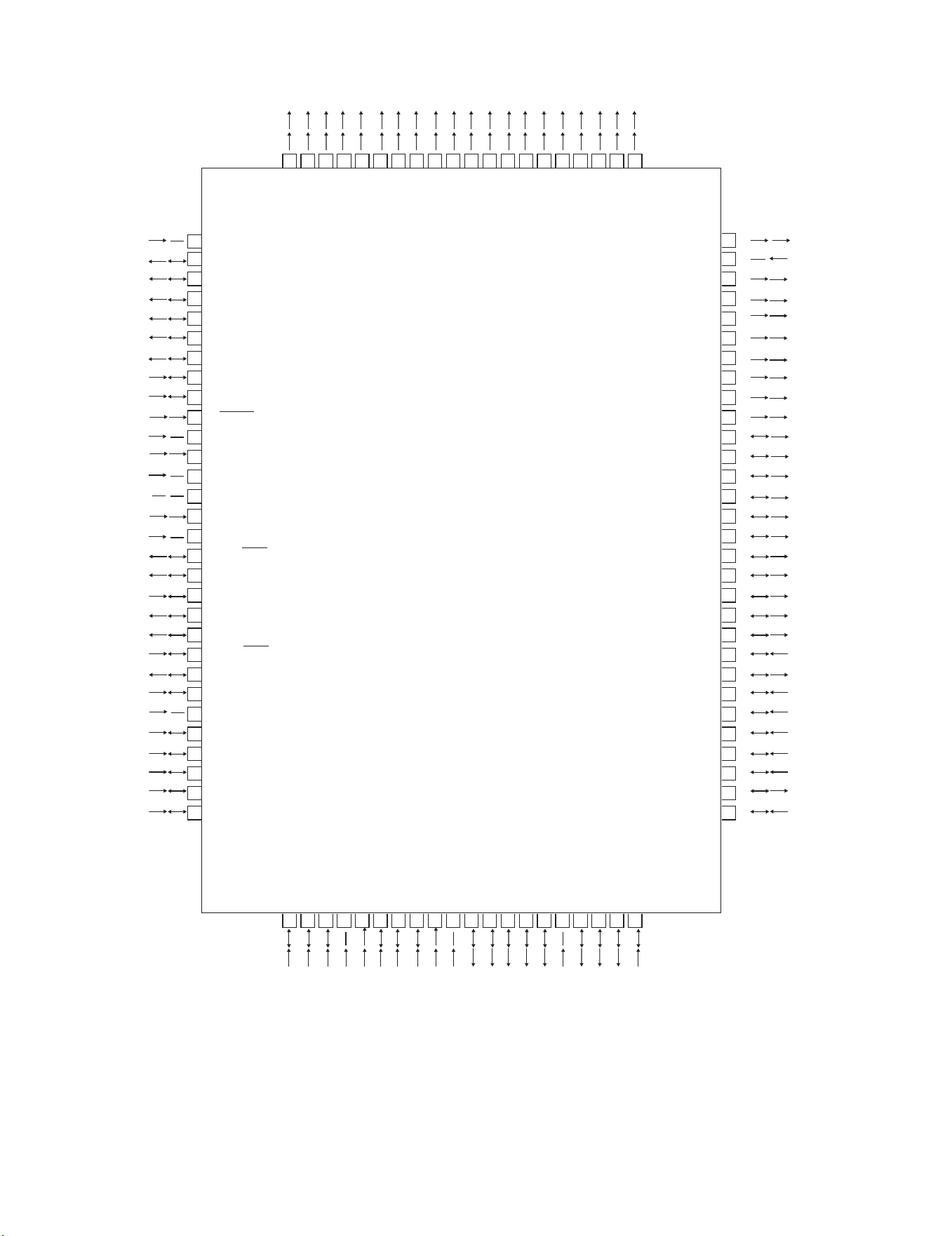

Figure 8-6 BLOCK DIAGRAM OF IC
CD-DV999W/CD-DV777W
8 – 6
IC3401 RH-iX0614AWZZ: 64M S-DRAM (IX0614AW) (1/2)
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Pin No. Terminal Name Input/Output Function
1 VDD Input Power supply for internal circuits and the input buffer.
2 DQ0 Input/Output Multi data input/output pin.
3 VDDQ Input Power supply for the output buffer.
4, 5 DQ1, DQ2 Input/Output Multi data input/output pin.
6 VSSQ — GND.
7, 8 DQ3, DQ4 Input/Output Multi data input/output pin.
9 VDDQ Input Power supply for the output buffer.
10, 11 DQ5, DQ6 Input/Output Multi data input/output pin.
12 VSSQ — GND.
13 DQ7 Input/Output Multi data input/output pin.
14* N.C. — Not used.
15 VDD Input Power supply for internal circuits and the input buffer.
16 DQM0 Input/Output Controls output buffer during read mode and masks input data during write mode.
17 WE — RAS, CAS and WE define operations.
18 CAS — RAS, CAS and WE define operations.
19 RAS — RAS, CAS and WE define operations.
20 CS Input All inputs except for CLK, CKE and DQM are enabled or disabled.
21 N.C. — Not used.
22, 23 BA0, BA1 — The bank to be operated during RAS operation is selected.
The bank to read and write during CAS operation is selected.
24-27 A0-A2 — Line address: RA0-RA10; Column address: CA0-CA7
Auto precharge flag: A10
28 DQM2 Input/Output Controls output buffer during read mode and masks input data during write mode.
29 VDD Input Power supply for internal circuits and the input buffer.
30* N.C. — Not used.
31 DQ16 Input/Output Multi data input/output pin.
32 VSSQ — GND.
33, 34 DQ17, DQ18 Input/Output Multi data input/output pin.
35 VDDQ Input Power source for the output buffer.
36, 37 DQ19, DQ20 Input/Output Multi data input/output pin.
38 VSSQ — GND.
39, 40 DQ21, DQ22 Input/Output Multi data input/output pin.
41 VDDQ Input Power source for the output buffer.
42 DQ23 Input/Output Multi data input/output pin.
43 VDD Input Power supply for internal circuits and the input buffer.
44 VSS — GND.
45 DQ24 Input/Output Multi data input/output pin.
46 VSSQ — GND.
47, 48 DQ25, DQ26 Input/Output Multi data input/output pin.
49 VDDQ Input Power source for the output buffer.
50, 51 DQ27, DQ28 Input/Output Multi data input/output pin.
52 VSSQ — GND.
53, 54 DQ29, DQ30 Input/Output Multi data input/output pin.
55 VDDQ Input Power source for the output buffer.
56 DQ31 Input/Output Multi data input/output pin.
57* N.C. — Not used.
58 VSS — GND.
59 DQM3 Input/Output Controls output buffer during read mode and masks input data during write mode.
60-66 A3-A9 — Line address: RA0-RA10; Column address: CA0-CA7
Auto precharge flag: A10
67 CKE Input Controls internal clock signal. When the terminal is not operated, SDRAM is in either mode of
Power Down, Suspend, or Self-refresh.
68 CLK Input System clock input. All other input is registered in SDRAM of CLK rise.
69*, 70* N.C. — Not used.
71 DQM1 Input/Output Controls the output buffer during read mode and masks input data during write mode.
72 VSS — GND.
73* N.C. — Not used.
74 DQ8 Input/Output Multi data input/output pin.
75 VDDQ Input Power source for the output buffer.
76, 77 DQ9, DQ10 Input/Output Multi data input/output pin.
78 VSSQ — GND.
79, 80 DQ11, DQ12 Input/Output Multi data input/output pin.
CD-DV999W/CD-DV777W
8 – 7
IC3401 RH-iX0614AWZZ: 64M S-DRAM (IX0614AW) (2/2)
Pin No. Terminal Name Input/Output Function
81 VDDQ Input Power supply for the output buffer.
82, 83 DQ13, DQ14 Input/Output Multi data input/output pin.
84 VSSQ — GND.
85 DQ15 Input/Output Multi data input/output pin.
86 VSS — GND.
IC3401
IX0614AW
VDD
DQ0
V
DDQ
DQ1
DQ2
V
SSQ
DQ3
DQ4
V
DDQ
DQ5
DQ6
V
SSQ
DQ7
NC
V
DD
DQM0
/WE
/CAS
/RAS
/CS
NC
BA0
BA1
A10/AP
A0
A1
A2
DQM2
V
DD
NC
DQ16
V
SSQ
DQ17
DQ18
V
DDQ
DQ19
DQ20
V
SSQ
DQ21
DQ22
V
DDQ
DQ23
V
DD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
V
SS
DQ15
V
SSQ
DQ14
DQ13
V
DDQ
DQ12
DQ11
V
SSQ
DQ10
DQ9
V
DDQ
DQ8
NC
V
SS
DQM1
NC
NC
CLK
CKE
A9
A8
A7
A6
A5
A4
A3
DQM3
V
SS
NC
DQ31
V
DDQ
DQ30
DQ29
V
SSQ
DQ28
DQ27
V
DDQ
DQ26
DQ25
V
SSQ
DQ24
V
SS
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
Figure 8-7 BLOCK DIAGRAM OF IC
CD-DV999W/CD-DV777W
8 – 8
IC3501 RH-iXA173WJZZ: Flash ROM (IXA173WJ) (1/2)
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Pin No. Terminal Name Input/Output Function
1-9 A15-A8, A19 Input Memory address input: Address input for writing and reading. Addresses are latched internally dur-
ing a write cycle.
A1: least significant address input in byte mode (BYTE# = VIL),
data input/output DQ15 in the word mode (BYTE# = VIH)
A15- A19: main block selection address
A12- A19: boot/parameter block selection address
10 N.C. — No connection: Not connected internally. (can also be connected)
11 WE# Input Write enable: Writing to the CUI and array block is controlled. Activated when WE# = VIL. Addresses
and data are latched on the rising edge of WE# pulse.
12 RP# Input Reset: It is activated and automatically reset internally when RP# = VIL. The device operates nor-
mally when RP# = VIH. When RP# = VIL, writing is prohibited and data is protected. After recovering
from the reset mode, the device enters the array readout status. Make sure to set VIL when turning
on the power.
13 VCCW Input Block erase, full chip erase, word/byte write and lock bit configuration power supply: Memory data is
not changed when VCCW VCCWLK. Operations with improper voltage may cause malfunction or
breakage. When VCCW voltage is 12 ± 0.3 V, data can be rewritten up to 1,000 times per block.
When applying 12 ± 0.3 V to VCCW pin, total application time must be no longer than 80 hours.
14 WP# Input Write protect: When WP# = VIL, the boot block is protected from writing and erasing. Even when
WP# = VIH, writing and erasing are prohibited if the block lock bit is set. For the parameter/main
block, writing and erasing are controlled by the block lock bit status regardless of WP#.
15* RY/BY# Output Ready/Busy: The status of the internal Write State Machine (WSM) is sent. When VIL is supplied,
WSM is working (block erase, full chip erase, word/byte write, and lock bit configuration). When RY/
BY# = HighZ, WSM is waiting for the next command; word/byte write is not executed with block
erase suspended; word/byte write is suspended; or WSM is in the reset mode.
16, 17 A18, A17 Input Memory address input: Address input for writing and reading. Addresses are latched internally dur-
ing a write cycle.
A1: least significant address input in byte mode (BYTE# = VIL),
data input/output DQ15 in the word mode (BYTE# = VIH)
A15- A19: main block selection address
A12- A19: boot/parameter block selection address
19-25 A7-A0 Input Memory address input: Address input for writing and reading. Addresses are latched internally dur-
ing a write cycle.
A1: least significant address input in byte mode (BYTE# = VIL),
data input/output DQ15 in the word mode (BYTE# = VIH)
A15- A19: main block selection address
A12- A19: boot/parameter block selection address
26 CE# Input Chip enable: Control logic, input buffer decoder, sense amplifier of the device are activated when
CE# = VIL. When CE# = VIH, the device is not selected and power consumption is reduced to the
stand-by level.
27 GND — Ground: Connect all the ground pins.
28 OE# Input Output enable: Device output is controlled during a read cycle. Activated when OE# = VIL.
29, 30 DQ0, DQ8 Input/Output Data input/output: Data/command input, memory array, and status register during a Command User
Interface (CUI) write cycle. Data output during an ID code read cycle. When a chip is not selected or
output is disabled, the pin goes to the floating state. Data is latched internally in a write cycle. In the
byte mode, DQ8 - DQ15 are not used and DQ15 becomes address input (A-1).
31, 32 DQ1, DQ9 Input/Output Data input/output: Data/command input, memory array, and status register during a Command User
Interface (CUI) write cycle. Data output during an ID code read cycle. When a chip is not selected or
output is disabled, the pin goes to the floating state. Data is latched internally in a write cycle. In the
byte mode, DQ8 - DQ15 are not used and DQ15 becomes address input (A-1).
33, 34 DQ2, DQ10 Input/Output Data input/output: Data/command input, memory array, and status register during a Command User
Interface (CUI) write cycle. Data output during an ID code read cycle. When a chip is not selected or
output is disabled, the pin goes to the floating state. Data is latched internally in a write cycle. In the
byte mode, DQ8 - DQ15 are not used and DQ15 becomes address input (A-1).
35, 36 DQ3, DQ11 Input/Output Data input/output: Data/command input, memory array, and status register during a Command User
Interface (CUI) write cycle. Data output during an ID code read cycle. When a chip is not selected or
output is disabled, the pin goes to the floating state. Data is latched internally in a write cycle. In the
byte mode, DQ8 - DQ15 are not used and DQ15 becomes address input (A-1).
37 VCC Input Device power supply: When VCC? VLKO, the flash memory is protected from writing. Improper VCC
voltage may cause malfunction.
38, 39 DQ4, DQ12 Input/Output Data input/output: Data/command input, memory array, and status register during a Command User
Interface (CUI) write cycle. Data output during an ID code read cycle. When a chip is not selected or
output is disabled, the pin goes to the floating state. Data is latched internally in a write cycle. In the
byte mode, DQ8 - DQ15 are not used and DQ15 becomes address input (A-1).
CD-DV999W/CD-DV777W
8 – 9
IC3501 RH-iXA173WJZZ: Flash ROM (IXA173WJ) (2/2)
Pin No. Terminal Name Input/Output Function
40, 41 DQ5, DQ13 Input/Output Data input/output: Data/command input, memory array, and status register during a Command User
Interface (CUI) write cycle. Data output during an ID code read cycle. When a chip is not selected or
output is disabled, the pin goes to the floating state. Data is latched internally in a write cycle. In the
byte mode, DQ8 - DQ15 are not used and DQ15 becomes address input (A-1).
42, 43 DQ6, DQ14 Input/Output Data input/output: Data/command input, memory array, and status register during a Command User
Interface (CUI) write cycle. Data output during an ID code read cycle. When a chip is not selected or
output is disabled, the pin goes to the floating state. Data is latched internally in a write cycle. In the
byte mode, DQ8 - DQ15 are not used and DQ15 becomes address input (A-1).
44, 45 DQ7, DQ15 Input/Output Data input/output: Data/command input, memory array, and status register during a Command User
Interface (CUI) write cycle. Data output during an ID code read cycle. When a chip is not selected or
output is disabled, the pin goes to the floating state. Data is latched internally in a write cycle. In the
byte mode, DQ8 - DQ15 are not used and DQ15 becomes address input (A-1).
46 GND — Ground: Connect all the ground pins.
47 BYTE# Input Byte enable: When BYTE# = VIL, the device enters the byte mode (x8). At this time, DQ8 - 14 pins
go into HighZ state and DQ15/A-1 becomes least significant address input (A-1). When BYTE# =
VIH, the device goes into the word mode (x16) and DQ15/A-1 pin becomes data input/output DQ15.
48 A16 Input Memory address input: Address input for reading and writing. Addresses are latched internally dur-
ing a write cycle.
A1: least significant address input in byte mode (BYTE# = VIL),
data input/output DQ15 in the word mode (BYTE# = VIH)
A15- A19: main block selection address
A12- A19: boot/parameter block selection address
A15
A14
A13
A12
A11
A10
A9
A8
A19
NC
WE#
RP#
VCCW
WP#
RY/BY#
A18
A17
A7
A6
A5
A4
A3
A2
A1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
A16
BYTE#
GND
DQ15/A-1
DQ7
DQ14
DQ6
DQ13
DQ5
DQ12
DQ4
VCC
DQ11
DQ3
DQ10
DQ2
DQ9
DQ1
DQ8
DQ0
OE#
GND
CE#
A0
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
IC3501
Figure 8-9 BLOCK DIAGRAM OF IC
CD-DV999W/CD-DV777W
8 – 10
IC601 VHiLC75341/-1: Audio Processor (LC75341)
Pin No. Terminal Name Function
1 DI Serial data and clock input pin for con-
trol.
2 CE Chip enable pin.
Data written into an internal latch in a
timing of "H" to "L".
Each analog switch is activated.
Data transfer enabled at "H" level.
3 VSS Ground pin.
4 LOUT Bass band filter comprising
capacitor and resistor connection pin
and bass/treble output pin.
5 LBASS Bass band filter comprising capacitor
and resistor connection pin.
6 LTRE Treble band filter comprising capacitor
and resistor connection pin.
7 LIN Volume + equalizer output pin.
8 LSEL0 Input selector output pin.
9-12 L4-1 Input signal pin.
Pin No. Terminal Name Function
13-16 R1-4 Input signal pin.
17 RSEL0 Input selector output pin.
18 RIN Volume + equalizer output pin
19 RTRE Treble band filter comprising capacitor
and resistor connection pin.
20 RBASS Bass band filter comprising capacitor
and resistor connection pin.
21 ROUT Bass band filter comprising capacitor
and resistor connection pin and bass/
treble output pin.
22 VREF 0.5x VDD voltage generation block
for analog ground. Capacitor of sev-
eral 10µF to be connected between
VREF and AWSS (VSS) as a counter-
measure against power ripple.
23 VDD Supply pin
24 CLK Serial data and clock input pin for con-
trol.
19
20 21
22
23
24
1
2
3
45678
9
10
11
12
13
14
15
16
1817
LVref
RVref
CONTROL
CIRCUIT
CONTROL
CIRCUIT
CONTROL
CIRCUIT
LOUT
LBASS
LIN
LSEL0
L4
L3
L2
L1
R1
R2
R3
R4
RSEL0
RIN
RTRE
LTRE
RBASS
ROUT
VREF
VDD
CLK
DI
CE
VSS
CCB
INTERFACE
CD
Tuner
Tape
Video
Figure 8-10 BLOCK DIAGRAM OF IC
CD-DV999W/CD-DV777W
8 – 11
IC701 RH-iXA004AWZZ: System Microcomputer (IXA004AW) (1/2)
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Pin No. Port Name Terminal Name Input/Output Function
1 VDD VDD — Power supply 5V.
2 P37 -20dBATT Output -20dB Attenuator.
H: Attenuator ON.
3 P36/BUZ T_BIAS Output Tape record bias control.
H: Bias circuit ON.
4 P35/PCL T_REC/PLAY Output Tape RECORD/PLAY control.
H: Play, L: Record
5 P34/TI2 T_T1/T2 Output
6 P33/TI1 RXD_CNT-IN Output H: DVD ROM WRITE MODE.
L: OTHER (SET H B4 P_ON).
7 P32/TO2 DVD_RESET Output DVD Reset.
L: Reset.
8 P31/TO1 VOL_JOG1 Input VOLUME JOG INPUT 1.
9 P30/TO0 VOL_JOG2 Input VOLUME JOG INPUT 2.
10 RESET RESET Input System Micom Reset Input.
L: Reset.
11 X2 XOUT — Main clock output 4.19MHz.
12 X1 XIN Input Main clock input 4.19MHz.
13 IC(VPP) VPP — Connect to GND
14* XT2 NO USE — Open
15 P04/XT1 DVD A MUTE Input DVD Analog mute input.
L: Mute ON.
16 VDD VDD — Power supply 5V.
17 P27/SCK0 CLK Output TUNER/Vol clock.
18 P26/SO0/SB1 DI Output TUNER/Vol command.
19 P25/SI0/SB0 DO Input Tuner data input.
20 P24/BUSY CE Output Tuner/Vol chip enable.
21 P23/STB DVD_CS Output DVD Comm. Start req.
L: Other function.
22 P22/SCK1 DVD_CLK Input DVD Clock input.
Serial 32byte.
23 P21/SO1 SYS_DATA Output DVD Data output.
L: Other function.
24 P20/SI1 DVD_DATA Input DVD Data input.
Serial 32byte.
25 AVSS AVSS — A/D Analog GND.
26 P17/ANI7 T_RUN PULS Input Tape Run Pulse input.
27 P16/ANI6 TUN_SM(SPAN) Input Tuner signal meter input (H). (Tuner span selector --W)
28 P15/ANI5 T_FP SW Input Tape Fool Proof A & B SW.
29 P14/ANI4 PROTECT Input Power abnormal detect.
30 P13/ANI3 DVD+B PRT Input DVD +B Protect detect.
31-33 P12-P10/ANI2-ANI0 KEY 2-KEY 0 Input Key input.
34 AVDD AVDD — A/D power supply 5V.
35 AVREF AVREF — A/D reference voltage 5V.
36 P03/INTP3 P_IN Input Power failure detect. (A/C Signal)
37 P02/INTP2 PHOTO Input CD Mecha motor a rotation.
38 P01/INTP1 SP_DET Input SP abnormal detect.
L: PROTECT
39 P00/INTP0/TI0 REMOCON Input Remocon decoder input.
40 VSS VSS — Ground.
41 P74 S_MUTE Output System mute control.
H: Mute ON.
42 P73 TIMER LED Output Timer LED control.
43 P72 T_SOL B Output Tape 2 solenoid control.
L: Solenoid on.
44 P71 T_MOTOR Output Tape motor control.
L: Motor on.
CD-DV999W/CD-DV777W
8 – 12
IC701 RH-iXA004AWZZ: System Microcomputer (IXA004AW) (2/2)
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Pin No. Port Name Terminal Name Input/Output Function
45 P70 T_SOL A Output Tape 1 solenoid control.
L: Solenoid on.
46 VDD VDD — Power supply 5V.
47 P127/FIP52 SP_RLY Output SP relay control.
H: Relay ON.
48* P126/FIP51 AC_RLY Output AC relay control.
H: Relay ON.
49* P125/FIP50 RDS_RST Output RDS RAM reset.
50* P124/FIP49 RDS_READY Input RDS ready.
51* P123/FIP48 RDS_RDDA Input RDS data input.
52* P122/FIP47 RDS_RDCL Output RDS clock.
53 P121/FIP46 TRAY SW2 Input CD Mecha Tray SW2.
54 P120/FIP45 TRAY SW1 Input CD Mecha Tray SW1.
55 P117/FIP44 DISC SW Input CD Mecha Disc SW.
56 P116/FIP43 CLAMP SW Input CD Mecha Clamp SW.
57 P115/FIP42 DIST Input Destination input.
58 P114/FIP41 ILLU_LED Output FL edge light control.
H: LED ON.
59 P113/FIP40 MIC_SW Input Mic switch input. (W only)
60 P112/FIP39 KARA_LATCH Output Karaoke latch. (W only)
61 P111/FIP38 FUNC_DVD Output DVD Unit power control.
L: ON (DVD/CD func only).
62 P110/FIP37 MOT B- Output Tray motor (-). (V only)
63 P107/FIP36 MOT B+ Output Tray motor (+). (V only)
64 P106/FIP35 MOT A- Output CAM motor (-). (V only)
65 P105/FIP34 MOT A+ Output CAM motor (+). (V only)
66* P104/FIP33 MONSTER Output Monster LED control.
H: Monster ON only.
67 P103/FIP32 DISC TYPE Output Disc type monitor out.
L:DVD Disc.
68 P102/FIP31 MO_SPEED Output Mot B speed control.
H: High speed
69 P101/FIP30 S20(DIST 0) Output FL segment driver. (Destination output)
70 P100/FIP29 S19(DIST1) Output FL segment driver. (Destination output)
71 P97/FIP28 S18(DIST2) Output FL segment driver. (Destination output)
72 P96/FIP27 S17(DIST3) Output FL segment driver. (Destination output)
73-78 FIP26-FIP21 P95-P90/S16-S11 Output FL segment driver.
79 VLOAD VLOAD — VLOAD -35V
80-87 P87-80/FIP20-FIP13 S10-S3 Output FL segment driver.
88 FIP12 S2 Output FL segment driver.
89 FIP11 S1 Output FL grid driver.
90-100 FIP10-FIP0 G11-G1 Output FL grid driver.
CD-DV999W/CD-DV777W
8 – 13
IC701 RH-iXA004AWZZ: System Microcomputer (IXA004AW)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
VDD
-20dBATT
T_BIAS
T_REC/PLAY
RXD_CNT-IN
DVD_RESET
VOL_JOG1
VOL_JOG2
RESET
XOUT
XIN
VPP
DVD A MUTE
VDD
CLK
DI
DO
CE
DVD_CS
DVD_CLK
SYS_DATA
DVD_DATA
AVSS
T_RUN PULS
TUN_SM
(SPAN)
T_FP SW
PROTECT
DVD+B PRT
VDD
P37
P36/BUZ
P35/PCL
P34/T12
P33/T11
P32/TO2
RESET
X2
X1
IC(VPP)
P04/XT1
VDD
P27/SCK0
P26/SO0/SB1
P25/SI0/SB0
P24/BUSY
P23/STB
P22/SCK1
P21/SO1
P20/SI1
AVSS
P17/ANI7
P16/ANI6
P15/ANI5
P14/ANI4
P13/ANI3
VLOAD
S11
S12
S13
S14
S15
S16
S18
(DIST2)
S19
(DIST1)
S20
(DIST0)
KARA_LATCH
FUNC_DVD
MOT B-
MOT B+
MOT A-
MOT A+
MONSTER
DISC TYPE
MO_SPEED
MIC_SW
ILLU_LED
DIST
CLAMP SW
DISC SW
TRAY SW1
TRAY SW2
RDS_RDCL
RDS_RDDA
KEY2
KEY1
KEY0
AVDD
AVREF
P-IN
SP_DET
REMOCON
VSS
S MUTE
TIMER LED
T_SOL B
T MOTOR
T_SOL A
VDD
SP_RLY
AC_RLY
RDS_RST
RDS_READY
P12/ANI2
P11/ANI1
P10/ANI0
AVDD
AVREF
P03/INTP3
P02/INTP2
P01/INTP1
P00/INTPOT0
VSS
P74
P73
P72
P71
P70
VDD
P127/FIPS2
P126/FIPS1
P125/FIPS0
P124/FIP49
FIP0
FIP1
FIP2
FIP3
FIP4
FIP5
FIP6
FIP7
FIP8
FIP9
FIP10
FIP11
FIP12
P80/FIP13
P81/FIP14
P82/FIP15
P83/FIP16
P84/FIP17
P85/FIP18
P86/FIP19
G1
G2
G3
G4
G5
G6
G7
G8
G9
G10
G11
S1
S2
S3
S4
S5
S6
S7
S8
S9
S17
(DIST3)
S10
P31/TO1
P30/TO0
XT2
P87/FIP20
VLOAD
P90/FIP21
P91/FIP22
P92/FIP23
P93/FIP24
P94/FIP25
P97/FIP28
P100/FIP29
P101/FIP30
P102/FIP31
P104/FIP33
P105/FIP34
P106/FIP35
P107/FIP36
P110/FIP37
P111/FIP38
P112/FIP39
P113/FIP40
P114/FIP41
P115/FIP42
P116/FIP43
P117/FIP44
P120/FIP45
P121/FIP46
P122/FIP47
P123/FIP48
P95/FIP26
P96/FIP27
P103/FIP32
iXA004AWZZ
Figure 8-13 BLOCK DIAGRAM OF IC
CD-DV999W/CD-DV777W
8 – 14
IC851 VHIAN80T53/-1: Multi Regulator (AN80T53)
ICK1 VHiM65856SP-1: Mic Amp. (M65856SP) (1/2)
Pin
No.
Terminal Name Function
1 REG4 Output 5.1 V power supply with a minimum peak out current of 1200 mA.
2 REG3 Output 13 V power supply with a minimum peak out current of 1350 mA.
3 VCC Connected to Power supplies.
4 GND Connected to the IC substrate.
5 MODE 1 REG1, REG2,REG3 and REG4 outputs are turned ON when this pin is 5 V.
6 REG2 Output 10 V power supply with a minimum peak out current of 800 mA.
7 REG1 Output 8.5 V power supply with a minimum peak out current of 700 mA.
5 2 3 4 1 7 6
Peak Current Protection,
Thermal Protection,
Load Short Protection.
Out puts
-
+
-
+
Prc
Drive
-
+
Prc
Drive
-
+
Prc
Drive
Prc
Drive
Reference
Voltage
MODE1 REG3
13V
REG4
5.1V
REG1
8.5V
REG2
10.0V
VCC GND
Figure 8-14 BLOCK DIAGRAM OF IC
Pin No. Port Name Input/Output Function
1 MIC SW Input Microphone SWL: MIC OFF, H: MIC ON.
2 MCLKC ONT — Clock Control. Controls built-in clock generation circuit with external R.
3 VALCL — ALC operating voltage setting terminal. To set ALC operating voltage according to applied voltage.
4 MIC1 IN Input Microphone 1 input. To connect MIC 1.
5 ALC1 — ALC1 control. To connect ALC1 attack/recovery time setting capacitor.
6 MIC1NF IN Input Microphone 1 negative feedback input. To connect low cut-off frequency of MIC 1 amplifier setting
capacitor.
7 MIC1 OUT Output Microphone 1 output.
8 MIC1 VOL IN Input Microphone 1 volume input. To connect capacitor to reduce noise generated at time of volume
change.
9 MIC2 IN Input Microphone 2 input. To connect MIC 2.
10 ALC2 — ALC2 control. To connect ALC 2 attack/recovery time setting capacitor.
11 MIC2 NF IN Input Microphone 2 negative feedback input. To connect low cut-off frequency of MIC 2 amplifier setting
capacitor.
12 MIC2 OUT Output Microphone 2 output.
13 MIC2 VOL IN Input Microphone 2 volume input. To connect capacitor to reduce noise generated at time of volume
change.
14 MICOUT Output Microphone output. Mixing output of MIC 1 and MIC 2.
15 LPF1 IN1 Input Low pass filter 1 input 1. Pre-filter before A/D converter for digital delay.
16 LPF1 IN2 Input Low pass filter 1 input 2. Pre-filter before A/D converter for digital delay.
17 LPF1 OUT Output Low pass filter 1 output. Pre-filter before A/D converter for digital delay.
18 AD INTOUT Output A/D integrator output. Composes D/A conversion integrator with external capacitor.
19 AD INTIN Input A/D integrator input. Composes D/A conversion integrator with external capacitor.
20 ADCONT — A/D control. To determine adaptive time constant of A/D converter with ADM system.
21 REF — Reference power output. To connect 1/2 Vcc output and filter capacitor.
22 GND — Ground.
23 VCC Input Power supply.
24 DACONT — D/A control. To determine adaptive time constant of D/A converter with ADM system.s
25 DAINTIN Input D/A Integrator input. Composes D/A conversion integrator with external capacitor.
26 DAINTOUT Output D/A Integrator output. Composes D/A conversion integrator with external capacitor.
CD-DV999W/CD-DV777W
8 – 15
ICK1 VHiM65856SP-1: Mic Amp. (M65856SP) (2/2)
Pin No. Port Name Input/Output Function
27 LPF2IN1 Input Low pass filter 2 input 1. Post-filter after D/A converter for digital delay.
28 LPF2IN2 Input Low pass filter 2 input 2. Post-filter after D/A converter for digital delay.
29 LPF2OUT Output Low pass filter 2 output. Post-filter after D/A converter for digital delay.
30 VOLIN Input Echo effect/Echo feed back volume input. To connect capacitor to reduce noise generated at time
of volume change.
31 L IN Input Lch line input.
32 R IN Input Rch line input.
33* KEYCONIN Input Monaural input for external KEYCONTROL IC. Input/Output interface terminal for external KEY-
CONTROL IC.
34* SOURCEOUT Output Monaural input for external KEYCONTROL IC. Input/Output interface terminal for external KEY-
CONTROL IC.
35 R OUT Output Rch mixing output.
36 L OUT Output Lch mixing output.
37 VCF IL — Vocal cut filter. Processes frequencies lower then the vocal band.
38* PS1 Input Phase shift input 1. Determines a constant at time of phase shift.
39* PS2 Input Phase shift input 2. Determines a constant at time of phase shift.
40 LATCH Input Latch input via serial bus.
41 CLOCK Input Clock input via serial bus.
42 DATA Input Data input via serial bus.
CD-DV999W/CD-DV777W
8 – 16
[2] FL Display
FL701: VVKNA11SS55-1
RES WMA
V-
A
B
1
MEMORY
SURROUND
SLEEP
5
PTYI
PTY
ST
TA
TP
DAILY TITLE
CHAP
ANGLE
MHz
RDS
kHz
a
b
c
d
f
g
m
e
r
p
n
h
j
k
(2G~9G)
(1G)
D1a D1a
D1b
2G 3G 4G 5G 6G 7G 9G 10G
11G
8G1G
GRID ASSIGNMENT
P1
1G
D5-a
D5-b
D5-c
D4-a
D4-b
D4-c
D3-a
D2-a
D2-b
D2-c
D1-a
D1-b
D1-c
D3-b
D3-c
k
b
j
h
f
m
d
g
p
e
n
r
c
k
b
j
h
f
m
d
g
p
e
n
r
c
k
b
j
h
f
m
d
g
p
e
n
r
c
k
b
j
h
f
m
d
g
p
e
n
r
c
k
b
j
h
f
m
d
g
p
e
n
r
c
k
b
j
h
f
m
d
g
p
e
n
r
c
k
b
j
h
f
m
d
g
p
e
n
r
c
DotDot
aaaaaa aa
(R)
k
b
j
h
f
m
d
g
p
e
n
r
c
col
col
2G 3G 4G 5G 6G 7G 8G 9G 10G 11G
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
ANODE CONNECTION
4
3
2
1
A1
B
ANGLEMEMORY CHAP
DVD
TITLE WMAV- SURROUND
VCD
CD
MP3
X-BASS
TA
TP
DAILY
D1c
D2a D2a
D2b
D2c
D3a D3a
D3b
D3c
D4a D4a
D4b
D4c
D5a D5a
D5b
D5c
DVD
VCD
MP3
CD
X-BASS
)
(
(L)
PATTERN AREA
1
45
OUTER DIMENSIONS
PIN NO.
CONNECTION
45
F2 F2 NP NP P20 P19 P18 P17 P16 P15 P14 P13 P12 P11 P10 P9 P8 P7 NX P6
44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27-22 21
PIN NO.
CONNECTION
20
P5 P4 P3 P2 P1 11G 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G NP NP F1 F1
19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
PIN CONNECTION
col col
Dot Dot
CD-DV999W/CD-DV777W
8 – 17
—— MEMO ——
PARTS GUIDE
No. S6447CDDV777W
SHARP CORPORATION
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and performance of the set.
CD-DV999W/CD-DV777W
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
[1] INTEGRATED CIRCUITS
[2] TRANSISTORS
[3] DIODES
[4] FILTERS
[5] TRANSFORMERS
[6] COILS
[7] VIBRATORS
[8] CAPACITORS
[9] RESISTORS
[10] OTHER CIRCUITRY PARTS
[11] CHANGER MECHANISM
PARTS
[12] CABINET PARTS
[13] SPEAKER BOX PARTS
[14] ACCESSORIES/PACKING
PARTS
[15] P.W.B. ASSEMBLY
(Not Replacement Item)
[16] OTHER SERVICE PARTS
INDEX
CONTENTS
CD-DV777W
MODEL
CD-DV777W DVD Mini System consisting of CD-DV777W
(main unit)
and CP-DV777 (speaker system).
DVD MINI SYSTEM
CD-DV999W
MODEL
CD-DV999W DVD Mini System consisting of CD-DV999W
(main unit)
and CP-DV999 (speaker system).
DVD MINI SYSTEM
CD-DV999W/CD-DV777W
2
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[1] INTEGRATED CIRCUITS
IC101 VHIAN7345K/-1 AM Playback and Record/Playback Amp.,AN7345K
IC301 VHITA7358AP-1 AG FM Front End,TA7358AP
IC302 VHILC72131/-1 AP PLL (Tuner),LC72131
IC303 VHILA1832S/-1 AN FM IF Det./FM Mpx./AM IF,LA1832S
IC601 VHILC75341/-1 AM Audio Processor,LC75341
IC602 VHINJM2533M-1 AF Video Switch,NJM2533M
IC701 RH-IXA004AWZZ AX System Microcomputer,IXA004AW
IC851 VHIAN80T53/-1 AL Multi Regulator,AN80T53
IC852 VHIKIA7808AP1 AF Voltage Regulator,KIA7808AP
IC853 VHIBD9701T-V5 AM 1-ch DC-DC Converter,BD9701T
IC854 VHIAN78L05/-1 AE Voltage Regulator,AN78L05
IC855 VHILD1117V33/ AG 3.3V Voltage Regulator,LD1117V33
IC856 VHILD1117V/-1 AG 1.5V Voltage Regulator,LD1117V
IC901 VHISTK41242-1 BB Power Amp.,STK41242 [CD-DV777W]
IC901 VHISTK41244-1 BF Power Amp.,STK41244 [CD-DV999W]
IC3001 RH-IXA464WJZZ BS DVD Decoder,IXA464WJ
IC3002 VHIBD4825G+-1 AD Reset,BD4825G
IC3003 VHITC7WT126-1 AF Buffer,TC7WT126
IC3301 VHI7SB3157P-1 AF Analog Switch,7SB3157P
IC3401 RH-IX0614AWZZ AZ 64M S-DRAM,IX0614AW
IC3501 RH-IXA173WJZZ AZ Flash ROM,IXA173WJ
IC3503 VHITCLV573T-1 AK 8-Bit Latch,TCLV573T
IC3504 VHITCLV573T-1 AK 8-Bit Latch,TCLV573T
IC3601 VHIBU2363FV-1 AP Clock Generator,BU2363FV
IC3602 VHIBR24L04F-1 AF EEPROM,BR24L04F
IC3702 VHINJM12904-1 AE Ope Amp.,NJM12904
IC3704 VHILA6261//-1 AN Focus/Tracking/Spin/Sled Driver,LA6261
IC3801 VHIPCM1748E-1 AP D/A Converter,PCM1748E
ICK1 VHIM65856SP-1 AX Mic Amp.,M65856SP
ICK2 VHIKIA4558P-1 AC Ope Amp.,KIA4558P
[2] TRANSISTORS
Q101 VSKTC3200GR-1 AC Silicon,NPN,KTC3200 GR
Q102 VSKTC3200GR-1 AC Silicon,NPN,KTC3200 GR
Q103 VSKTC3200GR-1 AC Silicon,NPN,KTC3200 GR
Q104 VSKTC3200GR-1 AC Silicon,NPN,KTC3200 GR
Q105 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q106 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q107 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q108 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q109 VSKTA1504Y/-1 AB Silicon,PNP,KTA1504 Y
Q110 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q111 VSKTC3203Y/-1 AC Silicon,NPN,KTC3203 Y
Q112 VSKTA1504Y/-1 AB Silicon,PNP,KTA1504 Y
Q113 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q114 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q302 VSKTC3194Y/-1 AD Silicon,NPN,KTC3194 Y
Q360 VSKTA1266GR-1 AB Silicon,PNP,KTA1266 GR
Q601 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q602 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q603 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q604 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q605 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q606 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q661 VSKTC3265Y/-1 AC Silicon,NPN,KTC3265 Y
Q706 VSKTA1273Y/-1 AE Silicon,PNP,KTA1273 Y
Q707 VSKTA1273Y/-1 AE Silicon,PNP,KTA1273 Y
Q708 VSKTA1273Y/-1 AE Silicon,PNP,KTA1273 Y
Q709 VSKRC102S//-1 AB Digital,NPN,KRC102 S
Q710 VSKRC102S//-1 AB Digital,NPN,KRC102 S
Q711 VSKRA107S//-1 AB Digital,NPN,KRA107 S
Q712 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q713 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q714 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q715 VSKRA107S//-1 AB Digital,NPN,KRA107 S
Q716 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q717 VSKRA107S//-1 AB Digital,NPN,KRA107 S
Q801 VSKTA1274Y/-1 AE Silicon,PNP,KTA1274 Y
Q842 VSKRC107M//-1 AC Digital,NPN,KRC107 M
Q885 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q886 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q888 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q901 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q902 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q903 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q904 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q905 VSKTC3199GR-1 AB Silicon,NPN,KTC3199 GR
Q906 VSKTC3203Y/-1 AC Silicon,NPN,KTC3203 Y
Q907 VSKTC3203Y/-1 AC Silicon,NPN,KTC3203 Y
Q908 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q909 VSKTC3875GR-1 AB Silicon,NPN,KTC3875 GR
Q3100 VSKTA1298Y/-1 AC Silicon,PNP,KTA1298 Y
Q3101 VSKTA1298Y/-1 AC Silicon,PNP,KTA1298 Y
Q3102 VSKTA1298Y/-1 AC Silicon,PNP,KTA1298 Y
Q3105 VSKRC104S//-1 AC Digital,NPN,KRC104 S
CD-DV999W/CD-DV777W
3
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
Q3303 VS2SD601AR/-1 AC Silicon,NPN,2SD601 AR
Q3304 VSKTA1298Y/-1 AC Silicon,PNP,KTA1298 Y
Q3305 VS2SD601AR/-1 AC Silicon,NPN,2SD601 AR
Q3306 VSKTA1298Y/-1 AC Silicon,PNP,KTA1298 Y
Q3307 VSKRC104S//-1 AC Digital,NPN,KRC104 S
Q3501 VS2SB709AR+-1 AB Silicon,PNP,2SB709 AR
QK1 VSKTC3203Y/-1 AC Silicon,NPN,KTC3203 Y
[3] DIODES
D301 VHDDS1SS133-1 AB Silicon,DS1SS133
D302 VHDDS1SS133-1 AB Silicon,DS1SS133
D305 VHDDS1SS133-1 AB Silicon,DS1SS133
D690 VHDDS1SS133-1 AB Silicon,DS1SS133
D691 VHDDS1SS133-1 AB Silicon,DS1SS133
D701 VHDDS1SS133-1 AB Silicon,DS1SS133
D709 VHDDS1SS133-1 AB Silicon,DS1SS133
D710 VHDDS1SS133-1 AB Silicon,DS1SS133
D711 VHDDS1SS133-1 AB Silicon,DS1SS133
D712 VHDDS1SS133-1 AB Silicon,DS1SS133
D713 VHDDS1SS133-1 AB Silicon,DS1SS133
D714 VHDDS1SS133-1 AB Silicon,DS1SS133
D715 VHDDS1SS133-1 AB Silicon,DS1SS133
D716 VHDDS1SS133-1 AB Silicon,DS1SS133
D801 VHDD10XB60F-1 AL Silicon,D10XB60F
D802 VHDD10XB60F-1 AL Silicon,D10XB60F
D803 VHD1N4004S/-1 AB Silicon,1N4004S
D804 VHD1N4004S/-1 AB Silicon,1N4004S
D805 VHD1N4004S/-1 AB Silicon,1N4004S
D806 VHD1N4004S/-1 AB Silicon,1N4004S
D856 VHDDS1SS133-1 AB Silicon,DS1SS133
D860 VHDDS1SS133-1 AB Silicon,DS1SS133
D861 VHDDS1SS133-1 AB Silicon,DS1SS133
D862 VHDDS1SS133-1 AB Silicon,DS1SS133
D865 VHDDS1SS133-1 AB Silicon,DS1SS133
D867 VHDD2S4M124-1 AE D2S4M
D870 VHDRL204F//-1 AC Silicon,RL204F
D871 VHDRL204F//-1 AC Silicon,RL204F
D885 VHDDS1SS133-1 AB Silicon,DS1SS133
D905 VHDDS1SS133-1 AB Silicon,DS1SS133
D906 VHDDS1SS133-1 AB Silicon,DS1SS133
D907 VHDDS1SS133-1 AB Silicon,DS1SS133
D909 VHD1N4004S/-1 AB Silicon,1N4004S
D910 VHD1N4004S/-1 AB Silicon,1N4004S
D911 VHDDS1SS133-1 AB Silicon,DS1SS133
D912 VHDDS1SS133-1 AB Silicon,DS1SS133
D913 VHDDS1SS133-1 AB Silicon,DS1SS133
D914 VHDDS1SS133-1 AB Silicon,DS1SS133
D3002 VHDMA111///-1 AC Silicon,MA111
D3100 VHDKDS226//-1 AB Silicon,KDS226
D3101 VHDKDS226//-1 AB Silicon,KDS226
D3102 VHDKDS226//-1 AB Silicon,KDS226
D3301 VHDDAP222//-1 AC Silicon,DAP222
DK1 VHDDS1SS133-1 AB Silicon,DS1SS133
DK2 VHDDS1SS133-1 AB Silicon,DS1SS133
LED701 VHP304VT2H3-1 AC LED,Red,304VT2H3
LED703 VHPSDPB50CD-1 AK LED,Blue,SDPB50CD
ZD351 VHEDZ5R1BSB-1 AC Zener,5.1V,DZ5.1BSB
ZD801 VHEDZ6R2BSA-1 AB Zener,6.2V,DZ6.2BSA
ZD802 VHEDZ7R5BSB-1 AB Zener,7.5V,DZ7.5BSB
ZD803 VHEDZ300BSB-1 AB Zener,30V,DZ30BSB
ZD804 VHEDZ6R8BSB-1 AB Zener,6.8V,DZ6.8BSB
ZD805 VHEDZ120BSB-1 AB Zener,12V,DZ12BSB
ZD902 VHEDZ120BSB-1 AB Zener,12V,DZ12BSB
ZD903 VHEDZ120BSB-1 AB Zener,12V,DZ12BSB
ZDK1 VHEMTZJ5R6B-1 AD Zener,5.6V,MTZJ5.6B
[4] FILTERS
BF301 RFILR0008AWZZ AE Band Pass Filter
CF303 RFILF0124AFZZ AD FM IF,10.7 MHz
CF351 RFILF0003AWZZ AK FM IF
CF352 RFILA0009AWZZ AE AM IF
[5] TRANSFORMERS
!
PT801 RTRNP0520AWZZ BM Power,Main [CD-DV999W]
!
PT801 RTRNP0524AWZZ BG Power,Main [CD-DV777W]
T301 RCILB0065AWZZ AC FM OSC.
T302 RCILI0017AWZZ AB FM IF
T303 RCILA0052AWZZ AE AM Antenna
T306 RCILB0067AWZZ AD AM OSC.
T351 RCILI0019AWZZ AD AM IF
[2] TRANSISTORS
CD-DV999W/CD-DV777W
4
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[6] COILS
FB3003 RBLN-0061TAZZ AB Chip Ferrite Core
FB3401 RBLN-0061TAZZ AB Chip Ferrite Core
FB3402 RBLN-0061TAZZ AB Chip Ferrite Core
FB3601 RBLN-0061TAZZ AB Chip Ferrite Core
FB3602 RBLN-0061TAZZ AB Chip Ferrite Core
FB3603 RBLN-0061TAZZ AB Chip Ferrite Core
FB3606 RBLN-0061TAZZ AB Chip Ferrite Core
FB3801 RBLN-0061TAZZ AB Chip Ferrite Core
L103 VP-MK331K0000 AB 330 µ H,Choke
L312 RCILR0056AWZZ AB FM RF
L351 VP-DH101K0000 AB 100 µ H,Choke
L352 VP-DH101K0000 AB 100 µ H,Choke
L701 VP-DH101K0000 AB 100 µ H,Choke
L801 RCILZ0082AWZZ AF 100 µ H
!
L841 RCILZ0022AWZZ AG Line Filter
L901 RCILZ0024AWZZ AC 3 µ H,Choke
L902 RCILZ0024AWZZ AC 3 µ H,Choke
L920 RCILZ0137AFZZ AA 0.29 µ H
L921 RCILZ0137AFZZ AA 0.29 µ H
L3100 VP-NM2R2M0000 AD 2.2 µ H
L3101 VP-NM2R2M0000 AD 2.2 µ H
L3102 VP-NM2R2M0000 AD 2.2 µ H
L3201 VP-NM4R7M0000 AC 4.7 µ H
L3301 VP-NM4R7M0000 AC 4.7 µ H
L7001 VP-DH100K0000 AB 10 µ H,Choke
R3606 RBLN-0061TAZZ AB Chip Ferrite Core
[7] VIBRATORS
X351 92LCRSTL1425A AF Crystal,456 kHz
X352 RCRSP0019AWZZ AF Crystal,4.5 MHz
X3601 RCRSCA015WJZZ AK Crystal,36.864 MHz
XL701 RCRSP0003AWZZ AH Crystal,4.19 MHz
[8] CAPACITORS
C101 VCKYCY1HB561K AA 560 pF,50V
C102 VCKYCY1HB561K AA 560 pF,50V
C103 VCKYBT1HB181K AA 180 pF,50V
C104 VCCCCY1HH181J AA 180 pF (CH),50V
C105 VCKYCY1HB152K AA 0.0015 µ F,50V
C106 VCKYCY1HB152K AA 0.0015 µ F,50V
C107 VCKYCY1HB331K AA 330 pF,50V
C108 VCKYCY1HB331K AA 330 pF,50V
C109 VCKYCY1HB331K AA 330 pF,50V
C110 VCKYCY1HB331K AA 330 pF,50V
C111 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C112 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C113 VCTYPA1EX393K AA 0.039 µ F,25V
C114 VCTYPA1EX393K AA 0.039 µ F,25V
C115 VCKYCY1HB561K AA 560 pF,50V
C116 VCKYCY1HB561K AA 560 pF,50V
C117 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C118 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C119 VCKYCY1HB222K AA 0.0022 µ F,50V
C120 VCKYCY1HB222K AA 0.0022 µ F,50V
C121 VCKYCY1EF223Z AB 0.022 µ F,25V
C123 VCKYCY1HB271K AA 270 pF,50V
C124 VCKYCY1HB271K AA 270 pF,50V
C125 VCEAZA1HW226M AB 22 µ F,50V,Electrolytic
C126 VCEAZA1HW226M AB 22 µ F,50V,Electrolytic
C127 VCTYPA1CX223K AA 0.022 µ F,16V
C128 VCTYPA1CX223K AA 0.022 µ F,16V
C129 VCKYCY1HB332K AA 0.0033 µ F,50V
C130 VCKYCY1HB332K AA 0.0033 µ F,50V
C131 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C132 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C133 VCEAZA1EW226M AB 22 µ F,25V,Electrolytic
C134 VCEAZA1AW227M AC 220 µ F,10V,Electrolytic
C135 VCKYCY1EF223Z AB 0.022 µ F,25V
C137 VCQYKA1HM473K AB 0.047 µ F,50V,Mylar
C138 VCQPKA2AA822J AA 0.0082 µ F,100V,Polypropylene
C139 VCQYKA1HM393K AB 0.039 µ F,50V,Mylar
C140 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C141 VCEAZA1CW107M AC 100 µ F,16V,Electrolytic
C143 VCEAZA1HW335M AB 3.3 µ F,50V,Electrolytic
C150 VCEAZA1HW476M AB 47 µ F,50V,Electrolytic
C302 VCKYCY1HB102K AA 0.001 µ F,50V
C303 VCCCCY1HH100D AA 10 pF (CH),50V
C304 VCKYCY1HB103K AA 0.01 µ F,50V
C305 VCCCCY1HH4R7C AA 4.7 pF (CH),50V
C306 VCKYCY1EF223Z AB 0.022 µ F,25V
C307 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C308 VCCCCY1HH4R7C AA 4.7 pF (CH),50V
C309 VCKYCY1HB102K AA 0.001 µ F,50V
C310 VCCCCY1HH150J AA 15 pF (CH),50V
C311 VCCCCY1HH180J AA 18 pF (CH),50V
CD-DV999W/CD-DV777W
5
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
C312 VCKYCY1EF223Z AB 0.022 µ F,25V
C313 VCCCCY1HH220J AA 22 pF (CH),50V
C315 VCKYCY1HB103K AA 0.01 µ F,50V
C316 VCKYCY1EF223Z AB 0.022 µ F,25V
C317 VCKYCY1HB102K AA 0.001 µ F,50V
C318 VCKYBT1HB101K AA 100 pF,50V
C320 VCKYBT1HB102K AA 0.001 µ F,50V
C323 VCKYCY1EF223Z AB 0.022 µ F,25V
C324 VCCCCY1HH4R7C AA 4.7 pF (CH),50V
C330 VCCCCY1HH150J AA 15 pF (CH),50V
C331 VCKZPA1HF473Z AA 0.047 µ F,50V
C332 VCKYCY1EF223Z AB 0.022 µ F,25V
C334 VCCCCY1HH220J AA 22 pF (CH),50V
C335 VCKYCY1HB561K AA 560 pF,50V
C338 VCKYCY1HB102K AA 0.001 µ F,50V
C342 VCKYCY1EF223Z AB 0.022 µ F,25V
C347 VCKYCY1EF223Z AB 0.022 µ F,25V
C350 VCKYCY1EF223Z AB 0.022 µ F,25V
C351 VCKYCY1EF223Z AB 0.022 µ F,25V
C352 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C353 VCKYCY1EF223Z AB 0.022 µ F,25V
C354 VCKYCY1EF223Z AB 0.022 µ F,25V
C355 VCCCCY1HH220J AA 22 pF (CH),50V
C356 VCKYCY1HB102K AA 0.001 µ F,50V
C357 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
C358 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C361 VCKYCY1EF223Z AB 0.022 µ F,25V
C362 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
C363 VCKYCY1EF223Z AB 0.022 µ F,25V
C364 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
C365 VCTYPA1CX223K AA 0.022 µ F,16V
C366 VCKYCY1HB102K AA 0.001 µ F,50V
C367 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C368 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C369 VCCCCY1HH270J AA 27 pF (CH),50V
C370 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C371 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C372 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C373 VCTYPA1CX153K AA 0.015 µ F,16V
C374 VCTYPA1CX153K AA 0.015 µ F,16V
C380 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C381 VCCCCY1HH120J AA 12 pF (CH),50V
C382 VCCCCY1HH150J AA 15 pF (CH),50V
C383 VCCSBT1HL470J AA 47 pF,50V
C384 VCKYCY1HB102K AA 0.001 µ F,50V
C385 VCKYCY1HB103K AA 0.01 µ F,50V
C386 VCKYCY1HB331K AA 330 pF,50V
C387 VCKYCY1EF223Z AB 0.022 µ F,25V
C388 VCKYCY1HB102K AA 0.001 µ F,50V
C389 VCKYBT1HB102K AA 0.001 µ F,50V
C391 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C392 VCKYCY1HB102K AA 0.001 µ F,50V
C393 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C394 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C395 VCKYCY1EF223Z AB 0.022 µ F,25V
C396 VCEAZA1AW107M AB 100 µ F,10V,Electrolytic
C397 VCKYCY1EF223Z AB 0.022 µ F,25V
C398 VCEAZA1AW107M AB 100 µ F,10V,Electrolytic
C399 VCKYCY1EF223Z AB 0.022 µ F,25V
C601 VCEAZA1CW227M AC 220 µ F,16V,Electrolytic
C602 VCKYPA1HF223Z AB 0.022 µ F,50V
C603 VCEAZA1AW227M AC 220 µ F,10V,Electrolytic
C605 VCFYFA1HA104J AC 0.1 µ F,50V,Thin Film
C606 VCFYFA1HA104J AC 0.1 µ F,50V,Thin Film
C607 VCFYFA1HA823J AB 0.082 µ F,50V
C608 VCFYFA1HA823J AB 0.082 µ F,50V
C609 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C610 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C611 VCKYCY1HB222K AA 0.0022 µ F,50V
C612 VCKYCY1HB222K AA 0.0022 µ F,50V
C613 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C614 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C615 VCEAZA1HW475M AB 4.7 µ F,50V,Electrolytic
C616 VCEAZA1HW475M AB 4.7 µ F,50V,Electrolytic
C617 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C618 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C619 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C620 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C621 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C622 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C623 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C624 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C625 VCKYCY1HB222K AA 0.0022 µ F,50V
C626 VCKYCY1HB222K AA 0.0022 µ F,50V
C631 VCKYBT1HB103K AB 0.01 µ F,50V
[8] CAPACITORS
CD-DV999W/CD-DV777W
6
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
C639 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C640 VCEAZA1HW226M AB 22 µ F,50V,Electrolytic
C651 VCKYCY1HB221K AA 220 pF,50V
C652 VCKYCY1HB221K AA 220 pF,50V
C653 VCKYCY1HB221K AA 220 pF,50V
C662 VCEAZA1CW106M AC 10 µ F,16V,Electrolytic
C663 VCEAZA1CW106M AC 10 µ F,16V,Electrolytic
C664 VCEAZA1CW107M AC 100 µ F,16V,Electrolytic
C665 VCEAZA1CW106M AC 10 µ F,16V,Electrolytic
C666 VCKYCY1HB103K AA 0.01 µ F,50V
C667 VCEAZA0JW108M AC 1000 µ F,6.3V,Electrolytic
C669 VCEAZA1CW107M AC 100 µ F,16V,Electrolytic
C670 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C671 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C690 VCKYPA1HB391K AA 390 pF,50V
C691 VCKYPA1HB391K AA 390 pF,50V
C693 VCKYPA1HB101K AA 100 pF,50V
C694 VCKYPA1HB102K AA 0.001 µ F,50V
C695 VCKYPA1HB102K AA 0.001 µ F,50V
C696 VCKYPA1HB103K AA 0.01 µ F,50V
C701 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C702 VCEAZA0JW108M AC 1000 µ F,6.3V,Electrolytic
C704 VCCCCY1HH150J AA 15 pF (CH),50V
C705 VCCCCY1HH180J AA 18 pF (CH),50V
C707 VCEAZA1HW105M AB 1 µ F,50V,Electrolytic
C709 VCKYCY1HB473K AB 0.047 µ F,50V
C710 VCKYCY1HB473K AB 0.047 µ F,50V
C714 VCEAZA1HW335M AB 3.3 µ F,50V,Electrolytic
C715 VCKYCY1HB103K AA 0.01 µ F,50V
C717 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C720 VCKYCY1EF223Z AB 0.022 µ F,25V
C721 VCKYCY1EF223Z AB 0.022 µ F,25V
C722 VCKYCY1HF103Z AB 0.01 µ F,50V
C723 VCKYCY1EF473Z AB 0.047 µ F,25V
C727 VCKYCY1EF473Z AB 0.047 µ F,25V
C730 VCKYCY1EF473Z AB 0.047 µ F,25V
C732 VCKYCY1EF473Z AB 0.047 µ F,25V
C801 VCEAZA1VW107M AC 100 µ F,35V,Electrolytic
C802 VCEAZA1HW476M AB 47 µ F,50V,Electrolytic
C803 VCEAZA1HW476M AB 47 µ F,50V,Electrolytic
C804 VCEAZA1JW227M AD 220 µ F,63V,Electrolytic
C805 VCEAZA2AW226M AC 22 µ F,100V,Electrolytic
C806 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C807 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C808 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C809 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C810 VCFYDA2AA224J AD 0.22 µ F,100V,Thin Film
C811 VCFYDA2AA224J AD 0.22 µ F,100V,Thin Film
C812 RC-EZ0149AWZZ AC 470 µ F,10V,Electrolytic
C813 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C814 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C815 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C816 RC-EZ0159AWZZ AC 220 µ F,35V,Electrolytic
C817 VCEAZA1EW226M AB 22 µ F,25V,Electrolytic
C850 RC-EZ3006AWZZ AL 6800 µ F,35V,Electrolytic
C851 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C852 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C854 VCEAZA1EW227M AC 220 µ F,25V,Electrolytic
C855 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C856 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C859 VCEAZA1HW226M AB 22 µ F,50V,Electrolytic
C861 VCKYPA1HF223Z AB 0.022 µ F,50V
C864 VCEAZA1EW226M AB 22 µ F,25V,Electrolytic
C865 VCEAZA1EW226M AB 22 µ F,25V,Electrolytic
C866 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C871A VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C871B VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C872 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C873 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C874 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C875 VCKYCY1HB104K AD 0.1 µ F,50V
C876 VCKYCY1HB104K AD 0.1 µ F,50V
C877 VCKYCY1HB104K AD 0.1 µ F,50V
C878 VCKYCY1HB104K AD 0.1 µ F,50V
C885 VCKYCY1HB104K AD 0.1 µ F,50V
C901 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic [CD-DV999W]
C901 VCEAZA1HW475M AB 4.7 µ F,50V,Electrolytic [CD-DV777W]
C902 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic [CD-DV999W]
C902 VCEAZA1HW475M AB 4.7 µ F,50V,Electrolytic [CD-DV777W]
C903 VCKYCY1HB102K AA 0.001 µ F,50V
C904 VCKYCY1HB102K AA 0.001 µ F,50V
C905 VCEAZA1HW476M AB 47 µ F,50V,Electrolytic
C906 VCEAZA1HW476M AB 47 µ F,50V,Electrolytic
C907 VCCCCY1HH101J AA 100 pF (CH),50V
C908 VCCCCY1HH3R0C AA 3 pF (CH),50V
[8] CAPACITORS
CD-DV999W/CD-DV777W
7
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
C909 VCQYKA1HM104K AB 0.1 µ F,50V,Mylar
C910 VCCCCY1HH3R0C AA 3 pF (CH),50V
C911 VCEAZA2AW107M AD 100 µ F,100V,Electrolytic
C912 VCEAZA2AW107M AD 100 µ F,100V,Electrolytic
C913 VCCCCY1HH101J AA 100 pF (CH),50V
C914 VCEAZA2AW107M AD 100 µ F,100V,Electrolytic
C915 VCEAZA2AW107M AD 100 µ F,100V,Electrolytic
C916 VCEAZA1HW107M AC 100 µ F,50V,Electrolytic
C917 VCKYCY1HB103K AA 0.01 µ F,50V
C918 VCEAZA1HW107M AC 100 µ F,50V,Electrolytic
C919 VCKYCY1HB103K AA 0.01 µ F,50V
C920 RC-EZ0029AWZZ AN 3300 µ F,71V,Electrolytic [CD-DV777W]
C920 RC-EZ0124AWZZ AR 3900 µ F,85V,Electrolytic [CD-DV999W]
C921 RC-EZ0065AWZZ AN 4700 µ F,50V,Electrolytic [CD-DV999W]
C921 RC-EZ0106AWZZ AH 4700 µ F,35V,Electrolytic [CD-DV777W]
C922 RC-EZ0065AWZZ AN 4700 µ F,50V,Electrolytic [CD-DV999W]
C922 RC-EZ0106AWZZ AH 4700 µ F,35V,Electrolytic [CD-DV777W]
C923 RC-EZ0029AWZZ AN 3300 µ F,71V,Electrolytic [CD-DV777W]
C923 RC-EZ0124AWZZ AR 3900 µ F,85V,Electrolytic [CD-DV999W]
C925 VCEAZA1HW476M AB 47 µ F,50V,Electrolytic
C926 VCFYFA1HA224J AC 0.22 µ F,50V,Thin Film
C927 VCFYFA1HA224J AC 0.22 µ F,50V,Thin Film
C928 VCFYFA1HA224J AC 0.22 µ F,50V,Thin Film
C929 VCFYFA1HA224J AC 0.22 µ F,50V,Thin Film
C931 VCEAZA1HW106M AB 10 µ F,50V,Electrolytic
C944 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
C946 VCEAZA1HW104M AB 0.1 µ F,50V,Electrolytic
C3001 VCKYCY1CB104K AB 0.1 µ F,16V
C3003 VCKYCY1CB104K AB 0.1 µ F,16V
C3004 VCKYCY1CB104K AB 0.1 µ F,16V
C3006 VCKYCY1CB104K AB 0.1 µ F,16V
C3007 VCKYCY1CB104K AB 0.1 µ F,16V
C3009 VCKYCY1CB104K AB 0.1 µ F,16V
C3010 VCKYCY1CB104K AB 0.1 µ F,16V
C3013 VCKYCY1CB104K AB 0.1 µ F,16V
C3014 VCKYCY1CB104K AB 0.1 µ F,16V
C3015 VCKYCY1CB104K AB 0.1 µ F,16V
C3017 VCKYCY1CB104K AB 0.1 µ F,16V
C3018 VCKYCY1CB104K AB 0.1 µ F,16V
C3019 VCKYCY0JB105K AC 1 µ F,6.3V
C3020 VCKYCY1CB104K AB 0.1 µ F,16V
C3022 VCKYCY1CB104K AB 0.1 µ F,16V
C3023 VCKYCY1CB104K AB 0.1 µ F,16V
C3025 VCKYCY0JB105K AC 1 µ F,6.3V
C3026 VCKYCY1HB821K AA 820 pF,50V
C3027 VCKYCY1HB102K AA 0.001 µ F,50V
C3028 VCKYCY1CB104K AB 0.1 µ F,16V
C3030 VCKYCY1CB104K AB 0.1 µ F,16V
C3031 VCKYCY1HB102K AA 0.001 µ F,50V
C3032 VCKYCY1HB102K AA 0.001 µ F,50V
C3033 VCKYCY1HB102K AA 0.001 µ F,50V
C3034 VCKYCY1HB152K AA 0.0015 µ F,50V
C3035 VCKYCY1CB104K AB 0.1 µ F,16V
C3036 VCKYCY1EB103K AA 0.01 µ F,25V
C3037 VCKYCY1CB104K AB 0.1 µ F,16V
C3038 VCCCCY1HH221J AA 220 pF (CH),50V
C3039 VCKYCY0JB105K AC 1 µ F,6.3V
C3040 VCKYCY0JB105K AC 1 µ F,6.3V
C3041 VCKYCY0JB105K AC 1 µ F,6.3V
C3042 VCKYCY1CB104K AB 0.1 µ F,16V
C3043 VCKYCY1CB104K AB 0.1 µ F,16V
C3044 VCKYCY1HB562K AA 0.0056 µ F,50V
C3045 VCKYCY1EB183K AB 0.018 µ F,25V
C3046 VCKYCY1CB104K AB 0.1 µ F,16V
C3047 VCCCCY1HH331J AA 330 pF (CH),50V
C3048 VCKYCY1EB103K AA 0.01 µ F,25V
C3049 VCKYCY1CB104K AB 0.1 µ F,16V
C3050 VCKYCY1CB104K AB 0.1 µ F,16V
C3051 VCKYCY1CB104K AB 0.1 µ F,16V
C3052 VCCCCY1HH330J AA 33 pF (CH),50V
C3053 VCKYCY1CB333K AA 0.033 µ F,16V
C3054 VCKYCY1CB104K AB 0.1 µ F,16V
C3055 VCKYCY1CB104K AB 0.1 µ F,16V
C3056 VCKYCY1CB104K AB 0.1 µ F,16V
C3057 VCKYCY1CB104K AB 0.1 µ F,16V
C3058 RC-EZ0475GEZZ AD 220 µ F,6.3V,Electrolytic
C3059 RC-EZ0475GEZZ AD 220 µ F,6.3V,Electrolytic
C3060 VCKYCY1CB104K AB 0.1 µ F,16V
C3061 VCKYCY1CB104K AB 0.1 µ F,16V
C3062 VCKYCY0JB105K AC 1 µ F,6.3V
C3063 VCKYCY1CB104K AB 0.1 µ F,16V
C3065 VCKYCY1CB104K AB 0.1 µ F,16V
C3066 VCKYCY1CB104K AB 0.1 µ F,16V
C3068 RC-EZ0475GEZZ AD 220 µ F,6.3V,Electrolytic
C3100 VCCCCY1HH180J AA 18 pF (CH),50V
[8] CAPACITORS
CD-DV999W/CD-DV777W
8
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
C3107 VCCCCY1HH100D AA 10 pF (CH),50V
C3108 VCCCCY1HH180J AA 18 pF (CH),50V
C3109 VCCCCY1HH100D AA 10 pF (CH),50V
C3110 VCCCCY1HH180J AA 18 pF (CH),50V
C3111 VCCCCY1HH100D AA 10 pF (CH),50V
C3301 VCKYCY1CB104K AB 0.1 µ F,16V
C3302 VCEAPS476AF0J AC 47 µ F,6.3V,Electrolytic
C3303 VCEAPS476AF0J AC 47 µ F,6.3V,Electrolytic
C3304 VCKYCY1CB104K AB 0.1 µ F,16V
C3401 VCKYCY1CB104K AB 0.1 µ F,16V
C3402 VCKYCY1CB104K AB 0.1 µ F,16V
C3406 VCKYCY1CB104K AB 0.1 µ F,16V
C3408 VCKYCY1CB104K AB 0.1 µ F,16V
C3409 VCKYCY1CB104K AB 0.1 µ F,16V
C3412 VCKYCY1CB104K AB 0.1 µ F,16V
C3501 VCKYCY1CB104K AB 0.1 µ F,16V
C3502 VCKYCY1CB104K AB 0.1 µ F,16V
C3503 VCKYCY1CB104K AB 0.1 µ F,16V
C3504 VCKYCY1CB104K AB 0.1 µ F,16V
C3601 VCKYCY1CB104K AB 0.1 µ F,16V
C3602 VCKYCY1CB104K AB 0.1 µ F,16V
C3603 VCKYCY1CB104K AB 0.1 µ F,16V
C3604 VCCCCY1HH9R0D AA 9 pF (CH),50V
C3605 VCCCCY1HH9R0D AA 9 pF (CH),50V
C3606 VCEAPS107AF0J AC 100 µ F,6.3V,Electrolytic
C3703 VCKYCY1CB104K AB 0.1 µ F,16V
C3705 VCEAPS107AF1A AD 100 µ F,10V,Electrolytic
C3706 VCKYCY1CB104K AB 0.1 µ F,16V
C3707 VCKYCY1HB103K AA 0.01 µ F,50V
C3708 VCKYCY1CB104K AB 0.1 µ F,16V
C3709 VCKYCY1EF223Z AB 0.022 µ F,25V
C3710 VCEAPS107AF1A AD 100 µ F,10V,Electrolytic
C3711 VCKYCY1CB104K AB 0.1 µ F,16V
C3712 VCEAPS107AF1A AD 100 µ F,10V,Electrolytic
C3801 RC-EZ0130AWZZ AG 10 µ F,10V,Electrolytic
C3803 VCKYCY1CB104K AB 0.1 µ F,16V
C3804 VCKYCY1CB104K AB 0.1 µ F,16V
C3805 RC-EZ0475GEZZ AD 220 µ F,6.3V,Electrolytic
C3906 VCKYCY1CB104K AB 0.1 µ F,16V
C7001 VCEAZA1AW476M AB 47 µ F,10V,Electrolytic
C7002 VCKZPA1HF223Z AA 0.022 µ F,50V
C7003 VCCSPA1HL470J AA 47 pF,50V
C7004 VCCSPA1HL470J AA 47 pF,50V
C7005 VCCSPA1HL470J AA 47 pF,50V
C7008 VCTYPA1CX103K AA 0.01 µ F,16V
C7009 VCEAZA1AW477M AC 470 µ F,10V,Electrolytic
C7011 VCEAZA1AW477M AC 470 µ F,10V,Electrolytic
CK1 VCTYPA1CX103K AA 0.01 µ F,16V
CK3 VCKZPA1HF473Z AA 0.047 µ F,50V
CK7 VCEAZA1HW474M AB 0.47 µ F,50V,Electrolytic
CK8 VCEAZA1HW475M AB 4.7 µ F,50V,Electrolytic
CK9 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
CK10 VCFYFA1HA104J AC 0.1 µ F,50V,Thin Film
CK11 VCFYFA1HA104J AC 0.1 µ F,50V,Thin Film
CK12 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
CK13 VCTYPA1CX472K AA 0.0047 µ F,16V
CK14 VCKYPA1HB102K AA 0.001 µ F,50V
CK15 VCFYFA1HA683J AB 0.068 µ F,50V,Thin Film
CK16 VCFYFA1HA224J AC 0.22 µ F,50V,Thin Film
CK17 VCEAZA1AW227M AC 220 µ F,10V,Electrolytic
CK18 VCEAZA1CW107M AC 100 µ F,16V,Electrolytic
CK19 VCKZPA1HF223Z AA 0.022 µ F,50V
CK20 VCFYFA1HA224J AC 0.22 µ F,50V,Thin Film
CK21 VCFYFA1HA683J AB 0.068 µ F,50V,Thin Film
CK22 VCTYPA1CX472K AA 0.0047 µ F,16V
CK23 VCKYPA1HB102K AA 0.001 µ F,50V
CK24 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
CK25 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
CK26 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
CK29 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
CK30 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
CK31 VCFYFA1HA154J AB 0.15 µ F,50V,Thin Film
CK33 VCCSPA1HL470J AA 47 pF,50V
CK34 VCCSPA1HL470J AA 47 pF,50V
CK35 VCCSPA1HL470J AA 47 pF,50V
CK40 VCEAZA1CW107M AC 100 µ F,16V,Electrolytic
CK41 VCEAZA1CW107M AC 100 µ F,16V,Electrolytic
CK42 VCKZPA1HF223Z AA 0.022 µ F,50V
CK43 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
CK44 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
CK45 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
CK46 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
CK47 VCCSPA1HL221J AA 220 pF,50V
CK48 VCCSPA1HL221J AA 220 pF,50V
CK49 VCCSPA1HL101J AA 100 pF,50V
[8] CAPACITORS
CD-DV999W/CD-DV777W
9
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
CK50 VCCSPA1HL101J AA 100 pF,50V
CK51 VCEAZA1HW476M AB 47 µ F,50V,Electrolytic
CK52 VCEAZA1HW476M AB 47 µ F,50V,Electrolytic
CK53 VCEAZA1EW476M AB 47 µ F,25V,Electrolytic
CK54 VCFYFA1HA104J AC 0.1 µ F,50V,Thin Film
CK70 VCEAZA1HW474M AB 0.47 µ F,50V,Electrolytic
CK71 VCEAZA1HW475M AB 4.7 µ F,50V,Electrolytic
CK72 VCEAZA1HW225M AB 2.2 µ F,50V,Electrolytic
CK73 VCFYFA1HA104J AC 0.1 µ F,50V,Thin Film
CK74 VCFYFA1HA104J AC 0.1 µ F,50V,Thin Film
CK75 VCFYFA1HA104J AC 0.1 µ F,50V,Thin Film
[9] RESISTORS
VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
FB3001 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
FB3002 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R101 VRS-CY1JB102J AA 1 kohm,1/16W
R102 VRS-CY1JB102J AA 1 kohm,1/16W
R103 VRS-CY1JB222J AA 2.2 kohms,1/16W
R104 VRS-CY1JB222J AA 2.2 kohms,1/16W
R105 VRS-CY1JB332J AA 3.3 kohms,1/16W
R106 VRS-CY1JB332J AA 3.3 kohms,1/16W
R107 VRS-CY1JB473J AA 47 kohms,1/16W
R108 VRS-CY1JB473J AA 47 kohms,1/16W
R109 VRS-CY1JB472J AA 4.7 kohms,1/16W
R110 VRS-CY1JB472J AA 4.7 kohms,1/16W
R111 VRD-ST2CD153J AA 15 kohms,1/6W
R112 VRS-CY1JB153J AA 15 kohms,1/16W
R113 VRD-ST2CD102J AA 1 kohm,1/6W
R114 VRD-ST2CD102J AA 1 kohm,1/6W
R115 VRD-ST2CD560J AA 56 ohms,1/6W
R116 VRD-ST2CD560J AA 56 ohms,1/6W
R117 VRS-CY1JB104J AA 100 kohm,1/16W
R118 VRS-CY1JB104J AA 100 kohm,1/16W
R119 VRS-CY1JB392J AA 3.9 kohms,1/16W
R120 VRS-CY1JB392J AA 3.9 kohms,1/16W
R121 VRS-CY1JB153J AA 15 kohms,1/16W [CD-DV999W]
R121 VRS-CY1JB183J AA 18 kohms,1/16W [CD-DV777W]
R122 VRS-CY1JB153J AA 15 kohms,1/16W [CD-DV999W]
R122 VRS-CY1JB183J AA 18 kohms,1/16W [CD-DV777W]
R123 VRS-CY1JB562J AA 5.6 kohms,1/16W [CD-DV999W]
R123 VRS-CY1JB682J AA 6.8 kohms,1/16W [CD-DV777W]
R124 VRS-CY1JB562J AA 5.6 kohms,1/16W [CD-DV999W]
R124 VRS-CY1JB682J AA 6.8 kohms,1/16W [CD-DV777W]
R126 VRS-CY1JB472J AA 4.7 kohms,1/16W
R127 VRS-CY1JB472J AA 4.7 kohms,1/16W
R128 VRS-CY1JB562J AA 5.6 kohms,1/16W
R129 VRS-CY1JB562J AA 5.6 kohms,1/16W
R130 VRS-CY1JB152J AA 1.5 kohms,1/16W
R131 VRS-CY1JB152J AA 1.5 kohms,1/16W
R132 VRS-CY1JB101J AA 100 ohm,1/16W
R133 VRS-CY1JB101J AA 100 ohm,1/16W
R134 VRS-CY1JB103J AA 10 kohm,1/16W
R135 VRS-CY1JB103J AA 10 kohm,1/16W
R136 VRS-CY1JB224J AA 220 kohms,1/16W
R137 VRS-CY1JB224J AA 220 kohms,1/16W
R138 VRS-CY1JB103J AA 10 kohm,1/16W
R139 VRS-CY1JB103J AA 10 kohm,1/16W
R140 VRS-CY1JB473J AA 47 kohms,1/16W
R141 VRS-CY1JB472J AA 4.7 kohms,1/16W
R142 VRD-RT2HD820J AA 82 ohms,1/2W
R143 VRS-CY1JB473J AA 47 kohms,1/16W
R144 VRS-CY1JB223J AA 22 kohms,1/16W
R145 VRD-ST2CD4R7J AA 4.7 ohms,1/6W
R146 VRS-CY1JB103J AA 10 kohm,1/16W
R147 VRS-CY1JB103J AA 10 kohm,1/16W
R148 VRS-CY1JB472J AA 4.7 kohms,1/16W
R149 VRD-ST2EE151J AA 150 ohms,1/4W
R150 VRS-CY1JB683J AA 68 kohms,1/16W
R158 VRD-ST2EE221J AA 220 ohms,1/4W
R302 VRS-CY1JB100J AA 10 ohm,1/16W
R309 VRD-ST2CD103J AA 10 kohm,1/6W
R311 VRS-CY1JB104J AA 100 kohm,1/16W
R313 VRS-CY1JB333J AA 33 kohms,1/16W
R314 VRD-ST2CD220J AA 22 ohms,1/6W
R316 VRS-CY1JB472J AA 4.7 kohms,1/16W
R322 VRS-CY1JB681J AA 680 ohms,1/16W
R323 VRS-CY1JB683J AA 68 kohms,1/16W
R325 VRS-CY1JB473J AA 47 kohms,1/16W
R336 VRS-CY1JB103J AA 10 kohm,1/16W
R350 VRS-CY1JB272J AA 2.7 kohms,1/16W
R351 VRS-CY1JB562J AA 5.6 kohms,1/16W
R352 VRS-CY1JB102J AA 1 kohm,1/16W
R353 VRS-CY1JB271J AA 270 ohms,1/16W
R355 VRS-CY1JB332J AA 3.3 kohms,1/16W
[8] CAPACITORS
CD-DV999W/CD-DV777W
10
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
R356 VRS-CY1JB102J AA 1 kohm,1/16W
R357 VRS-CY1JB474J AA 470 kohms,1/16W
R358 VRD-ST2CD392J AA 3.9 kohms,1/6W
R359 VRS-CY1JB182J AA 1.8 kohms,1/16W
R360 VRS-CY1JB472J AA 4.7 kohms,1/16W
R365 VRS-CY1JB103J AA 10 kohm,1/16W
R372 VRS-CY1JB102J AA 1 kohm,1/16W
R373 VRS-CY1JB102J AA 1 kohm,1/16W
R374 VRS-CY1JB102J AA 1 kohm,1/16W
R375 VRD-ST2CD471J AA 470 ohms,1/6W
R376 VRS-CY1JB102J AA 1 kohm,1/16W
R377 VRS-CY1JB473J AA 47 kohms,1/16W
R378 VRS-CY1JB102J AA 1 kohm,1/16W
R379 VRS-CY1JB222J AA 2.2 kohms,1/16W
R380 VRS-CY1JB152J AA 1.5 kohms,1/16W
R381 VRS-CY1JB103J AA 10 kohm,1/16W
R382 VRD-ST2EE151J AA 150 ohms,1/4W
R383 VRS-CY1JB562J AA 5.6 kohms,1/16W
R384 VRD-ST2CD562J AA 5.6 kohms,1/6W
R385 VRS-CY1JB562J AA 5.6 kohms,1/16W
R386 VRD-ST2CD223J AA 22 kohms,1/6W
R387 VRD-ST2CD562J AA 5.6 kohms,1/6W
R388 VRS-CY1JB392J AA 3.9 kohms,1/16W
R391 VRD-ST2EE271J AA 270 ohms,1/4W
R392 VRD-ST2EE271J AA 270 ohms,1/4W
R393 VRD-ST2CD102J AA 1 kohm,1/6W
R395 VRS-CY1JB473J AA 47 kohms,1/16W
R573 VRD-ST2CD103J AA 10 kohm,1/6W
R574 VRS-CY1JB472J AA 4.7 kohms,1/16W
R576 VRD-ST2CD102J AA 1 kohm,1/6W
R577 VRD-ST2CD102J AA 1 kohm,1/6W
R578 VRD-ST2CD102J AA 1 kohm,1/6W
R579 VRD-ST2CD102J AA 1 kohm,1/6W
R588 VRS-CY1JB103J AA 10 kohm,1/16W
R589 VRD-ST2CD103J AA 10 kohm,1/6W
R593 VRS-CY1JB472J AA 4.7 kohms,1/16W
R601 VRD-ST2CD102J AA 1 kohm,1/6W
R602 VRD-ST2CD102J AA 1 kohm,1/6W
R603 VRD-ST2CD102J AA 1 kohm,1/6W
R604 VRS-CY1JB103J AA 10 kohm,1/16W
R605 VRS-CY1JB103J AA 10 kohm,1/16W
R606 VRS-CY1JB392J AA 3.9 kohms,1/16W
R607 VRS-CY1JB392J AA 3.9 kohms,1/16W
R608 VRS-CY1JB822J AA 8.2 kohms,1/16W
R609 VRS-CY1JB822J AA 8.2 kohms,1/16W
R610 VRS-CY1JB222J AA 2.2 kohms,1/16W
R611 VRS-CY1JB222J AA 2.2 kohms,1/16W
R612 VRS-CY1JB391J AA 390 ohms,1/16W
R613 VRS-CY1JB391J AA 390 ohms,1/16W
R614 VRS-CY1JB822J AA 8.2 kohms,1/16W
R615 VRS-CY1JB822J AA 8.2 kohms,1/16W
R616 VRS-CY1JB222J AA 2.2 kohms,1/16W
R617 VRS-CY1JB222J AA 2.2 kohms,1/16W
R618 VRD-ST2CD331J AA 330 ohms,1/6W
R619 VRS-CY1JB331J AA 330 ohms,1/16W
R620 VRS-CY1JB223J AA 22 kohms,1/16W
R621 VRS-CY1JB223J AA 22 kohms,1/16W
R641 VRS-CY1JB103J AA 10 kohm,1/16W
R642 VRD-ST2CD103J AA 10 kohm,1/6W
R643 VRS-CY1JB682J AA 6.8 kohms,1/16W
R644 VRS-CY1JB682J AA 6.8 kohms,1/16W
R660A VRS-CY1JB102J AA 1 kohm,1/16W
R660B VRS-CY1JB561J AA 560 ohms,1/16W
R661 VRD-ST2CD101J AA 100 ohm,1/6W
R662 VRS-CY1JB222J AA 2.2 kohms,1/16W
R663 VRS-CY1JB332J AA 3.3 kohms,1/16W
R664 VRS-CY1JB221J AA 220 ohms,1/16W
R665 VRS-CY1JB472J AA 4.7 kohms,1/16W
R666 VRS-CY1JB472J AA 4.7 kohms,1/16W
R667 VRS-CY1JB472J AA 4.7 kohms,1/16W
R668 VRS-CY1JB472J AA 4.7 kohms,1/16W
R674 VRS-CY1JB221J AA 220 ohms,1/16W
R675 VRS-CY1JB221J AA 220 ohms,1/16W
R677 VRS-CY1JB222J AA 2.2 kohms,1/16W
R679 VRS-CY1JB680J AA 68 ohms,1/16W
R680 VRD-ST2CD103J AA 10 kohm,1/6W
R681 VRD-ST2CD103J AA 10 kohm,1/6W
R688 VRS-CY1JB331J AA 330 ohms,1/16W
R690 VRD-ST2CD682J AA 6.8 kohms,1/6W
R691 VRD-ST2CD682J AA 6.8 kohms,1/6W
R692 VRD-ST2CD333J AA 33 kohms,1/6W [CD-DV777W]
R692 VRD-ST2CD393J AA 39 kohms,1/6W [CD-DV999W]
R693 VRD-ST2CD333J AA 33 kohms,1/6W [CD-DV777W]
R693 VRD-ST2CD393J AA 39 kohms,1/6W [CD-DV999W]
R701 VRS-CY1JB102J AA 1 kohm,1/16W
[9] RESISTORS
CD-DV999W/CD-DV777W
11
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
R702 VRS-CY1JB102J AA 1 kohm,1/16W
R703 VRS-CY1JB101J AA 100 ohm,1/16W
R704 VRD-ST2CD222J AA 2.2 kohms,1/6W
R705 VRD-ST2CD102J AA 1 kohm,1/6W
R706 VRS-CY1JB102J AA 1 kohm,1/16W
R707 VRD-ST2CD102J AA 1 kohm,1/6W
R708 VRD-ST2CD102J AA 1 kohm,1/6W
R709 VRD-ST2CD102J AA 1 kohm,1/6W
R710 VRD-ST2CD102J AA 1 kohm,1/6W
R711 VRD-ST2CD102J AA 1 kohm,1/6W
R712 VRD-ST2CD102J AA 1 kohm,1/6W
R713 VRS-CY1JB102J AA 1 kohm,1/16W
R714 VRS-CY1JB102J AA 1 kohm,1/16W
R715 VRS-CY1JB222J AA 2.2 kohms,1/16W
R716 VRS-CY1JB102J AA 1 kohm,1/16W
R717 VRD-ST2CD102J AA 1 kohm,1/6W
R718 VRS-CY1JB102J AA 1 kohm,1/16W
R719 VRS-CY1JB102J AA 1 kohm,1/16W
R720 VRS-CY1JB102J AA 1 kohm,1/16W
R721 VRS-CY1JB102J AA 1 kohm,1/16W
R722 VRS-CY1JB102J AA 1 kohm,1/16W
R723 VRD-ST2CD102J AA 1 kohm,1/6W
R724 VRS-CY1JB102J AA 1 kohm,1/16W
R725 VRD-ST2CD102J AA 1 kohm,1/6W
R726 VRS-CY1JB222J AA 2.2 kohms,1/16W
R727 VRS-CY1JB681J AA 680 ohms,1/16W
R728 VRS-CY1JB681J AA 680 ohms,1/16W
R729 VRD-ST2CD561J AA 560 ohms,1/6W
R730 VRD-ST2CD102J AA 1 kohm,1/6W
R731 VRS-CY1JB103J AA 10 kohm,1/16W
R732 VRS-CY1JB102J AA 1 kohm,1/16W
R733 VRS-CY1JB102J AA 1 kohm,1/16W
R736 VRS-CY1JB102J AA 1 kohm,1/16W
R737 VRD-ST2CD102J AA 1 kohm,1/6W
R738 VRD-ST2CD102J AA 1 kohm,1/6W
R739 VRD-ST2CD102J AA 1 kohm,1/6W
R740 VRD-ST2CD101J AA 100 ohm,1/6W
R741 VRD-ST2CD102J AA 1 kohm,1/6W
R742 VRS-CY1JB102J AA 1 kohm,1/16W
R743 VRS-CY1JB102J AA 1 kohm,1/16W
R744 VRD-ST2CD102J AA 1 kohm,1/6W
R745 VRD-ST2CD103J AA 10 kohm,1/6W
R746 VRD-ST2CD102J AA 1 kohm,1/6W
R748 VRD-ST2CD102J AA 1 kohm,1/6W
R750 VRD-ST2CD473J AA 47 kohms,1/6W
R751 VRD-ST2CD331J AA 330 ohms,1/6W
R753 VRD-ST2CD102J AA 1 kohm,1/6W
R754 VRD-ST2CD103J AA 10 kohm,1/6W
R755 VRD-ST2CD472J AA 4.7 kohms,1/6W
R757 VRS-CY1JB103J AA 10 kohm,1/16W
R759 VRD-ST2CD562J AA 5.6 kohms,1/6W
R760 VRS-CY1JB822J AA 8.2 kohms,1/16W
R761 VRS-CY1JB103J AA 10 kohm,1/16W
R763 VRS-CY1JB102J AA 1 kohm,1/16W
R766 VRS-CY1JB103J AA 10 kohm,1/16W
R767 VRS-CY1JB103J AA 10 kohm,1/16W
R768 VRS-CY1JB103J AA 10 kohm,1/16W
R769 VRD-ST2CD102J AA 1 kohm,1/6W
R770 VRS-CY1JB562J AA 5.6 kohms,1/16W
R771 VRD-ST2CD472J AA 4.7 kohms,1/6W
R772 VRD-ST2CD102J AA 1 kohm,1/6W
R773 VRS-CY1JB103J AA 10 kohm,1/16W
R774 VRS-CY1JB103J AA 10 kohm,1/16W
R775 VRS-CY1JB103J AA 10 kohm,1/16W
R777 VRS-CY1JB103J AA 10 kohm,1/16W
R778 VRS-CY1JB103J AA 10 kohm,1/16W
R779 VRS-CY1JB103J AA 10 kohm,1/16W
R780 VRD-ST2CD103J AA 10 kohm,1/6W
R781 VRS-CY1JB473J AA 47 kohms,1/16W
R782 VRD-ST2CD104J AA 100 kohm,1/6W
R783 VRS-CY1JB101J AA 100 ohm,1/16W
R786 VRS-CY1JB472J AA 4.7 kohms,1/16W
R787 VRD-ST2CD472J AA 4.7 kohms,1/6W
R788 VRD-ST2CD472J AA 4.7 kohms,1/6W
R789 VRD-ST2CD472J AA 4.7 kohms,1/6W
R790 VRS-CY1JB822J AA 8.2 kohms,1/16W
R791 VRS-CY1JB472J AA 4.7 kohms,1/16W
R794 VRD-ST2EE1R5J AA 1.5 ohms,1/4W
R795 VRD-ST2EE1R5J AA 1.5 ohms,1/4W
R796 VRS-CY1JB103J AA 10 kohm,1/16W
R797 VRS-CY1JB103J AA 10 kohm,1/16W
R798 VRS-CY1JB103J AA 10 kohm,1/16W
R799 VRS-CY1JB103J AA 10 kohm,1/16W
R801 VRD-ST2CD104J AA 100 kohm,1/6W
R802 VRD-ST2CD473J AA 47 kohms,1/6W
[9] RESISTORS
CD-DV999W/CD-DV777W
12
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
R803 VRD-ST2CD123J AA 12 kohms,1/6W
R804 VRD-ST2EE470J AA 47 ohms,1/4W
R805 VRD-ST2EE470J AA 47 ohms,1/4W
R806 VRD-ST2CD473J AA 47 kohms,1/6W
R808 VRD-RT2HD222J AA 2.2 kohms,1/2W
R853 VRD-ST2CD223J AA 22 kohms,1/6W
R854 VRD-ST2CD332J AA 3.3 kohms,1/6W
R857 VRD-ST2CD223J AA 22 kohms,1/6W
R859 VRD-ST2CD103J AA 10 kohm,1/6W
R864 VRD-ST2CD223J AA 22 kohms,1/6W
R865 VRD-ST2CD222J AA 2.2 kohms,1/6W
R871A VRS-CY1JB270J AA 27 ohms,1/16W
R871B VRD-ST2CD102J AA 1 kohm,1/6W
R872 VRS-CY1JB331J AA 330 ohms,1/16W
R873 VRS-CY1JB470J AA 47 ohms,1/16W
R874 VRS-CY1JB121J AA 120 ohms,1/16W
R885 VRS-CY1JB681J AA 680 ohms,1/16W [CD-DV999W]
R885 VRS-CY1JB821J AA 820 ohms,1/16W [CD-DV777W]
R886 VRS-CY1JB223J AA 22 kohms,1/16W
R887 VRS-CY1JB223J AA 22 kohms,1/16W
R888 VRD-ST2CD473J AA 47 kohms,1/6W
R889 VRD-ST2CD473J AA 47 kohms,1/6W
R891 VRD-ST2EE101J AA 100 ohm,1/4W
R892 VRD-ST2CD182J AA 1.8 kohms,1/6W
R893 VRD-ST2CD103J AA 10 kohm,1/6W
R901 VRS-CY1JB563J AA 56 kohms,1/16W
R902 VRS-CY1JB563J AA 56 kohms,1/16W
R903 VRS-CY1JB102J AA 1 kohm,1/16W
R904 VRS-CY1JB102J AA 1 kohm,1/16W
R905 VRS-CY1JB561J AA 560 ohms,1/16W
R906 VRS-CY1JB561J AA 560 ohms,1/16W
R907 VRS-CY1JB563J AA 56 kohms,1/16W
R908 VRS-CY1JB102J AA 1 kohm,1/16W
R909 VRS-CY1JB333J AA 33 kohms,1/16W
R910 VRD-ST2CD102J AA 1 kohm,1/6W
R911 VRS-CY1JB563J AA 56 kohms,1/16W
!
R912 VRG-ST2EC101J AB 100 ohm,1/4W,Fusible
R913 VRN-CM05NR22J AD 0.22 ohms,5W [CD-DV999W]
R913 VRN-VV3LAR22J AC 0.22 ohms,3W [CD-DV777W]
R916 VRN-CM05NR22J AD 0.22 ohms,5W [CD-DV999W]
R916 VRN-VV3LAR22J AC 0.22 ohms,3W [CD-DV777W]
R917 VRN-CM05N0R1J AD 0.1 ohm,5W [CD-DV999W]
R917 VRN-VV3LAR10J AD 0.1 ohm,3W [CD-DV777W]
R918 VRD-ST2CD152J AA 1.5 kohms,1/6W [CD-DV777W]
R918 VRD-ST2CD222J AA 2.2 kohms,1/6W [CD-DV999W]
R919 VRS-CY1JB152J AA 1.5 kohms,1/16W [CD-DV999W]
R919 VRS-CY1JB182J AA 1.8 kohms,1/16W [CD-DV777W]
R920 VRS-CY1JB152J AA 1.5 kohms,1/16W [CD-DV999W]
R920 VRS-CY1JB182J AA 1.8 kohms,1/16W [CD-DV777W]
R921 VRD-ST2CD152J AA 1.5 kohms,1/6W [CD-DV777W]
R921 VRD-ST2CD222J AA 2.2 kohms,1/6W [CD-DV999W]
R922 VRN-CM05N0R1J AD 0.1 ohm,5W [CD-DV999W]
R922 VRN-VV3LAR10J AD 0.1 ohm,3W [CD-DV777W]
R925 VRD-RT2HD152J AA 1.5 kohms,1/2W
R926 VRD-RT2HD152J AA 1.5 kohms,1/2W
R927 VRD-ST2EE393J AA 39 kohms,1/4W
R928 VRD-ST2EE393J AA 39 kohms,1/4W
R929 VRD-ST2EE473J AA 47 kohms,1/4W
R930 VRD-ST2EE473J AA 47 kohms,1/4W
R934 VRD-ST2CD563J AA 56 kohms,1/6W
R935 VRD-ST2CD563J AA 56 kohms,1/6W
R937 VRS-CY1JB563J AA 56 kohms,1/16W
R938 VRD-RT2HD100J AA 10 ohm,1/2W
R939 VRD-RT2HD100J AA 10 ohm,1/2W
R940 VRD-RT2HD100J AA 10 ohm,1/2W
R941 VRD-RT2HD100J AA 10 ohm,1/2W
R942 VRS-VV3DA471J AB 470 ohms,2W [CD-DV777W]
R942 VRS-VV3DA681J AC 680 ohms,2W [CD-DV999W]
R943 VRS-VV3DA471J AB 470 ohms,2W [CD-DV777W]
R943 VRS-VV3DA681J AC 680 ohms,2W [CD-DV999W]
R944 VRD-ST2CD152J AA 1.5 kohms,1/6W
R945 VRD-ST2CD152J AA 1.5 kohms,1/6W
R946 VRS-CY1JB473J AA 47 kohms,1/16W
R947 VRS-CY1JB153J AA 15 kohms,1/16W
R949 VRD-RT2HD102J AA 1 kohm,1/2W
R950 VRD-ST2CD683J AA 68 kohms,1/6W
R951 VRD-ST2EE102J AA 1 kohm,1/4W
R956 VRS-CY1JB102J AA 1 kohm,1/16W
R957 VRS-CY1JB472J AA 4.7 kohms,1/16W
!
R958 VRG-ST2EC101J AB 100 ohm,1/4W,Fusible
R959 VRD-ST2CD221J AA 220 ohms,1/6W
R983 VRS-CY1JB333J AA 33 kohms,1/16W
R984 VRS-CY1JB152J AA 1.5 kohms,1/16W [CD-DV999W]
R984 VRS-CY1JB182J AA 1.8 kohms,1/16W [CD-DV777W]
R985 VRS-CY1JB562J AA 5.6 kohms,1/16W [CD-DV999W]
[9] RESISTORS
CD-DV999W/CD-DV777W
13
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
R985 VRS-CY1JB822J AA 8.2 kohms,1/16W [CD-DV777W]
R986 VRS-CY1JB562J AA 5.6 kohms,1/16W [CD-DV999W]
R986 VRS-CY1JB822J AA 8.2 kohms,1/16W [CD-DV777W]
R987 VRS-CY1JB222J AA 2.2 kohms,1/16W
R988 VRS-CY1JB222J AA 2.2 kohms,1/16W
R3001 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3002 VRS-CY1JB220J AA 22 ohms,1/16W
R3003 VRS-CY1JB101J AA 100 ohm,1/16W
R3004 VRS-CY1JB101J AA 100 ohm,1/16W
R3005 VRS-CY1JB332J AA 3.3 kohms,1/16W
R3006 VRS-CY1JB332J AA 3.3 kohms,1/16W
R3007 VRS-CY1JB332J AA 3.3 kohms,1/16W
R3008 VRS-CY1JB101J AA 100 ohm,1/16W
R3009 VRS-CY1JB101J AA 100 ohm,1/16W
R3010 VRS-CY1JB103J AA 10 kohm,1/16W
R3011 VRS-CY1JB103F AA 10 kohm,1/16W
R3012 VRS-CY1JB153F AA 15 kohms,1/16W
R3013 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3014 VRS-CY1JB153F AA 15 kohms,1/16W
R3015 VRS-CB1JF000J AA Block Resistors,0 ohmx4
R3016 VRS-CB1JF000J AA Block Resistors,0 ohmx4
R3018 VRS-CB1JF000J AA Block Resistors,0 ohmx4
R3019 VRS-CY1JB153J AA 15 kohms,1/16W
R3020 VRS-CY1JB153F AA 15 kohms,1/16W
R3021 VRS-CY1JB822J AA 8.2 kohms,1/16W
R3022 VRS-CY1JB822J AA 8.2 kohms,1/16W
R3024 VRS-CB1JF000J AA Block Resistors,0 ohmx4
R3025 VRS-CY1JB153J AA 15 kohms,1/16W
R3026 VRS-CY1JB153J AA 15 kohms,1/16W
R3027 VRS-CY1JB683J AA 68 kohms,1/16W
R3030 VRS-CY1JB153F AA 15 kohms,1/16W
R3031 VRS-CY1JB102J AA 1 kohm,1/16W
R3032 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3033 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3035 VRS-CY1JB681J AA 680 ohms,1/16W
R3037 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3038 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3039 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3043 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3044 VRS-CY1JB102J AA 1 kohm,1/16W
R3045 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3046 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3049 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3050 VRS-CY1JB335J AA 3.3 Mohms,1/16W
R3052 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3062 VRS-CY1JB392F AA 3.9 kohms,1/16W
R3063 VRS-CY1JB102J AA 1 kohm,1/16W
R3071 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3072 VRS-CY1JB332J AA 3.3 kohms,1/16W
R3074 VRS-CY1JB682J AA 6.8 kohms,1/16W
R3075 VRS-CY1JB682J AA 6.8 kohms,1/16W
R3076 VRS-CY1JB154J AA 150 kohms,1/16W
R3077 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3085 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3088 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3090 VRS-CY1JB103J AA 10 kohm,1/16W
R3091 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3103 VRS-TW2EE121J AA 120 ohms,1/4W
R3106 VRS-CY1JB511J AA 510 ohms,1/16W
R3107 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3109 VRS-TW2EE121J AA 120 ohms,1/4W
R3110 VRS-TW2EE121J AA 120 ohms,1/4W
R3111 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3112 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3115 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3116 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3117 VRS-CY1JB511J AA 510 ohms,1/16W
R3118 VRS-CY1JB511J AA 510 ohms,1/16W
R3126 VRS-CY1JB471J AA 470 ohms,1/16W
R3132 VRS-TV2AB750J AA 75 ohms,1/10W
R3133 VRS-TV2AB750J AA 75 ohms,1/10W
R3134 VRS-TV2AB750J AA 75 ohms,1/10W
R3135 VRS-TV2AB750J AA 75 ohms,1/10W
R3136 VRS-TV2AB750J AA 75 ohms,1/10W
R3137 VRS-TV2AB750J AA 75 ohms,1/10W
R3138 VRS-CY1JB102J AA 1 kohm,1/16W
R3139 VRS-CY1JB102J AA 1 kohm,1/16W
R3140 VRS-CY1JB101J AA 100 ohm,1/16W
R3142 VRS-CY1JB330J AA 33 ohms,1/16W
R3143 VRS-CY1JB102J AA 1 kohm,1/16W
R3144 VRS-CY1JB221J AA 220 ohms,1/16W
R3145 VRS-CY1JB221J AA 220 ohms,1/16W
R3147 VRS-CY1JB103J AA 10 kohm,1/16W
R3151 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3152 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
[9] RESISTORS
CD-DV999W/CD-DV777W
14
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
R3153 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3154 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3155 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3156 VRS-TV2AB000J AA 0 ohm,Jumper,1.25x2mm,Green
R3157 VRS-TV2AB000J AA 0 ohm,Jumper,1.25x2mm,Green
R3158 VRS-TV2AB000J AA 0 ohm,Jumper,1.25x2mm,Green
R3159 VRS-TV2AB000J AA 0 ohm,Jumper,1.25x2mm,Green
R3160 VRS-TV2AB000J AA 0 ohm,Jumper,1.25x2mm,Green
R3161 VRS-TV2AB000J AA 0 ohm,Jumper,1.25x2mm,Green
R3162 VRS-CY1JB103J AA 10 kohm,1/16W
R3163 VRS-CY1JB392J AA 3.9 kohms,1/16W
R3164 VRS-CY1JB392J AA 3.9 kohms,1/16W
R3165 VRS-CY1JB182J AA 1.8 kohms,1/16W
R3166 VRS-CY1JB392J AA 3.9 kohms,1/16W
R3167 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3171 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3172 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3201 VRS-CY1JB151J AA 150 ohms,1/16W
R3202 VRS-CY1JB151J AA 150 ohms,1/16W
R3203 VRS-CY1JB151J AA 150 ohms,1/16W
R3204 VRS-CY1JB750F AA 75 ohms,1/16W
R3205 VRS-CY1JB750F AA 75 ohms,1/16W
R3206 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3207 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3208 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3211 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3303 VRS-CY1JB102J AA 1 kohm,1/16W
R3304 VRS-CY1JB471J AA 470 ohms,1/16W
R3306 VRS-TW2EE470J AA 47 ohms,1/4W
R3307 VRS-TW2EE330J AB 33 ohms,1/4W
R3309 VRS-CY1JB473J AA 47 kohms,1/16W
R3310 VRS-CY1JB473J AA 47 kohms,1/16W
R3311 VRS-CY1JB103J AA 10 kohm,1/16W
R3312 VRS-CY1JB103J AA 10 kohm,1/16W
R3313 VRS-CY1JB102J AA 1 kohm,1/16W
R3314 VRS-CY1JB681J AA 680 ohms,1/16W
R3316 VRS-TW2EE470J AA 47 ohms,1/4W
R3317 VRS-TW2EE470J AA 47 ohms,1/4W
R3318 VRS-CY1JB473J AA 47 kohms,1/16W
R3319 VRS-CY1JB473J AA 47 kohms,1/16W
R3320 VRS-CY1JB103J AA 10 kohm,1/16W
R3321 VRS-CY1JB103J AA 10 kohm,1/16W
R3322 VRS-CY1JB103J AA 10 kohm,1/16W
R3401 VRS-CB1JF820J AB Block Resistors,82 ohmsx4
R3402 VRS-CB1JF820J AB Block Resistors,82 ohmsx4
R3403 VRS-CB1JF820J AB Block Resistors,82 ohmsx4
R3404 VRS-CB1JF820J AB Block Resistors,82 ohmsx4
R3405 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3406 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3407 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3408 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3409 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3410 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3411 VRS-CB1JF000J AA Block Resistors,0 ohmx4
R3412 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3413 VRS-CY1JB333J AA 33 kohms,1/16W
R3414 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3415 VRS-CB1JF000J AA Block Resistors,0 ohmx4
R3416 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3417 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3418 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3419 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3420 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3421 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3422 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3423 VRS-CB1JF820J AB Block Resistors,82 ohmsx4
R3424 VRS-CB1JF820J AB Block Resistors,82 ohmsx4
R3425 VRS-CB1JF820J AB Block Resistors,82 ohmsx4
R3426 VRS-CB1JF820J AB Block Resistors,82 ohmsx4
R3522 VRS-CY1JB472J AA 4.7 kohms,1/16W
R3523 VRS-CY1JB222J AA 2.2 kohms,1/16W
R3531 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3547 VRS-CY1JB102J AA 1 kohm,1/16W
R3548 VRS-CY1JB102J AA 1 kohm,1/16W
R3601 VRS-CY1JB103J AA 10 kohm,1/16W
R3602 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3603 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3604 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3605 VRS-CY1JB221J AA 220 ohms,1/16W
R3701 VRS-CY1JB153J AA 15 kohms,1/16W
R3702 VRS-CY1JB823J AA 82 kohms,1/16W
R3703 VRS-CY1JB823J AA 82 kohms,1/16W
R3704 VRS-CY1JB153J AA 15 kohms,1/16W
R3706 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3707 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
[9] RESISTORS
CD-DV999W/CD-DV777W
15
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
R3711 VRS-CY1JB822J AA 8.2 kohms,1/16W
R3712 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3714 VRS-CY1JB123J AA 12 kohms,1/16W
R3715 VRS-CY1JB472J AA 4.7 kohms,1/16W
R3716 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3717 VRS-CY1JB103J AA 10 kohm,1/16W
R3718 VRS-CY1JB103J AA 10 kohm,1/16W
R3722 VRS-CY1JB822J AA 8.2 kohms,1/16W
R3726 VRS-CY1JB822J AA 8.2 kohms,1/16W
R3727 VRS-CY1JB182J AA 1.8 kohms,1/16W
R3728 VRS-CY1JB474J AA 470 kohms,1/16W
R3729 VRS-CY1JB103J AA 10 kohm,1/16W
R3730 VRS-CY1JB473J AA 47 kohms,1/16W
R3731 VRS-CY1JB221J AA 220 ohms,1/16W
R3732 VRS-CY1JB333J AA 33 kohms,1/16W
R3733 VRS-CY1JB272J AA 2.7 kohms,1/16W
R3734 VRS-CY1JB273J AA 27 kohms,1/16W
R3735 VRS-CY1JB223J AA 22 kohms,1/16W
R3801 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3802 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3803 VRS-CY1JB000J AA 0 ohm,Jumper,0.8x1.55mm,Green
R3806 VRS-TV2AB470J AA 47 ohms,1/10W
R7004 VRD-ST2CD333J AA 33 kohms,1/6W
RD01 VRD-ST2CD681J AA 680 ohms,1/6W
RD02 VRS-CY1JB821J AA 820 ohms,1/16W
RD03 VRS-CY1JB102J AA 1 kohm,1/16W
RD04 VRD-ST2CD152J AA 1.5 kohms,1/6W
RD05 VRS-CY1JB222J AA 2.2 kohms,1/16W
RD06 VRS-CY1JB272J AA 2.7 kohms,1/16W
RD07 VRD-ST2CD392J AA 3.9 kohms,1/6W
RD11 VRS-CY1JB681J AA 680 ohms,1/16W
RD12 VRS-CY1JB821J AA 820 ohms,1/16W
RD13 VRD-ST2CD102J AA 1 kohm,1/6W
RD14 VRS-CY1JB152J AA 1.5 kohms,1/16W
RD22 VRD-ST2CD333J AA 33 kohms,1/6W
RD23 VRD-ST2CD681J AA 680 ohms,1/6W
RD24 VRD-ST2CD821J AA 820 ohms,1/6W
RD25 VRD-ST2CD102J AA 1 kohm,1/6W
RD26 VRS-CY1JB152J AA 1.5 kohms,1/16W
RD27 VRS-CY1JB222J AA 2.2 kohms,1/16W
RD28 VRS-CY1JB272J AA 2.7 kohms,1/16W
RD29 VRS-CY1JB392J AA 3.9 kohms,1/16W
RD30 VRS-CY1JB562J AA 5.6 kohms,1/16W
RD31 VRS-CY1JB103J AA 10 kohm,1/16W
RD32 VRS-CY1JB153J AA 15 kohms,1/16W
RK1 VRD-ST2CD103J AA 10 kohm,1/6W
RK2 VRD-ST2CD563J AA 56 kohms,1/6W
RK3 VRD-ST2CD563J AA 56 kohms,1/6W
RK4 VRD-ST2CD103J AA 10 kohm,1/6W
RK7 VRD-ST2CD102J AA 1 kohm,1/6W
RK8 VRD-ST2CD562J AA 5.6 kohms,1/6W
RK9 VRD-ST2CD102J AA 1 kohm,1/6W
RK10 VRD-ST2CD102J AA 1 kohm,1/6W
RK11 VRD-ST2CD102J AA 1 kohm,1/6W
RK12 VRD-ST2CD101J AA 100 ohm,1/6W
RK13 VRD-ST2CD122J AA 1.2 kohms,1/6W
RK14 VRD-RT2HD101J AA 100 ohm,1/2W
RK15 VRD-RT2HD101J AA 100 ohm,1/2W
RK36 VRD-ST2CD391J AA 390 ohms,1/6W
RK37 VRD-ST2CD391J AA 390 ohms,1/6W
RK38 VRD-ST2CD101J AA 100 ohm,1/6W
RK39 VRD-ST2CD102J AA 1 kohm,1/6W
RK40 VRD-ST2CD102J AA 1 kohm,1/6W
RK41 VRD-ST2CD103J AA 10 kohm,1/6W
RK42 VRD-ST2CD103J AA 10 kohm,1/6W
RK43 VRD-ST2CD183J AA 18 kohms,1/6W
RK44 VRD-ST2CD682J AA 6.8 kohms,1/6W
RK45 VRD-ST2CD682J AA 6.8 kohms,1/6W
RK46 VRD-ST2CD183J AA 18 kohms,1/6W
RK47 VRD-ST2CD822J AA 8.2 kohms,1/6W
RK48 VRD-ST2CD103J AA 10 kohm,1/6W
RK49 VRD-ST2CD103J AA 10 kohm,1/6W
RK50 VRD-ST2CD103J AA 10 kohm,1/6W
RK70 VRD-ST2CD102J AA 1 kohm,1/6W
RK71 VRD-ST2CD562J AA 5.6 kohms,1/6W
RK72 VRD-ST2CD472J AA 4.7 kohms,1/6W
RK73 VRD-ST2CD472J AA 4.7 kohms,1/6W
[9] RESISTORS
CD-DV999W/CD-DV777W
16
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[10] OTHER CIRCUITRY PARTS
BI102 QCNWN1974AWZZ AM Connector Ass'y,7/6Pin With in CNS102
BI601 QCNWNA130AWPZ Connector Ass'y,15/14Pin,Within CNS601
BI603 QCNWN2714AWPZ AK Connector Ass'y,6/5Pin,Within CNS603
BI801 QCNWN2731AWPZ Connector Ass'y,15/14Pin,Within CNS801
BIK1 QCNWN2721AWPZ AK Connector Ass'y,12/11Pin Within CNSK1
CN3003 QCNCWXC11AFZZ AF Plug,11Pin
CN3004 QCNCM890NAFZZ AH Plug,13Pin
CN3201 QCNCM970PAFZZ AK Plug,14Pin
CN3203 QCNCM890CAFZZ AC Plug,3Pin
CN3301 QCNCWXM24AFZZ AG Socket,24Pin
CN3701 QCNCM970GAFZZ AG Plug,7Pin
CN3702 QCNCM970BAFZZ AD Plug,2Pin
CN3704 QCNCWXT06AFZZ AD Plug,6Pin
CNP6A QCNCWZO11AWZZ AC Socket,11Pin
CNP101 QCNCM705CAFZZ AA Plug,3Pin
CNP301 92LCONE2P5268 AB Plug,2Pin
CNP602 92LCONE5P53253 AB Plug,5Pin
CNP701
A
QCNCWZY22AWZZ AD Socket,22Pin
CNP701
B
QCNCWZX22AWZZ AD Socket,22Pin
CNP702
A
QCNCWZY09AWZZ AC Socket,9Pin
CNP703 QCNCWYH06AWZZ AC Socket,6Pin
CNP704 QCNCWZY14AWZZ AD Socket,14Pin
CNP801 92LCONEEP5267X AD Plug,14Pin
CNP802 QCNCW012FAWZZ AC Plug,6Pin
!
CNP805 QCNCM049BAWZZ AC Plug,2Pin
CNP901 QCNCW012EAWZZ AC Socket,5Pin
CNP971 92LCONE2P53253 AB Plug,2Pin
CNP700
1
92LCONE8P53253 AC Plug,8Pin
CNP700
2
92LCONE2P5268 AB Plug,2Pin
CNP700
3
92LCONE3P53253 AB Plug,3Pin
CNP700
4
92LCONE2P53253 AB Plug,2Pin
CNP708
1
QCNCWZO11AWZZ AC Socket,11Pin
CNP708
2
QCNCWZX14AWZZ AD Socket,14Pin
CNP708
3
QCNCWYP11AWZZ AE Socket,11Pin
CNPK1 92LCONEBP53253 AC Plug,11Pin
CNS3A/
B
QCNWNA087AWPZ AF Connector Ass'y,6/6Pin
CNS971 QCNWNA080AWPZ AC Connector Ass'y,2Pin
CNS370
1
QCNWNA083AWPZ AH Connector Ass'y,7Pin
CNS370
2
QCNWNA064AWPZ AE Connector Ass'y,2Pin
!
F801 QFS-D502ABGNI AC Fuse,T5A L 250V
!
F802 QFS-D502ABGNI AC Fuse,T5A L 250V
!
F803 QFS-D202ABGNI AC Fuse,T2A L 250V
!
F804 QFS-D202ABGNI AC Fuse,T2A L 250V
!
F805 QFS-D502ABGNI AC Fuse,T5A L 250V
!
F806 QFS-D252ABGNI AE Fuse,T2.5A L 250V
!
F807 QFS-D252ABGNI AE Fuse,T2.5A L 250V
FFC1 QCNWN2700AWPZ AE Flat Cable,16Pin
FFC4 QCNWN2701AWPZ AD Flat Cable,11Pin
FFC701 QCNWN2719AWPZ AF Flat Cable,22Pin
FFC702 QCNWN2496AWZZ AD Flat Cable,9Pin
FFC703 QCNWN2723AWPZ AD Flat Cable,6PiN
FFC704 QCNWN2718AWPZ AF Flat Cable,14Pin
FFC330
1
QCNWNA069AWPZ AG Flat Cable,24Pin
FFC708
1
QCNWN2701AWPZ AD Flat Cable,11Pin
FFC708
2
QCNWN2717AWPZ AF Flat Cable,14Pin
FFC708
3
QCNWNA067AWPZ Flat Cable,11Pin
FJ1 RCORFA001AWZZ AB Core
FL701 VVKNA11SS55-1 AV FL Display
FW705 QCNWN2712AWPZ AD Flat Wire,6Pin
FW901 QCNWN2711AWPZ AD Flat Wire,5Pin
IC501 VHPTOTX141/-1 AK Digital Out Terminal,TOTX141
JK1 QJAKJ0012AWZZ AF Jack,Mic
JK2 QJAKJ0012AWZZ AF Jack,Mic
JK690 QSOCJ0313AWZZ AF Jack,Game Input
JK691 QSOCJ0120AWZZ AD Jack,Video Out
JK692 QJAKM0004AWZZ AK Jack,Headphones
JOG701 QSW-ZA001AWZZ AE Switch,Jog Type [Volume]
LG1 QLUGPA001AWZZ AC Lug Terminal
CD-DV999W/CD-DV777W
17
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
LG2 QLUGPA001AWZZ AC Lug Terminal
LG3 QLUGPA001AWZZ AC Lug Terminal
LG4 QLUGPA001AWZZ AC Lug Terminal
M1 92LMTR5529AASY AD Motor with Gear [Tray]
M2 92LMTR5529AASY AD Motor with Gear [Main Cam]
M901 RMOTV0059AWZZ AL Motor Air Cooling,Fan
NM1 92LMTR5515CASY AS Motor with Chassis [Spindle]
NM2 92LMTR1854BASY AP Motor with Gear [Sled]
NSW1 QSW-F9001AW01 AD Switch,Push Type [Pickup In]
!
RL841 RRLYD0018AWZZ AH Relay
RL914 RRLYD0016AWZZ AH Relay
RX1 VHPGP1S094HCZ AF Photo Interrupter,GP1S094HCZ
RX701 VHLPIC3704/-1 AG Remote Sensor,PIC3704
SO302 QTANC0206AWZZ AD Terminal,FM Antenna
SO902 QTANA0424AWZZ AE Terminal,Speaker
SO7001 QSOCDA001AWZZ Terminal,S-Video
SW1 QSW-P9003AWZZ AD Switch,Push Type [Clamp]
SW2 QSW-P9003AWZZ AD Switch,Push Type [Tray SW1]
SW3 QSW-P9003AWZZ AD Switch,Push Type [Tray SW2]
SW4 QSW-P9006AWZZ AF Switch,Push Type [Disc]
SW601 QSW-S0024AWZZ AE Switch,Slide Type
SW701 92LSWICH1401AT AC Switch,Key Type [Power On/Stand-by]
SW702 92LSWICH1401AT AC Switch,Key Type [Clock/Timer]
SW703 92LSWICH1401AT AC Switch,Key Type [Tuning Up]
SW704 92LSWICH1401AT AC Switch,Key Type [Tuning Down]
SW705 92LSWICH1401AT AC Switch,Key Type [Fast Rewind/Preset Down]
SW706 92LSWICH1401AT AC Switch,Key Type [Equalizer]
SW707 92LSWICH1401AT AC Switch,Key Type [Fast Forward/Preset Up]
SW708 92LSWICH1401AT AC Switch,Key Type [Reverse Mode]
SW712 92LSWICH1401AT AC Switch,Key Type [Tuner (Band)]
SW713 92LSWICH1401AT AC Switch,Key Type [DVD]
SW714 92LSWICH1401AT AC Switch,Key Type [Tape]
SW715 92LSWICH1401AT AC Switch,Key Type [Game/Video]
SW716 92LSWICH1401AT AC Switch,Key Type [X-Bass/Demo]
SW724 92LSWICH1401AT AC Switch,Key Type [Reverse Play]
SW725 92LSWICH1401AT AC Switch,Key Type [Play/Repeat]
SW726 92LSWICH1401AT AC Switch,Key Type [Stop]
SW727 92LSWICH1401AT AC Switch,Key Type [Rec/Pause]
SW728 92LSWICH1401AT AC Switch,Key Type [Memory/Set]
SW729 92LSWICH1401AT AC Switch,Key Type [Open/Close]
SW730 92LSWICH1401AT AC Switch,Key Type [Direct Play]
SW731 92LSWICH1401AT AC Switch,Key Type [Disc2]
SW732 92LSWICH1401AT AC Switch,Key Type [Disc4]
SW733 92LSWICH1401AT AC Switch,Key Type [Disc5]
SW734 92LSWICH1401AT AC Switch,Key Type [Disc3]
SW735 92LSWICH1401AT AC Switch,Key Type [Disc1]
!
SW801 QSOCE0008AWZZ AH Switch,Rotary Type [Voltage Selector]
VD301 VHCSVC347S/-1 AG Variable Capacitance,SVC347S
VD302 VHCSVC230C/-1 AD Variable Capacitance,SVC230C
VD303 VHCSVC230C/-1 AD Variable Capacitance,SVC230C
VRK1 RVR-G0001AWZZ AD 20 kohms (B) [Mic Volume]
WTM705 QCNCW019FAWZZ AB Socket,6Pin
WTM901 QCNCW019EAWZZ AB Socket,5Pin
[10] OTHER CIRCUITRY PARTS
CD-DV999W/CD-DV777W
18
[11] CHANGER MECHANISM PARTS
PWB-E
107
122
115
123
108
119
135
104
136
112
113
139
133
143
134
132
140
124
141
111
137
136
120
110
801x2
803x6
103
138
804
148
149
147
146
145
126
125
127
128
118
142
145
152
121
144
131
105
150
148
129
147
146
151
130
152
117
101
101
101
101
101
102
102
102
116
114
106
109-2
109-3
109-5
109
109-1
109-4
102
102
M1
SW1
SW2
SW3
RX1
SW4
M2
803x2
CD-DV999W/CD-DV777W
19
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[11] CHANGER MECHANISM PARTS
101 GCOVA1513AWZZ AF Disc Tray
102 GCOVA1514AWZZ AF Guide Tray
103 LANGG0008AWZZ AD Outer Tray Guide
104 LANGG0009AWZZ AC Inner Tray Guide
105 LCHSM0194AWZZ AP Main Base
106 LHLDZ9018AWZZ AF DVD Mechanism Holder
107 LPLTP0014AWZZ AK Top Plate
108 LPLTP0015AWZZ AG Gear Plate
109 MHOLD5655ASY Up/Down Holder Ass'y
109- 1 LHLDM9002AWZZ AD Stabilizer
109- 2 LHLDZ9019AWM1 AK Up/Down Holder Ass'y
109- 3 LPLTM0018AWZZ AB Stabilizer Plate
109- 4 LPLTMA001AWFW AC Plate
109- 5 PMAGF0003AWZZ AF Magnet
110 MLEVP0129AWZZ AC Tray Lock Lever
111 MLEVP0130AWZZ AG Gear Up/Down Board
112 MLEVP0131AWZZ AD Mechanism Up/Down Board (L)
113 MLEVP0132AWZZ AD Mechanism Up/Down Board (R)
114 MLEVP0133AWZZ AC Mechanism Clamp Board
115 MLEVP0134AWZZ AD L/R Joint Lver
116 MLEVP0135AWZZ AC Tray Set Lever
117 MLEVP0136AWZZ AC Mechanism Clamp Switch Lever
118 MLEVP0137AWZZ AC Mechanism Clamp Switch Arm
119 MLEVP0138AWZZ AB Inner GR Up/Down Lever
120 MLEVP0139AWZZ AC Outer GR Up/Down Lever
121 MSPRC0044AWFJ AB Shift Spring
122 MSPRD0191AWFJ AC Disc Stop Spring
123 MSPRD0192AWFJ AB Balance Spring
124 NGERH0176AWZZ AF Tray Big Gear
125 NGERH0177AWZZ AC Tray Front Gear A
126 NGERH0178AWZZ AC Tray Front Gear B
127 NGERH0179AWZZ AC Tray Rear Gear A
128 NGERH0180AWZZ AB Tray Rear Gear B
129 NGERH0181AWZZ AC Mechanism Clamp Gear A
130 NGERH0182AWZZ AC Mechanism Clamp Joint Gear
131 NGERH0183AWZZ AC Mechanism Clamp Board Gear
132 NGERH0184AWZZ AC Tray Rear Joint Gear A
133 NGERH0185AWZZ AC Tray Rear Joint Gear B
134 NGERH0186AWZZ AC Tray Rear Joint Gear C
135 NGERH0187AWZZ AB Tray Rear Drive Gear
136 NGERH0188AWZZ AC Tray Drive Gear
137 NGERH0189AWZZ AB Tray Front Drive Gear
138 NGERH0190AWZZ AC Tray Front Joint Gear
139 NGERH0191AWZZ AE Mode Big Gear
140 NGERH0192AWZZ AC G-Up/Down Gear A
141 NGERH0193AWZZ AC G-Up/Down Gear B
142 NGERH0194AWZZ AB Mechanism Up/Down Gear A
143 NGERH0195AWZZ AC Mechanism Up/Down Gear B
144 NGERH0196AWZZ AC Mechanism Clamp Switch Gear
145 NGERH0198AWZZ AB Reduction Gear A
146 NGERH0199AWZZ AB Reduction Gear B
147 NGERH0200AWZZ AB Reduction Gear C
148 NGERH0201AWZZ AB Reduction Gear D
149 NGERH0202AWZZ AB Up/Down Reduction Gear E
150 NGERH0203AWZZ AB Up/Down Reduction Gear F
151 NGERH0204AWZZ AB Tray Reduction Gear E
152 NSFTT0084AWFD AD Shaft,Main Base
801 LX-BZA006AWFD AB Screw,Special
803 XEBSD20P10000 AA Screw,M2x10mm
804 XEBSD30P10000 AA Screw,M3x10mm
M1 92LMTR5529AASY AD Motor with Gear [Tray]
M2 92LMTR5529AASY AD Motor with Gear [Main Cam]
SW1 QSW-P9003AWZZ AD Switch,Push Type [CLAMP]
SW2 QSW-P9003AWZZ AD Switch,Push Type [TRAY SW1]
SW3 QSW-P9003AWZZ AD Switch,Push Type [TRAY SW2]
SW4 QSW-P9006AWZZ AF Switch,Push Type [DISC]
CD-DV999W/CD-DV777W
20
[12] CABINET PARTS
PWB-B2
PWB-G
201
604
615
201-21
201-20
201-22
201-17
214
213
203x2
606x2
216
201-25
201-23
201-9
201-4
201-1
201-18
201-2
201-6
201-7
201-3
201-19
201-5
201-9
201-10
201-26
201-24
229
201-13
607x2
201-8
201-14
201-16
201-15
201-11
201-12
604
212
PWB-A2
PWB-A1
PWB-F1
PWB-B1
PWB-C
PWB-F2
602x2
603x2
603x2
602x4
602x2
602
207
CHANGER
MECHANISM UNIT
206
235
237
DVD
MECHANISM
601x3
202
601x5
601x3
601x2
601x11
234
204
601
218
M901
223
216
609x2
614x2
222
212
227
604x10
226
215
FL701
210
205
205
205
205
205
208
233
219
221
220
224x14
203x2
PT801
608x4
217
610
610
610
611
228
612
Tape
Motor
MAIN BELT
FLYWHEEL
ASS'Y
TAPE1
FLYWHEEL
ASS'Y
TAPE2
FF/REW
ROLLER
ASS'Y
FF/REW
ROLLER
ASS'Y
BELT CONNECTION
Silicon
Grease
601x2
616x2
616x2
601x2
225
230
230
607
610
236
IC901
613x2
617
IC851
209
PWB-D
605x6
212
617
IC852
232x2
232x2
212
CD-DV999W/CD-DV777W
21
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[12] CABINET PARTS
201 CCABA5538AW01 Front Panel Ass'y [CD-DV999W]
201 GCABA5554AW01 Front Panel Ass'y [CD-DV777W]
201- 1 -------- Front Panel (Not Replacement Item)
201- 2 GCOVA1521AWSA AK Cover,Cassette [Tape 1]
201- 3 GCOVA1522AWSA AK Cover,Cassette [Tape 2]
201- 4 GDORF0127AWSA AE Holder,Cassette [Tape 1]
201- 5 GDORF0128AWSA AE Holder,Cassette [Tape 2]
201- 6 HDECQ1108AWSA AE Panel,Cassette [Tape 1]
201- 7 HDECQA068AWSA AE Panel,Cassette [Tape 2]
201- 8 JKNBZ0982AWSA AE Button,Disc Number
201- 9 MLIF-A001AWZZ AD Damper
201-10 JKNBZA032AWSA AM Button,Operation A
201-10 JKNBZ0992AWSA AF Button,Operation A [CD-DV777W]
201-11 JKNBZA033AWSA AM Button,Operation B
201-11 JKNBZ0993AWSA AF Button,Operation B [CD-DV777W]
201-12 JKNBZ0985AWSA AE Button,Function
201-13 JKNBZ0986AWSA AE Button,Memory
201-14 JKNBZ0987AWSA AE Button,Tuning
201-15 JKNBZ0991AWSA AF Button,Power
201-16 GCOVA1533AWSA AC Cover,Timer
201-17 HBDGB1007AWSA AD Badge,SHARP
201-18 MSPRDA002AWFJ AB Spring,Cassette [Tape 1]
201-19 MSPRDA003AWFJ AB Spring,Cassette [Tape 2]
201-20 HDECQA039AWSA AH Volume Knob Ring,A
201-21 HDECQ1106AWSA AF Volume Knob Ring,B
201-22 HDECQA031AWSA Decoration Plate,Amp. [CD-DV999W]
201-22 HDECQA057AWSA Decoration Plate,Amp. [CD-DV777W]
201-23 MLOKC0014AWZZ AC Lock,Cassette [Tape 1]
201-24 MLOKC0015AWZZ AC Lock,Cassette [Tape 2]
201-25 MSPRD0196AWFJ AB Spring,Cassette Lock [Tape 1]
201-26 MSPRD0197AWFJ AC Spring,Cassette Lock [Tape 2]
202 GCAB-3101AWSA AY Cabinet,Top/Side
203 PCUSG0022AWZZ AB Cushion,Leg
204 GITARA117AWSA AK Rear Panel,B [CD-DV999W]
204 GITARA123AWSA Rear Panel,B [CD-DV777W]
205 GCOVA1520AWSA AG Cover,DVD Tray
206 LCHSZ0025AWZZ AM Chassis,Changer
207 PSLDMA009AWFW AG Shield,Dust Cover
208 92LNBAND1318A AA Nylon Band,80mm
209 KMECBA002AWZZ BF Tape Mechanism Ass'y
210 HDECQA033AWSA AE Panel,Edge Light
212 QCNWN1860AWZZ AC Lug Wire
213 JKNBK0103AWSA AD Knob,Volume
214 HDECQ1104AWSA AL Cover,Volume Knob
215 PSHEPA007AWZZ AE Sheet,Edge Light
216 92LCSPR1431C AA Spring,Ring
217 LCHSM0198AWFW AQ Chassis,Main [CD-DV777W]
217 LCHSM0201AWFW AR Chassis,Main [CD-DV999W]
218 GITARA100AWSA AP Rear Panel,A [CD-DV999W]
218 GITARA119AWSA AN Rear Panel,A [CD-DV777W]
219 LBND-1011AWZZ AA Nylon Band
!
220 QACCE0015AW00 AK AC Power Supply Cord
221 LBSHC0002AWZZ AD Bushing,AC Power Supply Cord
222 NFANP0001AWZZ AD Rotary Fan
223 LANGK0437AWFW AE Bracket,Fan Support A
!
224 QFSHD0001AWZZ AB Holder,Fuse
225 PRDAR0320AWFW AV Heat Sink
226 LHLDZ9023AWZZ AD Holder,Edge Light
227 LANGT0042AWFW AC Bracket,PWB Support
228 PSHEPA019AWZZ AF Fiber Sheet,Main PWB
229 LHLDZA004AWZZ AC Holder,Rib Support
230 LANGK0435AWFW AF Bracket,Heat Sink Support
232 PFLT-A006AWZZ AB Felt
233 JKNBKA003AWSA AE Knob,Mic Volume
234 GCOVD1006AWSA AH Cover,Terminal
235 DVDTCH5538ASY1 DVD Mechanism Unit Ass'y
236 PRDARA035AWFW AD Sub Heat Sink
237 LANGKA011AWZZ Holder,DVD Mechanism
601 XJBSD30P10000 AA Screw,M3x10mm
602 XEBSD30P10000 AA Screw,M3x10mm
604 XEBSD26P10000 AA Screw,M2.6x10mm
605 XESSD30P10000 AA Screw,M3x10mm
606 XJSSD30P08000 AA Screw,M3x8mm
607 LX-EZ0010AWFD AA Screw,Special
608 XHBSD40P08000 AA Screw,M4x8mm
609 XBBSD20P04000 AA Screw,M2x4mm
610 LX-JZ0010AFFD AA Screw,M3x10mm
611 LX-LZA002AWZZ AD Push Rivet
612 LX-LZ0002AW00 AC Snap Rivet
613 LX-JZ0037AWFD AB Screw,M3x18mm
614 LX-JZ0044AWFF AB Screw,M3x10mm
615 XWHSD32-10080 AA Washer,M3.2xM8x1mm
616 XHBSD30P06000 AA Screw,M3x6mm
617 LX-JZ0036AWFD AB Screw,Special
CD-DV999W/CD-DV777W
22
[13] SPEAKER BOX PARTS
RD BK
BK
BK
BK BL
BL
SP3,
TWEETER
SUPER TWEETER
SUPER TWEETER
SP1,
WOOFER
C1,
4
SP3,
TWEETER
4
SUPER TWEETER
SUPER TWEETER
2
SP1,
WOOFER
2
250V
Electrolytic
C1,
250V
Electrolytic
SP3,4
SP1,2
RD
SP7,
SP9,
C2
Capacitor
1.8µF,
8
10
SP7,
SP9,
8
10
C2
Capacitor
1.8µF,
SP7,
SP9,
908x2
8
10
SP5,6
903,904
911x2
911x2
911x2
910x4
914x4
913x4
915
901,
907
902
905,906
912x4
909x3
908
908
CD-DV999W/CD-DV777W
23
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[13] SPEAKER BOX PARTS
901 GBOXLA009AWSB BF Speaker Box Ass'y,Left [CP-DV999W]
901 GBOXLA023AWSB BE Speaker Box Ass'y,Left [CP-DV777W]
902 GBOXRA009AWSB BF Speaker Box Ass'y,Right [CP-DV999W]
902 GBOXRA023AWSB BE Speaker Box Ass'y,Right [CP-DV777W]
903 CPNLSA005AW01 BD Front Panel Ass'y,Left [CP-DV999W]
903 CPNLSA005AW03 BD Front Panel Ass'y [CP-DV777W]
904 CPNLSA006AW01 BD Front Panel Ass'y,Right [CP-DV999W]
904 CPNLSA006AW03 BD Front Panel Ass'y [CP-DV777W]
905 HPNLSA007AWSA AX Side Panel,Left
906 HPNLSA008AWSA AX Side Panel,Right
907 TSPC-A062AWZZ AC Label,Specifications [CP-DV999W]
907 TSPC-A180AWZZ Label,Specifications [CP-DV777W]
908 PFLT-0046AWZZ AC Felt
909 PFLT-0079AWZZ AG Felt
910 XJBSD40P16000 AB Screw,M4x16mm
911 XJBSD30P12000 AA Screw,M3x12mm
912 XMPSF40P35000 AC Screw,M4x35mm
913 XMBSF40P16000 AC Screw,M4x16mm
914 PCUSG0147AWZZ AC Leg Cushion
915 QCNWHA001AWZZ AK Speaker Cord
SP1 RSP-ZA006AWZZ BC Woofer [CP-DV999W]
SP1 RSP-ZA022AWZZ BD Woofer [CP-DV777W]
SP2 RSP-ZA006AWZZ BC Woofer [CP-DV999W]
SP2 RSP-ZA022AWZZ BD Woofer [CP-DV777W]
SP3 RSP-ZA061AWZZ AS Tweeter [CP-DV999W]
SP3 RSP-ZA023AWZZ AS Tweeter [CP-DV777W]
SP4 RSP-ZA061AWZZ AS Tweeter [CP-DV999W]
SP4 RSP-ZA023AWZZ AS Tweeter [CP-DV777W]
SP5 RSP-ZA008AWZZ AS Passive Radiator
SP6 RSP-ZA008AWZZ AS Passive Radiator
SP7 LHLDZA006AWM1 AS Super Tweeter Ass'y (with Capacitor C1,2)
SP8 LHLDZA006AWM1 AS Super Tweeter Ass'y (with Capacitor C1,2)
SP9 LHLDZA006AWM1 AS Super Tweeter Ass'y (with Capacitor C1,2)
SP10 LHLDZA006AWM1 AS Super Tweeter Ass'y (with Capacitor C1,2)
[14] ACCESSORIES/PACKING PARTS
SPAKAA013AWZZ AM Packing Add.,Top/Bottom
SPAKZA010AWZZ AF Miramat Sheet
SSAKH0053AWZZ AC Polyethylene Bag,Speaker
TLABZA131AWZZ Label,Feature,Speaker [CP-DV777W]
TLABZA137AWZZ Label,Feature,Speaker [CP-DV999W]
QANTL0005AWZZ AG AM Loop Antenna
QCNWG0046AWZZ AL Cord,Video
SPAKAA010AWZZ AL Packing Add,.Left/Right
SPAKCA040AWZZ Packing Case [CD-DV999W]
SPAKCA136AWZZ Packing Case [CD-DV999W]
SPAKP0032AWZZ AF Polyethylene Bag,Unit
SPAKZA007AWZZ AH Spacer
TINSZA017AWZZ Operation Manual [CD-DV999W]
TINSZA083AWZZ Operation Manual [CD-DV777W]
92LBAG1460C1 AB Polyethylene Bag,Accessories
92LFANT1746A AD FM Antenna
1 RRMCGA015AWSA AU Remote Control
1- 1 GFTAT1017AWSA AG Lid,Remote Control
[15] P.W.B. ASSEMBLY (Not Replacement Item)
PWB-A 92LPWB5538MANS
——
Main/Display (Combined Ass'y) PWB-A1,2 [CD-DV999W]
PWB-A 92LPWB5554MANS
——
Main/Display (Combined Ass'y) PWB-A1,2 [CD-DV777W]
!
PWB-B 92LPWB5538PWRS
——
Power/Game Input (Combined Ass'y) PWB-B1,2 [CD-DV999W]
!
PWB-B 92LPWB5554PWRS
——
Power/Game Input (Combined Ass'y) PWB-B1,2 [CD-DV777W]
PWB-C 92LPWB5655DVDS
——
DVD Servo
PWB-D --------
——
Tape Mechanism
PWB-E QPWBF1055AWZZ AE 5-Changer Motor (PWB Only)
PWB-F 92LPWB5538DVSS
——
S-Video/Audio Out/Sub (Combined Ass'y) PWB-F1,2
PWB-G 92LPWB5765MICS
——
Mic
[16] OTHER SERVICE PARTS
UDSKA0004AFZZ AZ CD Pickup Lens Cleaner
CD-DV999W/CD-DV777W
24
INDEX
INDEX
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
[ C ]
CCABA5538AW01 12-201
CPNLSA005AW01 13-903 BD
CPNLSA005AW03 13-903 BD
CPNLSA006AW01 13-904 BD
CPNLSA006AW03 13-904 BD
[ D ]
DVDTCH5538ASY1 12-235
[ G ]
GBOXLA009AWSB 13-901 BF
GBOXLA023AWSB 13-901 BE
GBOXRA009AWSB 13-902 BF
GBOXRA023AWSB 13-902 BE
GCAB-3101AWSA 12-202 AY
GCABA5554AW01 12-201
GCOVA1513AWZZ 11-101 AF
GCOVA1514AWZZ 11-102 AF
GCOVA1520AWSA 12-205 AG
GCOVA1521AWSA 12-201- 2 AK
GCOVA1522AWSA 12-201- 3 AK
GCOVA1533AWSA 12-201-16 AC
GCOVD1006AWSA 12-234 AH
GDORF0127AWSA 12-201- 4 AE
GDORF0128AWSA 12-201- 5 AE
GFTAT1017AWSA 14-1- 1 AG
GITARA100AWSA 12-218 AP
GITARA117AWSA 12-204 AK
GITARA119AWSA 12-218 AN
GITARA123AWSA 12-204
[ H ]
HBDGB1007AWSA 12-201-17 AD
HDECQ1104AWSA 12-214 AL
HDECQ1106AWSA 12-201-21 AF
HDECQ1108AWSA 12-201- 6 AE
HDECQA031AWSA 12-201-22
HDECQA033AWSA 12-210 AE
HDECQA039AWSA 12-201-20 AH
HDECQA057AWSA 12-201-22
HDECQA068AWSA 12-201- 7 AE
HPNLSA007AWSA 13-905 AX
HPNLSA008AWSA 13-906 AX
[ J ]
JKNBK0103AWSA 12-213 AD
JKNBKA003AWSA 12-233 AE
JKNBZ0982AWSA 12-201- 8 AE
JKNBZ0985AWSA 12-201-12 AE
JKNBZ0986AWSA 12-201-13 AE
JKNBZ0987AWSA 12-201-14 AE
JKNBZ0991AWSA 12-201-15 AF
JKNBZ0992AWSA 12-201-10 AF
JKNBZ0993AWSA 12-201-11 AF
JKNBZA032AWSA 12-201-10 AM
JKNBZA033AWSA 12-201-11 AM
[ K ]
KMECBA002AWZZ 12-209 BF
[ L ]
LANGG0008AWZZ 11-103 AD
LANGG0009AWZZ 11-104 AC
LANGK0435AWFW 12-230 AF
LANGK0437AWFW 12-223 AE
LANGT0042AWFW 12-227 AC
LBND-1011AWZZ 12-219 AA
LBSHC0002AWZZ 12-221 AD
LCHSM0194AWZZ 11-105 AP
LCHSM0198AWFW 12-217 AQ
LCHSM0201AWFW 12-217 AR
LCHSZ0025AWZZ 12-206 AM
LHLDM9002AWZZ 11-109- 1 AD
LHLDZ9018AWZZ 11-106 AF
LHLDZ9019AWM1 11-109- 2 AK
LHLDZ9023AWZZ 12-226 AD
LHLDZA004AWZZ 12-229 AC
LHLDZA006AWM1 13-SP7 AS
"13-SP8AS
"13-SP9AS
" 13-SP10 AS
LPLTM0018AWZZ 11-109- 3 AB
LPLTMA001AWFW 11-109- 4 AC
LPLTP0014AWZZ 11-107 AK
LPLTP0015AWZZ 11-108 AG
LX-BZA006AWFD 11-801 AB
LX-EZ0010AWFD 12-607 AA
LX-JZ0010AFFD 12-610 AA
LX-JZ0036AWFD 12-617 AB
LX-JZ0037AWFD 12-613 AB
LX-JZ0044AWFF 12-614 AB
LX-LZ0002AW00 12-612 AC
LX-LZA002AWZZ 12-611 AD
[ M ]
MHOLD5655ASY 11-109
MLEVP0129AWZZ 11-110 AC
MLEVP0130AWZZ 11-111 AG
MLEVP0131AWZZ 11-112 AD
MLEVP0132AWZZ 11-113 AD
MLEVP0133AWZZ 11-114 AC
MLEVP0134AWZZ 11-115 AD
MLEVP0135AWZZ 11-116 AC
MLEVP0136AWZZ 11-117 AC
MLEVP0137AWZZ 11-118 AC
MLEVP0138AWZZ 11-119 AB
MLEVP0139AWZZ 11-120 AC
MLIF-A001AWZZ 12-201- 9 AD
MLOKC0014AWZZ 12-201-23 AC
MLOKC0015AWZZ 12-201-24 AC
MSPRC0044AWFJ 11-121 AB
MSPRD0191AWFJ 11-122 AC
MSPRD0192AWFJ 11-123 AB
MSPRD0196AWFJ 12-201-25 AB
MSPRD0197AWFJ 12-201-26 AC
MSPRDA002AWFJ 12-201-18 AB
MSPRDA003AWFJ 12-201-19 AB
[ N ]
NFANP0001AWZZ 12-222 AD
NGERH0176AWZZ 11-124 AF
NGERH0177AWZZ 11-125 AC
NGERH0178AWZZ 11-126 AC
NGERH0179AWZZ 11-127 AC
NGERH0180AWZZ 11-128 AB
NGERH0181AWZZ 11-129 AC
NGERH0182AWZZ 11-130 AC
NGERH0183AWZZ 11-131 AC
NGERH0184AWZZ 11-132 AC
NGERH0185AWZZ 11-133 AC
NGERH0186AWZZ 11-134 AC
NGERH0187AWZZ 11-135 AB
NGERH0188AWZZ 11-136 AC
NGERH0189AWZZ 11-137 AB
NGERH0190AWZZ 11-138 AC
NGERH0191AWZZ 11-139 AE
NGERH0192AWZZ 11-140 AC
NGERH0193AWZZ 11-141 AC
NGERH0194AWZZ 11-142 AB
NGERH0195AWZZ 11-143 AC
NGERH0196AWZZ 11-144 AC
NGERH0198AWZZ 11-145 AB
NGERH0199AWZZ 11-146 AB
NGERH0200AWZZ 11-147 AB
NGERH0201AWZZ 11-148 AB
NGERH0202AWZZ 11-149 AB
NGERH0203AWZZ 11-150 AB
NGERH0204AWZZ 11-151 AB
NSFTT0084AWFD 11-152 AD
[ P ]
PCUSG0022AWZZ 12-203 AB
PCUSG0147AWZZ 13-914 AC
PFLT-0046AWZZ 13-908 AC
PFLT-A006AWZZ 12-232 AB
PMAGF0003AWZZ 11-109- 5 AF
PRDAR0320AWFW 12-225 AV
PRDARA035AWFW 12-236 AD
PSHEPA007AWZZ 12-215 AE
PSHEPA019AWZZ 12-228 AE
PSLDMA009AWFW 12-207 AG
[ Q ]
QACCE0015AW00 12-220 AK
QANTL0005AWZZ 14- AG
QCNCM049BAWZZ 10-CNP805 AC
QCNCM705CAFZZ 10-CNP101 AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
CD-DV999W/CD-DV777W
25
QCNCM890CAFZZ 10-CN3203 AC
QCNCM890NAFZZ 10-CN3004 AH
QCNCM970BAFZZ 10-CN3702 AD
QCNCM970GAFZZ 10-CN3701 AG
QCNCM970PAFZZ 10-CN3201 AK
QCNCW012EAWZZ 10-CNP901 AC
QCNCW012FAWZZ 10-CNP802 AC
QCNCW019EAWZZ 10-WTM901 AB
QCNCW019FAWZZ 10-WTM705 AB
QCNCWXC11AFZZ 10-CN3003 AF
QCNCWXM24AFZZ 10-CN3301 AG
QCNCWXT06AFZZ 10-CN3704 AD
QCNCWYH06AWZZ 10-CNP703 AC
QCNCWYP11AWZZ 10-CNP7083 AE
QCNCWZO11AWZZ 10-CNP6A AC
" 10-CNP7081 AC
QCNCWZX14AWZZ 10-CNP7082 AD
QCNCWZX22AWZZ 10-CNP701B AD
QCNCWZY09AWZZ 10-CNP702A AC
QCNCWZY14AWZZ 10-CNP704 AD
QCNCWZY22AWZZ 10-CNP701A AD
QCNWG0046AWZZ 14- AL
QCNWHA001AWZZ 13-915 AK
QCNWN1860AWZZ 12-212 AC
QCNWN1974AWZZ 10-BI102 AM
QCNWN2496AWZZ 10-FFC702 AD
QCNWN2700AWPZ 10-FFC1 AE
QCNWN2701AWPZ 10-FFC4 AD
" 10-FFC7081 AD
QCNWN2711AWPZ 10-FW901 AD
QCNWN2712AWPZ 10-FW705 AD
QCNWN2714AWPZ 10-BI603 AK
QCNWN2717AWPZ 10-FFC7082 AF
QCNWN2718AWPZ 10-FFC704 AF
QCNWN2719AWPZ 10-FFC701 AF
QCNWN2721AWPZ 10-BIK1 AK
QCNWN2723AWPZ 10-FFC703 AD
QCNWN2731AWPZ 10-BI801
QCNWNA001AWZZ 13-909 AY
QCNWNA064AWPZ 10-CNS3702 AE
QCNWNA067AWPZ 10-FFC7083
QCNWNA069AWPZ 10-FFC3301 AG
QCNWNA080AWPZ 10-CNS971 AC
QCNWNA083AWPZ 10-CNS3701 AH
QCNWNA087AWPZ 10-CNS3A/B AF
QCNWNA130AWPZ 10-BI601
QFS-D202ABGNI 10-F803 AC
" 10-F804 AC
QFS-D252ABGNI 10-F806 AE
" 10-F807 AE
QFS-D502ABGNI 10-F801 AC
" 10-F802 AC
" 10-F805 AC
QFSHD0001AWZZ 12-224 AB
QJAKJ0012AWZZ 10-JK1 AF
"10-JK2AF
QJAKM0004AWZZ 10-JK692 AK
QLUGPA001AWZZ 10-LG1 AC
"10-LG2AC
"10-LG3AC
"10-LG4AC
QPWBF1055AWZZ 15-PWB-E AE
QSOCDA001AWZZ 10-SO7001
QSOCE0008AWZZ 10-SW801 AH
QSOCJ0120AWZZ 10-JK691 AD
QSOCJ0313AWZZ 10-JK690 AF
QSW-F9001AW01 10-NSW1 AD
QSW-P9003AWZZ 10-SW1 AD
"10-SW2AD
"10-SW3AD
"11-SW1AD
"11-SW2AD
"11-SW3AD
QSW-P9006AWZZ 10-SW4 AF
"11-SW4AF
QSW-S0024AWZZ 10-SW601 AE
QSW-ZA001AWZZ 10-JOG701 AE
QTANA0424AWZZ 10-SO902 AE
QTANC0206AWZZ 10-SO302 AD
[ R ]
RBLN-0061TAZZ 6-R3606 AB
" 6-FB3003 AB
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
" 6-FB3401 AB
" 6-FB3402 AB
" 6-FB3601 AB
" 6-FB3602 AB
" 6-FB3603 AB
" 6-FB3606 AB
" 6-FB3801 AB
RC-EZ0029AWZZ 8-C920 AN
"8-C923AN
RC-EZ0065AWZZ 8-C921 AN
"8-C922AN
RC-EZ0106AWZZ 8-C921 AH
"8-C922AH
RC-EZ0124AWZZ 8-C920 AR
"8-C923AR
RC-EZ0130AWZZ 8-C3801 AG
RC-EZ0149AWZZ 8-C812 AC
RC-EZ0159AWZZ 8-C816 AC
RC-EZ0475GEZZ 8-C3058 AD
" 8-C3059 AD
" 8-C3068 AD
" 8-C3805 AD
RC-EZ3006AWZZ 8-C850 AL
RCILA0052AWZZ 5-T303 AE
RCILB0065AWZZ 5-T301 AC
RCILB0067AWZZ 5-T306 AD
RCILI0017AWZZ 5-T302 AB
RCILI0019AWZZ 5-T351 AD
RCILR0056AWZZ 6-L312 AB
RCILZ0022AWZZ 6-L841 AG
RCILZ0024AWZZ 6-L901 AC
"6-L902AC
RCILZ0082AWZZ 6-L801 AF
RCILZ0137AFZZ 6-L920 AA
"6-L921AA
RCORFA001AWZZ 10-FJ1 AB
RCRSCA015WJZZ 7-X3601 AK
RCRSP0003AWZZ 7-XL701 AH
RCRSP0019AWZZ 7-X352 AF
RFILA0009AWZZ 4-CF352 AE
RFILF0003AWZZ 4-CF351 AK
RFILF0124AFZZ 4-CF303 AD
RFILR0008AWZZ 4-BF301 AE
RH-IX0614AWZZ 1-IC3401 AZ
RH-IXA004AWZZ 1-IC701 AX
RH-IXA173WJZZ 1-IC3501 AZ
RH-IXA464WJZZ 1-IC3001 BS
RMOTV0059AWZZ 10-M901 AL
RRLYD0016AWZZ 10-RL914 AH
RRLYD0018AWZZ 10-RL841 AH
RRMCGA015AWSA 14-1 AU
RSP-ZA006AWZZ 13-SP1 BC
"13-SP2BC
RSP-ZA007AWZZ 13-SP3 AS
"13-SP4AS
RSP-ZA008AWZZ 13-SP5 AS
"13-SP6AS
RSP-ZA022AWZZ 13-SP1 BD
"13-SP2BD
RSP-ZA023AWZZ 13-SP3 AS
"13-SP4AS
RTRNP0520AWZZ 5-PT801 BM
RTRNP0524AWZZ 5-PT801 BG
RVR-G0001AWZZ 10-VRK1 AD
[ S ]
SPAKAA010AWZZ 14- AL
SPAKAA013AWZZ 14- AM
SPAKCA040AWZZ 14-
SPAKCA136AWZZ 14-
SPAKP0032AWZZ 14- AF
SPAKZA007AWZZ 14- AH
SPAKZA010AWZZ 14- AF
SSAKH0053AWZZ 14- AC
[ T ]
TINSZA017AWZZ 14-
TINSZA083AWZZ 14-
TLABZA131AWZZ 14-
TLABZA137AWZZ 14-
TSPC-A062AWZZ 13-907
TSPC-A180AWZZ 13-907
[ U ]
UDSKA0004AFZZ 16- AZ
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
CD-DV999W/CD-DV777W
26
[ V ]
VCCCCY1HH100D 8-C303 AA
" 8-C3107 AA
" 8-C3109 AA
" 8-C3111 AA
VCCCCY1HH101J 8-C907 AA
" 8-C913 AA
VCCCCY1HH120J 8-C381 AA
VCCCCY1HH150J 8-C310 AA
" 8-C330 AA
" 8-C382 AA
" 8-C704 AA
VCCCCY1HH180J 8-C311 AA
" 8-C705 AA
" 8-C3100 AA
" 8-C3108 AA
" 8-C3110 AA
VCCCCY1HH181J 8-C104 AA
VCCCCY1HH220J 8-C313 AA
" 8-C334 AA
" 8-C355 AA
VCCCCY1HH221J 8-C3038 AA
VCCCCY1HH270J 8-C369 AA
VCCCCY1HH330J 8-C3052 AA
VCCCCY1HH331J 8-C3047 AA
VCCCCY1HH3R0C 8-C908 AA
" 8-C910 AA
VCCCCY1HH4R7C 8-C305 AA
" 8-C308 AA
" 8-C324 AA
VCCCCY1HH9R0D 8-C3604 AA
" 8-C3605 AA
VCCSBT1HL470J 8-C383 AA
VCCSPA1HL101J 8-CK49 AA
" 8-CK50 AA
VCCSPA1HL221J 8-CK47 AA
" 8-CK48 AA
VCCSPA1HL470J 8-CK33 AA
" 8-CK34 AA
" 8-CK35 AA
" 8-C7003 AA
" 8-C7004 AA
" 8-C7005 AA
VCEAPS107AF0J 8-C3606 AC
VCEAPS107AF1A 8-C3705 AD
" 8-C3710 AD
" 8-C3712 AD
VCEAPS476AF0J 8-C3302 AC
" 8-C3303 AC
VCEAZA0JW108M 8-C667 AC
" 8-C702 AC
VCEAZA1AW107M 8-C396 AB
" 8-C398 AB
VCEAZA1AW227M 8-C134 AC
" 8-C603 AC
" 8-CK17 AC
VCEAZA1AW476M 8-C7001 AB
VCEAZA1AW477M 8-C7009 AC
" 8-C7011 AC
VCEAZA1CW106M 8-C662 AC
" 8-C663 AC
" 8-C665 AC
VCEAZA1CW107M 8-C141 AC
" 8-C664 AC
" 8-C669 AC
" 8-CK18 AC
" 8-CK40 AC
" 8-CK41 AC
VCEAZA1CW227M 8-C601 AC
VCEAZA1EW226M 8-C133 AB
" 8-C817 AB
" 8-C864 AB
" 8-C865 AB
VCEAZA1EW227M 8-C854 AC
VCEAZA1EW476M 8-C111 AB
" 8-C112 AB
" 8-C117 AB
" 8-C118 AB
" 8-C131 AB
" 8-C132 AB
" 8-C140 AB
" 8-C391 AB
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
"8-C394AB
"8-C717AB
"8-C866AB
"8-C872AB
"8-C874AB
"8-C944AB
"8-CK43AB
"8-CK44AB
"8-CK53AB
VCEAZA1HW104M 8-C946 AB
VCEAZA1HW105M 8-C358 AB
"8-C367AB
"8-C368AB
"8-C370AB
"8-C371AB
"8-C372AB
"8-C393AB
"8-C609AB
"8-C610AB
"8-C613AB
"8-C614AB
"8-C617AB
"8-C618AB
"8-C619AB
"8-C620AB
"8-C621AB
"8-C622AB
"8-C623AB
"8-C624AB
"8-C639AB
"8-C670AB
"8-C671AB
"8-C701AB
"8-C707AB
VCEAZA1HW106M 8-C307 AB
"8-C352AB
"8-C380AB
"8-C855AB
"8-C873AB
"8-C931AB
" 8-C871A AB
VCEAZA1HW107M 8-C916 AC
"8-C918AC
VCEAZA1HW225M 8-CK9 AB
"8-C357AB
"8-C362AB
"8-C364AB
"8-C901AB
"8-C902AB
"8-CK12AB
"8-CK24AB
"8-CK25AB
"8-CK26AB
"8-CK29AB
"8-CK30AB
"8-CK45AB
"8-CK46AB
"8-CK72AB
VCEAZA1HW226M 8-C125 AB
"8-C126AB
"8-C640AB
"8-C859AB
VCEAZA1HW335M 8-C143 AB
"8-C714AB
VCEAZA1HW474M 8-CK7 AB
"8-CK70AB
VCEAZA1HW475M 8-CK8 AB
"8-C615AB
"8-C616AB
"8-C901AB
"8-C902AB
"8-CK71AB
VCEAZA1HW476M 8-C150 AB
"8-C802AB
"8-C803AB
"8-C905AB
"8-C906AB
"8-C925AB
"8-CK51AB
"8-CK52AB
VCEAZA1JW227M 8-C804 AD
VCEAZA1VW107M 8-C801 AC
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
CD-DV999W/CD-DV777W
27
VCEAZA2AW107M 8-C911 AD
"8-C912AD
"8-C914AD
"8-C915AD
VCEAZA2AW226M 8-C805 AC
VCFYDA2AA224J 8-C810 AD
"8-C811AD
VCFYFA1HA104J 8-C605 AC
"8-C606AC
"8-CK10AC
"8-CK11AC
"8-CK54AC
"8-CK73AC
"8-CK74AC
"8-CK75AC
VCFYFA1HA154J 8-CK31 AB
VCFYFA1HA224J 8-C926 AC
"8-C927AC
"8-C928AC
"8-C929AC
"8-CK16AC
"8-CK20AC
VCFYFA1HA683J 8-CK15 AB
"8-CK21AB
VCFYFA1HA823J 8-C607 AB
"8-C608AB
VCKYBT1HB101K 8-C318 AA
VCKYBT1HB102K 8-C320 AA
"8-C389AA
VCKYBT1HB103K 8-C631 AB
VCKYBT1HB181K 8-C103 AA
VCKYCY0JB105K 8-C3019 AC
" 8-C3025 AC
" 8-C3039 AC
" 8-C3040 AC
" 8-C3041 AC
" 8-C3062 AC
VCKYCY1CB104K 8-C3001 AB
" 8-C3003 AB
" 8-C3004 AB
" 8-C3006 AB
" 8-C3007 AB
" 8-C3009 AB
" 8-C3010 AB
" 8-C3013 AB
" 8-C3014 AB
" 8-C3015 AB
" 8-C3017 AB
" 8-C3018 AB
" 8-C3020 AB
" 8-C3022 AB
" 8-C3023 AB
" 8-C3028 AB
" 8-C3030 AB
" 8-C3035 AB
" 8-C3037 AB
" 8-C3042 AB
" 8-C3043 AB
" 8-C3046 AB
" 8-C3049 AB
" 8-C3050 AB
" 8-C3051 AB
" 8-C3054 AB
" 8-C3055 AB
" 8-C3056 AB
" 8-C3057 AB
" 8-C3060 AB
" 8-C3061 AB
" 8-C3063 AB
" 8-C3065 AB
" 8-C3066 AB
" 8-C3301 AB
" 8-C3304 AB
" 8-C3401 AB
" 8-C3402 AB
" 8-C3406 AB
" 8-C3408 AB
" 8-C3409 AB
" 8-C3412 AB
" 8-C3501 AB
" 8-C3502 AB
" 8-C3503 AB
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
" 8-C3504 AB
" 8-C3601 AB
" 8-C3602 AB
" 8-C3603 AB
" 8-C3703 AB
" 8-C3706 AB
" 8-C3708 AB
" 8-C3711 AB
" 8-C3803 AB
" 8-C3804 AB
" 8-C3906 AB
VCKYCY1CB333K 8-C3053 AA
VCKYCY1EB103K 8-C3036 AA
" 8-C3048 AA
VCKYCY1EB183K 8-C3045 AB
VCKYCY1EF223Z 8-C121 AB
"8-C135AB
"8-C306AB
"8-C312AB
"8-C316AB
"8-C323AB
"8-C332AB
"8-C342AB
"8-C347AB
"8-C350AB
"8-C351AB
"8-C353AB
"8-C354AB
"8-C361AB
"8-C363AB
"8-C387AB
"8-C395AB
"8-C397AB
"8-C399AB
"8-C720AB
"8-C721AB
" 8-C3709 AB
VCKYCY1EF473Z 8-C723 AB
"8-C727AB
"8-C730AB
"8-C732AB
VCKYCY1HB102K 8-C302 AA
"8-C309AA
"8-C317AA
"8-C338AA
"8-C356AA
"8-C366AA
"8-C384AA
"8-C388AA
"8-C392AA
"8-C903AA
"8-C904AA
" 8-C3027 AA
" 8-C3031 AA
" 8-C3032 AA
" 8-C3033 AA
VCKYCY1HB103K 8-C304 AA
"8-C315AA
"8-C385AA
"8-C666AA
"8-C715AA
"8-C917AA
"8-C919AA
" 8-C3707 AA
VCKYCY1HB104K 8-C875 AD
"8-C876AD
"8-C877AD
"8-C878AD
"8-C885AD
VCKYCY1HB152K 8-C105 AA
"8-C106AA
" 8-C3034 AA
VCKYCY1HB221K 8-C651 AA
"8-C652AA
"8-C653AA
VCKYCY1HB222K 8-C119 AA
"8-C120AA
"8-C611AA
"8-C612AA
"8-C625AA
"8-C626AA
VCKYCY1HB271K 8-C123 AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
CD-DV999W/CD-DV777W
28
" 8-C124 AA
VCKYCY1HB331K 8-C107 AA
" 8-C108 AA
" 8-C109 AA
" 8-C110 AA
" 8-C386 AA
VCKYCY1HB332K 8-C129 AA
" 8-C130 AA
VCKYCY1HB473K 8-C709 AB
" 8-C710 AB
VCKYCY1HB561K 8-C101 AA
" 8-C102 AA
" 8-C115 AA
" 8-C116 AA
" 8-C335 AA
VCKYCY1HB562K 8-C3044 AA
VCKYCY1HB821K 8-C3026 AA
VCKYCY1HF103Z 8-C722 AB
VCKYPA1HB101K 8-C693 AA
VCKYPA1HB102K 8-C694 AA
" 8-C695 AA
" 8-CK14 AA
" 8-CK23 AA
VCKYPA1HB103K 8-C696 AA
VCKYPA1HB391K 8-C690 AA
" 8-C691 AA
VCKYPA1HF223Z 8-C602 AB
" 8-C861 AB
VCKZPA1HF223Z 8-CK19 AA
" 8-CK42 AA
" 8-C7002 AA
VCKZPA1HF473Z 8-CK3 AA
" 8-C331 AA
VCQPKA2AA822J 8-C138 AA
VCQYKA1HM104K 8-C806 AB
" 8-C807 AB
" 8-C808 AB
" 8-C809 AB
" 8-C813 AB
" 8-C814 AB
" 8-C815 AB
" 8-C851 AB
" 8-C852 AB
" 8-C856 AB
" 8-C909 AB
" 8-C871B AB
VCQYKA1HM393K 8-C139 AB
VCQYKA1HM473K 8-C137 AB
VCTYPA1CX103K 8-CK1 AA
" 8-C7008 AA
VCTYPA1CX153K 8-C373 AA
" 8-C374 AA
VCTYPA1CX223K 8-C127 AA
" 8-C128 AA
" 8-C365 AA
VCTYPA1CX472K 8-CK13 AA
" 8-CK22 AA
VCTYPA1EX393K 8-C113 AA
" 8-C114 AA
VHCSVC230C/-1 10-VD302 AD
" 10-VD303 AD
VHCSVC347S/-1 10-VD301 AG
VHD1N4004S/-1 3-D803 AB
" 3-D804 AB
" 3-D805 AB
" 3-D806 AB
" 3-D909 AB
" 3-D910 AB
VHDD10XB60F-1 3-D801 AL
" 3-D802 AL
VHDD2S4M124-1 3-D867 AE
VHDDAP222//-1 3-D3301 AC
VHDDS1SS133-1 3-DK1 AB
"3-DK2AB
" 3-D301 AB
" 3-D302 AB
" 3-D305 AB
" 3-D690 AB
" 3-D691 AB
" 3-D701 AB
" 3-D709 AB
" 3-D710 AB
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
"3-D711AB
"3-D712AB
"3-D713AB
"3-D714AB
"3-D715AB
"3-D716AB
"3-D856AB
"3-D860AB
"3-D861AB
"3-D862AB
"3-D865AB
"3-D885AB
"3-D905AB
"3-D906AB
"3-D907AB
"3-D911AB
"3-D912AB
"3-D913AB
"3-D914AB
VHDKDS226//-1 3-D3100 AB
" 3-D3101 AB
" 3-D3102 AB
VHDMA111///-1 3-D3002 AC
VHDRL204F//-1 3-D870 AC
"3-D871AC
VHEDZ120BSB-1 3-ZD805 AB
" 3-ZD902 AB
" 3-ZD903 AB
VHEDZ300BSB-1 3-ZD803 AB
VHEDZ5R1BSB-1 3-ZD351 AC
VHEDZ6R2BSA-1 3-ZD801 AB
VHEDZ6R8BSB-1 3-ZD804 AB
VHEDZ7R5BSB-1 3-ZD802 AB
VHEMTZJ5R6B-1 3-ZDK1 AD
VHI7SB3157P-1 1-IC3301 AF
VHIAN7345K/-1 1-IC101 AM
VHIAN78L05/-1 1-IC854 AE
VHIAN80T53/-1 1-IC851 AL
VHIBD4825G+-1 1-IC3002 AD
VHIBD9701T-V5 1-IC853 AM
VHIBR24L04F-1 1-IC3602 AF
VHIBU2363FV-1 1-IC3601 AP
VHIKIA4558P-1 1-ICK2 AC
VHIKIA7808AP1 1-IC852 AF
VHILA1832S/-1 1-IC303 AN
VHILA6261//-1 1-IC3704 AN
VHILC72131/-1 1-IC302 AP
VHILC75341/-1 1-IC601 AM
VHILD1117V/-1 1-IC856 AG
VHILD1117V33/ 1-IC855 AG
VHIM65856SP-1 1-ICK1 AX
VHINJM12904-1 1-IC3702 AE
VHINJM2533M-1 1-IC602 AF
VHIPCM1748E-1 1-IC3801 AP
VHISTK41242-1 1-IC901 BB
VHISTK41244-1 1-IC901 BF
VHITA7358AP-1 1-IC301 AG
VHITC7WT126-1 1-IC3003 AF
VHITCLV573T-1 1-IC3503 AK
" 1-IC3504 AK
VHLPIC3704/-1 10-RX701 AG
VHP304VT2H3-1 3-LED701 AC
VHPGP1S094HCZ 10-RX1 AF
VHPSDPB50CD-1 3-LED703 AK
VHPTOTX141/-1 10-IC501 AK
VP-DH100K0000 6-L7001 AB
VP-DH101K0000 6-L351 AB
"6-L352AB
"6-L701AB
VP-MK331K0000 6-L103 AB
VP-NM2R2M0000 6-L3100 AD
" 6-L3101 AD
" 6-L3102 AD
VP-NM4R7M0000 6-L3201 AC
" 6-L3301 AC
VRD-RT2HD100J 9-R938 AA
"9-R939AA
"9-R940AA
"9-R941AA
VRD-RT2HD101J 9-RK14 AA
"9-RK15AA
VRD-RT2HD102J 9-R949 AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
CD-DV999W/CD-DV777W
29
VRD-RT2HD152J 9-R925 AA
"9-R926AA
VRD-RT2HD222J 9-R808 AA
VRD-RT2HD820J 9-R142 AA
VRD-ST2CD101J 9-R661 AA
"9-R740AA
"9-RK12AA
"9-RK38AA
VRD-ST2CD102J 9-RK7 AA
"9-RK9AA
"9-R113AA
"9-R114AA
"9-R393AA
"9-R576AA
"9-R577AA
"9-R578AA
"9-R579AA
"9-R601AA
"9-R602AA
"9-R603AA
"9-R705AA
"9-R707AA
"9-R708AA
"9-R709AA
"9-R710AA
"9-R711AA
"9-R712AA
"9-R717AA
"9-R723AA
"9-R725AA
"9-R730AA
"9-R737AA
"9-R738AA
"9-R739AA
"9-R741AA
"9-R744AA
"9-R746AA
"9-R748AA
"9-R753AA
"9-R769AA
"9-R772AA
"9-R910AA
"9-RD13AA
"9-RD25AA
"9-RK10AA
"9-RK11AA
"9-RK39AA
"9-RK40AA
"9-RK70AA
" 9-R871B AA
VRD-ST2CD103J 9-RK1 AA
"9-RK4AA
"9-R309AA
"9-R573AA
"9-R589AA
"9-R642AA
"9-R680AA
"9-R681AA
"9-R745AA
"9-R754AA
"9-R780AA
"9-R859AA
"9-R893AA
"9-RK41AA
"9-RK42AA
"9-RK48AA
"9-RK49AA
"9-RK50AA
VRD-ST2CD104J 9-R782 AA
"9-R801AA
VRD-ST2CD122J 9-RK13 AA
VRD-ST2CD123J 9-R803 AA
VRD-ST2CD152J 9-R918 AA
"9-R921AA
"9-R944AA
"9-R945AA
"9-RD04AA
VRD-ST2CD153J 9-R111 AA
VRD-ST2CD182J 9-R892 AA
VRD-ST2CD183J 9-RK43 AA
"9-RK46AA
VRD-ST2CD220J 9-R314 AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
VRD-ST2CD221J 9-R959 AA
VRD-ST2CD222J 9-R704 AA
"9-R865AA
"9-R918AA
"9-R921AA
VRD-ST2CD223J 9-R386 AA
"9-R853AA
"9-R857AA
"9-R864AA
VRD-ST2CD271J 9-R7081 AA
VRD-ST2CD331J 9-R618 AA
"9-R751AA
VRD-ST2CD332J 9-R854 AA
VRD-ST2CD333J 9-R692 AA
"9-R693AA
"9-RD22AA
" 9-R7082 AA
VRD-ST2CD391J 9-RK36 AA
"9-RK37AA
VRD-ST2CD392J 9-R358 AA
"9-RD07AA
VRD-ST2CD393J 9-R692 AA
"9-R693AA
VRD-ST2CD471J 9-R375 AA
VRD-ST2CD472J 9-R755 AA
"9-R771AA
"9-R787AA
"9-R788AA
"9-R789AA
"9-RK72AA
"9-RK73AA
VRD-ST2CD473J 9-R750 AA
"9-R802AA
"9-R806AA
"9-R888AA
"9-R889AA
VRD-ST2CD4R7J 9-R145 AA
VRD-ST2CD560J 9-R115 AA
"9-R116AA
VRD-ST2CD561J 9-R729 AA
VRD-ST2CD562J 9-RK8 AA
"9-R384AA
"9-R387AA
"9-R759AA
"9-RK71AA
VRD-ST2CD563J 9-RK2 AA
" 9-RK3 AA
"9-R934AA
"9-R935AA
VRD-ST2CD681J 9-RD01 AA
"9-RD23AA
VRD-ST2CD682J 9-R690 AA
"9-R691AA
"9-RK44AA
"9-RK45AA
VRD-ST2CD683J 9-R950 AA
VRD-ST2CD821J 9-RD24 AA
VRD-ST2CD822J 9-RK47 AA
VRD-ST2EE101J 9-R891 AA
VRD-ST2EE102J 9-R951 AA
VRD-ST2EE151J 9-R149 AA
"9-R382AA
VRD-ST2EE1R5J 9-R794 AA
"9-R795AA
VRD-ST2EE221J 9-R158 AA
VRD-ST2EE271J 9-R391 AA
"9-R392AA
VRD-ST2EE393J 9-R927 AA
"9-R928AA
VRD-ST2EE470J 9-R804 AA
"9-R805AA
VRD-ST2EE473J 9-R929 AA
"9-R930AA
VRG-ST2EC101J 9-R912 AB
"9-R958AB
VRN-CM05N0R1J 9-R917 AD
"9-R922AD
VRN-CM05NR22J 9-R913 AD
"9-R916AD
VRN-VV3LAR10J 9-R917 AD
"9-R922AD
VRN-VV3LAR22J 9-R913 AC
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
CD-DV999W/CD-DV777W
30
" 9-R916 AC
VRS-CB1JF000J 9-R3015 AA
" 9-R3016 AA
" 9-R3018 AA
" 9-R3024 AA
" 9-R3411 AA
" 9-R3415 AA
VRS-CB1JF820J 9-R3401 AB
" 9-R3402 AB
" 9-R3403 AB
" 9-R3404 AB
" 9-R3423 AB
" 9-R3424 AB
" 9-R3425 AB
" 9-R3426 AB
VRS-CY1JB000J 9- AA
" 9-R3001 AA
" 9-R3013 AA
" 9-R3032 AA
" 9-R3033 AA
" 9-R3037 AA
" 9-R3038 AA
" 9-R3039 AA
" 9-R3043 AA
" 9-R3045 AA
" 9-R3046 AA
" 9-R3049 AA
" 9-R3052 AA
" 9-R3071 AA
" 9-R3077 AA
" 9-R3085 AA
" 9-R3088 AA
" 9-R3091 AA
" 9-R3107 AA
" 9-R3111 AA
" 9-R3112 AA
" 9-R3115 AA
" 9-R3116 AA
" 9-R3151 AA
" 9-R3152 AA
" 9-R3153 AA
" 9-R3154 AA
" 9-R3155 AA
" 9-R3167 AA
" 9-R3171 AA
" 9-R3172 AA
" 9-R3206 AA
" 9-R3207 AA
" 9-R3208 AA
" 9-R3211 AA
" 9-R3405 AA
" 9-R3406 AA
" 9-R3407 AA
" 9-R3408 AA
" 9-R3409 AA
" 9-R3410 AA
" 9-R3412 AA
" 9-R3414 AA
" 9-R3416 AA
" 9-R3417 AA
" 9-R3418 AA
" 9-R3419 AA
" 9-R3420 AA
" 9-R3421 AA
" 9-R3422 AA
" 9-R3531 AA
" 9-R3602 AA
" 9-R3603 AA
" 9-R3604 AA
" 9-R3706 AA
" 9-R3707 AA
" 9-R3712 AA
" 9-R3716 AA
" 9-R3801 AA
" 9-R3802 AA
" 9-R3803 AA
" 9-FB3001 AA
" 9-FB3002 AA
VRS-CY1JB100J 9-R302 AA
VRS-CY1JB101J 9-R132 AA
" 9-R133 AA
" 9-R703 AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
"9-R783AA
" 9-R3003 AA
" 9-R3004 AA
" 9-R3008 AA
" 9-R3009 AA
" 9-R3140 AA
VRS-CY1JB102J 9-R101 AA
"9-R102AA
"9-R352AA
"9-R356AA
"9-R372AA
"9-R373AA
"9-R374AA
"9-R376AA
"9-R378AA
"9-R701AA
"9-R702AA
"9-R706AA
"9-R713AA
"9-R714AA
"9-R716AA
"9-R718AA
"9-R719AA
"9-R720AA
"9-R721AA
"9-R722AA
"9-R724AA
"9-R732AA
"9-R733AA
"9-R736AA
"9-R742AA
"9-R743AA
"9-R763AA
"9-R903AA
"9-R904AA
"9-R908AA
"9-R956AA
"9-RD03AA
" 9-R3031 AA
" 9-R3044 AA
" 9-R3063 AA
" 9-R3138 AA
" 9-R3139 AA
" 9-R3143 AA
" 9-R3303 AA
" 9-R3313 AA
" 9-R3547 AA
" 9-R3548 AA
" 9-R660A AA
VRS-CY1JB103F 9-R3011 AA
VRS-CY1JB103J 9-R134 AA
"9-R135AA
"9-R138AA
"9-R139AA
"9-R146AA
"9-R147AA
"9-R336AA
"9-R365AA
"9-R381AA
"9-R588AA
"9-R604AA
"9-R605AA
"9-R641AA
"9-R731AA
"9-R757AA
"9-R761AA
"9-R766AA
"9-R767AA
"9-R768AA
"9-R773AA
"9-R774AA
"9-R775AA
"9-R777AA
"9-R778AA
"9-R779AA
"9-R796AA
"9-R797AA
"9-R798AA
"9-R799AA
"9-RD31AA
" 9-R3010 AA
" 9-R3090 AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
CD-DV999W/CD-DV777W
31
" 9-R3147 AA
" 9-R3162 AA
" 9-R3311 AA
" 9-R3312 AA
" 9-R3320 AA
" 9-R3321 AA
" 9-R3322 AA
" 9-R3601 AA
" 9-R3717 AA
" 9-R3718 AA
" 9-R3729 AA
VRS-CY1JB104J 9-R117 AA
"9-R118AA
"9-R311AA
VRS-CY1JB121J 9-R874 AA
VRS-CY1JB123J 9-R3714 AA
VRS-CY1JB151J 9-R3201 AA
" 9-R3202 AA
" 9-R3203 AA
VRS-CY1JB152J 9-R130 AA
"9-R131AA
"9-R380AA
"9-R919AA
"9-R920AA
"9-R984AA
"9-RD14AA
"9-RD26AA
VRS-CY1JB153F 9-R3012 AA
" 9-R3014 AA
" 9-R3020 AA
" 9-R3030 AA
VRS-CY1JB153J 9-R112 AA
"9-R121AA
"9-R122AA
"9-R947AA
"9-RD32AA
" 9-R3019 AA
" 9-R3025 AA
" 9-R3026 AA
" 9-R3701 AA
" 9-R3704 AA
VRS-CY1JB154J 9-R3076 AA
VRS-CY1JB182J 9-R359 AA
"9-R919AA
"9-R920AA
"9-R984AA
" 9-R3165 AA
" 9-R3727 AA
VRS-CY1JB183J 9-R121 AA
"9-R122AA
VRS-CY1JB220J 9-R3002 AA
VRS-CY1JB221J 9-R664 AA
"9-R674AA
"9-R675AA
" 9-R3144 AA
" 9-R3145 AA
" 9-R3605 AA
" 9-R3731 AA
VRS-CY1JB222J 9-R103 AA
"9-R104AA
"9-R379AA
"9-R610AA
"9-R611AA
"9-R616AA
"9-R617AA
"9-R662AA
"9-R677AA
"9-R715AA
"9-R726AA
"9-R987AA
"9-R988AA
"9-RD05AA
"9-RD27AA
" 9-R3523 AA
VRS-CY1JB223J 9-R144 AA
"9-R620AA
"9-R621AA
"9-R886AA
"9-R887AA
" 9-R3735 AA
VRS-CY1JB224J 9-R136 AA
"9-R137AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
VRS-CY1JB270J 9-R871A AA
VRS-CY1JB271J 9-R353 AA
VRS-CY1JB272J 9-R350 AA
"9-RD06AA
"9-RD28AA
" 9-R3733 AA
VRS-CY1JB273J 9-R3734 AA
VRS-CY1JB330J 9-R3142 AA
VRS-CY1JB331J 9-R619 AA
"9-R688AA
"9-R872AA
VRS-CY1JB332J 9-R105 AA
"9-R106AA
"9-R355AA
"9-R663AA
" 9-R3005 AA
" 9-R3006 AA
" 9-R3007 AA
" 9-R3072 AA
VRS-CY1JB333J 9-R313 AA
"9-R909AA
"9-R983AA
" 9-R3413 AA
" 9-R3732 AA
VRS-CY1JB335J 9-R3050 AA
VRS-CY1JB391J 9-R612 AA
"9-R613AA
VRS-CY1JB392F 9-R3062 AA
VRS-CY1JB392J 9-R119 AA
"9-R120AA
"9-R388AA
"9-R606AA
"9-R607AA
"9-RD29AA
" 9-R3163 AA
" 9-R3164 AA
" 9-R3166 AA
VRS-CY1JB470J 9-R873 AA
VRS-CY1JB471J 9-R3126 AA
" 9-R3304 AA
VRS-CY1JB472J 9-R109 AA
"9-R110AA
"9-R126AA
"9-R127AA
"9-R141AA
"9-R148AA
"9-R316AA
"9-R360AA
"9-R574AA
"9-R593AA
"9-R665AA
"9-R666AA
"9-R667AA
"9-R668AA
"9-R786AA
"9-R791AA
"9-R957AA
" 9-R3522 AA
" 9-R3715 AA
VRS-CY1JB473J 9-R107 AA
"9-R108AA
"9-R140AA
"9-R143AA
"9-R325AA
"9-R377AA
"9-R395AA
"9-R781AA
"9-R946AA
" 9-R3309 AA
" 9-R3310 AA
" 9-R3318 AA
" 9-R3319 AA
" 9-R3730 AA
VRS-CY1JB474J 9-R357 AA
" 9-R3728 AA
VRS-CY1JB511J 9-R3106 AA
" 9-R3117 AA
" 9-R3118 AA
VRS-CY1JB561J 9-R905 AA
"9-R906AA
" 9-R660B AA
VRS-CY1JB562J 9-R123 AA
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
CD-DV999W/CD-DV777W
32
" 9-R124 AA
" 9-R128 AA
" 9-R129 AA
" 9-R351 AA
" 9-R383 AA
" 9-R385 AA
" 9-R770 AA
" 9-R985 AA
" 9-R986 AA
" 9-RD30 AA
VRS-CY1JB563J 9-R901 AA
" 9-R902 AA
" 9-R907 AA
" 9-R911 AA
" 9-R937 AA
VRS-CY1JB680J 9-R679 AA
VRS-CY1JB681J 9-R322 AA
" 9-R727 AA
" 9-R728 AA
" 9-R885 AA
" 9-RD11 AA
" 9-R3035 AA
" 9-R3314 AA
VRS-CY1JB682J 9-R123 AA
" 9-R124 AA
" 9-R643 AA
" 9-R644 AA
" 9-R3074 AA
" 9-R3075 AA
VRS-CY1JB683J 9-R150 AA
" 9-R323 AA
" 9-R3027 AA
VRS-CY1JB750F 9-R3204 AA
" 9-R3205 AA
VRS-CY1JB821J 9-R885 AA
" 9-RD02 AA
" 9-RD12 AA
VRS-CY1JB822J 9-R608 AA
" 9-R609 AA
" 9-R614 AA
" 9-R615 AA
" 9-R760 AA
" 9-R790 AA
" 9-R985 AA
" 9-R986 AA
" 9-R3021 AA
" 9-R3022 AA
" 9-R3711 AA
" 9-R3722 AA
" 9-R3726 AA
VRS-CY1JB823J 9-R3702 AA
" 9-R3703 AA
VRS-TV2AB000J 9-R3156 AA
" 9-R3157 AA
" 9-R3158 AA
" 9-R3159 AA
" 9-R3160 AA
" 9-R3161 AA
VRS-TV2AB470J 9-R3806 AA
VRS-TV2AB750J 9-R3132 AA
" 9-R3133 AA
" 9-R3134 AA
" 9-R3135 AA
" 9-R3136 AA
" 9-R3137 AA
VRS-TW2EE121J 9-R3103 AA
" 9-R3109 AA
" 9-R3110 AA
VRS-TW2EE330J 9-R3307 AB
VRS-TW2EE470J 9-R3306 AA
" 9-R3316 AA
" 9-R3317 AA
VRS-VV3DA471J 9-R942 AB
" 9-R943 AB
VRS-VV3DA681J 9-R942 AC
" 9-R943 AC
VS2SB709AR+-1 2-Q3501 AB
VS2SD601AR/-1 2-Q3303 AC
" 2-Q3305 AC
VSKRA107S//-1 2-Q711 AB
" 2-Q715 AB
" 2-Q717 AB
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
VSKRC102S//-1 2-Q709 AB
"2-Q710AB
VSKRC104S//-1 2-Q110 AC
"2-Q113AC
"2-Q114AC
"2-Q712AC
"2-Q713AC
"2-Q714AC
"2-Q716AC
"2-Q888AC
" 2-Q3105 AC
" 2-Q3307 AC
VSKRC107M//-1 2-Q842 AC
VSKTA1266GR-1 2-Q360 AB
VSKTA1273Y/-1 2-Q706 AE
"2-Q707AE
"2-Q708AE
VSKTA1274Y/-1 2-Q801 AE
VSKTA1298Y/-1 2-Q3100 AC
" 2-Q3101 AC
" 2-Q3102 AC
" 2-Q3304 AC
" 2-Q3306 AC
VSKTA1504Y/-1 2-Q109 AB
"2-Q112AB
VSKTC3194Y/-1 2-Q302 AD
VSKTC3199GR-1 2-Q905 AB
VSKTC3200GR-1 2-Q101 AC
"2-Q102AC
"2-Q103AC
"2-Q104AC
VSKTC3203Y/-1 2-QK1 AC
"2-Q111AC
"2-Q906AC
"2-Q907AC
VSKTC3265Y/-1 2-Q661 AC
VSKTC3875GR-1 2-Q105 AB
"2-Q106AB
"2-Q107AB
"2-Q108AB
"2-Q601AB
"2-Q602AB
"2-Q603AB
"2-Q604AB
"2-Q605AB
"2-Q606AB
"2-Q885AB
"2-Q886AB
"2-Q901AB
"2-Q902AB
"2-Q903AB
"2-Q904AB
"2-Q908AB
"2-Q909AB
VVKNA11SS55-1 10-FL701 AV
[ X ]
XBBSD20P04000 12-609 AA
XEBSD20P10000 11-803 AA
XEBSD26P10000 12-604 AA
XEBSD30P10000 11-804 AA
"12-602AA
XESSD30P10000 12-605 AA
XHBSD30P06000 12-616 AA
XHBSD40P08000 12-608 AA
XJBSD30P10000 12-601 AA
XJBSD30P12000 13-911 AA
XJBSD40P16000 13-910 AB
XJSSD30P08000 12-606 AA
XMBSF40P16000 13-913 AC
XMPSF40P35000 13-912 AC
XWHSD32-10080 12-615 AA
[ 9 ]
92LBAG1460C1 14- AB
92LCONE2P5268 10-CNP301 AB
" 10-CNP7002 AB
92LCONE2P53253 10-CNP971 AB
92LCONE2P53253 10-CNP7004 AB
92LCONE3P53253 10-CNP7003 AB
92LCONE5P53253 10-CNP602 AB
92LCONE8P53253 10-CNP7001 AC
92LCONEBP53253 10-CNPK1 AC
92LCONEEP5267X 10-CNP801 AD
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
CD-DV999W/CD-DV777W
33
92LCRSTL1425A 7-X351 AF
92LCSPR1431C 12-216 AA
92LFANT1746A 14- AD
92LMTR1854BASY 10-NM2 AP
92LMTR5515CASY 10-NM1 AS
92LMTR5529AASY 10-M1 AD
" 10-M2 AD
" 11-M1 AD
" 11-M2 AD
92LNBAND1318A 12-208 AA
92LPWB5538DVSS 15-PWB-F
——
92LPWB5538MANS 15-PWB-A
——
92LPWB5538PWRS 15-PWB-B
——
92LPWB5554MANS 15-PWB-A
——
92LPWB5554PWRS 15-PWB-B
——
92LPWB5655DVDS 15-PWB-C
——
92LPWB5765MICS 15-PWB-G
——
92LSWICH1401AT 10-SW701 AC
" 10-SW702 AC
" 10-SW703 AC
" 10-SW704 AC
" 10-SW705 AC
" 10-SW706 AC
" 10-SW707 AC
" 10-SW708 AC
" 10-SW712 AC
" 10-SW713 AC
" 10-SW714 AC
" 10-SW715 AC
" 10-SW716 AC
" 10-SW724 AC
" 10-SW725 AC
" 10-SW726 AC
" 10-SW727 AC
" 10-SW728 AC
" 10-SW729 AC
" 10-SW730 AC
" 10-SW731 AC
" 10-SW732 AC
" 10-SW733 AC
" 10-SW734 AC
" 10-SW735 AC
PARTS CODE No.
PRICE
RANK
NEW
MARK
PART
RANK
CD-DV999W
−− MEMO −−
34
CD-DV999W
NOTE:
Parts marked with are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.
Explanation of capacitors/resistors parts codes
Capacitors
VCC ....................... Ceramic type
VCK ........................ Ceramic type
VCT ........................ Semiconductor type
VC MF ............... Cylindrical type (without lead wire)
VC MN............... Cylindrical type (without lead wire)
VC TV................ Square type (without lead wire)
VC TQ ............... Square type (without lead wire)
VC CY ............... Square type (without lead wire)
VC CZ ............... Square type (without lead wire)
VC J.. The 13th character represents capacity difference.
("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)
If there are no indications for the electrolytic capacitors, error is ±20%.
Resistors
VRD ....................... Carbon-film type
VRS ........................ Carbon-film type
VRN ....................... Metal-film type
VR MF ............... Cylindrical type (without lead wire)
VR MN............... Cylindrical type (without lead wire)
VR TV................ Square type (without lead wire)
VR TQ ............... Square type (without lead wire)
VR CY ............... Square type (without lead wire)
VR CZ ............... Square type (without lead wire)
VR J.. The 13th character represents error.
("J" ±5%, "F" ±1%, "D" ±0.5%.)
If there are no indications for other parts, the resistors are ±5%
carbon-film type.
35
CD-DV999W
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
COPYRIGHT
©
XXXX BYSHARP CORPORATION
ALL RIGHTS RESERVED.
A0406-165DS HA M
EX
COPYRIGHT 2004 BY SHARP CORPORATION
ALL RIGHTS RESERVED.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any from or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
©
SHARP CORPORATION
AV Systems Group
Quality & Reliability Control Center
Higashihiroshima, Hiroshima 739-0192, Japan
Printed in Japan
