Polaris RZR 170 EFI 2017 Youth User Manual

2017

Owner's Manual

for Maintenance

and Safety

WARNING

Read, understand, and follow all of the instructions and safety

precautions in this manual and on all product labels.

Failure to follow the safety precautions

could result in serious injury or death.

WARNING

The engine exhaust from this product contains chemicals

known to the State of California to cause cancer, birth defects

or other reproductive harm.

For videos and more information

about a safe riding experience with

your Polaris vehicle, scan this QR

code with your smartphone.

Visit us at www.polaris.com

POLARIS® and RZR® are trademarks of POLARIS Industries Inc.

publication is based on the latest product information at the time of publication. Due to

constant improvements in the design and quality of production components, some minor

discrepancies may result between the actual vehicle and the information presented in

this publication. Depictions and/or procedures in this publication are intended for

reference use only. No liability can be accepted for omissions or inaccuracies. Any

reprinting or reuse of the depictions and/or procedures contained within, whether whole

or in part, is expressly prohibited.

The original instructions for this vehicle are in English. Other languages are provided as

translations of the original instructions.

Printed in Taiwan

2017 RZR 170 Owner’s Manual

P/N 9927394

WELCOME

Dear Parents:

We believe your children should have the opportunity to enjoy the

POLARIS riding experience along with you. We encourage you to teach

your children to ride safely, and to help ensure the future of recreational

sports, please teach them to show respect for our environment and for

the rights of others while operating the vehicle.

This vehicle is not a toy and can be hazardous to operate. We've

provided this owner’s manual and an instructional video to help you and

your children learn about the safe operation and care of your new

POLARIS vehicle. Before your children drive or ride in the vehicle,

please read and make sure they read this owner’s manual. Watch the

instructional video with them. Make sure all operators and passengers

understand and follow all of the instructions and warnings contained in

this owner’s manual and video. Make sure they understand that the

vehicle must be used under adult supervision at all times.

After reading this owner’s manual and watching the video, help your

child practice the New Operator Driving Procedures on pages 42-43.

Never allow a child under age 10 to operate or ride as a passenger in

this vehicle. Children differ in skills, physical abilities and judgement.

Please supervise the use of the vehicle at all times. Permit continued use

only if you determine that your child has the ability and maturity to

operate safely.

For your child’s safety, be sure your child can reach and operate all

RZR 170 controls, including steering wheel, accelerator and brake

pedals, and ignition switch. Make sure your child is not too tall to ride

safely in this vehicle. See page 12.

The vehicle’s speed control system allows adults to limit vehicle speed

for new and inexperienced operators. Please see page 35 for more

information.

The preventive maintenance program outlined in this manual is

designed to ensure that all critical components on your child's vehicle

are thoroughly inspected at specific intervals. Always follow all of the

instructions and recommendations in this manual to ensure the vehicle

remains in safe operating condition at all times.

This POLARIS vehicle is not designed for adult use. Serious damage

may occur if the maximum weight capacity is exceeded. Refer to

vehicle labels and to the specifications section beginning on page 92 for

the maximum weight capacity.

WELCOME

Dear Young Operators:

Before you ride your new POLARIS vehicle, there are some important

things that you need to know. You must learn how to keep yourself and

those around you safe while you're riding.

Your parents and POLARIS want you to be safe while you enjoy riding

your new vehicle, and that's why it’s very important that you read this

owner’s manual and watch the instructional video. Make sure you

understand and follow all of the instructions and warnings in this

owner’s manual and video. Ask your parents to explain anything you

don't understand.

Your safety and the safety of others is the most important thing to think

about at all times. Pay attention when you see this symbol:

This is the safety alert symbol. When you see this symbol on your vehicle

or in this manual it means PAY ATTENTION because you could die or be

seriously injured if you don't follow the instructions.

After reading this owner’s manual and watching the video, complete the

New Operator Driving Procedures on pages 42-43. Show your parent

that you understand how to drive safely.

Enjoy riding your new POLARIS vehicle!

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Features and Controls. . . . . . . . . . . . . . . . . . . 24

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Emission Control Systems . . . . . . . . . . . . . . . 52

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . 92

POLARIS Products. . . . . . . . . . . . . . . . . . . . . . 94

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . 95

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Maintenance Log . . . . . . . . . . . . . . . . . . . . . . 106

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

INTRODUCTION

The following signal words and symbols appear throughout this manual

and on your vehicle. Your safety is involved when these words and sym-

bols are used. Become familiar with their meanings before reading the

manual.

The safety alert symbol indicates a potential personal injury hazard.

DANGER

A DANGER indicates a hazardous situation that, if not avoided, will result in

death or serious injury.

WARNING

A WARNING indicates a hazardous situation that, if not avoided, could result in

death or serious injury.

CAUTION

A CAUTION indicates a hazardous situation that, if not avoided, could result in

minor or moderate injury.

NOTICE

A NOTICE indicates a situation that could result in property damage.

The Prohibition Safety Sign indicates an action NOT to take in order

to avoid a hazard.

The Mandatory Action Sign indicates an action that NEEDS to be

taken to avoid a hazard.

INTRODUCTION

Failure to follow the warnings and safety precautions contained in this manual

can result in severe injury or death. Your POLARIS vehicle is not a toy and can

be hazardous to operate. This vehicle handles differently than cars, trucks or

other off-road vehicles. A collision or rollover can occur quickly, even during

routine maneuvers like turning, or driving on hills or over obstacles, if you fail to

take proper precautions.

• Never operate this vehicle without proper instruction. All operators and

supervising adults must watch the instructional video that was provided with

the vehicle. Read this owner’s manual and review the safety DVD that came

with your vehicle. A free extra copy of the DVD can be obtained by contacting

your local POLARIS dealer. Understand all safety warnings, precautions and

operating procedures before operating the vehicle. Keep this manual with the

vehicle.

• For your child’s safety, be sure your child can reach and operate all RZR 170

controls, including steering wheel, accelerator and brake pedals, and ignition

switch. No person under the age of 10 may ride as a passenger in this vehicle.

All riders must be able to sit with backs against the seat, both feet flat on the

floor and both hands on the steering wheel (if driving) or on a passenger hand

hold.

• Always follow the age guidelines for your vehicle. Operation is prohibited for

anyone under age 10. Never operate with a passenger under age 10.

• Always use the cab nets (or doors) while riding in this vehicle. Always keep

hands, feet and all other body parts inside the vehicle at all times.

• Always wear a helmet, eye protection, gloves, long-sleeve shirt, long pants

and over-the-ankle boots.

• Complete the New Operator Driving Procedures outlined on pages 42-43.

Never allow a guest to operate this vehicle until the guest has watched the

instructional video and has completed the New Operator Driving Procedures.

WARNING

INTRODUCTION

Vehicle Identification Numbers

Record your vehicle's identification numbers and key number in the

spaces provided. Remove the spare key and store it in a safe place. An

ignition key can be duplicated only by ordering a POLARIS key blank

(using your key number) and mating it with one of your existing keys.

The ignition switch must be replaced if all keys are lost.

Vehicle Model Number: ___________________________________________________

Vehicle Identification Number: ______________________________________________

Engine Serial Number: ___________________________________________________

Key Number ____________________________________________________________

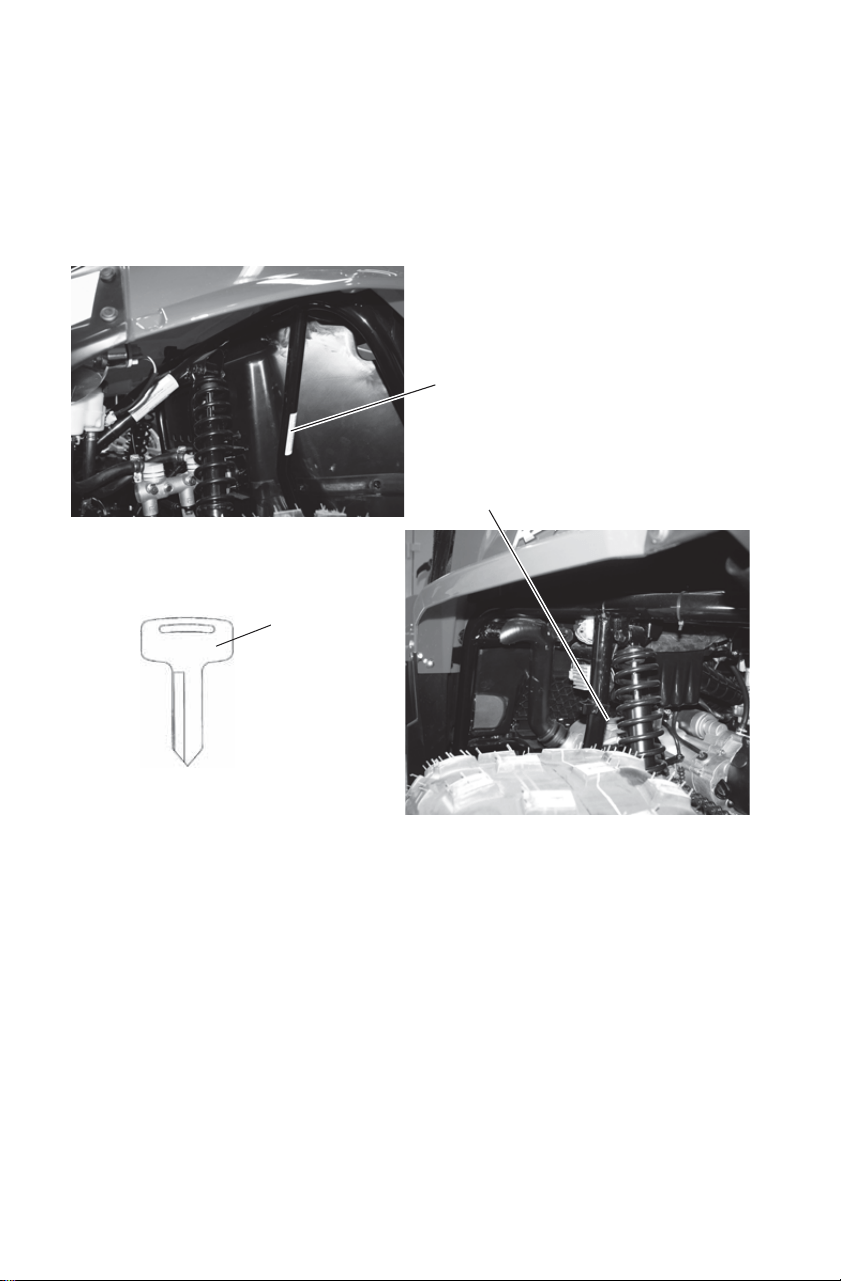

Engine Serial Number

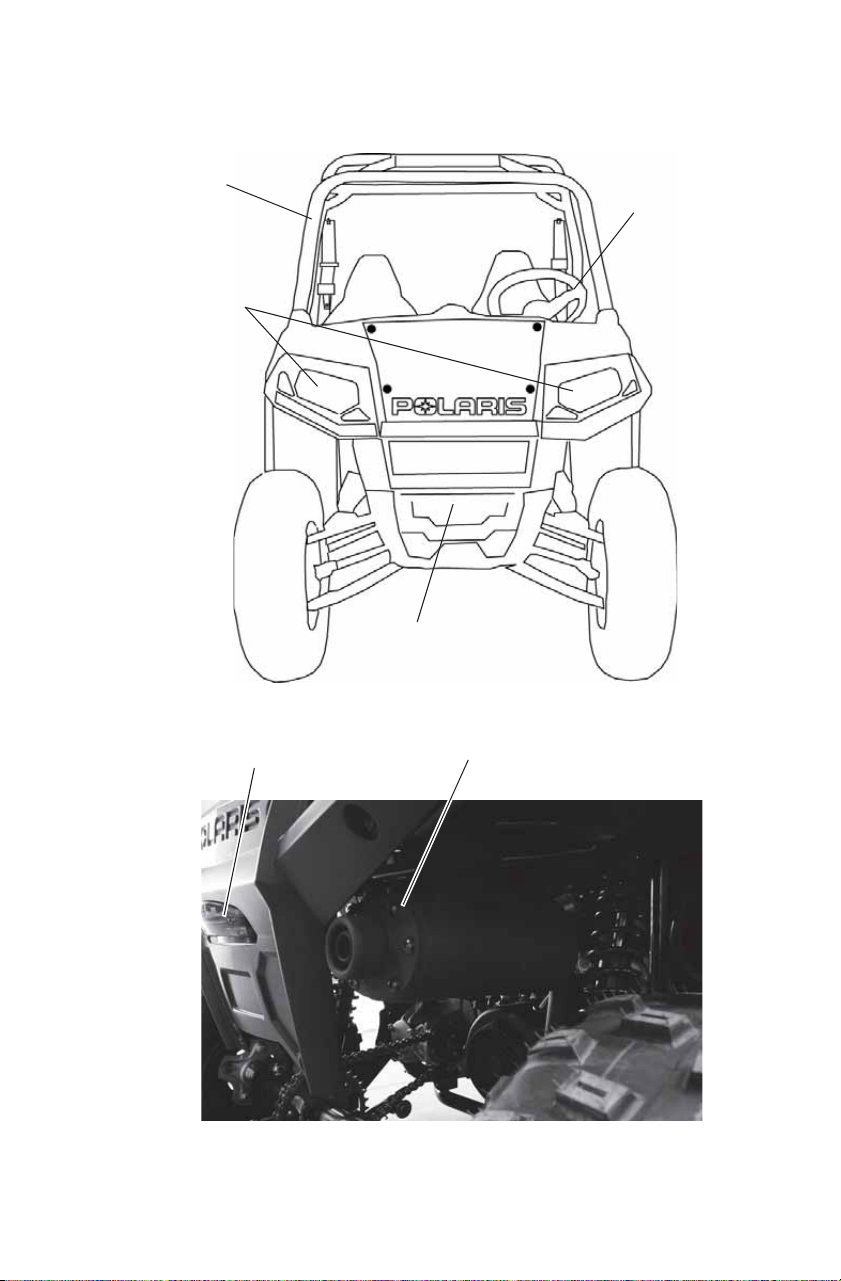

(left rear wheel well)

Key

Number

Vehicle Identification Number

(left front wheel well)

####

SAFETY

Equipment Modifications

Your POLARIS vehicle is designed to provide safe operation when used as

directed.

WARNING! Modifying this vehicle in any way can change the top speed,

stability and handling performance of this vehicle. Modifications that increase

speed, decrease stability or change performance may present a greater risk to

inexperienced or younger operators and could result in loss of control and

serious injury or death. Use only POLARIS-approved accessories to modify this

vehicle. Review all vehicle changes with your child prior to operating.

The POLARIS limited warranty on your POLARIS vehicle will be terminated if

any non-POLARIS-approved equipment and/or modifications have been added

to the vehicle that increase speed or power.

European Vibration and Noise

The driver-perceived noise and hand/arm and whole body vibration levels of this

machinery is measured per prEN 15997.

The operating conditions of the machinery during testing:

The vehicles were in like-new condition. The environment was controlled as

indicated by the test procedure(s).

The uncertainty of vibration exposure measurement is dependent on many

factors, including:

• Instrument and calibration uncertainty

• Variations in the machine such as wear of components

• Variation of machine operators such as experience or physique

• Ability of the worker to reproduce typical work during measurements

• Environmental factors such as ambient noise or temperature

SAFETY

Safe Riding Gear

The driver and passenger must wear helmet, eye protection, gloves,

long-sleeve shirt, long pants, over-the-ankle boots and seat belt at all

times. Protective gear reduces the chance of injury.

Helmet

Wearing a helmet can prevent a severe head injury. Whenever riding this

POLARIS vehicle, always wear a helmet that meets or exceeds estab-

lished safety standards.

Approved helmets in the USA and Canada bear a U.S. Department of

Transportation (DOT) label.

Approved helmets in Europe, Asia and Oceania

bear the ECE 22.05 label. The ECE mark consists

of a circle surrounding the letter E, followed by the

distinguishing number of the country which has

granted approval. The approval number and serial

number will also be displayed on the label.

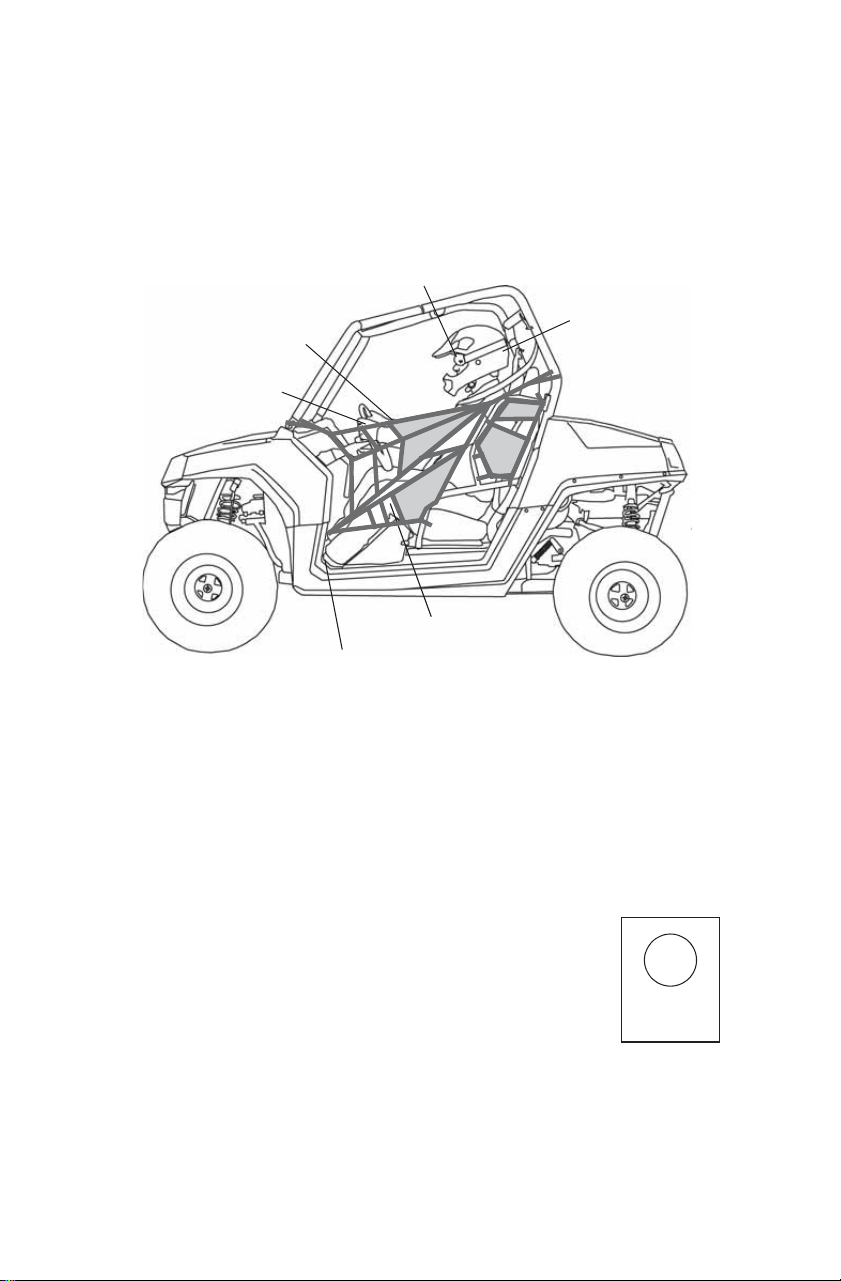

Helmet

Eye

Protection

Gloves

Over-the-Ankle

Boots

Long

Pants

Long

Sleeves

051039

0006.31

SAFETY

Safe Riding Gear

Eye Protection

Do not depend on eyeglasses or sunglasses for eye protection.

Whenever riding this POLARIS vehicle, always wear shatterproof

goggles or use a shatterproof helmet face shield. POLARIS

recommends wearing approved Personal Protective Equipment (PPE)

bearing markings such as VESC 8, V-8, Z87.1, or CE. Make sure

protective eye wear is kept clean.

Gloves

Wear gloves for comfort and for protection from sun, cold weather and

other elements.

Boots

Wear sturdy over-the-ankle boots for support and protection. Never ride

a POLARIS vehicle with bare feet or sandals.

Clothing

Wear long sleeves and long pants to protect arms and legs.

Rider Comfort

Under certain operating conditions, heat generated by the engine and

exhaust system can elevate temperatures in the driver and passenger cab

area. The condition occurs most frequently when a vehicle is being

operated in high ambient temperatures at low speeds and/or high load

conditions for an extended period of time. The use of certain

windshield, roof and/or cab systems may contribute to this condition by

restricting airflow. Any discomfort due to heat buildup in this area can

be minimized by wearing proper riding apparel and by varying speeds to

increase airflow.

SAFETY

Safety Warnings

Failure to operate this vehicle properly can result in a collision, loss of control,

accident or rollover, which may result in serious injury or death. Heed all safety

warnings outlined in this section of the owner’s manual and in the safety DVD

provided with your vehicle.

Be sure to read all of the following warnings about driving hazards and how to

avoid them. These warnings are provided for your child's safety. Be sure to

explain to your young driver that the hazards outlined in this section of this

owner’s manual MUST be avoided at all times. See the OPERATION section of

this owner’s manual for proper operating procedures.

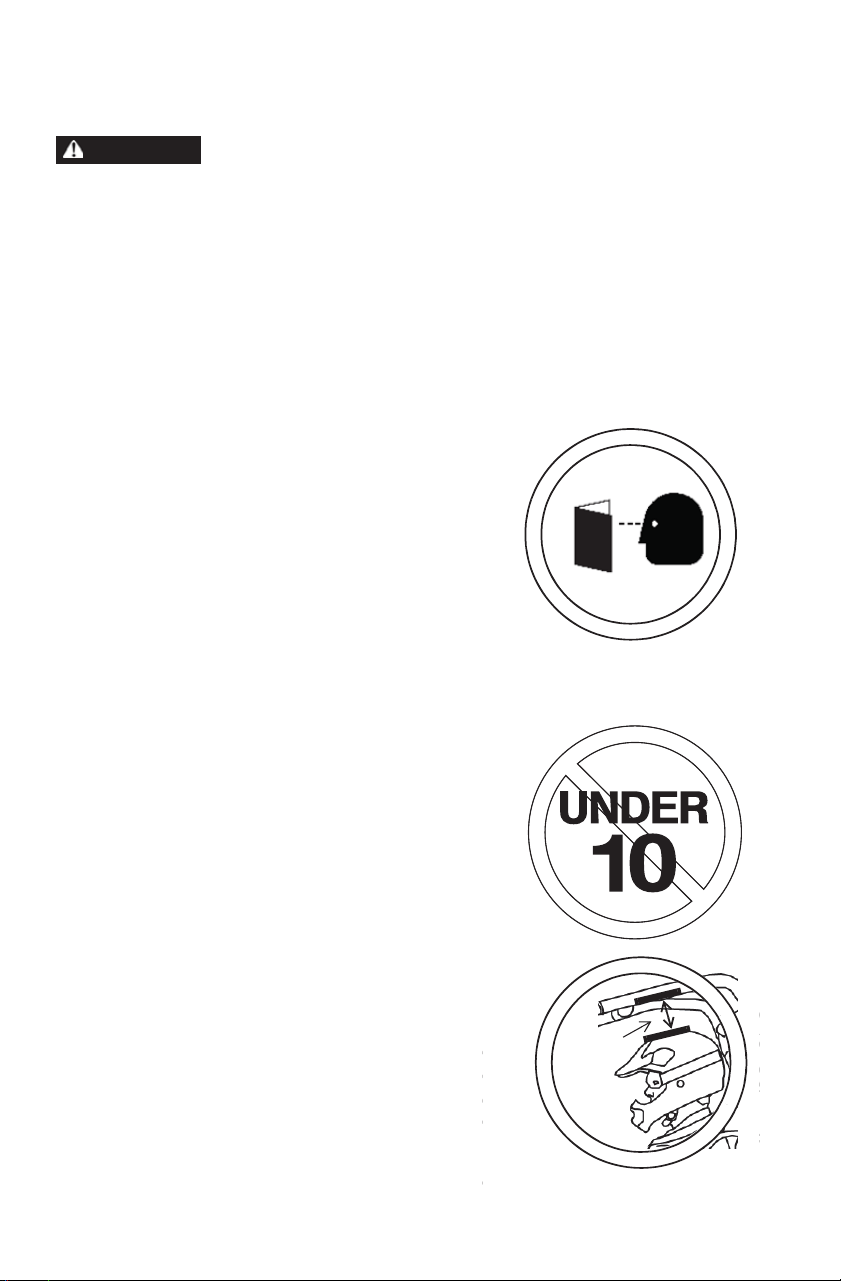

Operating Without Instruction

Operating this vehicle without proper instruction

increases the risk of an accident. The operator

and the supervising adult must understand how

to operate the vehicle properly in different

situations and on different types of terrain.

Complete the New Operator Driving

Procedures outlined on pages 42-43.

All operators must read and understand this

owner’s manual and all warning and instruction

labels before operating the vehicle. Never allow

a guest to operate this vehicle until the guest

has read this manual and all product labels and

has completed the New Operator Driving

Procedures outlined on pages 42-43.

Age Restrictions

This vehicle is for recreational use by young

operators under adult supervision ONLY.

Operation is prohibited for anyone under age 10.

Never operate with a passenger under age 10.

All riders must be able to sit with backs against

the seat, both feet flat on the floor and both

hands on the steering wheel (if driving) or on a

passenger hand hold.

Rider Height

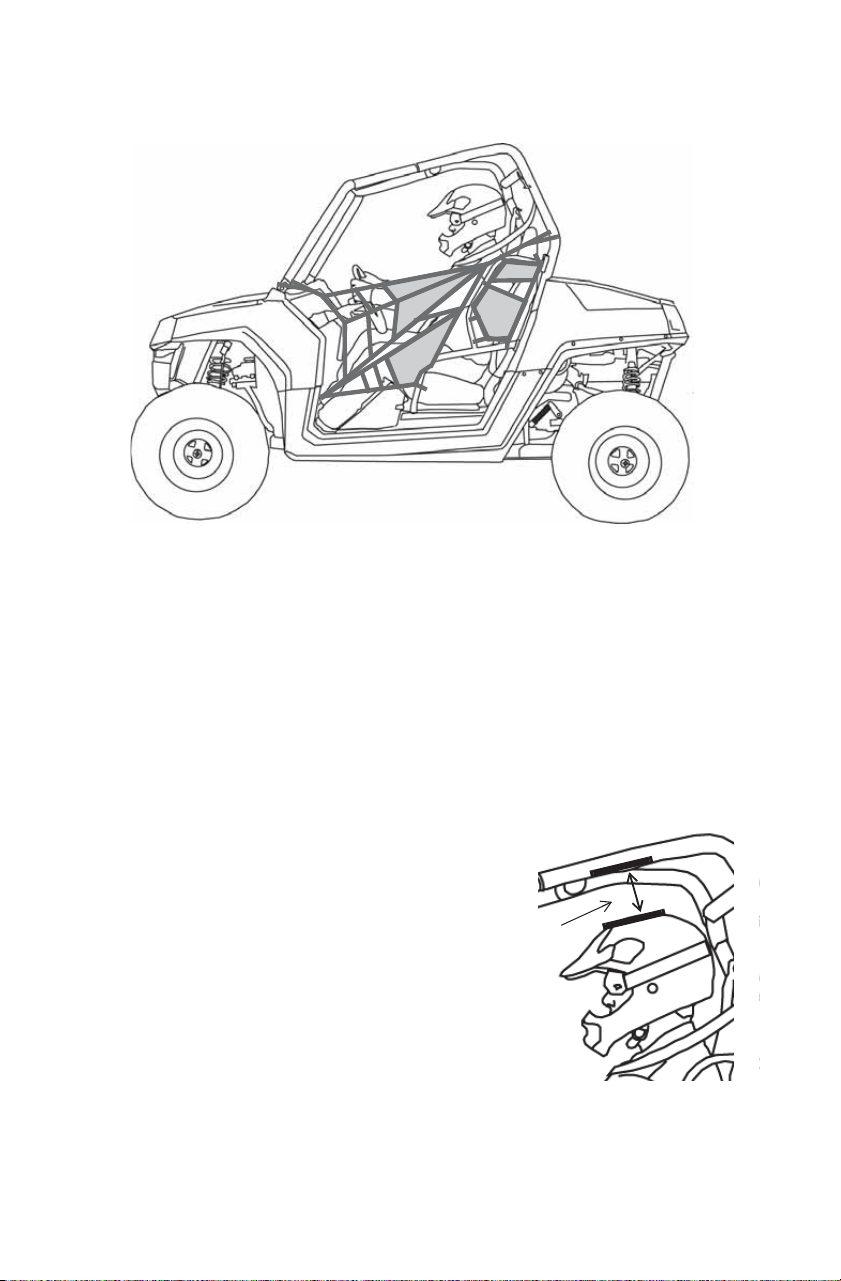

Some riders may be too tall to ride safely in

this vehicle. Do not operate or ride in this

vehicle if the clearance between the top of your

helmet and the overhead cab frame is less

than 2 inches (5 cm).

WARNING

Minimum

2 in

ches

(5 cm)

SAFETY

Safety Warnings

Failure to Inspect Before Operating

Failure to inspect and verify that the

vehicle is in safe operating condition

before operating increases the risk of an

accident.

Always inspect the vehicle before each

use to make sure it's in safe operating

condition. See page 38.

Always follow the inspection and

maintenance procedures and schedules

described in this owner’s manual. See

page 53.

Protective Apparel

Riding in this vehicle without wearing an

approved helmet and protective eyewear

increases the risk of serious injury in the

event of an accident.

Operator and passenger must always

wear an approved helmet that fits properly

and eye protection (goggles or face

shield).

Seat Belts

Riding in this vehicle without wearing the seat belt increases the risk of serious

injury in the event of rollover, loss of control, other accident or sudden stop. Seat

belts may reduce the severity of injury in these circumstances. Riders must wear

seat belts at all times. Always make sure the seat belts are secured for both the

operator and passenger before riding.

Cab Nets

Riding in this vehicle without using the cab nets (or doors, if equipped) increases

the risk of serious injury or death in the event of an accident or rollover. Always

use the cab nets (or doors) while riding in this vehicle. Always keep hands and

feet inside the vehicle at all times.

SAFETY

Safety Warnings

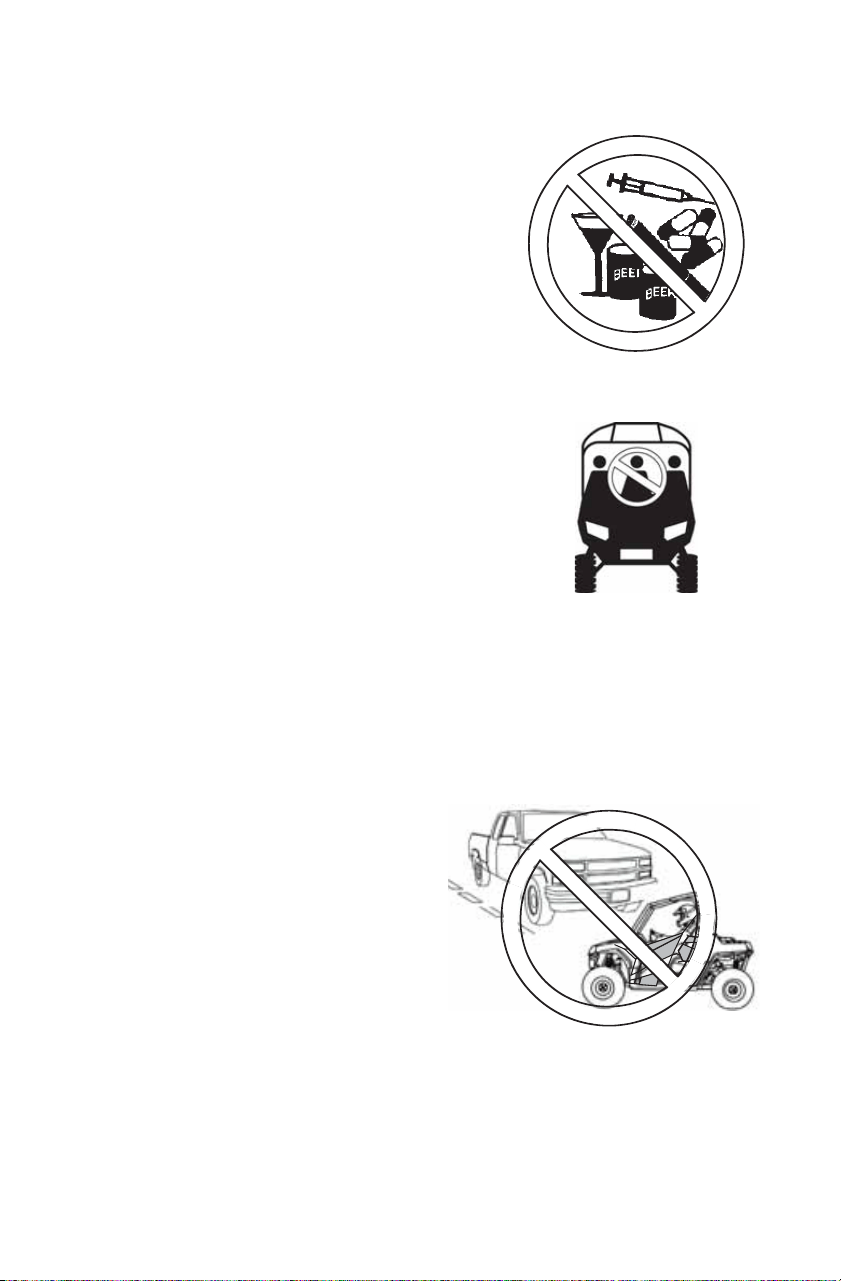

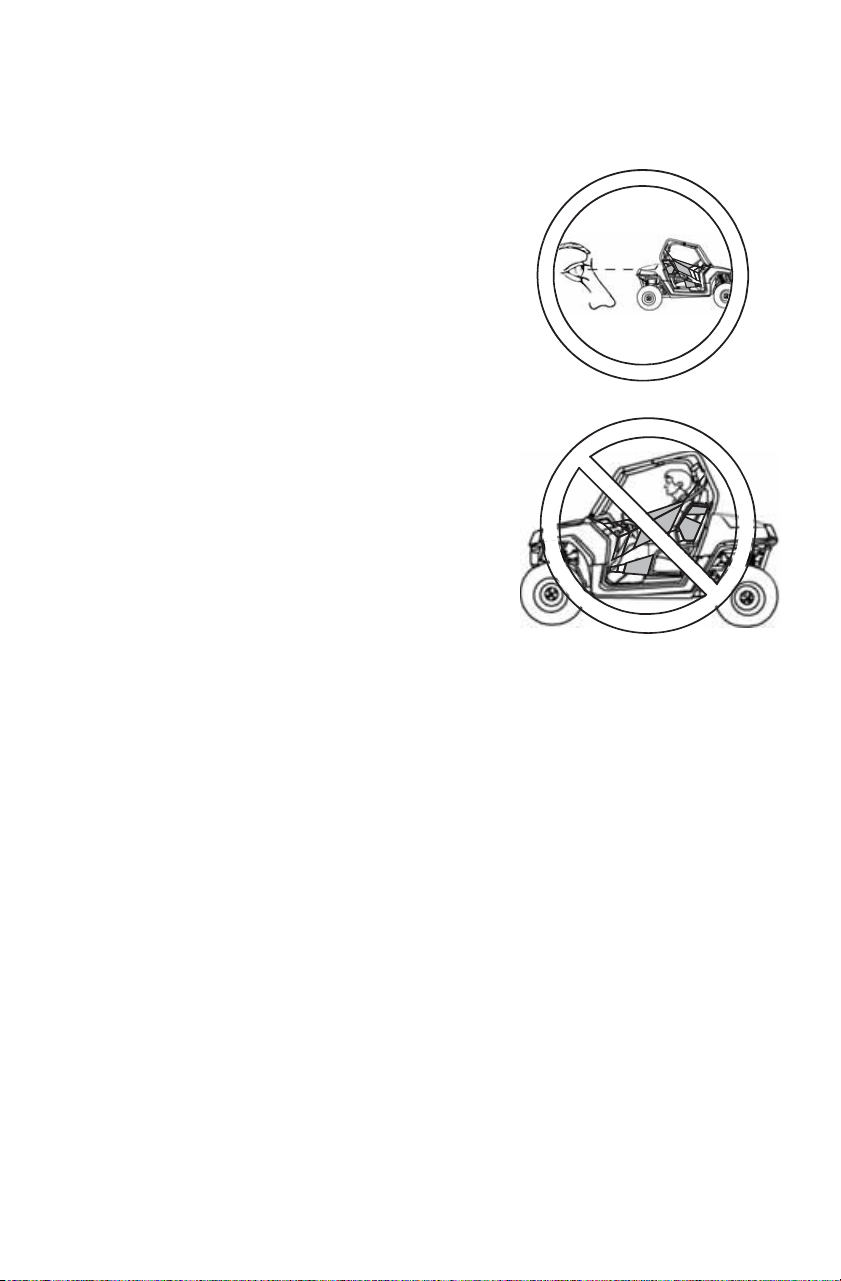

Using Alcohol or Drugs

Riding in this vehicle after consuming alcohol or

drugs could adversely affect operator judgment,

reaction time, balance and perception.

Never consume alcohol or drugs before or while

operating or riding in this vehicle.

Carrying a Passenger

Never carry a passenger until you have operated

this vehicle for at least four hours and have

completed the New Operator Driving Procedures

outlined on pages 42-43.

Carrying Multiple Passengers

A passenger must always be seated in a

passenger seat with seat belt secured.

Carrying more than one passenger in this

vehicle can affect the operator’s ability to

steer and operate the controls, which

increases the risk of loss of control and

accident or rollover. Never carry more than

one passenger in this vehicle.

Operating on Pavement

This vehicle's tires are designed for off-road use only, not for use on pavement.

Operating this vehicle on paved surfaces (including sidewalks, paths, parking

lots and driveways) may adversely affect the handling of the vehicle and may

increase the risk of loss of control and accident or rollover. Avoid operating the

vehicle on pavement. If it's unavoidable, travel slowly, travel short distances and

avoid sudden turns or stops.

Operating on Public Roads

Operating this vehicle on public streets,

roads or highways could result in a

collision with another vehicle. Never

operate this vehicle on any public street,

road or highway, including dirt and gravel

roads (unless designated for off-highway

use).

SAFETY

Safety Warnings

Operating at Excessive Speeds

Operating this vehicle at

excessive speeds increases the

operator's risk of losing control.

Always operate at a speed that's

appropriate for the terrain, the

visibility and operating

conditions, your skills and

experience and your

passengers’ skills and

experience.

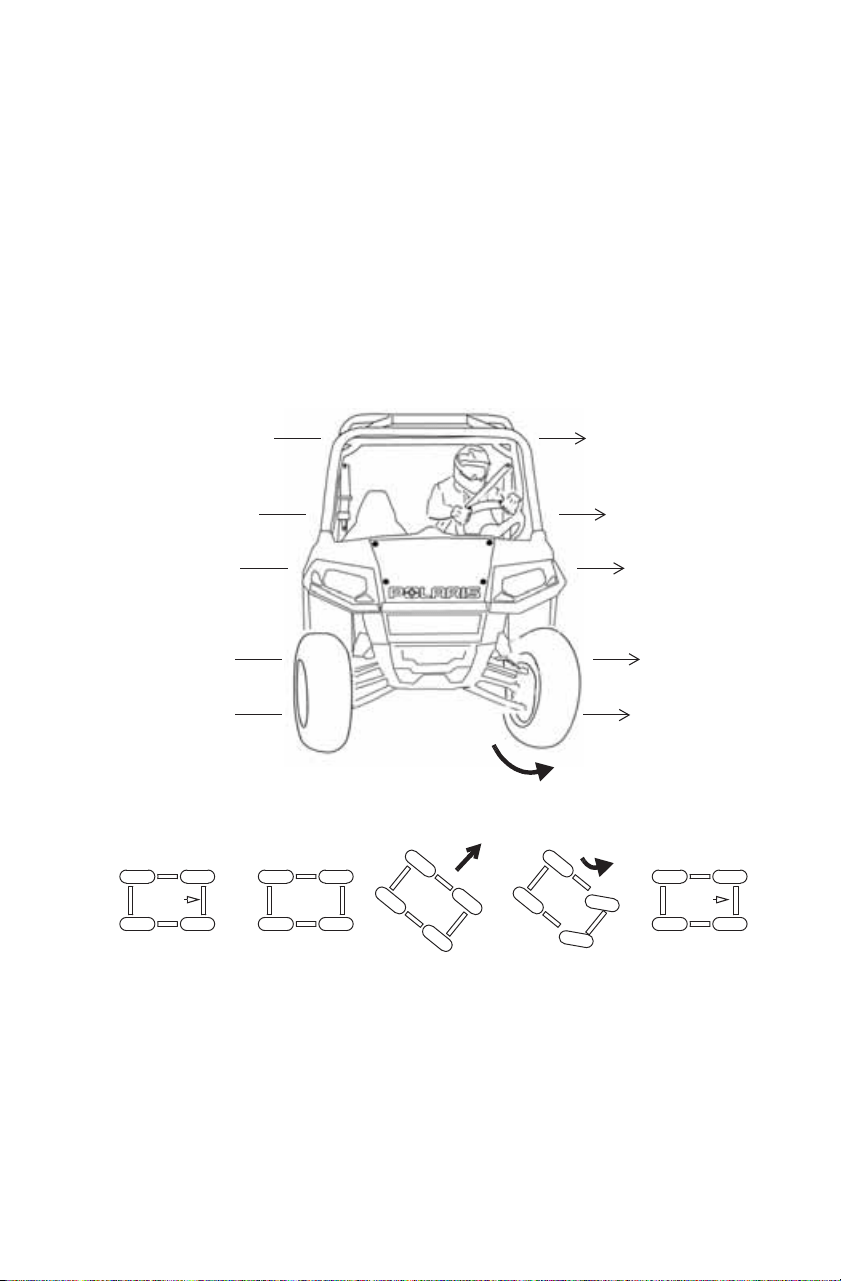

Turning Improperly

Turning improperly could cause loss of traction, loss of control, accident or

rollover. Always follow proper procedures for turning as described in this

owner’s manual.

Never turn abruptly or at sharp angles. Never turn at high speeds. Practice

turning at slow speeds before attempting to turn at faster speeds.

Physical Control of the Vehicle

Removing hands from the steering wheel or hand holds or removing feet from

the floor while riding increases the risk of loss of control and accident or rollover.

The operator should always keep both hands on the steering wheel during

operation. A passenger should always be seated in the passenger seat with

both feet on the floor and with both hands securely grasping the hand holds.

Always keep hands and feet inside the vehicle at all times.

Jumps and Stunts

Exhibition driving increases the risk of

an accident or rollover. DO NOT do

power slides, “donuts”, jumps or other

driving stunts. Avoid exhibition driving.

SAFETY

Safety Warnings

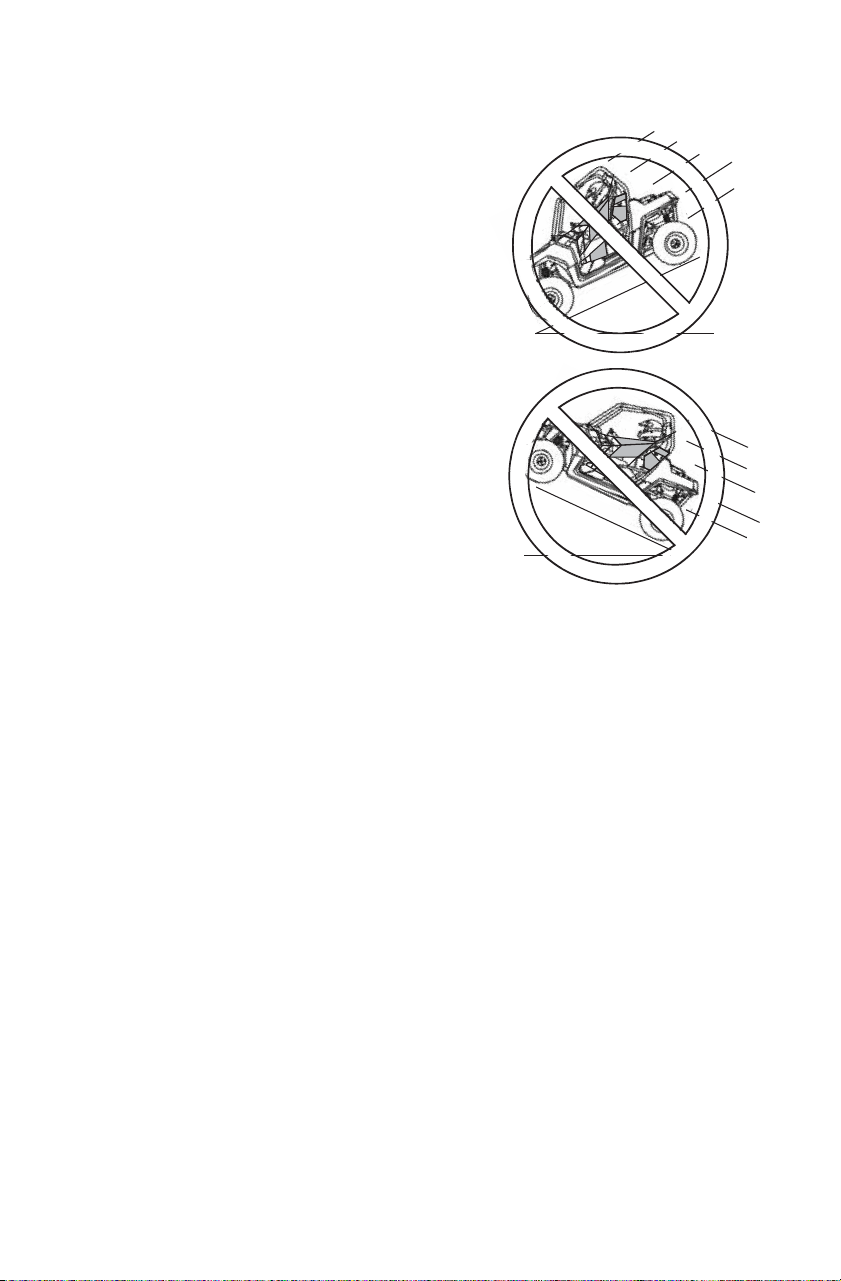

Driving Downhill Improperly

Driving down a hill improperly could cause

loss of control or rollover. Always follow

proper procedures for driving down a hill

as described in this owner’s manual. See

page 47.

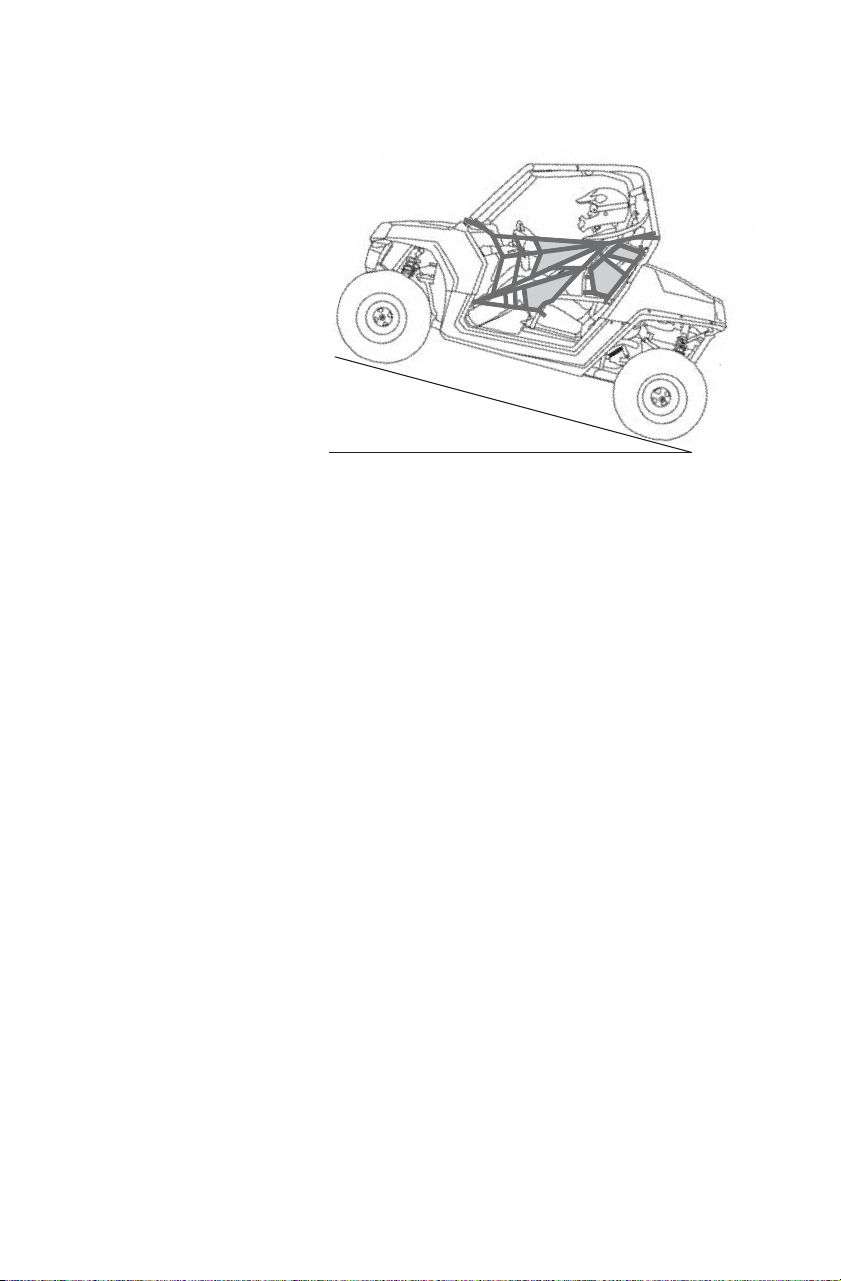

Improper Hill Climbing

Improper hill climbing could cause loss of

control or rollover. Use extreme caution

when operating on hills. Always follow proper

procedures for hill climbing as described in

this owner’s manual. See page 46. Never

operate the vehicle on hills steeper than 15

degrees.

+15°

SAFETY

Safety Warnings

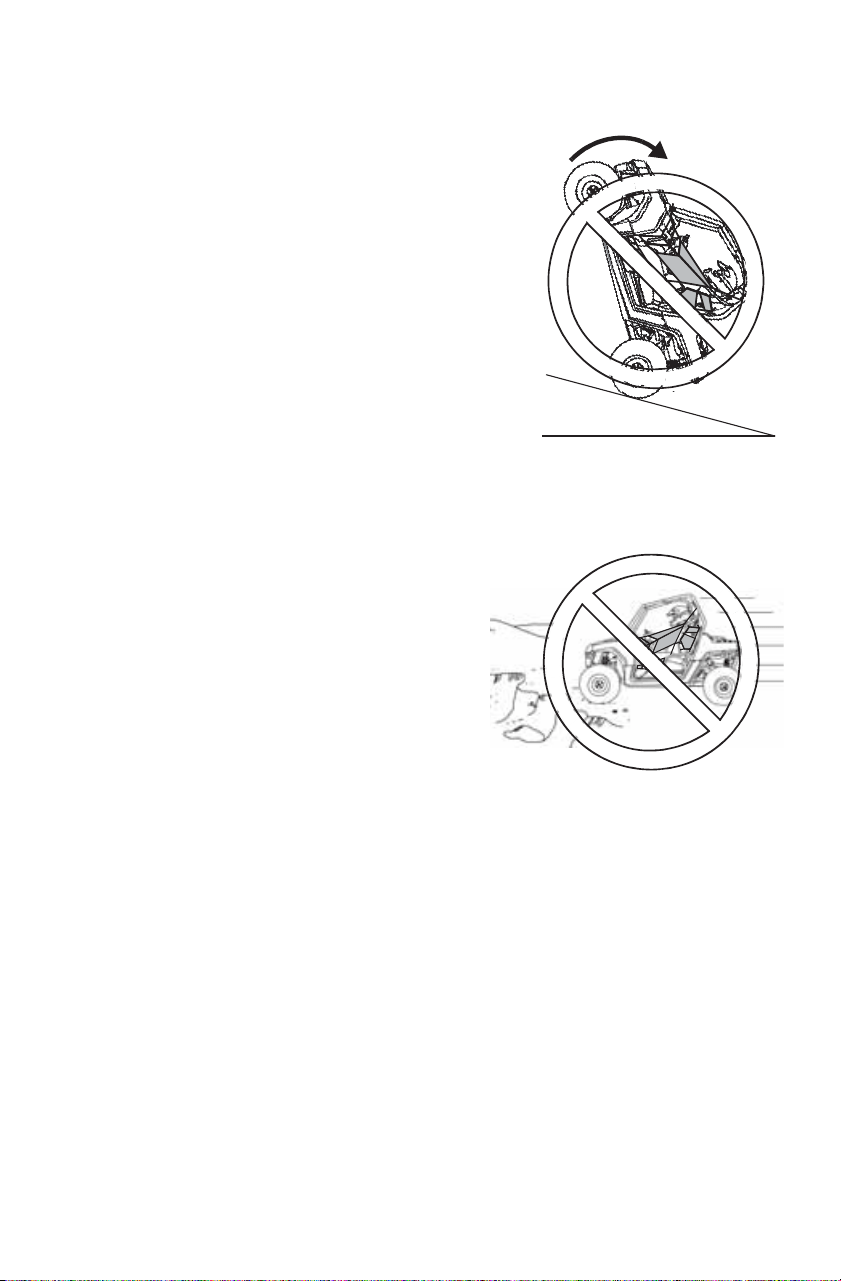

Stalling While Climbing a Hill

Stalling or rolling backwards while climbing a hill

could cause a rollover. Maintain a steady speed

when climbing a hill.

If you lose all forward speed:

Apply the brakes gradually until the vehicle is

fully stopped. Place the transmission in reverse

and slowly allow the vehicle to roll straight

downhill while applying light brake pressure to

control speed.

Crossing Hillsides

Driving on a sidehill is not recommended.

Improper procedure could cause loss of control

or rollover. Avoid crossing the side of any hill

unless absolutely necessary.

If crossing a hillside is unavoidable, always follow proper procedures as

described in this owner’s manual. See page 47.

Operating in Unfamiliar Terrain

Failure to use extra caution when operating

on unfamiliar terrain could result in an

accident or rollover.

Unfamiliar terrain may contain hidden rocks,

bumps, or holes that could cause loss of

control or rollover.

Travel slowly and use extra caution when

operating on unfamiliar terrain. Always be

alert to changing terrain conditions.

SAFETY

Safety Warnings

Operating on Sand or Slippery

Terrain

Operating on sand or on excessively rough,

slippery or loose terrain could cause loss of

traction, loss of control, accident or rollover.

Always use extra caution when operating on

sand or on rough, slippery or loose terrain.

Do not operate on excessively rough,

slippery or loose terrain.

Operating Improperly in

Reverse

Improperly operating in reverse could

result in a collision with an obstacle or

person. Always follow proper operating

procedures as outlined in this manual.

See page 50.

Before shifting into reverse gear, always

check for obstacles or people behind the

vehicle. When it's safe to proceed, back

slowly.

Improper Tires and Maintenance

Operating this vehicle with improper tires or

with improper or uneven tire pressure could

cause loss of control, accident or rollover.

Always use the size and type of tires specified

for your vehicle. Always maintain proper tire

pressure as described in this owner's manual

and on safety labels.

SAFETY

Safety Warnings

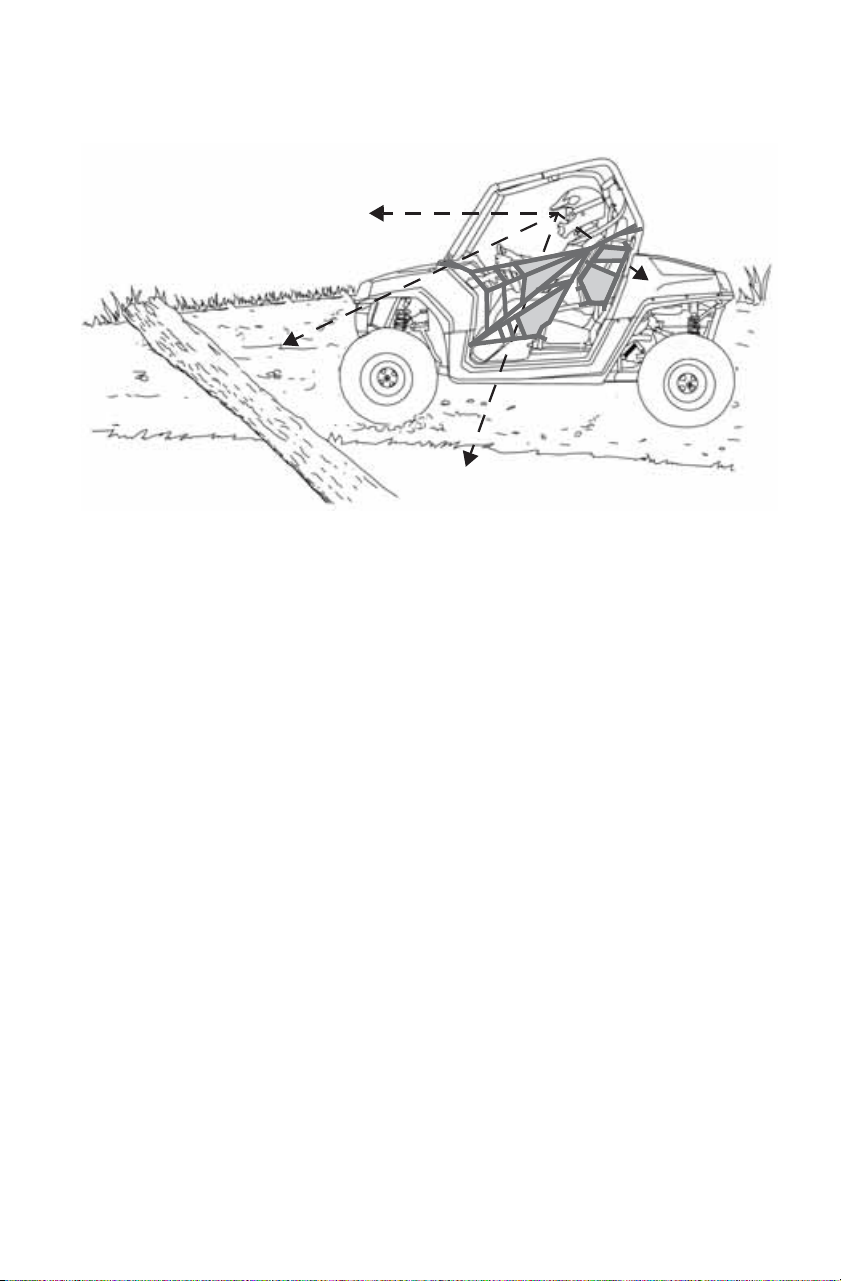

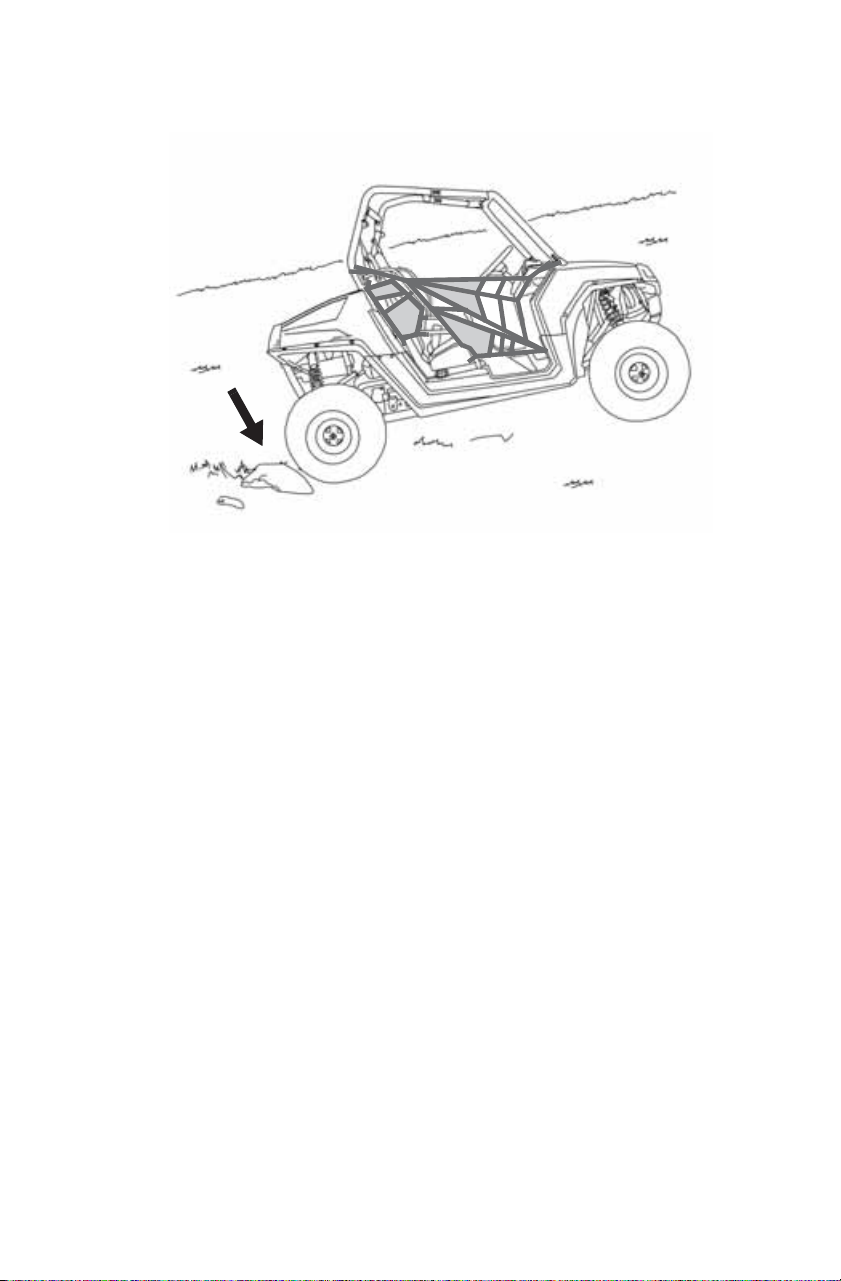

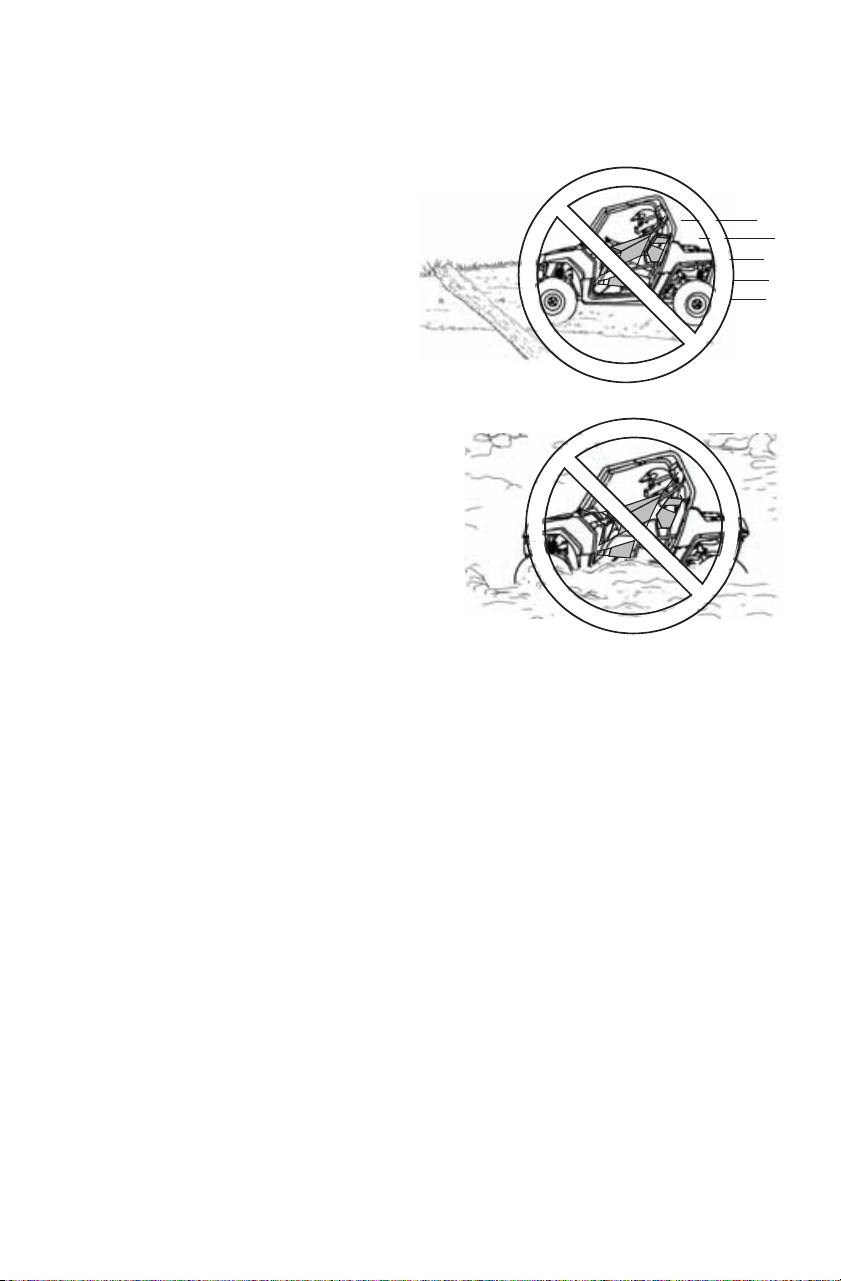

Operating Over Obstacles

Improperly operating over obstacles

could cause loss of control or

rollover.

Before operating in a new area,

check for obstacles. Never attempt

to operate over large obstacles such

as large rocks or fallen trees. Always

follow the proper procedures

outlined in this manual when

operating over obstacles. See page

49.

Operating Through Water

Operating through deep or fast-flowing

water can cause loss of traction, loss of

control, rollover or accident. Never

operate in fast-flowing water or in water

that exceeds the floor level.

Always follow proper procedures for

operating in water as described in this

owner’s manual. See page 48.

Wet brakes may have reduced stopping

ability. After leaving water, test the

brakes. Apply them lightly several times

while driving slowly. The friction will help dry out the pads.

SAFETY

Safety Warnings

Overloading the Vehicle

Overloading the vehicle or carrying/towing loads may cause changes in stability

and handling, which could cause loss of control or an accident.

• Never tow objects or carry loads with this vehicle.

• Never exceed the maximum weight capacity for this vehicle. See page 23.

Operating a Damaged Vehicle

Operating a damaged vehicle can result in an accident. After any rollover or

other accident, have a qualified service dealer inspect the entire machine for

possible damage, including (but not limited to) seat belts, rollover protection

devices, brakes, throttle and steering systems.

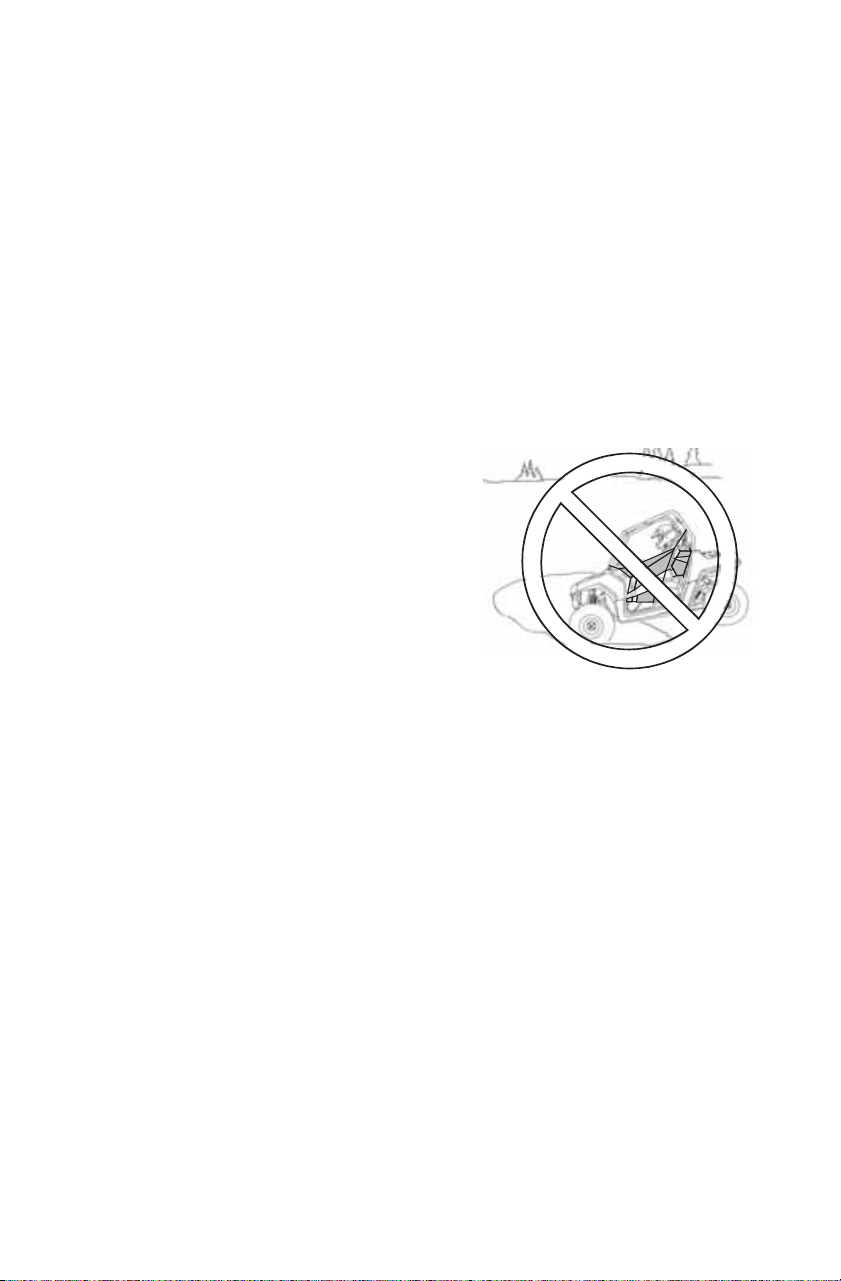

Operating on Frozen Bodies of Water

Operating on frozen bodies of water can

result in the vehicle and/or riders falling

through the ice. Never operate this vehicle on

a frozen body of water.

SAFETY

Safety Warnings

Refueling

Gasoline is highly flammable and is explosive under certain conditions. Always

exercise extreme caution whenever handling gasoline.

• Never allow a child to refuel or handle gasoline.

• Always stop the engine when refueling.

• Always refuel outdoors or in a well ventilated area.

• Do not smoke or allow open flames or sparks in or near the refueling area or

where gasoline is stored.

• Never refuel while a person is in the vehicle.

• Do not over fill the tank. Do not fill the tank neck.

• If gasoline spills on your skin or clothing, immediately wash it off with soap and

water and change clothing.

Exposure to Exhaust

Engine exhaust fumes are poisonous and can cause loss of consciousness or

death in a short time. Never start the engine or let it run in an enclosed area.

Operate this vehicle only outdoors or in well-ventilated areas.

Hot Exhaust Systems

Exhaust system components are very hot during and after use of the vehicle.

Hot components can cause burns and fire. Do not touch hot exhaust system

components. Always keep combustible materials away from the exhaust

system.

Use caution when traveling through tall grass, especially dry grass. Always

inspect the underside of the vehicle and areas near the exhaust system after

driving through tall grass, weeds, brush and other tall ground cover. Promptly

remove any grass or debris clinging to the vehicle.

Unauthorized Use of the Vehicle

Leaving the keys in the ignition can lead to unauthorized use of the vehicle by

someone under the age of 10 or without proper training. This could result in an

accident or rollover. Always remove the ignition key when the vehicle is not in

use.

FOR MORE INFORMATION ABOUT SAFETY

call POLARIS at 1-800-342-3764.

SAFETY

Safety Labels and Locations

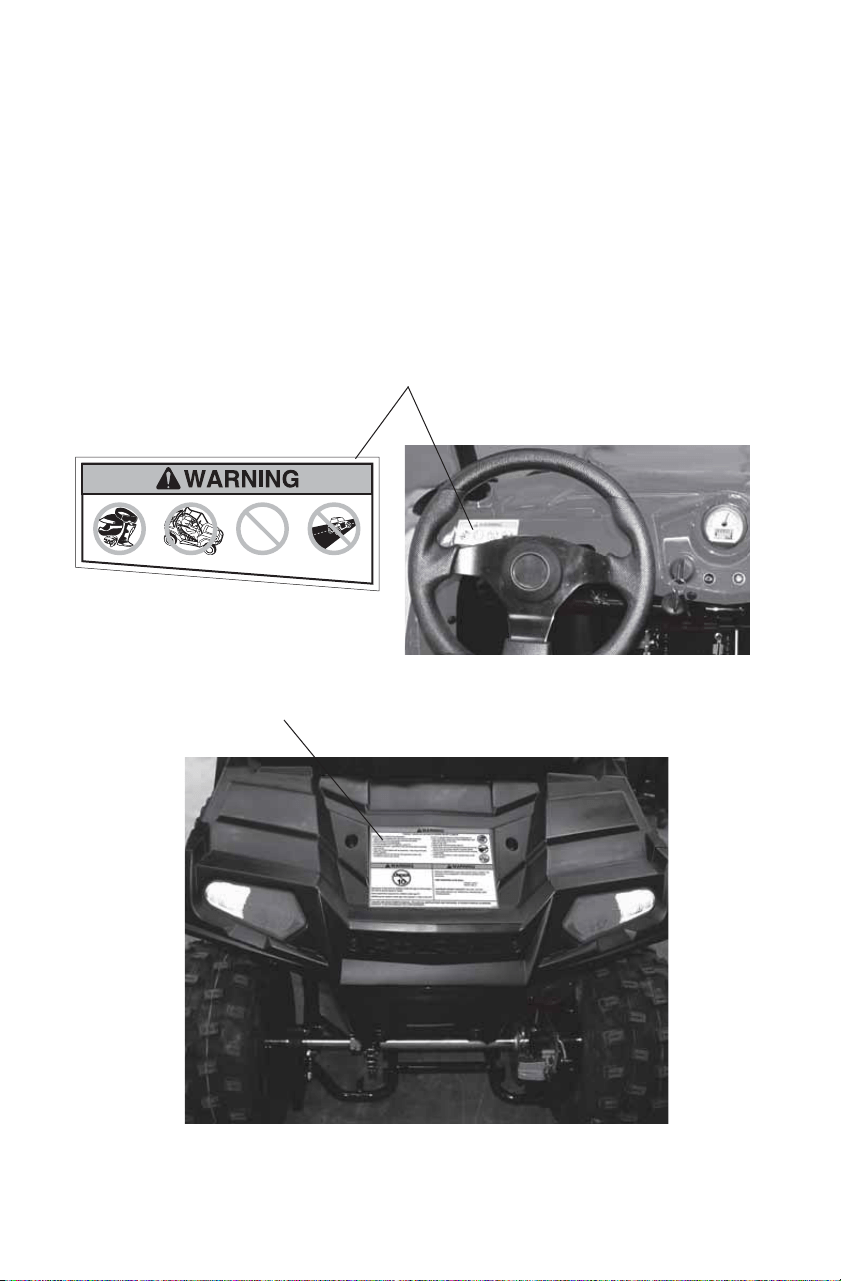

Warning labels have been placed on the vehicle for your protection.

Read and follow the instructions on each label carefully. If any of the

labels shown in this manual differ from the labels on your vehicle,

always read and follow the instructions of the labels on the vehicle.

If an informational or graphic label becomes illegible or comes off,

contact your POLARIS dealer to purchase a replacement. Replacement

safety labels are provided by POLARIS at no charge. The part number is

printed on the label.

UNDER

Rear Warning Label

Dash Warning Label

SAFETY

Safety Labels and Locations

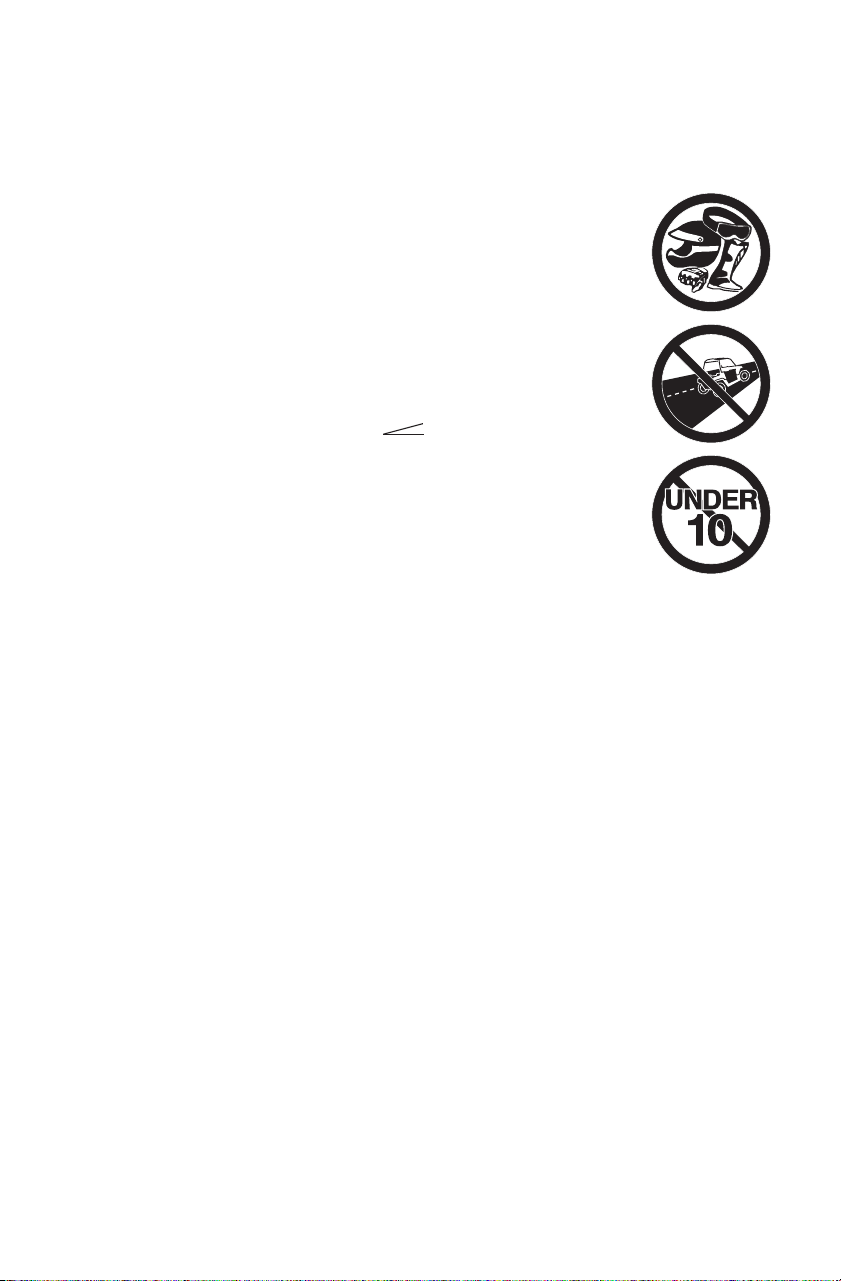

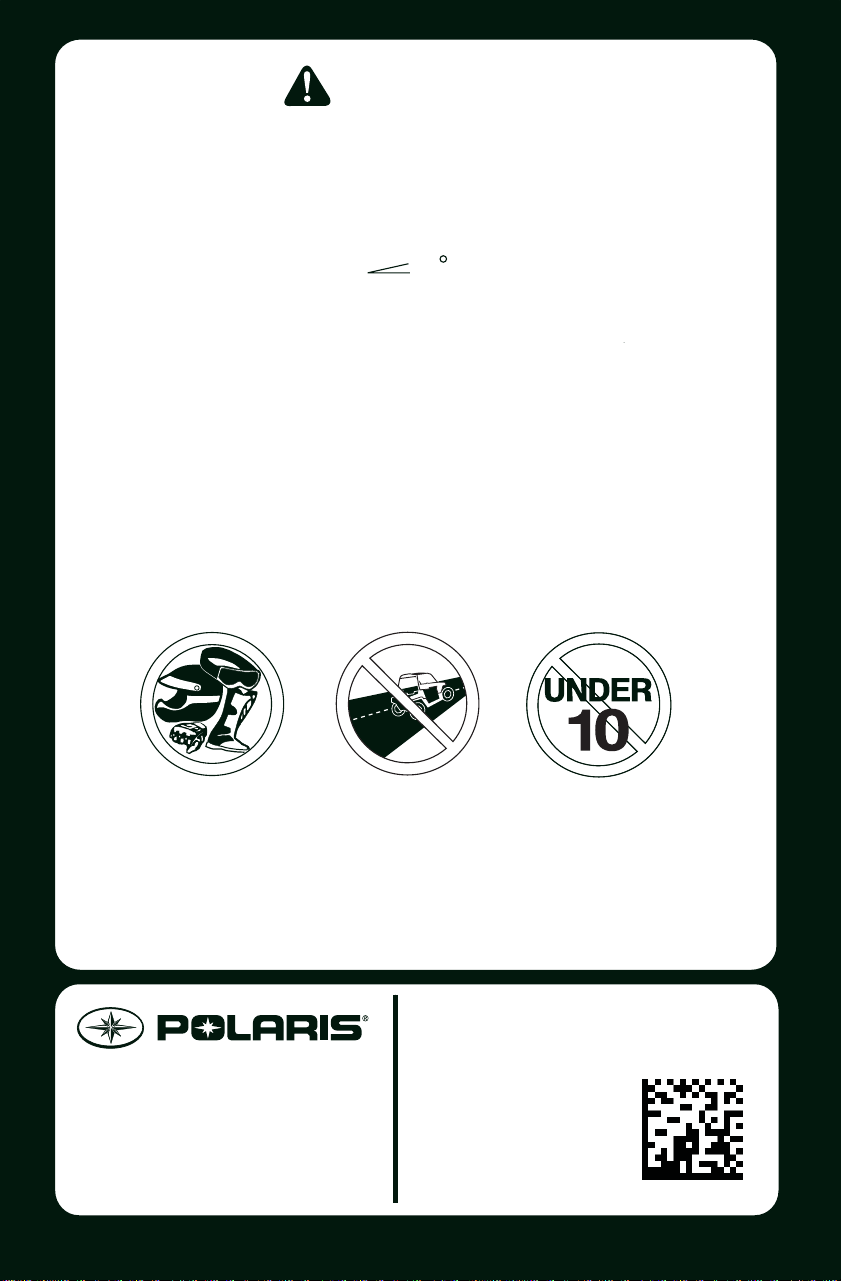

Rear Warning Label

WARNING

Improper vehicle use can result in SEVERE INJURY or

DEATH

NEVER allow vehicle to be operated:

• without adult supervision.

• by anyone under age 10.

• with a passenger under age 10.

• with a passenger whose feet cannot touch the floor.

• without all occupants first viewing and understanding safety

video and warning labels.

• with more than one passenger.

• on hills steeper than 15 degrees 15°.

• on paved surfaces - pavement may seriously affect handling

and control.

• with non-POLARIS approved accessories - they may

seriously affect stability.

• at speeds that are too fast for the operator’s skills, the

conditions and/or the terrain.

ALWAYS require operator and passenger to:

• wear seat belts, grab hand holds (passenger) and plant feet firmly on the floor.

• secure cab nets.

• keep hands and feet inside vehicle.

• avoid quick turns of the steering wheel and driving stunts such as jumps,

donuts or power slides.

• reduce speed and use extra caution when carrying a passenger.

• watch for branches or other hazards that could enter vehicle.

WARNING

Operation of this vehicle by children under age 10 increases the risk of severe

injury or death.

Adult supervision required for children under age 16.

NEVER permit children under age 10 to operate or ride in this vehicle.

WARNING

VEHICLE ROLLOVER could cause severe injury or death. The cab frame is not

designed or intended to provide rollover protection.

TIRE PRESSURE IN PSI (KPa):

Front: 3 (20.7)

Rear: 3 (20.7)

MAXIMUM WEIGHT CAPACITY 300 lbs. (136 KG)

INCLUDES WEIGHT OF OPERATOR, PASSENGER AND ACCESSORIES.

LOCATE AND READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS

AND WARNINGS. IF OWNER’S MANUAL IS MISSING, CONTACT A POLARIS

DEALER FOR A REPLACEMENT.

FEATURES AND CONTROLS

Component Locations

Your vehicle is equipped with cab nets on both sides of the vehicle. Cab

nets must be used by both operator and passenger at all times. Promptly

replace worn or damaged cab nets with new cab nets, available from

your authorized POLARIS dealer. The vehicle illustrated below is

shown without cab nets only to allow component identification. Always

use the cab nets.

Dash

Hip Bar

Fuel Tank

Cap

Seat Belts

Seat

(battery under

driver’s seat)

Shifter

Passenger

Hand Hold

Parking

Brake

Cab Net

FEATURES AND CONTROLS

Component Locations

Running

Lights

Brush Guard

Steering

Wheel

Cab

Frame

Taillight/Brake Light

Muffler

(Spark Arrester)

FEATURES AND CONTROLS

Seats

Driver’s Seat Adjustment

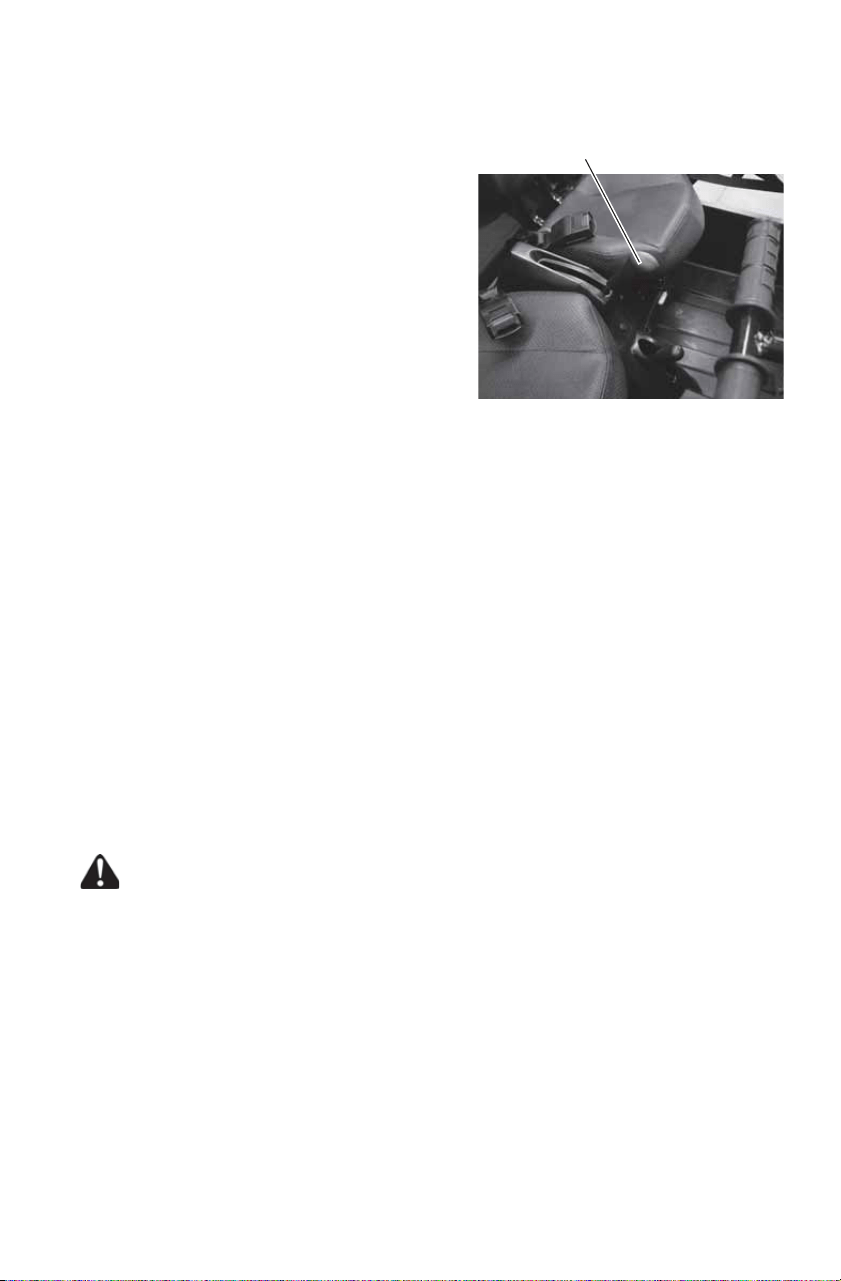

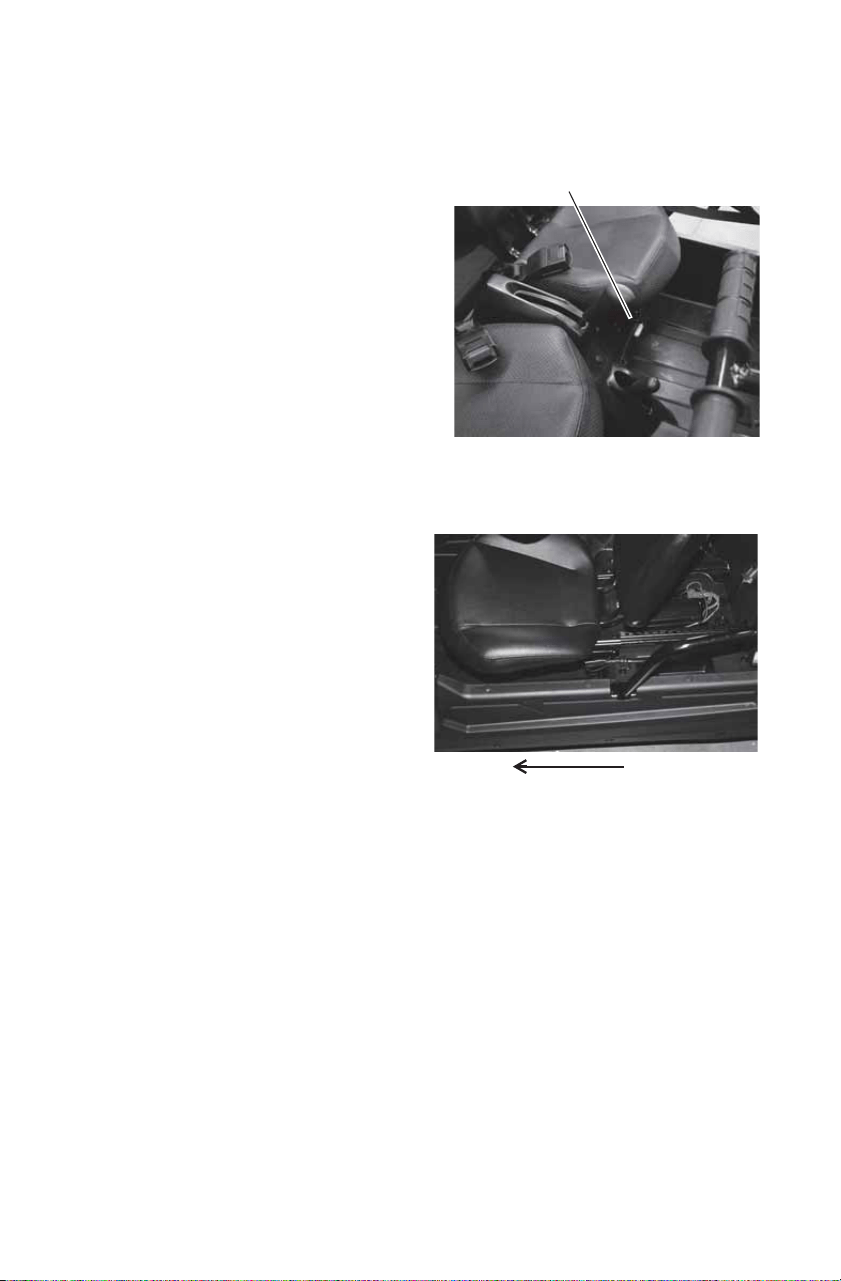

1. Lift the seat latch lever located

under the right front edge of the

driver’s seat.

2. While holding the lever

upward, slide the seat forward

or rearward to the desired

position, then release the lever.

3. Slide the seat forward and

rearward to ensure the latch is

engaged. Before operating the

vehicle, always make sure both

seats are securely installed.

Seat Removal

1. To remove the driver’s seat, lift

the seat latch lever.

2. While holding the lever upward,

slide the seat completely forward

to remove it from the seat

mounting rails.

3. Before operating the vehicle,

always make sure the driver’s

seat is installed and securely

latched.

4. To remove the passenger seat,

remove the two bolts located at

the front of the seat mounting rails. Slide the seat forward to remove

it from the vehicle. Always reinstall the passenger seat before

operating the vehicle. After reinstalling the seat and bolts, torque

the nuts to 10 ft. lbs. (13.5 Nm).

Seat Latch Lever

Slide Seat Forward

FEATURES AND CONTROLS

Steering Wheel

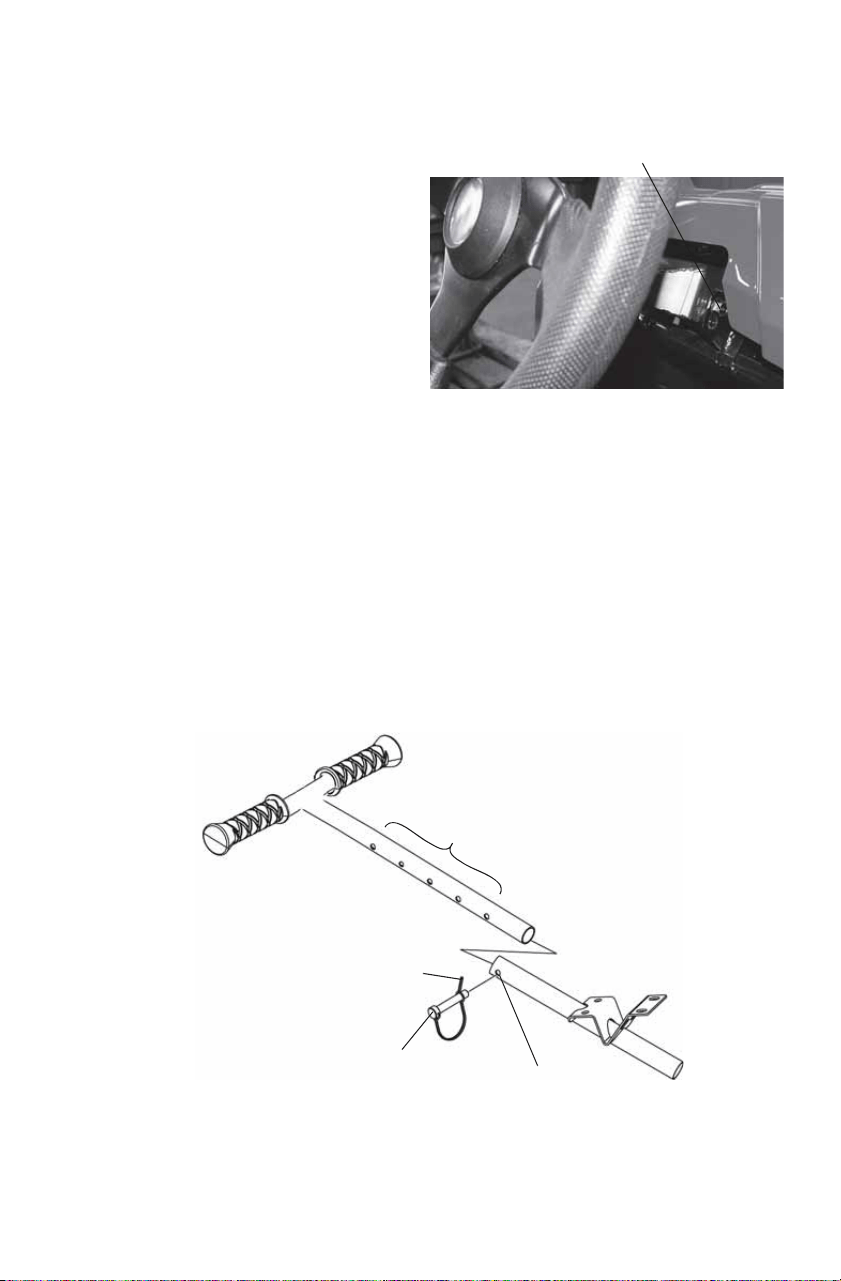

The steering wheel can be

adjusted upward or downward for

rider preference.

1. Loosen the steering wheel

adjustment bolt.

2. Move the steering wheel

upward or downward to the

desired position.

3. Tighten the bolt to 10 ft. lbs.

(13.5 Nm).

Passenger Hand Hold

Always adjust the hand hold to a comfortable position for your

passenger before operating. Make sure the adjustment pin and retainer

are securely installed after making adjustments.

1. Remove the retainer from the end of the adjustment pin. Remove

the pin from the post.

2. Slide the post inward or outward to the desired position.

3. Reinstall the pin through the mounting bracket hole, through both

post adjustment holes, and through the remaining bracket hole.

4. Reinstall the retainer to the pin.

Adjustment Bolt

Mounting

Bracket Holes

Adjustment

Retainer

FEATURES AND CONTROLS

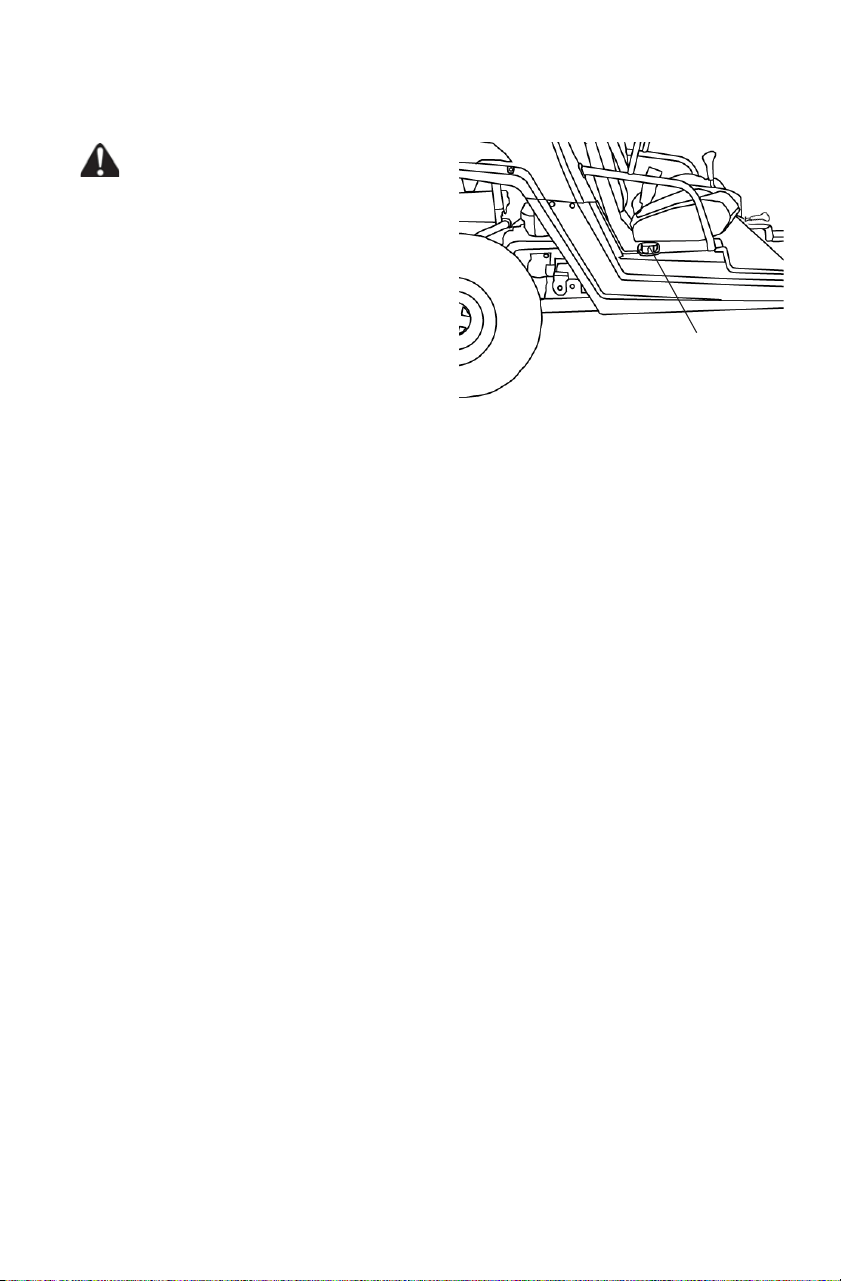

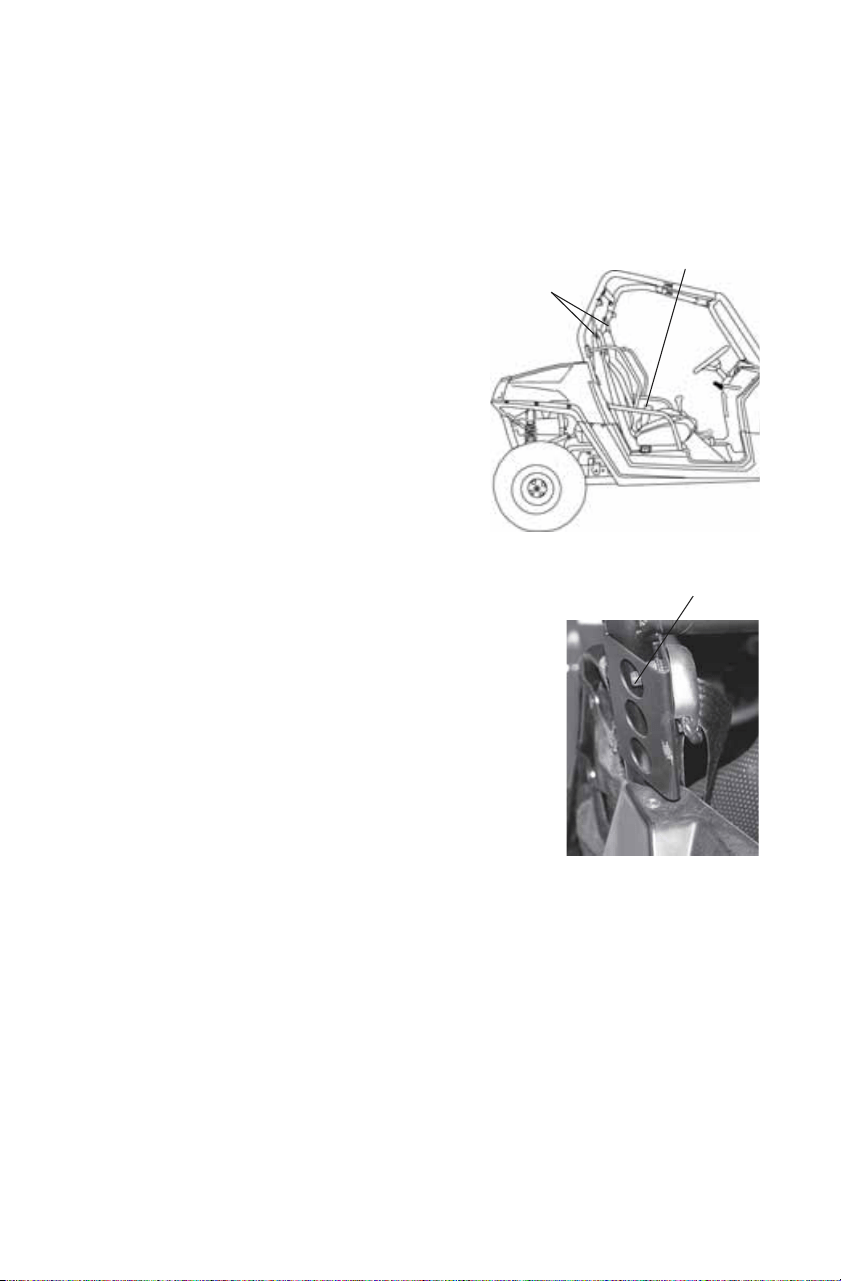

Seat Belts

This POLARIS vehicle is equipped with three-point lap and diagonal

seat belts for the operator and passenger. Always make sure the seat

belts are secured for both the operator and passenger before riding.

To wear the seat belt properly, follow

this procedure:

1. Pull the seat belt latch downward

and across your chest toward the

buckle at the inner edge of the seat.

The belt should fit snugly across

your hips and diagonally across

your chest. Make sure the belt is not

twisted.

Tip: The position of the shoulder strap can

be adjusted to the height of the

operator. Have an adult relocate the

mounting bolt to a different position,

making sure the nut and bolt are

tightened securely.

2. Push the latch plate into the buckle

until it clicks.

3. Release the strap, it will self-

tighten.

4. Press the red release latch on the

buckle to release the seat belt.

Seat Belt

Latches

Seat Belt

Buckles

Nut and

Bolt

FEATURES AND CONTROLS

Seat Belts

Seat Belt Inspection

Inspect all seat belts for proper operation before each use of the vehicle.

1. Push the latch plate into the buckle until it clicks. The latch plate

must slide smoothly into the buckle. A click indicates that it's

securely latched.

2. Push the red release latch in the middle of the buckle to make sure it

releases freely.

3. Pull each seat belt completely out and inspect the full length for any

damage, including cuts, wear, fraying or stiffness. If any damage is

found, or if the seat belt does not operate properly, have the seat belt

system checked and/or replaced by an authorized POLARIS dealer.

4. To clean dirt or debris from the seat belts, sponge the straps with

mild soap and water. Do not use bleach, dye or household

detergents.

FEATURES AND CONTROLS

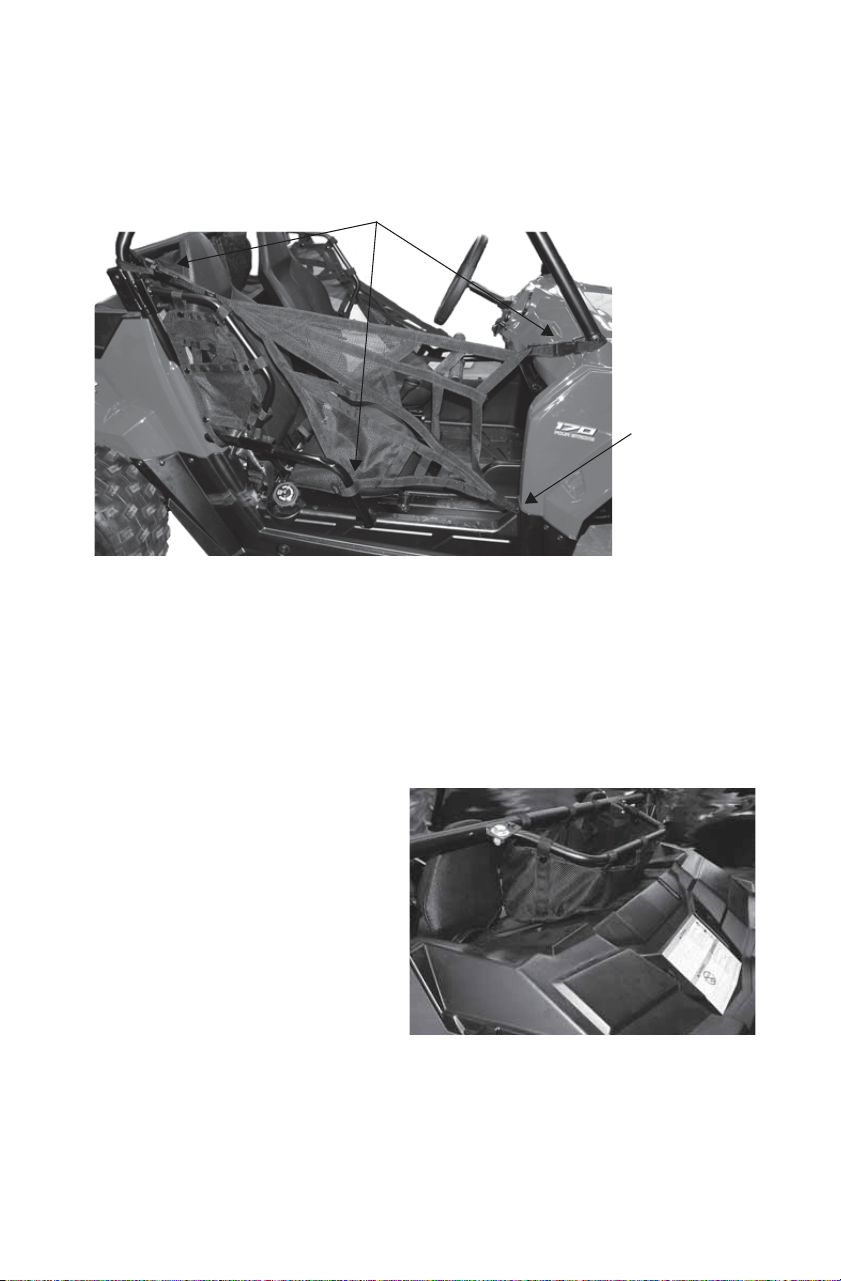

Cab Nets

Riding in this vehicle without using the cab nets increases the risk of

serious injury or death in the event of an accident or rollover.

Cab nets must be used by both operator and passenger at all times. Make

sure all latches are secure before operating the vehicle.

Always inspect cab nets for tightness, wear and damage before each use

of the vehicle. Use the strap adjusters to tighten any loose straps.

Promptly replace worn or damaged cab nets with new cab nets,

available from your authorized POLARIS dealer.

Storage Bag

The storage bag is attached

to the cab frame behind the

seats. Use the storage bag to

carry lightweight items such

as water bottles or apparel.

Do not carry heavy items in

the storage bag.

Screw

Adjusters/Latches

FEATURES AND CONTROLS

Fuel Cap

Never allow a child to refuel or

handle gasoline.

The fuel tank filler cap is located on

the right-hand side of the vehicle

near the passenger seat.

Use POLARIS Carbon Clean fuel

treatment at each fill. Follow the

mixing directions on the container.

See page 94 for the part numbers of

POLARIS products.

When refueling, always use either leaded or unleaded gasoline with a

minimum pump octane number of 87 R+M/2 octane. Non-ethanol fuel

is recommended. Do not use fuel with ethanol content greater than 10

percent, such as E-85 fuel.

Fuel Cap

FEATURES AND CONTROLS

Ignition Switch

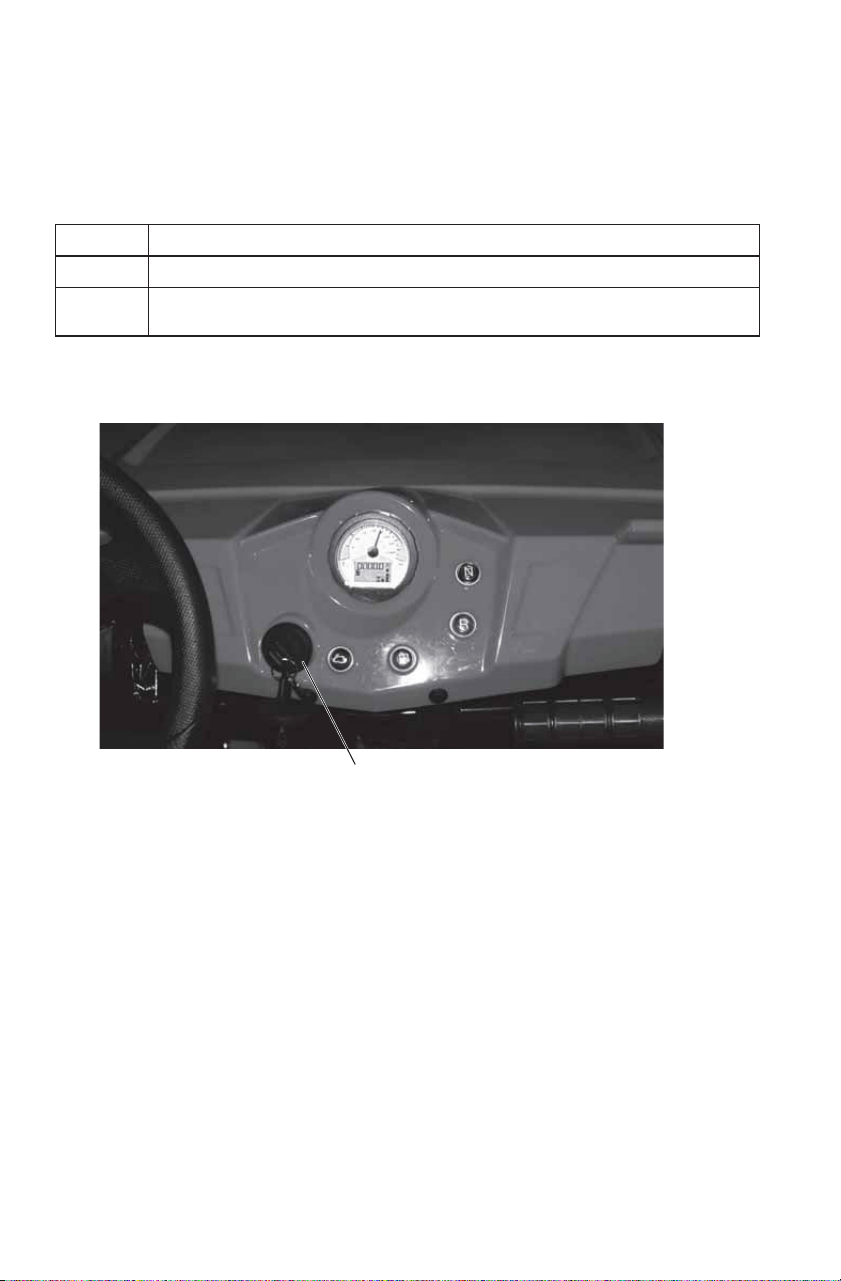

The ignition switch is a three-position, key-operated switch. Use the

ignition switch to start the engine. See page 40 for starting procedures.

The key can be removed from the switch when it is in the OFF position.

OFF The engine is off. Electrical circuits are off, except accessory 12V.

ON Electrical circuits are on. Electrical equipment can be used.

START Turn the key to the START position to engage the electric starter.

The key returns to the ON position when released.

Ignition Switch

FEATURES AND CONTROLS

Gear Selector

F: Forward

N: Neutral

R: Reverse

The gear selector is located between

the seats. To change gears, stop the

vehicle, and with the engine idling,

move the lever to the desired gear.

Do not attempt to shift gears with

engine speed above idle or while the

vehicle is moving.

Tip: Maintaining shift linkage adjustment is important to assure proper

transmission function. Your POLARIS dealer can assist in resolving any

shifting problems.

NOTICE: Do not attempt to shift the transmission while the vehicle is moving or

damage to the transmission could result. Always shift when the

vehicle is stationary and the engine is at idle.

Parking Brake

1. Apply the brakes.

2. When the vehicle is fully stopped, pull the parking brake lever

rearward as far as possible to set the parking brake.

3. Stop the engine.

4. To release the parking brake, apply the brakes and push the lever

toward the passenger seat and forward.

5. See page 64 for parking brake adjustment procedures.

Tip: Always set the parking brake whenever the vehicle is left unattended.

Operating the vehicle while the parking brake is engaged could cause an

accident resulting in serious injury or death. It could also result in driveline

or engine damage. Always be sure to disengage the parking brake before

operating the vehicle.

Gear Selector

FEATURES AND CONTROLS

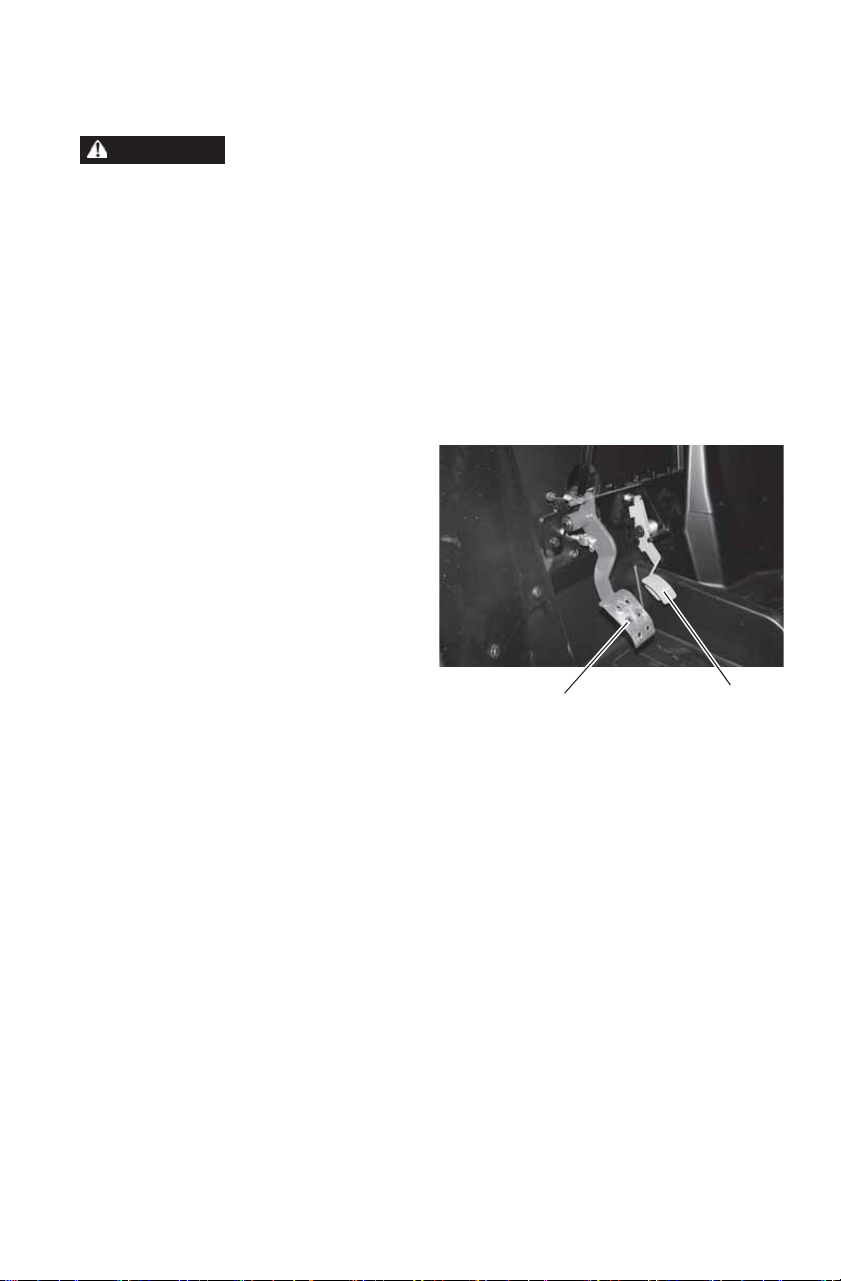

Brake Pedal

Depress the brake pedal to slow

or stop the vehicle. Apply the

brakes while starting the engine.

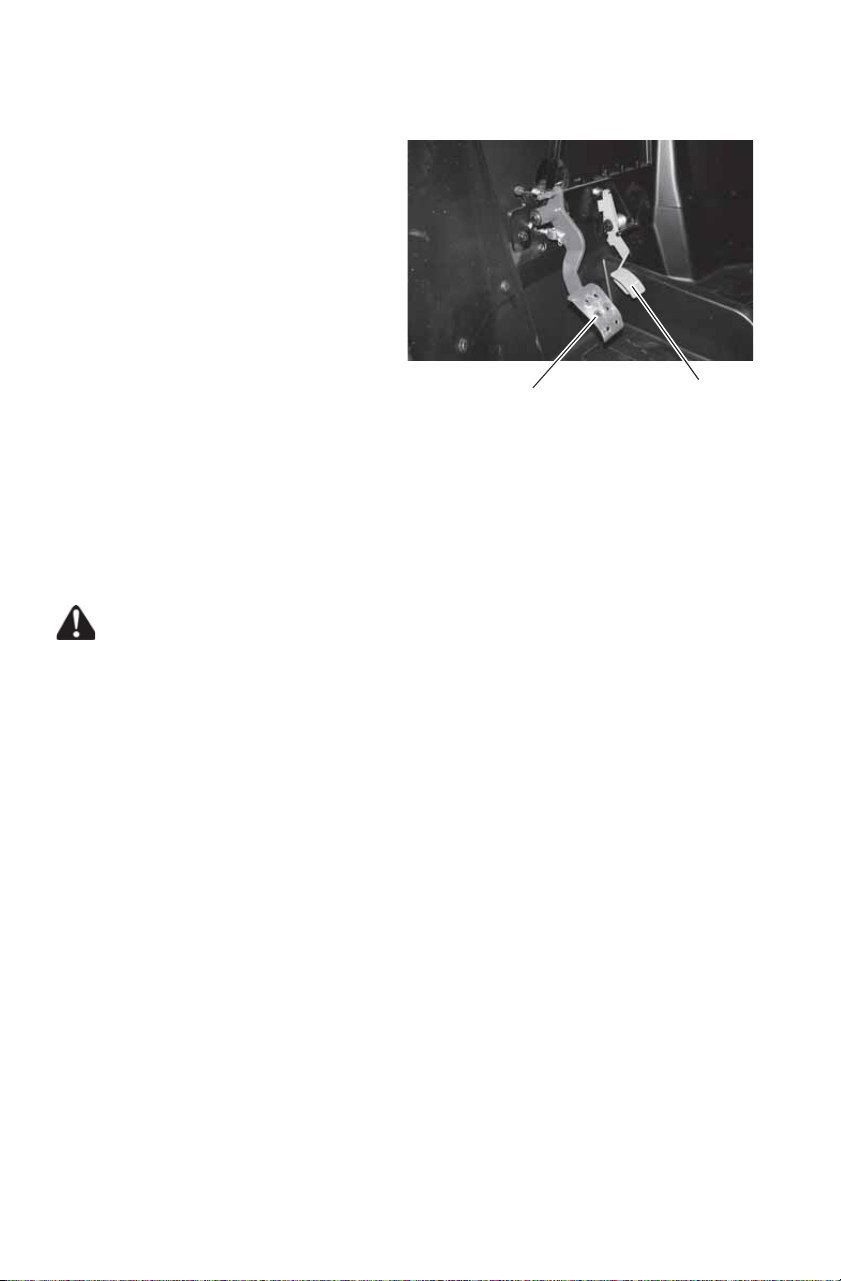

Throttle Pedal

Push the pedal down to increase

engine speed. Spring pressure

returns the pedal to the rest

position when released. Always

check that the throttle pedal

returns normally before starting

the engine. Make sure there's

adequate throttle pedal freeplay.

See page 70 for throttle pedal adjustment procedures.

This vehicle is equipped with a throttle release switch, which is

designed to reduce the risk of a frozen or stuck throttle. If the throttle

cable should stick in an open position when the operator releases the

throttle pedal, engine speed will be limited to idle speed.

The throttle release switch limits engine speed in the event of a throttle

system malfunction. Modifications to the throttle release switch could

result in failure to perform as designed, which could result in an accident.

Do not attempt to modify the throttle control system or replace it with any

after market throttle mechanism. Always ensure that the throttle cable is

installed and properly routed to the throttle control.

Throttle

Pedal

Brake

Pedal

FEATURES AND CONTROLS

Speed Control System

The speed of this vehicle is restricted to under 15 MPH (24 km/h) at

manufacture. The speed limiting device may be adjusted by supervising

adults when they determine that their child is capable of handling addi-

tional speed. The unrestricted top speed for this model is approximately

25 MPH (40 km/h).

The adjustable throttle limiting screw is located behind the throttle

pedal. Use the following procedure to control how far the throttle opens.

1. Loosen the jam nut.

2. Turn the screw outward to reduce speed. Turn the screw inward to

increase speed.

Tighten the jam nut after adjusting.

OPERATION

Failure to operate the vehicle properly can result in a collision, loss of control,

accident or rollover, which may result in serious injury or death. Read and

understand all safety warnings outlined in the safety section of this owner’s

manual.

Vehicle Break-in Period

The break-in period for your new POLARIS vehicle is defined as the

first ten hours of operation, or the time it takes to use the first two full

tanks of gasoline.

No single action on your part is as important as a proper break-in period.

Careful treatment of a new engine and drive components will result in

more efficient performance and longer life for these components.

Perform the following procedures carefully.

NOTICE: Excessive heat build-up during the first three hours of operation will

damage close-fitted engine parts and drive components. Do not

operate at full throttle or high speeds during the first three hours of

use.

Mixing brands or using a non-recommended oil may cause serious

engine damage. Always use the recommended oil. Never substitute or

mix oil brands.

WARNING

OPERATION

Vehicle Break-in Period

Engine and Drivetrain Break-in

1. Fill the fuel tank with gasoline. Always exercise extreme caution

whenever handling gasoline. Never allow a child to handle gasoline.

2. Check the oil level. See page 59. Add the recommended oil as

needed to maintain the oil level in the safe operating range.

3. Complete the New Operator Driving Procedures outlined on pages

42-43.

4. Avoid aggressive use of the brakes. See Brake System Break-in

below.

5. Vary throttle positions. Do not operate at sustained idle.

6. Perform regular checks on fluid levels, controls and areas outlined

on the daily pre-ride inspection checklist. See page 38.

7. Change the engine oil at 10 hours or one month.

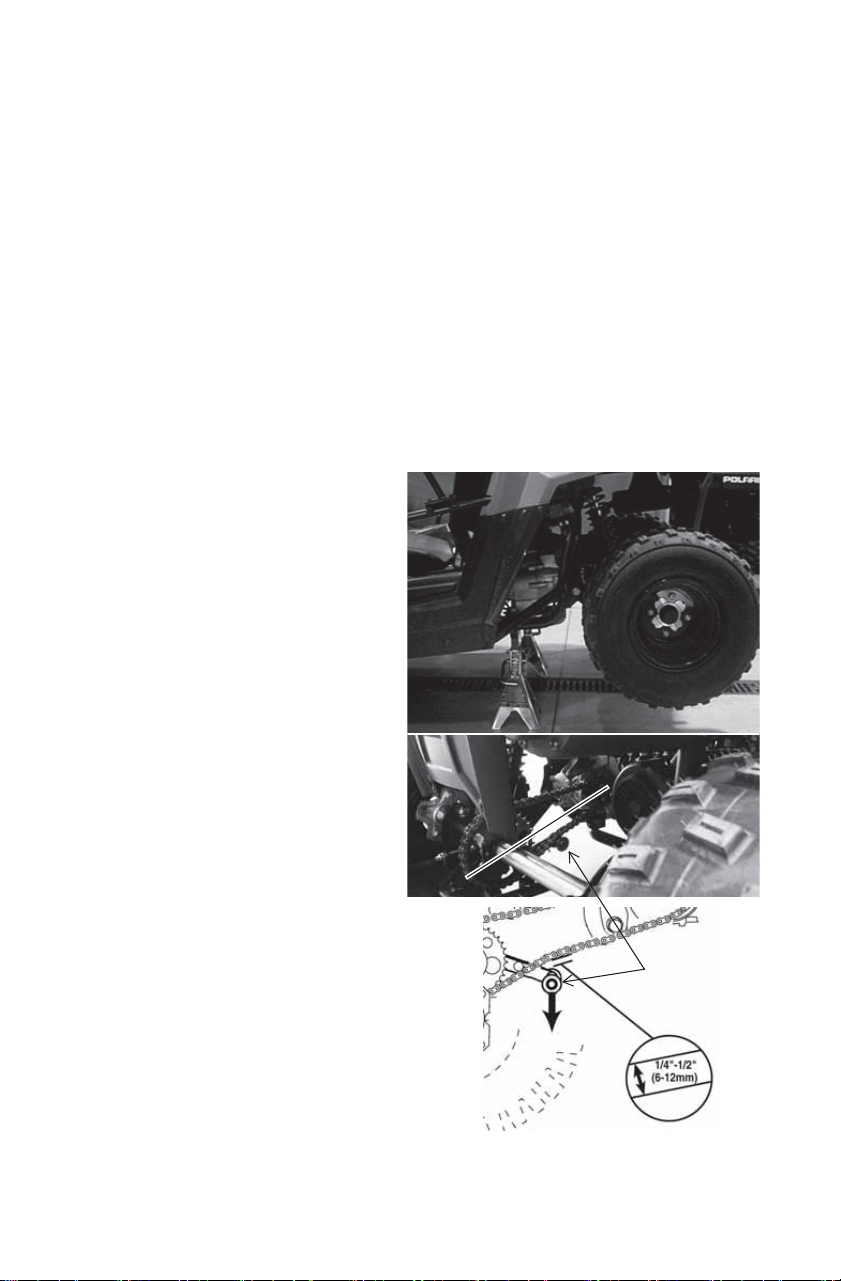

8. Adjust and lubricate the drive chain at 10 hours or one month.

Brake System Break-in

Apply only moderate braking force for the first 50 stops. Aggressive or

overly forceful braking when the brake system is new could damage

brake pads and rotors.

CVT Break-in (Clutches/Belt)

A proper break-in of the clutches and drive belt will ensure a longer life

and better performance. Break in the clutches and belt by operating at

slower speeds during the break-in period as recommended. Avoid

aggressive acceleration and high speed operation during the break-in

period.

OPERATION

Pre-Ride Inspection

Failure to inspect and verify that the vehicle is in safe operating

condition before operating increases the risk of an accident. Always

inspect the vehicle before each use to make sure it's in safe operating

condition.

Item Remarks Page

Brake system/pedal travel Ensure proper operation 34

Brake fluid Ensure proper level 73

Front suspension Inspect, lubricate if necessary 58

Rear suspension Inspect, lubricate if necessary 58

Steering Ensure free operation 74

Tires Inspect condition and pressure 23

Wheels/fasteners Inspect, ensure fastener tightness 77

Frame nuts, bolts, fasteners Inspect, ensure tightness -

Fuel and oil Ensure proper levels 31

Grass and debris Remove grass and debris from the

vehicle, especially on the underside

and near the exhaust system

Throttle Ensure proper operation 69

Indicator lights/switches Ensure proper operation -

Air filter Inspect and clean or replace 67

Daytime running lights Ensure proper operation 78

Brake light Ensure proper operation -

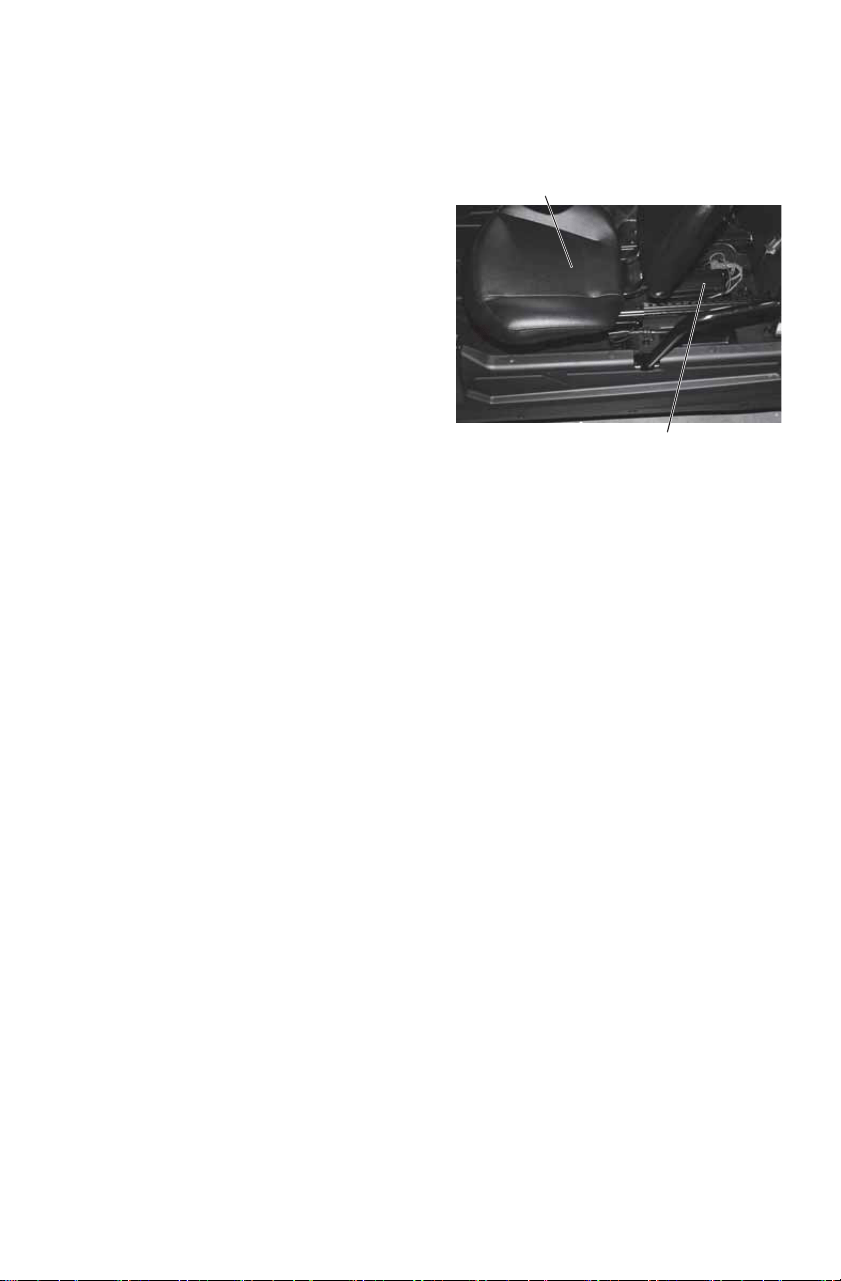

Seat Latches Move the seats forward and rearward

to ensure correct installation

Seat Belts Check length of belt for damage,

check latches for proper operation

Cab Nets Check for wear or damage, ensure

proper installation

OPERATION

Safe Operation Practices

1. Complete the New Operator Driving Procedures outlined on pages

42-43.

2. Do not ride at night or when visibility is poor (rain, fog, dusk). Your

vehicle doesn't have lights that are designed for driving in these

conditions.

3. Never tow objects or carry loads with this vehicle.

4. Engine exhaust fumes are poisonous. Never start the engine or let it

run in an enclosed area. Never allow a child to handle gasoline.

5. Never install accessories not approved by POLARIS for use on this

vehicle.

6. Ride this vehicle only in areas permitted by a supervising adult.

Never operate the vehicle on pavement or on any public street, road

or highway, including dirt and gravel roads.

7. Drive in a manner appropriate for your skills and operating

conditions. Never operate at excessive speeds. DO NOT attempt to

do power slides, “donuts”, jumps or other driving stunts. Keep both

hands on the steering wheel at all times.

8. Never consume alcohol or drugs before or while operating this

vehicle.

9. Always use the size and type of tires specified for your vehicle.

Always maintain proper tire pressure.

10. Never operate a damaged vehicle. After any rollover or accident,

have a qualified service dealer inspect the entire machine for

possible damage.

11. Never operate the vehicle on a frozen body of water.

12. Do not touch hot exhaust system components. Always keep

combustible materials away from the exhaust system.

13. Always remove the ignition key when the vehicle is not in use to

prevent unauthorized use.

OPERATION

Starting the Engine

1. Sit in the driver’s seat and fasten the seat belt.

2. Secure the cab nets.

3. Place the transmission in neutral. Set the parking brake.

4. Apply the brakes.

5. Do not press the throttle pedal while starting the engine.

6. Turn the ignition key past the ON/RUN position to START. Engage

the starter for a maximum of five seconds. Release the key when the

engine starts.

NOTICE: Operating the vehicle immediately after starting could cause engine

damage. Allow the engine to warm up for several minutes before

operating the vehicle.

7. If the engine does not start within five seconds, return the ignition

switch to the OFF position and wait five seconds. Repeat steps 6

and 7 until the engine starts.

8. Vary the engine RPM slightly with the throttle to aid in warm-up

until the engine idles smoothly.

9. Release the parking brake before driving.

OPERATION

Stopping the Engine

1. Release the throttle pedal completely and brake to a complete stop.

2. Place the transmission in neutral.

3. Set the parking brake.

4. Stop the engine.

Braking

1. Release the throttle pedal completely. (When the throttle pedal is

released completely and engine speed slows to near idle, the vehicle

has no engine braking.)

2. Press on the brake pedal evenly and firmly. Practice starting and

stopping (using the brakes) until you're familiar with the controls.

Parking the Vehicle

1. Stop the vehicle on a level surface. When parking inside a garage or

other structure, be sure that the structure is well ventilated and that

the vehicle is not close to any source of flame or sparks, including

any appliance with pilot lights.

2. Place the transmission in neutral.

3. Set the parking brake.

4. Stop the engine.

5. Remove the ignition key to prevent unauthorized use.

OPERATION

New Operator Driving Procedures

1. Read and understand this owner's manual and all warning and

instruction labels before operating this vehicle.

2. Watch the instructional video with the supervising adult.

3. Review the section of this owner’s manual about starting the engine,

stopping the engine, braking and parking (pages 40-41).

4. Perform the pre-ride inspection (page 38).

5. The driver and all passengers must wear helmet, eye protection,

gloves, long-sleeve shirt, long pants, over-the-ankle boots and seat

belt at all times.

6. Do not operate or ride in this

vehicle if the clearance between

the top of your helmet and the

overhead cab frame is less than

2 inches (5 cm).

(continued on next page)

Minimum

2 inche

(5 cm)

OPERATION

New Operator Driving Procedures

7. Select a level open area to practice driving. Make sure you have

adult supervision and permission to drive in this area.

8. Sit in the driver's seat and fasten the seat belt.

9. Make sure all passengers secure their seat belts.

10. Make sure all cab nets are properly secured.

11. Do not carry a passenger until you have at least four hours of

driving experience with this vehicle. See page 44.

12. Set the parking brake.

13. Place the transmission in neutral.

14. Start the engine.

15. Apply the brakes and shift into gear.

16. Release the parking brake.

17. Check your surroundings. Make sure the area is clear of people and

obstacles.

18. Keeping both hands on the steering wheel, slowly release the brakes

and press the throttle with your right foot to begin driving.

19. Drive slowly at first. Practice starting, stopping, turning, using the

throttle and brakes and driving in reverse. Learn how the vehicle

handles when making both left and right turns at a slow speed.

20. Increase speed only after mastering all maneuvers at a slow speed.

21. After you become skilled at making turns and begin to operate at

faster speeds, follow these precautions:

• Avoid sharp turns. Make turns gradually.

• Never turn while applying heavy throttle.

• Never turn the steering wheel abruptly.

• Operate at speeds appropriate for your skills, the conditions and

the terrain.

• DO NOT attempt to do power slides, “donuts”, jumps or other

driving stunts.

OPERATION

Driving with a Passenger

1. Complete the New

Operator Driving

Procedures outlined on

pages 42-43.

2. Perform the pre-ride

inspection. See page

38.

3. Do not carry a

passenger until you

have at least four hours

of driving experience

with this vehicle.

4. Never operate with a passenger under age 10. All riders must be

able to sit with backs against the seat, both feet flat on the floor and

both hands on the steering wheel (if driving) or on a passenger hand

hold.

5. Make sure the passenger has at least 2 inches (5 cm) of clearance

between his helmet and the top of the cab frame.

6. Never carry more than one passenger in this vehicle.

7. Never allow a passenger to ride on the back of the vehicle. Allow a

passenger to ride only in the passenger seat.

8. Make sure the passenger is wearing helmet, eye protection, gloves,

long-sleeve shirt, long pants and over-the-ankle boots. See page 10.

9. Make sure the passenger secures the seat belt.

10. Tell your passenger to always keep hands and feet inside the vehicle

at all times.

11. Make sure all cab nets are properly secured.

12. Drive slowly. Vehicle handling may change with a passenger on

board. Always travel at a speed appropriate for your skills, your

passenger's skills, and operating conditions. Avoid unexpected or

aggressive maneuvers that could cause discomfort or injury to a

passenger.

13. Always follow all operating guidelines as outlined on safety labels

and in this manual.

OPERATION

Driving on Slippery Surfaces

When driving on slippery surfaces such as wet trails, loose gravel, sand

or ice, be alert for the possibility of skidding and sliding.

Follow these precautions when driving in slippery conditions:

1. Slow down before entering slippery areas.

2. Be alert, watch the path ahead and avoid quick turns, which can

cause skids.

3. Correct a skid by turning the steering wheel in the direction of the

skid. Never apply the brakes during a skid.

Sideways

skid

Turn in

direction of

skid

OPERATION

Driving Uphill

Whenever traveling

uphill, follow these

precautions:

1. Always check the

terrain carefully

before ascending a

hill. Never drive on

hills with

excessively slippery

or loose surfaces.

2. Avoid excessively

steep hills (15°

maximum).

3. Drive straight

uphill.

4. Drive at a steady rate of speed. Never press the throttle suddenly.

5. Avoid unnecessary changes in speed or direction.

6. Never go over the crest of a hill at a high speed. An obstacle, a sharp

drop, or another vehicle or person could be on the other side of the

hill.

7. If the vehicle stalls while climbing a hill, apply the brakes. Place the

transmission in reverse and slowly allow the vehicle to roll straight

downhill while applying the brakes lightly to control speed.

15° maximum

OPERATION

Driving on a Sidehill (Sidehilling)

Driving on a sidehill is not recommended. Driving on a sidehill

improperly cause loss of control or rollover.

If crossing a hill is unavoidable, follow these precautions:

1. Drive slowly and use extreme caution.

2. If the vehicle begins to roll over, or if it feels as if it may roll over,

immediately turn downhill.

3. Avoid obstacles and changes in terrain that may lower or raise one

side of the vehicle or cause the vehicle to slide.

4. If the vehicle begins to slide downhill, immediately turn downhill to

stop the slide, or stop the vehicle and maneuver slowly and

carefully until the vehicle can be driven straight downhill.

Driving Downhill

Whenever driving down a hill, follow these precautions:

1. Avoid excessively steep hills (15° maximum).

2. Slow down. Never travel down a hill at high speed.

3. Always check the terrain carefully before driving down a hill. Never

drive on hills with excessively slippery or loose surfaces.

4. Always drive down a hill with the transmission in forward gear.

Never “coast” or drive down a hill with the transmission in neutral.

5. Avoid driving down a hill at an angle, which would cause the

vehicle to lean sharply to one side. Always drive straight downhill.

6. Apply the brakes lightly to keep speed slow.

OPERATION

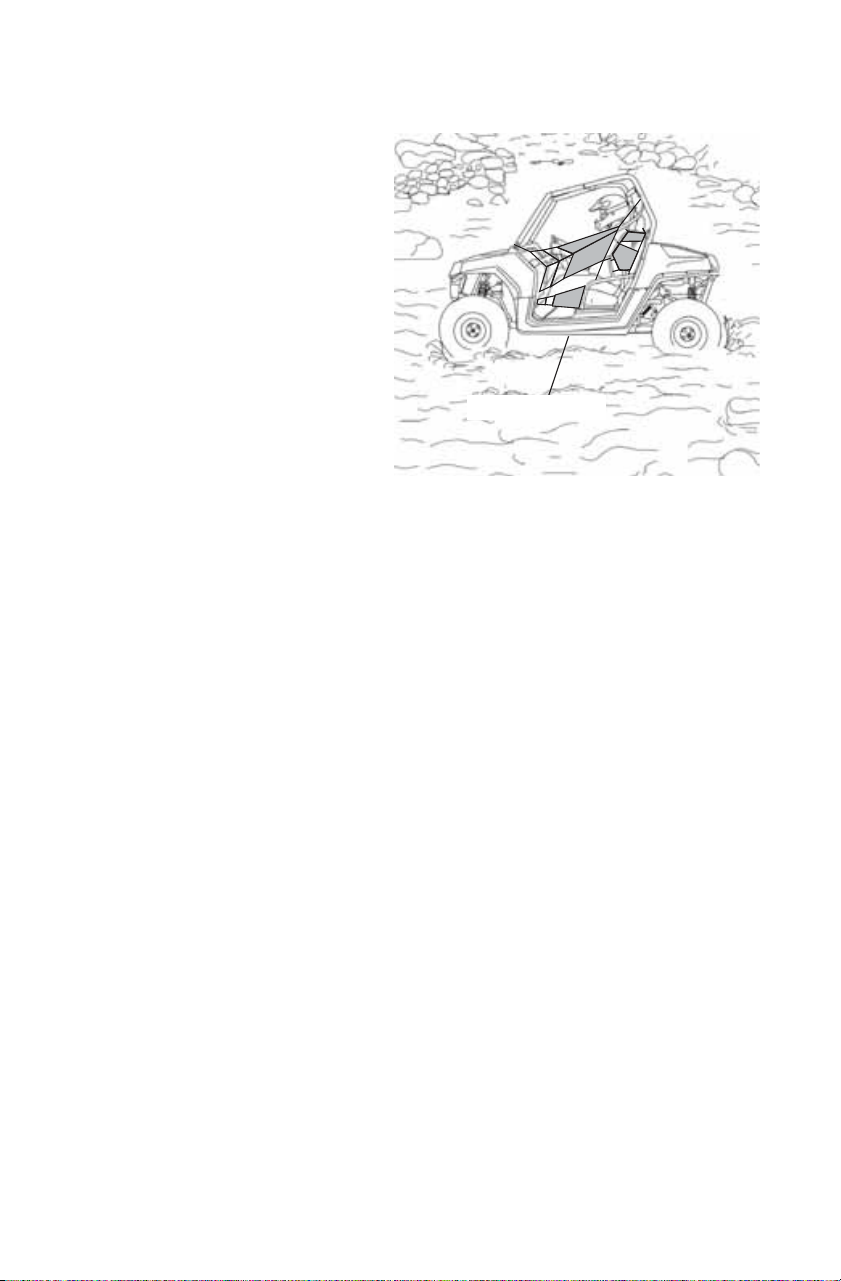

Driving Through Water

Your vehicle can drive through

shallow water. Make sure the

water is no deeper than the floor

of the vehicle. Follow these

precautions when driving

through water:

1. Check water depth. Never

drive through water that is

deeper than the floor level.

2. After driving through water,

test the brakes. Apply them

lightly several times while

driving slowly. The friction

will help dry out the pads.

NOTICE: Major engine damage can result if the vehicle is not thoroughly

inspected after operation in water. Perform the services outlined in the

maintenance chart. See page 53. Give special attention to engine oil,

transmission oil and all grease fittings.

If your vehicle becomes immersed or is operated in water that

exceeds the floor level, service is required before starting the engine.

Your POLARIS dealer can provide this service. If it's impossible to

bring the vehicle in before starting the engine, perform the service

outlined on page 79, and take the vehicle in for service at the first

opportunity.

Floor Level

OPERATION

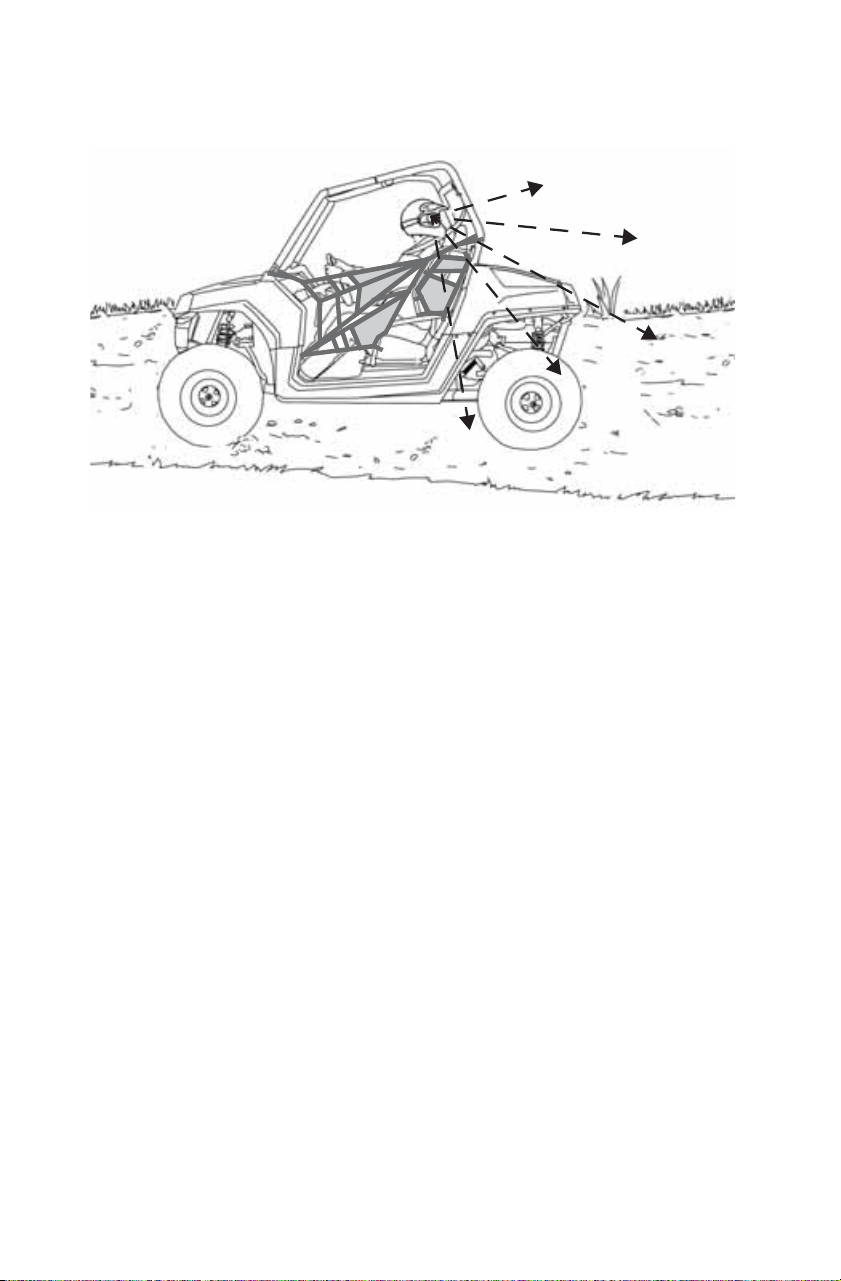

Driving Over Obstacles

Follow these precautions when driving over obstacles:

1. Always check for obstacles before driving in a new area.

2. Look ahead and watch the terrain. Always be alert for hazards such

as logs, rocks and low hanging branches.

3. Drive slowly and use extra caution when driving on unfamiliar

terrain. Obstacles are not always clearly visible.

4. Do not drive over large obstacles such as large rocks and fallen

trees. If it’s unavoidable, use extreme caution and drive slowly.

5. Always have a passenger dismount and move away from the vehicle

before driving over an obstacle that could cause a rollover.

OPERATION

Driving in Reverse

Follow these precautions when driving in reverse:

1. Always check for obstacles or people behind the vehicle.

2. Apply the throttle lightly. Never apply the throttle suddenly.

3. Back slowly.

4. Apply the brakes lightly for stopping.

5. Avoid making sharp turns.

OPERATION

Parking on an Incline

A rolling vehicle can result in serious injury. Avoid parking on an

incline. If parking on an incline is unavoidable, follow these

precautions:

1. Place the transmission in neutral.

2. Set the parking brake.

3. Stop the engine.

4. Always block the rear wheels on the downhill side.

EMISSION CONTROL SYSTEMS

Noise Emission Control System

Do not modify the engine, intake or exhaust components, as doing so

may affect compliance with U.S.A. EPA noise control requirements (40

CFR 205) and local noise level requirements.

Operation on Public Lands in the U.S.A.

Your POLARIS vehicle has a spark arrester that was tested and qualified

to be in accordance with the USFS standard 5100-1c. Federal law

requires that this spark arrester be installed and functional when the

vehicle is operated on public lands.

Operation of off-road vehicles on public lands in the U.S.A. is regulated

by 43 CFR 420. Violations are subject to monetary penalties. Federal

regulations can be viewed online at www.gpoaccess.gov/ecfr/.

Crankcase Emission Control System

This engine is equipped with a closed crankcase system. Blow-by gases

are forced back to the combustion chamber by the intake system. All

exhaust gases exit through the exhaust system.

Exhaust Emission Control System

Exhaust emissions are controlled by engine design. An electronic fuel

injection (EFI) system controls fuel delivery. The engine and EFI

components are set at the factory for optimal performance and are not

adjustable.

The emissions label is located on the frame behind the right front wheel.

Electromagnetic Interference

This spark ignition system complies with Canadian ICES-002.

This vehicle complies with the EMC requirements of European

directives 97/24/EC and 2004/108/EC.

Non-ionizing Radiation: This vehicle emits some electromagnetic

energy. People with active or non-active implantable medical devices

(such as heart monitoring or controlling devices) should review the

limitations of their device and the applicable electromagnetic standards

and directives that apply to this vehicle.

MAINTENANCE

Periodic Maintenance Chart

Any qualified repair shop or person may maintain, replace or repair the

emission control devices or systems on your vehicle. An authorized

POLARIS dealer can perform any service that may be necessary for

your vehicle. POLARIS also recommends POLARIS parts for

emissions-related service, however equivalent parts can be used.

It is a potential violation of the Clean Air Act if a part supplied by an

aftermarket parts manufacturer reduces the effectiveness of the vehicle’s

emission controls. Tampering with emission controls is prohibited by

federal law.

Owners are responsible for performing the scheduled maintenance

identified in this owner’s manual.

Careful periodic maintenance will help keep your vehicle in the safest,

most reliable condition. Inspection, adjustment and lubrication of

important components are explained in the periodic maintenance chart.

Inspect, clean, lubricate, adjust and replace parts as necessary. When

inspection reveals the need for replacement parts, genuine POLARIS

parts are available from your POLARIS dealer. Equivalent parts may be

used for emissions-related service.

Record maintenance and service in the Maintenance Log beginning on

page 106.

Service and adjustments are important for proper vehicle operation. If

you're not familiar with safe service and adjustment procedures, a

qualified dealer can perform these operations.

Vehicles subjected to heavy or severe use patterns must be inspected and

serviced more frequently.

Severe Use Definition

• Frequent immersion in mud, water or sand

• Racing or race-style high RPM use

• Prolonged low speed operation

• Extended idle

• Short trip cold weather operation

Pay special attention to the oil level. A rise in oil level during cold

weather can indicate contaminants collecting in the oil sump or

crankcase. Change oil immediately if the oil level begins to rise.

Monitor the oil level, and if it continues to rise, discontinue use and

determine the cause. Your POLARIS dealer can assist.

MAINTENANCE

Periodic Maintenance Chart

Maintenance Chart Key

WARNING! Improperly performing the procedures marked with a “D” could

result in component failure and lead to serious injury or death. Have an

authorized POLARIS dealer or other qualified person perform these services.

Symbol Description

Ź Perform these operations more often for vehicles subjected to severe use.

D Have an authorized POLARIS dealer or other qulaified person perform

these services.

MAINTENANCE

Periodic Maintenance Chart

Perform all services at whichever maintenance interval is reached first.

Ź Perform these procedures more often for vehicles subjected to severe use.

D Have an authorized POLARIS dealer or other qualified person perform these services.

Item Maintenance Interval

(whichever comes first)

Remarks

Hours Calendar Miles

(Km)

Steering -

Daily

Check each day before

driving the vehicle. Make

adjustments as needed.

See the Pre-Ride Checklist

on page 38.

Front suspension - -

Rear suspension - -

Tires - -

Brake fluid level - -

Brake pedal travel - -

Brake system - -

Wheels/fasteners - -

Frame fasteners - -

Engine oil level - -

Ź Air filter - Daily - Inspect; clean often; replace

as needed

Daytime running

lights/taillight

- Daily - Check operation

Drive chain - Daily - Inspect daily; adjust and

lubricate if needed

CVT housing (if

equipped)

- Weekly - Drain water as needed,

check often if driving in wet

conditions

Brake pad wear 10 Monthly 100 (160) Inspect periodically

Ź Engine oil change

(break-in)

10 1 M - Perform a break-in oil change

at one month

Drive chain

(break-in)

10 1 M - Adjust and lubricate

Fuel System 25 Monthly - Inspect; cycle key to

pressurize fuel pump; check

lines and fittings for leaks and

abrasion

Battery 25 Monthly 250 (400) Check terminals; clean; test

Ź Main gearcase oil 25 Monthly 250 (400) Inspect level; change yearly

MAINTENANCE

Periodic Maintenance Chart

Ź Perform these procedures more often for vehicles subjected to severe use.

D Have an authorized POLARIS dealer or other qualified person perform these services.

Item Maintenance Interval

(whichever comes first)

Remarks

Hours Calendar Miles

(Km)

Ź Engine breather

filter (if equipped)

25 Monthly 150 (250) Inspect; replace if necessary

Ź Engine oil change 30 6 M 300 (480) Perform a break-in oil change

at one month

Ź General

lubrication

50 3 M 500 (800) Lubricate all fittings, pivots,

cables, etc.

D Throttle release

switch

50 6 M 300 (480) Inspect; adjust; lubricate;

replace if necessary

Shift Linkage 50 6 M 500 (800) Inspect, lubricate, adjust

D Steering 50 6 M 500 (800) Lubricate

Ź Front Suspension 50 6 M 500 (800) Lubricate

Ź Rear Suspension 50 6 M 500 (800) Lubricate

D Fuel system/filter 100 12 M 600 (1000) Cycle key to pressurize fuel

pump; check for leaks at fill

cap, fuel lines/rail and fuel

pump; replace lines every

two years

Ź Spark plug 100 12M 600 (1000) Inspect; replace as needed

MAINTENANCE

Periodic Maintenance Chart

Ź Perform these procedures more often for vehicles subjected to severe use.

D Have an authorized POLARIS dealer or other qualified person perform these services.

Item Maintenance Interval

(whichever comes first)

Remarks

Hours Calendar Miles

(Km)

Ź Engine mounts 100 12 M 1000 (1600) Inspect

Exhaust muffler/

pipe

100 12 M 1000 (1600) Inspect

D Ignition timing 100 12 M 1000 (1600) Inspect

Ź Wiring 100 12 M 1000 (1600) Inspect for wear, routing,

security; apply dielectric

grease to connectors

subjected to water, mud, etc.

D Clutches (drive

and driven)

100 12 M 1000 (1600) Inspect; clean; replace worn

parts

Drive belt 100 12 M 1000 (1600) Inspect; replace as needed

D Front wheel

bearings

100 12 M 1000 (1600) Inspect; replace as needed

D Brake fluid 200 24 M 2000 (3200) Change every two years

Spark arrester 300 36 M 3000 (4800) Clean out

D Toe adjustment - Inspect periodically; adjust

when parts are replaced

MAINTENANCE

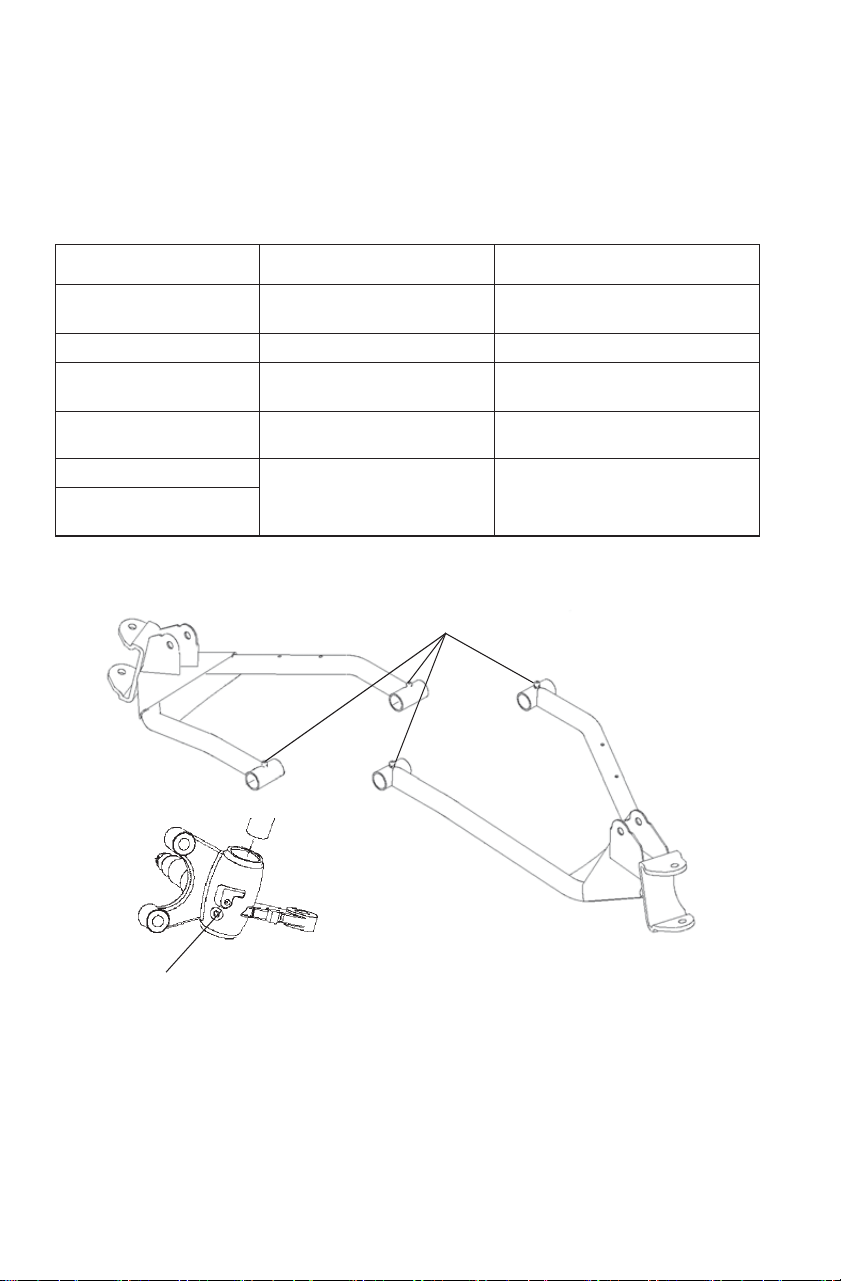

Lubrication Recommendations

Check and lubricate all components at the intervals outlined in the

Periodic Maintenance Chart beginning on page 53, or more often under

severe use, such as wet or dusty conditions. Items not listed in the chart

should be lubricated at the general lubrication interval.

ŹPerform these procedures more often for vehicles subjected to severe use.

Item Lube Method

Engine Oil PS-4 Extreme Duty

10W-50 4-Cycle Oil

See page 59.

Brake Fluid DOT 4 Brake Fluid See page 73.

Transmission Oil

(Main Gearcase)

AGL Gearcase Lubricant

& Transmission Fluid

See page 61.

Drive Chain POLARIS Chain Lube or

SAE 80/90

See page 62.

A-Arm Pivots POLARIS All Season

Grease or grease

conforming to NLGI No. 2

Grease at general lubrication

interval, also after washing

vehicle or driving in water.

Steering Arm

Pivots

A-Arm Pivots

Steering Arm

Pivots

MAINTENANCE

Engine Oil

Oil Recommendations

Always check and change the engine oil at the intervals outlined in the

Periodic Maintenance Chart beginning on page 53. POLARIS

recommends the use of POLARIS PS-4 Extreme Duty 10W-50 4-Cycle

Oil for this vehicle. Oil may need to be changed more frequently if

POLARIS oil is not used. Do not use automotive oil. See page 94 for the

part numbers of POLARIS products.

NOTICE: Mixing brands or using a non-recommended oil may cause serious

engine damage. Always use the recommended oil. Never substitute or

mix oil brands.

Oil Check

Maintain the oil level within the

safe range on the dipstick. Do not

overfill.

1. Position the vehicle on a level

surface.

2. Remove the dipstick. Wipe it

dry with a clean cloth.

3. Reinstall the dipstick

completely.

4. Remove the dipstick and

check the oil level.

Tip: A rising oil level between checks

in cool weather driving can

indicate contaminants such as

gas or moisture collecting in the

crankcase. If the oil level is over

the full/safe mark, change the oil

immediately.

5. Add the recommended oil as

needed.

6. Reinstall the dipstick.

Dipstick

Full

Add Oil

{

Safe Range

MAINTENANCE

Engine Oil

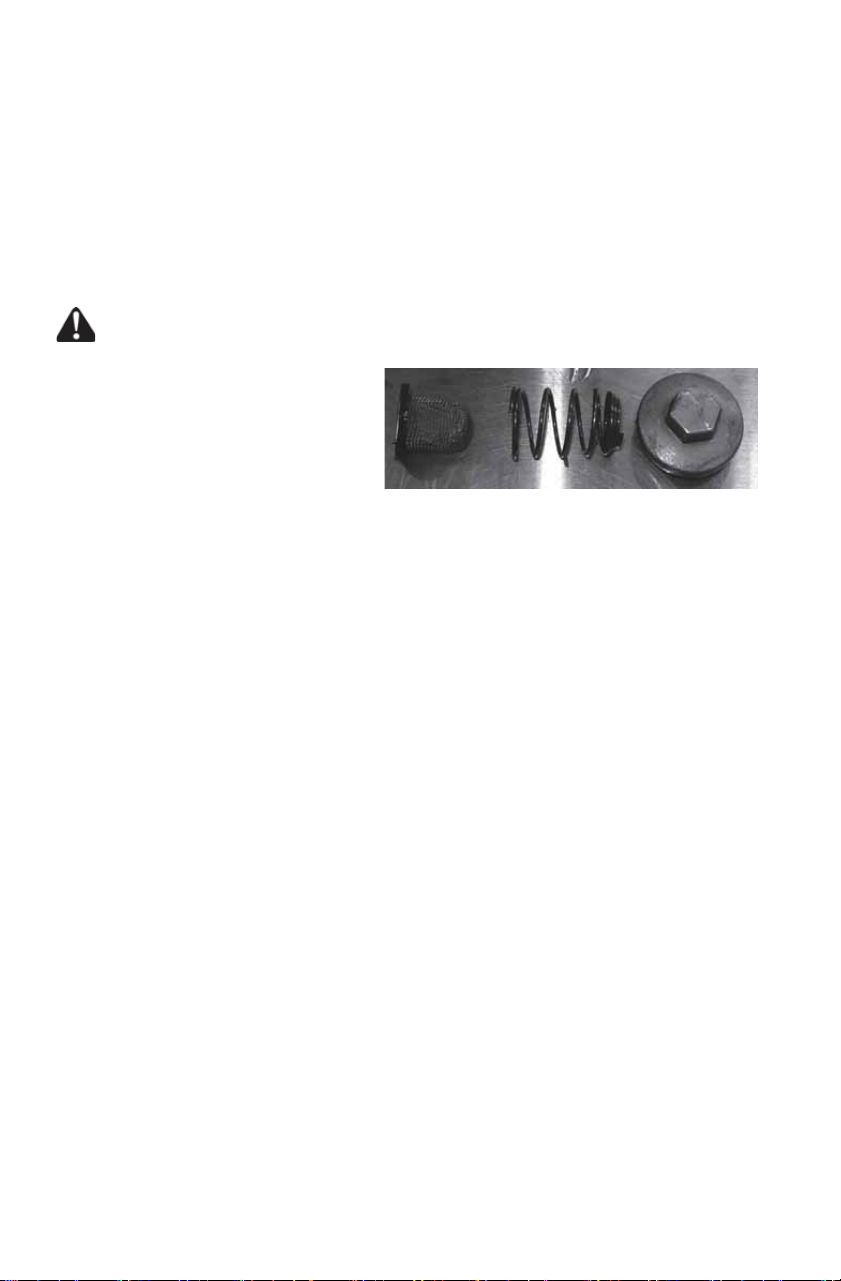

Oil Change

1. Position the vehicle on a level surface. Set the parking brake.

2. Clean the area around the pre-filter plug.

3. Start the engine. Allow it to idle for two to three minutes.

4. Stop the engine.

Hot oil can cause burns to skin. Do not allow hot oil to contact skin.

5. Place a drain pan under the

engine crankcase.

6. Remove the pre-filter plug.

Allow the oil to drain com-

pletely.

7. Wash the oil pre-filter screen with solvent to remove debris. Allow

the screen to air dry.

8. Clean the pre-filter plug. Install a new sealing washer on the plug.

The sealing surfaces on the plug and crankcase should be clean and

free of burrs, nicks or scratches.

9. Reassemble the pre-filter screen and spring to the pre-filter plug.

10. Reinstall the pre-filter drain plug. Torque to 11 ft. lbs. (15 Nm).

11. Remove the dipstick. Add 37 oz. (1.1 liters) of the recommended

oil. Do not overfill. See the specifications section beginning on

page 92 for capacities.

12. Reinstall the dipstick.

13. Start the engine. Allow it to idle for one to two minutes.

14. Stop the engine and inspect for leaks.

15. Check the oil level. Add oil as needed to bring the level to the upper

mark on the dipstick.

16. Dispose of used oil properly.

MAINTENANCE

Transmission (Main Gearcase)

Always check and change the fluid at the intervals outlined in the

Periodic Maintenance Chart beginning on page 53. POLARIS

recommends the use of AGL Gearcase Lubricant & Transmission Fluid

for this vehicle.

Fluid Check

The fill plug is located on the rear of the

gearcase. Access the fill plug through the

left rear wheel well. Maintain the fluid

level at the bottom of the fill plug hole.

1. Position the vehicle on a level surface.

2. Remove the fill plug.

3. Check the fluid level.

4. Add the recommended fluid as

needed.

5. Reinstall the fill plug.

Fluid Change

The drain plug is located on the bottom of the gearcase.

1. Remove the fill plug.

2. Place a drain pan under the drain plug.

3. Remove the drain plug. Allow the fluid to drain completely.

4. Clean the drain plug.

5. Reinstall the drain plug with a new o-ring. Torque to 11 ft. lbs. (15

Nm).

6. Add 23.7 oz. (700 ml) of the recommended fluid to the fill hole.

Maintain the fluid level at the bottom of the fill plug hole. Do not

overfill.

7. Reinstall the fill plug.

8. Check for leaks.

9. Discard used fluid properly.

Fill Plug

MAINTENANCE

Drive Chain Lubrication

Lubricate the drive chain with POLARIS chain spray lube or an

approved chain lube at the general lubrication interval specified in the

Periodic Maintenance Chart beginning on page 53. Lubricate more often

under severe use, such as in dirty or wet conditions. See page 94 for the

part numbers of POLARIS products.

NOTICE: Washing the drive chain with a high pressure washer or gasoline can

cause premature wear and drive chain failure. Don't use a high

pressure washer or gasoline to clean the drive chain.

Adjusting or operating the vehicle with improper rear drive chain slack

can result in severe damage to the transmission and drive

components. Always make sure the slack is within the stated

specifications.

Drive Chain Slack

1. Check the amount of chain

slack by moving the vehicle

slightly forward to gain slack

at the top side of the chain.

2. Raise the rear of the vehicle

and support securely under

the mainframe. Allow the

swing arm to hang at full

shock extension without

touching the ground. This

establishes the tightest chain

position.

3. Pull down on the chain ten-

sioner to move it out of the

way, then measure chain

slack. It should have 1/4"-1/2"

(6-12 mm) deflection.

4. If the chain needs adjustment,

use the procedure on page 63.

Chain

Tensioner

MAINTENANCE

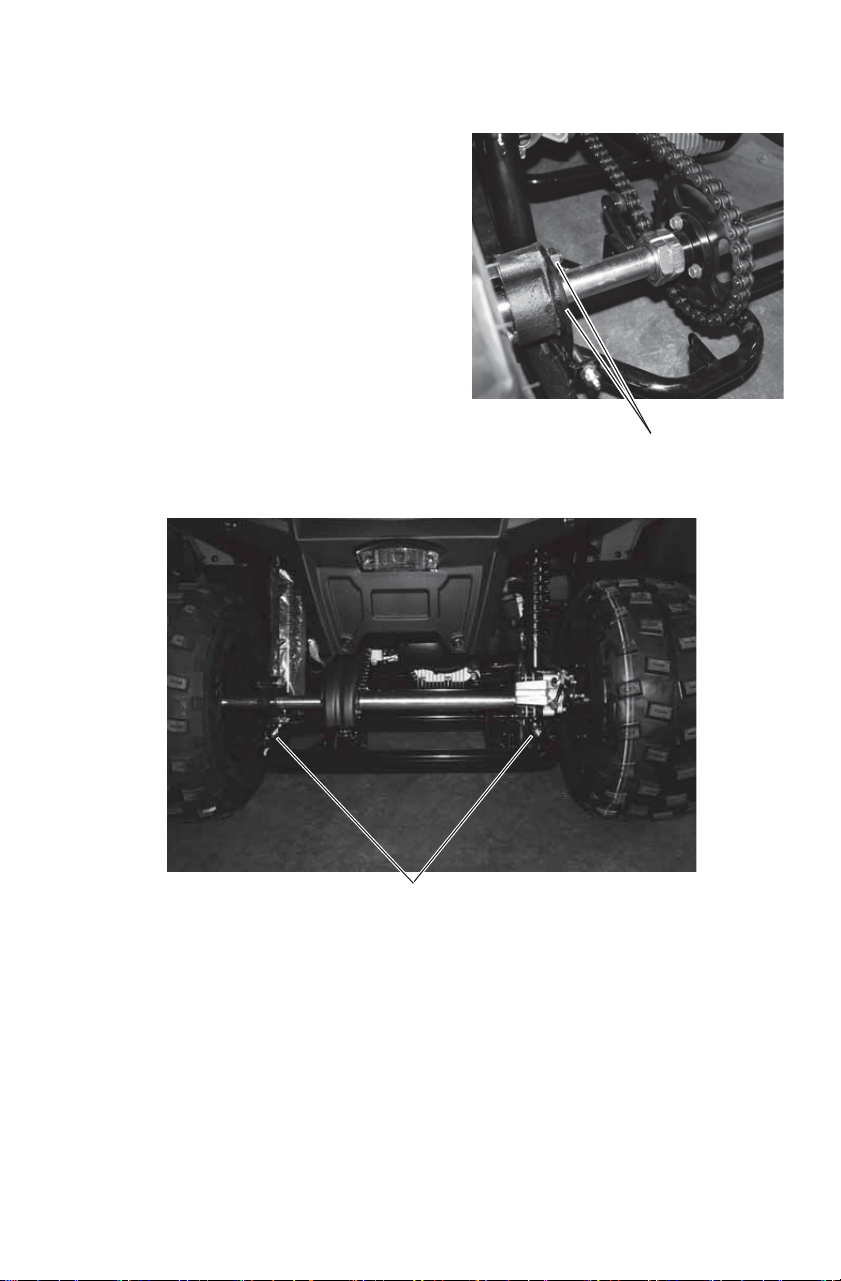

Drive Chain Slack Adjustment

1. Loosen the four rear housing

mount bolts (two on each side).

2. Loosen the chain adjuster lock

nuts.

3. Turn the chain adjusters clockwise

to 1/4"-1/2" (6-12 mm) deflection.

4. Tighten the chain adjuster lock

nuts to 18 ft. lbs. (25 Nm). Hold

the adjuster stud securely while

tightening the nut to avoid

breaking the stud.

5. Tighten the four rear housing

mount bolts to 43 ft. lbs. (60 Nm).

Housing Mount Bolts

Chain Adjusters

MAINTENANCE

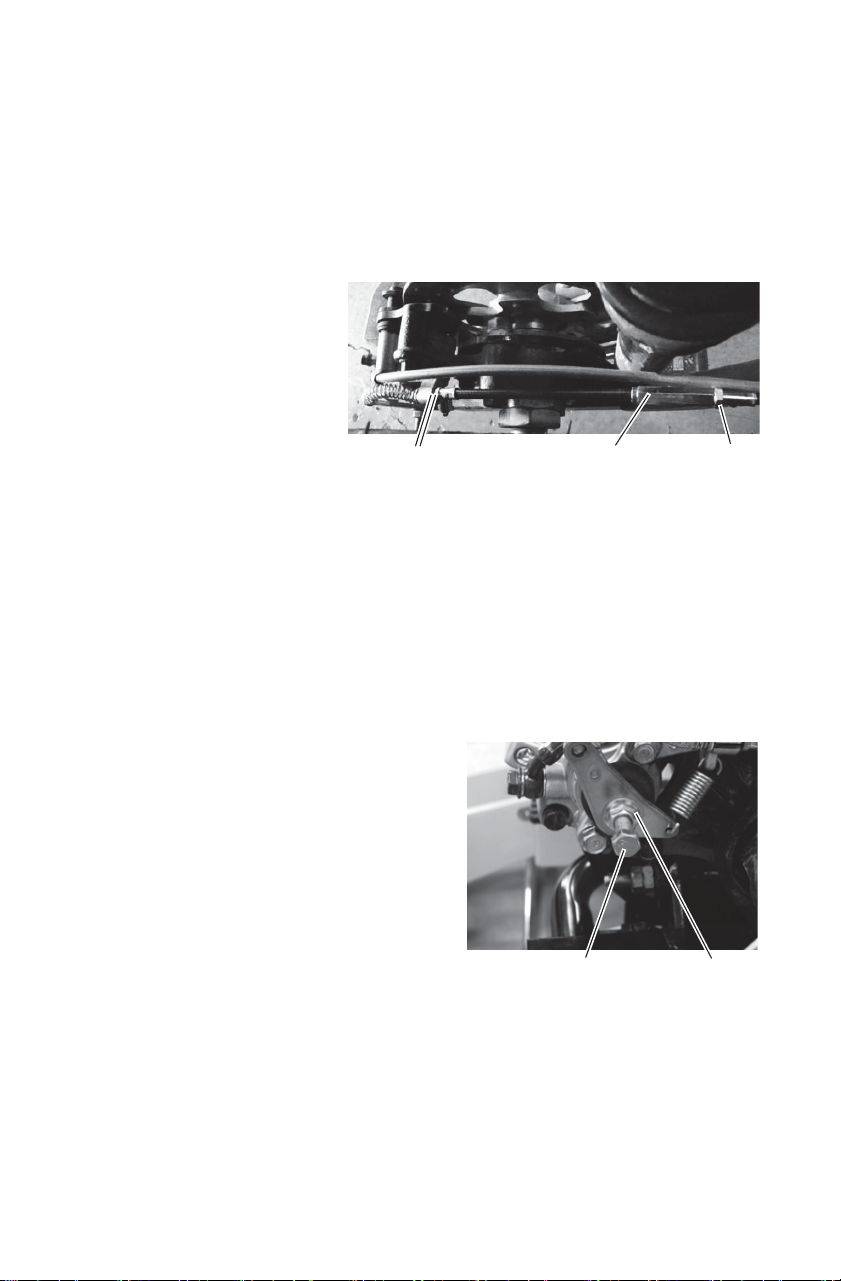

Parking Brake Cable Freeplay Adjustment

1. Inspect and perform any needed service on the brake pads before

adjusting parking brake cable freeplay.

2. Make sure the parking brake is NOT set (lever is DOWN).

3. Pull the brake cable back to inspect freeplay between the cable end

and the caliper bracket. Freeplay should be 1/16" - 1/8" (1.5-3 mm).

4. To adjust freeplay,

loosen the jam nut.

Turn the in-line

adjuster nut outward to

decrease freeplay. Turn

the adjuster nut inward

to increase freeplay.

5. Tighten the jam nut

against the adjuster nut.

Parking Brake Adjustment

1. Inspect and perform any needed service on the brake pads before

adjusting the parking brake.

2. Position the vehicle on a level surface. Place the transmission in

neutral.

3. Carefully elevate the rear of the vehicle slightly. Use an appropriate

lift.

4. Loosen the jam nut on the parking

brake adjustment bolt.

5. While rotating the rear wheels by

hand, tighten the adjustment bolt

until significant brake drag is

detected. Then back the adjustment

bolt out 1/4 turn.

6. Hold the adjustment bolt in place

and tighten the jam nut securely

against the lever arm.

7. Check parking brake lever movement. Verify that the rear wheels

rotate freely with the parking brake off (lever in DOWN position)

and that the vehicle will not move when the parking brake is applied

(lever in UP position).

8. Verify that the park brake lever stays in the UP position when the

brake is fully applied.

Jam

Nut

In-line

Adjuster Nut

Inspect

Freeplay

Jam Nut

Adjustment Bolt

MAINTENANCE

Spark Plug

Spark Plug Gap/Torque

NOTICE: Using non-recommended spark plugs can result in serious engine

damage. Use POLARIS-recommended spark plugs or their

equivalent. See page 92.

Spark plug condition is indicative of engine operation. The spark plug

firing end condition should be read after the engine is warmed up and

the vehicle is driven at higher speeds. Immediately check the spark plug

for correct color. See page 65.

A hot exhaust system and engine can cause burns. Wear protective

gloves when removing a spark plug for inspection.

Spark Plug Condition

Normal Plug

The normal insulator tip is gray, tan or light brown. There will be few

combustion deposits. The electrodes are not burned or eroded. This

indicates the proper type and heat range for the engine and the service.

Tip: The tip should not be white. A white insulator tip indicates overheating,

caused by use of an improper spark plug or incorrect throttle body

adjustments.

Wet Fouled Plug

The wet fouled insulator tip is black. A damp oil film covers the firing

end. There may be a carbon layer over the entire nose. Generally, the

electrodes are not worn. General causes of fouling are excessive oil, use

of non-recommended injection oil or incorrect throttle body

adjustments.

Spark Plug Removal and Replacement

1. Remove the spark plug cap.

2. Using the spark plug wrench provided

in the tool kit, remove the plug by

rotating it counter-clockwise.

3. Reverse the procedure for spark plug

installation. Torque to specification.

See page 65.

Electrode Gap New Plug Torque Used Plug Torque

0.6-0.7 mm 9-11 ft. lbs.

(12-15 Nm)

17-20 ft. lbs.

(23-27 Nm)

Spark Plug

(right rear wheel well)

MAINTENANCE

Constant Variable Transmission (CVT) System

Failure to comply with the instructions in this warning can result in severe injury

or death.

Do not modify any component of the CVT system. Doing so may reduce its

strength so that a failure may occur at a high speed. The CVT system has been

precision balanced. Any modification will cause the system to be out of balance,

creating vibration and additional loads on components.

The CVT system rotates at high speeds, creating large amounts of force on

clutch components. Extensive engineering and testing has been conducted to

ensure the safety of this product. However, as the owner, you have the following

responsibilities to make sure this system remains safe:

• Always follow all recommended maintenance procedures. See your POLARIS

dealer, or other qualified person, for service and repair assistance.

• This CVT system is intended for use on POLARIS products only. Do not install

it in any other product.

• Always make sure the CVT housing is securely in place during operation.

CVT Drying

There may be some instances when water is accidently ingested into the

CVT system. Use the following instructions to dry it out before

operating. The drain plug is located on the bottom of the CVT cover.

1. Remove the drain plug. Allow the water to drain. Reinstall the drain

plug.

2. Shift the transmission to neutral. Set the parking brake.

3. Start the engine. Apply varying throttle for 10-15 seconds to expel

the moisture and air-dry the belt and clutches. Do not hold the

throttle wide open for more than 10 seconds.

4. Allow the engine RPM to settle to idle speed.

5. Test for belt slippage. If the belt slips, repeat the process.

6. Your vehicle requires service as soon as possible. Your POLARIS

dealer can assist.

NOTICE: Exposure to salt water will cause corrosion to metal components. If

your vehicle is operated in salt water areas, rinse it off frequently with

fresh water.

WARNING

MAINTENANCE

Filter Systems

Air Filter

Always change the air filter at the

intervals outlined in the Periodic

Maintenance Chart beginning on page 53.

Access the air box through the access

cover on the forward surface of the rear

body panel.

1. Move or remove the storage bag.

Remove the four (4) access cover

fasteners to remove the access cover.

2. Release the air box cover spring clips

and remove the cover.

3. Loosen the air filter clamp. Remove

the air filter.

4. Clean away any oil or sediments in

the air box.

5. Apply a commercially available

chassis lubricant to the inside lip of

the new air filter. Install the filter and

tighten the clamp.

6. Reinstall the air box cover and secure

the clips.

NOTICE: Never operate the vehicle with the

filter element removed. Dirt will enter

the engine, causing rapid wear and

severe damage to the engine.

7. Reinstall the access cover and storage

bag.

Access Cover

Lubricant

Filter

MAINTENANCE

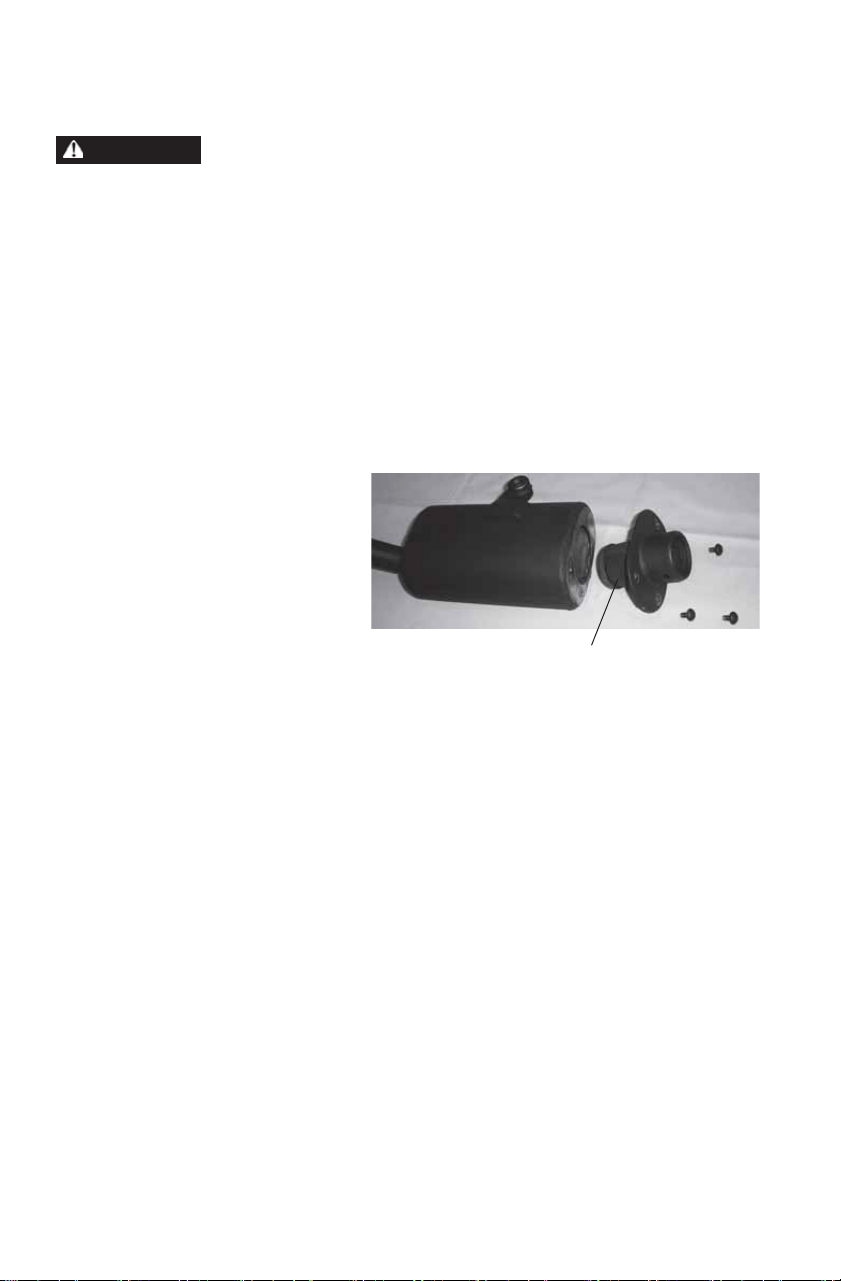

Spark Arrester

Failure to heed the following warnings while servicing the spark arrester could

result in serious injury or death.

• Do not perform service on the spark arrester while the system is hot. Allow

components to cool sufficiently before proceeding.

• Wear eye protection and gloves.

• Never operate without the spark arrestor.

• Never run the engine in an enclosed area. Exhaust contains poisonous carbon

monoxide gas.

To remove accumulated carbon, clean the spark arrester at the intervals

recommended in the Periodic Maintenance Chart beginning on page 53.

1. Remove the six bolts and

remove the arrester from

the end of the muffler.

2. Use a non-synthetic brush

to clean the arrester

screen. A synthetic brush

may melt if components

are warm. If necessary,

blow debris from the

screen with compressed

air.

3. Inspect the screen for wear and damage. Replace the arrester if dam-

age is found.

4. Reinstall the arrester.

5. Torque the bolts to 7 ft. lbs. (9.5 Nm).

WARNING

Arrester Screen

MAINTENANCE

Throttle System

Failure to check or maintain proper operation of the throttle system can result in

an accident and lead to serious injury or death if the throttle pedal sticks during

operation.

Never start or operate this vehicle if it has a sticking or improperly operating

throttle pedal.

Immediately contact your POLARIS dealer or other qualified person for service if

throttle problems arise.

Always check the pedal for free movement and return before starting the engine

and occasionally during operation.

Throttle Freeplay

If the throttle pedal has excessive

play due to cable stretch or misad-

justment, it will cause a delay in

throttle response, especially at low

engine speed. The throttle may

also not open fully. If the throttle

pedal has no freeplay, the throttle

may be hard to control, and the

idle speed may be erratic.

Check the throttle pedal freeplay

at the intervals outlined in the

Periodic Maintenance Chart

beginning on page 53. Adjust the

freeplay if necessary.

Throttle Freeplay Inspection

1. Place the transmission in neutral. Set the parking brake.

2. Start the engine. Allow it to warm up thoroughly.

3. Measure the distance the throttle pedal moves before the engine

begins to pick up speed. Freeplay should be 1/16 to 1/8 inches (1.5-

3 mm).

WARNING

Throttle

Pedal

Brake

Pedal

MAINTENANCE

Throttle System

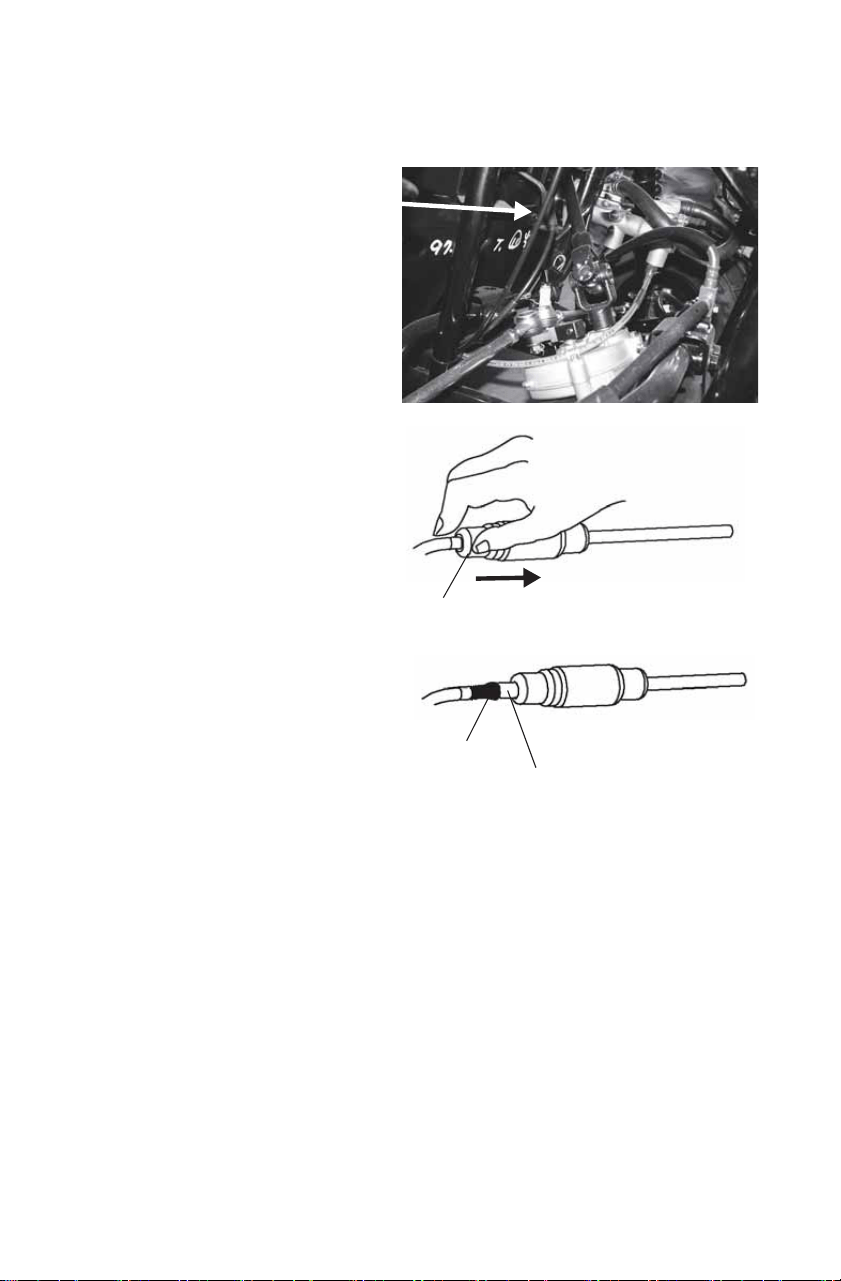

Throttle Freeplay Adjustment

Access the throttle cable

adjuster through the right front

wheel well.

1. Slide the cable adjuster

boot off the cable adjuster.

2. Squeeze the end of the

rubber boot and slide it far

enough to expose the end

of the inline cable adjuster.

3. Loosen the adjuster lock

nut.

4. Move the cable adjuster

until 1/16" to 1/8" (1.5-3

mm) of freeplay is

achieved at the throttle

pedal. See page 69. While

adjusting, lightly flip the

throttle pedal up and down.

5. Tighten the lock nut.

6. Apply a small amount of

grease to the inside of the

boot and slide it over the

cable adjuster to its

original position.

Lock Nut

Adjuster

Boot

MAINTENANCE

Brakes

The front and rear brakes are hydraulic disc type brakes activated by the

brake pedal. See page 34.

Always check brake pedal travel and the brake fluid reservoir level

before each use of the vehicle. When applied, the brake pedal should

feel firm. Any sponginess would indicate a possible fluid leak or low

brake fluid level, which must be corrected before riding. See page 73 for

brake fluid information.

If you discover any irregularities in brake system operation, including

excessive pedal travel, contact your dealer for proper diagnosis and

repairs.

Operating the vehicle with a spongy brake pedal can result in loss of

braking, which could cause an accident resulting in severe injury or death.

Never operate the vehicle with a spongy-feeling brake pedal.

MAINTENANCE

Brakes

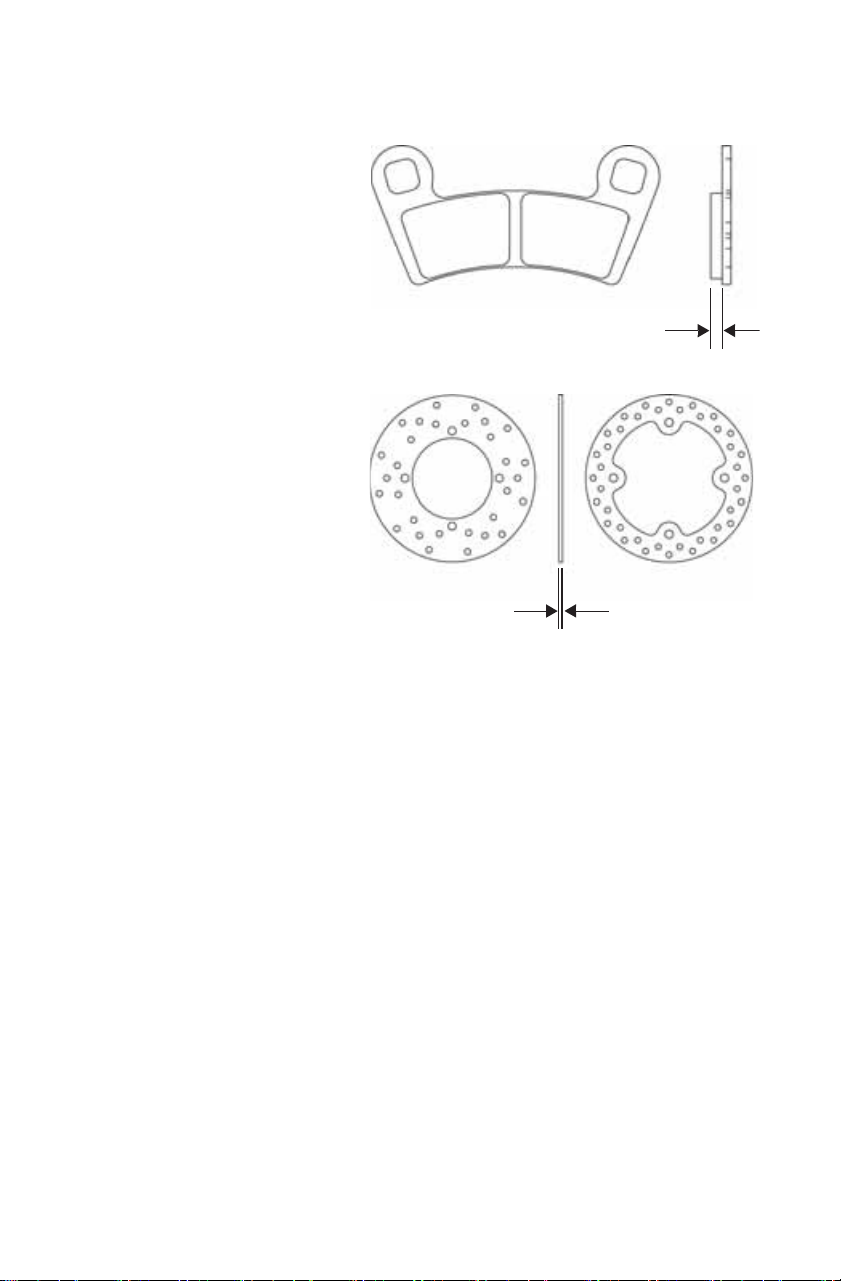

Brake Inspection

1. Check the brake system

for fluid leaks.

2. Check the brake pedal

for excessive travel or a

spongy feel.

3. Check the brake pads for

wear, damage and

looseness.

4. Inspect the brake pad

wear surface for

excessive wear.

5. Change pads when the

friction material is worn

to .40" (1 mm).

6. Check the surface

condition of the brake

discs. Measure the

thickness of the front and

rear discs. Replace a disc

if the thickness is less than .170” (4.32 mm).

7. Check brake system hoses and fittings for cracks, deterioration,

abrasion and leaks. Tighten any loose fittings and replace any worn

or damaged parts.

.40" (1 mm)

.170" (4.32 mm)

Brake Pad

Rear Disc

Front Disc

MAINTENANCE

Brakes

Brake Fluid

Inspect the level of the brake fluid before each operation. If the fluid

level is low add DOT 4 brake fluid only. See page 94 for the part

numbers of POLARIS products.

After opening a bottle of brake fluid, always discard any unused portion.

Never store or use a partial bottle. Brake fluid is hygroscopic, meaning it

rapidly absorbs moisture from the air. The moisture causes the boiling

temperature of the brake fluid to drop, which can lead to early brake fade

and the possibility of accident or severe injury.

Change the brake fluid every two

years and any time the fluid

becomes contaminated, the fluid

level is below the minimum, or if

the type and brand of the fluid in

the reservoir are unknown.

Access the brake fluid reservoir

through the left front wheel well.

1. Position the vehicle on a level

surface.

2. Place the transmission in

neutral. Set the parking

brake.

3. View the brake fluid level in

the reservoir. The level

should be between the

maximum and minimum

level lines. Add brake fluid as needed.

4. Apply the brake forcefully for a few seconds and check for fluid

leakage around the fittings.

Brake Fluid

Reservoir

Maximum

Minimum

MAINTENANCE

Steering Wheel Inspection

Check the steering wheel for specified freeplay and smooth operation at

the intervals outlined in the Periodic Maintenance Chart beginning on

page 53.

1. Position the vehicle on level ground.

2. Lightly turn the steering wheel left and right.

3. There should be 0.8"-1.0" (20-25 mm) of freeplay.

4. If there is excessive freeplay or strange noises, or the steering feels

rough or "catchy," have the steering system inspected by an

authorized POLARIS dealer or other qualified service facility

before operating the vehicle.

Shock Spring Adjustment

The front and rear shock absorber springs are adjustable to increase or

decrease spring tension. Rotate the adjuster either clockwise or counter-

clockwise to make adjustments. Always apply the same adjustment

setting to all four wheels.

WARNING! Uneven adjustment may cause poor handling of the vehicle, which

could result in an accident. Always adjust both the left and right spring preloads

equally or have your POLARIS dealer perform the adjustments.

Adjustment

Cam

Lowest (Softest)

Setting

Highest (Stiffest)

Setting

MAINTENANCE

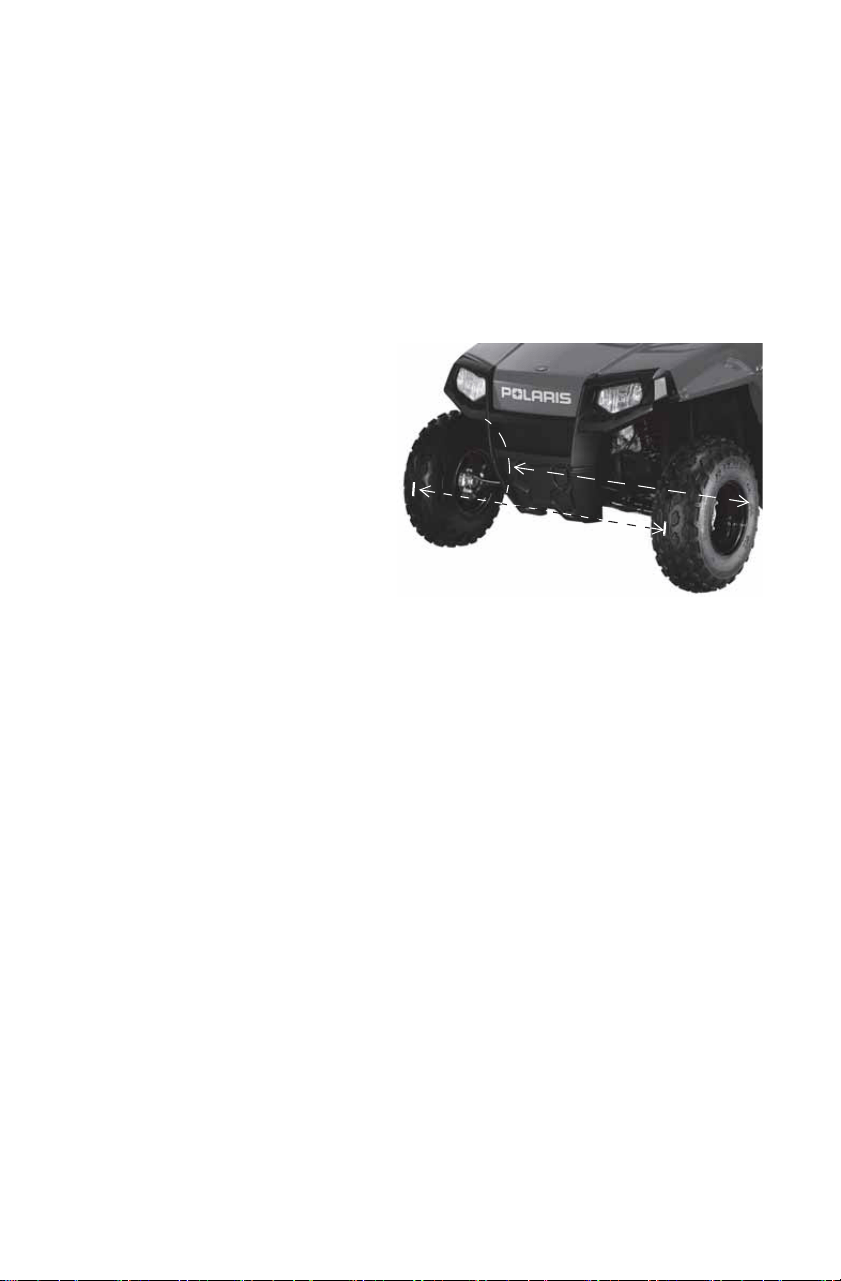

Toe Alignment

Use the following procedure to check the toe alignment of the vehicle.

The recommended toe alignment is 1/8" to 1/4" (3-6 mm) toe out.

WARNING! Severe injury or death can result from improper toe alignment and

adjustment. Do not attempt to adjust tie rod alignment. All tie rod adjustments

should be performed by an authorized POLARIS dealer or other qualified

service facility.

1. Position the vehicle on a

level surface.

2. Set the handlebars in a

straight-ahead position

and secure them in this

position.

3. Place a chalk mark on the

center line of the front

tires approximately 10"

(25.4 cm) from the floor,

or as close to the hub/axle

center line as possible.

Make sure both marks are the same distance from the floor.

4. Measure the distance between the marks and record the

measurement (1).

5. Move the vehicle to rotate the tires 180°. Position the wheels with

the chalk marks at the rear of the tires, even with the hub/axle center

line.

6. Measure the distance between the marks and record the

measurement (2).

7. Subtract measurement 2 from measurement 1. The difference is the

vehicle toe-out alignment.

8. If you discover improper alignment, see your POLARIS dealer for

service.

MAINTENANCE

Tires

Operating your vehicle with worn tires will increase the possibility of skidding,

loss of control and an accident, which could result in serious injury or death.

Always replace tires when the tread depth measures 1/8" (3 mm) or less.

Improper tire inflation or the use of non-standard size or type of tires may

adversely affect vehicle handling, which could result in vehicle damage or

personal injury. Always maintain proper tire pressure. Always use POLARIS-

approved size and type of tires for this vehicle when replacing tires.

Tire Tread Depth

Always replace tires

when tread depth is

worn to 1/8" (3 mm)

or less.

Front Wheel Hub Tightening

Front wheel bearing tightness and spindle nut retention are critical

component operations. All service must be performed by your

authorized POLARIS dealer or other qualified service facility.

Wheel Removal

1. Position the vehicle on a level surface.

2. Place the transmission in neutral. Set the parking brake. Stop the

engine.

3. Loosen the wheel nuts slightly.

4. Elevate the side of the vehicle by placing a suitable stand under the

frame.

5. Remove the wheel nuts. Remove the wheel.

WARNING

1/8" (3 mm)

MAINTENANCE

Tires

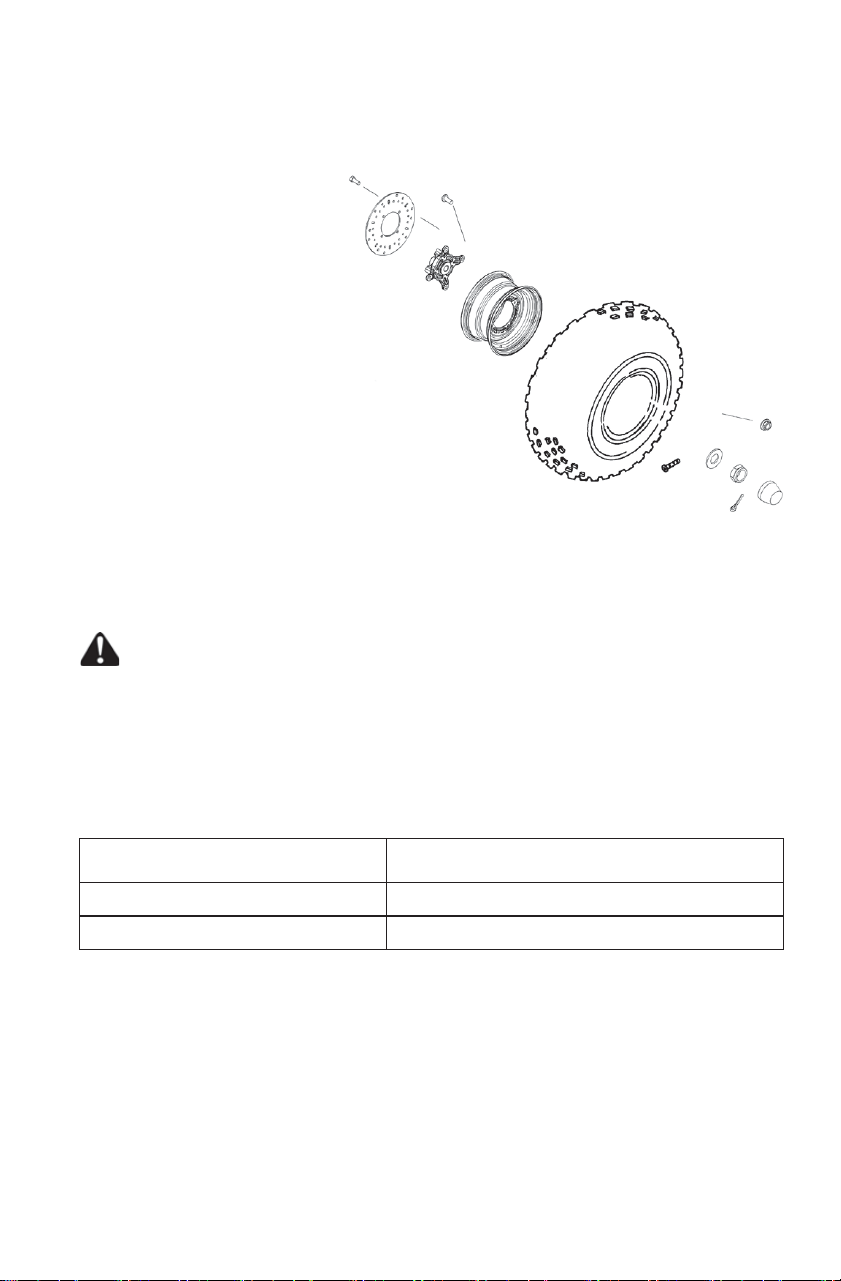

Wheel Installation

1. Place the

transmission in

neutral.

2. Set the parking

brake.

3. Place the wheel on

the wheel hub with

the valve stem

toward the outside

and the rotation

arrows on the tire

pointing toward

forward rotation.

4. Attach the wheel

nuts and finger tighten.

5. Carefully lower the vehicle to the ground.

6. Torque the wheel nuts to specification.

Improperly installed wheels can adversely affect tire wear and vehicle

handling, which can result in serious injury or death. Always ensure that

all nuts are torqued to specification. Do not service axle nuts that have a

cotter pin installed. Your POLARIS dealer can assist.

Wheel Nut Torque Specifications

Check the wheel nut torques occasionally and when they've been

loosened for service.

Location Nut Torque

Front Wheel 27 ft. lbs. (37 Nm)

Rear Wheel 27 ft. lbs. (37 Nm)

MAINTENANCE

Lights

Daytime Running Lights Lamp Replacement

If the daytime running lights do not operate, replace the lamps.

POLARIS recommends that you install replacement lamps obtained

from your authorized POLARIS dealer.

1. Disconnect the lights from the harness.

2. Remove the rubber cover from the back of the light assembly.

3. Press the lamp retainer inward and turn it counter-clockwise to

remove it. Note the position of the lamp positioning tab, then

carefully pull the lamp out.

4. Install the new lamp. Make sure the filament is horizontal.

5. Reinstall the lamp retainer. Press the retainer inward and turn it

clockwise about 1/4 turn.

6. Start the engine to make sure the lights come on. If the lights do not

operate, see your POLARIS dealer for service.

7. Reinstall the rubber cover, and reconnect the lights to the harness.

Tail Light Lamp Replacement

If the brakelight doesn't work, the

lamp may need to be replaced.

1. Remove the two screws

securing the lens cover.

Remove the lens cover.

2. Remove the lamp and replace

it with a new recommended

lamp.

3. Test the light for proper

operation.

4. Reinstall the lens cover.

Screws

Cover

Lamp

MAINTENANCE

Vehicle Immersion

NOTICE: If your vehicle becomes immersed, major engine damage can result if

the machine is not thoroughly inspected. Take the vehicle in for

service before starting the engine. Your POLARIS dealer can provide

this service.

If it’s impossible to take your vehicle to a dealer before starting it,

follow the steps outlined below.

1. Move the vehicle to dry land.

2. Check the air box. If water is present, dry the air box and replace the

filter with a new filter. Thoroughly dry the air pre-filter. See page

67.

3. Remove the air box drain plug to drain any water. Reinstall the drain

plug securely.

4. Remove the spark plug.

5. Turn the engine over several times using the electric start.

6. Dry the spark plug and reinstall it, or install a new plug.

7. Attempt to start the engine. If necessary, repeat the drying

procedure.

8. Take the vehicle in for service as soon as possible, whether you

succeed in starting it or not. Your POLARIS dealer can provide the

required service.

9. If water has been ingested into the transmission follow the

procedure on page 66 for drying.

MAINTENANCE

Battery

Improperly connecting or disconnecting battery cables can result in an explosion

and cause serious injury or death. When removing the battery, always

disconnect the negative (black) cable first. When reinstalling the battery, always

connect the negative (black) cable last.

Battery electrolyte is poisonous. It contains sulfuric acid. Serious burns can

result from contact with skin, eyes or clothing.

Antidote:

External: Flush with water.

Internal: Drink large quantities of water or milk. Follow with milk of magnesia,

beaten egg, or vegetable oil. Call physician immediately.

Eyes: Flush with water for 15 minutes and get prompt medical attention.

Batteries produce explosive gases. Keep sparks, flame, cigarettes, etc. away.

Ventilate when charging or using in an enclosed space. Always shield eyes

when working near batteries. KEEP OUT OF REACH OF CHILDREN.

Your vehicle may have either a sealed battery, which requires little

maintenance, or a conventional battery. A sealed battery can be

identified by its flat covers on the top of the battery. A conventional

battery has six filler caps on the top of the battery.

Always keep battery terminals and connections free of corrosion. If

cleaning is necessary, remove the corrosion with a stiff wire brush.

Wash with a solution of one tablespoon baking soda and one cup water.

Rinse well with tap water and dry off with clean shop towels. Coat the

terminals with dielectric grease or petroleum jelly. Be careful not to

allow cleaning solution or tap water into a conventional battery.

WARNING

MAINTENANCE

Battery

Battery Removal

1. Remove the driver’s seat. See

page 26.

2. On conventional batteries,

remove the battery vent tube

(sealed batteries do not have a

vent tube).

3. Disconnect the black (negative)

battery cable first.

4. Disconnect the red (positive)

battery cable last.

5. Lift the battery out of the

vehicle. Be careful not to tip a

conventional battery sideways, which could spill electrolyte.

NOTICE: If electrolyte spills, immediately wash it off with a solution of one

tablespoon baking soda and one cup water to prevent damage to the

vehicle.

Battery

Remove Seat

MAINTENANCE

Battery

Battery Installation

Using a new battery that has not been fully charged can damage the

battery and result in a shorter life. It can also hinder vehicle

performance. Follow the battery charging instructions on page 84 before

installing the battery.

1. Ensure that the battery is fully charged.

2. Place the battery in the battery holder.

3. On conventional batteries, install the battery vent tube. The vent

tube must be free of obstructions and securely installed. Route the

tube away from the frame and vehicle body to prevent contact with

electrolyte.

Battery gases could accumulate in an improperly installed vent tube and

cause an explosion, resulting in serious injury or death. Always ensure

that the vent tube is free of obstructions and is securely installed as

recommended.

4. Coat the terminals with dielectric grease or petroleum jelly.

5. Connect and tighten the red (positive) cable first.

6. Connect and tighten the black (negative) cable last.

7. Verify that cables are properly routed.

8. Reinstall the driver’s seat.

MAINTENANCE

Battery

Battery Storage

Whenever the vehicle is not used for a period of three months or more,

remove the battery from the vehicle, ensure that it's fully charged, and

store it out of the sun in a cool, dry place. Check battery voltage each

month during storage and recharge as needed to maintain a full charge.

See page 84.

Tip: Battery charge can be maintained by using a POLARIS Battery Tender

charger or by charging about once a month to make up for normal self-

discharge. Battery Tender can be left connected during the storage period,

and will automatically charge the battery if the voltage drops below a pre-

determined point. See page 94 for the part numbers of POLARIS products.

Battery Fluid (Conventional Battery)

A poorly maintained battery will

deteriorate rapidly. Check the

battery fluid level often. Maintain

the fluid level between the upper

and lower level marks.

Add only distilled water. Tap water

contains minerals that are harmful

to a battery.

Lower

Mark

Upper

Mark

MAINTENANCE

Battery

Battery Charging (Conventional Battery)

1. Remove the battery from the vehicle to prevent damage from

leaking or spilled electrolyte during charging. See page 81.

2. Charge the battery with a charging output no larger than 1/10 of the

battery’s amp/hr rating. Charge as needed to raise the specific

gravity to 1.270 or greater.

3. Reinstall the battery. See page 82. Make sure the positive terminal is

toward the front of the vehicle.

Battery Charging (Sealed Battery)

The following battery charging instructions apply only to the

installation of a sealed battery. Read all instructions before proceeding

with the installation of this battery.

The sealed battery is already filled with electrolyte and has been sealed

and fully charged at the factory. Never pry the sealing strip off or add

any other fluid to this battery.

The single most important thing about maintaining a sealed battery is to

keep it fully charged. Since the battery is sealed and the sealing strip

cannot be removed, you must use a voltmeter or multimeter to measure

DC voltage.

An overheated battery may explode, causing severe injury or death.

Always watch charging times carefully. Stop charging if the battery

becomes very warm to the touch. Allow it to cool before resuming

charging.

For a refresh charge, follow all instructions carefully.

1. Check the battery voltage with a

voltmeter or multimeter. A fully

charged battery will register 12.8

V or higher.

2. If the voltage is less than 12.8

volts, recharge the battery at 1.2

amps or less until battery voltage

is 12.8 or greater. The battery

charging harness is located under

the left edge of the driver’s seat.

Connect the battery charging harness to the charger.

Tip: When using an automatic charger, refer to the charger manufacturer's

instructions for recharging. When using a constant current charger, use the

guidelines on the next page for recharging.

Charging Harness

MAINTENANCE

Battery

Battery Charging (Sealed Battery)

Always verify battery condition before and 1-2 hours after the end of

charging.

State of

Charge

Voltage Action

Charge Time

(Using constant current

charger @ standard amps

specified on top of battery)

100% 12.8-13.0 volts None, check at 3

mos. from date of

manufacture

None required

75%-100% 12.5-12.8 volts May need slight

charge, if no

charge given,

check in 3 months

3-6 hours

50%-75% 12.0-12.5 volts Needs charge 5-11 hours

25%-50% 11.5-12.0 volts Needs charge At least 13 hours,

verify state of charge

0%-25% 11.5 volts or less Needs charge with

desulfating charger

At least 20 hours

MAINTENANCE

Cleaning and Storage

Washing the Vehicle

Keeping your POLARIS vehicle clean will

not only improve its appearance but it can

also extend the life of various components.

Before washing the vehicle, locate the CVT

inlet and outlet ducts. The ducts are located

under the rear wheel wells. Avoid spraying

water directly toward the ducts when

washing the vehicle from the rear.

NOTICE: Water in the CVT system could cause

the drive belt to become wet and slip in

the clutches. Always avoid spraying

water directly toward the CVT inlet and

outlet ducts when washing the vehicle

from the rear.

High water pressure may damage

components. POLARIS recommends

washing the vehicle by hand or with a

garden hose, using mild soap.

Certain products, including insect repellents and chemicals, will

damage plastic surfaces. Do not allow these types of products to

contact the vehicle.

The best and safest way to clean your POLARIS vehicle is with a

garden hose and a pail of mild soap and water.

1. Use a professional-type washing cloth, cleaning the upper body first

and the lower parts last.

2. Rinse with clean water frequently.

3. Dry surfaces with a chamois to prevent water spots.

Washing Tips

• Avoid the use of harsh cleaners, which can scratch the finish.

• Do not use a power washer to clean the vehicle.

• Do not use medium to heavy duty compounds on the finish.

• Always use clean cloths and pads for cleaning and polishing. Old or

reused cloths and pads may contain dirt particles that will scratch the

finish.

MAINTENANCE

Cleaning and Storage

Washing the Vehicle

If a high pressure water system is used for cleaning (not recommended),

exercise extreme caution. The water may damage components and could

remove paint and labels. Avoid directing the water stream at the

following items:

• Wheel bearings

• Radiator

• Transmission seals

• CVT inlet and outlet ducts

•Brakes

• Cab and body panels

• Labels and decals

• Electrical components and wiring

If an informational or graphic label becomes illegible or comes off,

contact your POLARIS dealer to purchase a replacement. Replacement

safety labels are provided by POLARIS at no charge.

Grease all zerk fittings immediately after washing. Allow the engine to

run for a while to evaporate any water that may have entered the engine

or exhaust system.

Polishing the Vehicle

POLARIS recommends the use of common household aerosol furniture

polish for polishing the finish on your POLARIS vehicle. Follow the

instructions on the container.

Polishing Tips

• Avoid the use of automotive products, some of which can scratch the

finish of your vehicle.

• Always use clean cloths and pads for cleaning and polishing. Old or

reused cloths and pads may contain dirt particles that will scratch the

finish.

MAINTENANCE

Cleaning and Storage

Chrome Wheel Care (if equipped)

Proper maintenance will protect chrome wheels from corrosion,

preserve wheel life and ensure a “like new” appearance for many years.

Tip: Chrome wheels exposed to road salt (or salt in the air in coastal areas) are

more susceptible to corrosion if not properly cleaned. Clean chrome wheels

more often if they're exposed to salt or other corrosive elements.

1. Wash chrome wheels frequently. Use a mild detergent. Never use

abrasive cleaners on plated or painted surfaces.

2. Rinse well with clear water. Soap, detergents, salt, dirt, mud and

other elements can cause corrosion.

3. Polish the clean chrome wheels periodically. Use an automotive

grade chrome polish.

4. Routinely and liberally apply a weather resistant wax to each

polished chrome wheel. Choose a product suitable for chrome

finishes. Read and follow the product labels and instructions.

Removing Corrosion

If light rust is found on the chrome finish, use steel wool (#0000-OTT

grade) to remove it. Gently rub the affected areas with the steel wool

until the corrosion has been removed. Clean and polish the wheel as

outlined above.

MAINTENANCE

Cleaning and Storage

Storage Tips

NOTICE: Starting the engine during the storage period will disturb the protective

film created by fogging and damage could occur. Never start the

engine during the storage period.

Clean the Exterior

Make any necessary repairs and clean the vehicle as recommended. See

page 86.

Stabilize the Fuel

1. Fill the fuel tank.

2. Add POLARIS Carbon Clean Fuel Treatment or POLARIS Fuel

Stabilizer or equivalent fuel treatments or stabilizers. Follow the

instructions on the container for the recommended amount. Carbon

Clean removes water from fuel systems, stabilizes fuel and removes

carbon deposits from pistons, rings, valves and exhaust systems.

3. Allow the engine to run for 15-20 minutes to allow the stabilizer to

disperse through the entire fuel delivery system.

Air Filter / Air Box

Inspect and clean or replace the air filter. See page 67. Clean the air box.

Drain the sediment tube.

Fluid Levels

Inspect the fluid levels. Add or change fluids as recommended in the

Periodic Maintenance Chart beginning on page 53.

• Transmission fluid

• Brake fluid (change every two years and any time the fluid looks dark

or contaminated)

Engine Oil

Change the oil. See page 60.

MAINTENANCE

Cleaning and Storage

Storage Tips

Inspect and Lubricate

Inspect all cables and lubricate all areas of the vehicle as recommended

in the Periodic Maintenance Chart beginning on page 53.

Fog the Engine

1. Treat the fuel system with POLARIS Carbon Clean or other

equivalent fuel treatment. Follow the instructions on the container.

Start the engine. Allow it to idle for several minutes so the Carbon

Clean reaches the injectors. Stop the engine.

2. Remove the spark plug and add 2-3 tablespoons of engine oil. To

access the plug hole, use a section of clear 1/4” hose and a small

plastic squeeze bottle filled with the pre-measured amount of oil.

3. Reinstall the spark plug. Torque to specification. See page 65.

4. Apply dielectric grease to the inside of the spark plug cap. Do not

reinstall the cap onto the plug at this step.

5. Turn the engine over several times. Oil will be forced in and around

the piston rings and ring lands, coating the cylinder with a

protective film of fresh oil.

6. If fuel system additive is not used, fuel tank, fuel lines, and injectors

should be completely drained of gasoline.

7. Reinstall the spark plug cap to the spark plug.

Battery Maintenance

See pages 83-85 for storage and charging procedures.

Storage Area/Covers

Be sure the storage area is well ventilated. Cover the vehicle with a

genuine POLARIS cover. Do not use plastic or coated materials. They

do not allow enough ventilation to prevent condensation, and may

promote corrosion and oxidation.

MAINTENANCE

Cleaning and Storage

Removal from Storage

1. Check the battery electrolyte level and charge the battery if

necessary. Install it in the vehicle. Make sure the battery vent hose is

routed properly and that it's not pinched or restricted in any way.

2. Make sure the spark plug is tight.

3. Fill the fuel tank with fuel.

4. Check all the points listed in the Daily Pre-Ride Inspection section

on page 38. Tightness of the bolts, nuts and other fasteners should

be checked by an authorized POLARIS dealer or other qualified

service facility.

5. Lubricate at the intervals outlined in the Periodic Maintenance

Chart beginning on page 53.

Transporting the Vehicle

Follow these procedures when

transporting the vehicle.

1. Place the transmission in neutral. Set

the parking brake.

2. Stop the engine.

3. Remove the key to prevent loss

during transporting.

4. Secure the fuel cap and seats. Ensure

that the seats are attached correctly

and are not loose.

NOTICE: Always tie the frame of the

POLARIS vehicle to the

transporting unit securely with

suitable straps or rope. Do not

attach tie straps to the front control

arm bolt pockets.

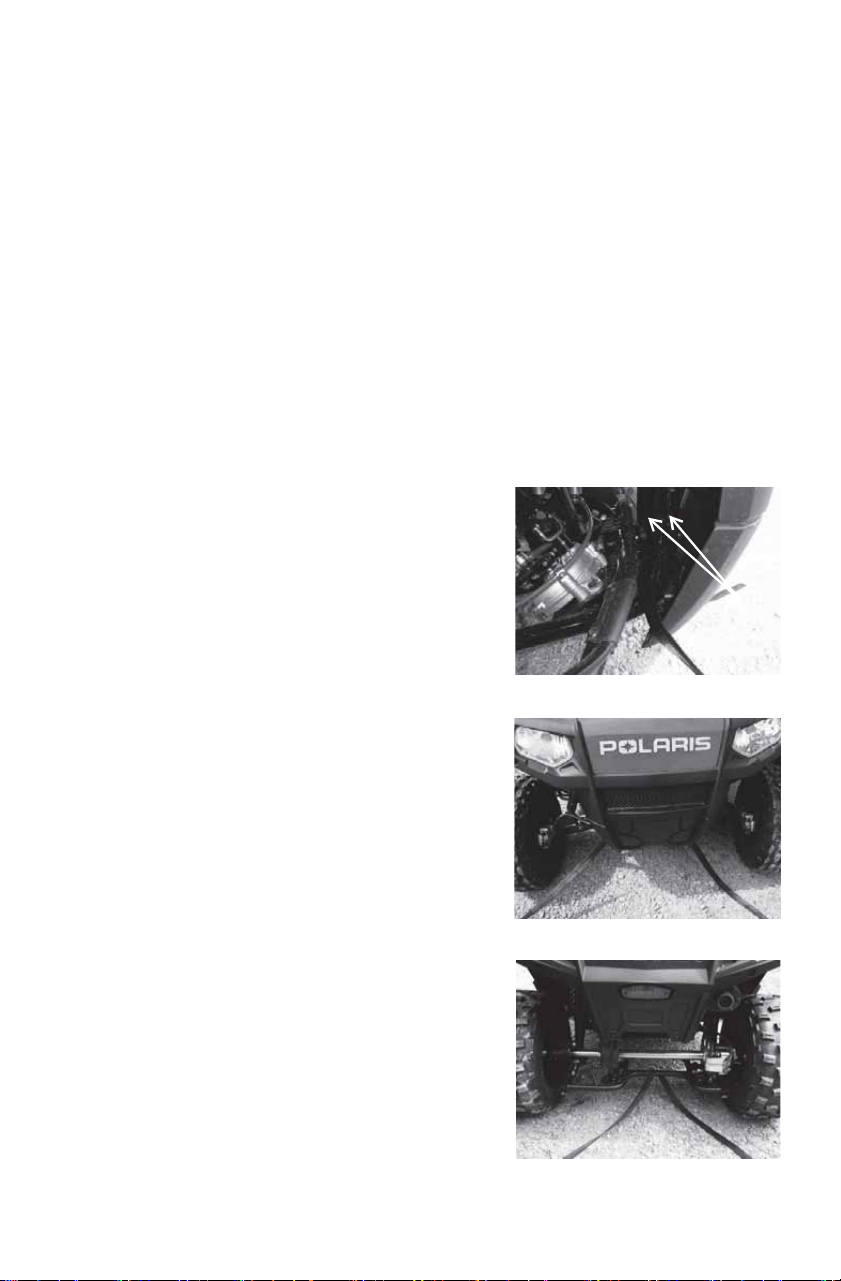

5. Wrap the front tie strap through the

frame tubes, or attach a tie-down

hook around each of the tubes.

6. Wrap the rear tie strap around the

swing arm.

Step 5

Step 6

Tubes

SPECIFICATIONS

RZR 170

Maximum Rider Weight 150 lbs. (68 kg) (each rider)

Maximum Weight Capacity 300 lbs. (136 kg)

Gross Vehicle Weight 840 lbs. (381 kg)

Dry Weight 500 lbs. (227 kg)

Fuel Capacity 2.5 gal. (9.5 ltr)

Engine Oil Capacity 37 oz. (1.1 ltr)

Transmission Oil Capacity 23.7 oz. (700 ml)

Overall Length 85 in. (216 cm)

Overall Width 48 in. (122 cm)

Overall Height 55 in. (139.7 cm)

Wheelbase 65 in. (165 cm)

Ground Clearance 6 in. (15.2 cm)

Engine Type 4-Stroke

Displacement 169 cc

Cooling Air Cooled

Bore x Stroke 61 mm x 57.8 mm

Alternator Output 80 watts

Compression Ratio 9.5:1

Starting System Electric

Fuel System Electronic fuel injection

Throttle Body Size 36 mm

Ignition System CDI

Ignition Timing 32° +/- 2° @ 5000 RPM

Spark Plug / Gap NGK CR6HSA / 0.6-0.7 mm

Front Suspension Single A-arm w/5 in. (12.7 cm) travel

Rear Suspension Dual Shock swing arm w/5 in. (12.7 cm) travel

Lubrication System Wet Sump

Driving System Type Automatic Constant Variable Transmission

Final Drive Chain

Shift Type F/N/R

SPECIFICATIONS

Clutching Chart

To access clutches for inspection, remove the passenger seat and remove the

clutch access panel. See page 26.

*Optional 15-gram weight

RZR 170

Tire Size - Front 19x7-8

Tire Size - Rear 20x10-9

Tire Pressure - Front 3 psi (20.7 kPa)

Tire Pressure - Rear 3 psi (20.7 kPa)

Brakes, Front/Rear Foot Activated, 4-wheel hydraulic disc

Parking Brake Mechanical, Rear (Lever)

Daytime Running Lights Dual, Standard

Brake Light Standard

ALTITUDE

Meters (Feet)

SHIFT WEIGHT

0-3048 (0-10,000) 6 @ 17 grams

Above 3048 (Above 10,000) *6 @ 15 grams

PN 0454619

POLARIS PRODUCTS

Part

Number

Description

Engine Lubricant

2870791 Fogging Oil (12 oz. Aerosol)

2878920 PS-4 Extreme Duty Synthetic 10W-50 4-Cycle Oil (qt./.95 l)

2878919 PS-4 Extreme Duty Synthetic 10W-50 4-Cycle Oil (gal./3.8 l)

Gearcase / Transmission Lubricants

2878068 AGL Full Synthetic Gearcase Lubricant & Transmission

Fluid (qt./.95 l)

2878069 AGL Full Synthetic Gearcase Lubricant & Transmission

Fluid (gal./3.8 l)

2872348 Chain Lube, Aerosol

Grease / Specialized Lubricants

2871312 Grease Gun Kit, All Season Grease

2871322 All Season Grease (3 oz./89 ml cartridge)

2871423 All Season Grease (14 oz./414 ml cartridge)

2871329 Dielectric Grease (Nyogel™)

Additives / Miscellaneous

2871326 Carbon Clean

2870652 Fuel Stabilizer

2872189 DOT 4 Brake Fluid

2871956 Loctite™ 565 Thread Sealant

2859044 POLARIS Battery Tender™ Charger

TROUBLESHOOTING

Drive Belt Wear/Burn

Possible Cause Solution

Driving at low RPM or

ground speed

Drive at a higher speed.

Insufficient warm-up at

low ambient tempera-

tures

Warm the engine at least 5 minutes. With the transmission

in neutral, apply small amount of throttle in short bursts, 5

to 7 times. The belt will become more flexible and

prevent belt burning.

Slow/easy clutch engage-

ment

Use the throttle quickly and effectively.

Belt slippage from water

or snow ingestion into the

CVT system

Dry out the CVT (see page 66). Prevent water from

entering the CVT inlet and outlet ducts (see page 86).

Inspect clutch seals for damage if repeated leaking

occurs.

Clutch malfunction Your POLARIS dealer can assist.

Poor engine performance Check for fouled plug or foreign material in gas tank or

fuel lines. Your POLARIS dealer can assist.

Wrong or missing belt Install the recommended belt.

Improper break-in Always break in a new belt and/or clutch. See page 36.

TROUBLESHOOTING

Engine Doesn't Turn Over

Engine Turns Over, Fails to Start

Engine Backfires

Possible Cause Solution

Low battery voltage Recharge the battery to 12.8 VDC

Loose battery connections Check all connections and tighten

Loose solenoid connections Check all connections and tighten

Possible Cause Solution

Out of fuel Refuel

Water is present in fuel Drain the fuel system and refuel

Old or non-recommended fuel Replace with fresh recommended fuel

Fouled or defective spark plug Inspect plug and replace if necessary

No spark to spark plug Inspect plug and replace if necessary

Water or fuel in crankcase Your POLARIS dealer can assist.

Clogged fuel filter Your POLARIS dealer can assist.

Low battery voltage Recharge the battery to 12.8 VDC

Mechanical failure Your POLARIS dealer can assist.

Possible Cause Solution

Weak spark from spark plug Inspect, clean and/or replace spark plug

Incorrect spark plug gap or heat range Set gap to specs or replace plug

Old or non-recommended fuel Replace with fresh recommended fuel

Incorrectly installed spark plug wires Your POLARIS dealer can assist.

Incorrect ignition timing Your POLARIS dealer can assist.

Mechanical failure Your POLARIS dealer can assist.

Loose ignition connections Check all connections and tighten

Water present in fuel Replace with fresh recommended fuel

Exhaust system leak Your POLARIS dealer can assist.

TROUBLESHOOTING

Engine Pings or Knocks

Engine Runs Irregularly, Stalls or Misfires

Possible Cause Solution

Poor quality or low octane fuel Replace with recommended fuel

Incorrect ignition timing Your POLARIS dealer can assist.

Incorrect spark plug gap or heat range Set gap to specs or replace plug

Possible Cause Solution

Fouled or defective spark plug Inspect, clean and/or replace spark plug

Worn or defective spark plug wires Your POLARIS dealer can assist.

Incorrect spark plug gap or heat range Set gap to specs or replace plug

Loose ignition connections Check all connections and tighten

Water present in fuel Replace with new fuel

Low battery voltage Recharge battery to 12.8 VDC

Kinked or plugged fuel tank vent line Inspect and replace

Incorrect fuel Replace with recommended fuel

Clogged air filter Inspect and clean or replace

Electronic throttle control malfunction Your POLARIS dealer can assist.

Other mechanical failure Your POLARIS dealer can assist.

Possible Lean Fuel Cause Solution

Low or contaminated fuel Add or change fuel, clean the fuel system

Low octane fuel Replace with recommended fuel

Clogged fuel filter Your POLARIS dealer can assist.

Incorrect fuel Replace with recommended fuel

Possible Rich Fuel Cause Solution

Fuel is very high octane Replace with lower octane fuel

Stopping/starting without adequate

warm-up

Allow engine to warm up before operat-

ing and/or stopping

Incorrect fuel Replace with recommended fuel

Clogged air filter Inspect and clean or replace

TROUBLESHOOTING

Engine Stops or Loses Power

Possible Cause Solution

Out of fuel Refuel

Kinked or plugged fuel vent line Inspect and replace

Water is present in fuel Replace with new fuel

Fouled or defective spark plug Inspect, clean and/or replace spark plug

Worn or defective spark plug wires Your POLARIS dealer can assist.

Incorrect spark plug gap or heat range Set gap to specs or replace plug

Loose ignition connections Check all connections and tighten

Low battery voltage Recharge the battery to 12.8 VDC

Incorrect fuel Replace with fresh recommended fuel

Clogged air filter Inspect and clean or replace

Electronic throttle control malfunction Your POLARIS dealer can assist.

Other mechanical failure Your POLARIS dealer can assist.

WARRANTY

LIMITED WARRANTY

POLARIS Industries Inc., 2100 Highway 55, Medina, MN 55340 (POLARIS) gives a

SIX MONTH LIMITED WARRANTY on all components of your POLARIS vehicle

against defects in material or workmanship. POLARIS further warrants that the spark

arrester in this product will meet the efficiency requirements of USFS standard 5100-1C

for at least 1000 hours when subjected to normal use and when maintenance and

installation are in accordance with POLARIS recommendations.

This warranty covers parts and labor charges for repair or replacement of defective parts

and begins on the date of purchase by the original retail purchaser. This warranty is

transferable to another owner during the warranty period through a POLARIS dealer,

but any such transfer will not extend the original term of the warranty. The duration of

this warranty may vary by international region based upon local laws and regulations.

Registration

At the time of sale, the Warranty Registration Form must be completed by your dealer

and submitted to POLARIS within ten days of purchase. Upon receipt of this

registration, POLARIS will record the registration for warranty. No verification of

registration will be sent to the purchaser as the copy of the Warranty Registration Form

will be your proof of warranty coverage. If you have not signed the original registration

and received the customer copy, please contact your dealer immediately. NO

WARRANTY COVERAGE WILL BE ALLOWED UNLESS YOUR VEHICLE IS

REGISTERED WITH POLARIS. Initial dealer preparation and set-up of your vehicle is

very important in ensuring trouble-free operation. Purchasing a machine in the crate or

without proper dealer set-up will void your warranty coverage.

Warranty Coverage And Exclusions:

Limitations Of Warranties And Remedies

This POLARIS limited warranty excludes any failures that are not caused by a defect in

material or workmanship. THIS WARRANTY DOES NOT COVER CLAIMS OF

DEFECTIVE DESIGN. This warranty also does not cover acts of God, accidental

damage, normal wear and tear, abuse or improper handling. This warranty also does not

cover any vehicle, component, or part that has been altered structurally, modified,

neglected, improperly maintained or used for racing, competition or purposes other than

for which it was designed.

This warranty excludes damages or failures resulting from improper lubrication;

improper engine timing; improper fuel; surface imperfections caused by external stress,

heat, cold or contamination; operator error or abuse; improper component alignment,

tension, adjustment or altitude compensation; snow, water, dirt or other foreign

substance ingestion/contamination; improper maintenance; modified components; use

of aftermarket or unapproved components, accessories, or attachments; unauthorized

repairs; or repairs made after the warranty period expires or by an unauthorized repair

center.

100

WARRANTY

Warranty Coverage And Exclusions:

Limitations Of Warranties And Remedies

This warranty excludes damages or failures caused by abuse, accident, fire, or any other

cause other than a defect in materials or workmanship and provides no coverage for

consumable components, general wear items, or any parts exposed to friction surfaces,

stresses, environmental conditions and/or contamination for which they were not

designed or not intended, including but not limited to the following items:

Lubricants and Fluids

1. Mixing oil brands or using non-recommended oil may cause engine damage. We

recommend the use of POLARIS engine oil.

2. Damage or failure resulting from the use of non-recommended lubricants or fluids is

not covered by this warranty.

This warranty provides no coverage for personal loss or expense, including mileage,

transportation costs, hotels, meals, shipping or handling fees, product pick-up or

delivery, replacement rentals, loss of product use, loss of profits, or loss of vacation or

personal time.

THE EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY SHALL BE, AT

POLARIS' OPTION, REPAIR OR REPLACEMENT OF ANY DEFECTIVE

MATERIALS, COMPONENTS, OR PRODUCTS. THE REMEDIES SET FORTH IN

THIS WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON

FOR BREACH OF THIS WARRANTY. POLARIS SHALL HAVE NO LIABILITY

TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL

DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF EXPRESS OR

IMPLIED WARRANTY OR ANY OTHER CONTRACT, NEGLIGENCE, OR

OTHER TORT OR OTHERWISE. THIS EXCLUSION OF CONSEQUENTIAL,

INCIDENTAL, AND SPECIAL DAMAGES IS INDEPENDENT FROM AND SHALL

SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY FAILED OF ITS

ESSENTIAL PURPOSE.

THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE IS

EXCLUDED FROM THIS LIMITED WARRANTY. ALL OTHER IMPLIED

WARRANTIES (INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTY OF MERCHANTABILITY) ARE LIMITED IN DURATION TO THE

ABOVE SIX MONTH WARRANTY PERIOD. POLARIS DISCLAIMS ALL

EXPRESS WARRANTIES NOT STATED IN THIS WARRANTY. SOME STATES DO

NOT PERMIT THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES OR ALLOW LIMITATIONS ON THE DURATION

OF IMPLIED WARRANTIES, SO THE ABOVE LIMITATIONS MAY NOT APPLY

TO YOU IF INCONSISTENT WITH CONTROLLING STATE LAW.

• Wheels and tires • Finished and unfinished surfaces

• Suspension components • Carburetor/Throttle body components

• Brake components • Engine components

• Seat components • Drive belts

• Clutches and components • Hydraulic components and fluids

• Steering components • Circuit breakers/Fuses

• Batteries • Electronic components

• Light bulbs/Sealed beam lamps • Spark plugs

•Filters •Sealants

• Lubricants • Coolants

• Bushings • Bearings

101

WARRANTY

How To Obtain Warranty Service

If your vehicle requires warranty service, you must take it to a POLARIS Servicing

Dealer. When requesting warranty service you must present your copy of the Warranty

Registration Form to the dealer. (THE COST OF TRANSPORTATION TO AND

FROM THE DEALER IS YOUR RESPONSIBILITY.) POLARIS suggests that you use

your original selling dealer; however, you may use any POLARIS Servicing Dealer to

perform warranty service.

In the Country where your product was purchased:

Warranty or Service Bulletin repairs must be done by an authorized POLARIS dealer. If

you move or are traveling within the country where your product was purchased,

Warranty and Service Bulletin repairs may be requested from any authorized POLARIS

dealer that sells the same line as your product.

Outside the Country where your product was purchased:

If you are traveling temporarily outside the country where your product was purchased,

you should take your product to an authorized POLARIS dealer. You must show the

dealer photo identification from the country of the selling dealer's authorized location as

proof of residence. Upon residence verification, the servicing dealer will be authorized

to perform the warranty repair.

If you move:

If you move to another country, be sure to contact POLARIS Customer Assistance and

the customs department of the destination country before you move. Product

importation rules vary considerably from country to country. You may be required to

present documentation of your move to POLARIS in order to continue your warranty

coverage. You may also be required to obtain documentation from POLARIS in order to

a local POLARIS dealer in your new country immediately after you move to continue

your warranty coverage and to ensure that you receive information and notices regarding

your vehicle.

If you purchase from a private party:

If you purchase a POLARIS product from a private party, to be kept and used outside of

the country in which the product was originally purchased, all warranty coverage will be

denied. You must nonetheless register your product under your name and address with a

local POLARIS dealer in your country to ensure that you receive safety information and

notices regarding your product.

Exported Products

EXCEPT WHERE SPECIFICALLY REQUIRED BY LAW, THERE IS NO

WARRANTY OR SERVICE BULLETIN COVERAGE ON THIS PRODUCT IF IT IS

SOLD OUTSIDE THE COUNTRY OF THE SELLING DEALER'S AUTHORIZED

LOCATION. This policy does not apply to products that have received authorization for

export from POLARIS. Dealers may not give authorization for export. You should

consult an authorized dealer to determine this product's warranty or service coverage if

you have any questions. This policy does not apply to products registered to government

officials or military personnel on assignment outside the country of the selling dealer's

authorized location. This policy does not apply to Safety Bulletins.

102

WARRANTY

Notice

If your product is registered outside of the country where it was purchased and you have

not followed the procedure set above, your product will no longer be eligible for

warranty or service bulletin coverage of any kind, other than safety bulletins. Products

registered to government officials or military personnel on assignment outside of the

country where the product was purchased will continue to be covered by the Limited

Warranty.

Please work with your dealer to resolve any warranty issues. Should your dealer require

any additional assistance, they will contact the appropriate person at POLARIS.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state or in different countries. If any of the above terms are void

because of federal, state, local law, all other warranty terms will remain in effect.

For questions call POLARIS Customer Assistance:

United States & Canada: 1-800-POLARIS (1-800-765-2747)

French: 1-800-268-6334

103

WARRANTY

U.S.A. EPA Emissions Limited Warranty

This emissions limited warranty is in addition to the POLARIS standard limited

warranty for your vehicle. POLARIS Industries Inc. warrants that at the time it is first

purchased, this emissions-certified vehicle is designed, built and equipped so it

conforms with applicable U.S. Environmental Protection Agency emission regulations.

POLARIS warrants that the vehicle is free from defects in materials and workmanship

that would cause it to fail to meet these regulations.

The warranty period for off road vehicles 100cc or greater emissions-certified vehicles

starts on the date of purchase by original retail purchaser and continues for a period of

500 hours of engine operation, 5000 kilometers (3100 miles) of vehicle travel, or 30

calendar months from the date of purchase, whichever comes first. The warranty period

for ATVs less than 100cc emissions-certified vehicles starts on the date of purchase by

original retail purchaser and continues for a period of 250 hours of engine operation,

2500 kilometers (1550 miles) of vehicle travel, or 30 calendar months from the date of

purchase, whichever comes first. This EPA emissions warranty period is extended for at

least as long as the standard factory warranty that Polaris provides on the vehicle as a

whole. The EPA emissions warranty period does not further extend if you purchase

additional warranty coverage in the form of a service contract or other paid warranty

extension, but emission-related parts may be covered subject to the terms of any such

paid service contract or paid warranty extension.

This emissions limited warranty covers components whose failure increases the

vehicle's regulated emissions, and it covers components of systems whose only purpose

is to control emissions. Repairing or replacing other components not covered by this

warranty is the responsibility of the vehicle owner. This emissions limited warranty does

not cover components whose failure does not increase the vehicle's regulated emissions.

For exhaust emissions, emission-related components include any engine parts related to

the following systems:

The following parts are also considered emission-related components for exhaust

emissions:

• Air-induction system • Ignition system

• Fuel system • Exhaust gas recirculation systems

• Aftertreatment devices • Sensors

• Crankcase ventilation valves • Electronic control units

104

WARRANTY

U.S.A. EPA Emissions Limited Warranty

The following parts are considered emission-related components for evaporative

emissions:

*As related to the evaporative emission control system.

Emission-related components also include any other part whose only purpose is to

reduce emissions or whose failure will increase emissions without significantly

degrading engine/equipment performance. The exclusive remedy for breach of this

limited warranty shall be, at the exclusive option of POLARIS, repair or replacement of

any defective materials, components or products. THE REMEDIES SET FORTH IN

THIS LIMITED WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY

PERSON FOR BREACH OF THIS WARRANTY. POLARIS SHALL HAVE NO

LIABILITY TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR

SPECIAL DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF

EXPRESS OR IMPLIED WARRANTY OR ANY OTHER CONTRACT,

NEGLIGENCE OR OTHER TORT OR OTHERWISE. THIS EXCLUSION OF

CONSEQUENTIAL, INCIDENTAL, AND SPECIAL DAMAGES IS INDEPENDENT

FROM AND SHALL SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY

FAILED OF ITS ESSENTIAL PURPOSE.

ALL IMPLIED WARRANTIES (INCLUDING BUT NOT LIMITED TO ANY

IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE) ARE LIMITED IN DURATION TO THE WARRANTY

PERIOD DESCRIBED HEREIN. POLARIS DISCLAIMS ALL EXPRESS

WARRANTIES NOT STATED IN THIS WARRANTY. Some states do not allow

limitations on how long an implied warranty lasts, so the above limitation may not apply

if it is inconsistent with the controlling state law.

This limited warranty excludes failures not caused by a defect in material or

workmanship. This limited warranty does not cover damage due to accidents, abuse or

improper handling, maintenance or use. This limited warranty also does not cover any

engine that has been structurally altered, or when the vehicle has been used in racing

competition. This limited warranty also does not cover physical damage, corrosion or

defects caused by fire, explosions or other similar causes beyond the control of

POLARIS.

• Fuel Tank • Vacuum Control Diaphragms*

• Fuel Cap • Control Cables*

• Fuel Line • Control Linkages*

• Fuel Line Fittings • Purge Valves

• Clamps* • Vapor Hoses

• Pressure Relief Valves* • Liquid/Vapor Separator

• Control Valves* • Carbon Canister

• Control Solenoids* • Canister Mounting Brackets

• Electronic Controls* • Carburetor Purge Port Connector

105

WARRANTY

U.S.A. EPA Emissions Limited Warranty

Owners are responsible for performing the scheduled maintenance identified in the

owner's manual. POLARIS may deny warranty claims for failures that have been caused

by the owner's or operator's improper maintenance or use, by accidents for which

POLARIS has no responsibility, or by acts of God.

Any qualified repair shop or person may maintain, replace, or repair the emission

control devices or systems on your vehicle. An authorized POLARIS dealer can perform

any service that may be necessary for your vehicle. POLARIS also recommends

POLARIS parts, however equivalent parts may be used for such service. It is a potential

violation of the Clean Air Act if a part supplied by an aftermarket parts manufacturer

reduces the effectiveness of the vehicle's emission controls. Tampering with emission

controls is prohibited by federal law.

California Residents

Certain POLARIS Off-Road Vehicles are available in 49-state and 50-state versions.

Only the 50-state models are certified for sale in California. The 50-state models

available for sale in California are identified by the letter “B” in the ninth position of the

model number (e.g., R16RTE87B). The POLARIS 50-state models are designed and

built with features such as a reduced cargo box capacity. Any modifications to these

features may be a violation of the applicable California regulations and may void this

limited emissions warranty offered by the manufacturer.

If you have any questions regarding your warranty rights and responsibilities, please

contact POLARIS Customer Assistance:

United States & Canada: 1-800-POLARIS (1-800-765-2747)

French: 1-800-268-6334

106

MAINTENANCE LOG

Use the following chart to record periodic maintenance.

DATE MILES (KM)

OR HOURS

TECHNICIAN SERVICE PERFORMED / COMMENTS

107

MAINTENANCE LOG

DATE MILES (KM)

OR HOURS

TECHNICIAN SERVICE PERFORMED / COMMENTS

108

INDEX

Adjustment, Steering Wheel . . . . . . 27

Adjustment, Throttle Freeplay. . . . . 70

Air Filter . . . . . . . . . . . . . . . . . . . . . 67

Air Filter Cleaning. . . . . . . . . . . . . . 67

Arrester, Spark, Warning. . . . . . . . . 68

Battery . . . . . . . . . . . . . . . . . . . . 80-85

Battery Charging . . . . . . . . . . . . . 84-85

Battery Fluid Replenishment. . . . . . 83

Battery Installation. . . . . . . . . . . . . . 82

Battery Removal . . . . . . . . . . . . . . . 81

Battery Storage . . . . . . . . . . . . . . . . 83

Before Riding. . . . . . . . . . . . . . . . . . 38

Belt Burning. . . . . . . . . . . . . . . . . . . 95

Belt Wear. . . . . . . . . . . . . . . . . . . . . 95

Belts, Seat . . . . . . . . . . . . . . . . . . 28-29

Boots . . . . . . . . . . . . . . . . . . . . . . . . 11

Brake Adjustment, Parking . . . . . . . 64

Brake Adjustment . . . . . . . . . . . . . . 64

Brake Fluid . . . . . . . . . . . . . . . . . . . 73

Brake Inspection . . . . . . . . . . . . . . . 72

Brake Pedal . . . . . . . . . . . . . . . . . . . 34

Brake System Break-in . . . . . . . . . . 37

Brakes . . . . . . . . . . . . . . . . . . . . . 71-73

Braking . . . . . . . . . . . . . . . . . . . . . . 41

Break-In Period . . . . . . . . . . . . . . 36-37

Burning Belts. . . . . . . . . . . . . . . . . . 95

Cab Nets. . . . . . . . . . . . . . . . . . . . . . 30

Changing Gears . . . . . . . . . . . . . . . . 33

Chart, Periodic Maintenance . . . . 53-57

Chrome Wheel Care . . . . . . . . . . . . 88

Cleaning and Storage. . . . . . . . . . 86-91

Cleaning the Air Filter. . . . . . . . . . . 67

Cleaning, Exhaust System . . . . . . . . 68

Cleaning, Spark Arrester . . . . . . . . . 68

Clothing . . . . . . . . . . . . . . . . . . . . . . 11

Clutching Chart . . . . . . . . . . . . . . . . 93

Component Locations . . . . . . . . . 24-25

Condition, Spark Plugs . . . . . . . . . . 65

Constant Variable Transmission . . . 66

Corrosion Removal, Chrome. . . . . . 88

Cover for Storage. . . . . . . . . . . . . . . 90

Crankcase Emission Control System 52

CVT Break-In . . . . . . . . . . . . . . . . . 37

CVT Drying. . . . . . . . . . . . . . . . . . . 66

CVT System. . . . . . . . . . . . . . . . . . . 66

Drive Belt Wear. . . . . . . . . . . . . . . . . 95

Drive Chain Lubrication . . . . . . . . . . 62

Drive Chain Slack . . . . . . . . . . . . . . . 62

Drive Chain Slack Adjustment . . . . . 63

Drivetrain Break-In . . . . . . . . . . . . . . 37

Driving Downhill. . . . . . . . . . . . . . . . 47

Driving in Reverse. . . . . . . . . . . . . . . 50

Driving on a Sidehill . . . . . . . . . . . . . 47

Driving on Slippery Surfaces . . . . . . 45

Driving Over Obstacles . . . . . . . . . . . 49

Driving Procedures . . . . . . . . . . . 42-43

Driving Through Water . . . . . . . . . . . 48

Driving Uphill . . . . . . . . . . . . . . . . . . 46

Driving with a Passenger. . . . . . . . . . 44

Electromagnetic Interference. . . . . . . 52

Emission Control, Crankcase . . . . . . 52

Emission Control, Exhaust . . . . . . . . 52

Emission Control, Noise . . . . . . . . . . 52

Emissions Limited Warranty. . 103-105

Engine Break-In. . . . . . . . . . . . . . . . . 37

Engine Fogging . . . . . . . . . . . . . . . . . 90

Engine Oil . . . . . . . . . . . . . . . . . . 59-60

Engine Stopping . . . . . . . . . . . . . . . . 41

Equipment Modifications . . . . . . . . . . 9

Exhaust Cleaning. . . . . . . . . . . . . . . . 68

Exhaust Emission Control System . . 52

Exhaust System Warning. . . . . . . . . . 68

Eye Protection . . . . . . . . . . . . . . . . . . 11

Filling the Battery . . . . . . . . . . . . . . . 83

Filter Care During Storage . . . . . . . . 89

Filter Cleaning, Air . . . . . . . . . . . . . . 67

Filter Systems . . . . . . . . . . . . . . . . . . 67

Filter, Air . . . . . . . . . . . . . . . . . . . . . . 67

Fluid

Main Gearcase . . . . . . . . . . . . . . . 61

Transmission. . . . . . . . . . . . . . . . . 61

Fluid Change

Main Gearcase . . . . . . . . . . . . . . . 61

Transmission. . . . . . . . . . . . . . . . . 61

Fluid Check

Main Gearcase . . . . . . . . . . . . . . . 61

Transmission. . . . . . . . . . . . . . . . . 61

Fluid Levels During Storage . . . . . . . 89

Fluid, Battery. . . . . . . . . . . . . . . . . . . 83

Fluid, Brake . . . . . . . . . . . . . . . . . . . . 73

109

INDEX

Fogging the Engine. . . . . . . . . . . . . . 90

Fouled Plugs . . . . . . . . . . . . . . . . . . . 65

Freeplay Adjustment, Throttle . . . . . 70

Freeplay, Steering Wheel . . . . . . . . . 74

Fuel Cap . . . . . . . . . . . . . . . . . . . . . . 31

Fuel Safety . . . . . . . . . . . . . . . . . . . . 21

Fuel Stabilizer. . . . . . . . . . . . . . . . . . 89

Fuel Tank Filler Cap. . . . . . . . . . . . . 31

Gap, Spark Plug . . . . . . . . . . . . . . . . 65

Gasoline Handling . . . . . . . . . . . . . . 21

Gear Selector. . . . . . . . . . . . . . . . . . . 33

Gearcase Oil, Main . . . . . . . . . . . . . . 61

Gearcases

Main Gearcase . . . . . . . . . . . . . . . 61

Transmission . . . . . . . . . . . . . . . . 61

Gears, shifting. . . . . . . . . . . . . . . . . . 33

Gloves. . . . . . . . . . . . . . . . . . . . . . . . 11

Hand Hold, Passenger. . . . . . . . . . . . 27

Helmet. . . . . . . . . . . . . . . . . . . . . . . . 10

Ignition Switch . . . . . . . . . . . . . . . . . 32

Inspection, Brakes. . . . . . . . . . . . . . . 72

Inspection, Pre-Ride . . . . . . . . . . . . . 38

Inspection, Seat Belts . . . . . . . . . . . . 29

Inspection, Steering Wheel. . . . . . . . 74

Inspection, Throttle Freeplay . . . . . . 69

Installation, Battery. . . . . . . . . . . . . . 82

Installation, Wheels . . . . . . . . . . . . . 77

Interference, Electromagnetic. . . . . . 52

Key, Periodic Maintenance Chart. . . 54

Lamp Replacement

Taillight . . . . . . . . . . . . . . . . . . . . 78

Daytime Running Lights . . . . . . . 78

Lights . . . . . . . . . . . . . . . . . . . . . . . . 78

Lubricant Part Numbers . . . . . . . . . . 94

Lubrication for Storage. . . . . . . . . . . 90

Lubrication Recommendations. . . . . 58

Maintenance Log . . . . . . . . . . 106-107

Maintenance, Periodic . . . . . . . . 53-57

Nets, Cab. . . . . . . . . . . . . . . . . . . . . . 30

New Operator Procedures. . . . . . 42-43

Noise Emission Control System . . . . 52

Obstacles. . . . . . . . . . . . . . . . . . . . . . 49

Oil

Engine . . . . . . . . . . . . . . . . . . 59-60

Main Gearcase . . . . . . . . . . . . . . . 61

Transmission . . . . . . . . . . . . . . . . 61

Oil Change

Engine Oil . . . . . . . . . . . . . . . . . . 60

Main Gearcase . . . . . . . . . . . . . . . 61

Transmission . . . . . . . . . . . . . . . . 61

Oil Check

Engine Oil . . . . . . . . . . . . . . . . . . 59

Main Gearcase . . . . . . . . . . . . . . . 61

Transmission . . . . . . . . . . . . . . . . 61

Operation on Public Lands . . . . . . . . 52

Parking Brake Adjustment . . . . . . . . 64

Parking Brake Cable Freeplay . . . . . 64

Parking on an Incline . . . . . . . . . . . . 51

Parking the Vehicle. . . . . . . . . . . . . . 41

Passenger Hand Hold Adjustment . . 27

Periodic Maintenance Chart . . . . 53-57

Plug Condition . . . . . . . . . . . . . . . . . 65

Plug Gap . . . . . . . . . . . . . . . . . . . . . . 65

Plug Torque . . . . . . . . . . . . . . . . . . . 65

Plug, Spark . . . . . . . . . . . . . . . . . . . . 65

Plugs, Fouled . . . . . . . . . . . . . . . . . . 65

Polaris Products . . . . . . . . . . . . . . . . 94

Polishing the Vehicle . . . . . . . . . . . . 87

Pre-Ride Inspection . . . . . . . . . . . . . 38

Public Lands . . . . . . . . . . . . . . . . . . . 52

Refueling Safety . . . . . . . . . . . . . . . . 21

Registration, Warranty . . . . . . . . . . . 99

Removal, Battery . . . . . . . . . . . . . . . 81

Removal, Seat. . . . . . . . . . . . . . . . . . 26

Removal, Wheels . . . . . . . . . . . . . . . 76

Removing the Vehicle from Storage 91

Reverse . . . . . . . . . . . . . . . . . . . . . . . 50

Riding Gear. . . . . . . . . . . . . . . . . 10-11

110

INDEX

Safe Operation Practices . . . . . . . . . 39

Safety Labels . . . . . . . . . . . . . . . . 22-23

Safety Symbols . . . . . . . . . . . . . . . . . 6

Safety Warnings. . . . . . . . . . . . . . 12-21

Seat Adjustment, Driver’s . . . . . . . . 26

Seat Belt Cleaning . . . . . . . . . . . . . . 29

Seat Belt Inspection. . . . . . . . . . . . . 29

Seat Belts . . . . . . . . . . . . . . . . . . . 28-29

Seat Removal. . . . . . . . . . . . . . . . . . 26

Selector, Gear . . . . . . . . . . . . . . . . . 33

Severe Use Definition . . . . . . . . . . . 53

Shifting Gears . . . . . . . . . . . . . . . . . 33

Shock Spring Adjustment . . . . . . . . 74

Signal Words . . . . . . . . . . . . . . . . . . . 6

Spark Arrester Cleaning . . . . . . . . . 68

Spark Arrester Warning. . . . . . . . . . 68

Spark Plug . . . . . . . . . . . . . . . . . . . . 65

Spark Plug Condition. . . . . . . . . . . . 65

Spark Plug Gap . . . . . . . . . . . . . . . . 65

Spark Plug Removal . . . . . . . . . . . . 65

Spark Plug Torque. . . . . . . . . . . . . . 65

Spark Plugs, Fouled. . . . . . . . . . . . . 65

Specifications. . . . . . . . . . . . . . . . 92-93

Speed Control System . . . . . . . . . . . 35

Stabilizing the Fuel . . . . . . . . . . . . . 89

Steering Wheel Adjustment. . . . . . . 27

Steering Wheel Inspection. . . . . . . . 74

Stopping the Engine. . . . . . . . . . . . . 41

Storage. . . . . . . . . . . . . . . . . . . . . 86-91

Storage and Inspection. . . . . . . . . . . 90

Storage and Lubrication. . . . . . . . . . 90

Storage Area . . . . . . . . . . . . . . . . . . 90

Storage, Battery . . . . . . . . . . . . . . . . 83

Storage, Covers . . . . . . . . . . . . . . . . 90

Storage, Fluid Levels. . . . . . . . . . . . 89

Storage, Oil Change. . . . . . . . . . . . . 89

Storage, Removal. . . . . . . . . . . . . . . 91

Taillight . . . . . . . . . . . . . . . . . . . . . . . 78

Throttle Freeplay Adjustment . . . . . . 70

Throttle Freeplay Inspection . . . . . . . 69

Throttle Freeplay, Freeplay, Throttle 69

Throttle Pedal . . . . . . . . . . . . . . . . . . 34

Throttle System . . . . . . . . . . . . . . . . . 69

Tire Tread Depth . . . . . . . . . . . . . . . . 76

Tires . . . . . . . . . . . . . . . . . . . . . . 76-77

Front Wheel Hub Tightening . . . . 76

Wheel Nut Torque . . . . . . . . . . . . 77

Toe Alignment. . . . . . . . . . . . . . . . . . 75

Torque, Spark Plug . . . . . . . . . . . . . . 65

Transmission Oil . . . . . . . . . . . . . . . . 61

Transporting the Vehicle . . . . . . . . . . 91

Tread Depth, Tire . . . . . . . . . . . . . . . 76

Vehicle Identification Numbers. . . . . . 8

Vehicle Immersion . . . . . . . . . . . . . . 79

Vehicle Transport . . . . . . . . . . . . . . . 91

Warning Symbols . . . . . . . . . . . . . . . . 6

Washing the Vehicle . . . . . . . . . . 86-87

Water, Immersion of Vehicle . . . . . . 79

Wear, Drive Belt . . . . . . . . . . . . . . . . 95

Wheel Hub Tightening . . . . . . . . . . . 76

Wheel Installation . . . . . . . . . . . . . . . 77

Wheel Nut Torque Specifications . . . 77

Wheel Removal . . . . . . . . . . . . . . . . . 76

WARNING

For your nearest Polaris dealer,

call 1-800-POLARIS (765-2747)

or visit www.polaris.com

Polaris Industries Inc.

2100 Highway 55

Medina, MN 55340

Part No. 9927394 Rev 01

Printed in Taiwan

Improper vehicle use can result in SEVERE INJURY or DEATH

Operation of this vehicle by children under age 10 increases the risk of severe

injury or death. Adult supervision required for children under age 16.

NEVER permit children under age 10 to operate or ride in this vehicle.

NEVER allow vehicle to be operated:

• without all occupants first viewing and understanding safety video

and warning labels.

• with more than one passenger.

• on hills steeper than 15 degrees 15 .

• on paved surfaces - pavement may seriously affect handling and control.

• with non-Polaris approved accessories - they may seriously affect stability.

• at speeds that are too fast for the operator’s skills, the conditions

and/or the terrain.

ALWAYS require operator and passenger to:

• wear seat belts, grab hand holds (passenger) and plant feet firmly on the floor.

• secure cab nets.

• keep hands and feet inside vehicle.

• avoid quick turns of the steering wheel and driving stunts such as jumps,

donuts or power slides.

• reduce speed and use extra caution when carrying a passenger.

• watch for branches or other hazards that could enter vehicle.

ALWAYS USE AN APPROVED HELMET AND PROTECTIVE GEAR

FOR ALL OCCUPANTS.

READ OWNER’S MANUAL. FOLLOW ALL INSTRUCTIONS AND WARNINGS.

Polaris RZR 170 EFI 2017 Youth

Product's Documents

Owner's Manual

Specifications

Polaris 2017 RZR 170 EFI Questions and Answers

Related Products

Polaris Youth ATV 2003

Polaris Youth ACE 150 EFI Car

Polaris YOUTH PREDATOR 50 ATV

Polaris 2006 Youth Outlaw

Polaris 2014 Youth Outlaw 90 / Sportsman 90

Polaris 2009 Youth Outlaw 90 / Sportsman 90
