WARNING
The engine exhaust from this
product contains chemicals known
to cause cancer, birth defects or
other reproductive harm.
A card containing important ATV safety information should be attached to the owner’s
manual on the next page. If you cannot locate this card, or if it has been removed,
please call 1-800-342-3764 for assistance.
1
2
Copyright 2005 Polaris Sales Inc. All information contained within this publication is based on the latest product
information at the time of publication. Due to constant improvements in the design and quality of production
components, some minor discrepancies may result between the actual vehicle and the information presented in this
publication. Depictions and/or procedures in this publication are intended for reference use only. No liability can
be accepted for omissions or inaccuracies. Any reprinting or reuse of the depictions and/or procedures contained
within, whether whole or in part, is expressly prohibited. Printed in U.S.A.
2006 Outlaw Owner’s Manual P/N 9920188
3
WELCOME
Thank you for purchasing a Polaris vehicle, and welcome to our world-wide family of
Polaris owners. We proudly produce an exciting line of utility and recreational products.
S Snowmobiles
S All-terrain vehicles (ATVs)
S RANGER utility vehicles
S Victory motorcycles
4
WELCOME
We believe Polaris sets a standard of excellence for all utility and recreational vehicles
manufactured in the world today. Many years of experience have gone into the engineering,
design, and development of your Polaris vehicle, making it the finest machine we’ve ever
produced.
For safe and enjoyable operation of your vehicle, be sure to follow the instructions and
recommendations in this owner’s manual. Your manual contains instructions for minor
maintenance, but information about major repairs is outlined in the Polaris Service Manual
and should be performed only by a Factory Certified Master Service Dealer (MSD)
Technician. Your Polaris dealer knows your vehicle best and is interested in your total
satisfaction. Be sure to return to your dealership for all of your service needs during, and
after, the warranty period.
We also take great pride in our Parts, Apparel and Accessories (PAA) products, available
through our online store at www.purepolaris.com. Have your accessories and clothing
delivered right to your door!
5
TABLE OF CONTENTS
VEHICLE IDENTIFICATION NUMBERS 6..............................
SAFETY 8.........................................................
FEATURES AND CONTROLS 50.....................................
OPERATION 69....................................................
EMISSION CONTROL SYSTEMS 92..................................
MAINTENANCE AND LUBRICATION 94...............................
ADJUSTMENTS 146................................................
CLEANING AND STORAGE 167......................................
TROUBLESHOOTING 174...........................................
POLARIS PRODUCTS 181...........................................
SPECIFICATIONS 182...............................................
WARRANTY 184....................................................
MAINTENANCE LOG 193............................................
INDEX 196.........................................................
6
VEHICLE IDENTIFICATION NUMBERS
Record your ATV’s identification numbers and key number in the spaces provided.
Remove the spare key and store it in a safe place. Your key can be duplicated only by
mating a P olaris key blank with one of your existing keys. If both keys are lost, the
ignition switch must be replaced.
2
1
31XX
3
7

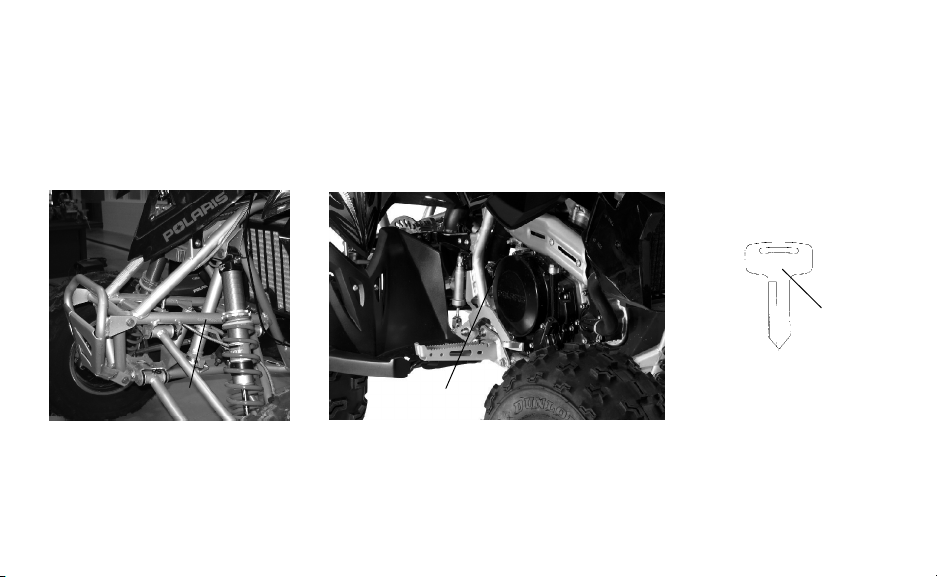

VEHICLE IDENTIFICATION NUMBERS
Vehicle Model Number:
Frame VIN (1)(left side):
Engine Serial Number (2)(right side):
Key Number (3):
8
SAFETY
Safety Decals and Lo catio n s
Warning decals have been placed on the ATV for your protection. Read and follow the
instructions of the decals on the ATV carefully. If any of the decals depicted in this manual
differ from the decals on your ATV, always read and follow the instructions of the decals on
the ATV.
If any decal becomes
illegible or comes off,
contact your P olaris
dealer to purchase a
replacement.
Replacement safety
decals are provided
by Polaris at no
charge. The part
number i s printed
on the decal.
A
B
C
9
SAFETY

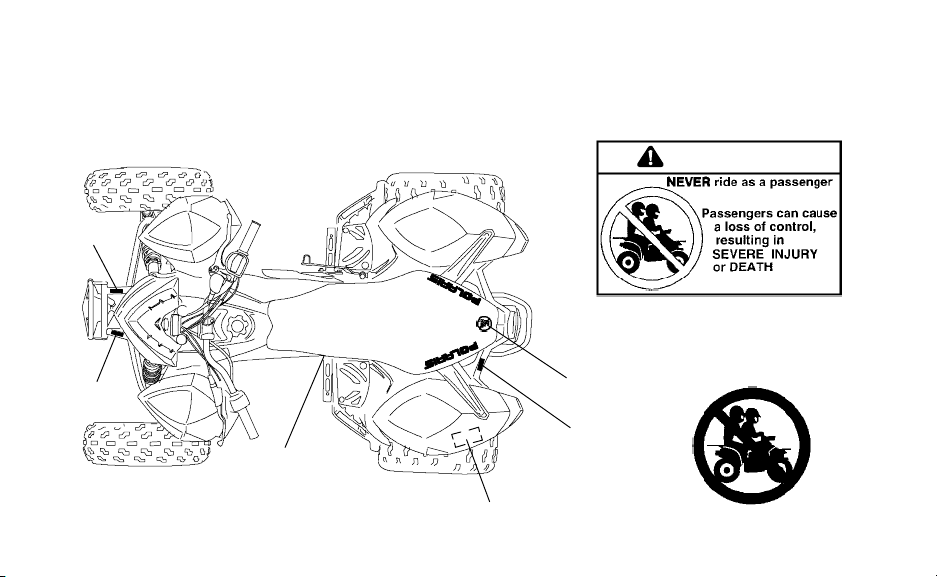

Safety Decals and Lo catio n s
Location B
Location C
7172560
E1997, 2000
IF OWNER’S MANUAL IS MISSING, CO NTACT
A POLARIS DEALER FOR A REPLACEMENT.
WARNING
Operating this ATV if you are under
the age of 16 increases your chance
of severe injury or death.
NEVER operate this ATV if you are
under age 16.
7172559
WARNING
DNever operate this ATV on
HILLS steeper than 25 degrees
25°. To prevent flipover on
hilly terrain, when going up or
down, use throttle and brakes
gradually.
W ARNING
7173837
Location A
W ARNING
This ATV may ex ceed the performance of other
ATVs you may have ridden in the pas t. This
category S (Sport) ATV is a high performance
vehicle for off-road us e only, in s port type
recreation and competitive use by operators
with advanced sk ills and s ubstantial experience.
DREVERSE operation can be
dangerous, even at low speeds.
Steering becomes difficult. To prevent
flipover, avoid s udden braking or sharp
turns.
DPARKING BRAKE may relax when used
for more than 5 minutes. When parking
on grades, leave ATV in gear.
10
SAFETY
Safety Decals and Lo catio n s
E
D
F
Location F
H
G
I
7172566
WARNING
Location E
11
SAFETY
Safety Decals and Lo catio n s
ATTENTION
S Operation of this v ehicle without the air filter
element will severely damage the engine.
S Clean pre-filter element often, more
frequent cleaning required in dusty
conditi ons. Do not operate vehic le
without pre-filter.
S Operation of this v ehicle without engine
breather filter(s) can cause engine
damage. Consult owner’s manual or dealer
for details.
Factory setting:
40_ to 80_ F. at 0-3000 feet
(5_ to 27_ C. at 0-900 meters).
7079902
S Specific carburetor jetting and
adjustments are required depending on
temperature and altitude. See your Owner’s
Manual.
THIS VEHICLE IS AN ALL TERRAIN
VEHICLE AND IS NOT INTENDED FOR
USE ON PUBLIC ROADS.
7170983
CE VÉHICULE EST UN VÉHICULE TOUT
TERRAIN QUI NEST PAS DESTINE A
ETRE UTILISE SUR
LES CHEMINS
PUBLICS.
IMPROPER TIRE PRESSURE OR OVERLOADING can cause loss of
control resulting in SEVERE INJURY OR DEATH.
TIRE PRESSURE IN PSI (KPa): FRONT 5 (34,5) REAR 5 (34,5)
MAXIMUM WEIGHT CAPACITY (Gross Vehicle Wei ght)
INCLUDING MACHINE, DRIVER AND CARGO IS 660 LBS. (299 kg).
Reduce speed and allow greater distance for braki ng when carrying cargo.
Overloading or carrying tall, off-center, or unsecured loads wil l increase
your risk of losing control. For stability on rough or hilly terrain, reduce
speed and cargo.
Read Owner’ s Manual for more detailed loading information.
L
ocation D
Location I (under seat)
L
ocation H
Location G
WARNING
7171782
E
4
051039
0006.031
12
SAFETY
Safe Riding Gear
Always wear clothing suited t o the type of riding. ATV riding requires protective clothing
for comfort and to reduce t he chance of injury.
1. Helmet
Wearing a helmet can prevent a severe head injury. Whenever riding a Polaris vehicle,
always wear a helmet that meets or exceeds established safety standards.
USA, Canada
Approved helmets in the USA and Canada bear a U.S. Department
of T ransportation (DOT) label.
Europe, Asia, Oceania
Approved helmets in Europe, Asia and Oceania bear the ECE 22.05
label. The ECE mark consists of a circle surrounding the l etter E,
followed by the distinguishing number of the country which has
granted approval. The approval number and serial number will also
be displayed on the label.
13
SAFETY
Safe Riding Gear
2. Eye Protection
Do not depend on sunglasses for proper eye protection.
Wear shatterproof goggles or a shatterproof helmet face
shield.
3. Gloves
Off-road style gloves with knuckle pads are the best for
comfort and protection.
4. Boots
The best footwear is a pair of strong over-the-calf boots
with heels, like m oto-cross boots.
5. Clothing
Always wear long sleeves and long pants to protect arms
and legs. Riding pants with kneepads and a jersey with
shoulder pads provide the best protection.
1
2
3
4
5
14
SAFETY
Operator Safety
WARNING
Failure to follow the warnings contained in this manual can result in serious injury or
death.
A Polaris ATV is not a toy and can be hazardous to operate. This vehicle handles
differently than other vehicles, such as motorcycles and cars. A collision or rollover
can occur quickly, even during routine maneuvers like turning, or driving on hills or
over obstacles, if you fail to take proper precautions.
Read and understand your owner’s manual and all warnings before operating a
Polaris ATV.
15
SAFETY
Operator Safety
Operator Restrictions
This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited for anyone under 16
years of age. This category S (Sport) ATV is a high perform ance vehicle intended for off
road use only, for sport-type recreation and for competitive use by operators with advanced
skills and substantial experience.
Know Your Vehicle
As the operator of the ATV, you are responsible for your safety, the safety of others, and the
protection of our environment. Read and understand your owner’s manual, which includes
valuable information about all aspects of your ATV, including safe operating procedures.
16
SAFETY
Safety Training
ATV safety training is a top priority for Polaris. When you purchased your new ATV, your
dealer instructed you on the authorized ATV RiderCourse
sm
available t o you and your
eligible family members. This training is included in the purchase price of your ATV.
Polaris strongly encourages you and your eligible family members who will be riding the
ATV t o take t h e ATV RiderCourse
sm
. You were also provided with printed materials that
explain safe operating procedures. You should review this i nformation on a regular basis.
If you purchased a used Polaris ATV, you can take the ATV RiderCourse
sm
by calling ATV
Enrollment Express at (800) 887-2887 or by visiting www.atvsafety.org. Purchasers of a
used Polaris ATV will be charged for this training.
17
SAFETY
Safety Training
A Polaris ATV is an off-road vehicle. Familiarize yourself with all laws and regulations
concerning the operation of this vehicle in your area.
Follow the recommended maintenance program outlined in your owner’s manual. This
program is designed t o ensure that all critical components on the ATV are thoroughly
inspected at specific intervals.
18
SAFETY
Operator Safety
The following two pages identify signal words and symbols that appear in this manual.
Your safety is involved when these words and symbols are used. Become familiar with
their m eanings before reading the manual.
The safety alert symbol, on your vehicle or in this manual, alerts you to the potential
for personal injury.
WARNING
The safety alert warning indicates a potential hazard that may result in serious injury
or death.
19
SAFETY
Operator Safety
CAUTION
The safety alert caution indicates a potential hazard that may result in minor personal
injury or damage to the vehicle.
CAUTION
A caution indicates a situation that may result in damage to the vehicle.
NOTE:
A note will alert you to important information or instructions.
20
SAFETY
Operator Safety
WARNING
Serious injury or death can result if you do not follow these instructions and
procedures, which are outlined in further detail within your owner’s manual.
S Read this manual and all labels carefully, and follow the operating procedures described.
S Never operate an ATV without proper instruction. Take a training course. Purchasers of
a new Polaris ATV and their eligible family members are entitled t o take the ATV Rider-
Course
sm
. Contact ATV Enrollment Express at (800) 887-2887 or visit www.atvsafe-
ty.org for i nformation on enrollment in the ATV RiderCourse
sm
.
S Never allow anyone under 16 years of age to operate this ATV.
S Never permit a guest to operate the ATV unless the guest has read this manual and all
product labels and has completed a certified safety t raining course.
S Always avoid operating an ATV on paved surfaces, including sidewalks, driveways,
parking lots, and streets.
21
SAFETY
Operator Safety
S Never operate an ATV on a public street , road or highway, including a dirt or gravel road.
S Never operate an ATV without wearing an approved helmet that fits properly. Always
wear eye protection (goggles or face shield), gloves, boots, a long-sleeved shirt or jacket,
and long pants.
S Never consume alcohol or drugs before or while operating an ATV.
S Never operate at excessive speeds. Travel at speeds appropriate for the terrain, visibility
and operating conditions, and your experience.
S Never attempt wheelies, jumps or other stunts.
S Always inspect your ATV before each use to make sure it’s in safe operating condition.
Always follow the inspection and maintenance procedures and schedules outlined in your
owner’s manual.
S Always keep both hands on the handlebars and both feet on the footpegs of the ATV dur-
ing operation.
S Always travel slowly and use extra caution when operating on unfamiliar terrain. Be
alert to changing terrain conditions.
22
SAFETY
Operator Safety
S Never operate on excessively rough, slippery, or loose terrain.
S Always follow proper turning procedures as described in this manual. Practice turning at
low speeds before attempting to turn at faster speeds. Do not turn at excessive speeds.
S Always have the ATV inspected by an authorized P olaris dealer if it’s been involved in
an accident.
S Never operate on hills too steep for the ATV or for your abilities. Practice on smaller
hills before attempting larger hills.
S Always follow proper procedures for climbing hills. Check the terrain carefully before
ascending a hill. Never climb hills with excessively slippery or loose surfaces. Shift
your weight forward. Never open the throttle suddenly or make s udden gear changes.
Never go over the top of a hill at high speed.
S Always follow proper procedures for going downhill and for braking on hills. Check the
terrain carefully before you start down a hill. S hift your weight backward. Never go
down a hill at high speed. Avoid going down a hill at an angle, which would cause the
vehicle to lean sharply t o one side. Travel straight down the hill when possible.
23
SAFETY
Operator Safety
S Always follow proper procedures for crossing the side of a hill. Avoid hills with exces-
sively slippery or loose surfaces. Shift your weight to the uphill side of the ATV. Never
attempt t o t urn the ATV around on any hill until you’ve mastered (on level ground) the
turning technique outlined in this manual. Avoid crossing the side of a steep hill when
possible.
S Always use proper procedures if you stall or roll backwards while climbing a hill. To
avoid stalling, maintain a steady speed when climbing a hill. If you stall or roll back-
wards, follow the special procedure for braking described in this manual. Always dis-
mount on the uphill side, or to either side if the ATV is pointed straight uphill. Turn the
ATV around and remount following the procedure described in this manual.
S Always check for obstacles before operating in a new area. Never attempt to operate
over large obstacles, such as rocks or fallen t rees. Always follow proper procedures
when operating over obstacles as described in this manual.
S Always be careful of skidding or sliding. On slippery surfaces like ice, travel slowly and
use extra caution to reduce the chance of skidding or sliding out of control.
24
SAFETY
Operator Safety
S Avoid operating the ATV through deep or fast-flowing water. If it’s unavoidable, travel
slowly, balance your weight carefully, avoid sudden m ovements, and maintain a slow
and steady forward motion. Do not make sudden t urns or stops, and do not make sudden
throttle changes.
S Wet brakes may have reduced stopping ability. Test the brakes after leaving water. If
necessary, apply them lightly several times to allow friction to dry out the pads.
S Always check for obstacles or people behind the ATV before operating in reverse. When
it’s safe to proceed in reverse, move slowly and avoid turning at sharp angles.
S Always use the size and type of tires specified for your ATV, and always maintain proper
tire pressure.
S Never modify an ATV through improper installation or use of accessories.
S Never exceed the stated load capacity for your ATV.
FOR MORE INFORMATION ABOUT ATV SAFETY, call the Consumer Product
Safety Commission at 1-800-638-2772, or visit www.cpsc.gov,
visit www.atvsafety.org, or call Polaris at 1 -800-342-3764.
25
SAFETY
Operator Safety
Equipment Modifications
We are concerned for the safety of our customers and for the general public. Therefore, we
strongly recommend that consumers do not install on a Polaris ATV any equipment that
may increase the speed or power of the vehicle, or make any other modifications to the
vehicle for these purposes. Any modifications to the original equipment of the vehicl e
create a substantial safety hazard and increase the risk of bodily injury.
The warranty on your Polari s ATV is terminated if any equipment has been added to the
vehicle, or if any modifications have been made to the vehicle, that increase its speed or
power.
NOTE: The addition of certain accessories may change the handling characteristics of
the vehicle. Use only Polaris-approved accessories, and familiarize yourself with
their function and effect on the vehicle.
26
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Operating this ATV without proper instruction.
WHAT CAN HAPPEN
: The risk of an accident is greatly increased if the operator
does not know how to operate the ATV properly in different situations and on different
types of terrain.
HOW TO AVOID THE HAZARD
: Beginning and inexperienced operators should
complete the ATV RiderCourse
sm
offered by Polaris through the SVIA. They should
then regularly practice the skills learned in the course and the operating techniques
described in the Owner’s Manual.
For more information about the ATV RiderCourse
sm
contact ATV Enrollment Express
at (800) 887-2887 or visit www.atvsafety.org
27
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Failure to follow the skill and experience recommendations
for this ATV.
WHAT CAN HAPPEN
: Severe injury and/or death could occur if a beginner or
inexperienced driver operates this ATV.
HOW TO AVOID THE HAZARD
: Only operators with advanced skills and substantial
experience should operate this ATV.
28
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Failure to follow the age recommendations for this ATV.
WHAT CAN HAPPEN
: Severe injury and/or death could occur if a child under the
minimum age recommendation operates this ATV.
Even though a child may be within the recommended age group for operating some
ATVs, he/she may not have the skills, abilities, or judgment needed to operate an ATV
safely and could be susceptible to accident or injury.
HOW TO AVOID THE HAZARD
: No one under the age of 16 should operate a
Polaris ATV. Only operators with advanced skills and substantial experience should
operate this ATV.
29
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Carrying a passenger on
an ATV.
WHAT CAN HAPPEN
: Carrying a passenger
greatly reduces the operator’s ability to balance and
control the ATV, which could cause an accident and
injury to the operator and/or passenger.
HOW TO AVOID THE HAZARD
: Never carry a
passenger. The purpose of the long seat is to allow
the operator to shift position as needed during
operation. It is not intended for carrying
passengers.
30
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Operating an ATV on
paved surfaces, including sidewalks, paths,
parking lots, and driveways.
WHAT CAN HAPPEN
: ATV tires are designed
for off-road use. Operating on paved surfaces
may adversely affect the handling of the ATV
and could result in loss of control, accident,
and/or injury.
HOW TO AVOID THE HAZARD
:Avoid
operating the ATV on pavement. If it’s
unavoidable, travel slowly and avoid sudden
turns or stops.
31
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Operating
this ATV on public streets, roads
or highways.
WHAT CAN HAPPEN
:TheATV
could collide with another vehicle.
HOW TO AVOID THE HAZARD
:
Never operate the ATV on any public
street, road or highway, including dirt
and gravel roads. In many states it’s
illegal to operate ATVs on public
streets, roads and highways.
32
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Operating this ATV
without wearing an approved helmet, eye
protection and protective clothing.
WHAT CAN HAPPEN
: Operating an ATV
without an approved helmet increases the risk of
a severe head injury or death in the event of an
accident.
Operating without eye protection could result in
an accident and could increase the chance of a
severe injury in the event of an accident.
HOW TO AVOID THE HAZARD
: Always wear
an approved helmet that fits properly. Always
wear eye protection (goggles or face shield),
gloves, boots, long-sleeved shirt or jacket, and
long pants.
33
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Operating the ATV after consuming alcohol or drugs.
WHAT CAN HAPPEN
: Consumption of alcohol and/or drugs could seriously affect
operator judgment. Reaction time may be slower and operator balance and perception
could be affected.
Consuming alcohol and/or drugs before or while operating an ATV could result in an
accident causing severe injury or death.
HOW TO AVOID THE HAZARD
: Never consume alcohol or drugs before or while
operating an ATV.
WARNING
POTENTIAL HAZARD: Operating the ATV at excessive speeds.
WHAT CAN HAPPEN
: Excessive speed increases the operator’s chance of losing
control of the ATV, which can result in an accident causing severe injury or death.
HOW TO AVOID THE HAZARD
: Always operate the ATV at a speed that’s proper for
the terrain, visibility and operating conditions, and your experience.
34
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Attempting wheelies,
jumps and other stunts.
WHAT CAN HAPPEN
: Attempting stunts
increases the chance of an accident, including
an overturn.
HOW TO AVOID THE HAZARD
: Never attempt
wheelies, jumps, or other stunts. Avoid exhibition
driving.
35
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Failure to inspect the ATV before operating.
Failure to properly maintain the ATV.
WHAT CAN HAPPEN
: Poor maintenance increases the possibility of an accident or
equipment damage.
HOW TO AVOID THE HAZARD
: Always inspect your ATV before each use to make
sure it’s in safe operating condition. Always follow the inspection and maintenance
procedures and schedules described in the owner’s manual.
36
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Removing hands from the handlebars or feet from the
footpegs during operation.
WHAT CAN HAPPEN
: Removing even one hand or foot can reduce ability to control
the vehicle or could cause loss of balance and ejection from the ATV.
If the operator’s foot is not firmly planted on the footpeg, it could come into contact
with the rear wheels and lead to accident or injury.
HOW TO AVOID THE HAZARD
: Always keep both hands on the handlebars and
both feet on the footpegs of the ATV during operation.
37
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Failure to use
extra caution when operating the ATV on
unfamiliar terrain.
WHAT CAN HAPPEN
: Unfamiliar terrain
may contain hidden rocks, bumps, or
holes that could cause loss of control or
overturn.
HOW TO AVOID THE HAZARD
: Travel
slowly and use extra caution when
operating on unfamiliar terrain. Always be
alert to changing terrain conditions.
38
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Failure to use extra
caution when operating on excessively
rough, slippery or loose terrain.
WHAT CAN HAPPEN
: Operating on
excessively rough, slippery or loose terrain
could cause loss of traction or loss of
control, which could result in an accident or
overturn.
HOW TO AVOID THE HAZARD
: Do not
operate on excessively rough, slippery or
loose terrain until you’ve learned and
practiced the skills necessary to control the
ATVonsuchterrain. Alwaysuseextra
caution on rough, slippery or loose terrain.
39
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: T urning improperly.
WHAT CAN HAPPEN
: Improper turns could cause loss of control and lead to a
collision or overturn.
HOW TO AVOID THE HAZARD
: Always follow proper procedures for turning as
described in the owner’s manual. Practice turning at slow speeds before attempting
to turn at faster speeds. Never turn at excessive speed.
WARNING
POTENTIAL HAZARD: Operating on excessively steep hills.
WHAT CAN HAPPEN
: The vehicle may overturn.
HOW TO AVOID THE HAZARD
: Never operate on hills too steep for the ATV or for
your abilities. Never operate the ATV on hills steeper than 25 degrees 25_.
Practice on smaller hills before attempting large hills.
40
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Climbing hills
improperly.
WHAT CAN HAPPEN
: Improper hill climbing
could cause loss of control or overturn.
HOW TO AVOID THE HAZARD
: Always follow
proper procedures for climbing hills as
described in the owner’s manual. Always check
the terrain carefully before ascending any hill.
Never operate the ATV on hills steeper than
25_. Never climb hills with excessively slippery
or loose surfaces. Shift your weight forward. Never
open the throttle suddenly while traveling uphill. The
ATV could flip over backwards. Never go over the top
of any hill at high speed. An obstacle, a sharp drop, or
another vehicle or person could be on the other side of the hill.
41
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: T raveling downhill
improperly.
WHAT CAN HAPPEN
: Improperly descending
a hill could cause loss of control or overturn.
HOW TO AVOID THE HAZARD
: Always
follow proper procedures for traveling down
hills as described in the owner’s manual.
NOTE: A special technique is required when
braking while traveling downhill. See page 83.
Always check the terrain carefully before
descending a hill. Shift your weight backward.
Never travel down a hill at high speed. Avoid
traveling down a hill at an angle, which would
cause the vehicle to lean sharply to one side.
T ravel straight down the hill when possible.
42
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Improperly crossing
hills and turning on hills.
WHAT CAN HAPPEN
: Improperly crossing or
turning as hills could cause loss of control or
overturn.
HOW TO AVOID THE HAZARD
: Never attempt
to turn the ATV around on any hill until you’ve
mastered the turning technique (on level ground)
as described in the owner’s manual. See page
84. Use extra caution when turning on any hill.
Avoid crossing the side of a steep hill.
When crossing the side of a
hill:
Always follow proper procedures as described in
the owner’s manual. Avoid hills with excessively
slippery or loose surfaces. Shift your weight to
the uphill side of the ATV.
43
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Stalling, rolling or
improperly dismounting while climbing a hill.
WHAT CAN HAPPEN
: The vehicle could overturn.
HOW TO AVOID THE HAZARD
: Maintain steady
speed when climbing a hill.
If all forward speed is lost:
Keep your
weight uphill. Apply front brakes gradually.
When fully stopped, apply rear brake as
well, then lock the parking brake.
If the ATV begins rolling backwards:
Keep
weight uphill. Never apply engine power. Never
apply the rear brake while rolling backwards. Apply the front brake gradually. When
fully stopped, apply the rear brake as well, and then lock the parking brake. Dismount
on uphill side, or to either side if ATV is pointed straight uphill. T urn the ATV around
and remount, following the procedure described in the owner’ s manual. See page 84.
44
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Improperly operating over obstacles.
WHAT CAN HAPPEN
: Operating over obstacles could cause loss of control or
overturn.
HOW TO AVOID THE HAZARD
: Before operating in a new area, check for
obstacles. Avoid operating over large obstacles such as rocks and fallen trees when
possible. If unavoidable, use extreme caution and always follow proper procedures
as outlined in the owner’s manual.
WARNING
POTENTIAL HAZARD: Skidding or sliding.
WHAT CAN HAPPEN
: Skidding or sliding can cause loss of control. If the tires
regain traction unexpectedly, the ATV could overturn.
HOW TO AVOID THE HAZARD
: On slippery surfaces such as ice, travel slowly and
use extra caution to reduce the chance of skidding or sliding out of control.
45
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Operating the ATV through deep or fast-flowing water.
WHAT CAN HAPPEN
: T ires may float, causing loss of traction and loss of control,
which could lead to an accident or overturn.
HOW TO AVOID THE HAZARD
: Avoid operating the ATV through deep or
fast-flowing water. If it’s unavoidable to enter water that exceeds the recommended
maximum depth (see page 89), travel slowly, balance your weight carefully, avoid
sudden movements, and maintain a slow and steady forward motion. Do not make
sudden turns or stops, and do not make sudden throttle changes.
Wet brakes may have reduced stopping ability. Always test the brakes after leaving
water. If necessary, apply them several times to let friction dry out the pads.
46
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Operating this ATV with improper tires, or with improper or
uneven tire pressure.
WHAT CAN HAPPEN
: Use of improper tires, or operation of the ATV with improper
or uneven tire pressure, could cause loss of control or accident.
HOW TO AVOID THE HAZARD
: Always use the size and type of tires specified for
the ATV in the owner’s manual.
Always maintain proper tire pressure as described in
the owner’s manual and on safety decals.
WARNING
POTENTIAL HAZARD: Overloading the ATV or carrying/towing cargo.
WHAT CAN HAPPEN
: Overloading or carrying/towing cargo can cause changes in
vehicle handling, which could lead to loss of control or an accident.
HOW TO AVOID THE HAZARD
: Never haul cargo or tow a load with this ATV.
Never exceed the stated load capacity for this ATV.
47
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Operating the ATV with improper modifications.
WHAT CAN HAPPEN
: Improper installation of accessories or modification of the ATV
may cause changes in handling, which could lead to an accident.
HOW TO AVOID THE HAZARD
: Never modify the ATV through improper installation
or use of accessories. All parts and accessories added to the vehicle must be
genuine Polaris Industries Inc. or equivalent components designed for use on this
ATV and should be installed and used according to approved instructions. See your
authorized Polaris ATV dealer for more information.
48
SAFETY
Operator Safety
WARNING
POTENTIAL HAZARD: Operating on frozen bodies of water .
WHAT CAN HAPPEN
: Severe injury or death can result if the ATV and/or the
operator fall through the ice.
HOW TO AVOID THE HAZARD
: Never operate the ATV on a frozen body of water .
WARNING
POTENTIAL HAZARD
Improperly operating in reverse.
WHAT CAN
HAPPEN
The ATV could collide with an obstacle or person, resulting in severe injury.
HOW TO AVOID THE
HAZARD
Before shifting into reverse gear , always check for obstacles or people behind the
ATV. When it’ s safe to proceed, back slowly.
49
SAFETY
Operator Safety
WARNING
Operating a damaged ATV can result in an accident with serious injury or death. After
any overturn or accident, have a qualified service dealer inspect the entire machine
for possible damage, including (but not limited to) brakes, throttle and steering
systems.
WARNING
Safe operation of this rider-active vehicle requires good judgement and physical skills.
Persons with cognitive or physical disabilities who operate this vehicle have an
increased risk of overturn and loss of control, which could result in severe injury or
death.
CAUTION
Exposure to the hot components could result in a fire. Always keep combustible
materials away from the exhaust system.
50
FEATURES AND CONTROLS
Engine Electrical Switches
1
2
3
51
FEATURES AND CONTROLS
Engine Electrical Switches
1. Start Button - The start button engages the starter. Always
release the start button as soon as the engine starts.
2
. Engine Stop Switch - The purpose of this switch is to
provide the operator with a quick means of engine shutdown
in case of an emergency. The engine will not start or run
when the switch i s i n the OFF position.
3
. Main Key Switch - To start the engine, the main key switch
must be in the RUN position.
NOTE: Both the main switch and the emergency engine stop switch will shut off all
electrical power to the vehicle, including lights. To stop the engine quickly, slide
the stop switch either right or left to the OFF position.
RUN
OFFOFF
2
52
FEATURES AND CONTROLS
Instrumentation
An illuminated light in the indicator window will alert you to the following conditions.
1. Hot engine
2. Reverse gear is selected
3. Neutral gear is selected
NR
3
1
2
53
FEATURES AND CONTROLS
Lights
WARNING
Operating the ATV on streets or roads, especially in
darkness, could result in an accident and serious
injury or death.
Your ATV is not equipped with highway-approved
lights. It’ s designed for and must be used for
off- road use only. Use caution and drive at
reduced speeds in conditions of reduced visibility
such as fog, rain and darkness.
The light switch is located on the left handlebar. It’s used
to turn the lights on and off and to switch the lights from
HI to LO.
NOTE: The lights won’t work unless the key is in the ON position and the engine stop
switch is in the RUN position.
54
FEATURES AND CONTROLS
WARNING
Operating an ATV with sticking or improperly operating throttle controls could cause
an accident and lead to severe injury or death.
Never start or operate an ATV with a sticking or improperly operating throttle. Always
contact your dealer for service if throttle problems arise.
Failure to check or maintain proper operation of the throttle system can result in an
accident if the throttle lever sticks during operation. Always check the lever for free
movement and return before starting the engine. Also check occasionally during
operation.
Throttle L ever
Engine speed and vehicle movement are controlled
by pressing the throttle lever toward the handlebar.
The throttle lever i s spring loaded. Engine speed
returns to idle and the ATV will slow down when
the lever is released.
55
FEATURES AND CONTROLS
Electronic Throttle Control
This ATV is equipped with Polaris Electronic Throttle Control (ETC), which is designed to
reduce the risk of a frozen or stuck throttle. If the throttle cable should stick in an open
position when the operator releases the throttle lever, the engine will stop, and power to the
rear wheels will cease.
WARNING
The Electronic Throttle Control (ETC) stops the engine in the event of a throttle
system malfunction and is provided for your safety. Do not attempt to modify the ETC
system or replace it with any after market throttle mechanisms.
Clutch Lever
The clutch lever is located on the left-hand handlebar.
Squeeze the clutch lever toward the handlebar to
disengage the clutch. Disengage the clutch before
shifting gears.
56
FEATURES AND CONTROLS
Foot Brake
The foot brake (1) operates the rear brakes. It’s located in
front of the right-hand footpeg (2).
If the rear wheels slide while using the foot brake, reduce
brake pedal pressure to brake the wheels without skidding.
Check the brake fluid level frequently for the foot brake
system. The reservoir is l ocated under the seat.
Maintain the fluid level between the MIN and MAX
marks.
WARNING
Aggressively applying the foot brake when backing down a hill may cause rear tipover,
which could result in serious injury or death.
Use caution when applying the foot brake. Do not aggressively apply the foot brake
when going forward. The rear wheels may skid and slide sideways, causing loss of
control and serious injury or death.
1
2
57
FEATURES AND CONTROLS
Brake Lever
The brake lever operates the front brakes. It’s l ocated on the right
handlebar. Squeeze the brake lever toward the handlebar to engage
the front brakes. These brakes are hydraulically activated disc type
brakes.
Always test brake lever travel and master cylinder fluid level before
riding. When squeezed, the lever should feel firm. Any sponginess
would indicate a possible fluid leak or low m aster cylinder fluid
level, which must be corrected before riding. Contact your dealer
for proper diagnosis and repai rs.
WARNING
Operating the ATV with a spongy brake lever can result in loss of braking, which could
cause an accident. Never operate the ATV with a spongy-feeling brake lever .
58
FEATURES AND CONTROLS
Master Cylinder
The master cylinder (1) is on the
right-hand handlebar. Check the brake
fluid level before each ride. The fluid
level can be seen through the indicator
window (2) on the top of the master
cylinder. This eye will appear dark when
the fluid level is full. When fluid needs to
be added, the eye will be clear.
NOTE: When checking the fluid level, the ATV must be on level ground with the
handlebars straight. If the fluid level is low add DOT 3 brake fluid only. Do not
overfill. See page 181 for the part numbers of Polaris products.
2
1
59
FEATURES AND CONTROLS
Master Cylinder
WARNING
Overfilling the master cylinder will result in brake failure. Without room to expand, the
excess fluid will cause the brakes to apply automatically, which could result in serious
injury or death. Always maintain the fluid level between the MIN and MAX marks.
After opening a bottle of brake fluid, always discard any unused portion. Never store
or use a partial bottle. Brake fluid is hygroscopic, meaning it rapidly absorbs moisture
from the air. The moisture causes the boiling temperature of the brake fluid to drop,
which can lead to early brake fade and the possibility of accident or severe injury.
See page 146.
60
FEATURES AND CONTROLS
Parking Brake
WARNING
Operating the ATV while the parking
brake is engaged could result in an
accident and serious injury or death.
Always check to be sure the parking
brake is disengaged before operating.
Locking the Parking Brake
1. Place the transmission in first gear or
neutral.
2. Squeeze and release the brake lever
two or three times, then squeeze and hold.
3. Push the park brake lock down to engage the l ock (1). Release the brake lever.
4. To release the parking brake lock (2), squeeze and release the brake lever. The lock will
automatically disengage.
2
1
61
FEATURES AND CONTROLS
Parking Brake
Important Safeguards
S The parking brake may relax if left on for a long period of time. Always block the wheels
to prevent rolling.
S Always block the wheel s on the downhill side of the ATV if leaving it parked on a hill.
Another option i s to park the ATV i n a sidehill position.
S Never depend on the parking brake alone if the ATV is parked on a hill. Always block
the wheels to prevent rolling.
S Place the transmission in first gear or neutral before locking the park brake.
62
FEATURES AND CONTROLS
Fuel Tank
The fuel tank filler cap is located directly below t he handlebar. Use either leaded or
unleaded gasoline with a minimum pump octane number of 87=(R+ M/2) octane.
Fuel Filter
The fuel valve has an internal fuel filter. Do not attempt to clean the fuel filter. See your
Polaris dealer for service if you suspect the fuel filter is plugged.
63
FEATURES AND CONTROLS
Fuel Valve
The fuel valve (1) is located on the left side of
the ATV. It has three positions:
OFF: For vehicle storage and when
transporting.
ON: For normal operation.
RES: For reserve supply if main supply is exhausted.
NOTE: There’ s about a 5 to 8 mile (8 to 13 km) range
on reserve gas. Always refill the gas tank as
soon as possible after using the main supply.
Always return the valve to the ON position after refueling.
1
RES
OFF
ON
FUEL
OFFOFF
RES RES
FUELFUEL
ON ON
64
FEATURES AND CONTROLS
Choke
The choke assists in starting a cold
engine. The choke knob (1) is located
on the left side of the vehicle.
Refer to the engine starting procedure
on page 74 for correct choke and
throttle settings during starting.
1
65
FEATURES AND CONTROLS
Manual Shift
Shift Pedal
The gear shift pedal is located in front of the left-hand
footpeg. One full stroke of the pedal shifts the transmission
to the next gear in the shifting sequence. The pedal
automatically returns to a horizontal position when released.
To upshift to a higher gear, place the toe of your boot under
the gear shift pedal and raise the pedal one full stroke. To
downshift, place your foot on the gear shift pedal and
depres s the pedal one full stroke. See page 66.
NOTE: To shift into reverse, see page 67.
WARNING
Shifting without releasing the throttle and disengaging
the clutch could cause loss of control or vehicle
overturn. Always release the throttle and fully
squeeze the clutch lever while shifting gears.
66
FEATURES AND CONTROLS
Manual Shift
Shifting Gears
NOTE: Always allow a cold engine to warm up before shifting gears.
1. When starting from a stopped position, place the transmission in neutral.
2. Squeeze and hold the brake lever.
NOTE: Do not squeeze the throttle lever.
3. Squeeze the clutch lever to disengage the clutch.
4. Depress the gear shift pedal one full stroke to shift into first gear.
5. Release the brake lever.
6. Gradually squeeze the throttle lever while slowly releasing the clutch lever.
7. As engine speed (RPM) increases in first gear, simultaneously release the throttle,
disengage the clutch and shift to second gear by raising t he gear shift pedal one full
stroke. Repeat this procedure t o progressively upshift to additional gears.
8. Use the same procedure to downshift.
67
FEATURES AND CONTROLS
Manual Shift
Reverse Lock-Out Switch
The reverse lock-out switch (1)
prevents the operator from
shifting into reverse
unintentionally.
1. Place the transmission in
first gear. See page 65.
2. Push the l ock-out lever
forward toward the handlebar to
unlock the transmission.
3. Shift down into reverse gear.
NOTE: The lock will automatically re-engage when the transmission is shifted out of
reverse gear.
1
68
FEATURES AND CONTROLS
Manual Shift
Deceleration
To slow or stop the ATV, release the throttle lever and apply the brakes smoothly and
evenly. As the vehicle slows and engine RPM decreases, disengage the clutch and shift to a
lower gear.
NOTE: Be sure the engine RPM has sufficiently decreased before shifting to a lower
gear.
WARNING
Improper use of the brakes, or shifting when the engine RPM is too high can cause
the tires to lose traction or stop rotating, which could lead to loss of control, accident,
and injury. It could also cause engine or drive train damage.
Make sure the engine RPM has sufficiently decreased before shifting to a lower gear.
69
OPERATION
Fuel Safety
WARNING
Gasoline is highly flammable and explosive under certain conditions.
S Always exercise extreme caution whenever handling gasoline.
S Always refuel with the engine stopped, and outdoors or in a well ventilated area.
S Do not smoke or allow open flames or sparks in or near the area where refueling is
performed or where gasoline is stored.
S Do not overfill the tank. Do not fill the tank neck.
S If gasoline spills on your skin or clothing, immediately wash it off with soap and wa-
ter and change clothing.
S Never start the engine or let it run in an enclosed area. Engine exhaust fumes are
poisonous and can cause loss of consciousness or death in a short time.
S Turn the fuel valve off whenever the ATV is stored or parked.
S Make sure the vent line is in good condition and is routed properly.
70
OPERATION
Break -In Period
Careful treatment of a new engine and transmission will result in more efficient
performance and longer life for both. The break-in period for your new Polaris ATV is
defined as the first one hour of operation, or the time it takes to use the first full tank of
gasoline. Follow the break-in period with an additional two hours of cautious operation.
No single action on your part is as important as following the procedures for a proper
break-in. Perform the following procedures carefully.
CAUTION
Excessive heat build-up during the first three hours of operation may damage
close-fitted engine and transmission parts. Do not operate at full throttle or high
speeds for extended periods during the first three hours of use.
Use of any lubricants other than those recommended by Polaris may cause serious
engine damage. We recommend the use of Polaris lubricants for your vehicle.
71
OPERATION
Break -In Period
1. Fill the fuel tank with gasoline. See page 62.
2. Check the oil level on the dipstick. See page 105. Add oil if necessary to maintain the
level between the safe and add marks.
3. Allow the engine sufficient time to warm up before operating.
4. Drive slowly at first. Select an open area that allows room to familiarize yourself with
vehicle operation and handling.
5. Vary the throttle positions. Do not operate at sustained idle.
6. Perform regular checks on fluid levels, controls and areas outlined on the daily pre-ride
inspection checklist. See page 72.
7. During the break-in period, change both the oil and the filter after one hour of
operation, or after using the first tank of fuel.
72
OPERATION
Pre-Ride In spection
WARNING
If a proper inspection is not done before each use, severe injury or death could result.
Always inspect the vehicle before each use to ensure it’s in proper operating
condition.
Pre-Ride Checklist
Item Remarks See Page
Brake system / lever travel Ensure proper operation 57, 147
Brake fluid Ensure proper level 58
Foot brake Ensure proper operation 56
Clutch lever Check for proper operation and correct adjustment. 163
Suspension, front and rear Inspect, lubricate if necessary 101
Steering Ensure free operation --
Tires Inspect condition and pressure 140, 141
Wheels / fasteners Inspect, ensure fastener tightness 143
73
OPERATION
Pre-Ride In spection
Pre-Ride Checklist See Page
Frame nuts, bolts, fasteners Inspect, ensure tightness --
Fuel and oil Ensure proper levels 105
Coolant level (if applicable) Ensure proper level 114
Coolant hoses (if applic able) Inspect for leaks --
Throttle Ensure proper operation 54, 164
Indicator lights / switches Ensure operation 51
Engine stop switch Ensure proper operation 51
Air filter, pre-filter Inspect, clean 116
Headlamp Check operation, apply Polaris dielectric grease to
the socket when the lamp is replaced
118
Brake light / tail lamp Check operation --
Riding gear Wear helmet, goggles, protective clothing 12
A-arm ball joints Check freeplay. If the tire moves excessively, do
not operate. See your Polaris dealer.
98
Rear shaft assembly Check boots for tears, punctures and grease leaks. 144
74
OPERATION
Starting a Cold Engine
The engine can be started when t he transmission is in neutral, or while in gear if the clutch
is disengaged.
WARNING
Engine exhaust contains poisonous carbon monoxide and can cause loss of
consciousness resulting in severe injury or death. Never run an engine in an
enclosed area.
CAUTION
Operating the vehicle immediately after starting could cause engine damage. Allow
the engine to warm up for several minutes before operating.
1. Place the transmission in neutral, lock the parking brake and
disengage the clutch.
2. Make sure the fuel valve is on.
75
OPERATION
Starting a Cold Engine
3. Sit on the ATV. Pull the choke knob (1) out until it stops.
NOTE: If the knob doesn’t stay where positioned,
increase the tension by rotating the tension
adjusting nut clockwise.
FULL ON
HALF ON
OFF
NOTE: The choke can be adjusted gradually, depending on how much choke is needed
for starting. Be sure the choke is off during operation, as excess fuel washing into
the engine oil will increase wear on engine components.
4. Move the engine stop switch to RUN.
5. Turn the i gnition key to ON.
1
76
OPERATION
Starting a Cold Engine
NOTE: If starting the engine while in neutral, the neutral indicator light should be on. If it
isn’t, disengage the clutch and shift the foot pedal to find neutral. See page 65.
If starting the engine while in gear, apply the hand brake and squeeze the clutch
lever fully to disengage the clutch.
6. Press the start button t o start the engine. Activate the starter for a maximum of five
seconds. Release the start button immediately when the engine starts.
NOTE: Do not press the throttle lever while starting the engine.
NOTE: Excessive engagement may result in starter damage.
7. If the engine does not start, wait five seconds after releasing the start button, then
activate the starter for another five seconds. Repeat until the engine starts.
8. If the engine slows or stops, position the choke knob half way in to allow proper engine
warm-up.
9. Vary the engine RPM slightly with the throttle to aid in warm-up. When the engine
idles smoothly, push the choke completely in.
77
OPERATION
Starting a Warm Engine
Follow the procedure for starting a cold engine, but do not use the choke.
If the engine has cooled to a point where it does not readily start, intermittent use of the
choke (pulled half way out) may be necessary.
If you believe the engine is over-choked when warm, push the choke lever completely in
and depress the throttle lever fully while cranking to aid in starting. Release the throttle
lever immediately after the engine starts.
If the engine does not start, review the engine troubleshooting information beginning on
page 174. If all conditions are favorable and the engine still does not start, see your Polaris
dealer for service.
78
OPERATION
Driving Safely
Driving Procedures
1. Sit upright with both feet on the footpegs and both
hands on the handlebars.
2. Start the engine and allow it to warm up, then shift
the transmission into gear. See page 66.
3. Check your surroundings and determine your
path of travel.
4. Release the parking brake.
5. Slowly depress t he throttle with your right
thumb while slowly releasing the clutch
lever to begin driving.
6. Drive slowly. Practice maneuvering and
using the throttle, clutch and brakes on level
surfaces.
79
OPERATION
Driving Safely
Making Turns
Your ATV i s equipped with a solid rear axle, which drives both rear
wheels equally at all times. The wheel on the outside of the turn
travels a greater distance than the inside wheel when turning,
and t he inside tire slips traction slightly. To turn, steer in
the direction of the turn, leaning your upper body to the
inside of the turn while supporting your weight on the
outer footpeg. This technique alters the balance of
traction between the rear wheels, allowing the turn to
be made smoothly. The same leaning technique
should be used for turning in reverse.
NOTE: Practice making turns at slow speeds
before attempting to turn at faster speeds.
WARNING
T urning at sharp angles or at excessive speeds can result in vehicle overturn and lead
to serious injury or death. Avoid turning at sharp angles. Never turn at high speeds.
80
OPERATION
Driving Safely
Driving on Slippery Surfaces
Whenever riding on slippery surfaces such as wet trails or loose
gravel, or during freezing weather, follow these precautions:
1. Slow down when entering slippery areas.
2. Maintain a high level of alertness, reading the trail and
avoiding quick, sharp turns, which can cause skids.
3. Correct a skid by turning the handlebars in the
direction of the skid and shifting your body weight
forward.
WARNING
Failure to exercise care when operating on slippery surfaces can result in loss of tire
traction and cause loss of control, accident, and serious injury or death.
Never apply the brakes during a skid. Do not operate on excessively slippery
surfaces. Always reduce speed and use additional caution, especially when
downshifting.
81
OPERATION
Driving Safely
Driving Uphill
Whenever traveling uphill, follow these precautions:
1. Always travel straight uphill.
2. Avoid steep hills (25_ maximum).
3. Keep both feet on the footpegs and transfer
your weight forward.
4. Proceed at a steady rate of speed and throttle
opening.
5. Be alert and prepared to take emergency action.
This may include quick dismounting of the vehicle.
WARNING
Braking and handling are greatly affected when operating in hilly terrain. Improper
procedure could cause loss of control or overturn and result in serious injury or death.
Use extreme caution when operating on hills, and follow all procedures outlined in the
owner’s manual.
25_
Maximum
82
OPERATION
Driving Safely
Driving Across Hills
WARNING
Improperly crossing hills or turning on hills can result in loss of control or vehicle
overturn, resulting in severe injury or death. Avoid crossing the side of a hill when
possible. Follow proper procedures as outlined in the owner’s manual.
If you enter into a situation where sidehilling is unavoidable:
1. Slow down.
2. Lean into the hill, transferring your upper body weight
toward the hill while keeping your feet on the footpegs.
3. Steer slightly into the hill to maintain vehicle
direction.
NOTE: If the vehicle begins to tip, quickly turn the
front wheels downhill, if possible, or dismount
on the uphill side immediately!
83
OPERATION
Driving Safely
Driving Downhill
Whenever descending a hill, follow these
precautions:
1. Proceed directly downhill.
2. Transfer your weight to the rear of the vehicle.
3. Slow down.
4. Shift t o the lowest gear possible while
maintaining a safe speed.
5. Apply the foot brake slightly toaidinslowing.
WARNING
Excessive speed can cause loss of control and lead to serious injury or death.
Always operate slowly when traveling downhill.
84
OPERATION
Driving Safely
Turning Around on a Hill
WARNING
Improper hill climbing procedures could cause loss of control or overturn and result in
serious injury or death. Avoid climbing steep hills (25_ maximum). Use extreme
caution when operating on hills, and follow proper operating procedures outlined in the
owner’s manual.
If the vehicle stalls while climbing a hill, never back it down the hill! One maneuver that
can be used when it’s necessary to turn around while climbing a hill is the K-turn:
1. Keep your body weight uphill.
2. Pull in the clutch lever and apply the front and rear brakes.
3. When completely stopped, shut off the engine. Leaving the transmission in gear, release
the clutch lever and lock the park brake.
4. Dismount on the uphill side of the vehicle, or on the left side if the vehicle is pointing
straight uphill.
85
OPERATION
Driving Safely
Turning Around on a Hill
5. Staying uphill of the ATV, turn the handlebars full
left. Reach across the handlebar and apply the
front brakes to unlock the park brake.
6. With the front brakes applied, pull in t he clutch
lever. Use the brakes to slowly allow the vehicle
to roll around to your right until it’s pointing
across the hill or slightly downward.
7. With the front brakes still applied, release the
clutch lever and lock the park brake. Remount
from the uphill side, keeping body weight uphill.
8. Pull in the clutch lever, shift into neutral and
restart the engine.
9. Release the park brake and slowly release the clutch lever, allowing the ATV to proceed
slowly. Stay in first gear, using the brakes for additional speed control if necessary, until
more level ground is reached. Do not apply the brakes abruptly when driving downhill.
8’ (2.4m)
86
OPERATION
Driving Safely
ParkingonanIncline
Avoid parking on an incline if
possible. If it’s unavoidable,
follow these precautions:
1. Turn the engine off.
2. Place the transmission in
first gear.
3. Lock the parking brake.
4. Always block the rear wheels on the
downhill side. See illustration.
5. Shut off the fuel supply.
87
OPERATION
Driving Safely
Driving Over Obstacles
Be alert!
Look ahead and learn to read the terrain
you’re traveling on. Be constantly alert for
hazards such as logs, rocks and low hanging
branches.
WARNING
Severe injury or death can result if your
vehicle comes in contact with a hidden
obstacle. Not all obstacles are immediately
visible. Travel with caution in unfamiliar
terrain.
88
OPERATION
Driving Safely
Driving Through Water
Your ATV can operate through water with a
maximum recommended depth equal to the
level of the footpegs (1). Follow these
procedures when operating through water:
1. Determine water depths and current before
crossing.
2. Choose a crossing where both banks have
gradual inclines.
3. Proceed slowly, avoiding rocks and
obstacles if possible.
4. After crossing, dry the brakes by applying light pressure to the lever until braking
action is normal.
After running the vehicle in water, it’s critical to have it serviced as outlined in the
maintenance chart. See page 94. The engine oil and all grease fittings need special
attention.
1
89
OPERATION
Driving Safely
Driving Through Water
CAUTION
Major engine damage can result if the vehicle is not thoroughly inspected after
operation in water. Perform the services outlined in the maintenance chart.
If your vehicle becomes immersed or is operated in water that exceeds the footpeg
level, take it to your dealer for service before starting the engine.
NOTE: Avoid operating the vehicle through deep or fast-flowing water. If you cannot
avoid water that exceeds the recommended maximum depth, go slowly, balance
your weight carefully, avoid sudden movements, and maintain a slow and steady
forward motion. Do not make sudden turns or stops, and do not make sudden
throttle changes.
If your vehicle becomes immersed, and it’s impossible to take it to a dealer before starting
it, follow the steps described on page 132. Have the vehicle serviced by your dealer at the
first opportunity.
90
OPERATION
Driving Safely
Driving in Reverse
Follow these precautions when operating in
reverse:
1. Avoid backing downhill.
2. Back slowly.
3. Apply the brakes lightly for stopping.
4. Avoid turning at sharp angles.
5. Never open the throttle suddenly while
backing.
91
OPERATION
Driving Safely
Driving in Reverse
WARNING
Failure to use caution when operating in reverse can result in serious injury or death.
Before shifting into reverse, always check for obstacles or people behind the vehicle.
Drive slowly. Avoid backing on inclines. Avoid turning at sharp angles.
NOTE: This Polaris ATV is equipped with a reverse speed limiter. Do not operate at full
throttle. Use just enough throttle to maintain a desired speed.
CAUTION
Excessive throttle operation while in the speed limit mode may cause fuel to build in
the exhaust, resulting in engine popping and/or engine damage.
92
EMISSION CONTROL SYSTEMS
Noise Emission Con t rol System
Do not modify the engine, intake or exhaust components, as doing so may affect
compliance with U.S.A. EPA noise control requirements (40 CFR 205) and local noise
level requirements.
Operation on Public Land s in the U.S.A.
Your Polaris vehicle has a spark arrestor that was tested and qualified to be in accordance
with the USDA Forest Service Standard 5100-1C. Federal law requires that this spark
arrestor be installed and functional when the vehicle is operated on public lands.
Operation of off-road vehicles on public lands in the U.S.A. is regulated by 43 CFR 8343.
Violations are subject to monetary penalties. Federal regulations can be viewed online at
www.gpoaccess.gov/ecfr/.
Electromagnetic Interference
This spark ignition system complies with Canadian ICES--002.
This vehicle complies with European directives 97/24/EC and 89/336/EEC.
93
EMISSION CONTROL SYSTEMS
Crankcase Emission Control System
This engine is equipped with a closed crankcase system. Blow-by gases are forced back to
the combustion chamber by the intake system. All exhaust gases exit through the exhaust
system.
Exhaust Emission Control System
The emissions from the exhaust of this vehicle are controlled by engine design, including
fact ory-set fuel delivery and ignition. The engine and related components m ust be
maintained at Polaris specifications to achieve optimal performance.
Engine idle speed is the only adjustment Polaris recommends that the operator perform.
Any other adjustments should be performed by an authorized Polaris dealer.
The emissions label is located on the recoil cover or stator housing.
94
MAINTENANCE AND LUBRICATION
Periodic Maintenance Schedule
Careful periodic maintenance will help keep your vehicle in t he safest, most reliable
condition. Inspection, adjustment and lubrication of important components are explai ned
in the following pages. A tool kit is provided in the storage compartment under the seat.
Keep the tool kit with the vehicle at all times.
Maintenance intervals in the following charts are based upon average riding conditions and
an average vehicle speed of approximately 10 miles per hour. Vehicles subjected to severe
use must be inspected and serviced more frequently.
Record maintenance and service in the Maintenance Log beginning on page 193.
95
MAINTENANCE AND LUBRICATION
Periodic Maintenance Schedule
Severe Use Definition
S Frequent immersion in mud, water or sand
S Racing or race-style high RPM use
S Prolonged low speed, heavy load operation
S Extended idle
S Short trip cold weat her operation
Inspect, clean, lubricate, adjust and replace parts as necessary. When inspection reveals the
need for replacement parts, use genuine Polaris parts available from your Polaris dealer.
NOTE: Service and adjustments are important for proper vehicle operation. If you’re not
familiar with safe service and adjustment procedures, have a qualified dealer
perform these operations.
96
MAINTENANCE AND LUBRICATION
Periodic Maintenance Schedule
WARNING
Improperly performing the procedures marked with a J could result in component
failure and lead to serious injury or death. Have an authorized Polaris dealer perform
these services.
Maintenance Chart Key
" Perform these procedures more frequently for vehicles subjected to severe use.
E Emission-related service (Failure to conduct this maintenance will not void the
emissions warranty but may affect emissions.)
J Have an authorized Polaris dealer perform these services.
F Use Polaris Premium All Season Grease or grease conforming to NLGI No. 2, such as
Conoco Superlube M or Mobilegrease Special
97
MAINTENANCE AND LUBRICATION
Periodic Maintenance Chart
Item
Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles (Km)
Brake systems/fluid -- Pre-Ride -- Inspect; maintain fluid between fill lines
Tires -- Pre-Ride -- Inspect
Wheels/lug nuts -- Pre-Ride -- Inspect; tighten
Frame fasteners -- Pre-Ride -- Inspect; tighten
"
E
Air filter and
Pre-cleaner
-- Pre-Ride -- Inspect; clean; replace as needed
Coolant -- Pre-Ride -- Inspect level; add as needed
Fuel -- Pre-Ride -- Fill to proper levels
" Engine/transmission
oil
-- Pre-Ride -- Fill to proper level with Polaris PS-4 oil
Throttle -- Pre-Ride -- Check operation
" Clutch -- Pre-Ride -- Check operation and adjustment
Lights -- Pre-Ride -- Check operation
Engine stop switch -- Pre-Ride -- Check operation
98
MAINTENANCE AND LUBRICATION
Periodic Maintenance Chart
Item
Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles (Km)
" Steering -- Pre-Ride -- Check for free operation and loose compo-
nents
" Air box sediment
tubes
-- Pre-Ride -- Drain deposits when visible
Headlamp -- Pre-Ride -- Check daily; apply Polaris dielectric grease
to connector when replaced
Tail lamp/brake lamp -- Pre-Ride -- Check daily
" A-arm ball joint -- Pre-Ride -- Check freeplay daily; have dealer replace if
wheel moves excessively
Rear shaft assembly -- Pre-Ride
Post-Ride
-- Check pre-ride for tears, punctures, leaking.
Check post-ride for bulging/ballooning.
Replace if damaged. Burp if bulging.
" Perform these procedures more often for vehicles subjected to severe use.
E Emission-Related Service
J Have an authorized Polaris dealer perform these services.
F Polaris Premium All Season Grease
99
MAINTENANCE AND LUBRICATION
Periodic Maintenance Chart
Item
Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles (Km)
"
E
Air filter,
main element
-- Weekly -- Inspect; clean; replace as needed
J Brake pad wear 10 H Monthly 100 (160) Inspect periodically
" Oil Change 10 H 6M 100 (160) Perform break-in service after first hour of
operation
" Oil Filter 10 H 6M 100 (160) Replace with oil change
Battery 20 H Monthly 200 (320) Check terminals; clean
"
E
Engine breather filter 20 H Monthly 200 (320) Inspect; clean as needed
"
F
General lubrication 50 H 3M 500 (800) Lubricate all fittings, pivots, cables
100
MAINTENANCE AND LUBRICATION
Periodic Maintenance Chart
Item
Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles (Km)
Carburetor float bowl 50 H 6M 500 (800) Drain bowl periodically and prior to storage
J
E
Throttle Cable/ETC
Switch
50 H 6M 500 (800) Inspect; adjust; replace if necessary
E
Choke (enricher)
cable
50 H 6M 500 (800) Inspect; adjust; lubricate; replace if neces-
sary
" Drive chain(s) 50 H 6M 500 (800) Inspect daily; adjust and lubricate if needed
"
E
Engine breather hose
and filter (in airbox)
50 H 6M 500 (800) Inspect
" Perform these procedures more often for vehicles subjected to severe use.
E Emission-Related Service
J Have an authorized Polaris dealer perform these services.
F Polaris Premium All Season Grease
101
MAINTENANCE AND LUBRICATION
Periodic Mainten an ce Chart
Item
Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles (Km)
"
F
Upper steering
post (A)
50 H 3M 500 (800) Inspect; tighten fasteners; grease after
washing ATV or driving in water
"
F
Front A-Arms (B) 50 H 3M 500 (800) Inspect; tighten fasteners; grease (also
after washing ATV or driving in water)
"
F
Rear Control Arm
Bushings (C)
50 H 3M 500 (800) Inspect; tighten fasteners; grease (also
after washing ATV or driving in water)
"
F
Stabilizer Bar (D) 50 H 6M 500 (800) Grease
"
F
Rear Control Arm
Needle Bearings (E)
100 H 12 M 1000 (1600) Disassemble, clean, inspect bearings and
seals, grease, reassemble
B
A
C
E
C
E
E
B
D
102
MAINTENANCE AND LUBRICATION
Periodic Maintenance Chart
Item
Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles (Km)
Coolant strength 50 H 6M 500 (800) Inspect strength seasonally; pressure test
system annually
Coolant system
pressure test
100 H 12 M 1000 (1600) Pressure test system annually
E
Spark plug 100 H 12 M 1000 (1600) Inspect; replace as needed
J
E
Fuel system 100 H 12 M 1000 (1600) Check for leaks at tank cap, lines, fuel
valve, pump and carburetor; replace lines
every two years
J
E
Ignition Timing -- 12 M -- Inspect; adjust as needed
" Perform these procedures more often for vehicles subjected to severe use.
E Emission-Related Service
J Have an authorized Polaris dealer perform these services.
F Polaris Premium All Season Grease
103
MAINTENANCE AND LUBRICATION
Periodic Maintenance Chart
Item
Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Miles (Km)
Radiator 100 H 12 M 1000 (1600) Inspect; clean external surface; change
coolant every 2 years
" Cooling system hoses 100 H 12 M 1000 (1600) Inspect
Engine mounts 100 H 12 M 1000 (1600) Inspect
J Brake fluid 200 H 24 M 2000 (3200) Change every two years
Spark arrestor 300 H 36 M 3000 (4800) Clean out
J Front and rear wheel
bearings
300 H 36 M 3000 (4800) Inspect; replace as needed
Idle speed -- As required -- Adjust
J Toe adjustment -- As required -- Periodic inspection; adjust when parts are
replaced
Headlight aim -- As required -- Adjust as needed
" Perform these procedures more often for vehicles subjected to severe use.
E Emission-Related Service
J Have an authorized Polaris dealer perform these services.
F Polaris Premium All Season Grease
104
MAINTENANCE AND LUBRICATION
Lubrication Recommendations
Performance Synthetic 4 -Stroke (PS-4) Oil
Polaris highly recommends the use of Polari s PS-4 or a similar oil designed for use in
4-stroke manual clutch ATV and m otorcycle applications. PS -4 has been specifically
formulated for use in high performance engines. PS-4 is a fully synthetic, high
performance, multi-viscosity oil designed to provide the ultimate in lubrication
performance and protection and prolonged clutch life. See page 181 for the part numbers of
Polaris products.
PS-4 oil possesses unsurpassed film strength over the widest possible temperature range. It
resists viscosity and frictional breakdown in ambient temperatures from --40° F. to +120° F.
(-- 40° to +49° C.). Its exceptional frictional properties result in more efficient operation,
more power output and lower fuel consumption.
CAUTION
Mixing brands or using a non-recommended oil may cause serious engine damage.
Polaris recommends the use of Polaris PS-4 oil. Never mix oil brands.
105
MAINTENANCE AND LUBRICATION
Engine Oil L evel
Check the oil level before each use of the vehicle.
The dipstick (1) is located on the left side of the ATV.
1. Position t he ATV on a level surface.
2. Start the engine and let it idle for one minute.
3. Stop the engine and remove the dipstick. Wipe
it dry with a clean cloth.
4. R einstall the dipstick completely.
NOTE: The dipstick must be screwed completely
in to keep the angle and depth of the stick
consistent.
5. Remove the dipstick and check the oil level.
Maintain the oil level in the safe range (2),
between the full and add marks. Do not
overfill.
6. Reinstall the dipstick.
1
2
106
MAINTENANCE AND LUBRICATION
Engine Oil L evel
If the ATV is used year-round, check the oil level frequently. A rising oil level could
indicate the accumulation of contaminates such as water or excess fuel in the bottom of the
oil tank. Water in the bottom of t he tank can lead to engine damage and must be drained.
Water accumulation increases as outside temperature decreases.
107
MAINTENANCE AND LUBRICATION
Oil an d Filter Change
CAUTION
If the ATV is left without oil in the system for extended periods, the oil pump may lose
its prime, which could result in engine damage. Do not allow the vehicle to be without
oil and filter overnight. Always replace the oil and filter within a few hours of draining
the oil.
Always change the oil at the intervals outlined in the Periodic Maintenance Chart beginning
on page 94. Always change the oil filter whenever changing oil.
Perform a break-in oil change after one hour of operation, or after t he first tank of fuel,
whichever comes first. Change the oil more frequently on vehicles subjected to severe use.
108
MAINTENANCE AND LUBRICATION
Oil an d Filter Change
1. Position t he vehicle on a level surface.
2. Clean the area around the oil tank (1) and
crankcase (2) drain plugs with clean shop
towels.
3. Run the engine for two to three minutes until
warm, then stop the engine.
4. Place a drain pan beneath the oil tank and
remove the drain plug.
CAUTION
Hot oil can cause serious burns to skin. Do not allow hot oil to contact skin.
5. Allow the oil to drain completely.
6. Replace the sealing washer and reinstall the plug. Torque to 14 ft. lbs. (19 Nm).
NOTE: The sealing surfaces on drain plugs, oil tank and crankcase should be clean and
free of burrs, nicks or scratches.
1
2
109
MAINTENANCE AND LUBRICATION
Oil an d Filter Change
7. Place a drain pan beneath t he crankcase and remove the drain plug.
8. Allow the oil to drain completely.
9. Replace the sealing washer and reinstall the plug. Torque to 14 ft. lbs. (19 Nm).
10. Place shop towels beneath the oil filter.
11. Remove the three cover bolts and remove the
cover.
12. Pull out the oil filter.
NOTE: A spring located behind the filter may pop
out as the filter is removed. The spring
must be reinstalled with the new filter.
13. Using a clean dry cloth, clean the filter sealing
surfaces.
Step 12
110
MAINTENANCE AND LUBRICATION
Oil an d Filter Change
14. Replace the o-ring in the cover.
15. Lubricate the gasket on the new filter with a film of fresh engine oil.
16. Reinstall the spring and install the new filter with the open end facing outward.
17. Install the cover and torque the bolts to 72-78 in. l bs. (8-9 Nm).
NOTE: The long bolt must be placed in the forward hole.
Step 14 Step 16 Step 17
111
MAINTENANCE AND LUBRICATION
Oil an d Filter Change
18. Remove the dipstick and fill the oil tank with the recommended oil.
19. Place the t ransmission in neutral. Lock the parking brake.
20. Prime the oil pump using the procedure on page 112. Then stop the engine and
inspect for leaks.
21. Re-check the oil level on the dipstick and add oil as necessary to bring the level to the
upper m ark on the dipstick.
22. Dispose of the used filter, oil and shop towels properly.
112
MAINTENANCE AND LUBRICATION
Oil Pump Priming
This priming procedure m ust be performed whenever the
oil hose connection between the oil tank and pump inlet
has been disconnected.
1. Clamp or pinch off the vent line (1) approximately
2I (5 cm) from the oil tank.
2. Run the engine for 5-10 seconds at idle. Stop the engine
and remove the vent line clamp. If the line is bled
properly, you should hear a rush of air, indicating that
the line is properly primed and ready for operation. If
you do not hear air, the line has not bled, and you’ll
need to repeat the priming procedure.
1
113
MAINTENANCE AND LUBRICATION
Engine Cooling System
The engine coolant level is controlled or maintained by the recovery system. The recovery
system components are the recovery bottle, radiator filler neck, radiator pressure cap and
connecting hose.
To ensure that the coolant maintains its ability to protect the engine, we recommend that
you completely drain t he cooling system every two years and add a fresh mixture of
antifreeze and water.
Polaris recommends the use of Polaris Premium 60/40 anti-freeze/coolant or a 50/50
mixture of high quality aluminum compatible anti-freeze/coolant and distilled water. See
page 181 for the part numbers of Polaris products.
NOTE: Polaris Premium 60/40 is already premixed and ready to use. Do not dilute with
water.
NOTE: Always follow the manufacturer’s mixing recommendations for the freeze
protection required in your area.
114
MAINTENANCE AND LUBRICATION
Engine Cooling System
Coolant Level
The recovery bottle (1) is located on the right side of the
vehicle under the front fender. The fluid level must be
maintained between the FULL (2) and ADD (3) marks on
the side panel (when the fluid is cool).
As coolant operating temperature increases, the
expanding (heated) excess coolant is forced out of the
radiat or, past the pressure cap, and into the recovery
bottle. As engine coolant t emperature decreases, the
contracting (cooled) coolant is drawn back up from the
tank, past the pressure cap, and into the radiator.
NOTE: Some coolant level drop on new machines is
normal, as the system is purging itself of trapped
air. Observe coolant levels and maintain as
recommended by adding coolant to the recovery bottle.
2
3
1
115
MAINTENANCE AND LUBRICATION
Engine Cooling System
WARNING
Escaping steam can cause severe burns. Never remove the pressure cap while the
engine is warm or hot. Always allow the engine to cool before removing the cap.
Radiator Coolant Level
This procedure is required only if the cooling system has been
drained for maintenance and/or repair. However, if the recovery
bottle has run dry, inspect the level in the radiator and add coolant
if necessary. The radiator pressure cap is located on the left side of
the vehicle.
1. Remove the pressure cap.
2. Using a funnel, slowly add coolant as necessary through the
radiator filler neck.
3. Reinstall the pressure cap.
NOTE: Use of a non-standard pressure cap will not allow the recovery system to function
properly. Contact your dealer for the correct replacement part.
116
MAINTENANCE AND LUBRICATION
Air F ilter Systems
1. Unlatch and remove the seat.
2. Release the two airbox cover clips (1)
and rotat e the cover rearward to remove it.
3. Remove the air filter retaining screw (2).
4. Loosen the filter clamp (3).
5. Remove the main air filter (4).
6. Remove the pre-filter (5) from the main
filter element.
7. Remove the breather filter (6).
8. Wash the pre-filter and breather filter in
soapy water, then rinse and let dry.
1
3
5
6
4
2
117
MAINTENANCE AND LUBRICATION
Air F ilter Systems
9. Wash the main filter element (4) without removing it from the internal filter cage. Rinse
and let dry. When dry, apply Pure Polaris foam filter oil thoroughly to the element.
10. Reinstall all components.
11. Check the hoses for cracks, deterioration, abrasion, or leaks. Replace as needed.
CAUTION
Operation of your vehicle without a breather filter can cause engine damage. Always
reinstall the breather filter after removing for service.
118
MAINTENANCE AND LUBRICATION
Lights
When servicing a halogen lamp, don’t t ouch the lamp with bare fingers. Oil from your skin
leaves a residue, causing a hot spot that will shorten the life of the lamp.
WARNING
Poor lighting while driving can result in severe injury or death. Headlight and taillight
lenses become dirty during normal operation. Wash the headlights frequently to
maintain lighting quality.
Hot components can cause serious burns to skin. Do not service the headlamps until
they’ve cooled sufficiently.
119
MAINTENANCE AND LUBRICATION
Lights
Headlight Lamp Replacement
1. Remove the wire harness connector from the
back of the headlight.
2. On the left headlamp, grasp the bulb housing and
turn it counterclockwise (1) to remove the bulb.
On the right headlamp, t urn the bulb housing
clockwise (2) to remove the bulb.
3. Apply dielectric grease to the socket and install
the new bulb. Rotate firmly.
NOTE: The bulb must be positioned so the harness
installs into the lamp at outer side.
4. Reinstall the connect or to the back of the headlight.
1
2
120
MAINTENANCE AND LUBRICATION
Lights
Headlight Assembly Replacement
1. Remove the wire harness connector from the
headlights.
2. Remove the front cab (see page 123).
Position the cab upside down on a soft
protective surface to prevent scratching.
3. Remove the small adjuster bracket (1) and
install it on the new lamp.
4. Remove the large pivot bracket (2) and remove
the headlamp.
1
2
121
MAINTENANCE AND LUBRICATION
Lights
Headlight Assembly Replacement
5. Install the new headlamp by inserting the outboard pivot pin in the hole of the
mounting tab on the cab.
6. Install the adjuster bracket onto the inboard pivot pin of the headlamp.
7. Adjust for approximately 1/16” clearance between the bracket and the edge of the
headlight. Tighten the mounting screws. IMPORTANT: Be sure the bracket is 90
degrees to the pivot pin so the lamp can move freely.
8. Install the adjusting screw, leaving it loose so the headlight can be adjusted.
9. Reinstall the front cab and connect the wire harness to the headlamp.
10. Adjust the lamps as needed, then tighten the adjuster screw. See page 122.
122
MAINTENANCE AND LUBRICATION
Lights
Headlight Adjustment
1. Position the ATV on a level surface with the headlight
approximately 25 ft. (7.6 m) from a flat wall.
2. Measure t he distance from the floor to the center of
the headlight and make a mark on the wall at the
same height.
3. Start the engine and turn the headlight switch to
high beam.
4. Observe the headlight aim on the wall. The most
intense part of the headlight beam should be aimed
2” (5 cm) below the mark placed on the wall.
NOTE: Include rider weight on the seat when measuring.
5. Loosen the pivot screw (1) and adjust the beam to the desired position.
6. Tighten the screw and torque to 27 in. lbs. (3 Nm).
1
123
MAINTENANCE AND LUBRICATION
Front Cab Removal
1. Remove the screws (1) from the left and right cab
mounts.
2. Remove the wire harness connector from the cab.
The connector is located under the left fender.
3. Loosen the fuel tank cover screws (2).
4. Remove the four side panel screws (3).
5. Gently pull t he cab upward to disengage it from the
stand-off.
Side Panel Removal
1. Unlatch and remove the seat.
2. Remove the front cab.
3. Remove the two screws (1) securing the
side panel.
4. Remove the side panel.
3
2
1
1
124
MAINTENANCE AND LUBRICATION
Rear Cab Removal
1. Unlatch and remove the seat.
2. Remove the two lower bolts (1) on the rear
fenders of the cab and the two bolts (2), washers
and grommets (3) on the top of the cab.
3. Remove the cab.
3
2
1
125
MAINTENANCE AND LUBRICATION
Spark Plugs
S Use NGK DCPR8E spark plugs.
S Proper electrode gap is .035″ (.90 mm).
S Spark plug torque is 14 ft. lbs. (19 Nm).
CAUTION
Using non-recommended spark plugs may result in serious engine damage and may
void your emission-related warranty. Always use Polaris-recommended spark plugs.
Spark plug condition is indicative of engine operation. The spark plug firing end condition
should be read after the engine has been warmed up and the vehicle has been driven at
higher speeds. Immediately check the spark plug for correct color.
WARNING
A hot exhaust system and engine can cause serious burns. Wear protective gloves
when removing a spark plug for inspection. Allow components to cool before
continuing.
126
MAINTENANCE AND LUBRICATION
Spark Plugs
1. Normal
The normal insulator tip is gray, tan or light brown. There will be few combustion
deposits. The electrodes are not burned or eroded. This indicates the proper type and heat
range for the engine and the service.
NOTE: The tip should not be white. A white insulator tip indicates overheating, caused
by use of an improper spark plug or incorrect carburetion adjustments.
2. Wet Fouled
The wet fouled insulator tip is black. A damp oil film covers the firing end. There may be
a carbon layer over the entire nose. Generally, the electrodes are not worn. General causes
of fouling are excessive oil, use of non-recommended oil, improper use of the choke, or
incorrect carburetion adjustments.
127
MAINTENANCE AND LUBRICATION
Spark Plugs
Spark Plug Removal and Replacement
1. Remove the side panels and front cab (see page 123).
2. Turn the fuel valve off.
WARNING
A hot ember on the ATV could cause fuel to ignite. Allow all components to cool
sufficiently before accessing the spark plug. Always exercise extreme caution when
handling fuel systems and gasoline. Always heed the fuel warnings on page 69.
128
MAINTENANCE AND LUBRICATION
Spark Plugs
Spark Plug Removal and Replacement
3. Move the fuel valve hose clamp (1) forward and gently remove the hose from the fuel
valve fitting on the gas tank.
4. Remove the vent hose (2) from the steering post, taking note of the hose routing for
reinstallation.
2
1
3
129
MAINTENANCE AND LUBRICATION
Spark Plugs
Spark Plug Removal and Replacement
5. Remove the tank mounting bolt (3) at the rear of the gas tank.
6. Move the tank rearward and upward over the engine. Slowly remove the tank and be
careful not to catch any hoses, wires or other components. P l ace the tank on a stable
surface or work bench. Be sure to protect the valve from contamination or damage.
7. Using the forked end of the spark plug wrench handle, remove the spark plug boot.
IMPORTANT: Do not pull on the wire to remove the boot. Doing so may cause a
wire disconnection inside t he boot.
8. Using the spark plug wrench and handle, rotate counterclockwise to remove the spark
plug.
9. Reverse all steps to install the spark plug and reassemble the body. Torque the spark
plug to 14 ft. lbs. (19 Nm). Be sure to reroute the vent hose down the steering post.
Torque the tank mounting bolt to 9 ft. lbs. (12 Nm).
130
MAINTENANCE AND LUBRICATION
Spark Arrestor Clean-Out
WARNING
Do not perform clean-out immediately after the engine has been run, as the exhaust
system becomes very hot. Serious burns could result from contact with the exhaust
components.
Wear eye protection and gloves.
Never run the engine in an enclosed area. Exhaust contains poisonous carbon
monoxide gas.
Failure to heed these warnings could result in serious injury or death.
131
MAINTENANCE AND LUBRICATION
Spark Arrestor Clean-Out
Periodically clean the spark arrestor to remove
accumulated carbon.
1. Remove the three screws (1) and remove the
arrestor (2) from the end of the muffler.
2. Use a non-synthetic brush to clean the
arrestor screen (3). A synthetic brush may
melt if components are warm. If necessary,
blow debris from the screen with compressed
air.
3. Inspect the screen for wear and damage.
Replace if necessary.
4. Remove and inspect the gasket (4). Replace if worn or damaged.
5. Reinstall the gasket and arrestor.
6. Torque screws to 50 in. lbs. (5.6 Nm).
1
2
3
4
132
MAINTENANCE AND LUBRICATION
Vehicle Immersion
If your ATV has been submerged or overturned in water deeper than the footpeg level, it’s
critical to dry it promptly and properly before starting t he engine.
CAUTION
Do not start the engine after an ATV has been in water that exceeds the
recommended depth. Serious engine damage WILL occur. Tow or trailer the ATV to
your dealer for service. In an emergency, perform the temporary drying out procedure
outlined below , which will allow short-term operation only,todrivetheATVtoatrailer
or towing vehicle.
Do not perform the following procedures if you don’t feel completely capable, or if you
suspect that water has entered the fuel tank (likely if the water was deep or if the ATV
overturned). Tow or trailer the ATV to your dealer for immediate service.
133
MAINTENANCE AND LUBRICATION
Vehicle Immersion
1. Turn the fuel valve off.
2. Drain water from the air box and clean the air filter (if equipped). See page 116.
3. Drain the fuel/water from the carburetor for about 10 seconds.
4. Remove the spark plug. See page 127.
WARNING
Fluids will be ejected through the spark plug hole and may cause serious injury to face
or other body parts. Stand clear of the spark plug while performing the following
steps.
5. Intermittently and briefly touch the starter button in half-second intervals to SLOWLY
rotate the engine three or four times. Water will eject from the spark plug hole.
134
MAINTENANCE AND LUBRICATION
Vehicle Immersion
6. Press and hold the starter button for 10 second intervals for about one minute or until
water vapor is no longer ejecting from the spark plug hole.
7. Check the oil level on the dipstick. If the level is higher than the pre-ri de inspection
level, water has entered the oil tank. Do not start the engine. Tow the ATV and see
your dealer. If the oil level is unchanged from the pre-ride inspection level , replace the
spark plug, start t he engine and move the ATV promptly to a trailer or towing vehicle.
CAUTION
If water isn’t removed promptly from a submerged ATV, rust will form in precision
components, gears, bearings, the cylinder and other areas and result in serious
engine damage. Always see your dealer promptly after an ATV has been submerged.
135
MAINTENANCE AND LUBRICATION
Battery
The sealed battery is already filled with elect rolyte and has been sealed and fully charged at
the factory. Never pry the sealing strip off or add any other fluid to this battery.
Keep battery terminals and connections free of corrosion. If cleaning is necessary, remove
the corrosion with a stiff wire brush. Wash with a solution of one tablespoon baking soda
and one cup water. Rinse well with tap water and dry off with clean shop towels. Coat the
terminals with dielectric grease or petroleum jelly.
WARNING
Improperly connecting or disconnecting battery cables can result in an explosion and
cause serious injury or death. When removing a battery, always disconnect the
negative (black) cable first. When reinstalling the battery, always connect the
negative cable last.
136
MAINTENANCE AND LUBRICATION
Battery Storage
When the vehicle is placed in storage for three months or more, the battery should be
removed and stored out of the sun in a cool, dry place. Test and recharge the battery
monthly and before reusing.
Battery Removal
1. Remove the front cab (see page 123) and disconnect the strap securing the battery.
2. Disconnect the black (negative) cable first, then disconnect the red (positive) cable.
3. Lift the battery out of the ATV.
137
MAINTENANCE AND LUBRICATION
Battery Installation
1. Place the battery in the battery holder.
2. Connect and tighten the red (positive) cable first, then connect and tighten the black
(negative) cable.
3. Attach the hold-down strap and rei nstall the front cab.
4. Verify that cables are properly routed.
NOTE: When installing a new battery, make sure it’ s fully charged prior to its initial use.
Using a new battery that has not been fully charged can damage the battery and
result in a shorter life. It can also hinder vehicle performance.
138
MAINTENANCE AND LUBRICATION
Battery Charging (Sealed Battery)
The battery included with your ATV is sealed and the sealing strip cannot be removed. Use
a voltmeter or multimeter to measure DC voltage. A fully charged battery will register 12.8
V or higher. If the voltage is less than 12.8 volts, recharge the battery. Use the remote
char ging terminals under the right front cab. Removing the cab is not necessary.
NOTE: The Polaris Battery Tendert battery charger can be left connected during the
storage period and will automatically charge the battery if the voltage drops below
a pre-determined point.
When using an automatic charger such as the Polaris Battery Tendert, refer to the
manufacturer’s instructions for recharging. When using a constant current charger, use the
guidelines on the following page for recharging.
WARNING
An overheated battery could explode, causing severe injury or death. Always watch
charging times carefully. Stop charging if the battery becomes very warm to the touch.
Allow it to cool before resuming charging.
139
MAINTENANCE AND LUBRICATION
Battery Charging (Sealed Battery)
NOTE: Always verify battery condition before and 1-2 hours after charging.
State of
Charge
Voltage Action Charge Time*
(Using constant current
charger @ standard amps
specified on top of battery)
100% 12.8-13.0 volts None, check at
3 mos. from date of
manufacture
None required
75%-100% 12.5-12.8 volts May need slight charge,
if no charge given, check
in 3 months
3-6 hours
50%-75% 12.0-12.5 volts Needs charge 5-11 hours
25%-50% 11.5-12.0 volts Needs charge At least 13 hours,
verify state of charge
0%-25% 11.5 volts or less Needs charge with
desulfating charger
At least 20 hours
140
MAINTENANCE AND LUBRICATION
Tires
WARNING
Operating your ATV with worn tires, improperly inflated tires, non-standard tires or
improperly installed tires will affect vehicle handling and could cause an accident
resulting in serious injury or death.
Maintain proper tire pressure as described on the ATV decal and in the owner’s
manual.
Always use original equipment size and type when replacing tires.
Make sure the wheels are installed properly.
Always replace tires when the tread depth measures 1/8″ (.3 cm) or less.
141
MAINTENANCE AND LUBRICATION
Tire Tread Depth
Always replace tires when tread depth is worn to
1/8″ (.3 cm) or less. See illustration.
Wheel Removal
1. Stop the engine, place the transmission in gear and
lock the parking brake.
2. Loosen the wheel nuts slightly.
3. Elevate the side of the vehicle by placing a suitable
stand under the frame.
4. Remove the wheel nuts and remove the wheel.
1/8I (.3 cm)
142
MAINTENANCE AND LUBRICATION
Wheel Installatio n
WARNING
Improperly installed wheels can adversely affect tire wear and vehicle handling, which
can result in serious injury or death. Never install the rim with the valve stem to the
inside of the vehicle. Always ensure that all nuts are torqued to specification.
1. Place the transmission in gear and lock the parking
brake.
2. Place the wheel on the wheel hub with the valve
stem (1) toward the outside and rotation arrows (2)
on the tire pointing toward forward rotation.
3. Install the wheel nuts and finger tighten.
4. Lower the vehicle to the ground.
5. Torque the nuts to s pecification. See page 143.
1
2
143
MAINTENANCE AND LUBRICATION
Wheel Nut Torque Specifications
Check the wheel nut torques occasionally and when they’ve been loosened for maintenance
service.
Bolt Size Torque Specification
Front 3/8″ 27 ft. lbs. (36.5 Nm)
Rear 3/8″ 27 ft. lbs. (36.5 Nm)
144
MAINTENANCE AND LUBRICATION
Boot Inspection
Before Operating
Inspect the boots before operating the vehicle. If a
boot is torn, punctured or leaking fluid, see your
Polaris dealer for service or replacement.
Good Boot
After Operating
Inspect the boots after operating the vehicle. If a boot
is bulging or ballooned, perform the boot burping
procedure on page 145.
Bulging Boot
145
MAINTENANCE AND LUBRICATION
Boot Burping
1. Using a needle nose pliers or boot clamp removal
tool, remove the small boot clamp (1) from the
inboard boot.
NOTE: Do not use any tools that may damage the boot.
2. Slide the free end of the boot two inches toward the
center of the vehicle and lift t he boot away from the
shaft to allow excess air to escape.
3. Wipe excess grease from the shaft before returning the
boot to the boot groove. Use caution not to allow
excess air back into the system when reinstalling the
boot.
4. Reinstall the boot clamp.
1
146
ADJUSTMENTS
Brakes
Under normal operation, the diaphragm extends into the reservoir as fluid level drops. If
the fluid level is low and the diaphragm is not extended, a leak is likely and the diaphragm
should be replaced. Always fill the reservoir as needed whenever the cover is loosened or
removed to ensure proper diaphragm operation. Do not overfill. See page 58.
The front brakes are hydraulic disc brakes. They’re activated by squeezing the brake lever
toward the handlebar. The rear brake is a hydraulic disc brake activated by the foot brake
pedal. Both brakes are self-adjusting, but the following checks are recommended to keep
the brake systems in good operating condition. Check more often i f brakes are used
heavily under normal operation.
WARNING
Overfilling the master cylinder will result in brake failure. Without room to expand, the
excess fluid will cause the brakes to apply automatically, which could result is serious
injury or death. Always maintain the fluid level between the MIN and MAX marks.
See page 58.
147
ADJUSTMENTS
Brakes
1. Always maintain the brake fluid at an adequate level
(see page 58).
2. Check the brake system for fluid leaks.
3. Check the brakes for excessive travel or spongy feel.
4. Check the friction pads for wear, damage and looseness.
5. Check the security and surface condition of the disc.
6. Inspect the rear brake disc spline and pad wear surface for
excessive wear.
NOTE: Pads should be changed when worn to 3/64″ (.1 cm).
3/64″ (.1 cm)
148
ADJUSTMENTS
WARNING
Severe injury or death can result from improper toe alignment and adjustment. Do not
attempt to adjust tie rod alignment. All tie rod adjustments should be performed by an
authorized Polaris dealer.
Toe Alignment
Use the following procedure to check toe alignment. The vehicle is designed for a neutral
toe setting.
1. Position t he vehicle on a level surface.
2. Place the handlebars in a straight-ahead position. Use tie straps to secure the
handlebars to the rear grab bar so they can’t move.
3. Place stands (1) i n front of the vehicle, perpendicular to the rear tires. See illustration.
149
ADJUSTMENTS
Toe Alignment
4. Ti e an elastic string (2) around the stands, making
sure the string just touches the side surface of the
rear tires on each side of the vehicle and goes
around the stands in front of the vehicle.
5. Measure the distance between the string in front of
the rear tires (A) and in front of the front tires (B).
If the two measurements are not equal, adjust the
string position until the measurements are equal.
6. Measure the distance from the string to the rim at
the front and rear of the front rim (3). The
difference between these two measurements should
be between 0″ and 1/16″ toe out.
NOTE: If you discover improper alignment, see your
Polaris dealer for service.
1
2
3
A
B
150
ADJUSTMENTS
Chain Tension
CAUTION
Never adjust or operate the vehicle with the rear drive chain too loose or too tight.
Severe damage to the transmission and drive components can result.
Check the amount of chain slack by moving the vehicle slightly forward to rem ove slack at
the top side of the chain. At the center point of the top side of the chain there should be
1/4″ -3/8″ (6-9 mm) deflection.
Use the procedure on the following page if the chain needs adjustment.
NOTE: The chain has a press-on master link. A chain tool must be used if it’s necessary
to remove the chain for service.
151
ADJUSTMENTS
Chain Tension
1. Loosen the upper and lower pivot mounting bolts (1).
2. Thread the chain adjusting bolt (2) inward or outward to adjust chain slack to the
proper dimension.
3. Tighten the pivot mounting bolts to 30 ft. lbs. (40 Nm).
4. Torque the chain adjusting bolt to 17 ft. lbs. (23 Nm).
Proper Splicelink Clip Opening Position
2
1
1
152
ADJUSTMENTS
Handlebars
If desired, the handlebars can be adjusted for rider preference.
WARNING
Improper adjustment of the handlebars or incorrect torquing of the adjuster block bolts
can cause limited steering or loosening of the handlebars, which could result in loss of
control and serious injury or death. Follow the adjustment procedures exactly, or see
your Polaris dealer for service.
1. Loosen the four handlebar bolts (1).
2. Adjust the handlebar to the desired height. Be
sure the handlebars do not contact the gas tank
or any other part of the machine when turned
fully to the left or right.
3. Torque the front two bolts to 8-10 ft. lbs.
(11-14 Nm), then torque the rear two bolts.
A gap of up to 1/8” (3 mm) will remain at the rear bolts.
1
153
ADJUSTMENTS
Steering Assembly
The steering assembly of the ATV should be checked periodically for loose nuts and bolts.
If loose nuts and bolts are found, or if you notice any freeplay in the steering post, see your
Polaris dealer for service before operating the vehicle.
Camber and Caster
The camber and caster are non-adjustable.
154
ADJUSTMENTS
Front Suspension
Suspension Set -Up
1. Position t he vehicle on a level surface.
2. Stop the engine.
3. Elevate the front of the vehicle by placing a
suitable stand under the frame.
NOTE: The tires should be barely touching the
ground and the suspension should be at
full rebound.
4. Measure the distance from the ground to the
bottom of the lower front bumper bolt. Note
this measurement for later use.
5. Remove the stand and have a rider sit
comfortably on the seat with hands on the
handlebars.
155
ADJUSTMENTS
Front Suspension
Suspension Set -Up
6. Place the transmission in neutral and slowly roll the machine forward and rearward at
least t en feet (3 m) without lifting or pushing down on the suspension.
7. Turn the handlebars fully to the left and right.
8. With the rider still on the vehicle, repeat the measurement performed in step 4.
9. Subtract the step 8 measurement from the step 4 measurement. The difference should
be between 3.75 and 4 inches (9.5-10.2 cm).
10. If the number is less than 3.75 inches (9.5 cm), decrease the front spring prel oad (see
page 157) and repeat all steps. If the number is higher than 4 inches (10.2 cm), incr ease
spring preload and repeat all steps.
156
ADJUSTMENTS
Front Suspension
Spring Preload
The front suspension preload may be adjusted to suit different riding conditions and
operator weight.
WARNING
Uneven adjustment may cause poor handling of the ATV, which could result in an
accident and serious injury or death. Always adjust both the left and right spring
preloads equally or have your Polaris dealer perform the adjustments.
157
ADJUSTMENTS
Front Suspension
Spring Preload
1. Raise and safely support t he front of the ATV off the
ground to allow the suspension to fully extend.
2. Loosen the jam nut (1).
3. Turn the adjusting ring (2) clockwise to increase
preload (A). Turn the ring counter-clockwise to
decrease preload (B).
4. Tighten the jam nut against the adjusting ring.
A B
1
2
158
ADJUSTMENTS
Rear Suspension
Suspension Set -Up
1. Position t he vehicle on a level surface.
2. Stop the engine.
3. Elevate the rear of the vehicle by placing
a suitable stand under the frame.
NOTE: The tires should be barely touching
the ground and the suspension
should be at full rebound.
4. Measure the distance from the ground to
the bottom of the rear lower control arm
pivot bolt. Note this measurement for
later use.
159
ADJUSTMENTS
Rear Suspension
Suspension Set -Up
5. Remove the stand and have a rider sit comfortably on the seat with hands on the
handlebars.
6. Place the transmission in neutral and slowly roll the machine forward and rearward at
least t en feet (3 m) without lifting or pushing down on the suspension.
7. Turn the handlebars fully to the left and right.
8. With the rider still on the vehicle, repeat the measurement performed in step 4.
9. Subtract the step 8 measurement from the step 4 measurement. The difference should
be between 4 and 4.25 inches (10.2-10.8 cm).
10. If the number is less than 4 inches (10.2 cm), decr ease the rear spring preload on both
shocks (see page 161) and repeat all steps. If the number is higher than 4.25 i nches
(10.8 cm), increase spring preload and repeat all steps.
160
ADJUSTMENTS
Rear Suspension
Use a flat blade screwdriver to make damping adjustments.
NOTE: When the adjuster screw is turned clockwise until it stops, the damping is in the
fully closed position.
Rear Shock
Setting Compression Damping
Softest 18 clicks from closed
Factory 8 clicks from closed
Firmest 2 clicks from closed
161
ADJUSTMENTS
Rear Suspension
The rear suspension spring preload, shock rebound damping
and shock compression damping may be adjusted to suit
different riding conditions and operator weight.
Spring Preload
1. Raise and safely support t he rear of the ATV off the
ground to allow the suspension to fully extend.
2. Loosen the jam nut (1) and back it away from the
adjusting ring.
3. Turn the adjusting ring (2) clockwise (A) to increase
preload. Turn the ring counter-clockwise (B) to
decrease preload.
4. Tighten the j am nut firmly against the adjuster ring.
A
B
1
2
1
A
B
162
ADJUSTMENTS
Rear Suspension
Compression Damping
The compression damping clickers (1) are locat ed on top
of the shocks (under the rear fenders).
Use a screwdriver to make adjustments. To increase
compression damping, turn the clicker clockwise (A). To
decrease compression damping, turn the clicker
counter-clockwise (B).
The factory setting is at 8 clicks from fully closed.
163
ADJUSTMENTS
Clutch Lever Freeplay
1. Measure clutch lever freeplay between
the perch and the lever (A). This
distance should be 1/8″ -3/16″
(3.1 mm - 4.7 mm).
2. If adjustment is required, slide t he
clutch perch pivot boot down the
clutch cable to access the clutch
adjustment screw (B) and l ock ring (C).
3. Loosen the lock ring and turn the screw in (clockwise) to increase lever travel. Turn
the screw out (counterclockwise) to decrease lever travel. Tighten the lock ring.
4. Squeeze the lever fully and release. Slightly squeeze the lever again until a slight
resistance is felt. Measure the freeplay again. If necessary, repeat the adjustment
procedure until proper freeplay is attained.
5. Replace the clutch perch pivot boot over the screw and lock ring.
C
B
A
164
ADJUSTMENTS
Throttle Cable Freeplay
WARNING
Improper adjustment of throttle cable freeplay can result in loss of control, which could
result in serious injury or death. Polaris recommends that this procedure be performed
by a Polaris dealer to ensure that it’s done correctly. Mechanically knowledgeable
persons who perform this procedure must follow the adjustment procedures exactly.
Throttle cable freeplay is adjusted at the handlebar.
1. Slide the boots (1) off the inline cable
adjuster sleeve (2) and loosen the adjuster
locknut (3).
2. Turn the adjuster until 1/16″ to 1/8″
freeplay is achieved at the thumb lever.
NOTE: While adjusting freeplay, be sure to flip the throttle lever back and forth.
3. Tighten the l ocknut and slide the boots over the cable adjuster until they touch at the
midpoint of the adjuster.
1
2
1
3
165
ADJUSTMENTS
Carburetor/Idle RPM
If the engine idle speed is not satisfactory, and all other
conditions are favorable, the carburetor can be adjusted.
1. Warm up the engine by running the vehicle for five minutes,
or until operating temperature is reached.
2. Apply t he park brake and place the transmission in neutral.
3. Adjust the carburetor idle screw (1) either in or out until the
desired idle RPM is reached. T urning the screw in
(clockwise) will raise RPM. Turning the screw out
(counterclockwise) will lower RPM.
1
166
ADJUSTMENTS
Carburetor/Idle RPM
Carburetor re-j etting can be perform ed to compensate for altitude and/or temperature
changes. If the vehicle is to be operated at various altitudes and temperatures, certain
adjustments can be made to improve its operation and driveability. Above 6000 feet (1800
m) the engine air/fuel mixture becomes overly rich. An engine loses approximately 3% of
its power for each 1000-foot (305 m) increase in elevation. Although this power cannot be
regained, changes to the carburetor and drive system can be made to allow more efficient
operation.
NOTE: Contact your dealer for altitude adjustments. Your dealer has the training and
special tools required to perform these modifications.
167
CLEANING AND STORAGE
NOTE: See page 181 for the part numbers of Polaris products.
Cleaning the ATV
Keeping your ATV clean will not only improve its appearance but it can also extend the life
of various components.
Washing the ATV
CAUTION
Do not use a high pressure washer for washing the ATV. Serious damage will result
to wheel bearings, chains, transmission seals, body panels, brakes and decals.
Clean your ATV with a garden hose and a pai l of mild soap and water. Use a professional
type washing mitten, cleaning the upper body first and the lower parts last. Rinse with
water frequently and dry with a chamois to prevent water spots.
NOTE: If warning and safety decals are damaged, contact your Polaris dealer for free
replacement. Grease all zerk fittings immediately after washing, and allow the
vehicle to run for a while to evaporate any water that may have entered the
engine or exhaust system.
168
CLEANING AND STORAGE
Waxing the ATV
Your ATV can be waxed with any non-abrasive automotive paste wax. Avoid the use of
harsh cleaners since they can scratch the body finish.
CAUTION
Certain products, including insect repellants and chemicals, will damage plastic
surfaces. Use caution when using these products near plastic surfaces.
169
CLEANING AND STORAGE
Storage Recommendations
CAUTION
Starting the engine during the storage period will disturb the protective film created by
fogging and damage could occur . Never start the engine during the storage period.
Clean the Exterior
Make necessary repairs and then clean the ATV thoroughly as outlined on page 167.
Stabilize the Fuel
Add Polaris Carbon Clean F uel Treatment or Polaris Fuel Stabilizer to the fuel t ank,
following the instructions on the containe r for the reco mmended amount. Fill the fuel tank
with fuel. Allow 15-20 minutes of operation for the stabilize r to disperse through the fuel in
the tank and car buretor. T urn the fuel valve of f and drain the carbur etor bowl.
NOTE: Carbon Clean will also reduce the possibility of bacterial growth in the fuel system.
170
CLEANING AND STORAGE
Storage Recommendations
Oil and Filter
Warm the engine and change the oil and filter. See page 107.
Air Filter / A ir B ox
Inspe ct and cle an or re place the pre- clea ner and air filter. Clean the air box and drain the
sediment tube.
Breather Filter
Inspect and clean or replace the breather filter (inside the airbox).
Fluid Levels
Inspect all fluid levels and change as outlined in the Maintenance Schedule beginning on
page 94.
Battery
Refer to pages 136-138 for battery storage and battery charging procedures.
171
CLEANING AND STORAGE
Storage Recommendations
Fog the Engine
1. Start the engine and allow it to warm up. Turn engine off.
2. Unlatch and remove the seat.
3. Loosen the intake duct clamp at the carburetor and pull the duct off the carburetor.
4. Start the engine and spray Polaris fogging oil or a comparable product into the
carburetor, following the instructions on the fogging oil container.
5. Turn the engine off, reassemble the intake duct to the carburetor, secure the clamp, and
reinstall the seat.
172
CLEANING AND STORAGE
Storage Recommendations
Inspect and Lubricate
Inspect all cables and lubricate. Follow lubrication guidelines in the Maintenance Section
of the service or owner’s manual to completel y grease and lubricate the entire vehicle with
Polaris Premium All Season Grease.
Engine Anti- Freeze
Test engine coolant strength and add or change coolant if necessary. Replace coolant every
two years.
Storage Area/Covers
Set the tire pressure and safely support the ATV with the tires 1-2” off the ground. Be sure
the storage area is well ventilated, and cover the machine with a genuine Polaris ATV cover.
NOTE: Do not use plastic or coated materials. They do not allow enough ventilation to
prevent condensation, and may promote corrosion and oxidation.
173
CLEANING AND STORAGE
Transporting the ATV
Follow these procedures when transporting the
vehicle.
1. Turn off the engine and remove the key to
prevent loss during transporting.
2. Turn the fuel valve off.
3. Be sure the fuel cap, oil cap and seat are
installed correctly.
4. Always tie the frame of the ATV to the
transporting unit securely, as shown in the
illustration, using suitable straps or rope.
5. Always place the transmission in first gear and
lock the parking brake.
174
TROUBLESHOOTING
Contact your Polaris dealer for service if you’re unable to identify solutions using the
following charts.
Engine Doesn’t Turn Over
Possible Cause Solution
Fuseable link See Polaris dealer for replacement
Low battery voltage Recharge battery to 12.8 VDC
Loose battery connections Check all connections and tighten
Loose solenoid connections Check all connections and tighten
175
TROUBLESHOOTING
Engine Turns Over, Fails to Start
Possible Cause Solution
Out of fuel Turn fuel valve to reserve, refuel
Clogged fuel valve Inspect and clean or replace
Water is present in fuel Drain the fuel system and refuel
Fuel valve is turned off Turn the fuel valve on
Old, poor or non-recommended fuel Drain and replace with new fuel
Fouled or defective spark plug Inspect plug(s), replace if necessary
No spark to spark plug Inspect plug(s), verify stop switch is on
Overuse of choke Inspect, clean and/or replace spark plugs
Low battery voltage Recharge battery to 12.8 VDC
Mechanical failure See your Polaris dealer
Throttle ETC switch not opening Adjust throttle freeplay
176
TROUBLESHOOTING
Engine Pings or Knocks
Possible Cause Solution
Poor quality or low octane fuel Replace with recommended fuel
Incorrect ignition timing See your Polaris dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Engine Backfires
Possible Cause Solution
Weak, fouled or defective spark plug Inspect, clean and/or replace spark plugs
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Old, poor or non-recommended fuel Replace with new fuel
Incorrectly installed spark plug wire See your Polaris dealer
Incorrect ignition timing See your Polaris dealer
Mechanical failure See your Polaris dealer
177
TROUBLESHOOTING
Engine Runs Irregularly, Stalls or Misfires
Possible Cause Solution
Fouled or defective spark plug Inspect, clean and/or replace spark plugs
Worn or defective spark plug wire See your Polaris dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Loose ignition connections Check all connections and tighten
Water present in fuel Replace with new fuel
Low battery voltage Recharge battery to 12.8 VDC or replace
Kinked or plugged fuel tank vent line Inspect and replace
Old, poor or non-recommended fuel Replace with recommended fuel
Clogged air filter Inspect and clean or replace
Electronic throttle control (ETC) malfunction See your Polaris dealer
Other mechanical failure See your Polaris dealer
178
TROUBLESHOOTING
Engine Runs Irregularly, Stalls or Misfires
Possible Lean Fuel Mixture Cause Solution
Low or contaminated fuel Add or change fuel, clean the fuel system
Low octane fuel Replace with recommended fuel
Old, poor or non-recommended fuel Replace with recommended fuel
Clogged fuel valve screen See your Polaris dealer
Incorrect jetting See your Polaris dealer
Possible Rich Fuel Mixture Cause Solution
Overuse of choke Inspect, clean and/or replace spark plugs
Fuel is very high octane Replace with recommended lower octane fuel
Incorrect jetting See your Polaris dealer
Plugged, dirty or wet air filter Clean pre-filter, replace main filter as needed
179
TROUBLESHOOTING
Engine Stops or Loses Power
Possible Cause Solution
Out of fuel Turn fuel valve to reserve, refuel
Kinked or plugged fuel vent line Inspect and replace
Water present in fuel Replace with new fuel
Overuse of choke Inspect, clean and/or replace spark plugs
Fouled or defective spark plug Inspect, clean and/or replace spark plugs
Worn or defective spark plug wire See your Polaris dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Loose ignition connections Check all connections and tighten
Low battery voltage Recharge battery to 12.8 VDC or replace
Old, poor or non-recommended fuel Replace with recommended fuel
180
TROUBLESHOOTING
Engine Stops or Loses Power
Possible Cause Solution
Clogged, dirty or wet air filter Inspect and clean or replace
Electronic throttle control (ETC) malfunction See your Polaris dealer
Other mechanical failure See your Polaris dealer
Overheated engine Clean radiator screen and core if equipped
Clean engine exterior
See your Polaris dealer
Engine Overheating
Possible Cause Solution
Debris lodged in screen Remove and clean the screen.
Plugged radiator Use a garden hose to flush any debris from the radiator
fins. NOTE: High pressure washers can deform the
radiator fins and reduce cooling efficiency.
181
POLARIS PRODUCTS
Part # Description Part # Description
Engine Lubricant Coolant
2874414 Performance Synthetic 4-Stroke (PS-4) Oil (qt.) 2871323 60/40 Coolant (gal.)
2874415 PS-4 Oil (gal.) 2871534 60/40 Coolant (qt.)
Grease / Specialized Lubricants
2871312 Grease Gun Kit, Premium All Season (3 oz.) Additives / Miscellaneous
2871322 Premium All Season Grease (3 oz. cartridge) 2871326 Carbon Clean Plus (12 oz.)
2871423 Premium All Season Grease (14 oz. cartridge) 2870652 Fuel Stabilizer (16 oz.)
2871460 Starter Drive Grease (2 oz.) 2870990 DOT3 Brake Fluid (12 oz.)
2871329 Dielectric Grease (Nyogelt) 2872893 Engine Degreaser (12 oz.)
2872073 Chain Lube (6.25 oz. aerosol)
2872348 Chain Lube (16 oz. aerosol)
1350046 Rear Shaft Grease (30 g)
182
SPECIFICATIONS
OUTLAW
Gross Vehicle Weight 645 lbs./292 kg Pilot Jet 37.5
Fuel Capacity 3.25 gal./12.3 l Main Jet 145
Overall Length 71.5 in./182 cm Needle Jet O-0
Overall Width 47.5 in./121 cm Jet Needle 6GL68-40-#2
Overall Height 45 in./114 cm Alternator Output 200 w @ 3000 RPM
Wheelbase 51 in./130 cm Compression Ratio 10.8:1
Ground Clearance 11.5 in./29 cm Starting System Electric
Dry Weight 439 lbs./199 kg Carburetor BSR 42m m
Minimum Turning Radius 67 in./170 cm Ignition System CDI
Engine Oil Capacity 2.25 qts./2.1 l Ignition Timing 30°±3° @ 3500 RPM
Coolant Capacity 2.25 qts./2.1 l SparkPlug/Gap NGK DCPR8E / 0 .9 mm / .035 in.
Engine ES50PLX Lubrication System Dry Sump
Displacement 499 cc
Bore x Stroke 99.2 x 64.6 mm
183
SPECIFICATIONS
OUTLAW
Driving System Type Rear Two-Wheel Drive Tire Size/Pressure - Front 21x7R10/5psi
Shift Type 5 -Speed Manual Shift Tire Size/Pressure - Rear 20x10R9/5psi
Primary Ratio 2.880 Front Brake Hydraulic Disc
Gear Ratio - 1 st 2.357 Rear Brake Hydraulic Disc
Gear Ratio - 2nd 1.867 Parking Brake Hydraulic lock, front wheel
Gear Ratio - 3 rd 1.529 Headlights 2 - Dual Beam (35w/35w)
Gear Ratio - 4th 1.238 Taillights LED
Gear Ratio - 5th 0.920 Brakelight 26.9w
Gear Ratio - Rev 2.072
Jetting Chart
Altitude AMBIENT
TEMPERATURE
Below 40° F
(Below 5° C)
+40° F and above (+5° C and above)
Meters
(Feet)
0-1800
(0-6000)
150 145
(
F
e
e
t
)
1800-3700
(6000-12000)
142.5 137.5
184
WARRANTY
LIMITED WARRANTY
Polaris Sales Inc., 2100 Highway 55, Medina, MN 55340, gives a SIX MONTH LIMITED WARRANTY on all
components of the Polaris All Terrain Vehicle (ATV) against defects in material or workmanship. Polaris also
gives a one year limited warranty on the final drive chain for failure due to defects. This warranty covers the parts
and labor charges for repair or replacement of defective parts which are covered by this warranty. This warranty
begins on the date of purchase. This warranty is transferrable to another consumer during the warranty period
through a Polaris dealer.
REGISTRATION
At the time of sale, the Warranty Registration Form must be completed by your dealer and submitted to Polaris
within ten days. Upon receipt of this registration, Polaris will record the registration for warranty. No verification
of registration will be sent to the purchaser as the copy of the Warranty Registration Form will be the warranty
entitlement. If you have not signed the original registration and received the “customer copy”, please contact your
dealer immediately. NO WARRANTY COVERAGE WILL BE ALLOWED UNLESS YOUR AT V IS REG-
ISTERED WITH POLARIS.
Initial dealer preparation and set-up of your ATV is very important in ensuring trouble-free operation. Purchasing
a machine in the crate or without proper dealer set-up will void your warranty coverage.
185
WARRANTY
WARRANTY COVERAGE AND EXCLUSIONS:
LIMITATIONS OF WARRANTIES AND REMEDIES
The Polaris limited warranty excludes any failures that are not caused by a defect in material or workmanship.
This warranty does not cover accidental damage, normal wear and tear , abuse or improper handling. This warranty
also does not cover any ATV that has been altered structurally, modified, neglected, improperly maintained, used
for racing, or used for purposes other than for which it was manufactured, or for any damages which occur during
trailer transit or as a result of unauthorized service or the use of unauthorized parts. In addition, this warranty does
not cover physical damage to paint or finish, stress cracks, tearing or puncturing of upholstery material, corrosion,
or defects in parts, components or the ATV due to fire, explosions or any other cause beyond Polaris’ control.
This warranty does not cover the use of unauthorized lubricants, chemicals, or fuels that are not compatible with
the ATV. The exclusive remedy for breach of this warranty shall be, at Polaris’ exclusive option, repair or replace-
ment of any defective materials, or components or p roducts. THE REMEDIES SET FORTH IN THIS WARRAN-
TY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS WARRANTY.
POLARIS SHALL HAVE NO LIABILITY TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR
SPECIAL DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF EXPRESS OR IMPLIED
WARRANTY OR ANY OTHER CONTRACT, NEGLIGENCE, OR OTHER TORT OR OTHERWISE. S ome
states do not permit the exclusion or limitation of incidental or consequential damages or implied warranties, so
the above limitations or exclusions may not apply to you if inconsistent with controlling state law.
186
WARRANTY
WARRANTY COVERAGE AND EXCLUSIONS:
LIMITATIONS OF WARRANTIES AND REMEDIES
ALL IMPLIED WARRANTIES (INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION
TO THE ABOVE SIX MONTH WARRANTY PERIOD. POLARIS FURTHER DISCLAIMS ALL EXPRESS
WARRANTIES NOT STATED IN THIS WARRANTY. Some states do not allow limitations on how long an
implied warranty lasts, so the above limitation may not apply to you if inconsistent with controlling state law.
187
WARRANTY
HOW TO OBTAIN WARRANTY SERVICE
If your ATV requires warranty service, you must take it to a Polaris dealer authorized to repair Polaris ATVs.
When requesting warranty service you must present your copy of the Warranty Registration form to the dealer.
(THE COST OF TRANSPORTAT ION TO AND FROM THE DEALER IS YOUR RESPONSIBILIT Y). Polaris
suggests that you use your original selling dealer; however , you may use any Polaris Servicing Dealer to perform
warranty service.
Please work with your dealer to resolve any warranty issues. Should your dealer require any additional assistance
they will contact the appropriate personnel at Polaris.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
If any of the above terms are void because of state or federal law, all other warranty terms will remain in effect.
Engine Oil
1. Mixing oil brands or using non-recommended oil may cause engine damage. We recommend the use of Polaris
engine oil.
2. Damage resulting from the use of non-recommended lubricants may not be covered by warranty.
SPARK ARRESTOR
Polaris warrants that the spark arrestor in this vehicle will meet the efficiency requirements of 43 CFR 8340.1(c)
for at least 1000 hours when subjected to normal use and when maintenance and installation are in accordance
with Polaris recommendations.
188
WARRANTY
Exported Vehicles
EXCEPT WHERE SPECIFICALLY REQUIRED BY LAW, THERE IS NO WARRANTY OR SERVICE BUL-
LETIN COVERAGE ON THIS VEHICLE IF IT IS SOLD OUTSIDE THE COUNTRY OF THE SELLING
DEALER’S AUTHORIZED LOCATION.
This policy does not apply to vehicles that have received authorization for export from Polaris Industries. Dealers
may not give authorization for export. You should consult an authorized dealer to determine this vehicle’s warran-
ty or service bulletin coverage if you have any questions.
This policy does not apply to vehicles registered to government officials or military personnel on assignment out-
side the country of the selling dealer’s authorized location.
This policy does not apply to Safety Recalls.
189
WARRANTY
Exported Vehicles
How to Get Service
In the Country where your vehicle was purchased:
Warranty or Service Bulletin repairs must be done by an authorized Polaris dealer. If you move or are traveling
within the country where your vehicle was purchased, Warranty or Service Bulletin repairs may be requested from
any authorized Polaris dealer who sells the same line as your vehicle.
Outside the Country where your vehicle was purchased:
If you are traveling temporarily outside the country where your vehicle was purchased, you should take your ve-
hicle to an authorized Polaris dealer. You must show the dealer photo identification from the country of the selling
dealer ’s authorized location as proof of residence. Upon residence verification, the servicing dealer will be autho-
rized to perform the warranty repair.
If You Move:
If you move to another country, be sure to contact Polaris Customer Assistance an d the customs department of the
destination country before you move. Vehicles importation rules vary considerably from country to country. You
may be required to present documentation of your move to Polaris Industries in order to continue your warranty
coverage. You may also be required to obtain documentation from Polaris Industries in order to register your ve-
hicle in your new country.
190
WARRANTY
Exported Vehicles
How to Get Service
If Purchased From A Private Party:
If you purchase a Polaris product from a private citizen outside of the country in which the vehicle was originally
purchased, all warranty coverage will be denied.
Notice
If your vehicle is registered outside of the country where it was purchased, and you have not followed the proce-
dure set out above, your vehicle will no longer be eligible for warranty or service bulletin coverage of any kind.
(Vehicles registered to Government officials or military personnel on assignment outside of the country where the
vehicle was purchased will continue to be covered by the basic warranty.)
For questions call Polaris Customer Assistance:
United States: 1-763-417-8650
Canada: 1-204-925-7100
191
WARRANTY
U.S.A. EPA Emissions Limited W arranty
This All Terrain Vehicle (ATV) or Off Road Utility Vehicle (ORUV) emissions limited warranty is in addition to
the Polaris standard limited warranty for this vehicle.
Polaris warrants that this vehicle is; (1) designed, built, and equipped to conform at the time of initial sale with the
requirements of 40 CFR 1051 and, (2) free from defects in materials and workmanship that may keep it from
meeting these requirements.
The emissions warranty period for this vehicle begins on the date the vehicle is delivered to the original retail pur-
chaser and ends 30 months (2.5 years) after that date, or after 5000 km (3100 miles), whichever comes first.
This emission-related warranty covers components whose failure would increase an engine’s emissions, including
electronic controls, fuel injection, exhaust-gas recirculation, aftertreatment, or any other system utilized in this
vehicle to control emissions. Replacing or repairing other components not covered by this emissions warranty or
the standard warranty is the responsibility of the owner; including the parts, labor and other costs associated with
recommended maintenance.
192
WARRANTY
U.S.A. EPA Emissions Limited W arranty
The exclusive remedy for breach of this limited warranty shall be, at the exclusive option of Polaris, repair or re-
placement of any defective materials, components or products. THE REMEDIES SET FORTH IN THIS LIM-
ITED WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON FOR BREACH OF THIS
WARRANTY. POLARIS SHALL HAVE NO LIABILITY TO ANY PERSON FOR INCIDENTAL, CONSE-
QUENTIAL OR SPECIAL DAMAGES OF ANY DESCRIPTION,WHETHER ARISING OUT OF EXPRESS
OR IMPLIED WARRANTY OR ANY OTHER CONTRACT, NEGLIGENCE OR OTHER TORT OR OTHER-
WISE.
ALL IMPLIED WARRANTIES (INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) ARE LIMITED IN DURATION
TO THE WARRANTY PERIOD DESCRIBED HEREIN. POLARIS DISCLAIMS ALL EXPRESS WARRAN-
TIES NOT STATED IN THIS WARRANTY. Some states do not allow limitations on how long an implied war-
ranty lasts, so the above limitation may not apply if it is inconsistent with the controlling state law.
This limited warranty excludes failures not caused by a defect in material or workmanship. This limited warranty
does not cover damage due to accidents, abuse or improper handling, maintenance or use. This limited warranty
also does not cover any engine that has been structurally altered, or any engine that has been used in racing com-
petition. This limited warranty also does not cover physical damage, corrosion or defects caused by fire, explo-
sions or other similar causes beyond the control of Polaris.
If you have any questions regarding your warranty rights and responsibilities, you should contact the Polaris War-
ranty Department at 1-763-417-8650.
193
MAINTENANCE LOG
Periodic Maintenan ce Record
Use the following chart to record periodic maintenance.
Maintenance
Interval
Performed
Servicing
Date
Servicing
Dealer
or Person
Remarks
10 hrs.
20 hrs.
50 hrs.
100 hrs.
194
MAINTENANCE LOG
Periodic Maintenan ce Record
Maintenance
Interval
Performed
Servicing
Date
Servicing
Dealer
or Person
Remarks
195
MAINTENANCE LOG
Periodic Maintenan ce Record
Maintenance
Interval
Performed
Servicing
Date
Servicing
Dealer
or Person
Remarks
196
Index
A
Air Filter Systems 116-117.......
B
Battery 135..................
Battery Charging 138-139........
Battery Installation 137.........
Battery Removal 136...........
Battery Storage 136............
Boot Burping 145.............
Boot Inspection 144............
Brake Fluid 58-59..............
Brake Levers 57...............
Brakes 146 -147................
Break-In Period 70-71..........
C
Cab Removal, Front 123........
Cab Removal, Rear 124.........
Camber and Caster 153.........
Carburetor/Idle RPM 165-166....
Chain Tension 150-151..........
Choke 64....................
Clutch Lever 55...............
Clutch Lever Freeplay 163......
Compression Damping 1 6 2......
C
Coolant Level, Radiator 115......
Coolant Level, Recovery Bottle 114
Cooling System 113-114........
Crankcase Emission Control 93...
D
Driving Across Hills 82.........
Driving Downhill 83...........
Driving in Reverse 90-91........
Driv ing o n Slippery Surfaces 80..
Driv ing Over Obstacles 87......
Driving Procedures 78..........
Driving Safely 78-91...........
Driving Through Water 88-89.....
Driving Uphill 81.............
E
Electrical Switches 50-51........
Electronic Throttle Control 55....
Emissions Warranty 191 -192.....
Engine Cooling System 115......
Engine Oil Level 105-106........
Equipment Modifications 25.....
Exhaust Emission Control 93....
F
Foot Brake 56................
Fuel Filter 62.................
Fuel Safety 69................
Fuel Tank 62.................
Fuel Valve 63.................
H
Handlebars 152...............
Headlight Adjustment 122.......
Headlight Assembly 120 -121.....
Headlight Lamp 119............
Helmet 12...................
I-J-K
Instrumentation 52.............
Jetting Chart 183..............
K-Turn 84...................
L
Light Switches 53.............
Lights 53, 118-122.............
Lubrication Recommendations 104
197
Index
M
Maintenance Log 193-195.......
Maintenance Schedule 94-96.....
Making Turns 79..............
Manual Shift 65 -68.............
Master Cylinder 58 -59..........
N
Noise Emission Control 92......
O
Oil Change 107-111............
Oil Filter Change 107-111.......
Oil Level 105-106..............
Oil Pump Priming 112...........
Operator Restrictions 15........
Operator Safety 14 -49...........
P
Parking Brake 60-61............
ParkingonanIncline 86........
Periodic Maintenance Chart 97-103
P
Periodic Maintenance
Schedule 94-96...........
Polaris Products 181...........
Pre-Ride Inspection 72 -73.......
R
Reverse Lock -Out Switch 67.....
S
Safe Riding Gear 12-13.........
Safety Decals and Locations 8 -11..
Safety Training 16-17...........
Shift Pedal 65................
Shifting Gears 66..............
Side Panel Removal 123........
Spark Arrestor Clean-Out 130-131.
Spark Plugs 125-129............
Spring Preload, Front 156-157....
Spring Preload, Rear 161........
Starting a Cold Engine 74 -76.....
Starting a Warm Engine 77......
Steering Assembly 153.........
S
Storage Recommendations 169-172
Suspension Adjust, Fron t 154-157.
Suspension Adjust, Rear 158-162..
Suspension Set-Up, Front 154-155.
Suspension Set-Up, Rear 158-159.
Switches, Electrical 50-51........
T
Throttle Cable Freeplay 164.....
Throttle Lever 54..............
Tires 140 -141.................
Toe Alignment 148 -149.........
Transporting the ATV 1 73.......
Turning Around on a Hill 84 -85...
V
Vehicle Immersion 132-134......
W
Wheel Installation 142..........
Wheel Nut Torque 143.........
Wheel Removal 141...........
