1
Lowes.com/harborbreeze
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m.,
EST, Friday.
ATTACH YOUR RECEIPT HERE
Serial Number _________________________ Purchase Date _________________________
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
AB15786
ITEM #0747610
ABERLY COVE CEILING FAN
MODEL #40842
Español p. 23
2
Lowes.com/harborbreeze
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Closemount Instructions ...........................................................11
Wiring .........................................................................12
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operating Instructions .............................................................17
Care and Maintenance ............................................................19
Troubleshooting ..................................................................19
Limited Lifetime Warranty ..........................................................21
Replacement Parts List ............................................................22
3
Lowes.com/harborbreeze

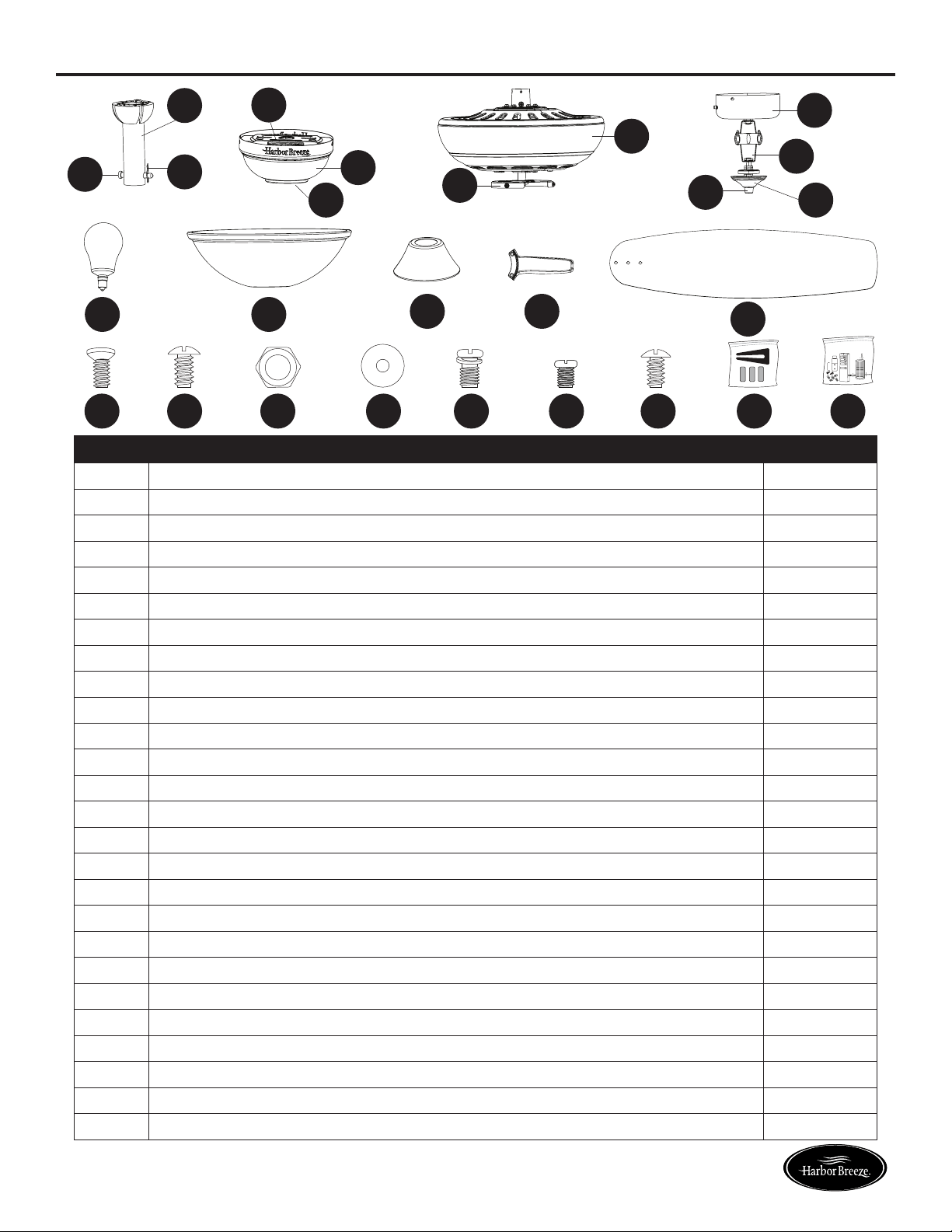

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to Downrod [A]) 1
C Downrod Clip (preassembled to Downrod [A]) 1
D Mounting Bracket (preassembled to Canopy [E]) 1
E Canopy 1
F Canopy Cover (preassembled to Canopy [E]) 1
G Motor Assembly 1
H Fitter Plate (preassembled to Motor Assembly [G]) 1
I Switch Housing (preassembled to Light Kit [J]) 1
J Light Kit 1
K Finial Cap (preassembled to Light Kit [J]) 1
L Finial (preassembled to Light Kit [J]) 1
M Bulb 3
N Glass Bowl 1
O Yoke Cover 1
P Blade Arm 5
Q Blade 5
R Motor Screw (preassembled to Motor Assembly [G]) 10 + 1 extra
S Mounting Bracket Screw (preassembled to Mounting Bracket [D]) 4
T Hex Nut (preassembled to Light Kit [J]) 1
U Rubber Washer (preassembled to Light Kit [J]) 1
V Phillips-head Closemount Screw (preassembled to Motor Assembly [G]) 3
W Set Screw (preassembled to Motor Assembly [G]) 2
X Fitter Plate Screw (preassembled to Fitter Plate [H]) 3
Y Blade Balancing Kit 1
Z Remote Pack 1
A
C
B
D
E
F
G
H
I
J
K
L
M N
O P
Q
R S T U V W X Y Z
4
Lowes.com/harborbreeze
HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 1
+ 1 extra
Blade Screw
Qty. 15
+ 1 extra
Blade Washer
Qty. 15
+ 1 extra
Plug Button
Qty. 1
AA
BB CC DD
5
Lowes.com/harborbreeze
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
CodeandANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourselfwiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
theoorandatleast30in.fromtheendofthebladestoanyobstruction.
• The net weight of this fan is: 21.5 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noisefromthefan.Toreducetheriskofreorelectricshock,doNOTuseafull-rangedimmerswitch
to control the fan speed.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,mountthefantoanoutlet
box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the
outletbox.Mostoutletboxescommonlyusedforthesupportoflightingxturesarenotacceptable
forfansupportandmayneedtobereplaced.Consultaqualiedelectricianifindoubt.Securethe
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,wireconnectorsprovided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and/or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,donotbendtheblade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.
6
Lowes.com/harborbreeze
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook
7
Lowes.com/harborbreeze

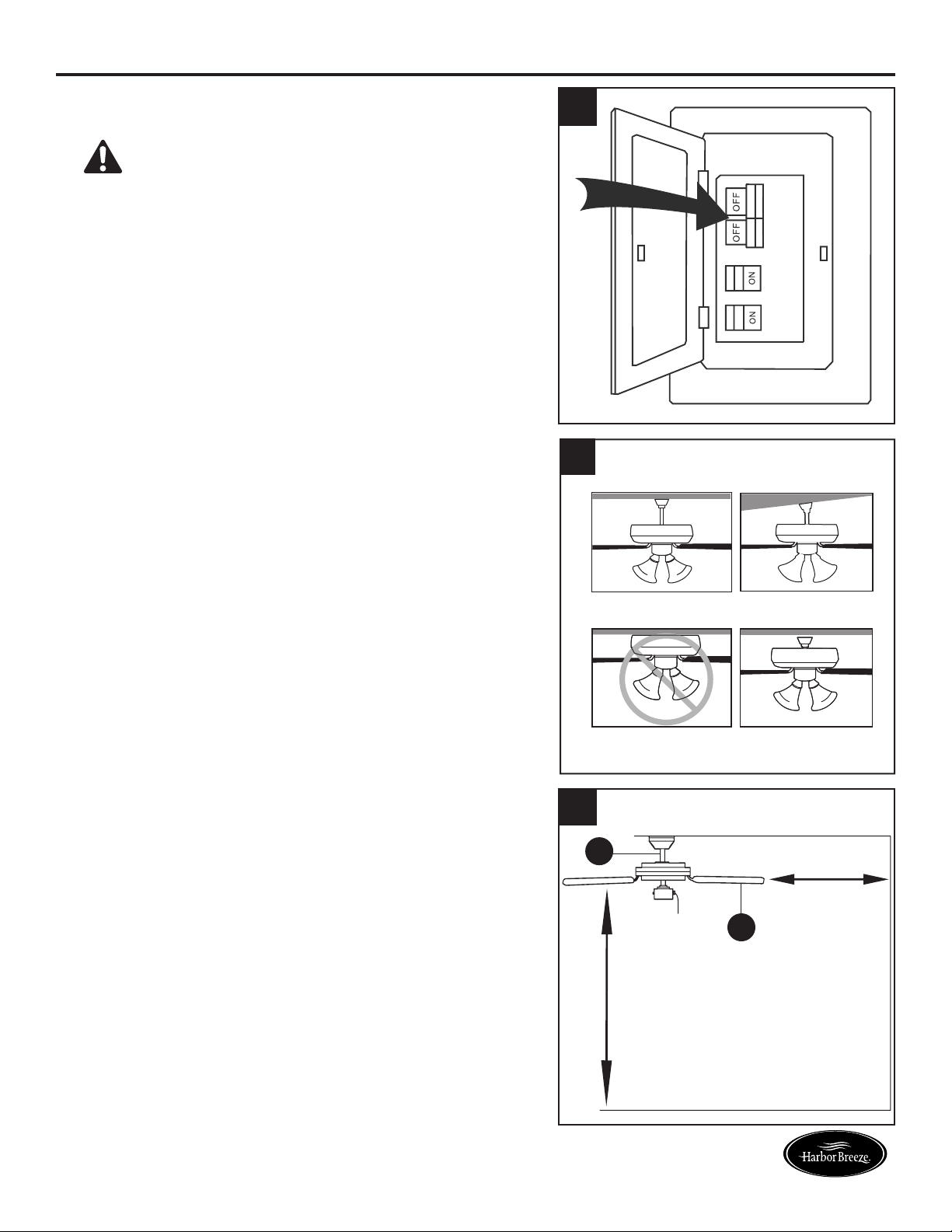

INITIAL INSTALLATION
1. Turn off the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. Determine the mounting method to use.
Standard mounting is best suited for ceilings 8 ft. or
higher. For taller ceilings you may want to use a longer
downrod (not included).
Angle-style mounting is best suited for angled or
vaulted ceilings. A longer downrod is sometimes
necessary to ensure proper blade clearance. Note:
If using the angle mount, check to ensure the ceiling
angle is not steeper than 10°.
Closemount-style mounting is more suitable for
ceilings lower than 8 ft. high.
Flushmount installation is not available for this item.
2
Standard Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (Q) will be at least 30 in. from any
obstructions. Also check the downrod (A) length to
ensure the blades (Q) will be at least 7 ft. above the
oor.
A
7 ft.
Minimum
30 in.
Minimum
3
1
A
Q
8
Lowes.com/harborbreeze
INITIAL INSTALLATION
4. Loosen all four preassembled mounting bracket
screws (S), then completely remove the two
mounting bracket screws (S) from the round holes
of canopy (E). Set aside for later use.
Detach mounting bracket (D) from canopy (E).
5. Attach mounting bracket (D) to outlet box (not
included) using screws and washers provided with
the outlet box.
CAUTION: It is very important to use the proper
hardware when installing the mounting bracket (D) as
this will support the fan.
Important: If using the angle mount, ensure the open
end of the mounting bracket (D) is installed facing the
higher point of the ceiling.
6. Remove all 10 preassembled motor screws (R) and
vepreassembledplasticmotorblocksfromthe
underside of the motor assembly (G). Discard the
motor blocks, but keep the motor screws (R) for later.
For Standard or Angle Mounting Instructions, continue
to page 9. For Closemount Instructions, proceed to
page 11.
G
5
6
4
E
D
S
D
D
R
Standard or
Closemount
Mounting
Angled
Mounting
Motor
Block
9
Lowes.com/harborbreeze

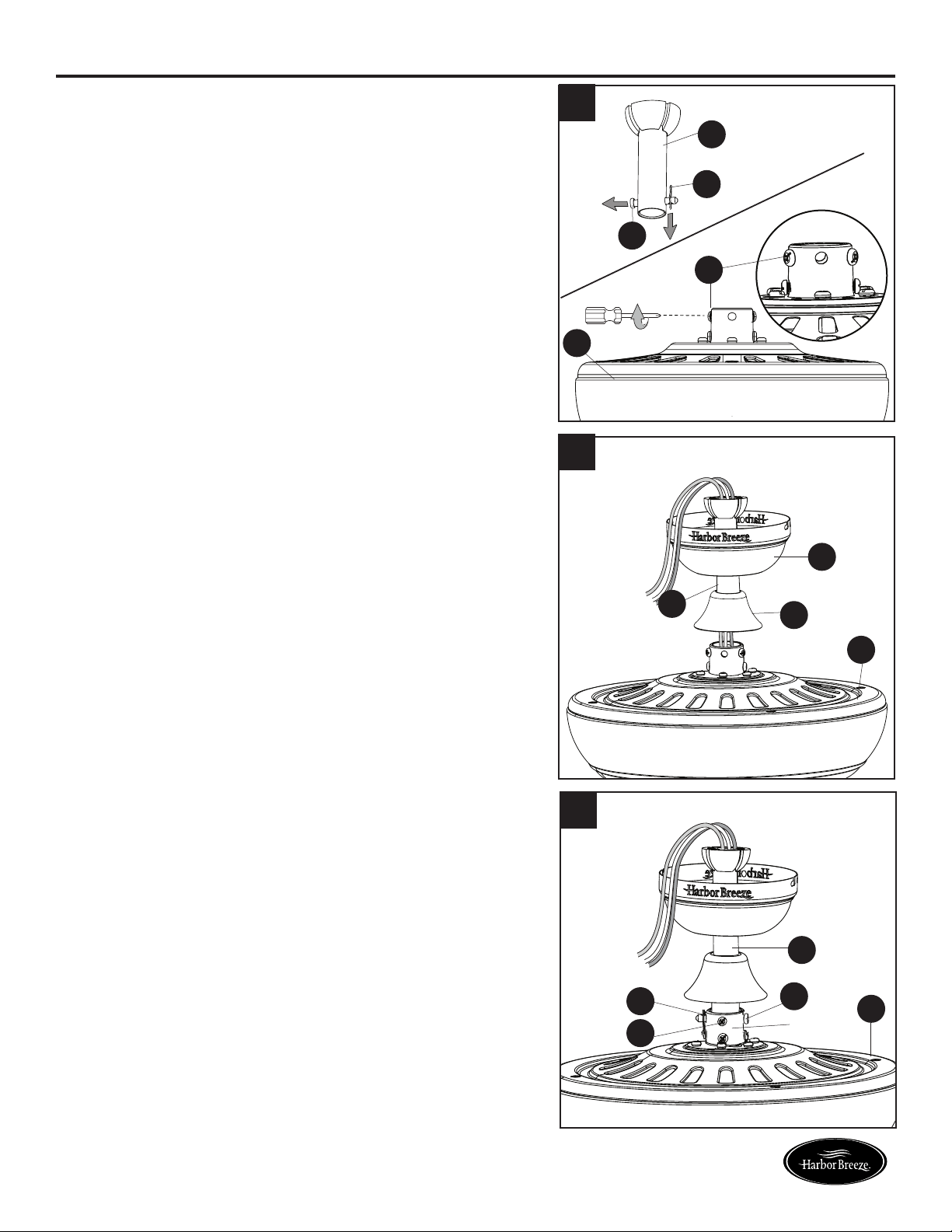

STANDARD OR ANGLE MOUNTING INSTRUCTIONS
1. Remove the downrod pin (B) and downrod clip (C) from
the downrod (A). Then partially loosen the set screws
(W) in the yoke at the top of the motor assembly (G).
2. Insert the downrod (A) through the canopy (E) and yoke
cover (O). Feed the wires from the motor assembly (G)
through the downrod (A).
3. Slide the downrod (A) into the yoke of the motor
assembly (G), align the holes, then re-install the
downrod clip (C) and downrod pin (B). Secure with set
screws (W).
A
G
B
C
W
2
E
A
O
G
3
A
C
W
B
G
Yoke
1
Yoke
10
Lowes.com/harborbreeze
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

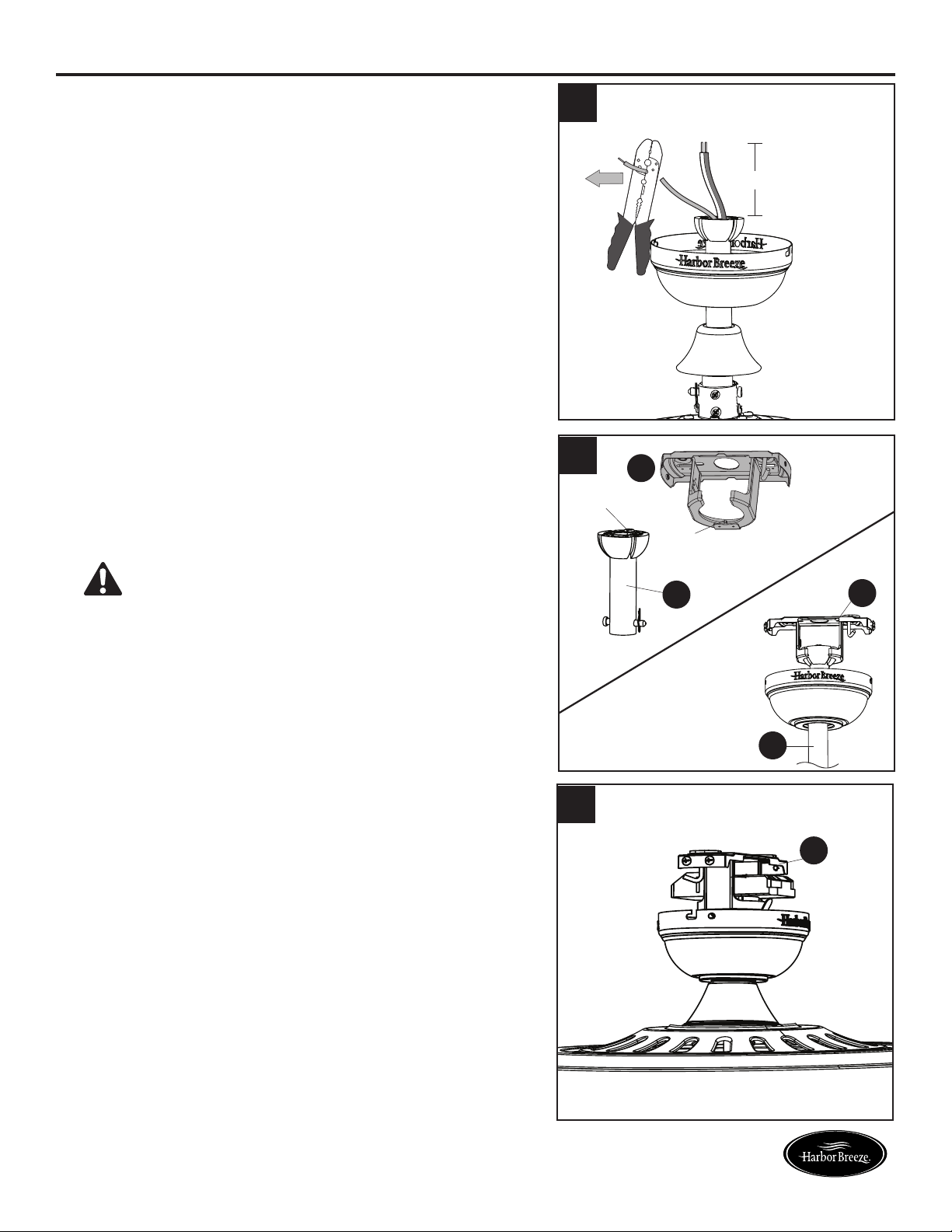

4. Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner: Take
the lead wires and make sure you have pulled them
all the way through the top of the downrod. Measure
8 inches of lead wire, then cut the excess wire off with
wire cutters (not included).
Then, strip 1/2 in. of insulation from the end of the
white wire. Twist the stripped ends of each strand of
wire within the insulation with pliers (not included).
5. Install the ball end of the downrod (A) into the opening
of mounting bracket (D). Align one of the four slots in
the ball with the tab in the mounting bracket (D).
Note: The downrod (A) should not rotate if installed
correctly.
DANGER: Failure to align the slot in the
downrod (A) with the tab of the mounting bracket (D)
may cause the fan to wobble or fall, which could result
in serious injury or death.
6. Insert the receiver from remote pack (Z) into the
mountingbracket(D)withtheatsidefacingthe
ceiling.
Proceed to the Wiring on page 12.
4
6
5
A
A
D
D
D
Tab
Slot
8 in.
11
Lowes.com/harborbreeze
CLOSEMOUNT INSTRUCTIONS
Helpful Hint: The downrod (A), canopy cover (F) and
yoke cover (O) are not used in this type of installation.
1. Remove the canopy cover (F) from the bottom of the
canopy (E).
2. Remove three Phillips-head closemount screws (V)
from the top of the motor assembly (G). Align the
canopy (E) with the holes in the top of the motor
assembly (G), then re-install the Phillips-head
closemount screws (V) to secure the canopy (E) to
the top of the motor assembly (G).
3. Raise the fan and place the canopy (E) on the hook
on the mounting bracket (D), temporarily leaving
hands free for the wiring process. Then, place the
receiver from remote pack (Z) inside the mounting
bracket(D)withtheatsidefacingtheceiling.
1
F
E
2
V
E
E
D
G
3
12
Lowes.com/harborbreeze

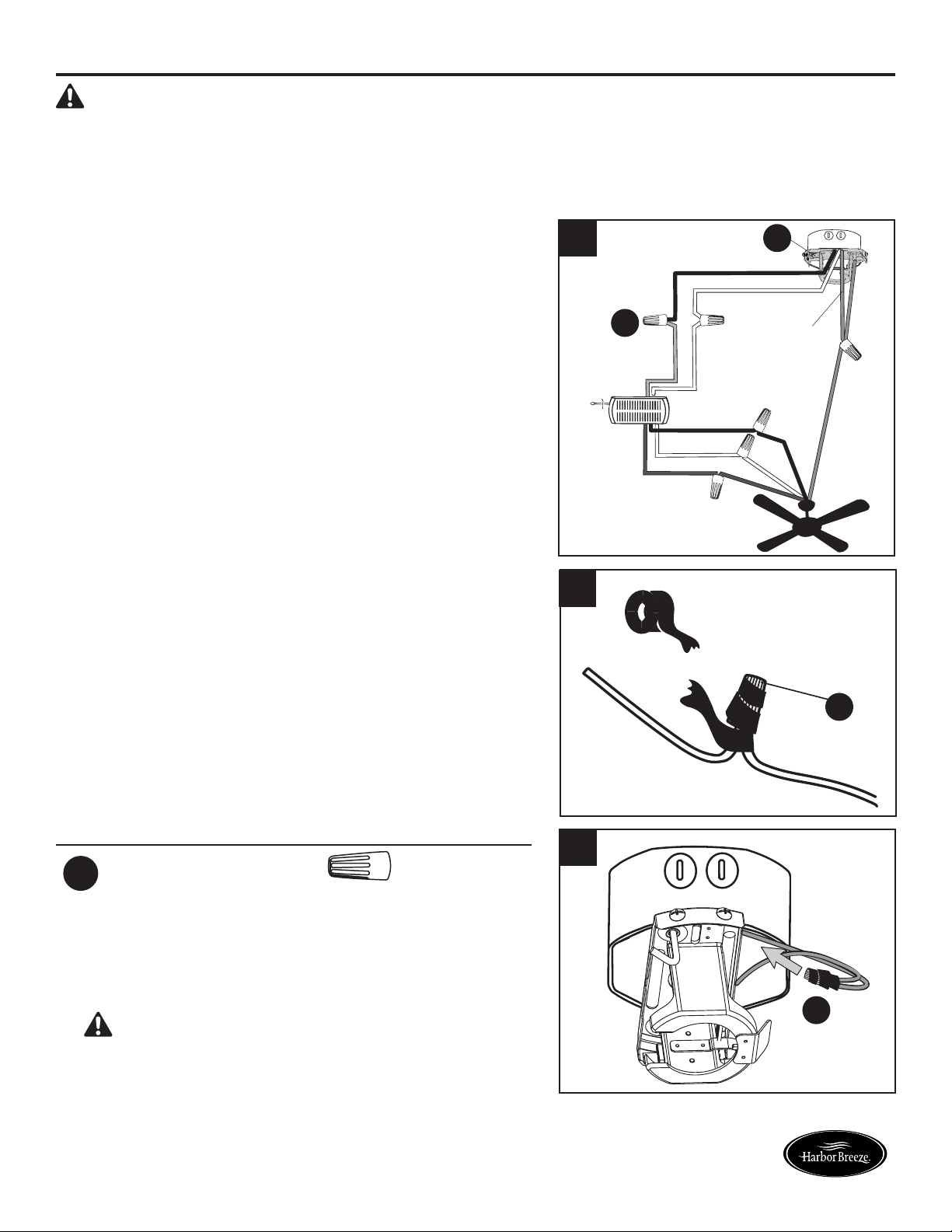

WIRING
WARNING:Toreducetheriskofre,electricalshockorpersonalinjury,wireconnectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
1. Secure all wiring connections together with wire
connector (AA) and the wire connectors from remote
pack (Z) according to the diagram and these steps:
•ConnecttheGreenwiresfromthefanandthe
mounting bracket (D) to the Bare/Green (ground)
supply wire.
•ConnecttheBluewirewithwhitelabelfromthe
receiver from remote pack (Z) to the Blue fan wire.
•ConnecttheBlackwirewithwhitelabelfromthe
receiver from remote pack (Z) to the Black fan
wire.
•ConnecttheRedwirewithredlabelfromthereceiver
from remote pack (Z) to the Black (hot/power) supply
wire.
•ConnecttheWhitewirewithredlabelfromthe
receiver from remote pack (Z) to the White
(neutral) supply wire.
•ConnecttheWhitewirewithwhitelabelfromthe
receiver from remote pack (Z) to the White fan
wire.
Important: The Blue fan wire is power for the light.
The Black wire is power for the fan. The White wire is
common/neutral. The Green wire is the ground wire. If
supply wires are different colors than referred to above,
a professional electrician should determine proper
wiring.
Hardware Used
AA
Wire Connector x 1
Black (hot/power)
White (neutral)
Bare/Green
(ground)
Red
White
White
White
Black
Blue
Blue
Black
Green
Green
Receiver
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the
Green and White wire connections on the opposite
side of the outlet box from the Black and Blue wire
connections.
1
3
AA
AA
AA
D
2
13
Lowes.com/harborbreeze
FINAL INSTALLATION
1. Align the canopy (E) over the loosened mounting
bracket screws (S) preassembled on mounting
bracket (D). Place the keyholes of the canopy (E)
onto the mounting bracket screws (S) and rotate the
canopy (E) clockwise.
2. Secure the canopy (E) with the mounting bracket
screws (S) previously removed (Step 4, page 8).
Tighten all mounting bracket screws (S) securely.
3. Partially insert the blade screws (BB) along with the
blade washers (CC) through the blade (Q) and into
the blade arm (P). Tighten each blade screw (BB) with
a Phillips screwdriver (not included), starting with the
one in the middle. Repeat this step for the remaining
blades (Q) and blade arms (P).
Hardware Used
BB
Blade Screw x 15
Blade Washer x 15
1
2
E
E
S
S
D
Note: Closemount installation will not have the downrod (A), yoke cover (O) or canopy cover (F).
3
BB
CC
Q
P
CC
14
Lowes.com/harborbreeze
FINAL INSTALLATION

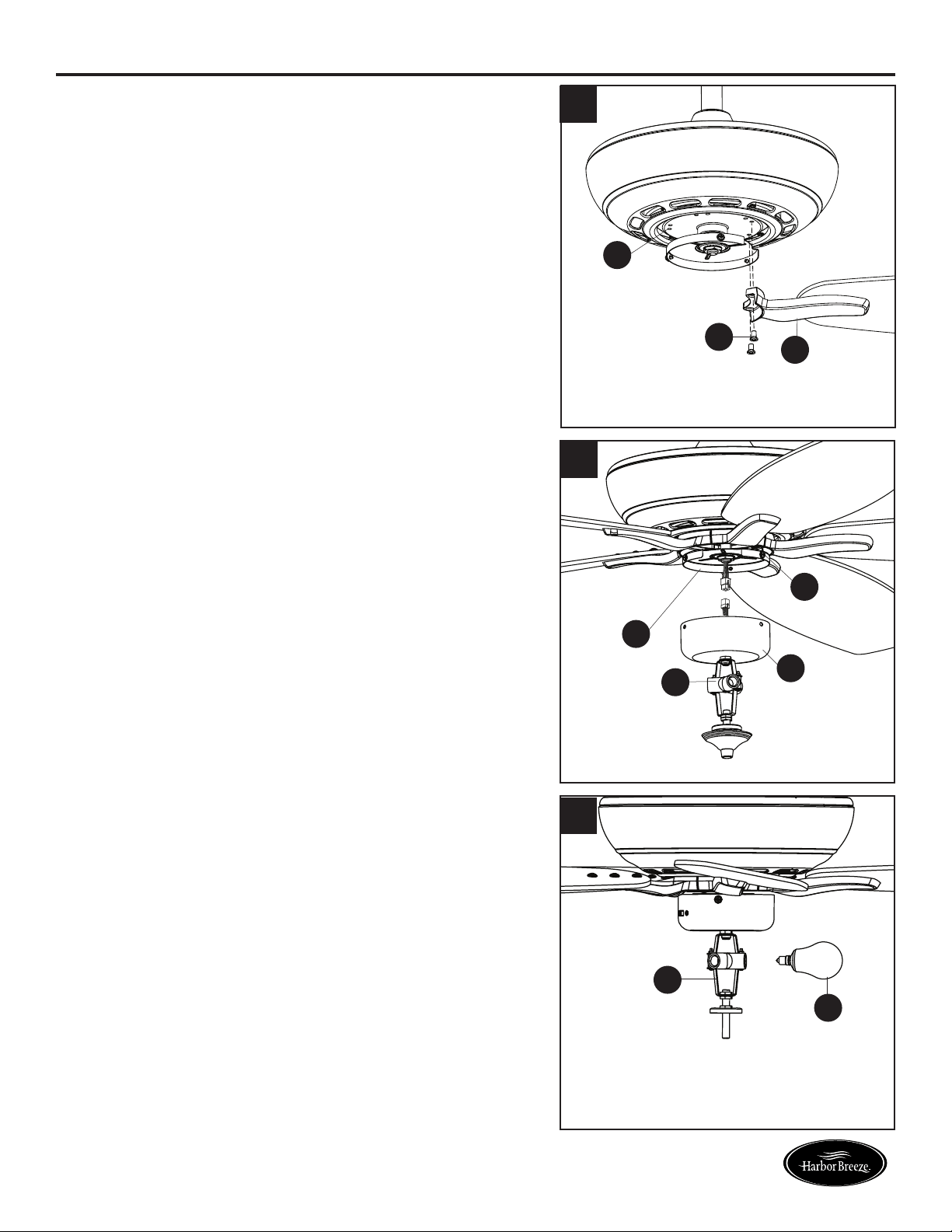

4. Install the blade arm (P) to the underside of the motor
assembly (G) with motor screws (R) previously removed
(Step 6, page 8). Tighten with Phillips screwdriver.
Repeat for each blade arm (P).
Note: If you wish to install the fan without the light kit
(J), proceed to Step 8.
5. To install the light kit (J),rstremovethethreetter
platescrews(X)fromthetterplate(H).Thenconnect
the9-pinconnectorfromthetterplate(H)tothe
9-pin connector from the light kit (J). Secure the switch
housing(I)withlightkit(J)tothetterplate(H)using
thepreviouslyremovedtterplatescrews(X).
6. Install the bulbs (M) into the sockets on the light kit (J).
IMPORTANT: Make sure you allow the bulbs (M) and
light kit (J) to cool before you replace the bulbs.
4
5
P
H
J
I
X
R
G
6
M
J
15
Lowes.com/harborbreeze
FINAL INSTALLATION

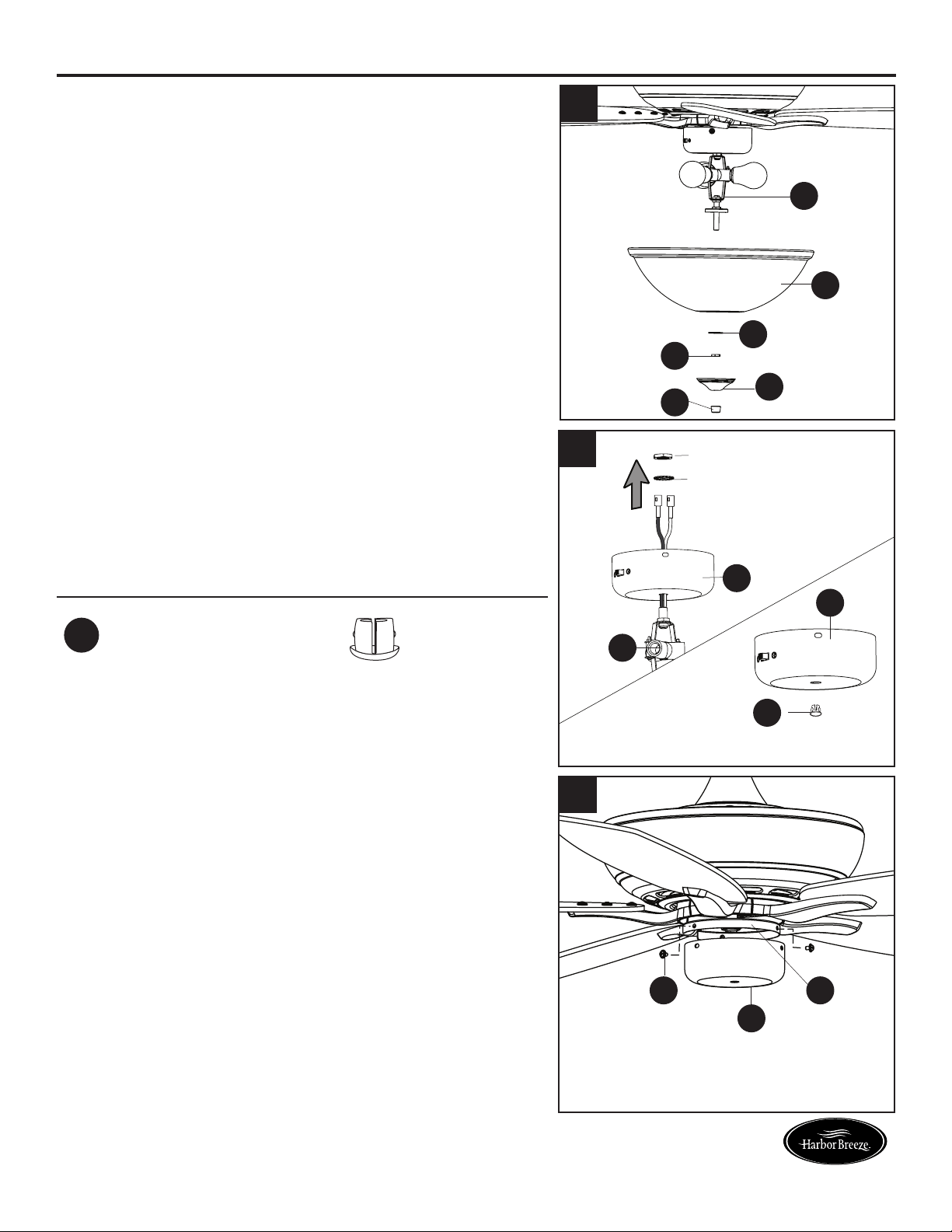

7.Removethepreassemblednial(L),nialcap(K),hex
nut (T) and rubber washer (U) from the light kit (J). Lift
the glass bowl (N) onto the threaded rod at the bottom
of the light kit (J).
Feed the pull chain coming from the grommet in the
light kit (J) through the off-center hole in the glass bowl
(N). Feed pull chain coming from the center of the light
kit (J) through the center hole in the glass bowl (N).
Secure glass bowl (N) with rubber washer (U) and hex
nut(T).Thenattachnialcap(K)andnial(L).
Proceed to Step 10.
8. To install the fan without the light kit (J), remove
the preassembled hex nut and lock washer from the
threaded rod on the inside of the switch housing (I).
Remove light kit (J) from the switch housing (I) and
discard, then install the plug button (DD) into the center
hole of the switch housing (I).
Hardware Used
DD
Plug Button x 1
9. Removethethreetterplatescrews(X)fromthetter
plate (H). Then, attachtheswitchhousing(I)tothetter
plate(H)usingthetterplatescrews(X).
8
I
DD
I
J
U
N
J
T
K
L
7
I
X H
9
Hex Nut
Lock Washer
16
Lowes.com/harborbreeze
FINAL INSTALLATION

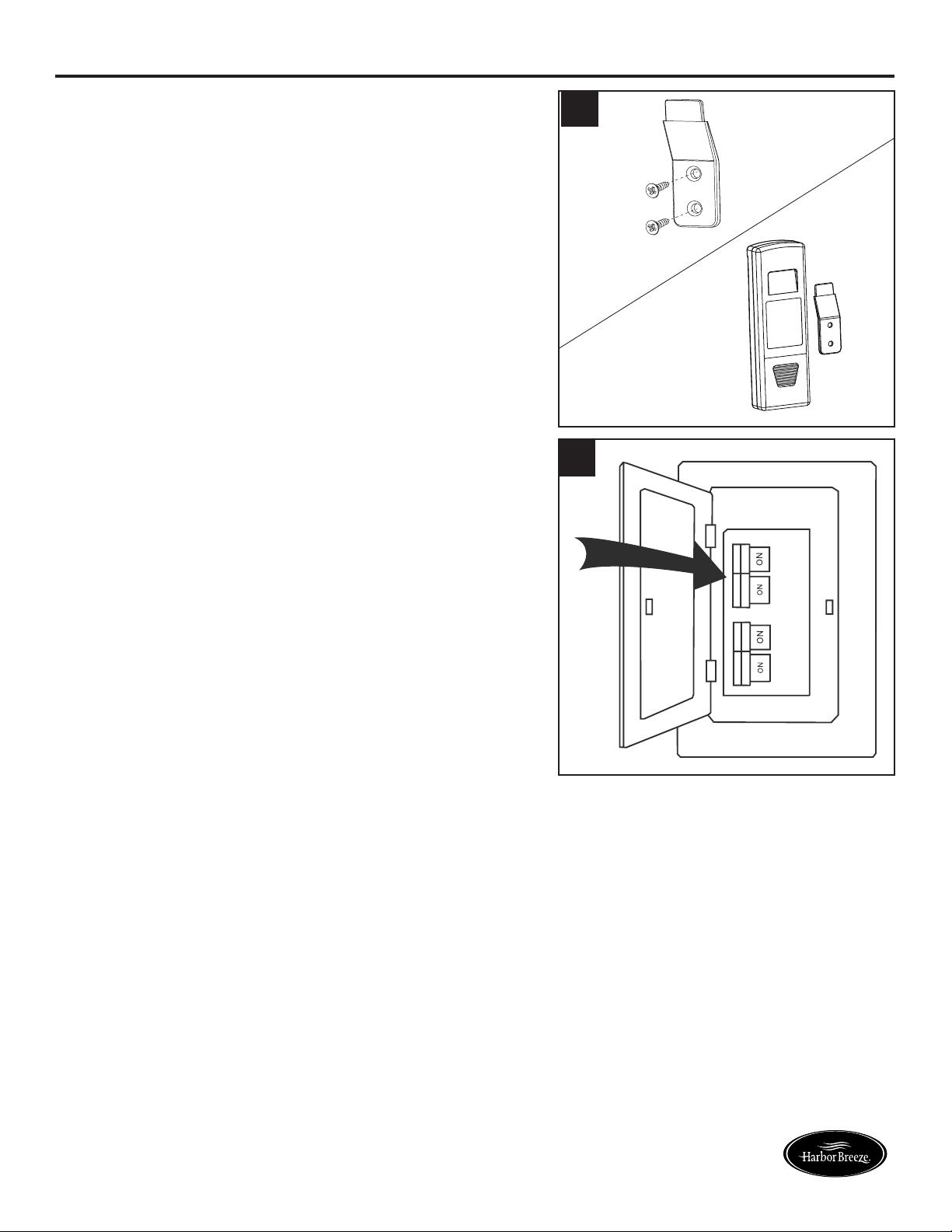

10. If desired, the mounting bracket in remote pack (Z)
can be installed to a wall using the provided mounting
screws. The remote from remote pack (Z) can be stored
in the mounting bracket for easy access.
11. Turn on power supply to the fan.
Assembly is complete.
10
11
Mounting Bracket
Mounting Bracket
17
Lowes.com/harborbreeze
OPERATING INSTRUCTIONS

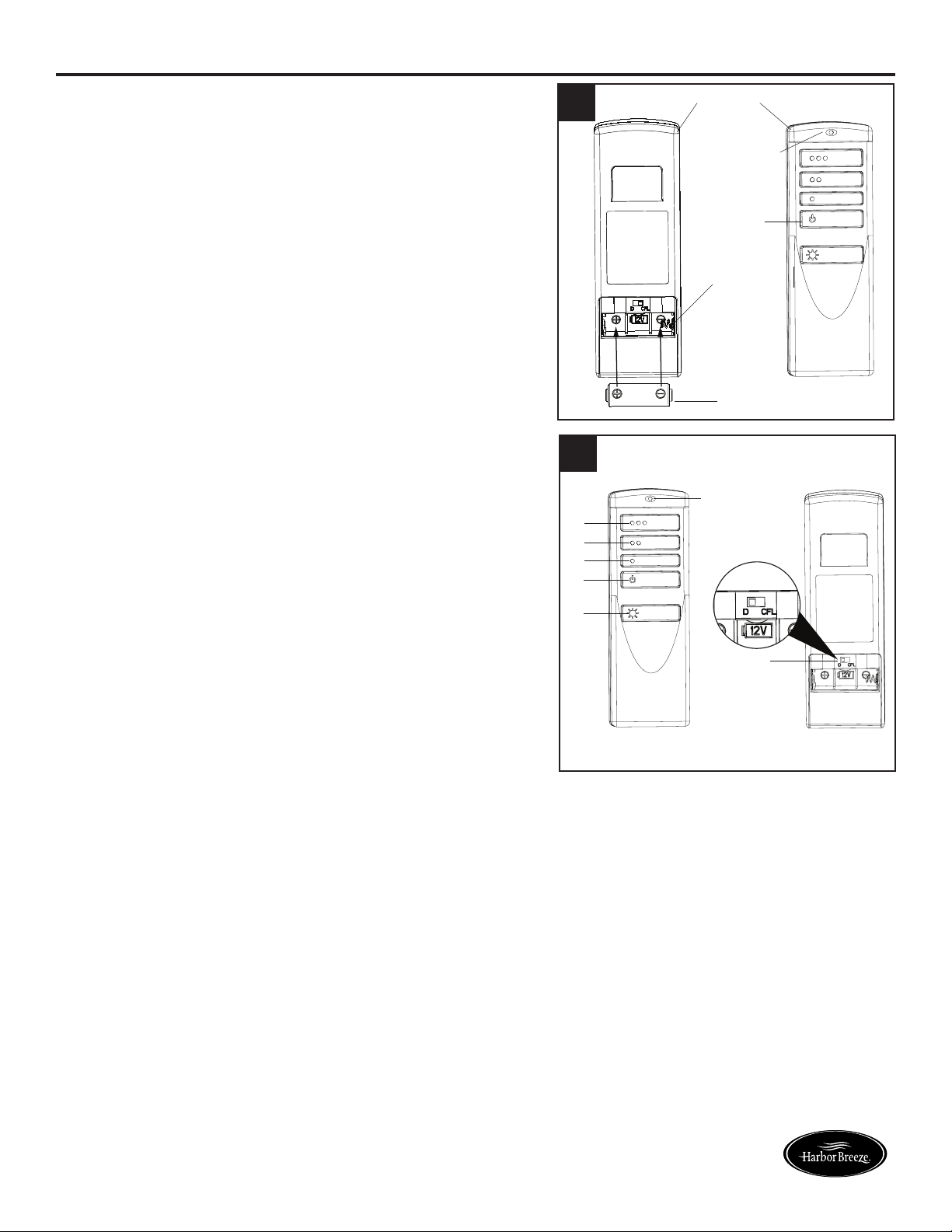

1. Remove the battery cover from the back of the remote
found in remote pack (Z). Insert the battery from remote
pack (Z) into the remote; ensuring the polarity of the
battery matches the polarity indicated in the battery
compartment -- positive (+) to positive (+) and negative
(-) to negative (-). Replace the battery cover and press
the fan power button on the remote to ensure the LED
indicator illuminates and the remote turns on the fan.
Note: If remote doesn’t turn on the fan, see
TROUBLESHOOTING (page 20).
2. To operate the fan using the remote, press and release
the following buttons:
1 - High fan speed
2 - Medium fan speed
3 - Low fan speed
4 - Fan Power - Turns the fan off.
Light Delay Off mode - Press and hold the fan
powerbutton(4)forveseconds,whichwillturn
off light after one minute. The LED indicator on the
remotewillashfourtimestoconrmmodesetting.
5 - Light Control:
Incandescent Bulbs - Press light control to turn
lights off and on. Press and hold light control to dim
or brighten the lights.
CFL -Turns the lights on and off. Note: The dimmer
function does not work with CFL.
6 - D/CFL Switch: Switch should be set to “D” to
correspond with the included incandescent bulbs.
Flip to “CFL” if you change to CFL, which will
disable the dimming function.
1
2
3
4
5
6
2
1
Remote
Front
Back
Battery
Battery
Compartment
2
LED Indicator
LED Indicator
Fan Power
18
Lowes.com/harborbreeze
OPERATING INSTRUCTIONS

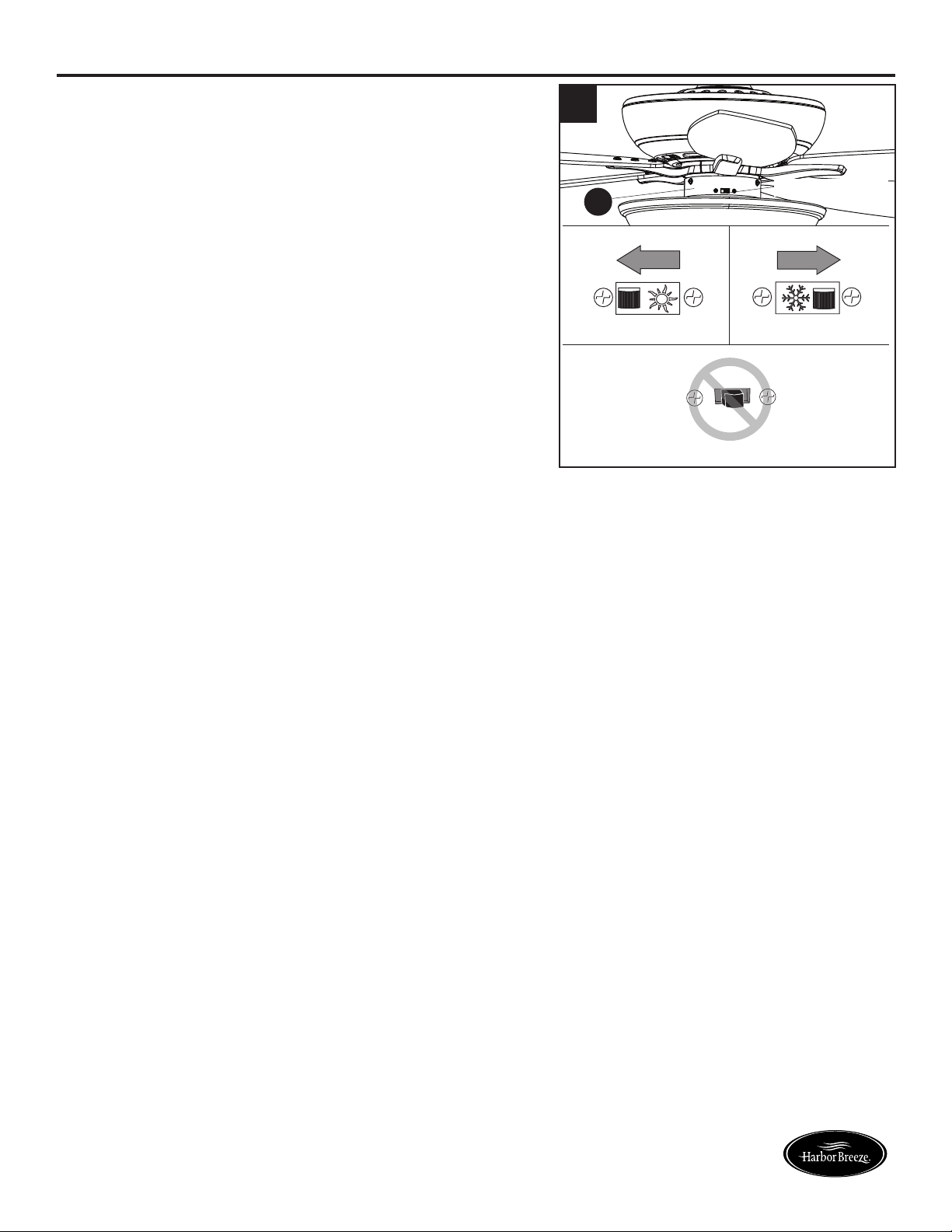

3. Use the fan reverse switch, located on the switch
housing (I), to optimize your fan for seasonal
performance.
Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a difference in your
comfort.
Note: Wait for the fan to stop before moving the reverse
switch.
3a. In warmer weather, push the reverse switch left to
displayasunicon,whichwillresultindownwardairow
creating a wind chill effect.
3b. In cooler weather, push the reverse switch right
todisplayasnowakeicon,whichwillresultinupward
airowthatcanhelpmovestagnant,hotairoffthe
ceiling area.
Important: The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 2c).
I
3
Fig. 3a Fig. 3b
Fig. 3c
Reverse Switch
19
Lowes.com/harborbreeze
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all
screws on the fan. Clean the motor assembly with only a soft brush or lint-free cloth to avoid
scratchingthenish.Cleanthebladeswithalint-freecloth.
Bulb Replacement: Use 60-watt max. candelabra-base bulbs or CFL equivalent.
Battery Replacement: Use a 23-amp, 12-volt alkaline battery.
Important: Shut off the main power supply before you begin any maintenance task. Do not use water
or a damp cloth to clean the fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The reverse switch is not
engaged.
2. The wall switch is turned off.
3. The power is off or the fuse
(breaker) is blown.
4. There is a faulty wire connection.
1. Firmly push the reverse switch
completely left or right.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse
(breaker).
4. Turn the power off and check all
connections at the ceiling outlet box.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that hold
the fan blades to the blade arms and the
motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer switch to
control the fan speed.
4. Ensure the outlet box is secured to the
building structure.
5. Ensure the mounting bracket is secured
to the outlet box and that the screws are
tight.
The fan operates
correctly, but the
lights are not
working.
1. The bulbs are not installed
correctly.
2. The light kit wire plugs are not
connected properly.
3. There is a faulty wire connection.
4. The total power of the lights
exceeds 190W.
1. Re-install the bulb(s).
2. Ensure the 9-pin connectors in the light
kit are connected properly.
3. Turn the power off and check all
connections at the ceiling outlet box.
4. The fan comes with a 190W limiter.
When the total wattage of the lights
is over 190W, the lights do not work.
Replace with bulbs of lower wattage.
20
Lowes.com/harborbreeze
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade arms
are loose.
2. The blades are unbalanced.
3. The fan mounting is not secure.
4. The fan is too close to the
vaulted ceiling.
5. The set screws on the motor
assembly yoke is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and
the blade arms to the motor.
2. Switch one blade with a blade from the
opposite side. Or balance the fan using
the blade balancing kit (Y).
3. Turn off the power. Loosen the canopy
and verify that the mounting bracket
is secure to the electrical outlet box.
Thebracketmustbeushwithout
movement against the outlet box.
Verify the outlet box is secure.
4. Use a longer downrod (sold
separately) or move the fan to another
location.
5. Lift up the yoke cover and tighten the
set screws on the yoke until secure.
Remote control
does not work.
1. Power surge may have cleared
memory and remote needs to be
re-synced to the receiver.
2. Battery in remote control needs
to be replaced.
3. Interference from another
remote.
1. Turn off the main power, then turn it
back on. Within 30 seconds, press and
hold the high and low speed buttons
on the remote at the same time for
5 seconds. The LED indicator will
ash3times,signalingasuccessful
synchronization. Once complete, the
fan will start on the low speed with the
light (if applicable) off.
2. Insert new 12V battery in battery
compartment of the remote control
(see page 18).
3. If there are several fans in close
proximity, turn power off to other fans
and re-sync the remote (see Corrective
Action 1 above).
21
Lowes.com/harborbreeze
LIFETIME LIMITED WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuseorimproperinstallationorbyafxinganyaccessories,isnotcoveredbythiswarranty.The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Duetovaryingclimateconditions,thiswarrantydoesnotcoveranychangesinbrassnish,including
rusting,pitting,corroding,tarnishingorpeeling.Brassnishesofthistypegivetheirlongestusefullife
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Anyreplacementofdefectivepartsfromtheceilingfanmustbereportedwithintherstyearfromthe
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
whichcannotbedisclaimedislimitedtothetimeperiodasspeciedintheexpressedwarranty.The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warrantygivesspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
This warranty supersedes all prior warranties.
Note: A small amount of “wobble” is normal and should not be considered a defect.
Lowes.com/harborbreeze
22
Printed in China
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.

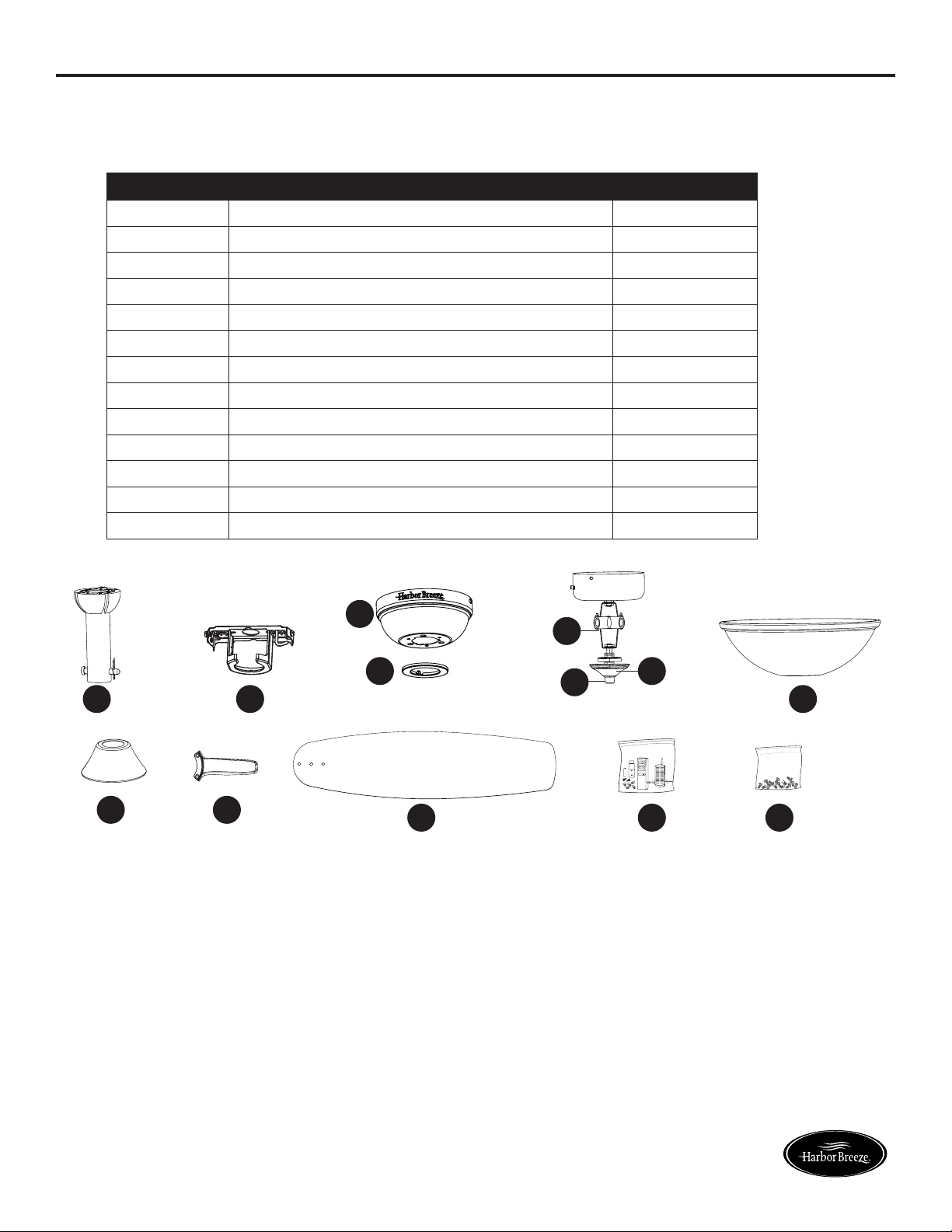

REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
PART DESCRIPTION PART #
A Downrod 0747610-A
D Mounting Bracket 0747610-D
E Canopy 0747610-E
F Canopy Cover 0747610-F
J Light Kit 0747610-J
K Finial Cap 0747610-K
L Finial 0747610-L
N Glass Bowl 0747610-N
O Yoke Cover 0747610-O
P Blade Arm 0747610-P
Q Blade 0747610-Q
Z Remote Pack 0747610-Z
HW Hardware Kit 0747610-HW
9121•101615
D
E
A
F
J
K
L
N
Z HW
O P
Q
