USER’S MANUAL
Model No. NTEX75016.4
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
nordictrack.com
To register your product and
activate your warranty today,
go to my.nordictrack.com.
For service at any time, go to
support.nordictrack.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE
Serial Number
Decal
2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
MAINTENANCE AND TROUBLESHOOTING .....................................................22
EXERCISE GUIDELINES ....................................................................24
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

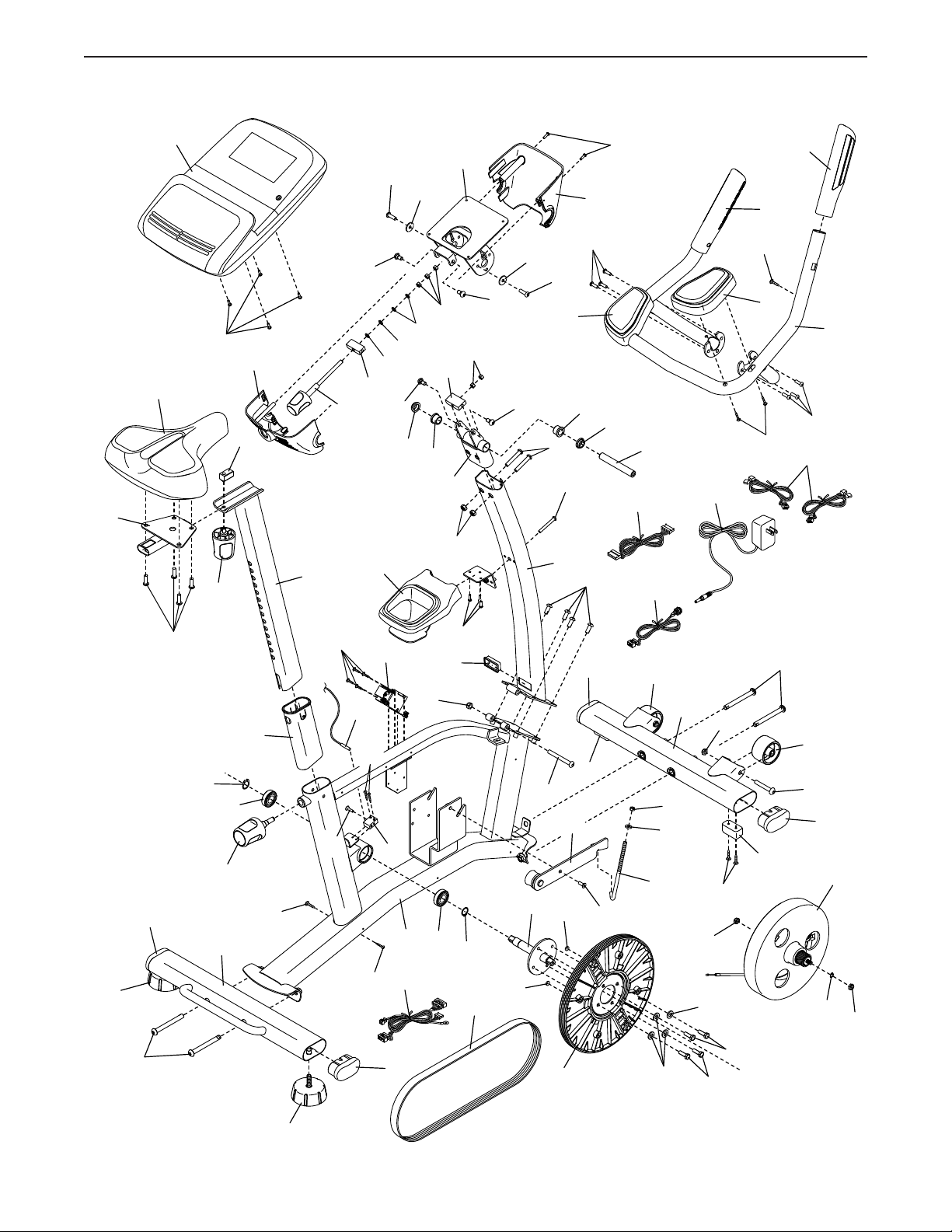

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request
a free replacement decal. Apply the decal in
the location shown. Note: The decal(s) may
not be shown at actual size.
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of
Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google LLC.
The Bluetooth
®
word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The exercise bike is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the exercise
bike by someone responsible for their safety.
4. Use the exercise bike only as described in
this manual.
5. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
6. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
7. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
8. Inspect and properly tighten all parts each
time the exercise bike is used. Replace any
worn parts immediately.
9. Keep children under age 16 and pets away
from the exercise bike at all times.
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
11. The exercise bike should not be used
by persons weighing more than 300 lbs.
(136 kg).
12. Be careful when mounting and dismounting
the exercise bike.
13. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
14. Always keep your back straight while using
the exercise bike; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
4
all
STANDARD SERVICE PLANS
5
Thank you for selecting the revolutionary
NORDICTRACK
®
GX 4.4 PRO exercise bike. Cycling
is one of the most effective exercises for increasing
cardiovascular fitness, building endurance, and ton-
ing the entire body. The GX 4.4 PRO exercise bike
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Heart Rate Monitor
Seat
Seat Post
Seat Knob
Leveling Foot
Handle
Wheel
Pedal/Strap
Fan
Console Knob
Handlebar
Console
Seat Post Knob
Accessory Tray
BEFORE YOU BEGIN
Length: 3 ft. 6 in. (107 cm)
Width: 1 ft. 11 in. (58 cm)
6
M10 x 98mm Screw
(53)–4
M8 x 20mm
Screw (65)–4
M6 x 50mm Screw
(89)–1
M8 x 50mm Bolt
(70)–2
M8 Locknut
(43)–2
M4 x 16mm
Screw (72)–4
M4 x 22mm
Screw (84)–6
M4 x 16mm
Flat Head
Screw (93)–1

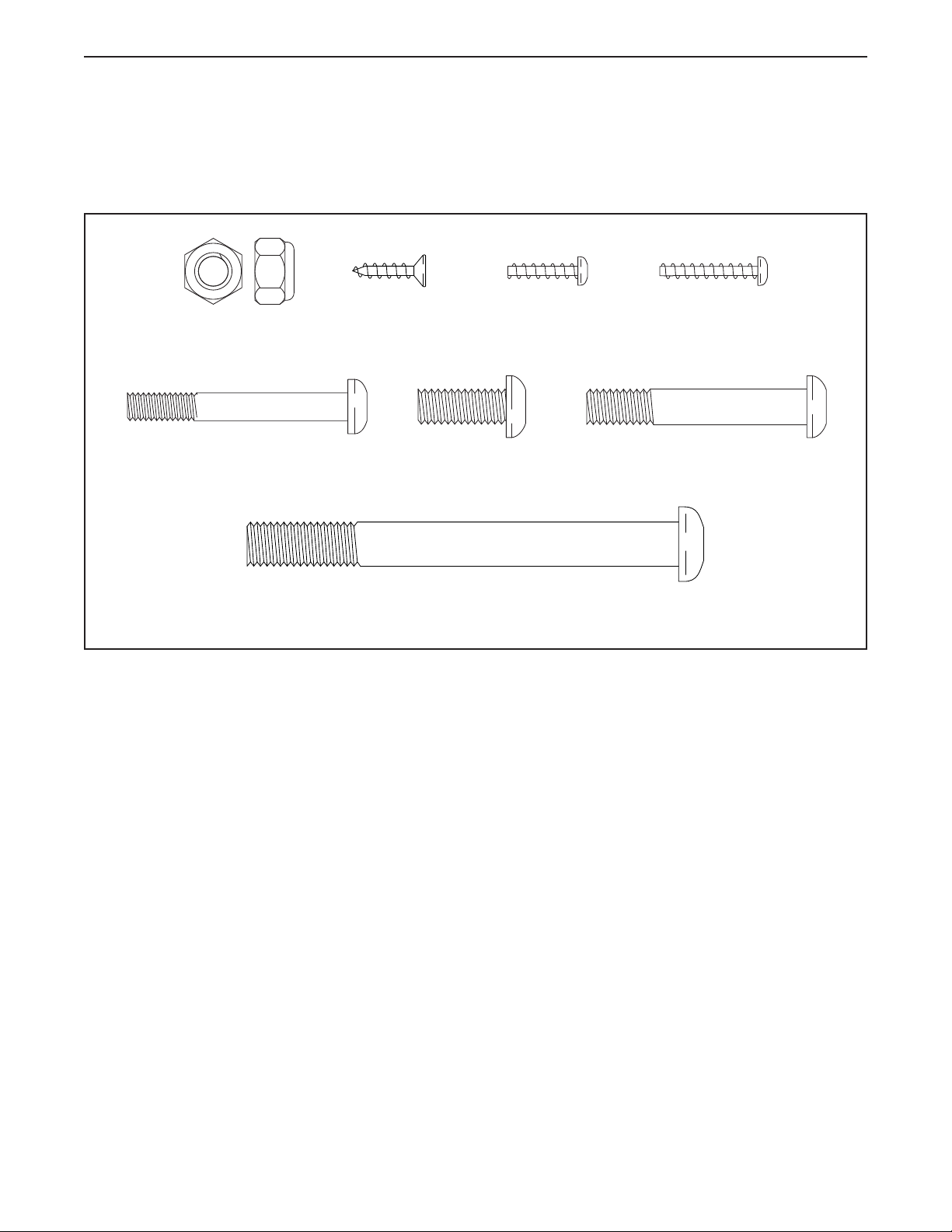

PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see
whether it has been preassembled. Extra parts may be included.
7
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
2. Set a sturdy piece of packing material under the
rear of the Frame (1).
Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 98mm Screws (53).
Then, remove the packing material.
2
53
1
3
1. Go to my.nordictrack.com on your computer
and register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
8

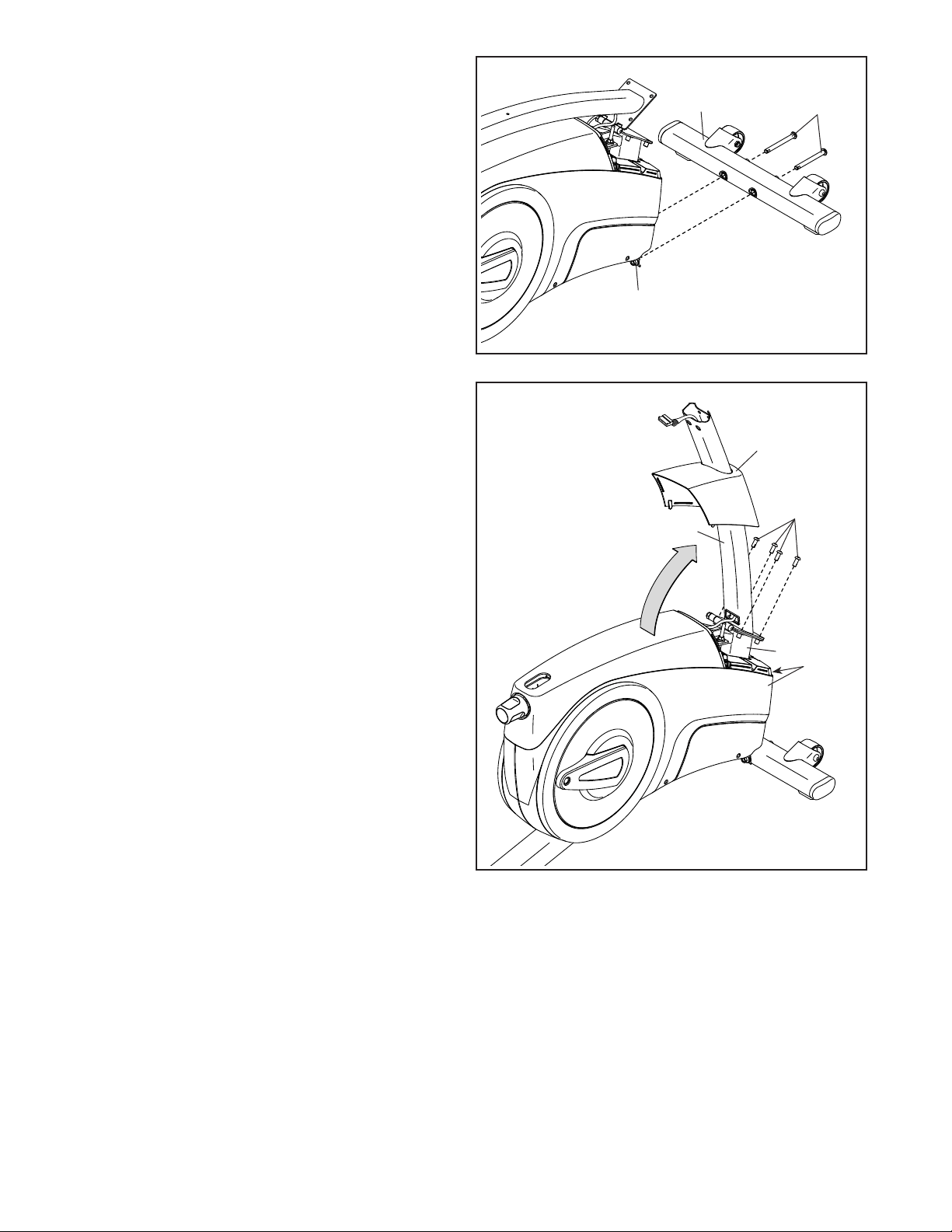

3. Set a sturdy piece of packing material under the
front of the Frame (1).
Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 98mm Screws (53).
Then, remove the packing material.
3
53
2
1
4
4
1
9
65
10, 11

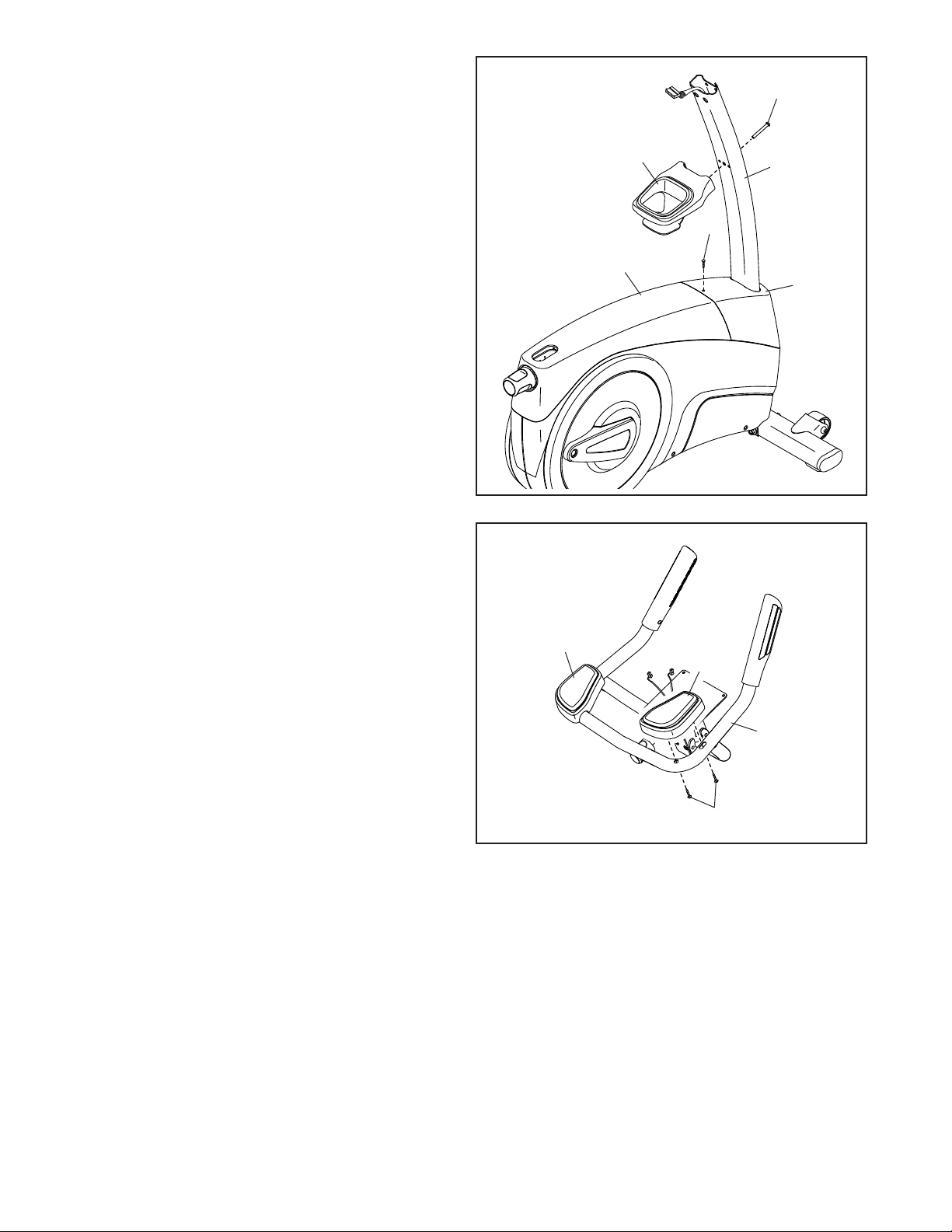

4. With the help of a second person, raise the
Upright (4) to the vertical position. Have the
second person hold the Upright until you
complete this step.
Attach the Upright (4) to the Frame (1) with four
M8 x 20mm Screws (65); start all the Screws,
and then tighten them.
Next, orient the Front Shield Cover (9) as shown,
and slide it downward onto the Upright (4). Then,
press the Front Shield Cover onto the Right and
Left Shields (10, 11).
9
5
8
7
4
9
89
93
5. Attach the Front Shield Cover (9) to the Rear
Shield Cover (7) with an M4 x 16mm Flat Head
Screw (93).
Then, attach the Accessory Tray (8) to the
Upright (4) with an M6 x 50mm Screw (89).
6
84
16
5
31
6. Identify the Right Armrest (16).
Attach the Right Armrest (16) to the Handlebar (5)
with two M4 x 22mm Screws (84).
Attach the Left Armrest (31) in the same way.
10
7

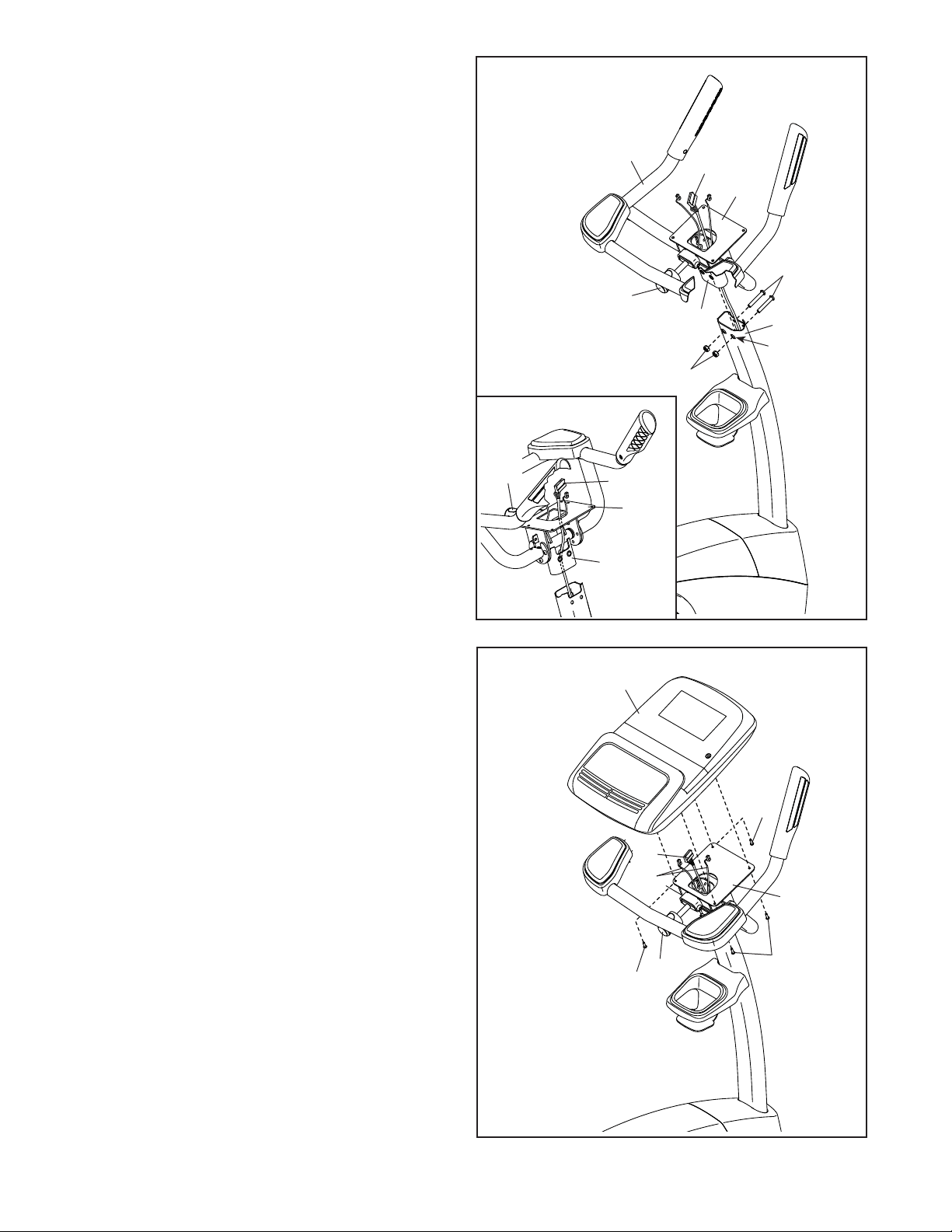

7. Have a second person hold the Handlebar (5)
near the Upright (4).
See the inset drawing. Route the Upper Wire
(87) through the Pivot Post (78) and the Pivot
Bracket (71) as shown. Tip: It may be easier to
route the Upper Wire if you adjust the angle
of the Pivot Bracket by turning the Console
Knob (77).
Tip: Avoid pinching the wires. Insert the Pivot
Post (78) into the Upright (4).
Attach the Pivot Post (78) with two M8 x 50mm
Bolts (70) and two M8 Locknuts (43); make
sure that the Locknuts are in the hexagonal
holes (A).
4
71
43
70
78
87
87
71
78
77
5
A
Avoid pinching
the wires
77
8
87
61
13
72
71
72
72
Avoid pinching
the wires
8. Have a second person hold the Console (13)
near the Pivot Bracket (71). Connect the Upper
Wire (87) and the Pulse Wires (61) to the
matching wires or receptacles on the back of the
Console.
If you do not connect the Wires (61, 87)
properly, the Console (13) may become
damaged when you use the exercise bike. If
a connector on a Wire does not slide easily and
snap into place, turn the connector and try again.
Insert the excess wire downward through the
Pivot Bracket (71). Do not insert the excess
wire into the Console (13); the wires may
interfere with the fan.
Tip: Avoid pinching the wires. Attach the
Console (13) to the Pivot Bracket (71) with four
M4 x 16mm Screws (72); start all the Screws,
and then tighten them. Tip: It may be helpful
to adjust the angle of the Pivot Bracket by
turning the Console Knob (77).
77
11
9
84
12
15
9. Tip: Avoid pinching the wires. Press the Front
Pivot Cover (12) and the Rear Pivot Cover (15)
together around the Pivot Bracket (71).
Attach the Front and Rear Pivot Covers (12, 15)
to the Pivot Bracket (71) with two M4 x 22mm
Screws (84).
71
71
Avoid pinching
the wires
10. Remove the Seat Knob (26) from the Seat
Bracket (30) inside the Seat Carriage (24).
Next, hold the Seat Carriage (24) on the Seat
Post (6). Insert the Seat Knob (26) upward into
the Seat Post, and tighten the Seat Knob into the
Seat Bracket (30) inside the Seat Carriage.
10
26
24
6
30
12
11
28
27
6

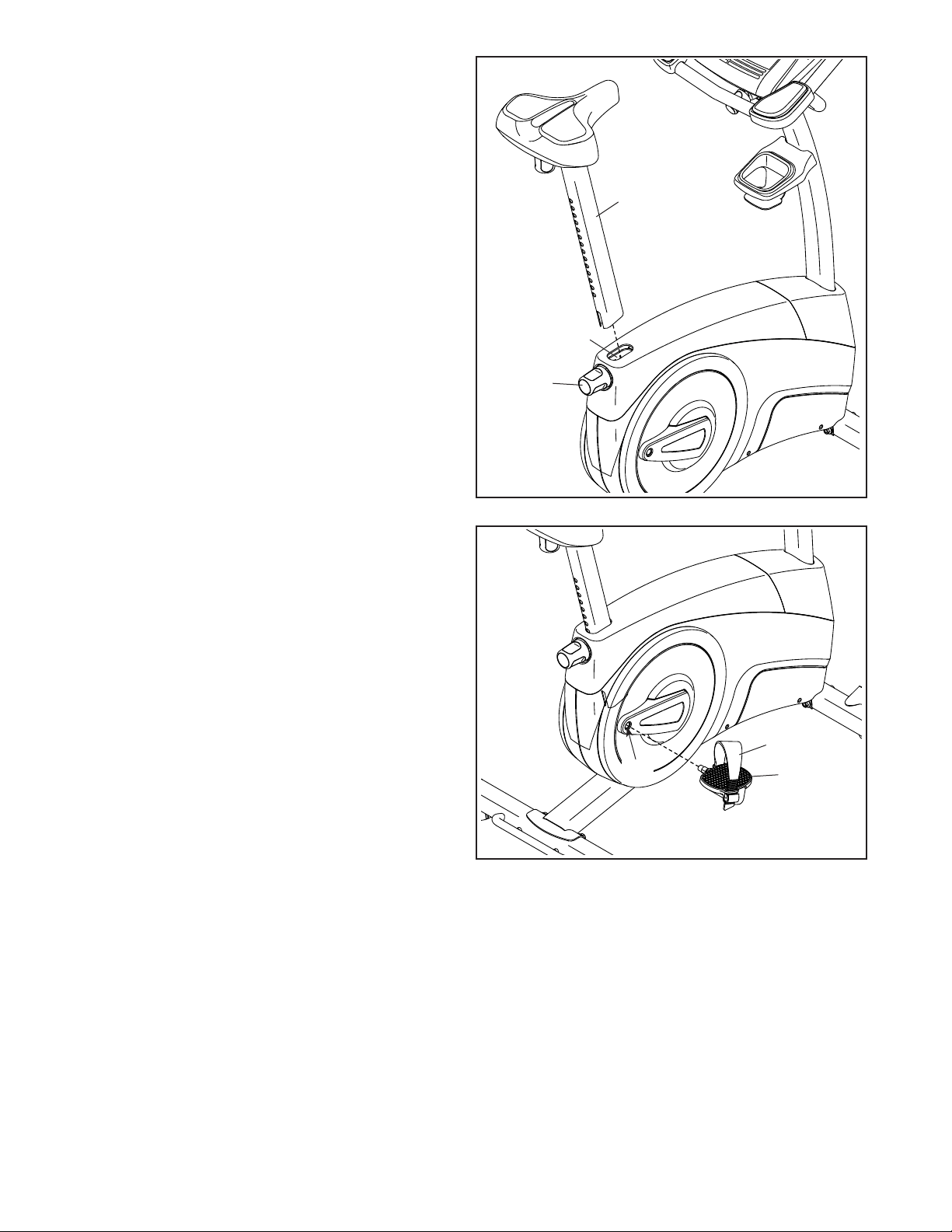

11. Loosen the Seat Post Knob (27) and pull it out-
ward. Then, remove and discard the shipping
bracket (not shown) that is inside the Seat
Post Sleeve (28).
Next, insert the Seat Post (6) into the Seat Post
Sleeve (28), and release the Seat Post Knob
(27). Move the Seat Post upward or down-
ward slightly to make sure that the Seat Post
Knob is engaged in one of the adjustment
holes in the Seat Post. Then, tighten the Seat
Post Knob.
21
B
12. Identify the Right Pedal (21).
Using an adjustable wrench, firmly tighten the
Right Pedal (21) clockwise into the Right Crank
Arm (19).
Firmly tighten the Left Pedal (not shown)
counterclockwise into the Left Crank Arm
(not shown). IMPORTANT: You must turn the
Left Pedal counterclockwise to attach it.
Then, attach the right pedal strap (B) to the Right
Pedal (21) as shown. Attach the left pedal
strap in the same way.
19
12
13
14
67
13. After the exercise bike is assembled, inspect
it to make sure that it is assembled correctly,
that it functions properly, and that all parts
are properly tightened. Note: Extra parts may
be included. Place a mat under the exercise bike
to protect the floor or carpet.

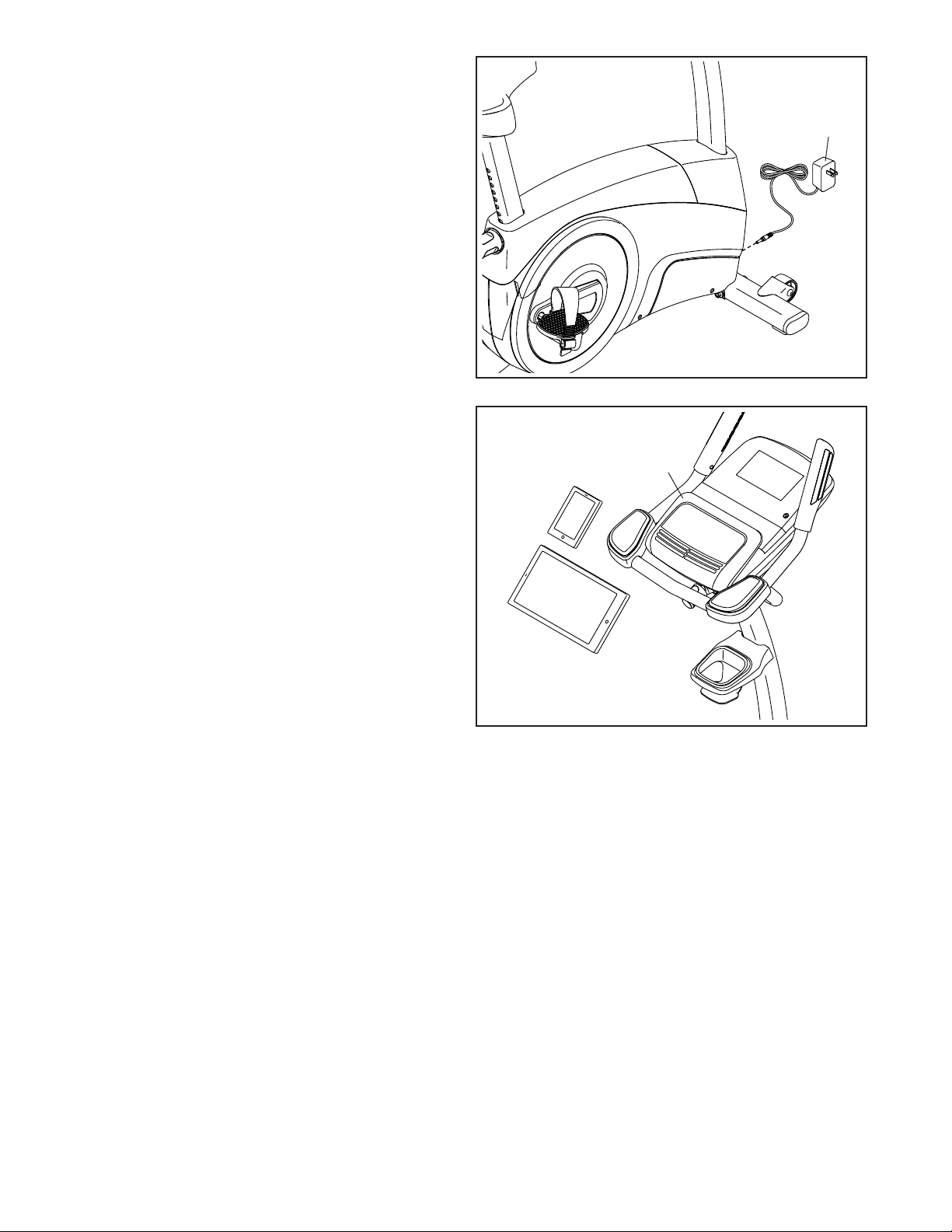

Next, plug the Power Adapter (67) into the
receptacle on the front of the exercise bike.
Then, plug the Power Adapter (67) into an
outlet (see HOW TO PLUG IN THE POWER
ADAPTER on page 14).
14. IMPORTANT: You must activate your Console
(13) to begin using its exclusive features.
First, press any button on the Console (13) to
turn on the power.
Then, using your smartphone or tablet, go to
iFit.com/activate and follow the instructions to
activate the Console (13).
Note: If you do not have a smartphone or tablet,
use your computer to go to iFit.com/activate for
an alternate way to activate the Console (13). If
you do not have a computer, call Customer Care
(see the front cover of this manual).
13
13
14
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the exercise bike has been exposed
to cold temperatures, allow it to warm to room
temperature before you plug in the power adapter.
If you do not do this, you may damage the console
displays or other electronic components.
Plug the power adapter
(A) into the receptacle
on the frame of the
exercise bike. Then,
plug the power adapter
into an appropriate
outlet that is properly
installed in accordance
with all local codes and
ordinances.
HOW TO ADJUST THE HEIGHT OF THE SEAT
For effective exercise, the seat should be at the proper
height. As you pedal, there should be a slight bend in
your knees when the pedals are in the lowest position.
To adjust the seat,
first turn the seat
post knob (B) coun-
terclockwise several
turns to loosen it.
Next, pull the knob,
slide the seat post
upward or down-
ward to the desired
position, and then
release the knob.
Move the seat
post up or down
slightly to make
sure that the knob
is engaged in one of the adjustment holes in the
seat post. Then, turn the knob clockwise to tighten it.
HOW TO ADJUST THE LATERAL POSITION OF THE
SEAT
To adjust the lateral
position of the seat,
first loosen the seat
knob (C) a few
turns. Then, move
the seat forward
or backward to the
desired position,
and firmly tighten
the seat knob.
HOW TO ADJUST THE PEDAL STRAPS
To tighten a pedal
strap, pull downward
on the end of the
strap. To loosen a
strap, press the tab
(E) and pull upward
on the strap.
HOW TO ADJUST THE CONSOLE
The angle of the
console can be
adjusted. To adjust
the angle, turn the
console knob (F)
until the console is
at the desired angle.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike
rocks slightly on
your floor during
use, turn one or
both of the leveling
feet (G) beneath the
rear stabilizer until
the rocking motion is
eliminated.
A
B
C
E
F
G
G
HOW TO USE THE EXERCISE BIKE
15
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
IMPORTANT: To activate your console and begin
using its exclusive features, see assembly step 14
on page 13.
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button.
While you exercise, the console will display continu-
ous exercise feedback. You can also measure your
heart rate using the handgrip heart rate monitor or
a compatible heart rate monitor. See page 20 for
information about purchasing an optional chest
heart rate monitor.
You can also connect your tablet to the console and
use the iFit
®
–Smart Cardio Equipment app to record
and track your workout information.
The console also offers a selection of onboard
workouts. Each workout automatically changes the
resistance of the pedals as it guides you through an
effective workout.
You can even connect your personal audio player to
the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 16. To use an
onboard workout, see page 18. To connect your
tablet to the console, see page 19. To connect
your heart rate monitor to the console, see page
19. To use the sound system, see page 20. To
change console settings, see page 20.
Note: If there is a sheet of plastic on the display,
remove the plastic.
Note: The console can display speed and distance in
either miles or kilometers. To change the unit of mea-
surement, press the Standard/Metric button repeatedly.
For simplicity, all instructions in this section refer to
miles.
Uranium
EBNT75016
NTEX75016
HOW TO USE THE CONSOLE
16
HOW TO USE THE MANUAL MODE
1. Turn on the console.
Begin pedaling or press any button on the console
to turn on the console.
When you turn on the console, the displays will turn
on, a tone will sound, and the console will be ready
for use.
2. Select the manual mode.
Press the Manual Control button to select the
manual mode.
3. Change the resistance of the pedals as desired.
As you pedal, change the resistance of the pedals
by pressing the Quick Resistance increase and
decrease buttons or by pressing one of the num-
bered Quick Resistance buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.
4. Follow your progress with the displays.
The display can show the following workout
information:
Calories (flame icon)—When the manual mode
is selected, this display will show the approximate
number of calories you have burned. When an
onboard workout is selected, this display will show
either the approximate number of calories remain-
ing to be burned or the approximate number of
calories you have burned.
Calories per Hour (Cals/Hr)—This display will
show the approximate number of calories you are
burning per hour.
Distance—This display will show the distance that
you have pedaled in miles (mi) or kilometers (km).
Pulse (BPM)—This display will show your heart
rate in beats per minute (bpm) when you use the
handgrip heart rate monitor or the optional chest
heart rate monitor (see step 5).
Pulse Average (BPM AVG)—This display will
show your average heart rate in beats per minute
(bpm) when you use the handgrip heart rate moni-
tor or the optional chest heart rate monitor (see
step 5).
Resistance—This display will show the resistance
level of the pedals for a few seconds each time the
resistance level changes.
RPM—This display will show your pedaling speed
in revolutions per minute (rpm).
RPM Average (RPM AVG)—This display will show
your average pedaling speed in revolutions per
minute (rpm).
Speed—This display will show your pedaling
speed in miles per hour or kilometers per hour.
To change the unit of measurement, press the
Standard/Metric button repeatedly.
Time—When the manual mode is selected, this
display will show the elapsed time. When an
onboard workout is selected, this display will show
either the time remaining in the workout or the
elapsed time.
Watts—This display will show your approximate
power output in watts.
Average Watts (AVG)—This display will show your
approximate average power output in watts for the
workout.
17

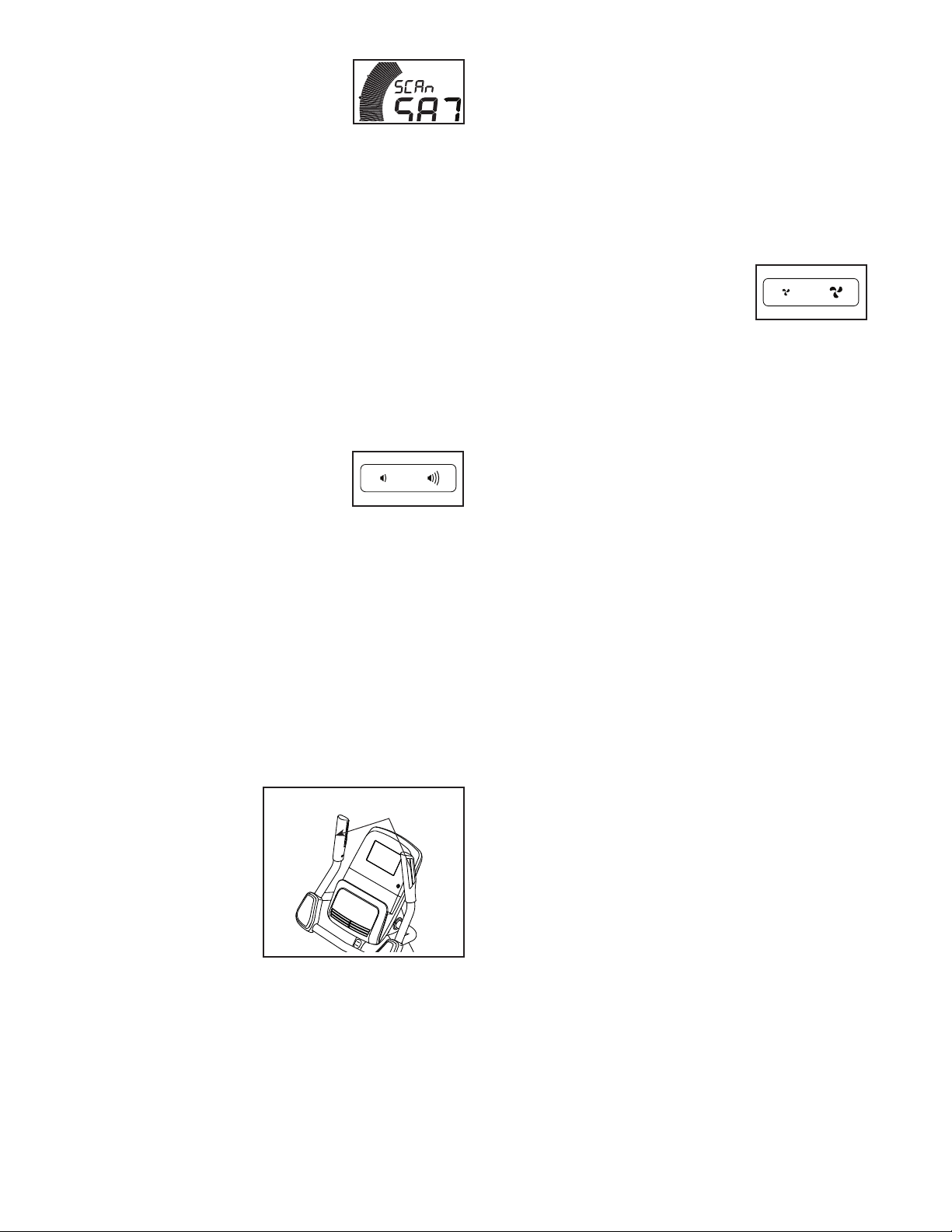

Scan Mode and Priority
Mode—The calories and watts
displays will appear in an
alternating cycle (scan mode).
To select either the calories
display or the watts display for continuous display
(priority mode), press the increase or decrease
button next to the Enter button repeatedly until
the desired display appears. To return to the scan
mode, press the increase button repeatedly until
the word SCAN appears.
Press the Home button to exit the workout and
return to the main menu. If necessary, press the
Home button again.
Press the End/Summary button to end the work-
out and view a workout summary. The workout
summary will appear in the displays for several
seconds.
Change the volume level of
the console by pressing the
volume increase and decrease
buttons.
5. Measure your heart rate if desired.
You can measure your heart rate using either the
handgrip heart rate monitor or an optional chest
heart rate monitor (see page 20 for information
about the optional chest heart rate monitor).
Note: The console is compatible with Bluetooth
®
Smart heart rate monitors.
Note: If you use both heart rate monitors at the
same time, the chest heart rate monitor will
have priority.
If there are
sheets of plas-
tic on the metal
contacts (A) on
the handgrip
heart rate moni-
tor, remove the
plastic. To mea-
sure your heart
rate, hold the handgrip heart rate monitor with your
palms resting against the contacts. Avoid moving
your hands or gripping the contacts tightly.
When your pulse is detected, your heart rate will
appear in the display. For the most accurate
heart rate reading, hold the contacts for at least
15 seconds.
6. Turn on the fan if desired.
The fan has several speed
settings, including an auto
mode. While the auto mode
is selected, the speed of the
fan will automatically increase or decrease as your
exercise intensity increases or decreases. Press
the fan increase and decrease buttons repeatedly
to select a fan speed or to turn off the fan.
Note: If the pedals do not move for about 30
seconds, the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and the display will pause.
If the pedals do not move for several minutes, the
console will turn off and the display will be reset.
Note: The console features a display demo mode,
designed to be used if the exercise bike is dis-
played in a store. When the demo mode is turned
on, the console will show a preset presentation. To
turn off the demo mode, see HOW TO CHANGE
CONSOLE SETTINGS on page 20.
A
18
HOW TO USE AN ONBOARD WORKOUT
1. Turn on the console.
Begin pedaling or press any button on the console
to turn on the console.
When you turn on the console, the displays will turn
on, a tone will sound, and the console will be ready
for use.
2. Select an onboard workout.
To select an onboard workout, press the desired
Workout Apps button repeatedly until the desired
workout appears in the display.
When you select an onboard workout, the display
will show the name of the workout and the dura-
tion of the workout or the number of calories to be
burned.
The maximum speed and the maximum resistance
level for the workout will also appear in the display.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute seg-
ments. One resistance level and one target speed
is programmed for each segment. Note: The same
resistance level and/or target speed may be pro-
grammed for consecutive segments.
At the end of each segment of the workout, a
series of tones will sound. If a different resistance
level and/or target speed is programmed for the
next segment, the resistance level and/or target
speed will appear in the display to alert you. The
resistance of the pedals will then change.
As you exercise, keep your pedaling speed near
the target speed for the current segment.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfort-
able for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Quick Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
The workout will continue in this way until the last
segment ends. To pause the workout at any time,
stop pedaling. The time will flash in the display. To
resume the workout, simply resume pedaling.
To end the workout, press the End/Summary but-
ton. A summary of the workout will appear in the
displays for several seconds.
4. Follow your progress with the displays.
See step 4 on page 16.
5. Measure your heart rate if desired.
See step 5 on page 17.
6. Turn on the fan if desired.
See step 6 on page 17
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 17.
19
HOW TO CONNECT YOUR TABLET TO THE
CONSOLE
The console supports Bluetooth connections to tab-
lets via the iFit–Smart Cardio Equipment app and to
compatible heart rate monitors. Note: Other Bluetooth
connections are not supported.
1. Download and install the iFit–Smart Cardio
Equipment app on your tablet.
On your iOS
®
or Android™ tablet, open the App
Store℠ or the Google Play™ store, search for the
free iFit–Smart Cardio Equipment app, and then
install the app on your tablet. Make sure that the
Bluetooth option is enabled on your tablet.
Then, open the iFit–Smart Cardio Equipment app
and follow the instructions to set up an iFit account
and customize settings.
2. Connect your heart rate monitor to the console
if desired.
If you are connecting both your heart rate monitor
and your tablet to the console, you must connect
your heart rate monitor before you connect
your tablet. See HOW TO CONNECT YOUR
HEART RATE MONITOR TO THE CONSOLE at
the right.
3. Connect your tablet to the console.
Press the iFit Sync button on the console; the
console pairing number will appear in the display.
Then, follow the instructions in the iFit–Smart
Cardio Equipment app to connect your tablet to the
console.
When a connection is established, the LED on the
console will turn solid blue.
4. Record and track your workout information.
Follow the instructions in the iFit–Smart Cardio
Equipment app to record and track your workout
information.
5. Disconnect your tablet from the console if
desired.
To disconnect your tablet from the console, first
select the disconnect option in the iFit–Smart
Cardio Equipment app. Then, press and hold the
iFit Sync button on the console until the LED on the
console turns solid green.
Note: All Bluetooth connections between the con-
sole and other devices (including any tablets, heart
rate monitors, and so forth) will be disconnected.
HOW TO CONNECT YOUR HEART RATE MONITOR
TO THE CONSOLE
The console is compatible with all Bluetooth Smart
heart rate monitors.
To connect your Bluetooth Smart heart rate monitor to
the console, press the iFit Sync button on the console;
the console pairing number will appear in the display.
When a connection is established, the LED on the
console will flash red twice.
Note: If there is more than one compatible heart rate
monitor near the console, the console will connect to
the heart rate monitor with the strongest signal.
To disconnect your heart rate monitor from the console,
press and hold the iFit Sync button on the console until
the LED on the console turns solid green.
Note: All Bluetooth connections between the console
and other devices (including any tablets, heart rate
monitors, and so forth) will be disconnected.
20
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
jack on the console and into a jack on your personal
audio player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see
your local electronics store.
Next, press the play button on
your personal audio player. Adjust
the volume level using the volume
increase and decrease buttons on
the console or the volume control
on your personal audio player.
THE OPTIONAL CHEST HEART RATE MONITOR
Whether your
goal is to
burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart
rate during your
workouts. The optional chest heart rate monitor will
enable you to continuously monitor your heart rate
while you exercise, helping you to reach your personal
fitness goals. To purchase a chest heart rate moni-
tor, please see the front cover of this manual.
Note: The console is compatible with all Bluetooth
Smart heart rate monitors.
HOW TO CHANGE CONSOLE SETTINGS
1. Select the settings mode.
To select the settings mode, press the Settings
button. The settings information will appear in the
display.
2. Navigate the settings mode.
While the settings mode is selected, the display will
show several optional screens. Press the increase
and decrease buttons near the Enter button
repeatedly to select the desired optional screen.
The lower section of the display will show
instructions for the selected screen. Make sure to
follow the instructions shown in the lower part
of the display.
3. Change settings as desired.
Units—The currently selected unit of measurement
will appear in the display. To change the unit of
measurement, press the Enter button repeatedly.
To view distance in miles, select ENGLISH. To view
distance in kilometers, select METRIC.
Contrast Level—The currently selected contrast
level will appear in the display. Press the Quick
Resistance increase and decrease buttons to
adjust the contrast level.
Usage Information—The display will show the
total number of hours that the exercise bike has
been used and the total distance (in miles or
kilometers) that has been pedaled on the exercise
bike.
Demo—The console features a display demo
mode, designed to be used if the exercise bike is
displayed in a store. Press the Quick Resistance
increase button repeatedly to turn the demo mode
on or off.
4. Exit the settings mode.
Press the Settings button to exit the settings mode.
21
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate this equipment.
IMPORTANT: To satisfy exposure compliance requirements, the antenna and transmitter in the console
must be at least 8 in. (20 cm) from all persons and must not be near or connected to any other antenna or
transmitter.
Note: The console contains FCC ID: OMCBMD1.
22
MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the exercise bike is used.
Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
The console requires activation. If you have not
activated the console, see assembly step 14 on
page 13.
If lines appear in the console display, see HOW TO
CHANGE CONSOLE SETTINGS on page 20 and
adjust the contrast level of the display.
If the console does not display your heart rate when
you use the handgrip heart rate monitor, see step 5 on
page 17.
If a replacement power adapter is needed, call the
telephone number on the cover of this manual.
IMPORTANT: To avoid damaging the console, use
only a manufacturer-supplied regulated power
adapter.
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while the
resistance is adjusted to the highest setting, the drive
belt may need to be adjusted. Before you adjust the
drive belt, unplug the power adapter.

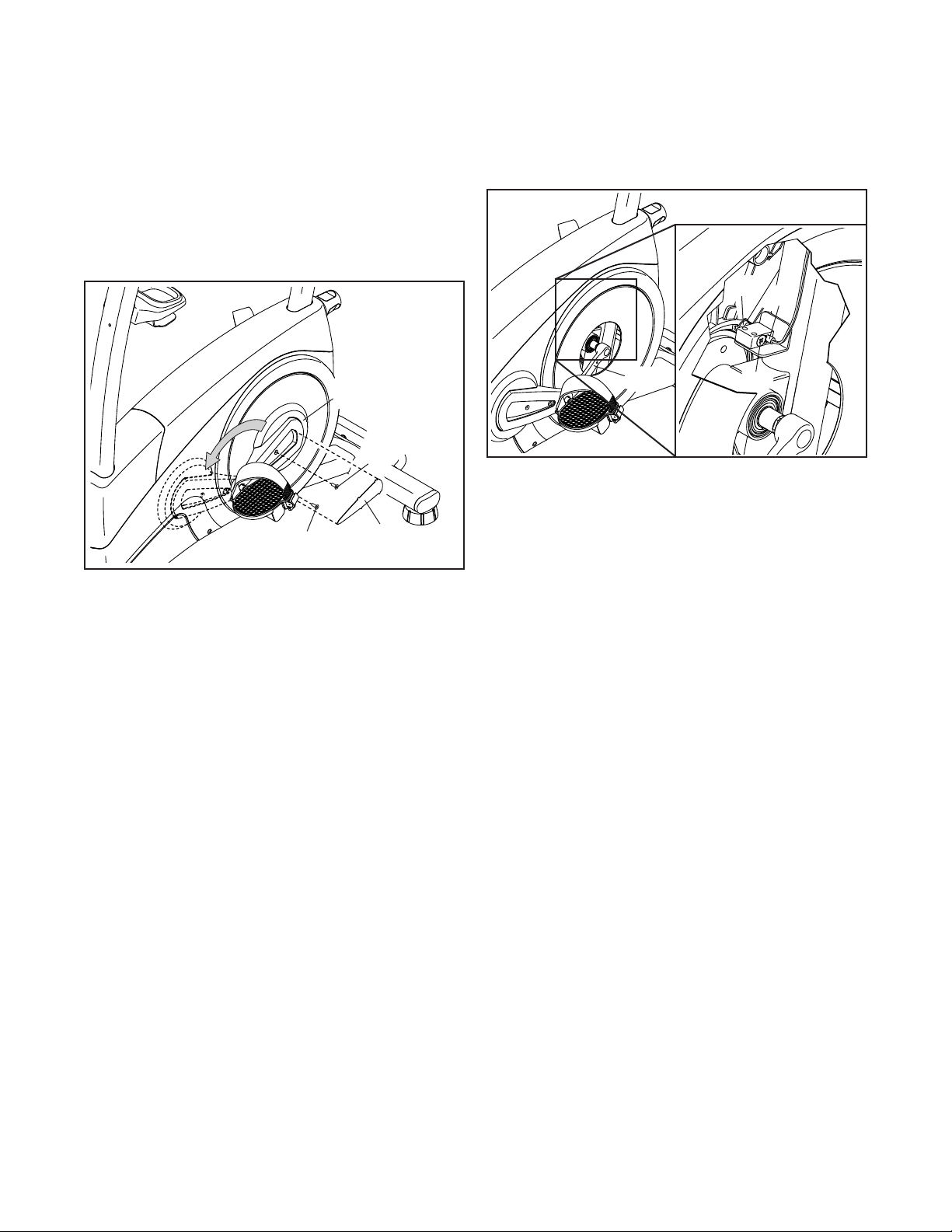

Next, remove the M4 x 16mm Flat Head Screw (93)
from the Front Shield Cover (9). Then, using a stan-
dard screwdriver, release the Front Shield Cover and
slide it out of the way.
Next, tighten the indicated M8 Locknut (43) slightly to
tighten the Drive Belt (not shown). Then, reattach the
Front Shield Cover (9) and plug in the power adapter.
Repeat this process, if necessary, until the pedals no
longer slip.
9
93
43
MAINTENANCE AND TROUBLESHOOTING
23
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. Before you adjust
the reed switch, unplug the power adapter.
Using a small standard screwdriver, carefully pry the
left Cover Insert (35) off the left Crank Arm Cover (33).
Next, remove the M5 x 12mm Screw (85) and the
M5 x 21mm Screw (86). Then, rotate the left Crank
Arm Cover out of the way.
Locate the Reed Switch (57). Rotate the Left Crank
Arm (20) until a Magnet (55) is aligned with the Reed
Switch. Next, loosen the M5 x 16mm Flat Head Screw
(60), slide the Reed Switch slightly toward or away
from the Magnet, and then retighten the Flat Head
Screw.
Plug in the power adapter and rotate the Left Crank
Arm (20) for a moment. Repeat these actions until the
console displays correct feedback.
When the reed switch is correctly adjusted, reattach
the parts that you removed.
85
35
86
33
57
60
55
20
24
EXERCISE GUIDELINES
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only
after the first few minutes of exercise does your body
begin to use stored fat calories for energy. If your
goal is to burn fat, adjust the intensity of your exer-
cise until your heart rate is near the lowest number in
your training zone. For maximum fat burning, exercise
with your heart rate near the middle number in your
training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise ; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretch-
ing. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete
three workouts each week, with at least one day of
rest between workouts. After a few months of regular
exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
25
Key No. Qty. Description Key No. Qty. Description
PART LIST
Model No. NTEX75016.4 R1019A
1 1 Frame
2 1 Front Stabilizer
3 1 Rear Stabilizer
4 1 Upright
5 1 Handlebar
6 1 Seat Post
7 1 Rear Shield Cover
8 1 Accessory Tray
9 1 Front Shield Cover
10 1 Right Shield
11 1 Left Shield
12 1 Front Pivot Cover
13 1 Console
14 2 Shield Ring
15 1 Rear Pivot Cover
16 1 Right Armrest
17 2 Wheel
18 2 M10 x 62mm Bolt
19 1 Right Crank Arm
20 1 Left Crank Arm
21 1 Right Pedal/Strap
22 1 Left Pedal/Strap
23 1 Seat
24 1 Seat Carriage
25 1 Small Snap Ring
26 1 Seat Knob
27 1 Seat Post Knob
28 1 Seat Post Sleeve
29 1 Power Receptacle/Wire
30 1 Seat Bracket
31 1 Left Armrest
32 4 Stabilizer Cap
33 2 Crank Arm Cover
34 16 #8 x 16mm Screw
35 2 Cover Insert
36 2 Leveling Foot
37 1 Right Pulse Grip
38 1 Pulley
39 1 Crank
40 2 Crank Bearing
41 2 Large Snap Ring
42 1 Eddy Mechanism
43 6 M8 Locknut
44 10 M8 x 12mm Screw
45 1 Idler
46 4 M8 Black Split Washer
47 1 Resistance Motor
48 1 M8 x 18mm Screw
49 5 Knob Nut
50 1 M8 x 76mm Bolt
51 1 J-bolt
52 4 #10 x 12mm Screw
53 4 M10 x 98mm Screw
54 1 Drive Belt
55 2 Magnet
56 1 Clamp
57 1 Reed Switch/Wire
58 1 Lower Wire
59 2 Stabilizer Foot
60 1 M5 x 16mm Flat Head Screw
61 2 Pulse Wire
62 2 M8 Flange Screw
63 6 M8 x 16mm Screw
64 2 M8 Washer
65 4 M8 x 20mm Screw
66 2 M10 Jam Nut
67 1 Power Adapter
68 2 M4 x 19mm Screw
69 2 Clip Nut
70 2 M8 x 50mm Bolt
71 1 Pivot Bracket
72 7 M4 x 16mm Screw
73 1 Left Pulse Grip
74 1 Pivot Axle
75 1 Small Block
76 1 Large Block
77 1 Console Knob
78 1 Pivot Post
79 2 Large Bushing
80 2 Small Bushing
81 4 M8 x 15mm Shoulder Screw
82 1 J-bolt Washer
83 4 M4 x 32mm Screw
84 9 M4 x 22mm Screw
85 2 M5 x 12mm Screw
86 2 M5 x 21mm Screw
87 1 Upper Wire
88 1 Grommet
89 1 M6 x 50mm Screw
90 2 M5 x 16mm Screw
91 1 M8 Split Washer
92 3 M8 Small Washer
93 1 M4 x 16mm Flat Head Screw
* – User’s Manual
Note: Specifications are subject to change without notice. See the back cover of this manual for information about
ordering replacement parts. *These parts are not illustrated.
26
4
6
8
23
26
61
65
43
70
89
80
74
80
79
79
81
81
76
49
78
30
5
37
1
17
17
28
32
32
47
54
56
72
88
43
57
58
90
90
87
43
43
25
53
36
36
53
52
83
84
44
44
16
31
29
40
40
41
41
51
43
82
73
59
59
2
42
3
45
50
32
32
18
66
27
38
39
48
55
55
44
44
24
46
46
68
34
60
63
15
12
63
63
64
64
71
81
81
84
49
91
92
92
77
75
72
13
67
EXPLODED DRAWING A
Model No. NTEX75016.4 R1019A
27
9
10
11
34
33
33
35
35
85
86
85
86
14
14
69
69
34
34
34
34
34
34
7
20
84
84
34
34
34
34
22
62
19
21
62
84
93
EXPLODED DRAWING B
Model No. NTEX75016.4 R1019A
