Samsung MS19M8020TG/AA 1.9 cu. ft. Countertop Microwave

User Manual - Transcript

• Page 1: Microwave Oven User manual MS19M8020 MS19M8020TSAADE6804466A01ENindd 1 20171221 92911
• Page 2 - English - : 2 English Contents Contents Important safety instructions 3 Installation 12 Whats included 12 Turntable 12 Maintenance 13 Cleaning 13 Replacement repair 13 Care during an extended period of disuse 13 Before you start 14 Current time 14 Power saving 14 Child lock 14 Sound OnOff 15 Kitchen timer 15 About microwave energy 15 Cookware for microwaving 16 Operations 17 Feature panel 17 Simple steps to start 18 Manual mode 19 Common settings 19 Sensor mode 21 Auto mode 23 Convenience 25 Cooking Smart 28 Microwave cooking guide 28 Reheating guide 30 Defrosting guide 32 Quick amp easy 32 Troubleshooting 33 Checkpoints 33 Information code 37 Technical specications 37 Warranty 38 Samsung microwave oven 38 MS19M8020TSAADE6804466A01ENindd 2 20171221 92911
• Page 3 - English - : English 3 Important safety instructions SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS Important safety instructions Congratulations on your new Samsung microwave oven This manual contains important information on the installation use and care of your appliance Please take time to read this manual to take full advantage of your microwave ovens many benets and features WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur It is your responsibility to use common sense caution and care when installing maintaining and operating your microwave oven PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY A Do not attempt to operate this oven with the door open since opendoor operation can result in harmful exposure to microwave energy It is important not to defeat or tamper with the safety interlocks B Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on the sealing surface C Do not operate the oven if it is damaged It is particularly important that the oven door close properly and that there is no damage to the 1 Door bent 2 Hinges and latches broken or loosened 3 Door seals and sealing surface D The oven should not be adjusted or repaired by anyone except properly qualied service personnel IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS What the icons and signs in this user manual mean WARNING Hazards or unsafe practices that may result in severe personal injury or death CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage CAUTION To reduce the risk of re explosion electric shock or personal injury when using your microwave oven follow these basic safety precautions Do NOT attempt Unplug the power plug from the wall socket Do NOT disassemble Make sure the machine is grounded to prevent electric shock Do NOT touch Call the service center for help Follow directions explicitly Note These warning signs are here to prevent injury to you and others Please follow them explicitly After reading this section keep it in a safe place for future reference MS19M8020TSAADE6804466A01ENindd 3 20171221 92911
• Page 4 - English - : 4 English Important safety instructions Important safety instructions SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS 8 Do not operate this appliance if it has a damaged cord or plug if it is not working properly or if it has been damaged or dropped 9 This appliance should be repaired or serviced only by qualied service personnel Contact the nearest authorized service facility for examination repair or adjustment 10 Do not cover or block any openings on the appliance 11 Do not tamper with or make any adjustments or repairs to the door 12 Do not store this appliance outdoors Do not use this product near water for example near a kitchen sink in a wet basement near a swimming pool or similar locations 13 Do not immerse the cord or plug in water 14 Keep the cord away from heated surfaces including the back of the oven 15 Do not let the cord hang over the edge of a table or counter 16 When cleaning surfaces of the door and oven that come together when the door closes use only mild nonabrasive soaps or detergents applied with a sponge or soft cloth Unplug the plug before cleaning 17 To reduce the risk of re in the oven cavity A Do not overcook food Carefully attend the appliance when paper plastic or other combustible materials are placed inside the oven to facilitate cooking B Remove wire twistties from paper or plastic bags before placing the bags in the oven C If materials inside the oven ignite keep the oven door closed turn the oven off and disconnect the power cord or shut off the power at the fuse or circuit breaker panel If the door is opened the re may spread D Do not use the cavity for storage purposes Do not leave paper products cooking utensils or food in the cavity when not in use STATE OF CALIFORNIA PROPOSITION 65 WARNING US ONLY WARNING This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm When using any electrical appliance basic safety precautions should be followed including the following WARNING To reduce risk of burns electric shock re personal injury or exposure to excessive microwave energy 1 Read all safety instructions before using the appliance 2 Read and follow the specic Precautions to avoid possible exposure to excessive microwave energy on page 3 3 This appliance must be grounded Connect only to properly grounded outlets See Important Grounding instructions on page 5 of this manual 4 Install or locate this appliance only in accordance with the provided installation instructions 5 Some products such as whole eggs and sealed containers for example closed glass jars can explode if heated rapidly Never heat them in a microwave oven 6 Use this appliance only for its intended purpose as described in this manual Do not expose this appliance to corrosive chemicals or vapors This type of oven is specically designed to heat cook or dry food It is not designed for industrial or laboratory use 7 As with any appliance close supervision is necessary when it is used by children Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their ngers in the door MS19M8020TSAADE6804466A01ENindd 4 20171221 92912
• Page 5 - English - : English 5 Important safety instructions SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS CAUTION 1 Over The Range model only Clean Ventilating Hoods frequently Grease should not be allowed to accumulate on the hood of the lter When aming foods under the hood turn the fan on Use care when cleaning the venthood lter Corrosive cleaning agents such as lyebased oven cleaner may damage the lter 2 Push Button type model only To avoid possible exposure to excessive microwave energy do not open the door by pulling on any part of the door by hand Open the door by pushing the button located on the bottom frontright side of the microwave only GROUNDING INSTRUCTIONS This appliance must be grounded In the event of an electrical short circuit grounding reduces the risk of electric shock by providing an escape wire for the electrical current This appliance is equipped with a cord that includes a grounding wire and a grounding plug The plug must be plugged into an outlet that is properly installed and grounded WARNING Improper use of the grounding plug can result in a risk of electric shock Plug the power cord into a grounded 3 pronged outlet Do not remove the third grounding prong Do not use an adaptor or otherwise defeat the grounding plug Consult a qualied electrician or service person if you do not understand the grounding instructions or if you are not sure if the appliance is properly grounded 18 Liquids such as water milk coffee or tea can be overheated beyond the boiling point without appearing to be boiling Visible bubbling or boiling when the container is removed from the microwave oven is not always present THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID To reduce the risk of injury A Do not overheat liquid B Stir liquid both before and halfway through heating it C Do not use straightsided containers with narrow necks D After heating allow the container to stand in the microwave oven for a short time before removing the container E Use extreme care when inserting a spoon or other utensil into the container 19 Oversized food or oversized metal utensils should not be inserted into the microwave toaster oven as they may cause a re or electric shock 20 Do not clean with metal scouring pads A piece of metal could come off the pad contact electrical parts and cause an electric shock 21 Do not put paper products into the oven when you are operating it in the toaster mode 22 Do not store any materials other than the manufacturers recommended accessories in this oven when not in use 23 Do not cover the racks or any other part of the oven with metal foil This will cause the oven to overheat MS19M8020TSAADE6804466A01ENindd 5 20171221 92912
• Page 6 - English - : 6 English Important safety instructions Important safety instructions SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS CRITICAL INSTALLATION WARNINGS If your microwave oven is an overtherange model installation must be performed by a qualied technician or service company Failing to have a qualied technician install the oven may result in electric shock re an explosion problems with the product or injury Unpack the oven remove all packaging material and examine the oven for any damage such as dents on the interior or exterior of the oven broken door latches cracks in the door or a door that is not lined up correctly If there is any damage do not operate the oven and notify your dealer immediately Make sure to install your oven in a location with adequate space Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis Unplug the power plug and clean it with a dry cloth Failing to do so may result in electric shock or re Plug the power cord into a properly grounded 3 pronged outlet Your oven should be the only appliance connected to this circuit Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or re Do not use an electric transformer to power the microwave It may result in electric shock or re Ensure that the voltage frequency and current provided match the products specications Failing to do so may result in electric shock or re Keep all packaging materials out of the reach of children Children may use them for play We do not recommend using an extension cord with this appliance If the powersupply cord is too short have a qualied electrician or serviceman install an outlet near the appliance However if it is necessary to use an extension cord read and follow the Use of extension cords section on this page USE OF EXTENSION CORDS A short powersupply cord is provided to reduce the risk of your becoming entangled in or tripping over a longer cord Longer cord sets or extension cords are available and you can use them if you exercise care If you use a long cord or extension cord 1 The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance 2 The extension cord must be a groundingtype 3wire cord and it must be plugged into a 3slot outlet 3 The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over accidentally If you use an extension cord the interior light may icker and the speed of the blower may vary when the microwave oven is on Cooking times may be longer too MS19M8020TSAADE6804466A01ENindd 6 20171221 92912
• Page 7 - English - : English 7 Important safety instructions SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS INSTALLATION CAUTIONS Position the oven so that the plug is easily accessible Failing to do so may result in electric shock or re due to electric leakage Unplug the oven when it is not being used for long periods of time or during a thunderlightning storm Failing to do so may result in electric shock or re CRITICAL USAGE WARNINGS If the microwave appliance is ooded please contact your nearest Samsung service center Failing to do so may result in electric shock or re Read and follow the specic Precautions to Avoid Possible Exposure to Excessive Microwave Energy found in the beginning of this Safety Information section If the microwave makes a strange noise or generates a burning smell or smoke unplug it immediately and contact your nearest service center Failing to do so may result in electric shock or re In the event of a gas leak propane gas LP gas etc ventilate the room immediately Do not touch the microwave power cord or plug Do not use a ventilating fan A spark may result in an explosion or re Take care that the door or any of the other parts do not come into contact with your body while cooking or just after cooking Failing to do so may result in burns This appliance must be properly grounded Read and follow the specic Grounding instructions found in the beginning of this Section Do not ground the appliance to a gas pipe plastic water pipe or telephone line This may result in electric shock re an explosion or problems with the product Never plug the power cord into a socket that is not grounded correctly and make sure that it is grounded in accordance with local and national codes Do not cut or remove the third ground prong from the power cord under any circumstances The microwave requires a separate branch circuit single grounded outlet of at least 15A and max of 20A Do not install this appliance in a humid oily or dusty location or in a location exposed to direct sunlight or water rain drops This may result in electric shock or re Plug the power plug into the wall socket rmly Do not use a damaged power plug damaged power cord or loose wall socket This may result in electric shock or re Do not mount over a sink Do not pull or excessively bend the power cord Do not twist or tie the power cord Do not hook the power cord over a metal object place a heavy object on the power cord insert the power cord between objects or push the power cord into the space behind the appliance This may result in electric shock or re Do not pull the power cord when you unplug the oven Unplug the oven by pulling the plug only Failing to do so may result in electric shock or re If the power plug or power cord is damaged contact your nearest Samsung service center for a replacement or repair MS19M8020TSAADE6804466A01ENindd 7 20171221 92912
• Page 8 - English - : 8 English Important safety instructions Important safety instructions SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS In the event of a grease re on the surface units below the oven smother the aming pan on the surface unit by covering the pan completely with a lid a cookie sheet or a at tray Never leave surface units beneath your oven unattended at high heat settings Boil overs cause smoking and greasy spillovers that may ignite and spread if the vent fan is operating To minimize automatic fan operation use adequately sized cookware and use high heat on surface units only when necessary If materials inside the oven should ignite keep the oven door closed turn the oven off and disconnect the power cord or shut off power at the fuse or circuit breaker panel If the door is opened the re may spread Always observe Safety Precautions when using your oven Never try to repair the oven on your own There is dangerous voltage inside If the oven needs to be repaired contact an authorized Samsung service center near you Do not attempt to repair disassemble or modify the appliance yourself Because a high voltage current enters the product chassis during operation opening the chassis can result in electric shock or re You may be exposed to electromagnetic waves When the oven requires repair contact your nearest Samsung service center If any foreign substance such as water enters the microwave unplug it and contact your nearest Samsung service center Failing to do so may result in electric shock or re Do not touch the power plug with wet hands This may result in electric shock Do not turn the appliance off by unplugging the power plug while the appliance is in operation Plugging the power plug into the wall socket again may cause a spark and result in electric shock or re Keep all packaging materials well out of the reach of children Packaging materials can be dangerous to children If a child places a bag over his or her head the child can suffocate Do not let children or any person with reduced physical sensory or mental capabilities use this appliance unsupervised Make sure that the appliance is out of the reach of children Failing to do so may result in electric shock burns or injury Do not touch the inside of the appliance immediately after cooking The inside of the appliance will be hot The heat on the inside of the oven can cause burns Do not put aluminum foil except as specically directed in this manual metal objects such as containers forks etc or containers with golden or silver rims into the microwave These objects can cause sparks or a re Do not use or place ammable sprays or objects near the oven Heat from the microwave can cause ammable sprays to explode or burn Failing to do so may result in electric shock or injury Do not tamper with or make any adjustments or repairs to the door Under no circumstances should you remove the outer cabinet Do not store or use the oven outdoors MS19M8020TSAADE6804466A01ENindd 8 20171221 92912
• Page 9 - English - : English 9 Important safety instructions SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS USAGE CAUTIONS If the surface of the microwave is cracked turn the microwave off Failing to do so may result in electric shock Dishes and containers can become hot Handle with care Hot foods and steam can cause burns Carefully remove container coverings directing steam away from your hands and face Remove lids from baby food before heating After heating baby food stir well to distribute the heat evenly Always test the temperature by tasting before feeding the baby The glass jar or surface of the food may be cooler than the food in the interior which can be so hot that it will burn the infants mouth Make sure all cookware used in the oven is suitable for microwaving Use microwavable cookware in strict compliance with the manufacturers recommendations Do not stand on top of the microwave or place objects such as laundry oven covers lighted candles lighted cigarettes dishes chemicals metal objects etc on the appliance Items such as a cloth may get caught in the door This may result in electric shock re problems with the product or injury Do not operate the appliance with wet hands This may result in electric shock Do not spray volatile material such as insecticide onto the surface of the appliance As well as being harmful to humans it may also result in electric shock re or problems with the product Do not place the appliance over a fragile object such as a sink or glass object This may result in damage to the sink or glass object Do not put your face or body close to the appliance while cooking or when opening the door just after cooking Take care that children do not come too close to the appliance Failing to do so may result in children burning themselves Do not place food or heavy objects over the door The food or object may fall when you open the door and this may result in burns or injury Do not abruptly cool the door the inside of the appliance or the cooked food inside by pouring water over it during or just after cooking This may result in damage to the appliance The steam or water spray may result in burns or injury Do not cook without the glass tray in place on the oven oor Food will not cook properly without the tray Do not defrost frozen beverages in narrownecked bottles The containers can break Do not scratch the glass of the oven door with a sharp object This may result in the glass being damaged or broken Do not store anything directly on top of the appliance when it is in operation Do not use sealed containers Remove seals and lids before heating Sealed containers can explode due to the buildup of pressure even after the oven has been turned off TVradio interference might be noticed while using the microwave Similar to the interference caused by other small appliances it does not indicate a problem with the microwave Plug the microwave into a different electrical circuit move the radio or TV as far away from the microwave as possible or check the position and signal of the TVradio antenna MS19M8020TSAADE6804466A01ENindd 9 20171221 92912
• Page 10 - English - : 10 English Important safety instructions Important safety instructions SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS CRITICAL CLEANING INSTRUCTIONS Do not clean the appliance by spraying water directly onto it Do not use benzene thinner or alcohol to clean the appliance This may result in discoloration deformation damage electric shock or re Before cleaning or performing maintenance unplug the appliance from the wall socket and remove food waste from the door and cooking compartment Failing to do so may result in electric shock or re Take care not to hurt yourself when cleaning the appliance inside and outside You may hurt yourself on the sharp edges of the appliance Do not clean the appliance with a steam cleaner This may result in corrosion Keep the inside of the oven clean Food particles or spattered oils stuck to the oven walls or oor can cause paint damage and reduce the efciency of the oven INSTALLING YOUR MICROWAVE OVEN Place the oven on a at level surface 335 inches 85 cm above the oor The surface should be strong enough to safety bear the weight of the oven 4 inches 10 cm behind 8 inches 20 cm above 4 inches 10 cm on the side 335 inches 85 cm above the oor 1 When you install your oven make sure there is adequate ventilation for your oven by leaving at least 4 inches 10 cm of space behind and on the sides of the oven and 8 inches 20 cm of space above 2 Remove all packing materials inside the oven 3 Install the roller and turntable Check that the turntable rotates freely Turntable type model only See page 12 4 This microwave oven must be positioned so that the plug is accessible NOTE A trim kit is available for select models MS19M8020TG and MS19M8000AS The trim kit allows you install this microwave in a cabinet or any other builtin application For complete installation instructions see the trim kit installation manual MS19M8020TSAADE6804466A01ENindd 10 20171221 92912
• Page 11 - English - : English 11 Important safety instructions SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS If the power cord is damaged it must be replaced by the manufacturer the manufacturers service agent or similarly qualied persons in order to avoid a hazard For your personal safety plug the power cord into a properly grounded AC socket Do not install the microwave oven in hot or damp surroundings such as next to a traditional oven or radiator The power supply specications of the oven must be observed and any extension cable used must have the same specications as the power cable supplied with the oven Wipe the interior and the door seal with a damp cloth before using your microwave oven for the rst time CLEANING THE TURNTABLE AND ROLLER Clean the roller periodically and wash the turntable as required You can wash the turntable safely in your dishwasher STORING AND REPAIRING YOUR MICROWAVE OVEN If you need to store your microwave oven for a short or extended period of time choose a dustfree dry location Dust and dampness may adversely affect the microwave parts Do not repair replace or service any part of your microwave oven yourself Allow only a qualied service technician to perform repairs If the oven is faulty and needs servicing or you are in doubt about its condition unplug the oven from the power outlet and contact your nearest Samsung service center Do not use the oven if it is damaged in particular if the door or door seals are damaged Door damage includes a broken hinge a worn out seal or distortedbent casing Do not remove the oven from its casing This microwave oven is for home use only and is not intended for commercial use MS19M8020TSAADE6804466A01ENindd 11 20171221 92912
• Page 12 - English - : 12 English Installation InstallationInstallation Whats included Make sure all parts and accessories are included in the product package If you have a problem with the oven or accessories contact a local Samsung customer center or your retailer Oven at a glance 01 02 03 04 05 06 01 Door 02 Vent 03 Oven light 04 Display 05 Push button door opener 06 Feature panel Accessories The oven comes with different accessories that help you prepare different types of food Roller Turntable Roller Insert the shaft of the roller into the coupler on the oor of the microwave The roller supports the turntable Turntable Put the turntable on the roller with the center of the turntable on the center of the roller The turntable serves as a cooking base NOTE Do not operate the oven without the turntable on the roller Turntable Remove all packing materials inside the oven Install the roller and turntable Check that the turntable rotates freely MS19M8020TSAADE6804466A01ENindd 12 20171221 92913
• Page 13 - English - : English 13 Maintenance Replacement repair WARNING This oven has no userremovable parts inside Do not try to replace parts or repair the oven yourself If you encounter a problem with hinges sealing andor the door contact a qualied technician or a local Samsung service center for technical assistance If you want to replace the light bulb contact a local Samsung service center Do not replace it yourself If you encounter a problem with the outer housing of the oven rst unplug the power cord from the power source and then contact a local Samsung service center Care during an extended period of disuse If you are not going to use the oven for an extended period of time unplug the power cord and move the oven to a dry dustfree location Dust and moisture that builds up inside the oven may affect the performance of the oven Maintenance Cleaning Clean the oven regularly to prevent debris from building up on or inside the oven Also pay special attention to the door door sealing and turntable and roller applicable models only If the door wont open or close smoothly rst check if the door seals have built up debris Use a soft cloth and soapy water to clean both the inner and outer sides of the oven Rinse and dry well To remove stubborn debris and bad smells from inside the oven 1 With the oven empty put a cup of diluted lemon juice on the center of the turntable 2 Heat the oven for 10 minutes at maximum power 3 When the cycle is complete wait until the oven cools down Then open the door and clean the cooking chamber To clean inside swingheater models A To clean the upper area of the cooking chamber lower the top heating element by 45 A as shown This will help you clean the upper area When done reposition the top heating element CAUTION Keep the door and door seal clean and ensure the door opens and closes smoothly Otherwise the ovens life span may be shortened Take caution not to spill water into the oven vents Do not use any abrasive or chemical substances for cleaning After each use of the oven use a mild detergent to clean the cooking chamber after waiting for the oven to cool down MS19M8020TSAADE6804466A01ENindd 13 20171221 92913
• Page 14 - English - : 14 English Before you start Power saving To reduce power consumption when not using the oven use the power saving function of the oven To activate power saving press Eco to turn off the display To deactivate power saving open the door or press Eco again The display turns back on showing the current time Auto power saving After 25 minutes of user inactivity the oven automatically enters power saving mode Any previous function will be cancelled and the current time will be displayed If you open the door and leave it open the oven light will turn off after 5 minutes Child lock To prevent accidents Child Lock disables all controls except for the Eco button Hold down Child Lock 3sec for 3 seconds to activate Hold down Child Lock 3sec again for 3 seconds to deactivate Before you start Before you use the microwave for the rst time there is some basic information you should know This information starts below NOTE Before or during any cooking mode you can setchange the clock or the kitchen timer Current time It is important to set the correct clock time to ensure correct automatic operations 1 Press Clock 2 Use the number buttons to enter the current time For example press 5 0 and 0 in sequence for 500 oclock 3 Press START to conrm your settings The colon indicator blinks several times MS19M8020TSAADE6804466A01ENindd 14 20171221 92913
• Page 15 - English - : English 15 Before you start About microwave energy Microwaves are highfrequency electromagnetic waves The magnetron built into the oven generates microwaves which cook or reheat food without deforming or discolouring it 1 The microwaves generated by the magnetron are distributed uniformly by the microwaves distribution system This is why the food cooks evenly 2 The microwaves are absorbed by the food to a depth of approx 1 inch 25 cm Then the microwaves dissipate inside the food as cooking continues 3 The cooking time is affected by the following conditions of the food Quantity and density Moisture content Initial temperature especially when frozen NOTE The cooked food retains heat in its core after cooking is complete This is why you must observe the standing times specied in this manual which ensures food cooks evenly down to the core Sound OnOff You can mute or unmute the sounds beeps or melody made by the oven To mute the sounds press Sound until OFF appears in the display To unmute the sounds press Sound again until ON appears in the display Kitchen timer 1 Press Kitchen Timer 2 Press the number buttons to set the length of time For example press 3 0 0 to set the timer to 3 minutes 3 Press START The Kitchen Timer counts down the time MS19M8020TSAADE6804466A01ENindd 15 20171221 92914
• Page 16 - English - : 16 English Before you start Before you start Material Microwavesafe Description Fastfood packaging Polystyrene cups or containers Overheating may cause these to melt Paper bags or newspaper These may catch re Recycled paper or metal trims These may cause arcing Glassware Oventotable ware Microwavesafe unless decorated with metal trim Fine glassware Rapid heating may cause delicate glassware to break or crack Glass jars Appropriate for warming only Remove the lid before cooking Metal Dishes These may cause arcing or re Freezer bag with twistties Paper Plates cups napkins and kitchen paper Use to cook for a short time These absorb excess moisture Recycled paper Causes arcing Microwave Safe Use Caution Microwave Unsafe Cookware for microwaving Cookware used for Microwave Mode must allow microwaves to pass through and penetrate food Metals such as stainless steel aluminum and copper reect microwaves Therefore do not use cookware made of metallic materials Cookware marked microwave safe is always safe for use For additional information on appropriate cookware refer to the following guide Requirements Flat bottom and straight sides Tighttting lid Wellbalanced pan with handles that weigh less than the main pan Material Microwavesafe Description Aluminium foil Use for a small serving size to protect against overcooking Arcing can occur if the foil is near the oven wall or if you use an excessive amount of foil Crusty plate Do not use for preheating for more than 8 minutes Bone china or earthenware Porcelain pottery glazed earthenware and bone china are usually microwavesafe unless decorated with a metal trim Disposable polyester cardboard dishes Some frozen foods are packaged in these dishes Microwave Safe Use Caution Microwave Unsafe MS19M8020TSAADE6804466A01ENindd 16 20171221 92914
• Page 17 - English - : English 17 Operations Material Microwavesafe Description Plastic Containers Use thermoplastic containers only Some plastics may warp or discolour at high temperatures Cling lm Use to maintain moisture after cooking Freezer bags Use boilable or ovenproof bags only Wax or greaseproof paper Use to maintain moisture and prevent spattering Microwave Safe Use Caution Microwave Unsafe Operations Feature panel The front panel comes in a wide range of materials and colors For improved quality the actual appearance of the oven is subject to change without notice 01 Sensor Cook 02 Healthy Cooking 03 SoftenMelt 04 Keep Warm 05 Defrost 06 Deodorization 07 Child Lock 08 Number 09 Power Level 10 Kitchen Timer 11 Clock 12 Eco 13 Sound 14 STOPCANCEL 15 30s 16 START MS19M8020TSAADE6804466A01ENindd 17 20171221 92914
• Page 18 - English - : 18 English Operations Operations Simple steps to start To cook food 1 Put the food in a microwavesafe container and then put the container in the center of the turntable 2 Use the number buttons to set the cooking time 3 Press START NOTE When cooking is complete the oven beeps 4 times Use oven gloves to take out the food To defrost frozen food 1 Put the frozen food in a microwavesafe container and then put the container in the center of the turntable 2 Press Defrost 3 Use the number buttons to set the serving size 4 Press START NOTE For more information see the Defrost section on page 25 MS19M8020TSAADE6804466A01ENindd 18 20171221 92914
• Page 19 - English - : English 19 Operations Common settings Cooking time Follow these steps to set or change the cooking time By default the power level is set to High Use the number buttons to set the cooking time max 99 min 99 sec The time area consists of the minute and second elements To set a cooking time of 25 minutes for example press 2 and 5 for the minutes then 0 and 0 for the seconds NOTE To change the cooking time during operation press STOPCANCEL twice and then repeat the steps above To stop cooking simply open the door or press STOPCANCEL To resume operation close the door and press START To cancel cooking press STOPCANCEL twice Manual mode Microwave This is the basic function of this microwave oven The power level is set to High by default 1 Put food in a microwavesafe container and then place the container on the turntable 02 03 2 Use the number buttons to set the cooking time max 99 min 99 sec For example to set the time to 10 minutes press 1 and 0 for the minutes and 0 and 0 for the seconds 1000 3 To change the default power level press Power Level and then select a different level See the Power level section on page 20 for details 4 Press START 5 When cooking is complete the oven beeps 4 times Use oven gloves to take out the food MS19M8020TSAADE6804466A01ENindd 19 20171221 92915
• Page 20 - English - : 20 English Operations Operations Power level Select the cooking time and then choose the power level before pressing the START button 1 Press Power Level 2 Use the number buttons to select a specic power level Available levels range from No power 0 to High 10 See the table below 0 PL0 No power 1 PL10 Warm 2 PL20 Defrost 3 PL30 Low 4 PL40 Medium low 5 PL50 Medium 6 PL60 Simmer 7 PL70 Medium high 8 PL80 Reheat 9 PL90 Sauté 10 PLHi High NOTE To check the current power level while cooking is in progress press Power Level Time increment You might want to add extra time to the current cooking time while cooking is in progress Time can be added in 30 second intervals Before or during cooking press 30s as many times as needed For example to add 2 minutes to the current cooking time press the button 4 times NOTE This button is disabled when you use Auto mode MS19M8020TSAADE6804466A01ENindd 20 20171221 92915
• Page 21 - English - : English 21 Operations 2 Select a category by pressing Popcorn Potato Pizza Veggies Beverage or Reheat 3 Press the selected button again or the number buttons to select a specic program 4 Press START 5 When cooking is complete the oven beeps 4 times Use oven gloves to take out the food Sensor mode Sensor cook For inexperienced cooks the oven offers a total of 9 Sensor Cook programs in 6 different categories Take advantage of this feature to save time or shorten your learning curve The cooking time and temperature will be adjusted according to the selected recipe 1 Put food in a microwavesafe container and then put the container in the center of the turntable MS19M8020TSAADE6804466A01ENindd 21 20171221 92915
• Page 22 - English - : 22 English Operations Operations CodeFood Serving size Instructions 4 Veggies 1 Fresh Vegetables 1 to 4 servings Place the food in a microwave safe ceramic glass or plastic dish and add 24 tbs water Cover with vented plastic wrap and then cook Stir before letting stand Let the oven cool for at least 5 minutes before using it again 2 Frozen Vegetables 1 to 4 servings 5 Beverage 8 to 10 oz Use a measuring cup or mug and do not cover Place the beverage in the oven After heating stir well Let the oven cool for at least 5 minutes before using it again Sensor cook guide The following table presents auto programs for cooking roasting and baking The table contains food quantities weight ranges and appropriate recommendations Cooking modes and times have been preprogrammed for your convenience CodeFood Serving size Instructions 1 Popcorn 30 to 35 oz 1 package Use only one microwave popcorn bag at a time Be careful when removing the heated bag from the oven and opening it Let the oven cool for at least 5 minutes before using it again 2 Potato 1 to 6 pcs Pierce each potato several times with a fork Place on the turntable in a spokelike fashion After cooking let the potatoes stand for 35 minutes Let the oven cool for at least 5 minutes before using it again 3 Pizza 2 to 4 slices Place 24 pizza slices on a microwavesafe plate with the wide ends of the slices towards the outside edge of the plate Do not let the slices overlap Do not cover Let the oven cool for at least 5 minutes before using it again MS19M8020TSAADE6804466A01ENindd 22 20171221 92915
• Page 23 - English - : English 23 Operations Auto mode Healthy Cooking For healthier alternatives the oven offers a total of 10 Healthy Cook programs Take advantage of this feature to save time or shorten your learning curve The cooking time and temperature will be adjusted according to the selected recipe 1 Put food in a microwavesafe container and then put the container in the center of the turntable 2 Press Healthy Cooking 3 Press the Healthy Cooking button again or the number buttons to select a specic program 4 Press START 5 When cooking is complete the oven beeps 4 times Use oven gloves to take out the food CodeFood Serving size Instructions 6 Reheat 1 Dinner Plate 1 serving Use only precooked refrigerated foods Cover the plate with vented plastic wrap or waxed paper tucked under the plate If the food is not as hot as you would like after using the Sensor function continue heating using additional time and power Let the oven cool for at least 5 minutes before using it again Contents 34 oz meat poultry or sh up to 6 oz with bone ½ cup starch potatoes pasta rice etc ½ cup vegetables about 34 oz 2 Casserole 1 to 4 servings Cover the plate with vented plastic wrap If the food is not as hot as you would like after using the Sensor Cook function continue heating using additional time and power Stir the food once before serving Let the oven cool for at least 5 minutes before using it again Contents Casseroles soup refrigerated foods 3 PastaSoup 1 to 4 servings MS19M8020TSAADE6804466A01ENindd 23 20171221 92915
• Page 24 - English - : 24 English Operations Operations Code Food Serving size Instructions 6 Green Beans 88 oz Rinse and clean green beans Put them evenly into a glass bowl with lid Add 30 ml 2 tbsp water Put bowl in the center of turntable Cook covered Stir after cooking Let stand for 12 minutes 7 Chicken Breasts 106 oz Rinse pieces and put on a ceramic plate Cover with plastic wrap Pierce the plastic wrap in 3 or 4 places Put dish on turntable Let stand for 2 minutes 8 Fresh Fish Fillet 106 oz Rinse sh llets and put on a ceramic plate add 1 tbsp lemon juice Cover with plastic wrap Pierce the plastic warp in 3 or 4 places Put dish on turntable Let stand for 12 minutes 9 Fresh Salmon Fillet 106 oz Rinse sh llets and put on a ceramic plate add 1 tbsp lemon juice Cover with plastic wrap Pierce the plastic warp in 3 or 4 places Put dish on turntable Let stand for 12 minutes 10 Fresh Prawns 88 oz Rinse prawns and put on a ceramic plate add 1 tbsp lemon juice Cover with plastic wrap Pierce the plastic warp in 3 or 4 places Put dish on turntable Let stand for 12 minutes Healthy Cooking guide The following table lists auto programs for cooking The table contains food quantities weight ranges and appropriate recommendations Cooking modes and times have been preprogrammed for your convenience Code Food Serving size Instructions 1 Spinach 53 oz Rinse and clean spinach Put into a glass bowl with lid Do not add water Put bowl in the center of turntable Cook covered Stir after cooking Let stand for 12 minutes 2 Squash 88 oz Slice the squash in half and remove the seeds Place the squash cut side down in a microwave safe dish and cover with the plastic wrap If needed add a ¼ cup of water 3 Brown Rice 16 oz Use a large glass ovenware dish with lid Add a double quantity of cold water 500 ml Cook covered Stir before standing time and add salt and herbs Let stand for 510 minutes 4 Oatmeal 1 pack Follow the package directions for the recommended amount of water needed Stir well before and afterwards 5 Quinoa 88 oz Use a large glass ovenware dish with lid Add a double quantity of cold water 500 ml Cook covered Stir before standing time and add salt and herbs Let stand for 13 minutes MS19M8020TSAADE6804466A01ENindd 24 20171221 92915
• Page 25 - English - : English 25 Operations Defrost guide The following table lists auto programs for defrosting food The table contains food quantities weight ranges and appropriate recommendations Code Food Serving size lb Instructions 1 Meat 0135 Shield the edges with aluminium foil Turn the meat over when the oven beeps This program is suitable for beef lamb pork steaks chops minced meat Let stand for 1030 minutes 2 Poultry 0135 This program is suitable for whole chicken as well as for chicken pieces Before defrosting if there are a large number of ice crystals on the surface of the poultry rinse the surface with cold water until all the ice crystals are removed The poultry should then be left to stand for 5 to 10 min at room temperature Shield the leg and wing tips with aluminum foil Place chicken pieces skinside down and whole chicken breastside down on the middle of a at microwavesafe plate Turn the poultry over when the oven beeps 3 Fish 0135 Shield the tail of a whole sh with aluminium foil Turn the sh over when the oven beeps This program is suitable for whole sh as well as for sh llets Let stand for 1030 minutes Convenience Defrost Use to defrost frozen meat poultry sh or bread The operating time and power level will be adjusted according to the selected program 1 Put food in the center of the turntable and then close the door 2 Press Defrost to select a category 3 Use the number buttons to select a weight 4 Press START 5 When the cycle is complete the oven beeps 4 times Use oven gloves to take out the food NOTE The oven beeps in the middle of the cycle to remind you to turn the food over Turn the food over and then press START again to continue When the cycle is complete the oven beeps 4 times You can defrost food manually To do this set a time press the 2 button 20 power and then press START For more information see the Power level section on page 20 MS19M8020TSAADE6804466A01ENindd 25 20171221 92916
• Page 26 - English - : 26 English Operations Operations SoftenMelt This is useful to soften or melt soft food or confections such as butter chocolate and sugar 1 Put food in the center of the turntable 2 Press SoftenMelt 3 Press the SoftenMelt button again or the number buttons to select a specic program 4 Press START 5 When the cycle is complete the oven beeps 4 times Use oven gloves to take out the food Code Food Serving size lb Instructions 4 Bread 0120 Put bread on a piece of kitchen paper and turn over as soon as the oven beeps Place cake on a ceramic plate and if possible turn over as soon as the oven beeps The oven keeps operating and stops when you open the door This program is also suitable for all kinds of bread sliced or whole as well as for bread rolls and baguettes Arrange bread rolls in a circle In addition this program is suitable for all kinds of yeast cakes biscuits cheese cakes and puff pastry It is not suitable for shortcrust pastry fruit and cream or for cakes with chocolate topping Let stand for 530 minutes MS19M8020TSAADE6804466A01ENindd 26 20171221 92916

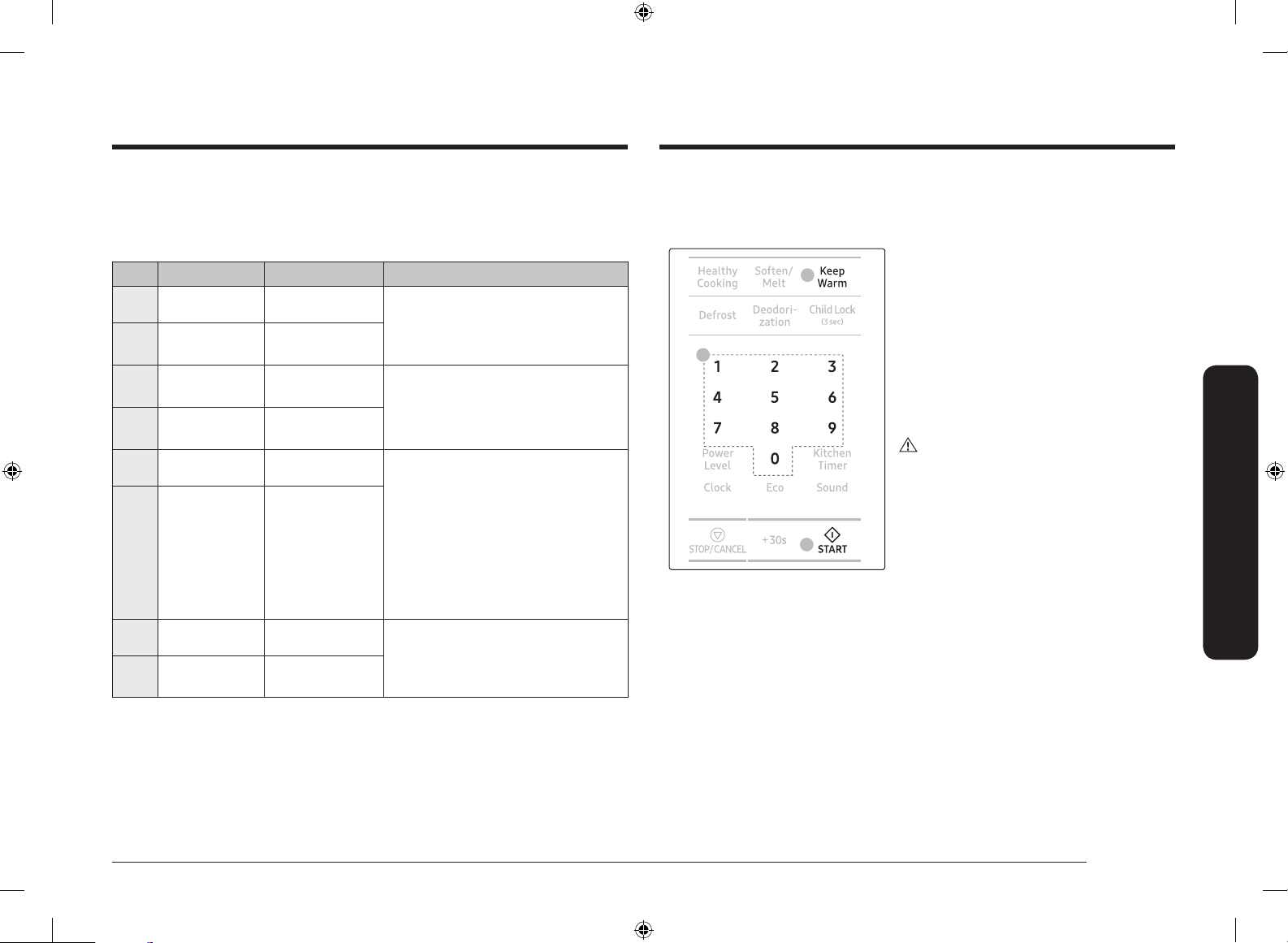

• Page 27 - English - : English 27 Operations Keep Warm If you want to keep cooked foods warm until serving use this function The operating time and power level will be adjusted according to the selected program 1 Put food in the center of the turntable and then close the door 2 Press Keep Warm The default time is 99 minutes 3 Use the number buttons to set the warming time max 99 min 99 sec 4 Press START 5 When the cycle is complete the oven beeps 4 times Use oven gloves to take out the food CAUTION Do not use this function to reheat cold food Use this only for keeping food that has just been cooked warm Do not keep food for more than 1 hour The food surface may dry up Do not put food covered with lids or plastic wrap in the oven SoftenMelt guide The following table lists auto programs for softening or melting specic kinds of food The table contains food quantities weight ranges and appropriate recommendations Code Food Serving size oz Instructions 1 Melting Butter 175 50 g Cut butter into 3 or 4 pieces and then put them in a small glass bowl Melt uncovered Stir after cooking Let stand for 12 minutes 2 Melting Butter 35 100 g 3 Melting Dark Chocolate 175 50 g Grate dark chocolate and then put in a small glass bowl Melt uncovered Stir after melting Let stand for 12 minutes 4 Melting Dark Chocolate 35 100 g 5 Melting Sugar 1 25 g Put sugar in a small glass bowl Add 2 tbsp 10 ml water for 1 oz 25 g Add 4 tbsp 20 ml water for 175 oz 50 g Melt uncovered Take out carefully using oven gloves Use spoon or fork and pour caramel decorations on baking paper Let stand for 10 minutes until dry and then remove from paper 6 Melting Sugar 175 50 g 7 Soften Butter 175 50 g Cut butter into 3 or 4 pieces and then put them in small glass bowl Soften uncovered Let stand for 12 minutes 8 Soften Butter 35 100 g MS19M8020TSAADE6804466A01ENindd 27 20171221 92916
• Page 28 - English - : 28 English Cooking Smart Cooking SmartOperations Deodorization Deodorization helps remove bad smells from inside the oven after cooking The default time is 5 minutes 1 To activate press Deodorization and then START on the feature panel 2 To increase the time in 30 second increments press 30s max 15 min Cooking Smart We provide these cooking guides to help you make the most out of this oven Experience our cooking knowhow to add convenience and richness to your life Microwave cooking guide Cover the food for the entire time it is cooking The vaporised moisture from the food cycles through inside and helps cook the food evenly When cooking is complete let stand for the specied time This allows the food to cook evenly throughout Use only microwavesafe cookware Frozen vegetables Use a suitable glass Pyrex container with a lid Stir twice during cooking and once after cooking and then add the seasoning of your preference Food Serving size oz Power Time min Spinach 53 150 g 60 56 Add 1 tbsp 15 ml cold water Let stand for 23 minutes Broccoli 106 300 g 60 89 Add 2 tbsp 30 ml cold water Let stand for 23 minutes Peas 106 300 g 60 78 Add 1 tbsp 15 ml cold water Let stand for 23 minutes Green Beans 106 300 g 60 7½8½ Add 2 tbsp 30 ml cold water Let stand for 23 minutes Mixed Vegetables CarrotsPeasCorn 106 300 g 60 78 Add 1 tbsp 15 ml cold water Let stand for 23 minutes Mixed Vegetables Chinese style 106 300 g 60 7½8½ Add 1 tbsp 15 ml cold water Let stand for 23 minutes MS19M8020TSAADE6804466A01ENindd 28 20171221 92916
• Page 29 - English - : English 29 Cooking Smart Fresh vegetables Use a suitable glass Pyrex container with a lid Cut ingredients so that pieces are as small as possible to reduce the cooking time Add 23 tbsp 3045 ml of cold water for every 9 oz 250 g of vegetables unless otherwise directed Stir once during cooking and once after cooking and then add seasoning to your preference Food Serving size oz Power Time min Broccoli 9 250 g 176 500 g 90 4½5 78 Prepare even sized orets Arrange so the stems are in the center Let stand for 3 minutes Brussels Sprouts 9 250 g 90 66½ Add 45 tbsp 6075 ml water Let stand for 3 minutes Carrots 9 250 g 90 4½5 Cut carrots into even sized slices Let stand for 3 minutes Cauliower 9 250 g 176 500 g 90 55½ 7½8½ Prepare even sized orets Cut big orets into halves Arrange so the stems are in the center Let stand for 3 minutes Calabacines Zucchini 9 250 g 90 44½ Cut courgettes into slices Add 2 tbsp 30 m water or a pat of butter Cook until just tender Let stand for 3 minutes Eggplant 9 250 g 90 3½4 Cut eggplant into small slices and sprinkle with 1 tbsp lemon juice Let stand for 3 minutes Food Serving size oz Power Time min Leeks 9 250 g 90 44½ Cut leeks into thick slices Let stand for 3 minutes Mushrooms 45 125 g 9 250 g 90 1½2 2½3 Prepare small whole or sliced mushrooms Do not add any water Sprinkle with lemon juice Spice with salt and pepper Drain before serving Let stand for 3 minutes Onions 9 250 g 90 55½ Cut onions into slices or halves Add only 1 tbsp 15 ml water Let stand for 3 minutes Pepper 9 250 g 90 4½5 Cut pepper into small slices Let stand for 3 minutes Potatoes 9 250 g 176 500 g 90 45 78 Weigh the peeled potatoes and cut them into similar sized halves or quarters Let stand for 3 minutes Turnip 9 250 g 90 5½6 Cut turnip into small cubes Let stand for 3 minutes MS19M8020TSAADE6804466A01ENindd 29 20171221 92916
• Page 30 - English - : 30 English Cooking Smart Cooking Smart Rice and pasta Rice Use a largesized glass Pyrex container with a lid Note that rice doubles in volume during cooking Pasta Use a largesized glass Pyrex container Cook uncovered Add boiling water a little salt and then stir well Stir several times during and after cooking Cover with a lid while letting stand and then drain well Food Serving size Power Time min White Rice Parboiled 9 oz 250 g 1325 oz 375 g 90 1516 17½18½ Add 2 cups 500 ml cold water for 9 oz 250 g Add 3125 cups 750 ml cold water for 1325 oz 375 g Let stand for 5 minutes Brown Rice Parboiled 9 oz 250 g 1325 oz 375 g 90 2021 2223 Add 2 cups 500 ml cold water for 9 oz 250 g Add 3125 cups 750 ml cold water for 1325 oz 375 g Let stand for 5 minutes Mixed Rice Rice Wild Rice 9 oz 250 g 90 1617 Add 2 cups 500 ml cold water Let stand for 5 minutes Mixed Grains Rice Grain 9 oz 250 g 90 1718 Add 166 cups 400 ml cold water Let stand for 5 minutes Pasta 9 oz 250 g 90 1011 Add 4 cups 1000 ml hot water Let stand for 5 minutes Reheating guide General This reheating guide is based on the following standards That the temperature of liquid at room temperature is between 644 F and 68 F 18 C and 20 C and that the temperature of chilled food is between 41 F and 446 F 5 C and 7 C Follow the operating time power level and standing times specied in this table Food Serving size Power Time min Drinks Coffee Tea and Water 1 cup 150 ml 2 cups 300 ml 3 cups 450 ml 4 cups 600 ml 90 11½ 22½ 33½ 3½4 Pour into cups and reheat uncovered 1 cup in the center 2 cups opposite of each other 3 cups in a circle Keep in microwave oven during standing time and stir well Let stand for 12 minutes Soup Chilled 9 oz 250 g 123 oz 350 g 1587 oz 450 g 12 lb 550 g 90 2½3 33½ 3½4 4½5 Pour into a deep ceramic plate or deep ceramic bowl Cover with plastic lid Stir well after reheating Stir again before serving Let stand for 23 minutes Stew Chilled 123 oz 350 g 60 4½5½ Put stew in a deep ceramic plate Cover with plastic lid Stir occasionally during reheating and again before standing and serving Let stand for 23 minutes Pasta with Sauce Chilled 123 oz 350 g 60 3½4½ Put pasta eg spaghetti or egg noodles on a at ceramic plate Cover with microwave cling lm Stir before serving Let stand for 3 minutes MS19M8020TSAADE6804466A01ENindd 30 20171221 92916
• Page 31 - English - : English 31 Cooking Smart Food Serving size Power Time min Filled Pasta with Sauce Chilled 123 oz 350 g 60 45 Put lled pasta eg ravioli tortellini in a deep ceramic plate Cover with plastic lid Stir occasionally during reheating and again before standing and serving Let stand for 3 minutes Plated Meal Chilled 123 oz 350 g 1587 oz 450 g 60 4½5 5½6½ Put a meal of 23 chilled components on a ceramic dish Cover with plastic clinglm Let stand for 3 minutes Cheese Fondue Readyto Serve Chilled 14 oz 400 g 60 67 Put the readytoserve cheese fondue in a suitable sized glass pyrex bowl with lid Stir occasionally during and after reheating Stir well before serving Let stand for 12 minutes Special care for baby food To prevent accidents such as burns special care must be taken with baby food before serving Make sure to strictly follow this reheating guide for baby food Baby food Use a deep ceramic plate and cover it with a plastic lid Recommended serving temperature is 86104 F 3040 C Baby milk Use a sterilised glass bottle and reheat it uncovered Remove the nipple before reheating Otherwise the milk in the bottle can boil over Food Serving Size Power Time sec Baby Food Vegetables Meat 67 oz 190 g 60 30 Empty into a deep ceramic plate Cook covered Stir after cooking time Before serving stir well and check the temperature carefully Let stand for 23 minutes Baby Porridge Grain Milk Fruit 67 oz 190 g 60 20 Empty into a deep ceramic plate Cook covered Stir after cooking time Before serving stir well and check the temperature carefully Let stand for 23 minutes Baby Milk 34 oz 100 ml 67 oz 200 ml 30 3040 6070 Stir or shake well and then pour into a sterilized glass bottle Place in the center of turntable Cook uncovered Shake well and let stand for at least 3 minutes Before serving shake well and check the temperature carefully MS19M8020TSAADE6804466A01ENindd 31 20171221 92916
• Page 32 - English - : 32 English Cooking Smart Cooking Smart Defrosting guide This defrosting guide is based on the following standard That frozen food has an internal temperature between 0 F and 4 F 18 C and 20 C The standing time varies depending on the food type meat or vegetables and serving size thinner or thicker pieces of food Put frozen food in a microwavesafe container uncovered Turn it over halfway through defrosting time and drain well when complete Food Food Serving size Power Time min Meat Minced Ground Meat 9 oz 250 g 11 lb 500 g 20 67 813 Pork Steaks 9 oz 250 g 78 Place the meat on turntable Shield thinner edges with aluminium foil Turn over after half of defrosting time Let stand for 1530 minutes Poultry Chicken Pieces 11 lb 500 g 2 pcs 20 1415 Whole Chicken 265 lb 1200 g 3234 First put chicken pieces skinside down whole chicken breastside down on a at ceramic plate Shield the thinner parts like wings and ends with aluminium foil Turn over after half of defrosting time Let stand for 1560 minutes Fish Fish Fillets 9 oz 250 g 20 67 Whole Fish 14 oz 400 g 1113 Put frozen sh in the middle of a at ceramic plate Arrange the thinner parts under the thicker parts Shield narrow ends of llets and tail of whole sh with aluminium foil Turn over after half of defrosting time Let stand for 1025 minutes Fruit Berries 106 oz 300 g 20 67 Spread fruit on a at round glass dish with a large diameter Let stand for 510 minutes Food Food Serving size Power Time min Bread Bread Rolls Each ca 50 g 2 pcs 4 pcs 20 11½ 2½3 ToastSandwich 9 oz 250 g 44½ German Bread Wheat Rye Flour 11 lb 500 g 7 9 Arrange rolls in a circle or bread horizontally on kitchen paper in the middle of turntable Turn over after half of defrosting time Let stand for 520 minutes Quick amp easy Melting crystallized honey Put 7 oz 20 g crystallized honey into a small deep glass dish Heat for 2030 seconds at 30 power until honey is melted Melting gelatine Put dry gelatine sheets 35 oz 10 g into cold water for 5 minutes Put drained gelatine into a small glass pyrex bowl Heat for 1 minute at 30 power Stir after melting Cooking glazeicing for cake and gateaux Mix instant glaze approximately 5 oz 14 g with 15 oz 40 g sugar and 85 oz 250 ml cold water Cook uncovered in a glass pyrex bowl for 3½ to 4½ minutes at 90 power until glazeicing is transparent Stir twice during cooking MS19M8020TSAADE6804466A01ENindd 32 20171221 92916
• Page 33 - English - : English 33 Troubleshooting Cooking jam Put 13 lb 600 g fruit for example mixed berries in a suitably sized glass pyrex bowl with lid Add 106 oz 300 g preserving sugar and stir well Cook covered for 1012 minutes at 90 power Stir several times during cooking Empty directly into small jam glasses with twist off lids Let stand for 5 minutes Cooking pudding custard Mix pudding powder with sugar and milk 2 cups 500 ml following the manufacturers instructions Stir well Use a suitably sized glass pyrex bowl with lid Cook covered for 6½ to 7½ minutes at 90 power Stir well several times during cooking Browning almond slices Spread 1 oz 30 g sliced almonds evenly on a medium sized ceramic plate Brown for 3½ to 4½ minutes at 60 power Stir several times during browning Let stand for 23 minutes in the oven Use oven gloves while taking out Troubleshooting If you encounter a problem with your oven rst check the tables starting below and try the suggestions If a problem persists or if an information code keeps appearing on the display contact a local Samsung service center Checkpoints If you encounter a problem with the oven rst check the tables below and try the suggestions Problem Cause Action General The buttons cannot be pressed properly Foreign matter may be caught between the buttons Remove the foreign matter and try again For touch models Moisture is on the exterior Wipe the moisture from the exterior Child lock is activated Deactivate Child lock The time is not displayed Power is not supplied Make sure power is supplied Conrm the microwave is plugged in Check your fuses or circuit breakers The Eco powersaving function is on Turn off the Eco function The oven does not work Power is not supplied Make sure power is supplied Conrm the microwave is plugged in Check your fuses or circuit breakers The door is open Close the door and try again The door open safety mechanisms are covered with foreign matter Remove the foreign matter and try again MS19M8020TSAADE6804466A01ENindd 33 20171221 92916
• Page 34 - English - : 34 English Troubleshooting Troubleshooting Problem Cause Action The oven stops while in operation The user has opened the door to turn food over After turning over the food press the START button again to start operation The power turns off during operation The oven has been cooking for an extended period of time After cooking for an extended period of time let the oven cool The cooling fan is not working Listen for the sound of the cooling fan Trying to operate the oven without food inside Put food in the oven There is not enough ventilation space around the oven There are intakeexhaust outlets on the front and rear of the oven for ventilation Check the installation guide and make sure that the microwave is far enough away from walls and cabinets for proper ventilation Several appliances or devices are plugged into the same outlet Unplug all other appliances or devices from the outlet There is no power to the oven Power is not supplied Make sure power is supplied Conrm the microwave is plugged in Check your fuses or circuit breakers There is a popping sound during operation then the oven doesnt work Cooking sealed food or using a container with a lid may causes popping sounds Do not use sealed containers as they may burst during cooking due to expansion of the contents Problem Cause Action The oven exterior gets too hot during operation There is not enough ventilation space around the oven There are intakeexhaust outlets on the front and rear of the oven for ventilation Check the installation guide and make sure that the microwave is far enough away from walls and cabinets for proper ventilation Objects are on top of the oven Remove all objects on the top of the oven The door cannot be opened properly Food residue is stuck between the door and oven interior Clean the oven and then open the door The oven does not heat The oven may not work too much food is being cooked or improper cookware is being used To test the oven put one cup of water in a microwavesafe container put the container in the oven and then run the microwave for 12 minutes to check whether the water is heated If the water is heated reduce the amount of food and start the function again Use a microwave safe cooking container with a at bottom MS19M8020TSAADE6804466A01ENindd 34 20171221 92917
• Page 35 - English - : English 35 Troubleshooting Problem Cause Action Heating is weak or slow The oven may not work too much food is being cooked or improper cookware is being used To test the oven put one cup of water in a microwavesafe container put the container in the oven and then run the microwave for 12 minutes to check whether the water is heated If the water is heated reduce the amount of food and start the function again Use a microwave safe cooking container with a at bottom The warm function does not work The oven may not work too much food is being cooked or improper cookware is being used To test the oven put one cup of water in a microwavesafe container put the container in the oven and then run the microwave for 12 minutes to check whether the water is heated If the water is heated reduce the amount of food and start the function again Use a microwave safe cooking container with a at bottom The thaw function does not work The oven may not work too much food is being cooked or improper cookware is being used To test the oven put one cup of water in a microwavesafe container put the container in the oven and then run the microwave for 12 minutes to check whether the water is heated If the water is heated reduce the amount of food and start the function again Use a microwave safe cooking container with a at bottom Problem Cause Action The interior light is dim or does not turn on The door has been left open for a long time The interior light may automatically turn off when the Eco function operates Close and reopen the door or press the STOPCANCEL button The interior light is covered by foreign matter Clean the inside of the oven and check again A beeping sound occurs during cooking If the Auto Cook function is being used this beeping sound means its time to turn over the food during thawing After turning over the food press the START button again to restart operation The oven is not level The oven is installed on an uneven surface Make sure the oven is installed on at stable surface There are sparks during cooking Metal containers are used during the oven thawing functions Do not use metal containers When power is connected the oven immediately starts to work The door is not properly closed Close the door and check again There is electricity coming from the oven The power cord or power socket is not properly grounded Make sure the power cord and power socket are properly grounded There is water dripping Water or steam may be generated by the cooking or defrosting process depending on the food This is not an oven malfunction Let the oven cool and then wipe with a dry dish towel MS19M8020TSAADE6804466A01ENindd 35 20171221 92917
• Page 36 - English - : 36 English Troubleshooting Troubleshooting Problem Cause Action Steam leaks from the door Water or steam may be generated by the cooking or defrosting process depending on the food This is not an oven malfunction Let the oven cool and then wipe with a dry dish towel There is water left in the oven Water or steam may be generated by the cooking or defrosting process depending on the food This is not an oven malfunction Let the oven cool and then wipe with a dry dish towel The brightness inside the oven varies Changes in brightness reect changes in power output Power output changes depending on the functions in use Power output changes during cooking are not malfunctions Cooking is nished but the cooling fan is still running To ventilate the oven the cooling fan continues to run for about 5 minutes after cooking is complete This is not an oven malfunction Pressing the 30s button operates the oven This happens when the oven was not operating The microwave oven is designed to start operating when you press the 30s button if it was not operating Turntable While turning the turntable comes out of place or stops turning There is no roller or the roller is not properly in place Install the roller and then try again Problem Cause Action The turn table drags while turning The roller is not properly in place there is too much food or the container is too large and touches the inside of the microwave Adjust the amount of food and do not use containers that are too large The turn table rattles while turning and is noisy Food residue is stuck to the bottom of the oven Remove any food residue stuck to the bottom of the oven NOTE If the above guidelines do not enable you to solve the problem then contact your local SAMSUNG customer service center Please have the following information ready The model and serial numbers normally printed on the rear of the oven Your warranty details A clear description of the problem MS19M8020TSAADE6804466A01ENindd 36 20171221 92917
• Page 37 - English - : English 37 Technical specications Information code Code Description Action Cd0 Control buttons are pressed for more than 10 seconds without working Clean the keys and check if there is water on the surface around the keys If this occurs again turn off the microwave oven for more than 30 seconds and then try setting again If this code appears again call your local Samsung service center C10 The GAS Sensor is open Unplug the power cord of the oven and then contact a local Samsung service center The GAS Sensor is shorted NOTE If the suggested solution does not solve the problem contact your local SAMSUNG Service Center Technical specications SAMSUNG strives to improve its products at all times Both the design specications and these user instructions are consequently subject to change without notice Model MS19M8020 Power Source 120 V 60 Hz Power Consumption 1650 W Output Power 100 W 950 W IEC 705 Operating Frequency 2450 MHz Magnetron OM75P 31 Cooling Method Cooling fan motor Dimensions W x H x D Main unit 23 8 x 13 32 x 18 16 in Cooking chamber 17 3 x 10 6 x 17 6 in Volume 19 cuft Weight Net 425 lbs MS19M8020TSAADE6804466A01ENindd 37 20171221 92917
• Page 38 - English - : 38 English Warranty Warranty Inhome service will be provided during the warranty labor period subject to availability within the contiguous United States Inhome service is not available in all areas To receive inhome service the product must be unobstructed and accessible to service personnel If during inhome service repair can not be completed it may be necessary to remove repair and return the product If in home service is unavailable SAMSUNG may elect at our option to provide for transportation of our choice to and from a SAMSUNG authorized service center Otherwise transportation to and from the SAMSUNG authorized service center is the responsibility of the purchaser This limited warranty covers manufacturing defects in materials and workmanship encountered in normal noncommercial use of this product and shall not apply to the following including but not limited to damage which occurs in shipment delivery and installation applications and uses for which this product was not intended altered product or serial numbers cosmetic damage or exterior nish accidents abuse neglect re water lightning or other acts of nature use of products equipment systems utilities services parts supplies accessories applications installations repairs external wiring or connectors not supplied or authorized by SAMSUNG which damage this product or result in service problems incorrect electrical line voltage uctuations and surges customer adjustments and failure to follow operating instructions cleaning maintenance and environmental instructions that are covered and prescribed in the instruction book problems caused by pest infestations and overheating or overcooking by user glass tray or turntable reduced magnetron power output related to normal aging SAMSUNG does not warrant uninterrupted or errorfree operation of the product Warranty Samsung microwave oven Limited warranty to original purchaser This SAMSUNG brand product as supplied and distributed by Samsung Electronics AMERICA Inc SAMSUNG and delivered new in the original carton to the original consumer purchaser is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of ONE 1 YEAR PARTS AND LABOR TEN 10 YEARS PARTS WARRANTY FOR MAGNETRON Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit andor damage to or loss of the accessory was caused by the customer Items this stipulation covers include A Dented Scratched or Broken Door Handle OutPanel or Control Panel A Broken or missing Tray Guide Roller Coupler Filter or Wire Rack User Replaceable Parts may be sent to the customer for unit repair If necessary a Service Engineer can be dispatched to perform service This limited warranty begins on the original date of purchase and is valid only on products purchased and used in the United States To receive warranty service the purchaser must contact SAMSUNG for problem determination and service procedures Warranty service can only be performed by a SAMSUNG authorized service center The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNGs authorized service center SAMSUNG will repair this product or replace it if cannot repair it at our option and at no charge as stipulated herein with new or reconditioned parts or products if found to be defective during the limited warranty period specied above All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG Replacement parts and products assume the remaining original warranty or ninety 90 days whichever is longer MS19M8020TSAADE6804466A01ENindd 38 20171221 92917
• Page 39 - English - : English 39 Warranty THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS OR ANY OTHER SPECIAL INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE MISUSE OR INABILITY TO USE THIS PRODUCT REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE WITHOUT LIMITING THE FOREGOING PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS DAMAGE OR INJURY TO PURCHASER AND PURCHASERS PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages so the above limitations or exclusions may not apply to you This warranty gives you specic legal rights and you may also have other rights which vary from state to state To obtain warranty service please contact SAMSUNG at 1800SAMSUNG 7267864 or wwwsamsungcomussupport MS19M8020TSAADE6804466A01ENindd 39 20171221 92917
• Page 40 - English - : Please be advised that the Samsung warranty does NOT cover service calls to explain product operation correct improper installation or perform normal cleaning or maintenance QUESTIONS OR COMMENTS COUNTRY CALL OR VISIT US ONLINE AT 1800SAMSUNG 7267864 wwwsamsungcomussupport CANADA 1800SAMSUNG 7267864 wwwsamsungcomcasupport English wwwsamsungcomcafrsupport French DE6804466A01 Scan the QR code or visit wwwsamsungcomspsn to view our helpful Howto Videos and Live Shows Requires reader to be installed on your smartphone MS19M8020TSAADE6804466A01ENindd 40 20171221 92917
• Page 41: Horno de microondas Manual del usuario MS19M8020 MS19M8020TSAADE6804466A01MESindd 1 20171221 92853
• Page 42 - Spanish - : 2 Español Contenido Contenido Instrucciones de seguridad importantes 3 Instalación 12 Elementos incluidos 12 Plato giratorio 12 Mantenimiento 13 Limpieza 13 Repuesto reparación 13 Cuidados para períodos prolongados sin uso 13 Antes de comenzar 14 Hora actual 14 Ahorro de energía 14 Bloqueo para niños 14 Activar o desactivar las señales sonoras 15 Cronómetro 15 Acerca de la energía de microondas 15 Utensilios de cocina para microondas 16 Funcionamiento 17 Panel de funciones 17 Pasos simples para comenzar 18 Modo manual 19 Conguraciones comunes 19 Modo con sensor 21 Modo automático 23 Platos preparados 25 Cocción inteligente 28 Guía de cocción en microondas 28 Guía de recalentado 30 Guía de descongelado 32 Rápido y fácil 32 Resolución de problemas 33 Puntos de vericación 33 Código de información 37 Especicaciones técnicas 37 Garantía 38 Horno de microondas Samsung 38 MS19M8020TSAADE6804466A01MESindd 2 20171221 92853
• Page 43 - Spanish - : Español 3 Instrucciones de seguridad importantes CONSERVE ESTAS INSTRUCCIONES CONSERVE ESTAS INSTRUCCIONES Instrucciones de seguridad importantes Felicitaciones por haber adquirido su nuevo horno de microondas Samsung Este manual contiene información importante acerca de la instalación el uso y el cuidado de su electrodoméstico Lea detenidamente el manual y podrá así aprovechar todas las ventajas y las funciones del horno de microondas LO QUE NECESITA SABER SOBRE LAS INSTRUCCIONES DE SEGURIDAD Las advertencias y las instrucciones de seguridad importantes de este manual no cubren todos los problemas y situaciones que podrían ocurrir Es su responsabilidad usar el sentido común ser precavido y cuidadoso al instalar mantener y manejar su horno de microondas PRECAUCIONES PARA EVITAR LA POSIBLE EXPOSICIÓN EXCESIVA A ENERGÍA DE MICROONDAS A No intente hacer funcionar este horno con la puerta abierta dado que el funcionamiento con la puerta abierta puede dar como resultado una exposición nociva a energía de microondas Es importante no alterar ni modicar las trabas de seguridad B No coloque ningún objeto entre la parte delantera del horno y la puerta ni deje que se acumule suciedad o residuos de limpiadores en la supercie de sellado C No haga funcionar el horno si está dañado Es de especial importancia que la puerta del horno cierre correctamente y que no haya daños en 1 La puerta doblada 2 Las bisagras y los pestillos rotos o sueltos 3 Las juntas de la puerta y la supercie de sellado D Este horno no debe ser ajustado ni reparado por nadie excepto por personal del servicio técnico adecuadamente calicado SÍMBOLOS Y PRECAUCIONES DE SEGURIDAD IMPORTANTES Signicado de iconos y símbolos en este manual del usuario ADVERTENCIA Prácticas peligrosas o inseguras que pueden provocar lesiones graves o la muerte PRECAUCIÓN Prácticas peligrosas o inseguras que pueden provocar lesiones leves o daños a la propiedad PRECAUCIÓN Para reducir el riesgo de incendio explosión descarga eléctrica o lesiones personales cuando utilice el horno de microondas siga estas instrucciones básicas de seguridad NO intentar Desenchufe la alimentación eléctrica del tomacorriente de la pared NO desensamblar Asegúrese de que la máquina tenga buena conexión a tierra para evitar descargas eléctricas NO tocar Comuníquese con el centro de servicio técnico para obtener ayuda Siga las instrucciones elmente Nota Estas señales de advertencia se incluyen para evitar lesiones a usted y a otras personas Sígalos explícitamente Una vez que haya leído esta sección consérvela en un lugar seguro para consultas futuras MS19M8020TSAADE6804466A01MESindd 3 20171221 92854
• Page 44 - Spanish - : 4 Español Instrucciones de seguridad importantes Instrucciones de seguridad importantes CONSERVE ESTAS INSTRUCCIONES CONSERVE ESTAS INSTRUCCIONES 7 Al igual que con cualquier electrodoméstico se requiere de supervisión cuando es utilizado por niños Mantenga a los niños alejados de la puerta cuando la abra o la cierre ya que podría golpearlos o pillarles los dedos 8 No haga funcionar este electrodoméstico si tiene un cable o enchufe dañado si no funciona correctamente o si fue dañado o se cayó 9 Este electrodoméstico debe ser reparado solo por personal técnico calicado Comuníquese con la ocina del servicio técnico autorizado más cercana para que examinen reparen o ajusten el equipo 10 No tape ni bloquee ninguna de las aberturas del electrodoméstico 11 No altere ni haga ajustes ni reparaciones en la puerta 12 No almacene este electrodoméstico al aire libre No utilice este producto cerca del agua por ejemplo cerca del fregadero de la cocina en un sótano húmedo cerca de una piscina o en lugares similares 13 No sumerja el cable ni el enchufe en agua 14 Mantenga el cable alejado de supercies calientes incluso la parte posterior del horno 15 No permita que el cable cuelgue del borde de una mesa o mesada 16 Cuando limpie las supercies de la puerta y del horno que se ensamblan al cerrar la puerta utilice solo jabones o detergentes suaves no abrasivos aplicados con una esponja o paño suave Desenchúfelo antes de limpiarlo 17 Para reducir el riesgo de incendio en el interior del horno A No cocine los alimentos en exceso Preste atención al electrodoméstico cuando coloque en su interior papel plástico u otros materiales combustibles para facilitar la cocción B Retire las ataduras de alambre de las bolsas de papel o plástico antes de colocar las bolsas en el horno C Si los materiales en el interior del horno se prenden fuego mantenga la puerta cerrada apague el horno y desconecte el cable de alimentación o corte la alimentación en el panel del disyuntor o fusible Si abre la puerta el fuego puede expandirse D No utilice el interior para almacenar alimentos u objetos No deje productos de papel utensilios de cocina ni alimentos en el interior cuando no utiliza el horno ADVERTENCIA SOBRE LA STATE OF CALIFORNIA PROPOSITION 65 SOLO EEUU ADVERTENCIA Este producto contiene productos químicos reconocidos en el estado de California como capaces de provocar cáncer y defectos de nacimiento u otras afecciones reproductivas Al utilizar cualquier electrodoméstico se deben seguir precauciones de seguridad básicas a saber ADVERTENCIA Para reducir el riesgo de quemaduras descargas eléctricas incendios lesiones o exposición a energía de microondas excesiva 1 Lea todas las instrucciones de seguridad antes de usar este electrodoméstico 2 Lea y siga las especícas Precauciones para evitar la posible exposición excesiva a energía de microondas en la página 3 3 Este electrodoméstico debe conectarse a tierra Conéctelo solo a los tomacorrientes adecuadamente conectados a tierra Consulte las importantes Instrucciones de conexión a tierra en la página 5 de este manual 4 Instale o coloque este electrodoméstico solo de acuerdo con las instrucciones de instalación proporcionadas 5 Algunos productos tales como los huevos enteros y los recipientes sellados por ejemplo frascos de vidrio cerrados pueden explotar si se los calienta rápidamente Nunca los caliente en un horno de microondas 6 Utilice este electrodoméstico solo para el uso al que fue destinado según se describe en este manual No exponga este electrodoméstico a vapores ni productos químicos corrosivos Este tipo de horno está especícamente diseñado para calentar cocinar o secar alimentos No está diseñado para uso industrial o de laboratorio MS19M8020TSAADE6804466A01MESindd 4 20171221 92854
• Page 45 - Spanish - : Español 5 Instrucciones de seguridad importantes CONSERVE ESTAS INSTRUCCIONES CONSERVE ESTAS INSTRUCCIONES PRECAUCIÓN 1 Solo modelo para instalar sobre la estufa Limpie con frecuencia las campanas de ventilación No se debe permitir la acumulación de grasa sobre la campana del ltro Cuando ambee alimentos debajo de la campana encienda el ventilador Tenga cuidado al limpiar el ltro de la campana de ventilación Los agentes de limpieza corrosivos tales como los limpiadores de horno a base de lejía pueden dañar el ltro 2 Solo el modelo con botón de apertura Para evitar la posible exposición a energía de microondas excesiva no jale con la mano ninguna parte de la puerta para abrirla Abra la puerta solamente presionando el botón ubicado en el lado delantero inferior derecho del horno de microondas INSTRUCCIONES DE CONEXIÓN A TIERRA Este electrodoméstico debe conectarse a tierra En caso de cortocircuito la conexión a tierra reduce el riesgo de descarga eléctrica ya que ofrece un cable de escape para la corriente eléctrica Este electrodoméstico está equipado con un cable que incluye un cable y un enchufe de conexión a tierra El enchufe debe conectarse a un tomacorriente que esté correctamente instalado y conectado a tierra ADVERTENCIA El uso inadecuado del enchufe de conexión a tierra puede provocar un riesgo de descarga eléctrica Enchufe el cable de alimentación en un tomacorriente de 3 clavijas conectado a tierra No retire el tercer pin a tierra No utilice un adaptador ni altere de otro modo el enchufe con conexión a tierra Consulte a un electricista o técnico calicado si no entiende las instrucciones de conexión a tierra o si no está seguro de si el electrodoméstico está bien conectado a tierra 18 Los líquidos tales como agua leche café o té pueden recalentarse más allá del punto de ebullición sin que se note que están hirviendo No siempre se verán las burbujas o el hervor cuando se retira el recipiente del horno de microondas ESTO PUEDE HACER QUE LOS LÍQUIDOS MUY CALIENTES SE DERRAMEN REPENTINAMENTE CUANDO SE MUEVE EL RECIPIENTE O SE COLOCA UNA CUCHARA U OTRO UTENSILIO EN EL LÍQUIDO Para reducir el riesgo de lesiones A No caliente demasiado los líquidos B Revuelva el líquido antes y durante la etapa de calentamiento C No utilice recipientes con lados rectos y cuellos estrechos D Después de calentar deje reposar el recipiente en el horno de microondas durante un tiempo breve antes de sacarlo E Tenga sumo cuidado cuando introduce una cuchara u otro utensilio en el recipiente 19 Los alimentos o utensilios de metal de mayor tamaño al normal no deben colocarse en el horno de microondastostador dado que pueden provocar un incendio o una descarga eléctrica 20 No limpie con paños para fregar de metal Puede desprenderse un trozo de metal del paño entrar en contacto con las piezas eléctricas y provocar una descarga 21 No coloque productos de papel en el horno cuando se encuentre en modo tostadora 22 No almacene ningún material distinto de los accesorios recomendados por el fabricante en este horno cuando no se lo utiliza 23 No cubra los estantes ni ninguna otra parte del horno con papel de aluminio Si lo hace el horno podría sobrecalentarse MS19M8020TSAADE6804466A01MESindd 5 20171221 92854
• Page 46 - Spanish - : 6 Español Instrucciones de seguridad importantes Instrucciones de seguridad importantes CONSERVE ESTAS INSTRUCCIONES CONSERVE ESTAS INSTRUCCIONES ADVERTENCIAS FUNDAMENTALES PARA LA INSTALACIÓN Si su horno de microondas es un modelo para instalar sobre la estufa la instalación solo puede ser realizada por un electricista calicado o una empresa de servicios Si el horno no es instalado por un técnico calicado pueden producirse descargas eléctricas incendios explosiones problemas con el producto o lesiones Desembale el horno quite todo el material de embalaje y examine el horno para determinar si hay daños tales como abolladuras en el interior o exterior del electrodoméstico pestillos de la puerta rotos rajaduras en la puerta o una puerta que no esté correctamente alineada Si hay algún daño no ponga el horno en funcionamiento y notique de inmediato al distribuidor Asegúrese de instalar su horno en un lugar con espacio suciente Retire todas las sustancias extrañas como polvo o agua de los terminales y puntos de contacto del enchufe con un paño seco regularmente Desenchufe la alimentación y limpie el enchufe con un paño seco No hacerlo puede provocar descarga eléctrica o incendio Enchufe el cable de alimentación en un tomacorriente de 3 clavijas conectado a tierra adecuadamente Su horno debe ser el único electrodoméstico conectado en este circuito Compartir un tomacorriente de pared con otros electrodomésticos utilizando un enchufe múltiple o prolongar el cable de alimentación puede provocar descargas eléctricas o incendios No utilice un transformador eléctrico para alimentar el horno de microondas Se puede producir una descarga eléctrica o un incendio Asegúrese de que el voltaje la frecuencia y la corriente provistas coincidan con las especicaciones del producto No hacerlo puede provocar descarga eléctrica o incendio Mantenga todos los materiales de embalaje fuera del alcance de los niños Podrían utilizarlos para jugar No recomendamos utilizar un cable prolongador con este electrodoméstico Si el cable de alimentación es demasiado corto llame a un electricista calicado o a un técnico autorizado para que instale un tomacorriente cerca del electrodoméstico No obstante si es necesario utilizar un cable prolongador lea y siga la sección Uso de los cables prolongadores en esta página USO DE LOS CABLES PROLONGADORES Se suministra un cable de alimentación corto para reducir el riesgo de enredarse o tropezar con un cable más largo y caerse Los juegos de cables más largos o cables prolongadores se encuentran disponibles y puede utilizarlos con cuidado Si utiliza un cable largo o un cable prolongador 1 La especicación eléctrica marcada del juego de cables o cable prolongador debe ser como mínimo igual a la especicación eléctrica del electrodoméstico 2 El cable prolongador debe ser un cable de 3 hilos de conexión a tierra y se lo debe enchufar en un tomacorriente de 3 ranuras 3 El cable más largo debe disponerse de manera tal que no quede colgando de la mesada o mesa en donde los niños pueden tirar de él o tropezarse con él accidentalmente Si utiliza un cable prolongador la luz interior puede parpadear y la velocidad del ventilador puede variar cuando el horno de microondas está encendido Los tiempos de cocción también pueden ser más largos MS19M8020TSAADE6804466A01MESindd 6 20171221 92854
• Page 47 - Spanish - : Español 7 Instrucciones de seguridad importantes CONSERVE ESTAS INSTRUCCIONES CONSERVE ESTAS INSTRUCCIONES PRECAUCIONES PARA LA INSTALACIÓN Coloque el horno de manera tal que se pueda acceder al enchufe fácilmente No hacerlo puede provocar descarga eléctrica o incendio debido a fugas eléctricas Desenchufe el horno cuando no se utilice por períodos prolongados o durante una tormenta eléctrica No hacerlo puede provocar descarga eléctrica o incendio ADVERTENCIAS FUNDAMENTALES PARA EL USO Si el horno se inunda comuníquese con el centro de servicio técnico Samsung más cercano No hacerlo puede provocar descarga eléctrica o incendio Lea y siga las quotPrecauciones para evitar la posible exposición a energía de microondas excesivaquot especicadas al comienzo de la sección Información de seguridad Si el microondas genera un ruido extraño olor a quemado o humo desenchúfelo de inmediato y comuníquese con el centro de servicio técnico más cercano No hacerlo puede provocar descarga eléctrica o incendio En caso de producirse una fuga de gas como gas propano gas LP etc ventile el ambiente de inmediato No toque el microondas ni el cable de alimentación ni el enchufe No utilice un ventilador Una chispa puede causar una explosión o un incendio Procure que ni la puerta ni ninguna otra pieza entre en contacto con el cuerpo mientras cocina o cuando acaba de cocinar No hacerlo puede provocar quemaduras Este electrodoméstico debe conectarse a tierra correctamente Lea y siga las quotInstrucciones de conexión a tierraquot especicadas al comienzo de esta sección No conecte el aparato a una tubería de gas una tubería plástica de agua o un cable de teléfono Esto puede provocar descarga eléctrica incendio explosión o problemas con el producto No enchufe el cable de alimentación en una toma que no tenga una conexión a tierra adecuada y asegúrese de que cumpla las normas locales y nacionales No corte ni retire la tercera clavija a tierra del cable de alimentación bajo ninguna circunstancia El horno de microondas requiere un tomacorriente separado con conexión a tierra único con circuito derivado de mínimo 15 A y máximo 20 A No instale este electrodoméstico en un lugar húmedo engrasado o cubierto de polvo ni en un lugar expuesto a la luz solar directa o al agua gotas de lluvia Se puede producir una descarga eléctrica o un incendio Enchufe la alimentación al tomacorriente de la pared con rmeza No utilice un enchufe dañado un cable de alimentación dañado ni un tomacorriente de pared ojo Se puede producir una descarga eléctrica o un incendio No lo coloque sobre un fregadero No jale ni doble excesivamente el cable de alimentación No retuerza ni ate el cable de alimentación No enganche el cable de alimentación de un objeto metálico ni coloque un objeto pesado sobre el cable de alimentación ni introduzca el cable de alimentación entre objetos ni lo empuje dentro del espacio que hay detrás del electrodoméstico Se puede producir una descarga eléctrica o un incendio No tire del cable de alimentación al desenchufar el horno Desenchufe el horno tirando únicamente del enchufe No hacerlo puede provocar descarga eléctrica o incendio Si se daña el enchufe o el cable de alimentación comuníquese con el centro de servicio técnico Samsung más cercano para solicitar un repuesto o una reparación MS19M8020TSAADE6804466A01MESindd 7 20171221 92854
• Page 48 - Spanish - : 8 Español Instrucciones de seguridad importantes Instrucciones de seguridad importantes CONSERVE ESTAS INSTRUCCIONES CONSERVE ESTAS INSTRUCCIONES En caso de un incendio provocado por grasa en las unidades de supercie debajo del horno extinga la charola en llamas sobre la supercie cubriéndola por completo con una tapa una bandeja para hornear o una bandeja plana Nunca descuide las unidades de supercie debajo de su horno en ambientes con altas temperaturas El sobrecalentamiento puede ocasionar humo y derrames de grasa que pueden incendiarse y expandirse si el ventilador se encuentra encendido Para minimizar el funcionamiento automático del ventilador utilice recipientes de tamaño adecuado y programe altas temperaturas sobre las unidades de supercie solo cuando sea necesario Si los materiales en el interior del horno se encendieran mantenga la puerta cerrada apague el horno y desconecte el cable de alimentación o corte la alimentación en el panel del disyuntor o fusible Si abre la puerta el fuego puede expandirse Siempre respete las Precauciones de seguridad cuando utilice su horno Nunca intente reparar el horno Contiene voltaje peligroso en el interior Si se debe reparar el horno comuníquese con un centro de servicio técnico Samsung autorizado cercano No intente reparar desarmar ni modicar el electrodoméstico Dado que una corriente de alta tensión ingresa en el chasis del producto durante su funcionamiento abrir el producto puede provocar descargas eléctricas o incendios Podría estar expuesto a ondas electromagnéticas Cuando sea necesario reparar el horno comuníquese con el centro de servicio técnico Samsung más cercano Si alguna sustancia extraña como por ejemplo agua ingresa en el horno de microondas desenchúfelo y comuníquese con el centro de servicio técnico Samsung más cercano No hacerlo puede provocar descarga eléctrica o incendio No toque el enchufe de alimentación con las manos húmedas Se puede producir una descarga eléctrica No desenchufe la alimentación para apagar el electrodoméstico cuando éste esté en funcionamiento Volver a enchufar la alimentación al tomacorriente de la pared puede provocar una chispa y generar una descarga eléctrica o un incendio Mantenga todos los materiales de embalaje fuera del alcance de los niños Los materiales de embalaje pueden ser peligrosos para los niños Si un niño se coloca una bolsa en la cabeza puede asxiarse No deje que los niños ni ninguna persona con capacidades físicas sensoriales o mentales reducidas utilice el electrodoméstico sin supervisión Asegúrese de que el electrodoméstico esté fuera del alcance de los niños No hacerlo puede provocar una descarga eléctrica quemaduras o lesiones No toque el interior del electrodoméstico inmediatamente después de cocinar El interior del electrodoméstico estará caliente El calor del interior del horno puede provocar quemaduras No utilice papel de aluminio excepto en los casos particulares especicados en este manual objetos metálicos tales como recipientes tenedores etc ni recipientes con bordes dorados o plateados en el microondas Estos objetos pueden provocar chispas o un incendio No utilice ni coloque objetos ni aerosoles inamables cerca del horno El calor del microondas puede hacer que los aerosoles inamables exploten o ardan No hacerlo puede provocar descarga eléctrica o lesiones No altere ni haga ajustes ni reparaciones en la puerta Bajo ninguna circunstancia debe quitar el gabinete exterior No almacene ni utilice el horno al aire libre MS19M8020TSAADE6804466A01MESindd 8 20171221 92854
• Page 49 - Spanish - : Español 9 Instrucciones de seguridad importantes CONSERVE ESTAS INSTRUCCIONES CONSERVE ESTAS INSTRUCCIONES PRECAUCIONES PARA EL USO Si la supercie del microondas está rajada apague el horno de microondas No hacerlo puede provocar una descarga eléctrica La vajilla y los envases pueden calentarse Manipúlelos con cuidado Los alimentos calientes y el vapor pueden provocar quemaduras Retire cuidadosamente las tapas de los envases dirigiendo el vapor lejos de las manos y la cara Retire las tapas de los alimentos para bebé antes de calentarlos Después de calentar los alimentos para bebé revuelva bien para distribuir el calor en forma pareja Siempre pruebe los alimentos para corroborar la temperatura antes de alimentar al bebé Los frascos de vidrio o la supercie de los alimentos pueden estar más fríos que el interior de los alimentos los cuales pueden estar tan calientes como para quemar la boca del niño Asegúrese de que todos los utensilios de cocina que se utilicen en el microondas sean los adecuados para este n Cuando utilice utensilios de cocina aptos para microondas cumpla estrictamente las recomendaciones del fabricante No se pare sobre el microondas ni coloque objetos tales como ropa velas o cigarrillos encendidos platos químicos objetos metálicos etc sobre el electrodoméstico Artículos tales como paños pueden quedar enganchados en la puerta Se pueden producir descargas eléctricas incendios problemas con el producto o lesiones personales No haga funcionar el aparato con las manos húmedas Se puede producir una descarga eléctrica No rocíe materiales volátiles como insecticidas en la supercie del electrodoméstico Además de ser perjudiciales para las personas pueden producirse descargas eléctricas incendios o problemas en el producto No coloque el electrodoméstico sobre un objeto frágil como un fregadero o un objeto de vidrio Hacerlo puede provocar daños al fregadero o al objeto de vidrio No acerque el rostro ni el cuerpo al electrodoméstico mientras está cocinando o al abrir la puerta inmediatamente después de la cocción Asegúrese de que los niños no se acerquen demasiado al electrodoméstico No hacerlo puede provocar quemaduras en los niños No coloque alimentos ni ningún objeto pesado sobre la puerta Los alimentos o el objeto podrían caerse al abrir la puerta y provocar quemaduras o lesiones No enfríe abruptamente la puerta el interior del electrodoméstico ni los alimentos cocinados del interior vertiendo sobre estas partes durante o después de la cocción Esto puede provocar daños en el electrodoméstico El vapor o el rocío de agua pueden provocar quemaduras o lesiones No cocine sin la charola de vidrio en su lugar sobre el piso del horno Los alimentos no se cocinarán correctamente sin la charola No descongele bebidas congeladas en botellas de cuello angosto Los envases pueden romperse No raye el vidrio de la puerta del horno con un objeto puntiagudo Esto puede provocar que el vidrio se dañe o se rompa No almacene nada directamente encima del electrodoméstico cuando está en funcionamiento No utilice recipientes sellados Quíteles los sellos y las tapas antes de calentarlos Los recipientes sellados pueden explotar debido a la acumulación de presión incluso después de que el horno se ha apagado Se podrán observar interferencias de TV radio mientras usa el horno microondas De forma similar a la interferencia causada por otros electrodomésticos pequeños esto no indica que exista un problema con el horno microondas Enchufe el horno microondas en un circuito eléctrico diferente aleje la radio o la TV tanto como sea posible del horno microondas o controle la posición y la señal de la antena de la TV radio MS19M8020TSAADE6804466A01MESindd 9 20171221 92855
• Page 50 - Spanish - : 10 Español Instrucciones de seguridad importantes Instrucciones de seguridad importantes CONSERVE ESTAS INSTRUCCIONES CONSERVE ESTAS INSTRUCCIONES INSTRUCCIONES FUNDAMENTALES PARA LA LIMPIEZA No rocíe agua directamente sobre el electrodoméstico para limpiarlo No utilice benceno diluyente ni alcohol para limpiar el electrodoméstico Esto puede provocar decoloración deformación daños descarga eléctrica o incendio Antes de limpiar o realizar el mantenimiento desenchufe el electrodoméstico del tomacorriente de la pared y quite los restos de comida de la puerta y del compartimiento de cocción No hacerlo puede provocar descarga eléctrica o incendio Tenga cuidado de no lastimarse cuando limpia el interior y el exterior del electrodoméstico Puede lastimarse con los bordes puntiagudos del electrodoméstico No limpie el electrodoméstico con un limpiador a vapor Esto puede provocar corrosión Mantenga limpia la parte interna del horno Las partículas de alimentos o los aceites salpicados que se adhieren a las paredes o al piso pueden causar daños en la pintura y reducir la eciencia del horno INSTALACIÓN DEL HORNO DE MICROONDAS Coloque el horno en una supercie plana nivelada a 335 pulgadas 85 cm por encima del suelo La supercie debe ser lo sucientemente resistente como para soportar el peso del horno 4 pulgadas 10 cm detrás 8 pulgadas 20 cm desde arriba 4 pulgadas 10 cm a los costados 335 pulgadas 85 cm por encima del suelo 1 Cuando instale el horno asegúrese de que la ventilación sea la adecuada deje un espacio de al menos 4 pulgadas 10 cm detrás y a los costados del horno y 8 pulgadas 20 cm hacia arriba 2 Retire todo el material de empaque que está dentro del horno 3 Instale el rodillo y el plato giratorio Verique si el plato giratorio gira libremente Modelos con plato giratorio solamente Consulte la página 12 4 Este horno de microondas debe colocarse de manera tal que se pueda acceder al enchufe NOTA Hay un kit de marco embellecedor disponible para seleccionar algunos modelos MS19M8020TG y MS19M8000AS El kit de marco embellecedor permite instalar el microondas en un gabinete o en otra instalación empotrada Para obtener instrucciones de instalación más completas consulte el manual de instalación del kit de marco embellecedor MS19M8020TSAADE6804466A01MESindd 10 20171221 92855
