Table of contents

• DRYER DESCRIPTION
• BEFORE USING THE APPLIANCE FOR THE FIRST TIME
• TIPS BEFORE DRYING
• DRYING PROCESS
• SYSTEM SETTINGS
• CLEANING AND MAINTENANCE
• ERRORS AND TROUBLESHOOTING

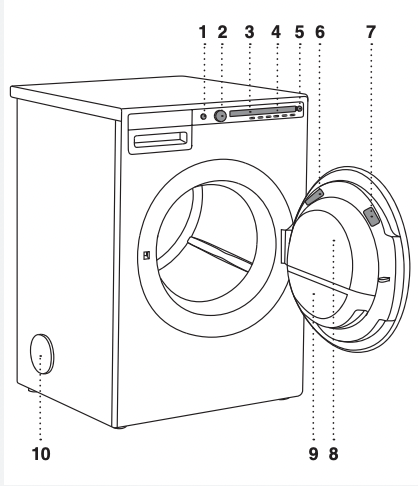

DRYER DESCRIPTION

1. Main switch (ON/OFF)

2. Program selector knob

3. Display unit

4. Program selector buttons

5. Button (start/pause)

6. Rating plate with information about the dryer (on the inside of the dryer door)

7. QR and AUID code (on the inside of the dryer door)

8. Dryer door

9. Door net filter

10. Air exhaust hose opening

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

CLEANING

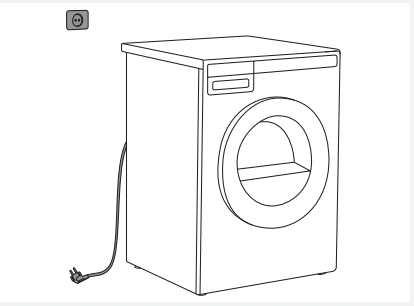

Disconnect the dryer from the power mains and open the door towards you. Clean the dryer drum with a damp cloth and a mild detergent.

No program can be started while the door is open.

CHOOSING THE LANGUAGE

When the dryer is connected (see chapter "INSTALLATION AND CONNECTION") and switched on for the first time, choose the preferred language:

1. Press the button 2 or the program selector button to scroll the list of languages. Confirm your selection by pressing the OK button.
2. Press the "Finalize" button to confirm your selection. For further drying process, see chapter "DRYING PROCESS".

When you run the dryer for the first time, or if the dryer has been out of use for a long time, slight hitting noise may occur. This is normal and it will disappear after a few drying cycles.

TIPS BEFORE DRYING

This chapter includes several tips on how to prepare the laundry for drying.

LAUNDRY SORTING

Sort the laundry according to:

• type,
• fabric thickness.

For the most even drying, make sure the laundry is made of a similar material.

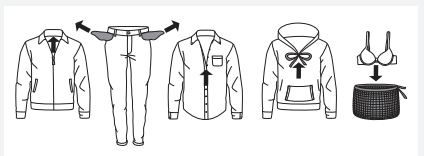

CLOTHING

1. Close the buttons, zips, and hook-and-loop fasteners, so that they do not damage the fabric.
2. Turn the pockets inside out.
3. Place very sensitive clothes in a special-purpose laundry washing bag.

Laundry to be dried in the dryer should be spun at a minimum of 1000 rpm. Higher spinning speeds will save energy and cut drying time.

If you decide to dry only one large item, we recommend drying it separately from smaller items of laundry

DRYING PROCESS

WARNING! - To reduce the risk of electric shock or injury to persons, read the "IMPORTANT SAFETY INSTRUCTIONS" section before operating this appliance.

STEP 1: SORT THE FABRICS.

See chapter "TIPS BEFORE DRYING"

STEP 2: TURN ON THE MAIN SWITCH.

Turning on

Press the on/off button.

Turning off

Press the on/off button.

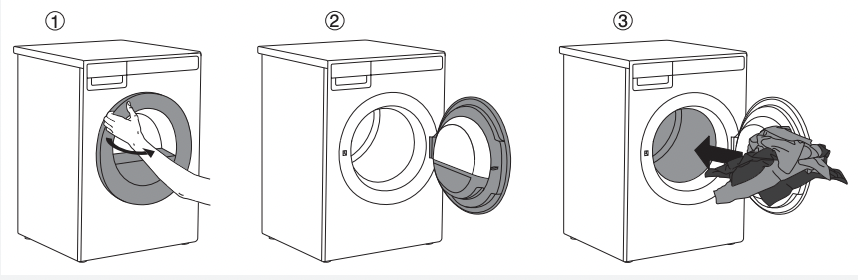

STEP 3: OPEN THE DRYER DOOR AND INSERT THE LAUNDRY.

Open the dryer door towards you.

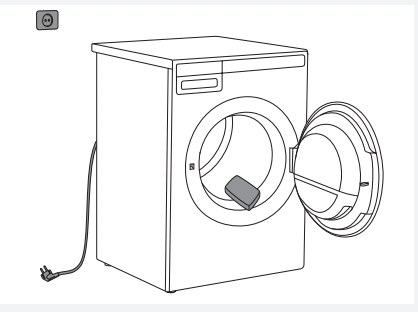

Place the laundry into the empty dryer drum. Make sure there aren't any other objects among the laundry. Such objects could melt and cause damage to the dryer or your laundry.

Do not overload the drum! (See the program table on the rating plate and adjust the load accordingly.) If the dryer drum is overloaded, the laundry will be more wrinkled and not dried as thoroughly.

STEP 4: CHOOSE THE DRYING PROGRAM.

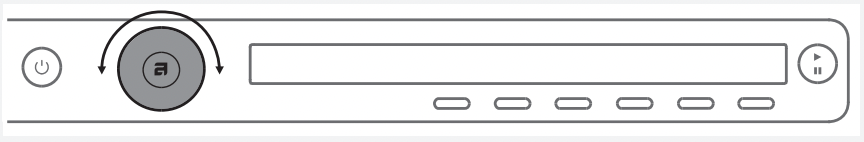

Choose the program by rotating the program selector knob in either direction.

The program selector knob can be used when arrows appear on the display. Select the program based on the type and remaining moisture of the laundry.

Anticipated program duration is indicated on the display.

Extra program settings can also be selected for each program. See STEP 5.

Choose between the following programs:

* Max. kg (lbs) dry load

If your laundry is not dried to the desired dryness level, use extra program settings or use a more suitable program.

STEP 5: CHOOSING THE PROGRAM SETTINGS

Using the program settings, the drying programs can be further adjusted to your preferences. Some program settings may not be available for your selected program. Selected program settings will remain stored after the end of the drying cycle and may be changed subsequently (except for delayed start which is not stored after the drying is complete).

1. Dryness level (extra dry)

2. Anti-crease

3. Load

4. Lower drying temperature (gentle dry)

5. Time (timed drying)

6. Delay Start

Choose the program settings before pressing the START button. When the drying program is in progress, program settings cannot be changed.

Press and hold the button under a program setting to display the information (INFO) about it.

Following are the program settings that may be selected using the buttons 1 to 6:

1. Dryness level (extra dry)

By pressing the button 1, you can choose between extra dryness levels (+, ++, +++). Each time the button is pressed, the final level of laundry dryness and drying time will change.

2. Anti-crease

This function pertains to what happens after the drying cycle. By pressing the button 2, you can choose the duration of the anti-crease program from 0 hours to 4 hours , in 1-hour increments.

3. Load

By pressing the button 3, you can choose between loads of the dryer.

Selection of actual load affects the initially displayed anticipated drying time.

4. Lower drying temperature (gentle dry)

Press the button 4 to switch the gentle dry function on (ON) or off (OFF)

5. Timed drying

First, use the program selector knob to select the Timed program.

Press the button 5 to select a drying time from 30 minutes to 4 hours, in 15-minute steps.

Use the button 6 (OK) to confirm the selected drying time. Press the Start/ Pause button to start the drying process.

6. Delay Start

Press the button 6 to choose the Delayed Start when you wish the drying program to start after a certain period of time.

Press the button 6 for to appear. Use the program selector knob or the button 6 to set the delay from 30 minutes to 6 hours in 30-minute increments, and then from 6 hours to 24 hours in 1-hour increments.

Press the button 5 (OK) to confirm the selected Delay Start time. Press the Start button to start. When the countdown reaches zero, the selected drying program will start automatically.

To cancel the delay and start the drying process immediately, press the button 5 .

When Start delay time is once set, it is not possible to change it; the only possibility is to »Skip it « with pressing on button and immediately continue with chosen program.

If you do not take any action for 5 minutes, the display will switch to standby mode. Press the ON/OFF button to reactivate it. The countdown to the start of the drying cycle will be displayed. If the dryer is in the standby mode, the display will switch on 1 minute before the start of the drying cycle. After the countdown, drying time will be indicated on the display unit.

Delayed start cannot be set for the favourite programs.

STEP 6: CLOSE THE DOOR AND START THE DRYING PROCESS.

Close the dryer door and press the Start/Pause button.

Start (pressed briefly – start/resume)

Pause (pressed briefly – drying temporarily suspended)

Cancel (press and hold the button for 3 seconds)

Remaining time

Depending on the selected program and load, anticipated drying time will be displayed in hours and minutes.

Actual drying time will depend on the selected program, load, type of laundry, spinning rate etc.

Actual drying time may be longer or shorter than initially displayed.

Pausing, stopping or changing the program

To pause a program, briefly press the Start/Pause button. To resume the program, press the Start/ Pause button again.

The drying program may also be paused by opening the dryer door. To resume the program, simply close the door and press the Start/Pause button.

To stop and cancel the washing program, press the Start/Pause button and hold it for 3 seconds.

The selected program will be stopped and the cooling stage will begin. Cooling time depends on the selected program.

Only after the cooling is complete, you can use the program selector knob to select a new program and press the Start/Pause button.

The final drying cycle includes a cooling down stage without heater operation. It makes sure the laundry is of suitable temperature at the end of the program and that it can be taken from the dryer without risk of touching hot clothes.

A drying program can be paused using the ON/OFF button. The dryer will switch off . Press the Start button to resume the program.

STEP 7: END OF PROGRAM

After the end of the drying program, the display will indicate that the program has been successfully completed ("Cycle completed successfully").

If you have selected the "Anti-crease" option, the dryer will continue to operate after the end of the drying cycle for the amount of time specified upon selection of this program setting.

After the drying cycle, you have the possibility to save the program as a favorite program (see "Favourite programs")

Open the door and remove the laundry from the dryer.

Clean the net filter in the door (see chapter "CLEANING AND MAINTENANCE").

Make sure the dryer drum is empty, then close the door.

5 minutes after the end of the program or last activation, the display will switch off to standby mode in order to save power. The display will light up again if you press the ON/OFF button or open the dryer door.

After each drying cycle, clean the net filter in the door and empty the condensate tank. See chapter ”CLEANING AND MAINTENANCE”.

A clogged net filter and heat pump filter may result in activation of the automatic overheating switch-off device. Clean the filter, wait for the machine to cool down, and try running it again. If the dryer still fails to start, call a service technician.

After the drying process, unplug the dryer power cord from the power outlet.

Favourite programs/Add to fav?

After the end of the drying program, you can use the button 6 to store the program, including all extra settings, as your favourite program.

Up to 4 favourite programs can be stored.

Choose the favourite program position (number) using the button 2; the most recently used program, including all settings, will be off ered. To store a program, confirm with the button 4.

Changing a favourite program

If you wish to store a program after the end of the drying cycle, but there is no more room for another favourite program (only 4 favourite program slots are available), then one of the existing stored favourite programs can be substituted with a new one.

Use the button 2 to scroll through the list of Favourite programs. Press the button 4 to confirm the program to be replaced.

Confirm the replacement by pressing the button 5.

If you do not take any action for 5 minutes, the display will switch to standby mode. To activate the display, press the ON/OFF button or open the dryer door.

SYSTEM SETTINGS

In the main menu, use the program selector knob to select "System Settings". Confirm the selection by pressing the button 2.

Then, use the program selector knob to scroll the list of settings that can be changed.

• Child Lock
• Language
• Programs
• Display (display unit: contrast & logo)
• Sounds
• Reset

Use the button 6 (BACK) to return to "System Settings" or to the main menu.

Press the INFO button to display brief information about the setting.

CHILD LOCK

Child lock can be activated by pressing the button 1 . This will prevent children from switching on the machine.

Press the button 1 to deactivate the child lock. When the child lock is activated, no other function can be selected

To temporarily (for 3 minutes) switch off the child lock, press the 1 and 4 buttons simultaneously for 3 seconds.

LANGUAGE

You can choose between 24 languages. Press the button 3 for to appear. Use the program selector knob or the button 3 to scroll the list of languages. Use the button 6 (OK) to confirm the selected language.

Use the button 6 to return to "System Settings".

PROGRAMS

The main menu includes the entire set of programs that you can choose using the program selector knob. This setting allows only displaying the selected program in the main menu.

Press the button 1 for to appear. Use the program selector knob or the button 1 to select a program. Use the button 3 to set whether this program is to be displayed or not: On / Off .

Use the button 6 to return to "System Settings".

DISPLAY UNIT

Set the Contrast and Logo display

Use the buttons 1 to 5 to set the Contrast.

Use the button 1 to toggle Logo display on or off .

The symbol means that logo will appear on the display when the machine is turned on.

Use the button 6 to return to "System Settings".

SOUNDS

Choose whether audible signals are switched on or off .

Use the button 1 to switch acoustic signal onor off .

Use the button 4 to choose between the following settings: low, mid, and high. As you scroll through the options, a sample audible signal will be sounded.

Use the button 6 to return to "System Settings".

RESET

This means that all settings will return to the default settings and your own settings will be deleted

Confirm the selection by pressing the button 3 (YES). Press the button 6 to return to "System Settings".

SOUNDS

In the initial stage of drying or during drying, the compressor and the pump may cause noise which, however, does not affect the dryer operation.

Humming sound: this is the sound of the compressor unit. The level of noise depends on the program and the drying stage.

Whirring sound: from time to time, the compressor unit is ventilated.

Pumping sound: the pump is pumping the condensate into the condensate tank.

Clicking sound: clicking noise is caused by automatic cleaning of the heat exchanger (compressor).

Swishing water sound: can be heard during automatic cleaning.

Rattling sound: can be heard during drying if laundry has any hard parts (buttons, zippers etc.)

CLEANING AND MAINTENANCE

Before cleaning, make sure to switch off the appliance and disconnect it from the power mains (unplug the power cord from the outlet).

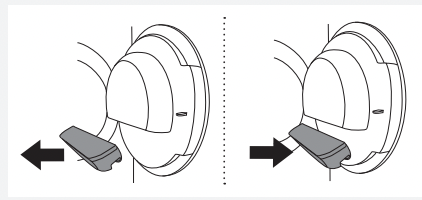

CLEANING THE DOOR NET FILTER IN THE DOOR

Clean the door net filter after each drying cycle.

Never operate without a door net filter or if the door net filter is damaged.

ADDITIONAL INFORMATION REGARDING CLEANING

If you have inadvertently removed the entire net filter housing in the dryer door, replace it in the same position.

Opening on the lower side of the door should occasionally be cleaned with a vacuum cleaner.

If necessary, clean the filter housing and door gasket as well.

CLEANING THE APPLIANCE EXTERIOR

Clean the appliance exterior and the display unit using a soft damp cotton cloth and water. Do not use solvents or abrasive cleaners that could damage the appliance (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents). Wipe all parts of the dryer with a soft cloth until dry.

Keep the area around the dryer clean and cool. Dust, heat, and humidity will extend the drying time.

Always disconnect the dryer from the power mains before cleaning.

ERRORS AND TROUBLESHOOTING

Disturbances from the environment (e.g. the power grid) may result in various error reports (see Troubleshooting table). In such case:

• Switch off the appliance, wait for 1 minute, switch the appliance back on, and repeat the drying program.
• If the error persists, call an authorized service center.
• You will be able to solve most of the problems in dryer operation by yourself (see troubleshooting table below).
• Repairs may only be carried out by an adequately trained person.
• Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the user.

The warranty does not cover the errors or failures resulting from disturbances from the environment lightning strike, power grid failures, natural disasters etc.).

FAILURE DISPLAY

In case of a failure while a program is in progress, the relevant Error X is indicated on the display unit.

Press and hold the INFO button to display the error description.

Press the 6 EXIT button to return to Main Menu.

Switch off the dryer and turn it back on.

Errors indicated on the display unit (depending on the model) may include the following:

INFORMATION before, during, and after the program (depending on the model)
