Dryer
User manual
DV25FG50BV**
DV5000F_LED_WEB_Vent_EN.indd 1DV5000F_LED_WEB_Vent_EN.indd 1 2025/9/5 10:00:042025/9/5 10:00:04
English2
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
CALIFORNIA PROPOSITION 65 WARNING 6
Important safety precautions 6
Warnings 8
Cautions 8
Before installation 10
Key installation requirements 10
Location considerations 10
Ducting requirements 14
Exhausting requirements 15
Electrical requirements 16
Installation 18
What’s included 18
Step-by-step installation 20
Exhaust ducting guide 24
Changing the direction of the exhaust duct (optional) 25
Vent blockage test 29

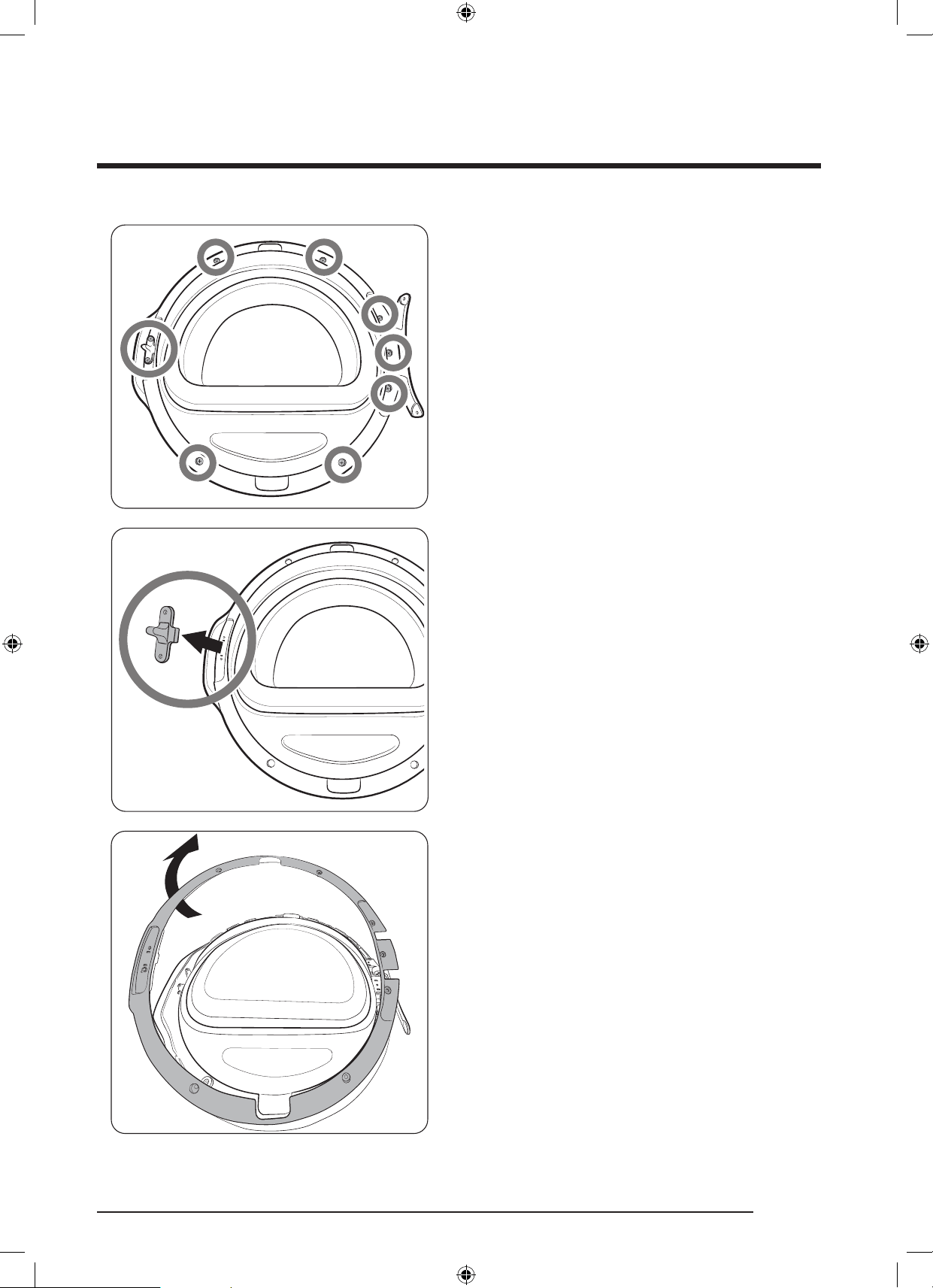

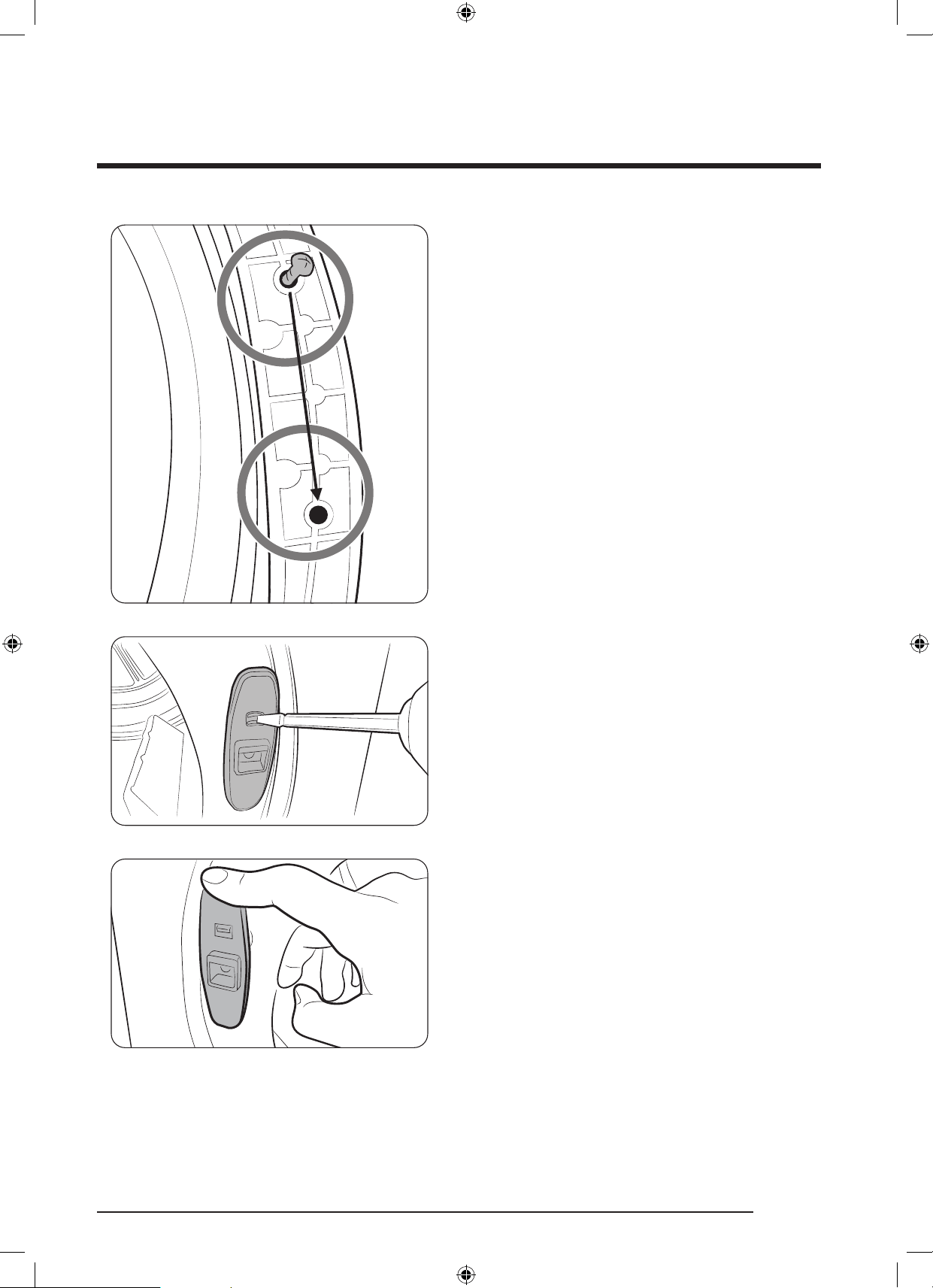

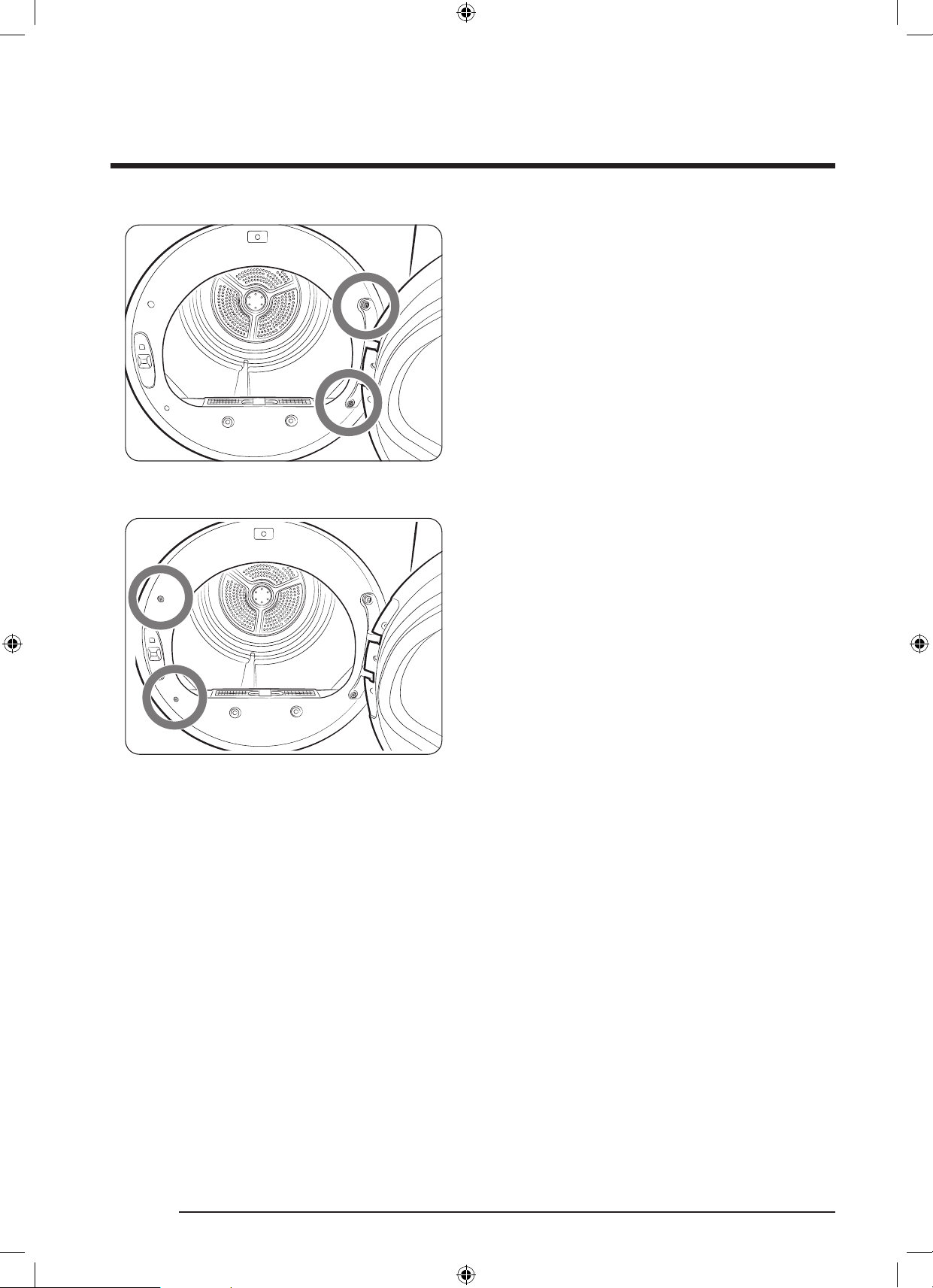

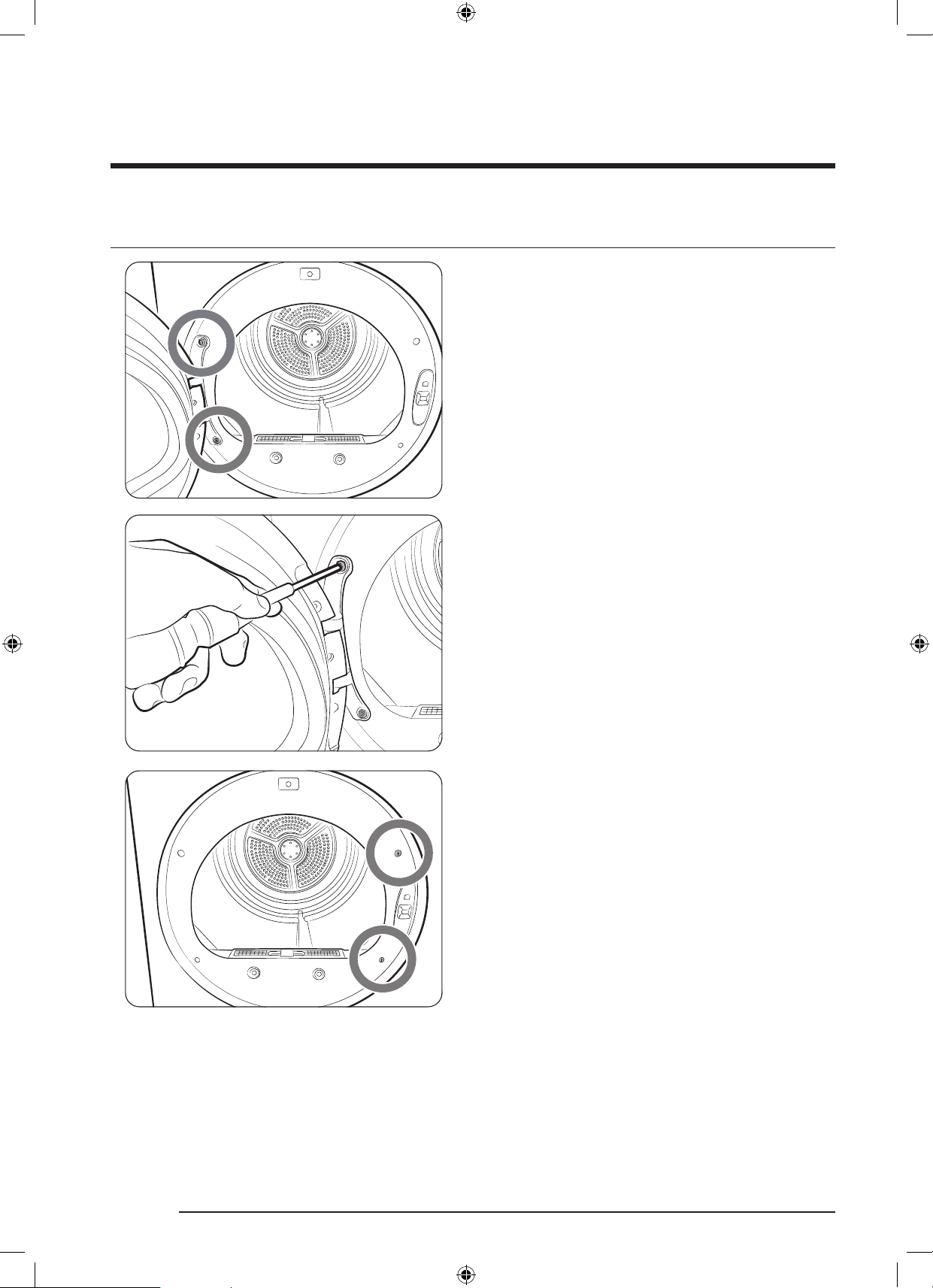

Switching the door position 32
Before you start 37
Sort and load 37
Functional prerequisite 37
Operations 38
Feature panel 38
Simple steps to start 40
Cycle overview 41
Cycle guide 42
Special features 43
SmartThings 44
DV5000F_LED_WEB_Vent_EN.indd 2DV5000F_LED_WEB_Vent_EN.indd 2 2025/9/5 10:00:042025/9/5 10:00:04
English 3
Maintenance 45
Cleaning 45
Troubleshooting 46
Checkpoints 46
Information codes 49
Specications 50
Fabric care chart 50
Specication sheet 51
Cycle chart 52
DV5000F_LED_WEB_Vent_EN.indd 3DV5000F_LED_WEB_Vent_EN.indd 3 2025/9/5 10:00:042025/9/5 10:00:04
SAVE THESE INSTRUCTIONS
English4
Safety information
Congratulations on your new Samsung dryer. This manual contains important information
on the installation, use and care of your appliance. Please take some time to read this
manual to take full advantage of your dryer’s many benets and features.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efciently
operate the extensive features and functions of your new appliance. Please store the
manual in a safe location close to the appliance for future reference. Use this appliance
only for its intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution and care when installing, maintaining and operating your dryer.
Because the following operating instructions cover various models, the characteristics of
your dryer may differ slightly from those described in this manual and not all warning
signs may be applicable. If you have any questions or concerns, contact your nearest
service center or nd help and information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or
property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist.
To safely operate this appliance, familiarize yourself with its operation and exercise care
when using it.
DV5000F_LED_WEB_Vent_EN.indd 4DV5000F_LED_WEB_Vent_EN.indd 4 2025/9/5 10:00:042025/9/5 10:00:04
SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS
English 5
WARNING - Risk of Fire
• Clothes dryer installation must be performed by a qualied installer.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• Do not install a clothes dryer with exible plastic venting materials. If exible metal
(foil type) duct is installed, it must be of a specic type identied by the appliance
manufacturer as suitable for use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airow and increase the risk of re.
• Do not install a booster fan in the exhaust duct.
Note: The booster fan warning does not apply to clothes dryers intended to be
installed in a multiple clothes dryer system, with an engineered exhaust duct system
that is installed per the clothes dryer manufacturer’s guidelines.
• To reduce the risk of severe injury or death, follow all installation instructions.
• Save these instructions.
WARNING - To reduce the risk of re or explosion:
• Do not dry items that have been previously cleaned, washed, soaked, or spotted with
gasoline, dry cleaning solvents, or other ammable or explosive substances. They
emit vapors that could ignite or explode. Any material that has been in contact with a
cleaning solvent or ammable liquids or solids should not be placed in the dryer until
all traces of these ammable liquids or solids and their fumes have been removed.
There are many highly ammable items used in homes, such as acetone, denatured
alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,
turpentine, waxes, and wax removers.
• Do not dry items containing foam rubber (may be labeled latex foam) or similarly
textured rubber-like materials on a heat setting. Heated foam rubber materials can,
under certain circumstances, ignite spontaneously.
DV5000F_LED_WEB_Vent_EN.indd 5DV5000F_LED_WEB_Vent_EN.indd 5 2025/9/5 10:00:042025/9/5 10:00:04
SAVE THESE INSTRUCTIONS
Safety information
SAVE THESE INSTRUCTIONS
English6
WARNING - Fire or explosion hazard:
• Failure to follow safety warnings exactly could result in serious injury, death or
property damage.
• Do not store or use gasoline or other ammable vapors and liquids near this or any
other appliance.
• Installation and service must be performed by a qualied installer, service agency, or
the gas supplier.
• Do not install a booster fan in the exhaust duct.
Note: The booster fan warning does not apply to clothes dryers intended to be
installed in a multiple clothes dryer system, with an engineered exhaust duct system
that is installed per the clothes dryer manufacturer’s guidelines.
CALIFORNIA PROPOSITION 65 WARNING
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Important safety precautions
WARNING
To reduce the risk of re, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
1. Read all instructions before using this appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other ammable or explosive
substances, as they give off vapors that could ignite or explode.
3. Risk of Suffocation and Injury from Entrapment: Do not allow children to play on or
in the appliance.Close supervision of children is necessary when the appliance is used
near children.
4. Before the appliance is removed from service or discarded, remove the door to the
drying compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.
DV5000F_LED_WEB_Vent_EN.indd 6DV5000F_LED_WEB_Vent_EN.indd 6 2025/9/5 10:00:042025/9/5 10:00:04
SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS
English 7
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless
specically recommended in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills to carry out.
9. Do not use fabric softeners or products to eliminate static unless recommended by the
manufacturer of the fabric softener or product.
10. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like
materials.
11. Clean lint screen before or after each load.
12. Keep area around the exhaust opening and adjacent surrounding areas free from the
accumulation of lint, dust, and dirt.
13. The interior of the appliance and exhaust duct should be cleaned periodically by
qualied service personnel.
14. Do not place items exposed to cooking oils in your dryer. Items contaminated with
cooking oils may contribute to a chemical reaction that could cause a load to catch re.
To reduce the risk of re due to contaminated loads, the nal part of a tumble dryer
cycle occurs without heat (cool down period). Avoid stopping a tumble dryer before the
end of the drying cycle unless all items are quickly removed and spread out so that the
heat is dissipated.
15. Do not use replacement parts that have not been recommended by the manufacturer
(e.g. parts made at home using a 3D printer).
16. (For Heat pump Clothes dryer) Sharp Edges – to reduce the risk of injury, use care
when cleaning the condenser or evaporator coil ns.
DV5000F_LED_WEB_Vent_EN.indd 7DV5000F_LED_WEB_Vent_EN.indd 7 2025/9/5 10:00:042025/9/5 10:00:04
SAVE THESE INSTRUCTIONS
Safety information
SAVE THESE INSTRUCTIONS
English8
Warnings
WARNING
• Ensure pockets are free of small, irregularly shaped hard objects and foreign material,
i.e. coins, knives, pins, etc. These objects could damage your dryer.
Cautions
CAUTION
• Do not allow children or pets to play on, in, or in front of the appliance. Close
supervision is necessary when the appliance is used near children and pets.
• Before discarding or removing your dryer from service, remove the door to the drying
compartment to prevent children or animals from becoming trapped inside.
• Do not reach into the appliance when the drum is moving.
• Do not install or store this appliance where it will be exposed to the weather.
• Do not tamper with the controls.
• Do not repair, replace, or attempt to service any part of the appliance unless
specically instructed to in the user-repair instructions and you have the
understanding and skills to carry out the procedure.
• Do not use fabric softeners or products to eliminate static unless the softener or
product is recommended for dryer use by the manufacturer of the fabric softener or
product.
• Clean the lint screen before or after each load.
• Keep the area around the exhaust opening and surrounding areas free from lint, dust,
and dirt.
• The interior of the dryer and exhaust duct should be cleaned periodically by qualied
service personnel.
• This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately or not in accordance with local and national codes. See
the installation instructions for information about grounding this appliance.
• Do not sit on top of the dryer.
• Do not dry clothing with large buckles, buttons, or other heavy metal or solid objects.
• Install and use in accordance with the manufacturer’s instructions.
• Do not place items in your dryer that have been spotted or soaked with vegetable oil
or cooking oil. Even after being washed, these items may contain signicant amounts
of these oils.
DV5000F_LED_WEB_Vent_EN.indd 8DV5000F_LED_WEB_Vent_EN.indd 8 2025/9/5 10:00:042025/9/5 10:00:04
SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS
English 9
• Residual oil on clothing can ignite spontaneously. The potential for spontaneous
combustion increases when items containing vegetable oil or cooking oil are exposed
to heat. Heat sources such as your dryer can warm these items, allowing an oxidation
reaction in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items
can become hot enough to catch re. Piling, stacking, or storing these kinds of items
may prevent heat from escaping and can create a re hazard.
• All washed and unwashed fabrics that contain vegetable oil or cooking oil can be
dangerous.
Washing these items in hot water with extra detergent will reduce, but not eliminate,
the hazard. Always use the Cool Down cycle for these items to reduce their
temperature. Never remove these items from the dryer hot or interrupt the drying
cycle until the items have run through the Cool Down cycle. Never pile or stack these
items when they are hot.
DV5000F_LED_WEB_Vent_EN.indd 9DV5000F_LED_WEB_Vent_EN.indd 9 2025/9/5 10:00:042025/9/5 10:00:04
English10
Before installation
Read through the following instructions before installing the dryer, and keep this manual
for future reference.
WARNING
Certain internal parts are intentionally not grounded and may present a risk of electric
shock only during servicing.
Service Personnel - Do not contact the following parts while the appliance is energized:
Control board and inlet valve.
Key installation requirements
• A grounded electrical outlet.
• A power cord for electric dryers (except in Canada).
• An exhaust system made of rigid metal or exible stiff-walled metal exhaust ducting.
WARNING
Remove the door from all discarded appliances to prevent a child from suffocating.
Location considerations
The dryer should be located where there is enough space at the front for loading the
dryer, and enough space behind for the exhaust system. This dryer is factory-ready for
the rear exhaust option. To exhaust out the bottom, right or the left, use the accessory
exhaust kit. Instructions are included with the kit. Make sure the room in which the dryer
is located has enough fresh air. The dryer must be located where there are no air-ow
obstructions. For gas dryers, adequate clearance must be maintained as noted on the data
plate to ensure adequate air for combustion and the proper dryer operation.
The dryer must not be installed or stored in an area where it will be exposed to water
and/or weather. The dryer area must be kept clear of combustible materials, gasoline, and
other ammable vapors and liquids. A dryer produces combustible lint. The area around
the dryer should be kept lint-free.
DV5000F_LED_WEB_Vent_EN.indd 10DV5000F_LED_WEB_Vent_EN.indd 10 2025/9/5 10:00:042025/9/5 10:00:04
English 11
Dimensions
Type Front loading dryer
Models DV25FG50BV**
Dimensions
(in. (mm))
A. Overall height 33.5 (850)
B. Width 23.6 (600)
C. Depth with door open 43.3 (1101)
D. Depth 25.8 (655)
DV5000F_LED_WEB_Vent_EN.indd 11DV5000F_LED_WEB_Vent_EN.indd 11 2025/9/5 10:00:052025/9/5 10:00:05
Before installation
English12
Clearance requirement
This clearance requirement is applicable for dryers only.
NOTE
• For washer’s clearance requirement, see the washer’s user manual.
• If the washer and dryer have different clearance requirements, use the one with the
larger value.
Alcove or closet installations
WARNING
• The dryer must be exhausted to the outside to reduce the risk of re when installed in
an alcove or closet.
• No other fuel-burning appliance should be installed in the same closet as the dryer.
• Place the dryer at least 18 in. (460 mm) above the oor for garage installation.
Minimum clearance for stable operation:
Sides Top Rear Front
1 in. (25 mm) 1 in. (25 mm) 3 in. (76 mm) 1 in. (25 mm)
If both the washer and a dryer are installed in the same location, the front of the alcove or
closet must have two unobstructed air openings for a combined minimum total area of 72
in.
2
(465 cm
2
).
Undercounter installation
B
C
A
A 34.4 in. (875 mm)
B 1 in. (25 mm)
C 1 in. (25 mm)
DV5000F_LED_WEB_Vent_EN.indd 12DV5000F_LED_WEB_Vent_EN.indd 12 2025/9/5 10:00:052025/9/5 10:00:05
English 13
This clearance requirement is applicable for washer and dryer pair installation.
Side by side installation
Stacked installation
A 1 in. (25 mm)
B* 3 in. (76 mm)
C 4 in. (101 mm)
D 6 in. (152 mm)
E 67 in. (1702 mm)
(B*): This clearance requirement only applies to the dryer. For washer’s clearance
requirement, see the washer’s user manual.
Minimum space (B*) of 3” is required for best dryer performance. In case of insufcient
space for duct installation, properly sized vent kit is needed.
NOTE
Stacking (SKK-DF)
Many of Samsung’s washers and dryers can be stacked to maximize usable space. You can
purchase an optional stacking kit from your Samsung retailer. For details about stacking
and compatible models, refer to the user manual included in the stacking kit you purchase.
DV5000F_LED_WEB_Vent_EN.indd 13DV5000F_LED_WEB_Vent_EN.indd 13 2025/9/5 10:00:052025/9/5 10:00:05
Before installation
English14
Ducting requirements
Recommended Use only for short-run installation
Weather hood
type
4” (10.2 cm)
2.5” (6.4 cm)
No. of 90°
elbows
Rigid Rigid
0 80 ft. (24.2 m) 60 ft. (28.3 m)
1 60 ft. (28.3 m) 45 ft. (13.7 m)
2 45 ft. (13.7 m) 35 ft. (10.7 m)
3 35 ft. (10.7 m) 25 ft. (7.6 m)
NOTE
* Use a 4-inch (10.2 cm) diameter rigid aluminum or galvanized steel duct.
If you integrate the dryer’s vent system with an existing exhaust system:
• Make sure the exhaust system meets all applicable local, state, and national regulations.
• Verify you are not using exible plastic duct.
• Make sure to check for and remove all lint buildup from inside the existing ducts.
• Conrm the duct is not kinked or crushed.
• Make sure the exhaust hood damper opens and closes freely.
Manometer measurements
The static pressure in any exhaust system must not exceed 0.83 inches of water column
or be less than 0. Note that these values are measured with the dryer running with a
manometer presented to the exhaust duct that connects to the dryer. The dryer tumbler
must be empty and lint lter clean.
DV5000F_LED_WEB_Vent_EN.indd 14DV5000F_LED_WEB_Vent_EN.indd 14 2025/9/5 10:00:062025/9/5 10:00:06
English 15
Exhausting requirements
The dryer must not be exhausted into a
chimney, a wall, a ceiling, an attic, a crawl
space, or a concealed space of a building.
Exhausting the dryer to the outside will
prevent large amounts of lint and moisture
from being blown into the room.
In the United States and Canada
• All dryers must be exhausted to the
outside.
• The required exhaust duct is 4 inches
(10.2 cm) in diameter.
• See “Ducting requirements” in the
“Installation” section for the maximum
duct length and number of bends that
can be used.
• The total length of exible metal duct
must not exceed 7’ 10½” (2.4 m).
• Do not assemble the duct with screws
or other fasteners that extend into the
duct and can catch lint.
• For the United States only: Use only
those foil-type exible ducts, if any,
specically identied for use with the
appliance by the manufacturer and that
comply with the Outline for Clothes
Dryer Transition Duct. Use Subject
2158A.
• For Canada only: Use only those foil-
type exible ducts, if any, specically
identied for use with the appliance by
the manufacturer.
Outside the United States and Canada
• Refer to the local codes.
WARNING
• You must exhaust the dryer to the
outside to reduce the risk of re when
you install the dryer in an alcove or
closet.
• Do not use a plastic or non-metal
exible duct.
• If your existing ductwork is plastic, non-
metal, or combustible, replace it with
metal.
• Use only a metal exhaust duct that is
non-ammable to ensure containment
of exhaust air, heat, and lint.
DV5000F_LED_WEB_Vent_EN.indd 15DV5000F_LED_WEB_Vent_EN.indd 15 2025/9/5 10:00:062025/9/5 10:00:06
Before installation
English16
Electrical requirements
The wiring diagram is located on the plate
under the control panel or rear frame.
WARNING
• Improperly connecting the equipment
grounding conductor can result in a
risk of electric shock. Check with a
qualied electrician or serviceman if
you are in doubt as to whether your
dryer is properly grounded. Do not
modify the plug provided with your
dryer – if it doesn’t t the outlet, have
a proper outlet installed by a qualied
electrician.
• To prevent unnecessary risk of re,
electrical shock, or personal injury, all
wiring and grounding must be done in
accordance with local codes, or in the
absence of local codes, in accordance
with the National Electrical Code, ANSI/
NFPA No. 70-Latest Revision (for the
U.S.) or the Canadian Electrical Code CSA
C22.1 – Latest Revisions and local codes
and ordinances. It is your responsibility
to provide adequate electrical service
for your dryer.
Grounding
This dryer must be grounded. In the event
of a malfunction or breakdown, the ground
will reduce the risk of electrical shock by
providing a path of least resistance for the
electrical current.
WARNING
• Your dryer has an optional cord with
an equipment-grounding conductor
and a grounding plug. This cord is sold
separately.
• The plug must be plugged into an
appropriate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
• Do not modify the plug provided with
your dryer – if it doesn’t t the outlet,
have a proper outlet installed by a
qualied electrician.
• If a power cord is not used and the
electric dryer is to be permanently
wired, the dryer must be connected to
a permanently grounded metal wiring
system, or an equipment grounding
conductor must be run with the circuit
conductors and connected to the
equipment grounding terminal or lead
on the dryer.
Electrical connections
Before operating or testing, follow all
grounding instructions in the “Grounding”
section. An individual branch (or separate)
circuit serving only your dryer is
recommended.
Do not use an extension cord.
DV5000F_LED_WEB_Vent_EN.indd 16DV5000F_LED_WEB_Vent_EN.indd 16 2025/9/5 10:00:062025/9/5 10:00:06
English 17
U.S. only
Most U.S. dryers require a 120 / 240 volt,
60 Hz AC approved electrical service.
Some require 120 / 208 volt, 60 Hz
approved electrical service. The electric
service requirements can be found on
the data label located behind the door.
A 30-ampere fuse or circuit breaker on
both sides of the line is required.
• If a power cord is used, the cord
should be plugged into a 30-ampere
receptacle.
• The power cord is not provided with
U.S. electric model dryers. This cord is
sold separately.
WARNING
Risk of Electric Shock
When local codes allow, you can connect
the dryer’s electrical supply with a new
power supply cord kit, marked for use with
a dryer, that is U.L. listed and rated at a
minimum of 120/240 volts, 30-amperes
with three No. 10 copper wire conductors
terminated with closed loop terminals,
open-end spade lugs with turned up ends,
or with tinned leads.
• Do not reuse a power supply cord from
an old dryer. The power cord electric
supply wiring must be supported at the
dryer cabinet by a suitable UL-listed
strain relief.
• Grounding through the neutral
conductor is prohibited for (1) new
branch-circuit installations, (2) mobile
homes, (3) recreational vehicles, and
(4) areas where local codes prohibit
grounding through the neutral
conductor. (Use a 4-prong plug for a
4 wire receptacle, NEMA type 14-30R.)
Canada Only
A 120 / 240 volt, 60 Hz AC approved
electrical service fused through a
30-ampere fuse or circuit breaker on both
sides of the line is required.
NOTE
• All Canadian models are shipped
with the power cord attached. The
power cord should be plugged into a
30-ampere receptacle.
• In Canada, you may convert a dryer to
120 / 208 volt.
DV5000F_LED_WEB_Vent_EN.indd 17DV5000F_LED_WEB_Vent_EN.indd 17 2025/9/5 10:00:062025/9/5 10:00:06
English18
Installation
This dryer must be installed by a qualied technician. The installer is responsible for
connecting the dryer to the main power while observing the relevant safety regulations of
your area.
What’s included
Make sure all the parts are included in the product package. If you have a problem with
the dryer or the accessories, contact a local Samsung service center or the retailer.
01
02
03
05
04
Dryer at a glance
01 Top cover 02 Feature panel 03 Door
04 Filter 05 Exhaust duct
DV5000F_LED_WEB_Vent_EN.indd 18DV5000F_LED_WEB_Vent_EN.indd 18 2025/9/5 10:00:062025/9/5 10:00:06
English 19
Accessories & tools
Provided accessories
DRYER
STACKING KIT
Stacking Kit
(Canadian models
only)
Cover Plate
Required tools
Pliers Cutting knife Nut driver Level
Philips screwdriver Duct tape Wrench
WARNING
Packing materials can be dangerous to children. Keep all packing materials (plastic bags,
polystyrene, etc.) out of children’s reach.
DV5000F_LED_WEB_Vent_EN.indd 19DV5000F_LED_WEB_Vent_EN.indd 19 2025/9/5 10:00:082025/9/5 10:00:08
Installation
English20
Step-by-step installation
Make sure you have a qualied technician install the dryer. Step by step installation
instructions start below.
STEP 1 Install the exhaust system
1. Select a location and move the dryer to the site. For easy access, we recommend you
install the dryer in the same location as your washer.
2. To change the door direction, see “Switching the door position”.
3. Install the exhaust system as instructed in the “Exhaust ducting guide” section.
NOTE
• To move the dryer easily, lay two of the carton cushions from the packaging on the
oor. Tip the dryer on its side so it lies across both cushion-tops. Push the dryer so that
it is near its nal location, and then set the dryer upright.
• Secure room around the dryer to facilitate ducting and wiring.
DV5000F_LED_WEB_Vent_EN.indd 20DV5000F_LED_WEB_Vent_EN.indd 20 2025/9/5 10:00:082025/9/5 10:00:08
English 21
STEP 2 Connect the electrical wiring
First, read through the “Electrical requirements” section, and then follow the instructions
on this page or the next page. Instructions for a 3-wire system are on this page.
Instructions for a 4-wire system are on the next page.
For a 3-wire system
D
B
C
E
A
L1
L2
N
A. Center silver-colored terminal block
screw
B. Neutral wire (white or center wire)
C. Neutral grounding wire (white or green/
yellow)
D. ¾” (1.9 cm) UL-listed strain relief
E. External ground connector
1. Loosen or remove the screws from the
center terminal block.
2. Connect the neutral wire (white or
center wire) of the power cable to the
center, silver-colored terminal screw
of the terminal block. Tighten the
screws.
3. Connect the other wires to outer
terminal block screws. Tighten the
screws.
4. Tighten the strain relief screws.
5. Insert the terminal block cover into the
rear panel of the dryer. Then, secure
the cover with a hold-down screw.
CAUTION
• To convert from the 4-wire system
to 3-wire system, connect the ground
strap to the terminal block support to
ground the dryer frame to the neutral
conductor.
• Ring-type terminals are recommended.
If using strap terminals, make sure they
are tightened.
• Connect the power cord and check
L1/L2/N voltage. If the voltage is low, it
may not heat properly.
DV5000F_LED_WEB_Vent_EN.indd 21DV5000F_LED_WEB_Vent_EN.indd 21 2025/9/5 10:00:082025/9/5 10:00:08
Installation
English22
For a 4-wire system
A
L1
L2
C
D
E
F
B
N
A. Center silver-colored terminal block
screw
B. Neutral grounding wire (white or green/
yellow)
C. ¾” (1.9 cm) UL-listed strain relief
D. Neutral wire (white or center wire)
E. External ground connector
F. Green or bare copper wire of power
cord
1. Remove the external ground
connector’s screw, and connect the
ground wire (green or unwrapped) of
the power cable to the screw.
CAUTION
• To connect the ground wire to the
neutral position without through
contact A (cabinet ground), contact
a technician. This is not user
serviceable.
• Ring-type terminals are
recommended. If using strap
terminals, make sure they are
tightened.
2. Loosen or remove the screws from the
center terminal block.
3. Connect the neutral wire (white or
center wire) and ground wire (white)
to the center, silver-colored terminal
screw of the terminal block. Tighten
the screw.
4. Connect the other wires to the outer
terminal block screws. Tighten the
screws.
5. Tighten the strain relief screws.
6. Insert the tab of the terminal block cover
into the rear panel of the dryer. Then,
secure the cover with a hold-down screw.
CAUTION
Connect the power cord and check L1/L2/N voltage. If the voltage is low, it may not heat
properly.
WARNING
• All U.S. models are designed for a 3-wire system connection. The dryer frame is
grounded to the neutral conductor at the terminal block. A 4-wire system connection
is required for new or remodeled construction, mobile homes, or if local codes do not
permit grounding through neutral. If you use the 4-wire system, you cannot ground the
dryer frame to the neutral conductor at the terminal block.
• Remove the terminal block cover plate.
DV5000F_LED_WEB_Vent_EN.indd 22DV5000F_LED_WEB_Vent_EN.indd 22 2025/9/5 10:00:082025/9/5 10:00:08
English 23
• Insert the power cord with a UL-listed strain relief through the hole provided in the
cabinet near the terminal block.
• A strain relief must be used.
• Do not loosen the nuts already installed on the terminal block. Be sure they are tight.
• Use a 3/8” (1 cm) deep well socket.
• Since january 1, 1996, The national electric code requires that new wiring (not existing)
utilize a 4-wire connection to this dryer.
STEP 3 Level the dryer
To ensure optimal performance, the dryer must be level.
A
B
1. Using a level (A), check if the dryer
is level side to side and then front to
back. If the dryer is not level, adjust
the leveling feet (B) at the bottom of
the dryer. Then, check if the dryer is
level again.
A B
NOTE
• To set the dryer to the same height
as your washer, fully retract (A)
the leveling feet by turning them
counterclockwise, then loosen (B) the
feet by turning them clockwise. Once
the dryer is the same height as the
washer, follow the directions above
to level the dryer.
• Adjust the leveling feet only as much
as necessary to level the dryer.
Extending the leveling feet more
than necessary can cause the dryer
to vibrate.
DV5000F_LED_WEB_Vent_EN.indd 23DV5000F_LED_WEB_Vent_EN.indd 23 2025/9/5 10:00:092025/9/5 10:00:09
Installation
English24
STEP 4 Final Check
When installation is complete, conrm that:
• The dryer is plugged into an electrical outlet and grounded properly.
• The exhaust ductwork is connected and the joints are taped.
• You have used rigid or stiff-walled exible metal duct material, not plastic exible duct.
• The dryer is level and is sitting rmly on the oor.
• The dryer starts, runs, heats, and shuts off properly.
Exhaust ducting guide
Ducting
1. Make sure the dryer is installed properly so the air exhausts freely.
2. Use 4-inch rigid metal ducts. Tape all joints including the dryer connection.
Never use lint-trapping screws.
3. To facilitate the exhaust, keep the ducts as straight as possible.
Cleaning
Clean all old ducts before installing the dryer, and make sure the vent ap opens and
closes freely. We recommend that you to clean the exhaust system annually or on a
regular basis.
WARNING
• To prevent re, do not use plastic, thin-foil, or non-metal exible ducts of any kind.
• Do not use a poor exhaust system because it slows down the dryer’s performance.
• Do not use excessively long ducts that have multiple elbows.
• Do not use crushed or clogged venting or ducts.
DV5000F_LED_WEB_Vent_EN.indd 24DV5000F_LED_WEB_Vent_EN.indd 24 2025/9/5 10:00:092025/9/5 10:00:09
English 25
Changing the direction of the exhaust duct (optional)
WARNING
Before performing this exhaust installation, disconnect the dryer from its electrical supply.
Wear gloves to protect your hands and arms from sharp edges when working inside the
cabinet.
Side venting
B
A
1. Detach the right (A) or left (B) side
knockout as desired.
C
2. Pull the duct out of the dryer, and then
remove the screw (C) from the duct.
Set screw (C) aside. You will need it in
a later step.
D
4.9"(125 mm)
3. Cut the duct as shown and keep the
cut portion of the duct (D).
DV5000F_LED_WEB_Vent_EN.indd 25DV5000F_LED_WEB_Vent_EN.indd 25 2025/9/5 10:00:092025/9/5 10:00:09
Installation
English26
D
C
4. Reconnect the cut portion of the duct
(D), and then fasten it to the ramp on
the appliance base with the screw (C)
which you set aside in Step 2.
5. Connect a duct to an elbow, and then
tape the duct and the elbow together
with duct tape.
E
6. Insert the duct with elbow (E) through
the rear opening, and then connect it
to the internal duct.
CAUTION
Wire components in the dryer may
interfere slightly with the duct. Do not pull
or damage the electrical wires inside the
dryer when inserting the duct.
F
7. Apply duct tape (F) on all joints as
shown.
CAUTION
All joints must be secured with duct tape,
otherwise, they may separate and cause a
safety hazard.
DV5000F_LED_WEB_Vent_EN.indd 26DV5000F_LED_WEB_Vent_EN.indd 26 2025/9/5 10:00:102025/9/5 10:00:10
English 27
G
8. Cover the back opening with a cover
plate (G).
WARNING
Never leave the back opening uncovered.
It must be covered with a cover plate.
Bottom venting
A
1. Detach the bottom knockout (A).
B
2. Pull the duct out of the dryer, and then
remove the screw (B) from the duct.
Set screw (B) aside. You will need it in
a later step.
C
4.9"(125 mm)
3. Cut the duct as shown and keep the
cut portion of the duct (C).
DV5000F_LED_WEB_Vent_EN.indd 27DV5000F_LED_WEB_Vent_EN.indd 27 2025/9/5 10:00:112025/9/5 10:00:11
Installation
English28
C
B
4. Reconnect the cut portion of the duct
(C), and then fasten it to the ramp on
the appliance base with the screw (B)
which you set aside in Step 2.
D
D
C
5. Insert the elbow (D) through the rear
hole and connect it to the duct (C).
6. Rotate the elbow (D) through the
bottom opening.
CAUTION
Do not to pull or damage the electrical
wires inside the dryer when inserting the
duct.
E
7. Apply duct tape (E) on the joint as
shown.
CAUTION
All joints must be secured with duct tape,
otherwise, they may separate and cause a
safety hazard.
DV5000F_LED_WEB_Vent_EN.indd 28DV5000F_LED_WEB_Vent_EN.indd 28 2025/9/5 10:00:122025/9/5 10:00:12
English 29
F
8. Cover the back opening with a cover
plate (F).
WARNING
Never leave the back opening uncovered.
It must be covered with a cover plate.
Vent blockage test
After the dryer is installed, start the Vent Blockage Test to check if the duct system is
properly installed. The Vent Blockage Test automatically detects the status of the ducts
and reports any blockage or problems. Proper ducting can reduce drying time and save
energy.
NOTE
The Vent Blockage Test must run when the dryer is cool. If the dryer warms up after
the installation check, run the AIR FLUFF cycle for several minutes to reduce its internal
temperature.
DV5000F_LED_WEB_Vent_EN.indd 29DV5000F_LED_WEB_Vent_EN.indd 29 2025/9/5 10:00:122025/9/5 10:00:12
Installation
English30
Running the vent blockage test
1. Make sure the drum is empty, and then close the door. (If there are any clothes or
other items in the drum, the test will not give accurate results.)
2. Press the Power button to turn the dryer on, then simultaneously press and hold the
Adjust Time and Dryness buttons for 3 seconds. “InS” appears in the dryer’s display.
(If you have started other procedures before the Vent Blockage Test, the dryer will
not enter the Vent Blockage Test mode.)
3. Press the Start/Pause (Hold to Start) button. The Vent Blockage Test starts
immediately. During the test, the number indicator makes a circle in 6 clockwise steps.
The test takes about 2 minutes. Do not open the door during the test.
4. After 2 minutes, when the test is complete, the results are displayed and the dryer
sounds a tone. If status of the duct system is normal, “0” appears and the dryer
sounds a completion tone. If the duct system cannot exhaust properly, the check code
appears, and the dryer sounds an alarm tone. For description about the code, see the
“Installation check codes” section on page 31.
If there are any other problems, an information code appears in the display. For
description about the code, see the “Information codes” section on page 49.
- To stop or cancel the Vent Blockage Test, press the Power button to turn off your
dryer.
- The results remain on the display for about 5 minutes and then automatically turn
off. You can turn the results off immediately by pressing the Power button.
NOTE
• During or after the test, the internal drum is hot. Use caution to prevent burns. The
Vent Blockage Test is used to check for problems in the current duct system when the
dryer is installed for the rst time.
• If the test result displays check code (the duct system is blocked ), refer to the “Ducting
requirements” section on page 14 and the “Exhaust ducting guide” section below, and
then take proper measures to correct any problems. If the test is suspended, it could
result in incorrect results. Follow the proper procedures when testing the dryer.
• Even if the test result is normal (“0”), the duct system could be blocked slightly.
Properly install all duct work according to the installation instructions in this manual.
DV5000F_LED_WEB_Vent_EN.indd 30DV5000F_LED_WEB_Vent_EN.indd 30 2025/9/5 10:00:122025/9/5 10:00:12
English 31
Installation check codes
Check code Meaning Solution
0 Vent condition is good.
C80 (C8)
About 80 % of the vent is clogged.
(This may decrease the drying
performance.)
1. Clean the lint lter.
2. Check your vent condition.
(Refer to the “Ducting
requirements” section)
* You must take measures (such as
cleaning) through expert personnel.
C90 (C9)
Over 90 % of the vent is clogged.
(This may lead to poor drying
performance or cause malfunction)
Ct
The internal temperature of the
dryer is too low (below 32 °F (0 °C))
or too high (over 104 °F (40 °C)) and
therefore vent blockage cannot be
detected.
Leave the dryer at room
temperature (41~95 °F (5~35 °C))
for an hour and check again.
tC Temperature sensor error Contact a service center.
C1
Unit is detecting items inside the
drum or there is an error on the dry
sensor.
Remove items from the drum and
check again.
If the problem continues, contact a
service center.
dC Unit is detecting door is open
Close the door properly and check
again.
If the problem continues, contact a
service center.
9C1 Abnormal voltage detected
Check the power connection. (Refer
to the “Connect the electrical wiring”
section)
If the problem continues, contact a
service center.
HC
Detection of abnormal temperature
in drum.
Check the power connection.
Check the vent condition if the
problem continue, contact a service
center.
DV5000F_LED_WEB_Vent_EN.indd 31DV5000F_LED_WEB_Vent_EN.indd 31 2025/9/5 10:00:122025/9/5 10:00:12
Installation
English32
Switching the door position
To reverse the direction of the door, we
recommend that you contact a qualied
technician.
1. Unplug the power cord of the dryer.
2. Remove the two hinge screws from
the door, and then remove the door by
lifting it up slightly.
3. Remove the two screws on the
opposite side of the door hinge.
DV5000F_LED_WEB_Vent_EN.indd 32DV5000F_LED_WEB_Vent_EN.indd 32 2025/9/5 10:00:122025/9/5 10:00:12
English 33
4. Locate and remove the 9 screws from
the door as shown.
5. Remove the door lever.
6. Remove the door frame.
DV5000F_LED_WEB_Vent_EN.indd 33DV5000F_LED_WEB_Vent_EN.indd 33 2025/9/5 10:00:132025/9/5 10:00:13
Installation
English34
7. Rotate the door glass 180°.
8. Reassemble the door frame and the
door lever.
DV5000F_LED_WEB_Vent_EN.indd 34DV5000F_LED_WEB_Vent_EN.indd 34 2025/9/5 10:00:132025/9/5 10:00:13
English 35
9. Move the location of the screw, used
to x the door hinge, as shown.
10. Remove the lever cover by pressing
the hook on it.
11. Put the lever holder on the other side
as shown.
DV5000F_LED_WEB_Vent_EN.indd 35DV5000F_LED_WEB_Vent_EN.indd 35 2025/9/5 10:00:132025/9/5 10:00:13
Installation
English36
12. Insert and tighten the two hinge
screws.
13. Insert and tighten the two screws on
the opposite side of the door hinge.
DV5000F_LED_WEB_Vent_EN.indd 36DV5000F_LED_WEB_Vent_EN.indd 36 2025/9/5 10:00:132025/9/5 10:00:13
English 37
Before you start
Here are a few things you should know before starting your dryer.
Sort and load
• Put one wash load in the dryer at a
time.
• Do not mix heavy and lightweight items
together.
• To improve drying efciency for one or
two items, add a dry towel to the load.
• For best results, untangle items before
inserting them into the dryer.
• Overloading reduces the tumbling
action, resulting in uneven drying and
wrinkling.
• Unless recommended on the care label,
do not dry woolens or berglass items.
• Avoid drying unwashed items.
• Do not dry items soiled with oil, alcohol,
gasoline, etc.
Functional prerequisite
Lint lter
A
To prevent a risk of re, make sure to
clean the lint lter before or after every
load.
1. Turn off the dryer.
2. Open the door, and pull out the lint
lter (A) from inside the tumbler.
3. Remove the lint that has accumulated,
and then clean the lint lter.
4. Reinsert the lint lter, and then close
the door.
CAUTION
• Do not operate the dryer without the
lint lter in place.
• Do not use a damaged or broken lint
lter. This may reduce performance
and/or cause re.
DV5000F_LED_WEB_Vent_EN.indd 37DV5000F_LED_WEB_Vent_EN.indd 37 2025/9/5 10:00:132025/9/5 10:00:13
English38
Operations
WARNING
To reduce the risk of re, electric shock, or injury to persons, read the “Safety information“
before operating this appliance.
Feature panel
02
12
050403
11
06
08
10
07
09
01
01 Cycle selector
Turn the cycle selector to select a desired cycle. When a cycle is
selected, the cycle indicator lights up.
02 Digital graphic
display
Displays all cycle information, including the cycle time, information
code, operating status, and indicators.
03 Time
Press to adjust the drying time for the Manual Dry cycles. This is not
available with the Sensor Dry cycles because the dryer determines the
drying time by sensing the current moisture level of the load.
04 Dryness
Press to select a dry level. You can select from 5 different options (1 to
5). Please refer to following recommendations to select the appropriate
dryness.
• For lar
ger or bulkier loads, select 5 for complete dryness.
• For items tha
t needs to lay at or hang to dry, use 1 to partially
dry
items.
NOTE
This option is not available with SANITIZE, WOOL, and ACTIVEWEAR.
DV5000F_LED_WEB_Vent_EN.indd 38DV5000F_LED_WEB_Vent_EN.indd 38 2025/9/5 10:00:142025/9/5 10:00:14
English 39
05 Temp.
Press to change the temperature of the current cycle. You can select
from 5 different options (1 to 5). Please select the appropriate
temperature depending on the items in the load.
• 5: For sturdy cottons or those labeled Tumble Dry.
• 4: For permanent press, synthetics, lightweight cottons, or items
labeled Tumble Dry Medium.
• 3: For heat lower than Medium. Use to dry synthetic or washable knit
fabrics.
• 2: For heat sensitive items labeled Tumble Dry Low or Tumble Dry
Warm.
• 1: Provides the lowest heated drying temperature possible.
06 Damp Alert
The Damp Alert noties you when the average dry level in a load is
damp dry (80% dried). This lets you take items that you don’t want fully
dried or that dry quickly out of the dryer early while letting others
continue to dry.
You can select this option in all Sensor Dry cycles except for HEAVY
DUTY, SANITIZE, WOOL, and ACTIVEWEAR. Available dry levels are
dryness 2-5.
07 Wrinkle Prevent
Wrinkle Prevent provides approximately 180 minutes of intermittent
tumbling in unheated air at the end of the cycle to reduce wrinkling.
Press Wrinkle Prevent to activate this feature. The load is dry and can
be removed at any time during the Wrinkle Prevent cycle.
08 Drum Light
Press to turn the interior lamp on or off. The lamp stays lit for 2 minutes
after it has turned on, regardless of whether the power is on or off or
the door is open or closed, and then turns off automatically.
09 Adjust Time
You can change the set time in the Manual Dry cycles. To change
the cycle time, press Adjust Time
or
until the desired time is
displayed.
10 Smart Control
After connecting the Tumble Dryer to your home network using the
SmartThings app, you can control or monitor the dryer remotely. When
started, the Smart Control indicator blinks. The dryer enters waiting
mode and waits for remote commands.
11 Power Press to turn on/turn off the dryer.
12 Start/Pause Press to start or stop operation.
NOTE
Extremely tangled items nished by the washer may degrade the drying efciency or cause the
door to open. We recommend that you untangle the items before drying.
DV5000F_LED_WEB_Vent_EN.indd 39DV5000F_LED_WEB_Vent_EN.indd 39 2025/9/5 10:00:142025/9/5 10:00:14
Operations
English40
Indicators
Filter Check Cooling
Sound Off Wi-Fi
Drying Child Lock
Simple steps to start
1. Press Power to turn on the dryer.
2. Turn the Cycle Selector to select a cycle.
3. Change the cycle settings (Dryness, Temp., and Time) as necessary.
4. Optionally, you can activate options available by pressing the relevant button (Adjust
Time, Wrinkle Prevent and/or Damp Alert).
5. Press Start/Pause. The dryer indicator turns on with an estimated cycle time on the
display.
To change the cycle during operation
1. Press Start/Pause to stop operation.
2. Select a different cycle.
3. Press Start/Pause again to start the new cycle.
DV5000F_LED_WEB_Vent_EN.indd 40DV5000F_LED_WEB_Vent_EN.indd 40 2025/9/5 10:00:152025/9/5 10:00:15
English 41
Cycle overview
Sensor Dry
Sensor Dry cycles sense moisture in the load and stop the dryer when the load reaches
the dryness level you have selected with Dryness.
Cycle Description
NORMAL For most fabrics including cottons and linens.
HEAVY DUTY
For drying items made out of heavy fabrics, such as jeans,
corduroys, or work clothes, with high temperature heat.
SANITIZE
Use to sanitize items by applying high-temperature heat to the
fabric. This cycle can make items soft and reduce smells.
WOOL For machine washable and tumble dryable wool only.
DELICATES For heat-sensitive items at a low drying temperature.
ACTIVEWEAR
For exercise wear and outdoor wear such as sports jerseys,
training pants, water-repellent jackets, and other performance
clothing.
Thick fabrics like a zipper or velcro closure of a jacket, or training
socks may not be completely dried.
PERM PRESS
Dry wrinkle-free cottons, synthetic fabrics, knits, and permanent
press fabrics automatically.
DOWNLOADED
• Select to choose from more cycles available on the
SmartThings app on your smartphone.
• Available cycles: TOWELS, SHIRTS, DENIM, MIXED LOAD.
• Factory setting: TOWELS
Manual Dry
You can change the drying settings manually to your preference.
Cycle Description
SMALL LOAD
Timed cycle for small load items. The default cycle time is 30
minutes. However, you may manually change the cycle time if
necessary.
TIME DRY You can specify a cycle time in minutes.
AIR FLUFF Tumbles the load in room temperature air.
WRINKLE RELEASE
The Wrinkle Release cycle will release wrinkles from items that
are clean, dry, and only slightly wrinkled, such as clothes from a
crowded closet, suitcase or items that have been in the dryer too
long after the cycle has ended. Wrinkle Release can be used with
Extra Low, Low, Med Low selection.
DV5000F_LED_WEB_Vent_EN.indd 41DV5000F_LED_WEB_Vent_EN.indd 41 2025/9/5 10:00:152025/9/5 10:00:15
Operations
English42
Cycle guide
The best way to dry items is to follow the instructions on the care label. If no drying
instructions are provided, see the following table for reference.
Cycle Description
Bedspreads &
Comforters
Follow the care label instructions or dry using NORMAL.
• Make sure the item is thoroughly dry before using or storing.
• May require repositioning in the drum to ensure even drying.
Blankets
Use NORMAL and dry only one blanket at a time for best
tumbling action.
• Make sure blankets are is thoroughly dry before using or
storing.
Curtains & Draperies
Use PERM PRESS and the Medium temperature setting to help
minimize wrinkling.
• Dry curtains and draperies in small loads for best results and
remove as soon as possible after the cycle is complete.
Cloth Diapers
Use Normal and the Medium temperature setting for soft, uffy
diapers.
Down–lled Items
(jackets, sleeping
bags, comforters, etc.)
Use NORMAL and the Medium temperature setting.
• Add a couple of dry towels to absorb moisture and shorten
drying time.
Foam Rubber (rug
backs, stuffed toys,
shoulder pads, etc.)
Do not dry on a heat setting. Use AIR FLUFF.
WARNING
Drying a rubber item with heat may damage it or cause a re.
Pillows
Use NORMAL.
• Add a couple of dry towels and a pair of clean sneakers to
help the tumbling action and to uff the pillows.
• Do not dry kapok or foam pillows using a heated drying cycle.
You can dry these items in the dryer only if you use AIR FLUFF.
Plastics (shower
curtains, outdoor
furniture covers, etc.)
Use AIR FLUFF or TIME DRY and the Low or Extra Low
temperature settings depending on the care label instructions.
WARNING
Do not dry:
• Fiberglass items (curtains, draperies, etc.)
• Woolens, unless recommended on the label
• Items spotted or soaked with vegetable or cooking oils
DV5000F_LED_WEB_Vent_EN.indd 42DV5000F_LED_WEB_Vent_EN.indd 42 2025/9/5 10:00:152025/9/5 10:00:15
English 43
Special features
Child Lock
Child Lock prevents children from playing with the dryer. When Child Lock is activated, all
buttons except for the Power button are disabled.
To activate/deactivate Child Lock, simultaneously press and hold Dryness and Temp. for 3
seconds.
NOTE
Once Child Lock is activated, it will remain active even after you restart the dryer.
If other buttons, except for the Power button, do not respond, check the Child Lock
indicator. If the indicator is on, follow the instructions above to turn Child Lock off.
Sound On/Off
To turn off the dryer’s notication beeps and melodies, press and hold Drum Light for 3
seconds.
To unmute the dryer, press and hold Drum Light again for 3 seconds.
NOTE
This function remains active even after you restart the dryer.
DOWNLOADED cycle
You can choose from more cycles available on the SmartThings app on your
smartphone.
1. On your smartphone, select the DOWNLOADED cycle.
You can choose from TOWELS, SHIRTS, DENIM, MIXED LOAD.
2. Press Power on your dryer.
3. Turn the Cycle Selector to DOWNLOADED.
4. Press and hold Start/Pause (Hold to Start).
DV5000F_LED_WEB_Vent_EN.indd 43DV5000F_LED_WEB_Vent_EN.indd 43 2025/9/5 10:00:152025/9/5 10:00:15
Operations
English44
SmartThings
Wi-Fi connection
On your smartphone, go to Settings, turn on the wireless connection, and then select
your AP (Access Point).
• This appliance supports the Wi-Fi 2.4 GHz protocols.
Download
On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), nd the
SmartThings app using the search term “SmartThings”. Download and install the app on
your device.
NOTE
The app is subject to change without notice for improved performance.
Log in
You must rst log into SmartThings with your Samsung account. To create a new
Samsung account, follow
the instructions in the app. You don’t need a separate app to create your account.
NOTE
If you have a Samsung account, use the account to log in. A registered Samsung
smartphone user
automatically logs in.
To register your appliance to SmartThings
1. Make sure your smartphone is connected to a wireless network. If not, go to Settings
and turn on the wireless connection, and then select your AP (Access Point).
2. Open SmartThings on your smartphone.
3. If the “A new device is found.” message appears, select Add.
4. If no message appears, select + and then select your appliance from the list of devices
available. If your appliance is not listed, select Device Type > Specic Device Model,
and then add your appliance manually.
5. Register your appliance to the SmartThings app.
a. Add your appliance to SmartThings. Make sure your appliance is connected to
SmartThings.
b. When registration is complete, then name of your appliance appears on your
smartphone.
DV5000F_LED_WEB_Vent_EN.indd 44DV5000F_LED_WEB_Vent_EN.indd 44 2025/9/5 10:00:152025/9/5 10:00:15
English 45
Maintenance
Keep the dryer clean to prevent decreased performance and to lengthen its life.
WARNING
Certain internal parts are intentionally not grounded and may present a risk of electric
shock only during servicing.
Service Personnel - Do not contact the following parts while the appliance is energized:
Control board and inlet valve.
Cleaning
Feature panel
• Clean with a soft, damp cloth. Do not
use abrasive substances.
• Do not spray liquid cleaning agents
directly on the display of the dryer.
• Some laundry pre-treatment soil and
stain removers may damage the feature
panel.
• When using liquid cleaning agents,
apply them to the cleaning cloth. Do not
apply them directly to the dryer. Wipe
up any spills or overspray immediately.
Tumbler
• Remove any stains from the tumbler
with an all-purpose cleaner.
• Tumble old towels or rags to remove
any remaining stains or cleaning
substances. Stains may still be visible,
but will not affect subsequent loads.
Stainless steel tumbler
To clean the stainless steel tumbler, use
a damp cloth with a mild, non-abrasive
cleaner suitable for easily marred surfaces.
Remove cleaner residue and dry with a
clean cloth.
Dryer exterior
• Clean with a soft, damp cloth. Do not
use abrasive substances.
• Protect the surface from sharp objects.
• Do not place any heavy or sharp
objects or a detergent container on the
dryer. They can scratch or damage the
top cover of the dryer.
• The dryer has a high-gloss nish on the
entire surface. Be careful not to scratch
or damage the surface.
Exhaust system
• Check and clean the exhaust system on
a yearly or regular basis to maintain
optimum performance.
• The external exhaust hood must be
cleaned more frequently to ensure
proper air ow.
DV5000F_LED_WEB_Vent_EN.indd 45DV5000F_LED_WEB_Vent_EN.indd 45 2025/9/5 10:00:162025/9/5 10:00:16
English46
Troubleshooting
Checkpoints
If the dryer operates abnormally, rst check the list of problems in the table below and
try the suggested actions.
Problem Action
Dryer does not start.
• Make sure the dryer is plugged in.
• Make sure the door is properly closed.
• Check the fuse or reset the circuit breaker.
• If you opened the door during a cycle, press again.
• Clean the lter.
• Make sure Child Lock is not activated.
The dryer does not
warm up.
• Check your home’s circuit breakers or fuses.
• Some cycles do not require heat. Check the selected cycle
again.
• For a gas dryer, make sure the gas supply is on.
• Clean the lint lter and exhaust duct.
• The dryer may have moved into the cool-down phase of the
cycle.
Items are not dried.
Check all of the above. Additionally:
• Make sure the exhaust hood outside your home can open and
close freely.
• Check the exhaust system for lint buildup. Ducting should be
inspected and cleaned annually.
• Use a 4” rigid metal exhaust duct.
• Do not overload. 1 wash load = 1 dryer load.
• Dry heavy items and light weight items separately.
• Large, bulky items, such as blankets or comforters, may
require repositioning to ensure even drying.
• Make sure that your washer is draining properly and
extracting adequate water from the load.
• The load may be too small to tumble properly. Add a few
towels and restart the dryer.
• The load may be too large to tumble properly. Remove some
items and restart the dryer.
• Clean the lint lter.
DV5000F_LED_WEB_Vent_EN.indd 46DV5000F_LED_WEB_Vent_EN.indd 46 2025/9/5 10:00:162025/9/5 10:00:16
English 47
Problem Action
The dryer is too loud.
• Look for coins, loose buttons, nails, and other objects and
remove them immediately.
• Check the lint lter. Remove any items stuck inside the lint
lter.
• Make sure the dryer is level and standing rmly on the oor.
• The dryer may hum due to air moving through the drum and
fan. This is normal.
• It is normal to hear the dryer gas valve or heating element
cycle on and off during the drying cycle.
Items are not dried
evenly.
• Seams, pockets, and other parts of clothing are harder to dry
than others. This is normal.
• Sort heavy and light items separately.
There is a smell
coming from the
dryer.
• The smell of paint, varnish, cleaning agents, and other
household items could have circulated in the air and entered
the dryer. If you notice such a smell, ventilate completely
before using the dryer.
• If drying in an enclosed area, the dryer could cause the
ambient temperature to rise. Accordingly, make sure to open
a window and ventilate the area.
• Do not attempt to dry wet items after leaving them in the
washing machine or dryer for a long time.
The dryer turns off
before the items are
dry.
• The load is too small. Throw in few additional items like
towels and try drying again.
The clothes have lint
on them.
• Always make sure the lint lter is clean before putting items
into the dryer. When drying items that generate a large
amount of lint, you may need to clean the lint lter in the
middle of a cycle.
• Some fabrics (such as white towels) causes more lint and
should be dried separately from fabrics that lint attaches
easily (such as black linen pants).
• Check the inside of the pockets to make sure they are empty
before drying.
Items still wrinkled
after Wrinkle Prevent
(Wrinkle Away,
Wrinkle Release).
• Small loads of 1 to 4 items work best.
• Load fewer items. Load similar-type items.
• Take out the items immediately after drying is complete.
DV5000F_LED_WEB_Vent_EN.indd 47DV5000F_LED_WEB_Vent_EN.indd 47 2025/9/5 10:00:162025/9/5 10:00:16
Troubleshooting
English48
Problem Action
Water drips from the
nozzle when the
Steam cycles starts.
• This is steam condensation. The dripping water will stop after
a short time.
Sprayed water is not
visible during Steam
cycles.
• Sprayed water is difcult to see when the door is closed.
Extended time.
• Sensor Dry automatically senses the moisture in the load
and shuts the dryer off when the selected dryness level is
reached. The drying time can change according to the type
and amount of laundry. See the cycle chart for reference.
If a problem persists, contact a local Samsung service center.
DV5000F_LED_WEB_Vent_EN.indd 48DV5000F_LED_WEB_Vent_EN.indd 48 2025/9/5 10:00:162025/9/5 10:00:16
English 49
Information codes
If the dryer fails to operate, you may see an information code on the display panel. To
determine what you should do, check the list of codes in the table below, and then try the
suggested actions.
Code Action
DC
Operating the dryer with the door open.
• Make sure the door is properly closed.
• Make sure laundry is not caught in the door.
FC
Invalid power source frequency
• Try restarting the cycle.
• If this information code remains, contact a Samsung service
center.
AC
Electronic control problem (Invalid Communication).
• Contact a Samsung service center.
HC
High temperature heating check.
• Clean the lint lter.
• If this information code remains, contact a Samsung service
center.
9C1
The electronic control needs to be checked.
• Check if power cord is connected properly.
• Check if the electrical outlet is working properly.
• If the information code remains, contact a Samsung service
center.
tC
The Thermistor1 resistance is very low or high.
• Check for a clogged lint screen.
• Check if the vent system is restricted.
• If this information code remains, contact a Samsung service
center.
dF
Incorrect door switch.
• Contact a Samsung service center.
If any information code keeps appearing on the screen, contact a Samsung service center.
DV5000F_LED_WEB_Vent_EN.indd 49DV5000F_LED_WEB_Vent_EN.indd 49 2025/9/5 10:00:162025/9/5 10:00:16
English50
Specications
Fabric care chart
The following symbols provide garment care direction. The clothing care labels
include symbols for drying. The use of symbols ensures consistency among garment
manufacturers of domestic and imported items. Follow care label directions to optimize
garment life and reduce laundering problems.
Tumble Dry Cycles
Dry
Normal
Permanent Press
Delicate/Gentle
Do Not Dry (Used with Do Not Wash)
Do Not Tumble Dry
In the Shade (Added to Line Dry, Drip Dry or Dry Flat)
Line Dry/ Hang to Dry
Drip Dry
Dry Flat
Tumble Dry Heat Setting
Any Heat
High
Medium
Low
No Heat/ Air
DV5000F_LED_WEB_Vent_EN.indd 50DV5000F_LED_WEB_Vent_EN.indd 50 2025/9/5 10:00:192025/9/5 10:00:19
English 51
Protecting the environment
This appliance is manufactured from recyclable materials. If you decide to dispose of this
appliance, please observe local waste disposal regulations. Cut off the power cord so that
the appliance cannot be connected to a power source. Remove the door so that animals
and small children cannot get trapped inside the appliance.
Specication sheet
Type Front loading dryer
Capacity (Cu.ft) 4.0
Weight lb (kg) 88 (40)
Heater rating Electric (W) 2200
Power consumption (W) 2500
DV5000F_LED_WEB_Vent_EN.indd 51DV5000F_LED_WEB_Vent_EN.indd 51 2025/9/5 10:00:192025/9/5 10:00:19
Specications
English52
Cycle chart
NOTE
: factory setting, : can be selected
Cycle Recommended items Time Drying Temp
Sensor Dry
NORMAL Cottons, Work clothes, Linen, Mixed loads Medium, level 4
HEAVY DUTY
Heavy fabrics such as jean, Corduroys,
Heavy work clothes
High, level 5
SANITIZE Bedding, Curtains, Children’s clothing High, level 5
WOOL
For machine washable and tumble dryable
wool only (Maximum amount : 3lb)
Low, level 2
DELICATES Underwear, Blouses, Lingerie Extra low, level 1
ACTIVEWEAR
Water-repellent wear, performance
clothes, Sports wear
Low, level 2
PERM PRESS
Shirts, Synthetic fabrics, Knits, Wrinkle-
free cottons, Permanent
Medium, level 4
Manual Dry
SMALL LOAD Small loads
High, level 5
TIME DRY Any load
High, level 5
(Adjustable)
AIR FLUFF Foam, rubber, plastic
-
WRINKLE RELEASE Shirts, Trouser, Blouses
Medium low, level 3
(Adjustable)
Downloaded
TOWELS Bath towels and similar items High, level 5
SHIRTS Shirt, Blouses Medium, level 4
DENIM Jeans, Denims Medium, level 4
MIXED LOAD
Mixed load is consisting of cotton and
synthetics fabrics
Medium, level 4
DV5000F_LED_WEB_Vent_EN.indd 52DV5000F_LED_WEB_Vent_EN.indd 52 2025/9/5 10:00:192025/9/5 10:00:19
English 53
NOTE
: factory setting, : can be selected
Cycle
Dryness Option
Extra
level 5
More
level 4
Normal
level 3
Less
level 2
Damp
level 1
Damp
Alert
Wrinkle
Prevent
Adjust
Time
Sensor Dry
NORMAL
HEAVY DUTY
SANITIZE
WOOL
DELICATES
ACTIVEWEAR
PERM PRESS
Manual Dry
SMALL LOAD
TIME DRY
AIR FLUFF
WRINKLE RELEASE
Downloaded
TOWELS
SHIRTS
DENIM
MIXED LOAD
DV5000F_LED_WEB_Vent_EN.indd 53DV5000F_LED_WEB_Vent_EN.indd 53 2025/9/5 10:00:192025/9/5 10:00:19
English54
Warranty (U.S.A)
SAMSUNG DRYER
LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF
PURCHASE AND/OR PROOF OF DELIVERY
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS
AMERICA, INC.(SAMSUNG) and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in
materials or workmanship for the following limited warranty periods, starting on the date
of delivery to the original consumer purchaser:
One (1) Year All Parts and Labor
This limited warranty is valid only on products purchased and used in the United States
that have been installed, operated, and maintained according to the instructions attached
to or furnished with the product.To receive warranty service, the purchaser must contact
SAMSUNG at the address or phone number provided below for problem determination and
service procedures. Warranty service can only be performed by a SAMSUNG authorized
service center. The original dated bill of sale and/or proof of delivery must be presented
upon request to SAMSUNG or SAMSUNG’s authorized service center to receive warranty
service.
SAMSUNG will provide in-home service within the contiguous United States during the
warranty period at no charge, subject to availability of SAMSUNG authorized servicers
within the customer’s geographic area. If in-home service is not available, SAMSUNG may
elect, at its option, to provide transportation of the product to and from an authorized
service center. If the product is located in an area where service by a SAMSUNG
authorized servicer is not available, you may be responsible for a trip charge or required
to bring the product to a SAMSUNG authorized service center for service.
To receive in-home service, product must be unobstructed and accessible to the service
agent.
During the applicable warranty period, a product will be repaired, replaced, or the
purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new
or reconditioned parts in repairing a product, or replace the product with a new or
reconditioned product. Replacement parts and products are warranted for the remaining
portion of the original product’s warranty or ninety (90) days, whichever is longer. All
replaced parts and products are the property of SAMSUNG and you must return them to
SAMSUNG.
DV5000F_LED_WEB_Vent_EN.indd 54DV5000F_LED_WEB_Vent_EN.indd 54 2025/9/5 10:00:192025/9/5 10:00:19
English 55
This limited warranty covers manufacturing defects in materials or workmanship
encountered in normal household, noncommercial use of this product and shall not
cover the following: damage that occurs in shipment, delivery, installation, and uses
for which this product was not intended; damage caused by unauthorized modication
or alteration of the product; product where the original factory serial numbers have
been removed, defaced, changed in any way, or cannot be readily determined; cosmetic
damage including scratches, dents, chips, and other damage to the product’s nishes;
damage caused by abuse, misuse, pest infestations, accident, re, oods, or other acts
of nature or God; damage caused by use of equipment, utilities, services, parts, supplies,
accessories, applications, installations, repairs, external wiring or connectors not supplied
or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage,
uctuations and surges; damage caused by failure to operate and maintain the product
according to instructions; in-home instruction on how to use your product; and service
to correct installation not in accordance with electrical or plumbing codes or correction
of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses). The
cost of repair or replacement under these excluded circumstances shall be the customer’s
responsibility.
Visits by a Service Engineer to explain functions, maintenance or installation is not
covered by warranty. Please contact your Samsung call agent for help with any of these
issues.
EXCLUSION OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST
PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitations or exclusions may not apply to you. This warranty
gives you specic rights, and you may also have other rights, which vary from state to
state.
DV5000F_LED_WEB_Vent_EN.indd 55DV5000F_LED_WEB_Vent_EN.indd 55 2025/9/5 10:00:192025/9/5 10:00:19
Warranty (U.S.A)
English56
LIMITATION OF REMEDIES
YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT,
OR REFUND OF THE PURCHASE PRICE AT SAMSUNG’S OPTION, AS PROVIDED IN THIS
LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME WAY FROM WORK,
HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR
PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL
THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply
to you. This warranty gives you specic rights, and you may also have other rights, which
vary from state to state.
SAMSUNG does not warrant uninterrupted or error-free operation of the product. No
warranty or guarantee given by any other person, rm, or corporation with respect to this
product shall be binding on SAMSUNG.
To obtain warranty service, please contact SAMSUNG at:
Samsung Electronics America, Inc.
85 Challenger Road
Ridgeeld Park, NJ 07660
1-800-SAMSUNG (726-7864)
www.samsung.com/us/support
DV5000F_LED_WEB_Vent_EN.indd 56DV5000F_LED_WEB_Vent_EN.indd 56 2025/9/5 10:00:192025/9/5 10:00:19
English 57
Warranty (CANADA)
SAMSUNG DRYER
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS
CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in
materials and workmanship for a limited warranty period of:
• One (1) year part and labor
This limited warranty begins on the original date of purchase, and is valid only on
products purchased and used in the Canada.
To receive warranty service, the purchaser must contact SAMSUNG for problem
determination and service procedures.
Warranty service can only be performed by a SAMSUNG authorized service center.
The original dated bill of sale must be presented upon request as proof of purchase to
SAMSUNG or SAMSUNG’s authorized service center.
SAMSUNG will provide in-home service during the warranty period at no charge, subject
to availability within the Canada.
In-home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service
agent.
If service is not available, SAMSUNG may elect to provide transportation of the product to
and from an authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as
stipulated herein, with new or reconditioned parts or products if found to be defective
during the limited warranty period specied above.
All replaced parts and products become the property of SAMSUNG and must be returned
to SAMSUNG.
Replacement parts and products assume the remaining original warranty, or ninety (90)
days, whichever is longer.
DV5000F_LED_WEB_Vent_EN.indd 57DV5000F_LED_WEB_Vent_EN.indd 57 2025/9/5 10:00:192025/9/5 10:00:19
Warranty (CANADA)
English58
This limited warranty covers manufacturing defects in materials and workmanship
encountered in normal, noncommercial use of this product and shall not apply to the
following: damage that occurs in shipment; delivery and installation; applications and
uses for which this product was not intended; altered product or serial numbers; cosmetic
damage or exterior nish; accidents, abuse, neglect, re, water, lightning, or other acts
of nature or God; use of products, equipment, systems, utilities, services, parts, supplies,
accessories, applications, installations, repairs, external wiring or connectors not supplied
or authorized by SAMSUNG that damage this product or result in service problems;
incorrect electrical line voltage, uctuations and surges; customer adjustments and
failure to follow operating instructions, maintenance and environmental instructions that
are covered and prescribed in the instruction book; product removal and reinstallation;
problems caused by pest infestations.
This limited warranty does not cover problems resulting from incorrect electric current,
voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for
instructions, or xing installation errors.
SAMSUNG does not warrant uninterrupted or error-free operation of the product.
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER
EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR
FITNESS FOR A PARTICULAR PURPOSE.
NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH
RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG.
SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO
REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS
PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND
EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN
THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED
DAMAGE.
WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY
FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO
OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE
THIS PRODUCT.
THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL
PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE
REMEDY.
DV5000F_LED_WEB_Vent_EN.indd 58DV5000F_LED_WEB_Vent_EN.indd 58 2025/9/5 10:00:192025/9/5 10:00:19
English 59
Some provinces do not allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of incidental or consequential damages, so the above limitations or
exclusions may not apply to you.
This warranty gives you specic rights, and you may also have other rights, which vary
from province to province.
To obtain warranty service, please contact SAMSUNG at:
Samsung Electronics Canada Inc.
2050 Derry Road West,
Mississauga, Ontario L5N 0B9 Canada
1-800-SAMSUNG (726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
Visits by a Service Engineer to explain functions, maintenance or installation is not
covered by warranty.
Please contact your Samsung call agent for help with any of these issues.
DV5000F_LED_WEB_Vent_EN.indd 59DV5000F_LED_WEB_Vent_EN.indd 59 2025/9/5 10:00:192025/9/5 10:00:19
Scan this with your smartphone
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
U.S.A
1-800-SAMSUNG (726-7864)
1-844-SAM-PAYS (726-7297)
www.samsung.com/us/support
CANADA
1-800-SAMSUNG(726-7864)
1-844-SAM-PAYS (726-7297)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
DV5000F_LED_WEB_Vent_EN.indd 60DV5000F_LED_WEB_Vent_EN.indd 60 2025/9/5 10:00:192025/9/5 10:00:19
