2007 Honda Element Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through this reference.
For a printed owner's manual, click on authorized manuals or go to www.helminc.com.
Contents
Owner's Identification Form
Introduction .........................................................................................................................................i
A Few Words About Safe
ty................................................................................................................iii
Your Vehicle at a Glanc
e.....................................................................................................................4
Driver and Passenger Safety ..............................................................................................................7
Proper use and care of your vehicle's seat belts, and Supplemental Restraint System.
Instruments and Controls.................................................................................................................57
Instrument panel indicator and gauge, and how to use dashboard and steering column controls.
Comfort and Convenience Features ..............................................................................................101
How to operate the climate control system, the audio system, and other convenience features.
Before Driving..................................................................................................................................137
What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo.
Driving ..............................................................................................................................................149
The proper way to start the engine, shift the transmission, and park, plus towing a trailer.
Maintenance.....................................................................................................................................177
The Maintenance Schedule shows you when you need to take your vehicle to the dealer.
Taking Care of the Unexpected......................................................................................................217
This section covers several problems motorists sometimes experience, and how to handle them.
Technical Information.....................................................................................................................241
ID numbers, dimensions, capacities, and technical information.
Warranty and Customer Relations (U.S. and Canada)................................................................257
A summary of the warranties covering your new Acura, and how to contact us.
Authorized Manuals (U.S. only)......................................................................................................261
How to order manuals and other technical literature.
Index...................................................................................................................................................... I
Service Information Summary
A summary of information you need when you pull up to the fuel pump.
Accord Value Package Audio System
This owner’s manual should be
considered a permanent part of the
vehicle and should remain with the
vehicle when it is sold.
This owner’s manual covers all
models of the Element. You may find
descriptions of equipment and
features that are not on your
particular model.
The information and specifications
included in this publication were in
effect at the time of approval for
printing. Honda Motor Co., Ltd.
reserves the right, however, to
discontinue or change specifications
or design at any time without notice
and without incurring any obligation
whatsoever.
Owner’s Identification
POUR CLIENTS CANADIEN
AVIS IMPORTANT: Si vous avez
besoin d’un Manuel du Conducteur
en français, veuillez demander à
votreconcessionnairede
commander le numéro de pièce
33SCVC40
OWNER
ADDRESS
V. I. N.
DELIVERY DATE
DEALER NAME DEALER NO.
ADDRESS
OWNER’S SIGNATURE
DEALER’S SIGNATURE
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
(Date sold to original retail purchaser)
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
Main Menu
One of the best ways to enhance the enjoyment of your new vehicle is to
read this manual. In it, you will learn how to operate its driving controls and
convenience items. Afterwards, keep this owner’s manual in your vehicle so
youcanrefertoitatanytime.
Several warranties protect your new vehicle. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.
Maintaining your vehicle according to the schedules given in this manual
helps to keep your driving trouble-free while it preserves your investment.
When your vehicle needs maintenance, keep in mind that your dealer’s staff
is specially trained in servicing the many systems unique to your vehicle.
Your dealer is dedicated to your satisfaction and will be pleased to answer
any questions and concerns.
As you read this manual, you will
find information that is preceded by
a symbol. This
information is intended to help you
avoid damage to your vehicle, other
property, or the environment.
Congratulations! Your selection of a 2007 Honda Element was a wise
investment. It will give you years of driving pleasure.
Introduction
i
Main Menu
California Proposition 65 Warning
This product contains or emits chemicals known to the state of California to cause cancer and birth
defects or other reproductive harm.
Service Diagnostic Recorders
This vehicle is equipped with service-related devices that record information about powertrain performance. The data
can be used to verify emissions law requirements and/or help technicians diagnose and solve service problems. It may
also be combined with data from other sources for research purposes, but it remains confidential and is never linked to
the vehicle owner.
Event Data Recorders
This vehicle is equipped with one or more devices commonly referred to as event data recorders. These devices
record front seat belt use, front passenger seat occupancy, airbag deployment data, and the failure of any airbag
system component. This data belongs to the vehicle owner and may not be accessed by anyone else except as legally
required or with the permission of the vehicle owner.
Introduction
WARNING:
ii
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners, and CR type batteries in this vehicle contain perchlorate materials - special handling
may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Main Menu
−
−
−
−
−
−
Your safety, and the safety of others,
is very important. And operating this
vehicle safely is an important
responsibility.
To help you make informed
decisions about safety, we have
provided operating procedures and
other information on labels and in
this manual. This information alerts
you to potential hazards that could
hurt you or others.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your vehicle. You must
use your own good judgement.
You will find this important safety information in a variety of forms,
including:
on the vehicle.
preceded by a safety alert symbol and one of
three signal words: , , or .
such as Important Safety Reminders or Important
Safety Precautions.
such as Driver and Passenger Safety.
how to use this vehicle correctly and safely.
This entire book is filled with important safety information please read it
carefully.
These signal words mean:
Safety Labels
Safety Messages
Safety Headings
Safety Section
Instructions
AFewWordsAboutSafety
DANGER WARNING CAUTION
iii
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
Main Menu
Your Element has higher ground clearance than a passenger vehicle designed for use only on pavement. Higher
ground clearance has many advantages for off-highway driving. It allows you to travel over bumps, obstacles, and
rough terrain. It also provides good visibility so you can anticipate problems earlier.
These advantages come at some cost. Because your vehicle is taller and rides higher off the ground, it has a high
center of gravity. This means your vehicle can tip or roll over if you make abrupt turns. Utility vehicles have a
significantly higher rollover rate than other types of vehicles. In a rollover crash, an unbelted person is significantly
more likely to die than a person wearing a seat belt. As a reminder, make sure you and your passengers always wear
seat belts.
For information on how to reduce the risk of rollover, read ‘‘Driving Guidelines’’ on page of this manual and the
section on page . Failure to operate your vehicle correctly might result in loss of
control or an accident.
150
173
Off-Highway Driving Guidelines
Important Handling Information
iv
Main Menu

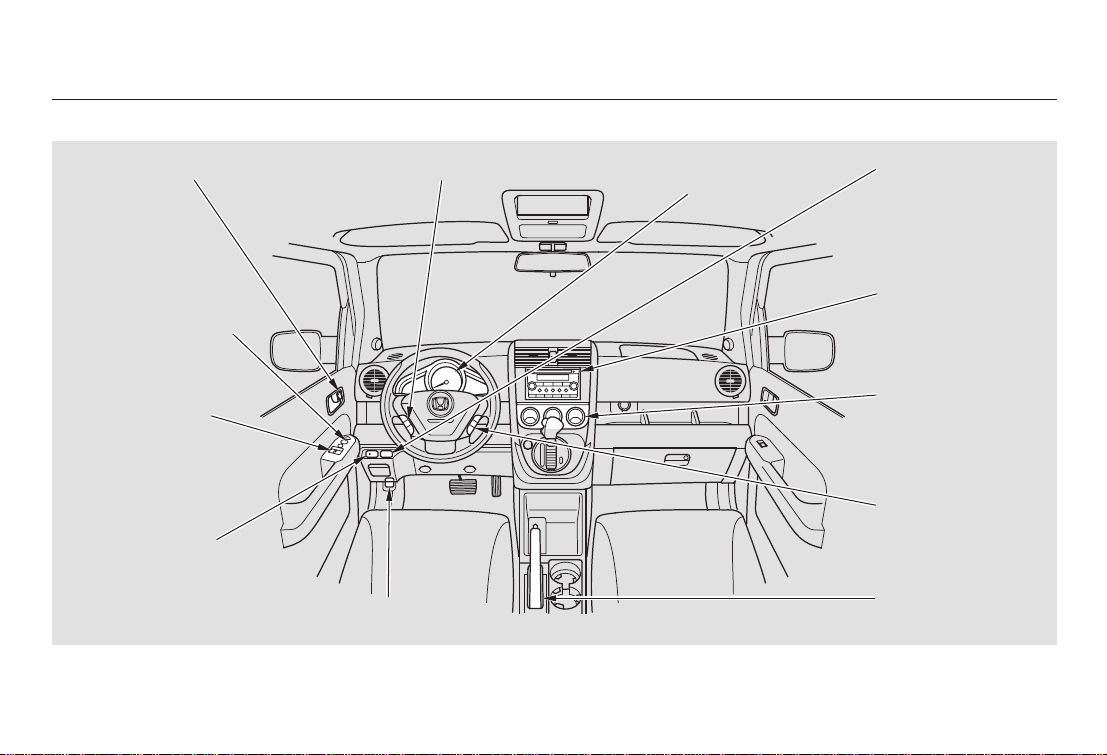

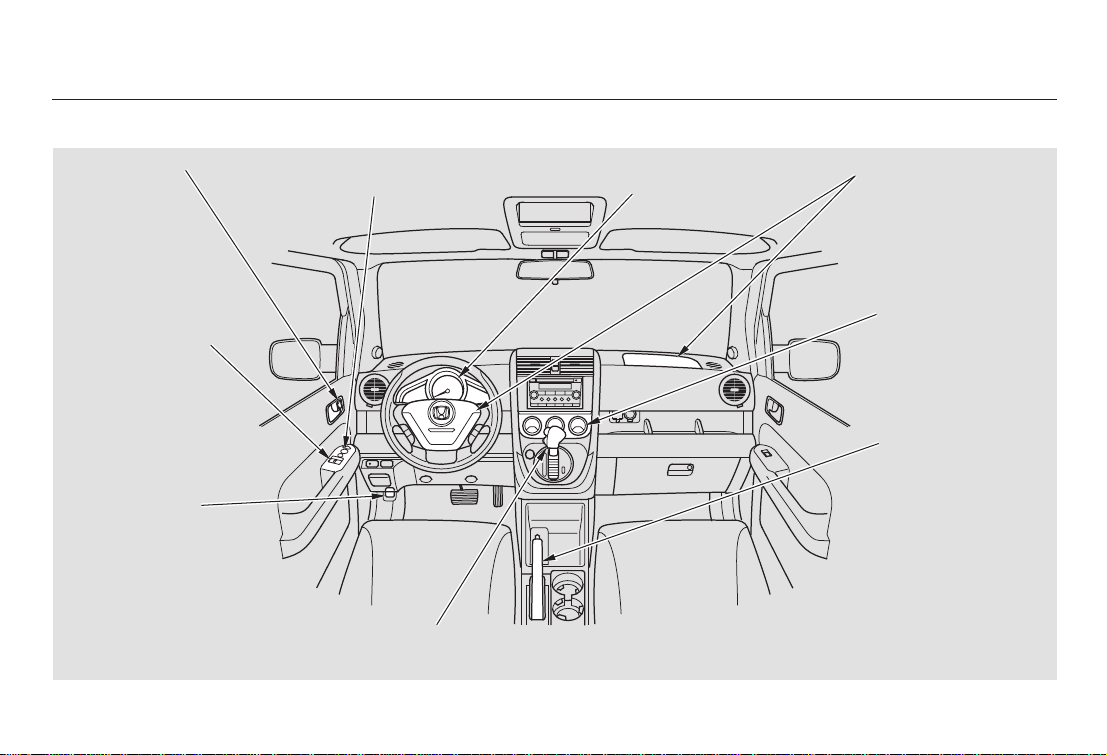

Your Vehicle at a Glance
4
POWER DOOR
LOCK SWITCH
MIRROR CONTROLS
POWER WINDOW
SWITCHES
A/T model is shown.
HOOD RELEASE
HANDLE
HEATING/COOLING
CONTROLS
AUTOMATIC TRANSMISSION
MANUAL TRANSMISSION
AIRBAGS
(P.11, 24)
(P.92)
(P.80)
(P.91)
(P.153)
PARKING BRAKE
(P.93)
(P.102)

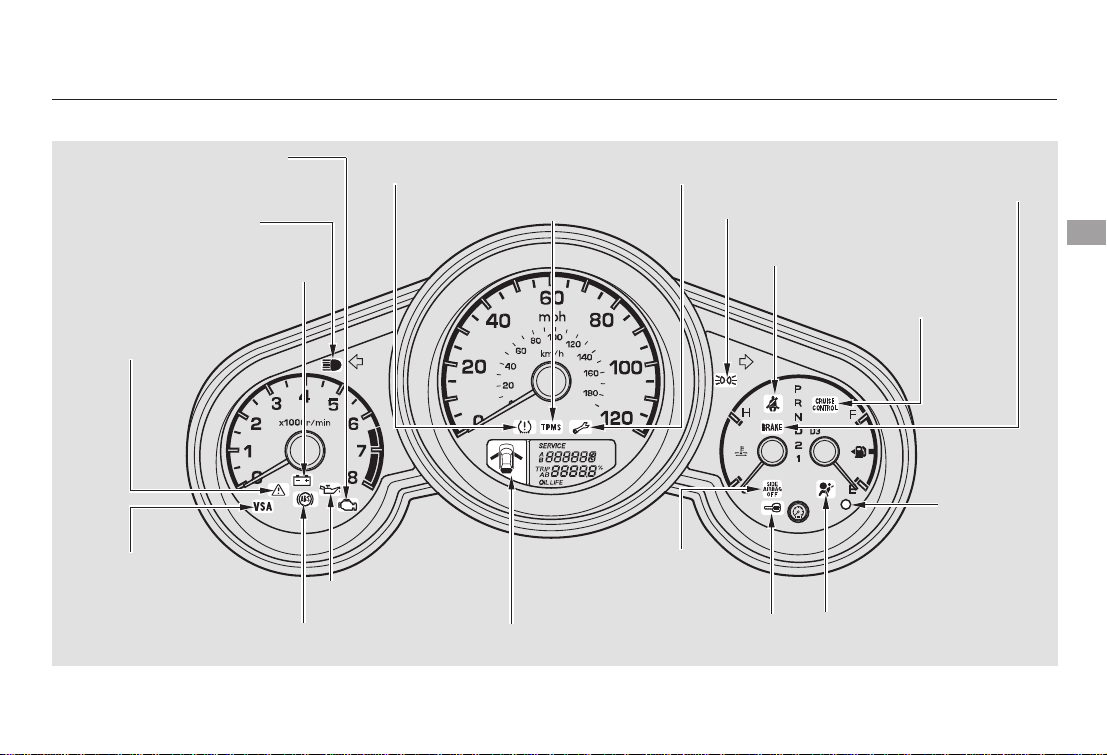

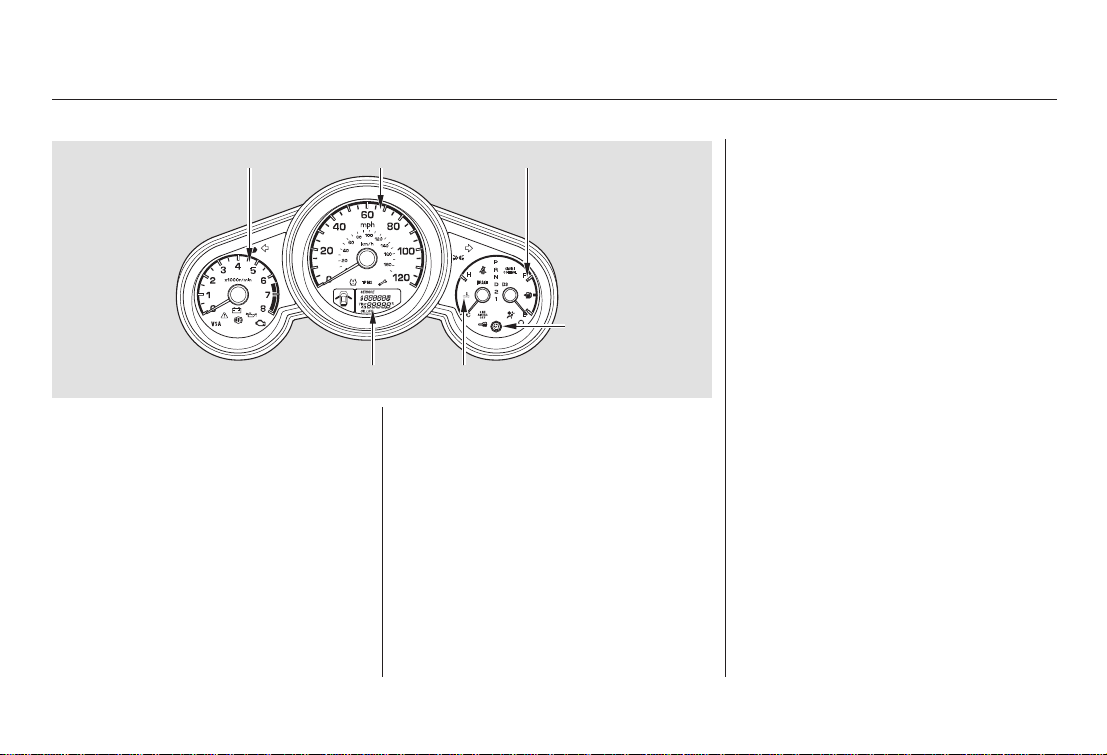

INSTRUMENT PANEL
GAUGES(P.66)
(P.59)
(P.140)
(P.155)
Main Menu
＊
＊
＊
＊
To use the horn, press the center pad of the steering wheel.1:
2 : If equipped
Your Vehicle at a Glance
Your Vehicle at a Glance
5
HEADLIGHTS/TURN SIGNALS
A/T model is shown.
CRUISE CONTROL MASTER
BUTTON

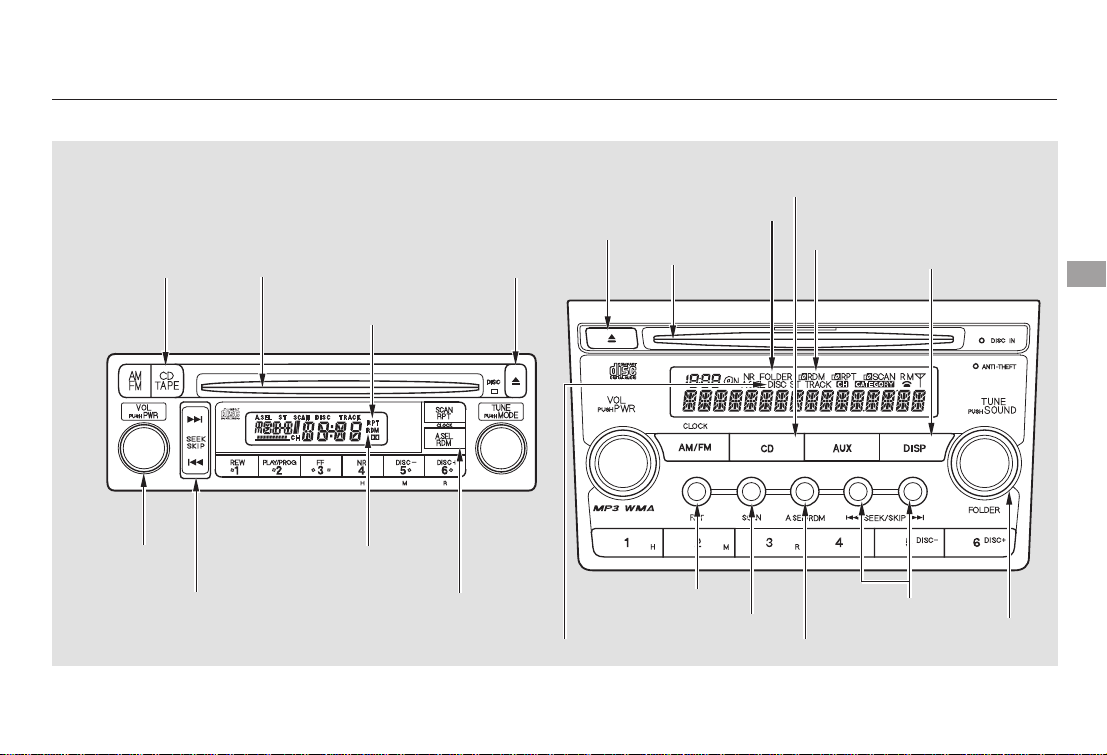

AUDIO SYSTEM
STEERING WHEEL ADJUSTMENT CRUISE CONTROL BUTTONS
(P.133)(P.74)
VEHICLE STABILITY ASSIST
(VSA) SYSTEM ON/OFF SWITCH
REMOTE AUDIO
CONTROLS
(P.132)
(P.133)
(P.166)
HORN
DIGITAL CLOCK
(P.107)
(P.130)
REAR WINDOW
DEFOGGER
(P.73)
HAZARD WARNING
BUTTON
(P.73)
WINDSHIELD WIPERS/WASHERS(P.70)
(P.71)
2
1
Main Menu
Main Menu
−
This section gives you important
information about how to protect
yourself and your passengers. It
shows you how to use seat belts. It

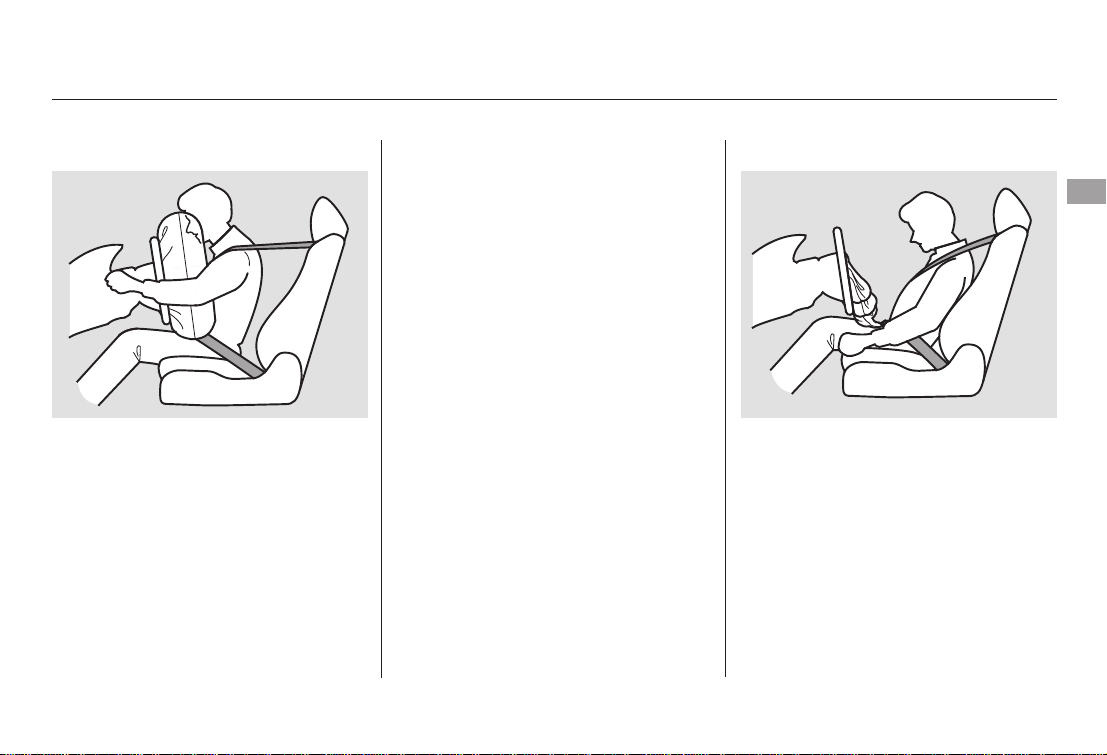

explains how your airbags work. And
it tells you how to properly restrain
infants and children in your vehicle.
.........Important Safety Precautions . 8
.......Your Vehicle’s Safety Features . 9
.....................................Seat Belts . 10
.........................................Airbags . 11
.........Protecting Adults and Teens . 12
.....1. Close and Lock the Doors . 12
...........2. Adjust the Front Seats . 13
............3. Adjust the Seat-Backs . 14
...4. Adjust the Head Restraints . 15
5. Fasten and Position the
............................Seat Belts . 15
6. Maintain a Proper Sitting
................................Position . 17
.....Advice for Pregnant Women . 18
...Additional Safety Precautions . 18
Additional Information About Your
.................................Seat Belts . 20
..Seat Belt System Components . 20
......................Lap/Shoulder Belt . 21
Automatic Seat Belt
...............................Tensioners . 22
...............Seat Belt Maintenance . 22
Additional Information About Your
.....................................Airbags . 24
......Airbag System Components . 24
How Your Front Airbags
.........................................Work . 27
...How Your Side Airbags Work . 31
How Your Side Curtain Airbags
.........................................Work . 32
How the SRS Indicator
.......................................Works . 33
How the Side Airbag Off
......................Indicator Works . 34
How the Passenger Airbag Off
......................Indicator Works . 34
.............................Airbag Service . 35
...Additional Safety Precautions . 36
Protecting Children General
................................Guidelines . 37
All Children Must Be
...............................Restrained . 37
All Children Should Sit in a
.................................Back Seat . 38
The Passenger’s Front Airbag
.........Can Pose Serious Risks . 38
If You Must Drive with Several
...................................Children . 40
If a Child Requires Close
..................................Attention . 40
...Additional Safety Precautions . 41
Protecting Infants and
.........................Small Children . 42
.......................Protecting Infants . 42
.........Protecting Small Children . 43
.....................Selecting a Child Seat . 44
....................Installing a Child Seat . 45
...............................With LATCH . 46
.........With a Lap/Shoulder Belt . 48
..............................With a Tether . 50
...........Protecting Larger Children . 51
...............Checking Seat Belt Fit . 51
..................Using a Booster Seat . 52
When Can a Larger Child Sit in
.........................................Front . 52
...Additional Safety Precautions . 53
.............Carbon Monoxide Hazard . 54
...................................Safety Labels . 55
Driver and Passenger Safety
Driver and Passenger Safety
7
Main Menu
−
You’ll find many safety
recommendations throughout this
section, and throughout this manual.
Therecommendationsonthispage
are the ones we consider to be the
most important.
A seat belt is your best protection in
all types of collisions. Airbags are
designed to supplement seat belts,
not replace them. So even though
your vehicle is equipped with airbags,
make sure you and your passengers
always wear your seat belts, and
wear them properly (see page ).
Having a tire blowout or a
mechanical failure can be extremely
hazardous. To reduce the possibility
of such problems, check your tire
pressures and condition frequently,
and perform all regularly scheduled
maintenance (see page ).
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current
conditions, regardless of the
maximum speed posted.
Alcohol and driving don’t mix. Even
one drink can reduce your ability to
respond to changing conditions, and
your reaction time gets worse with
every additional drink. So don’t drink
and drive, and don’t let your friends
drink and drive, either.
While airbags can save lives, they
can cause serious or fatal injuries to
occupants who sit too close to them,
or are not properly restrained.
Infants, young children, and short
adults are at the greatest risk. Be
sure to follow all instructions and
warnings in this manual.
Children age 12 and under should
ride properly restrained in a back
seat, not the front seat. Infants and
smallchildrenshouldberestrained
in a child seat. Larger children
should use a booster seat and a lap/
shoulder belt until they can use the
belt properly without a booster seat
(see pages ).
15
37 53
179
Important Safety Precautions
Always Wear Your Seat Belt
Keep Your Vehicle in Safe
Condition
Control Your Speed
Don’t Drink and Drive
Be Aware of Airbag Hazards
Restrain All Children
8
Main Menu
Table of Contents
Your vehicle is equipped with many
featuresthat work together to
protect you and your passengers
during a crash.
However, you and your passengers
can’t take full advantage of these
features unless you remain sitting in
a proper position and
. In fact, some safety
features can contribute to injuries if
they are not used properly.
The following pages explain how you
cantakeanactiveroleinprotecting
yourself and your passengers.
Some features do not require any
action on your part. These include a
strong steel framework that forms a
safety cage around the passenger
compartment; front and rear crush
zones, a collapsible steering column;
and tensioners that tighten the seat
belts in a crash.
Your Vehicle’s Safety Features
always wear
your seat belts
Driver and Passenger Safety
9
(2)
(6)
(4)(3)
(1)
(7)
(5)
(2)
(8)
(8)
(9)
(11)
(10)
(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Front Airbags
(8) Side Airbags
(9) Side Curtain Airbags
(10) Front Seat Belt Tensioners
(11) Door Locks
Main Menu
Table of Contents
Your vehicle is equipped with seat
belts in all seating positions.
Seat belts are the single most
effectivesafetydeviceforadultsand
larger children. (Infants and smaller
children must be properly restrained
in child seats.)
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Inaddition, most statesandall
Canadian provinces require you to
wear seat belts.
When properly worn, seat belts:
Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in safety features.
Help protect you in almost every
type of crash, including frontal,
side, and rear impacts and
rollovers.
Help keep you from being thrown
against the inside of the vehicle
and against other occupants.
Keep youfrom being thrown out
of the vehicle.
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury from an inflating airbag and
allows you to get the best
advantage from the airbag.
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.
Always wear your seat belt, and
make sure you wear it properly.
Your seat belt system also includes
an indicator on the instrument panel
and a beeper to remind you and your
passengers to fasten your seat belts.
Your Vehicle’s Safety Features
Seat Belts
Why Wear Seat Belts
What You Should Do:
10
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Be sure you and your
passengers always wear seat
belts and wear them properly.
Main Menu
Table of Contents
Your vehicle has a supplemental
restraint system (SRS) with front
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe frontal collision (see page
for more information on how
your front airbags work).
In addition, your vehicle has side
curtain airbags to help protect the
heads of the driver, front passenger,
and passengers in the outer rear
seating positions during a moderate
to severe side impact (see page
for more information on how
your side curtain airbags work).
Your vehicle also has side airbags to
help protect the upper torso of the
driver or a front seat passenger
during a moderate to severe side
impact (see page 31 for more
informationon how your side airbags
work).27 32
CONTINUED
Airbags
Your Vehicle’s Safety Features
Driver and Passenger Safety
11
Main Menu
Table of Contents
−
After everyone has entered the
vehicle, be sure the doors are closed
and locked.
They are designed to supplement
the seat belts.
To do
their job, airbags must inflate with
tremendous force. So while
airbags help save lives, they can
cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly.
The most important things you need
to know about your airbags are:
Always wear
your seat belt properly, and sit
upright and as far back from the
steering wheel as possible while
allowing full control of the vehicle. A
front passenger should move their
seat as far back from the dashboard
as possible.
Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent passengers from
accidentally opening a door and
falling out.
Locking the doors also helps prevent
an outsider from unexpectedly
opening a door when you come to a
stop.
The rest of this section gives more
detailed information about how you
can maximize your safety.
Remember however, that no safety
system can prevent all injures or
deaths that can occur in a severe
crash, even when seat belts are
properly worn and the airbags deploy.
The following pages provide
instructions on how to properly
protect the driver, adult passengers,
and teenage children who are large
enough and mature enough to drive
or ride in the front.
See pages for important
guidelines on how to properly
protect infants, small children, and
larger children who ride in your
vehicle.
Your vehicle has a door and
tailgate monitor indicator
on the instrument panel to indicate
when a specific door or the tailgate
or the hatch is not tightly closed.
See page for how to lock the
doors, and page for how the door
and tailgate monitor indicator works.
5337
63
80
Close and Lock the DoorsProtecting Adults and Teens
Introduction
1.
Airbags do not replace seat belts.
Airbags offer no protection in rear
impacts, or minor frontal or side
collisions.
Airbags can pose hazards.
What you should do:
Your Vehicle’s Safety Features, Protecting Adults and Teens
12
Main Menu
Table of Contents
See page for how to adjust the
front seats.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest. In addition to
adjusting the seat, you can adjust the

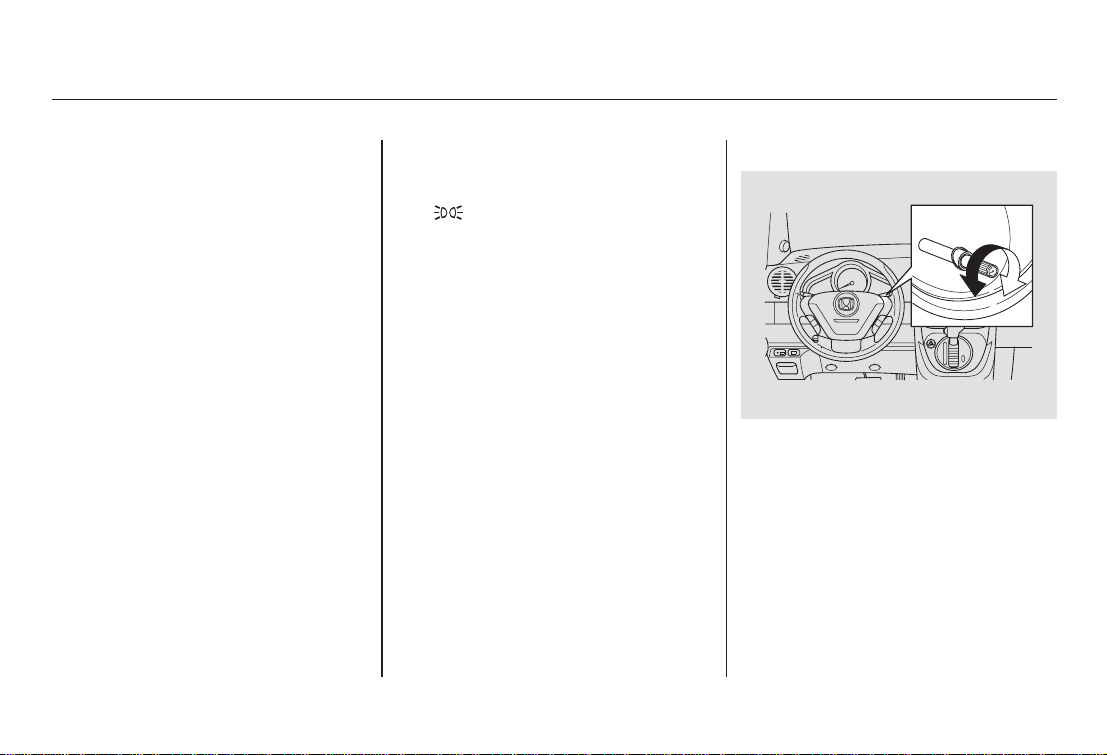

steering wheel up and down (see
page ).
If you cannot get far enough away
from the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
Once your seat is adjusted correctly,
rock it back and forth to make sure it
is locked in position.
Adjust the driver’sseat as far tothe
rear as possible while allowing you to
maintain full control of the vehicle.
Have a front passenger adjust their
seat as far to the rear as possible.
If yousit too close tothe steering
wheel or dashboard, you can be
seriously injured by an inflating front
airbag, or by striking the steering
wheel or dashboard.
83
74
Protecting Adults and Teens
Adjust the Front Seats2.
Driver and Passenger Safety
13
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
Main Menu
Table of Contents
Adjust the driver’s seat-back to a
comfortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
Passengers with adjustable seat-
backs should also adjust their seat-
back to a comfortable, upright
position.
Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
See page for how to adjust the
seat-backs.
83
Adjust the Seat-Backs3.
Protecting Adults and Teens
14
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat.
Main Menu
Table of Contents
Adjust the driver’s head restraint so
the back of your head rests against
the center of the restraint.
Properly adjusted head restraints
will help protect occupants from
whiplash and other crash injuries.
See page for how to adjust the
head restraints.
Have passengers adjust their head
restraints properly as well. Taller
persons should adjust their restraint
as high as possible.
Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Check that
the belt is not twisted, because a
twisted belt can cause serious
injuries in a crash.
85
CONTINUED
Adjust the Head Restraints Fasten and Position the Seat
Belts
4. 5.
Protecting Adults and Teens
Driver and Passenger Safety
15
Improperly positioning head
restraints reduces their
effectiveness and you can be
seriously injured in a crash.
Make sure head restraints are
in place and positioned properly
before driving.
Main Menu
Table of Contents
Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part fits snugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.
If necessary, pull up on the belt again
to remove any slack, then check that
the belt rests across the center of
your chest and over your shoulder.
This spreads the forces of a crash
over the strongest bones in your
upper body.
This could cause
very serious injuries in a crash.
See page for additional
information about your seat belts
and how to take care of them.
If a seat belt does not seem to work
properly, it may not protect the
occupant in a crash.
Using a seat
belt that is not working properly can
result in serious injury or death.
Have your dealer check the belt as
soon as possible.
20
Protecting Adults and Teens
Never place the shoulder portion of a
lap/shoulder belt under your arm or
behind your back.
No one should sit in a seat with an
inoperative seat belt.
16
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
Main Menu
Table of Contents
After all occupants have adjusted
their seats and put on seat belts, it is
very important that they continue to
sit upright, well back in their seats,
with their feet on the floor, until the
vehicle is parked and the engine is
off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both feet up, the
chance of injury during a crash is
greatly increased.
In addition, an occupant who is out of
position in the front seat can be
seriously or fatally injured in a crash
by striking interior parts of the
vehicle or being struck by an
inflating front airbag.
Protecting Adults and Teens
Maintain a Proper Sitting
Position
6.
Driver and Passenger Safety
17
Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on the
floor.
Main Menu
Table of Contents
If you are pregnant, the best way to
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.
When driving, remember to sit
upright and adjust the seat as far
back as possible while allowing full
control of the vehicle. When riding
as a front passenger, adjust the seat
as far back as possible.
This will reduce the risk of injuries
to both you and your unborn child
that can be caused by a crash or an
inflating front airbag.
Each time you have a checkup, ask
your doctor if it’s okay for you to
drive.
If they do, they
could be very seriously injured in a
crash.
A passenger who is not
wearing a seat belt during a crash
or emergency stop can be thrown
against the inside of the vehicle,
against other occupants, or out of
the vehicle.
If they do, they
could be very seriously injured in a
crash.
Protecting Adults and Teens
Advice for Pregnant Women Additional Safety Precautions
Never let passengers ride in the
cargo area or on top of a folded-
down back seat.
Passengers should not stand up or
change seats while the vehicle is
moving.
Two people should never use the
same seat belt.
18
Main Menu
Table of Contents
Devices intended to improve
occupant comfort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
the seat belt and increase the
chance of serious injury in a crash.
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp object in
your mouth, can result in injuries
if your front airbag inflates.
Objects on
the covers marked ‘‘SRS AIRBAG’’
could interfere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inflate.
If your
hands or arms are close to an
airbag cover, they could be injured
if the front airbag inflates.
If a side
airbag or a side curtain airbag
inflates, a cup holder or other hard
object attached on or near a door or
side panel could be propelled inside
the vehicle and hurt someone.
Protecting Adults and Teens
Do not put any accessories on seat
belts.
Do not place hard or sharp objects
between yourself and a front
airbag.
Do not attach or place objects on
the front airbag covers.
Keep your hands and arms away
from the airbag covers.
Do not attach hard objects on or
near a door or side panel.
Driver and Passenger Safety
19
Main Menu
Table of Contents
This system uses the same sensors
as the front airbags to monitor
whether the front seat belts are
latched or unlatched, and how much
weight is on the front passenger’s
seat (see pages and ).
The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you and your passengers to
fasten your seat belts.
This system monitors the front seat
belts. If you turn the ignition switch
to the ON (II) position before your
seat belt is fastened, the beeper will
sound and the indicator will flash. If
your seat belt is not fastened before
the beeper stops, the indicator will
stop flashing but remain on.
If a front passenger does not fasten
their seat belt, the indicator will
come on about 6 seconds after the
ignition switch is turned to the ON
(II) position.
When no one is sitting in the front
passenger’s seat, or a child or small
adult is riding there, the indicator
should not come on and the beeper
should not sound.
If the indicator comes on or the
beeper sounds when the driver’s seat
belt is latched and there is no front
seat passenger and no items on the
front seat, something may be
interfering with the monitoring
system. Look for and remove:
Any items under the front
passenger’s seat.
Any objects hanging on the seat or
in the seat-back pocket.
Any objects, such as a folded-down
back seat, that is touching the rear
of the seat-back.
If no obstructions are found, have
your vehicle checked by a dealer.
Your seat belt system includes lap/
shoulder belts in all four seating
positions. The front seat belts are
also equipped with automatic seat
belt tensioners.
If either the driver or a front
passenger does not fasten their seat
belt, the beeper will sound and the
indicator will flash again at regular
intervals.
29 30
Seat Belt System Components
Additional Information About Your Seat Belts
20
Main Menu
Table of Contents
The lap/shoulder belt goes over
your shoulder, across your chest,
and across your hips.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page for how to
properly position the belt).
To unlock the belt, press the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. After exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move freely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automatically locks the belt to help
restrain your body.
The seat belts in all positions except
the driver’s have an additional
lockable retractor that must be
activated to secure a child seat (see
page ).
If the shoulder part of the belt is
pulled all the way out, the lockable
retractor will activate. The belt will
retract, but it will not allow the
passenger to move freely.
To deactivate the lockable retractor,
unlatch the buckle and let the seat
belt fully retract. To refasten the
seat belt, pull it out only as far as
needed.
15
48
Lap/Shoulder Belt
Additional Information About Your Seat Belts
Driver and Passenger Safety
21
Main Menu
Table of Contents
For added protection, the front seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a front passenger in position.
For safety, you should check the
condition of your seat belts regularly.
Pull each belt out fully, and look for
frays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. If a belt does
not retract easily, cleaning the belt
may correct the problem (see page
). Any belt that is not in good
condition or working properly will
not provide good protection and
should be replaced as soon as
possible.
Honda provides a limited warranty
on seat belts. See your
booklet for
details.
The tensioners are designed to
activate in any collision severe
enough to cause the front airbags to
deploy, or if a sensor detects your
vehicle is about to roll over (see page
).
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled.
The tensioners can also be activated
during a collision in which the front
airbags . In this case, the
airbags would not be needed, but the
additional restraint could be helpful.
If a side airbag or side curtain airbag
deploys during a side impact, the
tensioner on that side of the vehicle
will also deploy. 205
32
Honda
Warranty Information
do not deploy
Seat Belt MaintenanceAutomatic Seat Belt Tensioners
Additional Information About Your Seat Belts
22
Main Menu
Table of Contents
The dealer should also inspect the
anchors for damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
If a seat belt is worn during a crash,
it must be replaced by your dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
Additional Information About Your Seat Belts
Driver and Passenger Safety
23
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
Main Menu
Table of Contents
Airbag System Components
Additional Information About Your Airbags
24
(1)
(3)
(5)
(4)
(13)
(7)
(5)
(4)
(6)
(10)
(12)
(11)
(8) (2)(9)
(10)
(14)
(15)
(1) Driver’s Airbag
(2) Front Passenger’s Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners
(5) Side Airbags
(6) Driver’s Seat Position Sensor
(7) Front Passenger’s Weight Sensors
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Side Impact Sensors (First)
(11) Occupant Position Detection System (OPDS) Sensors
(12) SRS Indicator
(13) Rollover Sensor
(14) Seat Belt Buckle Tensioners
(15) Rear Safing Sensor
Main Menu
Table of Contents
Your airbag system includes:
Two SRS (supplemental restraint
system) front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the front
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
Two side airbags, one for the
driver and one for a front
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Two side curtain airbags, one for
each side of the vehicle. The
airbags are stored in the ceiling,
above the side windows. The front
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page
).
27
32
31
CONTINUED
Additional Information About Your Airbags
Driver and Passenger Safety
25

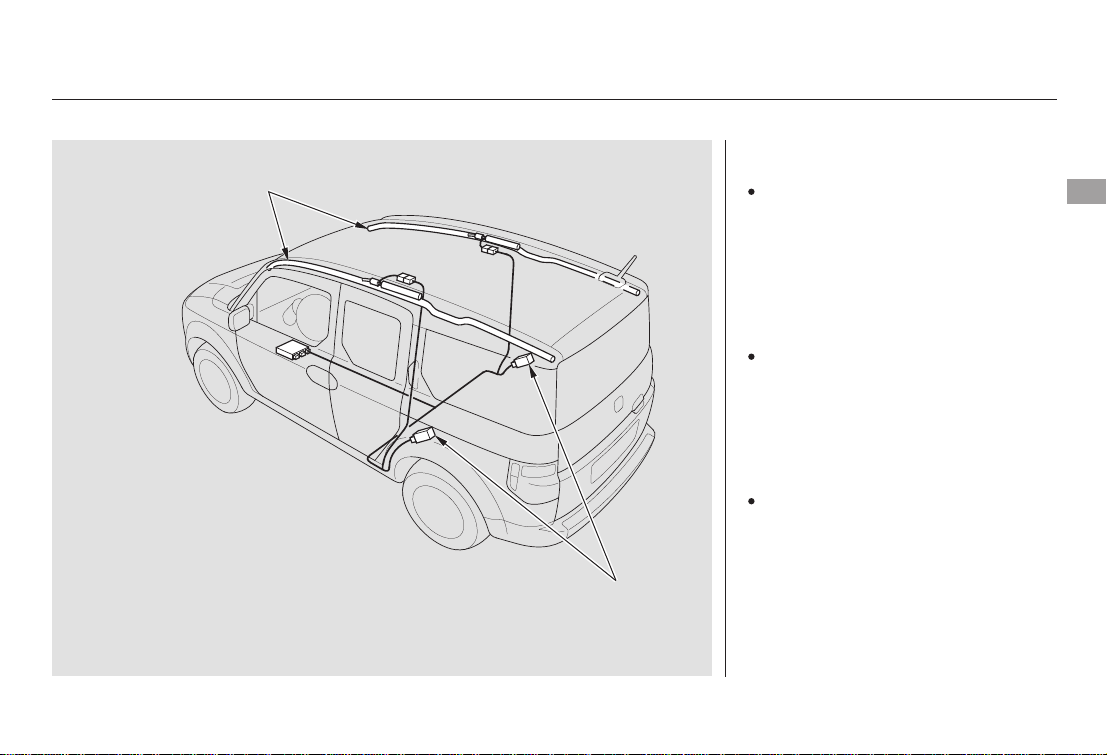

(16)
(17)
(16) Side Curtain Airbags
(17) Side Impact Sensors (Second)
Main Menu
Table of Contents
Automatic front seat belt
tensioners (see page ).
Sensors that can detect a
moderate to severe front impact or
side impact.
Sensors that can detect whether a
child is in the passenger’s side
airbag path and signal the control
unit to turn the airbag off (see
page ).

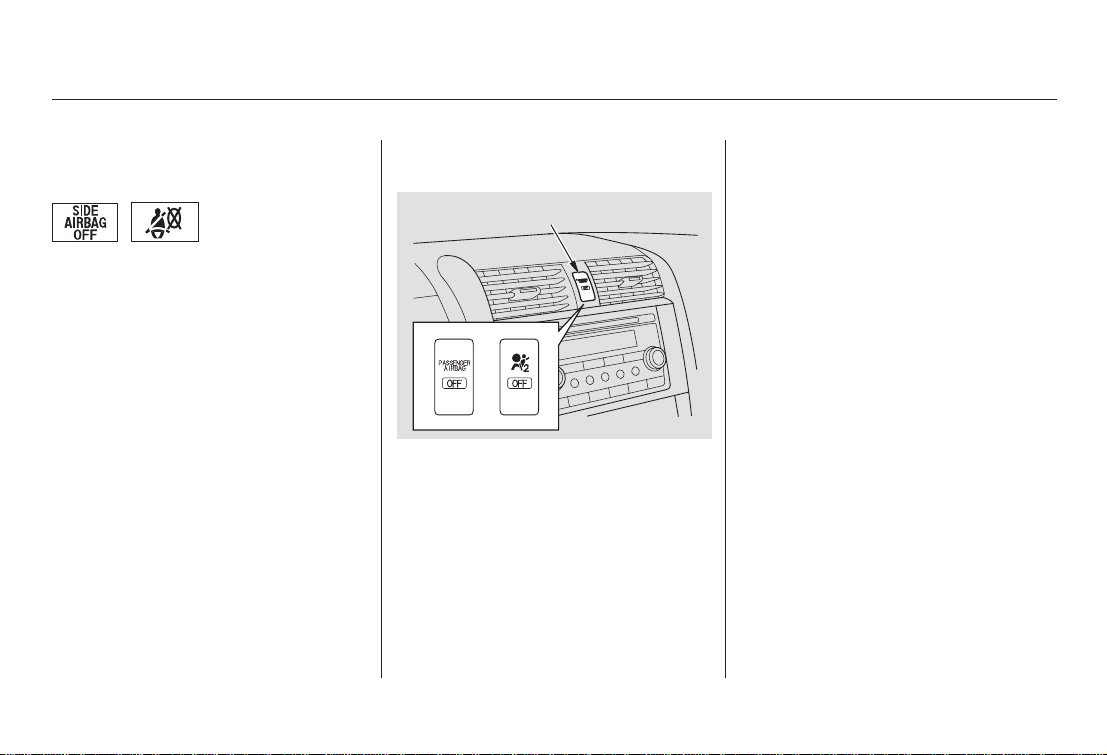

An indicator on the dashboard that
alerts you that the passenger’s
front airbag has been turned off
(see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
An indicator on the instrument
panel that alerts you that the
passenger’s side airbag has been
turned off (see page ).
Sensors that can detect whether
the driver’s seat belt and a front
passenger’s seat belt is latched or
unlatched (see page ).
A driver’s seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too far forward, the airbag will
inflate with less force (see page
).
Weight sensors that monitor the
weight on the front passenger’s
seat. If the weight is about 65 lbs
(29 kg) or less (the weight of an
infant or small child), the
passenger’s front airbag will be
turned off (see page ).
A sophisticated electronic system
that continually monitors and
records information about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and front
passenger seat belt use when the
ignition switch is in the ON (II)
position.
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags,
sensors, or seat belt tensioners
(see page ).
22
31
20
29
29
33
34
34
Additional Information About Your Airbags
26
Main Menu
Table of Contents
After inflating, the front airbags
immediately deflate, so they won’t
interfere with the driver’s visibility,
or the ability to steer or operate
other controls.
Although both airbags normally
inflate within a split second of each
other, it is possible for only one
airbag to deploy.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
sufficient protection, and the
supplemental protection offered by
the airbag would be minimal.
If you ever have a moderate to
severe frontal collision, sensors will
detect the vehicle’s rapid
deceleration.
If the rate of deceleration is high
enough, the control unit will instantly
inflate the driver’s and front
passenger’s airbags, at the time and
with the force needed.
During a frontal crash, your seat belt
restrains your lower body and torso,
and the front airbag helps protect
your head and chest.
Only the driver’s airbag can deploy if
there is no passenger in the front
seat, or if the advanced airbag
system has turned the passenger’s
airbag off (see page ).29
CONTINUED
How Your Front Airbags Work
Additional Information About Your Airbags
Driver and Passenger Safety
27
Main Menu
Table of Contents
Your front airbags are also dual-
threshold airbags. Airbags with this
feature have two deployment
thresholds that depend on whether
sensors detect the occupant is
wearing a seat belt or not.
Your front airbags are dual-stage
airbags. This means they have two
inflation stages that can be ignited
sequentially or simultaneously,
depending on crash severity.
In a crash, both stages
will ignite simultaneously to provide
the quickest and greatest protection.
In a crash, one stage will
ignite first, then the second stage
will ignite a split second later. This
provides longer airbag inflation time
with a little less force.
The total time for inflation and
deflation is one-tenth of a second, so
fast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
After a crash, you may see what
looks like smoke. This is actually
powder from the airbag’s surface.
Although the powder is not harmful,
people with respiratory problems
mayexperiencesometemporary
discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do
so.
If the occupant’s belt is ,
the airbag will deploy at a slightly
lower threshold, because the
occupant would need extra
protection.
If the occupant’s belt is , the
airbag will deploy at a slightly higher
threshold, when the airbag would be
needed to supplement the protection
provided by the seat belt.
Dual-Threshold AirbagsDual-Stage Airbags
more severe
less severe
not latched
latched
Additional Information About Your Airbags
28
Main Menu
Table of Contents
CONTINUED
Your front airbags are also advanced
airbags. The main purpose of this
feature is to help prevent airbag-
caused injuries to short drivers and
children who ride in front.
For both advanced airbags to work
properly:
Occupants must sit upright and
wear their seat belts properly.
Back-seat passengers should not
put their feet under the front seats.
Failure to follow these instructions
could damage the sensors or prevent
them from working properly.
The driver’s advanced front airbag
system includes a seat position
sensor under the seat. If the seat is
too far forward, the airbag will
inflate with less force, regardless of
the severity of the impact.
The passenger’s advanced front
airbag system has weight sensors
under the seat. Although Honda
does not encourage carrying an
infant or small child in front, if the
sensors detect the weight of an
infant or small child (up to about 65
lbs or 29 kg), the system will
automatically turn the passenger’s
front airbag off.
Do not spill any liquids on or
under the seats, cover the sensors,
or put any objects or metal items
under the front seats.
Be aware that objects placed on the
passenger’s seat can also cause the
airbag to be turned off.
If there is a problem with the sensor,
the SRS indicator will come on, and
the airbag will inflate in the normal
manner regardless of the driver’s
seating position.
Additional Information About Your Airbags
Advanced Airbags
Driver and Passenger Safety
29
PASSENGER’S SEAT
WEIGHT SENSOR
DRIVER’S SEAT
POSITION SENSOR
Main Menu
Table of Contents
Moving the front seat forcibly
back against cargo on the seat or
floor behind it.
When the airbag is turned off, a
‘‘passenger airbag off’’ indicator in
the center of the dashboard comes
on (see page ).
Hanging heavy items on the front
passenger seat, or placing heavy
items in the seat-back pocket.
Moving the front seat or seat-back
forcibly back against the folded
rear seat.
If the weight sensors detect there is
no passenger in the front seat, the
airbag will be off. However, the
passenger airbag off indicator will
not come on.
To ensure that the passenger’s
advanced front airbag system will
work properly,
This includes:
A rear passenger pushing or
pulling on the back of the front
passenger’s seat.
34
Additional Information About Your Airbags
do not do anything
that would increase or decrease the
weight on the front passenger’s seat.
30
Main Menu
Table of Contents
Only one airbag will deploy during a
side impact. If the impact is on the
passenger’s side, the passenger’s
side airbag will deploy even if there
is no passenger.
To get the best protection from the
side airbags, front seat occupants
should wear their seat belts and sit
upright and well back in their seats.
Your vehicle has a side airbag cutoff
system designed primarily to protect
a child riding in the front passenger’s
seat.
Although Honda does not encourage
children to ride in front, if the
sensors in the seat detect a child has
leaned into the side airbag’s
deployment path, the airbag will shut
off.
Thesideairbagmayalsoshutoffifa
short adult leans sideways, or a
larger adult slouches and leans
sideways into the airbag’s
deployment path.
Objects placed on the front
passenger seat can also cause the
side airbag to be shut off.
A front seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutoff
system from working properly.
There will be some delay between
the moment the passenger moves
into or out of the airbag deployment
pathandwhentheindicatorcomes
on or goes off.
If the side airbag off indicator comes
on (see page ), have the
passenger sit upright. Once the
passenger is out of the airbag’s
deployment path, the system will
turn the airbag back on, and the
indicator will go out.
If you ever have a moderate to
severe side impact, sensors will
detect rapid acceleration and signal
the control unit to instantly inflate
either the driver’s or the passenger’s
side airbag and activate the seat belt
tensioner.
34
How Your Side Airbags Work
Side Airbag Cutoff System
Additional Information About Your Airbags
Driver and Passenger Safety
31
Main Menu
Table of Contents
If the impact is on the passenger’s
side, the passenger’s side curtain
airbag will inflate even if there are no
occupants on that side of the vehicle.
To get the best protection from the
side curtain airbags, occupants
should wear their seat belts and sit
upright and well back in their seats.
In a moderate to severe side impact,
sensors will detect rapid acceleration
and signal the control unit to
instantly inflate the side curtain
airbag and activate the seat belt
tensioner on the driver’s or the
passenger’s side of the vehicle.
If the rollover sensor detects your
vehicle is about to roll over, it signals
the control unit, which immediately
deploys both side curtain airbags and
activates both front seat belt
tensioners.
The airbag on the passenger’s side
will deploy, and the seat belt
tensioner will activate, even if there
are no passengers on that side of the
vehicle.
How Your Side Curtain Airbags
Work
In a Side Impact
In a Rollover
Additional Information About Your Airbags
32

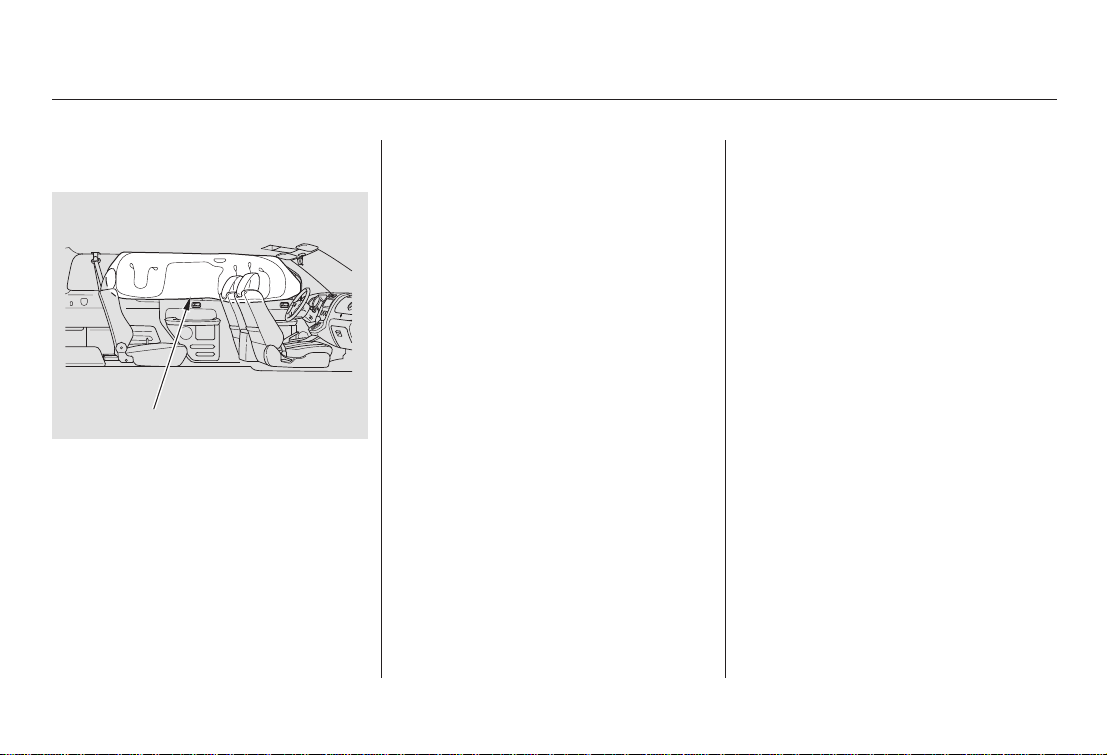

SIDE CURTAIN AIRBAG
Main Menu
Table of Contents
If the indicator comes on at any
other time, or does not come on at all,
you should have the system checked
by your dealer. For example:
If the SRS indicator does not come
on after you turn the ignition
switch to the ON (II) position.
If the indicator stays on after the
engine starts.
If the indicator comes on or
flashesonandoffwhileyoudrive.
If you see any of these indications,
the airbags and seat belt tensioners
may not work properly when you
need them.
The SRS indicator alerts
you to a potential problem
with your airbags or seat belt
tensioners.
When you turn the ignition switch to
the ON (II) position, this indicator
comes on briefly then goes off. This
tells you the system is working
properly.
Additional Information About Your Airbags
How the SRS Indicator Works
Driver and Passenger Safety
33
Ignoring the SRS indicator can
result in serious injury or death
if the airbag systems or
tensioners do not work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS indicator alerts you to
a possible problem.
Main Menu
Table of Contents
This indicator alerts you that the
passenger’s side airbag has been
automatically shut off. It does
mean there is a problem with your
side airbags.
When you turn the ignition switch to
the ON (II) position, the indicator
should come on briefly and go off
(see page ). If it doesn’t come on,
stays on, or comes on while driving
without a passenger in the front seat,
have the system checked.
This indicator alerts you that the
passenger’s front airbag has been
shut off because weight sensors
detect about 65 lbs (29 kg) or less
(the weight of an infant or small
child) on the front passenger’s seat.
It does there is a problem
with the airbag.
Be aware that objects placed on the
front seat can cause the indicator to
come on.
If no weight is detected on the front
seat, the airbag will be automatically
shut off. However, the indicator will
not come on.
The passenger airbag off indicator
maycomeonandoffrepeatedlyif
the total weight on the seat is near
the airbag cutoff threshold.
If an adult or teenage passenger is
riding in front, move the seat as far
to the rear as possible, and have the
passenger sit upright and wear the
seat belt properly.
61
Additional Information About Your Airbags
How the Side Airbag Off
Indicator Works
How the Passenger Airbag Off
Indicator Works
not
not mean
34
CanadaU.S.
PASSENGER AIRBAG OFF INDICATOR
U.S. Canada
Main Menu
Table of Contents
If the indicator comes on with no
front seat passenger and no objects
on the seat, or with an adult riding
there, something may be interfering
with the weight sensors. Look for
and remove:
Any items under the front
passenger’s seat.
Any object hanging on the seat or
in the seat-back pocket.
Any object, such as a folded-down
back seat, that is touching the rear
of the seat-back.
If no obstructions are found, have
your vehicle checked by a dealer as
soon as possible.
Your airbag systems are virtually
maintenance free, and there are no
parts you can safely service.
However, you must have your
vehicle serviced if:
Any airbag
that has deployed must be
replaced along with the control
unit and other related parts. Any
seat belt tensioner that activates
must also be replaced.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by an authorized dealer or
a knowledgeable body shop.
Take your vehicle to an
authorized dealer as soon as
possible. If you ignore this
indication, your airbags may not
operate properly.
Even if your
airbags do not inflate, your dealer
should inspect the driver’s seat
position sensor, the front
passenger’s weight sensors, the
front seat belt tensioners, and all
seat belts worn during the crash to
make sure they are operating
properly.
Airbag Service
An airbag ever inflates.
The SRS indicator alerts you to a
problem.
If your vehicle has a moderate to
severe impact.
Additional Information About Your Airbags
Driver and Passenger Safety
35
Main Menu
Table of Contents
Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
If water or
another liquid soaks into the seat-
back, it can prevent the side airbag
cutoff system from working
properly.
Improperly replacing
or covering front seat-back covers
can prevent your side airbags from
inflating during a side impact.
This could make the
driver’s seat position sensor or the
front passenger’s weight sensors
ineffective. If it is necessary to
remove or modify a front seat to
accommodate a person with
disabilities, first contact Honda
Automobile Customer Service at
(800) 999-1009.
Additional Safety Precautions
Donotattempttodeactivateyour
airbags.
Do not tamper with airbag
components or wiring for any
reason.
Do not expose the front passenger’s
seat-back to liquid.
Do not cover or replace front seat-
back covers without consulting
your dealer.
Do not remove or modif y a front
seat without consulting your
dealer.
Additional Information About Your Airbags
36
Main Menu
Table of Contents
−
−
−
If you have children, or ever need to
drive with a child in your vehicle, be
sure to read this section. It begins
with important general guidelines,
then presents special information for
infants, small children, and larger
children.
Each year, many children are injured
or killed in vehicle crashes because
they are either unrestrained or not
properly restrained. In fact, vehicle
accidents are the number one cause
of the death of children ages 12 and
under.
To reduce the number of child
deaths and injuries, every state and
Canadian province requires that
infants and children be properly
restrained when they ride in a
vehicle.
(see pages ).
(see pages ).
Children depend on adults to protect
them. However, despite their best
intentions, many adults do not know
how to properly protect child
passengers.
42 50
51 53
All Children Must Be Restrained
Infants and small children must be
restrained in an approved child seat
that is properly secured to the
vehicle
Larger children must be restrained
with a lap/shoulder belt and ride on
a booster seat until the seat belt fits
them properly
Protecting Children General Guidelines
Driver and Passenger Safety
37
Children who are unrestrained
or improperly restrained can be
seriously injured or killed in a
crash.
Any child too small for a seat
belt should be properly
restrained in a child seat. A
larger child should be properly
restrained with a seat belt and
use a booster seat if necessary.
Main Menu
Table of Contents
−
Front airbags have been designed to
help protect adults in a moderate to
severe frontal collision. To do this,
the passenger’s front airbag is quite
large, and it can inflate with enough
force to cause very serious injuries.
If the vehicle seat is
too far forward, or the child’s head is
thrown forward during a collision, an
inflating front airbag can strike the
child with enough force to kill or
very seriously injure a small child.
Whenever possible,
larger children should sit in the back
seat, on a booster seat if needed, and
be properly restrained with a seat
belt (see page for important
information about protecting larger
children).
According to accident statistics,
children of all ages and sizes are
safer when they are restrained in a
back seat. The National Highway
Traffic Safety Administration and
Transport Canada recommend that
all children age 12 and under be
properly restrained in a back seat.
Some states have laws restricting
where children may ride.
Children who ride in back are less
likely to be injured by striking
interior vehicle parts during a
collision or hard braking. Also,
children cannot be injured by an
inflating front airbag when they ride
in the back.
Even though your vehicle has an
advanced front airbag system that
automatically turns the passenger’s
front airbag off (see page ),
please follow these guidelines:
If
the airbag inflates, it can hit the back
of the child seat with enough force
to kill or very seriously injure an
infant.
34
51
Small Children
Placing a forward-f acing child seat in
the front seat of a vehicle equipped
with a passenger’s f ront airbag can
be hazardous.
Larger Children
Children who have outgrown child
seats are also at risk of being injured
or killed by an inflating passenger’s
front airbag.
Never put a rear-facing child seat in
the front seat of a vehicle equipped
with a passenger’s f ront airbag.
Infants
All Children Should Sit in a Back
Seat
The Passenger’s Front Airbag
Can Pose Serious Risks
Protecting Children General Guidelines
38
Main Menu
Table of Contents
−

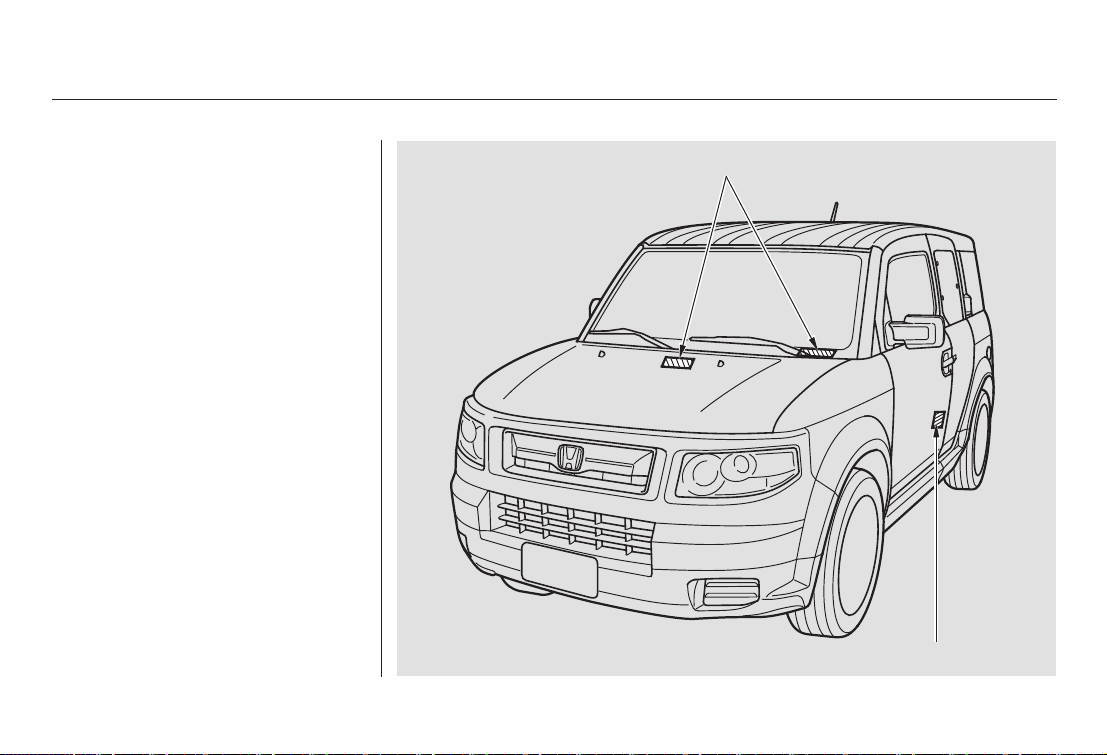

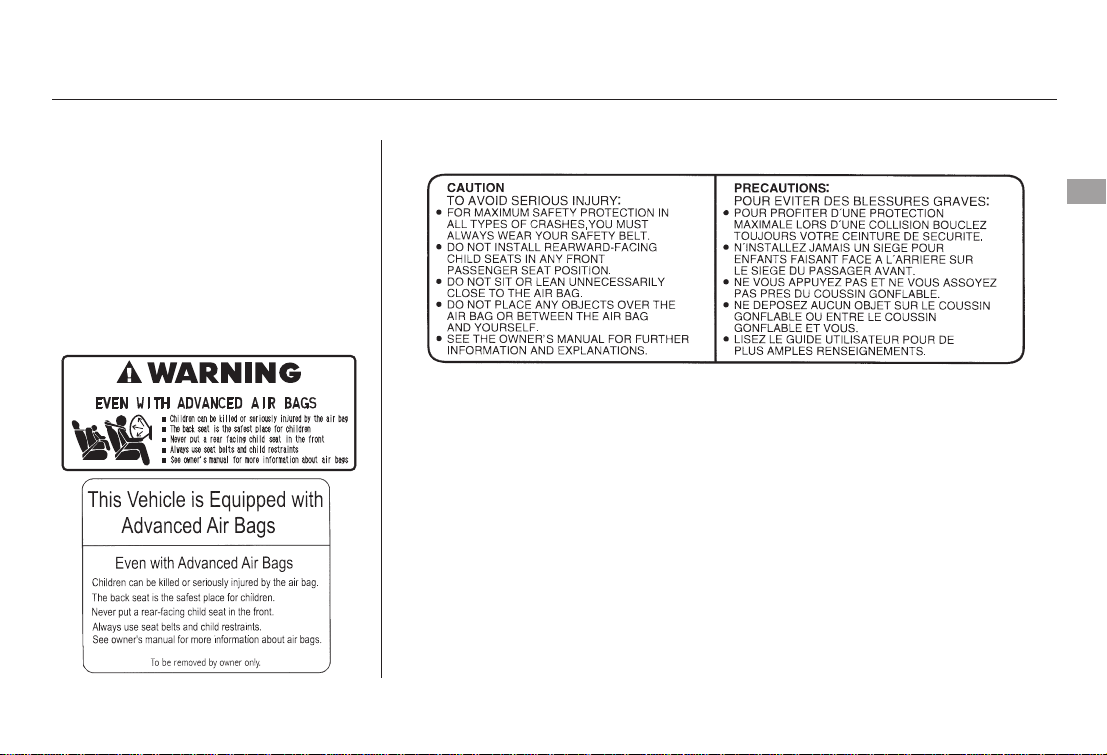

To remind you of the passenger’s
front airbag hazards, and that
children must be properly restrained
in a back seat, your vehicle has
warninglabelsonthedashboard
(U.S. models) and on the front visors.
Please read and follow the
instructions on these labels.
Canadian Models
U.S. Models
Protecting Children General Guidelines
Driver and Passenger Safety
39
Main Menu
Table of Contents
−
Many parents say they prefer to put
an infant or a small child in the front
passenger seat so they can watch the
child, or because the child requires
attention.
Placing a child in the front seat
exposes the child to hazards in a
frontal collision, and paying close
attention to a child distracts the
driver from the important tasks of
driving, placing both of you at risk.
If a child requires physical attention
or frequent visual contact, we
strongly recommend that another
adult ride with the child in the back
seat. The back seat is far safer for a
child than the front.
Place the largest child in the front
seat, provided the child is large
enough to wear the lap/shoulder
belt properly (see page ).
Move the vehicle seat as far to the
rear as possible (see page ).
Have the child sit upright and well
backintheseat(seepage ).
Make sure the seat belt is properly
positioned and secured (see page
).
Your vehicle has two back seats
where children can be properly
restrained. If you ever have to carry
a group of children, and a child must
ride in front:
15
17
83
51
If You Must Drive with Several
Children
If a Child Requires Close
Attention
Protecting Children General Guidelines
40
Main Menu
Table of Contents
−
During a crash, the
belt could press deep into the child
and cause serious or fatal injuries.
If they do, they
could be very seriously injured in a
crash.
If you are not wearing a
seat belt in crash, you could be
thrown forward and crush the
child against the dashboard or a
seat-back. If you are wearing a
seat belt, the child can be torn
from your arms and be seriously
hurt or killed.
Children who play in vehicles
can accidentally get trapped inside.
Teach your children not to play in
or around vehicles.
Even very
young children learn how to
unlock vehicle doors, turn on the
ignition, and open the tailgate or
hatch, which can lead to accidental
injury or death.
If a child wraps a loose
seat belt around their neck, they
can be seriously or fatally injured.
(See pages and for how to
activate and deactivate the
lockable retractor.)
Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous.
For example, infants and small
childrenleftinavehicleonahot
day can die from heatstroke. A
child left alone with the key in the
ignition switch can accidentally set
the vehicle in motion, possibly
injuring themselves or others.
4948
Additional Safety Precautions
Never put a seat belt over yourself
and a child.
Never let two children use the
same seat belt.
Neverholdaninfantorchildon
your lap.
Lock all doors, the tailgate and the
hatch when your vehicle is not in
use.
Keep vehicle keys and remote
transmitters (on some models) out
of the reach of children.
Make sure any unused seat belt
that a child can reach is buckled,
the lockable retractor is activated,
and the belt is fully retracted and
locked.
Do not leave children alone in a
vehicle.
Protecting Children General Guidelines
Driver and Passenger Safety
41
Main Menu
Table of Contents

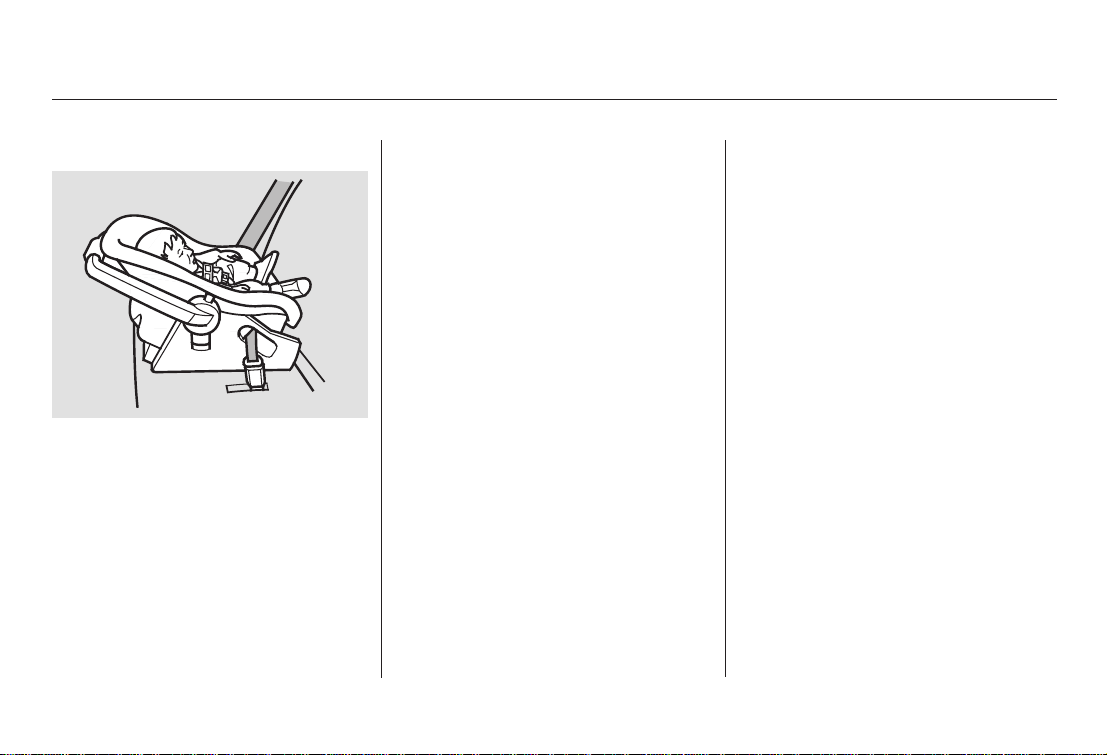

An infant must be properly
restrained in a rear-facing, reclining
child seat until the child reaches the
seat maker’s weight or height limit
for the seat, and the child is at least
one year old.
Only a rear-facing child seat provides
proper support for a baby’s head,
neck, and back.
Two types of seats may be used: a
seat designed exclusively for infants,
or a convertible seat used in the rear-
facing, reclining mode.
If placed
facing forward, an infant could be
very seriously injured during a
frontal collision.
A rear-facing child seat can be placed
in any seating position in the back
seat, but not in the front.
If the passenger’s front airbag
inflates, it can hit the back of the
child seat with enough force to kill or
seriously injure an infant.
When properly installed, a rear-
facing child seat may prevent the
driver or a front passenger from
moving their seat as far back as
recommended, or from locking their
seat-back in the desired position.
It can also interfere with proper
operation of the passenger’s
advanced front airbag system.
Protecting Infants
Child Seat Type
Do not put a rear-facing child seat in
a forward-facing position.
Never put a
rear-facing child seat in the front
seat.
Rear-facing Child Seat Placement
Protecting Infants and Small Children
42
Main Menu
Table of Contents
A child who is at least 1 year old, and
who fits within the child seat maker’s
weight and height limits, should be
restrained in a forward-facing,
upright child seat.
Of the different seats available, we
recommend those that have a five-
point harness system as shown.
If the vehicle seat is too
far forward, or the child’s head is
thrown forward during a collision, an
inflating airbag can strike the child
with enough force to cause very
serious or fatal injuries.
We strongly recommend placing a
forward-facing child seat in a back
seat, not the front.
We also recommend that a small
child use the child seat as long as
possible, until the child reaches the
weight or height limit for the seat.
In any of these situations, we
strongly recommend that you install
the child seat directly behind the
front passenger’s seat, move the seat
as far forward as needed, and leave it
unoccupied. Or, you may wish to get
a smaller rear-facing child seat.
CONTINUED
Protecting Small Children
Child Seat Type
Placing a forward-f acing child seat in
the front seat of a vehicle equipped
with a passenger’s airbag can be
hazardous.
Child Seat Placement
Protecting Infants and Small Children
Driver and Passenger Safety
43
Placing a rear-facing child seat
in the front seat can result in
serious injury or death if the
passenger’s front airbag inflates.
Always place a rear-facing child
seat in the back seat, not the
front.
Main Menu
Table of Contents
Since LATCH-compatible child seats
are easier to install and reduce the
possibility of improper installation,
we recommend selecting this style.
We also recommend selecting a
LATCH-compatible seat with a rigid,
rather than a flexible, anchor (see
page ).
In seating positions and vehicles not
equipped with LATCH, a LATCH-
compatible child seat can be installed
using a seat belt.
Whatever type of seat you choose, to
provide proper protection, a child
seat should meet three
requirements:
Look for FMVSS
213 or CMVSS 213 on the box.
Rear-facing for infants, forward-
facing for small children.
When buying a child seat, you need
to choose either a conventional child
seat, or one designed for use with
the lower anchors and tethers for
children (LATCH) system.
Conventional child seats must be
secured to a vehicle with a seat belt,
whereas LATCH-compatible seats
are secured by attaching the seat to
hardware built into the two second
row seats.
If it is necessary to put a forward-
facing child seat in the front, move
the vehicle seat as far to the rear as
possible, and be sure the child seat is
firmly secured to the vehicle and the
child is properly strapped in the seat.
Even with advanced front airbags
that automatically turn the
passenger’s front airbag off (see
page ), a back seat is the safest
place for a small child.
1.
2.
46
34
Selecting a Child Seat
The child seat should meet U.S. or
Canadian Motor Vehicle Safety
Standard 213.
The child seat should be of the
proper type and size to fit the child.
Protecting Infants and Small Children, Selecting a Child Seat
44
Placing a forward-facing child
seat in the front seat can result
in serious injury or death if the
front airbag inflates.
Ifyoumustplaceaforward-
facing child seat in front, move
the vehicle seat as far back as
possible, and properly restrain
the child.
Main Menu
Table of Contents
After selecting a proper child seat
and a good place to install the seat,
there are three main steps in
installing the seat:
All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (lower anchors and
tethers for children) system. A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
After installing a child
seat, push and pull the seat
forward and from side-to-side to
verify that it is secure.
A child seat secured with a seat belt
should be installed as firmly as
possible. However, it does not need
to be ‘‘rock solid.’’ Some side-to-side
movement can be expected and
should not reduce the child seat’s
effectiveness.
If the child seat is not secure, try
installing it in a different seating
position, or use a different style of
child seat that can be firmly secured.
Before purchasing a conventional
child seat, or using a previously
purchased one, we recommend that
you test the seat in the specific
vehicle seating position or positions
where the seat will be used.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
can be seriously injured in a crash.
The following pages provide
guidelines on how to properly install
a child seat. A forward-facing child
seat is used in all examples, but the
instructions are the same for rear-
facing child seats.
3.
1.
2.
3.
Installing a Child Seat
Properly secure the child seat to
the vehicle.
Make sure the child seat is firmly
secured.
The child seat should fit the
vehicle seating position (or
positions) where it will be used.
Secure the child in the child seat.
Selecting a Child Seat, Installing a Child Seat
Driver and Passenger Safety
45
Main Menu
Table of Contents
Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and the
anchors.
To install a LATCH-compatible child
seat:
Place the child seat on the vehicle
seat, then attach the seat to the
lower anchors according to the
child seat maker’s instructions.Remove both anchor covers by
pulling forward.
Some LATCH-compatible seats
have a rigid-type connector as
shown above.
Your vehicle is equipped with
LATCH (lower anchors and tethers
for children) in the rear seats. The
lower anchors are located between
the seat-back and seat bottom, and
aretobeusedonlywithachildseat
designed for use with LATCH. The
location of each lower anchor is
marked with a small button above
the point.
1.
2.
3.
Installing a Child Seat with
LATCH
Installing a Child Seat
46
MARKS
Rigid-type
LOWER ANCHORS
ANCHOR COVER
Main Menu
Table of Contents
Whatever type you have, follow
the child seat maker’s instructions
for adjusting or tightening the fit.

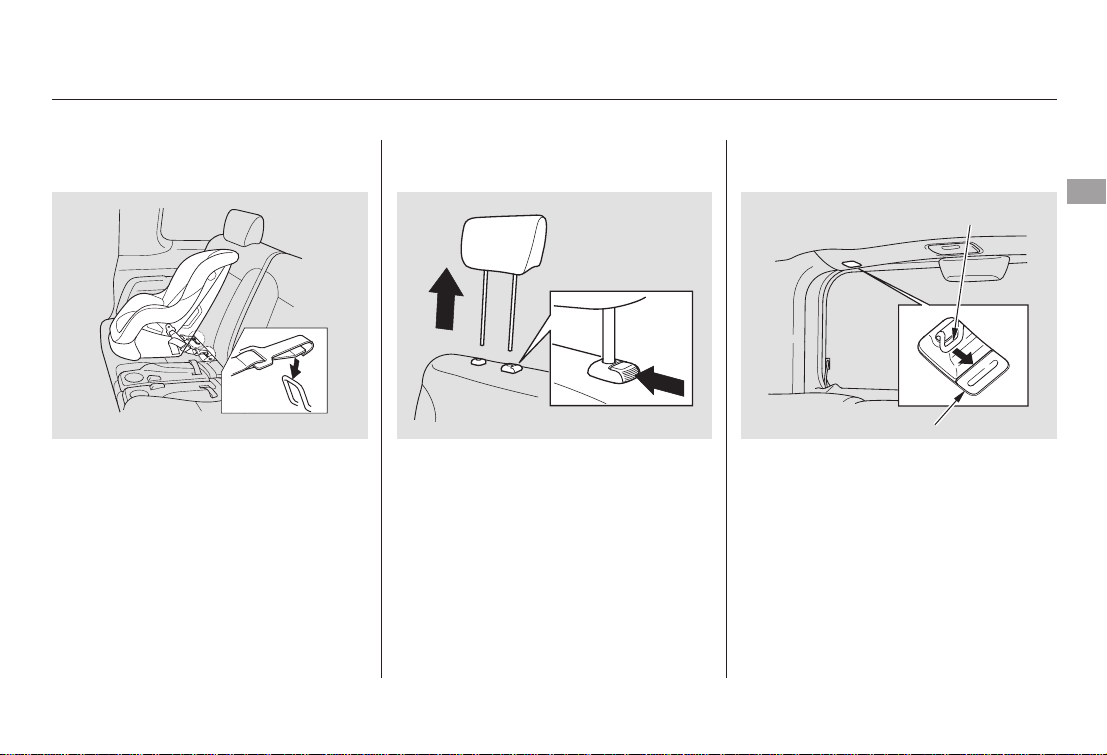

Remove the head restraint (see
page ). Make sure the removed
head restraints are secured in the
cargo area, and reinstalled when
the child seat is removed.
Slide the anchor cover open.
Route the tether strap over the top
of the seat-back, making sure the
strap is not twisted.
Other LATCH-compatible seats have
a flexible-type connector as shown
above.
5.
4.
6.
7.
85
CONTINUED
Installing a Child Seat
Driver and Passenger Safety
47
TETHER ANCHOR
ANCHOR COVER
Flexible-type
Main Menu
Table of Contents
With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle.
When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/
shoulder belt.
In addition, the lap/shoulder belts in
all seating positions except the
driver’s have a lockable retractor
that must be activated to secure a
child seat.
Push and pull the child seat
forward and from side-to-side to
verify that it is secure.
Attach the tether strap hook to the
tether anchor, then tighten the
strap as instructed by the child
seat maker.
1.
8.
9.
Installing a Child Seat with a Lap/
Shoulder Belt
Installing a Child Seat
48
TETHER ANCHOR
TETHER STRAP HOOK
Main Menu
Table of Contents

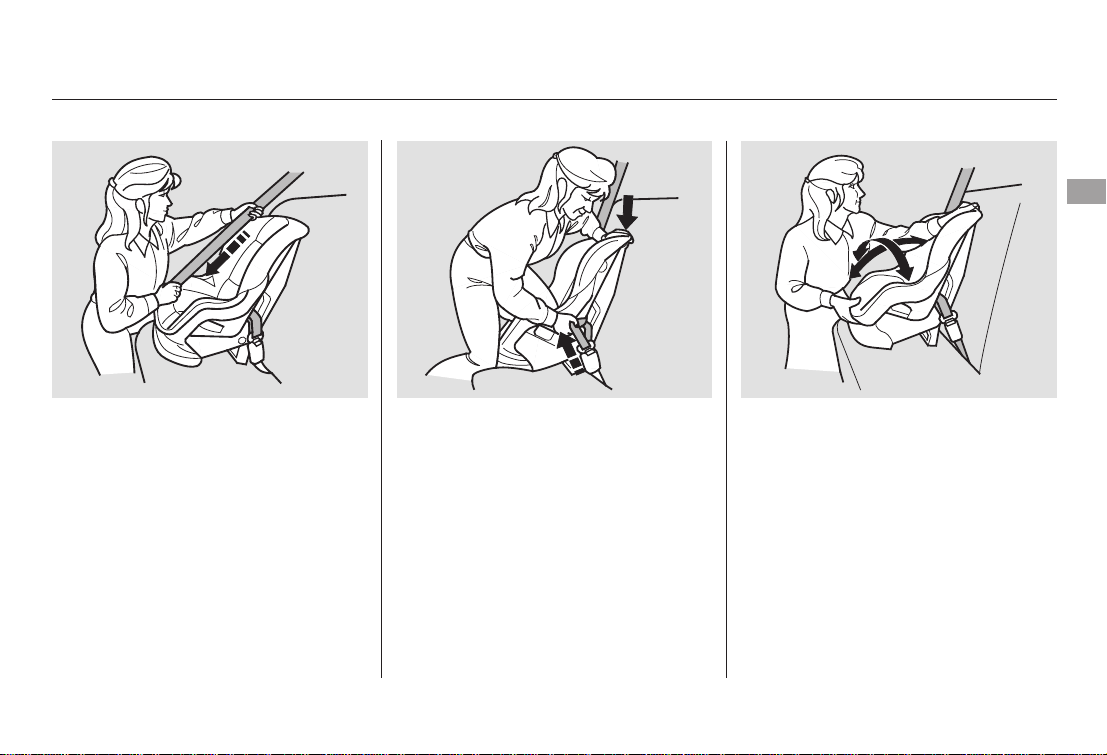

Push and pull the child seat
forward and from side-to-side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract fully, then repeat these
steps.
After confirming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt.
To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor.
After the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
To deactivate the lockable
retractor and remove a child seat,
unlatch the buckle, unroute the
seat belt, and let the belt fully
retract.
4. 5.2.
3.
Installing a Child Seat
Driver and Passenger Safety
49
Main Menu
Table of Contents

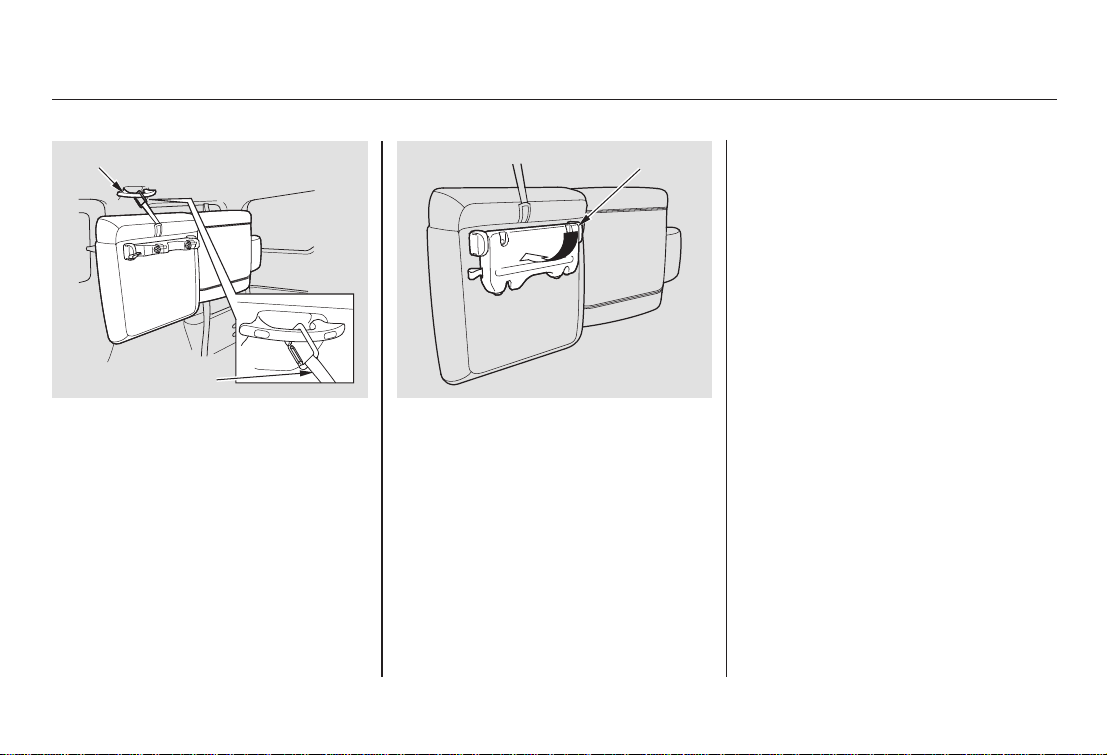

Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.
After securing the child seat in the
desired position (see page ),
remove the head restraint (see
page ), then route the tether
strap over the top of the seat-back.
Slide the anchor cover open as
shown.
Attach the tether strap hook to the
anchor, making sure the strap is
not twisted.
A child seat with a tether can be
installed in either back seat, using
one of the anchor points shown
above.
Tighten the strap according to the
seat maker’s instructions. Make
sure the removed head restraint is
secured in the cargo area.
Reinstall the head restraint in
place when you remove the child
seat.
1.
2.
3.
4.
48
85
Installing a Child Seat with a
Tether
Installing a Child Seat
50
TETHER STRAP HOOK
ANCHOR POINTS
TETHER ANCHOR
ANCHOR COVER
TETHER ANCHOR
Main Menu
Table of Contents
Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this for the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat.To determine if a lap/shoulder belt
properly fits a child, have the child
put on the seat belt, then ask
yourself:
Does the child sit all the way back
against the seat?
Do the child’s knees bend
comfortably over the edge of the
seat?
When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster seat and wear a lap/shoulder
belt.
The following pages give
instructions on how to check proper
seat belt fit, what kind of booster
seat to use if one is needed, and
important precautions for a child
who must sit in front.
1.
2.
3.
4.
5.
Checking Seat Belt Fit
Protecting Larger Children
Driver and Passenger Safety
51
Allowing a child age 12 or under
to sit in front can result in injury
or death if the passenger’s front
airbag inflates.
If a child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.
Main Menu
Table of Contents
A side airbag also poses risks. If any
part of a larger child’s body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries.
If the passenger’s front airbag
inflates in a moderate to severe
frontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in the back seat.
Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intend
to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster meets federal
safety standards and that you follow
the booster seat maker’s instructions.
If a child who uses a booster seat
must ride in front, move the vehicle
seat as far back as possible and be
sure the child is wearing the seat
belt properly.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.
A child who has outgrown a forward-
facing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt fits them
properly without the booster.
Using a Booster Seat When Can a Larger Child Sit in
Front
Protecting Larger Children
52
Main Menu
Table of Contents
If you decide that a child can safely
ride up front, be sure to:
Carefully read the owner’s manual,
and make sure you understand all
seat belt instructions and all safety
information.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the floor.
To safely ride in front, a child must
be able to follow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
Physically, a child must be large
enough for the lap/shoulder belt to
properly fit (see page ). If the seat
belt does not fit properly, with or
without the child sitting on a booster
seat, the child should not sit in front.
Check that the child’s seat belt is
properly and securely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to fasten the seat belts
or sit properly.
Of course, children vary widely. And
while age may be one indicator of
when a child can safely ride in front,
there are other important factors you
should consider.
This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
This could result
in serious neck injuries during a
crash.
If they do, they
could be very seriously injured in
a
crash.
Devices intended to
improve a child’s comfort or
reposition the shoulder part of a
seat belt can make the belt less
effective and increase the chance
of serious injury in a crash.
51
Additional Safety Precautions
Maturity
Physical Size
Do not let a child put the shoulder
part of a seat belt behind the back
or under the arm.
Do not let a child wear a seat belt
across the neck.
Two children should never use the
same seat belt.
Do not put any accessories on a
seat belt.
Protecting Larger Children
Driver and Passenger Safety
53
Main Menu
Table of Contents
Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
follow the information on this page.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
Have the exhaust system inspected
for leaks whenever:
The vehicle is raised for an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside.
Select the fresh air mode.
Select the mode.
Turn the fan on high speed.
Set the temperature control to a
comfortable setting.
If you must sit in your parked vehicle
with the engine running, even in an
unconfined area, adjust the heating
and cooling system as follows:
With the tailgate or hatch open, air
flow can pull exhaust gas into your
vehicle’s interior and create a
hazardous condition. If you must
drive with the tailgate or hatch open,
openallthewindowsandsetthe
heating and cooling system as shown
below.
1.
2.
3.
4.
Carbon Monoxide Hazard
54
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
Main Menu
Table of Contents
These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury or death. Read these labels
carefully.
If a label comes off or becomes hard
to read (except for the U.S.
dashboard label which may be
removed by the owner), contact your
dealer for a replacement.
CONTINUED
U.S. models only
U.S. models
Canadian models
U.S. models only
Safety Labels
Driver and Passenger Safety
55
SUN VISOR
DASHBOARD
Main Menu
Table of Contents
Safety Labels
56
HOOD
RADIATOR CAP
DOORJAMBS
U.S. models
Canadian models
Canadian modelsU.S. models
Main Menu
Table of Contents
This section gives information about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach.
...........................Control Locations . 58
............................Instrument Panel . 59
..........Instrument Panel Indicators . 60
.............................................Gauges . 66
...................................Trip Meter . 66
.....................................Odometer . 66
..................................Fuel Gauge . 67
..........Check Fuel Cap Message . 67
...................Temperature Gauge . 68
..................Maintenance Minder . 68
Controls Near the Steering
...........................................Wheel . 69
.Windshield Wipers and Washers . 70
...........Turn Signal and Headlights . 71
........Instrument Panel Brightness . 72
.................Hazard Warning Button . 73
.................Rear Window Defogger . 73
..........Steering Wheel Adjustment . 74
...............................Keys and Locks . 75
........................Immobilizer System . 76
.......................Remote Transmitter . 77
................................Ignition Switch . 79
......................................Door Locks . 80
......................Power Door Locks . 80
..................................Rear Doors . 81
............................................Hatch . 81
........................................Tailgate . 82
.................................................Seats . 83
........................Seat Adjustments . 83
Driver’s Seat Height
..............................Adjustment . 84
...................FrontSeatArmrests .84
..........................Head Restraints . 85
..........Reclining the Front Seats . 86
...............Folding the Rear Seats . 87
..........Removing the Rear Seats . 89
..............................Power Windows . 91
.............................................Mirrors . 92
....Adjusting the Power Mirrors . 92
.................................Rear Windows . 93
.................................Parking Brake . 93
............................................Skylight . 93
...........Interior Convenience Items . 96
.......................Beverage Holders . 97
..........Accessory Power Sockets . 97
....................................Glove Box . 97
.................................Interior Lights . 98
................................Ceiling Light . 98
.....................................Spotlights . 98
........................Cargo Area Light . 98
..................Ignition Switch Light . 98
..........................................Sun Visor . 99
..................................Vanity Mirror . 99
Instruments and Controls
Instruments and Controls
57
Main Menu
＊
＊
: If equipped
Control Locations
58
HEATING/COOLING
CONTROLS
CRUISE CONTROL
BUTTONS
AUDIO SYSTEM
(P.102)
(P. 133)
PARKING BRAKE
(P.93)
(P.80)
POWER WINDOW
SWITCHES
(P.107)
INSTRUMENT PANEL
GAUGES
(P.59)
(P.66)
CRUISE CONTROL
MASTER BUTTON
VEHICLE STABILITY
ASSIST(VSA)
SYSTEM ON/OFF
SWITCH
A/T model is shown.
POWER DOOR LOCK SWITCH
(P.91)
MIRROR CONTROLS
REMOTE AUDIO CONTROLS
(P.132)
(P.92)
(P.133)
(P.166)
HOOD RELEASE HANDLE
(P.140)
Main Menu
Table of Contents
＊The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.
Instrument Panel
Instruments and Controls
59
CRUISE CONTROL
INDICATOR
(P.61)
(P.64)
VEHICLE STABILITY
ASSIST(VSA) SYSTEM
INDICATOR
(P.61)
(P.65)
MAINTENANCE MINDER
INDICATOR (P.61)
LIGHT ON INDICATOR
SEAT BELT REMINDER
INDICATOR
(P.60)
(P.62)
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
CHARGING SYSTEM INDICATOR
LOW FUEL
INDICATOR
IMMOBILIZER SYSTEM
INDICATOR (P.62)
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
SIDE AIRBAG OFF
INDICATOR
LOW TIRE PRESSURE
INDICATOR
(P.64)
VSA ACTIVATION
INDICATOR
(P.64)
(P.60, 232)
(P.63)
(P.63)
(P.60, 233)
(P.60)
HIGH BEAM INDICATOR
(P.63)
MALFUNCTION INDICATOR
LAMP
LOW OIL PRESSURE
INDICATOR
ANTI-LOCK BRAKE SYSTEM
INDICATOR
DOOR AND TAILGATE
OPEN MONITOR (P.63)
(P.61)
TPMS INDICATOR
(P.60, 231)
Main Menu
Table of Contents
The instrument panel has many
indicators that give you important
information about your vehicle.
See page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more information,
see page .
The engine can be severely damaged
if this indicator flashes or stays on
when the engine is running. For
more information, see page .
This indicator has two functions:
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to fasten your seat belts.
A beeper also sounds if you have not
fastened your seat belt.
If you turn the ignition switch to the
ON (II) position before fastening
your seat belt, the beeper sounds
and the indicator flashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
flashing but remains on.
If your front passenger does not
fasten their seat belt, the indicator
comes on about 6 seconds after the
ignition switch is turned to the ON
(II) position.
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not fully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more information, see
page .
2.
1.
232
231
231
233
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Parking Brake and
Brake System
Indicator
Seat Belt Reminder
Indicator
Instrument Panel Indicators
60
U.S. Canada
Main Menu
Table of Contents
If either of you do not fasten your
seat belt while driving, the beeper
will sound and the indicator will flash
again at regular intervals. For more
information, see page .
This indicator comes on briefly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your front
airbags. This indicator will also alert
you to a potential problem with your
side airbags, passenger’s side airbag
automatic cutoff system, side curtain
airbags, automatic seat belt
tensioners, driver’s seat position
sensor, or the front passenger’s
weight sensors. For more
information, see page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates that the
passenger’s side airbag has
automatically shut off. For more
information, see page .
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock function. For more
information, see page .

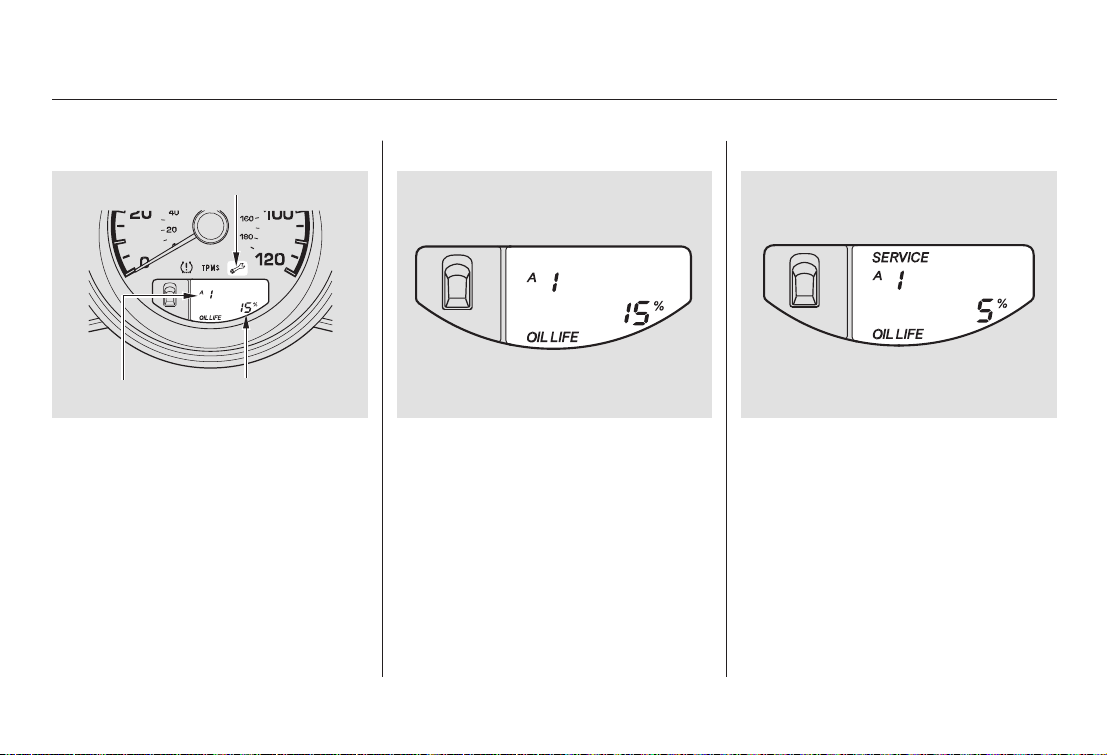

This indicator comes on for a few
seconds when you turn the ignition
switch to the ON (II) position. It
remindsyouthatitistimetotake
your vehicle in for scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the information display. See page
for more information on the
maintenance minder.
This indicator goes off when your
dealer resets it after completing the
required maintenance service.
20
34
33
162
179
Instrument Panel Indicators
Side Airbag Off Indicator
Supplemental Restraint
System Indicator
Anti-lock Brake System
(ABS) Indicator
Maintenance Minder
Indicator
Instruments and Controls
61
CanadaU.S.
Main Menu
Table of Contents
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in a circuit. Have your vehicle
checked by your dealer.
This indicator comes on when you
set the cruise control. See page
for information on operating the
cruise control.
The left or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicators do not blink
or they blink rapidly, it usually
means one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle flash.
This indicator comes on for a few
seconds when you turn the ignition
switch to the ON (II) position. It will
then go off if you have inserted a
properly-coded ignition key. If it is
not a properly-coded key, the
indicator will blink, and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch from the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position.
76
133
200
Canadian models only
Instrument Panel Indicators
Turn Signal and Hazard Warning
Indicators
Cruise Control Indicator
‘‘Daytime Running
Lights’’ Indicator
Immobilizer System
Indicator
62
Main Menu
Table of Contents
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or LOCK (0) position without
turning off the light switch, this
indicator will stay on. A reminder
chime will also sound when you open
the driver’s door.
This indicator comes on with the
high beam headlights. For more
information, see page .
On Canadian models, this indicator
comes on with reduced brightness
when the daytime running lights
(DRL) are on (see page ).
This indicator comes on when the
washer fluid level is low. Add washer
fluid when you see this indicator
come on (see page ).
All of the indicators in the monitor
display come on for a few seconds
when you turn the ignition switch to
the ON (II) position.
The appropriate indicator comes on
in this display if the tailgate or any
door is not closed tightly.
When the indicator comes on, there
is about 2.8 U.S. gal (10.5
)offuel
remaining in the tank before the
needle reaches E. There is a small
reserve of fuel remaining in the tank
when the needle does reach E.
This indicator comes on as a
reminder that you must refuel soon.
72
72
193
Canadian models only
Instrument Panel Indicators
Lights On Indicator
High Beam Indicator
Washer Level Indicator
Door and Tailgate Open Monitor
Low Fuel Indicator
Instruments and Controls
63
LOW FUEL INDICATOR
Main Menu
Table of Contents
This indicator has three functions:
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
Ifitcomesonandstaysonatany
other time, or it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. Have
your vehicle checked by your dealer.
Without VSA, your vehicle still has
normal driving ability, but will not
have VSA traction and stability
enhancement. See page for more
information on the VSA system.
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. For more information, see
page .
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position.
This indicator normally comes on for
a few seconds when you turn the
ignition to the ON (II) position.
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are extremely low on
pressure.
If this happens, pull to the side of the
road when it is safe, check which tire
has lost the pressure, and determine
the cause. If it is because of a flat tire,

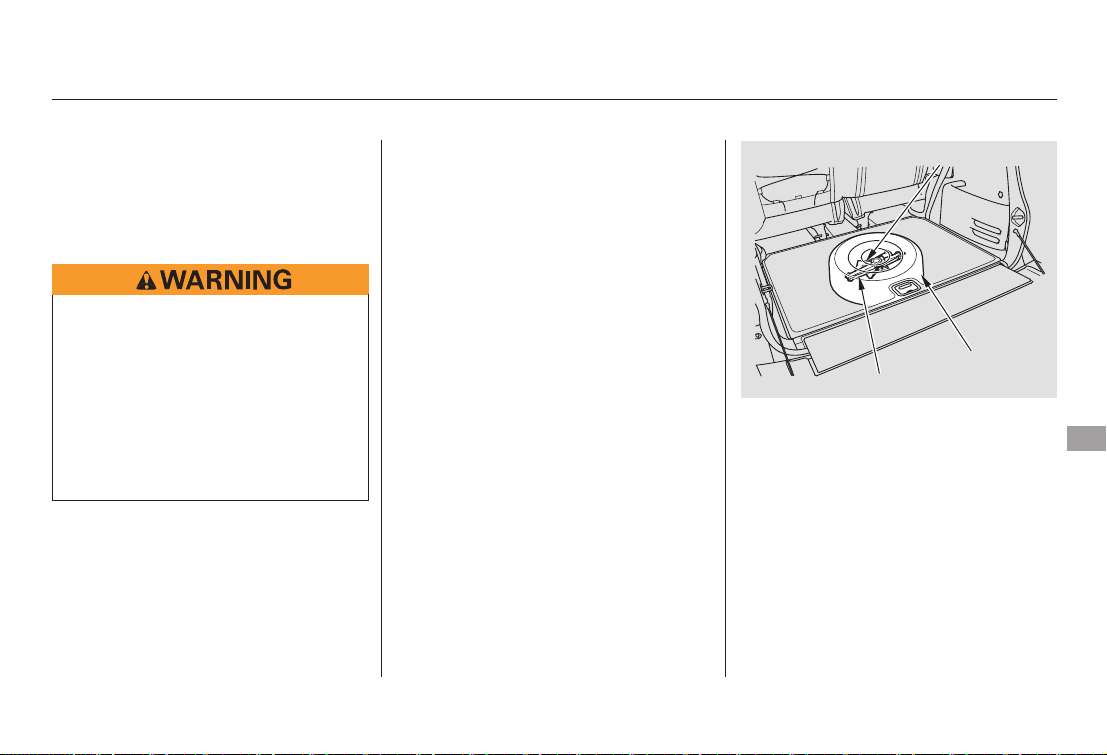

replace the flat tire with the compact
spare (see page ), and have the
flat tire repaired as soon as possible.
If two or more tires are underinflated,
call a professional towing service
(see page ). Refer to page
for more information.
1.
2.
3.
165
165
165
218
239
163
Instrument Panel Indicators
Vehicle Stability Assist
(VSA) System Indicator
VSA Activation Indicator Low Tire Pressure
Indicator
64
Main Menu
Table of Contents
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position.
If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS; the
system that monitors tire pressure.
With this indicator on, the low tire
pressure indicator will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked.
Instrument Panel Indicators
Tire Pressure Monitoring
System (TPMS) Indicator
Instruments and Controls
65
Main Menu
Table of Contents
This shows the number of miles (U.S.)
or kilometers (Canada) driven since
you last reset it.
Each trip meter works independently,
so you can keep track of two
different distances.
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
When you turn the ignition switch to
the ON (II) position, the meter you
last selected is displayed.
To reset a trip meter, display it, and
then press and hold the select/reset
knob until the number resets to " 0.0."
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the select/
reset knob repeatedly.
Odometer
Trip Meter
Gauges
66
SPEEDOMETER FUEL GAUGETACHOMETER
TEMPERATURE GAUGEODOMETER/TRIP METER
SELECT/RESET
KNOB
Main Menu
Table of Contents
This shows how much fuel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
off the ignition.
Your vehicle’s on board diagnostic
system will detect a loose or missing
fuel fill cap as an evaporative system
leak. The first time a leak is detected
a ‘‘CHECK FUEL CAP’’ message
appears on the information display.
If the system still detects a leak in
your vehicle’s evaporative emissions
system, the malfunction indicator
lamp (MIL) comes on. If the fuel fill
cap was not already tightened, turn
the engine off, and check or
retighten the fuel fill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go off,
have your vehicle inspected by a
dealer. For more information, see
page .
Turn the engine off, and confirm the
fuel fill cap is installed. If it is, loosen
it, then retighten it until it clicks at
least once. The message should go
off after several days of normal
driving once you tighten or replace
the fuel fill cap. To scroll to another
display, press the select/reset knob.
The ‘‘CHECK FUEL CAP’’ message
will appear each time you restart the
engine until the system turns the
message off.
232
Gauges
Fuel Gauge Check Fuel Cap Message
Instruments and Controls
67

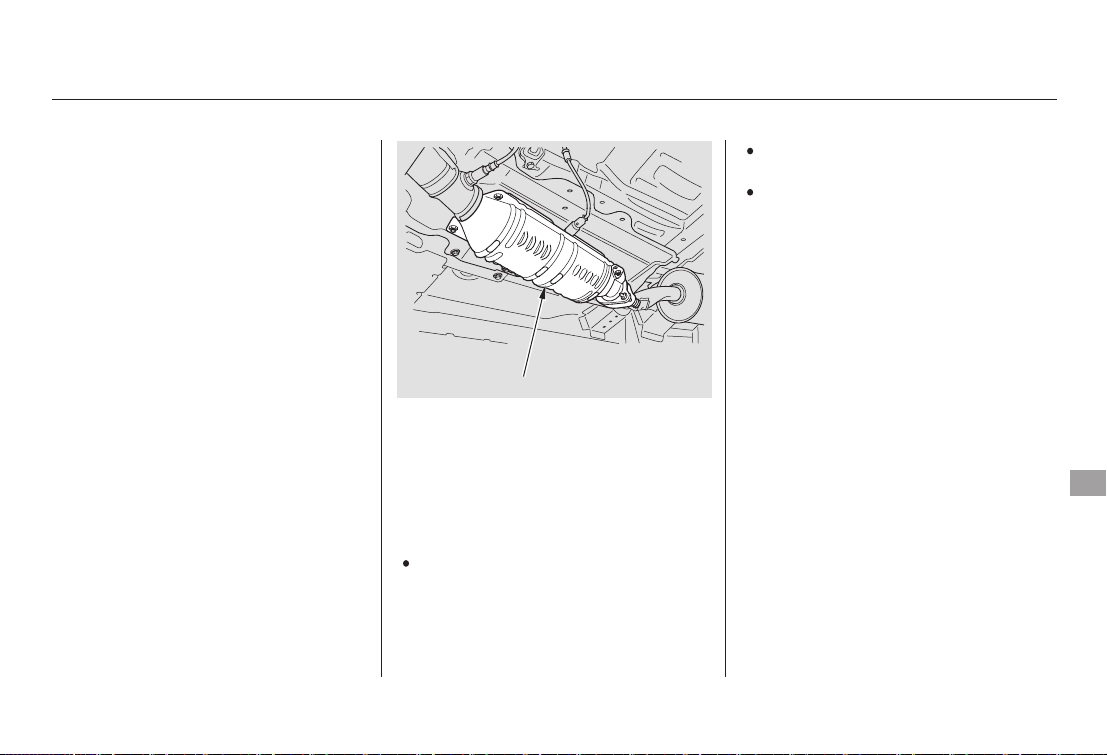

Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misfire, damaging
the catalytic converter.
Main Menu
Table of Contents
The information display in the
instrument panel shows you the
engine oil life and maintenance
service items when the ignition
switch is in the ON (II) position. This
information helps to keep you aware
of the periodic maintenance your
vehicle needs for continued trouble-
free driving. Refer to page for
more information.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (hot) mark, pull
safely to the side of the road. Turn to
page for instructions and
precautions on checking the engine’s
cooling system.
229 179
Gauges
Maintenance MinderTemperature Gauge
68
Main Menu
Table of Contents
＊
＊
＊
＊
To use the horn, press the center pad of the steering wheel.1:
2 : If equipped
Controls Near the Steering Wheel
Instruments and Controls
69

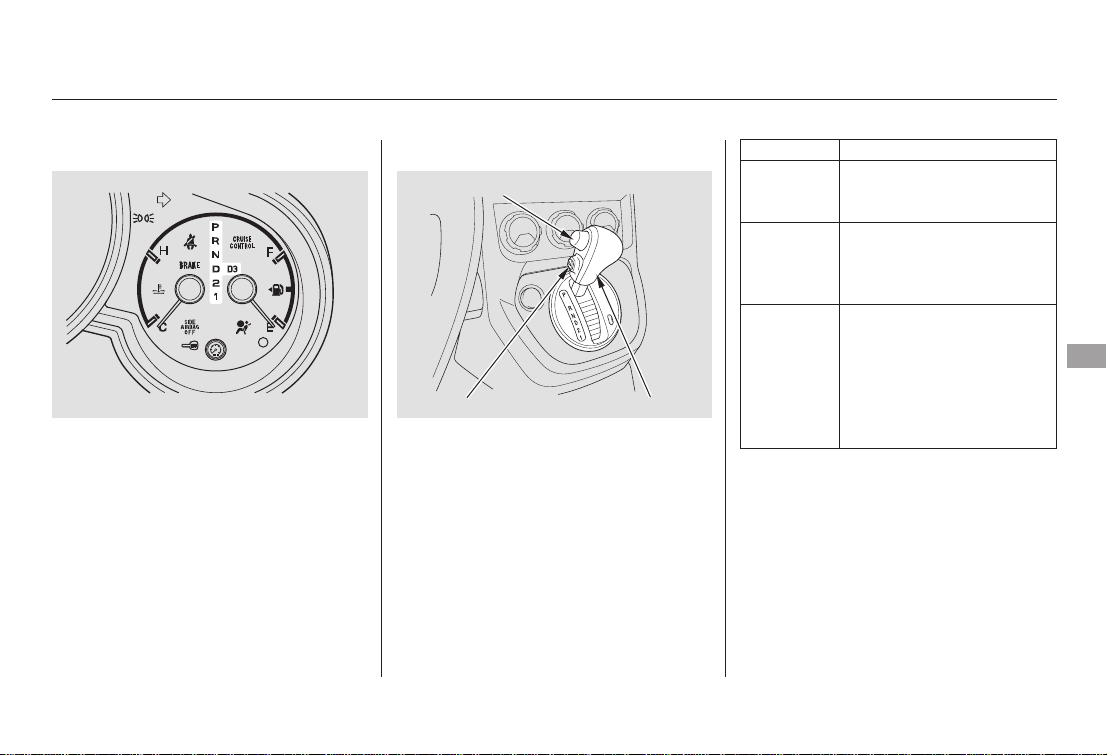

HEADLIGHTS/TURN SIGNALS
SHIFT LEVER (A/T)
HAZARD WARNING BUTTON
A/T model is shown.
CRUISE CONTROL BUTTONS
(P.71)
WINDSHIELD WIPERS/WASHERS
(P.70)
(P.73)
(P.73)STEERING WHEEL ADJUSTMENT
(P.74)
(P.133)
REAR WINDOW
DEFOGGER
HORN
(P.155)
(P.166)
VSA OFF SWITCH
(P.133)
CRUISE CONTROL
MASTER BUTTON
REMOTE AUDIO
CONTROLS
(P.132)
1
2
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−

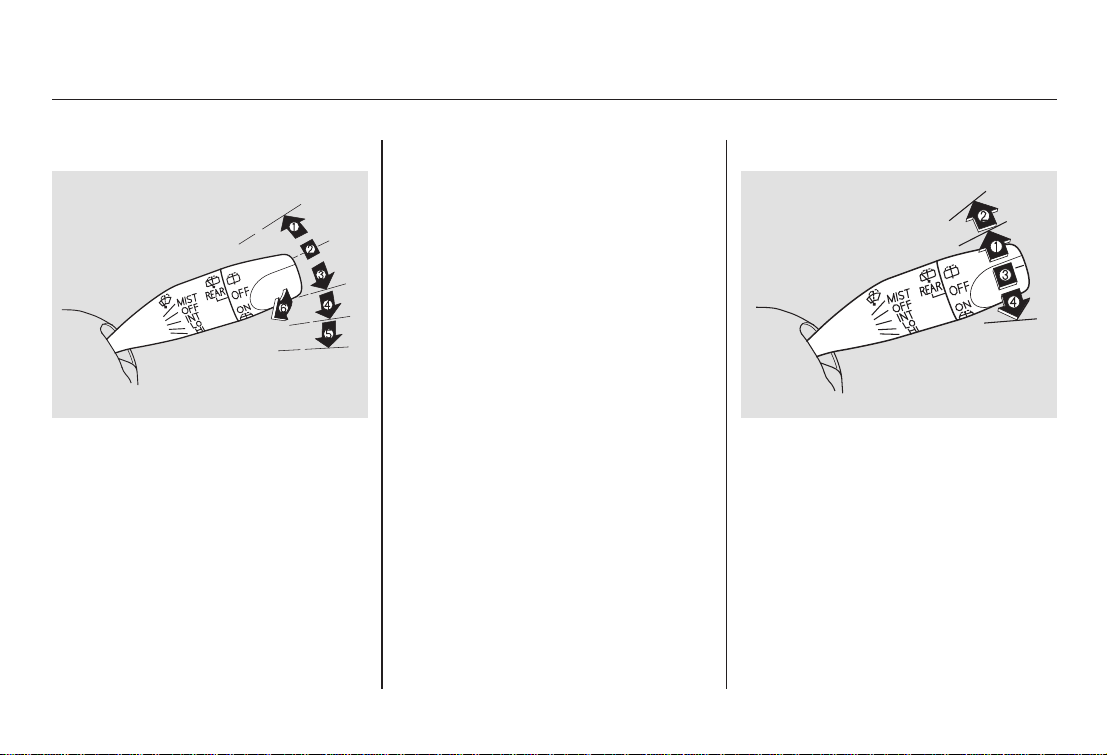

Push the right lever up or down to
select a position.
The wipers are not activated.
The wipers run at low speed.
The wipers run at high speed.
Rotate the switch clockwise to
turn the rear window wiper ON.
OFF
Rotate the switch
counterclockwise to spray the
window washer without activating
the wiper.
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers
The wipers run at high
speed until you release the lever.
The wipers operate every
few seconds.
Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
Hold past ON to turn the window
wiper on and the window washer
on.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
Windshield Wiper
OFF
LO
HI
Rear Window Wiper and Washer
MIST
INT
Windshield Washer
Windshield Wipers and Washers
70
Main Menu
Table of Contents
−−Push down on the
lever to signal a left turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn.
Turn Signal
OFF
Parking and interior lights
Headlights on
High Beams
Flashhighbeams
Turning the switch to
the ‘‘ ’’ position turns on the
parking lights, taillights, instrument
panel lights, side-marker lights, and
rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights.
When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as a
reminder. This indicator stays on if
you leave the light switch on and
turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position.
If you leave the lights on with the
key removed from the ignition
switch, you will hear a reminder
chime when you open the driver’s
door.
1.
2.
3.
4.
5.
6.
CONTINUED
Turn Signal Headlights
Turn Signal and Headlights
Instruments and Controls
71
Main Menu
Table of Contents
− Push the lever back
untilyouhearaclicktoturnonthe
high beams. The blue high beam
indicator will come on (see page ).
Pull the lever back again to low
beams.
With the headlight switch off or in
the position, the high beam
headlights and the high beam
indicator come on with reduced
brightness when you turn the
ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch off, even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
You can change the instrument panel
brightness only when the light
switch is on.
To flash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
To adjust the brightness, turn the
knob on the instrument panel.
63
Canadian models only
High Beams Daytime Running Lights Instrument Panel Brightness
Turn Signal and Headlights, Instrument Panel Brightness
72
Main Menu
Table of Contents
The rear window defogger will clear
fog, frost, and thin ice from the
window. Push the defogger button to
turn it on and off. The indicator in
the button comes on to show the
defogger is on. If you do not turn it
off, the defogger will shut itself off
after about 15 minutes. It also shuts
off when you turn off the ignition
switch. You have to turn the
defogger on again when you restart
the vehicle.
Push the button next to the shift
levertoturnonthehazardwarning
lights (four-way flashers). This
causes all four outside turn signals
and both turn indicators in the
instrument panel to flash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traffic, or if your vehicle is disabled.
You will hear a beep when maximum
or minimum brightness is reached.
You will also hear a beep when the
maximum level is canceled by
turning the knob a click to the left.
CONTINUED
Instrument Panel Brightness, Hazard Warning Button, Rear Window Defogger
Rear Window DefoggerHazard Warning Button
Instruments and Controls
73
Main Menu
Table of Contents
To adjust the steering wheel upward
or downward:
Push the lever under the left side
of the steering column all the way
down.
Move the steering wheel up or
down to the desired position.
Make sure you can see the
instrument panel gauges and the
indicators.
Make any steering wheel adjustment
before you start driving.
Make sure the rear window is clear
and you have good visibility before
starting to drive.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side-to-side.
1.
2.
Steering Wheel Adjustment
Rear Window Defogger, Steering Wheel Adjustment
74
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
Main Menu
Table of Contents
Push the lever up to lock the
steering wheel in that position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up and down.
Youshouldhavereceivedakey
number tag with your set of keys.
You will need this key number if you
ever have to get a key replaced. Use
only Honda-approved key blanks.
The master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the door
locks. You can keep the glove box
and hatch locked when you leave
your vehicle and the valet key at a
parking facility.
3.
4.
CONTINUED
Steering Wheel Adjustment, Keys and Locks
Keys and Locks
Instruments and Controls
75
KEY
NUMBER
TAG
VALET
KEY
(LIGHT
GRAY)
MASTER
KEYS
(BLACK)
Main Menu
Table of Contents
If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undrivable.
If you have lost your key and cannot
start the engine, contact your dealer.
The immobilizer system protects
your vehicle from theft. If an
improperly-coded key (or other
device) is used, the engine’s fuel
system is disabled.
When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on for
afewseconds,thengooff.Ifthe
indicator starts to blink, it means the
system does not recognize the
coding of the key. Turn the ignition
switch to the LOCK (0) position,
remove the key, reinsert it, and turn
the ignition switch to the ON (II)
position again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
fob) is near the ignition switch when
you insert the key.
These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.
The keys do not contain batteries.
Do not try to take them apart.
Protect the keys from direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away from liquids.
If they get wet, dry them
immediately with a soft cloth.
See page for an explanation of the
remote transmitter’s operation.
77
Immobilizer System
Keys and Locks, Immobilizer System
76
Main Menu
Table of Contents
−
−
−
Pressthisbuttononce
to unlock the driver’s door. Push it
twice to unlock the passenger’s door
and the hatch. Some exterior lights
will flash twice each time you press
the button. If you do not open either
door or the hatch within 30 seconds,
they will automatically relock.
Pressthisbuttonfor
about 1 second to attract attention;
thehornwillsoundandtheexterior
lights will flash for about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position.
Press this button once to
lock both doors and hatch. Some
exterior lights will flash. When you
push LOCK twice within 5 seconds,
you will hear a beep to verify that the
doors are locked. You cannot lock it
if any door is not fully closed or key
is in the ignition switch.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
CONTINUED
UNLOCK
PANIC
LOCK
Remote Transmitter
Immobilizer System, Remote Transmitter
Instruments and Controls
77
UNLOCK
BUTTON
LED LOCK
BUTTON
PANIC
BUTTON
Main Menu
Table of Contents
＋
▽
◎
To replace the battery, remove the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the side facing
up, and reinstall the cushion ring.
Align the mark on the cover
with the mark on the
transmitter. Set the cover in place
andturnitclockwise.
I
f it takes
several pushes on the
button to lock or unlock the doors
and the hatch, replace the battery as
soon as possible.
Battery type: CR2025
Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.
Remote Transmitter
Replacing the Transmitter
Battery
Remote Transmitter Care
78
ROUND
COVER
BATTERY
Recycle or dispose of batteries
properly, according to local
regulations. Improper disposal can
harm the environment. CR type
batteries may contain perchlorate
material - special handling may apply;
see http://www. dtsc.ca.gov/
hazaradouswaste/perchlorate.
Main Menu
Table of Contents
−
−
−
−

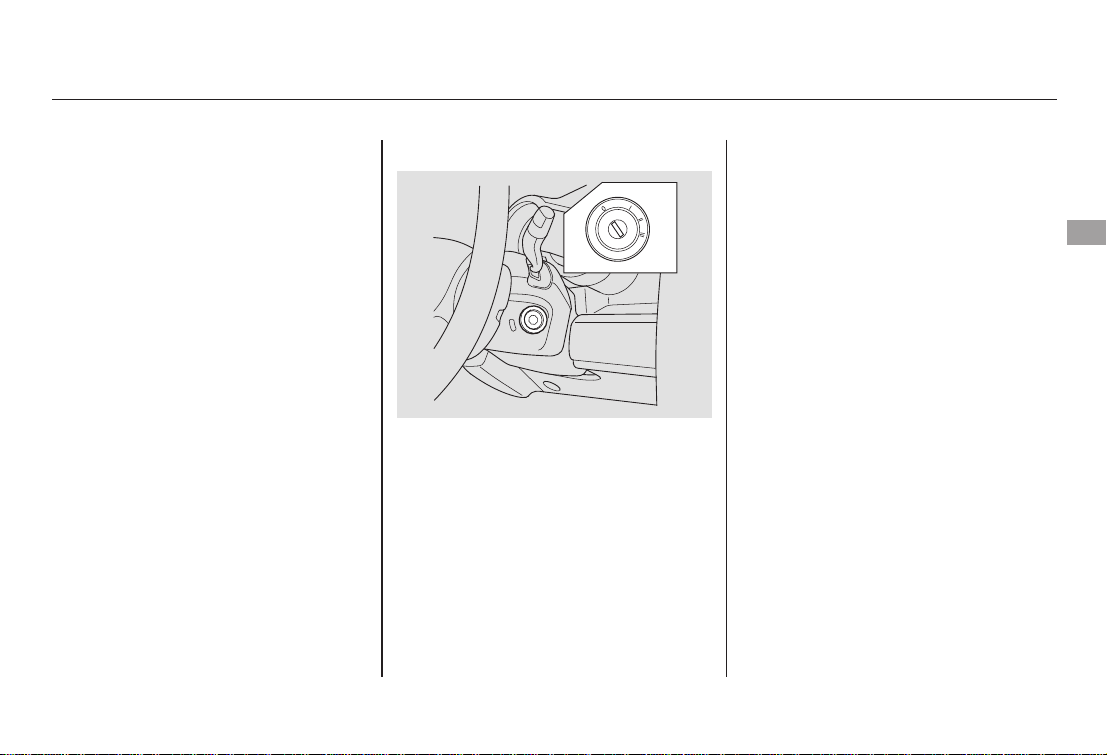

If the front wheels are turned, the
anti-theft lock may make it difficult
to turn the key. Firmly turn the
steering wheel to the left or right as
you turn the key.
You can
operate the audio system and the
accessory power sockets in this
position.
This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch from the
ACCESSORY (I) to the ON (II)
position.
Use this position
only to start the engine. The switch
returns to the ON (II) position when
you let go of the key.
You can insert or
remove the key only in this position.
To turn the key, push it in slightly. If
your vehicle has an automatic
transmission, the shift lever must
also be in park.
The ignition switch has four
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III).
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
CONTINUED
ACCESSORY (I)
ON (II)
START (III)
LOCK (0)
Ignition Switch
Remote Transmitter, Ignition Switch
Instruments and Controls
79
Main Menu
Table of Contents
The lock tab on the passenger’s door
locks and unlocks only that door.
Pulling up on the driver’s door lock
tab only unlocks the driver’s door.
To lock the driver’s door, remove the
key from the ignition switch, pull the
outside door handle and push the
lock tab down or push the door lock
switch down. Release the handle,
then close the door.
To unlock the driver’s door from the
outside, turn the key and release it.
To lock all of the doors and hatch,
press the door lock switch on the
driver’s door, or press the lock tab
down on the driver’s door, or use the
keyontheoutsidelock.Pressingup
on the door lock switch will unlock
all of the doors and the hatch.
You will hear a reminder beeper if
you leave the key in the LOCK (0) or
the ACCESSORY (I) position and
open the driver’s door. Remove the
key to turn off the beeper.
If your vehicle has an automatic
transmission, the shift lever must be
in Park before you can remove the
key from the ignition switch.
Power Door Locks
Ignition Switch, Door Locks
80
DOOR LOCK SWITCH
LOCK TAB
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control of the
vehicle.
Remove the key from the
ignition switch only when
parked.
Main Menu
Table of Contents
Lock the hatch by pushing down
the lock tab on the driver’s door
(see page ), or by using the
master key in the driver’s door
lock.
Lock or unlock the hatch with the
master door lock switch.
Useyourmasterkeytolockand
unlock the hatch. Turn the key
counterclockwise to lock the hatch,
and clockwise to unlock it.
To lock or unlock the hatch.To open the rear door, pull the rear
door handle located in the rear door
edge. The rear door can be opened
only when the front door is open.
To close the doors, close the rear
door first, then the front door. The
front door cannot be latched without
first closing the rear door. Closing
the rear door on the front door will
damage both doors.
80
CONTINUED
Door Locks
HatchRear Doors
Instruments and Controls
81
UNLOCK
LOCK
Main Menu
Table of Contents
See page for information on
cargo loading. Keep the tailgate and
the hatch closed at all times while
driving to avoid damaging them, and
to prevent exhaust gas from getting
into the interior. See
on page .
Youcanopenthetailgateonlywhen
the hatch is open. To open the
tailgate, slide the lock lever to the
left and swing down the tailgate. To
close the tailgate, lift it up and push
it firmly until it latches.
Before closing the tailgate, make
sure the hatch is raised. Closing the
tailgate on the lowered hatch can
damage the hatch and the tailgate.
When both the hatch and tailgate are
open, the hatch cannot be latched
without first closing the tailgate.
To close the hatch, lower it, then
press down on the back edge.
With the hatch unlocked, open it by
pulling the handle and lifting up.
147
54
Door Locks
Carbon
Monoxide Hazard
Tailgate
82
Main Menu
Table of Contents
−See pages for important safety
information and warnings about how to
properly position seats and seat-backs.
1413
To change the seat-back angle of the
front seat, pull up on the lever on the
outside of the seat bottom. Adjust
theseat-backandmakesureitlocks
into position.
Make all seat adjustments before
you start driving.
To adjust the seat forward and
backward, pull up on the bar under
the seat cushion’s front edge. Try to
movetheseattomakesureitis
locked in position.
Seats
Seat Adjustments
Front Seat
Instruments and Controls
83
Main Menu
Table of Contents

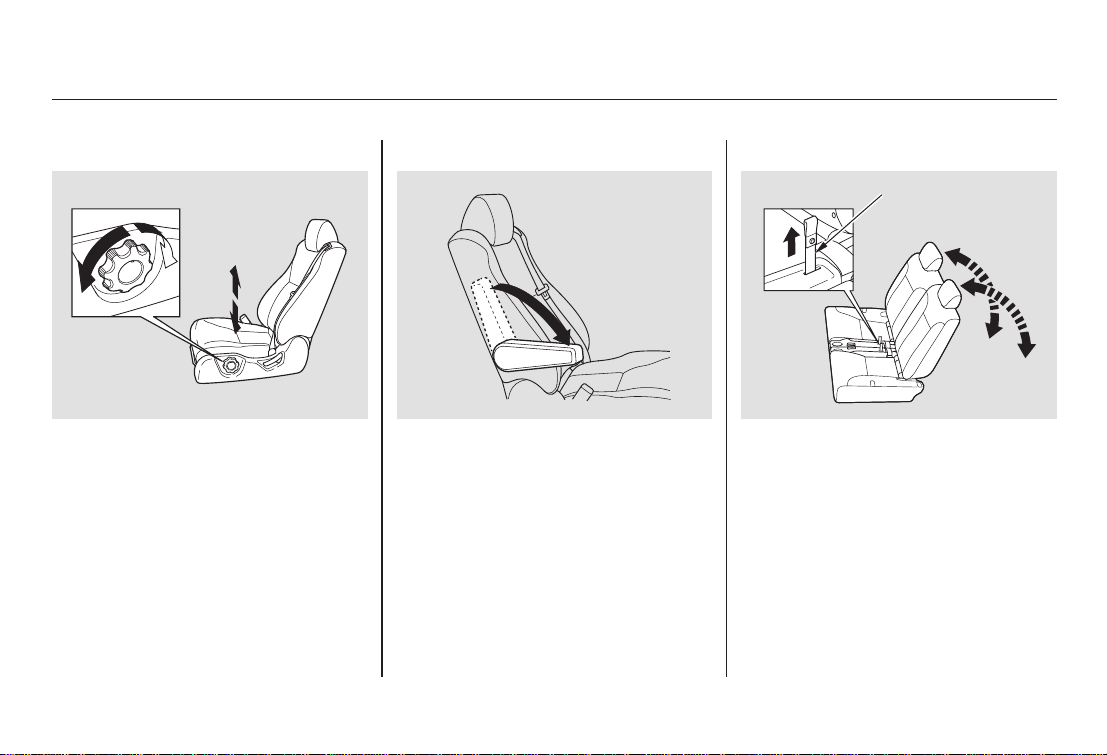

To adjust the height of the driver’s
seat, turn the dial on the outside of
the seat bottom.
To change the angle of the rear seat-
back, pull the strap at the inside
edge of the seat cushion, make sure
the seat-back locks into position.
Each front seat has an armrest on
thesideoftheseat-back.Touseit,
pivotitdown.
If equipped
Seats
Driver’s Seat Height Adjustment Front Seat Armrests
Rear Seat
84
SEAT-BACK ADJUSTMENT STRAP
Main Menu
Table of Contents
See page for important safety
information and a warning about how to
properly position the head restraints.
15
Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers from whiplash and other
injuries.
They are most effective when you
adjust them so the back of the
occupant’s head rests against the
center of the restraint.
The head restraints in the front and
rear seating positions adjust for
height. You need both hands to
adjust the restraint. To raise it, pull
upward. To lower the restraint, push
the release button sideways and
push the restraint down.
Seats
Head Restraints
Instruments and Controls
85
RELEASE BUTTON
Main Menu
Table of Contents
You can recline the seat-backs on the
front seats so they are level with the
rear seat cushions, making a large
cushioned area. To do this:
Adjust the front seats forward as
far as possible. Pull up the seat-
back angle adjustment lever and
pivot the seat-back backward until
it is level with the rear seat
cushion.
Move the front seat backward
until it touches the rear seat.
Adjust the rear seat-back to the
desired position.
Reverse this procedure to return the
front and rear seats to the upright
position. Make sure you install the
head restraints and the seats are
locked securely before driving.
When you return the seat-back to its
upright position, hold the seat-back
to keep it from going up too quickly.
Remove the head restraints from
the front seats (see page ), and
store them in the side pockets of
the cargo area.
1.
2.
3.
4.
85
Reclining the Front Seats
Seats
86
Main Menu
Table of Contents
To create more cargo space, you can
fold up each rear seat to each side
wall separately.
Lower the head restraint to its
lowest position.
Pull the seat-back adjustment
strap at the inside edge of the seat
cushion and push the seat-back
backward as far as it will go.
Pull the release strap on the seat
support, and pivot the seat toward
the vehicle’s side wall.
1.
2.
3.
CONTINUED
Folding the Rear Seats
Seats
Instruments and Controls
87
SEAT-BACK ADJUSTMENT STRAP
RELEASE STRAP
Main Menu
Table of Contents
A fastening strap is attached to the
inside of the seat cushion. While
pushing the seat up and toward
thesidewall,hookthefastening
straptothegrabrail.
Fold down the seat support.
Reverse this procedure to return the
rear seat to the upright position.
When not in use, store the fastening
strap hook in the fabric pocket on
the bottom of the seat cushion.
Make sure the seat is locked
securely.
4.
5.
Seats
88
GRAB RAIL
FASTENING STRAP
SEAT SUPPORT
Main Menu
Table of Contents
Both seats can be removed to give
more cargo capacity. To remove a
seat:
Pull the release strap on the seat
support to unlock the seat support.
Remove the cover between the
seat cushion and the side wall by
pulling the tab and pulling the
cover straight up.
Push the lock lever forward to
unlock the seat.
1.
3.2.
CONTINUED
Removing the Rear Seats
Seats
Instruments and Controls
89
RELEASE STRAP
COVER
TAB
STEEL HANDLELOCK LEVER
Main Menu
Table of Contents
Reverse this procedure to reinstall
the seat. Make sure the seat is
securely locked.
Always remove an unsecured seat
from the vehicle before driving. A
seat that is not locked in place could
be thrown about and cause injury in
a sudden stop or crash.
Hold the steel handle next to the
lock lever and the handle strap at
the outside edge of the seat
cushion, and remove the entire
seat by pulling it up and backward.
4.
Seats
90
STEEL HANDLE
HANDLE STRAP
Main Menu
Table of Contents
−
−
If the MAIN switch is OFF, the
passenger’s window cannot be raised
or lowered. Keep the MAIN switch
offwhenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
passenger’s window unintentionally.
To open/close the driver’s
window, push the window switch
firmly down or up to the second
detent, and release it. The window
will automatically go up or down all
the way. To stop the window, pull/
push on the window switch briefly.
If the driver’s
window senses any obstacle while it
is closing automatically, it will
reverse direction, and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
If the power windows do not operate
properly after resetting, have your
vehicle checked by your dealer.
Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
for about 2 seconds.
Start the engine. Push down and
hold the driver’s window switch
until the window is fully open.
Turn the ignition switch to the ON
(II) position to raise or lower either
window. To open the window, push
the switch down and hold it. Release
the switch when you want the
window to stop. Pull back on the
switchandholdittoclosethe
window.
If your vehicle’s battery is
disconnected or goes dead, or the
driver’s window fuse is removed, the
AUTO function may be disabled. If
this happens, the power window
system needs to be reset after
reconnecting the battery or installing
the fuse.
1.
2.
AUTO
AUTO REVERSE
Power Windows
Instruments and Controls
91
DRIVER’S WINDOW SWITCH
MAIN SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passenger is
away from the window before
closing it.
Main Menu
Table of Contents
Keeptheinsideandoutsidemirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare from headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you finish, move the
selector switch to the center (off)
position. This turns the
adjustment switch off to keep your
settings.
Turn the ignition switch to the ON
(II) position.
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
1.
2.
3.
4.
Mirrors
Adjusting the Power Mirrors
92
TAB
SELECTOR SWITCH
ADJUSTMENT SWITCH
Main Menu
Table of Contents

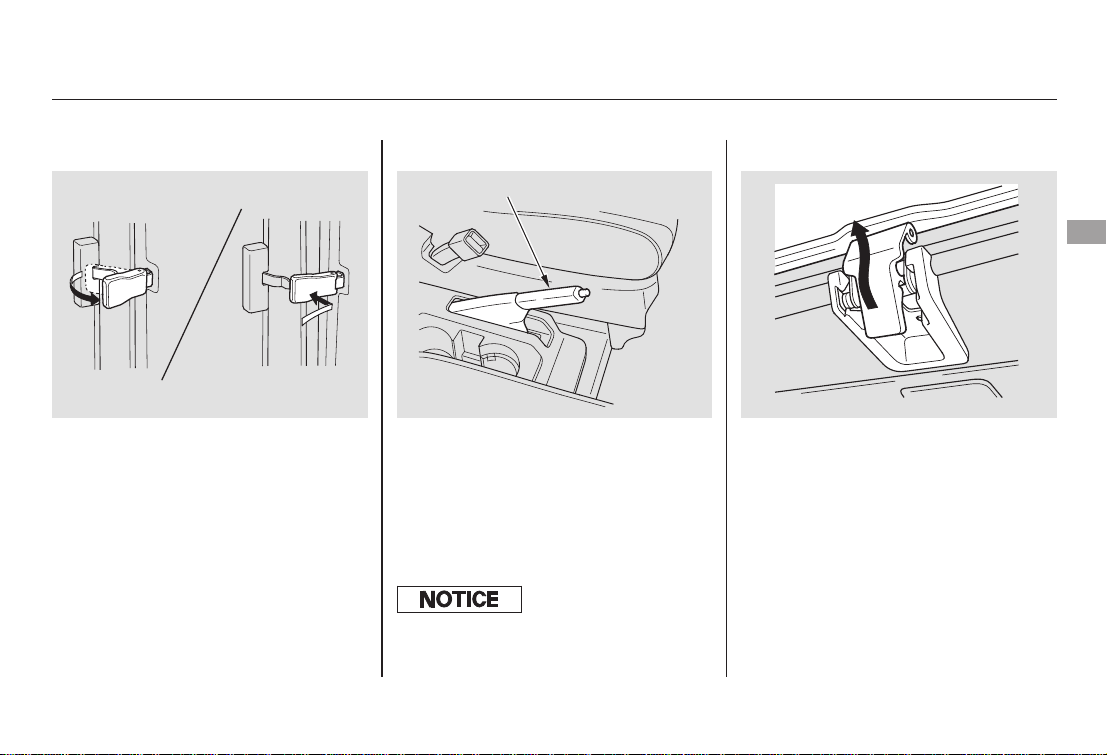

Toopenareardoor window,pullthe
lever towardsyou,thenpushitout
until it locks.Toclosetherear
window pull thelevertowardsyou,
then push it back.Makesurethe
window is fully closedandlocked.
Toliftuptherearoftheskylightfor
ventilation, pull down the lever to
unlock the skylight, then push it up
until the skylight is locked in the tilt-
up position.
To close the skylight, pull down the
lever to unlock the skylight, then
push it back in place. Make sure the
skylight is fully closed and locked.
To apply the parking brake, pull the
lever up fully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is fully released (see page ).60
CONTINUED
If equipped
Rear Windows, Parking Brake, Skylight
Parking BrakeRear Windows Skylight
Instruments and Controls
93
PARKING BRAKE LEVER
Driving the vehicle with the parking
brake applied can damage the rear
brakes and axles.
Main Menu
Table of Contents
Turn off the engine, and set the
parkingbrake.Thenpulldownthe
lever, squeeze both sides of the pivot
while pushing up the red tab in the
lever, and pull the lever assembly
away from the ceiling.
Push up the rear of the skylight.
Standing on the tailgate with the
hatch down, hold both sides of the
skylight and pull it toward you to
remove it from the vehicle roof.
To remove the skylight:
Skylight
94
Bef ore lif ting the skylight, make sure
the roof of the vehicle is dry. Rain or
remaining water after car-washing may
get into the f rame of the skylight. In
winter, remove the buildup of snow on
the roof .
If you try to tilt up the skylight in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage it.
The maximum weight on the tailgate is
440 lbs (200 kg).
Main Menu
Table of Contents
With the rear seats in their upright
position, store the skylight, face
down in its bag in the cargo area.
Secure the bag with four hooks on
the cargo area floor. Do not store
anything on top of the skylight.
To reinstall the skylight, make sure
the air deflector is pushed down.
When reinstalling the lever assembly,
push in both red pivots, and align
with the receptacle holes. Let the
pivots move out until they rest in the
holes securely. Make sure the
skylight is fully closed and latched.
Skylight
Instruments and Controls
95
An unsecured skylight can be
thrown about and cause serious
injury in a sudden stop or crash.
Make sure to store the skylight
in its bag, and secure the bag to
the hooks on the cargo area
floor.
Main Menu
Table of Contents
＊
＊
＊
＊
＊
＊
Interior Convenience Items
96
CARGO AREA COIN TRAYCARGO AREA
SIDE POCKET
DOOR POCKETS
VANITY MIRROR
ACCESSORY
POWER
SOCKET
BEVERAGE HOLDERS
SEAT-BACK POCKET
CEILING POCKET
GLOVE BOX
RADIO POCKET
CENTER LOWER POCKET
SC modelexcept SC
: If equipped
ACCESSORY POWER SOCKET
Main Menu
Table of Contents

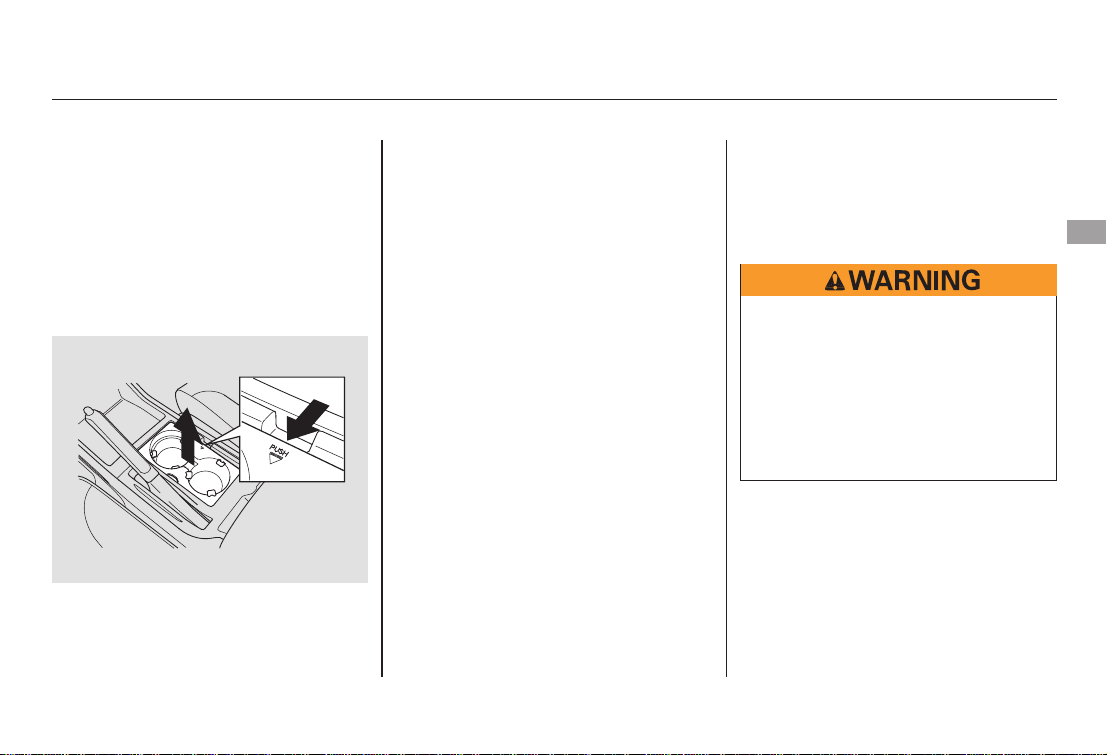

Be careful when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can also
damage the upholstery, and
electrical components in the interior.
Your vehicle has one, two, or three
accessory power sockets, depending
on the model. All models have a
front accessory power socket on the
dashboard above the glove box.
EX and SC models have an accessory
power socket in the cargo area on
the passenger’s side.
The SC model has another socket in
the center console.
The front beverage holder is
removable. To remove it, push the
tab and pull it up.
These sockets are intended to supply
power for 12 volt DC accessories
that are rated 120 watts or less (10
amps). None of the sockets will
power an automotive type cigarette
lighter element. When more than
one socket is being used, the
combined power rating of the
accessories should be 120 watts or
less (10 amps).
Open the glove box by pulling the
bottom of the handle. Close it with a
firm push. Lock or unlock the glove
box with the master key.
On SC model
Interior Convenience Items
Beverage Holders Accessory Power Sockets Glove Box
Instruments and Controls
97
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
Main Menu
Table of Contents
The ceiling light has a three-position
switch: ON, Door Activated, and
OFF.
In the Door Activated (center)
position, the light comes on when
you:
Open any door.
Remove the key from the ignition.
If you do not open a door, the light
fades out in about 30 seconds.
Unlock the doors with the key or
remote transmitter.
Turn on the spotlight by pushing the
lens. Push the lens again to turn it
off. You can use the spotlights at all
times.
The cargo area light has a three-
position switch. In the center
position, the light comes on when
you open the hatch.
The ignition switch light comes on
when you unlock the driver’s door,
and fades out about 30 seconds after
you close the door.
On EX and SC models
Interior Lights
Ceiling Light Spotlights Cargo Area Light
Ignition Switch Light
98
ON
OFF
DOOR ACTIVATED
Main Menu
Table of Contents
To use the sun visor, pull it down.
You can also use the sun visor at the
side window. Remove the support
rod from the clip and swing the sun
visor toward the side window.
Touseavanitymirroronthebackof
the sun visor, pull up the cover.
If equipped
Sun Visor Vanity Mirror
Sun Visor, Vanity Mirror
Instruments and Controls
99
Main Menu
Table of Contents
Main Menu
The standard audio system has
many features. This section
describes those features and how to
use them. (If you have an optional
audio system, refer to the operating
instructions that came with it.)
The heating and air conditioning
system in your vehicle provides a
comfortable driving environment in
all weather conditions.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
.............Vents, Heating, and A/C . 102
.....................Air Flow Controls . 103
.................................Ventilation . 104
......................Using the Heater . 104
...........................Using the A/C . 104
...........Dehumidify the Interior . 105
..............To Defog and Defrost . 105
To Remove Exterior Frost
....or Ice From the Windows . 106
...............To Turn Everything Off . 106
..........Playing the AM/FM Radio . 107
............AM/FM Radio Reception . 111
Playing the XM
...........................Satellite Radio . 113
................................Playing a Disc . 119
..................Protecting Your Discs . 126
.......Disc Player Error Messages . 127
...Disc Changer Error Messages . 128
.................Radio Theft Protection . 129
..........................Setting the Clock . 130
................Remote Audio Controls . 132
...............................Cruise Control . 133
Features
Features
101
Main Menu
Vents, Heating, and A/C
102
FAN CONTROL DIAL
TEMPERATURE
CONTROL DIAL
MODE CONTROL DIAL
RECIRCULATION BUTTON
AIR CONDITIONING
(A/C) BUTTON
REAR WINDOW DEFOGGER
BUTTON
MAX A/C POSITION
DEFROST POSITION
Main Menu
Table of Contents
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
Use the mode control dial to select
the vents the air flows from. Some
air will flow from the dashboard
vents in all modes.
Turning this dial clockwise increases
the temperature of the airflow.
Turn this dial clockwise to increase
the fan speed and airflow.
This button turns the air
conditioning on and off. The
indicatorinthebuttonisonwhen
the A/C is on.
When the recirculation indicator is
on, air from the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in from the outside of the
vehicle (fresh air mode).
The system automatically
turns on the A/C and
switches to recirculation mode. Air
flows from the center and side vents
in the dashboard.
Air flows from the center
and corner vents in the dashboard.
Airflow is divided between
the vents in the dashboard and the
floor vents.
Air flows from the floor
vents. When you select , the
system automatically switches to
fresh air mode.
Airflow is divided between
the floor vents and the defroster
vents at the base of the windshield.
This button turns the rear window
defogger on and off (see page ).73
CONTINUED
Rear Window Defogger Button
Mode Control Dial
Air Conditioning (A/C) Button
Temperature Control Dial
Fan Control Dial
Air Flow Controls
Recirculation Button
Vents, Heating, and A/C
Features
103
Main Menu
Table of Contents
Air flows from the defroster
vents at the base of the windshield. The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes before you
feel warm air coming from the
system.
When you select or ,
the system automatically switches to
fresh air mode and turns on the A/C.
The A/C indicator does not come on.
Select and fresh air mode.
Set the fan to the desired speed.
Adjust the warmth of the air with
the temperature control dial.The flow-through ventilation system
draws in outside air, circulates it
through the interior, then discharges
it through vents near the tailgate. Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn off the A/C until the gauge
reading returns to normal.
Set the temperature to the lower
limit.
Make sure the A/C is off.
Select and fresh air mode.
Set the fan to the desired speed.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Set the temperature to the lower
limit.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select fresh air mode.
Set the fan to the desired speed.
Set the mode control dial to MAX
A/C.
The system automatically turns on
the A/C, selects and
switches to recirculation mode.
Set the temperature to the lower
limit.
Set the fan to the desired speed.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in fresh air mode.
1.
2.
3.
4.
1.
2.
3.
1.
2.
3.
68
1.
2.
3.
4.
5.
To cool the interior with MAX A/C:
If the interior is very warm,
Vents, Heating, and A/C
Using the A/C
Using the Heater
Ventilation
(fresh air mode)
104
Main Menu
Table of Contents
To remove fog from the inside of the
windows:
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry and
can prevent the windows from
fogging up.
This setting is suitable for all driving
conditions whenever the outside
temperature is above 32°F (0°C).
Turn the fan on.
Turn on the air conditioning.
Select and fresh air mode.
Adjust the temperature to your
preference.
When you select or ,
the system automatically turns on
the A/C. This helps to dehumidify
the air and to defog the windshield.
In either mode, you cannot turn off
the A/C. When you switch to
another mode, the A/C returns to its
original setting, either on or off, as
indicated by the A/C indicator.
Set the fan to the desired speed, or
high for faster defrosting.
Select . The system
automatically switches to fresh air
mode and turns on the A/C. (The
A/C indicator will not come on in
U.S. vehicles, if the A/C was off to
start with)
Adjust the temperature control
dial so the airflow feels warm.
Select to help clear the
rear window.
To increase airflow to the
windshield, close the corner vents.
1.
2.
3.
4.
1.
2.
3.
4.
5.
Vents, Heating, and A/C
Dehumidify the Interior To Defog and Defrost
Features
105
Main Menu
Table of Contents
Select . The system
automatically switches to fresh air
mode and turns on the A/C. The
A/C indicator does not come on in
U.S. vehicle, if the A/C was off to
start with.
Select .
Set the fan and temperature
controls to maximum level.
Select to help clear the
rear window.
To clear the windows faster, you can
close the dashboard corner vents by
rotating the wheel below each vent.
This sends more warm air to the
windshield defroster vents. Once the
windshield is clear, select fresh air
mode to avoid fogging the windows.
For your safety, make sure you have
a clear view through all the windows
before driving.
Turning the fan speed control dial all
the way to the left shuts the system
off.
Keep the system off for short
periods only.
To keep stale air and mustiness
from collecting, you should have
the fan running at all times.
1.
2.
3.
4.
To Remove Exterior Frost or Ice
From the Windows
To Turn Everything Off
Vents, Heating, and A/C
106
Main Menu
Table of Contents
CONTINUED
Playing the AM/FM Radio
Features
107
AM/FM BUTTON STEREO INDICATOR
SCAN INDICATOR
SCAN BUTTON
SEEK BAR
PWR/VOL
KNOB
AUTO SELECT
BUTTON
PRESET BUTTONS
TUNE KNOB
PRESET BUTTONS
AM/FM
BUTTON
LX model
Canadian EX and SC models
SCAN BUTTON TUNE KNOB
PWR/VOL KNOB
STEREO INDICATOR
AUTO SELECT BUTTON
SEEK/SKIP BUTTONS
Main Menu
Table of Contents
Playing the AM/FM Radio
108
PWR/VOL KNOB
PRESET BUTTONS
AM/FM
BUTTON
U.S. EX and SC models
TUNE KNOB
SCAN BUTTON
STEREO INDICATOR
AUTO SELECT BUTTON
SEEK/SKIP BUTTONS
Main Menu
Table of Contents
−
−
−
−
−
You can use any of five methods to
find radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select.
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Turn the system on by
pushingthePWR/VOLknoborthe
AM/FM button. Adjust the volume
by turning the same knob.
The band and frequency that the
radio was last tuned to is displayed.
To change bands, press the FM/AM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
Use the TUNE knob to
tune the radio to a desired frequency.
Turn the knob right to tune to a
higher frequency, or left to tune to a
lower frequency.
The seek function
searches up and down from the
current frequency to find a station
with a strong signal. To activate it,
press either ( or ), then
release it.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
The scan function samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan for a station
with a strong signal. When it finds
one, it will stop and play that station
for about 5 seconds (LX model) or
10 seconds (EX and SC models).
If you do nothing, the system will
then scan for the next strong station
and play it for 5 seconds (LX model)
or 10 seconds (EX and SC models).
When it plays a station you want to
listen to, press the SCAN button
again.
Each preset button can
store one frequency on AM and two
frequencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two frequencies with each preset
button.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Pick a preset number (1 6), and
hold it until you hear a beep.
2.
3.
4.
1.
CONTINUED
To Play the Radio
To Select a Station
TUNE
SEEK
SCAN
Preset
Playing the AM/FM Radio
Features
109
Main Menu
Table of Contents
− −
−
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
These two
modes adjust the strength of the
sound coming from each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the front-to-back
strength.
Use
the TRE/BAS/SUB-W modes to
adjust the tone to your liking.
Press the A. SEL button. ‘‘A. SEL’’
flashes in the display, and the system
goes into scan mode for several
seconds. It stores the frequencies of
six AM and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed after
pressing a preset button if auto
select cannot find a strong station for
every preset button.
If you do not like the stations auto
select has stored, you can store
other frequencies on the preset
buttons as previously described.
press the
A. SEL button. This restores the
presets you originally set.
Eachmodeisshowninthedisplayas
it changes. Turn the MODE or
SOUND knob to adjust the setting to
your liking. When the level reaches
the center, you will see ‘‘C’’ in the
display. The system will
automatically return the display to
the selected audio mode about 5
seconds after you stop adjusting a
mode.
Press the MODE or SOUND knob
repeatedly to display the bass (BAS),
treble (TRE), balance (BAL), fader
(FAD), and sub-woofer (SUB-W)
settings.
To turn off auto select,
AUTO SELECT Balance/Fader
Treble/Bass/Sub-Woofer
Adjusting the Sound
Playing the AM/FM Radio
110
Main Menu
Table of Contents
The radio can receive the complete
AM and FM bands. Those bands
cover these frequencies:
AM band: 530 to 1,710 kHz
FM band: 87.7 to 107.9 MHz
How well the radio receives stations
is dependent on many factors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
Driving very near the transmitter of
a station that is broadcasting on a
frequency close to the frequency of
the station you are listening to can
also affect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
A radio station’s signal gets weaker
as you get farther away from its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.Ifyouare
listening to an FM station, you will
see the stereo indicator flickering off
and on as the signal weakens.
Eventually, the stereo indicator will
go off and the sound will fade
completely as you get out of range of
the station’s signal.
Radio stations on the AM band are
assigned frequencies at least 10 kHz
apart (530, 540, 550). Stations on the
FM band are assigned frequencies at
least 0.2 MHz apart (87.9, 88.1, 88.3).
Stations must use these exact
frequencies. It is fairly common for
stations to round-off the frequency in
their advertising, so your radio could
display a frequency of 100.9 even
though the announcer may identify
the station as ‘‘FM101.’’
Radio Frequencies Radio Reception
AM/FM Radio Reception
Features
111
Main Menu
Table of Contents
Radio signals, especially on the FM
band, are deflected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal from the station’s transmitter,
and the deflected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.
Radio reception can be affected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interference from passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
AM/FM Radio Reception
112
Main Menu
Table of Contents
Your vehicle is capable of receiving
XM
Satellite Radio anywhere in the
United States, except Hawaii and
Alaska.
Satellite radio is only available on U.S.
models.
XM
is a registered trademark of
XM Satellite Radio, Inc.
CONTINUED
U.S. EX and SC models
XM Satellite Radio
Playing the XM Satellite Radio
Features
113
TUNE
KNOB
CATEGORY
BUTTONS
XM BUTTON
SCAN
BUTTON
PRESET BUTTONS
DISPLAY/MODE BUTTON
CATEGORY INDICATOR
CHANNEL INDICATOR
PWR/VOL KNOB
Main Menu
Table of Contents
−
−
−
XM radio receives signals from two
satellites to produce clear, high-
quality digital reception. It offers
many channels in several categories.
Along with a large selection of
different types of music, XM radio
allows you to view channel and
category selections in the display.
To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Push the
PWR/VOL knob to turn on the audio
system, and press the ‘‘XM’’ button.
Adjust the volume by turning the
PWR/VOL knob. The last channel
you listened to will show in the
display.
To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes.
In the channel mode, you can select
all of the available channels. In the
category mode, such as Jazz, Rock,
Classical, etc., you can select all of
the channels within that category.
Each time you press and release the
DISP/MODE button, the display
changes in the following sequence:
channel name, channel number,
category, artist name, and music title.
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
information. If this happens, there is
nothing wrong with your system.
Turn the TUNE knob left
or right to select channels. In the
category mode, you can only select
channels within that category.
In
the category mode, press either
button to select another category.
Operating the Satellite Radio
MODE
TUNE
CATEGORY ( or )
Playing the XM Satellite Radio
114
Main Menu
Table of Contents
−−The scan function gives
you sampling of all channels while in
the channel mode. In the category
mode, only the stations within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order for 5 seconds, then
selects the next channel. When you
hear a channel you want to continue
listening to, press the button.
Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel from the XM1 band and one
channel from the XM2 band.
To store a channel:
Press the XM button. Either XM1
or XM2 will show in the display.
Use the TUNE knob, or the
CATEGORY or SCAN buttons to
tune to a desired channel.
In category mode, only channels
within that category can be
selected. In channel mode, all
channels can be selected.
Pick the preset button you want
for that channel. Press and hold
the button until you hear a beep.
Repeat steps 2 and 3 to store the
first six channels.
Press the XM button again. The
other XM band will show. Store
the next six channels using steps 2
and 3.
Once a channel is stored, press and
release the proper preset button to
tune to it.
2.
3.
4.
1.
5.SCAN Preset
Playing the XM Satellite Radio
Features
115
Main Menu
Table of Contents
−
−
−
−
−
−
XM is loading the
audio or program
information.
The channel
currently selected is
no longer
broadcasting.
The encryption
code is being
updated. Wait
until the
encryption code is
fully updated.
Channels 0 and 1
should still work
normally.
The signal is
currently too
weak. Move the
vehicle to an area
away from tall
buildings, and
with an
unobstructed view
of the southern
horizon.
There is a problem
with the XM
antenna. Please
consult your
dealer.
The selected channel
number does not exist, is
notpartofyour
subscription, or this
channel has no artist or
title information at this
time.
XM Radio Display Messages
‘‘LOADING’’
‘‘OFF AIR’’
‘‘UPDATING’’
‘‘NO SIGNAL’’
‘‘ANTENNA’’
‘‘----’’
Playing the XM Satellite Radio
116
Main Menu
Table of Contents
The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate for this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the farther north you
travel from the equator. Carrying
large items on a roof rack can also
block the signal.
CONTINUED
Playing the XM Satellite Radio
Features
117
Signal may be
blocked by
mountains or
large obstacles
to the south.
SATELLITE
GROUND
REPEATER
Main Menu
Table of Contents
Depending on where you drive, you
may experience reception problems.
Interference can be caused by any of
these conditions:
Driving on the north side of an
east/west mountain road.
Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep cliff, or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
Large items carried on a roof rack.
If your XM Radio service has expired
or you purchased your vehicle from
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Satellite Radio. With the
ignition switch in the ACCESSORY
(I) or ON (II) position, push the
PWR/VOL knob to turn on the audio
system and press the XM button. A
variety of music types and styles will
play.
If you decide to purchase XM
satellite radio service, contact XM
Radio at , or at
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, turn the TUNE
knob until ‘‘0’’ appears in the display.
Your I.D. will appear in the display.
While waiting for activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, you’ll be
able to listen to XM radio broadcasts.
XM Radio will continue to send an
activation signal to your vehicle for
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact XM
Radio.
After you have registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
for activation. This should take about
30 minutes.
There may be other geographic
situations that could affect satellite
radio reception.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
www.xmradio.com
Receiving Satellite Radio Service
Playing the XM Satellite Radio
118
Main Menu
Table of Contents
CONTINUED
Playing a Disc
Features
119
PWR/VOL
KNOB
CD BUTTON
REPEAT INDICATOR
EJECT BUTTONCD SLOT
SEEK/SKIP BAR
CD SLOT
RANDOM INDICATOR
RANDOM BUTTON
RANDOM BUTTON
DISPLAY BUTTON
FOLDER KNOB
LX model Canadian EX and SC models
RANDOM INDICATOR
FOLDER INDICATOR
EJECT BUTTON
CD BUTTON
REPEAT BUTTON
SCAN BUTTON
DISC INDICATOR
SEEK/SKIP BUTTONS
Main Menu
Table of Contents
Playing a Disc
120
CD BUTTON
PWR/VOL KNOB
RANDOM INDICATOR
DISC INDICATOR
REPEAT
BUTTON
DISPLAY BUTTON
FOLDER KNOB
RANDOM BUTTON
U.S. EX and SC models
SCAN
BUTTON
EJECT BUTTON
CD SLOT
FOLDER INDICATOR
SEEK/SKIP BUTTONS
Main Menu
Table of Contents
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
Video CDs and DVDs will not work
in this unit.
The specifications of the compatible
MP3 file are:
You operate the disc player with the
same controls used for the radio. To
select the disc player, press the CD/
AUX button. You will see ‘‘CD’’ in the
display. The number of the track
playing is shown in the display. The
system will continuously play a disc
until you change modes.
The disc player can also play CD-Rs
WMA files, and CD-RWs
compressed in MP3 standard. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. You can select
up to folders or tracks.
Because the compressed audio
format of MP3 and WMA discs
allows them to store large
amounts of files and tagging
information, these discs may take
more time to begin playing.
The sound quality of MP3 and
WMA discs generally degrades as
the bit rate increases.
If a file on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio
unit displays FORMAT, and then
skips to the next file.
Sampling frequency: 32/44.1/48 kHz
Bit rate: 8/16/24/32/40/48/56/64/
80/96/112/128/160/192/224/256/
320 kbps
Compatible with variable bit rate and
multi-session.
Maximum layers (including
ROOT): 8
255
On EX and SC models
To Play a Disc
Note:
Playing a Disc
Features
121
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
Main Menu
Table of Contents
− Each time you
press and release the , the
player skips forward to the
beginning of the next track (files in
MP3/WMA mode). Press and
release the to skip backward to
the beginning of the current track.
Press it again to skip to the
beginning of the previous track.
To move rapidly within a track, press
and hold or .
You will see CUE or REW in the
display while moving within a track.
If you turn the system off while a
disc is playing, either with the PWR/
VOL knob or by turning off the
ignition switch, the disc will stay in
the drive. When you turn the system
back on, the disc will begin playing
where it left off.
Insert the disc about halfway into the
disc slot. The drive will pull the disc
in the rest of the way and begin to
play it. When the system reaches the
end of the disc, it will return to the
beginning and play the disc again.
You can also play 3-inch (8-cm) discs
without using an adapter ring. If you press the DISP/MODE button
while playing a disc, additional
information (track, album, artist, etc.)
maybedisplayed.
To play the radio when a disc is
playing, press the AM/FM button.
Press the CD/AUX button again to
switch back to the disc player.
Use the SEEK/SKIP button while a
disc is playing to select passages and
change tracks (files in MP3/WMA
mode).
In MP3/WMA mode, use the
FOLDER knob to select folders in
the disc, and use the SEEK/SKIP
button to change files.
Except EX and SC models
SEEK/SKIP
To Change or Select Tracks/Files
Playing a Disc
122
Main Menu
Table of Contents
−
−
−
−
−
This feature,
when activated, replays all the files
on the selected folder in the order
they are compressed in MP3/WMA.
To activate folder repeat, press and
hold the RPT button for 2 seconds.
You will see RPT in the
display. The system continuously
replays the current folder. Press and
hold the RPT button for 2 seconds to
turn it off.
This feature plays the
tracks (all files in each folder in
MP3/WMA mode) within a disc in
random order. To activate random
play, press and release the RDM
button. You will see RDM in the
display. Press the RDM button again
to return to normal play.
This
feature, when activated, plays the
files within a folder in random order,
rather than in the order they are
compressedinMP3/WMA.To
activate folder random play, press
andholdtheRDMbutton.Youwill
see RDM in the display. The
system will then select and play files
randomly. This continues until you
deactivate folder random play by
pressing the RDM button again or
selecting a different folder with the
FOLDER knob.
To continuously replay
a track (files in MP3/WMA mode),
press and release the RPT button.
You will see RPT in the display.
Press the RPT button again to turn it
off.
To
select a different folder, use the
FOLDER knob to move to the
beginning of the next folder. Turn
the knob right to move to the
beginning of the current folder. Turn
the knob left to skip to the beginning
of the previous folder.
CONTINUED
In MP3/WMA mode
On EX and SC models
FOLDER-REPEAT
RANDOM (Random within a
Disc)
FOLDER-RANDOM
REPEAT (TRACK/FILE
REPEAT)
FOLDER SELECTION
Playing a Disc
Features
123
Main Menu
Table of Contents
−−The scan function samples
all tracks/files on the selected disc in
the order they are recorded. To
activate scan, press and hold the
SCAN button until you hear a beep.
You will see SCAN in the display.
You will get a 10 second sampling of
each track/file on the selected disc.
Press the SCAN button again to exit
scan and play the last track/file
sampled.
Pressing either side of the SEEK/
SKIP button also turns off scan.
This feature,
when activated, samples all files on
the selected folder in order. To
activate folder scan, press and hold
the SCAN button until you hear a
beep. You will see SCAN in
the display. The system will then
play the first file for about 10
seconds. If you do nothing, the
system will then play the first file in
each folder for 10 seconds. When it
plays a file you want to continue
listening to, press the SCAN button
again.
Pressing either side of the SEEK/
SKIP button or selecting a different
folder with the FOLDER knob also
turns off folder scan.
Press the eject button ( ) to
remove the disc. If you eject the disc,
but do not remove it from the slot,
the system will automatically reload
the disc after 10 seconds (EX and SC
models) or 15 seconds (LX model)
and put it in pause mode. To begin
playing, press the CD/AUX button.
If you turn the system off while a
disc is playing, either with the PWR/
VOL knob or by turning off the
ignition switch, the disc will stay in
the drive. When you turn the system
back on, the disc will begin playing
where it left off.
Press the AM/FM button to switch
to the radio while a disc is playing.
To play the disc, press the CD button.
To Stop Playing a DiscSCAN FOLDER SCAN
Playing a Disc
124
Main Menu
Table of Contents
−＋
−
＋
If you select an empty slot in the
magazine, the changer will search
for the next available disc to load and
play.
An optional six disc changer is
available for your vehicle. This disc
changer uses the same controls used
for the in-dash disc player or the
radio.
Load the desired discs in the
magazine, and load the magazine in
the changer according to the
instructions that came with the unit.
To select the disc changer, press the
CD/AUX button. The disc and track
numbers will be displayed. To select
a different disc, use the preset 5
(DISC ) or the preset 6 (DISC )
button. To select the previous disc,
press the preset 5 (DISC ), or the
preset 6 (DISC ) to select the next
disc in sequence.
The auxiliary input jack is next to the
accessory power socket, either in the
center console compartment or on
the dashboard, depending on the
model of your vehicle.
When a compatible audio unit is
connected to the jack, pressing the
AUX button allows the system to
accept auxiliary input from the
connected audio unit.
See pages and for
information on error messages.
For information on how to handle
and protect discs, see page .
128127
126
If equipped
Auxiliary Input Jack Operating the Optional Disc
Changer
Protecting Discs
Audio System Malfunction
Playing a Disc
Features
125
Main Menu
Table of Contents
Never try to insert foreign objects in
the CD player or the magazine.
When a disc is not being played,
store it in its case to protect it from
dust and other contamination. To
prevent warpage, keep discs out of
direct sunlight and extreme heat.
To clean a disc, use a clean soft cloth.
Wipe across the disc from the center
to the outside edge.
Handle a disc by its edges; never
touch either surface. Do not place
stabilizer rings or labels on the disc.
These, along with contamination
from finger prints, liquids, and felt-
tip pens, can cause the disc to not
play properly, or possibly jam in the
drive.
When using CD-R or CD-RW discs,
use only high quality CDs labeled
for audio use.
When recording a CD-R or
CD-RW, the recording must be
closedforittobeusedbythe
system.
A new disc may be rough on the
inner and outer edges. The small
plastic pieces causing this roughness
can flake off and fall on the recorded
surface of the disc, causing skipping
or other problems. Remove these
pieces by rubbing the inner and
outer edges with the side of a pencil
or pen.
Handle your discs properly to
prevent damage and skipping.
Play only standard round discs.
Odd-shaped discs may jam in the
driveorcauseotherproblems.
General Information Protecting Discs
Protecting Your Discs
126
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
Main Menu
Table of Contents
Indication Cause Solution
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
If there is still a problem, the error
message will appear again. Press the
eject button, and pull out the disc.
Insert a different disc. If the new
disc plays, there is a problem with
the first disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.
FOCUS error
Mechanical error
High temperature
Press the EJECT button and pull out the disc.
Check if it is inserted correctly in the disc
player.
Make sure the disc is not scratched or damaged.
Press the EJECT button, and pull out the disc.
Check the disc for damage or deformation.
If the disc cannot be pulled out, or the error
message does not disappear after the disc is
ejected, see your dealer.
Will disappear when the temperature returns to
normal.
:
:
EX and SC models
LX model
Disc Player Error Messages
Features
127
Main Menu
Table of Contents
Indication
SolutionCause
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
If there is still a problem, the error
message will appear again. Press the
eject button, and pull out the disc.
Insert a different disc. If the new
disc plays, there is a problem with
the first disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.
Press the magazine eject button, and pull the
magazine out.
If the message does not disappear or the
magazine cannot be pulled out, see your dealer.
Insert disc.
Press the magazine eject button, and pull the
magazine out. Check for an error message, and
insert the magazine again. If the message does
not disappear or the magazine cannot be pulled
out, see your dealer.
Will disappear when the temperature returns to
normal.
Insert magazine.
FOCUS error
No disc in the magazine
Mechanical error
High temperature
No magazine in the
changer
: EX and SC models
:LXmodel
Disc Changer Error Messages
128
Main Menu
Table of Contents
If your vehicle’s battery is
disconnected or goes dead, or the
radio fuse is removed, the audio
system will disable itself. If this
happens, you will see ‘‘ENTER
CODE’’ in the frequency display the
nexttimeyouturnonthesystem.
Use the preset buttons to enter the
code. The code is on the radio code
card included in your owner’s
manual kit. When it is entered
correctly, the radio will start playing.
Your vehicle’s audio system will
disable itself if it is disconnected
from electrical power for any reason.
To make it work again, you must
enter a specific five-digit code in the
preset buttons. Because there are
hundreds of number combinations
possible from five-digits, making the
system work without knowing the
exact code is nearly impossible.
If you lose the card, you must obtain
the code number from a dealer. To
do this, you will need the system’s
serial number.
You should have received a radio
code card that lists your audio
system’s code and serial numbers. It
is best to store this card in a safe
place at home. In addition, you
should write the audio system’s
serial number in this owner’s manual.
If you make a mistake entering the
code, do not start over; complete the
sequence, then enter the correct
code. You have 10 tries to enter the
correct code. If you are unsuccessful
in 10 attempts, you must then leave
the system on for 1 hour before
trying again.
On EX and SC models
Radio Theft Protection
Features
129
Main Menu
Table of Contents
You can use the R button to quickly
set the time to the nearest hour.
Press the R button while pressing
the CLOCK button. If the displayed
time is before the half hour, pressing
Rsetstheclockbacktotheprevious
hour. If the displayed time is after
the half hour, pressing R sets the
clock forward to the beginning of the
next hour.
For example:
1:06 will reset to 1:00
1:53 will reset to 2:00
To set the hour, press the H button
while pressing the CLOCK (SCAN/
RPT) button until the hour advances
to the desired time. Change the
minute by pressing the M button
while pressing the CLOCK (SCAN/
RPT) button until the minute
advances to the desired time.
Release the CLOCK button.
Press and hold the CLOCK button
until the numbers flash and you hear
abeep.Changethehourbypressing
the H button until the numbers
advance to the desired time. Change
the minute by pressing the M button
until the numbers advance to the
desired time. Press the CLOCK button
again when you have finished.
If your vehicle’s battery is
disconnected or goes dead, you may
need to set the clock.
LX model
On U.S. EX and SC models
Setting the Clock
130
CLOCK
BUTTON
H BUTTON R BUTTON
TIME DISPLAY
M BUTTON
R BUTTON
CLOCK BUTTON
TIME DISPLAY
H BUTTON
M BUTTON
Main Menu
Table of Contents
You can quickly set the time to the
nearest hour. If the displayed time is
before the half hour, press the R
(RESET) button to set the clock
back to the previous hour. If the
displayed time is after the half hour,
pressing R sets the clock forward to
the beginning of the next hour.
For example:
1:06 will reset to 1:00
1:53 will reset to 2:00
When you are finished, press the
CLOCK button again.
On Canadian EX and SC models
Setting the Clock
Features
131
H BUTTON
R BUTTON
M BUTTON
CLOCK BUTTON
TIME DISPLAY
Main Menu
Table of Contents
▲▼
The middle button adjusts the
volume up ( ) or down ( ). Press
the top or bottom of the button and
hold it until the desired volume is
reached, then release it.
IfyouareplayingaCD,thesystem
skips to the beginning of the next
track each time you push the CH
button. You will see the disc and
track number in the display.
Three controls for the audio system
are mounted in the steering wheel
hub. These let you control basic
functions without removing your
hand from the wheel.
The MODE button changes the
mode. Pressing the button
repeatedly selects FM1, FM2, AM or
CD (if a CD is loaded). On models
with satellite radio system, you can
also select XM1 or XM2.
The CHANNEL button has two
functions, depending on whether you
are listening to the radio, or playing a
CD.
If you are listening to the radio, use
the CH button to change stations.
Each time you press this button, the
system advances to the next preset
station on the band you are listening
to. You will see the number of the
selected Preset button in the display.
To change bands, or to change from
FM1toFM2orXM1toXM2(if
equipped), press the MODE button.
On EX and SC models
Remote Audio Controls
132
MODE
BUTTON
CH BUTTON
VOLUME
BUTTON
Main Menu
Table of Contents
Accelerate to the desired cruising
speedabove25mph(40km/h).
Press and release the SET/
DECELbuttononthesteering
wheel. The indicator on the
instrument panel comes on to
show the system is now activated.
Cruise control may not hold the set
speed when you are going up and
down hills. If your speed increases
going down a hill, use the brakes to
slow down. This will cancel cruise
control. To resume the set speed,
press the RES/ACCEL button. The
indicator on the instrument panel will
come back on.
Push in the cruise control master
button. The indicator in the button
comes on.
Cr
uise contro
l allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your foot on the
accelerator pedal. It should be used
for cruising on straight, open
highways. It is not recommended for
city driving, winding roads, slippery
roads, heavy rain, or bad weather.
1.
2.
3.
CONTINUED
Using Cruise Control
Cruise Control
Features
133
CANCEL
BUTTON
RES/ACCEL BUTTON
SET/DECEL BUTTON
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
NOTE:
T
he main switch can be
left on, even when the system is
not in use.
Main Menu
Table of Contents
Tap the brake or clutch pedal
lightly with your foot. The
CRUISE CONTROL indicator on
the instrument panel goes out.
When the vehicle slows to the
desired speed, press the SET/
DECEL button.
Resting your foot on the brake or
clutch pedal causes cruise control to
cancel.
You can increase the set cruising
speed in any of these ways:
Push on the accelerator pedal.
Accelerate to the desired cruising
speed, then press the SET/
DECEL button.
Press and hold the RES/ACCEL
button. When you reach the
desired cruising speed, release the
button.
You can decrease the set cruising
speed in any of these ways:
Press and hold the SET/DECEL
button. Release the button when
you reach the desired speed.
To increase your speed in very
small amounts, tap the RES/
ACCEL button. Each time you do
this, the vehicle will speed up
about 1 mph (1.6 km/h).
When climbing a steep hill, the
automatic transmission may
downshift to hold the set speed.
To slow down in very small
amounts, tap the SET/DECEL
button. Each time you do this, the
vehicle will slow down about 1
mph (1.6 km/h).
Even with cruise control turned on,
you can still use the accelerator
pedal to speed up for passing. After
completing the pass, take your foot
off the accelerator pedal. The vehicle
will return to the set cruising speed.
Changing the Set Speed
Cruise Control
134
Main Menu
Table of Contents
You can cancel cruise control in any
of these ways:
Tap the brake or clutch pedal.
Push the CANCEL button on the
steering wheel.
Pushthecruisecontrolmaster
button.
When you push the CANCEL button,
or tap the brake or clutch pedal, the
system will remembers the
previously set cruising speed. To
return to that speed, accelerate to
above25mph(40km/h)thenpress
and release the RES/ACCEL button.
The CRUISE CONTROL indicator
will come on. The vehicle will
accelerate to the same cruising
speed as before.
Pressing the cruise control master
button turns the system off and
erases the previous cruising speed.
Cruise Control
Cancelling Cruise Control Resuming the Set Speed
Features
135
RES/ACCEL BUTTON
SET/DECEL BUTTON
CANCEL
BUTTON
Main Menu
Table of Contents
Main Menu
Before you begin driving your
vehicle, you should know what
gasoline to use and how to check the
levels of important fluids. You also
need to know how to properly store
luggage or packages. The
information in this section will help
you. If you plan to add any
accessories to your vehicle, please
read the information in this section
first.
.............................Break-in Period . 138
.................Fuel Recommendation . 138
.........Service Station Procedures . 139
....................................Refueling . 139
Opening and Closing the
.......................................Hood . 140
...................................Oil Check . 141
.............Engine Coolant Check . 141
...............................Fuel Economy . 142
...Accessories and Modifications . 143
.............................Carrying Cargo . 145
Before Driving
Before Driving
137
Main Menu
Help assure your vehicle’s future
reliability and performance by paying
extra attention to how you drive
during the first 600 miles (1,000 km).
During this period:
Avoid full-throttle starts and rapid
acceleration.
Do not change the oil until the
scheduled maintenance time.
Avoidhardbrakingforthefirst
200 miles (300 km).
Do not tow a trailer.
You should also follow these
recommendations with an
overhauled or exchanged engine, or
when the brakes are replaced.
Your vehicle is designed to operate
on unleaded gasoline with a pump
octane number of 87 or higher. Use
of a lower octane gasoline can cause
a persistent, heavy metallic rapping
noise that can lead to engine damage.
You may hear a knocking noise from
the engine if you drive the vehicle at
low engine speed (below about 1,000
rpm) in a higher gear. To stop this,
raise the engine speed by shifting to
a lower gear.
We recommend quality gasoline
containing detergent additives that
help prevent fuel system and engine
deposits.
In addition, in order to maintain good
performance, fuel economy, and
emissions control, we strongly
recommend, in areas where it is
available, the use of gasoline that
does NOT contain manganese-based
fuel additives such as MMT.
Use of gasoline with these additives
may adversely affect performance,
and cause the malfunction indicator
lamp on your instrument panel to
come on. If this happens, contact
your authorized dealer for service.
Some gasoline today is blended with
oxygenates such as ethanol or
MTBE. Your vehicle is designed to
operate on oxygenated gasoline
containing up to 10 % ethanol by
volume and up to 15 % MTBE by
volume. Do not use gasoline
containing methanol.
On vehicles with manual transmission
Break-in Period, Fuel Recommendation
Break-in Period Fuel Recommendation
138
Main Menu
Table of Contents
Close the fuel fill door.
Screw the fuel fill cap back on
until it clicks at least once. If you
do not properly tighten the cap,
the malfunction indicator lamp
maycomeon(seepage ).You
will also see a ‘‘CHECK FUEL
CAP’’ message on the information
display.
even though the tank is not full,
there may be a problem with your
vehicle’s fuel vapour recovery
system. The system helps keep
fuel vapours from going into the
atmosphere. Try filling at another
pump. If this does not fix the
problem, consult your dealer.
Stop filling the tank after the fuel
nozzle automatically clicks off. Do
not try to ‘‘top off’’ the tank. Leave
some room for the fuel to expand
with temperature changes.
Remove the fuel fill cap slowly.
You may hear a hissing sound as
pressure inside the tank escapes.
Place the cap in the holder on the
fuel fill door.
Park with the driver’s side closest
to the service station pump.
Outside of the vehicle, open the
fuel fill door by pulling its notched
edge.
For further important fuel-related
information, please refer to your
.
If you notice any undesirable
operating symptoms, try another
service station or switch to another
brand of gasoline.
1.
2.
3.
4.
5.
6.
232
If the fuel nozzle keeps clicking off
Refueling
Quick Start Guide
Fuel Recommendation, Service Station Procedures
Before Driving
139
Stop the engine, and keep
heat, sparks, and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
Gasoline is highly flammable
and explosive. You can be
burned or seriously injured
when handling fuel.
Main Menu
Table of Contents
Pull the support rod out of its clip
and insert the end into the hole in
the hood.
If the hood latch handle moves
stiffly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated.
Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower left corner of the dashboard.
The hood will pop up slightly.
Put your fingers under the front
edge of the hood near the center.
The hood latch handle is above
the ‘‘H’’ logo. Push this handle up
to release it. Lift up the hood.
Lift it up slightly to remove the
support rod from the hole. Put the
support rod back into its holding clip.
Lower the hood to about a foot
(30cm)abovethefender,thenletit
drop. Make sure it is securely
latched.
1.
2.
3.
To Close the Hood:
Opening and Closing the Hood
Service Station Procedures
140
LATCH
HOOD RELEASE HANDLE SUPPORT ROD
CLIP
Main Menu
Table of Contents

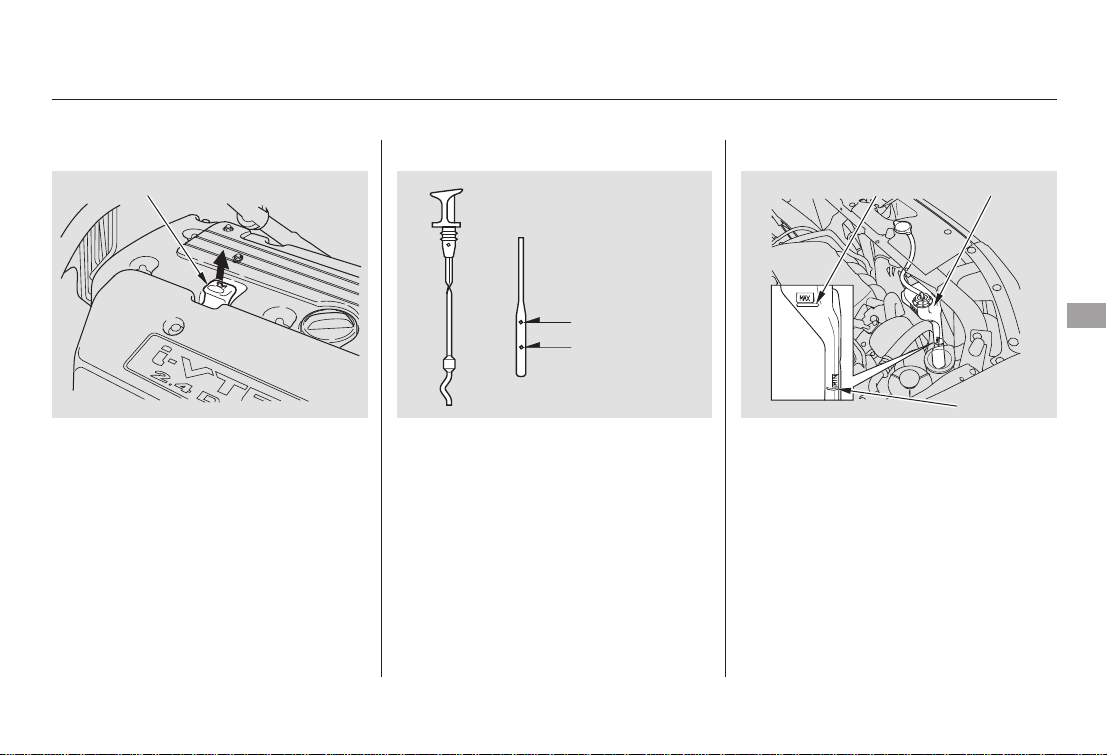

Wait a few minutes after turning the
engine off before you check the oil.
Remove the dipstick (orange tab).
Wipe the dipstick with a clean
cloth or paper towel.
Insert it all the way back in its tube.
Remove the dipstick again, and
check the level. It should be
between the upper and lower
marks.
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page for
information on adding the proper
coolant.
Refer to
on page for information
about checking other items on your
vehicle.
If it is near or below the lower mark,
see on page .
1.
2.
3.
4.
189
192
184
Oil Check Engine Coolant Check
Adding
Engine Coolant
Owner’s Maintenance
Checks
Adding Engine Oil
Service Station Procedures
Before Driving
141
DIPSTICK
UPPER MARK
LOWER MARK
RESERVE TANK
MAX
MIN
Main Menu
Table of Contents
The air conditioning puts an extra
load on the engine which makes it
usemorefuel.Usethefresh-air
ventilation when possible.
Combine several short trips into
one.
Try to maintain a constant speed.
Everytimeyouslowdownand
speed up, your vehicle uses extra
fuel. Use cruise control when
appropriate.
Always maintain your vehicle
according to the maintenance
messages displayed in the
information display. See
on page
.
Always drive in the highest gear
possible.
Drive moderately. Rapid
acceleration, abrupt cornering,
and hard braking use more fuel.
The build-up of snow or mud on
your vehicle’s underside adds
weight and rolling resistance.
Frequent cleaning helps your fuel
mileage and reduces the chance of
corrosion.
an underinflated tire
causes more ‘‘rolling resistance,’’
which uses more fuel.
184
For example,
Improving Fuel Economy
Owner’s
Maintenance Checks
Fuel Economy
142
Main Menu
Table of Contents
When properly installed, cellular
phones, alarms, two-way radios, and
low-powered audio systems should
not interfere with your vehicle’s
computer controlled systems, such
as your airbags and anti-lock brakes.
Your dealer has Honda accessories
that allow you to personalize your
vehicle. These accessories have
been designed and approved for your
vehicle, and are covered by warranty.
Modifying your vehicle, or installing
some non-Honda accessories, can
make it unsafe. Before you make any
modifications or add any accessories,
be sure to read the following
information.
Before installing any accessory:
Make sure the accessory does not
obscure any lights, or interfere
with proper vehicle operation or
performance.
Although non-Honda accessories
may fit on your vehicle, they may not
meet factory specifications, and
could adversely affect your vehicle’s
handling and stability.
Before installing any electronic
accessory, have the installer
contact your dealer for assistance.
If possible, have your dealer
inspect the final installation.
Be sure electronic accessories do
not overload electrical circuits
(see page ) or interfere with
the proper operation of your
vehicle.
Do not install accessories on the
side pillars or across the rear
windows. In these areas,
accessories may interfere with
proper operation of the side
curtain airbags.
234
Accessories
Accessories and Modifications
Before Driving
143
Improper accessories or
modifications can affect your
vehicle’s handling, stability, and
performance, and cause a
crash in which you can be hurt
or killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
Main Menu
Table of Contents
Larger or smaller wheels and tires
can interfere with the operation of
your vehicle’s anti-lock brakes and
other systems.
If you plan to modify your vehicle,
consult your dealer.
Modifying your steering wheel or
any other part of your vehicle’s
safety features can make the
systems ineffective.Lowering the vehicle with a non-
Honda suspension kit that
significantly reduces ground
clearance can allow the
undercarriage to hit speed bumps
or other raised objects, which
could cause the airbags to deploy.
Raising your vehicle with a
non-Honda suspension kit can
affect the handling and stability.
Herearesomeexamples:
Non-Honda wheels, because they
are a universal design, can cause
excessive stress on suspension
components.
Removing parts from your vehicle,
or replacing components with some
non-Honda components could
seriously affect your vehicle’s
handling, stability, and reliability.
Modifying Your Vehicle
Accessories and Modifications
144
Main Menu
Table of Contents

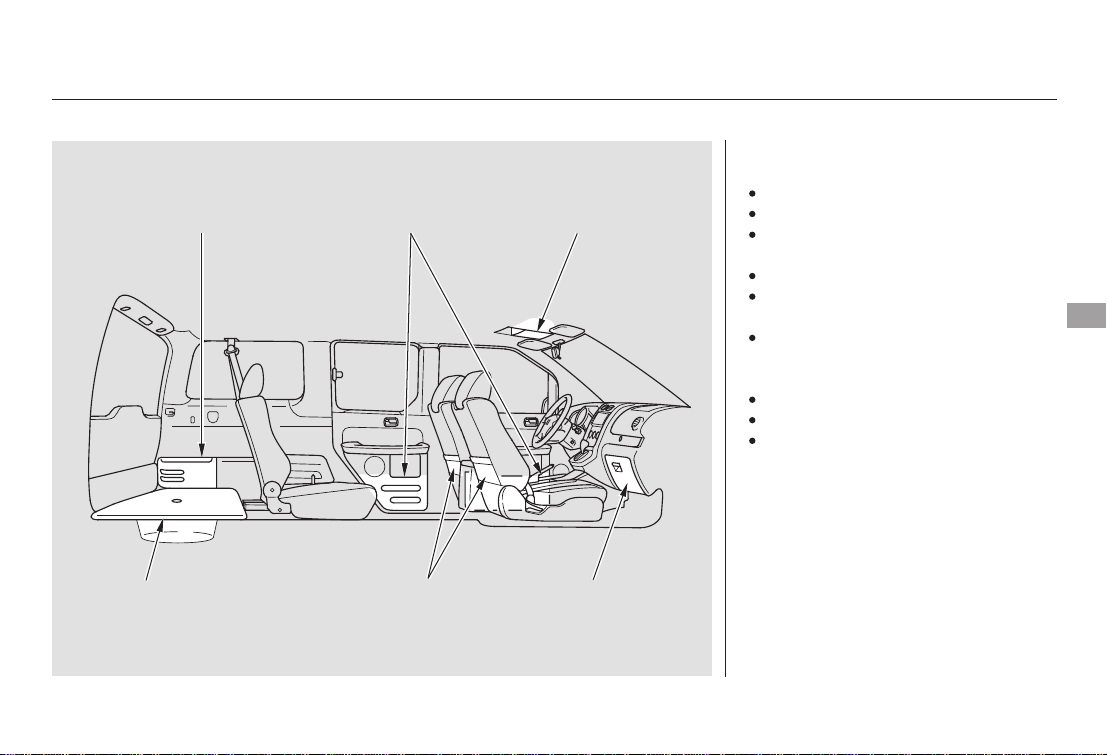

Your vehicle has several convenient
storage areas:
Cargo area side pockets
Glove box
Door pockets
Cargo area (including rear seats
when they are folded down, folded
to the side, or removed)
Ceiling pocket (EX and SC
models)
Seat-back pocket (EX and SC
models)
Seat-back bungees (EX model)
Roof-rack (if installed)
However, carrying too much cargo,
or improperly storing it, can affect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsafe. Before carrying any
type of cargo, be sure to read the
following pages.
Center console (SC model)
Carrying Cargo
Before Driving
145
CARGO AREA SIDE POCKET DOOR POCKETS
CARGO AREA
CEILING POCKET
SEAT-BACK POCKET
GLOVE BOX
Main Menu
Table of Contents
−×
Steps for determining correct load
limit:
Determine the combined weight
of the driver and passengers that
will be riding in your vehicle.
The maximum load for your vehicle
is 675 lbs (308 kg). This figure
includes the total weight of all
occupants, cargo, and accessories,
and the tongue load if you are towing
a trailer.
Locate the statement, ‘‘the
combined weight of occupants and
cargo should never exceed 675
lbs’’ on your vehicle’s placard.
[The placard is on the driver’s
doorjamb.]
Subtract the combined weight of
the driver and passengers from
675 pounds or 308 kilograms.
Determine the combined weight
of luggage and cargo being loaded
on the vehicle. That weight may
not safely exceed the available
cargo and luggage load capacity
calculated in step 4.
The resulting figure equals the
available amount of cargo and
luggage load capacity.
For example, if the maximum load
is 675 lbs and there will be four
150 lb. passengers in your vehicle,
the amount of available cargo and
luggage load capacity is 75 lbs.
(675 600 (4 150) = 75 lbs.)
If your vehicle will be towing a
trailer, load from your trailer will
be transferred to your vehicle.
Consult this manual to determine
how this reduces the available
cargo and luggage load capacity of
yourvehicle(seepage ).
1.
2.
5.
6.
3.
4.
167
Load Limits
Carrying Cargo
146
Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
Main Menu
Table of Contents
In addition, the total weight of the
vehicle, all passengers, accessories,
cargo, and trailer tongue load must
not exceed the Gross Vehicle
Weight Rating (GVWR) or the Gross
Axle Weight Rating (GAWR). Both
areonalabelonthedriver’s
doorjamb.
Store or secure all items that could
be thrown around and hurt
someone during a crash.
Be sure items placed on the floor
behind the front seats cannot roll
under the seats and interfere with
the driver’s ability to operate the
pedals, the proper operation of the
seats, or proper operation of the
sensors under the seats.
Keep the glove box closed while
driving. If it is open, a passenger
could injure their knees during a
crash or sudden stop.
Ifyoufoldtherearseatsdownor
up,orremovethem,tiedown
items that could be thrown about
the vehicle during a crash or
sudden stop. Also, keep all cargo
below the bottom of the windows.
If it is higher, it could interfere
with the proper operation of the
side curtain airbags.
Distribute cargo evenly on the
floor of the cargo area, placing the
heaviest items on the bottom and
as far forward as possible. Tie
down items that could be thrown
about the vehicle during a crash or
sudden stop.
If you carry large items that
prevent you from closing the
tailgate or the hatch, exhaust gas
can enter the passenger area. To
avoid the possibility of
,followthe
instructions on page .
If you carry any items on a roof
rack,besurethetotalweightof
the rack and the items does not
exceed 165 lbs (75 kg).
If you use an accessory roof rack,
the roof rack weight limit may be
lower. Refer to the information that
came with your roof rack.
Theseparationnetcanbeusedto
hold back soft, lightweight items
stored in the cargo area. Heavy
items should be properly secured on
the floor of the cargo area. The net
may not prevent heavy items from
being thrown forward in a crash or a
sudden stop.
54
Carrying Items in the Passenger
Compartment
Carrying Cargo in the Cargo Area
or on a Roof Rack
carbon
monoxide poisoning
Optional Separation Net
Carrying Cargo
Before Driving
147
Main Menu
Table of Contents
The driver’s seat-back and left rear
seat-back are equipped with
adjustable bungee cords to hold
medium-sized, lightweight objects.
If the cords are not installed, route
one cord through the loops as shown.
To attach the hooks, press the top of
the hook down, and slide to the
desired position, then release. Adjust
as needed.
On EX model
Seat-Back Bungee
Carrying Cargo
148
LOOP
ADJUSTABLE BUNGEE CORD
HOOK
Main Menu
Table of Contents
This section gives you tips on
starting the engine under various
conditions, and how to operate the
manual and automatic transmissions.
It also includes important
information on parking your vehicle,
the braking system, the vehicle
stability assist (VSA) system, and
facts you need if you are planning to
tow a trailer or drive off-highway.
........................Driving Guidelines . 150
....................Preparing to Drive . 151
.......................Starting the Engine . 152
...................Manual Transmission . 153
..............Automatic Transmission . 155
...........................................Parking . 159
.............................Braking System . 160
...............Anti-lock Brakes (ABS) . 161
Tire Pressure Monitoring
........................System (TPMS) . 163
Vehicle Stability Assist
............................(VSA) System . 165
...........................Towing a Trailer . 167
Off-Highway Driving
..................................Guidelines . 173
Driving
Driving
149
Main Menu
Because your vehicle rides higher
off the ground, it has a high center
of gravity that can cause it to roll
over if you make abrupt turns. Utility
vehicles have a significantly higher
roll over rate than other types of
vehicles.
To prevent rollovers or loss of
control:
Take corners at slower speeds
than you would with a passenger
vehicle.
Avoid sharp turns and abrupt
maneuvers whenever possible.
Do not carry heavy cargo on the
roof.
Do not modify your vehicle in any
way that would raise the center of
gravity.
Your vehicle is equipped with a four-
wheel drive (4WD) system. When
the system senses a loss of front-
wheel traction, it automatically
transfers some power to the rear
wheels. This gives you better
traction and mobility.
You still need to exercise the same
care when accelerating, steering, and
brakingthatyouwouldinatwo-
wheel drive vehicle.
Your vehicle has a higher ground
clearance that allows you to travel
over bumps, obstacles, and rough
terrain. It also provides good
visibility so you can anticipate
problems earlier.
Four-wheel drive models
See page for off-highway driving
guidelines.
173
Driving Guidelines
150
Main Menu
Table of Contents
Check the seat adjustment (see
page ).
Check the adjustment of the
inside and outside mirrors (see
page ).
Check the steering wheel
adjustment (see page ).
Make sure the doors, hatch, and
tailgate are securely closed and
locked.
Fasten your seat belt. Check that
your passengers have fastened
their seat belts (see page ).
When you start the engine, check
the gauges and indicators in the
instrument panel (see page ).
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure.
Check that the hood is fully closed.
Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove frost, snow,
or ice.
Youshoulddothefollowingchecks
and adjustments before you drive
your vehicle.
Check that any items you may be
carrying are stored properly or
fastened down securely.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
59
15
74
92
83
Preparing to Drive
Driving Guidelines
Driving
151
Main Menu
Table of Contents
Apply the parking brake.
In cold weather, turn off all
electrical accessories to reduce
the drain on the battery.
If the engine fails to start, press
the accelerator pedal all the way
down, and hold it there while
starting to clear flooding. If the
engine still does not start, return
to step 5.
If the engine does not start within
15 seconds, or starts but stalls
right away, repeat step 4 with the
accelerator pedal pressed halfway
down. If the engine starts, release
pressure on the accelerator pedal
so the engine does not race.
Without touching the accelerator
pedal, turn the ignition key to the
START (III) position. Do not hold
the key in the START (III)
position for more than 15 seconds
at a time. If the engine does not
start right away, pause for at least
10 seconds before trying again.Press the clutch pedal down all the
way. The START (III) position
does not function unless the clutch
pedal is pressed.
Make sure the shift lever is in
Park. Press on the brake pedal.
1.
2.
3.
4. 6.
5.
Manual transmission:
Automatic transmission:
Starting theEngine
152
The engine is harder to start in cold
weather. Also, the thinner air found at
altitudes above 8,000 feet (2,400
meters) adds to this problem.
The immobilizer system protects your
vehicle from thef t. If an improperly-
coded key (or other device) is used, the
engine’s f uel system is disabled. For
more inf ormation, see page .
76
Main Menu
Table of Contents
When slowing down, you can get
extra braking from the engine by
shifting to a lower gear. This extra
braking can help you maintain a safe
speed and prevent your brakes from
overheating while going down a
steep hill. Before downshifting,
make sure the engine speed will not
go into the tachometer’s red zone in
the lower gear.
The manual transmission is
synchronized in all forward gears for
smooth operation. It has a lockout so
you cannot shift directly from fifth to
reverse. When shifting up or down,
make sure you push the clutch pedal
down all the way, shift to the next
gear, and let the pedal up gradually.
When you are not shifting, do not
rest your foot on the clutch pedal.
This can cause the clutch to wear out
faster.
Come to a full stop before you shift
into reverse. You can damage the
transmission by trying to shift into
reverse with the vehicle moving.
Push down the clutch pedal, and
pause for a few seconds before
shifting into reverse, or shift into one
of the forward gears for a moment.
This stops the gears so they won’t
‘‘grind.’’
Manual Transmission
Driving
153
Rapid slowing or speeding up
can cause loss of control on
slippery surfaces. If you crash,
you can be injured.
Use extra care when driving on
slippery surfaces.
Main Menu
Table of Contents
Normal acceleration
15 mph (24 km/h)
25 mph (40 km/h)
40 mph (64 km/h)
48 mph (77 km/h)
Shift up
1st to 2nd
2nd to 3rd
3rd to 4th
4th to 5th
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
rpm below the red zone.
Drive in the highest gear that lets
the engine run and accelerate
smoothly. This will give you good
fuel economy and effective
emissions control. The following
shift points are recommended:
The engine speed limiter only works
when you upshift; engine speed is
not limited during downshifts.
Before downshifting, make sure the
engine will not go into the
tachometer’s red zone.
Recommended Shift Points Engine Speed Limiter
Manual Transmission
154
Main Menu
Table of Contents
−
These indicators on the instrument
panel show which position the shift
lever is in.
To shift from any position, press
firmly on the brake pedal, push the
release button, and pull the lever
toward you. You cannot shift out of
Park when the ignition switch is in
the LOCK (0) or ACCESSORY (I)
position.
The ‘‘D’’ indicator comes on for a
few seconds when you turn the
ignition switch to the ON (II)
position. If it flashes while driving (in
any shift position), it indicates a
possible problem in the transmission.
Avoid rapid acceleration, and have
thetransmissioncheckedbyyour
dealer as soon as possible.
This position mechani-
cally locks the transmission. Use
Park whenever you are turning off or
starting the engine. To shift out of
Park, you must press on the brake
pedal and have your foot off the
accelerator pedal.
CONTINUED
To shift from:
PtoR
RtoP
NtoR
Dto2
2to1
1to2
2toD
DtoD
DtoN
DtoD
NtoD
RtoN
Do this:
Press the brake pedal, and
press the shift lever release
button.
Press the shift lever release
button.
Move the shift lever.
3
3
3
3
Shift Lever Position Indicators Shifting
Park (P)
Automatic Transmission
Driving
155
SHIFT LEVER
RELEASE BUTTON
D BUTTON
3
Main Menu
Table of Contents
−
−
−
−
Use neutral if you
need to restart a stalled engine, or if
it is necessary to stop briefly with
the engine idling. Shift to the Park
position if you need to leave your
vehicle for any reason. Press on the
brake pedal when you are moving
the shift lever from neutral to
another gear.
Press the brake
pedal and press the release button to
shift from Park to reverse. To shift
from reverse to neutral, come to a
completestop,andthenshift.
To avoid transmission damage, come
to a complete stop before shifting
into Park. You must also press the
release button to shift into Park. The
shift lever must be in Park before
you can remove the key from the
ignition switch.
If you have done all of the above and
still cannot move the lever out of
Park, see on
page .
Use this position for
your normal driving. The
transmission automatically selects a
suitable gear (1 through 5) for your
speed and acceleration. You may
notice the transmission shifting up at
higher engine speeds when the
engine is cold. This helps the engine
warm up faster.
To use D , press the
D buttonwhentheshiftleverisin
the ‘‘D’’ position. This position is simi-
lartoD,exceptonlythefirstthree
gears are selected instead of all five.
Use D when towing a trailer in hilly
terrain, or to provide engine braking
when going down a steep hill. D can
also keep the transmission from
cycling between third and fourth
gears in stop-and-go driving.
158
3
3
3
3
Automatic Transmission
Neutral (N)
Reverse (R)
Shift Lock Release
Drive (D)
Drive (D )
3
156
Main Menu
Table of Contents
−−This position locks
the transmission in second gear. It
does not downshift to first gear
when you come to a stop.
Use second gear:
For more power when climbing.
To increase engine braking when
going down steep hills.
For starting out on a slippery
surface or in deep snow.
To help reduce wheel spin.
When driving downhill with a
trailer.
This position locks the
transmission in first gear. By
upshifting and downshifting through
1, 2, D , and D, you can operate the
transmission much like a manual
transmission without a clutch pedal.
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
rpm below the red zone.
3
Automatic Transmission
Second (2) First (1) Engine Speed Limiter
Driving
157
Main Menu
Table of Contents
This allows you to move the shift
lever out of Park if the normal
method of pushing on the brake
pedal and pressing the release
button does not work.
Set the parking brake.
Remove the key from the ignition
switch.
Put a cloth on the edge of the shift
lock release slot cover next to the
shift lever. Using a flat-tip
screwdriver, carefully pry on the
edge of the cover to remove it.
Insert the key in the shift lock
release slot.
Push down on the key while you
pressthereleasebuttononthe
shift lever and move the shift lever
out of Park to neutral.
Remove the key from the Shift
Lock Release slot, then reinstall
thecover.Makesurethenotchon
the cover is on the right side.
Press the brake pedal, and restart
the engine.
If you need to use the shift lock
release, it means your vehicle is
developing a problem. Have it
checked by your dealer.
1.
2.
3.
4.
5.
6.
Automatic Transmission
Shift Lock Release
158
COVER
SHIFT LOCK RELEASE SLOT
Main Menu
Table of Contents
Always use the parking brake when
you park your vehicle. Make sure
the parking brake is set firmly, or
your vehicle may roll if it is parked
on an incline.
If your vehicle has an automatic
transmission, set the parking brake
before you put the transmission in
Park. This keeps the vehicle from
moving and putting pressure on the
parking mechanism in the
transmission.
Make sure the windows are closed.
Turn off the lights.
Place any packages, valuables, etc.
in the cargo area or take them
with you.
Lock the doors and the hatch with
the key.
Never park over dry leaves, tall
grass, or other flammable
materials. The hot three way
catalytic converter could cause
these materials to catch on fire.
If the vehicle is facing uphill, turn
the front wheels away from the
Make sure the parking brake is
fully released before driving away.
Driving with the parking brake
partially set can overheat or
damage the rear brakes.
If the vehicle is facing downhill,
turn the front wheels toward the
curb. If you have a manual
Parking Tips
Parking
Driving
159
curb. If you have a manual
transmission, put it in first gear,
and set the parking brake.
t
ran
s
m
i
s
s
ion, put it in reverse gear,
and set the parking brake.
Main Menu
Table of Contents
Constant application of the brakes
when going down a long hill builds
up heat and reduces their effective-
ness. Use the engine to assist the
brakes by taking your foot off the
accelerator and downshifting to a
lower gear.
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the left-front brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.Resting your foot on the pedal keeps
the brakes applied lightly, builds up
heat, and reduces their effectiveness.
It also keeps your brake lights on all
the time, confusing drivers behind
you.
Your vehicle is equipped with disc
brakes at all four wheels. A power
assist helps reduce the effort needed
on the brake pedal. The anti-lock
brake system (ABS) helps you retain
steering control when braking very
hard.
Check your brakes after driving
through deep water. Apply the
brakes moderately to see if they feel
normal. If not, apply them gently and
frequently until they do. Be extra
cautious and alert in your driving.
Braking System Design
Braking System
160
Main Menu
Table of Contents
If the brake pads need replacing, you
will hear a distinctive, metallic
screeching sound when you apply
the brake pedal. If you do not have
the brake pads replaced, they will
screech all the time. It is normal for
the brakes to occasionally squeal or
squeak when you apply them.
The anti-lock brake system (ABS)
helps prevent the brakes from
locking up, and helps you retain
steering control by pumping the
brakes rapidly, much faster than a
person can do it.
The ABS also balances the front-to-
rear braking distribution according
to vehicle loading.
Let the ABS work for you by always
keeping firm, steady pressure on the
brake pedal. This is sometimes
referred to as ‘‘stomp and steer.’’
You will feel a pulsation in the brake
pedal when the ABS activates, and
you may hear some noise. This is
normal: it is the ABS rapidly
pumpingthebrakes.Ondry
pavement, you will need to press on
thebrakepedalveryhardbeforethe
ABS activates. However, you may
feel the ABS activate immediately if
you are trying to stop on snow or ice.
You should never pump the brake pedal.
Brake Wear Indicators Anti-lock Brakes
Braking System, Anti-lock Brakes (ABS)
Driving
161
Main Menu
Table of Contents
If this indicator comes on, the anti-
lock function of the braking system
has shut down. The brakes still work
like a conventional system, but
without anti-lock. You should have
your dealer inspect your vehicle as
soon as possible.
If the indicator comes on while
driving, test the brakes as instructed
on page .
If the ABS indicator and the brake
system indicator come on together
and the parking brake is fully
released, the front-to-rear braking
distribution system may also shut
down.
Test your brakes as instructed on
page . If the brakes feel normal,
drive slowly and have your vehicle
repaired by your dealer as soon as
possible. Avoid sudden hard braking
which could cause the rear wheels to
lock up and possibly lead to a loss of
control.
The VSA indicator will come on
alongwiththeABSindicator.
It only helps with steering
control during braking.
such as trying to take a
corner too fast or making a sudden
lane change. Always drive at a safe
speed for the road and weather
conditions.
Always steer moderately
when you are braking hard. Severe
or sharp steering wheel movement
can still cause your vehicle to veer
into oncoming traffic or off the road.
on loose or
uneven surfaces, such as gravel or
snow, than a vehicle without anti-
lock.
233
233
Anti-lock Brakes (ABS)
ABS Indicator
Important Safety Reminders
ABS does not reduce the time or
distance it takes to stop the
vehicle.
ABS will not prevent a skid that
results from changing direction
abruptly,
ABS cannot prevent a loss of
stability.
A vehicle with ABS may require a
longer distance to stop
162
Main Menu
Table of Contents
Your vehicle is equipped with a tire
pressure monitoring system (TPMS)
that turns on every time you start the
engine and monitors the pressure in
your tires while driving.
Each tire, including the spare, should
be checked monthly when cold and
set to the recommended inflation
pressure as specified in the vehicle
placard and this owner’s manual (see
page ).
Although your tire pressure is
monitored, you must manually check
thetirepressuresmonthly.
If you think you can safely drive a
short distance to a service station,
proceed slowly, and inflate the tire to
the recommended pressure shown
on the driver’s doorjamb.
When the tire pressure monitoring
system warning indicator is on, one
or more of your tires is significantly
under-inflated. You should stop and
check your tires as soon as possible,
and inflate them to the proper
pressureasindicatedonthevehicle’s
tire information placard.
If the tire is flat, or if the tire
pressure is too low to continue
driving, replace the tire with the
compact spare tire.
Each tire has its own pressure
sensor. If the air pressure of a tire
becomes significantly low, the
sensor in that tire immediately sends
a signal that causes the low tire
pressure indicator to come on. After inflating the tire(s) to the
proper pressure, the warning
indicator will remain on until the
vehicle is driven at a speed more
than 25 mph (40 km/h).
Driving on a significantly under-
inflated tire causes the tire to
overheat and can lead to tire failure.
Under-inflation also reduces fuel
efficiency and tire tread life, and may
affect the vehicle’s handling and
stopping ability.
245
Tire Pressure Monitoring System (TPMS)
Low Tire Pressure
Indicator
Driving
163
Main Menu
Table of Contents
Each wheel is equipped with a tire
pressure sensor mounted inside the
tire behind the valve stem. You must
use TPMS specific wheels. It is
recommended that you always have
your tires serviced by your dealer or
qualified technician.
After you replace the flat tire, the
low tire pressure indicator stays on.
This is normal; the system is not
monitoring the spare tire pressure.
Manually check the spare tire
pressure to be sure it is correct.
Never use a puncture-repairing agent
in a flat tire. If used, you will have to
replace the tire pressure sensor.
Havetheflattirerepairedbyyour
dealer as soon as possible.
This indicator comes on and stays on
if there is a problem with the tire
pressure monitoring system.
If you see this message, the system
is off and is not monitoring the tire
pressures. Have the system checked
by your dealer as soon as possible.
If you have a flat tire, the low tire
pressure indicator will come on.
Replace the flat tire with the
compact spare tire (see page ).218
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Tire Pressure Monitoring System (TPMS)
Tire Pressure Monitoring
System (TPMS) Indicator
Changing a Tire with TPMS
164
Main Menu
Table of Contents
The VSA system cannot enhance the
vehicle’s driving stability in all
situations and does not control your
vehicle’s entire braking system. It is
still your responsibility to drive and
corner at reasonable speeds and to
leave a sufficient margin of safety.
The vehicle stability assist (VSA)
system helps to stabilize the vehicle
during cornering if the vehicle turns
more or less than desired. It also
assists you in maintaining traction
while accelerating on loose or
slippery road surfaces. It does this
by regulating the engine’s output and
by selectively applying the brakes.
When VSA activates, you may notice
that the engine does not respond to
the accelerator in the same way it
does at other times. You will also see
the VSA activation indicator blink.
When VSA activates, you will see the
VSA activation indicator blink (see
page ).
The VSA system indicator (see page
) comes on and stays on when
there is a problem with the VSA
system. The VSA activation indicator
will also come on.
If this indicator comes on while
driving, pull to the side of the road
when it is safe, and turn off the
engine. Reset the system by
restarting the engine. If the VSA
system indicator stays on, or comes
back on while driving, have the VSA
system inspected by your dealer.
If the indicator does not come on
when the ignition switch is turned to
the ON (II) position, there may be a
problem with the VSA system. Have
your dealer inspect your vehicle as
soon as possible.
Without VSA, your vehicle will have
normal braking and cornering ability,
but it will not have VSA traction and
stability enhancement.
64
64
VSA Activation Indicator
Vehicle Stability Assist
(VSA) System Indicator
Vehicle Stability Assist (VSA) System
Driving
165
Main Menu
Table of Contents
VSA is turned on every time you
start the engine, even if you turned it
off the last time you drove the
vehicle.
Driving with varying tire or wheel
sizes may cause the VSA to
malfunction. When replacing tires,
make sure they are the same size
and type as your original tires (see
page ).
If you install winter tires, make sure
they are the same size as those that
were originally supplied with your
vehicle. Exercise the same caution
during winter driving as you would if
your vehicle was not equipped with
VSA.
Immediately after freeing your
vehicle, be sure to switch the VSA on
again. We do not recommend driving
your vehicle with the VSA and
traction control systems switched off.
In certain unusual conditions when
your vehicle gets stuck in shallow
mud or fresh snow, it may be easier
to free it with the VSA temporarily
switched off. When the VSA system
is off, the traction control system is
alsooff.Youshouldonlyattemptto
free your vehicle with the VSA off if
you are not able to free it when the
VSA is on.
This button is under the driver’s side
vent. Press it to turn the VSA system
on or off.
When VSA is off, the VSA activation
indicator comes on as a reminder.
Pressing the switch again turns the
system back on.
209
VSA and Tire Sizes
VSA Off Switch
Vehicle Stability Assist (VSA) System
166
VSA OFF SWITCH
Main Menu
Table of Contents
Your vehicle has been designed
primarily to carry passengers and
their cargo. You can also use it to
tow a trailer if you carefully observe
the load limits, use the proper
equipment, and follow the guidelines
in this section.
The weight that
the tongue of a fully-loaded trailer
puts on the hitch should be
approximately 10 % of the total
trailer weight. Too much tongue
load reduces front-tire traction and
steering control. Too little tongue
load can make the trailer unstable
and cause it to sway.
Be sure to read the
on page
if you plan to tow off paved
surfaces.
The
maximum allowable weight of the
trailer and everything in or on it
must not exceed 1,500 lbs (680 kg).
Towing a trailer that is too heavy
can seriously affect your vehicle’s
handling and performance. It can
also damage the engine and
drivetrain.
173
Driving Off-
Highway Guidelines section
CONTINUED
Load Limits
Tongue Load:Total Trailer Weight:
Towing a Trailer
Driving
167
Exceeding any load limit or
improperly loading your vehicle
and trailer can cause a crash in
which you can be seriously hurt
or killed.
Check the loading of your
vehicle and trailer carefully
beforestartingtodrive.
Main Menu
Table of Contents
To achieve a proper tongue load,
start by loading 60 % of the load
toward the front of the trailer and
40 % toward the rear, then re-adjust
the load as needed.
The best way to confirm that vehicle
and trailer weights are within limits
is to have them checked at a public
scale.
Using a suitable scale or a special
tongue load gauge, check the tongue
load the first time you set up a
towing combination (a fully-loaded
vehicle and trailer), then recheck the
tongue load whenever the conditions
change.
The maximum allowable weight of
the vehicle axles is:
The maximum allowable weight of
the vehicle, all occupants, all cargo,
and tongue load is:
on the front axle
on the rear axle
Checking LoadsGross Axle Weight Rating
(GAWR):
Gross Vehicle Weight Rating
(GVWR):
Towing a Trailer
168
4,450 Ibs (2,020 kg)
2,300 Ibs (1,045 kg)
2,205 Ibs (1,000 kg)
Main Menu
Table of Contents
Honda recommends that any trailer
having a total weight of 1,000 lbs
(450 kg) or more be equipped with
its own electric or surge-type brakes.
If you choose electric brakes, be
sure they are electronically actuated.
Do not attempt to tap into your
vehicle’s hydraulic system. No
matter how successful it may seem,
any attempt to attach trailer brakes
to your vehicle’s hydraulic system
will lower braking effectiveness and
create a potential hazard.
Seeyourtrailerdealerorrental
agency for more information on
installing electric brakes.
Any hitch used on your vehicle must
be properly bolted to the underbody.
Always use safety chains when you
tow a trailer. Make sure the chains
are secured to the trailer and hitch,
and that they cross under the tongue
and can catch the trailer if it
becomes unhitched. Leave enough
slack to allow the trailer to turn
corners easily, but do not let the
chains drag on the ground.
Towing can require a variety of
equipment, depending on the size of
your trailer, how it will be used, how
much load you are towing, and
where you tow. To ensure the
highest quality equipment, purchase
Honda equipment whenever possible.
Discuss your needs with your trailer
sales or rental agency, and follow the
guidelines in the rest of this section.
Also make sure that all equipment is
properly installed and that it meets
federal, state, province, and local
regulations.
CONTINUED
Towing Equipment and
Accessories
Trailer BrakesHitches
Safety Chains
Towing a Trailer
Driving
169
Main Menu
Table of Contents
Many states and Canadian provinces
require special outside mirrors when
towing a trailer. Even if they don’t,
you should install special mirrors if
you cannot clearly see behind you, or
if the trailer creates a blind spot.
Askyourtrailersalesorrental
agency if any other items are
recommended or required for your
towing situation.
Since lighting and wiring vary by
trailer type and brand, you should
have a qualified technician install a
suitable connector between the
vehicle and the trailer. Improper
equipment or installation can cause
damage to your vehicle’s electrical
system and affect your vehicle
warranty.
Trailer lights and equipment must
comply with federal, state, and local
regulations. Check with your local
recreational vehicle dealer for the
requirements in your area, and use
only equipment designed for your
vehicle.
Trailer Lights Additional Towing Equipment
Towing a Trailer
170
Main Menu
Table of Contents
When preparing to tow, and before
driving away, be sure to check the
following:
The vehicle has been properly
serviced, and the tires, brakes,
suspension, cooling system, and
lights are in good operating
condition.
Your vehicle tires and spare are
properly inflated (see page ),
and the trailer tires and spare are
inflated as recommended by the
trailer maker.
The added weight, length, and
height of a trailer will affect your
vehicle’s handling and performance,
so driving with a trailer requires
some special driving skills and
techniques.
All weights and loads are within
limits (see pages and ).
The trailer has been properly
serviced and is in good condition.
Thehitch,safetychains,andany
other attachments are secure.
All items in or on the trailer are
properly secured and cannot shift
while you drive.
Foryoursafetyandthesafetyof
others,taketimetopracticedriving
maneuvers before heading for the
open road, and follow the guidelines
below.
Drive slower than normal in all
driving situations, and obey posted
speed limits for vehicles with trailers.
If you have an automatic
transmission, use D position when
towing a trailer on level roads. D is
the proper shift lever position to use
when towing a trailer in hilly terrain.
(See ‘‘ ’’ on the next
page for additional gear information.)
208
167 168
CONTINUED
3
Pre-Tow Checklist Driving Safely With a Trailer
Towing a Trailer
Towing Speeds and Gears
Driving on Hills
Driving
171
Main Menu
Table of Contents
Maketurnsmoreslowlyandwider
than normal. The trailer tracks a
smaller arc than your vehicle, and it
canhitorrunoversomethingthe
vehicle misses. Allow more time and
distance for braking. Do not brake or
turn suddenly as this could cause the
trailer to jackknife or turn over.
When climbing hills, closely watch
your temperature gauge. If it nears
the red (Hot) mark, turn the air
conditioning off, reduce speed and, if
necessary, pull to the side of the
road to let the engine cool.
If you must stop when facing uphill,
use the foot brake or parking brake.
Do not try to hold the vehicle in
placebypressingontheaccelerator,
as this can cause the automatic
transmission to overheat.
Always drive slowly and have
someone guide you when backing up.
Grip the of the steering
wheel; then turn the wheel to the left
to get the trailer to move to the left,
andturnthewheelrighttomovethe
trailer to the right.
Follow all normal precautions when
parking, including firmly setting the
parking brake and putting the
transmission in Park (automatic) or
in 1st or reverse (manual). Also,
place wheel chocks at each of the
trailer’s tires.
If the automatic transmission shifts
frequently while going up a hill, shift
to D .
When driving down hills, reduce
your speed, and shift down to second
gear. Do not ‘‘ride’’ the brakes, and
remember, it will take longer to slow
downandstopwhentowingatrailer.
Crosswinds and air turbulence
caused by passing trucks can disrupt
your steering and cause trailer to
sway. When being passed by a large
vehicle, keep a constant speed, and
steer straight ahead. Do not try to
make quick steering or braking
corrections.
bottom
3
Towing a Trailer
Making Turns and Braking
Driving on Hills
Backing Up
Parking
Handling Crosswinds and Buffeting
172
Main Menu
Table of Contents
To avoid loss of control or rollover,
be sure to follow all precautions and
recommendations.
Be sure to store cargo properly,
and do not exceed your vehicle
cargo load limits (see pages
and ).
Wherever you drive, make sure
you and your passengers always
wear seat belts.
Keep your speed low, and never
go faster than the conditions allow.
It’s up to you to continually assess
the situation and drive within the
limits.
If you decide to drive on unpaved
roads, you will find that it requires
somewhat different driving skills.
Your vehicle will also handle
somewhat differently than it does on
pavement. So be sure to read this
owner’s manual, pay special attention
to the precautions and tips in this
section, and get acquainted with
your vehicle before you leave the
pavement.
Your vehicle has been designed
primarily for use on pavement. But
its higher ground clearance allows
you to occasionally travel on unpaved
roads, such as campgrounds, picnic
sites, and similar locations. It is not
designed for trail-blazing, mountain
climbing, or other challenging off-
road activities.
146 167
General Information Important Safety Precautions
Off-Highway Driving Guidelines
Driving
173
Improperly operating this
vehicle on or off-pavement can
cause an accident or rollover in
which you and your passengers
could be seriously injured or
killed.
Follow all instructions and
guidelines in this owner’s
manual.
Keep your speed low, and
don’t drive faster than
conditions permit.
Main Menu
Table of Contents
Before you leave the pavement, be
sure to do all scheduled maintenance
and service, and inspect your vehicle
for any problems. Pay special
attention to the condition of the tires,
and check the tire pressures.
After you return to the pavement,
carefully inspect your vehicle to
make sure there is no damage that
could make driving it unsafe.
Recheck the condition of the tires
and the tire pressures.
The route presents limits (too steep
or bumpy roads). You have limits
(driving skill and comfort). And your
vehicle has limits (traction, stability,
and power).
Driving off-highway can be
hazardous if you fail to recognize
limits and take the proper
precautions.
Forbettertractiononallsurfaces,
accelerate slowly and gradually build
up speed. If you try to start too fast
on wet soil, mud, snow, or ice, you
might not have enough traction to
get underway, and you may dig
yourself a hole. Starting with the
shift lever in second (2) gear will
help you have a smoother start on
snow or ice.
Keep in mind that you will usually
need more time and distance to
brake to a stop on unpaved surfaces.
Avoid hard braking. Do not ‘‘pump’’
the brakes; let the anti-lock braking
system pump them for you.
Debris in the road can damage your
suspension or other components.
Because your vehicle has a high
center of gravity, driving over a large
obstacle, or allowing a wheel to drop
into a deep hole can cause your
vehicle to tip or roll over.
If you can’t clearly see all conditions
or obstacles on a slope, walk the
slope before you drive on it. If you
have any doubt whether or not you
can safely drive on the slope, don’t
do it. Find another route.
If you are driving up a hill and find
that you cannot continue,
. Your vehicle could roll
over. Slowly back down the hill,
following the same route you took up
the hill.
do not try to
turn around
Off-Highway Driving Guidelines
Check Out Your Vehicle
Remember
Accelerating and Braking Avoiding Obstacles
Driving on Slopes
174
Main Menu
Table of Contents
Avoid driving through deep water. If
you encounter water in your route (a
small stream or large puddle, for
example), evaluate it carefully before
going ahead. Make sure it is shallow,
flowing slowly, and has firm ground
underneath. If you are not sure of
the depth or the ground, turn around
andfindanotherroute.
Driving through deep water can also
damage your vehicle. The water can
get into the transmission and
differential, diluting the lubricant
and causing an eventual failure. It
can also wash the grease out of the
wheel bearings.
Avoid driving on soft sand, deep mud,
or other surfaces where you could
get stuck. If you do happen to get
stuck because of inclement weather
or other conditions, choose a safe
and appropriate course of action.
You should never use a jack to try
getting unstuck. A jack only works
on firm, level ground. Also, your
vehicle could easily slip off the jack
and hurt you or someone else.
If you spin the wheels excessively
trying to get unstuck, you may
overheat the components of the
4-wheel drive system. If this happens,
the 4-wheel drive system shuts off
and only the front wheels receive
power. If this happens, stop and
allow everything to cool down. The
4-wheel drive system will work again
after its temperature drops.
If you slip the clutch for a long time
while trying to get unstuck, you may
overheat and damage it.
Off-Highway Driving Guidelines
If You Get StuckCrossing a Stream
4-Wheel Drive Vehicles
Driving
175
Main Menu
Table of Contents
Main Menu
This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
If you have the skills and tools to
perform more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page for information on how to
obtain a copy, or see your dealer.
This section also includes
instructions on how to read the
maintenance minder messages on
the information display, a
maintenance record, and instructions
for simple maintenance tasks you
may want to take care of yourself.
......................Maintenance Safety . 178
....................Maintenance Minder . 179
....................Maintenance Record . 186
..............................Fluid Locations . 188
........................Adding Engine Oil . 189
Changing the Engine Oil and
...........................................Filter . 190
..............................Engine Coolant . 192
....................Windshield Washers . 193
.......................Transmission Fluid . 194
Automatic Transmission
.......................................Fluid . 194
...Manual Transsmission Fluid . 195
.................Rear Differential Fluid . 196
................Brake and Clutch Fluid . 196
....................Power Steering Fluid . 197
............Cleaning the Body Panels . 197
.............................................Lights . 198
................Cleaning the Seat Belts . 205
.....................................Floor Mats . 205
..................Dust and Pollen Filter . 206
.................................Wiper Blades . 206
...........................................Wheels . 208
...............................................Tires . 208
...................Checking the Battery . 214
.............................Vehicle Storage . 215
261
Maintenance
Maintenance
177
Main Menu
To eliminate potential hazards, read
the instructions before you begin,
and make sure you have the tools
and skills required.
To clean parts, use a commercially
available degreaser or parts
cleaner, not gasoline.
To reduce the possibility of fire or
explosion, keep cigarettes, sparks,
and flames away from the battery
and all fuel-related parts.
Wear eye protection and
protective clothing when working
with the battery or compressed air.
Be sure there is
adequate ventilation whenever you
operate the engine.
Let the
engine and exhaust system cool
down before touching any parts.
Do
not run the engine unless
instructed to do so.
Some of the most important safety
precautions are given here. However,
we cannot warn you of every
conceivable hazard that can arise in
performing maintenance. Only you
can decide whether or not you
should perform a given task.
Make sure your vehicle is parked
on level ground, the parking brake
is set, and the engine is off.
All service items not detailed in this
section should be performed by a
certified technician or other qualified
mechanic.
Maintenance Safety
Important Safety Precautions
Potential Vehicle Hazards
Carbon Monoxide poison from
engine exhaust.
Burns from hot parts.
Injury from moving parts.
178
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
Improperly maintaining this
vehicle, or failing to correct a
problem before driving can
cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection
and maintenance
recommendations and
schedules in this owner’s
manual.
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−
−
CONTINUED
Calculated Engine
Oil Life (%)
100 % 91 %
90 % 81 %
80 % 71 %
70 % 61 %
60 % 51 %
50 % 41 %
40 % 31 %
30 % 21 %
20 % 16 %
15 % 11 %
10 % 6 %
5% 1%
0%
Displayed
Engine Oil Life (%)
100 %
90 %
80 %
70 %
60 %
50 %
40 %
30 %
20 %
15 %
10 %
5%
0%
Based on the engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your vehicle calculates the remaining
engine oil life and displays it as a
percentage.
The remaining engine oil life is
shownonthedisplayaccordingto
this table:
Toseethecurrentengineoillife,
turntheignitionswitchtotheON
(II)position,thenpressandrelease
theselect/resetknobrepeatedly
until the engine oil life indicator
appears (see page ).
Your vehicle displays engine oil life
and maintenance service items on
the information display to show you
when you should have your dealer do
engine oil replacement and indicated
maintenance service.
68
Maintenance Minder
Engine Oil Life Display
Maintenance
179
ENGINE OIL LIFE INDICATOR
SELECT/RESET KNOB
Main Menu
Table of Contents
If the remaining engine oil life is 15
to 6 percent, you will see the engine
oil life indicator every time you turn
the ignition switch to the ON (II)
position. The maintenance minder
indicator will also come on, and the
maintenance item code(s) for other
scheduled maintenance items
needing service will be displayed
below the ‘‘OIL LIFE’’ message.
When the remaining engine oil life is
5 to 1 percent, you will see a
‘‘SERVICE’’ message along with the
same maintenance item code(s),
everytimeyouturntheignition
switch to the ON (II) position.
The 15 and 10 percent oil life
indicator reminds you that the time
is coming soon to take your vehicle
in for the required maintenance.
Maintenance Minder
180
MAINTENANCE
ITEM CODE(S)
ENGINE OIL LIFE
INDICATOR
MAINTENANCE MINDER INDICATOR
Main Menu
Table of Contents
If you do not perform the indicated
maintenance, negative mileage is
displayed and begins to blink after
the vehicle has been driven 10 miles
(10 km) or more.
When the remaining engine oil life is
0 percent, the engine oil life indicator
will blink. The display comes on
everytimeyouturntheignition
switch to the ON (II) position. The
maintenance minder indicator
( ) also comes on and remains
on in the instrument panel. When
you see this message, immediately
have the indicated maintenance
performed by your dealer.
The maintenance item code or codes
indicate the main and sub items
required at the time of the oil change
(see page ).
You can switch the information
display from the engine oil life
display to the odometer or the trip
meter. Press and release the select/
reset knob on the instrument panel.
Whentheengineoillifeis15to1
percent, the maintenance minder
indicator ( ) comes on every
time you turn the ignition switch to
the ON (II) position, then it goes out
if you switch the information display.
When you see this message, have
the indicated maintenance
performed by your dealer as soon as
possible.
Negative mileage means your
vehicle has passed the maintenance
required point.
Immediately have the indicated
maintenance done by your dealer.
182
CONTINUED
Maintenance Minder
Maintenance
181
NEGATIVE MILEAGE
Main Menu
Table of Contents
Your dealer will reset the display
after completing the required
maintenance service. You will see
‘‘OIL LIFE 100%’’ on the information
display the next time you turn the
ignition switch to the ON (II)
position.
If maintenance service is done by
someone other than your dealer,
reset the maintenance minder as
follows:
Turn the ignition switch to the ON
(II) position.
Presstheselect/resetknob
repeatedlyuntiltheengineoillife
isdisplayed.
All maintenance items displayed in
the information display are in code.
For an explanation of these
maintenance codes, see page .
To change the information display
from the engine oil life display to the
odometer or the trip meter, press
and release the select/reset knob.
When the engine oil life is 0 percent
or negative mileage, the
maintenance minder indicator
( )remainsonevenifyou
change the information display.
Immediately have the service
performed, and make sure to reset
the display as described on the
following.
1.
2.185
Maintenance Minder
Resetting the Engine Oil Life
Display
Maintenance Main Items and Sub
Items
182
MAINTENANCE MAIN ITEM
MAINTENANCE SUB ITEM(S)
Main Menu
Table of Contents
Your authorized Honda dealer
knows your vehicle best and can
provide competent, efficient service.
If you have the required service
done but do not reset the display, or
reset the display without doing the
service, the system will not show the
proper maintenance intervals. This
canleadtoseriousmechanical
problems because you will no longer
have an accurate record of when
maintenance is needed.
Press and hold the select/reset
knob for about 10 seconds. The
engine oil life and the maintenance
item code(s) will blink.
Press the select/reset knob for
another 5 seconds. The
maintenance item code(s) will
disappear, and the engine oil life
will reset to "100."
4.3.
CONTINUED
Maintenance Minder
Important Maintenance
Precautions
Maintenance
183
Main Menu
Table of Contents
＃
−
−
−
−
−
−
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualified service facility or
person who is skilled in this type of
automotive service. Make sure to
have the service facility or person
reset the display as previously
described. Keep all receipts as proof
of completion, and have the person
who does the work fill out the
maintenance record. Check your
warranty booklet for more
information.
We recommend using Honda parts
and fluids whenever you have
maintenance done. These are
manufactured to the same high
quality standards as the original
components, so you can be confident
of their performance and durability.
U.S. Vehicles:
According to state and federal
regulations, failure to perform
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
performed in accordance with the
intervals indicated by the
information display.
Youshouldcheckthefollowing
items at the specified intervals. If
you are unsure of how to perform
any check, turn to the appropriate
page listed.
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you fill the fuel tank. See page .
Automatic transmission Check
the fluid level monthly. See page
.
Brakes Check the fluid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
.
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page .198
209
196
141
141
194
Maintenance Minder
Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certified’’ to EPA
standards.
Owner’s Maintenance Checks
184
Main Menu
Table of Contents
＊
＊
＃
＃
＊
＃
＊
＊
Maintenance Minder
185
:
See information on maintenance and emissions warranty on page .
Inspect idle speed every 160,000 miles (256,000 km).
Adjust the valves during services A, B, 1, 2, or 3 only if they are noisy.
If the message ‘‘SERVICE’’ does not appear more than 12 months after the
display is reset, change the engine oil every year.
Independent of the maintenance items in the information display, replace
the brake fluid every 3 years.
NOTE:
1:
2:
186
Maintenance Main Items
Replace engine oil
Replace engine oil and oil filter
Inspect front and rear brakes
Check parking brake adjustment
Inspect these items:
Tie rod ends, steering gear box, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Maintenance Sub Items
Rotate tires
Replace air cleaner element
If you drive in dusty conditions, replace
every 15,000 miles (24,000 km).
Replace dust and pollen filter
If you drive primarily in urban areas that have high
concentrations of soot in the air from industry and
from diesel-powered vehicles, replace every 15,000
miles (24,000 km).
Inspect drive belt
Replace transmission fluid
Driving in mountainous areas at very low vehicle
speeds results in higher transmission temperatures.
This requires transmission fluid changes more
frequently than recommended by the maintenance
minder. If you regularly drive your vehicle under
these conditions, have the transmission fluid
changed at 60,000 miles (100,000 km), then every
30,000 miles (48,000 km) .
Replace spark plugs
Inspect valve clearance
Replace engine coolant
Replace rear differential fluid (4WD models only)
A
B
Symbol Symbol
1
2
3
4
5
Automatic transmission
6
1
1
2
Maintenance Minder
Main Menu
Table of Contents
Maintenance Record
186
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
Mileage
km
km
km
km
km
km
km
Signature
Date
Mileage
km
km
km
km
km
km
km
Signature
Date
Maintenance
Performed
AB123456
AB123456
AB123456
AB123456
AB123456
AB123456
AB123456
Maintenance
Performed
AB123456
AB123456
AB123456
AB123456
AB123456
AB123456
AB123456
You or the servicing dealer can record all completed maintenance here. When maintenance is performed, record the mileage, circle the coded item(s)
completed, and write in any other non-coded items (such as brake fluid replacement) below the codes. Keep the receipts for all work done on your
vehicle. Maintenance can also be recorded in your Honda service history booklet.
Main Menu
Table of Contents
Maintenance Record
Maintenance
187
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
mi
Signature
Date
Mileage
km
km
km
km
km
km
km
Mileage
km
km
km
km
km
km
km
Signature
Date
Maintenance
Performed
AB123456
AB123456
AB123456
AB123456
AB123456
AB123456
AB123456
Maintenance
Performed
AB123456
AB123456
AB123456
AB123456
AB123456
AB123456
AB123456
Main Menu
Table of Contents
Fluid Locations
188
RADIATOR CAP
ENGINE
COOLANT
RESERVOIR
WASHER FLUID
(Blue cap)
ENGINE OIL
FILL CAP
POWER
STEERING FLUID
(Red cap)
ENGINE OIL
DIPSTICK
(Orange tab)
BRAKE FLUID
(Gray cap)
CLUTCH FLUID
(Manual
Transmission only)
(Gray cap)
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
Main Menu
Table of Contents
Oil is a major contributor to your
engine’s performance and longevity.
Always use a premium-grade 5W-20
detergent oil displaying the API
certification seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements.
Honda motor oil is the preferred
5W-20 lubricant for your vehicle. It is
highly recommended that you use
Honda motor oil in your vehicle for
optimum engine protection. Make
sure the API certification seal says
‘‘For Gasoline Engines.’’
The oil viscosity or weight is
provided on the container’s label.
5W-20 oil is formulated for year-
round protection of your vehicle to
improve cold weather starting and
fuel economy.
Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and carefully so
you do not spill. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment. Install the engine oil
fill cap, and tighten it securely. Wait
a few minutes, and recheck the oil
level. Do not fill above the upper
mark; you could damage the engine.
Recommended Engine OilAdding Engine Oil
Adding Engine Oil
Maintenance
189
ENGINE OIL FILL CAP
API CERTIFICATION SEAL
Ambient Temperature
Main Menu
Table of Contents
Your vehicle does not require any oil
additives. Additives may adversely
affect the engine or transmission
performance and durability.
Open the hood, and remove the
engine oil fill cap. Remove the oil
drain bolt and washer from the
bottom of the engine. Drain the oil
into an appropriate container.
Run the engine until it reaches
normal operating temperature,
then shut it off.
Always change the oil and filter
according to the maintenance
messages shown on the information
display. The oil and filter collect
contaminants that can damage your
engine if they are not removed
regularly.
Changing the oil and filter requires
special tools and access from
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lift for this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
You may use a synthetic motor oil if
it meets the same requirements
given for a conventional motor oil, it
displays the API certification seal,
and it is the proper weight. You must
follow the oil and filter change
intervals shown on the maintenance
minder display.
1.
2.
Synthetic Oil
Engine Oil Additives
Changing the Engine Oil and
Filter
Adding Engine Oil, Changing the Engine Oil and Filter
190
WASHER
OIL DRAIN BOLT
Main Menu
Table of Contents
Remove the oil filter and let the
remaining oil drain. A special
wrench (available from your
dealer) is required.
Install a new oil filter according to
the instructions that come with it.
Turn off the engine and let it sit
for several minutes, then check
the oil level on the dipstick. If
necessary, add more oil.
Let the engine run for several
minutes, then check the drain bolt
and oil filter for leaks.
Replace the engine oil fill cap.
Start the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn off the
engine, and check your work.
Refill the engine with the recom-
mended oil.
Engine oil change capacity
(including filter):
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten the drain bolt to:
Check the oil filter to make sure its
gasket did not stick to the engine
block. A stuck gasket could cause an
oil leak.
4.
3.
5.
6.
7.
8.
9.
Changing the Engine Oil and Filter
Maintenance
191
OIL FILTER
4.4 US qt (4.2 )
33 lbf·ft (44 N·m , 4.5 kgf·m)
Improper disposal of engine oil can be
harmf ul to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container, and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.
Main Menu
Table of Contents
If Honda antifreeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended for aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malfunction or fail. Have the cooling
system flushed and refilled with
Honda antifreeze/coolant as soon as
possible.
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
Always use Honda Long-life Anti-
freeze/Coolant Type 2. This coolant
is pre-mixed with 50 percent
antifreeze and 50 percent water.
Never add straight antifreeze or
plain water.
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system for leaks.
Adding Engine Coolant
Engine Coolant
192
RESERVE TANK
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
The coolant level should be up to
the base of the filler neck. Add
coolant if it is low.
Pourthecoolantslowlyand
carefully so you do not spill any.
Clean up any spill immediately; it
could damage components in the
engine compartment.
Put the radiator cap back on and
tighten it.
Pour coolant into the reserve tank.
Fill it to halfway between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.
Fill the reservoir with a good-quality
windshield washer fluid. This
increases the cleaning capability and
prevents freezing in cold weather.
Check the fluid level in the
windshield washer reservoir at least
monthly during normal use.
The low washer
level indicator comes on when the
level is low (see page ).
When you refill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition them.
Remove the radiator cap by
pushing down and turning
counterclockwise.
Make sure the engine and radiator
are cool.
Relieve any pressure in the cooling
system by turning the radiator cap
counterclockwise, without
pressing down.
4.
5.
2.
1.
3.
6.
63
On Canadian models:
Windshield Washers
Engine Coolant, Windshield Washers
Maintenance
193
RADIATOR CAP
Do not use engine antifreeze or a
vinegar/water solution in the
windshield washer reservoir. Antif reeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer f luid.
Main Menu
Table of Contents
Park the vehicle on level ground.
Turn off the engine. For accurate
results, wait at least 60 seconds,
andnomorethan90seconds,
after turning off the engine to
check the fluid level.
Check the fluid level with the engine
at normal operating temperature.
Remove the dipstick (yellow loop)
from the transmission, and wipe it
with a clean cloth.
Insert the dipstick all the way into
the transmission securely as
shown in the illustration.
Remove the dipstick and check
the fluid level. It should be
between the upper and lower
marks.
3.
4.
2.
1.
Transmission Fluid
Automatic Transmission Fluid
194
DIPSTICK
LOWER
MARK
UPPER
MARK
Main Menu
Table of Contents
Put a new washer on the filler bolt,
then reinstall the filler bolt and
tighten it securely.
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certification seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
The transmission should be drained
and refilled with new fluid according
to the time and distance recommen-
dations in the maintenance schedule.
Check the fluid level with the
transmission at normal operating
temperature and the vehicle on level
ground. Remove the transmission
filler bolt, and carefully feel inside
the bolt hole with your finger. The
fluid level should be up to the edge
of the bolt hole. If it is not, add
Honda Manual Transmission Fluid
(MTF) until it starts to run out of the
hole.
If you are not sure how to check and
add fluid, contact your dealer.
Pour the fluid slowly and carefully
so you do not spill any. Clean up
any spill immediately; it could
damage components in the engine
compartment.
If the level is below the lower
mark, add fluid into the filler hole
to bring it to the upper mark.
Always use Honda ATF-Z1
(automatic transmission fluid). If
it’s not available, you may use a
DEXRON
III automatic
transmission fluid as a temporary
replacement. However, continued
use can affect the shift quality.
Have the transmission flushed and
refilled with Honda ATF-Z1 by
your dealer as soon as it is
convenient.
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
If you are not sure how to add fluid,
contact your dealer.
5.
6.
Transmission Fluid
Manual Transmission Fluid
Maintenance
195
FILLER BOLT
Correct Level
WASHER
Main Menu
Table of Contents
The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected for leaks or
worn brake pads.
Check the brake fluid level in the
reservoirs monthly.
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 fluid, from a sealed
container, as a temporary
replacement.
Using any non-Honda brake fluid can
cause corrosion and decrease the life
of the system. Have the brake
system flushed and refilled with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Brake fluid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.
Replace the brake fluid according to
the time recommendations shown on
the maintenance minder display.
Use Honda Dual Pump Fluid only.
Do not use automatic transmission
fluid (ATF).
The rear differential should be
drained and refilled with new fluid
accordingtothetimeanddistance
recommendations shown on the
maintenance minder display. Have
your dealer replace the rear
differential fluid.
4WD model only
Brake FluidRear Differential Fluid
Rear Differential Fluid, Brake and Clutch Fluid
196
MAX
MIN
Main Menu
Table of Contents
A low power steering fluid level can
indicate a leak in the system. Check
the fluid level frequently, and have
the system inspected as soon as
possible.
To clean the gray composite body
panels, wash them with soap and
water only. Do not apply wax to the
panels; it will cause discoloration.
Always use Honda Power Steering
Fluid. You may use another power
steering fluid as an emergency
replacement, but have the power
steering system flushed and refilled
with Honda PSF as soon as possible.
Check the level on the side of the
reservoir when the engine is cold.
The fluid should be between the
UPPER LEVEL and LOWER LEVEL.
If not, add power steering fluid to the
UPPER LEVEL.
Pour the fluid slowly and carefully so
you do not spill any. Clean up any
spill immediately; it could damage
components in the engine
compartment.
The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake fluid to bring it up to that level.
Use the same fluid specified for the
brake system.
A low fluid level can indicate a leak
in the clutch system. Have this
system inspected as soon as possible.
If equipped with body panels
Manual Transmission only
Cleaning the Body Panels
Power Steering FluidClutch Fluid
Brake and Clutch Fluid, Power Steering Fluid, Cleaning the Body Panels
Maintenance
197
UPPER LEVEL
LOWER LEVEL
MAX
MAX
Turning the steering wheel to f ull lef t
or right lock and holding it there can
damage the power steering pump.
Main Menu
Table of Contents
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area or pull a trailer,
readjustment may be required.
Adjustmentsshouldbedonebyyour
dealer or other qualified technician.
Your vehicle has halogen headlight
bulbs. Handle it by its steel base and
protect the glass from contact with
your skin or hard objects. If you
touch the glass, clean it with
denaturedalcoholandacleancloth.
Your vehicle has halogen headlight
bulbs, two on each side. When
replacing a bulb, handle it by its base
and protect the glass from contact
with your skin or hard objects. If you
touch the glass, clean it with
denaturedalcoholandacleancloth.
Open the hood.
If you need to change the
headlight bulb on the driver’s side,
remove the front end of the air
intake duct by pulling it out.
1.
On SC model
On all models except SC
On all models except SC
Headlight Aiming Replacing a Headlight Bulb
Lights
198
AIR INTAKE DUCT
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
Main Menu
Table of Contents
Reinstall the rubber weather seal.
Make sure it is right side up; it is
marked ‘‘TOP.’’
Install the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place, and clip the end into
the slot.
Push the electrical connector onto
the new bulb. Make sure it is
connected securely. Turn on the
headlights to test the new bulb.
(Driver’s side)
Install the front end of the air
intake duct.
Remove the rubber weather seal
by pulling on the tab.
Remove the electrical connector
from the bulb by pulling the
connector straight back.
Unclip the end of the hold-down
wire from its slot. Pivot the wire
out of the way, then remove the
bulb.
The high beam headlight bulb and
the low beam headlight bulb are
replaced the same way.
Open the hood.
If you need to change the
headlight bulb on the driver’s side,
remove the front end of the air
intake duct by pulling it out.
1.
2.
3.
4.
5.
6.
7.
8.
CONTINUED
On SC model
Lights
Maintenance
199
AIR INTAKE DUCT
Main Menu
Table of Contents
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Turn on the headlights to test the
new bulb.
(Driver’s side)
Install the front end of the air
intake duct.
Insert the new bulb into the hole,
and turn it one-quarter turn
clockwise to lock it in place.
Remove the bulb by turning it one-
quarter turn counterclockwise.
Remove the electrical connector
from the bulb by pushing on the
tab and pulling the connector
down.
3.
4.
5.
6.
7.
2.
Lights
Replacing a Front Parking/Turn
Signal Light Bulb
200
On all models except SC
On SC model
TAB
Main Menu
Table of Contents
Remove the socket from the light
assembly by turning it one-quarter
turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Place a cloth between the trim of
the lens and the body, at the top of
the lens. Remove the front side
marker light assembly by carefully
prying on the trim of the lens with
a small flat-tip screwdriver.
The front parking/turn signal light
is next to the headlight bulb. On
the driver’s side, remove the front
end of the air intake duct by
pulling it out (see page ).
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Install the front end of the air
intake duct.
1. 2.
3.
1.
2.
3.
4.
5.
6.
198
(Driver’s side)
CONTINUED
On all models except SC
Lights
Replacing a Front Side Marker
Light Bulb
Maintenance
201
SCREWDRIVER
CLOTH
LIGHT
ASSEMBLY
LIGHT ASSEMBLY
SOCKET
Main Menu
Table of Contents
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
The front side marker light is next
to the headlight bulb. On the
driver’s side, remove the front end
of the air intake duct by pulling it
out (see page ).
Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Turn on the lights to make sure
the new bulb is working.
Put the light assembly back into
the body, bottom first. Push on the
top edge until it snaps into place.
Remove the socket from the light
assembly by turning it one-quarter
turn counterclockwise.
Testthelightstomakesurethe
new bulb is working.
Install the front end of the air
intake duct.
Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
1.
3.
2.
4.
5.
6.
4.
5.
6.
199
On SC model
Lights
202
Main Menu
Table of Contents
Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Testthelightstomakesurethe
new bulb is working.
When reinstalling the taillight
assembly, first place the two pins
in the holes in place. Tighten the
two mounting bolts.
Remove the socket by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Open the hatch and the tailgate.
Remove the two mounting screws
with a Phillips-head screwdriver,
and remove the taillight assembly
from the body by pulling it back.
Determine which of the three
bulbs is burned out: brake/
taillight, turn signal light or back-
up light.
6.
7.
5.
3.
4.
1.
2.
Lights
Replacing Rear Bulbs
Maintenance
203
SOCKET
SOCKET
SOCKET
SCREW
SCREW
TAILLIGHT ASSEMBLY
Main Menu
Table of Contents
Open the hatch. Remove the light
assembly cover by pushing in on
the tabs on both sides and pulling
the cover down.
Remove the socket from the light
assembly by turning it one-quarter
turn counterclockwise.
Turn on the parking lights and
check that the new bulb is
working.
Put the lens back into the light
assembly, right side first. Push on
the left edge until it snaps into
place.
Using a cloth to prevent scratches,
insert a small flat-tip screwdriver
between the left edge of the lens
and the housing. The lens will
come down.
Pull the bulb straight out of its
socket. Push the new bulb in until
it bottoms in the socket.
1.
2.
3.
4.
1.
2.
Lights
Replacing a High-mount Brake
Light Bulb
Replacing a Rear License Plate
Bulb
204
COVER
TAB TAB
BULB
LENS
SCREWDRIVER
HOUSING
LENS
CLOTH
Main Menu
Table of Contents
The floor mats that came with your
vehicle hook over the floor mat
anchors. This keeps them from
sliding forward and possibly
interfering with vehicle operation.
If you remove the driver’s floor mat,
make sure to re-anchor it when you
putitbackinyourvehicle.
If your seat belts get dirty, use a soft
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air-dry before
you use the vehicle.
Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Press the brake pedal to make
sure the new bulb is working.
Put the socket back into the light
assembly, and turn it clockwise to
lock it in place.
Put the cover back onto the light
assembly. Push it on until it locks
in place.
3.
4.
5.
6.
CONTINUED
If equipped
Cleaning the Seat Belts Floor Mats
Cleaning the Seat Belts, Floor Mats
Maintenance
205
LOOP
BULBSOCKET
Main Menu
Table of Contents
If you use non-Honda floor mats,
make sure they fit properly and that
theycanbeusedwiththefloormat
anchors. Do not put additional floor
mats on top of the anchored mats.
Check the condition of the wiper
blades at least every 6 months.
Replace them if you find signs of
cracking in the rubber, areas that are
getting hard, or if they leave streaks
and unwiped areas when used.
Front:
Raise the wiper arm off the
windshield.
Raise the wiper arm off the hatch
glass and hold it.
Rear:
This filter removes the dust and
pollenthatisbroughtinfromthe
outside through the heating and
cooling system.
Have your dealer replace the filter
when this service is indicated by a
maintenance message on the
information display. It should be
replaced every 15,000 miles (24,000
km) if you drive primarily in urban
areas that have high concentrations
of soot in the air, or if the flow from
the heating and cooling system
becomeslessthanusual.
1.
Floor Mats, Dust and Pollen Filter, Wiper Blades
Wiper BladesDust and Pollen Filter
206
Do not open the hood when the wiper
arms are raised, or you will damage
the hood and the arms.
Main Menu
Table of Contents
Slide the new wiper blade into the
holder until the tabs lock.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm down against
the windshield or the hatch glass.
Examine the new wiper blades. If
they have no plastic or metal
reinforcement along the back
edge, remove the metal
reinforcement strips from the old
wiper blade, and install them in
the slots along the edge of the new
blade.
Disconnect the blade assembly
fromthewiperarmbypushingin
the lock tab. Hold the lock tab in
while you push the blade assembly
toward the base of the arm.
If you are changing the rear wiper
blade, go to step 6.
Remove the blade from its holder
by grasping the tabbed end of the
blade. Pull firmly until the tabs
come out of the holder.
5.
6.
7.
4.2.
3.
Wiper Blades
Maintenance
207
REINFORCEMENT
BLADE
HOLDER
BLADE
LOCK TAB
Main Menu
Table of Contents
Keeping the tires properly inflated
provides the best combination of
handling, tread life, and riding
comfort.
Underinflated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinflated tires can make your
vehicleridemoreharshly,are
more prone to damage from road
hazards, and wear unevenly.
To safely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inflated.
The following pages give more
detailed information on how to take
care of your tires and what to do
when they need to be replaced.
Clean the wheels as you would the
rest of the exterior. Wash them with
thesamesolution,andrinsethem
thoroughly.
Aluminum alloy wheels have a
protective clear-coat that keeps the
aluminum from corroding and
tarnishing. Cleaning the wheels with
harsh chemicals (including some
commercial wheel cleaners) or a stiff
brush can damage the clear-coat. To
clean the wheels, use a mild
detergent and a soft brush or sponge.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.
If equipped
Tires Inflation GuidelinesWheels
Wheels, Tires
208
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
Main Menu
Table of Contents
Youshouldgetyourowntire
pressure gauge and use it whenever
you check your tire pressures. This
will make it easier for you to tell if a
pressure loss is due to a tire problem
and not due to a variation between
gauges.
Use a gauge to measure the air
pressure in each tire at least once a
month. Even tires that are in good
condition may lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf/cm ) per
month. Remember to check the
sparetireatthesametime.
If you check air pressures when the
tires are hot (driven for several
miles), you will see readings 4 to 6
psi (30 to 40 kPa, 0.3 to 0.4 kgf/cm )
higher than the cold readings. This
is normal. Do not let air out to match
the recommended cold air pressure.
The tire will be underinflated.
While tubeless tires have some
ability to self-seal if they are
punctured, you should look closely
for punctures if a tire starts losing
pressure.
Check the air pressures when the
tires are cold. This means the
vehicle has been parked for at least 3
hours, or driven less than 1 mile (1.6
km). Add or release air, if needed, to
match the recommended cold tire
pressures.
The tire pressure monitoring system
(TPMS) warns you when a tire
pressure is low. See page for
more information.
The following chart shows the
recommended cold tire pressures for
most normal and high-speed driving
conditions.
163
CONTINUED
Tire Size Cold Tire Pressure
for Normal Driving
Tire Size Cold Tire Pressure
for Normal Driving
Front:
Rear:
Front/Rear:
All models except SC
SC model
Tires
Recommended Tire Pressures
Maintenance
209
P215/70R16 99S
33 psi (230 kPa ,
2.3 kgf/cm )
35 psi (240 kPa ,
2.4 kgf/cm
)
32 psi (220 kPa ,
2.2 kgf/cm
)
P225/55R18 97H
Main Menu
Table of Contents
Your tires have wear indicators
molded into the tread. When the
tread wears down, you will see a
band 1/2 inch (12.7 mm) wide band
across the tread. This shows there is
less than 1/16 inch (1.6 mm) of tread
left on the tire.
A tire this worn gives very little
traction on wet roads. You should
replace the tire if you can see three
or more tread wear indicators.
Every time you check inflation, you
should also examine the tires for
damage, foreign objects, and wear.
Youshouldlookfor:
Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitheroftheseconditions.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see fabric or cord.
Excessive tread wear.
Thecompactsparetirepressureis:
For convenience, the recommended
tire sizes and cold tire pressures are
on a label on the driver’s doorjamb.
For additional technical information
about your tires, see page .246
Tires
Tire Inspection
210
TREAD WEAR INDICATORS
INDICATOR LOCATION MARKS
60 psi (420 kPa , 4.2 kgf/cm )
Main Menu
Table of Contents
Replace your tires with radial tires of
the same size, load range, speed
rating, and maximum cold tire
pressure rating (as shown on the
tire’s sidewall).
Mixing radial and bias-ply tires on
your vehicle can reduce braking
ability, traction, and steering
accuracy. Using tires of a different
size or construction can cause the
ABS to work inconsistently.
TheABSworksbycomparingthe
speed of the wheels. When replacing
tires, use the same size originally
supplied with the vehicle. Tire size
and construction can affect wheel
speed and may cause the system to
activate.
To help increase tire life and
distribute wear more evenly, rotate
the tires according to the
maintenance messages displayed on
the information display. Move the
tires to the positions shown in the
chart each time they are rotated. If
you purchase directional tires, rotate
only front-to-back.
In addition to proper inflation,
correct wheel alignment helps to
decrease tire wear. If you find a tire
is worn unevenly, have your dealer
check the wheel alignment.
Have your dealer check the tires if
you feel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed from the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comfort and tire life. For best results,
have the installer perform a dynamic
balance.
CONTINUED
Replacing Tires and WheelsTire RotationTire Maintenance
Tires
Maintenance
211
Front
Front
(For Non-directional
Tires and Wheels)
(For Directional
Tires and Wheels)
On vehicles with aluminum wheels,
improper wheel weights can damage
your vehicle’s wheels. Use only Honda
wheel weights f or balancing.
Main Menu
Table of Contents
Wheels:
Tires:
See page for DOT tire quality
grading information, and page
for tire size and labeling
information.
It is best to replace all four tires at
thesametime.Ifthatisnotpossible
or necessary, replace the two front
tires or two rear tires as a pair.
Replacing just one tire can seriously
affect your vehicle’s handling.
If you ever replace a wheel, make
sure that the wheel’s specifications
match those of the original wheels.
Replacement wheels are available at
your dealer.
246
248
(SC model)
(SC model)
(On all models except SC)
(On all models except SC)
Wheel and Tire Specif ications
Tires
212
16x61/2JJ
P215/70R16 99S
18 x 7JJ
P225/55R18 97H
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
Main Menu
Table of Contents
＋ Because your vehicle has limited tire
clearance, Honda strongly
recommends using the chains listed
below, made by Security Chain
Company (SCC).
Because your vehicle has limited tire
clearance, use only SAE Class ‘‘S’’
cable-type traction devices, with
rubber chain tensioners, on the front
tires. Use traction devices only when
required by driving conditions or
local laws. Make sure they are the
correct size for your tires. Metal link-
type ‘‘chains’’ should not be used.
When installing cables, follow the
manufacturer’s instructions, and
mount them as tight as you can.
Make sure they are not contacting
the brake lines or suspension. Drive
slowly with them installed. If you
hear them coming into contact with
the body or chassis, stop and
investigate. Remove them as soon as
youbegindrivingonclearedroads.
Tires marked ‘‘M S’’ or ‘‘All
Season’’ on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best performance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
If you mount snow tires on your
vehicle, make sure they are radial
tires of the same size and load range
as original tires. Mount snow tires on
all four wheels. The traction
provided by snow tires on dry roads
maybelowerthanyouroriginaltires.
Check with the tire dealer for
maximum speed recommendations.
Cable-type:SCC Super Z6 SZ 139
SC model
On all models except SC
Tire ChainsWinter Driving
Snow Tires
Tires
Maintenance
213
Traction devices that are the wrong
size or improperly installed can
damage your vehicle’s brake lines,
suspension, body, and wheels. Stop
driving if they are hitting any part of
the vehicle.
Main Menu
Table of Contents
−
Check the condition of the battery
monthlybylookingatthetest
indicator window. The label on the
battery explains the test indicator’s
colors.
Check the terminals for corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it off with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
future corrosion.
If additional battery maintenance is
needed, see your dealer or a
qualified technician.
Battery posts,
terminals, and related accessories
contain lead and lead compounds.
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last.
If your vehicle’s battery is
disconnected, or goes dead, the time
setting may be lost. To reset the time,
see page .
If your vehicle’s battery is
disconnected, or goes dead, the
audio system will disable itself. The
nexttimeyouturnontheradio,you
will see ‘‘ENTER CODE’’ in the
frequency display. Use the preset
buttons to enter the code (see page
).
130
129
On EX and SC models
Checking the Battery
WARNING:
Wash your hands after handling.
214
TEST INDICATOR
WINDOW
POSITIVE TERMINAL
NEGATIVE TERMINAL
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
technician do the battery
maintenance.
Main Menu
Table of Contents
Fill the fuel tank.
Change the engine oil and filter.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc., are
completely dry.
Block the rear wheels.
If the vehicle is to be stored for a
longer period, it should be
supported on jackstands so the
tires are off the ground.
Cover the vehicle with a
‘‘breathable’’ cover, one made
from a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
If you need to park your vehicle for
an extended period (more than 1
month), there are several things you
should do to prepare it for storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors. Leave one window open slightly (if
the vehicle is being stored
indoors).
Disconnect the battery.
Support the front and rear wiper
blade arms with a folded towel or
ragsotheydonottouchthe
windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and tailgate seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and tailgate seals.
Leave the parking brake off. Put
the transmission in reverse
(manual) or Park (automatic).
If possible, periodically run the
engine until it reaches full
operating temperature (the
cooling fans cycle on and off
twice). Preferably, do this once a
month.
Vehicle Storage
Maintenance
215
Main Menu
Table of Contents
Main Menu
This section covers the more
common problems that motorists
experience with their vehicles. It
gives you information about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also find instructions
on getting your vehicle towed.
......................Compact Spare Tire . 218
....................Changing a Flat Tire . 219
.............If the Engine Won’t Start . 225
................................Jump Starting . 227
..............If the Engine Overheats . 229
.........Low Oil Pressure Indicator . 231
..........Charging System Indicator . 231
.......Malfunction Indicator Lamp . 232
...............Brake System Indicator . 233
..............................................Fuses . 234
..............................Fuse Locations . 237
......................Emergency Towing . 239
Taking Care of the Unexpected
Taking Care of the Unexpected
217
Main Menu
Check the inflation pressure of the
compact spare tire every time you
check the other tires. It should be
inflated to:
Follow these precautions:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road
surfaces. Use greater caution
while driving.
Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced,
and put it back on your vehicle as
soon as you can.
Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed for mounting a regular tire.
Do not mount snow chains on the
compact spare tire.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Turn off the VSA system (see
page ). Driving with the
compact spare tire may activate
the VSA system.
166
Compact Spare Tire
218
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm )
Main Menu
Table of Contents
If you have a flat tire while driving,
stop in a safe place to change it.
Drive slowly along the shoulder until
you get to an exit or an area to stop
that is far away from the traffic lanes.
Open the hatch and the tailgate.
The spare tire, jack, and tools are
under the cargo area floor.
Park the vehicle on firm, level, and
non-slippery ground. Put the
transmission in Park (automatic)
or reverse (manual). Apply the
parking brake.
If you are towing a trailer, unhitch
the trailer.
Turn on the hazard warning lights,
and turn the ignition switch to the
LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire.
1.
2.
3.
4.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
219
TOOLS
SPARE TIRE
JACK
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
Main Menu
Table of Contents
Push the rear edge of the handle
to raise the handle loop and pull up
the loop to raise the cargo area
floor.
Unscrew the wing bolt, and take
the spare tire out of the cargo area.
Remove the tools and the jack. To
remove the jack, turn the jack’s
end bracket counterclockwise to
loosen it.
Loosen the five wheel nuts 1/2
turn with the wheel nut wrench.
8.
7.
6.5.
Changing a Flat Tire
220
WHEEL NUTS
JACK
WHEEL NUT WRENCH
Main Menu
Table of Contents
Locate the jacking point nearest
thetireyouneedtochange.Itis
pointed to by an arrow molded into
the underside of the body. Place
the jack under the jacking point.
Turn the end bracket clockwise
until the top of the jack contacts
the jacking point. Make sure the
jacking point tab is resting in the
jack notch.
Use the extension and the wheel
nut wrench as shown to raise the
vehicle until the flat tire is off the
ground.
Remove the wheel nuts, then
remove the flat tire. Handle the
wheel nuts carefully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up.
9.
10.
11.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
221
EXTENSION
JACKING POINTS
WHEEL NUT WRENCH
Main Menu
Table of Contents
Before mounting the spare tire,
wipeanydirtoffthemounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
Put on the spare tire. Put the
wheel nuts back on finger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is firmly against
the hub. Do not try to tighten the
wheel nuts fully.
Do not attempt to forcibly pry the
wheel cover off with a screwdriver or
other tool. The wheel cover cannot
be removed without first removing
the wheel nuts.
13.
12.
LX model
Changing a Flat Tire
222
BRAKE HUB
WHEEL COVER
WHEEL NUTS
WHEEL NUTS
Main Menu
Table of Contents
Store the jack in its holder. Turn
the jack’s end bracket to lock it in
place. Store the tools.
Remove the center cap from the
flat tire, and store it in the spare
tire well.
Removethewingboltonthespare
tire mount, and pivot the arm 90°
to the upright position. Then
tighten the wing bolt securely.Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
facility.
Tighten the wheel nuts to:
Lower the vehicle to the ground,
and remove the jack.
18.
16.
17.
14.
15.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
223
WING BOLT
ARM
80 lbf·ft (108 N·m , 11 kgf·m)
Loose items can fly around the
interiorinacrashandcould
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
Main Menu
Table of Contents
Remove the small round plug from
the cargo area floor by pushing it
fromthebacksidetomakeahole.
Storetheremovedpluginaplace
you can easily remember.
Reinstall the cargo area floor.
Place the flat tire face down on the
cargo area floor.
Align the center of the flat tire
with the hole in the cargo area
floor. Remove the spacer cone
from the wing bolt, turn it over,
and put it back on the bolt.
Secure the flat tire by screwing
thewingbolttothesparetire
mount through the hole in the
cargo area floor.
19. 20.
21.
22.
Changing a Flat Tire
224
WING BOLT
SPACER CONE
Main Menu
Table of Contents
Diagnosing why the engine won’t
start falls into two areas, depending
on what you hear when you turn the
ignition switch to the START (III)
position:
When you turn the ignition switch to
the START (III) position, you do not
hear the normal noise of the engine
trying to start. You may hear a
clicking sound, a series of clicks, or
nothing at all.
Turn the ignition switch to the
START (III) position. If the
headlights do not dim, check the
condition of the fuses. If the fuses
areOK,thereisprobably
something wrong with the
electrical circuit for the ignition
switch or starter motor. You will
need a qualified technician to
determine the problem. See
on page .
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is
discharged or the connections are
corroded. Check the condition of the
battery and terminal connections
(see page ). You can then try
jump starting the vehicle from a
booster battery (see page ).
You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
faster than normal, but the engine
does not start up and run.
Turn the ignition switch to the ON
(II) position. Turn on the
headlights, and check their
brightness. If the headlights are
very dim or do not come on at all,
the battery is discharged (see
on page ).
Check the transmission interlock.
If you have a manual transmission,
the clutch pedal must be pushed
all the way to the floor or the
starter will not operate. With an
automatic transmission, the shift
lever must be in Park or neutral.
Check these things:
227
227
214
239
CONTINUED
Nothing Happens or the Starter
Motor Operates Very Slowly
Emergency Towing
Jump Starting
IftheEngineWon’tStart
Taking Care of the Unexpected
225
Main Menu
Table of Contents
Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
In this case, the starter motor’s
speed sounds normal, or even faster
than normal, when you turn the
ignition switch to the START (III)
position, but the engine does not run.
Are you using the proper starting
procedure? Refer to
on page .
Do you have fuel? Check the fuel
gauge; the low fuel indicator may
not be working.
There may be an electrical
problem, such as no power to the
fuel pump. Check all the fuses
(see page ).
Ifyoufindnothingwrong,youwill
need a qualified technician to find
the problem (see
on page ).
62
234
239
152
The Starter Operates Normally
Starting the
Engine
Emergency
Towing
IftheEngineWon’tStart
226
Main Menu
Table of Contents
Although this seems like a simple
procedure, you should take several
precautions.
You cannot start your vehicle with an
automatic transmission by pushing
or pulling it.
The numbers in the illustration show
you the order to connect the jumper
cables.
Turn off all the electrical
accessories: heater, A/C, audio
system, lights, etc. Put the
transmission in neutral (M/T) or
Park (A/T), and set the parking
brake.
Open the hood, and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or frozen, do not try
jump starting until it thaws.
1.
2.
CONTINUED
To Jump Start Your Vehicle:
Jump Starting
Taking Care of the Unexpected
227
BOOSTER BATTERY
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme cold, the
electrolyte inside can f reeze.
Attempting to jump start with a frozen
battery can cause it to rupture.
Main Menu
Table of Contents
＋
＋
−
If the booster battery is in another
vehicle, have an assistant start
that vehicle and run it at a fast idle.
Start your vehicle. If the starter
motor still operates slowly, check
that the jumper cables have good
metal-to-metal contact.
Once your vehicle is running,
disconnect the negative cable from
your vehicle, then from the
booster battery. Disconnect the
positive cable from your vehicle,
then from the booster battery.
Keep the ends of the jumper cables
away from each other and any metal
on the vehicle until everything is
disconnected. Otherwise, you may
cause an electrical short.
Connect one jumper cable to the
positive ( ) terminal on your
battery. Connect the other end to
the positive ( ) terminal on the
booster battery.
Connect the second jumper cable
to the negative ( ) terminal on
the booster battery. Connect the
other end to the grounding strap
on your vehicle as shown. Do not
connect this jumper cable to any
other part of the engine.
4.
5.
6.
7.
3.
Jump Starting
228
Main Menu
Table of Contents
If you do not see steam or spray,
leave the engine running, and
watch the temperature gauge. If
the high heat is due to overloading,
the engine should start to cool
down almost immediately. If it
does, wait until the temperature
gauge comes down to the midpoint,
then continue driving.
If the temperature gauge stays at
the red mark, turn off the engine.
The pointer of the vehicle’s
temperature gauge should stay in
the midrange. If it climbs to the red
mark, you should determine the
reason (hot day, driving up a steep
hill, etc.).
If the vehicle overheats, you should
take immediate action. The only
indication may be the temperature
gauge climbing to or above the red
mark. Or you may see steam or
spray coming from under the hood.
If you see steam and/or spray
coming from under the hood, turn
off the engine. Wait until you see
no more signs of steam or spray,
then open the hood.
Safely pull to the side of the road.
Put the transmission in neutral
(M/T) or Park (A/T), and set the
parking brake. Turn off all the
accessories, and turn on the
hazard indicator.
1.
2.
3.
4.
CONTINUED
IftheEngineOverheats
Taking Care of the Unexpected
229
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
Driving with the temperature gauge
pointer at the red mark can cause
serious damage to the engine.
Main Menu
Table of Contents
Look for any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you find a leak, it
must be repaired before you
continue driving (see
on page ).
Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the first stop. After the
pressure releases, push down on
the cap, and turn it until it comes
off.
Put the radiator cap back on
tightly. Run the engine, and check
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the
temperature gauge or lower
before checking the radiator.
Start the engine, and set the
temperature control dial to
maximum heat. Add coolant to the
radiator up to the base of the filler
neck. If you do not have the
proper coolant mixture available,
you can add plain water.
Remember to have the cooling
system drained and refilled with
the proper mixture as soon as you
can.
If you don’t find an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.
9.
8.
7.
6.
5.
11.
10.
239
239
Emergency
Towing
Emergency
Towing
IftheEngineOverheats
230
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
Let the vehicle sit for a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
Immediately turn off all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.
Safely pull off the road, and shut
off the engine. Turn on the hazard
warning lights.
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn off the
engine. There is a mechanical
problem that needs to be repaired
before you can continue driving
(see on page
).
This indicator should never
come on when the engine is
running. If it starts flashing or stays
on, the oil pressure has dropped very
low or lost pressure. Serious engine
damage is possible, and you should
take immediate action.
1.
2.
4.
3.
141
189
239
Low Oil Pressure Indicator Charging System Indicator
Emergency Towing
Low Oil Pressure Indicator, Charging System Indicator
Taking Care of the Unexpected
231
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn of f
the engine as soon as you can safely get
the vehicle stopped.
Main Menu
Table of Contents
If the indicator comes on repeatedly,
even though it may turn off as you
continue driving, have your vehicle
checked by your dealer as soon as
possible.
If this indicator comes on
while driving, it means one
of the engine’s emissions control
systems may have a problem. Even
though you may feel no difference in
your vehicle’s performance, it can
reduce your fuel economy and cause
increased emissions. Continued
operation may cause serious damage.
If you have recently refueled your
vehicle, the indicator coming on
could be due to a loose or missing
fuel fill cap. You will also see a
‘‘CHECK FUEL CAP’’ message on
the information display. Tighten the
cap until it clicks at least once.
Tightening the cap will not turn the
indicator off immediately; it can take
several days of normal driving.
If your vehicle has an automatic
transmission, the malfunction
indicator lamp may also come on
with the ‘‘D’’ indicator.
Tocheckiftheyareset,turnthe
ignitionswitchtotheON(II)
position,withoutstartingtheengine.
Themalfunctionindicatorlampwill
comeonfor20seconds.Ifitthen
goesoff,thereadinesscodesareset.
Ifitblinksfivetimes,thereadiness
codesarenotset.Ifpossible,donot
take your vehicle for a state
emissions test until the readiness
codes are set. Refer to
for more information
(see page ).
If your vehicle’s battery has been
disconnected or gone dead, these
codes are erased. It takes several
days of driving under various
conditions to set the codes again.
Your vehicle has certain " readiness
codes" that are part of the on-board
diagnostics for the emissions
systems. In some states and
provinces, part of the emissions
testing is to make sure these codes
are set. If they are not set, the test
cannot be completed.
254
Malfunction Indicator Lamp
Emissions
Testing
R
e
a
d
ines
s
C
odes
232
If you keep driving with the
malf unction indicator lamp on, you can
damage your vehicle’s emissions
controls and engine. Those repairs may
not be covered by your vehicle’s
warranties.
Main Menu
Table of Contents
However, if the brake pedal does not
feel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will feel the brake
pedal go down much farther before
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
Slow down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see
on page ).
If you must drive the vehicle a short
distance in this condition, drive
slowly and carefully.
If the brake system indicator comes
on while driving, the brake fluid level
is probably low. Press lightly on the
brake pedal to see if it feels normal.
If it does, check the brake fluid level
thenexttimeyoustopataservice
station (see page ).
If the fluid level is low, take your
vehicle to a dealer, and have the
brake system inspected for leaks or
worn brake pads.
The brake system indicator
normally comes on when
you turn the ignition switch
to the ON (II) position, and
as a reminder to check the
parking brake. It will stay
on if you do not fully
release the parking brake.
If the ABS indicator and the VSA
system indicator come on with the
brake system indicator, have your
vehicle inspected by your dealer
immediately.
196
239
Emergency
Towing
Brake System Indicator
Taking Care of the Unexpected
233
Canada
U.S.
Main Menu
Table of Contents
Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are off.
If something electrical in your
vehicle stops working, check for a
blown fuse first. Determine from the
chart on pages and , or the
diagram on the fuse box lid, which
fuse or fuses control that device.
Check those fuses first, but check all
the fuses before deciding that a
blown fuse is the cause. Replace any
blown fuses, and check if the device
works.
The interior fuse box is underneath
the steering column. To remove the
fuse box lid, turn the knobs
counterclockwise and pull the lid out
of its hinges.
The vehicle’s fuses are located in
two fuse boxes. The under-hood fuse
box is located in the engine
compartment on the driver’s side. To
open it, push the tabs as shown.
Remove the cover from the fuse
box.
1.
2.
237 238
Checking and Replacing Fuses
Fuses
234
TAB
UNDER-HOOD
INTERIOR
KNOBS
Main Menu
Table of Contents
Check the smaller fuses in the
under-hood fuse box and all the
fuses in the interior fuse box by
pulling out each one with the fuse
puller provided in the under-hood
fuse box.
Look for a blown wire inside the
fuse. If it is blown, replace it with
one of the spare fuses of the same
rating or lower.
Check each of the large fuses in
the under-hood fuse boxes by
looking through the top at the wire
inside. Removing these fuses
requires a Phillips-head
screwdriver.
3. 4. 5.
CONTINUED
Fuses
Taking Care of the Unexpected
235
FUSE
BLOWN
BLOWN
FUSE PULLER
Main Menu
Table of Contents
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit and have your vehicle
checked by a qualified technician.
If the radio fuse is removed, the
audio system will disable itself. The
nexttimeyouturnontheradioyou
will see ‘‘CODE’’ in the frequency
display. Use the preset buttons to
enter the five-digit code (see page
).
If you cannot drive the vehicle
without fixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as
soon as you can.
6.
129
On EX and SC models
Fuses
236
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
Main Menu
Table of Contents
＊
＊
＋
＋
＋
＊
−
−
−
−
−
−
CONTINUED
No. Circuits ProtectedAmps.
No. Amps. Circuits Protected
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Power Window Relay
AMP
Accessory, Radio
Rear Wiper
Meter
Not Used
IG2 Daytime running lights
SRS
Remote Control Mirrors
LAF Heater
B Ignition Relay
Fuel Pump
Front Accessory Power Socket
Turn Signal Lights
Front Wiper
Not Used
Passenger’s Power Window
Driver’s Power Window
Not Used
Not Used
7.5 A
20 A
7.5 A
10 A
7.5 A
7.5 A
10 A
10 A
20 A
15 A
15 A
15 A
7.5 A
20 A
20 A
20 A
1
2
3
4
5
10 A
10 A
10 A
Not Used
BACC
B Daytime running lights /
TPMS
IG1 ACG
Not Used
1 : Canadian models
1
1
Fuse Locations
Taking Care of the Unexpected
237
INTERIOR FUSE BOX
Main Menu
Table of Contents
−
−
No. Amps. Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
30 A
15 A
7.5 A
20 A
15 A
15 A
15 A
15 A
10 A
30 A
20 A
40 A
40 A
40 A
15 A
15 A
15 A
30 A
100 A
50 A
Condenser Fan
Small Light
Interior Light
Cooling Fan Motor
Hazard
IGP
Horn, Stop
DBW
Back Up
VSA Motor
Rear Defroster
Heater Motor
Power Window Main
Option
Left Headlight
Door Lock
Right Headlight
VSA MTR FSR
Battery
IG1 Main
Spare Fuses
21 25
7.5A 30A
Fuse Locations
238
UNDER-HOOD FUSE BOX
Main Menu
Table of Contents
The operator will load
your vehicle on the back of a truck.
Any other method of towing will
damage the drive system. When you
contact the towing agency, inform
them a flat-bed is required.
If your vehicle needs to be towed,
call a professional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
The only way you can safely tow
your vehicle is with flat-bed
equipment.
Emergency Towing
Taking Care of the Unexpected
239
Towing with only two tires on the
ground will damage parts of the 4WD
system. It should be transported on a
f lat-bed truck or trailer.
Main Menu
Table of Contents
Main Menu
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identification numbers. It also
includes information you should
know about your vehicle’s tires and
emissions control systems.
................Identification Numbers . 242
................................Specifications . 244
DOT Tire Quality Grading
......................(U.S. Vehicles) . 246
Uniform Tire Quality
..................................Grading . 246
.................................Treadwear . 246
......................................Traction . 246
.............................Temperature . 247
.................................Tire Labeling . 248
Tire Pressure Monitoring System
(TPMS)-Required
.............Federal Explanation . 249
.......................Emissions Controls . 251
.....................The Clean Air Act . 251
Crankcase Emissions Control
....................................System . 251
Evaporative Emissions Control
....................................System . 251
Onboard Refueling Vapor
................................Recovery . 251
...Exhaust Emissions Controls . 252
....................PGM-FI System . 252
Ignition Timing Control
................................System . 252
Three Way Catalytic
...........................Converter . 252
....................Replacement Parts . 252
..Three Way Catalytic Converter . 253
Emissions Testing ......................... 254
Technical Information
Technical Information
241
Main Menu
Your vehicle has several identifying
numbers located in various places.
The vehicle identification number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
for warranty purposes. It is also
necessary for licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb
(front edge of rear door), and is
stamped on the engine compartment
bulkhead. The VIN is also provided
in bar code on the certification label.
Identification Numbers
242
VEHICLE IDENTIFICATION NUMBER
CERTIFICATION LABEL
Main Menu
Table of Contents
The transmission number is on a
label on top of the transmission.
The engine number is stamped into
the engine block.
Identification Numbers
Technical Information
243
AUTOMATIC TRANSMISSION NUMBER
ENGINE NUMBER
MANUAL TRANSMISSION NUMBER
Main Menu
Table of Contents
＊
＊
＊
＊
＊
＊
＊＊
＊
＊＊
＊
＊
＊
＊
＊
＊
＊＊
＊
Specifications
244
Capacities
Engine
Weights
Dimensions
169.3 in (4,300 mm)
1.90 US gal (7.2
)
1.93 US gal (7.3 )
2.6 US qt (2.5 )
7.6 US qt (7.2 )
2.0 US qt (1.9 )
1.35 US gal (5.1 )
2.7 US qt (2.6 )
1.37 US gal (5.2 )
7.4 US qt (7.0
)
1.3 US qt (1.2 )
1.1 US qt (1.0
)
2.4 US qt (2.3
)
2.3 US qt (2.2
)
Engine
coolant
Automatic
transmission
fluid
Manual
transmission
fluid
Rear
differential
fluid (4WD)
Windshield
washer
reservoir
4.8 US qt (4.5
)
Fuel tank
Engine oil
5.6 US qt (5.3 )
4.2 US qt (4.0 )
4.4 US qt (4.2 )
15.9 US gal (60 )
0.16 US gal (0.6 )
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity:
Excluding the oil remaining in the engine
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
SKJ20DR-M11
IZFR6K-11
9.7 : 1
144 cu-in (2,354 cm )
3.43 x 3.90 in (87.0 x 99.0 mm)
Water cooled 4-stroke DOHC
i-VTEC 4-cylinder gasoline engine
See the certification label attached
to the driver’s doorjamb (front
edge of rear door).
Gross vehicle weight rating
62.5 in (1,587 mm)
62.3 in (1,582 mm)
62.1 in (1,578 mm)
62.1 in (1,577 mm)
101.4 in (2,575 mm)
70.4 in (1,788 mm)
71.5 in (1,815 mm)
Length
Width
Height
Wheelbase
Track
170.9 in (4,341 mm)
170.3 in (4,326 mm)
69.4 in (1,763 mm)
Approx.
1:
2:
NGK:
DENSO:
Front
Rear
3:
4:
Change
Without filter
Total
Change
Total
Change
Total
Change
4WD
2WD
Total
4WD
2WD
Change
Total
4WD
2WD
Change
Total
LX model
EX model
SC model
5:
Automatic Transmission
Manual Transmission
4
1, 2
3
1, 2
3
1
5
5
3
2
1, 2
3
Including filter
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
Specifications
Technical Inf ormation
245
Air Conditioning Fuses
Battery
Lights
Tires
Alignment
HFC-134a (R-134a)
12 V 60/55 W (H4/HB2)
0°13’
0.08 in (2.0 mm)
0.0in(0mm)
Refrigerant type
Charge quantity
Lubricant type
Interior
Under-hood
Capacity 12 V 45 AH/20 HR
Headlights
Headlights High Beam
Headlights Low Beam
Front turn signal/parking
lights
Front side marker lights
Rear turn signal lights
Brake/Taillights
Back-up lights
License plate lights
Ceiling light
Spotlights
Cargo area light
High-mount brake light 12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
21 W
10 W
8W
10 W
3CP
18 W (21 CP)
21/5 W
21 W
3CP
21/5 W
12 V 60 W
12 V 55 W
12 V
12 V 5 W
P215/70R16 99S
0°24’
1°00’
Size
Pressure
60 psi (420 kPa , 4.2 kgf/cm
)
35 psi (240 kPa , 2.4 kgf/cm )
33 psi (230 kPa , 2.3 kgf/cm )
P225/55R18 97H
32 psi (220 kPa , 2.2 kgf/cm )
32 psi (220 kPa , 2.2 kgf/cm )
28/8 W
See page 237 or the fuse label
attached to the inside of the fuse
box door under the steering
column.
See page 238 or the fuse box
cover.
1°50’
Toe-in
Camber
Caster
1°06’
Front/Rear
Front
Rear
Spare
All models except SC
SC model
1:
2:
(HB3)
(H11)
Front
Rear
Front
Rear
Front
1
1
2
1
1
2
1
2
2
2
1
2
1
2
2
1
2
17.6−19.4 oz (500−550 g)
12 V −
ND-OIL8
Main Menu
Table of Contents
−
Quality grades can be found where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specified government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative performance of
tires depends upon the actual condi-
tions of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices, and differences in
road characteristics and climate.
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specified government test surfaces
of asphalt and concrete. A tire
marked C may have poor traction
performance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Safety Requirements.
All tires are also graded for
treadwear, traction, and temperature
performance according to
Department of Transportation
(DOT) standards. The following
explains these gradings.
All passenger vehicle tires must
conform to Federal Safety
Requirements in addition to these
grades.
Uniform Tire Quality Grading
Treadwear 200
Traction AA
Temperature A
Treadwear Traction AA, A, B, C
DOT Tire Quality Grading (U.S. Vehicles)
246
Main Menu
Table of Contents
− Warning: The temperature grade for
this tire is established for a tire that
is properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire failure.
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger car
tires must meet under the Federal
Motor Vehicle Safety Standard No.
109. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the
minimum required by law.
Temperature A,B,C
DOT Tire Quality Grading (U.S. Vehicles)
Technical Information
247
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−
−
−
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
The maximum air
pressurethetirecan
hold.
The maximum load the
tire can carry at
maximum air pressure.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches.
The tire identification number (TIN)
is a group of numbers and letters
that look like the following example
TIN. The TIN is located on the
sidewall of the tire.
Date of manufacture.
Tire type code.
Manufacturer’s
identification mark.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
P
R
16
DOT
B97R
FW6X
2202
Max Press
Max Load
215
70
99
S
Tire Labeling
Tire Labeling
Tire Size
Tire Identification Number
Maximum Tire Pressure
Maximum Tire Load
248
P215/70R16 99S
DOT B97R FW6X 2202
Main Menu
Table of Contents
−
(If your vehicle has tires of a
different size than the size indicated
on the vehicle placard or tire
inflation pressure label, you should
determine the proper tire inflation
pressure for those tires.)
Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated to
the inflation pressure recommended
by the vehicle manufacturer on the
vehicle placard or tire inflation
pressure label.
Driving on a significantly under-
inflated tire causes the tire to
overheat and can lead to tire failure.
Under-inflation also reduces fuel
efficiency and tire tread life, and may
affect the vehicle’s handling and
stopping ability.
Please note that the TPMS is not a
substitute for proper tire
maintenance, and it is the driver’s
responsibility to maintain correct tire
pressure, even if under-inflation has
not reached the level to trigger
illumination of the TPMS low tire
pressure telltale.
As an added safety feature, your
vehicle has been equipped with a tire
pressure monitoring system (TPMS)
that illuminates a low tire pressure
telltale
when one or more of your tires is
significantly under-inflated.
Accordingly, when the low tire
pressure telltale illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure.
CONTINUED
Tire Pressure Monitoring System (TPMS) Required Federal Explanation
Technical Information
249
Main Menu
Table of Contents
−
Always check the TPMS malfunction
telltale after replacing one or more
tires or wheels on your vehicle to
ensure that the replacement or
alternate tires and wheels allow the
TPMS to continue to function
properly.
Your vehicle has also been equipped
with a TPMS malfunction indicator
to indicate when the system is not
operating properly. The TPMS
malfunction indicator has a separate
telltale, which displays the symbol
"TPMS" when illuminated.
TPMS malfunctions may occur for a
variety of reasons, including the
installation of replacement or
alternate tires or wheels on the
vehicle that prevent the TPMS from
functioning properly.
When the malfunction indicator is
illuminated,
the system may not be able to detect
or signal low tire pressure as
intended.
Tire Pressure Monitoring System (TPMS) Required Federal Explanation
250
Main Menu
Table of Contents
＊
＊
The burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx), and hydrocarbons (HC).
Gasoline evaporating from the tank
also produces hydrocarbons.
Controlling the production of NOx,
CO, and HC is important to the
environment. Under certain
conditions of sunlight and climate,
NOx and HC react to form
photochemical ‘‘smog.’’ Carbon
monoxide does not contribute to
smog creation, but it is a poisonous
gas.
The United States Clean Air Act
sets standards for automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
In Canada, Honda vehicles comply
with the Canadian emission
requirements, as specified in an
agreement with Environment
Canada, at the time they are
manufactured.
Your vehicle has a positive
crankcase ventilation system. This
keeps gasses that build up in the
engine’s crankcase from going into
the atmosphere. The positive
crankcase ventilation valve routes
them from the crankcase back to the
intake manifold. They are then
drawn into the engine and burned.
As gasoline evaporates in the fuel
tank, an evaporative emissions
control canister filled with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is off. After
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The onboard refueling vapor
recovery (ORVR) system captures
the fuel vapors during refueling. The
vapors are adsorbed in a canister
filled with activated carbon. While
driving, the fuel vapors are drawn
into the engine and burned off.
Emissions Controls
The Clean Air Act
Crankcase Emissions Control
System
Evaporative Emissions Control
System
Onboard Refueling Vapor
Recovery
Technical Information
251
Main Menu
Table of Contents
The PGM-FI system uses sequential
multiport fuel injection. It has three
subsystems: air intake, engine
control, and fuel control. The
powertrain control module (PCM) in
automatic transmission vehicles or
the engine control module (ECM) in
manual transmission vehicles uses
various sensors to determine how
much air is going into the engine. It
then controls how much fuel to inject
under all operating conditions.
The emissions control systems are
designed and certified to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent for repairs. Using lower
qualitypartsmayincreasethe
emissions from your vehicle.
The exhaust emissions controls
include three systems: PGM-FI,
ignition timing control, and three
way catalytic converter. These three
systems work together to control the
engine’s combustion and minimize
the amount of HC, CO, and NOx that
comes out the tailpipe. The exhaust
emissions control systems are
separate from the crankcase and
evaporative emissions control
systems. The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa-
tion.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
2
2
Exhaust Emissions Controls Replacement Parts
PGM-FI System
Three Way Catalytic Converter
Ignition Timing Control System
Emissions Controls
252
Main Menu
Table of Contents
The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter is referred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter ineffective.
Keep the engine well maintained.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on fire any
combustible materials that come
near it. Park your vehicle away from
high grass, dry leaves, or other
flammables.
A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
formance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter.
Have your vehicle diagnosed and
repaired if it is misfiring, back-
firing, stalling, or otherwise not
running properly.
Three Way Catalytic Converter
Technical Information
253
THREE WAY CATALYTIC CONVERTER
Main Menu
Table of Contents
Without touching the accelerator
pedal, start the engine, and let it
idle for 20 seconds.
If you take your vehicle for an
emissions test shortly after the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain " readiness
codes" that must be set in the on-
board diagnostics for the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing facility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle retested within the
next two or three days, you can
condition the vehicle for retesting by
doing the following.
Make sure the fuel tank is nearly,
but not completely full (around
3/4).
Keep the vehicle in Park
(automatic transmission) or
neutral (manual transmission).
Increase the engine speed to 2,000
rpm,andholditthereuntilthe
temperature gauge rises to at least
1/4ofthescale(about3minutes).
Make sure the vehicle has been
parked with the engine off for 6
hours or more.
Make sure the ambient
temperature is between 40° and
95°F.
Without touching the accelerator
pedal, start the engine, and let it
idle for 20 seconds.
Testing of Readiness Codes
Emissions Testing
254
Main Menu
Table of Contents
Then drive in city/suburban
traffic for at least 10 minutes.
When traffic conditions allow, let
the vehicle coast for several
seconds without using the
accelerator pedal or the brake
pedal.
Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
D (A/T) or 5th (M/T). Do not use
cruise control. When traffic allows,
drive for 90 seconds without
moving the accelerator pedal.
(Vehicle speed may vary slightly;
this is okay.) If you cannot do this
for a continuous 90 seconds
because of traffic conditions, drive
for at least 30 seconds, then repeat
it two more times (for a total of 90
seconds).
Make sure the vehicle has been
parked with the engine off for 30
minutes.
If the testing facility determines the
readiness codes are still not set, see
your dealer.
Emissions Testing
Technical Information
255
Main Menu
Table of Contents
Main Menu
Honda dealership personnel are
trained professionals. They should
be able to answer all your questions.
If you encounter a problem that your
dealership does not solve to your
satisfaction, please discuss it with
the dealership’s management. The
service manager or general manager
can help. Almost all problems are
solved in this way.
If you are dissatisfied with the
decision made by the dealership’s
management, contact your Honda
Customer Service Office.
U.S. Owners:
Canadian Owners:
In Puerto Rico and the U.S. Virgin
Islands:
When you call or write, please give
us this information:
Vehicle identification number (see
page )
Name and address of the dealer
who services your vehicle
Date of purchase
Mileage on your vehicle
Your name, address, and
telephone number
A detailed description of the
problem
Name of the dealer who sold the
vehicle to you
242
Customer Service Information
258
CUSTOMER RELATIONS
RELATIONS AVEC LA CLIENTÈLE
Honda Canada Inc.
715 Milner Avenue
Toronto, ON
M1B 2K8
Tel: 1-888-9-HONDA-9
Fax: Toll-free 1-877-939-0909
Toronto (416) 287-4776
American Honda Motor Co., Inc.
Automobile Customer Service
Mail Stop 500-2N-7A
1919 Torrance Boulevard
Torrance, California 90501-2746
Tel: (800) 999-1009
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-7028
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
Your new vehicle is covered by these
warranties:
covers your new vehicle, except for
the battery, emissions control
systems, and accessories, against
defects in materials and
workmanship.
provides prorated
coverage for a replacement battery
purchased from your dealer.
these two
warranties cover your vehicle’s
emissions control systems. Time,
mileage, and coverage are
conditional. Please read your
warranty booklet for exact
information.
provides
coverageforaslongasthepur-
chaser of the muffler owns the
vehicle.
this warranty gives up
to 100 % credit toward a replacement
battery.
a seat
belt that fails to function properly is
covered by a limited warranty.
Please read your warranty booklet
for details.
all exterior body panels are
covered for rust-through from the
inside for the specified time period
with no mileage limit.
Honda accessories are covered
under this warranty. Time and
mileage limits depend on the type of
accessory and other factors. Please
read your warranty booklet for
details.
covers all Honda
replacement parts against defects in
materials and workmanship.
Restrictions and exclusions apply to
all these warranties. Please read the
2007 Honda warranty information
booklet that came with your vehicle
for precise information on warranty
coverages. Your vehicle’s original
tires are covered by their
manufacturer. Tire warranty
information is in a separate booklet.
Please refer to the 2007 warranty
manual that came with your vehicle.
Warranty Coverages
U.S. Owners
Canadian Owners
New Vehicle Limited Warranty
Replacement Battery Limited
Warranty
Emissions Control Systems Defects
Warranty and Emissions
Performance Warranty
Replacement Muffler Lifetime
Limited Warranty
Original Equipment Battery Limited
Warranty
Seat Belt Limited Warranty
Rust Perforation Limited Warranty
Accessory Limited Warranty
Replacement Parts Limited
Warranty
Warranty and Customer Relations
259
Main Menu
Table of Contents
If NHTSA receives similar com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or
American Honda Motor Co., Inc.
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying American Honda Motor
Co., Inc.
To contact NHTSA, you may call the
VehicleSafetyHotlinetoll-freeat
1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, DC 20590.
You can also obtain other
information about motor vehicle
safety from http://www.safercar.gov.
Reporting Safety Defects (U.S. Vehicles)
260
Main Menu
Table of Contents
−
−
＊
＊
＊
＊
２
０
０
７
Ｈ
Ｏ
Ｎ
Valid only for sales within the United States. Canadian
owners should contact their authorized Honda dealer.
The publications shown below can be purchased from Helm
Incorporated. You can order in any of three ways:
If you are interested in other years or models, contact Helm Inc.
at 1-800-782-4356.
Detach and mail the order form on the right half of this page
Call Helm Inc. at 1-800-782-4356
Go online at
(credit card orders only)
Purchasing Factory Authorized Manuals
(U.S. only)
Authorized Manuals
Authorized Manuals
261
ORDER TOLL FREE: 1-800-782-4356
OR
(NOTE: For Credit Card Holder Orders Only)
MINIMUM CREDIT CARD PURCHASE $10.00
Form Description
2007 Honda Element
Service Manual
2007 Honda Element
Electrical Troubleshooting Manual
2003 2007 Honda Element
Body Repair Manual
2007 Honda Element
Honda Service History
Order Form for Previous Years-
Indicate Year and Model Desired
Publication
Form Number
61SCV04
61SCV04EL
61SCV30
31SCV641
31SCVM20
31SCVQ40
HON-R
Price
Each
$75.00
$50.00
$44.00
$35.00
$12.00
$12.00
FREE
2007 Honda Element Owner’s Manual
2007 Honda Element Quick Start Guide
PUBLICATION NUMBER
VEHICLE MODEL
Name Year
Qty
Price
Each
Total
Price
GRAND TOTAL
HANDLING CHARGE
Mich. Purchases
Add 6% Sales Tax
TOTAL MATERIAL
$6.95
Monday-Friday 8:00 A.M. 6:00 P.M. EST
By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail to
Helm Incorporated at the address shown on the back of the order form.
Prices are subject to change without
notice and without incurring obligation.
Orders are mailed within 10 days. Please
allow adequate time for delivery.
Prices are subject to change without notice and without incurring obligation.
www. helminc. com
Main Menu
Table of Contents
−
−
−
Ｓ
Ｈ
Ｉ
Ｐ
Ｔ
Ｏ
Ｐ
Ａ
Ｙ
Ｍ
Ｅ
Ｎ
This manual covers maintenance and recommended
procedures for repair to engine and chassis components.
It is written for the journeyman mechanic, but is simple
enough for most mechanically-inclined owners to under-
stand.
This manual describes the procedures involved in the
replacement of damaged body parts.
This manual complements the service manual by
providing in-depth troubleshooting information for each
electrical circuit in your vehicle.
Authorized Manuals
Service Manual:
Electrical Troubleshooting Manual:
Body Repair Manual:
262
NOTE: Dealers and Companies please provide dealer or company name,
and also the name of the person to whose attention the shipment should
be sent. For purchases outside U.S.A. please write to the address shown
below for a quotation.
P.O. BOX 07280·DETROIT, MICHIGAN 48207·1-800-782-4356
Customer Name
Attention
Apartment Number
State & Zip Code
City
Daytime Telephone Number
Check or money order enclosed payable to Helm Inc U.S. funds only.
Do not send cash
Master
Card
VISA Check here if your billing address is different
from the shipping address shown above.
Account Number
Expiration: Mo. Yr.
CUSTOMER SIGNATURE
DATE
Street Address No P.O. Box Number
()
These Publications cannot be returned for credit without receiving advance authorization within 14
days of delivery. On returns, a restocking fee may be applied against the original order.
Main Menu
Table of Contents
CONTINUED
....................................Accessories . 143
ACCESSORY (Ignition Key
.......................................Position) . 79
..............Accessory Power Sockets . 97
....................Additives, Engine Oil . 190
.........Advice for Pregnant Women . 18
.............................Airbag (SRS) . 11, 24
...Airbags, Additional Information . 24
...Additional Safety Precautions . 36
.............................Airbag Service . 35
How the Passenger Airbag Off
......................Indicator Works . 34
How the Side Airbag Off
......................Indicator Works . 34
..How the SRS Indicator Works . 33
How Your Front Airbags
.........................................Work . 27
...How Your Side Airbags Work . 31
How Your Side Curtain Airbags
.........................................Work . 32
........................SRS Components . 24
..............Air Conditioning System . 102
.........................................Usage . 103
.......................Air Pressure, Tires . 209
......................................Alignment . 245
......................................Antifreeze . 192
Anti-lock Brakes (ABS)
...............................Indicator . 61, 162
...................................Operation . 161
..............Anti-theft, Audio System . 129
.Anti-theft Steering Column Lock . 79
......................Armrests, Front Seat . 84
................................Audio System . 107
...Automatic Seat Belt Tensioners . 22
.............Automatic Speed Control . 133
..............Automatic Transmission . 155
..........................Capacity, Fluid . 244
...............Checking Fluid Level . 194
.......................................Shifting . 155
.Shift Lever Position Indicator . 155
................Shift Lever Positions . 155
....................Shift Lock Release . 158
......................Auxiliary Input Jack . 125
Battery
Charging System
...........................Indicator . 60, 231
............................Jump Starting . 227
..............................Maintenance . 214
............................Specifications . 245
..............................Before Driving . 137
..................................Belts, Seat . 10, 20
...........................Beverage Holders . 97
...................................Body Panels . 197
..................................Booster Seats . 52
Brakes
...........Anti-lock System (ABS) . 161
.............Break-in, New Linings . 138
....................Bulb Replacement . 203
...........................................Fluid . 196
.........................................Parking . 93
.................System Indicator . 60, 233
........................Wear Indicators . 161
.............................Braking System . 160
.................Break-in, New Vehicle . 138
..Brightness Control, Instruments . 72
........................Brights, Headlights . 72
Index
A
B
INDEX
I
Main Menu
＊＊
＊
............................Capacities Chart . 244
.............Carbon Monoxide Hazard . 54
.............................Carrying Cargo . 145
.............CAUTION, Explanation of . iii
.........................................CD Care . 126
...................................CD Changer . 125
.......................CD Error Message . 127
.......CD Changer Error Message . 128
.......................................CD Player . 119
.................................Ceiling Pocket . 96
........................Certification Label . 242
............................................Chains . 213
....................Changing a Flat Tire . 219
.................................Changing Oil . 190
........................................How to . 190
......................................When to . 179
...Charging System Indicator . 60, 231
............Checklist, Before Driving . 151
.....................................Child Safety . 37
Child Seats
......LATCH Anchorage System . 46
...........................Lower Anchors . 46
..........Tether Anchorage Points . 50
..........Children, Protecting Larger . 51
............Cleaning the Body Panels . 197
..............................................Clock . 130
.........................Clock, Setting the . 130
...................................Clutch Fluid . 197
........................CO in the Exhaust . 251
............Cold Weather, Starting in . 152
..............................Compact Spare . 218
.................Consumer Information . 258
.............Controls, Instruments and . 57
Coolant
........................................Adding . 192
....................................Checking . 141
.........................Proper Solution . 192
...................Temperature Gauge . 68
Crankcase Emissions Control
........................................System . 251
................Cruise Control Indicator . 62
............Cruise Control Operation . 133
................Cup (Beverage) Holders . 97
.............Customer Service Office . 258
...............DANGER, Explanation of . iii
...................................Dashboard . 4, 58
............Daytime Running Lights . 72
.......................................Indicator . 62
.................................Dead Battery . 227
.........Defects, Reporting Safety . 260
........................Defog and Defrost . 105
................Defogger, Rear Window . 73
..............Defrosting the Windows . 105
..........................Differential Fluid . 196
....................................Dimensions . 244
...............Dimming the Headlights . 71
Dipstick
..........Automatic Transmission . 194
..................................Engine Oil . 141
..........................Directional Signals . 71
Bulb Replacement
..........................Back-up Lights . 203
..............................Brake Lights . 203
................Front Parking Lights . 200
........Front Side Marker Lights . 201
.................................Headlights . 198
....................High-mount Brake . 204
....................Rear License Plate . 204
............................Specifications . 245
....................Turn Signal Lights . 200
..............................Bulbs, Halogen . 198
................................Bungee Cords . 148
Index
D
C
II
Main Menu
＊
CONTINUED
...................................Fan, Interior . 103
.........................................Features . 101
.................First (1) Gear Position . 157
....................Filling the Fuel Tank . 139
Filters
.........................Dust and Pollen . 206
...............................................Oil . 190
.............Flashers, Hazard Warning . 73
...................Flat Tire, Changing a . 219
Fluids
..........Automatic Transmission . 194
..........................................Brake . 196
.........................................Clutch . 197
................................Differential . 196
..............Manual Transmission . 195
..........................Power Steering . 197
..................Windshield Washer . 193
FM Stereo Radio
...................................Reception . 111
...........................Folding Rear Seat . 87
..........................Four-way Flashers . 73
..........................Four-wheel Drive . 150
..............................Economy, Fuel . 142
............Emergencies on the Road . 217
.............Battery, Jump Starting . 227
...........Brake System Indicator . 233
................Changing a Flat Tire . 219
.....Charging System Indicator . 231
..................Checking the Fuses . 234
.........Hazard Warning Flashers . 73
.....Low Oil Pressure Indicator . 231
...Malfunction Indicator Lamp . 232
..................Overheated Engine . 229
...........................Emergency Brake . 93
......................Emergency Flashers . 73
......................Emergency Towing . 239
.......................Emissions Controls . 251
.............Emissions Testing, State . 254
Engine
....Coolant Temperature Gauge . 68
......Engine Speed Limiter . 154, 157
Malfunction Indicator
................................Lamp . 60, 232
.........................Oil Life Display . 179
........Oil Pressure Indicator . 60, 231
..............Oil, What Kind to Use . 189
...............................Overheating . 229
............................Specifications . 244
.......................................Starting . 152
.Evaporative Emissions Controls . 251
...............................Exhaust Fumes . 54
Expectant Mothers, Use of Seat
........................................Belts by . 18
........Disc Brake Wear Indicators . 161
.....................Disposal of Used Oil . 191
.Door and Tailgate Open Monitor . 63
Doors
..............Locking and Unlocking . 80
......................Power Door Locks . 80
........DOT Tire Quality Grading . 246
Downshifting, Manual
.............................Transmission . 153
..Drive Gear Positions, D and D . 156
...........Driver and Passenger Safety . 7
...........................................Driving . 149
....................................Economy . 142
........................Driving Guidelines . 150
..................Dust and Pollen Filter . 206
3
Index
E
F
INDEX
III
Won’t Start .................................. 225
Floor Mats ...................................... 205
Main Menu
＊＊
............................Front Airbags . 11, 27
Front Seat
......................................Adjusting . 13
...................................Airbags . 11, 27
.................................................Fuel . 138
......................Fill Door and Cap . 139
...........................................Gauge . 67
................Octane Requirement . 138
........................Reserve Indicator . 63
........................Tank, Filling the . 139
.....................Fuses, Checking the . 234
...............Gas Mileage, Improving . 142
.........................................Gasoline . 138
...............Fuel Reserve Indicator . 63
...........................................Gauge . 67
................Octane Requirement . 138
........................Tank, Filling the . 139
................Gas Station Procedures . 139
.............................................Gauges . 66
...Engine Coolant Temperature . 68
...............................................Fuel . 67
Gearshift Lever Positions
..........Automatic Transmission . 155
..............Manual Transmission . 153
........................................Glove Box . 97
.............Halogen Headlight Bulbs . 198
................................................Hatch . 81
..............Hazard Warning Flashers . 73
Headlights
........................................Aiming . 198
.......Daytime Running Lights . 72
..................High Beam Indicator . 63
........................Reminder Beeper . 71
........Replacing Halogen Bulbs . 198
...................................Turning on . 71
..............................Head Restraints . 85
......................Safety Information . 15
.....................Heating and Cooling . 102
.............High Altitude, Starting at . 152
.................High-Low Beam Switch . 71
..Hood, Opening and Closing the . 140
..............................................Horn .5,69
...........................Hydraulic Clutch . 197
...Identification Number, Vehicle . 242
Ignition
..............................................Keys . 75
.............................................Light . 98
...........................................Switch . 79
............Timing Control System . 252
........................Immobilizer System . 76
.......Immobilizer System Indicator . 62
...Important Handling Information . iv
.........Important Safety Precautions . 8
.........Indicators, Instrument Panel . 60
...............................Infant Restraint . 42
......................................Infant Seats . 42
......LATCH Anchorage System . 46
...........................Lower Anchors . 46
..........Tether Anchorage Points . 50
...................Inflation, Proper Tire . 208
...................................Inside Mirror . 92
.............................Inspection, Tire . 210
............................Instrument Panel . 59
........Instrument Panel Brightness . 72
..........Instrument Panel Indicators . 60
.................................Interior Lights . 98
........................................Introduction . i
Index
I
H
G
IV
Guidelines, Driving ........................ 150
High Beam Indicator ....................... 63
Main Menu
CONTINUED
.................Jacking up the Vehicle . 221
.......................................Jack, Tire . 219
................................Jump Starting . 227
...............................Keys and Locks . 75
.......................Label, Certification . 242
.................Lane Change, Signaling . 71
..................Lap/Shoulder Belts . 15, 21
...........LATCH Anchorage System . 46
Lights
....................Bulb Replacement . 198
.......................................Indicator . 59
.........................................Parking . 71
..................................Turn Signal . 71
....................................Load Limits . 146
......LOCK (Ignition Key Position) . 79
Locks
.......Anti-theft Steering Column . 79
....................................Glove Box . 97
............................................Hatch . 81
.................................Power Door . 80
........................................Tailgate . 82
........................Low Coolant Level . 141
.........................Low Fuel Indicator . 63
...Low Oil Pressure Indicator . 60, 231
.Low Tire Pressure Indicator . 64, 163
................................Lower Anchors . 46
...Lower Gear, Downshifting to a . 153
...Lubricant Specifications Chart . 244
.........................................Luggage . 145
..................................Maintenance . 177
........................................Minder . 179
.........................Minder Indicator . 61
...Owner Maintenance Checks . 184
.................................Record . 186-187
..........................................Safety . 178
.Malfunction Indicator Lamp . 60, 232
...................Manual Transmission . 153
...............Checking Fluid Level . 195
.....Recommended Shift Points . 154
................................Shifting the . 153
........Manual Transmission Fluid . 195
.........................Meters, Gauges . 59, 66
.................................Mirror, Vanity . 99
..........................Mirrors, Adjusting . 92
...............Modifying Your Vehicle . 144
Monitor, Door and Tailgate
.............................................Open . 63
...Octane Requirement, Gasoline . 138
.........................................Odometer . 66
...............................Odometer, Trip . 66
....................Off-Highway Driving . 173
...................Neutral Gear Position . 156
..................New Vehicle Break-in . 138
.....................Normal Shift Speeds . 154
...................NOTICE, Explanation of . i
...............Numbers, Identification . 242
Index
N
O
M
J
K
L
INDEX
V
Main Menu
＊
Oil
........................Change, How to . 190
......................Change, When to . 179
......................Checking Engine . 141
..............Pressure Indicator . 60, 231
Selecting Proper Viscosity
......................................Chart . 189
...........ON (Ignition Key Position) . 79
Onboard Refueling Vapor
....................................Recovery . 251
..............................Outside Mirrors . 92
....................Overheating, Engine . 229
.......Owner Maintenance Checks . 184
..............Panel Brightness Control . 72
........................Park Gear Position . 155
...........................................Parking . 159
.................................Parking Brake . 93
Parking Brake and Brake
.................System Indicator . 60, 233
.................................Parking Lights . 71
..Parking Over Things that Burn . 159
................................Playing a Disc . 119
..........Playing the AM/FM Radio . 107
Playing the XM Satellite
..........................................Radio . 113
.............................PGM-FI System . 252
..........................Power Door Locks . 80
.................................Power Mirrors . 92
.................Power Socket Locations . 97
....................Power Steering Fluid . 197
.........Pregnancy, Using Seat Belts . 18
........................Preparing to Drive . 151
.........Protecting Adults and Teens . 12
...Additional Safety Precautions . 18
.....Advice for Pregnant Women . 18
........................Protecting Children . 37
Protecting Infants and Small
.......................................Children . 42
...........Protecting Larger Children . 51
.....................Using Booster Seat . 52
...................Radiator Overheating . 229
.............Radio/CD Sound System . 107
..................RadioTheft Protection . 129
Readiness Codes ........................... 254
.................Rear Differential Fluid . 196
.......................................Rear Doors . 81
..Rear Lights, Bulb Replacement . 203
..........................Rear Seat, Folding . 87
............................Rear View Mirror . 92
.................................Rear Windows . 93
......................................Defogger . 73
......................Wiper and Washer . 70
...............Reclining the Seat Backs . 83
..............Reclining the Front Seats . 86
.......Recommended Shift Speeds . 154
...Recommended Tire Pressures . 209
.............................Reminder Lights . 59
...............Removing the Rear Seats . 89
.......................Remote Transmitter . 77
................Remote Audio Controls . 132
Replacement Information
..............Dust and Pollen Filter . 206
................Engine Oil and Filter . 190
..........................................Fuses . 234
................................Light Bulbs . 198
...........................................Tires . 208
.............................Wiper Blades . 206
Replacing Seat Belts After a
............................................Crash . 23
..........Reporting Safety Defects . 260
Reserve Tank, Engine
...............................Coolant . 141, 192
Index
R
P
VI
Main Menu
＊
＊
CONTINUED
...............................Restraint, Child . 37
..................Reverse Gear Position . 156
......................................Roof Rack . 147
................................Rotation, Tire . 211
................................Safety Belts . 10, 20
.........Safety Defects, Reporting . 260
.................................Safety Features . 9
.........................................Airbags . 11
.....................................Seat Belts . 10
.............Safety Labels, Location of . 55
..............................Safety Messages . iii
................................Satellite Radio . 113
...................................Seat Belts . 10, 20
...............Additional Information . 20
Automatic Seat Belt
...............................Tensioners . 22
.....................................Cleaning . 205
................Lap/Shoulder Belt . 15, 21
................................Maintenance . 22
.....................Reminder Light . 20, 60
.............Replacing After a Crash . 23
...................System Components . 20
...............Use During Pregnancy . 18
...Wearing a Lap/Shoulder Belt . 15
........................Seats, Adjusting the . 83
.............Second (2) Gear Position . 157
.....................Selecting a Child Seat . 44
...............................Serial Number . 242
...........................Service Intervals . 185
...........................Service Manual . 261
...........Service Station Procedure . 139
..........................Setting the Clock . 130
.....Shift Lever Position Indicator . 155
........................Shift Lock Release . 158
....................................Side Airbags . 31
................................Off Indicator . 34
Side Marker Lights, Bulb
..............................Replacement . 201
...............................Signaling Turns . 71
............................................Skylight . 93
.....................................Snow Tires . 213
................................Sound System . 107
......................................Spare Tire . 218
......................................Inflating . 218
............................Specifications . 245
....................Specifications Charts . 244
................................Speed Control . 133
..........SRS, Additional Information . 24
...Additional Safety Precautions . 36
.............................Airbag Service . 35
How the Passenger Airbag Off
......................Indicator Works . 34
How the Side Airbag Off
......................Indicator Works . 34
..How the SRS Indicator Works . 33
How Your Front Airbags
.........................................Work . 27
...How Your Side Airbags Work . 31
How Your Side Curtain Airbags
.........................................Work . 32
........................SRS Components . 24
.............................SRS Indicator . 33, 61
....START (Ignition Key Position) . 79
..............State Emissions Testing . 254
.......................Starting the Engine . 152
In Cold Weather at High
..................................Altitude . 152
................With a Dead Battery . 227
........Steam Coming from Engine . 229
Steering Wheel
..................................Adjustment . 74
.............Anti-theft Column Lock . 79
Index
INDEX
S
VII
Main Menu
＊
＊
CONTINUED
Tailgete
............................................Locks . 82
..............................Open Monitor . 63
..........Taillights, Changing Bulbs . 203
.Taking Care of the Unexpected . 217
Technical Descriptions
......DOT Tire Quality Grading . 246
.....Emissions Control Systems . 251
..........State Emissions Testing . 254
Three Way Catalytic
...............................Converter . 253
.....................Tensioners, Seat Belt . 22
.......................Temperature Gauge . 68
..............Tether Anchorage Points . 50
Tire Pressure Monitoring System
..................................(TPMS) . 163
.......................................Indicator . 65
................Theft Protection, Radio . 129
..Three Way Catalytic Converter . 253
..................Tilt the Steering Wheel . 74
..........................Time, Setting the . 130
....................................Tire Chains . 213
.........Tire, How to Change a Flat . 219
...........................Tire Information . 246
.................................Tire Labeling . 248
...............................................Tires . 208
..............................Air Pressure . 209
.........................Checking Wear . 210
..........................Compact Spare . 218
....DOT Tire Quality Grading . 246
......................................Inflation . 208
..................................Inspection . 210
.....Low Pressure Indicator . 64, 163
..............................Maintenance . 211
...................................Replacing . 211
......................................Rotating . 211
...........................................Snow . 213
............................Specifications . 245
................................Tire Chains . 213
...................VSA and Tire Sizes . 166
...................Tools, Tire Changing . 219
Towing
.....................................A Trailer . 167
................................Emergency . 239
...Equipment And Accessories . 169
.............................Weight Limit . 167
.....Trailer, Driving Safely With a . 171
.............................Trailer Loading . 168
...........................Traction Devices . 213
Transmission
Checking Fluid Level,
..............................Automatic . 194
Checking Fluid Level,
...................................Manual . 195
..................Fluid Selection . 194, 195
..............Identification Number . 243
.............Shifting the Automatic . 155
..................Shifting the Manual . 153
......................Transmitter, Remote . 77
...................................Treadwear . 246
.......................................Trip Meter . 66
....................................Turn Signals . 71
...................Stereo Sound System . 107
....................Storing Your Vehicle . 215
Supplemental Restraint
................................System . 11, 24
......................................Servicing . 35
.........................SRS Indicator . 33, 61
...................System Components . 24
..................................Synthetic Oil . 190
Index
T
VIII
Turn Signal and Hazard
Warning Indicators .................. 62
Main Menu
＊＊
＊
＊＊
Unexpected, Taking Care
..........................................of the . 217
..Uniform Tire Quality Grading . 246
........................Unleaded Gasoline . 138
.......Used Oil, How to Dispose of . 191
.......................................XM Radio . 113
..................................Vanity Mirror . 99
.................Vehicle Capacity Load . 146
......................Vehicle Dimensions . 244
....Vehicle Identification Number . 242
.............................Vehicle Storage . 215
.....................................Ventilation . 104
.................................................VIN . 242
..................................Viscosity, Oil . 189
Vehicle Stability Assist (VSA)
........................................System . 165
.............................VSA Off Switch . 166
VSA System and Activation
.....................................Indicators . 64
............WARNING, Explanation of . iii
.........Warning Labels, Location of . 55
..................Warranty Coverages . 259
Washers, Windshield
........Checking the Fluid Level . 193
.....................................Operation . 70
...........................................Wheels . 208
...............Adjusting the Steering . 74
............Alignment and Balance . 211
..............................Replacement . 211
............................Specifications . 212
...............................Nut Wrench . 220
Windows
..................Operating the Power . 91
..............................................Rear . 93
...........................Rear, Defogger . 73
Windshield
.......................................Cleaning . 70
...................................Defroster . 105
.....................................Washers . 193
Wipers, Windshield
.......................Changing Blades . 206
.....................................Operation . 70
....................................Worn Tires . 210
.....Wrecker, Emergency Towing . 239
:U.S.only
: Canada only
Index
INDEX
U
V
W
X
IX
Main Menu
Service Information Summary
Gasoline:
Fuel Tank Capacity:
Recommended Engine Oil:
Automatic Transmission Fluid:
Brake Fluid:
Tire Pressure (measured cold):
Manual Transmission Fluid:
Rear Differential Fluid:
Power Steering Fluid: Spare Tire Pressure:
15.9 US gal (60
)
4.4 US qt (4.2
)
Unleaded gasoline, pump octane
number of 87 or higher.
API Premium grade 5W-20
detergent oil (see page ).
Oil change capacity (including
filter):
Honda Heavy Duty Brake Fluid
DOT 3 preferred, or a DOT 3 or
DOT 4 brake fluid as a temporary
replacement (see page ).
Honda ATF-Z1 (Automatic
Transmission Fluid) preferred, or
aDEXRON
III ATF as a
temporary replacement (see page
).
Honda Manual Transmission
Fluid preferred, or an SAE 10W-30
or 10W-40 motor oil as a
temporary replacement (see page
).
Capacity (including differential):
2.0 US qt (1.9
)
Honda Dual Pump Fluid. Do not
use ATF.
Capacity:
1.1 US qt (1.0
)
Honda Power Steering Fluid
preferred, or another brand of
power steering fluid as a
temporary replacement. Do not
use ATF (see page ).
Front:
33 psi (230 kPa , 2.3 kgf/cm
)
Rear:
35 psi (240 kPa , 2.4 kgf/cm
)
Front/Rear:
32 psi (220 kPa , 2.2 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm
)
SC model
189
195
197
196
All models except SC
194
Main Menu
