SAMSUNG
User manual
Galaxy
View2
i
Table of contents
Features 1
Expandable storage 1
Getting started 2
Device layout 3
Assemble your device 4
Start using your device 5
Lock or unlock your device 5
Use the Setup Wizard 6
Accounts 6
Transfer data from your old device 7
Navigation 8
Navigation bar 13
Customize the home screen 15
Multi window 20
Enter text 22
Apps 26
Using apps 27
Search for apps 27
ATT_T927A_EN_UM_TN_SB7_041919_FINAL
Table of contents
iv
AT&T Watch TV
64
Additional apps
65
Facebook
65
Hancom Office Viewer
65
Settings
66
Access Settings
67
Search for Settings
67
Connections
68
Wi-Fi
68
Bluetooth
70
Data usage
71
Airplane mode
72
Location
73
Nearby device scanning
74
Connect to a printer
74
Virtual Private Networks
74
Ethernet
75
Sounds and vibration
76
Sound mode
76
Table of contents
v
Volume
76
Do not disturb
77
System sounds
78
Key-tap feedback
78
Dolby Atmos
78
Equalizer
78
Headset audio options
79
Adapt sound
79
Notifications
79
Manage notifications
79
Display
80
Screen brightness
80
Font and screen zoom
80
Icon frames
80
Screen timeout
81
Screen saver
81
Device maintenance
81
Quick optimization
81
Battery
82
Table of contents
vi
Storage and memory card
82
Memory
84
Language and input
84
Date and time
87
Troubleshooting
87
Lock screen and security
90
Screen lock types
90
Clock and information
91
Google Play Protect
91
Find My Mobile
92
Security update
92
Install unknown apps
93
Secure Folder
93
App permission monitor
93
Secure startup
93
Encrypt SD card
94
Factory data reset password
94
Set up SIM card lock
94
View passwords
95
Table of contents
vii
Security update service
95
Device administration
95
Credential storage
96
Advanced security settings
96
Accounts
96
Samsung Cloud
97
Add an account
97
Account settings
97
Synchronize accounts
97
Remove an account
98
Users
98
Backup and restore
99
Google settings
100
Accessibility
101
Vision
101
Hearing
103
Dexterity and interaction
104
Accessibility settings
105
Accessibility services
105
Table of contents
viii
Other settings 106
Help 106
Daily Board 106
TV Mode 106
About tablet 106
Learn more 107
Videos 107
Smart Simulator 107
Tips 107
Samsung Care 107
Talk to an agent 107
Legal information 108
Intellectual property 109
Open source software 109
Disclaimer of warranties; exclusion of liability 110
Modification of software 110
Notice from AT&T 111
Samsung Knox 112
Restricting children’s access to your mobile device 112
II
Features
1
Features
Camera
The camera on your device has several unique features. See Camera on
page 34.
Direct Share
Share content with specific people directly. See Direct share on page 43.
Expandable storage
Expand storage with a microSD memory card. See Storage and memory card on
page 82.
Multi window
Multitask by using two applications at the same time. See Multi window on
page 20.
-'A'-
,v,
Getting started
3
Device layout
Volume keys
Power key
USB charger/
accessory port
SIM/microSD
card tray
Devices and software are constantly evolving — the illustrations you see here are for reference only.
NOTE Use care when adjusting the stand.
-'tJ-
Getting started
4
Assemble your device
Your device uses a nano-SIM card. Your SIM card may be preinstalled or you may be
able to use your previous SIM card. Contact your carrier for more details.
NOTE Use only charging devices and batteries (if applicable) that are approved
by Samsung. Samsung charging devices and batteries are designed for your
device to maximize battery life. Using other charging devices and batteries may
void your warranty and may cause damage.
Install SIM/microSD card
Slide the SIM card and
optional microSD
™
c
ard (sold
separately) into the tray with
the gold contacts facing down.
Charge your device
Before turning on your
device, charge it fully.
Getting started
5
Start using your device
Use the Power key to turn your device on or off.
Lock or unlock your device
Use your device’s screen lock features to secure your device. By default, the device
locks automatically when the screen times out. For more information about screen
locks, see Lock screen and security on page 90.
Devices and software are constantly evolving — the illustrations you see here are for reference only.
Power key
Press to lock. Press to turn on the
screen, and then drag your finger
across the screen to unlock.
-~-
-'n'-
,'t:(,
(+)
-'n'-
,'t:(,
Getting started
6
Use the Setup Wizard
The first time you turn your device on, the Setup Wizard guides you through the basics
of setting up your device.
Follow the prompts to choose a default language, connect to a Wi-Fi
®
network, set up
accounts, choose location services, learn about your device’s features, and more.
Accounts
Set up and manage accounts, including email accounts, your Google account, and
Samsung account.
TIP Accounts may support email, calendars, contacts, and other features. See
your service provider for more information.
Add a Google account
Your new device uses your Google
™
account to fully utilize its Android
™
features.
1.
From Settings, tap
Cloud and accounts > Accounts.
2.
Tap
Add account > Google.
NOTE When you sign in to a Google account, Factory Reset Protection (FRP) is
activated. FRP requires your Google account information when resetting to
factory settings. For more information, see Factory data reset on page 88.
Add a Samsung account
Create a Samsung account for access to Samsung content and apps on your device.
1.
From Settings, tap
Cloud and accounts > Accounts.
2.
Tap
Add account > Samsung account.
NOTE To quickly access your Samsung account, from Settings tap Samsung
account.
Getting started
7
Add an email account
View and manage all of your email accounts.
1.
From Settings, tap
Cloud and accounts > Accounts.
2.
Tap
Add account > Email.
Transfer data from your old device
Use Smart Switch
™
to transfer contacts, photos, and other content from your old
device.
Visit samsung.com/us/support/owners/app/smart-switch to learn more.
1.
From Settings, tap
Cloud and accounts > Smart Switch.
2. Follow the prompts and select the content to transfer.
1,524x14
21,336x
34
=21,336
725,424
•
@
!:i
2nd
Rad
-./
C
()
%
sin
cos
tan
8
9
X
In
log
7/x
5 6
ex x2
xY
2 3
e
Getting started
8
Navigation
A touch screen responds best to a light touch from the pad of your finger or a
capacitive stylus. Using excessive force or a metallic object on the touch screen may
damage the tempered glass surface and void the warranty.
Tap
Devices and software are constantly evolving — the illustrations you see here are for reference only.
Lightly touch items to select or launch them.
l Tap the keyboard to enter characters or text.
l Tap an item to select it.
Captured by Smart capture
saved
In
Gallery
.
Y And1old
$ysltm
"'
USB for file transfer
Tap
for other
use
op lions.
Getting started
9

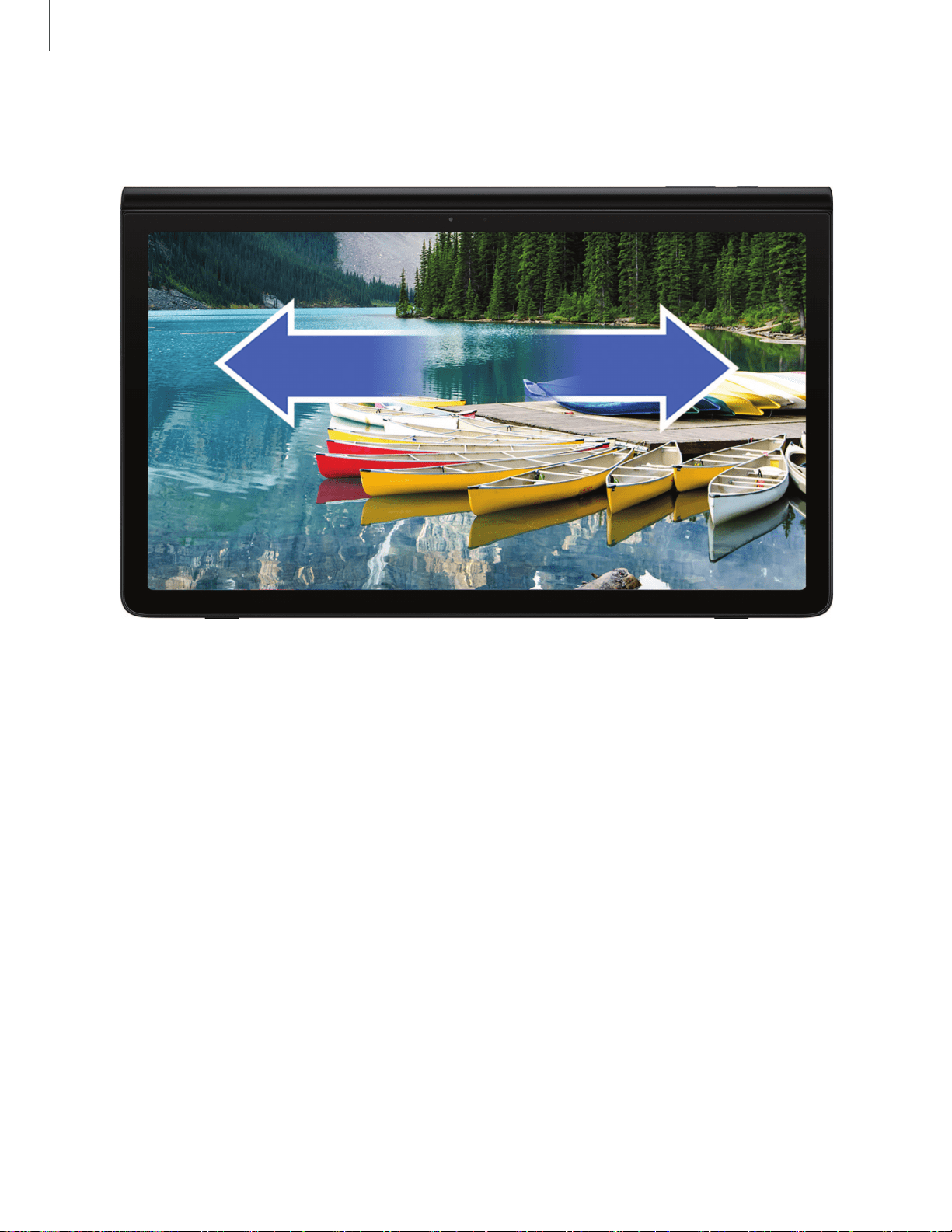

Swipe
Devices and software are constantly evolving — the illustrations you see here are for reference only.
Lightly drag your finger vertically or horizontally across the screen.
l Swipe the screen to unlock the device.
l Swipe the screen to scroll through the Home screens or menu options.
Getting started
10
Drag and drop
Devices and software are constantly evolving — the illustrations you see here are for reference only.
Touch and hold an item, and then move it to a new location.
l Drag an app shortcut to add it to a Home screen.
l Drag a widget to place it in a new location.
Getting started
11
Zoom in and out
Devices and software are constantly evolving — the illustrations you see here are for reference only.
Move your thumb and forefinger together or apart to zoom in and out.
l Bring your thumb and forefinger together on the screen to zoom out.
l Move your thumb and forefinger apart on the screen to zoom in.
To
J
-,
m
es
(D
SUH
MOH
TUE
wtl)
THU
SAT
Hi
James
HI
Jam
es
. I hope
th
i
ng
s are go
ing
we
ll.
Pl
ease
ca
ll
me l
at
er today,
Th
a
nk
s.
7
mm::111
10
11
12
14
15 16
17 18 19
20
21
22
23
24 25 26 27 28
5
0
Getting started
12
Touch and hold
Devices and software are constantly evolving — the illustrations you see here are for reference only.
Touch and hold items to activate them.
l Touch and hold a field to display a pop-up menu of options.
l Touch and hold a Home screen to customize the Home screen.
_J
r
•
L
'
@
.
Calculator
~
Gallery
()
SeJr
ch t
.i
h
!~
•!
(ID
Calendar
Q
Internet
~
G)
Camera Chrome
~
~
My
Files
Phone
-!.,
ct)
(£l
'B
·~
-~.---
.
Clock
Contacts
Email
GalaKy
Apps
~
(Q)
IT]
@
Samsung
Flow
Samsung
Notes
Secure
Folder
Settings
Getting started
13
Navigation bar
The Navigation bar, at the bottom of the screen, displays the navigation keys.
Devices and software are constantly evolving — the illustrations you see here are for reference only.
Recent Home Back
l
Tap Recent to view all open apps.
l
Tap Home to return to the main home screen.
l
Tap Back to return to the previous screen.
Getting started
14
Full screen mode
The navigation keys are hidden in full screen mode.
To enter or exit full screen mode:
◌
Double-tap the Hide/Show icon to the left of the navigation keys.
To view the navigation keys in full screen mode:
◌
Swipe up from the bottom of the screen to display the Navigation bar.
Navigation bar settings
You can configure the Navigation bar background color and button layout.
◌
From Settings, tap Display > Navigation bar for the following options:
•
Show and hide button: Add a button on the left side of the navigation bar to
show or hide the Navigation bar.
•
Background color: Choose a color for the background of the Navigation bar.
•
Button layout: Choose the position of the navigation keys.
-:¢:-
Getting started
15
Customize the home screen
Your device has multiple Home screens to hold app shortcuts and widgets. You can
add, remove, change the order of screens, as well as choose a different main Home
screen.
App icons
You can use app icons to launch an app from any Home screen.
◌
From Apps, touch and hold an app icon to open the options menu, and then tap
Add to Home.
To remove an icon:
◌
Touch and hold an app icon to open the options menu, and then tap Remove
from Home.
NOTE Removing a icon does not delete the app, it just removes the icon from a
Home screen.
Use folders
You can organize app in folders on the Apps screens and Home screens.
For more information, see Create and use folders on page 28.
Wallpapers
You can change the look of the Home and Lock screens by choosing a favorite picture
or preloaded wallpaper.
1. Touch and hold a Home screen.
2. Tap Wallpapers to customize.
3. Tap an image to choose it.
• Tap the screen or screens you want to apply the wallpaper to.
4. Tap Set as wallpaper, and confirm when prompted.
®
Getting started
1
6
Widgets
Widgets run on the home screen to give you quick access to info or apps.
1. Touch and hold a Home screen.
2. Tap Widgets.
3. Touch and hold a widget, drag it to a Home screen, and release it.
To remove a widget from a Home screen:
1. From a Home screen, touch and hold a widget to open the options menu.
2.
Tap
Remove from Home.
Home screen settings
Customize your Home and Apps screens.
1. Touch and hold a Home screen.
2.
Tap
Home screen settings to customize:
• Home screen layout: Set your device to have separate Home and Apps
screens, or only a Home screen where all apps are located.
• Apps button: Add a button to the Home screen for easy access to the Apps
screen.
• App icon badges: Select how to show icon badges when apps receive
notifications.
• Add apps to Home screen: Automatically add newly-downloaded apps to the
Home screen.
• Quick-open notification panel: Enable this feature to open the Notification
panel from the Home screen by swiping down.
• Hide apps: Select apps to hide.
• About Home screen: View version information.
~
• •
~
-
•
1'
-
~I
~
~?
• •
Q
Getting started
17
Status bar
The Status bar provides device information on the right side and notification alerts on
the left.
Status icons
Battery full Battery low Charging Mute
Airplane mode Bluetooth active Wi-Fi active Location active
Notification icons
Missed calls Call in progress Call on hold New email
Download Upload Wi-Fi available App update
Co
nfigure display options for the Status bar.
◌
From Settings, tap Display > Status bar for the following options:
•
Tap Show recent notifications only to display only the three most recent
notification icons on the Status bar.
•
Tap Show battery percentage to display the battery charge percentage next
to the battery icon on the Status bar.
C.
SarMurl9
CC>h,0
hit
Pf,I v
captured by
Smart
capture
~
tm-.ge
uvedtn
Gallery
1111
V AMl'Oldlyttn ...
USS
for flle transfer
Tap
for Olhef
USS
op(IOOS.
Getting started
18
Notification panel
For quick access to notifications, settings, and more, simply open the Notification
panel.
Devices and software are constantly evolving — the illustrations you see here are for reference only.
Device settings
View all
Quick settings
Notifications cards
0
•
•
•
L
'
Getting started
19
View the Notification panel
You can access the Notification panel from any screen.
1. Drag the Status bar down to display the Notification panel.
2. Swipe down the list to see notification details.
• To open an item, tap it.
• To clear a single notification, drag the notification left or right.
• To customize notifications, tap Notification settings.
• To clear all notifications, tap Clear.
3.
Drag upward from the bottom of the screen or tap
Back to close the
Notification panel.
Quick settings
The Notification panel also provides quick access to device functions, allowing you to
quickly turn them on or off.
1. Drag the Status bar down to display the Notification panel.
2.
Drag
View all downward.
• Tap a quick setting icon to turn it on or off.
• Touch and hold a quick setting icon to open the setting.
•
Tap
Settings to quickly access the device's settings menu.
•
Tap
More options to reorder Quick settings or to change the button layout.
3.
Drag
View all upward to close Quick settings.
CJ
CJ
.....
10
17
24
"""
TUf
4
11
12
18
19
25 26
...
mu
6
7
mm::!1111
20
27
_J
'
14
21
28
CJ
CJ
To
Jame
s
G)
"'
..
,
Hi
James
HI James. I h
ope
things
are
going
wel
l.
Please call me later
today
.
Thank
s.
8
15
16
22
23
-
Getting started
20
Multi window
Multitask by using two apps at the same time. Apps that support Multi window
™
can be
displayed together on a split screen. You can switch between the apps and adjust the
size of their windows.
Split screen
control
Devices and software are constantly evolving — the illustrations you see here are for reference only.
1.
From any screen, tap
Recent apps.
2.
Tap
Multi window in the title bar to launch an app in split screen view.
• Recently opened apps are displayed in the lower window. Apps that support
Multi window have the
Multi window icon in their title bar.
• If there are no recently opened apps that support Multi window, or if you
want to launch a different app, tap App list.
3. Tap an app in the lower window to add it to the split screen view.
0
C)
Getting started
2
1
Window controls
The Window controls modify the way app windows are displayed in split screen view.
◌
Tap the middle of the window border for the following options:
•
Add app pair on Home screen
: Add the open pair of apps as a shortcut to
the Home screen.
•
Switch windows
: Swap the two windows.
•
Open in pop-up view
: Open the selected app in a pop-up window.
•
Close app
: Close the selected app.
Multi window settings
Additional features are available for Multi window.
◌
From Settings, tap Advanced features > Multi window, and then tap to
enable each of the following options:
•
Split screen view action: Configure the Recent apps key to switch between
full screen view and split screen view.
•
Pop-up view action: Swipe down diagonally from either the right or left top
corner of the screen to put the app into pop-up view.
....
...
-
-~·
_
iltll
0
Go
to
the grocery store
0
Do
laundry
0
Ca
llm
om
El
- -
B
.L!
I
(r)
g
(;i
G)
~
®
2 3 4 5 6 7 8 9 0
Del
Q
w E R T
y
u 0
p
<El
A s D
F
G H J K L
¢,!I
'll'
z X C V B N M
?
'll'
1#
1
Enghsh (US)
~
!>
Getting started
22
Enter text
Text can be entered using a keyboard or your voice.
Devices and software are constantly evolving — the illustrations you see here are for reference only.
Expand toolbar
◌
Tap a field to display the Samsung keyboard.
•
Tap
Show predictive text
to view suggested words while you type.
•
Tap
Show toolbar functions
to view all keyboard options.
V
Getting started
23
Toolbar functions
The toolbar provides additional helpful functions.
◌
From the Samsung keyboard, tap Expand toolbar for the following options:
•
Clipboard
: Access the clipboard.
•
Emojis
: Insert an emoji.
•
GIF keyboard
: Add animated GIFs.
•
Handwriting
: Use your handwriting to enter text.
•
Modes
: Select a keyboard layout.
•
Settings
: Access keyboard settings.
•
Stickers
: Add illustrated stickers.
•
Voice input
: Use Google Voice
™
typing.
Configure the Samsung keyboard
Set customized options for the Samsung keyboard.
◌
From the Samsung keyboard, tap Settings for the following options:
•
Languages and types: Set the keyboard type and choose which languages are
available on the keyboard.
– To switch between languages, slide the Space bar sideways.
•
Smart typing: Use predictive text and auto-correction features to prevent
common typing mistakes. Type by swiping between letters.
•
Keyboard layout and feedback: Customize the appearance and function of
the keyboard.
•
Reset to default settings: Return keyboard to original settings and clear
personalized data.
•
About Samsung keyboard: View version and legal information for the
Samsung keyboard.
""
El
...
O
Go
to
the grocery store
D
Do
laundry
D
Ca
llm
om
-
-
.....
B
l1
I
Try
saying something
•
Goo
Getting started
24
Use Google Voice typing
Instead of typing, enter text by speaking.
Settings
Devices and software are constantly evolving — the illustrations you see here are for reference only.
1.
From the Samsung keyboard, tap
Voice input.
2. Tap the screen and speak your text.
0
Getting started
25
Configure Google Voice typing
Set customized options for Google voice typing.
1.
From the Samsung keyboard, tap
Voice input.
2.
Tap
Settings for options.
• Languages: Choose the language for the keyboard.
• Offline speech recognition: Download languages for offline Google voice
typing.
• Hide offensive words: Hide potentially offensive words with asterisks.
-'fJ-
-'fJ-
Q
•
•
•
•
•
•
•
•
•
Apps
27
Using apps
The Apps list displays all preloaded and downloaded apps. Apps can be downloaded
from Galaxy Apps and the Google Play store. Not all apps can be uninstalled, but you
can disable them to remove them from view.
◌
From a Home screen, swipe the screen upward to access the Apps list.
Search for apps
If you are not sure where to find an app or a setting, you can use the Search feature.
◌
From Apps, tap Search tablet, enter a word(s), and tap a result to go to that
app.
TIP To customize the Finder search settings, tap More options > Settings.
Sort apps
App shortcuts can be listed alphabetically or in your own custom order.
◌
From Apps, tap More options > Sort for the following sorting options:
•
Custom order: Arrange apps manually.
•
Alphabetical order: Sort apps alphabetically.
TIP When apps are arranged manually (Custom order), empty icon spaces can be
removed by tapping
More options > Clean up pages.
0
(±)
L
'
®
Apps
28
Create and use folders
You can make folders to organize App shortcuts on the Apps list.
1. From Apps, touch and hold an app shortcut, and then drag it on top of another
app shortcut until it is highlighted.
2. Release the app shortcut to create the folder.
• Enter f
older name: Name the folder.
•
Palette: Change the folder color.
•
Add apps: Place more apps in the folder. Tap apps to select them, and
then tap Add.
3.
Tap
Back to close the folder.
Copy a folder to a Home screen
You can copy a folder to a Home screen.
1. From Apps, touch and hold a folder to open the options menu.
2.
Tap
Add to Home.
Delete a folder
When you delete a folder, the app shortcuts return to the Apps list.
1. From Apps, touch and hold a folder to delete.
2.
Tap
Delete folder, and confirm when prompted.
-
•
•
•
Apps
29
Samsung apps
The following apps are either preloaded or downloaded over-the-air to your device
during setup.
Galaxy Essentials
You can find and download apps that are designed for your Galaxy device.
◌
From Apps, tap More options > Galaxy Essentials.
Galaxy Apps
Find and download premium apps that are exclusive to Galaxy devices. A Samsung
account is required to download from Galaxy Apps.
◌
From Apps, tap Samsung folder > Galaxy Apps.
Samsung Flow
Samsung Flow is a platform that allows applications to seamlessly transition your
activities across devices and time.
l Transfer: Start an activity on your device, and pick up where you left off on another
device.
l Defer: Put an activity on hold until you are ready to pick it back up.
l Task Lisk: Track your deferred activities.
For more information, visit samsung.com/us/support/owners/app/samsung-flow.
◌
From Apps, tap Samsung folder > Samsung Flow.
&
Apps
30
Secure Folder
Secure folder is a private encrypted space on the device that can store your private
data, files, and apps.
1.
From Apps, tap Samsung folder >
Secure Folder.
2. Follow the prompts to create a secure lock for your folder.
1,524x 4
21,336x
34
=21,336
725,424
c:::l
<D
"'
2nd
Rad
-./
C
()
%
sin cos tan
7
8
9
X
In
log 1/x
4
5 6
ex x 2
x Y
1 2 3
TI
e
Apps
31
Calculator
The Calculator app features both basic and scientific math functions, as well as a unit
converter.
◌
From Apps, tap Calculator.
Devices and software are constantly evolving — the illustrations you see here are for reference only.
History
View past calculations
Converter
Convert between
measurements
TODAY
FEB
,UN
"""
""
fN
..
,
2
3 5 7 8 9
1-
...
1444-
10
11
12
EJ
14 15
16
..
17 18 19 20
21
22 23
24 25 26
27
28
Apps
32
Calendar
The Calendar app can be connected to your various online accounts to consolidate all
your calendars in one place.
◌
From Apps, tap Calendar.
Devices and software are constantly evolving — the illustrations you see here are for reference only.
Double-tap to
edit event
Change to other
calendar views
Create new
event or task
0
Apps
33
Create an event
Use your Calendar to create events.
1.
From Apps, tap
Calendar > Add to add an event.
2. Enter details for the event, and then tap Save.
Delete an event
Delete events from your Calendar.
1.
From Apps, tap
Calendar, tap an event, and tap again to edit it.
2. Tap Delete, and confirm when prompted.
Apps
34
Camera
You can capture high-quality pictures and videos using the Camera app.
◌
From Apps, tap Camera.
Devices and software are constantly evolving — the illustrations you see here are for reference only.
Open the
Gallery app
Change settings
Record a video
Take a picture
Change
Shooting Mode
SELFIE STICKERSSELFIE FOCUS
0 ©
e
• •
0
Apps
35
Navigate the camera screen
Take stunning pictures with your device’s cameras.
1.
From
Camera, set up your shot with the following features:
• Tap the screen where you want the camera to focus.
• To change to a different shooting mode, swipe the screen right or left.
•
To change camera settings, tap
Settings.
2.
Tap
Capture.
Camera Features
Your device features several camera modes and settings that are designed to take
your photography to the next level. See below for some useful tips about your camera.
Change the shooting method
Take pictures faster by setting up a shortcut shooting method.
1.
From
Camera,
tap Settings > Shooting methods.
2. Tap an option to select it:
• Tap screen: Simply tap the screen to take a selfie.
• Show palm: Hold you palm up to the camera to automatically take a picture.
Record videos
Record high-quality videos using your device.
1.
From
Camera, tap Record to begin recording a video.
•
To take a picture while recording, tap
Capture.
•
To temporarily stop recording, tap
Pause. To continue recording, tap
Resume.
2.
Tap
Stop when you are finished recording.
Apps
36
Change shooting modes
The Camera is equipped with a variety of shooting modes to capture pictures and
videos in specific scenarios.
◌
From Camera, the shooting modes are located at the top of the screen.
•
To change the shooting mode, swipe the screen right or left.
•
To view the entire shooting mode list and each mode’s description, touch and
hold a shooting mode.
Configure shooting mode
Allow the camera to determine the ideal mode for your pictures or choose from
several shooting modes.
◌
From Apps, tap Camera, and swipe to the right or left to see the available
shooting modes. To view and reorganize all available shooting modes, touch and
hold a shooting mode.
•
Selfie focus: Enhance the focus of a selfie by adding blur to the background.
•
Selfie: Take selfie shots and apply various effects, such as an airbrushed
effect.
•
Stickers: Add decorations to your image.
Camera settings
Use the icons on the main camera screen and the settings menu to configure your
camera’s settings.
◌
From Apps, tap Camera > Settings.
Front camera
•
Pic
ture size: Select a resolution. Selecting a higher resolution for higher
quality requires more memory.
•
Video size: Select a resolution. Selecting a higher resolution for higher
quality requires more memory.
•
Timer: Take time-delayed pictures or videos.
Apps
37
•
Save pictures as previewed: Save self-portraits or self-recordings as viewed
on the camera screen, not as flipped images.
•
Shooting me
thods: Create a shortcut to take pictures.
Com
mon
•
Ed
it camera modes: Enable, disable, and rearrange shooting modes.
•
Grid lines: Display viewfinder grid lines to help compose a picture or video.
•
Location tags: Attach a GPS location tag to the picture.
•
Review pictures: Review pictures after taking them.
•
Storage location: Select a memory location.
– A memory card (not included) must be installed to view Storage location.
•
Floating Camera button: Add an extra camera button that you can move
anywhere on the screen in Auto and Selfie modes.
•
Press Volume key to: Use the Volume key to take pictures, record video, zoom,
or control system volume.
•
Shutter sound: Play a tone when taking a picture.
•
Reset settings: Reset the camera settings.
6:00
....
12:15
PM
5:30
PM
WORLOClOCte
STOPWATCH
TIMEII
n,.,...,,
C:
Apps
38
Clock
The Clock app offers features for keeping track of time and setting alarms.
◌
From Apps, tap Clock.
Devices and software are constantly evolving — the illustrations you see here are for reference only.
Turn on or off
an existing
alarm
Create new
alarm
© 0
Apps
39
Alarm
Use the Alarm tab to set one-time or recurring alarms, and choose options for how to
be notified.
1.
From
Clock, tap Add alarm.
2. Tap the following items to configure an alarm:
• Date: Choose the day for this alarm.
• Time: Set a time for the alarm.
• Repeat: Choose when to repeat the alarm.
• Alarm name: Enter a name for the alarm.
• Snooze: Allow snoozing. Set interval and repeat values for the alarm while
snoozing.
• Alarm sound: Choose a sound to play for the alarm, and drag the slider to set
the volume of the alarm.
• Read time aloud: Read the time aloud when the alarm rings.
3. Tap Save to save the alarm.
Delete an alarm
You can delete an alarm that you created.
◌
From Clock, touch and hold an alarm, and then tap Delete.
Chicago
llOPM
0
NewYOf'k
no""
London
Berlon
...
0
0
Porn,
...
1.Jsbon
Rome
Apps
40
World clock
The World clock lets you keep track of the current time in multiple cities around the
globe.
Location
Center the globe on
your current location
City
View the current time and
add to your list of cities
Search
Find a particular city
Globe
Drag to spin and see times
around the world
Devices and software are constantly evolving — the illustrations you see here are for reference only.
1.
From
Clock, tap World clock.
2.
Tap
Add city.
3. Tap Search and enter the name of the city.
4. Tap the city name in the list, and then tap Add.
• To remove a city, touch and hold it, and tap Delete.
Apps
4
1
T
ime zone converter
Set a time in a city on your World clock list to see what the local times would be in
the other listed cities.
1.
From
Clock, tap World clock.
2.
Tap
Time zone converter.
3.
Tap Menu to choose a different city.
• To add a city to the list, tap Add city.
4. Swipe the hours, minutes, and period (AM or PM) on the clock to set a time. Local
times for the other cities listed are automatically updated.
• To return the clock to the current time, tap Reset.
Stopwatch
The Stopwatch lets you time events down to a hundredth of a second.
1.
From
Clock, tap Stopwatch.
2. Tap Start to begin timing.
• To keep track of lap times, tap Lap.
3. Tap Stop to end timing.
• To continue timing after stopping the clock, tap Resume.
• To reset the Stopwatch to zero, tap Reset.
Timer
Set a countdown timer for up to 99 hours, 59 minutes, and 59 seconds.
1.
From
Clock, tap Timer.
2. Use the keypad and tap Hours, Minutes, and Seconds to set the Timer.
3. Tap Start to begin the Timer.
• To temporarily stop the Timer, tap Pause. To continue, tap Resume.
• To stop and reset the Timer, tap Cancel.
e
*
0
0
*
Apps
43
Edit a contact
When editing a contact, you can tap a field and change or delete information, or you
can add more fields to the contact’s list of information.
1.
From
Contacts, tap a contact.
2. Tap Edit.
3. Tap any of the fields to add, change, or delete information.
4. Tap Save.
Call a contact
You can quickly call a contact using their default phone number.
1.
From
Contacts, tap a contact.
2.
Tap
Call.
Direct share
Share content directly with your contacts from within any app. Once enabled, your
frequent contacts are displayed in the Share window.
◌
From Settings, tap Advanced features > Direct share, and tap to enable.
Favorites
When you mark contacts as favorites, they are easily accessible from other apps.
1.
From
Contacts, tap a contact.
2.
Tap
Add to Favorites to mark the contact as a favorite.
•
To remove the contact from Favorites, tap
Favorite.
Share a contact
Share a contact with others by using various sharing methods and services.
1.
From
Contacts, tap a contact.
2. Tap Share.
3. Tap either vCard file (VCF) or Text.
4. Choose a sharing method and follow the prompts.
•
•
•
Apps
44
Groups
You can use groups to organize your contacts.
Create a group
Create your own contact groups.
1.
From
Contacts, tap Groups.
2. Tap Create, and then tap fields to enter information about the group:
• Group name: Enter a name for the new group.
• Add member: Select contacts to add to the new group, and then tap Done.
3. Tap Save.
Add or remove group contacts
Add more contacts to a group, or remove contacts.
◌
From Contacts, tap Groups, and then tap a group.
•
To remove a contact, touch and hold a contact to select it, and then tap
Remove.
•
To add a contact, tap Edit > Add member, and then tap the contacts you want
to add. When finished, tap Done > Save.
Send an email to a group
Send an email to members of a group.
1.
From
Contacts, tap Groups, and then tap a group.
2.
Tap
More options > Send email.
3. Tap contacts to select them, or tap the All checkbox at the top of the screen to
select all, and then tap Done.
• Only group members that have an email address in their records are
displayed.
4. Choose an email account and follow the prompts.
•
•
•
•
•
•
•
•
•
Apps
4
5
D
elete a group
Delete a group you have created.
1.
From
Contacts, tap Groups, and then tap a group.
2.
Tap
More options > Delete.
• To only delete the group, tap Group only.
• To delete the group and the contacts in the group, tap Group and members.
Manage contacts
You can import or export contacts, as well as link multiple contacts into one contact
entry.
Import contacts
Your device can import contacts from an installed memory card (not included).
1.
From
Contacts, tap More options > Manage contacts.
2. Tap Import/Export contacts.
3. Tap Import and follow the prompts.
Export contacts
Manually back up contacts to an installed memory card (not included).
1.
From
Contacts, tap More options > Manage contacts.
2. Tap Import/Export contacts.
3. Tap Export and follow the prompts.
•
•
•
•
•
•
Apps
46
Link or unlink contacts
Consolidate contact information from multiple sources into one contact by linking
entries into a single contact.
1.
From
Contacts, tap the contact to select it.
2.
Tap
More options > Link contacts.
3. Tap contacts to choose them.
4. Tap Link.
To unlink contacts:
1.
From
Contacts, tap the contact to select it.
2.
Tap
More options > Manage linked contacts.
3. Tap Unlink beside contacts to unlink them from the main contact.
Delete contacts
Delete a single contact or multiple contacts.
1.
From
Contacts, touch and hold a contact to select it.
• You can also tap other contacts to select them for deletion.
2. Tap Delete, and confirm when prompted.
HI
James
. I hope
things
are
going
well.
Please
call
me
l
ater
t
oday
.
Th
anks
.
"I
F. R
oboL
•
12 •
B
J.l
I
m
-
"'
.,
-
(r)
Q
(;i
GI
~
©
V
2 3 4 5 6 7 8
9
0
Del
Q
w E R
T
y
u 0
p
<El
A
s D
F
G H J K L
¢ll
'u'
z X C V B N M
?
'u'
Ctrl
1#
1
Enghsh(US)
<l
I>
Apps
47
Email
View and manage all of your email accounts in one app. To add an email account, see
Add an email account on page 7.
◌
From Apps, tap Email.
Devices and software are constantly evolving — the illustrations you see here are for reference only.
Send the email
message
Attach documents,
images, and more
V
•
•
•
-
-
0
Q
Apps
48
Create and send an email
Learn how to create and send email messages.
1.
From
Email, tap Compose new email.
• Different email account may have additional steps and options.
2.
Tap the To field to add an email address or tap
Add from Contacts to select a
recipient from your contacts.
• When adding multiple recipients, separate them with a semicolon (;). More
recipients can be added at any time before the message is sent.
• If adding a recipient from your Contacts, tap the contact to place a
checkmark, and then tap Done. The contact is displayed in the recipients
field.
•
Tap
Show additional fields to add Cc and Bcc fields.
3. Tap the Subject and Message fields to enter text.
• Tap Attach to add files, images, audio, and more to your email.
•
Tap
More options for additional email options.
4. Review your message and tap Send.
Manage the inbox
There are several tools available from the Inbox screen.
◌
From Email:
•
Tap a message to read and reply or forward it.
•
Tap Search to search for key words in your email inbox.
•
Tap Edit for additional message options.
•
Tap Sort to customize how messages display.
•
Tap
to change the inbox view and settings.
Apps
49
Email settings
Modify settings associated with using the Email app.
◌
From Email, tap > Settings.
•
Under General, tap an option, and then follow the prompts.
•
Tap an account to configure specific settings for only that account.
Apps
50
Gallery
View, edit, and manage pictures and videos.
◌
From Apps, tap Gallery.
Devices and software are constantly evolving — the illustrations you see here are for reference only.
Stories
Custom collections of
pictures and videos
Shared
Use your Samsung
account to share
pictures and videos
Pictures
Content organized by date
Albums
Sort images into
custom albums
•
•
•
Apps
51
View pictures
Pictures stored on your device are viewable in the Gallery app.
1.
From
Gallery, tap Pictures.
2. Tap a picture to view it. Swipe left or right to view other pictures or videos.
•
To access the following features, tap
More options:
– Details: View and edit information about the picture.
– Set as wallpaper: Set the picture as wallpaper.
– Show date and location tags: See date and location tags when viewing
your pictures.
– Print: Send the picture to a connected printer.
– Open in Photo Editor Pro: Edit the picture in Photo Editor Pro.
Edit pictures
Edit pictures stored on your device.
1.
From
Gallery, tap Pictures, and tap a picture to edit.
2. Tap a picture to view it and to see the following options:
•
Transform: Rotate, flip, crop, or make other changes to the overall
appearance of the picture.
•
Effects: Add color effects.
•
Stickers: Overlay illustrated or animated stickers.
•
Tex
t: Add text to the picture.
•
Draw: Add handwritten text or hand drawn content.
•
•
•
•
Q
•
•
•
Apps
52
Play video
Play videos stored on your device.
1.
From
Gallery, tap Pictures.
2. Tap a video to view it. Swipe left or right to view other pictures or videos.
•
To mark the video as a favorite, tap
Favorite. The video is added to
Favorites under the Albums tab.
•
To access the following features, tap
More options:
– Details: View and edit information about the video.
– Show date and location tags: See date and location tags when viewing
your videos.
3.
Tap
Play video to play the video.
Edit video
Edit videos stored on your device.
1.
From
Gallery, tap Pictures.
2. Tap a video to view it.
3.
Tap
Edit to cut segments of the video.
4. Tap Save, and confirm when prompted.
Share pictures and videos
Share pictures and videos from the Gallery app.
1.
From
Gallery, tap Pictures.
2.
Tap
More options > Share, and then tap pictures and videos to select them.
3. Tap Share, and then choose an app or connection to use for sharing your
selection. Follow the prompts.
0
•
•
•
0
Apps
53
Delete pictures and videos
Delete pictures and videos stored on your device.
1.
From
Gallery, tap More options > Edit.
2. Tap pictures and videos to select them, or tap the All checkbox at the top of the
screen to select all pictures and videos.
3. Tap Delete, and confirm when prompted.
Take a screenshot
Capture an image of your screen. It will automatically create a Screenshots album in
the Gallery app.
◌
From any screen, press and hold the Power and Volume down keys.
Enable Smart capture
When taking a screen shot, capture an image of any scrollable areas of the screen
that are currently hidden, as well as the area that is visible, and crop and share the
screenshot immediately.
1.
From Settings, tap
Advanced features > Smart capture.
2. Tap
to enable this feature.
Go gle
-~-
Apps
54
Internet
You can access the Internet with a fully-featured web browser.
◌
From Apps, tap Samsung folder > Internet.
Bookmarked pages
and browser tabs
Reload
webpage
Add webpage
to Favorites
Navigation
Devices and software are constantly evolving — the illustrations you see here are for reference only.
NOTE Visit samsung.com/us/support/owners/app/samsung-internet for more
information.
-~-
op
-~-
+
X
op
•
•
•
•
•
•
op
•
•
•
Apps
5
5
Browser tabs
Use tabs to view multiple web pages at the same time.
◌
From Internet, tap New tab.
•
To close a tab, tap
Close tab
.
Bookmarks
The Bookmarks page stores Bookmarks, Saved pages, and your browsing History.
Open a Bookmark
Quickly launch a web page from the Bookmarks page.
1.
From Internet, tap Bookmarks > Bookmarks.
2. Tap a bookmark entry.
Save a web page
Saving a web page stores its content on your device so that you can access it offline.
◌
From Internet, tap More options > Save webpage.
TIP To view saved web pages, tap Bookmarks > Saved pages.
View history
View a list of recently visited web pages:
◌
Tap Bookmarks > History.
TIP To clear your browsing history, tap More options > Clear history.
Share pages
Web pages can be shared with your contacts.
◌
From Internet, tap More options > Share, and follow the prompts.
•
•
•
•
•
•
•
•
•
Apps
56
Secret mode
Pages viewed in Secret mode are not listed in your browser history or search history,
and leave no traces (such as cookies) on your device. Secret tabs are a darker shade
than the normal tab windows.
Any downloaded files remain on your device after you close the secret tab.
1.
From
Internet, tap More options > Turn on secret mode.
2. Tap Set password to protect your Secret mode data with a password.
To t
urn off Secret mode:
◌
From Internet, tap More options > Turn off secret mode.
Internet settings
Modify settings associated with using the Internet app.
1.
From
Internet, tap More options > Settings.
2. Tap an option and follow the prompts.
Qsearch
Recent files
CATEGORIES
t:_:i Images
J' Audio
[Bl Videos
[j
Documents
~
Downloads
In
stallation files
In
ternal storage
SD
card
Recent files O items
My Files ) Recent files
Name Date Type Size
No files
Any files that you open
or
download will appear here
Apps
57
My Files
View and manage files stored on your device, including images, videos, music, and
sound clips.
Storage
locations
Devices and software are constantly evolving — the illustrations you see here are for reference only.
1.
From Apps, tap
My Files.
2. Tap a category to view the relevant files or folders.
3. Tap a file or folder to open it.
Q
•
•
•
Apps
58
File groups
Files stored in the device are organized into the following groups:
•
Recent files: View recently accessed files.
–
This option displays if one or more files have been accessed recently.
•
Categories: View your files based on the file type.
•
Tablet: View folders and files located on the device and optional memory card
(not included).
•
Cloud: View files saved on your cloud accounts.
–
Cloud drives vary depending on the services you sign in to.
My Files options
Use My Files options to search, edit, clear file history, and more.
◌
From Apps, tap My Files. The following options are available:
•
Search
: Search for a file or folder.
•
More options
:
– Get more space: View storage information for your device.
– Settings: View settings for the app.
1
2
3
ABC
DEF
4 5 6
GHO
JKL
MNO
7
8 9
PORS
ruv
w,.yz
*
0
#
Apps
59
Phone
You can make and receive phone calls, check voicemail messages, and set up speed
dial numbers.
◌
From a Home screen, tap Phone.
Make a callMake a vide
o call
Devices and software are constantly evolving — the illustrations you see here are for reference only.
NumberSync
Use your mobile number to make and receive voice and video calls from your tablet.
l Voice and video calling: Now you have two ways to call.
l One number: Calls from your tablet display as your mobile number.
For more information, visit att.
com/numbersync.
-tJ-
Apps
60
NOTE L
og-in with your AT&T User ID and password for the mobile number you
would like to sync with your tablet. If you do not have an AT&T User ID and
password for your number, select Register.
l AT&T NumberSync
SM
for Android Tablets: Requires smartphone set up for HD voice
on AT&T postpaid wireless account and compatible tablet. To use NumberSync for
video calls on tablet, phone must be video call capable.
l Device Limit: Sync up to 5 tablets.
l Charges: When tablet is not connected to Wi-Fi, data usage rates apply to voice and
video calls on the tablet. International calls sent through your tablet incur charges
consistent with your smartphone’s rate plan or international package.
l Roaming: You cannot use NumberSync outside of the U.S., Puerto Rico, or U.S. Virgin
Islands. Due to technical limitations, calls using NumberSync cannot be used with
TTY devices and will not support 911 TTY calls. Instead, dial 911 with a TTY from a
wireless phone on a cellular network or landline phone; or text 911 directly, where
available; or call 911 through relay service using TTY or IP CTS from a wireless
phone on a cellular network or landline phone; or use IP Relay or IP CTS from a
capable device. Visit att.com/numbersync for more information.
l 911 Call Routing: 911 calls sent through your tablet are routed based on automatic
location information obtained from your tablet. If you cannot be located using
automatic location information, 911 calls will be routed based on the address you
provide in the NumberSync settings of your tablet.
l Additional restrictions: Certain features are incompatible with NumberSync.
•
0
Apps
6
1
Google apps
Enjoy these apps from Google.
Chrome
Browse the Internet with Chrome
™
and bring your open tabs, bookmarks, and
address bar data from your computer to your mobile device.
Visit support.google.com/chrome to learn more.
Drive
Open, view, rename, and share files saved to your Google Drive
™
cloud account.
Visit support.google.com/drive to learn more.
Duo
Make one-to-one video calls.
Visit support.google.com/duo to learn more.
Gmail
Send and receive email with Google’s web-based email service.
Visit support.google.com/mail to learn more.
Google
Find online content with tools that learn what interests you. Turn on your
personalized feed to receive customized content.
Visit support.google.com/websearch to learn more.
I
Apps
6
2
Maps
Get directions and other location-based information. You must enable location
services to use Google Maps. For more information, see Location on page 73.
Visit support.google.com/maps to learn more.
Photos
Store and back up your photos and videos automatically to your Google Account
with Google Photos
™
.
Visit support.google.com/photos to learn more.
Play Movies and TV
Watch movies and TV shows purchased from Google Play. You can also view
videos saved on your device.
Visit play.google.com/store/movies to learn more.
Play Music
Play music and audio files on your device.
Visit support.google.com/music to learn more.
Play Store
Find new apps, movies and TV shows, music, books, magazines, and games in
the Google Play
™
store.
Visit support.google.com/play to learn more.
YouTube
Watch and upload YouTube
™
videos right from your device.
Visit support.google.com/youtube to learn more.
-
DIRECTV
N@N
Apps
6
3
Carrier apps
Some apps require a data plan or paid subscription. Contact your carrier for additional
information.
AT&T AllAccess
View and manage your data plan with this easy-to-use, all-in-one tool. Your
Data plan and Data Usage are displayed. Manage your account, view your bill,
and contact customer support.
AT&T ProTech
Get support for your device, from device setup to troubleshooting.
Device Help
Access online information to help with your device questions.
DirectTV
Sync your device to your DIRECTV
®
account.
DIRECTV NOW
Sync your device to your DIRECTV
®
account, and start watching shows and
videos on your device.
Messages
Send and receive text and picture messages across devices using your AT&T
mobile number.
My AT&T
Manage your AT&T account. You can review and pay your bill, check minutes
and data usage, upgrade to a new device, or change your plan.
Apps
64
Setup & Transfer
Transfer your contacts, call logs, messages and media when switching phones.
AT&T Watch TV
Stream live TV and on-demand entertainment on the go. Watch TV is a
subscription service from AT&T.
Apps
6
5
Additional apps
The following apps are preloaded or downloaded over-the-air to your device.
Facebook
Keep up with friends and family with the Facebook app. Share updates, photos,
and videos, as well as text, chat, and play games.
Hancom Office Viewer
View, edit, and create spreadsheets, documents, and presentation files.
G
Connections
t I D ge.Aifpl
<I>)
Sound
Sounds,
Do
not
disturb
~
Notifications
Block.
allow,
pnontlze
[ii
Display
Brigh1ness.
Home
screen
~
Wallpaper
Wallpaper
Advanced features
MU"IWlndow
@
Device maintenance
Battery,
Slo,age,
Memory
00
Apps
00
Oefaul1
apps
,
App
perm,sStOOS
Lock screen
emode
CONNECTIONS
Wi-Fi
Tran
sNati
on
Gue
st
Bluetooth
Connect
tQ
nearby
Bh
Data usage
Airplane
mode
Turn
ort
ca
ng,
mes!
Location
H
igh
a
ccu
r
acy
More connectio,
LOOKING
F
OR
SO
ME1
SAMSUNG
CL
OUD
Settings
Access Settings
Connections
Sounds and vibration
Notifications
Display
Device maintenance
Lock screen and security
Accounts
Accessibility
Other settings
66
Q
Settings
67
Access Settings
There are a couple of ways to access your device settings.
From a Home screen, swipe up to access Apps, and then tap Settings.
Swipe down from the Status bar, and then tap Settings.
Search for Settings
If you are not sure exactly where to find a certain setting, you can search for it.
1.
From Settings, tap
Search tablet.
2. Enter keywords in the Search tablet field. As you type, settings that match
display on the screen.
3. Tap an entry to go to that setting.
0
0
Settings
68
Connections
Manage connections between your device and a variety of networks and other
devices.
Wi-Fi
You can connect your device to a Wi-Fi network to access the Internet without using
your mobile data.
1.
From Settings, tap
Connections > Wi-Fi, and then tap to turn on
Wi-Fi and scan for available networks.
2. Tap a network.
• When you select an open network, connection happens automaticallly.
Otherwise, enter a password to connect.
Manually connect to a Wi-Fi network
If the Wi-Fi network you want is not listed after a scan, you can still connect to it by
entering the information manually.
Ask the Wi-Fi network administrator for the name and password before you begin.
1.
From Settings, tap
Connections > Wi-Fi, and then tap to turn on Wi-Fi.
2.
Tap
Add network at the bottom of the list.
3. Enter information about the Wi-Fi network:
• Network name: Type the exact name of the network.
• Security: Select a security option from the list, and enter the password if
required.
• Auto reconnect: Choose this option if you want to automatically reconnect to
this network whenever you are in range.
• Show advanced options: Add any advanced options, such as IP and Proxy
settings.
4. Tap Connect.
0
0
-~-
Settings
69
Advanced Wi-Fi settings
You can configure connections to various types of Wi-Fi networks and hotspots,
manage saved networks and look up your device's network addresses.
1.
From Settings, tap
Connections > Wi-Fi, and then tap to turn on Wi-Fi.
2. Tap Advanced.
• Switch to mobile data: When enabled, your device switches to mobile data
whenever the Wi-Fi connection is unstable.
• Turn on Wi-Fi automatically: Turn on Wi-Fi in frequently-used locations.
• Network notification: Receive notifications when open networks in range are
detected.
• Manage networks: View your saved Wi-Fi networks.
• Wi-Fi control history: View devices that have turned your Wi-Fi on or off.
• Hotspot 2.0: Connect automatically to Wi-Fi networks that support
Hotspot 2.0.
• WPS push button: Connect to a Wi-Fi network by pressing the WPS button on
a router.
• WPS PIN entry: Connect to a Wi-Fi network by entering your WPS PIN.
• Install network certificates: Install authentication certificates.
• MAC address: View your device’s MAC address, required when connecting to
some secured networks (not configurable).
• IP address: View your device’s IP address (not configurable).
Wi-Fi Direct
Wi-Fi Direct shares data directly between devices using Wi-Fi.
1.
From Settings, tap
Connections > Wi-Fi, and then tap to turn on Wi-Fi.
2. Tap Wi-Fi Direct.
• Your device scans for discoverable Wi-Fi Direct devices.
3. Tap a device, and then follow the prompts to connect.
TIP When sharing a file, tap Wi-Fi Direct to use this feature.
0
-:¢:-
0
0
-:¢:-
Settings
70
Disconnect from Wi-Fi Direct
Disconnect your device from a Wi-Fi Direct device.
◌
From Settings, tap Connections > Wi-Fi > Wi-Fi Direct, and tap a device to
disconnect it.
Bluetooth
Bluetooth allows you to pair your device to another Bluetooth-enabled device. Once a
pairing is created, the devices remember each other and exchange information
without having to enter a passcode.
1.
From Settings, tap
Connections > Bluetooth, and then tap to turn on
Bluetooth.
• Your device automatically scans for discoverable Bluetooth devices. Tap Scan
to search again.
2. Tap a device, and follow the prompts to connect.
TIP When sharing a file, tap Bluetooth to use this feature.
Rename a paired device
You can rename a paired device to any name you choose.
1.
From Settings, tap
Connections > Bluetooth, and then tap to turn on
Bluetooth.
2.
Tap
Settings next to the device name, and then tap Rename.
3. Enter a new name, and tap Rename.
TIP Renaming a paired device may make it easier to recognize.
0
-'A'-
l\:('
0
Settings
7
1
Unpair from a Bluetooth device
When you unpair from a Bluetooth device, the two devices no longer recognize each
other.
1.
From Settings, tap
Connections > Bluetooth, and then tap to turn on
Bluetooth.
2.
Tap
Settings next to the device, and then tap Unpair.
TIP You will need to pair with the device in order to connect to it.
Data usage
Check your current mobile and Wi-Fi data usage. You can also customize warnings and
limits.
◌
From Settings, tap Connections > Data usage.
Turn on Data saver
Use Data saver to reduce your data consumption by preventing selected apps from
sending or receiving data in the background.
1.
From Settings, tap
Connections > Data usage > Data saver.
2.
Tap
to turn on Data saver.
• To allow some apps to have unrestricted data usage, tap Allow app while
Data saver on, and tap
next to each app to specify restrictions.
-'A'-
,):(,
0
Settings
72
Monitor mobile data
You can customize your mobile data access by setting limits and restrictions.
◌
From Settings, tap Connections > Data usage. The following options are
available:
•
Mobile data: Turn on mobile data services.
•
International data roaming: Enable mobile data services while roaming
internationally.
•
Mobile data usage: View data usage over mobile connections over a period of
time. You can view total usage as well as usage by app.
•
Billing cycle and data warning: Set the day of the month to start the bill
cycle for your device.
TIP Use these features to stay within your data plan and avoid overage fees
or throttling (slower speeds).
Monitor Wi-Fi data
You can restrict Wi-Fi data access by customizing usage limits and networks.
◌
From Settings, tap Connections > Data usage. The following options are
available:
•
Wi-Fi data usage: View data usage over Wi-Fi connections over a period of
time. You can view total usage as well as usage by app.
•
Restrict networks: Select networks to prevent apps that are running in the
background from using them.
Airplane mode
Airplane mode disconnects your device from all networks and turns off connectivity
features.
1.
From Settings, tap
Connections > Airplane mode.
2. Tap
to enable this feature.
C)
_'(')'_
,'I:(,
C)
Settings
7
3
Location
Location services use a combination of GPS, mobile network and Wi-Fi to determine
the location of your device.
1.
From Settings, tap
Connections > Location.
2. Tap
to turn on Location services.
3. Tap Locating method to select how your location is determined:
• High accuracy: Uses GPS, Wi-Fi, and mobile networks.
• Battery saving: Uses Wi-Fi and mobile networks (no GPS).
• Tablet only: Uses GPS only.
4. Tap Improve accuracy to use other connections for determining your location:
• Wi-Fi scanning: Allow apps and services to scan for Wi-Fi networks
automatically, even when Wi-Fi is turned off.
• Bluetooth scanning: Allow apps to scan for and connect to nearby devices
automatically through Bluetooth, even when Bluetooth is turned off.
TIP Some apps require location services be turned on for full functionality.
Recent location requests
View a list of apps that have requested your location.
1.
From Settings, tap
Connections > Location.
2. Tap
to turn on Location services.
3. Tap an entry under Recent location requests to view the app’s settings.
Location services
Location services store and use your device’s most recent location data. Select apps
can use this data to improve your search results based on places that you have visited.
1.
From Settings, tap
Connections > Location.
2. Tap an entry under Location services to use as a location service.
0
-'fJ-
-'fJ-
•
•
•
Settings
74
Nearby device scanning
Easily set up connections to other available devices by turning on Nearby device
scanning. This feature sends you a notification when there are available devices to
connect to.
1.
From Settings, tap
Connections > More connection settings > Nearby device
scanning.
2. Tap
to turn on the feature.
Connect to a printer
Connect your device to a printer on the same Wi-Fi network to easily print documents
and images from your device.
1.
From Settings, tap
Connections > More connection settings > Printing.
2.
Tap
Add service and follow the prompts to add a print service.
3.
Tap the print service, and then tap
More options > Add printer.
TIP Make sure the app you want to print from supports printing.
Virtual Private Networks
A Virtual Private Network (VPN) allows you to connect to a private secured network
from your device. You will need the connection information from your VPN
administrator.
1.
From Settings, tap
Connections > More connection settings > VPN.
2. Tap Add VPN.
3. Enter the VPN network information provided by your network administrator.
TIP A secured screen lock is required to set up a VPN.
(I
-~-
Settings
75
Manage a VPN
Use the VPN settings menu to edit or delete a VPN connection.
1.
From Settings, tap
Connections > More connection settings > VPN.
2.
Tap
Settings next to a VPN.
3. Edit the VPN and tap Save, or tap Delete to remove the VPN.
Connect to a VPN
Once you have set up a VPN, connecting to and disconnecting from a VPN is easy.
1.
From Settings, tap
Connections > More connection settings > VPN.
2. Tap
a VPN, enter your log in information, and tap Connect.
l To disconnect, tap the VPN, and then tap Disconnect.
Ethernet
If wireless network connection is not available, you can use an Ethernet cable to
connect your device to a local network.
1. Connect an Ethernet cable to your device.
2.
From Settings, tap
Connections > More connection settings > Ethernet, and
follow the prompts.
TIP You need an adapter (not included) to connect an Ethernet cable to your
device.
~))
-'lj-
~))
-'lj-
V
~))
Settings
76
Sounds and vibration
You can control the sounds and vibrations used to indicate notifications, screen
touches, and other interactions.
Sound mode
You can change the sound mode on your device without using the volume keys.
◌
From Settings, tap Sound > Sound mode, and then choose a mode:
•
Sound: Use the sounds, vibrations, and volume levels you have chosen in
Sound settings for notifications and alerts.
•
Mute: Set your device to make no sounds.
– Temporary mute: Set a time limit for muting the device.
TIP Use the sound mode setting instead of the volume keys to change
the sound mode without losing your customized sound levels.
Volume
Set the volume level for notifications and other audio.
◌
From Settings, tap Sound > Volume, and drag the sliders.
TIP You can also use the Volume key to adjust the volume. Tap More to
customize all volume options.
Use Volume keys for media
Set the default of the Volume key to control the media volume.
1.
From Settings, tap
Sound.
2. Tap Use Volume keys for media to enable this feature.
-~-
•
•
•
C)
~))
~))
Settings
77
Media volume limiter
Limit the maximum output of the device’s volume while using headphones or
Bluetooth speakers (not included).
1.
From Settings, tap
Sound > Volume.
2.
Tap
More options > Media volume limiter.
3. Tap
to enable this feature.
l To set the maximum output volume, drag the Custom volume limit slider.
l To require a PIN to make changes to the volume setting, tap Set volume
limit PIN.
Do not disturb
Do not disturb allows you to block sounds and notifications while this mode in turned
on. You can also specify exceptions for people, apps, and alarms.
◌
From Settings, tap Sound > Do not disturb and configure the following:
•
Turn on now: Put your device in Do not disturb mode.
•
Turn on as scheduled: Configure Days and Set schedule to set up a regular
schedule.
•
Allow exceptions: Customize which notifications are allowed while your
device is in Do not disturb mode.
•
App rules: Manage rules set by apps.
•
Hide visual notifications: Select options for preventing visual notifications for
apps silenced by Do not disturb.
TIP Do not disturb has a scheduling feature so that you never forget to
silence your phone during important meetings.
~))
~))
~))
C)
~))
Settings
78
System sounds
Customize your device's sounds for things like tapping the screen to charging the
device.
◌
From Settings, tap Sound for the following options:
•
Touch sounds: Play tones when you touch or tap the screen to make
selections.
•
Screen lock sounds: Play a sound when you unlock the screen.
•
Charging sound: Play a sound when a charger is connected.
Key-tap feedback
Play tones when keys are tapped.
◌
From Settings, tap Sound, and tap an option to customize:
•
Dialing keypad tones: Play a tone when dialing numbers on the Phone
keypad.
•
Keyboard sound: Play a sound when typing with the Samsung keyboard.
Dolby Atmos
Enjoy Dolby Atmos quality when playing content that was specifically mixed for
Atmos.
1.
From Settings, tap
Sound > Sound quality and effects.
2. Tap Dolby Atmos, and tap
to turn the feature on and choose a sound mode.
Equalizer
Choose an audio preset that is customized to different genres of music, or manually
change your audio settings.
1.
From Settings, tap
Sound > Sound quality and effects.
2. Tap Equalizer to choose a music genre, or tap Advanced or Basic to manually
adjust the sound levels.
~))
~))
-'lj-
0
Settings
79
Headset audio options
Enhance the sound resolution of music and videos for a clearer listening experience.
These features are only available with a headset connected.
◌
From Settings, tap Sound > Sound quality and effects, and tap an option to
turn it on:
•
Tube Amp Pro: Simulates the warm tones of a tube amplifier.
•
Concert hall: Adds reverb for a unique hall effect.
Adapt sound
Customize the sound for each ear and enhance your listening experience.
1.
From Settings, tap
Sound > Sound quality and effects > Adapt sound.
2.
Tap the sound profile that fits you best, and tap
Settings to customize.
TIP Tap Add personalized sound profile to take a hearing test and let your
device identify the best sound for you.
Notifications
You can prioritize and streamline app alerts by changing which apps send
notifications and how notifications alert you.
Manage notifications
You can configure notifications from apps and services.
◌
From Settings, tap Notifications.
•
App icon badges: Identify which apps have active notifications with badges
that appear on their icons. Tap to choose whether or not badges indicate the
number of unread notifications.
•
To block notifications from an app, tap
next to the app.
•
To configure additional notification settings, tap Advanced.
Settings
80
Display
You can configure the screen brightness, timeout delay, font size, and many other
display settings.
Screen brightness
You can set the screen brightness to adjust to lighting conditions or personal
preference.
1.
From Settings, tap
Display.
2. Customize options under Brightness:
• Drag the Brightness slider to set a custom brightness level.
• Tap Auto brightness to automatically adjust the screen brightness based on
the lighting conditions.
Font and screen zoom
You can set the screen zoom level and the font size and style.
1.
From Settings, tap
Display > Font for the following options:
• Drag the Screen zoom slider to adjust the zoom level.
• Drag the Font size slider to adjust the size of text.
•
Tap a font style to select it, or tap
Download fonts to find new fonts from
Galaxy Apps.
2. Tap OK to set the screen zoom and font.
Icon frames
You can show icons with shaded frames to make them stand out on the Home screen
and Apps list screen.
1.
From Settings, tap
Display > Icon frames and choose one of the following
options:
• Icons only: Show icons only.
• Icons with frames: Show frames around icons.
2. Tap Done, and confirm when prompted.
C)
-'fJ-
0
Settings
8
1
Screen timeout
You can set the screen to turn off after a set amount of time.
◌
From Settings, tap Display > Screen timeout, and tap a time limit to set it.
Screen saver
You can display colors or photos when the screen turns off or while charging.
1.
From Settings, tap
Display > Screen saver.
2. Tap
to enable the feature and configure the following options:
• Colors: Tap the selector to display a changing screen of colors.
• Photo table: Display pictures in a photo table.
• Photo frame: Display pictures in a photo frame.
• Photos: Display pictures from your Google Photos account.
3. Tap Preview for a demonstration of the selected Screen saver.
TIP Tap Settings next to a feature for additional options.
Device maintenance
View the status of your device’s battery, storage, and memory. You can also
automatically optimize your device’s system resources.
Quick optimization
The quick optimization feature improves device performance through the following
actions:
•
Identifying apps that use excessive battery power and clearing unneeded items
from memory.
•
Deleting unnecessary files and closing apps running in the background.
•
Scanning for malware.
•
•
•
©
©
©
Settings
82
T
o use the quick optimization feature:
1.
From Settings, tap
Device maintenance.
2. Tap Optimize now.
Battery
View how battery power is used for your various device activities.
◌
From Settings, tap Device maintenance > Battery for options:
•
Batt
ery usage: View power usage by app and service.
•
Powe
r saving mode: Select a power mode to extend battery life.
•
App p
ower monitor: View power usage by app.
•
Unmo
nitored apps: Select apps to exclude from being put to sleep by the App
power monitor.
•
Alwa
ys sleeping apps: Select apps to put to sleep immediately when not
being used.
•
More options
>
Advanced settings
: Configure advanced battery settings
and notifications.
Storage and memory card
View the device memory and usage. You can also mount, unmount, or format an
optional memory card (not included).
Device storage
Quickly optimize your device’s memory, increasing available memory.
1.
From Settings, tap
Device maintenance > Storage.
2. Tap Clean now.
Memory card
Once an optional microSD memory card (not included) has been installed in your
device, the card memory is displayed in the Storage setting.
For more information, see Assemble your device on page 4.
•
•
•
•
•
•
•
•
•
•
•
•
@
@
@
@
Settings
83
Mount a memory card
When you install an optional memory card, it is automatically mounted (connected to
the device) and prepared for use. However, should you unmount the card without
removing it from the device, you need to mount it before it can be accessed.
1.
From Settings, tap
Device maintenance > Storage.
2.
Tap
More options > Storage settings.
3. Under Portable storage, tap your SD card, and then tap Mount.
Remove a memory card
To prevent damage to information stored on the memory card, unmount the card
before removing it from the device.
1.
From Settings, tap Device maintenance >
Storage.
2.
Tap More options >
Storage settings.
3. Under Portable storage, tap your SD card, and then tap Unmount.
4. Remove your memory card from the device.
1.
From Settings, tap
Device maintenance > Storage.
2.
Tap
More options > Storage settings.
3. Under Portable storage, tap your SD card, and then tap Unmount.
4. Remove your memory card from the device.
Format a memory card
When formatting an SD card, you should back up your music and photo files that are
stored on the card because formatting the SD card deletes ALL stored files.
1.
From Settings, tap
Device maintenance > Storage.
2.
Tap
More options > Storage settings.
3. Under Portable storage, tap your SD card, tap Format, and then follow the
prompts.
@
-0--
----0-
-0--
-0--
----0-
-0--
A
V
Settings
84
Memory
Check the amount of available memory. You can close background apps and reduce
the amount of memory you are using to speed up your device.
1.
From Settings, tap
Device maintenance > Memory.
• The used and available memory are shown.
2. To free up as much memory as possible, tap Clean now and follow the prompts.
• The selected apps and services in the list will be closed.
Language and input
Configure your device’s language and input settings.
Change the device language
You can add languages to your list and organize them according to preference. If an
app does not support your default language, then it will move to the next supported
language in your list.
1.
From Settings, tap
General management > Language and input > Language.
2.
Tap
Add language, and select a language from the list.
3. Tap Set as default to change the device language.
•
To switch to another language on the list, drag
Move next to the desired
language to the top of the list, and then tap Done.
Default keyboard
You can select a default keyboard for your device’s menus and keyboards. Additional
keyboards can be downloaded from the Google Play store.
1.
From Settings, tap
General management > Language and input.
2. Tap Default keyboard, and select a keyboard.
-0--
----0-
-0--
-0--
----0-
-0--
-0--
----0-
-0--
-0--
----0-
-0--
-0--
----0-
-0--
Settings
85
Google Voice typing
Speak rather than type your text entries using Google voice typing.
1.
From Settings, tap
General management > Language and input.
2. Tap On-screen keyboard > Google voice typing to customize settings.
Manage on-screen keyboards
Enable or disable on-screen keyboards.
1.
From Settings, tap
General management > Language and input.
2.
Tap On-screen keyboard >
Manage keyboards.
3. Tap each keyboard to enable or disable.
Physical keyboards
Customize options when you have a physical keyboard connected to your device (sold
separately).
1.
From Settings, tap
General management > Language and input.
2. Tap Physical keyboard, and then choose an option:
• Show on-screen keyboard: Show the on-screen keyboard while a physical
keyboard is also being used.
• Keyboard shortcuts: Show explanations of the keyboard shortcuts on the
screen.
Show keyboard button
Show a button on the Navigation bar to quickly switch between keyboards.
1.
From Settings, tap
General management > Language and input.
2. Tap Show keyboard button to enable this feature.
Autofill service
Save time entering information using autofill services.
1.
From Settings, tap
General Management > Language and input.
2. Tap Autofill service and select your preferred service.
-0--
----0-
-0--
-0--
----0-
-0--
Settings
86
Text-to-speech
Configure your Text-to-Speech (TTS) options. TTS is used for various accessibility
features, such as Voice Assistant.
◌
From Settings, tap General management > Language and input >
Text-to-speech for options:
•
Preferred engine: Choose either the Samsung or Google Text-to-speech
engine. Tap
Settings
for options.
•
Use system language: Set the default speech language.
•
Speech rate: Set the speed at which the text is spoken.
•
Pitch: Set the pitch of the speech.
•
Play: Tap to play a short demonstration of speech synthesis.
•
Reset: Reset the speech rate and pitch.
Pointer speed
Configure pointer speed for an optional mouse or trackpad (not included).
1.
From Settings, tap
General management > Language and input.
2. Under Pointer speed, drag the slider to the right to go faster or to the left to go
slower.
-0--
----0,
-0--
-0--
----0,
-0--
Settings
87
Date and time
By default, your device receives date and time information from the wireless network.
Outside of network coverage, you can set the date and time manually.
◌
From Settings, tap General management > Date and time. The following
options are available:
•
Automatic date and time: Receive date and time updates from your wireless
network. When Automatic date and time is disabled, the following options
are available:
– Select time zone: Choose a new time zone.
– Set date: Enter the current date.
– Set time: Enter the current time.
•
Use 24-hour format: Set the format for displaying time.
Troubleshooting
Should you have performance issues with your device, you can send diagnostic
information to Samsung. You can also check for software updates, and if necessary,
reset services on your phone.
Software update
Check for and install available software updates for your device.
◌
From Settings, tap Software update for the following options:
•
Check for updates: Manually check for software updates.
•
Continue update: Resume an update that was interrupted.
Report diagnostic information
You can send diagnostic information about your device to Samsung when you are
having technical problems.
1.
From Settings, tap
General management > Report diagnostic information.
2. Read and accept the consent information to enable this feature.
-0----
--0-
-0----
-0----
--0-
-0----
-0----
--0-
-0----
0
-~-
Settings
88
Reset
Reset device and network settings. You can also reset your device to its factory
defaults.
Reset settings
You can reset your device to its factory default settings, which resets everything
except the security, language, and account settings. Personal data is not affected.
1.
From Settings, tap
General management > Reset > Reset settings.
2. Tap Reset settings, and confirm when prompted.
Reset network settings
You can reset Wi-Fi, mobile data, and Bluetooth settings with Reset network settings.
1.
From Settings, tap
General management > Reset > Reset network settings.
2. Tap Reset settings, and confirm when prompted.
Auto restart
Optimize your device by restarting it automatically at set times. Any unsaved data will
be lost when the device restarts.
1.
From Settings, tap
General management > Reset > Auto restart.
2. Tap
to activate Auto restart, and then set the following parameters:
• Time: Set the time of day to restart your device.
• Day: Select the day of the week to automatically restart your device.
Factory data reset
You can reset your device to factory defaults, erasing all data from your device.
This action permanently erases ALL data from the device, including Google or other
account settings, system and application data and settings, downloaded applications,
as well as your music, photos, videos, and other files. Any data stored on an external
SD card is not affected.
NOTE When you sign in to a Google Account on your device, Factory Reset
Protection is activated. This protects your device in the event it is lost or stolen.
-~-
-0-
--0-
-0-
Settings
89
If you reset your device to factory default settings with the Factory Reset Protection
(FRP) feature activated, you must enter the user name and password for a registered
Google Account to regain access to the device. You will not be able to access the
device without the correct credentials.
NOTE If you reset your Google Account password, it can take 24 hours for the
password reset to sync with all devices registered to the account.
Before resetting your device:
1. Verify that the information you want to keep has transferred to your storage
area.
2. Log in to your Google Account and confirm your user name and password.
To reset your device:
1.
From Settings, tap
General management > Reset > Factory data reset.
2. Tap Reset and follow the prompts to perform the reset.
3. When the device restarts, follow the prompts to set up your device.
Factory reset protection
When you sign in to a Google Account on your device, Factory Reset Protection is
activated. Factory Reset Protection (FRP) prevents other people from using your
device if it is reset to factory settings without your permission. For example, if your
device is lost or stolen and a factory data reset is performed, only someone with your
Google Account username and password can use the device.
You will not be able to access the device after a factory data reset if you do not have
your Google Account username and password.
CAUTION: Before sending your device to Samsung or taking it to a Samsung‐
authorized service center, remove your Google Account and then perform a
factory data reset. For more information, visit samsung.com/us/support/frp.
Enable factory reset protection
Adding a Google Account to your device automatically activates the FRP security
feature.
C)
Settings
9
0
D
isable factory reset protection
To disable FRP, remove all Google Accounts from the device.
1.
From Settings, tap
Cloud and accounts > Accounts > [Google account].
2. Tap Remove account.
Lock screen and security
You can secure your device and protect your data by setting a screen lock.
Screen lock types
You can choose from the following screen lock types that offer high, medium, or no
security: Swipe, Pattern, PIN, Password, and None.
Set a secure screen lock
It is recommended that you secure your device using a secure screen lock (Pattern,
PIN, or Password).
1.
From Settings, tap
Lock screen > Screen lock type and tap a secure screen
lock (Pattern, PIN, or Password).
2. Tap
to enable showing notifications on the lock screen. The following
options are available:
• Hide content: Enable to hide the content of notifications.
• Notification icons only: Enable to hide notification details and show only the
icon.
• Transparency: Adjust the transparency of notifications.
• Auto-reverse text color: Reverse the color of notification text automatically
based on the background color.
3. Tap Done when finished.
4. Configure the following screen lock options:
-'lj-
G
-'lj-
G
Settings
92
Find My Mobile
You can protect your device from loss or theft by allowing your device to be locked,
tracked online, and for your data to be deleted remotely. For more information, visit
samsung.com/us/support/owners/app/find-my-mobile.
TIP A Samsung account is required, and Google location service must be turned
on in order to use Find My Mobile.
Turn on Find My Mobile
Before you can use the Find My Mobile feature, you must turn it on and customize the
options.
1.
From Settings, tap
Security > Find My Mobile.
2. Tap Add account and follow the prompts. The following options are available:
l Remote controls: Turn on to access your device remotely.
l Google location service: Turn on to enable Google location service to find
your device.
l Send last location: Allow your device to send its last location to the Find My
Mobile server when the remaining battery charge falls below a certain level.
TIP To access your device remotely, visit findmymobile.samsung.com.
Security update
You can easily check the date of the last installed security software update and find
out if newer updates are available.
◌
From Settings, tap Security > Security update to see the latest security update
installed and check if a newer update is available.
G
_'(')'_
,):(,
G
-'tJ-
G
0
G
-'tJ-
Settings
93
Install unknown apps
You can allow installation of unknown third-party apps from selected apps or sources.
1.
From Settings, tap
Security > Install unknown apps.
2. Tap an app or source, and then tap Allow from this source.
TIP Installing unknown third-party apps could make your device and personal
data more vulnerable to security risks.
Secure Folder
You can create a secure folder on your device to protect private content and apps
from anyone who may be using your device.
◌
From Settings, tap Security > Secure Folder and follow the prompts to secure
content on your device.
You must sign in to your Samsung account, and use secured lock on your device
to set up and use Secure Folder.
App permission monitor
Apps might access features of your device that you permit them to (like the camera,
microphone, or location) when they are running in the background, not just when you
are using the app. You can set your device to notify you when this happens.
1.
From Settings, tap
Security > App permission monitor.
2.
Tap
next to the apps you want to be notified about.
l Tap an app to select which permissions you want to be notified about.
Secure startup
You can protect your device by requiring a PIN, pattern, or password when your phone
is turned on.
◌
From Settings, tap Security > Secure startup and select an option.
TIP A secure screen lock (Pattern, PIN, Password, or Fingerprints) is required to
use Secure startup.
8
-'fJ-
8
8
8
Settings
94
Encrypt SD card
You can encrypt your optional memory card (not included) to protect its data. This
only allows the SD card information to be accessed from your device with a password.
1.
From Settings, tap
Security > Encrypt SD card.
2. Tap Encrypt SD card and follow the prompts to encrypt all data on your memory
card.
NOTE Performing a Factory data reset on your device prevents it from accessing
an encrypted SD card. Before initiating a Factory data reset, make sure to decrypt
the installed SD card first.
Decrypt SD card
You can decrypt an optional memory card (not included) if it was encrypted by this
device. You may want to decrypt the memory card if you plan to use it with another
device or before performing a Factory data reset.
1.
From Settings, tap
Security > Decrypt SD card.
2. Tap Decrypt SD card and follow the prompts to decrypt all data on your memory
card.
Factory data reset password
You can require a password to reset your device to factory default settings.
◌
From Settings, tap Security > Other security settings > Set up/change
password and enter a password.
Set up SIM card lock
You can set up a PIN to lock your SIM card, which prevents unauthorized use of your
SIM card if someone attempts to use it another device.
◌
From Settings, tap Security > Other security settings > Set up SIM card lock
and follow the prompts.
•
Tap Lock SIM card to turn on the feature.
•
Tap Change SIM card PIN to create a new PIN.
G
G
G
Settings
95
View passwords
You can have characters displayed briefly in password fields as you type them.
◌
From Settings, tap Security > Other security settings > Make passwords
visible to turn on the feature.
Security update service
You can set your device to automatically check for security updates.
◌
From Settings, tap Security > Other security settings for the following options:
•
Security policy updates: Check for security updates.
– Automatic downloads can be limited to when your device is connected to
a Wi-Fi network.
•
Send security reports: Use Wi-Fi to send security reports to Samsung for
threat analysis.
Device administration
You can authorize security features and apps (like Find My Mobile) to have
administrative access to your device.
1.
From Settings, tap
Security > Other security settings > Device admin apps.
2. Tap an option to turn it on as a device administrator.
8
8
Settings
96
Credential storage
You can manage the trusted security certificates installed on your device, which verify
the identity of servers for secure connections.
◌
From Settings, tap Security > Other security settings for the following options:
•
Storage type: Select a storage location for credential contents.
•
View security certificates: Review the trusted CA certificates that are
installed on your device.
•
User certificates: View user certificates that identify your device.
•
Install from device storage: Install a new certificate from storage.
•
Clear credentials: Erase credential contents from the device and reset the
password.
Advanced security settings
You can use these options to configure advanced security settings to better protect
your device.
◌
From Settings, tap Security > Other security settings.
•
Trust agents: Allow trusted devices to perform selected actions when
connected.
– This option is only displayed when a lock screen is turned on. For more
information, see Set a secure screen lock on page 90.
•
Pin windows: Pin an app on your device screen, which prevents access to
other features of your device.
•
Usage data access: View which apps can access your device’s usage history.
•
Notification access: View which apps can access notifications you receive on
your device.
•
Do not disturb permission: View which apps have permission to change the
Do not disturb settings.
Accounts
You can connect to and manage your accounts, including your Google Account,
Samsung account, email, and social networking accounts.
Settings
9
7
Samsung Cloud
You can keep your data safe by backing up and restoring your device. You can also
sync your data from multiple devices. For more information, visit
samsung.com/us/support/owners/app/samsung-cloud.
1.
From Settings, tap
Cloud and accounts > Samsung Cloud.
l If a Samsung account has not been added, the screens explain how to create
or sign in to your account.
2. Once a Samsung account is configured, you can view and manage items stored in
the Samsung Cloud.
Add an account
You can add and sync all your email, social networking, and picture and video sharing
accounts.
1.
From Settings, tap
Cloud and accounts > Accounts > Add account.
2. Tap one of the account types.
3. Follow the prompts to enter your credentials and set up the account.
l Tap Auto sync data to enable automatic updates to your accounts.
Account settings
Each account has its own custom settings. You can configure common settings for all
accounts of the same type. Account settings and available features vary between
account types and service providers. Contact your service provider for more
information on your account’s settings.
1.
From Settings, tap
Cloud and accounts > Accounts > [Account type].
2. Tap an account to configure that account’s sync settings.
3. Tap other available options for the account type.
Synchronize accounts
You can synchronize your calendar, contacts, and other types of accounts.
1.
From Settings, tap
Cloud and accounts > Accounts > [Account type].
2. Tap an account to view the sync settings for that account.
•
•
•
(t)
Settings
98
3. Tap individual data items to sync.
4.
Tap
More options > Sync now to synchronize the account.
Remove an account
You can remove accounts from your device.
1.
From Settings, tap
Cloud and accounts > Accounts > [Account type].
2. Tap the account and then tap Remove account.
Users
Share this tablet with multiple people by creating User accounts.
Users have their own space, which they can customize with their own apps, wallpaper,
and settings. Users can also adjust tablet settings that affect everyone, such as Wi-Fi.
Rest
ricted profiles allow only limited access to apps and content.
Users
1.
From Settings, tap
Cloud and accounts > Users.
2.
Tap
Add user or profile and follow the prompts to set up a new user or
profile.
Switch User Profiles
To access the device with a different user profile:
◌
From a Lock screen, tap Manage users and tap a user or profile from the list.
Change User Account Nicknames and Photo IDs
The photo and name each user uses in their personal Contact entry is used as their
User ID and name.
T
o change their ID photo and name, each user can edit their personal Contact entry.
For more information, see .
0
•
-~-
Settings
99
Delete a User or Profile
1.
From Settings, tap
Cloud and accounts > Users.
2.
For a restricted account, tap
Settings next to the user profile.
3.
Tap
Delete, and then confirm when prompted.
NOTE Only the device owner can delete other users or profiles. Deleting a user’s
profile removes the user account from the device entirely. This includes the
user’s Google Account, Samsung account, and any other local accounts
associated with the user.
Backup and restore
You can configure your device to back up data to your personal accounts.
Samsung account
You can enable backup of your information to your Samsung account.
◌
From Settings, tap Cloud and accounts > Backup and restore for options:
•
Back up data: Configure your Samsung account to back up your data.
•
Restore data: Use your Samsung account to restore your backup data.
Google account
You can enable backup of your information to your Google account.
◌
From Settings, tap Cloud and accounts > Backup and restore for options:
•
Back up my data: Enable back up of application data, Wi-Fi passwords, and
other settings to Google servers.
•
Backup account: Select a Google Account to be used as your backup account.
•
Automatic restore: Enable automatic restoration of settings from Google
servers.
Settings
10
0
External storage transfer
You can back up your data to an SD card or USB storage device, or restore backup data
using Smart Switch. For more information, see Transfer data from your old device on
page 7.
◌
From Settings, tap Cloud and accounts > Backup and restore > External
storage transfer.
Google settings
You can configure your device’s Google settings. Available options depend on your
Google account.
◌
From Settings, tap Google, and select an option to customize.
0
w
Settings
1
01
Accessibility
There are accessibility settings for people who need help seeing, hearing or otherwise
operating their device. Accessibility services are special features that make using the
device easier for everyone. For more information about Accessibility for
Samsung products, please contact us at accessibility@sea.samsung.com.
Vision
You can configure Accessibility features to assist with visual aspects of your device.
Contrast and color
You can adjust the colors and contrast of text and other screen elements for easier
viewing.
◌
From Settings, tap Accessibility > Vision and tap an option:
•
High contrast fonts: Adjust the color and outline of fonts to increase the
contrast with the background.
•
High contrast keyboard: Adjust the size of the Samsung keyboard and change
its colors to increase the contrast between the keys and the background.
•
Show button shapes: Show buttons with shaded backgrounds to make them
stand out better against the wallpaper.
•
Remove animations: Remove certain screen effects if you have sensitivity to
animation or screen movements.
•
Color inversion: Reverse the display of colors from white text on a black
background to black text on a white background.
•
Color correction: Adjust the color of the screen if you find it difficult to see
some colors.
0
w
0
w
Settings
10
2
Magnification and gestures
You can increase the size of supported screen elements and create shortcuts for
accessibility features on your device.
◌
From Settings, tap Accessibility > Vision and tap an option:
•
Font and screen zoom: Configure the screen zoom level and font size and
style.
•
Magnifier window: Magnify content shown on the screen.
•
Large mouse/touchpad pointer: Use a large pointer for a connected mouse or
touchpad (accessories not included).
•
Magnification: Use exaggerated gestures such as triple-tapping, double
pinching, and dragging two fingers across the screen.
•
Rapid key input: Tap keys once to enter text.
Privacy
For added privacy, you can set your screen to remain off at all times.
◌
From Settings, tap Accessibility > Vision and tap an option:
•
Voice Assistant: Receive spoken confirmation of what you tap, select, and
activate.
•
Voice Assistant help: Get help with using Voice Assistant.
•
Dark screen: Keep the screen turned off at all times to protect your privacy.
0
w
0
w
Settings
10
3
Hearing
You can configure Accessibility features to assist with audial aspects of the device.
Sounds
You can adjust audio quality when using hearing aids or earphones.
◌
From Settings, tap Accessibility > Hearing and tap an option:
•
Mute all sounds: Turn off all notifications and audio for privacy.
•
Hearing aids: Improve the sound quality of hearing aids.
•
Left/right sound balance: Use the slider to adjust the left and right balance
when listening to audio in stereo.
•
Mono audio: Switch audio from stereo to mono when using one earphone.
Visual cues
You can watch closed captions when viewing multimedia.
◌
From Settings, tap Accessibility > Hearing and tap an option:
•
Samsung subtitles (CC): Use Samsung subtitles with multimedia files when
available.
•
Google subtitles (CC): Use Google subtitles with multimedia files when
available.
0
w
0
w
Settings
10
4
Dexterity and interaction
You can configure Accessibility features to assist with limited dexterity when
interacting with your device.
Alternate input
You can control your device using different kinds of inputs and controls.
◌
From Settings, tap Accessibility > Dexterity and interaction and tap an option:
•
Universal switch: Control your device with your customized switches.
•
Assistant menu: Improve device accessibility for users with reduced dexterity.
•
Click after pointer stops: Automatically click on an item after the pointer
stops over it.
Screen interactions
You can adjust your screen to be less sensitive to taps and touches.
◌
From Settings, tap Accessibility > Dexterity and interaction and tap an option:
•
Touch and hold delay: Select a time interval for this action.
•
Interaction control: Customize areas of screen interactions, hardkeys, and the
keyboard.
-'A'-
,):(,
-'lj-
Settings
1
05
Accessibility settings
You can customize additional accessibility features and services for your device.
TIP Additional accessibility apps may be downloaded from the Google Play store.
◌
From Settings, tap Accessibility and tap an option:
•
Text-to-speech: Set your preferred text-to-speech (TTS) engine and options.
For more information, see Text-to-speech on page 86.
•
Direction lock: Unlock the screen by swiping in a series of directions.
•
Direct access: Open your accessibility settings by pressing the Volume up key
and the Power key together.
•
Accessibility shortcut: Quickly turn on accessibility features using the Volume
keys.
•
Notification reminder: Beep at set intervals to remind you of any unread
notifications.
•
Answering and ending calls: Select shortcuts for answering and ending calls.
•
Single tap mode: Dismiss or snooze alarms, calendar events, and timer alerts
with a single tap.
•
Accessibility settings backup: Import and export your accessibility settings, or
share them with other devices.
NOTE Other installed accessibility services may be listed and configured under
Services section.
Accessibility services
Additional accessibility apps may be downloaded from the Google Play store.
1.
From Settings, tap
Accessibility.
2. Other installed accessibility services may be listed and configured under
Services.
0
C)
0
CD
Settings
10
6
Other settings
Configure features on your device that make it easier to use.
Help
View the user manual on your device.
◌
From Settings, tap Help.
Daily Board
View a slideshow of your photos when your tablet is charging.
1.
From Settings, tap
Advanced features > Daily Board.
2. Tap
to enable Daily Board.
3. Choose one of the following options:
• Auto start: Start the slideshow automatically when the device is put into
charging mode.
• Turn off as scheduled: Set a schedule time to turn the device off.
– Set time: Select a turn off time.
• About Daily Board: View the app version and other information.
TV Mode
View and select AT&T TV Mode settings.
◌
From Settings, tap Advanced features > TV Mode.
About tablet
View information about your device, including current status, legal information,
hardware and software versions, and more.
1.
From Settings, tap
About tablet, and then view your model number, serial
number, and IMEI information.
2. Tap additional items to view more information about your device.
108
Legal information
READ THIS INFORMATION BEFORE USING YOUR MOBILE DEVICE.
Arbitration Agreement - This Product is subject to a binding arbitration agreement
between you and SAMSUNG ELECTRONICS AMERICA, INC. (“Samsung”). You can opt
out of the agreement within 30 calendar days of the first consumer purchase by
emai
ling
optout@sea.samsung.com or calling 1-800-SAMSUNG (726-7864) and
prov
iding the applicable information. For complete terms and conditions that bind
you and Samsung, refer to the “Arbitration Agreement” section of the Terms &
Conditions, included with the Product.
Find legal information online
The full Arbitration Agreement, Standard Limited Warranty, End User License
Agreement (EULA), and Health & Safety Information for your device are available
online.
Arbitration Agreement, Standard Limited Warranty, and Health & Safety Information:
Phone:
•
English: samsung.com/us/Legal/Phone-HSGuide
•
Spanish: samsung.com/us/Legal/Phone-HSGuide-SP
Tablet:
•
English: samsung.com/us/Legal/Tablet-HSGuide
•
Spanish: samsung.com/us/Legal/Tablet-HSGuide-SP
End User License Agreement:
•
English: samsung.com/us/Legal/SamsungLegal-EULA4
•
Spanish: samsung.com/us/Legal/SamsungLegal-EULA4/#SPANISH
Legal information
109
Fi
nd legal information on the mobile device
The full Arbitration Agreement, Standard Limited Warranty, End User License
Agreement (EULA) and Health & Safety Information are also available on the device,
in the Samsung legal section of Settings. The location depends on the device, and is
usually in the “About device” or “About phone” section, for example:
•
Settings > About phone or About device or About tablet > Legal information >
Samsung legal
•
Or, use the Search feature to search for “Legal”.
Intellectual property
All Intellectual Property, as defined below, owned by or which is otherwise the
property of Samsung or its respective suppliers relating to the Product, including but
not limited to, accessories, parts, or software relating thereto, is proprietary to
Samsung and protected under federal laws, state laws, and international treaty
provisions. Intellectual Property includes, but is not limited to, inventions (patentable
or unpatentable), patents, trade secrets, copyrights, software, computer programs, and
related documentation and other works of authorship.
You may not infringe or otherwise violate the rights secured by the Intellectual
Property. Moreover, you agree that you will not (and will not attempt to) modify,
prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise
attempt to create source code from the software. No title to or ownership in the
Intellectual Property is transferred to you. All applicable rights of the Intellectual
Property shall remain with Samsung and its suppliers.
Open source software
Some software components of this product, including but not limited to ‘PowerTOP’
and ‘e2fsprogs’, incorporate source code covered under GNU General Public License
(GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and
other open source licenses. To obtain the source code covered under the open source
licenses, please visit: opensource.samsung.com
Legal information
11
0
Disclaimer of warranties; exclusion
of liability
The information below explains that a user accepts this Product as sold, including the
hardware and software components as created and packaged for sale. If the user
changes these parameters through a unique modification, Samsung will not be held
responsible for damages or issues that result from these end-user changes.
Except as set forth in the Standard Limited Warranty that accompanies the Product,
the purchaser takes the Product “as is”, and Samsung makes no express or implied
warranty of any kind whatsoever with respect to the Product, including but not
limited to the:
•
merchantability of the Product or its fitness for any particular purpose or use;
•
design, condition or quality of the Product;
•
performance of the Product;
•
workmanship of the Product or the components contained therein; or
•
compliance of the Product with the requirements of any law, rule, specification
or contract pertaining thereto.
Nothing contained in the User Manual or any other document shall be construed to
create an express or implied warranty of any kind whatsoever with respect to the
Product. Neither Samsung nor the wireless carrier are responsible for, and the
Standard Limited Warranty does not apply to, any damage or injury arising from
disassembly or repairs by persons not authorized or approved by Samsung to service
this Product. In addition, Samsung shall not be liable for any damages of any kind
resulting from the purchase or use of the Product or arising from the breach of the
express warranty, including incidental, special or consequential damages, or loss of
anticipated profits or benefits.
Modification of software
Samsung is not liable for performance issues or incompatibilities caused by your
editing of registry settings, or your modification of Operating System (OS) software.
Legal information
11
1
U
sing custom OS software may cause your device and applications to work
improperly. Your carrier may not permit users to download certain software, such as
custom OS.
Diagnostic Software
This device is equipped with diagnostic software reporting usage and performance
information used solely to deliver improved network quality and overall device
experience to AT&T customers. Please refer to your AT&T Wireless Customer
Agreement and/or the AT&T Privacy Policy (att.com/privacy) for more information.
Notice from AT&T
This device is intended for use exclusively on AT&T’s system. You agree that you won’t
make any modifications to the Equipment or programming to enable the Equipment
to operate on any other system. A voice plan is required on all voice-capable devices,
unless specifically noted otherwise in the terms governing your agreement. Some
devices or plans may require you to subscribe to a data plan.
Your device is designed to make it easy for you to access a wide variety of content. For
your protection, AT&T wants you to be aware that some applications that you enable
may involve the location of your device being shared. For applications available
through AT&T, AT&T offers privacy controls that let you decide how an application
may use the location of your device and other devices on your account. However,
AT&T’s privacy tools do not apply to applications available outside of AT&T. Please
review the terms and conditions and the associated privacy policy for each location-
based service to learn how location information will be used and protected.
Your device may be used to access the Internet and to download, and/or purchase
goods, applications, and services from AT&T or elsewhere from third parties. AT&T
provides tools for you to control access to the Internet and certain Internet content.
These controls may not be available for certain devices which bypass AT&T controls.
AT&T may collect certain types of information from your device when you use AT&T
services to provide customer support and to improve its services.
For more information on AT&T’s Privacy Policy, visit: att.com/privacy.
t-11:
HEVct\dvance
TM
"IIC
Covered
by
Patents
at
patentlist.hevcadvance.com
Legal information
112
Samsung Knox
Samsung Knox is Samsung’s security platform and is a mark for a Samsung device
tested for security with enterprise use in mind. Additional licensing fee may be
required. For more information about Knox, please refer to: samsung.com/us/knox.
Restricting children’s access to your
mobile device
Your device is not a toy. Do not allow children to play with it because they could hurt
themselves and others, damage the device, or make calls that increase your device
bill. Keep the device and all its parts and accessories out of the reach of small
children.
Samsung Electronics America, Inc.
Address:
85 Challenger Road
Ridgefield Park
New Jersey 07660
Phone: 1-800-SAMSUNG (726-7864)
Internet: samsung.com
©2019 Samsung Electronics America, Inc. Samsung, Samsung Galaxy, Multi Window,
and Smart Switch are all trademarks of Samsung Electronics Co., Ltd.
Other marks are the property of their respective owners.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, and the
double-D symbol are trademarks of Dolby Laboratories.
Legal information
113
Some multimedia (audio/video) files contain Digital Rights Management (DRM)
technology to verify you have the right to use the files. Preloaded apps on your
device may not be compatible with DRM-protected files.
Screen images are simulated. Appearance of device may vary.
The actual available capacity of the internal memory is less than the specified
capacity because the operating system and default applications occupy part of the
memory. The available capacity may change when you upgrade the device.
Please check with your service provider to verify qualifying services/features.
