Bosch Connected Control
BCC100 Thermostat User Guide
1
Contents
WARNING: Failure
to follow and read
all instructions
before installing or
operating this device
may cause personal
injury and/or
property damage.
IN THE BOX:
▶ BCC100 Wi-Fi Thermostat
▶ Screws (2) and Anchors (2)
▶ Flathead Screwdriver
▶ Wire Labels
▶ Jumper Wire
▶ User Guide
▶ Customer Support Card
Some features require an
internet connection and a
user account. Features,
specifications, and
appearance are subject to
change without notice.
A C-wire (common wire) is
required to power the unit.
Two wire systems are not
supported. If a C-wire is not
available, please contact
your local Contractor for
support.
CHECK COMPATIBILITY FIRST
For conventional (gas/oil/electric)
▶ Heat Only, Cool Only,
and Combined Heat & Cool
For heat-pump systems ▶ Up To 4-Heat & 2-Cool
Not compatible with other Bosch Boiler controls, such as the Logamatic
Getting Started.......................2
Main Screen............................9
Icons.....................................10
Initialization..........................12
Wi-Fi Setup...........................16
App Setup.............................19
Starting Your System............21
Temporary Scheduling..........23
Programming Schedules.......24
Additional Features
...............
26
Advanced Features...............30
Warranty
...............................
33
Connected Solution for 24VAC Thermostat Systems
2
Getting Started
The BCC100 thermostat is designed to work on most 24VAC
low voltage heating and cooling systems such as gas and oil
furnaces, heat pumps, and single or dual-stage systems.
Professional installation recommended for:
▶ Humidifiers and dehumidifiers
Before removing the wires from the old thermostat, take a
picture of the wiring configuration for reference, and then
label each wire according to the terminal codes using the
wire labels provided.
Remove the Old Thermostat
1
NOTE: After labeling the wires, secure them to an
object such as a pen or clip to prevent them from
falling back into the wall.
WARNING: Turn Off Power
Failure to turn off power may result in
electrical shock and/or system damage.
Disconnect the wires from the old thermostat one by
one. Do not let wires fall back into the wall.
Turn Off Power
Please turn off the unit’s main power at the circuit panel
before beginning the installation process.
3
Feed all wires vertically into the hole or slit in the center
of the backplate. Referencing the photo of the previous
wiring configuration or the wire labels currently on the
wires, insert the wires one-by-one into the matching
terminals, and use the supplied flathead screwdriver to
close each terminal. After you have finished fastening the
wires, pull each wire gently to ensure they are secure.
Repeat this process for each wire to be installed.
Connect the New Wall Plate
3
CAUTION: To prevent possible shorts to adjacent
terminals, use care when securing and routing
your thermostat wires.

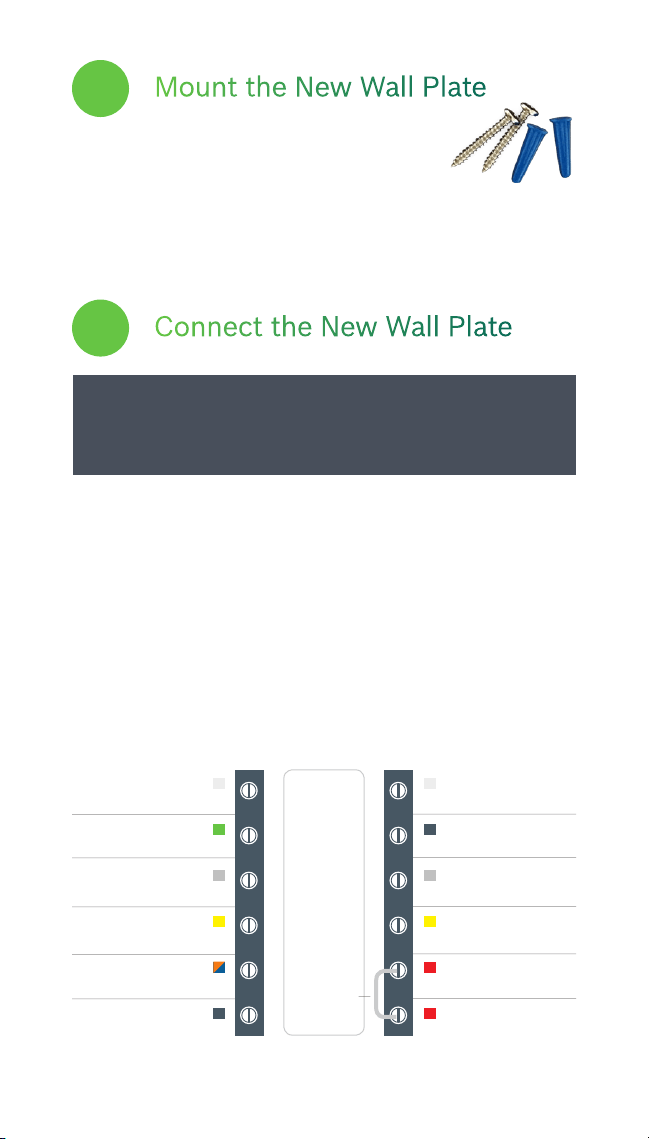

Mount the New Wall Plate
Use the enclosed screws and anchors to
mount the new wall plate. In most cases,
you can utilize the same mounting position of your old
thermostat. Be sure to check the alignment of your wall
plate before installation to ensure all holes are covered.
2
Note: The color of your wires may not be the same as shown in this User Guide
(1)Emergency heat activated at W/E, (2) Single-stage Auxiliary heat activated at W2/AUX,
(3)Only to be used with Bosch WSHP
BCC100 Terminal Key
Data
Alarm Input
3
C
Common
W/E (W1)
1st Stage Heating
1
Y (Y1)
1st Stage Compressor
RH
Heating Appliance Power
RC (R)
Cooling Appliance Power
----
Not Used
G
Fan
W2/AUX
(W2) 2nd Stage Heating
2
Y2
2nd Stage Compressor
O/B
Reversing Valve
H/DH
Humidifier/Dehumidifier
Jumper
4

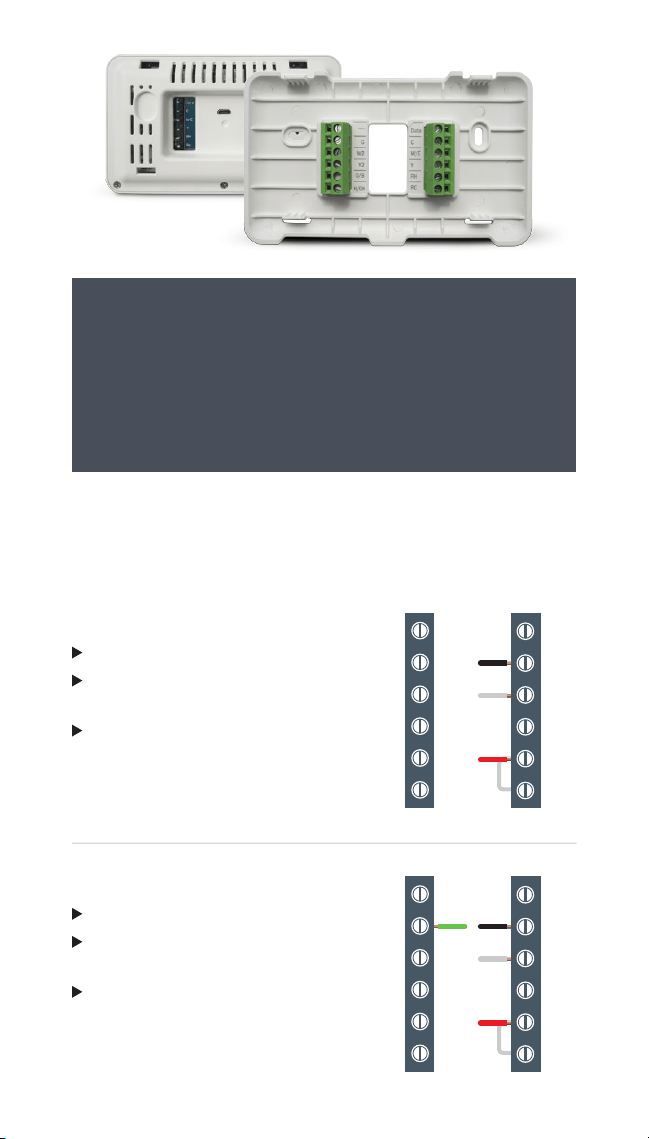

Conventional Systems
Conventional systems include furnaces, boilers, and
dedicated, non-window air conditioning units.
NOTE: The following wiring diagrams describe some
common configurations that are compatible with the
BCC100. Not all compatible configurations are depicted
below. If you are unsure of how to connect your
thermostat, please contact customer support using the
number on the card provided in the box.
Single Stage Heat – Boiler
Ensure the system has a C-wire
Ensure the pre-installed jumper
wire remains between RH and RC
Connect the R, C and W1 wires
from the boiler to RH, C and W/E
terminals on the wall plate,
respectively
Jumper
----
G
W2/
AUX
Y2
O/B
H/DH
Data
C
W/E
Y
RH
RC
Single Stage Heat – Furnace
Ensure the system has a C-wire
Ensure the pre-installed jumper
wire remains between RH and RC
Connect the R, C, W1 and G
wires from the Furnace to RH, C,
W/E and G terminals on the wall
plate, respectively
Jumper
----
G
W2/
AUX
Y2
O/B
H/DH
Data
C
W/E
Y
RH
RC
5
Two Stage Heat – Furnance
Ensure the system has a C-wire
Ensure the pre-installed jumper
wire remains between RH and RC
Connect the R, C, W1, W2 and G
wires from the Furnace to RH, C,
W/E, W2/AUX and G terminals on
the wall plate, respectively
Jumper
----
G
W2/
AUX
Y2
O/B
H/DH
Data
C
W/E
Y
RH
RC
Combined Single Stage Heat and Single
Stage Cool Furnace and Air Conditioner
Ensure the system has a C-wire
Remove the pre-installed jumper
wire from between RH and RC
Connect the R, C, W1 and G wires
from the Furnace to RH, C, W/E
and G terminals on the wall plate,
respectively
Connect the R, C, Y1 and G wires
from the Air Conditioner to RC, C,
Y and G terminals on the wall plate,
respectively
----
G
W2/
AUX
Y2
O/B
H/DH
Data
C
W/E
Y
RH
RC
Single Stage Cool – Air Conditioner
Ensure the system has a C-wire
Ensure the pre-installed jumper
wire remains between RH and RC
Connect the R, C, Y1 and G wires
from the Air Conditioner to RC,
C, Y and G terminals on the wall
plate, respectively
Jumper
----
G
W2/
AUX
Y2
O/B
H/DH
Data
C
W/E
Y
RH
RC
6
Single Stage Heat Pump
Ensure the system has a C-wire
Ensure the pre-installed jumper
wire remains between RH and RC
Connect the R, C, Y1, O/B and G
wires from the heat pump to RC,
C, Y, O/B and G terminals on the
wall plate, respectively
Jumper
----
G
W2/
AUX
Y2
O/B
H/DH
Data
C
W/E
Y
RH
RC
Heat Pump Systems
Heat pump systems are specialty designed to be able to
provide heating and cooling using a single compressor, a
reversing valve, and a fan
Single Stage Heat Pump with
Emergency Heat and Auxiliary Heat
Note: W/E controls the Emergency Heat
output and W2/AUX controls the Auxiliary
Heat output. Therefore, a jumper is required
when using the same heating source for both
Emergency Heat and Auxiliary Heat.
Ensure the system has a C-wire
Ensure the pre-installed jumper
wire remains between RH and RC
Connect the R, C, W1, Y1, O/B and
G wires from the heat pump to RC,
C, W/E, Y, O/B and G terminals on
the wall plate, respectively
Connect the supplied jumper
wire between the W/E and W2/AUX
terminals of the wall plate
Jumper
----
G
W2/
AUX
Y2
O/B
H/DH
Data
C
W/E
Y
RH
RC
Two Stage Heat Pump with
One Stage Emergency Heat
Ensure the system has a C-wire
Ensure the pre-installed jumper
wire remains between RH and RC
Connect the R, C, W1, Y1, Y2,
O/B and G wires from the heat
pump to RC, C, W/E, Y, Y2, O/B
and G terminals on the wall plate,
respectively
Jumper
----
G
W2/
AUX
Y2
O/B
H/DH
Data
C
W/E
Y
RH
RC
7
Humidifier or Dehumidifier
Accessory with a Combined Single
Stage Heat and Cool Conventional
System
Note: The wiring configuration for
humidifiers and dehumidifiers is the same
for all type of Conventional Systems.
Ensure that the accessory is
externally powered
Ensure the Conventional System
is wired correctly
Connect the control wire of the
accessory to the H/DH terminal
of the wall plate
----
G
W2/
AUX
Y2
O/B
H/DH
Data
C
W/E
Y
RH
RC
Humidifier and Dehumidifier Accessory
A single Humidifier or Dehumidifier Accessory can be
controlled using the BCC100. The thermostat only
supports Humidifiers in heating operation, Dehumidifiers
in cooling operation, and only one accessory per
thermostat.
Humidifier or Dehumidifier
Accessory with a Single Stage
Heat Pump
Note: The wiring configuration for
humidifiers and dehumidifiers is the same
for all type of Heat Pump Systems
Ensure that the accessory is
externally powered
Ensure the Heat Pump System is
wired correctly
Connect the control wire of the
accessory to the H/DH terminal
of the wall plate
Jumper
----
G
W2/
AUX
Y2
O/B
H/DH
Data
C
W/E
Y
RH
RC
8

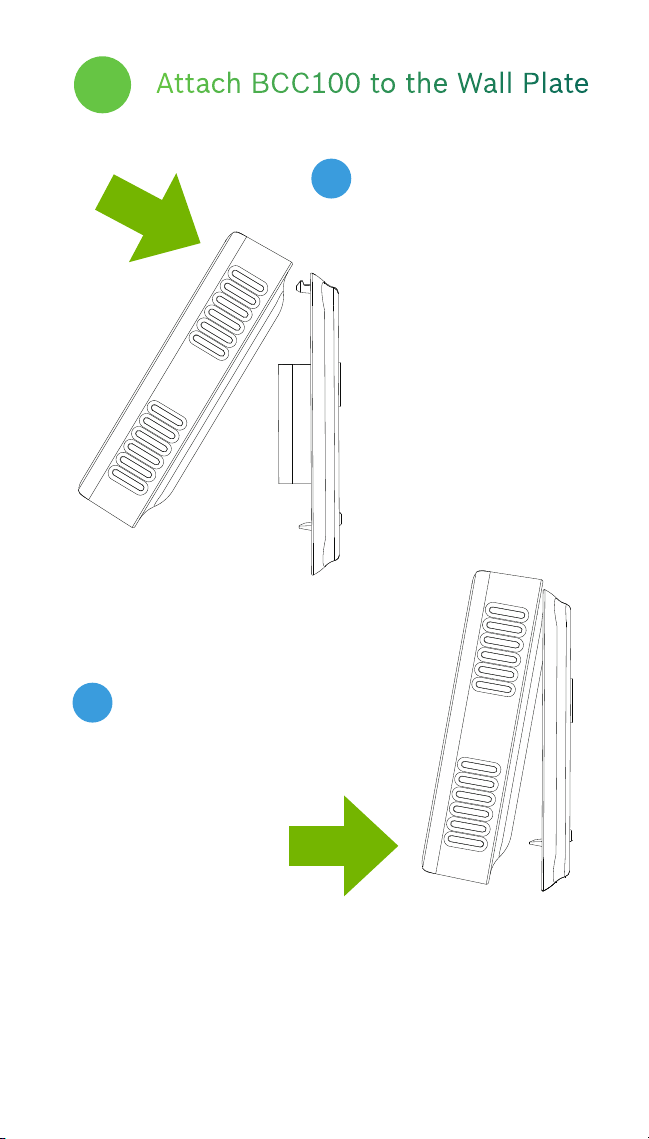

Attach BCC100 to the Wall Plate
Align the two clips on
the back of the
BCC100 into the
corresponding slots
on the top of the
wall plate.
4
Firmly press forward
until you hear a click to
secure the thermostat
into position.
1
2
PUSH
CLIPS
Switch on the power to the heating/cooling system at the
main switch box. If the thermostat does not power on,
remove the BCC100 from the wall and ensure the RH/RC
wire(s) and C-wire are correctly connected to both the
appliance and the thermostat.
9
When your thermostat powers on, it prompts you to
start the setup. If you are having trouble powering the
thermostat, please refer to the Customer Support
Card in the box for additional support information.
Thank you for choosing the BCC100. Enjoy the savings
and comfort of owning a Bosch connected thermostat!

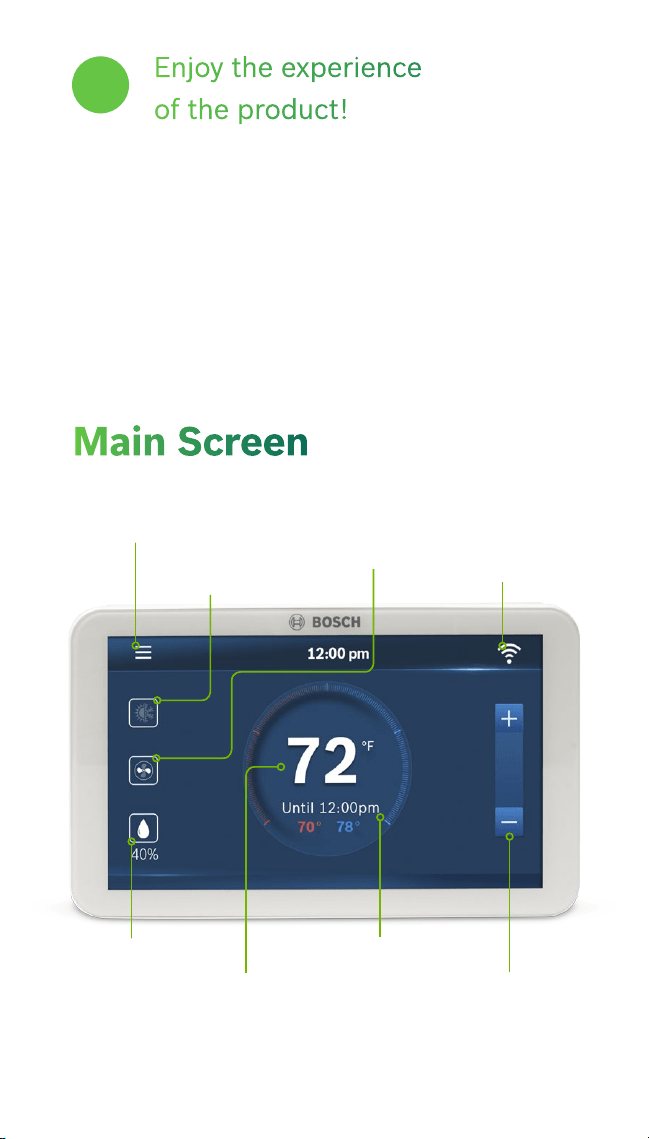

Main Screen
System
Mode
Main Menu Fan
Status
Wifi / Cloud Access
Indicator
Current
Room
Humidity
Current Room
Temperature
Current
Schedule
Adjust
Temperature
Set-Points
Enjoy the experience
of the product!
5
10
Icons
Menu
Exit / Save Settings
Back
Weather
Schedule
Device Settings
System Settings
Advanced Settings
Heat Mode
Cool Mode
Auto Mode
Emergency Heat Mode
Off
Gas/Oil/
Propane
Heat Pump
Electric
Auto
On
Circulation
Humidifier
Dehumidifier
System Modes
Basic Icons Heating Types
Fan Modes
Humidity
10
11
Icons
11
Schedule on Device
Schedule on Cloud
Wi-Fi Connection Established
Wi-Fi Connection Not Established
Internet is Not Available
Retry Internet Connection
System Connectivity
Unit Operation
1 2
1
2
1 2
1 2
4
Heat Mode
Heating on (1st stage) & (2nd stage)
Cool Mode
Cooling on (1st stage) & (2nd stage)
Auto Mode
Heating on (1st stage) & (2nd stage)
Auto Mode
Cooling on (1st stage) & (2nd stage)
Fan on/running - Fan Auto Mode
Emergency heat on
Auxiliary heat on - 2nd Aux Stage of a
4-stage heating system
Auxiliary
Heating
Emergency
Heating
12
For a quick and easy way to begin using your new smart
thermostat, the device will automatically direct you to the
Initial Setup screen after you have turned it on for the first
time.
Initialization
Heat Pump System
Configure the reversing valve for O (energized in cool) or B
(energized in heat) and enable/disable Emergency Heat and/or
Auxiliary Heat.
1. Unit Configuration
Select your home’s heating type, stage configuration for
heating and cooling, and type of accessory (humidifier or
dehumidifier) if available.
NOTE: If you do not know which operation to choose,
check your heating/cooling system manual or consult
a professional HVAC technician.
Humidifier & Dehumidifier Unit Configuration
When selecting a dehumidifier, you have the ability to enable or
disable Cool to Dehumidify. When selecting a humidifier, you have
the ability to choose between either a steam or evaporative type.
Enabling this feature will allow the thermostat to control an external
dehumidifier accessory, while disabling this feature will allow the
thermostat to control specific appliances, such as Bosch Water
Source Heat Pumps equipped with Hot Gas Reheat coils and/or
ECM motors, with just an H/DH call.
13
2. Date & Time
ON DEVICE: Enter your location’s current date and time;
after the device is registered or linked to a user account,
the date and time on the device will automatically update
to the current time associated
with the user account.
APP: The date and time for the device, as well as the user
account, will automatically update by selecting the time
zone for the device.
3. Wi-Fi Setup
The BCC100 requires a reliable Wi-Fi connetion in order
to access smart features such as remote access, weather
forecast and more. To complete the Wi-Fi setup, follow
the on-screen instructions. Additional instructions are
also available on page 16 in the Wi-Fi Setup section of this
User Guide.
After a successful connection, the thermostat displays the
Registration screen. Follow the instructions on the screen
to complete the setup. After completing the setup,
download the Bosch Connected Control (BCC100) app
from the App Store or Google Play. Create an account
within the app and then add a device by following the
on-screen instructions.
14
4. Schedule
During offline operations, only 2 schedules (Home and
Vacation) are available. However, when a Wi-Fi connection
is established, the list can be expanded up to 4 schedules.
HOME: You can use this schedule to set your heating/
cooling equipment to predefined set points. The device
initially comes with a factory default schedule, which can
be adjusted as necessary.
VACATION: This schedule will be used to set your
heating/cooling equipment to 2 periods with set points (1
heating and 1 cooling) that can be manually adjusted.
However, you will not be able to add additional or remove
current periods. The schedule can be used for vacation or
permanently setting a heating/cooling set point.
15

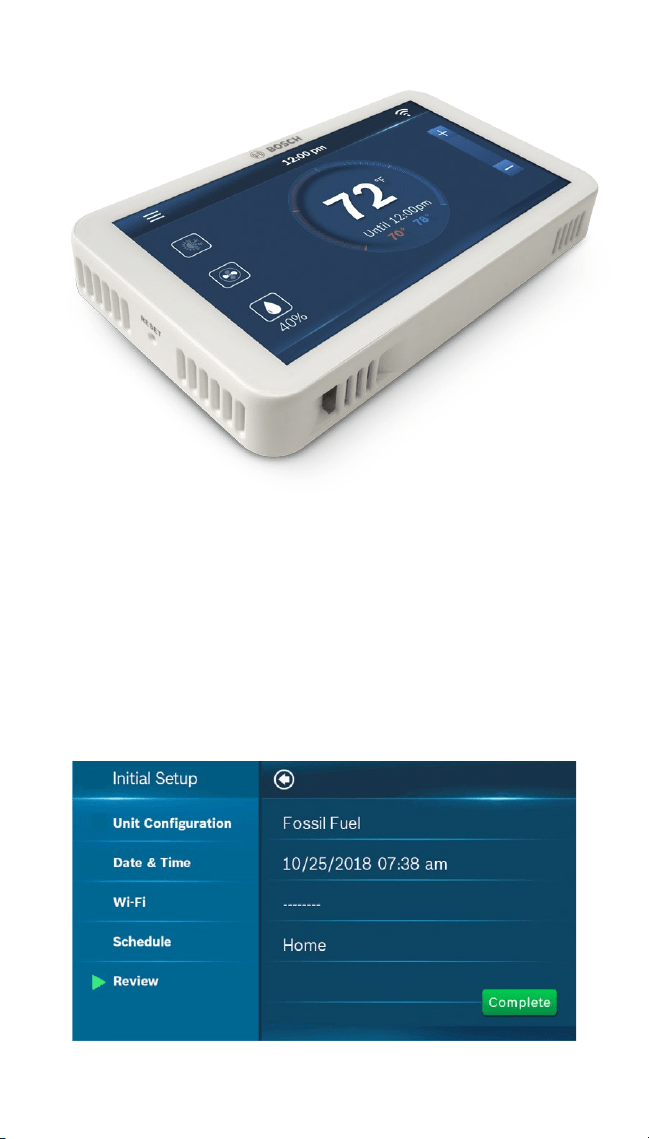

5. Review
In the final step, the BCC100 provides a review of all
information that you have entered into the thermostat.
You will be able to go back to different parts of the Initial
Setup guide by pressing the different sections on the left
pane. If you have completed the review, please press the
Complete button to start utilizing your BCC100!
16
Wi-Fi Connection
SCAN: To start Wi-Fi setup, tap the Wi-Fi icon in the top
right hand corner of the main screen. Then click the Scan
icon to view available Wi-Fi networks. Follow the
on-screen instructions to complete the Wi-Fi setup.
Hidden Wi-Fi Connection
MANUAL ENTRY: If you are trying to connect to a hidden
network, press the SSID button to bring up the SSID
screen. Enter your SSID into the text box, then follow the
on-screen instruction to complete the Wi-Fi setup.
Wi-Fi Setup
17
NOTE: If this is a first time installation, follow the
instructions in the App Setup section of this User
Guide to register your thermostat to your smart device.
The following may cause a failed connection
to the device:
▶ Wi-Fi signal is too weak
▶ 5 GHz Wi-Fi network is not supported
▶ SSID contains space or non-ASCII characters
▶ Incorrect password
▶ Wi-Fi is okay but your internet is unavailable
▶ Additional web authentication is not supported
After you have successfully established a connection, your
network name appears. If your thermostat is already
registered to your account on your smart device, your
User ID name appears.
NOTE: For all smart devices that require access to the
same thermostat, you must use the same account.
18
For an unregistered device, click the green Registration
button to register your account. If you want to register a
different account to your device, you can also click the
Registration button and follow the steps outlined in the
App Setup section of this User Guide.
Auto Reconnect
If your device loses connection with your wireless
network, it will automatically attempt to reconnect after
5 minutes. If that fails, it will make a new attempt every
15 minutes for the next 24 hours. Any manual network
reconfiguration of the thermostat will stop automatic
reconnection attempts.
19
BOSCH CONNECTED CONTROL COMPATIBLE DEVICES
Apple® devices running iOS 7.1 & higher
Android™ devices running 4.0.3 & higher
There are three ways to download the
BCC100 App for your smart device:
▶ In the App Store or Google Play, search “Bosch
Connected Control” or “BCC100” and then
download the app.
▶ Use your smart device to scan the QR code below or
on the packaging to be directed to the Bosch website
for easy download.
▶ On your smart device, navigate to the website:
www.bosch-climate.us/bcc100
and click the links for the app
in the Download the App
section to download.
App
Setup
Congratulations! You are now connected
to the thermostat. Now set up your App to
enjoy additional exciting features.
Step 1: Download
20
Add Device
Device Name
Device MacID
BOSCH
x
For Automatic Entry (Recommended):
Scan QR code found in “Wi-Fi settings” screen
For Manual Entry:
Enter MacID and temporary verification code.
MacID can be found on device label, package,
or “Wi-Fi settings” screen. Temporary verification
code can be found on the Wi-Fi settings screen
on your thermostat.
Temporary Verification Code
1234
OK
Step 2: Create a User Account
After installing the App onto your smart phone, create a
user account. After installing the App on your smart device,
create a user account by clicking Register from the Login
Screen. Follow the on-screen instructions to finish creating
your account.

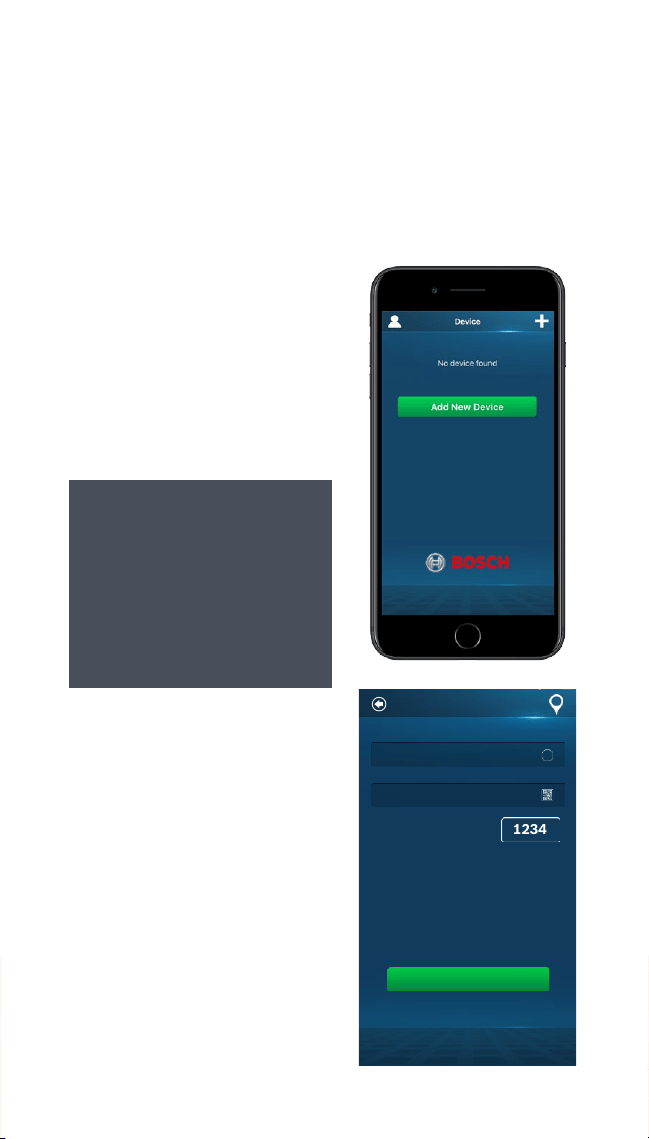

Step 3: Add Device
to your Account
1. Log in to your account.
2. Click Add New Device.
3. Follow on-screen
instructions.
NOTE: You can find the
MAC ID by navigating to
the Wi-Fi Settings screen
on your thermostat and
clicking the Registration
button.
MAC ID and Temporary
Verification Code
You can find the MAC ID and
Temporary Verification Code by
navigating to the Wi-Fi Settings
screen on your thermostat and
clicking the Registration button.
21
HEAT | COOL | AUTO | OFF | EM. HEAT
Tap the System Mode icon on the Home Screen to enter
Mode or go to Main Menu > System Settings > Mode
Starting Your System
The Temporary Verification Code (TVC) is a 4-digit
code randomly generated each time you enter the
Registration screen on your thermostat.
The code expires after
90 seconds. If the
previous code has
expired, click the TVC to
generate a new code.
To automatically populate
the MAC ID and TVC in
your App, you may use the
embedded QR code in the
thermostat and the QR
scanner in your App’s
MAC ID field.
NOTE: The MAC ID is a
unique network ID that
helps to identify your
device over the
internet. When dealing
with Bosch Customer
Support, the TVC
functions as verification
that you are in current
possession of the
thermostat.
22
Mode
AutoCoolHeat Off
-----
Hum/Dehum
Fan
Heat/Cool
Note that your device is always running on a programmed
schedule and the current operating mode is part of that
schedule. Thus, when you change the Mode,
it will only change the mode for the current program. If
you change to a different program, your Mode will follow
the new program that you have selected.
The mode selection is for the current program (Home).
You cannot assign different modes within a program.
NOTE: Em Heat
(Emergency Heat)
mode is only available
if you have selected
Heat Pump as your
Heat Type and enabled
the Emergency Heat
function in the setup
menu.
23
Temporary Adjustment
This feature will override the current set point in favor of
the set point you enter until the next programmed time in
the schedule. If you would like to permanently schedule
the new set point, press the lock icon. This will
permanently lock in the adjustment until the X button is
pressed on the main screen.
Schedule Override on the Thermostat
You can override the current scheduled set point(s) by
tapping the plus or minus (+/-) icons on the right side of
the screen.
If you are in Auto mode, manually adjust either the
Heating/Cooling set points individually.
If you are in either Heat or Cool mode, you can manually
select a new temperature set point or select one of the
available preset set points.
Temporary Scheduling
NOTE:
You can change the
preset temperatures from the
Presets Settings Menu of the
thermostat.
Schedule Override on the App
You can override the current
schedule by scrolling the
temperature up and down
with your finger.
24
Programming a Schedule
When the thermostat is offline, there are only two default
schedules (Home and Vacation) available for selection. If
the Internet connection is established, you may have up to 4
schedules.
Programming Schedules
Programming with the Thermostat
You can access the Schedule by following: Menu > Schedule
and selecting the schedule that you would like to run. If
you want to modify the schedule, you must first select the
schedule you want to modify.
1. Select Schedule from the list and press the Setup button
2. Select the Mode on which you want the schedule to
operate, then press the Next button.
3. Select the day of the week
Select the period you want to change and press the
Setup button. A total of 8 periods are available per day.
u
The Insert button adds a new period after the current period.
u
The Delete button removes the current period.
4. Set period times in 15-minute intervals. The first
scheduled period is 12:00am and cannot be modified
or deleted.
5. Set the temperature set point(s) you want for the
selected period. You can also select System Off.
6. Use the Copy button to mirror the same schedule to
other day(s) of the week.
25
Programming with the App
From the main menu in the
App, select Schedule.
1. Select the Mode that you
would like the schedule
to operate, and press Edit
u
If you would like to edit
a different schedule
please press List for a
list of available
schedules
2. Select the day of the
week you would like
to change
3. Select a period (a total of
8 are available per day)
to change
u
Edit: Edit the current
schedule
u
Insert: Insert a new
period after the
current one
u
Delete: Delete the
current period
4. Set period times in
15-minute intervals. The
first scheduled time may
not be changed from
12:00am.
Schedule
Mon
Tue
Wed
Thu
Fri
Sat
Sun
Periods: 4 55°-60°
Home
1
2
3
4
00:30am-03:15am
03:15am-06:30am
06:30am-09:15am
09:15am-12:30am
72°-78°
66°-72°
55°-60°
68°-68°
List Copy
Schedule
Mon
Tue
Wed
Thu
Fri
Sat
Sun
Periods: 4 55°-60°
Home
List Copy
Off
Cool
F
o
74.5
75.0
F
o
74.0
F
o
Heat
F
o
68.5
69.0
F
o
68.0
F
o
05
:
45
AM
06
:
00
AM
06
:
15
AM
Starting Time:
OK Cancel
5. Set the temperature set point(s) you want for the
selected period. You can also select the System Off.
6. Use the Copy button to copy the same schedule
to another day of the week
26
Device Information
Device information will contain
all the relevant Account and
System information.
Account: Change or remove
the account associated with
the thermostat.
System: Displays the current
hardware and software information.
This screen can also be used to update the firmware.
NOTE: It is important
that you remember
your screen lock
passcode as you will
not be able to unlock
the screen without
this code.
Additional Features
Weather Forecast
The weather forecast is
based on the location of
the installed thermostat.
The first time you connect
your thermostat to the app,
your location was assigned to the thermostat.
Screen Options
There are 3 levels of screen brightness and 3 options for
Screen Timeout.
You can also utilize this menu to Lock the screen. A 4-digit
passcode will be required to lock the screen.
NOTE: You must grant
“location access” for
the app to enable
this feature.
27
Unit Operating Mode
Heat: The thermostat cycles your heating appliance to
maintain your scheduled heating set point.
Cool: The thermostat cycles your cooling appliance to
maintain your scheduled cooling set point.
Auto: The thermostat cycles your heating/cooling appliance
to maintain your scheduled heating/cooling set points.
Off: The thermostat turns off all heating/cooling functions.
You can still manually operate the fan in this mode.
Emergency Heat (available only with Heat Pumps): The
thermostat turns off all compressor stage(s) and activates
the back-up electric heat source(s).
Fan Operation
Auto: Fan will follow
heating and cooling
operations.
On: Fan runs non-stop.
Circulation: Fan cycles on
and off regularly in addition to heating and cooling
operations. By selecting this option, you also need to
define the operation length of time and schedule for the
circulation.
28
Humidifier & Dehumidifier
Operating Mode
You can enable automatic
humidity control if the correct
humidifier or dehumidifier
accessory was correctly wired
and configured during the
thermostat’s initial setup. Based
on the setup, the thermostat turns on the humidifier during
heating operation and the dehumidifier will be turned on during
cooling operation. You can also configure the thermostat to
operate similar to a humidistat, which runs the humidifier or
dehumidifier, regardless of an active heating/cooling call.
NOTE: You may only
operate in either
humidifier OR
dehumidifier mode and
may not operate in both
modes at the same time.
29

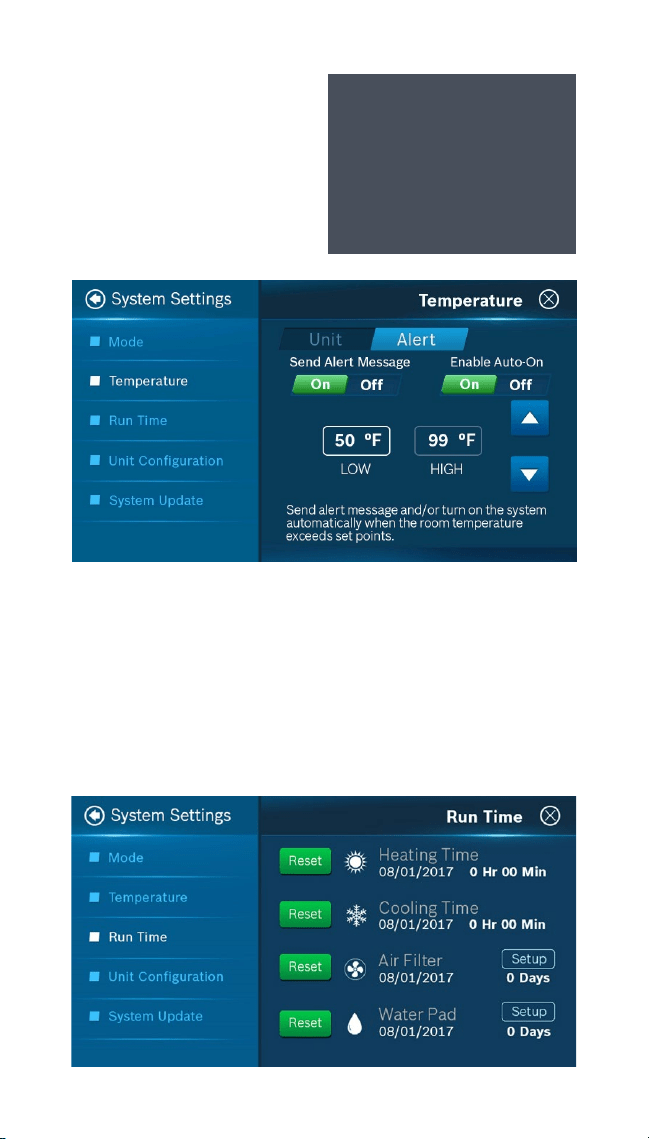

Run Time
The thermostat keeps track of your run time for the
Heating, Cooling, Air Filter and Water Pad. You can also
set a reminder for Air Filter and Water Pad according to
the number of calendar days. When it reaches its
predefined run time, the thermostat displays a notification
and sends a message to the registered smart device(s).
Temperature, Alerts,
and Auto-On
Alert: Send an alert message
or turn on the system
automatically when the room
temperature is out of the
range between set-points.
NOTE: Alerts are an
additional source of
protection for your
heating/cooling
appliance.
30
Heating & Cooling
Click Main Menu > Advanced Settings > Heating & Cooling
and then enter the Professional Access Code to gain
access to Fan Delay, Minimum Run Time, Anti Short Cycle,
Cycle Time and Zero Energy Band advanced settings.
Installer Access
Click Main Menu > Advanced Settings > Installer Access,
enter the Professional Access Code and then use the
Action Codes listed below to gain access to various
advanced settings.
HC: Humidity Calibration
Ability to adjust humidity readings after extended product use.
HSD: Relative Humidity Hysteresis
Adjust the set point differential for the humidity control.
IS: Initial Setup
Initial Setup process.
SC: Sensor Calibration
Ability to adjust temperature readings after extended use.
SS: Sensitivity Level
The lower the level, the more your system cycles to maintain
the set point(s).
ST: Staging
Configuration options: Latching, Stage Delay and Stage Temp.
Advanced Settings allow HVAC professionals the ability to
modify specific thermostat settings for better control of the
heating/cooling appliance(s).
Advanced Settings
NOTE: Advanced Settings are for professional use only
and require access code: 1886.
31
Control Your BCC100 with Amazon Alexa
Bosch offers one Smart Home Skill for integrating your
BCC100 with Amazon Alexa’s voice controls. Using the
Bosch Connected Control Skill from the Skills section of
the Amazon Alexa App.
The Device Name is the name assigned to your device in the
BCC100 app. You can check the device name by opening the
BCC100 app and reading the name displayed on the main
menu of selectable devices.
NOTE: The Amazon Alexa commands for the BCC100 are
intended for use in Heating Only and Cooling Only modes.
You Can Control the BCC100 by Saying:
▶ Alexa, turn (Device Name) on.
▶ Alexa, turn (Device Name) off.
▶ Alexa, Increase (Device Name) by __ degrees.
▶ Alexa, Decrease (Device Name) by __ degrees.
▶ Alexa, Set (Device Name) to __ degrees.
▶ Alexa, what is the (Device Name) set to?
▶ Alexa, what is the temperature of the (Device Name)?
32
Connecting Your BCC100 to Amazon Alexa
1. Download the BCC100 App, create an account, and register
your app to the BCC100 thermostat.
2. Download the Amazon Alexa app and set up your
Alexa-enabled device.
3. In the Amazon Alexa app, click on the Menu button in the
top left corner.
4. Click on the Skills section and search for “Bosch
Connected Control” in the search bar at the top of the
page.
5. After you find and click on the Bosch Connected Control
Skill, click on the blue Enable button.
6. The setup process redirects you to a Bosch sign-in page
where you will need to enter your BCC100 account
username and password.
7. After you have received confirmation that your two
accounts have been successfully linked, click Done in the
top left hand corner.
8. Next click Discover Devices in the Amazon Alexa app or say
“Alexa, discover new devices.” Device Discovery could take
up to 45 seconds.
9. When device discovery is complete, you should see a list of
connected devices in the Smart Home menu of your
Amazon Alexa app.
The setup process is now complete and you can start to
control your BCC100 with your Alexa enabled device. Try out
some of the commands above and enjoy!
NOTE: You must have a registered BCC100 account to
set up and use your thermostat with Amazon Alexa.
33
Models Covered
This limited warranty is provided by Bosch Thermotechnology Corp.
(“Bosch”) and covers the Bosch Connected Control (BCC100) Wi-Fi
Thermostat (hereinafter referred to as “Product”). This warranty is
provided to the original purchaser of the Product as long as the Product
remains installed at its original place of installation.
Warranty Coverage
Limited Warranty
Bosch warrants that the Product will remain free from defects in material
and workmanship for five (5) years from the date of original installation or
from the date of manufacture if proof of installation is not available,
provided it is properly installed and the other conditions of this warranty
are met. If Bosch determines that the Product has a defect in workmanship
or materials, Bosch, at its option, will repair or replace the defective part.
Items Not Covered
This limited warranty does not cover the following circumstances:
1. Components or parts not provided by Bosch.
2. Components or parts, on which the tags or nameplates have been removed,
altered or defaced.
3. Scratches in or discoloration of finishes.
4. The workmanship of any installer. Bosch disclaims and does not assume any
liability of any nature for unsatisfactory performance caused by improper
installation, repair or maintenance.
5. Any labor or material costs for removal, reinstallation, repair and replacement of
the defective component or part unless otherwise provided above.
6. Electricity or fuel costs, or any increases or unrealized savings in same, for any
reason whatsoever.
7. Damage caused by operation of the Product in a corrosive atmosphere,
electrical failures, flooding or acts of God.
8. Damage caused by any attachment or modification to the Product, including any
energy saving device.
9. Damage caused by Product not being installed in accordance with all applicable
state and local plumbing and/or building codes and regulations.
10. Shipping charges, delivery expenses or administrative fees incurred by the
purchaser in repairing or replacing the Product.
Warranty
Bosch Connected Control
BCC100 Thermostat
34
LIMITED WARRANTY
OTHER THAN THE OBLIGATIONS OF BOSCH EXPRESSLY SET FORTH
HEREIN, BOSCH DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. BOSCH’S
SOLE OBLIGATION WITH RESPECT TO THE PRODUCT AND PURCHASER’S
EXCLUSIVE REMEDIES ARE SET FORTH IN THE FOREGOING LIMITED
WARRANTY. BOSCH SHALL NOT BE LIABLE FOR ANY INDIRECT, PUNITIVE,
INCIDENTAL, SPECIAL, CONSEQUENTIAL OR SIMILAR DAMAGES
INCLUDING, WITHOUT LIMITATION, INJURY OR DAMAGE TO PERSONS OR
PROPERTY OR DAMAGES FOR LOSS OF USE, LOST PROFITS,
INCONVENIENCE OR LOSS OF TIME. NOTE THAT ANY REPAIRED OR
REPLACED PRODUCT WILL BE WARRANTED FOR ONLY THE UNEXPIRED
TERM OF THE ORIGINAL WARRANTY.
Some states do not allow the exclusion of limitation of damages, or
limitations on how long an implied warranty lasts, so the above limitations
and exclusions may not apply to you.
WARRANTY CLAIMS PROCESS
If you have a warranty claim you should notify the heating contractor who
installed your Product and ask that the contractor notify the distributor
from whom the contractor purchased the Product. If this action is not
possible or you don’t receive a response, contact Bosch Thermotechnology
Corp. (Bosch), 50 Wentworth Avenue, Londonderry, NH 03053. To process
your claim, you will need a copy of your original invoice or other proof of
purchase and documentation showing the original installation date and
location. The alleged defective Product must be returned to Bosch in
accordance with Bosch procedure then in force for handling goods
returned for the purpose of inspection to determine cause
of failure (contact Bosch if you have questions regarding the return
process). If Bosch determines that the returned product is defective and
that this warranty applies, Bosch will furnish the repaired or replacement
Product.
This Warranty applies to Bosch Products installed in the Continental
United States and Canada only. United States and Canada only.
35
Bosch Thermotechnology Corp.
Watertown, MA • Londonderry, NH • Ft. Lauderdale, FL
Inquiries and support: 1-800-283-3787
Copyright © 2018 Bosch Thermotechnology Corp.
All rights reserved. Subject to change without notice.
76H993390E
11-18
CoolingHeating Hot Water Controls
www.BoschHeatingAndCooling.com
