2011 Fit
Owner’s Manual
(Unlinked)
This document does not contain hyperlinks and may be formatted for printing instead of web use. This is due to changes
in content and specifications of the vehicle that happen throughout the model year. This manual will be replaced with a
hyperlinked version at the end of the model year.
P/N 00X31-TK6-
© 2010 American Honda Motor Co., Inc. - All Rights Reserved
6200
OWNER _________________________________________________________
______________________________________________________________________________
ADDRESS _______________________________________________________
STREET
_________________________________ _________________________________ ___________________
CITY STATE/PROVINCE/TERRITORY ZIP CODE/
POSTAL CODE
V. I. N. ___________________________________________________________
DELIVERY DATE __________________________________________________
(Date sold to original retail purchaser)
DEALER NAME ___________________ DEALER NO. ___________________
ADDRESS _______________________________________________________
STREET
_________________________________ _________________________________ ___________________
CITY STATE/PROVINCE/TERRITORY ZIP CODE/
POSTAL CODE
OWNER'S SIGNATURE ___________________________________________
DEALER'S SIGNATURE ___________________________________________
This owner's manual should be considered a
permanent part of the vehicle and should
remain with the vehicle when it is sold.
This owner's manual covers all models of the
Fit. You may find descriptions of equipment
and features that are not on your particular
vehicle.
Images throughout this owner's manual
(including the front cover) represent features
and equipment that are available on some,
but not all, models. Your particular model
may not have some of these features.
The information and specifications included
in this publication were in effect at the time of
approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or
change specifications or design at any time
without notice and without incurring any
obligation whatsoever.
POUR CLIENTS CANADIEN AVIS
IMPORTANT: Si vous avez besoin
d'un Manuel du Conducteur en
français, veuillez demander à votre
concessionnaire de commander le
numéro de pièce 33TK6C20
Owner's Identification
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Congratulations! Your selection of a 2011 Honda Fit was a wise investment. It
will give you years of driving pleasure.
One of the best ways to enhance the enjoyment of your new vehicle is to read
this manual. In it, you will learn how to operate its driving controls and
convenience items. Afterwards, keep this owner's manual in your vehicle so
you can refer to it at any time.
Several warranties protect your new vehicle. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.
Maintaining your vehicle according to the Maintenance Minder™ shown in
the instrument panel helps to keep your driving trouble-free while it
preserves your investment. When your vehicle needs maintenance, keep in
mind that your dealer's staff is specially trained in servicing the many
systems unique to your vehicle. Your dealer is dedicated to your satisfaction
and will be pleased to answer any questions and concerns.
As you read this manual, you will find
information that is preceded by a
symbol. This information is
intended to help you avoid damage to
your vehicle, other property, or the
environment.
Introduction
i
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
California Proposition 65 Warning
WARNING: This product contains or emits chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
Event Data Recorders
This vehicle is equipped with one or more devices commonly referred to as event data recorders. These
devices record front seat belt use, front passenger seat occupancy, airbag deployment data, and the failure of
any airbag system component. This data belongs to the vehicle owner and may not be accessed by anyone else
except as legally required or with the permission of the vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with service-related devices that record information about powertrain performance. The data
can be used to verify emissions law requirements and/or help technicians diagnose and solve service problems. It
may also be combined with data from other sources for research purposes, but it remains confidential.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners, and CR type batteries in this vehicle may contain perchlorate materials － special
handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
Introduction
ii
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Your safety, and the safety of others,
is very important. And operating this
vehicle safely is an important
responsibility.
To help you make informed
decisions about safety, we have
provided operating procedures and
other information on labels and in
this manual. This information alerts
you to potential hazards that could
hurt you or others.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your vehicle. You must
use your own good judgement.
You will find this important safety information in a variety of forms, including:
●
Safety Labels － on the vehicle.
●
Safety Messages － preceded by a safety alert symbol and one of
three signal words: DANGER, WARNING,orCAUTION.
These signal words mean:
You WILL be KILLED or SERIOUSLY
HURT if you don't follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don't follow instructions.
You CAN be HURT if you don't follow
instructions.
●
Safety Headings － such as Important Safety Reminders or Important
Safety Precautions.
●
Safety Section － such as Driver and Passenger Safety.
●
Instructions － how to use this vehicle correctly and safely.
This entire book is filled with important safety information － please read it
carefully.
A Few Words About Safety
iii
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Your Vehicle at a Glance (main controls).................................................................................................................... 3
Driver and Passenger Safety (seat belts, SRS, and child protection)
........................................................................... 5
Instruments and Controls (indicators, gauges, dashboard, steering wheel, and other convenience items)
.............. 57
Features (heating and cooling, audio, steering wheel, security, and cruise control)
................................................ 109
Before Driving (fuel, vehicle break-in, and cargo loading)
....................................................................................... 199
Driving (engine and transmission operation)
........................................................................................................... 215
Maintenance (minder, fluid checking, minor services, and vehicle storage)
........................................................... 245
Taking Care of the Unexpected (flat tire, jump starting, overheating, and fuses)
................................................... 285
Technical Information (vehicle specifications, tires, and emissions controls)
........................................................ 317
Warranty and Customer Relations (U.S. and Canada only) (warranty and contact information)
........................ 333
Index
.............................................................................................................................................................................. I
INDEX
Service Information Summary (fluid capacities and tire pressures) ............................................................... last page
Contents
1
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Contents
A convenient reference to the
sections in this manual.
Your Vehicle at a Glance
A quick reference to the main
controls in your vehicle.
Driver and Passenger Safety
Important information about the
proper use and care of your vehicle's
seat belts, an overview of the
supplemental restraint system, and
valuable information on how to
protect children with child restraints.
Instruments and Controls
Explains the purpose of each
instrument panel indicator and
gauge, and how to use the controls
on the dashboard and steering
column.
Features
How to operate the heating and air
conditioning system, the audio
system, and other convenience
features.
Before Driving
What gasoline to use, how to break-
in your new vehicle, and how to load
luggage and other cargo.
Driving
The proper way to start the engine,
shift the transmission, and park.
Maintenance
The Maintenance Minder™ shows
you when you need to take your
vehicle to the dealer for maintenance
service. There is also a list of things
to check and instructions on how to
check them.
Taking Care of the Unexpected
This section covers several problems
motorists sometimes experience, and
details how to handle them.
Technical Information
ID numbers, dimensions, capacities,
and technical information.
Warranty and Customer Relations
(U.S. and Canada only)
A summary of the warranties
covering your new vehicle, and how
to contact us for any reason. Refer to
your warranty manual for detailed
information.
Index
Service Information Summary
A summary of the information you
need when you pull up to the fuel
pump.
Overview of Contents
2
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
ꭧ: If equipped
Vehicle with navigation system is shown.
DRIVER'S FRONT AIRBAG
(P. 9, 24)
MIRROR CONTROLS
(P. 102)
DOOR LOCK TAB
(P. 81)
POWER DOOR LOCK
MASTER SWITCH
ꭧ
(P. 82)
POWER WINDOW
SWITCHES
(P. 100)
HOOD RELEASE
HANDLE
(P. 203)
INSTRUMENT PANEL
INDICATOR (P. 60)
GAUGES (P. 68)
AUDIO SYSTEM
(P. 115, 143)
PASSENGER'S FRONT
AIRBAG
(P. 9, 24)
USB ADAPTER CABLE
ꭧ
(P. 130, 137, 172, 179)
HEATING/COOLING
CONTROLS
ꭧ
(P. 110)
PARKING BRAKE
(P. 103)
AUTOMATIC TRANSMISSION (P. 221)
MANUAL TRANSMISSION (P. 219)
NAVIGATION SYSTEM
ꭧ
CONTINUED
Your Vehicle at a Glance
3
Your Vehicle at a Glance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
ꭧ1: To use the horn, press the center pad of the steering wheel.
ꭧ2: If equipped.
ꭧ3: Only on vehicles equipped with navigation system. Refer to the navigation system manual.
Vehicle with navigation system is shown.
PADDLE SHIFTER
(DOWNSHIFT)
ꭧ2
(P. 226)
HEADLIGHTS/
TURN SIGNAL/
FOG LIGHTS
ꭧ2
(P. 74)
REMOTE AUDIO
CONTROL
BUTTONS
ꭧ2
(P. 190)
NAVIGATION
SYSTEM VOICE
CONTROL
BUTTONS
ꭧ3
VEHICLE STABILITY
ASSIST (VSA)
SYSTEM OFF
SWITCH
ꭧ2
(P. 236)
STEERING WHEEL ADJUSTMENTS
(P. 77)
CRUISE CONTROL BUTTONS
ꭧ2
(P. 195)
HORN
ꭧ1
PADDLE SHIFTER
(UPSHIFT)
ꭧ2
(P. 226)
INSTRUMENT PANEL
BRIGHTNESS (P. 76)
HAZARD WARNING BUTTON
(P. 76)
WINDSHIELD WIPERS/WASHERS
(P. 73)
PASSENGER AIRBAG OFF
INDICATOR
(P. 31)
REAR WINDOW DEFOGGER/
HEATED MIRROR BUTTON
ꭧ2
(P. 76/102)
AUXILIARY INPUT JACK
(P. 191)
ACCESSORY POWER SOCKET
(P. 106)
Your Vehicle at a Glance
4
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
This section gives you important
information about how to protect
yourself and your passengers. It shows
you how to use seat belts. It explains
how your airbags work. And it tells you
how to properly restrain infants and
children in your vehicle.
Important Safety Precautions
............. 6
Your Vehicle's Safety Features
.......... 7
Seat Belts
..................................... 8
Airbags
........................................ 9
Protecting Adults and Teens
........... 11
1. Close and Lock the Doors
........ 11
2. Adjust the Front Seats
............. 11
3. Adjust the Seat-Backs
.............. 12
4. Adjust the Head Restraints
...... 13
5. Fasten and Position the Seat
Belts
.................................. 14
6. Maintain a Proper Sitting
Position
.............................. 15
Advice for Pregnant Women
........ 16
Additional Safety Precautions
...... 17
Additional Information About Your
Seat Belts
............................... 18
Seat Belt System Components
..... 18
Lap/Shoulder Belt
...................... 19
Automatic Seat Belt
Tensioners
............................. 20
Seat Belt Maintenance
................ 20
Additional Information About Your
Airbags
.................................. 22
Airbag System Components
........ 22
How Your Front Airbags Work
.... 24
How Your Side Airbags Work
...... 28
How Your Side Curtain Airbags
Work
..................................... 29
How the SRS Indicator Works
..... 30
How the Side Airbag Off
Indicator Works
..................... 30
How the Passenger Airbag Off
Indicator Works
..................... 31
Airbag Service
............................ 32
Additional Safety Precautions
...... 33
Protecting Children － General
Guidelines
.............................. 34
All Children Must Be
Restrained
.............................. 34
All Children Should Sit in a Back
Seat
....................................... 35
The Passenger's Front Airbag
Can Pose Serious Risks
........... 35
If You Must Drive with Several
Children
................................ 37
If a Child Requires Close
Attention
................................ 37
Additional Safety Precautions
...... 38
Protecting Infants and Small
Children
................................. 39
Protecting Infants
....................... 39
Protecting Small Children
........... 40
Selecting a Child Seat
..................... 41
Installing a Child Seat
..................... 42
Installing a Child Seat with
LATCH
.................................. 43
Installing a Child Seat with a
Lap/Shoulder Belt
.................. 45
Installing a Child Seat with a
Tether
................................... 47
Protecting Larger Children
............. 49
Checking Seat Belt Fit
................ 49
Using a Booster Seat
................... 50
When Can a Larger Child Sit in
Front
..................................... 51
Additional Safety Precautions
...... 52
Carbon Monoxide Hazard
............... 53
Safety Labels
.................................. 54
Driver and Passenger Safety
5
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
You'll find many safety
recommendations throughout this
section, and throughout this manual.
The recommendations on this page are
the ones we consider to be the most
important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of collisions. Airbags are designed
to supplement seat belts, not replace
them. So even though your vehicle is
equipped with airbags, make sure you
and your passengers always wear your
seat belts, and wear them properly (see
page 14).
Restrain All Children
Children age 12 and under should ride
properly restrained in a back seat, not
the front seat. Infants and small children
should be restrained in a child seat.
Larger children should use a booster
seat and a lap/shoulder belt until they
can use the belt properly without a
booster seat (see pages 34 － 52).
Be Aware of Airbag Hazards
While airbags can save lives, they can
cause serious or fatal injuries to
occupants who sit too close to them, or
are not properly restrained. Infants,
young children, and short adults are at
the greatest risk. Be sure to follow all
instructions and warnings in this
manual.
Don't Drink and Drive
Alcohol and driving don't mix. Even one
drink can reduce your ability to respond
to changing conditions, and your
reaction time gets worse with every
additional drink. So don't drink and
drive, and don't let your friends drink
and drive, either.
Pay Appropriate Attention to the
Task of Driving Safely
Engaging in mobile phone conversation
or other activities that keep you from
paying close attention to the road, other
vehicles and pedestrians could lead to a
crash. Remember, situations can change
quickly, and only you can decide when it
is safe to divert attention away from
driving.
Control Your Speed
Excessive speed is a major factor in
crash injuries and deaths. Generally, the
higher the speed, the greater the risk,
but serious injuries can also occur at
lower speeds. Never drive faster than is
safe for current conditions, regardless of
the maximum speed posted.
Keep Your Vehicle in Safe Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance (see page 247).
Important Safety Precautions
6
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Your vehicle is equipped with many
features that work together to protect
you and your passengers during a
crash.
Some features do not require any
action on your part. These include a
strong steel framework that forms a
safety cage around the passenger
compartment, front and rear crush
zones, a collapsible steering column,
and tensioners that tighten the front
seat belts in a crash.
However, you and your passengers
can't take full advantage of these
features unless you remain sitting in
the correct position and
always wear
your seat belts.
In fact, some safety
features can contribute to injuries if
they are not used properly.
The following pages explain how you
can take an active role in protecting
yourself and your passengers.
(7)
(1)
(4)
(5)
(9) (3)
(11)
(2)
(8)
(10)
(6)
(2)
(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Front Airbags
(8) Side Airbags
(9) Side Curtain Airbags
(10) Front Seat Belt Tensioners
(11) Door Locks
(12) Occupant Position Detection
System (OPDS) Sensor
(12)
(9)
(8)
(11)
(7)
Your Vehicle's Safety Features
7
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Seat Belts
Your vehicle is equipped with seat
belts in all seating positions.
Your seat belt system also includes
an indicator on the instrument panel
and a beeper to remind you and your
passengers to fasten your seat belts.
Why Wear Seat Belts
Seat belts are the single most
effective safety device for adults and
larger children. (Infants and smaller
children must be properly restrained
in child seats.)
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
In addition, most states and all
Canadian provinces and territories
require you to wear seat belts.
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has
airbags.
Be sure you and your
passengers always wear seat
belts and wear them properly.
When properly worn, seat belts:
●
Keep you connected to the vehicle
so you can take advantage of the
vehicle's built-in safety features.
●
Help protect you in almost every
type of crash, including:
－ frontal impacts
－ side impacts
－ rear impacts
－ rollovers
●
Help keep you from being thrown
against the inside of the vehicle
and against other occupants.
●
Keep you from being thrown out of
the vehicle.
●
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury from an inflating airbag and
allows you to get the best
advantage from the airbag.
Of course, seat belts cannot
completely protect you in every
crash. But in most cases, seat belts
can reduce your risk of serious
injury.
What You Should Do:
Always wear your seat belt, and
make sure you wear it properly.
Your Vehicle's Safety Features
8
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Airbags
Your vehicle has a supplemental
restraint system (SRS) with front
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe frontal collision (see page 24
for more information on how your
front airbags work).
Your vehicle also has side airbags to
help protect the upper torso of the
driver or a front seat passenger
during a moderate to severe side
impact (see page 28 for more
information on how your side airbags
work).
In addition, your vehicle has side
curtain airbags to help protect the
heads of the driver, front passenger,
and passengers in the outer rear
seating positions during a moderate
to severe side or front impact (see
page 29 for more information on how
your side curtain airbags work).
CONTINUED
Your Vehicle's Safety Features
9
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The most important things you need
to know about your airbags are:
●
Airbags do not replace seat belts.
They are designed to supplement
the seat belts.
●
Airbags offer no protection in rear
impacts, or minor frontal or side
collisions.
●
Airbags can pose serious hazards.
To do their job, airbags must
inflate with tremendous force. So
while airbags help save lives, they
can cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly.
What you should do:
Always wear
your seat belt properly, and sit
upright and as far back from the
steering wheel as possible while
allowing full control of the vehicle. A
front passenger should move their
seat as far back from the dashboard
as possible.
The rest of this section gives more
detailed information about how you
can maximize your safety.
Remember, however, that no safety
system can prevent all injuries or
deaths that can occur in a severe
crash, even when seat belts are
properly worn and the airbags
deploy.
Your Vehicle's Safety Features
10
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Introduction
The following pages provide
instructions on how to properly
protect the driver, adult passengers,
and teenage children who are large
enough and mature enough to drive
or ride in the front.
See pages 34 － 38 for important
guidelines on how to properly protect
infants, small children, and larger
children who ride in your vehicle.
1. Close and Lock the Doors
After everyone has entered the
vehicle, be sure the doors and the
tailgate are closed and locked.
Your vehicle has a door and
tailgate open indicator on
the instrument panel to indicate
when any door or the tailgate is not
tightly closed.
Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent passengers from
accidentally opening a door and
falling out.
Locking the doors and the tailgate
also helps prevent an outsider from
unexpectedly opening a door or the
tailgate when you come to a stop.
See page 81 for how to lock the
doors, and page 62 for how the door
and tailgate open indicator works.
Some models have the auto door
locking/unlocking feature. For more
information, see page 83.
2. Adjust the Front Seats
Adjust the driver's seat as far to the
rear as possible while allowing you to
maintain full control of the vehicle.
Have a front passenger adjust their
seat as far to the rear as possible.
CONTINUED
Protecting Adults and Teens
11
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inflating front
airbag, or by striking the steering
wheel or dashboard.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest. In addition to
adjusting the seat, you can adjust the
steering wheel up and down, and in
and out (see page 77).
If you cannot get far enough away
from the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
Once a seat is adjusted correctly,
rock it back and forth to make sure it
is locked in position.
See page 93 for how to adjust the
front seats.
3. Adjust the Seat-Backs
Adjust the driver's seat-back to a
comfortable, upright position, leaving
ample space between your chest and
the airbag cover in the center of the
steering wheel.
Passengers with adjustable seat-
backs should also adjust their seat-
back to a comfortable, upright
position.
Protecting Adults and Teens
12
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat.
Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant's chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
See page 93 for how to adjust the
seat-backs.

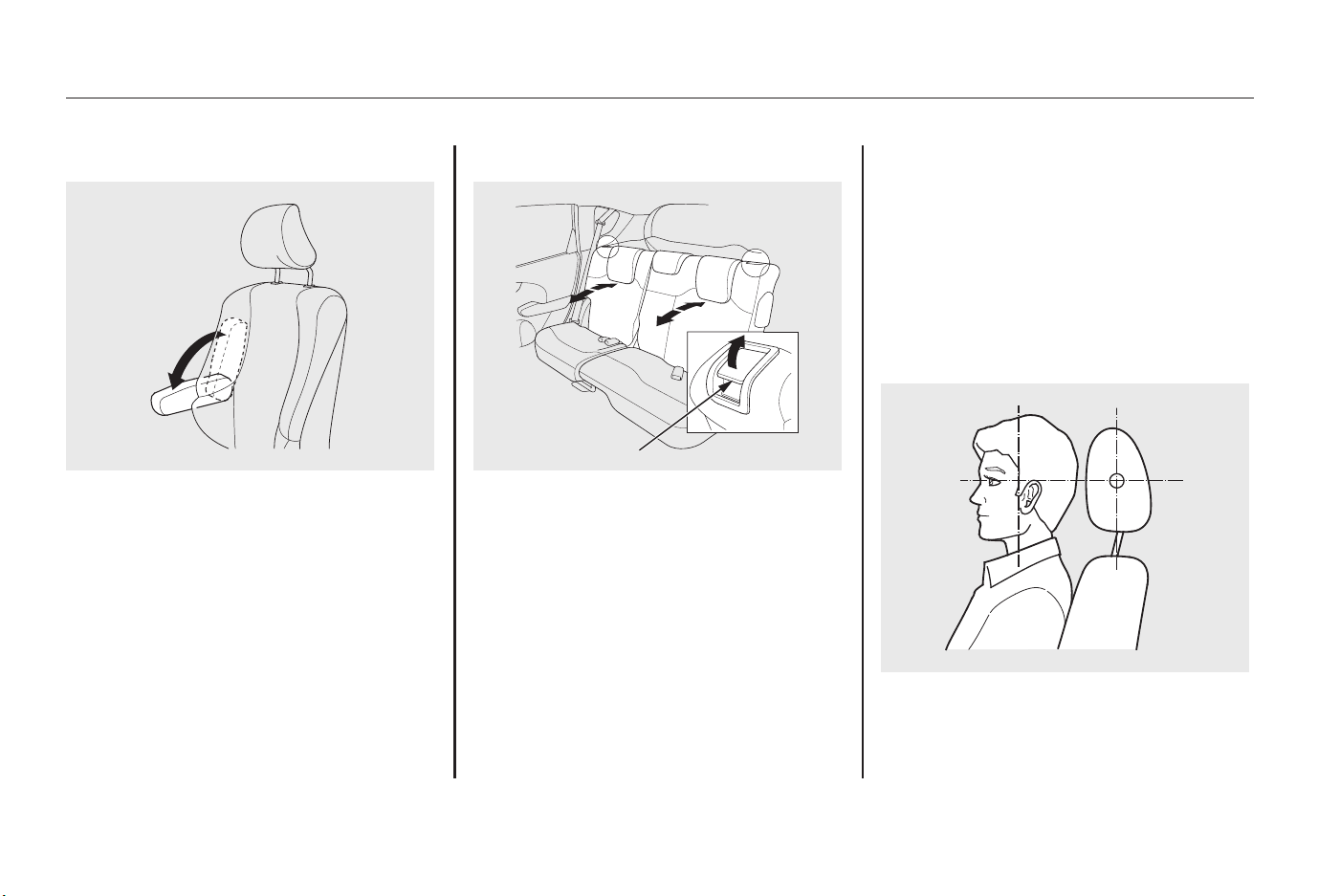

4. Adjust the Head Restraints
Adjust the driver's head restraint so
the center of the back of your head
rests against the center of the
restraint.
Have passengers adjust their head
restraints properly as well. Taller
persons should adjust their restraint
as high as possible.
When a passenger is seated in the
rear center seating position, make
sure the center head restraint is
properly positioned.
Improperly positioning head
restraints reduces their
effectiveness and you can be
seriously injured in a crash.
Make sure head restraints are
in place and positioned properly
before driving.
Properly adjusted head restraints will
help protect occupants from whiplash
and other crash injuries.
See page 94 for how to adjust the
head restraints and how the driver's
and front passenger's active head
restraints work.
Protecting Adults and Teens
13
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
5. Fasten and Position the Seat
Belts
Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Check that
the belt is not twisted, because a
twisted belt can cause serious
injuries in a crash.

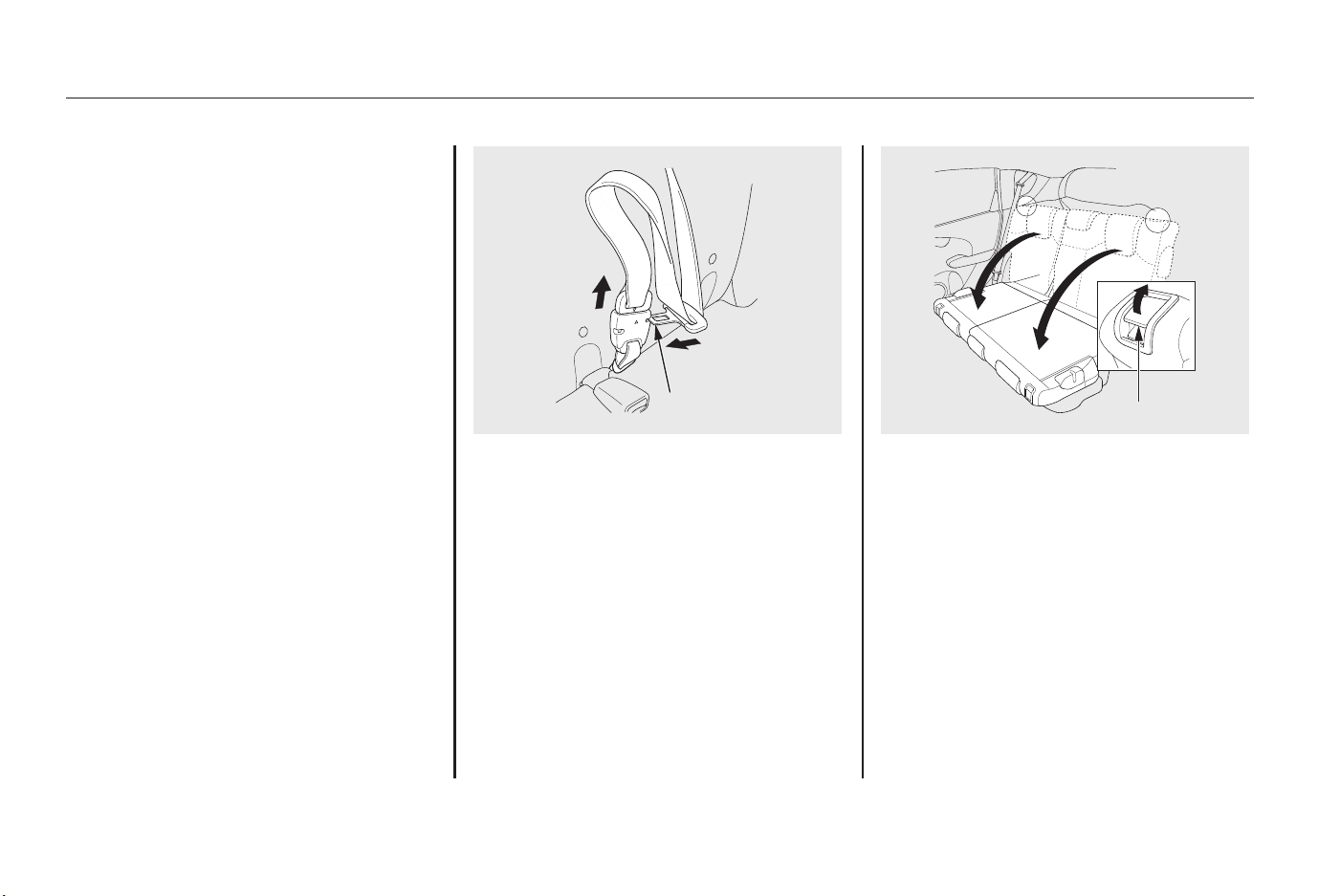

The seat belt in the center position of
the back seat can be unlatched and
retracted to allow the back seat to be
folded up or down. This seat belt
should be latched whenever the seat-
back is in an upright position. See
page 99 for how to unlatch and
relatch the seat belt.
Position the lap part of the belt as low as
possible across your hips, then pull up
on the shoulder part of the belt so the
lap part fits snugly. This lets your strong
pelvic bones take the force of a crash
and reduces the chance of internal
injuries.
If necessary, pull up on the belt again to
remove any slack, then check that the
belt rests across the center of your
chest and over your shoulder.
This spreads the forces of a crash over
the strongest bones in your upper body.
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
If the seat belt touches or crosses
your neck, or if it crosses your arm
instead of your shoulder, you need to
adjust the seat belt anchor height.
Protecting Adults and Teens
14
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The front seats have adjustable seat
belt anchors. To adjust the height of
an anchor, squeeze the two release
buttons, and slide the anchor up or
down as needed (it has four
positions).
Never place the shoulder portion of a
lap/shoulder belt under your arm or
behind your back.
This could cause
very serious injuries in a crash.
If a seat belt does not seem to work
properly, it may not protect the
occupant in a crash.
No one should sit in a seat with an
inoperative seat belt.
Using a seat
belt that is not working properly can
result in serious injury or death.
Have your dealer check the belt as
soon as possible.
See page 18 for additional
information about your seat belts and
how to take care of them.
6. Maintain a Proper Sitting
Position
After all occupants have adjusted
their seats and head restraints, and
put on their seat belts, it is very
important that they continue to sit
upright, well back in their seats, with
their feet on the floor, until the
vehicle is safely parked and the
engine is off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches, lies
down, turns sideways, sits forward,
leans forward or sideways, or puts
one or both feet up, the chance of
injury during a crash is greatly
increased.
RELEASE BUTTONS
CONTINUED
Protecting Adults and Teens
15
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
In addition, an occupant who is out of
position in the front seat can be
seriously or fatally injured in a crash
by striking interior parts of the
vehicle or being struck by an
inflating front airbag.
Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on the
floor.
Advice for Pregnant Women
If you are pregnant, the best way to
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.
When driving, remember to sit
upright and adjust the seat as far
back as possible while allowing full
control of the vehicle. When riding
as a front passenger, adjust the seat
as far back as possible.
This will reduce the risk of injuries to
both you and your unborn child that
can be caused by a crash or an
inflating front airbag.
Each time you have a checkup, ask
your doctor if it's okay for you to
drive.
Protecting Adults and Teens
16
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Additional Safety Precautions
●
Never let passengers ride in the
cargo area or on top of a folded-
down back seat.
If they do, they
could be very seriously injured in a
crash.
●
Never let passengers ride in the
area in front of a folded-up rear
seat or on top of a folded-down rear
seat.
If they do, they could be very
seriously injured in a crash.
●
Passengers should not stand up or
change seats while the vehicle is
moving.
A passenger who is not
wearing a seat belt during a crash
or emergency stop can be thrown
against the inside of the vehicle,
against other occupants, or out of
the vehicle.
●
Two people should never use the
same seat belt.
If they do, they
could be very seriously injured in a
crash.
●
Do not put any accessories on seat
belts.
Devices intended to improve
occupant comfort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
the belt and increase the chance of
serious injury in a crash.
●
Do not place hard or sharp objects
between yourself and a front
airbag.
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp object in your
mouth, can result in injuries if your
front airbag inflates.
●
Keep your hands and arms away
from the airbag covers.
If your
hands or arms are close to an
airbag cover, they could be injured
if the airbag inflates.
●
Do not attach or place objects on
the front airbag covers.
Objects on
the covers marked ‘‘SRS AIRBAG’’
could interfere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inflate.
●
Do not attach hard objects on or
near a door.
If a side airbag or a
side curtain airbag inflates, a cup
holder or other hard object
attached on or near the door could
be propelled inside the vehicle and
hurt someone.
●
Do not cover or replace front seat-
back covers without consulting
your dealer.
Improperly replacing
or covering front seat-back covers
can prevent your side airbags from
inflating during a side impact.
Protecting Adults and Teens
17
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Seat Belt System Components
Your seat belt system includes lap/
shoulder belts in all seating
positions. The front seat belts are
also equipped with automatic seat
belt tensioners.
The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you and your passengers to
fasten your seat belts.
This system monitors the front seat
belts. If you turn the ignition switch
to the ON (II) position before your
seat belt is fastened, the beeper will
sound and the indicator will flash. If
your seat belt is not fastened before
the beeper stops, the indicator will
stop flashing but remain on.
If a front passenger does not fasten
their seat belt, the indicator will
come on about 6 seconds after the
ignition switch is turned to the ON
(II) position.
If either the driver or a front
passenger does not fasten their seat
belt while driving, the beeper will
sound and the indicator will flash
again at regular intervals.
When no one is sitting in the front
passenger's seat, or a child or small
adult is riding there, the indicator
should not come on and the beeper
should not sound.
If the indicator comes on or the
beeper sounds when the driver's seat
belt is latched and there is no front
seat passenger and no items on the
front seat, something may be
interfering with the monitoring
system. Look for and remove:
●
Any items under the front
passenger's seat.
●
Any object(s) hanging on the seat
or in the seat-back pocket.
●
Any object(s) touching the rear of
the seat-back.
If no obstructions are found, have
your vehicle checked by a dealer.
Additional Information About Your Seat Belts
18
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Lap/Shoulder Belt
The lap/shoulder belt goes over your
shoulder, across your chest, and
across your hips.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page 14 for how to
properly position the belt).
To unlock the belt, press the red
PRESS button on the buckle. Guide
the belt across your body so that it
retracts completely. After exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move freely in
your seat while it keeps some tension
on the belt. During a collision or
sudden stop, the retractor
automatically locks the belt to help
restrain your body.
The seat belts in all positions except
the driver's have a lockable retractor
that must be activated to secure a
child seat (see page 45).
If the shoulder part of the belt is
pulled all the way out, the lockable
retractor will activate. The belt will
retract, but it will not allow the
passenger to move freely.
To deactivate the lockable retractor,
unlatch the buckle and let the seat
belt fully retract. To refasten the seat
belt, pull it out only as far as needed.

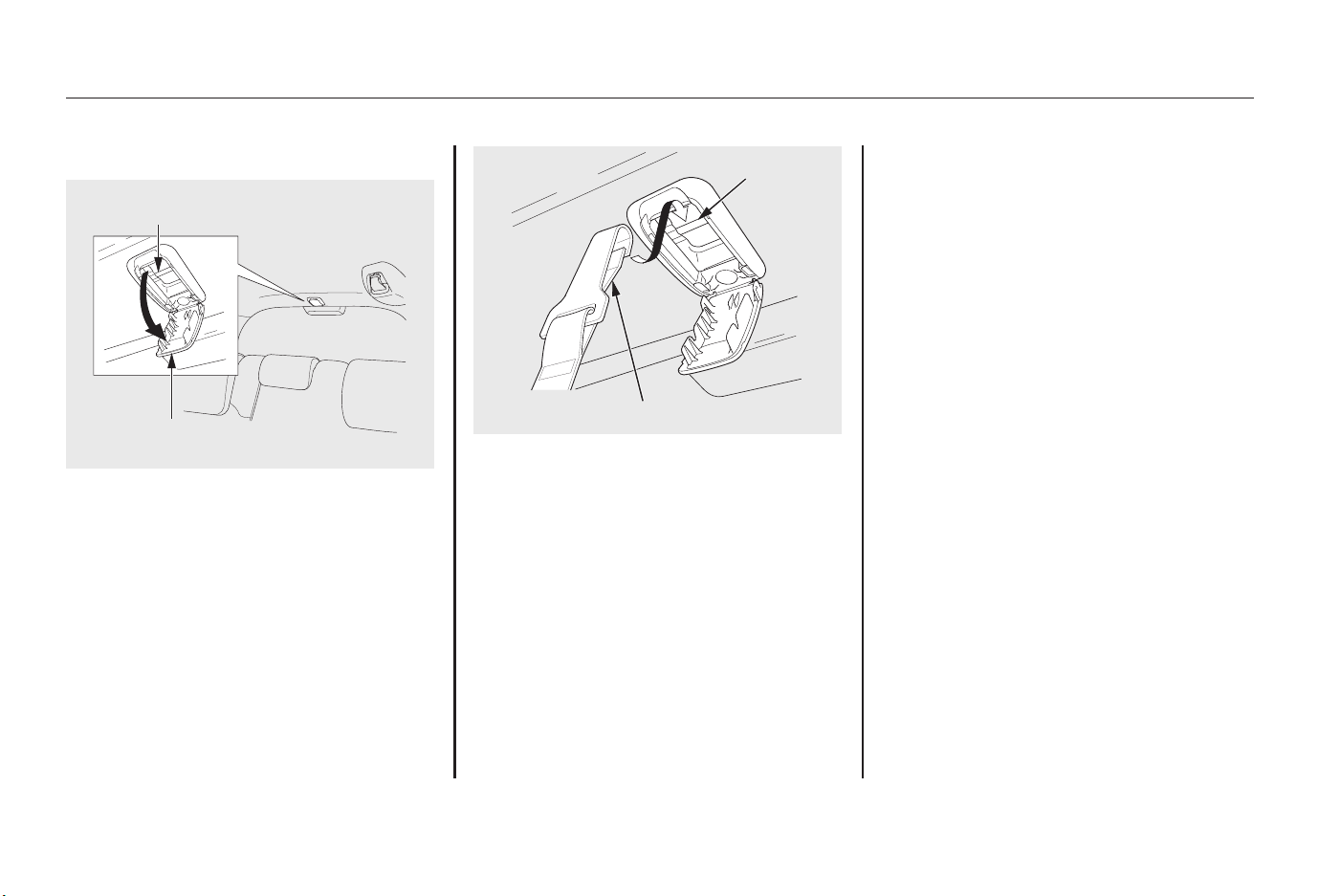

The lap/shoulder belt in the center
seating position on the rear seat is
equipped with a detachable seat belt
that has two parts: a small latch plate
and an anchor buckle.
The detachable seat belt should
normally be latched whenever the
seat-backs are in an upright position.
For more information about the
detachable seat belt, see page 99.
Make sure all rear shoulder belts are
positioned in front of the rear seat-
backs and the seat belt buckles are
on the seat cushion whenever the
seat-back is in its upright position.
DETACHABLE ANCHOR
Additional Information About Your Seat Belts
19
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Automatic Seat Belt Tensioners
For added protection, the front seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and a
front passenger in position.
The tensioners can be activated
during a collision in which the front
airbags
do not deploy
. In this case, the
airbags would not be needed, but the
additional restraint could be helpful.
If the tensioner is activated, the SRS
indicator comes on and the tensioner
must be replaced.
Seat Belt Maintenance
For safety, you should check the
condition of your seat belts regularly.
Pull each belt out fully, and look for
frays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. If a belt does
not retract easily, cleaning the belt
may correct the problem (see page
269). Any belt that is not in good
condition or working properly will
not provide good protection and
should be replaced as soon as
possible.
Honda provides a limited warranty
on seat belts. See your
Honda
Warranty Information
booklet for
details.
Additional Information About Your Seat Belts
20
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If a seat belt is worn during a crash,
it must be replaced by your dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The dealer should also inspect the
anchors for damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
Additional Information About Your Seat Belts
21
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Airbag System Components
(1)
(3)
(6)
(12)
(4)
(5)
(11)
(4)
(7)
(5)
(9)
(10)(2)
(8)
(1) Driver's Front Airbag
(2) Passenger's Front Airbag
(3) Control Unit/Rollover Sensor
(4) Front Seat Belt Tensioners
(5) Side Airbags
(6) Driver's Seat Position Sensor
(7) Front Passenger's Weight Sensors
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Occupant Position Detection System (OPDS) Sensors
(11) ODS Unit
(12) Supplemental Restraint System (SRS) Indicator
(13) Side Curtain Airbags
(14) Side Impact Sensors (First)
(15) Side Impact Sensors (Second)
(16) Safing Sensor
(8)
(13)
(15)
(16)
(15)
(14)
(13)
Additional Information About Your Airbags
22
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Your airbag system includes:
●
Two SRS (supplemental restraint
system) front airbags. The driver's
airbag is stored in the center of the
steering wheel; the front
passenger's airbag is stored in the
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page 24).
●
Two side airbags, one for the
driver and one for a front
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page 28).
●

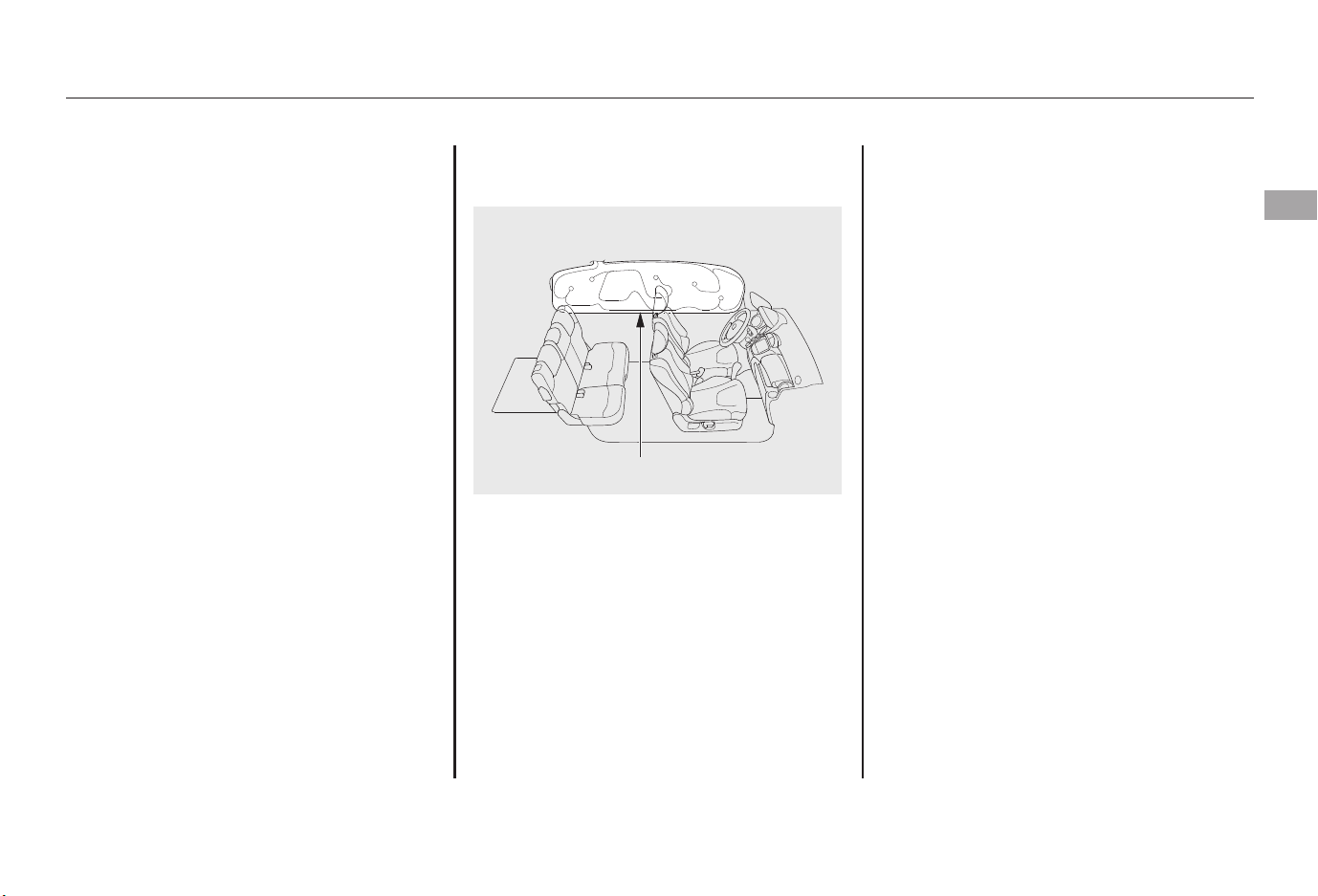

Two side curtain airbags, one for
each side of the vehicle. The
airbags are stored in the ceiling,
above the side windows. The front
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page 29).
●
Automatic front seat belt
tensioners (see page 20).
●
Sensors that can detect a moderate
to severe front impact or side
impact.
●
Sensors that can detect whether a
child is in the passenger's side
airbag path and signal the control
unit to turn the airbag off (see
page 28).
●
Sensors that can detect whether
the driver's seat belt and the front
passenger's seat belt are latched or
unlatched (see page 18).
●
A driver's seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too far forward, the airbag will
inflate with less force (see page
26).
●
Weight sensors that monitor the
weight on the front passenger's
seat. If the weight is about 65 lbs
(29 kg) or less (the weight of an
infant or small child), the
passenger's front airbag will be
turned off (see page 27).
●
A sophisticated electronic system
that continually monitors and
records information about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and front
passenger seat belt use when the
ignition switch is in the ON (II)
position.
●
An indicator on the instrument
panel that alerts you to a possible
problem with your airbag system
components (see page 30).
CONTINUED
Additional Information About Your Airbags
23
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
●
An indicator on the instrument
panel that alerts you that the
passenger's side airbag has been
turned off (see page 30).
●
An indicator on the dashboard that
alerts you that the passenger's
front airbag has been turned off
(see page 31).
●
Emergency backup power in case
your vehicle's electrical system is
disconnected in a crash.
How Your Front Airbags Work
If you ever have a moderate to severe
frontal collision, sensors will detect
the vehicle's rapid deceleration.
If the rate of deceleration is high
enough, the control unit will inflate
the driver's and front passenger's
airbags, at the time and with the
force needed.
During a frontal crash, your seat belt
restrains your lower body and torso,
and the front airbag helps protect
your head and chest.
Although both airbags normally
inflate within a split second of each
other, it is possible for only one
airbag to deploy.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
sufficient protection, and the
supplemental protection offered by
the airbag would be minimal.
Only the driver's airbag can deploy if
there is no passenger in the front
seat, or if the advanced airbag
system has turned the passenger's
airbag off (see page 26).
Additional Information About Your Airbags
24
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
After inflating, the front airbags
immediately deflate, so they won't
interfere with the driver's visibility,
or the ability to steer or operate other
controls.
The total time for inflation and
deflation is one-tenth of a second, so
fast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
After a crash, you may see what
looks like smoke. This is actually
powder from the airbag's surface.
Although the powder is not harmful,
people with respiratory problems
may experience some temporary
discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do
so.
Dual-Stage, Multiple-Threshold Front
Airbags (SRS)
Your vehicle is equipped with dual-
stage, multiple-threshold front
airbags (SRS). During a frontal crash
severe enough to cause one or both
front airbags to deploy, the airbags
can inflate at different rates,
depending on the severity of the
crash, whether or not the seat belts
are latched, and/or other factors.
Front airbags are designed to
supplement the seat belts to help
reduce the likelihood of head and
chest injuries in frontal crashes.
CONTINUED
Additional Information About Your Airbags
25
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Advanced Airbags
Your front airbags are also advanced
airbags. The main purpose of this
feature is to help prevent airbag-
caused injuries to short drivers and
children or small statued adults who
ride in front.
For both advanced airbags to work
properly:
●
Occupants must sit upright and
wear their seat belts properly.
●
Do not spill any liquids on or
under the seats, cover the sensors,
or put any objects or metal items
under the front seats.
●
Objects placed or pushed under
the front passenger's seat may
cause the sensor to malfunction,
increasing the risk of injury in a
crash.
Failure to follow these instructions
could damage the sensors or prevent
them from working properly.
The driver's advanced front airbag
system includes a seat position
sensor under the seat. If the seat is
too far forward, the airbag will inflate
with less force, regardless of the
severity of the impact.
If there is a problem with the sensor,
the SRS indicator will come on, and
the airbag will inflate in the normal
manner regardless of the driver's
seating position.
DRIVER'S
SEAT
POSITION
SENSOR
Additional Information About Your Airbags
26
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The passenger's advanced front
airbag system has weight sensors
under the seat. Although Honda does
not encourage carrying an infant or
small child in front, if the sensors
detect the weight of an infant or
small child (up to about 65 lbs or 29
kg), the system will automatically
turn the passenger's front airbag off.
Be aware that objects placed on the
passenger's seat can also cause the
airbag to be turned off.
When the passenger airbag gets
turned off by the weight sensors, a
‘‘passenger airbag off’’ indicator in
the center of the dashboard comes
on (see page 31).
If the weight sensors detect there is
no passenger in the front seat, the
airbag is automatically turned off.
However, the passenger airbag off
indicator in this situation will not
come on.
To ensure that the passenger's
advanced front airbag system will
work properly,
do not do anything
that would increase or decrease the
weight on the front passenger's seat.
This includes:
●
A rear passenger pushing or
pulling on the back of the front
passenger's seat.
●
Moving the front seat forcibly back
against cargo on the seat or floor
behind it.
●
Hanging heavy items on the front
passenger seat, or placing heavy
items in the seat-back pocket.
●
Moving the front seat or seat-back
forcibly back against the folded
rear seat.
●
Back seat passengers should not
wedge objects or intentionally
force their feet under the front
passenger seat.
If your vehicle has optional floor
mats, make sure the mat behind the
driver's seat is hooked to the floor
mat anchor (see page 269). If it is
not, the mat may interfere with the
proper operation of the sensors and
operation of the seat.
PASSENGER'S
SEAT WEIGHT
SENSORS
Additional Information About Your Airbags
27
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
How Your Side Airbags Work
If you ever have a moderate to severe
side impact, sensors will detect rapid
acceleration and signal the control
unit to instantly inflate either the
driver's or the passenger's side
airbag.
Only one airbag will deploy during a
side impact. If the impact is on the
passenger's side, the passenger's
side airbag will deploy even if there
is no passenger.
To get the best protection from the
side airbags, front seat occupants
should wear their seat belts and sit
upright and well back in their seats.
Side Airbag Cutoff System
Your vehicle has a side airbag cutoff
system designed primarily to protect
a child riding in the front passenger's
seat.
Although Honda does not encourage
children to ride in front, if the
position sensors detect a child has
leaned into the side airbag's
deployment path, the airbag will shut
off.
The side airbag may also shut off if a
short adult leans sideways, or a
larger adult slouches and leans
sideways into the airbag's
deployment path.
Objects placed on the front
passenger seat can also cause the
side airbag to be shut off.
Additional Information About Your Airbags
28
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If the side airbag off indicator comes
on (see page 30), have the passenger
sit upright. Once the passenger is
out of the airbag's deployment path,
the system will turn the airbag back
on, and the indicator will go out.
There will be some delay between
the moment the passenger moves
into or out of the airbag deployment
path and when the indicator comes
on or goes off.
A front seat passenger should not
use a cushion or another object as a
backrest. It may prevent the cutoff
system from working properly.
How Your Side Curtain Airbags
Work
In a moderate to severe side impact,
sensors will detect rapid acceleration
and signal the control unit to
instantly inflate the side curtain
airbag.
If the impact is on the passenger's
side, the passenger's side curtain
airbag will inflate even if there are no
occupants on that side of the vehicle.
One or both side curtain airbags may
inflate in a moderate to severe frontal
collision which causes the front
airbags to deploy.
To get the best protection from the
side curtain airbags, occupants
should wear their seat belts and sit
upright and well back in their seats.
SIDE CURTAIN AIRBAG
Additional Information About Your Airbags
29
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
How the SRS Indicator Works
The SRS indicator alerts
you to a potential problem
with your airbag system components.
When you turn the ignition switch to
the ON (II) position, this indicator
comes on briefly then goes off. This
tells you the system is working
properly.
If the indicator comes on at any other
time, or does not come on at all, you
should have the system checked by
your dealer. For example:
●
If the SRS indicator does not come
on after you turn the ignition
switch to the ON (II) position.
●
If the indicator stays on after the
engine starts.
●
If the indicator comes on or flashes
on and off while you drive.
If you see any of these indications,
the airbag system components may
not work properly when you need
them.
Ignoring the SRS indicator can
result in serious injury or death
if the airbag systems or
tensioners do not work
properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS indicator alerts you to
a possible problem.
How the Side Airbag Off Indicator
Works
U.S. Canada
This indicator
alerts you that the
passenger's side airbag has been
automatically shut off. It does
not
mean there is a problem with your
side airbags.
When you turn the ignition switch to
the ON (II) position, the indicator
should come on briefly and then go
off (see page 61). If it doesn't come
on, stays on, or comes on while
driving without a passenger in the
front seat, have the system checked.
Additional Information About Your Airbags
30
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
How the Passenger Airbag Off
Indicator Works
This indicator alerts you that the
passenger's front airbag has been
shut off because weight sensors
detect about 65 lbs (29 kg) or less
(the weight of an infant or small
child) on the front passenger's seat.
It does
not mea n
there is a problem
with the airbag.
Be aware that objects placed on the
front seat can cause the indicator to
come on.
If the weight sensors detect there is
no passenger in the front seat, the
airbag will be off. However, the
passenger airbag off indicator will
not come on.
The passenger airbag off indicator
may come on and off repeatedly if the
total weight on the seat is near the
airbag cutoff threshold.
If an adult or teenage passenger is
riding in front, move the seat as far to
the rear as possible, and have the
passenger sit upright and wear the
seat belt properly.
If the indicator comes on with no
front seat passenger and no objects
on the seat, or with an adult riding
there, something may be interfering
with the weight sensors. Look for
and remove:
●
Any items under the front
passenger's seat.
●
Any object hanging on the seat or
in the seat-back pocket.
●
Any object(s), such as a folded-
down back seat, that are touching
the rear of the seat-back.
If no obstructions are found, have
your vehicle checked by a dealer as
soon as possible.
PASSENGER AIRBAG
OFF INDICATOR
On vehicle with navigation system
U.S.
PASSENGER AIRBAG OFF INDICATOR
On vehicle without navigation system
U.S. Canada
Additional Information About Your Airbags
31
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Airbag Service
Your airbag systems are virtually
maintenance free, and there are no
parts you can safely service.
However, you must have your
vehicle serviced if:
●
An airbag ever inflates.
Any airbag
that has deployed must be
replaced along with the control
unit and other related parts. Any
seat belt tensioner that activates
must also be replaced.
Do not try to remove or replace
any airbag by yourself. This must
be done by an authorized dealer or
a knowledgeable body shop.
●
The SRS indicator alerts you to a
problem.
Take your vehicle to an
authorized dealer as soon as
possible. If you ignore this
indication, your airbags may not
operate properly.
●
If your vehicle has a moderate to
severe impact.
Even if your airbags
do not inflate, your dealer should
inspect the driver's seat position
sensor, the front passenger's
weight sensors, the front seat belt
tensioners, and all seat belts worn
during a crash to make sure they
are operating properly.
Additional Information About Your Airbags
32
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Additional Safety Precautions
●
Do not attempt to deactivate your
airbags.
Together, airbags and
seat belts provide the best
protection.
●
Do not tamper with airbag
components or wiring for any
reason.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
●
Do not expose the front
passenger's seat-back to liquid.
If
water or another liquid soaks into
a seat-back, it can prevent the side
airbag cutoff system from working
properly.
●
Do not remove or modify a front
seat without consul ting your
dealer.
This could make the
driver's seat position sensor or the
front passenger's weight sensors
ineffective. If it is necessary to
remove or modify a front seat to
accommodate a person with
disabilities, first contact Honda
Automobile Customer Service at
(800) 999-1009 in the US, or Honda
Customer Relations at
1-888-9-HONDA-9 in Canada.
Additional Information About Your Airbags
33
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Children depend on adults to protect
them. However, despite their best
intentions, many adults do not know
how to
properly
protect child
passengers.
If you have children, or ever need to
drive with a child in your vehicle, be
sure to read this section. It begins
with important general guidelines,
then presents special information for
infants, small children, and larger
children.
All Children Must Be Restrained
Each year, many children are injured
or killed in vehicle crashes because
they are either unrestrained or not
properly restrained. In fact, vehicle
collisions are the number one cause
of the death of children aged 12 and
under.
To reduce the number of child
deaths and injuries, every state,
Canadian province and territory
requires that infants and children be
properly restrained when they ride in
a vehicle.
Infants and small children must be
restrained in an approved child seat
that is properly secured to the vehicle
(see pages 39 － 48).
Children who are unrestrained
or improperly restrained can be
seriously injured or killed in a
crash.
Any child too small for a seat
belt should be properly
restrained in a child seat. A
larger child should be properly
restrained with a seat belt and
use a booster seat if necessary.
Larger children must be restrained
with a lap/shoulder belt and ride on a
booster seat until the seat belt fits
them properly
(see pages 49 － 52).
Protecting Children － General Guidelines
34
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
All Children Should Sit in a Back
Seat
According to crash statistics,
children of all ages and sizes are
safer when they are restrained in a
back seat.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
aged 12 and under be properly
restrained in a back seat. Some
states have laws restricting where
children may ride.
Children who ride in back are less
likely to be injured by striking
interior vehicle parts during a
collision or hard braking. Also,
children cannot be injured by an
inflating front airbag when they ride
in the back.
The Passenger's Front Airbag Can
Pose Serious Risks
Front airbags have been designed to
help protect adults in a moderate to
severe frontal collision. To do this,
the passenger's front airbag is quite
large, and it can inflate with enough
force to cause very serious injuries.
Even though your vehicle has an
advanced front airbag system that
automatically turns the passenger's
front airbag off under certain
circumstances (see page 31), please
follow these guidelines:
Infants
Never put a rear-facing ch ild seat in
the front seat of a vehicle equipped
with a passenger's front airbag.
If the
airbag inflates, it can hit the back of
the child seat with enough force to
kill or very seriously injure an infant.
Small Children
Placing a forward-facing child seat in
the front seat of a vehicle equipped
with a passenger's front airbag can be
hazardous.
If the vehicle seat is too
far forward, or the child's head is
thrown forward during a collision, an
inflating front airbag can strike the
child with enough force to kill or
very seriously injure a small child.
Larger Children
Children who have outgrown child
seats are also at risk of being injured
or killed by an inflating passenger's
front airbag.
Whenever possible,
larger children should sit in the back
seat, on a booster seat if needed, and
be properly restrained with a seat
belt (see page 49 for important
information about protecting larger
children).
CONTINUED
Protecting Children － General Guidelines
35
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To remind you of the passenger's
front airbag hazards, and that
children must be properly restrained
in a back seat, your vehicle has
warning labels on the dashboard
(U.S. models) and on the front visors.
Please read and follow the
instructions on these labels.
U.S. Models
DASHBOARD
SUN VISORS
Canadian Models
SUN VISORS
Protecting Children － General Guidelines
36
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If You Must Drive with Several
Children
Your vehicle has a back seat where
children can be properly restrained.
If you ever have to carry a group of
children, and a child must ride in
front:
●
Place the largest child in the front
seat, provided the child is large
enough to wear the lap/shoulder
belt properly (see page 49).
●
Move the vehicle seat as far to the
rear as possible (see page 93).
●
Have the child sit upright and well
back in the seat (see page 15).
●
Make sure the seat belt is properly
positioned and secured (see page
14).
If a Child Requires Close
Attention
Many parents say they prefer to put
an infant or a small child in the front
passenger seat so they can watch the
child, or because the child requires
attention.
Placing a child in the front seat
exposes the child to hazards in a
frontal collision, and paying close
attention to a child distracts the
driver from the important tasks of
driving, placing both of you at risk.
If a child requires close physical
attention or frequent visual contact,
we strongly recommend that another
adult ride with the child in a back
seat. The back seat is far safer for a
child than the front.
Protecting Children － General Guidelines
37
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Additional Safety Precautions
●
Never hold an infant or child on
your lap.
If you are not wearing a
seat belt in a crash, you could be
thrown forward and crush the
child against the dashboard or a
seat-back. If you are wearing a seat
belt, the child can be torn from
your arms and be seriously hurt or
killed.
●
Never put a seat belt over yourself
and a child.
During a crash, the
belt could press deep into the child
and cause serious or fatal injuries.
●
Never let two children use the
same seat belt.
If they do, they
could be very seriously injured in a
crash.
●
Make sure any unused seat belt
that a child can reach is buckled,
the lockable retra ctor is activated,
and the belt is fully retracted and
locked.
If a child wraps a loose
seat belt around their neck, they
can be seriously or fatally injured.
(See pages 45 and 46 for how to
activate and deactivate the
lockable retractor.)
●
Use the childproof door locks to
prevent children from opening the
rear doors.
This can prevent
children from accidentally falling
out (see page 83).
●
Do not leave children alone in a
vehicle.
Leaving children without
adult supervision is illegal in most
states, Canadian provinces and
territories, and can be very
hazardous.
For example, infants and small
children left in a vehicle on a hot
day can die from heatstroke. A
child left alone with the key in the
ignition switch can accidentally set
the vehicle in motion, possibly
injuring themselves or others.
●
Lock all doors and the tailgate
when your vehicle is not in use.
Children who play in vehicles can
accidentally get trapped inside.
Teach your children not to play in
or around vehicles.
●
Keep vehicle keys/remote
transmitters out of the reach of
children.
Even very young
children learn how to unlock
vehicle doors, turn on the ignition
switch, and open the tailgate,
which can lead to accidental injury
or death.
Protecting Children － General Guidelines
38
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Protecting Infants
Child Seat Type
An infant must be properly restrained
in a rear-facing, reclining child seat
until the child reaches the seat
maker's weight or height limit for the
seat, and the child is at least one year
old.
Only a rear-facing child seat provides
proper support for a baby's head,
neck, and back.
Two types of seats may be used: a
seat designed exclusively for infants,
or a convertible seat used in the rear-
facing, reclining mode.
Do not put a rear-facing child seat in
a forward-facing position.
If placed
facing forward, an infant could be
very seriously injured during a
frontal collision.
Rear-facing Child Seat Placement
A rear-facing child seat can be placed
in any seating position in the back
seat, but not in the front.
Never put a
rear-facing child seat in the front seat.
If the passenger's front airbag
inflates, it can hit the back of the
child seat with enough force to kill or
seriously injure an infant.
When properly installed, a rear-
facing child seat may prevent the
driver or a front passenger from
moving their seat as far back as
recommended, or from locking their
seat-back in the desired position.
It could also interfere with proper
operation of the passenger's
advanced front airbag system.
CONTINUED
Protecting Infants and Small Children
39
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
In any of these situations, we
strongly recommend that you install
the child seat directly behind the
front passenger's seat, move the seat
as far forward as needed, and leave it
unoccupied. Or, you may wish to get
a smaller rear-facing child seat.
Placing a rear-facing child seat
in the front seat can result in
serious injury or death during a
crash.
Always place a rear-facing child
seat in the back seat, not the
front.
Protecting Small Children
Child Seat Type
Many states, Canadian provinces and
territories allow a child one year of age
or order who also meets the minimum
size and weight requirements to
transition from a rear-facing child seat
to a forward facing seat. Know the
requirements where you are driving
and follow the child seat instructions.
Many experts recommend use of a
rear-facing seat up to age two, if the
child's height and weight are
appropriate for a rear-facing seat.
Of the different seats available, we
recommend those that have a five-
point harness system as shown.
We also recommend that a small child
use the child seat until the child
reaches the weight or height limit for
the seat.
Child Seat Placement
We strongly recommend placing a
forward-facing child seat in a back
seat, not the front.
Placing a forward-facing child seat in
the front seat of a vehicle equipped
with a passenger's airbag can be
hazardous.
If the vehicle seat is too far
forward, or the child's head is thrown
forward during a collision, an inflating
airbag can strike the child with
enough force to cause very serious or
fatal injuries.
Protecting Infants and Small Children
40
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Even with advanced front airbags that
automatically turn the passenger's
front airbag off (see page 31), a back
seat is the safest place for a small
child.
If it is necessary to put a forward-
facing child seat in the front, move the
vehicle seat as far to the rear as
possible, and be sure the child seat is
firmly secured to the vehicle and the
child is properly strapped in the seat.
Placing a forward-facing child
seat in the front seat can result in
serious injury or death if the front
airbag inflates.
If you must place a forward-
facing child seat in front, move
the vehicle seat as far back as
possible, and properly restrain
the child.
Selecting a Child Seat
When buying a child seat, you need
to choose either a conventional child
seat, or one designed for use with
the Lower Anchors and Tethers for
CHildren (LATCH) system.
Conventional child seats must be
secured to a vehicle with a seat belt,
whereas LATCH-compatible seats
are secured by attaching the seat to
hardware built into the two outer
seating positions in the back seat.
Since LATCH-compatible child seats
are easier to install and reduce the
possibility of improper installation,
we recommend selecting this style.
In seating positions and vehicles not
equipped with LATCH, a LATCH-
compatible child seat can be installed
using a seat belt.
Whatever type of seat you choose, to
provide proper protection, a child
seat should meet three
requirements:
1.
The child seat should meet Federal
Motor Vehicle Safety Standard 213
or Canadian Motor Vehicle Safety
Standard 213.
Look for FMVSS
213 or CMVSS 213 on the box.
2.
The child seat should be of the
proper type and size to fit the child.
Rear-facing for infants, forward-
facing for small children.
3.
The child seat should fit the vehicle
seating position (or positions)
where it will be used.
Before purchasing a conventional
child seat, or using a previously
purchased one, we recommend that
you test the seat in the specific
vehicle seating position or positions
where the seat will be used.
Protecting Infants and Small Children, Selecting a Child Seat
41
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
After selecting a proper child seat
and a good place to install the seat,
there are three main steps in
installing the seat:
1.
Properly secure the child seat to
the vehicle.
All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (Lower Anchors and
Tethers for CHildren) system. A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
2.
Make sure the child seat is firmly
secured.
After installing a child
seat, push and pull the seat
forward and from side-to-side to
verify that it is secure.
A child seat secured with a seat
belt should be installed as firmly
as possible. However, it does not
need to be ‘‘rock solid.’’ Some side-
to-side movement can be expected
and should not reduce the child
seat's effectiveness.
If the child seat is not secure, try
installing it in a different seating
position, or use a different style of
child seat that can be firmly
secured.
3.
Secure the child in the child seat.
Make sure the child is properly
strapped in the child seat
according to the child seat maker's
instructions. A child who is not
properly secured in a child seat
can be seriously injured in a crash.
The following pages provide
guidelines on how to properly install
a child seat. A forward-facing child
seat is used in all examples, but the
instructions are the same for rear-
facing child seats.
Installing a Child Seat
42
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Installing a Child Seat with
LATCH
Your vehicle is equipped with
LATCH (Lower Anchors and Tethers
for CHildren) at the outer rear seats.
The lower anchors are located
between the seat-back and seat
bottom, and are to be used only with
a child seat designed for use with
LATCH.
The location of each lower anchor is
indicated by a small button above the
anchor point.
You can find lower anchors in the
slits in the seat-backs.
To install a LATCH-compatible child
seat:
1. Move the seat belt buckle or
tongue away from the lower
anchors.
2. Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and the
anchors.
3. Place the child seat on the vehicle
seat, then attach the seat to the
lower anchors according to the
child seat maker's instructions.
Some LATCH-compatible seats
have a rigid-type connector as
shown above.
LOWER ANCHORS
BUTTON
Rigid type
CONTINUED
Installing a Child Seat
43
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Other LATCH-compatible seats
have a flexible-type connector as
shown above.
4. Whatever type you have, follow the
child seat maker's instructions for
adjusting or tightening the fit.
5. Lift the head restraint (see page
94), then route the tether strap
through the legs of the head
restraint and over the seat-back,
making sure the strap is not
twisted.
6. Attach the tether strap hook to the
anchor, then tighten the strap as
instructed by the child seat maker.
If the tether strap is too long and
cannot be tightened firmly, find a
route where the strap can be
tightened securely.
7. Push and pull the child seat
forward and from side-to-side to
verify that it is secure.
Flexible type
ANCHOR
TETHER STRAP HOOK
Installing a Child Seat
44
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Installing a Child Seat with a Lap/
Shoulder Belt
When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/
shoulder belt.
In addition, the lap/shoulder belts in
all seating positions except the
driver's have a lockable retractor that
must be activated to secure a child
seat.
If you intend to install a child seat in
the center seating position of the rear
seat, make sure to push down the
head restraint to the lowest position,
and make sure the detachable seat
belt is securely latched (see page
99).
1. With the child seat in the desired
seating position, route the belt
through the child seat according to
the seat maker's instructions, then
insert the latch plate into the
buckle and remove any slack from
the lap portion of the belt.
2. To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor.
3. After the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
the belt out, it is not locked, and
you will need to repeat these steps.
CONTINUED
Installing a Child Seat
45
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
4. After confirming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.
To remove slack, it may help to put
weight on the child seat, or push
on the back of the seat while
pulling up on the belt.
5. Push and pull the child seat
forward and from side-to-side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract fully, then repeat these
steps.
To deactivate the lockable retractor
and remove a child seat, unlatch the
buckle, unroute the seat belt, and let
the belt fully retract.
Installing a Child Seat
46
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Installing a Child Seat with a
Tether
A child seat with a tether can be
installed in any seating position in
the back seat.
Each rear outside seating position
has an anchorage point on the seat-
back, and the center seating position
has an anchorage point in the ceiling
near the tailgate.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.
Using an Outer Anchor
1. After properly securing the child
seat (see page 45), lift the head
restraint, then route the tether
strap over the seat-back and
through the head restraint legs.
2. Attach the tether strap hook to the
anchor, making sure the tether
strap is not twisted.
3. Tighten the strap according to the
seat maker's instructions.
TETHER STRAP HOOK
ANCHOR
CONTINUED
Installing a Child Seat
47
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Using the Center Anchor
1. Lower the head restraint to its
lowest position.
2. After properly securing the child
seat (see page 45), open the
anchor cover.
3. Route the tether strap over the
head restraint, then attach the
tether strap hook to the anchor,
making sure the tether strap is not
twisted.
4. Tighten the strap according to the
seat maker's instructions.
ANCHOR
COVER
ANCHOR
TETHER STRAP HOOK
Installing a Child Seat
48
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster seat and wear the lap/
shoulder belt.
The following pages give instructions
on how to check proper seat belt fit,
what kind of booster seat to use if
one is needed, and important
precautions for a child who must sit
in front.
Allowing a child age 12 or under
to sit in front can result in injury
or death if the passenger's front
airbag inflates.
If a child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.
Checking Seat Belt Fit
To determine if a lap/shoulder belt
properly fits a child, have the child
put on the seat belt, then ask
yourself:
1. Does the child sit all the way back
against the seat?
2. Do the child's knees bend
comfortably over the edge of the
seat?
CONTINUED
Protecting Larger Children
49
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
3. Does the shoulder belt cross
between the child's neck and arm?
4. Is the lap part of the belt as low as
possible, touching the child's
thighs?
5. Will the child be able to stay
seated like this for the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat.
Using a Booster Seat
A child who has outgrown a forward-
facing child seat should ride in a
back seat and use a booster seat until
the lap/shoulder belt fits them
properly without the booster.
Some states, Canadian provinces and
territories also require children to
use a booster seat until they reach a
given age or weight (e.g., 6 years or
60 lbs). Be sure to check current
laws in the states, provinces and
territories where you intend to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
federal safety standards (see page
41) and that you follow the booster
seat maker's instructions.
Protecting Larger Children
50
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If a child who uses a booster seat
must ride in front, move the vehicle
seat as far back as possible and be
sure the child is wearing the seat belt
properly.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle's or
booster's seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.
When Can a Larger Child Sit in
Front
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in a back seat.
If the passenger's front airbag
inflates in a moderate to severe
frontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
A side airbag also poses risks. If any
part of a larger child's body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries.
Of course, children vary widely. And
while age may be one indicator of
when a child can safely ride in front,
there are other important factors you
should consider.
Physical Size
Physically, a child must be large
enough for the lap/shoulder belt to
properly fit (see pages 14 and 49). If
the seat belt does not fit properly,
with or without the child sitting on a
booster seat, the child should not sit
in front.
Maturity
To safely ride in front, a child must
be able to follow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
CONTINUED
Protecting Larger Children
51
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If you decide that a child can safely
ride up front, be sure to:
●
Carefully read the owner's manual,
and make sure you understand all
seat belt instructions and all safety
information.
●
Move the vehicle seat to the rear-
most position.
●
Have the child sit up straight, back
against the seat, and feet on or
near the floor.
●
Check that the child's seat belt is
properly and securely positioned.
●
Supervise the child. Even mature
children sometimes need to be
reminded to fasten the seat belts
or sit properly.
Additional Safety Precautions
●
Do not let a child wear a seat belt
across the neck.
This could result
in serious neck injuries during a
crash.
●
Do not let a child put the shoul der
part of a seat belt behind the back
or under the arm.
This could cause
very serious injuries during a
crash. It also increases the chance
that the child will slide under the
belt in a crash and be injured.
●
Two children should never use the
same seat belt.
If they do, they
could be very seriously injured in a
crash.
●
Do not put any accessories on a
seat belt.
Devices intended to
improve a child's comfort or
reposition the shoulder part of a
seat belt can make the belt less
effective and increase the chance
of serious injury in a crash.
Protecting Larger Children
52
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Your vehicle's exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
follow the information on this page.
Have the exhaust system inspected
for leaks whenever:
●
The vehicle is raised for an oil
change.
●
You notice a change in the sound
of the exhaust.
●
The vehicle was in a collision that
may have damaged the underside.
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
With the tailgate open, airflow can
pull exhaust gas into your vehicle's
interior and create a hazardous
condition. If you must drive with the
tailgate open, open all the windows
and set the heating and cooling
system as shown below.
If you must sit in your parked vehicle
with the engine running, even in an
unconfined area, adjust the heating
and cooling system as follows:
1. Select the fresh air mode.
2. Select the
mode.
3. Turn the fan on high speed.
4. Set the temperature control to a
comfortable setting.
Carbon Monoxide Hazard
53
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
These labels are in the locations shown. They warn you of potential hazards that could cause serious injury or death.
Read these labels carefully.
If a label comes off or becomes hard to read (except for the U.S. dashboard label which may be removed by the owner),
contact your dealer for a replacement.
U.S. models only
DASHBOARD
U.S. models
SUN VISORS
Canadian models
Safety Labels
54
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
RADIATOR CAP
U.S. models
Canadian models
DOORJAMBS
Safety Labels
55
Driver and Passenger Safety
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
56
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
This section gives information about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach.
Control Locations
.......................... 58
Instrument Panel
.......................... 59
Instrument Panel Indicators
.......... 60
Gauges
.......................................... 68
Trip Meter
................................ 69
Instant Fuel Economy
............... 70
Average Fuel Economy
............. 70
Odometer
.................................. 70
Fuel Gauge
............................... 70
Check Fuel Cap Indicator
......... 70
Maintenance Minder™
.............. 71
Controls Near the Steering
Wheel
....................................... 72
Windshield Wipers and
Washers
................................ 73
Windshield Wipers
................... 73
Rear Window Wiper and
Washer
................................. 73
Turn Signal and Headlights
.......... 74
Instrument Panel Brightness
........ 76
Hazard Warning Button
................ 76
Rear Window Defogger
................. 76
Steering Wheel Adjustments
......... 77
Keys and Locks
............................. 78
Immobilizer System
...................... 79
Ignition Switch
.............................. 80
Door Locks
................................... 81
Power Door Locks
.................... 82
Childproof Door Locks
.............. 83
Auto Door Locking/
Unlocking
............................. 83
Auto Door Locking
................... 83
Auto Door Unlocking
................ 86
Tailgate
......................................... 88
Remote Transmitter
...................... 90
Seats
............................................. 93
Power Windows
.......................... 100
Mirrors
....................................... 101
Parking Brake
............................. 103
Interior Convenience Items
......... 104
Lower Glove Box
.................... 105
Upper Glove Box
..................... 105
Beverage Holders
................... 106
Seat Under Box
....................... 106
Accessory Power Socket
......... 106
Sun Visor
................................ 106
Interior Lights
............................. 107
Instruments and Controls
57
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
ꭧ: If equipped
MIRROR CONTROLS
(P. 102)
POWER DOOR
LOCK MASTER SWITCH
ꭧ
(P. 82)
HOOD RELEASE HANDLE
(P. 203)
POWER WINDOW
SWITCHES
(P. 100)
PARKING BRAKE (P. 103)
AUTOMATIC TRANSMISSION
(P. 221)
MANUAL TRANSMISSION
(P. 219)
HEATING/COOLING
CONTROLS
ꭧ
(P. 110)
AUDIO SYSTEM (P. 115, 143)INSTRUMENT PANEL INDICATORS (P. 60)
GAUGES (P. 68)
DOOR LOCK TAB
(P. 81)
Vehicle with navigation system is shown.
USB ADAPTER CABLE
ꭧ
(P. 130, 137, 172, 179)
NAVIGATION SYSTEM
ꭧ
Control Locations
58
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
ꭧ: If equipped
SECURITY SYSTEM INDICATOR
ꭧ
(P. 66, 194)
WASHER LEVEL
INDICATOR
ꭧ
(P. 65)
MALFUNCTION
INDICATOR LAMP (P. 306)
CHARGING SYSTEM
INDICATOR (P. 60, 305)
LOW OIL PRESSURE
INDICATOR (P. 60, 305)
IMMOBILIZER SYSTEM INDICATOR (P. 66)
FOG LIGHT INDICATOR
ꭧ
(P. 64)
LIGHTS ON INDICATOR (P. 64)
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR (P. 30, 61)
MAINTENANCE MINDER INDICATOR (P. 66)
CRUISE MAIN INDICATOR
ꭧ
(P. 65)
CRUISE CONTROL INDICATOR
ꭧ
(P. 65)
LOW TEMPERATURE
INDICATOR (P. 63)
ELECTRIC POWER STEERING (EPS)
INDICATOR (P. 62)
HIGH BEAM INDICATOR (P. 65)
LOW FUEL INDICATOR
(P. 62)
TPMS INDICATOR
ꭧ
(P. 64)
SEAT BELT REMINDER
INDICATOR (P. 60)
PARKING BRAKE AND
BRAKE SYSTEM INDICATOR
(P. 60, 307)
DAYTIME RUNNING LIGHTS INDICATOR (P. 65)
HIGH TEMPERATURE
INDICATOR (P. 63)
VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR
ꭧ
(P. 67)
VSA OFF INDICATOR
ꭧ
(P. 67)
SIDE AIRBAG OFF INDICATOR (P. 30, 61)
LOW TIRE PRESSURE INDICATOR
ꭧ
(P. 64)
ANTI-LOCK BRAKE SYSTEM
INDICATOR (P. 62)
DOOR AND TAILGATE OPEN
INDICATOR (P. 62)
Instrument Panel
59
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The instrument panel has many
indicators that give you important
information about your vehicle.
Malfunction Indicator
Lamp
See page 306.
Low Oil Pressure
Indicator
The engine can be severely damaged
if this indicator flashes or stays on
when the engine is running. For
more information, see page 305.
Charging System
Indicator
If this indicator comes on when the
engine is running, the battery is not
being charged. For more
information, see page 305.
U.S. Canada
Parking Brake
and Brake
System Indicator
(Red)
This indicator has two functions:
1. It comes on when you turn the
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. A beeper
sounds if you drive with the
parking brake not fully released.
Driving with the parking brake not
fully released can damage the
brakes and tires.
2. If it remains on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more information, see
page 307.
Seat Belt Reminder
Indicator
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to fasten your seat belts.
A beeper also sounds if you have not
fastened your seat belt.
If you turn the ignition switch to the
ON (II) position before fastening
your seat belts, the beeper sounds,
and the indicator flashes. If you do
not fasten your seat belts before the
beeper stops, the indicator stops
flashing but remains on.
Instrument Panel Indicators
60
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If your front passenger does not
fasten their seat belt, the indicator
comes on about 6 seconds after the
ignition switch is turned to the ON
(II) position.
If either of you do not fasten your
seat belt while driving, the beeper
will sound and the indicator will flash
again at regular intervals. For more
information, see page 18.
Supplemental Restraint
System Indicator
This indicator comes on briefly when
you turn the ignition switch to the
ON (II) position. If it comes on at any
other time, it indicates a potential
problem with your front airbags. This
indicator will also alert you to a
potential problem with your airbag
system components. For more
information, see page 30.
U.S. Canada
Side Airbag Off
Indicator
This indicator comes on briefly when
you turn the ignition switch to the
ON (II) position. If it comes on at any
other time, it indicates that the
passenger's side airbag has
automatically shut off. For more
information, see page 30.
CONTINUED
Instrument Panel Indicators
61
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Anti-lock Brake System
(ABS) Indicator
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, there is a problem with the
ABS. If this happens, have your
vehicle checked at a dealer. With this
indicator on, your vehicle still has
normal braking ability but no anti-
lock function. For more information,
see page 233.
Electric Power Steering
(EPS) Indicator
This indicator normally comes on when
you turn the ignition switch to the ON
(II) position and goes off after the
engine starts. If it comes on at any
other time, there is a problem in the
electric power steering system. If this
happens, stop the vehicle in a safe
place and turn off the engine. Reset the
system by restarting the engine. The
indicator will not turn off immediately.
If it does not go off after driving a short
distance, or comes back on again while
driving, take the vehicle to your dealer
to have it checked. With the indicator
on, the EPS may be turned off, making
the vehicle harder to steer.
If you turn the steering wheel to the
full left or right position repeatedly
while stopping or driving at very low
speed, you may feel slightly harder
steering in order to prevent damage to
the steering box caused by
overheating.
Low Fuel Indicator
This indicator comes on as a
reminder that you must refuel soon.
When the indicator comes on, there
are about 1.64 US gal (6.2 L) of fuel
remaining in the tank.
When the needle reaches E, there is
a very small amount of fuel in the
tank.
Door and Tailgate Open
Indicator
This indicator comes on if any door
or the tailgate is not closed tightly.
Instrument Panel Indicators
62
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
High Temperature
Indicator
This indicator monitors the
temperature of the engine coolant. It
normally comes on when you turn the
ignition switch to the ON (II) position
and goes off after a few seconds. In
normal driving conditions, this
indicator should not blink or stay on. In
severe driving conditions, such as very
hot weather or a long period of uphill
driving, this indicator may blink. This
means the engine coolant temperature
is high. If the indicator begins to blink
while you are driving, be sure to slow
down to prevent overheating. If the
indicator stays on, pull safely to the
side of the road and turn off the engine.
See page 303 for instructions and
precautions on checking the engine's
cooling system.
Do not drive the vehicle while the
indicator is on or the engine may be
damaged.
Low Temperature
Indicator
This indicator monitors the
temperature of the engine coolant. If
there is no problem, this indicator
comes on when the engine is cold. If
it comes on when the engine is warm
(normal operating temperature),
have the vehicle inspected by your
dealer as soon as possible.
Turn Signal and
Hazard Warning
Indicators
The left or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is burned
out (see pages 266 and 268). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
and all turn signals on the outside of
the vehicle flash.
CONTINUED
Instrument Panel Indicators
63
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Low Tire Pressure
Indicator
U.S. models only
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. If it comes on while driving,
it indicates that one or more of your
vehicle's tires are significantly low on
pressure.
If this happens, pull to the side of the
road when it is safe, check which tire
has lost pressure, and determine the
cause. If it is because of a flat tire,
replace the flat tire with the compact
spare (see page 286), and have the
flat tire repaired as soon as possible.
If two or more tires are underinflated,
call a professional towing service
(see page 313). For more
information, see page 237.
Tire Pressure Monitoring
System (TPMS) Indicator
U.S. models only
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position.
If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to the ON (II) position, there
is a problem with the TPMS. With
this indicator on, the low tire
pressure indicator will not come on
when a tire loses pressure. Take the
vehicle to your dealer to have the
system checked. For more
information, see page 238.
Lights On Indicator
This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. If you turn the
ignition switch to the ACCESSORY
(I) or LOCK (0) position without
turning off the light switch, this
indicator will stay on. A reminder
chime will also sound when you open
the driver's door.
Fog Light Indicator
On Sport model
This indicator comes on when you
turn on the fog lights. For more
information, see page 75.
Instrument Panel Indicators
64
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
High Beam Indicator
This indicator comes on with the
high beam headlights. For more
information, see page 75.
This indicator comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page 75).
Daytime Running Lights
Indicator
If this indicator comes on when the
ignition switch is turned to the ON
(II) position and the parking brake is
released, it means there is a problem
in the circuit. Have your vehicle
checked by your dealer.
Cruise Main Indicator
All models except Canadian DX and
DX-A models
This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button (see
page 195).
Cruise Control Indicator
All models except Canadian DX and
DX-A models
This indicator comes on when you
set the cruise control. See page 195
for information on operating the
cruise control.
Washer Level Indicator
Canadian models only
This indicator comes on when the
washer fluid level is low. Add washer
fluid when you see this indicator
come on (see page 260).
CONTINUED
Instrument Panel Indicators
65
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Maintenance Minder
Indicator
This indicator comes on for a few
seconds when you turn the ignition
switch to the ON (II) position. It
reminds you that it is time to take
your vehicle in for scheduled
maintenance. The maintenance main
items and sub items will be displayed
in the information display. See page
247 for more information on the
Maintenance Minder™.
This indicator goes off when your
dealer resets it after completing the
required maintenance service.
Immobilizer System
Indicator
This indicator comes on briefly when
you turn the ignition switch to the
ON (II) position. It will go off if you
have inserted a properly coded
ignition key. If it is not a properly
coded key, the indicator will blink,
and the engine's fuel system will be
disabled (see page 79).
Security System Indicator
On Sport model
This indicator comes on when the
security system is set. See page 194
for more information on the security
system.
SECURITY SYSTEM INDICATOR
Instrument Panel Indicators
66
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Vehicle Stability Assist
(VSA) System Indicator
If equipped
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position.
It flashes when VSA is active (see
page 235).
If it comes on and stays on at any
other time, there is a problem with
the VSA system. Take your vehicle to
a dealer to have it checked. Without
VSA, your vehicle still has normal
driving ability, but will not have VSA
traction and stability enhancement.
See page 235 for more information
on the VSA system.
VSA OFF Indicator
If equipped
It comes on as a reminder that you
have turned off the vehicle stability
assist (VSA) system.
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. See page 235 for more
information on the VSA system.
Instrument Panel Indicators
67
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
TACHOMETER SPEEDOMETER FUEL GAUGE
SELECT/RESET KNOB
INFORMATION DISPLAY
ODOMETER/TRIP METER/INSTA NT FUEL ECONOMY/
AVERAGE FUEL ECONOMY/CHECK FUEL CAP INDICATOR
U.S. Sport model is shown.
Gauges
68
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The information display consists of
two segments. The upper segment
displays instant fuel economy,
maintenance item code(s), and the
lower segment displays the trip
meter, odometer, average fuel
economy, and engine oil life.
To switch the display, press and
release the select/reset knob
repeatedly. When you turn the
ignition switch to the ON (II)
position the last selection is
displayed.
Trip Meter
This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
To reset a trip meter, display it, and
then press and hold the select/reset
knob until the number resets to
‘‘0.0’’.
When you reset the trip meter,
average fuel economy is reset
simultaneously.
ODOMETER TRIP METER
INSTANT FUEL ECONOMY
AVERAGE FUEL
ECONOMY
ENGINE OIL LIFE
: SELECT/RESET KNOB
U.S. model is shown.
Gauges
69
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Instant Fuel Economy
This shows your instant fuel
economy in mpg (U.S.) or l/100 km
(Canada).
Average Fuel Economy
This shows your vehicle's average
fuel economy in mpg (U.S.) or 1/100
km (Canada) since you last reset the
trip meter.
When you reset a trip meter, the
average fuel economy for that trip
meter also resets.
Odometer
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial/
territorial regulations to disconnect,
reset, or alter the odometer with the
intent to change the number of miles
or kilometers indicated.
Fuel Gauge
This shows how much fuel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
off the ignition.
Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, damaging
the catalytic converter.
Check Fuel Cap Indicator
If the fuel fill cap is loose or missing,
a ‘‘ CHECK FUEL CAP’’ message
appears on the information display
after you start the engine. The
message changes from CHECK, to
FUEL, to CAP repeatedly.
Turn the engine off and confirm the
fuel fill cap is installed. If it is, loosen
the cap, then retighten it until it
clicks at least once. You can cycle the
message off of the display by
pressing the select/reset knob
repeatedly, but this message will be
displayed each time the engine is
started. It will take several days of
normal driving for the vehicle to turn
the warning off.
Gauges
70
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If the system still detects a loose or
missing fuel fill cap, the malfunction
indicator lamp (MIL) comes on. Turn
the engine off, and check or
retighten the fuel fill cap until it
clicks at least once. The MIL goes
out after several days of normal
driving once the cap is tightened or
replaced. If it does not go out, have
your dealer inspect the vehicle. For
more information, see page 306.
Maintenance Minder™
The information display in the
instrument panel shows you the
engine oil life and maintenance
service items when the ignition
switch is in the ON (II) position. This
information helps to keep you aware
of the periodic maintenance your
vehicle needs for continued trouble-
free driving. Refer to page 247 for
more information.
Gauges
71
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
ꭧ1: To use the horn, press the center pad of the steering wheel.
ꭧ2: If equipped.
ꭧ3: Only on vehicles equipped with navigation system. Refer to the navigation system manual.
PADDLE SHIFTER
(DOWNSHIFT)
ꭧ2
(P. 226)
HEADLIGHTS/
TURN SIGNAL/
FOG LIGHTS
ꭧ2
(P. 74)
NAVIGATION SYSTEM
VOICE CONTROL
BUTTONS
ꭧ3
STEERING WHEEL
ADJUSTMENTS
(P. 77)
CRUISE CONTROL
BUTTONS
ꭧ2
(P. 195)
AUXILIARY INPUT JACK
(P. 191)
ACCESSORY POWER SOCKET
(P. 106)
PASSENGER AIRBAG OFF
INDICATOR
(P. 31)
REAR WINDOW DEFOGGER/
HEATED MIRROR BUTTON
ꭧ2
(P. 76/102)
WINDSHIELD
WIPERS/WASHERS
(P. 73)
HAZARD WARNING BUTTON
(P. 76)
PADDLE SHIFTER
(UPSHIFT)
ꭧ2
(P. 226)
INSTRUMENT PANEL
BRIGHTNESS
(P. 76)
REMOTE AUDIO CONTROL
BUTTONS
ꭧ2
(P. 190)
VEHICLE STABILITY
ASSIST (VSA) SYSTEM
OFF SWITCH
ꭧ2
(P. 236)
Vehicle with navigation system is shown.
HORN
ꭧ1
Controls Near the Steering Wheel
72
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Windshield Wipers
1. MIST
2. OFF
3. INT － Intermittent
4. LO － Low speed
5. HI － High speed
6. Windshield washers
Push the right lever up or down to
select a position.
MIST － The wipers run at high
speed until you release the lever.
OFF － The wipers are not activated.
INT － The wipers operate every few
seconds.
LO － The wipers run at low speed.
HI － The wipers run at high speed.
Windshield Washers － Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
Rear Window Wiper and Washer
1. OFF
When you turn the wiper switch to
the ‘‘OFF’’ position, the wiper will
return to its parked position.
2. Rotate the switch clockwise to turn
the rear window wiper ON.
3. Hold past ON to turn the rear
window wiper on and to spray the
rear window washer.
CONTINUED
Windshield Wipers and Washers
73
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
4. Hold past OFF to turn the rear
window wiper on and to spray the
rear window washer. The rear
window wiper makes one more
sweep after you release the switch.
When you shift the transmission to
the reverse position with the front
windshield wiper activated, the rear
wiper operates automatically even if
the rear wiper switch is off.
The rear window washer uses the
same fluid reservoir as the
windshield washer.
Turn Signal and Headlights
1. Turn signal
2. Off
3. Parking and interior lights
4. Headlights
5. High beams
6. Flash high beams
On Sport model
7. Fog lights off
8. Fog lights on
Turn Signal － Push down on the
left lever to signal a left turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to the
center when you release it or
complete a turn.
Windshield Wipers and Washers, Turn Signal and Headlights
74
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Headlights － Turning the switch to
the ‘‘
’’ position turns on the
parking lights, taillights, instrument
panel lights, side-marker lights, and
rear license plate lights.
Turning the switch to the ‘‘
’’
position turns on the headlights.
When the light switch is in the
‘‘
’’ or ‘‘ ’’ position, the lights
on indicator comes on as a reminder.
This indicator stays on if you leave
the light switch on and turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position.
If you leave the lights on with the key
removed from the ignition switch,
you will hear a reminder chime when
you open the driver's door.
High Beams － Push the lever
forward and the high beam indicator
will come on (see page 65). Pull it
back to return to low beams.
To flash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
Fog Lights
On Sport model
Turn the fog lights on and off by
turning the switch next to the
headlight switch.
You can use the fog lights only when
the headlights are on low beam.
They will go off when the headlights
are turned off.
Daytime Running Lights
With the headlight switch off or in
the
position, the high beam
headlights and the high beam
indicator come on with reduced
brightness when you turn the
ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch off, even if you set
the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
Turn Signal and Headlights
75
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Instrument Panel Brightness
You can change the instrument panel
brightness only when the ignition
switch is in the ON (II) position and
the light switch is on.
Turn the knob on the lower part of the
instrument panel to adjust the
brightness.
You will hear a beep when maximum
or minimum brightness is reached.
You will also hear a beep when the
maximum level is canceled by turning
the knob a click to the left.
Hazard Warning Button
Push the button to turn on the
hazard warning lights (four-way
flashers). This causes all four outside
turn signals and both turn indicators
in the instrument panel to flash. Use
the hazard warning lights if you need
to park in a dangerous area near
heavy traffic, or if your vehicle is
disabled.
Rear Window Defogger
The rear window defogger will clear
fog, frost, and thin ice from the
window. Push the defogger button to
turn it on and off. The indicator in the
button comes on to show the
defogger is on. You must manually
shut off the rear window defogger
when it is no longer needed.
INSTRUMENT PANEL BRIGHTNESS
CONTROL KNOB
Instrument Panel Brightness, Hazard Warning Button, Rear Window Defogger
76
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Make sure the rear window is clear
and you have good visibility before
starting to drive.
The defogger wires on the inside of
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side-to-side.
If equipped
Pushing this button also turns the
mirror heaters on or off. For more
information, see page 102.
Steering Wheel Adjustments
Make any steering wheel adjustment
before you start driving.
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
in a crash.
Adjust the steering wheel only
when the vehicle is stopped.
1. Pull the lever under the steering
column toward you until it stops.
2. Move the steering wheel up or
down, and in or out, so it points
toward your chest, not toward your
face. Make sure you can see the
instrument panel gauges and
indicators.
3. Push the lever forward fully to lock
the steering wheel in position.
4. Make sure you have securely
locked the steering wheel in place
by trying to move it up, down, in,
and out.
Rear Window Defogger, Steering Wheel Adjustments
77
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
All models except Canadian DX and
DX-A models
Your vehicle comes with the two
ignition keys.
On Canadian DX and DX-A models
You should have received a key
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the circuits
are damaged.
●
Protect the keys from direct
sunlight, high temperature, and
high humidity.
●
Do not drop the keys or set heavy
objects on them.
●
Keep the keys away from liquids.
If they get wet, dry them
immediately with a soft cloth.
On Canadian DX and DX-A models
The keys do not contain batteries.
Do not try to take them apart.
KEY NUMBER TAG KEYS WITH
TRANSMITTER
KEY NUMBER TAG KEYS
Keys and Locks
78
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The immobilizer system protects
your vehicle from theft. If an
improperly coded key (or other
device) is used, the engine's fuel
system is disabled.
When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on
briefly, then go off. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to the
LOCK (0) position, remove the key,
reinsert it, and turn the ignition
switch to the ON (II) position again.
The system may not recognize your
key's coding if another immobilizer
key or other metal object (i.e. key
chain) is near the ignition switch
when you insert the key.
If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system or
add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.
If you have lost your key and cannot
start the engine, contact your dealer.
Always take the ignition key with you
whenever you leave the vehicle alone.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210. Operation is
subject to the following two conditions :
(1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Immobilizer System
79
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The ignition switch has four positions:
LOCK (0), ACCESSORY (I), ON (II),
and START (III).
LOCK (0) － You can insert or remov e
the key only in this position. To turn
the key, push it in slightly. If your
vehicle has an automa tic transmission,
the shift lever must also be in Park.
If the front wheels are turned, the anti-
theft lock may make it difficult to turn
the key. Firmly turn the steering wheel
to the left or right as you turn the key.
ACCESSORY (I) － You can operate
the audio system and the accessory
power socket in this position.
ON (II) － This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch from the
ACCESSORY (I) to the ON (II)
position.
START (III) － Use this position
only to start the engine. The switch
returns to the ON (II) position when
you let go of the key.
You will hear a reminder beeper if
you leave the key in the LOCK (0) or
the ACCESSORY (I) position and
open the driver's door. Remove the
key to turn off the beeper.
If your vehicle has an automatic
transmission, the shift lever must be
in Park before you can remove the
key from the ignition switch.
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control of the
vehicle.
Remove the key from the
ignition switch only when
parked.
Ignition Switch
80
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Each door has a lock tab next to the
inside door handle. Pull the lock tab
to lock the door, and push it forward
to unlock the door.
When the door is unlocked, you can
see the red indicator on the lock tab
above the inner door handle.
On Canadian DX and DX-A models
To lock the passenger's door when
getting out of the vehicle, pull the
lock tab and close the door. To lock
the driver's door, pull and hold the
outside door handle, then pull the
lock tab. Release the handle, then
close the door.
On Canadian DX and DX-A models
Each front door can be locked or
unlocked with the ignition key.
LOCK TAB
To lock
To unlock
RED INDICATOR
LOCK
UNLOCK
Door Locks
81
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Power Door Locks
All models except Canadian DX and
DX-A models
To lock the doors and the tailgate,
push the top of the master door lock
switch on the driver's door, pull the
lock tab rearward on the driver's
door, or use the key in the outside
door lock on the driver's door.
Pushing the bottom of the master
door lock switch unlocks all doors
and the tailgate.
The lock tab on each passenger's
door locks and unlocks only that
door. Pushing forward the lock tab
on the driver's door unlocks only that
door. To unlock only the driver's
door from the outside, turn the key
and release it. If you turn it again, the
remaining doors and the tailgate
unlock.
To lock a passenger's door when
getting out of the vehicle, pull the
lock tab rearward and close the door.
To lock the driver's door, remove
key from ignition switch and pull the
lock tab rearward or push the top of
the master door lock switch, then
close the door.
Lockout Prevention
If you forget and leave the key in the
ignition switch, lockout prevention
will not allow you to lock the driver's
door. With any door open and the
key in the ignition switch, locking
with master door lock switch is
disabled. If the driver's door is
closed, the lock tab on the driver's
door is not disabled. Pulling the
driver's lock tab rearward will lock all
doors. If you try to lock an open
driver's door by pulling the lock tab
rearward, the driver's door lock tab
pops out and unlocks the driver's
door.
MASTER DOOR LOCK SWITCH
Door Locks
82
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Childproof Door Locks
The childproof door locks are
designed to prevent children seated
in the rear from accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position (lever is
down), the door cannot be opened
from the inside regardless of the
position of the lock tab. To open the
door, pull the lock tab forward and
use the outside door handle.
Auto Door Locking/Unlocking
On all models except Canadian DX and
DX-A
Your vehicle has customizable
settings for the doors and tailgate to
automatically lock and unlock. There
are default settings for each of these
features. You can turn off or change
the settings for these features as
described on the following pages.
When you customize the setting,
make sure your vehicle is parked
safely, the engine is off, and apply the
parking brake. Make all settings
before you start driving.
Auto Door Locking
The auto door locking feature has
three possible settings:
●
The auto door locking is
deactivated all the time.
●
All doors and tailgate lock
whenever you move the shift lever
out of the Park (P) position (A/T
vehicles).
●
All doors and tailgate lock when
the vehicle speed reaches 9 mph
(15 km/h).
This is the default setting.
LEVER
Unlock
Lock
CONTINUED
Door Locks
83
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To turn off the Auto Door Lock
modes:
1. Make sure the shift lever is in the
Park (P) position (A/T vehicles).
2. Turn the ignition switch to the ON
(II) position, and open the driver's
door.
3. Push and hold the front of the
master door lock switch on the
driver's door until you hear a click
(after about 5 seconds).
4. Release the switch, and within 20
seconds, turn the ignition switch to
the LOCK (0) position.
To program the Park Lock mode:
Locks all doors and tailgate when the
shift lever is moved out of the Park (P)
position (A/T vehicles only).
1. Make sure the shift lever is in the
Park (P) position.
2. Turn the ignition switch to the ON
(II) position, and make sure to
close the driver's door.
Door Locks
84
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
3. Push and hold the front of the
master door lock switch on the
driver's door. You will hear a click.
Keep holding the switch until you
hear another click (after about 5
seconds).
4. Release the switch, and within 20
seconds, turn the ignition switch to
the LOCK (0) position.
To program the Drive Lock mode:
Locks all doors and tailgate when the
vehicle's speed reaches about 9 mph (15
km/h).
1. Make sure the shift lever is in the
Park (P) position (A/T vehicles).
2. Turn the ignition switch to the ON
(II) position, and make sure to
close the driver's door.
3.
On A/T vehicles,
push and hold the
brake pedal, and move the shift
lever out of the Park (P) position.
4. Push and hold the front of the
master door lock switch on the
driver's door. You will hear a click.
Keep holding the switch until you
hear another click (after about 5
seconds).
5. Release the switch, and within 20
seconds, turn the ignition switch to
the ACCESSORY (I) position.
On
A/T vehicl es,
move the shift lever to
the Park (P) position.
6. Turn the ignition switch to the
LOCK (0) position.
A/T models
Door Locks
85
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Auto Door Unlocking
The auto door unlocking feature has
five possible settings:
●
The auto door unlocking is
deactivated all the time.
●
On A/T vehicles,
the driver's door
unlocks when you move the shift
lever to the Park (P) position with
the brake pedal depressed.
This is the default setting.
●
All doors and tailgate unlock when
you move the shift lever to the Park
(P) position (A/T vehicles) with the
brake pedal depressed.
●
The driver's door unlocks whenever
you turn the ignition switch to the
ACCESSORY (I) position.
This is the default setting on M/T
vehicles.
●
All doors and tailgate unlock
whenever you turn the ignition
switch to the ACCESSORY (I)
position.
To turn off the Auto Door Unlock
modes:
1. Make sure the shift lever is in the
Park (P) position (A/T vehicles).
2. Turn the ignition switch to the ON
(II) position, and open the driver's
door.
3. Push and hold the rear of the
master door lock switch on the
driver's door. You will hear a click,
and after about 5 seconds, you will
hear another click.
4. Release the switch, and within 20
seconds, turn the ignition switch to
the LOCK (0) position.
To program the Park Unlock mode:
Unlocks the driver's door or all doors
and tailgate when the shift lever is
moved into the Park (P) position with
the brake pedal depressed (A/T vehicles
only).
1. Make sure the shift lever is in the
Park (P) position.
Door Locks
86
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
2. Turn the ignition switch to the ON
(II) position, and make sure to
close the driver's door.
3. Push and hold the rear of the
master door lock switch on the
driver's door. You will hear a click.
Continue to hold the switch:
●
Until you hear another click
(after about 5 seconds) to
activate
driver's door unlock
feature
.
●
Or, until you hear two more
clicks (after about 10 seconds)
to activate
all doors and tailgate
unlock feature
.
4. Release the switch, and within 20
seconds, turn the ignition switch to
the LOCK (0) position.
To program the Ignition Switch
Unlock mode:
Unlocks the driver's door or all doors
and tailgate when the ignition switch is
moved out of the ON (II) position.
1. Make sure the shift lever is in the
Park (P) position (A/T vehicles).
2. Turn the ignition switch to the ON
(II) position, and make sure to
close the driver's door.
3.
On A/T vehicles,
push and hold the
brake pedal, then move the shift
lever out of the Park (P) position.
4. Push and hold the rear of the
master door lock switch on the
driver's door. You will hear a click.
Continue to hold the switch:
●
Until you hear another click
(after about 5 seconds) to
activate
driver's door unlock
feature
.
●
Or, until you hear two more
clicks (after about 10 seconds)
to activate
all doors and tailgate
unlock feature
.
5. Release the switch, and within 20
seconds, turn the ignition switch to
the ACCESSORY (I) position.
On
A/T vehicl es,
move the shift lever to
the Park (P) position.
6. Turn the ignition switch to the
LOCK (0) position.
Even if your vehicle's battery is
removed or goes dead, the system
keeps the auto door lock/unlock
setting which you selected.
A/T models
Door Locks
87
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
All models except Canadian DX and
DX-A models
The tailgate will lock or unlock when
you lock or unlock the driver's door
by using the key, the lock tab on the
driver's door, the master door lock
switch or the remote transmitter (if
equipped).
On Canadian DX and DX-A models
You can lock or unlock the tailgate
with the key.
To open the tailgate, pull the handle,
then lift up.
LOCK
UNLOCK
KEY
HANDLE
Tailgate
88
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To close the tailgate, hold the tailgate
handle, lower the tailgate, then press
down on the back edge.
Keep the tailgate closed at all times
while driving to avoid damaging the
tailgate and to prevent exhaust gas
from getting into the interior. See
Carbon Monoxide Hazard on page
53.
Unlocking the Tailgate
All models except Canadian DX and
DX-A models
If the power door lock system cannot
unlock the tailgate, unlock it
manually.
Place a cloth on the edge of the cover
to prevent scratches, then use a
small flat-tip screwdriver to remove
the cover on the back of the tailgate.
Push the release lever to the right as
shown.
If you need to unlock the tailgate
manually, it means there is a
problem with the tailgate. Have the
vehicle checked by your dealer.
TAILGATE HANDLE
Lock
Unlock
Tailgate
89
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
All models except Canadian DX and
DX-A models
LOCK － Press this button once to
lock all doors and the tailgate. Some
exterior lights will flash once. When
you push LOCK twice within 5
seconds, the horn will sound to verify
that the doors and the tailgate are
locked and the security system (if
equipped) has set. You cannot lock
the doors and the tailgate if any door
or the tailgate is not fully closed or
the key is in the ignition switch.
UNLOCK － Press this button once
to unlock the driver's door. Push it
twice to unlock the remaining doors
and the tailgate. Some exterior lights
will flash twice each time you press
the button.
The ceiling light (if the ceiling light
switch is in the door activated
position) will come on when you
press the UNLOCK button. If you do
not open any door or the tailgate
within 30 seconds, the light fades
out. If you relock the doors and the
tailgate with the remote transmitter
before 30 seconds have elapsed, the
light will go off immediately.
If you do not open any door or the
tailgate within 30 seconds, they will
automatically relock and the security
system (if equipped) will set.
PANIC － Press this button for
about 2 seconds to attract attention:
the horn will sound, and the exterior
lights will flash for about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position.
LED
UNLOCK
BUTTON
PANIC
BUTTON
LOCK
BUTTON
Remote Transmitter
90
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Remote Transmitter Care
●
Avoid dropping or throwing the
transmitter.
●
Protect the transmitter from
extreme temperature.
●
Do not immerse the transmitter in
any liquid.
●
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.
Replacing the Transmitter Battery
If it takes several pushes on the
button to lock or unlock the doors
and the tailgate, replace the battery
as soon as possible.
Battery type: CR1616
To replace the battery:
1. Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
NOTE: Be careful when removing
this screw as the head of the screw
can strip out.
SCREW
CONTINUED
Remote Transmitter
91
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
2. Separate the transmitter by prying
its middle seam with your
fingernail.
3. Inside the transmitter, separate the
inner cover from the keypad by
carefully prying on the edge with a
coin.
4. Remove the old battery, and insert
a new battery into the back of the
cover with the ＋ side facing down.
An improperly disposed of battery
can hurt the environment. Always
confirm local regulations for
battery disposal.
5. Install the parts in reverse order.
As required by the FCC: This device
complies with Part 15 of the FCC rules.
Operation is subject to the following two
conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210. Operation is
subject to the following two conditions :
(1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
BATTERY
Remote Transmitter
92
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Front Seat Adjustments
See pages 11 － 12 for important safety
information and warnings about how to
properly position the seats and seat-
backs.
Make all seat adjustments before you
start driving.
To adjust the seat forward or
backward, pull up on the bar under
the seat cushion's front edge. Move
the seat to the desired position, and
release the bar. Try to move the seat
to make sure it is locked in position.
To change the seat-back angle, pull
up the lever on the outside of the
seat bottom.
Once a seat is adjusted correctly,
rock it back and forth to make sure it
is locked in position.
CONTINUED
Seats
93
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Armrest
On Sport model and Canadian LX model
The driver's seat has an armrest on
the side of the seat-back. To use,
pivot it down.
Rear Seat Adjustments
You can adjust the angle of the rear
seat-backs separately. To change the
seat-back angle, pull up the release
lever on the outer side of the seat-
back.
Head Restraints
See page 13 for important safety
information and a warning about
improperly positioning head restraints.
Your vehicle is equipped with head
restraints in all seating positions to
help protect you and your
passengers from the likelihood of
whiplash and other injuries.
They are most effective when you
adjust them so the center of the back
of the occupant's head rests against
the center of the restraint.
RELEASE LEVER
Seats
94
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Adjusting the Head Restraint
The head restraints adjust for height.
You need both hands to adjust a
restraint. Do not attempt to adjust it
while driving. To raise it, pull
upward. To lower the restraint, push
the release button sideways, and
push the restraint down.
When a passenger is seated in the
rear center seating position, the
center head restraint should be
adjusted up or down, to match the
passenger's height.
Removing the Head Restraint
To remove a head restraint for
cleaning or repair, pull it up as far as
it will go. Push the release button,
then pull the restraint out of the seat-
back.
Failure to reinstall the head
restraints can result in severe
injury during a crash.
Always replace the head
restraints before driving.
When reinstalling a head restraint,
put the legs back in place. Then
adjust it to the appropriate height
while pressing the release button.
Make sure the head restraint locks in
position when you reinstall it.
Front
RELEASE
BUTTON
CUSHION
LEGS SEAT-BACK
Rear Center
Position
RELEASE
BUTTON
CUSHION
LEGS SEAT-BACK
CONTINUED
Seats
95
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Active Head Restraints
The driver's and front passenger's
seats have active head restraints. If the
vehicle is struck severely from the rear,
the occupant properly secured with the
seat belt will be pushed against the
seat-back and the head restraint will
automatically move forward.
This reduces the distance between the
restraint and the occupant's head. It
also helps protect the occupants
against the likelihood of whiplash and
injuries to the neck and upper spine.
After a collision, the activated restraint
should return to its normal position.
If the restraints do not return to their
normal position, or in the event of a
severe collision, have the vehicle
inspected by a Honda dealer.
For a head restraint system to work
properly:
●
Do not hang any items on the head
restraints, or from the restraint
legs.
●
Do not place any object between
an occupant and the seat-back.
●
Install each restraint in its proper
location.
●
Only use genuine Honda
replacement head restraints.
Seats
96
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Folding the Rear Seat Up
The left and right rear seat cushions
can be lifted up separately to make
room for cargo.
Remove any items from the seat
before you fold up the seat cushion.
Make sure the seat belt buckles are
on the seat. Do not take them out of
their loops (cushion rubber band).
Pull up the rear seat cushion, and
fold the seat leg down. Push the seat
cushion firmly against the seat-back
to lock it.
To return the seat cushion to its
original position, first make sure
there are no items or seat belts on
the floor, then pull up the seat leg
fully, and push down the seat
cushion slowly while holding it with
your hands. Set the seat leg in the
floor guide. A latch comes out when
the leg is set properly.
LOOP
(CUSHION RUBBER BAND)
FLOOR GUIDE
LEG
LATCH
CONTINUED
Seats
97
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Folding the Rear Seat Down
The rear seat-backs can be folded
down for more cargo room.
Each side folds down separately, so
you can still carry a passenger in the
rear outer seating position.
Remove any items from the seat
before folding down the seat-back.
Make sure the seat belt buckles are
on the seat (see page 97).
Make sure there are no items or seat
belts on the floor before folding
down the seats.
When you fold down the driver's side
rear seat, use the latch plate to
release the center seat belt from the
detachable anchor (see page 99).
Allow the seat belt to retract into the
holder on the ceiling, and store the
buckles in it.
1. Remove all items from the driver's
seat-back pocket.
2. Completely lower all rear head
restraints to prevent contact with,
or possible damage to the pocket.
3. Pull up the release lever on the
outside of the seat-back.
4. Fold the seat-back forward.
LATCH PLATE
RELEASE LEVER
Seats
98
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Do not put any heavy items on the
seat-back when it is folded down.
While lifting the seat-back, the seat
cushion may come up with it. To
secure the seat cushion, see page 97.
Make sure the seat-back and seat
cushion are locked securely and all
rear shoulder belts are positioned in
front of the rear seat-backs. In the
center seating position of the rear
seat, be sure the detachable anchor
is latched securely before using the
seat belt (see page 99).
Make sure all items in the cargo area
are secured. Loose items can fly
forward and cause injury if you have
to brake hard (See Carrying Cargo
on page 210).
Detachable Anchor
The seat belt in the rear center seat
is equipped with a detachable
anchor.
This allows the center seat belt to be
unlatched when the driver's side rear
seat is folded.
Using a seat belt with the
detachable anchor unlatched
increases the chance of serious
injury or death in a crash.
Before using the seat belt,
make sure the detachable
anchor is correctly latched.
Pull out the small latch plate and the
latch plate from each holding slot in
the ceiling, and pull out the seat belt
to extend it.
SMALL LATCH PLATE
LATCH PLATE
CONTINUED
Seats
99
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Line up the triangle marks on the
small latch plate and anchor buckle
when reattaching the belt and
buckle.
Tug on the seat belt to verify that the
detachable anchor is securely
latched. Make sure the seat belt is
not twisted.
To unlatch the detachable anchor,
insert the latch plate into the slot on
the side of the anchor buckle. Store
the detachable anchor and seat belt
latch plates in the retractor housing.
Power Windows
Turn the ignition switch to the ON
(II) position to raise or lower any
window. To open a window, push the
switch down and hold it. Release the
switch when you want the window to
stop. Pull back on the switch and
hold it to close the window.
The windows will operate for up to 10
minutes after you turn off the ignition
switch. Opening either front door
cancels this function.
SMALL LATCH PLATE
TRIANGLE MARKS
ANCHOR
BUCKLE
LATCH PLATE
ANCHOR
BUCKLE
DRIVER'S WINDOW SWITCH
MAIN SWITCH
Seats, Power Windows
100
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Closing a power window on
someone's hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
When you push the MAIN switch in,
the switch is off, and the passenger
windows cannot be raised or
lowered. To cancel this feature, push
on the switch again to get it to pop
out. Keep the MAIN switch off when
you have children in the vehicle so
they do not injure themselves by
operating the windows
unintentionally.
AUTO － To open or close the
driver's window, push or pull the
window switch firmly down or up to
the second detent, and release it.
The window will automatically go
down or up all the way. To stop the
window, pull or push the window
switch briefly.
AUTO REVERSE － If the driver's
window senses any obstacle while it
is closing automatically, it will
reverse direction, and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
before closing it.
Mirrors
Keep the inside and outside mirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare from headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
TAB
CONTINUED
Power Windows, Mirrors
101
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Adjusting the Power Mirrors
1. Turn the ignition switch to the ON
(II) position.
2. Move the selector switch to L
(driver's side) or R (passenger's
side).
3. Push the appropriate edge of the
adjustment switch to move the
mirror right, left, up, or down.
4. When you finish, move the
selector switch to the center (off)
position. This turns the adjustment
switch off to keep your settings.
Heated Mirrors
On Canadian Sport and LX models
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off. Pressing this button also
turns the rear window defogger on
and off.
SELECTOR SWITCH
ADJUSTMENT SWITCH
HEATED MIRROR BUTTON
Mirrors
102
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To apply the parking brake, pull the
lever up fully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is fully released (see page 60).
Driving the vehicle with the parking
brake applied can damage the rear
brakes and axles. A beeper will sound if
the vehicle is driven with the parking
brake on.
PARKING BRAKE LEVER
Parking Brake
103
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
SEAT-BACK POCKET
ꭧ1
COAT HOOK
FRONT DOOR POCKET
VANITY MIRRORS
SUN VISOR
SEAT UNDER BOX
CENTER POCKET
PASSENGER'S TRAY
UPPER GLOVE BOX
ACCESSORY POWER SOCKET
BEVERAGE
HOLDER
REAR SIDE POCKET
(RIGHT SIDE)
LOWER GLOVE BOX
BEVERAGE HOLDERS
CARGO FLOOR BOX
ꭧ2
ꭧ1: If equipped
ꭧ2: All Canadian models with automatic transmission
Interior Convenience Items
104
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Lower Glove Box
Open the lower glove box by pulling
the bottom of the handle. Close it
with a firm push.
An open glove box can cause
serious injury to your passenger
in a crash, even if the
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
Upper Glove Box
Open the upper glove box by pulling
up on the lever. Close it with a firm
push.
Interior Convenience Items
105
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Beverage Holders
Be careful when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Liquid can also spill
from the door pocket beverage
holders when you open or close the
doors. Use only resealable containers
in the door pockets.
Spilled liquids can damage the
upholstery, carpeting, and electrical
components in the interior.
Seat Under Box
Pull up the driver's side rear seat
cushion (see page 97).
Open the seat under box by turning
the knob.
To close the seat under box, turn the
knob and align the marks.
Accessory Power Socket
This socket is intended to supply
power for 12 volt DC accessories that
are rated 120 watts or less (10 amps).
To use the accessory power socket,
pull up the cover. The ignition switch
must be in the ACCESSORY (I) or
ON (II) position.
It will not power an automotive type
cigarette lighter element.
Sun Visor
To use the sun visor, pull it down.
When using the sun visor for the
side window, remove the support rod
from the clip, and swing it out.
Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle.
KNOB
MARKSSEAT UNDER BOX
Interior Convenience Items
106
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Ceiling Light
The ceiling light has a three-position
switch: ON, Door Activated, and
OFF. In the Door Activated (center)
position, the light comes on when
you:
●
Open any door.
●
Unlock the doors and the tailgate
with the key or the remote
transmitter (if equipped).
After all doors are closed tightly, the
light fades out in about 30 seconds.
The ceiling light (with the switch in
the door activated position) comes on
when you remove the key from the
ignition switch. If you do not open a
door, the light fades out in about 30
seconds.
If you leave any door open without
the key in the ignition switch, the
ceiling light will go off after 15
minutes.
DOOR ACTIVATED
ON
OFF
Interior Lights
107
Instruments and Controls
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
108
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The heating and air conditioning
system in your vehicle provides a
comfortable driving environment in
all weather conditions.
The standard audio system has many
features. This section describes
those features and how to use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to
discourage vandalism and theft of
your vehicle.
Vents, Heating, and A/C
............. 110
Playing the FM/AM Radio
(Models without navigation
system)
............................... 115
Playing a Disc (Models without
navigation system)
.................. 122
Disc Player Error Messages
(Models without navigation
system)
............................... 128
Playing an iPod
®
(Models without
navigation system)
.................. 129
iPod
®
Error Messages (Models
without navigation system)
..... 135
Playing a USB Flash Memory
Device (Models without
navigation system)
.............. 136
USB Flash Memory Device Error
Messages (Models without
navigation system)
.............. 142
Playing the AM/FM Radio
(Models with navigation
system)
............................... 143
Playing a Disc (Models with
navigation system)
.................. 149
Disc Player Error Messages
(Models with navigation
system)
............................... 157
Playing a PC card (Models with
navigation system)
.................. 158
PC Card Error Messages
(Models with navigation
system)
............................... 170
Playing an iPod
®
(Models with
navigation system)
.................. 171
iPod
®
Error Messages (Models
with navigation system)
.......... 177
Playing a USB Flash Memory
Device (Models with
navigation system)
.............. 178
USB Flash Memory Device Error
Messages (Models with
navigation system)
.............. 184
FM/AM Radio Reception
............ 185
Protecting Your Discs
................. 187
Remote Audio Controls
............... 190
Auxiliary Input Jack
.................... 191
Radio Theft Protection
................ 192
Setting the Clock
......................... 193
Security System
.......................... 194
Cruise Control
............................ 195
Features
109
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
ꭧ: If equipped
TEMPERATURE
CONTROL DIAL
FAN CONTROL DIAL
REAR WINDOW
DEFOGGER BUTTON
AIR CONDITIONING
BUTTON
ꭧ
FRESH AIR/RECIRCULATION LEVER
REAR WINDOW DEFOGGER/
HEATED MIRRORS BUTTON
ꭧ
MODE CONTROL DIAL
Vents, Heating, and A/C
110
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Airflow Controls
Fan Control Dial
Turn this dial to increase or decrease
the fan speed and airflow.
Temperature Control Dial
Turning this dial clockwise increases
the temperature of the airflow.
Air Conditioning (A/C) Button
If equipped
This button turns the air
conditioning on and off. The
indicator in the button is on when the
A/C is on.
Fresh Air/Recirculation Lever
This lever controls the source of the
air going into the system. When you
slide the lever to the
side, air is
brought in from outside the vehicle
(fresh air mode). When you select
the
side, air from the vehicle's
interior is sent through the system
again (recirculation mode).
The outside air intakes for the
heating and cooling system are at the
base of the windshield. Keep this
area clear of leaves and other debris.
The system should be left in fresh air
mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
Rear Window Defogger
Button
/
This button turns the rear window
defogger on and off (see page 76).
On some models, this button also
operates the heated outside mirrors
(see page 102).
Mode Control Dial
Use the mode control dial to select
the vents the air flows from. Some air
will flow from the dashboard corner
vents in all modes.
Air flows from the center and
corner vents in the dashboard.
Airflow is divided between the
vents in the dashboard and the floor
vents.
Air flows from the floor vents.
Airflow is divided between the
floor vents and defroster vents at the
base of the windshield.
Air flows from the defroster
vents at the base of the windshield.
CONTINUED
Vents, Heating, and A/C
111
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
When you select or , the
system automatically turns on the
A/C (if equipped). You cannot turn
the A/C off in this mode.
Ventilation
The flow-through ventilation system
draws in outside air, circulates it
through the interior, then discharges
it through vents near the tailgate.
1. Set the temperature to the lower
limit.
2. Make sure the A/C is off.
3. Select
and .
4. Set the fan to the desired speed.
Using the Heater
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes before you
feel warm air coming from the
system.
1. Select
and .
2. Set the fan to the desired speed.
3. Adjust the warmth of the air with
the temperature control dial.
Using the A/C
If equipped
Air conditioning places an extra load
on the engine. Check the high
temperature indicator (see page 63).
If the indicator begins to blink, turn
off the A/C until the indicator goes
off.
1. Turn on the A/C by pressing the
button. The indicator in the button
comes on when a fan speed is
selected.
2. Make sure the temperature is set
to maximum cool.
3. Select
.
4. If the outside air is humid, select
recirculation mode. If the outside
air is dry, select
.
5. Set the fan to the desired speed.
Vents, Heating, and A/C
112
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If the interior is very warm,
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to maximum
speed in
.
Dehumidify the Interior
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry and
can prevent the windows from
fogging up.
1. Turn the fan on.
2. If the A/C is off, turn it on (if
equipped).
3. Select
and .
Adjust the temperature to your
preference.
This setting is suitable for all driving
conditions whenever the outside
temperature is above 32°F (0°C).
To Defog and Defrost
To remove fog from the inside of the
windows:
1. Set the fan to the desired speed or
high for faster defrosting.
2. Select
by sliding the lever.
3. Select
. The system
automatically turns on the A/C (if
equipped). The A/C indicator will
not come on if it was previously off.
4. Adjust the temperature so the
airflow feels warm.
5. Select
/ to help clear the
rear window.
6. To increase airflow to the
windshield, close the corner vents.
When you select
or , the
system automatically turns on the
A/C. This helps to dehumidify the air
and to defog the windshield. In either
mode, you cannot turn off the A/C.
When you switch to another mode,
the A/C returns to its original
setting, either on or off, as indicated
by the A/C indicator.
CONTINUED
Vents, Heating, and A/C
113
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To Remove Exterior Frost or Ice
From the Windows
1. Set the fan and temperature
controls to maximum level.
2. Select
. The system
automatically turns on the A/C (if
equipped). The A/C indicator does
not come on if it was previously off.
3. Select
.
To clear the windows faster, you can
close the dashboard corner vents by
rotating each vent. This sends more
warm air to the windshield defroster
vents. Once the windshield is clear,
select fresh air mode to avoid
fogging the windows.
For your safety, make sure you have
a clear view through all the windows
before driving.
To Turn Everything Off
Turning the fan speed control dial all
the way to the left shuts the system
off.
●
Keep the system off for short
periods only.
●
To keep stale air and mustiness
from collecting, you should have
the fan running at all times.
Vents, Heating, and A/C
114
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
ꂺ PLAY BUTTON
POWER ( ꂻ )
BUTTON
PRESET BUTTONS
FM/AM BUTTON
TUNE/SEEK
( ꀾ
SEEK)
BUTTON
TITLE BUTTON
SCAN BUTTONSOUND ( ꂼ/ꂽ ) BUTTON
DISPLAY
ꂹꂾBUTTON
VOL/SELECT
KNOB
AUTO SELECT
BUTTON
TUNE/SEEK
( ꀽ
SEEK)
BUTTON
CONTINUED
Playing the FM/AM Radio (Models without navigation system)
115
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To Play the FM/AM Radio
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
FM/AM button. Adjust the volume
by turning the VOL/SELECT knob.
The band and frequency that the
radio was last tuned to are displayed.
To change bands, press the FM/AM
button. On the FM band, ST will be
displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available.
To Select a Station
You can use any of five methods to
find radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select.
TUNE － Use the TUNE/SEEK
button to tune to a desired
frequency. Press the
button to
tune to a higher frequency, and the
button to tune to a lower
frequency.
You can also operate the tune
function by using the VOL/SELECT
knob.
Press the VOL/ SELECT knob and
you will see ‘‘ SEL’’ in the display.
Turn the knob right to tune to a
higher frequency, or left to tune to a
lower frequency.
To turn it off, press the VOL/
SELECT knob or
button, or
PLAY button.
The system will return to the normal
display about 10 seconds after you
stop adjusting the tune mode.
SEEK － The SEEK function
searches up and down from the
current frequency to find a station
with a strong signal. To activate it,
press and hold the
or side of
the TUNE/SEEK button until you
hear a beep, then release it.
SCAN － The scan function samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan for a station
with a strong signal. When it finds
one, it will stop and play that station
for about 10 seconds.
If you do nothing, the system will
then scan for the next strong station
and play it for 10 seconds. When it
plays a station you want to listen to,
press the SCAN button again.
Playing the FM/AM Radio (Models without navigation system)
116
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
PRESET － Each preset button (1－
6) can store one frequency on AM,
and two frequencies on FM.
1. Select the desired band, AM or
FM. FM1 and FM2 let you store
two frequencies with each preset
button.
2. Use the tune, seek, or scan
function to tune the radio to a
desired station.
3. Pick a preset number (1－6), and
hold it until you hear a beep.
4. Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
AUTO SELECT － If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A.SEL button. ‘‘A.SEL’’
flashes in the display, and the system
goes into scan mode for several
seconds. It stores the frequencies of
six AM and twelve FM stations in the
preset buttons.
You will see a ‘‘0’’ displayed after
pressing a preset button if auto select
cannot find a strong station for that
preset button.
If you do not like the stations auto
select has stored, you can store other
frequencies on the preset buttons as
previously described.
To turn off auto select
, press the A.SEL
(auto select) button. This restores
the presets you originally set.
For information on FM/AM radio
frequencies and reception, see page
185.
CONTINUED
Playing the FM/AM Radio (Models without navigation system)
117
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Radio Data System (RDS)
On the FM band, you can select a
favorite station and display the
program service name according to
the information provided by the radio
data system (RDS).
Program Service (PS) Name Display
The program service name display
function shows the name of the
station you are listening to. With the
audio system on and the FM band
selected, you can turn this function
on or off.
To switch the function between on
and off, press and release the TITLE
button. With the system on, you will
see the ‘‘ RDS INFO ON’’ message on
the display. If the station you are
listening to is an RDS station, the
displayed frequency switches to the
station name.
If the station you are listening to is
not an RDS station, the display
continues to show the frequency with
the PS name display function on.
When you turn off this function by
pressing the TITLE button, the
display shows ‘‘RDS INFO OFF.’’
PROGRAM SERVICE
NAME DISPLAY ON
Playing the FM/AM Radio (Models without navigation system)
118
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Radio Data System (RDS) Category
On the FM band selected, you can
select the program category provided
by the RDS. Press
or PLAY
button to display and select an RDS
category. The principal RDS
categories are shown as follows;
ALL: All RDS category stations
ROCK: Rock, classic rock and soft
rock music
COUNTRY: Country music
SOFT: Adult hits and soft music
TOP 40: Top 40 hits
OLDIES: Nostalgia music and oldies
R & B: Rhythm and blues, and soft
rhythm and blues
RELIGION: Religious music and
religious talk
CLASSIC: Classical music
JAZZ: Jazz
INFO: News, information, sports,
talk, foreign language, personality,
public, college, and weather
TRAFFIC: Traffic information
Press
or PLAY button to
select an RDS category. The display
shows the selected RDS category
name for about 10 seconds. You can
use the search or scan function to
find radio stations in the selected
RDS category. If you do nothing
while the RDS category name is
displayed, the selected category is
canceled.
RDS Program Search
This function searches up and down
a frequency for the strongest signal
from the frequencies that carry the
selected RDS category information.
This can help you to find a station in
your favorite category. To activate it,
press the
or side of the
TUNE/SEEK button. You will see
the selected RDS category name
blinking while searching it. When
the system finds a station, the
selected RDS category name will be
displayed again for about 5 seconds.
RDS CATEGORY
CONTINUED
Playing the FM/AM Radio (Models without navigation system)
119
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If the system does not find a station,
‘‘NOTHING’’ will be blinking for
about 5 seconds, then the system
goes back to the last selected station.
RDS Program SCAN
The scan function samples all
stations with strong signals on the
selected RDS category. To activate it,
press the SCAN button. You will see
‘‘SCAN’’ in the display. The system
will scan for a station with a strong
signal in the selected RDS category.
You will also see the selected RDS
category name blinking while
searching it. When it finds one, it will
stop and play that station for about 10
seconds.
If you do nothing, the system will
scan for the next strong station and
play it for 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
If the system does not find a station,
‘‘NOTHING’’ will be blinking for
about 5 seconds, then the system
goes back to the last selected station.
You can use the RDS program search
or scan function even if the PS name
display function is off. In this case,
the display shows a frequency in
place of a PS name.
Playing the FM/AM Radio (Models without navigation system)
120
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Adjusting the Sound
Press the SOUND (
) button to
select an appropriate setting: bass,
treble, fader, balance, and SVC
(speed-sensitive volume
compensation). Turn the VOL/
SELECT knob to adjust the setting.
BASS － Adjusts the bass.
TREBLE － Adjusts the treble.
FADER － Adjusts the front-to-back
strength of the sound.
BALANCE － Adjusts the side-to-
side strength of the sound.
Each mode is shown in the display as
it changes. Turn the VOL/SELECT
knob to adjust the setting to your
liking. When the level reaches the
center, you will see ‘‘C’’ in the
display.
SVC － Adjusts the volume level
based on the vehicle speed.
The system will return to the audio
display about 10 seconds after you
stop adjusting a mode.
Speed-sensitive Volume
Compensation (SVC)
The SVC mode controls the volume
based on vehicle speed. The faster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
The SVC has four modes: SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. Turn the VOL/SELECT knob
to adjust the setting to your liking. If
you feel the sound is too loud,
choose low. If you feel the sound is
too quiet, choose high.
Audio System Lighting
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page 76). The audio system
illuminates when the parking lights
are on, even if the system is turned
off.
Playing the FM/AM Radio (Models without navigation system)
121
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
ꂺ PLAY BUTTON
CD BUTTON
DISC EJECT
( ꁎ ) BUTTON
RANDOM
BUTTON
SEEK/SKIP
( ꀽ
SEEK)
BUTTON
TITLE BUTTON
SCAN BUTTON
DISC SLOTꂹꂾBUTTON
VOL/SELECT KNOB REPEAT BUTTON
SEEK/SKIP
( ꀾ
SEEK)
BUTTON
Playing a Disc (Models without navigation system)
122
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To Play a Disc
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
You operate the in-dash disc player
with the same controls used for the
radio. To select the disc player, press
the CD button. You will see ‘‘CD’’ in
the display. The folder or track
numbers are shown in the display.
You can also select the displayed
information with the TITLE button
(see page 124). The system will
continuously play a disc until you
change modes.
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
The in-dash disc player can also play
CD-Rs and CD-RWs compressed in
CD-TEXT, MP3, and WMA formats.
When playing a disc in MP3 or
WMA, you will see ‘‘MP3’’ or ‘‘WMA’’
in the display. You can see up to 99
folders, and select up to 999 tracks/
files.
NOTE: If a file on an MP3 or WMA
disc is protected by digital rights
management (DRM), the audio unit
displays UNSUPPORTED, and then
skips to the next file.
Depending on the software the files
were made with, it may not be
possible to play some files, or display
some text data.
If you have a disc that is a
combination of CD-DA tracks and
MP3/WMA files, you can choose the
format to listen by pressing the CD
button.
Video CDs and DVDs will not work
in this unit.
A disc compressed in AAC format
cannot be played in this audio
system.
CONTINUED
Playing a Disc (Models without navigation system)
123
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To Load a Disc
Insert a disc about halfway into the
disc slot. The drive will pull the disc
in the rest of the way to play it. You
operate the disc player with the same
controls used for the radio. The
number of the current track is shown
in the display. When playing a disc in
MP3 or WMA, the numbers of the
current folder and file are shown.
The system will continuously play a
disc until you change modes.
You cannot load and play 3-inch
(8-cm) discs in this unit.
For information on how to handle
and protect compact discs, see page
187.
Text Data Display Function
Each time you press the TITLE
button, the display shows you the
text data on a disc, if the disc was
recorded with text data.
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the folder and file name, and the
artist, album, and track tag.
With the folder name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
When you press the TITLE button
while a disc without text data is
playing, you will see ‘‘ NO INFO’’ on
the display.
The display shows up to about 16
characters of selected text data (the
folder name, file name, etc.).
If the text data has more than 16
characters, you will see the first 15
characters and the
indicator on the
display. Press and hold the TITLE
button until the next 16 characters
are shown. You can see up to about
31 characters of the text data.
If you press and hold the TITLE
button again, the display shows the
first 15 characters again.
If any letter is not available, it is
replaced with ‘‘ . ’’ (dot) in the
display. When the disc has no text
data, you will see ‘‘NO INFO’’ on the
display.
Playing a Disc (Models without navigation system)
124
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
You will also see some text data
under these conditions:
●
When a new folder, file, or track is
selected.
●
When you change the audio mode
to play a disc with text data or in
MP3 or WMA.
●
When you insert a disc, and the
system begins to play.
When playing a CD-DA with text
data, the album and track name are
shown in the display. With a disc in
MP3 or WMA, the display shows the
folder and file name.
To Change or Select Tracks/Files
You can use the SEEK/SKIP button
while a disc is playing to select
passages and change tracks (files in
MP3/WMA mode).
In MP3/WMA mode, use the
or PLAY button to select folders
on the disc, and use the SEEK/SKIP
button to change files.
SEEK/SKIP － Each time you press
the
button, the player skips
forward to the beginning of the next
track (files in MP3/WMA mode).
Press the
button to skip
backward to the beginning of the
current track. Press it again to skip to
the beginning of the previous track.
To move rapidly within a track, press
and hold the
or button.
You can also operate the track
selection by using the VOL/SELECT
knob. Press the VOL/SELECT knob
and you will see ‘‘ SEL’’ in the display.
Turn the knob to switch the track
number. Press the VOL/SELECT
knob or
PLAY button to set your
selection. To turn it off, press the
button.
CONTINUED
Playing a Disc (Models without navigation system)
125
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
In MP3/W MA mode
FOLDER SELECTION － To select
a different folder, press the
or
PLAY button. Press the
button to skip to the next folder, and
the
PLAY button to skip to the
previous folder.
You can also operate the folder and
file selection by using the VOL/
SELECT knob. Press the VOL/
SELECT knob and you will see
‘‘SEL’’ in the display. Turn the knob
to switch the folder number and
press the knob to set your selection.
Turn the knob to switch the file
number and press the knob to your
selection. To turn it off, press the
button repeatedly.
REPEAT (TRACK/FILE REPEAT)
－ To continuously replay a track
(file in MP3/WMA mode), press the
RPT button. You will see ‘‘RPT’’ in
the display. Press and hold the RPT
button to turn it off.
In MP3/WMA mode
FOLDER-REPEAT － This feature,
when activated, replays all the files in
the selected folder in the order they
are compressed in MP3/WMA. To
activate folder repeat mode, press the
RPT button repeatedly until you see
‘‘F-RPT’’ in the display. The system
continuously replays the current
folder. Press and hold the RPT
button to turn it off.
Each time you press the RPT button,
the mode changes from file repeat to
folder repeat, then to normal play.
RANDOM (Random within a disc)
－ This feature plays the tracks
within a disc in random order. In
MP3/WMA mode, all files in all
folders are played in random order.
To activate random mode, press the
RDM button repeatedly until you see
‘‘RDM’’ in the display. Press and hold
the RDM button to turn it off.
In MP3/WMA mode
FOLDER-RANDOM － This
feature, when activated, plays the
files in the current folder in random
order, rather than in the order they
are compressed in MP3/WMA. To
activate folder random play, press the
RDM button. You will see ‘‘F-RDM’’
in the display. The system will then
select and play files randomly. This
continues until you deactivate folder
random play by pressing and holding
the RDM button.
Each time you press the RDM
button, the mode changes from
folder random play, to within a disc
random play, then to normal play.
Playing a Disc (Models without navigation system)
126
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
SCAN － The scan function samples
all the tracks on the disc in the order
they are recorded on the disc (all
files in the selected folder in MP3 or
WMA mode). To activate the scan
feature, press the SCAN button. You
will see ‘‘SCAN’’ in the display. You
will get a 10 second sampling of each
track/file on the disc/folder. Press
and hold the SCAN button to get out
of scan mode and play the last track
sampled.
In MP3/WMA mode
FOLDER-SCAN － This feature,
when activated, samples the first file
in each folder on the disc in the
order they are recorded. To activate
the folder scan feature, press the
SCAN button repeatedly. You will
see ‘‘F-SCAN’’ in the display. The
system will then play the first file in
the main folders for about 10
seconds. If you do nothing, the
system will then play the following
first files for 10 seconds each. When
the system samples the first file in all
folders, F-SCAN is cancelled, and the
system plays normally.
Each time you press the SCAN
button, the mode changes from
track/file scan to folder scan, then to
normal play.
To Stop Playing a Disc
Press the eject button (
)to
remove the disc. If you eject the disc,
but do not remove it from the slot,
the system will automatically reload
it after 10 seconds and put it in pause
mode. To begin playing, press the
CD button.
Press the FM/AM button to switch
to the radio while a disc is playing.
Press the CD button to play the disc.
If you turn the system off while a disc
is playing, either with the power (
)
button or by turning off the ignition
switch, the disc will stay in the drive.
When you turn the system back on,
the disc will begin playing where it
left off.
Protecting Discs
For information on how to handle
and protect compact discs, see page
187.
Playing a Disc (Models without navigation system)
127
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The chart on the right explains the
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again. For the
additional information on damaged
discs, see page 188.
The audio system will try to play the
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the
disc.
Insert a different disc. If the new disc
plays, there is a problem with the
first disc. If the error message cycle
repeats and you cannot clear it, take
your vehicle to a dealer.
Error Message
Cause Solution
HEAT ERROR High Temperature
Will disappear when the temperature returns
to normal.
UNSUPPORTED
Track/File format not
supported
Current track will be skipped. The next
supported track or file plays automatically.
BAD DISC
PLEASE CHECK
OWNERS
MANUAL PUSH
EJECT
Mechanical Error
Press the EJECT button and pull out the
disc. Check the disc for serious damage,
signs of deformation, excessive scratches,
and/or dirt (see page 188). Insert the disc
again. If the code does not disappear, or the
disc cannot be removed, consult your dealer.
Do not try to force the disc out of the player.
BAD DISC
PLEASE CHECK
OWNERS
MANUAL
Servo Error
BAD DISC
PLEASE CHECK
OWNERS
MANUAL
DISC Error
Check the disc for serious damage, signs of
deformation, excessive scratches, and/or
dirt (see page 188).
Disc Player Error Messages (Models without navigation system)
128
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
ꂺ PLAY BUTTON
USB INDICATOR
RANDOM
BUTTON
ꀽ
SEEK
(SKIP ＋)
BUTTON
TITLE BUTTON
AUX BUTTONꂹꂾBUTTON
VOL/SELECT KNOB REPEAT BUTTON
ꀾ
SEEK
(SKIP －)
BUTTON
iPod INDICATOR
POWER ( ꂻ )
BUTTON
All models except Canadian DX, DX-A, and LX models
CONTINUED
Playing an iPod
®
(Models without navigation system)
129
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To Play an iPod
ꭂ
This audio system can operate the
audio files on the iPod
ꭂ
with the
same controls used for the in-dash
disc player. To play an iPod, connect
it to the USB adapter cable in the
upper glove box by using your dock
connector, then press the AUX
button. The ignition switch must be
in the ACCESSORY (I) or ON (II)
position. The iPod will also be
recharged with the ignition switch in
these positions.
The audio system reads and plays
sound files to be playable on the
iPod. The system cannot operate an
iPod as a mass storage device. The
system will only play songs stored on
the iPod with iTunes.
iPod and iTunes are registered
trademarks owned by Apple Inc.
iPod models confirmed to be
compatible with your audio system
using the USB adapter cable are:
Model
iPod classic (80/160 G)
iPod classic (120 G)
iPod with video (iPod 5th generation)
iPod nano
iPod nano 2nd generation
iPod nano 3rd generation
iPod nano 4th generation
iPod nano 5th generation
iPod touch
iPod touch 2nd generation
This system may not work with all
software versions of these devices.
NOTE:
●
Do not connect your iPod using a
HUB.
●
Do not keep the iPod in the
vehicle. Direct sunlight and high
heat will damage it.
●
Do not use an extension cable
between the USB adapter cable
equipped with your vehicle and
your dock connector.
●
We recommend backing up your
data before playing it.
●
Some devices cannot be powered
or charged via the USB adapter. If
this is the case, use the accessory
adapter to supply power to your
device.
Playing an iPod
®
(Models without navigation system)
130
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Connecting an iPod
1. Open the upper glove box, and pull
out the USB adapter cable.
2. Connect your dock connector to
the iPod correctly and securely.
3. Install the dock connector to the
USB connector securely.
Text Data Display Function
Each time you press the TITLE
button the display mode switches
between the album name, the song
name, the artist name, or name off
(which turns off the text display).
USB CONNECTOR
USB ADAPTER CABLE
DOCK CONNECTOR
USB CONNECTOR
CONTINUED
Playing an iPod
®
(Models without navigation system)
131
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The display shows up to about 16
characters of the selected data. If the
text data has more than 16
characters, you will see the first 15
characters and the
indicator in the
display. Press and hold the TITLE
button until the next 16 characters
are shown.
To Change or Select Files
Use the SKIP button while an iPod is
playing to select passages and
change files.
SKIP － Each time you press the
(SKIP ＋) button, the system skips
forward to the beginning of the next
file. Press the
(SKIP －) button,
to skip backward to the beginning of
the current file. Press it again to skip
to the beginning of the previous file.
To move rapidly within a file, press
and hold either side (
or )of
the SKIP button.
Playing an iPod
®
(Models without navigation system)
132
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
You can also select a file from any list
on the iPod menu: playlists, artists,
albums and songs, by using the
VOL/SELECT knob. Push the VOL/
SELECT knob to switch the display
to an iPod menu, then turn the VOL/
SELECT knob to select a desired list.
Press the VOL/SELECT knob to set
your selection.
The display shows items on the
selected list. Turn the VOL/SELECT
knob to select an item, then press the
VOL/SELECT knob to set your
selection.
If you select ‘‘ALL,’’ all available files
on the selected list are played.
Pressing the
button goes back
to the previous display and pressing
the TITLE button cancels this setting
mode.
To Select Repeat or Shuffle Mode:
You can select any type of repeat and
shuffle mode by using the RPT
button or the RDM button.
REPEAT － This feature
continuously plays a file. To activate
the repeat feature, press the RPT
button. You will see ‘‘RPT’’ in the
display. To turn it off, press the RPT
button again.
SHUFFLE ALL － This feature
plays all available files in a selected
list (playlists, artists, albums or
songs) in random order. To activate
the shuffle all feature, press the RDM
button. You will see ‘‘RDM’’ in the
display. To turn it off, press and hold
the RDM button.
Press the
VOL/SELECT knob.
CONTINUED
Playing an iPod
®
(Models without navigation system)
133
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
SHUFFLE ALBUM － This feature
plays all available albums in a
selected list (playlists, artists, albums
or songs) in random order. The files
in each album are played in the
recorded order. To activate the
shuffle album feature, press the
RDM button repeatedly. You will see
‘‘F-RDM’’ in the display. To turn it
off, press and hold the RDM button.
Each time you press the RDM
button, the mode changes from
shuffle all play to shuffle album play,
then to normal play.
To Stop Playing Your iPod
To play the radio when an iPod is
playing, press the FM/AM button. If
a disc is in the audio unit, press the
CD button to play the disc.
Disconnecting an iPod
You can disconnect the iPod at any
time when you see the ‘‘OK to
Disconnect’’ message
ꭧ
in the iPod
display. Always make sure you see
‘‘OK to Disconnect’’ message in the
iPod display before you disconnect it.
Make sure to follow the iPod's
instructions on how to disconnect the
dock connector from the USB
adapter cable.
ꭧ: The displayed message may vary
on models or versions. On some
models, there is no message to
disconnect.
If you reconnect the same iPod, the
system may begin playing where it
left off, depending on what mode the
iPod is in when it is reconnected.
When you disconnect the iPod while
it is playing, the display shows ‘‘USB
NO DATA.’’
iPod Error Messages
If you see an error message in the
display, see page 135.
Playing an iPod
®
(Models without navigation system)
134
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If you see an error message on the
audio display while playing an iPod,
find the solution in the chart to the
right. If you cannot clear the error
message, take your vehicle to your
dealer.
Error Message
Cause Solution
USB ERROR USB ROM Error
There is a problem with the USB adapter
unit.
BAD USB
DEVICE
PLEASE CHECK
OWNERS
MANUAL
Abnormal power source
Appears when the overcurrent protection
feature of the system stops supplying power
to USB because an incompatible device is
connected. Disconnect the device. Then,
turn the audio system off, and turn it on
again. Do not reconnect the device that
caused the error.
iPod NO SONG No files in iPod
Appears when the iPod is empty. Store some
files in the iPod.
UNSUPPORTED
VER.
Use of unsupported iPod
Appears when an unsupported iPod is
connected. See page 130 for the specification
information for iPods. If it appears when a
supported iPod is connected, update the
iPod software to the newer version.
CONNECT
RETRY
Recognition failure of iPod
Appears when the system does not
acknowledge the iPod. Reconnect the iPod.
iPod
®
Error Messages (Models without navigation system)
135
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
ꂺ PLAY BUTTON
USB INDICATOR
RANDOM
BUTTON
ꀽ
SEEK
(SKIP ＋)
BUTTON
TITLE BUTTON
AUX BUTTONꂹꂾBUTTON
VOL/SELECT KNOB REPEAT BUTTON
ꀾ
SEEK
(SKIP －)
BUTTON
POWER ( ꂻ )
BUTTON
All models except Canadian DX, DX-A, and LX models
Playing a USB Flash Memory Device (Models without navigation system)
136
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To Play a USB Flash Memory
Device
This audio system can operate the
audio files on a USB flash memory
device with the same controls used
for the in-dash disc player. To play a
USB flash memory device, connect it
to the USB adapter cable in the
upper glove box, then press the AUX
button. The ignition switch must be
in the ACCESSORY (I) or ON (II)
position.
The audio system reads and plays
the audio files on the USB flash
memory device in MP3, WMA or
AAC
ꭧ
formats. Depending on the
format, the display shows MP3,
WMA or AAC when a USB flash
memory device is playing. The USB
flash memory device limit is up to
700 folders or up to 65535 files.
ꭧ: Only AAC format files recorded
with iTunes are playable on this
audio unit.
The recommended USB flash
memory devices are 256 Mbyte or
higher, and formatted with the FAT
file system. Some digital audio
players may be compatible as well.
Some USB flash memory devices
(such as devices with security
lockout features, etc.) will not work
in this audio unit.
NOTE:
●
Do not use a device such as a card
reader or hard drive as the device
or your files may be damaged.
●
Do not connect your USB flash
memory device using a HUB.
●
Do not use an extension cable to
the USB adapter cable equipped
with your vehicle.
●
Do not keep the USB flash
memory device in the vehicle.
Direct sunlight and high heat will
damage it.
●
We recommend backing up your
data before playing a USB flash
memory device.
●
Depending on the type and
number of files, it may take some
time before they begin to play.
●
Depending on the software the
files were made with, it may not be
possible to play some files, or
display some text data.
●
Some devices cannot be powered
or charged via the USB adapter. If
this is the case, use the accessory
adapter to supply power to your
device.
CONTINUED
Playing a USB Flash Memory Device (Models without navigation system)
137
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Even if recorded in MP3, WMA or
AAC format, a file with unsupported
version cannot be played. If the
system finds it, the audio unit
displays UNSUPPORTED, and then
skips to the next file.
In WMA or AAC format, DRM
(digital rights management) files
cannot be played. If the system finds
a DRM file, the audio unit displays
UNPLAYABLE FILE, and then skips
to the next file.
Connecting a USB Flash Memory
Device
1. Open the upper glove box, and pull
out the USB adapter cable.
USB CONNECTOR
USB ADAPTER CABLE
Playing a USB Flash Memory Device (Models without navigation system)
138
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
2. Connect the USB flash memory
device to the USB connector
correctly and securely.
When the USB flash memory device
is connected, the USB indicator is
shown in the display.
Text Data Display Function
Each time you press the TITLE
button, the display mode shows you
in sequence, the folder name, the file
name, the artist name, the album
name, the song name, or name off
(which turns off the text display).
The display shows up to about 16
characters of the selected data. If the
text data has more than 16
characters, you will see the first 15
characters and the
indicator in the
display. Press and hold the TITLE
button until the next 16 characters
are shown.
To Change or Select Files
Use the SKIP button while a USB
flash memory device is playing to
select passages and change files.
SKIP － Each time you press the
(SKIP ＋) button, the system skips
forward to the beginning of the next
file. Press the
(SKIP －) button,
to skip backward to the beginning of
the current file. Press it again to skip
to the beginning of the previous file.
To move rapidly within a file, press
and hold either side (
or )of
the SKIP button.
FOLDER SELECTION － To select
a different folder, press the
button or PLAY button. Press the
button to skip to the next
folder, and press the
PLAY button
to skip to the beginning of the
previous folder.
USB CONNECTOR
CONTINUED
Playing a USB Flash Memory Device (Models without navigation system)
139
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To Select a File from Folder and File
Lists
You can also select a folder or file by
using the VOL/SELECT knob. Push
the VOL/SELECT knob to switch the
display to the folder or file list, then
turn the VOL/SELECT knob to
select a folder or file. Press the VOL/
SELECT knob to set your selection.
Pressing the
button goes back
to the previous display and pressing
the TITLE button cancels this setting
mode.
To Select Repeat, Random or Scan
Mode:
You can select any type of repeat,
random and scan modes by using the
RPT button or RDM button, or SCAN
button.
REPEAT － This feature
continuously plays a file. To activate
the repeat feature, press the RPT
button. You will see ‘‘ RPT’’ in the
display. To turn it off, press and hold
the RPT button.
FOLDER REPEAT－ This feature
replays all the files in the selected
folder in the order they are stored.
To activate the folder repeat feature,
press the RPT button repeatedly. You
will see ‘‘ F-RPT’’ in the display. To
turn it off, press and hold the RPT
button.
Each time you press the RPT button,
the mode changes from file repeat to
folder repeat, then to normal play.
RANDOM － This feature plays all
the files in random order. To activate
the track random feature, press the
RDM button. You will see ‘‘RDM’’ in
the display. To turn it off, press and
hold the RDM button.
FOLDER RANDOM－ This feature
plays the files in the selected folder
in random order. To activate the
folder random feature, press the
RDM button repeatedly. You will see
‘‘F-RDM’’ in the display. To turn it
off, press and hold the RDM button.
Each time you press the RDM
button, the mode changes from track
random play to folder random play,
then to normal play.
Folder Selection
Track Selection
Press the
VOL/SELECT knob.
Playing a USB Flash Memory Device (Models without navigation system)
140
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
SCAN － This feature samples all
files in the selected folder in the
order they are stored. To activate the
scan feature, press the SCAN button.
You will see ‘‘SCAN’’ in the display.
You will get a 10 second sampling of
each file in the folder. Press and hold
the SCAN button to get out of the
scan mode and play the last file
sampled.
FOLDER SCAN－ This feature
samples the first file in each folder in
the order they are stored. To activate
the folder scan feature, press the
SCAN button repeatedly. You will
see ‘‘F-SCAN’’ in the display. You will
get a 10 second sampling of each first
file in the folder(s). Press and hold
the SCAN button to get out of the
folder scan mode and play the last
file sampled.
Each time you press the SCAN
button, the mode changes from file
scan to folder scan, then to normal
play.
To Stop Playing a USB Flash
Memory Device
To play the radio when a USB flash
memory device is playing, press the
FM/AM button. If a disc is in the
audio unit, press the CD button to
play the disc.
Disconnecting a USB Flash Memory
Device
You can disconnect the USB flash
memory device in any time even if
the USB mode is selected on the
audio system. Always follow the USB
flash memory device's instructions
when you remove it.
When you disconnect the USB flash
memory device while it is playing,
the display shows ‘‘USB NO DATA.’’
If you reconnect the same USB flash
memory device, the system will
begin playing where it left off.
USB Flash Memory Device Error
Messages
If you see an error message in the
display, see page 142.
Playing a USB Flash Memory Device (Models without navigation system)
141
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If you see an error message on the
audio display while playing a USB
flash memory device, find the
solution in the chart to the right. If
you cannot clear the error message,
take your vehicle to your dealer.
Error Message
Cause Solution
USB ERROR USB ROM Error
There is a problem with the USB adapter
unit.
BAD USB
DEVICE
PLEASE CHECK
OWNERS
MANUAL
Abnormal power source
Appears when the overcurrent protection
feature of the system stops supplying power
to USB because an incompatible device is
connected. Disconnect the device. Then,
turn the audio system off, and turn it on
again. Do not reconnect the device that
caused the error.
UNPLAYABLE
FILE
Use of unsupported files
Appears when the files in the USB flash
memory device are DRM or an unsupported
format. This error message appears for
about 3 seconds, then plays the next song.
USB NO SONG
No files in USB flash
memory device
Appears when the USB flash memory device
is empty or there are no MP3, WMA, or AAC
files in the USB flash memory device. Save
some MP3, WMA, or AAC files in the USB
flash memory device.
UNSUPPORTED
Use of unsupported USB
flash memory device
Appears when an unsupported device is
connected. See page 137 for the specification
information for the USB flash memory
device. If it appears when a supported device
is connected, reconnect the device.
USB Flash Memory Device Error Messages (Models without navigation system)
142
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
SOUND ICON
SCAN
BUTTON
AM/FM
BUTTON
AUDIO
BUTTON
AUTO SELECT ICON
PRESET BUTTONS
BACK GROUND ICON
FM1 ICON
TUNE BAR
AM ICON
FM2 ICON
POWER/VOLUME KNOB
CONTINUED
Playing the AM/FM Radio (Models with navigation system)
143
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Voice Control System
In addition to the standard audio
controls, the audio system in your
vehicle can be operated using the
voice control system. See the
navigation system manual for
complete details.
To Play the AM/FM Radio
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
power/volume knob or the AM/FM
button. Adjust the volume by turning
the power/volume knob.
Pushing the AUDIO button will also
turn on the system.
You can also operate the audio
system without using the control
icons on the audio screen. Use the
control buttons on the left side of the
screen. The status bar appears on the
bottom of the screen each time you
operate any of the control buttons.
On the navigation screen, you can
also see audio information by
touching the AUDIO INFO icon on
the lower of the screen.
The band and frequency that the
radio was last turned to are
displayed. To change bands, press
the AM/FM button, or touch the
desired band icon (FM1, FM2, or
AM). On the FM band, STEREO will
be displayed if the station is
broadcasting in stereo. Stereo
reproduction on AM is not available.
To Select a Station
You can use any of five methods to
find radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select.
TUNE － Use the TUNE bar to tune
the radio to a desired frequency.
Press the
side of the bar to tune to
a higher frequency, and press the
side to tune to a lower frequency.
Press and hold the
or side of the
TUNE bar until you hear two beeps
to change the frequency rapidly.
Release the bar when the display
reaches the desired frequency.
Playing the AM/FM Radio (Models with navigation system)
144
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
SEEK － The SEEK function
searches up and down from the
current frequency to find a station
with a strong signal. To activate it,
press and hold the
or side of the
TUNE bar until you hear a beep,
then release it.
SCAN － The SCAN function
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan for
a station with a strong signal. When
it finds one, it will stop and play that
station for about 10 seconds.
If you do nothing, the system will
then scan for the next strong station
and play it for 10 seconds. When it
plays a station you want to listen to,
press the SCAN button again.
Preset － Each preset button can
store one frequency on AM and two
frequencies on FM.
1. Select the desired band, AM or
FM. FM1 and FM2 let you store
two frequencies with each preset
button.
2. Use the tune, seek, or scan
function to tune the radio to a
desired station.
3. Pick a preset button, and hold it
until you hear a beep.
4. Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
Each preset button's frequency is
shown on the bottom of the audio
display.
CONTINUED
Playing the AM/FM Radio (Models with navigation system)
145
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
AUTO SELECT － If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the AUDIO button to view the
audio control icons, then touch the
AUTO SEL icon. You will see AUTO
SEL flashing in the display, and the
system goes into scan mode for
several seconds. It stores the
frequencies of six AM, and twelve
FM stations in the preset buttons.
You will see a ‘‘0’’ displayed after
pressing a preset button if auto select
cannot find a strong station for every
preset button.
If you do not like the stations auto
select has stored, you can store other
frequencies on the preset buttons as
previously described.
To turn off auto select
, touch the
AUTO SEL icon . This restores the
presets you originally set.
For information on FM/AM radio
frequencies and reception, see page
185.
Adjusting the Sound
You can adjust the sound on the
navigation screen. To adjust the
sound, push the AUDIO button, then
enter the sound grid by touching the
SOUND icon on the display.
SOUND ICON
Playing the AM/FM Radio (Models with navigation system)
146
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
BASS － Adjusts the bass.
TREBLE － Adjusts the treble. To
adjust the treble and bass, touch
or on each side of the treble or
bass adjustment bar. The adjustment
bar on the right lower display shows
you the current setting.
FADER － Adjusts the front-to-back
strength of the sound. To adjust the
front/rear fader, touch the FR or RR
icon.
BALANCE － Adjusts the side-to-
side strength of the sound.
To adjust the left/right balance,
touch the L or R icon.
The right upper display shows you
the current setting of the sound
strength coming from each speaker.
SVC (speed-sensitive volume
compensation) － The SVC mode
controls the volume based on vehicle
speed. The faster you go, the louder
the audio volume becomes. As you
slow down, the audio volume
decreases. Touch the appropriate
icon (Low, Mid, Hi, Off) to select the
mode.
If you feel the sound is too loud,
choose low. If you feel the sound is
too quiet, choose Hi.
You can also select the icon with the
joystick. Move it up and down to
move the highlighting and scroll
through lists. Select the icon, then
enter the joystick.
The system will return to the audio
display about 10 seconds after you
stop adjusting a mode.
SPEAKER SETTING
BASS/TREBLE SETTING
CONTINUED
Playing the AM/FM Radio (Models with navigation system)
147
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Screen Mode
You can select the background
screen to display the sound level.
There are three screen modes: level
(the sound level is shown with the
vertical bars), spectrum analysis (the
sound level appears as ripples of
water), and off. Each time you touch
the background icon, the display
changes.
Audio System Lighting
You can use the instrument panel
brightness control knob to adjust the
illumination of the control panel (see
page 76). The audio system
illuminates when the parking lights
are on, even if the radio is turned off.
Playing the AM/FM Radio (Models with navigation system)
148
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
POWER/VOLUME
KNOB
JOYSTICK
REPEAT BUTTON
CD ICON
RANDOM
BUTTON
OPEN BUTTON
CD/AUX BUTTON
AUDIO BUTTON
SCAN BUTTON
TUNE FOLDER BAR
REWIND BUTTON
FAST FORWARD
BUTTON
SKIP － BUTTON
SKIP ＋ BUTTON
CONTINUED
Playing a Disc (Models with navigation system)
149
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To Play a Disc
(In-dash single player)
You operate the in-dash disc player
with the same controls used for the
radio. To load or play discs, the
ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
This audio system can also play
CD-Rs and CD-RWs compressed in
MP3 or WMA formats. When playing
a disc in MP3, you will see ‘‘MP3’’ on
the screen. In WMA format, ‘‘WMA’’
will appear on the screen. You can
select up to 255 folders and play up
to 999 tracks. If the disc has a
complex structure, it takes a while to
read the disc before the system
begins to play it.
If you have a disc that is a
combination of CD-DA tracks and
MP3/WMA files, you can choose the
format to listen by pressing and
holding CD/AUX button until you
hear a beep.
Video CDs and DVD discs do not
work in this unit.
A disc compressed in AAC format
cannot be played in this audio
system.
NOTE:
If a file on an MP3 or WMA disc is
protected by digital rights
management (DRM), the audio unit
displays FILE ERROR, and then
skips to the next file.
Depending on the software the files
were made with, it may not be
possible to play some files, or display
some text data.
Playing a Disc (Models with navigation system)
150
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To Load a Disc
The in-dash disc player is behind the
navigation screen. To use the disc
player, press the OPEN button
beside the screen. The screen folds
back, and the disc slot appears.
Insert a disc about halfway into the
disc slot. The drive will pull the disc
in the rest of the way and begin to
play it.
You cannot load and play 3-inch
(8-cm) discs in this system.
To return the screen to the upright
position, press the CLOSE button on
the edge of the screen panel. Do not
use the folded screen as a tray. If you
put a cup, for example, on the screen,
the liquid inside the cup may spill on
the screen when you go over a bump.
OPEN BUTTON
DISC SLOT CLOSE BUTTON
CONTINUED
Playing a Disc (Models with navigation system)
151
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Press the AUDIO button beside the
screen to show the audio display and
operate the in-dash disc player.
You can also operate the audio
system without using the control
icons on the audio screen. Press the
CD/AUX button. The status bar
appears on the bottom of the screen.
On the navigation screen, you can
see the audio information whenever
you touch the AUDIO INFO or
TRACK LIST icons on the lower of
the screen.
When playing a CD recorded with
text data, the track, album, and artist
name are shown on the audio
display. When playing a disc in MP3
or WMA, the folder number and
name, the file number and name, the
artist name, and the elapsed time are
shown. The system will continuously
play a disc until you change modes.
If the disc was not recorded with text
data, it will not be displayed.
To Change or Select Tracks/Files
You can use the preset buttons while
a disc is playing to select passages
and change tracks (files in MP3 or
WMA mode). Each preset button's
function is shown on the bottom of
the screen.
You can also select an icon with the
joystick. Move it to left, right, up, or
down to change the highlighting and
scroll through lists. Then press the
ENT on the top of the joystick to
select the icon.
SKIP － Each time you press
(preset 6), the player skips forward
to the beginning of the next track
(file in MP3 or WMA mode). Press
(preset 5), to skip backward to
the beginning of the current track.
Press it again to skip to the
beginning of the previous track.
FF/REW － To move rapidly within
a track/file, press and hold
(preset 4) or (preset 3).
PRESET BUTTON'S FUNCTION
PRESET BUTTONS
Playing a Disc (Models with navigation system)
152
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
In MP3 or WMA mode
FOLDER SELECTION － To select
a different folder, press either side of
the TUNE FOLDER bar to move to
the beginning of the next folder.
Press the
side of the TUNE
FOLDER bar to skip to the next
folder, and the
side to move to the
beginning of the current folder.
Press it again to skip to the
beginning of the previous folder.
TRACK REPEAT (FILE REPEAT)
－ To continuously replay a track
(file in MP3 or WMA mode), press
the RPT button (preset 1). You will
see ‘‘TRACK REPEAT’’ in the
display. Press the RPT button again
to turn it off.
In MP3 or WMA mode
FOLDER REPEAT － This feature,
when activated, replays all files in the
selected folder in the order they are
compressed. To activate folder
repeat, press and hold the RPT
button (preset 1) for 2 seconds. You
will see ‘‘ FOLDER REPEAT’’ in the
display. The system continuously
replays the current folder. Press the
RPT button again to turn it off.
Selecting a different folder with the
TUNE FOLDER bar also turns off
folder repeat.
TRACK RANDOM (Random
within a disc/folder) － This
feature plays the tracks/files within a
disc in random order. To activate
track random, press the RDM button
(preset 2). You will see ‘‘TRACK
RANDOM’’ in the display. Press the
RDM button again to return to
normal play.
In MP3 or WMA mode
FOLDER RANDOM － This
feature, when activated, plays all files
in the selected folder in random
order, rather than in the order they
are compressed. To activate folder
random, press and hold the RDM
button. You will see ‘‘FOLDER
RANDOM’’ in the display. The
system then selects and plays files
randomly. This continues until you
deactivate folder random by pressing
the RDM button again, or if you
select a different folder with the
TUNE FOLDER bar.
CONTINUED
Playing a Disc (Models with navigation system)
153
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
SCAN (TRACK/FILE SCAN) －
The scan function samples all tracks
(files in MP3 or WMA) in the order
they were recorded. To activate scan,
press the SCAN button. You will see
‘‘TRACK SCAN’’ in the display. You
will get a 10 second sampling of each
track/file on the disc. Press the
SCAN button to get out of scan mode
and play the last track/file sampled.
Pressing either SKIP button (preset
5 or 6) also turns off scan.
In MP3 or WMA mode
FOLDER SCAN － This feature,
when activated, samples all the first
files in each folder on the disc in
order. To activate folder scan, press
and hold the SCAN button for 2
seconds. You will see ‘‘FOLDER
SCAN’’ in the display.
The system plays the first file in each
folder for about 10 seconds. If you do
nothing, the system then plays the
first file in each folder for 10 seconds
each. After playing the first file of the
last folder, the system goes to normal
play.
Pressing either SKIP button (preset
5 or 6), or selecting a different folder
with the TUNE FOLDER bar, or
pressing the SCAN button, also turns
off folder scan.
Using a Track List
You can also select a track/file
directly from a track list on the audio
display. Press the AUDIO button to
show the audio display, then touch
the Track List icon. The track list
menu appears on the display.
FOLDER ICON TRACK/FILE ICON
FOLDER NUMBER RETURN ICON
Playing a Disc (Models with navigation system)
154
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
When playing a CD recorded with
text data, each track name is shown
on the audio display. With a disc
recorded in MP3 or WMA, the folder
number and the location are also
displayed.
If the disc was not recorded with text
data, only the track number is
shown.
To scroll through the display, touch
the
or icon on the side of the
screen. To go back to the previous
display, touch the Return icon on the
screen.
Select the desired track/file by
touching the icon on the display. The
selected icon will be highlighted in
blue. The system begins to play the
selected track/file. With a disc in
MP3 or WMA, touch the folder icon
on the upper left of the screen to
move to the root folder. The current
folder is highlighted in blue.
To Stop Playing a Disc
To play the radio when a disc is
playing, press the AM/FM button or
touch the FM1, FM2, or AM icon. If
a PC card is in the audio unit, touch
the CARD icon to play the PC card.
Press the CD/AUX button again or
touch the CD icon to switch back to
the in-dash disc player.
If you turn the system off while a disc
is playing, either with the power/
volume knob or by turning off the
ignition switch, the disc will stay in
the drive. When you turn the system
back on, the disc will begin playing
where it left off.
CONTINUED
Playing a Disc (Models with navigation system)
155
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Removing a Disc
To remove a disc from the audio unit,
fold back the screen by pressing the
OPEN button (see page 151). Press
the disc eject button (
) to remove
the disc. If you eject the disc, but do
not remove it from the slot, the
system will automatically reload it
after 10 seconds and put it in pause
mode. To begin playing, press the
CD/AUX button.
To return the screen to the upright
position, press the CLOSE button.
You cannot close the screen if a disc
is partially inserted into its slot.
You can also eject the disc when the
ignition switch is off.
Protecting Discs
For information on how to handle
and protect discs, see page 187.
Playing a Disc (Models with navigation system)
156
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If you see an error message in the
display while playing a disc, find the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to your dealer.
The chart on the right explains the
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
The audio system will try to play the
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the
disc.
Insert a different disc. If the new disc
plays, there is a problem with the
first disc. If the error message cycle
repeats and you cannot clear it, take
your vehicle to a dealer.
Error Message Cause Solution
CHECK DISC FOCUS Error
Press the eject button, and pull out the disc.
Make sure it is inserted correctly in the disc
player.
Make sure the disc is not scratched or
damaged.
MECH ERROR Mechanical Error
Press the eject button, and pull out the disc.
Check the disc for damage or deformation.
If the disc cannot be pulled out, or the error
message does not disappear after the disc is
ejected, see your dealer.
CHECK DISC Disc Format Error
Press the eject button, and pull out the disc.
Check the disc for damage or deformation.
HEAT ERROR High Temperature
Will disappear when the temperature returns
to normal.
Disc Player Error Messages (Models with navigation system)
157
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
TRACK LIST ICON
POWER/VOLUME KNOB PC CARD ICON
JOYSTICK
OPEN BUTTON
PLAY MODE
ICON
CD/AUX
BUTTON
AUDIO BUTTON
SCAN BUTTON
TUNE FOLDER
BAR
REPEAT BUTTON
RANDOM BUTTON
REWIND BUTTON
FAST FORWARD BUTTON
SKIP － BUTTON
SKIP ＋ BUTTON
Playing a PC card (Models with navigation system)
158
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To Play a PC card
You operate the PC card player with
the same controls used for the radio
and the in-dash disc player. To load
or play a card, the ignition switch
must be in the ACCESSORY (I) or
ON (II) position.
The PC card player reads and plays
cards in MP3 or WMA formats.
Depending on the format, the screen
will indicate ‘‘MP3’’ or ‘‘WMA’’ when
a card is playing. The card limit of
the player is 255 folders and 999
tracks. If the card has a complex
structure, it takes some time for the
system to begin playing it.
Based on PCMCIA 2.1/JEIDA 4.2,
the recommended PC cards for the
PC card reader are:
CompactFlash
Flash ATA
SD memory card
Always use the recommended
memory card with the appropriate
adapter (if an adapter is needed).
Some memory cards will not work in
this unit.
NOTE:
●
When you insert a PC card into the
slot, make sure you put it in
straight. If you cannot insert it,
remove it, and insert again.
●
Do not keep PC cards in the
vehicle. Direct sunlight and high
heat will damage them.
●
To avoid damaging the card
reader, do not insert hard disc
drive cards into the PC card slot.
●
You cannot close the screen (move
it to the upright position) until the
PC card is inserted all the way into
its slot or removed.
●
Never insert foreign objects into
the PC card slot.
●
Depending on the type of
encoding and writing software
used, there may be causes where
character information does not
display properly.
CONTINUED
Playing a PC card (Models with navigation system)
159
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
In WMA format, DRM (digital rights
management) files cannot be played.
If the system finds a DRM file, it
skips that file and plays the next
available folder or file.
Loading a PC Card
The PC card slot is behind the
navigation screen. To use the PC
card player, press the OPEN button
beside the screen. The screen folds
back, and the PC card slot appears.
Insert a PC card straight into the slot.
The drive will read the PC card and
begin to play it.
Return the screen to the upright
position by pressing the CLOSE
button on the edge of the screen
panel.
Press the AUDIO button beside the
screen to show the audio display and
operate the PC card player.
You can also operate the audio
system without using the control
icons on the audio screen. Press any
of the appropriate control buttons.
The status bar appears on the bottom
of the screen. On the navigation
screen, you can see the audio
information whenever you touch the
AUDIO INFO icon on the screen.
PC CARD SLOT
Playing a PC card (Models with navigation system)
160
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
There are three play modes: Folder,
Artist, and Album. Touch the PLAY
MODE icon, then choose one of the
modes by touching its icon. When a
mode is selected, it is highlighted in
blue.
●
Folder mode plays tracks in the
order they were added to the card.
●
Artist mode plays tracks in
alphabetical order, by artist and
song title.
●
Album mode plays albums
(folders) in alphabetical order.
If play mode information was not
included in the tracks/files when
they were added to the card, it will
not be displayed on the screen.
To Select a Play Mode
PLAY MODE ICON
FOLDER MODE
MODE INDICATOR
PLAY MODE ICON
ALBUM MODE
PLAY MODE ICON
ARTIST MODE
MODE INDICATOR
MODE INDICATOR
CONTINUED
Playing a PC card (Models with navigation system)
161
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To select a play mode, push the
AUDIO button to show the audio
display, then touch the PLAY MODE
icon on the display.
Select the desired mode by touching
the appropriate icon, or move the
joystick, then press the ENT.
After you select the play mode, the
display changes to the selectable
playing menu. If you select
‘‘Continue playing the current song,’’
the system goes into the selected
play mode after playing the current
file.
PLAY MODE ICON
Playing a PC card (Models with navigation system)
162
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If you select ‘‘Play a new track list,’’
the system goes into the selected
play mode immediately and begins to
play the new track list.
To go back to the previous screen,
press the CANCEL button on the
right side of the screen. To exit the
play mode screens, press the AUDIO
button.
To Change or Select Tracks/Files
You can use the preset buttons while
a card is playing to select or change
files. Each preset button's function is
shown on the bottom of the screen.
Icons on the screen can also be
selected with the joystick. Move the
joystick left or right and up or down
until the icon is highlighted, then
press the ENT on the top of the
joystick to select the icon.
PRESET BUTTONS
PRESET BUTTON'S FUNCTION
CONTINUED
Playing a PC card (Models with navigation system)
163
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
SKIP － Each time you press
(preset 6), the player skips forward
to the beginning of the next file.
Press
(preset 5), to skip
backward to the beginning of the
current file. Press it again to skip to
the beginning of the previous file.
FF/REW － To move rapidly within
a file, press and hold
(preset 4)
or
(preset 3).
FOLDER SELECTION － To select
a different folder, press either side of
the TUNE FOLDER bar to move to
the beginning of the next folder.
Press the
side of the TUNE
FOLDER bar to skip to the next
folder, and to the
side to move to
the beginning of the current folder.
Press it again to skip to the
beginning of the previous folder.
TRACK REPEAT (FILE REPEAT)
－ To continuously replay a file,
press the RPT button (preset 1). You
will see ‘‘ TRACK REPEAT’’ in the
display. Press the RPT button again
to turn it off.
FOLDER/ARTIST/ALBUM
REPEAT － This feature, when
activated, replays all the files in the
selected folder/artist/album in the
order they are recorded or listed. To
activate each repeat mode, press and
hold the RPT button (preset 1) for 2
seconds. You will see ‘‘FOLDER
REPEAT, ARTIST REPEAT or
ALBUM REPEAT’’ in the display.
The system continuously replays the
current folder/artist/album. Press
and hold the RPT button again to
turn it off. Pressing the RDM button,
or selecting a different folder/artist/
album with the TUNE FOLDER bar
also turns off the repeat feature.
TRACK RANDOM (Random
within a folder) － This feature
plays the files within a folder in
random order. To activate random
play, press the RDM button (preset
2). You will see ‘‘TRACK RANDOM’’
in the display. Press the RDM button
again to return to normal play.
FOLDER/ARTIST/ALBUM
RANDOM － This feature, when
activated, plays all files in each
folder/artist/album in random order,
rather than in the order they are
recorded or listed. To activate each
random play, push and hold the
RDM button (preset 2) for 2 seconds.
You will see ‘‘FOLDER RANDOM,
ARTIST RANDOM or ALBUM
RANDOM’’ in the display.
Playing a PC card (Models with navigation system)
164
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The system then selects and plays
files randomly. This continues until
you deactivate each random play by
pressing the RDM button again.
SCAN － The SCAN function
samples all the files on the PC card in
the order they are recorded. To
activate the scan feature, press the
SCAN button. You will see ‘‘TRACK
SCAN’’ in the display. You will get a
10 second sampling of each file on
the PC card. Press the SCAN button
again to get out of scan mode and
play the last file sampled.
Pressing either of the SKIP buttons
(preset 5 or 6) also turns off the scan
feature.
FOLDER/ARTIST/ALBUM SCAN
－ This feature, when activated,
samples the first file in each folder/
artist/album on the PC card in order.
To activate each scan feature, press
and hold the SCAN button. You will
see ‘‘FOLDER SCAN, ARTIST SCAN
or ALBUM SCAN’’ in the display.
The system plays the first file in the
folder for about 10 seconds. If you do
nothing, the system plays the first
file in each folder, in order, for 10
seconds each. After playing the first
file of the last folder/artist/album,
the system returns to normal play.
Pressing either of the SKIP buttons
(preset 5 or 6), selecting a different
folder/artist/album with the TUNE
FOLDER bar, or pressing the SCAN
button, also turns off the scan
feature.
CONTINUED
Playing a PC card (Models with navigation system)
165
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Using a Track List
You can also select a file directly
from a track list on the audio display.
Press the AUDIO button to show the
audio display, then touch the Track
List icon. The track list menu
appears on the display.
To scroll through the display, touch
the
or icon on the side of the
screen. To go back to the previous
display, touch the Return icon.
To play a file, touch its icon on the
screen. In folder mode, touch the
folder icon on the upper left of the
screen to move to the root folder.
The current folder is highlighted in
blue.
In artist mode, the artist name is also
displayed on the right side of each
selectable icon. Select the desired
file.
TRACK LIST ICON
FOLDER ICON
RETURN ICON
ARTIST NAME
Playing a PC card (Models with navigation system)
166
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
In album mode, the album name is
also displayed on the right side of
each selectable icon. Select the
desired file.
Song Search Function
When you select ‘‘Song Search’’ from
the track list display, the song search
menu appears.
You can then select any of three
modes to search a file: Title by
keyword, Artist, and Album.
ALBUM NAME
RETURN ICON
SONG SEARCH ICON
Folder mode is shown.
TITLE BY KEYWORD ICON
ARTIST ICON ALBUM ICON
CONTINUED
Playing a PC card (Models with navigation system)
167
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Searching for a Song Title by keyword
In Title by keyword mode, enter the
title name, or any keyword, by
touching the letter icons on the
screen. Press the List icon to begin
the song search. If you press the
CANCEL button on the control
panel, the display returns to the
mode menu without doing a search.
To cancel the selected letter, touch
the Delete icon. To select more
characters, touch the More icon. The
other character list will be shown.
After the system searches for a song,
a file list is displayed. To scroll
through the list, touch the
or
icon on the side of the screen. Select
the desired file by touching the
appropriate icon, or moving the
joystick and pressing the ENT.
Searching for a Song by Artist Name
Select the Artist icon, and the artist
list appears. Select the desired artist,
and the artist's file list is displayed.
MORE ICON
DELETE ICON LIST ICON
FILE LIST
ARTIST LIST
Playing a PC card (Models with navigation system)
168
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Searching for a Song by Album Name
Select the Album icon, and the album
list appears. Select the desired
album, and its song list is displayed.
You can then select the desired song
from the list.
To Stop Playing a PC card
To play the radio when a PC card is
playing, press the AM/FM button or
touch the FM1, FM2, or AM icon. If
a disc is in the audio unit, press the
CD/AUX button or touch the CD
icon to play the disc. Touch the
CARD icon to switch back to the PC
card player.
If you turn the system off while a PC
card is playing, either with the
power/volume knob or by turning off
the ignition switch, the card will stay
in the drive. When you turn the
system back on, the card will begin
playing where it left off.
When you leave the vehicle, always
remove the PC card from the audio
unit.
Removing a PC Card
To remove a PC card from the audio
unit, fold back the screen by
pressing the OPEN button (see page
151). Press the eject button (
)to
remove the card. If you do not
remove it from the slot, you cannot
return the screen to the upright
position.
To return the screen to the upright
position, press the CLOSE button.
You can also eject a card when the
ignition switch is off.
PC Card Player Malfunction
If there is a problem with the PC card
player, see your dealer.
ALBUM LIST
Playing a PC card (Models with navigation system)
169
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If you see an error message in the
display while playing a PC card, find
the solution in the chart to the right.
If you cannot clear the error
message, take your vehicle to your
dealer.
Error Message
Solution
FILE ERROR
The system cannot read the file(s). Check the files in the disc. There is a
possibility that the files have been damaged
NO MUSIC
It appears when the PC card is empty or there are no MP3 or WMA files in
the PC card. Save the MP3 or WMA files in the PC card.
MEDIA ERROR
It appears when an unsupported PC card is inserted. The system supports
CF card, Flash ATA card, and SanDisk 6-in-1 Card Adapter.
PC Card Error Messages (Models with navigation system)
170
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
iPod INDICATOR
POWER/VOLUME KNOB AUX ICON
JOYSTICK
CD/AUX
BUTTON
AUDIO BUTTON
SCAN BUTTON
REPEAT BUTTON
RANDOM BUTTON
SKIP － BUTTON
SKIP ＋ BUTTON
CONTINUED
Playing an iPod
®
(Models with navigation system)
171
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To Play an iPod
ꭂ
This audio system can operate the
audio files on the iPod
ꭂ
with the
same controls used for the in-dash
disc player. To play an iPod, connect
it to the USB adapter cable in the
upper glove box by using your dock
connector, then press the CD/AUX
button. The ignition switch must be
in the ACCESSORY (I) or ON (II)
position. The iPod will also be
recharged with the ignition switch in
these positions.
The audio system reads and plays
sound files to be playable on the
iPod. The system cannot operate an
iPod as a mass storage device. The
system will only play songs stored on
the iPod with iTunes.
iPod and iTunes are registered
trademarks owned by Apple Inc.
Voice Control System
You can select the AUX mode by using
the navigation system voice control
buttons, but cannot operate the play
mode functions.
iPod models confirmed to be compatible
with your audio system using the USB
adapter cable are:
Model
iPod classic (80/160 G)
iPod classic (120 G)
iPod with video (iPod 5th generation)
iPod nano
iPod nano 2nd generation
iPod nano 3rd generation
iPod nano 4th generation
iPod nano 5th generation
iPod touch
iPod touch 2nd generation
This system may not work with all
software versions of these devices.
NOTE:
●
Do not connect your iPod using a
HUB.
●
Do not keep the iPod in the
vehicle. Direct sunlight and high
heat will damage it.
●
Do not use an extension cable
between the USB adapter cable
equipped with your vehicle and
your dock connector.
●
We recommend backing up your
data before playing it.
●
Some devices cannot be powered
or charged via the USB adapter. If
this is the case, use the accessory
adapter to supply power to your
device.
Playing an iPod
®
(Models with navigation system)
172
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Connecting an iPod
1. Open the upper glove box, and pull
out the USB adapter cable.
2. Connect your dock connector to
the iPod correctly and securely.
3. Install the dock connector to the
USB connector securely.
If the audio system still does not
recognize the iPod, the iPod may
need to be reset. Follow the
instructions that came with your
iPod, or you can find reset
instructions online at
www.apple.com/
ipod
.
The current file number and total of
the selected playable files are
displayed on the screen. It also
shows the artist, album and track
(file) names on the screen.
USB CONNECTOR
USB ADAPTER CABLE
DOCK CONNECTOR
USB CONNECTOR
CONTINUED
Playing an iPod
®
(Models with navigation system)
173
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To Change or Select Files
Use the SKIP button while an iPod is
playing to select passages and
change files.
SKIP － Each time you press the
SKIP ＋ button (Preset 6), the
system skips forward to the
beginning of the next file. Press the
SKIP － button (Preset 5), to skip
backward to the beginning of the
current file. Press it again to skip to
the beginning of the previous file.
To Select a File from iPod Menu
You can also select a file from any list
on the iPod menu: playlists, artists,
albums and songs. Press the AUDIO
button to display the screen, then
touch the iPod MENU icon.
Select the desired mode by touching
the appropriate icon, or move the
joystick, then press the ENT.
If you select ‘‘ALL’’ on either the
artists or albums list, all available
files on the selected list are played.
Press the AUDIO button to go back
to the normal audio playing display.
Pressing the CANCEL button goes
back to the previous screen, and
pressing the MAP button cancels the
audio control display on the screen.
Playing an iPod
®
(Models with navigation system)
174
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Using a Track List
You can also select a file directly
from a track list on the audio display.
Press the AUDIO button to show the
audio display, then touch the Track
List icon. The track list menu
appears on the display.
To scroll through the display, touch
the
or icon on the side of the
screen. To go back to the previous
display, touch the Return icon.
To play a file, touch its icon on the
screen. The current folder is
highlighted in blue.
To Select Repeat or Random Mode:
You can select any type of repeat and
random mode by using the RPT
button or RDM button.
REPEAT － This feature
continuously plays a file. To activate
the repeat feature, press the RPT
button (Preset 1). You will see
‘‘REPEAT’’ in the display. To turn it
off, press the RPT button (Preset 1)
again.
TRACK RANDOM－ This feature
plays all available files from the
selected items in the iPod menu list
(playlists, artists, albums or songs) in
random order. To activate the track
random feature, press the RDM
button (Preset 2). You will see
‘‘TRACK RANDOM’’ in the display.
To turn it off, press the RDM button
(Preset 2).
TRACK LIST ICON
RETURN ICON
CONTINUED
Playing an iPod
®
(Models with navigation system)
175
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
ALBUM RANDOM－ This feature
plays all available albums from the
selected items in the iPod menu list
(playlists, artists, albums or songs) in
random order. The files in each
album are played in the recorded
order. To activate the album random
feature, press and hold the RDM
button (Preset 2). You will see
‘‘ALBUM RANDOM’’ in the display.
To turn it off, press and hold the
RDM button (Preset 2).
You can also select another list from
the iPod menu while keeping the
random function.
NOTE:
Available operating function varies
on models or versions. Some
functions may not be available on the
vehicle's audio system.
To Stop Playing Your iPod
To play the radio when an iPod is
playing, press the AM/FM button or
touch the FM1, FM2, or AM icon. If
a disc is in the audio unit, press the
CD/AUX button or touch the CD
icon to play the disc. If a PC card is in
the audio unit, Press the CD/AUX
button or touch the CARD icon to
play a PC card.
Press the CD/AUX button again or
touch the AUX icon to switch back to
the iPod.
Disconnecting an iPod
You can disconnect the iPod at any
time when you see the ‘‘OK to
Disconnect’’ message
ꭧ
in the iPod
display. Always make sure you see
‘‘OK to Disconnect’’ message in the
iPod display before you disconnect it.
Make sure to follow the iPod's
instructions on how to disconnect the
dock connector from the USB
adapter cable.
ꭧ: The displayed message may vary
on models or versions. On some
models, there is no message to
disconnect.
When you disconnect the iPod while
it is playing, the navigation screen
shows ‘‘NO DATA.’’
If you reconnect the same iPod, the
system may begin playing where it
left off, depending on what mode the
iPod is in when it is reconnected.
iPod Error Messages
If you see an error message on the
screen, see page 177.
Playing an iPod
®
(Models with navigation system)
176
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If you see an error message on the
screen while playing an iPod, find the
solution in the chart to the right. If
you cannot clear the error message,
take your vehicle to your dealer.
Error Message
Cause Solution
USB ERROR USB ROM Error
There is a problem with the USB adapter
unit.
BAD USB
DEVICE
PLEASE CHECK
OWNERS
MANUAL
Abnormal power source
Appears when the overcurrent protection
feature of the system stops supplying power
to USB because an incompatible device is
connected. Disconnect the device. Then,
turn the audio system off, and turn it on
again. Do not reconnect the device that
caused the error.
iPod NO SONG No files in iPod
Appears when the iPod is empty. Store some
files in the iPod.
UNSUPPORTED
VER.
Use of unsupported iPod
Appears when an unsupported iPod is
connected. See page 172 for the specification
information for iPods. If it appears when a
supported iPod is connected, update the
iPod software to the newer version.
CONNECT
RETRY
Recognition failure of iPod
Appears when the system does not
acknowledge the iPod. Reconnect the iPod.
iPod
®
Error Messages (Models with navigation system)
177
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
WMA/MP3 INDICATOR
POWER/VOLUME KNOB AUX ICON
JOYSTICK
CD/AUX
BUTTON
AUDIO BUTTON
SCAN BUTTON
REPEAT BUTTON
RANDOM BUTTON
SKIP － BUTTON
SKIP ＋ BUTTON
TUNE FOLDER
BAR
Playing a USB Flash Memory Device (Models with navigation system)
178
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To Play a USB Flash Memory
Device
This audio system can operate the
audio files on a USB flash memory
device with the same controls used
for the in-dash disc player. To play a
USB flash memory device, connect it
to the USB adapter cable in the
upper glove box, then press the CD/
AUX button. The ignition switch
must be in the ACCESSORY (I) or
ON (II) position.
The audio system reads and plays
the audio files on the USB flash
memory device in MP3, WMA or
AAC
ꭧ
formats. Depending on the
format, the display shows MP3,
WMA or AAC when a USB flash
memory device is playing. The USB
flash memory device limit is up to
700 folders or up to 65535 files.
ꭧ: Only AAC format files recorded
with iTunes are playable on this
audio unit.
The recommended USB flash
memory devices are 256 Mbyte or
higher, and formatted with the FAT
file system. Some digital audio
players may be compatible as well.
Some USB flash memory devices
(such as devices with security
lockout features, etc.) will not work
in this audio unit.
NOTE:
●
Do not use a device such as a card
reader or hard drive as the device
or your files may be damaged.
●
Do not connect your USB flash
memory device using a HUB.
●
Do not use an extension cable to
the USB adapter cable equipped
with your vehicle.
●
Do not keep the USB flash
memory device in the vehicle.
Direct sunlight and high heat will
damage it.
●
We recommend backing up your
data before playing a USB flash
memory device.
●
Depending on the type and
number of files, it may take some
time before they begin to play.
●
Depending on the software the
files were made with, it may not be
possible to play some files, or
display some text data.
●
Some devices cannot be powered
or charged via the USB adapter. If
this is the case, use the accessory
adapter to supply power to your
device.
●
Depending on the type of
encoding and writing software
used, there may be cases where
character information does not
display properly.
CONTINUED
Playing a USB Flash Memory Device (Models with navigation system)
179
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Voice Control System
You can select the AUX mode by
using the navigation system voice
control buttons, but cannot operate
the play mode functions.
Even if recorded in MP3, WMA or
AAC format, a file with unsupported
version cannot be played. If the
system finds it, the audio unit
displays UNSUPPORTED, and then
skips to the next file.
In WMA or AAC format, DRM
(digital rights management) files
cannot be played. If the system finds
a DRM file, the audio unit displays
UNPLAYABLE FILE, and then skips
to the next file.
Connecting a USB Flash Memory
Device
1. Open the upper glove box, and pull
out the USB adapter cable.
USB CONNECTOR
USB ADAPTER CABLE
Playing a USB Flash Memory Device (Models with navigation system)
180
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
2. Connect the USB flash memory
device to the USB connector
correctly and securely.
When the USB flash memory device
is connected and the USB mode is
selected on the audio system, the
WMA or MP3 indicator is shown on
the navigation screen. It also shows
the folder and file numbers, and the
elapsed time on the screen.
To Change or Select Files
Use the SKIP button while a USB
flash memory device is playing to
select passages and change files.
SKIP － Each time you press the
SKIP ＋ button (Preset 6), the
system skips forward to the
beginning of the next file. Press the
SKIP － button (Preset 5), to skip
backward to the beginning of the
current file. Press it again to skip to
the beginning of the previous file.
FOLDER SELECTION － To select
a different folder, press either side of
the TUNE FOLDER bar. Press the
side to skip to the next folder, and
press the
side to skip to the
beginning of the previous folder.
Using a Track List
You can also select a file directly
from a track list on the audio display.
Press the AUDIO button to show the
audio display, then touch the Track
List icon. The track list menu
appears on the display.
USB CONNECTOR
TRACK LIST ICON
CONTINUED
Playing a USB Flash Memory Device (Models with navigation system)
181
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To scroll through the display, touch
the
or icon on the side of the
screen. To go back to the previous
display, touch the Return icon.
To play a file, touch its icon on the
screen. The current folder is
highlighted in blue.
To Select Repeat, Random or Scan
Mode:
You can select any type of repeat,
random and scan modes by using the
RPT button or RDM button, or SCAN
button.
TRACK REPEAT － This feature
continuously plays a file. To activate
the track repeat feature, press the
RPT button (Preset 1). You will see
‘‘TRACK REPEAT’’ in the display. To
turn it off, press the RPT button
(Preset 1).
FOLDER REPEAT－ This feature
replays all the files in the selected
folder in the order they are stored.
To activate the folder repeat feature,
press and hold the RPT button
(Preset 1). You will see ‘‘FOLDER
REPEAT’’ in the display. To turn it
off, press and hold the RPT button
(Preset 1).
TRACK RANDOM － This feature
plays all the files in random order. To
activate the track random feature,
press the RDM button (Preset 2).
You will see ‘‘TRACK RANDOM’’ in
the display. To turn it off, press the
RDM button (Preset 2).
FOLDER RANDOM－ This feature
plays the files in the selected folder
in random order. To activate the
folder random feature, press and
hold the RDM button (Preset 2). You
will see ‘‘ FOLDER RANDOM’’ in the
display. To turn it off, press and hold
the RDM button (Preset 2).
TRACK SCAN － This feature
samples all files in the selected folder
in the order they are stored. To
activate the scan feature, press the
SCAN button. You will see ‘‘TRACK
SCAN’’ in the display. You will also
see the file number blinking. You will
get a 10 second sampling of each file
in the folder. Press the SCAN button
to get out of the scan mode. The
system plays the last file sampled.
FOLDER ICON
RETURN ICON
Playing a USB Flash Memory Device (Models with navigation system)
182
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
FOLDER SCAN－ This feature
samples the first file in each folder in
the order they are stored. To activate
the folder scan feature, press and
hold the SCAN button. You will see
‘‘FOLDER SCAN’’ in the display. You
will also see the folder number
blinking. You will get a 10 second
sampling of each first file in the
folder(s). Press the SCAN button to
get out of the scan mode. The system
plays the last file sampled.
To Stop Playing a USB Flash
Memory Device
To play the radio when a USB flash
memory device is playing, press the
AM/FM button or touch the FM1,
FM2, or AM icon. If a disc is in the
audio unit, press the CD/AUX button
or touch the CD icon to play the disc.
If a PC card is in the audio unit, press
the CD/AUX button or touch the
CARD icon to play a PC card.
Press the CD/AUX button again or
touch the AUX icon to switch back to
the USB flash memory device.
Disconnecting a USB Flash Memory
Device
You can disconnect the USB flash
memory device in any time even if
the USB mode is selected on the
audio system. Always follow the USB
flash memory device's instructions
when you remove it.
When you disconnect the USB flash
memory device while it is playing,
the navigation screen shows ‘‘NO
DATA.’’
If you reconnect the same USB flash
memory device, the system will
begin playing where it left off.
USB Flash Memory Device Error
Messages
If you see an error message on the
screen, see page 184.
Playing a USB Flash Memory Device (Models with navigation system)
183
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If you see an error message on the
screen while playing a USB flash
memory device, find the solution in
the chart to the right. If you cannot
clear the error message, take your
vehicle to your dealer.
Error Message
Cause Solution
USB ERROR USB ROM Error
There is a problem with the USB adapter
unit.
BAD USB
DEVICE
PLEASE CHECK
OWNERS
MANUAL
Abnormal power source
Appears when the overcurrent protection
feature of the system stops supplying power
to USB because an incompatible device is
connected. Disconnect the device. Then,
turn the audio system off, and turn it on
again. Do not reconnect the device that
caused the error.
UNPLAYABLE
FILE
Use of unsupported files
Appears when the files in the USB flash
memory device are DRM or an unsupported
format. This error message appears for
about 3 seconds, then plays the next song.
USB NO SONG
No files in USB flash
memory device
Appears when the USB flash memory device
is empty or there are no MP3, WMA, or AAC
files in the USB flash memory device. Save
some MP3, WMA, or AAC files in the USB
flash memory device.
UNSUPPORTED
Use of unsupported USB
flash memory device
Appears when an unsupported device is
connected. See page 179 for the specification
information for the USB flash memory
device. If it appears when a supported device
is connected, reconnect the device.
USB Flash Memory Device Error Messages (Models with navigation system)
184
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Radio Frequencies
The radio can receive the complete
AM and FM bands.
Those bands cover these
frequencies:
AM band: 530 to 1,710 kHz
FM band: 87.7 to 107.9 MHz
Radio stations on the AM band are
assigned frequencies at least 10 kHz
apart (530, 540, 550). Stations on the
FM band are assigned frequencies at
least 0.2 MHz apart (87.9, 88.1, 88.3).
Stations must use these exact
frequencies. It is fairly common for
stations to round-off the frequency in
their advertising, so your radio could
display a frequency of 100.9 even
though the announcer may identify
the station as ‘‘FM101.’’
Radio Reception
How well the radio receives stations
is dependent on many factors, such
as the distance from the station's
transmitter, nearby large objects, and
atmospheric conditions.
A radio station's signal gets weaker
as you get farther away from its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
station drifting in and out. If you are
listening to an FM station, you will
see the stereo indicator flickering off
and on as the signal weakens.
Eventually, the stereo indicator will
go off and the sound will fade
completely as you get out of range of
the station's signal.
Driving very near the transmitter of a
station that is broadcasting on a
frequency close to the frequency of
the station you are listening to can
also affect your radio's reception. You
may temporarily hear both stations,
or hear only the station you are close
to.
CONTINUED
FM/AM Radio Reception
185
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Radio signals, especially on the FM
band, are deflected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal from the station's transmitter,
and the deflected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.
Radio reception can be affected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interference from passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
FM/AM Radio Reception
186
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
General Information
●
When using CD-R or CD-RW
discs, use only high quality discs
labeled for audio use.
●
When recording a CD-R or
CD-RW, the recording must be
closed for it to be used by the
system.
●
Play only standard round discs.
Odd-shaped discs may jam in the
drive or cause other problems.
●
Handle your discs properly to
prevent damage and skipping.
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
Protecting Discs
When a disc is not being played,
store it in its case to protect it from
dust and other contamination. To
prevent warpage, keep discs out of
direct sunlight and extreme heat.
To clean a disc, use a clean soft cloth.
Wipe across the disc from the center
to the outside edge.
A new disc may be rough on the
inner and outer edges. The small
plastic pieces causing this roughness
can flake off and fall on the recording
surface of the disc, causing skipping
or other problems. Remove these
pieces by rubbing the inner and
outer edges with the side of a pencil
or pen.
Never try to insert foreign objects in
the disc player.
Handle a disc by its edges; never
touch either surface. Do not place
stabilizer rings or labels on the disc.
These, along with contamination
from finger prints, liquids, and felt-tip
pens, can cause the disc to not play
properly, or possibly jam in the drive.
CONTINUED
Protecting Your Discs
187
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Additional Information of
Recommended Discs
The in-dash disc player has a
sophisticated and delicate
mechanism. If you insert a damaged
disc as indicated in this section, it
may become stuck inside and
damage the audio unit.
Examples of these discs are shown to
the right:
1. Bubbled, wrinkled, labeled, and excessively thick discs
2. Damaged discs 3. Poor quality discs
Bubbled/
Wrinkled
With Label/
Sticker
Using Printer
Label Kit
Sealed With Plastic
Ring
Chipped/
Cracked
Warped
Burrs
Protecting Your Discs
188
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
4. Small, irregular shaped discs 5. Discs with scratches, dirty discs
●
CD-R or CD-RW may not play due
to the recording conditions.
●
Scratches and fingerprints on the
discs may cause the sound to skip.
●
Recommended discs are printed
with the following logo.
●
Audio unit may not play the
following formats.
3-inch (8-cm) CD Triangle Shape
Can Shape Arrow Shape
Fingerprints, scratches, etc.
Protecting Your Discs
189
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
On vehicl es with navigation system
Three controls for the audio system
are mounted in the steering wheel
hub. These let you control basic
functions without removing your
hand from the wheel.
The VOL button adjusts the volume
up (
) or down ( ). Press the top or
bottom of the button and hold it until
the desired volume is reached, then
release it.
The MODE button changes the
mode. Pressing the button
repeatedly selects FM1, FM2, AM,
disc or a PC card (if a disc or a PC
card is loaded), or an audio unit
connected to the auxiliary input jack
or the USB adapter cable.
If you are listening to the radio, use
the CH button to change stations.
Each time you press the top (＋)of
the button, the system goes to the
next preset station on the band you
are listening to. Press the bottom
(－) to go back to the previous
station. If you press and hold the CH
button (＋)or(－), the system goes
into the seek mode. It finds a station
with a strong signal.
If you are playing a disc, iPod or USB
flash memory device, the system
skips to the beginning of the next
track (file in MP3, WMA or AAC
format) each time you press the top
(＋) of the CH button. Press the
bottom (－) to return to the
beginning of the current track/file.
Press it twice to return to the
previous track/file.
You will see the track/file number
and the elapsed time. If the disc has
text data or is compressed in MP3 or
WMA, you can also see any other
information (track title, file name,
folder name, etc.).
MODE BUTTON
VOL BUTTONCH BUTTON
Remote Audio Controls
190
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
In MP3 or WMA mode, you can use
the skip function to select folders.
Press and hold the top (＋) of the CH
button until you hear a beep, to skip
forward to the first file of the next
folder. Press the bottom (－) to skip
backward to the previous folder.
If you are playing a PC card, press
the top (＋) of the CH button to
advance to the next file. Press the
bottom ( －) to go back to the
previous file.
Auxiliary Input Jack
Your vehicle has the auxiliary input
jack on the front panel. The system
will accept auxiliary input from
standard audio accessories.
When a compatible audio unit is
connected to the jack, press the CD/
AUX (On vehicles with navigation
system) or AUX (On vehicles without
navigation system) button to select it.
On vehicles with navigation system
On vehicles without navigation system
Remote Audio Controls, Auxiliary Input Jack
191
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Your vehicle's audio system will
disable itself if it is disconnected
from electrical power for any reason.
To make it work again, you must
enter a specific digit code using the
preset buttons. Because there are
hundreds of number combinations
possible from specific digits, making
the system work without knowing
the exact code is nearly impossible.
You should have received a card that
lists your audio system's code and
serial numbers. It is best to store this
card in a safe place at home. In
addition, you should write the audio
system's serial number in this
owner's manual.
If you lose the card, you must obtain
the code number from a dealer. To
do this, you will need the system's
serial number.
If your vehicle's battery is
disconnected or goes dead, the audio
system will disable itself. If this
happens, you will see ‘‘ENTER
CODE’’ in the frequency display the
next time you turn on the system.
Use the preset buttons to enter the
code. On vehicles with navigation
system, touch the Done icon to set
the code. The code is on the radio
code card included in your owner's
manual kit. When it is entered
correctly, the radio will start playing.
If you make a mistake entering the
code, do not start over; complete the
sequence, then enter the correct
code. You have 10 tries to enter the
correct code. If you are unsuccessful
in 10 attempts, you must then leave
the system on for 1 hour before
trying again.
Radio Theft Protection
192
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
On vehicl es without navigation system
Press and hold the FM/AM
(CLOCK) button until the displayed
time begins to blink, then release the
button. Change the hours by
pressing the 1 (H) button until the
numbers advance to the desired
time. Change the minutes by
pressing the 2 (M) button until the
numbers advance to the desired
time.
Press the FM/AM (CLOCK) button
again to enter the set time.
You can quickly set the time to the
nearest hour. If the displayed time is
before the half hour, press the FM/
AM (CLOCK) button until you hear a
beep, then press the 3 (R) button to
set the clock back to the previous
hour. If the displayed time is after the
half hour, the clock sets forward to
the beginning of the next hour.
For example:
1:06 will reset to 1:00
1:53 will reset to 2:00
On vehicles with navigation system
The navigation system receives
signals from the global positioning
system (GPS), and the displayed
time is updated automatically by the
GPS. Refer to the navigation system
manual for how to adjust the time.
1 (H) BUTTON
FM/AM (CLOCK)
BUTTON
3 (R) BUTTON
CLOCK
2 (M) BUTTON
Setting the Clock
193
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
On Sport model
The security system helps to protect
your vehicle and valuables from
theft. The horn sounds and a
combination of headlights, parking/
side marker lights and taillights
flashes if someone attempts to break
into your vehicle or remove the audio
unit. This alarm continues for 2
minutes, then the system resets. To
reset an activated system before the
2 minutes have elapsed, unlock the
driver's door with the key or the
remote transmitter.
The security system automatically
sets 15 seconds after you lock the
doors, hood, and the tailgate. For the
system to activate, you must lock the
doors and the tailgate from the
outside with the key, driver's lock
tab, door lock master switch, or
remote transmitter. The security
system indicator on the instrument
panel starts blinking immediately to
show you the system is setting itself.
Once the security system is set,
opening any door, the tailgate, or the
hood without using the key or the
remote transmitter, will cause the
alarm to activate. It also activates if
the audio unit is removed from the
dashboard or the wiring is cut.
The alarm will also activate if a
passenger inside the locked vehicle
turns the ignition switch on.
The security system will not set if the
hood, tailgate, or any door is not fully
closed. If the system will not set,
check the door and tailgate open
indicator on the instrument panel
(see page 62) to see if the doors and
tailgate are fully closed. Since it is
not part of the monitor display,
manually check the hood.
NOTE: To see if the system is set
after you exit the vehicle, press the
LOCK button on the remote
transmitter within 5 seconds. If the
system is set, the horn will beep
once.
Do not attempt to alter this system or
add other devices to it.
SECURITY SYSTEM INDICATOR
Security System
194
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
All models except Canadian DX and
DX-A models
Cruise control allows you to maintain
a set speed above 25 mph (40 km/h)
without keeping your foot on the
accelerator pedal. It should be used
for cruising on straight, open
highways. It is not recommended for
city driving, winding roads, slippery
roads, heavy rain, or bad weather.
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
Using the Cruise Control
1. Press the CRUISE button on the
steering wheel. The CRUISE
MAIN indicator on the instrument
panel comes on.
NOTE: The main switch can be left
on, even when the system is not in
use.
2. Accelerate to the desired cruising
speed above 25 mph (40 km/h).
3. Press the SET/DECEL button on
the steering wheel. The CRUISE
CONTROL indicator on the
instrument panel comes on to
show the system is now activated.
Cruise control may not hold the set
speed when you are going up and
down hills. If your speed increases
going down a hill, use the brakes to
slow down. This will cancel cruise
control. To resume the set speed,
press the RES/ACCEL button. The
indicator on the instrument panel will
come back on.
CRUISE BUTTON
SET/DECEL BUTTON
CANCEL
BUTTON
RES/ACCEL
BUTTON
CONTINUED
Cruise Control
195
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Changing the Set Speed
You can increase the set cruising
speed in any of these ways:
●
Press and hold the RES/ACCEL
button. When you reach the
desired cruising speed, release the
button.
●
To increase your speed in very
small amounts, tap the RES/
ACCEL button. Each time you do
this, the vehicle will speed up
about 1 mph (1.6 km/h).
●
Push on the accelerator pedal.
Accelerate to the desired cruising
speed, then press the SET/
DECEL button.
You can decrease the set cruising
speed in any of these ways:
●
Press and hold the SET/DECEL
button. Release the button when
you reach the desired speed.
●
To slow down in very small
amounts, tap the SET/DECEL
button. Each time you do this,
your vehicle will slow down about
1 mph (1.6 km/h).
●
Tap the brake or clutch pedal
lightly with your foot. The CRUISE
CONTROL indicator on the
instrument panel goes out. When
the vehicle slows to the desired
speed, press the SET/DECEL
button.
Even with the cruise control turned
on, you can still use the accelerator
pedal to speed up for passing. After
completing the pass, take your foot
off the accelerator pedal. The vehicle
will return to the set cruising speed.
Resting your foot on the brake or
clutch pedal causes the cruise
control to cancel.
Cruise Control
196
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Canceling Cruise Control
You can cancel cruise control in any
of these ways:
●
Tap the brake or clutch pedal.
●
Press the CANCEL button on the
steering wheel.
●
Press the CRUISE button on the
steering wheel.
Tapping either of the paddle shifters
shifts the gear up or down, but does
not cancel the cruise control. For
more information on driving with
paddle shifters, see page 226.
Resuming the Set Speed
When you push the CANCEL button,
or tap the brake or clutch pedal, the
system will remember the previously
set cruising speed. To return to that
speed, accelerate to above 25 mph
(40 km/h), and then press the RES/
ACCEL button. The CRUISE
CONTROL indicator comes on. The
vehicle will accelerate to the same
cruising speed as before.
Pressing the CRUISE button turns
the system off and erases the
previous cruising speed.
CRUISE BUTTON
CANCEL BUTTON
Cruise Control
197
Features
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
198
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Before you begin driving your
vehicle, you should know what
gasoline to use and how to check the
levels of important fluids. You also
need to know how to properly store
luggage or packages. The
information in this section will help
you. If you plan to add any
accessories to your vehicle, please
read the information in this section
first.
Break-in Period
........................... 200
Fuel Recommendation
................ 200
Service Station Procedures
......... 201
Refueling
................................. 201
Opening and Closing the
Hood
................................... 203
Oil Check
................................ 204
Engine Coolant Check
............ 204
Fuel Economy
............................. 205
Accessories and
Modifications
.......................... 208
Carrying Cargo
........................... 210
Before Driving
199
Before Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Break-in Period
Help assure your vehicle's future
reliability and performance by paying
extra attention to how you drive
during the first 600 miles (1,000 km).
During this period:
●
Avoid full-throttle starts and rapid
acceleration.
●
Avoid hard braking for the first 200
miles (300 km).
●
Do not change the oil until the
scheduled maintenance time.
You should also follow these
recommendations with an
overhauled or exchanged engine, or
when the brakes are replaced.
Fuel Recommendation
Your vehicle is designed to operate
on unleaded gasoline with a pump
octane number of 87 or higher. Use
of a lower octane gasoline can cause
a persistent, heavy metallic rapping
noise that can lead to engine
damage.
We recommend using quality
gasoline containing detergent
additives that help prevent fuel
system and engine deposits: In
addition, in order to maintain good
performance, fuel economy, and
emissions control, we strongly
recommend the use of gasoline that
does NOT contain harmful
manganese-based fuel additives such
as MMT, if such gasoline is available.
Use of gasoline with these additives
may adversely affect performance,
and cause the malfunction indicator
lamp on your instrument panel to
come on. If this happens, contact
your authorized dealer for service.
Some gasoline today is blended with
oxygenates such as ethanol. Your
vehicle is designed to operate on
oxygenated gasoline containing up to
10% ethanol by volume. Do not use
gasoline containing methanol. If you
notice any undesirable operating
symptoms, try another service
station or switch to another brand of
gasoline.
Break-in Period, Fuel Recommendation
200
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Because the level of detergency and
additives in gasoline vary in the
market, Honda endorses the use of
‘‘TOP TIER Detergent Gasoline’’
where available to help maintain the
performance and reliability of your
vehicle. TOP TIER Detergent
Gasoline meets a new gasoline
standard jointly established by
leading automotive manufacturers to
meet the needs of today's advanced
engines. Qualifying gasoline retailers
will, in most cases, identify their
gasoline as having met ‘‘TOP TIER
Detergent Gasoline’’ standards at the
retail location. This fuel is
guaranteed to contain the proper
level of detergent additives and be
free of metallic additives. The proper
level of detergent additives, and
absence of harmful metallic additives
in gasoline, help avoid build-up of
deposits in your engine and emission
control system.
For further important fuel-related
information for your vehicle, or
information on gasoline that does not
contain MMT, visit Owner Link at
owners.honda.com
. In Canada, visit
www.honda. ca
for additional
information on gasoline. For more
information on top tier gasoline, visit
www.toptiergas.com.
Refueling
1. Park with the driver's side closest
to the service station pump.
2. Outside of the vehicle, push on the
right side edge of the fuel fill door
in the middle. The fuel fill door will
pop up slightly. Pull it outward to
open it.
FUEL FILL DOOR
Push
Pull out
CONTINUED
Fuel Recommendation, Service Station Procedures
201
Before Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
3. Remove the fuel fill cap slowly.
You may hear a hissing sound as
pressure inside the tank escapes.
Place the fuel fill cap in the holder
on the fuel fill door. To prevent the
fuel fill cap from becoming lost, it
is attached to the fuel filler with a
tether.
4. Stop filling the tank after the fuel
nozzle automatically clicks off. Do
not try to ‘‘top off’’ the tank. Leave
some room for the fuel to expand
with temperature changes.
If the fuel nozzle keeps clicking off
even though the tank is not full,
there may be a problem with your
vehicle's fuel vapor recovery
system. The system helps keep
fuel vapor from going into the
atmosphere. Try filling at another
pump. If this does not fix the
problem, consult your dealer.
Gasoline is highly flammable
and explosive. You can be
burned or seriously injured
when handling fuel.
●
Stop the engine, and keep
heat, sparks, and flame
away.
●
Handle fuel only outdoors.
●
Wipe up spills immediately.
5. Screw the fuel fill cap back on until
it clicks at least once. If you do not
properly tighten the cap, the
malfunction indicator lamp may
come on (see page 306). You will
also see a ‘‘CHECK FUEL CAP’’
message on the information
display.
6. Push the fuel fill door closed until
it latches.
HOLDER
TETHER
FUEL FILL CAP
Service Station Procedures
202
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Opening and Closing the Hood
1. Park the vehicle, and set the
parking brake. Pull the hood
release handle under the lower left
corner of the dashboard. The hood
will pop up slightly.
2. Put your fingers under the front
edge of the hood near the center.
Slide your hand to the left until
you feel the hood latch handle.
Push this handle up to release it.
Lift up the hood.
If the hood latch handle moves
stiffly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated.
3. Holding the grip, pull the support
rod out of its clip. Insert the end
into the designated hole in the
hood.
To close the hood, lift it up slightly to
remove the support rod from the
hole. Put the support rod back into
its holding clip. Lower the hood to
about a foot (30 cm) above the
fender, then let it drop. Make sure it
is securely latched.
HOOD RELEASE HANDLE
LATCH
SUPPORT ROD
GRIP CLIP
Service Station Procedures
203
Before Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Oil Check
Wait a few minutes after turning the
engine off before you check the oil.
1. Remove the dipstick (orange loop).
2. Wipe off the dipstick with a clean
cloth or paper towel.
3. Insert the dipstick all the way back
into its hole.
4. Remove the dipstick again, and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower mark,
see Adding Engine Oil on page 255.
Engine Coolant Check
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see Adding
Engine Coolant on page 258 for
information on adding the proper
coolant.
Refer to Owner's Maintenance
Checks on page 252 for information
about checking other items on your
vehicle.
DIPSTICK
UPPER MARK
LOWER MARK
RESERVE TANK
MAX
MIN
Service Station Procedures
204
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Actual Mileage and EPA Fuel
Economy Estimates Comparison.
Fuel economy is not a fixed number.
It varies based on driving conditions,
driving habits and vehicle condition.
Therefore, it is not possible for one
set of estimates to predict fuel
economy precisely for all drivers in
all environments.
The EPA fuel economy estimates
shown in the example to the right are
a useful tool for comparison when
buying a vehicle. EPA estimates
include:
City MPG － Represents urban
driving in a vehicle in light traffic. A
range of miles per gallon achieved is
also provided.
Highway MPG － Represents a
mixture of rural and interstate
driving, in a warmed-up vehicle,
typical of longer trips in free-flowing
traffic. A range of miles per gallon
achieved is also provided.
Combined Fuel Economy －
Represents a combination of city and
highway driving. The scale
represents the range of combined
fuel economy for other vehicles in
the class.
Estimated Annual Fuel Cost －
Provides an estimated annual fuel
cost, based on 15,000 miles (20,000
km) per year multiplied by the cost
per gallon (based on EPA fuel cost
data) divided by the combined fuel
economy.
For more information on fuel
economy ratings and factors that
affect fuel economy, visit
www.
fueleconomy.gov
(Canada: Visit
www.
vehicles.gc.ca
)
(Sample U.S. EPA label shown)
City MPG
Combined Fuel
Economy
Highway MPG
Estimated Annual
Fuel Cost
CONTINUED
Fuel Economy
205
Before Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Fuel Economy Factors
The following factors can lower your
vehicle's fuel economy:
●
Aggressive driving (hard
acceleration and braking)
●
Excessive idling, accelerating and
braking in stop-and-go traffic
●
Cold engine operation (engines
are more efficient when warmed
up)
●
Driving with a heavy load or the air
conditioner running
●
Improperly inflated tires
Improving Fuel Economy
Vehicle Maintenance
A properly maintained vehicle
maximizes fuel economy. Poor
maintenance can significantly reduce
fuel economy. Always maintain your
vehicle according to the maintenance
messages displayed on the
information display (see Owner's
Maintenance Checks on page 252).
For example:
●
Use the recommended viscosity
motor oil, displaying the API
Certification Seal (see page
255).
●
Maintain proper tire inflation －
An under-inflated tire increases
‘‘rolling resistance,’’ which reduces
fuel economy.
●
Avoid carrying excess weight in
your vehicle － It puts a heavier
load on the engine, increasing fuel
consumption.
●
Keep your vehicle clean － In
particular, a build-up of snow or
mud on your vehicle's underside
adds weight and rolling resistance.
Frequent cleaning helps your fuel
economy.
Drive Efficiently
●
Drive moderately － Rapid
acceleration, abrupt cornering, and
hard braking increase fuel
consumption.
●
Observe the speed limit －
Aerodynamic drag has a big effect
on fuel economy at speeds above
45 mph (75 km/h). Reduce your
speed and you reduce the drag.
Trailers, car top carriers, roof
racks and bike racks are also big
contributors to increased drag.
●
Always drive in the highest gear
possible － If your vehicle has a
manual transmission, you can
boost your fuel economy by up
shifting as early as possible.
Fuel Economy
206
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
●
Avoid excessive idling － Idling
results in 0 miles per gallon (0 kms
per liter).
●
Minimize the use of the air
conditioning system － The A/C
puts an extra load on the engine
which makes it use more fuel. Use
the fresh-air ventilation when
possible.
●
Plan and combine trips －
Combine several short trips into
one. A warmed-up engine is more
fuel efficient than a cold one.
Calculating Fuel Economy
Measuring Techniques
Direct calculation is the
recommended source of information
about your actual fuel economy.
Using frequency of fill-ups or taking
fuel gauge readings are NOT
accurate measures of fuel economy.
Fuel economy may improve over the
first several thousand miles.
Checking Your Fuel Economy
1) Fill the fuel tank until the nozzle automatically clicks off.
2) Reset trip counter to zero.
3) Record the total gallons (liters) needed to refill.
4) Follow one of the simple calculations above.
Miles
driven
Gallons
of fuel
Miles per
Gallon
100 Liter Kilometers
L per
100 km
Fuel Economy
207
Before Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Modifying your vehicle, or installing
some non-Honda accessories, can
make it unsafe. Before you make any
modifications or add any accessories,
be sure to read the following
information.
Accessories
Your dealer has Honda accessories
that allow you to personalize your
vehicle. These accessories have been
designed and approved for your
vehicle, and are covered by warranty.
Although non-Honda accessories
may fit on your vehicle, they may not
meet factory specifications, and could
adversely affect your vehicle's
handling, stability, and reliability.
Improper accessories or
modifications can affect your
vehicle's handling, stability, and
performance, and cause a
crash in which you can be hurt
or killed.
Follow all instructions in this
owner's manual regarding
accessories and modifications.
When properly installed, cellular
phones, alarms, two-way radios, and
low-powered audio systems should
not interfere with your vehicle's
computer controlled systems, such
as your airbags, anti-lock brakes, and
tire pressure monitoring system (if
equipped).
Before installing any accessory:
●
Make sure the accessory does not
obscure any lights, or interfere
with proper vehicle operation or
performance.
●
Be sure electronic accessories do
not overload electrical circuits (see
page 309) or interfere with proper
operation of your vehicle.
●
Before installing any electronic
accessory, have the installer
contact your dealer for assistance.
If possible, have your dealer
inspect the final installation.
●
Do not install accessories on the
side pillars or across the rear
windows. Accessories installed in
these areas may interfere with
proper operation of the side
curtain airbags.
Accessories and Modifications
208
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Modifying Your Vehicle
Removing parts from your vehicle, or
replacing components with non-
Honda components could seriously
affect your vehicle's handling,
stability, and reliability.
Here are some examples:
●
Lowering your vehicle with a non-
Honda suspension kit that
significantly reduces ground
clearance can allow the
undercarriage to hit speed bumps
or other raised objects, which
could cause the airbags to deploy.
●
Raising your vehicle with a non-
Honda suspension kit can affect
the handling, stability, and
reliability.
●
Non-Honda wheels, because they
are a universal design, can cause
excessive stress on suspension
components and will not be
compatible with the tire pressure
monitoring system (TPMS)
ꭧ
.
ꭧ: If equipped
●
Larger or smaller wheels and tires
can interfere with the operation of
your vehicle's anti-lock brakes and
other systems.
●
Modifying your steering wheel or
any other part of your vehicle's
safety features can make the
systems ineffective.
If you plan to modify your vehicle,
consult your dealer.
Accessories and Modifications
209
Before Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Your vehicle has several convenient
storage areas:
●
Upper glove box
●
Lower glove box
●
Front door pockets
●
Seat-back pocket (if equipped)
●
Center pocket
●
Cargo area side pocket
●
Cargo area, including the rear
seats when folded up or down.
●
Seat under box
●
Cargo floor box (all canadian
models with automatic
transmission)
However, carrying too much cargo,
or improperly storing it, can affect
your vehicle's handling, stability,
stopping distance, and tires, and
make it unsafe. Before carrying any
type of cargo, be sure to read the
following pages.
REAR SIDE POCKET
(RIGHT SIDE)
CARGO FLOOR BOX*
2
FRONT DOOR POCKETS
SEAT-BACK POCKET*
1
SEAT UNDER BOX CENTER POCKET
CARGO AREA
LOWER GLOVE BOX
ꭧ1: If equipped
ꭧ2: All Canadian models with automatic transmission
UPPER GLOVE BOX
Carrying Cargo
210
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Load Limits (Payload)
The maximum load for your vehicle
is 850 lbs (385 kg).
See Tire And Loading Information
label attached to the driver's
doorjamb.
Label Example
This figure includes the total weight
of all occupants, cargo, and
accessories, and the tongue load if
you are towing a trailer.
Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
Steps for Determining Correct Load
Limit －
1. Locate the statement ‘‘The
combined weight of occupants and
cargo should never exceed XXX kg
or XXX lbs.’’ on your vehicle's
placard.
2. Determine the combined weight of
the driver and passengers that will
be riding in your vehicle.
3. Subtract the combined weight of
the driver and passengers from
XXX kg or XXX lbs.
CONTINUED
Carrying Cargo
211
Before Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
4. The resulting figure equals the
available amount of cargo and
luggage load capacity. For
example, if the ‘‘XXX’’ amount
equals 1,400 lbs. and there will be
five 150 lb. passengers in your
vehicle, the amount of available
cargo and luggage load capacity is
650 lbs.
(1,400 － 750 (5 ꭦ 150) ＝ 650
lbs.)
5. Determine the combined weight of
luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo
and luggage load capacity
calculated in Step 4.
6. If your vehicle will be towing a
trailer, load from your trailer will
be transferred to your vehicle.
Consult this manual to determine
how this reduces the available
cargo and luggage load capacity of
your vehicle.
Example 1
Example 2
Example 3
In addition, the total weight of the
vehicle, all occupants, accessories,
cargo, and trailer tongue load must
not exceed the Gross Vehicle Weight
Rating (GVWR) or the Gross Axle
Weight Rating (GAWR). Both are on
a label on the driver's doorjamb.
Max Load 850 lbs
(385 kg)
Passenger Weight
150 lbs x 2 ＝ 300 lbs
(68 kg x 2 ＝ 136 kg)
Cargo Weight
550 lbs
(249 kg)
Max Load 850 lbs
(385 kg)
Passenger Weight
150 lbs x 4 ＝ 600 lbs
(68 kg x 4 ＝ 272 kg)
Cargo Weight
250 lbs
(113 kg)
Max Load 850 lbs
(385 kg)
Passenger Weight
150 lbs x 5 ＝ 750 lbs
(68 kg x 5 ＝ 340 kg)
Cargo Weight
100 lbs
(45 kg)
Carrying Cargo
212
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Carrying Cargo in the Passenger
Compartment
●
Store or secure all items that could
be thrown around and hurt
someone during a crash.
●
Be sure items placed on the floor
behind the front seats cannot roll
under the seats and interfere with
the driver's ability to operate the
pedals, the proper operation of the
seats, or proper operation of the
sensors under the seats.
●
Keep the upper and lower glove
boxes closed while driving. If it is
open, a passenger could injure
their knees during a crash or
sudden stop.
●
If you fold the rear seats up or
down, tie down items that could be
thrown about the vehicle during a
crash or sudden stop. Also, keep
all cargo below the bottom of the
windows. If it is higher, it could
interfere with the proper operation
of the side curtain airbags.
Carrying Cargo in the Cargo Area
●
Distribute cargo evenly on the
floor of the cargo area, placing the
heaviest items on the bottom and
as far forward as possible. Tie
down items that could be thrown
about the vehicle during a crash or
sudden stop.
●
Do not stack items higher than the
back of the rear seats. They can
block your view and be thrown
around the vehicle during a crash.
●
If you carry large items that
prevent you from closing the
tailgate, exhaust gas can enter the
passenger area. To avoid the
possibility of carbon monoxide
poisoning, follow the instructions
on page 53.
CONTINUED
Carrying Cargo
213
Before Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Cargo Hooks
The two or four hooks on the floor
can be used to install a net for
securing items.
Your vehicle also has cargo hooks on
side panel in the cargo area.
They are designed to hold light
items. Heavy objects may damage
the hook. Make sure any items put
on each hook weigh less than 2.2 lbs
(1 kg).
HOOKꭧ: If equipped
HOOK
ꭧ
Carrying Cargo
214
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
This section gives you tips on
starting the engine under various
conditions, and how to operate the
manual and automatic transmissions.
It also includes important information
on parking your vehicle, the braking
system, the vehicle stability assist
(VSA
®
), and the tire pressure
monitoring system (TPMS).
Driving Guidelines
...................... 216
Preparing to Drive
...................... 217
Starting the Engine
..................... 218
Manual Transmission
................. 219
Automatic Transmission
............. 221
Driving with the Paddle Shifters
(Sport only)
............................. 226
Parking
....................................... 231
Braking System
.......................... 232
Anti-lock Brakes (ABS)
............... 233
Vehicle Stability Assist (VSA
®
),
aka Electronic Stability Control
(ESC), System
..................... 235
Tire Pressure Monitoring System
(TPMS)
................................... 237
Towing a Trailer
.......................... 240
Towing Your Vehicle Behind a
Motorhome
............................. 240
Driving
215
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
On Sport model
Your vehicle is designed to give you
optimum handling and performance
on well-maintained roads. As part of
this design, your vehicle has
minimum ground clearance.
●
Use caution if you ever drive your
vehicle on very rough or rutted
roads. You could damage the
suspension and underbody by
bottoming out. Going too fast over
parking lot ‘‘speed bumps’’ can
also cause damage.
●
Curbs and steep inclines could
damage the front and rear
bumpers. Low curbs that do not
affect the average vehicle may be
high enough to hit the bumper on
your vehicle. The front or rear
bumper may scrape when trying to
drive onto an incline, such as a
steep driveway or trailer ramps.
Driving Guidelines
216
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
You should do the following checks
and adjustments before you drive
your vehicle.
1. Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove frost, snow,
or ice.
2. Check that the hood is fully
closed.
3. Visually check the tires. If a tire
looks low, use a gauge to check its
pressure (see page 275).
4. Check that any items you may be
carrying are stored properly or
fastened down securely.
5. Check the seat adjustment (see
page 93).
6. Check the adjustment of the inside
and outside mirrors (see page
101).
7. Check the steering wheel
adjustments (see page 77).
8. Make sure the doors and the
tailgate are securely closed and
locked.
9. Fasten your seat belt. Check that
your passengers have fastened
their seat belts (see page 14).
10. When you start the engine, check
the gauges and indicators in the
instrument panel (see page 59).
Preparing to Drive
217
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
1. Apply the parking brake.
2. In cold weather, turn off all
electrical accessories to reduce the
drain on the battery.
3.
Manual transmission:
Press the clutch pedal down all the
way. The START (III) position
does not function unless the clutch
pedal is pressed.
Automatic transmission:
Make sure the shift lever is in
Park. Press on the brake pedal.
4. Without touching the accelerator
pedal, turn the ignition key to the
START (III) position. Do not hold
the key in the START (III) position
for more than 15 seconds at a time.
If the engine does not start right
away, pause for at least 10 seconds
before trying again.
The immobilizer system protects your
vehicle from theft. If an improperly
coded key (or other device) is used, the
engine's fuel system is disabled. For
more information, see page 79.
The engine is harder to start in cold
weather. Also, the thinner air found at
altitudes above 8,000 feet (2,400
meters) adds to this problem.
Starting the Engine
218
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The manual transmission is
synchronized in all forward gears for
smooth operation. It has a lockout so
you cannot shift directly from fifth to
reverse. When shifting up or down,
make sure you push the clutch pedal
down all the way, shift to the next
gear, and let the pedal up gradually.
When you are not shifting, do not
rest your foot on the clutch pedal.
This can cause the clutch to wear out
faster.
Come to a full stop before you shift
into reverse. You can damage the
transmission by trying to shift into
reverse with the vehicle moving.
Push down the clutch pedal, and
pause for a few seconds before
shifting into reverse, or shift into one
of the forward gears for a moment.
This stops the gears so they won't
‘‘grind.’’
When slowing down, you can get
extra braking from the engine by
shifting to a lower gear. This extra
braking can help you maintain a safe
speed and prevent your brakes from
overheating while going down a
steep hill. Before downshifting, make
sure the engine speed will not go
into the tachometer's red zone in the
lower gear.
Rapid slowing or speeding up
can cause loss of control on
slippery surfaces. If you crash,
you can be injured.
Use extra care when driving on
slippery surfaces.
CONTINUED
Manual Transmission
219
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Recommended Shift Points
Drive in the highest gear that lets the
engine run and accelerate smoothly.
This will give you good fuel economy
and effective emissions control. The
following shift points are
recommended:
Shift up Normal acceleration
1st to 2nd
2nd to 3rd
3rd to 4th
4th to 5th
15 mph (24 km/h)
27 mph (44 km/h)
39 mph (63 km/h)
53 mph (85 km/h)
Engine Speed Limiter
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the
tachometer's red zone. If this occurs,
you may feel the engine cut in and
out. This is caused by a limiter in the
engine's computer controls. The
engine will run normally when you
reduce the rpm below the red zone.
The engine speed limiter only works
when you upshift; engine speed is
not limited during downshifts. Before
downshifting, make sure the engine
will not go into the tachometer's red
zone.
Manual Transmission
220
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Shift Lever Position Indicators
These indicators on the instrument
panel show which position the shift
lever is in.
The ‘‘D’’ indicator comes on for a few
seconds when you turn the ignition
switch to the ON (II) position. If it
flashes while driving (in any shift
position), it indicates a possible
problem in the transmission.
If the malfunction indicator lamp
comes on along with the ‘‘D’’
indicator, there is a problem with the
automatic transmission control
system. Avoid rapid acceleration, and
have the transmission checked by
your dealer as soon as possible.
Shifting
To shift from Park to any position,
press firmly on the brake pedal and
press the release button on the front
of the shift lever, then pull the lever.
You cannot shift out of Park when
the ignition switch is in the LOCK
(0) or the ACCESSORY (I) position.
All models except U.S. Sport
U.S. Sport model
U.S. Sport model is shown.
RELEASE
BUTTON
SHIFT LEVER
CONTINUED
Automatic Transmission
221
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
All models except U.S. Sport
To shift from: Do this:
PtoR
Press the brake pedal, and
press the shift lever release
button.
RtoP
Press the shift lever release
button.
NtoR
DtoD
3
D3 to 2
2to1
1to2
Move the shift lever.
2toD
3
D3 to D
DtoN
NtoD
RtoN
U.S. Sport model
To shift from: Do this:
PtoR
Press the brake pedal, and
press the shift lever release
button.
RtoP
Press the shift lever release
button.
NtoR
DtoS
StoD
Move the shift lever.
DtoN
NtoD
RtoN
Park (P) － This position
mechanically locks the transmission.
Use Park whenever you are turning
off or starting the engine. To shift out
of Park, you must press on the brake
pedal and have your foot off the
accelerator pedal. Press the release
button on the front of the shift lever
to move it.
If you have done all of the above and
still cannot move the lever out of
Park, see Shift Lock Release on
page 225.
To avoid transmission damage, come
to a complete stop before shifting
into Park. You must also press the
release button to shift into Park. The
shift lever must be in Park before
you can remove the key from the
ignition switch.
Automatic Transmission
222
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Reverse (R) － Press the brake
pedal and press the release button on
the front of the shift lever to shift
from Park to reverse. To shift from
reverse to neutral, come to a
complete stop, and then shift. Press
the release button before shifting
into reverse from neutral.
Neutral (N) － Use neutral if you
need to restart a stalled engine, or if
it is necessary to stop briefly with the
engine idling. Shift to the Park
position if you need to leave your
vehicle for any reason. Press on the
brake pedal when you are moving
the shift lever from neutral to
another gear.
Drive (D) － Use this position for
your normal driving. The
transmission automatically selects a
suitable gear (1 through 5) for your
speed and acceleration. You may
notice the transmission shifting up at
higher engine speeds when the
engine is cold. This helps the engine
warm up faster.
All models except U.S. Sport
Drive (D3) － This position is similar
to D, except only the first three gears
are selected. Use D
3 to provide
engine braking when going down a
steep hill. D
3 can also keep the
transmission from cycling between
third and fourth gears in stop-and-go
driving.
All models except U.S. Sport
Second (2) － To shift to second,
press the release button on the front
of the shift lever. This position locks
the transmission in second gear. It
does not downshift to first gear when
you come to a stop.
Use second gear:
●
For more power when climbing.
●
To increase engine braking when
going down steep hills.
●
For starting out on a slippery
surface or in deep snow.
●
To help reduce wheel spin.
CONTINUED
Automatic Transmission
223
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
All models except U.S. Sport
First (1) － To shift from second to
first, press the release button on the
front of the shift lever. This position
locks the transmission in first gear.
By upshifting and downshifting
through 1, 2, D
3, and D, you can
operate the transmission much like a
manual transmission without a clutch
pedal.
U.S. Sport model
S position (S) － To shift into the S
position, press the release button on
the front of the shift lever, and move
the lever to S. This position is similar
to D, except only first to fourth gears
are selected and fifth gear is no
longer available. However, during
most driving conditions, only first
through third gears are used.
With the shift lever in D or S, you
can also use the paddle shifters to
shift the transmission up or down.
With the paddle shifters, you can
operate the transmission much like a
manual transmission without a clutch
pedal. For more information on
driving with the paddle shifters, see
page 226.
Engine Speed Limiter
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the
tachometer's red zone. If this occurs,
you may feel the engine cut in and
out. This is caused by a limiter in the
engine's computer controls. The
engine will run normally when you
reduce the rpm below the red zone.
Automatic Transmission
224
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Shift Lock Release
This allows you to move the shift
lever out of Park if the normal
method of pushing on the brake
pedal and pressing the release button
does not work.
1. Set the parking brake.
2. Remove the key from the ignition
switch.
3. Put a cloth on the notch of the shift
lock release slot cover to prevent
scratches. Using a small flat-tip
screwdriver or a metal fingernail
file, carefully pry on the notch of
the cover to remove it.
4. Insert the key in the shift lock
release slot.
5. Push down on the key while you
press the release button on the
shift lever and move the shift lever
out of Park to neutral.
6. Remove the key from the shift lock
release slot, then reinstall the
cover. Make sure the notch on the
cover is on the left side. Insert the
key into the ignition switch, press
the brake pedal, and restart the
engine.
If you need to use the shift lock
release, it means your vehicle is
developing a problem. Have it
checked by your dealer.
NOTCH
COVER
RELEASE BUTTON
SHIFT LOCK
RELEASE SLOT
U.S. Sport model is shown.
Automatic Transmission
225
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Using the Paddle Shifters in the D
position (D-Paddle Shift Mode)
U.S. models only
When you are driving in the D
position, you can shift the
transmission up or down manually
with the paddle shifters.
To shift up or down, use the ＋
(right) or － (left) paddle shifter on
either side of the steering wheel.
Each time you pull the ＋ (right)
paddle, the transmission shifts to a
higher gear. Pull the － (left) paddle
to downshift. You will see the
selected gear number on the
instrument panel.
When you pull either paddle shifter,
the gear position indicator shows you
the selected gear number.
When the transmission returns to
drive mode (D), the displayed gear
number disappears.
GEAR POSITION INDICATOR
Driving with the Paddle Shifters (Sport only)
226
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Downshifting with the paddle shifter
allows you to increase the engine
braking when going down steep or
long hills, and provides more power
when climbing uphills. You can
upshift the transmission manually to
reduce the rpm. Driving in the
higher gear helps fuel economy.
The transmission control system
monitors the accelerator pedal use
and your driving conditions. When
you press the accelerator pedal as in
normal driving, the system judges
that you are driving at a constant
cruising speed without using the
paddle shifters. Under these
conditions, D-paddle shift mode is
canceled, and the transmission
automatically returns to drive mode
(D).
The transmission remains in the
selected gear if you do not
accelerate.
Each time you pull either paddle
shifter, the transmission shifts one
gear up or down. If you want to shift
up or down more than two gears, pull
the paddle shifter twice, pause, and
then pull it again.
The automatic transmission will not
allow you to shift up or down if:
●
You downshift before the engine
speed reaches the highest
threshold of the lower gear.
If you try to do this, the gear position
indicator will flash the number of the
lower gear several times, then return
to a higher gear.
●
You upshift before the engine
speed reaches the lowest
threshold of the higher gear.
●
You pull both paddle shifters at the
same time.
The transmission downshifts to first
gear and returns to drive mode (D)
when the vehicle comes to a
complete stop or the vehicle speed is
about 6 mph (10 km/h).
CONTINUED
Driving with the Paddle Shifters (Sport only)
227
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
When you pull and hold the ＋
(right) paddle shifter, the
transmission automatically returns to
drive mode (D).
If there is a problem in the
transmission while you are driving
with the paddle shifters, the D
indicator flashes, the D-paddle shift
mode is canceled, and the
transmission returns to drive mode
(D).
Using the Paddle Shift in the S
position (Sequential Shift Mode)
U.S. models only
With the shift lever in the S position,
you can manually shift up or down
with the paddle shifters. The
transmission goes into the sequential
shift mode and holds the selected
gear.
To enter the sequential shift mode,
press the release button on the front
of the shift lever, move the lever to
the S position, then pull either paddle
shifter. To return to drive mode (D),
move the shift lever to the D
position. While you are driving in the
sequential shift mode, the
transmission will not automatically
return to drive mode (D).
When you move the shift lever from
‘‘D’’ to the ‘‘ S’’ position and pull either
paddle shifter, the gear position
indicator displays ‘‘M’’ along with the
selected gear number.
To upshift, pull the ＋ (right) paddle
shifter. To downshift, pull the －
(left) paddle shifter.
GEAR POSITION INDICATOR
‘‘M’’ INDICATOR
Driving with the Paddle Shifters (Sport only)
228
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
When you accelerate from a stop, the
transmission starts in first gear, and
you must manually upshift between
first and fifth gears. Make sure you
upshift before the engine speed
reaches the tachometer's red zone.
The transmission remains in the
selected gear (5, 4, 3, 2, or 1). There
is no automatic downshift when you
push the accelerator pedal to the
floor.
When you are driving in 4th or 5th
gear, the transmission downshifts to
the lower gear under the following
conditions:
●
The vehicle slows down to a
certain speed.
●
You press the brake pedal.
Downshifting with the paddle shifter
allows you to increase the engine
braking when going down steep or
long hills, and provides more power
when climbing uphills. You can
upshift the transmission manually to
reduce the rpm. Driving in the
higher gear helps fuel economy.
The transmission also shifts
automatically as the vehicle comes to
a complete stop. It downshifts to first
gear when the vehicle speed reaches
6 mph (10 km/h) or less.
The automatic transmission will not
allow you to shift up or down if:
●
You downshift before the engine
speed reaches the highest
threshold of the lower gear.
If you try to do this, the gear position
indicator will flash the number of the
lower gear several times, then return
to a higher gear.
CONTINUED
Driving with the Paddle Shifters (Sport only)
229
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If the vehicle speed decreases below
the redline of the selected lower gear
while the indicator is flashing, the
transmission downshifts, and the
indicator displays the selected gear.
●
You upshift before the engine
speed reaches the lowest
threshold of the higher gear.
●
You pull both paddle shifters at the
same time.
Starting in Second Gear
When you are in sequential shift
mode, and the vehicle is stopped,
pull the ＋ (right) paddle shifter to
shift to second gear. You will see
‘‘M2’’ in the display. Starting in
second gear helps to reduce
wheelspin in deep snow or on a
slippery surface.
Recommended Shift Points
Drive in the highest gear that lets the
engine run and accelerate smoothly.
This will give you good fuel economy
and effective emissions control. The
following shift points are
recommended:
Shift up Normal acceleration
1st to 2nd
2nd to 3rd
3rd to 4th
4th to 5th
15 mph (24 km/h)
25 mph (40 km/h)
40 mph (64 km/h)
47 mph (76 km/h)
Driving with the Paddle Shifters (Sport only)
230
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Always use the parking brake when
you park your vehicle. Make sure the
parking brake is set firmly, or your
vehicle may roll if it is parked on an
incline.
If your vehicle has an automatic
transmission, set the parking brake
before you put the transmission in
Park. This keeps the vehicle from
moving and putting pressure on the
parking mechanism in the
transmission.
Parking Tips
●
Make sure the windows are
closed.
●
Turn off the lights.
●
Place any packages, valuables, etc.
in the cargo area or take them with
you.
●
Lock the doors and the tailgate.
On Sport model
Check the indicator on the
instrument panel to verify that the
security system is set.
●
Never park over dry leaves, tall
grass, or other flammable
materials. The hot three way
catalytic converter could cause
these materials to catch on fire.
●
If the vehicle is facing uphill, turn
the front wheels away from the
curb. If your vehicle has a manual
transmission, put it in first gear
and set the parking brake.
●
If the vehicle is facing downhill,
turn the front wheels toward the
curb. If your vehicle has a manual
transmission, put it in reverse gear
and set the parking brake.
●
Make sure the parking brake is
fully released before driving away.
Driving with the parking brake
partially set can overheat or
damage the rear brakes.
Parking
231
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Your vehicle is equipped with front
disc brakes. The brakes on the rear
wheels are drum. A power assist
helps reduce the effort needed on the
brake pedal. The anti-lock brake
system (ABS) helps you retain
steering control when braking very
hard.
Resting your foot on the pedal keeps
the brakes applied lightly, builds up
heat, and reduces their effectiveness
and reduces brake pad life. In
addition, fuel economy can be
reduced. It also keeps your brake
lights on all the time, confusing
drivers behind you.
Constant application of the brakes
when going down a long hill builds
up heat and reduces their
effectiveness. Use the engine to
assist the brakes by taking your foot
off the accelerator and downshifting
to a lower gear.
Check your brakes after driving
through deep water. Apply the
brakes moderately to see if they feel
normal. If not, apply them gently and
frequently until they do. Be extra
cautious and alert in your driving.
Braking System Design
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the left-front brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
Brake Pad Wear Indicators
If the front brake pads need
replacing, you will hear a distinctive,
metallic screeching sound when you
apply the brake pedal. If you do not
have the brake pads replaced, they
will screech all the time. It is normal
for the brakes to occasionally squeal
or squeak when you apply them.
Braking System
232
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The anti-lock brake system (ABS)
helps prevent the wheels from
locking up, and helps you retain
steering control by pumping the
brakes rapidly, much faster than a
person can do it.
The electronic brake distribution
(EBD) system, which is part of the
ABS, also balances the front-to-rear
braking distribution according to
vehicle loading.
You should never pump the brake pedal.
Let the ABS work for you by always
keeping firm, steady pressure on the
brake pedal. This is sometimes
referred to as ‘‘stomp and steer.’’
You will feel a pulsation in the brake
pedal when the ABS activates, and
you may hear some noise. This is
normal: it is the ABS rapidly
pumping the brakes. On dry
pavement, you will need to press on
the brake pedal very hard before the
ABS activates. However, you may
feel the ABS activate immediately if
you are trying to stop on snow or ice.
ABS Indicator
If the ABS indicator comes on, the
anti-lock function of the braking
system has shut down. The brakes
still work like a conventional system,
but without anti-lock. You should
have your dealer inspect your vehicle
as soon as possible.
If the ABS indicator comes on while
driving, test the brakes as shown on
page 307.
CONTINUED
Anti-lock Brakes (ABS)
233
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If the ABS indicator and the brake
system indicator come on together,
and the parking brake is fully
released, the EBD system may also
be shut down.
Test your brakes as instructed on
page 307. If the brakes feel normal,
drive slowly and have your vehicle
repaired by your dealer as soon as
possible. Avoid sudden hard braking
which could cause the rear wheels to
lock up and possibly lead to a loss of
control.
Important Safety Reminders
ABS does not reduce the time or
distance it takes to stop the
vehicle. It only helps with the
steering control during braking.
ABS will not prevent a skid that
results from changing direction
abruptly, such as trying to take a
corner too fast or making a sudden
lane change. Always drive at a safe
speed for the road and weather
conditions.
ABS cannot prevent a loss of
stability. Always steer moderately
when you are braking hard. Severe
or sharp steering wheel movement
can still cause your vehicle to veer
into oncoming traffic or off the road.
A vehicle with ABS may require a
longer distance to stop on loose or
uneven surfaces, such as gravel or
snow, than a vehicle without anti-
lock.
Anti-lock Brakes (ABS)
234
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If equipped
The vehicle stability assist (VSA)
system helps to stabilize the vehicle
during cornering if the vehicle turns
more or less than desired. It also
assists you in maintaining traction
while accelerating on loose or
slippery road surfaces. It does this by
regulating the engine's output and by
selectively applying the brakes.
When VSA activates, you may notice
that the engine does not respond to
the accelerator in the same way it
does at other times. There may also
be some noise from the VSA
hydraulic system. You will also see
the VSA system indicator blink.
The VSA system cannot enhance the
vehicle's driving stability in all
situations and does not control your
vehicle's entire braking system. It is
still your responsibility to drive and
corner at reasonable speeds and to
leave a sufficient margin of safety.
VSA OFF Indicator
When VSA is off, the VSA OFF
indicator comes on as a reminder.
Vehicle Stability Assist
(VSA) System Indicator
When VSA activates, you will see the
VSA system indicator blink.
If this indicator comes on while
driving, pull to the side of the road
when it is safe, and turn off the
engine. Reset the system by
restarting the engine. If the VSA
system indicator stays on or comes
back on while driving, have the VSA
system inspected by your dealer.
NOTE: The main function of the VSA
system is generally known as
Electronic Stability Control (ESC).
The system also includes a traction
control function.
If the indicator does not come on
when the ignition switch is turned to
the ON (II) position, there may be a
problem with the VSA system. Have
your dealer inspect your vehicle as
soon as possible.
If the low tire pressure indicator or
TPMS indicator comes on, the VSA
system automatically turns on even if
the VSA system is turned off by
pressing the VSA OFF switch (see
page 236). If this happens, you
cannot turn the VSA system off by
pressing the VSA OFF switch again.
Without VSA, your vehicle will have
normal braking and cornering ability,
but it will not have VSA traction and
stability enhancement.
CONTINUED
Vehicle Stability Assist (VSA
®
), aka Electronic Stability Control (ESC), System
235
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
VSA OFF Switch
This switch is under the driver's side
beverage holder. To turn the VSA
system on and off, press and hold it
until you hear a beep.
When VSA is off, the VSA OFF
indicator comes on as a reminder.
Press and hold the switch again. It
turns the system back on.
VSA is turned on every time you start
the engine, even if you turned it off
the last time you drove the vehicle.
In certain unusual conditions when
your vehicle gets stuck in shallow
mud or fresh snow, it may be easier
to free it with the VSA temporarily
switched off. When the VSA system
is off, the traction control system is
also off. You should only attempt to
free your vehicle with the VSA off if
you are not able to free it when the
VSA is on.
Immediately after freeing your
vehicle, be sure to switch the VSA on
again. We do not recommend driving
your vehicle with the VSA and
traction control systems switched off.
VSA and Tire Sizes
Driving with varying tire or wheel
sizes may cause the VSA to
malfunction. When replacing tires,
make sure they are the same size
and type as your original tires (see
page 279).
If you install winter tires, make sure
they are the same size as those that
were originally supplied with your
vehicle. Exercise the same caution
during winter driving as you would if
your vehicle was not equipped with
VSA.
VSA OFF SWITCH
Vehicle Stability Assist (VSA
®
), aka Electronic Stability Control (ESC), System
236
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
U.S. models only
Your vehicle is equipped with a tire
pressure monitoring system (TPMS)
that turns on every time you start the
engine and monitors the pressure in
your tires while driving.
Each tire has its own pressure sensor
(not including the spare tire). If the
air pressure of a tire becomes
significantly low, the sensor in that
tire immediately sends a signal that
causes the low tire pressure indicator
to come on.
Low Tire Pressure
Indicator
When the low tire pressure indicator
is on, one or more of your tires is
significantly underinflated. You
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure as indicated on
the vehicle's tire information placard.
If you think you can safely drive a
short distance to a service station,
proceed slowly, and inflate the tire to
the recommended pressure shown
on the driver's doorjamb.
If the tire is flat, or if the tire pressure
is too low to continue driving, replace
the tire with the compact spare tire
(see page 286).
If you cannot make the low tire
pressure indicator go out after
inflating the tires to the specified
values, have your dealer check the
system as soon as possible.
Driving on a significantly under-
inflated tire causes the tire to
overheat and can lead to tire failure.
Under-inflation also reduces fuel
efficiency and tire tread life, and may
affect the vehicle's handling and
stopping ability.
Because tire pressure varies by
temperature and other conditions,
the low tire pressure indicator may
come on unexpectedly.
CONTINUED
Tire Pressure Monitoring System (TPMS)
237
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
For example, if you check and fill
your tires in a warm area, then drive
in extremely cold weather, the tire
pressure will be lower than
measured and could be underinflated
and cause the low tire pressure
indicator to come on. Or, if you
check and adjust your tire pressure
in cooler conditions, and drive into
extremely hot conditions, the tire
may become overinflated. However,
the low tire pressure indicator will
not come on if the tires are
overinflated.
Refer to page 275 for tire inflation
guidelines.
Although your tire pressure is
monitored, you must manually check
the tire pressures monthly.
Each tire, including the spare, should
be checked monthly when cold, and
set to the recommended inflation
pressure as specified on the tire
information label and in the owner's
manual (see page 276).
Tire Pressure Monitoring
System (TPMS) Indicator
This indicator comes on and stays on
if there is a problem with the tire
pressure monitoring system.
If this happens, the system will shut
off and no longer monitor tire
pressures. Have the system checked
by your dealer as soon as possible.
If the low tire pressure indicator or
TPMS indicator comes on, the VSA
system
ꭧ
automatically turns on even
if the VSA system is turned off by
pressing the VSA OFF switch
ꭧ
(see
page 236). If this happens, you cannot
turn the VSA system off by pressing
the VSA off switch again.
ꭧ: If equipped
When you restart the vehicle with
the compact spare tire, the TPMS
indicator may also come on and stay
on after driving several miles
(kilometers).
Tire Pressure Monitoring System (TPMS)
238
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Changing a Tire with TPMS
If you have a flat tire, the low tire
pressure indicator will come on.
Replace the flat tire with the compact
spare tire (see page 286).
Each wheel (except the compact
spare tire wheel) is equipped with a
tire pressure sensor. You must use
TPMS specific wheels. It is
recommended that you always have
your tires serviced by your dealer or
qualified technician.
After you replace the flat tire with the
compact spare tire, the low tire
pressure indicator stays on. This is
normal; the system is not monitoring
the spare tire pressure. Manually
check the spare tire pressure to be
sure it is correct. After several miles
(kilometers) driving with the
compact spare tire, the TPMS
indicator comes on and the low tire
pressure indicator goes off.
The low tire pressure indicator or the
TPMS indicator will go off, after
several miles (kilometers) driving,
when you replace the spare tire with
the specified regular tire equipped
with the tire pressure monitor
sensor.
Never use a puncture-repairing agent
in a flat tire. If used, you will have to
replace the tire pressure sensor.
Have the flat tire repaired by your
dealer as soon as possible.
As required by the FCC: This device
complies with Part 15 of the FCC rules.
Operation is subject to the following two
conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210. Operation is
subject to the following two conditions :
(1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Tire Pressure Monitoring System (TPMS)
239
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Towing a Trailer
Your vehicle is not designed to tow a
trailer. Attempting to do so can void
your warranties.
Towing Your Vehicle Behind a
Motorhome
Your vehicle can be towed behind a
motorhome at legal highway speeds
up to 65 mph (100 km/h). Do not
exceed 65 mph (100 km/h).
Otherwise, severe transmission
damage will occur.
When purchasing a tow bar, make
sure you select a reputable
manufacturer and installer. Follow
the manufacturer's attachment
instructions carefully.
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns freely before you begin
towing.
Automatic transmission:
Perform the following procedure
every day immediately before you
begin towing. Otherwise severe
automatic transmission damage will
occur.
1. Check the transmission fluid level
(see page 261).
Do not overfill.
2. Start the engine.
3. Press on the brake pedal. Move
the shift lever through all its
positions.
4. Shift to the D position and hold for
5 seconds, then to N. Let the
engine run for 3 minutes, then turn
it off.
Severe transmission damage will occur
if the vehicle is shifted from reverse to
neutral and then towed with the drive
wheels on the ground.
Towing a Trailer, Towing Your Vehicle Behind a Motorhome
240
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
5. Release the parking brake.
Manual transmission:
1. Move the shift lever into the
neutral position.
2. Release the parking brake.
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock. Make
sure the radio and any items plugged
into the accessory power sockets are
turned off so you do not run down
the battery.
When you stop towing your vehicle
and shift out of the neutral position,
you may not be able to move the shift
lever from neutral to reverse or Park.
If this happens, press the brake pedal
and turn the ignition switch to the
ON (II) position, then shift out of
neutral.
Extended Towing
If you tow more than 8 hours in one
day, you should repeat the above
procedure at least every 8 hours
(when you stop for fuel, etc.).
Failure to follow the recommended
instructions exactly will result in severe
automatic transmission damage. If you
cannot shift the transmission or start
the engine, your vehicle must be
transported on a flat-bed truck or
trailer.
CONTINUED
Towing Your Vehicle Behind a Motorhome
241
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
When towing your vehicle for long
periods, remove the 30 A Radio fuse
to reduce drain on battery. This fuse
is located in the interior fuse box and
shown as number 61 below.
Only remove the fuse after you have
performed the transmission shifting
procedure, and the key is in the
ACCESSORY (I) position. Store the
fuse in an obvious location (center
pocket, etc) as a reminder to re-
install the fuse before driving the
vehicle.
RADIO FUSE
Towing Your Vehicle Behind a Motorhome
242
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Automatic transmission
If you tow a Fit behind a motorhome,
the transmission fluid must be
changed every 2 years or 30,000
miles (48,000 km), whichever comes
first.
Towing Your Vehicle Behind a Motorhome
243
Driving
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
244
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
This section also includes
instructions on how to read the
Maintenance Minder messages on
the information display, and
instructions for simple maintenance
tasks you may want to take care of
yourself.
If you have the skills and tools to
perform more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page 337 for information on how to
obtain a copy, or see your dealer.
U.S. Vehicles:
Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certified’’ to EPA
standards.
Maintenance Safety
..................... 246
Maintenance Minder
TM
............... 247
Fluid Locations
........................... 254
Adding Engine Oil
...................... 255
Changing the Engine Oil and
Filter
....................................... 256
Engine Coolant
........................... 258
Windshield Washers
................... 260
Transmission Fluid
..................... 261
Automatic Transmission
Fluid
................................... 261
Manual Transmission Fluid
.... 262
Brake and Clutch Fluid
............... 263
Lights
.......................................... 264
Cleaning the Seat Belts
............... 269
Floor Mats
.................................. 269
Audio Antenna
............................ 270
Dust and Pollen Filter
................. 270
Wiper Blades
.............................. 271
Tires
........................................... 275
Checking the Battery
.................. 281
Vehicle Storage
........................... 283
Maintenance
245
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
All service items not detailed in this
section should be performed by a
certified technician or other qualified
mechanic.
Important Safety Precautions
To eliminate potential hazards, read
the instructions before you begin,
and make sure you have the tools
and skills required.
●
Make sure your vehicle is parked
on level ground, the parking brake
is set, and the engine is off.
●
To clean parts, use a commercially
available degreaser or parts
cleaner, not gasoline.
●
To reduce the possibility of fire or
explosion, keep cigarettes, sparks,
and flames away from the battery
and all fuel-related parts.
●
Wear eye protection and protective
clothing when working with the
battery or compressed air.
Improperly maintaining this
vehicle, or failing to correct a
problem before driving can
cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection
and maintenance
recommendations and
schedules in this owner's
manual.
Potential Vehicle Hazards
●
Carbon Monoxide poison from
engine exhaust. Be sure there is
adequate ventilation whenever you
operate the engine.
●
Burns from hot parts. Let the
engine and exhaust system cool
down before touching any parts.
●
Injury from moving parts. Do
not run the engine unless
instructed to do so.
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner's
manual.
Some of the most important safety
precautions are given here. However,
we cannot warn you of every
conceivable hazard that can arise in
performing maintenance. Only you
can decide whether or not you
should perform a given task.
Maintenance Safety
246
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Your vehicle displays engine oil life
and maintenance service items on
the information display to show you
when you should have your dealer
perform engine oil replacement and
indicated maintenance service.
Based on the engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your vehicle calculates the remaining
engine oil life and displays it as a
percentage.
Engine Oil Life Display
To see the current engine oil life,
turn the ignition switch to the ON
(II) position, then press and release
the select/reset knob repeatedly
until the engine oil life indicator
appears (see page 69).
The remaining engine oil life is
shown on the display according to
this table:
Calculated Engine
Oil Life (%)
Displayed
Engine Oil Life (%)
100%－91% 100%
90%－81% 90%
80%－71% 80%
70%－61% 70%
60%－51% 60%
50%－41% 50%
40%－31% 40%
30%－21% 30%
20%－16% 20%
15%－11% 15%
10%－6% 10%
5%－1% 5%
0% 0%
SELECT/RESET KNOB
ENGINE OIL LIFE INDICATOR
CONTINUED
Maintenance Minder
TM
247
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If the remaining engine oil life is 15
to 6 percent, you will see the engine
oil life indicator every time you turn
the ignition switch to the ON (II)
position. The Maintenance Minder
indicator will also come on, and the
maintenance item code(s) for other
scheduled maintenance items
needing service will be displayed
above the ‘‘OIL LIFE’’ message.
The 15 and 11 percent oil life
indicator reminds you that the time is
coming soon to take your vehicle in
for the required maintenance.
When the remaining engine oil life is
5 to 1 percent, you will see a
‘‘SERVICE’’ message along with the
same maintenance item code(s),
every time you turn the ignition
switch to the ON (II) position.
MAINTENANCE
MINDER INDICATOR
MAINTENANCE ITEM CODE(S)
ENGINE OIL
LIFE INDICATOR
Maintenance Minder
TM
248
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The maintenance item code or codes
indicate the main and sub items
required at the time of the oil change
(see page 250).
You can switch the information
display from the engine oil life
display to the odometer or the trip
meter. Press and release the select/
reset knob on the instrument panel.
When the engine oil life is 15 to 1
percent, the Maintenance Minder
indicator (
) comes on every time
you turn the ignition switch to the
ON (II) position, then it goes out if
you switch the information display.
When you see this message, have
the indicated maintenance performed
by your dealer as soon as possible.
When the remaining engine oil life is
0 percent, the engine oil life indicator
will blink. The display comes on
every time you turn the ignition
switch to the ON (II) position. The
Maintenance Minder indicator (
)
also comes on and remains on in the
instrument panel. When you see this
message, immediately have the
indicated maintenance done by your
dealer.
If you do not perform the indicated
maintenance, negative distance
traveled is displayed and begins to
blink after the vehicle has been
driven 10 miles (10 km) or more.
Negative distance traveled means
your vehicle has passed the
maintenance required point.
Immediately have the indicated
maintenance done by your dealer.
NEGATIVE DISTANCE TRAVELED
CONTINUED
Maintenance Minder
TM
249
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To change the information display
from the engine oil life display to the
odometer, the trip meter or average
fuel economy, press and release the
select/reset knob.
When the engine oil life is 0 percent
or negative distance traveled, the
Maintenance Minder indicator (
)
remains on even if you change the
information display.
Immediately have the service
performed, and make sure to reset
the display as described.
Maintenance Main Items and Sub
Items
All maintenance items displayed on
the information display are in code.
For an explanation of these
maintenance codes, see page 253.
Resetting the Engine Oil Life
Display
Your dealer will reset the display
after completing the required
maintenance service. You will see
‘‘OIL LIFE 100%’’ on the information
display the next time you turn the
ignition switch to the ON (II)
position.
If maintenance service is done by
someone other than your dealer,
reset the Maintenance Minder as
follows:
1. Turn the ignition switch to the ON
(II) position.
2. Press the select/reset knob
repeatedly until the engine oil life
is displayed.
MAINTENANCE MAIN ITEM
MAINTENANCE SUB ITEM(S)
Maintenance Minder
TM
250
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
3. Press the select/reset knob for
about 10 seconds. The engine oil
life and the maintenance item
code(s) will blink.
4. Press the select/reset knob for
another 5 seconds. The
maintenance item code(s) will
disappear, and the engine oil life
will reset to ‘‘100.’’
Important Maintenance
Precautions
If you have the required service done
but do not reset the display, or reset
the display without doing the service,
the system will not show the proper
maintenance intervals. This can lead
to serious mechanical problems
because you will no longer have an
accurate record of when
maintenance is needed.
Your authorized Honda dealer knows
your vehicle best and can provide
competent, efficient service.
CONTINUED
Maintenance Minder
TM
251
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
However, service at a dealer is not
mandatory to keep your warranties in
effect. Maintenance may be done by
any qualified service facility or
person who is skilled in this type of
automotive service. Make sure to
have the service facility or person
reset the display as previously
described. Keep all receipts as proof
of completion, and have the person
who does the work fill out your
Honda Service History or Canadian
Maintenance Log. Check your
warranty booklet for more
information.
We recommend using Honda parts
and fluids whenever you have
maintenance done. These are
manufactured to the same high
quality standards as the original
components, so you can be confident
of their performance and durability.
U.S. Vehicles:
According to state and federal
regulations, failure to perform
maintenance on the items marked
with ＃ will not void your emissions
warranties. However, all
maintenance services should be
performed in accordance with the
intervals indicated by the information
display.
Owner's Maintenance Checks
You should check the following
items at the specified intervals. If you
are unsure of how to perform any
check, turn to the appropriate page
listed.
●
Engine oil level － Check every
time you fill the fuel tank. See page
204.
●
Engine coolant level － Check the
radiator reserve tank every time
you fill the fuel tank. See page 204.
●
Automatic transmission － Check
the fluid level monthly. See page
261.
●
Brakes － Check the fluid level
monthly. See page 263.
●
Tires － Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
276.
●
Lights － Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page 264.
Maintenance Minder
TM
252
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Symbol Maintenance Main Items
A
●
Replace engine oil
ꭧ1
B
●
Replace engine oil and oil filter
●
Inspect front and rear brakes
●
Check parking brake adjustment
●
Inspect these items:
●
Tie rod ends, steering gear box, and boots
●
Suspension components
●
Driveshaft boots
●
Brake hoses and lines (including ABS/VSA)
●
All fluid levels and condition of fluids
●
Exhaust system
＃
●
Fuel lines and connections
＃
●
Check expiration date for TRK bottle
ꭧ2
ꭧ1: If the message ‘‘SERVICE’’ does not appear more than 12 months after the
display is reset, change the engine oil every year.
ꭧ2: Canadian A/T models only
＃: See information on maintenance and emissions warranty on page 252.
NOTE:
●
Independent of the Maintenance Minder information, replace the brake
fluid every 3 years.
●
Inspect idle speed every 160,000 miles (256,000 km).
●
Adjust the valves during services A, B, 1, 2, or 3 only if they are noisy.
Symbol Maintenance Sub Items
1
●
Rotate tires
2
●
Replace air cleaner element
If you drive in dusty conditions, replace every 15,000
miles (24,000 km).
●
Replace dust and pollen filter
If you drive primarily in urban areas that have high
concentrations of soot in the air from industry and from
diesel-powered vehicles, replace every 15,000 miles
(24,000 km).
●
Inspect drive belt
3
●
Replace transmission fluid
If you tow a Fit behind a motorhome, the transmission
fluid must be changed every 2 years or 30,000 miles
(48,000 km), whichever comes first. (For A/T only)
4
●
Replace spark plugs
●
Inspect valve clearance
5
●
Replace engine coolant
Maintenance Minder
TM
Maintenance Minder
253
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
CLUTCH FLUID
(Manual
Transmission only)
(Gray cap)
RADIATOR CAP
ENGINE OIL FILL CAP
AUTOMATIC TRANSMISSION
FLUID DIPSTICK (Yellow loop)
WASHER FLUID
(Blue cap)
ENGINE OIL DIPSTICK
(Orange loop)
ENGINE COOLANT
RESERVOIR
BRAKE FLUID
(Black cap)
Fluid Locations
254
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Unscrew and remove the engine oil
fill cap on the valve cover. Pour in the
oil slowly and carefully so you do not
spill any. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment.
Reinstall the engine oil fill cap, and
tighten it securely. Wait a few
minutes, and recheck the oil level on
the engine oil dipstick. Do not fill
above the upper mark; you could
damage the engine.
Recommended Engine Oil
Oil is a major contributor to your
engine's performance and longevity.
Always use a premium-grade 0W-20
detergent oil displaying the API
Certification Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute's latest requirements.
Honda Motor Oil is the preferred
0W-20 lubricant for your vehicle. It is
highly recommended that you use
Honda Motor Oil in your vehicle for
optimum engine protection. Make
sure the API Certification Seal says
‘‘For Gasoline Engines.’’
The oil viscosity or weight is
provided on the container's label.
0W-20 oil is formulated for year-
round protection of your vehicle to
improve cold weather starting and
fuel economy.
ENGINE OIL FILL CAP
API CERTIFICATION SEAL
Ambient Temperature
CONTINUED
Adding Engine Oil
255
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Synthetic Oil
You may use a synthetic motor oil if
it meets the same requirements
given for a conventional motor oil, it
displays the API Certification Seal,
and it is the proper weight. You must
follow the oil and filter change
intervals shown on the information
display.
Engine Oil Additives
Your vehicle does not require any oil
additives. Additives may adversely
affect the engine or transmission
performance and durability.
Changing the Engine Oil and
Filter
Always change the oil and filter
according to the maintenance
messages shown on the information
display. The oil and filter collect
contaminants that can damage your
engine if they are not removed
regularly.
Changing the oil and filter requires
special tools and access from
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lift for this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
1. Run the engine until it reaches
normal operating temperature,
then shut it off.
2. Open the hood, and remove the
engine oil fill cap. Remove the oil
drain bolt and washer from the
bottom of the engine. Drain the oil
into an appropriate container.
WASHER
OIL DRAIN BOLT
Adding Engine Oil, Changing the Engine Oil and Filter
256
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
3. Remove the oil filter, and let the
remaining oil drain. A special
wrench (available from your
dealer) is required.
Make sure the oil filter gasket is
not stuck to the engine block. If it
is, remove it before installing a
new oil filter.
4. Install a new oil filter according to
the instructions that come with it.
Make sure to clean off any dirt and
dust on the connecting surface of a
new oil filter.
5. Put a new washer on the drain
bolt, then reinstall the drain bolt.
Tighten the drain bolt to:
29 lbf·ft (39 N·m, 4.0 kgf·m)
6. Refill the engine with the
recommended oil.
Engine oil change capacity
(including filter):
3.8 US qt (3.6 L)
7. Replace the engine oil fill cap. Start
the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn off the
engine, and check your work.
8. Let the engine run for several
minutes, then check the drain bolt
and oil filter for leaks.
9. Turn off the engine, let it sit for
several minutes, then check the oil
level on the dipstick. If necessary,
add more oil.
Improper disposal of engine oil can be
harmful to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.
OIL FILTER
Changing the Engine Oil and Filter
257
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Adding Engine Coolant
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX
line. Inspect the cooling system for
leaks.
Always use Honda Long-life Anti-
freeze/Coolant Type 2. This coolant
is pre-mixed with 50 percent
antifreeze and 50 percent water.
Never add straight antifreeze or plain
water.
If Honda antifreeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporary replacement. Make sure it
is a high-quality coolant
recommended for aluminum
engines. Continued use of any non-
Honda coolant can result in
corrosion, causing the cooling
system to malfunction or fail. Have
the cooling system flushed and
refilled with Honda antifreeze/
coolant as soon as possible.
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
RESERVE TANK
Engine Coolant
258
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
1. Make sure the engine and radiator
are cool.
2. Relieve any pressure in the cooling
system by turning the radiator cap
counterclockwise, without
pressing down.
3. Remove the radiator cap by
pushing down and turning
counterclockwise.
4. The coolant level should be up to
the base of the filler neck. Add
coolant if it is low.
Pour the coolant slowly and
carefully so you do not spill any.
Clean up any spill immediately; it
could damage components in the
engine compartment.
5. Put the radiator cap back on, and
tighten it fully.
6. Pour coolant into the reserve tank.
Fill it halfway between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle's
cooling system. They may not be
compatible with the coolant or
engine components.
RADIATOR CAP
RESERVE TANK
Engine Coolant
259
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Check the fluid level in the
windshield washer reservoir at least
monthly during normal use. This
reservoir supplies the windshield and
rear window washers.
On U.S. models:
To check the
windshield washer fluid level, open
the hood and look for the windshield
washer reservoir located behind the
right headlight. You will see a ‘‘1/2’’
mark on the reservoir.
On Canadian models:
The low washer
level indicator comes on when the
level is low (see page 65).
Fill the reservoir with a good-quality
windshield washer fluid. This
increases the cleaning capability and
prevents freezing in cold weather.
When you refill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition the blade edges.
Do not use engine antifreeze or a
vinegar/water solution in the
windshield washer reservoir. Antifreeze
can damage your vehicle's paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer fluid.
WINDSHIELD WASHER RESERVOIR
Fill up to here
Windshield Washers
260
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Automatic Transmission Fluid
Check the fluid level with the engine
at normal operating temperature.
1. Park the vehicle on level ground.
Start the engine, let it run until the
radiator fan comes on, then shut
off the engine. For accurate
results, wait about 60 seconds (but
no longer than 90 seconds) before
doing step 2.
2. Remove the dipstick (yellow loop)
from the transmission, and wipe it
with a clean cloth.
3. Insert the dipstick all the way into
the transmission securely as
shown in the illustration.
4. Remove the dipstick, and check
the fluid level. It should be
between the upper and lower
marks.
5. If the level is below the lower
mark, add fluid into the dipstick
hole to bring it to the level
between the upper and lower
marks.
Pour the fluid slowly and carefully so
you do not spill any. Clean up any
spill immediately; it could damage
components in the engine
compartment.
Always use Honda ATF DW-1
(automatic transmission fluid).
DIPSTICK
UPPER
MARK
LOWER
MARK
HOT
MARK
CONTINUED
Transmission Fluid
261
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Use only Honda ATF DW-1 (automatic
transmission fluid). Do not mix with
other transmission fluids.
Using transmission fluid other than
Honda ATF DW-1 may cause
deterioration in transmission operation
and durability, and could result in
damage to the transmission.
Damage resulting from the use of
transmission fluid other than Honda
ATF DW-1 is not covered by the Honda
new vehicle warranty.
6. Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
If you are not sure how to add fluid,
contact your dealer.
Manual Transmission Fluid
Check the fluid level with the
transmission at normal operating
temperature and the vehicle on level
ground.
Remove the transmission filler bolt,
and carefully feel inside the bolt hole
with your finger. The fluid level
should be up to the edge of the bolt
hole. If it is not, add Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the hole.
Put a new washer on the filler bolt,
then reinstall the filler bolt and
tighten it securely.
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certification seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as soon
as it is convenient.
If you are not sure how to check and
add fluid, contact your dealer.
FILLER BOLT
Correct level WASHER
Transmission Fluid
262
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Check the brake fluid level in the
reservoirs monthly.
There are up to two reservoirs,
depending on the model. They are:
●
Brake fluid reservoir (all models)
●
Clutch fluid reservoir
(manual transmission models
only)
Independent of the Maintenance
Minder information, replace the
brake fluid every 3 years.
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 fluid, from a sealed
container, as a temporary
replacement.
Using any non-Honda brake fluid can
cause corrosion and decrease the life
of the system. Have the brake
system flushed and refilled with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Brake fluid marked DOT 5 is not
compatible with your vehicle's
braking system and can cause
extensive damage.
Brake Fluid
The fluid level should be between
the MIN and MAX marks on the side
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected for leaks or
worn brake pads/shoes.
MAX MIN
CONTINUED
Brake and Clutch Fluid
263
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Clutch Fluid
Manual Transmission only
The fluid level should be between
the MIN and MAX marks on the side
of the reservoir. If it is not, add brake
fluid to bring it up to that level. Use
the same fluid specified for the brake
system.
A low fluid level can indicate a leak in
the clutch system. Have this system
inspected as soon as possible.
Headlight Aiming
The headlights were properly aimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area, readjustment may be
required. Adjustments should be
done by your dealer or another
qualified mechanic.
Replacing a Headlight Bulb
Your vehicle has halogen headlight
bulbs. When replacing a bulb, handle
it by its base, and protect the glass
from contact with your skin or hard
objects. If you touch the glass, clean
it with denatured alcohol and a clean
cloth.
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
1. Open the hood.
2. Remove the electrical connector
from the bulb by pulling the
connector straight back.
3. Remove the rubber weather seal
by pulling on the tab.
MAX
MIN
BULBELECTRICAL
CONNECTOR
RUBBER WEATHER SEAL
HOLD-DOWN
WIRE
Brake and Clutch Fluid, Lights
264
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
4. Unclip the end of the hold-down
wire from its slot. Pivot the wire
out of the way, then remove the
bulb.
5. Install the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place, and clip the end into
the slot.
6. Make sure that the hold-down wire
is installed properly and securely.
You can check its installation from
the inspection window on the
headlight assembly.
7. Install the rubber seal over the
back of the headlight assembly.
8. Push the electrical connector onto
the new bulb. Make sure it is
connected securely. Turn on the
headlights to test the new bulb.
Replacing a Parking Light/Front
Side Marker Bulb
1. Open the hood.
2. Remove the socket by turning it
one-quarter turn counterclockwise.
3. Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
4. Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
INSPECTION WINDOW
HOLD-DOWN
WIRE
CONTINUED
Lights
265
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
5. Turn on the lights to make sure
the new bulb is working.
Replacing a Front Turn Signal
Light Bulb
1. Open the hood.
2. Remove the socket by turning it
one-quarter turn counterclockwise.
3. Remove the bulb from the socket
by pushing the bulb in and turning
it counterclockwise until it
unlocks.
4. Install the new bulb in the socket.
Turn it clockwise to lock it in
place.
5. Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
6. Turn on the lights to make sure
the new bulb is working.
Lights
266
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Replacing a Fog Light Bulb
On Sport model
The fog lights use halogen bulbs.
When replacing a bulb, handle it
carefully. See page 264 for more
information.
1. Use a Phillips-head screwdriver to
remove the screw.
2. To remove the fog light assembly,
pull it out of the bumper.
3. Remove the electrical connector
from the bulb by squeezing the
connector to unlock the tab, then
slide the connector off the bulb.
4. Remove the bulb by turning it
about one-quarter turn
counterclockwise.
5. Insert the new bulb into the hole,
and turn it one-quarter turn
clockwise to lock it in place.
6. Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
7. Turn on the fog lights to test the
new bulb.
8. Reinstall the fog light assembly,
then tighten the screw.
SCREW
ELECTRICAL CONNECTOR
CONTINUED
Lights
267
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Replacing Rear Bulbs
1. Open the tailgate. Place a cloth on
the edge of the light assembly
cover to prevent scratches.
Remove the cover by carefully
prying in the notch on its middle
edge with a flat-tip screwdriver.
2. Determine which of the three
bulbs is burned out: stop/taillight,
back-up light, or turn signal light.
3. Remove the socket by turning it
one-quarter turn counterclockwise.
4. Remove the burned out bulb from
the socket by pulling it straight out
of its socket.
5. Install the new bulb in the socket.
6. Turn on the lights to make sure
the new bulb is working.
7. Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
8. Reinstall the light assembly cover.
High-mount Brake Light
The high-mount brake light should
be replaced by your dealer.
LIGHT ASSEMBLY COVER
Lights
268
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Cleaning the Seat Belts
If your seat belts get dirty, use a soft
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air-dry before
you use the vehicle.
Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
Floor Mats
The driver's floor mat that came with
your vehicle hooks over the floor mat
anchors. To lock each hook, turn the
knob clockwise. This keeps the floor
mat from sliding forward and
possibly interfering with the pedals.
When cleaning or replacing, turn the
knob counterclockwise to unhook
the floor mat.
LOOP
Unlock
Lock
KNOB
CONTINUED
Cleaning the Seat Belts, Floor Mats
269
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If you remove the driver's floor mat,
make sure to re-anchor it when you
put it back in your vehicle.
If you use a non-Honda floor mats,
make sure they fit properly and that
they can be anchored securely. Do
not put additional floor mats on top of
the anchored mat.
Audio Antenna
Your vehicle is equipped with an
antenna at the rear of the roof. Before
using a ‘‘drive-through’’ car wash,
remove the antenna by unscrewing it by
hand. This prevents the antenna from
being damaged by the car wash
brushes.
Dust and Pollen Filter
This filter removes the dust and
pollen that is brought in from the
outside through the heating and
cooling system.
Have your dealer replace the filter
when this service is indicated by a
maintenance message on the
information display. It should be
replaced every 15,000 miles (24,000
km) if you drive primarily in urban
areas that have high concentrations
of soot in the air, or if the flow from
the heating and cooling system
becomes less than usual.
Floor Mats, Audio Antenna, Dust and Pollen Filter
270
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Check the condition of the wiper
blades at least every six months.
Replace them if you find signs of
cracking in the rubber, areas that are
getting hard, or if they leave streaks
and unwiped areas when used.
To replace a front wiper blade:
1. Raise the wiper arm off the
windshield. Raise the driver's side
first, then the passenger's side.
Do not open the hood when the wiper
arms are raised, or you will damage the
hood and wiper arms.
2. Disconnect the blade assembly
from the wiper arm:
●
Put a cloth on the edge of the
lock tab to prevent scratches,
then push up on the lock tab
carefully with a flat-tip
screwdriver.
WIPER ARMS
LOCK TAB
CONTINUED
Wiper Blades
271
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
●
Pivot the blade assembly toward
the wiper arm until it releases
from the wiper arm.
When replacing a wiper blade,
make sure not to drop the wiper
blade or wiper arm down on the
windshield.
3. Remove the blade from its holder
by grabbing the tabbed end of the
blade. Pull firmly until the tabs
come out of the holder.
4. Examine the new wiper blades. If
they have no plastic or metal
reinforcement along the back
edge, remove the metal
reinforcement strips from the old
wiper blade, and install them in the
slots along the edge of the new
blade.
Make sure the two rubber tabs
inside the blade fit to each notch of
the reinforcement, as shown.
WIPER ARM BLADE
REINFORCEMENT
TOP
BLADE
Wiper Blades
272
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
5. Place the top of the wiper blade on
the end of the blade assembly, and
slide the blade onto the assembly.
Make sure the blade is completely
installed.
6. Slide the wiper blade assembly
onto the wiper arm. Push down the
lock tab. Make sure the wiper
blade assembly locks in place.
7. Lower the wiper arm down against
the windshield, the passenger's
side first, then the driver's side.
To replace the rear wiper blade:
1. Raise the wiper arm off the rear
window.
2. Disconnect the blade assembly
from the wiper arm by pivoting the
blade assembly upward.
CONTINUED
Wiper Blades
273
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
3. Slide the blade out of the holder. 4. Examine the new wiper blades. If
they have no plastic or metal
reinforcement along the back
edge, remove the metal
reinforcement strips from the old
wiper blade, and install them in the
slots along the edge of the new
blade.
5. Slide the new blade into the
holder. Make sure it is engaged in
the slot along its full length.
Insert both ends of the blade into
the holder. Make sure they are
secure.
6. Install the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
7. Lower the wiper arm against the
windshield.
BLADE
REINFORCEMENT
Wiper Blades
274
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
To safely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inflated.
The following pages give more
detailed information on how to take
care of your tires and what to do
when they need to be replaced.
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner's manual regarding tire
inflation and maintenance.
Inflation Guidelines
Keeping the tires properly inflated
provides the best combination of
handling, tread life, and riding
comfort.
●
Underinflated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
●
Overinflated tires can make your
vehicle ride more harshly, are
more prone to damage from road
hazards, and wear unevenly.
The tire pressure monitoring system
(TPMS)
ꭧ
warns you when a tire
pressure is low. See page 237 for
more information.
ꭧ: If equipped
Even though your vehicle is
equipped with TPMS, we
recommend that you visually check
your tires every day. If you think a
tire might be low, check it
immediately with a tire gauge.
Use a gauge to measure the air
pressure in each tire at least once a
month. Even tires that are in good
condition may lose 1 to 2 psi (10 to
20 kPa, 0.1 to 0.2 kgf/cm
2
) per
month. Remember to check the
spare tire (if equipped) at the same
time.
Check the air pressures when the
tires are cold. This means the vehicle
has been parked for at least 3 hours,
or driven less than 1 mile (1.6 km).
Add or release air, if needed, to
match the recommended cold tire
pressures.
CONTINUED
Tires
275
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If you check air pressures when the
tires are hot [driven for several miles
(kilometers)], you will see readings 4
to 6 psi (30 to 40 kPa, 0.3 to 0.4
kgf/cm
2
) higher than the cold
readings. This is normal. Do not let
air out to match the recommended
cold air pressure. The tire will be
underinflated.
You should get your own tire
pressure gauge and use it whenever
you check your tire pressures. This
will make it easier for you to tell if a
pressure loss is due to a tire problem
and not due to a variation between
gauges.
While tubeless tires have some
ability to self-seal if they are
punctured, you should look closely
for punctures if a tire starts losing
pressure.
Recommended Tire Pressures
The following charts show the
recommended cold tire pressures for
most normal and high-speed driving
conditions.
All models except Sport
Tire Size Cold Tire Pressure
for Normal Driving
175/65R15 84S Front/Rear:
32 psi (220 kPa,
2.2 kgf/cm
2
)
Sport model
Tire Size Cold Tire Pressure
for Normal Driving
185/55R16 83H Front/Rear:
33 psi (230 kPa,
2.3 kgf/cm
2
)
If equipped
The compact spare tire pressure is:
60 psi (420 kPa, 4.2 kgf/cm
2
)
For convenience, the recommended
tire sizes and cold tire pressures are
on a label on the driver's doorjamb.
For additional information about your
tires, see page 325.
Tires
276
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Tire Inspection
Every time you check inflation, you
should also examine the tires for
damage, foreign objects, and wear.
You should look for:
●
Bumps or bulges in the tread or
side of the tire. Replace the tire if
you find either of these conditions.
●
Cuts, splits, or cracks in the side of
the tire. Replace the tire if you can
see fabric or cord.
●
Excessive tread wear.
Your tires have wear indicators
molded into the tread. When the
tread wears down, you will see a 1/2
inch (12.7 mm) wide band across the
tread. This shows there is less than
1/16 inch (1.6 mm) of tread left on
the tire.
A tire this worn gives very little
traction on wet roads. You should
replace the tire if you can see three
or more tread wear indicators.
Tire Service Life
The service life of your tires is
dependent on many factors,
including, but not limited to, driving
habits, road conditions, vehicle
loading, inflation pressure,
maintenance history, speed, and
environmental conditions (even
when the tires are not in use).
In addition to your regular
inspections and inflation pressure
maintenance, it is recommended that
you have annual inspections
performed once the tires reach five
years old. It is also recommended
that all tires, including the spare, be
removed from service after 10 years
from the date of manufacture,
regardless of their condition or state
of wear.
The last four digits of the TIN (tire
identification number) are found on
the sidewall of the tire and indicate
the date of manufacture (See Tire
Labeling on page 325).
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR
CONTINUED
Tires
277
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Tire Maintenance
In addition to proper inflation, correct
wheel alignment helps to decrease
tire wear. If you find a tire is worn
unevenly, have your dealer check the
wheel alignment.
Have your dealer check the tires if
you feel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed from the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comfort and tire life. For best results,
have the installer perform a dynamic
balance.
On vehicles with aluminum wheels,
improper wheel weights can damage
your vehicle's aluminum wheels. Use
only Honda wheel weights for
balancing.
Tire Rotation
To help increase tire life and
distribute wear more evenly, rotate
the tires according to the
maintenance messages displayed on
the information display. Move the
tires to the positions shown in the
illustration each time they are
rotated. If you purchase directional
tires, rotate only front-to-back.
When the tires are rotated, make
sure the air pressures are checked.
Replacing Tires and Wheels
Replace your tires with radial tires of
the same size, load range, speed
rating, and maximum cold tire
pressure rating (as shown on the
tire's sidewall).
Mixing radial and bias-ply tires on
your vehicle can reduce braking
ability, traction, and steering
accuracy. Using tires of a different
size or construction can cause the
ABS and vehicle stability assist
system (VSA)
ꭧ
to work
inconsistently.
The ABS and VSA system
ꭧ
work by
comparing the speed of the wheels.
When replacing tires, use the same
size originally supplied with the
vehicle. Tire size and construction
can affect wheel speed and may
cause the system to activate.
ꭧ: If equipped
Front Front
(For Non-directional
Tires and Wheels)
(For Directional
Tires and Wheels)
Tires
278
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
It is best to replace all four tires at
the same time. If that is not possible
or necessary, replace the two front
tires or two rear tires as a pair.
Replacing just one tire can seriously
affect your vehicle's handling.
If you ever replace a wheel, make
sure that the wheel's specifications
match those of the original wheels.
Also be sure you use only TPMS
specific wheels (if equipped). If you
do not, the tire pressure monitoring
system will not work.
Replacement wheels are available at
your dealer.
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner's manual.
Wheel and Tire Specifications
Wheels:
All models except Sport
15 x 5 1/2J
Sport model
16 x 6J
Tires:
All models except Sport
175/65R15 84S
Sport model
185/55R16 83H
See page 323 for DOT tire quality
grading information, and page 325
for tire size and labeling information.
CONTINUED
Tires
279
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Winter Driving
Tires marked ‘‘M ＋ S’’ or ‘‘All
Season’’ on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best performance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
Snow Tires
If you mount snow tires on your
vehicle, make sure they are radial
tires of the same size and load range
as the original tires. Mount snow
tires on all four wheels. The traction
provided by snow tires on dry roads
may be lower than your original tires.
Check with the tire dealer for
maximum speed recommendations.
Tire Chains
Mount tire chains on your tires when
required by driving conditions or
local laws. Install them only on the
front tires.
Because your vehicle has limited tire
clearance, Honda strongly
recommends using the chains listed
below, made by Security Chain
Company (SCC).
All models except Sport
SC1026
Sport model
SC1030
When installing cables, follow the
manufacturer's instructions, and
mount them as tight as you can.
Make sure they are not contacting
the brake lines or suspension. Drive
slowly with them installed. If you
hear them coming into contact with
the body or chassis, stop and
investigate. Remove them as soon as
you begin driving on cleared roads.
Traction devices that are the wrong size
or improperly installed can damage
your vehicle's brake lines, suspension,
body, and wheels. Stop driving if they
are hitting any part of the vehicle.
Using the wrong chains, or not
properly installing chains, can
damage the brake lines and
cause a crash in which you can
be seriously injured or killed.
Follow all instructions in this
owner's manual regarding the
selection and use of tire chains.
Tires
280
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Wheels
Clean the wheels as you would the
rest of the exterior. Wash them with
the same solution, and rinse them
thoroughly.
If equipped
Aluminum alloy wheels have a
protective clear-coat that keeps the
aluminum from corroding and
tarnishing. Cleaning the wheels with
harsh chemicals (including some
commercial wheel cleaners) or a stiff
brush can damage the clear-coat. To
clean the wheels, use a mild
detergent and a soft brush or sponge.
Checking the Battery
Check the condition of the battery
monthly by looking at the test
indicator window. The label on the
battery explains the test indicator's
colors.
The location of the test indicator
window varies between
manufacturers.
Check the terminals for corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it off with plain
water. Dry off the battery with a cloth
or paper towel. Coat the terminals
with grease to help prevent future
corrosion.
If additional battery maintenance is
needed, see your dealer or a
qualified technician.
TEST INDICATOR WINDOW
CONTINUED
Tires, Checking the Battery
281
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
WARNING: Battery posts,
terminals, and related accessories
contain lead and lead compounds.
Wash your hands after handling.
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle's
electrical system. Always disconnect
the negative (－) cable first, and
reconnect it last.
On vehicl es without navigation system
If your vehicle's battery is
disconnected, or goes dead, the time
setting is lost. To reset the time, see
page 193.
If your vehicle's battery is
disconnected, or goes dead, the
audio system may disable itself. The
next time you turn on the radio, you
will see ‘‘ENTER CODE’’ in the
frequency display. Use the preset
buttons to enter the code (see page
192).
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt
you.
Wear protective clothing and a
face shield, or have a skilled
technician do the battery
maintenance.
On vehicles with navigation system
The navigation system will also
disable itself. The next time you turn
on the ignition switch, the system
will require you to enter ‘‘ENTER
CODE’’ before it can be used. Refer
to the navigation system manual.
Checking the Battery
282
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If you need to park your vehicle for
an extended period (more than 1
month), there are several things you
should do to prepare it for storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.
●
Fill the fuel tank.
●
Wash and dry the exterior
completely.
●
Clean the interior. Make sure the
carpeting, floor mats, etc., are
completely dry.
●
Leave the parking brake off. Put
the transmission in reverse
(manual) or Park (automatic).
●
Block the rear wheels.
●
If the vehicle is to be stored for a
longer period, it should be
supported on jackstands so the
tires are off the ground.
●
Leave one window open slightly (if
the vehicle is being stored
indoors).
●
Disconnect the battery.
●
Support the front and rear wiper
blade arms with a folded towel or
rag so they do not touch the
windshield.
●
To minimize sticking, apply a
silicone spray lubricant to all door
and tailgate seals. Also, apply a
vehicle body wax to the painted
surfaces that mate with the door
and tailgate seals.
●
Cover the vehicle with a
‘‘breathable’’ cover, one made from
a porous material such as cotton.
Non-porous materials, such as
plastic sheeting, trap moisture,
which can damage the paint.
●
If possible, periodically run the
engine until it reaches full
operating temperature (the cooling
fans cycle on and off twice).
Preferably, do this once a month.
Vehicle Storage
283
Maintenance
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
284
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
This section covers the more
common problems that motorists
experience with their vehicles. It
gives you information about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again. If
not, you will also find instructions on
getting your vehicle towed.
Compact Spare Tire
.................... 286
Changing a Flat Tire
................... 287
Temporarily Repairing a Flat
Tire
......................................... 293
If the Engine Won't Start
............. 299
Jump Starting
.............................. 301
If the Engine Overheats
.............. 303
Low Oil Pressure Indicator
......... 305
Charging System Indicator
......... 305
Malfunction Indicator Lamp
........ 306
Brake System Indicator
............... 307
Fuses
.......................................... 308
Fuse Locations
............................ 311
Emergency Towing
..................... 313
If Your Vehicle Gets Stuck
.......... 314
Taking Care of the Unexpected
285
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Except all Canadian models with
automatic transmission
Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or
replaced, and put it back on your
vehicle as soon as you can.
Check the inflation pressure of the
compact spare tire every time you
check the other tires. It should be
inflated to:
60 psi (420 kPa, 4.2 kgf/cm
2
)
Follow these precautions:
●
Never exceed 50 mph (80 km/h).
●
This tire gives a harsher ride and
less traction on some road
surfaces. Use greater caution while
driving.
●
Do not mount tire chains on the
compact spare tire.
●
Do not use your compact spare tire
on another vehicle unless it is the
same make and model.
●
On vehicles with the TPMS
system, the low tire pressure
indicator comes on and stays on
after you replace the flat tire with
the compact spare tire. After
several miles (kilometers) driving
with the compact spare tire, the
TPMS indicator comes on and the
low tire pressure indicator goes
off.
Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed for mounting a regular tire.
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
Compact Spare Tire
286
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Except all Canadian models with
automatic transmission
If you have a flat tire while driving,
stop in a safe place to change it.
Drive slowly along the shoulder until
you get to an exit or an area to stop
that is far away from the traffic lanes.
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
1. Park the vehicle on firm, level, and
non-slippery ground. Put the
transmission in Park (automatic)
or reverse (manual). Apply the
parking brake.
2. Turn on the hazard warning lights,
and turn the ignition switch to the
LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire.
3. Lift the rear center head restraint.
4. Open the tailgate. Raise the cargo
area floor lid by lifting it up with
the back of the strap. To keep the
floor lid open, hook the looped
side of the strap to the legs of the
rear center head restraint.
5. Take the tool kit out of the spare
tire.
FLOOR LID LOOP
SPARE
TIRE
TOOL KIT JACK STRAP
CONTINUED
Changing a Flat Tire
287
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
6. Take the jack out of the cargo area.
Turn the jack's end bracket
counterclockwise to loosen it, then
remove the jack by lifting it
straight up.
7. Unscrew the wing bolt and take
the spare tire out of its well.
8. On all models except Sport and
Canadian LX model with manual
transmission, remove the wheel
cover by carefully prying under its
edge with the flat tip of the
extension.
9. Loosen each wheel nut 1/2 turn
with the wheel nut wrench.
EXTENSION WHEEL NUT
WHEEL COVER
WHEEL NUT WRENCH
Changing a Flat Tire
288
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
10. Place the jack under the jacking
point nearest the tire you need to
change. It is pointed to by a △
mark molded into the underside of
the body (Sport model). Turn the
end bracket clockwise until the top
of the jack contacts the jacking
point. Make sure the jacking point
tab is resting in the jack notch.
11. Use the extension and the wheel
nut wrench as shown to raise the
vehicle until the flat tire is off the
ground.
12. Remove the wheel nuts, then
remove the flat tire. Handle the
wheel nuts carefully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up.
13. Before mounting the spare tire,
wipe any dirt off the mounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully; it may be hot from
driving.
JACKING POINT
EXTENSION
WHEEL NUT WRENCH
BRAKE HUB
CONTINUED
Changing a Flat Tire
289
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
14. Put on the spare tire. Put the
wheel nuts back on finger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is firmly against the
hub. Do not try to tighten the
wheel nuts fully.
15. Lower the vehicle to the ground,
and remove the jack.
16. Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
facility.
Tighten the wheel nuts to:
80 lbf·ft (108 N·m, 11 kgf·m)
17.
On Sport model and Canadian LX
model with manual transmission:
Remove the center cap before
storing the flat tire.
18. Remove the strap loop from the
legs of the head restraint and
lower the cargo area floor lid.
19. Pull the floor lid toward you and
remove the tabs.
20. Pull the floor lid out.
TAB
FLOOR LID
Changing a Flat Tire
290
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
21. Place the flat tire face down in the
spare tire well.
22. Secure the flat tire by screwing the
wing bolt back into its hole.
23. Store the jack. Place the tool kit in
the center of the flat tire.
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
24. Place the floor lid in the cargo
area.
25. Store the wheel cover or center
cap in the cargo area. Make sure it
will not get scratched or damaged.
26. Close the tailgate.
27.
On U.S. models
Your vehicle's original tire has a
tire pressure monitoring system
sensor. To replace a tire, refer to
Changing a Tire with TPMS (see
page 239).
For
normal
tire
For
spare
tire
CONTINUED
Changing a Flat Tire
291
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Installing a wheel cover
All models except Sport and Canadian
LX model with manual transmission
1. Make sure the wire support ring is
hooked into the clips around the
edge of the wheel cover.
2. Align the valve mark on the wheel
cover to the tire valve on the
wheel, then install the wheel
cover.
3. Make sure the wire support ring is
on the outer side of the tire valve
as shown.
CLIPS CLIPS
WIRE SUPPORT RING
Changing a Flat Tire
292
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
How to Use the Tire Repair Kit
All Canadian models with automatic
transmission
To reduce weight, your vehicle is
equipped with a tire repair kit instead
of a spare tire. This kit will allow you
to temporarily repair a flat tire under
the following conditions:
●
Only one tire is flat.
●
The puncture is smaller than
3/16ths of an inch (4 mm).
●
The puncture is located within the
tread.
●
The wheel rim is not damaged.
●
The tire bead is seated.
When making a temporary repair,
carefully follow all instructions in this
owner's manual and in the
instructions that came with the kit.
If you have a flat tire while driving,
park the vehicle on a level surface in
a safe place, put the transmission in
Park (P), set the parking brake, and
turn the hazard lights on.
Thoroughly examine the tire for a
puncture or other damage.
If a puncture is wider than 3/16ths of
an inch (4 mm), or is located in the
tire sidewall, do not attempt to repair
the tire. Have your vehicle towed to a
Honda service center. In Canada or
the continental U.S.A. simply call 1-
800-465-PLUS (7587) for Honda Plus
Roadside Assistance.
If the damage is smaller than 3/16ths
of an inch (4 mm) and within the tire
tread, proceed with the following
instructions.
1. Park vehicle on a level surface in a
safe place. Put the transmission in
Park (P) and set the parking brake.
Turn hazard light on. Remove valve
cap from tire valve.
TIRE VALVE
VALVE CAP
CONTINUED
Temporarily Repairing a Flat Tire
293
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
2. Open the tailgate.
3. Raise the cargo area floor lid by
lifting it up with the back of the
strap. Remove the tire repair kit.
Your tire repair kit contains:
●
An air pump with a power cord and
an air hose attached.
●
A bottle of sealant with a filler hose
attached.
●
Two labels, one for the tire wheel
and one for the instrument panel.
●
An instruction sheet.
●
An empty recovery bottle. A tire
repair professional will use this to
collect the injected sealant from the
tire during the permanent repair.
4. Remove the sealant bottle and
check the expiration date on the
label. If the date has expired, do not
continue. Have your vehicle towed
to the nearest Honda service
center. In Canada or the
continental U.S.A. simply call 1-800-
465-PLUS (7587) for Honda Plus
Roadside Assistance.
FLOOR LID
TIRE REPAIR KIT STRAP
EXPIRATION DATE
Temporarily Repairing a Flat Tire
294
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If the date has not expired, shake
the bottle thoroughly and proceed
to step 5.
5. Screw the sealant filler hose onto
the tire valve. Make sure the bottle
remains upright to ensure all of the
sealant flows into the tire.
6. Unscrew the bottle cap from the
bottle adapter.
7. Remove the air pump from the
repair kit, then screw the air pump
hose onto the bottle adapter tightly.
8. Route the power cord into the
vehicle, and insert the plug into the
accessory power socket.
Pay attention not to have the power
cord pinched by the door.
9. Turn the ignition switch to the
ACCESSORY (I) position.
BOTTLE HOSE
TIRE VALVE
AIR PUMP HOSE
AIR PUMP BOTTLE CAP ADAPTER
BOTTLE
CAP
PLUG
ACCESSORY SOCKET
CONTINUED
Temporarily Repairing a Flat Tire
295
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
In freezing temperatures, turn the
engine on and leave it running
while the flat tire is being serviced.
Prolonged exposure to the cold
may cause the vehicle's battery to
weaken. Under cold conditions,
safely start the vehicle's engine and
keep the engine running at idle
when operating the air pump.
Running the engine with the
vehicle in an enclosed or even
partly enclosed area can cause
a rapid build-up of toxic carbon
monoxide.
Breathing this colorless,
odorless gas can cause
unconsciousness and even
death. Only run the engine to
power the air pump with the
vehicle outdoors.
10. Turn the air pump on to inflate the
tire. Do not run the air pump for
more than 15 minutes or it may
overheat. The air pressure gauge
will show about 40 to 60 psi (275 to
415 kPa) for the first few minutes
while the sealant is pumped into
the tire, and then the pressure will
go down to about 10 to 20 psi (70
to 140 kPa).
11. Inflate the tire to 33 psi (230 kPa),
then turn the air pump switch OFF
for an accurate pressure reading. If
the pressure fails to reach 33 psi
(230 kPa) within 15 minutes, do
not continue, and have the vehicle
towed. In Canada or the
continental U.S.A. simply call 1-
800-465-PLUS (7587) for Honda
Plus Roadside Assistance.
12. Turn the ignition switch to the
LOCK (0) position.
13. Remove the sealant bottle hose
from the tire valve, then reinstall
the tire valve cap.
AIR PUMP SWITCH
OFF
ON
Temporarily Repairing a Flat Tire
296
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
14. Push the deflate button on the air
pump until the air pressure gauge
shows 0 psi.
15. Remove the wheel label from the
repair kit, wipe any dirt off the
wheel with a clean cloth, and
attach the label to the center of the
wheel.
The label may adhere poorly when
cold. Clean the surface and
securely attach the label.
16. Remove the front pillar label from
the repair kit and place it as shown
above.
17. Remove the power plug from the
accessory power socket.
18. Return all items except the air
pump to the repair kit, and store
the kit in the cargo floor box. Keep
the air pump handy as you may
need it soon.
AIR PRESSURE GAUGE
DEFLATE BUTTON
WHEEL LABEL
LABEL
CONTINUED
Temporarily Repairing a Flat Tire
297
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
19. Drive carefully within the speed of
50 mph (80 km/h) for 5 minutes.
20. Stop safely and check the pressure
in the tire. Remove the tire valve
cap, screw the air pump hose onto
the tire valve, and check the air
gauge. (You do not need to attach
the power cord or turn the air
pump switch on.)
If pressure is less than 19 psi (130
kPa), do not drive the vehicle
further or attempt to re-inflate the
tire. Call or wait for help. If
pressure is lower than 33 psi (230
kPa) and higher than 19 psi (130
kPa), use air pump to bring tire
pressure to 33 psi (230 kPa).
21. Then, drive carefully within the
speed of 50 mph (80 km/h) for 5
minutes more.
22. Stop safely and check the pressure
in the tire.
VALVE CAP TIRE VALVE
AIR PUMP HOSE
Temporarily Repairing a Flat Tire
298
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If the pressure is lower than 32 psi
(220 kPa) and higher than 19 psi
(130 kPa), use the air pump to
bring air to the desired level as
described in step 11. Then drive to
the nearest service station at no
more than 50 mph (80 km/h).
If the pressure is below 19 psi, do
not continue. Have the vehicle
towed (see page 313).
In any case, be sure to have the
damaged tire permanently repaired
as soon as possible.
Remember to return the tire sealant
bottle to your Honda service center
for proper disposal.
If the Engine Won't Start
Diagnosing why the engine won't
start falls into two areas, depending
on what you hear when you turn the
ignition switch to the START (III)
position:
●
You hear nothing, or almost
nothing. The engine's starter
motor does not operate at all, or
operates very slowly.
●
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
faster than normal, but the engine
does not start up and run.
Nothing Happens or the Starter
Motor Operates Very Slowly
When you turn the ignition switch to
the START (III) position, you do not
hear the normal noise of the engine
trying to start. You may hear a
clicking sound, a series of clicks, or
nothing at all.
Check these things:
●
Check the transmission interlock.
If you have a manual transmission,
the clutch pedal must be pushed
all the way to the floor or the
starter will not operate. With an
automatic transmission, it must be
in Park or neutral.
●
Turn the ignition switch to the ON
(II) position. Turn on the
headlights, and check their
brightness. If the headlights are
very dim or do not come on at all,
the battery is discharged. See
Jump Starting on page 301.
CONTINUED
Temporarily Repairing a Flat Tire, If the Engine Won't Start
299
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
●
Turn the ignition switch to the
START (III) position. If the
headlights do not dim, check the
condition of the fuses. If the fuses
are OK, there is probably
something wrong with the
electrical circuit for the ignition
switch or starter motor. You will
need a qualified technician to
determine the problem. See
Emergency Towing on page 313.
If the headlights dim noticeably or go
out when you try to start the engine,
either the battery is discharged or
the connections are corroded. Check
the condition of the battery and
terminal connections (see page 281).
You can then try jump starting the
vehicle from a booster battery (see
page 301).
The Starter Operates Normally
In this case, the starter motor's speed
sounds normal, or even faster than
normal, when you turn the ignition
switch to the START (III) position,
but the engine does not run.
●
Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page 79).
●
Are you using the proper starting
procedure? Refer to Starting the
Engine on page 218.
●
Do you have fuel? Check the fuel
gauge; the low fuel indicator may
not be working.
●
There may be an electrical
problem, such as no power to the
fuel pump. Check all the fuses (see
page 308).
If you find nothing wrong, you will
need a qualified technician to find the
problem. See Emergency Towing on
page 313.
If the Engine Won't Start
300
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Although this seems like a simple
procedure, you should take several
precautions.
A battery can explode if you do
not follow the correct
procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
You cannot start your vehicle with an
automatic transmission by pushing
or pulling it.
To Jump Start Your Vehicle:
1. Open the hood, and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or frozen, do not try
jump starting until it thaws.
If a battery sits in extreme cold, the
electrolyte inside can freeze. Attempting
to jump start with a frozen battery can
cause it to rupture.
2. Turn off all the electrical
accessories: heater, A/C (if
equipped), audio system, lights,
etc. Put the transmission in neutral
(manual) or Park (automatic), and
set the parking brake.
The numbers in the illustration show
you the order to connect the jumper
cables.
BOOSTER BATTERY
CONTINUED
Jump Starting
301
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
3. Remove the cover from the under-
hood fuse box (see page 308).
Connect one jumper cable to the
positive (＋) terminal on your
battery. Connect the other end to
the positive (＋) terminal on the
booster battery.
4. Connect the second jumper cable
to the negative (－) terminal on
the booster battery. Connect the
other end to the ground strap as
shown. Do not connect this jumper
cable to any other part of the
engine.
5. If the booster battery is in another
vehicle, have an assistant start that
vehicle and run it at a fast idle.
6. Start your vehicle. If the starter
motor still operates slowly, check
that the jumper cables have good
metal-to-metal contact.
7. Once your vehicle is running,
disconnect the negative cable from
your vehicle, then from the
booster battery. Disconnect the
positive cable from your vehicle,
then from the booster battery.
Keep the ends of the jumper cables
away from each other and any metal
on the vehicle until everything is
disconnected. Otherwise, you may
cause an electrical short.
Jump Starting
302
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The high temperature indicator
should be off under most conditions.
If the engine coolant temperature
gets higher than normal, the
indicator will blink. If it stays on, you
should determine the reason (hot
day, driving up a steep hill, etc.).
If the vehicle overheats, you should
take immediate action. The only
indication may be the high
temperature indicator blinking or
remaining on. Or you may see steam
or spray coming from under the
hood.
Driving with the high temperature
indicator on can cause serious damage
to your engine.
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
1. Safely pull to the side of the road.
Put the transmission in neutral
(manual) or Park (automatic), and
set the parking brake. Turn off all
accessories, and turn on the
hazard warning lights.
2. If you see steam and/or spray
coming from under the hood, turn
off the engine. Wait until you see
no more signs of steam or spray,
then open the hood.
3. If you do not see steam or spray,
leave the engine running, and
check the high temperature
indicator. If the high heat is due to
overloading, the engine should
start to cool down almost
immediately. If it does, wait until
the high temperature indicator
goes off, then continue driving.
4. If the high temperature indicator
stays on, turn off the engine.
CONTINUED
If the Engine Overheats
303
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
5. Look for any obvious coolant
leaks, such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you find a leak, it
must be repaired before you
continue driving (see Emergency
Towing on page 313).
6. If you don't find an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.
7. If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the high
temperature indicator goes off
before checking the radiator.
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
8. Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the first stop. After the
pressure releases, push down on
the cap, and turn it until it comes
off.
9. Start the engine, and set the
temperature control dial to
maximum heat. Add coolant to the
radiator up to the base of the filler
neck. If you do not have the proper
coolant mixture available, you can
add plain water. Remember to
have the cooling system drained
and refilled with the proper
mixture as soon as you can.
10. Put the radiator cap back on
tightly. Run the engine, and check
the high temperature indicator. If
it begins to blink or comes on
again, the engine needs repair (see
Emergency Towing on page 313).
11. If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has gone
down, add coolant to the MAX
mark. Put the cap back on tightly.
If the Engine Overheats
304
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Low Oil Pressure Indicator
This indicator should never
come on when the engine is
running. If it starts flashing or stays
on, the oil pressure has dropped very
low or lost pressure. Serious engine
damage is possible, and you should
take immediate action.
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn off
the engine as soon as you can safely get
the vehicle stopped.
1. Safely pull off the road, and shut
off the engine. Turn on the hazard
warning lights.
2. Let the vehicle sit for a minute.
Open the hood, and check the oil
level (see page 204). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
3. If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page 255).
4. Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn off the
engine. There is a mechanical
problem that needs to be repaired
before you can continue driving
(see Emergency Towing on page
313).
Charging System Indicator
If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
Immediately turn off all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.
Low Oil Pressure Indicator, Charging System Indicator
305
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If this indicator comes on
while driving, it means one
of the engine's emissions control
systems may have a problem. Even
though you may feel no difference in
your vehicle's performance, it can
reduce your fuel economy and cause
increased emissions. Continued
operation may cause serious damage.
If you have recently refueled your
vehicle, the indicator coming on
could be due to a loose or missing
fuel fill cap. You will also see a
‘‘CHECK FUEL CAP’’ message on
the information display. Tighten the
cap until it clicks at least once.
Tightening the cap will not turn the
indicator off immediately; it can take
several days of normal driving.
If the indicator comes on repeatedly,
even though it may go off as you
continue driving, have your vehicle
checked by a dealer as soon as
possible.
If you keep driving with the malfunction
indicator lamp on, you can damage
your vehicle's emissions controls and
engine. Those repairs may not be
covered by your vehicle's warranties.
If your vehicle has an automatic
transmission, the malfunction
indicator lamp may also come on
with the ‘‘D’’ indicator.
Readiness Codes
Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics for the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.
If the battery in your vehicle has
been disconnected or gone dead,
these codes are erased. It can take
several days of driving under various
conditions to set the codes again.
To check if they are set, turn the
ignition switch to the ON (II)
position, without starting the engine.
The malfunction indicator lamp will
come on for 20 seconds. If it then
goes off, the readiness codes are set.
If it blinks five times, the readiness
codes are not set. If possible, do not
take your vehicle for an emissions
test until the readiness codes are set.
Refer to Emissions Testing for
more information (see page 331).
Malfunction Indicator Lamp
306
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
U.S. Canada
Brake System
Indicator (Red)
The brake system indicator (red)
normally comes on when you turn
the ignition switch to the ON (II)
position, and as a reminder to check
the parking brake. It will stay on if
you do not fully release the parking
brake.
If the brake system indicator (red)
comes on while driving, the brake
fluid level is probably low. Press
lightly on the brake pedal to see if it
feels normal. If it does, check the
brake fluid level the next time you
stop at a service station (see page
263).
If the fluid level is low, take your
vehicle to a dealer, and have the
brake system inspected for leaks or
worn brake pads/shoes.
However, if the brake pedal does not
feel normal, you should take
immediate action. A problem in one
part of the system's dual circuit
design will still give you braking at
two wheels. You will feel the brake
pedal go down much farther before
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
Slow down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see Emergency
Towing on page 313).
If you must drive the vehicle a short
distance in this condition, drive
slowly and carefully.
If the ABS indicator and the VSA
system indicator (if equipped) come
on with the brake system indicator,
have your vehicle inspected by your
dealer immediately.
Brake System Indicator
307
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The vehicle's fuses are contained in
two fuse boxes.
The interior fuse box is behind the
fuse lid. To access it, pull the fuse lid
toward you.
The under-hood fuse box is on the
positive terminal of the battery.
INTERIOR
FUSE LID
FUSE LABEL
INTERIOR
UNDER-HOOD (On Battery)
Fuses
308
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Checking and Replacing Fuses
If something electrical in your
vehicle stops working, check for a
blown fuse first. Determine from the
chart on pages 311 and 312, or the
diagram on the fuse label, which fuse
or fuses control that device. Check
those fuses first, but check all the
fuses before deciding that a blown
fuse is the cause. Replace any blown
fuses, and check if the device works.
1. Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are off.
2. On the under-hood fuse box,
remove the cover from the fuse
box. On the interior fuse box, pull
the fuse lid toward you.
3. Check each of the large fuses in
the under-hood fuse box and the
interior fuse box by looking
through the top at the wire inside.
4. Check all smaller fuses in the
interior fuse box by pulling out
each one with the fuse puller
provided in the interior fuse box.
FUSE
BLOWN
FUSE PULLER
CONTINUED
Fuses
309
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
5. Look for a blown wire inside the
fuse. If it is blown, replace it with
one of the spare fuses of the same
rating or lower.
If you cannot drive the vehicle
without fixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of the other circuits. Make
sure you can do without that circuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate anything is wrong. Replace
the fuse with one of the correct
rating as soon as you can.
Replacing a fuse with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement fuse with the proper rating
for the circuit, install one with a lower
rating.
6. If the replacement fuse of the same
rating blows in a short time, there
is probably a serious electrical
problem in your vehicle. Leave the
blown fuse in that circuit and have
your vehicle checked by a
qualified technician.
On vehicles without navigation system
When the audio system is disabled,
the clock setting in the audio system
will be canceled. You will need to
reset the clock (see page 193).
On vehicles with navigation system
The navigation system will also
disable itself. The next time you turn
on the ignition switch, the system
will require you to enter ‘‘ENTER
CODE’’ before it can be used. Refer
to the navigation system manual.
BLOWN
Fuses
310
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
INTERIOR FUSE BOX
No. Amps. Circuits Protected
1 10 A Back Up
2 (7.5 A) TPMS
ꭧ
3 20 A Driver's Power Window
4 － Not Used
5 10 A Back Up Light
6 10 A SRS
7 (10 A) Transmission SOL
ꭧ
8 7.5 A SRS
9 (20 A) Fog Light
ꭧ
10 7.5 A A/C
ꭧ
11 7.5 A ABS/VSA
ꭧ
12 10 A ACG
13 20 A ACC Socket
14 7.5 A Key Lock/Radio
15 7.5 A Daytime Running Light
16 10 A Rear Wiper
17 20 A Front Passenger's Power
Window
18 20 A Rear Passenger's Side Power
Window
19 20 A Rear Driver's Side Power
Window
20 15 A Fuel Pump
21 15 A Washer
22 7.5 A Meter
23 10 A Hazard
24 10 A Stop/Horn
25 － Not Used
No. Amps. Circuits Protected
26 10 A LAF
27 (30 A) Door Lock Main
ꭧ
28 20 A Headlight Main
29 10 A Small Light
30 30 A Main Fan Motor
31 － Not Used
32 10 A Passenger's Side Headlight
Low Beam
33 15 A IG Coil
34 10 A Driver's Side Headlight Low
Beam
35 (15 A) Door Lock
ꭧ
36 (15 A) Door Lock
ꭧ
37 30 A ABS/VSA
ꭧ
FSR
38 (15 A) Door Lock
ꭧ
39 15 A IGP
40 － Not Used
41 － Not Used
42 － Not Used
43 (7.5 A) MG Clutch
44 7.5 A STS
45 － Not Used
46 － Not Used
47 (30 A) Sub Fan Motor
48 10 A Driver's Side Headlight High
Beam
ꭧ: If equipped
CONTINUED
Fuse Locations
311
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
No. Amps. Circuits Protected
49 (15 A) Door Lock
ꭧ
50 (15 A) Door Lock
ꭧ
51 10 A Passenger's Side Headlight
High Beam
52 15 A DBW
53 － Not Used
54 20 A Rear Defogger
ꭧ
55 10 A Heated Mirror
ꭧ
56 30 A Front Wiper
57 30 A Blower Motor
58 30 A ABS/VSA
ꭧ
Motor
59 20 A Rear Defogger
30 A
60 50 A/
40 A
IG Main/Option Main
61 30 A Radio
62 － Not Used
ꭧ: If equipped
UNDER-HOOD FUSE BOX
Under-hood Fuse Box (On the battery)
No.
Amps. Circuits Protected
1 100 A Battery
2 70 A EPS
3 20 A Horn/Hazard
Fuse Locations
312
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
If your vehicle needs to be towed,
call a professional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
There are two ways to tow your
vehicle:
Flat-bed Equipment
－ The operator
loads your vehicle on the back of a
truck. This is the best way to
transport your vehicle.
Wheel-lift Equipment
－ The tow
truck uses two pivoting arms that go
under the front tires and lift them off
the ground. The rear tires remain on
the ground. This is an acceptable
way to tow your vehicle.
If, due to damage, your vehicle must
be towed with the front wheels on
the ground, do this:
Manual transmission:
●
Release the parking brake.
●
Shift the transmission to neutral.
●
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
Automatic transmission:
●
Start the engine.
●
Shift to the D position and hold for
5 seconds, then to N.
●
Turn off the engine.
●
Leave the ignition switch in the
ACCESSORY (I) position so the
steering wheel does not lock.
●
Release the parking brake.
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shift the transmission or start the
engine (automatic transmission), your
vehicle must be transported with the
front wheels off the ground.
With the front wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speed below 35 mph (55 km/h).
CONTINUED
Emergency Towing
313
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Trying to lift or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle's weight.
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns freely before you begin
towing.
If Your Vehicle Gets Stuck
If your vehicle gets stuck in sand,
mud, or snow, call a towing service to
pull it out (see page 313).
For very short distances, such as
freeing the vehicle, you can use the
detachable towing hook that mounts
on the anchor in the front bumper.
To use the towing hook:
1. Take the towing hook and the
extension out of the tool kit in the
cargo area.
2. Put a cloth on the notch of the
cover. Using the extension,
carefully pry on the notch of the
cover to remove it.
Emergency Towing, If Your Vehicle Gets Stuck
314
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
3. Screw the towing hook into the
bolt hole behind the bumper, then
tighten the hook securely with the
extension.
To avoid damage to your vehicle, use
the towing hook for straight, flat
ground towing only. Do not tow at an
angle. The tow hook should not be used
to tow the vehicle onto a flat bed. Do
not use it as a tie down.
If Your Vehicle Gets Stuck
315
Taking Care of the Unexpected
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
316
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The diagrams in this section give you
the dimensions and capacities of
your vehicle and the locations of the
identification numbers. It also
includes information you should
know about your vehicle's tires and
emissions control systems.
Identification Numbers
............... 318
Specifications
.............................. 320
DOT Tire Quality Grading (U.S.
Vehicles)
............................. 323
Uniform Tire Quality
Grading
............................... 323
Treadwear
............................... 323
Traction
.................................. 323
Temperature
........................... 324
Tire Labeling
.............................. 325
Tire Pressure Monitoring System
(TPMS) － Required Federal
Explanation
......................... 326
Emissions Controls
..................... 328
The Clean Air Act
.................... 328
Crankcase Emissions Control
System
................................ 328
Evaporative Emissions Control
System
................................ 328
Onboard Refueling Vapor
Recovery
............................. 328
Exhaust Emissions
Controls
.............................. 329
Replacement Parts
.................. 329
Three Way Catalytic
Converter
................................ 330
Emissions Testing
....................... 331
Technical Information
317
Technical Information
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Your vehicle has several identifying
numbers in various places.
The vehicle identification number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
for warranty purposes. It is also
necessary for licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
see it by looking through the
windshield on the driver's side. It is
also on the certification label
attached to the driver's doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certification label.
The VIN is also located on the
engine bulkhead. Slide the cover on
the engine compartment bulkhead to
view the VIN. Always close the cover
when finished.
VEHICLE IDENTIFICATION NUMBER
COVER
CERTIFICATION LABEL
Identification Numbers
318
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The engine number is stamped into
the front of the engine block.
The transmission number is on a
label on top of the transmission.
ENGINE NUMBER
TRANSMISSION NUMBER
Identification Numbers
319
Technical Information
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Dimensions
Length 161.6 in (4,105 mm)
Width 66.7 in (1,695 mm)
Height 60.0 in (1,525 mm)
Wheelbase 98.4 in (2,500 mm)
Track Front 58.7 in (1,492 mm)
ꭧ1
58.1 in (1,476 mm)
ꭧ2
Rear 58.1 in (1,475 mm)
ꭧ1
57.4 in (1,459 mm)
ꭧ2
ꭧ1: All models except Sport
ꭧ2: Sport model
Weights
Gross vehicle weight rating See the certification label
attached to the driver's
doorjamb.
Seating Capacities
Total 5
Front 2
Rear 3
Engine
Type Water cooled 4-stroke SOHC
i-VTEC 4-cylinder gasoline engine
Bore x Stroke 2.87 x 3.52 in
(73.0 x 89.4 mm)
Displacement 91.3 cu-in (1,497 cm
3
)
Compression ratio 10.4 : 1
Spark plugs IZFR6K13 (NGK)
SKJ20DR-M13 (DENSO)
Specifications
320
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Capacities
Fuel tank Approx.
10.6 US gal (40 L)
Engine oil Change
ꭧ1
Including filter 3.8 US qt (3.6 L)
Without filter 3.6 US qt (3.4 L)
Total 4.4 US qt (4.2 L)
Engine
coolant
Automatic
transmission
Change
ꭧ2
1.19 US gal (4.5 L)
Total 1.32 US gal (5.0 L)
Manual
transmission
Change
ꭧ2
1.16 US gal (4.4 L)
Total 1.29 US gal (4.9 L)
Automatic
transmission
fluid
Change 2.6 US qt (2.5 L)
Total 6.18 US qt (5.85 L)
Manual
transmission
fluid
Change 1.6 US qt (1.5 L)
Total 1.7 US qt (1.6 L)
Windshield
washer
reservoir
U.S. Vehicles 2.6 US qt (2.5 L)
Canada Vehicles 4.8 US qt (4.5 L)
ꭧ1: Excluding the oil remaining in the engine
ꭧ2: Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity:
0.116 US gal (0.44 L)
Air Conditioning
Refrigerant type HFC-134a (R-134a)
Charge quantity 13.1－14.8 oz
(370－420 g)
Lubricant type SP-10
Lights
Headlights High/Low 60/55 W (HB2)
Front turn signal lights 21 W (Amber)
Parking lights/side marker lights 3.8 W (Amber)
Fog lights
ꭧ
55 W (H11)
Rear turn signal lights 21 W (Amber)
Stop/Taillights 21/5 W
Back-up lights 16 W
License plate lights 5 W
Ceiling light 8 W
Cargo area light 5 W
Map light
ꭧ
8W
High-mount brake light LED
ꭧ: For some types
Specifications
321
Technical Information
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Battery
Capacity 12 V － 32 AH/5 HR
12 V － 34 AH/5 HR
12 V － 40 AH/20 HR
Fuses
Interior See page 311 or the fuse label
attached to the dashboard.
Under-hood See page 312 or the fuse box
cover.
Alignment
Toe-in Front 0.0 in (0 mm)
Rear 0.10 in (2.5 mm)
Camber Front 0°
Rear －1°
Caster Front 3°20'
Tires
Size Front/Rear 175/65R15 84S
ꭧ1
185/55R16 83H
ꭧ2
Spare T125/70D15 95M
ꭧ3
T135/80D15 99M
ꭧ4
Pressure Front/Rear 32 psi (220 kPa, 2.2 kgf/cm
2
)
ꭧ1
33 psi (230 kPa, 2.3 kgf/cm
2
)
ꭧ2
Spare 60 psi (420 kPa, 4.2 kgf/cm
2
)
ꭧ1: All models except Sport
ꭧ2: Sport model
ꭧ3: On models without VSA system and all Canadian models with
manual transmission
ꭧ4: On models with VSA system
Specifications
322
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The tires on your vehicle meet all
U.S. Federal Safety Requirements.
All tires are also graded for
treadwear, traction, and temperature
performance according to
Department of Transportation (DOT)
standards. The following explains
these gradings.
Uniform Tire Quality Grading
Quality grades can be found where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:
Treadwear 200
Traction AA
Temperature A
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.
Treadwear
The treadwear grade is a
comparative rating based on the wear
rate of the tire when tested under
controlled conditions on a specified
government test course. For
example, a tire graded 150 would
wear one and one-half (1 1/2) times
as well on the government course as
a tire graded 100. The relative
performance of tires depends upon
the actual conditions of their use,
however, and may depart
significantly from the norm due to
variations in driving habits, service
practices and differences in road
characteristics and climate.
Traction
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire's ability to
stop on wet pavement as measured
under controlled conditions on
specified government test surfaces of
asphalt and concrete. A tire marked
C may have poor traction
performance.
Warning: The traction grade
assigned to this tire is based on
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
DOT Tire Quality Grading (U.S. Vehicles)
323
Technical Information
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Temperature
The temperature grades are A (the
highest), B, and C, representing the
tire's resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger car
tires must meet under the Federal
Motor Vehicle Safety Standard No.
109. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the
minimum required by law.
Warning: The temperature grade for
this tire is established for a tire that
is properly inflated and not
overloaded. Excessive speed,
underinflation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire failure.
DOT Tire Quality Grading (U.S. Vehicles)
324
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Tire Size
Whenever tires are replaced, they
should be replaced with tires of the
same size. Below is an example of
tire size with an explanation of what
each component means.
185/55R16 83H
185 － Tire width in millimeters.
55 － Aspect ratio (the tire's
section height as a
percentage of its width).
R － Tire construction code (R
indicates radial).
16 － Rim diameter in inches.
83 － Load index (a numerical code
associated with the
maximum load the tire can
carry).
H － Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Tire Identification Number (TIN)
The tire identification number (TIN)
is a group of numbers and letters that
look like the following example. TIN
is located on the sidewall of the tire.
DOT B97R FW6X 2202
DOT － This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
B97R － Manufacturer's
identification mark.
FW6X － Tire type code.
TIRE LABELING EXAMPLE
(1)
(1) Tire Size
(2) Tire Identifi cation Number (TIN)
(3) Maximum Tire Pressure
(4) Maximum Tire Load
(4)
(3) (2)
(1)
2202 －
Year
Week
Date of manufacture.
CONTINUED
Tire Labeling
325
Technical Information
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Glossary of Tire Terminology
Cold Tire Pressure － The tire air
pressure when the vehicle has been
parked for at least three hours or
driven less than 1 mile (1.6 km).
Load Rating － Means the maximum
load that a tire is rated to carry for a
given inflation pressure.
Maximum Inflation Pressure － The
maximum tire air pressure that the
tire can hold.
Maximum Load Rating － Means the
load rating for a tire at the maximum
permissible inflation pressure for that
tire.
Recommended Inflation Pressure －
The cold tire inflation pressure
recommended by the manufacturer.
Treadwear Indicators (TWI) －
Means the projections within the
principal grooves designed to give a
visual indication of the degrees of
wear of the tread.
Tire Pressure Monitoring System
(TPMS) － Required Federal
Explanation
U.S. models only
Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated to
the inflation pressure recommended
by the vehicle manufacturer on the
vehicle placard or tire inflation
pressure label.
(If your vehicle has tires of a different
size than the size indicated on the
vehicle placard or tire inflation
pressure label, you should determine
the proper tire inflation pressure for
those tires.)
As an added safety feature, your
vehicle has been equipped with a tire
pressure monitoring system (TPMS)
that illuminates a low tire pressure
telltale
when one or more of your tires is
significantly under-inflated.
Accordingly, when the low tire
pressure telltale illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure.
Tire Labeling, Tire Pressure Monitoring System (TPMS) － Required Federal Explanation
326
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Driving on a significantly under-
inflated tire causes the tire to
overheat and can lead to tire failure.
Under-inflation also reduces fuel
efficiency and tire tread life, and may
affect the vehicle's handling and
stopping ability.
Please note that the TPMS is not a
substitute for proper tire
maintenance, and it is the driver's
responsibility to maintain correct tire
pressure, even if under-inflation has
not reached the level to trigger
illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped
with a TPMS malfunction indicator to
indicate when the system is not
operating properly. The TPMS
malfunction indicator is provided by
a separate telltale, which displays the
symbol ‘‘TPMS’’ when illuminated.
When the malfunction indicator is
illuminated,
the system may not be able to detect
or signal low tire pressure as
intended.
TPMS malfunctions may occur for a
variety of reasons, including the
installation of replacement or
alternate tires or wheels on the
vehicle that prevent the TPMS from
functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more
tires or wheels on your vehicle to
ensure that the replacement or
alternate tires and wheels allow the
TPMS to continue to function
properly.
Tire Pressure Monitoring System (TPMS) － Required Federal Explanation
327
Technical Information
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The burning of gasoline in your
vehicle's engine produces several
byproducts. Some of these are
carbon monoxide (CO), oxides of
nitrogen (NOx), and hydrocarbons
(HC). Gasoline evaporating from the
tank also produces hydrocarbons.
Controlling the production of NOx,
CO, and HC is important to the
environment. Under certain
conditions of sunlight and climate,
NOx and HC react to form
photochemical ‘‘smog.’’ Carbon
monoxide does not contribute to
smog creation, but it is a poisonous
gas.
The Clean Air Act
The United States Clean Air Act
ꭧ
sets standards for automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
work and what to do to maintain
them. This section summarizes how
the emissions controls work.
ꭧ
In Canada, Honda vehicles comply
with the Canadian emission
requirements, as specified in an
agreement with Environment
Canada, at the time they are
manufactured.
Crankcase Emissions Control
System
Your vehicle has a positive crankcase
ventilation system. This keeps
gasses that build up in the engine's
crankcase from going into the
atmosphere. The positive crankcase
ventilation valve routes them from
the crankcase back to the intake
manifold. They are then drawn into
the engine and burned.
Evaporative Emissions Control
System
As gasoline evaporates in the fuel
tank, an evaporative emissions
control canister filled with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is off. After
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
Onboard Refueling Vapor
Recovery
The onboard refueling vapor
recovery (ORVR) system captures
the fuel vapors during refueling. The
vapors are adsorbed in a canister
filled with activated carbon. While
driving, the fuel vapors are drawn
into the engine and burned off.
Emissions Controls
328
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Exhaust Emissions Controls
The exhaust emissions controls
include four systems: PGM-FI,
ignition timing control, exhaust gas
recirculation, and three way catalytic
converter. These four systems work
together to control the engine's
combustion and minimize the
amount of HC, CO, and NOx that
come out the tailpipe. The exhaust
emissions control systems are
separate from the crankcase and
evaporative emissions control
systems.
PGM-FI System
The PGM-FI system uses sequential
multiport fuel injection. It has three
subsystems: air intake, engine
control, and fuel control. The
powertrain control module (PCM) in
automatic transmission vehicles or
the engine control module (ECM) in
manual transmission vehicles uses
various sensors to determine how
much air is going into the engine. It
then controls how much fuel to inject
under all operating conditions.
Ignition Timing Control System
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
Exhaust Gas Recirculation (EGR)
System
The exhaust gas recirculation (EGR)
system takes some of the exhaust gas
and routes it back into the intake
manifold. Adding exhaust gas to the
air/fuel mixture reduces the amount
of NOx produced when the fuel is
burned.
Three Way Catalytic Converter
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine's exhaust
to carbon dioxide (CO
2), nitrogen
(N
2), and water vapor.
Replacement Parts
The emissions control systems are
designed and certified to work
together in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent for repairs. Using lower
quality parts may increase the
emissions from your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more
information.
Emissions Controls
329
Technical Information
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter is referred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on fire any
combustible materials that come
near it. Park your vehicle away from
high grass, dry leaves, or other
flammables.
A defective three way catalytic
converter contributes to air pollution,
and can impair your engine's
performance. Follow these
guidelines to protect your vehicle's
three way catalytic converter.
●
Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter ineffective.
●
Keep the engine well maintained.
●
Have your vehicle diagnosed and
repaired if it is misfiring,
backfiring, stalling, or otherwise
not running properly.
THREE WAY CATALYTIC CONVERTER
Three Way Catalytic Converter
330
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Testing of Readiness Codes
If you take your vehicle for an
emissions test shortly after the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics for the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing facility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle retested within the
next two or three days, you can
condition the vehicle for retesting by
doing the following.
1. Make sure the gas tank is nearly,
but not completely, full (around
3/4).
2. Make sure the vehicle has been
parked with the engine off for 6
hours or more.
3. Make sure the ambient
temperature is between 40° and
95°F (4° and 35°C).
4. Without touching the accelerator
pedal, start the engine, and let it
idle for 20 seconds.
5. Keep the vehicle in Park
(automatic transmission) or
neutral (manual transmission).
Increase the engine speed to 2,000
rpm, and hold it there until the low
temperature indicator goes off.
6. Without touching the accelerator
pedal, let the engine idle for 20
seconds.
CONTINUED
Emissions Testing
331
Technical Information
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
7. Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80 to 97 km/h) for at least 20
minutes. Drive on the highway in
D (automatic) or 5th (manual). Do
not use the cruise control. When
traffic allows, drive for 90 seconds
without moving the accelerator
pedal. (Vehicle speed may vary
slightly; this is okay.) If you cannot
do this for a continuous 90
seconds because of traffic
conditions, drive for at least 30
seconds, then repeat it two more
times (for a total of 90 seconds).
8. Then drive in city/suburban traffic
for at least 10 minutes. When
traffic conditions allow, let the
vehicle coast for several seconds
without using the accelerator pedal
or the brake pedal.
9. Make sure the vehicle has been
parked with the engine off for 30
minutes.
If the testing facility determines the
readiness codes are still not set, see
your dealer.
Emissions Testing
332
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Customer Service Information .... 334
Warranty Coverages
................... 335
Reporting Safety Defects
............. 336
Authorized Manuals
.................... 337
Warranty and Customer Relations
333
Warranty and Customer Relations
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Honda dealership personnel are
trained professionals. They should
be able to answer all your questions.
If you encounter a problem that your
dealership does not solve to your
satisfaction, please discuss it with the
dealership's management. The
service manager or general manager
can help. Almost all problems are
solved in this way.
If you are dissatisfied with the
decision made by the dealership's
management, contact Honda
Customer Service.
U.S. Owners:
American Honda Motor Co., Inc.
Automobile Customer Service
Mail Stop 500-2N-7A
1919 Torrance Boulevard
Torrance, California 90501-2746
Tel: (800) 999-1009
Canadian Owners:
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-Mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands:
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-7546
When you call or write, please give
us this information:
●
Vehicle Identification Number (see
page 318)
●
Name and address of the dealer
who services your vehicle
●
Date of purchase
●
Odometer reading of your vehicle
●
Your name, address, and
telephone number
●
A detailed description of the
problem
●
Name of the dealer who sold the
vehicle to you
Customer Service Information
334
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
U.S. Owners
Your new vehicle is covered by these
warranties:
New Vehicle Limited Warranty
－
covers your new vehicle, except for
emissions control systems, and
accessories against defects in
materials and workmanship.
Emissions Control Systems Defects
Warranty and Emis sions
Performance Warranty
－ these two
warranties cover your vehicle's
emissions control systems. Time,
mileage, and coverage are
conditional. Please read your
warranty booklet for exact
information.
Seat Belt Limited Warranty
－ a seat
belt that fails to function properly is
covered by a limited warranty. Please
read your warranty booklet for
details.
Rust Perforation Limited Warranty
－
all exterior body panels are covered
for rust-through from the inside for
the specified time period with no
mileage limit.
Accessory Limited Warranty
－
Honda accessories are covered
under this warranty. Time and
mileage limits depend on the type of
accessory and other factors. Please
read your warranty booklet for
details.
Replacement Parts Limited Warrant y
－ covers all Honda replacement
parts against defects in materials and
workmanship.
Replacement Battery Limited
Warranty
－ provides prorated
coverage for a replacement battery
purchased from your dealer.
Replacement Muffler Lifetime
Limited Warranty
－ provides
coverage for as long as the purchaser
of the muffler owns the vehicle.
Restrictions and exclusions apply to
all these warranties. Please read the
2011 Honda warranty information
booklet that came with your vehicle
for precise information on warranty
coverages. Your vehicle's original
tires are covered by their
manufacturer. Tire warranty
information is in a separate booklet.
Canadian Owners
Please refer to the 2011 warranty
manual that came with your vehicle.
Warranty Coverages
335
Warranty and Customer Relations
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
In the US
If you believe that your vehicle has a defect which could
cause a crash or could cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying
American Honda Motor Co., Inc.
In Canada
If you believe that your vehicle has a defect which could
cause a crash or could cause injury or death, you should
immediately inform Honda Canada Inc. and you may also
inform Transport Canada.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists in a
group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved in
individual problems between you, your dealer, or
American Honda Motor Co., Inc.
If Transport Canada receives similar complaints, it may
open an investigation, and if it finds that a safety defect
exists in a group of vehicles, it may lead to a recall and
remedy campaign. However, Transport Canada cannot
become involved in individual problems between you,
your dealer, or Honda Canada Inc.
To contact NHTSA, you may call the Vehicle Safety
Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov;or
write to: Administrator, NHTSA, 1200 New Jersey
Avenue, SE., Washington, DC 20590. You can also obtain
other information about motor vehicle safety from
http://www.safercar.gov.
To contact Transport Canada's Defect Investigations and
Recalls Division, you may call 1-800-333-0510. For more
information on reporting safety defects or about motor
vehicle safety, go to
http://www.tc.gc.ca/roadsafety.
Reporting Safety Defects
336
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Purchasing Factory Authorized Manuals (U.S. only)
The publications shown below can be purchased from Helm
Incorporated. You can order by phone or online:
●
Call Helm Inc. at 1-800-782-4356 (credit card orders only)
●
Go online at www. helminc. com
If you are interested in other years or models, contact Helm Inc.
at 1-800-782-4356.
Publication
Form Number
Form Description
61TK602 2011 Honda Fit Service Manual
61TK602EL 2011 Honda Fit
Electrical Troubleshooting Manual
61TK630 2009 Honda Fit Body Repair Manual
31TK6620 2011 Honda Fit Owner's Manual
31TK6820 2011 Honda Fit Navigation System Owner's Manual
31TK6M20 2011 Honda Fit Honda Service History
31TK6Q20 2011 Honda Fit Technology Reference Guide
HON-R Order Form for Previous Years-
Indicate Year and Model Desired
Service Manual:
Covers maintenance and recommended procedures for
repair to engine and chassis components. It is written
for the journeyman mechanic, but it is simple enough
for most mechanically inclined owners to understand.
Electrical Troubleshooting Manual:
Complements the Service Manual by providing in-depth
troubleshooting information for each electrical circuit in
your vehicle.
Body Repair Manual:
Describes the procedures involved in the replacement
of damaged body parts.
Authorized Manuals
337
Warranty and Customer Relations
338
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
A
Accessories and
Modifications
.......................... 208
ACCESSORY (Ignition Key
Position)
................................... 80
Accessory Power Socket
............ 106
Additives, Engine Oil
................. 256
Adjusting the Steering Wheel
...... 77
Advanced Airbags
........................ 26
Airbag (SRS)
............................ 9, 22
Air Conditioning System
............ 110
Usage
...................................... 112
Air Pressure, Tires
.............. 275, 276
Alcohol in Gasoline
.................... 200
Antifreeze
................................... 258
Anti-lock Brakes (ABS)
Indicator
............................ 62, 233
Operation
................................ 233
Anti-theft, Audio System
............. 192
Anti-theft Steering Column
Lock
......................................... 80
Audio Antenna
........................... 270
Auto Door Locking
....................... 83
Auto Door Locking/Unlocking
.... 83
Auto Door Unlocking
................... 86
Automatic Seat Belt Tensioners
... 20
Automatic Speed Control
........... 195
Automatic Transmission
............ 221
Capacity, Fluid
........................ 321
Checking Fluid Level
.............. 261
Paddle Shifters
........................ 226
Shifting
................................... 221
Shift Lever Position
Indicators
............................ 221
Shift Lever Positions
............... 222
Shift Lock Release
................... 225
Automatic Transmission Fluid
... 261
Auxiliary Input Jack
................... 191
Average Fuel Economy
................ 70
B
Battery
Charging System
Indicator
........................ 60, 305
Jump Starting
.......................... 301
Maintenance
........................... 281
Specifications
.......................... 322
Before Driving
........................... 199
Belts, Seat
................................ 8, 18
Beverage Holders
...................... 106
Booster Seats
............................... 50
Brakes
Anti-lock Brakes (ABS)
........... 233
Break-in, New Linings
............. 200
Bulb Replacement
................... 268
Fluid
....................................... 263
Parking
................................... 103
System Design
........................ 232
System Indicator
............... 60, 307
Wear Indicators
....................... 232
Braking System
.......................... 232
Break-in, New Vehicle
................ 200
Brightness Control,
Instruments
.............................. 76
CONTINUED
Index
I
INDEX
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Bulb Replacement
Back-up Lights
........................ 268
Brake Lights
........................... 268
Fog Lights
............................... 267
Front Parking Lights
............... 265
Front Side Marker Lights
........ 265
Front Turn Signal Lights
......... 266
Headlights
.............................. 264
High-mount Brake Light
......... 268
Rear Bulbs
.............................. 268
Specifications
.......................... 321
Taillights
................................. 268
Turn Signal Lights
.......... 266, 268
Bulbs, Halogen
.......................... 264
C
Capacities Chart ......................... 321
Carbon Monoxide Hazard
............ 53
Cargo
......................................... 210
Cargo Hooks
.............................. 214
Cargo, How to Carry
.................. 210
Carrying Cargo
.......................... 210
CAUTION, Explanation of
............ iii
CD Care
..................................... 187
CD Error Messages
............ 128, 157
CD Player
........................... 122, 149
Ceiling Light
.............................. 107
Certification Label
...................... 318
Chains, Tires
.............................. 280
Changing a Flat Tire
.................. 287
Changing Oil
How to
.................................... 256
When to
.................................. 247
Charging System
Indicator
........................... 60, 305
Check Fuel Cap Indicator
............. 70
Checklist, Before Driving
........... 217
Childproof Door Locks
................. 83
Child Safety
.................................. 34
Booster Seats
........................... 50
Child Seats
.................... 39, 40, 41
Important Safety Reminders
..... 38
Infants
...................................... 39
Larger Children
....................... 49
LATCH
..................................... 43
Risks with Airbags
................... 35
Small Children
......................... 40
Tethers
.................................... 47
Warning Labels
........................ 36
Where Should a Child Sit?
........ 35
Child Seats
............................. 34, 41
LATCH Anchorage Points
........ 43
Tether Anchorage Points
......... 47
Cleaning the Seat Belts
.............. 269
Clock
.......................................... 193
Clutch Fluid
............................... 263
Code, Audio System
................... 192
CO in the Exhaust
................ 53, 328
Cold Weather, Starting in
........... 218
Compact Spare Tire
.................... 286
Controls, Instruments and
............ 57
Coolant
Adding
.................................... 258
Checking
................................ 204
Proper Solution
....................... 258
Temperature Indicator
............. 63
Crankcase Emissions Control
System
................................... 328
Cruise Control Indicator
............... 65
Cruise Control Operation
........... 195
Cruise Main Indicator
.................. 65
Cup Holders
............................... 106
Customer Service
....................... 334
Index
II
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
D
DANGER, Explanation of ............. iii
Dashboard
............................... 3, 58
Daytime Running Lights
.............. 75
Daytime Running Lights
Indicator
................................... 65
Dead Battery
.............................. 301
Defects, Reporting Safety
........... 336
Defogger, Rear Window
............... 76
Defrosting the Windows
............ 113
Detachable Anchor
...................... 99
Dimensions
................................ 320
Dimming the Headlights
.............. 74
Dipstick
Automatic Transmission
......... 261
Engine Oil
............................... 204
Directional Signals
................. 63, 74
Disc Brake Wear Indicators
....... 232
Disc Care
................................... 187
Disc Player
.......................... 122, 149
Disc Player Error
Messages
........................ 128, 157
Disposal of Used Oil
................... 257
Doors
Auto Door Locking/
Unlocking
............................. 83
Childproof Door Locks
............. 83
Locking and Unlocking
............ 81
Power Door Locks
................... 82
DOT Tire Quality Grading (U.S.
Vehicles)
................................ 323
Downshifting, Manual
Transmission
.......................... 219
Driver and Passenger Safety
.......... 5
Driving
....................................... 215
Economy
................................. 205
Driving Guidelines
..................... 216
Driving with the Paddle Shifters
(Sport only)
............................ 226
Dust and Pollen Filter
................ 270
E
Economy, Fuel ........................... 205
Electric Power Steering (EPS)
Indicator
................................... 62
Emergencies on the Road
.......... 285
Battery, Jump Starting
............. 301
Brake System Indicator
..... 60, 307
Changing a Flat Tire
............... 287
Charging System
Indicator
........................ 60, 305
Checking the Fuses
................ 309
Driving with a Flat Tire
........... 287
Hazard Warning Flashers
........ 76
Jump Starting
.......................... 301
Low Oil Pressure
Indicator
........................ 60, 305
Malfunction Indicator
Lamp
............................. 60, 306
Overheated Engine
................. 303
Towing
.................................... 313
Emergency Brake
...................... 103
Emergency Flashers
.................... 76
Emergency Towing
.................... 313
Emissions Controls
.................... 328
Emissions Testing
...................... 331
CONTINUED
Index
III
INDEX
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Engine
Adding Engine Coolant
........... 258
Coolant Temperature
Indicator
............................... 63
If it Won't Start
........................ 299
Malfunction Indicator
Lamp
............................. 60, 306
Oil Life Indicator
..................... 247
Oil Pressure Indicator
....... 60, 305
Oil, What Kind to Use
............. 255
Overheating
............................ 303
Specifications
.......................... 320
Speed Limiter
.................. 220, 224
Starting
................................... 218
Engine Coolant
.......................... 258
Engine Number
......................... 319
Ethanol in Gasoline
.................... 200
Evaporative Emissions
Controls
.................................. 328
Exhaust Emissions Controls
...... 329
Exhaust Fumes
............................ 53
Expectant Mothers, Use of Seat
Belts by
.................................... 16
F
Fan, Interior ............................... 111
Features
..................................... 109
Filters
Dust and Pollen
....................... 270
Oil
........................................... 256
Flashers, Hazard Warning
........... 76
Flat Tire, Changing a
................. 287
Floor Mats
................................. 269
Fluids
Automatic Transmission
......... 261
Brake
...................................... 263
Clutch
..................................... 263
Location
.................................. 254
Manual Transmission
.............. 262
Windshield Washer
................. 260
FM/AM Radio Reception
........... 185
Fog Lights
.................................... 75
Four-way Flashers
........................ 76
Front Airbags
........................... 9, 24
Front Seat
Adjusting
.................................. 93
Fuel
............................................ 200
Check Fuel Cap Indicator
......... 70
Economy
................................. 205
Fill Door and Cap
.................... 201
Gauge
...................................... 70
Low Fuel Indicator
................... 62
Octane Requirement
............... 200
Reserve Indicator
..................... 62
Tank, Filling the
...................... 201
Fuel Economy
............................ 205
Fuses, Checking the
.................. 309
G
Gas Mileage, Improving ............. 206
Gasoline
..................................... 200
Low Fuel Indicator
................... 62
Octane Requirement
............... 200
Tank, Refueling
....................... 201
Gas Station Procedures
.............. 201
Gauges
Fuel
.......................................... 70
Odometer
................................. 70
Speedometer
............................ 68
Tachometer
.............................. 68
Index
IV
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Gearshift Lever Positions
Automatic
Transmission
............... 221, 222
Manual Transmission
.............. 219
Glove Box
.................................. 105
Gross Vehicle Weight Rating
(GVWR)
................................. 212
H
Halogen Headlight Bulbs ........... 264
Hazard Warning Flashers
............ 76
Headlights
................................... 74
Aiming
.................................... 264
Daytime Running Lights
.......... 75
High Beam Indicator
................ 65
High Beams, Turning on
.......... 74
Lights On Indicator
.................. 64
Low Beams, Turning on
........... 74
Reminder Chime
...................... 75
Replacing Halogen Bulbs
........ 264
Turning on
............................... 74
Head Restraints
............................ 94
Heated Mirror
............................ 102
Heating and Cooling
.................. 110
High Altitude, Starting at
............ 218
High Beam Lever
................... 74, 75
High-Low Beam Switch
................ 74
Hood, Opening and Closing
the
.......................................... 203
Horn
........................................ 4, 72
Hydraulic Clutch
........................ 263
I
Identification Number,
Vehicle
................................... 318
Ignition
Keys
......................................... 78
Switch
...................................... 80
Timing Control System
........... 329
Immobilizer System
..................... 79
Important Safety Precautions
......... 6
Indicators, Instrument Panel
........ 59
ABS (Anti-lock Brake)
....... 62, 233
Brake (Parking and Brake
System)
......................... 60, 307
Charging System
.............. 60, 305
Check Fuel Cap
....................... 70
Cruise Control
.......................... 65
Cruise Main
............................. 65
Door and Tailgate Open
........... 62
DRL (Daytime Running
Lights)
.................................. 65
Electric Power Steering
............ 62
Fog Lights
................................ 64
High Beam
............................... 65
High Temperature
................... 63
Key (Immobilizer System)
....... 66
Lights On
................................. 64
Low Fuel
.................................. 62
Low Oil Pressure
.............. 60, 305
Low Temperature
..................... 63
Low Tire Pressure
............. 64, 237
Maintenance Minder
TM
..... 66, 247
Malfunction Indicator
Lamp
............................. 60, 306
Passenger Airbag Off
............... 31
Seat Belt Reminder
............. 18, 60
Security System
....................... 66
Side Airbag Off
.................... 30, 61
SRS
..................................... 30, 61
TPMS
................................ 64, 238
Turn Signal and Hazard
Warning
............................... 63
CONTINUED
Index
V
INDEX
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
VSA OFF .................................. 67
VSA System
............................. 67
Washer Level
........................... 65
Infant Restraint
............................ 39
Infant Seats
.................................. 39
Tether Anchorage Points
......... 47
Inflation, Proper Tire
.................. 275
Recommended Pressures
....... 276
Inside Mirror
............................. 101
Inspection, Tire
.......................... 277
Installing a Child Seat
.................. 42
Instant Fuel Economy
.................. 70
Instrument Panel
.......................... 59
Instrument Panel Brightness
....... 76
Instruments and Controls
............. 57
Interior Lights
............................ 107
Ceiling Light
........................... 107
Introduction
................................... i
iPod
®
................................... 129, 171
iPod
®
Error Messages ......... 135, 177
J
Jacking up the Vehicle ............... 287
Jack, Tire
................................... 287
Jump Starting
............................. 301
K
Keys ............................................. 78
L
Label, Certification ..................... 318
Lane Change, Signaling
............... 74
Lap/Shoulder Belt
................. 14, 19
LATCH Anchorage System
.......... 43
Lights
Bulb Replacement
................... 264
Indicator
................................... 59
Interior
.................................... 107
Parking
.................................... 74
Turn Signal
.............................. 74
Load Limit
.................................. 211
LOCK (Ignition Key Position)
...... 80
Locks
Anti-theft Steering Column
....... 80
Childproof Door
....................... 83
Fuel Fill Door
.......................... 201
Lockout Prevention
.................. 82
Power Door
.............................. 82
Tailgate
.................................... 88
Low Coolant Level
...................... 204
Lower Anchors
............................. 43
Lower Glove Box
........................ 105
Low Fuel Indicator
....................... 62
Low Oil Pressure
Indicator
........................... 60, 305
Lubricant Specifications Chart
... 321
Luggage, Storing (cargo)
........... 210
M
Maintenance .............................. 245
Main Items and Sub Items
...... 250
Minder
.................................... 247
Minder Indicator
...................... 66
Owner's Maintenance
Checks
................................ 252
Safety
...................................... 246
Schedule
................................. 253
Malfunction Indicator
Lamp
................................ 60, 306
Manual Transmission
................. 219
Checking Fluid Level
.............. 262
Index
VI
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Shifting ................................... 219
Manual Transmission Fluid
....... 262
Meters, Gauges
............................ 68
Methanol in Gasoline
................. 200
Mirrors, Adjusting
...................... 102
Modifications
............................. 209
Modifying Your Vehicle
............. 209
N
Neutral Gear Position ................. 223
New Vehicle Break-in
................. 200
Normal Shift Speeds
........... 220, 230
NOTICE, Explanation of
................ i
Numbers, Identification
............. 318
O
Octane Requirement,
Gasoline
................................. 200
Odometer
..................................... 70
Odometer, Trip
............................ 69
Oil
Change, How to
...................... 256
Change, When to
.................... 247
Checking Engine
.................... 204
Life, Engine
............................. 247
Pressure Indicator
............. 60, 305
Selecting Proper Viscosity
Chart
................................... 255
Onboard Refueling Vapor
Recovery
................................ 328
ON (Ignition Key Position)
.......... 80
Outside Mirrors
......................... 101
Overheating, Engine
.................. 303
Owner's Maintenance Checks
.... 252
Oxygenated Fuels
...................... 200
P
Paddle Shifters ........................... 226
Panel Brightness Control
............. 76
Park Gear Position
..................... 222
Parking
...................................... 231
Parking Brake
............................ 103
Parking Brake and Brake System
Indicator
........................... 60, 307
Parking Lights
............................. 74
Parking Over Things that
Burn
................................ 231, 330
Passenger Airbag Off Indicator
.... 31
PGM-FI System
.......................... 329
Playing a Disc
..................... 122, 149
Playing an iPod
®
.................. 129, 171
Playing a PC card
....................... 158
Playing a USB Flash Memory
Device
............................. 136, 178
Playing the AM/FM Radio
......... 143
Playing the FM/AM Radio
......... 115
Pollen Filter
............................... 270
Power Door Locks
....................... 82
Power Socket Location
............... 106
Power Windows
......................... 100
Pregnancy, Using Seat Belts
........ 16
Preparing to Drive
...................... 217
Proper Seat Belt Usage
................ 14
Protecting Adults and Teens
........ 11
Additional Safety Precautions
... 17
Advice for Pregnant Women
.... 16
CONTINUED
Index
VII
INDEX
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Protecting Children ...................... 34
General Guidelines
.................. 34
Protecting Infants
..................... 39
Protecting Larger Children
...... 49
Protecting Small Children
........ 40
Using Child Seats with
Tethers
................................. 47
Using LATCH
.......................... 43
R
Radiator Overheating ................. 303
Radio/Disc Sound
System
............................ 115, 143
Radio Theft Protection
............... 192
Readiness Codes
........................ 331
Rear Lights, Bulb
Replacement
........................... 268
Rearview Mirror
......................... 101
Rear Window Defogger
................ 76
Rear Window Wiper and
Washer
..................................... 73
Recommended Shift
Speeds
............................. 220, 230
Refueling
.................................... 201
Reminder Indicators
..................... 60
Remote Audio Controls
.............. 190
Remote Transmitter
..................... 90
Replacement Information
Dust and Pollen Filter
............. 270
Engine Oil and Filter
............... 256
Fuses
...................................... 308
Light Bulbs
............................. 264
Schedule
................................. 253
Spark Plugs
............................. 320
Tires
....................................... 278
Wiper Blades
.......................... 271
Replacing Seat Belts After a
Crash
........................................ 20
Reporting Safety Defects
............ 336
Reserve Tank, Engine
Coolant
............................ 204, 258
Restraint, Child
............................ 34
Reverse Gear Position
................ 223
Reverse Lockout
........................ 219
Rotation, Tire
............................. 278
S
Safety Belts .............................. 8, 18
Safety Defects, Reporting
........... 336
Safety Features
.............................. 7
Airbags
................................. 9, 22
Door Locks
.............................. 11
Head Restraints
........................ 13
Seat Belts
........................ 8, 14, 18
Seats & Seat-Backs
.............. 11, 12
Safety Labels, Location of
............. 54
Safety Messages
.......................... iii
Seat Belts
................................. 8, 18
Additional Information
............. 18
Advice for Pregnant Women
.... 16
Automatic Seat Belt
Tensioners
........................... 20
Cleaning
.................................. 269
Detachable Anchor
.................. 99
Lap/Shoulder Belt
.............. 14, 19
Maintenance
............................ 20
Reminder Indicator and
Beeper
............................. 18, 60
System Components
................ 18
Use During Pregnancy
............. 16
Wearing a Lap/Shoulder
Belt
.................................. 14, 19
Seats
............................................ 93
Seats, Adjusting the
..................... 93
Index
VIII
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Seat Under Box .......................... 106
Security System
......................... 194
Security System Indicator
............ 66
Sensors
Driver's Seat Position Sensor
... 26
Front Passenger's Weight
Sensors
................................ 26
Impact Sensors
........................ 22
Serial Number
............................ 318
Service Intervals
......................... 247
Service Manual (U.S. only)
........ 337
Service Station Procedures
........ 201
Setting the Clock
........................ 193
Shifting the Automatic
Transmission
.......................... 221
Shift Lever Position Indicators
... 221
Shift Lock Release
...................... 225
Side Airbags
................................. 28
How the Side Airbag Off
Indicator Works
................... 30
How Your Side Airbags Work
.. 28
Side Curtain Airbags
.................... 29
How Your Side Curtain Airbags
Work
.................................... 29
Side Marker Lights, Bulb
Replacement in
....................... 265
Signaling Turns
............................ 63
Snow Tires
................................. 280
Spare Tire
.................................. 286
Inflating
........................... 275, 286
Specifications
.......................... 322
Spark Plugs
................................ 320
Specifications
............................. 320
Speed Control
............................ 195
Speed Limiter
...................... 220, 224
Speedometer
................................ 68
SRS, Additional Information
......... 22
Additional Safety Precautions
... 33
Airbag Service
.......................... 32
Airbag System Components
..... 22
How the Side Airbag Off
Indicator Works
................... 30
How the SRS Indicator Works
.. 30
How Your Front Airbags
Work
.................................... 24
How Your Side Airbags Work
.. 28
How Your Side Curtain Airbags
Work
.................................... 29
SRS Indicator
......................... 30, 61
START (Ignition Key Position)
..... 80
Starting the Engine
.................... 218
In Cold Weather at High
Altitude
................................ 218
With a Dead Battery
................ 301
State Emissions Testing
............. 331
Steam Coming from Engine
....... 303
Steering Wheel
Adjustments
............................. 77
Anti-theft Column Lock
............ 80
Buttons
........................... 190, 195
Storing Your Vehicle
.................. 283
Sun Visor
................................... 106
Supplemental Restraint
System
.............................. 9, 22
Servicing
.................................. 32
SRS Indicator
...................... 30, 61
System Components
................ 22
Synthetic Oil
.............................. 256
T
Tachometer .................................. 68
Tailgate
........................................ 88
Open Indicator
......................... 62
Opening the
............................. 88
CONTINUED
Index
IX
INDEX
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Taillights, Changing Bulbs in ..... 268
Taking Care of the
Unexpected
............................ 285
Technical Descriptions
DOT Tire Quality Grading (U.S.
Vehicles)
............................. 323
Emissions Control Systems
..... 328
Three Way Catalytic
Converter
............................ 330
Tire Labeling
........................... 325
Tire Pressure Monitoring System
(TPMS) － Required Federal
Explanation
...................... 326
Temperature Indicator
................. 63
Temporarily Repairing a Flat
Tire
........................................ 293
Tensioners, Seat Belts
.................. 20
Tether Anchorage Points
............. 47
Theft Protection, Radio
.............. 192
Three Way Catalytic
Converter
............................... 330
Tilt/Telescopic Steering Wheel
... 77
Time, Setting the
........................ 193
Tire Chains
................................ 280
Tire, How to Change a Flat
........ 287
Tire Information
......................... 325
Tire Labeling
.............................. 325
Tire Pressure Monitoring System
(TPMS)
........................... 237, 326
Tires
.......................................... 275
Air Pressure
............................ 276
Chains
..................................... 280
Checking Wear
....................... 277
Compact Spare
........................ 286
DOT Tire Quality Grading (U.S.
Vehicles)
............................. 323
Inflation
................................... 275
Inspection
............................... 277
Labeling
.................................. 325
Low Tire Pressure
Indicator
........................ 64, 237
Maintenance
........................... 278
Pressure Monitoring System
... 237
Replacing
................................ 278
Rotating
.................................. 278
Snow
....................................... 280
Specifications
.......................... 322
Tools, Tire Changing
................. 287
Towing
A Trailer
.................................. 240
Emergency Wrecker
............... 313
TPMS (Tire Pressure Monitoring
System)
.............................. 237
Indicator
............................ 64, 238
Required Federal
Explanation
......................... 326
Transmission
Checking Fluid Level,
Automatic
............................ 261
Checking Fluid Level,
Manual
................................ 262
Fluid Selection
................ 261, 262
Identification Number
............. 318
Shifting the Automatic
............. 221
Shifting the Manual
................. 219
Treadwear
.................................. 323
Trip Meter
................................... 69
Turn Signals
................................. 63
U
Unexpected, Taking Care of
the
.......................................... 285
Uniform Tire Quality Grading
(U.S. only)
.............................. 323
Unleaded Gasoline
..................... 200
Index
X
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Upper Glove Box ........................ 105
USB Flash Memory Device Error
Messages
........................ 142, 184
Used Oil, How to Dispose of
...... 257
V
Vehicle Capacity Load ................ 211
Vehicle Dimensions
................... 320
Vehicle Identification Number
... 318
Vehicle Stability Assist (VSA
®
),
aka Electronic Stability
Control (ESC), System
VSA OFF Indicator
.................. 235
Vehicle Stability Assist (VSA)
System
................................ 235
VSA OFF Indicator
................... 67
VSA OFF Switch
..................... 236
VSA System Indicator
.............. 67
Vehicle Storage
.......................... 283
Ventilation
.................................. 112
VIN
............................................ 318
Viscosity, Oil
.............................. 255
W
WARNING, Explanation of ........... iii
Warning Labels, Location of
......... 54
Warranty Coverages (U.S.
only)
....................................... 335
Washer, Windshield
Checking the Fluid Level
........ 260
Fluid Level Indicator (Canada
only)
..................................... 65
Operation
................................. 73
Wheels
Adjusting the Steering
.............. 77
Alignment and Balance
........... 278
Compact Spare
........................ 286
Wrench, Nut
........................... 287
Windows
Auto Reverse
........................... 101
Operating the Power
............... 100
Rear, Defogger
......................... 76
Windshield
Cleaning
................................... 73
Defroster
................................. 113
Washers
............................ 73, 260
Wipers, Windshield
Changing Blades
..................... 271
Operation
................................. 73
Rear Windshield Wiper and
Washer
................................. 73
Worn Tires
................................. 277
Wrecker, Emergency Towing
.... 313
Index
XI
INDEX
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
10/08/06 13:54:35 11 FIT MMC North America Owner's Manual 50 31TK6620 enu
Gasoline:
Unleaded gasoline, pump octane
number of 87 or higher.
Fuel Tank Capacity:
10.6 US gal (40 L)
Recommended Engine Oil:
API Premium grade 0W-20
detergent oil (see page 255).
Oil change capacity (including
filter):
3.8 US qt (3.6 L)
Automatic Transmission Fluid:
Honda ATF DW-1 (automatic
transmission fluid) (see page 261).
Manual Transmission Fluid:
Honda Manual Transmission Fluid
preferred, or an SAE 10W-30 or
10W-40 motor oil as a temporary
replacement (see page 262).
Capacity (including differential):
1.6 US qt (1.5 L)
Brake Fluid:
Honda Heavy Duty Brake Fluid
DOT 3 preferred, or a DOT 3 or
DOT 4 brake fluid as a temporary
replacement (see page 263).
Tire Pressure (measured cold):
Front/Rear:
All models except Sport
32 psi (220 kPa, 2.2 kgf/cm
2
)
Sport model
33 psi (230 kPa, 2.3 kgf/cm
2
)
Spare Tire Pressure:
60 psi (420 kPa, 4.2 kgf/cm
2
)
Service Information Summary
