DANGER
IF YOU SMELL GAS:
APPLY SERIAL NUMBER LABEL FROM CARTON
Serial No.
XXXXXX000000
MODEL NO.
WARNING!
BILEX730
www.gtrc.gov. au
N415-0326-AU SEP 19.14
SAI Global
SAI-400025
AS4557
DO NOT REMOVE
WARNING
www.napoleongrills.com
2
NAPOLEON warrants that components in your new NAPOLEON product will be free from defects in material and
workmanship from the date of purchase, for the following period:
Aluminum casngs / stainless steel base Lifeme
Stainless steel lid Lifeme
Porcelain enamel lid Lifeme
Stainless steel cooking grids Lifeme
Stainless steel tube burners 10 years
Stainless steel sear plates 5 years
Porcelain-enameled cast iron cooking grids 5 years
Stainless steel infrared rosserie burner 5 years
Ceramic infrared rosserie burner (excluding screen) 3 years
Ceramic infrared boom or side burners (excluding screen) 2 years
All other parts 2 years
indicates a period of extended warranty coverage whereby the replacement part will be made available to the
consumer for an addional 5 years at 50% of the current retail price.
NAPOLEON warrants its products against manufacturing defects to the original purchaser only, provided that the purchase was
made through an authorized NAPOLEON dealer and is subject to the following condions and limitaons:
This factory warranty is non-transferable and may not be extended what-so-ever by any of our representaves.
The gas grill must be installed by a licensed, authorized service technician or contractor. Installaon must be done in accordance
with the installaon instrucons included with the product and all local and naonal building and re codes.
This limited warranty does not cover damages caused by misuse, lack of maintenance, grease res, hosle environments, accident,
alteraons, abuse or neglect and parts installed from other manufacturers will nullify this warranty. Discoloraon to plasc parts
from chemical cleaners or UV exposure is not covered by this warranty.
This limited warranty further does not cover any scratches, dents, painted nishes, corrosion or discoloring by heat, abrasive and
chemical cleaners, nor chipping on porcelain enamel parts, nor any components used in the installaon of the gas grill.
Should deterioraon of parts occur to the degree of non-performance (rusted through or burnt through) within the duraon of
the warranted coverage, a replacement part will be provided.
Aer the rst year, with respect to this President’s Limited Lifeme Warranty NAPOLEON may, at its discreon, fully discharge all
obligaons with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted
but defecve part(s).
NAPOLEON will not be responsible for the installaon, labor or any other costs or expenses related to the re-installaon of a
warranted part, and such expenses are not covered by this warranty.
Notwithstanding any provision contained in this President’s Limited Lifeme Warranty NAPOLEON’s responsibility under this
warranty is dened as above and it shall not in any event extend to any incidental, consequenal, or indirect damages.
This warranty denes the obligaon and liability of NAPOLEON with respect to the NAPOLEON gas grill and any other warranes
expressed or implied with respect to this product, its components or accessories are excluded.
NAPOLEON neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilies with respect to the sale of
this product.
NAPOLEON will not be responsible for: over ring, blow outs caused by environmental condions such as strong winds, or
inadequate venlaon,
Any damages to the gas grill due to weather damage, hail, rough handling, damaging chemicals or cleaners will not be the
responsibility of NAPOLEON.
The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from
NAPOLEON.
NAPOLEON reserves the right to have its representave inspect any product or part prior to honoring any warranty claim.
NAPOLEON shall not be liable for any transportaon charges, labor costs, or export dues.
THANK YOU FOR CHOOSING NAPOLEON
NAPOLEON products are designed with superior components and materials, and are assembled by trained crasmen
who take great pride in their work. The burner and valve assembly are leak tested and test-red at a quality test
staon. This grill has been thoroughly inspected by a qualied technician before packaging and shipping to ensure
that you, the customer, receive the quality product you expect from NAPOLEON.
We at Napoleon are dedicated to you, “our valued customer.” It is our goal to provide you with the necessary tools
for an unforgeable grilling experience. This manual is provided to assist you in assuring your new grill is assembled,
installed, maintained and cared for properly. It is important to read and understand this enre manual before
operang your new grill to ensure you fully understand all the safety precauons and features your grill has to oer.
By carefully following these instrucons, you will enjoy years of trouble-free grilling. If this product fails to meet your
expectaons, for any reason, please call our customer soluons department at 1-866-820-8686 between 9 AM and 5 PM
(Eastern Standard Time) or visit our Website at www.napoleongrills.com.
www.napoleongrills.com
3
WARNING!
• This gas grill must be assembled exactly according to the instrucons in the manual. If the grill was
store assembled, you must review the assembly instrucons to conrm correct assembly and perform
the required leak tests before operang the grill.
• Read the enre instrucon manual before operang the gas grill.
• This gas grill must be used only outdoors in a well-venlated space and must not be used inside a
building, garage, screened-in porch, gazebo or any other enclosed area.
• This gas grill must not be installed in or on recreaonal vehicles and/or boats.
• Do not locate unit in windy sengs. High winds adversely aect the cooking performance of the gas grill.
• Under no circumstances should this gas grill be modied.
• Do not operate unit under overhead combusble construcon.
• Maintain proper clearance to combusbles, (18” (457mm) to rear of unit, 24” (610mm) to sides).
Addional clearance of 24” (610mm) is recommended near vinyl siding or panes of glass.
• Gas must be turned o at the gas supply valve when the gas grill is not in use.
• If the enclosure is to house a Universal Liqueed Petroleum Gas cylinder, the tank poron of the
enclosure must be venlated according to local codes, and must not have communicaon with the
cavity used to enclose the gas grill. A Universal Liqueed Petroleum Gas cylinder tank cannot be
stored below the gas grill.
• Do not aempt to use a cylinder that is not equipped with a QCC1 type connecon.
• When the Universal Liqueed Petroleum Gas cylinder is connected to the appliance, the gas grill and
cylinder must be stored outdoors in a well-venlated space.
• When the gas grill is to be stored indoors, the connecon between the Universal Liqueed Petroleum
Gas cylinder and the gas grill must be disconnected and the cylinder removed and stored outdoors
in a well venlated space out of reach of children. Disconnected cylinders must not be stored in a
building, garage or any other enclosed area. Natural gas units must be disconnected from the supply
when being stored indoors.
• Inspect the fuel supply hose before each use. If there is evidence of excessive abrasion or wear or the
hose is cut, it must be replaced prior to using the gas grill with a replacement hose assembly specied
by the grill manufacturer.
• Leak test the unit before inial use, annually, and whenever any gas components are replaced.
• Follow lighng instrucons carefully when operang grill.
• Burner controls must be o when turning supply cylinder valve on.
• The lid is to be closed during the gas grill preheang period on all models except the BISZ300NFT/PFT
and the built-in side burner BISB245.
• The BISZ300NFT/PFT and the built-in side burner BISB245 are supplied with a at cover for storage
and protecon from the elements. Never place this cover on the grill while hot or operang. Allow
grill to cool completely before covering.
• Adults and especially children should be alerted to the hazards of high surface temperatures. Young
children should be supervised near the gas grill.
• Do not leave grill unaended when operang.
• Do not light burners with lid closed.
• Do not operate rear burner with main burners operang.
• Do not move grill when hot or operang.
• Keep any electrical supply cord and fuel supply hose away from any heated surfaces.
• Ensure sear plates are posioned properly according to sear plate installaon instrucons. The holes
must be towards the front of the gas grill (if applicable).
• Clean grease tray and sear plates regularly to avoid build-up, which could lead to grease res.
• Remove warming rack before lighng rear burner. The extreme heat will damage the warming rack.
• Inspect infrared burner venturi tube for spider webs and other obstrucons periodically. Clean the
tubes completely if you nd any such obstrucons.
• Do not allow cold water (rain, sprinkler, hose, etc.) to come in contact with heated unit. A large
temperature dierenal can cause chipping in the porcelain.
• Do not allow cold water (rain, sprinkler, hose, etc.) to come in contact with ceramic burners. A large
temperature dierenal can cause cracking in the ceramic le.
• Do not use a pressure washer to clean any part of the unit.
www.napoleongrills.com
4
Locang Your Outdoor Gas Grill
It is important when selecng a locaon for your gas grill to ensure clearances to adjacent combusbles
are met. This appliance is intended for installaon on an outdoor pao or in your yard.
‘This appliance shall only be used in an above ground open-air situaon with natural venlaon, without
stagnant areas, where gas leakage and products of combuson are rapidly dispersed by wind and natural
convecon.’
Any enclosure in which the appliance is used shall comply with one of the following:
An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead
cover.
Within a paral enclosure that includes an overhead cover and no more than two sidewalls. These
sidewalls may be parallel, as in a breezeway, or at right angles to each other.
Within a paral enclosure which includes an overhead cover and more than two walls, the following shall
apply:
a) at least 25% of the total wall area is completely open; and.
b) at least 30% of the remaining wall area is open and unrestricted.
In the case of balconies, at least 20% of the total of the side, back and front wall areas shall be and remain
open and unrestricted.
www.napoleongrills.com
5
WARNING!
WARNING!
WARNING!
BUILT IN : The piping up to the gas grill is the
responsibility of the installer and piping should be located as shown in the built-in instrucons. A exible
metal connector is included to simplify the installaon of the unit. Connect this exible metal connector
to the are ng on the end of the manifold. Connect the other end of the connector to the gas piping.
Ensure that the connector does not pass through a wall, oor, ceiling or paron, and is protected from
damage. The installaon must be performed by a licensed gas er in accordance with AS5601 / AG601,
and all connecons must be leak tested before operang the grill.
Do not use a hose to connect the unit except to connect the cylinder regulator to the piping system. It
must be connected with rigid pipe, copper tube or an approved exible metal connector which complies
with with AS5601 / AG601. The gas supply pipe must be suciently sized to supply the kPA specied on
the rang plate, based on the length of the piping run. If installing a side burner, a separate line must be
branched o to the side burner unit and enter the side burner opening at the specied locaon. If the
enclosure is to house a ULPG cylinder, the tank poron of the enclosure must be venlated according
to local codes, and must not have communicaon with the cavity used to enclose the gas grill. A ULPG
cylinder cannot be stored below the gas grill.
This gas grill is cered for outdoor use and should be installed to conform to local codes. Check gas type
and specicaons located on the rang plate located on the back panel of the grill.
Universal Liqueed Petroleum Gas Cylinder Specicaons
WARNING!
If the gas grill is being supplied with Universal Liqueed Petroleum Gas from a portable cylinder, a
regulator specied by the manufacturer must be used. Cart models have been designed for use for use
with an approved 9 kg size Universal Liqueed Petroleum Gas cylinder (not supplied). The Universal
Liqueed Petroleum Gas cylinder must be equipped with a POL tank valve connecon. A dented or rusty
cylinder may be hazardous and should be checked by your Universal Liqueed Petroleum Gas supplier.
Never use a cylinder with a damaged valve. The cylinder supply system must be arranged for vapor
withdrawal and the cylinder shall include a dust cap to protect the cylinder valve. The cylinder shall
incorporate a listed OPD (overll protecon device). Do not store a spare Universal Liqueed Petroleum
Gas cylinder under or near this appliance. Never ll the cylinder beyond 80 percent full.
www.napoleongrills.com
6
CYLINDER SIZE
20 lb (9.1 kg)
20 in
2
(130 cm
2
) 10 in
2
(65 cm
2
)
30 lb (13.6 kg)
30 in
2
(195 cm
2
) 15 in
2
(100 cm
2
)
MAXIMUM
MAXIMUM
A
B
MINIMUM
CYLINDER FROM GRILL
RECOMMENDED
MAXIMUM
BUILT IN CYLINDER ENCLOSURES: Built in cylinder enclosures which completely enclose the cylinder must
have both of the following:
1. At least one unobstructed venlaon opening on the exposed exterior side of the enclosure located
within 5 in (127mm) of the top of the enclosure. The opening must have a total free area of more than
20 in
2
(130 cm
2
) for a 20 lb (9.1 kg) cylinder and 30 in
2
(195 cm
2
) for a 30 lb (13.6 kg) cylinder.
2. At least one venlaon opening on the exposed, exterior side of the enclosure located 1 in (25.4 mm) or
less from the oor level. The opening must have a total free area of more than 10 in
2
(65 cm
2
) for a 20 lb
(9.1 kg) cylinder and 15 in
2
(100 cm
2
) for a 30 lb (13.6 kg) cylinder. The upper edge must be no more than
5 in (127 mm) above the oor level.
WARNING!
• The cylinder valve(s) must be readily accessible for hand operaon. A door on the enclosure to gain
access to the cylinder valves is acceptable, provided it is non-locking and can be opened without the
use of tools.
• The enclosure for the ULPG-gas cylinder must isolate the cylinder from the burner compartment to
provide shielding from radiaon, a ame barrier, and protecon from foreign material, such as hot
drippings. The enclosure cannot be located directly below the grill.
• There must be a minimum clearance of 2 in (51 mm) between the oor of the ULPG-gas cylinder
enclosure and the ground.
• The enclosure must be designed so that the ULPG-gas cylinder can be connected, disconnected and
the connecons inspected and tested outside the cylinder enclosure. Any connecons that can
be disturbed when installing the cylinder in the enclosure must be accessible for tesng inside the
enclosure.
www.napoleongrills.com
7
WARNING!
WARNING!
: This must be done before inial use, annually, and whenever any gas components are
replaced or serviced. Do not smoke while performing this test, and remove all sources of ignion. See Leak
Tesng Diagram for areas to check. Turn all burner controls to the o posion. Turn gas supply valve on.
Brush a half-and-half soluon of liquid soap and water onto all joints and connecons of the regulator,
hose, manifolds and valves.
Bubbles will indicate a gas leak. Either ghten the loose joint or have the part replaced with one
recommended by the Napoleon Customer Care department and have the grill inspected by a cered gas
installer.
If the leak cannot be stopped, immediately shut o the gas supply, disconnect it, and have the grill
inspected by a cered gas installer or dealer. Do not use the grill unl the leak has been corrected.
: The piping up to the gas grill is the responsibility of the installer and
piping should be located as shown in the built-in instrucons. A exible metal connector is included
to simplify the installaon of the unit. Connect this connector to the are ng on the end of the
manifold. Connect the other end of the connector to the gas piping. Ensure that the connector does not
pass through a wall, oor, ceiling or paron, and is protected from damage. The installaon must be
performed by a licensed gas er in accordance with AS5601 / AG601, and all connecons must be leak
tested before operang the grill.
Do not use a hose to connect the unit. It must be connected with rigid pipe, copper tube or an approved
exible metal connector which complies with with AS5601 / AG601. The gas supply pipe must be
suciently sized to supply the kPA specied on the rang plate, based on the length of the piping run. If
installing a side burner, a separate line must be branched o to the side burner unit and enter the side
burner opening at the specied locaon.
WARNING!
WARNING!
DANGER!
: The gas grill is designed to operate at an inlet pressure of 1.00 kPA and must be checked aer
installaon by turning all burners on and measuring at the regulator outlet test point provided.
This unit includes an internal regulator which stabilizes
the gas pressure and improves grill performance. This
regulator cannot be adjusted. There is a pressure tap
located on the side of the regulator. It can be used by
a qualied service person when servicing the grill to
determine if the regulator is funconing properly. The
screw within the pressure tap must always be kept ght,
except when performing a pressure test on the regulator
(qualied service personnel only).
www.napoleongrills.com
8
WARNING!
WARNING!
Main Burner
Lighng
Rear Burner Lighng
(Rosserie Burner)
(if equipped)
Side Burner Lighng
(If equipped)
1. Open grill lid. 1. Open grill lid. 1. Open side burner cover.
2. Push and turn any main burner
knob slowly to the ’hi’ posion. This
acon will ignite the pilot ame
which will in turn light the selected
burner. If the pilot lights, connue to
push down on the control knob unl
the burner lights and then release.
2. Remove the warming rack. 2. Push and turn side burner control to
high posion.
3. If the pilot does not ignite, then
immediately turn the control knob
back to the ‘o posion and repeat
step 2 several mes.
3. Push and turn the rosserie burner
control knob slowly to the ‘hi’ posion.
This acon will ignite the pilot ame
which will in turn light the burner. If
the pilot lights, connue to push down
on the burner control knob unl the
burner lights then release.
3. Press and hold igniter buon unl
burner lights, or light by match.
4. If the pilot and burner will not
ignite within 5 seconds, turn the
control knob to the ‘o’ posion
and wait 5 minutes for any excess
gas to dissipate. Either repeat steps
2 and 3 or light with a match.
4. If the burner does not ignite, then
immediately turn the control knob
back to the ‘o’ posion and repeat
step 3 several mes.
4. If the burner will not ignite within
5 seconds, turn the control knob to
the ‘o’ posion and wait 5 minutes
for any excess gas to dissipate. Either
repeat steps 2 and 3 or light with a
match.
5. If lighng the unit with a
match, clip the match into the
supplied lighng rod. Hold the
lit match down through the grill
and sear plate while turning the
corresponding burner valve to high.
5. If the burner will not ignite within 5
seconds, turn the control knob to the
‘o’ posion and wait 5 minutes for any
excess gas to dissipate. Either repeat
steps 3 and 4 or light with a match.
WARNING!
WARNING!
www.napoleongrills.com
9
: When lit for the rst me, the gas grill emits a slight odor. This is a normal temporary
condion caused by the “burn-in” of internal paints and lubricants used in the manufacturing process and
does not occur again. Simply run the main burners on high for approximately one-half hour.
: Remove the warming rack prior to use, the extreme heat will damage the
warming rack. Cooking grids should also be removed if they interfere with the rosserie. The rear burner
is designed to be used in conjuncon with the rosserie kit available from your dealer. See the rosserie
kit assembly instrucons.
To use the counterbalance - remove the rosserie motor from the gas grill. Place the spit with meat
being cooked across the hangers inside the grill. The meat will naturally hang with the heavy side down.
Tighten the counterbalance arm and weight so the arm is facing up. Slide the counterweight in or out
to balance the load and ghten in place. Re-install the motor and begin cooking. Place a metal dish
underneath the meat to collect drippings for basng and naturally delicious gravy. Basng liquid may be
added as required. To seal in juices, rst operate rear burner on high unl brown, then reduce the heat to
thoroughly cook foods. Keep the lid closed for best results. Your roasts and fowl will brown perfectly on
the outside and stay moist and tender on the inside. For example, a 3 pound chicken on the rosserie will
be done in approximately 1½ hours on medium to high. See ‘Your all Season Grill’ cookbook by Napoleon
for more detailed instrucons.
WARNING!
: Place food to be cooked on the grill directly over the heat. This method is generally used
for searing or for foods that do not require prolonged cooking mes such as hamburgers, steaks, chicken
pieces, or vegetables. The food is rst seared to trap-in the juices and avor, and then the temperature is
lowered to nish cooking the food to your preference.
: With one or more burners operang, place food to be cooked on the grill over a burner
that is not operang. The heat circulates around the food, cooking slowly and evenly. Cooking with this
method is much the same as cooking in your oven and is generally used for larger cuts of meats such
as roasts, chickens or turkeys, but can also be used for cooking foods that are prone to are-ups or for
smoking foods. Lower temperatures and slower cooking mes result in tender foods.
:
Food cooked for short periods of me (sh, vegetables) can be grilled with the
open. Cooking with the lid closed will ensure higher, more even temperatures that can reduce cooking
me and cook meat more evenly. Food that has a cooking me longer than 30 minutes, such as roasts, can
be cooked indirectly (with the burner lit opposite to the food placement). When cooking very lean meats,
such as chicken breasts or lean pork, the grids can be oiled before pre-heang to reduce scking. Cooking
meat with a high degree of fat content can create are-ups. Either trim the fat or reduce temperatures to
inhibit this. Should a are-up occur, move food away from the ames and reduce the heat. Leave the lid
open. See Your All Season Grill cookbook by Napoleon for more detailed instrucons.
I: Follow the Infrared Burner Ignion procedures and operate on high for 5
minutes with the lid closed or unl the ceramic burners glow red.
Place food on the grill(s) and cook according to
mes listed in the Infrared Grilling Chart. Depending upon your taste, connue cooking over infrared
burners on high, medium, or low, turning food frequently, or place food over unlit burners, close lid, and
allow the oven temperature to slowly nish cooking your food.
CAUTION!
www.napoleongrills.com
10
Most people don’t realize that the heat source we are most familiar with, our sun, warms the earth using
mainly infrared energy. This is a form of electro-magnec energy with a wavelength just greater than the
red end of the visible light spectrum but less than a radio wave. This energy was discovered in 1800 by Sir
William Herschel who dispersed sunlight into its component colors using a prism. He showed that most
of the heat in the beam fell into the spectral region just beyond the red end of the spectrum, where no
visible light existed. Most materials readily absorb infrared energy in a wide range of wavelengths, causing
an increase in its temperature. The same phenomenon causes us to feel warmth when we are exposed to
sunlight. The infrared rays from the sun travel through the vacuum of space, through the atmosphere, and
penetrate our skin. This causes increased molecular acvity in the skin, which creates internal fricon and
generates heat, allowing us to feel warmth.
Foods cooked over infrared heat sources are heated by the same principle. Charcoal grilling is our most
familiar choice for infrared cooking. The glowing briquees emit infrared energy to the food being cooked
with very lile drying eect. Any juices or oils that escape from the food drip onto the charcoal and
vaporize into smoke giving the food its delicious grilled taste. The Napoleon infrared burner cooks in the
same way. In each burner, 10,000 ports – each with its own ny ame – cause the surface of the ceramic
le to glow red. This glow emits the same type of infrared heat to the food as charcoal, without its hassle
or mess. Infrared burners also provide a more consistently heated area that is far easier to regulate than
a charcoal re. For instant searing, the burners can be set to high, yet they can also be turned down for
slower cooking. We all know how dicult that is on a charcoal re. Tradional gas burners heat the food in
a dierent way. The air surrounding the burner is heated by the combuson process and then rises to the
food being cooked. This generates lower grill temperatures that are ideal for more delicate cuisine such
as seafood or vegetables, whereas Napoleon’s infrared burners produce searing heat for juicier, taser
steaks, hamburgers and other meats. For cooking mes and ps refer to the Infrared Grilling Chart.
www.napoleongrills.com
11
Steak
1 in. (2.54cm) thick
High seng 2 min. each side.
High seng 2 min. each side
then medium seng.
High seng 2 min. each side
then medium seng.
4 min. – Rare
6 min. – Medium
8 min. – Well done
When selecng meat for grilling,
ask for marbled fat distribuon.
The fat acts as a natural
tenderizer while cooking and
keeps it moist and juicy.
Hamburger
1/2 in. (1.27cm) thick
High seng 2 min. each side.
High seng 2 1/2 min. each
side.
High seng 3 min. each side.
4 min. – Rare
5 min. – Medium
6 min. – Well done
Preparing hamburgers to order
is made easier by varying the
thickness of your paes. To add
an exoc taste to your meat,
try adding hickory-avored
woodchips to Napoleon’s
woodchip smoker.
Chicken pieces High seng 2 min. each side.
then medium-low to low
seng.
20-25 min. The joint connecng the thigh
and the leg from the skinless
side should be sliced 3/4 of the
way though for the meat to lay
aer on the grill. This helps it
to cook faster and more evenly.
To add a trademark taste to your
cooking, try adding mesquite-
avoured woodchips to your
Napoleon woodchip smoker.
Pork chops Medium 6 min. per side Trim o the excess fat before
grilling. Choose thicker chops for
more tender results.
Spare ribs High seng for 5 minutes
low to nish
20 min. per side
turn oen
Choose ribs that are lean and
meaty. Grill unl meat easily
pulls away from the bone.
Lamb chops High seng for 5 minutes
medium to nish
15 min. per side Trim o the excess fat before
grilling. Choose extra thick chops
for more tender results.
Hot dogs Medium - Low 4-6 min. Select the larger size wieners.
Slit the skin lengthwise before
grilling.
www.napoleongrills.com
12
WARNING!
WARNING!
: Stainless steel tends to oxidize or stain in the presence of chlorides and suldes, parcularly in
coastal areas and other harsh environments, such as the warm, highly humid atmosphere around pools
and hot tubs. These stains could be perceived as rust, but can be easily removed or prevented. To provide
stain prevenon and removal, wash all stainless steel surfaces every 3-4 weeks or as oen as required
with fresh water and/or stainless steel cleaner.
: The grids and warming rack are best cleaned with a brass wire brush during
the pre-heang period. Steel wool can be used for stubborn stains. It is normal that stainless grids (if
equipped) will discolor permanently from regular usage due to the high temperature of the cooking
surface.
: The control panel text is printed directly on the stainless steel and with proper
maintenance will remain dark and legible. To clean the panel, use only warm soapy water or stainless steel
cleaner available from your Napoleon dealer. Never apply abrasive cleaners on any stainless surfaces,
especially the printed poron of the control panel or the prinng will gradually rub o.
: Remove the cooking grids. Use a brass wire brush to clean loose debris from
the casng sides and underneath the lid. Scrape the sear plates with a puy knife or scraper, and use a
wire brush to remove the ash. Remove the sear plates and brush debris from the burners with the brass
wire brush. Sweep all debris from inside the gas grill into the drip pan.
WARNING!
: Accumulated grease is a re hazard. Clean the drip pan aer each use to avoid grease buildup.
Grease and excess drippings pass through to the drip pan, located beneath the gas grill. To clean the drip
pan, slide the drip pan free of the grill. Never line the drip pan with aluminum foil, sand or any other
material as this could prevent the grease from owing properly. The pan should be scraped out with a
puy knife or scraper.
: Do not use abrasive cleaners or steel wool on any painted, porcelain or
stainless steel parts of your Napoleon Grill. Doing so will scratch the nish. Exterior grill surfaces should be
cleaned with warm soapy water while the metal is sll warm to the touch. To clean stainless surfaces, use
a stainless steel or a non-abrasive cleaner. Always wipe in the direcon of the grain. Over me, stainless
steel parts discolor when heated, usually to a golden or brown hue. This discoloraon is normal and does
not aect the performance of the grill. Porcelain enamel components must be handled with addional
care. The baked-on enamel nish is glass-like, and will chip if struck. Touch-up enamel is available from
your Napoleon Grill dealer.
www.napoleongrills.com
13
WARNING!
WARNING!
: The burners are made from heavy wall 304 stainless steel, but extreme heat and a corrosive
environment can cause surface corrosion to occur. This can be removed with a brass wire brush.
CAUTION!
Spiders and insects are aracted to the smell of Universal Liqueed Petroleum Gas and Natural Gas.
The burner is equipped with an insect screen on the air shuer, which reduces the likelihood of insects
building nests inside the burner but does not enrely eliminate the problem. A nest or web can cause the
burner to burn with a so yellow or orange ame or cause a re (ashback) at the air shuer beneath the
control panel. To clean the inside of the burner, it must be removed from the gas grill: Remove the screw
that aaches the burner to the back wall. Slide the burner back and upwards to remove. Cleaning: Use
a exible venturi tube brush to clean the inside of the burner. Shake any loose debris from the burner
through the gas inlet. Check the burner ports and valve orices for blockages. Burner ports can close over
me due to cooking debris and corrosion, use an opened paperclip or the supplied port maintenance bit
to clean them. Drill out blocked ports using this drill bit in a small cordless drill. The ports are easier to
Light Blue
Yellow Tipping
Dark Blue
Burner
Burner Port
Approximately
1/2” (13mm)
We recommend this gas grill be thoroughly inspected and serviced annually by a qualied service person.
At all mes keep the gas grill area free from combusble materials, gasoline and other ammable vapors
and liquids. Do not obstruct the ow of venlaon and combuson air. Keep the cylinder enclosure
venlaon openings (located on the cart sides and at the front and back of the boom shelf) free and
clear from debris.
: (This must be done by a qualied gas installer.) The air shuer is factory
set and should not need adjusng under normal condions. Under extreme eld condions, adjustments
might be required. When the air shuer is adjusted correctly the ames will be dark blue, pped with
light blue and occasionally yellow.
• With too lile air ow to the burner, the ames are lazy yellow and can produce soot.
• With too much air ow, the ames li erracally and can cause dicules when lighng.
:
1. Remove cooking grids and sear plates and leave lid open.
2. Loosen air-shuer lock screw located at the mouth of the burner and open or close air shuer as
required. The normal opening sengs are:
Main Tube Burner Universal Liqueed Petroleum Gas 5/32” (4mm)
Natural Gas 5/32” (4mm)
3. Light the burners and set to high. Visually inspect burner ames. When the shuers are set correctly,
turn burners o, ghten locking screws, and replace removed parts. Ensure that the insect screens are
installed.
www.napoleongrills.com
14
WARNING!
WARNING!
: Clean casngs periodically with warm soapy water. Aluminum will not rust, but high
temperatures and weathering can cause oxidaon to occur on aluminum surfaces. This appears as white
spots on the casngs. To renish these areas, clean rst and sand lightly with ne sandpaper. Wipe the
surface to
remove any residue and paint with high temperature barbecue paint. Protect surrounding
areas from over-spray. Follow the manufacture’s direcons for curing.
clean if the burner is removed from the grill, but it can also be done with the burner installed. Do not ex
the drill bit when drilling the ports, as this will cause the drill bit to break. This drill is for burner ports only,
not for the brass orices (jets) which regulate the ow into the burner. Take care not to enlarge the holes.
Ensure the insect screen is clean, ght, and free of any lint or other debris.
: Reverse the procedure to reinstall the burner. Check that the valve enters the burner when
installing.
: Because of the high intensity of the infrared burner, most drippings and food parcles
that fall onto the burner surface are immediately incinerated. However, some debris and residue may
remain. To remove this residue aer cooking, turn the grill on high with lid closed for 5-10 minutes. Do
not clean the ceramic le with a wire brush. If debris is collecng on your burner, simply light the burner
and operate on high for 5 minutes with the lid open, allowing debris to burn o. If the back burner is not
used oen, grease splaer from main burner grilling will eventually block the ports. Once a month, the
back burner should be red for 5-10 minutes to burn o the accumulated grease.
: The infrared burners of your grill are designed to provide a long service
life, though care must taken to prevent cracking of their ceramic surfaces. Fractures will cause the burners
to malfuncon. The following provides a few of the causes of cracks and the steps you can take to avoid
them. Damage caused by failure to follow these steps is not covered by your grill warranty.
1. Impact with hard objects - Never allow hard objects to strike the ceramic. Take care when inserng or
removing cooking grates and accessories into or from the grill.
2. Contact with water or other liquids - Cold liquids contacng the hot ceramic surfaces can cause them
to break. Never throw water into the grill to douse a ame. If the ceramic or interior of a burner becomes
wet while not in use, later operaon of the burner can create steam, which can produce sucient
pressure to crack the ceramic. Repeated soaking of the ceramic can also cause it to swell and expand. This
expansion causes undue pressure on the ceramic that can cause it to crack and crumble.
i) Never throw water into the grill to control are-ups.
ii) Do not aempt to operate the infrared burners in open air while raining.
iii) If you nd standing water in your grill (because of exposure to rainfall, sprinklers, etc.), inspect
the ceramic for evidence of possible watersoaking. If the ceramic appears to be wet, remove the burner
from the grill. Turn it upside down to drain the excess water and bring indoors to dry thoroughly.
3. Impaired venlaon of hot air from the grill - For the burners to funcon properly, hot air must have
a way to escape the grill. If the hot air is not allowed to escape, the burners can become deprived of
oxygen causing them to back-ash. If this occurs repeatedly, the ceramic could crack. Never cover more
than 75% of the cooking surface with solid metal (i.e., griddle or large pan).
4. Incorrect cleaning - Do not clean the ceramic le with a wire brush. If debris is collecng on your
burner, light the burner and operate on high for 5 minutes with the lid open, allowing debris to burn o.
REPLACEMENT SCREEN N565-0002
www.napoleongrills.com
15
Low heat / Low ame
when valve turned to
high.
For Universal Liqueed Petroleum
Gas - improper lighng procedure.
For natural gas - undersized supply
line.
For both gases - improper
preheang.
Ensure lighng procedure is followed
carefully. All gas grill valves must be
in the o posion when the tank valve
is turned on. Turn tank on slowly to
allow pressure to equalize. See lighng
instrucons.
Pipe must be sized according to
installaon code.
Preheat grill with both main burners on
high for 10 to 15 minutes.
Excessive are-ups/
uneven heat.
Sear plates installed incorrectly.
Improper preheang.
Excessive grease and ash build on
sear plates and in drip pan.
Ensure sear plates are installed with
the holes towards the front and the
slots on the boom. See assembly
instrucons.
Preheat grill with both main burners on
high for 10 to 15 minutes.
Clean sear plates and drip pan
regularly. Do not line pan with
aluminum foil. Refer to cleaning
instrucons.
Burners burn with yellow
ame, accompanied by
the smell of gas.
Possible spider web or other
debris, or improper air shuer
adjustment.
Thoroughly clean burner by removing.
See general maintenance instrucons.
Open air shuer slightly according
to combuson air adjustment
instrucons. (This must be done by a
qualied gas installer.)
Flames li away from
burner, accompanied
by the smell of gas, and
possibly dicules in
lighng.
Improper air shuer adjustment. Close air shuer slightly according
to combuson air adjustment
instrucons. (This must be done by a
qualied gas installer.)
Rear and Side burners
will not light with the
igniter, but will light with
a match.
Dead baery / or installed
incorrectly.
Loose electrode wire or switch
terminal wires.
Liing ames on burner.
Replace with premium heavy duty
baery.
Check that electrode wire is rmly
pushed onto the terminal on the back
of the igniter. Check that the lead
wires from the module to the ignion
switch (if equipped) are rmly pushed
onto their respecve terminals.
Close air shuer slightly - see previous
problem.
Main burner will not
light with the igniter, but
will light with a match.
Jet-re outlet is dirty or clogged. Clean jet-re outlet with a so bristle
brush.
www.napoleongrills.com
16
Humming regulator. Normal occurrence on hot days. This is not a defect. It is caused by
internal vibraons in the regulator
and does not aect the performance
or safety of the gas grill. Humming
regulators will not be replaced.
Burners will not cross
light each other.
Dirty or corroded cross light
brackets.
Clean or replace as required.
“Paint” appears to be
peeling inside lid or
hood.
Grease build-up on inside surfaces. This is not a defect. The nish on the
lid and hood is porcelain, and will
not peel. The peeling is caused by
hardened grease, which dries into
paint-like shards, that ake o. Regular
cleaning will prevent this. See cleaning
instrucons.
Burner output on “high”
seng is too low.
(Rumbling noise and
uering blue ame at
burner surface.)
Lack of gas.
Supply hose is pinched.
Dirty or clogged orice.
Spider webs or other maer in
venturi tube.
Universal Liqueed Petroleum Gas
regulator in “low ow” state.
Check gas level in Universal Liqueed
Petroleum Gas cylinder.
Reposion supply hose as necessary.
Clean burner orice.
Clean out venturi tube.
Ensure lighng procedure is followed
carefully. All gas grill valves must be
in the o posion when the tank valve
is turned on. Turn tank on slowly to
allow pressure to equalize. See lighng
instrucons.
Infrared burner (if
equipped) ashes back
(during operaon the
burner abruptly makes
a loud “whoosh” sound,
followed by a connuous
blow-torch type sound
and grows dim.)
Ceramic les overloaded with
grease drippings and build-up.
Ports are clogged.
Burner overheated due to
inadequate venlaon (too much
grill surface covered by griddle or
pan.)
Cracked ceramic le.
Leaking gasket surrounding the
ceramic le, or a weld failure in
the burner housing.
Turn burner o and allow to cool for at
least two minutes. Relight burner and
burn on high for at least ve minutes
or unl the ceramic les are evenly
glowing red.
Ensure that no more than 75% of the
grill surface is covered by objects or
accessories. Turn burner o and allow
to cool for at least two minutes, then
relight.
Allow burner to cool and inspect
very closely for cracks. If any cracks
are found, contact your authorized
Napoleon dealer to order a
replacement burner assembly.
Contact your authorized Napoleon
dealer for instrucons on ordering a
replacement burner assembly.
www.napoleongrills.com
17
KEEP YOUR RECEIPT AS PROOF OF PURCHASE TO VALIDATE YOUR WARRANTY.
Warranty Informaon
MODEL:
DATE OF PURCHASE:
SERIAL NUMBER:
(Record informaon here for easy reference)
Before contacng the Customer Care Department, check the NAC Website for more extensive cleaning,
maintenance, troubleshoong and parts replacement instrucons at www.napoleongrills.com. Contact
the factory directly for replacement parts and warranty claims. Our Customer Soluons Department is
available between 9 AM and 5 PM (Eastern Standard Time) at 1-866-820-8686 or fax at 1-705-727-4282.
To process a claim, we must be provided with the following informaon:
1. Model and serial number of the unit.
2. Part number and descripon.
3. A concise descripon of the problem (‘broken’ is not sucient).
4. Proof of purchase (photocopy of the invoice).
In some cases the Customer Care Representave could request to have the parts returned to the factory
for inspecon before providing replacement parts. These parts must be shipped prepaid to the aenon
of the Customer Soluons Department with the following informaon enclosed:
1. Model and serial number of the unit.
2. A concise descripon of the problem (‘broken’ is not sucient).
3. Proof of purchase (photocopy of the invoice).
4. Return Authorizaon Number - provided by the Customer Care Representave.
Before contacng customer care, please note that the following items are not covered by the warranty:
Costs for transportaon, brokerage or export dues.
Labor costs for removal and reinstallaon.
Costs for service calls to diagnose problems.
Discoloraon of stainless steel parts.
Part failure due to lack of cleaning and maintenance, or use of improper cleaners (oven cleaner).
www.napoleongrills.com
18
CAUTION!
Flat and Philips
screwdrivers
Pliers
3/8 (10mm)
Wrench,
ratchet or driver
Hammer
TOOLS REQUIRED FOR ASSEMBLY (tools not included)
Geng Started
1. Remove all cart panels, hardware, and grill head from carton. Raise lid and remove any components
packed inside. Use the parts list to ensure all necessary parts are included.
2. Do not destroy packaging unl the grill has been fully assembled and operates to your sasfacon.
3. Assemble the grill where it is to be used, lay down cardboard or a towel to protect parts from being
lost or damaged while assembling.
5. Follow all instrucons in the order that they are laid out in this manual.
6. Two people are required to li the grill head onto the assembled cart.
www.napoleongrills.com
19
MODEL NOTES
W D H
BILEX730 43 1/4”
1099mm
21 3/8”
543mm
7 1/2”
191mm
SIDE
BURNER
12 3/4”
324mm
16 1/2”
419mm
4 1/2”
114mm
OPENING OF AT LEAST 5 SQ (32cm
2
) IN MUST BE PROVIDED FOR
COMBUSTION AIR FOR SIDE BURNER.
WARNING!
RECOMMENDED
2
)
OF VENTILATION REQUIRED ON
W
W
D
OUTDOOR GFI ELECTRICAL OUTLET
REC
W
D
www.napoleongrills.com
20
W D
N370-0361 PF STYLE STAINLESS STEEL DOOR 17” (432mm) 23 ¼” (591mm)
N370-0359 PF STYLE STAINLESS STEEL SINGLE
DRAWER
17 ¼” (438mm) 6 ¾” (171mm) 23” (584mm)
N370-0360 PF STYLE STAINLESS STEEL TRIPLE
DRAWER
17 ¼” (438mm) 22 ¾” (578mm) 23” (584mm)
N370-0502
N370-0503
DOUBLE DOOR SMALL
DOUBLE DOOR LARGE
28 ¼” (718mm)
37 ¾” (959mm)
20 ¼” (514mm)
20 ¼” (514mm)
N370-0504
N370-0505
SIDE BURNER UNIVERSAL LIQUEFIED
PETROLEUM GAS
SIDE BURNER NATURAL
12 ¾” (324mm)
12 ¾” (324mm)
4 ½ ” ( 1 1 4 m m )
minimum
16 ½” (419mm)
16 ½” (419mm)
www.napoleongrills.com
21
BI ACCESSORY DRAWER INSTRUCTIONS
BI ACCESSORY DOOR INSTRUCTIONS
1. Unpack the drawer frame assembly.
2. Remove the drawers from the enclosure by fully extending them and then liing up to remove them
from the slides.
3. Shim the opening to ensure that the enclosure ts snuggly into the opening. Ensure that the side shims
are located at the same height as the enclosure mounng holes. The boom of the opening may need to
be shimmed as well to ensure that the front of the enclosure is plumb.
4. Once the enclosure is level and square, fasten into place. (Fasteners not included).
5. Re-install the drawers by pping the back of the drawer down into the slide. Once the wheels are
inserted into the slide, lower the front of the drawer unl it is level, then push in. Note: if the enclosure
is installed with shims that are too thick, the wheel will not engage into the slide. The shim thickness will
need to be reduced.
6. Remove the protecve coang from all remaining surfaces.
1. Unpack the door and frame.
a. For the curved stainless steel doors, remove the door(s) from the frame by liing the door while holding
on to the pivot rod. This will allow the pivot rod to come out of the hole on the boom of the frame.
Once the pivot is removed from the boom hole, the enre door can be dropped and removed from the
frame.
b. For the PF style stainless steel door, the door needs to be removed by loosening the center philips
screw on the hinge furthest away from the door. This will allow the hinge to separate.
c. For double door kits N370-0502/N370-0503, refer to the instucons included with the door kit.
2. Center the frame in the opening. Mark the locaon of the pivot holes, top and boom. Remember on
the PT600 double doors, there will be a pivot rod on both ends. The PF style doors do not have pivot rods.
Once all pivot holes are marked, remove the frame and using a 3/8” drill bit, drill out the clearance holes
for the pivot rod. These clearance holes should be at least 1/2” deep. Aer the holes are complete, you
may once again center the frame in the opening. Starng with the hinged side, shim between the frame
and side wall of the opening. Ensure the shims are close to the hinge on the PF style doors. When the
frame side wall is plumb, fasten it to the cabinet with screws (not provided). Aach the other side of the
frame in the same fashion, ensuring the frame is square.
3. Other than on the curved stainless steel double door kit, fasteners are not required on the top and
boom of the frame. The curved stainless steel double door frame must be fastened in the center both at
the top and boom.
4. Once the frame has been secured and checked for squareness, the door can be re-installed.
5. Remove the protecve coang from all remaining surfaces.
www.napoleongrills.com
22
3/8”(10mm)

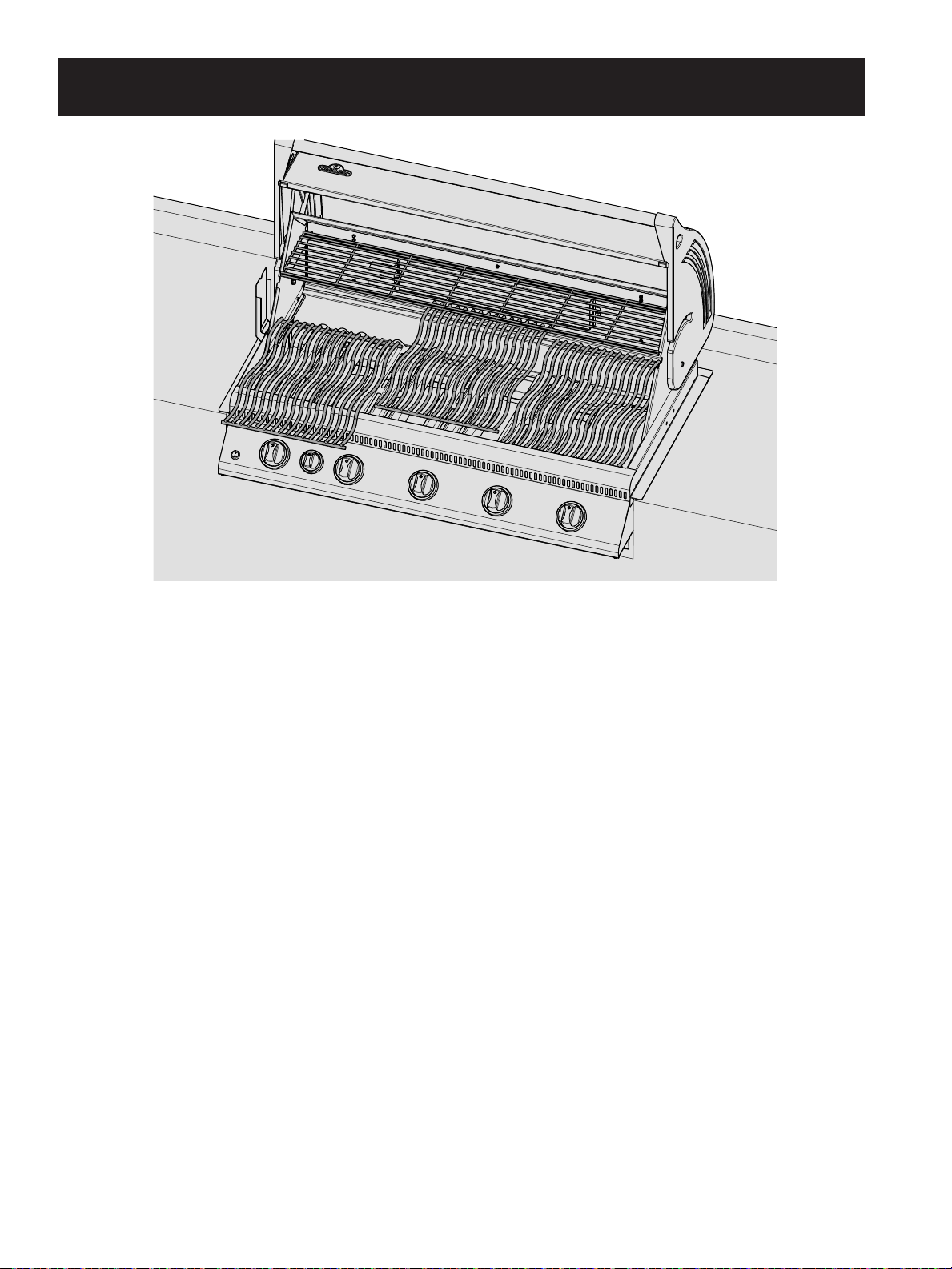

This grill is designed for masonry, NON-COMBUSTIBLE enclosures only, and must be installed and serviced
by a qualied installer to local codes.
1. Aach side mounng brackets to each side of the grill using #1/4-20 x 3/8" screws (N570-0073).
2. Lay the rear trim piece across the back of the opening. To keep it in place, a dab of silicone may be
applied to each wing of the rear trim.
3. Lower the unit in place, the wings on the rear trim should be under the side mounng brackets.
Connect the ex supply line to the ng at the end of the manifold.
4. The enre installaon must be leak tested before operang the unit.
6 x N570-0073 (1/4-20 X 3/8”)
REGULATOR FOR
NATURAL GAS
MODELS ONLY
www.napoleongrills.com
23
FOLD TABS OVER
TO SECURE
www.napoleongrills.com
24
www.napoleongrills.com
25
Rosserie Kit Assembly Instrucon
www.napoleongrills.com
26
WARNING!
WARNING!
: This must be done before inial use, annually, and whenever any gas components are
replaced or serviced. Do not smoke while performing this test, and remove all sources of ignion. See
Leak Tesng Diagram for areas to check. Turn all burner controls to the o posion. Turn gas supply valve
on.
Brush a half-and-half soluon of liquid soap and water onto all joints and connecons of the regulator,
hose, manifolds and valves.
Bubbles will indicate a gas leak. Either ghten the loose joint or have the part replaced with one
recommended by the Napoleon Customer Care department and have the grill inspected by a cered gas
installer.
If the leak cannot be stopped, immediately shut o the gas supply, disconnect it, and have the grill
inspected by a cered gas installer or dealer. Do not use the grill unl the leak has been corrected.
www.napoleongrills.com
27
1
5 3
4
5
17
5
10
6
7
8
5
10
5
11
2
19
60
5
52
62
12
62
56
54
51
14
13
57
59
1662
40
12
15
39
27
16
16
16
38
39
39
38
47
48
16
24
63
26
16
63
50
24
23
23
23
46
26
16
49
63
48
16
34
22
31
33
28
16
18
30
43
42
45
14
41
53
45
14
29
44
61
21
16
55
37
32
25
34
16
33
22
36
35
20
58
14
9
9
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
N135-0042
LID CASTING LEFT
1
2
N135-0043
LID CASTING, RIGHT SIDE
1
3
N335-0045L
INSERT, LID
1
4
N585-0082
HEATSHIELD LID
1
5
N570-0091
SCREW,1/4-20 X 1/2" SHARP TIP HX WSH 12
6
N010-0741-TUBE
1
7
N385-0129
NAPOLEON LOGO, MILLED FINISH
1
8
W450-0005
NUT,SPRING 3/16 STUD SIZE
2
9
N510-0013
BUMPER, RECTANGULAR BLK SILICONE
2
10
N080-0287
BRACKET, LID HANDLE
2
11
N570-0042
SCRW,10-24 X 3/8 RND HD PHILIP STN STL
4
12
N570-0015
SCREW, LID PIVOT .303 SS
2
13
N735-0003
WASHER, LOCK 1/4 STN STL
2
14
N570-0073
SCREW, 1/4-20 X 3/8 S/S HEX WASHER HD
4
15
N475-0351
PANEL, HOOD PLATE AUS
1
16
N570-0008
SCREW, #8 X 1/2" MARUTEX HEX WSHR
34
17
N685-XXXXA
BEZEL, TEMP GAUGE - LEX
1
18
CH_MANIF_BI730
1
19
N200-0080
COVER, INFRA RED R.B. 1
20
STN-STL_FLEX_TUBE_CURVED_LEX
1
21
N255-0027
FITTING, UNION 3/8" FLARE TO 3/8" FLARE
1
22
N570-0078
SCREW, M4 X 8MM PAN HD PHIL ZINC
12
23
N100-0036
4
24
N080-0209
BRKT, CROSS LIGHT TUBE
3
25
N035-0081-M01
BASE, BACK
1
26
N510-0010
BUMPER, LID
2
27
N200-0082
COVER, BASE BACK
1
28
N475-0244
PANEL, CONTROL
1
29
N105-0001
BUSHING, PLASTIC 0.875" HOLE
1
30
WIRE_7_22AWG_500
1
31
N660-0002
SWITCH, LIGHT 1
32
N190-0001_LID
1
33
N051-0006
BEZEL, CONTROL KNOB
5
34
N380-0011A
KNOB, CONTROL
5
35
N051-0008
BEZEL, KNOB SMALL
1
36
N380-0019A
KNOB, CONTROL
1
37
CHAIN FOR MATCH ROD
CHAIN MATCH ROD
1
38
N305-0057
SEARPLATE STN STL
4
39
N305-0058
GRILL COOKING STN WAVE ROD
3
40
N520-0025
RACK, WARMING
1
41
N475-0301
MOUNT, ROTISSERIE
1
42
N525-0045-M02
RAIL, DRIP PAN
1
43
N585-0046
1
44
N715-0086
TRIM, REAR TOP, BUILT IN
1
45
N080-0216
BRACKET, BUILT-IN UNIT MOUNT
2
46
N010-0497H
1
47
N300-0006
GLASS, INFRA RED BURNER
1
48
N080-0309
BRACKET, INFRA RED BRN MOUNT
2
49
N080-0207
BRKT, I.R MAIN BRN SUPPORT
1
50
N215-0007
1
51
N010-0527_E
4
52
N455-0077
1
53
STN-
STL_FLEX_TUBE_CURVED_RE_BNR_
730
1
54
N240-0030
1
55
N160-0017
CLIP,ELECTRODE WIRE/R BURN FD TUBE
2
56
N200-0114
COVER, REAR BURNER ELECTRODE AUS
1
57
90184A276
1
58
N615-0011
SPACER #10 X .875 STN STL
1
59
N455-0079
1
60
N720-0073B
1
61
N530-0047
REG LPG STEP DOWN 50MBAR TO 18.5MBAR 1
62
91675A321
7
63
N570-0087
SCREW,1/4-20 X 7/8" HEX HD STN STL
11
64
WIRE_6_22AWG_500
1
65
N035-0082-M01
BASE, FRONT
1
66
N035-0075
BASE, LEFT SIDE 1
67
N035-0076
BASE, RIGHT SIDE
1
68
N655-0098-M01
STIFFENER, ANGLE BASE FRONT
1
69
N585-0049
SHIELD, HEAT BASE
1
70
AIR_SHUTTER
AIR SHUTTER 20GA CRS PLATED
4
71
AIR SHUTTER SCREW
SCREW, SELF-TAPPING #8 x 0.250 PAN HEAD PHILIPS
4
72
SCREEN
INSECT SCREEN
4
73
N010-0497A
1
74
N010-0497B_ALT
1
75
N010-0499C-1
1
76
IRSK_VENTURI_SUPPORT
1
77
N010-0497G
1
78
N695-0004
3
79
N010-0497D
1
80
N010-0497E
1
81
N010-0498F_AF0
1
82
N380-0011B
INSERT, FLAME
5
83
N380-0019B
INSERT, FLAME
1
84
3_8-FLARE_NUT_ADAPTOR
4
85
N750-0020_LED
6
86
CONNECTOR-FLAG_FEMALE
2
87
WIRE_4_22AWG_LEX605
1
88
WIRE_5_22AWG_LEX605
1
89
WIRE_1_22AWG_LEX730
4
90
WIRE_2_22AWG_LEX730
4
91
WIRE_3_22AWG_LEX605
4
92
N725-0034
VALVE, MAIN BURN #56 PRO
5
93
N725-0034_CLAMP
6
94
N725-0034_SCREW
6
95
N725-0036
1
96
N725-0036_ELBOW
1
97
N255-0016
FITTING, 1/8 MP TO 3/8 MF
1
98
N710-0082-M01
PAN, DRIP BI730
1
99
N545-0005
RIVET, STN STL .125 X .039-.118 GRIP
20
100
N705-0029-M02
HOOD, LEFT SIDE
1
101
N705-0030-M02
HOOD, RIGHT SIDE
1
102
N080-0204-M01
BRACKET, LID MOUNT
2
103
N080-0203-M01
BRKT, WARMING RACK MNT
2
104
N080-0205
BRACKET, LID HANDLE
2
105
N685-0004_GASKET
GASKET, TEMPERATURE GAUGE
1
106
N685-0004_GLASS
GLASS, TEMPERATURE GAUGE
1
107
N685-0004_DIALBASE
SHEETMETAL BASE, TEMPERATURE GAUGE
1
108
N685-0006_DIAL
DIAL, TEMPERATURE GAUGE
1
109
N685-0005_TEMPPIN
PROBE, TEMPERATURE GAUG
1
110
N685-0005_NEEDLE
NEEDLE, TEMPERATURE GAUGE
1
111
N685-0003AZH
3/8-16 KNURLED BRASS NUT - CHROME PLATED 1
112
N010-0527_C
1
113
N010-0527_A
1
114
N010-0527_G
1
115
N010-0527_B
1
116
N720-0073A
2
117
N190-0001
1
118
N190-0001_PLATE
2
119
N570-0082
SCREW, 1/4-20 X 5/8" S/S HEX HD
4
120
KEY RING MATCH ROD KEY RING MATCH ROD
1
121
ROD FOR MATCH ROD
ROD FOR MATCH ROD ASSY
1
www.napoleongrills.com
28
1 N135-0042-GY1HT le side lid casng x
2 N135-0043-GY1HT right side lid casng x
3 N335-0045L-M02 stainless steel lid insert x
4 N585-0082 lid heat shield x
5 N570-0091 1/4-20 x 1/2” screw x
6 N010-0741 lid handle x
7 N385-0129-SER NAPOLEON logo x
8 N450-0044 logo clips x
9 N510-0013 black silicone lid bumper x
10 N080-0287-GY1HT lid handle cover x
11 N570-0042 #10-24 x 3/8” screw x
12 N570-0015 lid pivot screw x
13 N735-0003 1/4” lock washer x
14 N570-0073 1/4-20 x 3/8” screw x
15 N010-0833 hood x
16 N570-0008 #8 x 1/2” screw x
17 N685-0013 temperature gauge x
18 N010-0546-AU manifold assembly p
N010-0547-AU manifold assembly n
19 N200-0080-M02 infra red rear burner cover x
20 N720-0044 ex connector x
21 W445-0031 union ng 3/8” - 1/2” x
22 N570-0078 m4 x 8mm screw x
23 N100-0036 main burner x
24 N080-0209 main burner cross light bracket x
25 N010-0599-M01 base x
26 Z510-0003 black silicone bumper x
27 N200-0082-GY1SG back cover x
28 N475-0322-AU control panel x
29 N105-0001 bushing 7/8” x
30 N750-0022B wiring harness led x
31 N660-0002 switch light x
32 N190-0001 baery pack x
33 N051-0011 control knob bezel x
34 N380-0021-CL control knob x
35 N051-0012 control knob bezel x
36 N380-0020-CL control knob x
37 N555-0025 lighng rod x
38 N305-0057-M01 sear plate x
39 N305-0058 cooking grid x
40 N520-0025 warming rack x
41 N475-0301-M02 rosserie mount x
42 N010-0845 drip pan x
43 N585-0046 heat shield drip pan x
Parts List
www.napoleongrills.com
29
44 N715-0086-M02 rear trim x
45 N080-0216-M02 bracket unit mount x
46 N010-0499 infra red main burner x
47 N300-0006 infrared glass x
48 N080-0309 glass mount x
49 N080-0207-M01 support bracket infra red burner x
50 N215-0007-M01 deector infra red main burner x
51 N010-0527P-AU infra red rear burner p
N010-0527N-AU infra red rear burner n
52 N455-0077 rear orice - burner p
N455-0078 rear orice - burner n
53 N720-0053 rear burner supply tube x
54 N240-0030 rear burner electrode c/w pilot x
55 N160-0017 clip rear burner tube x
56 N200-0114 rear burner electrode cover x
57 Z570-0002 rear burner electrode cover screw x
58 N615-0011 rear burner electrode cover spacer x
59 N455-0079 orice - pilot p
N455-0080 orice - pilot n
60 N720-0073 rear burner pilot hardline x
61 N530-0047 regulator - ng n
62 Z570-0035 #8 x 3/8” screw x
63 N570-0073 1/4-20 x 1/2” screw x
N020-0126 fastener baggie x
65334 rosserie kit ac
68675 vinyl cover ac
56018 stainless steel griddle ac
56040 cast iron gridle ac
67731 charcoal tray ac
Parts List
p - Universal Liqueed Petroleum Gas units only n - natural gas units only
x - standard ac - accessory
www.napoleongrills.com
30
NOTES
N415-0326-AU
