Haier HWF12D1W1 12kg Front Load Washing Machine

User Manual - Transcript

• Page 1: User Manual Washing Machine Steam STEAM PLUSDIRECT MOTION 12kg
• Page 2 - English - : Disposal Index Thank you for purchasing a Haier product Legend Yes No General information and tips Warning Important safety information Environmental information Safety45 Installation78 Product description6 Control panel9 11 Display symbols11 Programmes12 Consumption13 Daily use1417 Care and cleaning1820 Troubleshooting2123 Technical data24 Please read these instructions carefully before using this appliance It contains important information which will help you get the best out of your appliance and ensure safe and proper installation use care and cleaning Keep this manual in a convenient place so you can always refer to it for safe and proper use If you sell the appliance give it away or leave it behind when you move make sure you also pass on this manual so that the new owner can become familiar with all features and safety warnings The presence of this symbol on the product accessories or materials that goes with this information indicates that at the end of its useful life the product or its electronic accessories eg cable hose should not be disposed with other household waste To prevent possible damage to the environment or human health from uncontrolled waste disposal please separate these items from other types of waste and recycle them This will promote the sustainable reuse of material resources Household users should contact either the retailer where they purchased the product or relevant local authorities to out how they can take this item for environmentally safe recycling and safety Business users should contact their supplier and check the conditions of the purchase This product and its electronic accessories should not be mixed with other commercial waste
• Page 3 - English - : Disposal Index Thank you for purchasing a Haier product Legend Yes No General information and tips Warning Important safety information Environmental information Safety45 Installation78 Product description6 Control panel9 11 Display symbols11 Programmes12 Consumption13 Daily use1417 Care and cleaning1820 Troubleshooting2123 Technical data24 Please read these instructions carefully before using this appliance It contains important information which will help you get the best out of your appliance and ensure safe and proper installation use care and cleaning Keep this manual in a convenient place so you can always refer to it for safe and proper use If you sell the appliance give it away or leave it behind when you move make sure you also pass on this manual so that the new owner can become familiar with all features and safety warnings The presence of this symbol on the product accessories or materials that goes with this information indicates that at the end of its useful life the product or its electronic accessories eg cable hose should not be disposed with other household waste To prevent possible damage to the environment or human health from uncontrolled waste disposal please separate these items from other types of waste and recycle them This will promote the sustainable reuse of material resources Household users should contact either the retailer where they purchased the product or relevant local authorities to out how they can take this item for environmentally safe recycling and safety Business users should contact their supplier and check the conditions of the purchase This product and its electronic accessories should not be mixed with other commercial waste
• Page 4 - English - : Do not Safety During daily use of the appliance Do not Safety Before switching on the appliance for the first time make sure all transport bolts are removed make sure the power cord is not caught under or in the appliance and there is no damage or risk for damaging make sure the power circuit fuse is rated for 10A use a separate earthed socket for the power supply make sure the plug is always accessible hold the plug and not the electric cable when unplugging the power supply check that hose joints and connections are firm and by opening tap check for any water leaks do not switch on the appliance until everything is properly installed allow children or infirm persons to play with the appliance or packing materials install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit In the event of a water leak cut power supply and allow the machine to dry naturally expose machine to any frost heat or direct sunlight touch or use the appliance when barefoot or with wet or damp hands or feet use flammable detergent or dry cleaning agent use any flammable sprays in close vicinity to the appliance remove or insert the plug in presence of flammable gas place the appliance directly on a carpet or close to a wall or furniture supervise children Ensure that they dont play with the applicance and its packaging ensure that appliance is not used by people with reduced physical sensory or mental capabilities lack of experience and knowledge pull up zips fix loose threads and take care for small items to prevent laundry from being entangled If necessary use an appropriate bag or net switch off at the wall socket after each wash programme to save electricity and for safety keep the lower part of the porthole clean and open door and detergent drawer if appliance is not in use to prevent odours a damaged power cord is only to be replaced by the manufacturer service agent or other specifically qualified people touch the door during the washing process as it may get hot place heavy objects or sources of heat or damp on top of the appliance hot wash from rubber or spongelike materials open detergent drawer during any wash cycle force the door to open it is fitted with a selflock device and will open shortly after wash cycle end open the door if the water level is visible over the porthole cover or encase the appliance during operation or after wards as it will restrict any moisture or dampness to evaporate This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops offices and other working environments farm houses by clients in hotels motels and other residential type environments bed and breakfast type environments areas for communal use in blocks of flats or in launderettes The appliance is not to be used by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety Children should be supervised to ensure that they do not play with the appliance connect water inlet valve to the hot water supply
• Page 5 - English - : Do not Safety During daily use of the appliance Do not Safety Before switching on the appliance for the first time make sure all transport bolts are removed make sure the power cord is not caught under or in the appliance and there is no damage or risk for damaging make sure the power circuit fuse is rated for 10A use a separate earthed socket for the power supply make sure the plug is always accessible hold the plug and not the electric cable when unplugging the power supply check that hose joints and connections are firm and by opening tap check for any water leaks do not switch on the appliance until everything is properly installed allow children or infirm persons to play with the appliance or packing materials install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit In the event of a water leak cut power supply and allow the machine to dry naturally expose machine to any frost heat or direct sunlight touch or use the appliance when barefoot or with wet or damp hands or feet use flammable detergent or dry cleaning agent use any flammable sprays in close vicinity to the appliance remove or insert the plug in presence of flammable gas place the appliance directly on a carpet or close to a wall or furniture supervise children Ensure that they dont play with the applicance and its packaging ensure that appliance is not used by people with reduced physical sensory or mental capabilities lack of experience and knowledge pull up zips fix loose threads and take care for small items to prevent laundry from being entangled If necessary use an appropriate bag or net switch off at the wall socket after each wash programme to save electricity and for safety keep the lower part of the porthole clean and open door and detergent drawer if appliance is not in use to prevent odours a damaged power cord is only to be replaced by the manufacturer service agent or other specifically qualified people touch the door during the washing process as it may get hot place heavy objects or sources of heat or damp on top of the appliance hot wash from rubber or spongelike materials open detergent drawer during any wash cycle force the door to open it is fitted with a selflock device and will open shortly after wash cycle end open the door if the water level is visible over the porthole cover or encase the appliance during operation or after wards as it will restrict any moisture or dampness to evaporate This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops offices and other working environments farm houses by clients in hotels motels and other residential type environments bed and breakfast type environments areas for communal use in blocks of flats or in launderettes The appliance is not to be used by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety Children should be supervised to ensure that they do not play with the appliance connect water inlet valve to the hot water supply
• Page 6 - English - : Installation Production description Preparation Remove all packaging material including polystyrene base While opening the package water drops may be seen on plastic bag and porthole This is normal as a result from water tests and quality control in the factory Removing the transportation bolts The transportation bolts are designed for clamping antivibration components inside the appliance during transportation 1 Remove all 4 bolts T1 T4 2 Remove screws R1R10 on the rear side and take out reinforcements S1 and S2 from the machine Keep the transportation bolts in a sa fe place for later use If the machine is to be moved to another location replace transportation bolts contrariwise to prevent damage 3 Pull out the 2 iron bars I1 and I2 4 Fill the transportation bolt holes with blanking plugs T1 T4 T3 T2 S2 R1R4 S1 R5R10 I1 I2 General information and tips Note Packaging disposal Keep all packaging material out of childrens reach and dispose them in an environmentally friendly manner 5 Adjust all feet to achieve a complete level position This will minimi ze vibrations and thus noise during use It will also reduce wear and tear We recommend to stable and flat as possible use a spirit level for adjustment Floor should be as 1 Door 2 DetergentSoftener drawer 3 Worktop 4 Control panel 5 Pump filter cover 6 Adjustable feet 1 Iron bar 2 Transportation bolts 3 Rear wall reinforcement 4 Power cord 5 Water inlet valve 6 Drain hose Accessories Check the accessories and literature in accordance with this list Inlet hose assembly Warrantycard 6 blanking plugs User manual Drain hose bracket Steam STEAM PLUSDIRECT MOTION 12kg
• Page 7 - English - : Installation Production description Preparation Remove all packaging material including polystyrene base While opening the package water drops may be seen on plastic bag and porthole This is normal as a result from water tests and quality control in the factory Removing the transportation bolts The transportation bolts are designed for clamping antivibration components inside the appliance during transportation 1 Remove all 4 bolts T1 T4 2 Remove screws R1R10 on the rear side and take out reinforcements S1 and S2 from the machine Keep the transportation bolts in a sa fe place for later use If the machine is to be moved to another location replace transportation bolts contrariwise to prevent damage 3 Pull out the 2 iron bars I1 and I2 4 Fill the transportation bolt holes with blanking plugs T1 T4 T3 T2 S2 R1R4 S1 R5R10 I1 I2 General information and tips Note Packaging disposal Keep all packaging material out of childrens reach and dispose them in an environmentally friendly manner 5 Adjust all feet to achieve a complete level position This will minimi ze vibrations and thus noise during use It will also reduce wear and tear We recommend to stable and flat as possible use a spirit level for adjustment Floor should be as 1 Door 2 DetergentSoftener drawer 3 Worktop 4 Control panel 5 Pump filter cover 6 Adjustable feet 1 Iron bar 2 Transportation bolts 3 Rear wall reinforcement 4 Power cord 5 Water inlet valve 6 Drain hose Accessories Check the accessories and literature in accordance with this list Inlet hose assembly Warrantycard 6 blanking plugs User manual Drain hose bracket Steam STEAM PLUSDIRECT MOTION 12kg
• Page 8 - English - : Installation Control panel 1 DetergentSoftener drawer 2 Display 3 Programme selector 4 OnOff button 5 Function buttons ag a Delay b Speed up c Temperature d Spin Speed e Rinse f Steam g StartPause Open the drawer and you will see three compartments Compartment 2 Detergent Compartment 3 Softener Conditioning agent etc Detergent drawer The recommendation on the type of de tergents is dependant on the various washing temperatures Please refer to the manual of detergent Display If the appliance is switched on the display will illuminate and the current status icons are visible Refer to the following pages for details If no buttons or the program selector is not touched the display will go dark after a short while to save energy If the program selector is turned the display will illuminate Programme selector By turning the dial 1 of 16 programmes can be selected related LED will light up and its default settings will be displayed OnOff button Touch this button gently to switch on The display will illumin ate Touch it again for about 2 seconds to switch off If no panel element or programme is activated after a while the machine will shut down automatically Compartment 1 Washing powder Inlet hose 1 Connect inlet hose to the machine water inlet valve 2 Connect inlet hose to a water tap 3 Tighten inlet hose connections and turn on water supply Check for any water leaks Stop all water leaks before continuing with installation Warning Appliance is only qualified for cold water supply Use the hoseset supplied with the appliance Old hosesets should not be reused Drain hose Drainage could be installed in dif ferent ways Nevertheless level of drain hose has to reach between 80100 cm If possible al ways keep drain hose fixed to the clip at the back of the applian ce Use the drain hose bracket to keep drain hose end retai ned and out of any water level Fix the bracket securely to avoid dropping due to oper ational movements 1 Drain hose to sink 2 Drain hose to sink siphon Connection has to be securely sealed and fixed to corr esponding adapter above the siphoning part 80 100 cm The drain hose should not be submerged in water and should be securely fxed and leakfree If the drain hose is placed on the ground or if the pipe is at a height of less than 80 cm the washing machine will continuously drain while being filled selfsiphoning Warning Steam STEAM PLUSDIRECT MOTION 12kg
• Page 9 - English - : Installation Control panel 1 DetergentSoftener drawer 2 Display 3 Programme selector 4 OnOff button 5 Function buttons ag a Delay b Speed up c Temperature d Spin Speed e Rinse f Steam g StartPause Open the drawer and you will see three compartments Compartment 2 Detergent Compartment 3 Softener Conditioning agent etc Detergent drawer The recommendation on the type of de tergents is dependant on the various washing temperatures Please refer to the manual of detergent Display If the appliance is switched on the display will illuminate and the current status icons are visible Refer to the following pages for details If no buttons or the program selector is not touched the display will go dark after a short while to save energy If the program selector is turned the display will illuminate Programme selector By turning the dial 1 of 16 programmes can be selected related LED will light up and its default settings will be displayed OnOff button Touch this button gently to switch on The display will illumin ate Touch it again for about 2 seconds to switch off If no panel element or programme is activated after a while the machine will shut down automatically Compartment 1 Washing powder Inlet hose 1 Connect inlet hose to the machine water inlet valve 2 Connect inlet hose to a water tap 3 Tighten inlet hose connections and turn on water supply Check for any water leaks Stop all water leaks before continuing with installation Warning Appliance is only qualified for cold water supply Use the hoseset supplied with the appliance Old hosesets should not be reused Drain hose Drainage could be installed in dif ferent ways Nevertheless level of drain hose has to reach between 80100 cm If possible al ways keep drain hose fixed to the clip at the back of the applian ce Use the drain hose bracket to keep drain hose end retai ned and out of any water level Fix the bracket securely to avoid dropping due to oper ational movements 1 Drain hose to sink 2 Drain hose to sink siphon Connection has to be securely sealed and fixed to corr esponding adapter above the siphoning part 80 100 cm The drain hose should not be submerged in water and should be securely fxed and leakfree If the drain hose is placed on the ground or if the pipe is at a height of less than 80 cm the washing machine will continuously drain while being filled selfsiphoning Warning Steam STEAM PLUSDIRECT MOTION 12kg
• Page 10 - English - : Control panelfunction buttons To get best results in each programme Haier has well defined specific default settings If there is no special requirement default settings are recommended Accordingly to these factory settings many programme parameters and additional functions could be individually changed DelayStart time delay Button a Speed Up button b Touch it to increase washing speed and reduce washing time General information and tips End time must always be longer than programme cycle time Otherwise operation will start immediately and the end time chosen will be never reached c d Temp button c Touch it to change the washing temperature of the programme If there is no value the water is not heated Spin Speed button d Touch it to rinse the laundry more intense with fresh water This is recommended for people with sensitive skin One to three additional rinse cycles are available Rinse button e e Display symbolsControl panel Child lock button ab The Child Lock function stops any further changes to the set program To active hold the Delay and Speed Up buttons at the same time for 3 seconds Panel elements will be blocked after hearing an indicating voice To deactivate the Child Lock hold the Delay and Speed Up buttons at the same time for 3 seconds Memory function button cd The memory function is used to record the current settings such as temperature spin speed rinse time and ect To active hold the Temp and Spin Speed buttons at the same time for 3 seconds To deactivate the memory function hold the Temp and Spin Speed buttons at the same time for 3 seconds Display The display shows following information 1 Washing time 2 End time delay 3 Error codes and service information During operation display will be deactivated after two minutes until programme selector is turned or a button is touched Symbols of the display Door Spin Rinse Running spin drainage cycle Running Rinse cycle Door is locked in operation Child lock Memory fuction Time display Water Wash Running Washing cycle f g Steam button f STARTPAUSE button g a b Steam mode With Steam Plus it is possible to inactivate common household bacteria and allergens when selecting steam mode and 90 degrees wash temperature on Cotton Eco Towels Allergy or Baby Care wash programs The cycles with a blue line around the dial have steam mode available Washing at 90 degrees may cause damage to some garments Use this option only for durable fabrics and follow the recommendations of care labels Touch it to increase programme end time in increments of 30 minutes from 2hr 24hr Press the StartPause button once you are satisfied with the delayed end time You will note the countdown of the delay time com mence and subsequently the remaining programme cycle time will be displayed The related symbol to the operation will display Touch it to start or interrupt the currently displayed programme Touch it to change or deselect the spin of the program me If there is no value the laundry will not run
• Page 11 - English - : Control panelfunction buttons To get best results in each programme Haier has well defined specific default settings If there is no special requirement default settings are recommended Accordingly to these factory settings many programme parameters and additional functions could be individually changed DelayStart time delay Button a Speed Up button b Touch it to increase washing speed and reduce washing time General information and tips End time must always be longer than programme cycle time Otherwise operation will start immediately and the end time chosen will be never reached c d Temp button c Touch it to change the washing temperature of the programme If there is no value the water is not heated Spin Speed button d Touch it to rinse the laundry more intense with fresh water This is recommended for people with sensitive skin One to three additional rinse cycles are available Rinse button e e Display symbolsControl panel Child lock button ab The Child Lock function stops any further changes to the set program To active hold the Delay and Speed Up buttons at the same time for 3 seconds Panel elements will be blocked after hearing an indicating voice To deactivate the Child Lock hold the Delay and Speed Up buttons at the same time for 3 seconds Memory function button cd The memory function is used to record the current settings such as temperature spin speed rinse time and ect To active hold the Temp and Spin Speed buttons at the same time for 3 seconds To deactivate the memory function hold the Temp and Spin Speed buttons at the same time for 3 seconds Display The display shows following information 1 Washing time 2 End time delay 3 Error codes and service information During operation display will be deactivated after two minutes until programme selector is turned or a button is touched Symbols of the display Door Spin Rinse Running spin drainage cycle Running Rinse cycle Door is locked in operation Child lock Memory fuction Time display Water Wash Running Washing cycle f g Steam button f STARTPAUSE button g a b Steam mode With Steam Plus it is possible to inactivate common household bacteria and allergens when selecting steam mode and 90 degrees wash temperature on Cotton Eco Towels Allergy or Baby Care wash programs The cycles with a blue line around the dial have steam mode available Washing at 90 degrees may cause damage to some garments Use this option only for durable fabrics and follow the recommendations of care labels Touch it to increase programme end time in increments of 30 minutes from 2hr 24hr Press the StartPause button once you are satisfied with the delayed end time You will note the countdown of the delay time com mence and subsequently the remaining programme cycle time will be displayed The related symbol to the operation will display Touch it to start or interrupt the currently displayed programme Touch it to change or deselect the spin of the program me If there is no value the laundry will not run
• Page 12 - English - : 12 13 007 100 056 051 113 1 Cotton Programmes Programme table 2 Detergent compartment 3 Softener compartment Programme Temp Preset 1 2 Fibre Type Preset 7 Spin 8 Drum Clean 9 Daily Wash 10 Express 15 11 Express 30 12 Hand Wash 16 Duvet CottonSynth Cotton farics CottonSynth CottonSynth Cotton farics Duvet Consumption The indicated consumption values may differ in local conditions Programme Max load kg Steam Temp Washing time hmin Spin drying performance 1 Cotton 6 Rinse 7 Spin 8 Drum Clean 9 Daily Wash 10 Express 15 11 Express 30 12 Hand Wash 16 Duvet General information and tips Standard programme for the Energy and Water Labelling according to ASNZS 20402 and ASNZS 6400 3 3 Rinse Times 1 Washing powder compartment 15 Synthetic 12 2 2 Eco 12 2 Wool 141 3 Towels 12 2 156 4 Allergy 14 Sport 135 5 Baby Care 2 Eco CottonSynth 15 Synthetic Wool Chemical fibre fabrics Woolen fabrics 3 Towels Towels 4 Allergy CottonSynth 14 Sport Sports Wear 6 Rinse 5 Baby Care CottonSynth 026 Auto Auto 030 015 041 101 Auto Eco 40 1400rpm others are default setting 090 090 090 090 090 060 040 030 030 040 040 060 040 1000rpm 1000rpm 1000rpm 1000rpm 1000rpm 1000rpm 1000rpm 1000rpm 800rpm 800rpm 600rpm 600rpm 1000rpm 1000rpm 1000rpm 1000rpm
• Page 13 - English - : 12 13 007 100 056 051 113 1 Cotton Programmes Programme table 2 Detergent compartment 3 Softener compartment Programme Temp Preset 1 2 Fibre Type Preset 7 Spin 8 Drum Clean 9 Daily Wash 10 Express 15 11 Express 30 12 Hand Wash 16 Duvet CottonSynth Cotton farics CottonSynth CottonSynth Cotton farics Duvet Consumption The indicated consumption values may differ in local conditions Programme Max load kg Steam Temp Washing time hmin Spin drying performance 1 Cotton 6 Rinse 7 Spin 8 Drum Clean 9 Daily Wash 10 Express 15 11 Express 30 12 Hand Wash 16 Duvet General information and tips Standard programme for the Energy and Water Labelling according to ASNZS 20402 and ASNZS 6400 3 3 Rinse Times 1 Washing powder compartment 15 Synthetic 12 2 2 Eco 12 2 Wool 141 3 Towels 12 2 156 4 Allergy 14 Sport 135 5 Baby Care 2 Eco CottonSynth 15 Synthetic Wool Chemical fibre fabrics Woolen fabrics 3 Towels Towels 4 Allergy CottonSynth 14 Sport Sports Wear 6 Rinse 5 Baby Care CottonSynth 026 Auto Auto 030 015 041 101 Auto Eco 40 1400rpm others are default setting 090 090 090 090 090 060 040 030 030 040 040 060 040 1000rpm 1000rpm 1000rpm 1000rpm 1000rpm 1000rpm 1000rpm 1000rpm 800rpm 800rpm 600rpm 600rpm 1000rpm 1000rpm 1000rpm 1000rpm
• Page 14 - English - : Daily use This appliance is only for domestic use inside the house If it is used for commercial industrial or not intended purposes any Haier guarantee will not be valid anymore Consider instructions on each garment label and wash only machinewashable laundry Connect the washing machine to the power supply 220V to 240V50Hz Turn on the tap The water must be clean and clear Warning Before use check for leakage in the joints between the tap and the inlet hose by turning on the tap Preparing laundry Separate white clothes from coloured ones Wash coloured textiles first by hand to check if they fade or run Empty pockets keys coins etc and remove harder decorative objects eg brooches Garments without hems delicates and finely woven textile such as f ine curtains are to be put into a wash bag hand or dry cleaning would be better Close zippers and hooks make sure the buttons are sewn on tightly and place small items such as socks belts bras etc in a wash bag Unfold large pieces of fabric such as bed sheets bedspreads etc Warning Nontextile as well as small loose or sharpedged items may cause malfunctions and damage of clothes and appliance Open the door and put in the laundry piece by piece Close the door carefully Dont overload Check if you can put a hand upright on top of load General information and tips After installation or long down time run programme Drum Clean with no load and add detergent in washing agent compartment to remove possibly corruptive residues General information and tips Remove detergent residues before next wash cycle Please follow given detergent dosage recommendation Slide out the detergent drawer and put the required chemicals into corresponding compartments Push back the drawer gently Adding detergent To get the best washing results select the program that is most suitable to the laundry type loaded Select program by turning the program selector dial Select a programme Sort out clothes according to fabric cotton synthe tics wool or silk and to how dirty they are Pay attention to the care labelling of washing labels Turn jeans and printed decorated or colorintensive textiles inside out If possible wash them separately Washing efficiency and performance will vary de pending on detergent quality Use only machine wash approved detergent and if needed specific deter gents eg for synthetic and woolen fabric Be mindful of always detergent manufacturer recommendations
• Page 15 - English - : Daily use This appliance is only for domestic use inside the house If it is used for commercial industrial or not intended purposes any Haier guarantee will not be valid anymore Consider instructions on each garment label and wash only machinewashable laundry Connect the washing machine to the power supply 220V to 240V50Hz Turn on the tap The water must be clean and clear Warning Before use check for leakage in the joints between the tap and the inlet hose by turning on the tap Preparing laundry Separate white clothes from coloured ones Wash coloured textiles first by hand to check if they fade or run Empty pockets keys coins etc and remove harder decorative objects eg brooches Garments without hems delicates and finely woven textile such as f ine curtains are to be put into a wash bag hand or dry cleaning would be better Close zippers and hooks make sure the buttons are sewn on tightly and place small items such as socks belts bras etc in a wash bag Unfold large pieces of fabric such as bed sheets bedspreads etc Warning Nontextile as well as small loose or sharpedged items may cause malfunctions and damage of clothes and appliance Open the door and put in the laundry piece by piece Close the door carefully Dont overload Check if you can put a hand upright on top of load General information and tips After installation or long down time run programme Drum Clean with no load and add detergent in washing agent compartment to remove possibly corruptive residues General information and tips Remove detergent residues before next wash cycle Please follow given detergent dosage recommendation Slide out the detergent drawer and put the required chemicals into corresponding compartments Push back the drawer gently Adding detergent To get the best washing results select the program that is most suitable to the laundry type loaded Select program by turning the program selector dial Select a programme Sort out clothes according to fabric cotton synthe tics wool or silk and to how dirty they are Pay attention to the care labelling of washing labels Turn jeans and printed decorated or colorintensive textiles inside out If possible wash them separately Washing efficiency and performance will vary de pending on detergent quality Use only machine wash approved detergent and if needed specific deter gents eg for synthetic and woolen fabric Be mindful of always detergent manufacturer recommendations
• Page 16 - English - : Steam 16 17 Daily use Daily use Add individual selections Select required options and settings refer to Control panel Start wash programme Touch STARTPAUSE button to start Appliance operates according to selected settings Changes are only possible by cancelling wash programme General information and tips 1 For safety reasons the door is locked partially during the washing cycle It is only possible to open the door at the end of the programme or after the programme was cancelled correctly see description ab ove 2 In case of high water level high water temperature and drum spinning it is not possible to open the door Locl is displ ayed Interrupt cancel wash programme To interrupt a running programme press gently STARTPAUSE button Press it again to resume operation To cancel a running programme and all its individual settings activate STARTPAUSE and then hold OnOff for about 3 seconds General information and tips Choose programme settings carefully refering to icons on each laudry label and Care chart Removing laundry promptly at the end of cycle will minimise weinkling After washing Turn off the water supply and unplug the power cord Open the door to prevent formation of moisture and odours Leave it open while not used Care chart
• Page 17 - English - : Steam 16 17 Daily use Daily use Add individual selections Select required options and settings refer to Control panel Start wash programme Touch STARTPAUSE button to start Appliance operates according to selected settings Changes are only possible by cancelling wash programme General information and tips 1 For safety reasons the door is locked partially during the washing cycle It is only possible to open the door at the end of the programme or after the programme was cancelled correctly see description ab ove 2 In case of high water level high water temperature and drum spinning it is not possible to open the door Locl is displ ayed Interrupt cancel wash programme To interrupt a running programme press gently STARTPAUSE button Press it again to resume operation To cancel a running programme and all its individual settings activate STARTPAUSE and then hold OnOff for about 3 seconds General information and tips Choose programme settings carefully refering to icons on each laudry label and Care chart Removing laundry promptly at the end of cycle will minimise weinkling After washing Turn off the water supply and unplug the power cord Open the door to prevent formation of moisture and odours Leave it open while not used Care chart

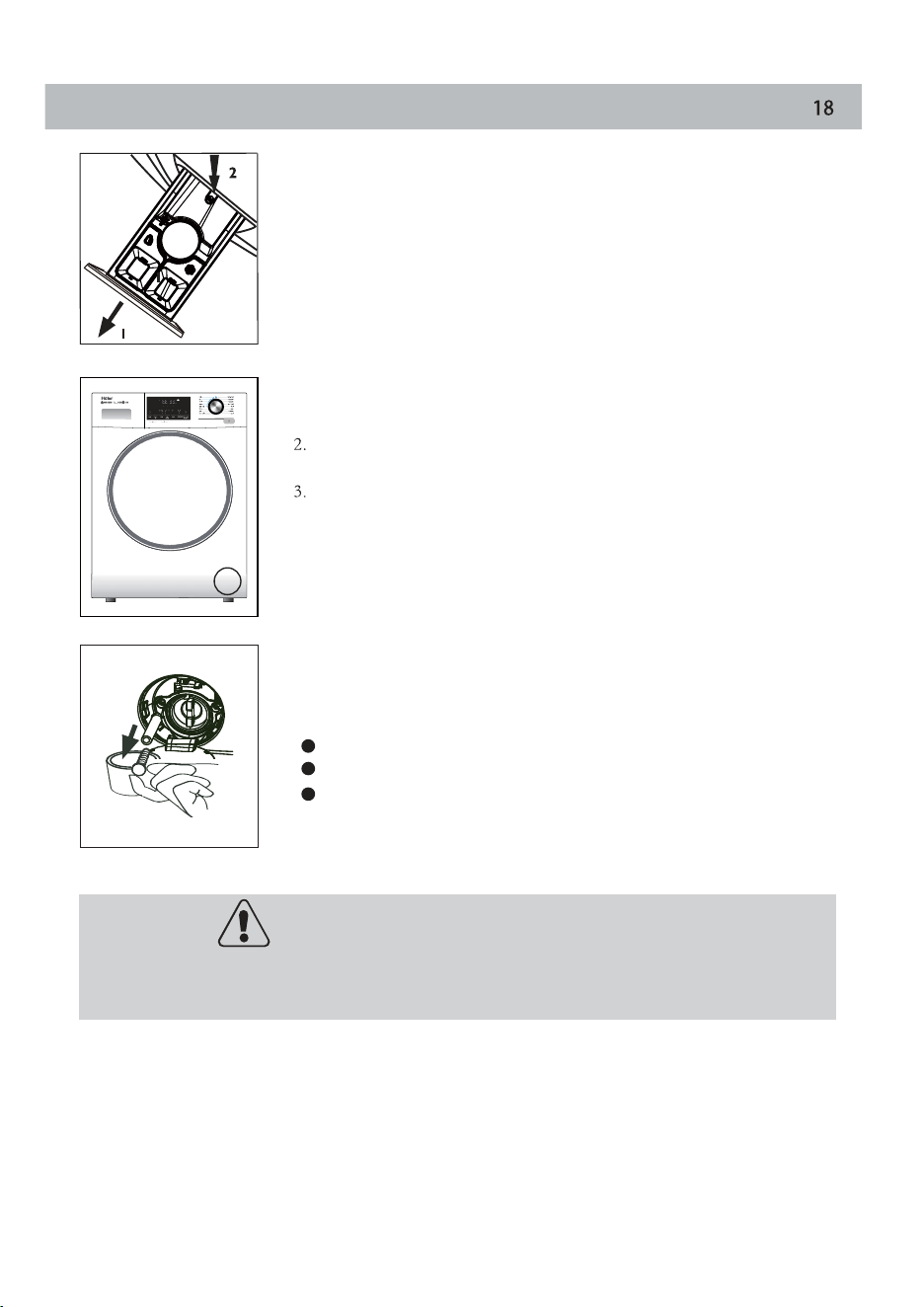

• Page 18 - English - : Care and cleaning Care and cleaning Cleaning the detergent drawer Clean the drawer from detergent residues regularly Pull out the drawer until it stops 1 and press the release button 2 to remove the drawer Then flush the drawer with water until it is clean and insert the drawer back in the applian ce Cleaning the machine Pump filter Clean the filter once a month and check the pump filter immediately if the applian ce doesnt drain the water General information and tips Pump filter sealing has to be clean and unhurt If the lid is not full tigh tened water will escape The filter must be in place or it may lead to leakage Warning 1 Turn off and unplug the machine 2 Open service flap at the right corner of appliance front 3 Provide a flat container to catch leach water There could be bigger amounts 4 Pull the drain hose out and hold its end above the container 5 Take the sealing plug out of the d rain hose 6 After complete drainage close drain hose and push it back into the machine 7 Unscrew and remove counter clockwise the pump 8 Remove contaminants and dirt 9 Clean pump filter carefully 10 Refix it thoroughly 11 Close service flap doesnt spin causes unusual noise while running 1Unplug the machine during cleaning and maintenance Use a soft cloth with soap liquid to clean the machine case and rubber components Do not use organic chemicals or corrosive solvents Scalding Risk Water in the pump filter can be very hotBefore and action please ensure water has cooled down

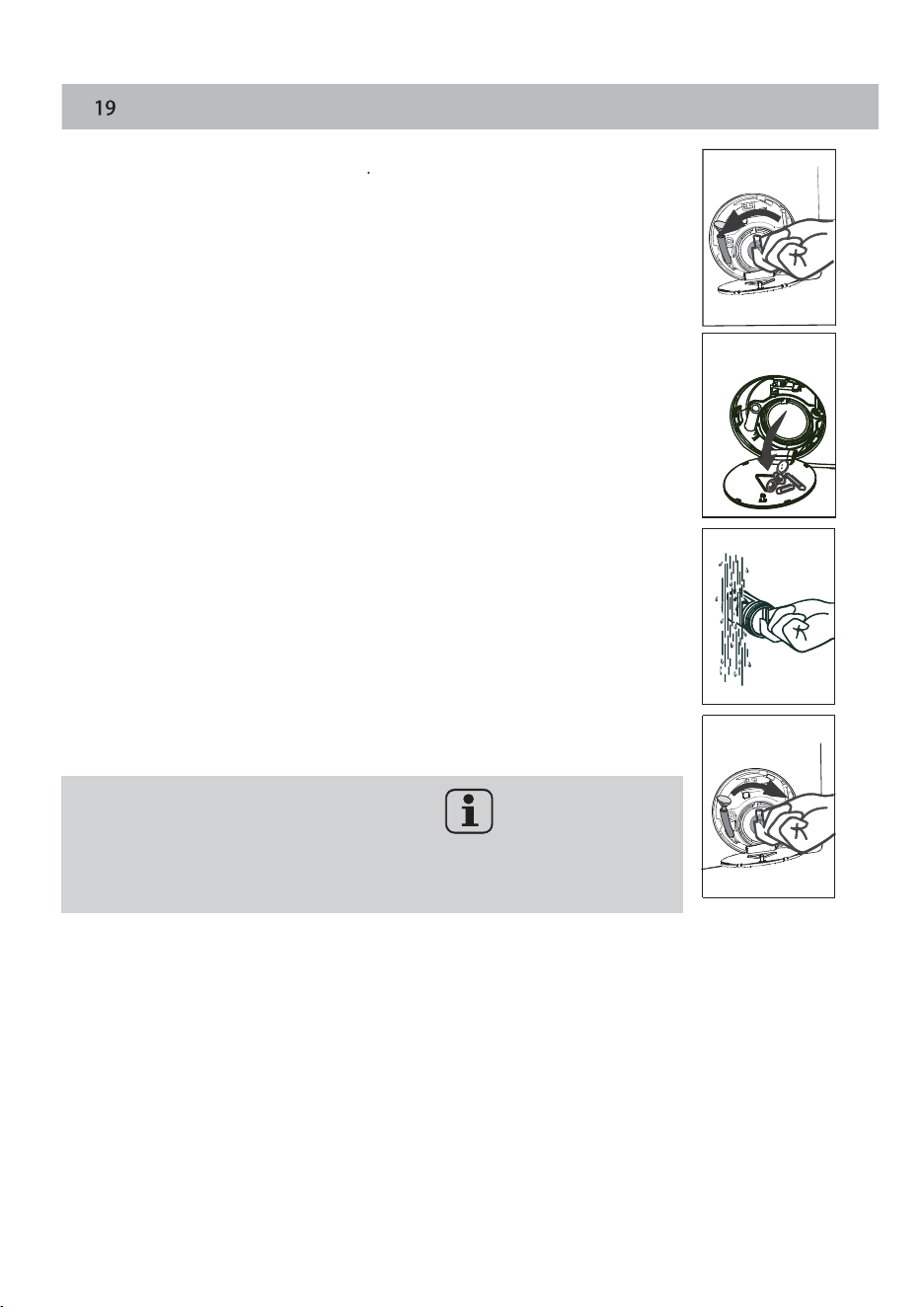

• Page 19 - English - : Care and cleaning Care and cleaning Cleaning the detergent drawer Clean the drawer from detergent residues regularly Pull out the drawer until it stops 1 and press the release button 2 to remove the drawer Then flush the drawer with water until it is clean and insert the drawer back in the applian ce Cleaning the machine Pump filter Clean the filter once a month and check the pump filter immediately if the applian ce doesnt drain the water General information and tips Pump filter sealing has to be clean and unhurt If the lid is not full tigh tened water will escape The filter must be in place or it may lead to leakage Warning 1 Turn off and unplug the machine 2 Open service flap at the right corner of appliance front 3 Provide a flat container to catch leach water There could be bigger amounts 4 Pull the drain hose out and hold its end above the container 5 Take the sealing plug out of the d rain hose 6 After complete drainage close drain hose and push it back into the machine 7 Unscrew and remove counter clockwise the pump 8 Remove contaminants and dirt 9 Clean pump filter carefully 10 Refix it thoroughly 11 Close service flap doesnt spin causes unusual noise while running 1Unplug the machine during cleaning and maintenance Use a soft cloth with soap liquid to clean the machine case and rubber components Do not use organic chemicals or corrosive solvents Scalding Risk Water in the pump filter can be very hotBefore and action please ensure water has cooled down
• Page 20 - English - : i Remaining delay start time Likely showing the delay start operation Lock error with door Shut the door properly Motor error Unbalanced load and not able to spin Care and cleaning Troubleshooting Water inlet valve and inlet valve filter Unplug the power cord and turn off the water supply Unscrew the water inlet hose at the back of the appliance as well as on the tap Remove the filters and flush them with water and a brush Insert the filter and install the inlet hose If using liquid detergent it is not recommended to activate the delayed start Refer to the detergent manufacturers packaging for recommended dosage info Modern washing detergents at low temperatures Display code Code Cause Solution Remaining wash cycle time Automatic load detection Weighing the laundry load in the drum Door cannot be opened due to water level or hot water in the drumor if the drum is still movingwait for it to stop before attempting to open the door End of cycle Drainage error water not emptied Water level not reached after 8 minutes Water protective levelerror Temperature sensorerror Heating error Appears at the end of a cycle Water level sensor error Electronic control error Laundry weight detection in progress please wait until program cycle time is displayed Lo small load FULL optimized weight load HI full load Wait for the program to end or cancel the program and select the SpinDrain program In case there is still hot water in the drum to avoid scalding select the Hand Wash program and leave it to wash for several minutes then select the SpinDrain program This should allow the drum to cool down Check drain hose for block age and ensure it is installed properly Check if water supply and water pressure is normal Drain hose is self syphoning Auto release Otherwise contact the af ter sales service Contact the after sales service Contact the after sales service Contact the after sales service Contact the after sales service Contact the after sales service Check and balance the laundry load in the drum Also reduce the load if too heavy Restart with a spin program Clean pump filter To prevent blockage of water supply by solid substance like lime clean regularly the inlet valve filter HALF half load
• Page 21 - English - : i Remaining delay start time Likely showing the delay start operation Lock error with door Shut the door properly Motor error Unbalanced load and not able to spin Care and cleaning Troubleshooting Water inlet valve and inlet valve filter Unplug the power cord and turn off the water supply Unscrew the water inlet hose at the back of the appliance as well as on the tap Remove the filters and flush them with water and a brush Insert the filter and install the inlet hose If using liquid detergent it is not recommended to activate the delayed start Refer to the detergent manufacturers packaging for recommended dosage info Modern washing detergents at low temperatures Display code Code Cause Solution Remaining wash cycle time Automatic load detection Weighing the laundry load in the drum Door cannot be opened due to water level or hot water in the drumor if the drum is still movingwait for it to stop before attempting to open the door End of cycle Drainage error water not emptied Water level not reached after 8 minutes Water protective levelerror Temperature sensorerror Heating error Appears at the end of a cycle Water level sensor error Electronic control error Laundry weight detection in progress please wait until program cycle time is displayed Lo small load FULL optimized weight load HI full load Wait for the program to end or cancel the program and select the SpinDrain program In case there is still hot water in the drum to avoid scalding select the Hand Wash program and leave it to wash for several minutes then select the SpinDrain program This should allow the drum to cool down Check drain hose for block age and ensure it is installed properly Check if water supply and water pressure is normal Drain hose is self syphoning Auto release Otherwise contact the af ter sales service Contact the after sales service Contact the after sales service Contact the after sales service Contact the after sales service Contact the after sales service Check and balance the laundry load in the drum Also reduce the load if too heavy Restart with a spin program Clean pump filter To prevent blockage of water supply by solid substance like lime clean regularly the inlet valve filter HALF half load

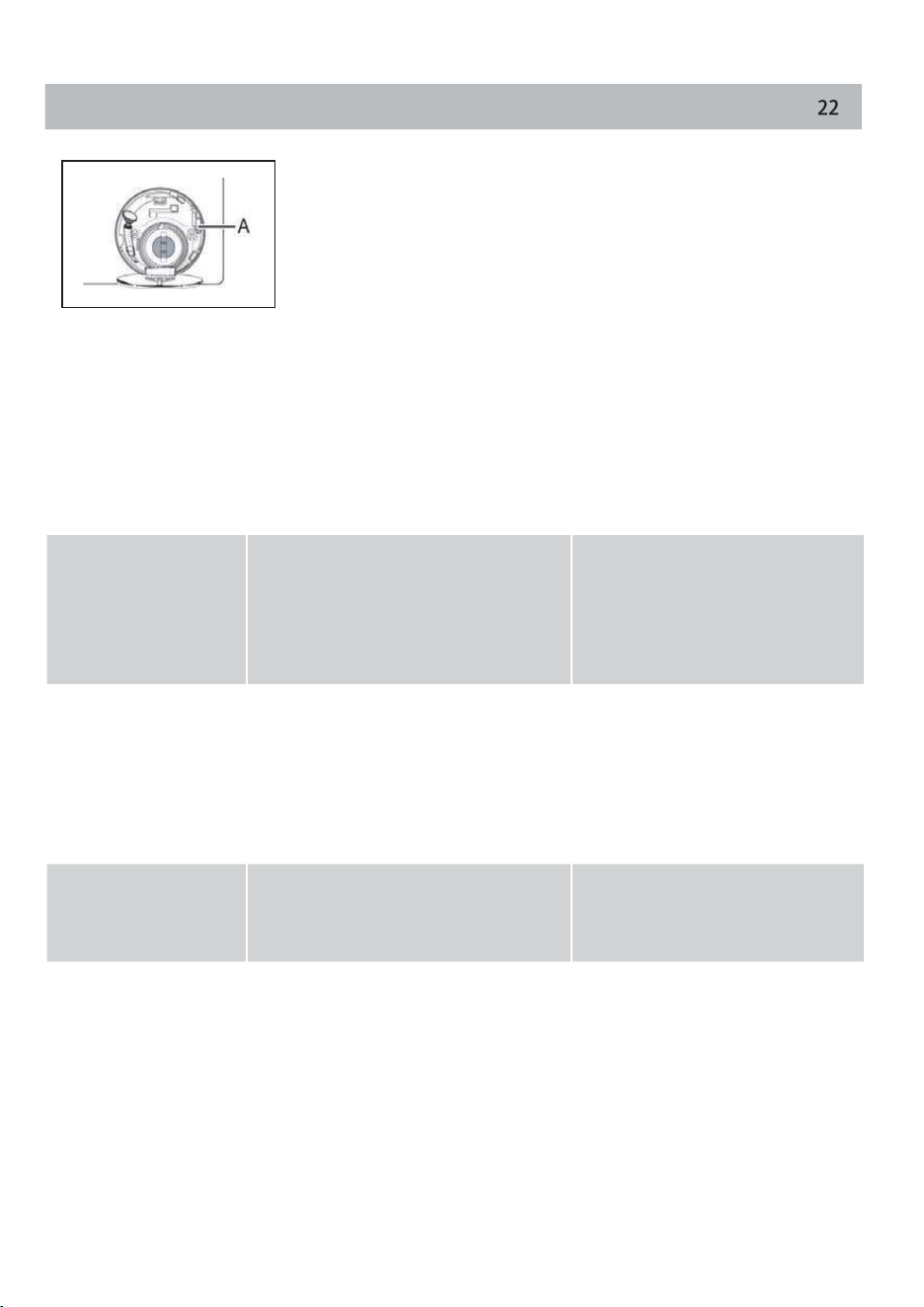

• Page 22 - English - : Troubleshooting Troubleshooting In case of power failure Troubleshooting without display code Problem Cause Solution Washing machine fails to operate 1 Power failure 2 Machine hasnt been switched on 3 Door is not p roperly closed 4 P 5 Child lock is activated 5 Deactivate child lock rogramme is not yet started 1 Check power supply 2 Switch the machine on 3 Close the door p roperly 4 Press STARTPAUSE button Washing machine will not fill with water 1 No water 2 Inlet hose is kinked 3 Inlet hose filter is blocked 4 Water pressure is less than 003Mpa 5 Door is not properly closed 6 Water supply failure 1 Check water tap 2 Check in let hose 3 Unblock inlet hose filter 4 Check water pressure 5 Close the door properly 6 Ensure the water supply Machine is draining while being filled 1 Height of d rain hose is bel ow 80cm 2 Drain hose end could reach into water 1 Make sure that drain hose is properly installed 2 Make sure the drain hose is not in water Drainage failure 1 Drain hose is bloc ked 2 Pump filter is blocked 3 Drain hose end is higher than 100cm above floor level Problem Cause Solution Strong vibration while spinning 1 Not all t ransportation bolts have been removed 2 Appliance has no solid position 3 Machine load is not correct 1 Remove all transportation bolts 2 Ensure solid ground and a levelled position 3 Check load weight and balance Operation stops for a period of time 1 Appliance displays error code 2 Problem due to load pattern 1 Consider display codes 2 Reduce or adjust load Operation stops before completi ng wash cycle Water or electric failure Check power and water supply Excessive foam floats drum andor detergent drawer 1 Detergent is not a appropriate 2 Excessive use of detergent in manually dosag e 1 Check detergent recom mendations 2 Reduce amount of deter gent General information and tips If too much foam is visible during spin cycle the motor will stop and drain pump will activate for 90 seconds If that elimin ation of foam fails up to 3 times p rogramme ends without spinning 1 Unblock drain hose Make sure that drain hose is properly installed Clean pump filter 2 Automatic adjust ment Washing programme This is normal and doesnt of washing duration will be adjusted aff ect functionality Spinning fails Unbalance of laundry Check machine load and laundr y and run a spinning programme again time The current programme and its setting will be saved When power supply is restored operation will be resumed If a power failure cuts an operating wash programme door opening is mechanically blocked To get out any laundry water level should not be seen in the glassy porthole of the door Danger of burns Water level has to be lowered as described in Pump filter Not till then pull lever A beneath service flap until door is unlocked by a gentle click Afterwards refix all parts
• Page 23 - English - : Troubleshooting Troubleshooting In case of power failure Troubleshooting without display code Problem Cause Solution Washing machine fails to operate 1 Power failure 2 Machine hasnt been switched on 3 Door is not p roperly closed 4 P 5 Child lock is activated 5 Deactivate child lock rogramme is not yet started 1 Check power supply 2 Switch the machine on 3 Close the door p roperly 4 Press STARTPAUSE button Washing machine will not fill with water 1 No water 2 Inlet hose is kinked 3 Inlet hose filter is blocked 4 Water pressure is less than 003Mpa 5 Door is not properly closed 6 Water supply failure 1 Check water tap 2 Check in let hose 3 Unblock inlet hose filter 4 Check water pressure 5 Close the door properly 6 Ensure the water supply Machine is draining while being filled 1 Height of d rain hose is bel ow 80cm 2 Drain hose end could reach into water 1 Make sure that drain hose is properly installed 2 Make sure the drain hose is not in water Drainage failure 1 Drain hose is bloc ked 2 Pump filter is blocked 3 Drain hose end is higher than 100cm above floor level Problem Cause Solution Strong vibration while spinning 1 Not all t ransportation bolts have been removed 2 Appliance has no solid position 3 Machine load is not correct 1 Remove all transportation bolts 2 Ensure solid ground and a levelled position 3 Check load weight and balance Operation stops for a period of time 1 Appliance displays error code 2 Problem due to load pattern 1 Consider display codes 2 Reduce or adjust load Operation stops before completi ng wash cycle Water or electric failure Check power and water supply Excessive foam floats drum andor detergent drawer 1 Detergent is not a appropriate 2 Excessive use of detergent in manually dosag e 1 Check detergent recom mendations 2 Reduce amount of deter gent General information and tips If too much foam is visible during spin cycle the motor will stop and drain pump will activate for 90 seconds If that elimin ation of foam fails up to 3 times p rogramme ends without spinning 1 Unblock drain hose Make sure that drain hose is properly installed Clean pump filter 2 Automatic adjust ment Washing programme This is normal and doesnt of washing duration will be adjusted aff ect functionality Spinning fails Unbalance of laundry Check machine load and laundr y and run a spinning programme again time The current programme and its setting will be saved When power supply is restored operation will be resumed If a power failure cuts an operating wash programme door opening is mechanically blocked To get out any laundry water level should not be seen in the glassy porthole of the door Danger of burns Water level has to be lowered as described in Pump filter Not till then pull lever A beneath service flap until door is unlocked by a gentle click Afterwards refix all parts
• Page 24 - English - : Basic technical information regarding the appliance Power source Max working current A Water pressure MPa Nominal load kg Max spinning speed rpm Washing programmes Max power W Dimensions HxDxW mm Net weight kg Power consumption of the offmode W Power consumption of the lefton mode W 220240V50Hz 003 P 1 845x600x595 Technical data
