17L Table Top Cooler
Model number:
RHCLRF17(B)
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
IMPORTANT:
RETAIN FOR FUTURE REFERENCE
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
Contents
Safety
Instructions
………………………………………
. 2
Features
& Spare Parts
………………………………………
. 5
Location
………………………………………
. 6
Installation
……………………………
.………… 7
Usage
Information
……………………………………….
8
Cleaning
& Maintenance
………………………………………
. 10
Defrosting
………………………………………
. 10
Connection
to the Mains Supply
……………………………………….
11
Troubleshooting
………………………………
.……… 12
Guarantee
………………………………………
. 14
Technical
specification
…………………………
.…………… 15
Notes
…………………………
.…………… 16-18
Before Using the Appliance
Safety Instructions
• This appliance is a Semi-conductor electric refrigerating appliance, which is a Category
10 other appliance, according to ErP 643/2009.
Warning: Keep ventilation openings of the appliance clear of obstruction.
• The appliance must not be placed or rested on the power cord.
• Do not use electrical appliances in the compartment of the appliance.
• If this appliance is to replace an appliance with a lock, the lock must be removed as a
safety measure before storing it or disposing of it. This is to protect children from
locking themselves inside the appliance.
• Old appliances must be disposed of properly. Entrust the disposal of the scrap
unit categorically to the competence of your local waste disposal service.
Contact your local authority or your dealer if you have any questions. Please ensure
that you do not damaged the scrap unit prior to being picked-up by the relevant
waste disposal service.
Important Note:
Please read this booklet before installing and switching on this appliance.
Themanufacturer assumes no responsibility for incorrect installation and usage.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
2
Safety Instructions
Warning:
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children should not play with the
appliance.
• Do not use adaptors, multiple receptacles or extension leads.
• Do not plug in damaged plugs.
• Do not pull, twist or damage the power cable.
• Do not put the appliance or any other objects on the power cord.
• This appliance is designed for the use by adults, do not allow children to play with the
appliance or let them hang over the door.
• Do not plug-in or un-plug the appliance with wet hands to prevent electrical shock.
• Do not place explosive or flammable material in your cooler for your own safety.
• Bottles containing a high percentage of alcohol must be sealed well and placed
horizontally in the appliance.
• Do not cover the body or the top of the appliance with lace. This affects the
performance of your appliance.
• Fix down the accessories in the appliance during transportation to prevent damage to
them.
Before Switching On:
• There may be an odour when you first switch on the appliance, this is normal and
should disappear when the appliance starts to cool.
• Before using your appliance, add a teaspoon of bicarbonate of soda to warm water
and with a damp cloth wipe down all parts of the new appliance, then repeat the
process with a clean damp cloth and dry.
• ENSURE THE APPLIANCE IS NOT CONNECTED TO THE POWER WHEN PERFORMING
THIS TASK
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
3
Safety Instructions
• Operating voltage for your appliance is 220-240V at 50Hz.
• If you need help or are unsure how to install the unit, please contact Customer
Services on 0345 208 8750 or visit www.productcare.co.uk
• Before plugging in the power supply, ensure that the voltage on the nameplate
corresponds to the working voltage of your electrical system in your home.
• Insert the plug into an efficient Ground (Earth) connection. If the socket has no
Ground (Earth) contact or the plug does not match, we suggest you call an authorised
electrician for assistance.
• We do not take responsibility for damages that occur due to Ungrounded (Un-
earthed) usage.
• Place your appliance in an area that is not exposed to direct sunlight.
• Your appliance should be placed at least 500 mm (50cms) away from stoves, ovens
and other heating cores.
• It should never be used outdoors or left in the rain.
• When your appliance is placed next to a chest freezer or freezer, there should be at
least 50 mm (5cms) between them to prevent humidity on the outer surface.
• Do not place anything on your appliance and install the unit in a suitable place so that
there is at least 300 mm (30cms) clearance above the appliance.
• If placing your appliance next to kitchen cabinets, leave 50 mm (5cms) between them.
• The rear of the appliance should be at least 100 mm (10cms) away from the back wall.
• The appliance must be used in the vertical position and on a flat surface.
• To level the appliance use the adjustable feet on the front of the appliance.
• Do not place your appliance on a carpeted surface as this will prevent adequate
ventilation.
• Do not place hot food or containers in the appliance as this can cause damage your
appliance.
• Your appliance is only designed to be used in the home. If it is used for any other
purpose or it is not used correctly, then Product Care Ltd. will accept no liability for any
damage that is caused.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
4
1. Temperature dial
2. Light
3. Fan
4. Removable wire shelf
5. Adjustable feet
6. Drip tray
7. Door hinge cover
8. Door shelf
9. Door seal
10. Door frame
Your Appliance and the Compartments
Partsmay vary accordingto the appliance model.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
5
Unit & Spare Parts
For spare parts please contact customer service on
0345 208 8750 or visit www.productcare.co.uk
Item Quantity
Shelf 1
Instruction Booklet 1
Where to put your appliance
This appliance should only be placed on a flat, solid surface.
Do not place your appliance on a carpeted surface as this will prevent
adequate ventilation.
Choose a dry and well-ventilated space. No less than 50mm (5cms) must be left
around the sides and 100mm (10cms) around the back of the appliance to allow
sufficient cooling.
Choose a location away from a heat source, e.g. direct sunlight, a radiator or
oven, etc.
The appliance should be positioned so that the plug is easily accessible.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
6
(5cms)
(10cms)
(5cms)
Installation
• The unit should be kept away from direct sunlight.
• Remove all transport tapes and foam protection pieces. Clean the
interior of the appliance with a cloth dampened in lukewarm soap and
water. Wipe with clear water and wipe dry.

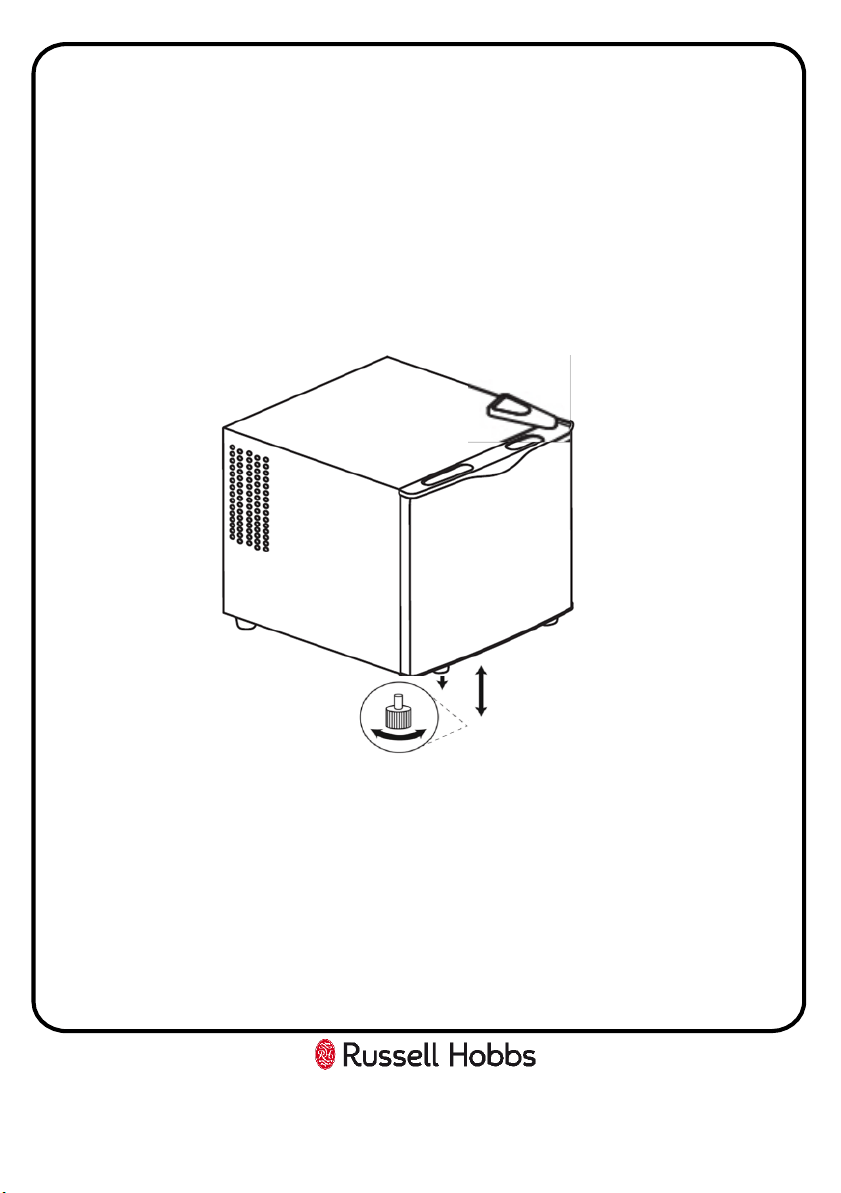

• When the appliance has been positioned, adjust the two front feet to
ensure the unit is stable. This is essential to ensure quiet running and
proper door opening /closing. See figure below.
• Plug in the cooler and adjust the temperature to the required level by
using the temperature adjustment dial as shown on page 5. Close the
door.
• Leave the appliance for a minimum of 3 hours for the correct
temperature to be reached before placing anything inside.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
7
Usage Information
Thermostat Setting
Note:
The temperature of freshly stored items and how often the door is opened affects
the temperature in the compartment. If required, change the temperature setting.
• When you first switch on the appliance, to enable suitable cooling, the appliance
should work 24 hours continuously until it cools down to sufficient temperature.
• During this time do not open the door frequently or place a lot of items inside
the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before
restarting or reconnecting the unit.
• Temperature selection - The temperature of the appliance is controlled manually by the
temperature adjustment dial.
• The appliance has a temperature range of 5°C to 15°C, such that ‘Low’ on the
temperature dial is around 5°C.
• Your appliance is designed to operate in the ambient temperature range stated in
the associated standards, according to the climate class stated on the information
label. We do not recommend operatingyour mini cooler out of the stated
temperatures, as the appliance may not operate to its optimum level. The
climate class for this product is SN/N, and will perform best between 10°C
and 32°C.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
8
Usage Information
Shelves
• The wire shelf can be removed to allow for storage of larger items.
• Removing a shelf - Remove all of the items from the shelf that you want to remove. Lift
the shelf upwards and then gently pull the shelf away from the appliance.
• Replacing a shelf - Place the shelf back into a supporting guide slot and push it back as
far as it will go.
Important: Whilst the appliance can store larger items, you must make sure that they do
not prevent the door from shutting properly.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
9
Cleaning and Maintenance
• Disconnect the appliance from the power supply before cleaning.
• Do not pour water directly over or on the appliance.
• The compartment should be cleaned periodically using a solution of bicarbonate of
soda and lukewarm water.
• Do not use abrasive products, detergents or soaps. After cleaning wipe down with a
damp clean cloth.
• Note: Reconnect to the power after you have dried your hands.
Do not use sharp metal tools as it may damage the appliance.
Do not use an electrical heater, this may cause an electric shock.
Defrosting
The cooler will defrost automatically if frost has started to build up.
Import ant Notes:
• If you do not use your appliance for a long period of time, e.g. when on summer
holidays unplug it. Clean and leave the door open to prevent humidity and bad
odours.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
10
Connection to the mains supply
For UK use only – Plug fitting details (where applicable):
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your plug,
proceed as follows:
The GREEN/YELLOW wire is the EARTH and must be connected to the
terminal which is marked with the letter E or by the earth symbol or coloured
GREEN or
GREEN/YELLOW.
The BLUE wire is the NEUTRAL and must be connected to the
terminal marked with the letter N or coloured BLACK. The
BROWN wire is the LIVE wire and must be connected to the
terminal marked with the letter L or coloured RED.
Always ensure that the plug cord grip is fastened correctly.
If a 13A (BS1363) fused plug is used it must be fitted with a
13amp fuse conforming to BS1362 and be BSI or ASTA approved.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
11
Troubleshooting
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
12
Problem
Solution
The appliance doesn't work
Check
that the appliance is switched on.
Check
that there has not been a power cut.
Check
that the plug is not faulty.
Check
that the fuse has not blown.
Check
that the voltage is correct for the appliance.
The temperature inside the
appliance is not cold enough
Check
that the appliance is not overfilled.
Check
that the temperature is set to a suitable
temperature.
Check that the appliance is not placed in direct sunlight,
or
too near to a heating source.
Check
that the ambient temperature is within the
operation limits of the appliance.
Opening
the doors frequently will also reduce the
temperature within the
appliance.
Check that the door has not been left open
or c
heck that
the door gasket is clean and undamaged.
The temperature within the
appliance is too cold.
Increase
the working temperature
The inner surfaces of the
appliance are wet
Caused
by condensation -
dry the inside of the appliance.
The outer surfaces of the
appliance are wet
Caused
by condensation -
dry the outer of the appliance
carefully.
Unusual noises
Check that the appliance is on a flat, level surface and is
stable
. Try adjusting the feet if not level.
Check
the spacing's around the appliance
and ensure it is
not
touching other items.
Troubleshooting
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
13
Problem
Solution
Smell/odour
Check
that nothing
has leaked or any stagnant liquid is at
the bottom of the appliance. Clean if required.
Guarantee
This product is guaranteed for 12 months from the date of the original
purchase. If any defect arises due to faulty materials or workmanship the faulty
product must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with the original proof of
purchase.
• The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other instructions
for use which have been supplied.
• It must be used for domestic purposes only and for its intended use.
• This warranty does not cover wear and tear, damage, misuse or
consumable parts.
This does not affect your statutory rights.
Produced for:
G2S Limited
Wigan
WN2 4AY
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
14
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
15
Technical Specification
Model number RHCLRF17 (B)
Rated Voltage 230-240V/50Hz
Net capacity (litres) 17 litres
Dimensions (CMs): (H)35.0 x (W)38.5 x (D)41.5
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
16
Notes:
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
17
Notes:
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am – 8pm & Saturday 9am – 1pm
or visit us at www.productcare.co.uk
18
Notes:
For Customer Services &
Spare Parts please call
0345 208 8750
Opening times:
Monday – Friday
8am – 8pm
&
Saturday
9am – 1pm
or visit us at
www.productcare.co.uk
This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this
symbol is marked on a product/batteries, it means that the product/batteries
should not be disposed of with your general household waste. Only discard
electrical/electronic/battery items in separate collection schemes, which cater
for the recovery and recycling of materials contained within. Your co-operation
is vital to make sure the success of these schemes and for the protection of the
environment. For your nearest disposal facility, visit www.recycle-more.co.uk
or ask in store for details.
We reserve the right due to possible changes to design to alter the
instruction manual without prior notice.
Revision 9
