2017
NAVIGATION MANUAL
The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd., reserves the right,
however, to discontinue or change specifications or design at any time without notice and without incurring any obligation.
Accessories Precautions
The GPS antenna is located in the dashboard. Metallic front or side window tinting can seriously degrade or obstruct GPS reception.
Signal noise from devices such as radar detectors, vehicle tracking devices, remote starters, and additional amplifiers can disrupt the navigation system. If you
install any such item, install it away from the navigation display and antenna.
Important Safety Information
Avoid focusing on the screen or manually operating the system controls while driving.
Certain on-screen controls are disabled when driving, but most of the audible instructions and voice commands continue to function. Pull to the side of the road
if you need to devote more attention and time to look at the screen or access additional menus.
Route guidance may conflict with street closures, road construction, detours, and out-of-date map data.
The system itself may also have limitations. Verify route information by carefully observing roads, signs, and signals. Always use your own judgment and obey
traffic laws.
2
System Limitations
P. 224
3 WARNING
Using the navigation system while driving can take your
attention away from the road, causing a crash in which you
could be seriously injured or killed.
Only operate system controls when the conditions permit you
to safely do so.
00X31-T7A-8101 2017 HR-V Navigation Manual ANV-05484
Contents
2 System Setup P. 19
Start-up 20 Voice Control System 22 Display Mode Settings 25 Personal Information 27
Routing 38 Guidance 46 Map 49 System Settings 63
Display Settings 65 Sound and Beep Settings 67 Voice Recognition Settings 69 Clock Adjustment 70
Other Settings 76 Data Reset 78
2 Navigation P. 79
Entering a Destination 80 Calculating the Route 98
Driving to Your Destination 100
Map Menu 105
Changing Your Route 111 Changing Your Destination 120 Resuming Your Trip 123
2 Audio P. 125
Audio System 126 Audio Remote Controls 128 Audio Settings 131 Playing FM/AM Radio 133
Playing SiriusXM® Radio
*
137 Playing a Disc 141 Playing an iPod 146 Playing Pandora®
*
154
Playing a USB Flash Drive 157 Playing Bluetooth® Audio 161 Playing a Video Using the HDMI® 165
2 Bluetooth® HandsFreeLink® P. 167
Bluetooth® HandsFreeLink® 168 Text/E-mail Message 192 HondaLink Assist 195
2 Other Features P. 197
Trip Computer 198 Information Functions 199 Multi-View Rear Camera 202
2 Troubleshooting P. 205
Troubleshooting 206 Error Messages 214
2 Reference Information P. 221
System Initialization 222 System Limitations 224 Customer Assistance 226 Legal Information 229
2 Voice Commands P. 233
Voice Commands 234
Quick Reference Guide
P. 2
System Setup
P. 19
Navigation
P. 79
Audio
P. 125
Bluetooth
®
HandsFreeLink
®
P. 167
Other Features
P. 197
Troubleshooting
P. 205
Reference Information
P. 221
Voice Commands
P. 233
Index
P. 245
2
Quick Reference Guide
Quick Reference Guide
Overview—Functions at a Glance
Navigation
You can select any place/landmark as a destination by using voice control or the touchscreen. The navigation
system gives you turn-by-turn driving directions to your destination.
Store home addresses
(P33 )
Register
2
home addresses.
Track route
(P100 )
Follow your route in real-time with voice guidance.
Store contacts
(P28 )
Store up to
200
contacts in
2
address books.
Enter destination
(P80 )
Select your destination using
11
methods.

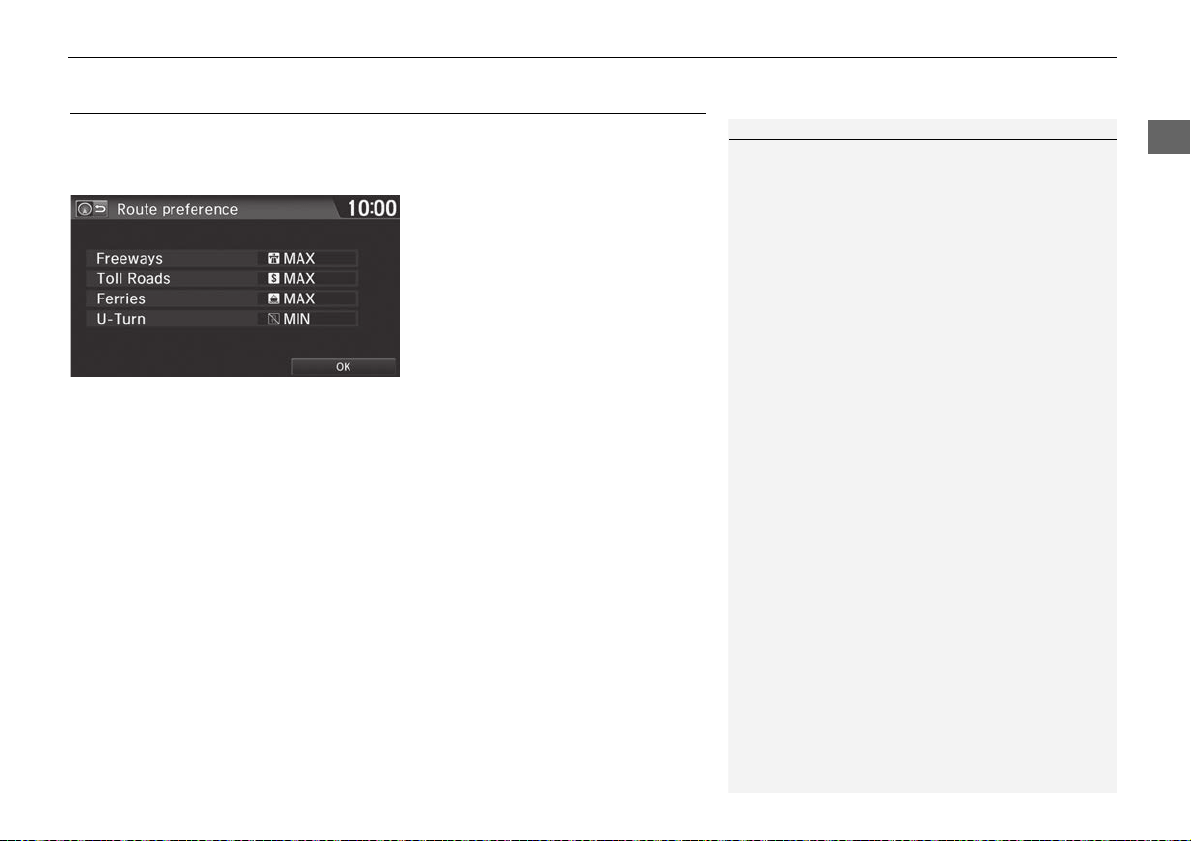

Select route
(P99 )
Set route preferences and select one of
3
routes.

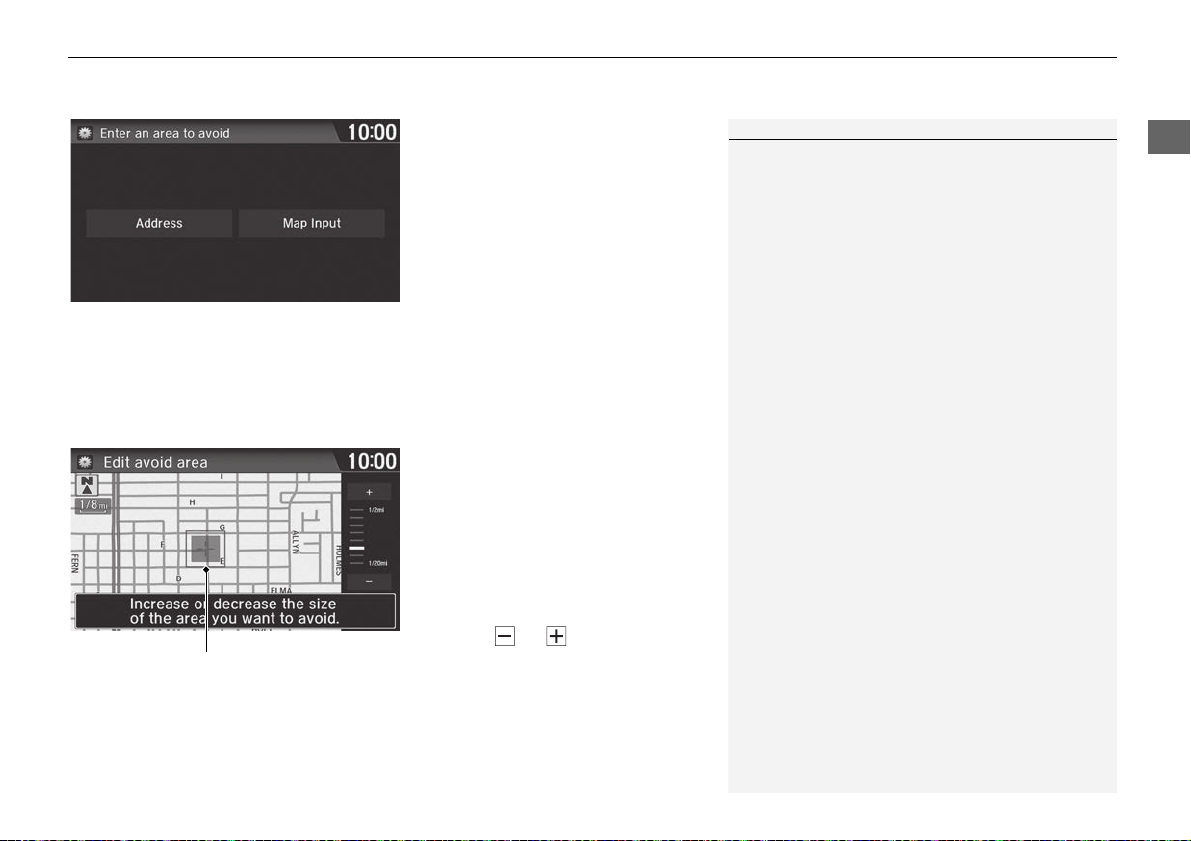

Avoid certain areas
(P119 )
Set streets and areas to detour around.
Add waypoints
(P112 )
Add up to
4
“pit stops” along your route.

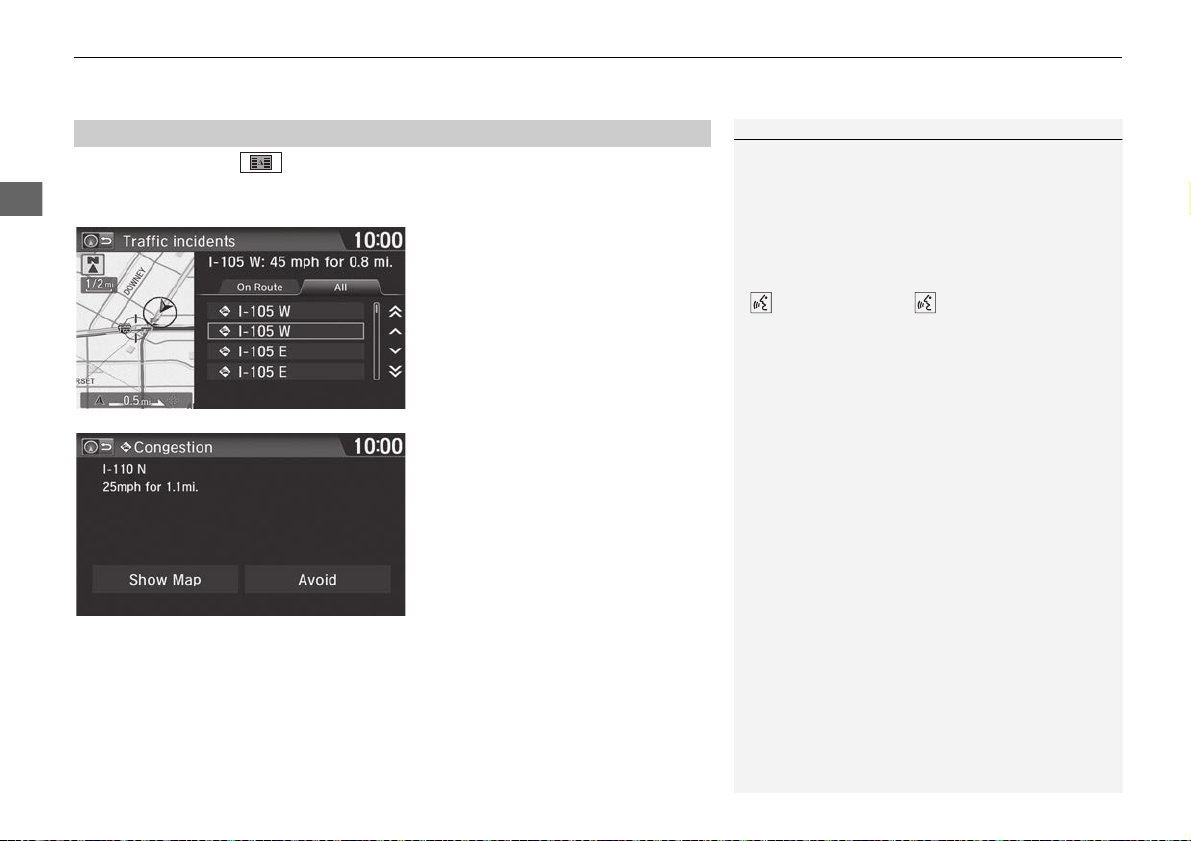

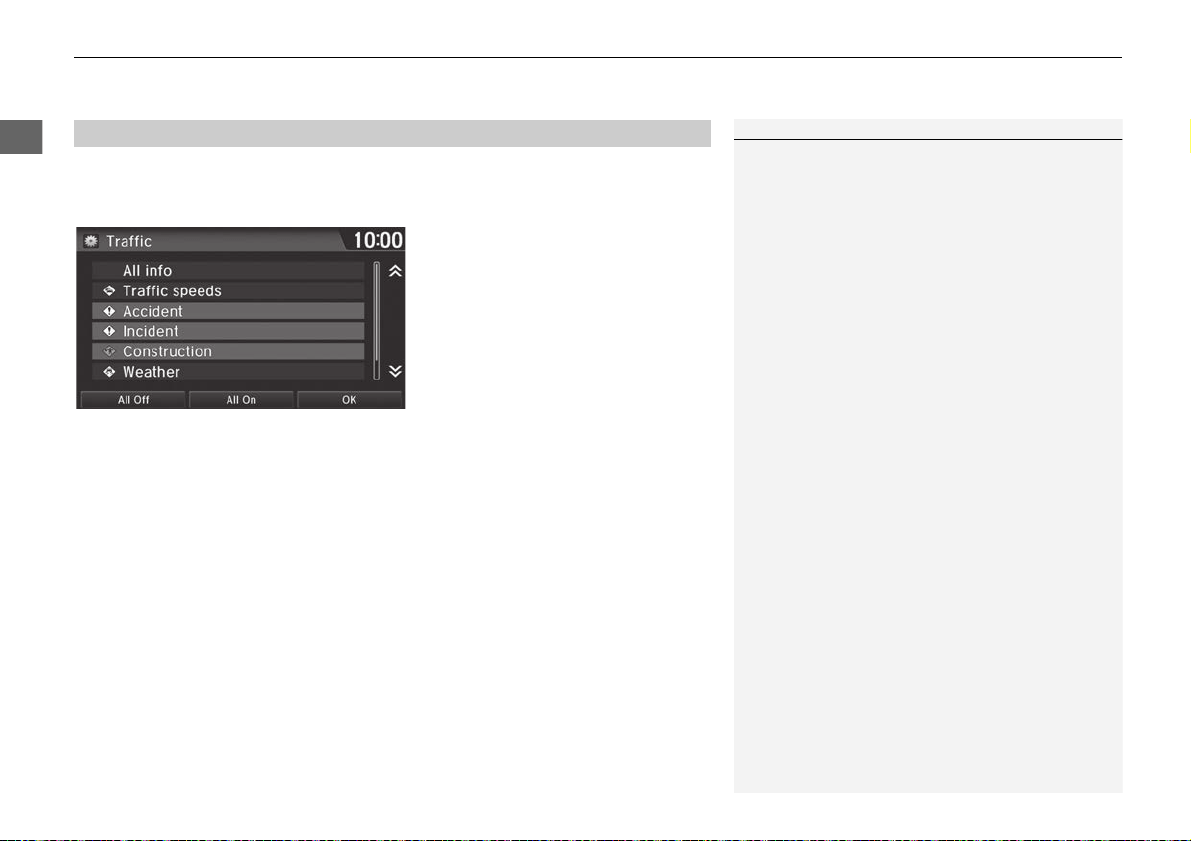

Traffic Information* (P109 )
View and avoid congestion and traffic incidents.
*: Available only in certain areas.
3
Quick Reference Guide
Other Features
Multi-View Rear Camera (P202)
Helps you check for obstacles around the rear of your vehicle on the navigation screen when reversing.
Audio
The advanced audio system provides clear, well-defined sound and makes the most of your music.
Enjoy listening to a variety of audio sources, such as:
AM/FM Radio
(P133 )
SiriusXM® Radio
*
(P137 )
Compact Disc
(P141 )
Pandora®
*
(P154 )
iPod
(P146 )
USB Flash Drive
(P157 )
Bluetooth® Audio
(P161 )
Voice Control
(P22 )
Use voice commands to control the system while driving. You can operate all key functions of the
navigation, audio, Bluetooth® HandsFreeLink®, and climate control systems.
Bluetooth® HandsFreeLink®
(P168 )
Pair a compatible cell phone to receive incoming and make outgoing calls. You can operate the
phone features without ever taking your hands off the wheel.

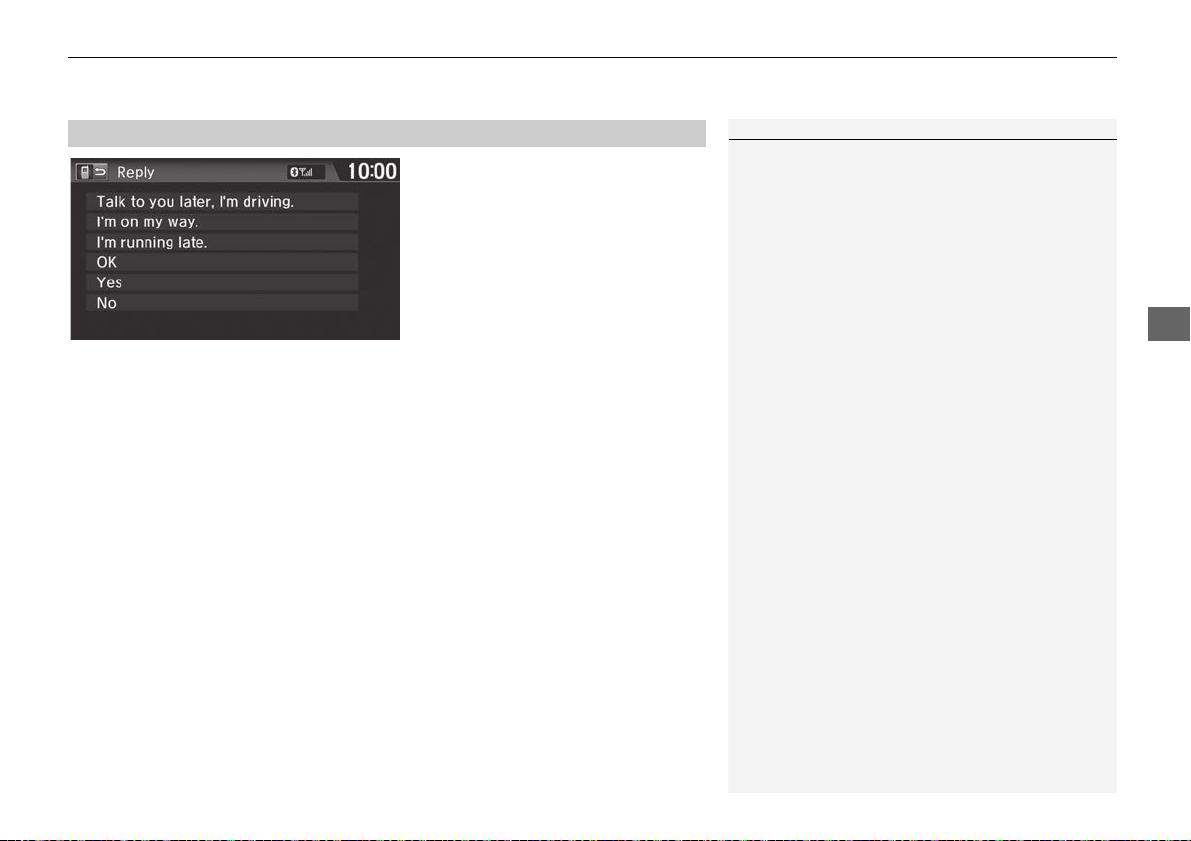

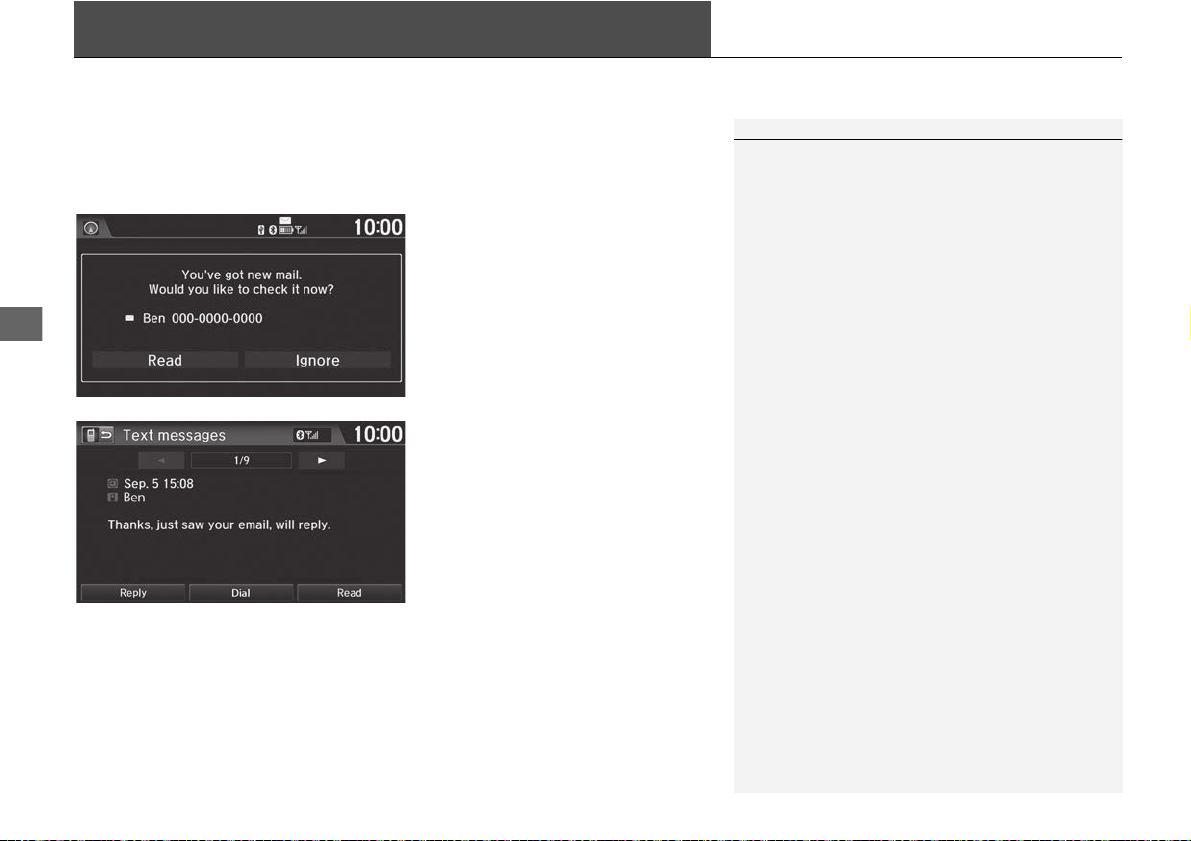

Text Messages
(P192 )
Receive text messages on the navigation screen from a compatible device and hear them read aloud.
Reply to them using preloaded messages.
* Not available on all models
4
Quick Reference Guide
System Controls
4 (Display Mode)
Button
(P25 )
Navigation Screen
(Touchscreen)
Audio
Common
Voice Control
Bluetooth® HandsFreeLink®
1 (Audio Power)
Button
(P9 )
3 (Eject) Button
2 Disc Slot
lh (Talk) Button
(P22)
lg (Hang-Up/Back)
Button
(P187 )
lf (Pick-Up) Button
(P187 )
6 HOME
(P7 )
8 MENU
7 VOL (Volume)
(P9 )
9 BACK
5 Microphone
(P22)
0 (Display) Button
(P129 )
ld (Volume) Button
(P129 )
lc (Channel) Button
(P1 29)
lb SOURCE Button
(P1 28)
le (Menu) Button
(P1 30)
5
Quick Reference Guide
Voice Control Operation
Voice Portal Screen
a Press and release the (Talk)
button on the HOME screen or the
top screen of any mode.
The system prompts you to say a voice
command and gives examples. Press
and release the (Talk) button
again to bypass this prompt.
The system beeps when ready for a
command. Press the (Hang-Up/
Back) button to cancel.
Available voice commands are
highlighted on the screen.
b Say a voice command (e.g., Address).
After that, follow the voice prompt
and say a voice command.
The audio system is muted during voice
control mode.
You can use other voice commands on
the Voice Portal screen.
Voice Commands (P233 )
Say “Voice Help” to enter supported
commands for the current screen. A
voice help tutorial is also available.
Voice Help (P15)
Set Voice Prompt to Off to bypass the
voice prompt.
Voice Recognition (P23)
Carefully read the usage note for the
voice control.
Voice Control System (P22)
On the Menu Screen
Say “Voice portal” to display the
Voice Portal on any screen.
a Press and release the (Talk)
button on the menu or setting screen.
The system prompts you to say a voice
command and gives examples. Press
and release the (Talk) button
again to bypass this prompt.
Available voice commands are
highlighted on the screen.
b Say a voice command.
6
Quick Reference Guide
Touchscreen Operation
You can operate the system using your finger on the touchscreen.
The touchscreen can be operated if you are wearing thin gloves, but it may be more difficult for the system to respond.
Tap
Touch the screen lightly with your finger to select an item on the
screen.
Flick
Lightly sweep your finger side to side or up and down to scroll a list
or map.
Slide
Move your finger slowly across the screen to scroll the map.
Pinch In/Out
Open or close your fingers on the screen in a pinching motion to
zoom in or out of the map.
7
Quick Reference Guide
HOME Screen
The system displays various functions from the HOME screen. Select HOME at any time to return to the main HOME screen.

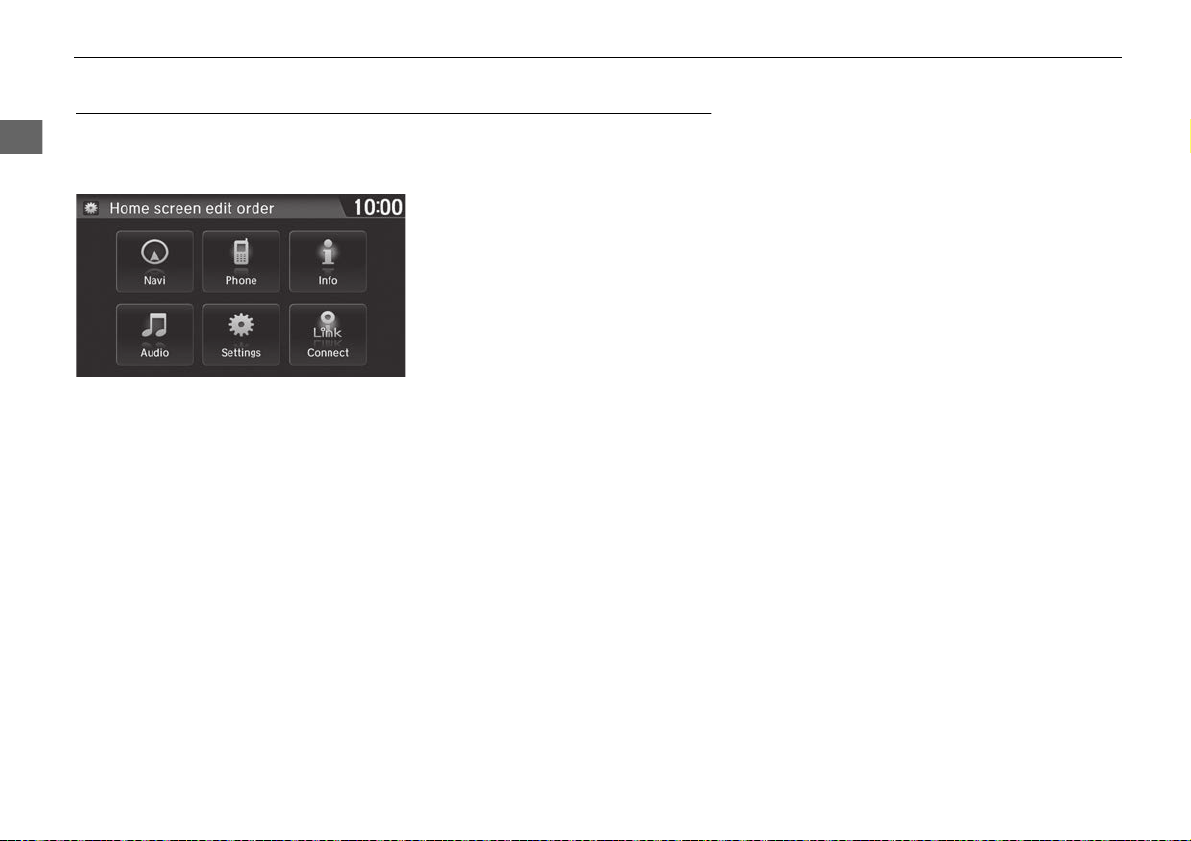

The position of the icons on the HOME screen can be changed. (P64 )
Phone (P167)
Display the phone screen and use a Bluetooth-compatible phone
to make and receive calls.
Navi (P79 )
Display the map screen and operate the navigation system.
Audio (P9) (P125)
Display the audio control screen. Play
various music media such as the radio,
CD, and iPod.
Settings (P19 )
Change settings for functions
in the system.
Info
View system information, the trip computer, and more.
HOME
Display the HOME screen.
VOL (Volume)
Increase or decrease audio volume.
MENU
Display the menu screen of each
function.
BACK
Go back to the previous screen.
Only VOL (Volume) is displayed on
the HOME screen.
HondaLink Apps
You can connect a compatible
smartphone to the system to enable
integration between the smartphone's
approved apps and the vehicle. This
allows you to control the phone through
the vehicle display. When a smartphone is
connected, select on the HOME screen
to display the app launcher screen.
Select an icon to launch the app.
To check smartphone compatibility and
connection instructions:
U.S.: visit handsfreelink.honda.com.
Canada: visit www.handsfreelink.ca.
To get more information on HondaLink
features and apps:
U.S.: visit www.hondalink.com.
Canada: visit www.honda.ca/hondalink.
Sample images shown.
Connect
Display the HondaLink screen.
8
Quick Reference Guide
How to Enter Information
You can enter information (e.g., city names, street names, personal names, and business names comprising letters, numbers, and symbols)
when prompted on input screens by two different methods.
Using Voice Control
When you see in this manual, voice commands are available for
that feature.
The system recognizes only certain commands.
Available navigation commands (P234 )
Say the letter, number, or symbol (e.g., say “A”).
Use spelling assist (e.g., say “Apple” to enter the letter “A”
or “Hyphen” to enter a hyphen).
The system beeps if you say an unavailable (grayed out) letter or
number.
If a voice command is not recognized, a list is displayed with
possible options.
On list screens:
Say the number of the list item (e.g., say “Five” to select item
5).
Say “Up” or “Previous” to scroll up one page.
Say “Down” or “Next” to scroll down one page.
Using the Touchscreen
Select a character or icon on the screen to select it.
Select to remove the last entered character.
Select Shift to display upper/lower case characters.
Select Space to enter a space character.
Select a tab to display other types of characters.
Select to change the keypad type. You can enter a character
with flick input as well.
On list screens:
Certain touchscreen functions are limited or inoperable while the
vehicle is moving. For these functions, use available voice
commands or pull over to proceed.
Number of Hits
On input search screens, the number of hits in the map database is
displayed. Select OK to display a list of possible entries.
9
Quick Reference Guide
Audio System
You can play music from a wide array of media sources. You can also control the audio system using voice commands.
Basic Operation
a Press the (Audio Power) button to turn the audio system
on or off.
b Select HOME and then select Audio on the screen.
The audio control screen of the last selected source is
displayed.
c Select SOURCE and then select the audio source.
d Select VOL (Volume) to adjust the volume.
Audio source
Audio Control Display
Track list
Play mode
Audio source
Displays selected source.
Displays or hides the
music information.
Close tab
Music
information
Open tab
Audio control
Folder/Track
tab
Displays the
list.
10
Quick Reference Guide
Map Screen Legend
Park
Hospital
Golf Course
Body of Water
Cemetery
University
Airport
Industrial complex
Feature areas
Traffic status indicator* (P109)
Map orientation (P54 )
GPS signal strength
North up
Heading up
Best reception
Good reception
No icon: Poor/No reception
Traffic information available
Flow or incident data not available
Traffic information not available
Traffic information off or map
scale too large
Current map scale
Current street name
Map menu (P105)
Map scale (P58)
Current vehicle position (P62 )
Streets
Landmark icons (P59 )
Shopping Mall
Freeways
State routes
Road
Unverified road
Pedestrian street
Acura dealer
Honda dealer (U.S.)
Gas station
Hospital
Post office
Restaurant
ATM
School
Parking lot
Parking Garage
Grocery store
Hotel/Lodging
Freeway exit information
Congestion
Incident
Weather
Construction
Road Closed/Blocked
Traffic incident icons* (P109)
Traffic flow indicator* (P109 )
Heavy
Moderate
Free flow
3D map
Honda dealer (Canada)
*: Traffic is only available in certain areas.
Military Base
State line
One-way streets
11
Quick Reference Guide
During Route Guidance
During route guidance, route information is displayed on the map/guidance screen.
Select the map orientation icon to change the guidance mode.
Map Screen
Guidance Screen
Distance to destination
Distance of the actual
route.
Straight line guide (P55)
Calculated route
(P98 )
Guidance indicator
Distance to the next
guidance point.
Estimated time to
destination
Destination/Waypoint icon (P112 )
Calculated route
(unverified roads)
(P102 )
Street name of
guidance point
Distance to
guidance point
No entry icon
Map Screen during Scrolling
Select the open/close tab to view and
select map icon and street or traffic
information. Select the (Navi/Back)
icon to go back to the map screen.
(P121 )
List open/
close tab
Selectable icons on
the cursor location
12
Quick Reference Guide
Navigation—Home Addresses and Going Home
The “Home” feature automatically routes you to your home address from any location simply by selecting Go Home 1 or 2, or saying
“Go Home.” You can store two home addresses. (P33 )
Storing Your Home Address
a Select HOME.
b Select Settings and select Navigation.
c Select Personal Info tab.
d Select Edit Go Home 1.
e Select Name.
f Enter a name and select OK.
g Select Address.
h Select Address from the Destination
menu.
i Enter an address.
j Select Phone No.
k Enter a phone number and select OK.
l Select OK.
Going Home
a Select HOME and then
select Navi.
b Select MENU and then select Go
Home 1.
Alternatively, you can say “Go Home”
from any screen. Your home address is
displayed on the calculate route screen.
c Select Set as Destination.
13
Quick Reference Guide
Navigation—Entering a Destination
Enter your destination using one of several methods, then follow route guidance on the map or guidance screen to your destination. You
can also perform these steps using voice control.
a Select HOME and then
select Navi.
b Select MENU and then select Address.
c Select Street.
d Enter the name of your destination
street and select OK if necessary.
e Select your destination street from
the list.
f Enter the street number. Select OK
when finished.
g If there is more than one city with the
specified street, a list of cities is
displayed. Select the desired city from
the list.

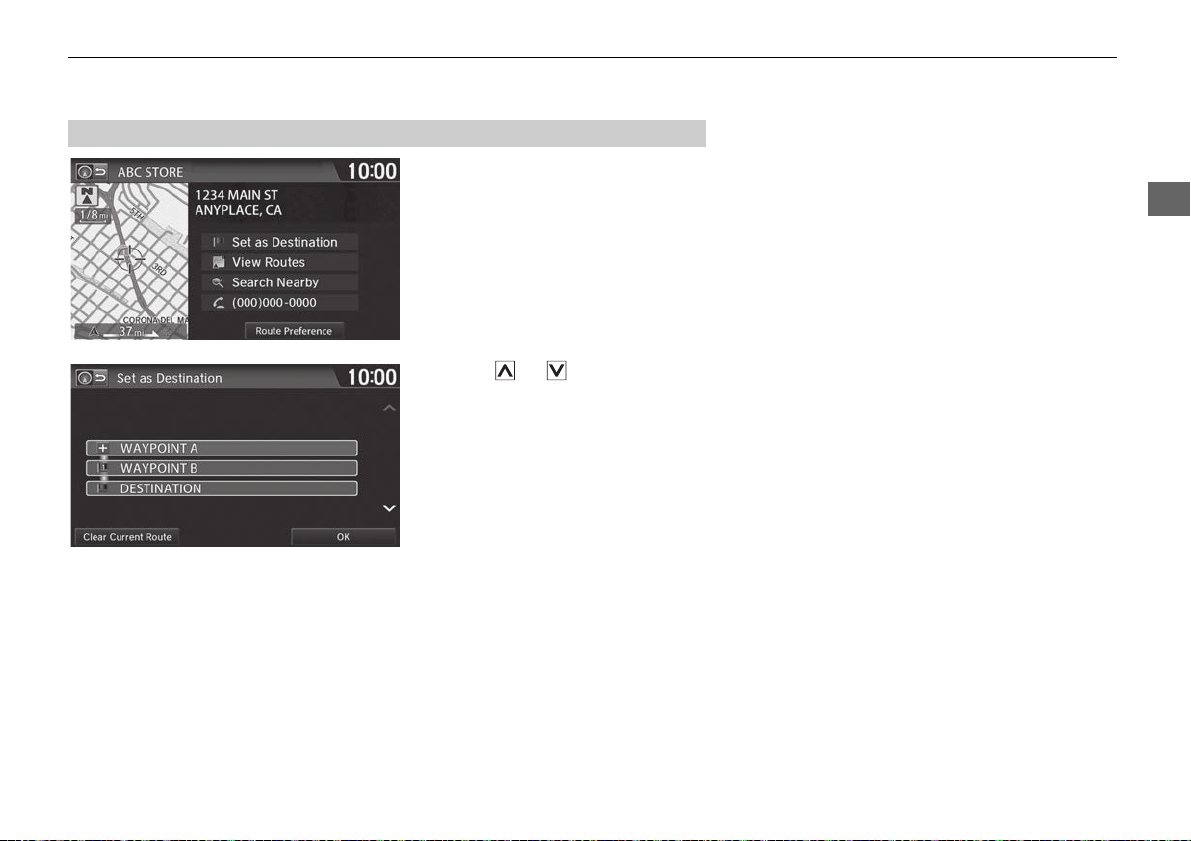

h Select Set as Destination.
Route guidance to the destination
begins.
View Routes: Choose one of three
routes.
Route Preference: Choose MAX or MIN
for the four settings.
14
Quick Reference Guide
Navigation—Changing Route or Destination
You can alter your route by adding waypoints to visit, adding streets to avoid, or changing your destination during route guidance.
Adding a Waypoint (“Pit Stop”)
You can add up to four waypoints along
your route. (P112 )
a Select HOME and then select Navi.
b Select MENU and then select
Destination List on the Route Option
tab.

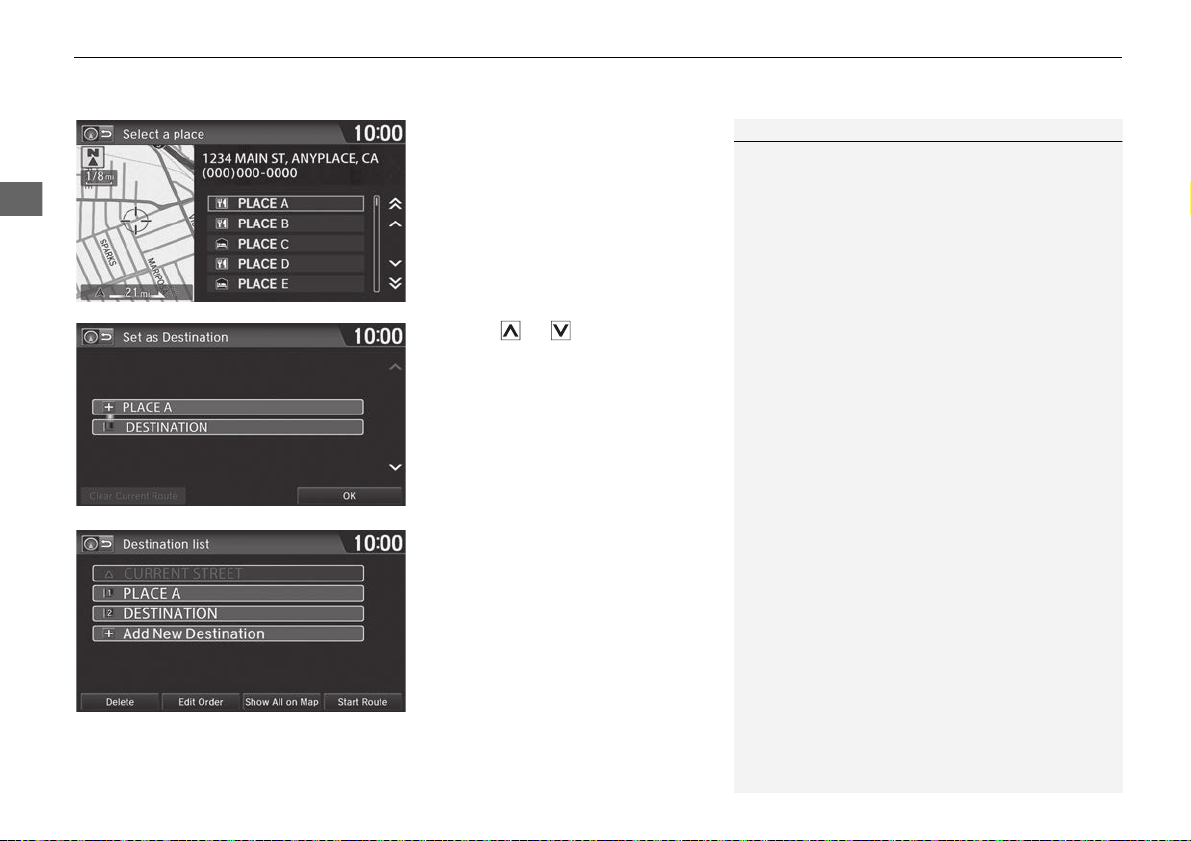

c Select Add New Destination.
d Select search method.
e Select the location to add to the
Destination List.
f If necessary, edit the order of the
destinations.
Changing Your Destination
There are four methods you can use to
specify a new destination during route
guidance.
Say “Find Nearest…” (P120 )
Searches for the nearest place/landmark
on the map screen (e.g., “Find
nearest gas station”).
Say “Go Home” (P 12)
Routes to your home address.
Selecting an icon on the map (P121 )
Scroll the map to position the cursor
over a place/landmark icon or a new
area on the map. Select the highlighted
icon on the right side of the screen, and
then select Set as Destination.
Entering a new destination (P122 )
Select MENU on the map screen. Select
Destination tab and enter a new
destination.
Canceling Your Route
From the map screen:
a Select HOME and then select Navi.
b Select MENU and then select Cancel
Route.
a Select HOME and then select Navi.
b Select (map menu) icon.
c Select Cancel Route.
15
Quick Reference Guide
Voice Help
This navigation system comes with voice help, which shows you what command to say when using the voice command functions.
Command Help
a Press and release the (Talk)
button.
b Say “Voice Help.”
The voice help screen is displayed.
The “Voice Help” command is
available on most screens.
c Press and release the (Talk)
button.
d Say one of the options for a list of
available commands by category (e.g.,
“Navi commands”).
e Press and release the (Talk)
button.
f Say one of the options for a list of
available commands by category (e.g.,
“Find place commands”).
g The system displays a list of all
available commands for the category.
Select Read to hear the list read
aloud.
Voice Commands (P233)
You can also display the All commands

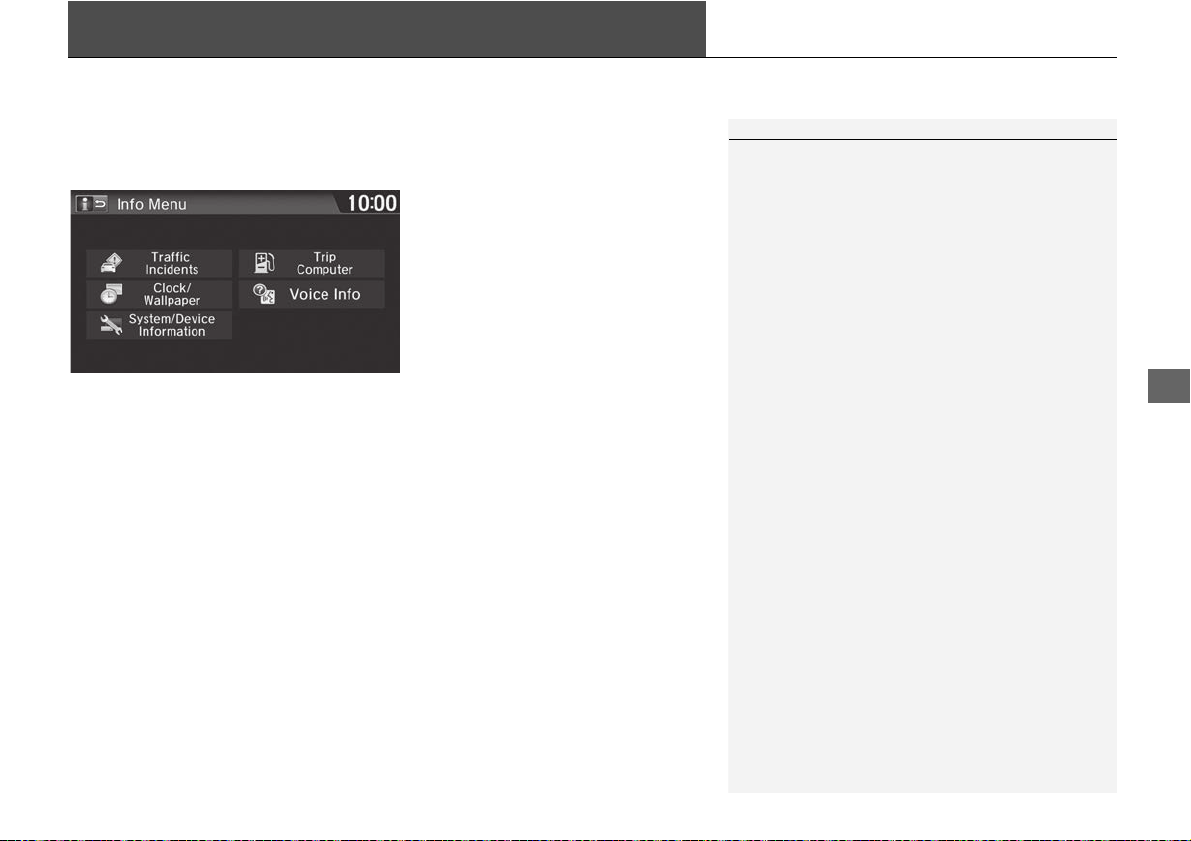

screen from the Info Menu. Select
Voice Info on the Info Menu screen.
Getting Started Tutorial
a Say “Getting Started” on the
voice help screen.
The system starts to read the tutorial
automatically.
Select Stop or select BACK to stop
reading.
Say “Previous” or “Next” to
display the previous/next page.
16
Quick Reference Guide
Troubleshooting
For more Information
(P205 )
Why does the vehicle position icon on the map “lag” a
short distance behind my actual position, especially at
intersections?
This is normal. The navigation system is unaware of the
width of intersections. Large differences in vehicle position
can indicate a temporary loss of GPS signal.
Why does the “time to destination” display sometimes
increase even though I am getting closer to my
destination?
The “time to destination” is based on the posted road
speed signs and your actual road speed to give you a
better estimate of arrival time.
How do I specify a destination when an entered city or
street could not be found?
Try entering the street first. Some cities are lumped in
with a major metro area. In rural “unverified” areas or
new subdivisions, streets may be missing or only partially
numbered.
How do I turn on the navigation system voice guidance?

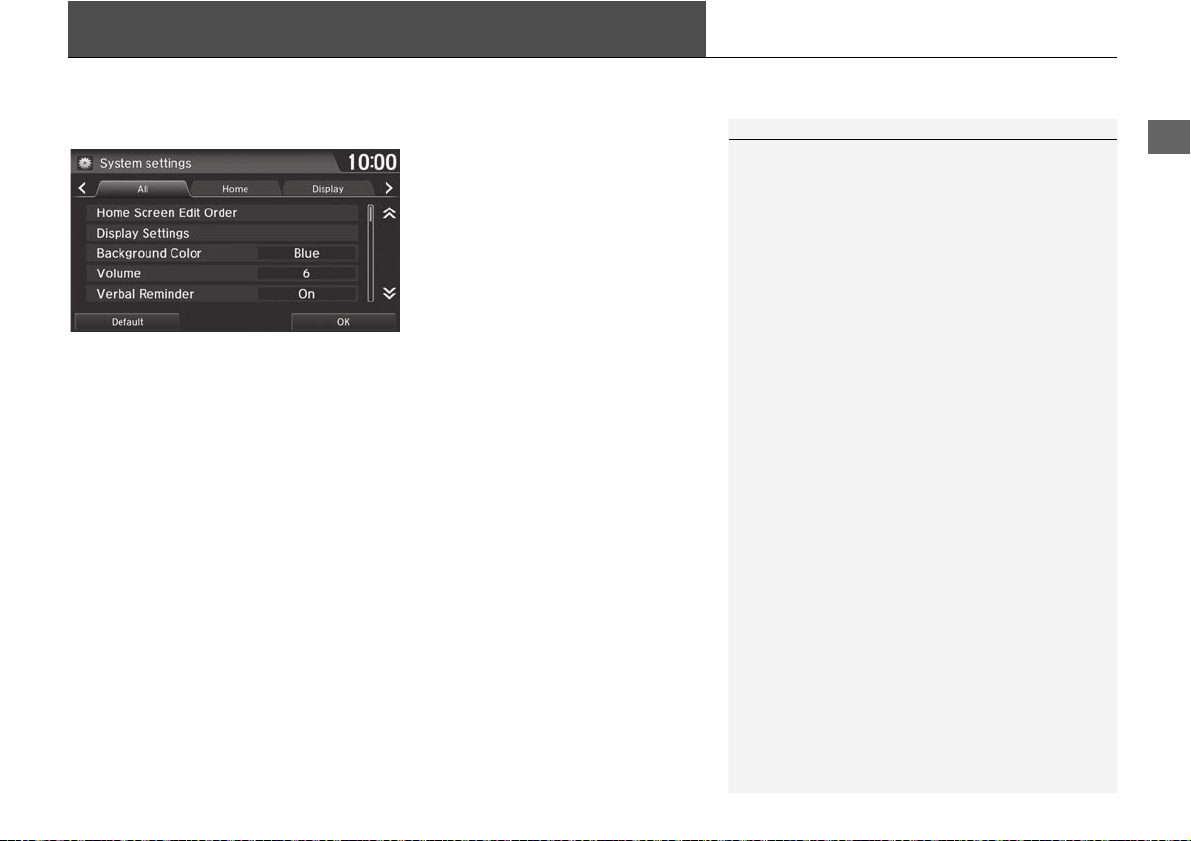

1.Select HOME and then select Settings. Select System,
and then select Sound/Beep tab. Check that Volume
is not set to 00.

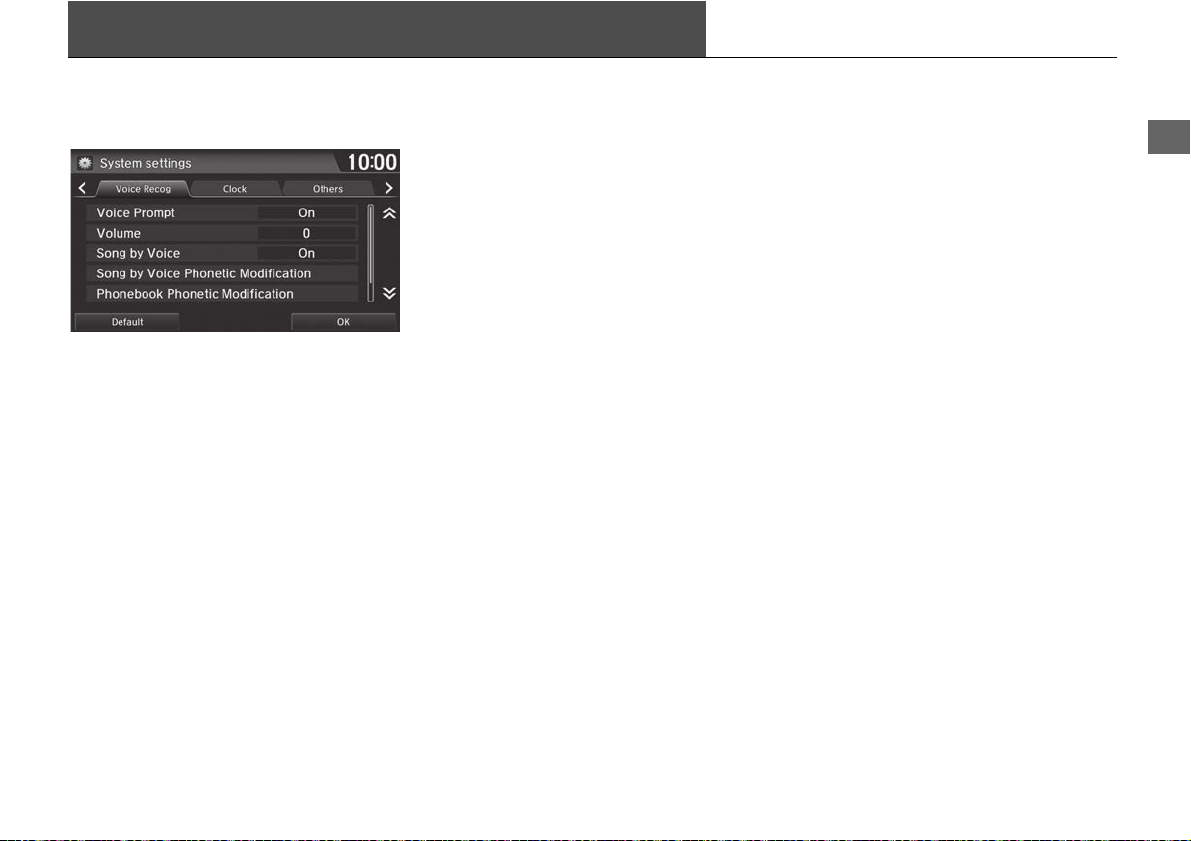

2.Select Voice Recog tab on the System settings screen,
and set Voice Prompt to On if you want the system to
provide confirmations and system prompts.
My battery was disconnected or went dead, and the
navigation system is asking for a code. Where do I find it?
In most cases, you do not need to enter a code. Simply
press and hold the (Audio Power) button for two
seconds; the system should reactivate.
2 System Initialization P. 222
How can I check if my smartphone is compatible with the
system?
Visit the following website:
●
U.S.: handsfreelink.honda.com.
●
Canada: www.handsfreelink.ca.
17
How to Use This Manual
This section explains different methods on how you can easily find information in this manual.
Contents
Contents
Searching the Table of Contents
(P1 )
First, find the general chapter related to
what you are looking for (e.g., entering
a destination from the Address Book).
Then, go to that chapter to view a more
specific table of contents.
Searching the Index
(P24 5)
This more detailed table of contents
shows you exactly what information is
listed by section and title.
The Index consists of
main terms and sub-
entries. The sub-entries
help you get to the
desired page depending
on what you are looking
for.
Table of Contents
Chapter Contents
Navigation Screen
Index
Two types of Tables of Contents help
you find your desired information.
Menu items displayed on the
navigation screen (e.g., Address Book)
can be found individually in the Index.
More Detailed
Contents
Go to the
Next Page
18
Entering a Destination
Address Book
Navigation
Address Book
H Address Book
Select an address stored in your address book to use as the destination.
1. Select the driver.
2. Select your destination from the
list.
1 Address Book
If you have PIN-protected your address book,
enter your PIN number when prompted. Select
OK. PINs are optional.
2 PIN Numbers P. 36
You can select
Address book screen to add an entry to the
address book.
2 Adding an Address Book Entry P. 31
Add New Address on the
HOME Navi MENU
3. Set the route to your destination.
Select the item on the system
control panel.
Menu Tree
The menu tree helps guide you
through the system’s menu options.
To get to your desired function, follow
the menu tree in order of the steps
shown.
All menu options can also be
activated with voice commands.
Select HOME.
Select the menu option.
After following the menu
tree, step-by-step
instructions explain how to
achieve the desired result.
* Sample pages and images in this section may differ from the actual ones.
Select Address Book.
HOME Address BookMENUNavi
19
System Setup
This section describes the start-up procedure and the navigation and setup functions.
Start-up ................................................... 20
Voice Control System ............................. 22
Command Input .................................... 22
Voice Recognition .................................. 23
Siri Eyes Free .......................................... 24
Display Mode Settings ........................... 25
Turning Off the Display .......................... 25
Switching Display Mode Manually .......... 25
Personal Information.............................. 27
Address Book......................................... 28
Home Addresses .................................... 33
PIN Numbers.......................................... 34
User Name............................................. 35
Previous Destination............................... 36
Category History .................................... 37
Routing.....................................................38
Route Preference ....................................39
Unverified Routing ..................................40

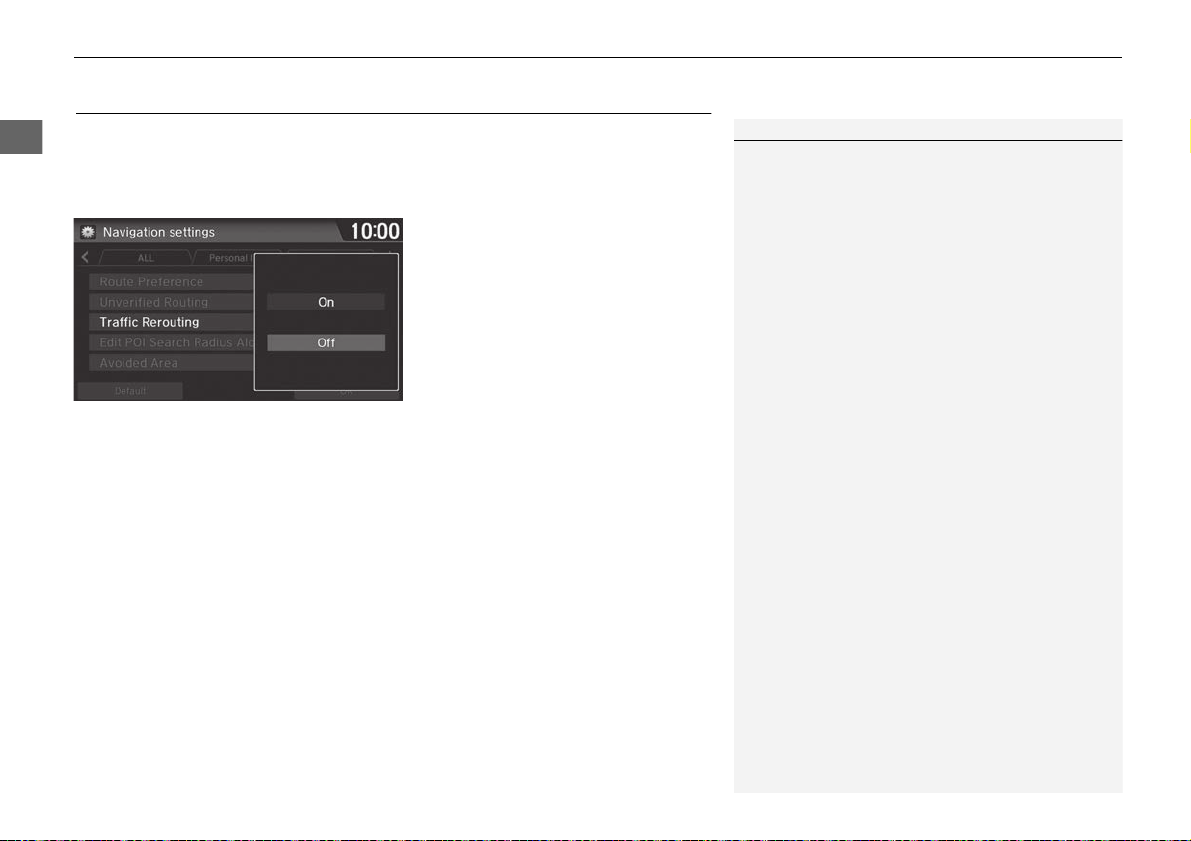

Traffic Rerouting .....................................42

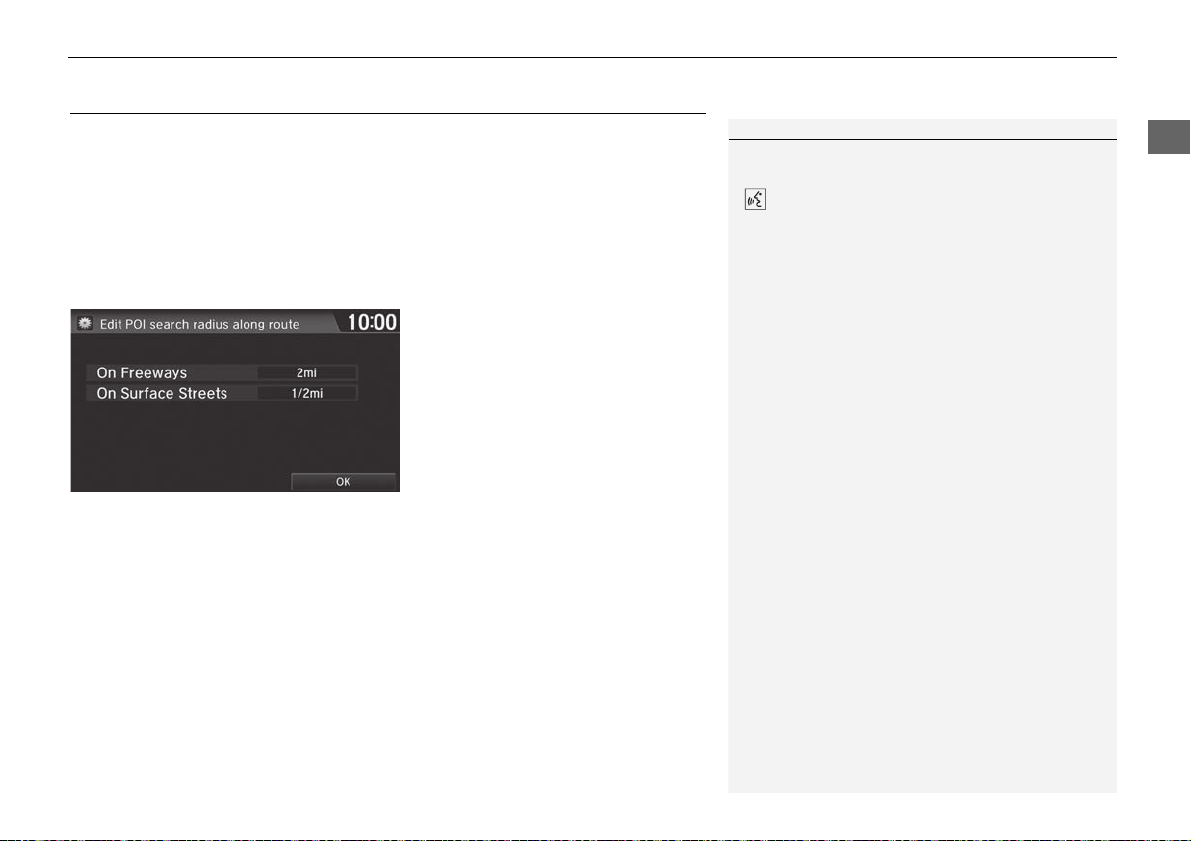

Edit POI Search Radius Along Route ........43
Avoided Area..........................................44
Guidance ..................................................46
Map...........................................................49

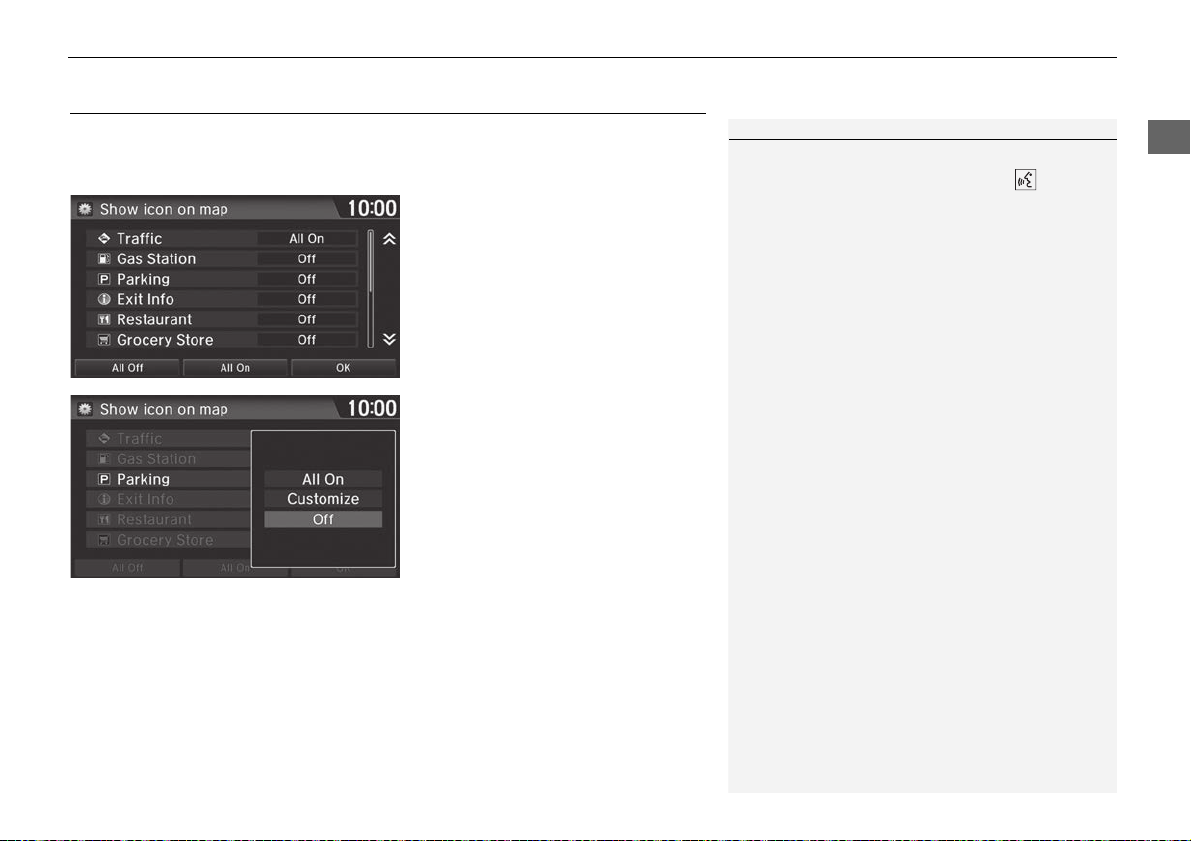

Showing Icons on the Map .....................51
Color ......................................................53
View (Map Orientation)...........................54

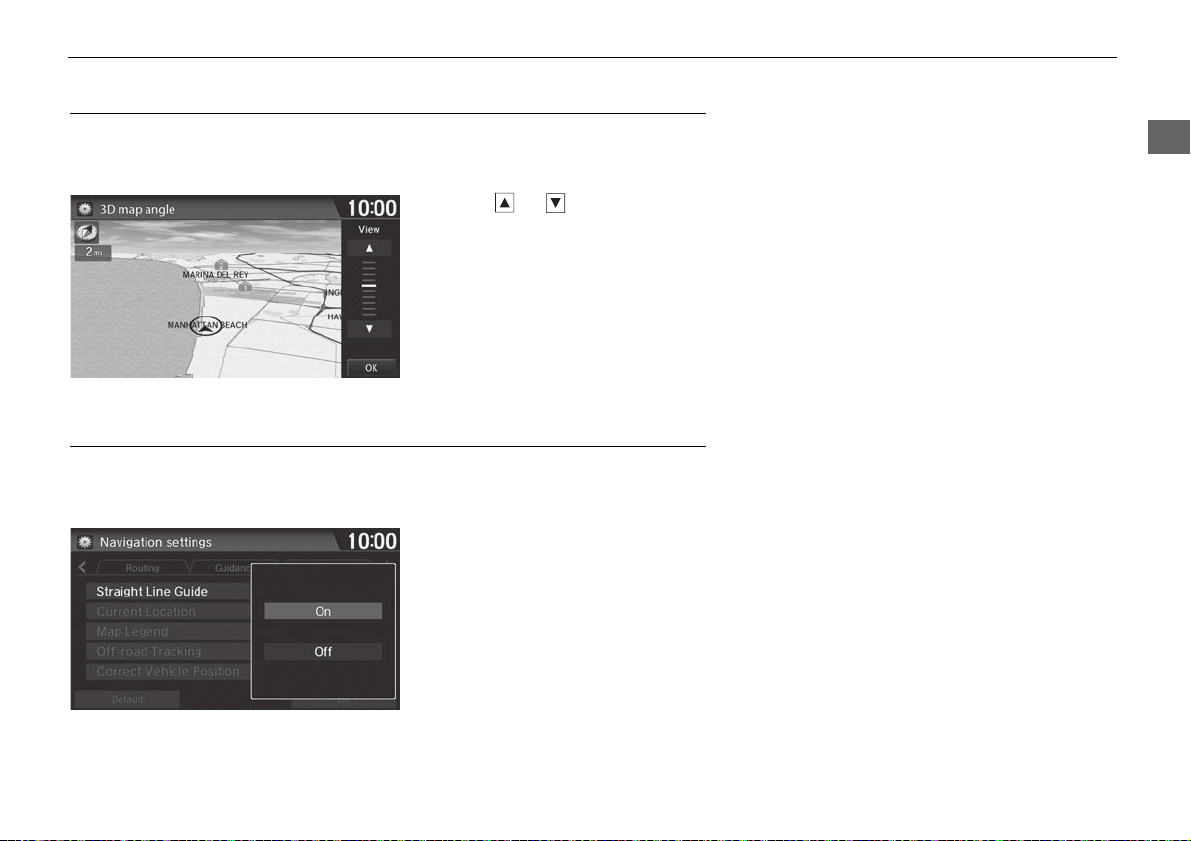

3D Angle Adjustment .............................55
Straight Line Guide .................................55
Current Location .....................................56
Map Legend ...........................................57
Off-road Tracking................................... 61

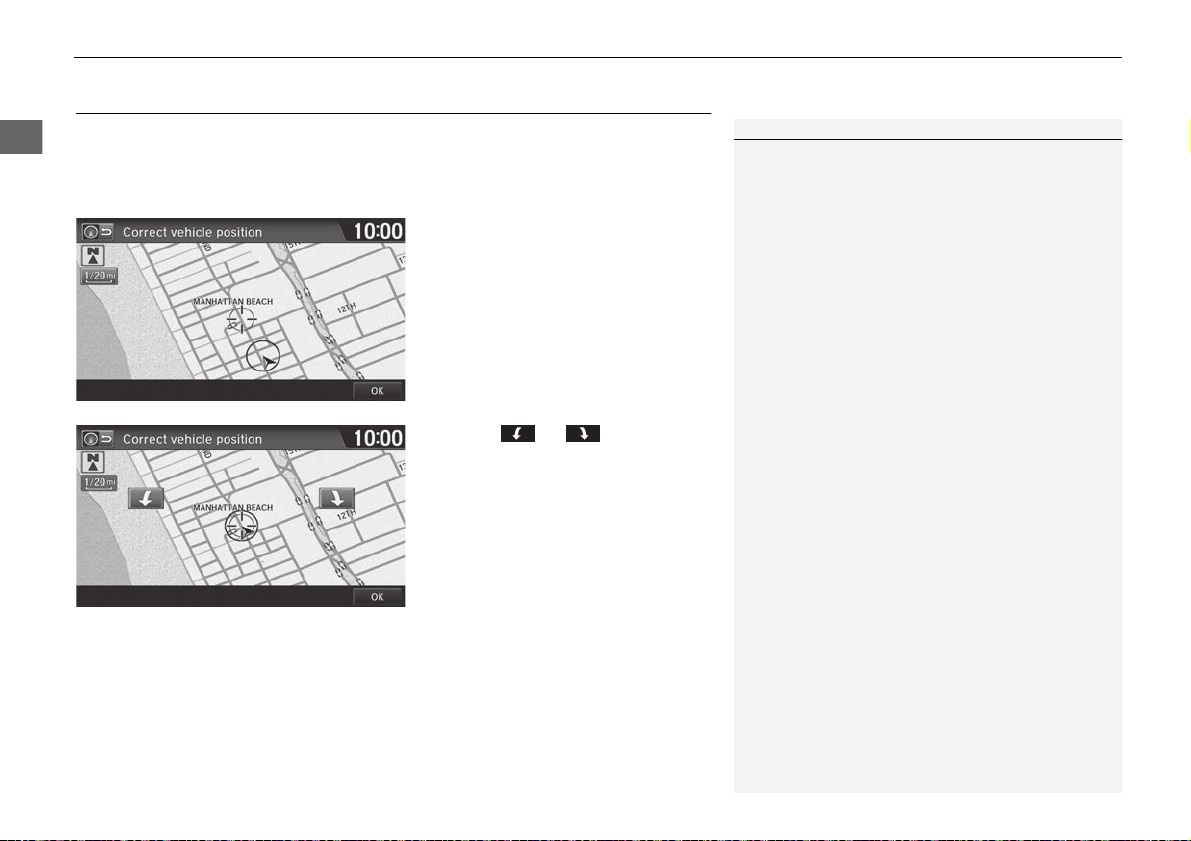

Correct Vehicle Position ......................... 62
System Settings ...................................... 63
Display Settings ...................................... 65
Display ................................................... 65
Background Color .................................. 66
Sound and Beep Settings ....................... 67
Voice Recognition Settings .................... 69
Clock Adjustment.................................... 70
Clock Type ............................................. 71
Wallpaper Settings ................................. 72
Adjust Time............................................ 75
Resetting the Clock Settings................... 75
Other Settings......................................... 76
Data Reset ............................................... 78
20
System Setup
Start-up
The navigation system starts automatically when you set the power mode to
ACCESSORY or ON. At start-up, the following Confirmation screen is displayed.
Select OK.
u The HOME screen is displayed.
1 Start-up
Do not use the smartphone while driving.
Avoid focusing on the screen and drive safely
following the actual traffic restrictions.
If the navigation system loses power at any time, you
may need to press and hold the (Audio Power)
button for more than two seconds, or you may be
prompted for the 5-digit security code.
2 System Initialization P. 222
You can change the system language at any time.
2 Language P. 77
If you do not select OK on the Confirmation screen,
the HOME screen is displayed after a certain period of
time.
OK on the Confirmation screen cannot be selected
by using a voice command.
If Remember Last Screen is set to On, the top
screen of the last mode is displayed after the HOME
screen.
2 Other Settings P. 76
U.S. models
21
uuStart-upu
System Setup
Certain manual functions are
disabled or inoperable while the
vehicle is in motion. You cannot
select a grayed out option until the
vehicle is stopped.
Voice commands are still operable
while the vehicle is in motion.
■
Limitations for Manual Operation
Disabled option
22
System Setup
Voice Control System
Your vehicle has a voice control system that allows hands-free operation of most of
the navigation system functions. You can also control the audio and climate control
system, and make and receive phone calls using Bluetooth® HandsFreeLink®.
The voice control system uses the (Talk) and (Hang-Up/Back) buttons on the
steering wheel and microphones at the top of the navigation screen.
A “Getting Started” feature provides a tutorial that explains how to use the voice
control system.
2 Voice Help P. 15
Command Input
If the system does not understand a command or you wait too long to give a
command, the system asks you to repeat the command.
When you give a command, the system generally either repeats the command as a
confirmation or asks you for further information. If you do not wish to hear this
feedback, you can turn it off. However, listening to the feedback will help familiarize
you with the way the system expects commands to be phrased.
2 Voice Recognition Settings P. 69
On character input screens, a list of possible characters is displayed if the system
does not recognize your command.
You can find out which voice commands are available for a particular screen using
the “Voice Help” command. The system will display and read the list of available
commands to you.
2 Voice Help P. 15
1 Voice Control System
When you press the (Talk) button, a helpful
prompt asks what you would like to do. Press and
release the (Talk) button again to bypass this
prompt and give a command.
1 Command Input
The audio system is muted while using the voice
control system.
23
uuVoice Control SystemuVoice Recognition
System Setup
Voice Recognition
To achieve optimum voice recognition when using either the navigation voice
control system or Bluetooth® HandsFreeLink®:
• Make sure the correct screen is displayed for the voice command that you are
using.
The system recognizes only certain commands. Available navigation voice
commands.
2 Voice Commands P. 234
• Close the windows and moonroof.
• Adjust the dashboard and side vents so air does not blow onto the microphones
at the top of the navigation screen.
• Speak clearly in a clear, natural speaking voice without pausing between words.
• Reduce any background noise if possible. The system may misinterpret your
command if more than one person is speaking at the same time.
• Refer to the Voice Help tutorial.
2 Voice Help P. 15
24
uuVoice Control SystemuSiri Eyes Free
System Setup
Siri Eyes Free
When your iPhone is paired and linked to the system via Bluetooth®, you can say Siri-
related commands. Make sure Siri on your iPhone is turned on.
2 Pairing a Phone P. 170
1. Press and hold the (Talk)
button for more than two seconds
until you hear the Siri tone.
2. Talk to Siri.
u When you hear the Siri tone,
you can continue to respond
without pressing any button. If
the Siri tone times out, you
have to press and hold the
(Talk) button again to reactivate
Siri Eyes Free.
u Press the (Hang-Up/Back)
button to turn off Siri Eyes Free.
1 Siri Eyes Free
iPhone and Siri are trademarks of Apple, Inc.
Siri Eyes Free is available only on iPhone with iOS 6.0
and above.
Some commands work only on specific phone
features or apps.
Some features may not be available for all countries
or all areas. For details about Siri, refer to
http://www.apple.com.
We recommend against using Siri other than in Eyes
Free mode while operating a vehicle.
On Siri Eyes Free, the display remains the same and
no feedback or commands appear.
While using Siri, you cannot operate the system with
the built-in voice recognition.
25
Continued
System Setup
Display Mode Settings
Turning Off the Display
Press the (Display mode) button for more than two seconds.
u Select HOME or BACK, or press the (Display mode) button to turn on the
display.
Switching Display Mode Manually
Set the screen brightness separately for Day and Night modes. Press the
(Display mode) button to cycle through the display modes (Day to Night to Off).
Press the (Display mode)
button.
u The Brightness bar is displayed for
a few seconds.
u Select or to adjust the
brightness.
1 Switching Display Mode Manually
The display brightness can be changed from the
System settings screen as well.
2 Display P. 65
You can also adjust the display brightness by sliding
or flicking on the bar.

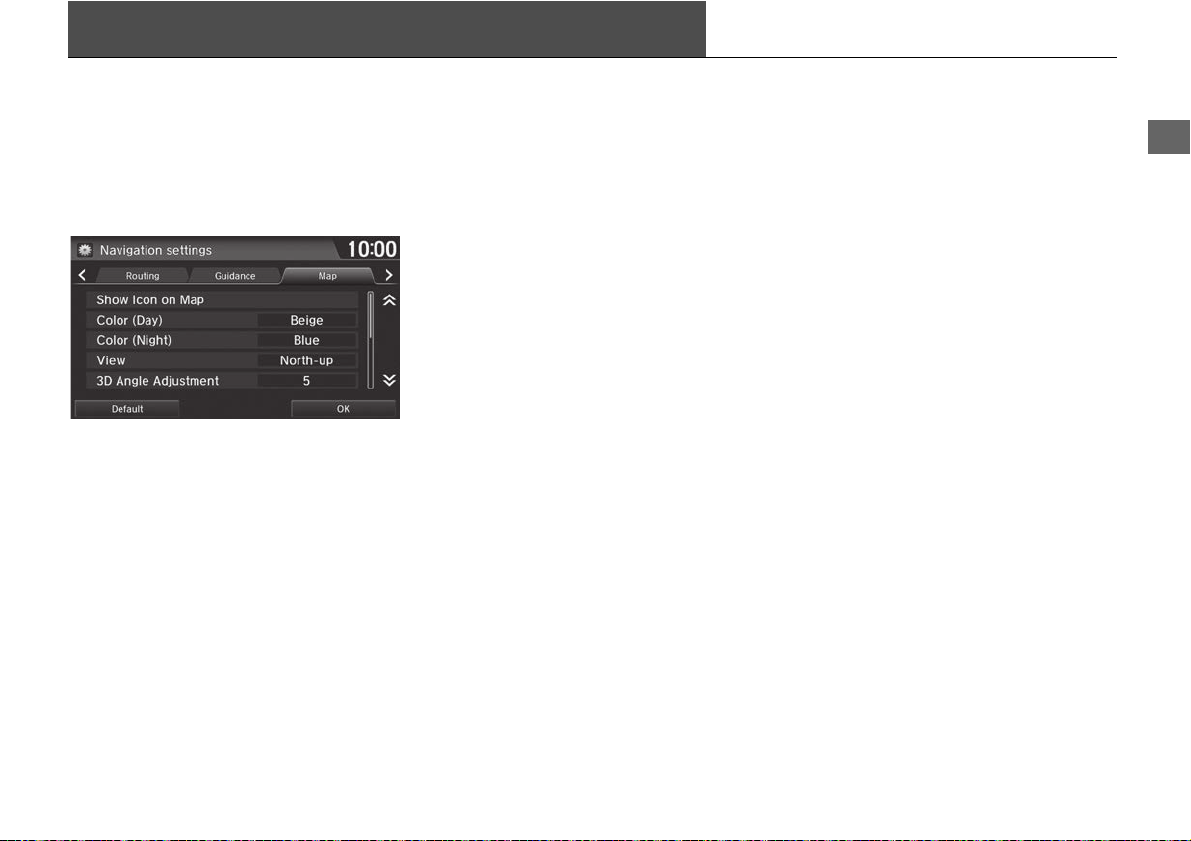

The map color is also switched depending on the Day
and Night mode. The map color can be set on the
Navigation settings screen.
2 Color P. 53
Illumination
control
Priority Operation
button 1 Selects Day or Night display mode when the user
wants to change the brightness of the display
temporarily.
Remember:This button overrides all other display
brightness adjustment that is set by the sunlight sensor
automatically or you changed manually from the
System settings screen.
26
uuDisplay Mode SettingsuSwitching Display Mode Manually
System Setup
Illumination
control
Priority Operation
Sunlight sensor
(see your
Owner’s
Manual for
location)
2 If the sunlight sensor detects daylight and the
headlights are turned on, the system automatically
overrides the Night display and displays the Day display
mode.
Remember: If desired, use the button to
override this automatic choice.
Dash
illumination
adjustment
buttons (see
your Owner’s
Manual for
location)
3 When the headlights are turned on, and you wish to
have the Day display mode, adjust the illumination to
the full brightness (beeps).
Remember: Adjust the dash brightness back to mid-
range to allow auto switching by sensing the
headlights are on or off.
Headlights
(Auto/On/Off)
4 When turned on, the display changes to Night display
mode. The previous three controls listed above can
“cancel” this function.
Remember: Use the button, or adjust the dash
illumination to full brightness, to set the display to your
desired choice.
Screen color
choice
N/A The user can select the color of the screen that will be
displayed for the Day and Night display modes
described above.
Remember: For best contrast, ensure that the map
color is white for Day and black for Night.
27
System Setup
Personal Information
H HOME u Settings u Navigation u Personal Info tab
Use the personal information menu to select and set your address books, home
addresses, and PINs. You can also delete previously routed destinations and
previously selected categories.
Select an item.
The following items are available:
• Address Book: Stores new addresses or edits your address book.
2 Address Book P. 28
• Edit Go Home 1: Sets or edits your home address.
2 Home Addresses P. 33
• Edit Go Home 2: Sets or edits another home address.
2 Home Addresses P. 33
• PIN Number: Sets or changes your PIN.
2 PIN Numbers P. 34
• Previous Destination: Deletes the destination history.
2 Previous Destination P. 36
• User Name: Sets or changes your user name.
2 User Name P. 35
• Category History: Deletes the category history.
2 Category History P. 37
28
uuPersonal InformationuAddress Book
System Setup
Address Book
H HOME u Settings u Navigation u Personal Info tab u Address Book
Store up to 200 address entries in two address books (Driver 1 and Driver 2). You
can add, edit, and delete information in the address books.
Select the driver to edit the address
book.
u The address book is displayed.
u Select the category tab to display
only the addresses in the selected
category.
1 Address Book
The number of addresses is shared by the two
address books. For example, if Driver 1 has 150
addresses, Driver 2 can only have 50.
If you have PIN-protected your address book, enter
your PIN when prompted. Select OK. PINs are
optional.
2 PIN Numbers P. 34
Any address book categories you create are also
displayed on the Address book screen.
2 Selecting an Address Book Category P. 31
Continued
29
uuPersonal InformationuAddress Book
System Setup
H HOME u Settings u Navigation u Personal Info tab u Address Book
This section explains how to enter the name and address.
1. Select the driver to add the new
address.
2. Select Add New Address.
3. Select an item.
The following items are available:
• Name: Edits the name of the entry.
• Address: Edits the address of the entry.
• Phone No.: Edits the phone number of the entry.
• Category: Specifies the category of the entry.
■
Adding an Address Book Entry
1 Adding an Address Book Entry
If you do not give the address a name, one is
automatically assigned (e.g., Address 001). You can
re-enter, edit, or make changes to any entry.
“Address” is the only required field.
uuPersonal InformationuAddress Book
30
System Setup
4. Select Name.
5. Enter a name or title. Select OK.
6. Select Address.
u Select an item for specifying the
address.
7. Select OK when you are done
creating the entry.
The following items are available:
• Address: Enter an address on the character input screen when prompted.
2 Address P. 82
• Place Name: Enter the name of a place/landmark.
2 Place Name P. 88
• Place Phone Number: Enter the phone number of a place/landmark.
2 Place Phone Number P. 90
• Place Category: Select a category to search for a place/landmark (e.g., Banking,
Lodging).
2 Place Category P. 91
• Previous Destination: Select a previous destination.
2 Previous Destination P. 93
• Current Position: Select your current location.
• More Search Methods: Displays additional search method entries.
2 Entering a Destination P. 80
1 Adding an Address Book Entry
When you use Place Name, Place Phone Number
or Place Category, the phone number is
automatically entered.
Continued
31
uuPersonal InformationuAddress Book
System Setup
H HOME u Settings u Navigation u Personal Info tab u Address Book
1. Select the driver and then select
the address to edit.
2. Enter the name, address, phone
number, and category fields.
2 Adding an Address Book
Entry P. 29
3. Select OK.
H HOME u Settings u Navigation u Personal Info tab u Address Book
1. Select the driver and then select an
address.
2. Select Category.
3. Select BUSINESS, PERSONAL, or
a category you created.
■
Editing an Address Book Entry
1 Editing an Address Book Entry
The entered contents are displayed on the Edit
address screen.
■
Selecting an Address Book Category
1 Selecting an Address Book Category
You can have a total of 100 categories (including
“Unfiled”). But these categories cannot be shared
with two address books.
If you delete a category that is used by other
addresses, the category type for those addresses
changes to “Unfiled.”
Category Icons
The following icons can be selected for a category:
uuPersonal InformationuAddress Book
32
System Setup
■ Creating a New Category
1. Select New Category.
2. Enter a name and select an icon when prompted. Select OK.
u The created category is displayed in the list of categories.
■ Deleting or Editing a Category
1. Select Edit or Delete.
2. Select a category and delete, or change the name and icon.
H HOME u Settings u Navigation u Personal Info tab u Address Book
1. Select the driver and then select
the address to delete.
2. Select Delete.
3. Select Yes.
■
Deleting an Address Book Entry
1 Deleting an Address Book Entry
When you transfer the vehicle to a third party, delete
all address book entries.
33
uuPersonal InformationuHome Addresses
System Setup
Home Addresses
H HOME u Settings u Navigation u Personal Info tab u Edit Go Home 1 or
Edit Go Home 2
Set two home addresses that you frequently use.
1. Edit the name, address, and phone
number the same way as an
address in the address book.
2 Adding an Address Book
Entry P. 29
2. Select OK.
1 Home Addresses
If you have PIN-protected your home addresses, enter
your PIN when prompted. Select OK. PINs are
optional.
2 PIN Numbers P. 34
If your home street is not in the system database,
park on the nearest verified street to your home.
When entering the “Address” field, select Current
Position to use your current location as the home
address.
You can delete a home address if necessary. Select
Clear Home Entry. Select Yes.
When you transfer the vehicle to a third party, delete
all home addresses.
The home icon is shown on the map screen in the 5
mile (8 km) or less scales.
34
uuPersonal InformationuPIN Numbers
System Setup
PIN Numbers
H HOME u Settings u Navigation u Personal Info tab u PIN Number
Set a 4-digit PIN for protecting personal addresses and your home addresses. Once
you set a PIN, you are prompted to enter it whenever you access a personal address
or a home address for the first time after setting the power mode to ACCESSORY or
ON.
1. Select the PIN to create.
2. Select the driver (when selecting
Address Book PIN).
3. Enter a 4-digit PIN.
4. Re-enter the new PIN when
prompted to confirm the number
you just enter.
u If you do not enter the same
number both times, an
Incorrect PIN message is
displayed. Enter your PIN again.
1 PIN Numbers
PIN
Personal Identification Number (PIN) is a password
used to access some personal data.
PINs are optional. If you choose to use a PIN, keep a
note of the number in a secure location. If you forget
your PIN, contact your dealer. The factory default is
no PIN.
Go Home PIN
Go Home PINs are shared with Driver 1 and Driver
2. If either Driver 1 or Driver 2 sets a Go Home PIN,
both of them need to enter the PIN when:
•
selecting Go Home for a destination
•
selecting Edit Go Home for editing
If you want to stop using a PIN, select Turn off PIN
entry.
35
uuPersonal InformationuUser Name
System Setup
User Name
H HOME u Settings u Navigation u Personal Info tab u User Name
Change the user name (Driver 1 or Driver 2) to your desired name.
1. Select the driver name to change.
2. Enter a name. Select OK.
36
uuPersonal InformationuPrevious Destination
System Setup
Previous Destination
H HOME u Settings u Navigation u Personal Info tab u Previous
Destination
The navigation system maintains a list of your previously routed destinations as a
shortcut for entering the same destination in the future. You can delete some or all
of your previous destinations from the list.
1. Select the destination to delete.
u Repeat the procedure as
necessary.
u Items to be deleted are
indicated with a trash icon.
2. Select OK to delete the selected
destinations.
1 Previous Destination
Up to 50 destinations can be stored.
To cancel the selection of a previous destination,
select the destination again.
Selecting Select All allows you to select all
destinations.
Selecting Deselect All allows you to deselect all
destinations.
Trash icon
37
uuPersonal Informationu Category History
System Setup
Category History
H HOME u Settings u Navigation u Personal Info tab u Category History
The navigation system maintains a list of your recently used place categories as a
shortcut for selecting the same categories in the future. You can delete some or all
of your recently used categories from the list.
1. Select the category to delete.
u Repeat the procedure as
necessary.
u Items to be deleted are
indicated with a trash icon.
2. Select OK to delete the selected
categories.
1 Category History
Up to 50 destinations can be stored.
To cancel the selection of a category, select the
category again.
Selecting Select All allows you to select all
categories.
Trash icon
38
System Setup
Routing
H HOME u Settings u Navigation u Routing tab
Choose various settings that determine the navigation system functionality during
route calculation.
Select an item.
The following items are available:
• Route Preference: Changes the route preferences (calculating method).
2 Route Preference P. 39
• Unverified Routing: Sets whether you use the route guidance in unverified
areas.
2 Unverified Routing P. 40
• Traffic Rerouting: Sets whether you use automatic recalculation based on traffic
information.
2 Traffic Rerouting P. 42
• Edit POI Search Radius Along Route: Sets the distance from the route to find
waypoints.
2 Edit POI Search Radius Along Route P. 43
• Avoided Area: Specifies areas to avoid when calculating a route.
2 Avoided Area P. 44
39
uuRoutinguRoute Preference
System Setup
Route Preference
H HOME u Settings u Navigation u Routing tab u Route Preference
Change the route preference by selecting minimum or maximum driving methods.
1. Select an item.
2. Select MIN or MAX.
3. Select OK.
1 Route Preference
The calculated route may not be the shortest route or
the route you would choose. For safety reasons, the
system generally applies the following rules to your
route:
•
Shortcuts through residential areas are avoided.
•
Right turns are favored over left turns or U-turns.
•
Time-restricted turns (turns prohibited at certain
times of the day) are not used.
Check the ferry schedule when the calculated route
includes ferry route.
On Canadian models, Highways is displayed as
Freeways.
40
uuRoutingu Unverified Routing
System Setup
Unverified Routing
H HOME u Settings u Navigation u Routing tab u Unverified Routing
Receive turn-by-turn map and voice guidance in unverified areas.
Select On or Off.
1 Unverified Routing
Unverified roads are found in rural areas, and
typically include residential streets away from the
center of a town. They may not be accurate, and can
contain errors in location, naming, and address
range.
Straight line guide
Pink route line
Differences Off On (factory default)
On or Off? The driver wishes to manually
navigate using the navigation
map and choose the streets that
lead to the destination.
The driver chooses to let the
navigation system suggest possible
routing, knowing that the
guidance may not be accurate.
Route
calculation
Route is usually longer, using
verified roads whenever
possible.
Route is shorter, but uses
unverified (purple) streets that
may not be accurate.
Route line The route line uses verified
streets only (when possible).
If Straight Line Guide is set to
On, a pink vector line is
displayed on map that
continually points to your
destination.
2 Straight Line Guide P. 55
A pink route line highlights
suggested unverified streets on
the map while traveling to your
destination.
41
uuRoutinguUnverified Routing
System Setup
Cautionary
messages
Cautionary pop-up screens and
voice announcements remind
you to obey all traffic
restrictions when starting route
guidance, approaching an
unverified area, and entering an
unverified street.
Cautionary pop-up screens and
voice announcements remind you
to exercise additional caution and
obey all traffic restrictions when
entering an unverified street.
Guidance
(map/voice)
There is no turn-by-turn map or
voice guidance.
Voice guidance commands end
with the phrase “if possible” to
remind you to verify all traffic
restrictions.
Directions list A direction list is typically not
available. However, depending
on your route, directions are
provided to help you reach the
first available verified road.
A direction list is provided
showing unverified street names
and turn symbols in pink.
Differences Off On (factory default)
42
uuRoutingu Traffic Rerouting
System Setup
Traffic Rerouting
H HOME u Settings u Navigation u Routing tab u Traffic Rerouting
A faster route can be calculated based on continuously updated traffic information.
2 Traffic Rerouting
TM
P. 109
Select an option.
The following options are available:
• On: The system reroutes automatically based on traffic information.
• Off (factory default): Disables the feature.
1 Traffic Rerouting
You must be in or near a traffic-enabled city to
receive coverage for that area. Traffic information is
available in certain areas in the lower 48 states,
Hawaii, and Canada.
2 Traffic Information P. 228
Automatic traffic rerouting may not provide a detour
route depending on circumstances.
43
uuRoutinguEdit POI Search Radius Along Route
System Setup
Edit POI Search Radius Along Route
H HOME u Settings u Navigation u Routing tab u Edit POI Search Radius
Along Route
Select the distance from your highlighted route line (on either side of your route)
that the system will search for a waypoint.
2 Adding Waypoints P. 112
You can specify a different search distance for freeways and surface streets.
1. Select an option.
2. Select a search distance.
3. Select OK.
The following options are available:
• On Freeways: 1, 2, 5, or 10 miles (1.6, 3, 8, or 16 km) can be set. Factory default
is 2 miles (3 km).
• On Surface Streets: 1/2, 1, 2, or 5 miles (800 m, 1.6, 3, or 8 km) can be set.
Factory default is 1/2 mile (800 m).
1 Edit POI Search Radius Along Route
The search distance does not affect the search range
used for the Find Nearest voice commands (e.g., say
“Find nearest gas station”).
44
uuRoutingu Avoided Area
System Setup
Avoided Area
H HOME u Settings u Navigation u Routing tab u Avoided Area
Specify up to five areas to avoid (e.g., road construction, closures), if possible, when
the system calculates routes to your destination.
1. Select New Area or an existing
area to edit.
2. Select Name to label the area to
avoid.
3. Enter a name or title. Select OK.
4. Select Area to define the area to
avoid.
The following items are available (after an area is set):
• View Area: Displays the selected avoid area on the map.
• Delete: Deletes the selected avoid area.
1 Avoided Area
The maximum size of an “avoid area” is 1/2 square
mile (800 m square).
If your selected area contains a freeway, you are
asked “Would you like to avoid the portion of
the freeway that runs through this area?”
Selecting No allows you to use a route through an
avoid area on a freeway. The pop-up message
appears when you calculate the route including the
area.
You can select areas to avoid, however you cannot
select roads or areas that you want the system to use
for routing.
You can enter up to 25 characters for the name.
45
uuRoutinguAvoided Area
System Setup
5. Select a method for specifying the
area.
The following items are available:
• Address: Specify the general area by entering an address.
2 Address P. 82
• Map Input: Specify the general area by map input.
2 Map Input P. 96
6. If you select Map Input, select
from Current Position, City or
State. Scroll the map to position
the cursor over your desired area,
adjusting the map scale as
necessary. Select OK.
u To redo the area selection,
select BACK.
7. Select or to change the
size of the area you want to avoid.
Select OK.
8. Select OK.
u The area you specify is
displayed in the list of areas to
avoid.
1 Avoided Area
The map scale can be changed at 1/4 mile (400 m) or
less.
Avoid area
46
System Setup
Guidance
H HOME u Settings u Navigation u Guidance tab
Choose various settings that determine the navigation system functionality during
route guidance.
Select an item.
The following items are available:
• Guidance Mode: Sets whether to display only the map screen or a split
map/guidance screen.
2 Guidance Mode P. 47
• Enhanced Voice Guidance: Sets whether to read out certain routing points (if
stored in the database) during voice guidance.
On: Voice guidance includes certain routing points.
Off (factory default): Disables the feature.
47
uuGuidanceuGuidance Mode
Continued
System Setup
Guidance Mode
H HOME u Settings u Navigation u Guidance tab u Guidance Mode
Select the display mode for the map and guidance screens.
1. Select an option.
2. Select OK.
The following items are available:
• 1 (Map) (factory default): Displays only the map screen. When you approach a
guidance point, the next guidance point appears.
1 Guidance Mode
The guidance mode can also be selected from the
map menu, or selecting the orientation icon.
2 Map Menu P. 105
You can also change the map orientation (north-up,
heading-up, or 3D).
2 View (Map Orientation) P. 54
1
2
3
Near the next
guidance point
Map screen Next Maneuver screen
Next guidance point
48
uuGuidanceuGuidance Mode
System Setup
• 2 (Direction List): Displays the map and direction list simultaneously on the map
screen. When you approach a guidance point, the next guidance point appears.
• 3 (Next Maneuver): Displays the map and next guidance point simultaneously on
the map screen.
Near the next
guidance point
Direction List screen
Next Maneuver screen
Next guidance pointGuidance direction list
Near the next
guidance point
Next Maneuver screen
Next Maneuver screen
Next guidance point
49
Continued
System Setup
Map
H HOME u Settings u Navigation u Map tab
Select the landmark icons to display on the map, change the orientation of the map,
display your current location, and learn the meaning of the icons, colors, and
symbols displayed on the map.
Select an item.
The following items are available:
• Show Icon on Map: Selects the icons to display on the map.
2 Showing Icons on the Map P. 51
• Color (Day): Selects the color of the map for the Day mode.
2 Color (Day) P. 53
• Color (Night): Selects the color of the map for the Night mode.
2 Color (Night) P. 53
• View: Selects the map orientation (North-up, Heading-up, or 3D map).
2 View (Map Orientation) P. 54
• 3D Angle Adjustment: Adjusts the viewing angle for the 3D map.
2 3D Angle Adjustment P. 55
• Straight Line Guide: Sets whether to display a straight guideline to the
destination or waypoint.
2 Straight Line Guide P. 55
50
uuMapu
System Setup
• Current Location: Displays and saves your current location.
2 Current Location P. 56
• Map Legend: Displays an overview of the map features.
2 Map Legend P. 57
• Off-road Tracking: Sets whether to display the tracking dots on the map.
2 Off-road Tracking P. 61
• Correct Vehicle Position: Adjusts the position of the vehicle on the map.
2 Correct Vehicle Position P. 62
51
uuMapu Showing Icons on the Map
Continued
System Setup
Showing Icons on the Map
H HOME u Settings u Navigation u Map tab u Show Icon on Map
Select the icons that are displayed on the map.
1. Select an icon.
2. Select an option.
u Repeat step 1 and 2 as
necessary.
3. Select OK.
The following options are available:
• All On: Displays the traffic or landmark icons.
2 Map Screen Legend P. 10
2 Traffic Rerouting
TM
P. 109
• Customize: Fine-tunes the icon display.
2 Fine-tuning the Icons P. 52
• Off: Hides the traffic or landmark icons.
1 Showing Icons on the Map
You can display or hide the icons using voice
commands on the map screen (e.g., say “Display
hospital”).
2 Map Display Commands P. 234
If there are no icons that can be fine-tuned, On is
displayed instead of All On.
Select All On at the bottom of the screen to select all
icons, and select All Off to deselect all icons.
uuMapuShowing Icons on the Map
52
System Setup
H HOME u Settings u Navigation u Map tab u Show Icon on Map
Icons in some categories can be fine-tuned to display or hide.
1. Select an icon, and then select
Customize.
2. Select the icons to display on the
map.
u Selecting toggles the icon
display on or off.
u Repeat the procedure as
necessary.
3. Select OK.
■
Fine-tuning the Icons
1 Fine-tuning the Icons
Select All On to select all icons, and select All Off to
deselect all icons.
53
uuMapuColor
System Setup
Color
Set separate map colors for Day and Night modes.
H HOME u Settings u Navigation u Map tab u Color (Day)
1. Select a color for the Day mode.
2. Select OK.
H HOME u Settings u Navigation u Map tab u Color (Night)
1. Select a color for the Night mode.
2. Select OK.
■
Color (Day)
1 Color (Day)
The factory default is set to Beige.
■
Color (Night)
1 Color (Night)
The factory default is set to Blue.
54
uuMapuView (Map Orientation)
System Setup
View (Map Orientation)
H HOME u Settings u Navigation u Map tab u View
Select the map orientation.
1. Select an option.
2. Select OK.
The following options are available:
• North-Up: Displays the map with North always pointing up.
• Heading-Up: Displays the map so that the direction you are traveling is always
pointing up.
• 3D Map: Displays the bird’s eye view map.
1 View (Map Orientation)
“Display Heading-up” (on Voice Portal screen),
“Display North-up” (on Voice Portal screen),
“Display 3D map” (on Voice Portal screen)
The map orientation can also be selected from the
map menu, or by selecting the orientation icon.
The red arrow in the symbol always points North.
The heading-up view switches to the north-up view
on map scales greater than 2 miles (3 km). The 3D
map view switches to the north-up view on map
scales greater than 5 miles (8 km).
The bird’s eye view map switches to the Heading-up
map while scrolling the map.
The viewing angle for the bird’s eye view can be
adjusted.
2 3D Angle Adjustment P. 55
55
uuMapu3D Angle Adjustment
System Setup
3D Angle Adjustment
H HOME u Settings u Navigation u Map tab u 3D Angle Adjustment
Adjust the viewing angle.
1. Select or to adjust the
angle.
2. Select OK.
u You can also slide or flick the
bar to adjust the angle.
Straight Line Guide
H HOME u Settings u Navigation u Map tab u Straight Line Guide
Set whether to display a straight guideline to the destination or waypoint.
Select an option.
The following options are available:
• On (factory default): Displays the straight guideline on the map.
• Off: Disables the feature.
56
uuMapuCurrent Location
System Setup
Current Location
H HOME u Settings u Navigation u Map tab u Current Location
Display and save your current location for future use as a destination. The address,
latitude, longitude, and elevation of your current location are displayed.
1. Select Address Book.
2. Select the user to save the
location.
3. Edit the name, phone number,
and category.
2 Address Book P. 28
4. Select OK.
1 Current Location
“Display Current Location” (on Voice Portal
screen)
You can also save the current location by saying
“Register the Current Location”, or selecting the
vehicle icon on the map.
If you have PIN-protected your address book, enter
your PIN when prompted. Select OK. PINs are
optional.
2 PIN Numbers P. 34
Saving your current location does not change or
cancel your current route.
57
uuMapuMap Legend
Continued
System Setup
Map Legend
H HOME u Settings u Navigation u Map tab u Map Legend
See an overview of the map lines, areas, routes, traffic information, navigation icons.
Select an item.
u The system displays the map
legend.
1 Map Legend
A visual guide helps you see the map legend.
2 Map Screen Legend P. 10
2 Traffic Rerouting
TM
P. 109
uuMapuMap Legend
58
System Setup
The functions that are available from the map screen depend on the map scale.
■
Map Scale and Functions
Function page
Map Scale (top: mile, bottom: metric)
1/20 1/8 1/4 1/2 1 2 5 15 50 150 350 1000
80 200 400 800 1.6 3 8 24 80 240 560 1600
Icon display
Landmark icon 10 ✔ ✔
Exit info. 10 ✔ ✔ ✔
One-way traffic 10 ✔
Waypoint
“flag”
11 ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Traffic incident 10 ✔ ✔ ✔ ✔ ✔ ✔ ✔
Map orientation
Heading-up 54 ✔ ✔ ✔ ✔ ✔
North-up 54 ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
3D map 54 ✔ ✔ ✔ ✔ ✔ ✔
Others
Off-road
tracking dots
61 ✔ ✔ ✔ ✔
Unverified road 10 ✔ ✔ ✔ ✔ ✔ ✔
Map features 10 ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Avoid areas 44 ✔ ✔ ✔
Traffic speed 10 ✔ ✔ ✔ ✔ ✔ ✔ ✔
1 Map Scale and Functions
You can change the map scale using voice
commands on the map screen (e.g., say “Display
2 mile scale”).
2 Map Scale Commands P. 235
You can change between miles or kilometers.
2 Other Settings P. 76
Traffic incident icons and traffic speed are only
available in certain areas.
Continued
59
uuMapuMap Legend
System Setup
Display or hide all icons on the map screen, with the exception of Honda/Acura
Dealer icons which are always shown.
■ Landmark icon
■
Map Icons and Functions
Type
Icon display
control
Icon
selectable
Icon
searchable
Honda/Acura dealer Always on Yes Yes
Hospital Yes Yes Yes
School Yes Yes Yes
ATM Yes Yes Yes
Fuel station Yes Yes Yes
Restaurants Yes Yes Yes
Post office Yes Yes Yes
Grocery store Yes Yes Yes
Hotel/Lodging Yes Yes Yes
Police station No icon No Yes
Shopping, Tourist attraction,
Bank
No icon No Yes
Parking garage Yes Yes Yes
Parking lot Yes Yes Yes
Freeway exit info. Yes Yes No
1 Map Icons and Functions
You can display or hide the icons using voice
commands on the map screen (e.g., say “Display
hospital”).
2 Map Display Commands P. 234
Some icons, like police stations, are not shown, but
you can still locate the nearest one with the Find
Nearest voice command (e.g., say “Find nearest
police station”).
2 Find Place Commands P. 235
Icon display control
Icons that can be displayed or hidden.
2 Showing Icons on the Map P. 51
Icon selectable
Icons that can be selected as a destination.
Icon searchable
Icons that can be searched using the Find Nearest
voice command.
uuMapuMap Legend
60
System Setup
■ Traffic icon
Type
Icon display
control
Icon
selectable
Icon
searchable
Traffic speed Yes No No
Traffic incident Yes No Yes
1 Traffic icon
When you scroll the map and select the traffic
incident icon, you can view a pop-up message
describing the incident in detail.
Traffic icons are only available in certain areas.
61
uuMapuOff-road Tracking
System Setup
Off-road Tracking
H HOME u Settings u Navigation u Map tab u Off-road Tracking
The navigation system can be set to display white off-road tracking dots
(“breadcrumbs”) on the map screen whenever you drive into an area approximately
1/2 mile (800 m) away from a mapped road.
Select an option.
The following options are available:
• On: The system displays the white tracking dots.
2 Driving Off-road P. 103
• Off (factory default): Disables the feature.
1 Off-road Tracking
To clear existing breadcrumbs, set Off-road
Tracking to Off, exit the Settings screen, and then
set Off-road Tracking to On again.
62
uuMapuCorrect Vehicle Position
System Setup
Correct Vehicle Position
H HOME u Settings u Navigation u Map tab u Correct Vehicle Position
Manually adjust the current position of the vehicle as displayed on the map screen if
the position appears to be incorrect. Make sure the vehicle is in Park.
1. Scroll the map to position the
arrowhead at your correct
position. Select OK.
2. Select or to position
the arrowhead in the correct
direction the vehicle is facing.
3. Select OK.
1 Correct Vehicle Position
An apparent position error can occur where
buildings, tunnels, and other objects block or reflect
GPS signals, forcing the system to use “dead
reckoning” to determine your location and direction.
Using this function to adjust vehicle position is not
recommended. When the system reacquires a GPS
signal, it will automatically place the vehicle in the
correct location.
If you continually have to adjust the vehicle position,
you may have problems with GPS reception or there
may be database errors.
2 System Limitations P. 224
63
System Setup
System Settings
H HOME u Settings u System
Select an item.
The following items are available:
• Home tab: Changes the setting for the HOME screen.
Home Screen Edit Order: Changes the position of icons on the HOME screen.
2 Home Screen Edit Order P. 64
• Display tab: Adjusts the screen’s preferences and change the background color
of the menu screen.
2 Display Settings P. 65
• Sound/Beep tab: Changes the system sound and beep settings.
2 Sound and Beep Settings P. 67
• Voice Recog tab: Changes the setting for the voice control system and modifies
Song By Voice and phonebook voice commands.
2 Voice Recognition Settings P. 69
• Clock tab: Sets the automatic adjustment of the system clock for daylight saving
and international time zones.
2 Clock Adjustment P. 70
• Others tab: Sets other basic settings for the system.
2 Other Settings P. 76
1 System Settings
Select All tab to see the all items in a list.
64
uuSystem SettingsuHome Screen Edit Order
System Setup
Home Screen Edit Order
H HOME u Settings u System u Home tab u Home Screen Edit Order
Change the position of icons on the HOME screen.
Select and hold the icon and slide it
to the position you want.
65
System Setup
Display Settings
Display
H HOME u Settings u System u Display tab u Display Settings
Adjusts the screen’s preferences.
1. Select or to adjust the
desired item.
u You can also slide or flick the
bar to adjust the value.
2. Select OK.
The following items are available:
• Brightness: Adjusts the screen’s brightness.
• Contrast: Adjusts the screen’s contrast.
• Black Level: Adjusts the screen’s black level.
1 Display
You can set separate daytime and nighttime settings
for Brightness, Contrast, and Black Level. Adjust
each setting when the display is in either daytime or
nighttime mode.
66
uuDisplay Settingsu Background Color
System Setup
Background Color
H HOME u Settings u System u Display tab u Background Color
Changes the background color of the menu screen.
1. Select a color for the menu screen.
2. Select OK.
67
System Setup
Sound and Beep Settings
H HOME u Settings u System u Sound/Beep tab
Changes the system sound and beep settings.
Select an item.
The following items are available:
• Volume: Adjusts the navigation system volume level.
2 Volume Setting P. 68
• Verbal Reminder: Turns the verbal reminders on and off.
On (factory default): Sets the verbal reminders.
Off: Disables the feature.
• Beep Volume: Sets the beep volume to 1, 2 (factory default), 3, or Off.
68
uuSound and Beep SettingsuVolume Setting
System Setup
Volume Setting
H HOME u Settings u System u Sound/Beep tab u Volume
1. Select or to adjust the
volume.
u You can check the volume
hearing the beep.
u You can also slide or flick the
bar to adjust the value.
2. Select OK.
1 Volume Setting
If you set the volume to 00, you will not hear route
guidance or voice command confirmation. However,
if you then select Voice on the Map Menu, you will
hear route guidance at the default volume.
2 Map Menu P. 105
Volume bar
69
System Setup
Voice Recognition Settings
H HOME u Settings u System u Voice Recog tab
Select an item.
The following items are available:
• Voice Prompt: Turns the voice prompt on or off.
On (factory default): Provides voice prompts when using the voice command
system.
Off: Disables the feature.
• Volume: Adjusts the voice prompt volume level.
2 Volume Setting P. 68
• Song by Voice: Turns the Song By Voice
TM
on or off.
2 Song By Voice
TM
(SBV) P. 151
On (factory default): Song by Voice commands are available.
Off: Disables the feature.
• Song by Voice Phonetic Modification: Modifies voice commands for music
stored in the iPod or USB flash drive.
2 Phonetic Modification P. 152
• Phonebook Phonetic Modification: Modifies voice commands for names in the
phonebook.
2 Phonebook Phonetic Modification P. 180
• Automatic Phone Sync: Imports the phonebook and call history of the paired
phone automatically.
2 Automatic Phone Sync P. 176
70
System Setup
Clock Adjustment
H HOME u Settings u Clock/Info u Clock tab
Set the automatic adjustment of the system clock for daylight saving and
international time zones.
Select an item.
The following items are available:
• Clock/Wallpaper Type: Changes the clock display type and the wallpaper type.
2 Clock Type P. 71
• Clock Adjustment: Adjust the current time manually.
2 Adjust Time P. 75
• Clock Format: Sets the time notation to either 12-hour clock (12H, factory
default) or 24-hour clock (24H).
• Auto Time Zone: The navigation system automatically adjusts the clock when
driving through different time zones.
On (factory default): Adjusts the clock automatically.
Off: Disables the feature.
• Auto Daylight: The navigation system automatically adjusts the clock (“spring
ahead” or “fall back” by one hour) when a daylight saving time change occurs.
On (factory default): Adjusts the clock automatically.
Off: Disables the feature.
• Clock Display: Sets whether to display the clock at the header of the screen.
1 Clock Adjustment
You can check the time and date from any screen
using voice commands.
2 General Commands P. 234
Auto Time Zone
If you live and work in two different time zones, you
may want to turn Auto Time Zone to Off. When
driving near a time zone boundary, the displayed
time zone may fluctuate between the two zone
times.
Auto Daylight
This function is not activated in areas that have not
adopted daylight saving time, even if you have set
Auto Daylight to On.
71
uuClock Adjustmentu Clock Type
System Setup
• Clock Location: Sets the location of the clock while playing a video through
HDMI®.
• Clock Reset: Resets the settings of all items in the Clock settings.
Clock Type
H HOME u Settings u Clock/Info u Clock tab u Clock/Wallpaper Type
u Clock tab
Set the design of the clock.
1. Select an option to change the
design.
2. Select OK.
1 Clock Type
Even though the time on the clock screen is based on
GPS, some errors may be observed.
72
uuClock Adjustmentu Wallpaper Settings
System Setup
Wallpaper Settings
Select, delete, and import wallpaper pictures for display on the screen.
H HOME u Settings u Clock/Info u Clock tab u Clock/Wallpaper Type
u Wallpaper tab
1. Select Add New.
2. Select a desired picture.
u The preview is displayed on the
left side on the screen.
u You can select multiple pictures
at a time.
3. Select Start Import.
u After the picture is imported,
the display will return to the
wallpaper list.
■
Import Wallpaper
1 Import Wallpaper
Recommended files
•
When importing wallpaper files, the image must be
in the USB flash drive’s root directory.
Images in a folder cannot be imported.
•
The file name must be fewer than 256 characters.
•
The file format of the image that can be imported
is BMP (bmp) or JPEG (jpg).
•
The individual file size limit is 5 MB.
•
The maximum image size is 4,096 × 4,096 pixels. If
the image size is less than 420 × 234 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
•
Up to 5 files can be saved.
•
If the USB flash drive does not have any pictures,
the No files detected message appears.
Shortly after setting the wallpaper or importing
pictures, do not set the power mode to OFF, or
disconnect the USB device. It may cause the setting
error or the destruction of data.
Continued
73
uuClock AdjustmentuWallpaper Settings
System Setup
H HOME u Settings u Clock/Info u Clock tab u Clock/Wallpaper Type
u Wallpaper tab
1. Select a desired wallpaper.
u The preview is displayed on the
left side on the screen.
2. Select Set.
u Select Preview to see a preview
at full-size screen.
3. Select OK.
■
Select Wallpaper
1 Select Wallpaper
When the file size is large, it takes a while to be
previewed.
uuClock Adjustmentu Wallpaper Settings
74
System Setup
H HOME u Settings u Clock/Info u Clock tab u Clock/Wallpaper Type
u Wallpaper tab
1. Select a wallpaper that you want
to delete.
u The preview is displayed on the
left side on the screen.
2. Select Delete.
u The confirmation message will
appear.
3. Select Yes.
u The display will return to the
wallpaper list.
■
Delete Wallpaper
1 Delete Wallpaper
Select Delete All to delete all imported wallpapers.
“Blank”, “Galaxy”, “Metallic” and “Time Zone”
cannot be deleted.
75
uuClock AdjustmentuAdjust Time
System Setup
Adjust Time
H HOME u Settings u Clock/Info u Clock tab u Clock Adjustment
Adjust the current time (hours and minutes).
1. Select or to adjust the
value.
2. Select OK.
Resetting the Clock Settings
H HOME u Settings u Clock/Info u Clock tab u Clock Reset
Reset all clock settings to the factory defaults.
Select Yes to reset.
76
System Setup
Other Settings
H HOME u Settings u System u Others tab
Set the map units to either miles or kilometers, the system language, and various
settings for the navigation system.
Select an item.
The following items are available:
• Unit: Sets the map units to either miles (factory default) or kilometers.
• Language: Sets the system language used on all screens. You can choose from
three languages.
• Keyboard Layout: Sets the type of keyboard screen to either Alphabet or
QWERTY (factory default).
• Voice Command Tips: Alerts you when manual control of the system is disabled
to prevent distraction while driving. Only voice commands are available.
On (factory default): Displays a message.
Off: Disables the message, but some options may be grayed out on the screen.
• Remember Last Screen: Sets whether to display the last selected screen when
you turn on the system.
On: Displays the last selected screen.
Off (Factory Default): Disable the feature.
• Factory Data Reset: Resets all the settings on the Settings screen to their factory
defaults.
2 Data Reset P. 78
1 Other Settings
Unit
The factory default is set to km on Canadian models.
Voice Command Tips is only available on U.S.
models.
77
uuOther SettingsuLanguage
System Setup
Language
H HOME u Settings u System u Others tab u Language
Set the system language used on all screens. You can choose from three languages:
English, Français (French), Español (Spanish).
Select the system language.
1 Language
Voice confirmation of cities and streets only occurs
when English is the system language.
When Français or Español is selected, some
messages continue to be displayed in English.
78
System Setup
Data Reset
Reset Factory Default Settings
H HOME u Settings u System u Others tab u Factory Data Reset
Reset all the settings on the Settings screens to their factory defaults.
Select Yes.
1 Reset Factory Default Settings
The following settings are reset:
•
Navigation settings
•
Phone settings
•
Clock/Info settings
•
Audio settings
•
Camera settings
•
Bluetooth settings
•
System settings
When you transfer the vehicle to a third party, reset
all settings to default and delete all personal data.
79
Navigation
This section describes how to enter a destination, select a route to take, and follow the
route to your destination. It also describes how to change your route or destination along
the way.
Entering a Destination ........................... 80
Address ................................................. 82
Address Book......................................... 87
Place Name............................................ 88
Place Phone Number.............................. 90
Place Category....................................... 91
Previous Destination............................... 93
Intersection ............................................ 94
Coordinate ............................................ 95
Map Input.............................................. 96
Calculating the Route ..............................98
Viewing the Routes.................................99
Driving to Your Destination .................100
Viewing the Route ................................100
Listening to Voice Guidance ..................104
Map Menu..............................................105
Displaying the Map Menu .....................105
Directions .............................................107
Traffic Rerouting
TM
................................109
Changing Your Route............................111
Adding Waypoints ................................112
Editing the Destination List....................116
Canceling the Route .............................118
Taking a Detour ....................................118
Avoiding Streets................................... 119
Changing Your Destination ................. 120
Find Nearest Place ................................ 120
Selecting a Destination on the Map ...... 121
Entering a New Destination.................. 122
Resuming Your Trip .............................. 123
80
Navigation
Entering a Destination
H HOME u Navi u MENU
This section describes how to enter a destination for route guidance.
Select an item.
u Select More Search Methods to
display additional menu entries.
The following items are available:
• Address: Sets a destination by entering an address.
2 Address P. 82
• Address Book: Sets a destination by selecting an address stored in your Address
Book.
2 Address Book P. 87
• Place Name: Sets a destination by entering a place name.
2 Place Name P. 88
1 Entering a Destination
“Display Menu” (on the map screen)
If you select MENU on the map screen when en
route, the Route Option screen is displayed.
2 Changing Your Route P. 111
Prior to departure, you can set areas along your route
to avoid.
2 Avoiding Streets P. 119
Certain touchscreen functions are disabled while the
vehicle is moving.
2 Limitations for Manual Operation P. 21
If you press the (Menu) button on the steering
wheel while on the map screen, the following items
are available. Use the steering wheel buttons to select
the items.
•
Go Home
•
Previous Destination
•
Change Route Pref.
•
Address Book
•
Cancel Route
U.S. models
81
uuEntering a Destinationu
Navigation
• Place Phone Number: Sets a destination by entering the phone number of a
place/landmark.
2 Place Phone Number P. 90
• Place Category: Sets a destination by selecting a place/landmark.
2 Place Category P. 91
• Previous Destination: Sets a destination by selecting a previous destination.
2 Previous Destination P. 93
• Go Home 1 or 2: Sets your home address as a destination.
2 Going Home P. 12
• Intersection: Sets a destination (intersection) by entering two streets.
2 Intersection P. 94
• Coordinate: Sets a destination by entering latitude and longitude.
2 Coordinate P. 95
• Map Input: Sets a destination by scrolling through the map.
2 Map Input P. 96
82
uuEntering a DestinationuAddress
Navigation
Address
H HOME u Navi u MENU u Address
Enter an address to use as the destination. The state or province you are currently in
is displayed (e.g., CALIFORNIA).
Select an item.
The following items are available:
• City: Selects your destination city.
2 Selecting a City P. 84
• Street: Selects your destination street.
2 Selecting a Street P. 85
• Change State: Selects the state or province.
2 Selecting the State or Province P. 83
1 Address
On Canadian models, Change Province is displayed
as Change State.
You can say the entire address at once using voice
commands. Say “Address” on the Voice Portal
screen, then say the entire address. For example,
“1-2-3-4 Main Street, Los Angeles, California.” The
system interprets the address. Say “Set as
destination” to begin the route.
The system language needs to be set in English.
U.S. models
83
uuEntering a DestinationuAddress
Continued
Navigation
H HOME u Navi u MENU u Address u Change State
1. Select a state or province from the
list.
u Select a tab to change the
country.
■
Selecting the State or Province
uuEntering a DestinationuAddress
84
Navigation
H HOME u Navi u MENU u Address u City
The name of the city where you are currently located is displayed.
1. Enter the name of a different city,
or select OK for the current city.
2. Select your destination city from
the list.
u A list of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list.
u Next, you are prompted to
enter a street name.
2 Selecting a Street P. 85
■
Selecting a City
1 Selecting a City
Vehicle position may not be displayed when:
•
The automobile is traveling off-road.
•
The vehicle position data cannot be updated.
You do not need to enter spaces or symbols (e.g., &,
-,%). Partial matches are supported (e.g., “LOS” to
find “LOS ANGELES”).
Using Voice Command
Say “City” on the Address screen, and the
following screen is displayed.
Select Current City for your current location, or say
the name of different city.
2 Selecting a Street P. 85
If your city is not listed, it may be part of a larger
metropolitan area. Try entering the street first.
U.S. models
Non-detailed area mark: Try entering the
street first and then select the city.
Continued
85
uuEntering a DestinationuAddress
Navigation
H HOME u Navi u MENU u Address u Street
1. Enter the name of your destination
street.
u Do not enter the street type
(e.g., street, road, avenue) or
direction (e.g., north, south,
east, west).
u Select OK to display a list of
streets.
2. Select your destination street from
the list.
u A list of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list.
■
Selecting a Street
1 Selecting a Street
When entering the names of major freeways, you can
use the following abbreviations. For interstates, use
an “I” (e.g., I-10). For U.S. freeways, use “US” (e.g.,
US-18). For state freeways, use the two-character
state designation (e.g., CA-101). For county roads,
use the appropriate designation (e.g., G-2). For
Trans-Canada and Provincial highways, use “Hwy”
(HWY-7). For County roads, use “CR” (CR-32). For
Regional Roads, use “RR” (RR-5).
Using Voice Command
Say “Street” on the Address screen, and the
following screen is displayed:
•
Say the name of your destination street, and say
the street number as a string of individual numbers.
•
Set the route to your destination.
2 Calculating the Route P. 98
U.S. models
uuEntering a DestinationuAddress
86
Navigation
3. Enter the street number. Select
OK.
u Only valid street numbers can
be entered.
4. Set the route to your destination.
2 Calculating the Route P. 98
1 Selecting a Street
If you did not select a city first and there is more than
one city with the specified street, a list of cities is
displayed.
Select the desired city from the list.
If there is more than one address though you
specified the street and the city, select an address on
the Select an address screen.
87
uuEntering a DestinationuAddress Book
Navigation
Address Book
H HOME u Navi u MENU u Address Book
Select an address stored in your address book to use as the destination.
1. Select the driver.
2. Select your destination from the
list.
3. Set the route to your destination.
2 Calculating the Route P. 98
u Select or to display only
the entries in a category: ALL,
BUSINESS, PERSONAL, or
other categories you have
created.
2 Selecting an Address Book
Category P. 31
1 Address Book
If you have PIN-protected your address book, enter
your PIN number when prompted. Select OK. PINs
are optional.
2 PIN Numbers P. 34
You can select Add New Address on the Address
book screen to add an entry to the address book.
2 Adding an Address Book Entry P. 29
88
uuEntering a DestinationuPlace Name
Navigation
Place Name
H HOME u Navi u MENU u Place Name
Enter the name of a place (e.g., business, hotel, restaurant) stored in the map
database to use as the destination.
1. Enter a place name.
2. Select OK to display a list of
matching hits.
3. Select a place name from the list.
u If the place name is in multiple
categories, the categories are
displayed when you select it.
2 Place Name in Multiple
Categories P. 89
4. Set the route to your destination.
2 Calculating the Route P. 98
1 Place Name
You can find a place by name using voice commands.
Say “Place Name” on the Voice Portal screen.
Say a category, for example “ATM/Bank.” Say
the name of the place, for example “ABC Bank.”
The system interprets the name. Say “Set as
destination” to set the route.
This option is convenient if you know the exact name
of a place.
Select ÁÀÂ or Symbol tab to enter accented letters
or symbols, select Space to enter a space character,
or select to remove the last character.
Once a name is entered and selected, select Sort by
Name or Sort by Distance. Matching letters are in
blue.
U.S. models
89
uuEntering a DestinationuPlace Name
Navigation
If the place name is in multiple categories in the map database, the following screen
is displayed.
1. Select a place name.
2. Select a subcategory.
3. Set the route to your destination.
2 Calculating the Route P. 98
■
Place Name in Multiple Categories
1 Place Name in Multiple Categories
Select Sort by Name or Sort by Distance.
90
uuEntering a DestinationuPlace Phone Number
Navigation
Place Phone Number
H HOME u Navi u MENU u Place Phone Number
Select a destination by phone number. Only phone numbers in the database are
recognized.
1. Enter the area code and phone
number. Select OK.
2. Set the route to your destination.
2 Calculating the Route P. 98
1 Place Phone Number
All 10 digits must be entered.
Phone numbers of private residences entered in your
address book are not stored in the database and thus
cannot be used to search for a destination.
91
uuEntering a DestinationuPlace Category
Continued
Navigation
Place Category
H HOME u Navi u MENU u Place Category
Select the category of a place (e.g., ATM/Bank, Lodging, Restaurant) stored in the
map database to search for the destination.
1. Select a category.
2. Select a subcategory.
2 List of Categories P. 244
1 Place Category
This option is convenient if you do not know the
exact name of a place or if you want to narrow down
the number of matches returned for places with a
common name.
Select Category History tab to access your recently
used place categories. Up to 50 categories can be
stored.
You can also delete your recently used place
categories.
2 Category History P. 37
Search POI Categories helps you to search the
subcategory. When you enter a keyword and select
OK, the list of appropriate subcategories is displayed.
92
uuEntering a DestinationuPlace Category
Navigation
3. Select an item.
The following items are available:
• Search by Name: Searches for a place in the subcategory by name. Enter a city
name when prompted.
• City Vicinity: Searches for a place in the subcategory within a 20-mile (32 km)
radius of a specific city. Enter a city name and then a place name when prompted.
Only the first approximately 1,000 matching places/landmarks are displayed.
• Sort by Distance to Travel: Displays up to approximately 1,000 places in the
subcategory sorted by distance from your current location. The closest place is
displayed at the top.
4. Select a place name from the list.
5. Set the route to your destination.
2 Calculating the Route P. 98
93
uuEntering a DestinationuPrevious Destination
Navigation
Previous Destination
H HOME u Navi u MENU u Previous Destination
Select an address from a list of your 50 most recent destinations to use as the
destination. The list is displayed with the most recent destination at the top.
1. Select a destination from the list.
2. Set the route to your destination.
2 Calculating the Route P. 98
1 Previous Destination
If Previous Destination is grayed out, there are no
previous destinations entered.
Your home addresses and addresses stored in your
address book are not added to the list of previous
destinations.
You can delete unwanted previous destinations from
the list.
2 Previous Destination P. 36
Select Delete All to delete all previous destinations.
94
uuEntering a DestinationuIntersection
Navigation
Intersection
H HOME u Navi u MENU u More Search Methods u Intersection
Select the intersection of two streets as the destination. The state or province for
your current location is displayed at the left side of the screen (e.g., CALIFORNIA).
1. Select the intersection search
method.
2. Set the route to your destination.
2 Calculating the Route P. 98
The following items are available:
• City: Selects the city where the intersection is located. You are prompted to enter
the name of the two intersecting streets.
2 Selecting a City P. 84
• Street: Selects the two intersecting streets. The city or cities that the streets are
located in are displayed.
2 Selecting a Street P. 85
• Change State: Selects the state or province.
2 Selecting the State or Province P. 83
1 Intersection
It is usually easier to select Street to find the streets
first. The city or cities that the streets are in will be
displayed. If you select City and your city is not listed,
it may be part of a larger metropolitan area. Try
entering the street first.
If the intersection is outside the state you are
currently in, select Change State.
2 Selecting the State or Province P. 83
On Canadian models, Change Province is displayed
as Change State.
If there is more than one intersection, you are
prompted to select the intersection. If the two streets
that you have selected do not intersect, no
intersection is entered.
95
uuEntering a DestinationuCoordinate
Navigation
Coordinate
H HOME u Navi u MENU u More Search Methods u Coordinate
Specify a location using latitude and longitude map coordinates.
1. Enter the latitude. Select OK.
2. Enter the longitude. Select OK.
3. Scroll the map to position the
cursor over your desired
destination, adjusting the map
scale as necessary.
u If the address is not the desired
location, scroll to another
location and try again.
4. Select an icon from the right side
of the screen to display the route
calculation menu.
2 Calculating the Route P. 98
5. Select Set as Destination.
1 Coordinate
Latitude and longitude must be entered up to the
seconds’ value.
Place/landmark icons are displayed at 1/8 mile (200 m)
or less. Roads are displayed at 1/4 mile (400 m) or less.
If you select multiple icons within the cursor radius,
you are prompted to select one of the items from a
list.
2 Selecting a Destination on the Map P. 121
96
uuEntering a DestinationuMap Input
Navigation
Map Input
H HOME u Navi u MENU u More Search Methods u Map Input
Scroll and select an icon on the map screen as the destination.
You are prompted to define the map area to display.
1. Select an item.
The following items are available:
• Current Position: Your current position is centered on the map.
• State: You are prompted to select the state or province.
2 Selecting the State or Province P. 83
• City: You are prompted to enter the city name.
2 Selecting a City P. 84
97
uuEntering a DestinationuMap Input
Navigation
2. Scroll the map to position the
cursor over your desired
destination, adjusting the map
scale as necessary.
u If the address is not the desired
location, scroll the map to
another location and try again.
3. Select an icon from the right side
of the screen to display the route
calculation menu.
2 Calculating the Route P. 98
4. Select Set as Destination.
1 Map Input
Place/landmark icons are displayed at 1/8 mile (200 m)
or less. Roads are displayed at 1/4 mile (400 m) or less.
If you select multiple icons within the cursor radius,
you are prompted to select one of the items from a
list.
2 Selecting a Destination on the Map P. 121
98
Navigation
Calculating the Route
This section describes how to calculate your route.
1. Select Set as Destination.
u The system calculates and
displays the route line on the
map screen.
2 Route Line P. 102
The following items are available:
• View Routes: Displays three different routes.
2 Viewing the Routes P. 99
• Route Preference: Changes the route preferences (calculating method).
2 Route Preference P. 39
2. Follow the route guidance to your
destination.
2 Driving to Your Destination
P. 100
u The system provides you with
pop-up messages if your route
passes through unverified
areas, avoid areas, or areas with
traffic restrictions.
1 Calculating the Route
You cannot use voice commands while the system is
calculating the route.
Search Nearby
You can find the nearest place/landmark (e.g.,
nearest gas station) by specifying a category.
2 Find Nearest Place P. 120
Call
You can place a telephone call to the destination
phone number.
2 Bluetooth® HandsFreeLink® P. 168
Address Book
You can add the destination address to the address
book.
2 Adding an Address Book Entry P. 29
Edit/Delete Entry
You can edit or delete the address book entry.
2 Editing an Address Book Entry P. 31
Edit Home Entry
You can edit your home address entry.
2 Storing Your Home Address P. 12
99
uuCalculating the RouteuViewing the Routes
Navigation
Viewing the Routes
View three different routes to your destination.
1. Select a route on the list.
u The travel distance and
estimated travel time is
displayed for each route.
u The system calculates and
displays the route line on the
map screen.
2 Route Line P. 102
2. Select OK.
1 Viewing the Routes
It is not unusual for some calculated route options to
be identical.
100
Navigation
Driving to Your Destination
This section describes how to follow the route guidance to your destination, receive
traffic information, and choose the icons displayed on the map screen.
Viewing the Route
After calculating the route to your
destination, the route is displayed on
the map screen.
2 During Route Guidance P. 11
As you drive, the system tracks your
position on the map in real time and
provides guidance as you approach
each guidance point on the route.
■
Map Screen
1 Viewing the Route
“Display Map”
You can change the map scale using voice control
commands (e.g., say “Display 2 mile scale”).
2 Map Scale Commands P. 235
You can also change the map scale by selecting the
scale icon, pinching in/out, and double tapping on
the map screen with two fingers (zoom out only).
You can control the icons displayed on the map
screen using voice control commands (e.g., say
“Display post office”).
2 Map Display Commands P. 234
You can obtain information about the route using
voice control commands (e.g., say “How long to
the destination?”).
2 Route Commands P. 236
If you scroll the map while en route, the time and
distance to destination indicators are hidden, and an
indicator showing distance from the current vehicle
position is displayed at the bottom of the screen.
Continued
101
uuDriving to Your DestinationuViewing the Route
Navigation
The guidance screen offers an alternative way to view your route.
u The next guidance point is
displayed as you approach each
guidance point on the route.
u You can also view a list of
guidance directions.
2 Directions P. 107
■
Guidance Screen
1 Guidance Screen
A visual guide helps you check the guidance screen.
2 Guidance Screen P. 11
uuDriving to Your DestinationuViewing the Route
102
Navigation
When driving on verified streets, the route line is light blue. The route line display
changes when driving on unverified streets:
u If Unverified Routing is Off, the
route line uses verified streets only
(when possible). If Straight Line
Guide is set to On, a pink “vector
line” pointing directly towards
your destination is displayed.
2 Straight Line Guide P. 55
u If Unverified Routing is On, the
route line changes to a pink line to
indicate that the route line uses
unverified streets.
■
Route Line
1 Route Line
You can set Unverified Routing to Off to follow
your own route to the destination. If Unverified
Routing is On, be aware that unverified streets may
not be displayed accurately.
2 Unverified Routing P. 40
You can always view the entire route by simply saying
“Display entire route”.
2 Route Commands P. 236
The route line may also consist of red, orange, or
green segments when your route line displays traffic
information.
2 Map Screen Legend P. 10
2 Traffic Rerouting
TM
P. 109
Straight line guide
Pink route line
103
uuDriving to Your DestinationuViewing the Route
Navigation
If you leave the calculated route, the system automatically recalculates a route to the
desired destination based on your current location and direction.
If you leave all mapped (digitized) roads, the system automatically starts displaying a
series of dots (breadcrumbs) to track the path you are taking. If needed, you can
follow the dots back to the mapped road you originally left.
2 Off-road Tracking P. 61
■
Deviating From the Planned Route
■
Driving Off-road
1 Driving Off-road
Breadcrumbs may appear when you drive half a mile
away from a mapped road.
Breadcrumbs may occasionally be displayed in urban
areas, such as large parking lots in shopping malls, in
new subdivisions where the roads are not yet in the
database, or in areas where a GPS signal is
unavailable, such as in a parking garage.
Off-road tracking breadcrumbs are limited to
approximately 150 miles (240 km). Breadcrumbs at
the beginning of the trail are deleted if you exceed
that distance.
Breadcrumbs are displayed only at 1/20, 1/8, 1/4, and
1/2 mile (80, 200, 400, and 800 m) scales.
104
uuDriving to Your DestinationuListening to Voice Guidance
Navigation
Listening to Voice Guidance
H HOME u Navi u (Map menu) (on map) u Voice
As you approach each guidance point, a pop-up window is displayed on the map
screen with instructions for you to follow. Voice guidance for each guidance point is
also provided.
Typically, you hear three prompts:
• 1/2 mile (800 m) from the guidance point (2 miles (3 km) on freeway)
• 1/4 mile (400 m) from the guidance point (1 mile (1.5 km) on freeway)
• Just before the guidance point
To replay voice guidance, select Voice in the Map Menu.
If you select Voice between guidance points, voice guidance for the next guidance
point is provided.
1 Listening to Voice Guidance
“Voice” (on the map screen)
You can turn voice guidance off if you prefer.
2 Volume Setting P. 68
When driving in unverified areas, the phrase “if
possible” is inserted after each voice guidance
prompt.
Voice in the Map menu may be grayed out if:
•
The system is in process of gathering the route
guidance information.
•
The vehicle is out of the road (e.g., pulling in a
parking lot).
The timing of voice guidance varies depending on the
type of road you are on and the distance to the next
guidance point.
105
Continued
Navigation
Map Menu
Displaying the Map Menu
Use the (Map menu) icon to control the icons displayed on the map screen
and to display traffic information. You can also use the (Map menu) icon to
find locations or to cancel the route.
1. On the map screen, select
(Map menu) (if displayed).
u The Map menu screen is
displayed.
2. Select an item.
1 Map Menu
If you scroll the map while en route, select the
(Navi/Back) icon or select BACK to return to the
current position map screen, then select (Map
menu) icon.
uuMap MenuuDisplaying the Map Menu
106
Navigation
The following items are available:
• Voice: Select to hear the voice guidance when en route.
2 Listening to Voice Guidance P. 104
• Map/Guidance: Allows you to select the map and guidance settings (display
mode, map orientation, icons to display on the map, map color, display your
current location, an overview of the map features and 3D view angle).
2 Guidance Mode P. 47
2 View (Map Orientation) P. 54
2 Showing Icons on the Map P. 51
2 Color P. 53
2 Current Location P. 56
2 Map Legend P. 57
2 3D Angle Adjustment P. 55
• Cancel Route: Cancels your current route.
2 Canceling the Route P. 118
• Directions: Displays a list of the guidance points.
2 Directions P. 107
• Search Nearby: Allows you to find the nearest place/landmark (e.g., nearest gas
station) by specifying a category. You can then add the location to the list of
destinations, set as a waypoint, or set as your destination.
2 Find Nearest Place P. 120
• Traffic Incidents: Displays a list of the traffic incidents around your current
location or on your current route.
2 Traffic Rerouting P. 42
1 Map Menu
Traffic Incidents
You must be in or near a traffic-enabled city to
receive coverage for that area. Traffic information is
available in certain areas in the lower 48 states,
Hawaii, and Canada.
2 Traffic Information P. 228
The incident icons are displayed on the 5 mile (8 km)
or less map scale.
2 Map Scale and Functions P. 58
Directions
The system provides freeway exit information only in
the U.S.
107
uuMap MenuuDirections
Continued
Navigation
Directions
H HOME u Navi u (Map menu) (on map) u Directions
Display a list of the guidance points on your route for your confirmation.
Select or , or flick the screen
to scroll through the list.
u When you select a guidance point
from the list, the system displays a
map of the guidance point.
1 Directions
Guidance points with exit information are indicated
by a (freeway exit information) icon. Select Exit
Info to display the exit information.
The system provides freeway exit information only in
the U.S.
2 Freeway Exit Information P. 108
The route guidance information is automatically
deleted when you reach your destination.
When you select a guidance point, a map of the
guidance point is displayed as following. Select Back
to List to return to the directions list screen.
uuMap MenuuDirections
108
Navigation
H HOME u Navi u (Map menu) (on map) u Directions u Exit Info
Display a list of the freeway exits for the route. You can view freeway exit
information (whether the exit is near fuel stations, restaurants, ATMs, etc.) and add
new destinations or waypoints to the calculated route.
1. Select an exit from the list.
2. Select a list item.
u Select or to display
information for different exits.
u The location is displayed on the
Calculate Route screen.
2 Calculating the Route P. 98
■
Freeway Exit Information
1 Freeway Exit Information
“Display Freeway Exit Information”
You can scroll the map and select a (freeway exit
information) icon on the map screen to display the
freeway exit information. The icon is only
displayed if there is exit information available.
Icons are displayed only at 1/4, 1/2, or 1 mile (400,
800, or 1600 m) scale.
2 Map Scale and Functions P. 58
The system provides freeway exit information only in
the U.S.
109
uuMap MenuuTraffic Rerouting
TM
Continued
Navigation
Traffic Rerouting
TM
When driving to your destination, the system automatically searches for a faster
route based on traffic flow information and traffic incidents.
2 Map Screen Legend P. 10
1 Traffic Rerouting
TM
Traffic information is only available in certain areas.
Automatic traffic rerouting may not provide a detour
route depending on circumstances.
The route is recalculated only when Traffic
Rerouting is set to On.
2 Traffic Rerouting P. 42
uuMap MenuuTraffic Rerouting
TM
110
Navigation
H HOME u Navi u (Map menu) (on map) u Traffic Incidents
Manually avoid specific incidents and/or congestion on your route.
1. Select an incident from the list.
2. Select Avoid.
u Repeat step 1 and 2 as
necessary.
3. Select Recalculate Route.
u The system recalculates a
detour route that avoids the
selected traffic incidents.
■
Traffic Rerouting
TM
Manually
1 Traffic Rerouting
TM
Manually
Traffic rerouting is only available in certain areas.
You must be in or near a traffic-enabled city to
receive coverage for that area. Traffic information is
available in certain areas in the lower 48 states,
Hawaii, and Canada.
2 Traffic Information P. 228
“Display traffic list”, “Display traffic incidents”
You can display traffic incidents and related information
on the map screen using voice commands.
2 Map Display Commands P. 234
You can also display the traffic incidents from the
Info Menu screen. Select Info on the HOME screen,
select MENU, and then select Traffic Incidents.
You can choose to avoid up to 10 traffic incidents. It
is not always possible for the system to calculate a
route that avoids all traffic incidents or specific traffic
incidents you select.
The On Route tab on the Traffic List screen is only
available during route guidance.
You cannot select an incident to avoid from the All tab.
You can also detour around a traffic incident
manually if you encounter an unexpected obstacle.
2 Taking a Detour P. 118
Show Map displays a map of the incident location.
Select Return to return to the list.
111
Navigation
Changing Your Route
H HOME u Navi u MENU (when en route)
This section describes how to alter your route, add an interim “waypoint” (pit stop),
choose a different destination, cancel your current destination, and continue your
trip after stopping.
Select an item.
The following items are available:
• Voice: Select to hear the voice guidance when en route.
2 Listening to Voice Guidance P. 104
• Change Route Preference: Changes the route preferences (calculating method).
2 Route Preference P. 39
• Destination List: Shows a list of waypoints. You can delete waypoints or edit the
order of them.
2 Editing the Destination List P. 116
• Cancel Route: Cancels the route guidance.
2 Canceling the Route P. 118
• View Routes: Displays three different routes.
2 Viewing the Routes P. 99
• Detour: Calculates a detour route.
2 Taking a Detour P. 118
• Avoid Streets: Avoids streets along your route.
2 Avoiding Streets P. 119
1 Changing Your Route
“Display Menu” (on the map screen, when en
route)
If you select MENU on the map screen when not en
route, the Destination menu screen is displayed.
2 Entering a Destination P. 80
112
uuChanging Your RouteuAdding Waypoints
Navigation
Adding Waypoints
Add up to four waypoints (pit stops) along the route to your destination.
Waypoints are displayed on the map
screen as small, numbered red flags.
The route follows the waypoints in
the order they are listed in the
Destination List.
1 Adding Waypoints
Waypoints allow you to stop for gas or food, for
example, and then continue on to your destination.
Select the (Navi/Back) icon to return to the map
screen without adding a waypoint at any time.
The search corridor used for adding waypoints can be
adjusted.
2 Edit POI Search Radius Along Route P. 43
You can delete waypoints or edit the order of
waypoints in the Destination List.
2 Editing the Destination List P. 116
Continued
113
uuChanging Your Routeu Adding Waypoints
Navigation
H HOME u Navi u MENU (when en route) u Destination List u Add New
Destination
1. Select a search method to add a
waypoint.
The following items are available:
• Use Navigation Menu: Searches from the Destination menu. Select a search
method from the Destination menu.
2 Entering a Destination P. 80
• Places Along the Route: Searches within a “corridor” on either side of the
route. Select a place by selecting a place category.
2 Place Category P. 91
• Places Around the Destination: Searches in a spiral pattern around the
destination. Select a place by selecting a place category.
2 Place Category P. 91
• Places Around the Waypoint: Searches in a spiral pattern around the location
you select. Select a waypoint you want to search around, and then select a place
by selecting a place category.
2 Place Category P. 91
■
Adding Waypoints from the Route Menu
1 Adding Waypoints from the Route Menu
Search method
“Search around” method
“Search along” method
uuChanging Your RouteuAdding Waypoints
114
Navigation
2. Select a place.
u The waypoint is added to the
Destination List.
3. Select or , and move the
order of destinations. Select OK.
4. Select Start Route.
u The route is automatically
recalculated and displayed on
the map screen.
1 Adding Waypoints from the Route Menu
If you select a location by Use Navigation Menu,
the Select order screen is not displayed.
Select Edit Order on the Destination list screen to
edit the order of waypoint.
2 Editing the Destination List P. 116
115
uuChanging Your Routeu Adding Waypoints
Navigation
1. Select a new address or location.
2. Select Set as Destination.
3. Select or and select a
location.
4. Select OK.
u The route is automatically
recalculated and displayed on
the map screen.
■
Adding Waypoints from the Calculate Route Screen
116
uuChanging Your RouteuEditing the Destination List
Navigation
Editing the Destination List
H HOME u Navi u MENU (when en route) u Destination List
1. Select Edit Order.
2. Select a list item to move.
3. Select or , and select a new
location. Select OK.
4. Select Start Route.
u The route is automatically
recalculated and displayed on
the map screen.
■
Editing the Order of Waypoints
1 Editing the Order of Waypoints
Select Show All on Map to display the destination
and waypoints on the map screen.
117
uuChanging Your Routeu Editing the Destination List
Navigation
H HOME u Navi u MENU (when en route) u Destination List
1. Select a list item to delete.
2. Select Delete.
■
Deleting Waypoints
1 Deleting Waypoints
Select Delete on the Destination list screen before
selecting a list item to select multiple locations to
delete.
Select Show on Map to display the waypoint on the
map screen.
118
uuChanging Your RouteuCanceling the Route
Navigation
Canceling the Route
H HOME u Navi u MENU (when en route) u Cancel Route
Cancel the route guidance and remove the destination and all waypoints from the
Destination List. The system then returns to the map screen.
Taking a Detour
H HOME u Navi u MENU (when en route) u Detour
Calculate a detour route manually. The system attempts to calculate a new route by
avoiding the next 5 miles (8 km) (while on a freeway) or 1 mile (1600 m) (while on a
surface street).
1 Canceling the Route
You can also cancel your route from the Map Menu.
2 Map Menu P. 105
1 Taking a Detour
The detour option is convenient if you encounter an
unexpected obstacle such as a road closure or
extremely heavy traffic congestion.
119
uuChanging Your RouteuAvoiding Streets
Navigation
Avoiding Streets
H HOME u Navi u MENU (when en route) u Avoid Streets
Select a street or streets along your route to avoid.
1. Select the street you want to
avoid.
u Repeat the procedure to avoid
other streets.
u Streets to be avoided are
indicated with a trash lid open
icon.
2. Select Recalculate Route.
u The system calculates a new
route.
1 Avoiding Streets
Avoiding certain streets is convenient if you know of
road construction, road closures, or excessive traffic
along the route.
You cannot choose specific streets you want to use,
only those to avoid. However, you can select
intersections or waypoints (places/landmarks) that
the system will use in your route.
2 Adding Waypoints P. 112
You can store up to 10 streets to avoid. You cannot
avoid your current street or the streets of your
waypoint(s) or destination (system beeps if selected).
120
Navigation
Changing Your Destination
There are several methods you can use to change the route destination.
Find Nearest Place
H HOME u Navi u (Map menu) (on map) u Search Nearby
Search for the nearest place/landmark on the map screen and set it as your
destination.
1. Select a category type.
2. Select a subcategory.
3. Select a place.
4. Select Set as Destination.
5. Select Clear Current Route or
select a location to add to the
destination list.
u The system calculates the route.
2 Calculating the Route P. 98
1 Find Nearest Place
“Find Nearest…” (on Voice Portal screen)
The Find Nearest voice command is the fastest
method of specifying a place/landmark as your
destination. Many kinds of places can be found.
2 Find Place Commands P. 235
121
uuChanging Your DestinationuSelecting a Destination on the Map
Navigation
Selecting a Destination on the Map
Select a new destination when en route by selecting a location on the map.
1. Scroll the map to position the
cursor over your desired
destination, adjusting the map
scale as necessary.
u If the address displayed is not
the desired location, select
BACK and repeat the
procedure.
2. Select an icon from the right side
of the screen.
3. Select Set as Destination.
2 Calculating the Route P. 98
4. Select Clear Current Route or
select a location to add to the
destination list.
u The route is automatically
recalculated and displayed on
the map screen.
1 Selecting a Destination on the Map
Select the list open/close tab to open the list.
2 Map Screen during Scrolling P. 11
The following icons are available.
•
: Traffic*
•
: Map Icon
•
: Exit Info*
•
: Street
•
: Address Book/Home
* These icons are only available in certain areas.
If there is more than one landmark icon under the
map cursor, you are prompted to select a place from
a list.
When you select a traffic incident icon, you can check
the traffic information for the selected location.
Limited coverage only
122
uuChanging Your DestinationuEntering a New Destination
Navigation
Entering a New Destination
H HOME u Navi u MENU (when en route) u Destination tab
Enter a new destination using the Destination menu screen even when you are en
route.
1. Select a method to enter a new
destination.
2 Entering a Destination P. 80
u After entering a new
destination, the address is
displayed on the Calculate
Route screen.
2. Select Set as Destination.
3. Select Clear Current Route or
select a location to add to the
destination list.
u The route is automatically
recalculated and displayed on
the map screen.
1 Entering a New Destination
“Display Menu” (on the map screen)
123
Navigation
Resuming Your Trip
Stop your vehicle en route (e.g., to rest, stop for gas, etc.), and then continue on
your route.
If you did not complete your route, the Continue trip to screen is displayed when
you restart your vehicle.
Select Set as Destination.
u You can continue on the same
route.
• View Routes: Displays three different routes.
2 Viewing the Routes P. 99
• Route Preference: Changes the route preferences (calculating method).
2 Route Preference P. 39
1 Resuming Your Trip
The Continue trip to screen has the same options as
when you calculate a route.
2 Calculating the Route P. 98
To cancel your destination, select BACK.
Search Nearby
You can find the nearest place/landmark (e.g.,
nearest gas station) by specifying a category.
2 Find Nearest Place P. 120
Call
You can place a phone call to the destination phone
number.
2 Bluetooth® HandsFreeLink® P. 168
Edit/Delete Entry
You can edit or delete the address book entry.
2 Editing an Address Book Entry P. 31
When you restart the vehicle, the route is
recalculated without the selected traffic incidents to
avoid.
2 Traffic Rerouting
TM
Manually P. 110
124
125
Audio
This section describes how to operate the audio system. You can play music from a wide
array of media sources, and control the audio system using the touchscreen, remote
control, or voice control.
Audio System ........................................ 126
About Your Audio System.................... 126
Audio System Theft Protection ............. 127
Audio Remote Controls ........................ 128
Steering Wheel Controls ...................... 128
Audio Settings ...................................... 131
Adjusting the Sound ............................ 132
Playing FM/AM Radio........................... 133
Selecting FM/AM Mode........................ 133
Audio Screen Control........................... 134
Audio Menu ........................................ 135
Playing SiriusXM® Radio
*
..................... 137
Selecting SiriusXM® Mode.................... 137
Audio Screen Control........................... 138
Audio Menu ........................................ 139
SiriusXM® Radio Service ........................140
Playing a Disc .........................................141
Selecting Disc Mode..............................141
Audio Screen Control............................142
Playing MP3/WMA/AAC Discs ...............143
Audio Menu .........................................144
Recommended Discs .............................145
Playing an iPod ......................................146
Selecting iPod Mode .............................147
Audio Screen Control............................148
Audio Menu .........................................149
Searching for Music ..............................150
Song By Voice
TM
(SBV)...........................151
Playing Pandora®
*
.................................154
Selecting Pandora® Mode......................154
Audio Screen Control........................... 155
Audio Menu......................................... 156
Playing a USB Flash Drive..................... 157
Selecting USB Mode............................. 158
Audio Screen Control........................... 159
Audio Menu......................................... 160
Playing Bluetooth® Audio .................... 161
Selecting Bluetooth® Audio Mode........ 161
Switching to HFL Mode ........................ 162
Audio Screen Control........................... 163
Audio Menu......................................... 164
Playing a Video Using the HDMI®........ 165
Selecting HDMI® Mode ........................ 166
* Not available on all models
126
Audio
Audio System
About Your Audio System
The audio system features FM/AM radio and SiriusXM® Radio
*
. It can also play audio
discs, WMA/MP3/AAC tracks, iPods, USB flash drives, and Bluetooth® devices.
The audio system is operable from the items on the touchscreen, or the remote
controls on the steering wheel.
2 Audio Remote Controls P. 128
2 Audio System P. 9
1 About Your Audio System
SiriusXM® Radio
*
is available on a subscription basis
only.
2 SiriusXM® Radio Service P. 140
SiriusXM® Radio
*
is available in the United States and
Canada, except Hawaii, Alaska, and Puerto Rico.
SiriusXM®
*
is a registered trademark of SiriusXM®
Radio, Inc.
Video CDs, DVDs, and 3-inch/8-cm mini discs are not
supported.
Do not leave the iPod or USB flash drive in the vehicle.
Direct sunlight and high temperatures may damage
it.
iPod and iPhone are registered trademark owned by
Apple Inc.
State (provincial in Canada) or local laws may prohibit
the operation of handheld electronic devices while
operating a vehicle.
You can operate the audio system by voice
commands.
2 Audio Commands P. 237
Remote Control
iPod
USB Flash Drive
iPhone
* Not available on all models
127
uuAudio SystemuAudio System Theft Protection
Audio
Audio System Theft Protection
The audio system is disabled when it is disconnected from the power source, such as
when the battery is disconnected or goes dead. In certain conditions, the system
may display Enter Code. If this occurs, reactivate the audio system.
■ Reactivating the audio system
1. Set the power mode to ON.
2. Turn on the audio system.
3. Press and hold the audio system power button for more than two seconds.
u The audio system is reactivated when the audio control unit establishes a
connection with the vehicle control unit. If the control unit fails to recognize
the audio unit, you must go to a dealer and have the audio unit checked.
128
Audio
Audio Remote Controls
Steering Wheel Controls
Control basic audio system functions using the controls mounted on the steering
wheel.
Cycles through the audio modes as follows:
1 SOURCE Button
Some sources will only appear when available, such
as when a CD is inserted or when a compatible device
is connected.
App mode appears only when a connection is
established with your smartphone and the app is
launched.
Aha
TM
mode appears only when a connection is
established with your smartphone and HondaLink
app is launched.
AUX-HDMI® mode appears only when a connection
via HDMI® cable is established.
Volume button
SOURCE button
Channel button
(Display) button
(Menu) button
■
SOURCE Button
FM
PANDORA
®
*
AM SiriusXM
®
*
iPod
Disc
USB
Bluetooth
Audio
Apps
AUX-HDMI
®
Aha
TM
* Not available on all models
129
uuAudio Remote ControlsuSteering Wheel Controls
Continued
Audio
Adjusts the volume.
• Press the (Volume) button to increase the volume.
• Press the (Volume) button to decrease the volume.
FM/AM, SiriusXM®
*
• Press the (Channel) button to select the next preset station (channel).
• Press the (Channel) button to select the previous preset station (channel).
• Press and hold the or button to skip to the next or previous station in the
frequency.
DISC, iPod, USB, or Bluetooth® Audio (on some phones)
• Press the button to skip to the next track.
• Press the button to skip to the beginning of the current track. Press the
button again to go to the beginning of the previous track.
• Press and hold the or button to skip up or down a folder (MP3/WMA/AAC
Discs and USB devices), and a group (some Bluetooth devices).
Pandora®
*
• Press the button to skip to the next song.
• Press and hold the or button to select the upper or lower station.
Cycles through the display modes as follows:
Navigation > Phone > Audio
■
(Volume) Button
■
(Channel) Button
■
(Display) Button
* Not available on all models
130
uuAudio Remote ControlsuSteering Wheel Controls
Audio
Press the (Menu) button while on the audio screen to display available menu
items for the current screen.
• Scan (AM/FM/SiriusXM®
*
/Disc/USB flash device)
• Save Preset (AM/FM/SiriusXM®
*
)
• Seek (AM/FM)
• Channel (SiriusXM®
*
)
• Category (SiriusXM®
*
)
• Save Song Tag (HD Radio
TM
)
• Repeat (Disc/iPod/USB flash device)
• Random (Disc/USB flash device)
• Shuffle (iPod)
• Play/Pause (Pandora®
*
/Bluetooth® Audio)
• Bookmark (Pandora®
*
)
■
(Menu) Button
* Not available on all models
131
Continued
Audio
Audio Settings
H HOME u Settings u Audio
Select an item.
The following items are available:
• Sound: Adjusts the settings of the audio speaker’s sound.
2 Adjusting the Sound P. 132
• Audio Source Pop-Up: Selects whether the list of selectable audio sources
comes on when Audio is selected on the HOME screen.
• HD Radio Mode (AM/FM mode): Selects whether the audio system automatically
switches to the digital radio waves or receives the analogue waves only.
• RDS INFO (AM/FM mode): Selects whether the RDS information displays on the
audio screen.
• Cover Art (iPod, Pandora®
*
, USB mode): Turns on and off the cover art display.
• Bluetooth Device List (Pandora®
*
, Bluetooth Audio mode): Edit or delete the list
of Bluetooth Audio devices.
• Change Bluetooth Audio Device (Pandora®
*
, Bluetooth® Audio mode):
Connects, disconnects or pairs a Bluetooth Audio device.
• Display Adjustment (HDMI® mode): Adjusts the screen preference while playing
the video.
– Display tab: Adjusts Brightness, Contrast, and Black Level of the video
screen.
– Color tab: Adjusts Color and Tint of the video screen.
1 Audio Settings
The Audio Setting items differ depending on the
playing source.
HD Radio Mode
HD Radio functions may not be available on the
vehicle’s audio system.
Cover Art
While playing the HD Radio
TM
, Cover Art appears
also on the Audio settings screen of AM/FM mode.
* Not available on all models
uuAudio SettingsuAdjusting the Sound
132
Audio
• Aspect Ratio Adjustment (HDMI® mode): Sets the aspect ratio of the image.
– Normal: Displays the image with the ratio of 4 to 3.
– Full: Displays the image in full-screen.
– Zoom: Displays the enlarged image.
Adjusting the Sound
H HOME u Settings u Audio u Sound
Adjust the sound bass, treble, fader, and balance. In addition, you can set Speed-
sensitive Volume Compensation (SVC).
1. Select the tab to adjust the desired
sound mode.
2. Adjust the desired level.
1 Adjusting the Sound
Fader adjusts the front-to-back strength, while
balance adjusts the side-to-side strength.
The SVC has four modes: Off, Low, Mid, and High.
SVC adjusts the volume level based on the vehicle
speed. The faster you go, the audio volume increases.
As you slow down, the audio volume decreases. If
you feel the sound is too loud, choose Low, and vice
versa.
133
Audio
Playing FM/AM Radio
Selecting FM/AM Mode
1. Select Audio on the HOME screen.
2. Select SOURCE.
3. Select the FM or AM icon.
4. Select the radio frequency with Tune , Seek , Scan or open the tab
and select from stored presets.
u The band, frequency, and available subchannel number are displayed.
1 Playing FM/AM Radio
“Radio Select FM/AM”
You can control the radio using voice control
commands.
2 Radio Commands P. 237
A visual guide helps you operate the audio system.
2 System Controls P. 4
2 Basic Operation P. 9
The radio can receive the complete AM and FM
bands:
AM band: 530 to 1710 kHz
FM band: 87.7 to 107.9 MHz
You can store six AM stations and 12 FM stations in
the presets.
134
uuPlaying FM/AM RadiouAudio Screen Control
Audio
Audio Screen Control
H HOME u Audio u SOURCE u FM or AM icon
Control the audio system through the navigation screen.
1. Select the open/close tab on the
operation panel to display the
station list and preset list.
2. Select Preset tab.
u Select and hold a preset key
until a beep sounds to store the
current station as a preset.
You can also store the current station
as a preset by selecting and holding
the preset key in the operation panel.
Select to display preset 7
onwards.
The following items are available:
• Tune : Tunes the radio to the frequency you select.
• Seek : Search up and down the selected band for a station with a strong
signal.
• TAG: Displays the information on the song played from the HD Radio
TM
Station.
1 Audio Screen Control
HD Radio
TM
HD Radio Technology manufactured under license
from iBiquity Digital Corporation. U.S. and Foreign
Patents. HD Radio
TM
and the HD, HD Radio, and
“Arc” logos are proprietary trademarks of iBiquity
Digital Corp.
When an HD Radio
TM
station is selected, the HD
indicator appears on the screen.
Band
Operation panel
Open/Close tab
Preset list
Continued
135
uuPlaying FM/AM RadiouAudio Menu
Audio
• Scan: Scans for stations with a strong signal in the current band and plays a 10-
second sample. Select Cancel to stop scanning and play the current selection.
Audio Menu
H HOME u Audio (in FM/AM mode) u MENU
Select an item.
The following items are available:
•
View Radio Text
: Displays the text information broadcast by the current RDS station.
• Scan: Scans for stations with a strong signal in the current band and plays a 10-
second sample. Select Cancel to stop scanning and play the current selection.
• Station List: Displays the list of station can be tuned.
• Save Preset: Stores the station into the preset memory.
• Change Source: Changes the audio source mode.
• Save Song Tag: Displays the TAG information saved to the audio system when
an HD Radio
TM
station is selected.
• Song Tag List: You can store the TAG information in the connected iPod/iPhone.
• HD Subchannel: Displays the subchannel list when an HD Radio
TM
station is
selected.
• Sound: Displays the sound preferences screen.
2 Adjusting the Sound P. 132
1 Audio Menu
iTunes Tagging
“iTunes” in “iTunes Tagging” is a trademark of
Apple Inc.
If the iPod/iPhone is connected, the tag is transferred
to the device immediately.
If the iPod/iPhone is not connected to the audio
system, the information is stored in the audio unit
temporarily. When the device is connected to the
system, the data is transferred to the iPod/iPhone.
Available operating functions vary on models. Some
functions may not be available on the vehicle’s audio
system.
137
Audio
Playing SiriusXM® Radio
*
Selecting SiriusXM® Mode
1. Select Audio on the HOME screen.
2. Select SOURCE.
3. Select the SiriusXM® icon.
4. Select the channel with Category , Channel , Scan or open the tab
and select from stored presets.
u The channel is displayed.
1 Playing SiriusXM® Radio
*
“Radio select XM”, “Radio XM”
You can control the radio using voice control
commands.
2 Radio Commands P. 237
A visual guide helps you operate the audio system.
2 System Controls P. 4
2 Basic Operation P. 9
In the channel mode, all available channels are
selectable. In the category mode, you can select a
channel within a category (Jazz, Rock, Classical, etc.).
There may be instances when SiriusXM® Radio does
not broadcast all the data fields (artist name, title).
This does not indicate a problem with your audio
system.
You can store 12 SiriusXM® stations in the presets.
SiriusXM® Radio display messages will be displayed
on the audio screen.
2 SiriusXM® Radio Display Messages P. 140
* Not available on all models
138
uuPlaying SiriusXM® Radio
*
uAudio Screen Control
Audio
Audio Screen Control
H HOME u Audio u SOURCE u SiriusXM® icon
Control the audio system through the navigation screen.
1. Select the open/close tab on the
operation panel to display the
channel list and preset list.
2. Select Preset tab.
u Select and hold a preset until a
beep sounds to store the
current channel as a preset.
You can also store the current
channel as a preset by selecting and
holding the preset key in the
operation panel.
Select to display preset 7
onwards.
The following items are available:
• Category : Display and select an SiriusXM® Radio category.
• Channel : Select the previous or next channel.
Operation panel
Band Open/Close tab
Preset list
139
uuPlaying SiriusXM® Radio
*
uAudio Menu
Audio
• Scan: Scans for channels in the selected mode and plays a 10-second sample.
Select Cancel to stop scanning and play the current selection.
Audio Menu
H HOME u Audio (in SiriusXM® mode) u MENU
Select an item.
The following items are available:
• Scan: Scans for channels in the selected mode and plays a 10-second sample.
Select Cancel to stop scanning and play the current selection.
• Save Preset: Stores the channel into the preset memory.
• Change Source: Changes the audio source mode.
• Channel List: Displays the list of available channels.
• XM Tune Mode: Sets Channel Mode or Category Mode.
– Channel Mode: Scans to select all available channels.
– Category Mode: Scans to select a channel within a category (Jazz, Rock,
Classic, etc.).
• Sound: Displays the sound preferences screen.
2 Adjusting the Sound P. 132
140
uuPlaying SiriusXM® Radio
*
uSiriusXM® Radio Service
Audio
SiriusXM® Radio Service
1. Retrieve your radio ID before registering for subscription.
u To see the radio ID, select (channel) to select “000” channel. You can also
select “000” channel from Channel List.
2. Have your radio ID and credit card number ready, and either call SiriusXM® or visit
the SiriusXM® website to subscribe.
Select the SiriusXM® icon and stay in this mode for about 30 minutes until the
service is activated. Make sure your vehicle is in an open area with good reception.
Loading...: SiriusXM® is loading the audio or program information.
Channel Off Air: The channel is not currently broadcasting.
Channel Not Authorized: The encryption code is being updated. Channels 0 and
1 still work normally.
No Signal: The signal is too weak in the current location.
Channel Not Available: No such channel exists, the channel is not part of your
subscription, or the artist or title information is not available.
Check Antenna: There is a problem with the SiriusXM® antenna. Contact a dealer.
■
Subscribing to SiriusXM® Radio
■
Receiving SiriusXM® Radio
■
SiriusXM® Radio Display Messages
1 Subscribing to SiriusXM® Radio
Contact Information for SiriusXM® Radio:
U.S.: SiriusXM® Radio at www.siriusxm.com, or
(800) 852-9696
Canada: SiriusXM® Canada at www.xmradio.ca, or
(877) 209-0079
1 Receiving SiriusXM® Radio
The SiriusXM® satellites are in orbit over the equator;
therefore, objects south of the vehicle may cause
satellite reception interruptions. Satellite signals are
more likely to be blocked by tall buildings and
mountains the farther north you travel from the
equator.
You may experience reception problems under the
following circumstances:
•
In a location with an obstruction to the south of
your vehicle
•
In tunnels
•
On the lower level of a multi-tiered road
•
Large items are carried on the roof rack
141
Audio
Playing a Disc
Selecting Disc Mode
1. Select Audio on the HOME screen.
2. Select SOURCE.
3. Select the Disc icon.
4. Insert a disc into the disc slot.
u The disc automatically begins playing.
5. Select the track with Folder or Track , or open the tab and select
from the track list.
u The track number and elapsed time are displayed. Text information stored on
MP3/WMA/AAC discs is also displayed.
1 Playing a Disc
“Disc play”
You can control the disc using voice commands.
2 Disc Commands P. 238
A visual guide helps you operate the audio system.
2 System Controls P. 4
2 Basic Operation P. 9
In some cases, the name of the artist, album, or track
may not appear correctly.
Do not use discs with adhesive labels. The label can
cause the disc to jam in the unit.
WMA and ACC tracks protected by digital rights
management (DRM) cannot be played. The audio
system displays Unplayable File, then skips to the
next track.
If there is a problem, you may see an error message
on the display.
2 Error Messages P. 214
If you eject the disc but do not remove it from the
slot, the system reloads the disc automatically after
several seconds.
142
uuPlaying a DiscuAudio Screen Control
Audio
Audio Screen Control
H HOME u Audio u SOURCE u Disc icon
Control the audio system through the navigation screen.
1. Select the open/close tab on the
operation panel to display the
track list.
u You can also display the list by
selecting the track name.
2. Select a track.
u Select the (folder) tab to
display the list of folders on
MP3/WMA/AAC discs having a
folder structure.
2 Playing MP3/WMA/AAC Discs
P. 143
The following items are available, depending on the type of disc:
• Folder : Select the previous or next folder on MP3/WMA/AAC discs having
a folder structure.
• Track : Select the previous or next track. Select and hold to move rapidly
within a track.
Disc mode
Operation panel
Open/Close tab
Track list
143
uuPlaying a DiscuPlaying MP3/WMA/AAC Discs
Audio
Playing MP3/WMA/AAC Discs
H HOME u Audio u SOURCE u Disc icon
Change the folder on MP3/WMA/AAC discs that have tracks stored in a folder
structure.
1. Select the (folder) tab on the
track list.
2. Select a folder.
u The system displays the track
list.
3. Select a track.
u The system begins playing the
selected track.
1 Playing MP3/WMA/AAC Discs
Folder List
•
Any tracks not in a folder are automatically added
to a Root folder, which is displayed at the top of
the folder list.
•
If the root folder has additional folders in a lower
layer, they are listed on the screen.
Folder list
144
uuPlaying a DiscuAudio Menu
Audio
Audio Menu
H HOME u Audio (in Disc mode) u MENU
Select an item.
The following items are available:
• Scan: Scans for track and plays a 10-second sample. Select Cancel to stop
scanning and play the current selection.
– Scan Folders (MP3/WMA/AAC): Scans the first track in each folder on the
disc.
– Scan Tracks: Scans all tracks on the disc (or in the selected folder).
• Music Search: Selects a track from the Music Search list. When the MP3/WMA/
AAC disc is playing, you can switch the display contents of the list by using the
tab.
• Change Source: Changes the audio source mode.
• Random/Repeat:
– Repeat Folder (MP3/WMA/AAC): Repeats all tracks in the current folder.
– Repeat Track: Repeats the current track.
– Random All Tracks: Plays all tracks on the current disc in random order.
– Random in Folder (MP3/WMA/AAC): Plays all tracks in the current folder in
random order.
• Sound: Displays the sound preferences screen.
2 Adjusting the Sound P. 132
1 Audio Menu
To stop repeat- or random-play, select the current
play mode again.
145
uuPlaying a DiscuRecommended Discs
Audio
Recommended Discs
• Use only high-quality CD-R or CD-RW discs labeled for audio use.
• Use only CD-R or CD-RW discs on which the recordings are closed.
• Play only standard round-shaped discs.
■ Discs with MP3, WMA, or AAC Tracks
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA, or AAC formats may be unsupported. If an
unsupported track is found, the audio unit displays Unsupported, and then skips
to the next track.
1 Recommended Discs
A Dual-disc cannot play on this audio unit. If recorded
under certain conditions, a CD-R or CD-RW may not
play either.
The disc packages or jackets should have one of these symbols.
146
Audio
Playing an iPod
1. Open the USB cover under the front console.
2. Install the iPod dock connector to the USB connector.
■
Connecting an iPod
1 Connecting an iPod
•
We recommend connecting the iPod with the USB
adapter cable.
•
Do not connect the iPod using a hub.
•
Do not use a device such as a card reader or hard
disk drive, as the device or your tracks may be
damaged.
•
We recommend backing up your data before using
the device in your vehicle.
•
Displayed messages may vary depending on the
device model and software version.
Your audio system may not work with all software
versions of these devices.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device.
■
Model Compatibility
Model
iPod (5th generation)
iPod classic 80GB/160GB (launched in 2007)
iPod classic 120GB (launched in 2008)
iPod classic 160GB (launched in 2009)
iPod nano (1st to 7th generation)
iPod touch (1st to 5th generation)
iPhone 3G / iPhone 3GS / iPhone 4 / iPhone 4S / iPhone 5 / iPhone 5s / iPhone 5c
147
uuPlaying an iPoduSelecting iPod Mode
Audio
Selecting iPod Mode
1. Select Audio on the HOME screen.
2. Select SOURCE.
3. Select the iPod icon.
u The iPod automatically begins playing.
1 Playing an iPod
“iPod play”
You can control the iPod using voice commands.
2 iPod Commands P. 239
A visual guide helps you operate the audio system.
2 System Controls P. 4
2 Basic Operation P. 9
In some cases, the name of the artist, album, or track
may not appear correctly.
Available operating functions vary on models or
versions. Some functions may not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the display.
2 Error Messages P. 214
148
uuPlaying an iPoduAudio Screen Control
Audio
Audio Screen Control
H HOME u Audio u SOURCE u iPod icon
Control the audio system through the navigation screen.
1. Select the open/close tab on the
operation panel to display the
track list.
u You can also display the list by
selecting the track name.
2. Select a track.
u Select the tab to change songs
in the track list.
The following items are available:
• Song : Select the previous or next track. Select and hold to move rapidly
within a track.
iPod mode
Operation panel
Open/Close tab
Track list
149
uuPlaying an iPoduAudio Menu
Audio
Audio Menu
H HOME u Audio (in iPod mode) u MENU
Select an item.
The following items are available:
• Music Search: Selects a track from the Music Search list.
2 Searching for Music P. 150
• Change Source: Changes the audio source mode.
• Shuffle/Repeat:
– Shuffle Albums: Plays all available albums in a selected list (playlists, artists,
albums, songs, genres, or composers) in random order.
– Repeat Song: Repeats the current track.
– Shuffle All Songs: Plays all available files in a selected list (playlists, artists,
albums, songs, genres, or composers) in random order.
• Sound: Displays the sound preferences screen.
2 Adjusting the Sound P. 132
1 Audio Menu
To stop repeat- or shuffle-play, select the current play
mode again.
150
uuPlaying an iPoduSearching for Music
Audio
Searching for Music
H HOME u Audio (in iPod mode) u MENU u Music Search
Search for music using the iPod menu.
1. Select a search category (e.g.,
Albums).
2. Select an item.
u The selection begins playing.
u If you select the Alphabet
Search key on the left part of
the list and then select a letter,
the selected letter is displayed
at the top of the list.
1 Searching for Music
The order of the track list displayed if you select All
on the iPod menu varies depending on the iPod
model and software.
Alphabet Search
You can use the Alphabet Search function when you
select the following categories:
•
Artists
•
Albums
•
Songs
•
Genres
•
Podcasts
•
Composers
•
Audiobooks
Alphabet Search
151
uuPlaying an iPoduSong By Voice
TM
(SBV)
Continued
Audio
Song By Voice
TM
(SBV)
Use SBV to search for and play music from your iPod or USB flash drive using voice
commands.
1. Set the Song by Voice setting to
On.
2 Voice Recognition Settings
P. 69
2. Press the (Talk) button and say
“Music Search” to activate the
SBV feature for the iPod and USB
flash drive.
3. Press the (Talk) button and say
a command.
u Example 1: Say “List ‘Artist
A’“to view a list of songs by
that artist. Select the desired
song to start playing.
u Example 2: Say “Play ‘Artist
A’“to start playing songs by
that artist.
4. To cancel SBV, press the
(Hang-Up/Back) button on the
steering wheel. The selected song
continues playing.
■
Searching for music using Song By Voice (SBV)
1 Searching for music using Song By Voice (SBV)
Song By Voice commands are available for tracks
stored on the iPod or USB flash drive.
You can add phonetic modifications of difficult
words so that it is easier for SBV to recognize artists,
songs, albums, and composers in voice commands.
2 Phonetic Modification P. 152
Once you have canceled this mode, press the
(Talk) button and say “Music Search” again to
reactivate this mode.
uuPlaying an iPoduSong By Voice
TM
(SBV)
152
Audio
H HOME u Settings u System u Voice Recog tab u Song By Voice Phonetic
Modification
Add phonetic modifications of difficult or foreign words so that it is easier for SBV
to recognize artists, songs, albums, and composers in voice commands when
searching for music on the iPod or USB flash drive.
1. Select New Modification.
u If you want to modify the item
already stored, select the item
and proceed with step 5.
2. Select USB or iPod.
■
Phonetic Modification
1 Phonetic Modification
You can store up to 2,000 phonetic modification
items.
153
uuPlaying an iPoduSong By Voice
TM
(SBV)
Audio
3. Select the item to modify (e.g.,
Artist).
u The list of the selected item
appears on the screen.
4. Select an entry (e.g., Artist A).
u The pop-up menu appears on
the screen.
5. Select Modify.
u To listen to the current
phonetic modification, select
Play.
u To delete the current phonetic
modification, select Delete.
6. Enter the phonetic spelling you
wish to use (e.g., “ABCD”) when
prompted.
7. Select OK to exit. The artist “Artist
A” is phonetically modified to
“ABCD.” When in the SBV mode,
you can press the (Talk) button
and use the voice command “Play
‘ABCD’” to play songs by the artist
“Artist A.”
154
Audio
Playing Pandora®
*
Pandora is a personalized Internet radio service that selects music based on an artist,
song, or genre a user enters, and streams what is likely to be of interest.
Selecting Pandora® Mode
1. Connect a compatible phone through Bluetooth®.
u You can also connect the phone using your dock connector to the USB port if
you use the iPhone.
2. Select Audio on the HOME screen.
3. Select SOURCE.
4. Select the PANDORA icon.
u A pop-up message may appear on your phone requesting you to allow access
for the app to launch.
u The current station name, artist name, rating, and track name are displayed.
1 Playing Pandora®
*
“Pandora play”
Pandora is available on U.S. models only.
You can control Pandora using voice commands.
2 Pandora®
*
Commands P. 239
A visual guide helps you operate the audio system.
2 System Controls P. 4
2 Basic Operation P. 9
Pandora, the Pandora logo, and the Pandora trade
dress are trademarks or registered trademarks of
Pandora Media, Inc., used with permission. Pandora
is currently available exclusively in the United States.
To use this service in your vehicle, the Pandora app
must first be installed on your smartphone. Visit
www.pandora.com for more information.
If there is a problem, you may see an error message
on the display.
2 Error Messages P. 214
* Not available on all models
155
uuPlaying Pandora®
*
uAudio Screen Control
Audio
Audio Screen Control
H HOME u Audio u SOURCE u Pandora icon
Control the audio screen through the navigation system.
1. Select the open/close tab on the
operation panel to display the
station list.
u You can also display the list by
selecting the station name.
2. Select a station.
The following items are available:
• Station : Select a station.
• (Skip Forward): Skip the current song.
• (Play/Pause): Resume or play a song.
• (Dislike): Dislikes the current song and skips to the next song. Pandora will
avoid playing songs similar to the one disliked.
(Like): Likes the current song. Pandora will play songs similar to the one liked.
1 Audio Screen Control
The following functions are not available on this
navigation system:
•
Buy from iTunes
•
Email the Current Station
•
Check Song Detail
You can skip the song or select only a
predetermined number of times in an hour. If
exceeded, an error message is displayed and the
operation is not performed.
For details, please visit and check
www.pandora.com.
If you cannot operate Pandora® through the audio
system, it may be streaming through Bluetooth®
Audio. Make sure Pandora mode on your audio
system is selected.
Pandora mode
Operation panel
Open/Close tab
Station list
156
uuPlaying Pandora®
*
uAudio Menu
Audio
Audio Menu
H HOME u Audio (in Pandora® mode) u MENU
Select an item.
The following items are available:
• Bookmark: Bookmarks the current song or artist. Select Bookmark Track or
Bookmark Artist.
• Station List: Displays the list of all your stored stations. Select a station from the
list to play. You can also select Shuffle to play all stations randomly.
• New Station: Create a new station from genre, current track, or artist. Select
Genre, Current Track, or Current Artist.
• Change Source: Changes the audio source mode.
• Sound: Displays the sound preferences screen.
2 Adjusting the Sound P. 132
157
Audio
Playing a USB Flash Drive
1. Open the USB cover under the front console.
2. Install the USB flash drive to the USB connector.
Use a recommended USB flash drive of 256 MB or higher.
Some digital audio players may not be compatible.
Some USB flash drives (e.g., a device with security lockout) may not work.
Some software files may not allow for audio play or text data display.
Some versions of MP3, WMA, or AAC formats may be unsupported.
■
Connecting a USB Flash Drive
1 Connecting a USB Flash Drive
•
We recommend connecting the USB flash drive
with the USB adapter cable.
•
Do not connect the USB flash drive using a hub.
•
Do not use a device such as a card reader or hard
disk drive, as the device or your tracks may be
damaged.
•
We recommend backing up your data before using
the device in your vehicle.
•
Up to two USB devices can be connected.
■
USB Flash Drives
158
uuPlaying a USB Flash DriveuSelecting USB Mode
Audio
Selecting USB Mode
1. Select Audio on the HOME screen.
2. Select SOURCE.
3. Select the USB icon.
u The USB flash drive automatically begins playing.
1 Playing a USB Flash Drive
“USB play”
You can control the USB flash drive using voice
commands.
2 USB Commands P. 238
A visual guide helps you operate the audio system.
2 System Controls P. 4
2 Basic Operation P. 9
In some cases, the name of the artist, album, or track
may not appear correctly.
Tracks on the USB flash drive are played in their
stored order. This order may be different from the
order displayed on your PC or device.
The audio system displays Unplayable File, and then
skips to the next track when the following tracks are
played:
•
Tracks in WMA or AAC format protected by digital
rights management (DRM)
•
Tracks in unsupported format
If there is a problem, you may see an error message
on the display.
2 Error Messages P. 214
159
uuPlaying a USB Flash DriveuAudio Screen Control
Audio
Audio Screen Control
H HOME u Audio u SOURCE u USB icon
Control the audio system through the navigation screen.
1. Select the open/close tab on the
operation panel to display the
track list.
u You can also display the list by
selecting the track name.
2. Select a track.
u Select the tab to change songs
in the track list.
The following items are available:
• Folder : Select the previous or next folder.
• Track : Select the previous or next track. Select and hold to move rapidly
within a track.
USB mode
Operation panel
Open/Close tab
Track list
160
uuPlaying a USB Flash DriveuAudio Menu
Audio
Audio Menu
H HOME u Audio (in USB mode) u MENU
Select an item.
The following items are available:
• Scan: Scans for track and plays a 10-second sample. Select Cancel to stop
scanning and play the current selection.
– Scan Folders: Scans the first track in each folder.
– Scan Tracks: Scans all tracks on the USB flash drive (or in the selected folder).
• Music Search: Selects a track from the Music Search list. You can switch the
display contents of the list by using the tab.
• Change Source: Changes the audio source mode.
• Random/Repeat:
– Repeat Folder: Repeats all tracks in the current folder.
– Repeat Track: Repeats the current track.
– Random All Tracks: Plays all tracks on the USB flash drive in random order.
– Random in Folder: Plays all tracks in the current folder in random order.
• Sound: Displays the sound preferences screen.
2 Adjusting the Sound P. 132
• Switch USB Device: Change the USB device to play when two USB devices are
connected.
1 Audio Menu
To stop repeat- or random-play, select the current
play mode again.
161
Audio
Playing Bluetooth® Audio
Your audio system allows you to listen to music tracks stored on your Bluetooth-
compatible phone.
This function is available when the phone is linked to the vehicle’s Bluetooth®
HandsFreeLink® (HFL) system.
2 Bluetooth® HandsFreeLink® P. 167
Selecting Bluetooth® Audio Mode
1. Make sure that your phone is on, paired, and linked to HFL.
2 Pairing a Phone P. 170
2. Select Audio on the HOME screen.
3. Select SOURCE.
4. Select the Bluetooth icon.
5. Select the track with Group or Track , or open the tab and select
from the track list.
u The current track name and artist name are displayed.
Check the following if the phone is not recognized:
• Another HFL-compatible phone, which is not compatible for Bluetooth Audio, is
already connected.
1 Playing Bluetooth® Audio
“BTA play”, “Bluetooth audio play”
You can control the Bluetooth Audio using voice
commands.
2 Bluetooth® Audio Commands P. 239
Not all Bluetooth-enabled phones with streaming
audio capabilities are compatible. To check if your
phone is compatible:
•
U.S.: Visit handsfreelink.honda.com.
•
Canada: Visit www.handsfreelink.ca.
In some states, it may be illegal to perform some data
device functions while driving.
In some cases, the name of the artist, album, or track
may not appear correctly.
Only one phone can be used with HFL at a time.
When there are more than two paired phones in the
vehicle, the first paired phone the system finds is
automatically linked.
If more than one phone is paired to the HFL system,
there may be a delay before the system begins to
play.
162
uuPlaying Bluetooth® AudiouSwitching to HFL Mode
Audio
Switching to HFL Mode
1. If you receive a call when
Bluetooth Audio is playing, press
the (Pick-Up) button on the
steering wheel to answer the call.
2 Bluetooth® HandsFreeLink®
P. 168
2. Press the (Hang-Up/Back)
button to end the call, and
Bluetooth® Audio is resumed.
1 Switching to HFL Mode
You can also select Answer or Hang Up on the
screen to receive or end a call.
(Pick-Up) button
(Hang-Up/Back) button
163
uuPlaying Bluetooth® AudiouAudio Screen Control
Audio
Audio Screen Control
H HOME u Audio u SOURCE u Bluetooth icon
Control the audio system through the navigation screen.
Select a track.
The following items are available:
• (Play): Plays a song.
• (Pause): Pauses a song.
• Group : Select the previous or next group.
• Track : Select the previous or next track. Select and hold to move rapidly
within a track.
1 Audio Screen Control
The display items may vary depending on the
connected device.
Some devices select a track from the list displayed on
the screen.
The following functions may not be available on
some devices:
•
Pause function
•
Group selection
Bluetooth® Audio mode
Operation panel
164
uuPlaying Bluetooth® AudiouAudio Menu
Audio
Audio Menu
H HOME u Audio (in Bluetooth Audio mode) u MENU
Select an item.
The following items are available:
• Music Search: Selects a track from the Music Search list. You can switch the
display contents of the list by using the tab.
• Change Source: Changes the audio source mode.
• Sound: Displays the sound preferences screen.
2 Adjusting the Sound P. 132
1 Audio Menu
The Music Search function may not be available on
some devices.
165
Audio
Playing a Video Using the HDMI®
Your audio system allows you to play videos from an HDMI®-compatible device
when the vehicle is stopped.
Connect the device using an HDMI® cable, and then select the HDMI® mode.
1. Open the HDMI® jack cover under
the front console.
2. Connect an HDMI®-compatible
device to the input jack using an
HDMI® cable.
■
Connecting an HDMI® Cable
1 Playing a Video Using the HDMI®
“Auxiliary play”
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
■
Recommended Video Files
Video File Types
Profile (MP4 version) Baseline Level 3 (MPEG4-AVC), Simple Level 5 (MPEG4)
File extension (MP4 version)
.mp4/.m4v
Compatible audio codec MPEG4-AVC (H.264) MPEG4 (ISO/IEC 14496 Part.2)
Bit rate 10 Mbps (MPEG4-AVC) 8 Mbps (MPEG4)
Maximum image 720 × 576 pixels
1 Recommended Video Files
DivX® files are not compatible.
166
uuPlaying a Video Using the HDMI®uSelecting HDMI® Mode
Audio
Selecting HDMI® Mode
1. Select Audio on the HOME screen.
2. Select SOURCE.
3. Select the HDMI® icon.
u The video automatically begins playing.
167
Bluetooth® HandsFreeLink®
This section describes how to operate Bluetooth® HandsFreeLink®. You can place and
receive phone calls using your vehicle’s audio system without handling your cell phone.
Bluetooth® HandsFreeLink® ................. 168
Pairing a Phone .................................... 170
Bluetooth Setting ................................. 172
Automatic Phone Sync ......................... 176
Setting Up Speed Dialing...................... 177
Phonebook Phonetic Modification........ 180
Phone Setting ...................................... 182
Making a Call....................................... 183
Receiving a Call.................................... 187
HFL Menus........................................... 188
Text/E-mail Message ............................ 192
Text/Email Setting ................................ 194
HondaLink Assist .................................. 195
168
Bluetooth® HandsFreeLink®
Bluetooth® HandsFreeLink®
■ Phone Screen
Select an item.
u Select the tab on the phone
screen to open the full list. Flick or
slide the list to scroll.
The following items are available:
• Speed Dial tab: Displays the list of stored speed dial entries.
2 Using Speed Dial P. 186
• Call History tab: Displays the call history list.
2 Using Call History P. 186
1 Bluetooth® HandsFreeLink®
You can control the HFL system using voice
commands.
2 HFL Menus P. 188
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•
U.S.: Visit handsfreelink.honda.com.
•
Canada: Visit www.handsfreelink.ca.
Voice Control Tips
•
Close the windows, as noise coming from them
may interfere with the microphones.
•
Press and release the (Talk) button before
giving a command. Speak clearly and naturally
after a beep.
2 Voice Control Operation P. 5
•
If the microphones pick up voices other than yours,
the command may be misinterpreted.
•
When HFL is in use, navigation voice commands
cannot be recognized.
•
To change the volume level, use VOL (volume) or
the remote audio controls.
Some phones may send battery, signal strength, and
roaming status information to the screen.
Bluetooth indicator
Signal strength
Battery level
169
uuBluetooth® HandsFreeLink® u
Bluetooth® HandsFreeLink®
■ Phone Menu Screen
1. Select MENU on the Phone
screen.
2. Select an item.
The following items are available:
• Speed Dial: Makes a call to stored speed dial entries.
2 Using Speed Dial P. 186
• Redial: Dials the last number.
• Call History: Displays the call history.
2 Using Call History P. 186
• Phonebook: Displays the cell phone’s imported phonebook.
2 Using the Phonebook P. 184
• Dial: Makes a call by entering the phone number.
2 Entering a Phone Number P. 185
• Text/Email: Displays received text messages list. is displayed if there is an
unread message.
2 Text/E-mail Message P. 192
1 Bluetooth® HandsFreeLink®
Bluetooth® Wireless Technology
Bluetooth word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFL Limitations
An incoming call on HFL will interrupt the audio
system when it is playing. Audio will resume when
the call is ended.
Certain touchscreen functions are disabled while the
vehicle is moving.
2 Limitations for Manual Operation P. 21
State or local laws may prohibit the operation of
handheld electronic devices while operating a
vehicle.
If you press the (Menu) button on the steering
wheel while on the Phone screen, the following items
are available. Use the steering wheel buttons to select
the items.
•
Speed Dial
•
Call History
•
Redial
170
uuBluetooth® HandsFreeLink®u Pairing a Phone
Bluetooth® HandsFreeLink®
Pairing a Phone
H HOME u Phone
When no Bluetooth®-compatible phone has ever been paired to the system, the
following screen appears:
1. Select Yes.
2. Put your cell phone in “Discovery”
or “Search” mode.
3. Select Continue.
u The system begins to search for
your phone.
4. Select your phone in the list.
u Select Refresh if your phone is
not found.
u Refer to your phone’s manual
for instructions on searching for
a Bluetooth device.
5. Enter or confirm the pairing code
on your phone when prompted to
complete the pairing process.
u After completing the pairing
process, the system prompts
you to turn on HondaLink Assist
and the Automatic Phone Sync.
2 HondaLink Assist P. 195
2 Automatic Phone Sync
P. 176
1 Pairing a Phone
Your Bluetooth-compatible phone must be paired to
HFL before you can make and receive hands-free
calls.
Phone Not Found
If your phone still does not appear, select Phone Not
Found to search for the system from the Bluetooth-
compatible phone. Refer to your phone’s manual.
Phone Pairing Tips
•
You cannot pair your phone while the vehicle is
moving.
•
Your phone must be in discovery or search mode
when pairing the phone. Refer to your phone’s
manual.
•
Up to six phones can be paired.
•
Your phone’s battery may drain faster when it is
paired to HFL.
•
If your phone is not ready for pairing or not found
by the system within a few minutes, the system will
time out and returns to idle.
Pairing Code
The default pairing code “0000” is used unless you
change the setting.
You can change the pairing code setting.
2 Changing the Pairing Code P. 173
171
uuBluetooth® HandsFreeLink®uPairing a Phone
Bluetooth® HandsFreeLink®
H HOME u Settings u Phone u Phone tab u Connect Phone
Use the Phone settings to pair an additional Bluetooth®-compatible phone if a
phone has been previously paired to the system.
1. Select Add Bluetooth Device.
2. Put your cell phone in “Discovery”
or “Search” mode.
3. Select Continue.
u The system begins to search for
your phone.
4. Select your phone in the list.
u Select Refresh if your phone is
not found.
u Refer to your phone’s manual
for instructions on searching for
a Bluetooth device.
5. Enter the pairing code on your
phone when prompted to
complete the pairing process.
u After completing the pairing
process, the system prompts
you to turn on HondaLink Assist
and the Automatic Phone Sync.
2 HondaLink Assist P. 195
2 Automatic Phone Sync P. 176
■
Pairing from Phone Setting
1 Pairing from Phone Setting
You can control the HFL system using voice
commands.
2 HFL Menus P. 188
Select another paired phone from the list to connect
another phone.
172
uuBluetooth® HandsFreeLink®u Bluetooth Setting
Bluetooth® HandsFreeLink®
Bluetooth Setting
H HOME u Settings u Bluetooth
Select an item.
The following items are available:
• Bluetooth On/Off Status: Turns the system Bluetooth on or off.
• Bluetooth Device List: Displays the list of paired phones.
2 Editing the Paired Phone Name P. 174
2 Deleting a Paired Phone P. 175
• Edit Pairing Code: Changes the pairing code.
2 Changing the Pairing Code P. 173
Continued
173
uuBluetooth® HandsFreeLink®uBluetooth Setting
Bluetooth® HandsFreeLink®
H HOME u Settings u Bluetooth u Edit Pairing Code
1. Select Fixed.
2. Delete the current paring code.
3. Enter a new paring code and
select OK.
■
Changing the Pairing Code
1 Changing the Pairing Code
When your phone is not found by the system and you
have to initiate the process from your phone, you
need to enter the pairing code from your phone.
Random
Uses a randomly generated pairing code.
The default pairing code is “0000” until you change
the setting.
174
uuBluetooth® HandsFreeLink®u Bluetooth Setting
Bluetooth® HandsFreeLink®
H HOME u Settings u Bluetooth u Bluetooth Device List
1. Select a phone to edit the name.
2. Select Edit Device Name.
3. Edit the name and select OK.
■
Editing the Paired Phone Name
175
uuBluetooth® HandsFreeLink®uBluetooth Setting
Bluetooth® HandsFreeLink®
H HOME u Settings u Bluetooth u Bluetooth Device List
1. Select a phone to delete.
2. Select Delete This Device.
3. Select Yes.
■
Deleting a Paired Phone
1 Deleting a Paired Phone
When you transfer the vehicle to a third party, delete
all paired phones.
176
uuBluetooth® HandsFreeLink®u Automatic Phone Sync
Bluetooth® HandsFreeLink®
Automatic Phone Sync
When your phone is paired, the contents of its phonebook and call history are
automatically imported to HFL.
Select On.
1 Automatic Phone Sync
You can also set from the Phone settings screen.
Select HOME and then select Settings. Select
Phone, and then select Automatic Phone Sync.
2 Phone Setting P. 182
If you switch to Off after importing the phonebook
and call history, all imported data is deleted.
On some phones, it may not be possible to import the
phonebook and call history to HFL.
The phonebook is updated after every connection.
Call history is updated after every connection or call.
Make sure your phone's settings allow for automatic
phone sync.
Up to 2,000 contacts in the phonebook and each 20
numbers in the All, Dialed, Received, and Missed calls
can be imported.
When On is selected, you can say a name and phone
type from the phonebook to make a call on the Voice
Portal screen. For example, say “Call John Smith
mobile.”
177
uuBluetooth® HandsFreeLink® uSetting Up Speed Dialing
Continued
Bluetooth® HandsFreeLink®
Setting Up Speed Dialing
H HOME u Settings u Phone u Phone tab u Edit Speed Dial
Create speed dial entries with voice tags for easy calling.
1. Select New Entry.
2. Select a number entry option.
3. Select the number and enter the
name.
u The system prompts you to
store a voice tag when you
select Import from
Phonebook or Import from
Call History.
2 Registering a Voice Tag to a
Speed Dial Entry P. 178
The following options are available:
• Manual Input: Enters a number manually.
• Import from Call History: Selects a number from the call history.
• Import from Phonebook: Selects a number from the imported phonebook.
1 Setting Up Speed Dialing
You can control the HFL system using voice
commands.
2 HFL Menus P. 188
Up to 20 speed dial entries can be stored per phone.
Import from Phonebook and Import from Call
History can be selected only when Automatic
Phone Sync is set to On.
2 Automatic Phone Sync P. 176
uuBluetooth® HandsFreeLink®u Setting Up Speed Dialing
178
Bluetooth® HandsFreeLink®
H HOME u Settings u Phone u Phone tab u Edit Speed Dial
1. Select a speed dial entry.
2. Select Edit.
3. Select Voice Tag.
4. Select Record.
5. Select Record again.
u Using the (Talk) button,
follow the prompt to enter a
voice tag.
■
Registering a Voice Tag to a Speed Dial Entry
1 Registering a Voice Tag to a Speed Dial Entry
Voice tags allow you to call speed dial entries from
the Voice Portal screen by saying the voice tag name
(e.g., “John Smith”)
2 Making a Call P. 183
•
Avoid using duplicate voice tags.
•
Avoid using “Home” as a voice tag.
•
It is easier for HFL to recognize a longer name (e.g.,
“John Smith” instead of “John”).
Select Delete to delete the stored speed dial entry.
179
uuBluetooth® HandsFreeLink® uSetting Up Speed Dialing
Bluetooth® HandsFreeLink®
H HOME u Settings u Phone u Phone tab u Edit Speed Dial
1. Select a speed dial entry.
2. Select Edit.
3. Select Voice Tag.
4. Select an item.
The following items are available:
• Play: Plays the stored voice tag.
• Record: Stores a new voice tag. Follow the prompt to enter a voice tag.
• Clear: Deletes the stored voice tag.
■
Editing a Voice Tag
180
uuBluetooth® HandsFreeLink®u Phonebook Phonetic Modification
Bluetooth® HandsFreeLink®
Phonebook Phonetic Modification
Add a voice tag to the contact name of phonebook so that it is easier for HFL to
recognize voice commands.
H HOME u Settings u System u Voice Recog tab u Phonebook Phonetic
Modification
1. Select the phone you want to add
a voice tag.
2. Select New Voice Tag.
3. Select a contact name.
4. Select Modify.
5. Select Record.
u Using the (Talk) button,
follow the prompts to complete
the voice tag.
■
Adding a New Voice Tag
1 Adding a New Voice Tag
Up to 20 phonetic voice tags per phone can be
stored.
You can only add a new voice tag for the currently
connected phone.
Select Search to select a contact name by entering
the name directly.
You can also add a Voice Tag for a speed dial.
2 Setting Up Speed Dialing P. 177
181
uuBluetooth® HandsFreeLink® u Phonebook Phonetic Modification
Bluetooth® HandsFreeLink®
H HOME u Settings u System u Voice Recog tab u Phonebook Phonetic
Modification
1. Select the phone you want to edit
a voice tag.
2. Select a contact name you want to
modify.
3. Select Modify.
4. Select Record.
u Using the (Talk) button,
follow the prompts to complete
the voice tag.
■
Editing a Voice Tag
1 Editing a Voice Tag
You can only modify or delete contact names for the
currently connected phone.
Select Delete All to delete all stored voice tags.
Select Delete to delete a stored voice tag.
Selecting Play, you can check the stored voice tag.
182
uuBluetooth® HandsFreeLink®u Phone Setting
Bluetooth® HandsFreeLink®
Phone Setting
H HOME u Settings u Phone u Phone tab
Set HFL options and features.
Select an item.
The following items are available:
• Connect Phone: Connects another paired device.
2 Pairing from Phone Setting P. 171
• Bluetooth Device List: Displays the list of paired devices.
2 Editing the Paired Phone Name P. 174
2 Deleting a Paired Phone P. 175
• Edit Speed Dial: Creates, edits, and deletes speed dial entries.
2 Setting Up Speed Dialing P. 177
• Ring Tone: Sets the ring tone.
Fixed: Uses the built-in ring tone of the system.
Mobile Phone (factory default): Uses the ring tone set for the phone.
• Automatic Phone Sync: Imports the phonebook and call history of the paired
phone automatically.
2 Automatic Phone Sync P. 176
• HondaLink Assist: Turns the HondaLink Assist on or off.
On: When a crash is detected, the vehicle will attempt to call emergency services
automatically.
Off (factory default): Disables the feature.
2 HondaLink Assist P. 195
1 Phone Setting
You can control the HFL system using voice
commands.
2 HFL Menus P. 188
183
uuBluetooth® HandsFreeLink®uMaking a Call
Continued
Bluetooth® HandsFreeLink®
Making a Call
Make calls by entering a number or using the imported phonebook, call history, or
speed dial entries.
2 Using the Phonebook P. 184
2 Entering a Phone Number P. 185
2 Using Call History P. 186
2 Using Speed Dial P. 186
1 Making a Call
You can control the HFL system using voice
commands.
2 HFL Menus P. 188
When you say the voice tag or phonebook name
(e.g., “John Smith”) on the Voice Portal screen,
the following screen appears and the system begins
calling.
2 Automatic Phone Sync P. 176
2 Registering a Voice Tag to a Speed Dial
Entry P. 178
2 Adding a New Voice Tag P. 180
Only one phone can be used with HFL at a time.
When there are more than two paired phones in the
vehicle, the first paired phone the system finds is
automatically linked.
You can redial the last number called by pressing and
hold the (Pick-Up) button for more than two
seconds.
uuBluetooth® HandsFreeLink®u Making a Call
184
Bluetooth® HandsFreeLink®
H HOME u Phone u MENU u Phonebook
1. Select a name.
u Select alphabetical tabs to
display the entries in the group.
u Select Search to select a name
by entering the name directly.
2. Select a number.
u The system begins dialing.
■
Using the Phonebook
1 Using the Phonebook
Up to three icons are displayed for each phonebook
entry. If there are more than three numbers for an
entry, … is displayed.
This feature is not available on all phones.
Home Fax
Mobile Car
Preference Voice
Work Other
Pager
Continued
185
uuBluetooth® HandsFreeLink®uMaking a Call
Bluetooth® HandsFreeLink®
H HOME u Phone u MENU u Dial
1. Enter a phone number.
2. Select Dial or press the (Pick-
Up) button to begin dialing.
■
Entering a Phone Number
1 Entering a Phone Number
A command that consists of several words can be
spoken together. For example, say “123-456-
7890” at once. You can also say a phone number
from the voice portal screen.
Symbol commands, such as #, *, +, or Pause cannot
be spoken together with numbers. Say these
commands individually.
This function is disabled while the vehicle is moving.
However, you can call a stored voice tagged speed
dial number, phonebook name, or number using
voice commands.
2 Limitations for Manual Operation P. 21
2 Setting Up Speed Dialing P. 177
2 Phonebook Phonetic Modification P. 180
U.S. models
uuBluetooth® HandsFreeLink®u Making a Call
186
Bluetooth® HandsFreeLink®
H HOME u Phone u MENU u Call History
1. Select a call.
u Select All, Dialed, Received,
Missed tabs to view the call
history by category.
u The system begins dialing.
H HOME u Phone u MENU u Speed Dial
1. Select a speed dial entry.
u The system begins dialing.
■
Using Call History
1 Using Call History
The call history displays the last 20 dialed, received, or
missed calls (appears only when a phone is connected
to HFL).
These icons next to the number indicate the
following:
: Dialed calls
: Received calls
: Missed calls
You can also select a call on the Phone screen.
2 Phone Screen P. 168
■
Using Speed Dial
1 Using Speed Dial
To make a call using speed dial, you need to create
speed dial entries.
2 Setting Up Speed Dialing P. 177
You can also select a speed dial entry on the Phone
screen.
2 Phone Screen P. 168
You can add a new speed dial entry by selecting New
Entry.
2 Setting Up Speed Dialing P. 177
187
uuBluetooth® HandsFreeLink®uReceiving a Call
Bluetooth® HandsFreeLink®
Receiving a Call
When there is an incoming call, an audible ring tone sounds and the Incoming call
screen appears.
1. Select Answer or press the
(Pick-Up) button to answer a call
and display the In call screen.
2. Select Hang Up or press the
(Hang-Up/Back) button to
terminate the call.
The following options are available during a call:
• Transfer: Allows you to transfer a call from HFL to your phone, or from your
phone to HFL.
• Mute: Allows you to mute your voice.
• Touch Tones (available on some phones): Allows you to send numbers or names
during a call. This is useful when you call an automated phone system.
1 Receiving a Call
An incoming call notification appears on the
navigation screen and you hear an audible ring tone.
Press the (Hang-Up/Back) button or select
Ignore on the Incoming call screen to ignore the call.
If your phone has call waiting, “Second incoming
call” appears on the screen. Select Swap Calls or
press the (Pick-Up) button to put the original call
on hold and answer the incoming call. To return to
the original call, select Swap Calls or press the
(Pick-Up) button again. To ignore the second
incoming call completely, select Ignore. If you want
to hang up the original call and answer the new call,
select Hang Up or press the (Hang-Up/Back)
button.
To change the volume level of HFL, use VOL (volume)
or the steering wheel volume controls.
When you use the phone mode, Incoming call is
displayed in full-screen. When you use the other
mode, it is displayed in split-screen.
Call ID
188
uuBluetooth® HandsFreeLink®u HFL Menus
Bluetooth® HandsFreeLink®
HFL Menus
The power mode of the vehicle must be in ACCESSORY or ON to use HFL.
■ Phone Setting screen
1. Select HOME and then select
Settings.
2. Select Phone.
1 HFL Menus
To use HFL, you must first pair your Bluetooth®-
compatible phone to the system while the vehicle is
parked.
Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is cancelled.
Connect a phone to the system.
Edit a previously paired phone
name.
2 Editing the Paired Phone
Name P. 174
Connect Phone
Bluetooth Device List
(Existing entry list)
Add Bluetooth Device
Disconnect*
1
Pair a phone to the system.
Disconnect a paired phone from the system.
(Existing entry list)*
1
Edit Device Name
Delete This Device
Delete a previously paired
phone.
2 Deleting a Paired Phone
P. 175
Add Bluetooth Device
*
1
: Appears only when a phone is connected to HFL.
Pair a phone to the system.
Phone
2 Pairing from Phone
Setting P. 171
189
uuBluetooth® HandsFreeLink® u HFL Menus
Continued
Bluetooth® HandsFreeLink®
*
1
: Appears only when a phone is connected to HFL.
Manual Input
New Entry
Import from Call History
Import from Phonebook
Edit
Delete
(Existing entry list)
Edit Speed Dial*
1
Delete All
Enter a phone number to
store as a speed dial number.
Select a phone number from
the call history to store as a
speed dial number.
Delete all of the previously stored speed dial number.
Select a phone number from
the phonebook to store as a
speed dial number.
Edit a previously stored speed
dial number.
•Change a name.
•Change a number.
•Create or delete a voice tag.
Delete a previously stored
speed dial number.
Ring Tone
Select the ring tone.
•Fixed
•Mobile Option
Automatic Phone Sync
*
1
Set phonebook and call history data to be automatically imported when a phone is paired to HFL.
2 Automatic Phone Sync P. 176
Default
Cancel/Reset all customized items in the Phone settings group as default.
Text/Email
2 Setting Up Speed
Dialing P. 177
HondaLink Assist*
1
Turn HondaLink Assist to on or off.
Enable Text/Email*
1
Turn the text/E-mail message function on and off.
Select Account*
1
Select a text or e-mail message account.
New Message Notification
*
1
Select whether a pop-up alert comes on the screen when HFL receives a new text/E-mail
message.
2 Text/Email
Setting P. 194
190
uuBluetooth® HandsFreeLink®u HFL Menus
Bluetooth® HandsFreeLink®
■ Phone menu screen
1. Select HOME and then select
Phone.
2. Select MENU.
Display the last 20 outgoing, incoming and missed calls.
Select a phone number from the call
history to store as a speed dial number.
Call History*
1
Speed Dial*
1
All
Manual Input
Dialed
Received
Display the last 20 outgoing calls.
Display the last 20 incoming calls.
New Entry
Import from Call History
Import from Phonebook
Select a phone number from the
phonebook to store as a speed dial
number.
Enter a phone number to store as a speed
dial number.
*
1
: Appears only when a phone is connected to HFL.
Missed
Display the last 20 missed calls.
Dial*
1
Redial*
1
Enter a phone number to dial.
2 Entering a Phone Number P. 185
Redial the last number dialed in the phone’s history.
(Existing entry list)
Dial the selected number in the speed dial list.
Phonebook*
1
Display the paired phone’s phonebook.
2 Using the Phonebook P. 184
2 Using Speed
Dial P. 186
2 Using Call
History P. 186
Search
Select a name by entering the name directly.
191
uuBluetooth® HandsFreeLink® u HFL Menus
Bluetooth® HandsFreeLink®
Make a call to the sender.
(Existing message list)
Reply
Dial
Reply to a received message using
one of six fixed phrases.
2 Replying to the Message P. 193
System reads received message
aloud, or stop message from being
read.
Read/Stop
Select Account
Select a text or e-mail message account.
Text/Email*
1
*
1
: Appears only when a phone is connected to HFL.
192
Bluetooth® HandsFreeLink®
Text/E-mail Message
If your paired phone is MAP-compatible, you can receive and hear text or e-mail
messages and reply to them using fixed reply messages.
2 Pairing a Phone P. 170
If a text message is received, the following screen is displayed.
1. Select Read.
u The text message is read aloud.
u Select Ignore to check the text
message later.
u If the phone number of the
sender is stored to the
Phonebook, the name is
displayed.
2. Select an item.
u The entire message body is not
displayed while driving.
The following items are available:
• Read: Reads the text message aloud. Select Stop to stop reading. Adjust the
volume using VOL (Volume).
• Reply: Replies to the message using a fixed reply message. You cannot create
your own messages.
2 Replying to the Message P. 193
• Dial: Dials the sender.
1 Text/E-mail Message
You can control the text messages feature using
voice commands.
To use this feature, you need a Bluetooth®- and MAP
(Message Access Profile)-compatible cell phone. For a
list of compatible phones and special feature
capabilities:
•
U.S.: Visit handsfreelink.honda.com.
•
Canada: Visit www.handsfreelink.ca.
State (provincial in Canada) or local laws may limit
your use of the HFL text/E-mail message feature. Only
use the text/E-mail message feature when conditions
allow you to do so safely.
Text/Email on the Phone menu is grayed out if your
connected phone is not compatible.
Select Text/Email from the Phone menu to view a list
of the 20 most recently received text and e-mail
messages. You can select each one to read, reply, or
call back. On U.S. models, the list cannot be scrolled
while the vehicle is moving.
193
uuText/E-mail Messageu
Bluetooth® HandsFreeLink®
1. Select the message you want to
use.
2. Select Send.
■
Replying to the Message
1 Text/E-mail Message
You can set up text message notification when the
first message for the paired phone is received. You
can change the setting from the Phone settings
screen.
2 Text/Email Setting P. 194
If you delete a message on the phone, the message is
also deleted in the system. If you send a message
from the system, the message goes to your phone’s
outbox.
194
uuText/E-mail MessageuText/Email Setting
Bluetooth® HandsFreeLink®
Text/Email Setting
H HOME u Settings u Phone u Text/Email tab
Select an item.
The following items are available:
• Enable Text/Email: Turns the Text/Email feature on or off.
On (factory default): Text or e-mail messages can be received.
Off: Disables the feature.
• Select Account: Selects an account to be active and receive notifications. Select
Text Messages for SMS or an E-mail message account you want. Only one
account can be active at a time.
• New Message Notification: Sets whether to give an incoming message
notification.
On: Gives an incoming message notification.
Off: Messages are still received, but without notification.
195
Continued
Bluetooth® HandsFreeLink®
HondaLink Assist
If your vehicle’s airbags deploy or if the unit detects that the vehicle is severely
impacted, your vehicle automatically will attempt to connect to the HondaLink
operator. If connected, information about your vehicle, its location and its condition
will be sent to the operator; you also can speak to the operator when connected.
To use this function, you need to connect a phone via Bluetooth® in advance.
2 Pairing a Phone P. 170
1. Select Call Now.
u If you do not select Call Now,
HondaLink Assist automatically
attempts to call emergency
services after 10 seconds.
1 HondaLink Assist
IMPORTANT: Owner activation constitutes
authorization for Honda to collect information from
your vehicle needed to provide the service, and
agreement to the Terms and Conditions at
www.hondalink.com/TermsAndConditions. In a
crash, HondaLink Assist will attempt to notify
emergency services but NEITHER Honda NOR ITS
SERVICE PROVIDERS GUARANTEE THAT SUCH
NOTIFICATION WILL OCCUR.
Honda reserves the right to terminate HondaLink
Assist services at any time or for any reason, and in
the future may not be able to provide services due to
changes in, or obsolescence of, technology integral
to the service or changes in governmental regulation.
This function may not work properly depending on
the phone, carrier, or contract conditions.
Your vehicle may not be able to connect to the operator
if the battery level is low, the line is disconnected, or you
do not have adequate cellular coverage.
You cannot use emergency services when:
•
You travel outside the HondaLink service coverage
areas.
•
There is a problem with the connecting devices, such
as the microphones, speakers, or the unit itself.
uuHondaLink Assistu
196
Bluetooth® HandsFreeLink®
2. Talk to the operator.
u Select Talk Now to talk to the
operator immediately.
u The call with the operator may
be interrupted to confirm
information about your vehicle
location.
u Select Hang Up or press the
(Hang-Up/Back) button to
hang up the call.
1 HondaLink Assist
You cannot operate other navigation- or phone-
related functions using the screens while talking to
the operator.
If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.
If you select Cancel or press the (Hang-Up/Back)
button before calling the operator, you can cancel
the call.
197
Other Features
This section describes the useful functions incorporated into the navigation system.
Trip Computer ....................................... 198
Information Functions .......................... 199
System/Device Information ................... 200
Multi-View Rear Camera ...................... 202
198
Other Features
Trip Computer
H HOME u Info u MENU u Trip Computer
View the distance traveled and average fuel consumption.
Select an item.
The following items are available:
• Current Drive tab: Displays the current trip information.
• History of Trip A tab: Displays information for the three previous drives. The
information is stored every time you reset Trip A.
1 Trip Computer
Displays the following trip information:
•
Instant Fuel Economy: The current estimated
instant fuel economy.
•
Average Fuel Economy: The average fuel
economy since the last key cycle.
•
1st, 2nd, 3rd Prev.: The previous average fuel
consumption.
•
Range: The estimated distance you can travel on
the fuel remaining in the tank.
These values are estimates only.
Select Delete history to delete the trip information.
199
Other Features
Information Functions
H HOME u Info u MENU
Check the information about the system or the vehicle.
Select an item.
The following items are available:
• Traffic Incidents: Displays a list of the traffic incidents around your current
location or on your route.
2 Traffic Rerouting
TM
Manually P. 110
• Clock/Wallpaper: Displays the clock/wallpaper screen.
2 Clock Adjustment P. 70
• System/Device Information: Displays the system and USB device information.
2 System/Device Information P. 200
• Trip Computer: Displays the distance traveled and average fuel consumption.
2 Trip Computer P. 198
• Voice Info: Displays the voice commands list.
2 Voice Help P. 15
1 Information Functions
Info Screen Preference
You can set the Info screen type.
1. Select HOME and then select Settings.
2. Select Clock/Info. Select Info tab, and then select
Info Screen Preference.
3. Select one of the following options:
•
Info Top: Displays the pop-up window to prompt
you to select Trip Computer or Clock/Wallpaper.
•
Info Menu: Displays the pop-up window of the
Info Menu.
•
OFF (factory default): Does not display any pop-up
window.
If you set Remember Last Screen to On, the pop-up
windows are not displayed on some screens.
Traffic Incidents are only available in certain areas.
200
uuInformation FunctionsuSystem/Device Information
Other Features
System/Device Information
H HOME u Info u MENU u System/Device Information
Check the system and the USB device information.
Select an item.
The following items are available:
• System Info: Displays the version information of the system.
2 System Information P. 201
• Map Update: Updates the map database via an updated USB device.
2 Map Update P. 201
• USB Info: Displays the information of the connected USB device.
• About Map Update: Displays the information about the map update.
1 System/Device Information
When you transfer the vehicle to a third party, delete
all stored data.
201
uuInformation FunctionsuSystem/Device Information
Other Features
H HOME u Info u MENU u System/Device Information u System Info
View database, software version, device number, and vehicle identification
information.
H HOME u Info u MENU u System/Device Information u Map Update
Update the map database.
■
System Information
1 System Information
You will need this information when ordering a map
update.
2 Obtaining a Navigation Update P. 228
■
Map Update
1 Map Update
When you order a map update, it is mailed to you on
a USB flash drive.
2 Obtaining a Navigation Update P. 228
202
Other Features
Multi-View Rear Camera
Your vehicle is equipped with a multi-view rear camera. When you shift into Reverse,
the rear view is displayed on the navigation system screen. The edge of the bumper
and parking guidelines are also displayed.
Select HOME to increase brightness
or MENU to decrease brightness.
While the rear view is displayed,
touch , or to
switch between wide, normal, and
top down view modes.
1 Multi-View Rear Camera
Always keep the camera lens clean and
unobstructed. The multi-view rear camera has a lens
that makes distances appear different than they
actually are. Always take care when reversing, and
look behind you for obstacles.
Navigation controls are disabled when in Reverse.
If you turn the guidelines off, they remain off until
you turn them back on.
Adjusting the brightness for the multi-view rear
camera display does not affect the brightness for the
navigation screen.
If the last used viewing mode is wide or normal, the
same mode is selected the next time you set the
power mode to ACCESSORY or ON. If top down view
was last used, wide mode is selected.
Press the button to adjust the brightness.
U.S. models
Canadian models
Multi-View
Rear Camera
Screen display
Bumper
Guidelines
Camera
Approx. 3.3 ft (1 m)
Approx. 6.6 ft (2 m)
Approx. 9.8 ft (3 m)
Approx. 1.7 ft
(50 cm)
Trunk open range
Approx. 9.8 ft (3 m)
Approx. 6.6 ft (2 m)
Approx. 3.3 ft (1 m)
: Displays in wide view mode.
: Displays in normal view mode.
: Displays in top down view mode.
203
uuMulti-View Rear Camerau
Other Features
H HOME u Settings u Camera u Rear Camera
The following items are available:
• Fixed Guideline:
– On (factory default): Guidelines appear when you shift into Reverse.
– Off: Guidelines do not appear.
• Dynamic Guideline:
– On (factory default): Guidelines move according to the steering wheel direction.
– Off: Guidelines do not move.
■
Rear Camera Setting
1 Rear Camera Setting
The dynamic guidelines are displayed only on the
wide view mode or the normal view mode.
You can also change the rear camera setting by
selecting MENU on the rear camera screen. When
you select MENU, the following items are available in
additional:
•
Display: Adjusts the screen preference of the rear
camera screen.
–
Display tab: Adjusts Brightness, Contrast, and
Black Level of the rear camera screen.
–
Color tab: Adjusts Color and Tint of the rear
camera screen.
Canadian models
204
205
Troubleshooting
Troubleshooting ....................................206
Map, Voice, Entering Destinations.........206
Traffic ...................................................208
Guidance, Routing ................................209
Update, Coverage, Map Errors ..............210
Smartphone Connection .......................211
Display, Accessories ..............................212
Multi-View Rear Camera .......................212
Miscellaneous Questions .......................213
Error Messages...................................... 214
Navigation System................................ 214
Disc Player............................................ 215
Pandora®
*
............................................ 216
iPod/USB Flash Drive............................. 218
Bluetooth® HandsFreeLink® .................. 219
Smartphone Connection ...................... 220
* Not available on all models
206
Troubleshooting
Troubleshooting
Map, Voice, Entering Destinations
Problem Solution
The Startup Confirmation screen is displayed every
time I start the car.
This is normal. The Startup Confirmation screen reminds you and your guest
drivers to always operate the navigation system in a safe manner. The Startup
Confirmation screen goes off after a certain period of time, even if you do not
select OK.
The navigation system reboots by itself (returns to
the opening screen).
A reboot can be caused by extreme temperatures or shock from bumpy roads, and
does not necessarily indicate a problem. If this happens frequently, please see your
dealer.
How do I specify a destination when an entered city
or street could not be found?
●
Try entering the street first. Some cities are lumped in with a major metro area.
In rural “unverified” areas or new subdivisions, streets may be missing or only
partially numbered.
●
Try selecting the destination directly from the map.
2 Map Input P. 96
Why do some letters become grayed out when I
enter an address?
As you enter each letter in an address or a place/landmark, the navigation system
looks in the database to see what letters are possible and grays out letters that do
not apply.
How do I delete Addresses in my address book, or
the Home Address?
1. Select HOME > Settings > Navigation > Personal Info tab to display the
types of information.
2. Select the type of address to delete.
3. Select Delete.
I cannot hear the navigation system voice. 1. Select HOME > Settings > System > Sound/Beep tab and check that Volume
is not set to 00.
2 Volume Setting P. 68
2. Select Voice Recog tab on the System settings screen and set Voice Prompt to
On.
2 Voice Recognition Settings P. 69
207
uuTroubleshootingu Map, Voice, Entering Destinations
Troubleshooting
The voice control system is having difficulty
recognizing my voice commands.
●
Check that the vents are not blowing air onto the microphones at the top of the
navigation screen, the vehicle interior is as quiet as possible, and you are using
the correct command when speaking.
2 Voice Recognition P. 23
●
Say “Help” on any screen to see a list of the applicable voice commands.
The navigation system pronunciation of destination
address sounds strange.
The basic guidance phrases use a studio-recorded voice, but destination address is
pronounced using a machine-generated voice. Consequently, it may be
mispronounced or sound strange at times.
The screen is bright when I drive at night. 1. Check that the nighttime dashboard brightness control is not set to maximum.
2. Press the (Display mode) button to change the Brightness Settings for
Night mode.
2 Switching Display Mode Manually P. 25
The screen is dark when I drive during the day. Press the (Display mode) button to change the Brightness Settings for Day
mode.
2 Switching Display Mode Manually P. 25
How do I change or remove my PIN? 1. Select HOME > Settings > Navigation > Personal Info tab > PIN Number >
Go Home 1 PIN, Go Home 2 PIN or Address Book PIN.
2. Enter your existing PIN. You then have the choice to change or remove the PIN.
2 PIN Numbers P. 34
I have forgotten my PIN. How do I reset the PIN for
Home or the PIN for address books?
Your dealer must reset the PIN for you.
Why is the phone number grayed out on the
Calculate Route screen?
Your phone is not paired to Bluetooth® HandsFreeLink® or, if paired, your phone
is in use.
Problem Solution
208
uuTroubleshootinguTraffic
Troubleshooting
Traffic
Problem Solution
Traffic information is missing or is not displaying
properly. What is wrong?
Verify the following:
●
Traffic information relies on a clear signal. If signal strength is low, traffic data
may not be available.
●
Check that the traffic icons are turned on.
2 Showing Icons on the Map P. 51
●
It is possible that there is a temporary technical problem with your metropolitan
area traffic information provider. You can call Honda Automobile Customer
Service to see if there is an outage.
2 Honda Automobile Customer Service Contact Information P. 226
●
If the situation persists, see your Honda dealer for assistance.
●
Traffic information is available only in certain areas.
The navigation system sometimes provides a detour
route when I am driving a route on the freeway.
If Traffic Rerouting is set to On, the navigation system provides a detour route
to your destination only if it can find a significantly faster route than the original
one.
2 Traffic Rerouting P. 42
The navigation system routes me to an exit and an
alternate freeway with unknown flow speeds or
surface streets.
The navigation system predicts which route should be faster based on freeway
congestion along your route. Use your own experience to determine whether the
alternate route would be faster.
How can I ignore the detour route and return to the
original route?
Select HOME > Settings > Navigation > Routing tab, and set Traffic
Rerouting to Off.
2 Traffic Rerouting P. 42
209
uuTroubleshootinguGuidance, Routing
Continued
Troubleshooting
Guidance, Routing
Problem Solution
The navigation system does not route me the same
way I would go or the same way as other mapping
systems.
The navigation system attempts to generate the optimal route. You can change
the route preferences used when calculating a route.
2 Route Preference P. 39
The street I’m on is not shown on the map screen. The mapping database is constantly undergoing revision. You can access the most
recent information on the internet.
2 Map Coverage P. 227
The vehicle position icon is not following the road
and the “GPS icon” text in the upper left hand
corner of the screen is white or missing.
●
Check that the GPS antenna (located in the dashboard) is not blocked. For best
reception, remove items from the dashboard, such as radar detectors, cell
phones, or loose articles.
●
Metallic tinting or other aftermarket devices can interfere with GPS reception.
Please consult your dealer.
2 GPS P. 224
The blue highlighted route and voice guidance
stopped or turned into a pink line before I got to my
destination.
Your route has entered an unverified area.
2 Unverified Routing P. 40
How do I stop the map from rotating as I drive
along?
Select the map orientation icon on the map screen to select the north-up icon, or
say “Display north-up” to change the map orientation.
Sometimes, I cannot select between the North-up,
Heading-up and 3D map orientations.
The Heading-up map orientation can only be shown in the lower scales (1/20 - 1
mile (80 m-1.6 km) scales). The 3D map orientation can only be shown in the
lower scales (1/20 - 2 mile (80 m-3 km) scales).
2 Map Scale and Functions P. 58
The “time to destination” display sometimes
increases even though I am getting closer to my
destination.
If your speed reduces due to slower traffic, the navigation system updates the
“time to destination” based on your actual road speed to give you a better
estimate of arrival time.
210
uuTroubleshootinguUpdate, Coverage, Map Errors
Troubleshooting
Update, Coverage, Map Errors
Problem Solution
The vehicle position icon on the map “lags” a short
distance behind, especially when I arrive at an
intersection.
This is normal. The navigation system is unaware of the width of intersections.
Large differences in vehicle position can indicate a temporary loss of GPS signal.
2 GPS P. 224
The screen is showing white dots as I drive along. These dots are called “breadcrumbs.” These are displayed if Off-road Tracking is
set to On and you drive more than 1/2 mile off mapped roads.
2 Off-road Tracking P. 61
How do I remove the white dots (“breadcrumbs”)
from my screen?
Select HOME > Settings > Navigation > Map tab, and set Off-road Tracking
to Off, then return to the map.
2 Off-road Tracking P. 61
A road that I selected to avoid is being used when
routing.
When you set your area to avoid, make sure to select sections of roads that include
at least one intersection.
2 Avoiding Streets P. 119
My elevation (shown when I display the current
position) seems to fluctuate even though my
elevation has not changed.
This is normal. The elevation can vary ±100 feet due to GPS calculation errors.
2 GPS P. 224
My elevation is missing on the “current position”
screen.
The elevation is only displayed if the GPS antenna can receive signals from at least
four satellites. Try moving the vehicle into an open area. The elevation is also not
displayed if the calculated elevation is zero or below sea level.
Problem Solution
My city is not part of a fully verified detailed
coverage area.
The mapping database is constantly undergoing revision. You can access the most
recent information on the internet.
2 Map Coverage P. 227
211
uuTroubleshootinguSmartphone Connection
Troubleshooting
Smartphone Connection
Does the navigation system work outside North
America?
The navigation system contains maps for the 50 U.S. states, Canada, and Puerto
Rico. The navigation system will not work in Mexico or other countries.
2 Map Coverage P. 227
Can I play video DVDs in my navigation system? No. The navigation system is designed only to read music discs. If you experience
any problems that you cannot resolve, please contact your dealer.
How do I report errors I find in the database? Minor errors are bound to occur in a large database. If you encounter major errors, see
2 Reporting Errors P. 226
Problem Solution
I cannot connect my smartphone to the system.
●
Make sure your smartphone is compatible with the system, and that it is paired
and linked to Bluetooth® HandsFreeLink®. To check phone compatibility,
–
U.S.: Visit handsfreelink.honda.com
– Canada: Visit www.handsfreelink.ca
2 Pairing a Phone P. 170
●
The HondaLink app must be installed on your smartphone to connect to the
system. For more information:
–
U.S.: Visit www.hondalink.com
– Canada: Visit www.honda.ca/hondalink
●
Check that your smartphone is in good operating condition. Then try the
following operations on your smartphone.
–
Unlock the security.
– Connect to the system on the HOME screen.
– Close all apps.
– Restart the smartphone.
Problem Solution
212
uuTroubleshootinguDisplay, Accessories
Troubleshooting
Display, Accessories
Multi-View Rear Camera
Problem Solution
The display appears dim when starting the car in
really cold weather.
This is normal. The display will become brighter after a few minutes.
Problem Solution
When I shift gears, the multi-view rear camera
image display is delayed.
This is normal. When shifting into or out of Reverse, you may experience a delay
while the screen image switches between the navigation screen and the multi-
view rear camera image.
The multi-view rear camera image is too dark or too
bright. How do I adjust the brightness?
While the camera image is displayed, select HOME to increase brightness or
MENU to decrease brightness.
This adjustment does not affect the navigation screen brightness settings.
213
uuTroubleshootinguMiscellaneous Questions
Troubleshooting
Miscellaneous Questions
Problem Solution
My clock frequently changes forward and backward
by one hour.
The clock setting is automatically updated based on your GPS location. If you live
and work on the boundary between two time zones, you can turn off this feature.
2 Clock Adjustment P. 70
The clock changes even when I am not driving near
a time zone boundary.
The time zone boundaries are only approximated in the navigation system.
Depending on the geography of the time zone boundary, the switch to a different
zone can be erratic.
2 Clock Adjustment P. 70
My state does not observe daylight saving time.
How do I turn off this feature?
Select
HOME
>
Settings
>
Clock/Info
>
Clock
tab, and set
Auto Daylight
to
Off
.
2 Clock Adjustment P. 70
Daylight saving time has started, but the navigation
system did not change time even though Auto
Daylight is set to ON.
The automatic daylight saving time feature does not work in regions where the
daylight saving time system has not been adopted.
The navigation system automatic daylight feature is
not switching the navigation system clock on the
correct dates.
Select HOME > Settings > Clock/Info > Clock tab, and set Auto Daylight to On.
Note that the automatic daylight feature does not work in regions where the
daylight saving time system has not been adopted.
2 Clock Adjustment P. 70
The navigation system clock switched by one hour
for no apparent reason.
You may be driving near a time zone boundary.
2 Clock Adjustment P. 70
My battery was disconnected or went dead, and the
navigation system is asking for a code.
Press and hold the (Audio Power) button for two seconds. The system should
reactivate. If you have installed an aftermarket system, see your dealer.
2 Entering the Security Code P. 222
How do I change the interface language? Select HOME > Settings > System > Others tab > Language, and set the
language to English, Français, or Español.
214
Troubleshooting
Error Messages
Navigation System
Error Message Solution
The system is unable to start due to excessive
heat.
The system will start after the system cools.
The flash memory temperature is too high. The system turns back on automatically
when the flash memory cools down. If the error persists, contact your dealer.
The display temperature is too high. The system turns back on automatically when
the display cools down.
The route could not be calculated There is no road for calculating around your vehicle position. Try calculating a
route again after moving your vehicle near a street.
There is no road for calculating near the destination or the waypoint. Try another
destination or waypoint.
The destination is too far. Try another destination, or add a waypoint on the route.
215
uuError MessagesuDisc Player
Troubleshooting
Disc Player
Error Message Cause Solution
Bad Disc
Please check Owner's Manual
Please push eject button
Disc with dust Clean off the dust on the disc.
Condensation on disc Play the disc after a while.
Disc scratched or deformed Do not use the scratched or deformed disc.
Disc placed upside down Insert the disc label side up.
Disc not supported Insert a disc playable with the system.
2 Recommended Discs P. 145
216
uuError MessagesuPandora®
*
Troubleshooting
Pandora®
*
Error Message Cause Solution
The connected USB device has
a problem.
See Owner’s Manual
The overcurrent protection
feature of the system stops
supplying power to USB because
an incompatible device is
connected.
An incompatible device is connected. Disconnect the device, and
turn the audio system off and on. Do not reconnect the device that
caused the error.
Pandora App version is not
supported
The Pandora version is not
supported.
The Pandora version is not supported. Update to the latest version.
Unable to save bookmark. The bookmark operation is
failed.
The commanded operation failed. Try again later.
Pandora system maintenance. The Pandora server is in
maintenance.
The Pandora server is in maintenance. Try again later.
* Not available on all models
217
uuError MessagesuPandora®
*
Troubleshooting
Error Message Cause Solution
Unable to connect to
Pandora. When stopped,
check your mobile phone.
The Pandora® app failed to start
because of the following device
errors:
●
The display on your
smartphone is turned off.
●
Your smartphone is locked.
●
The home screen or the app
screen (music screen) is not
displayed on your
smartphone.
●
The track is not played on your
smartphone even after 30
seconds have passed.
●
The Pandora app is not
installed in your device, or the
Pandora version is not
supported.
●
Turn the phone screen on, and make sure it is unlocked.
●
The Pandora version is not supported. Update to the latest
version.
The Pandora app in your
smartphone is not compatible
with the app launcher system.
Download the most recent version of the Pandora app.
The required app is not installed.
218
uuError MessagesuiPod/USB Flash Drive
Troubleshooting
iPod/USB Flash Drive
Error Message Cause Solution
The connected USB device has
a problem.
See Owner’s Manual
The USB connector error occurs.
●
Disconnect the iPod or the USB device from the USB connector,
and reconnect them.
●
Turn the audio system off, and turn it on again pressing the
(Audio Power) Button.
●
Set the Power Mode to OFF, and then turn the mode ON or
ACCESSORY.
If the error persists, contact your dealer.
The iPod cannot be
authenticated.
An unsupported format device is
connected.
Check a supported format of the USB device.
The iPod version is not
supported.
Update your iPod to the latest version.
A connected device is not
compatible with the USB
connector.
Connect a device compatible with the USB connector.
2 USB Flash Drives P. 157
Unplayable File The music files in the USB flash
drive are not compatible.
Check the compatible files.
The format of music files is not
appropriate.
Change the format of music files.
Copyright error WMA and ACC files protected by digital rights management (DRM)
cannot be played.
219
uuError MessagesuBluetooth® HandsFreeLink®
Troubleshooting
Bluetooth® HandsFreeLink®
Error Message Cause Solution
Unable to pair with your
device.
Please try again.
The system failed to connect to
the Bluetooth® device.
●
Make sure that Bluetooth function is turned ON, on your
Bluetooth-compatible device. For details, check the manual of
your Bluetooth-compatible device.
●
Try pairing your Bluetooth device again.
2 Pairing a Phone P. 170
If the problem is not resolved yet, contact your dealer.
Unable to add smartphone.
Please check the settings in
your smartphone.
The settings in your phone are
not correct.
Make sure the settings in your phone are set to allow Bluetooth
connection.
Unable to import phonebook.
Please try again later.
Your phone is not compatible
with Automatic Phone Sync.
Check that your phone is compatible with Automatic Phone Sync.
Visit:
●
U.S.: handsfreelink.honda.com
●
Canada: www.handsfreelink.ca
220
uuError MessagesuSmartphone Connection
Troubleshooting
Smartphone Connection
Error Message Cause Solution
This Smartphone is not
supported.
Smartphone is not compatible
Unable to start the app.
When safe, please check your
mobile device.
Lost communication with
smartphone
Your phone is not compatible. Your phone is not compatible with the system. Visit:
●
U.S.: handsfreelink.honda.com
●
Canada: www.handsfreelink.ca
Unable to start the app.
When safe, please check your
mobile device.
One or more of the required
HondaLink apps are not
installed. Please download
from the App Store
Lost communication with
smartphone
The cable is not connected. Try connecting your smartphone again. To view connection
information:
●
U.S.: handsfreelink.honda.com
●
Canada: www.handsfreelink.ca
The smartphone is not
connected properly.
Appears when the HondaLink
app is not installed in your
smartphone.
Install the HondaLink app in your smartphone. For more
information visit:
●
U.S.: www.hondalink.com
●
Canada: www.honda.ca/hondalink
Unable to connect to mobile
device using Bluetooth.
Please check Settings in the
Audio Unit.
Appears when your phone is not
paired with the system.
Make sure that Bluetooth® function is turned ON in the system and
your phone, and try pairing it again.
2 Pairing a Phone P. 170
221
Reference Information
System Initialization..............................222
Entering the Security Code....................222
Acquiring GPS Information....................222
Startup Confirmation Screen.................223
Map Matching ......................................223
System Limitations ................................224
GPS ......................................................224
Address Calculation ..............................224
Database ..............................................224
Customer Assistance .............................226
Resolving Problems ...............................226
Reporting Errors....................................226
Honda Automobile Customer Service
Contact Information............................226
Visiting Your Dealer ............................. 227
Map Coverage ..................................... 227
Obtaining a Navigation Update ............ 228
Traffic Information ............................... 228
Operation in Alaska, Hawaii, Canada, and
Puerto Rico............................................. 228
Shipping a Vehicle to the U.S. Mainland .. 228
Legal Information ................................. 229
User Agreement................................... 229
As required by the FCC ........................ 231
222
Reference Information
System Initialization
The navigation system must be initialized if
power to the navigation system is
interrupted for any reason (e.g., the battery
was disconnected).
Entering the Security Code
Find the navigation system’s security code
and serial number label in your Owner’s
Manual kit. Do not store the label in your
vehicle. If you lose the label, you must first
retrieve the serial number, and then obtain
the code. You can find out about your serial
number and security code from a dealer.
1. Set the power mode to ON, and turn on
the audio system.
2. Press and hold the audio system power
button for more than two seconds.
u The system is reactivated when the
system’s control unit recognizes that
the system is in your vehicle. If the
control unit fails to recognize, Enter
Code appears on the navigation
screen.
3. Enter the security code.
u If you do not enter the security code
correctly after 10 tries, leave the
system for one hour before trying
again, or visit a dealer to have the
system reset.
In the U.S., you can register the security
code on Honda Owners
(owners.honda.com). To find information
on how to retrieve the serial number and
obtain the code, visit
radio-navicode.honda.com.
Acquiring GPS Information
Depending on the length of time the power
was interrupted, your system may require
GPS initialization.
If initialization is not necessary, the system
proceeds directly to the Startup
Confirmation screen.
If the system fails to locate a sufficient
number of satellites to locate your position
within 10 minutes, the following screen is
displayed.
223
uuSystem Initializationu Startup Confirmation Screen
Reference Information
If you are experiencing GPS reception
problems:
2 GPS P. 224
Startup Confirmation
Screen
The Startup Confirmation screen is
displayed when initialization has
successfully completed. It is displayed every
time you start your vehicle. Select OK to
continue.
“OK” cannot be selected using a voice
command.
Map Matching
Map matching is the process of using the
acquired GPS information to locate your
position on the map screen. If you are on a
mapped road, the name of the road is
displayed along the bottom of the map
screen when map matching is completed.
Do not enter a destination until the road
name is displayed.
The system may initially show your location
on a different street (e.g., in urban areas
where streets are close together), may show
an incorrect elevation, or may delay the
display of the vehicle position icon at
intersections. This is normal; the system will
correct itself while you drive.
224
Reference Information
System Limitations
GPS
The signals received from GPS satellites are
extremely weak (less than a millionth of the
strength of a local FM station) and require
an unobstructed view of the sky. The GPS
antenna is located in the dashboard. The
signal reception can easily be interrupted or
interfered with by the following:
• Metallic window tint on the front or side
windows
• Cell phones, PDAs, or other electronic
devices docked in a cradle or lying loose
on the dashboard
• Remote starters or “hidden” vehicle
tracking systems mounted near the
navigation unit
• Audio electronic devices mounted near
the navigation unit
• Trees, tall buildings, freeway overpasses,
tunnels, or overhead electrical power
wires
GPS is operated by the U.S. Department of
Defense. For security reasons, there are
certain inaccuracies built into GPS for which
the navigation system must constantly
compensate. This can cause occasional
positioning errors of up to several hundred
feet.
Address Calculation
The destination icon shows only the
approximate location of a destination
address. This occurs if the number of
possible addresses is different from the
number of actual addresses on a block. For
example, the address 1425 on a 1400 block
with 100 possible addresses (because it is
followed by the 1500 block) will be shown a
quarter of the way down the block by the
system. If there are only 25 actual addresses
on the block, the actual location of address
1425 would be at the end of the block.
Database
The digitized map database reflects
conditions as they existed at various points
in time before production. Accordingly,
your database may contain inaccurate or
incomplete data or information due to the
passage of time, road construction,
changing conditions, or other causes.
For example, some places/landmarks may
be missing when you search the database
because the name was misspelled, the place
was improperly categorized, or a place/
landmark is not yet in the database. This is
also true for police stations, hospitals, and
other public institutions. Do not rely on the
navigation system if you need law
enforcement or hospital services. Always
check with local information sources.
225
uuSystem LimitationsuDatabase
Reference Information
In addition, the map database contains
verified and unverified areas. Unverified
streets may be missing from the map, in the
wrong location, or have an incorrect name
or address range. A message will warn you
if your route includes unverified streets.
Exercise additional caution when driving in
unverified areas.
The database does not include, analyze,
process, consider, or reflect any of the
following categories of information:
• Neighborhood quality or safety
• Population density
• Availability or proximity of law
enforcement
• Emergency, rescue, medical, or other
assistance
• Construction work, zones, or hazards
• Road and lane closures
• Legal restrictions (such as vehicular type,
weight, load, height, and speed
restrictions)
• Road slope or grade
• Bridge height, width, weight, or other
limits
• Traffic facilities safety
• Special events
• Pavement characteristics or conditions
Every effort has been made to verify that
the database is accurate. The number of
inaccuracies you experience increases the
longer you go without obtaining an
updated map database.
2 Obtaining a Navigation Update P. 228
We assume no liability for any incident that
may result from an error in the program, or
from changed conditions not noted above.
226
Reference Information
Customer Assistance
Resolving Problems
If you run into a specific issue that you
cannot resolve, consult the following help
resources:
• For navigation system issues:
2 Troubleshooting P. 206
There are also FAQs available online at
automobiles.honda.com.
• For questions regarding Bluetooth®
HandsFreeLink®:
2 Bluetooth® HandsFreeLink® P. 168
• For questions regarding the smartphone
connection:
– U.S.: Visit handsfreelink.honda.com.
– Canada: Visit www.handsfreelink.ca.
• For traffic-related issues:
2 Traffic P. 208
• For reporting issues with the database or
places/landmarks:
2 Reporting Errors P. 226
• Call Honda Automobile Customer
Service.
2 Honda Automobile Customer Service
Contact Information P. 226
Reporting Errors
You can help to improve database accuracy
by reporting any errors you encounter.
• Report errors in freeways and main
“verified” roads shown in black on the
map at http://mapreporter.navteq.com/
dur-web-external/.
• Please do not report errors in purple
“unverified” roads. Maps for these areas
are provided for reference only.
2 Unverified Routing P. 40
• Please do not report errors in places/
landmarks, such as changes in business
names. Information about points of
interest are constantly being updated. An
updated database is available for
purchase, usually in the fall of each year.
2 Obtaining a Navigation Update
P. 228
• For vehicle position icon errors, screen
error messages, or other GPS-related
errors:
2 Troubleshooting P. 206
2 System Limitations P. 224
Honda Automobile
Customer Service Contact
Information
Honda Navi
American Honda Motor Co., Inc.
Honda Automobile Customer Service
Mail Stop 500-2N-7A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 999-1009
Fax: (310) 783-3023
Honda Canada Inc.
Honda Customer Relations
180 Honda Blvd.
Markham, ON
L6C 0H9
Tel: (888)-9-HONDA-9
Hours: 8:00 am to 7:30 pm Mon to Fri (EST)
227
uuCustomer AssistanceuVisiting Your Dealer
Reference Information
Visiting Your Dealer
If you have a question that you cannot
resolve using the available help resources,
you can consult your dealer. Please identify
the specific issue (e.g., error occurs when
you enter a specific address, when driving
on a certain road, or just when it’s cold) so
that the service advisor can refer the issue to
the factory so that a solution can be found.
Be patient, the service advisor may be
unfamiliar with your specific issue.
Map Coverage
The navigation system provides map
coverage for the contiguous United States,
Alaska, Hawaii, Canada, and Puerto Rico.
The map coverage consists of accurately
mapped (verified) metropolitan areas and a
less accurate (unverified) rural database.
Note that unverified areas are constantly
being reviewed and converted to verified
areas each year.
Contiguous United States
Hawaii
Puerto Rico
Canada
Alaska
Map coverage update information is
available from Honda Automobile
Customer Service or online at:
•U.S.: www.hondanavi.com
• Canada: www.honda.ca
To find navigation system update
information:
1. Visit the website:
• U.S.: www.hondanavi.com
• Canada: www.honda.ca
2. Select your vehicle model and model
year.
3. Click Map Coverage to display a list of
verified coverage areas on the most
recent update.
4. Click Map Coverage Details to display a
PDF document with a full listing of all
coverage areas.
u Adobe® Reader® is required for
viewing and printing the Portable
Document Format (PDF) documents.
To download the latest version of
Adobe Reader, visit http://
get.adobe.com/reader/.
228
uuCustomer AssistanceuObtaining a Navigation Update
Reference Information
Obtaining a Navigation
Update
Honda is continually expanding the scope of
the navigation system. Navigation system
software upgrades may be made available
periodically, usually in the fall of each year.
To purchase an updated data file:
1. Obtain your vehicle’s VIN number and the
System/Device Information.
2 System/Device Information P. 200
2. Call the Honda Navigation Disc Fulfilment
Center at (888) 291-4675, or order
online at:
•U.S.: www.hondanavi.com
• Canada: www.honda.ca
Updated data is not available from your
dealer. However, the dealer may assist you
in obtaining one out of courtesy. There is no
program for free updates.
Traffic Information
• Continuously updated traffic information
is available in certain areas across the
lower 48 U.S. states, Hawaii, and
Canada.
•Visit automobiles.honda.com/traffic for a
complete listing of coverage areas and
other information.
Operation in Alaska,
Hawaii, Canada, and
Puerto Rico
Navigation-equipped vehicles delivered to
Alaska, Hawaii, and Puerto Rico are
equipped with SiriusXM® hardware, but
SiriusXM® broadcasting is not available.
There are certain functions that rely on
SiriusXM® satellite signal coverage which
are not available. Unavailable menu options
will appear gray on the LCD display.
All roads displayed on the map screens are
verified roads. Information in this manual
■
SiriusXM® Radio
*
■
Map Coverage
relating to “unverified” roads or areas is not
applicable.
Entering a destination address or place/
landmark on another island may result in a
screen caution message. This is because
there are no ferry routes between islands in
the database.
Shipping a Vehicle to the
U.S. Mainland
To receive SiriusXM®
*
audio, you must call
SiriusXM® and set up an account at
(800) 852-9696.
■
Address and Place Entry
Screens
* Not available on all models
229
Continued
Reference Information
Legal Information
User Agreement
The data (“Data”) is provided for your
personal, internal use only and not for
resale. It is protected by copyright, and is
subject to the following terms and
conditions which are agreed to by you, on
the one hand, and NAVTEQ North America,
LLC (“NT”) and its licensors (including their
licensors and suppliers) on the other hand.
© 2012 NAVTEQ. All rights reserved.
This data includes information taken with
permission from Canadian authorities,
including © Her Majesty the Queen in Right
of Canada, © Queen's Printer for Ontario, ©
Canada Post Corporation, GeoBase®, ©
The Department of Natural Resources
Canada. All rights reserved.
NAVTEQ holds a non-exclusive license from
the United States Postal Service® to publish
and sell ZIP+4® information.
©United States Postal Service® 2009. Prices
are not established, controlled or approved
by the United States Postal Service®. The
following trademarks and registrations are
owned by the USPS: United States Postal
Service, USPS, and ZIP+4.
■
END-USER TERMS
Personal Use Only. You agree to use this
Data for the solely personal, non-
commercial purposes for which you were
licensed, and not for service bureau, time-
sharing or other similar purposes.
Accordingly, but subject to the restrictions
set forth in the following paragraphs, you
may copy this Data only as necessary for
your personal use to (i) view it, and (ii) save
it, provided that you do not remove any
copyright notices that appear and do not
modify the Data in any way. You agree not
to otherwise reproduce, copy, modify,
decompile, disassemble or reverse engineer
any portion of this Data, and may not
transfer or distribute it in any form, for any
purpose, except to the extent permitted by
mandatory laws. Multi-disc sets may only be
transferred or sold as a complete set as
provided by NT and not as a subset thereof.
Restrictions. Except where you have been
specifically licensed to do so by NT, and
without limiting the preceding paragraph,
you may not (a) use this Data with any
products, systems, or applications installed
or otherwise connected to or in
■
TERMS AND CONDITIONS
communication with vehicles, capable of
vehicle navigation, positioning, dispatch,
real time route guidance, fleet management
or similar applications; or (b) with or in
communication with any positioning
devices or any mobile or wireless-connected
electronic or computer devices, including
without limitation cellular phones, palmtop
and handheld computers, pagers, and
personal digital assistants or PDAs.
Warning. The Data may contain inaccurate
or incomplete information due to the
passage of time, changing circumstances,
sources used and the nature of collecting
comprehensive geographic data, any of
which may lead to incorrect results.
No Warranty. This Data is provided to you
“as is,” and you agree to use it at your own
risk. NT and its licensors (and their licensors
and suppliers) make no guarantees,
representations or warranties of any kind,
express or implied, arising by law or
otherwise, including but not limited to,
content, quality, accuracy, completeness,
effectiveness, reliability, fitness for a
particular purpose, usefulness, use or results
to be obtained from this Data, or that the
230
uuLegal InformationuUser Agreement
Reference Information
Data or server will be uninterrupted or
error-free.
Disclaimer of Warranty: NT AND ITS
LICENSORS (INCLUDING THEIR LICENSORS
AND SUPPLIERS) DISCLAIM ANY
WARRANTIES, EXPRESS OR IMPLIED, OF
QUALITY, PERFORMANCE,
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE OR NON-
INFRINGEMENT. Some States, Territories
and Countries do not allow certain warranty
exclusions, so to that extent the above
exclusion may not apply to you.
Disclaimer of Liability: NT AND ITS
LICENSORS (INCLUDING THEIR LICENSORS
AND SUPPLIERS) SHALL NOT BE LIABLE TO
YOU: IN RESPECT OF ANY CLAIM, DEMAND
OR ACTION, IRRESPECTIVE OF THE NATURE
OF THE CAUSE OF THE CLAIM, DEMAND
OR ACTION ALLEGING ANY LOSS, INJURY
OR DAMAGES, DIRECT OR INDIRECT,
WHICH MAY RESULT FROM THE USE OR
POSSESSION OF THE INFORMATION; OR
FOR ANY LOSS OF PROFIT, REVENUE,
CONTRACTS OR SAVINGS, OR ANY OTHER
DIRECT, INDIRECT, INCIDENTAL, SPECIAL
OR CONSEQUENTIAL DAMAGES ARISING
OUT OF YOUR USE OF OR INABILITY TO USE
THIS INFORMATION, ANY DEFECT IN THE
INFORMATION, OR THE BREACH OF THESE
TERMS OR CONDITIONS, WHETHER IN AN
ACTION IN CONTRACT OR TORT OR BASED
ON A WARRANTY, EVEN IF NT OR ITS
LICENSORS HAVE BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. Some
States, Territories and Countries do not
allow certain liability exclusions or damages
limitations, so to that extent the above may
not apply to you.
Export Control. You agree not to export
from anywhere any part of the Data
provided to you or any direct product
thereof except in compliance with, and with
all licenses and approvals required under,
applicable export laws, rules and
regulations.
Entire Agreement. These terms and
conditions constitute the entire agreement
between NT (and its licensors, including
their licensors and suppliers) and you
pertaining to the subject matter hereof, and
supersedes in their entirety any and all
written or oral agreements previously
existing between us with respect to such
subject matter.
Governing Law. The above terms and
conditions shall be governed by the laws of
the State of Illinois, without giving effect to
(i) its conflict of laws provisions, or (ii) the
United Nations Convention for Contracts
for the International Sale of Goods, which is
explicitly excluded. You agree to submit to
the jurisdiction of the State of Illinois for any
and all disputes, claims and actions arising
from or in connection with the Data
provided to you hereunder.
Government End Users. If the Data is being
acquired by or on behalf of the United
States government or any other entity
seeking or applying rights similar to those
customarily claimed by the United States
government, this Data is a “commercial
item” as that term is defined at 48 C.F.R.
(“FAR”) 2.101, is licensed in accordance
with this End User License Agreement, and
each copy of the Data delivered or
otherwise furnished shall be marked and
embedded as appropriate with the
following “Notice of Use,” and shall be
treated in accordance with such Notice:
231
uuLegal Informationu As required by the FCC
Reference Information
Contractor (Manufacturer/ Supplier) Name:
NAVTEQ
CONTRACTOR (MANUFACTURER/
SUPPLIER) ADDRESS: 425 West Randolph
St., Chicago, Illinois 60606
This Data is a commercial item as defined in
FAR 2.101 and is subject to the End User
License Agreement under which this Data
was provided.
© 2012 NAVTEQ – All rights reserved.
If the Contracting Officer, federal
government agency, or any federal official
refuses to use the legend provided herein,
the Contracting Officer, federal
government agency, or any federal official
must notify NAVTEQ prior to seeking
additional or alternative rights in the Data.
■
NOTICE OF USE
As required by the FCC
1. This device complies with Part 15 of the
FCC Rules and Canadian RSS-210/
RSSGen. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
2. The FCC requires the user to be notified
that any changes or modifications made
to this device that are not expressly
approved by the party responsible for
compliance may void the user’s authority
to operate the equipment.
3. This product emits radio frequency
energy, but the radiated output power of
this device is far below the FCC and IC
radio frequency exposure limits. This
equipment complies with FCC and IC RF
radiation exposure limits set forth for an
uncontrolled environment. Nevertheless,
the device should be used in such a
manner that the potential for human
contact with the antenna during normal
operation is minimized.
232
233
Voice Commands
Voice Commands .................................. 234
General Commands ............................. 234
Voice Portal Commands ....................... 234
Navigation Commands......................... 234
Information Commands ....................... 236
Climate Control Commands................. 237
Audio Commands ................................ 237
Phone Commands................................ 240
On-Screen Commands ......................... 240
Spelling Assistance ............................... 240
List of Categories .................................. 244
234
Voice Commands
Voice Commands
General Commands
The system accepts these commands on any
screen.
Voice Help*
Display navigation (equivalent to Navi)
Display map
Display menu (equivalent to MENU)
Display information (equivalent to Info)
Display phone screen (equivalent to
Phone)
Display audio screen (equivalent to
Audio)
Display clock
Display wallpaper
Display Voice Portal
Display home (equivalent to HOME)
Display setting (equivalent to Settings)
Trip computer
Cancel
Back (equivalent to BACK)
What is today’s date?
What time is it?
* This command displays available
commands for current screen.
Voice Portal Commands
The system accepts these commands on the
Voice Portal screen.
Phone Call
Music Search
Voice Help
Address
Place Name*
More Destination Methods
* This command is available only when
you select English for the system
language on U.S. models. In other case,
Find Nearest POI Category is displayed.
Navigation Commands
The system accepts these commands on a
map/guidance screen.
Display current location (shows current
latitude, longitude, and elevation)
Display/Hide (specify icon type):
ATM
gas station
restaurant
post office
■
Map Display Commands
grocery store
lodging (hotel, motel)
parking garage
parking lot
school
hospital
freeway exit information
traffic*
traffic speeds*
traffic icons*
Go home 1
Go home 2
Register the current location (stores
current location in the Address Book)
* These commands are only available in
certain areas.
235
uuVoice CommandsuNavigation Commands
Continued
Voice Commands
Display north up
Display heading up
Display 3D map
Display zoom in
Display zoom out
Display (specify scale):
1/20 mile (80 m) scale
1/8 mile (200 m) scale
1/4 mile (400 m) scale
1/2 mile (800 m) scale
1 mile (1600 m) scale
2 mile (3 km) scale
5 mile (8 km) scale
15 mile (24 km) scale
50 mile (80 km) scale
150 mile (240 km) scale
350 mile (560 km) scale
1000 mile (1600 km) scale
Max zoom in
Max zoom out
■
Map Scale Commands
Find nearest (specify place):
Fuel and auto
ACURA dealers
HONDA dealers
Gas station
Hydrogen station
Auto parts & electronics
Auto repair & maintenance
Car wash & detailing
Motorcycle dealers
Other car dealers
Roadside assistance
ATM and bank
ATM
Bank
Check cashing
Community
Business
City hall
Civic center
Convention center
Court house
Higher education
Library
Post office
School
■
Find Place Commands
Emergency room
Hospital
Police station
Veterinarian
Lodging
Bed & breakfast
Hotel
Recreation
Amusement park
Golf course
Historical monument
Marina
Movie theater
Museum
Park
Performing arts
Sports complex
Tourist attraction
Restaurant
American restaurant
Californian restaurant
Chinese restaurant
Coffee shop
Continental restaurant
Fast food
French restaurant
German restaurant
Greek restaurant
236
uuVoice CommandsuInformation Commands
Voice Commands
Indian restaurant
Italian restaurant
Japanese restaurant
Korean restaurant
Mexican restaurant
Pizza
Seafood restaurant
Thai restaurant
Vegetarian restaurant
Vietnamese restaurant
Other restaurant
Shopping area
Accessory store
Book store (Music, Video)
Clothing store
Grocery store
Home improvement store
Mall
Office supply store
Pharmacy
Pet food store
Sewing store
Shoe store
Sporting goods store
Toy store
Travel center
Airport
Automobile club
Bus station
Camping
Commuter rail station
Ferry terminal
Named place
Park & ride
Parking garage
Parking lot
Rental car agency
Rest area
Ski area
Tourist information
Train station
Travel agency
Truck stop
The system accepts these commands when
a route is set.
How long to the destination?
How far to the destination?
Display destination map
Display entire route
Cancel route
Repeat guidance
Route menu
Information Commands
The system accepts these commands on
most screens.
Trip computer
Display traffic list*
Display traffic on my route* (when en
route)
Display clock
Display wallpaper
* These commands are only available in
certain areas.
■
Route Commands
237
uuVoice CommandsuClimate Control Commands
Continued
Voice Commands
Climate Control Commands
The system accepts these commands on
most screens.
Climate control automatic (maintains
selected temperature)
Climate control on
*1
Climate control off
*1
Air conditioner on
*1
Air conditioner off
*1
Climate control defrost on
*1
Climate control defrost off
*1
Rear defrost on
*1
Rear defrost off
*1
Climate control fresh air
Climate control recirculate
Climate control vent
Climate control bi-level (vent and floor)
Climate control floor
Climate control floor and defrost
Fan speed up
Fan speed down
Fan speed # (#: 1 to 7)
Temperature # degrees (#: 57 to 87 °F/15
to 29 °C)
Driver temperature # degrees (#: 57 to 87
°F/15 to 29 °C)
Passenger temperature # degrees (#: 57
to 87 °F/15 to 29 °C)
*
Temperature up
Temperature down
Driver Temperature up
Driver Temperature down
Passenger temperature up
*
Passenger temperature down
*
Temperature max heat
Temperature max cool
*1: These commands toggle the function
on and off, so the command may not
match your intended action.
Audio Commands
The system accepts these commands on
most screens.
Audio on
*1
Audio off
*1
Radio on
*1
Radio off
*1
Radio select FM
Radio select AM
Radio tune to # FM (#: frequency, e.g.,
95.5)
Radio tune to # AM (#: frequency, e.g.,
1020)
Radio seek up
Radio seek down
Radio next station
Radio preset # (#: 1 to 12)
Radio FM preset # (#: 1 to 12)
Radio AM preset # (#: 1 to 6)
Radio scan
*1
Turn on XM radio
*
Radio select XM
*
XM channel (channel name)
*
XM channel # (#: 0 to 255)
*
XM channel up
*
■
Radio Commands
* Not available on all models
238
uuVoice CommandsuAudio Commands
Voice Commands
XM channel down
*
XM category up
XM category down
XM preset # (#: 1 to 12)
XM scan
*, *1
XM category scan
*, *1
XM channel scan
*, *1
XM category mode
*
XM channel mode
*
*1: These commands toggle the function
on and off, so the command may not
match your intended action.
Audio volume levels cannot be controlled
using voice control.
DISC play
DISC play track # (#: 1 to 30)
DISC skip forward
DISC skip back
DISC track random
*1
DISC track repeat
*1
DISC track scan
*1
DISC folder up
DISC folder down
DISC folder random
*1
DISC folder repeat
*1
DISC folder scan
*1
DISC normal play (cancels random,
repeat, or scan play mode, resumes
normal play mode)
*1: These commands toggle the function
on and off, so the command may not
match your intended action.
■
Disc Commands
USB play
USB play track # (#: 1 to 30)
USB skip forward
USB skip back
USB track random
*1
USB track repeat
*1
USB track scan
*1
USB folder up
USB folder down
USB folder random
*1
USB folder repeat
*1
USB folder scan
*1
USB normal play (cancels random, repeat,
or scan play mode, resumes normal play
mode)
*1: These commands toggle the function
on and off, so the command may not
match your intended action.
■
USB Commands
* Not available on all models
239
uuVoice CommandsuAudio Commands
Voice Commands
iPod play
iPod play track # (#: 1 to 30)
iPod skip forward
iPod skip back
iPod track shuffle
*1
iPod album shuffle
*1
iPod track repeat
*1
iPod normal play (cancels repeat or
shuffle play mode, resumes normal play
mode)
What am I listening to?
Who am I listening to?
Who is this?
Who’s playing?
What’s playing?
What album is this?
*1: These commands toggle the function
on and off, so the command may not
match your intended action.
Pandora
*
(Station name)
Pandora play
*
Pandora thumbs up
*
Pandora thumbs down
*
Pandora skip forward
*
Pandora station up
*
■
iPod Commands
■
Pandora®
*
Commands
Pandora station down
*
Pandora pause
*, *1
Pandora resume
*, *1
*1: These commands toggle the function
on and off, so the command may not
match your intended action.
Bluetooth audio play
Bluetooth audio skip forward
Bluetooth audio skip back
Bluetooth audio group up
*1
Bluetooth audio group down
*1
Bluetooth audio pause
Bluetooth audio resume
*1: These commands are not available
depending on the paired Bluetooth
audio devices.
Bluetooth Audio commands may not work
on some phones or Bluetooth audio
devices.
Auxiliary play (for HDMI® video)
■
Bluetooth® Audio Commands
■
AUX Commands
■ Song By Voice
TM
Commands
What am I listening to?
Who am I listening to?
Who is this?
Who’s playing?
What’s playing?
What album is this?
■ Play Commands
Play artist (name)
Play track/song (name)
Play album (name)
Play genre/category (name)
Play playlist (name)
Play composer (name)
■ List Commands
List artist (name)
List album (name)
List genre/category (name)
List playlist (name)
List composer (name)
■
Music Search Commands
* Not available on all models
240
uuVoice CommandsuPhone Commands
Voice Commands
Phone Commands
The system accepts these commands on any
screen.
Dial (Call) by number
Dial (Call) by name
Call (phone number or contact name)
Contacts that are imported from your
phone to the vehicle are all made available
by voice. Voice tags can also be recorded for
each of your speed dial entries.
On-Screen Commands
The system accepts these commands on any
screen. There are over 100 on-screen
commands. Say what is written on the
screen to activate that selection. For lists,
you can say the list item number to select
that item. The following commands are
some examples among many.
Next/Previous*
1
Right/Left*
2
Up/Down*
1
Return
OK (excluding Startup Confirmation
screen)
Delete
Keypad*
2
Qwerty*
2
Alphabet keyboard*
2
ABC*
2
A acute A grave A circumflex*
2
Number Symbol*
2
*1: While driving, you can scroll down the
list up to three pages.
*2: These commands can be accepted
from a keyboard screen to enter
letters.
Spelling Assistance
The voice control system can also recognize
phonetic alphabet input for numbers,
letters, accented letters, punctuation marks,
and symbols.
When selecting letters using the voice
control system, a confirmation box may pop
up to confirm the entry.
241
uuVoice CommandsuSpelling Assistance
Continued
Voice Commands
■
Numbers
Number Say …
1 One
2 Two
3 Three
4 Four
5 Five
6 Six
7 Seven
8 Eight
9 Nine
0 Zero
■
Letters
Say … Or say…
A Alpha/Apple
BBravo/Boy
C Charlie
DDelta/Dog
E Echo/Edward
F Foxtrot/Frank
G Golf/George
HHotel/Henry
I India/Igloo
J Juliet/John
K Kilo/King
LLima/Larry
M Mike/Mary
N November/Nancy
O Oscar
P Papa/Paul
Q Quebec/Queen
RRomeo/Robert
S Sierra/Sam
T Tango/Tom
U Uniform/Uncle
VVictor
W Whiskey/William
XX-ray
Y Yankee/Yellow
ZZulu/Zebra
Say … Or say…
242
uuVoice CommandsuSpelling Assistance
Voice Commands
■
Accented Letters
Say … Or say…
À A grave
Á A acute
 A circumflex
à A Tilde
Ä A umlaut
ÇC cedilla
È E grave
É E acute
Ê E circumflex
Ë E umlaut
Ì I grave
Í I acute
Î I circumflex
Say … Or say…
Ï I umlaut
Ó O acute
Ô O circumflex
Õ O Tilde
Ö O umlaut
ÙU grave
Ú U acute
Û U circumflex
Ü U umlaut
■
Symbols
Symbol Or say…
@ At sign
^ Caret
* Asterisk
_ Underscore
` Back quote
, Comma
. Dot
? Question mark
: Colon
; Semicolon
+ Plus
¿ Inverted Question Mark
¡ Inverted Exclamation Point
243
uuVoice CommandsuSpelling Assistance
Voice Commands
« Left-Pointing Double
Angle Quotation Mark
» Right-Pointing Double
Angle Quotation Mark
- Hyphen
! Exclamation point
“ Double quote
# Pound
$ Dollar
% Percent
& Ampersand
‘ Apostrophe
( Open parenthesis
) Close parenthesis
~ Tilde
/ Slash
< Less than
> Greater than
{ Open brace
} Close brace
Symbol Or say…
244
Voice Commands
List of Categories
Fuel/Auto Lodging Shopping
All Types (Fuel/Auto) Auto Repair & Maintenance All Types (Lodging) Hotel/Motel All Types (Shopping)
Office Supplies/Electronics
Acura Dealers Car Wash & Detailing Bed & Breakfast Accessories/Jewelry
Pharmacy/Drug Store
Honda Dealers Motorcycle Dealers Recreation
Auto Parts & Electronics
Pet Food/Supplies
Gas Station Other Car Dealers All Types (Recreation) Museum Books/Music/Video Sewing/Linen
Hydrogen Station Roadside Assistance Amusement Park
Park/Recreation Area
Clothing Shoes/Bags
Auto Parts & Electronics Golf Course Performing Arts
Groceries
Sporting Goods
ATM/Bank
Historical Monument
Sports Complex Home Improvement Toys/Arts/Crafts
All Types (ATM/Bank) Bank Marina Tourist Attraction Mall/Department Store
ATM Check Cashing/Money Trans Movie Theater
Travel
Community Restaurant
All Types (Travel)
Parking Garage/House
All Types (Community) Court House
All Types (Restaurant)
Indian Airport Parking Lot
Business Higher Education American Italian Automobile Club Rental Car Agency
City Hall Library Café/Coffee Shop Japanese Bed & Breakfast Resort
Civic/Community Center Post Office Californian Korean Bus Station Rest Area
Convention/Exhibition Cent
School Chinese Mexican Camping Ski Area
Emergency Continental Pizza
Commuter Rail Station
Tourist Attraction
All Types (Emergency) Police Station Fast Food Seafood Ferry Terminal Tourist Information
Honda Roadside Assistance Roadside Assistance French Thai Hotel/Motel Train Station
Hospital Veterinarian German Vegetarian Named Place Travel Agency
Greek Vietnamese Park & Ride Truck Stop/Plaza
Other
Index
245
Index
Index
Symbols
9 (Audio Power) Button............................ 4
bn (Channel) Button ....................... 4, 129
a (Display Mode) Button ................. 4, 25
b (Display) Button............................ 4, 129
E (Eject) Button.......................................... 4
J (Hang-Up/Back) Button ............... 4, 22
h (Pick-Up) Button............................. 4, 187
d (Talk) Button .................................... 4, 22
NB (Volume) Button........................ 4, 129
Numbers
3D Angle Adjustment ................................ 55
3D Map ....................................................... 54
A
Address
Editing Address Book ................................ 30
Editing Avoid Area .................................... 45
Setting Destination ................................... 82
Address Book
Editing Address Book ................................ 28
Saving to Address Book ............................ 98
Setting Destination ................................... 87
Address Book PIN....................................... 34
Adjust Time ................................................ 75
Answer...................................................... 187
ATM/Bank (Place Category)....................... 91
Audio..................................................... 7, 125
Basic Operation ........................................... 9
Remote Control....................................... 128
Settings ................................................... 131
Voice Commands List .............................. 237
Audio Menu
Bluetooth® Audio .................................... 164
Disc ......................................................... 144
FM/AM Radio .......................................... 135
iPod......................................................... 149
Pandora® ................................................. 156
SiriusXM® Radio ...................................... 139
USB Flash Drive........................................ 160
Audio Source Pop-Up ............................... 131
Auto Daylight ............................................. 70
Auto Time Zone.......................................... 70
Automatic Phone Sync ............................. 176
Avoid Streets............................................. 119
Avoided Area.............................................. 44
B
BACK ............................................................. 4
Background Color....................................... 66
Beep Volume .............................................. 67
Black Level .................................................. 65
Bluetooth (Settings) ................................. 172
Bluetooth On/Off Status .......................... 172
Bluetooth Device List
Audio ...................................................... 131
Phone...................................................... 174
Bluetooth® Audio
Playing .................................................... 161
Voice Commands List .............................. 239
Bluetooth® HandsFreeLink®..................... 167
Bluetooth Setting .................................... 172
Making a Call.......................................... 183
Pairing a Phone ....................................... 170
Phone Setting.......................................... 182
Receiving a Call....................................... 187
Setting Speed Dials.................................. 177
Brightness ................................................... 65
C
Call History................................................ 186
Cancel Route............................................. 118
Category
Editing Address Book ................................ 31
Place Category List .................................. 244
SiriusXM®................................................ 138
Category History......................................... 37
Change Bluetooth Audio Device............. 131
Change Route Preference........................ 111
Change State .............................................. 83
Channel
SiriusXM®................................................ 138
Channel List .............................................. 139
City .............................................................. 84
City Vicinity................................................. 92
Clear Current Route ................................. 120
246
Index
Clock Adjustment ....................................... 70
Adjust Time ............................................... 75
Auto Daylight ............................................ 70
Auto Time Zone......................................... 70
Clock Display ............................................. 70
Clock Format ............................................. 70
Clock Location........................................... 71
Resetting ................................................... 75
Clock Reset.................................................. 71
Clock/Wallpaper Type
Clock......................................................... 71
Wallpaper.................................................. 72
Color (Day) .................................................. 53
Color (Night) ............................................... 53
Community (Place Category) ..................... 91
Connect Phone.......................................... 171
Continue Trip To....................................... 123
Contrast....................................................... 65
Coordinate .................................................. 95
Correct Vehicle Position ............................. 62
Current Location......................................... 56
Current Position
Editing Address Book................................. 30
Setting Destination .................................... 96
Customize.................................................... 51
D
Delete This Device .................................... 175
Destination List
Adding Waypoint .................................... 113
Editing..................................................... 116
Detour ....................................................... 118
Dial............................................................ 185
Directions.................................................. 107
Disc
Playing .................................................... 141
Voice Commands List .............................. 238
Display Mode.............................................. 25
Display Settings .......................................... 65
E
Edit Device Name ..................................... 174
Edit Go Home 1 .......................................... 33
Edit Go Home 2 .......................................... 33
Edit Home Entry ......................................... 98
Edit Pairing Code...................................... 173
Edit POI Search Radius Along Route ......... 43
Edit Speed Dial ......................................... 177
Edit/Delete Entry ................................ 98, 123
Emergency (Place Category) ...................... 91
Enhanced Voice Guidance ......................... 46
Error Messages
Bluetooth® HandsFreeLink® ..................... 219
Disc Player............................................... 215
iPod/USB Flash Drive................................ 218
Navigation System................................... 214
Pandora®................................................. 216
Smartphone Connection ......................... 220
Exit Info..................................................... 108
F
Factory Data Reset ..................................... 78
FM/AM Radio
Playing.................................................... 133
Voice Commands List.............................. 237
Folder
Disc ........................................................ 142
USB Flash Drive ....................................... 159
Folder List
Disc ........................................................ 143
Fuel/Auto (Place Category)........................ 91
G
Go Home 1 ................................................. 12
Go Home 1 PIN........................................... 34
Go Home 2 ................................................. 12
Go Home 2 PIN........................................... 34
Group
Bluetooth® Audio ................................... 163
Guidance .................................................... 46
Guidance Mode.......................................... 47
H
Hang Up ................................................... 187
HD Radio Mode........................................ 131
Heading-Up ................................................ 54
HOME ....................................................... 4, 7
HOME Screen ............................................... 7
Honda Customer Service ......................... 226
HondaLink Assist...................................... 195
247
Index
I
Info ............................................................... 7
Info Menu................................................. 199
Info Screen Preference ............................ 199
Intersection ................................................ 94
iPod
Connecting, Disconnecting ..................... 146
Playing.................................................... 146
Voice Commands List.............................. 239
K
Keyboard Layout........................................ 76
L
Language.................................................... 77
Lodging (Place Category) .......................... 91
M
Map............................................................. 49
Map Input
Editing Avoid Area .................................... 45
Setting Destination ................................... 96
Map Legend ......................................... 10, 57
Map Menu................................................ 105
Map Screen............................................... 100
Icon .............................................. 10, 51, 59
Orientation ............................................... 54
Scale......................................................... 58
Map Update
Checking Version .................................... 201
Obtaining Update Data............................ 228
Viewing Update Status ............................ 201
Map/Guidance .......................................... 106
MENU .................................................... 4, 111
Menu Button ........................................ 4, 130
Music Search
iPod......................................................... 150
Mute.......................................................... 187
N
Navi ............................................................... 7
Navigation menu
Destination................................................ 80
Route Option........................................... 111
North-Up ..................................................... 54
O
Off-road Tracking
Driving .................................................... 103
Setting ...................................................... 61
Others (Settings)......................................... 76
P
Pair Phone................................................. 170
Pandora®
Playing .................................................... 154
Voice Commands List .............................. 239
Personal Info............................................... 27
Phone............................................................ 7
Voice Commands List .............................. 240
Phone (Settings) ....................................... 182
Phonebook ............................................... 184
Phonebook Phonetic Modification
Adding.................................................... 180
Editing .................................................... 181
PIN Number ................................................ 34
Place Category
Editing Address Book ................................ 30
Setting Destination.................................... 91
Place Name
Editing Address Book ................................ 30
Setting Destination.................................... 88
Place Phone Number
Editing Address Book ................................ 30
Setting Destination.................................... 90
Previous Destination
Deleting .................................................... 36
Editing Address Book ................................ 30
Setting Destination.................................... 93
248
Index
R
Radio
FM/AM .................................................... 133
SiriusXM® ................................................ 137
Radio Data System.................................... 136
Random/Repeat
Disc ......................................................... 144
USB Flash Drive........................................ 160
RDS INFO ................................................... 131
Rear Camera (Settings)............................. 203
Recalculation............................................. 103
Recreation (Place Category)....................... 91
Remember Last Screen ............................... 76
Restaurant (Place Category)....................... 91
Ring Tone.................................................. 182
Route Option ............................................ 111
Route Preference........................................ 39
Routing........................................................ 38
S
Scan
Disc ......................................................... 144
FM/AM Radio .......................................... 135
SiriusXM® ................................................ 139
USB Flash Drive........................................ 160
Search by Name .......................................... 92
Search Nearby..................................... 98, 120
Security Code ............................................ 222
Seek
FM/AM Radio .......................................... 134
Settings.......................................................... 7
Shopping (Place Category) ........................ 91
Shuffle/Repeat
iPod ........................................................ 149
Siri Eyes Free............................................... 24
SiriusXM® Radio
Playing .................................................... 137
Voice Commands List .............................. 237
Song
iPod ........................................................ 148
Song by Voice
Searching Music ...................................... 151
Setting ...................................................... 69
Song By Voice Phonetic Modification..... 152
Sort by Distance to Travel.......................... 92
Sound........................................................ 132
Sound/Beep................................................. 67
SOURCE......................................................... 9
SOURCE Button .................................... 4, 128
Speed Dial
Making a Call.......................................... 186
Registering .............................................. 177
Straight Line Guide .................................... 55
Street........................................................... 85
System Settings........................................... 63
System/Device Information...................... 200
T
TAG ........................................................... 134
Text/Email ................................................. 192
Setting .................................................... 194
Touch Tones.............................................. 187
Track
Bluetooth® Audio ................................... 163
Disc ........................................................ 142
USB Flash Drive ....................................... 159
Traffic Incidents ....................................... 110
Traffic Rerouting........................................ 42
Driving.................................................... 109
Setting...................................................... 42
Transfer .................................................... 187
Travel (Place Category).............................. 91
Trip Computer.......................................... 198
Tune
FM/AM Radio.......................................... 134
U
Unit (mile or km)........................................ 76
Unverified Routing .................................... 40
Update System Software
Finding Update Information .................... 227
Obtaining Update Data ........................... 228
USB Flash Drive
Connecting, Disconnecting ..................... 157
Playing.................................................... 157
Voice Commands List.............................. 238
User Name .................................................. 35
V
Verbal Reminder ........................................ 67
View............................................................ 54
View Area................................................... 44
249
Index
View Routes ............................................... 99
Voice
Map Menu.............................................. 104
Voice Command Tips ................................. 76
Voice Commands
Basic Operation........................................... 8
Help.......................................................... 15
Voice Commands List.............................. 234
Voice Control System................................ 22
Voice Control Operation
Basic Operation........................................... 5
Siri Eyes Free ............................................. 24
Voice Portal .................................................. 5
Voice Commands List.............................. 234
Voice Prompt.............................................. 69
Voice Recog................................................ 69
Voice Tag
Editing .................................................... 179
Registering.............................................. 178
VOL (Volume)............................................... 4
Volume
Guidance .................................................. 68
W
Wallpaper................................................... 72
Waypoint
Adding ................................................... 112
Deleting, Ordering .................................. 116
31T7A810
NV05484
00X31-T7A-8101
owners.honda.com (U.S.)
myhonda.ca (Canada)
Printed in U.S.A
2017 Honda HR-V Navigation Manual
©2017 Honda Motor Co., Ltd. — All Rights Reserved
