ITEM #0915543
BUILDER’S SERIES
CEILING FAN
MODEL #41391
2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................6
Wiring ..........................................................................9
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating Instructions .............................................................13
Care and Maintenance ............................................................14
Troubleshooting ..................................................................14
Limited Lifetime Warranty ..........................................................16
Replacement Parts List ............................................................17
3

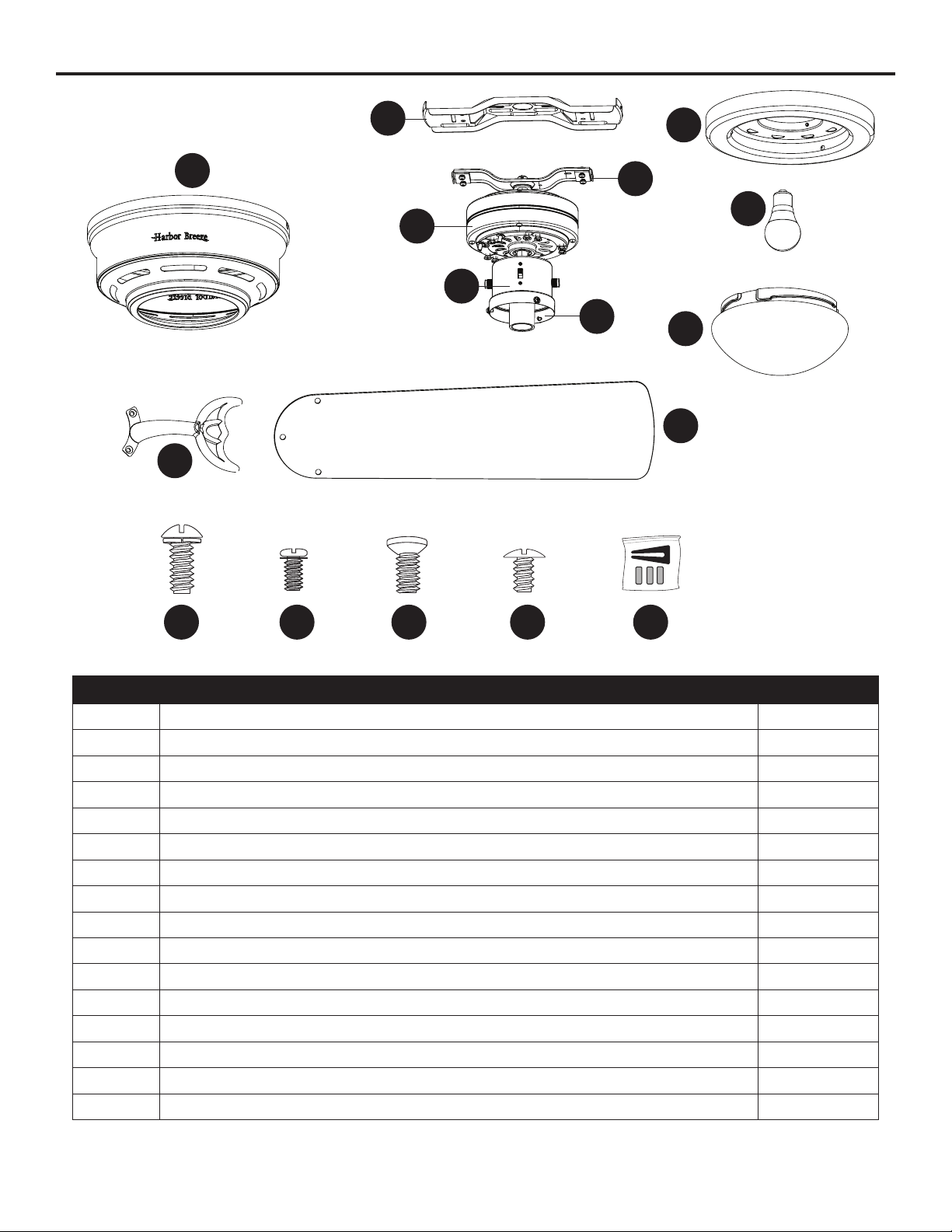

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Motor Housing 1
B Upper Mounting Bracket 1
C Lower Mounting Bracket (preassembled to Motor [D]) 1
D Motor 1
E Switch Housing (preassembled to Motor [D]) 1
F Light Kit (preassembled to the Switch Housing [E]) 1
G Light Pan 1
H Bulb 1
I Glass Bowl 1
J Blade Arm 5
K Blade 5
L Lower Bracket Screw (preassembled to Lower Mounting Bracket [C]) 4
M Switch Housing Screws (preassembled to Light Pan [G]) 3
N Motor Screw (preassembled to Motor [D]) 10
O Motor Housing Screw (preassembled to Upper Mounting Bracket [B]) 4
P Blade Balancing Kit 1
A
B
C
D
E
F
G
H
I
J
K
L M N O P
4

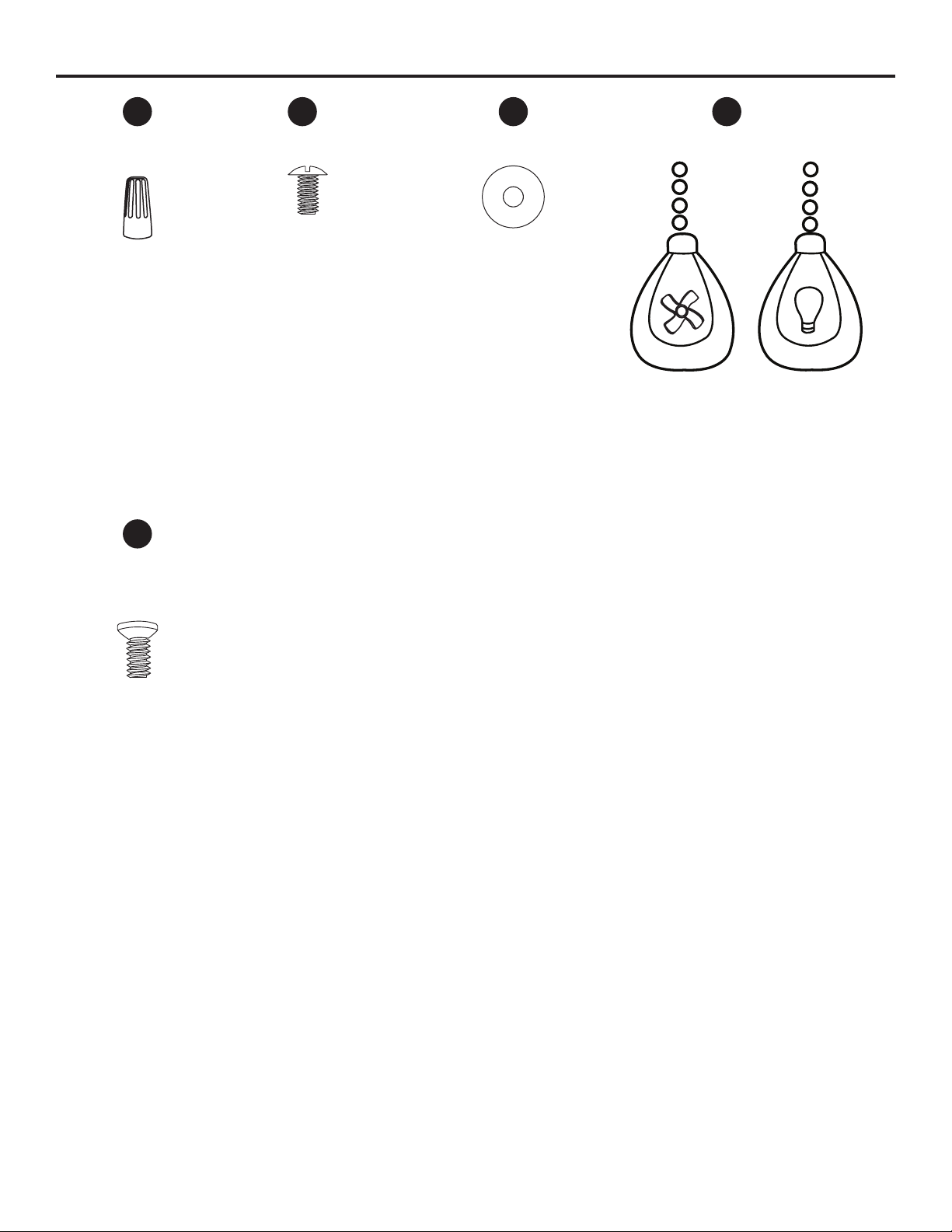

HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 3 + 1 extra
Blade Screw
Qty. 15 + 1 extra
Blade Washer
Qty. 15 + 1 extra
Pull Chain Extension
Qty. 2
Motor Screw
1 extra
AA
BB
CC
DD
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
XX
5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Beforeyoubegininstallingthefan,disconnectthepowerbyremovingfusesorturningothecircuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
CodeandANSI/NFPA70-199.Hireaqualiedelectricianorconsultado-it-yourselfwiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
theoorandatleast30in.fromtheendofthebladestoanyobstruction.
• The net weight of this fan is: 14.11 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,mountthefantoanoulet
box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the
outletbox.Mostoutletboxescommonlyusedforthesupportoflightingxturesarenotacceptable
forfansupportandmayneedtobereplaced.Consultaqualiedelectricianifindoubt.Securethe
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,wireconnectorsprovided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12 gauges and/or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: Toreducetheriskofreorelectricshock,donotusethefanwithanysolid-state
speed-control device or control the fan speed with a full-range dimmer switch.
WARNING: Toreducetheriskofre,electricshockorpersonalinjury,donotbendtheblade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.
6
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipmentoandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe
following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connecttheequipmentintoandoutletonacircuitdierentfromthattowhichthereceiverisconnected.
--Consult the dealer or an experienced radio/TV technician for help.
Pleasenotechangesormodicationsnotexpresslyapprovedbythepartyresponsibleforcompliance
could void the user’s authority to operate the equipment.
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook
INITIAL INSTALLATION
1. Turnothecircuitbreakersandthewallswitchtothe
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
1
7

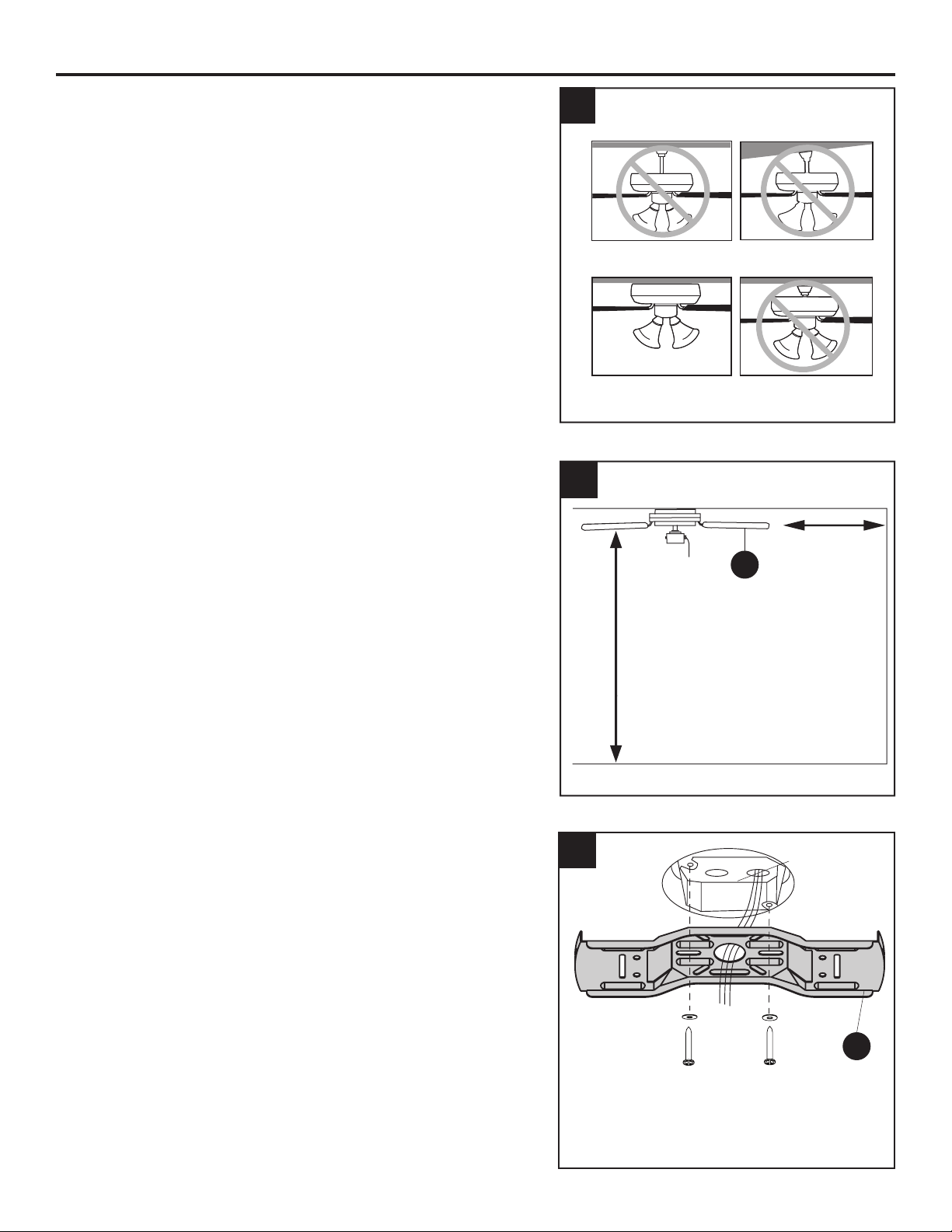

INITIAL INSTALLATION
2. This fan is intended for Flushmount installation.
Standard Mounting, Angle Mounting, and Closemount
installations are not available.
3. Ensure the blades (K) will be at least 30 in. from any
obstructionsandwillbeatleast7ft.abovetheoor.
7 ft. Min
30 in. Min
4. Secure the upper mounting bracket (B) to the outlet
box (not included) using screws and washers provided
with the outlet box.
CAUTION: It is very important that you use the proper
hardware when installing the upper mounting bracket
(B) as it will support the fan.
3
Outlet Box
K
B
4
2
Standard Mounting
Flushmount Closemount
Angle Mounting
8

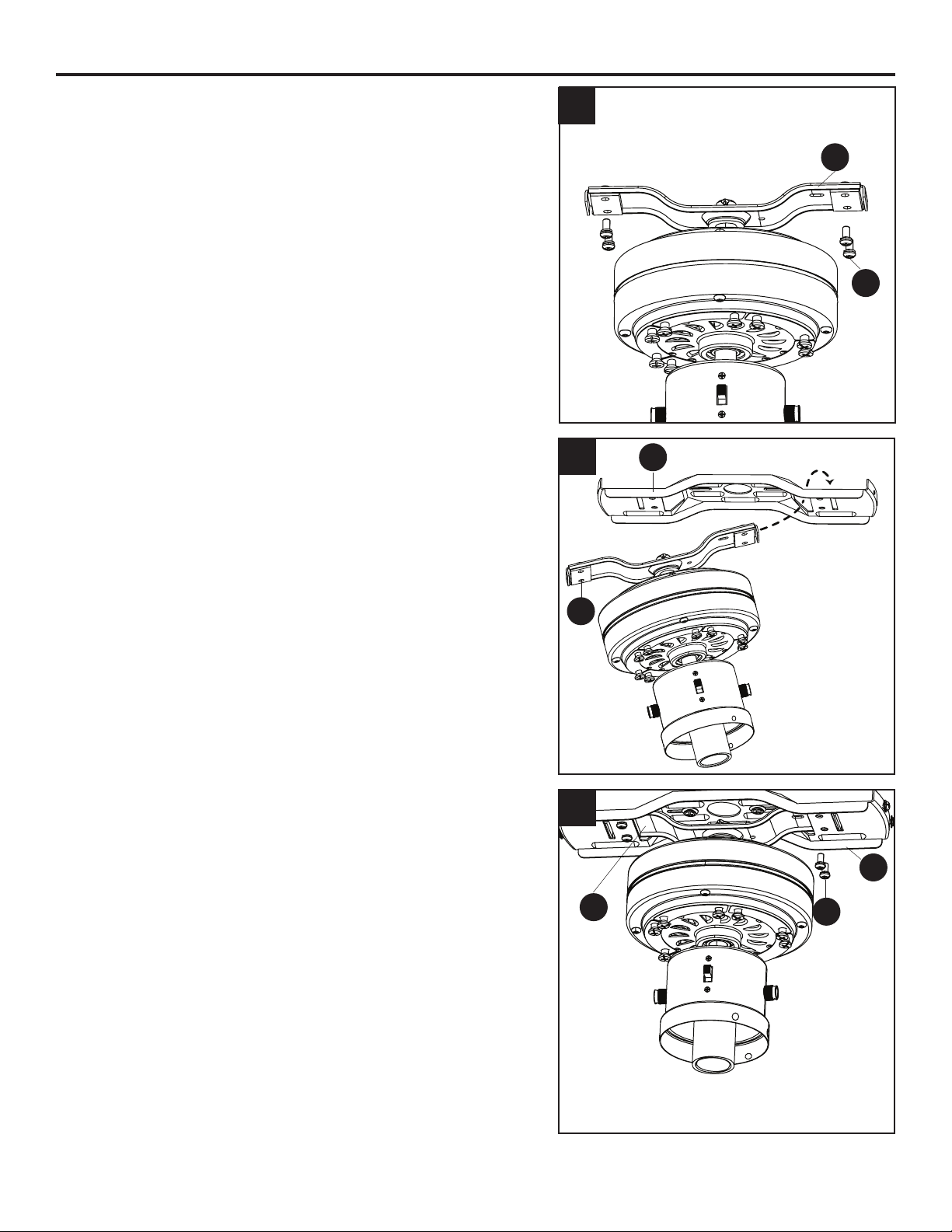

INITIAL INSTALLATION
5. Remove the lower bracket screws (L) from underneath
the lower mounting bracket (C).
6. Place one tab of the lower mounting bracket (C) into a
slot in the upper mounting bracket (B), then slide the
second tab of the lower mounting bracket (C) into the
second slot on the upper mounting bracket (B) until all
four holes are in alignment.
7. Re-install the previously removed lower bracket
screws (L) to secure the lower mounting bracket (C)
to the upper mounting bracket (B).
L
C
6
7
B
C
B
C
L
Slot
5
9

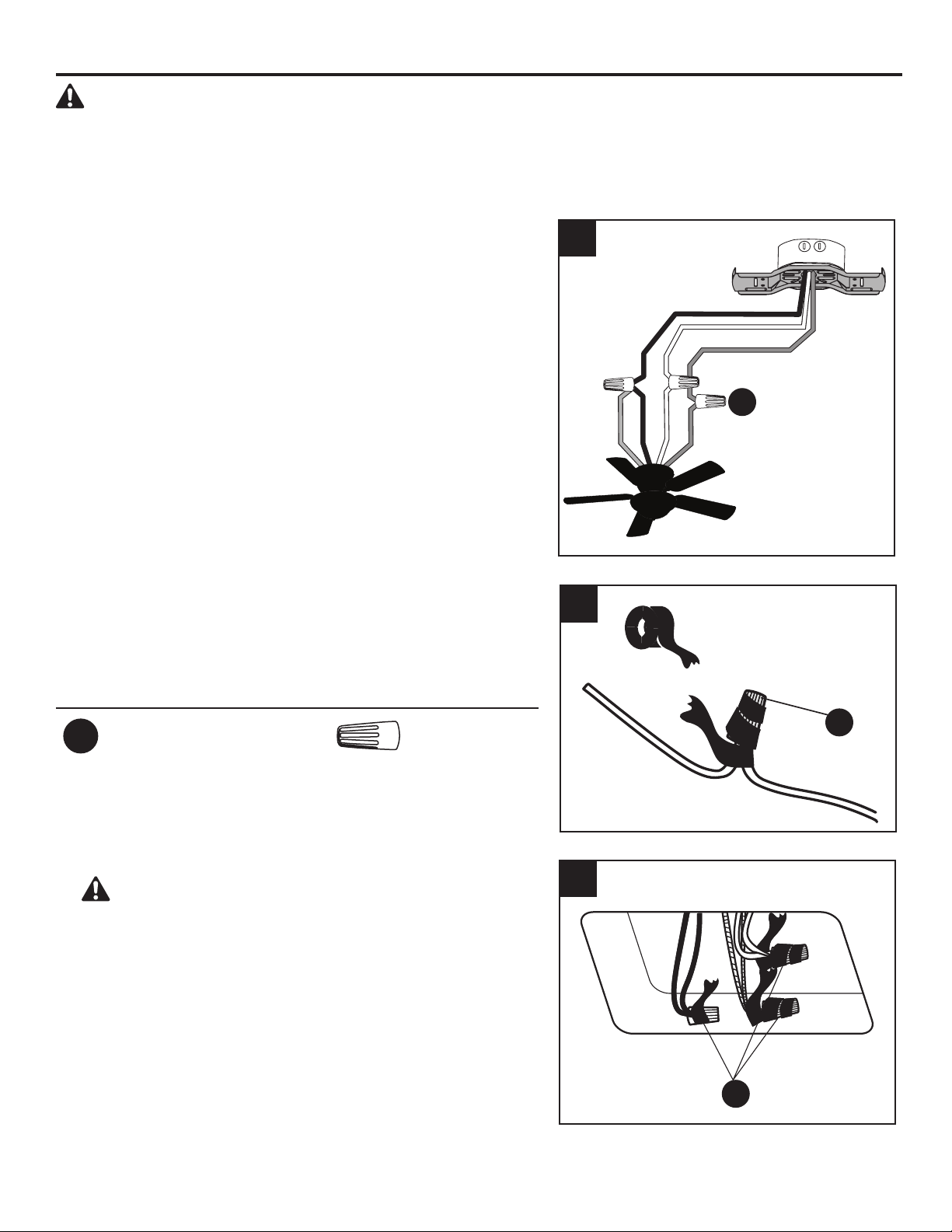

WIRING
WARNING:Toreducetheriskofre,electricalshockorpersonalinjury,wireconnectorsprovided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12 gauges and/or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a Ground (Green or Bare) wire is present.
1. Connect household supply and fan wires according to
the diagram and these steps:
•ConnecttheGreenwirefromthefantotheBare/
Green (ground) supply wire.
•ConnecttheWhitewirefromthefantotheWhite
(neutral) supply wire.
•ConnecttheBlackandBluewiresfromthefantothe
Black (hot) supply wire.
•Secureallwiringconnectionstogetherwithwire
connectors (AA).
Note: If there is a second hot/power wire coming from
the outlet box, connect it to the blue (light power) fan
wire for separate light and fan control.
Note: The Black wire is hot power for the fan. The
White wire is common for the fan and light kit. The
Blue wire is hot power for light. The Green wire is the
groundwire.Ifhouseholdsupplywiresaredierent
colors than referred to above, it is recommended a
professional electrician determines the proper wiring.
Hardware Used
AA
Wire Connector x 3
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the Green
and White wire connections on the opposite side of the
outlet box from the Black and Blue wire connections.
1
3
AA
AA
AA
2
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black
Blue
White
Green
10
FINAL INSTALLATION
1. Temporarily lift the motor housing (A) to the upper
mounting bracket (B) to determine which two motor
housing screws (O) preassembled in the sides of the
upper mounting bracket (B) align with the slotted holes
in the top edge of the motor housing (A). Partially
loosen the two motor housing screws (O) that align
with the slotted holes.
Remove the other two motor housing screws (O) from
the upper mounting bracket (A).
2. Slide the motor housing (A) over the motor (D), aligning
the slotted holes in the motor housing (A) with the
loosened motor housing screws (O) in the upper
mounting bracket (B). Twist the motor housing (A) to
lock, then re-insert the two previously removed motor
housing screws (O) and securely tighten all screws.
3. Remove the 10 motor screws (N) from the motor (D)
and save for later use.
B
O
A
O
A
1
2
3
D
N
11

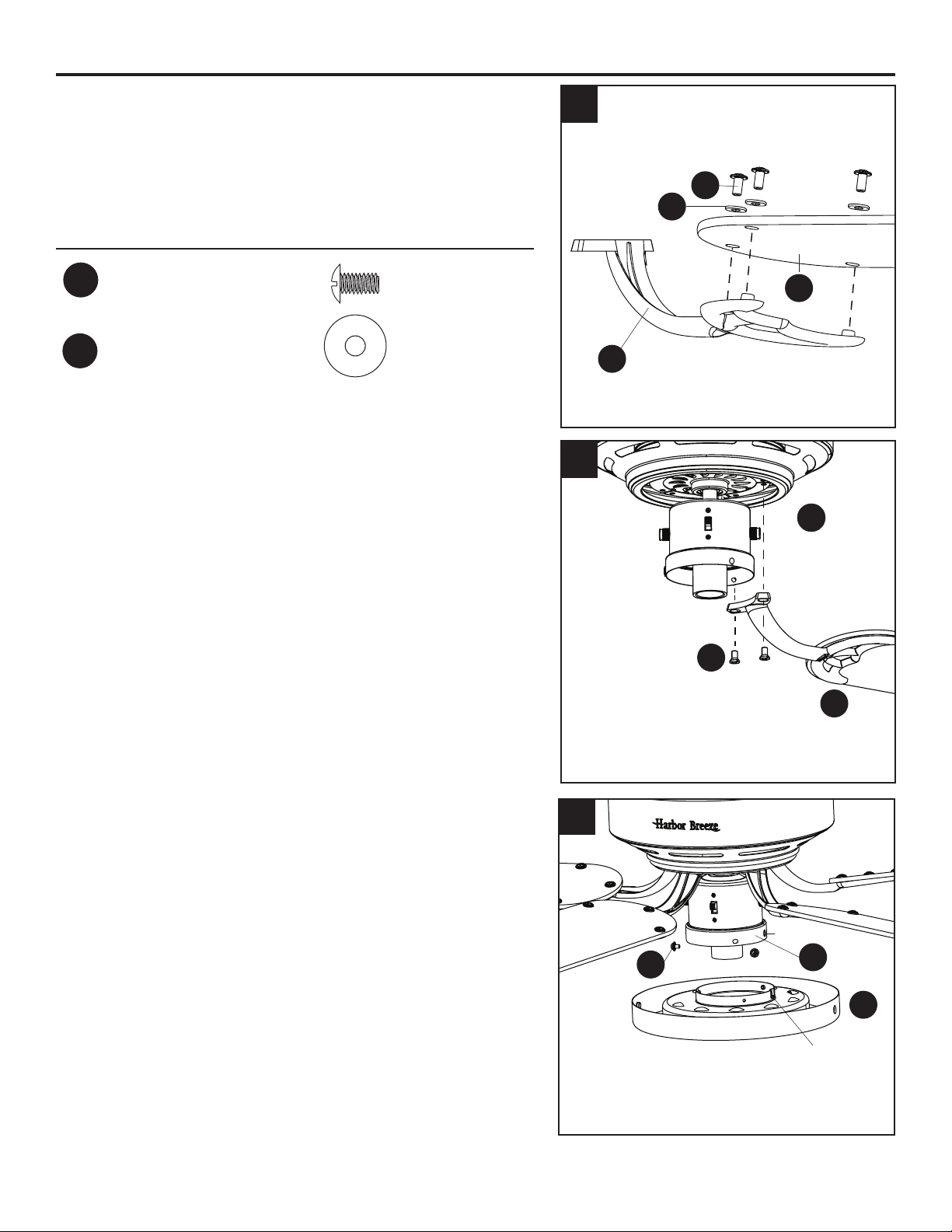

FINAL INSTALLATION
4. Partially insert the blade screws (BB) along with the
blade washers (CC) through the blade (K) and into the
blade arm (J). Tighten each blade screw (BB) with a
Phillips screwdriver, starting with the one in the middle.
Repeat this step for the remaining blades (K) and blade
arms (J).
Hardware Used
BB
Blade Screw x 12
Blade Washer x 12
5. Install the blade arm (J) to the underside of the motor
(D) with motor screws (N) previously removed (Step 3,
page 10). Tighten with Phillips screwdriver.
Repeat for each blade arm (J).
6. Remove the three preassembled switch housing screws
(M) from the light pan (G). Lift the light pan (G) onto
the light kit (F) and secure the light pan (G) with the
previously removed switch housing screws (M).
Note: Align the notch in the light kit with the bump on
the lower edge of the light kit.
4
5
BB
CC
K
J
J
N
D
6
G
M
F
CC
Bump
Notch
12

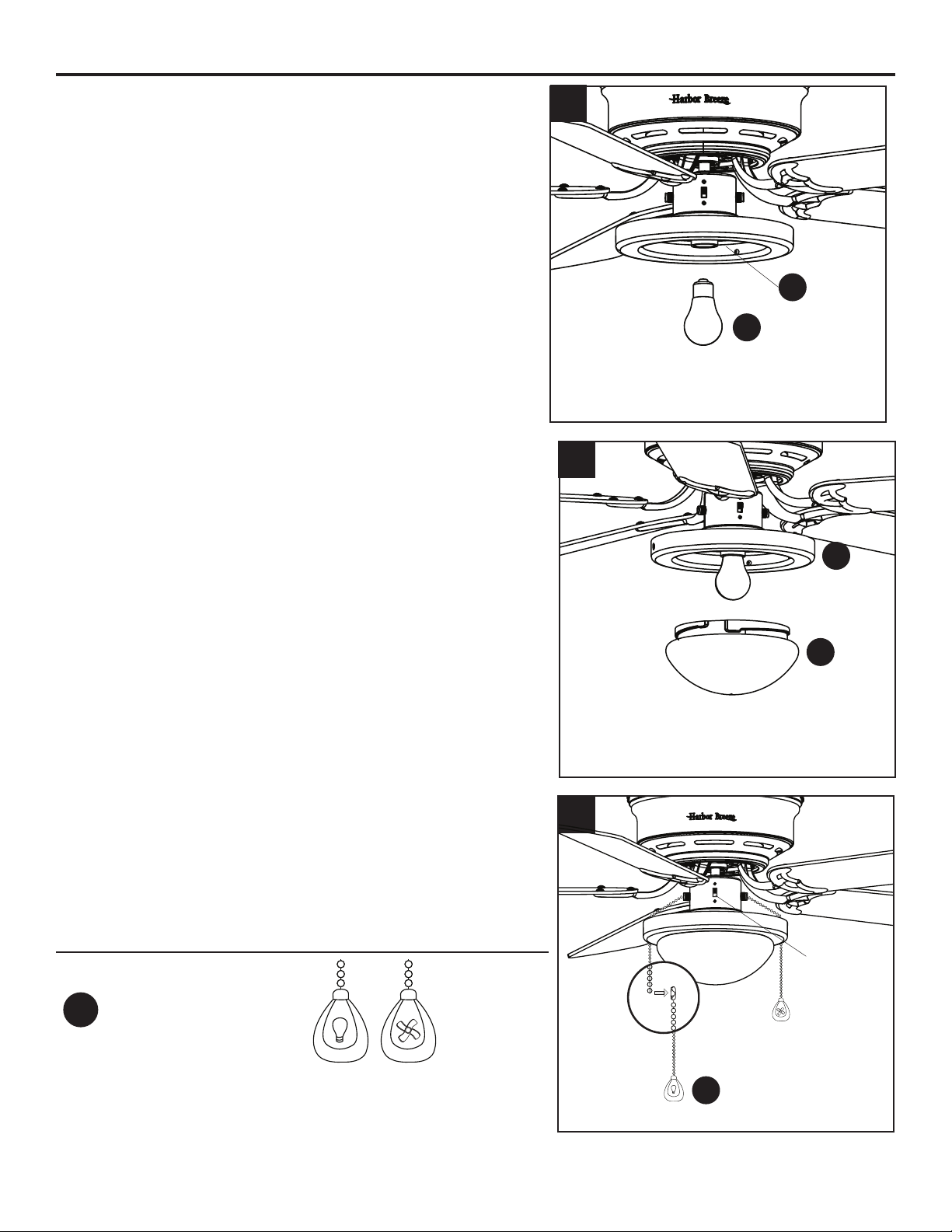

FINAL INSTALLATION
7. Install the bulb (H) into the socket of the light kit (F).
8. Lift the glass bowl (I) into the light pan (G) and twist in
a clockwise direction until the glass bowl (I) is secure.
9. Attach the pull chain extensions (DD) or custom pull chain
extensions (not included) to the fan and light pull chains.
Note: When facing the reverse switch, the pull chain for
the fan is on the right and the pull chain for the light is
on the left.
Hardware Used
DD
Pull Chain
Extension
x 2
Assembly is complete. Turn on power supply to fan.
9
Reverse
Switch
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
DD
I
J
F
G
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
8
7
13
OPERATING INSTRUCTIONS
1. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF.
The light pull chain has two positions to control the light,
ON and OFF.
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
2. Use the fan reverse switch, located on the switch
housing (E), to optimize your fan for seasonal
performance.
Using a ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting in
winterwithoutfeelingadierenceinyourcomfort.
Note: Wait for the fan to stop before moving the reverse
switch.
2a. In warmer weather, push the reverse switch down to
displayasunicon,whichwillresultindownwardairow
creatingawindchilleect.
2b. In cooler weather, push the reverse switch up to
displayasnowakeicon,whichwillresultinupward
airowthatcanhelpmovestagnant,hotairothe
ceiling area.
Important: The reverse switch must be set either
completely up or down in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 2c).
Fig. 2a Fig. 2b
Fig. 2c
2
1
Fan Pull
Chain
Light Pull
Chain
E
14
CARE AND MAINTENANCE
At least twice each year, lower the motorhousing and tighten all screws on the fan. Clean the motor
housingwithonlyasoftbrushorlint-freeclothtoavoidscratchingthenish.Cleanthebladeswith
a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for added
protection.
Bulb Replacement: Use 60-watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are
not recommended for this item.
Important:Shutothemainpowersupplybeforeyoubeginanymaintenancetask.Donotusewater
or a damp cloth to clean the fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The reverse switch is not
engaged.
2. Thewallswitchisturnedo.
3. Thepowerisoorthefuse
(breaker) is blown.
4. There is a faulty wire
connection.
1. Firmly push the reverse switch
completely up or down.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse
(breaker).
4. Turnthepoweroandcheckall
connections at the ceiling outlet box.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer
switch to control the fan speed.
4. Ensure the outlet box is secured to
the building structure.
5. Ensure the mounting bracket is
secured to the outlet box and that
the screws are tight.
15
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade are
loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the blade arms to the
motor.
2. Switch one blade with a blade from
the opposite side. Or balance the fan
using the blade balancing kit (P).
3. Turnothepower.Loosenthe
motor housing and verify that the
mounting bracket is secure to the
electrical outlet box. The bracket
mustbeushwithoutmovement
against the outlet box. Verify the
outlet box is secure.
The fan operates
correctly, but the
lights are not
working.
1. The bulbs are not installed
correctly.
2. The light kit wire plugs are not
connected properly.
3. There is a faulty wire
connection.
1. Re-install the bulb(s).
2. Ensure the single-pin connectors in
the light kit are connected properly.
3. Turnthepoweroandcheckall
connections at the ceiling outlet box.
16
LIFETIME LIMITED WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuseorimproperinstallationorbyaxinganyaccessories,isnotcoveredbythiswarranty.The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Duetovaryingclimateconditions,thiswarrantydoesnotcoveranychangesinbrassnish,including
rusting,pitting,corroding,tarnishingorpeeling.Brassnishesofthistypegivetheirlongestusefullife
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Anyreplacementofdefectivepartsfromtheceilingfanmustbereportedwithintherstyearfromthe
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
whichcannotbedisclaimedislimitedtothetimeperiodasspeciedintheexpressedwarranty.The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warrantygivesspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
This warranty supersedes all prior warranties.
Note: A small amount of “wobble” is normal and should not be considered a defect.
17
Printed in China
PART DESCRIPTION PART #
A Motor Housing 4L000008830
B Upper Mounting Bracket 4L000005480
I Glass Bowl 4L166810001
J Blade Arm 4L073700000
K Blade 4L084870001
HW Hardware Kit 4L000008840
9264•110117
B
I
A
J
HW
K
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
