Basic Owner’s Manual
High Definition Video Camera 4K Video Camera
Model No.
HC-V800
Model No.
HC-WXF1
HC-VXF1
HC-VX1
Please read these instructions carefully before using this product, and save this manual for future
use.
More detailed operating instructions are available in “Owner’s Manual
(PDF format)”. To read it, download it from the website.
https://eww.pavc.panasonic.co.jp/hdw/oi/WXF1/
≥ Click the desired language.
DVQX1447ZA
F0218SQ0
until
2018/03/30
Register online at http://shop.panasonic.com/support (U.S. customers only)
If you have any questions, visit :
U.S.A. : http://shop.panasonic.com/support
Canada : www.panasonic.ca/english/support
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 1 ページ ２０１８年２月５日 月曜日 午後２時１４分
2
DVQX1447 (ENG)
Dear Customer,
Thank you for choosing Panasonic!
You have purchased one of the most
sophisticated and reliable products on the
market today. Used properly, we’re sure it
will bring you and your family years of
enjoyment. Please take time to fill in the
information on the right.
The serial number is on the tag located on
the back of your camera. Be sure to retain
this manual as your convenient camera
information source.
Safety Precautions
WARNING:
To reduce the risk of fire, electric shock or product damage,
≥ Do not expose this unit to rain, moisture, dripping or splashing.
≥ Do not place objects filled with liquids, such as vases, on this unit.
≥ Use the recommended accessories.
≥ Do not remove covers.
≥ Do not repair this unit by yourself. Refer servicing to qualified service personnel.
CAUTION!
To reduce the risk of fire, electric shock or product damage,
≥ Do not install or place this unit in a bookcase, built-in cabinet or in another confined space.
Ensure this unit is well ventilated.
≥ Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and
similar items.
≥ Do not place sources of naked flames, such as lighted candles, on this unit.
This unit is intended for use in moderate climates.
Date of Purchase
Dealer Purchased From
Dealer Address
Dealer Phone No.
Model No.
Serial No.
U.S.A./CANADA CONSUMERS: ATTENTION:
A lithium ion battery that is recyclable powers the product
you have purchased. Please call 1-800-8-BATTERY for
information on how to recycle this battery.
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 2 ページ ２０１８年２月５日 月曜日 午後２時１４分
3
(ENG) DVQX1447
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
THE FOLLOWING APPLIES ONLY IN CANADA.
Certification and Compliance
See Camcorder for the certification and compliance mark specific to that device.
1 Touch .
2 Touch [SETUP].
3 Touch [Approved Regulations].
FCC Note:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
≥ Reorient or relocate the receiving antenna.
≥ Increase the separation between the equipment and receiver.
≥ Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
≥ Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, follow the attached installation
instructions and use only shielded interface cables with ferrite
core when connecting to computer or peripheral devices.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Declaration of Conformity
Trade Name: Panasonic
Model No.: HC-WXF1/HC-VX1/HC-V800
Responsible Party: Panasonic Corporation of North America
Two Riverfront Plaza, Newark, NJ 07102-5490
Support Contact: http://shop.panasonic.com/support
CAN ICES-3(B)/NMB-3(B)
MENU
HC-WXF1
HC-VX1 HC-V800
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 3 ページ ２０１８年２月５日 月曜日 午後２時１４分
4
DVQX1447 (ENG)
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
THE FOLLOWING APPLIES ONLY IN CANADA.
Contains FCC ID: VPYLBVX532
FCC CAUTION
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines.
This equipment has very low levels of RF energy that is deemed to comply without testing of
specific absorption rate (SAR).
Contains IC: 772C-LBVX604
This device complies with Industry Canada’s licence-exempt
RSSs. Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of the device.
The available scientific evidence does not show that any health problems are associated with
using low power wireless devices. There is no proof, however, that these low power wireless
devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency
energy (RF) in the microwave range while being used. Whereas high levels of RF can produce
health effects (by heating tissue), exposure of low-level RF that does not produce heating
effects causes no known adverse health effects. Many studies of low-level RF exposures have
not found any biological effects. Some studies have suggested that some biological effects
might occur, but such findings have not been confirmed by additional research. HC-WXF1/
HC-VX1/HC-V800 has been tested and found to comply with IC radiation exposure limits set
forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF)
Exposure rules.
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 4 ページ ２０１８年２月５日 月曜日 午後２時１４分
5
(ENG) DVQX1447
IMPORTANT SAFETY
INSTRUCTIONS
Read thses operating instructions carefully before using the unit. Follow the safety instructions on
the unit and the applicable safety instructions listed below. Keep thses operating instructions handy
for future reference.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the
polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding-type plug
has two blades and a third grounding
prong. The wide blade or the third prong
are provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete
outlet.
10) Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
12) Use only with the
cart, stand, tripod,
bracket, or table
specified by the
manufacturer, or
sold with the
apparatus. When a
cart is used, use caution when moving the
cart/apparatus combination to avoid injury
from tip-over.
13) Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14) Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 5 ページ ２０１８年２月５日 月曜日 午後２時１４分
6
DVQX1447 (ENG)
∫ Concerning the battery
∫ Product Identification Marking
Conforms to UL STD 60065.
Certified to CAN/CSA STD C22.2 No.60065.

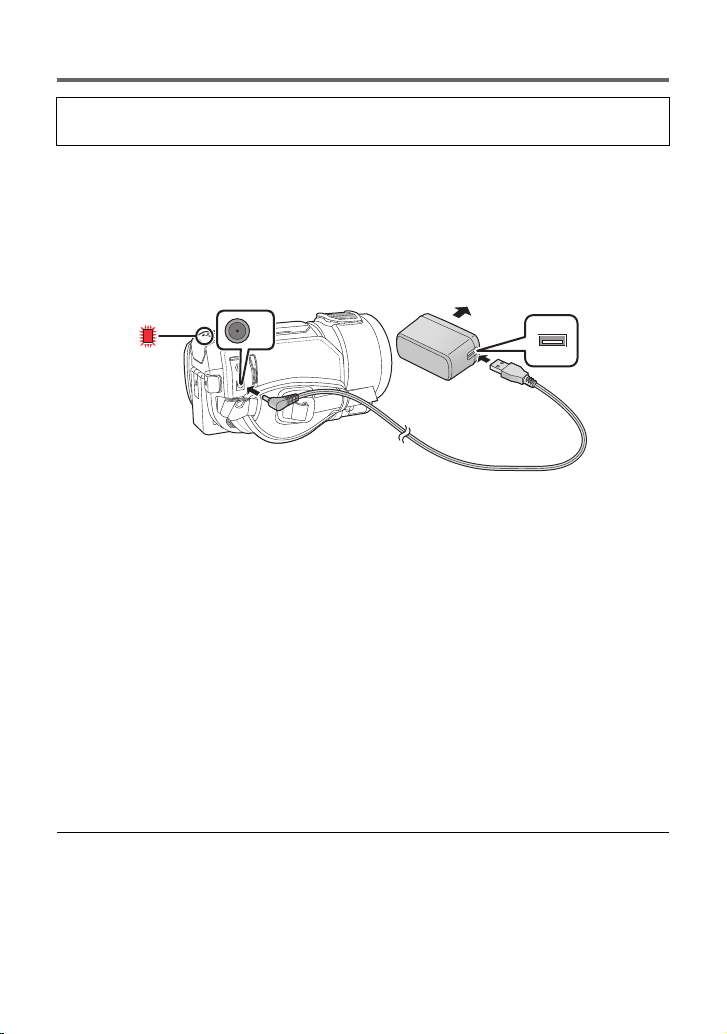

AC adaptor
This AC adaptor operates on AC between 110 V and 240 V.
But
≥ In the U.S.A. and Canada, the AC adaptor must be connected to a 120 V AC power supply only.
≥ When connecting to an AC supply outside of the U.S.A. or Canada, use a plug adaptor to suit
the AC outlet configuration.
The power plug is the disconnecting device. Install this unit so that the power plug can be
unplugged from the socket outlet immediately.
Battery pack (Lithium ion battery pack)
≥ Use the specified unit to recharge the battery pack.
≥ Do not use the battery pack with equipment other than the specified unit.
≥ Do not get dirt, sand, liquids, or other foreign matter on the terminals.
≥ Do not touch the plug terminals (i and j) with metal objects.
≥ Do not disassemble, remodel, heat or throw into fire.
≥ If any electrolyte should come into contact with your hands or clothes, wash it off thoroughly with
water.
If any electrolyte should come into contact with your eyes, never rub the eyes. Rinse eyes
thoroughly with water, and then consult a doctor.
Warning
Risk of fire, explosion and burns. Do not disassemble, heat above 60 oC (140 oF) or incinerate.
CAUTION
≥ Danger of explosion if battery is incorrectly replaced. Replace only with the type
recommended by the manufacturer.
≥ When disposing of the batteries, please contact your local authorities or dealer and ask for the
correct method of disposal.
Product Location
//
4K Video Camera
Battery holder
High Definition Video Camera
Battery holder
AC adaptor Bottom
WXF1
VXF1
VX1
V800
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 6 ページ ２０１８年２月５日 月曜日 午後２時１４分
7
(ENG) DVQX1447
∫ Cautions for use
Keep this unit as far away as possible from electromagnetic equipment (such as microwave
ovens, TVs, video games etc.).
≥ If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be disrupted
by electromagnetic wave radiation.
≥ Do not use this unit near cell phones because doing so may result in noise adversely affecting the
pictures and/or sound.
≥ Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields created
by speakers or large motors.
≥ Electromagnetic wave radiation generated by microprocessors may adversely affect this unit,
disturbing the pictures and/or sound.
≥ If this unit is adversely affected by electromagnetic equipment and stops functioning properly, turn
this unit off and remove the battery or disconnect AC adaptor. Then reinsert the battery or
reconnect AC adaptor and turn this unit on.
Do not use this unit near radio transmitters or high-voltage lines.
≥ If you record near radio transmitters or high-voltage lines, the recorded pictures and/or sound
may be adversely affected.
About connecting to a PC
≥ Do not use any other USB cables except the supplied one.
About connecting to a TV
≥ Do not use any other HDMI micro cables except the supplied one.
About using a headphone
≥ Excessive sound pressure from earphones and headphones can cause hearing loss.
Make sure to use the supplied cords and cables. If you use optional accessories, use the
cords and the cables supplied with them.
Do not extend the cords and the cables.
Do not spray insecticides or volatile chemicals onto the unit.
≥ If the unit is sprayed with such chemicals, its body may be marred and the surface finish may peel
off.
Do not leave rubber or plastic products in contact with the unit for a long time.
Cleaning
≥ Before cleaning, detach the battery or pull the AC adaptor from the AC outlet, and then wipe the
unit with a soft, dry cloth.
≥ If the unit is very dirty, dip a cloth in water and squeeze firmly, and then wipe the unit with the
damp cloth. Next, dry the unit with a dry cloth.
≥ Use of benzine, paint thinner, alcohol, or dishwashing liquid may alter the camera body or peel
the surface finish. Do not use these solvents.
≥ When using a chemical dust cloth, follow the instructions that came with the cloth.
When you are not going to use the unit for an extended time
≥ When storing the unit in a cupboard or cabinet, it is recommended that you place a desiccant
(silica gel) in with it.
The unit and the SD card become warm during use. This is not a malfunction.
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 7 ページ ２０１８年２月５日 月曜日 午後２時１４分
8
DVQX1447 (ENG)
Be sure to detach the battery after use.
≥ If the battery is left attached, a minute amount of current continues to flow even if the unit is off.
Keeping the unit in this state may result in over discharge of the battery. This may result in you
not being able to use the battery even after it is charged.
≥ The battery should be stored in a cool place free from humidity, with as constant temperature as
possible. (Recommended temperature: 15 oC to 25 oC (59 oF to 77 oF), Recommended humidity:
40%RH to 60%RH)
≥ To store the battery for a long period of time, we recommend you charge it once every year and
store it again after you have completely used up the charged capacity.
If the operating time is very short even after the battery has been recharged, the battery has
worn out. Please purchase a new battery.
About the SD card
≥ When the card access lamp is lit, do not:
j Remove the SD card
j Turn the unit off
j Insert and remove the USB cable
j Expose the unit to vibrations or shock
About the accessory shoe cover
≥ Close accessory shoe cover A when not using the accessory shoe.
≥ For details about accessory shoe cover, refer to the Owner’s Manual (PDF
format).
∫ About the recording format for recording motion pictures
≥ Motion pictures recorded with other devices are not supported by this unit.
(For the / / )
You can select from AVCHD
*1
, 4K MP4
*2
, MP4
*2
or 24p
*2
recording formats to record motion
pictures using this unit.
(For the )
You can select from AVCHD
*1
, MP4
*2
or 24p
*2
recording formats to record motion pictures using
this unit.
*1 It is compatible with the AVCHD Progressive (1080/60p).
*2 It is not compatible with motion pictures recorded in AVCHD format.
AVCHD:
It is suitable for viewing on a high-definition TV or for saving to disc
*3
.
*3 Images recorded in 1080/60p can be saved using the following methods:
j Copying to a disc using the HD Writer AE 5.4.
j Copying to a Panasonic Blu-ray disc recorder that supports AVCHD Progressive.
4K MP4 (For the / / ):
This is a recording format suitable for editing images.
This format can record 4K motion pictures (3840k2160/30p), which deliver a resolution four times
higher than that of full high-definition motion pictures.
MP4:
This is a recording format suitable for playing back or editing on a PC.
WXF1
VXF1
VX1
V800
WXF1 VXF1
VX1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 8 ページ ２０１８年２月５日 月曜日 午後２時１４分
9
(ENG) DVQX1447
24p:
This allows you to record images similar to those shot on a roll of cinema film.
(For the / / )
Images can be recorded as 4K motion pictures (3840k2160/24p) or in high-definition picture quality
(1920k1080/24p).
(For the )
Images can be recorded as high-definition picture quality (1920k1080/24p).
∫ Indemnity about recorded content
Panasonic does not accept any responsibility for damages directly or indirectly due to any type of
problems that result in loss of recording or edited content, and does not guarantee any content if
recording or editing does not work properly. Likewise, the above also applies in a case where any
type of repair is made to the unit.
∫ About Condensation
(When the lens, the viewfinder
*
or LCD Monitor is fogged up)
Condensation occurs when there is a change in temperature or humidity, such as when the unit is
taken from outside or a cold room to a warm room. Please be careful, as it may cause the lens, the
viewfinder or LCD monitor to become soiled, moldy, or damaged.
When taking the unit to a place which has a different temperature, if the unit is accustomed to the
room temperature of the destination for about one hour, condensation can be prevented. (When the
difference in temperature is severe, place the unit in a plastic bag or the like, remove air from the
bag, and seal the bag.)
When condensation has occurred, remove the battery and/or the AC adapter and leave the unit like
that for about one hour. When the unit becomes accustomed to the surrounding temperature,
fogginess will disappear naturally.
* For the /
∫ Cards that you can use with this unit
SD Memory Card, SDHC Memory Card and SDXC Memory Card
≥ 4 GB or more Memory Cards that do not have the SDHC logo or 48 GB or more Memory Cards
that do not have the SDXC logo are not based on SD Memory Card Specifications.
≥ Refer to page 18 for more details on SD cards.
∫ Caution regarding the lens and the viewfinder
*
Do not aim the lens or the viewfinder at the sun or strong light. Doing so may cause the unit to
malfunction.
* For the /
∫ For the purposes of this owner’s manual
≥ SD Memory Card, SDHC Memory Card and SDXC Memory Card are referred to as the “SD card”.
≥ The smartphone and tablet are indicated as “smartphone”.
≥ Function that can be used for Motion Picture Recording Mode:
Function that can be used for Still Picture Recording Mode:
≥ Function that can be used for the Playback Mode:
Function that can be used for the Playback Mode (motion pictures only):
Function that can be used for the Playback Mode (still pictures only):
≥ Scene(s) recorded in the recording format [AVCHD]: “AVCHD scene(s)”
≥ (For the / / )
Scene(s) recorded in the recording format [4K MP4] and scene(s) recorded in 4K PHOTO mode:
“4K MP4 scene(s)”
WXF1
VXF1
VX1
V800
WXF1 VXF1
WXF1 VXF1
WXF1
VXF1
VX1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 9 ページ ２０１８年２月５日 月曜日 午後２時１４分
10
DVQX1447 (ENG)
≥ Scene(s) recorded in the recording format [MP4] and scene(s) saved in MP4 (1920k1080/30p),
MP4 (1280k720/30p) or MP4 (640k360/30p): “MP4 scene(s)”
≥ Scene(s) recorded in the recording format [24p]: “24p scene(s)”
≥ Scene(s) containing only the Main Camera’s image that was recorded separately from a
simultaneously recorded normal scene when [Backup for Twin Camera] was set to [ON]:
“Scene(s) recorded as Backup for Twin Camera”
≥ Pages for reference are indicated by an arrow, for example: l 00
≥ (For the / )
Fn buttons set as follows in [FN BUTTON SETTING]
j Fn button set as [ (Wi-Fi)]: “Wi-Fi button”
j Fn button set as [ (HDR Movie)]: “HDR button”
j Fn button set as [ (PHOTOSHOT)]: “Photoshot button”
j Fn button set as [ (REC MODE CHANGE)]: “Recording Mode selector button”
≥ Model numbers are abbreviated as follows in this owner’s manual:
Model number
Abbreviation used in this
owner’s manual
HC-WXF1
[WXF1]
HC-VXF1
[VXF1]
HC-VX1
[VX1]
HC-V800
[V800]
This owner’s manual are designed for use with models , , and .
Pictures may be slightly different from the original.
≥ The illustrations used in this owner’s manual show model , however, parts of the
explanation refer to different models.
≥ Depending on the model, some functions are not available.
≥ Features may vary, so please read carefully.
≥ Not all models may be available depending on the region of purchase.
WXF1
VXF1
WXF1
VXF1
VX1
V800
WXF1
VXF1
VX1
V800
VX1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 10 ページ ２０１８年２月５日 月曜日 午後２時１４分
11
(ENG) DVQX1447
∫ Installing HD Writer AE 5.4
∫ Downloading the Owner’s Manual (PDF format)
You can check the URL and QR code of the website where you can download the Owner’s Manual
(PDF format) in [ONLINE MANUAL] in the Setup menu.
≥ Touch (left side)/ (right side) of on the Touch Menu to display . (l 24)
1Touch .
2Touch [SETUP].
3 Touch [ONLINE MANUAL].
4 Touch the access method you want to check.
≥ You will need Adobe Reader to browse or print the Owner’s Manual (PDF format).
You can download and install a version of Adobe Reader that you can use with your OS from the
following website. (As of January 2018)
http://www.adobe.com/products/acrobat/readstep2.html
Check the website below to download/install the software.
≥ The software is available for download until the end of March 2021.
http://panasonic.jp/support/global/cs/soft/download/f_ae54.html
[URL display]:
Displays the URL of the website on the LCD monitor of this unit.
[USB connect]:
Displays the website on a PC connected to this unit with the USB cable. Click [OIBOOK], which
will be displayed on the PC.
[QR code]:
Displays the QR code of the website on the LCD monitor of this unit.
MENU
MENU
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 11 ページ ２０１８年２月５日 月曜日 午後２時１４分
12
DVQX1447 (ENG)
Accessories ............................................13
Preparation
Power supply ..........................................14
Inserting/removing the battery............ 14
Charging the battery .......................... 15

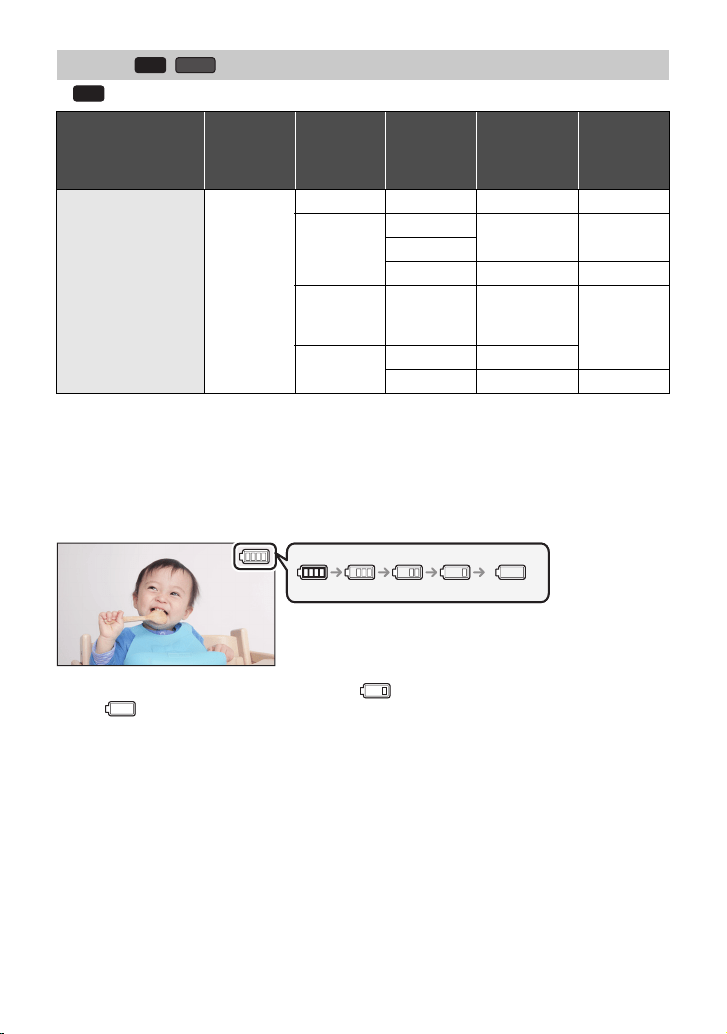

Charging and recording time.............. 16
Recording to a card ............................... 18
Cards that you can use
with this unit .......................................18
Inserting/removing an SD card........... 19
Turning the unit on/off ........................... 20
Selecting a mode ................................... 21
Switching this unit between
Recording Mode and
Playback Mode ..................................21
Switching this unit between
Motion Picture Recording Mode and
Still Picture Recording Mode..............22
LCD monitor/viewfinder ........................23
How to use the touch screen .............23
Viewfinder adjustment
[WXF1]/[VXF1] ................................... 24
About the Touch Menu....................... 24
Setting date and time ............................. 25
Setting your home region
for the first time ...................................... 25
Basic
Changing the Recording Mode ............. 26

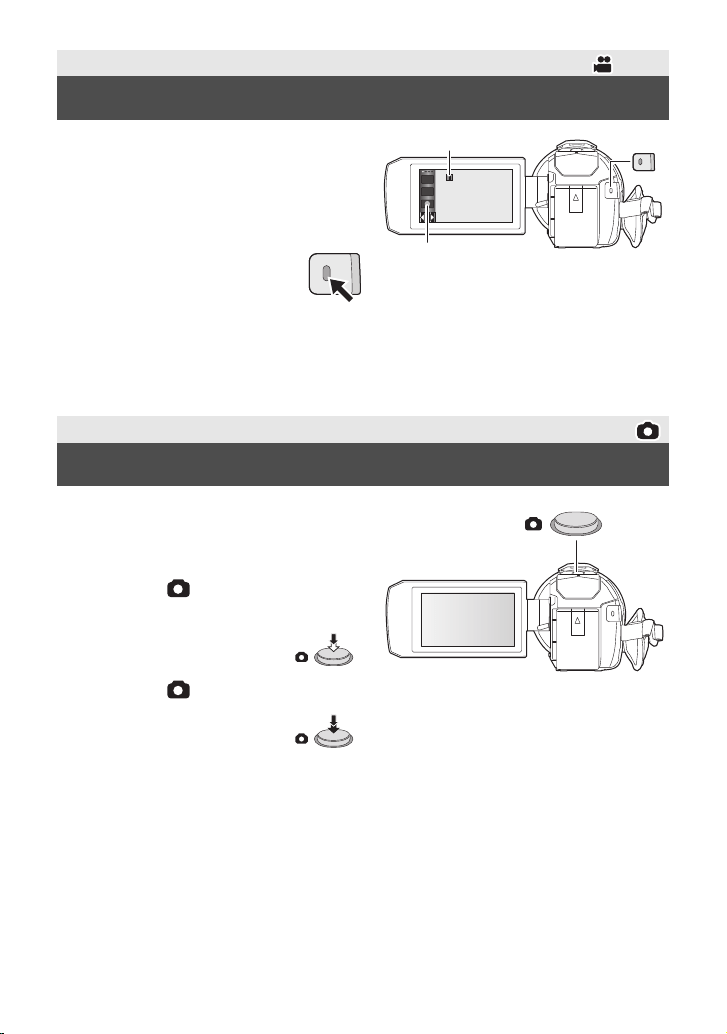

Recording motion pictures ................... 28
Recording still pictures ......................... 28

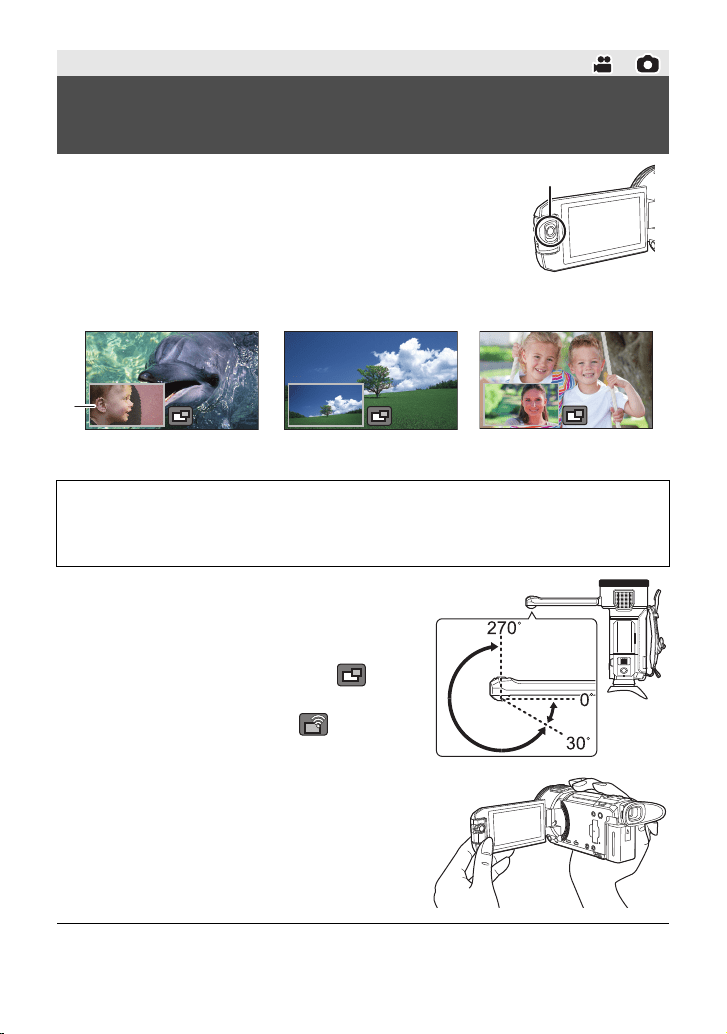

Recording with the Sub Camera
(Twin Camera) [WXF1] .......................... 29

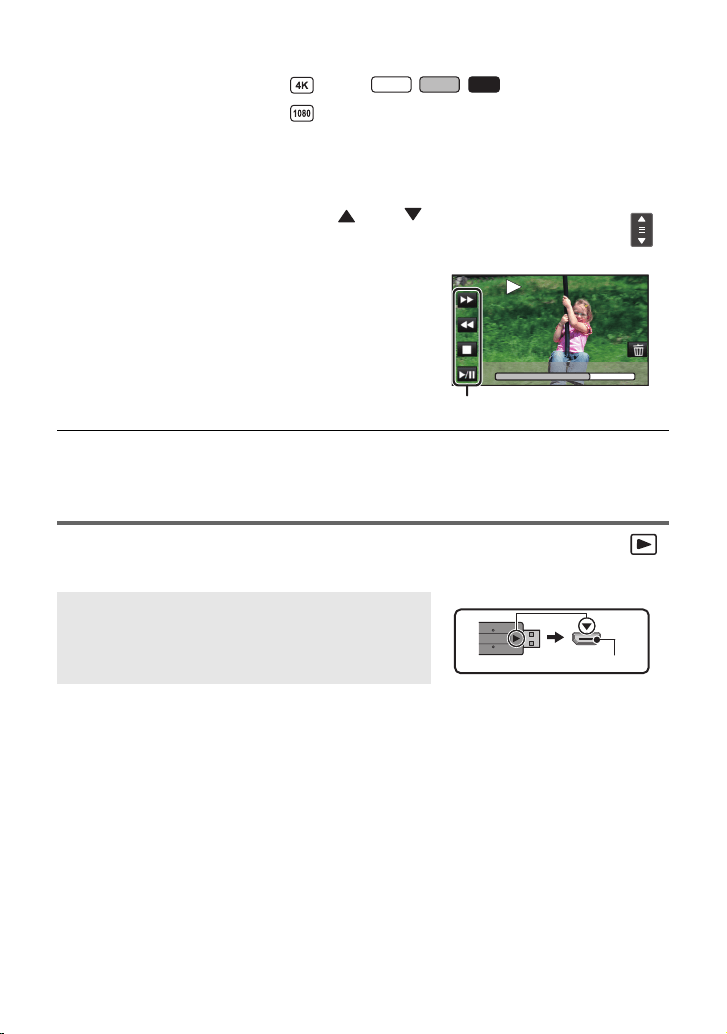

Motion picture/
Still picture playback ............................. 30
Watching Video/
Pictures on your TV ........................... 31
Using the menu screen ......................... 32
Language selection ........................... 32
Formatting ......................................... 32
Wi-Fi
What you can do with the
Wi-Fi
®
function ....................................... 33
[Link to Cell] ........................................... 34
Install the “Image App”....................... 34
Preparations before using
[Link to Cell] ....................................... 35
Using [Link to Cell] with a
direct connection................................ 36
About [Link to Cell]............................. 37
Wireless Twin/
Multi-Camera function ........................... 38
Others
Troubleshooting .................................... 39
Specifications ........................................ 41
About copyright ..................................... 45

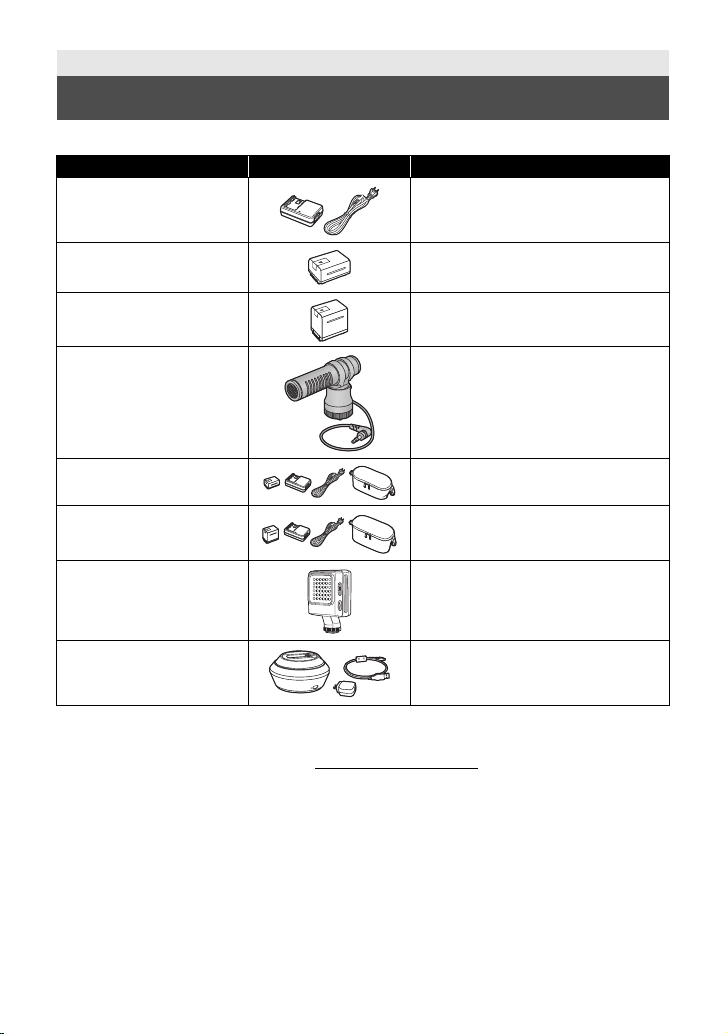

Optional accessories ............................ 47
Limited Warranty
(ONLY FOR U.S.A.) ................................ 48
Warranty
(For Canadian Customers) .................... 50
Useful Information
(Only For Latin American Countries)
...... 51
Contents
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 12 ページ ２０１８年２月５日 月曜日 午後２時１４分
13
(ENG) DVQX1447
Check the accessories before using this unit.
Keep the accessories out of reach of children to prevent swallowing.
Product numbers correct as of Jan. 2018. These may be subject to change.
(For U.S.A. only)
If accessories are lost, customers can visit us at
http://shop.panasonic.com/support
for further information about obtaining
replacement parts.
Accessories
Battery pack
VW-VBT190
AC adaptor
VSK0815F
DC cable
K2GHYYS00004
USB cable
K1HY04YY0106
HDMI micro cable
K1HY19YY0055
Lens hood
DVZE1023Z
≥ For details on how to
attach the lens hood, refer
to the Owner’s Manual
(PDF format).
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 13 ページ ２０１８年２月５日 月曜日 午後２時１４分
14
DVQX1447 (ENG)
∫ About batteries that you can use with this unit
The battery that can be used with this unit is VW-VBT190/VW-VBT380.
≥ The unit has a function for distinguishing batteries which can be used safely. The
dedicated battery (VW-VBT190/VW-VBT380) supports this function. The only batteries
suitable for use with this unit are genuine Panasonic products and batteries manufactured
by other companies and certified by Panasonic. Panasonic cannot in any way guarantee
the quality, performance or safety of batteries which have been manufactured by other
companies and are not genuine Panasonic products.
Inserting/removing the battery
≥ Press the power button to turn off the unit. (l 20)
Install the battery by inserting it in the direction shown in the figure.
Preparation
Power supply
It has been found that counterfeit battery packs which look very similar to the genuine
product are made available to purchase in some markets. Some of these battery packs
are not adequately protected with internal protection to meet the requirements of
appropriate safety standards. There is a possibility that these battery packs may lead to
fire or explosion. Please be advised that we are not liable for any accident or failure
occurring as a result of use of a counterfeit battery pack. To ensure that safe products are
used we would recommend that a genuine Panasonic battery pack is used.
Removing the battery
Be sure to hold down the power button until the
status indicator goes off. Then remove the battery
while supporting the unit to prevent it from dropping.
Move the battery release lever in the direction
indicated by the arrow and remove the battery
when unlocked.
A Battery holder
Insert the battery until it clicks and
locks.
ャモヵヵ
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 14 ページ ２０１８年２月５日 月曜日 午後２時１４分
15
(ENG) DVQX1447
Charging the battery
The unit is in the standby condition when the AC adaptor is connected. The primary circuit is always
“live” as long as the AC adaptor is connected to an electrical outlet.
Important:
≥ Do not use the AC adaptor/DC cable with any other equipment as it is designed only for
this unit. Also, do not use the AC adaptor/DC cable from other equipment with this unit.
≥ The battery will not be charged if the unit is turned on.
≥ It is recommended to charge the battery in a temperature between 10 oC and 30 oC (50 oF
and 86 oF). (The battery temperature should also be the same.)
A DC input terminal
1 Connect the DC cable to the AC adaptor and to the DC input terminal of this
unit.
≥ Insert the plugs as far as they will go.
2 Insert the AC adaptor into an AC outlet.
≥ The status indicator will flash red at an interval of approximately 2 seconds (approximately
1 second on, approximately 1 second off), indicating that charging has begun.
It will turn off when the charging is completed. (l 20)
∫ Connecting to the AC outlet
It is possible to use this unit with power supplied from the AC outlet by turning on the unit with the
AC adaptor connected.
Even when you use the AC adaptor for recording images, keep the battery connected.
This allows you to continue the recording even if a power failure occurs or the AC adaptor is
unplugged from the AC outlet by accident.
∫ To charge by connecting to other device
It is possible to charge by connecting to other device with the USB cable (supplied).
≥ Do not use any other DC cables except the supplied one.
≥ Do not use any other AC adaptors except the supplied one.
≥ We recommend using Panasonic batteries (l 14).
≥ If you use other batteries, we cannot guarantee the quality of this product.
≥ Do not heat or expose to flame.
≥ Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with
doors and windows closed.
When this unit is purchased, the battery is not charged. Charge the battery fully before
using this unit for the first time.
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 15 ページ ２０１８年２月５日 月曜日 午後２時１４分
16
DVQX1447 (ENG)
Charging and recording time
∫ Charging/Recording time
≥ Temperature: 25 oC (77 oF)/humidity: 60%RH
≥ When using the LCD monitor
≥ The indicated charging time is for when the battery has been discharged completely.
Charging time and recordable time vary depending on the usage conditions such as high/
low temperature.
≥ Charging times in parentheses are when charging from the USB terminal.
≥ Maximum continuous recordable times and actual recordable times in round parentheses are the
values when the viewfinder is used.
≥ (For the )
Maximum continuous recordable times and actual recordable times in square parentheses are the
values when recording is performed with the Sub Camera in combination with the LCD monitor
*
.
* These include times when is displayed on the screen.
For the /
Battery model
number
[Voltage/Capacity
(minimum)]
Charging
time
Recording
format
Recording
mode
Maximum
continuous
recordable
time
Actual
recordable
time
Supplied battery/
VW-VBT190
(optional)
[3.6 V/1940 mAh]
2h20min
(5h20min)
[4K MP4] [2160]
1h25min
(1h30min)
[1h5min]
45 min
(45 min)
[35 min]
[MP4]
[1080/50M]
1h40min
(1h45min)
[1h15min]
50 min
(55 min)
[40 min]
[1080/28M]
1h40min
(1h45min)
[1h15min]
50 min
(55 min)
[40 min]
[720]
1h55min
(2h5min)
[1h25min]
1h
(1 h 5 min)
[45 min]
[AVCHD]
[1080/60p]
1h40min
(1h45min)
[1h15min]
50 min
(55 min)
[40 min]
[PH]
1h40min
(1h45min)
[1h15min]
50 min
(55 min)
[40 min]
[HA], [HG]
1h40min
(1h50min)
[1h15min]
[HE]
1h40min
(1h50min)
[1h20min]
[24p]
[2160/24p]
1h35min
(1h40min)
50 min
(50 min)
[1080/24p]
1h45min
(1h50min)
55 min
(55 min)
WXF1
VXF1
WXF1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 16 ページ ２０１８年２月５日 月曜日 午後２時１４分
17
(ENG) DVQX1447
* only
≥ “h” is an abbreviation for hour, “min” for minute and “s” for second.
≥ These times are approximations.
≥ The actual recordable time refers to the recordable time when repeatedly starting/stopping
recording, turning the unit on/off, moving the zoom lever etc.
∫ Battery capacity indication
The battery capacity indication is displayed on the LCD monitor.
≥ If there is less than 3 minutes remaining, then will become red. If the battery discharges,
then will flash. Recharge the battery or replace it with a fully charged battery.
For the /
Battery model
number
[Voltage/Capacity
(minimum)]
Charging
time
Recording
format
Recording
mode
Maximum
continuous
recordable
time
Actual
recordable
time
Supplied battery/
VW-VBT190
(optional)
[3.6 V/1940 mAh]
2h20min
(5h20min)
[4K MP4]
*
[2160] 1 h 25 min 45 min
[MP4]
[1080/50M]
1h40min 50min
[1080/28M]
[720] 1h55min 1h
[AVCHD]
[1080/60p],
[PH], [HA],
[HG], [HE]
1h40min
50 min
[24p]
[2160/24p]
*
1h35min
[1080/24p] 1 h 45 min 55 min
VX1
V800
VX1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 17 ページ ２０１８年２月５日 月曜日 午後２時１４分
18
DVQX1447 (ENG)
The unit can record still pictures or motion pictures to an SD card. To record to an SD card, read the
following.
Cards that you can use with this unit
∫ About the Speed Class ratings for recording motion pictures
Depending on [REC MODE] and [REC FORMAT], the required card differs.
Use a card that meets the following ratings of the SD Speed Class. Use of a non-compatible
card may cause recording to stop suddenly.
≥ SD Speed Class is the speed standards regarding continuous writing. To check the class, see the
labeled side, etc. of the card.
* For the / /
≥ In the following situations, you need an SD card conforming to Class 10 of the SD Speed
Class Rating to record motion pictures.
Use of a non-compatible card may cause recording to stop suddenly.
j FULL HD Slow Motion Video Mode
j When [Backup for Twin Camera] is set to [ON]
(For the / / )
j 4K Photo Mode
j Slow & Quick Video Mode
Preparation
Recording to a card
Card type Capacity
SD Memory Card 512 MB to 2 GB
SDHC Memory Card 4GB to 32GB
SDXC Memory Card 48 GB to 128 GB
≥ Please check the latest information on the support website below.
http://panasonic.jp/support/global/cs/e_cam
(This website is in English only.)
≥ We do not guarantee the operation of SD cards other than the ones above.
≥ Operation is not guaranteed for all SD cards.
≥ Keep the memory card out of reach of children to prevent swallowing.
Recording formats Recording modes Speed Class ratings Label examples
4K MP4
*
[2160]
Class 10
24p All
MP4
[1080/50M]
[1080/28M], [720]
Class 4 or more
AVCHD All
WXF1 VXF1
VX1
WXF1
VXF1
VX1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 18 ページ ２０１８年２月５日 月曜日 午後２時１４分
19
(ENG) DVQX1447
Inserting/removing an SD card
When using an SD card not from Panasonic, or one previously used on other equipment, for the first
time on this unit, format the SD card. (l 32) When the SD card is formatted, all of the recorded data
is deleted. Once the data is deleted, it cannot be restored.
Caution:
Check that the access lamp has gone off.
1 Open the SD card cover and insert (remove) the SD card into (from) the card
slot B.
≥ Face the label side C in the direction shown in the illustration and press it straight in as far as it
will go.
≥ Press the center of the SD card and then pull it straight out.
2 Securely close the SD card cover.
≥ Securely close it until it clicks.
Access lamp [ACCESS] A
≥ When this unit is accessing the SD card, the access lamp lights up.
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 19 ページ ２０１８年２月５日 月曜日 午後２時１４分
20
DVQX1447 (ENG)
You can turn the unit on and off using the power button or by opening and closing the LCD monitor.
Open the LCD monitor and press the power button to turn on the unit.
A The status indicator lights on.
The unit is turned on when the LCD monitor is opened, and unit is turned off when it is closed.
≥ (For the / )
j You can also turn the unit on and off using the viewfinder.
j The unit will not turn off unless the LCD monitor is closed and the viewfinder is retracted.
j When the viewfinder is extended, opening the LCD monitor turns off the viewfinder and turns
on the LCD monitor.
The viewfinder may turn on depending on the settings for the [LCD/EVF CHANGE] in the Fn
button function. For information about the Fn button functions, refer to the Owner’s Manual
(PDF format).
∫ Overheat detection
When the internal temperature of the unit rises during use, a message will be displayed. When this
happens, the unit will turn off automatically a few minutes later.
≥ Wait until the temperature has dropped before resuming use.
If you try to use the Wi-Fi function while the internal temperature of this unit is high, a message will
be displayed. When this happens, the Wi-Fi function is disabled.
≥ Wait until the temperature has dropped before resuming use.
Preparation
Turning the unit on/off
Turning the unit on and off with the power button
To turn off the unit
Hold down the power button until the status
indicator goes off.
WXF1
VXF1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 20 ページ ２０１８年２月５日 月曜日 午後２時１４分
21
(ENG) DVQX1447

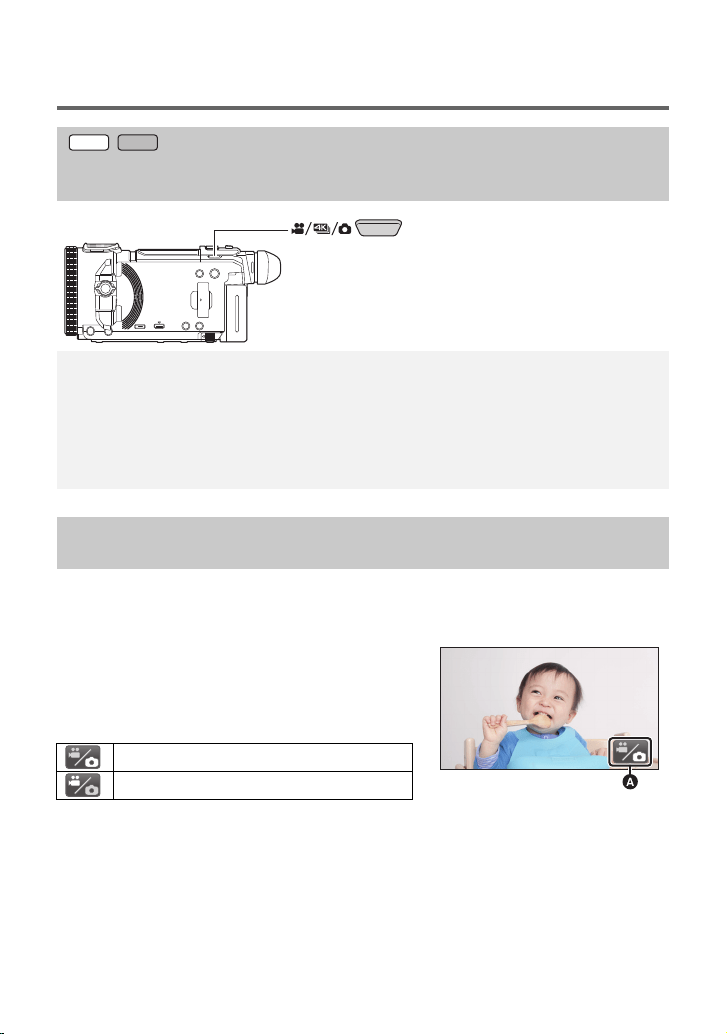

You can switch this unit between Recording Mode (Motion Picture Recording Mode/Still Picture
Recording Mode) and Playback Mode by pressing the recording/playback button.
If you touch the recording mode switching icon in Recording Mode, this unit can be switched
between Motion Picture Recording Mode and Still Picture Recording Mode.
≥ (For the / )
In Recording Mode, pressing the recording mode selector button allows you to switch between
Motion Picture Recording Mode, 4K Photo Mode and Still Picture Recording Mode. (l 22)
Switching this unit between Recording Mode and
Playback Mode
Preparation
Selecting a mode
Motion Picture Recording Mode (l 28) Recording motion pictures.
Still Picture Recording Mode (l 28) Recording still pictures.
Playback Mode (l 30) Motion picture/Still picture playback.
WXF1
VXF1
Recording/playback button
Press the button to switch this unit
between Recording Mode and Playback
Mode.
≥ When you turn on this unit, it starts up in
Recording Mode.
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 21 ページ ２０１８年２月５日 月曜日 午後２時１４分
22
DVQX1447 (ENG)
Switching this unit between Motion Picture Recording
Mode and Still Picture Recording Mode
Touch the recording mode switching icon displayed on the LCD monitor (touch screen) to switch this
unit between Motion Picture Recording Mode and Still Picture Recording Mode.
2 Touch the recording mode switching icon.
≥ Refer to page 23 for touch screen operation.
/
Pressing a button to switch between Motion Picture Recording Mode
and Still Picture Recording Mode
Recording mode selector button
Each time you press this button, the Recording Mode switches in the following order:
Motion Picture Recording Mode # 4K Photo Mode
*
# Still Picture Recording Mode
* The unit does not switch to 4K Photo Mode in the following cases:
j When the Wireless Twin Camera function is in use
j When [REC FORMAT] is set to [24p]
j Night Mode
Touching an icon to switch between Motion Picture Recording Mode
and Still Picture Recording Mode
(Motion Picture Recording Mode)
1 Press the recording/playback button to
switch this unit to Recording Mode.
≥ The recording mode switching icon A is displayed on
the screen.
Motion Picture Recording Mode
Still Picture Recording Mode
WXF1
VXF1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 22 ページ ２０１８年２月５日 月曜日 午後２時１４分
23
(ENG) DVQX1447
To display the recording mode switching icon
Display of the recording mode switching icon will disappear when no touch operation is performed
for a specific period of time. To display it again, touch the screen.
≥ The recording mode selector button and the recording mode switching icon are disabled when
the Wireless Multi-Camera function is enabled.
≥ If the recording start/stop button is pressed in Still Picture Recording Mode or Playback Mode,
this unit will be switched to Motion Picture Recording Mode. During motion picture/still picture
playback or in other conditions, even if the recording start/stop button is pressed, the recording
mode may not be switched.
≥ When you switch between Motion Picture Recording Mode, 4K Photo Mode
*
and Still Picture
Recording Mode, settings used in the original recording mode may not be maintained. (l 26)
* For the / /
How to use the touch screen
You can operate by directly touching the LCD monitor (touch screen) with your finger.
∫ Touch
Touch and release the touch screen to select icon or picture.
≥ Touch the center of the icon.
≥ Touching the touch screen will not operate while you are
touching another part of the touch screen.
∫ Slide while touching
Move your finger while pressing on the touch screen.
∫ About the operation icons
///:
Touch when changing a page or performing settings.
:
Touch to return to the previous screen.
≥ (For the / )
When the viewfinder is in use, on-screen icons will be displayed but disabled.
Open the LCD monitor to touch them.
Preparation
LCD monitor/viewfinder
WXF1
VXF1
VX1
WXF1
VXF1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 23 ページ ２０１８年２月５日 月曜日 午後２時１４分
24
DVQX1447 (ENG)

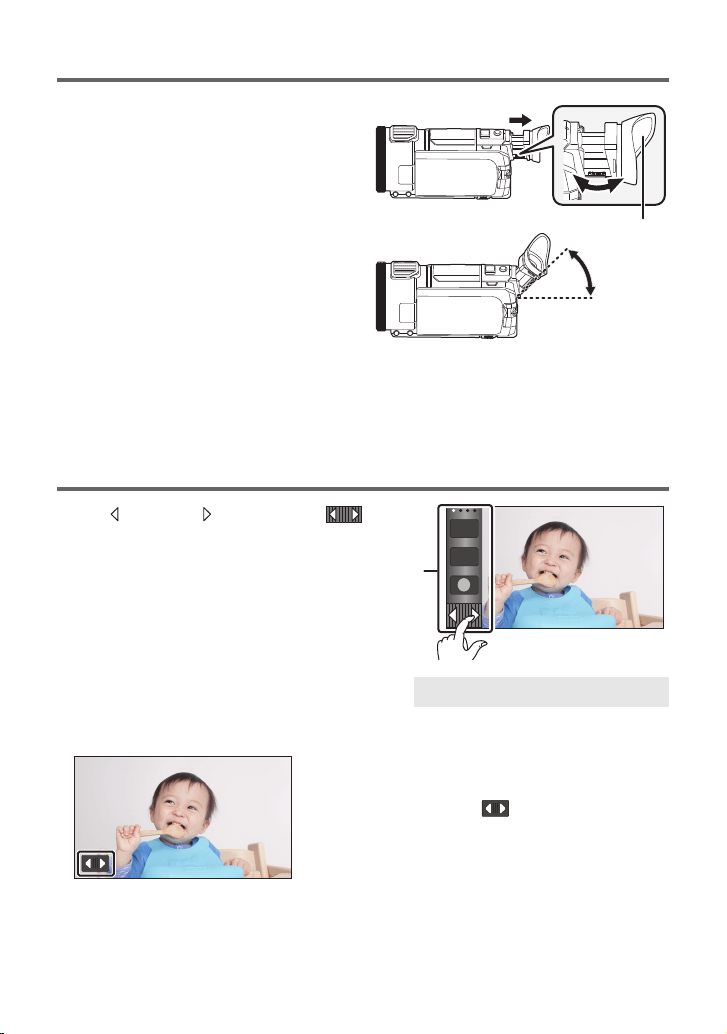

Viewfinder adjustment [WXF1]/[VXF1]
∫ Diopter adjustment
Adjust to make the image clear by
rotating the diopter adjustment dial.
≥ Extend the viewfinder and close the LCD
monitor to turn on the viewfinder.
≥ The viewfinder can be raised up to
approximately 50 o A.
≥ When moving the viewfinder, be careful not to
catch your fingers.
∫ About the eyecup
If you remove the eyecup B, rotate it
anti-clockwise by 180 o and re-attach it, you can also use it with your left eye.
For information on how to attach and remove the eyecup, refer to the Owner’s
Manual (PDF format).
≥ Keep the eyecup out of reach of children to prevent swallowing.
About the Touch Menu
Touch (left side)/ (right side) of on
the Touch Menu to switch the operation
icons.
≥ It is also possible to switch the operation icons by
sliding the Touch Menu right or left while touching it.
∫ To display the Touch Menu
A Touch Menu
T
W
Display of the Touch Menu will disappear when no
touch operation is performed for a specific period of
time during recording of motion picture/still picture.
To display it again, touch .
≥ Do not touch on the LCD monitor with hard pointed
tips, such as ball point pens.
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 24 ページ ２０１８年２月５日 月曜日 午後２時１４分
25
(ENG) DVQX1447

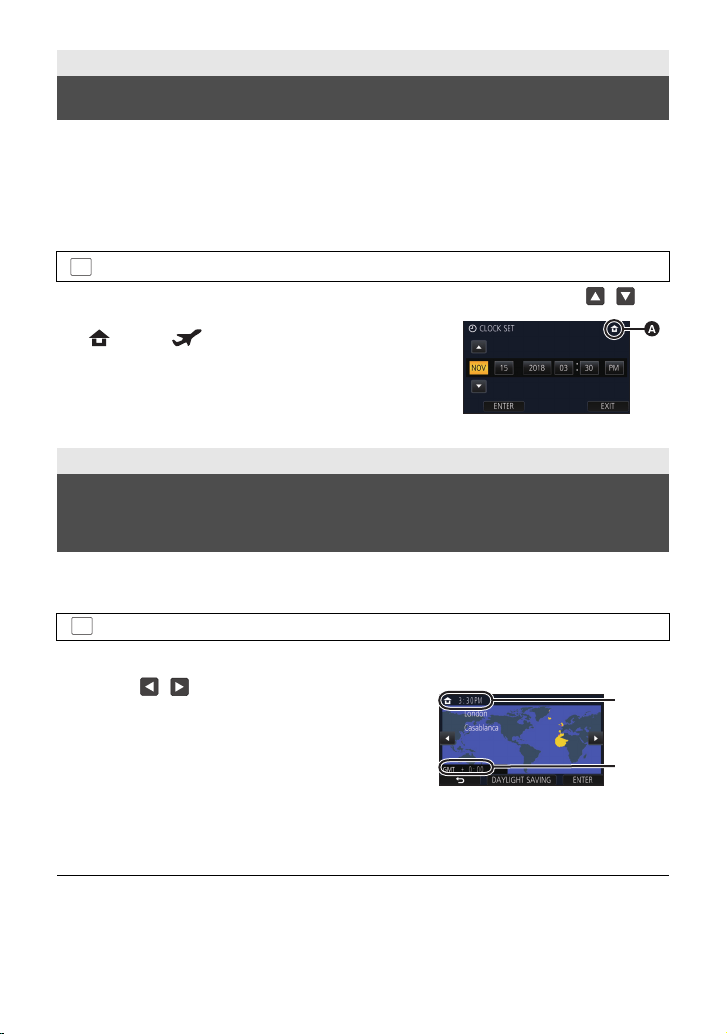

The clock is not set at the time of purchase. Make sure to set the clock.
≥ When you turn on this unit, the message “Set home region and date/time.” may be
displayed. Select [YES], and follow the steps below to make these settings:
j Step 2 of “Setting your home region for the first time”
j Steps 2–3 of “Setting date and time”
1 Select the menu. (l 32)
2 Touch the date or time to be set, then set the desired value using /.
A Displaying the World Time setting:
[HOME]/ [DESTINATION]
≥ The year can be set between 2000 and 2039.
3 Touch [ENTER].
≥ Touch [EXIT] to complete the setting.
You can set your home region in [SET WORLD TIME].
1 Select the menu. (l 32)
≥ A message will be displayed. Touch [ENTER].
≥ For information on how to change your home region or set the region of your travel destination,
refer to the Owner’s Manual (PDF format).
Preparation
Setting date and time
: [SETUP] # [CLOCK SET]
Preparation
Setting your home region for the first
time
: [SETUP] # [SET WORLD TIME]
2 Touch / to select your home
region and touch [ENTER].
≥ When the clock is not set, the current time is
displayed as “--:----”.
A The current time
B The time difference from GMT
(Greenwich Mean Time)
MENU
MENU
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 25 ページ ２０１８年２月５日 月曜日 午後２時１４分
26
DVQX1447 (ENG)

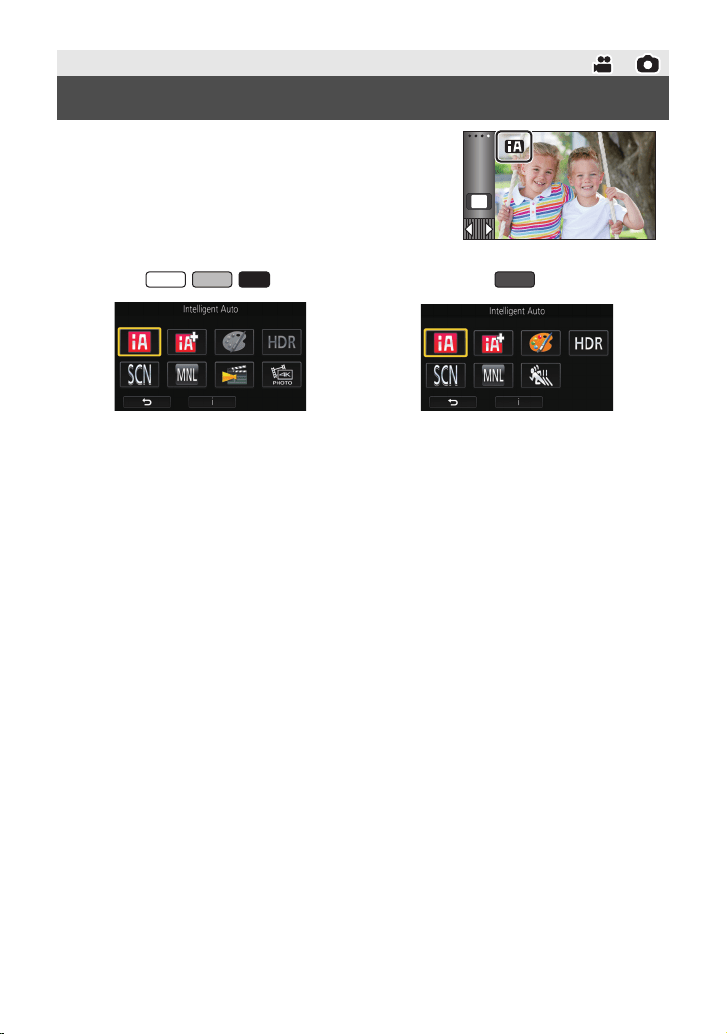

1 Touch the Recording Mode button icon.
2 Touch the desired Recording Mode button icon.
Basic
Changing the Recording Mode
//
MENU
WXF1
VXF1
VX1
V800
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 26 ページ ２０１８年２月５日 月曜日 午後２時１４分
27
(ENG) DVQX1447
*1 In Motion Picture Recording Mode only
*2 In Still Picture Recording Mode only
*3For the //
*4 only
Mode Effect
*1
*2
Intelligent Auto
You can switch the mode to the Intelligent Auto Mode,
which optimizes settings to the recording environment
you are in.
*1
*2
Intelligent Auto Plus
You can add manually-adjusted brightness and color
balance settings to the Intelligent Auto Mode, and
record.
*1
Creative Control
You can record motion pictures with added effects.
*1
HDR Movie
You can minimize the loss of gradations in bright areas
and dark areas when, for example, the contrast
between the background and the subject is large.
Scene Mode
This option allows this unit to automatically adjust the
shutter speed and aperture, etc. according to the scene
you want to record.
Manual
You can set the shutter speed, focus, White Balance,
and brightness (iris/gain).
*1, 3
Cinema Like Effect
You can record images with cinematic effects.
*1, 4
FULL HD Slow
Motion Video
You can record slow motion pictures.
*1, 3
4K Photo
You can record motion pictures optimized for capturing
still pictures from 4K motion pictures.
*2
Stop Motion
Animation Assist
You can set a recorded still picture as the background,
and record the next picture while looking at that
recorded picture as the background.
MNL
WXF1
VXF1
VX1
V800
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 27 ページ ２０１８年２月５日 月曜日 午後２時１４分
28
DVQX1447 (ENG)
1 Open the LCD monitor or extend the
viewfinder to switch to Motion
Picture Recording Mode. (l 22)
2 Press the recording start/stop button
to start recording.
A Recording button icon
B When you begin recording, ; changes to ¥.
3 Press the recording start/stop button again to pause recording.
≥ Recording can also be started/stopped by touching the recording button icon.
1 Open the LCD monitor or extend the
viewfinder to switch to Still Picture
Recording Mode. (l 22)
2 Press the button halfway.
(For Auto Focus only)
3 Press the button fully.
Basic
Recording motion pictures
Basic
Recording still pictures
T
W
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 28 ページ ２０１８年２月５日 月曜日 午後２時１４分
29
(ENG) DVQX1447
Using the Sub Camera and the Main Camera, you can record two
images simultaneously. (Twin Camera)
Use the Sub Camera to enjoy recording yourself, a family member
next to you or scenery different from that seen from the Main
Camera.
A Sub Camera
B Sub Window
≥ The image of the Sub Camera is displayed on the Sub Window.
1 Rotate the Sub Camera.
≥ When you rotate the Sub camera from a position in the
range C (0e to approximately 30e) to a position in the
range D (approximately 30e to 270e), the Sub Window is
displayed on the LCD monitor.
≥ If the Sub Window does not appear, touch to
display it.
≥ When the Sub Camera is in use, you cannot start up the
Wireless Twin Camera function with (startup icon
for Wireless Twin Camera/disconnect icon for Wireless
Twin/Multi-Camera).
2 Start recording.
≥ Rotate the Sub Camera to the desired position.
≥ The Sub Camera works in Auto Focus, which adjusts
focus automatically.
≥ Normally, hold this unit as shown in the illustration when
recording.
≥ When the LCD monitor is either closed or closed with the screen facing outward, the Sub Camera
does not work. The Sub Window will be displayed if you open the LCD monitor again.
Basic
Recording with the Sub Camera
(Twin Camera)
[WXF1]
Recording a family
member next to you
Recording scenery Recording yourself
≥ Recording only with the Sub Camera is not possible.
≥ An image recorded with the Main Camera and the Sub Camera’s image displayed on the
Sub Window are recorded as a single scene or still picture. When you play back such a
scene or still picture, it is not possible to delete only the Sub Window image or hide it.
≥ The minimum focus distance of the Sub Camera is approximately 30cm (12q).
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 29 ページ ２０１８年２月５日 月曜日 午後２時１４分
30
DVQX1447 (ENG)

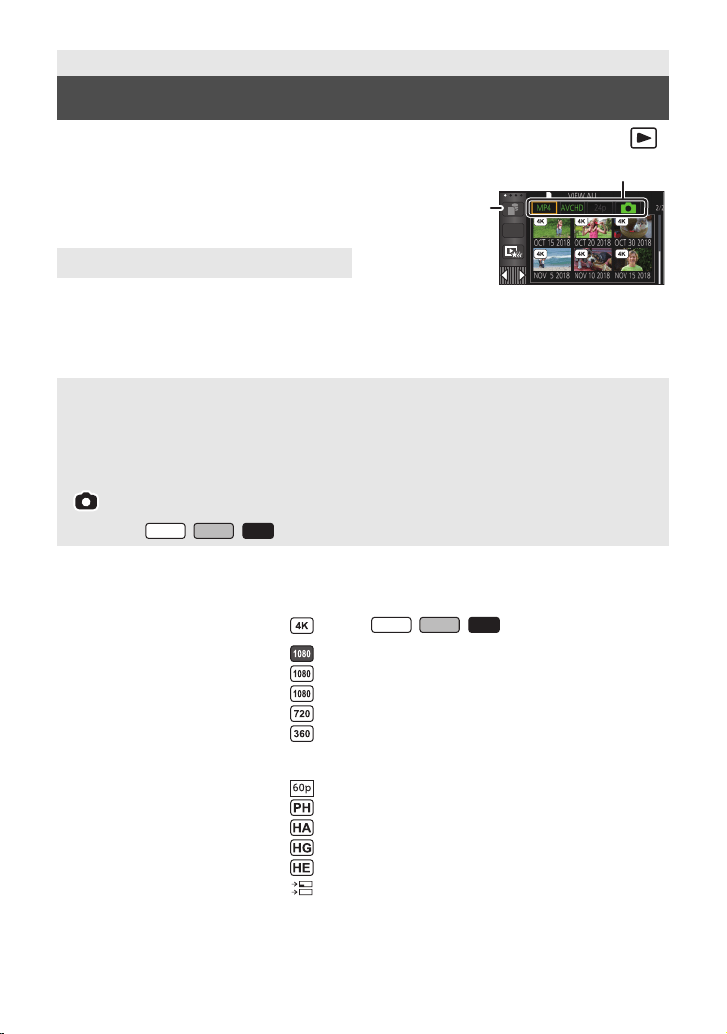

1 Set this unit to Playback Mode (l 21).
2 Touch the media selection icon A to select the
media you want to play. (l 24)
*1 You can only select media to play when a USB HDD is connected.
Proceed to step 3 if a USB HDD is not connected.
3 Touch the motion picture/still picture tab B.
≥ If there are recorded scenes/still pictures, the letters and icons on the motion picture/still picture
tabs are displayed in green.
≥ The following icons are displayed on thumbnails when [MP4] is touched:
≥ The following icons are displayed on thumbnails when [AVCHD] is touched:
Basic
Motion picture/Still picture playback
[SD CARD]/[HDD]
*1
ALL
[MP4]: 4K MP4
*2
and MP4 scenes are displayed as thumbnails.
[AVCHD]: AVCHD scenes and scenes recorded with the Backup for Twin Camera function
are displayed as thumbnails.
[24p]: 2160/24p
*2
and 1080/24p scenes are displayed as thumbnails.
[]: Still pictures are displayed as thumbnails.
*2 For the / /
j MP4 [2160/30p] scene: (For the / / )
j MP4 [1080/60p] scene: (Blue) (Recording mode [1080/50M])
(Recording mode [1080/28M])
j MP4 [1080/30p] scene:
j MP4 [720/30p] scene:
j MP4 [360/30p] scene:
j AVCHD [1080/60p] scene:
j AVCHD [PH] scene:
j AVCHD [HA] scene:
j AVCHD [HG] scene:
j AVCHD [HE] scene:
j Scenes recorded with the
Backup for Twin Camera
function:
WXF1 VXF1
VX1
WXF1 VXF1
VX1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 30 ページ ２０１８年２月５日 月曜日 午後２時１４分
31
(ENG) DVQX1447
≥ The following icons are displayed on thumbnails when [24p] is touched:
4 Touch the scene or the still picture to be played back.
≥ To display the next (previous) page:
j Slide the thumbnail display upward (downward) while touching it.
j Switch the Touch Menu, and then touch (up) / (down) on the thumbnail scroll
lever.
≥ You can also select the media for playback through menu settings.
[VIDEO SETUP] or [PICT. SETUP] # [PLAY MEDIA SELECT]. (l 32)
Watching Video/Pictures on your TV
j MP4 [2160/24p] scene: (For the / / )
j MP4 [1080/24p] scene:
5 Select the playback operation by touching
the operation icon.
≥ Operation icons and screen display will disappear when
no touch operation is performed for a specific period of
time. To display them again, touch the screen.
≥ Touch 1/; to start/pause playback of motion pictures.
Operation icon
Connect this unit to a TV using an HDMI micro cable (supplied).
A HDMI micro connector [HDMI]
≥ Be sure to connect to the HDMI terminal. (Insert the
connector with the arrow side facing up.)
WXF1 VXF1
VX1
0h01m30s
0h01m30s
0h01m30s
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 31 ページ ２０１８年２月５日 月曜日 午後２時１４分
32
DVQX1447 (ENG)
≥ Touch (left side)/ (right side) of on the Touch Menu to display . (l 24)
1 Touch .
2 Touch the top menu A.
3 Touch the submenu B.
≥ Next (previous) page is displayed by touching
/.
4 Touch the desired item to enter the
setting.
5 Touch [EXIT] to exit the menu
setting.
∫ About guide display
After touching , touching the submenus
and items will cause function descriptions and
settings confirmation messages to appear.
≥ After the messages have been displayed, the
guide display is canceled.
Language selection
You can select the language on the screen
display and the menu screen.
Formatting
Please be aware that if a medium is formatted,
then all the data recorded on the medium will be
erased and cannot be restored. Back up
important data on a PC, DVD disc etc.
* Displayed when connecting a USB HDD.
(Refer to the Owner’s Manual (PDF format))
≥ Media selection screen is not displayed when
the USB HDD is not connected. Touch [YES].
≥ Do not format an SD card using any other
equipment such as a PC. The card may
not be used on this unit.
Basic

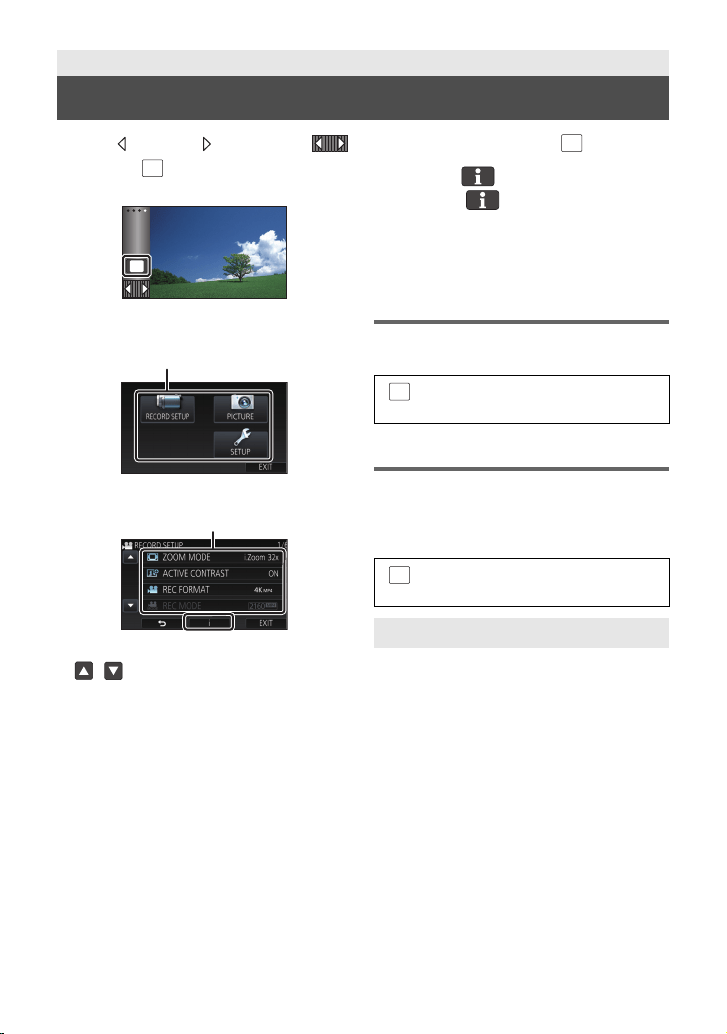

Using the menu screen
MENU
MENU
MENU
: [SETUP] # [LANGUAGE] #
desired language
: [SETUP] # [FORMAT MEDIA] #
desired media
[SD CARD]/[HDD]
*
MENU
MENU
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 32 ページ ２０１８年２月５日 月曜日 午後２時１４分
33
(ENG) DVQX1447
This unit offers the following Wi-Fi functions when used in combination with another Wi-Fi
compatible device.
Before using any of these Wi-Fi functions, check the settings of your device and get it ready for use.
This Basic Owner’s Manual describes the procedure for using [Link to Cell] to provide a Wi-Fi
connection example.
∫ This unit is WPS-compatible
WPS (Wi-Fi Protected Setup
™
) is a function that allows you to easily set up a connection with a
wireless LAN device and make security-related settings.
Wi-Fi
What you can do with the Wi-Fi
®
function
[TWIN CAMERA]
You can display the image transmitted from a Wireless Sub Camera
connected via Wi-Fi on this unit’s Sub Window and record it
simultaneously with the Main Camera’s image. (l 38)
[Multi Camera]
Connecting multiple smartphones to this unit via Wi-Fi allows you to
simultaneously display two Sub Windows and record images in them.
Up to three smartphones can be connected simultaneously.
[Link to Cell]
Using a smartphone, you can perform record/playback operations from a
remote location or upload motion pictures and still pictures recorded in
this unit on SNS (Social Networking Service). (l 34)
[Baby Monitor]
You can use your smartphone to check on your baby being monitored by
this unit when you are in another room. The smartphone and this unit can
be used like radio transceivers, allowing the users to have a conversation
by taking turns. This unit can also send a notification to the smartphone
whenever the baby cries.
[Home Cam]
You can confirm the recording screen of this unit from outside using a
smartphone.
[Live Cast]
You can broadcast motion pictures of this unit live by setting up a link
between the “LUMIX CLUB” and USTREAM.
[DLNA Play]
Connecting this unit to a DLNA (DMR) -compatible TV via Wi-Fi, you can
play back scenes and still pictures on the TV.
[Copy]
By setting up a Wi-Fi communication between this unit and a PC, you can
copy scenes and still pictures recorded with this unit to the PC.
[History]
Each use of a Wi-Fi function is stored in the Wi-Fi connection history.
Connecting from the history allows you to easily set up a connection
using the previous connection settings.
≥ Records of Wi-Fi connections made with the Wireless Multi-Camera
function are not saved.
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 33 ページ ２０１８年２月５日 月曜日 午後２時１４分
34
DVQX1447 (ENG)
∫ Before using [Link to Cell]
Install the “Image App”
* The supported OS version are current as of January 2018 and subject to change.
≥ Use the latest version.
≥ Refer to [Help] in the “Image App” menu about how to operate.
≥ The service may not be able to be used properly depending on the type of smartphone being
used. For information on the “Image App”, check the support website below.
http://panasonic.jp/support/global/cs/e_cam
(This Site is English only.)
≥ When downloading the app on a mobile network, high packet communication fees may be
incurred depending on the details of your contract.
Wi-Fi
[Link to Cell]
≥ You need to turn on the Wi-Fi function of your smartphone.
≥ Do not remove the SD card during remote operations.
Caution:
Be sure to pay special attention to the privacy, the likeness rights, etc. of the subject when you use
this function. Use at your own risk.
About the “Image App”
The “Image App” is an application provided by Panasonic.
For Android
™
apps For iOS apps
OS Android 4.2 or later
*
iOS 9.0 or later
*
Installation
procedure
1 Connect your Android
device to a network.
2 Select “Google Play™
Store”.
3 Enter “Panasonic Image
App” into the search
box.
4 Select “Panasonic
Image App” and install
it.
≥ The icon will be added
to the menu.
1 Connect your iOS
device to a network.
2 Select “App Store”.
3 Enter “Panasonic Image
App” into the search
box.
4 Select “Panasonic
Image App” and install
it.
≥ The icon will be added
to the menu.
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 34 ページ ２０１８年２月５日 月曜日 午後２時１４分
35
(ENG) DVQX1447
Preparations before using [Link to Cell]
Install the “Image App”. (l 34)
Setting up a direct connection between this unit and the smartphone when
[Direct Connection Password] is set to [OFF] (l 36)
≥ The default setting for [Direct Connection Password] is [OFF].
1 Check if the wireless access point is compatible with IEEE802.11b/g/n.
2 Set up a Wi-Fi connection between this unit and the wireless access point.
≥ For information on how to connect this unit and a wireless access point, refer to the Owner’s
Manual (PDF format).
Setting up a direct Wi-Fi connection between this unit and a
smartphone
Setting up a Wi-Fi connection via a wireless access point
Image App
Image App
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 35 ページ ２０１８年２月５日 月曜日 午後２時１４分
36
DVQX1447 (ENG)
Using [Link to Cell] with a direct connection
5 When the Wi-Fi connection is complete, press the home button on the
smartphone and start up the smartphone application “Image App”.
≥ Transmission speed may decrease, or may not be usable depending on the environment it is
used in.
≥ For details on how to set up a connection with [Direct Connection Password] set to [ON], refer to
the Owner’s Manual (PDF format).
≥ If you cannot connect this unit and the smartphone, refer to the following:
j Check the Wi-Fi settings of the smartphone to see if the SSID of this unit is selected so that a
Wi-Fi connection will be made from the smartphone to this unit.
j Make sure the smartphone is not connected to the wireless access point. If it is connected to
the wireless access point, change the Wi-Fi access point using the smartphone’s Wi-Fi set up.
≥ Please refer to the operating instruction of the device in use for details about the setting of the
wireless access point or smartphone.
Setting up a direct connection between this unit and the smartphone
when [Direct Connection Password] is set to [OFF]
1 Press Wi-Fi button on this unit and touch [Wi-Fi
Setup].
2 Touch [Direct Connection].
≥ This unit will go into connection standby with the smartphone.
≥ The SSID of this unit is displayed on the screen of this unit.
A [Wi-Fi Setup]
B [EXIT]
3 Turn on the Wi-Fi function in the smartphone’s
setup menu.
4 On the smartphone’s Wi-Fi setting screen, select
the SSID displayed on this unit.
≥ It may take time to complete the Wi-Fi connection.
6 (If this is the first time the smartphone is connecting
to this unit)
Confirm the message “Connect this
smartphone?”, and touch [YES] on the screen of
this unit.
≥ When the connection to this unit is complete, the image from
this unit is displayed on the smartphone screen.
Control this unit remotely with the smartphone.
C [Device Name]
D [YES]
E Message
2/2
Wi-Fi
Wi-Fi
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 36 ページ ２０１８年２月５日 月曜日 午後２時１４分
37
(ENG) DVQX1447

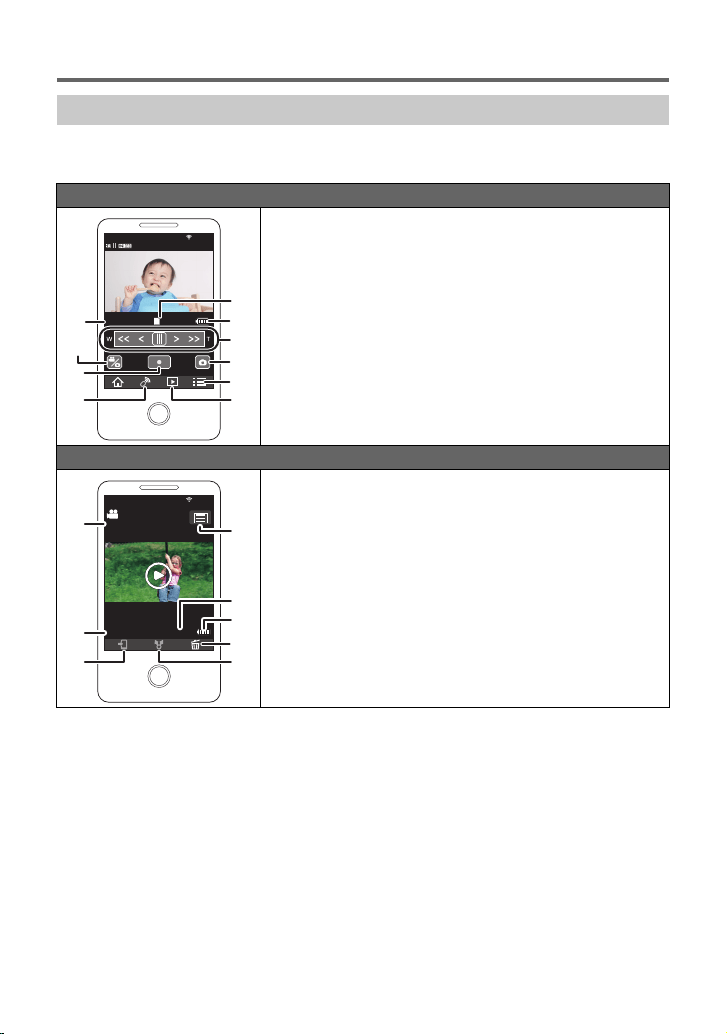

About [Link to Cell]
Smartphone screen shots are example displayed in Motion Picture Recording Mode and Playback
Mode.
≥ Depending on your OS or the version of the smartphone application “Image App”, the screens
may differ from the ones above.
Screen display during remote operations
Recording screen
1 Recording media/remaining recordable time
2 Remaining battery power of this unit
3 Zoom
4 Photoshot button
5 Menu display
6 Playback mode button
7 Remote control button
8 Recording start/stop button
9 Motion Picture Recording Mode/Still Picture Recording
Mode toggle button
: Name of the connected device
Playback screen
1 Camera function button
2 Number of scenes
3 Remaining battery power of this unit
4 Delete
5 Upload
6 Copy
7 Name of the connected device
8 Scene information display
XXXXXXXXX
XXXXXXXXX
R 1h 20min
XXXXXXXXX
1/16
AVCHD_0001
2018/12/15 15:30:50
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 37 ページ ２０１８年２月５日 月曜日 午後２時１４分
38
DVQX1447 (ENG)

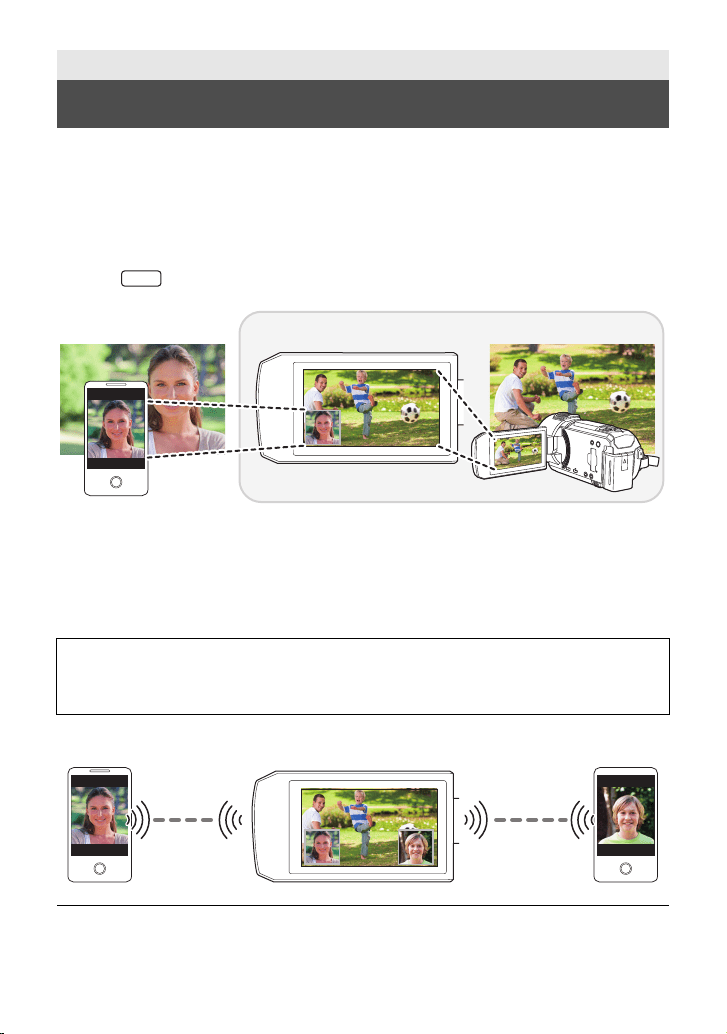

When this unit and one or more smartphones are connected via Wi-Fi, you can display the image
transmitted from the smartphone on this unit’s Sub Window and record it simultaneously with the
Main Camera’s image. (Wireless Twin/Multi-Camera)
* For the
Use your Wireless Sub Camera to enjoy recording your own face or any scenery different from what
is being recorded with the Main Camera.
∫ Wireless Twin Camera function
∫ Wireless Multi-Camera function (l 33)
≥ For information on how to connect this unit and a smartphone and other details, refer to
the Owner’s Manual (PDF format).
Wi-Fi
Wireless Twin/Multi-Camera function
≥ In this owner’s manual, a function that displays an image from one smartphone in one Sub
Window is referred to as “Wireless Twin Camera”, and a function that displays images
from up to three smartphones and the Sub Camera of this unit* in two Sub Windows is
referred to as “Wireless Multi-Camera”.
A Smartphone (Wireless Sub Camera)
B This unit (Main Camera)
For information on non-smartphone devices that support the Wireless Sub Camera
function and the procedures for using them, check the support website below. (As of
January 2018)
http://panasonic.jp/support/global/cs/e_cam
WXF1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 38 ページ ２０１８年２月５日 月曜日 午後２時１４分
39
(ENG) DVQX1447
∫ It is not a malfunction in following cases
Others
Troubleshooting
A clicking sound is heard
when the unit is shaken.
≥ This is the sound of the lens moving and is not a defect.
This sound will no longer be heard when the unit is turned on
and set this unit to the Motion Picture Recording Mode or Still
Picture Recording Mode.
Object seems to be
warped.
≥ Object seems to be warped slightly when the object moves
across the image very fast, but this is because the unit is
using MOS for the image sensor. This is not a malfunction.
The lens, the viewfinder or
LCD monitor fog up.
≥ This is due to condensation. It is not a malfunction. Please
refer to page 9.
Power
Problem Check points
This unit cannot be turned
on.
This unit does not stay on
long enough.
Battery runs down quickly.
≥ Charge the battery again to ensure it is sufficiently charged.
(l 15)
≥ In cold places, the battery using time becomes shorter.
≥ The battery has a limited life. If the operating time is still too
short even after the battery is fully charged, the battery has
worn out and needs to be replaced.
This unit cannot be
operated though it is
turned on.
This unit does not operate
normally.
≥ Remove the battery or AC adaptor, wait about 1 minute and
then reconnect the battery or AC adaptor. Then about
1 minute later, turn on the unit again. (Conducting the above
operation while the media is being accessed may damage the
data on the media.)
≥ If normal operation is still not restored, detach the power
connected, and consult the dealer who you purchased this
unit from.
“ERROR OCCURRED.
PLEASE TURN UNIT OFF,
THEN TURN ON AGAIN.”
is displayed.
≥ The unit has automatically detected an error. Restart the unit
by turning the unit off and on.
≥ The unit will be turned off in about 1 minute if the unit is not
turned off and on.
≥ Repair is needed if it is repeatedly displayed even if it is
restarted. Detach the power connected, and consult the
dealer who you purchased this unit from. Do not attempt to
repair the unit by yourself.
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 39 ページ ２０１８年２月５日 月曜日 午後２時１４分
40
DVQX1447 (ENG)
Please refer to “Owner’s Manual (PDF format)” for details.
Recording
Problem Check points
Color or brightness of the
image changes, or you
may see horizontal bars in
the image.
The LCD monitor flickers
indoors.
≥ Color or brightness of the image may change, or you may see
horizontal bars in the image when the object is recorded
under fluorescent light, mercury light or sodium light, etc., but
this is not a malfunction.
≥ In Motion Picture Recording Mode, record in Intelligent Auto
Mode/Intelligent Auto Plus Mode or set the shutter speed as
follows:
j When [REC FORMAT] is set to [24p]:
Set to 1/50 seconds in areas where the power supply
frequency is 50 Hz, or 1/60 seconds in areas where the
frequency is 60 Hz.
j When [REC FORMAT] is set to a setting other than [24p]:
Set to 1/100 seconds in areas where the power supply
frequency is 50 Hz, or 1/60 seconds in areas where the
frequency is 60 Hz.
≥ In Still Picture Recording Mode, this will not affect the
recorded image.
≥ In the following cases, setting the shutter speed to
1/120 seconds reduces the intensity of the problem:
j In FULL HD Slow Motion Mode
j (For the / / )
Slow & Quick Video Mode
Playback
Problem Check points
Scenes/still pictures
cannot be played back.
≥ Any scenes/still pictures where the thumbnails are displayed
as cannot be played back.
WXF1 VXF1
VX1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 40 ページ ２０１８年２月５日 月曜日 午後２時１４分
41
(ENG) DVQX1447
4K Video Camera/High Definition Video Camera
Information for your safety
Others
Specifications
*1 When [REC FORMAT] is set to
[4K MP4], or when [REC FORMAT] is
set to [24p] with [REC MODE] set to
[2160/24p]
*2 When [REC FORMAT] is set to
[AVCHD] or [MP4]
*3 When [REC FORMAT] is set to [24p]
with [REC MODE] set to [1080/24p]
*4 When Level Shot Function is set to
normal or off
Power source:
5.0 V (When using AC adaptor)
3.6 V (When using battery)
Power consumption:
Recording;
6.1 W (When using the viewfinder)
7.3 W (When using the LCD monitor)
Charging; 7.7 W
Recording;
6.1 W (When using the viewfinder)
6.6 W (When using the LCD monitor)
Charging; 7.7 W
Recording; 6.4 W
Charging; 7.7 W
Recording; 6.2 W
Charging; 7.7 W
Motion picture recording format:
[4K MP4]
*
, [MP4], [24p];
MPEG-4 AVC file format compliant (.MP4)
[AVCHD];
AVCHD format version 2.0 compliant
(AVCHD Progressive)
*//
WXF1
VXF1
VX1
V800
WXF1 VXF1
VX1
Motion picture compression:
MPEG-4 AVC/H.264
Audio compression:
[4K MP4]
*
, [MP4], [24p];
AAC/2 ch
[AVCHD];
Dolby Audio
™
/5.1 ch (built-in
microphone),
2 ch (built-in microphone/external
microphone)
*//
Recording mode and transfer rate:
[4K MP4]
*
[2160];
Maximum 72 Mbps (VBR)
*//
[MP4]
[1080/50M];
Maximum 50 Mbps (VBR)
[1080/28M];
Maximum 28 Mbps (VBR)
[720];
Average 9 Mbps (VBR)
[AVCHD]
[1080/60p];
Maximum 28 Mbps (VBR)
[PH];
Maximum 24 Mbps (VBR)
[HA];
Average 17 Mbps (VBR)
[HG];
Average 13 Mbps (VBR)
[HE];
Average 5 Mbps (VBR)
[24p]
[2160/24p]
*
;
Maximum 72 Mbps (VBR)
[1080/24p];
Maximum 50 Mbps (VBR)
*//
Refer to the Owner’s Manual (PDF format) for
the picture size and recordable time of a
motion picture.
WXF1
VXF1
VX1
WXF1
VXF1
VX1
WXF1
VXF1
VX1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 41 ページ ２０１８年２月５日 月曜日 午後２時１４分
42
DVQX1447 (ENG)
Still picture recording format:
JPEG (Design rule for Camera File system,
based on Exif 2.2 standard)
Refer to the Owner’s Manual (PDF format) for
picture size of a still picture and number of
recordable pictures.
Recording media:
SD Memory Card
SDHC Memory Card
SDXC Memory Card
Refer to page 18 for details on SD cards usable
in this unit.
Image sensor:
1/2.5 z 1MOS image sensor
Total; 8570 K
Effective pixels;
Motion picture; 8290 K (16:9)
*1, 3
,
6170 K (16:9)
*2, 4
Still picture; 8290 K (16:9), 6220 K (4:3)
Lens:
Auto Iris, 24k optical zoom, F1.8 to F4.0
Focal length;
4.12 mm to 98.9 mm
(Full range AF)
35 mm equivalent;
Motion picture;
25 mm to 600 mm (16:9)
*1, 3, 4
,
28.9 mm to 693.7 mm (16:9)
*2, 4
Still picture;
25 mm to 600 mm (16:9),
30.6 mm to 734.4 mm (4:3)
Minimum focus distance;
Normal; Approx. 10 cm (3.9q) (Wide)/
Approx. 1.2 m (3.9 feet) (Tele)
Intelligent Auto Macro;
Approx. 5 cm (2.0q) (Wide)
Filter diameter:
62 mm
Zoom:
24k optical zoom, 32k
*1
/48k
*2, 3
i.Zoom
70k/1500k digital zoom
Image stabilizer function:
Optical (Hybrid Optical Image Stabilizer,
Optical Image Stabilizer Lock function)
Level Shot Function:
Off/Normal/Strong
Creative Control:
[Miniature Effect]/[Silent movie]/
[8mm movie]/[Time Lapse Rec]
HDR movie:
Low/High
Monitor:
3.0z wide LCD monitor (Approx. 460 K dots)
Viewfinder ( / ):
0.24z wide EVF (Approx. 1550 K dots
equivalent)
Microphone:
5.1 channel surround microphone/
Zoom microphone/Focus microphone/
Stereo microphone
Minimum required illumination:
Approx. 1.5 lx (1/30 with Low Light Mode in
the Scene Mode)
Approx. 0.5 lx with the Night Mode
([COLOR]) function
/
0 lx with the Night Mode ([Infrared]) function
HDMI micro connector video output level:
HDMI
™
(x.v.Color
™
) 2160p
*
/1080p/1080i/
480p
*//
Headphone output:
85 mV, 32 h (Stereo mini jack)
HDMI micro connector audio output level:
[4K MP4]
*
, [MP4], [24p];
Linear PCM
[AVCHD];
Dolby Audio/Linear PCM
*//
MIC input:
j60 dBV (Mic sensitivity j40 dB equivalent,
0dB=1V/Pa, 1kHz)
Input impedance 5600 h
(Stereo mini jack)
LINE input ( / ):
j10 dBV (Stereo mini jack)
USB:
Reader function
SD card; Read only (No copyright
protection support)
Hi-Speed USB (USB 2.0), USB terminal
Type micro AB
USB host function (for USB HDD)
Battery charging function (Charges from
USB terminal when the main unit is off)
WXF1
VXF1
WXF1
VXF1
WXF1
VXF1
VX1
WXF1
VXF1
VX1
WXF1
VXF1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 42 ページ ２０１８年２月５日 月曜日 午後２時１４分
43
(ENG) DVQX1447
Dimensions:
/
69 mm (W)k77 mm (H)k167 mm (D)
[2.717 q (W)k3.031 q (H)k6.575 q (D)]
(including projecting parts)
/
68 mm (W)k77 mm (H)k142 mm (D)
[2.677 q (W)k3.031 q (H)k5.591 q (D)]
(including projecting parts)
Mass (Weight):
Approx. 458
g (Approx. 1.010 lbs.)
[without battery (supplied) and an SD card
(optional)]
Approx. 450
g (Approx. 0.992 lbs.)
[without battery (supplied) and an SD card
(optional)]
/
Approx. 428
g (Approx. 0.944 lbs.)
[without battery (supplied) and an SD card
(optional)]
Mass (Weight) in operation:
Approx. 503
g (Approx. 1.109 lbs.)
[with battery (supplied) and an SD card
(optional)]
Approx. 495
g (Approx. 1.091 lbs.)
[with battery (supplied) and an SD card
(optional)]
/
Approx. 473
g (Approx. 1.043 lbs.)
[with battery (supplied) and an SD card
(optional)]
WXF1 VXF1
VX1
V800
WXF1
VXF1
VX1
V800
WXF1
VXF1
VX1
V800
Operating temperature:
0°Cto40°C (32°Fto104°F)
Operating humidity:
10%RH to 80%RH
Battery operation time:
See page 16
Wireless transmitter:
Compliance standard; IEEE802.11b/g/n
Frequency range used;
Central frequency 2412 MHz to 2462 MHz
[11ch]
Encryption method; Wi-Fi compliant WPA
™
/
WPA2
™
/WEP
Access method; Infrastructure mode
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 43 ページ ２０１８年２月５日 月曜日 午後２時１４分
44
DVQX1447 (ENG)
Sub Camera ( )
AC adaptor
Information for your safety
The symbols on this product (including the
accessories) represent the following:
Image sensor:
1/4z 1MOS image sensor
Total; 5270 K
Lens:
F2.2
Focal length;
3.54 mm
35 mm equivalent (Motion picture);
37.2 mm
Minimum focus distance;
Approx. 30 cm
Power source:
110 V to 240 V , 50/60 Hz
AC input:
0.25 A
DC output:
5.0 V , 1.8 A
Dimensions:
66.4 mm (W)k58.5 mm (H)k31 mm (D)
[2.62 q (W)k2.30 q (H)k1.22 q (D)]
Mass (Weight):
Approx. 60
g (Approx. 0.132 lbs.)
AC
DC
Class II equipment (The construction of
the product is double-insulated.)
ON
Standby
WXF1
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 44 ページ ２０１８年２月５日 月曜日 午後２時１４分
45
(ENG) DVQX1447
∫ Carefully observe copyright laws
Whatever you have recorded and created can be used for your personal entertainment only.
Under copyright laws, other materials cannot be used without obtaining permission from the
holders of the copyrights.
∫ Licenses
≥ SDXC Logo is a trademark of SD-3C, LLC.
≥ “AVCHD”, “AVCHD Progressive” and the “AVCHD Progressive”
logo are trademarks of Panasonic Corporation and Sony
Corporation.
≥ Dolby, Dolby Audio, and the double-D symbol are trademarks of
Dolby Laboratories.
≥ The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the United States and other
countries.
≥ x.v.Color™ is a trademark.
≥ LEICA is a registered trademark of Leica Microsystems IR GmbH
and DICOMAR is a registered trademark of Leica Camera AG.
≥ iMovie, Final Cut Pro, Mac, OS X and macOS are trademarks of
Apple Inc. registered in the U.S. and other countries.
≥ App Store is a service mark of Apple Inc.
≥ Android and Google Play are trademarks or registered
trademarks of Google Inc.
≥ The Wi-Fi CERTIFIED
™
Logo is a certification mark of Wi-Fi
Alliance
®
.
≥ The Wi-Fi Protected Setup
™
Logo is a certification mark of Wi-Fi
Alliance
®
.
≥ “Wi-Fi
®
” is a registered trademark of Wi-Fi Alliance
®
.
≥ “Wi-Fi Protected Setup
™
”, “WPA
™
”, and “WPA2
™
” are
trademarks of Wi-Fi Alliance
®
.
≥ DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification
marks of the Digital Living Network Alliance.
≥ QR Code is a registered trademark of DENSO WAVE INCORPORATED.
≥ Other names of systems and products mentioned in these instructions are usually the registered
trademarks or trademarks of the manufacturers who developed the system or product concerned.
This product is licensed under the AVC Patent Portfolio License for the personal use of a consumer
or other uses in which it does not receive remuneration to (i) encode video in compliance with the
AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer
engaged in a personal activity and/or was obtained from a video provider licensed to provide AVC
Video. No license is granted or shall be implied for any other use. Additional information may be
obtained from MPEG LA, L.L.C.
See http://www.mpegla.com
Others
About copyright
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 45 ページ ２０１８年２月５日 月曜日 午後２時１４分
46
DVQX1447 (ENG)
This product incorporates the following software:
(1) the software developed independently by or for Panasonic Corporation,
(2) the software owned by third party and licensed to Panasonic Corporation,
(3) the software licensed under the GNU General Public License, Version 2.0 (GPL V2.0),
(4) the software licensed under the GNU LESSER General Public License, Version 2.1 (LGPL
V2.1), and/or
(5) open source software other than the software licensed under the GPL V2.0 and/or LGPL V2.1.
The software categorized as (3) - (5) are distributed in the hope that it will be useful, but WITHOUT
ANY WARRANTY, without even the implied warranty of MERCHANTABILITY or FITNESS FOR A
PARTICULAR PURPOSE. Refer to the detailed terms and conditions thereof, which can be
displayed by following the procedure described in [SOFTWARE INFO] under “Using the Setup
Menu” in the Owner’s Manual (PDF format).
At least three (3) years from delivery of this product, Panasonic will give to any third party who
contacts us at the contact information provided below, for a charge no more than our cost of
physically performing source code distribution, a complete machine-readable copy of the
corresponding source code covered under GPL V2.0 or LGPL V2.1, as well as the respective
copyright notice thereof.
Contact Information: oss-cd-reque[email protected]nic.com
The source code and the copyright notice are also available for free in our website below.
https://panasonic.net/cns/oss/index.html
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 46 ページ ２０１８年２月５日 月曜日 午後２時１４分
47
(ENG) DVQX1447
Some optional accessories may not be available in some countries.
* Please refer to page 16, concerning the battery charging time and available recording time.
(For U.S.A. only)
To order optional accessories please visit http://shop.panasonic.com
or your local Photo Specialty Dealer.
NOTE:
Accessories and/or model numbers may vary by country. Please consult your local dealer.
Product numbers correct as of Jan. 2018. These may be subject to change.
Others
Optional accessories
Accessory No. Figure Description
VW-BC10PP Battery charger
VW-VBT190
*
Rechargeable Lithium Ion Battery
Pack
VW-VBT380 Rechargeable Lithium Ion Battery
Pack
VW-VMS10PP Stereo microphone
VW-ACT190PP Accessory kit
VW-ACT380PP Accessory kit
VW-LED1PP LED Video Light
VW-CTR1PP Remote Pan Tilt Cradle
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 47 ページ ２０１８年２月５日 月曜日 午後２時１４分
48
DVQX1447 (ENG)
Others
Limited Warranty (ONLY FOR U.S.A.)
Panasonic ProductsLimited Warranty
Limited Warranty Coverage (For USA Only)
If your product does not work properly because of a defect in materials or workmanship,
Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the
period indicated on the chart below, which starts with the date of original purchase
(“warranty period”), at its option either (a) repair your product with new or refurbished parts,
(b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price.
The decision to repair, replace or refund will be made by the warrantor.
Product or Part Name Parts Labor
1 Year 90 DaysHigh Definition and 4K Video Camera
All included Accessories
(Except Non-Rechargeable Batteries)
90 Days
10 Days
Not Applicable
Only Non-Rechargeable Batteries
Not Applicable
During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty
period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for
non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies
to products purchased and serviced in the United States. This warranty is extended only to
the original purchaser of a new product which was not sold “as is”.
Mail-In Service--Online Repair Request
Online Repair Request
To submit a new repair request and for quick repair status visit our Web Site at
http://shop.panasonic.com/support.
When shipping the unit, carefully pack, include all supplied accessories listed in the Owner’s
Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping
Lithium Ion batteries please visit our Web Site at http://shop.panasonic.com/support as Panasonic
is committed to providing the most up to date information. Include a letter detailing the complaint,
a return address and provide a daytime phone number where you can be reached.
A valid registered receipt is required under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE
REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE
OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE
CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF
PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER
normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which
result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation,
set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning
damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office,
restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service
Center or other Authorized Servicer, or damage that is attributable to acts of God.
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 48 ページ ２０１８年２月５日 月曜日 午後２時１４分
49
(ENG) DVQX1447
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY
COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING
FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media
or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF
MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which vary from state
to state. If a problem with this product develops during or after the warranty period, you may contact
your dealer or Service Center. If the problem is not handled to your satisfaction, then write to:
Consumer Affairs Department
Panasonic Corporation of North America
661 Independence Pkwy
Chesapeake, VA 23320
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE
YOUR RESPONSIBILITY.
As of July 2015
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 49 ページ ２０１８年２月５日 月曜日 午後２時１４分
50
DVQX1447 (ENG)
Others
Warranty (For Canadian Customers)
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT – LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under
normal use and for a period as stated below from the date of original purchase agrees to, at its option
either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished
equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will
be made by Panasonic Canada Inc.
Camcorder Products - One (1) year, parts and labour
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product
mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold
“as is”, and which product was delivered to you in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE
RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND
PLACE OF PURCHASE IS REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER
normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in
shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result
from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments,
misadjustment of consumer controls, improper maintenance, improper batteries, power line surge, lightning damage,
modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other
business or rental use of the product, or service by anyone other than an Authorized Servicer, or damage that is
attributable to acts of God.
Dry cell batteries are also excluded from coverage under this warranty. Rechargeable batteries are
warranted for ninety (90) days from date of original purchase.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY
SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT
OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY.
(As examples, this warranty
excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other
memory or recorded content. This list of items is not exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions
may not be applicable. This warranty gives you specific legal rights and you may have other rights which
vary depending on your province or territory.
WARRANTY SERVICE
For product operation, repairs and information assistance, please visit our Support page:
www.panasonic.ca/english/support
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 50 ページ ２０１８年２月５日 月曜日 午後２時１４分
51
(ENG) DVQX1447
Others
Useful Information
(Only For Latin American Countries)
Customer Service
Customer Service Directory
Obtain products information and operative assistant; localize the closer
distributor or Service Center; buy spare parts and accessories by our
Web Site to Latin American:
COUNTRY WEB SITE CONTACT CENTER
Panama www.panasonic.com/pa/soporte/ 800-7262
Colombia www.panasonic.com/co/soporte/ 01-8000-947262
Ecuador www.panasonic.com/ec/soporte/ 1-800-726276
Costa Rica www.panasonic.com/cr/soporte/ 800-7262737
El Salvador www.panasonic.com/sv/soporte/ 800-7262
Guatemala www.panasonic.com/gt/soporte/ 1-801-811-7262
Uruguay www.panasonic.com/uy/soporte/ 0-800-7262
Paraguay www.panasonic.com/uy/soporte/ 0-800-11-7262
Chile www.panasonic.com/cl/soporte/ 800-390-602
022-797-5000
Peru www.panasonic.com/pe/soporte/ 0800-00726
Venezuela www.panasonic.com/ve/soporte/ 800-7262-800
Mexico www.panasonic.com/mx/soporte/ 01800-847-7262
55-5000-1200
Argentina www.panasonic.com/ar/soporte/ 0800-333-7262
0810-321-7262
Dominican Republic
www.panasonic.com/do/soporte/ 809-200-8000
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 51 ページ ２０１８年２月５日 月曜日 午後２時１４分
Panasonic Corporation of North America
Two Riverfront Plaza, Newark, NJ 07102-5490
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3
© Panasonic Corporation 2018
Printed in Malaysia
http://shop.panasonic.com
www.panasonic.com
Panasonic Corporation
Web site: http://www.panasonic.com
HC-WXF1-VXF1-VX1-V800PP-DVQX1447_eng.book 44 ページ ２０１８年２月５日 月曜日 午後２時１４分
