CD-BA160H photo

Service Manual

This is the main product document for model CD-BA160H. Additionally, the document applies to other Sharp models: CD-BA1700H

The file format is pdf, 64 pages, you can download this manual here .

background
– 1 –
CD-BA160H/1700H
No. S4024CDBA160H
CONTENTS
Page
SAFETY PRECAUTION FOR SERVICE MANUAL ........................................................................................................... 2
IMPORTANT SERVICE NOTES (CD-BA1700H FOR U.K. ONLY) ................................................................................... 2
SPECIFICATIONS ............................................................................................................................................................. 3
NAMES OF PARTS ........................................................................................................................................................... 4

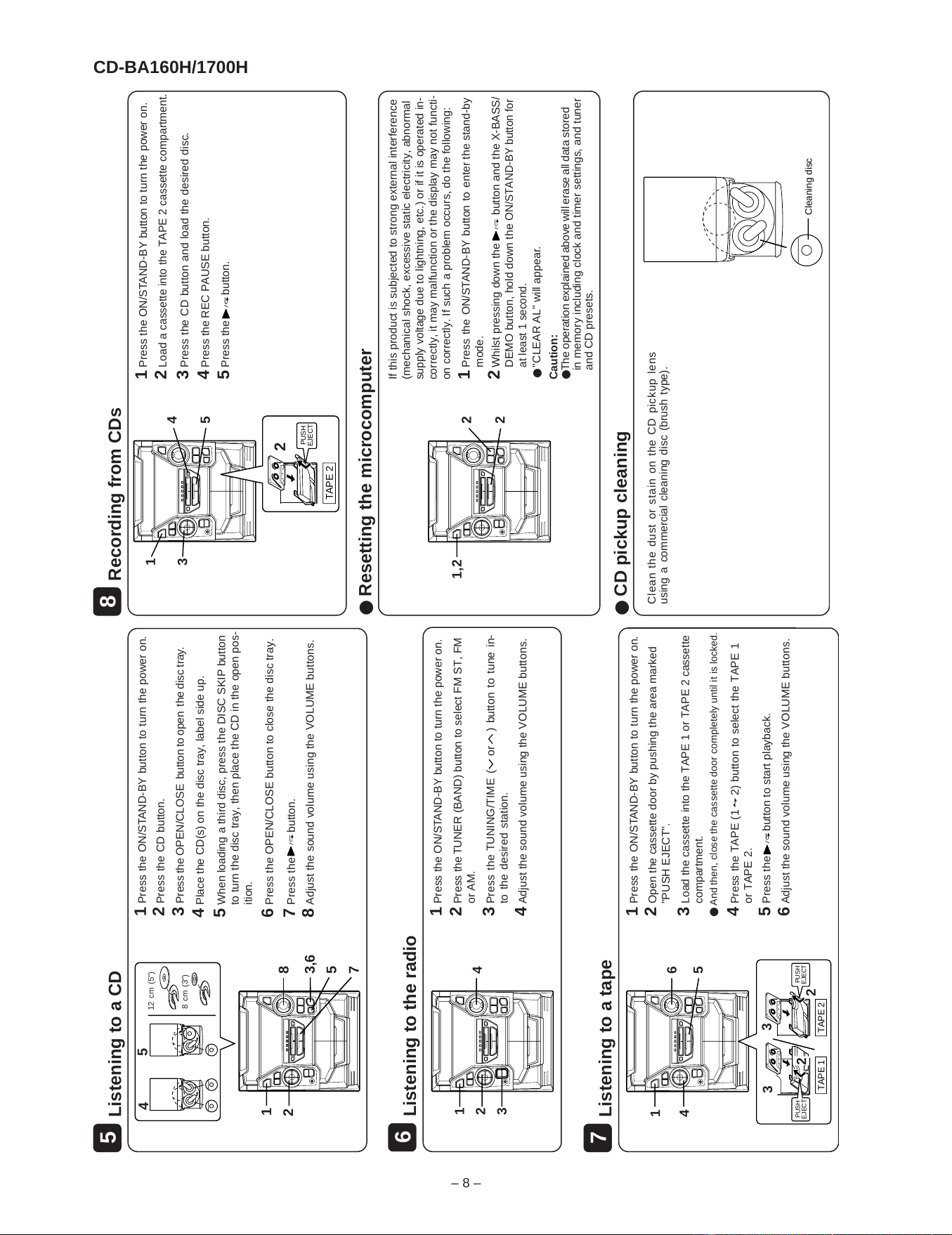

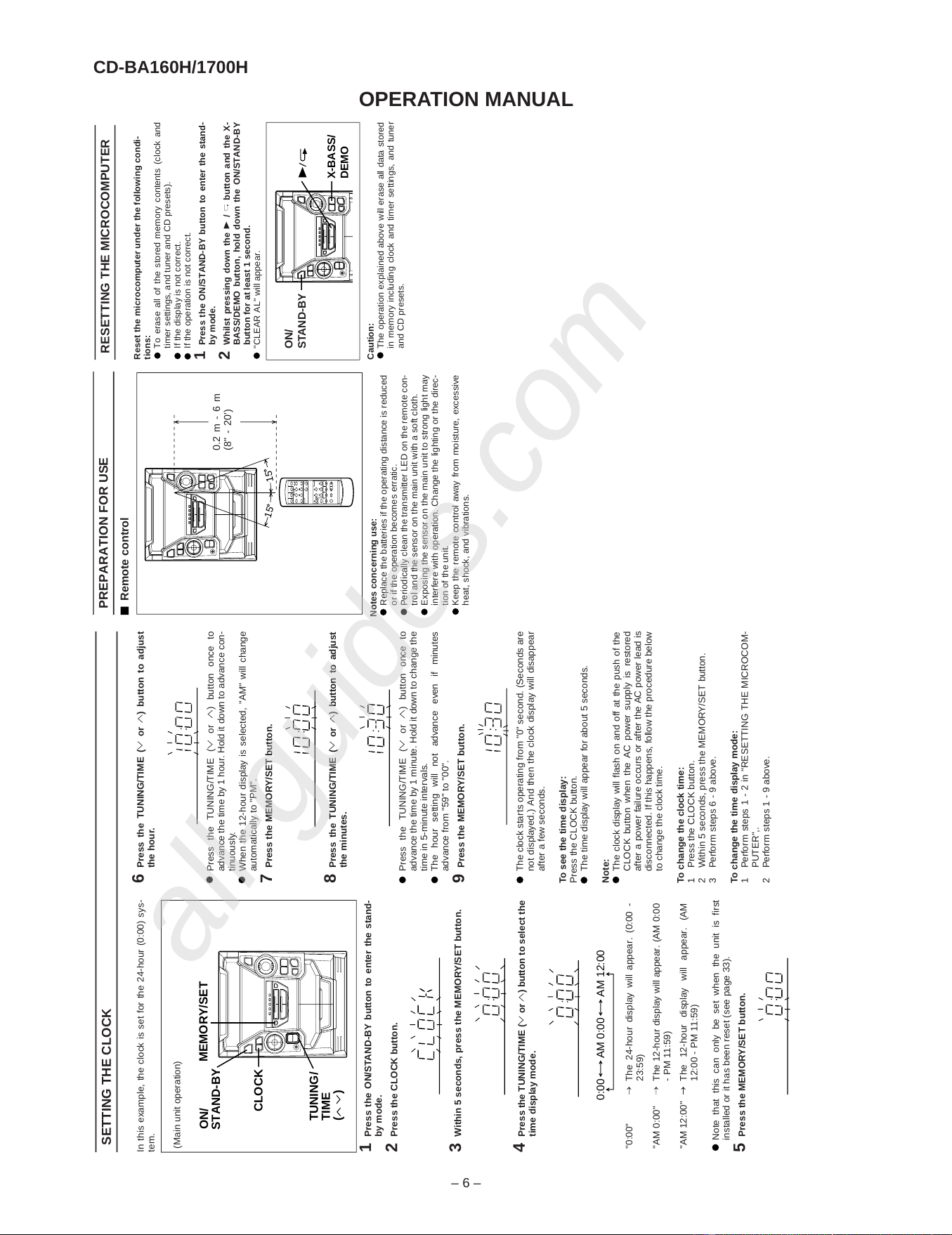

OPERATION MANUAL ...................................................................................................................................................... 6

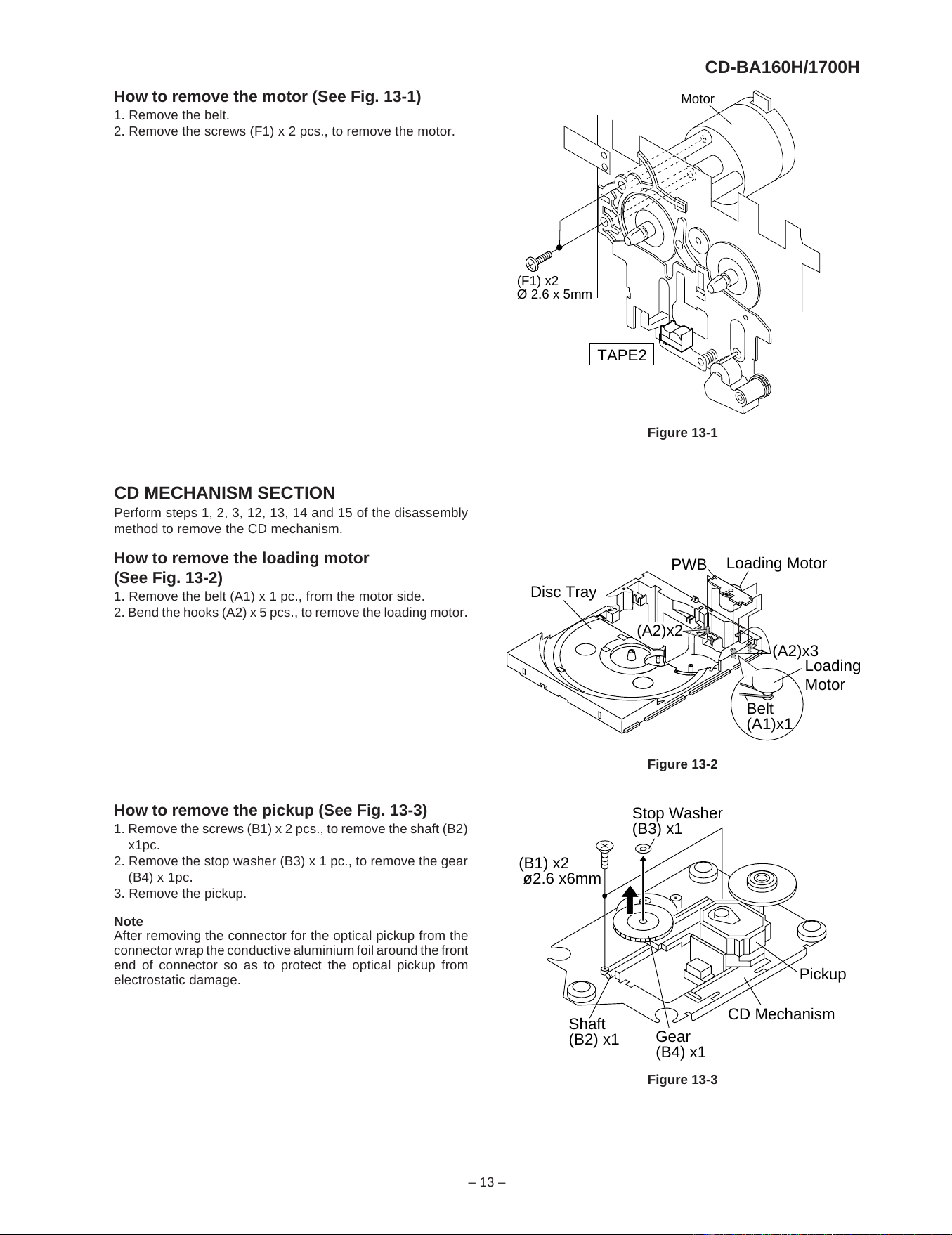

DISASSEMBLY .................................................................................................................................................................. 9

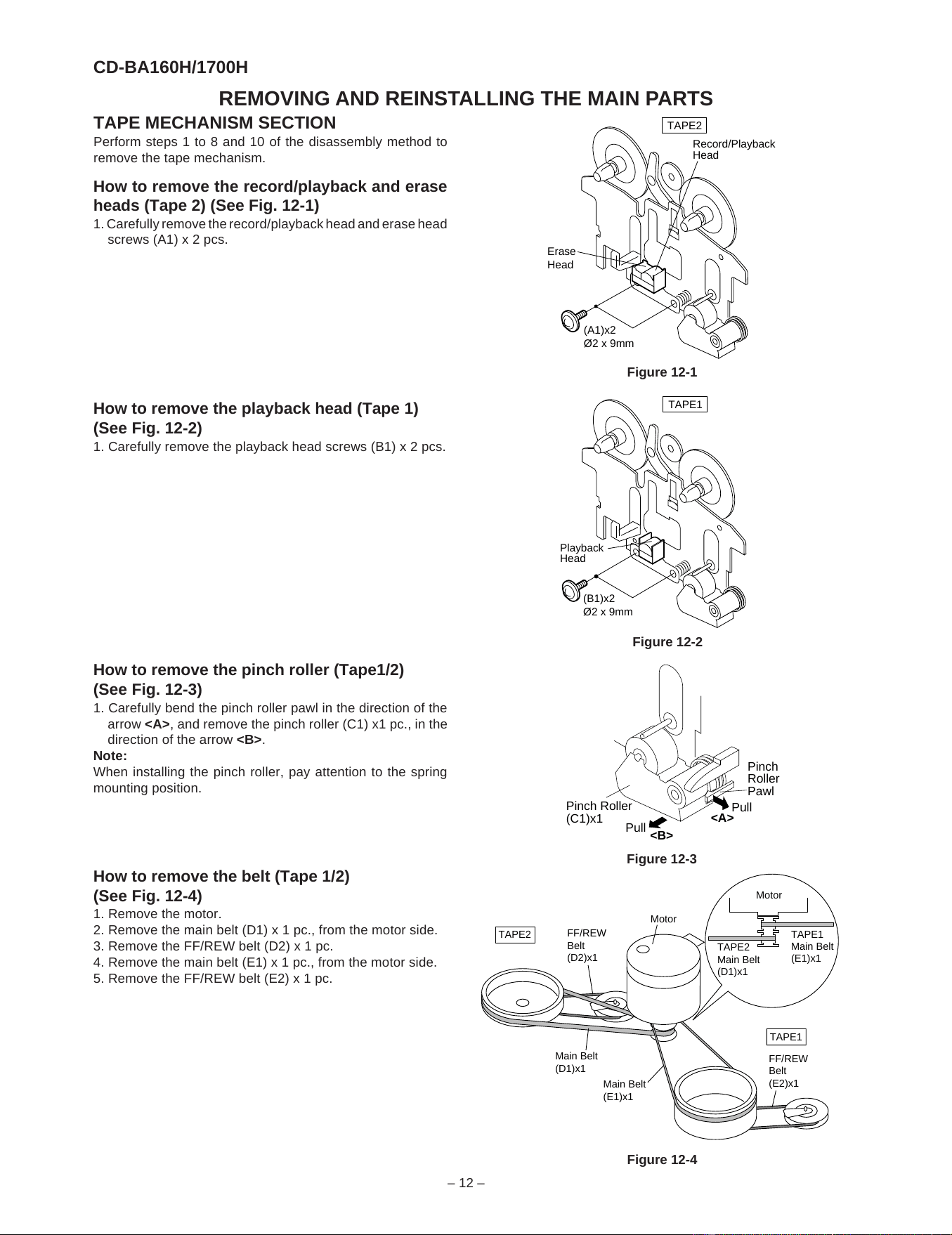

REMOVING AND REINSTALLING THE MAIN PARTS ................................................................................................... 12

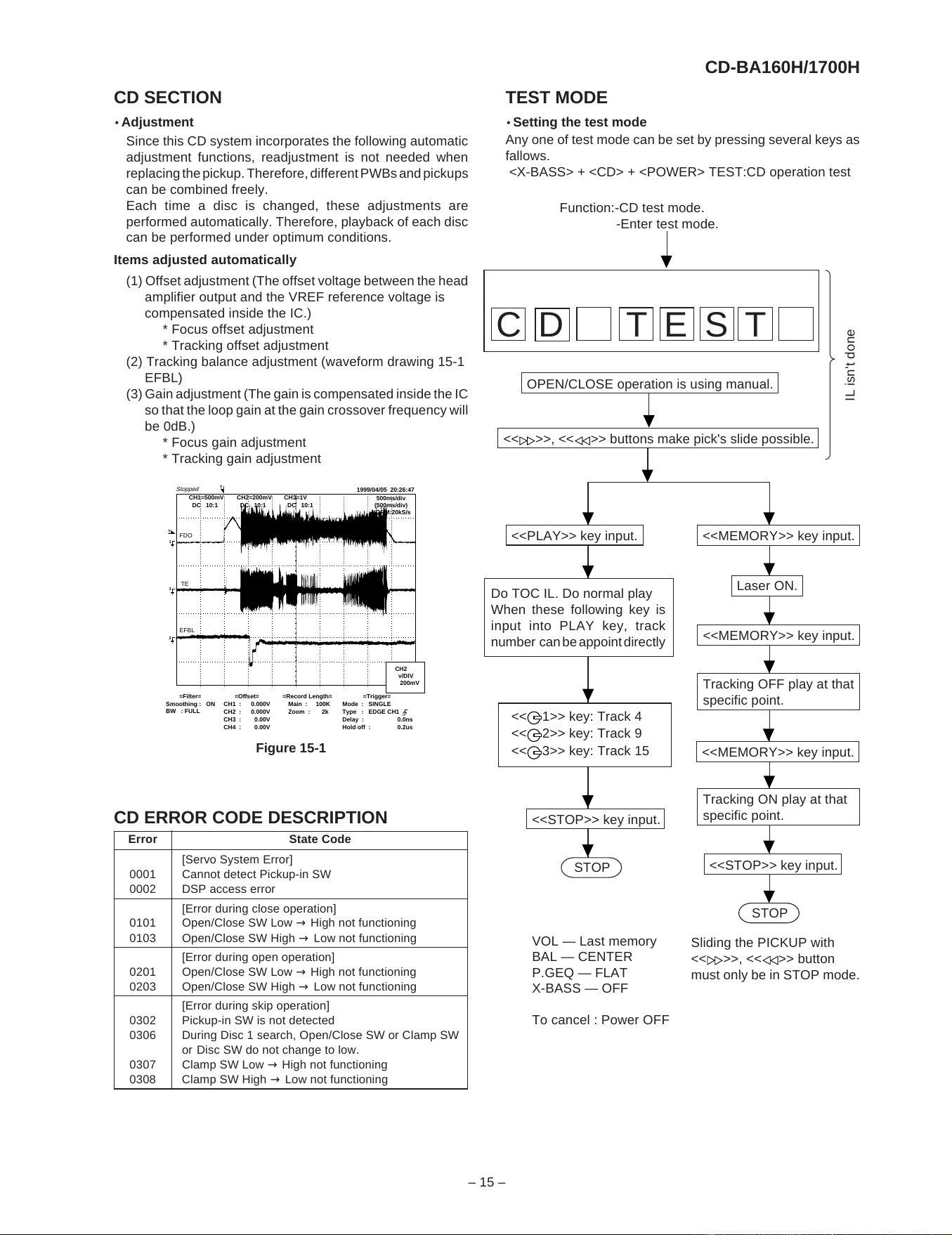

ADJUSTMENT ................................................................................................................................................................. 14
NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 20
TYPES OF TRANSISTOR AND LED............................................................................................................................... 20

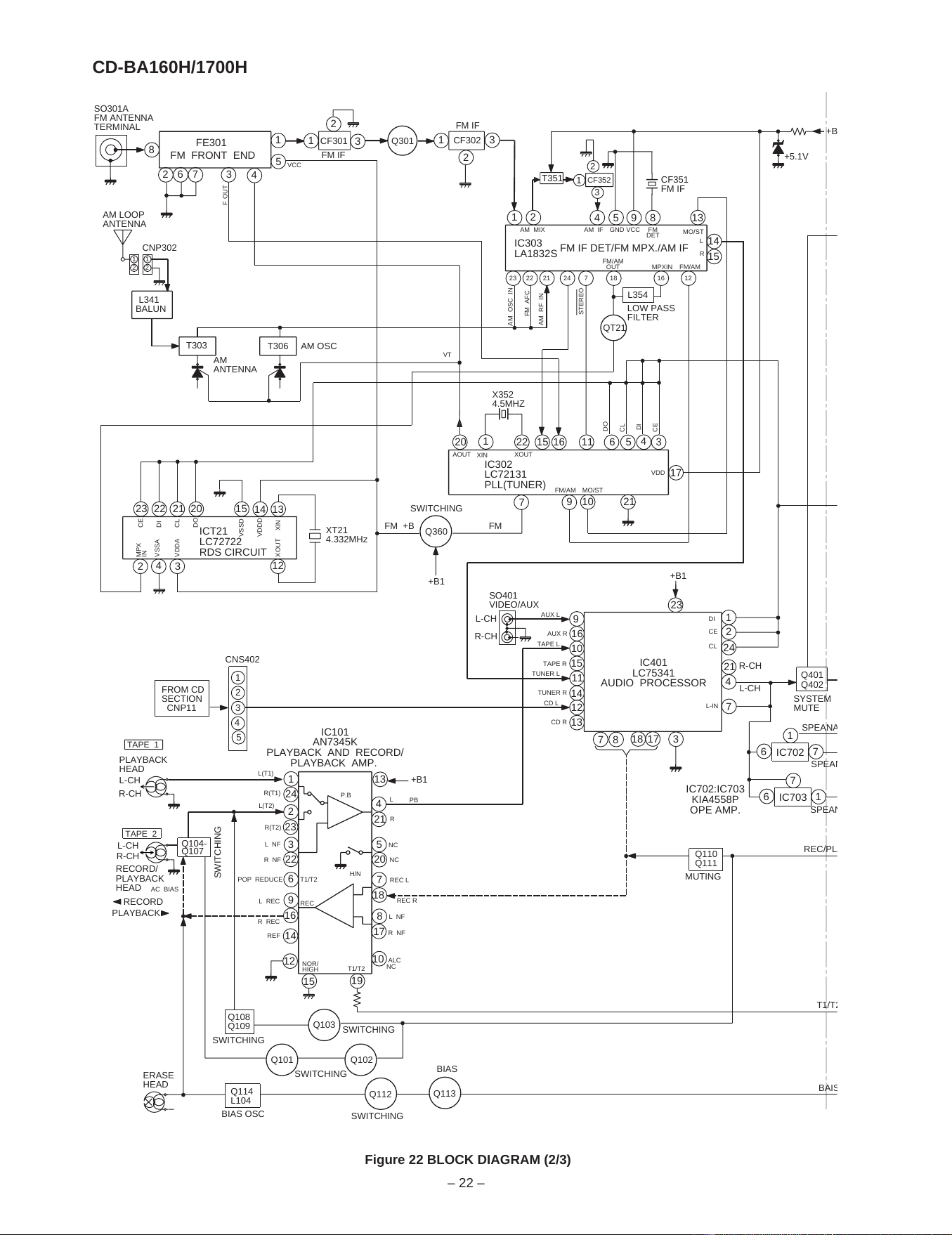

BLOCK DIAGRAM ........................................................................................................................................................... 21

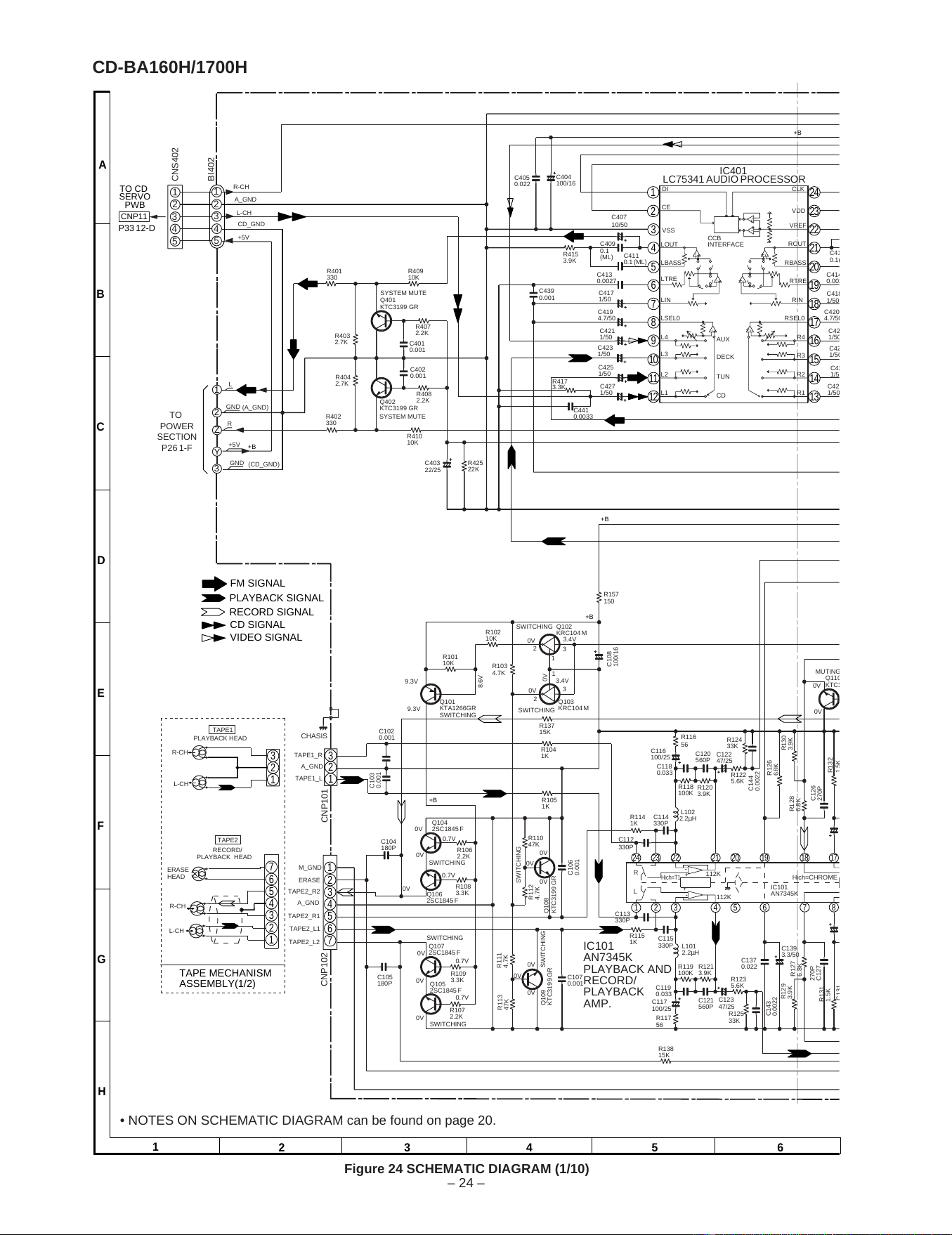

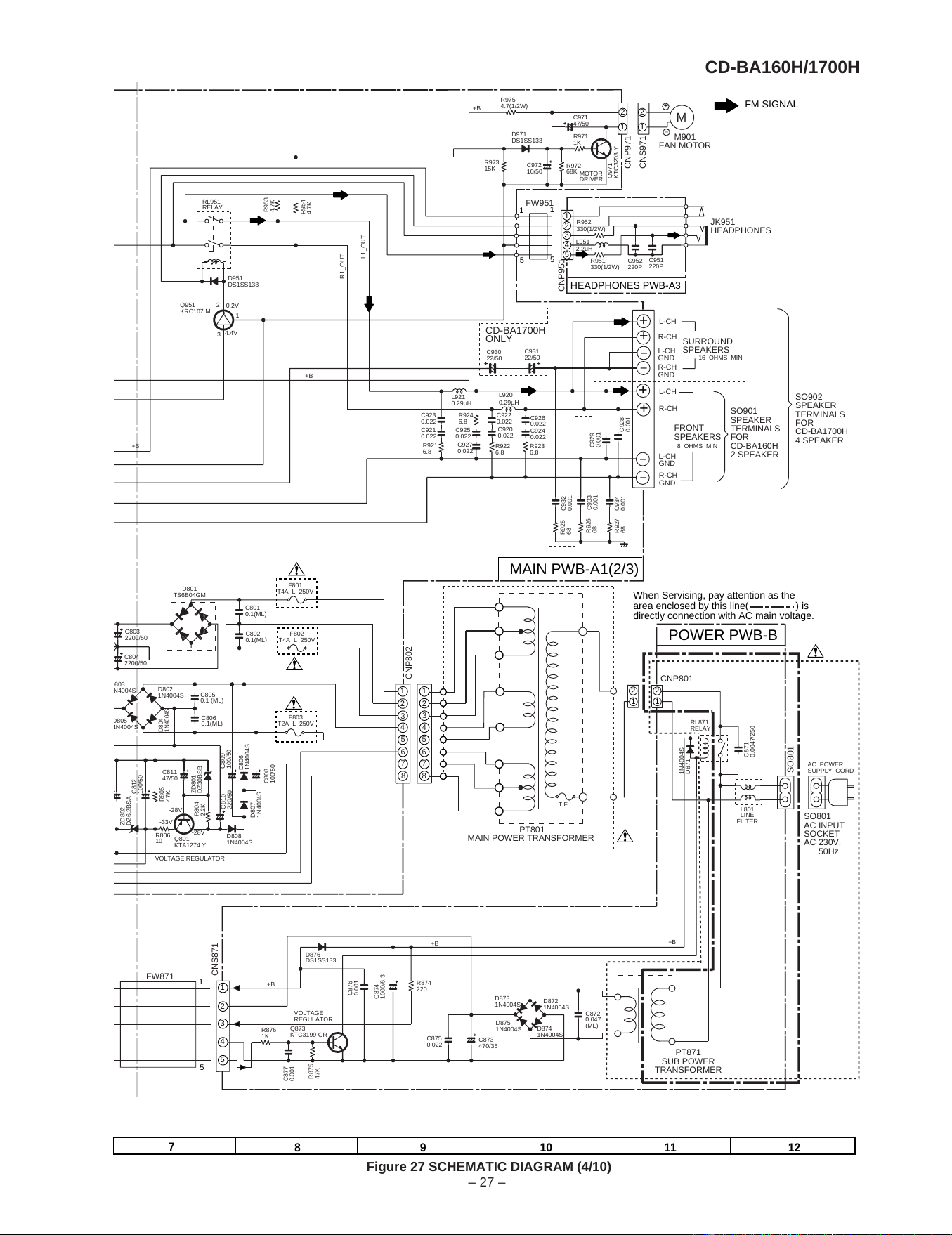

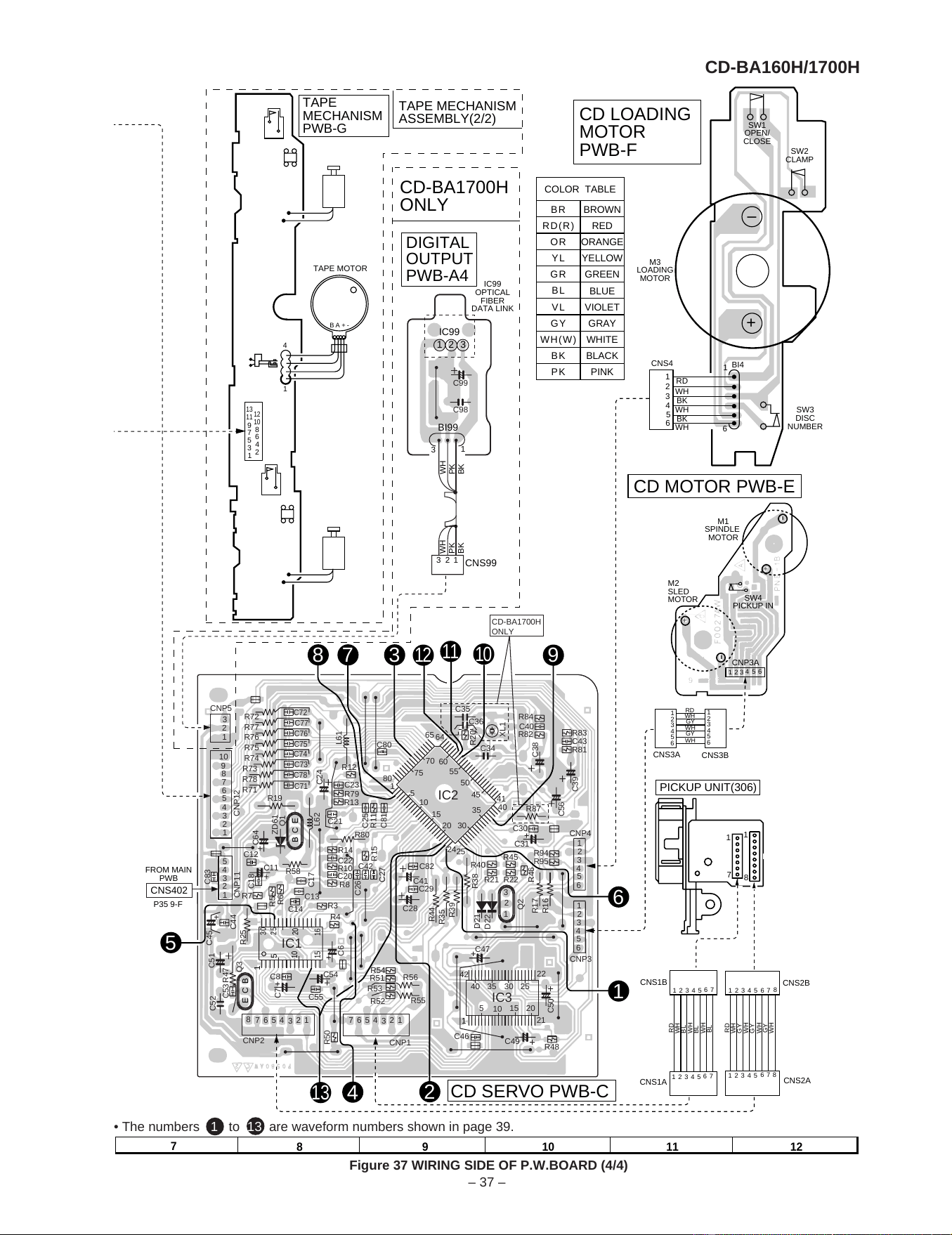

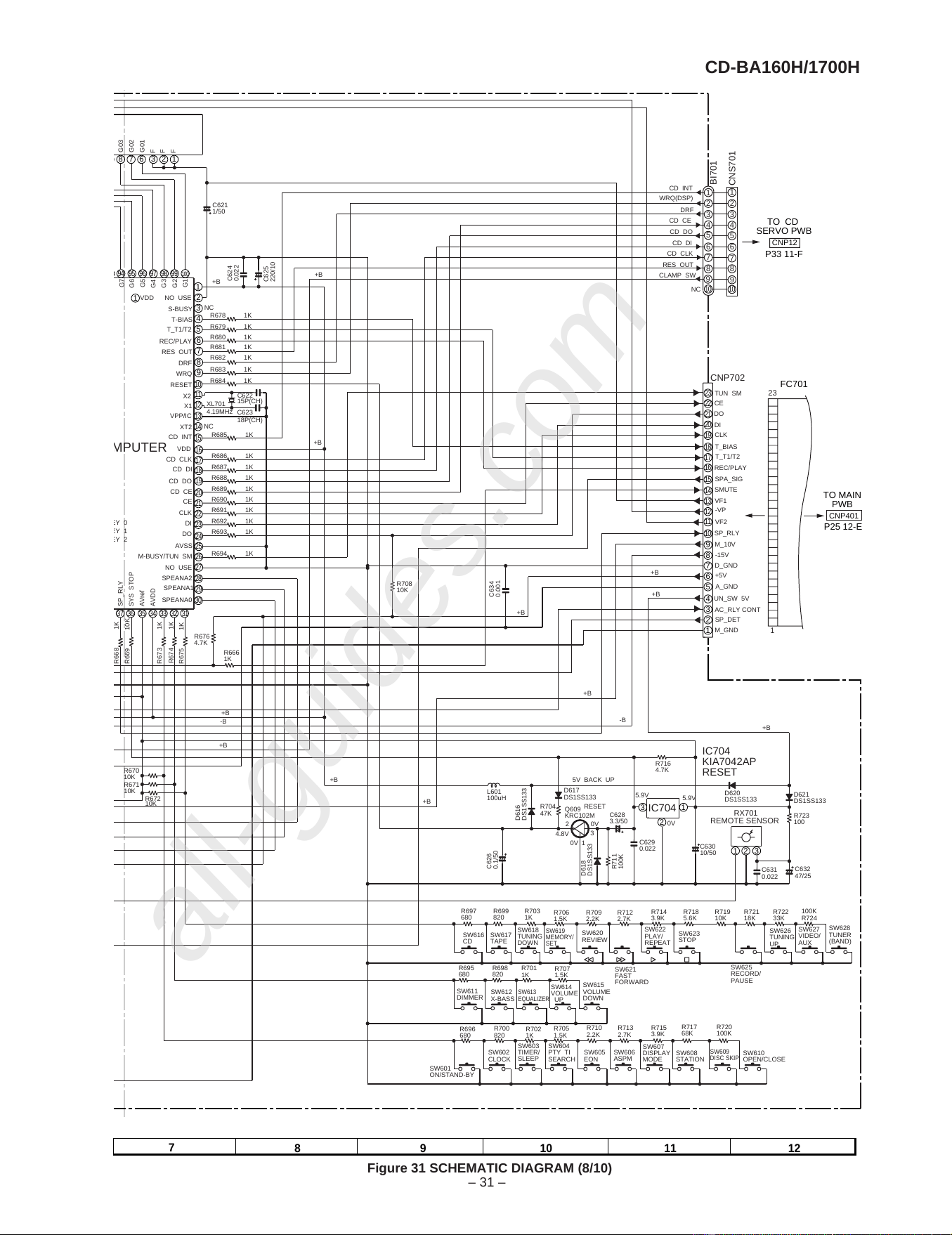

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD .............................................................................................. 24

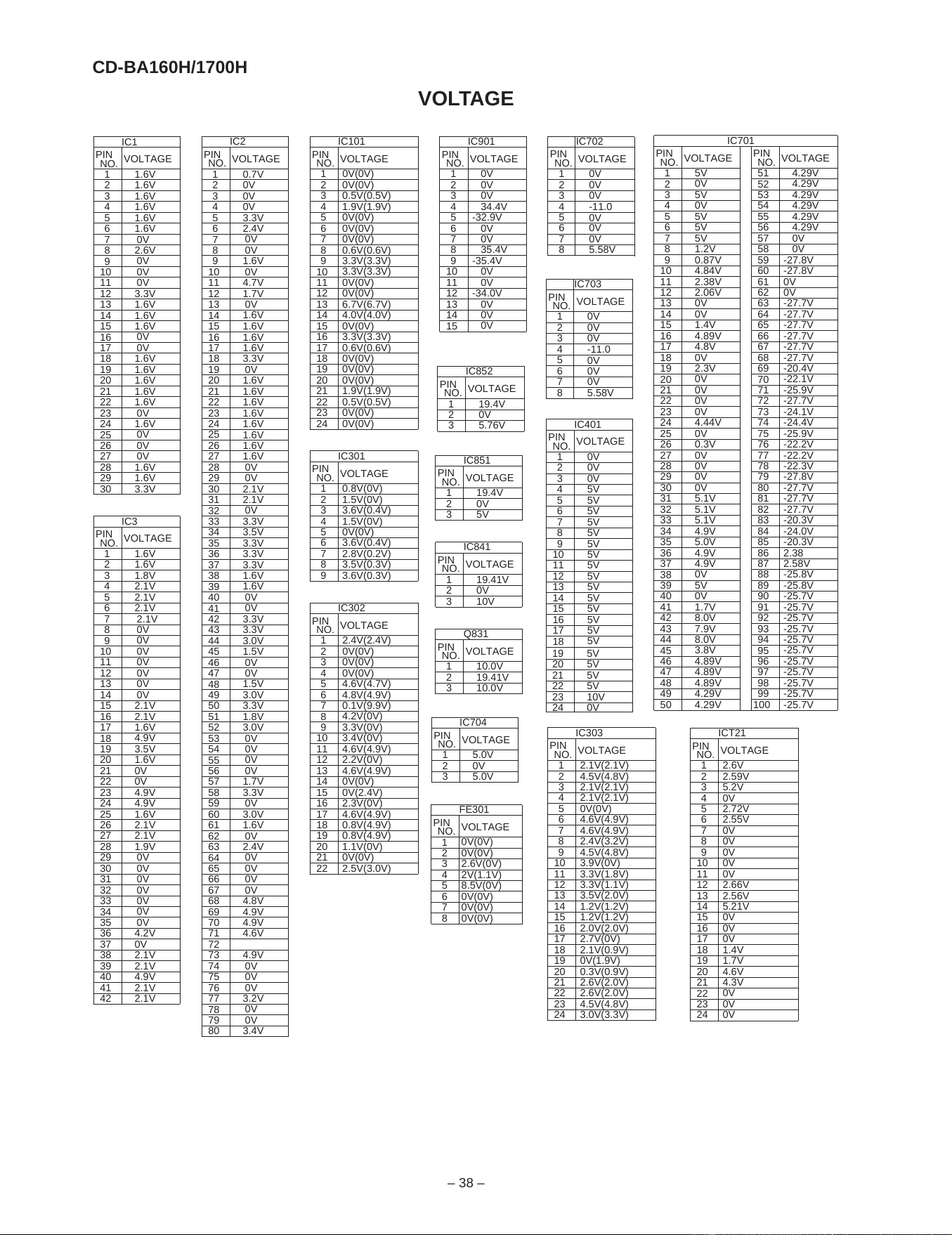

VOLTAGE ........................................................................................................................................................................ 38

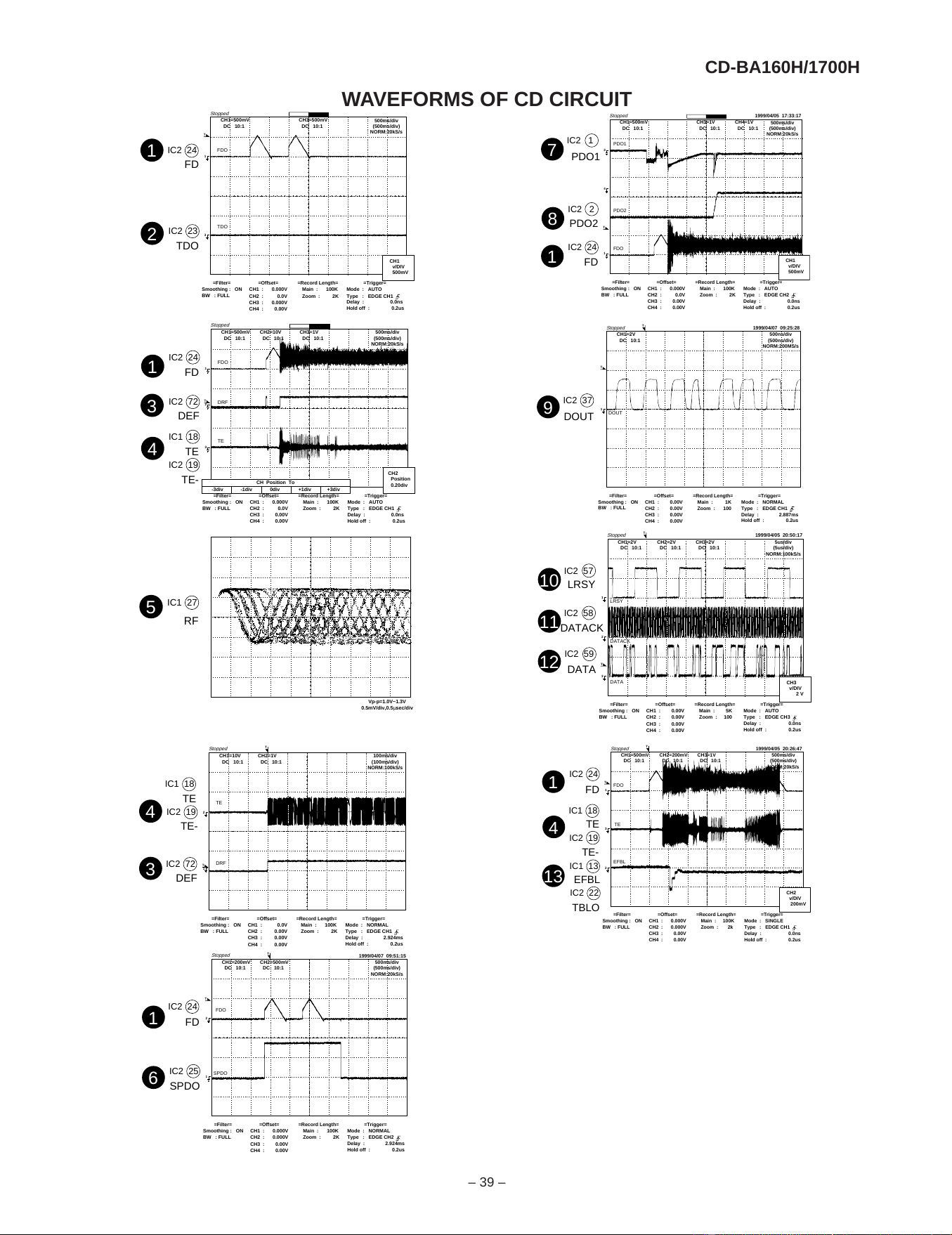

WAVEFORMS OF CD CIRCUIT ...................................................................................................................................... 39

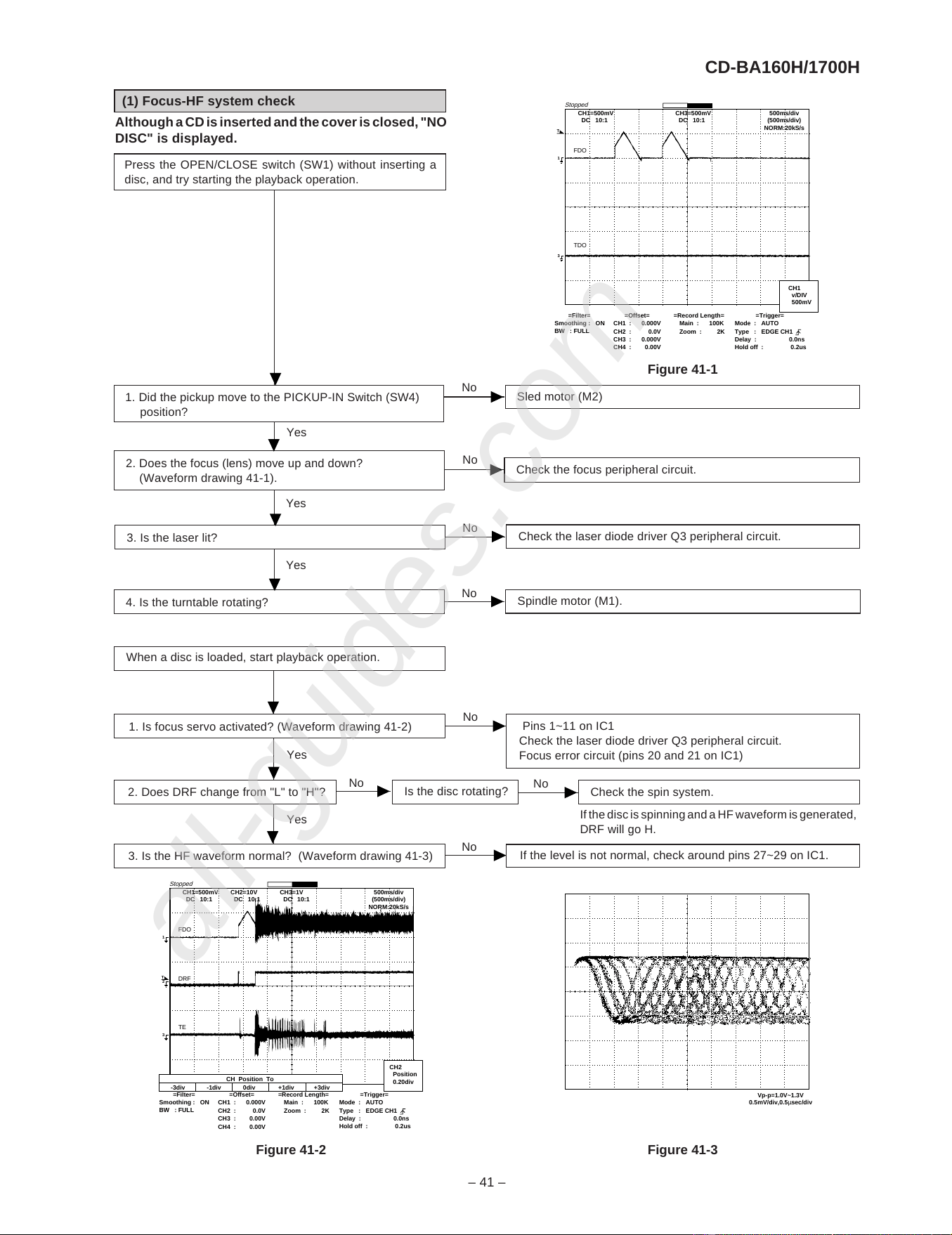

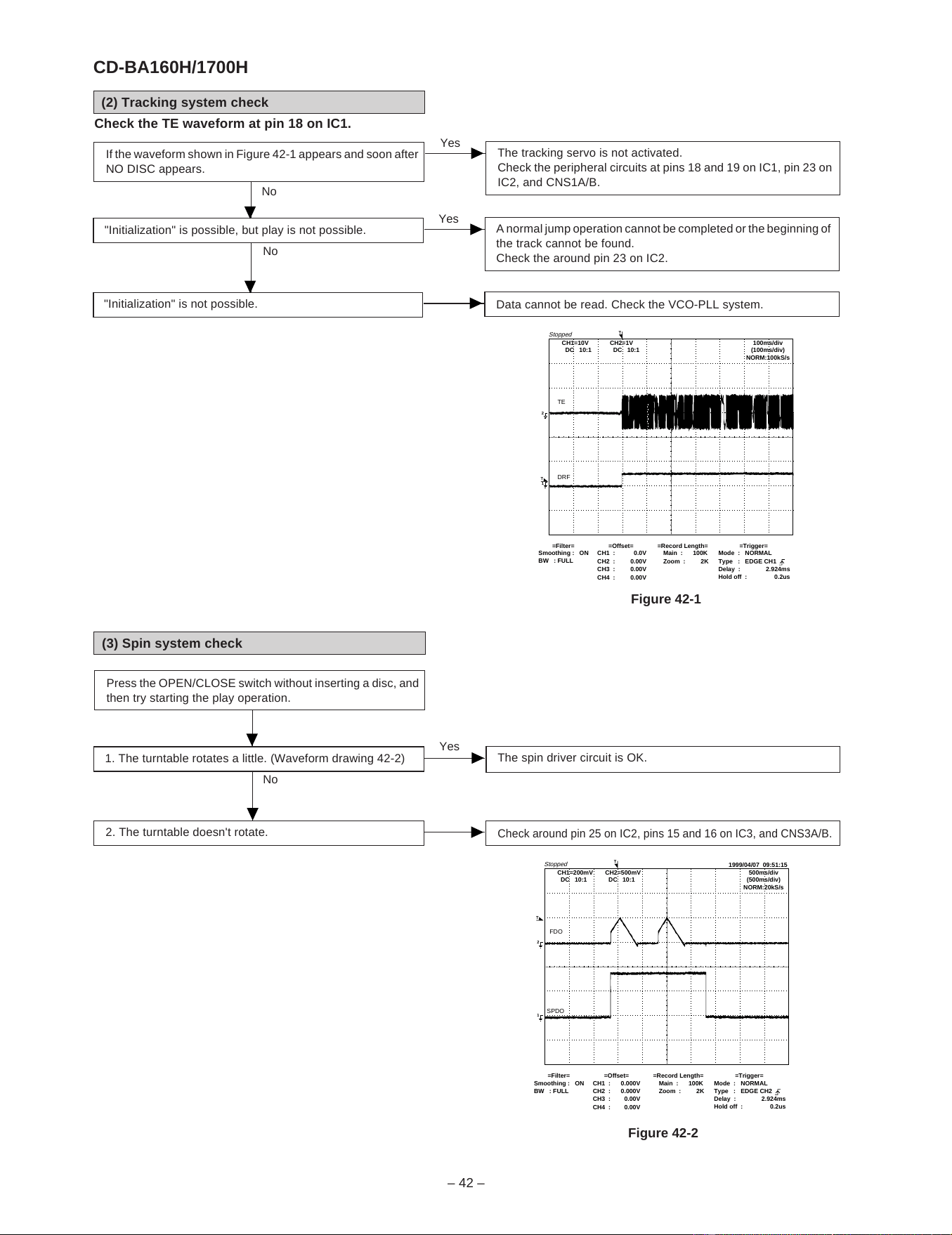

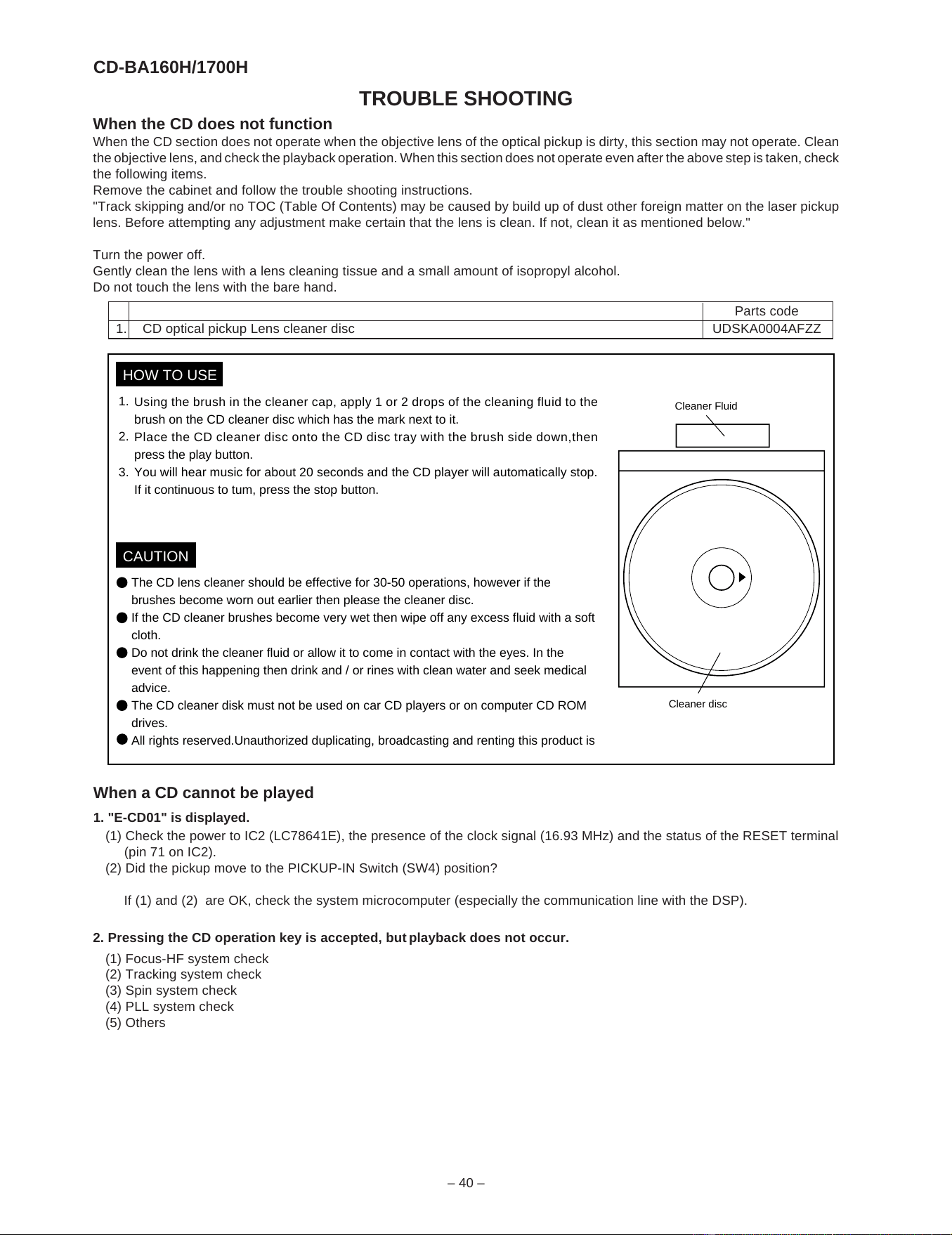

TROUBLESHOOTING ..................................................................................................................................................... 40

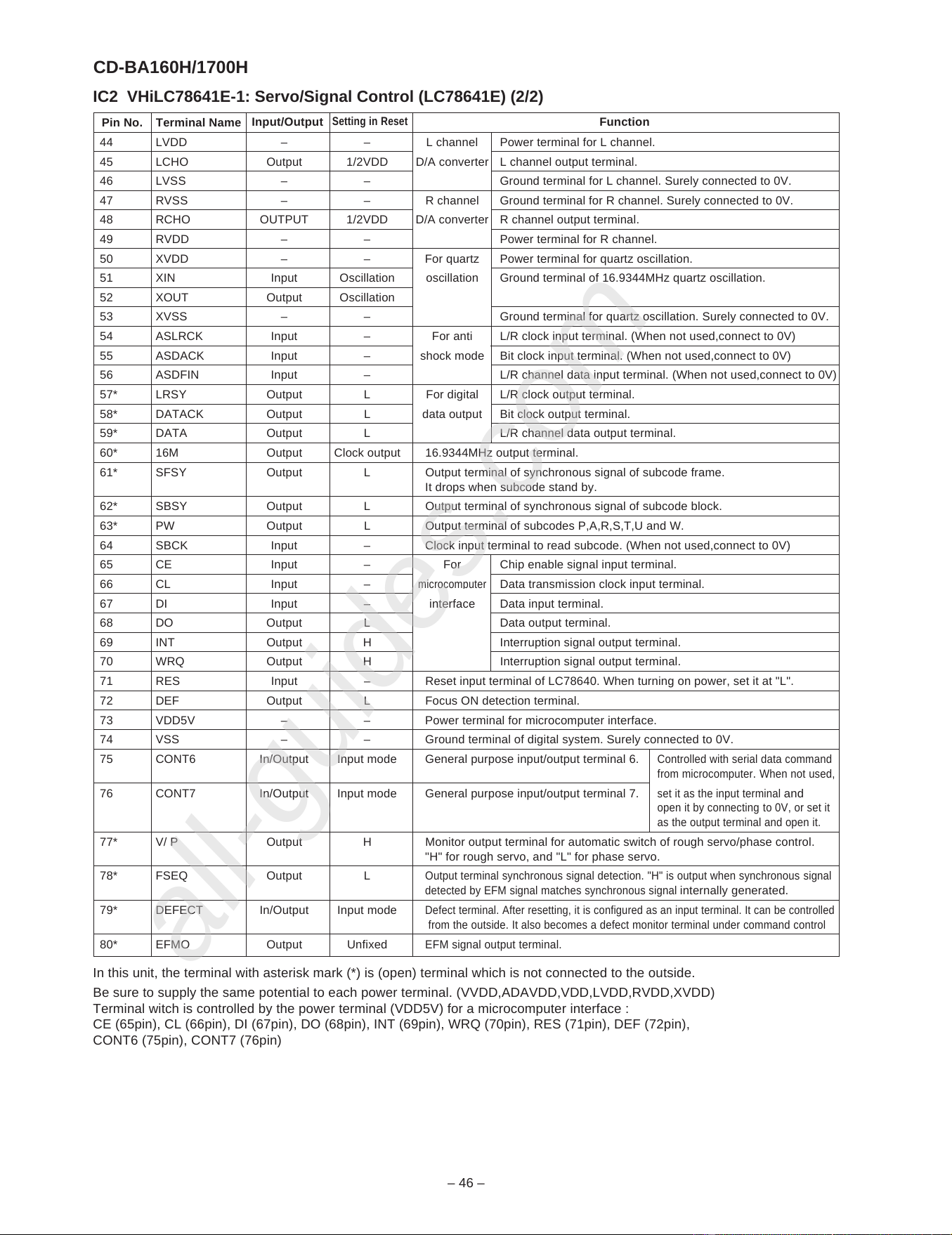

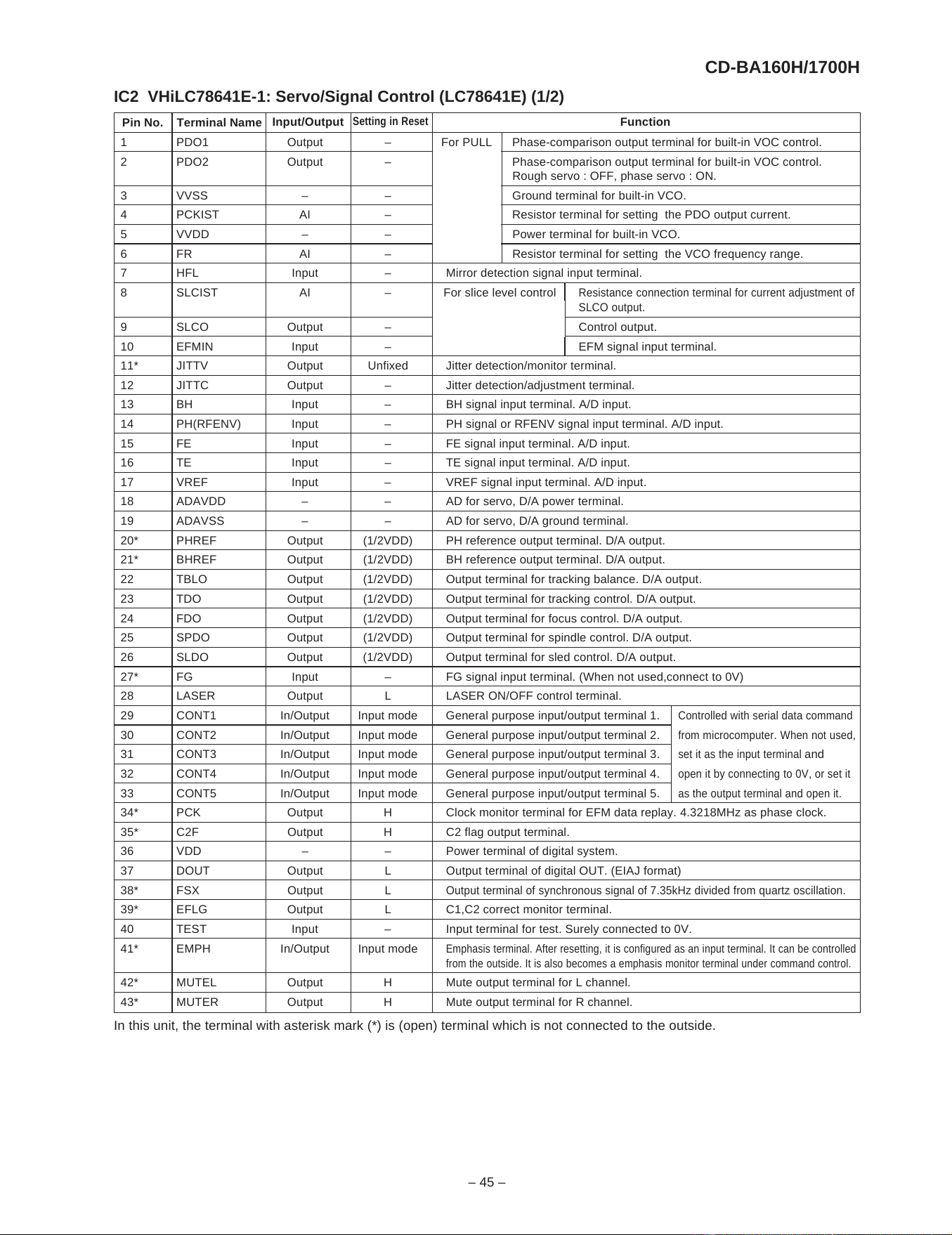

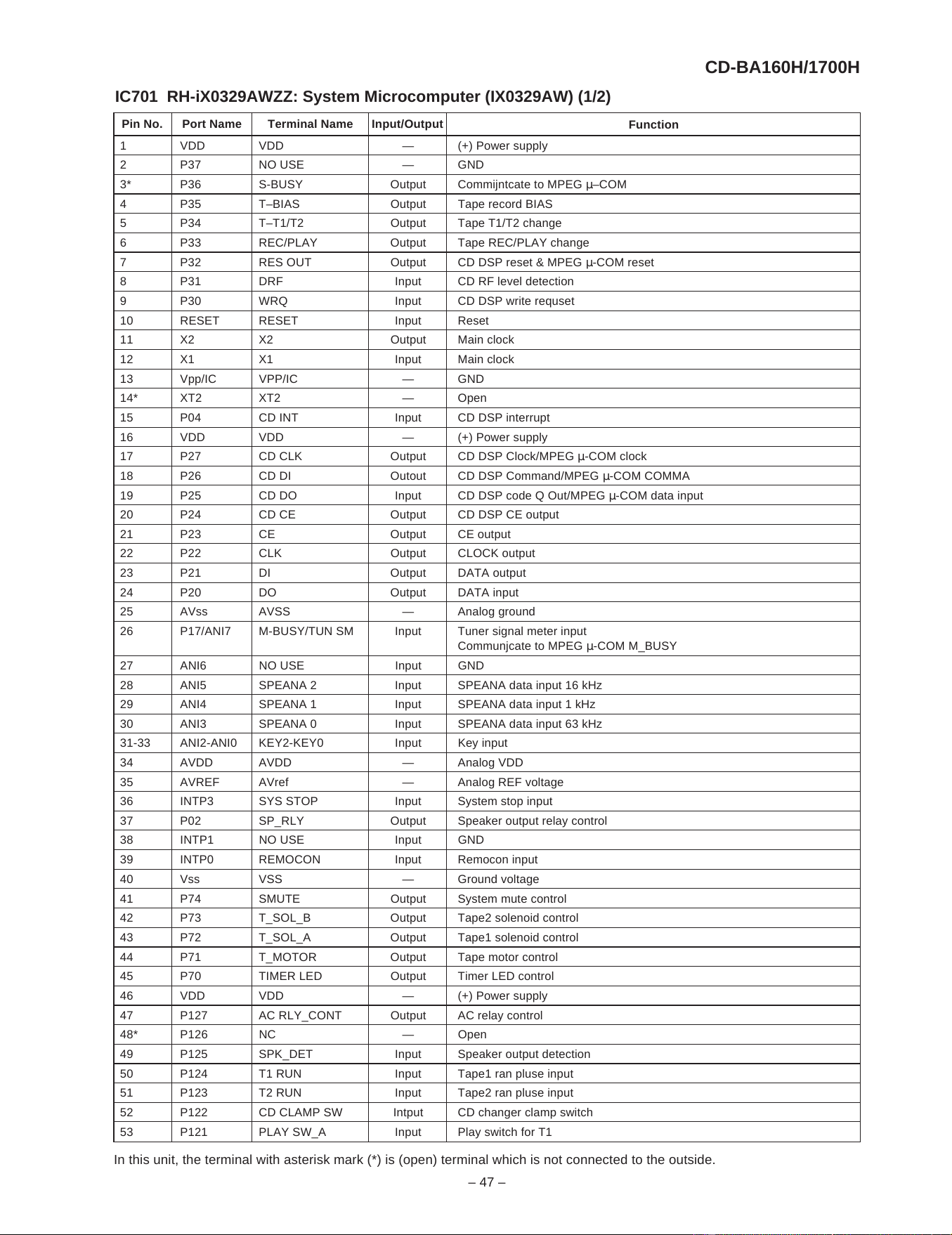

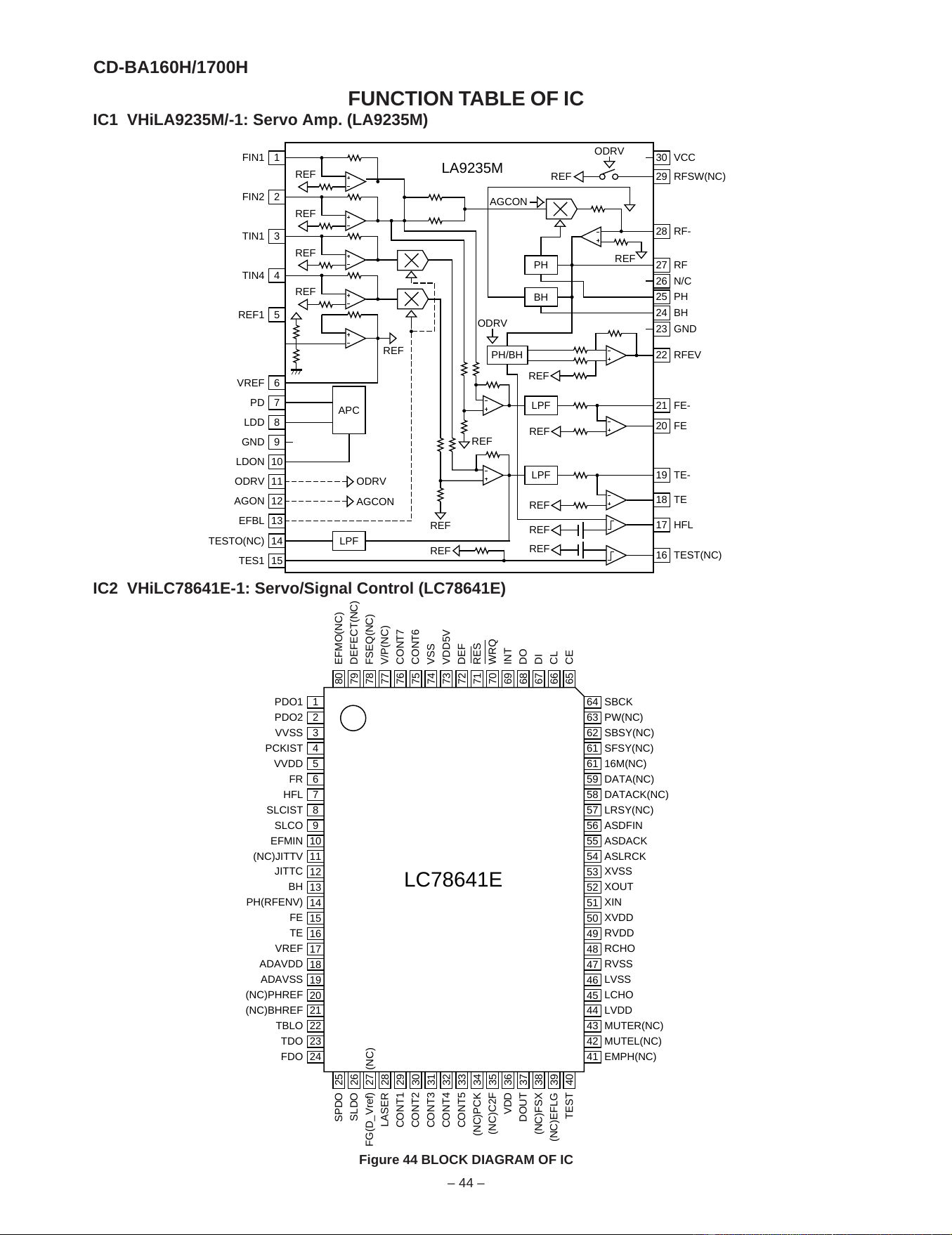

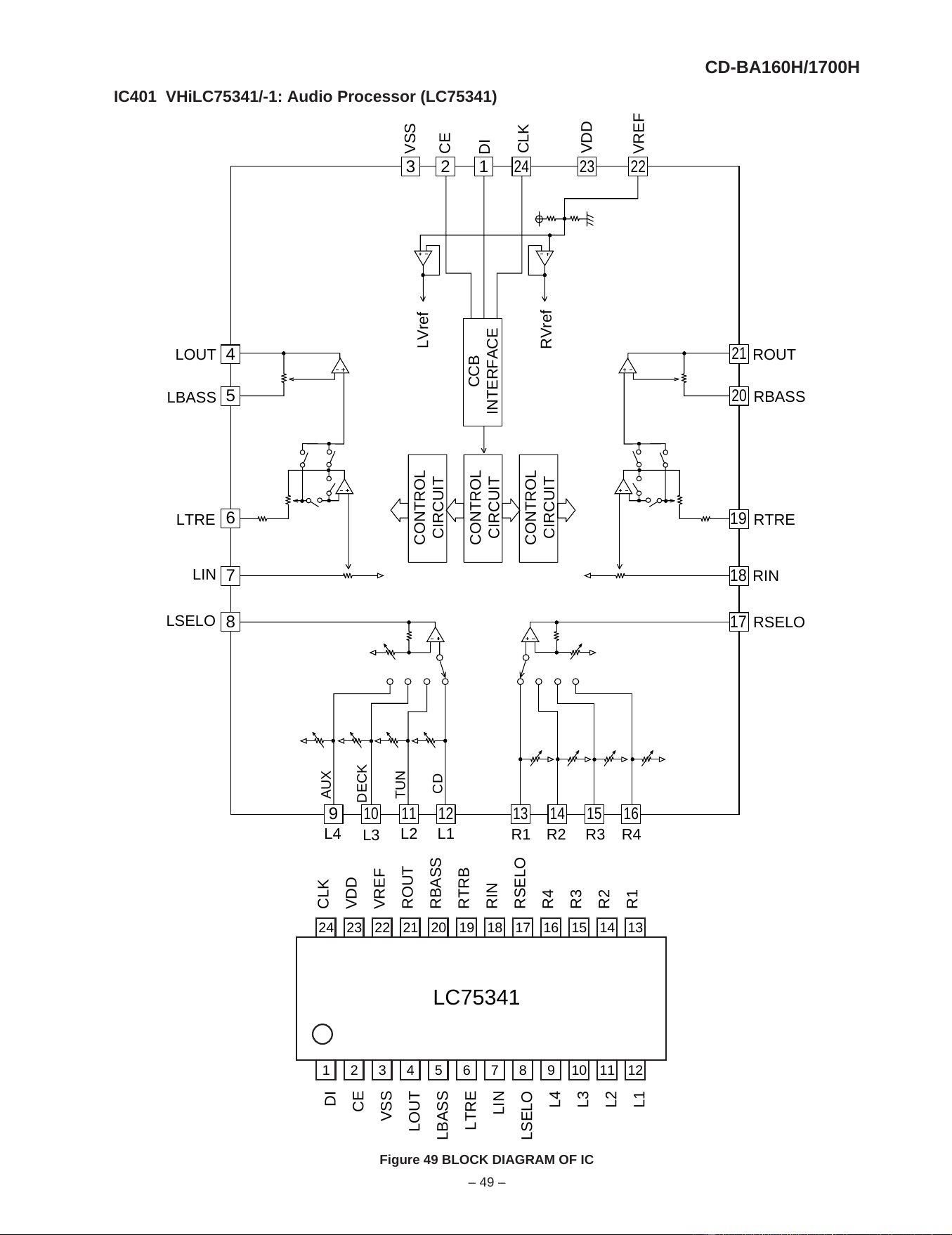

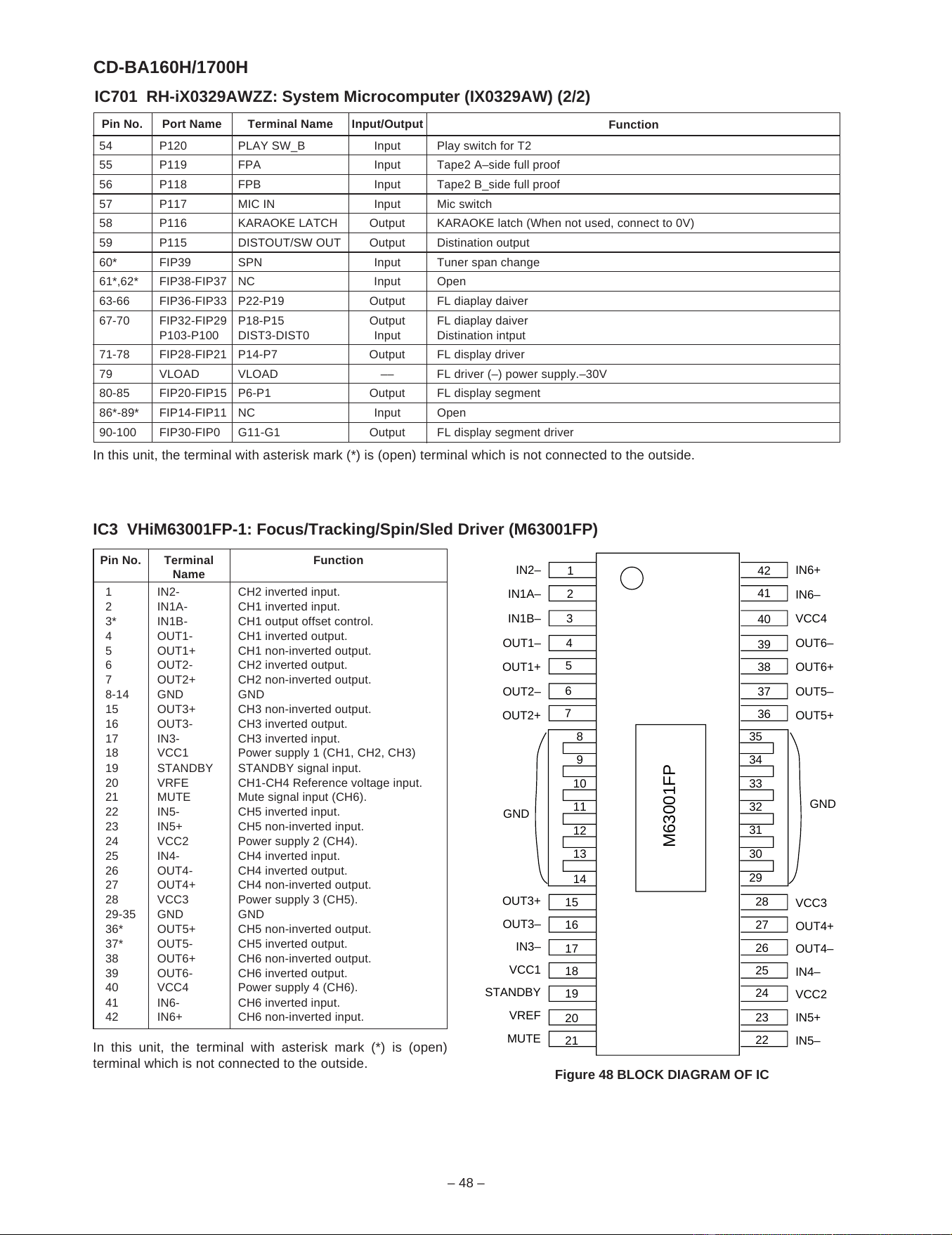

FUNCTION TABLE OF IC................................................................................................................................................ 44

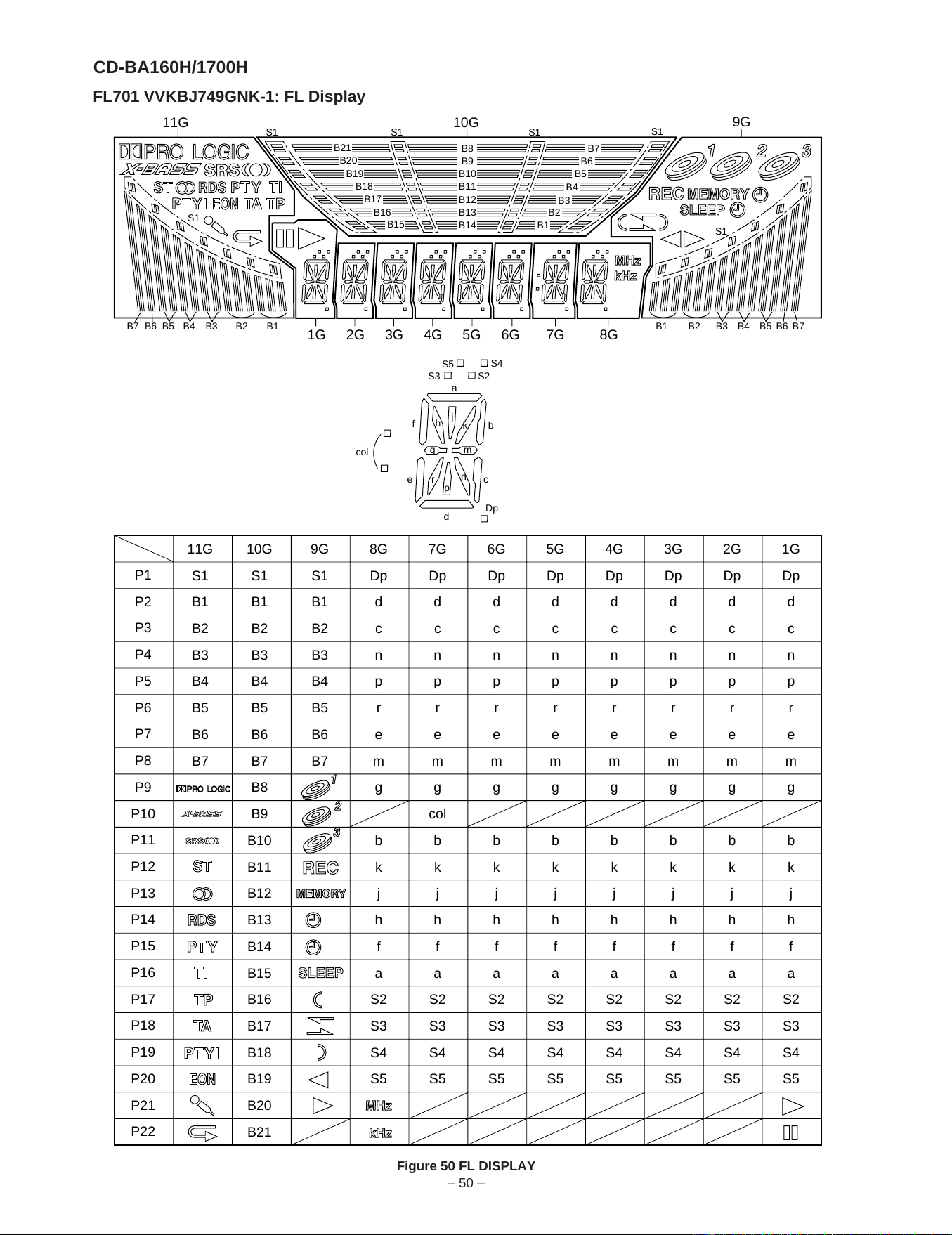

FL DISPLAY ...................................................................................................................................................................... 50

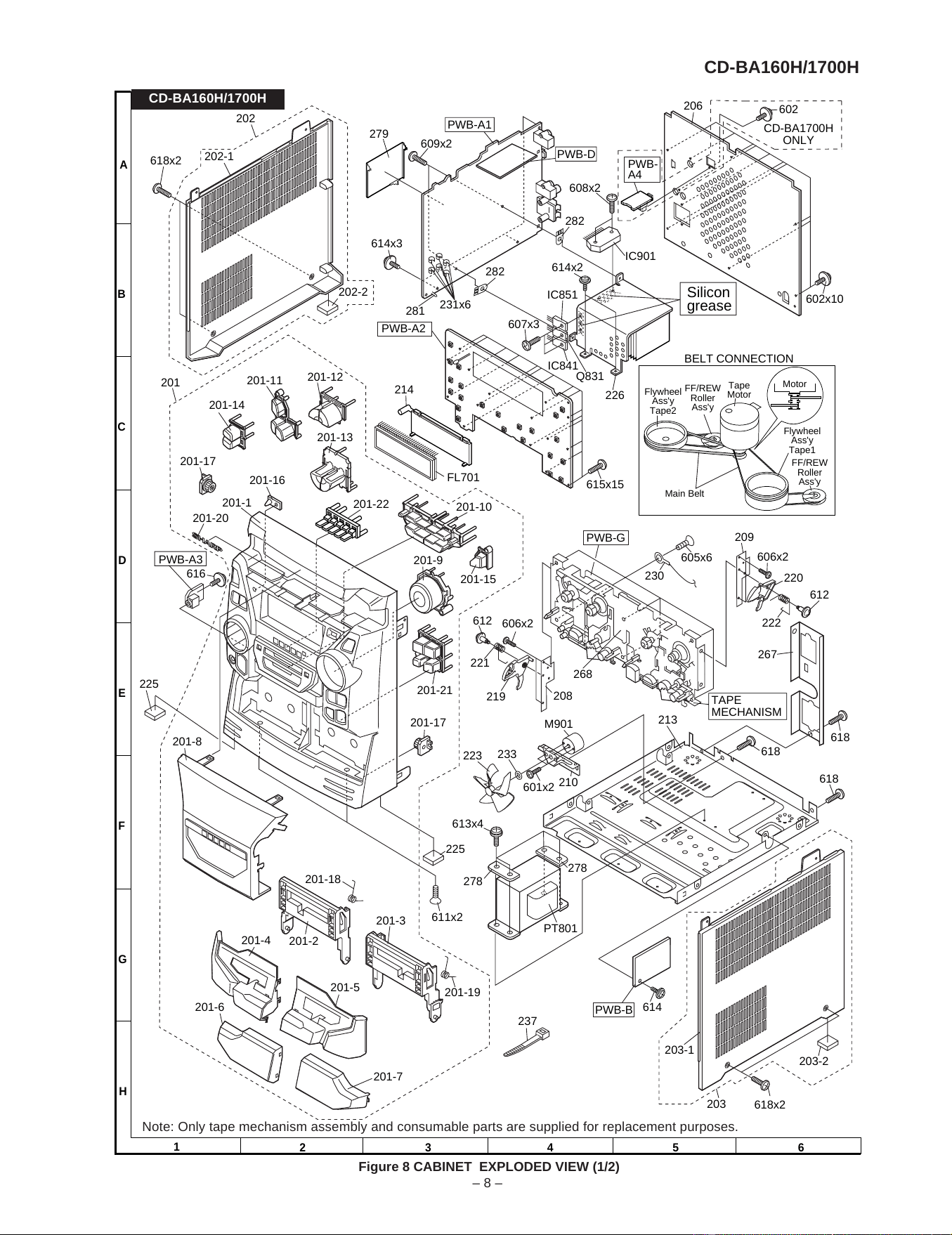

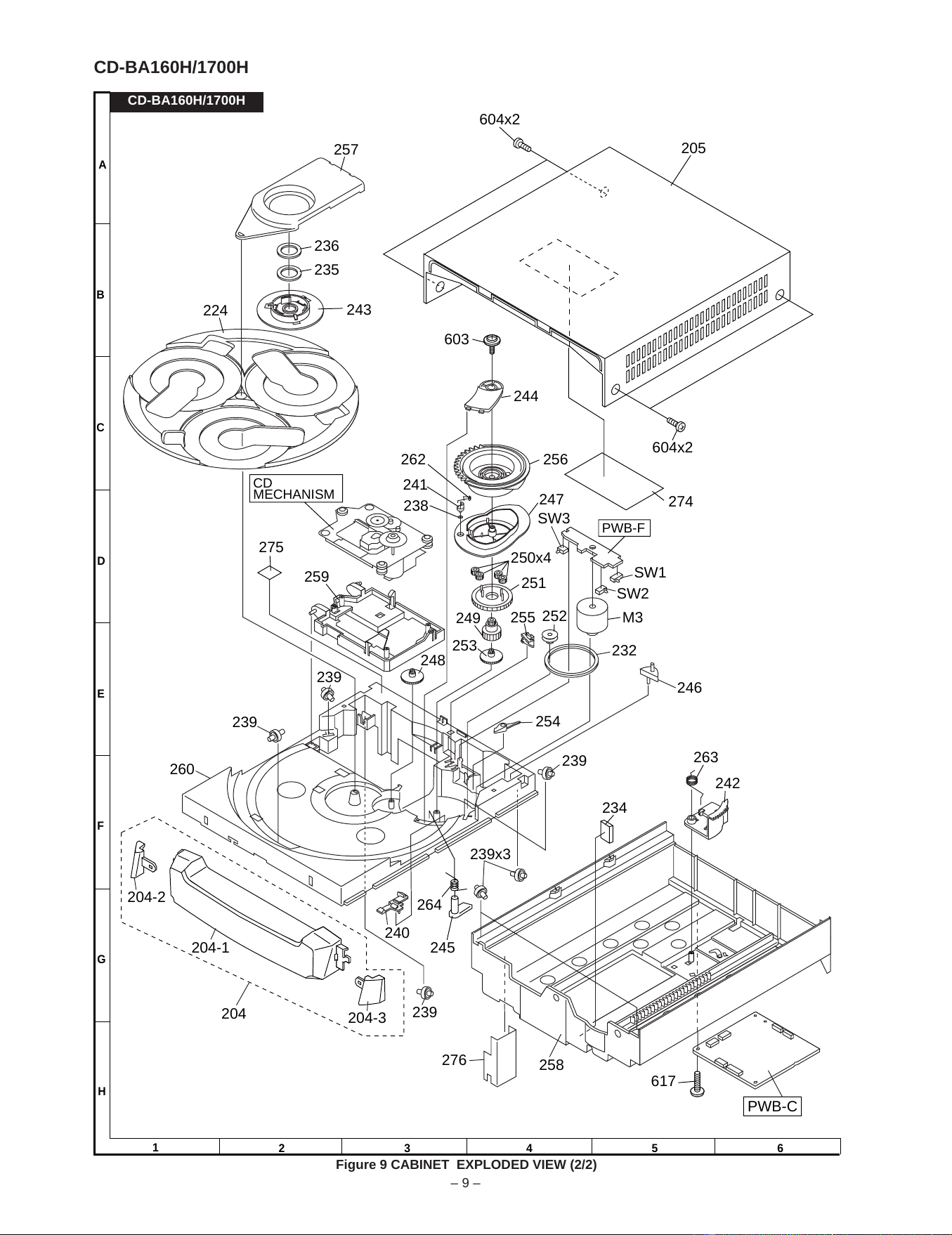

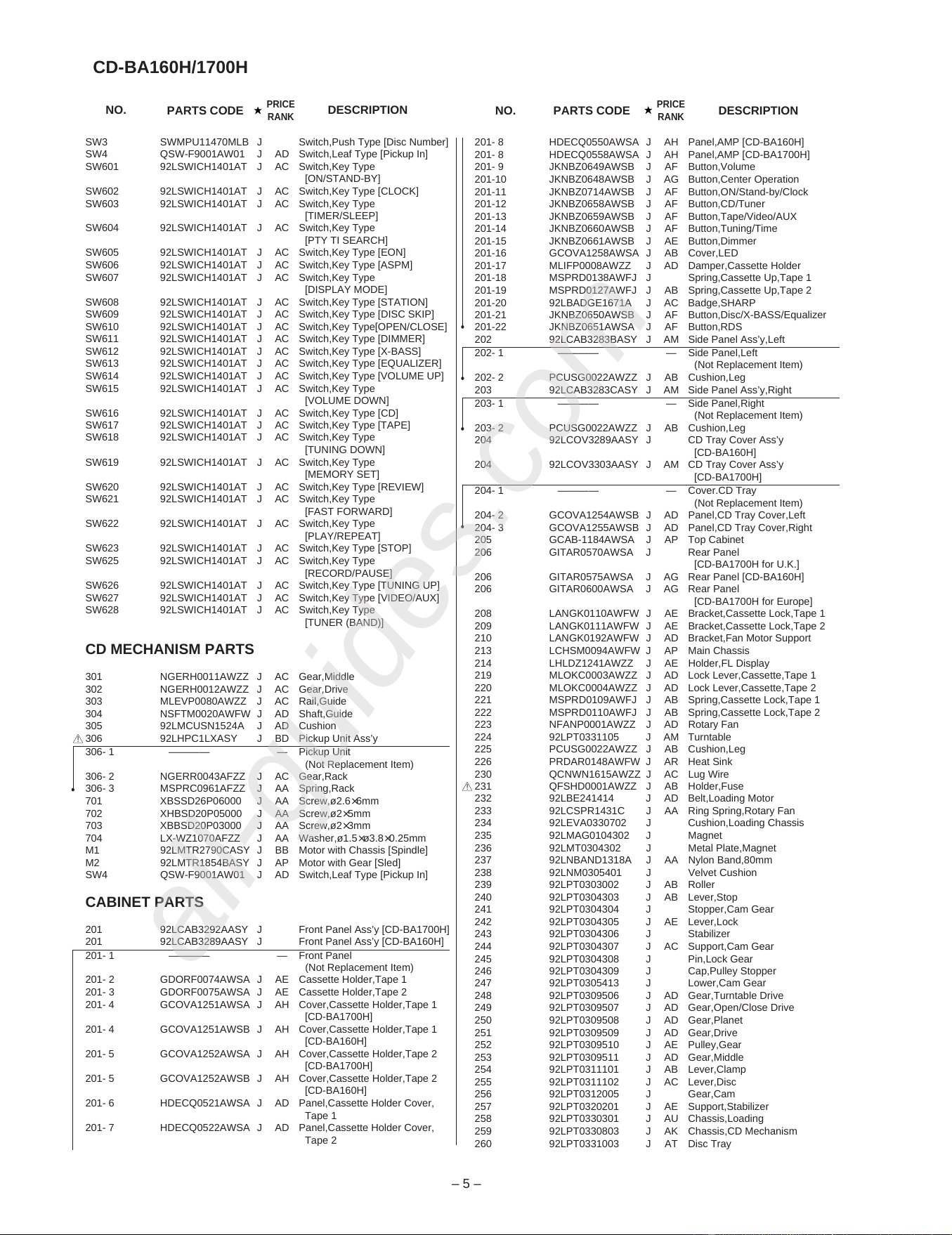

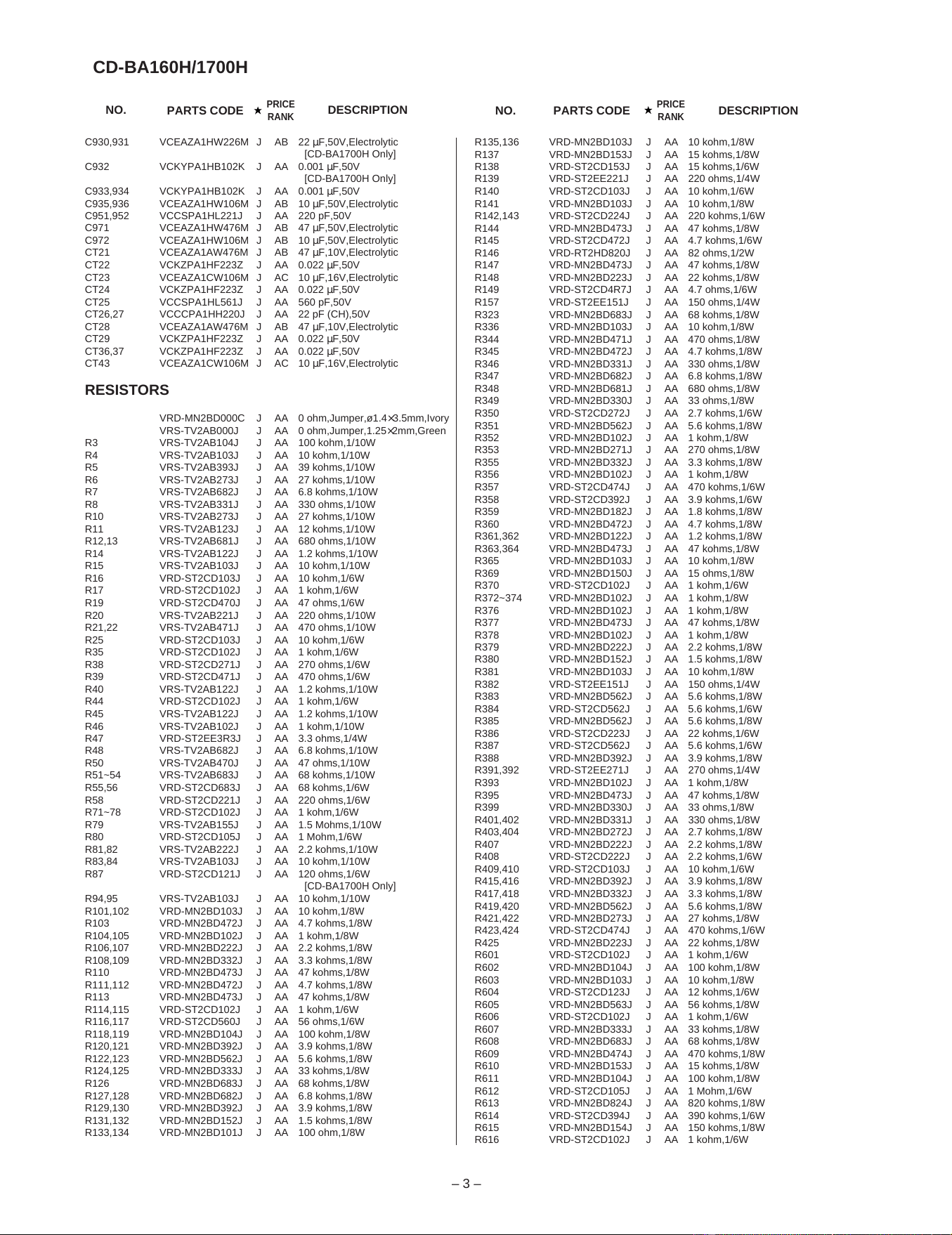

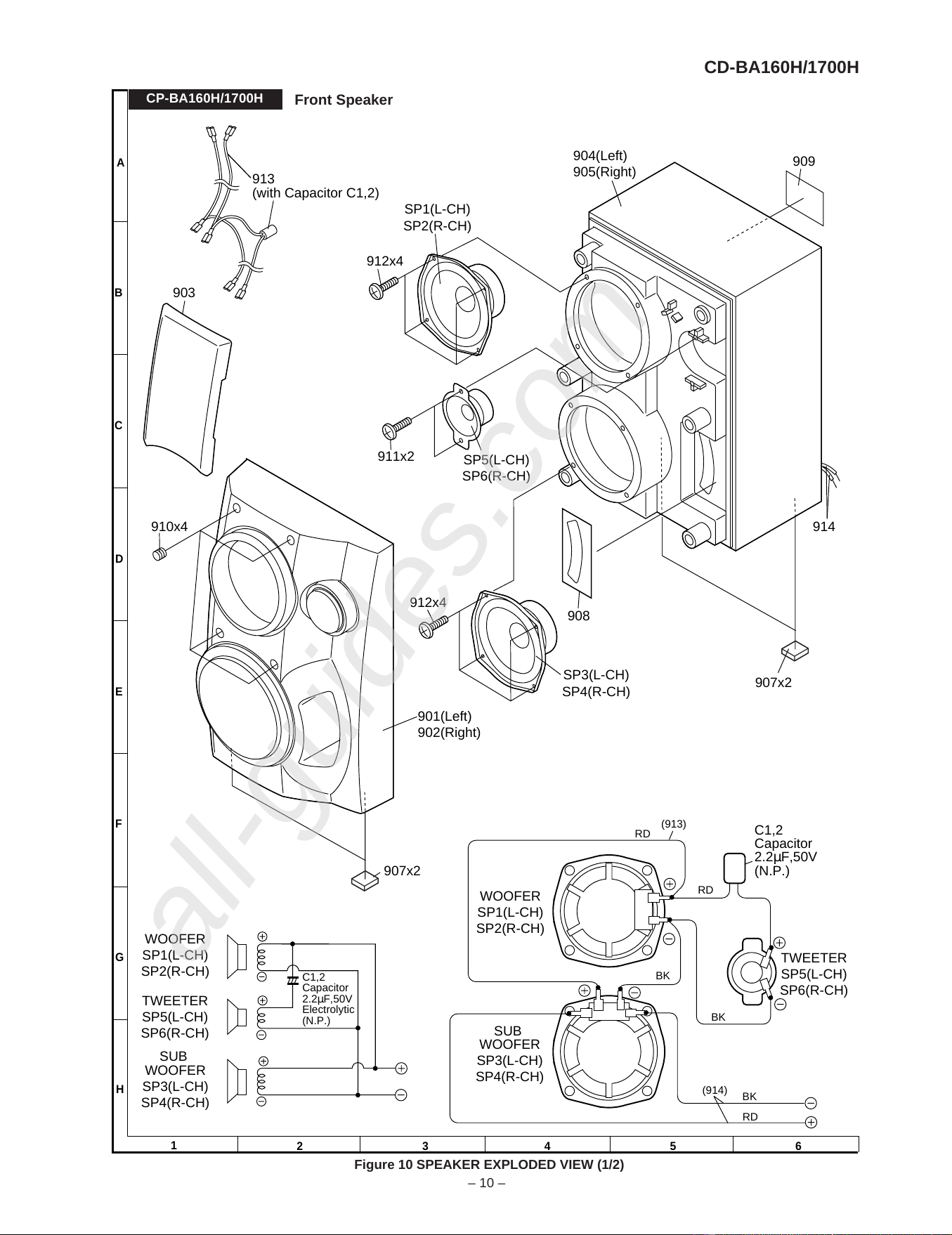

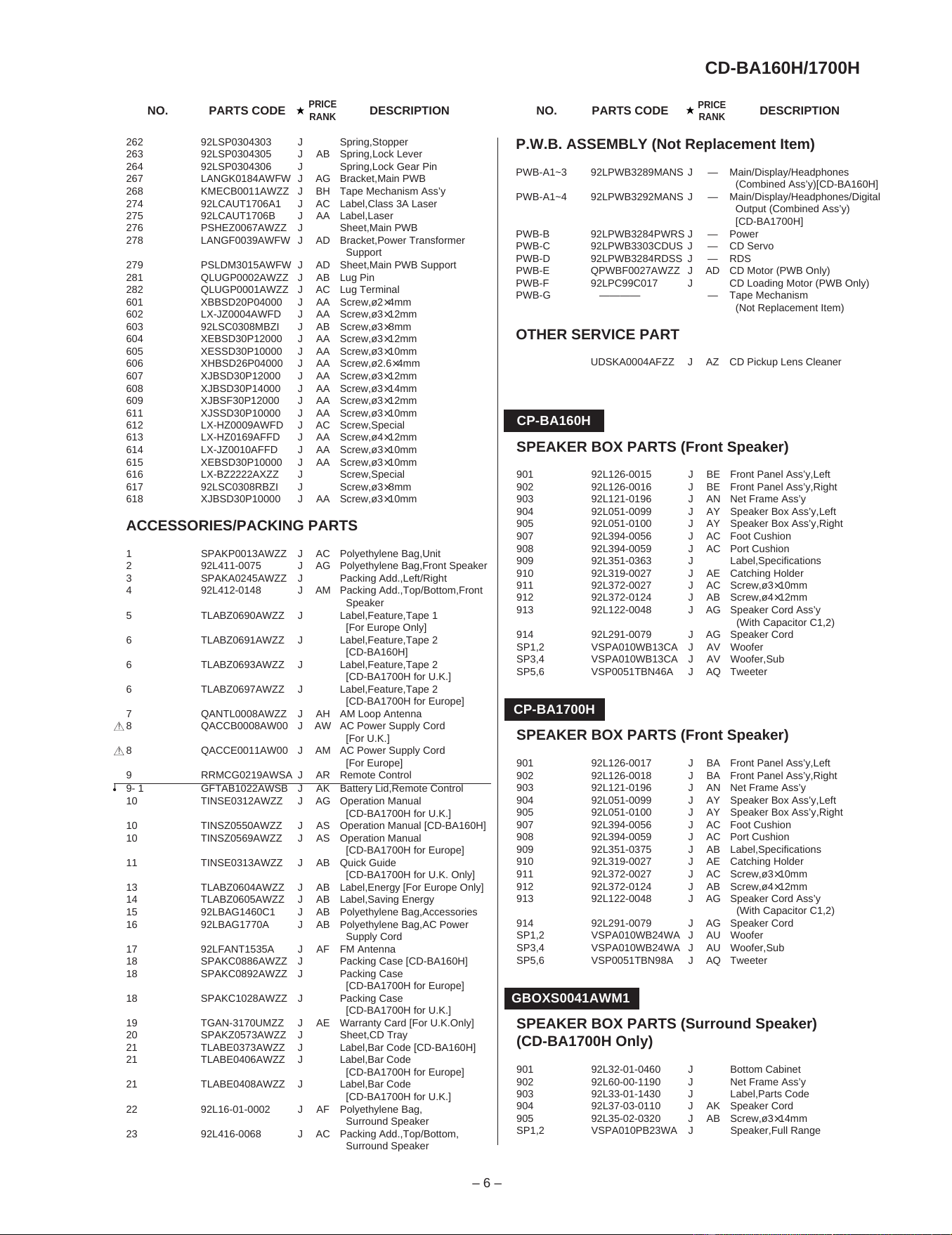

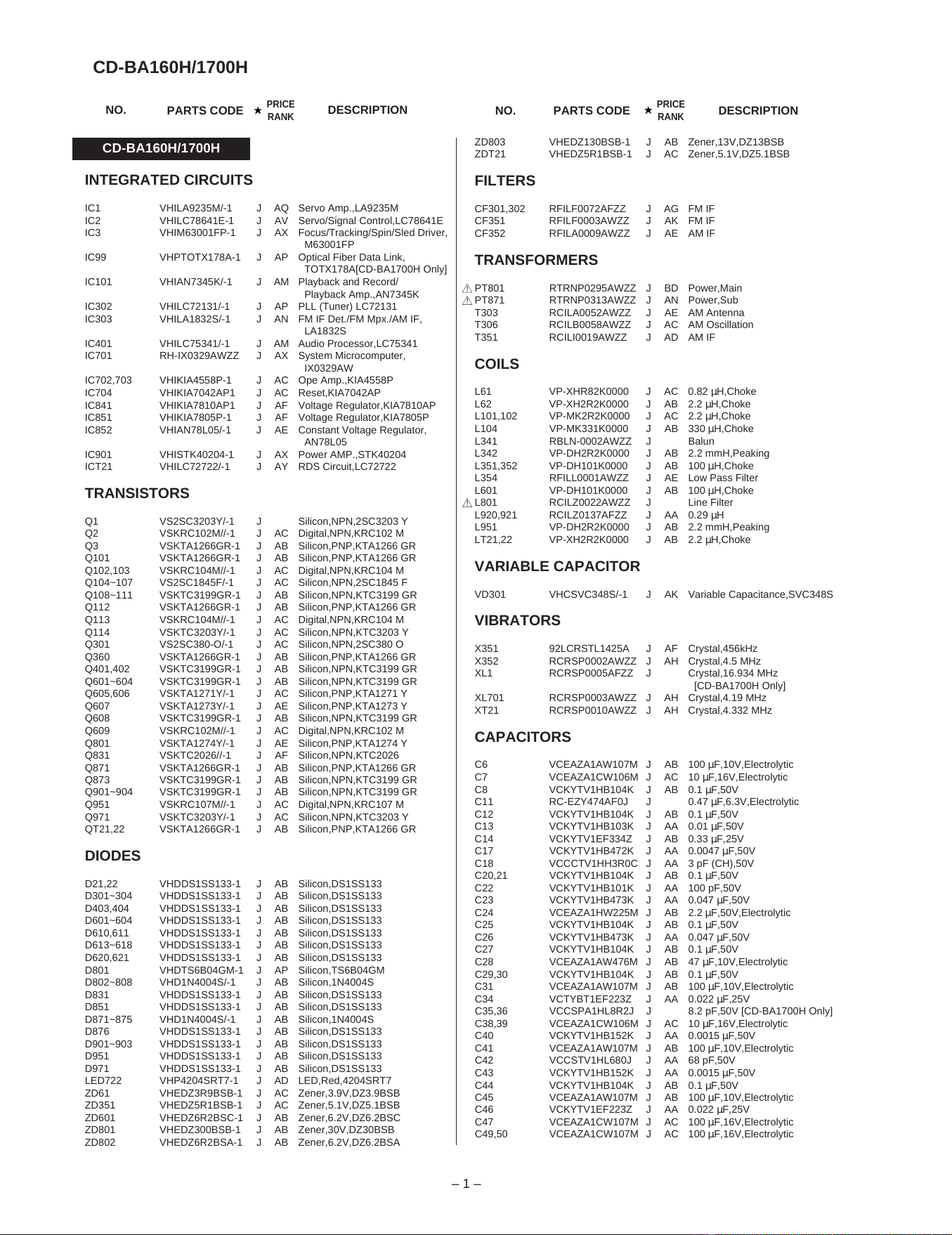

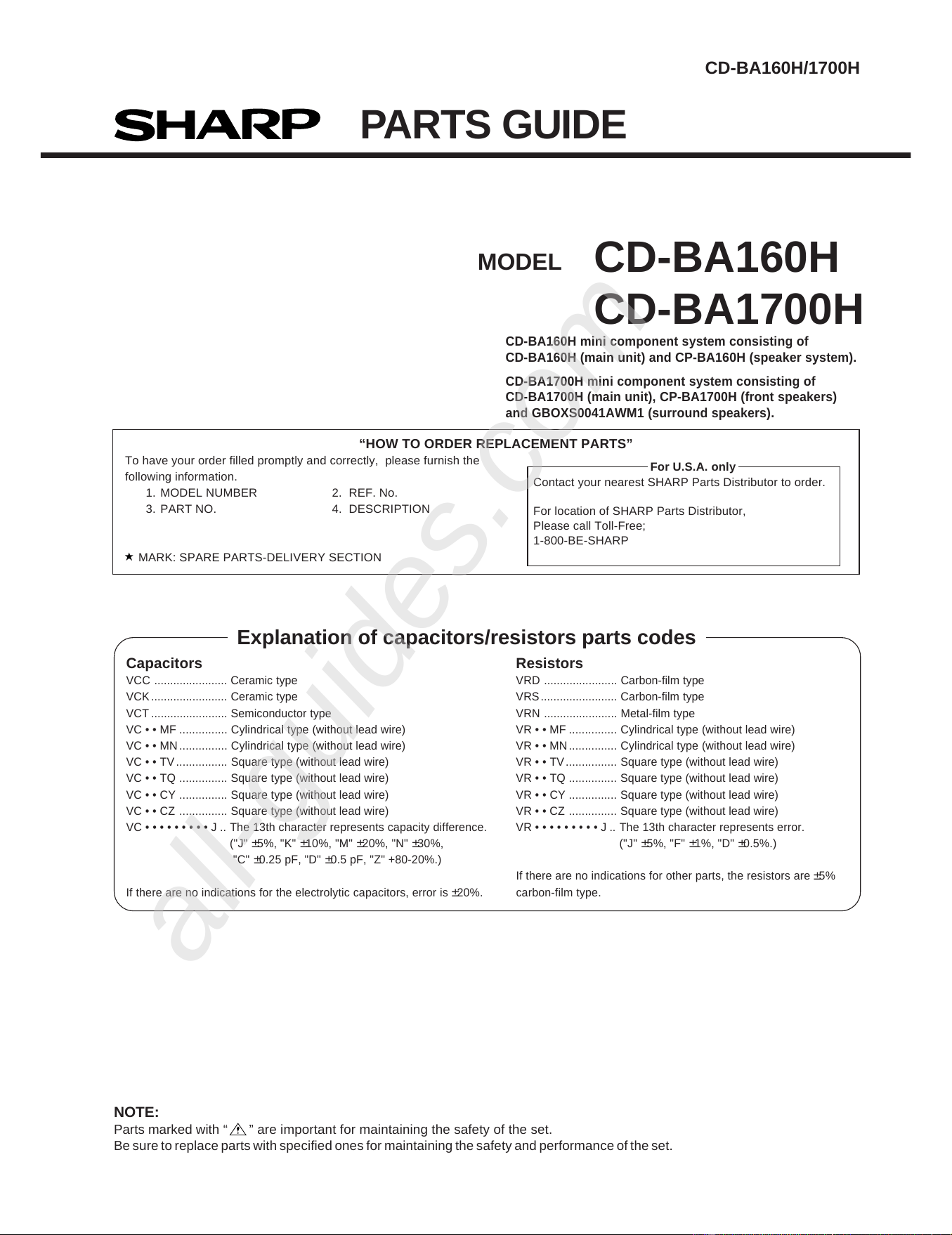

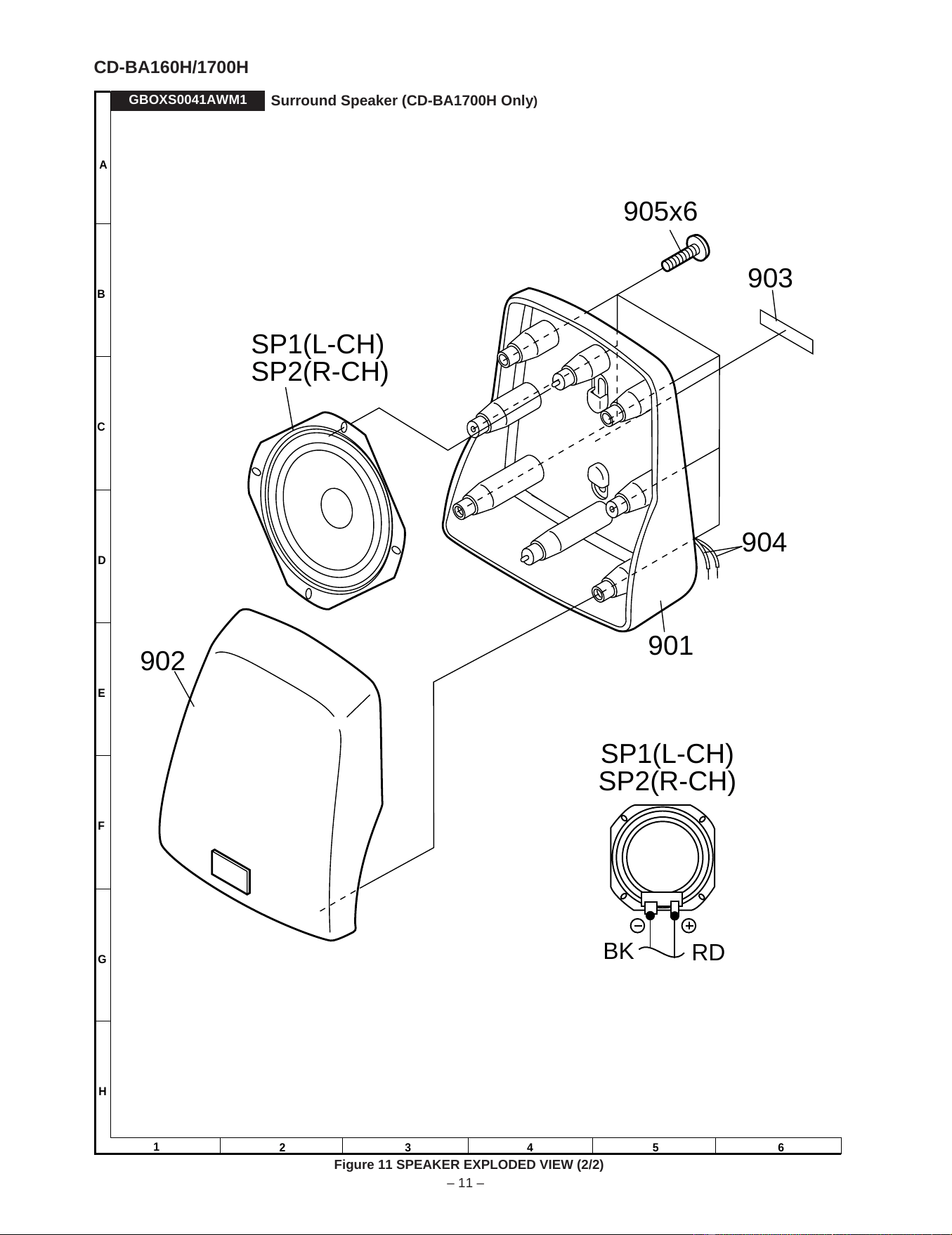

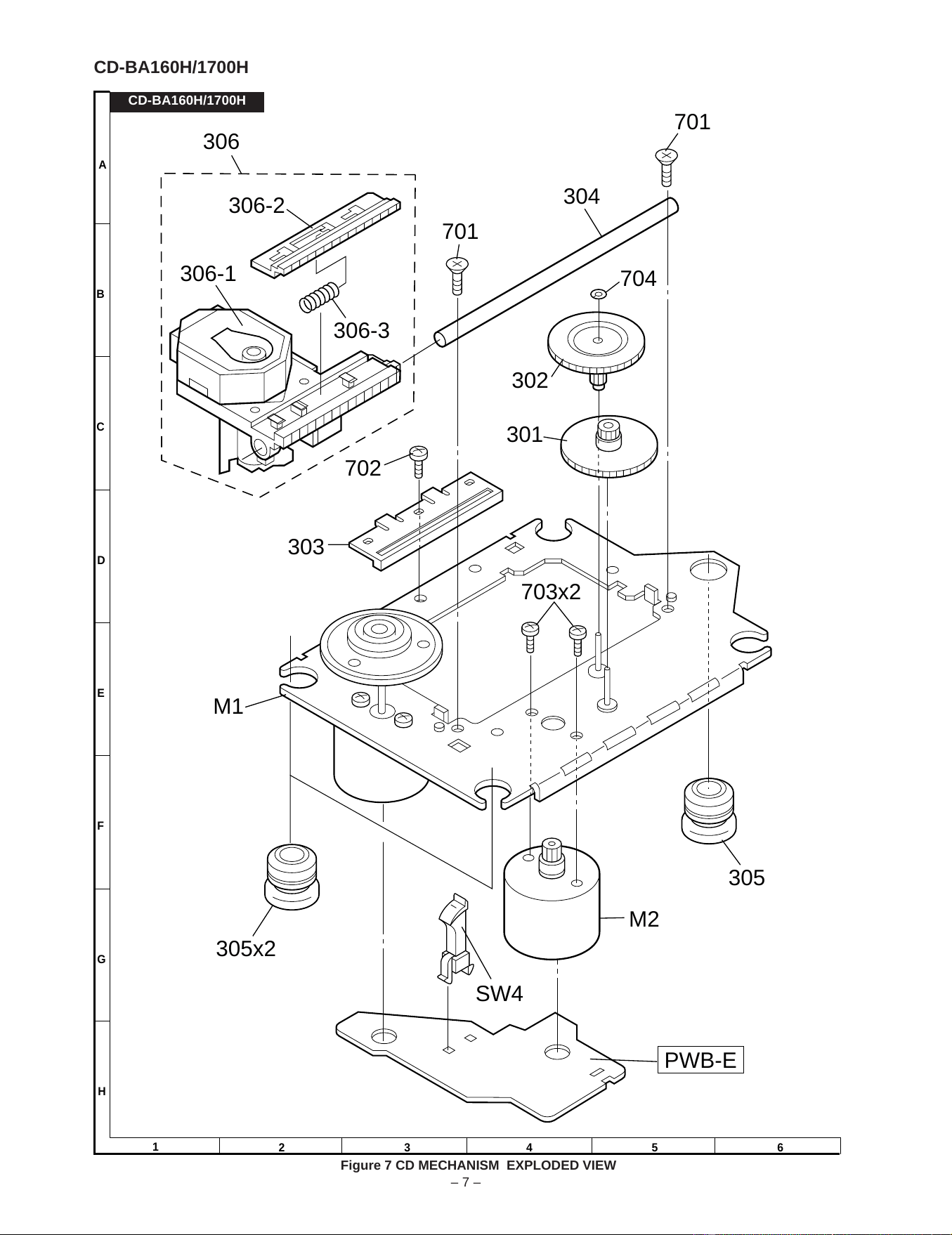

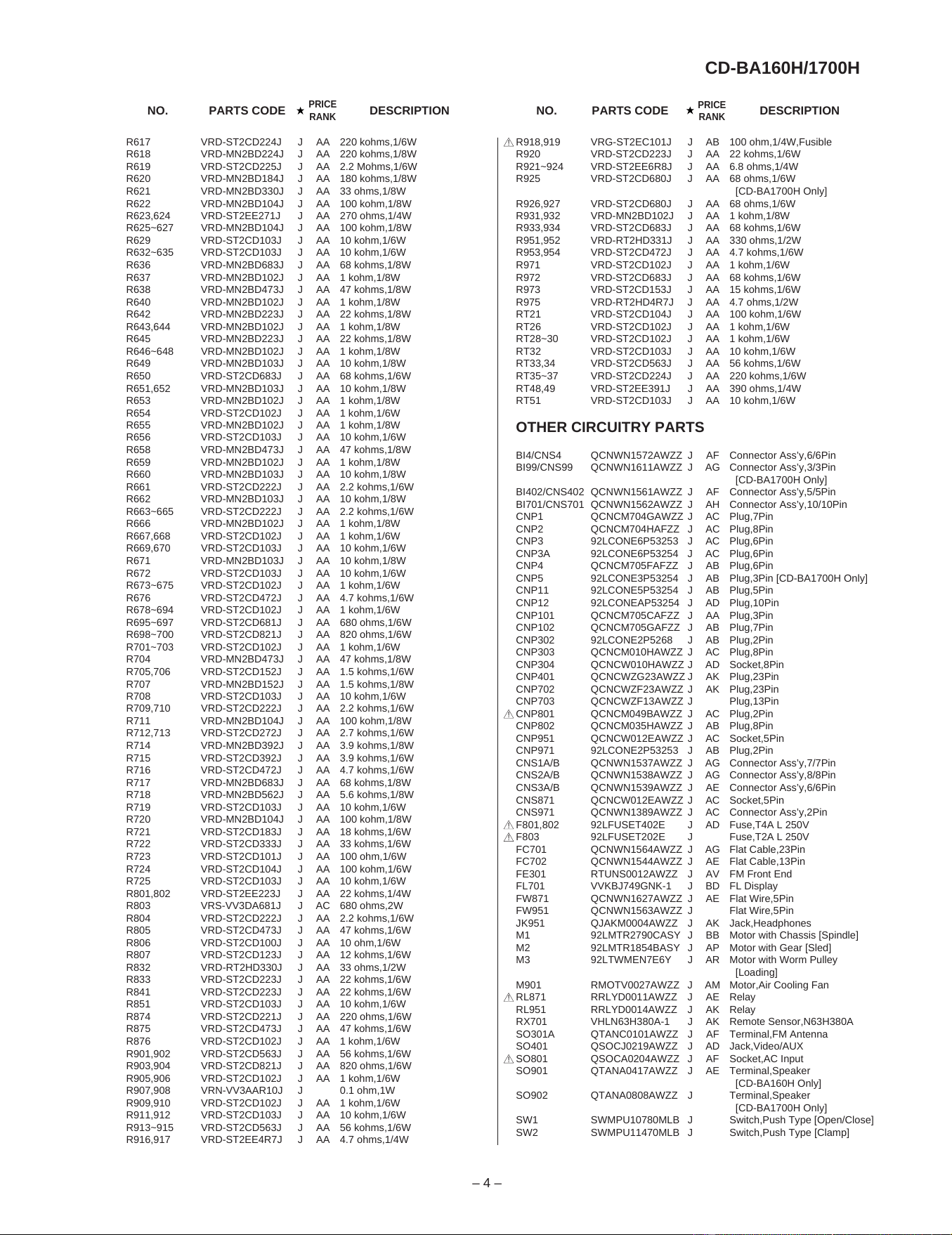

PARTS GUIDE/EXPLODED VIEW

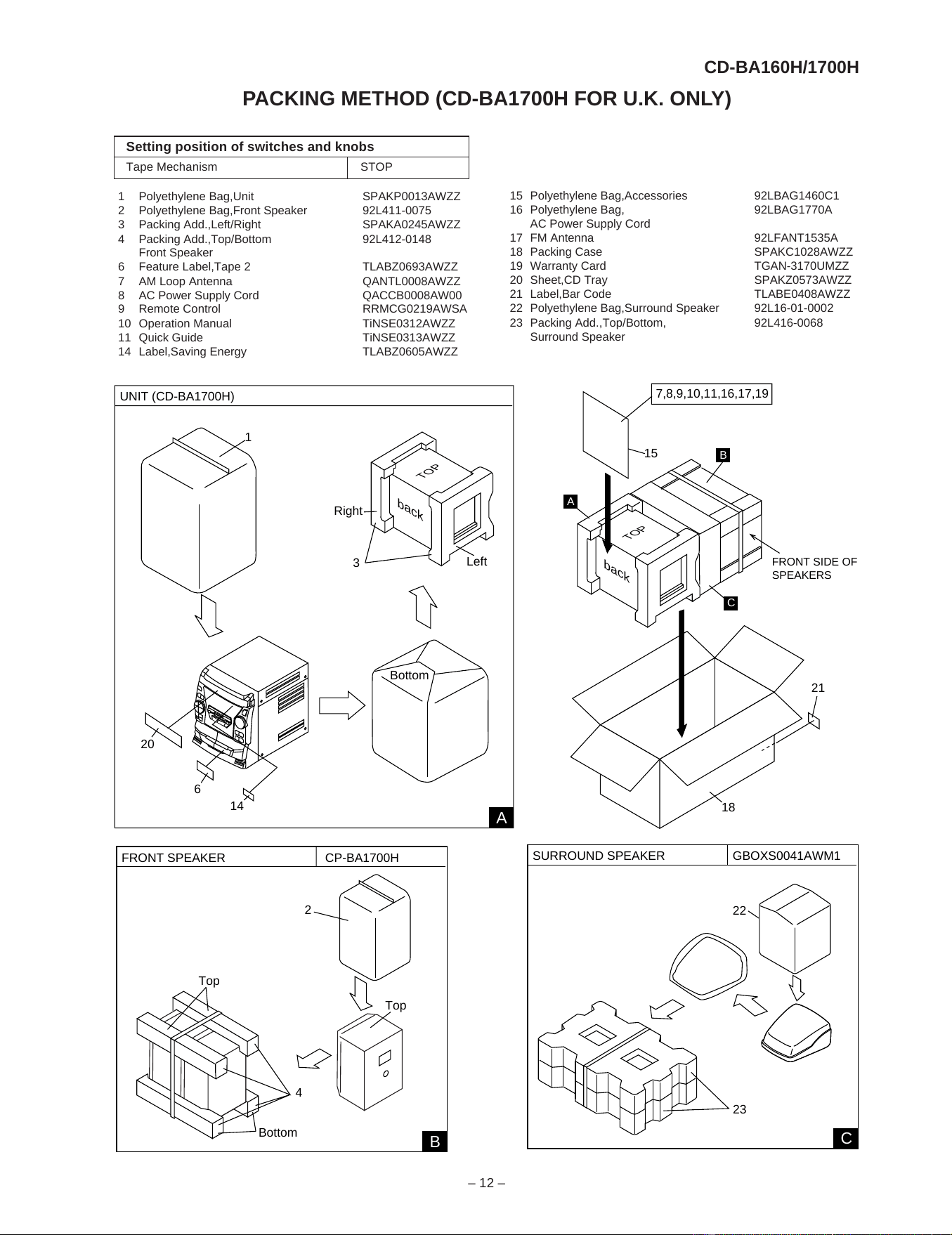

PACKING METHOD (CD-BA1700H FOR U.K. ONLY)
CD-BA160H
CD-BA1700H
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
SERVICE MANUAL
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
Illustration: CD-BA160H
Illustration: CD-BA1700H
SHARP CORPORATION
CD-BA160H mini component system consisting of
CD-BA160H (main unit) and CP-BA160H (speaker system).
CD-BA1700H mini component system consisting of
CD-BA1700H (main unit), CP-BA1700H (front speakers)
and GBOXS0041AWM1 (surround speakers).
• Note for users in U.K.
Recording and playback of any material may require consent,
which SHARP is unable to give. Please refer particularly to the
provisions of Copyright Act 1956, the Dramatic and Musical
Performers Protection Act 1956, the Performers Protection Acts
1963 and 1972 and to any subsequent statutory enactments and
orders.
DIFFERENCE BETWEEN
CD-BA160H AND CD-BA1700H
CD Digital Output None Used
Speaker terminal 2 speaker 4 speaker
Surround speaker None Used
CD-BA160H
SECTION CD-BA1700H
All manuals and user guides at all-guides.com
all-guides.com
background
CD-BA160H/1700H
– 2 –
SAFETY PRECAUTION FOR
SERVICE MANUAL
Precaution to be taken when replacing and servicing the
Laser Pickup.
The AEL (Accessible Emission Level) of Laser Power Output
for this model is specified to be lower than Class I Requirements.
However, the following precautions must be observed during
servicing to protect your eyes against exposure to the Laser
beam.
(1) When the cabinet has been removed, the power is turned
on without a compact disc, and the Pickup is on a position
outer than the lead-in position, the Laser will light for several
seconds to detect a disc. Do not look into the Pickup Lens.
(2) The Laser Power Output of the Pickup inside the unit and
replacement service parts have already been adjusted prior
to shipping.
(3) No adjustment to the Laser Power should be attempted
when replacing or servicing the Pickup.
(4) Under no circumstances look directly into the Pickup Lens
at any time.
(5) CAUTION - Use of controls or adjustments, or performance
of procedures other than those specified herein may result
in hazardous radiation exposure.
IMPORTANT SERVICE NOTES (CD-BA1700H FOR U.K. ONLY)
Before returning the unit to the customer after completion of a
repair or adjustment it is necessary for the following withstand
voltage test to be applied to ensure the unit is safe for the
customer to use.
Setting of Withstanding Voltage Tester and set.
Set name set value
Withstanding Voltage Tester
Test voltage 4,240 VPEAK
3,000 VRMS
Set time 6 secs
Set current(Cutoff current) 4 mA
Unit
Judgment
OK: The “GOOD” lamp lights.
NG: The “NG” lamp lights and the buzzor sounds.
(For Europe)
(CD-BA1700H for U.K. Only)
PROBE
AC
OUT
UNIT
SHORT-CIRCUT
AC POWER
SUPPLY CORD
CONNECT THE PROBE
TO GND OF CHASSIS
SCREW TERMINAL
WITHSTANDING
VOLTAGE TESTER
CAUTION
Use of controls, adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
As the laser beam used in this compact disc player is harm-
ful to the eyes, do not attempt to disassemble the cabinet.
Refer servicin
g
to
q
ualified personnel onl
y
.
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO
BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA
EJ IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I
STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.
VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE.
ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD.
STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT
INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE
INN I STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.
VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN
TÄSSÄ
KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA
ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1
YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.
VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT
ÄN I DENNA BRUKSANVISNING SPECIFICERAS. KAN
ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG
LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN
FÖR LASERKLASS 1.
CHASSIS SCREW
All manuals and user guides at all-guides.com
background
– 3 –
CD-BA160H/1700H
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
Specifications for this model are subject to change without
prior notice.
SPECIFICATIONS
CD-BA160H/1700H
CP-BA160H
CP-BA1700H
GBOXS0041AWM1
General
Amplifier section (CD-BA1700H for Europe)
Compact disc player section
Tuner section
Cassette deck section
Power source:
AC 230 V, 50 Hz
Power
consumption:
95 W
Dimensions:
Width; 270 mm (10-5/8")
Height; 330 mm (13")
Depth; 375 mm (14-6/8")
Weight:
6.4 kg (14.0 lbs.)
Output power:
PMPO; 320 W
MPO; 160 W (80 W + 80 W) (DIN45 324)
RMS; 100 W (50 W + 50 W) (DIN 45 324)
RMS; 74 W (37 W + 37 W) (DIN 45 500)
Input terminals:
Video/Auxiliary (audio signal); 500 mV/47 kohms
Output terminals:
Front speakers; 8 ohms
Surround speakers; 16 ohms
Headphones; 16-50 ohms (recommended; 32 ohms)
CD digital output (optical)
Type:
3-disc multi-play compact disc player
Signal readout:
Non-contact, 3-beam semi-conductor laser pickup
D/A converter:
1-bit D/A converter
Frequency
response:
20 - 20,000 Hz
Dynamic range:
90 dB (1 kHz)
Frequency range:
FM; 87.5 - 108 MHz
AM; 522 - 1,620 kHz
Frequency
response:
50 - 14,000 Hz (Normal tape)
Motor:
DC motor with electronic governor x 1
Bias and erasure
system:
AC
Tape speed:
4.76 cm/sec. (1-7/8 ips.)
Signal/noise ratio:
55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter:
0.35 % (DIN 45 511)
Heads:
TAPE-1: Playback x 1
TAPE-2: Recording/playback x 1
Erase x 1
Type:
3-way [10 cm (4") woofer x 2 and 5 cm (2") tweeter]
Maximum input
power:
80 W
Rated input power:
40 W
Impedance:
8 ohms
Dimensions:
Width; 220 mm (8-11/16")
Height; 330 mm (13")
Depth; 227 mm (8-15/16")
Weight:
3.0 kg (6.8 lbs.)/each
Type:
10 cm (4") full-range speaker
Maximum input
power:
30 W
Rated input power:
15 W
Impedance:
16 ohms
Dimensions:
Width; 170 mm (6-3/4")
Height; 170 mm (6-3/4")
Depth; 88 mm (3-1/2")
Weight:
0.5 kg (1.0 lbs.)/each
Amplifier section (CD-BA1700H for U.K.)
Output power:
RMS; 100 W (50 W + 50 W) (10 % T.H.D.)
RMS; 74 W (37 W + 37 W) (0.9 % T.H.D.)
Input terminals:
Video/Auxiliary (audio signal); 500 mV/47 kohms
Output terminals:
Front speakers; 8 ohms
Surround speakers; 16 ohms
Headphones; 16-50 ohms (recommended; 32 ohms)
CD digital output (optical)
Amplifier section (CD-BA160H)
Output power:
PMPO; 320 W
MPO; 160 W (80 W + 80 W) (DIN 45 324)
RMS; 100 W (50 W + 50 W) (DIN 45 324)
RMS; 74 W (37 W + 37 W) (DIN 45 500)
Input terminals:
Video/Auxiliary (audio signal); 500
mV/47 kohms
Output terminals:
Front speakers; 6 ohms
Headphones; 16-50 ohms (recom mended; 32 ohms)
(For Europe)
Wow and flutter:
0.3 % (WRMS)
(For U.K)
Type:
3-way [10 cm (4") woofer x 2 and
5 cm (2") tweeter]
Maximum input
power:
100 W
Rated input power:
50 W
Impedance:
6 ohms
Dimensions:
Width; 220 mm (8-11/16")
Height; 330 mm (13")
Depth; 227 mm (8-15/16")
Weight:
3.0 kg (6.6 lbs.)/each
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 4 –
NAMES OF PARTS
CD-BA160H/1700H
Front panel
1. (CD) Disc Tray
2. (TUNER) Programme Type/Traffic Information
Search Button
3. EON Button
4. ASPM Button
5. Display Mode Selector Button
6. Station Selector Button
7. (CD) Track Up/Cue Button
(TUNER) Preset Up Button
(TAPE 2) Fast Forward Button
8. Timer Set Indicator
9. On/Stand-by Button
10. Clock Button
11. Timer/Sleep Button
12. Function Selector Buttons
13. Dimmer Button
14. Volume Up/Down Buttons
15. Equalizer Mode Selector Button
16. Extra Bass/Demo Mode Button
17. (CD) Open/Close Button
18. Headphone Socket
19. Tuning and Time Up/Down Buttons
20. Memory/Set Button
21. (CD) Track Down/Review Button
(TUNER) Preset Down Button
(TAPE 2) Rewind Button
22. (CD/TAPE) Stop Button
23. (CD) Play/Repeat Button
(TAPE) Play Button
24. (TAPE 2) Record Pause Button
25. (CD) Disc Skip Button
26. (TAPE 1) Cassette Compartment
27. (TAPE 2) Cassette Compartment
28. Spectrum Analyzer/Volume Level Indicator
29. Extra Bass Indicator
30. RDS Indicator
31. Programme Type Indicator
32. Traffic Information Indicator
33. FM Stereo Mode Indicator
34. FM Stereo Indicator
35. Dynamic PTY Indicator
36. EON Indicator
37. Traffic Announcement Indicator
38. Traffic Programme Indicator
39. (CD) Repeat Indicator
40. Sleep Indicator
41. (CD/TUNER) Memory Indicator
42. Record Indicator
43. (CD) Disc Number Indicators
44. Timer Play Indicator
45. (CD) Pause Indicator
46. (CD) Play Indicator
47. Timer Record Indicator
48. (TAPE) Play Indicator
33
34
36
47
28
3029
35
40
38
28
48
44
31 32
37
4645
39
41
42
43
28
27
26
15
67
8
9
10
11
12
14
16
18
22
23
24 25
19 20 21
21
543
13
17
All manuals and user guides at all-guides.com
background
– 5 –
CD-BA160H/1700H
CD-BA160H/1700H
GBOXS0041AWM1
CD-BA160H/1700H
CP-BA160H/1700H
Rear panel (Illustration: CD-BA1700H)
1. AC Power Input Socket
2. CD Digital Output Socket (CD-BA1700H Only)
3. FM 75 Ohms Aerial Socket
4. AM Loop Aerial Socket
5. Video/Auxiliary (Audio Signal) Input Sockets
6. Front Speaker Terminals
7. Surround Speaker Terminals (CD-BA1700H Only)
Front speaker
1. Tweeter
2. Bass Reflex Duct
3. Woofer
4. Speaker Wire
Surround speaker (CD-BA1700H Only)
1. Full-Range Speaker
2. S
p
eaker Wire
1
2
3
4
5
6
7
1
2
1
2
4
3
1
2
Remote control
1. Remote Control Transmitter LED
CD control section
2. Disc Number Select Buttons
3. Memory Button
4. Pause Button
5. Clear Button
6. Track Down/Review Button
7. Track Up/Cue Button
8. Disc Skip Button
9. Play/Repeat Button
10. Stop Button
11. Random Button
Tuner control section
12. Preset Up/Down Buttons
Tape control section
13. (TAPE 1) Play Button
14. (TAPE 2) Record Pause Button
15. (TAPE 1/2) Stop Button
16. (TAPE 2) Play Button
17. (TAPE 2) Rewind Button
18. (TAPE 2) Fast Forward Button
Common section
19. Equalizer Mode Selector Button
20. Function Selector Buttons
21. On/Stand-by Button
22. Extra Bass Button
23. Volume Up/Down Buttons
1
2
3
4
5
6
7
8
9
10
11
12
13 14 15 16 17 18
19
20
21
22
23
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 6 –
OPERATION MANUAL
SETTING THE CLOCK
In this example, the clock is set for the 24-hour (0:00) sys-
tem.
1
Press the ON/STAND-BY button to enter the stand-
by mode.
2
Press the CLOCK button.
3
Within 5 seconds, press the MEMORY/SET button.
4
Press the TUNING/TIME ( or ) button to select the
time display mode.
Note that this can only be set when the unit is first
installed or it has been reset (see page 33).
5
Press the MEMORY/SET button.
6
Press the TUNING/TIME ( or ) button to adjust
the hour.
Press the TUNING/TIME ( or ) button once to
advance the time by 1 hour. Hold it down to advance con-
tinuously.
When the 12-hour display is selected, "AM" will change
automatically to "PM".
7
Press the MEMORY/SET button.
8
Press the TUNING/TIME ( or ) button to adjust
the minutes.
Press the TUNING/TIME ( or ) button once to
advance the time by 1 minute. Hold it down to change the
time in 5-minute intervals.
The hour setting will not advance even if minutes
advance from "59" to "00".
9
Press the MEMORY/SET button.
The clock starts operating from "0" second. (Seconds are
not displayed.) And then the clock display will disappear
after a few seconds.
To see the time display:
Press the CLOCK button.
The time display will appear for about 5 seconds.
Note:
The clock display will flash on and off at the push of the
CLOCK button when the AC power supply is restored
after a power failure occurs or after the AC power lead is
disconnected. If this happens, follow the procedure below
to change the clock time.
To change the clock time:
1 Press the CLOCK button.
2 Within 5 seconds, press the MEMORY/SET button.
3 Perform steps 6 - 9 above.
To change the time display mode:
1 Perform steps 1 - 2 in "RESETTING THE MICROCOM-
PUTER",.
2 Perform steps 1 - 9 above.
(Main unit operation)
"0:00" The 24-hour display will appear. (0:00 -
23:59)
"AM 0:00" The 12-hour display will appear. (AM 0:00
- PM 11:59)
"AM 12:00" The 12-hour display will appear. (AM
12:00 - PM 11:59)
ON/
STAND-BY
CLOCK
MEMORY/SET
TUNING/
TIME
( )
AM 12:00AM 0:000:00
RESETTING THE MICROCOMPUTER
Reset the microcomputer under the following condi-
tions:
To erase all of the stored memory contents (clock and
timer settings, and tuner and CD presets).
If the display is not correct.
If the operation is not correct.
1
Press the ON/STAND-BY button to enter the stand-
by mode.
2
Whilst pressing down the / button and the X-
BASS/DEMO button, hold down the ON/STAND-BY
button for at least 1 second.
"CLEAR AL" will appear.
Caution:
The operation explained above will erase all data stored
in memory including clock and timer settings, and tuner
and CD presets.
X-BASS/
DEMO
ON/
STAND-BY
PREPARATION FOR USE
Remote control
Notes concerning use:
Replace the batteries if the operating distance is reduced
or if the operation becomes erratic.
Periodically clean the transmitter LED on the remote con-
trol and the sensor on the main unit with a soft cloth.
Exposing the sensor on the main unit to strong light may
interfere with operation. Change the lighting or the direc-
tion of the unit.
Keep the remote control away from moisture, excessive
heat, shock, and vibrations.
15
15
0.2 m - 6 m
(8" - 20')
All manuals and user guides at all-guides.com
all-guides.com
background
– 7 –
CD-BA160H/1700H
Check the supplied accessories
AM loop aerial
× 1
FM aerial
× 1
Remote control
× 1
AC power lead
× 1
Putting batteries into the remote control
Placing the system
10 cm (4")
10 cm (4")
1
Remove the battery cover.
2
Insert the batteries.
3
Replace the battery cover.
1
2
3
10 cm (4")
10 cm (4")
●
2 "AA" size batteries
(UM/SUM-3, R6, HP-7 or similar)
(For U.K.)
(For Europe)
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 8 –
7
Listening to a tape
1
Press the ON/STAND-BY button to turn the power on.
4
Press the TAPE (1 2) button to select the TAPE 1
or TAPE 2.
3
Load the cassette into the TAPE 1 or TAPE 2 cassette
compartment.
2
Open the cassette door by pushing the area marked
"PUSH EJECT".
5
Press the button to start playback.
1
Press the ON/STAND-BY button to turn the power on.
2
Press the TUNER (BAND) button to select FM ST, FM
or AM.
4
Adjust the sound volume using the VOLUME buttons.
6
Adjust the sound volume using the VOLUME buttons.
3
Press the TUNING/TIME ( or ) button to tune in-
to the desired station.
Listening to the radio
6
1
Press the ON/STAND-BY button to turn the power on.
2
Press the CD button.
3
Press the OPEN/CLOSE button to open the disc tray.
4
Place the CD(s) on the disc tray, label side up.
5
When loading a third disc, press the DISC SKIP button
to turn the disc tray, then place the CD in the open pos-
ition.
6
Press the OPEN/CLOSE button to close the disc tray.
Listening to a CD
5
7
Press the button.
8
Adjust the sound volume using the VOLUME buttons.
●
And then, close the cassette door completely until it is locked.
4
5
1
2
3,6
5
8
7
4
12 cm (5")
8 cm (3")
2
1
3
TAPE 1 TAPE 2
PUSH
EJECT
PUSH
EJECT
1
4
5
6
3
2
2
3
● Resetting the microcomputer
1 Press the ON/STAND-BY button to enter the stand-by
mode.
2 Whilst pressing down the button and the X-BASS/
DEMO button, hold down the
ON/STAND-BY button for
at least 1 second.
●
"CLEAR AL" will appear.
Caution:
●
The operation explained above will erase all data stored
in memory including clock and timer settings, and tuner
and CD presets.
If this product is subjected to strong external interference
(mechanical shock, excessive static electricity, abnormal
supply voltage due to lightning, etc.) or if it is operated in-
correctly, it may malfunction or the display may not functi-
on correctly. If such a problem occurs, do the following:
● CD pickup cleaning
1 Press the ON/STAND-BY button to turn the power on.
3 Press the CD button and load the desired disc.
2
Load a cassette into the TAPE 2 cassette compartment.
4 Press the REC PAUSE button.
5 Press the button.
Recording from CDs
8
Clean the dust or stain on the CD pickup lens
using a commercial cleaning disc (brush type).
Cleaning disc
1
4
3
5
TAPE 2
PUSH
EJECT
2
1,2
2
2
All manuals and user guides at all-guides.com
background
– 9 –
CD-BA160H/1700H
1 Top Cabinet 1. Screw ..................... (A1) x4 9-1
2 Side Panel 1. Screw ..................... (B1) x4 9-1
(Left/right) 2. Screw ..................... (B2) x4
3 CD Player Unit/ 1. Turn on the power supply, 9-2
CD Tray Cover
open the disc tray, take out the
CD cover, and close.
(Note 1)
2. Screw ..................... (C1) x1
3. Hook ....................... (C2) x3
4. Hook ....................... (C3) x2
5. Socket .................... (C4) x2
6. Socket .................... (C5) x1
(CD-BA1700H Only)
4 Rear Panel 1. Screw ..................... (D1) x5 9-2
Digital Output 2. Screw ..................... (D2) x1 9-2
PWB (CD-BA
1700H Only)
5 RDS PWB 1. Socket .................... (E1) x1 9-3
6 Main PWB 1. Socket .................... (F1) x4 9-3
2. Flat Wire................. (F2) x1
3. Flat Cable .............. (F3) x1
4. Lug Wire................. (F4) x1
5. Screw ..................... (F5) x3
6. Screw ..................... (F6) x2
7 Power PWB 1. Socket .................... (G1) x1 9-3
2. Screw ..................... (G2) x1
3. Screw ..................... (G3) x1
8 Front Panel 1. Screw ..................... (H1) x2 9-3
2. Hook ....................... (H2) x2
9 Display PWB 1. Screw .....................
(J1) x15
10-1
2. Flat Cable .............. (J2) x1
10 Tape Mechanism 1. Open the cassette holder. 10-1
2. Screw...................... (K1) x6
11
Headphones PWB
1. Screw ..................... (L1) x1 10-1
12 Turntable 1. Hook ....................... (M1) x2 10-2
2. Cover ..................... (M2) x1
13 Disc Tray 1.
Turn fully the lock lever in the
10-3
arrow direction.
2.
While holding the lock lever,rotate
10-3
the cam gear until the cam gear
rib engages with the clamp lever.
3.
Push the slide holder backward to
10-4
engage the claw with the groove
and remove it in the direction
of the arrow. ..............
(N1) x6
14 CD Servo PWB 1. Screw ..................... (P1) x1 10-5
(Note 2) 2. Hook ....................... (P2) x3
3. Socket .................... (P3) x4
15 CD Mechanism 1. Hook ....................... (Q1) x2 10-6
2. Hook ....................... (Q2) x3
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need be
removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.
4. Take suffcient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 9-2
Figure 9-3
CD-BA160H/1700H
STEP REMOVAL
PROCEDURE
FIGURE
Figure 9-1
CD-BA160H/1700H
(B2)x4
ø3x12mm
(B1)x2
ø3x10mm
Rear
Panel
(B1)x2
ø3x10mm
Side Panel
(Right)
Side Panel
(Left)
(A1)x2
ø3x12mm
(A1)x2
ø3x12mm
Top Cabinet
Front Panel
(C3)x1
(C1)x1
ø3x12mm
(D1)x5
ø3x12mm
CD Player
Unit
CD Tray Cover
Rear Panel
Pull
(C3) x1
(C4)x2
(C2) x3
1
1
2
Main PWB
CD Servo
PWB
Pull
Disc Tray
CD-BA1700H Only
Front
Panel
Digital
Output PWB
(D2)x1
ø3x12mm
(CD-BA1700H
Only)
(C5)x1
(H1)x2
ø3x10mm
(F6)x2
ø3x10mm
(F3)x1
(F4)x1
(F1)x3
(F1)x1
Main PWB
(F2)x1
Headphones
PWB
(G2)x1
ø3x10mm
(E1)x1
RDS
PWB
Power
PWB
(F2)x1
(G1)x1
(G3)x1
ø3x10mm
Front Panel
(F5)x1
ø3x10mm
(F5)x2
ø3x10mm
Tape
Mechanism
Display PWB
Pull
(H2) x1
Pull
(H2) x1
Pull
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 10 –
Figure 10-2
Figure 10-3
Figure 10-4
Figure 10-5
Figure 10-6
Figure 10-1
Note 1:
How to open the changer manually. (Fig. 10-3)
1. In this state, turn fully the lock lever in the arrow direction
through the hole on the loading chassis bottom.
2.
While holding the lock lever, rotate the cam gear anticlockwise
until the cam gear rib engages with the clamp lever.
3. After that, push forward the CD slide holder.
Note 2:
1. After removing the connector for the optical pickup from the
connector, wrap the conductive aluminium foil around the
front end of the connector so as to protect the optical pickup
from electrostatic damage.
Note 3:
1. Be careful not to break the claw of the CD mechanism.
2. When fining back the cam gear assembly, let it lock by front
movement.
Turntable
Disc Tray
(M2) x1
CD Player Unit
(M1) x2
Clamp
Lever
Cam
Gear Rib
1
2
(N1) x3
(N1) x3
Disc Tray
CD Player Unit
(P3)x2
(P2)x3
(P3) x2
CD Servo
PWB
Disc Tray
(P1)x1
ø3x8mm
Lock Lever
CD Player
Unit
(Q2) x3
(Q1) x1
(Q1) x1
CD
Mechanism
Disc Tray
(J1)x15
ø3x10mm
(J2)x1
(K1)x6
ø3x10mm
(L1)x1
ø3x10mm
Display PWB
Open
Cassette
Holder
(Lift/Right)
Tape
Mechanism
Front Panel
Headphones
PWB
Tape
Mechanism
PWB
All manuals and user guides at all-guides.com
background
– 11 –
CD-BA160H/1700H
CP-BA160H/1700H (Front Speaker)
1 Woofer/ 1. Front Panel ............ (A1) x1 11-1
Sub Woofer 2. Screw ..................... (A2) x8 11-2
2 Tweeter 1. Screw ..................... (B1) x2 11-2
STEP REMOVAL
PROCEDURE
FIGURE
Figure 11-2
Figure 11-1
Figure 11-3
Screw
Driver
Driver should
be pried away
from Speaker
Box.
(A1)x1
Sperker
Box
GBOXS0041AWM1 (Surround Speaker)
CD-BA1700H Only
1 Speaker 1. Screw ..................... (C1) x6 11-3
STEP REMOVAL
PROCEDURE
FIGURE
Bottom Cabinet
Speaker
Net Frame
(C1)x6
ø3x14mm
(A2)x4
ø4x12mm
(B1)x2
ø3x10mm
(A2)x4
ø4x12mm
Sub
Woofer
Woofer
Tweeter
Speaker
Box
All manuals and user guides at all-guides.com
all-guides.com
background
CD-BA160H/1700H
– 12 –
REMOVING AND REINSTALLING THE MAIN PARTS
TAPE MECHANISM SECTION
Perform steps 1 to 8 and 10 of the disassembly method to
remove the tape mechanism.
How to remove the record/playback and erase
heads (Tape 2) (See Fig. 12-1)
1. Carefully remove the record/playback head and erase head
screws (A1) x 2 pcs.
How to remove the playback head (Tape 1)
(See Fig. 12-2)
1. Carefully remove the playback head screws (B1) x 2 pcs.
How to remove the pinch roller (Tape1/2)
(See Fig. 12-3)
1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (C1) x1 pc., in the
direction of the arrow <B>.
Note:
When installing the pinch roller, pay attention to the spring
mounting position.
How to remove the belt (Tape 1/2)
(See Fig. 12-4)
1. Remove the motor.
2. Remove the main belt (D1) x 1 pc., from the motor side.
3. Remove the FF/REW belt (D2) x 1 pc.
4. Remove the main belt (E1) x 1 pc., from the motor side.
5. Remove the FF/REW belt (E2) x 1 pc.
Figure 12-1
Figure 12-2
Figure 12-3
Figure 12-4
(A1)x2
Ø2 x 9mm
TAPE2
Record/Playback
Head
Erase
Head
(B1)x2
Ø2 x 9mm
TAPE1
Playback
Head
TAPE2
TAPE1
Main Belt
(E1)x1
TAPE2
Main Belt
(D1)x1
TAPE1
Main Belt
(D1)x1
FF/REW
Belt
(D2)x1
FF/REW
Belt
(E2)x1
Motor
Motor
Main Belt
(E1)x1
Pinch Roller
(C1)x1
<A>
Pinch
Roller
Pawl
Pull
<B>
Pull
All manuals and user guides at all-guides.com
background
– 13 –
CD-BA160H/1700H
How to remove the pickup (See Fig. 13-3)
1. Remove the screws (B1) x 2 pcs., to remove the shaft (B2)
x1pc.
2. Remove the stop washer (B3) x 1 pc., to remove the gear
(B4) x 1pc.
3. Remove the pickup.
Figure 13-3
CD MECHANISM SECTION
Perform steps 1, 2, 3, 12, 13, 14 and 15 of the disassembly
method to remove the CD mechanism.
How to remove the loading motor
(See Fig. 13-2)
1. Remove the belt (A1) x 1 pc., from the motor side.
2. Bend the hooks (A2) x 5 pcs., to remove the loading motor.
Figure 13-2
Note
After removing the connector for the optical pickup from the
connector wrap the conductive aluminium foil around the front
end of connector so as to protect the optical pickup from
electrostatic damage.
(A2)x3
Loading Motor
Disc Tray
(A2)x2
Belt
(A1)x1
Loading
Motor
PWB
(B1) x2
ø2.6 x6mm
Shaft
(B2) x1
Stop Washer
(B3) x1
Gear
(B4) x1
CD Mechanism
Pickup
Figure 13-1
(F1) x2
Ø 2.6 x 5mm
Motor
TAPE2
How to remove the motor (See Fig. 13-1)
1. Remove the belt.
2. Remove the screws (F1) x 2 pcs., to remove the motor.
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 14 –
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
*1. Input: Antenna, Output: TP302
*2. Input: Antenna, Output: TP301
TUNER SECTION
fL: Low-range frequency
fH: High-range frequency
AM IF 450 kHz 1,620 kHz T351 *1
AM Band — 522 kHz (fL): T306 *2
Coverage 1.1 ± 0.1 V
AM Tracking 990 kHz 990 kHz (fL): T303 *1
Figure 14-2 ADJUSTMENT POINT
Test Stage
Frequency Frequency
Display
Setting/
Adjusting
Parts
Instrument
Connection
• FM
Notes:
1: Description of the "FM IF Adjustment" is not carried on this
Manual. It is because the IF coil in the FM front end section
has been best adjusted in the factory so that its further
adjustment is not needed at the field. When replacing the
FM front end assembly, no adjustment is needed either.
2: The parts in the FM front end section are prepared in a
complete unit, so you can't obtain each part individually
FE301
AM IF
T303
T306
AM
TRACKING fL
AM BAND
COVERAGE fL
T351
MAIN PWB
1
SO301
R381
TP302
R357
TP301
CNP301
ADJUSTMENT
MECHANISM SECTION
• Driving Force Check
Torque Meter
Specified Value
Play: TW-2111 Tape 1: Over 80 g
Tape 2: Over 80 g
• Torque Check
Torque Meter
Tape 2
Play: TW-2111 30 to 80 g. cm 30 to 80 g.cm
Fast forward: TW-2231 — 70 to 180 g.cm
Rewind: TW-2231 — 70 to 180 g.cm
Specified Value
Tape 1
Specified
Value
Adjusting
Point
Instrument
Connection
Test Tape
Normal MTT-111 Variable 3,000 ± Speaker
speed Resistor in 30 Hz terminal
motor. (Load
resistance:
6 ohms)
• Tape Speed
Figure 14-1
TAPE MECHANISM
Variable Resistor
in motor
Tape motor
All manuals and user guides at all-guides.com
background
– 15 –
CD-BA160H/1700H
Any one of test mode can be set by pressing several keys as
fallows.
<X-BASS> + <CD> + <POWER> TEST:CD operation test
Function:-CD test mode.
-Enter test mode.
C D T E S T
OPEN/CLOSE operation is using manual.
<< >>, << >> buttons make pick's slide possible.
Do TOC IL. Do normal play
When these following key is
input into PLAY key, track
number can be appoint directly
<<PLAY>> key input. <<MEMORY>> key input.
<< 1>> key: Track 4
<< 2>> key: Track 9
<< 3>> key: Track 15
<<STOP>> key input.
STOP
Laser ON.
<<MEMORY>> key input.
Tracking OFF play at that
specific point.
<<MEMORY>> key input.
Tracking ON play at that
specific point.
<<STOP>> key input.
STOP
VOL — Last memory
BAL — CENTER
P.GEQ — FLAT
X-BASS — OFF
To cancel : Power OFF
Sliding the PICKUP with
<< >>, << >> button
must only be in STOP mode.
CD SECTION
Figure 15-1
CD ERROR CODE DESCRIPTION
Error
State Code
[Servo System Error]
0001 Cannot detect Pickup-in SW
0002 DSP access error
[Error during close operation]
0101 Open/Close SW Low → High not functioning
0103 Open/Close SW High → Low not functioning
[Error during open operation]
0201 Open/Close SW Low → High not functioning
0203 Open/Close SW High → Low not functioning
[Error during skip operation]
0302 Pickup-in SW is not detected
0306 During Disc 1 search, Open/Close SW or Clamp SW
or Disc SW do not change to low.
0307 Clamp SW Low → High not functioning
0308 Clamp SW High → Low not functioning
Since this CD system incorporates the following automatic
adjustment functions, readjustment is not needed when
replacing the pickup. Therefore, different PWBs and pickups
can be combined freely.
Each time a disc is changed, these adjustments are
performed automatically. Therefore, playback of each disc
can be performed under optimum conditions.
Items adjusted automatically
(1) Offset adjustment (The offset voltage between the head
amplifier output and the VREF reference voltage is
compensated inside the IC.)
* Focus offset adjustment
* Tracking offset adjustment
(2) Tracking balance adjustment (waveform drawing 15-1
EFBL)
(3) Gain adjustment (The gain is compensated inside the IC
so that the loop gain at the gain crossover frequency will
be 0dB.)
* Focus gain adjustment
* Tracking gain adjustment
• Adjustment
T
T
EFBL
FDO
TE
Stopped
CH1=500mV
DC 10:1
CH2=200mV
DC 10:1
CH3=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V
Main : 100K
Zoom : 2k
Mode : SINGLE
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH2
v/DIV
200mV
1999/04/05 20:26:47
IL isn't done
• Setting the test mode
TEST MODE
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 16 –
ASPM, summary operation
Yes
Yes
Comparing freg.
same or not?
Between current receiving
frequency and (already)
previously memorized
frequency.
Hold down the ASPM button for 3 more second.
No operate.
After displayed “END”.
Return to previous station.
“ASPM” blinks in the display.
Begin to scan start 87.50 → 108.00 MHz
Preset CH memory full over?
SD (TUNE) DET out OK?
Yes
No
No
No
No
No
If count 1st OK?
Yes
If count 2nd OK?
Yes
RDS signal or not? PI—identify
Yes
Comparing PI cord
same or not?
between current receiving
PI and before PI which is
already memorized by
ASPM on this time.
Yes
Yes
No
Comparing freg.
same or not?
between current receiving
frequency and (already)
previouslymemorized
frequency.
No
Memorized to the
lowest vacant
preset channel.
No
Memorized to the
lowest vacant
preset channel.
Compare the field
strength of current receiving
signal.
Is receiving signal stronger than
signal which has same PI cord
and is already memorized to
preset memory ahead of this
receiving time?
No effect
No effect
No effect
Effect
Pass
No effect
Pass
No effect
Pass
No effect
Pass
No effect
Displayed the TTL quantity of memorized
stations by ASPM operation on this time.
And return to the previous
receiving freq. automatically.
Begin to ASPM SCAN from the next
CH-SPAN again.
Repeat and continue with same format
ASPM operation untill 108 MHz.
After reached 108 MHz, displayed the TTL
quantity of memorized stations.
And return to the previous receiving freq.
automatically.
Preset CH memory become full over?
Yes
No
All manuals and user guides at all-guides.com
all-guides.com
background
– 17 –
CD-BA160H/1700H
4. No adjust type (None adjusting circuit.)
5. Added EON button.
6. Need to change RDS logo due to the addition of EON feature.
7. Added EON—TI, EON—PTY function.

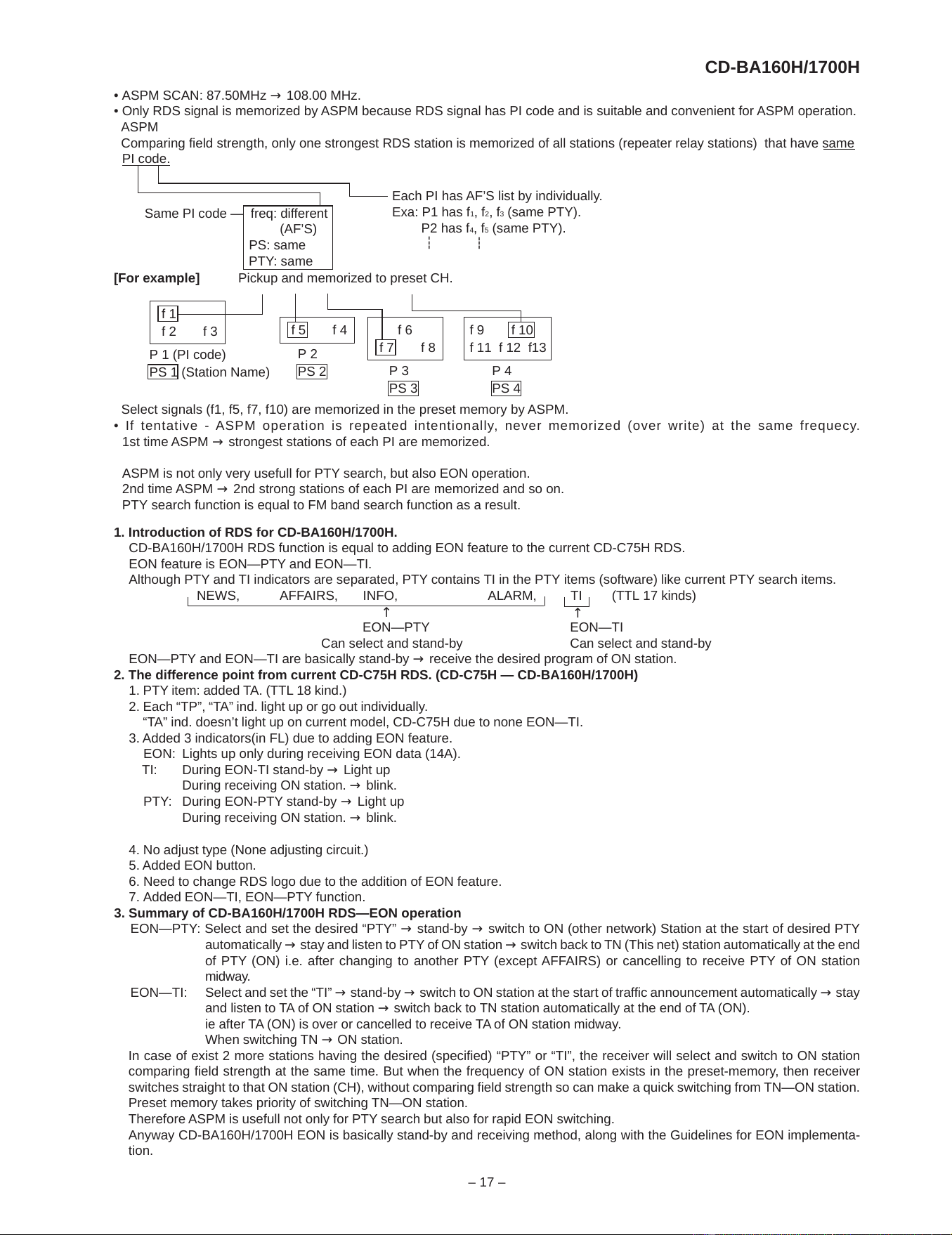

3. Summary of CD-BA160H/1700H RDS—EON operation
EON—PTY: Select and set the desired “PTY” → stand-by → switch to ON (other network) Station at the start of desired PTY
automatically → stay and listen to PTY of ON station → switch back to TN (This net) station automatically at the end
of PTY (ON) i.e. after changing to another PTY (except AFFAIRS) or cancelling to receive PTY of ON station
midway.
EON—TI: Select and set the “TI” → stand-by → switch to ON station at the start of traffic announcement automatically → stay
and listen to TA of ON station → switch back to TN station automatically at the end of TA (ON).
ie after TA (ON) is over or cancelled to receive TA of ON station midway.
When switching TN → ON station.
In case of exist 2 more stations having the desired (specified) “PTY” or “TI”, the receiver will select and switch to ON station
comparing field strength at the same time. But when the frequency of ON station exists in the preset-memory, then receiver
switches straight to that ON station (CH), without comparing field strength so can make a quick switching from TN—ON station.
Preset memory takes priority of switching TN—ON station.
Therefore ASPM is usefull not only for PTY search but also for rapid EON switching.
Anyway CD-BA160H/1700H EON is basically stand-by and receiving method, along with the Guidelines for EON implementa-
tion.
• ASPM SCAN: 87.50MHz → 108.00 MHz.
• Only RDS signal is memorized by ASPM because RDS signal has PI code and is suitable and convenient for ASPM operation.
ASPM
Comparing field strength, only one strongest RDS station is memorized of all stations (repeater relay stations) that have same
PI code.
Same PI code — freq: different
(AF’S)
PS: same
PTY: same
Each PI has AF’S list by individually.
Exa: P1 has f1, f2, f3 (same PTY).
P2 has f4, f5 (same PTY).
[For example] Pickup and memorized to preset CH.
f 1
f 2 f 3
P 1 (PI code)
PS 1 (Station Name)
f 5 f 4
P 2
PS 2
f 6
f 7 f 8
P 3
PS 3
f 9 f 10
f 11 f 12 f13
P 4
PS 4
Select signals (f1, f5, f7, f10) are memorized in the preset memory by ASPM.
• If tentative - ASPM operation is repeated intentionally, never memorized (over write) at the same frequecy.
1st time ASPM → strongest stations of each PI are memorized.
ASPM is not only very usefull for PTY search, but also EON operation.
2nd time ASPM → 2nd strong stations of each PI are memorized and so on.
PTY search function is equal to FM band search function as a result.
1. Introduction of RDS for CD-BA160H/1700H.
CD-BA160H/1700H RDS function is equal to adding EON feature to the current CD-C75H RDS.
EON feature is EON—PTY and EON—TI.
Although PTY and TI indicators are separated, PTY contains TI in the PTY items (software) like current PTY search items.
NEWS, AFFAIRS, INFO, ALARM, TI (TTL 17 kinds)
EON—PTY EON—TI
Can select and stand-by Can select and stand-by
EON—PTY and EON—TI are basically stand-by → receive the desired program of ON station.
2. The difference point from current CD-C75H RDS. (CD-C75H — CD-BA160H/1700H)
1. PTY item: added TA. (TTL 18 kind.)
2. Each “TP”, “TA” ind. light up or go out individually.
“TA” ind. doesn’t light up on current model, CD-C75H due to none EON—TI.
3. Added 3 indicators(in FL) due to adding EON feature.
EON: Lights up only during receiving EON data (14A).
TI: During EON-TI stand-by → Light up
During receiving ON station. → blink.
PTY: During EON-PTY stand-by → Light up
During receiving ON station. → blink.
---
---
↑
↑
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 18 –

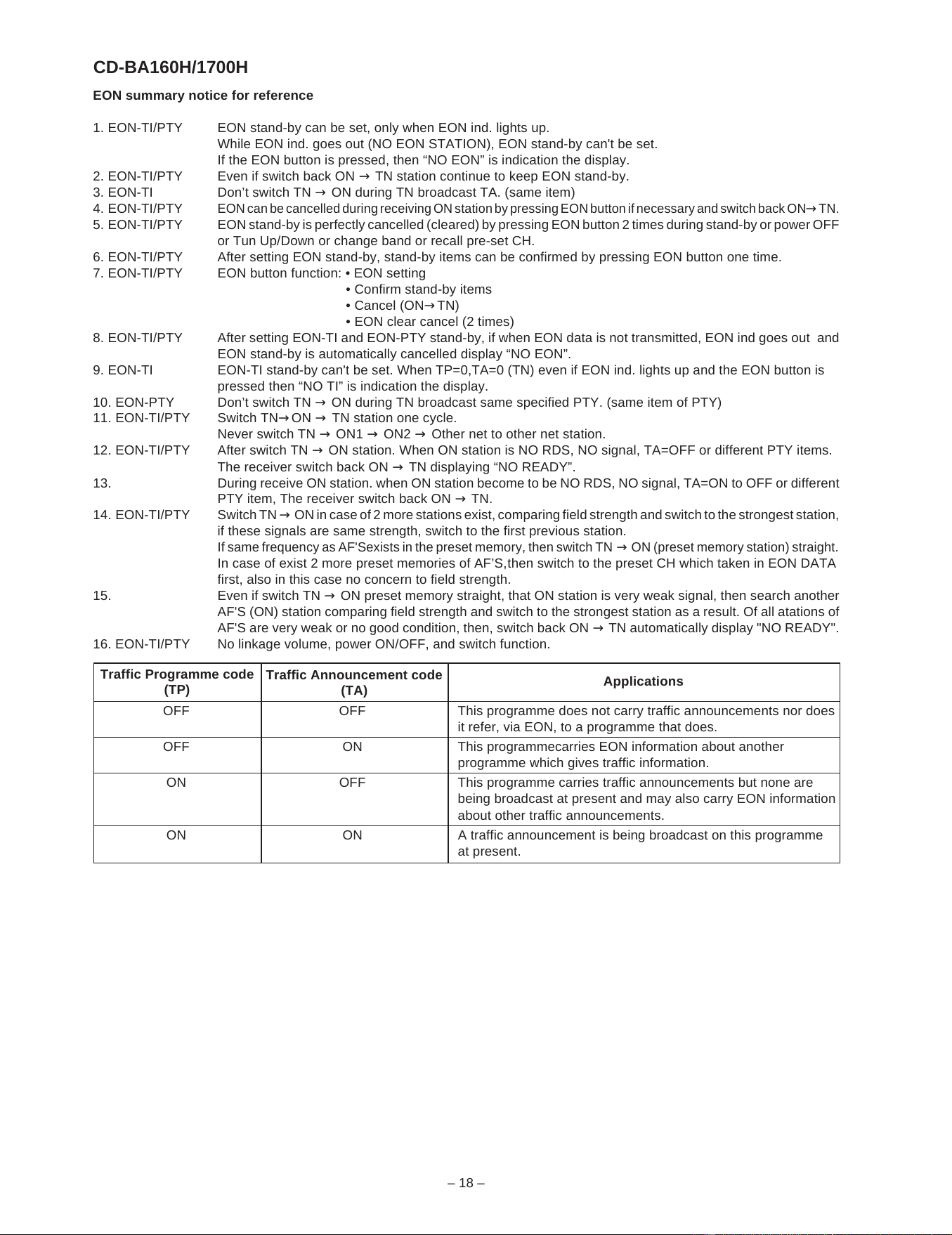

EON summary notice for reference
1. EON-TI/PTY EON stand-by can be set, only when EON ind. lights up.
While EON ind. goes out (NO EON STATION), EON stand-by can't be set.
If the EON button is pressed, then “NO EON” is indication the display.
2. EON-TI/PTY Even if switch back ON → TN station continue to keep EON stand-by.
3. EON-TI Don’t switch TN → ON during TN broadcast TA. (same item)
4. EON-TI/PTY
EON can be cancelled during receiving ON station by pressing EON button if necessary and switch back ON
→
TN.
5. EON-TI/PTY EON stand-by is perfectly cancelled (cleared) by pressing EON button 2 times during stand-by or power OFF
or Tun Up/Down or change band or recall pre-set CH.
6. EON-TI/PTY After setting EON stand-by, stand-by items can be confirmed by pressing EON button one time.
7. EON-TI/PTY EON button function: • EON setting
• Confirm stand-by items
• Cancel (ON→TN)
• EON clear cancel (2 times)
8. EON-TI/PTY After setting EON-TI and EON-PTY stand-by, if when EON data is not transmitted, EON ind goes out and
EON stand-by is automatically cancelled display “NO EON”.
9. EON-TI EON-TI stand-by can't be set. When TP=0,TA=0 (TN) even if EON ind. lights up and the EON button is
pressed then “NO TI” is indication the display.
10. EON-PTY Don’t switch TN → ON during TN broadcast same specified PTY. (same item of PTY)
11. EON-TI/PTY Switch TN→ON → TN station one cycle.
Never switch TN → ON1 → ON2 → Other net to other net station.
12. EON-TI/PTY After switch TN → ON station. When ON station is NO RDS, NO signal, TA=OFF or different PTY items.
The receiver switch back ON → TN displaying “NO READY”.
13. During receive ON station. when ON station become to be NO RDS, NO signal, TA=ON to OFF or different
PTY item, The receiver switch back ON → TN.
14. EON-TI/PTY Switch TN → ON in case of 2 more stations exist, comparing field strength and switch to the strongest station,
if these signals are same strength, switch to the first previous station.
If same frequency as AF'Sexists in the preset memory, then switch TN → ON (preset memory station) straight.
In case of exist 2 more preset memories of AF’S,then switch to the preset CH which taken in EON DATA
first, also in this case no concern to field strength.
15. Even if switch TN → ON preset memory straight, that ON station is very weak signal, then search another
AF'S (ON) station comparing field strength and switch to the strongest station as a result. Of all atations of
AF'S are very weak or no good condition, then, switch back ON → TN automatically display "NO READY".
16. EON-TI/PTY No linkage volume, power ON/OFF, and switch function.
Traffic Programme code
(TP)
Traffic Announcement code
(TA)
Applications
OFF OFF This programme does not carry traffic announcements nor does
it refer, via EON, to a programme that does.
OFF ON This programmecarries EON information about another
programme which gives traffic information.
ON OFF This programme carries traffic announcements but none are
being broadcast at present and may also carry EON information
about other traffic announcements.
ON ON A traffic announcement is being broadcast on this programme
at present.
All manuals and user guides at all-guides.com
background
– 19 –
CD-BA160H/1700H
RDS (Radio Data System) OPERATION
RDS is a broadcasting service which a growing number of
FM stations are now providing. It allows these FM stations
to send additional signals along with their regular pro-
gramme signals. For example, the stations send their station
names, and information about what type of programme they
broadcast, such as sports or music, etc.
When tuned to an FM station which provides the RDS ser-
vice, the RDS will appear, and the station frequency (and
then the station name if sent) will be displayed.
"TP" (Traffic Programme) will appear on the display when
the received broadcast carries traffic announcements, and
"TA" (Traffic Announcement) will appear whilst a traffic
announcement is received.
"EON" will appear whilst the EON (Enhanced Other Net-
works information) data is broadcast.
"PTYI" (Dynamic PTY Indicator) will appear whilst the
Dynamic PTY station is received.
Note:
"TP" and "TA" appear at the same time during an announce-
ment. When only "TA" appears, an announcement is not
made.
Information Provided by RDS
With the CD-BA1700H, you can display three types of RDS
service. To show them in the display, press the DISPLAY
MODE button. Each time you press the DISPLAY MODE
button, the display will change to show the following infor-
mation.
Descriptions of the PTY (Programme Type) codes, TP (Traf-
fic Programme) and TA (Traffic Announcement) With the
CD-BA1700H, you can search for and receive the following
PTY, TP and TA signals.
PS (Programme
Service)
Station names commonly known will
be displayed. "NO PS" appears if no
signal is received.
PTY (Program
Type)
Programme type will be displayed.
"NO PTY" appears if no signal is re-
ceived.
RT (Radio Text)
Radio text will be displayed. "NO RT"
appears if no signal is received.
Station Frequen-
cy
Station frequencies.
PS RTPTY
Station Frequency
DISPLAY
MODE
NEWS:
Short accounts of facts, events and public-
ly expressed views, reportage and actuali-
ty.
AFFAIRS:
Topical programme expanding or enlarg-
ing upon the news, generally in different
presentation style or concept, including
debate, or analysis.
INFO:
Programmes whose purpose is to impart
advice in the widest sense.
SPORT:
Programme concerned with any aspect of
sport.
EDUCATE:
Programme intended primarily to educate,
of which the formal element is fundamen-
tal.
DRAMA:
All radio plays and serials.
CULTURE:
Programmes concerned with any aspect
of national or regional culture, including
language, theatre, etc.
SCIENCE:
Programmes about the natural sciences
and technology.
VARIED:
Used for mainly speech-based pro-
grammes usually of light-entertainment
nature, not covered by other categories.
Examples include: quizzes, panel games,
personality interviews.
POP M:
Commercial music, which would generally
be considered to be of current popular ap-
peal, often featuring in current or recent
record sales charts.
ROCK M:
Contemporary modern music, usually writ-
ten and performed by young musicians.
EASY M:
Current contemporary music considered
to be "easy-listening", as opposed to Pop,
Rock or Classical, or one of the special-
ised music styles, Jazz, Folk or Country.
Music in this category is often but not al-
ways, vocal, and usually of short duration.
LIGHT M:
Classical music for general, rather than
specialist appreciation. Examples of music
in this category are instrumental music,
and vocal or choral works.
CLASSICS:
Performances of major orchestral works,
symphonies, chamber music, etc., and in-
cluding Grand Opera.
OTHER M:
Musical styles not fitting into any of the oth-
er categories. Particularly used for special-
ist music of which Rhythm & Blues and
Reggae are examples.
WEATHER:
Weather reports and forecasts and meteo-
rological information.
(Continued)
Note:
When the unit is in the EON stand-by mode and a pro-
gramme is selected, the unit will display "TI" instead of
"TA".
FINANCE:
Stock Market reports, commerce, trading,
etc.
CHILDREN:
For programmes targeted at a young audi-
ence, primarily for entertainment and inter-
est, rather than where the objective is to
educate.
SOCIAL:
Programmes about people and things that
influence them individually or in groups. In-
cludes: sociology, history, geography, psy-
chology and society.
RELIGION:
Any aspect of beliefs and faiths, involving
a God or Gods, the nature of existence
and ethics.
PHONE IN:
Involving members of the public express-
ing their views either by phone or at a pub-
lic forum.
TRAVEL:
Features and programmes concerned with
travel to near and far destinations, pack-
age tours and travel ideas and opportuni-
ties. Not for use for announcements about
problems, delays, or roadworks affecting
immediate travel where TP/TA should be
used.
LEISURE:
Programmes concerned with recreational
activities in which the listener might partic-
ipate. Examples include, Gardening, Fish-
ing, Antique collecting, Cooking, Food &
Wine, etc.
JAZZ:
Polyphonic, syncopated music character-
ised by improvisation.
COUNTRY:
Songs which originate from, or continue
the musical tradition of the American
Southern States. Characterised by a
straightforward melody and narrative story
line.
NATION M:
Current Popular Music of the Nation or Re-
gion in that country's language, as op-
posed to International 'Pop' which is
usually US or UK inspired and in English.
OLDIES:
Music from the so-called "golden age" of
popular music.
FOLK M:
Music which has its roots in the musical
culture of a particular nation, usually
played on acoustic instruments. The nar-
rative or story may be based on historical
events or people.
DOCUMENT:
Programme concerned with factual mat-
ters, presented in an investigative style.
TEST:
Broadcast when testing emergency broad-
cast equipment or receivers.
ALARM !:
Emergency announcement made under
exceptional circumstances to give warning
of events causing danger of a general na-
ture.
NONE:
No programme type (receive only).
TP:
Broadcasts which carry traffic announce-
ments.
TA:
Traffic announcements are currently on
air.
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 20 –
• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
REF. NO DESCRIPTION POSITION POSITION
SW613 EQUALIZER ON—OFF
SW614 VOLUME UP ON—OFF
SW615 VOLUME DOWN ON—OFF
SW616 CD ON—OFF
SW617 TAPE ON—OFF
SW618 TUNING DOWN ON—OFF
SW619 MEMORY SET ON—OFF
SW620 REVIEW ON—OFF
SW621 FAST FORWARD ON—OFF
SW622 PLAY/REPEAT ON—OFF
SW623 STOP ON—OFF
SW625 RECORD/PAUSE ON—OFF
SW626 TUNING UP ON—OFF
SW627 VIDEO/AUX ON—OFF
SW628 TUNER (BAND) ON—OFF
REF. NO DESCRIPTION
SW1 OPEN/CLOSE ON—OFF
SW2 CLAMP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW601 ON/STAND-BY ON—OFF
SW602 CLOCK ON—OFF
SW603 TIMER/SLEEP ON—OFF
SW604 PTY TI/SEARCH ON—OFF
SW605 EON ON—OFF
SW606 ASPM ON—OFF
SW607 DISPLAY MODE ON—OFF
SW608 STATION ON—OFF
SW609 DISC SKIP ON—OFF
SW610 OPEN/CLOSE ON—OFF
SW611 DIMMER ON—OFF
SW612 X-BASS ON—OFF
Figure 20 TYPES OF TRANSISTOR AND LED
(1) (2) (3)
(S) (G) (D)
E C B
FRONT
VIEW
KTA1266 GR
KTA1271 Y
KTA1273 Y
KTA1274 Y
KTC3199 GR
KTC3203 Y
KRC102 M
KRC104 M
KRC107 M
2SC1845 F
2SC3203 Y
2SC380 O
KTC2026 4204SRT7
BCE
FRONT
VIEW
FRONT
VIEW
All manuals and user guides at all-guides.com
background
– 21 –
CD-BA160H/1700H
Figure 21 BLOCK DIAGRAM (1/3)
CNP12
CNP11
Q2
+3.3V
+5V
CONT5
CONT2
CONT3
CONT4
CONT7
CONT6
SLDO
SPDO
FDO
TDO
+5V
TO DISPLAY SECTION
CLAMP SW
CDINT
WRQ
CE
DO
CLK
DI
CD RES
GND
DRF
CNS4
BI4
CNP4
M2
SLED
MOTOR
M1
SPINDLE
MOTOR
M
M
TRACKING COIL
FOCUS COIL
PICKUP UNIT
TE
FE
RFEV
HFL
VVDD
ADAVDD
VDD
LVDD
RVDD
XVDD
VDD5V
RFEV
FE-
FE
TE-
TE
HFL
+3.3V
CONSTANT
VOLTAGE
+5V
Q1
Q3
LASER
DRIVER
LDD
PD
VCC3
VCC2
VCC4
VCC1
TIN2
TIN1
FIN2
FIN1
IC3
M63001FP
FOCUS/TRACKING/
SPIN/SLED DRIVER
IC1
LA9235M
SERVO AMP.
TO MAIN SECTION
(TO IC401)
R-CH
L-CH
AGND
DGND
+B2(+5V)
RCHO
RVSS
LVSS
LCHO
IC2
LC78641E
SERVO/SIGNAL
CONTROL
-
+
M
SW1
OPEN/
CLOSE
XL1
16.9344MHz
6
5
43
3
2
5
4
1
12
34
7
8
217
89
10
12
4
3
5
SW2
CLAMP
SW3
DISC
NUMBER
M3
LOADING
MOTOR
6
12
4
3
56
12
4
3
56
75
76
45 46
47 48 32 31
30
65
66
67
68
69
70
71
72
CE
CL
DI
DO
INT
WRQ
RES
DEF
52
51
XOUT
XIN
73
51836
44 49
50
7141516
23
24
25
26
33
3
13
19
40
64
74
17
18
19 20
21
22
30
23
11
9
1
4567
15
16 26 27
2 1725 4142 3839
35
29
22
21
14
8
40
18
24
23
28
SW4
PICKUP IN
+3.3V
CNS99
BI99
CNP5
IC99
TOTX178A
OPTICAL FIBER
DATA LINK
12
3
12
3
12
3
37
DOUT
12
3
CD-BA1700H
ONLY
O/C
DISC_NO
M+
M-
CD-BA1700H
ONLY
VCC
~
~
TO
FD
SLDO
SPO
PUIN
LD_M-
LD_M+
LOADING M-
LOADING M+
All manuals and user guides at all-guides.com
all-guides.com
background
CD-BA160H/1700H
– 22 –
Figure 22 BLOCK DIAGRAM (2/3)
AM LOOP
ANTENNA
XIN
VDDD
VSSD
DO
CL
DI
CE
XOUT
VDDA
VSSA
IN
MPX
FM AFC
BALUN
REC/PL
A
CL
CE
DI
SYSTEM
MUTE
DO
CL
DI
CE
MO/ST
+B1
SWITCHING
+B1
FM/AM
OUT
FM/AM
+
B
L-CH
R-CH
BAI
S
T1/T
2
MUTING
PLAYBACK
RECORD
AC BIAS
R-CH
L-CH
CD R
TAPE R
AUX L
TAPE L
TUNER L
CD L
PB
FROM CD
SECTION
ERASE
HEAD
SWITCHING
SWITCHING
SWITCHING
BIAS
SWITCHING
BIAS OSC
RECORD/
PLAYBACK
HEAD
TAPE 2
PLAYBACK
HEAD
TAPE 1
R-CH
L-CH
R-CH
L-CH
H/N
P.B
+B1
R
L
REC L
REC R
L NF
R NF
ALC
REC
T1/T2
T1/T2
HIGH
NOR/
REF
R REC
L REC
POP REDUCE
R NF
L NF
SWITCHING
L(T2)
R(T2)
R(T1)
L(T1)
R
L
FM/AM MPXIN
STEREO
AM RF IN
AM OSC IN
FM +B FM
VT
AOUT
AM OSC
AM
ANTENNA
MO/ST
DET
FM VCCGND AM IF
FM IF DET/FM MPX./AM IF
AM MIX
F OUT
FM FRONT END
1
1
9
7
2
4
5
9
8 13
14
15
1216
20
12
13
20
21
2223
14
15
3
4
2
22 15
6
5
4
316 11
17
21
23
1
2
4
3
8
7
1
2
3
4
5
4
1
2
3
6
9
5
7
8
13
21
24
23
22
16
14
12
20
18
17
10
19
15
9
24
21
13
12
14
11
15
10
16
17
18
10
1824212223
7
1
8
5
4
3762
1
3
1
3
2
2
3
1
2
TUNER R
AUX R
Q112
XIN
XOUT
NC
NC
NC
VDD
+5.1V
VCC
1
6
7
IC702
7
6
1
IC703
SPEAN
A
SPEA
N
SPEA
N
7
L-IN
QT21
L354
IC303
LA1832S
X352
4.5MHZ
IC302
LC72131
PLL(TUNER)
Q360
SO401
VIDEO/AUX
Q401
Q402
Q110
Q111
IC401
LC75341
AUDIO PROCESSOR
CNP11
IC101
AN7345K
PLAYBACK AND RECORD/
PLAYBACK AMP.
CNS402
ICT21
LC72722
RDS CIRCUIT
XT21
4.332MHz
T306
T303
L341
SO301A
FM ANTENNA
TERMINAL
FE301
CF301 Q301
CF302
CF351
FM IF
CF352
T351
Q103
Q108
Q109
Q104-
Q107
Q101 Q102
Q114
L104
Q113
1
2
CNP302
1
2
FM IF
FM IF
LOW PASS
FILTER
IC702:IC703
KIA4558P
OPE AMP.
All manuals and user guides at all-guides.com
background
– 23 –
CD-BA160H/1700H
Figure 23 BLOCK DIAGRAM (3/3)
+B2
+5V
5V
E
C/PLAY
VLOAD
+B3
RESET IC
SYS. STOP
RESET
+B2
M901
FAN MOTOR
M
+B3
+B3
+B3
+B3
VDD
VDD
VDD
L-OUT
R-OUT
SP. DET.
UNSWITCH
+5V
A10V
+B3
+B2
+B1
T
EM
E
CE
DI
CLK
DO
+B1
-Vcc
+Vcc
BAIS
T1/T2
AVDD
SW601-SW623
SW625~SW628
KEY SWITCH
SECTION
TO CD
AC POWER
SUPPLY
CORD
T.F.
1 2
3
47
48 496 13
14
16
59
10
3
1
2
11 12 13 15 16
17 20
21 22 23 24
1
1
7
8
9
15
13
10
7
9
4 5 6
63
78
79
80
85
90
92
93
100
56
55
54 53
52
51
50
49
47 46
45 44
43 42
41 40
39
38
37
36
35
34
33
31
23
28
29
44
L-CH
R-CH
~
~
~
~
~
~~
~
~
~~
AVref
T-BIAS
T_T1/T2
REC/PLAY
SO901
(CD-BA160H)
FOR 2 SPEAKERS
SO902
(CD-BA1700H)
FOR 4 SPEAKERS
SURROUND
SPEAKER
(CD-BA1700H
ONLY)
SO902
(FOR
CD-BA1700H)
SPEAKER
TERMINALS
+B
REMOTE SENSOR
1
3
2
RX701
TAPE
MOTOR
TO TAPE
MECHANISM
+B
3
1
2
2
2
3
1
13
RESET
X2
X1
MOTOR
DRIVER
MOTOR
DRIVER
+B2
JK951
HEADPHONES
7
1
30
29
28
E
ANA2
S
PEANA1
S
PEANA0
IC701
IX0329AW
SYSTEM MICROCOMPUTER
SO901
FRONT
SPEAKER
(FOR
CD-BA160H)
RL951
RELAY
F801
T4A L 250V
IC901
STK40204
POWER AMP.
D801
XL701
4.19MHz
RL871
RELAY
F802
T4A L 250V
D802-D805
F803
T2A L 250V
L801
IC851
PT801
MAIN POWER TRANSFORMER
PT871
SUB POWER TRANSFORMER
D872-875
Q873
IC852
IC841
Q971
Q609
IC704
Q601~
Q603
Q901
Q902
Q903
Q904
0
1
0
2
FL701
FL DISPLAY
IC704
KIA7042AP
RESET
L-CH
L-CH
L-CH
GND
L-CH
GND
R-CH
R-CH
GND
R-CH
R-CH
GND
SO801
AC INPUT
SOCKET
AC 230V
50Hz
LINE
FILTER
Q951
Q605
Q606
Q607
M
Q608
Q604
LED722
VOLTAGE REGULATOR
IC852
AN78L05
CONSTANT VOLTAGE
REGULATOR
IC841
KIA7810AP
VOLTAGE
REGULATOR
IC851
KIA7805P
VOLTAGE REGULATOR
Q801
VOLTAGE REGULATOR
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 24 –
Figure 24 SCHEMATIC DIAGRAM (1/10)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 20.
GND
L
GND
+5V
R
M_GND
(CD_GND)
(A_GND)
+5V
CD_GND
L-CH
A_GND
R-CH
TAPE1_R
TAPE1_L
A_GND
A_GND
ERASE
TAPE2_R2
TAPE2_R1
TAPE2_L1
TAPE2_L2
9.3V
8.6V
9.3V
0V
3.4V
3.4V
0V
0V
0V
0V
0.7V
0V
0.7V
0V
0V
0V
0.7V
0V
0V
0V
0.7V
0V
0V
0V
0V
0V
ERASE
HEAD
PLAYBACK HEAD
RECORD/
TAPE2
TAPE1
PLAYBACK HEAD
R-CH
L-CH
R-CH
L
R
-
-
+
Hich=T1
+
Hich=CHROME
112K
112K
CD
TUN
DECK
AUX
LSEL0
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
R1
R2
R3
R4
RSEL0
RIN
RTRE
RBASS
ROUT
VREF
VDD
CLK
L1
L2
L3
L4
LIN
LTRE
LBASS
LOUT
VSS
CE
DI
24
23
1
24 23 22 21 20
1 2 3 4 5
19 18 17
6 7 8
2
22
21
20
19
18
17
16
15
14
13
3
4
5
6
7
8
9
10
11
12
3
2
1
3
2
1
1
2
3
4
5
6
7
1
2
3
4
5
3
4
2
1
5
CNP11
TO CD
SERVO
PWB
P33 12-D
BI402
CNS402
TO
POWER
SECTION
P26 1-F
1
2
Z
Y
3
+B
7
6
5
4
3
2
1
L-CH
1
1
2
2
3
3
MUTIN
G
+B
+B
+B
+B
R132
15K
C126
270P
R128
6.8K
R130
3.9K
C42
1/5
0
C4
2
1/5
C4
2
1/5
0
C4
2
1/5
0
C420
4.7/5
0
C41
8
1/50
C41
4
0.00
2
C4
1
0.1
(
CCB
INTERFACE
C407
10/50
C409
0.1
(ML)
C411
0.1 (ML)
C441
0.0033
C421
1/50
C427
1/50
C425
1/50
C423
1/50
R415
3.9K
R417
3.3K
C419
4.7/50
C417
1/50
C413
0.0027
C439
0.001
Q11
0
KTC
3
R401
330
R409
10K
Q401
KTC3199 GR
R407
2.2K
C401
0.001
R404
2.7K
R403
2.7K
R408
2.2K
C402
0.001
Q402
KTC3199 GR
R410
10K
R425
22K
R402
330
C403
22/25
C404
100/16
C405
0.022
R157
150
R104
1K
R102
10K
Q102
KRC104 M
R137
15K
R101
10K
Q103
KRC104 M
C108
100/16
R103
4.7K
Q101
KTA1266GR
SWITCHING
C122
47/25
R122
5.6K
C116
100/25
R116
56
L102
2.2µH
R118
100K
C118
0.033
R120
3.9K
C120
560P
C114
330P
R124
33K
R114
1K
C112
330P
C144
0.0022
R126
68K
IC101
AN7345K
C106
0.001
R105
1K
R110
47K
Q108
KTC3199 GR
R112
4.7K
R108
3.3K
R106
2.2K
Q104
2SC1845 F
Q106
2SC1845 F
C104
180P
C102
0.001
C103
0.001
R109
3.3K
Q107
2SC1845 F
C105
180P
R107
2.2K
Q105
2SC1845 F
R113
47K
Q109
KTC3199 GR
C107
0.001
R111
4.7K
L101
2.2µH
C115
330P
R115
1K
R121
3.9K
R119
100K
R123
5.6K
C137
0.022
C119
0.033
C117
100/25
R117
56
R125
33K
C123
47/25
C121
560P
C143
0.0022
R127
6.8K
270P
C127
C139
3.3/50
R129
3.9K
C131
R131
1.5K
C113
330P
R138
15K
CNP101
CNP102
IC401
LC75341 AUDIO PROCESSOR
FM SIGNAL
PLAYBACK SIGNAL
RECORD SIGNAL
CD SIGNAL
VIDEO SIGNAL
CHASIS
SYSTEM MUTE
SYSTEM MUTE
SWITCHING
SWITCHING
SWITCHING
SWITCHING
SWITCHING
SWITCHING
SWITCHING
IC101
AN7345K
PLAYBACK AND
RECORD/
PLAYBACK
AMP.
TAPE MECHANISM
ASSEMBLY(1/2)
All manuals and user guides at all-guides.com
background
– 25 –
CD-BA160H/1700H
Figure 25 SCHEMATIC DIAGRAM (2/10)
7
8 9 10 11 12
1
1
A_10V
TUN_SM
DO
CE
VF1
-VP
VF2
SP_RLY
M_10V
-15V
GND
SW_5V
GND
UN_SW_5V
AC_RLY_CONT
SP_DET
CLK
DI
TUN_L
TUN_R
GND (M_GND)
(A_GND)
(D_GND)
M_GND
SP_DET
AC_RLY CONT
UN_SW 5V
A_GND
+5V
D_GND
-15V
M_10V
SP_RLY
VF1
VF2
-VP
T_BIAS
SPA_SIG
SMUTE
REC/PLAY
T_T1/T2
CE
DI
CLK
DO
TUN SM
REC_L
REC_R
0V
0V
0.7V
0.7V
0V
0V
0V
11.7V
11.6V
11.6V
0V
0V
0V
0V
0V
AUX IN
R-CH
L-CH
Vcc
ALC
GND
ALC
RIPPLE
Nor/CrO2
+
+
-
-
Hich=CHROME
56K
56K
R1
R2
R3
R4
S
EL0
RIN
R
TRE
B
ASS
R
OUT
V
REF
VDD
CLK
24
23
18 17 16 15 14 13
7 8 9 10 11 12
22
21
20
19
18
17
16
15
14
13
22
23
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
MAIN PWB-A1(1/3)
TO
TUNER
SECTION
P29 10-H
G
F
I
D
E
H
C
1
23
FC701
CNP702
TO DISPLAY
PWB
P31 12-D
TO POWER SECTION
P26 1-G
K
L
MN
O
P
QRS
T
U
W
X
–B
+B
+B
V
+B
MUTING
MUTING
1
2
3
+B
+B
+B
+B
-B
+B
+B
+B
+B
+B
R419
5.6K
R420
5.6K
C430
390P
C429
390P
R422
27K
R421
27K
D403
DS1SS133
D404
QS1SS133
SO401
VIDEO/AUX
CNP401
C142
47/25
R149
4.7
Q114
KTC3203 Y
BIAS OSC
L104
330µH
C141
0.039
(ML)
C140
0.0082
C148
0.047
(ML)
R148
22K
R147
47K
Q113
KRC104 M
BIAS
R146
82(1/2W)
R145
4.7K
Q112
KTA1266 GR
SWITCHING
R144
47K
R139
220
C136
22/25
C138
220/10
C134
47/25
R136
10K
C132
0.0033
C130
0.022
C128
22/25
R134
100
R132
1.5K
C126
270P
R128
6.8K
3
.
9K
C150
22/25
R423
470K
R424
470K
R416
3.9K
C440
0.001
R418
3.3K
C442
0.0033
C428
1/50
C426
1/50
C424
1/50
C422
1/50
C420
4.7/50
C418
1/50
C414
0.0027
C412
0.1(ML)
C410
0.1(ML)
C406
22/50
C408
10/50
R143
220K
R141
10K
Q111
KTC3199 GR
R140
10K
Q110
KTC3199 GR
R142
220K
5
K
C135
47/25
R127
6.8K
270P
C127
3
9
/
50
3.9K
C131
0.022
R131
1.5K
R133
100
C133
0.0033
R135
10K
C129
22/25
O
R
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 26 –
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 20.
Figure 26 SCHEMATIC DIAGRAM (3/10)
3
2
1
3
2
1
3
2
1
A_10V
M_10V
GND
GND
AC_RLY_CONT
UN_SW_5V
GND
+B2
GND
R
GND
VF1
VF2
-VP
L
SP_RLY
-15V
SP_DET
+5V
20V
5.7V
205
20V
10V
9.9V
20V
9.9V
4.1V
0V
0V
0V
0V
4.1V
+5V
GND
AC_RLY_CONT
UN_SW_5V
SW_5V
(M_GND)
A_GND
(CD_GND)
(D_GND)
(A_GND)
Out
Ch2
Out
Ch1
Out
Out
Ch2
Ch1
Ch2
Ch1
+Vcc
-Vcc
-
-
+
+
2
3
4
5
6
8
9
11 12
13
14
15
7
1
1
5
TO
MAIN
SECTION
P25 10-H
Y
1
2
Z
3
K
M
N
L
O
P
Q
R
T
U
V
W
X
S
TO
MAIN
SECTION
P24 1-C
10
C914
0.1(ML)
C916
0.1(ML)
R916
4.7
C913
0.1(ML)
C915
0.1(ML)
R917
4.7
R915
56K
C917
47/50
R914
56K
R913
56K
Q904
KTC3199 GR
Q903
KTC3199 GR
D903
DS1SS133
R934
68K
C906
47/50
R906
1K
R932
1K
C904
15P
R902
56K
R904
820
C902
470P
C909
100/50
R918
100(1/4W)
Fusible
C912
10/50
D902
DS1SS133
Q902
KTC3199 GR
R912
10K
C908
0.022
R910
1K
R908
0.1(1W)
R911
10K
Q901
KTC3199 GR
R909
1K
C907
0.022
R907
0.1(1W)
C910
100/50
R920
22K
R903
820
C905
47/50
C903
15P
R901
56K
R931
1K
R905
1K
C901
470P
R933
68K
C935
10/50
C911
10/50
D901
DS1SS133
C936
10/50
C803
2200/50
C804
2200/50
22K
R801
22K
R802
R803
680(2W)
D803
1N4004S
D805
1N4004S
C812
100/50
C813
100/35
R807
12K
ZD802
DZ6.2BSA
ZD803
DZ13BSB
C807
3300/25
220/25
C831
C832
0.022
Q831
KTC2026
C833
22/25
R832
33(1/2W)
R833
22K
C834
0.047(ML)
C842
0.1(ML)
C841
0.1
(ML)
C843
47/25
R841
22K
IC841
IC851
C851
0.1
(ML)
C852
0.022
C853
47/25
R851
10K
D831
DS1SS133
IC852
D851
DS1SS133
C854
47/25
C855
0.047(ML)
F
IC901
STK40204(2Ch) POWER AMP.
Q901~Q904
SP DET.
+B
IC852
AN78L05
CONSTANT
VOLTAGE REGULATOR
IC841
KIA7810AP
VOLTAGE REGULATOR
IC851
KIA7805P
VOLTAGE
REGULATOR
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B
R919
100
(1/4W)
Fusible
-B
+B
-B
All manuals and user guides at all-guides.com
all-guides.com
background
– 27 –
CD-BA160H/1700H
Figure 27 SCHEMATIC DIAGRAM (4/10)
7
8 9 10 11 12
-28V
-28V
-33V
4.4V
0.2V
R1_OUT
L1_OUT
3
44
55
66
77
88
M
22
11
11
22
1
2
3
4
5
2
1
3
C931
22/50
8 OHMS MIN
16 OHMS MIN
1
5
2
1
AC POWER
SUPPLY CORD
POWER PWB-B
+
+
+
+
–
–
–
–
L-CH
L-CH
L-CH
GND
R-CH
R-CH
R-CH
GND
R-CH
GND
L-CH
GND
HEADPHONES PWB-A3
5
1
2
3
4
5
1
5
1
M901
FAN MOTOR
+
–
MAIN PWB-A1(2/3)
C930
22/50
VOLTAGE REGULATOR
1
2
3
FM SIGNAL
C971
47/50
R975
4.7(1/2W)
D971
DS1SS133
C972
10/50
R972
68K
R971
1K
R973
15K
Q971
KTC3203 Y
CNS971
CNP971
CNP951
FW951
R951
330(1/2W)
C952
220P
C951
220P
JK951
HEADPHONES
L951
2.2uH
R952
330(1/2W)
R954
4.7K
R953
4.7K
RL951
RELAY
D951
DS1SS133
Q951
KRC107 M
SO901
SPEAKER
TERMINALS
FOR
CD-BA160H
2 SPEAKER
R922
6.8
C922
0.022
C920
0.022
R924
6.8
C925
0.022
C927
0.022
R921
6.8
C923
0.022
C921
0.022
L921
0.29µH
L920
0.29µH
C926
0.022
R923
6.8
C924
0.022
C928
0.001
C929
0.001
R925
68
C932
0.001
R926
68
C933
0.001
C934
0.001
R927
68
1N4004S
D871
C871
0.0047/250
L801
LINE
FILTER
SO801
AC INPUT
SOCKET
AC 230V,
50Hz
CNP801
RL871
RELAY
T.F
PT801
MAIN POWER TRANSFORMER
C873
470/35
C875
0.022
C876
0.001
R874
220
C874
1000/6.3
R876
1K
C877
0.001
R875
47K
Q873
KTC3199 GR
PT871
SUB POWER
TRANSFORMER
D876
DS1SS133
C872
0.047
(ML)
D875
1N4004S
D874
1N4004S
D872
1N4004S
D873
1N4004S
CNS871
CNP802
F803
T2A L 250V
F802
T4A L 250V
F801
T4A L 250V
C801
0.1(ML)
C802
0.1(ML)
D801
TS6B04GM
C803
2200/50
C804
2200/50
C805
0.1 (ML)
C806
0.1(ML)
D
803
N4004S
D804
1N4004S
D802
1N4004S
D
805
1
N4004S
C809
100/50
D807
1N4004S
D806
1N4004S
C808
100/50
C810
220/50
R804
2.2K
C811
47/50
R805
47K
C812
100/50
R806
10
Q801
KTA1274 Y
D808
1N4004S
ZD802
DZ6.2BSA
ZD801
DZ30BSB
FW871
SO801
When Servising, pay attention as the
area enclosed by this line( ) is
directly connection with AC main voltage.
FRONT
SPEAKERS
SURROUND
SPEAKERS
SO902
SPEAKER
TERMINALS
FOR
CD-BA1700H
4 SPEAKER
CD-BA1700H
ONLY
+B
+B
VOLTAGE
REGULATOR
+B
+B
+B
+B
MOTOR
DRIVER
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 28 –
Figure 28 SCHEMATIC DIAGRAM (5/10)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 20.
CONT
IF
FM/AM
FM/AM
AM LOOP
ANTENNA
SD
ST IND
MO/ST
F OUT
IF OUT
VCC
VT
GND
GND
GND
ANT
VSS
AOUT
AIN
PD
VDD
FM IN
AM IN
DO
CL
DI
CE
X IN
IF IN
FM
REG
AM IF IN
GND
SD
FM/AM OUT
VSM
AM LOW
CUT
AM RF IN
AM OSC IN
FM AFC
AM OSC
OUT
AM MIX OUT
FM IF IN
24
1
22
1
12
3
4
5
6
7
8
2
3
4
5
6 7
8
9
10
21
20
19
18
17 16 15 1314
12
1
1
22
2
3 4 5 6
23
22
21
20
19 18
X OUT
AM OSC
NC
AM TRACKING fL
AM BAND
COVERAGE fL
NC
NC
AM IF
TP301
R35
0
2.7K
C36
7
1/50
C365
0.022
C366
0.001
C364
10/16
C363
0.022
R365
10K
C342
0.022
R358
3.9K
C362
3.3/50
C361
0.022
R351
5.6K
C353
0.022
CF352
AM IF
T351
R352
1K
C352
10/16
C351
0.022
C326
0.001
CF302
FM IF
IC
L
A
C302
0.001
R336
10K
R323
68K
VD301
SVC348S
C331
0.047
C332
0.022
C330
15P(UJ)
T303
AM ANTENNA
C323
0.022
C338
0.001
D301
DS1SS133
D302
DS1SS133
CNP302
L341
BALUN
C335
560P
T306
C334
27P(UJ)
R377
47K
L351
100µH
C385
0.01
R379
2.2K
C387
0.022
C392
0.001
C380
10/16
C394
47/16
R380
1.5K
C393
1/50
R381
10K
C397
0.022
R382
150
C381
12P(CH)
X352
4.5MHz
C382
15P(CH)
R374
1K
R373
1K
R372
1K
R378
1K
IC302
LC72131
PLL(TUNER)
C348
0.01
R399
33
R349
33
R348
680
R347
6.8K
R346
330
R344
470
C347
0.022
1
R345
4.7K
C345
0.022
C321
100/16
C346
0.022
CF301
FM IF
FE301
FM FRONT END
C341
0.022
L342
2.2µH
R369
15
D303
DS1SS133
D304
DS1SS133
C301
0.01P
C375
0.001
SO301A
FM
ANTENNA
TERMINAL
1
3
2
1
3
2
Q301
2SC380 O
3
2
+B
All manuals and user guides at all-guides.com
background
– 29 –
CD-BA160H/1700H
Figure 29 SCHEMATIC DIAGRAM (6/10)
7
8 9 10 11 12
9
10
24
23
22
21
20 19 18
17
16
15
14 13
11
12
8
7
6
5
4
3 2
1
1
2 3
4
5
6
7
8
GND
CE
DO
DI
CLK
GND
A_10V
TUN_L
TUN_R
TUN_SM
A GND
D GND
SD
T6
TP
T4
TP TP
VDDA
XIN
VDDD
CE
MO/ST
ST IND
MO/ST
RDS CIRCUIT
SYR
CL
DO
RDS-ID
DI
SYNC
T7
VSSD
XOUT
T5
T3
T2
T1
CIN
MPXIN
VSSA
FLOUT
VREF
IF IN
FM IF DET./FM MPX./AM IF
GND
SD
STEREO
FM DET
VCC
IF OUT
PHASE
(FM/AM)
PHASE
L-CH OUT
R-CH OUT
MPX IN
MPX VCO
9
10
13
12
5
6
7
8
9
10 11
12
17
16
15
14
13
JIHGFEC D
A
B
TO MAIN SECTION
P25 12-C
23
45
1
78
6
+B
+B+B
FM SIGNAL
AM SIGNAL
TP302
RT37
220K
RT36
220K
RT35
220K
RT49
390
CT43
10/16
ZDT21
DZ5.1BSB
RT48
390
CNP304
RT30 1K
RT29 1K
RT28 1K
CT28
47/10
LT22
2.2µH
CT27
22P(CH)
CT29
0.022
XT21
4.332MHz
CT26
22P(CH)
QT21
KTC3199GR
RT34
56K
CT25
560P
RT21
100K
CT24
0.022
CT23
10/16
ICT21
LC72722
CT37
0.022
CT36
0.022
RT32
10K
RT33
56K
QT22
KTA1266GR
RT51
10K
RT26
1K
RT32
10K
LT21
2.2µH
CT21
47/10
CT22
0.022
R370
1K
CNP303
C388
0.001
R384
5.6K
C391
47/16
R385
5.6K
R383
5.6K
R359
1.8K
Q360
KTA1266 GR
R391
270
R392
270
C395
0.022
C396
100/10
ZD351
DZ5.1BSB
L352
100µH
R363
47K
R364
47K
C373
0.015
C372
1/50
C371
1/50
C374
0.015
R356
1K
R357
470K
C368
1/50
X351
456kHz
C369
27P
(UJ)
R350
2.7K
C367
1/50
L354
LOW PASS
FILTER
C370
1/50
R355
3.3K
C357
2.2/50
C358
1/50
C356
0.001
C398
100/10
C355
22P
R353
270
CF351
FM IF
C354
0.022
R393
1K
C399
0.022
C353
0.022
R388
3.9K
IC303
LA1832S
R387
5.6K
R395
47K
R360
4.7K
R376
1K
C386
330P
R377
47K
H
R386
22K
R362
1.2K
R361
1.2K
SWITCHING
+B
+B
+B
+B
+B
RDS PWB-D
MAIN PWB-A1 (3/3)
+B
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 30 –
Figure 30 SCHEMATIC DIAGRAM (7/10)
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 20.
-25.7V
3.3V
-25.7V
3.3V
-25.7V
-25.7V
-25.7V
3.3V
-25.7V
0V
0V
9.3V
9.3V
9.3V
9.3V
9.3V
9.3V
8.6V
SP_RLY
DET
SPK_
M10V
T1 SOL
F
USE
F-REC
COM
T1 RUN
T1 RUN
R_REC
T2 SOL
MTR +
T2 RUN
+5V
T2 PLAY
DISTOUT/SW OUT
SPN
MIC IN
FPB
PLAY SW_A
T1 RUN
AVref
F
FPA
T2 RUN
CD CLAMP
SW
T_SOL_B
F
F
G11
G10
G09
G08
G07
G06
G05
G04
G03
G02
G01
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
VDD
G4
G5
G6
G7
G8
G9
G10
G11
VLOAD
P16/DIST1
P17/DIST2
P18/DIST3
P19
P20
P22
KARAOKE LATCH
PLAY SW_B
AC RLY_CONT
VDD
TIMER LED
T_MOTOR
T_SOL_A
SMUTE
VSS
REMOCON
NO
SYS STOP
KEY 0
KEY 1
KEY 2
M-BU
S
P15/DIST0
P14
P13
P12
P11
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
AVDD
M
33
32
31
53
52
51
56
55
54
59
58
57
62
61
60
63
66
65
64
69
68
67
72
71
70
75
74
73
78
77
80
81 82 83 84
49 48 47 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 16 15 14 13 12 11 10
85 86 87 88 89 90 91 92 93 94 95 96 9
7
79
76
50 49 48 47
50
49
48
47
46 45 44
43
42 41 40 39 38 37 36 35 3
4
1
1
2
3
5
6
2 4
1
8
7
3
5
6
8
7
9 8 7 6 3
1
2
3
4
5
6
7
8
10
11
12
13
1
2
3
4
5
6
9
8
10
11
12
13
P21
TAPE
MOTOR
13
13
1
1
FC702
TAPE MECHANISM PWB-G
- -
+
4
NC
NC
NC
NC
NC
NC
NC
+B
+B
+B
+B
+B
+B
+B
+B
+B
-B
7
9
NC
NC
NC
NC
+B
+B
R659 1K
R661 2.2K
R663 2.2K
R664 2.2K
R665 2.2K
R667 1K
R669 10K
R653 1K
R654 1K
R668 1K
R642 22K
R640 1K
R646 1K
R648 1K
R647 1K
R645 22K
R644 1K
R643 1K
D610
DS1SS133
IC701
IX0329AW
SYSTEM MICROCOMPUT
E
C616
1/50
C609
47/50
R622
100K
R616
1K
R611
100K
R606
1K
R602
100K
R601
1K
Q601
KTC3199 GR
Q602
KTC3199 GR
FL701
FL DISPLAY
R632 10K
R629 10K
R633 10K
R634 10K
R635 10K
R725 10K
R621
33
C605
270P
R613
820K
R603
10K
R607
33K
R608
68K
R604
12K
C602
0.0027
C606
0.0027
R618
220K
R617
220K
R614
390K
IC702
KIA4558P
C601
270P
R605
56K
R609
470K
C603
0.0068
C604
0.0068
C607
0.022
R615
150K
R619
2.2M
R612
1M
R627
100K
C614
2.2/50
D604
DS1SS133
C613
2.2/50
R626
100K
R625
100K
C612
2.2/50
D603
DS1SS133
D602
DS1SS133
R623
270
R624
270
R610
15K
C608
0.022
R620
180K
IC703
KIA4558P
C611
0.022
C610
0.022
ZD601
DZ6.2BSC
C620
47/25
CNP703
D613
DS1SS133
D614
DS1SS133
R652
10K
R651
10K
R662
10K
Q606
KTA1271 Y
Q605
KTA1271 Y
Q607
KTA1273 Y
Q604
KTC3199 GR
R660
10K
Q608
KTC3199 GR
R658
47K
R655
1K
C618
10/16
R650
68K
D615
DS1SS133
R649
10K
R638
47K
R637
1K
C617
10/16
R636
68K
R656
10K
LED722
4204SRT7
R670
10K
R671
10K
R6
7
10
K
IC703
KIA4558P
OPE AMP.
IC702
KIA4558P
OPE AMP.
D611
DS1SS133
DISPLAY PWB-A4
Q603
KTC3199 GR
D601
DS1SS133
TAPE MECHANISM ASSEMBLY(2/2)
MOTOR DRIVER
All manuals and user guides at all-guides.com
background
– 31 –
CD-BA160H/1700H
Figure 31 SCHEMATIC DIAGRAM (8/10)
7
8 9 10 11 12
5.9V
5.9V
0V
0V
0V
4.8V
SPA_SIG
SP_RLY
M_GND
SP_DET
TUN SM
DO
5V BACK UP
F
CLK
CE
DI
M_10V
UN_SW 5V
RES OUT
T_BIAS
T_T1/T2
REC/PLAY
DRF
AVref
SPEANA1
XT2
DRF
NO USE
+5V
-15V
A_GND
D_GND
SP_RLY
SMUTE
-VP
VF2
VF1
CD CLK
CD CE
CD DI
CD DO
CLAMP SW
WRQ(DSP)
CD INT
F
F
G03
G02
G01
VDD
G1
G2
G3
G4
G5
G6
G7
SYS STOP
E
Y 0
E
Y 1
E
Y 2
SPEANA0
SPEANA2
NO USE
M-BUSY/TUN SM
AVSS
DO
DI
CLK
CD DO
CD CLK
VPP/IC
RES OUT
REC/PLAY
S-BUSY
CE
CD INT
WRQ
CD DI
CD CE
RESET
AVDD
X2
X1
VDD
T_T1/T2
T-BIAS
10
10
11
13
14
12
17
18
19
20
16
22
23
15
21
2
2
3
3
1
1
94 95 96 97 98 99
37 36 35 34 33 32 31
18
17
16
19
20
10
11
12
13
14
15
25
24
23
22
26
27
28
29
30
21
1
1
8 7 6 3 2 1
2
3
4
5
7
8
9
6
2
3
4
5
1
7
8
9
6
8
7
6
5
9
3
2
1
4
100
CNP12
TO CD
SERVO PWB
CNS701
BI701
1
23
CNP401
TO MAIN
PWB
P25 12-E
FC701
10
2
3
4
5
1
7
8
9
6
P33 11-F
NC
1
2
3
RESET
+B
+B
+B
+B
+B
+B
+B
+B
-B
-B
+B
+B
+B
+B
NC
NC
AC_RLY CONT
SW610
OPEN/CLOSE
R720
100K
SW609
DISC SKIP
SW608
STATION
R715
3.9K
R717
68K
R710
2.2K
R713
2.7K
SW605
EON
SW606
ASPM
SW607
DISPLAY
MODE
R705
1.5K
R702
1K
R700
820
SW601
ON/STAND-BY
SW602
CLOCK
SW603
TIMER/
SLEEP
SW604
PTY TI
SEARCH
R696
680
SW615
VOLUME
DOWN
SW614
VOLUME
UP
SW613
EQUALIZER
SW612
X-BASS
SW611
DIMMER
R701
1K
R707
1.5K
R698
820
R695
680
SW628
TUNER
(BAND)
SW627
VIDEO/
AUX
SW626
TUNING
UP
SW625
RECORD/
PAUSE
100K
R724
R722
33K
R721
18K
R719
10K
R718
5.6K
R714
3.9K
R703
1K
R699
820
R697
680
R706
1.5K
R712
2.7K
R709
2.2K
SW623
STOP
SW616
CD
SW617
TAPE
SW618
TUNING
DOWN
SW621
FAST
FORWARD
SW622
PLAY/
REPEAT
SW619
MEMORY/
SET
SW620
REVIEW
C632
47/25
C631
0.022
C629
0.022
C630
10/50
R711
100K
D618
DS1SS133
RX701
REMOTE SENSOR
R723
100
D621
DS1SS133
D620
DS1SS133
C628
3.3/50
Q609
KRC102M
D617
DS1SS133
R704
47K
D616
DS1SS133
C626
0.1/50
L601
100uH
R716
4.7K
IC704
CNP702
C634
0.001
R708
10K
C625
220/10
C624
0.022
C621
1/50
R681 1K
R684 1K
R680 1K
R683 1K
R678 1K
R679 1K
R682 1K
R685 1K
R686 1K
R687 1K
R688 1K
R689 1K
R690 1K
R691 1K
R692 1K
R693 1K
R694 1K
R676
4.7K
R666
1K
R669 10K
R673 1K
R674 1K
R675 1K
R668 1K
M
PUTER
R670
10K
R671
10K
R672
10K
XL701
4.19MHz
IC704
KIA7042AP
RESET
C622
15P(CH)
C623
18P(CH)
All manuals and user guides at all-guides.com
all-guides.com
background
CD-BA160H/1700H
– 32 –
A
B
C
D
E
F
G
H
1
23456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 20.
Figure 32 SCHEMATIC DIAGRAM (9/10)
• The numbers 1 to 13 are waveform numbers shown in page 39.
R56
68K
R55
68K
R54 68K
R53 68K
R52 68K
R51 68K
C54
47/10
C14
0.33
0.33
C13
0.01
R50
47
C47
100/16
C55
0.01
CNP1
C51
47/10
C53
0.001
R47
3.3
CNP2
CNP3
C41
100/10
R8
330
C11
0.47/6.3
R10
27K
C
0
C22
100P
C49
100/16
C50
100/16
C24
2.2/50
C23
0.047
C52
0.01
R25
10
R
1
R6
27K
C82
0.022
R7
6.8K
C17
0.0047
IC1
LA9235M
SERVO AMP.
IC1
LA9235M
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
R5
39K
C12
0.1
C46
0.022
C6
100/10
R15
10K
C20
0.1
C18
3P
(CH)
R3
100K
C7
10/16
R4
10K
C42
68P
C8
0.1
C25
0.1
IC3
M63001FP
FOCUS/
TRACKING/
SPIN/SLED
DRIVER
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
R48
6.8K
NC
NC
NC
NC
NC
LDON
EFBL
FIN2
FIN1
TIN2
TIN1
EFBL
SPDO
FIN1
SLDO
FIN2
REF1
TIN2
TIN1
FDO
TDO
Vcc
NC
LOADING M-
AGON
PU-IN
SLIDE
M
+
-
SPIN
GND(D)
PUIN
SP+
SP-
SL+
SL-
LDD
VCC3
TESTO
TEST
HFL
TE
TE-
FE
FE-
RFEV
BH
PH
RF
RF-
RFSW
VCC
GND
VREF
TES1
TR-
TR+
FO+
FO-
GND
PD
VR
LD
C
VCC2(SPN)
VCC4
ACTUATOR
FO+
FO-
TR-
TR+
Vref
F
B
E
A
LD_M+
LD_M-
LOADING M+
SP-
SP+
SPO
MUTE
Vref
STANDBY
VCC1
SL-
SL+
GND
GND
TR+
TR-
FO-
FO+
FO
FD
TO
LD
VR
PD
GND
FO-
FO+
TR+
TR-
-
+
M
2
5
3
1
7
6
44
3
2
1
7
6
5
5
2
2
3
5
1
4
6
1
2
3
4
5
6
7
88
3
6
7
1
4
-
+
-
+
+
-
+
-
-
-
+
+
-
+
+
-
+
-
-
+
+
-
+
-
-
+
-
+
+
-
NC
REF
ODRV
AGCON
ODRV
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
AGCON
ODRV
APC
LPF
DH
PH
LPF
LPF
PH/BH
CD SERVO PWB-C
CD SIGNAL
5
1
3
7
6
4
2
4
3
2
1
7
6
5
CNS1A
CNS1B
1
2
3
4
5
6
7
88
3
6
7
1
4
5
2
CNS2A
CNS2B
3
6
1
4
5
2
3
6
1
4
5
2
2
3
5
1
4
6
CNS3A
CNS3B
PD
Q3
KTA1266 GR
LASER DRIVER
REF
CD MOTOR
PWB-E
M1
SPINDLE
MOTOR
M2
SLED
MOTOR
SW4
PICKUP IN
CNP3A
5
4
+B
+B
+B
PICKUP UNIT
13
ODRV
All manuals and user guides at all-guides.com
background
– 33 –
CD-BA160H/1700H
7
8 9 10 11 12
Figure 33 SCHEMATIC DIAGRAM (10/10)
R16
10K
L61
0.82µH
R87
120
C56
330/6.3
C64
0.47/6.3
ZD61
DZ3.9BSB
R94
10K
R95
10K
CNP11
C36
8.2P
C35
8.2P
C83
0.022
R84
10K
C40
0.0015
C43
0.0015
R83
10K
C34
0.022
CNP12
R82
2.2K
R81
2.2K
R17 1K
D21
DS1SS133
R21
470
R22
470
D22
DS1SS133
1
R46 1K
R45 1.2K
R40 1.2K
C80
0.1
R73 1K
R71 1K
C72 0.01
R72 1K
C71 100P
C73 100P
C75 100P
C76 100P
C77 100P
C78 100P
R75 1K
R76 1K
R77 1K
R78 1K
C74 100P
R74 1K
L62
2.2µ˙
CNP5
R19
47
C38
10/16
C39
10/16
C47
100/16
CNP4
C41
100/10
R8
330
R
10
2
7K
C26
0.047
C22
100P
R80
1M
R79
1.5M
C24
2.2/50
C21
0.1
C23
0.047
R12
680
R35
1K
R39
470
R38
270
R20
220
XL1
16.934MHz
C45
100/10
C44
0.1
C31
100/10
R14
1.2K
R11
12K
R13
680
C81
0.022
C27
0.1
C28
47/10
2
0
22
R44
1K
IC2
LC78641E
SERVO/SIGNAL
CONTROL
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
R58
220
C30
0.1
R15
10K
C29
0.1
C42
68P
C
25
.1
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
O/C
DISC_NO
TDO
DISC_NO
RES
WRQ
CE
DO
CL
DI
DRF
INT
SLDO
SPDO
FDO
INT
DRF
WRQ
CE
DO
DI
CL
RES
O/C
EFBL
O
CD-BA1700H ONLY
DIGITAL OUT
DGND
5V
+5V
DGND
AGND
L-CH
R-CH
DRF
SW3
DISC
NUMBER
SW2
CLAMP
M
-
CONT7
CONT6
GND(D)
M-
M+
GND
CD RES
DI
CLK
DO
CE
WRQ
CDINT
CLAMP SW
PCKIST
TEST
DOUT
VDD
C2F
PCK
FG(D_Vref)
SLDO
SPDO
FDO
TDO
TBLO
BHREF
PHREF
ADAVSS
ADAVDD
VREF
TE
FE
PH(RFENV)
BH
JITTC
JITTV
EFMIN
SLCO
SLCIST
HFL
FR
VVDD
VVSS
PDO2
PDO1
EMPH
MUTEL
MUTER
LVDD
LCHO
XVDD
LVSS
RVSS
RCHO
RVDD
XIN
XOUT
XVSS
ASLRCK
ASDACK
ASDFIN
LRSY
DATACK
DATA
16M
SFSY
SBSY
PW
SBCK
CE
CL
DI
DO
WRQ
RES
DEF
VDD5V
VSS
V/P
FSEQ
DEFECT
EFMO
M+
M3
LOADING
MOTOR
SW1
OPEN/
CLOSE
M
+
-
10
9
8
7
1
2
3
4
5
6
3
2
1
1
2
3
4
5
1
2
3
4
5
6
6
5
4
3
2
1
5
4
3
2
1
NC
EFLG
FSX
CONT5
CONT4
CONT3
CONT2
CONT1
LASER
SERIAL
OUT
EXTERNAL
AUDIO IN
FILTER
DIGITAL
DAC
1BIT
LPF
DEEMPHASIS
ATTENUATION
MUTE
INTERPOLATION
OUT
AUDIO
ERROR
CORRECT
EFM
DECODE
DEFECT,
PROTECT
FRAME
SYNC
CONTROL
CLV
GENERATOR
CLOCK
GENERAL
CRC
DECODE
SUBCODE
INTERFACE
COMMAND
GENERAL
SW
PROCESSEROR
SERVO
ADJUST
AUTO
-
+
S/H
CONTROL
DEFECT
JITER
A/DSW
CONTROL
LEVEL
SLICE
PLL
VCEC
DIGITAL OUT
DIGITAL
OUTPUT
PWB-A4
IC99
TOTX178A
OPTICAL
FIBER
DATA LINK
3
2
1
C98
0.022
C99
100/10
BI99
CNS99
CD-BA1700H ONLY
CNS402
P24 1-A
FROM MAIN PWB
P31 12-B
CNS701
FROM DISPLAY PWB
CD LOADING
MOTOR PWB-F
6
BI4
CNS4
D/A
2
3
Q2
KRC102 M
NC
NC
Q1
2SC3203 Y
CONSTANT
VOLTAGE
2
1
6
7
8
3
10
11
12
9
+B
+B
+B
+B
+B
+B
+B
INT
1
2
3
3
2
1
GND
+5V
13
IC99
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 34 –
Figure 34 WIRING SIDE OF P.W.BOARD (1/4)
A
B
C
D
E
F
G
H
1
23456
R142
C138
C150
R139
C134
R140
C144
C131
Q111
C136
C130
C135
C128
C129
C122
IC101
C139
C118
R116
R115
Q107
R114
Q105
CNP101
Q108
Q109
Q104
CNP102
R138
Q106
C148
R149
C140
Q114
L104
Q103
C108
Q102
C142
C141
Q101
R146
R145
R157
Q112
Q113
C813
FW871
D831
ZD802
R807
C812
R805
ZD801
C811
C808
C809
Q801
R806
D803
C805
R804
D807
D805
D806
D808
C810
D802
D804
C806
C802
C801
C841
C843
C842
R841
R832
C834
C833
R833
C851
C854
C852
C855
R851
D851
C853
IC852
Q402
R408
C119
CNP401
C117
C123
C440
C418
R143
C424
C422
C428
C427
BI402
C425
C423
C419
C421
R423
CNP303
C439
C411
C417
R409
C407
C409
C426
C388
IC401
ZD351
C404
C412
C408
C420
C410
C370
C405
C406
R410
C358
C403
C371
C906
C373
R934
R933
Q401
C374
C935
C372
C936
R904
C904
C905
R903
C901
C902
R902
IC901
R919
R901
C903
R918
C910
R920
C911
C909
C912
C908
R906
C907
R912
R911
Q902
Q901
Q904
R910
D902
R915
D901
D903
C917
C831
ZD803
C832
D801
R803
R802
R801
C803
R921
R913
RL951
R922
R953
R909
R954
Q951
R973
R907
C920
D971
R905
CNP971
C972
D951
R972
FW951
C971
R971
Q971
R975
C365
C364
T306
L354
C368
R357
R350
R358
C367
C362
R370
IC303
X351
CF302
C357
C352
C321
CF351
T351
CF352
C398
C393
R382
C326
Q360
C380
L351
R391
R392
C394
C391
IC302
R384
R387
C396
R386
X352
D304
D303
Q301
CF301
FE301
L342
CNP302
L341
D301
D302
T303
C331
D404
D403
C924
C926
C928
C922
R923
L920
C929
R924
L921
C925
C923
C921
C927
C933
C934
C931
C930
R926
R927
C932
R925
VD301
IC851
CNP802
R379
Q110
R117
C116
R424
L352
R908
R914
Q903
IC841
Q831
C807
C804
L101
L102
B
C
E
B
C
E
B C E
E C B
1 2 3
1 2
1
5
234
1
3
2
1
3
2
1
ECB
B
C
E
B
C
E
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
3
2
1
3 2 1
3 2 1
B C E
B C E
B C E
B C E
1
2
3
1
5
1 2 3 4 5 6 7
1
2
3
4
5
6
7
8
E
C
B
5
1
F801
T4A L 250V
F802
T4A L 250V
F803
T2A L 250V
1
5
RD
WH
BK
WH
BK
5
1
(281)
23
21
19
17
15
13
11
9
7
5
3
1
22
20
18
16
14
12
10
8
6
4
2
CD-BA1700H ONLY
2
1
E C B
AM LOOP
ANTENNA
1
2
3
1
1
11
10
5
5
12
20
22
1
2
3
1
2
3
15
15
20
1
2
3
4
5
6
7
8
MAIN PWB-A1
TO TAPE MECHANISM GND
3
2
1
(230)
10 12
13
15
20
24
10
12
13
15
20
24
TP302
TP301
R916
R917
C916
C914
C913
C915
R132
R136
R124
C132
R134
R135
C145
R122
R130
R128
R131
C126
R127
R126
C127
C137
R118
C120
R120
C113
C114
C115
C112
R105
R104
R109
C105
C107
R107
R106
C102
C106
R137
R108
C104
R110
R113
R112
R111
C103
R148
R147
R103
R102
R101
R144
R402
R404
C402
R119
C121
R121
R123
R125
C143
R129
R133
R418
C442
R417
R141
R415
C413
C414
R416
C356
R355
C355
R361
R363
R407
R425
R364
C401
R362
R401
R931
R932
C335
C332
C363
R323
R356
C342
R336
C361
C369
R365
C366
C399
R351
R352
C353
C354
R353
C351
R395
R383
R380
R381
R393
C385
R385
R377
C392
C387
C386
R360
C395
C381
R376
R359
C382
R388
R373
R372
R374
R378
C348
C302
R347
R349
R399
R346
C301
C397
C341
C345
R345
C346
R369
C347
C375
C323
C330
C340
C338
R422
C430
R420
R421
R419
C429
R344
R348
C133
R403
5
7
8
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
10
12
13
24
C334
SURROUND
SPEAKER
SO901
FRONT SPEAKER
TERMINALS
(FOR CD-BA160H)
SO401
VIDEO/
AUX
R-CH
L-CH
SO902
SPEAKER TERMINALS
(FOR CD-BA1700H)
R-CH
L-CH
R-CH
GND
L-CH
GND
R-CH
GND
L-CH
GND
R-CH
L-CH
SO301A
FM ANTENNA
TERMINAL
All manuals and user guides at all-guides.com
background
– 35 –
CD-BA160H/1700H

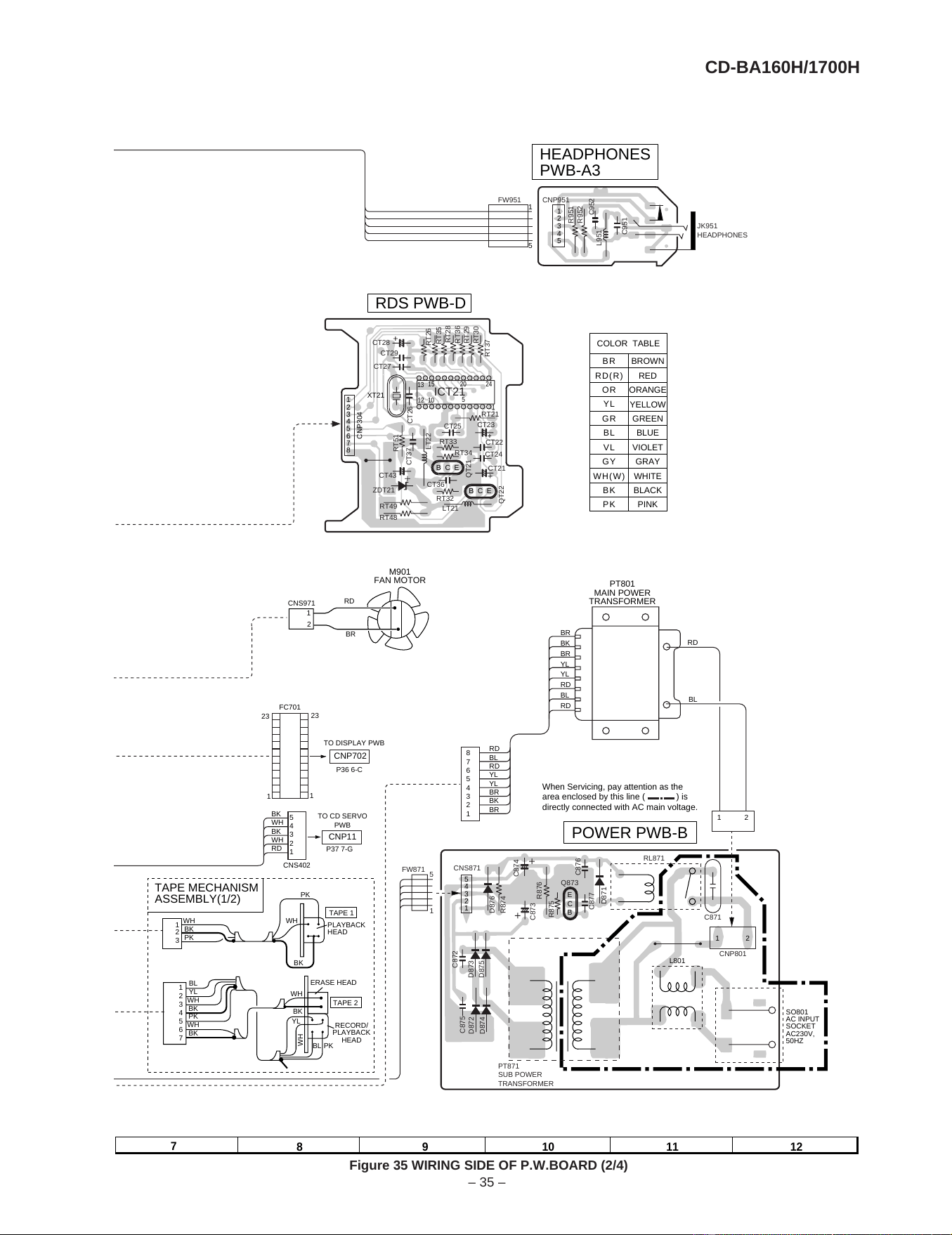

Figure 35 WIRING SIDE OF P.W.BOARD (2/4)
7
8 9 10 11 12
L951
JK951
HEADPHONES
R952
R951
C951
C952
CNP951
FW951
1
2
3
4
5
1
5
HEADPHONES
PWB-A3
RDS PWB-D
POWER PWB-B
PT871
SUB POWER
TRANSFORMER
D872
D874
C875
C872
D873
D875
C873
R875
Q873
C877
CNS871
R876
D876
R874
D871
C874
C876
RL871
C871
CNP801
RT37
RT21
CT23
CT22
CT24
CT21
QT22
RT48
LT21
RT49
RT32
ZDT21
CT36
CT43
QT21
RT34
LT22
RT33
CT37
RT51
CT25
ICT21
CT26
CT27
CT29
RT26
RT30
RT29
RT28
RT35
RT36
CT28
1
2
3
4
5
6
7
8
13
15 2420
12 10
5
1
CNP304
XT21
B C E
B C E
E
C
B
5
4
3
2
1
SO801
AC INPUT
SOCKET
AC230V,
50HZ
1
1
2
2
L801
8
7
6
5
4
3
2
1
RD
BL
RD
YL
YL
BR
BK
BR
When Servicing, pay attention as the
area enclosed by this line ( ) is
directly connected with AC main voltage.
RD
BL
BR
BK
BR
YL
YL
RD
BL
RD
PT801
MAIN POWER
TRANSFORMER
TO CD SERVO
PWB
CNP11
TO DISPLAY PWB
CNP702
23
23
1
1
FW871
1
5
FC701
CNS402
P37 7-G
P36 6-C
TAPE MECHANISM
ASSEMBLY(1/2)
RD
CNS971
BR
1
2
M901
FAN MOTOR
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
5
4
3
2
1
BK
WH
BK
WH
RD
TAPE 1
PLAYBACK
HEAD
TAPE 2
ERASE HEAD
RECORD/
PLAYBACK
HEAD
1
2
3
WH
BK
PK
BL
YL
WH
BK
PK
WH
BK
PK
PK
BL
YL
WH
WH
WH
BK
BK
1
2
3
4
5
6
7
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 36 –
Figure 36 WIRING SIDE OF P.W.BOARD (3/4)
A
B
C
D
E
F
G
H
1
23456
BI701
RD
BK
WH
BK
WH
BK
WH
BK
WH
BK
WH
BK
C621
SW601
ON/STAND-BY
R696
R700
SW602
CLOCK
D617
R723
D620
D616
D621
IC704
R716
C629
C628
D618
C630
C626
Q609
R697
R724
R722
SW626
TUNING
UP
R721
R699
SW618
TUNING
DOWN
CNP702
R706
R703
R656
SW619
MEMORY/
SET
R725
R708
R705
R654
R702
L601
C625
R673
R670
R661
R632
R629
R633
R635
R634
C616
D610
R686
R687
R685
R681
FL701
C624
R675
R672
R674
51
50
45
40
35
R667
R689
R713
R664
R715
R665
R710
R663
R668
R676
R709
R712
C634
CNP703
D613
R719
SW625
RECORD
PAUSE
R694
R693
C613
R692
R691
R678
R690
R688
C612
XL701
R680
R679
R682
R683
R684
R616
R606
R601
RX701
C609
C632
SW611
DIMMER
Q602
Q601
Q603
SW614
VOLUME
UP
C614
D604
DZ601
C611
R612
IC703
R619
D601
C601
IC702
R623
R624
D602
R617
R614
SW615
VOLUME
DOWN
D603
R701
D615
C618
Q608
R650
R695
R698
SW613
EQUALIZER
Q606
Q604
C620
D611
D614
Q605
Q607
C617
LED722
R669
SW603
TIMER/
SLEEP
SW612
X/BASS
SW609
DISC
SKIP
SW610
OPEN/
CLOSE
SW622
PLAY/REPEAT
SW623
STOP
SW621
FAST
FORWARD
SW608
STATION
SW607
DISPLAY
MODE
SW606
ASPM
SW605
EON
SW604
PTY TI
SERCH
SW620
REVIEW
SW628
TUNER
(BAND)
SW627
VIDEO/
AUX
SW617
TAPE
SW616
CD
1
1 2 3
3 2 1
1234
56
7
8
1
1
2
2
3
3
4
56
7
8
E C B
E C B
E C B
B C E
2
3
1
7
8
9
6
12
13
14
15
11
10
16
23
24
25
27
28
29
47
48
49
26
32
33
34
35
31
30
37
38
39
36
42
43
44
41
40
23
21
19
17
15
13
11
9
7
5
3
1
22
20
18
16
14
12
10
8
6
4
2
23 23
1
1
RD
BK
WH
BK
WH
BK
WH
BK
WH
BK
1
2
3
4
5
6
7
8
9
10
CNS701
FC701
FC702
TO MAIN PWB
CNP401
13
12
11
10
9
8
7
6
5
4
3
2
1
1
1
DISPLAY
PWB-A2
10
P35 9-F
13
13
R711
R704
R666
R659
R653
R646
R647
R648
R640
R643
R644
R642
R645
R602
IC701
R671
R718
R714
R626
R625
C623
C622
R611
R622
C631
R621
R627
C603
R620
R609
C608
R605
R615
C610
R610
C607
R613
R603
R607
R608
C606
R618
R707
R658
R655
R660
R649
R638
R652
R637
R651
R662
R717
R720
C604
R636
E C B
E C B
E C B
E C B
31
30
25
20
15
10
5
95
90
85
80
81
75
70
65
60
55
1
100
C605
C602
R604
All manuals and user guides at all-guides.com
all-guides.com
background
– 37 –
CD-BA160H/1700H
Figure 37 WIRING SIDE OF P.W.BOARD (4/4)
7
8 9 10 11 12
• The numbers 1 to 13 are waveform numbers shown in page 39.
CNS402
FROM MAIN
PWB
-
M1
SPINDLE
MOTOR
1
7
1
8
CNS1B
CNS1A
CNS2B
CNS2A
CNS3B
CNS3A
RD
WH
GY
WH
GY
WH
GY
WH
RD
WH
GY
WH
GY
WH
12345
67
PICKUP UNIT(306)
CD SERVO PWB-C
CD LOADING
MOTOR
PWB-F
CD MOTOR PWB-E
DIGITAL
OUTPUT
PWB-A4
SW4
PICKUP IN
M2
SLED
MOTOR
+
-
+
1
2
3
4
5
6
CNP3A
RD
WH
BL
WH
BL
WH
BL
1
6
BI4
M3
LOADING
MOTOR
–
+
SW3
DISC
NUMBER
SW2
CLAMP
SW1
OPEN/
CLOSE
TAPE MOTOR
1
1
2
3
4
4
5
6
7
8
9
10
11
12
13
TAPE
MECHANISM
PWB-G
TAPE MECHANISM
ASSEMBLY(2/2)
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
R84
C40
R20
R83
R82
C43
R81
IC2
R94
R95
R45
R46
C82
R22
C29
IC3
C46
R48
R50
R52
C55
R53
C53
R51
C8
R54
IC1
R4
C44
R3
C14
R7
C13
R5
R6
R8
C17
C18
C20
C83
C27
C42
C26
R10
C12
C22
R15
R14
C21
C81
R11
C25
R13
R79
C23
R12
C73
C74
C80
C75
C76
C77
C72
C30
R21
R40
C78
C71
1
1
30
C35
XL1
CD-BA1700H
ONLY
C36
C34
C38
C39
C56
R87
C31
CNP4
R38
C41
R16
R17
R39
R35
R44
C28
D22
D21
Q2
CNP3
C47
R56
C50
R55
C49
C52
Q3
C7
C54
R47
C51
C6
R25
C45
C11
CNP11
R58
R80
C64
ZD61
Q1
L62
R19
CNP12
R71
C24
R78
R73
R74
R75
L61
R76
CNP5
R77
R72
CNP2
CNP1
C98
C99
32
1
1
3
B C E
E C B
5
10
15 16
20
25
IC99
OPTICAL
FIBER
DATA LINK
3
2
4
5
1
6
13
78
10
9
11
12
1
2
3
4
5
6
RD
WH
BK
WH
BK
WH
CNS4
BI99
CNS99
10
5
15
20
24
25
30
35
40
41
45
50
55
60
64
65
70
75
80
1
3
2
1
5
10
15
20
21
22
25
3035
40
42
P35 9-F
12345
67
12345
6
7
12345
67
8
8
1
2
3
4
5
6
1
2
3
456
1
2
3
WH
PK
BK
WH
PK
BK
CD-BA1700H
ONLY
1
2
3
4
5
67
8
1
2
3
4
5
67
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
1
2
3
4
5
6
1
2
3
4
5
10
9
8
7
B
A
+
-
IC99
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 38 –
VOLTAGE
0V(0V)
PIN
NO.
VOLTAGE
7
8
FE301
1
2
3
4
5
6
0V(0V)
0V(0V)
2.6V(0V)
2V(1.1V)
0V(0V)
0V(0V)
8.5V(0V)
2.6V
6
5
4
3
2
1
ICT21
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
VOLTAGE
NO.
PIN
2.59V
5.2V
0V
2.72V
2.55V
0V
0V
0V
0V
0V
2.66V
2.56V
5.21V
0V
0V
0V
1.4V
1.7V
4.6V
4.3V
0V
0V
0V
10V
5V19
20
21
22
23
24
5V
5V
5V
0V
0V
0V
0V
-11.0
0V
0V
0V
6
5
4
3
2
1
IC703
8
7
VOLTAGE
NO.
PIN
5.58V
5.58V
PIN
NO.
VOLTAGE
7
8
IC702
1
2
3
4
5
6
0V
0V
0V
-11.0
0V
0V
0V
5.76V
0V
19.4V
VOLTAGE
3
2
1
IC852
NO.
PIN
-25.7V
-25.7V
-25.7V
-25.7V
-25.7V
-25.7V
-25.7V
-25.7V
PIN
NO.
0V
IC704
1
2
3
VOLTAGE
5.0V
5.0V
10.0V
10.0V
VOLTAGE
3
2
1
Q831
19.41V
NO.
PIN
10V
19.41V
VOLTAGE
3
2
1
IC841
0V
NO.
PIN
PIN
NO.
IC851
1
2
3
VOLTAGE
19.4V
0V
5V
4.29V
-27.7V
-24.4V
-27.7V
-25.9V
-22.1V
-27.7V
-27.7V
-27.7V
0V
-27.7V
-27.8V
0V
4.29V
4.29V
4.29V
4.29V
4.29V
80
79
78
56
55
54
53
52
51
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
VOLTAGE
NO.
PIN
0V
-27.8V
0V
88
89
90
91
92
93
94
95
96
97
-20.4V
-24.1V
-25.9V
-27.7V
-27.7V
-22.2V
-22.2V
-22.3V
-27.8V
81
82
83
84
85
86
87
98
99
100
-27.7V
-27.7V
-20.3V
-24.0V
-20.3V
2.38
2.58V
-25.8V
-25.8V
-25.7V
-25.7V
-25.7V
5V
0V
4.44V
0V
0V
0V
0V
1.4V
0V
2.06V
0V
4.84V
5V
5V
0V
5V
0V
5V
30
29
28
6
5
4
3
2
1
IC701
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
VOLTAGE
NO.
PIN
1.2V
0.87V
2.38V
38
39
40
41
42
43
44
45
46
47
2.3V
0V
0V
4.89V
4.8V
0.3V
0V
0V
0V
31
32
33
34
35
36
37
48
49
50
5.1V
5.1V
5.1V
4.9V
5.0V
4.9V
4.9V
0V
5V
0V
1.7V
8.0V
7.9V
8.0V
3.8V
4.89V
4.89V
4.89V
4.29V
4.29V
5V
5V
5V
5V
5V
5V
5V
5V
5V
5V
0V
0V
0V
6
5
4
3
2
1
IC401
18
17
16
15
14
13
12
11
10
9
8
7
VOLTAGE
NO.
PIN
5V
5V
5V
5V
5V
-32.9V
0V
0V
-34.0V
0V
0V
0V
0V
34.4V
0V
0V
0V
6
5
4
3
2
1
IC901
15
14
13
12
11
10
9
8
7
VOLTAGE
NO.
PIN
35.4V
-35.4V
0V
4.5V(4.8V)
2.1V(2.1V)
6
5
4
3
2
1
IC303
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
VOLTAGE
NO.
PIN
3.9V(0V)
3.3V(1.8V)
3.3V(1.1V)
3.5V(2.0V)
1.2V(1.2V)
1.2V(1.2V)
2.0V(2.0V)
2.7V(0V)
2.1V(0.9V)
0V(1.9V)
0.3V(0.9V)
2.1V(2.1V)
2.1V(2.1V)
0V(0V)
4.6V(4.9V)
4.6V(4.9V)
2.4V(3.2V)
4.5V(4.8V)
2.6V(2.0V)
2.6V(2.0V)
4.5V(4.8V)
3.0V(3.3V)
0V(0V)
2.4V(2.4V)
6
5
4
3
2
1
IC302
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
VOLTAGE
NO.
PIN
3.4V(0V)
4.6V(4.9V)
2.2V(0V)
4.6V(4.9V)
0V(0V)
0V(2.4V)
2.3V(0V)
4.6V(4.9V)
0.8V(4.9V)
0.8V(4.9V)
1.1V(0V)
0V(0V)
0V(0V)
4.6V(4.7V)
4.8V(4.9V)
0.1V(9.9V)
4.2V(0V)
3.3V(0V)
0V(0V)
2.5V(3.0V)
1.5V(0V)
0.8V(0V)
6
5
4
3
2
1
IC301
9
8
7
VOLTAGE
NO.
PIN
3.6V(0.4V)
1.5V(0V)
0V(0V)
3.6V(0.4V)
2.8V(0.2V)
3.5V(0.3V)
3.6V(0.3V)
0V(0V)
0V(0V)
0.5V(0.5V)
1.9V(1.9V)
0V(0V)
0V(0V)
0V(0V)
0.6V(0.6V)
3.3V(3.3V)
0V(0V)
4.0V(4.0V)
6.7V(6.7V)
0V(0V)
0V(0V)
3.3V(3.3V)
3.3V(3.3V)
0.6V(0.6V)
0V(0V)
0V(0V)
0V(0V)
1.9V(1.9V)
0.5V(0.5V)
0V(0V)
PIN
NO.
VOLTAGE
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
IC101
1
2
3
4
5
6
0V(0V)
0V
0V
0V
0V
0V
0V
0V
0V
0V
2.1V
4.9V
0V
0V
1.6V
4.9V
2.1V
0V
0V
2.1V
2.1V
2.1V
1.8V
1.6V
1.6V
30
29
28
6
5
4
3
2
1
IC3
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
VOLTAGE
NO.
PIN
0V
38
39
40
41
42
3.5V
4.9V
1.6V
2.1V
1.6V
2.1V
2.1V
1.9V
0V
31
32
33
34
35
36
37
0V
4.2V
0V
2.1V
2.1V
4.9V
2.1V
2.1V
0V
0V
3.4V
3.2V
0V
0V
4.9V
0V
4.6V
4.9V
4.9V
4.8V
0V
0V
0V
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
2.4V
0V
0V
1.6V
3.0V
0V
3.3V
1.7V
0V
0V
0V
0V
3.0V
1.8V
3.3V
3.0V
1.5V
0V
0V
1.5V
3.0V
3.3V
3.3V
0V
0V
1.6V
1.6V
3.3V
3.3V
3.3V
3.5V
3.3V
0V
2.1V
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
0V
0V
1.6V
1.6V
1.6V
1.6V
0V
1.6V
1.6V
4.7V
1.6V
0V
3.3V
PIN
NO.
VOLTAGE
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
IC2
1
2
3
4
5
6
28
29
30
0.7V
0V
0V
0V
2.4V
0V
0V
1.6V
1.7V
0V
1.6V
3.3V
1.6V
1.6V
1.6V
1.6V
2.1V3.3V
1.6V
1.6V
0V
0V
0V
1.6V
0V
1.6V
1.6V
1.6V
1.6V
1.6V
0V
0V
1.6V
1.6V
1.6V
3.3V
0V
0V
0V
2.6V
0V
1.6V
1.6V
1.6V
1.6V
1.6V
1.6V
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
VOLTAGE
NO.
PIN
IC1
All manuals and user guides at all-guides.com
background
– 39 –
CD-BA160H/1700H
WAVEFORMS OF CD CIRCUIT
T
FDO
TDO
Stopped
CH1=500mV
DC 10:1
CH3=500mV
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.000V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500mV
1
IC2 24
2
IC2 23
FD
TDO
T
FDO
DRF
TE
Stopped
CH1=500mV
DC 10:1
CH2=10V
DC 10:1
CH3=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
-3div -1div 0div +1div +3div
CH Position To
CH2
Position
0.20div
1
IC2 24
3
IC2 72
4
FD
DEF
IC1 18
TE
IC2 19
TE-
Vp-p=1.0V~1.3V
0.5mV/div,0.5µsec/div
5
IC1 27
RF
T
T
TE
DRF
Stopped
CH1=10V
DC 10:1
CH2=1V
DC 10:1
100ms/div
(100ms/div)
NORM:100kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.0V
CH2 : 0.00V
Main : 100K
Zoom : 2K
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
3
IC2 72
4
DEF
IC1 18
TE
IC2 19
TE-
T
T
FDO
SPDO
Stopped
CH1=200mV
DC 10:1
CH2=500mV
DC 10:1
500ms/div
1999/04/07 09:51:15
(500ms/div)
NORM:20kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V
Main : 100K
Zoom : 2K
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
1
IC2 24
6
IC2 25
FD
SPDO
T
FDO
PDO2
PDO1
Stopped
CH1=500mV
DC 10:1
CH3=1V
DC 10:1
CH4=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
4
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH2
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500mV
1999/04/05 17:33:17
1
IC2 24
7
IC2 1
8
IC2 2
PDO1
PDO2
FD
T
T
DOUT
Stopped
CH1=2V
DC 10:1
500ns/div
1999/04/07 09:25:28
(500ns/div)
NORM:200MS/s
1
=Record Length=
Smoothing : ON CH1 : 0.00V
CH2 : 0.00V
Main : 1K
Zoom : 100
Mode : NORMAL
Type : EDGE CH1
Delay : 2.887ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
9
IC2 37
DOUT
T
T
DATA
DATACK
LRSY
Stopped
CH1=2V
DC 10:1
CH2=2V
DC 10:1
CH3=2V
DC 10:1
5us/div
(5us/div)
NORM:100kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.00V
CH2 : 0.00V
Main : 5K
Zoom : 100
Mode : AUTO
Type : EDGE CH3
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH3
v/DIV
2 V
1999/04/05 20:50:17
10
IC2 57
IC2 58
IC2 59
11
12
LRSY
DATACK
DATA
T
T
EFBL
FDO
TE
Stopped
CH1=500mV
DC 10:1
CH2=200mV
DC 10:1
CH3=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V
Main : 100K
Zoom : 2k
Mode : SINGLE
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH2
v/DIV
200mV
1999/04/05 20:26:47
1
IC2 24
4
13
FD
IC1 18
TE
IC2 19
TE-
IC1 13
EFBL
IC2 22
TBLO
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 40 –
Parts code
1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ
TROUBLE SHOOTING
When the CD does not function
When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean
the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check
the following items.
Remove the cabinet and follow the trouble shooting instructions.
"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup
lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."
Turn the power off.
Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.
Do not touch the lens with the bare hand.
HOW TO USE
CAUTION
Cleaner Fluid
Cleaner disc
Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the
brush on the CD cleaner disc which has the mark next to it.
Place the CD cleaner disc onto the CD disc tray with the brush side down,then
press the play button.
You will hear music for about 20 seconds and the CD player will automatically stop.
If it continuous to tum, press the stop button.
1.
2.
3.
The CD lens cleaner should be effective for 30-50 operations, however if the
brushes become worn out earlier then please the cleaner disc.
If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft
cloth.
Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the
event of this happening then drink and / or rines with clean water and seek medical
advice.
The CD cleaner disk must not be used on car CD players or on computer CD ROM
drives.
All rights reserved.Unauthorized duplicating, broadcasting and renting this product is
(1) Check the power to IC2 (LC78641E), the presence of the clock signal (16.93 MHz) and the status of the RESET terminal
(pin 71 on IC2).
(2) Did the pickup move to the PICKUP-IN Switch (SW4) position?
If (1) and (2) are OK, check the system microcomputer (especially the communication line with the DSP).
2. Pressing the CD operation key is accepted, butplayback does not occur.
(1) Focus-HF system check
(2) Tracking system check
(3) Spin system check
(4) PLL system check
(5) Others
1. "E-CD01" is displayed.
When a CD cannot be played
All manuals and user guides at all-guides.com
background
– 41 –
CD-BA160H/1700H
If the level is not normal, check around pins 27~29 on IC1.
1. Is focus servo activated? (Waveform drawing 41-2)
Pins 1~11 on IC1
Check the laser diode driver Q3 peripheral circuit.
Focus error circuit (pins 20 and 21 on IC1)
When a disc is loaded, start playback operation.
2. Does DRF change from "L" to "H"?
Is the disc rotating?
3. Is the HF waveform normal? (Waveform drawing 41-3)
Check the spin system.
If the disc is spinning and a HF waveform is generated,
DRF will go H.
Figure 41-1
Check the laser diode driver Q3 peripheral circuit.
(1) Focus-HF system check
Although a CD is inserted and the cover is closed, "NO
DISC" is displayed.
1. Did the pickup move to the PICKUP-IN Switch (SW4)
position?
Sled motor (M2)
Press the OPEN/CLOSE switch (SW1) without inserting a
disc, and try starting the playback operation.
2. Does the focus (lens) move up and down?
(Waveform drawing 41-1).
Check the focus peripheral circuit.
3. Is the laser lit?
Spindle motor (M1).
4. Is the turntable rotating?
Figure 41-2 Figure 41-3
Yes
Yes
Yes
No
No
No
No
No
No
No
Yes
Yes
No
T
FDO
TDO
Stopped
CH1=500mV
DC 10:1
CH3=500mV
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.000V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500mV
T
FDO
DRF
TE
Stopped
CH1=500mV
DC 10:1
CH2=10V
DC 10:1
CH3=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
-3div -1div 0div +1div +3div
CH Position To
CH2
Position
0.20div
Vp-p=1.0V~1.3V
0.5mV/div,0.5µsec/div
All manuals and user guides at all-guides.com
all-guides.com
background
CD-BA160H/1700H
– 42 –
The tracking servo is not activated.
Check the peripheral circuits at pins 18 and 19 on IC1, pin 23 on
IC2, and CNS1A/B.
If the waveform shown in Figure 42-1 appears and soon after
NO DISC appears.
(2) Tracking system check
Check the TE waveform at pin 18 on IC1.
A normal jump operation cannot be completed or the beginning of
the track cannot be found.
Check the around pin 23 on IC2.
"Initialization" is possible, but play is not possible.
Data cannot be read. Check the VCO-PLL system.
"Initialization" is not possible.
Figure 42-1
Figure 42-2
Press the OPEN/CLOSE switch without inserting a disc, and
then try starting the play operation.
(3) Spin system check
The spin driver circuit is OK.
1. The turntable rotates a little. (Waveform drawing 42-2)
Check around pin 25 on IC2, pins 15 and 16 on IC3, and CNS3A/B.
2. The turntable doesn't rotate.
T
T
TE
DRF
Stopped
CH1=10V
DC 10:1
CH2=1V
DC 10:1
100ms/div
(100ms/div)
NORM:100kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.0V
CH2 : 0.00V
Main : 100K
Zoom : 2K
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
T
T
FDO
SPDO
Stopped
CH1=200mV
DC 10:1
CH2=500mV
DC 10:1
500ms/div
1999/04/07 09:51:15
(500ms/div)
NORM:20kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V
Main : 100K
Zoom : 2K
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
Yes
No
Yes
No
Yes
No
All manuals and user guides at all-guides.com
background

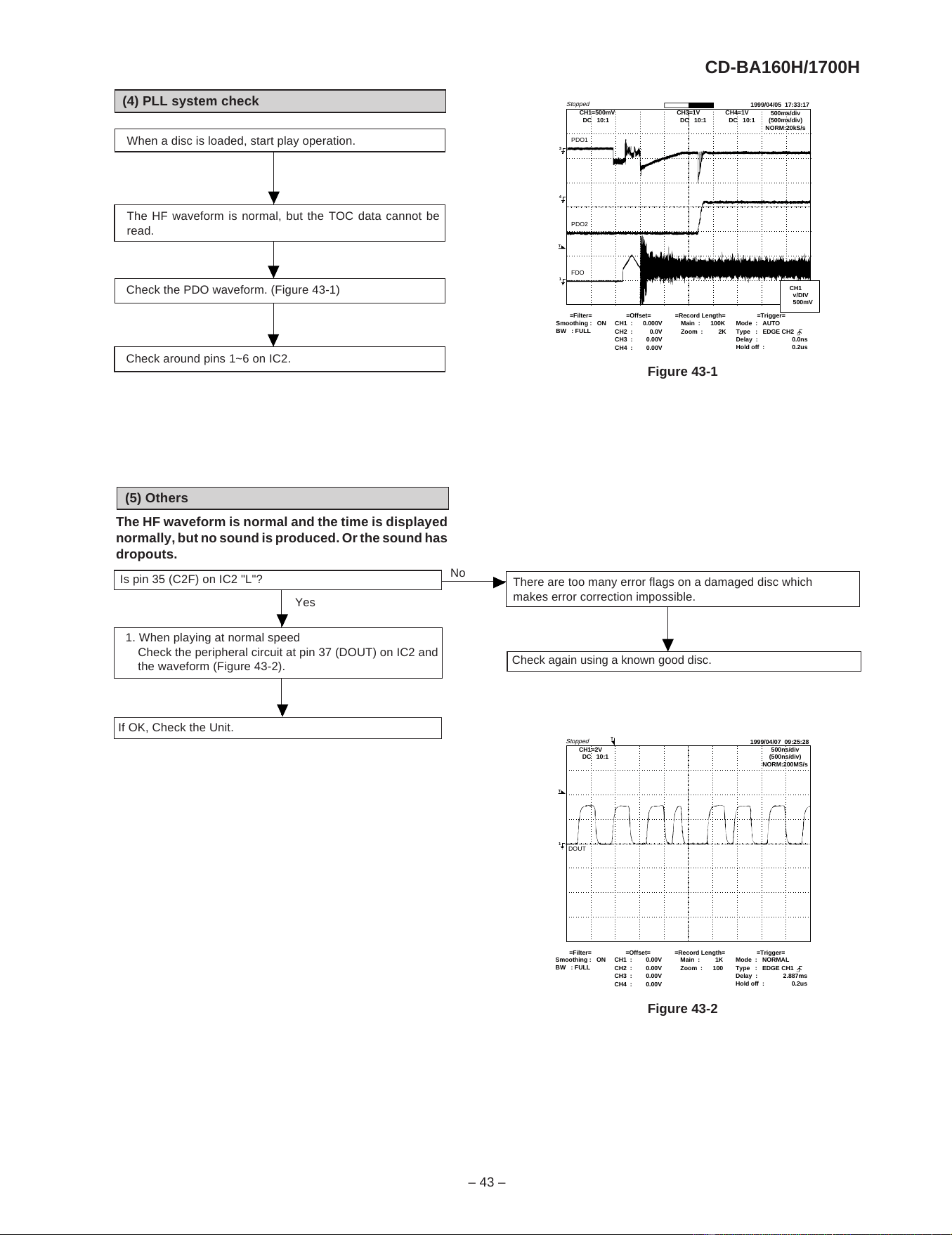

– 43 –
CD-BA160H/1700H
Is pin 35 (C2F) on IC2 "L"?
Yes
No
The HF waveform is normal and the time is displayed
normally, but no sound is produced. Or the sound has
dropouts.
(5) Others
There are too many error flags on a damaged disc which
makes error correction impossible.
Check again using a known good disc.
1. When playing at normal speed
Check the peripheral circuit at pin 37 (DOUT) on IC2 and
the waveform (Figure 43-2).
If OK, Check the Unit.
When a disc is loaded, start play operation.
(4) PLL system check
The HF waveform is normal, but the TOC data cannot be
read.
Check the PDO waveform. (Figure 43-1)
Check around pins 1~6 on IC2.
Figure 43-1
Figure 43-2
T
FDO
PDO2
PDO1
Stopped
CH1=500mV
DC 10:1
CH3=1V
DC 10:1
CH4=1V
DC 10:1
500ms/div
(500ms/div)
NORM:20kS/s
1
4
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V
Main : 100K
Zoom : 2K
Mode : AUTO
Type : EDGE CH2
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500mV
1999/04/05 17:33:17
T
T
DOUT
Stopped
CH1=2V
DC 10:1
500ns/div
1999/04/07 09:25:28
(500ns/div)
NORM:200MS/s
1
=Record Length=
Smoothing : ON CH1 : 0.00V
CH2 : 0.00V
Main : 1K
Zoom : 100
Mode : NORMAL
Type : EDGE CH1
Delay : 2.887ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 44 –
FUNCTION TABLE OF IC
Figure 44 BLOCK DIAGRAM OF IC
IC1 VHiLA9235M/-1: Servo Amp. (LA9235M)
IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E)
REF
LA9235M
REF
REF
REF
REF
REF
REF
REF
REF
AGCON
ODRV
AGCON
ODRV
REF
REF
LPF
LPF
APC
ODRV
REF
REF
REF
REF
LPF
PH/BH
PH
BH
1 30FIN1 VCC
2
29
FIN2
RFSW(NC)
3TIN1
4
27
TIN4
RF
26 N/C
25 PH
24 BH
23 GND
5REF1
15
16
TES1
14TESTO(NC)
13EFBL
12AGON
11ODRV
10LDON
9GND
8LDD
7PD
6VREF
TEST(NC)
17 HFL
18 TE
19 TE-
20 FE
21 FE-
22 RFEV
28 RF-
1
PDO1
2
PDO2
3
VVSS
4
PCKIST
5
VVDD
6
FR
7
HFL
8
SLCIST
9
SLCO
10
EFMIN
11
(NC)JITTV
12
JITTC
13
BH
14
PH(RFENV)
15
FE
16
TE
25
SPDO
26
SLDO
27
FG(D_Vref)
28
LASER
29
CONT1
30
CONT2
CONT3
CONT4
CONT5
31
32
33
34
(NC)PCK
35
(NC)C2F
36
VDD
37
DOUT
38
(NC)FSX
39
(NC)EFLG
40
TEST
EFMO(NC)
DEFECT(NC)
FSEQ(NC)
V/P(NC)
CONT7
CONT6
VSS
VDD5V
DEF
RES
WRQ
INT
DO
DI
CL
CE
17
VREF
18
ADAVDD
19
ADAVSS
20
(NC)PHREF
21
(NC)BHREF
22
TBLO
23
TDO
24
FDO
SBCK
PW(NC)
SBSY(NC)
SFSY(NC)
16M(NC)
DATA(NC)
DATACK(NC)
LRSY(NC)
ASDACK
ASLRCK
ASDFIN
XVSS
XOUT
XIN
XVDD
RVDD
RCHO
RVSS
LVSS
LCHO
LVDD
MUTER(NC)
MUTEL(NC)
EMPH(NC)
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
61
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
LC78641E
(NC)
All manuals and user guides at all-guides.com
background
– 45 –
CD-BA160H/1700H
IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E) (1/2)
1 PDO1 Output – For PULL Phase-comparison output terminal for built-in VOC control.
2 PDO2 Output – Phase-comparison output terminal for built-in VOC control.
Rough servo : OFF, phase servo : ON.
3 VVSS – – Ground terminal for built-in VCO.
4 PCKIST AI – Resistor terminal for setting the PDO output current.
5 VVDD – – Power terminal for built-in VCO.
6 FR AI – Resistor terminal for setting the VCO frequency range.
7 HFL Input – Mirror detection signal input terminal.
8 SLCIST AI – For slice level control
Resistance connection terminal for current adjustment of
SLCO output.
9 SLCO Output – Control output.
10 EFMIN Input – EFM signal input terminal.
11* JITTV Output Unfixed Jitter detection/monitor terminal.
12 JITTC Output – Jitter detection/adjustment terminal.
13 BH Input – BH signal input terminal. A/D input.
14 PH(RFENV) Input – PH signal or RFENV signal input terminal. A/D input.
15 FE Input – FE signal input terminal. A/D input.
16 TE Input – TE signal input terminal. A/D input.
17 VREF Input – VREF signal input terminal. A/D input.
18 ADAVDD – – AD for servo, D/A power terminal.
19 ADAVSS – – AD for servo, D/A ground terminal.
20* PHREF Output (1/2VDD) PH reference output terminal. D/A output.
21* BHREF Output (1/2VDD) BH reference output terminal. D/A output.
22 TBLO Output (1/2VDD) Output terminal for tracking balance. D/A output.
23 TDO Output (1/2VDD) Output terminal for tracking control. D/A output.
24 FDO Output (1/2VDD) Output terminal for focus control. D/A output.
25 SPDO Output (1/2VDD) Output terminal for spindle control. D/A output.
26 SLDO Output (1/2VDD) Output terminal for sled control. D/A output.
27* FG Input – FG signal input terminal. (When not used,connect to 0V)
28 LASER Output L LASER ON/OFF control terminal.
29 CONT1 In/Output Input mode General purpose input/output terminal 1.
Controlled with serial data command
30 CONT2 In/Output Input mode General purpose input/output terminal 2.
from microcomputer
.
When not used,
31 CONT3 In/Output Input mode General purpose input/output terminal 3.
set it as the input terminal
and
32 CONT4 In/Output Input mode General purpose input/output terminal 4.
open it by connecting
to 0V, or set it
33 CONT5 In/Output Input mode General purpose input/output terminal 5.
as the output terminal and open it.
34* PCK Output H Clock monitor terminal for EFM data replay. 4.3218MHz as phase clock.
35* C2F Output H C2 flag output terminal.
36 VDD – – Power terminal of digital system.
37 DOUT Output L Output terminal of digital OUT. (EIAJ format)
38* FSX Output L
Output terminal of synchronous signal of 7.35kHz divided from quartz oscillation.
39* EFLG Output L C1,C2 correct monitor terminal.
40 TEST Input – Input terminal for test. Surely connected to 0V.
41* EMPH In/Output Input mode
Emphasis terminal. After resetting, it is configured as an input terminal. It can be controlled
from the outside. It is also becomes a emphasis monitor terminal under command control.
42* MUTEL Output H Mute output terminal for L channel.
43* MUTER Output H Mute output terminal for R channel.
Pin No.
Function
Terminal Name
Input/Output
Setting in Reset
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 46 –
IC2 VHiLC78641E-1: Servo/Signal Control (LC78641E) (2/2)
44 LVDD – – L channel Power terminal for L channel.
45 LCHO Output 1/2VDD D/A converter L channel output terminal.
46 LVSS – – Ground terminal for L channel. Surely connected to 0V.
47 RVSS – – R channel Ground terminal for R channel. Surely connected to 0V.
48 RCHO OUTPUT 1/2VDD D/A converter R channel output terminal.
49 RVDD – – Power terminal for R channel.
50 XVDD – – For quartz Power terminal for quartz oscillation.
51 XIN Input Oscillation oscillation Ground terminal of 16.9344MHz quartz oscillation.
52 XOUT Output Oscillation
53 XVSS – – Ground terminal for quartz oscillation. Surely connected to 0V.
54 ASLRCK Input – For anti L/R clock input terminal. (When not used,connect to 0V)
55 ASDACK Input – shock mode Bit clock input terminal. (When not used,connect to 0V)
56 ASDFIN Input – L/R channel data input terminal. (When not used,connect to 0V)
57* LRSY Output L For digital L/R clock output terminal.
58* DATACK Output L data output Bit clock output terminal.
59* DATA Output L L/R channel data output terminal.
60* 16M Output Clock output 16.9344MHz output terminal.
61* SFSY Output L Output terminal of synchronous signal of subcode frame.
It drops when subcode stand by.
62* SBSY Output L Output terminal of synchronous signal of subcode block.
63* PW Output L Output terminal of subcodes P,A,R,S,T,U and W.
64 SBCK Input – Clock input terminal to read subcode. (When not used,connect to 0V)
65 CE Input – For Chip enable signal input terminal.
66 CL Input –
microcomputer
Data transmission clock input terminal.
67 DI Input – interface Data input terminal.
68 DO Output L Data output terminal.
69 INT Output H Interruption signal output terminal.
70 WRQ Output H Interruption signal output terminal.
71 RES Input – Reset input terminal of LC78640. When turning on power, set it at "L".
72 DEF Output L Focus ON detection terminal.
73 VDD5V – – Power terminal for microcomputer interface.
74 VSS – – Ground terminal of digital system. Surely connected to 0V.
75 CONT6 In/Output Input mode General purpose input/output terminal 6.
Controlled with serial data command
from microcomputer
.
When not used,
76 CONT7 In/Output Input mode General purpose input/output terminal 7.
set it as the input terminal
and
open it by connecting
to 0V, or set it
as the output terminal and open it.
77* V/ P Output H Monitor output terminal for automatic switch of rough servo/phase control.
"H" for rough servo, and "L" for phase servo.
78* FSEQ Output L
Output terminal synchronous signal detection. "H" is output when synchronous
signal
detected by EFM signal matches synchronous signal
internally generated.
79* DEFECT In/Output Input mode
Defect terminal. After resetting, it is configured as an input terminal. It can be controlled
from the outside. It also becomes a defect monitor terminal under command control
80* EFMO Output Unfixed
EFM signal output terminal.
Pin No.
Function
Terminal Name
Input/Output
Setting in Reset
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Be sure to supply the same potential to each power terminal. (VVDD,ADAVDD,VDD,LVDD,RVDD,XVDD)
Terminal witch is controlled by the power terminal (VDD5V) for a microcomputer interface :
CE (65pin), CL (66pin), DI (67pin), DO (68pin), INT (69pin), WRQ (70pin), RES (71pin), DEF (72pin),
CONT6 (75pin), CONT7 (76pin)
All manuals and user guides at all-guides.com
all-guides.com
background
– 47 –
CD-BA160H/1700H
IC701 RH-iX0329AWZZ: System Microcomputer (IX0329AW) (1/2)
Port Name Terminal NamePin No. Input/Output
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Function
1 VDD VDD — (+) Power supply
2 P37 NO USE — GND
3* P36 S-BUSY Output Commijntcate to MPEG µ–COM
4 P35 T–BIAS Output Tape record BIAS
5 P34 T–T1/T2 Output Tape T1/T2 change
6 P33 REC/PLAY Output Tape REC/PLAY change
7 P32 RES OUT Output CD DSP reset & MPEG µ-COM reset
8 P31 DRF Input CD RF level detection
9 P30 WRQ Input CD DSP write requset
10 RESET RESET Input Reset
11 X2 X2 Output Main clock
12 X1 X1 Input Main clock
13 Vpp/IC VPP/IC — GND
14* XT2 XT2 — Open
15 P04 CD INT Input CD DSP interrupt
16 VDD VDD — (+) Power supply
17 P27 CD CLK Output CD DSP Clock/MPEG µ-COM clock
18 P26 CD DI Outout CD DSP Command/MPEG µ-COM COMMA
19 P25 CD DO Input CD DSP code Q Out/MPEG µ-COM data input
20 P24 CD CE Output CD DSP CE output
21 P23 CE Output CE output
22 P22 CLK Output CLOCK output
23 P21 DI Output DATA output
24 P20 DO Output DATA input
25 AVss AVSS — Analog ground
26 P17/ANI7 M-BUSY/TUN SM Input Tuner signal meter input
Communjcate to MPEG µ-COM M_BUSY
27 ANI6 NO USE Input GND
28 ANI5 SPEANA 2 Input SPEANA data input 16 kHz
29 ANI4 SPEANA 1 Input SPEANA data input 1 kHz
30 ANI3 SPEANA 0 Input SPEANA data input 63 kHz
31-33 ANI2-ANI0 KEY2-KEY0 Input Key input
34 AVDD AVDD — Analog VDD
35 AVREF AVref — Analog REF voltage
36 INTP3 SYS STOP Input System stop input
37 P02 SP_RLY Output Speaker output relay control
38 INTP1 NO USE Input GND
39 INTP0 REMOCON Input Remocon input
40 Vss VSS — Ground voltage
41 P74 SMUTE Output System mute control
42 P73 T_SOL_B Output Tape2 solenoid control
43 P72 T_SOL_A Output Tape1 solenoid control
44 P71 T_MOTOR Output Tape motor control
45 P70 TIMER LED Output Timer LED control
46 VDD VDD — (+) Power supply
47 P127 AC RLY_CONT Output AC relay control
48* P126 NC — Open
49 P125 SPK_DET Input Speaker output detection
50 P124 T1 RUN Input Tape1 ran pluse input
51 P123 T2 RUN Input Tape2 ran pluse input
52 P122 CD CLAMP SW Intput CD changer clamp switch
53 P121 PLAY SW_A Input Play switch for T1
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 48 –
54 P120 PLAY SW_B Input Play switch for T2
55 P119 FPA Input Tape2 A–side full proof
56 P118 FPB Input Tape2 B_side full proof
57 P117 MIC IN Input Mic switch
58 P116 KARAOKE LATCH Output KARAOKE latch (When not used, connect to 0V)
59 P115 DISTOUT/SW OUT Output Distination output
60* FIP39 SPN Input Tuner span change
61*,62* FIP38-FIP37 NC Input Open
63-66 FIP36-FIP33 P22-P19 Output FL diaplay daiver
67-70 FIP32-FIP29 P18-P15 Output FL diaplay daiver
P103-P100 DIST3-DIST0 Input Distination intput
71-78 FIP28-FIP21 P14-P7 Output FL display driver
79 VLOAD VLOAD –– FL driver (–) power supply.–30V
80-85 FIP20-FIP15 P6-P1 Output FL display segment
86*-89* FIP14-FIP11 NC Input Open
90-100 FIP30-FIP0 G11-G1 Output FL display segment driver
IC701 RH-iX0329AWZZ: System Microcomputer (IX0329AW) (2/2)
Port Name Terminal NamePin No. Input/Output
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Function
1 IN2- CH2 inverted input.
2 IN1A- CH1 inverted input.
3* IN1B- CH1 output offset control.
4 OUT1- CH1 inverted output.
5 OUT1+ CH1 non-inverted output.
6 OUT2- CH2 inverted output.
7 OUT2+ CH2 non-inverted output.
8-14 GND GND
15 OUT3+ CH3 non-inverted output.
16 OUT3- CH3 inverted output.
17 IN3- CH3 inverted input.
18 VCC1 Power supply 1 (CH1, CH2, CH3)
19 STANDBY STANDBY signal input.
20 VRFE CH1-CH4 Reference voltage input.
21 MUTE Mute signal input (CH6).
22 IN5- CH5 inverted input.
23 IN5+ CH5 non-inverted input.
24 VCC2 Power supply 2 (CH4).
25 IN4- CH4 inverted input.
26 OUT4- CH4 inverted output.
27 OUT4+ CH4 non-inverted output.
28 VCC3 Power supply 3 (CH5).
29-35 GND GND
36* OUT5+ CH5 non-inverted output.
37* OUT5- CH5 inverted output.
38 OUT6+ CH6 non-inverted output.
39 OUT6- CH6 inverted output.
40 VCC4 Power supply 4 (CH6).
41 IN6- CH6 inverted input.
42 IN6+ CH6 non-inverted input.
IC3 VHiM63001FP-1: Focus/Tracking/Spin/Sled Driver (M63001FP)
Pin No.
Terminal
Name
Function
Figure 48 BLOCK DIAGRAM OF IC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
27
26
25
24
23
22
IN2–
IN1A–
IN1B–
OUT1–
OUT1+
OUT2–
OUT2+
OUT3+
OUT3–
IN3–
VCC1
STANDBY
VREF
MUTE
GND
GND
VCC3
OUT4+
OUT4–
IN4–
VCC2
IN5+
IN5–
IN6+
IN6–
VCC4
OUT6–
OUT6+
OUT5–
OUT5+
M63001FP
In this unit, the terminal with asterisk mark (*) is (open)
terminal which is not connected to the outside.
All manuals and user guides at all-guides.com
background
– 49 –
CD-BA160H/1700H
IC401 VHiLC75341/-1: Audio Processor (LC75341)
Figure 49 BLOCK DIAGRAM OF IC
19
20
21
222324
123
4
5
6
7
8
9
10 11 12 13 14 15 16
18
17
LVref
RVref
CONTROL
CIRCUIT
CONTROL
CIRCUIT
CONTROL
CIRCUIT
LOUT
LBASS
LIN
LSELO
L4
L3
L2
L1
R1 R2 R3 R4
RSELO
RIN
RTRE
LTRE
RBASS
ROUT
VREF
VDD
CLK
DI
CE
VSS
CCB
INTERFACE
AUX
DECK
TUN
CD
24 23 22 21 20 19 18 17 16 15 14 13
123456789101112
LC75341
DI
CE
VSS
LOUT
LBASS
LTRE
LIN
LSELO
L4
L3
L2
L1
CLK
VDD
VREF
ROUT
RBASS
RTRB
RIN
RSELO
R4
R3
R2
R1
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 50 –
FL701 VVKBJ749GNK-1: FL Display
Figure 50 FL DISPLAY
S1
9G
B1 B2 B3 B4 B5 B6 B7
B7 B6 B5 B4 B3 B2 B1
S5
1G 2G 3G 4G 5G 6G 7G 8G
11G 10G
S1
B8
B9
B10
B11
B12
B13
B14
S1S1
S1
S1
S4
S3
S2
col
f
a
bk
j
h
mg
c
n
e
r
p
Dp
d
B21
B20
B19
B18
B17
B16
B15
B1
B2
B3
B4
B5
B6
B7
11G
S1
B1
B2
B3
B4
B5
B6
B7
10G
S1
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
9G
S1
B1
B2
B3
B4
B5
B6
B7
8G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
7G
Dp
d
c
n
p
r
e
m
g
col
b
k
j
h
f
a
S2
S3
S4
S5
6G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
5G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
4G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
3G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
2G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
1G
Dp
d
c
n
p
r
e
m
g
b
k
j
h
f
a
S2
S3
S4
S5
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
PARTS GUIDE
NOTE:
Parts marked with “ ” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.
MODEL
CD-BA160H
CD-BA1700H
“HOW TO ORDER REPLACEMENT PARTS”
To have your order filled promptly and correctly, please furnish the
following information.
1. MODEL NUMBER 2. REF. No.
3. PART NO. 4. DESCRIPTION
MARK: SPARE PARTS-DELIVERY SECTION
For U.S.A. only
Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP
Explanation of capacitors/resistors parts codes
Capacitors
VCC ....................... Ceramic type
VCK........................ Ceramic type
VCT ........................ Semiconductor type
VC • • MF ............... Cylindrical type (without lead wire)
VC • • MN............... Cylindrical type (without lead wire)
VC • • TV................ Square type (without lead wire)
VC • • TQ ............... Square type (without lead wire)
VC • • CY ............... Square type (without lead wire)
VC • • CZ ............... Square type (without lead wire)
VC • • • • • • • • • J .. The 13th character represents capacity difference.
("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)
If there are no indications for the electrolytic capacitors, error is ±20%.
Resistors
VRD ....................... Carbon-film type
VRS........................ Carbon-film type
VRN ....................... Metal-film type
VR • • MF ............... Cylindrical type (without lead wire)
VR • • MN............... Cylindrical type (without lead wire)
VR • • TV................ Square type (without lead wire)
VR • • TQ ............... Square type (without lead wire)
VR • • CY ............... Square type (without lead wire)
VR • • CZ ............... Square type (without lead wire)
VR • • • • • • • • • J .. The 13th character represents error.
("J" ±5%, "F" ±1%, "D" ±0.5%.)
If there are no indications for other parts, the resistors are ±5%
carbon-film type.
CD-BA160H mini component system consisting of
CD-BA160H (main unit) and CP-BA160H (speaker system).
CD-BA1700H mini component system consisting of
CD-BA1700H (main unit), CP-BA1700H (front speakers)
and GBOXS0041AWM1 (surround speakers).
All manuals and user guides at all-guides.com
all-guides.com
background
PRICE
RANK
DESCRIPTIONNO.
PARTS CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA160H/1700H
– 1 –
CD-BA160H/1700H
INTEGRATED CIRCUITS
IC1 VHILA9235M/-1 J AQ Servo Amp.,LA9235M
IC2 VHILC78641E-1 J AV Servo/Signal Control,LC78641E
IC3 VHIM63001FP-1 J AX Focus/Tracking/Spin/Sled Driver,
M63001FP
IC99 VHPTOTX178A-1 J AP Optical Fiber Data Link,
TOTX178A[CD-BA1700H Only]
IC101 VHIAN7345K/-1 J AM Playback and Record/
Playback Amp.,AN7345K
IC302 VHILC72131/-1 J AP PLL (Tuner) LC72131
IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,
LA1832S
IC401 VHILC75341/-1 J AM Audio Processor,LC75341
IC701 RH-IX0329AWZZ J AX System Microcomputer,
IX0329AW
IC702,703 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P
IC704 VHIKIA7042AP1 J AC Reset,KIA7042AP
IC841 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP
IC851 VHIKIA7805P-1 J AF Voltage Regulator,KIA7805P
IC852 VHIAN78L05/-1 J AE Constant Voltage Regulator,
AN78L05
IC901 VHISTK40204-1 J AX Power AMP.,STK40204
ICT21 VHILC72722/-1 J AY RDS Circuit,LC72722
TRANSISTORS
Q1 VS2SC3203Y/-1 J Silicon,NPN,2SC3203 Y
Q2 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q3 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q101 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q102,103 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q104~107 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F
Q108~111 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q112 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q113 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q114 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q301 VS2SC380-O/-1 J AC Silicon,NPN,2SC380 O
Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q401,402 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q601~604 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q605,606 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y
Q607 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y
Q608 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q609 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q801 VSKTA1274Y/-1 J AE Silicon,PNP,KTA1274 Y
Q831 VSKTC2026//-1 J AF Silicon,NPN,KTC2026
Q871 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q873 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q901~904 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q951 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q971 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
QT21,22 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
DIODES
D21,22 VHDDS1SS133-1 J AB Silicon,DS1SS133
D301~304 VHDDS1SS133-1 J AB Silicon,DS1SS133
D403,404 VHDDS1SS133-1 J AB Silicon,DS1SS133
D601~604 VHDDS1SS133-1 J AB Silicon,DS1SS133
D610,611 VHDDS1SS133-1 J AB Silicon,DS1SS133
D613~618 VHDDS1SS133-1 J AB Silicon,DS1SS133
D620,621 VHDDS1SS133-1 J AB Silicon,DS1SS133
D801 VHDTS6B04GM-1 J AP Silicon,TS6B04GM
D802~808 VHD1N4004S/-1 J AB Silicon,1N4004S
D831 VHDDS1SS133-1 J AB Silicon,DS1SS133
D851 VHDDS1SS133-1 J AB Silicon,DS1SS133
D871~875 VHD1N4004S/-1 J AB Silicon,1N4004S
D876 VHDDS1SS133-1 J AB Silicon,DS1SS133
D901~903 VHDDS1SS133-1 J AB Silicon,DS1SS133
D951 VHDDS1SS133-1 J AB Silicon,DS1SS133
D971 VHDDS1SS133-1 J AB Silicon,DS1SS133
LED722 VHP4204SRT7-1 J AD LED,Red,4204SRT7
ZD61 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB
ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB
ZD601 VHEDZ6R2BSC-1 J AB Zener,6.2V,DZ6.2BSC
ZD801 VHEDZ300BSB-1 J AB Zener,30V,DZ30BSB
ZD802 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA
ZD803 VHEDZ130BSB-1 J AB Zener,13V,DZ13BSB
ZDT21 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB
FILTERS
CF301,302 RFILF0072AFZZ J AG FM IF
CF351 RFILF0003AWZZ J AK FM IF
CF352 RFILA0009AWZZ J AE AM IF
TRANSFORMERS
! PT801 RTRNP0295AWZZ J BD Power,Main
! PT871 RTRNP0313AWZZ J AN Power,Sub
T303 RCILA0052AWZZ J AE AM Antenna
T306 RCILB0058AWZZ J AC AM Oscillation
T351 RCILI0019AWZZ J AD AM IF
COILS
L61 VP-XHR82K0000 J AC 0.82 µH,Choke
L62 VP-XH2R2K0000 J AB 2.2 µH,Choke
L101,102 VP-MK2R2K0000 J AC 2.2 µH,Choke
L104 VP-MK331K0000 J AB 330 µH,Choke
L341 RBLN-0002AWZZ J Balun
L342 VP-DH2R2K0000 J AB 2.2 mmH,Peaking
L351,352 VP-DH101K0000 J AB 100 µH,Choke
L354 RFILL0001AWZZ J AE Low Pass Filter
L601 VP-DH101K0000 J AB 100 µH,Choke
! L801 RCILZ0022AWZZ J Line Filter
L920,921 RCILZ0137AFZZ J AA 0.29 µH
L951 VP-DH2R2K0000 J AB 2.2 mmH,Peaking
LT21,22 VP-XH2R2K0000 J AB 2.2 µH,Choke
VARIABLE CAPACITOR
VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S
VIBRATORS
X351 92LCRSTL1425A J AF Crystal,456kHz
X352 RCRSP0002AWZZ J AH Crystal,4.5 MHz
XL1 RCRSP0005AFZZ J Crystal,16.934 MHz
[CD-BA1700H Only]
XL701 RCRSP0003AWZZ J AH Crystal,4.19 MHz
XT21 RCRSP0010AWZZ J AH Crystal,4.332 MHz
CAPACITORS
C6 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C7 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C8 VCKYTV1HB104K J AB 0.1 µF,50V
C11 RC-EZY474AF0J J 0.47 µF,6.3V,Electrolytic
C12 VCKYTV1HB104K J AB 0.1 µF,50V
C13 VCKYTV1HB103K J AA 0.01 µF,50V
C14 VCKYTV1EF334Z J AB 0.33 µF,25V
C17 VCKYTV1HB472K J AA 0.0047 µF,50V
C18 VCCCTV1HH3R0C J AA 3 pF (CH),50V
C20,21 VCKYTV1HB104K J AB 0.1 µF,50V
C22 VCKYTV1HB101K J AA 100 pF,50V
C23 VCKYTV1HB473K J AA 0.047 µF,50V
C24 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C25 VCKYTV1HB104K J AB 0.1 µF,50V
C26 VCKYTV1HB473K J AA 0.047 µF,50V
C27 VCKYTV1HB104K J AB 0.1 µF,50V
C28 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
C29,30 VCKYTV1HB104K J AB 0.1 µF,50V
C31 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C34 VCTYBT1EF223Z J AA 0.022 µF,25V
C35,36 VCCSPA1HL8R2J J 8.2 pF,50V [CD-BA1700H Only]
C38,39 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C40 VCKYTV1HB152K J AA 0.0015 µF,50V
C41 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C42 VCCSTV1HL680J J AA 68 pF,50V
C43 VCKYTV1HB152K J AA 0.0015 µF,50V
C44 VCKYTV1HB104K J AB 0.1 µF,50V
C45 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C46 VCKYTV1EF223Z J AA 0.022 µF,25V
C47 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C49,50 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
All manuals and user guides at all-guides.com
background
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PARTS CODE
PRICE
RANK
DESCRIPTION

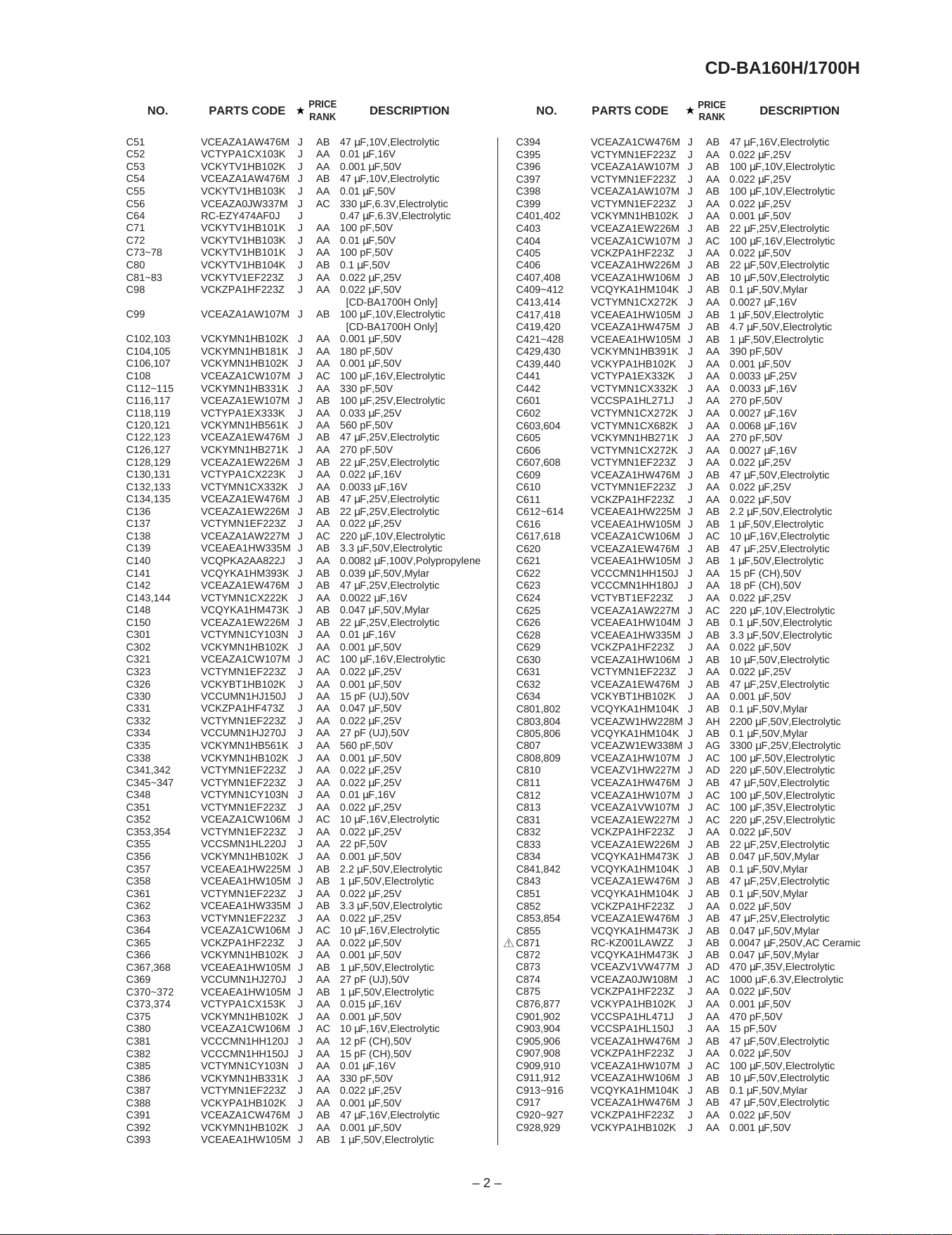

CD-BA160H/1700H
– 2 –
C51 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
C52 VCTYPA1CX103K J AA 0.01 µF,16V
C53 VCKYTV1HB102K J AA 0.001 µF,50V
C54 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
C55 VCKYTV1HB103K J AA 0.01 µF,50V
C56 VCEAZA0JW337M J AC 330 µF,6.3V,Electrolytic
C64 RC-EZY474AF0J J 0.47 µF,6.3V,Electrolytic
C71 VCKYTV1HB101K J AA 100 pF,50V
C72 VCKYTV1HB103K J AA 0.01 µF,50V
C73~78 VCKYTV1HB101K J AA 100 pF,50V
C80 VCKYTV1HB104K J AB 0.1 µF,50V
C81~83 VCKYTV1EF223Z J AA 0.022 µF,25V
C98 VCKZPA1HF223Z J AA 0.022 µF,50V
[CD-BA1700H Only]
C99 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
[CD-BA1700H Only]
C102,103 VCKYMN1HB102K J AA 0.001 µF,50V
C104,105 VCKYMN1HB181K J AA 180 pF,50V
C106,107 VCKYMN1HB102K J AA 0.001 µF,50V
C108 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C112~115 VCKYMN1HB331K J AA 330 pF,50V
C116,117 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic
C118,119 VCTYPA1EX333K J AA 0.033 µF,25V
C120,121 VCKYMN1HB561K J AA 560 pF,50V
C122,123 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C126,127 VCKYMN1HB271K J AA 270 pF,50V
C128,129 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C130,131 VCTYPA1CX223K J AA 0.022 µF,16V
C132,133 VCTYMN1CX332K J AA 0.0033 µF,16V
C134,135 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C136 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C137 VCTYMN1EF223Z J AA 0.022 µF,25V
C138 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C139 VCEAEA1HW335M J AB 3.3 µF,50V,Electrolytic
C140 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene
C141 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar
C142 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C143,144 VCTYMN1CX222K J AA 0.0022 µF,16V
C148 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C150 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C301 VCTYMN1CY103N J AA 0.01 µF,16V
C302 VCKYMN1HB102K J AA 0.001 µF,50V
C321 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C323 VCTYMN1EF223Z J AA 0.022 µF,25V
C326 VCKYBT1HB102K J AA 0.001 µF,50V
C330 VCCUMN1HJ150J J AA 15 pF (UJ),50V
C331 VCKZPA1HF473Z J AA 0.047 µF,50V
C332 VCTYMN1EF223Z J AA 0.022 µF,25V
C334 VCCUMN1HJ270J J AA 27 pF (UJ),50V
C335 VCKYMN1HB561K J AA 560 pF,50V
C338 VCKYMN1HB102K J AA 0.001 µF,50V
C341,342 VCTYMN1EF223Z J AA 0.022 µF,25V
C345~347 VCTYMN1EF223Z J AA 0.022 µF,25V
C348 VCTYMN1CY103N J AA 0.01 µF,16V
C351 VCTYMN1EF223Z J AA 0.022 µF,25V
C352 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V
C355 VCCSMN1HL220J J AA 22 pF,50V
C356 VCKYMN1HB102K J AA 0.001 µF,50V
C357 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic
C358 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C361 VCTYMN1EF223Z J AA 0.022 µF,25V
C362 VCEAEA1HW335M J AB 3.3 µF,50V,Electrolytic
C363 VCTYMN1EF223Z J AA 0.022 µF,25V
C364 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C365 VCKZPA1HF223Z J AA 0.022 µF,50V
C366 VCKYMN1HB102K J AA 0.001 µF,50V
C367,368 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C369 VCCUMN1HJ270J J AA 27 pF (UJ),50V
C370~372 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C373,374 VCTYPA1CX153K J AA 0.015 µF,16V
C375 VCKYMN1HB102K J AA 0.001 µF,50V
C380 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C381 VCCCMN1HH120J J AA 12 pF (CH),50V
C382 VCCCMN1HH150J J AA 15 pF (CH),50V
C385 VCTYMN1CY103N J AA 0.01 µF,16V
C386 VCKYMN1HB331K J AA 330 pF,50V
C387 VCTYMN1EF223Z J AA 0.022 µF,25V
C388 VCKYPA1HB102K J AA 0.001 µF,50V
C391 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C392 VCKYMN1HB102K J AA 0.001 µF,50V
C393 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C394 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C395 VCTYMN1EF223Z J AA 0.022 µF,25V
C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C397 VCTYMN1EF223Z J AA 0.022 µF,25V
C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C399 VCTYMN1EF223Z J AA 0.022 µF,25V
C401,402 VCKYMN1HB102K J AA 0.001 µF,50V
C403 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C404 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C405 VCKZPA1HF223Z J AA 0.022 µF,50V
C406 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C407,408 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C409~412 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C413,414 VCTYMN1CX272K J AA 0.0027 µF,16V
C417,418 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C419,420 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic
C421~428 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C429,430 VCKYMN1HB391K J AA 390 pF,50V
C439,440 VCKYPA1HB102K J AA 0.001 µF,50V
C441 VCTYPA1EX332K J AA 0.0033 µF,25V
C442 VCTYMN1CX332K J AA 0.0033 µF,16V
C601 VCCSPA1HL271J J AA 270 pF,50V
C602 VCTYMN1CX272K J AA 0.0027 µF,16V
C603,604 VCTYMN1CX682K J AA 0.0068 µF,16V
C605 VCKYMN1HB271K J AA 270 pF,50V
C606 VCTYMN1CX272K J AA 0.0027 µF,16V
C607,608 VCTYMN1EF223Z J AA 0.022 µF,25V
C609 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C610 VCTYMN1EF223Z J AA 0.022 µF,25V
C611 VCKZPA1HF223Z J AA 0.022 µF,50V
C612~614 VCEAEA1HW225M J AB 2.2 µF,50V,Electrolytic
C616 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C617,618 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C620 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C621 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C622 VCCCMN1HH150J J AA 15 pF (CH),50V
C623 VCCCMN1HH180J J AA 18 pF (CH),50V
C624 VCTYBT1EF223Z J AA 0.022 µF,25V
C625 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C626 VCEAEA1HW104M J AB 0.1 µF,50V,Electrolytic
C628 VCEAEA1HW335M J AB 3.3 µF,50V,Electrolytic
C629 VCKZPA1HF223Z J AA 0.022 µF,50V
C630 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C631 VCTYMN1EF223Z J AA 0.022 µF,25V
C632 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C634 VCKYBT1HB102K J AA 0.001 µF,50V
C801,802 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C803,804 VCEAZW1HW228M J AH 2200 µF,50V,Electrolytic
C805,806 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C807 VCEAZW1EW338M J AG 3300 µF,25V,Electrolytic
C808,809 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C810 VCEAZV1HW227M J AD 220 µF,50V,Electrolytic
C811 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C812 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C813 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic
C831 VCEAZA1EW227M J AC 220 µF,25V,Electrolytic
C832 VCKZPA1HF223Z J AA 0.022 µF,50V
C833 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C834 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C841,842 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C843 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C851 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C852 VCKZPA1HF223Z J AA 0.022 µF,50V
C853,854 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C855 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
! C871 RC-KZ001LAWZZ J AB 0.0047 µF,250V,AC Ceramic
C872 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C873 VCEAZV1VW477M J AD 470 µF,35V,Electrolytic
C874 VCEAZA0JW108M J AC 1000 µF,6.3V,Electrolytic
C875 VCKZPA1HF223Z J AA 0.022 µF,50V
C876,877 VCKYPA1HB102K J AA 0.001 µF,50V
C901,902 VCCSPA1HL471J J AA 470 pF,50V
C903,904 VCCSPA1HL150J J AA 15 pF,50V
C905,906 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C907,908 VCKZPA1HF223Z J AA 0.022 µF,50V
C909,910 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C911,912 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C913~916 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C917 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C920~927 VCKZPA1HF223Z J AA 0.022 µF,50V
C928,929 VCKYPA1HB102K J AA 0.001 µF,50V
All manuals and user guides at all-guides.com
background
PRICE
RANK
DESCRIPTIONNO.
PARTS CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA160H/1700H
– 3 –
C930,931 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
[CD-BA1700H Only]
C932 VCKYPA1HB102K J AA 0.001 µF,50V
[CD-BA1700H Only]
C933,934 VCKYPA1HB102K J AA 0.001 µF,50V
C935,936 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C951,952 VCCSPA1HL221J J AA 220 pF,50V
C971 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C972 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
CT21 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
CT22 VCKZPA1HF223Z J AA 0.022 µF,50V
CT23 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
CT24 VCKZPA1HF223Z J AA 0.022 µF,50V
CT25 VCCSPA1HL561J J AA 560 pF,50V
CT26,27 VCCCPA1HH220J J AA 22 pF (CH),50V
CT28 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
CT29 VCKZPA1HF223Z J AA 0.022 µF,50V
CT36,37 VCKZPA1HF223Z J AA 0.022 µF,50V
CT43 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
RESISTORS
VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory
VRS-TV2AB000J J AA 0 ohm,Jumper,1.25×2mm,Green
R3 VRS-TV2AB104J J AA 100 kohm,1/10W
R4 VRS-TV2AB103J J AA 10 kohm,1/10W
R5 VRS-TV2AB393J J AA 39 kohms,1/10W
R6 VRS-TV2AB273J J AA 27 kohms,1/10W
R7 VRS-TV2AB682J J AA 6.8 kohms,1/10W
R8 VRS-TV2AB331J J AA 330 ohms,1/10W
R10 VRS-TV2AB273J J AA 27 kohms,1/10W
R11 VRS-TV2AB123J J AA 12 kohms,1/10W
R12,13 VRS-TV2AB681J J AA 680 ohms,1/10W
R14 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R15 VRS-TV2AB103J J AA 10 kohm,1/10W
R16 VRD-ST2CD103J J AA 10 kohm,1/6W
R17 VRD-ST2CD102J J AA 1 kohm,1/6W
R19 VRD-ST2CD470J J AA 47 ohms,1/6W
R20 VRS-TV2AB221J J AA 220 ohms,1/10W
R21,22 VRS-TV2AB471J J AA 470 ohms,1/10W
R25 VRD-ST2CD103J J AA 10 kohm,1/6W
R35 VRD-ST2CD102J J AA 1 kohm,1/6W
R38 VRD-ST2CD271J J AA 270 ohms,1/6W
R39 VRD-ST2CD471J J AA 470 ohms,1/6W
R40 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R44 VRD-ST2CD102J J AA 1 kohm,1/6W
R45 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R46 VRS-TV2AB102J J AA 1 kohm,1/10W
R47 VRD-ST2EE3R3J J AA 3.3 ohms,1/4W
R48 VRS-TV2AB682J J AA 6.8 kohms,1/10W
R50 VRS-TV2AB470J J AA 47 ohms,1/10W
R51~54 VRS-TV2AB683J J AA 68 kohms,1/10W
R55,56 VRD-ST2CD683J J AA 68 kohms,1/6W
R58 VRD-ST2CD221J J AA 220 ohms,1/6W
R71~78 VRD-ST2CD102J J AA 1 kohm,1/6W
R79 VRS-TV2AB155J J AA 1.5 Mohms,1/10W
R80 VRD-ST2CD105J J AA 1 Mohm,1/6W
R81,82 VRS-TV2AB222J J AA 2.2 kohms,1/10W
R83,84 VRS-TV2AB103J J AA 10 kohm,1/10W
R87 VRD-ST2CD121J J AA 120 ohms,1/6W
[CD-BA1700H Only]
R94,95 VRS-TV2AB103J J AA 10 kohm,1/10W
R101,102 VRD-MN2BD103J J AA 10 kohm,1/8W
R103 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R104,105 VRD-MN2BD102J J AA 1 kohm,1/8W
R106,107 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R108,109 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R110 VRD-MN2BD473J J AA 47 kohms,1/8W
R111,112 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R113 VRD-MN2BD473J J AA 47 kohms,1/8W
R114,115 VRD-ST2CD102J J AA 1 kohm,1/6W
R116,117 VRD-ST2CD560J J AA 56 ohms,1/6W
R118,119 VRD-MN2BD104J J AA 100 kohm,1/8W
R120,121 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R122,123 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R124,125 VRD-MN2BD333J J AA 33 kohms,1/8W
R126 VRD-MN2BD683J J AA 68 kohms,1/8W
R127,128 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R129,130 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R131,132 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R133,134 VRD-MN2BD101J J AA 100 ohm,1/8W
R135,136 VRD-MN2BD103J J AA 10 kohm,1/8W
R137 VRD-MN2BD153J J AA 15 kohms,1/8W
R138 VRD-ST2CD153J J AA 15 kohms,1/6W
R139 VRD-ST2EE221J J AA 220 ohms,1/4W
R140 VRD-ST2CD103J J AA 10 kohm,1/6W
R141 VRD-MN2BD103J J AA 10 kohm,1/8W
R142,143 VRD-ST2CD224J J AA 220 kohms,1/6W
R144 VRD-MN2BD473J J AA 47 kohms,1/8W
R145 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R146 VRD-RT2HD820J J AA 82 ohms,1/2W
R147 VRD-MN2BD473J J AA 47 kohms,1/8W
R148 VRD-MN2BD223J J AA 22 kohms,1/8W
R149 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W
R157 VRD-ST2EE151J J AA 150 ohms,1/4W
R323 VRD-MN2BD683J J AA 68 kohms,1/8W
R336 VRD-MN2BD103J J AA 10 kohm,1/8W
R344 VRD-MN2BD471J J AA 470 ohms,1/8W
R345 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R346 VRD-MN2BD331J J AA 330 ohms,1/8W
R347 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R348 VRD-MN2BD681J J AA 680 ohms,1/8W
R349 VRD-MN2BD330J J AA 33 ohms,1/8W
R350 VRD-ST2CD272J J AA 2.7 kohms,1/6W
R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R352 VRD-MN2BD102J J AA 1 kohm,1/8W
R353 VRD-MN2BD271J J AA 270 ohms,1/8W
R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R356 VRD-MN2BD102J J AA 1 kohm,1/8W
R357 VRD-ST2CD474J J AA 470 kohms,1/6W
R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R361,362 VRD-MN2BD122J J AA 1.2 kohms,1/8W
R363,364 VRD-MN2BD473J J AA 47 kohms,1/8W
R365 VRD-MN2BD103J J AA 10 kohm,1/8W
R369 VRD-MN2BD150J J AA 15 ohms,1/8W
R370 VRD-ST2CD102J J AA 1 kohm,1/6W
R372~374 VRD-MN2BD102J J AA 1 kohm,1/8W
R376 VRD-MN2BD102J J AA 1 kohm,1/8W
R377 VRD-MN2BD473J J AA 47 kohms,1/8W
R378 VRD-MN2BD102J J AA 1 kohm,1/8W
R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R381 VRD-MN2BD103J J AA 10 kohm,1/8W
R382 VRD-ST2EE151J J AA 150 ohms,1/4W
R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R384 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R385 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R386 VRD-ST2CD223J J AA 22 kohms,1/6W
R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R388 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R391,392 VRD-ST2EE271J J AA 270 ohms,1/4W
R393 VRD-MN2BD102J J AA 1 kohm,1/8W
R395 VRD-MN2BD473J J AA 47 kohms,1/8W
R399 VRD-MN2BD330J J AA 33 ohms,1/8W
R401,402 VRD-MN2BD331J J AA 330 ohms,1/8W
R403,404 VRD-MN2BD272J J AA 2.7 kohms,1/8W
R407 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R408 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R409,410 VRD-ST2CD103J J AA 10 kohm,1/6W
R415,416 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R417,418 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R419,420 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R421,422 VRD-MN2BD273J J AA 27 kohms,1/8W
R423,424 VRD-ST2CD474J J AA 470 kohms,1/6W
R425 VRD-MN2BD223J J AA 22 kohms,1/8W
R601 VRD-ST2CD102J J AA 1 kohm,1/6W
R602 VRD-MN2BD104J J AA 100 kohm,1/8W
R603 VRD-MN2BD103J J AA 10 kohm,1/8W
R604 VRD-ST2CD123J J AA 12 kohms,1/6W
R605 VRD-MN2BD563J J AA 56 kohms,1/8W
R606 VRD-ST2CD102J J AA 1 kohm,1/6W
R607 VRD-MN2BD333J J AA 33 kohms,1/8W
R608 VRD-MN2BD683J J AA 68 kohms,1/8W
R609 VRD-MN2BD474J J AA 470 kohms,1/8W
R610 VRD-MN2BD153J J AA 15 kohms,1/8W
R611 VRD-MN2BD104J J AA 100 kohm,1/8W
R612 VRD-ST2CD105J J AA 1 Mohm,1/6W
R613 VRD-MN2BD824J J AA 820 kohms,1/8W
R614 VRD-ST2CD394J J AA 390 kohms,1/6W
R615 VRD-MN2BD154J J AA 150 kohms,1/8W
R616 VRD-ST2CD102J J AA 1 kohm,1/6W
All manuals and user guides at all-guides.com
background
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA160H/1700H
– 4 –
R617 VRD-ST2CD224J J AA 220 kohms,1/6W
R618 VRD-MN2BD224J J AA 220 kohms,1/8W
R619 VRD-ST2CD225J J AA 2.2 Mohms,1/6W
R620 VRD-MN2BD184J J AA 180 kohms,1/8W
R621 VRD-MN2BD330J J AA 33 ohms,1/8W
R622 VRD-MN2BD104J J AA 100 kohm,1/8W
R623,624 VRD-ST2EE271J J AA 270 ohms,1/4W
R625~627 VRD-MN2BD104J J AA 100 kohm,1/8W
R629 VRD-ST2CD103J J AA 10 kohm,1/6W
R632~635 VRD-ST2CD103J J AA 10 kohm,1/6W
R636 VRD-MN2BD683J J AA 68 kohms,1/8W
R637 VRD-MN2BD102J J AA 1 kohm,1/8W
R638 VRD-MN2BD473J J AA 47 kohms,1/8W
R640 VRD-MN2BD102J J AA 1 kohm,1/8W
R642 VRD-MN2BD223J J AA 22 kohms,1/8W
R643,644 VRD-MN2BD102J J AA 1 kohm,1/8W
R645 VRD-MN2BD223J J AA 22 kohms,1/8W
R646~648 VRD-MN2BD102J J AA 1 kohm,1/8W
R649 VRD-MN2BD103J J AA 10 kohm,1/8W
R650 VRD-ST2CD683J J AA 68 kohms,1/6W
R651,652 VRD-MN2BD103J J AA 10 kohm,1/8W
R653 VRD-MN2BD102J J AA 1 kohm,1/8W
R654 VRD-ST2CD102J J AA 1 kohm,1/6W
R655 VRD-MN2BD102J J AA 1 kohm,1/8W
R656 VRD-ST2CD103J J AA 10 kohm,1/6W
R658 VRD-MN2BD473J J AA 47 kohms,1/8W
R659 VRD-MN2BD102J J AA 1 kohm,1/8W
R660 VRD-MN2BD103J J AA 10 kohm,1/8W
R661 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R662 VRD-MN2BD103J J AA 10 kohm,1/8W
R663~665 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R666 VRD-MN2BD102J J AA 1 kohm,1/8W
R667,668 VRD-ST2CD102J J AA 1 kohm,1/6W
R669,670 VRD-ST2CD103J J AA 10 kohm,1/6W
R671 VRD-MN2BD103J J AA 10 kohm,1/8W
R672 VRD-ST2CD103J J AA 10 kohm,1/6W
R673~675 VRD-ST2CD102J J AA 1 kohm,1/6W
R676 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R678~694 VRD-ST2CD102J J AA 1 kohm,1/6W
R695~697 VRD-ST2CD681J J AA 680 ohms,1/6W
R698~700 VRD-ST2CD821J J AA 820 ohms,1/6W
R701~703 VRD-ST2CD102J J AA 1 kohm,1/6W
R704 VRD-MN2BD473J J AA 47 kohms,1/8W
R705,706 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R707 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R708 VRD-ST2CD103J J AA 10 kohm,1/6W
R709,710 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R711 VRD-MN2BD104J J AA 100 kohm,1/8W
R712,713 VRD-ST2CD272J J AA 2.7 kohms,1/6W
R714 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R715 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R716 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R717 VRD-MN2BD683J J AA 68 kohms,1/8W
R718 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R719 VRD-ST2CD103J J AA 10 kohm,1/6W
R720 VRD-MN2BD104J J AA 100 kohm,1/8W
R721 VRD-ST2CD183J J AA 18 kohms,1/6W
R722 VRD-ST2CD333J J AA 33 kohms,1/6W
R723 VRD-ST2CD101J J AA 100 ohm,1/6W
R724 VRD-ST2CD104J J AA 100 kohm,1/6W
R725 VRD-ST2CD103J J AA 10 kohm,1/6W
R801,802 VRD-ST2EE223J J AA 22 kohms,1/4W
R803 VRS-VV3DA681J J AC 680 ohms,2W
R804 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R805 VRD-ST2CD473J J AA 47 kohms,1/6W
R806 VRD-ST2CD100J J AA 10 ohm,1/6W
R807 VRD-ST2CD123J J AA 12 kohms,1/6W
R832 VRD-RT2HD330J J AA 33 ohms,1/2W
R833 VRD-ST2CD223J J AA 22 kohms,1/6W
R841 VRD-ST2CD223J J AA 22 kohms,1/6W
R851 VRD-ST2CD103J J AA 10 kohm,1/6W
R874 VRD-ST2CD221J J AA 220 ohms,1/6W
R875 VRD-ST2CD473J J AA 47 kohms,1/6W
R876 VRD-ST2CD102J J AA 1 kohm,1/6W
R901,902 VRD-ST2CD563J J AA 56 kohms,1/6W
R903,904 VRD-ST2CD821J J AA 820 ohms,1/6W
R905,906 VRD-ST2CD102J J AA 1 kohm,1/6W
R907,908 VRN-VV3AAR10J J 0.1 ohm,1W
R909,910 VRD-ST2CD102J J AA 1 kohm,1/6W
R911,912 VRD-ST2CD103J J AA 10 kohm,1/6W
R913~915 VRD-ST2CD563J J AA 56 kohms,1/6W
R916,917 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W
! R918,919 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible
R920 VRD-ST2CD223J J AA 22 kohms,1/6W
R921~924 VRD-ST2EE6R8J J AA 6.8 ohms,1/4W
R925 VRD-ST2CD680J J AA 68 ohms,1/6W
[CD-BA1700H Only]
R926,927 VRD-ST2CD680J J AA 68 ohms,1/6W
R931,932 VRD-MN2BD102J J AA 1 kohm,1/8W
R933,934 VRD-ST2CD683J J AA 68 kohms,1/6W
R951,952 VRD-RT2HD331J J AA 330 ohms,1/2W
R953,954 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R971 VRD-ST2CD102J J AA 1 kohm,1/6W
R972 VRD-ST2CD683J J AA 68 kohms,1/6W
R973 VRD-ST2CD153J J AA 15 kohms,1/6W
R975 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W
RT21 VRD-ST2CD104J J AA 100 kohm,1/6W
RT26 VRD-ST2CD102J J AA 1 kohm,1/6W
RT28~30 VRD-ST2CD102J J AA 1 kohm,1/6W
RT32 VRD-ST2CD103J J AA 10 kohm,1/6W
RT33,34 VRD-ST2CD563J J AA 56 kohms,1/6W
RT35~37 VRD-ST2CD224J J AA 220 kohms,1/6W
RT48,49 VRD-ST2EE391J J AA 390 ohms,1/4W
RT51 VRD-ST2CD103J J AA 10 kohm,1/6W
OTHER CIRCUITRY PARTS
BI4/CNS4 QCNWN1572AWZZ J AF Connector Ass’y,6/6Pin
BI99/CNS99 QCNWN1611AWZZ J AG Connector Ass’y,3/3Pin
[CD-BA1700H Only]
BI402/CNS402 QCNWN1561AWZZ J AF Connector Ass’y,5/5Pin
BI701/CNS701 QCNWN1562AWZZ J AH Connector Ass’y,10/10Pin
CNP1 QCNCM704GAWZZ J AC Plug,7Pin
CNP2 QCNCM704HAFZZ J AC Plug,8Pin
CNP3 92LCONE6P53253 J AC Plug,6Pin
CNP3A 92LCONE6P53254 J AC Plug,6Pin
CNP4 QCNCM705FAFZZ J AB Plug,6Pin
CNP5 92LCONE3P53254 J AB Plug,3Pin [CD-BA1700H Only]
CNP11 92LCONE5P53254 J AB Plug,5Pin
CNP12 92LCONEAP53254 J AD Plug,10Pin
CNP101 QCNCM705CAFZZ J AA Plug,3Pin
CNP102 QCNCM705GAFZZ J AB Plug,7Pin
CNP302 92LCONE2P5268 J AB Plug,2Pin
CNP303 QCNCM010HAWZZ J AC Plug,8Pin
CNP304 QCNCW010HAWZZ J AD Socket,8Pin
CNP401 QCNCWZG23AWZZ J AK Plug,23Pin
CNP702 QCNCWZF23AWZZ J AK Plug,23Pin
CNP703 QCNCWZF13AWZZ J Plug,13Pin
! CNP801 QCNCM049BAWZZ J AC Plug,2Pin
CNP802 QCNCM035HAWZZ J AB Plug,8Pin
CNP951 QCNCW012EAWZZ J AC Socket,5Pin
CNP971 92LCONE2P53253 J AB Plug,2Pin
CNS1A/B QCNWN1537AWZZ J AG Connector Ass’y,7/7Pin
CNS2A/B QCNWN1538AWZZ J AG Connector Ass’y,8/8Pin
CNS3A/B QCNWN1539AWZZ J AE Connector Ass’y,6/6Pin
CNS871 QCNCW012EAWZZ J AC Socket,5Pin
CNS971 QCNWN1389AWZZ J AC Connector Ass’y,2Pin
! F801,802 92LFUSET402E J AD Fuse,T4A L 250V
! F803 92LFUSET202E J Fuse,T2A L 250V
FC701 QCNWN1564AWZZ J AG Flat Cable,23Pin
FC702 QCNWN1544AWZZ J AE Flat Cable,13Pin
FE301 RTUNS0012AWZZ J AV FM Front End
FL701 VVKBJ749GNK-1 J BD FL Display
FW871 QCNWN1627AWZZ J AE Flat Wire,5Pin
FW951 QCNWN1563AWZZ J Flat Wire,5Pin
JK951 QJAKM0004AWZZ J AK Jack,Headphones
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
M3 92LTWMEN7E6Y J AR Motor with Worm Pulley
[Loading]
M901 RMOTV0027AWZZ J AM Motor,Air Cooling Fan
! RL871 RRLYD0011AWZZ J AE Relay
RL951 RRLYD0014AWZZ J AK Relay
RX701 VHLN63H380A-1 J AK Remote Sensor,N63H380A
SO301A QTANC0101AWZZ J AF Terminal,FM Antenna
SO401 QSOCJ0219AWZZ J AD Jack,Video/AUX
! SO801 QSOCA0204AWZZ J AF Socket,AC Input
SO901 QTANA0417AWZZ J AE Terminal,Speaker
[CD-BA160H Only]
SO902 QTANA0808AWZZ J Terminal,Speaker
[CD-BA1700H Only]
SW1 SWMPU10780MLB J Switch,Push Type [Open/Close]
SW2 SWMPU11470MLB J Switch,Push Type [Clamp]
All manuals and user guides at all-guides.com
background
PRICE
RANK
DESCRIPTIONNO.
PARTS CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA160H/1700H
– 5 –
SW3 SWMPU11470MLB J Switch,Push Type [Disc Number]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]
SW601 92LSWICH1401AT J AC Switch,Key Type
[ON/STAND-BY]
SW602 92LSWICH1401AT J AC Switch,Key Type [CLOCK]
SW603 92LSWICH1401AT J AC Switch,Key Type
[TIMER/SLEEP]
SW604 92LSWICH1401AT J AC Switch,Key Type
[PTY TI SEARCH]
SW605 92LSWICH1401AT J AC Switch,Key Type [EON]
SW606 92LSWICH1401AT J AC Switch,Key Type [ASPM]
SW607 92LSWICH1401AT J AC Switch,Key Type
[DISPLAY MODE]
SW608 92LSWICH1401AT J AC Switch,Key Type [STATION]
SW609 92LSWICH1401AT J AC Switch,Key Type [DISC SKIP]
SW610 92LSWICH1401AT J AC Switch,Key Type[OPEN/CLOSE]
SW611 92LSWICH1401AT J AC Switch,Key Type [DIMMER]
SW612 92LSWICH1401AT J AC Switch,Key Type [X-BASS]
SW613 92LSWICH1401AT J AC Switch,Key Type [EQUALIZER]
SW614 92LSWICH1401AT J AC Switch,Key Type [VOLUME UP]
SW615 92LSWICH1401AT J AC Switch,Key Type
[VOLUME DOWN]
SW616 92LSWICH1401AT J AC Switch,Key Type [CD]
SW617 92LSWICH1401AT J AC Switch,Key Type [TAPE]
SW618 92LSWICH1401AT J AC Switch,Key Type
[TUNING DOWN]
SW619 92LSWICH1401AT J AC Switch,Key Type
[MEMORY SET]
SW620 92LSWICH1401AT J AC Switch,Key Type [REVIEW]
SW621 92LSWICH1401AT J AC Switch,Key Type
[FAST FORWARD]
SW622 92LSWICH1401AT J AC Switch,Key Type
[PLAY/REPEAT]
SW623 92LSWICH1401AT J AC Switch,Key Type [STOP]
SW625 92LSWICH1401AT J AC Switch,Key Type
[RECORD/PAUSE]
SW626 92LSWICH1401AT J AC Switch,Key Type [TUNING UP]
SW627 92LSWICH1401AT J AC Switch,Key Type [VIDEO/AUX]
SW628 92LSWICH1401AT J AC Switch,Key Type
[TUNER (BAND)]
CD MECHANISM PARTS
301 NGERH0011AWZZ J AC Gear,Middle
302 NGERH0012AWZZ J AC Gear,Drive
303 MLEVP0080AWZZ J AC Rail,Guide
304 NSFTM0020AWFW J AD Shaft,Guide
305 92LMCUSN1524A J AD Cushion
! 306 92LHPC1LXASY J BD Pickup Unit Ass’y
306- 1 ———— — Pickup Unit
(Not Replacement Item)
306- 2 NGERR0043AFZZ J AC Gear,Rack
306- 3 MSPRC0961AFZZ J AA Spring,Rack
701 XBSSD26P06000 J AA Screw,ø2.6×6mm
702 XHBSD20P05000 J AA Screw,ø2×5mm
703 XBBSD20P03000 J AA Screw,ø2×3mm
704 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]
CABINET PARTS
201 92LCAB3292AASY J Front Panel Ass’y [CD-BA1700H]
201 92LCAB3289AASY J Front Panel Ass’y [CD-BA160H]
201- 1 ———— — Front Panel
(Not Replacement Item)
201- 2 GDORF0074AWSA J AE Cassette Holder,Tape 1
201- 3 GDORF0075AWSA J AE Cassette Holder,Tape 2
201- 4 GCOVA1251AWSA J AH Cover,Cassette Holder,Tape 1
[CD-BA1700H]
201- 4 GCOVA1251AWSB J AH Cover,Cassette Holder,Tape 1
[CD-BA160H]
201- 5 GCOVA1252AWSA J AH Cover,Cassette Holder,Tape 2
[CD-BA1700H]
201- 5 GCOVA1252AWSB J AH Cover,Cassette Holder,Tape 2
[CD-BA160H]
201- 6 HDECQ0521AWSA J AD Panel,Cassette Holder Cover,
Tape 1
201- 7 HDECQ0522AWSA J AD Panel,Cassette Holder Cover,
Tape 2
201- 8 HDECQ0550AWSA J AH Panel,AMP [CD-BA160H]
201- 8 HDECQ0558AWSA J AH Panel,AMP [CD-BA1700H]
201- 9 JKNBZ0649AWSB J AF Button,Volume
201-10 JKNBZ0648AWSB J AG Button,Center Operation
201-11 JKNBZ0714AWSB J AF Button,ON/Stand-by/Clock
201-12 JKNBZ0658AWSB J AF Button,CD/Tuner
201-13 JKNBZ0659AWSB J AF Button,Tape/Video/AUX
201-14 JKNBZ0660AWSB J AF Button,Tuning/Time
201-15 JKNBZ0661AWSB J AE Button,Dimmer
201-16 GCOVA1258AWSA J AB Cover,LED
201-17 MLIFP0008AWZZ J AD Damper,Cassette Holder
201-18 MSPRD0138AWFJ J Spring,Cassette Up,Tape 1
201-19 MSPRD0127AWFJ J AB Spring,Cassette Up,Tape 2
201-20 92LBADGE1671A J AC Badge,SHARP
201-21 JKNBZ0650AWSB J AF Button,Disc/X-BASS/Equalizer
201-22 JKNBZ0651AWSA J AF Button,RDS
202 92LCAB3283BASY J AM Side Panel Ass’y,Left
202- 1 ———— — Side Panel,Left
(Not Replacement Item)
202- 2 PCUSG0022AWZZ J AB Cushion,Leg
203 92LCAB3283CASY J AM Side Panel Ass’y,Right
203- 1 ———— — Side Panel,Right
(Not Replacement Item)
203- 2 PCUSG0022AWZZ J AB Cushion,Leg
204 92LCOV3289AASY J CD Tray Cover Ass’y
[CD-BA160H]
204 92LCOV3303AASY J AM CD Tray Cover Ass’y
[CD-BA1700H]
204- 1 ———— — Cover.CD Tray
(Not Replacement Item)
204- 2 GCOVA1254AWSB J AD Panel,CD Tray Cover,Left
204- 3 GCOVA1255AWSB J AD Panel,CD Tray Cover,Right
205 GCAB-1184AWSA J AP Top Cabinet
206 GITAR0570AWSA J Rear Panel
[CD-BA1700H for U.K.]
206 GITAR0575AWSA J AG Rear Panel [CD-BA160H]
206 GITAR0600AWSA J AG Rear Panel
[CD-BA1700H for Europe]
208 LANGK0110AWFW J AE Bracket,Cassette Lock,Tape 1
209 LANGK0111AWFW J AE Bracket,Cassette Lock,Tape 2
210 LANGK0192AWFW J AD Bracket,Fan Motor Support
213 LCHSM0094AWFW J AP Main Chassis
214 LHLDZ1241AWZZ J AE Holder,FL Display
219 MLOKC0003AWZZ J AD Lock Lever,Cassette,Tape 1
220 MLOKC0004AWZZ J AD Lock Lever,Cassette,Tape 2
221 MSPRD0109AWFJ J AB Spring,Cassette Lock,Tape 1
222 MSPRD0110AWFJ J AB Spring,Cassette Lock,Tape 2
223 NFANP0001AWZZ J AD Rotary Fan
224 92LPT0331105 J AM Turntable
225 PCUSG0022AWZZ J AB Cushion,Leg
226 PRDAR0148AWFW J AR Heat Sink
230 QCNWN1615AWZZ J AC Lug Wire
! 231 QFSHD0001AWZZ J AB Holder,Fuse
232 92LBE241414 J AD Belt,Loading Motor
233 92LCSPR1431C J AA Ring Spring,Rotary Fan
234 92LEVA0330702 J Cushion,Loading Chassis
235 92LMAG0104302 J Magnet
236 92LMT0304302 J Metal Plate,Magnet
237 92LNBAND1318A J AA Nylon Band,80mm
238 92LNM0305401 J Velvet Cushion
239 92LPT0303002 J AB Roller
240 92LPT0304303 J AB Lever,Stop
241 92LPT0304304 J Stopper,Cam Gear
242 92LPT0304305 J AE Lever,Lock
243 92LPT0304306 J Stabilizer
244 92LPT0304307 J AC Support,Cam Gear
245 92LPT0304308 J Pin,Lock Gear
246 92LPT0304309 J Cap,Pulley Stopper
247 92LPT0305413 J Lower,Cam Gear
248 92LPT0309506 J AD Gear,Turntable Drive
249 92LPT0309507 J AD Gear,Open/Close Drive
250 92LPT0309508 J AD Gear,Planet
251 92LPT0309509 J AD Gear,Drive
252 92LPT0309510 J AE Pulley,Gear
253 92LPT0309511 J AD Gear,Middle
254 92LPT0311101 J AB Lever,Clamp
255 92LPT0311102 J AC Lever,Disc
256 92LPT0312005 J Gear,Cam
257 92LPT0320201 J AE Support,Stabilizer
258 92LPT0330301 J AU Chassis,Loading
259 92LPT0330803 J AK Chassis,CD Mechanism
260 92LPT0331003 J AT Disc Tray
All manuals and user guides at all-guides.com
all-guides.com
background
NO.
PRICE
RANK
DESCRIPTIONPARTS CODE
NO. PARTS CODE
PRICE
RANK
DESCRIPTION
CD-BA160H/1700H
– 6 –
262 92LSP0304303 J Spring,Stopper
263 92LSP0304305 J AB Spring,Lock Lever
264 92LSP0304306 J Spring,Lock Gear Pin
267 LANGK0184AWFW J AG Bracket,Main PWB
268 KMECB0011AWZZ J BH Tape Mechanism Ass’y
274 92LCAUT1706A1 J AC Label,Class 3A Laser
275 92LCAUT1706B J AA Label,Laser
276 PSHEZ0067AWZZ J Sheet,Main PWB
278 LANGF0039AWFW J AD Bracket,Power Transformer
Support
279 PSLDM3015AWFW J AD Sheet,Main PWB Support
281 QLUGP0002AWZZ J AB Lug Pin
282 QLUGP0001AWZZ J AC Lug Terminal
601 XBBSD20P04000 J AA Screw,ø2×4mm
602 LX-JZ0004AWFD J AA Screw,ø3×12mm
603 92LSC0308MBZI J AB Screw,ø3×8mm
604 XEBSD30P12000 J AA Screw,ø3×12mm
605 XESSD30P10000 J AA Screw,ø3×10mm
606 XHBSD26P04000 J AA Screw,ø2.6×4mm
607 XJBSD30P12000 J AA Screw,ø3×12mm
608 XJBSD30P14000 J AA Screw,ø3×14mm
609 XJBSF30P12000 J AA Screw,ø3×12mm
611 XJSSD30P10000 J AA Screw,ø3×10mm
612 LX-HZ0009AWFD J AC Screw,Special
613 LX-HZ0169AFFD J AA Screw,ø4×12mm
614 LX-JZ0010AFFD J AA Screw,ø3×10mm
615 XEBSD30P10000 J AA Screw,ø3×10mm
616 LX-BZ2222AXZZ J Screw,Special
617 92LSC0308RBZI J Screw,ø3×8mm
618 XJBSD30P10000 J AA Screw,ø3×10mm
ACCESSORIES/PACKING PARTS
1 SPAKP0013AWZZ J AC Polyethylene Bag,Unit
2 92L411-0075 J AG Polyethylene Bag,Front Speaker
3 SPAKA0245AWZZ J Packing Add.,Left/Right
4 92L412-0148 J AM Packing Add.,Top/Bottom,Front
Speaker
5 TLABZ0690AWZZ J Label,Feature,Tape 1
[For Europe Only]
6 TLABZ0691AWZZ J Label,Feature,Tape 2
[CD-BA160H]
6 TLABZ0693AWZZ J Label,Feature,Tape 2
[CD-BA1700H for U.K.]
6 TLABZ0697AWZZ J Label,Feature,Tape 2
[CD-BA1700H for Europe]
7 QANTL0008AWZZ J AH AM Loop Antenna
! 8 QACCB0008AW00 J AW AC Power Supply Cord
[For U.K.]
! 8 QACCE0011AW00 J AM AC Power Supply Cord
[For Europe]
9 RRMCG0219AWSA J AR Remote Control
9- 1 GFTAB1022AWSB J AK Battery Lid,Remote Control
10 TINSE0312AWZZ J AG Operation Manual
[CD-BA1700H for U.K.]
10 TINSZ0550AWZZ J AS Operation Manual [CD-BA160H]
10 TINSZ0569AWZZ J AS Operation Manual
[CD-BA1700H for Europe]
11 TINSE0313AWZZ J AB Quick Guide
[CD-BA1700H for U.K. Only]
13 TLABZ0604AWZZ J AB Label,Energy [For Europe Only]
14 TLABZ0605AWZZ J AB Label,Saving Energy
15 92LBAG1460C1 J AB Polyethylene Bag,Accessories
16 92LBAG1770A J AB Polyethylene Bag,AC Power
Supply Cord
17 92LFANT1535A J AF FM Antenna
18 SPAKC0886AWZZ J Packing Case [CD-BA160H]
18 SPAKC0892AWZZ J Packing Case
[CD-BA1700H for Europe]
18 SPAKC1028AWZZ J Packing Case
[CD-BA1700H for U.K.]
19 TGAN-3170UMZZ J AE Warranty Card [For U.K.Only]
20 SPAKZ0573AWZZ J Sheet,CD Tray
21 TLABE0373AWZZ J Label,Bar Code [CD-BA160H]
21 TLABE0406AWZZ J Label,Bar Code
[CD-BA1700H for Europe]
21 TLABE0408AWZZ J Label,Bar Code
[CD-BA1700H for U.K.]
22 92L16-01-0002 J AF Polyethylene Bag,
Surround Speaker
23 92L416-0068 J AC Packing Add.,Top/Bottom,
Surround Speaker
P.W.B. ASSEMBLY (Not Replacement Item)
PWB-A1~3 92LPWB3289MANS J — Main/Display/Headphones
(Combined Ass’y)[CD-BA160H]
PWB-A1~4 92LPWB3292MANS J — Main/Display/Headphones/Digital
Output (Combined Ass’y)
[CD-BA1700H]
PWB-B 92LPWB3284PWRS J — Power
PWB-C 92LPWB3303CDUS J — CD Servo
PWB-D 92LPWB3284RDSS J — RDS
PWB-E QPWBF0027AWZZ J AD CD Motor (PWB Only)
PWB-F 92LPC99C017 J CD Loading Motor (PWB Only)
PWB-G ———— — Tape Mechanism
(Not Replacement Item)
OTHER SERVICE PART
UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner
SPEAKER BOX PARTS (Front Speaker)
901 92L126-0015 J BE Front Panel Ass’y,Left
902 92L126-0016 J BE Front Panel Ass’y,Right
903 92L121-0196 J AN Net Frame Ass’y
904 92L051-0099 J AY Speaker Box Ass’y,Left
905 92L051-0100 J AY Speaker Box Ass’y,Right
907 92L394-0056 J AC Foot Cushion
908 92L394-0059 J AC Port Cushion
909 92L351-0363 J Label,Specifications
910 92L319-0027 J AE Catching Holder
911 92L372-0027 J AC Screw,ø3×10mm
912 92L372-0124 J AB Screw,ø4×12mm
913 92L122-0048 J AG Speaker Cord Ass’y
(With Capacitor C1,2)
914 92L291-0079 J AG Speaker Cord
SP1,2 VSPA010WB13CA J AV Woofer
SP3,4 VSPA010WB13CA J AV Woofer,Sub
SP5,6 VSP0051TBN46A J AQ Tweeter
SPEAKER BOX PARTS (Front Speaker)
901 92L126-0017 J BA Front Panel Ass’y,Left
902 92L126-0018 J BA Front Panel Ass’y,Right
903 92L121-0196 J AN Net Frame Ass’y
904 92L051-0099 J AY Speaker Box Ass’y,Left
905 92L051-0100 J AY Speaker Box Ass’y,Right
907 92L394-0056 J AC Foot Cushion
908 92L394-0059 J AC Port Cushion
909 92L351-0375 J AB Label,Specifications
910 92L319-0027 J AE Catching Holder
911 92L372-0027 J AC Screw,ø3×10mm
912 92L372-0124 J AB Screw,ø4×12mm
913 92L122-0048 J AG Speaker Cord Ass’y
(With Capacitor C1,2)
914 92L291-0079 J AG Speaker Cord
SP1,2 VSPA010WB24WA J AU Woofer
SP3,4 VSPA010WB24WA J AU Woofer,Sub
SP5,6 VSP0051TBN98A J AQ Tweeter
SPEAKER BOX PARTS (Surround Speaker)
(CD-BA1700H Only)
901 92L32-01-0460 J Bottom Cabinet
902 92L60-00-1190 J Net Frame Ass’y
903 92L33-01-1430 J Label,Parts Code
904 92L37-03-0110 J AK Speaker Cord
905 92L35-02-0320 J AB Screw,ø3×14mm
SP1,2 VSPA010PB23WA J Speaker,Full Range
CP-BA1700H
CP-BA160H
GBOXS0041AWM1
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 7 –
A
B
C
D
E
F
G
H
1
23456
Figure 7 CD MECHANISM EXPLODED VIEW
CD-BA160H/1700H
306-1
701
304
701
302
301
702
303
M1
703x2
305x2
SW4
M2
305
PWB-E
306-2
306-3
306
704
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 8 –
Figure 8 CABINET EXPLODED VIEW (1/2)
A
B
C
D
E
F
G
H
1
23456
Note: Only tape mechanism assembly and consumable parts are supplied for replacement purposes.
CD-BA160H/1700H
202-1
202
618x2
202-2
PWB-A2
PWB-G
206
605x6
613x4
203-1
203-2
203
201-7
201-6
201-4
201-5
201-2
201-3
201-19
PT801
201-18
201-8
PWB-A3
PWB-B
223
233
601x2
618x2
210
M901
268
201-17
201-21
201-10
201-13
201-12
201-15
201-14
201-11
201-9
201-17
201
201-1
616
201-16
201-20
PWB-A1
614x3
231x6
226
IC901
IC851
Q831
IC841
615x15
614x2
602x10
609x2
FL701
214
213
237
612
606x2
221
219
208
612
222
606x2
220
209
230
618
267
Silicon
grease
201-22
PWB-D
PWB-
A4
282
282
281
Motor
Tape
Motor
Flywheel
Ass'y
Tape1
Flywheel
Ass'y
Tape2
FF/REW
Roller
Ass'y
FF/REW
Roller
Ass'y
BELT CONNECTION
Main Belt
614
618
618
278
278
607x3
608x2
611x2
225
225
TAPE
MECHANISM
602
CD-BA1700H
ONLY
279
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 9 –
Figure 9 CABINET EXPLODED VIEW (2/2)
A
B
C
D
E
F
G
H
1
23456
CD-BA160H/1700H
248
CD
MECHANISM
205
257
235
236
243
224
259
239
239
260
204-2
204-1
204-3
258
204
240
239x3
604x2
604x2
250x4
256
247
262
238
241
244
603
251
252
255
249
253
PWB-C
239
254
246
232
263
234
M3
242
SW3
SW2
SW1
617
264
245
274
275
276
239
PWB-F
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 10 –
A
B
C
D
E
F
G
H
1
23456
Figure 10 SPEAKER EXPLODED VIEW (1/2)
CP-BA160H/1700H
Front Speaker
904(Left)
905(Right)
901(Left)
902(Right)
909
912x4
903
911x2
SP5(L-CH)
SP6(R-CH)
SP3(L-CH)
SP4(R-CH)
908
910x4
907x2
C1,2
Capacitor
2.2µF,50V
Electrolytic
(N.P.)
C1,2
Capacitor
2.2µF,50V
(N.P.)
TWEETER
SP5(L-CH)
SP6(R-CH)
TWEETER
SP5(L-CH)
SP6(R-CH)
SUB
WOOFER
SP3(L-CH)
SP4(R-CH)
WOOFER
SP1(L-CH)
SP2(R-CH)
WOOFER
SP1(L-CH)
SP2(R-CH)
SUB
WOOFER
SP3(L-CH)
SP4(R-CH)
913
(with Capacitor C1,2)
914
RD
RD
RD
(913)
BK
BK
BK
(914)
907x2
912x4
SP1(L-CH)
SP2(R-CH)
All manuals and user guides at all-guides.com
all-guides.com
background
CD-BA160H/1700H
– 11 –
A
B
C
D
E
F
G
H
1
23456
Figure 11 SPEAKER EXPLODED VIEW (2/2)
GBOXS0041AWM1
Surround Speaker (CD-BA1700H Only)
SP1(L-CH)
SP2(R-CH)
901
905x6
903
904
SP1(L-CH)
SP2(R-CH)
902
BK
RD
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
– 12 –
PACKING METHOD (CD-BA1700H FOR U.K. ONLY)
Setting position of switches and knobs
Tape Mechanism STOP
1 Polyethylene Bag,Unit SPAKP0013AWZZ
2 Polyethylene Bag,Front Speaker 92L411-0075
3 Packing Add.,Left/Right SPAKA0245AWZZ
4 Packing Add.,Top/Bottom 92L412-0148
Front Speaker
6 Feature Label,Tape 2 TLABZ0693AWZZ
7 AM Loop Antenna QANTL0008AWZZ
8 AC Power Supply Cord QACCB0008AW00
9 Remote Control RRMCG0219AWSA
10 Operation Manual TiNSE0312AWZZ
11 Quick Guide TiNSE0313AWZZ
14 Label,Saving Energy TLABZ0605AWZZ
15 Polyethylene Bag,Accessories 92LBAG1460C1
16 Polyethylene Bag, 92LBAG1770A
AC Power Supply Cord
17 FM Antenna 92LFANT1535A
18 Packing Case SPAKC1028AWZZ
19 Warranty Card TGAN-3170UMZZ
20 Sheet,CD Tray SPAKZ0573AWZZ
21 Label,Bar Code TLABE0408AWZZ
22 Polyethylene Bag,Surround Speaker 92L16-01-0002
23 Packing Add.,Top/Bottom, 92L416-0068
Surround Speaker
1
UNIT (CD-BA1700H)
7,8,9,10,11,16,17,19
18
21
FRONT SIDE OF
SPEAKERS
3
6
4
2
Bottom
A
B
A
FRONT SPEAKER CP-BA1700H
B
back
20
15
14
SURROUND SPEAKER
C
C
Left
Right
Top
Top
Bottom
TOP
back
TOP
GBOXS0041AWM1
23
22
All manuals and user guides at all-guides.com
background
CD-BA160H/1700H
COPYRIGHT 2000 BY SHARP CORPORATION
ALL RIGHTS RESERVED.
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any from or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
A0004-2288DS•HA•M
SG • SK
SHARP CORPORATION
Communication Systems Group
Quality & Reliability Control Center
Higashihiroshima, Hiroshima 739-0192, Japan
Printed in Japan
©
All manuals and user guides at all-guides.com

Specifications

Indexed Terms: Mini System, Cd Player

Sharp CD-BA160H Questions and Answers

Find answers or ask new question.
Questions and Answers

Related Products

Product Sharp XL BH250 image
Sharp XL-BH250 Audio
2021-11-23 1 docs
Product Sharp GX BT7 image
Sharp GX-BT7 Audio
2021-03-10 1 docs
Product Sharp CD BA150 image
Sharp CD-BA150 Audio
2018-12-29 2 docs
Product Sharp CD C401H image
Sharp CD-C401H Audio Mini Componet System
2018-12-29 1 docs
Product Sharp CD ES111H image
Sharp CD-ES111H Audio
2018-12-29 2 docs
Product Sharp CD ES222E image
Sharp CD-ES222E Audio
2018-12-29 2 docs
