Installation and operating instructions
Tumble dryer
WTW87565AU
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch WTW87565AU:
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Table of contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Energy-saving tips 12
3
5 Installing and connecting the appliance 12
3
2 Appliance settings 16
3
9 Quick reference guide 18
3
* Familiarising yourself with your appliance 19
3
/ Overview of programmes 22
3
0 Programme settings 24
3
Z Laundry 26
3
1 Operating the appliance 27
3
Œ Draining the condensation water 32
3
D Cleaning and maintenance 35
3
Y Information on the display 38
3
3 Help with the appliance 39
3
L Transporting the appliance 41
3
[ Consumption values 43
3
{ Technical specifications 44
3
) Disposal 44
3
4 After-sales service 45
3
8 Intended use
4
Intended use
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
9
Risk of poisoning/material damage!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
Caution!
9
Material damage/damage to the appliance
9
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Energy-saving tips
12
Energy-saving tips
12
Note:
12
5 Installing and connecting the appliance
12
Installing and connecting the appliance
12

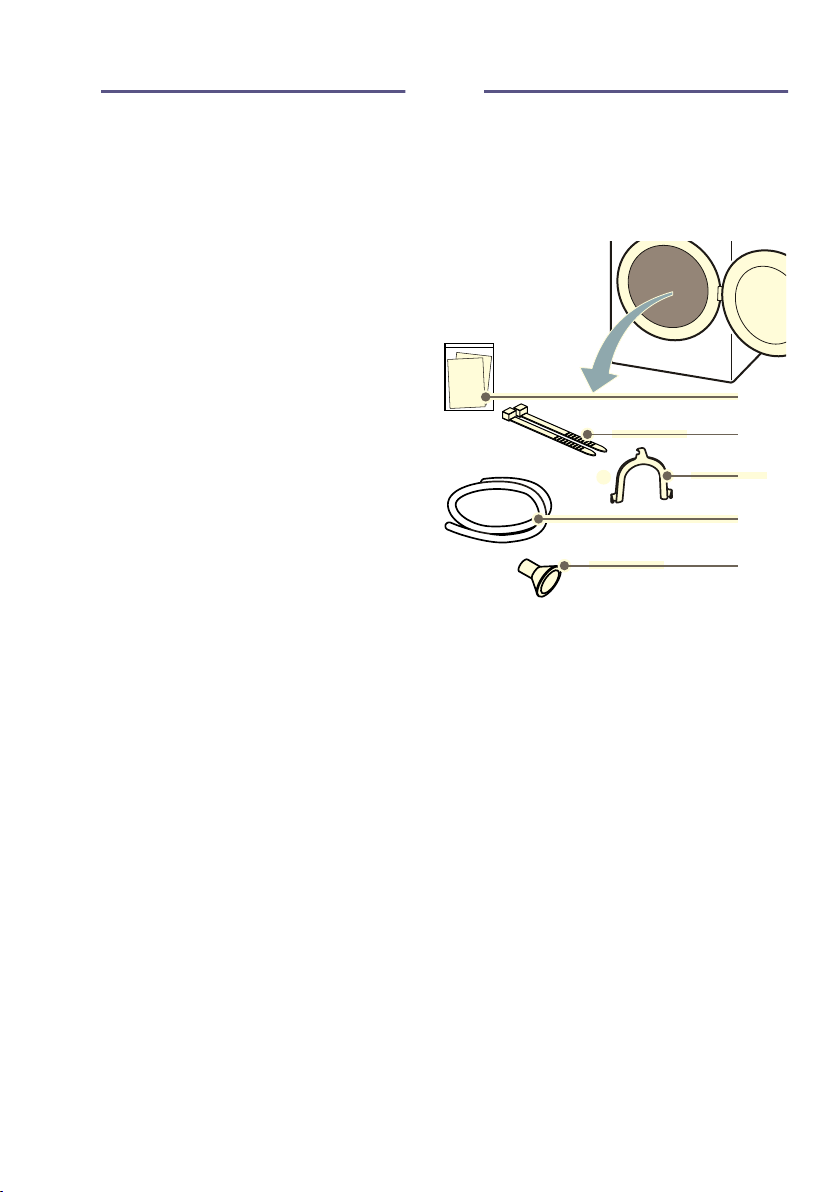

Included with the appliance:
12
1. Remove any packaging and protective covers completely from the appliance.
12
2. Open the door.
12
3. Remove all the accessories from the drum.
12
Caution!
13
Risk of material damage/damage to the appliance
13
Installing the appliance
13
: Warning
13
Risk of death!
13
: Warning
13
Risk of explosions/fire!
13
: Warning
13
Risk of injury/material damage/ damage to the appliance!
13
: Warning
13
Risk of injury!
13
Caution!
13
Material damage/damage to the appliance
13
1. Place the appliance on a clean, even, solid surface.
14
2. Check that the appliance is level using a spirit level.
14
3. If necessary, turn the appliance feet to make sure it is level.
14
Notes
14
Connecting the appliance
14
: Warning
14
Risk of electric shock/fire/material damage/damage to the appliance!
14
: Warning
14
Risk of electric shock/fire/material damage/damage to the appliance!
14
: Warning
14
Risk of fire/material damage/damage to the appliance!
14
: Warning
15
Risk of injury!
15
1. Connecting the drain hose. ~ Page 32
15
2. Plug the appliance's mains plug into the designated socket.
15
3. Check that the mains plug is in securely.
15
Caution!
15
Risk of material damage/damage to the appliance
15
Note:
15
Before using the appliance for the first time
15
Note:
15
Optional accessories
16
2 Appliance settings
16
Appliance settings
16
Childproof lock
16
Note:
16
Activating setting mode
16
1. Switch on the appliance.
17
2. Turn the programme selector to position 1.
17
3. Press Fine adjust and, at the same time, turn the programme selector to position 2.
17
4. Release Fine adjust .
17
Changing the audible signal volume
17
1. Activate setting mode.
17
2. Turn the programme selector to the required position.
17
3. Use the Finished in + or – button to set the volume you require (0 = off; 4 = very loud).
17
Switching the automatic switch-off function on/off
17
1. Activate setting mode.
17
2. Turn the programme selector to position 4.
17
3. Use the Finished in + or – button to switch the appliance's automatic switch-off function on or off.
17
Exiting setting mode
17
9 Quick reference guide
18
Quick reference guide
18
* Familiarising yourself with your appliance
19
Familiarising yourself with your appliance
19
Appliance overview
19
Panel
20
Programme selector
20
A for:
20
Display
21
/ Overview of programmes
22
Overview of programmes
22
Programme
22
Maximum load
22
Notes
22
Note:
22
Notes
22
Note:
22
Note:
23
Note:
23
Note:
23
0 Programme settings
24
Programme settings
24
Buttons
24
Displays
24
Explanations and information
24
Note:
24
1. Select a programme.
25
2. Press Finished in repeatedly until the required number of hours is displayed.
25
Note:
25
3. Press Start/Pause A.
25
Note:
25
Z Laundry
26
Laundry
26
Preparing the laundry
26
: Warning
26
Risk of explosions/fire!
26
Caution!
26
Risk of damage to the drum and laundry
26
Notes
26
Sorting laundry
26
Note:
26
Caution!
26
Risk of material damage to the dryer or laundry
26
Note:
27
Caution!
27
Risk of material damage to the appliance and laundry
27
1 Operating the appliance
27
Operating the appliance
27
Loading laundry and switching on the appliance
27
Note:
27
1. Prepare and sort the laundry.
27
2. Press # to switch on the appliance.
27
3. Open the door.
27
4. Load the laundry unfolded into the drum.
28
5. Close the appliance door.
28
Caution!
28
Risk of material damage to the appliance or laundry.
28
Note:
28
Setting a programme
28
Note:
28
1. Set the programme you require.
28
2. Adjust the programme settings, if required. ~ "Programme settings" on page 24
28
Starting a programme
28
Note:
28
Programme progress
28
Note:
28
Changing the programme or adding more laundry
29
1. Open the door or press Start/ Pause A to pause the programme.
29
2. Add or remove laundry.
29
3. If required, select a different programme or a different programme setting. ~ "Overview of programmes" on page 22 ~ "Programme settings" on page 24
29
4. Close the door.
29
5. Press Start/Pause A.
29
Note:
29
Cancelling the programme
29
Caution!
29
Risk of fire. Laundry may catch fire.
29
Programme end
29
Removing laundry and switching off the appliance
29
1. Remove the laundry.
29
2. Press # to switch off the appliance.
29
Emptying the condensation container
30
1. Pull out the condensation container horizontally.
30
2. Pour out the condensation water.
30
Caution!
30
Risk of harm to health and material damage
30
3. Push the condensation container back into the appliance until you feel it lock into place.
30
Note:
30
Removing the fluff
31
Note:
31

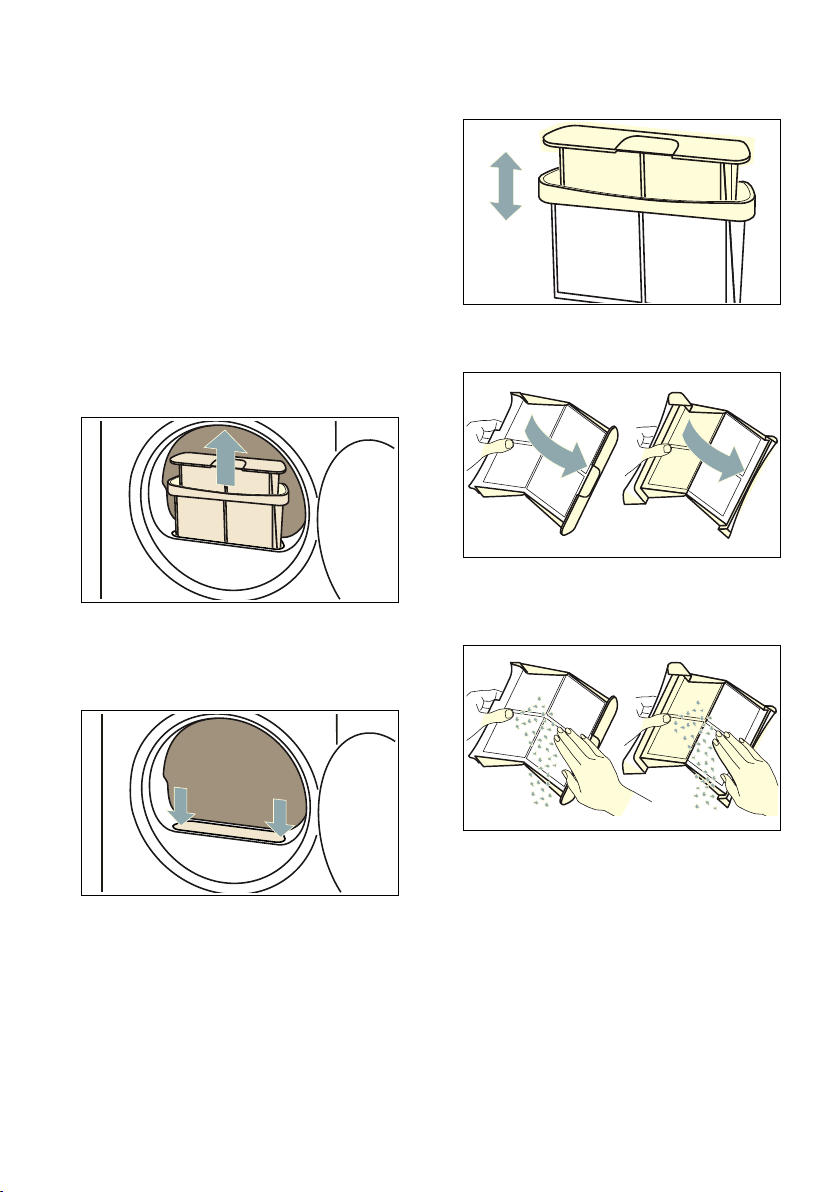

Clean the fluff filter after each drying cycle:
31
1. Open the door and remove all fluff from it.
31
2. Pull out the two-part fluff filter.
31
3. Remove the fluff from the fluff filter recess. Ensure that no fluff falls into the open shaft.
31
4. Pull the two-part fluff filter apart.
31
5. Open the two parts of the filter.
31
6. Remove all fluff from both parts of the filter.
31

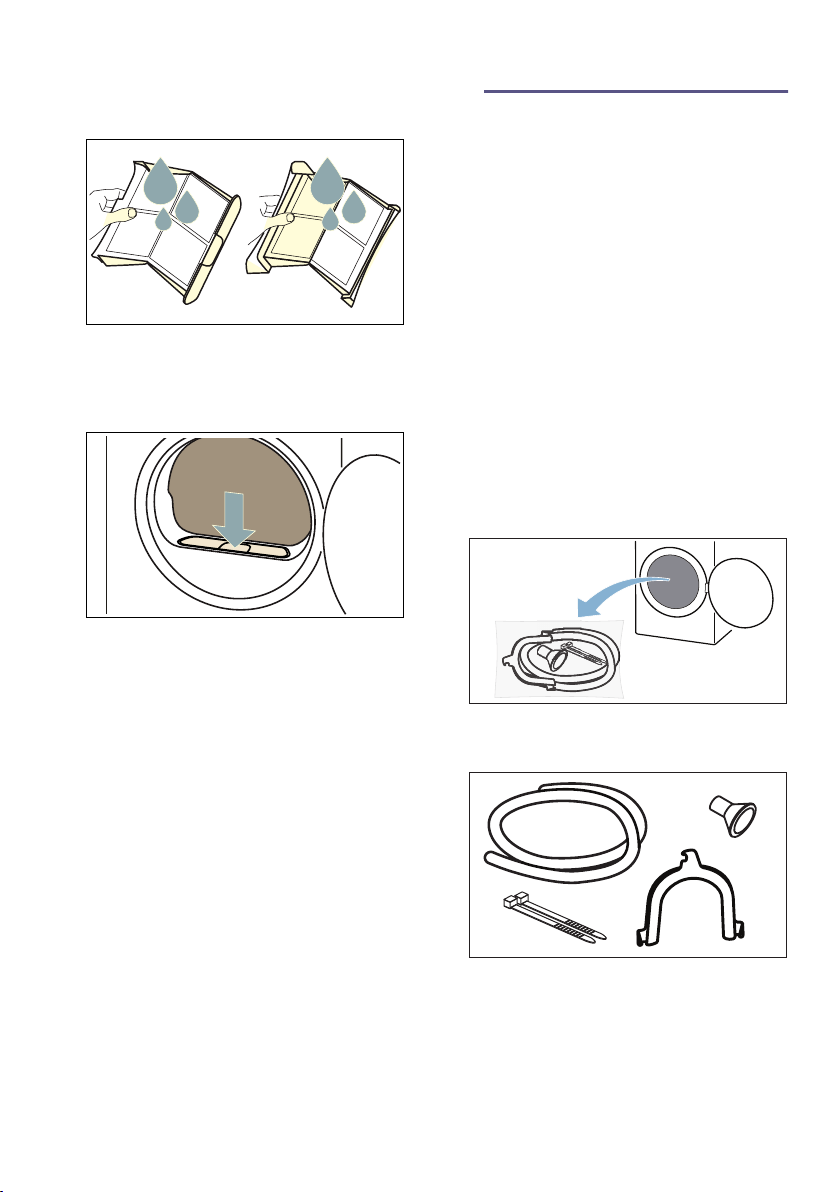

7. Rinse off fluff under warm, running water.
32
8. Dry the two parts of the fluff filter, snap them shut and reinsert the filter.
32
Caution!
32
Material damage/damage to the appliance
32
Œ Draining the condensation water
32
Draining the condensation water
32
Connect the drain hose as follows:
32
1. Remove any accessories from the drum.
32
2. Remove all items from the bag.
32

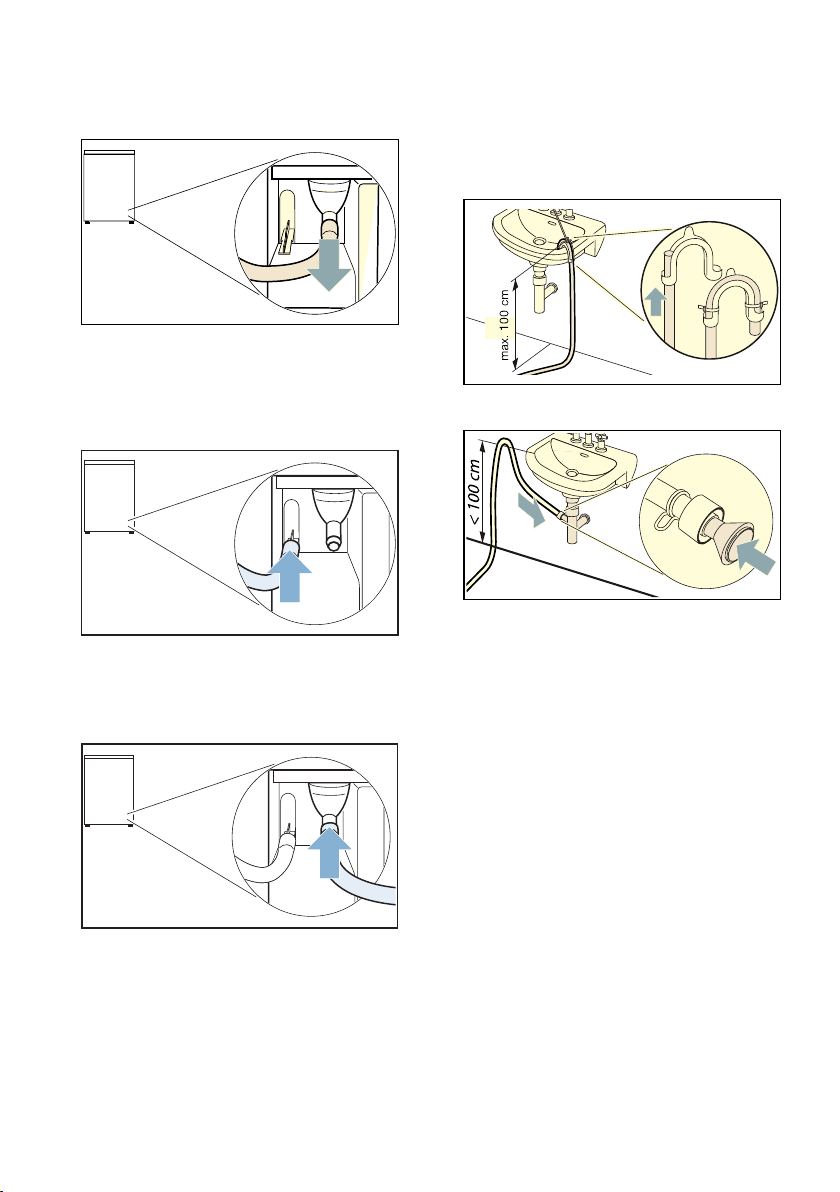

3. Detach the condensation hose from the socket.
33
Note:
33
4. Place the condensation hose in the "parked" position.
33
5. Take the drain hose from the accessories and attach it to the free socket, pushing it up to the stop.
33
6. Secure the other end of the drain hose in place using the remaining accessories (depending on the connection type).
33
Caution!
34
Risk of material damage due to leaks or draining water.
34
Caution!
34
Risk of accumulated water being drawn back into the appliance and causing material damage.
34
7. Pull out the condensation container horizontally and empty it.
34
8. Turn the condensation container 180° onto its underside and remove the stopper that is fitted.
34
9. Turn the condensation container 180° again and insert the stopper into the recess in the top of the condensation container.
34
10. Pull the filter out of its snap-in lock.
34
11. Place the filter into the recess on the condensation container.
35
12. Slide in the condensation container until it clicks into place.
35
Note:
35
Caution!
35
Risk of material damage/damage to the appliance
35
D Cleaning and maintenance
35
Cleaning and maintenance
35
Cleaning the appliance
35
: Warning
35
Risk of death!
35
: Warning
35
Risk of poisoning!
35
: Warning
36
Risk of electric shock/material damage/damage to the appliance!
36
Caution!
36
Material damage/damage to the appliance
36

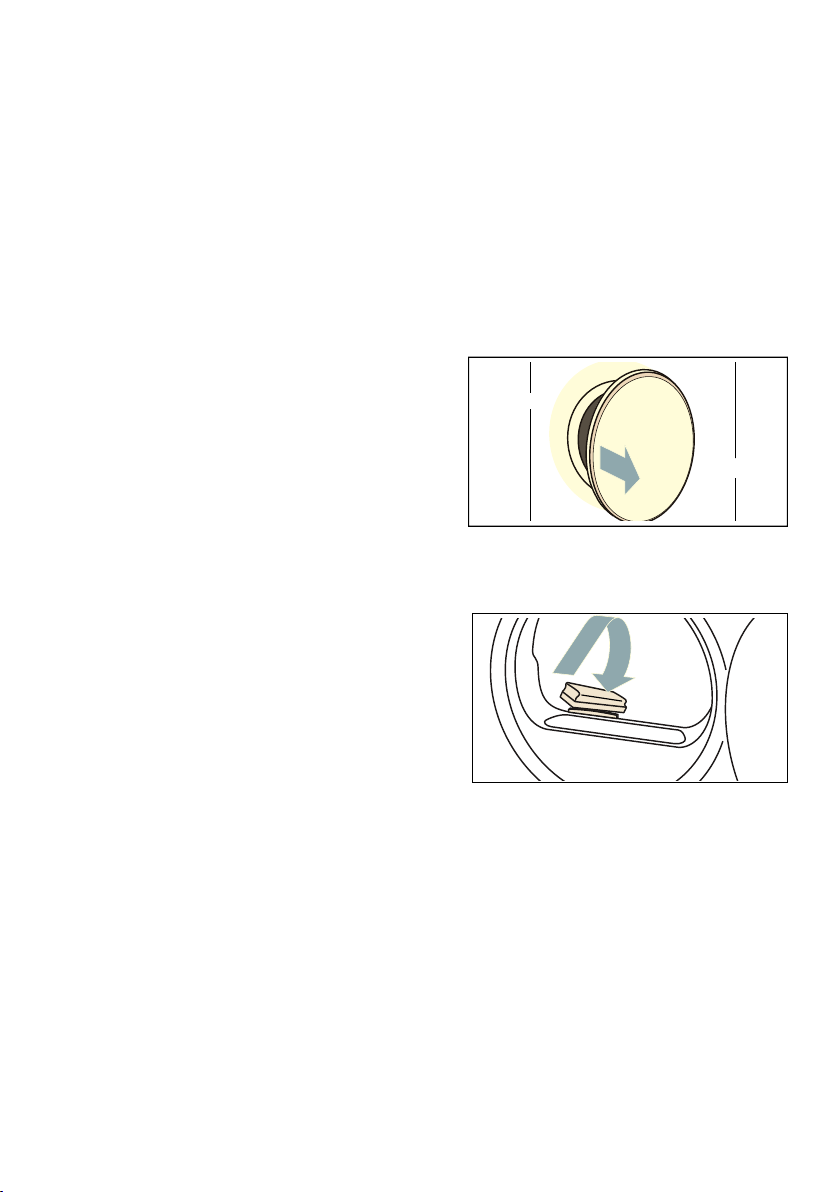

Cleaning the moisture sensor
36
Note:
36
1. Open the door.
36
2. Clean the moisture sensor with a rough sponge.
36
Caution!
36
Risk of damaging the moisture sensor.
36

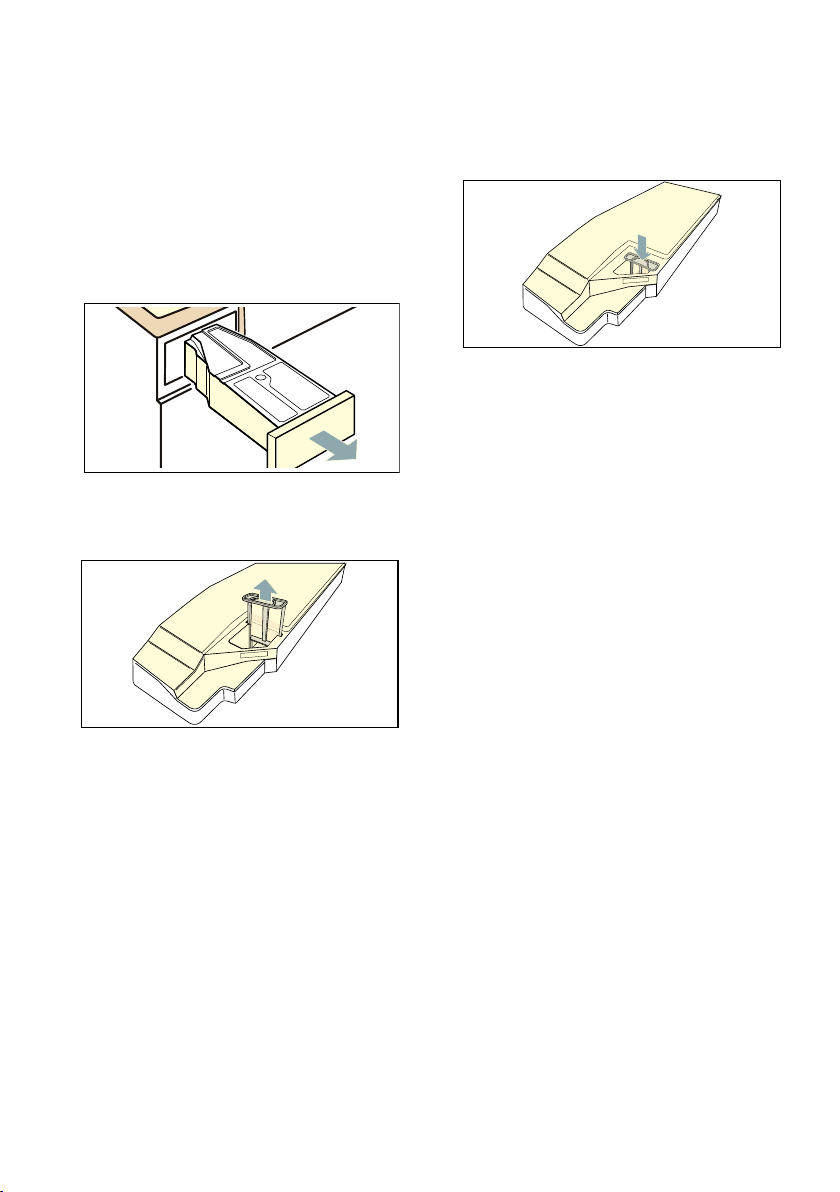

Cleaning the filter in the condensation container
37
Note:
37
1. Pull out the condensation container horizontally.
37
2. Pour out the condensation water.
37
3. Remove the filter.
37
4. Clean the filter under warm, running water or in the dishwasher.
37
5. Push the filter in until you feel it lock into place.
37
Caution!
37
If the filter is not inserted, fluff can find its way inside the appliance and damage it.
37
6. Push the condensation container in until you feel it lock into place.
37
Y Information on the display
38
Information on the display
38
Faults
38
Cause/remedy
38
Note:
38
3 Help with the appliance
39
Help with the appliance
39
Faults
39
Cause/remedy
39
Note:
39
Note:
39
Note:
40
L Transporting the appliance
41
Transporting the appliance
41
: Warning
41
Risk of injury/material damage/ damage to the appliance!
41
: Warning
41
Risk of injury!
41
1. Pull out the condensation container horizontally and empty it.
41
2. Push the condensation container back into the appliance until you feel it lock into place.
41
3. Press # to switch on the appliance.
41
4. Select any programme.
41
5. Press Start/Pause A.
42
6. Wait for 5 minutes.
42
7. Empty the condensation container again.
42
8. If installed, remove the drain hose from the washbasin, siphon or floor drain. ~ Page 32
42
Caution!
42
9. Switch off the appliance.
42
10. Disconnect the appliance's mains plug from the power supply.
42
Caution!
42
Risk of material damage/damage to the appliance
42
[ Consumption values
43
Consumption values
43
Consumption values table
43
9 kg
43
9 kg
43
1400
43
133
43
1.72
43
1000
43
157
43
2.13
43
800
43
181
43
2.48
43
1400
43
98
43
1.22
43
1000
43
123
43
1.62
43
800
43
147
43
2.00
43
3,5 kg
43
3,5 kg
43
800
43
50
43
0.55
43
600
43
64
43
0.69
43
{ Technical specifications
44
Technical specifications
44
) Disposal
44
Disposal
44
Greenhouse gas:
44
R407C
44
4 After-sales service
45
After-sales service
45
File type: PDF
File name: Bosch WTW87565AU Dryer.pdf
File size: 1.99 MB
File Language: English
Pages: 48
Author: Bosch
Published: 2018-07-31 17:00:00
Updated: 2023-08-08
Download File
Specifications
Brand:
Bosch
Model: WTW87565AU
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
WTY877W0AU
WAK24162AU
WAN22120AU
WAT24220AU
WAT24261AU
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WTW87564AU
Bosch WTW87566AU
Bosch WTW875W0
Bosch WTW87561GB
Bosch WTW85460AU
Bosch WTW8759ENL
Bosch WTW8756ENL
Bosch WTW85475NL
Bosch WTW875E27
Bosch WTW84360AU
Bosch WTW875ECO
Bosch WTW85475NLB
Bosch WTW8759ENLB
Bosch WTWH7540
Bosch WTW87640
Table of Contents
×
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Table of contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Energy-saving tips 12
3
5 Installing and connecting the appliance 12
3
2 Appliance settings 16
3
9 Quick reference guide 18
3
* Familiarising yourself with your appliance 19
3
/ Overview of programmes 22
3
0 Programme settings 24
3
Z Laundry 26
3
1 Operating the appliance 27
3
Œ Draining the condensation water 32
3
D Cleaning and maintenance 35
3
Y Information on the display 38
3
3 Help with the appliance 39
3
L Transporting the appliance 41
3
[ Consumption values 43
3
{ Technical specifications 44
3
) Disposal 44
3
4 After-sales service 45
3
8 Intended use
4
Intended use
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
9
Risk of poisoning/material damage!
9
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
Caution!
9
Material damage/damage to the appliance
9
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
11
Risk of poisoning!
11
: Warning
11
Risk of electric shock/material damage/damage to the appliance!
11
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Energy-saving tips
12
Energy-saving tips
12
Note:
12
5 Installing and connecting the appliance
12
Installing and connecting the appliance
12
Included with the appliance:
12
1. Remove any packaging and protective covers completely from the appliance.
12
2. Open the door.
12
3. Remove all the accessories from the drum.
12
Caution!
13
Risk of material damage/damage to the appliance
13
Installing the appliance
13
: Warning
13
Risk of death!
13
: Warning
13
Risk of explosions/fire!
13
: Warning
13
Risk of injury/material damage/ damage to the appliance!
13
: Warning
13
Risk of injury!
13
Caution!
13
Material damage/damage to the appliance
13
1. Place the appliance on a clean, even, solid surface.
14
2. Check that the appliance is level using a spirit level.
14
3. If necessary, turn the appliance feet to make sure it is level.
14
Notes
14
Connecting the appliance
14
: Warning
14
Risk of electric shock/fire/material damage/damage to the appliance!
14
: Warning
14
Risk of electric shock/fire/material damage/damage to the appliance!
14
: Warning
14
Risk of fire/material damage/damage to the appliance!
14
: Warning
15
Risk of injury!
15
1. Connecting the drain hose. ~ Page 32
15
2. Plug the appliance's mains plug into the designated socket.
15
3. Check that the mains plug is in securely.
15
Caution!
15
Risk of material damage/damage to the appliance
15
Note:
15
Before using the appliance for the first time
15
Note:
15
Optional accessories
16
2 Appliance settings
16
Appliance settings
16
Childproof lock
16
Note:
16
Activating setting mode
16
1. Switch on the appliance.
17
2. Turn the programme selector to position 1.
17
3. Press Fine adjust and, at the same time, turn the programme selector to position 2.
17
4. Release Fine adjust .
17
Changing the audible signal volume
17
1. Activate setting mode.
17
2. Turn the programme selector to the required position.
17
3. Use the Finished in + or – button to set the volume you require (0 = off; 4 = very loud).
17
Switching the automatic switch-off function on/off
17
1. Activate setting mode.
17
2. Turn the programme selector to position 4.
17
3. Use the Finished in + or – button to switch the appliance's automatic switch-off function on or off.
17
Exiting setting mode
17
9 Quick reference guide
18
Quick reference guide
18
* Familiarising yourself with your appliance
19
Familiarising yourself with your appliance
19
Appliance overview
19
Panel
20
Programme selector
20
A for:
20
Display
21
/ Overview of programmes
22
Overview of programmes
22
Programme
22
Maximum load
22
Notes
22
Note:
22
Notes
22
Note:
22
Note:
23
Note:
23
Note:
23
0 Programme settings
24
Programme settings
24
Buttons
24
Displays
24
Explanations and information
24
Note:
24
1. Select a programme.
25
2. Press Finished in repeatedly until the required number of hours is displayed.
25
Note:
25
3. Press Start/Pause A.
25
Note:
25
Z Laundry
26
Laundry
26
Preparing the laundry
26
: Warning
26
Risk of explosions/fire!
26
Caution!
26
Risk of damage to the drum and laundry
26
Notes
26
Sorting laundry
26
Note:
26
Caution!
26
Risk of material damage to the dryer or laundry
26
Note:
27
Caution!
27
Risk of material damage to the appliance and laundry
27
1 Operating the appliance
27
Operating the appliance
27
Loading laundry and switching on the appliance
27
Note:
27
1. Prepare and sort the laundry.
27
2. Press # to switch on the appliance.
27
3. Open the door.
27
4. Load the laundry unfolded into the drum.
28
5. Close the appliance door.
28
Caution!
28
Risk of material damage to the appliance or laundry.
28
Note:
28
Setting a programme
28
Note:
28
1. Set the programme you require.
28
2. Adjust the programme settings, if required. ~ "Programme settings" on page 24
28
Starting a programme
28
Note:
28
Programme progress
28
Note:
28
Changing the programme or adding more laundry
29
1. Open the door or press Start/ Pause A to pause the programme.
29
2. Add or remove laundry.
29
3. If required, select a different programme or a different programme setting. ~ "Overview of programmes" on page 22 ~ "Programme settings" on page 24
29
4. Close the door.
29
5. Press Start/Pause A.
29
Note:
29
Cancelling the programme
29
Caution!
29
Risk of fire. Laundry may catch fire.
29
Programme end
29
Removing laundry and switching off the appliance
29
1. Remove the laundry.
29
2. Press # to switch off the appliance.
29
Emptying the condensation container
30
1. Pull out the condensation container horizontally.
30
2. Pour out the condensation water.
30
Caution!
30
Risk of harm to health and material damage
30
3. Push the condensation container back into the appliance until you feel it lock into place.
30
Note:
30
Removing the fluff
31
Note:
31
Clean the fluff filter after each drying cycle:
31
1. Open the door and remove all fluff from it.
31
2. Pull out the two-part fluff filter.
31
3. Remove the fluff from the fluff filter recess. Ensure that no fluff falls into the open shaft.
31
4. Pull the two-part fluff filter apart.
31
5. Open the two parts of the filter.
31
6. Remove all fluff from both parts of the filter.
31
7. Rinse off fluff under warm, running water.
32
8. Dry the two parts of the fluff filter, snap them shut and reinsert the filter.
32
Caution!
32
Material damage/damage to the appliance
32
Œ Draining the condensation water
32
Draining the condensation water
32
Connect the drain hose as follows:
32
1. Remove any accessories from the drum.
32
2. Remove all items from the bag.
32
3. Detach the condensation hose from the socket.
33
Note:
33
4. Place the condensation hose in the "parked" position.
33
5. Take the drain hose from the accessories and attach it to the free socket, pushing it up to the stop.
33
6. Secure the other end of the drain hose in place using the remaining accessories (depending on the connection type).
33
Caution!
34
Risk of material damage due to leaks or draining water.
34
Caution!
34
Risk of accumulated water being drawn back into the appliance and causing material damage.
34
7. Pull out the condensation container horizontally and empty it.
34
8. Turn the condensation container 180° onto its underside and remove the stopper that is fitted.
34
9. Turn the condensation container 180° again and insert the stopper into the recess in the top of the condensation container.
34
10. Pull the filter out of its snap-in lock.
34
11. Place the filter into the recess on the condensation container.
35
12. Slide in the condensation container until it clicks into place.
35
Note:
35
Caution!
35
Risk of material damage/damage to the appliance
35
D Cleaning and maintenance
35
Cleaning and maintenance
35
Cleaning the appliance
35
: Warning
35
Risk of death!
35
: Warning
35
Risk of poisoning!
35
: Warning
36
Risk of electric shock/material damage/damage to the appliance!
36
Caution!
36
Material damage/damage to the appliance
36
Cleaning the moisture sensor
36
Note:
36
1. Open the door.
36
2. Clean the moisture sensor with a rough sponge.
36
Caution!
36
Risk of damaging the moisture sensor.
36
Cleaning the filter in the condensation container
37
Note:
37
1. Pull out the condensation container horizontally.
37
2. Pour out the condensation water.
37
3. Remove the filter.
37
4. Clean the filter under warm, running water or in the dishwasher.
37
5. Push the filter in until you feel it lock into place.
37
Caution!
37
If the filter is not inserted, fluff can find its way inside the appliance and damage it.
37
6. Push the condensation container in until you feel it lock into place.
37
Y Information on the display
38
Information on the display
38
Faults
38
Cause/remedy
38
Note:
38
3 Help with the appliance
39
Help with the appliance
39
Faults
39
Cause/remedy
39
Note:
39
Note:
39
Note:
40
L Transporting the appliance
41
Transporting the appliance
41
: Warning
41
Risk of injury/material damage/ damage to the appliance!
41
: Warning
41
Risk of injury!
41
1. Pull out the condensation container horizontally and empty it.
41
2. Push the condensation container back into the appliance until you feel it lock into place.
41
3. Press # to switch on the appliance.
41
4. Select any programme.
41
5. Press Start/Pause A.
42
6. Wait for 5 minutes.
42
7. Empty the condensation container again.
42
8. If installed, remove the drain hose from the washbasin, siphon or floor drain. ~ Page 32
42
Caution!
42
9. Switch off the appliance.
42
10. Disconnect the appliance's mains plug from the power supply.
42
Caution!
42
Risk of material damage/damage to the appliance
42
[ Consumption values
43
Consumption values
43
Consumption values table
43
9 kg
43
9 kg
43
1400
43
133
43
1.72
43
1000
43
157
43
2.13
43
800
43
181
43
2.48
43
1400
43
98
43
1.22
43
1000
43
123
43
1.62
43
800
43
147
43
2.00
43
3,5 kg
43
3,5 kg
43
800
43
50
43
0.55
43
600
43
64
43
0.69
43
{ Technical specifications
44
Technical specifications
44
) Disposal
44
Disposal
44
Greenhouse gas:
44
R407C
44
4 After-sales service
45
After-sales service
45
Search:
×
Search
