Please read the instructions before using the product - the warranty card is included and the picture is for reference only
Information Security
1
Information Security
2
Name and content of harmful substances in the product
Email: [email protected]
Telephone: 1-855-919-0908
Address: 1601, Building 2, No. 1, Qingqing Road, Qinghu, Longhua District, Shenzhen, China
Shell
PCB
Component
Item
Hazardous substance
Mercury
(Hg)
○
○
Lead
(Pb)
×
×
Cadmium
(Cd)
○
○
Hexavalent
chromium
(Cr(VI))
○
○
Polybrominated
bipheny
(PBB)
○
○
Polybrominated
diphenyl ethers
(PBDE)
○
○
Accessories
○
×
○ ○ ○ ○
This form has been formulated in accordance with SJ/T 11364.
○：Indicates that the contents of the hazardous substances in all homogeneous materials of the parts should be below
the limit value as per stipulation of GB/T 26572.
×：Indicates that the content of the hazardous substance in at least one homogeneous material of the component
exceeds the limit value as per stipulation by GB/T 26572, and the replacement of the hazardous substance could not
be realized due to the limitation of the global technological development level. Printed circuit board (PCB) components:
including printed circuit board and its parts, electronic components and so on. According to the different product model,
the product you purchase may not contain all of the above components.
Robot cleaner (Qty*1）
3

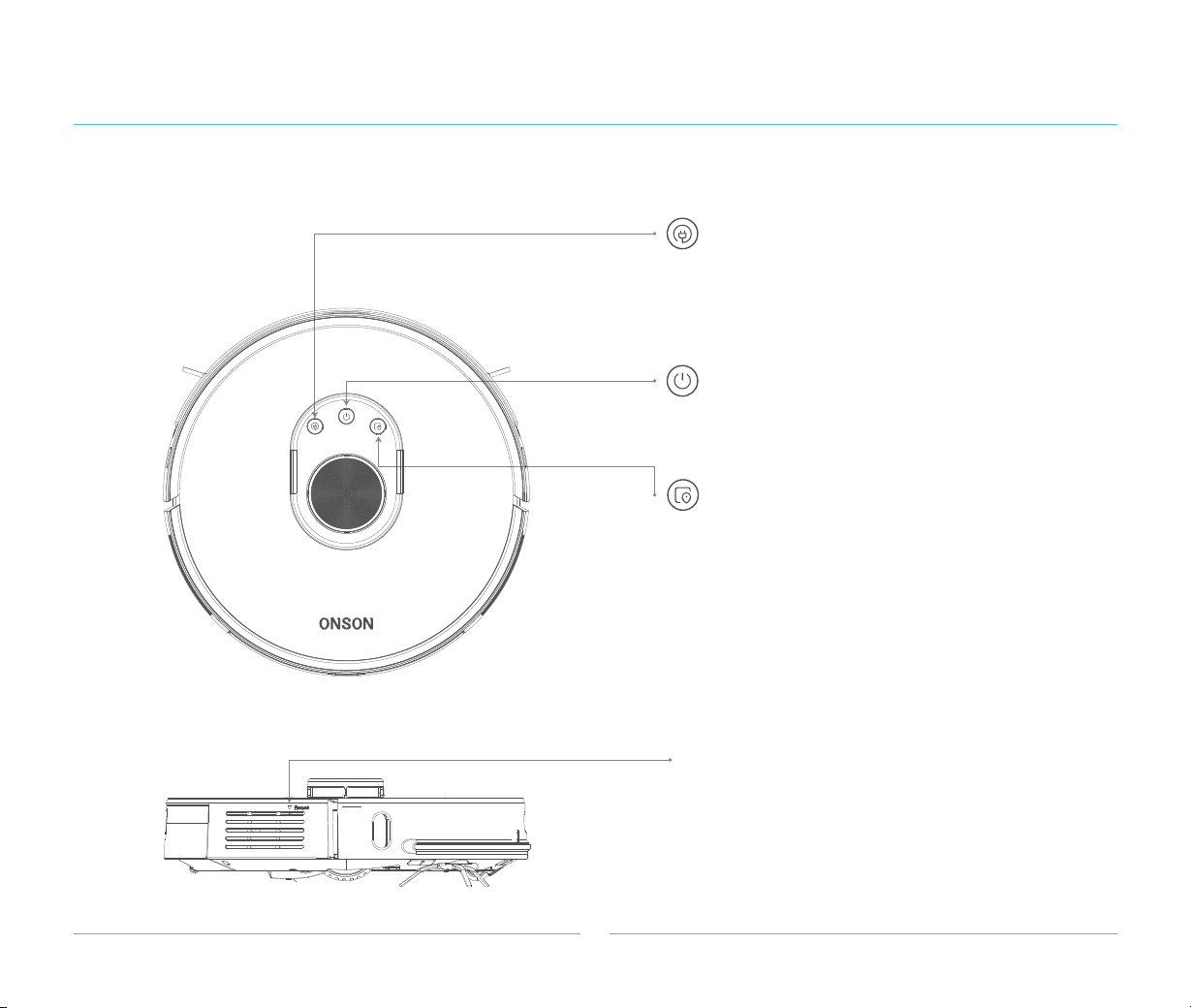

Product Package List and Introduction
Force shutdown press key
·Short press to shut down.
Clean/switch robot cleaner push button
· Short-Press the button to start the
recharging function.
·
·Long press to turn on or off.
Short press the button to start the cleaning
function.
Partial Local sweep button
·Short press to start local cleaning.
·Hold down the local sweep key and the
recharging key for more than 3 seconds at
the same time.
Note: press any key to pause while
cleaning/recharging or partial local
cleaning.
Reset the WiFi
Recharge push button
Robot cleaner
4

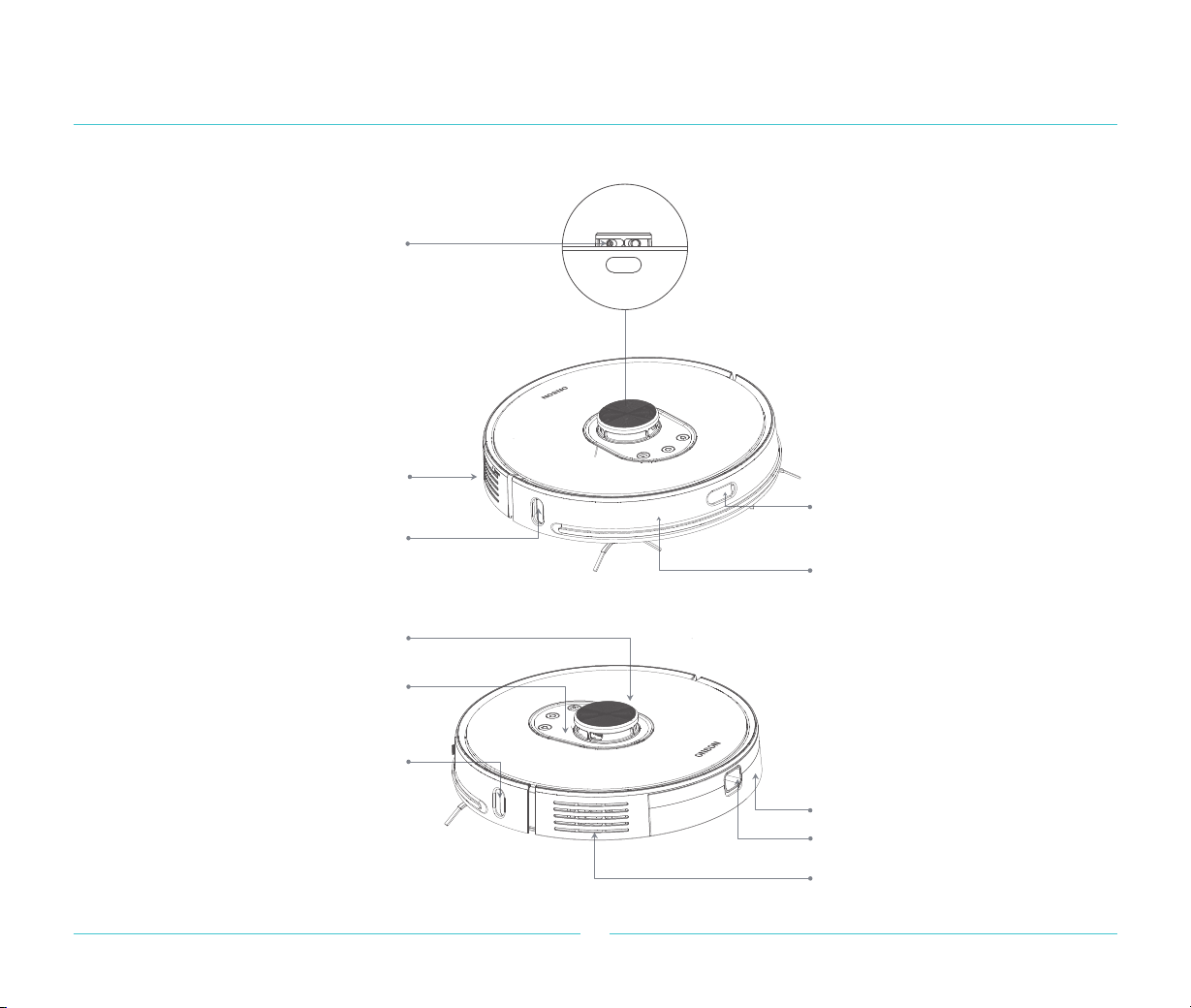

Product Package List and Introduction
Infrared recharge sensor/infrared
anti-collision sensor
Collision sensor
Laser distance
measurement sensor
TOF sensor along the wall/
infrared auxiliary recharge sensor
Loudspeaker
Laser head plate cover laser
cover pressure sensor
Laser head plate cover
Infrared auxiliary recharge sensor
Air Vent Cutout
Dust box
Dust box button
Robot cleaner
Product Package List and Introduction
Charging connected charging pole sheet
Universal direction wheel
Cliff sensor
Side brush
Driven wheel
Rolling brush
Dust collector connection
charging pole plate
5
Accessories list
Dust box
Before using the dust box module, it is necessary to find the accessory - filter screen, and then use after installing the filter screen.
Dust box top
holder
Dust box filter
screen
Dust box bottom
holder
Dust box flip
Dust box button
Dust box clip
Cleaning tool
Dust box
Product Package List and Introduction
Accessories list
1. Recharge dock
7
Product Package List and Introduction
Charging spring plate
Recharging dock indicator light
Signal emission area
Power source interface
Recharger seat back
Recharger seat front
Recharger seat adapter
Power cord length 1.2m
8
Installation
1. Install a recharging dock
Lean the recharging dock against the wall, lay on flat levelled ground.
Make sure the recharging dock is 1.2 meters distance in vertical front direction and 0.5 meters on both sides.
Lean against the wall Not leaning against the wall
1
2
9
Installation
Long press to start the robot cleaner, press the return key to automatically find the charging dock for charging.
On/off push button indicator light
color represents power
·
white: power load ≥ 15%
· orange light breathing:
power load < 15%
·Note: If the power is low, it may not be possible to start the robot cleaner. Please align precisely the robot cleaner at
the charging spring on the recharging dock. The switch button orange light is always on when charging.
3
10
Installation
3. The App Settings
Connect to the mobile phone client terminal (if you do not need to use App control, this step can be skipped).
Download the App
Scan the QR code below to download and install the App.
1
11
Operation instruction
When the robot cleaner is in operation state, press any key to
pause, then press after the pause, the robot cleaner will
continue to clean, press to recharge and end the cleaning,
press to carry out local cleaning.
Power on/power off
Long press the button to start the robot cleaner, the key indicator
lights up slowly, and the robot cleaner enters standby mode. When
the robot cleaner is at static motionless status,long press to shut
down, the white light will be slowly off, the current cleaning job is
completed.
Note: The robot cleaner cannot be shut down during charging.
Whole House Clean
Short press to start the whole room cleaning (see the
picture below).
Press any key to pause while cleaning.
Note:
· It is suggested that the sweeping robot start cleaning from
the recharging dock or dust collector.
· If the power is too low, the whole house cleaning cannot be
started, please charge first and then start the whole house
cleaning.
· When the power is insufficient during the cleaning process,
the robot cleaner will automatically return to the charging
station for charging. When the power is sufficient, the robot
cleaner will automatically return to the interruption to continue
the cleaning.
· Please tidy up all kinds of wires (power cord) on the ground
before cleaning, so as to avoid electrical power failure caused
by dragging of the robot cleaner during cleaning and damage
to goods or wires and materials.
Charging
Automatic mode: after the cleaning, the robot cleaner will recharge
automatically.
Manual: in the paused state, press to start the recharging.
When the robot cleaner is charging, the orange indicator light of the
switch button is always on, and the white indicator light breathes
brightly after being fully charged.
Note: If the robot cleaner does not start cleaning from the recharging
dock or dust collector, the recharging may fail. The robot cleaner will
automatically return to the starting position of cleaning. Please
manually put the robot cleaner back to the recharging dock or dust
collector to charge.
Cleaning method
After starting, the robot cleaner will scan and generate a map and
partition the zone intelligently. In the partitioned zone, sweep along
the wall first, plan the cleaning path route and then sweep each
partition zone one by one with the bow filling scheme.
Zone I clean completed
Zone II clean completed
Zone IV clean job pending Zone III clean in progress
Pause
Note: When paused, charge the robot cleaner against the charging
dock, and the cleaning will be completed.
12
Operation instruction
Partial cleaning
Failure state
When the robot cleaner is in standby or paused, short press
the local key sweep key to start the partial location sweep.
This mode is used to clean the square area with the robot
cleaner as the center of 1.6m x 1.6m. After the sweep, the
robot cleaner will automatically return to the starting position
and stop working.
1.6m
1.6m
Note: Starting partial cleaning when paused will end the previous
cleaning and start the new cleaning task.
Add water or clean the mop during the process
of water dust integration device
If the robot cleaner needs to add water or clean the mop during the
cleaning process, please firstly press on the cleaner to pause
and remove the water and dust integration device.
When there is an abnormal occurrence during the operation of the
robot cleaner, the on-off button indicator will quick flicker in orange
color and give a voice indication. For the solution, please refer to
"troubleshooting" on Page 20.
Note: If there is no operation for 10 minutes under the failure state,
and the robot cleaner will be dormant automatically.
Dormancy
If there is no operation maintaining exceeding 20 minutes, the
cleaner will automatically enter the dormancy state. In the
dormancy state, after the breathing lamp is off, press any key
to wake up the robot cleaner.
Note:
· The robot cleaner will not enter dormancy while charging on
the recharging dock.
· Automatic shutdown after dormancy to low power state.
Reset the WiFi
When the router changes the configuration, forgets the password
or causes the phone to be unable to connect to the robot cleaner
for other reasons, hold down the keys ( + )until the voice
prompts "reset WiFi", and then reset the WiFi connection according
to the relevant part of the WiFi network configuration in the quick
setting instructions.
whole house cleaning
Use the mobile App to click the whole room cleaning, the robot
cleaner will perform the whole room cleaning.
Room cleaning
Use the mobile App to click on the room cleaning, add and
configure the room, and then select the room to carry out the
cleaning task.
Designated location cleaning
The mobile App can be used to specify the target point on the
map, and the robot cleaner will automatically plan the route to the
designated location.
Zone cleaning
Using the mobile App, you can set the zone cleaning function, and
the robot cleaner will clean according to the planned area on the
phone.
Cleaning mode
Standard mode is set as default, using the mobile phone client
end client to choose quiet, automatic, powerful, only mop the
ground choices.
13
Daily maintenance
Middle sweep rolling brush cleaning
tolls use instruction
Main brush (weekly cleaning is recommended)
1. Turn over the cleaner, press down the clasp and remove the main
brush cover.
2. Take out the main brush upward and clean the main brush bearing.
3. With the matching main brush cleaning tool, cut off the tangled hair
on the main brush.
4. Re-install the main brush back and press the main brush cover
tightly, then fix the clasp.
Note: It is recommended to replace the main brush every 6-12 months to ensure the cleaning effect.
Middle sweep
base support
Middle sweep
rolling brush
14
Daily maintenance

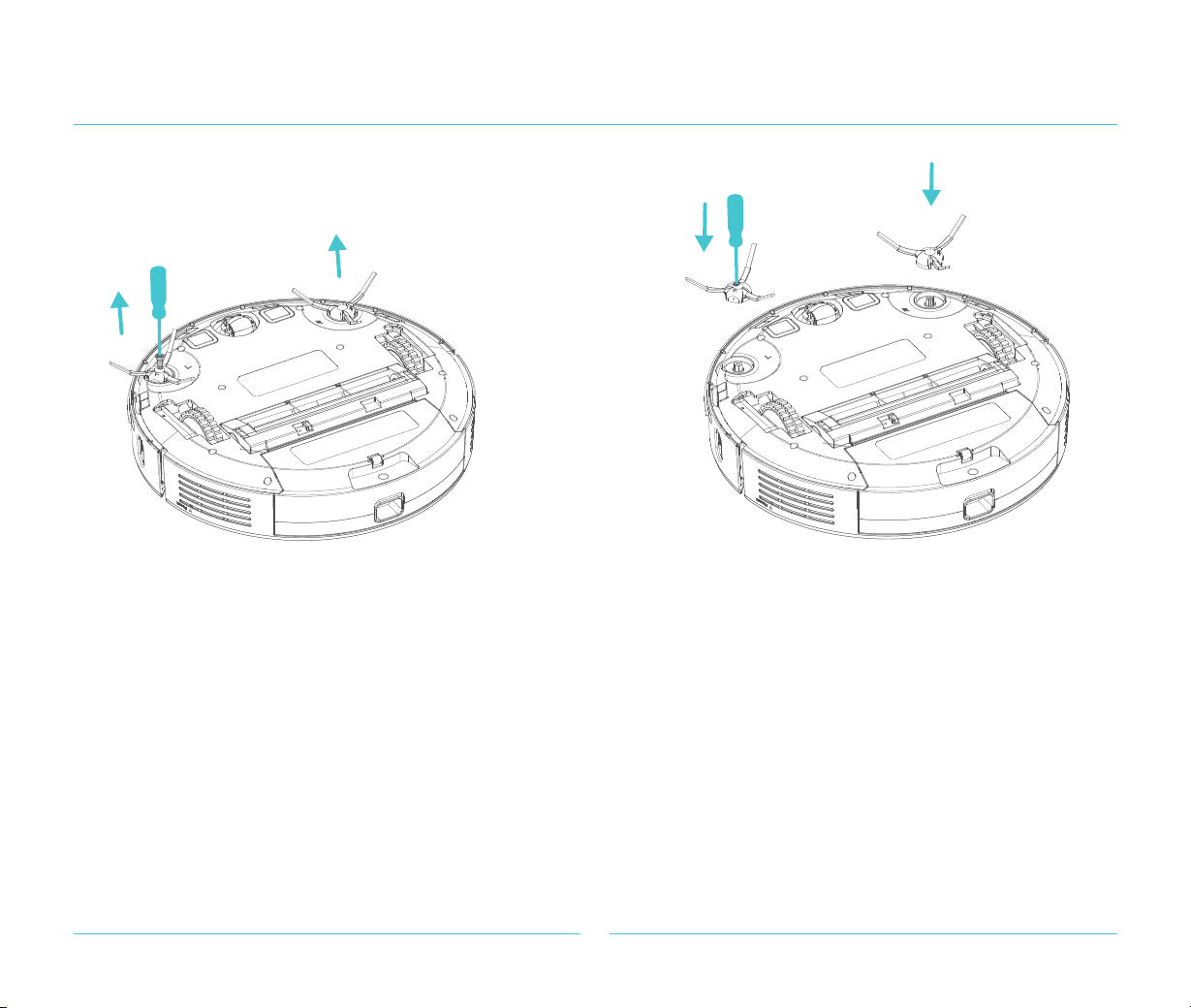

Side brush (weekly cleaning is recommended)
Use a screwdriver to unscrew and clean the brush.
Note: it is recommended to replace the side brush
every 3-6 months to ensure the cleaning effect.
Battery
The robot cleaner is equipped with a high-performance rechargeable lithium battery pack. In order to maintain the battery
performance, please keep the robot cleaner under charging condition for daily use.
Note: If you do not use it for a long time, please preserve it in shutdown condition. Minimum every three months one time
charging is recommended to prevent the battery for long over-discharge damage.
15
Daily maintenance
1.Push the dust box release button to take it out. 2. Open the dust box clasp.
3. Empty the garbage. 4. Open the dust box clamp-shell and dismantle the
filter cover and filter mesh (HEPA).
Dust box and filter mesh (weekly cleanup is recommended)
16
Daily maintenance
Wipe and clean each sensor of the robot cleaner with
a soft dry cloth, including:
1. Four cliff sensors at the bottom of the robot cleaner.
2. Side wall sensor on the right side of the robot cleaner.
3. Charging docking charging pole at the bottom of the
robot cleaner.
4. Dust collector charging pole at the bottom of the robot
cleaner.
5. Infrared auxiliary recharging sensor.
Robot cleaner sensor
TOF sensor along
the wall
Infrared auxiliary
recharging sensor
Infrared auxiliary
recharging sensor
Cliff sensor
Charge connection
charging pole plate
Dust collector
charging pole plate
17

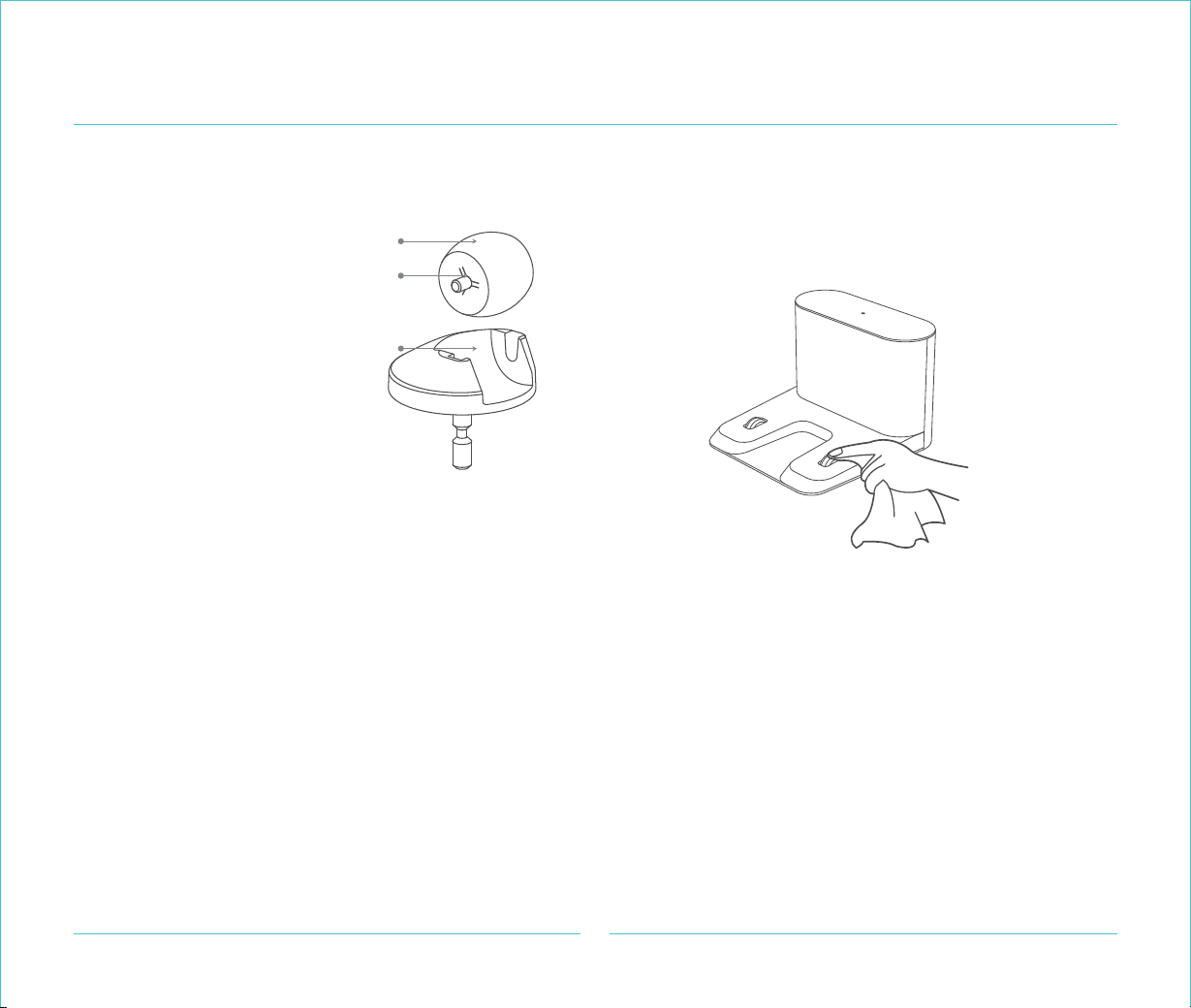

Daily maintenance
Recharging dock
(monthly replacement recommended)
Universal direction wheel
(recommended monthly cleaning)
wheel
proper
Wheel
shaft
support
1.Turn the robot cleaner up
and pull out the universal
direction wheel.
2.Clean hair and dirt from
the wheel body and shaft.
3. Re-install the wheel proper
and press it tightly.
Note: It can be washed with tap water,
dried and loaded back.
Firmware upgradation
The firmware of the robot cleaner can be upgraded by using the mobile client terminal. Please connect the recharging
dock and ensure the power is more than 15% before upgrading.
When the firmware is upgrading, the indicator light of the push button is showing white and orange color alternately.
Wipe the charging spring of recharging dock with a soft
dry cloth.
18
Common parameters
Trouble shooting
Robot cleaner proper
When there is an abnormal occurrence in the robot cleaner, there is quick flicker of on/off key indicator orange, please refer to the
following table to solve the malfunction.
Recharge dock
Item
Outer dimension
Battery type
Outer dimension
Rated frequency
Product weight
Rated voltage
Rated frequency
Parameters
350 X 350 X 98mm
5200mAh
≈3.6kg
14.4V
50W
Item
Input
Output
Parameters
145 X 140 X 99mm
30W
DC24V 1.2A
DC24V 1.2A
Malfunction indication
Please check if the Radar is overshadowed and
please move it to a new position to re-start
If the laser ranging sensor is blocked or stuck by a foreign matter, please
remove the blocking or foreign matter;If unable to clear, please move the
robot cleaner to a new location to start.
Please check whether the front collision barrier
is stuck
The collision buffer is stuck. Please gently pat it several times to remove
the foreign matter.If there is no foreign matter, please move to a new
position to start.
Please wipe the cliff sensor and activate it away
from the dangerous area
Please check that the main brush is not wound
or stuck
The main brush may be entangled with foreign matter. Please remove the
main brush and bearing and clean them.
The side brush may be entangled with foreign matter. Please remove the
side brush and clean it.
Please check if the side brush is wound or stuck
Solution
The robot cleaner is suspended, please move to a new position to start;
If cliff sensor is too dirty, it may also cause the fault, please wipe the cliff
sensor to remove the trouble.
19
Troubleshooting
Please put back the dust box and the filter screen, and confirm that the filter
screen and the dust box are installed in place.
Please let it dry for at least 24 hours if the strainer is not dry;
Filter may be blocked, please clean the filter; If could not be solved, please
replace the filter mesh.
The robot cleaner may be stuck or trapped. Please clear obstacles around
the robot cleaner.
Please check if the main wheel is stuck
The dust box has been taken out
Please clean the dust box and filter mesh
Solutions
The power is low and start to recharge The power is low, please charge before using.
Please check the top radar cover to see if it is
compressed or stuck
The laser head pressure sensor is pinned or stuck. Please move to a new
position to start.
Please wipe the sensor on the right side of the robot
cleaner and move to a new position to restart
The sensor along the wall is blocked by dust, please wipe the sensor along
the wall.
The fan is abnormal Dust collector fan cannot work normally. Please try to shut down and restart.
The battery is damaged or not installed
The temperature is too high or too low. Please wait for the battery
temperature to be normal before using.
Note: Restart after shutdown to eliminate some of the possible mal-fucntion.
Common parameters
20
Common parameters
Problem type Solution
Battery power is insufficient, please sit on the charging dock to charge before using;
Ambient temperature is too low (below 0℃) or too high (above 50℃), please use in the
environment of 0-40℃.
There are too many obstacles around the charging dock. Please put the charging dock in
the open area.The robot cleaner is too far away from the charging dock. Please put the
robot cleaner near the charging dock.
Turn it off and reboot.
The main brush, side brush or main wheel may be entangled with foreign matter, please
clean after shutdown.
If the power is low, the remaining power is more than 30%, the scheduled cleaning will be
started.
The power consumption of the robot cleaner is very low when sitting on recharging dock,
which is conducive to keeping the battery in the best performance.
Lithium battery is on charge whenever low battery with no memory effect, when charged full
battery there is no need for waiting for 16 hours.
The charging dock is not energized. Please confirm whether the power wire at two ends of
the charging dock is plugged in at both ends. Bad contact, please clean the charging block
spring and the charging contact of the robot cleaner, or the side brush may interfere;
Please confirm whether the charging dock indicator light is on.
The dust box is full, please clean the dust box. The filter has been blocked, please clean the
filter;The main brush is entangled with foreign material. Please clean the main brush.
Unable to start
Unable to charge
Could not recharge
Abnormal activities
Abnormal sound during cleanup
Reduced capability of clean up or
dust drop off occurred
Uanble to connect to WiFi
Scheduled cleaning does not
take effect
Is sitting on recharging dock
power consuming
Do I need to charge for 16 hours
for the first three times of use
Water dust integration device
with out water drainage or less
water drainage
Please check whether there is water in the water tank. Please clean the mop. Please
replace the filter core. Please install the mop correctly according to the instruction.
Water dust integration device with
excessive water drainage
Please confirm that the water tank cover has been installed in place;
Please confirm that the filter core has been installed in place.
Please check if the robot cleaner is not in the Do Not Disturb mode, in that mode the cleaner
will not continue to sweep; Manual recharging or placing the robot cleaner back on the
charging dock will not continue the sweeping job.
The robot will regenerate the map after partial cleaning or remote movement of the position,
such as the recharging dock; If the distance is too far, it may not be able to recharge
automatically. Please manually put the robot cleaner back to the charging station for charging.
During the cleaning, the power is
insufficient to recharge but the
sweeping will not continue after
completion of charging
Unable to return to charging dock
after partial cleaning or moving
position
Poor WiFi signal, please ensure that the robot cleaner is in a good Wi-Fi signal coverage
area; WIFI connection is abnormal, please download the latest client terminal and try to
connect again after reset WIFI;WIFI password is wrong, please reconfirm whether the
password is correct.
