2005 Civic 2 Door Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through this reference.
For a printed owner's manual, click on authorized manuals or go to www.helminc.com.
Contents
Introduction ....................................................................................................................................... i
A Few Words About Safety................................................................................................................ ii
Your Vehicle at a Glance................................................................................................................... 3
Driver and Passenger Safety ............................................................................................................ 5
Seat belts, SRS, and child protection.
Instruments and Controls................................................................................................................. 49
Indicators, gauges, dashboard, and steering column.
Features .............................................................................................................................................. 87
Heating and cooling, audio, steering wheel, and cruise control.
Before Driving.................................................................................................................................. 121
Fuel, vehicle break-in, and cargo loading.
Driving .............................................................................................................................................. 133
Engine and transmission operation.
Maintenance..................................................................................................................................... 149
Schedules, fluid checking, minor services, and vehicle storage.
Taking Care of the Unexpected...................................................................................................... 187
Flat tire, dead battery, overheating, fuses.
Technical Information..................................................................................................................... 211
Vehicle specifications, tires, fuels, and emissions controls.
Warranty and Customer Relations (U.S. and Canada)................................................................ 223
Warranty and contact information.
Authorized Manuals (U.S. only)...................................................................................................... 227
How to order.
Index..................................................................................................................................................... I
Service Information Summary
Fluid capacities and tire pressures.
Owner's Idenfication
This Owner’s Manual should be considered
a permanent part of the vehicle and should
remain with the vehicle when it is sold.
This Owner’s Manual covers all models of
the Civic Coupe. You may find descriptions
of equipment and features that are not on
your particular model.
The information and specifications included
in this publication were in effect at the time
of approval for printing. Honda Motor Co.,
Ltd. reserves the right, however, to
discontinue or change specifications or
design at any time without notice and
without incurring any obligation whatsoever.
Owner’s Identification
POUR CLIENTS CANADIEN
AVIS IMPORTANT: Si vous avez
besoin d’un Manuel du Conducteur
en français, veuillez demander à
votreconcessionnairede
commander le numéro de pièce
33S5PC40
OWNER
ADDRESS
V. I. N.
DELIVERY DATE
DEALER NAME DEALER NO.
ADDRESS
OWNER’S SIGNATURE
DEALER’S SIGNATURE
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
(Date sold to original retail purchaser)
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
Main Menu
Congratulations! Your selection of a 2005 Honda Civic was a wise investment.
It will give you years of driving pleasure.
One of the best ways to enhance the enjoyment of your new vehicle is to
read this manual. In it, you will learn how to operate its driving controls and
convenience items. Afterwards, keep this owner’s manual in your vehicle so
youcanrefertoitatanytime.
Several warranties protect your new vehicle. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.
Maintaining your vehicle according to the schedules given in this manual
helps to keep your driving trouble-free while it preserves your investment.
When your vehicle needs maintenance, keep in mind that your dealer’s staff
is specially trained in servicing the many systems unique to your vehicle.
Your dealer is dedicated to your satisfaction and will be pleased to answer
any questions and concerns.
As you read this manual, you will
find information that is preceded by
a symbol. This
information is intended to help you
avoid damage to your vehicle, other
property, or the environment.
California Proposition 65 Warning
This product contains
or emits chemicals known to the
State of California to cause cancer
and birth defects or other
reproductive harm.
Event Data Recorders
This vehicle is equipped with one or
more recording devices commonly
referred to as event data recorders
or sensing and diagnostic modules.
Introduction
WARNING:
i
Main Menu
−
−
−
−
−
−
Your safety, and the safety of others,
is very important. And operating this
vehicle safely is an important
responsibility.
To help you make informed
decisions about safety, we have
provided operating procedures and
other information on labels and in
this manual. This information alerts
you to potential hazards that could
hurt you or others.
You will find this important safety information in a variety of forms,
including:
on the vehicle.
preceded by a safety alert symbol and one of
three signal words: , , or .
such as Important Safety Reminders or Important
Safety Precautions.
such as Driver and Passenger Safety.
how to use this vehicle correctly and safely.
This entire book is filled with important safety information please read it
carefully.
These signal words mean:
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your vehicle. You must
use your own good judgement.
Safety Labels
Safety Messages
Safety Headings
Safety Section
Instructions
AFewWordsAboutSafety
DANGER WARNING CAUTION
ii
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
Main Menu

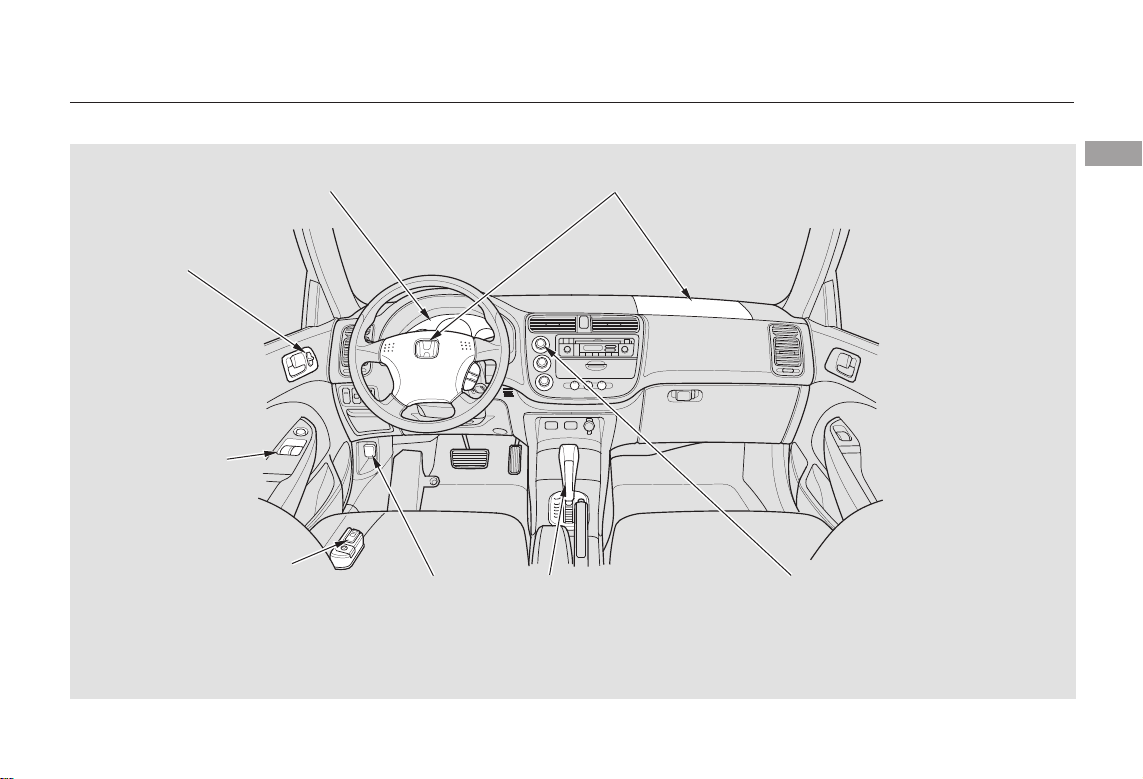

Your Vehicle at a Glance
Your Vehicle at a Glance
3
POWER WINDOW
SWITCHES
HOOD RELEASE
HANDLE
HEATING/COOLING CONTROLS
A/T model is shown.
AUTOMATIC TRANSMISSION
MANUAL TRANSMISSION

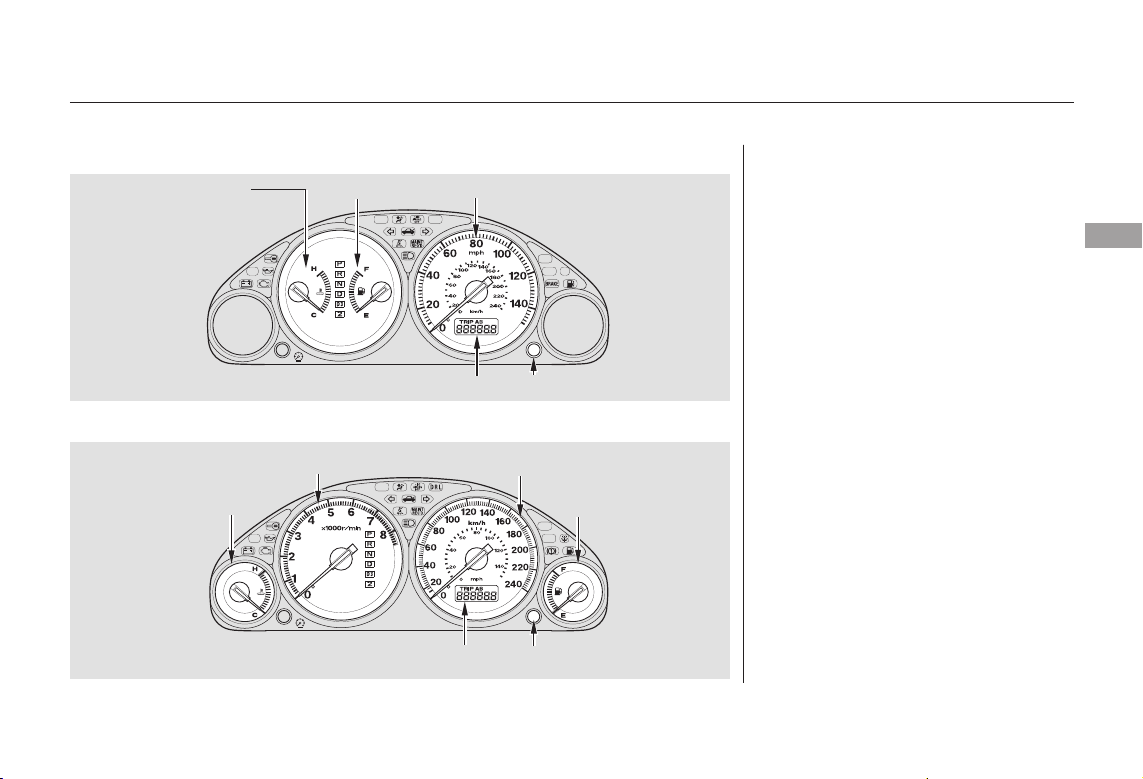

GAUGES
POWER
DOOR LOCK
MASTER
SWITCH
INSTRUMENT PANEL INDICATORS (P. 51)
(P. 58)
(P.9,22)
FRONT AIRBAGS
(P. 69)
(P. 78)
FUEL FILL DOOR RELEASE
HANDLE
(P. 123)
TRUNK RELEASE HANDLE
(P. 70)
(P. 124)
(P. 138)
(P. 136)
(P. 88)
Main Menu
Your Vehicle at a Glance
4
HEADLIGHTS/TURN SIGNALS
MIRROR CONTROLS CRUISE CONTROL BUTTONS
REAR WINDOW
DEFOGGER
WINDSHIELD WIPERS/WASHERS
AUDIO SYSTEM
STEERING WHEEL ADJUSTMENT
HAZARD WARNING BUTTON
MOONROOF SWITCH
(P. 79)
CRUISE CONTROL
MASTER BUTTON
(P. 117)
(P. 80)
(P. 62)
(P. 61)
(P. 64)
(P. 92)
CLOCK
(P. 115)
(P. 64)
ACCESSORY POWER SOCKET
(P. 85)
(P. 117)
(P. 65)
Main Menu
−
This section gives you important
information about how to protect
yourself and your passengers. It
shows you how to use seat belts. It
explains how your airbags work. And
it tells you how to properly restrain
infants and children in your vehicle.
.........Important Safety Precautions . 6
.......Your Vehicle’s Safety Features . 7
.........Protecting Adults and Teens . 11
.....1. Close and Lock the Doors . 11
...........2. Adjust the Front Seats . 11
............3. Adjust the Seat-Backs . 12
...4. Adjust the Head Restraints . 13
5. Fasten and Position the Seat
.....................................Belts . 14
6. Maintain a Proper Sitting
................................Position . 15
.....Advice for Pregnant Women . 16
...Additional Safety Precautions . 16
Additional Information About
.......................Your Seat Belts . 18
..Seat Belt System Components . 18
......................Lap/Shoulder Belt . 18
Automatic Seat Belt
...............................Tensioners . 19
...............Seat Belt Maintenance . 19
Additional Information About
...........................Your Airbags . 21
......Airbag System Components . 21
How Your Front Airbags
.........................................Work . 22
...How Your Side Airbags Work . 24
..How the SRS Indicator Works . 25
How the Side Airbag Off
......................Indicator Works . 26
.............................Airbag Service . 26
...Additional Safety Precautions . 26
Protecting Children General
................................Guidelines . 27
All Children Must Be
...............................Restrained . 27
All Children Should Sit in a
.................................Back Seat . 28
The Passenger’s Front Airbag
................Poses Serious Risks . 28
If You Must Drive with Several
...................................Children . 30
If a Child Requires Close
..................................Attention . 30
...Additional Safety Precautions . 30
Protecting Infants and Small
...................................Children . 32
.......................Protecting Infants . 32
.........Protecting Small Children . 33
.....................Selecting a Child Seat . 34
....................Installing a Child Seat . 35
...............................With LATCH . 36
..........................With a Seat Belt . 38
..............................With a Tether . 40
...........Protecting Larger Children . 41
...............Checking Seat Belt Fit . 41
..................Using a Booster Seat . 42
..When Can a Child Sit in Front . 43
...Additional Safety Precautions . 44
.............Carbon Monoxide Hazard . 45

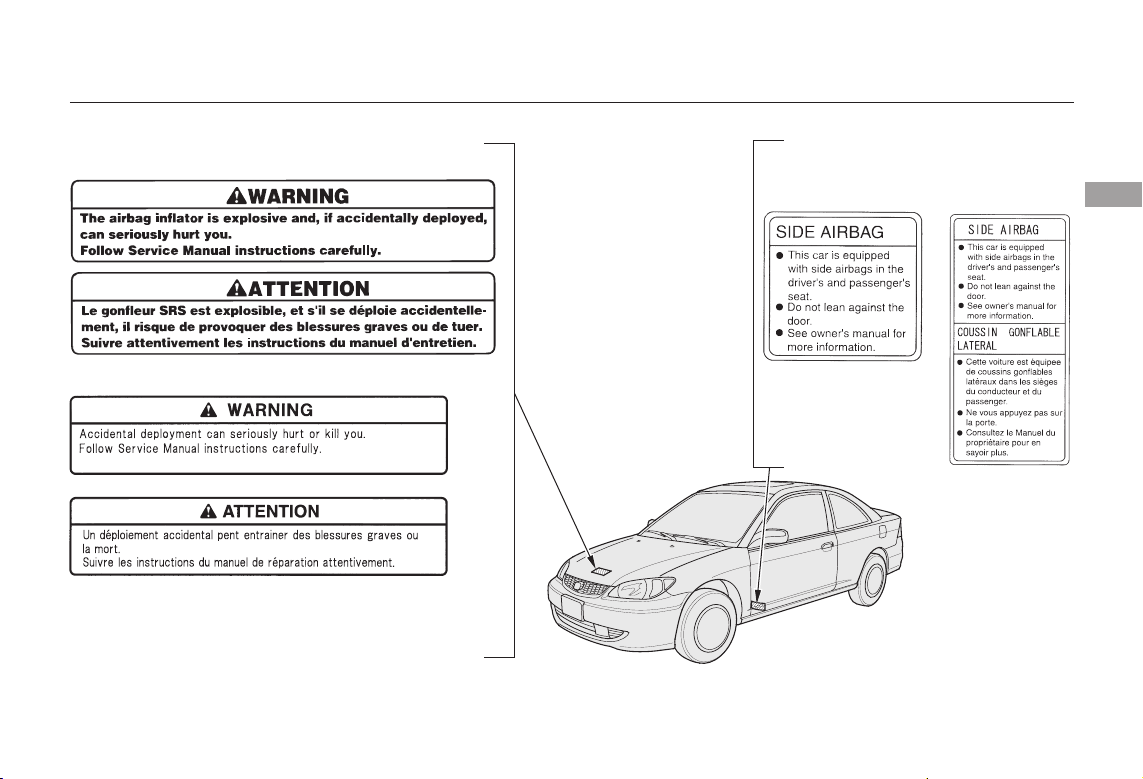

...................................Safety Labels . 46
Driver and Passenger Safety
Driver and Passenger Safety
5
Main Menu
−
You’ll find many safety
recommendations throughout this
section, and throughout this manual.
Therecommendationsonthispage
are the ones we consider to be the
most important.
A seat belt is your best protection in
all types of collisions. Airbags are
designed to supplement seat belts,
not replace them. So even though
your vehicle is equipped with airbags,
make sure you and your passengers
always wear your seat belts, and
wear them properly (see page ).
Alcohol and driving don’t mix. Even
one drink can reduce your ability to
respond to changing conditions, and
your reaction time gets worse with
every additional drink. So don’t drink
and drive, and don’t let your friends
drink and drive, either.
While airbags can save lives, they
can cause serious or fatal injuries to
occupants who sit too close to them,
or are not properly restrained.
Infants, young children, and short
adults are at the greatest risk. Be
sure to follow all instructions and
warnings in this manual.
Children age 12 and under should
ride properly restrained in a back
seat, not the front seat. Infants and
smallchildrenshouldberestrained
in a child seat. Larger children
should use a booster seat and a lap/
shoulder belt until they can use the
belt properly without a booster seat
(see pages ).
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current
conditions, regardless of the
maximum speed posted.
Having a tire blowout or a
mechanical failure can be extremely
hazardous. To reduce the possibility
of such problems, check your tire
pressures and condition frequently,
and perform all regularly scheduled
maintenance (see page ).
14
4427
152
Important Safety Precautions
Always Wear Your Seat Belt
Don’t Drink and Drive
Be Aware of Airbag Hazards
Restrain All Children
Control Your Speed
Keep Your Vehicle in Saf e
Condition
6
Main Menu
Table of Contents
Your vehicle is equipped with many
features that work together to
protect you and your passengers
during a crash.
Some features do not require any
action on your part. These include a
strong steel framework that forms a
safety cage around the passenger
compartment; front and rear crush
zones; a collapsible steering column;
and tensioners that tighten the front
seat belts in a crash.
However, you and your passengers
can’t take full advantage of these
features unless you remain sitting in
a proper position and
. In fact, some safety
features can contribute to injuries if
they are not used properly.
The following pages explain how you
cantakeanactiveroleinprotecting
yourself and your passengers.
Your Vehicle’s Safety Features
always wear
your seat belts
Driver and Passenger Safety
7
(7)
(11)
(9)
(2)
(8)
(6)(4)(3)(1)
(7)
(5)
(2)
(10)
(8)
(1) Safety Cage
(2) Crush Zone
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Front Airbags
(8) Side Airbags (Optional)
(9) Front Seat Belt Tensioners
(10) Door Locks
(11) Seat Belt Buckle Tensioners
Main Menu
Table of Contents
Your vehicle is equipped with seat
belts in all seating positions.
Your seat belt system also includes
an indicator on the instrument panel
to remind you and your passengers
to fasten your seat belts.
Seat belts are the single most
effectivesafetydeviceforadultsand
larger children. (Infants and smaller
children must be properly restrained
in child seats.)
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
In addition, most states and all
Canadian provinces require you to
wear seat belts.
When properly worn, seat belts:
Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in safety features.
Help protect you in almost every
type of crash, including frontal,
side, and rear impacts and
rollovers.
Help keep you from being thrown
against the inside of the vehicle
and against other occupants.
Keep you from being thrown out
of the vehicle.
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury from an inflating airbag and
allows you to get the best
advantage from the airbag.
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.
Always wear your seat belt, and
make sure you wear it properly.
Your Vehicle’s Safety Features
Seat Belts
Why Wear Seat Belts
What You Should Do:
8
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Be sure you and your
passengers always wear seat
belts and wear them properly.
Main Menu
Table of Contents
Your vehicle has a Supplemental
Restraint System (SRS) with front
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe frontal collision (see page
for more information on how
your front airbags work).
Your vehicle also has side airbags to
help protect the upper torso of the
driver or a front seat passenger
during a moderate to severe side
impact (see page for more
information on how your side airbags
work).
They are designed to supplement
the seat belts.
The most important things you need
to know about your airbags are:
To do
their job, airbags must inflate with
tremendous force. So while
airbags help save lives, they can
cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly.
22 24
Only on models equipped with side
airbags
CONTINUED
Airbags do not replace seat belts.
Airbags offer no protection in rear
impacts, or minor frontal or side
collisions.
Airbags can pose hazards.
Airbags
Your Vehicle’s Safety Features
Driver and Passenger Safety
9
Main Menu
Table of Contents
Always wear
your seat belt properly, and sit
upright and as far back from the
steering wheel as possible while
allowing full control of the vehicle. A
front passenger should move their
seat as far back from the dashboard
as possible.
The rest of this section gives more
detailed information about how you
can maximize your safety.
Remember, however, that no safety
system can prevent all injuries or
deaths that can occur in a severe
crash, even when seat belts are
properly worn and the airbags deploy.
Your Vehicle’s Safety Features
What you should do:
10
Main Menu
Table of Contents
−
After everyone has entered the
vehicle, be sure the doors are closed
and locked.
Adjust the driver’s seat as far to the
rear as possible while allowing you to
maintain full control of the vehicle.
Have a front passenger adjust their
seat as far to the rear as possible.
The following pages provide
instructions on how to properly
protect the driver, adult passengers,
and teenage children who are large
enough and mature enough to drive
or ride in the front.
See pages for important
guidelines on how to properly
protect infants, small children, and
larger children who ride in your
vehicle.
Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent passengers from
accidentally opening a door and
falling out.
Locking the doors also helps prevent
an outsider from unexpectedly
opening a door when you come to a
stop.
See page for how to lock the
doors.
69
27 31
CONTINUED
Protecting Adults and Teens
Adjust the Front SeatsClose and Lock the DoorsIntroduction 1. 2.
Driver and Passenger Safety
11
Main Menu
Table of Contents
If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inflating front
airbag, or by striking the steering
wheel or dashboard.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest.
If you cannot get far enough away
from the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
Once your seat is adjusted correctly,
rock it back and forth to make sure
the seat is locked in position.
See page for how to adjust the
front seats.
Adjust the driver’s seat-back to a
comfortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
Passengers with adjustable seat-
backs should also adjust their seat-
back to a comfortable, upright
position.
73
Protecting Adults and Teens
Adjust the Seat-Backs3.
12
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
Main Menu
Table of Contents
Properly adjusted head restraints
will help protect occupants from
whiplash and other crash injuries.
See page for how to adjust the
head restraints.
Adjust the driver’s head restraint so
the back of your head rests against
the center of the restraint.
Have passengers with adjustable
head restraints adjust their restraints
properly as well. Taller persons
should adjust their restraint as high
as possible.
Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
See page for how to adjust the
seat-backs.
75
73
CONTINUED
Protecting Adults and Teens
Adjust the Head Restraints4.
Driver and Passenger Safety
13
Improperly positioning head
restraints reduces their
effectiveness and you can be
seriously injured in a crash.
Make sure head restraints are
in place and positioned properly
before driving.
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat.
Main Menu
Table of Contents
This spreads the forces of a crash
over the strongest bones in your
upper body.Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Check that
the belt is not twisted, because a
twisted belt can cause serious
injuries in a crash.
Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part fits snugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.
If necessary, pull up on the belt again
to remove any slack, then check that
the belt rests across the center of
your chest and over your shoulder.
Protecting Adults and Teens
Fasten and Position the Seat
Belts
5.
14
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
Main Menu
Table of Contents
After all occupants have adjusted
their seats and put on seat belts, it is
very important that they continue to
sit upright, well back in their seats,
with their feet on the floor, until the
vehicle is parked and the engine is
off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both feet up, the
chance of injury during a crash is
greatly increased.
In addition, an occupant who is out of
position in the front seat can be
seriously or fatally injured in a crash
by striking interior parts of the
vehicle or being struck by an
inflating front airbag.
See page for additional
information about your seat belts
and how to take care of them.
This could cause
very serious injuries in a crash.
If a seat belt does not seem to work
properly, it may not protect the
occupant in a crash.
Using a seat
belt that is not working properly can
result in serious injury or death.
Have your dealer check the belt as
soon as possible.
18
Protecting Adults and Teens
Maintain a Proper Sitting
Position
6.
Never place the shoulder portion of a
lap/shoulder belt under your arm or
behind your back.
No one should sit in a seat with an
inoperative seat belt.
Driver and Passenger Safety
15
Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on the
floor.
Main Menu
Table of Contents
If you are pregnant, the best way to
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.
When driving, remember to sit
upright and adjust the seat as far
back as possible while allowing full
control of the vehicle. When riding
as a front passenger, adjust the seat
as far back as possible.
This will reduce the risk of injuries
to both you and your unborn child
that can be caused by a crash or an
inflating front airbag.
Each time you have a checkup, ask
your doctor if it’s okay for you to
drive.
If they do, they
could be very seriously injured in a
crash.
Devices intended to improve
occupant comfort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
the belt and increase the chance of
serious injury in a crash.
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp object in
your mouth, can result in injuries
if your front airbag inflates.
Protecting Adults and Teens
Advice for Pregnant Women Additional Safety Precautions
Two people should never use the
same seat belt.
Do not put any accessories on seat
belts.
Do not place hard or sharp objects
between yourself and a front
airbag.
16
Main Menu
Table of Contents
If your
hands or arms are close to an
airbag cover, they could be injured
if the airbag inflates.
Objects on
the covers marked ‘‘SRS AIRBAG’’
could interfere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inflate.
If a side airbag inflates, a
cupholderorotherhardobject
attached on or near the door could
be propelled inside the vehicle and
hurt someone.
Protecting Adults and Teens
Keep your hands and arms away
from the airbag covers.
Do not attach or place objects on
the front airbag covers.
On models with side airbags, do
not attach hard objects on or near
a door.
Driver and Passenger Safety
17
Main Menu
Table of Contents
Your seat belt system includes lap/
shoulder belts in all five seating
positions. The front seat belts are
also equipped with automatic seat
belt tensioners.
The lap and shoulder belt goes over
your shoulder, across your chest,
and across your hips.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page for how to
properly position the belt).
To unlock the belt, push the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. After exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move freely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automatically locks the belt to help
restrain your body.
If the shoulder part of the belt is
pulled all the way out, the locking
mechanism will activate. The belt
will retract, but it will not allow the
passenger to move freely.
The seat belts in all positions except
the driver’s have an additional
locking mechanism that must be
activated to secure a child seat (see
page ).
The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you to fasten your seat belt.
If you turn the ignition switch to ON
(II) before fastening your seat belt,
the beeper will sound, and the
indicator will flash. If you do not
fasten your seat belt before the
beeper stops, the indicator will stop
flashing but remain on.
If you continue driving without
fastening your seat belt, the beeper
will sound and the indicator will flash
again at regular intervals.
To deactivate the locking
mechanism, unlatch the buckle and
let the seat belt fully retract. To
refasten the seat belt, pull it out only
as far as needed.
14
38
Seat Belt System Components Lap/Shoulder Belt
Additional Information About Your Seat Belts
18
Main Menu
Table of Contents
For added protection, the front seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a front passenger in place.
The tensioners are designed to
activate primarily in frontal collisions,
andtheyshouldactivateinany
collision severe enough to cause
front-airbag inflation.
The tensioners can also be activated
during a collision in which the front
airbags do not deploy. In this case,
the airbags would not be needed, but
the additional restraint could be
helpful.
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled in the normal
manner.
For safety, you should check the
condition of your seat belts regularly.
Pull each belt out fully and look for
frays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. Any belt that
is not in good condition or working
properly will not provide good
protection and should be replaced as
soon as possible.
Honda provides a lifetime warranty
on seat belts for U.S. models. See
your
booklet for details.
Honda Warranty Information
CONTINUED
Additional Information About Your Seat Belts
Automatic Seat Belt Tensioners Seat Belt Maintenance
Driver and Passenger Safety
19
Main Menu
Table of Contents
If a seat belt is worn during a crash,
it must be replaced by your dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The dealer should also inspect the
anchors for damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
For information on how to clean your
seat belts, see page .174
Additional Information About Your Seat Belts
20
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
Main Menu
Table of Contents
Your airbag system includes:
Automatic front seat belt
tensioners (see page ).
In models with side airbags, an
indicator on the instrument panel
that alerts you that the passenger’s
side airbag has been turned off
(see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.
Two SRS (Supplemental Restraint
System) front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the front
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
In models with side airbags, one
for the driver and one for a front
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Sensors that can detect a
moderate to severe front impact,
or side impact in models with side
airbags.
In models with side airbags,
sensors that can detect whether a
small person or child is in the
passenger’s side airbag path and
automatically turn the airbag off
(see page ).
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags,
sensors, or seat belt tensioners
(see page ).
A sophisticated electronic system
that continually monitors and
records information about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and front
passenger seat belt use when the
ignition is ON (II).
22
24
19
26
25
25
Airbag System Components
Additional Information About Your Airbags
Driver and Passenger Safety
21
Main Menu
Table of Contents
After inflating, the front airbags
immediately deflate, so they won’t
interfere with the driver’s visibility,
or the ability to steer or operate
other controls.
The total time for inflation and
deflation is one-tenth of a second, so
fast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
During a frontal crash, your seat belt
restrains your lower body and torso,
and the front airbag helps protect
your head and chest.
Although both airbags normally
inflate within split second of each
other, it is possible for only one
airbag to deploy.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
sufficient protection, and the
supplemental protection offered by
the airbag would be minimal.
If you ever have a moderate to
severe frontal collision, sensors will
detect the vehicle’s rapid
deceleration.
If the rate of deceleration is high
enough, the control unit will instantly
inflate the driver’s and front
passenger’s airbags, at the time and
with the force needed.
Additional Information About Your Airbags
How Your Front Airbags Work
22
Main Menu
Table of Contents
Your front airbags are also dual-
threshold airbags. Airbags with this
feature have two deployment
thresholds that depend on whether
or not the occupant is wearing a seat
belt.
If the occupant’s belt is ,
the airbag will deploy at a slightly
lower threshold, because the
occupant would need extra
protection.
If the occupant’s belt , the
airbag will inflate at a slightly higher
threshold, when the airbag would be
needed to supplement the protection
provided by the seat belt.
Your front airbags are dual-stage
airbags. This means they have two
inflation stages that can be ignited
sequentially or simultaneously,
depending on crash severity.
In a crash, both stages
will ignite simultaneously to provide
the quickest and greatest protection.
In a crash, one stage will
ignite first, then the second stage
will ignite a split second later. This
provides longer airbag inflation time
with a little less force.
After a crash, you may see what
looks like smoke. This is actually
powder from the airbag’s surface.
Although the powder is not harmful,
people with respiratory problems
mayexperiencesometemporary
discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do
so.
Additional Information About Your Airbags
Dual-Threshold Airbags
not latched
is latched
Dual-Stage Airbags
more severe
less severe
Driver and Passenger Safety
23
Main Menu
Table of Contents
Only one airbag will deploy during a
side impact. If the impact is on the
passenger’s side, the passenger’s
side airbag will deploy even if there
is no passenger.
To get the best protection from the
side airbags, front seat occupants
should wear their seat belts and sit
upright and well back in their seats.
If you ever have a moderate to
severe side impact, sensors will
detect rapid deceleration and signal
the control unit to instantly inflate
either the driver’s or the passenger’s
side airbag.
To reduce the risk of injury from an
inflating side airbag, your vehicle has
an automatic cutoff system for the
passenger’s side airbag.
Although Honda does not encourage
children to ride in front, this system
is designed to shut off the side
airbag if a child leans into the side
airbag’s path.
Thesideairbagmayalsoshutoffifa
short adult leans sideways, or a
larger adult slouches and leans
sideways into the airbag’s
deployment path.
Objects placed on the front
passenger seat can also cause the
side airbag to be shut off.
On models equipped
How Your Side Airbags Work
Additional Information About Your Airbags
Side Airbag Cutoff System
24
Main Menu
Table of Contents
If the Side Airbag Off Indicator
comes on (see page ), have the
passenger sit upright. Once the
passenger is out of the airbag’s
deployment path, the system will
turn the airbag back on, and the
indicator will go out.
There will be some delay between
the moment the passenger moves
into or out of the airbag deployment
pathandwhentheindicatorcomes
on or goes off.
A front seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutoff
system from working properly.
The SRS indicator alerts
you to a potential problem
with your airbags or seat belt
tensioners.
When you turn the ignition switch to
ON (II), this indicator comes on
briefly then goes off. This tells you
the system is working properly.
If the indicator comes on at any
other time, or does not come on at all,
you should have the system checked
by your dealer. For example:
If the indicator stays on after the
engine starts.
If the SRS indicator does not come
on after you turn the ignition
switch to ON (II).
If the indicator comes on or
flashesonandoffwhileyoudrive.
If you see any of these indications,
the airbags and seat belt tensioners
may not work properly when you
need them.
26
Additional Information About Your Airbags
How the SRS Indicator Works
Driver and Passenger Safety
25
Ignoring the SRS indicator can
result in serious injury or death
if the airbag systems or
tensioners do not work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS indicator alerts you to
a possible problem.
Main Menu
Table of Contents
This indicator alerts you
that the passenger’s side
airbag has been automatically shut
off. It does mean there is a
problem with your side airbags.
When you turn the ignition switch to
ON (II), the indicator should come
on briefly and go off (see page ).
If it doesn’t come on, stays on, or
comes on while driving without a
passenger in the front seat, have the
system checked.
Your airbag systems are virtually
maintenance free, and there are no
parts you can safely service.
However, you must have your
vehicle serviced if:
Any airbag
that has deployed must be
replaced along with the control
unit and other related parts. If a
front airbag inflates, the seat belt
tensioners must also be replaced.
Do not try to remove or replace
anyairbagbyyourself.Thismust
be done by your dealer or a
knowledgeable body shop.
Take your vehicle to an
authorized dealer as soon as
possible. If you ignore this
indication, your airbags may not
operate properly.
Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
If water or another liquid
soaks into a seat-back, it can
prevent the side airbag cutoff
system from working properly.
Improperly replacing
or covering front seat-back covers
can prevent your side airbags from
inflating during a side impact.
54
In models with side airbags
How the Side Airbag Off
Indicator Works
Additional Safety PrecautionsAirbag Service
not
An airbag ever inflates.
The SRS indicator alerts you to a
problem.
Donotattempttodeactivateyour
airbags.
Do not tamper with airbag
components or wiring for any
reason.
Do not expose the front seat-backs
to liquid.
Do not cover or replace front seat-
back covers without consulting
your dealer.
Additional Information About Your Airbags
26
Main Menu
Table of Contents
−
−
−
CONTINUED

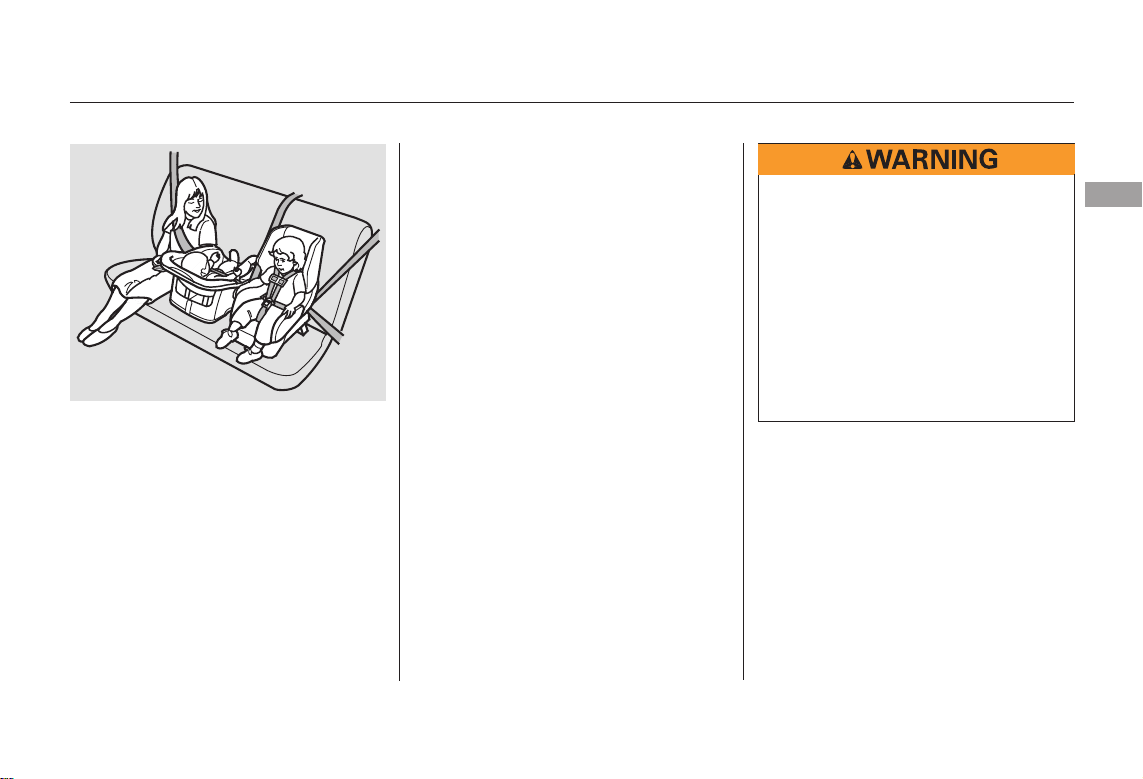

Children depend on adults to protect
them. However, despite their best
intentions, many adults do not know
how to protect child
passengers.
If you have children, or ever need to
drive with a child in your vehicle, be
sure to read this section. It begins
with important general guidelines,
then presents special information for
infants, small children, and larger
children.
Each year, many children are injured
or killed in vehicle crashes because
they are either unrestrained or not
properly restrained. In fact, vehicle
accidents are the number one cause
of the death of children ages 12 and
under.
To reduce the number of child
deaths and injuries, every state and
Canadian province requires that
infants and children be properly
restrained when they ride in a
vehicle.
(see pages ).
(see pages ).44
4032
41
properly
Protecting Children General Guidelines
All Children Must Be Restrained
Infants and small children must be
restrained in an approved child seat
that is properly secured to the
vehicle
Larger children must be restrained
with a lap/shoulder belt and ride on
a booster seat until the seat belt fits
them properly
Driver and Passenger Safety
27
Children who are unrestrained
or improperly restrained can be
seriously injured or killed in a
crash.
Any child too small for a seat
belt should be properly
restrained in a child seat. A
larger child should be properly
restrained with a seat belt and
use a booster seat if necessary.
Main Menu
Table of Contents
−
Whenever possible,
larger children should sit in the back
seat, on a booster seat if needed, and
be properly restrained with a seat
belt (see page for important
information about protecting larger
children).
According to accident statistics,
children of all ages and sizes are
safer when they are restrained in a
back seat. The National Highway
Traffic Safety Administration and
Transport Canada recommend that
all children age 12 and under be
properly restrained in a back seat.
Children who ride in back are less
likely to be injured by striking
interior vehicle parts during a
collision or hard braking. Also,
children cannot be injured by an
inflating front airbag when they ride
in the back.
Front airbags have been designed to
help protect adults in a moderate to
severe frontal collision. To do this
the passenger’s front airbag is quite
large, and it can inflate with enough
force to cause very serious injuries.
If
the airbag inflates, it can hit the back
of the child seat with enough force
to kill or very seriously injure an
infant.
If the vehicle seat is
too far forward, or the child’s head is
thrown forward during a collision, an
inflating front airbag can strike the
child with enough force to kill or
very seriously injure a small child.
41
Children who have outgrown child
seats are also at risk of being injured
or killed by an inflating passenger’s
front airbag.
Never put a rear-facing child seat in
the front seat of a vehicle equipped
with a passenger’s front airbag.
Placing a forward-facing child seat in
the front seat of a vehicle equipped
with a passenger’s front airbag can
be hazardous.
Infants
Small Children
Larger Children
Protecting Children General Guidelines
All Children Should Sit in a Back
Seat
The Passenger’s Front Airbag
Poses Serious Risks
28
Main Menu
Table of Contents
−

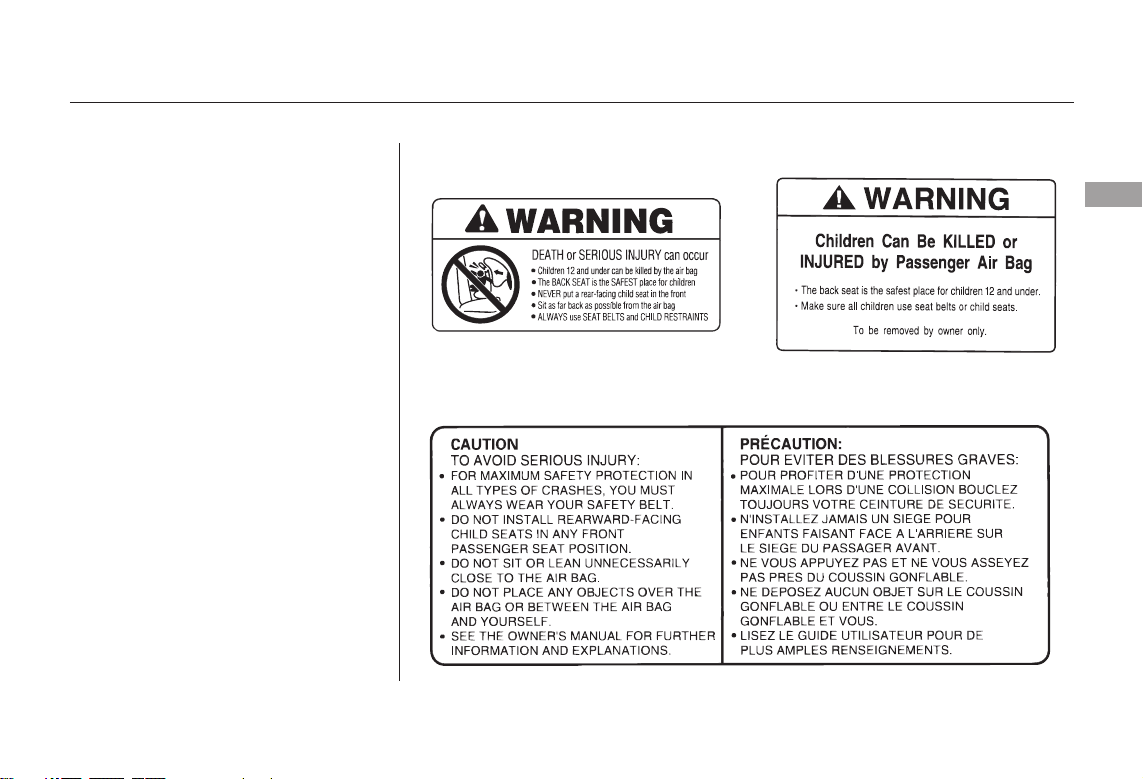

To remind you of the passenger’s
front airbag hazards, and that
children must be properly restrained
in a back seat, your vehicle has
warninglabelsonthedashboard
(U.S. models) and on the front visors.
Please read and follow the
instructions on these labels.
U.S. Models
Canadian Models
Protecting Children General Guidelines
Driver and Passenger Safety
29
SUN VISOR
SUN VISOR
DASHBOARD
Main Menu
Table of Contents
−
Many parents say they prefer to put
an infant or small child in the front
passenger seat so they can watch the
child, or because the child requires
attention.
Placing a child in the front seat
exposes the child to hazards in a
frontal collision, and paying close
attention to a child distracts the
driver from the important tasks of
driving, placing both of you at risk.
Your vehicle has a back seat where
children can be properly restrained.
If you ever have to carry a group of
children, and a child must ride in
front:
Place the largest child in the front
seat, provided the child is large
enough to wear the lap/shoulder
belt properly (see page ).
Move the vehicle seat as far to the
rear as possible (see page ).
Have the child sit upright and well
backintheseat(seepage ).
Make sure the seat belt is properly
positioned and secured (see page
).
If a child requires close physical
attention or frequent visual contact,
we strongly recommend that another
adult ride with the child in a back
seat. The back seat is far safer for a
child than the front.
If you are not wearing a
seat belt in a crash, you could be
thrown forward and crush the
child against the dashboard or a
seat-back. If you are wearing a
seat belt, the child can be torn
from your arms and be seriously
hurt or killed.
During a crash, the
belt could press deep into the child
and cause serious or fatal injuries.
If they do, they
could be very seriously injured in a
crash.
41
73
15
14
If You Must Drive with Several
Children
If a Child Requires Close
Attention
Additional Safety Precautions
Protecting Children General Guidelines
Neverholdaninfantorchildon
your lap.
Never put a seat belt over yourself
and a child.
Never let two children use the
same seat belt.
30
Main Menu
Table of Contents
−
Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous.
For example, infants and small
childrenleftinavehicleonahot
day can die from heatstroke. A
child left alone with the key in the
ignition switch can accidentally set
the vehicle in motion, possibly
injuring themselves or others.
Children who play in vehicles can
accidentally get trapped inside.
Teach your children not to play in
or around vehicles. Know how to
operate the emergency trunk
opener and decide if your children
should be shown how to use this
feature(seepage ).
Even very young
children learn how to unlock
vehicle doors, turn on the ignition
switch, and open the trunk, which
can lead to accidental injury or
death.
70
Protecting Children General Guidelines
Do not leave children alone in a
vehicle.
Lock both doors and the trunk
when your vehicle is not in use.
Keep vehicle keys and remote
transmitters out of the reach of
children.
Driver and Passenger Safety
31
Main Menu
Table of Contents
When properly installed, a rear-
facing child seat may prevent the
driver or a front passenger from
moving the seat as far back as
recommended, or from locking the
seat-back in the desired position.

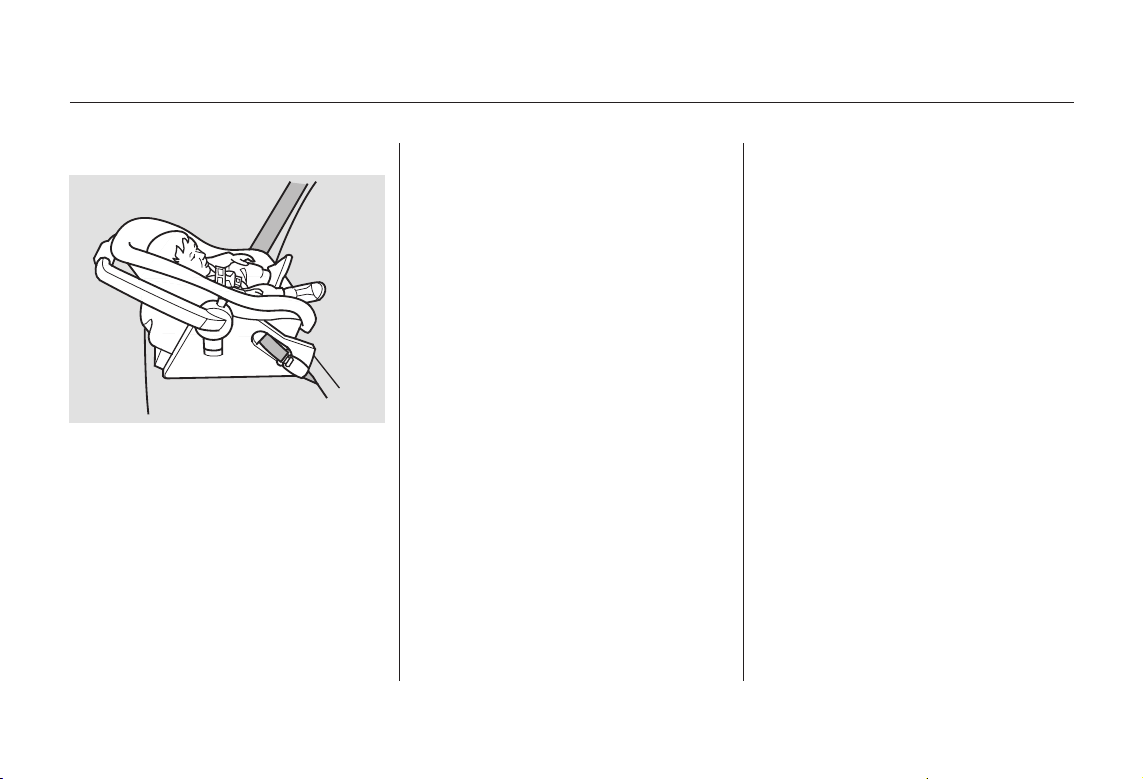

An infant must be properly
restrained in a rear-facing, reclining
child seat until the child reaches the
seat maker’s weight or height limit
for the seat and the child is at least
one year old.
Only a rear-facing child seat provides
proper support for a baby’s head,
neck, and back.
Two types of seats may be used: a
seat designed exclusively for infants,
or a convertible seat used in the rear-
facing, reclining mode.
If placed
facing forward, an infant could be
very seriously injured during a
frontal collision.
A rear-facing child seat can be placed
in any seating position in the back
seat, but not in the front.
If the passenger’s front airbag
inflates, it can hit the back of the
child seat with enough force to kill or
seriously injure an infant.
Protecting Infants
Protecting Infants and Small Children
Child Seat Type
Do not put a rear-facing child seat in
a forward-facing position.
Rear-facing Child Seat Placement
Never put a
rear-facing child seat in the front
seat.
32
Main Menu
Table of Contents
We strongly recommend placing a
forward-facing child seat in a back
seat, not the front.
If the vehicle seat is too
far forward, or the child’s head is
thrown forward during a collision, an
inflating airbag can strike the child
with enough force to cause very
serious or fatal injuries.
A child who is at least one year old,
and who fits within the child seat
maker’s weight and height limits,
should be restrained in a forward-
facing, upright child seat.
Of the different seats available, we
recommend those that have a five-
point harness system as shown.
In either situation, we strongly
recommend that you install the child
seat directly behind the front
passenger’s seat, move the seat as
far forward as needed, and leave it
unoccupied. Or, you may wish to get
a smaller rear-facing child seat.
CONTINUED
Protecting Infants and Small Children
Child Seat Placement
Placing a forward-facing child seat in
the front seat of a vehicle equipped
with a passenger’s airbag can be
hazardous.
Child Seat Type
Protecting Small Children
Driver and Passenger Safety
33
Placing a rear-facing child seat
in the front seat can result in
serious injury or death if the
passenger’s front airbag inflates.
Always place a rear-facing child
seat in the back seat, not the
front.
Main Menu
Table of Contents
In seating positions and vehicles not
equipped with LATCH, a LATCH-
compatible child seat can be installed
using a seat belt.
Whatever type of seat you choose, to
provide proper protection, a child
seat should meet three
requirements:
Look for FMVSS
213 or CMVSS 213 on the box.
Rear-facing for infants, forward-
facing for small children.
If it is necessary to put a forward-
facing child seat in the front, move
the vehicle seat as far to the rear as
possible, be sure the child seat is
firmly secured to the vehicle, and the
child is properly strapped in the seat.
We also recommend selecting a
LATCH-compatible seat with a rigid,
rather than a flexible, anchor (see
page ).
Since LATCH-compatible child seats
are easier to install and reduce the
possibility of improper installation,
we recommend selecting this style.
Conventional child seats must be
secured to a vehicle with a seat belt,
whereas LATCH-compatible seats
are secured by attaching the seat to
hardware built into the two outer
seating positions in the back seat.
When buying a child seat, you need
to choose either a conventional child
seat, or one designed for use with
the Lower Anchors and Tethers for
Children (LATCH) system.
36
The child seat should meet U.S. or
Canadian Motor Vehicle Safety
Standard 213.
The child seat should be of the
proper type and size to fit the child.
1.
2.
Protecting Infants and Small Children, Selecting a Child Seat
Selecting a Child Seat
34
Placing a forward-facing child
seat in the front seat can result
in serious injury or death if the
front airbag inflates.
Ifyoumustplaceaforward-
facing child seat in front, move
the vehicle seat as far back as
possible, and properly restrain
the child.
Main Menu
Table of Contents
After selecting a proper child seat,
and a good place to install the seat,
there are three main steps in
installing the seat:
All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (Lower Anchors and
Tethers for Children) system. A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
After installing a child
seat, push and pull the seat
forward and from side to side to
verify that it is secure.
A child seat secured with a seat belt
should be installed as firmly as
possible. However, it does not need
to be ‘‘rock solid.’’ Some side-to-side
movement can be expected and
should not reduce the child seat’s
effectiveness.
If the child seat is not secure, try
installing it in a different seating
position, or use a different style of
child seat that can be firmly secured.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
can be seriously injured in a crash.
The following pages provide
guidelines on how to properly install
a child seat. A forward-facing child
seat is used in all examples, but the
instructions are the same for rear-
facing child seats.
Before purchasing a conventional
child seat, or using a previously
purchased one, we recommend that
you test the seat in the specific
vehicle seating position (or
positions) where the seat will be
used.
Selecting a Child Seat, Installing a Child Seat
Installing a Child Seat
Properly secure the child seat to
the vehicle.
Make sure the child seat is firmly
secured.
Secure the child in the child seat.
The child seat should fit the
vehicle seating position (or
positions) where it will be used.
1.
2.
3.
3.
Driver and Passenger Safety
35
Main Menu
Table of Contents
Place the child seat on the vehicle
seat, then attach the seat to the
lower anchors according to the
child seat maker’s instructions.
Your vehicle is equipped with
LATCH (Lower Anchors and
Tethers for Children) at the outer
rear seats.
The lower anchors are located
between the seat-back and seat
bottom, and are to be used only with
a child seat designed for use with
LATCH.
The location of each lower anchor is
indicated by a small button above the
anchor point.
Make sure there are no objects
near the anchors that could
prevent a secure connection
between the child seat and the
anchors.
Move the seat belt buckle or
tongue away from the lower
anchors.
To install a LATCH-compatible child
seat:
Some LATCH-compatible seats
have a rigid-type connector as
shown above.
1.
2.
3.
Installing a Child Seat
Installing a Child Seat with
LATCH
36
LOWER ANCHORS
Rigid type
BUTTONS
Main Menu
Table of Contents
Whatever type you have, follow
the child seat maker’s instructions
for adjusting or tightening the fit.
Other LATCH-compatible seats
have a flexible-type connector as
shown above.
Lift the head restraint (see page
), then route the tether strap
through the legs of the head
restraint, over the seat-back,
making sure the strap is not
twisted.
Attach the tether strap hook to the
tether anchor, then tighten the
strap as instructed by the child
seat maker.
Push and pull the child seat
forward and from side to side to
verify that it is secure.
4.
6.
5.
7.
75
Installing a Child Seat
Driver and Passenger Safety
37
Flexible type
ANCHOR
TETHER STRAP HOOK
Main Menu
Table of Contents
To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor.
After the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/
shoulder belt.
With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle.
In addition, the lap/shoulder belts in
all seating positions except the
driver’s have a locking mechanism
that must be activated to secure a
child seat.
1. 2.
3.
Installing a Child Seat
Installing a Child Seat with a Seat
Belt
38
Main Menu
Table of Contents
After confirming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.
Push and pull the child seat
forward and from side to side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract fully, then repeat these
steps.
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt.
To deactivate the locking
mechanism and remove a child seat,
unlatch the buckle, unroute the seat
belt, and let the belt fully retract.
4. 5.
Installing a Child Seat
Driver and Passenger Safety
39
Main Menu
Table of Contents
A child seat with a tether can be
installed in any seating position in
the back seat, using one of the
anchorage points shown above.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.
After properly securing the child
seat (see page ), lift the head
restraint, then route the tether
strap over the seat-back and
through the head restraint legs.
Lift the anchor cover, then attach
the tether strap hook to the
anchor, making sure the strap is
not twisted.
Followsteps2and3fromthe
previous column.
After properly securing the child
seat (see page ), route the
tether strap over the seat-back.
Tighten the strap according to the
seat maker’s instructions.
1.
2.
3.
38
1.
2.
38
Installing a Child Seat with a
Tether
Installing a Child Seat
Using an Outer Anchor
Using the Center Anchor
40
TETHER ANCHORAGE POINTS
COVER
ANCHOR
TETHER
STRAP
HOOK
ANCHOR
TETHER STRAP
HOOK
Front
Main Menu
Table of Contents
When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster seat and wear a lap/shoulder
belt.
The following pages give
instructions on how to check proper
seat belt fit, what kind of booster
seat to use if one is needed, and
important precautions for a child
who must sit in front.
To determine if a lap/shoulder belt
properly fits a child, have the child
put on the seat belt, then ask
yourself:
Does the child sit all the way back
against the seat?
Do the child’s knees bend
comfortably over the edge of the
seat?
1.
2.
CONTINUED
Protecting Larger Children
Checking Seat Belt Fit
Driver and Passenger Safety
41
Allowing a child age 12 or under
to sit in front can result in injury
or death if the passenger’s front
airbag inflates.
If a child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.
Main Menu
Table of Contents
Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this for the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. A child who has outgrown a forward-
facing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt fits them
properly without the booster.
Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intend
to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
federal safety standards (see page
) and that you follow the booster
seat maker’s instructions.
If a child who uses a booster seat
must ride in front, move the vehicle
seat as far back as possible, and be
sure the child is wearing the seat
belt properly.
3.
4.
5.
34
Protecting Larger Children
Using a Booster Seat
42
Main Menu
Table of Contents
CONTINUED
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in a back seat.
If the passenger’s front airbag
inflates in a moderate to severe
frontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
A side airbag also poses risks. If any
part of a larger child’s body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries.
Of course, children vary widely. And
while age may be one indicator of
when a child can safely ride in front,
there are other important factors you
should consider.
To safely ride in front, a child must
be able to follow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
Physically, a child must be large
enough for the lap/shoulder belt to
properly fit (see pages and ). If
the seat belt does not fit properly,
with or without the child sitting on a
booster seat, the child should not sit
in front.
4114
Protecting Larger Children
When Can a Larger Child Sit in
Front
Physical Size
Maturity
Driver and Passenger Safety
43
Main Menu
Table of Contents
If you decide that a child can safely
ride up front, be sure to:
Carefully read the owner’s manual,
and make sure you understand all
seat belt instructions and all safety
information.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the floor.
Check that the child’s seat belt is
properly and securely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to fasten the seat belts
or sit properly.
This could result
in serious neck injuries during a
crash.
This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
If they do, they
could be very seriously injured in a
crash.
Devices intended to
improve a child’s comfort or
reposition the shoulder part of a
seat belt can make the belt less
effective and increase the chance
of serious injury in a crash.
Protecting Larger Children
Additional Safety Precautions
Do not let a child wear a seat belt
across the neck.
Do not let a child put the shoulder
part of a seat belt behind the back
or under the arm.
Two children should never use the
same seat belt.
Do not put any accessories on a
seat belt.
44
Main Menu
Table of Contents
Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
With the trunk open, airflow can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk open, open all the windows and
set the heating and cooling system
as shown below.
If you must sit in your parked vehicle
with the engine running, even in an
unconfined area, adjust the heating
and cooling system as follows:
Select the fresh air mode.
Select the mode.
Turn the fan on high speed.
Set the temperature control to a
comfortable setting.
Have the exhaust system inspected
for leaks whenever:
The vehicle is raised for an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside.
1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Safety
45
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
Main Menu
Table of Contents
These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels carefully.
If a label comes off or becomes hard
to read (except for the U.S.
dashboard label which may be
removed by the owner), contact your
dealer for a replacement.
U.S. models
Canadian models
U.S. models only
Safety Labels
46
RADIATOR CAP
SUN VISOR
DASHBOARD
Main Menu
Table of Contents
On models without side airbags
On models with side airbags
On vehicle with side airbags
U.S. models Canadian models
Safety Labels
Driver and Passenger Safety
47
HOOD DOORJAMBS
Main Menu
Table of Contents
48
Main Menu
This section gives information about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach.
...........................Control Locations . 50
............................Instrument Panel . 51
..........Instrument Panel Indicators . 54
.............................................Gauges . 58
...............Odometer/Trip Meter . 58
..................................Fuel Gauge . 58
...................Temperature Gauge . 59
Controls Near the Steering
...........................................Wheel . 60
.Windshield Wipers and Washers . 61
...........Turn Signal and Headlights . 62
........Instrument Panel Brightness . 63
.................Hazard Warning Button . 64
.................Rear Window Defogger . 64
..........Steering Wheel Adjustment . 65
...............................Keys and Locks . 66
........................Immobilizer System . 67
................................Ignition Switch . 68
......................................Door Locks . 69
......................Power Door Locks . 69
................................................Trunk . 70
........Emergency Trunk Opener . 70
.......................Remote Transmitter . 71
Replacing the Transmitter
.....................................Battery . 72
.................................................Seats . 73
..............................Power Windows . 78
.........................................Moonroof . 79
.............................................Mirrors . 80
.................................Parking Brake . 81
...........Interior Convenience Items . 82
.......................Beverage Holders . 83
...............Console Compartment . 83
....................................Glove Box . 84
....................................Coat Hook . 84
.............................Center Pocket . 85
...........Accessory Power Socket . 85
..............................Vanity Mirror . 85
.................................Interior Lights . 86
................................Ceiling Light . 86
..................Ignition Switch Light . 86
Instruments and Controls
Instruments and Controls
49
Main Menu
Control Locations
50
MIRROR
CONTROLS
HEATING/COOLING CONTROLS
HOOD RELEASE
HANDLE
CRUISE CONTROL
BUTTONS
FUEL FILL DOOR RELEASE
A/T model is shown.
POWER WINDOW
SWITCHES
AUDIO SYSTEM
MOONROOF SWITCH
(P. 79)
POWER DOOR LOCK
MASTER SWITCH
(P. 69)
CRUISE CONTROL
MASTER BUTTON
(P. 117)
(P. 78)
(P. 124)
(P. 117)
ACCESSORY POWER
SOCKET
(P. 85)
CLOCK
(P. 115)
(P. 92)
HAZARD WARNING BUTTON
(P. 88)
(P. 80)
(P. 64)
(P. 123)
TRUNK RELEASE
(P. 70)
Main Menu
Table of Contents
＊
＊
＊
＊
＊
CONTINUED
The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.
Shift lever position indicators for HX model are shown on page .2:
1:
142
Instrument Panel
Instruments and Controls
U.S.: HX, LX, EX, and Special Edition, Canada: LX, Si
51
IMMOBILIZER SYSTEM
INDICATOR
MAINTENANCE
REQUIRED INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
HIGH BEAM INDICATOR
CHARGING SYSTEM
INDICATOR
LOW OIL PRESSURE
INDICATOR
MALFUNCTION INDICATOR LAMP
CRUISE CONTROL INDICATOR
TRUNK-OPEN INDICATOR
ANTI-LOCK BRAKE
SYSTEM INDICATOR
LOW FUEL INDICATOR
(P. 56)
(P. 55)
(P. 54, 200)
(P. 54, 200)
(P. 54, 201)
(P. 138)
SHIFT LEVER POSITION INDICATORS
(P. 54)
(P. 56)
(P. 54)
SIDE AIRBAG OFF INDICATOR
(P. 56)
(P. 57)
(P. 56)
(P. 55, 202)
(P. 54)
SEAT BELT REMINDER INDICATOR
(P. 55)
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
2
1
1
Main Menu
Table of Contents
Instrument Panel
Canada: DX, DX Special Edition, REVERB
52
LOW OIL PRESSURE
INDICATOR
DAYTIME RUNNING
LIGHTS INDICATOR
MALFUNCTION INDICATOR LAMP
WASHER LEVEL
INDICATOR
TRUNK-OPEN INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
CHARGING SYSTEM
INDICATOR
MAINTENANCE REQUIRED
INDICATOR
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
LOW FUEL INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
HIGH BEAM INDICATOR
SIDE AIRBAG OFF INDICATOR
(P. 54)
(P. 56)
(P. 54, 200)
(P. 54, 200)
(P. 54, 201)
(P. 54)
(P. 55)
(P. 57)
(P. 55, 202)
(P. 56)
(P. 56)
(P. 55)
(P. 54)
(P. 56)
SEAT BELT REMINDER INDICATOR
Main Menu
Table of Contents
Instrument Panel
U.S.: DX and Value Package
Instruments and Controls
53
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
LOW OIL PRESSURE
INDICATOR
MAINTENANCE REQUIRED INDICATOR
TRUNK-OPEN INDICATOR
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
HIGH BEAM INDICATOR
LOW FUEL INDICATOR
CHARGING SYSTEM
INDICATOR
MALFUNCTION INDICATOR LAMP
SIDE AIRBAG OFF INDICATOR
(P. 54)
(P. 56)
(P. 54, 200)
(P. 54, 200)
(P. 54)
SEAT BELT REMINDER INDICATOR
(P. 55)
(P. 57)
(P. 55, 202)
(P. 56)
(P. 54)
(P. 56)
(P. 54, 201)
Main Menu
Table of Contents
The instrument panel has many
indicators to give you important
information about your vehicle. If this indicator comes on when the
engine is running, the battery is not
being charged. For more information,
see page .
This indicator comes on when you
turn the ignition switch to ON (II). It
reminds you and your passengers to
fasten your seat belts. A beeper also
sounds if you have not fastened your
seat belt.
If you turn the ignition switch to ON
(II) before fastening your seat belt,
the beeper sounds and the indicator
flashes. If you do not fasten your
seat belt before the beeper stops, the
indicator stops flashing but remains
on.
If you continue driving without
fastening your seat belt, the beeper
sounds and the indicator flashes
again at regular intervals.
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates a potential problem with
your front airbags or automatic seat
belt tensioners. On models equipped
with side airbags, this indicator will
also alert you to a potential problem
with your side airbags or passenger’s
side airbag automatic cutoff system.
For more information, see page .
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For more information, see page .
The engine can be severely damaged
if this indicator flashes or stays on
when the engine is running. For
more information, see page .
See page .
200
200
201
25
26
If equipped
Supplemental Restraint
System Indicator
Charging System
Indicator
Low Oil Pressure
Indicator
Side Airbag Off Indicator
Seat Belt Reminder
Indicator
Malfunction Indicator
Lamp
Instrument Panel Indicators
54
Main Menu
Table of Contents
CONTINUED
This indicator has two functions:
Itcomesonwhenyouturnthe
ignition switch ON (II). It is a
reminder to check the parking
brake. Driving with the parking
brake not fully released can
damage the brakes and tires.
If it remains lit after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more information, see
page .
This indicator normally comes on for
a few seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem with
theABS.Ifthishappens,haveyour
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock function. For more
information, see page .
This indicator comes on with the
high beam headlights. For more
information, see page .
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go off if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
1.
2.
202
147
62
62
If equipped
Canadian models only
Anti-lock Brake System
(ABS) Indicator
Parking Brake and Brake System
Indicator
High Beam Indicator
‘‘Daytime Running
Lights’’ Indicator
Instrument Panel Indicators
Instruments and Controls
55
U.S. Canada
Main Menu
Table of Contents
This indicator comes on if the trunk
lid is not closed tightly.
This indicator comes on as a
reminder that you must refuel soon.
This indicator comes on when you
set the cruise control. See page
for information on operating the
cruise control.
This indicator also blinks several
times when you turn the ignition
switch from ON (II) to ACCESSORY
(I) or LOCK (0).
This indicator comes on when the
washer fluid level is low. Add washer
fluidwhenyouseethisindicator
(see page ).
The left or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicator does not
blink or blinks rapidly, it usually
means one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
blink. All turn signals on the outside
of the vehicle should flash.
This indicator comes on for a few
seconds when you turn the ignition
switch to ON (II). It will then go off
if you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink,
and the engine will not start (see
page ).
172
117
67
164
Canadian models only
If equipped
Trunk-open Indicator
Low Fuel Indicator
Washer Level Indicator
Cruise Control Indicator
Immobilizer System
Indicator
Turn Signal and Hazard Warning
Indicators
Instrument Panel Indicators
56
Main Menu
Table of Contents

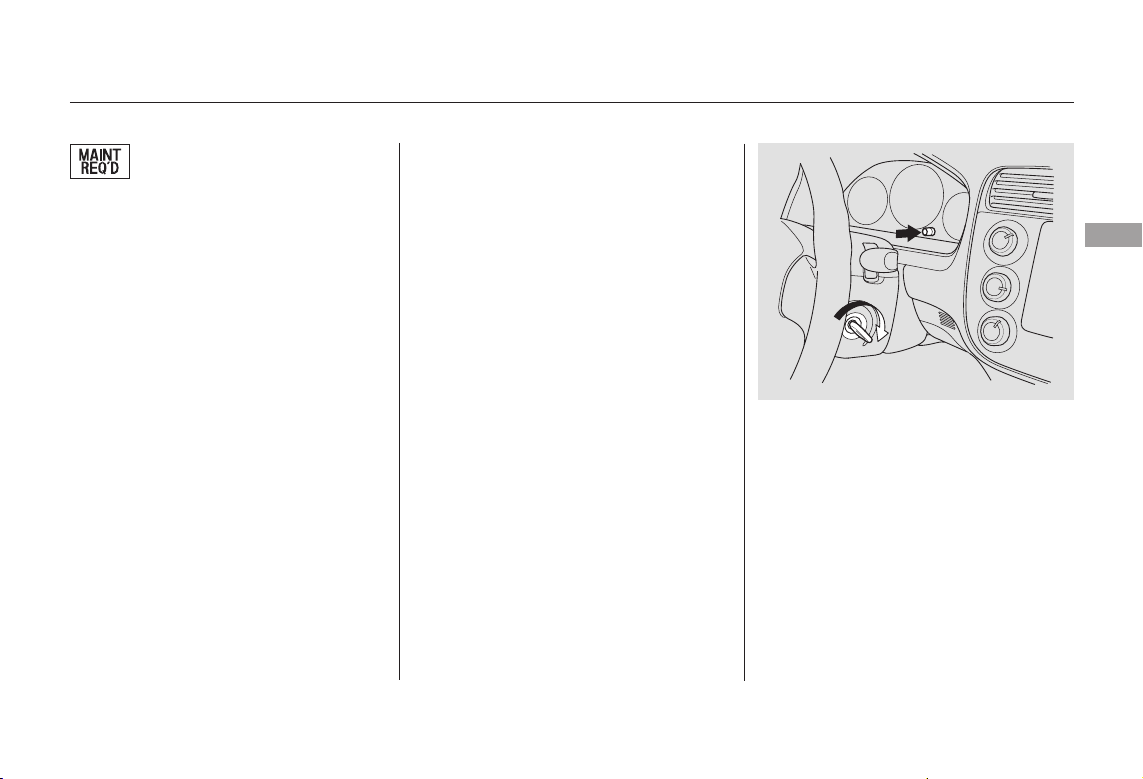

Press and hold the Select/Reset
knob in the instrument panel, then
turn the ignition switch to ON (II).
Hold the knob for about 10
seconds until the indicator goes
off.
If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance performed, this
indicator will remain on as a constant
reminder.
Your dealer will reset this indicator
after completing the scheduled
maintenance. If this maintenance is
done by someone other than your
dealer, reset the indicator as follows.
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
Refer to the Maintenance Schedules
for Normal and Severe Driving
Conditions on pages and .
For the first 8,000 miles (12,800 km)
after the Maintenance Required
Indicator is reset, it will come on for
2 seconds when you turn the ignition
switch to ON (II).
Turn off the engine.
Between 8,000 miles (12,800 km)
and 10,000 miles (16,000 km), this
indicator will come on for 2 seconds
when you first turn the ignition
switch to ON (II), and then flash for
10 seconds.
1.
2.
3.
153 154
Maintenance Required
Indicator
Instrument Panel Indicators
Instruments and Controls
57
Main Menu
Table of Contents
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
The odometer and the trip meters
use the same display. Switch
between these displays by pressing
the Select/Reset knob repeatedly.
When you turn the ignition switch to
ON (II), the meter you last selected
is displayed.
The trip meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Each trip meter works
independently, so you can keep track
of two different distances.
To reset a trip meter, display it and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’.
Both trip meters will reset if the
vehicle’s battery goes dead or is
disconnected.
This shows how much fuel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
off the ignition.
Gauges
Odometer/Trip Meter
Fuel Gauge
U.S.: HX, LX, EX, and Special Edition, Canada: LX, Si
58
TEMPERATURE GAUGE
FUEL GAUGE
ODOMETER/TRIP METER
TACHOMETER
SPEEDOMETER
SELECT/RESET KNOB
U.S. instrument
panel is shown.
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
Main Menu
Table of Contents
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, such as
very hot weather or a long period of
uphill driving, the pointer may rise to
the upper zone. If it reaches the red
(Hot) mark, pull safely to the side of
the road. See page for
instructions and precautions on
checking the engine’s cooling
system.
197
Gauges
Temperature GaugeU.S. DX, Value Package
Canada: DX, DX Special Edition, REVERB
Instruments and Controls
59
SPEEDOMETER
SELECT/RESET KNOB
TACHOMETER
TEMPERATURE
GAUGE
ODOMETER/TRIP METER
FUEL GAUGE
FUEL GAUGE
SPEEDOMETER
TEMPERATURE
GAUGE
ODOMETER/TRIP METER SELECT/RESET KNOB
Main Menu
Table of Contents
＊
＊
To use the horn, press the center pad of the steering wheel.
Controls Near the Steering Wheel
60
MIRROR CONTROLS
REAR WINDOW
DEFOGGER
WINDSHIELD
WIPERS/WASHERS
MOONROOF
SWITCH
(P. 117)
(P. 80)
STEERING WHEEL ADJUSTMENT
(P. 65)
(P. 64)
(P. 64)
(P. 61)
(P. 79)
HORN
HAZARD WARNING BUTTON
INSTRUMENT
PANEL
BRIGHTNESS
(P. 63)
HEADLIGHTS/ TURN
SIGNALS
(P. 62)
CRUISE CONTROL BUTTONS
(P. 117)
CRUISE CONTROL
MASTER BUTTON
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
Push the right lever up or down to
select a position.
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield Washers
The wipers run at high
speed until you release the lever.
The wipers are not activated.
The wipers operate every
few seconds. In low speed and high
speed, the wipers run continuously.
Vary the delay by turning the INT
TIME ring.
The wipers run at low speed.
The wipers run at high speed.
Pull the
wiper control lever toward you and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
1.
2.
3.
4.
5.
6.
On EX models in U.S., and Si models in
Canada
Windshield Wipers and Washers
MIST
OFF
INT
LO
HI
Windshield Washers
Instruments and Controls
61
Main Menu
Table of Contents
−
−
−
Turn Signal
Off
Parking and indicator lights
Headlights on
High beams
Flashhighbeams
Push down on the
left lever to signal a left turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to
center when you release it or
complete a turn.
Turning the
switch to the ‘‘ ’’ position turns
on the parking lights, taillights,
instrument panel lights, side-marker
lights, and rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights. If
you leave the lights on with the key
removed from the ignition switch,
you will hear a reminder tone when
you open the driver’s door.
Push the lever
forward until you hear a click to turn
on the high beams. The blue high
beam indicator will come on (see
page ). Pull the lever back to
return to the low beams.
To flash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
With the headlight switch off, the
high beam headlights and the high
beam indicator come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
switch off, even if you set the
parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
1.
2.
3.
4.
5.
6.
55
Canadian models only
Turn Signal and Headlights
Turn Signal
Headlights On
High Beams
Daytime Running Lights
62
Main Menu
Table of Contents

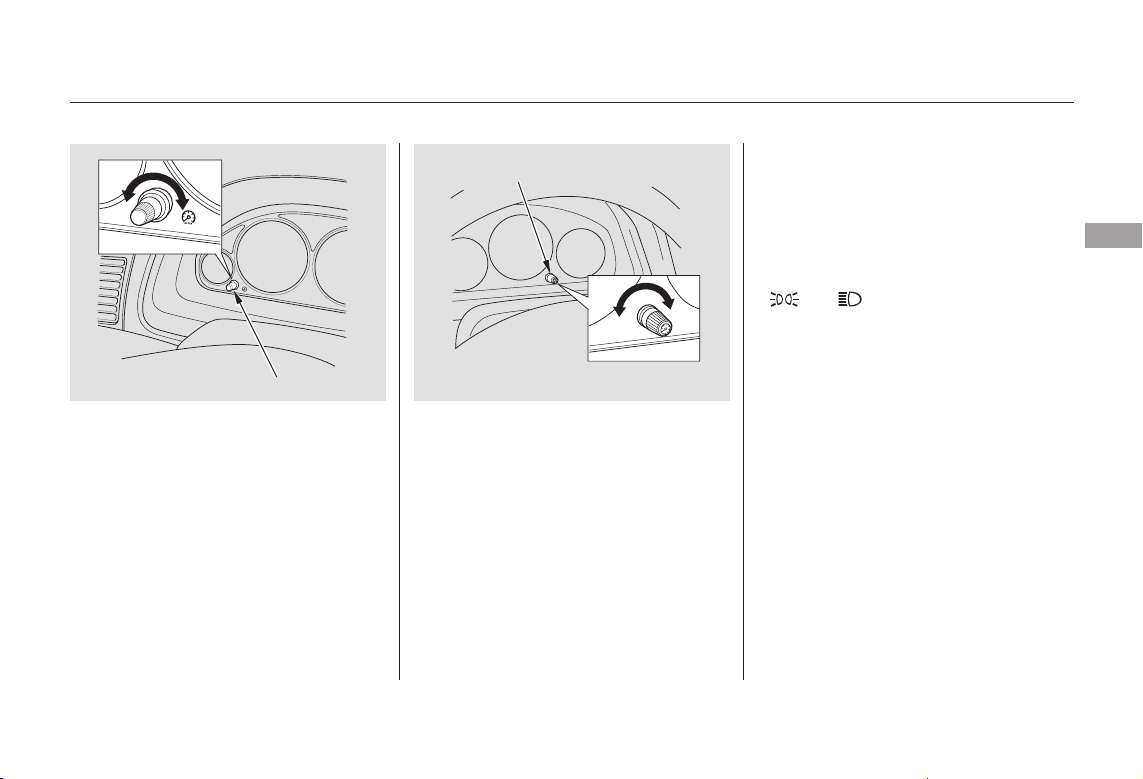

The knob on the instrument panel
controls the brightness of the instru-
ment panel lights. Turn the knob to
adjust the brightness.
Adjust the brightness to the desired
level with the headlight switch off,
and also with the headlight switch on.
To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to
or . Turning the Select/
Reset knob fully to the right will
return the instrument panel to the
brightness adjusted with the
headlight switch off and a tone will
sound.
There are six brightness levels.
When you turn the knob, the
odometer/trip meter display
changes to circles that show you the
current level. You will hear a tone
when you reach the maximum or
minimum brightness.
On all models except DX, Value Package
and REVERB
Instrument Panel Brightness
Instruments and Controls
63
SELECT/RESET KNOB
KNOB
DX, Value Package
and REVERB models
All models except DX, Value
Package and REVERB
Main Menu
Table of Contents
Make sure the rear window is clear
and you have good visibility before
starting to drive.
The defogger and antenna wires on
the inside of the rear window can be
accidentally damaged. When
cleaning the glass, always wipe side
to side.
Push the button between the center
vents to turn on the hazard warning
lights (four-way flashers). This
causes all four outside turn signals
and both indicators in the instrument
panel to flash. Use the hazard
warning lights if you need to park in
a dangerous area near heavy traffic,
or if your vehicle is disabled.
The rear window defogger will clear
fog, frost, and thin ice from the
window. Push the defogger button to
turn it on and off. The indicator in
the button comes on to show the
defogger is on. If you do not turn it
off, the defogger will shut itself off
after about 15 minutes. It also shuts
off when you turn off the ignition
switch. You have to turn the
defogger on again when you restart
the vehicle.
Rear Window DefoggerHazard Warning Button
Hazard Warning Button, Rear Window Defogger
64
Main Menu
Table of Contents
Make sure you have securely
locked the steering wheel in place
by trying to move it up and down.
Make any steering wheel adjustment
before you start driving.
Push the lever under the steering
column all the way down.
Move the steering wheel up or
down to the desired position.
Make sure you can see the
instrument panel gauges and
indicators.
Push the lever up to lock the
steering wheel in position.
1.
4.
3.
2.
Steering Wheel Adjustment
Instruments and Controls
65
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
Main Menu
Table of Contents
Protect the keys from direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away from liquids.
If they get wet, dry them
immediately with a soft cloth.
The master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the door
locks. You can keep the trunk, trunk
release handle and rear seat trunk
access locked when you leave your
vehicle and the valet key at a parking
facility.
The keys do not contain batteries.
Do not try to take them apart.
Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.
Keys and Locks
66
MASTER
KEYS (Black)
VALET
KEY (Gray)
KEY
NUMBER
TAG
Main Menu
Table of Contents
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
fob) is near the ignition switch when
you insert the key.
If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undriveable.
If you have lost your key and cannot
start your engine, contact your
dealer.
When you turn the ignition switch to
ON (II), the immobilizer system
indicator should come on for a few
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again.
The immobilizer system protects
your vehicle from theft. If an
improperly-coded key (or other
device) is used, the engine’s fuel
system is disabled.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Immobilizer System
Instruments and Controls
67
Main Menu
Table of Contents
−
−
−
−
The ignition switch has four
positions: LOCK (0), ACCESSORY
(I), ON (II), START (III)
If the front wheels are turned, the
anti-theft lock may make it difficult
to turn the key. Firmly turn the
steering wheel to the left or right as
you turn the key.
Use this position
only to start the engine. The switch
returns to ON (II) when you let go of
the key.
You can insert or
remove the key only in this position.
To turn the key, push it in slightly. If
your vehicle has an automatic
transmission, the shift lever must
also be in park.
You can
operate the audio system and the
accessory power socket in this
position.
This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch from ACCESSORY
(I) to ON (II).
You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
the driver’s door. Remove the key to
turn off the beeper.
If your vehicle has an automatic
transmission, the shift lever must be
in Park before you can remove the
key from the ignition switch.
START (III)
LOCK (0)
ACCESSORY (I)
ON (II)
Ignition Switch
68
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control.
Remove the key from the
ignition switch only when
parked.
Main Menu
Table of Contents
Each door has a lock tab on the top.
Push the tab down to lock the door
and pull it up to unlock.
To lock the passenger’s door when
getting out of the vehicle, push the
lock tab down and close the door. To
lock the driver’s door, pull and hold
the outside door handle then push
the lock tab down. Release the
handle, then close the door.
To lock the doors, press the master
door lock switch on the driver’s door,
pressthelocktabdownonthe
driver’s door, or use the key on the
outside lock on the driver’s door.
Pressing up on the master door lock
switch will unlock both doors.
Only the driver’s door unlocks when
you use the driver’s door lock tab or
the key on the outside driver’s door
lock.
If equipped
Door Locks Power Door Locks
Door Locks
Instruments and Controls
69
Lock
Unlock
MASTER DOOR LOCK SWITCH
Lock
Unlock
LOCK TAB
Main Menu
Table of Contents
As a safety feature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened from the
inside. To open the trunk, push the
release lever to the left.
Parents should decide if their
children should be shown how to use
this feature. For more information
about child safety, see page .
You can also use the master key to
open the trunk lock. The valet key
does not work in this lock.
To open the trunk, pull the trunk
releasehandletotheleftofthe
driver’s seat. To protect items in the
trunk when you need to give the key
to someone else, lock the trunk
releasehandlewiththemasterkey
and give the other person the valet
key.
To close the trunk, press down on
the trunk lid.
Keep the trunk lid closed at all times
while driving to avoid damaging the
lid, and to prevent exhaust gas from
getting into the interior. See
on page .
30
45
Emergency Trunk Opener
Carbon
Monoxide Hazard
Trunk
70
MASTER KEY
TRUNK RELEASE HANDLE
MASTER KEY
Pull
Main Menu
Table of Contents
−
−−
If equipped
Press this button once to
lock both doors. Some exterior lights
will flash once. When you push
LOCK twice within 5 seconds, you
will hear a beep to verify that the
doors are locked. You cannot lock
the doors if either door is not fully
closed or the key is in the ignition
switch.
Press this button once
to unlock the driver’s door. Some
exterior lights will flash twice. Push
it twice to unlock the passenger’s
door.
Pressthisbuttonfor
about 2 seconds to attract attention:
thehornwillsoundandtheexterior
lights will flash for about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to ON (II).
The ceiling light (if the ceiling light
switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
either door within 30 seconds, the
light fades out. If you relock the
doors with the remote transmitter
before 30 seconds have elapsed, the
light will go off immediately.
If you do not open either door within
30 seconds, they will automatically
relock.
Avoid dropping or throwing the
transmitter.
Protect the transmitter from
extreme temperature.
Do not immerse the transmitter in
any liquid.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.
Remote Transmitter
LOCK
UNLOCK PANIC
Remote Transmitter Care
Instruments and Controls
71
LED LOCK
BUTTON
UNLOCK
BUTTON
PANIC
BUTTON
Main Menu
Table of Contents
＋
◎
▽
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR2025
To replace the battery, remove the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the side facing
up. Reinstall the cushion ring. Align
the mark on the cover with the
mark on the transmitter. Set
the cover in place, and turn it
clockwise.
Replacing the Transmitter
Battery
Remote Transmitter
72
ROUND
COVER
CUSHION
RING
BATTERY
Open
Close
Main Menu
Table of Contents
−

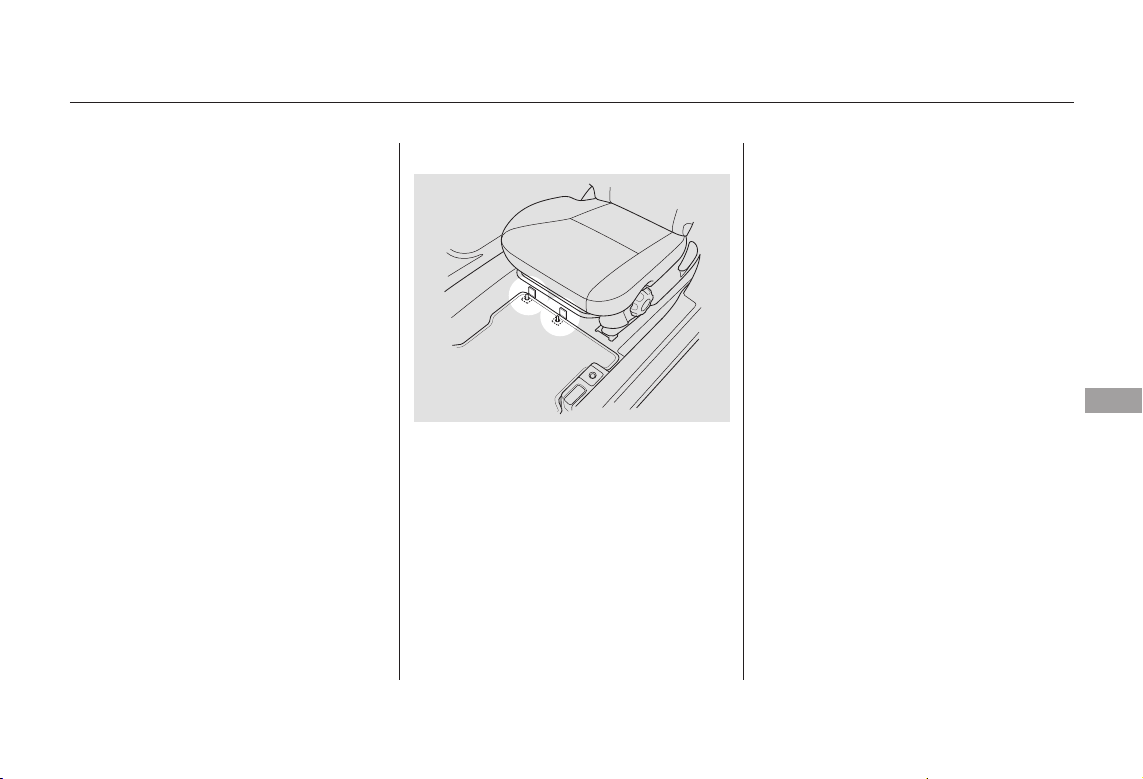

To change the seat-back angle, pull
up on the lever on the outside of the
seat bottom.
Make all seat adjustments before
you start driving.
To adjust the seat forward and
backward, pull up on the bar under
the seat cushion’s front edge. Try to
movetheseattomakesureitis
locked in position.
See pages for important safety
information and warnings about how to
properly position the seats and seat-
backs.
11 13
FrontSeatAdjustments
Seats
Instruments and Controls
73
Main Menu
Table of Contents
To get into the rear seat on the
driver’s side, pull up on the seat-back
adjustment lever.
On all other models, push down the
release lever at the base of the seat-
back. The seat-back will tilt forward
and the whole seat will slide forward.
The height of the driver’s seat is
adjustable. Turn the dial on the
outside of the seat cushion.
To get into the rear seat from the
passenger’s side in the U.S. DX and
Value Package models, pull up the
seat-back adjustment lever. The seat-
back will tilt forward. If more room is
needed, use the seat adjustment bar
to move the seat forward.
If equipped
Driver’s Seat Height Adjustment Rear Seat Access
Seats
74
RELEASE
LEVER
SEAT-BACK
ADJUSTMENT LEVER
Main Menu
Table of Contents
When you return the seat-back
upright, the seat stays in the fully
forward position. Use the seat
adjustment bar and the seat-back
adjustment lever to move the seat to
the desired position. Make sure the
seat is fully latched before sitting in
it.
Your vehicle is equipped with head
restraints in the front seats and the
outboard seating positions in the
rear.
As you return the seat-back upright,
push the whole seat backward until it
latches. Make sure the seat is fully
latched before sitting in it.
The head restraints help protect you
and your passengers from whiplash
and other injuries.
They are most effective when you
adjust them so the back of the
occupant’s head rests against the
center of the restraint.
The head restraints in the front and
rear outboard seating positions
adjust for height. You need both
hands to adjust the restraint. Do not
attempt to adjust it while driving. To
raise it, pull upward. To lower the
restraint, push the release button
sideways and push the restraint
down.
See page for important safety
information and a warning about how to
properly position the head restraints.
On HX model in the U.S., and all
Canadian models 13
On LX, EX, and Special Edition models
in the U.S.
Head Restraints
Seats
Instruments and Controls
75
FRONT
RELEASE BUTTON
Main Menu
Table of Contents
The left and right halves can be
folded separately from inside the
vehicle or inside the trunk. To fold
down the seat-back from inside the
vehicle, insert the master key in the
lock on the rear shelf. To fold down
the driver’s side, turn the key
clockwise, pull down the top of the
seat-back, then release the key. To
fold down the passenger’s side, turn
the key counterclockwise and
perform the same procedure.
When storing cargo, you can move
therearcentershoulderbeltoutof
the way by removing the belt from
the guide.
The lid of the console compartment
canbeusedasanarmrest.
Make sure the passenger’s hands or
fingersareawayfromthearmrest
before pushing it down.
If equipped
Folding Rear SeatArmrest
Seats
76
GUIDE
CENTER SHOULDER BELT
Main Menu
Table of Contents

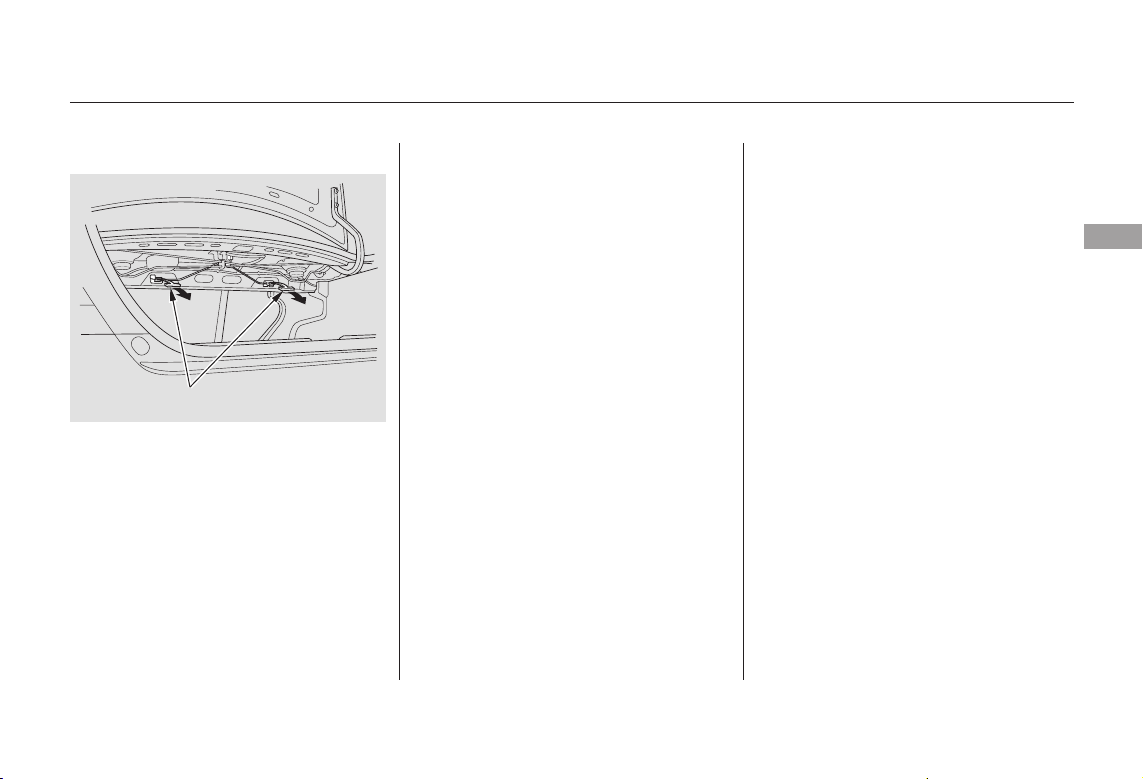

To release the seat-back from inside
the trunk, pull the release under the
trunk panel. Push the seat-back
down, then let go of the release.
To lock the seat-back upright, push it
firmly against the trunk panel. Make
sure it is latched in place by pulling
on the top of the seat.
Make sure all rear shoulder belts are
positioned in front of the rear seat-
back whenever it is in the upright
position.
Do not put any heavy items on the
seat-back when it is folded.
Make sure all items in the trunk, or
items extending through the opening
into the back seat, are secured.
Looseitemscanflyforwardand
cause injury if you have to brake
hard. See on page
.
Never drive with the seat-back
folded down and the trunk lid open.
See on
page .
130
45
Carrying Cargo
Carbon Monoxide Hazard
Seats
Instruments and Controls
77
RELEASE
Pull Pull
Main Menu
Table of Contents
−
If equipped
Turn the ignition switch to ON (II)
to raise or lower either window. To
open the window, push the switch
downandholdit.Releasetheswitch
when you want to stop the window.
Pull back on the switch and hold it to
close the window.
To open the driver’s
window fully, push the window
switch firmly down to the second
detent, and release it. The window
will automatically go down all the
way. To stop the window, pull back
on the window switch briefly.
When you push the MAIN switch in,
the switch is OFF, and the
passenger’s window cannot be raised
or lowered. To cancel this feature,
push on the switch again to get it to
pop out. Keep the MAIN switch off
whenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the window
unintentionally.
AUTO
Power Windows
78
MAIN SWITCH
DRIVER’S WINDOW SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passenger is
away from the window before
closing it.
Main Menu
Table of Contents
If equipped
The moonroof can be tilted up in the
back for ventilation, or it can be slid
back into the roof. Use the switch
under the left dashboard vent to
operate the moonroof. You must
turn the ignition switch to ON (II)
for the moonroof to operate.
To tilt up the back of the moonroof,
press and hold the center button
( ). To close the moonroof,
press and hold the top of the switch
( ). To open the moonroof,
press and hold the bottom of the
switch ( ).
Moonroof
Instruments and Controls
79
MOONROOF SWITCH
TILT BUTTON
Opening or closing the
moonroof on someone’s hands
or fingers can cause serious
injury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it.
If you try to open the moonroof in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or motor.
Main Menu
Table of Contents
Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
The inside mirror has day and night
positions. The night position reduces
glare from headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
Keeptheinsideandoutsidemirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
When you finish, move the
selector switch to the center (off)
position. This turns the
adjustment switch off to keep your
settings.
Turn the ignition switch to ON (II).
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
1.
2.
3.
4.
If equipped
Adjusting the Power Mirrors
Mirrors
80
SELECTOR SWITCH
ADJUSTMENT SWITCH
TAB
Main Menu
Table of Contents
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off.
To apply the parking brake, pull the
lever up fully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is fully released (see page ).
55
On Canadian Si models
Power Mirror Heaters Parking Brake
Mirrors, Parking Brake
Instruments and Controls
81
PARKING BRAKE
LEVER
U.S. : Value Package, LX, EX, Special
Edition
Canada: DX Special Edition, REVERB,
LX, Si
PARKING BRAKE LEVER
U.S. : DX, HX
Canada: DX
Driving the vehicle with the parking
brake applied can damage the rear
brakes and axles.
Main Menu
Table of Contents
＊
＊
＊
＊
Interior Convenience Items
82
VANITY MIRROR
GLOVE BOX
COIN BOX
ACCESSORY
POWER SOCKET
COAT HOOK
BEVERAGE HOLDER
CONSOLE COMPARTMENT
BEVERAGE HOLDER
:If equipped
CENTER POCKET
Main Menu
Table of Contents
Be careful when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can
damage the upholstery, carpeting,
and electrical components in the
interior.
To open the console compartment,
pull the lever and lift the lid.
To close, lower the lid and push it
down until it latches.
Open the front beverage holder by
pushing on the top.
On the U.S. EX models, open the
rear beverage holder by pushing on
the back and pulling the holder all
the way out.
If equipped
If equipped
Beverage Holders Console Compartment
Interior Convenience Items
Instruments and Controls
83
LEVER
CONSOLE COMPARTMENT
Push
Pull
Push
Main Menu
Table of Contents

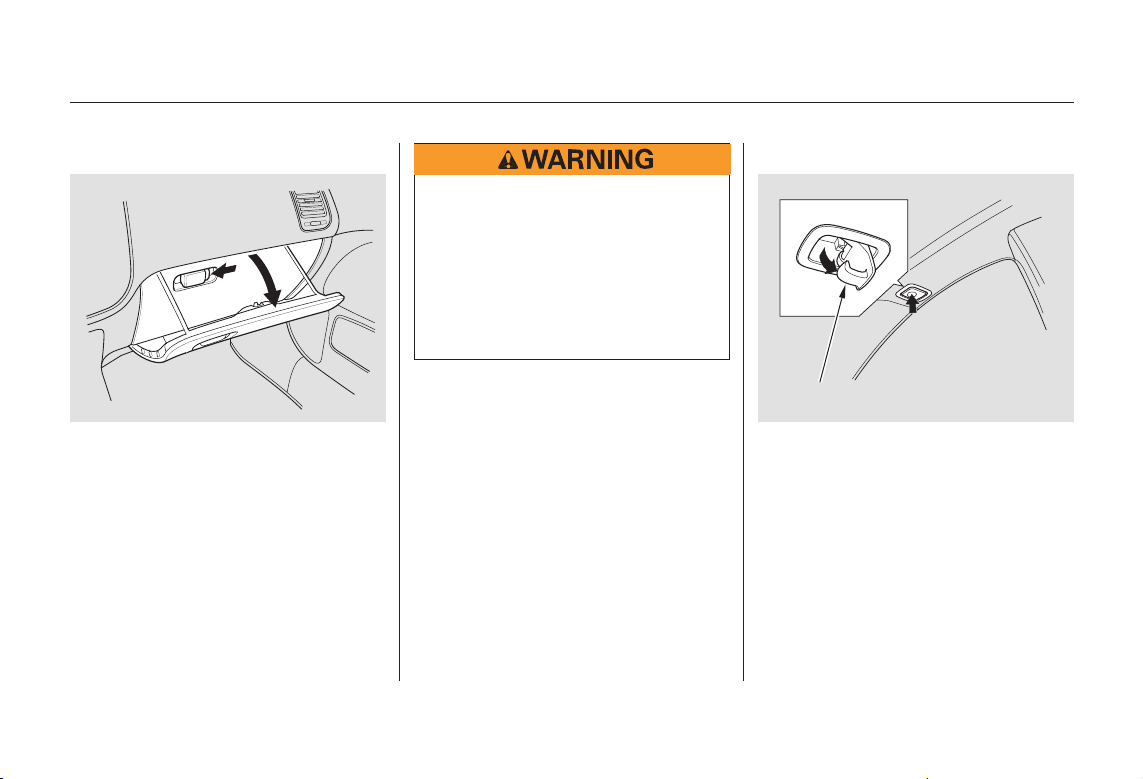

Open the glove box by squeezing the
handle. Close it with a firm push.
To use a coat hook, push on the lid.
Close it with a firm push.
Make sure the coat hook is closed
when you are not using it. This hook
is not designed for large or heavy
items.
Glove Box Coat Hook
Interior Convenience Items
84
COAT HOOK
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
Main Menu
Table of Contents

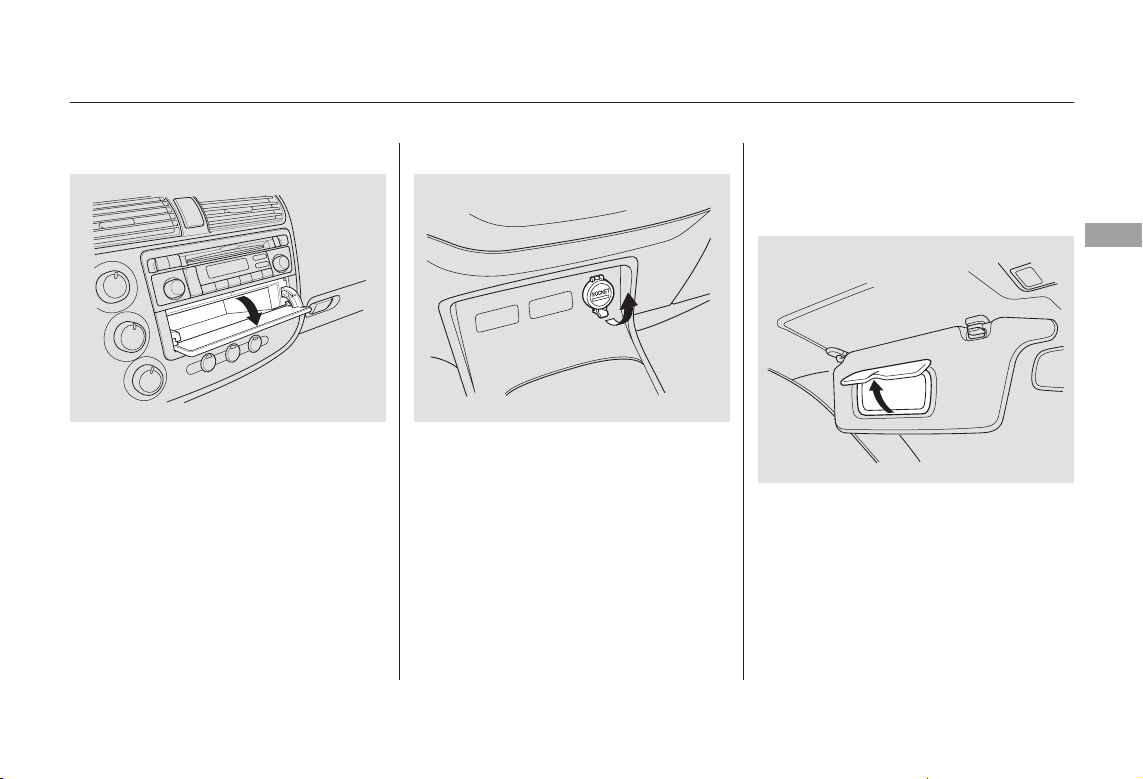

To use an accessory power socket,
pull up the cover.To open the lid, pull it down. Close it
with a firm push.
Touseavanitymirroronthebackof
the sun visor, pull up the cover.
They will not power an automotive
type cigarette lighter element.
To use an accessory, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
This socket is intended to supply
power for 12 volt DC accessories
that are rated 120 watts or less (10
amps).
If equipped
Center Pocket Accessory Power Socket
Vanity Mirror
Interior Convenience Items
Instruments and Controls
85
Main Menu
Table of Contents
Push on the spotlight lenses to turn
the light on and off.
The ignition switch light comes on
when you open the driver’s door. It
goes out several seconds after the
door is closed.
If you leave either door open with
the key not in the ignition switch, the
ceiling light will go off after 3
minutes.
The front ceiling light also contains
two spotlights. Push the button next
to each light to turn the spotlight on
andoff.Youcanusethespotlightsat
all times.
The ceiling light has a three-position
switch: ON, Door Activated, and
OFF. In the Door Activated (center)
position, the light comes on when
you:
Open either door.
Remove the key from the ignition
switch.
If you do not open a door, the light
fades out in about 10 seconds.
Unlock the doors with the key or
remote transmitter.
On LX models
OnU.S.EXandCanadianSimodels
OnU.S.EXandCanadianSimodels
Ceiling Light
Ignition Switch Light
Interior Lights
86
DOOR ACTIVATED
ON
OFF
OFF
ON
FRONT
DOOR ACTIVATED
Main Menu
Table of Contents
＊
＊
The heating and air conditioning
systems in your vehicle provide a
comfortable driving environment in
all weather conditions.
...............Vents, Heating, and A/C . 88
..........................Airflow Controls . 89
............................Playing the Radio . 92
..............................Radio Reception . 97
..................................Playing a Disc . 99
..................Protecting Your Discs . 108
.........CD Player Error Messages . 109
CD Changer Error
...................................Messages . 110
...............................Playing a Tape . 111
.................Radio Theft Protection . 114
..........................Setting the Clock . 115
...............................Cruise Control . 117
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The standard audio system has
many features. This section de-
scribes those features and how to
use them. (If you selected an
optional audio system, refer to the
operating instructions that came
with it.)
Air conditioning is standard on LX,
Value Package, Special Edition, and
EX models in the U.S., and DX
Special Edition, REVERB, LX and Si
models in Canada. It is optional on
other models.
Standard for Value Package, HX, LX, EX
and Special Edition models in the U.S.,
and DX Special Edition, REVERB, LX
andSimodelsinCanada
Features
Features
87
Main Menu
Vents, Heating, and A/C
88
MODE CONTROL DIAL
TEMPERATURE
CONTROL DIAL
FAN CONTROL DIAL
REAR WINDOW
DEFOGGER
BUTTON
AIR CONDITIONING
(A/C) BUTTON
RECIRCULATION BUTTON
Main Menu
Table of Contents
Air flows from the defroster
vents at the base of the windshield.
Air flows from the center
and corner vents in the dashboard.
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
This button turns the rear window
defogger off and on (see page ).
Turning this dial clockwise increases
the temperature of the airflow.
This button turns the air
conditioning on and off. The
indicatorinthebuttonisonwhen
the A/C is on.
Use the mode control dial to select
the vents the air flows from. Some
air will flow from the dashboard
corner vents in all modes.
Airflow is divided between
the vents in the dashboard and the
floor vents.
Airflow is divided between
the floor vents and the defroster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
fresh air mode and turns on the A/C.
You cannot turn the A/C off in this
mode.
Turn this dial to increase or decrease
the fan speed and airflow.
When the recirculation indicator is
on, air from the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in from the outside of the
vehicle (fresh air mode).
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Air flows from the floor
vents. When you select , the
system automatically switches to
fresh air mode.
64
Optional on DX and HX models
Rear Window Defogger Button
Mode Control Dial
Fan Control Dial
Airflow Controls
Temperature Control Dial
Air Conditioning (A/C) Button
Recirculation Button
Vents, Heating, and A/C
Features
89
Main Menu
Table of Contents
The flow-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes before you
feel warm air coming from the
system.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn off the A/C until the gauge
reads normally.
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
This setting is suitable for all driving
conditions whenever the outside
temperature is above 32°F (0°C).
Set the temperature to the lower
limit.
Make sure the A/C is off.
Select and fresh air mode.
Set the fan to the desired speed.
Select .
When you select , the system
automatically switches to fresh air
mode.
Set the fan to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Make sure the temperature is set
to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select fresh air mode.
Set the fan to the desired speed.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in fresh air mode.
Turn the fan on.
Turn on the air conditioning.
Select and fresh air mode.
Adjust the temperature to your
preference.
1.
2.
3.
4.
1.
2.
3.
4.
5.
1.
2.
3.
59
1.
2.
3.
4.
If the interior is very warm,
Vents, Heating, and A/C
Ventilation
Using the Heater
Using the A/C Dehumidify the Interior
90
Main Menu
Table of Contents
To remove fog from the inside of the
windows:
When you switch to another mode
from , the A/C stays on.
Press the A/C button to turn it off.
Keep the system completely off
for short periods only.
To keep stale air and mustiness
from collecting, you should have
the fan running at all times.
Select . The system
automatically switches to fresh air
mode and turns on the A/C.
The A/C indicator does not come
on if it was off to start with.
Select .
Set the fan and temperature
controls to maximum level.
To clear the windows faster, you can
close the dashboard corner vents by
rotating the wheel below each vent.
This sends more warm air to the
windshield defroster vents. Once the
windshield is clear, select fresh air
mode to avoid fogging the windows.
For your safety, make sure you have
a clear view through all the windows
before driving.
Turningthefanspeedand
temperature control dials all the way
to the left shuts off the system
completely.Set the fan to the desired speed, or
high for faster defrosting.
Select . The system
automatically switches to fresh air
mode and turns on the A/C. The
A/C indicator will not come on if it
was off to start with.
Adjust the temperature so the
airflow feels warm.
Select to help clear the
rear window.
To increase airflow to the
windshield, close the corner vents.
1.
2.
3.
1.
2.
3.
4.
5.
Vents, Heating, and A/C
To Defog and Defrost To Remove Exterior Frost or Ice
From the Windows
To Turn Everything Off
Features
91
Main Menu
Table of Contents
Playing the Radio
92
AM/FM BUTTON
TUNE KNOB
SCAN INDICATOR
SEEK BAR
PRESET BUTTONS
TUNE KNOB
SCAN INDICATOR
STEREO INDICATOR
AM/FM BUTTON
STEREO INDICATOR
SEEK BAR
FM/AM
BUTTON
SEEK BAR
AUTO SELECT
BUTTON
SOUND
BUTTON
SCAN
BUTTON
PRESET BUTTONS
PRESET BUTTONS
SCAN
BUTTON
AUTO SELECT BUTTON
PRESET BUTTONS
POWER/
VOLUME
KNOB
DX model
POWER/
VOLUME
KNOB
AUTO SELECT
BUTTON
POWER/
VOLUME
KNOB
PRESET CALL BAR
SCAN BUTTON
Audio System with In-dash CD Changer
STEREO INDICATOR
U.S. :Special Edition models
Canada:REVERB, Si-GA models
U.S.: Value Package, HX, LX, EX models
Canada: DX Special Edition, LX, Si-G models
Main Menu
Table of Contents
−
−
−
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
Power Volume knob or the AM/FM
button (FM/AM button on models
with in-dash CD changer). Adjust the
volume by turning the Power
Volume knob.
As you adjust a volume, you will hear
a beep whenever the adjustment
level reaches the maximum and
minimum of its range.
The band and frequency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
or FM/AM button. On the FM band,
ST will be displayed if the station is
broadcasting in stereo. Stereo
reproduction on AM is not available.
On the AM band, AM noise
reduction turns on automatically.
You can use any of five methods to
find a radio station on the selected
band: the
preset buttons, and .
Use the TUNE knob or
the SEEK bar to tune the radio to a
desired frequency.
Turn the knob to the right to tune a
higher frequency, and turn it to the
left to tune a lower frequency.
Press the side of the SEEK bar
to tune a higher frequency, and
press the side to tune a lower
frequency.
The SEEK function
searches up and down from the
current frequency to find a station
with a strong signal. To activate it,
press the or side of the
SEEK bar, then release it.
On models with in-dash CD changer,
press the or side of the
SEEK bar until you hear a beep, then
release it.
The SCAN function
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan for
a station with a strong signal. When
it finds one, it will stop and play that
station for about 5 seconds.
On models with in-dash CD changer
On models with in-dash CD changer
Except for models with in-dash CD
changer
On models with in-dash CD changer
Except for models with in-dash CD
changer
CONTINUED
Playing the Radio
To Play the Radio
To Select a Station
TUNE,SEEK,SCAN,
AUTO SELECT
TUNE
SEEK
SCAN
Features
93
Main Menu
Table of Contents
−
−
Press the A. SEL button. ‘‘A.SEL’’
flashes in the display, and the system
goes into scan mode for several
seconds. It stores the frequencies of
six AM, and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed after
pressing a preset button if Auto
Select cannot find a strong station
for every preset button.
If you do not like the stations Auto
Select has stored, you can store
other frequencies on the preset
buttons as previously described.
press the
A. SEL button. This restores the
presets you originally set.
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
To select a different preset
frequency, you can also use the
Preset CALL bar. Press the ‘‘ ’’
side of the bar to select the
frequency stored in the next preset
button, and press the ‘‘ ’’ side to
select the frequency in the previous
preset button.
The preset frequencies will be lost
if your vehicle’s battery goes dead,
is disconnected, or the radio fuse
is removed.
If you do nothing, the system will
then scan for the next strong station
andplayitfor5seconds.Whenit
plays a station that you want to listen
to, press the SCAN button again.
Each preset button can
store one frequency on AM, and two
frequencies on FM.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
Pick a preset button, and hold it
until you hear a beep.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two frequencies with each preset
button.
1.
2.
3.
4.
To turn off Auto Select,
On models with in-dash CD changer
Playing the Radio
AUTO SELECT
Preset
94
Main Menu
Table of Contents
−
−
−
−
CONTINUED
Adjust the Balance, or side-
to-side strength of the sound.
Adjust the Fader, or the
front-to-back strength of the sound.
AdjusttheTrebleinthe
sound.
Adjust the Bass in the sound.
Press the SOUND (TUNE) knob or
SOUND button repeatedly to display
the Bass (BAS), Treble (TRE),
Balance (BAL), and Fader (FAD)
settings. Each mode is shown in the
display as it changes.
Turn the SOUND (TUNE) knob to
adjust the setting to your liking.
Turn the Volume knob to adjust the
setting to your liking.
The displayed number shows you
the current setting. When the level
reaches the center, you will see a ‘‘C’’
in the display. The system will return
to the audio display about 5 seconds
after you stop adjusting a mode.
The level gauge on the display also
shows you the range. As you adjust a
mode, you will hear a beep whenever
the adjustment level reaches the
center (C), maximum, and minimum
of its range.
Except for models with in-dash CD
changer
On models with in-dash CD changer
On all models
On models with in-dash CD changer
Playing the Radio
Adjusting the Sound
BAL
FAD
TRE
BAS
Features
95
Main Menu
Table of Contents
On models with in-dash CD changer On models with in-dash CD changer
You can display the sound with
spectroscopic analysis. There are
five modes of display; Peak-Hold,
Normal, Aurora, Level and Off. Each
time you press and release the DISP
button, the mode changes from P.
HOLD to NORMAL to AURORA to
LEVEL, then to OFF. You see the
selected mode in the display for
about 5 seconds as it changes.
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned off.
You can also select the reduced
brightness in the display when the
parking lights are on. Press and hold
the DISP button for about 5 seconds
until you hear a beep to change the
brightness. Press and hold this
button again for about 5 seconds
until you hear a beep to return to the
full brightness.
63
Playing the Radio
Spectroscopic Analysis Display brightness
Audio System Lighting
96
Main Menu
Table of Contents
How well the radio receives stations
is dependent on many factors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
The radio can receive the complete
AM and FM bands.
Those bands cover these frequen-
cies:
AM band: 530 to 1,710 kilohertz
FM band: 87.7 to 107.9 megahertz
Driving very near the transmitter of
a station that is broadcasting on a
frequency close to the frequency of
the station you are listening to can
also affect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
A radio station’s signal gets weaker
as you get farther away from its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker and the
stationdriftinginandout.Ifyouare
listening to an FM station, you will
see the stereo indicator flickering off
and on as the signal weakens.
Eventually, the stereo indicator will
go off and the sound will fade
completely as you get out of range of
the station’s signal.
Radio stations on the AM band are
assigned frequencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned frequencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
frequencies. It is fairly common for
stations to round-off the frequency in
their advertising, so your radio could
display a frequency of 100.9 even
though the announcer may identify
the station as ‘‘FM101.’’
CONTINUED
Radio Reception
Radio ReceptionRadio Frequencies
Features
97
Main Menu
Table of Contents
Radio signals, especially on the FM
band, are deflected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal from the station’s transmitter,
and the deflected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.
Radio reception can be affected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interference from passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
Radio Reception
98
Main Menu
Table of Contents
−
＋
Playing a Disc
Features
99
AM/FM BUTTON
POWER/
VOLUME
KNOB
DX model
CD/TAPE BUTTON
RANDOM BUTTON
REPEAT
BUTTON
DISC BUTTON
DISC BUTTON
SEEK/SKIP BAR
POWER/VOLUME
KNOB
AM/FM
BUTTON
CD BUTTON
CD SLOT
REPEAT INDICATOR
RANDOM BUTTON
EJECT
BUTTON
REPEAT BUTTON
RANDOM INDICATOR
SEEK/ SKIP BAR
LOAD BUTTON
LOADED DISC
NUMBER
FOLDER INDICATOR/
NUMBER
FILE
INDICATOR/
NUMBER
DISC SLOT
DISC LOAD
INDICATOR
DISPLAY
BUTTON
SEEK/SKIP
BAR
CD
BUTTON
DISC
NUMBER
RANDOM
BUTTON
FOLDER
BAR
POWER/
VOLUME KNOB
RANDOM INDICATOR
REPEAT
INDICATOR
TITLE BUTTON
EJECT
BUTTON
RREPEAT BUTTON/
SCAN BUTTON
MP3 INDICATOR
Audio System with In-dash CD Changer
U.S.: Special Edition models
Canada: REVERB, Si-GA models
U.S.: Value Package, HX, LX, EX models
Canada: DX Special Edition, LX, Si-G models
Main Menu
Table of Contents
−
−
−
−
On models with in-dash CD changer
On models with CD player
Optional on DX model
The in-dash CD changer can also
play CD-Rs and CD-RWs
compressed in MP3 standard. When
playing a disc in MP3, you will see
‘‘MP3’’ in the display. You can select
afolderortrackupto .
Video CDs and DVD discs will not
work in this unit.
The specifications of the compatible
MP3 file are:
You operate the CD player/CD
changer with the same controls used
for the radio. To select the CD
player/CD changer, press the CD
button. You will see ‘‘CD’’ in the
display. The number of the track
playing is shown in the display. With
the in-dash CD changer, the disc and
track numbers are displayed. The
system will continuously play a disc
until you change modes.
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
Sampling frequency: 32/44.1/48
kHz
Bit rate: 32/40/48/56/64/80/96/
112/128/160/192/224/256/
320 kbps
Compatible with variable bit rate
and multi-session
Maximum layers
(including ROOT): 8 layers
While playing a disc, you can see the
playing time in the display by
cancelling the clock display (see
page ).
Insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way to play it. When the system
reaches the end of the disc, it will
return to the beginning and play the
disc again.
You can also play 3-inch (8-cm) discs
without using an adapter ring.
To play the radio when a disc is
playing, press the AM/FM button.
Press the CD button again to switch
back to the CD player.
255
116
To Play a Disc
Playing a Disc
100
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
Main Menu
Table of Contents
On models with in-dash CD changer
Your vehicle’s in-dash CD changer
hold up to six discs.
Press the LOAD button until you
hear beep and see ‘‘LOAD’’ in the
display. To load only one disc,
press and release the LOAD
button. The green disc load
indicator will come on.
The disc number for an empty
position begins blinking.
You cannot load and play 3-inch
(8-cm) discs in this unit.
When the disc load indicator turns
green and ‘‘LOAD’’ appears in the
display again, insert the next disc
in the slot. Do not try to insert a
disc until ‘‘LOAD’’ appears. You
could damage the audio unit.
Repeat this until all six positions
are loaded. If you are not loading
all six positions, the system begins
playing the last disc loaded.
You can also load a disc into an
empty position while a disc is playing
by pressing the appropriate preset
button. The system stops playing the
current disc and starts the loading
sequence. It plays the disc just
loaded.
Insert the disc into the disc slot
when the green disc load indicator
comes on. Insert it only about
halfway; the drive will pull it in the
rest of the way. You will see
‘‘BUSY’’ in the display while the
disc load indicator turns red and
blinks as the disc is loaded.
To play the tape when a CD is
playing, insert a tape in the player
(optional). If a tape is in the player,
press the TAPE button. Press the
CD button again, to switch back to
the CD player.
If you turn the system off while a CD
is playing, either with the Power/
Volume knob or by turning off the
ignition switch, the disc will stay in
the drive. When you turn the system
back on, the CD will begin playing
where it left off.
1.
2.
3.
4.
5.
CONTINUED
Loading Discs in the In-dash CD
Changer
Playing a Disc
Features
101
Main Menu
Table of Contents
In MP3 mode with In-dash CD Changer
With In-dash CD Changer
When you press the TITLE button
while playing a disc in MP3, the
displayshowsthefirst13characters
of the current folder or file name for
about 5 seconds, then automatically
returns to the normal display.
With the folder or file name, you will
see the FOLDER or FILE indicator
in the display.
Each time you press the TITLE
button, the display mode changes
from File Name display to Folder
Name display, then to Normal
display.
Ifthefolderorfilenamehasmore
than 13 characters and the name is
displayed, press and hold the TITLE
button until you hear a beep. The
display will show the next 13
characters for about 5 seconds. To
see all characters of the folder or file
name, repeat this step.
If you press the TITLE button when
the last character(s) is displayed,
you hear two beeps, then the display
shows the first 13 characters again.
You will also see the folder or file
name in the following conditions:
When the folder or the file is
changed.
When you change the audio mode
to play discs in MP3 and the
system begins to play.
When you insert a disc and the
system begins to play.
You can use the SEEK/SKIP bar
while a disc is playing to select
passages and change tracks (files in
MP3 mode).
To select a different disc, press the
appropriate preset button (1 to 6). If
you select an empty position, the
system will go into the loading
sequence (see page ).
In MP3 mode, use the FOLDER bar
to select folders in the disc and use
the SEEK/SKIP bar to change files.
101
Folder Name and File Name Display
Function
To Change or Select Tracks/Files
Playing a Disc
102
Main Menu
Table of Contents
−
−
−
−
Each time you
press and release the /
side of the SEEK/SKIP bar,
the player skips forward to the
beginning of the next track (file in
MP3 mode). Press and release the
/ side, to skip backward
to the beginning of the current track.
Press it again to skip to the
beginning of the previous track.
To move rapidly within a track, press
andholdthe / or /
side of the SEEK/SKIP bar.
You will see CUE or REW in the
display while moving.
While moving forward or backward,
thetimedisplaychangestothe
track/file playing time. After
releasing the bar, the display goes
back to the time display.
To
select a different folder, press and
release the ‘‘ ’’ side of the
FOLDER bar to move the beginning
of the next folder. Press and release
the‘‘ ’’sidetomovethe
beginning of the current folder.
Press and release it again to skip to
the beginning of the previous folder.
To continuously replay
a track (file in MP3 mode), press and
release the RPT button. You will see
RPT in the display. Press the RPT
button again to turn it off. With the
in-dash CD changer, press the RPT
button two or three times depending
on the selected mode to return to
normal playing.
Pressing either side of the SEEK/
SKIP bar or selecting a different disc
with a preset button also turns off
the repeat feature.
This feature,
when activated, replays all the tracks
(all files in each folder in MP3 mode)
on the selected disc in the order they
are recorded on the disc. To activate
the disc repeat feature, select the
Disc-Repeat mode by pressing the
RPT button repeatedly. You will see
D-RPT in the display. The system
continuously replays the current disc.
Press the RPT button again to turn it
off. Pressing the RDM button or
selecting a different disc with a
preset button also turns off the
repeat feature.
Except for models with in-dash CD
changer
On models with in-dash CD changer
In MP3 mode with In-dash CD Changer With In-dash CD Changer
With In-dash CD Changer
CONTINUED
SEEK/SKIP
FOLDER SELECTION
REPEAT (TRACK/FILE
REPEAT)
DISC-REPEAT
Playing a Disc
Features
103
Main Menu
Table of Contents
−
−
−
In MP3 mode with In-dash CD Changer
In CD mode with In-dash CD Changer
In MP3 mode with In-dash CD Changer
With In-dash CD Changer
In MP3 mode with In-dash CD Changer
This feature,
when activated, replays all the files
on the selected folder in the order
they are compressed in MP3. To
activate Folder Repeat mode, press
the RPT button. You will see F-RPT
in the display. The system
continuously replays the current
folder. Press the RPT button again to
turn it off. Pressing the RDM button,
selecting a different disc with a
preset button, or selecting a different
folder with the FOLDER bar also
turns off the repeat feature.
This feature plays the
tracks (all files in each folder in MP3
mode) within a disc in random order.
To activate Random Play, press and
release the RDM button. In MP3
mode, press the RDM button twice
to select Within a Disc Random Play.
You will see RDM in the display.
Press the RDM button again to
return to normal play.
Selecting a different disc with a
preset button also turns off the
random feature.
This
feature, when activated, plays the
files within a folder in random order,
rather than in the order they are
compressedinMP3.Toactivate
Folder Random play, press the RDM
button. You will see F-RDM in the
display. The system will then select
and play files randomly. This
continues until you deactivate Folder
RandomPlaybypressingtheRDM
button again, or you select a
different disc with a preset button or
a different folder with the FOLDER
bar.
Each time you press and release the
RDM button, the mode changes
from Folder Random Play to Within
a Disc Random Play, then to normal
playing.
Each time you press and release the
RPT button, the mode changes from
File Repeat to Folder Repeat to Disc
Repeat, then to normal playing.
Each time you press and release the
RPT button, the mode changes from
Track Repeat to Disc Repeat, then to
normal playing.
FOLDER-REPEAT
RANDOM (Random within a
Disc)
FOLDER-RANDOM
Playing a Disc
104
Main Menu
Table of Contents
−−
In CD mode with In-dash CD Changer In MP3 mode with In-dash CD Changer
Except for models with in-dash CD
changer
The SCAN function
samples all the tracks on the
selected disc in the order they are
recorded on the disc. To activate the
Scan feature, press and hold the
SCAN button until you hear a beep.
You will see SCAN in the display.
You will get a 10 second sampling of
each track on the selected disc.
Press the SCAN button again to get
out of the system and play the last
track sampled.
Pressing either side of the SEEK/
SKIP bar or selecting a different disc
with a preset button also turns off
the scan feature.
This feature, when
activated, samples all the files in the
selected folder in the order they are
compressedinMP3.Toactivatethe
Folder Scan feature, press and hold
the SCAN button until you hear a
beep. You will see F-SCAN in the
display. The system will then play
the first file for about 10 seconds. If
you do nothing, the system will then
play the following files for 10
seconds each. When it plays a file
that you want to continue listening to,
press the SCAN button again.
Pressing either side of the SEEK/
SKIP bar, selecting a different disc
with a preset button, or a different
folder with the FOLDER bar also
turns off the scan feature.
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it from the slot,
the system will automatically reload
the CD after 15 seconds and put it in
pause mode. To begin playing, press
the CD button.
Press the AM/FM button to switch
to the radio while a CD is playing. To
play the CD, press the CD button.
If a tape is in the optional tape player,
press the TAPE button to switch to
the tape while a CD is playing. Press
the CD button again to switch back
to the CD player.
CONTINUED
SCAN F-SCAN
To Stop Playing a Disc
Playing a Disc
Features
105
Main Menu
Table of Contents
On models with in-dash CD changer
On models with in-dash CD changer
Press the FM/AM button to switch
to the radio while a disc is playing.
To play the disc, press the CD button.
If you turn the system off while a
disc is playing, either with the
Power/Volume knob or by turning
off the ignition switch, the disc will
stay in the drive. When you turn the
system back on, the disc will begin
playing where it left off.
To remove the disc currently in play,
press the eject ( ) button. When
a disc is removed from a slot, the
system automatically begins the load
sequence so you can load another
disc in that position. If you do not
remove the disc from the changer
within 15 seconds, the system
returns to the previous mode (FM/
AM). The disc will reload into the
system and will remain in a pause
mode.
To remove a different disc from the
changer,firstselectitwiththe
appropriate preset button. When that
disc begins playing, press the eject
button. Continue pressing the eject
button to remove all the discs from
the changer.
You can also eject discs when the
ignition switch is off. The disc that
was last selected is ejected first.
Playing a Disc
Removing Discs from the In-dash CD
Changer
106
Main Menu
Table of Contents
−＋
−
＋
On models with in-dash CD changer
Except for models with in-dash CD
changer
On models with in-dash CD changer
Except for models with in-dash CD
changer
The auxiliary input jack is on the
audio panel. The system will accept
auxiliary input from standard audio
accessories.
When the appropriate audio unit is
connected with the auxiliary input
jack, press the AUX button to select
the unit.
See pages and for
information on the error messages.
If you find any problem with this
audio system, take the vehicle to
your dealer.
For information on how to handle
and protect discs, see page .
If you select an empty slot in the
magazine, the changer will search
for the next available disc to load and
play.
An optional six disc CD changer is
available for your vehicle. This disc
changer uses the same controls used
for the in-dash CD player or the
radio.
Load the desired CDs in the
magazine, and load the magazine in
the changer according to the
instructions that came with the unit.
To select the CD changer, press the
CD button. The disc and track
numbers will be displayed. To select
a different disc, use the preset 5
(DISC ) or the preset 6 (DISC )
button. To select the previous disc,
press the preset 5 (DISC ), or the
preset 6 (DISC ) to select the next
disc in sequence.
109
110
108
Playing a Disc
Auxiliary Input Jack
Audio System Malfunction
Protecting Discs
Operating the Optional CD
Changer
Features
107
Main Menu
Table of Contents
When using CD-R or CD-RW (only
with in-dash CD changer) discs,
use only high quality CDs labeled
for audio use.
When recording a CD-R or
CD-RW (only with in-dash CD
changer), the recording must be
closedforittobeusedbythe
system.
CD-RW discs will not work in this
unit.
Play only standard round CDs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.
Handle your CDs properly to
prevent damage and skipping.
Never try to insert foreign objects in
the system or the magazine.
When a disc is not being played,
store it in its case to protect it from
dust and other contamination. To
prevent warpage, keep discs out of
direct sunlight and extreme heat.
A new disc may be rough on the
inner and outer edges. The small
plastic pieces causing this roughness
can flake off and fall on the
recording surface of the disc,
causing skipping or other problems.
Remove these pieces by rubbing the
inner and outer edges with the side
of a pencil or pen.
To clean a disc, use a clean soft cloth.
Wipe across the disc from the center
to the outside edge.
Handle a disc by its edges; never
touch either surface. Do not place
stabilizer rings or labels on the disc.
These, along with contamination
from fingerprints, liquids, and felt-tip
pens, can cause the disc to not play
properly, or possibly jam in the drive.
You can also play 3-inch (8-cm)
discs without using an adapter
ring.
Except for models with in-dash CD
changer
Except for models with in-dash CD
changer
General Information
Protecting Discs
Protecting Your Discs
108
Main Menu
Table of Contents
Error Message Cause Solution
If you see an error message in the
display while playing a disc, find the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to your dealer.
Except for models with in-dash CD
changer
FOCUS Error
Mechanical Error
High temperature
Press the EJECT button and pull out the disc.
Check if it is inserted correctly in the disc
player.
Make sure the disc is not scratched or damaged.
Press the EJECT button and pull out the disc.
Check the disc for damage or deformation.
If the disc cannot be pulled out, or the error
message does not disappear after the disc is
ejected, see your dealer.
Will disappear when the temperature returns to
normal.
CD Player Error Messages
Features
109
Main Menu
Table of Contents
Error Message SolutionCause
Except for models with in-dash CD
changer
If you see an error message in the
display while playing a disc, find the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to your dealer.
Press the magazine eject button and pull it out.
If the message does not disappear or the
magazine cannot be pulled out, see your dealer.
Insert disc.
Press the magazine eject button and pull it out,
check for an error message, and insert the
magazine again. If the message does not
disappear or the magazine cannot be pulled out,
see your dealer.
Will disappear when the temperature returns to
normal.
Insert disc magazine.
FOCUS Error
No disc in the disc
magazine
Mechanical Error
High temperature
No disc magazine in the
disc changer
CD Changer Error Messages
110
Main Menu
Table of Contents
Playing a Tape (Optional)
Features
111
FF BUTTON
REW BUTTON
CD/TAPE BUTTON
AM/FM BUTTON
SKIP BAR
CD/TAPE BUTTON
SKIP BAR
REW BUTTON
FF BUTTON
PLAY/PROG BUTTON
REPEAT INDICATOR
DOLBY INDICATOR
AM/FM BUTTON
PLAY/PROG BUTTON
DX model
REPEAT BUTTON
POWER/VOLUME KNOB
NOISE REDUCTION BUTTON
DOLBY INDICATOR
REPEAT BUTTON
NOISE REDUCTION BUTTON
POWER/VOLUME KNOB
U.S.: Value Package, HX, LX, EX models
Canada:DX Special Edition, LX, Si- G models
Main Menu
Table of Contents
−
−
▲
＊
＊
To switch to the radio or CD player
while a tape is playing, press the
AM/FM or CD/TAPE button. To
change back to the tape player, press
the CD/TAPE button.
To rewind the tape,
push the REW button. You will see
REW in the display. To fast forward
the tape, push the FF button. You
will see FF displayed. Press the FF,
REW, or PLAY/PROG button to
take the system out of rewind or fast
forward.
Press button to find
the beginning of the current song or
passage. Press button to find
the beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
The ignition switch must be in
ACCESSORY (I) or ON (II). Make
sure the open side of the tape is
facing right, then insert the tape
most of the way into the slot. The
system will pull the tape in the rest
of the way, and begin to play it.
The tape direction indicator will
come on to show you which side of
the tape is playing. The indicates
the side you inserted upward is now
playing. If you want to play the other
side, press the PLAY/PROG button.
When the player reaches the end of
the tape, it will automatically reverse
direction and play the other side.
Dolby noise reduction turns on
when you insert a tape. The
indicator will come on in the
display. If the tape was not recorded
in Dolby, turn it off by pressing the
NR button. Dolby remains off until
you press the NR button again.
To remove the tape, press the eject
button on the tape player. If you
want to turn the player off, press the
Power/Volume knob or turn off the
ignition. The tape will remain in the
drive. When you turn the system
back on, the tape will begin playing
where it left off.
Tape player is optional except for
models with in-dash CD changer.
Dolby noise reduction is manufactured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
To Play a Tape
To Stop Playing a Tape
Tape Search Functions
FF/REW
SKIP
Playing a Tape (Optional)
112
Main Menu
Table of Contents
− Press the RPT button
to continuously play a song or
passage. You will see RPT displayed.
The track will repeat until you press
the RPT button again.
The SKIP and REPEAT
functions use silent periods on the
tape to find the end of a song or
passage. These features may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection.
Thetapeplayerpicksupdirtand
oxides from the tape. This
contamination builds up over time
and causes the sound quality to
degrade. To prevent this, you should
clean the player after every 30 hours
of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam the drive.
If the tape is loose, tighten it by
turning the hub with a pencil or your
finger. If the label is peeling off,
remove it or it could cause the
cassette to jam in the player. Never
try to insert a warped or damaged
cassette in the player.
Store tapes in their cases to protect
them from dust and moisture. Never
place tapes where they will be
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature before
inserting it into the player.
Never try to insert foreign object
into the tape player.
REPEAT Caring for the Tape and Player
Playing a Tape (Optional)
Features
113
NOTE:
Main Menu
Table of Contents
Your vehicle’s audio system will
disable itself if it is disconnected
from electrical power for any reason.
To make it work again, the user
must enter a specific five-digit code
in the Preset buttons. Because there
are hundreds of number
combinations possible from the five-
digits, making the system work
without knowing the exact code is
nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system’s code and
serial numbers. It is best to store this
card in a safe place at home. In
addition, you should write the audio
system’s serial number in this
Owner’s Manual.
If you lose the card, you must obtain
the code number from a dealer. To
do this, you will need the system’s
serial number.
If your vehicle’s battery is
disconnected or goes dead, or the
radio fuse is removed, the audio
system will disable itself. If this
happens, you will see ‘‘ ’’
(except for models with
in-dash CD changer)/‘‘CODE’’
(on models with in-dash CD
changer) in the frequency display
the next time you turn on the system.
Use the preset buttons to enter the
five-digit code. The code is on the
radio code card included in your
Owner’s Manual kit. When it is
entered correctly, the radio will start
playing.
If you make a mistake entering the
code, do not start over; complete the
five-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you are
unsuccessful in ten attempts, you
must then leave the system on for 1
hour before trying again.
You will have to store your favorite
stations in the preset buttons after
the system begins working. Your
original settings were lost when the
power was disconnected.
Standard for Value Package, HX, LX, EX
and Special Edition models in the U.S.,
and DX Special Edition, REVERB, LX
andSimodelsinCanada
Radio Theft Protection
114
Main Menu
Table of Contents
CONTINUED
Setting the Clock
Features
115
DX model
CLOCK BUTTON
RESET BUTTON
MINUTE BUTTON
HOUR BUTTON
CLOCK BUTTON
HOUR BUTTON
MINUTE BUTTON
RESET BUTTON
CLOCK
BUTTON
CLOCK DISPLAY
HOUR
BUTTON
MINUTE
BUTTON
RESET
BUTTON
U.S.: Special Edition models
Canada: REVERB, Si-GA models
U.S.: Value Package, HX, LX, EX models
Canada: DX Special Edition, LX, Si-G models
Main Menu
Table of Contents
If your vehicle’s battery is
disconnected or goes dead, you will
need to set the clock.
To set the time, press the CLOCK
(SCAN/RPT, AUX) button until you
hear a beep, then release the button.
The displayed time begins to blink.
Change the hours by pressing the H
(preset 4) button until the numbers
advance to the desired time. Change
the minutes by pressing the M
(preset 5) button until the numbers
advance to the desired time.
Press the CLOCK (SCAN/RPT,
AUX) button again to enter the set
time. On models with in-dash CD
changer, press the CLOCK button
until you hear a beep.
You can quickly set the time to the
nearest hour. If the displayed time is
before the half hour, pressing the
CLOCK (SCAN/RPT, AUX) button
until you hear a beep, then pressing
the R (preset 6) button sets the clock
back to the previous hour. If the
displayed time is after the half hour,
the clock sets forward to the
beginning of the next hour.
For example: 1:06 will reset to 1:00
1:52 will reset to 2:00
You can set the time only when the
clock is displayed.
To set the hours, press and hold the
CLOCK button, then press the H
(preset 4) button until the numbers
advance to the desired time. To set
theminutes,pressandholdthe
CLOCK button, then press the M
(preset 5) button until the numbers
advance to the desired time.
To quickly set the time to the
nearest hour, press and hold the
CLOCK button, then press the R
(preset 6) button.
To turn off the clock display, press
the CLOCK (AUX) button until you
hear a beep, then press the Preset 3
(Clock Off) button. The displayed
time will be turned off.
Toshowthetimeagain,pressthe
CLOCK (AUX) button again until
you hear a beep.
On models with in-dash CD player/
changer
On models without in-dash CD player/
changer
On models with in-dash CD changer
Setting the Clock
Cancelling Clock Display
116
Main Menu
Table of Contents
If equipped
Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your foot on the
accelerator pedal. It should be used
for cruising on straight, open
highways. It is not recommended for
city driving, winding roads, slippery
roads, heavy rain, or bad weather.
Accelerate to the desired cruising
speedabove25mph(40km/h).
Press and release the SET/decel
buttononthesteeringwheel.The
indicator on the instrument panel
comes on to show the system is
now activated.
Push in the CRUISE button. The
indicator will come on.
1.
2.
3.
CONTINUED
Cruise Control
Using Cruise Control
Features
117
CANCEL BUTTON
RESUME/
accel
BUTTON
SET/decel
BUTTON
CRUISE BUTTON
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
Main Menu
Table of Contents
You can decrease the set cruising
speed in any of these ways:
To slow down in very small
amounts, tap the SET/decel
button. Each time you do this,
your vehicle slows down about 1
mph (1.6 km/h).
Press and hold the SET/decel
button. Release the button when
you reach the desired speed.
You can increase the set cruising
speed in any of these ways:
Press and hold the RESUME/
accel button. When you reach the
desired cruising speed, release the
button.
Tap the brake or clutch pedal
lightly with your foot. The
CRUISE CONTROL indicator on
the instrument panel goes out.
When the vehicle slows to the
desired speed, press the SET/
decel button.
Cruise control may not hold the set
speed when you are going up and
down hills. If your speed increases
going down a hill, use the brakes to
slow down. This will cancel cruise
control. To resume the set speed,
press the RESUME/accel button.
The CRUISE CONTROL indicator
on the instrument panel will come
back on.
When climbing a steep hill, the
automatic transmission may
downshift to hold the set speed.
Push on the accelerator pedal until
you reach the desired cruising
speed, and press the SET/decel
button.
To increase the speed in very
small amounts, tap the RESUME/
accel button. Each time you do
this, your vehicle speeds up about
1 mph (1.6 km/h).
Changing the Set Speed
Cruise Control
118
Main Menu
Table of Contents
Resting your foot on the brake or
clutch pedal causes the cruise
control to cancel.
Even with cruise control turned on,
you can still use the accelerator
pedal to speed up for passing. After
completing the pass, take your foot
off the accelerator pedal. The vehicle
will return to the set cruising speed.
When you push the CANCEL button,
or tap the brake or clutch pedal, the
system remembers the previously
set cruising speed. To return to that
speed, accelerate to above 25 mph
(40 km/h) and then press and
release the RESUME/accel button.
The CRUISE CONTROL indicator
comes on, and the vehicle
accelerates to the same cruising
speed as before.
Tap the brake or clutch pedal.
Push the CANCEL button on the
steering wheel.
You can cancel cruise control in any
of these ways:
Push the CRUISE button.
Pressing the CRUISE button turns
the system off and erases the
previous cruising speed.
Cruise Control
Resuming the Set SpeedCancelling Cruise Control
Features
119
Main Menu
Table of Contents
120
Main Menu
Before you begin driving your
vehicle, you should know what
gasoline to use and how to check the
levels of important fluids. You also
need to know how to properly store
luggage or packages. The
information in this section will help
you. If you plan to add any
accessories to your vehicle, please
read the information in this section
first.
.............................Break-in Period . 122
.................Fuel Recommendation . 122
.........Service Station Procedures . 123
....................................Refueling . 123
Opening and Closing
................................the Hood . 124
...................................Oil Check . 125
.............Engine Coolant Check . 126
...............................Fuel Economy . 127
...Accessories and Modifications . 128
.............................Carrying Cargo . 130
Before Driving
Before Driving
121
Main Menu
Help assure your vehicle’s future
reliability and performance by paying
extra attention to how you drive
during the first 600 miles (1,000 km).
During this period:
Avoid full-throttle starts and rapid
acceleration.
You should also follow these
recommendations with an
overhauled or exchanged engine, or
when the brakes are replaced.
Avoidhardbrakingforthefirst
200 miles (300 km).
Do not change the oil until the
scheduled maintenance time.
Your vehicle is designed to operate
on unleaded gasoline with a pump
octane number of 86 or higher. Use
of a lower octane gasoline can cause
a persistent, heavy metallic rapping
noise that can lead to engine damage.
We recommend using quality
gasoline containing detergent
additives that help prevent fuel
system and engine deposits.
In addition, in order to maintain good
performance, fuel economy, and
emissions control, we strongly
recommend, in areas where it is
available, the use of gasoline that
does NOT contain manganese-based
fuel additives such as MMT.
Use of gasoline with these additives
may adversely affect performance,
and cause the malfunction indicator
lamp on your instrument panel to
come on. If this happens, contact
your authorized dealer for service.
Some gasoline today is blended with
oxygenates such as ethanol or
MTBE. Your vehicle is designed to
operate on oxygenated gasoline
containing up to 10 percent ethanol
by volume and up to 15 percent
MTBE by volume. Do not use
gasoline containing methanol.
If you notice any undesirable
operating symptoms, try another
service station or switch to another
brand of gasoline.
For further important fuel-related
information, please refer to your
.
Break-in Period Fuel Recommendation
Quick Start Guide
Break-in Period, Fuel Recommendation
122
Main Menu
Table of Contents
Park with the driver’s side of the
vehicle closest to the service
station pump.
Remove the fuel fill cap slowly.
You may hear a hissing sound as
pressure inside the tank escapes.
Place the cap in the holder on the
fuel fill door.
Stop filling the tank after the fuel
nozzle automatically clicks off. Do
not try to ‘‘top off’’ the tank. Leave
some room for the fuel to expand
with temperature changes.
Open the fuel fill door by pushing
onthehandletotheleftofthe
driver’s seat.
even though the tank is not full,
there may be a problem with your
vehicle’s fuel vapor recovery
system. The system helps keep
fuel vapors from going into the
atmosphere. Try filling at another
pump. If this does not fix the
problem, consult your dealer.
1.
2.
3.
4.
CONTINUED
If the fuel nozzle keeps clicking off
Service Station Procedures
Refueling
Before Driving
123
Push
HOLDER
FUEL FILL CAP
Gasoline is highly flammable
and explosive. You can be
burned or seriously injured
when handling fuel.
Stop the engine and keep
heat, sparks, and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
Main Menu
Table of Contents
If the hood latch handle moves
stiffly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated.
Put your fingers under the front
edge of the hood near the center.
Slide your hand to the left until
you feel the hood latch handle.
Push this handle up to release it.
Lift up the hood.
Screw the fuel fill cap back on
until it clicks at least three times.
If you do not properly tighten the
cap, the Malfunction Indicator
Lampmaycomeon(seepage
).
Push the fuel fill door closed until
it latches.
Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower left corner of the dashboard.
The hood will pop up slightly.
1. 2.
201
5.
6.
Opening and Closing the Hood
Service Station Procedures
124
HOOD
RELEASE
HANDLE
LATCH
Main Menu
Table of Contents
Remove the dipstick again, and
check the level. It should be
between the upper and lower
marks.
Wait a few minutes after turning the
engine off before you check the oil.
Insert it all the way back in its tube.
If it is near or below the lower mark,
see on page .
Pull the support rod out of its clip
and insert the end into the
designated hole in the hood.
To close the hood, lift it up slightly
to remove the support rod from
the hole. Put the support rod back
into its holding clip. Lower the
hood to about a foot (30 cm) above
the fender, then let it drop. Make
sure it is securely latched.
Remove the dipstick (orange loop).
Wipe off the dipstick with a clean
cloth or paper towel.
3.
1.
2.
4.3.
159
Oil Check
Adding Engine Oil
Service Station Procedures
Before Driving
125
SUPPORT ROD
CLIP
UPPER MARK
LOWER MARK
DIPSTICK
Main Menu
Table of Contents
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page for
information on adding the proper
coolant.
Refer to
on page for information
about checking other items on your
vehicle.
162
152
Engine Coolant Check
Adding
Engine Coolant
Owner’s Maintenance
Checks
Service Station Procedures
126
MAX
MIN
RESERVE
TANK
Main Menu
Table of Contents
Try to maintain a constant speed.
Everytimeyouslowdownand
speed up, your vehicle uses extra
fuel. Use the cruise control when
appropriate.
Combine several short trips into
one.
The air conditioning puts an extra
load on the engine which makes it
usemorefuel.Usethefresh-air
ventilation when possible.
an underinflated tire
causes more ‘‘rolling resistance,’’
which uses more fuel.
The build-up of snow or mud on
your vehicle’s underside adds
weight and rolling resistance.
Frequent cleaning helps your fuel
mileage and reduces the chance of
corrosion.
Always maintain your vehicle
according to the maintenance
schedule. See
(see page
).
Always drive in the highest gear
possible.
Drive moderately. Rapid
acceleration, abrupt cornering,
and hard braking use more fuel.
152
For example,
Improving Fuel Economy
Owner’s
Maintenance Checks
Fuel Economy
Before Driving
127
Main Menu
Table of Contents
When properly installed, cellular
phones, alarms, two-way radios, and
low-powered audio systems should
not interfere with your vehicle’s
computer controlled systems, such
as your airbags and anti-lock brakes.
Before installing any accessory:
Make sure the accessory does not
obscure any lights, or interfere
with proper vehicle operation or
performance.
Be sure electronic accessories do
not overload electrical circuits
(see page ) or interfere with
proper operation.
Modifying your vehicle, or installing
some non-Honda accessories, can
make it unsafe. Before you make any
modifications or add any accessories,
be sure to read the following
information.
Your dealer has Honda accessories
that allow you to personalize your
vehicle, or improve its performance.
These accessories have been
designed and approved for your
vehicle, and are covered by warranty.
Although non-Honda accessories
may fit on your vehicle, they may not
meet factory specifications, and
could adversely affect your vehicle’s
handling and stability.
Before installing any electronic
accessory, have the installer
contact your dealer for assistance.
If possible, have your dealer
inspect the final installation.
204
Accessories
Accessories and Modifications
128
Improper accessories or
modifications can affect your
vehicle’s handling, stability, and
performance, and cause a
crash in which you can be hurt
or killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
Main Menu
Table of Contents
Some examples are:
Larger or smaller wheels and tires
can interfere with the operation of
your vehicle’s anti-lock brakes and
other systems.
Removing parts from your vehicle,
or replacing components with
non-Honda components could
seriously affect your vehicle’s
handling, stability, and reliability.
Non-Honda wheels, because they
are a universal design, can cause
excessive stress on suspension
components.
Raising your vehicle with a
non-Honda suspension kit can
affect the handling and stability.
Lowering your vehicle with a
non-Honda suspension kit that
significantly reduces ground
clearance can allow the
undercarriage to hit speed bumps
or other raised objects, which
could cause the airbags to deploy.
If you plan to modify your vehicle,
consult your dealer.
Modifying your steering wheel or
any other part of your vehicle’s
safety features can make the
systems ineffective.
Modifying Your Vehicle
Accessories and Modifications
Before Driving
129
Main Menu
Table of Contents
＊
＊
＊

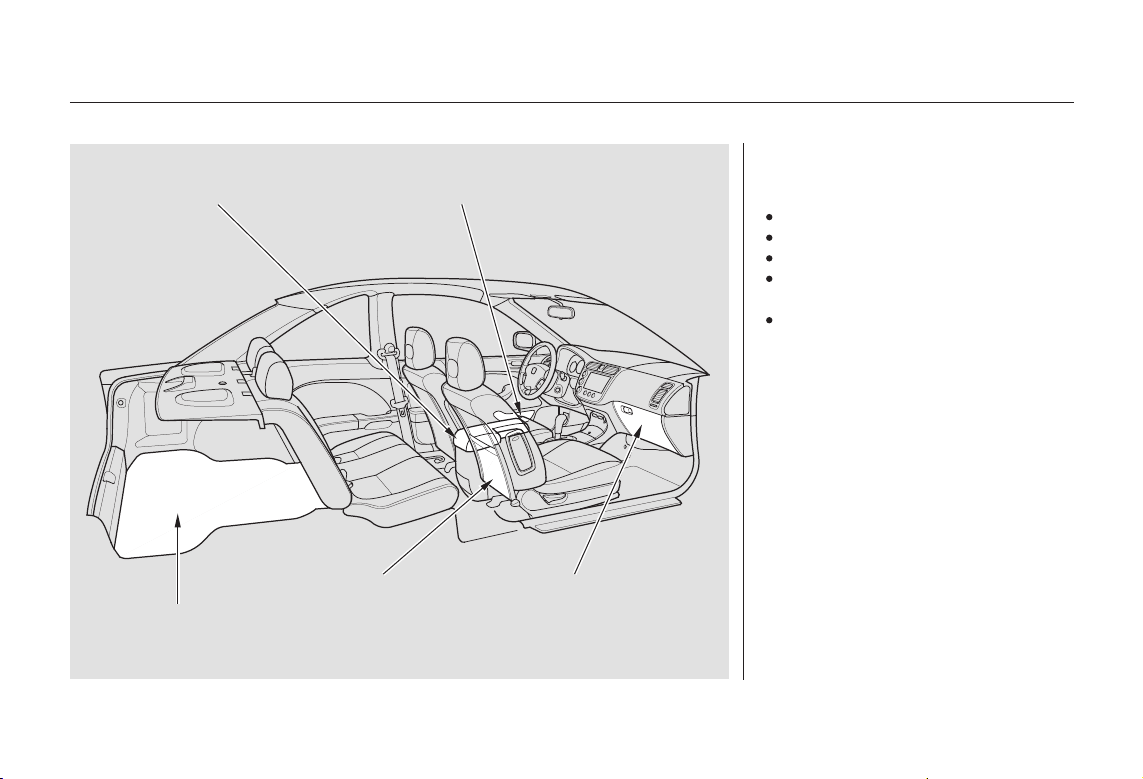

Your vehicle has several convenient
storage areas:
However, carrying too much cargo,
or improperly storing it, can affect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsafe. Before carrying any
type of cargo, be sure to read the
following pages.
Roof-rack (if installed)
Trunk, including the rear seats
when folded down
Console compartment
Door and seat-back pockets
Glove box
Carrying Cargo
130
TRUNK
GLOVE BOX
CONSOLE COMPARTMENT
DOOR POCKET
SEAT-BACK POCKET
: If equipped
Main Menu
Table of Contents
−×
The maximum load for your vehicle
is 850 lbs (395 kg). This figure
includes total weight of all occupants,
cargo, and accessories.
Determine the combined weight
of luggage and cargo being loaded
on the vehicle. That weight may
not safely exceed the available
cargo and luggage load capacity in
Step 4.
Steps for determining correct load
limit:
Locate the statement, ‘‘the
combined weight of occupants and
cargo should never exceed 850
lbs’’ on your vehicle’s placard.
[The placard is on the driver’s
doorjamb.]
Determine the combined weight
of the driver and passengers that
will be riding in your vehicle.
Subtract the combined weight of
the driver and passengers from
850 pounds or 395 kilograms.
In addition, the total weight of the
vehicle, all passengers, accessories,
and cargo must not exceed the Gross
Vehicle Weight Rating (GVWR) or
the Gross Axle Weight Rating
(GAWR). Both are on a label on the
driver’s doorjamb.
The resulting figure equals the
available amount of cargo and
luggage load capacity. For
example, if the maximum load is
850 lbs and there will be five 150 lb.
passengers in your vehicle, the
amount of available cargo and
luggage load capacity is 100 lbs.
(850 750 (5 150) = 100 lbs.)
1.
2.
3.
4.
5.
Carrying Cargo
Load Limits
Before Driving
131
Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
Main Menu
Table of Contents
If you carry large items that
prevent you from closing the trunk
lid, exhaust gas can enter the
passenger area. To avoid the
possibility of
, follow the instructions
on page .
Ifyoufolddownthebackseat,tie
down items that could be thrown
about the vehicle during a crash or
sudden stop.
Distribute cargo evenly on the
floor of the cargo area, placing the
heaviest items on the bottom and
as far forward as possible.
Store or secure all items that could
be thrown around and hurt
someone during a crash.
Do not put any items on top of the
rear shelf. They can block your
view and be thrown around the
vehicle during a crash.
Be sure items placed on the floor
behind the front seats cannot roll
under the seats and interfere with
the driver’s ability to operate the
pedals or the seat.
Keep the glove box closed while
driving. If it is open, a passenger
could injure their knees during a
crash or sudden stop.
If you use an accessory roof rack,
the roof rack weight limit may be
lower. Refer to the information that
came with your roof rack.
The cargo net can be used to help
hold down items stored in the trunk.
If you carry any items on a roof
rack,besurethetotalweightof
the rack and the items does not
exceed the maximum allowable
weight. Please contact your dealer
for further information.
45
If equipped
Carrying Cargo
carbon monoxide
poisoning
Carrying Cargo in the Trunk or on
a Roof Rack
Carrying Items in the Passenger
Compartment
Cargo Net
132
Main Menu
Table of Contents
This section gives you tips on
starting the engine under various
conditions, and how to operate the
manual and automatic transmissions.
It also includes important
information on parking your vehicle,
and the braking system.
........................Preparing to Drive . 134
.......................Starting the Engine . 135
...................Manual Transmission . 136
..............Automatic Transmission . 138
.Automatic Transmission (CVT) . 142
...........................................Parking . 145
.............................Braking System . 146
...............Anti-lock Brakes (ABS) . 147
...........................Towing a Trailer . 148
Driving
Driving
133
Main Menu
Fasten your seat belt. Check that
your passengers have fastened
their seat belts (see page ).
Make sure the doors are securely
closed and locked.
Check the steering wheel
adjustment (see page ).
Check the adjustment of the
inside and outside mirrors (see
page ).
Check that any items you may be
carrying are stored properly or
fastened down securely.
Check the seat adjustment (see
page ).
Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove frost, snow,
or ice.
Youshoulddothefollowingchecks
and adjustments before you drive
your vehicle.
Check that the hood is fully closed.
Check that the trunk is fully
closed.
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure.
When you start the engine, check
the gauges and indicators in the
instrument panel (see page ).
1.
2.
14
3.
4.
5.
6.
7.
8.
9.
11.
10.
80
73
65
51
Preparing to Drive
134
Main Menu
Table of Contents
Apply the parking brake.
In cold weather, turn off all
electrical accessories to reduce
the drain on the battery.
Push the clutch pedal down all the
way. START (III) does not
function unless the clutch pedal is
depressed.
Without touching the accelerator
pedal, turn the ignition key to the
START (III) position. Do not hold
the key in START for more than
15 seconds at a time. If the engine
does not start right away, pause
for at least 10 seconds before
trying again.
Make sure the shift lever is in
Park. Press on the brake pedal.
If the engine fails to start, press
the accelerator pedal all the way
downandholdittherewhile
starting to clear flooding. If the
engine still does not start, return
to step 5.
If the engine does not start within
15 seconds, or starts but stalls
right away, repeat step 4 with the
accelerator pedal pressed halfway
down. If the engine starts, release
pressure on the accelerator pedal
so the engine does not race.
5.
6.
1.
2.
3.
4.
Manual Transmission:
Automatic Transmission:
67
Starting the Engine
Driving
135
Immobilizer System
The engine is harder to start in cold
weather. Also, the thinner air f ound at
altitudes above 8,000 f eet (2,400
meters) adds to this problem.
The immobilizer system protects your
vehicle from thef t. If an improperly-
coded key (or other device) is used, the
engine’s f uel system is disabled. See
on page .
Main Menu
Table of Contents
The manual transmission is syn-
chronizedinallforwardgearsfor
smooth operation. It has a lockout so
you cannot shift directly from Fifth
to Reverse. When shifting up or
down,makesureyoupushtheclutch
pedal down all the way, shift to the
next gear, and let the pedal up
gradually. When you are not shifting,
do not rest your foot on the clutch
pedal. This can cause your clutch to
wear out faster.
Come to a full stop before you shift
into Reverse. You can damage the
transmission by trying to shift into
Reverse with the vehicle moving.
Push down the clutch pedal, and
pause for a few seconds before
shifting into Reverse, or shift into
one of the forward gears for a
moment. This stops the gears so
they won’t ‘‘grind.’’
When slowing down, you can get
extra braking from the engine by
shifting to a lower gear. This extra
braking can help you maintain a safe
speed and prevent your brakes from
overheating while going down a
steep hill. Before downshifting,
make sure the vehicle speed is low
enough that you will not activate the
engine speed limiter in the lower
gear. On all models except U.S. DX
and Value Package, make sure the
engine speed will not go into the
tachometer’s red zone in the lower
gear before downshifting.
Manual Transmission
136
Rapid slowing or speeding-up
can cause loss of control on
slippery surfaces. If you crash,
you can be injured.
Use extra care when driving on
slippery surfaces.
Main Menu
Table of Contents
If you exceed the maximum speed
for the gear you are in, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
engine speed by upshifting or
slowing down.
Before downshifting, make sure the
vehicle speed is low enough that you
will not activate the engine speed
limiter in the lower gear.
Drive in the highest gear that lets
the engine run and accelerate
smoothly. This will give you good
fuel economy and effective
emissions control. The following
shift points are recommended:
Shift up
1st to 2nd
2nd to 3rd
3rd to 4th
4th to 5th
Normal acceleration
15 mph (24 km/h)
27 mph (43 km/h)
39 mph (63 km/h)
53 mph (85 km/h)
Before downshifting, make sure the
engine will not go into the
tachometer’s red zone.
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
RPM below the red zone.
U.S. DX and Value Package models
All models except U.S. DX and Value
Package
Engine Speed LimiterRecommended Shift Points
Manual Transmission
Driving
137
Main Menu
Table of Contents
These indicators on the instrument
panel show which position the shift
lever is in.
The ‘‘D’’ indicator comes on for a
few seconds when you turn the
ignition switch to ON (II). If it
flashes while driving (in any shift
position), it indicates a possible
problem in the transmission. Avoid
rapid acceleration and have the trans-
mission checked by your dealer as
soon as possible.
Automatic Transmission
Shift Lever Position Indicators
138
U.S.: DX, Value Package
U.S.: LX, EX, Special Edition
Canada: LX, Si
Canada: DX,
DX Speical Edition, REVERB
Main Menu
Table of Contents
−−
CONTINUED
To shift from:
PtoR
RtoP
NtoR
Dto2
2toD
DtoD
DtoN
DtoD
NtoD
RtoN
Do this:
Press the brake pedal and
press the release button.
Press the release button.
Move the lever.
3
3
3
3
To shift from any position, press
firmly on the brake pedal and press
the release button on the front of the
shiftlever.Youcannotshiftoutof
Park when the ignition switch is in
the LOCK (0) or ACCESSORY (I)
position.
This position mechani-
cally locks the transmission. Use
Park whenever you are turning off or
starting the engine. To shift out of
Park, you must press on the brake
pedal and have your foot off the
accelerator pedal. Press the release
buttononthefrontoftheshiftlever
to move it.
If you have done all of the above and
still cannot move the lever out of
Park, see on
page .
To avoid transmission damage, come
to a complete stop before shifting
into Park. You must also press the
release button to shift into Park. The
shift lever must be in Park before
you can remove the key from the
ignition switch.
Press the brake
pedal and press the release button
on the front of the shift lever to shift
from Park to Reverse. To shift from
Reverse to Neutral, come to a
completestopandthenshift.Press
the release button before shifting
into Reverse from Neutral.
141
Automatic Transmission
Shifting
Park (P)
Shift Lock Release
Reverse (R)
Driving
139
SHIFT LEVER
RELEASE BUTTON
Main Menu
Table of Contents
−
−
−
−
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
RPM below the red zone.
If you exceed the maximum speed
for the gear you are in, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
engine speed by upshifting or
slowing down.
To help reduce wheel spin.
For starting out on a slippery
surface or in deep snow.
To increase engine braking when
going down steep hills.
For more power when climbing.
Use Second gear:
This position is similar
to D, except only the first three
gears are selected. Use D to provide
engine braking when going down a
steep hill. D can also keep the
transmission from cycling between
third and fourth gears in stop-and-go
driving.
To shift to Second,
pressthereleasebuttononthefront
of the shift lever. This position locks
thetransmissioninsecondgear.It
does not downshift to first gear
when you come to a stop.
Use Neutral if you
need to restart a stalled engine, or if
it is necessary to stop briefly with
the engine idling. Shift to the Park
position if you need to leave your
vehicle for any reason. Press on the
brake pedal when you are moving
the shift lever from Neutral to
another gear.
Use this position for
your normal driving. The
transmission automatically selects a
suitable gear for your vehicle speed
and acceleration. You may notice the
transmission shifting up at higher
speeds when the engine is cold. This
helps the engine warm up faster.
3
3
All models except U.S. DX and Value
Package
U.S. DX and Value Package models
Automatic Transmission
Engine Speed LimiterDrive (D )
Second (2)
Neutral (N)
Drive (D)
3
140
Main Menu
Table of Contents
Do this if pushing on the brake pedal
and pressing the release button does
not shift the transmission out of
park:
Set the parking brake.
Remove the key from the ignition
switch.
Push down on the key while you
pressthereleasebuttononthe
shift lever and move the shift lever
out of Park to Neutral.
Put a cloth on the edge of the shift
lock release slot cover. Using a
small flat-tipped screwdriver or a
metal fingernail file, carefully pry
on the edge of the cover to remove
it.
Insert the key in the shift lock
release slot.
Remove the key from the shift
lock release slot, then install the
cover. Make sure the notch on the
cover is on the left side.
Return the key to the ignition
switch, press the brake pedal, and
restart the engine.
If you need to use the shift lock
release, it means your vehicle is
developing a problem. Have it
checked by your dealer.
1.
2.
3.
4.
5.
6.
Automatic Transmission
Shift Lock Release
Driving
141
COVER
SHIFT LOCK
RELEASE SLOT
RELEASE BUTTON
Main Menu
Table of Contents
The continuously variable
transmission’s unique design
provides a smooth, constant flow of
power. It is electronically controlled
for more precise operation and
better fuel economy.
These indicators on the instrument
panel show which position the shift
lever is in.
Avoid rapid acceleration and have
thetransmissioncheckedbyyour
dealer as soon as possible.
To shift from any position, press
firmly on the brake pedal and press
the release button on the front of the
shiftlever.Youcannotshiftoutof
Park when the ignition switch is in
the LOCK (0) or ACCESSORY (I)
position.
The ‘‘D’’ indicator comes on for a
few seconds when you turn the
ignition switch to ON (II). If it
flashes while driving (in any shift
position), it indicates a possible
problem in the transmission.
On HX model
Automatic Transmission (CVT)
Continuously Variable
Transmission (CVT)
Shift Lever Position Indicators
Shifting
142
RELEASE BUTTON
SHIFT LEVER
Main Menu
Table of Contents
−
−
−
To shift from:
PtoR
RtoP
NtoR
StoL
LtoS
StoD
DtoS
DtoN
NtoD
RtoN
Do this:
Press the brake pedal and
press the release button.
Press the release button.
Move the lever.
Use Neutral if you
need to restart a stalled engine, or if
it is necessary to stop briefly with
the engine idling. Shift to the Park
position if you need to leave your
vehicle for any reason. Press on the
brake pedal when you are moving
the shift lever from Neutral to
another gear.
This position mechani-
cally locks the transmission. Use
Park whenever you are turning off or
starting the engine. To shift out of
Park, you must press on the brake
pedal and have your foot off the
accelerator pedal. Press the release
buttononthefrontoftheshiftlever
to move it.
If you have done all of the above and
still cannot move the lever out of
Park, see on
page .
You must also press the release
button to shift into Park. To avoid
transmission damage, come to a
complete stop before shifting into
Park. The shift lever must be in Park
before you can remove the key from
the ignition switch.
To shift to Reverse
from Park, see the explanation under
Park. To shift to Reverse from
Neutral, come to a complete stop
first. Press the release button before
shifting into Reverse from Neutral.
141
CONTINUED
Automatic Transmission (CVT)
Neutral (N)
Park (P)
Shift Lock Release
Reverse (R)
Driving
143
Main Menu
Table of Contents
−−
−
Use this position for
your normal driving. The
transmission automatically adjusts to
keep the engine at the best speed for
driving conditions. To help the
engine warm up faster, the
transmission will select ratios that
allow the engine to run at higher
speedswhenitiscold.
To shift to Low, press
the release button on the front of the
shift lever. Use Low to get more
power when climbing, and for
maximum engine braking when
going down steep hills.
Selecting Second
shifts the transmission into a lower
range of ratios for better
acceleration and increased engine
braking. Use Second when you are
going down a steep hill, or in stop-
and-go driving.
ForfasteraccelerationwheninD,S
or L, the transmission will
automatically ‘‘kick down’’ to a lower
range of ratios by pushing the
accelerator pedal to the floor.
The CVT shifts automatically to
maintain proper engine speed in any
shift position.
When the vehicle reaches the
maximum speed in any shift position,
you may feel the engine cut in and
out. This is caused by a limiter (112
mph, 180 km/h) in the engine’s
computer controls. The engine will
run normally when you reduce the
speed to below the maximum.
Automatic Transmission (CVT)
Drive (D) Low (L) Maximum Allowable Speeds
Second (S)
144
Main Menu
Table of Contents
If your vehicle has an automatic
transmission, set the parking brake
before you put the transmission in
Park. This keeps the vehicle from
moving and putting pressure on the
parking mechanism in the
transmission.
If the vehicle is facing uphill, turn
the front wheels away from the
curb. If you have a manual
transmission, put it in first gear.
If the vehicle is facing downhill,
turn the front wheels toward the
curb. If you have a manual
transmission, put it in reverse gear.
Make sure the parking brake is
fully released before driving away.
Driving with the parking brake
partially set can overheat or
damage the rear brakes.
Always use the parking brake when
you park your vehicle. Make sure
the parking brake is set firmly or
your vehicle may roll if it is parked
on an incline.
Make sure the moonroof (if
equipped) and the windows are
closed.
Never park over dry leaves, tall
grass, or other flammable
materials. The hot three way
catalytic converter could cause
these materials to catch on fire.
Lock the doors.
Place any packages, valuables, etc.,
in the trunk or take them with you.
Turn off the lights.
Parking Tips
Parking
Driving
145
Main Menu
Table of Contents
Check the brakes after driving
through deep water. Apply the
brakes moderately to see if they feel
normal. If not, apply them gently and
frequently until they do. Be extra
cautious in your driving.
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the left-front brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
The front disc brakes on all models
have audible brake wear indicators.
If the brake pads need replacing, you
will hear a distinctive, metallic
screeching sound when you apply
the brake pedal. If you do not have
the brake pads replaced, they will
screech all the time. It is normal for
the brakes to occasionally squeal or
squeak when you apply them.
Your vehicle is equipped with front
disc brakes. The brakes on the rear
wheels are drum. A power assist
helps reduce the effort needed on
thebrakepedal.TheABS(on
models equipped) helps you retain
steering control when braking very
hard.
Resting your foot on the pedal keeps
the brakes applied lightly, builds up
heat, and reduces their effectiveness.
It also keeps your brake lights on all
the time, confusing drivers behind
you.
Constant application of the brakes
when going down a long hill builds
up heat and reduces their effective-
ness. Use the engine to assist the
brakes by taking your foot off the
accelerator and downshifting to a
lower gear.
Braking System Design
Brake Wear Indicators
Braking System
146
Main Menu
Table of Contents
CONTINUED
The anti-lock brake system (ABS)
helps prevent the brakes from
locking up, and helps you retain
steering control by pumping the
brakes rapidly, much faster than a
person can do it.
Let the ABS work for you by always
keeping firm, steady pressure on the
brake pedal. This is sometimes
referred to as ‘‘stomp and steer.’’
The ABS also balances the front-to-
rear braking distribution according
to vehicle loading.
You will feel a pulsation in the brake
pedal when the ABS activates, and
you may hear some noise. This is
normal: it is the ABS rapidly
pumpingthebrakes.Ondry
pavement, you will need to press on
thebrakepedalveryhardbeforethe
ABS activates. However, you may
feel the ABS activate immediately if
you are trying to stop on snow or ice.
If the ABS indicator comes on, the
anti-lock function of the braking
system has shut down. The brakes
still work like a conventional system,
but without anti-lock. You should
have your dealer inspect your vehicle
as soon as possible.
If the ABS indicator comes on while
driving, test the brakes as shown on
page .
If the ABS indicator and the brake
system indicator come on together,
and the parking brake is fully
released, the front-to-rear braking
distribution system may also be shut
down.
Test your brakes as instructed on
page . If the brakes feel normal,
drive slowly and have your vehicle
repaired by your dealer as soon as
possible. Avoid sudden hard braking
which could cause the rear wheels to
lock up and possibly lead to a loss of
control.
202
202
If equipped
You should never pump the brake pedal.
Anti-lock Brakes (ABS)
ABS Indicator
Driving
147
ABS INDICATOR
Main Menu
Table of Contents
It only helps with the
steering control during braking.
such as trying to take a
corner too fast or making a sudden
lane change. Always drive at a safe
speed for the road and weather
conditions.
Always steer moderately
when you are braking hard. Severe
or sharp steering wheel movement
can still cause your vehicle to veer
into oncoming traffic or off the road.
on loose or
uneven surfaces, such as gravel or
snow, than a vehicle without anti-
lock. Slow down and allow a greater
distance between vehicles under
those conditions.
Your vehicle is not designed to tow a
trailer, attempting to do so can void
your warranties.
ABS does not reduce the time or
distance it takes to stop the
vehicle.
ABS will not prevent a skid that
results from changing direction
abruptly,
ABS cannot prevent a loss of
stability.
A vehicle with ABS may require a
longer distance to stop
Important Safety Reminders Towing a Trailer
Anti-Lock Brakes (ABS), Towing a Trailer
148
Main Menu
Table of Contents
This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
......................Maintenance Safety . 150
.................Maintenance Schedule . 151
....................Maintenance Record . 155
..............................Fluid Locations . 158
........................Adding Engine Oil . 159
.......Recommended Engine Oil . 159
..............................Synthetic Oil . 160
................Engine Oil Additives . 160
.........Changing the Oil and Filter . 160
..............................Engine Coolant . 162
....................Windshield Washers . 164
....Automatic Transmission Fluid . 165
........Manual Transmission Fluid . 167
................Brake and Clutch Fluid . 168
....................Power Steering Fluid . 169
....................................Timing Belt . 169
.............................................Lights . 170
................Cleaning the Seat Belts . 174
.....................................Floor Mats . 175
..................Dust and Pollen Filter . 176
.................................Wiper Blades . 176
...............................................Tires . 178
...................Checking the Battery . 184
.............................Vehicle Storage . 185
This section also includes
maintenance schedules for normal
driving and severe driving conditions,
a maintenance record, and
instructions for simple maintenance
tasks you may want to take care of
yourself.
If you have the skills and tools to
perform more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page for information on how to
obtain a copy, or see your dealer.
227
Maintenance
Maintenance
149
Main Menu
To eliminate potential hazards, read
the instructions before you begin,
and make sure you have the tools
and skills required.
Do
not run the engine unless
instructed to do so.
Some of the most important safety
precautions are given here. However,
we cannot warn you of every
conceivable hazard that can arise in
performing maintenance. Only you
can decide whether or not you
should perform a given task.
All service items not detailed in this
section should be performed by a
certified technician or other qualified
mechanic.
Make sure your vehicle is parked
on level ground, the parking brake
is set, and the engine is off.
To clean parts, use a commercially
available degreaser or parts
cleaner, not gasoline.
To reduce the possibility of fire or
explosion, keep cigarettes, sparks,
and flames away from the battery
and all fuel-related parts.
Wear eye protection and
protective clothing when working
with the battery or compressed air.
Be sure there is
adequate ventilation whenever you
operate the engine.
Let the
engine and exhaust system cool
before touching any parts.
Maintenance Safety
Important Safety Precautions
Injury from moving parts.
Potential Vehicle Hazards
Carbon Monoxide poison from
engine exhaust.
Burns from hot parts.
150
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
Improperly maintaining this
vehicle, or failing to correct a
problem before driving can
cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection
and maintenance
recommendations and
schedules in this owner’s
manual.
Main Menu
Table of Contents
−
−
Avoid exceeding your vehicle’s
load limit. This puts excess stress
on the engine, brakes, and many
other vehicle parts. The load limit
is shown on the tire information
label on the driver’s doorjamb.
Operate your vehicle on
reasonable roads within the legal
speed limit.
Drive your vehicle regularly over a
distance of several miles
(kilometers).
Always use unleaded gasoline with
theproperoctanerating(seepage
).
Service your vehicle according to the
time and mileage periods on one of
the Maintenance Schedules on the
following pages.
Follow the
Maintenance Schedule for Severe
Conditions if you drive your vehicle
MAINLY under one or more of the
following conditions.
Driving in extremely hot [over
90°F (32°C)] conditions.
Driving less than 5 miles (8 km)
per trip or, in freezing
temperatures, driving less than 10
miles (16 km) per trip.
Driving on muddy, dusty, or de-
iced roads.
Follow the
Maintenance Schedule for Severe
Conditions.
The maintenance schedule assumes
you will use your vehicle as normal
transportation for passengers and
their possessions. You should also
follow these recommendations:
Extensive idling or long periods of
stop-and-go driving, such as a taxi
or a commercial delivery vehicle.
If you only OCCASIONALLY
drive under a ‘‘severe’’ condition, you
should follow the Maintenance
Schedule for Normal Conditions.
Driving with a loaded roof rack, or
driving in mountainous conditions.
122
CONTINUED
Maintenance Schedule
Which Schedule to Follow
U.S. Owners
Canadian Owners
Maintenance
151
NOTE:
Main Menu
Table of Contents
−
−
−
−
−
−
＃
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you fill the fuel tank. See page .
Automatic transmission Check
the fluid level monthly. See page
.
Brakes Check the fluid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
.
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page .
We recommend the use of Honda
parts and fluids whenever you have
maintenance done.
U.S. Vehicles:
According to state and federal
regulations, failure to perform
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
performed at the recommended time
or mileage period to ensure long-
term reliability.
Youshouldcheckthefollowing
items at the specified intervals. If
you are unsure of how to perform
any check, turn to the appropriate
page listed.
Your authorized dealer knows your
vehicle best and can provide
competent, efficient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualified service facility or
skilled person to keep your
warranties in effect. Keep all the
receipts as proof of completion, and
have the person who does the work
fill out the maintenance record.
Check your warranty booklet for
more information.
165
126
168
178
170
125
Maintenance Schedule
Maintenance,
replacement, or repair of
emissions control devices and
systems may be done by any
automotive repair establishment
or individual using parts that are
‘‘certified’’ to EPA standards.
Owner’s Maintenance Checks
Servicing Your Vehicle
152
Main Menu
Table of Contents
−
＃
＊
＊
＃
＃
＊
＊
153
Canadian Owners
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000
10
16
20
32
30
48
40
64
50
80
70
112
80
128
90
144
120
192
130
208
150
240
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 10,000 miles (16,000 km) or every 1 year, whichever comes first
Every 10,000 miles (16,000 km)
Every 20,000 miles (32,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisy
Every 120,000 miles (192,000 km) or every 6 years, whichever comes first
Every 110,000 miles (176,000 km) or every 7 years, whichever comes first
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
Every 3 years (independent of mileage)
See information on maintenance and emissions warranty, middle column, page .
Replace at 120,000 miles (192,000 km) or 6 years, then every 90,000 miles (144,000 km) or 5 years.
Replace at 60,000 miles (96,000 km) or 3 years, then every 40,000 miles (64,000 km) or 2 years.
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 181 )
Replace engine oil filter
Check front and rear brakes
Check parking brake adjustment
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect and adjust drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Replace CVT fluid
Inspect idle speed
Replace timing belt, inspect auto-tensioner and water pump
Replace engine coolant
Replace brake fluid
60
96
100
160
110
176
140
224
Follow the maintenance schedule for severe conditions.
152:
1:
2:
1
2
Maintenance Schedule for Normal Conditions
Main Menu
Table of Contents
＃
＊
＊
＊
＊
＃＃
＊
＊
＊
＃＊
154
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000
10
16
20
32
30
48
40
64
50
80
70
112
80
128
130
208
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 5,000 miles (8,000 km) or every 6 months, whichever comes first
Every 10,000 miles (16,000 km)
Every 10,000 miles (16,000 km) or every 1 year, whichever comes first
Every 20,000 miles (32,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions)
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisy
Every 3 years (independent of mileage)
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
Every 110,000 miles (176,000 km) or every 7 years, whichever comes first
See information on maintenance and emissions warranty, middle column, page .
See dust and pollen filter on page for replacement information under special driving conditions.
Replace at 60,000 miles (96,000 km) or 3 years, then every 30,000 miles (48,000 km) or 2 years.
Replace at 60,000 miles (96,000 km) or 3 years, then every 40,000 miles (64,000 km) or 2 years.
See timing belt on page for replacement information under special driving conditions.
Every 60,000 miles (96,000 km) or every 3 years, whichever comes first
90
144
120
192
150
240
110
176
140
224
100
160
60
96
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 181 )
Replace engine oil filter
Check front and rear brakes
Lubricate all hinges, locks and latches
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components, Driveshaft boots
Check parking brake adjustment
Inspect the following items:
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system , Fuel lines and connections
Lights and controls/vehicle underbody
Inspect and adjust drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Replace CVT fluid
Inspect idle speed
Replace timing belt , inspect auto-tensioner and water pump
Replace engine coolant
Replace brake fluid
:
1:
2:
3:
4:
152
176
169
1
2
3
,4
Maintenance Schedule for Severe Conditions
Main Menu
Table of Contents
CONTINUED
(for Normal and Severe Schedules)
Maintenance Record
Maintenance
155
5,000 mi
10,000 mi
15,000 mi
20,000 mi
25,000 mi
30,000 mi
35,000 mi
40,000 mi
45,000 mi
50,000 mi
You or the servicing dealer can record all completed maintenance here, whether you follow the schedule for normal conditions (page ) or severe
conditions (page ). Keep the receipts for all work done on your vehicle.
8,000 km
16,000 km
24,000 km
32,000 km
40,000 km
48,000 km
56,000 km
64,000 km
72,000 km
80,000 km
Signature or dealer stamp Signature or dealer stamp
mi/km
Date
mi/km
mi/km
mi/km
mi/km
Date
Date
Date
Date
Date
Date
Date
Date
Date
mi/km
mi/km
mi/km
mi/km
mi/km
153
154
Main Menu
Table of Contents
(for Normal and Severe Schedules)
Maintenance Record
156
55,000 mi
60,000 mi
65,000 mi
70,000 mi
75,000 mi
80,000 mi
85,000 mi
90,000 mi
95,000 mi
100,000 mi
88,000 km
96,000 km
104,000 km
112,000 km
120,000 km
Signature or dealer stamp
128,000 km
136,000 km
144,000 km
152,000 km
160,000 km
Signature or dealer stamp
mi/km
mi/km
mi/km
mi/km
mi/km
Date
Date
Date
Date
Date
Date
Date
Date
Date
Date
mi/km
mi/km
mi/km
mi/km
mi/km
Main Menu
Table of Contents
(for Normal and Severe Schedules)
Maintenance Record
Maintenance
157
105,000 mi
110,000 mi
115,000 mi
120,000 mi
125,000 mi
130,000 mi
135,000 mi
140,000 mi
145,000 mi
150,000 mi
168,000 km
176,000 km
184,000 km
192,000 km
200,000 km
Signature or dealer stamp
208,000 km
216,000 km
224,000 km
232,000 km
240,000 km
Signature or dealer stamp
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
Date
Date
Date
Date
Date
Date
Date
Date
Date
Date
Main Menu
Table of Contents
Fluid Locations
158
BRAKE FLUID
(Gray cap)
WASHER FLUID
(Blue cap)
POWER STEERING
FLUID (Red cap)
AUTOMATIC
TRANSMISSION FLUID
DIPSTICK (CVT)
(Yellow loop)
RADIATOR CAP
ENGINE
COOLANT
RESERVOIR
ENGINE OIL DIPSTICK
(Orange loop)
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(except CVT)
(Yellow loop)
CLUTCH FLUID
(Manual
transmission only)
(Gray cap)
ENGINE OIL
FILL CAP
Main Menu
Table of Contents
Oil is a major contributor to your
engine’s performance and longevity.
Always use a premium-grade 5W-20
detergent oil displaying the API
Certification Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements.
Honda Motor Oil is the preferred
5W-20 lubricant for your vehicle. It is
highly recommended that you use
Honda Motor Oil in your vehicle for
optimum engine protection. Make
sure the API Certification Seal says
‘‘For Gasoline Engines.’’
Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and carefully so
you do not spill. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment.
Install the engine oil fill cap, and
tighten it securely. Wait a few
minutes, and recheck the oil level.
Do not fill above the upper mark; you
could damage the engine.
The oil’s viscosity or weight is
provided on the container’s label.
5W-20 oil is formulated for year-
round protection of your vehicle, to
improve cold weather starting and
fuel economy.
Recommended Engine Oil
Adding Engine Oil
Maintenance
159
ENGINE OIL
FILL CAP
API CERTIFICATION SEAL
Ambient Temperature
Main Menu
Table of Contents
Always change the oil and filter
according to the recommendations in
the maintenance schedule. The oil
and filter collect contaminants that
can damage your engine if they are
not removed regularly.
Changing the oil and filter requires
special tools and access from
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lift for this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
Run the engine until it reaches
normal operating temperature,
then shut it off.
Open the hood, and remove the
engine oil fill cap. Remove the oil
drain bolt and washer from the
bottom of the engine. Drain the oil
into an appropriate container.
You may use a synthetic motor oil if
it meets the same requirements
given for a conventional motor oil: it
displays the API Certification Seal,
and it is the proper weight. You must
follow the oil and filter change
intervals given on the maintenance
schedule.
Your vehicle does not require any oil
additives. Additives may adversely
affect your engine’s or transmission’s
performance and durability.
1.
2.
Changing the Oil and FilterSynthetic Oil
Engine Oil Additives
Adding Engine Oil, Changing the Oil and Filter
160
DRAIN BOLT WASHER
Main Menu
Table of Contents
Replace the engine oil fill cap.
Start the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn off the
engine, and check your work.
Turn off the engine, let it sit for
several minutes, then check the oil
level on the dipstick. If necessary,
add more oil.
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten the drain bolt to :
Let the engine run for several
minutes, then check the drain bolt
and oil filter for leaks.
Install a new oil filter according to
the instructions that come with it.
Remove the oil filter, and let the
remaining oil drain. A special
wrench (available from your
dealer) is required.
Make sure to clean off any dirt
and dust on the connecting
surface of a new oil filter.
Refill the engine with the
recommended oil.
Engine oil change capacity
(including filter):
5.
6.
7.
8.
9.
(U.S.: EX, EX Special Edition, HX,
Canada: Si)
3.
4.
(U.S.: DX, Value Package, LX, LX
Special Edition, Canada: DX,
REVERB, LX)
(U.S.: EX, EX Special Edition, HX,
Canada: Si)
(U.S.: DX, Value Package, LX, LX
Special Edition, Canada: DX,
REVERB, LX)
Changing the Oil and Filter
Maintenance
161
OIL FILTER
33 lbf·ft (44 N·m , 4.5 kgf·m)
29 lbf·ft (39 N·m , 4.0 kgf·m)
3.7 US qt (3.5
)
3.4 US qt (3.2
)
Improper disposal of engine oil can be
harmf ul to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.
Main Menu
Table of Contents
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system for leaks.
Always use Honda All Season
Antifreeze/Coolant Type 2. This
coolant is pre-mixed with 50 percent
antifreeze and 50 percent water.
Never add straight antifreeze or
plain water.
If Honda antifreeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended for aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malfunction or fail. Have the cooling
system flushed and refilled with
Honda antifreeze/coolant as soon as
possible.
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
Adding Engine Coolant
Engine Coolant
162
RESERVE TANK
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
When the radiator and engine are
cool, relieve any pressure in the
cooling system by turning the
radiator cap counterclockwise,
without pressing down.
The coolant level should be up to
the base of the filler neck. Add
coolant if it is low.
Pourthecoolantslowlyand
carefully so you do not spill. Clean
up any spill immediately; it could
damage components in the engine
compartment.
Put the radiator cap back on and
tighten it.
Remove the radiator cap by
pushing down and turning
counterclockwise.
Pour coolant into the reserve tank.
Fill it to halfway between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.
1.
2.
3.
4.
5.
Engine Coolant
Maintenance
163
RADIATOR CAP
RESERVE TANK
Main Menu
Table of Contents
Check the fluid level in the
windshield washer reservoir at least
monthly during normal use.
When you refill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition the blade edges.
Fill the reservoir with a good-quality
windshield washer fluid. This
increases the cleaning capability and
prevents freezing in cold weather.
The low washer
level indicator comes on when the
level is low (see page ).
Check the fluid level by removing
the cap and looking at the level
gauge.
56
On Canadian models:
Windshield Washers
164
LEVEL GAUGE
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir. Antif reeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer f luid.
Main Menu
Table of Contents
Check the fluid level with the engine
at normal operating temperature.
Park the vehicle on level ground.
Shut off the engine.
Remove the dipstick (yellow loop)
from the transmission, and wipe it
with a clean cloth.
Remove the dipstick and check
the fluid level. It should be
between the upper and lower
marks.
Insert the dipstick all the way into
the transmission securely as
shown in the illustration.NOTE: For accurate results, wait at
least 60 seconds, and no more than
90 seconds, after turning off the
engine to check the fluid level.
3.
4.
1.
2.
CONTINUED
Automatic Transmission Fluid
Maintenance
165
DIPSTICK (A/T)
LOWER MARK
UPPER MARK
DIPSTICK (CVT)
DIPSTICK (A/T)
Main Menu
Table of Contents
If the level is below the lower
mark, add fluid into the filler hole
to bring it to the upper mark (On
CVT model, the HOT side’s upper
mark).
Remove the dipstick and check the
fluid level. There is a HOT side and a
COLD side on the dipstick. It should
be between the upper and lower
marks on the HOT side.
To thoroughly flush the transmission,
the technician should drain and refill
it with Honda ATF-Z1, then drive the
vehicle for a short distance. Do this
three times. Then drain and refill the
transmission a final time.
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
If you are not sure how to add fluid,
contact your dealer.
The transmission should be drained
and refilled with new fluid according
to the time and distance recommen-
dations in the maintenance schedule.
Pour the fluid slowly and carefully
so you do not spill any. Clean up
any spills immediately; it could
damage components in the engine
compartment.
Always use Honda ATF-Z1
(Automatic Transmission Fluid). If
it’s not available, you may use a
DEXRON
III automatic
transmission fluid as a temporary
replacement. However, continued
use can affect the shift quality.
Have the transmission flushed and
refilled with Honda ATF-Z1 as
soon as it is convenient.
5.
6.
On CVT model
Automatic Transmission Fluid
166
UPPER MARK
DIPSTICK (CVT)
LOWER MARK
Main Menu
Table of Contents
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certification seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
The transmission should be drained
and refilled with new fluid according
to the time and distance recommen-
dations in the maintenance schedule.
Check the fluid level with the
transmission at normal operating
temperature and the vehicle sitting
on level ground. Remove the
transmission filler bolt, and carefully
feel inside the bolt hole with your
finger. The fluid level should be up
to the edge of the bolt hole. If it is
not, add Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the hole. Reinstall
the filler bolt, and tighten it securely.
If you are not sure how to check and
add fluid, contact your dealer.
Manual Transmission Fluid
Maintenance
167
FILLER BOLT
Correct Level
Main Menu
Table of Contents
The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected for leaks or
worn brake pads.
The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake fluid to bring it up to that level.
Use the same fluid specified for the
brake system.
Check the fluid level in the brake
fluid reservoir monthly.
Replace the brake fluid according to
the time recommendation in the
maintenance schedule.
Brake fluid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.
Using any non-Honda brake fluid can
cause corrosion and decrease the life
of the system. Have the brake
system flushed and refilled with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 fluid, from a sealed
container, as a temporary
replacement.
A low fluid level can indicate a leak
in the clutch system. Have this
system inspected as soon as possible.
Manual Transmission only
Clutch FluidBrake System
Brake and Clutch Fluid
168
MAX
MIN
MAX
MIN
Main Menu
Table of Contents
−−
Check the level on the side of the
reservoir when the engine is cold.
The fluid should be between the
UPPER LEVEL and LOWER LEVEL.
If not add power steering fluid to the
UPPER LEVEL mark.
Always use Honda Power Steering
Fluid. You may use another power
steering fluid as an emergency
replacement, but have the power
steering system flushed and refilled
with Honda PSF as soon as possible.
A low power steering fluid level can
indicate a leak in the system. Check
the fluid level frequently, and have
the system inspected as soon as
possible.
The timing belt should be replaced
at the intervals shown in the
maintenance schedule. Replace the
belt at 60,000 miles (100,000 km) if
you regularly drive your vehicle in
one or more of these conditions:
In very high temperatures
(over 110°F, 43°C).
In very low temperatures
(under 20°F, 29°C).
Pour the fluid slowly and carefully so
you do not spill. Clean up any spills
immediately; it could damage
components in the engine
compartment.
Power Steering Fluid Timing Belt
Power Steering Fluid, Timing Belt
Maintenance
169
UPPER LEVEL
LOWER LEVEL
Turning the steering wheel to f ull lef t
or right lock and holding it there can
damage the power steering pump.
Main Menu
Table of Contents
If you need to change the
headlight bulb on the driver’s side,
remove the power steering
reservoir tank by pulling it out of
its holder.
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk, readjustment may be required.
Adjustment should be done by your
dealer or other qualified mechanic.
Your vehicle has halogen headlight
bulbs. When replacing a bulb, handle
it by its base, and protect the glass
from contact with your skin or hard
objects. If you touch the glass, clean
it with denatured alcohol and a clean
cloth.
1.
Lights
Headlight Aiming Replacing a Headlight Bulb
170
HOLDER
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
Main Menu
Table of Contents
If you need to change a headlight
bulb on the passenger’s side, remove
the bolt from the stay and push the
battery toward windshield to obtain
enough working space.
Remove the electrical connector
from the bulb by pushing on the
tab and pulling the connector
down.
Remove the bulb by turning it one-
quarter turn counterclockwise.
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Turn on the headlights to test the
new bulb.
Put the battery back to its original
position, reinstall the bolt in the
stay and tighten it securely.
Reinstall the power steering
reservoir.
(Passenger’s side)
(Driver’s side)
Insert the new bulb into the hole
and turn it one-quarter turn clock-
wise to lock it in place.
2.
3.
4.
5.
6.
7.
Lights
Maintenance
171
STAY
TAB
BULB
CONNECTOR
Main Menu
Table of Contents
If you are changing the bulb on
the driver’s side, start the engine,
turn the steering wheel all the way
to the right, and turn off the
engine. If you are changing the
bulb on the passenger’s side, turn
the steering wheel to the left.
Use a flat-tipped screwdriver to
remove the holding clip from the
inner fender, and pull the inner
fender cover back.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Remove the bulb from the socket
bypushingitinandturningthe
bulb counterclockwise until it
unlocks.
Install the new bulb in the socket.
Turn it clockwise to lock it in place.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Put the inner fender cover in place.
Install the holding clip. Lock it in
place by pushing on the center.
2.1.
3.
4.
5.
6.
7.
Lights
Replacing the Front Side Marker/
Turn Signal and Parking Light
Bulb
172
BULB
SOCKET
Main Menu
Table of Contents
Open the trunk. Determine which of the three
bulbs is burned out: stop/taillight,
back-up light or turn signal light.
Remove the socket by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Remove the screw in the center of
the fastener on the side of the
trunk lining. Pull the lining back.
Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Turn on the lights to make sure
the new bulb is working.
Reinstall the trunk lining. Make
sure it is installed under the edge
of the trunk seal.
Put the fastener into the hole on
the side of the trunk lining.
Reinstall the screw.
1. 2.
3.
4.
5.
6.
7.
8.
Lights
Replacing Rear Bulbs
Maintenance
173
FASTENER
BULBS
BULB
SOCKET
SOCKETS
Main Menu
Table of Contents
Reinstall the socket. Turn it
clockwise until it locks. Make sure
the new bulb is working.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Open the trunk and remove the
socket from the light assembly by
turning it one-quarter turn counter-
clockwise.
If your seat belts get dirty, use a soft
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air-dry before
you use the vehicle.
3.
2.
1.
EXcept U.S. Special Edition models and
Canadian REVERB and Si models
Lights, Cleaning the Seat Belts
Replacing a High-mount Brake
Light Bulb
Cleaning the Seat Belts
174
SOCKET
BULB
LOOP
Main Menu
Table of Contents
If equipped
If you remove the driver’s floor mat,
make sure to re-anchor it when you
putitbackinyourvehicle.
Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
The driver’s floor mat that came
with your vehicle hooks over the
floor mat anchors. This keeps the
floor mat from sliding forward and
possibly interfering with the pedals.
If you use a non-Honda floor mat,
make sure it fits properly and that it
canbeusedwiththefloormat
anchor. Do not put additional floor
mats on top of the anchored mat.
Floor Mats
Cleaning the Seat Belts, Floor Mats
Maintenance
175
Main Menu
Table of Contents
Disconnect the blade assembly
fromthewiperarmbypushingin
the lock tab. Hold the lock tab in
while you push the blade assembly
toward the base of the arm.
Check the condition of the wiper
blades at least every six months.
Replace them if you find signs of
cracking in the rubber, areas that are
getting hard, or if they leave streaks
and unwiped areas when used.
Raise the wiper arm off the
windshield.
This filter removes the dust and
pollenthatisbroughtinfromthe
outside through the heating and
cooling system.
Have your dealer replace this filter
every 30,000 miles (48,000 km)
under normal conditions. It should
be replaced every 15,000 miles
(24,000 km) if you drive primarily in
urban areas that have high
concentrations of soot in the air, or if
the flow from the heating and
cooling system becomes less than
usual.
2.
1.
If equipped with A/C
Wiper BladesDust and Pollen Filter
Dust and Pollen Filter, Wiper Blades
176
LOCK TAB
Do not open the hood when the wiper
arms are raised, or you will damage the
hood and wiper arms.
Main Menu
Table of Contents
Slide the new wiper blade into the
holder until the tabs lock.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm down against
the windshield.
Examine the new wiper blades. If
they have no plastic or metal
reinforcement along the back
edge, remove the metal
reinforcement strips from the old
wiper blade, and install them in
the slots along the edge of the new
blade.
Remove the blade from its holder
by grasping the tabbed end of the
blade. Pull firmly until the tabs
come out of the holder.
4.
5.
6.
7.
3.
Wiper Blades
Maintenance
177
REINFORCEMENT
BLADE
BLADE
Main Menu
Table of Contents
Keeping the tires properly inflated
provides the best combination of
handling, tread life, and riding
comfort.
Underinflated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinflated tires can make your
vehicleridemoreharshly,are
more prone to damage from road
hazards, and wear unevenly.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.
The following pages give more
detailed information on how to take
care of your tires and what to do
when they need to be replaced.
To safely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inflated.
Use a gauge to measure the air
pressure in each tire at least once a
month. Even tires that are in good
condition may lose one to two psi (10
to 20 kPa, 0.1 to 0.2 kgf/cm ) per
month. Remember to check the
sparetireatthesametime.
Check the air pressures when the
tires are cold. This means the
vehicle has been parked for at least
three hours, or driven less than 1
mile (1.6 km). Add or release air, if
needed, to match the recommended
cold tire pressures on page .179
Tires
Inflation Guidelines
178
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
Main Menu
Table of Contents
While tubeless tires have some
ability to self-seal if they are
punctured, you should look closely
for punctures if a tire starts losing
pressure.
Youshoulduseyourowntire
pressure gauge whenever you check
your tire pressures. This will make it
easier for you to tell if a pressure
loss is due to a tire problem and not
due to a variation between gauges.
If you check air pressures when the
tires are hot [driven for several miles
(kilometers)], you will see readings 4
to6psi(30to40kPa,0.3to0.4
kgf/cm ) higher than the cold
readings.Thisisnormal.Donotlet
air out to match the recommended
cold air pressure. The tire will be
underinflated.
The following charts show the
recommended cold tire pressures for
most normal driving conditions and
speeds.
Honda strongly recommends that
you not drive faster than posted
speed limits and conditions allow. If
you decide it is safe to drive at high
speeds (over 100 mph or 160 km/h),
be sure to adjust the cold tire
pressuresasshownbelow.Ifyoudo
not, excessive heat can build up and
cause sudden tire failure.
Thecompactsparetirepressureis:
Tire Size
Cold Tire Pressure
for High-Speed
Driving
Tire Size Cold Tire Pressure
for Normal Driving
Tire Size Cold Tire Pressure
for Normal Driving
Tire Size Cold Tire Pressure
for Normal Driving
CONTINUED
U.S.: DX, Value Package, HX, Canada: DX
Canada: LX
U.S.: DX, Value Package, HX, Canada: DX
U.S. DX, Value Package, HX and
Canadian DX models only
U.S.: LX, EX, Special Edition, Canada: Si, REVERB
Tires
Recommended Tire Pressures
Normal Driving
High-Speed Driving
Maintenance
179
60 psi (420 kPa , 4.2 kgf/cm )
P185/70R14 87S 35 psi (240 kPa , 2.4
kgf/cm
)
P195/60R15 87H 30 psi (210 kPa , 2.1
kgf/cm
)
P185/65R15 86H 30 psi (210 kPa , 2.1
kgf/cm
)
P185/70R14 87S 30 psi (210 kPa , 2.1
kgf/cm
)
Main Menu
Table of Contents
Every time you check inflation, you
should also examine the tires for
damage, foreign objects, and wear.
Youshouldlookfor:
Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitheroftheseconditions.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see fabric or cord.
Excessive tread wear.
Tire pressure for high-speed driving
is the same as for normal driving.
When you return to normal speed
driving, be sure to readjust the tire
pressure for normal driving. You
should wait until the tires are cold
before adjusting the tire pressure.
For convenience, the recommended
tire sizes and cold air pressures are
on a label on the driver’s doorjamb.
For additional information about
your tires, see page .
Your tires have wear indicators
molded into the tread. When the
tread wears down, you will see a
band 1/2 inch (12.7 mm) wide across
the tread. This shows there is less
than 1/16 inch (1.6 mm) of tread left
on the tire.
A tire this worn gives very little
traction on wet roads. You should
replace the tire if you can see three
or more tread wear indicators.
216
U.S. LX, EX, Special Edition and
Canadian REVERB, LX, Si models
Tire Inspection
Tires
180
INDICATOR LOCATION MARKS
TREAD WEAR INDICATOR
Main Menu
Table of Contents
In addition to proper inflation,
correct wheel alignment helps to
decrease tire wear. If you find a tire
is worn unevenly, have your dealer
check the wheel alignment.
Have your dealer check the tires if
you feel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed from the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comfort and tire life. For best results,
have the installer perform a dynamic
balance.
To help increase tire life and
distribute wear more evenly, rotate
the tires every 10,000 miles (16,000
km). Move the tires to the positions
showninthecharteachtimethey
are rotated. If you purchase
directional tires, rotate only front-to-
back.
Replace your tires with radial tires of
the same size, load range, speed
rating, and maximum cold tire
pressure rating (as shown on the
tire’s sidewall).
Mixing radial and bias-ply tires on
your vehicle can reduce braking
ability, traction, and steering
accuracy. Using tires of a different
size or construction can cause the
ABS to work inconsistently.
It is best to replace all four tires at
thesametime.Ifthatisnotpossible
or necessary, replace the two front
tires or two rear tires as a pair.
Replacing just one tire can seriously
affect your vehicle’s handling.
For vehicles equipped with aluminum
wheels:
CONTINUED
Tire Maintenance Tire Rotation Replacing Tires and Wheels
Tires
Maintenance
181
Front
Front
(Front Non-directional
Tires and Wheels)
(Front Directional
Tires and Wheels)
Improper wheel weights can damage
your vehicle’s aluminum wheels. Use
only Honda wheel weights f or
balancing.
Main Menu
Table of Contents
＋
TheABSworksbycomparingthe
speed of the wheels. When replacing
tires, use the same size originally
supplied with the vehicle. Tire size
and construction can affect wheel
speed and may cause the system to
work.
If you ever replace a wheel, make
sure the new one matches the
specifications of the original.
Replacement wheels are available at
your dealer.
Wheels: Tires marked ‘‘M S’’ or ‘‘All
Season’’ on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best performance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
If you mount snow tires on your
vehicle, make sure they are radial
tires of the same size and load range
as original tires. Mount snow tires on
all four wheels. The traction
provided by snow tires on dry roads
maybelowerthanyouroriginaltires.
Check with the tire dealer for
maximum speed recommendations.
See page for information about
DOT Tire Quality Grading, and page
for tire size and labeling
information.
Tires:
Canada: LX
U.S.: DX, Value Package, HX
Canada: DX
U.S.:LX,EX,SpecialEdition
Canada: LX, REVERB, Si
U.S.: DX,Value Package, HX
Canada: DX
U.S.:LX,EX,SpecialEdition
Canada: Si, REVERB
216
218
Tires
Wheel and Tire Specifications Winter Driving
Snow Tires
182
14x51/2JJ
P195/60R15 87H
P185/65R15 86H
P185/70R14 87S
15x6JJ
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
Main Menu
Table of Contents
When installing cables, follow the
manufacturer’s instructions, and
mount them as tight as you can.
Make sure they are not contacting
the brake lines or suspension. Drive
slowly with them installed. If you
hear them coming into contact with
the body or chassis, stop and
investigate. Remove them as soon as
you begin driving on cleared roads.
Because your vehicle has limited tire
clearance, mount only SAE Class ‘‘S’’
cable-type traction devices, with
rubber chain tensioners, on the front
tires. Use traction devices only when
required by driving conditions or
local laws. Make sure they are the
correct size for your tires. Metal link-
type ‘‘chains’’ should not be used.
Tires
Tire Chains
Maintenance
183
Traction devices that are the wrong
size or improperly installed can
damage your vehicle’s brake lines,
suspension, body, and wheels. Stop
driving if they are hitting any part of
the vehicle.
Main Menu
Table of Contents
−
Check the condition of the battery
monthlybylookingatthetest
indicator window. The label on the
battery explains the test indicator’s
colors.
If additional battery maintenance is
needed, see your dealer or a
qualified technician.
Battery posts,
terminals, and related accessories
contain lead and lead compounds.
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last.
Check the terminals for corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it off with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
further corrosion.
WARNING:
Wash your hands after handling.
Checking the Battery
184
TEST INDICATOR WINDOW
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.
Main Menu
Table of Contents
If you need to park your vehicle for
an extended period (more than one
month), there are several things you
should do to prepare it for storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.
Fill the fuel tank.
Change the engine oil and filter.
Block the rear wheels.
If the vehicle is to be stored for a
longer period, it should be
supported on jackstands so the
tires are off the ground.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc., are
completely dry.
Cover the vehicle with a
‘‘breathable’’ cover, one made
from a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
Leave the parking brake off. Put
the transmission in Reverse
(manual) or Park (automatic).
Leave one window open slightly (if
the vehicle is being stored
indoors).
If possible, periodically run the
engine until it reaches full
operating temperature (the
cooling fans cycle on and off
twice). Preferably, do this once a
month.
If you store your vehicle for 1 year or
longer, have your dealer perform the
inspections called for in the 2 years/
30,000 miles (48,000 km)
maintenance schedule (Normal
Conditions) as soon as you take it
out of storage (see page ). The
replacements called for in the
maintenance schedule are not
needed unless the vehicle has
actually reached that time or mileage.
To minimize sticking, apply a
silicone spray lubricant to all door
and trunk seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and trunk seals.
Support the front wiper blade
arms with a folded towel or rag so
they do not touch the windshield.
Disconnect the battery.
153
Vehicle Storage
Maintenance
185
Main Menu
Table of Contents
186
Main Menu
This section covers the more
common problems that motorists
experience with their vehicles. It
gives you information about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also find instructions
on getting your vehicle towed.
......................Compact Spare Tire . 188
....................Changing a Flat Tire . 189
.............If the Engine Won’t Start . 194
................................Jump Starting . 196
..............If the Engine Overheats . 197
.........Low Oil Pressure Indicator . 200
..........Charging System Indicator . 200
.......Malfunction Indicator Lamp . 201
...............Brake System Indicator . 202
..................Closing the Moonroof . 203
..............................................Fuses . 204
..............................Fuse Locations . 207
......................Emergency Towing . 209
Taking Care of the Unexpected
Taking Care of the Unexpected
187
Main Menu
Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced,
and put it back on your vehicle as
soon as you can.
Check the inflation pressure of the
compact spare tire every time you
check the other tires. It should be
inflated to:
Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
same wheel. The spare tire is not
designed to be mounted on a regular
wheel, and the spare wheel is not
designed for mounting a regular tire.
Follow these precautions:
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road sur-
faces. Use greater caution while
driving.
Do not mount snow chains on the
compact spare tire.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Compact Spare Tire
188
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR
60 psi (420 kPa , 4.2 kgf/cm )
Main Menu
Table of Contents
Park the vehicle on firm, level and
non-slippery ground. Put the
transmission in Park (automatic)
or Reverse (manual). Apply the
parking brake.
Turn on the hazard warning lights,
and turn the ignition switch to
LOCK (0). Have all the
passengers get out of the vehicle
while you change the tire.
Take the tool kit out of the trunk.
Unscrew the wing bolt and take
the spare tire out of its well.
Open the trunk. Raise the trunk
floor mat and the trunk floor by
lifting up on the back edge.
If you have a flat tire while driving,
stop in a safe place to change it.
Drive slowly along the shoulder until
you get to an exit or an area that is
far away from the traffic lanes.
5.
4.
3.
2.
1.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
189
SPARE TIRE TRUNK FLOOR
TOOL KIT JACK
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
Main Menu
Table of Contents
Turn the jack’s end
counterclockwise to loosen it, then
remove the jack.
Loosen each wheel nut 1/2 turn
with the wheel nut wrench.
Placethejackunderthejacking
point nearest the tire you need to
change. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
6. 7. 8.
Changing a Flat Tire
190
JACK JACKING POINTS
WHEEL NUT WRENCH
Main Menu
Table of Contents
CONTINUED
Use the extension and the wheel
nut wrench as shown to raise the
vehicle until the flat tire is off the
ground.
Do not attempt to forcibly pry the
wheel cover off with a screwdriver
or other tool. The wheel cover
cannot be removed without first
removing the wheel nuts.Remove the wheel nuts, then
remove the flat tire. Handle the
wheel nuts carefully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up.
Before mounting the spare tire,
wipe any dirt off the mounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
9. 11.
10.
DX, Value Package, and LX models
Changing a Flat Tire
Taking Care of the Unexpected
191
EXTENSION
WHEEL
NUTS
WHEEL NUTS
WHEEL COVER
WHEEL NUT WRENCH
BRAKE HUB
Main Menu
Table of Contents
Put on the spare tire. Put the
wheel nuts back on finger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is firmly against
the hub. Do not try to tighten
them fully.
Lower the vehicle to the ground
and remove the jack.
Remove the center cap from the
flat tire.
Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
facility.
Tighten the wheel nuts to:
12.
13.
14.
15.
On HX, Special Edition, and EX
models in the U.S., REVERB and Si
models in Canada
Changing a Flat Tire
192
80 lbf·ft (108 N·m , 11 kgf·m)
Main Menu
Table of Contents
Place the flat tire face down in the
spare tire well.
Remove the spacer cone from the
wing bolt, turn it over, and put it
back on the bolt.
Securetheflattirebyscrewing
the wing bolt back into its hole.
Store the jack in the trunk with the
end bracket on the left side. Turn
the jack’s end bracket to lock it in
place. Store the tool kit.
Store the wheel cover or center
cap in the trunk. Make sure it does
not get scratched or damaged.
Lower the trunk floor, then close
the trunk lid.
16.
17.
18.
19.
20.
21.
Changing a Flat Tire
Taking Care of the Unexpected
193
WING BOLT
SPACER
CONE
Loose items can fly around the
interiorinacrashandcould
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
Main Menu
Table of Contents
Diagnosing why the engine won’t
start falls into two areas, depending
on what you hear when you turn the
key to START (III):
You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
faster than normal, but the engine
does not start up and run.
Check these things:
When you turn the ignition switch to
START (III), you do not hear the
normal noise of the engine trying to
start. You may hear a clicking sound
or series of clicks, or nothing at all.
Check the transmission interlock.
If you have a manual transmission,
the clutch pedal must be pushed
all the way to the floor or the
starter will not operate. With an
automatic transmission, it must be
in Park or Neutral.
Turn the ignition switch to ON (II).
Turn on the headlights, and check
their brightness. If the headlights
areverydimordonotcomeonat
all, the battery is discharged. See
on page .
Turn the ignition switch to START
(III). If the headlights do not dim,
check the condition of the fuses. If
the fuses are OK, there is
probably something wrong with
the electrical circuit for the
ignition switch or starter motor.
You will need a qualified
technician to determine the
problem (see
on page ).
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is dis-
charged or the connections are
corroded. Check the condition of
the battery and terminal connec-
tions (see page ). You can
then try jump starting the vehicle
from a booster battery (see page
).
209
184
196
196
Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting
Emergency Towing
IftheEngineWon’tStart
194
Main Menu
Table of Contents
In this case, the starter motor’s
speed sounds normal, or even faster
than normal, when you turn the
ignition switch to START (III), but
the engine does not run.
Do you have fuel? Check the fuel
gauge; the low fuel indicator may
not be working.
There may be an electrical
problem, such as no power to the
fuel pump. Check all the fuses
(see page ).Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
Are you using the proper starting
procedure? Refer to
on page .
Ifyoufindnothingwrong,youwill
need a qualified technician to find
the problem. See
on page .
67
135
204
209
The Starter Operates Normally
Starting the
Engine
Emergency
Towing
IftheEngineWon’tStart
Taking Care of the Unexpected
195
Main Menu
Table of Contents
＋
＋
Although this seems like a simple
procedure, you should take several
precautions.
Open the hood, and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or frozen, do not try
jump starting until it thaws.
You cannot start your vehicle with an
automatic transmission by pushing
or pulling it.
The numbers in the illustration show
you the order to connect the jumper
cables.
Connect one jumper cable to the
positive ( ) terminal on your
battery. Connect the other end to
the positive ( ) terminal on the
booster battery.
Turn off all the electrical acces-
sories: heater, A/C, stereo system,
lights, etc. Put the transmission in
Neutral or Park, and set the
parking brake.
3.
1.
2.
To Jump Start Your Vehicle:
Jump Starting
196
BOOSTER BATTERY
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme cold, the
electrolyte inside can f reeze.
Attempting to jump start with a frozen
battery can cause it to rupture.
Main Menu
Table of Contents
−
The pointer of the vehicle’s
temperature gauge should stay in
the midrange. If it climbs to the red
mark, you should determine the
reason (hot day, driving up a steep
hill, etc.).
If the vehicle overheats, you
should take immediate action. The
only indication may be the
temperature gauge climbing to or
above the red mark. Or you may
seesteamorspraycomingfrom
under the hood.
Connect the second jumper cable
to the negative ( ) terminal on
the booster battery. Connect the
other end to the grounding strap
as shown. Do not connect this
jumper cable to any other part of
the engine.
If the booster battery is in another
vehicle, have an assistant start
that vehicle and run it at a fast idle.
Start your vehicle. If the starter
motor still operates slowly, check
that the jumper cables have good
metal-to-metal contact.
Once your vehicle is running,
disconnect the negative cable from
your vehicle, then from the
booster battery. Disconnect the
positive cable from your vehicle,
then from the booster battery.
Keep the ends of the jumper cables
away from each other and any metal
on the vehicle until everything is
disconnected. Otherwise, you may
cause an electrical short.
7.
6.
4.
5.
CONTINUED
Jump Starting, If the Engine Overheats
If the Engine Overheats
Taking Care of the Unexpected
197
Driving with the temperature gauge
pointer at the red mark can cause
serious damage to your engine.
Main Menu
Table of Contents
If you do not see steam or spray,
leave the engine running, and
watch the temperature gauge. If
the high heat is due to overloading,
the engine should start to cool
down almost immediately. If it
does, wait until the temperature
gauge comes down to the midpoint,
then continue driving.
If the temperature gauge stays at
the red mark, turn off the engine.
Look for any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you find a leak, it
must be repaired before you
continue driving (see
on page ).
If you see steam and/or spray
coming from under the hood, turn
off the engine. Wait until you see
no more signs of steam or spray,
then open the hood.
If you don’t find an obvious leak,
check the coolant level in the
radiator reserve tank (see page
). Add coolant if the level is
below the MIN mark.
Safely pull to the side of the road.
Put the transmission in Neutral or
Park, and set the parking brake.
Turn off all accessories, and turn
on the hazard warning indicators.
1.
2.
3.
4.
5.
6.
126
209
Emergency
Towing
IftheEngineOverheats
198
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
Main Menu
Table of Contents
Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the first stop. After the
pressure releases, push down on
the cap, and turn it until it comes
off.
Put the radiator cap back on
tightly. Run the engine, and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
Start the engine, and set the
temperature control dial to
maximum heat. Add coolant to the
radiator up to the base of the filler
neck. If you do not have the
proper coolant mixture available,
you can add plain water.
Remember to have the cooling
system drained and refilled with
the proper mixture as soon as you
can.
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the
temperature gauge or lower
before checking the radiator.
7. 8.
9.
10.
11.
209
Emergency
Towing
IftheEngineOverheats
Taking Care of the Unexpected
199
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
Safely pull off the road, and shut
off the engine. Turn on the hazard
warning indicators.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
Immediately turn off all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
Go to a service station or garage
where you can get technical
assistance.
Let the vehicle sit for a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
This indicator should never
come on when the engine is
running. If it starts flashing or stays
on, the oil pressure has dropped very
low or lost pressure. Serious engine
damage is possible and you should
take immediate action.
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn off the
engine. There is a mechanical
problem that needs to be repaired
before you can continue driving
(see on page
).
1.
2.
3.
4.
125
159
209
Charging System IndicatorLow Oil Pressure Indicator
Emergency Towing
Low Oil Pressure Indicator, Charging System Indicator
200
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn of f
the engine as soon as you can safely get
the vehicle stopped.
Main Menu
Table of Contents
If your vehicle battery has been
disconnected or gone dead, these
codes are erased. It takes at least
three days of driving under various
conditions to set the codes again.
If you have recently refueled your
vehicle, the indicator coming on
could be due to a loose or missing
fuel fill cap. Tighten the cap until it
clicks at least three times.
Tightening the cap will not turn the
indicator off immediately; it takes at
least three days of normal driving.
Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics for the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.
If the indicator comes on
while driving, it means one
of the engine’s emissions control
systems may have a problem. Even
though you may feel no difference in
your vehicle’s performance, it can
reduce your fuel economy and cause
increased emissions. Continued
operation may cause serious damage.
If the indicator comes on repeatedly,
even though it may turn off as you
continue driving, have the vehicle
checked by your dealer as soon as
possible.
To check if they are set, turn the
ignition switch to ON (II), without
starting the engine. The Malfunction
Indicator Lamp will come on for 20
seconds. If it then goes off, the
readiness codes are set. If it blinks 5
times, the readiness codes are not
set. If possible, do not take your
vehicle for a state emissions test
until the readiness codes are set.
Refer to State Emissions Testing for
more information (see page ).222
Malfunction Indicator Lamp
Readiness Codes
Taking Care of the Unexpected
201
If you keep driving with the
Malf unction Indicator Lamp on, you
can damage your vehicle’s emissions
controls and the engine. Those repairs
may not be covered by your vehicle’s
warranties.
Main Menu
Table of Contents
However, if the brake pedal does not
feel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will feel the brake
pedal go down much farther before
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
If you must drive the vehicle a short
distance in this condition, drive
slowly and carefully.
Slow down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see
on page ).
The brake system
indicator normally
comes on when
you turn the ignition switch to ON
(II), and as a reminder to check the
parking brake. It will stay on if you
do not fully release the parking
brake.
If the fluid level is low, take your
vehicle to a dealer, and have the
brake system inspected for leaks or
worn brake pads.
If the brake system indicator comes
on while driving, the brake fluid level
is probably low. Press lightly on the
brake pedal to see if it feels normal.
If it does, check the brake fluid level
thenexttimeyoustopataservice
station (see page ).
If the ABS indicator comes on with
the brake system indicator, have
your vehicle inspected by your
dealer immediately.
168
209
On models equipped with ABS
Emergency
Towing
Brake System Indicator
202
Canada
U.S.
Main Menu
Table of Contents
Use a screwdriver or coin to
remove the round plug in the
center of the headliner.
Remove the wrench. Reinstall the
round plug.
If the electric motor will not close
the moonroof, do the following:
Check the fuse for the moonroof
motor (see page ). If the fuse
is blown, replace it with one of the
same or lower rating.
Try closing the moonroof. If the
new fuse blows immediately or the
moonroof motor still does not
operate, you can close the
moonroof manually.
Get the moonroof wrench out of
the tool kit in the trunk.
Insert the moonroof wrench into
the socket behind the plug. Turn
the wrench until the moonroof is
fully closed.
If you need to close the moonroof
manually, it means the moonroof
opening/closing function is
developing a problem. Have your
vehicle checked by your dealer.
5.
6.
4.
1.
2.
3.
208
If equipped
Closing the Moonroof
Taking Care of the Unexpected
203
ROUND PLUG
SOCKET
MOONROOF
WRENCH
Main Menu
Table of Contents
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover from the fuse
box.
The vehicle’s fuses are contained in
two fuse boxes.
The under-hood fuse box is in the
engine compartment on the
passenger’s side next to the battery.
To open it, push the tabs as shown.
If something electrical in your
vehicle stops working, check for a
blown fuse first. Determine from the
chart on pages and , or the
diagram on the fuse box lid, which
fuse or fuses control that device.
Check those fuses first, but check all
the fuses before deciding that a
blown fuse is the cause. Replace any
blown fuses, and check if the device
works.
The interior fuse box is underneath
the steering column. To open it, turn
the knobs as shown.
1.
2.
207 208
Fuses
Checking and Replacing Fuses
204
UNDER-HOOD
TAB
INTERIOR
Main Menu
Table of Contents
Check the smaller fuses in the
under-hood fuse box and all the
fuses in the interior fuse box by
pulling out each one with the fuse
puller provided in the under-hood
fuse box.
Look for a burned wire inside the
fuse. If it is burned, replace it with
one of the spare fuses of the same
rating or lower.
Check each of the large fuses in
the under-hood fuse box by
looking through the top at the wire
inside. Removing these fuses
requires a Phillips-head screw-
driver.
5.4.3.
CONTINUED
Fuses
Taking Care of the Unexpected
205
BLOWN
FUSE PULLER
FUSE
BLOWN
Main Menu
Table of Contents
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit and have your vehicle
checked by a qualified mechanic.
If you cannot drive the vehicle
without fixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as
soon as you can.
If the radio fuse is removed, the
audio system will disable itself. The
nexttimeyouturnontheradioyou
will see ‘‘ ’’ (except for
models with in-dash CD changer)/
‘‘CODE’’ (on models with in-dash CD
changer) in the frequency display.
Use the preset buttons to enter the
five-digit code (see page ).
When the audio system is disabled,
the clock setting in the audio system
will be canceled. You will need to
reset the clock according to the
instructions in the Features section
on this owner’s manual.
6.
114
Standard for Value Package, HX, LX, EX
and Special Edition models in the U.S.,
and DX Special Edition, REVERB, LX
andSimodelsinCanada
On all models
Fuses
206
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
Main Menu
Table of Contents
−
−
−
CONTINUED
No. Amps. Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20 A
15 A
7.5 A
20 A
10 A
15 A
15 A
20 A
10 A
40 A
40 A
40 A
40 A
40 A
20 A
20 A
20 A
80 A
40 A
Condenser Fan
Small Light
Interior Light
Cooling Fan
Hazard, Turn Signals
FI ECU (ECM/PCM)
Horn, Brake Light
ABS F/S
Back Up
ABS Motor
Rear Defroster
Heater Motor
Power Window
Option
Left Headlight
Door Lock
Right Headlight
Not Used
Battery
Ignition 1
Spare Fuses
21 25
7.5 A 30 A
Fuse Locations
Taking Care of the Unexpected
207
UNDER-HOOD FUSE BOX
Main Menu
Table of Contents
−
−
−
−
−
＊
＊
＊
No. Amps. Circuits Protected
No. Amps. Circuits Protected
: On Canadian models
1
2
3
4
5
15 A
20 A
10 A
10 A
Ignition Coil
LAF Heater
Daytime Running Lights
Alternator
Not Used
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
7.5 A
20 A
7.5 A
10 A
7.5 A
7.5 A
7.5 A
10 A
10 A
10 A
15 A
15 A
7.5 A
20 A
20 A
20 A
Power Window Relay
Moonroof
Accessory, Radio
SIDE SRS
Meter
ABS
Daytime Running Lights
SRS
Power Mirrors
(Security)
Not Used
Fuel Pump
Accessory Power Socket
Turn Signal Lights
Front Wipers
Not Used
Front Right Power Window
Front Left Power Window
Not Used
Not Used
Fuse Locations
208
INTERIOR FUSE BOX
Main Menu
Table of Contents
−
−
CONTINUED
If, due to damage, your vehicle must
be towed with the front wheels on
the ground, do the following:
If your vehicle needs to be towed,
call a professional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous. There are two ways to
tow your vehicle.
The operator
loads your vehicle on the back of a
truck.
The tow
truck uses two pivoting arms that go
under the tires (front or rear) and lift
them off the ground. The other two
tires remain on the ground.
Release the parking brake.
Shift the transmission to Neutral.
Release the parking brake.
Start the engine.
ShifttoD,thentoN.
Turn off the engine.
With the front wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If your vehicle is equipped with a
front spoiler, remove it before
towing so it is not damaged.
Manual Transmission and Continuously
Variable Transmission (CVT):
Automatic Transmission:
Emergency Towing
Flat-bed Equipment
Wheel-lift Equipment
This is the best way to trans-
port your vehicle.
This is
an acceptable way to tow your
vehicle.
Taking Care of the Unexpected
209
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine (automatic transmission), your
vehicle must be transported with the
f ront wheels of f the ground.
Main Menu
Table of Contents
If you decide to tow your vehicle
with all four wheels on the ground,
make sure you use a properly-
designed and attached tow bar.
Prepare the vehicle for towing as
described previously, and leave the
ignition switch in the ACCESSORY
(I) position so the steering wheel
does not lock. Make sure the radio
and any items plugged into the
accessory power socket are turned
off so they do not run down the
battery.
Emergency Towing
210
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in the ACCESSORY (I)
position, and make sure the steering
wheel turns f reely bef ore you begin
towing.
Main Menu
Table of Contents
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle, and the locations of the
identification numbers. It also
includes information you should
know about your vehicle’s tires and
emissions control systems.
................Identification Numbers . 212
................................Specifications . 214
DOT Tire Quality Grading
......................(U.S. Vehicles) . 216
Uniform Tire Quality
..................................Grading . 216
.................................Treadwear . 216
......................................Traction . 216
.............................Temperature . 217
.................................Tire Labeling . 218
.......................Emissions Controls . 219
.....................The Clean Air Act . 219
Crankcase Emissions Control
....................................System . 219
Evaporative Emissions Control
....................................System . 219
Onboard Refueling Vapor
................................Recovery . 219
...Exhaust Emissions Controls . 220
....................PGM-FI System . 220
Ignition Timing Control
................................System . 220
Exhaust Gas Recirculation
....................(EGR)System . 220
Three Way Catalytic
...........................Converter . 220
....................Replacement Parts . 220
..Three Way Catalytic Converter . 221
..............State Emissions Testing . 222
Technical Information
Technical Information
211
Main Menu
Your vehicle has several identifying
numbers located in various places.
The vehicle identification number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
for warranty purposes. It is also
necessary for licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certification label.
Identification Numbers
212
VEHICLE IDENTIFICATION NUMBER
CERTIFICATION LABEL
Main Menu
Table of Contents
The engine number is stamped into
the engine block. It is on the front.
The transmission number is on a
label on top of the transmission.
Identification Numbers
Technical Information
213
AUTOMATIC TRANSMISSION NUMBER
ENGINE NUMBER
MANUAL TRANSMISSION
NUMBER
Main Menu
Table of Contents
＊＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
＋
＋
Specifications
214
Dimensions
Weights
Engine
Capacities
Capacities
174.7 in (4,438 mm)
66.7 in (1,695 mm)
55.1 in (1,399 mm)
103.1 in (2,620 mm)
57.9 in (1,470 mm)
57.9 in (1,470 mm)
2.95 x 3.72 in (75.0 x 94.4 mm)
102 cu-in (1,668 cm )
9.5
9.9
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating See the certification label attached
to the driver’s doorjamb.
Water cooled 4-stroke
SOHC , SOHC VTEC
4-cylinder gasoline engine
NGK:
DENSO:
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Spark plug Gap
PZFR6F-11
PKJ20CR-M11
0.04 in (1.1 mm)
Engine
coolant
Engine oil
Automatic
transmission
fluid
13.2 US gal (50
)
Fuel tank
1.03 US gal (3.9
)
1.00 US gal (3.8 )
1.00 US gal (3.8 )
1.32 US gal (5.0 )
1.29 US gal (4.9 )
1.29 US gal (4.9 )
3.4 US qt (3.2 )
3.7 US qt (3.5 )
3.2 US qt (3.0
)
3.5 US qt (3.3
)
4.4 US qt (4.2 )
1.6 US qt (1.5
)
1.7 US qt (1.6
)
2.9 US qt (2.7 )
3.4 US qt (3.2
)
6.3 US qt (6.0
)
6.0 US qt (5.7
)
2.6 US qt (2.5 )
4.8 US qt (4.5 )
Including the coolant in the reserve tank and that remaining in
the engine.
Reserve tank capacity: 0.108 US gal (0.41 )
Excluding the oil remaining in the engine.
Front
Rear
Approx.
7:
1:
2:
U.S: DX, Value Package, LX, LX Special Edition
Canada: DX, LX, REVERB
U.S.: HX, EX, EX Special Edition
Canada: Si
Change
Manual
Automatic
CVT
Total
Manual
Automatic
CVT
Change
Including
filter
Without filter
Total
Change
Total
Change
Total
U.S. Vehicles
HX
3:
4:
5:
6:
U.S.: DX, Value Package, LX, LX Special Edition
Canada: DX, LX, REVERB
U.S.: HX, EX, EX Special Edition Canada: Si
12
1
2
3
4
5
6
5
6
7
7
Manual trans-
mission fluid
Canada Vehicles
Windshield
washer reservoir
0
0.1 mm
Main Menu
Table of Contents
−−
−
−−
＊
＊
＊
＊
＊
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
＊
＊
＊
＊
＊
＊
＊
＊
＊
＊
Specifications
Technical Information
215
Air Conditioning Fuses
Alignment
Tires
Lights
Battery
HFC-134a (R-134a)
17.6 19.4 oz (500 550 g)
12 V
12 V
60 W
2°14’
45’
0°
0.00 in (0.0 mm)
P185/65R15 86H
P185/70R14 87S
0.08 in ( 2.0 mm)
12 V
51 W
60 psi (420 kPa , 4.2 kgf/cm
)
30 psi (210 kPa , 2.1 kgf/cm )
T125/70D15 95M
T115/70D14 88M
P195/60R15 87H
Refrigerant type
Charge quantity
Lubricant oil type
Interior
Under-hood
Toe-in
Camber
Caster
Size
Pressure
24/2.2 CP
See page 208 or the fuse label
attached to the inside of the fuse
box door under the steering
column.
See page 207 or the fuse box
cover.Headlights (HI)
Headlights (LO)
Front turn signal/Side marker/
Parking light
Rear turn signal lights
Stop/Taillights
Back-up lights
High-mount stop light
License plate lights
Ceiling light
Front ceiling light
Spotlights
Trunk light
SP-10
12 V 5 W
8W12 V
12 V 5 W
5W12 V
10 W12 V
3CP12 V
21 W12 V
18 W12 V
21/5 W12 V
21 W12 V
Capacity
12 V
12 V
38 AH/5 HR
36 AH/5 HR
Front
Rear
Front
Rear
Front
3:
4:
5:
6:
7:
(HB3)
Front/Rear
Spare
Front/Rear
Spare
(HB4)
U.S.: DX, Value Package, HX Canada: DX
Canada: LX
U.S.: LX, EX, Special Edition Canada: Si, REVERB
1 : U.S.: EX, EX Special Edition
Canada : Si
2 : LX, LX Special Edition
U.S.: DX, Value Package, HX, LX and LX Special Edition
Canada : DX, LX, REVERB
U.S.: LX with ABS, EX, Special Edition
Canada: LX with ABS, Si
1
1
2
3
4
5
6
7
Main Menu
Table of Contents
−The tires on your vehicle meet all
U.S. Federal Safety Requirements.
All tires are also graded for
treadwear, traction, and temperature
performance according to
Department of Transportation
(DOT) standards. The following
explains these gradings.
Quality grades can be found where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specified government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative performance of
tires depends upon the actual condi-
tions of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices, and differences in
road characteristics and climate.
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specified government test surfaces
of asphalt and concrete. A tire
marked C may have poor traction
performance.
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
Uniform Tire Quality Grading
Treadwear 200
Traction AA
Temperature A
Treadwear Traction AA, A, B, C
DOT Tire Quality Grading (U.S. Vehicles)
216
Main Menu
Table of Contents
−
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger car
tires must meet under the Federal
Motor Vehicle Safety Standard No.
109. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the
minimum required by law.
Warning: The temperature grade for
this tire is established for a tire that
is properly inflated and not over-
loaded. Excessive speed, underinfla-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
failure.
Temperature A,B,C
DOT Tire Quality Grading (U.S. Vehicles)
Technical Information
217
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−
−
−
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches.
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Load index (a numerical code
associated with the maximum
load the tire can carry).
Tire type code.
Date of manufacture.
Max Press The maximum air
pressurethetirecanhold.
Max Load The maximum load the
tire can carry at maximum air
pressure.Tire Identification Number (TIN) is
a group of numbers and letters that
look like the following example TIN.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Manufacturer’s
identification mark.
B97R
FW6X
2202
DOT
R
P
195
60
15
87
H
Tire Size
Maximum Tire Pressure
Maximum Tire Load
Tire Identification Number
Tire Labeling
218
P195/60R15 87H
DOT B97R FW6X 2202
Main Menu
Table of Contents
＊
＊
The burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx) and hydrocarbons (HC).
Gasoline evaporating from the tank
also produces hydrocarbons. Con-
trolling the production of NOx, CO,
and HC is important to the environ-
ment. Under certain conditions of
sunlight and climate, NOx and HC
react to form photochemical ‘‘smog.’’
Carbon monoxide does not contri-
bute to smog creation, but it is a
poisonous gas.
The United States Clean Air Act
sets standards for automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
Scheduled maintenance is on page
.
In Canada, Honda vehicles comply
with the Canadian emission
requirements, as specified in an
agreement with Environment
Canada, at the time they are
manufactured.
Your vehicle has a positive
crankcase ventilation system. This
keeps gasses that build up in the
engine’s crankcase from going into
the atmosphere. The positive
crankcase ventilation valve routes
them from the crankcase back to the
intake manifold. They are then
drawn into the engine and burned.
As gasoline evaporates in the fuel
tank, an evaporative emissions
control canister filled with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is off. After
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The onboard refueling vapor
recovery (ORVR) system captures
the fuel vapors during refueling. The
vapors are adsorbed in a canister
filled with activated carbon. While
driving, the fuel vapors are drawn
into the engine and burned off.
151
The Clean Air Act
Crankcase Emissions Control
System
Evaporative Emissions Control
System
Onboard Refueling Vapor
Recovery
Emissions Controls
Technical Information
219
Main Menu
Table of Contents
The emissions control systems are
designed and certified to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent for repairs. Using lower
qualitypartsmayincreasethe
emissions from your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa-
tion.
The exhaust emissions controls
include four systems: PGM-FI,
ignition timing control, exhaust gas
recirculation and three way catalytic
converter. These four systems work
together to control the engine’s
combustion and minimize the
amount of HC, CO, and NOx that
comes out the tailpipe. The exhaust
emissions control systems are
separate from the crankcase and
evaporative emissions control
systems.
The PGM-FI system uses sequential
multiport fuel injection. It has three
subsystems: air intake, engine
control, and fuel control. The
powertrain control module (PCM) in
automatic transmission vehicles or
the engine control module (ECM) in
manual transmission vehicles uses
various sensors to determine how
much air is going into the engine. It
then controls how much fuel to inject
under all operating conditions.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
The exhaust gas recirculation (EGR)
system takes some of the exhaust
gas and routes it back into the intake
manifold. Adding exhaust gas to the
air/fuel mixture reduces the amount
of NOx produced when the fuel is
burned.
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
2
2
Replacement PartsExhaust Emissions Controls
PGM-FI System
Three Way Catalytic Converter
Exhaust Gas Recirculation (EGR)
System
Ignition Timing Control System
Emissions Controls
220
Main Menu
Table of Contents
The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter is referred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on fire any com-
bustible materials that come near it.
Park your vehicle away from high
grass, dry leaves, or other flamma-
bles.
Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter ineffective.
Keep the engine tuned-up.
Have your vehicle diagnosed and
repaired if it is misfiring, back-
firing, stalling, or otherwise not
running properly.
A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
formance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter.
Three Way Catalytic Converter
Technical Information
221
THREE WAY CATALYTIC CONVERTER
THREE WAY CATALYTIC CONVERTERSTHREE WAY CATALYTIC CONVERTER
U.S. EX and Canadian Si models U.S. DX, LX and Canadian DX, LX,
REVERB models
U.S. HX
Main Menu
Table of Contents
If you take your vehicle for a state
emissions test shortly after the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics for the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing facility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle retested within the
next two or three days, you can
condition the vehicle for retesting by
doing the following.
Make sure the gas tank is nearly,
but not completely full (around
3/4).
Make sure the vehicle has been
parked with the engine off for 8
hours or more.
Make sure the ambient
temperature is between 20° and
95°F.
Without touching the accelerator
pedal, start the engine, and let it
idle for 20 seconds.
Keep the vehicle in Park
(automatic transmission) or
Neutral (manual transmission).
Increase the engine speed to 2,000
rpm,andholditthereuntilthe
temperature gauge rises to at least
1/4ofthescale(about3minutes).
Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
D (A/T) or 5th (M/T). Do not use
thecruisecontrol.Whentraffic
allows, drive for 90 seconds
without moving the accelerator
pedal. (Vehicle speed may vary
slightly; this is okay.) If you cannot
do this for a continuous 90
seconds because of traffic
conditions, drive for at least 30
seconds, then repeat it two more
times (for a total of 90 seconds).
Then drive in city/suburban
traffic for at least 10 minutes.
When traffic conditions allow, let
the vehicle coast for several
seconds without using the
accelerator pedal or the brake
pedal.
If the testing facility determines the
readiness codes are still not set, see
your dealer.
Testing of Readiness Codes
State Emissions Testing
222
Main Menu
Table of Contents
Honda dealership personnel are
trained professionals. They should
be able to answer all your questions.
If you encounter a problem that your
dealership does not solve to your
satisfaction, please discuss it with
the dealership’s management. The
service manager or general manager
can help. Almost all problems are
solved in this way.
U.S. Owners:
Canadian Owners:
If you are dissatisfied with the
decision made by the dealership’s
management, contact your Honda
Customer Service Office.
When you call or write, please give
us this information:
In Puerto Rico and the U.S. Virgin
Islands:
Vehicle Identification Number
(see page )
Name and address of the dealer
who services your vehicle
Date of purchase
Mileage on your vehicle
Your name, address, and tele-
phone number
A detailed description of the
problem
Name of the dealer who sold the
vehicle to you
212
Customer Service Information
224
CUSTOMER RELATIONS
RELATIONS AVEC LA CLIENTÉLE
American Honda Motor Co., Inc.
Automobile Customer Service
Mail Stop 500-2N-7A
1919 Torrance Boulevard
Torrance, California 90501-2746
Tel: (800) 999-1009
Honda Canada Inc.
715 Milner Avenue
Toronto, ON
M1B 2K8
Tel: 1-888-9-HONDA-9
Fax: Toll-free 1-877-939-0909
Toronto (416) 287-4776
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 250-4327
Table of Contents
Main Menu
−
−
−
−
−
−
−
−
−
Your new vehicle is covered by these
warranties:
covers your new vehicle, except for
the battery, emissions control
systems and accessories, against
defects in materials and
workmanship.
a seat
belt that fails to function properly is
coveredfortheusefullifeofthe
vehicle.
all exterior body panels are
covered for rust-through from the
inside for the specified time period
with no mileage limit.
provides prorated
coverage for a replacement battery
purchased from your dealer.
provides
coverageforaslongasthepur-
chaser of the muffler owns the
vehicle.
these two
warranties cover your vehicle’s
emissions control systems. Time,
mileage, and coverage are
conditional. Please read your
warranty manual for exact
information.
Honda Accessories are covered
under this warranty. Time and
mileage limits depend on the type of
accessory and other factors. Please
read your warranty manual for
details.
covers all Honda
replacement parts against defects in
materials and workmanship.
Restrictions and exclusions apply to
all these warranties. Please read the
2005 Honda Warranty Information
booklet that came with your vehicle
for precise information on warranty
coverages. Your vehicle’s original
tires are covered by their
manufacturer. Tire warranty infor-
mation is in a separate booklet.
Please refer to the 2005 Warranty
Manual that came with your vehicle.
this warranty gives up
to 100 percent credit toward a
replacement battery.
Warranty Coverages
U.S. Owners
Canadian Owners
New Vehicle Limited Warranty
Seat Belt Limited Warranty
Rust Perforation Limited Warranty
Replacement Battery Limited
Warranty
Replacement Muffler Lifetime
Limited Warranty
Emissions Control Systems Defects
Warranty and Emissions
Performance Warranty
Accessory Limited Warranty
Replacement Parts Limited
Warranty
Original Equipment Battery Limited
Warranty
Warranty and Customer Relations
225
Main Menu
Table of Contents
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying American Honda Motor
Co., Inc.
If NHTSA receives similar com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or
American Honda Motor Co., Inc.
To contact NHTSA, you may either
call the Auto Safety Hotline toll-free
at 1-800-424-9393 (or 366-0123 in
Washington D.C. area) or write to:
NHTSA, U.S. Department of
Transportation, Washington,
D.C. 20590. You can also obtain
other information about motor
vehicle safety from the Hotline.
Reporting Safety Defects (U.S. Vehicles)
226
Main Menu
Table of Contents
−
＊
＊
＊
＊
２
０
０
５
Ｈ
Ｏ
Ｎ
Valid only for sales within the United States. Canadian
owners should contact their authorized Honda dealer.
The publications shown below can be purchased from Helm
Incorporated. You can order in any of three ways:
If you are interested in other years or models, contact Helm Inc.
at 1-800-782-4356.
Detach and mail the order form on the right half of this page
Call Helm Inc. at 1-800-782-4356
Go online at
(credit card orders only)
Purchasing Factory Authorized Manuals (U.S. only)
Authorized Manuals
Authorized Manuals
227
ORDER TOLL FREE: 1-800-782-4356
OR
(NOTE: For Credit Card Holder Orders Only)
MINIMUM CREDIT CARD PURCHASE $10.00
Price
Each
$70.00
$50.00
$44.00
$34.00
$12.00
$12.00
FREE
Publication
Form Number
61S5C01
61S5C00EL
61S5A30
31S5P640
31S5AM00
31S5PQ20
HON-R
Form Description
2001-2005 Honda Civic 2/4 Door
Service Manual
2001-2005 Honda Civic 2/4 Door
Electrical Troubleshooting Manual
2001-2005 Honda Civic 2/4 Door
Body Repair Manual
2005 Honda Civic 2 Door
Owner’s Manual
2005 Honda Civic
Honda Service History
2005 Honda Civic 2 Door
Quick Start Guide
Order Form for Previous Years-
Indicate Year and Model Desired
PUBLICATION NUMBER
VEHICLE MODEL
Name Year
Qty
Price
Each
Total
Price
GRAND TOTAL
HANDLING CHARGE
Mich. Purchases
Add 6% Sales Tax
TOTAL MATERIAL
$6.95
Monday-Friday 8:00 A.M. 6:00 P.M. EST
By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail to
Helm Incorporated at the address shown on the back of the order form.
Prices are subject to change without
notice and without incurring obligation.
Orders are mailed within 10 days. Please
allow adequate time for delivery.
Prices are subject to change without notice and without incurring obligation.
www. helminc. com
Main Menu
Table of Contents
−
−
−
Ｓ
Ｈ
Ｉ
Ｐ
Ｔ
Ｏ
Ｐ
Ａ
Ｙ
Ｍ
Ｅ
Ｎ
Ｔ
This manual covers maintenance and recommended
procedures for repair to engine and chassis components.
It is written for the journeyman mechanic, but is simple
enough for most mechanically-inclined owners to under-
stand.
This manual describes the procedures involved in the
replacement of damaged body parts.
This manual complements the service manual by
providing in-depth troubleshooting information for each
electrical circuit in your vehicle.
Authorized Manuals
Service Manual:
Electrical Troubleshooting Manual:
Body Repair Manual:
228
NOTE: Dealers and Companies please provide dealer or company name,
and also the name of the person to whose attention the shipment should
be sent. For purchases outside U.S.A. please write to the address shown
below for a quotation.
P.O. BOX 07280·DETROIT, MICHIGAN 48207·1-800-782-4356
Customer Name
Attention
Apartment Number
State & Zip Code
City
Daytime Telephone Number
Check or money order enclosed payable to Helm Inc U.S. funds only.
Do not send cash
Master
Card
VISA Check here if your billing address is different
from the shipping address shown above.
Account Number
Expiration: Mo. Yr.
CUSTOMER SIGNATURE
DATE
Street Address No P.O. Box Number
()
These Publications cannot be returned for credit without receiving advance authorization within 14
days of delivery. On returns, a restocking fee may be applied against the original order.
Main Menu
Table of Contents
CONTINUED
Battery
Charging System
...........................Indicator . 54, 200
............................Jump Starting . 196
..............................Maintenance . 184
............................Specifications . 215
..............................Before Driving . 121
....................................Belts,Seat .8,18
...........................Beverage Holders . 83
..................................Booster Seats . 42
Brakes
...........Anti-lock System (ABS) . 147
.............Break-in, New Linings . 122
....................Bulb Replacement . 173
...........................................Fluid . 168
.........................................Parking . 81
..........................System Design . 146
.................System Indicator . 55, 202
........................Wear Indicators . 146
.............................Braking System . 146
.................Break-in, New Vehicle . 122
..Brightness Control, Instruments . 63
........................Brights, Headlights . 62
Bulb Replacement
..........................Back-up Lights . 173
..............................Brake Lights . 173
................Front Parking Lights . 172
........Front Side Marker Lights . 172
.................................Headlights . 170
.........High-mount Brake Light . 174
............................Specifications . 215
....................Turn Signal Lights . 172
..............................Bulbs, Halogen . 170
............................Capacities Chart . 214
.............Carbon Monoxide Hazard . 45
....Accessories and Modificatons . 128
ACCESSORY (Ignition Key
.......................................Position) . 68
...............Accessory Power Socket . 85
................Adding Engine Coolant . 162
....................Additives, Engine Oil . 160
.......Adjusting the Steering Wheel . 65
.........Advice for Pregnant Women . 16
...............................Airbag (SRS) . 9, 21
................Air Conditioning System . 88
............................................Usage . 89
.......................Air Pressure, Tires . 178
..................High Speed Driving . 179
.........................Normal Driving . 179
.......................Alcohol in Gasoline . 122
......................................Antifreeze . 162
Anti-lock Brakes (ABS)
...............................Indicator . 55, 147
...................................Operation . 147
..............Anti-theft, Audio System . 114
Anti-theft Steering Column
..............................................Lock . 68
..................................Audio System . 92
.Automatic Seat Belt Tensioners . 119
.............Automatic Speed Control . 117
..............Automatic Transmission . 138
..........................Capacity, Fluid . 214
...............Checking Fluid Level . 165
.......................................Shifting . 138
Shift Lever Position
...............................Indicators . 138
................Shift Lever Positions . 138
....................Shift Lock Release . 141
Index
A
B
C
INDEX
I
Main Menu
................DANGER, Explanation of . ii
...................................Dashboard . 3, 50
................Daytime Running Lights . 62
Daytime Running Lights
.......................................Indicator . 55
.................................Dead Battery . 196
............Defects, Reporting Safety . 226
................Defogger, Rear Window . 64
................Defrosting the Windows . 91
....................................Dimensions . 214
...............Dimming the Headlights . 62
Dipstick
..........Automatic Transmission . 165
..................................Engine Oil . 125
.............................Carrying Cargo . 130
Cassette Player
............................................Care . 113
...................................Operation . 111
..............CAUTION, Explanation of . ii
.........................................CD Care . 108
.....................................CD Changer . 99
.....CD Changer Error Messages . 110
.........................................CD Player . 99
.........CD Player Error Messages . 109
....................................Ceiling Light . 86
........................Certification Label . 212
.................................Chains, Tires . 183
....................Changing a Flat Tire . 189
Changing Oil
........................................How to . 160
......................................When to . 153
...Charging System Indicator . 54, 200
............Checklist, Before Driving . 134
.....................................Child Safety . 27
..............................Booster Seats . 42
...................................Child Seats . 34
Important Safety
.........................Reminders . 27, 30
..........................................Infants . 32
............................Large Children . 41
.........................................LATCH . 36
......................Risks with Airbags . 28
.............................Small Children . 33
.........................................Tethers . 40
...........................Warning Labels . 46
.........Where Should a Child Sit? . 28
Child Seats
......................................Installing . 35
...........................Lower Anchors . 36
......................................Selecting . 34
................Tether Anchor Points . 40
Claning
...................................Seat Belts . 174
..............................................Clock . 115
...................................Clutch Fluid . 168
........................CO in the Exhaust . 220
........................................Coat Hook . 84
............Cold Weather, Starting in . 135
......................Compact Spare Tire . 188
...................Console Compartment . 83
.................Consumer Information . 224
Continuously Variable Transmission
.........................................(CVT) . 142
.............Controls, Instruments and . 49
Coolant
........................................Adding . 162
....................................Checking . 126
.........................Proper Solution . 162
...................Temperature Gauge . 59
Crankcase Emissions Control
........................................System . 219
................Cruise Control Indicator . 56
............Cruise Control Operation . 117
.....................................Cup Holders . 83
....Customer Service Information . 224
Index
D
II
Main Menu
＊
CONTINUED
..........................Directional Signals . 62
........Disc Brake Wear Indicators . 146
.......................................Disc Care . 108
.....................Disposal of Used Oil . 161
Doors
..............Locking and Unlocking . 69
......................Power Door Locks . 69
........DOT Tire Quality Grading . 216
Downshifting, Manual
.............................Transmission . 136
...........Driver and Passenger Safety . 5
...........................................Driving . 133
....................................Economy . 127
..................Dust and Pollen Filter . 176
..............................Economy, Fuel . 127
..................................Emergencies . 187
.............Battery, Jump Starting . 196
...........Brake System Indicator . 202
................Changing a Flat Tire . 189
.....Charging System Indicator . 200
..................Checking the Fuses . 204
.........Hazard Warning Flashers . 64
............................Jump Starting . 196
.....Low Oil Pressure Indicator . 200
...Malfunction Indicator Lamp . 201
...Manually Closing Moonroof . 203
..................Overheated Engine . 197
.......................................Towing . 209
...........................Emergency Brake . 81
......................Emergency Flashers . 64
......................Emergency Towing . 209
............Emergency Trunk Opener . 70
.......................Emissions Controls . 219
.............Emissions Testing, State . 222
Engine
............Adding Engine Coolant . 162
....Coolant Temperature Gauge . 59
.........................If It Won’t Start . 194
Malfunction Indicator
................................Lamp . 54, 201
........Oil Pressure Indicator . 54, 200
.............................Oil, Synthetic . 160
..............Oil, What Kind to Use . 159
...............................Overheating . 197
............................Specifications . 214
............Speed Limiter . 137, 140, 144
.......................................Starting . 135
......................Ethanol in Gasoline . 122
.Evaporative Emissions Controls . 219
...............................Exhaust Fumes . 45
Expectant Mothers, Use of Seat
........................................Belts by . 16
......................................Fan Control . 89
...........................................Features . 87
....................Filling the Fuel Tank . 123
Filters
.........................Dust and Pollen . 176
...............................................Oil . 160
.............Flashers, Hazard Warning . 64
...................Flat Tire, Changing a . 189
Fluids
..........Automatic Transmission . 165
..........................................Brake . 168
.........................................Clutch . 168
..............Manual Transmission . 167
..........................Power Steering . 169
..................Windshield Washer . 164
FM Stereo Radio
.....................................Reception . 97
...........................Folding Rear Seat . 76
Index
E
F
INDEX
III
Main Menu
.............Halogen Headlight Bulbs . 170
..............Hazard Warning Flashers . 64
Headlights
........................................Aiming . 170
............Daytime Running Lights . 62
..................High Beam Indicator . 55
...........................Reminder Tone . 62
........Replacing Halogen Bulbs . 170
...................................Turning on . 62
..............................Head Restraints . 75
...............................Heated Mirrors . 81
.......................Heating and Cooling . 88
.............High Altitude, Starting at . 135
............................High Beam Lever . 62
..............High-mount Brake Light . 174
..Hood, Opening and Closing the . 124
..................................................Horn . 60
...........................Hydraulic Clutch . 168
..........................Four-way Flashers . 64
..............................Front Airbags . 9, 22
Front Seat
......................................Adjusting . 73
.....................................Airbags . 9, 22
.................................................Fuel . 122
....................................Economy . 127
......................Fill Door and Cap . 123
...........................................Gauge . 58
.....................Low Fuel Indicator . 56
................Octane Requirement . 122
...............................Oxygenated . 122
........................Tank, Refueling . 123
..............................Fuse Locations . 207
.....................Fuses, Checking the . 204
...............Gas Mileage, Improving . 127
..........................................Gasohol . 122
.........................................Gasoline . 122
...........................................Gauge . 58
.....................Low Fuel Indicator . 56
................Octane Requirement . 122
........................Tank, Refueling . 123
................Gas Station Procedures . 123
Gauges
...Engine Coolant Temperature . 59
...............................................Fuel . 58
Gearshift Lever Positions
..........Automatic Transmission . 138
..............Manual Transmission . 136
........................................Glove Box . 84
Gross Axle Weight Rating
.....................................(GAWR) . 131
Gross Vehicle Weight Rating
.....................................(GVWR) . 131
...Identification Number, Vehicle . 212
..............If the Engine Overheats . 197
..............If the Engine Wont Start . 194
Ignition
..............................................Keys . 66
...........................................Switch . 68
............Timing Control System . 220
........................Immobilizer System . 67
.........Important Safety Precautions . 6
Indicators
..............ABS (Anti-Lock Brake) . 55
Brake (Parking and Brake
....................................System) . 55
................Charging System . 54, 200
.............................Cruise Control . 56
DRL (Daytime Running
......................................Lights) . 55
Index
G
H
I
IV
Main Menu
CONTINUED
...................................High Beam . 55
........Key (Immobilizer System) . 56
......................................Low Fuel . 56
................Low Oil Pressure . 54, 200
....................Malfunction Lamp . 201
...........................Side Airbag Off . 54
...............................................SRS . 54
.................................Trunk Open . 56
Turn Signal and Hazard
...................................Warning . 56
..............................Washer Level . 56
Indicators, Instrument
.......................................Panel . 51, 52
...............................Infant Restraint . 32
Infant Seats
......................................Installing . 35
................Tether Anchor Points . 40
...................Inflation, Proper Tire . 178
..................High Speed Driving . 179
.........................Normal Driving . 179
...................................Inside Mirror . 80
.............................Inspection, Tire . 180
....................Installing a Child Seat . 35
........................Instrument Panel . 3, 50
........Instrument Panel Brightness . 63
................Instrument and Controls . 49
.................................Interior Lights . 86
........................................Introduction . i
.................Jacking up the Vehicle . 190
.......................................Jack, Tire . 189
................................Jump Starting . 196
..................................................Keys . 66
.......................Label, Certification . 212
.................Lane Change, Signaling . 62
..................Lap/Shoulder Belts . 14, 18
Lights
....................Bulb Replacement . 170
...............................Indicators . 51, 52
.........................................Parking . 62
..................................Turn Signal . 62
....................................Load Limits . 131
......LOCK (Ignition Key Position) . 68
Locks
.......Anti-theft Steering Column . 68
............................Fuel Fill Door . 123
.................................Power Door . 69
...........................................Trunk . 70
........................Low Coolant Level . 126
.........................Low Fuel Indicator . 56
...Low Oil Pressure Indicator . 54, 200
................................Lower Anchors . 36
...Lower Gear, Downshifting to a . 136
...Lubricant Specifications Chart . 214
...........Luggage, Storing (Cargo) . 130
..................................Maintenance . 149
Owner’s Maintenance
...................................Checks . 152
.................................Record . 155-157
......................Required Indicator . 57
..........................................Safety . 150
.............................Schedule . 151-154
.Malfunction Indicator Lamp . 54, 201
Index
INDEX
J
K
LM
V
Main Menu
...................Manual Transmission . 136
...............Checking Fluid Level . 167
.......................................Shifting . 136
........Manual Transmission Fluid . 167
....................................Mats, Floor . 175
...............................Meters, Gauges . 58
...................Methanol in Gasoline . 122
..........................Mirrors, Adjusting . 80
...............Modifying Your Vehicle . 129
.........................................Moonroof . 79
......................Closing Manually . 203
.....................................Operation . 79
..................................................MP3 . 99
..........Neutral Gear Position . 140, 143
..................New Vehicle Break-in . 122
.....................Normal Shift Speeds . 137
...................NOTICE, Explanation of . i
...............Numbers, Identification . 212
...Octane Requirement, Gasoline . 122
.........................................Odometer . 58
...............................Odometer, Trip . 58
Oil
........................Change, How to . 160
......................Change, When to . 153
......................Checking Engine . 125
..............Pressure Indicator . 54, 200
Selecting Proper Viscosity
......................................Chart . 159
...........ON (Ignition Key Position) . 68
Onboard Refueling Vapor
....................................Recovery . 219
..............................Outside Mirrors . 80
....................Overheating, Engine . 197
....Owner’s Maintenance Checks . 152
.........................Oxygenated Fuels . 122
...................Radiator Overheating . 197
..............Panel Brightness Control . 63
...............Park Gear Position . 139, 143
...........................................Parking . 145
.................................Parking Brake . 81
Parking Brake and Brake
.................System Indicator . 55, 202
...............................Parking Lights . 172
..Parking Over Things that Burn . 221
.............................PGM-FI System . 220
..................................Playing a Disc . 99
...................................Pollen Filter . 176
..........................Power Door Locks . 69
..........Power Socket Locations . 82, 85
....................Power Steering Fluid . 169
..............................Power Windows . 78
.........Pregnancy, Using Seat Belts . 16
........................Preparing to Drive . 134
.........Protecting Adults and Teens . 11
...Additional Safety Precautions . 16
.....Advice for Pregnant Women . 16
........................Protecting Children . 27
.......................General Guideline . 27
................Installing a Child Seat . 35
.......................Protecting Infants . 32
.......Protecting Larger Children . 41
.........Protecting Small Children . 33
.................Selecting a Child Seat . 34
Using Child Seats with
.....................................Tethers . 40
.............................Using LATCH . 36
Index
N
O
P
R
VI
Main Menu
＊
＊
＊
CONTINUED
Radio/CD/Cassette
..............................Sound System . 92
...Recommended Tire Pressures . 179
.................Radio Theft Protection . 114
...................Readiness Codes . 201, 222
Rear Lights, Bulb
..............................Replacement . 173
............................Rear Seat Access . 74
..........................Rear Seat, Folding . 76
............................Rear View Mirror . 80
.................Rear Window Defogger . 64
................Reclining the Seat-backs . 73
.......Recommended Shift Speeds . 137
........................................Refueling . 123
.................Reminder Indicators . 51, 52
.......................Remote Transmitter . 71
Replacement Information
..............Dust and Pollen Filter . 176
................Engine Oil and Filter . 160
..........................................Fuses . 204
................................Light Bulbs . 170
....................................Schedule . 151
................................Spark Plugs . 214
................................Timing Belt . 169
......................Tires and Wheels . 181
.............................Wiper Blades . 176
Replacing Seat Belts After a
............................................Crash . 20
..........Reporting Safety Defects . 226
Reserve Tank, Engine
...............................Coolant . 126, 162
...............................Restraint, Child . 27
..........Reverse Gear Position . 139, 143
......................................Roof Rack . 132
................................Rotation, Tire . 181
..................................Safety Belts . 8, 18
.........Safety Defects, Reporting . 226
.................................Safety Features . 7
...........................................Airbags . 9
.......................................Seat Belts . 8
.............Safety Labels, Location of . 46
...............................Safety Messages . ii
.....................................Seat Belts . 8, 18
...............Additional Information . 18
Automatic Seat Belt
...............................Tensioners . 19
.....................................Cleaning . 174
................Lap/Shoulder Belt . 14, 18
................................Maintenance . 19
Reminder Indicator and
................................Beeper . 18, 54
...................System Components . 18
...............Use During Pregnancy . 16
Wearing a Lap/Shoulder
.....................................Belt . 14, 18
.................................................Seats . 73
.........................Seats, Folding Rear . 76
.....................Selecting a Child Seat . 34
...............................Serial Number . 212
...........................Service Intervals . 153
...........................Service Manual . 227
.........Service Station Procedures . 123
..........................Setting the Clock . 115
...Shift Lever Position Indicators . 138
........................Shift Lock Release . 141
................................Side Airbags . 9, 24
..........................Off Indicator . 26, 54
Side Marker Lights, Bulb
..............................Replacement . 172
...............................Signaling Turns . 62
..................................Snow Chains . 183
.....................................Snow Tires . 182
..............Socket, Accessory Power . 85
Index
INDEX
S
VII
Main Menu
＊
..................................Sound System . 92
Spare Tire
......................................Inflating . 188
............................Specifications . 215
....................................Spark Plugs . 214
................................Specifications . 214
................................Speed Control . 117
................Speed Limiter . 137, 140, 144
..........SRS, Additional Information . 21
...Additional Safety Precautions . 26
.............................Airbag Service . 26
......Airbag System Components . 21
How the Passenger Airbag
...............Off Indicator Works . 26
..How the SRS Indicator Works . 25
How Your Front Airbags
.........................................Work . 22
...How Your Side Airbags Work . 24
.............................SRS Indicator . 25, 54
....START (Ignition Key Position) . 68
.......................Starting the Engine . 135
In Cold Weather at High
..................................Altitude . 135
................With a Dead Battery . 196
..............State Emissions Testing . 222
........Steam Coming from Engine . 197
Steering Wheel
..................................Adjustment . 65
.............Anti-theft Column Lock . 68
...............Steering Wheel Buttons . 117
.....................Stereo Sound System . 92
....................Storing Your Vehicle . 185
Supplemental Restraint
..................................System .9,21
......................................Servicing . 26
.........................SRS Indicator . 25, 54
...................System Components . 21
..................................Synthetic Oil . 160
..........Taillights, Changing Bulbs . 173
.Taking Care of the Unexpected . 187
....................................Tape Player . 111
Technical Descriptions
....DOT Tire Quality Grading . 216
.....Emissions Control Systems . 219
.....................Oxygenated Fuels . 122
Three Way Catalytic
.......................Converter . 220, 221
.......................Temperature Gauge . 59
.....................Tether Anchor Points . 40
................Theft Protection, Radio . 114
Three Way Catalytic
...........................Converter . 220, 221
..................Tilt the Steering Wheel . 65
..........................Time, Setting the . 115
....................................Timing Belt . 169
....................................Tire Chains . 183
.........Tire, How to Change a Flat . 189
...............................................Tires . 178
..............................Air Pressure . 179
.........................Checking Wear . 180
..........................Compact Spare . 188
......DOT Tire Quality Grading . 216
......................................Inflation . 178
..................................Inspection . 180
.....................................Labeling . 218
..............................Maintenance . 181
...................................Replacing . 181
......................................Rotating . 181
...........................................Snow . 182
............................Specifications . 215
...................Tools, Tire Changing . 189
Towing
.....................................A Trailer . 148
................Emergency Wrecker . 209
Index
T
VIII
Main Menu
＊
＊
＊
Unexpected, Taking Care
..........................................of the . 187
..Uniform Tire Quality Grading . 216
........................Unleaded Gasoline . 122
.......Used Oil, How to Dispose of . 161
......................Using a Booster Seat . 42
..................................Vanity Mirror . 85
.................Vehicle Capacity Load . 131
......................Vehicle Dimensions . 214
....Vehicle Identification Number . 212
.............................Vehicle Storage . 185
........................................Ventilation . 90
.................................................VIN . 212
..................................Viscosity, Oil . 159
.............WARNING, Explanation of . ii
................Warning Button, Hazard . 64
.........Warning Labels, Location of . 46
....................Warranty Coverages . 225
Washer, Windshield
........Checking the Fluid Level . 164
.......................................Indicator . 56
.....................................Operation . 61
Wheels
...............Adjusting the Steering . 65
............Alignment and Balance . 181
..........................Compact Spare . 188
...................................Replacing . 181
..............................Wrench, Nut . 190
Windows
..................Operating the Power . 78
...........................Rear, Defogger . 64
Windshield
.......................................Cleaning . 61
.....................................Defroster . 91
.......................................Washers . 61
Wipers, Windshield
.......................Changing Blades . 176
.....................................Operation . 61
....................................Worn Tires . 180
.....Wrecker, Emergency Towing . 209
Transmission
Checking Fluid Level,
..............................Automatic . 165
Checking Fluid Level,
...................................Manual . 167
..................Fluid Selection . 166, 167
..............Identification Number . 213
.............Shifting the Automatic . 138
..................Shifting the Manual . 136
...................................Treadwear . 216
...................Treadwear Indicators . 180
.......................................Trip Meter . 58
................................................Trunk . 70
....................Emergency Opener . 70
........................................Opening . 70
............................Open Indicator . 56
....................................Turn Signals . 62
:U.S.only
Index
INDEX
U
V
W
IX
Main Menu
Service Information Summary
Gasoline:
Fuel Tank Capacity:
Recommended Engine Oil:
Automatic Transmission Fluid: Power Steering Fluid:
Brake Fluid:
Tire Pressure (measured cold):
Manual Transmission Fluid:
13.2 US gal (50
)
30 psi (210 kPa , 2.1 kgf/cm
)
Unleaded gasoline, pump octane
number of 86 or higher.
API Premium grade 5W-20
detergent oil (see page ).
Oil change capacity (including
filter):
Use Honda ATF-Z1 (Automatic
Transmission Fluid) only
Honda Power Steering Fluid
preferred, or another brand of
power steering fluid as a
temporary replacement. Do not
use ATF (see page ).
Honda Heavy Duty Brake Fluid
DOT 3 preferred, or a DOT 3 or
DOT 4 brake fluid as a temporary
replacement (see page ).
Front/Rear:
Spare Tire:
60 psi (420 kPa , 4.2 kgf/cm
)
Honda ATF-Z1 (Automatic
Transmission Fluid) preferred, or
aDEXRON
III ATF as a
temporary replacement (see page
).
Honda Manual Transmission
Fluid preferred, or an SAE 10W-30
or 10W-40 motor oil as a
temporary replacement (see page
).
Capacity (including differential):
1.6 US qt (1.5
)
3.4 US qt (3.2
)
3.7 US qt (3.5
)
HX model (CVT) only:
159
166 169
168
167
U.S.: DX, Value Package, LX,
LX Special Edition
Canada: DX, REVERB, LX
U.S.: HX, EX, EX Special Edition
Canada: Si
Main Menu
