2002 Civic Hatchback Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through this reference.
For a printed owner's manual, click on authorized manuals or go to www.helminc.com.
Contents
Owner's Identification Form
Introduction ......................................................................................................................................... i
A Few Words About Safety.................................................................................................................ii
Your Car at a Glance ...........................................................................................................................2
Driver and Passenger Safety ..............................................................................................................5
Proper use and care of your car's seat belts, and Supplemental Restraint System.
Instruments and Controls.................................................................................................................55
Instrument panel indicator and gauge, and how to use dashboard and steering column controls.
Comfort and Convenience Features ................................................................................................95
How to operate the climate control system, the audio system, and other convenience features.
Before Driving..................................................................................................................................127
What gasoline to use, how to break-in your new car, and how to load luggage and other cargo.
Driving ..............................................................................................................................................141
The proper way to start the engine, shift the transmission, and park, plus towing a trailer.
Maintenance.....................................................................................................................................153
The Maintenance Schedule shows you when you need to take your car to the dealer.
Appearance Care..............................................................................................................................213
Tips on cleaning and protecting your car. Things to look for if your car ever needs body repairs.
Taking Care of the Unexpected......................................................................................................221
This section covers several problems motorists sometimes experience, and how to handle them.
Technical Information.....................................................................................................................247
ID numbers, dimensions, capacities, and technical information.
Warranty and Customer Relations (U.S. and Canada)................................................................261
A summary of the warranties covering your new Honda, and how to contact us.
Authorized Manuals (U.S. only)......................................................................................................265
How to order manuals and other technical literature.
Index ..................................................................................................................................................... I
Service Information Summary
A summary of information you need when you pull up to the fuel pump.
This Owner’s Manual should be considered
a permanent part of the car, and should
remain with the car when it is sold.
This Owner’s Manual covers all models of
the Civic Si. You may find descriptions of
equipment and features that are not on your
particular model.
The information and specifications included
in this publication were in effect at the time
of approval for printing. Honda Motor Co.,
Ltd. reserves the right, however, to
discontinue or change specifications or
design at any time without notice and
without incurring any obligation whatsoever.
Owner’s Identification
OWNER
ADDRESS
V. I. N.
DELIVERY DATE
DEALER NAME DEALER NO.
ADDRESS
OWNER’S SIGNATURE
DEALER’S SIGNATURE
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
(Date sold to original retail purchaser)
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
Main Menu
Several warranties protect your new Honda. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.
As you read this manual, you will
find information that is preceded by
a symbol. This
information is intended to help you
avoid damage to your Honda, other
property, or the environment.
One of the best ways to enhance the enjoyment of your new Honda is to
read this manual. In it, you will learn how to operate its driving controls and
convenience items. Afterwards, keep this owner’s manual in your car so you
can refer to it at any time.
Maintaining your car according to the schedules given in this manual helps
to keep your driving trouble-free while it preserves your investment. When
your car needs maintenance, keep in mind that your Honda dealer’s staff is
specially trained in servicing the many systems unique to your Honda. Your
Honda dealer is dedicated to your satisfaction and will be pleased to answer
any questions and concerns.
Congratulations! Your selection of a 2002 Honda Civic was a wise investment.
It will give you years of driving pleasure.
California Proposition 65 Warning
This product contains or emits chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
Introduction
WARNING:
i
Main Menu
−
−
−
−
−
−
To help you make informed
decisions about safety, we have
provided operating procedures and
other information on labels and in
this manual. This information alerts
you to potential hazards that could
hurt you or others.
You will find this important safety information in a variety of forms,
including:
These signal words mean:
preceded by a safety alert symbol and one of
three signal words: , , or .
such as Driver and Passenger Safety.
This entire book is filled with important safety information please read it
carefully.
such as Important Safety Reminders or Important
Safety Precautions.
Your safety, and the safety of others,
is very important. And operating this
car safely is an important
responsibility.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your car. You must use
your own good judgement.
on the car.
how to use this car correctly and safely.
AFewWordsAboutSafety
Safety Messages
Safety Section
Safety Headings
Safety Labels
Instructions
DANGER WARNING CAUTION
ii
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
Main Menu
Your Car at a Glance
2
((PP.. 7755))
PPOOWWEERR WWIINNDDOOWW
SSWWIITTCCHHEESS
((PP.. 8855))
FFUUEELL FFIILLLL
DDOOOORR RREELLEEAASSEE
((PP.. 112299))
MM//TT ((PP.. 114466))
AAIIRRBBAAGGSS
HHOOOODD RREELLEEAASSEE
HHAANNDDLLEE
AAUUDDIIOO SSYYSSTTEEMM
GGAAUUGGEESS
((PP.. 110044))
HHEEAATTIINNGG//
CCOOOOLLIINNGG CCOONNTTRROOLLSS
((PP.. 9966))
((PP.. 113300))
PPOOWWEERR DDOOOORR LLOOCCKKSS
((PP.. 6633))
((PP.. 99,, 4466))
Main Menu
＊＊
＊
: To use the horn, press the center pad of the steering wheel.
Your Car at a Glance
3
HHAAZZAARRDD WWAARRNNIINNGG LLIIGGHHTTSS
HHOORRNN
MMIIRRRROORR CCOONNTTRROOLLSS
CCRRUUIISSEE CCOONNTTRROOLL
((PP.. 8888))
((PP.. 112244))
HHEEAADDLLIIGGHHTTSS//
TTUURRNN SSIIGGNNAALLSS
((PP.. 7700))
WWIINNDDSSHHIIEELLDD WWIIPPEERRSS//WWAASSHHEERRSS
RREEAARR WWIINNDDOOWW DDEEFFOOGGGGEERR
((PP.. 7711))
TTIILLTT AADDJJUUSSTTMMEENNTT
CCRRUUIISSEE CCOONNTTRROOLLSS
((PP.. 7700))
((PP.. 6688//6699))
((PP.. 6666//6688))
((PP.. 112244))
Main Menu
4
Main Menu
This section gives you important
information about how to protect
yourself and your passengers. It

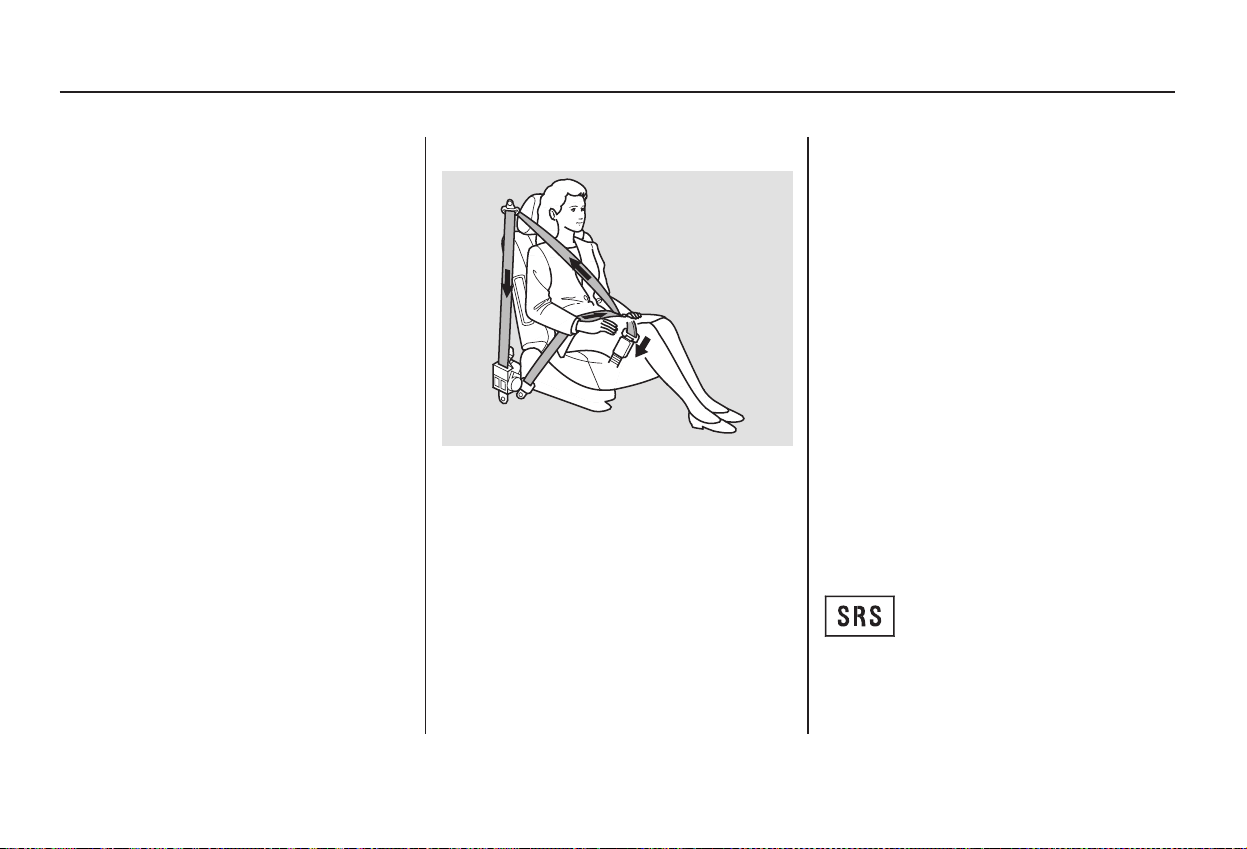

shows you how to use seat belts
properly. It explains your Supple-
mental Restraint System. And it tells
you how to properly restrain infants
andchildreninyourcar.
.........Important Safety Precautions . 6
.............Your Car’s Safety Features . 7
.......................................Seat Belts . 8
...........................................Airbags . 9
.....................Seats & Seat-Backs . 10
..........................Head Restraints . 10
..................................Door Locks . 11
........Pre-Drive Safety Checklist . 11
............................Protecting Adults . 12
.....1. Close and Lock the Doors . 12
...........2. Adjust the Front Seats . 12
............3. Adjust the Seat-Backs . 13
...4. Adjust the Head Restraints . 14
5. Fasten and Position the Seat
.....................................Belts . 15
....6. Adjust the Steering Wheel . 17
7. Maintain a Proper Sitting
................................Position . 17
.....Advice for Pregnant Women . 18
...Additional Safety Precautions . 18
........................Protecting Children . 20
All Children Must Be
...............................Restrained . 20
Children Should Sit in the Back
...........................................Seat . 21
The Passenger’s Airbag Poses
......Serious Risks to Children . 21
If You Must Drive with Several
...................................Children . 24
If a Child Requires Close
..................................Attention . 24
.....Additional Safety Precaution . 24
General Guidelines for Using
...............................Child Seats . 25
.......................Protecting Infants . 29
.........Protecting Small Children . 32
.......Protecting Larger Children . 35
Using Child Seats with
.....................................Tethers . 39
Additional Information About Your
.................................Seat Belts . 43
..Seat Belt System Components . 43
......................Lap/Shoulder Belt . 43
Automatic Seat Belt
...............................Tensioners . 44
...............Seat Belt Maintenance . 45
Additional Information About Your
.....................................Airbags . 46
....................Airbag Components . 46
How Your Front Airbags
.........................................Work . 46
...How Your Side Airbags Work . 48
How the SRS Indicator Light
.......................................Works . 48
How the Side Airbag Cutoff
...........Indicator Light Works . 49
.............................Airbag Service . 50
...Additional Safety Precautions . 51
.............Carbon Monoxide Hazard . 52

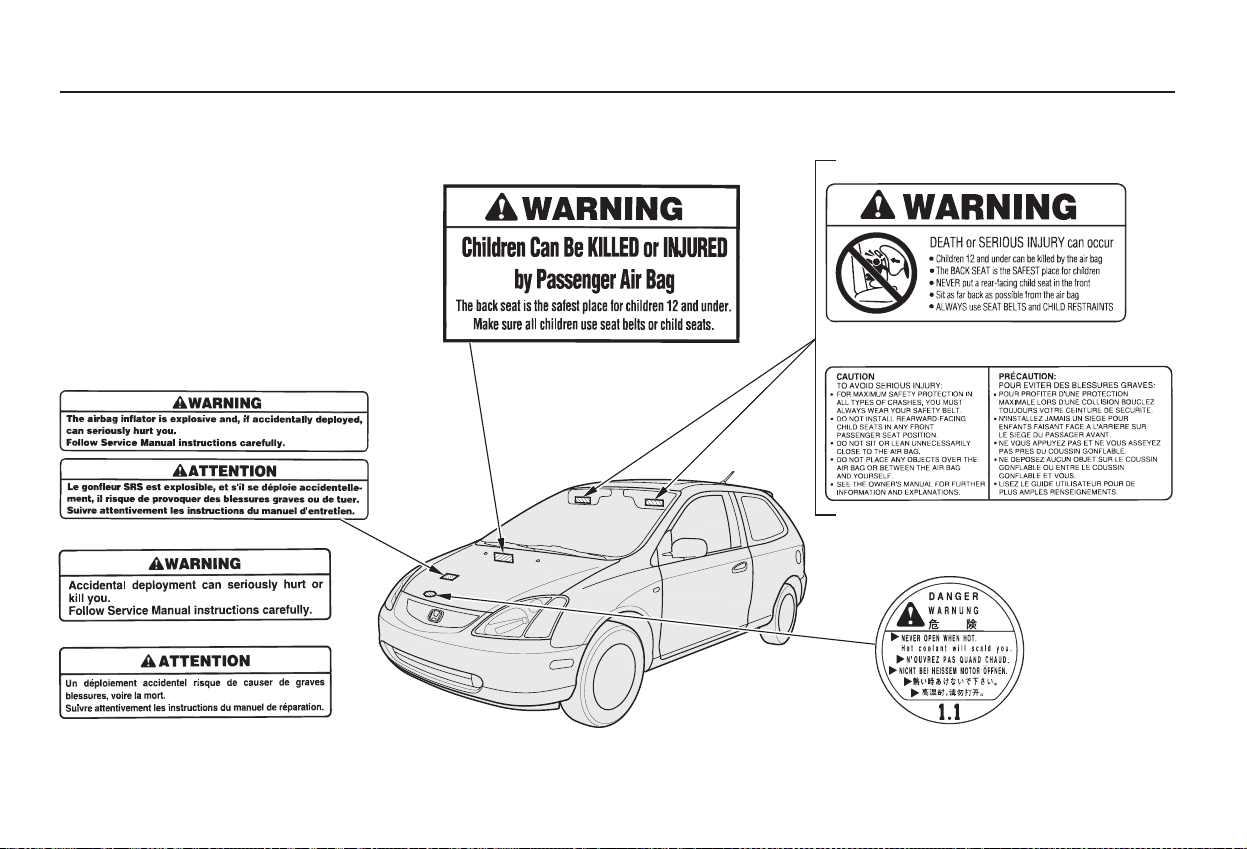

...................................Safety Labels . 53
Driver and Passenger Safety
Driver and Passenger Safety
5
Main Menu
You’ll find many safety
recommendations throughout this
section, and throughout this manual.
Therecommendationsonthispage
are the ones we consider to be the
most important.
Alcohol and driving don’t mix. Even
one drink can reduce your ability to
respond to changing conditions, and
your reaction time gets worse with
every additional drink. So don’t drink
and drive, and don’t let your friends
drink and drive, either.
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed the greater the
risk, but serious accidents can also
occur at lower speeds. Never drive
faster than is safe for current
conditions, regardless of the
maximum speed posted.A seat belt is your best protection in
all types of collisions. Airbags
supplement seat belts, but airbags
are designed to inflate only in a
moderate to severe frontal collision.
So even though your car is equipped
with airbags, make sure you and
your passengers always wear your
seat belts, and wear them properly.
(See page .)
While airbags can save lives, they
can cause serious or fatal injuries to
occupants who sit too close to them,
or are not properly restrained.
Infants, young children, and short
adults are at the greatest risk. Be
sure to follow all instructions and
warnings in this manual. (See page
.)
Children are safest when they are
properly restrained in the back seat,
notthefrontseat.Achildwhoistoo
smallforaseatbeltmustbeproperly
restrained in a child safety seat. (See
page .)
Having a tire blowout or a
mechanical failure can be extremely
hazardous. To reduce the possibility
of such problems, check your tire
pressures and condition frequently,
and perform all regularly scheduled
maintenance. (See page .)15
9
20
156
Driver and Passenger Safety
Important Safety Precautions
Always Wear Your Seat Belt
Be Aware of Airbag Hazards Control Your Speed
Don’t Drink and Drive
Keep Your Car in Safe Condition
Restrain All Children
6
Main Menu
Table of Contents
＊＊
＊＊
Your car is equipped with many
features that work together to
protect you and your passengers
during a crash.
Some safety features do not require
anyactiononyourpart.These
include a strong steel framework
that forms a safety cage around the
passenger compartment; front and
rear crush zones that are designed to
crumple and absorb energy during a
crash; a collapsible steering column;
and seat belt tensioners that
automatically tighten the front seat
belts in the event of a crash.
These safety features are designed
to reduce the severity of injuries in a
crash. However, you and your
passengers can’t take full advantage
of these safety features unless you
remain sitting in a proper position
and
In fact, some safety
features can contribute to injuries if
they are not used properly.
Driver and Passenger Safety
Your Car’s Safety Features
always wear your seat belts
properly.
7
((11))
((22))
((77))
((88))
((88))
((77))
((66))
((55))
((66))
((99))
((22))
((33))
((44))
((11)) SSaaffeettyy CCaaggee
((22)) CCrruusshh ZZoonneess
((33)) SSeeaattss && SSeeaatt--BBaacckkss
((44)) HHeeaadd RReessttrraaiinnttss
((55)) CCoollllaappssiibbllee SStteeeerriinngg CCoolluummnn
((66)) SSeeaatt BBeellttss
((77)) FFrroonntt AAiirrbbaaggss
((88)) SSiiddee AAiirrbbaagg
((99)) SSeeaatt BBeelltt TTeennssiioonneerrss
SSiiddee aaiirrbbaaggss aarree nnoott aavvaaiillaabbllee oonn tthhee
CCaannaaddiiaann mmooddeell..
:: OOppttiioonnaall iinn UU..SS..
Main Menu
Table of Contents
Your seat belt system also
includes a light on the
instrument panel to remind you and
your passengers to fasten your seat
belts.
Seat belts are the single most
effectivesafetydeviceforadultsand
larger children. (Infants and smaller
children must be properly restrained
in child seats.)
In addition, most states and all
Canadian provinces require you to
wear seat belts.
When properly worn, seat belts:
Foryoursafety,andthesafetyof
your passengers, your car is
equipped with seat belts in all seating
positions.
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your car has airbags.
Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in safety features.
Help protect you in almost every
type of crash, including frontal,
side, and rear impacts and
rollovers.
Help keep you from being thrown
against the inside of the vehicle
and against other occupants.
Keep you from being thrown out
of the vehicle.
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury from an inflating airbag, and
allows you to get the best
advantage from the airbag.
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.
Always wear
your seat belt, and make sure you
wear it properly.
Driver and Passenger Safety
Seat Belts
Why Wear Seat Belts
What you should do:
Your Car’s Safety Features
8
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
if you have airbags.
Be sure you and your
passengers always wear seat
belts and wear them properly.
Main Menu
Table of Contents
The most important things you need
to know about your airbags are:
Your car also has side airbags to help
protect the upper torso of the driver
or a front seat passenger during a
moderate to severe side impact.

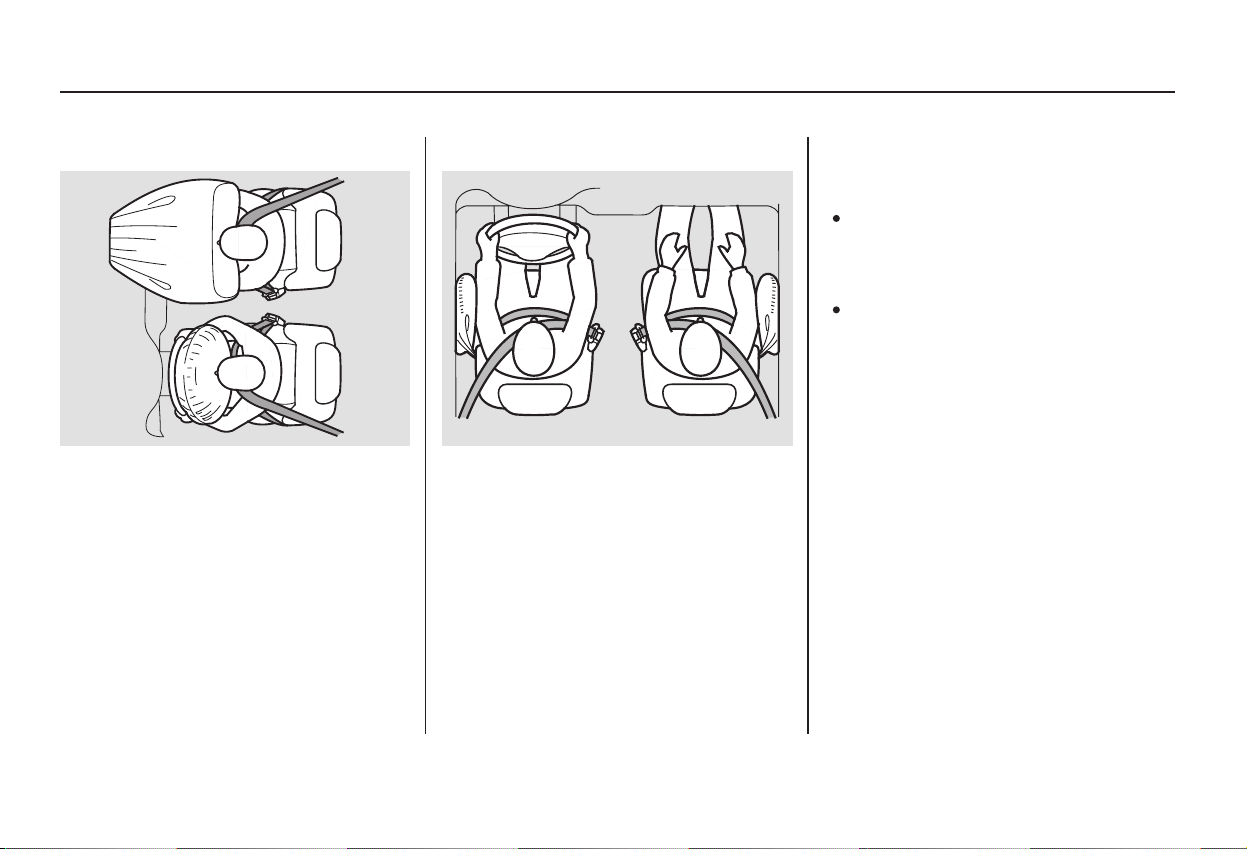

Your car has a Supplemental
Restraint System (SRS) with front
airbags to help protect the heads and
chests of the driver and a front seat
passenger during a moderate to
severe frontal collision.
They are designed to supplement
the seat belts.
Optional in U.S.
Driver and Passenger Safety
Airbags
Your Car’s Safety Features
Airbags do not replace seat belts.
Airbags offer no protection in rear
impacts, rollovers, or minor
frontal or side collisions.
9
Main Menu
Table of Contents
Move the front
seats as far back as possible, and
keep adjustable seat-backs in an
upright position whenever the car is
moving.
Head restraints can help protect you
from whiplash and other injuries. For
maximum protection, the back of
your head should rest against the
center of the head restraint.
Your car’s seats are designed to keep
you in a comfortable, upright
position so you can take full
advantage of the protection offered
by seat belts and the energy
absorbing materials in the seats.
How you adjust your seats and seat-
backs can also affect your safety. For
example, sitting too close to the
steering wheel or dashboard
increases the risk of you or your
passenger being injured by striking
theinsideofthecar,orbyan
inflating airbag.
Reclining a seat-back too far reduces
the seat belt’s effectiveness and
increases the chance that the seat’s
occupant will slide under the seat
belt in a crash and be seriously
injured.
To do their job, airbags must
inflate with tremendous force and
speed. So while airbags help save
lives, they can cause minor injuries,
or more serious or even fatal
injuries if occupants are not
properly restrained or sitting
properly.
Always wear
your seat belt properly, and sit
upright and as far back as possible
from the steering wheel or
dashboard.
Driver and Passenger Safety
Your Car’s Safety Features
What you should do:Airbags can pose serious hazards.
What you should do:
Head Restraints
Seats & Seat-Backs
10
Main Menu
Table of Contents
Any infant or small child is
properly restrained in a child seat
inthebackseat(seepage ).
Seat-backs are upright (see page
).
Head restraints are properly
adjusted (see page ).
The rest of this section gives more
detailed information about how you
can maximize your safety.
Remember, however, that no safety
system can prevent all injuries or
deaths that can occur in severe
crashes, even when seat belts are
properly worn and the airbags deploy.
All adults, and children who have
outgrown child safety seats, are
wearing their seat belts and
wearingthemproperly(seepage
).
All cargo is properly stored or
secured (see page ).
Frontseatoccupantsaresitting
upright and as far back as possible
from the steering wheel and
dashboard (see page ).
Keeping your doors locked reduces
thechanceofbeingthrownoutof
the car during a crash. It also helps
prevent occupants from accidentally
opening a door and falling out, and
outsiders from unexpectedly opening
your doors.
To make sure you and your
passengers get the maximum
protection from your car’s safety
features, check the following each
time before you drive away:
Both doors and the hatch are
closed and locked (see page ).
15
12
13
12
20
137
14
Driver and Passenger Safety
Door Locks Pre-Drive Safety Checklist
Your Car’s Safety Features
11
Main Menu
Table of Contents
The following pages provide
instructions on how to properly
protect the driver and other adult
occupants.
These instructions also apply to
children who have outgrown child
seats and are large enough to wear
lap/shoulder belts. (See page for
important additional guidelines on
how to properly protect larger
children.)
After everyone has entered the car,
be sure the doors are closed and
locked.
For safety, locking the doors reduces
the chance that a passenger,
especially a child, will open a door
while the car is moving and
accidentally fall out. It also reduces
the chance of someone being thrown
out of the car during a crash.
For security, locked doors can
prevent an outsider from
unexpectedly opening a door when
you come to a stop.
See page for how to lock the
doors.
Any driver who sits too close to the
steering wheel is at risk of being
seriously injured or killed by striking
the steering wheel, or from being
struck by an inflating front airbag
during a crash.
35
75
Driver and Passenger Safety
Protecting Adults
Introduction Adjust the Front SeatsClose and Lock the Doors1. 2.
12
Main Menu
Table of Contents
CONTINUED
Adjust the driver’s seat-back to a
comfortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel. If you
sit too close to the steering wheel,
you could be injured if the front
airbag inflates.
See page for how to adjust the
front seats.
Once your seat is adjusted correctly,
rock it back and forth to make sure
the seat is locked in position.
Most shorter drivers can get far
enough away from the steering
wheel and still reach the pedals.
However, if you are concerned about
sitting too close, we recommend that
you investigate whether some type
of adaptive equipment may help.
To reduce the chance of injury, wear
your seat belt properly, sit upright
with your back against the seat, and
movetheseatawayfromthe
steering wheel to the farthest
distance that allows you to maintain
full control of the car.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
adjust the seat so the center of the
chest is at least 10 inches (25 cm)
away from the center of the steering
wheel.Alsomakesureyourfront
seat passenger moves the seat as far
to the rear as possible.
81
Driver and Passenger Safety
Protecting Adults
Adjust the Seat-Backs3.
13
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
Main Menu
Table of Contents
A front passenger should also adjust
the seat-back to an upright position,
but as far from the dashboard as
possible. A passenger who sits too
close to the dashboard could be
injured if the airbag inflates.
Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
See page for how to adjust seat-
backs.

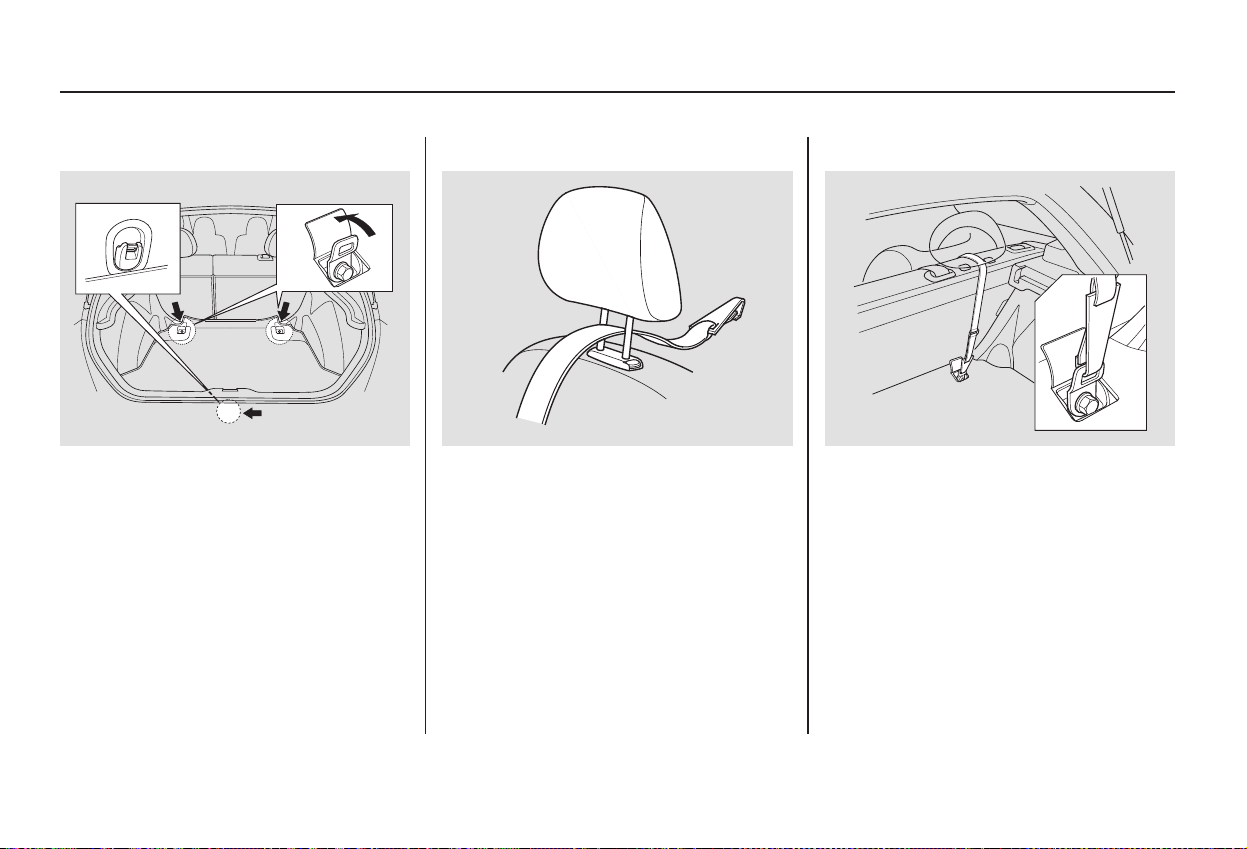

Before driving, make sure everyone
with an adjustable head restraint has
properly positioned the head
restraint. The restraint should be
positioned so the back of the
occupant’s head rests against the
center of the restraint. A taller
person should adjust the restraint as
high as possible.
81
Driver and Passenger Safety
Protecting Adults
Adjust the Head Restraints4.
14
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position and sit well
back in the seat.
Main Menu
Table of Contents
CONTINUED
Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part fits snugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.
Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Also check
that the belt is not twisted, because a
twisted belt can cause serious
injuries in a crash.
Properly adjusted head restraints
will help protect occupants from
whiplash and other crash injuries.
See page for how to adjust the
head restraints.
82
Driver and Passenger Safety
Protecting Adults
Fasten and Position the Seat
Belts
5.
15
Improperly positioning head
restraints reduces their
effectiveness and you can be
seriously injured in a crash.
Make sure head restraints are in
place and positioned properly
before driving.
Main Menu
Table of Contents
If necessary, pull up on the belt again
to remove any slack from the
shoulder part, then check that the
belt rests across the center of your
chest and over your shoulder. This
spreads the forces of a crash over
the strongest bones in your upper
body.
If the seat belt touches or crosses
your neck, or if it crosses your arm
instead of your shoulder, you need to
adjust the seat belt anchor height.
To adjust the height of a front seat
belt anchor, squeeze the two release
buttons and slide the anchor up or
down as needed (it has four
positions).
This could cause
very serious injuries in a crash.
If a seat belt does not seem to work
as it should, it may not protect the
occupant in a crash.
Anyone using a seat belt that is
not working properly can be
seriously injured or killed. Have your
Honda dealer check the belt as soon
as possible.
See page for additional
information about your seat belt
system and how to take care of your
belts.
43
Driver and Passenger Safety
Protecting Adults
Never place the shoulder portion of a
lap/shoulder belt under your arm or
behind your back.
No one should
sit in a seat with an inoperative seat
belt.
16
RREELLEEAASSEE
BBUUTTTTOONN
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
Main Menu
Table of Contents
Remember, to get the best
protection from your car’s airbags
and other safety features, you must
sit properly and wear your seat belt
properly.
After all occupants have adjusted
their seats and put on seat belts, it is
very important that they continue to
sit upright, well back in their seats,
with their feet on the floor, until the
car is parked and the engine is off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both feet up, the
chance of injury during a crash is
greatly increased.
In addition, an occupant who is out of
position in the front seat can be
seriously or fatally injured by
striking interior parts of the car, or
by being struck by an inflating front
airbag. Being struck by an inflating
side airbag can result in possibly
serious injuries.
Adjust the steering wheel, if needed,
so that the wheel points toward your
chest, not toward your face.
Pointing the steering wheel toward
your chest provides optimal
protection from the airbag.
See page for how to adjust the
steering wheel.
71
Protecting Adults
Driver and Passenger Safety
Maintain a Proper Sitting
Position
Adjust the Steering Wheel6. 7.
17
Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on the
floor.
Main Menu
Table of Contents
Pregnant women should also sit
upright and as far back as possible
from the steering wheel or
dashboard. This will reduce the risk
of injuries to both the mother and
her unborn child that can be caused
by a crash or an inflating airbag.
Each time you have a check-up, ask
your doctor if it’s okay for you to
drive.
If they do, they
couldbeveryseriouslyinjuredina
crash.
Devices intended to improve
occupant comfort or reposition the
shoulder part of a seat belt can
severely compromise the
protective capability of the seat
belt and increase the chance of
serious injury in a crash.
Because protecting the mother is the
best way to protect her unborn child,
a pregnant woman should always
wear a seat belt whenever she drives
or rides in a vehicle.
Remember to keep the lap portion of
the belt as low as possible across
your hips.
Advice for Pregnant Women Additional Safety Precautions
Two people should never use the
same seat belt.
Do not put any accessories on seat
belts.
Protecting Adults
Driver and Passenger Safety
18
Main Menu
Table of Contents
If a side airbag
inflates,acupholderorotherhard
object attached on or near the
door could be propelled inside the
vehicle and hurt someone.
If your
hands or arms are close to the
airbag cover in the center of the
steering wheel or on top of the
dashboard, they could be injured if
the front airbag inflates.
Any object
attached to or placed on the covers
marked ‘‘SRS AIRBAG’’ in the
center of the steering wheel and
on top of the dashboard could
interfere with the proper operation
of the airbags. Or, if the airbags
inflate, the objects could be
propelled inside the car and hurt
someone.
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp object in
your mouth, can result in injuries
if your front airbag inflates.
Protecting Adults
Driver and Passenger Safety
On models with side airbags, do
not attach hard objects on or near
a front door.
Keep your hands and arms away
from the airbag covers.
Do not attach or place objects on
the front airbag covers.
Do not place hard or sharp objects
between yourself and a front
airbag.
19
Main Menu
Table of Contents
Children depend on adults to protect
them. However, despite their best
intentions, many parents and other
adults may not know how to
protect young passengers. (See page
.)
(See page
.)
To reduce the number of child
deaths and injuries, every state and
Canadian province requires that
infants and children be restrained
whenever they ride in a vehicle.
Each year, many children are injured
or killed in vehicle crashes because
they are either unrestrained or not
properly restrained. In fact, vehicle
accidents are the number one cause
of death of children ages 12 and
under.
So if you have children, or if you ever
need to drive with a grandchild or
otherchildreninyourcar,besureto
read this section.
25
35
properly
All Children Must Be Restrained
Anychildwhoistoosmalltoweara
seat belt should be properly
restrained in a child seat.
A larger child should always be
restrained with a seat belt.
Protecting Children
Driver and Passenger Safety
20
Children who are unrestrained
or improperly restrained can be
seriously injured or killed in a
crash.
Any child too small for a seat
belt should be properly
restrained in a child seat. A
larger child should be properly
restrained with a seat belt.
Main Menu
Table of Contents
According to accident statistics,
children of all ages and sizes are
safer when they are restrained in the
back seat, not the front seat. The
National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
ages 12 and under be properly
restrained in the back seat.
In the back seat, children are less
likely to be injured by striking hard
interior parts during a collision or
hard braking. Also, children cannot
be injured by an inflating airbag
when they ride in the back.
If you are not wearing a
seat belt in a crash, you could be
thrown forward into the
dashboard and crush the child.
Ifyouarewearingaseatbelt,the
child can be torn from your arms
during a crash. For example, if
your car crashes into a parked
vehicleat30mph(48km/h),a
20-lb (9 kg) infant will become a
600-lb (275 kg) force, and you will
not be able to hold on.
During a
crash, the belt could press deep
into the child and cause very
serious injuries.
Front airbags have been designed to
help protect adults in a moderate to
severe frontal collision. To do this,
the passenger’s front airbag is quite
large, and it inflates with tremendous
speed.
If
the airbag inflates, it can hit the back
of the child seat with enough force
to kill or very seriously injure an
infant.
CONTINUED
The Passenger’s Airbag Poses
Serious Risks to Children
Children Should Sit in the Back
Seat
Infants
Additional Precautions to Parents
Neverholdaninfantorchildon
your lap.
Never put a seat belt over yourself
and an infant or child.
Never put a rear-facing child seat in
the front seat of a vehicle equipped
with a passenger’s front airbag.
Driver and Passenger Safety
Protecting Children
21
Main Menu
Table of Contents
If the vehicle seat is
too far forward, or the child’s head is
thrown forward during a collision, an
inflating front airbag can strike the
child with enough force to kill or
very seriously injure a small child.
To remind you of the passenger’s
airbag hazards, and that children
must be properly restrained in the
back seat, your car has warning
labels on the dashboard and on the
driver’s and front passenger’s visors.
Please read and follow the
instructions on these labels.
Whenever possible,
larger children should sit in the back
seat, properly restrained with a seat
belt. (See page for important
information about protecting larger
children.)
35
Protecting Children
Driver and Passenger Safety
Small Children
Placing a forward-facing child seat in
the front seat of a vehicle equipped
with a passenger’s front airbag can
be hazardous.
U.S. Models
Children who have outgrown child
seats are also at risk of being injured
or killed by an inflating passenger’s
front airbag.
Larger Children
22
Main Menu
Table of Contents
To remind you of the airbag hazards,
your car has warning labels on the
driver’s and front passenger’s visors.
Please read and follow the
instructions on these labels.
Protecting Children
Driver and Passenger Safety
Canadian Models
23
Main Menu
Table of Contents
Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous. For
example, infants and small
childrenleftinavehicleonahot
day can die from heatstroke. And
children left alone with the key in
the ignition can accidentally set
the vehicle in motion, possibly
injuring themselves or others.
Many parents say they prefer to put
an infant or small child in the front
passenger seat so they can watch the
child, or because the child requires
attention.If you ever have to carry more than
three children in your car:
Place the largest child in the front
seat, provided the child is large
enough to wear a seat belt
properly (see page ).
Move the vehicle seat as far to the
rear as possible (see page ).
Have the child sit upright and well
backintheseat(seepage ).
Make sure the seat belt is properly
positioned and secured (see page
).
Placing a child in the front seat
exposes the child to hazards from
the passenger’s front airbag, and
paying close attention to a child
distracts the driver from the
important tasks of driving, placing
both of you at risk.
If a child requires physical attention
or frequent visual contact, we
strongly recommend that another
adult ride with the child in the back
seat. The back seat is far safer for a
child than the front.
Your car has three seating positions
in the back seat where children can
be properly restrained.
12
15
35
17
Additional Safety PrecautionIf a Child Requires Close
Attention
If You Must Drive with Several
Children
Do not leave children alone in your
vehicle.
Protecting Children
Driver and Passenger Safety
24
Main Menu
Table of Contents
Childrenuptoaboutone
year old should be restrained in a
rear-facing, reclining child seat. Only
a rear-facing seat provides the
proper support to protect an infant’s
head, neck, and back. See page
for additional information on
protecting infants.
The following pages give general
guidelines for selecting and installing
child seats for infants and small
children.
To provide proper protection, a child
seat should meet three
requirements:
The child seat should
meet Federal Motor Vehicle
Safety Standard 213 (FMVSS 213)
or Canadian Motor Vehicle Safety
Standard 213 (CMVSS 213). Look
for the manufacturer’s statement
of compliance on the box and seat.
Children who play in cars can
accidentally get trapped inside the
car. Teach your children not to
play in or around cars.
Even very young
children learn how to unlock
vehicle doors, turn on the ignition,
and open the hatch, which can
lead to accidental injury or death.
29
CONTINUED
Infants:
Selecting a Child Seat
The child seat should meet safety
standards.
The child seat should be of the
proper type and size to fit the child.
Lock both doors and the hatch
when your car is not in use.
Keep car keys and remote
transmitters out of the reach of
children.
1.
2.
General Guidelines for Using
Child Seats
Protecting Children
Driver and Passenger Safety
25
Main Menu
Table of Contents
A child who is too
large for a rear-facing child seat, and
who can sit up without support,
should be restrained in a forward-
facing child seat. See page for
additional information on protecting
small children.
Due to variations in the design of
child seats, vehicle seats, and seat
belts, all child seats will not fit all
vehicle seating positions.
However, Honda is confident that
one or more child seat models can fit
andbeproperlyinstalledinall
recommended seating positions in
your car.
Before purchasing a child seat, we
recommend that parents test the
child seat in the specific vehicle
seating position (or positions) where
they intend to use the seat. If a
previously purchased child seat does
not fit, you may need to buy a
different one that will fit.
32
Small Children:
The child seat should fit the
vehicle seating position (or
positions) where it will be used.
3.
Protecting Children
Driver and Passenger Safety
26
Main Menu
Table of Contents
Not recommended,
due to the passenger’s airbag
hazard. If a small child must ride
in front, move the vehicle seat to
the rear-most position and secure
a front-facing child seat with the
seat belt (see page ).
Never in the front seat, due
to the passenger’s airbag hazard.
This page briefly summarizes
Honda’s recommendations on where
to place rear-facing and forward-
facing child seats in your car.
The passenger’s front airbag
inflates with enough force to kill
or seriously injure an infant in a
rear-facing child seat.
A small child in a forward-facing
child seat is also at risk. If the
vehicle seat is too far forward,
or the child’s head is thrown
forward during a collision, an
inflating airbag can kill or
seriously injure the child.
If a small child must ride in the
front, follow the instructions
provided in this section.
Recommended positions.
Properlysecurearear-facingchild
seat (see page ).
Recommended
positions. Properly secure a front-
facing child seat (see page ).
33
29
32
Placing a Child Seat
Small children:
Front Passenger’s Seat
Infants:
Back Seats
Infants:
Small children:
Airbags Pose Serious
Risks to Children
Protecting Children
Driver and Passenger Safety
27
Main Menu
Table of Contents
After selecting a proper child seat,
and a good position to install the seat,
there are three main steps in
installing the seat:
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
canbethrownoutoftheseatina
crash and be seriously injured.
To provide security during normal
driving maneuvers as well as during
a collision, we recommend that
parents secure a child seat as firmly
as possible.
However, a child seat does not need
to be ‘‘rock solid.’’ In some vehicles
or seating positions, it may be
difficult to install a child seat so that
it does not move at all. Some side-to-
side or back-and-forth movement can
be expected and should not reduce
the child seat’s effectiveness.
When you are not using a child seat,
either remove it and store it in a safe
place, or make sure it is properly
secured. An unsecured child seat can
be thrown around the car during a
crash or sudden stop and injure
someone.
If the child seat is not secure, try
installing it in a different seating
position, or use a different style of
child seat that can be firmly secured
in the desired seating position.
All child seats are
designed to be secured to the car
with the lap part of a lap/shoulder
belt. Some child seats can be
secured to the vehicle’s LATCH
anchorage system instead. A child
whose seat is not properly secured
to the car can be endangered in a
crash. See pages , and for
instructions on how to properly
secure child seats in this car.
After installing a child
seat, push and pull the seat
forward and from side to side to
verify that it is secure.
29 30 31
Installing a Child Seat Secure the child in the child seat.
Storing a Child Seat
Properly secure the child seat to
the car.
Make sure the child seat is firmly
secured.
1.
2.
3.
Protecting Children
Driver and Passenger Safety
28
Main Menu
Table of Contents
Only a rear-facing child seat provides
proper support for a baby’s head,
neck, and back. Infants up to about
one year of age must be restrained in
a rear-facing child seat.
We recommend that an infant be
restrained in a rear-facing child seat
until the infant reaches the seat
maker’s weight or height limit and is
able to sit up without support.
Two types of seats may be used: a
seat designed exclusively for infants,
or a convertible seat used in the rear-
facing, reclining mode.
In this car, a rear-facing child seat
can be placed in any seating position
in the back seat, but not in the front
seat.
If the passenger’s
front airbag inflates, it can hit the
back of the child seat with enough
forcetokillorseriouslyinjurean
infant. If an infant must be closely
watched, we recommend that
another adult sit in the back seat
with the baby.
If placed
facing forward, an infant could be
very seriously injured during a
frontal collision.
When properly installed, a rear-
facing child seat may prevent the
driver or a front-seat passenger from
moving the seat as far back as
recommended (see page ). Or it
may prevent them from locking the
seat-back in the desired upright
position (see page ).13
12
CONTINUED
Protecting Infants
Child Seat Type
Rear-Facing Child Seat Placement
Never put a rear-facing child seat in
the front seat.
Do not put a rear-facing child seat in
a forward-facing position.
Driver and Passenger Safety
Protecting Children
29
Placing a rear-facing child seat
in the front seat can result in
serious injury or death if the
passenger’s front airbag inflates.
Always place a rear-facing child
seat in the back seat, not the
front.
Main Menu
Table of Contents
With the child seat in the desired
back seating position, route the
belt through the child seat
according to the seat maker’s
instructions, then insert the latch
plate into the buckle.
To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor (you might hear a
clicking noise as the belt retracts).
After the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
the belt out, it is not locked and
you will need to repeat these steps.
In either case, we recommend that
you place the child seat directly
behind the front passenger seat,
move the front seat as far forward as
needed, and leave it unoccupied. Or
you may wish to get a smaller child
seat that allows you to safely carry a
front passenger.
The lap/shoulder belts in the back
seats have a locking mechanism that
must be activated to secure a child
seat.
The following pages provide
instructions on how to secure a rear-
facing child seat with this type of
seat belt.
If you have a child seat designed to
attach to the vehicle’s LATCH
anchorage system, follow the
instructions on page .
1. 2.
3.
40
Protecting Children
Driver and Passenger Safety
Rear-Facing Child Seat Installation
30
Main Menu
Table of Contents
After confirming that the belt is
locked, grab the shoulder part of
the belt near the buckle and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat, while
pulling up on the belt.
Push and pull the child seat
forward and from side to side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract fully, then repeat these
steps.
To deactivate the locking
mechanism and remove a child seat,
unlatch the buckle, unroute the seat
belt, and let the belt fully retract.
Forproperprotection,aninfantmust
ride in a reclined, or semi-reclined
position. To determine the proper
reclining angle, check with the baby’s
doctor or follow the seat maker’s
recommendations.
To achieve the desired reclining
angle, it may help to put a rolled up
towel under the toe of the child seat,
as shown.
4. 5.
Protecting Children
Driver and Passenger Safety
Rear-Facing Child Seat Installation
Tips
31
Main Menu
Table of Contents
A child who can sit up without
support, and who fits within the child
seat maker’s weight and height
limits, should be restrained in a
forward-facing, upright child seat.
Of the different seats available, we
recommend those that have a five-
point harness system as shown.
We also recommend that a small
child stay in the child seat as long as
possible, until the child reaches the
weight or height limit for the seat.
In this car, the best place to install a
forward-facing child seat is in one of
the seating positions in the back seat.
If the vehicle seat is
too far forward, or the child’s head is
thrown forward during a collision, an
inflating front airbag can strike the
child with enough force to cause
very serious or fatal injuries. If a
small child must be closely watched,
we recommend that another adult sit
in the back seat with the child.
Protecting Children
Driver and Passenger Safety
Protecting Small Children
Child Seat Type
Child Seat Placement
Placing a forward-facing child seat in
the front seat of a vehicle equipped
with a passenger’s front airbag can
be hazardous.
32
Main Menu
Table of Contents
With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle.
If it is necessary to put a forward-
facing child seat in the front, move
the vehicle seat as far to the rear as
possible, be sure the child seat is
firmly secured to the car, and the
child is properly strapped in the seat.
The lap/shoulder belts in the back
and front passenger seating positions
have a locking mechanism that must
be activated to secure a child seat.
The following pages provide
instructions on how to secure a
forward-facing child seat with this
type of seat belt.
If you have a child seat designed to
attach to the vehicle’s LATCH
anchorage system, follow the
instructions on page .
1.
40
CONTINUED
Protecting Children
Driver and Passenger Safety
Child Seat Installation
33
Improperly placing a forward-
facing child seat in the front
seat can result in serious injury
or death if the front airbags
inflate.
Ifyoumustplaceaforward-
facing child seat in front, move
the vehicle seat as far back as
possible and properly restrain
the child.
Main Menu
Table of Contents
Pushandpullthechildseat
forward and from side to side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract fully, then repeat these
steps.
After confirming that the belt is
locked, grab the shoulder part of
the belt near the buckle and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure. It
mayhelptoputweightonthe
child seat, or push on the back of
the seat, while pulling up on the
belt.
To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor (you might hear a
clicking noise as the belt retracts).
After the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
the belt out, it is not locked and
you will need to repeat these steps.
2.
3.
4. 5.
Protecting Children
Driver and Passenger Safety
34
Main Menu
Table of Contents
To deactivate the locking
mechanism in order to remove a
child restraint system, unlatch the
buckle, unroute the seat belt, and let
the belt fully retract.
When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in one of the outer
back seats and wear a lap/shoulder
belt.
If a child is too short for the shoulder
part of the belt to properly fit, we
recommend that the child use a
booster seat until the child is tall
enough to use the seat belt without a
booster.
The following pages give
instructions on how to check proper
seat belt fit, what kind of booster
seat to use if one is needed, and
important precautions for a child
who must sit in the front seat.
CONTINUED
Protecting Larger Children
Driver and Passenger Safety
Protecting Children
35
Allowing a larger child to sit
improperly in the front seat can
result in injury or death if the
front airbag inflates.
If a larger child must sit in front,
make sure the child moves the
seat as far back as possible
and wears the seat belt properly.
Main Menu
Table of Contents
To determine if a lap/shoulder belt
properly fits a child, have the child
put on the seat belt. Follow the
instructions on page . Then check
how the belt fits.
If the shoulder part of the belt rests
over the child’s collarbone and
against the center of the chest, as
shown, the child is large enough to
wear the seat belt.
However, if the belt touches or
crosses the child’s neck, the child
needs to use a booster seat.
This could result in
serious neck injuries during a crash.
This could cause
very serious injuries during a crash.
It also increases the chance that the
child will slide under the belt in a
crash and be injured.
Devices intended to improve
occupant comfort or reposition the
shoulder part of a seat belt, severely
compromise the protective capability
of seat belts and increase the chance
of serious injury in a crash.
If they do, they could
be very seriously injured in a crash.
15
Driver and Passenger Safety
Protecting Children
Checking Seat Belt Fit
Do not let a child wear a seat belt
across the neck.
Do not let a child put the shoulder
part of a seat belt behind the back or
under the arm.
Do not put any accessories on a seat
belt.
Two children should never use the
same seat belt.
36
Main Menu
Table of Contents
CONTINUED
If a child needs a booster seat, we
recommend choosing a style that
allows the child to use the lap/
shoulder belt directly, without a
shield, as shown.
Whichever style you select, follow
the booster seat maker’s instructions.
A child may continue using a booster
seat until the tops of the ears are
even with the top of the seat-back. A
child of this height should be tall
enough to use the lap/shoulder belt
without a booster.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
ages 12 and under be properly
restrained in a back seat.
The back seat is the safest place for
a child of any age or size.
In addition, the passenger’s front
airbag poses serious risks to children.
If the seat is too far forward, or the
child’s head is thrown forward
during a collision, or the child is
unrestrained or out of position, an
inflating front airbag can kill or
seriously injure the child.
Thesideairbagalsoposesrisks.If
any part of a larger child’s body is in
the path of a deploying airbag, the
child could receive possibly serious
injuries.
Protecting Children
Driver and Passenger Safety
Using a Booster Seat When Can a Larger Child Sit in Front
37
Main Menu
Table of Contents
Of course, children vary widely. And
while age may be one indicator of
when a child can safely ride in the
front, there are other important
factors you should consider.
Physically, a child must be large
enough for the lap/shoulder belt to
properly fit over the hips, chest, and
shoulder (see pages and ). If
the seat belt does not fit properly,
the child should not sit in the front.
To safely ride in front, a child must
be able to follow the rules, including
sitting properly and wearing the seat
belt properly throughout a ride.
If you decide that a child can safely
ride up front, be sure to:
Carefully read the owner’s manual
and make sure you understand all
seat belt instructions and all safety
information.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the floor.
Check that the child’s seat belt is
properly positioned and secured.
Supervise the child. Even mature
children sometimes need to be
reminded to fasten the seat belts
or sit properly.
15 36
Physical Size
Maturity
Protecting Children
Driver and Passenger Safety
38
Main Menu
Table of Contents
CONTINUED
One tether anchorage point for each
of the outer rear seats is located
under the cargo floor carpet. Pull up
the carpet to access the anchorage
point when securing a tether-style
child seat to the car.
Since a tether can provide additional
security, we recommend using a
tether whenever one is required or
available.
Attach the tether strap hook to the
tether anchorage point as shown in
the illustration, then tighten the
strap according to the child seat
maker’s instructions. Make sure the
strap is not twisted.
Lift the head restraint, then route
the tether strap over the seat-back
between the legs of the head
restraint.
Protecting Children
Driver and Passenger Safety
Using Child Seats with Tethers
39
Main Menu
Table of Contents
Your car is equipped with LATCH
(Lower Anchors and Tethers for
Children) at the outer rear seats.
The lower anchors are located
between the seat-back and seat
bottom and are to be used only with
a child seat designed for use with
LATCH.
When the child seat is used, follow
the instructions that came with the
child seat.
To attach the tether to the child seat,
follow the child seat maker’s
instructions.
You can also remove the rear head
restraints (see page ). The
removedheadrestraintsshouldbe
securedsotheywillnotbethrown
while you are driving. Make sure
to replace the rear head restraints
when the child seats are not in use.
82
Protecting Children
Driver and Passenger Safety
Using LATCH
40
LLOOWWEERR
AANNCCHHOORRSS
Main Menu
Table of Contents
Follow the child seat maker’s
instructions for any additional
advice on adjusting or tightening
the fit.
Put the child seat in the rear left
or right vehicle seat and attach the
child seat to the lower anchorages
according to the child seat maker’s
instructions.
The exact location of each lower
anchorage is marked with a small
circle above the lower anchorage
point.
To install a LATCH-compatible child
seat:
Move the seat belt buckle away
from the lower anchor.
Make sure there are no foreign
objects around the anchors.
Foreign objects could get in the
way of a secure connection
between the child seat and the
anchors.
3. 4.
2.
1.
CONTINUED
Protecting Children
Driver and Passenger Safety
41
FFlleexxiibbllee ttyyppee
RRiiggiidd ttyyppee
Main Menu
Table of Contents
Pushandpullthechildseat
forward and from side to side to
verify that it is secure enough to
stay upright during normal driving
maneuvers.
Attach the tether strap hook to the
tether anchorage point and tighten
the strap according to the child seat
maker’s instructions. Make sure the
strap is not twisted.
Lift the head restraint, then route
the tether strap over the seat-back
between the legs of the head
restraint.
5.
Driver and Passenger Safety
Protecting Children
42
TTEETTHHEERR SSTTRRAAPP HHOOOOKK
AANNCCHHOORRAAGGEE PPOOIINNTT
Main Menu
Table of Contents
This seat belt has a single belt that
goes over your shoulder, across your
chest and across your hips.
To unlock the belt, push the red
PRESSbuttononthebuckle.
Guide the belt across your body to
the door pillar. After exiting the car,
be sure the belt is out of the way and
will not get closed in the door.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched.
Your seat belt system includes lap/
shoulder belts in all five seating
positions.
All seat belts have an emergency
locking retractor. In normal driving,
the retractor lets you move freely in
your seat while it keeps some
tension on the belt. During a collision
or sudden stop, the retractor
automatically locks the belt to help
restrain your body.
The seat belts in all seating positions
except the driver’s have an additional
locking mechanism that must be
activated to secure a child seat. (See
pages and for instructions on
how to secure child seats with this
type of seat belt.)
The seat belt system also
includes a light on the
instrument panel to remind you and
your passengers to fasten your belts.
If the driver’s seat belt is not
fastened before the ignition is turned
ON (II), the light will come on and a
beeper will also sound. The beeper
will stop after a few seconds, but the
light will stay on until the driver’s
seat belt is fastened.
29 33
CONTINUED
Seat Belt System Components Lap/Shoulder Belt
Driver and Passenger Safety
Additional Information About Your Seat Belts
43
Main Menu
Table of Contents
See page for instructions on how
to wear the lap/shoulder belt
properly.
To deactivate the locking
mechanism, unlatch the buckle and
let the seat belt fully retract. To
refasten the belt, pull it out only as
far as needed.
If the shoulder part of the belt is
pulled all the way out, the locking
mechanism will activate. The belt
will retract, but it will not allow the
passenger to move freely.
For added protection, the front seat
belts are equipped with automatic
seat belt tensioners. When activated,
the tensioners immediately tighten
the belts to help hold the driver and
a front passenger in place.
The tensioners are designed to
activate primarily in frontal collisions.
The tensioners are independent of
the airbag system, so they can be
activated during a collision that
might not cause the airbags to
deploy. In this case, the airbags
would not be needed but the
additional seat belt tension can be
helpful.
The tensioners will be activated in a
collision severe enough to cause the
front airbags to inflate.
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled in the normal
way.
The SRS indicator light will
come on if there is a
problem with your automatic seat
belt tensioners (see page ).
15
48
Automatic Seat Belt Tensioners
Additional Information About Your Seat Belts
Driver and Passenger Safety
44
Main Menu
Table of Contents
For safety, you should check the
condition of your seat belts regularly.
Pull each belt out fully and look for
frays, cuts, burns, and wear. Check
that the latches work smoothly and
that the lap/shoulder belts retract
easily. Any belt not in good condition
or not working properly will not
provide good protection and should
be replaced as soon as possible.
Honda provides a lifetime warranty
on seat belts. Honda will repair or
replace any seat belt component that
fails to function properly during
normal use. Please see your
booklet for
details.
For information on how to clean your
seat belts, see page .
Automatic seat belt tensioners that
deployed during a crash must be
replaced.
If a seat belt is worn during a crash,
it must be replaced by the dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The dealer should also inspect the
anchors for damage and replace
them if needed.
218
Honda
Warranty Information
Seat Belt Maintenance
U.S. Models
Additional Information About Your Seat Belts
Driver and Passenger Safety
45
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
Main Menu
Table of Contents
Your Supplemental Restraint System
(SRS) includes:
Two front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the front
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG.’’
A sophisticated electronic system
that continually monitors and
records information about the
sensors, the control unit, the
airbag activators, and driver and
passenger seat belt use when the
ignition is ON (II).
An indicator light on the
instrument panel that alerts you to
a possible problem with the
system (see page ).
Emergency backup power in case
your car’s electrical system is
disconnected in a crash.
Automatic seat belt tensioners
(see page ).
If you ever have a moderate to
severe frontal collision, the sensors
will detect the vehicle’s rapid
deceleration. If the rate of
deceleration is high enough, the
control unit will instantly inflate the
front airbags.
Sensors that can detect a
moderate to severe frontal
collision.
48
44
How Your Front Airbags WorkAirbag Components
Driver and Passenger Safety
Additional Information About Your Airbags
46
Main Menu
Table of Contents
For additional information on how
your airbags work, see the booklet
titled
that came with your
owner’s manual.
The total time for inflation and
deflation is approximately one-tenth
of a second, so fast that most
occupants are not aware that the
airbags deployed until they see them
lying in their laps.
After a crash, you may see what
looks like smoke. This is actually
powder from the airbag’s surface.
Although the powder is not harmful,
people with respiratory problems
may experience some temporary
discomfort. If this occurs, get out of
the car as soon as it is safe to do so.
For additional information on how
your airbags work, ask your dealer
for a copy of the booklet titled
During a frontal crash, your seat belt
helps restrain your lower body and
torso.
Your airbag provides a cushion to
help restrain and protect your head
and chest.
Since both airbags use the same
sensors, both airbags normally
inflate at the same time. However, it
is possible for only one airbag to
inflate.
This can occur when the severity of
a collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
sufficient protection, and the
supplemental protection offered by
the airbag would be minimal.
After inflating, the front airbags
immediately deflate, so they won’t
interfere with the driver’s visibility,
or the ability to steer or operate
other controls.
SRS: What You Need to Know
About Airbags
SRS:
What You Need to Know About Airbags
.
Driver and Passenger Safety
Additional Information About Your Airbags
U.S. Owners
Canadian Owners
47
Main Menu
Table of Contents
When you turn the ignition ON (II),
this indicator will light briefly then
go out. This tells you that the system
is working properly.
ThepurposeoftheSRS
indicator light is to alert
you to a potential problem with your
front airbags. On cars with side
airbags, this light will also alert you
to a potential problem with your
automatic seat belt tensioners (page
); or your side airbags or
passenger’s side airbag automatic
cutoff system (page ).
Your car is equipped with side
airbags for the driver and a front
seat passenger. The airbags are
stored in the outer edges of the front
seat-backs, and both are marked
‘‘SIDE AIRBAG.’’
If you ever have a moderate to
severe side impact, the sensors will
detect rapid deceleration and signal
the control unit to instantly inflate
either the driver’s or the passenger’s
side airbag.
Only one airbag will deploy during a
side impact. If the impact is on the
passenger’s side, the passenger’s
side airbag will deploy even if there
is no passenger.
To get the best protection from the
side airbags, front seat occupants
should wear their seat belts and sit
upright and well back in their seats.
44
49
Optional in U.S.
How Your Side Airbags Work How the SRS Indicator Light
Works
Driver and Passenger Safety
Additional Information About Your Airbags
48
Main Menu
Table of Contents
If the light comes on at any other
time, or does not come on at all, you
should have the system checked by
your dealer. For example:
If the SRS indicator light does not
come on after you turn the ignition
ON (II).
If the light stays on after the
engine starts.
If the light comes on or flashes on
andoffwhileyoudrive.
If you see any of these indications,
your front or side airbags may not
deploy, your passenger’s side airbag
automatic cutoff system may not
work properly, or your seat belt
tensioners may not work when you
need them. See your Honda dealer
as soon as possible.
This light alerts you that
the passenger’s side airbag
has been automatically shut off.
If does not mean there is a problem
with your side airbags. It means that
thesideairbagcutoffsystemhas
activated to prevent the side airbag
from deploying.
To reduce the risk of injury from an
inflating side airbag, your car has an
automatic cutoff system for the
passenger’s side airbag.
Although Honda does not encourage
children to ride in the front, this
system is designed to shut off the
side airbag if a child leans sideways
and the child’s head is in the side
airbag deployment path.
Only when equipped with side airbags
CONTINUED
Driver and Passenger Safety
How the Side Airbag Cutoff
Indicator Light Works
Additional Information About Your Airbags
49
Ignoring the SRS indicator light
can result in serious injury or
death if the airbags, cutoff
system, or tensioners do not
work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS light alerts you to a
potential problem.
Main Menu
Table of Contents
When you turn the ignition ON (II),
the indicator should light briefly and
goout(seepage ).Ifitdoesn’t
light, stays on, or comes on while
driving without a passenger in the
front seat, have the system checked.
A front seat passenger should not
use a cushion or other object as a
backrest. It may prevent the cutoff
system from working properly.
If the side airbag indicator light
comes on, you should have the
passenger sit upright. Once the
passenger is out of the deployment
path of the side airbag, the system
will turn the airbag back on and the
light will go out.
If a small-statured adult leans
sideways, or larger adult slouches
and leans sideways into the
deployment path of the side airbag,
the system may also shut off the side
airbag.
Take your car to an
authorized Honda dealer as soon
as possible. If you ignore this
indication, the airbags might not
inflate when you need them.
Your front and side airbag systems
(optional in U.S.) are virtually
maintenance-free, and there are no
parts you can safely service.
However, you must have your car
serviced if:
Any
airbag that has deployed must be
replaced along with the seat belt
tensioners, control unit and other
related parts. Do not try to remove
or replace any airbag by yourself.
This must be done by a Honda
dealer or a knowledgeable body
shop.
59
Driver and Passenger Safety
Airbag Service
Additional Information About Your Airbags
The SRS indicator light alerts you
to a problem.
Your airbags ever inflate.
50
Main Menu
Table of Contents
Improperly
replacing or covering front seat-
back covers can prevent your side
airbags from inflating during a
collision.
See page for further information
and precautions relating to your
airbags.
If rain or spilled water
soaks into a seat-back, it can
prevent the side airbag system
from working properly.
Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
136
Driver and Passenger Safety
Do not cover or replace front seat-
back covers without consulting a
Honda dealer.
Do not expose the front seat-backs
to water.Donotattempttodeactivateyour
airbags.
Do not tamper with airbag
components or wiring for any
reason.
Additional Safety Precautions
Additional Information About Your Airbags
51
Main Menu
Table of Contents
Select the Fresh Air mode.
Select the mode.
Turn the fan on high speed.
Set the temperature control to a
comfortable setting.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
Your car’s exhaust contains carbon
monoxide gas. You should have no
problem with carbon monoxide
entering the car in normal driving if
you maintain your car properly.
If you must sit in your parked car,
even in an unconfined area, with the
engine running, adjust the heating
and cooling system as follows:
Have the exhaust system inspected
for leaks whenever:
The car is raised for an oil change.
You notice a change in the sound
of the exhaust.
Thecarwasinanaccidentthat
may have damaged the underside.
With the hatch open, air flow can
pull exhaust gas into your car’s
interior and create a hazardous
condition. If you must drive with the
hatch open, open all the windows
and set the heating and cooling
system as shown below.
1.
2.
3.
4.
Carbon Monoxide Hazard
Driver and Passenger Safety
52
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
Main Menu
Table of Contents
These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels carefully.
If a label comes off or becomes hard
to read, contact your Honda dealer
for a replacement.
U.S. models only
U.S. models
Canadian models
ON cars with Side Airbags
ON cars without Side Airbags
Safety Labels
Driver and Passenger Safety
53
HOOD
SUN VISOR
RADIATOR CAP
DASHBOARD
Main Menu
Table of Contents
54
Main Menu
This section gives information about
the controls and displays that
contribute to the daily operation of
your Honda. All the essential
controls are within easy reach.
...........................Control Locations . 56
...............................Indicator Lights . 57
.............................................Gauges . 63
...............................Speedometer . 63
.....................................Odometer . 63
...................................Trip Meter . 63
..................................Fuel Gauge . 64
.................................Tachometer . 64
...................Temperature Gauge . 64
Controls Near the Steering
.......................................Wheel . 65
...................................Headlights . 66
............Daytime Running Lights . 67
....Instrument Panel Brightness . 67
................................Turn Signals . 68
.....................Windshield Wipers . 68
..................Windshield Washers . 69
Rear Window Wiper and
.....................................Washer . 69
..........................Hazard Warning . 70
.............Rear Window Defogger . 70
......Steering Wheel Adjustment . 71
...............................Keys and Locks . 72
..............................................Keys . 72
............................Ignition Switch . 72
....................Immobilizer System . 74
......................Power Door Locks . 75
...................Remote Transmitter . 76
............................................Hatch . 80
............................Seat Adjustments . 81
.............Front Seat Adjustments . 81
..........................Head Restraints . 82
........................Rear Seat Access . 82
...........................Folding Rear Seat . 83
...........................Cargo Area Cover . 84
..............................Power Windows . 85
.........................................Moonroof . 87
.............................................Mirrors . 88
.................................Parking Brake . 89
........................................Glove Box . 90
.............................Beverage Holder . 90
...................Console Compartment . 92
........................................Coat Hook . 92
...............Accessory Power Socket . 92
..................................Vanity Mirror . 93
.................................Interior Lights . 93
..............................Ceiling Lights . 93
.....................................Spotlights . 94
........................Cargo Area Light . 94
Instruments and Controls
Instruments and Controls
55
Main Menu
Control Locations
Instruments and Controls
56
AAUUDDIIOO SSYYSSTTEEMM
HHOOOODD RREELLEEAASSEE HHAANNDDLLEE
MM//TT
((PP.. 113300))
((PP.. 114466))
HHEEAATTIINNGG//CCOOOOLLIINNGG CCOONNTTRROOLLSS
FFUUEELL FFIILLLL
DDOOOORR RREELLEEAASSEE
((PP.. 112299))
((PP.. 8855))
PPOOWWEERR WWIINNDDOOWW
SSWWIITTCCHHEESS
GGAAUUGGEESS
((PP.. 6633))
((PP.. 9966)) ((PP.. 110044))
MMIIRRRROORR CCOONNTTRROOLLSS
DDOOOORR LLOOCCKKSS
((PP.. 7755))
((PP.. 8888))
Main Menu
Table of Contents
＊
The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.
Indicator Lights
Instruments and Controls
57
LLOOWW FFUUEELL
IINNDDIICCAATTOORR
((PP.. 6600))
SSIIDDEE AAIIRRBBAAGG CCUUTTOOFFFF
IINNDDIICCAATTOORR
SSUUPPPPLLEEMMEENNTTAALL
RREESSTTRRAAUUNNTT
SSYYSSTTEEMM IINNDDIICCAATTOORR
SSEEAATT BBEELLTT RREEMMIIDDEERR LLIIGGHHTT
IIMMMMOOBBIILLIIZZEERR SSYYSSTTEEMM IINNDDIICCAATTOORR
MMAALLFFUUCCTTIIOONN
IINNDDIICCAATTOORR LLAAMMPP
LLOOWW OOIILL PPRREESSSSUURREE
IINNDDIICCAATTOORR
CCHHAARRGGIINNGG SSYYSSTTEEMM IINNDDIICCAATTOORR
HHAATTCCHH--OOPPEENN IINNDDIICCAATTOORR
HHIIGGHH BBEEAAMM IINNDDIICCAATTOORR
AANNTTII--LLOOCCKK BBRRAAKKEE SSYYSSTTEEMM IINNDDIICCAATTOORR
EELLEECCTTRRIICC PPOOWWEERR
SSTTEEEERRIINNGG IINNDDIICCAATTOORR
((PP.. 5588))
((PP.. 5588))
((PP.. 5588))
((PP.. 6611))
((PP.. 5599))
((PP.. 5588))
((PP.. 5588))
((PP.. 5599))
((PP.. 5599))
PPAARRKKIINNGG BBRRAAKKEE AANNDD
BBRRAAKKEE SSYYSSTTEEMM IINNDDIICCAATTOORR
MMAAIINNTTEENNAANNCCEE
RREEQQUUIIRREEDD
IINNDDIICCAATTOORR
((PP.. 6600))
((PP.. 6611))
CCRRUUIISSEE CCOONNTTRROOLL
IINNDDIICCAATTOORR
((PP.. 5599))
((PP.. 6600))
((PP.. 6611))
Main Menu
Table of Contents
The instrument panel has many
indicators to give you important
information about your car.
This indicator lights when you turn
the ignition switch ON (II). It is a
reminder to you and your passengers
to protect yourselves by fastening
the seat belts. A beeper also sounds
if you have not fastened your seat
belt.
If you do not fasten your seat belt,
the beeper will stop after a few
seconds but the light stays on until
you do. Both the light and the beeper
stay off if you fasten your seat belt
before turning on the ignition.
If this light comes on when the
engine is running, the battery is not
being charged. For complete
information, see page .
The engine can be severely damaged
if this light flashes or stays on when
the engine is running. For complete
information, see page .
This indicator lights when you turn
the ignition switch ON (II). If it
comes on at any other time, it
indicates a potential problem with
your front airbags or automatic seat
belt tensioners. On vehicles
equipped with side airbag, this light
will also alert you to a potential
problem with your side airbags or
passenger’s side airbag automatic
cutoff system. For complete
information, see page .
This indicator lights when you turn
the ignition switch ON (II). If it
comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For complete information, see page
.
48
235
234
49
Only when equipped with side airbags
Indicator Lights
Instruments and Controls
Seat Belt Reminder Light
Low Oil Pressure
Indicator
Supplemental Restraint
System Indicator
Charging System
Indicator
Side Airbag Cutoff
Indicator
58
Main Menu
Table of Contents
This light has two functions:
This indicator comes on when you
turn the ignition switch ON (II). It
is a reminder to check the parking
brake. Driving with the parking
brake not fully released can
damage the brakes and tires.
If the indicator remains lit after
you have fully released the
parking brake while the engine is
running, or if it comes on while
driving, it can indicate a problem
in the brake system. For complete
information, see page .
See page .
The left or right turn signal light
blinks when you signal a lane change
or turn. If the light does not blink or
blinks rapidly, it usually means one
of the turn signal bulbs is burned out
(see page ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signalling.
WhenyouturnontheHazard
Warning switch, both turn signal
lights blink. All turn signals on the
outside of the car should flash.
This light comes on if the hatch is
not closed tightly.
This indicator lights when you turn
the ignition switch to ON (II) with
the headlight switch off and the
parking brake set. It should go off if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
This light comes on with the high
beam headlights. See page for
information on the headlight
controls.
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
1.
2.
236
200
238
67
66
Canadian models only
Indicator Lights
Instruments and Controls
Parking Brake
and Brake
System
Indicator
Malfunction Indicator
Lamp
Turn Signal and
Hazard Warning
Indicators
Hatch-open Indicator
‘‘Daytime Running
Lights’’ Indicator
High Beam Indicator
59
U.S. Canada
Main Menu
Table of Contents
This indicator is located in the fuel
gauge.
This light comes on when the
washer fluid level is low. Add washer
fluid when you see this light come on
(see page ).
This lights when you set the cruise
control. See page for information
on operating the cruise control.
This light normally comes on for a
few seconds when you turn the
ignition switch ON (II), and when
the ignition switch is turned to
START (III). If this light comes on at
any other time, there is a problem in
theABS.Ifthishappens,takethe
cartoyourdealertohaveitchecked.
With the light on, your car still has
normal braking ability but no anti-
lock. For complete information, see
page .
If the indicator glows, it means you
should refuel soon.
124
176
148
Canadian models only
Indicator Lights
Instruments and Controls
Low Fuel Indicator Washer Level Indicator
Cruise Control Indicator
Anti-lock Brake
System (ABS)
Indicator
60
CanadaU.S.
LLOOWW FFUUEELL IINNDDIICCAATTOORR
Main Menu
Table of Contents
This light normally comes on when
you turn the ignition ON (II) and
goes off after the engine starts. If it
comes on at any other time, there is
a problem in the Electric Power
Steering system. If this happens,
stop the car in a safe place and turn
off the engine. Reset the system by
restarting the engine. The indicator
will not turn off immediately. If it
does not go off after driving a short
distance, or comes back on again
while driving, take the car to your
dealer to have it checked. With the
light on, the EPS is turned off,
making the car harder to steer.
This indicator comes on for a few
seconds when you turn the ignition
switch ON (II). It will then go off if
you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page ).
This indicator also blinks several
times when you turn the ignition
switch from ON (II) to ACCESSORY
(I) or LOCK (0).
This indicator reminds you that it is
time to take your car in for
scheduled maintenance.
Refer to the Maintenance Schedules
for Normal and Severe Driving
Conditions on pages and .
For the first 8,000 miles (12,800 km)
after the Maintenance Required
Indicator is reset, it will come on for
two seconds when you turn the
ignition switch ON (II).
Between 8,000 miles (12,800 km)
and 10,000 miles (16,000 km) this
indicator will light for two seconds
when you first turn the ignition
switch ON (II), and then flash for
ten seconds.
74
160158
Indicator Lights
Instruments and Controls
Electric Power Steering
(EPS) Indicator
Immobilizer System
Indicator
Maintenance Required
Indicator
61
Main Menu
Table of Contents
If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance performed, this
indicator will remain on as a constant
reminder.
Your dealer will reset this indicator
after completing the scheduled
maintenance. If this maintenance is
done by someone other than your
Honda dealer, reset the indicator as
follows.
Hold the button until the indicator
resets (approximately ten
seconds).
Press and hold the select/reset
buttonintheinstrumentpanel,
then turn the ignition switch ON
(II).
Turn off the engine.1.
2.
3.
Indicator Lights
Instruments and Controls
62
Main Menu
Table of Contents
This shows your speed in miles per
hour (mph). The smaller inner
numbers are the speed in kilometers
per hour (km/h).
This shows your speed in kilometers
per hour (km/h). The smaller inner
numbers are the speed in miles per
hour (mph).
The odometer shows the total dis-
tance your car has been driven. It
measures miles in U.S. models and
kilometers in Canadian models.
It is illegal under U.S. federal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
To reset a trip meter, display it, and
then press and hold the Select/Reset
button until the number resets to
‘‘0.0’’.
There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer by
pressing the Select/Reset button
repeatedly. Each trip meter works
independently, so you can keep track
of two different distances.
U.S. Models
Canadian Models
Speedometer Odometer
Trip Meter
Gauges
Instruments and Controls
63
UU..SS.. mmooddeell sshhoowwnn
OODDOO//TTRRIIPP
MMEETTEERR
MMAAIINNTTEENNAACCEE
RREEQQUUIIRREEDD
IINNDDIICCAATTOORR
FFUUEELL GGAAUUGGEESSEELLEECCTT//RREESSEETT BBUUTTTTOONN
TTEEMMPPEERRAATTUUEE GGAAUUGGEE
SSPPEEEEDD MMEETTEERR
TTAACCHHOOMMEETTEERR
Main Menu
Table of Contents
The tachometer shows the engine
speed in revolutions per minute
(rpm). To protect the engine from
damage, never drive with the
tachometer needle in the red zone.
This shows how much fuel you have.
It is most accurate when the car is on
level ground. It may show slightly
more or less than the actual amount
whenyouaredrivingoncurvyor
hilly roads.
The needle returns to the bottom
after you turn off the ignition. The
gauge shows the fuel level reading
immediately after you turn the
ignition switch back ON (II).
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom mark to about the
middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper blue zone. If it reaches the red
(Hot) mark, pull safely to the side of
the road. Turn to page for
instructions and precautions on
checking the engine’s cooling
system.
232
Gauges
Instruments and Controls
Tachometer
Fuel Gauge
Temperature Gauge
64
SSPPEEEEDDOOMMEETTEERR
UU..SS mmooddeell sshhoowwnn
OODDOO//TTRRIIPP
MMEETTEERR
MMAAIINNTTEENNAANNCCEE
RREEQQUUIIRREEDD
IINNDDIICCAATTOORR
TTAACCHHOOMMEETTEERR
FFUUEELL GGAAUUGGEE
TTEEMMPPEERRAATTUURREE GGAAUUGGEE
SSEELLEECCTT//RREESSEETT BBUUTTTTOONN
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
Main Menu
Table of Contents
＊
＊＊
Thetwoleversonthesteering
column contain controls for driving
features you use most often. The left
lever controls the turn signals,
headlights, and high beams. The
right lever controls the windshield
washers and wipers.
The tilt adjustment lever on the
underside of the steering column
allows you to tilt the steering wheel.
To use the horn, press the pad around the ‘‘H’’ logo.
Controls Near the Steering Wheel
Instruments and Controls
65
MMIIRRRROORR CCOONNTTRROOLLSS
HHEEAADDLLIIGGHHTTSS//
TTUURRNN SSIIGGNNAALLSS
HHAAZZAARRDD WWAARRNNIINNGG LLIIGGHHTTSS
RREEAARR WWIINNDDOOWW DDEEFFOOGGGGEERRTTIILLTT AADDJJUUSSTTMMEENNTT
WWIINNDDSSHHIIEELLDD WWIIPPEERRSS//
WWAASSHHEERRSS
((PP.. 6666//6688))
((PP.. 6688//6699))
((PP.. 7700))
((PP.. 7700))
((PP.. 7711))((PP.. 8888))
HHOORRNN
Main Menu
Table of Contents
The rotating switch on the left lever
controls the lights. Turning this
switch to the ‘‘ ’’ position turns
on the parking lights, taillights,
instrument panel lights, side-marker
lights, and rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights.
If you leave the lights on with the
ignition switch in ACCESSORY (I)
or LOCK (0), you will hear a
reminder beeper when you open the
driver’s door.
To change from low beams to high
beams, push the turn signal lever
forward until you hear a click. The
blue high beam indicator will light
(see page ). To return to low
beams, pull the turn signal lever
back.
59
Headlights
Controls Near the Steering Wheel
Instruments and Controls
66
Main Menu
Table of Contents
To flash the high beams, pull the
turn signal lever back lightly, then
release it. The high beams will come
on and go off.
The high beams will stay on for as
long as you hold the lever back, no
matter what position the headlight
switch is in.
The daytime running lights come on
automatically when the ignition
switch is turned to the ON (II)
position. They go out automatically
when the light switch is ON.
Theknobontheinstrumentpanel
controls the brightness of the instru-
ment panel lights. Turn the knob to
adjust the brightness.
Controls Near the Steering Wheel
Instruments and Controls
Daytime Running Lights
(Canadian Models)
Instrument Panel Brightness
67
Main Menu
Table of Contents
Signal a turn or lane change with this
lever. Push down on the lever to
signal a left turn, and up to signal a
right turn. If you push it up or down
all the way, the turn signal continues
to blink even when you release the
lever. It shuts off automatically as
you complete the turn.
To signal a lane change, push lightly
on the turn signal lever in the proper
direction and hold it. The lever will
return to the center position as soon
as you release it.
The right lever controls the wind-
shield wipers and washers. The
rotary switch at the end of the lever
has five positions;
MIST: mist
OFF: off
INT: intermittent
LO: low speed
HI: high speed
Controls Near the Steering Wheel
Instruments and Controls
Turn Signals Windshield Wipers
68
Main Menu
Table of Contents
In intermittent, the wipers operate
every few seconds. In low speed and
high speed, the wipers run continu-
ously.
To operate the wipers in mist mode,
push the control lever up from the
OFF position. The wipers run at high
speed until you release the lever.
This gives you a quick way to clear
the windshield.
To clean the windshield, pull back on
the wiper control lever. The washers
spray until you release the lever.
The wipers run at low speed while
you’re pulling the lever, then
complete one more sweep of the
windshield after you release it.
Therotatingswitchontheright
lever controls the rear window wiper
and washer.
To turn on the rear window wiper,
rotate the switch to ‘‘ON’’. The
wiper will complete two sweeps to
clear the window, then operate every
7 seconds. When you turn the wiper
switch to the ‘‘OFF’’ position or turn
off the ignition switch, the wiper
returns to its parked position.
Controls Near the Steering Wheel
Instruments and Controls
Windshield Washers Rear Window Wiper and Washer
69
Main Menu
Table of Contents
To clean the rear window, rotate and
hold the switch one position up from
‘‘ON’’, or rotate and hold it one
position down from ‘‘OFF’’. The
washer sprays while you hold the
switch. The wiper operates while you
hold the switch, then completes two
more sweeps after you release it.
Pushtheredbuttontoturnonthe
hazard warning lights (four-way
flashers). This causes all four
outside turn signals and both
indicators in the instrument panel to
flash. Use the hazard warning lights
if you need to park in a dangerous
area near heavy traffic, or if your car
is disabled.
The rear window defogger will clear
fog,frost,andthinicefromthe
window. Push the defogger button to
turn it on and off. The light in the
button lights to show the defogger is
on. If you do not turn it off, the
defogger will shut itself off after
about15minutes.Italsoshutsoff
when you turn off the ignition. You
have to turn it on again when you
restart the car.
Rear Window DefoggerHazard Warning
Controls Near the Steering Wheel
Instruments and Controls
70
Main Menu
Table of Contents
Make sure the rear window is clear
and you have good visibility before
starting to drive.
Make any steering wheel adjustment
before you start driving.
To adjust the steering wheel upward
or downward:
Push the lever under the steering
column all the way down.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side to side.
Move the steering wheel to the
desired position, making sure the
wheel points toward your chest,
not toward your face. Make sure
you can see the instrument panel
gauges and the indicator lights.
Push the lever up to lock the
steering wheel in that position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up and down.
1.
4.
3.
2.
See page for important safety
information about how to properly
position the steering wheel.
17
Instruments and Controls
Controls Near the Steering Wheel
Steering Wheel Adjustment
71
Adjusting the steering wheel
position while driving may
cause you to lose control of the
car and be seriously injured in a
crash.
Adjust the steering wheel only
when the car is stopped.
Main Menu
Table of Contents
Youshouldhavereceivedakey
number plate with your set of keys.
You will need this key number if you
ever have to get a lost key replaced.
Keep the plate stored in a safe place.
When replacing keys, use only
Honda-approved key blanks.
The ignition switch is on the right
side of the steering column. It has
four positions:
•LOCK(0)
• ACCESSORY (I)
• ON (II)
• START (III)
Your car comes with two identical
keys.
They fit all the locks on your car:
• Ignition
• Doors
•Hatch
•Glovebox
Your car also comes with two remote
transmitters; see page for an
explanation of the operation.
76
Instruments and Controls
Keys and Locks
Keys Ignition Switch
Remote Transmitter
72
KKEEYY
NNUUMMBBEERR
PPLLAATTEE
MMAASSTTEERR
KKEEYYSS
VVAALLEETT
KKEEYYSS
Main Menu
Table of Contents
−
−
−
−You can insert or
remove the key only in this position.
To switch from ACCESSORY to
LOCK, you must push the key in
slightly as you turn it. If your car has
an automatic transmission, the shift
lever must also be in Park. The anti-
theft lock will lock the steering
column when you remove the key.
If the front wheels are turned, the
anti-theft lock may sometimes make
it difficult to turn the key from
LOCK to ACCESSORY. Firmly turn
the steering wheel to the left or to
the right as you turn the key.
In this position,
you can operate the audio system
and the accessory power socket.
This is the normal key
position when driving. All features
and accessories on the car are usable.
Several of the lights on the instru-
ment panel come on as a test when
you turn the ignition switch from
ACCESSORY to ON.
Use this position
only to start the engine. The switch
returns to ON (II) when you let go of
the key.
The engine will not start if the
Immobilizer System does not
recognize the key’s coding (see page
).
You will hear a reminder beeper if
you leave the key LOCK (0) or
ACCESSORY (I) position and open
thedriver’sdoor.Removethekeyto
turn off the beeper.
74
LOCK (0)
ACCESSORY (I)
ON (II)
START (III)
Keys and Locks
Instruments and Controls
73
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control.
Remove the key from the
ignition switch only when
parked.
Main Menu
Table of Contents
The Immobilizer System protects
your car from theft. A properly-
coded master or valet key must be
used in the ignition switch for the
engine to start. If an improperly-
coded key (or other device) is used,
the engine’s fuel system is disabled.
When you turn the ignition switch to
ON (II), the Immobilizer System
indicator should come on for a few
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object is near the
ignition switch when you insert the
key. To make sure the system
recognizes the key code:
Do not keep other immobilizer
keys on the same key ring.
Use a plastic or leather key fob,
not metal.
Keep other keys away from your
vehicle’s key and the ignition
switch while trying to start the
engine.
If you have lost your key and you
cannot start the engine, contact your
Honda dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your car undriveable.
The Immobilizer System indicator
will also blink several times when
you turn the ignition switch from ON
(II) to ACCESSORY (I) or LOCK (0).
If the system repeatedly does not
recognize the coding of your key,
contact your Honda dealer.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Immobilizer System
Keys and Locks
Instruments and Controls
74
Main Menu
Table of Contents
Each door has a lock tab on the top.
Whenyoupushdownthelocktabon
the driver’s door, both doors and the
hatch lock. When you push down the
lock tab on the passenger’s door,
only that door locks.
The driver’s door also has a master
door lock switch. Push the switch
down to lock both doors and the
hatch, and up to unlock them.
To lock the driver’s door when
exiting the vehicle, pull either the
inside or outside door handle, then
push down the lock tab or the master
door lock switch. To lock the
passenger’s door, push down the
lock tab and close the door.
If the key is in the ignition switch
with the driver’s door open, the
master door lock switch is disabled.
The doors will still lock if you pull
one of the handles and push down
the lock tab.
When you lock the driver’s door with
the key, both doors and the hatch
lock. Unlocking the driver’s door
with the key unlocks only that door.
Usingthekeyinthepassenger’s
door locks and unlocks only that
door.
Keys and Locks
Instruments and Controls
Power Door Locks
75
LLOOCCKK TTAABB
MMAASSTTEERR DDOOOORR LLOOCCKK SSWWIITTCCHH
Main Menu
Table of Contents
When you push the LOCK button a
second time within 5 seconds, you
will hear a beep to verify that the
doors are locked.
When you push the UNLOCK button
once, only the driver’s door unlocks.
The remaining doors unlock when
you push the button a second time.
The exterior lights and instrument
panel lights flash twice.
You can lock and unlock your car
with the remote transmitter. When
you push the LOCK button, all doors
lock. The exterior lights and
instrument panel lights flash once.
Keys and Locks
Instruments and Controls
Remote Transmitter
76
LLEEDD
UUNNLLOOCCKK
BBUUTTTTOONN
PPAANNIICC
BBUUTTTTOONN
LLOOCCKK
BBUUTTTTOONN
Main Menu
Table of Contents
The ceiling lights (if the ceiling light
switches are in the center position)
will come on when you press the
UNLOCK button. If you do not open
any door, the lights stay on for about
30 seconds, then fades out. If you
relock the doors with the remote
transmitter before 30 seconds have
elapsed, the lights will go off
immediately.
You cannot lock the doors with the
remote transmitter if any door is not
fully closed or the key is in the
ignition switch.
If you unlock the doors with the
remote transmitter, but do not open
any of the doors within 30 seconds,
the doors automatically relock.
To cancel PANIC mode before 30
seconds, press any button on the
remote transmitter. You can also
turn the ignition switch to
ACCESSORY (I) or ON (II).
Panic mode will not activate if the
ignition switch is in the
ACCESSORY (I) or ON (II) position.
Panic mode allows you to remotely
activate your car’s horn and exterior
lights to attract attention. When
activated, the horn will sound, and
the exterior lights will flash, for
about 30 seconds. To activate panic
mode,pressandholdthePANIC
button for about one second.
Panic Mode
Keys and Locks
Instruments and Controls
77
Main Menu
Table of Contents
＋
▽
◎
When the remote transmitter’s
battery begins to get weak, it may
take several pushes on the button to
lock or unlock the doors, and the
LED will not light. Replace the
battery as soon as possible.
Battery type: CR2025
Remove the old battery and note the
polarity. Make sure the polarity of
the new battery is the same ( side
facing up), then insert it in the
transmitter.
To replace the battery, remove the
round cover on the back of the trans-
mitter by turning it counterclockwise
with a coin.
Align the mark on the cover
with the mark on the
transmitter, then set the cover in
place and turn it clockwise.
Replacing the Battery
Keys and Locks
Instruments and Controls
78
BBAATTTTEERRYY
RROOUUNNDD
CCOOVVEERR
Open
CClloossee
Main Menu
Table of Contents
Avoid severe shock to the trans-
mitter, such as dropping or throwing
it. Also, protect it from extreme hot
or cold temperatures.
Clean the transmitter case with a
soft cloth. Do not use strong
cleaners or solvents that could harm
the case. Immersing the transmitter
in any liquid will harm the trans-
mitter and cause it to not function
properly.
If you lose a transmitter, you will
need to have the replacement
programmed to your car’s system by
your Honda dealer. Any other
transmitters you have will also need
to be reprogrammed.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
Transmitter Care
Keys and Locks
Instruments and Controls
79
Main Menu
Table of Contents
Use your key to lock and unlock the
hatch.
You can also lock and unlock the
hatch with the remote transmitter or
the master door lock switch.
To open the hatch, pull the handle,
then lift up.
See page for cargo loading and
weight limit information. Keep the
hatch closed at all times while
driving to avoid damaging the hatch
and to prevent exhaust gas from
getting into the interior. See
on page .
To close the hatch, use the hatch
handletolowerthehatch,thenpress
down on the back edge.
52
137
Hatch
Carbon
Monoxide Hazard
Keys and Locks
Instruments and Controls
80
KKEEYY
LLoocckk
UUnnlloocckk
HHAANNDDLLEE
HHAATTCCHH HHAANNDDLLEE
Main Menu
Table of Contents
−
To change the angle of the seat-back,
pull up on the lever on the outside of
the seat bottom. Move the seat-back
to the desired position and release
the lever. Let the seat-back latch in
the new position.
Make all seat adjustments before
you start driving.
To adjust the seat forward and
backward, pull up on the bar under
the seat cushion’s front edge. Move
the seat to the desired position and
releasethebar.Trytomovetheseat
to make sure it is locked in position.
See pages for important safety
information and warnings about how to
properly position seats and seat-backs.
12 14
FrontSeatAdjustments
Seat Adjustments
Instruments and Controls
81
Main Menu
Table of Contents
The rear head restraints adjust for
height. To raise them, pull upward.
To lower the restraint, push the
release button sideways and push
the restraint down.
To remove a head restraint for
cleaning or repair, pull it up as far as
it will go. Push the release button
and pull the restraint out of the seat-
back.
To get into the rear seat on the
driver’s side, pull up on the seat-back
adjustment lever.
To get into the rear seat on the
passenger’s side, push down on the
release lever at the base of the seat-
back. The seat-back will tilt forward,
and the seat will slide forward to
allow easier access to the rear seat.
After you return the seat-back to the
upright position, push the whole seat
backwards until it latches. Make
sure the seat is fully latched before
you sit in it.
Head Restraints Rear Seat Access
Seat Adjustments
Instruments and Controls
82
RREELLEEAASSEE BBUUTTTTOONN
Main Menu
Table of Contents
The back of the rear seat folds down
to give you more cargo space. Each
side folds down separately. With only
half the seat folded, you can still
carry a passenger in the back seat.
Before folding down the seat-back,
move the seat belt out of the way
and put the shoulder part of the
outside seat belt in the clip on each
side.
To unlatch either side of the seat-
back, pull up on the release lever,
then fold the seat-back down.
CONTINUED
Folding Rear Seat
Seat Adjustments, Folding Rear Seat
Instruments and Controls
83
RREELLEEAASSEE LLEEVVEERR
CCLLIIPP
Main Menu
Table of Contents
Make sure all items in the cargo area
are secured. Loose items can fly
forward and cause injury if you have
to brake hard. See
on page .
To lock the seat-back upright, push
the seat-back firmly against its latch.
Tug on the seat-back to make sure it
is latched.
Do not put any heavy items on the
seat-back when it is folded.
Make sure the seat belts are
positioned in front of the rear seat-
back and the seat belt buckles are on
the seat cushion whenever the seat-
back is in its upright position.
The cargo area cover may be re-
moved to give you more cargo room.
To remove the cargo area cover,
disconnect the cables from the hatch
by lifting up each end, then pulling it
outward. Then push up on the
underside of the cargo cover at each
front corner to unsnap it from the
body.
To install the cargo area cover, place
it in its normal position over the
cargo area. Then push down on each
front corner to snap it in place. Lift
up the rear of the cover, then
reconnect the cables to the hatch.
137
Cargo Area Cover
Carrying Cargo
Folding Rear Seat, Cargo Area Cover
Instruments and Controls
84
HHOOOOKK
NNOOTTCCHHEESS
Main Menu
Table of Contents
Your car’s windows are electrically-
powered. Turn the ignition switch to
ON(II)toraiseorloweranywindow.
Each door has a switch that controls
its window. To open the window,
push the switch down and hold it.
Release the switch when you want
the window to stop. Close the
window by pushing the switch up
and holding it.
The driver’s door armrest has a
master power window control panel.
To open the passenger’s window,
push down on the appropriate switch
and hold it until the window reaches
the desired position. To close the
window, pull back on the window
switch. Release the switch when the
window gets to the position you want.
Power Windows
Instruments and Controls
85
DDRRIIVVEERR’’SS WWIINNDDOOWW
SSWWIITTCCHH
MMAAIINN SSWWIITTCCHH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
Main Menu
Table of Contents
−
The master control panel also con-
tains these extra features:
To open the driver’s window only
partially, push the window switch
down lightly and hold it. The window
will stop as soon as you release the
switch.
To open the driver’s
window fully, push the window
switch firmly down and release it.
The window automatically goes all
the way down. To stop the window
from going all the way down, pull
back on the window switch briefly.
The AUTO function only works to
lower the driver’s window. To raise
the window, you must pull back on
the window switch and hold it until
the window reaches the desired
position.
The MAIN switch controls power to
the passenger’s window. When you
push in the MAIN switch, the
passenger’s window cannot be raised
or lowered. The MAIN switch does
not affect the driver’s window. To
cancel this feature, push on the
switch again to get it to pop out.
Keep the MAIN switch off when you
have children in the car so they do
not injure themselves by operating
the windows unintentionally.
AUTO
Power Windows
Instruments and Controls
86
Main Menu
Table of Contents
There are two switches on the
ceiling near the front ceiling light.
The ignition switch must be ON (II)
to operate the moonrooof.
To open the moonroof, pull the
OPEN/CLOSE switch backward and
hold it. Release the switch when the
moonroof gets to the desired
position.
To close the moonroof, push the
OPEN/CLOSE switch forward and
hold it. The moonroof will not close
completely; it will stop about 5.1
inches (130 mm) away from being
closed. Make sure your passengers
are clear of the moonroof, then
release the switch and push it
forward again to close the moonroof
completely.
When you push the TILT-UP switch,
the rear of the moonroof will tilt up
for ventilation. To close it, push the
OPEN/CLOSE switch forward.
Make sure everyone’s hands are
away from the moonroof before
opening or closing it.
Moonroof
Instruments and Controls
87
OOPPEENN//CCLLOOSSEE
SSWWIITTCCHH
TTIILLTT--UUPP SSWWIITTCCHH
Opening or closing the
moonroof on someone’s hands
or fingers can cause serious
injury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it.
If you try to open the moonroof in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or motor.
Main Menu
Table of Contents
Adjust the outside mirrors with the
adjustment switch on the driver’s
side of the dashboard:
Turn the ignition switch ON (II).
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you finish, move the
selector switch to the center (off)
position. This turns off the
adjustment switch so you can’t
move a mirror out of position by
accidentally bumping the switch.
Keeptheinsideandoutsidemirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare from headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
3.
1.
2.
4.
Adjusting the Power Mirrors
Mirrors
Mirrors
Instruments and Controls
88
SSEELLEECCTTOORR SSWWIITTCCHH
AADDJJUUSSTTMMEENNTT SSWWIITTCCHH
TTAABB
Main Menu
Table of Contents
To apply the parking brake, pull the
lever up fully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake light on
the instrument panel should go out
when the parking brake is fully
released (see page ).
The outside mirrors are heated to re-
move fog and frost. With the ignition
switchON(II),turnontheheaters
by pressing the button. The light in
the button comes on as a reminder.
Press the button again to turn the
heaters off. 59
On all Canadian models
Mirrors, Parking Brake
Instruments and Controls
Parking Brake
89
PPAARRKKIINNGG BBRRAAKKEE LLEEVVEERR
HHEEAATTEEDD MMIIRRRROORR BBUUTTTTOONN
Driving the car with the parking brake
applied can damage the rear brakes
and axles.
Main Menu
Table of Contents
A beverage holder for the front
passenger is located in the center
console. A second beverage holder is
under the driver’s side air vent.
To use the beverage holder under
the air vent, pull on the front. Push
the holder all the way in to close it.
Open the glove box by pulling the
handle. Close it with a firm push.
Beverage HolderGlove Box
Glove Box, Beverage Holders
Instruments and Controls
90
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
Main Menu
Table of Contents
To access the beverage holder in the
center console, slide the lid forward.
Be careful when you are using the
beverage holder. A spilled liquid that
is very hot can scald you or your
passengers. Spilled liquids can also
damage the upholstery, carpeting,
and electrical components in the
interior.
The beverage holder for the rear
passengers is located in the rear of
the center console.
Beverage Holders
Instruments and Controls
91
LLIIDD
Main Menu
Table of Contents
To use an accessory power socket,
pull down on the cover.
This socket is intended to supply
power for 12 volt DC accessories
that are rated 120 watts or less (10
amps). The ignition switch must be
in ACCESSORY (I) or ON (II).
It will not power an automotive type
cigarette lighter element.
To access the console compartment,
slide the lid forward, then slide the
beverage holder assembly forward.
Instruments and Controls
Coat Hook Accessory Power SocketConsole Compartment
Console Compartment, Coat Hook, Accessory Power Socket
92
CCOOAATT HHOOOOKK
AACCCCEESSSSOORRYY PPOOWWEERR SSOOCCKKEETT
CCOONNSSOOLLEE CCOOMMPPAARRTTMMEENNTT
CCOONNSSOOLLEE CCOOMMPPAARRTTMMEENNTT
Main Menu
Table of Contents
CONTINUED
Touseavanitymirroronthebackof
the sun visor, pull up the cover.
Each ceiling light has a three-
position switch. In the OFF position,
the light does not come on. In the
center position, the ceiling light
comes on when you open either door.
After both doors are closed tightly,
the light goes out. In the ON position,
the ceiling light stays on
continuously.
Vanity Mirror, Interior Lights
Instruments and Controls
Ceiling LightsVanity Mirror
93
FFRROONNTT
DDOOOORR AACCTTIIVVAATTEEDD
OOFFFF
OONN
DDOOOORR AACCTTIIVVAATTEEDD
OOFFFF
OONN
VVAANNIITTYY MMIIRRRROORR
RREEAARR
Main Menu
Table of Contents
The ceiling lights (with each switch
in the center position) will also come
on when you remove the key from
the ignition switch. If you do not
open a door, the lights stay on, then
fade out in about ten seconds.
The front ceiling light also contains
two spotlights.
Turn on the spotlight by pushing the
button next to each light. Push the
button again to turn it off. You can
use the spotlights at all times.
The cargo area light comes on when
you open the hatch.
The front and rear ceiling lights
(witheachswitchinthecenter
position) come on when you unlock
the door with the key or the remote
transmitter (see page ).76
Interior Lights
Instruments and Controls
Spotlights Cargo Area Light
94
Main Menu
Table of Contents
.......................Heating and Cooling . 96
...........What Each Control Does . 96
..............How to Use the System . 99
..........To Turn Everything Off . 103
................................Audio System . 104
.................Operating the Radio . 104
.................Adjusting the Sound . 108
..............................Digital Clock . 109
....................Radio Frequencies . 110
........................Radio Reception . 111
.........Operating the CD Player . 113
Operating the Optional CD
.................................Changer . 115
.......Protecting Compact Discs . 116
....CD Player Error Indications . 117
CD Changer Error
.............................Indications . 118
Operating the Optional
.....................Cassette Player . 119
............Tape Search Functions . 120
Caring for the Cassette
.....................................Player . 122
.......................Theft Protection . 123
...............................Cruise Control . 124
Comfort and Convenience Features
Comfort and Convenience Features
95
Main Menu
Proper use of the Heating and
Cooling system can make the
interior dry and comfortable, and
keep the windows clear for best
visibility.
Turning this dial clockwise increases
the fan’s speed, which increases air
flow.
This button controls the source of
the air going into the system. When
the indicator in this button is lit, air
from the car’s interior is sent
through the system again (Recircula-
tion mode). When the indicator is off,
air is brought in from outside the car
(Fresh Air mode).
If your car does not have air
conditioning, it can be installed at
any time. Your dealer can install a
genuine Honda air conditioning
system that meets Honda’s high
quality standards and is designed to
exactly fit your car. Please contact
your dealer for more information.
Turning this dial clockwise increases
the temperature of the air flow.
This button turns the air condi-
tioning ON and OFF. The indicator
in the button lights when the A/C is
on.
This button turns the rear window
defogger on and off (see page ).70
Comfort and Convenience Features
Heating and Cooling
Recirculation Button
What Each Control Does
Fan Control Dial
Temperature Control Dial
Air Conditioning (A/C) Button
Rear Window Defogger Button
96
MMOODDEE CCOONNTTRROOLL
DDIIAALL
AAIIRR CCOONNDDIITTIIOONNIINNGG
BBUUTTTTOONN
RREEAARR WWIINNDDOOWW
DDEEFFOOGGGGEERR
BBUUTTTTOONN
RREECCIIRRCCUULLAATTIIOONN BBUUTTTTOONN
FFAANN CCOONNTTRROOLL DDIIAALL
TTEEMMPPEERRAATTUURREE
CCOONNTTRROOLL DDIIAALL
Main Menu
Table of Contents
Air flows from the center
and corner vents in the dashboard.
Air flow is divided between
the vents in the dashboard and the
floor vents.
Air flows from the floor
vents.
Air flow is divided between
the floor vents and the defroster
vents at the base of the windshield.
Air flows from the defroster
vents at the base of the windshield.
When you select , the system
automatically switches to Fresh Air
mode and turns on the A/C.
Use the MODE control dial to select
the vents the air flows from. Some
air will flow from the dashboard
vents in all modes.
Heating and Cooling
Comfort and Convenience Features
Mode Control Dial
97
Main Menu
Table of Contents
The vents in the corners of the
dashboard can be opened and closed
with the dials next to them.
You can adjust the direction of the
air coming from the dashboard vents
by moving the tab in the center of
each vent up-and-down and side-to-
side.
Heating and Cooling
Comfort and Convenience Features
Vent Controls
98
OOppeenn
CClloossee
TTAABB
OOppeenn
CClloossee
DDRRIIVVEERR’’SS--SSIIDDEE VVEENNTT
PPAASSSSEENNGGEERR’’SS--SSIIDDEE VVEENNTT
CCEETTEERR VVEENNTTSS
Main Menu
Table of Contents
CONTINUED
The flow-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the hatch.
Turn the temperature control dial
all the way to the left.
Make sure the A/C is off.
Select and Fresh Air mode.
Set the fan to the desired speed.
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep
these clear of leaves and other
debris.
It is best to leave the system in Fresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Switch to Recirculation mode when
you are driving through smoky or
dusty conditions, then switch back to
Fresh Air mode when the condition
clears.
This section covers how to set up the
system controls for ventilation,
heating, cooling, dehumidifying, and
defrosting.
The engine must be running for the
heater and air conditioning to
generate hot and cold air. The heater
uses engine coolant to warm the air.
If the engine is cold, it will be several
minutes before you feel warm air
coming from the system.
The air conditioning does not rely on
engine temperature.
1.
2.
3.
Heating and Cooling
Comfort and Convenience Features
Ventilation
How to Use the System
99
RREECCIIRRCCUULLAATTIIOONN BBUUTTTTOONN
AAIIRR CCOONNDDIITTIIOONNIINNGG
BBUUTTTTOONN
TTEEMMPPEERRAATTUURREE
CCOONNTTRROOLL DDIIAALL
FFAANN CCOONNTTRROOLL DDIIAALL
MMOODDEE CCOONNTTRROOLL
DDIIAALL
Main Menu
Table of Contents
When the interior has cooled down
to a more comfortable temperature,
close the windows and set the
controls as described for normal
cooling.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
) when driving in stop-and-go
traffic or climbing a long, steep hill.
If it moves near the red zone, turn
off the A/C until the gauge reads
normally.
If the interior is very warm from
beingparkedinthesun,youcancool
it down more rapidly by setting up
the controls this way:
Turn on the A/C by pressing the
button. The light in the button
comesonwhenafanspeedis
selected.
Make sure the temperature
control dial is all the way to the left.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the fan to the desired speed.
Start the engine.
Turn on the A/C by pressing the
button. Make sure the tempera-
ture control dial is turned all the
way to the left.
Set the fan to maximum speed.
Open the windows partially. Select
and Fresh Air mode.
1.
2.
3.
4.
1.
2.
3.
4.
5.
64
Comfort and Convenience Features
Heating and Cooling
To Cool with A/C
100
AAIIRR CCOONNDDIITTIIOONNIINNGG
BBUUTTTTOONN
RREECCIIRRCCUULLAATTIIOONN BBUUTTTTOONN
FFAANN CCOONNTTRROOLL DDIIAALL
MMOODDEE CCOONNTTRROOLL
DDIIAALL
TTEEMMPPEERRAATTUURREE
CCOONNTTRROOLL DDIIAALL
Main Menu
Table of Contents
To warm the interior:
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
To remove fog from the inside of the
windows:
This setting is suitable for all driving
conditions whenever the outside
temperature is above 32°F (0°C).
Start the engine.
Select and Fresh Air mode.
Set the fan to the desired speed.
Adjust the warmth of the air with
the temperature control dial. Set the fan to the desired speed.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial so the mixture of heated and
cooled air feels comfortable.
Set the fan to the desired speed.
Select .
When you select , the
system automatically switches to
Fresh Air mode and turns on the
A/C.
Adjust the temperature control
dial so the air flow from the
defroster vents feels warm.
Turn on the rear window defogger
to help clear the rear window.
When you switch to another mode
from , the A/C stays on.
PresstheA/Cbuttontoturnitoff.
1.
2.
3.
4.
1.
2.
3.
4.
1.
2.
3.
4.
CONTINUED
Heating and Cooling
Comfort and Convenience Features
To Heat To Heat and Dehumidify with Air
Conditioning
To Defog and Defrost
101
Main Menu
Table of Contents
Start the engine.
Select .
When you select , the
system automatically switches to
Fresh Air mode and turns on the
A/C.
Set the fan and temperature
controls to maximum.
To rapidly remove exterior frost or
ice from the windshield (on very cold
days), first select the Recirculation
mode. Once the windshield is clear,
select the Fresh Air mode to avoid
fogging the windows.
To remove exterior frost or ice from
the windshield and side windows
after the car has been sitting out in
cold weather:
1.
2.
3.
Comfort and Convenience Features
Heating and Cooling
102
TTEEMMPPEERRAATTUURREE
CCOONNTTRROOLL DDIIAALL
FFAANN CCOONNTTRROOLL DDIIAALL
MMOODDEE CCOONNTTRROOLL DDIIAALL
AAIIRR CCOONNDDIITTIIOONNIINNGG BBUUTTTTOONN
RREECCIIRRCCUULLAATTIIOONN BBUUTTTTOONN
Main Menu
Table of Contents
These settings direct all the air flow
to the defroster vents at the base of
the windshield and the side window
defroster vents. The air flow will get
warmer and clear the windows faster
as the engine warms up. You can
close the side vents with the dial
beside each vent. This will send
more warm air to the windshield
defroster vents.
For safety, make sure you have a
clear view through all the windows
before driving away.
You should shut the system
completely off only for the first few
minutes of driving in cold weather,
until the engine coolant warms up
enough to operate the heater. Keep
the fan on at all other times so stale
air does not build up in the interior.
To shut off the system temporarily,
turn the fan speed and temperature
control dials all the way to the left.
Heating and Cooling
Comfort and Convenience Features
To Turn Everything Off
103
Main Menu
Table of Contents
The band and frequency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
Your Honda’s audio system provides
clear reception on both AM and FM
bands, while the preset buttons allow
you to easily select your favorite
stations.
The anti-theft feature will disable the
system if it is disconnected from the
car’s battery. To get the system
working again, you must enter a
code number (see page ).
The ignition switch must be in
ACCESSORY (I) or ON (II) to
operate the audio system. Turn the
system on by pushing the PWR/
VOL knob or the AM/FM button.
Adjust the volume by turning the
same knob.
123
Audio System
Comfort and Convenience Features
AM/FM/CD Audio System
Operating the Radio
104
SSTTEERREEOO IINNDDIICCAATTOORR
PPRREESSEETT BBUUTTTTOONNSS
AAMM//FFMM BBUUTTTTOONN
SSEEEEKK BBAARR
AAUUTTOO
SSEELLEECCTT
BBUUTTTTOONN
TTUUNNEE KKNNOOBB
PPWWRR//VVOOLL KKNNOOBB
SSCCAANN IINNDDIICCAATTOORR
SSCCAANN
BBUUTTTTOONN
Main Menu
Table of Contents
−
−−
CONTINUED
Use the TUNE knob to
tune the radio to a desired frequency.
Turn the knob clockwise to tune to a
higher frequency, or
counterclockwise to tune to a lower
frequency.
You can use any of five methods to
find radio stations on the selected
band: TUNE, SEEK, SCAN, AUTO
SELECT, and the Preset buttons.
To change the frequency rapidly,
press and hold the top or bottom of
theSEEKbar.Releasethebarwhen
the display reaches the desired
frequency. Depending on which part
of the bar you press, the system
scans upward or downward from the
current frequency.
The SEEK function
searches the band for a station with
a strong signal. To activate it, press
and release the top or bottom of the
SEEK bar. Depending on which part
of the bar you press, the system
scans upward or downward from the
current frequency. It stops when it
finds a station with a strong signal.
The SCAN function
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. The system will scan
up the band for a station with a
strong signal. When it finds one, it
will stop and play that station for
approximately five seconds. If you do
nothing, the system will then scan
for the next strong station and play
that for five seconds. When it plays a
station that you want to continue
listening to, press the SCAN button
again.
Audio System
Comfort and Convenience Features
TUNE
SEEK SCAN
105
Main Menu
Table of Contents
−
Repeat steps 1 to 3 to store a total
of six stations on AM and twelve
on FM.
Pick the Preset button you want
for that station. Press the button
and hold it until you hear a beep.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two frequencies with each Preset
button.
To store a frequency:
Once a station’s frequency is stored,
simply press and release the proper
preset button to tune to it.
You can store the
frequencies of your favorite radio
stations in the six preset buttons.
Each button will store one frequency
on the AM band, and two
frequencies on the FM band.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
The preset frequencies will be lost if
your car’s battery goes dead, is
disconnected, or the radio fuse is
removed.
1.
2.
3.
4.
Audio System
Comfort and Convenience Features
Preset
106
AAMM//FFMM BBUUTTTTOONN
TTUUNNEE BBAARR
SSTTEERREEOO IINNDDIICCAATTOORR
SSCCAANN IINNDDIICCAATTOORR
SSEEEEKK BBAARR
PPRREESSEETT BBUUTTTTOONNSS
AAUUTTOO
SSEELLEECCTT
BBUUTTTTOONN
SSCCAANN
BBUUTTTTOONN
PPWWRR//VVOOLL KKNNOOBB
Main Menu
Table of Contents
− If you are
traveling far from home and can no
longer receive the stations you
preset, you can use the Auto Select
feature to find stations in the local
area.
To activate Auto Select, press the
A. SEL button. A. SEL will flash in
the display, and the system will go
into scan mode for several seconds.
It automatically scans both bands,
looking for stations with strong
signals. It stores the frequencies of
six AM stations and twelve FM
stations in the preset buttons. You
can then use the preset buttons to
select those stations.
Auto Select does not erase the
frequencies that you preset pre-
viously. When you return home, turn
off Auto Select by pressing the
A. SEL button. The preset buttons
will then select the frequencies you
originally set.
If you are in a remote area, Auto
Select may not find six strong AM
stations or twelve strong FM stations.
If this happens, you will see a ‘‘0’’
displayed when you press any preset
button that does not have a station
stored.
If you do not like the stations Auto
Select has stored, you can store
other frequencies in the preset
buttons. Use the TUNE, SEEK, or
SCAN function to find the desired
frequencies, then store them in the
selected preset buttons as described
previously.
AUTO SELECT
Audio System
Comfort and Convenience Features
107
AAMM//FFMM BBUUTTTTOONN
TTUUNNEE BBAARR
SSEEEEKK BBAARR
PPRREESSEETT BBUUTTTTOONNSS
AAUUTTOO
SSEELLEECCTT
BBUUTTTTOONN
SSCCAANN
BBUUTTTTOONN
AAUUTTOO SSEELLEECCTT IINNDDIICCAATTOORR
PPWWRR//VVOOLL KKNNOOBB
Main Menu
Table of Contents
−
−
Bass, Treble, Balance, and Fader are
each adjustable. You select which of
these you want to adjust by pressing
the TUNE knob. The mode changes
fromBAStoTREtoFADtoBAL,
and then back to the selected audio
mode, each time you press the
TUNE knob.
The system will automatically return
the display to the selected audio
mode about five seconds after you
stop adjusting a mode with the
TUNE knob.
These two
modes adjust the strength of the
sound coming from each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the front-to-back
strength.
Use these modes to
adjust the tone to your liking. Select
TRE or BAS by pressing the TUNE
knob. Adjust the desired mode by
turning the TUNE knob. The level
number on the display shows you the
range. When the adjustment level
reaches the center, you will see
‘‘ ’’.
Select BAL or FAD by pressing the
TUNE knob. Adjust the Balance or
Fader to your liking by turning the
TUNE knob. The level number on
the display shows you the range.
When the adjustment level reaches
the center, you will see ‘‘ ’’.
Comfort and Convenience Features
Audio System
Adjusting the Sound
Balance/Fader
Treble/Bass
108
LLEEVVEELL NNUUMMBBEERR IINNDDIICCAATTOORR
TTUUNNEE KKNNOOBB
Main Menu
Table of Contents
You can use the instrument panel
brightness control dial to adjust the il-
lumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned off.
The display of your audio system
usually shows the time when the
ignition switch is in ACCESSORY (I)
or ON (II). It shows the operation
mode of the radio, CD player, or
optional CD changer/cassette player
when you operate them, and goes
back to the time display after five
seconds.
You can set the time only when the
clock is displayed.
Adjust the hours by pressing and
holding the CLOCK button, then
pressing the H (Preset 4) button.
Adjust the minutes by pressing and
holding the CLOCK button, then
pressing the M (Preset 5) button.
If an error occurs while operating
the CD player or optional CD
changer, the display will show the
error code and will not switch to the
time display until the error is
corrected (see pages and ).117 118
67
CONTINUED
Audio System Lighting
Digital Clock
Audio System
Comfort and Convenience Features
109
CCLLOOCCKK BBUUTTTTOONN
MM BBUUTTTTOONN
RREESSEETT BBUUTTTTOONN
HH BBUUTTTTOONN
Main Menu
Table of Contents
You can quickly set the time to the
nearest hour. If the displayed time is
before the half hour, the clock is set
back to the previous hour by
pressing and holding the CLOCK
button, then pressing the RESET
(Preset 6) button. If the displayed
time is after the half hour, the clock
is set forward to the beginning of the
next hour.
Your Honda’s radio can receive the
complete AM and FM bands.
Those bands cover these frequen-
cies:
AM band:
530 to 1,710 kilohertz
FM band:
87.7 to 107.9 megahertz
Radio stations on the AM band are
assigned frequencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned frequencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
frequencies. It is fairly common for
stations to round-off the frequency in
their advertising, so your radio could
display a frequency of 100.9 even
though the announcer may identify
the station as ‘‘FM101.’’
1:06 would RESET to 1:00.
1:52 would RESET to 2:00.
For example:
Audio System
Comfort and Convenience Features
Radio Frequencies
110
Main Menu
Table of Contents
CONTINUED
Driving very near the transmitter of
a station that is broadcasting on a
frequency close to the frequency of
the station you are listening to can
also affect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
A radio station’s signal gets weaker
as you get farther away from its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.Ifyouare
listening to an FM station, you will
see the stereo indicator flickering off
and on as the signal weakens.
Eventually, the stereo indicator will
go off and the sound will fade
completely as you get out of range of
the station’s signal.
How well your Honda’s radio
receives stations is dependent on
many factors, such as the distance
from the station’s transmitter,
nearby large objects, and atmos-
pheric conditions.
Audio System
Comfort and Convenience Features
Radio Reception
111
Main Menu
Table of Contents
Radio signals, especially on the FM
band, are deflected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal from the station’s transmitter,
and the deflected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.
Radio reception can be affected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interference from passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
Audio System
Comfort and Convenience Features
112
Main Menu
Table of Contents
CONTINUED
You operate the CD player with the
same controls used for the radio.
With the ignition switch in
ACCESSORY (I) or ON (II), insert
the disc into the CD slot. Push the
disc in halfway, the drive will pull it
in the rest of the way and begin to
play. The number of the track that is
playing is shown in the display.
You can also play 3-inch (8-cm) discs
without using an adapter ring. Play
only standard round discs. Odd-
shaped CDs may jam in the drive or
cause other problems.
For best results when using CD-R
discs, use only high quality discs
labeled for audio use. When
recording a CD-R, the recording
must be closed in order for the disc
to be used by CD players. CD-RW
discs will not work in this unit.
Audio System
Comfort and Convenience Features
Operating the CD Player
113
CCDD SSLLOOTT
AAMM//FFMM BBUUTTTTOONN
PPWWRR//VVOOLL KKNNOOBB
CCDD//TTAAPPEE BBUUTTTTOONN RREEPPEEAATT IINNDDIICCAATTOORR
RRAANNDDOOMM BBUUTTTTOONN
SSEEEEKK//SSKKIIPP BBAARR
RRAANNDDOOMM IINNDDIICCAATTOORR
RREEPPEEAATT BBUUTTTTOONN
EEJJEECCTT
BBUUTTTTOONN
Main Menu
Table of Contents
−
−
This feature,
when activated, plays the tracks on
the CD in random order, rather than
in the order they are recorded on the
CD. To activate Random Play, press
the RDM button. You will see RDM
in the display. The system will then
select and play tracks randomly.
This continues until you deactivate
RandomPlaybypressingtheRDM
button again.
To activate the Repeat
feature, press and release the RPT
button. You will see RPT in the
display. The system continuously
replays the current track. Press the
RPT button again to turn it off.
When the system reaches the end of
the disc, it will return to the begin-
ning and play that disc again.
You can switch to the radio while a
CD is playing by pressing the AM/
FM button. Press the CD/TAPE
button to return to playing the CD.
The CD will begin playing where it
left off.
If you turn the system off while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it left off.
Press the eject button to remove the
disc from the drive.
If you eject the disc, but do not
remove it from the slot, the system
will automatically reload the disc
after 15 seconds and put the CD
player in pause mode. To begin
playing the disc, press the CD/TAPE
button.
You can use the SEEK/SKIP bar
while a disc is playing to select
passages and change tracks.
To move rapidly within a track, press
andholdtheSEEK/SKIPbar.Press
the side to move forward. You
will see CUE in the display. Press the
side to move backward. You
will see REW displayed. Release the
bar when the system reaches the
point you want.
Each time you press and release the
side of the SEEK/SKIP bar,
the system skips forward to the
beginning of the next track. Press
and release the side to skip
backward to the beginning of the
current track. Press it again to skip
to the beginning of the previous
track.
Audio System
Comfort and Convenience Features
RANDOM PLAY
REPEAT
114
Main Menu
Table of Contents
＋−
＋
−
Load the desired CDs in the
magazine and load the magazine in
the changer according to the
instructions that came with the unit.
Play only standard round discs. Odd-
shaped CDs may jam in the drive or
cause other problems.
Ifyouejectthediscinthein-dash
CD while it is playing, the system
will automatically switch to the CD
changer and begin play where it left
off. If there are no CDs in the
changer, the display will flash. You
will have to select another mode
(AM or FM) with the button.
When you switch back to CD mode,
the system selects the same unit (in-
dash or changer) that was playing
when you switched out of CD mode.
To use the SKIP, REPEAT, and
RANDOM functions, refer to the in-
dash player operating instructions.
If you load a CD in the in-dash player
while the changer is playing a CD,
the system will stop the changer and
begin playing the in-dash CD. To
select the changer again, press the
CD button. Play will begin where it
left off. Use the CD button to switch
between the player and the changer.
To select a different disc, press the
DISC (Preset 6) or DISC
(Preset 5) button. The next disc in
the changer is loaded and played
when you press the DISC button.
DISC loads and plays the previous
disc. If you select an empty slot in
the magazine, the changer will, after
finding that slot empty, try to load
the CD in the next slot. This
continues until it finds a CD to load
and play.
To select the CD changer, press the
CD button. The disc and track
numbers will be displayed.
For best results when using CD-R
discs, use only high quality discs
labeled for audio use. When
recording a CD-R, the recording
must be closed in order for the disc
to be used by CD players. CD-RW
discs will not work in this unit.
A Compact Disc changer is available
from your dealer. It holds up to six
discs, providing several hours of
continuous entertainment. You
operate this CD changer with the
same controls used for the in-dash
CD player.
Audio System
Comfort and Convenience Features
Operating the CD Changer
(Optional)
115
Main Menu
Table of Contents
When a CD is not being played, store
it in its case to protect it from dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
To clean a disc, use a clean soft cloth.
Wipe across the disc from the center
to the outside edge.
AnewCDmayberoughonthe
inner and outer edges. The small
plastic pieces causing this roughness
can flake off and fall on the re-
cording surface of the disc, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
Never try to insert foreign objects in
the CD player or the magazine.
Handle a CD by its edges; never
touch either surface. Do not place
stabilizer rings or labels on the CD.
These, along with contamination
from fingerprints, liquids, and felt-tip
pens, can cause the CD to not play
properly, or possibly jam in the drive.
Protecting Compact Discs
Audio System
Comfort and Convenience Features
116
Main Menu
Table of Contents
If you see an error indication in the
display while operating the CD
player,findthecauseinthechartto
the right. If you cannot clear the
error indication, take the car to your
Honda dealer.
Indication Cause Solution
FOCUS Error
Mechanical Error
High temperature.
Press the EJECT button and pull out the disc.
Check if the disc is inserted correctly in the CD
player.
Make sure the disc is not scratched or damaged.
Press the EJECT button and pull out the disc.
Check the disc for damage or deformation.
If the CD cannot be pulled out or the error
indication does not disappear after the disc is
ejected, see your Honda dealer.
Do not try to force the disc out of the player.
Will disappear when the temperature returns to
normal.
Audio System
Comfort and Convenience Features
CD Player Error Indications
117
Main Menu
Table of Contents
If you see an error indication in the
display while operating the CD
changer, find the cause in the chart
to the right. If you cannot clear the
error indication, take the car to your
Honda dealer.
Indication Cause Solution
FOCUS Error
No CD in the CD
magazine
Mechanical Error
High temperature.
No CD magazine in the
CD changer.
Press the magazine eject button and pull out
the magazine, check for error indication. Insert
the magazine again. If the code does not
disappear or the magazine cannot be pulled out,
consult your Honda dealer.
Insert CD.
Press the magazine eject button and pull out
the magazine, check for error indication. Insert
the magazine again. If the code does not
disappear or the magazine cannot be pulled out,
consult your Honda dealer.
Will disappear when the temperature returns to
normal.
Insert CD magazine.
Audio System
Comfort and Convenience Features
CD Changer Error Indications
118
Main Menu
Table of Contents
＊
＊
CONTINUED
The cassette system features Dolby
noise reduction, automatic sensing of
chromium-dioxide (CrO ) tape, and
autoreverse for continuous play.
Make sure the tape opening on the
cassette is facing to the right, then
insert the cassette most of the way
into the slot. The system will pull it
in the rest of the way, and begin to
play.
2
Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
Audio System
Comfort and Convenience Features
Operating the Cassette Player
(Optional)
119
NNRR BBUUTTTTOONN
PPWWRR//VVOOLL KKNNOOBB
AAMM//FFMM BBUUTTTTOONN
CCDD//TTAAPPEE BBUUTTTTOONN
NNRR IINNDDIICCAATTOORR
RREEPPEEAATT IINNDDIICCAATTOORR
RREEWW BBUUTTTTOONN
PPLLAAYY//PPRROOGG BBUUTTTTOONN
FFFF BBUUTTTTOONN
RREEPPEEAATT
BBUUTTTTOONN
SSKKIIPP BBAARR
Main Menu
Table of Contents
▲
−
Dolby noise reduction turns on when
you insert a cassette. If the tape was
not recorded with Dolby noise
reduction, turn it off by pressing the
NR button.
With a cassette playing, you can use
the FF, REW, SKIP, or REPEAT
function to find a desired program.
Noise reduction remains off until you
turn it on by pressing the button
again.
The tape direction indicator will light
to show you which side of the
cassette is playing. The indicates
thesideyouinsertedfacingupward
is now playing. If you want to play
the other side, press the PLAY/
PROG button.
If you turn the system off while a
tape is playing, either with the PWR/
VOL knob or by turning off the
ignition, the cassette will remain in
the drive. When you turn the system
back on, the cassette player will be in
pause mode. To begin playing, press
the PLAY/PROG button.
To switch to the radio or CD player
while a tape is playing, press the
AM/FM, or CD/TAPE button. To
change back to the cassette player,
push the CD/TAPE button.
Fast Forward and Re-
wind move the tape rapidly. To re-
wind the tape, push the REW button.
You will see REW in the display. To
fast forward the tape, push the FF
button. You will see FF displayed.
Press the PLAY/PROG button to
take the system out of rewind or fast
forward. If the system reaches the
end of the tape while in fast forward
or rewind, it automatically stops that
function, reverses direction, and
begins to play.
When the system reaches the end of
the tape, it will automatically reverse
direction and play the other side. If
you want to remove the cassette
from the drive, press the EJECT
button on the cassette player.
Audio System
Comfort and Convenience Features
Tape Search Functions
FF/REW
120
Main Menu
Table of Contents
−− The SKIP and REPEAT functions
use silent periods on the tape to find
the end of a song or passage. These
features may not work to your
satisfaction if there is almost no gap
between selections, a high noise
level between selections, or a silent
period in the middle of a selection.
The Repeat function
continuously replays the current
song or passage. Press the RPT
button to activate it; you will see RPT
displayed as a reminder. When the
system reaches the end of the song
or passage currently playing, it will
automatically go into rewind. When
it senses the beginning of the same
song or passage, the system returns
to PLAY mode. It will continue to
repeat this same program until you
deactivate REPEAT by pressing the
button again.
The Skip Function allows
you to find the beginning of a song
or passage. To find the beginning of
the song or passage currently
playing, push the lower part of the
SKIP bar. You will see REW flashing
in the display as the tape rewinds. To
find the beginning of the next song,
push the upper part of the SKIP bar.
You will see FF flashing in the
display as the tape fast forwards.
When the system finds the
beginning of a song or passage, it
goes back to PLAY mode.
Audio System
Comfort and Convenience Features
REPEATSKIP
121
Main Menu
Table of Contents
If you do not clean the cassette
player regularly, it may eventually
become impossible to remove the
contamination with a normal
cleaning kit.
Use 100-minute or shorter cassettes.
Cassettes longer than that use
thinner tape that may break or jam
the drive.
Look at the cassette before you
insert it. If the tape is loose, tighten
it by turning a hub with a pencil or
your finger.
The cassette player picks up dirt and
oxides from the tape. This contami-
nation builds up over time and
causes the sound quality to degrade.
To prevent this, you should clean the
player after every 30 hours of use.
Your dealer has a cleaning kit
available.
Never try to insert foreign objects
into the cassette player.
When they are not in use, store
cassettes in their cases to protect
them from dust and moisture. Never
place cassettes where they will be
exposed to direct sunlight, high heat,
or high humidity. If a cassette is
exposed to extreme heat or cold, let
it reach a moderate temperature
before inserting it in the player.
If the label is peeling off, remove it
from the cassette or it could cause
the cassette to jam in the player.
Never try to insert a warped or
damaged cassette in the player.
If you see the error indication
‘‘ ’’ on the display, press
the EJECT button and remove the
cassette from the unit. Make sure
the tape is not damaged. If the
cassette will not eject or the error
indication stays on after the cassette
ejects, take the car to your Honda
dealer.
Audio System
Comfort and Convenience Features
Caring for the Cassette Player
122
Main Menu
Table of Contents
You will have to store your favorite
stations in the Preset buttons after
the system begins working. Your
original settings were lost when
power was disconnected.
If your car’s battery is disconnected
or goes dead, or the radio fuse is
removed, the audio system will
disable itself. If this happens, you
will see ‘‘ ’’ in the frequency
display the next time you turn on the
system. Use the Preset buttons to
enter the five-digit code. If it is
entered correctly, the radio will start
playing.
If you make a mistake entering the
code, do not start over or try to
correct your mistake. Complete the
five-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you are
unsuccessful in ten attempts, you
must then leave the system on for
one hour before trying again.
Your car’s audio system will disable
itself if it is disconnected from
electrical power for any reason. To
make it work again, the user must
enter a specific five-digit code in the
Preset buttons. Because there are
hundreds of number combinations
possible from five digits, making the
system work without knowing the
exact code is nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system’s code
number and serial number. It is best
tostorethiscardinasafeplaceat
home. In addition, you should write
the audio system’s serial number in
this Owner’s Manual. If you should
happen to lose the card, you must
obtain the code number from your
Honda dealer. To do this, you will
need the system’s serial number.
Audio System
Comfort and Convenience Features
Theft Protection
123
Main Menu
Table of Contents
Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your foot on the
accelerator pedal. It should be used
for cruising on straight, open
highways. It is not recommended for
conditions such as city driving,
winding roads, slippery roads, heavy
rain, or bad weather. You should
have full control of the car under
those conditions.
Push in the Cruise Control Master
Switch to the left of the steering
column. The indicator in the
switch will light.
Accelerate to the desired cruising
speedabove25mph(40km/h).
Press and release the SET/decel
buttononthesteeringwheel.The
CRUISE CONTROL light on the
instrument panel comes on to
show the system is now activated.
1.
2.
3.
Using the Cruise Control
Cruise Control
Comfort and Convenience Features
124
SSEETT//ddeecceell
RREESSUUMMEE//
aacccceell
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
Main Menu
Table of Contents
Thecruisecontrolmaynotholdthe
set speed when you are going up and
down hills. If your speed increases
going down a hill, use the brakes to
slow down to the desired speed. This
will cancel the cruise control. To
resume the set speed, press the
RESUME/accel button. The
CRUISE CONTROL light on the
instrument panel comes on.
You can increase the set cruising
speed in any of these ways:
Press and hold the RESUME/
accel button. The car will acceler-
ate. When you reach the desired
cruising speed, release the button.
To increase your speed in very
small amounts, tap the RESUME/
accel button repeatedly. Each time
you do this, your car will speed up
about 1 mph (1.6 km/h).
Push on the accelerator pedal. Ac-
celerate to the desired cruising
speed and press the SET/decel
button.
You can decrease the set cruising
speed in any of these ways:
Press and hold the SET/decel
button. The car will decelerate.
Release the button when you
reach the desired speed.
To slow down in very small
amounts, tap the SET/decel
button repeatedly. Each time you
do this, your car will slow down
about 1 mph (1.6 km/h).
Tap the brake or clutch pedal
lightly with your foot. The
CRUISE CONTROL light on the
instrument panel will go out.
When the car slows to the desired
speed, press the SET/decel button.
The car will then maintain the
desired speed.
CONTINUED
Cruise Control
Comfort and Convenience Features
Changing the Set Speed
125
Main Menu
Table of Contents
Even with the cruise control turned
on, you can still use the accelerator
pedal to speed up for passing. After
completing the pass, take your foot
off the accelerator pedal. The car
will return to the set cruising speed.
Resting your foot on the brake or
clutch pedal will cause the cruise
control to cancel.
Youcancancelthecruisecontrolin
any of these ways:
Tap the brake or clutch pedal.
Press the Cruise Control Master
Switch.
Push the CANCEL button on the
steering wheel.
When you push the CANCEL
button, or tap the brake or clutch
pedal, the CRUISE CONTROL
light on the instrument panel will
go out and the car will begin to
slow down. You can use the
accelerator pedal in the normal
way.
The system remembers the
previously-set cruising speed. To
return to that speed, accelerate to
above25mph(40km/h),then
press the RESUME/accel button.
The CRUISE CONTROL light
comes on, and the car will
accelerate to the same cruising
speed as before.
Pressing the Cruise Control Master
Switch turns the system completely
off and erases the previous cruising
speed from memory. To use the
system again, refer to
.
Cruise Control
Comfort and Convenience Features
Cancelling the Cruise Control
Using the
Cruise Control
126
CCAANNCCEELL
BBUUTTTTOONN
Main Menu
Table of Contents
Before you begin driving your Honda,
youshouldknowwhatgasolineto
use, and how to check the levels of
important fluids. You also need to
know how to properly store luggage
or packages. The information in this
section will help you. If you plan to
add any accessories to your car,
please read the information in this
section first.
.............................Break-in Period . 128
.........................................Gasoline . 128
.........Service Station Procedures . 129
................Filling the Fuel Tank . 129
....................Opening the Hood . 130
...............................Oil Check . 132
.........Engine Coolant Check . 133
...............................Fuel Economy . 134
.....................Vehicle Condition . 134
...........................Driving Habits . 134
...Accessories and Modifications . 135
.............................Carrying Cargo . 137
Before Driving
Before Driving
127
Main Menu
During this period:
Avoid full-throttle starts and rapid
acceleration.
We recommend gasolines containing
detergent additives that help prevent
fuel system and engine deposits.
Avoidhardbraking.Newbrakes
need to be broken-in by moderate
use for the first 200 miles (300
km).
In Canada, some gasolines contain
an octane-enhancing additive called
MMT. If you use such gasolines,
your emission control system
performance may deteriorate and
the Malfunction Indicator Lamp on
your instrument panel may turn on.
If this happens, contact your
authorized Honda dealer for service.
Help assure your car’s future
reliability and performance by paying
extra attention to how you drive
during the first 600 miles (1,000 km).
Using gasoline containing lead will
damage your car’s emissions
controls. This contributes to air
pollution.
Do not change the oil until the
recommended time or mileage
intervalshowninthemaintenance
schedule.
Youshouldfollowthesesamere-
commendations with an overhauled
or exchanged engine, or when the
brakes are relined.
Your Honda is designed to operate
on unleaded gasoline with a pump
octane number of 86 or higher. Use
of a lower octane gasoline can cause
a persistent, heavy metallic rapping
noise in the engine that can lead to
mechanical damage.
Break-in Period, Gasoline
Before Driving
Break-in Period Gasoline
128
Main Menu
Table of Contents
Open the fuel fill door by pulling
onthehandletotheleftofthe
driver’s seat.
Because the fuel fill cap is on the
driver’s side of the car, park with
that side closest to the service
station pumps.
Removethefuelfillcapslowly.
You may hear a hissing sound as
pressure inside the tank escapes.
1.
2.
3.
CONTINUED
Filling the Fuel Tank
Service Station Procedures
Before Driving
129
PPuullll
FFUUEELL FFIILLLL CCAAPP
Gasoline is highly flammable
and explosive. You can be
burned or seriously injured
when handling fuel.
Stop the engine and keep
heat, sparks, and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
Main Menu
Table of Contents
Shift to Park or Neutral and set
the parking brake. Pull the hood
release handle located under the
lower left corner of the dashboard.
The hood will pop up slightly.
Push the fuel fill door closed until
it latches.
Stop filling the tank after the fuel
nozzle automatically clicks off. Do
not try to ‘‘top off’’ the tank, leave
some room for the fuel to expand
with temperature changes.
Your car has an on-board refueling
vapor recovery system to help
keep fuel vapors from going into
the atmosphere. If the fuel nozzle
keeps clicking off even though the
tank is not full, there may be a
problem with this system. Consult
your dealer.
Screw the fuel fill cap back on,
tighten it until it clicks several
times. If you do not properly
tighten the cap, the Malfunction
Indicator Lamp may come on (see
page ).
Put the attachment on the fuel fill
cap into the slit on the fuel fill door.
1.
5.
6.
4.
236
Service Station Procedures
Before Driving
Opening the Hood
130
BBOONNNNEETT RREELLEEAASSEE HHAANNDDLLEEAATTTTAACCHHMMEENNTT
FFUUEELL FFIILLLL CCAAPP
SSLLIITT
Main Menu
Table of Contents
CONTINUED
Pull the support rod out of its clip
and insert the end into the hole on
theleftsideofthehood.
To close the hood, lift it up slightly to
remove the support rod from the
hole. Put the support rod back into
its holding clip. Lower the hood to
about a foot (30 cm) above the
fender,thenletitdrop.
If you can open the hood without
lifting the hood latch handle, or the
hood latch handle moves stiffly or
does not spring back as before, the
mechanism should be cleaned and
lubricated (see page ).
Standing in front of the car, put
your fingers under the front edge
of the hood to the right of center.
Slide your hand to the left until
you feel the hood latch handle. Lift
up on this handle until it releases
the hood. Lift the hood.
3.
181
2.
Service Station Procedures
Before Driving
131
SSUUPPPPOORRTT RROODD
GGRRIIPP
CCLLIIPP
LLAATTCCHH
Main Menu
Table of Contents
Wipe the dipstick with a clean
cloth or paper towel.
Check the engine oil level every time
you fill the car with fuel. Wait a few
minutes after turning the engine off
before you check the oil.
Remove the dipstick (orange
handle).
After closing the hood, make sure
it is securely latched.
2.
1.
Service Station Procedures
Before Driving
Oil Check
132
DDIIPPSSTTIICCKK
Main Menu
Table of Contents
Refer to
on page for information
on checking other items in your
Honda.
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page for
informationonaddingtheproper
coolant.
Remove the dipstick again and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower mark,
see on page .
Insert it all the way back in its tube. 4.
171
165
167
3.
Service Station Procedures
Before Driving
Owner Maintenance
Checks
Adding
Engine Coolant
Adding Oil
Engine Coolant Check
133
MMAAXX
RREESSEERRVVEE
TTAANNKK
MMIINN
UUPPPPEERR MMAARRKK
LLOOWWEERR MMAARRKK
Main Menu
Table of Contents
You can improve fuel economy by
driving moderately. Rapid acceler-
ation, abrupt cornering, and hard
braking use more fuel.
A cold engine uses more fuel than a
warm engine. It is not necessary to
‘‘warm-up’’ a cold engine by letting it
idle for a long time. You can drive
away in about a minute, no matter
how cold it is outside. The engine
will warm up faster, and you get
better fuel economy. To cut down on
the number of ‘‘cold starts,’’ try to
combine several short trips into one.
The air conditioning puts an extra
load on the engine which makes it
usemorefuel.TurnofftheA/Cto
cutdownonairconditioninguse.
Use the flow-through ventilation
when the outside air temperature is
moderate.
Always drive in the highest gear that
allows the engine to run and acceler-
ate smoothly.
The condition of your car and your
driving habits are the two most
important things that affect the fuel
mileage you get.
Always maintain your car according
to the maintenance schedule. This
will keep it in top operating condition.
Depending on traffic conditions, try
to maintain a constant speed. Every
time you slow down and speed up,
your car uses extra fuel.
An important part of that mainte-
nance is the
(see page ). For
example, an underinflated tire
causes more ‘‘rolling resistance,’’
which uses fuel. It also wears out
faster, so check the tire pressure at
least monthly.
In winter, the build-up of snow on
your car’s underside adds weight and
rolling resistance. Frequent cleaning
helps your fuel mileage and reduces
thechanceofcorrosion.
165
Vehicle Condition
Driving Habits
Owner Maintenance
Checks
Fuel Economy
Before Driving
134
Main Menu
Table of Contents
Modifying your car, or installing
some non-Honda accessories, can
make your car unsafe. Before you
make any modifications or add any
accessories,besuretoreadthe
following information.
Your dealer has genuine Honda
accessories that allow you to
personalize your car. These
accessories have been designed and
approved for your car, and are
covered by warranty.
If possible, have your dealer inspect
the final installation.
Have the installer contact your
Honda dealer for assistance before
installing any electronic accessory.
Be sure electronic accessories do
not overload electrical circuits
(see page ).
Make sure the accessory does not
obscure any lights, or interfere
with proper car operation or
performance.
Before installing any accessory:
However, if electronic accessories
are improperly installed, or exceed
your car’s electrical system capacity,
they can interfere with the operation
of your car, or even cause the
airbags to deploy.
Non-Honda accessories are usually
designed for universal applications.
Although aftermarket accessories
may fit on your car, they may not
meet factory specifications, and
could adversely affect your car’s
handling and stability. (See
‘‘Modifications’’ on page for
additional information.)
When properly installed, cellular
phones, alarms, two-way radios, and
low-powered audio systems should
not interfere with your car’s
computer-controlled systems, such
as the SRS and anti-lock brake
system.
136
240
Accessories
Accessories and Modifications
Before Driving
135
Improper accessories or
modifications can affect your
car’s handling, stability and
performance, and cause a
crash in which you can be hurt
or killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
Main Menu
Table of Contents
In addition, any modifications that
decrease ground clearance increase
the chance of undercarriage parts
striking a curb, speed bump, or other
raised object, which could cause
your airbags to deploy.
Do not modify your steering wheel
or any other part of your
Supplemental Restraint System.
Modifications could make the
system ineffective.
Do not remove any original
equipment or modify your car in any
way that would alter its design or
operation. This could make your car
unsafe and illegal to drive.
For example, do not make any
modifications that would change the
ride height of your car, or install
wheels and tires with a different
overall diameter.
Such modifications can adversely
affect handling, and interfere with
the operation of the car’s anti-lock
brakes and other systems.
Any object attached to
or placed on the covers marked ‘‘SRS
AIRBAG,’’ in the center of the
steering wheel and on top of the
dashboard, could interfere with the
proper operation of the airbags. Or,
if the airbags inflate, the objects
could be propelled inside the car and
hurt someone.
If a side airbag
inflates,acupholderorotherhard
object attached on or near the
door could be propelled inside the
car and hurt someone.
Covering the outside edge of a
front seat-back, with a non-Honda
seat cover for example, could
prevent the airbag from inflating
properly.
Only when equipped with side airbags
Modifications
Additional Safety Precautions
Before Driving
Accessories and Modifications
Do not attach or place objects on the
airbag covers.
Do not attach hard objects on or
near a front door.
Do not place any objects over the
outsideedgeofafrontseat-back.
136
Main Menu
Table of Contents
Your car has several convenient
storage areas so you can stow cargo
safely.
However, carrying too much cargo,
or improperly storing it, can affect
your car’s handling, stability, and
operation and make it unsafe. Before
carrying any type of cargo, be sure to
read the following pages.
The glove box, and the pockets in
the doors and seat-back, are
designed for small, lightweight items.
The cargo area is intended for larger,
heavier items. In addition, the back
seatcanbefoldeddowntoallowyou
to carry more cargo or longer items.
Before Driving
Carrying Cargo
137
DDOOOORR PPOOCCKKEETT
CCAARRGGOO AARREEAA
GGLLOOVVEE BBOOXX
CCOONNSSOOLLEE CCOOMMPPAARRTTMMEENNTT
DDRRIIVVEERR’’SS PPOOCCKKEETT
Main Menu
Table of Contents
Store or secure all items that could
be thrown around and hurt
someone during a crash.
Besureitemsplacedonthefloor
behind the front seats cannot roll
under the seats and interfere with
the driver’s ability to operate the
pedals, or with the proper
operation of the seats.
Keep the glove box closed while
driving. If the lid is open, a
passenger could injure their knees
during a crash or sudden stop.
This figure includes the total weight
of all occupants, cargo, and
accessories.
To figure out how much cargo you
can carry:
Add up the weight of all occupants.
The final number is the total weight
of cargo you can carry.
The maximum load for your car is
850 lbs (395 kg).
Subtract the total from 850 lbs
(395 kg).
Carrying Items in the Passenger
Compartment
Load Limit
Carrying Cargo
Before Driving
138
Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
Main Menu
Table of Contents
Distribute cargo evenly on the
floor of the cargo area, placing the
heaviest items on the bottom and
as far forward as possible.
Do not place items on the cargo
area cover, or stack objects higher
than the top of the back seat. They
could block your view and be
thrown about the vehicle during a
crash or sudden stop.
If you can carry any items on a
roofrack,besurethetotalweight
of the rack and the items does not
exceed the maximum allowable
weight. Please contact your Honda
dealer for further information.
If you carry large items that
prevent you from closing the
hatch, exhaust gas can enter the
passenger area. To avoid the
possibility of carbon monoxide
poisoning, follow the instructions
on page .
Ifyoufolddownthebackseat,tie
down items that could be thrown
about the car during a crash or
sudden stop.
52
Carrying Cargo in the Cargo Area
or on a Roof Rack
Carrying Cargo
Before Driving
139
Main Menu
Table of Contents
140
Main Menu
This section gives you tips on
starting the engine under various
conditions, and how to operate the
5-speed manual transmission. It also
includes important information on
parking your car, and the braking
system.
........................Preparing to Drive . 142
.......................Starting the Engine . 143
Starting in Cold Weather
....................at High Altitude . 143
....5-speed Manual Transmission . 144
.....Recommended Shift Points . 145
..............Engine Speed Limiter . 145
...........................................Parking . 146
..............................Parking Tips . 146
.....................The Braking System . 147
.............Brake Wear Indicators . 147
...............Brake System Design . 148
........................Anti-lock brakes . 148
Important Safety
.......................Remainders . 149
......................ABS Indicators . 150
...............Driving in Bad Weather . 151
...........................Towing a Trailer . 152
Driving
Driving
141
Main Menu
Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove frost, snow,
or ice.
Check the adjustment of the seat
(see page ).
Check the adjustment of the
inside and outside mirrors (see
page ).
Turn the ignition switch ON (II).
Check the indicator lights in the
instrument panel.
Start the engine (see page ).
Check the gauges and indicator
lights in the instrument panel (see
page ).
Check that any items you may be
carrying with you inside are stored
properly or fastened down
securely.
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure.
Check that the hood and hatch are
fully closed. Make sure the doors are securely
closed and locked.
Check the adjustment of the
steering wheel (see page ).
Fasten your seat belt. Check that
your passengers have fastened
their seat belts (see page ).
Youshoulddothefollowingchecks
and adjustments every day before
you drive your car.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
15
81
88
71 57
143
Preparing to Drive
Driving
142
Main Menu
Table of Contents
Apply the parking brake.
In cold weather, turn off all
electrical accessories to reduce
the drain on the battery.
Use the following procedure:
Turn off all electrical accessories
to reduce the drain on the battery.
Push the accelerator pedal half-
way to the floor and hold it there
while starting the engine. Do not
hold the ignition key in START
(III) for more than 15 seconds.
When the engine starts, release
the accelerator pedal gradually as
the engine speeds up and smooths
out.
If the engine fails to start in step 2,
push the accelerator pedal to the
floor and hold it there while you
try to start the engine for no more
than 15 seconds. If the engine
does not start, return to step 2.
Push the clutch pedal down all the
way. START (III) does not
function unless the clutch pedal is
depressed.
Without touching the accelerator
pedal, turn the ignition key to the
START (III) position. If the engine
does not start right away, do not
hold the key in START (III) for
more than 15 seconds at a time.
Pause for at least 10 seconds
before trying again.
If the engine does not start within
15 seconds, or starts but stalls
right away, repeat step 4 with the
accelerator pedal pressed half-way
down. If the engine starts, release
pressure on the accelerator pedal
so the engine does not race.
If the engine still does not start,
press the accelerator pedal all the
way down and hold it there while
starting in order to clear flooding.
As before, keep the ignition key in
the START (III) position for no
more than 15 seconds. Return to
step 5 if the engine does not start.
If it starts, lift your foot off the
accelerator pedal so the engine
does not race.
An engine is harder to start in cold
weather. The thinner air found at
high altitude above 8,000 feet (2,400
meters) adds to the problem.
1.
2.
3.
4.
5.
6. 1.
2.
3.
Starting the Engine
Driving
Starting in Cold Weather at High
Altitude (Above 8,000 feet/
2,400 meters)
143
Main Menu
Table of Contents
The manual transmission is syn-
chronizedinallforwardgearsfor
smooth operation. It has a lockout so
you cannot shift directly from Fifth
to Reverse. When shifting up or
down,makesureyoupushtheclutch
pedal down all the way, shift to the
next gear, and let the pedal up
gradually. When you are not shifting,
do not rest your foot on the clutch
pedal. This can cause your clutch to
wear out faster.
Come to a full stop before you shift
into Reverse. You can damage the
transmission by trying to shift into
Reverse with the car moving. Push
down the clutch pedal, and pause for
a few seconds before shifting into
Reverse, or shift into one of the
forward gears for a moment. This
stops the gears so they won’t ‘‘grind.’’
When slowing down, you can get
extra braking from the engine by
shifting to a lower gear. This extra
braking can help you maintain a safe
speed and prevent your brakes from
overheating while going down a
steep hill. Before downshifting,
make sure the vehicle speed is low
enough that you will not activate the
engine speed limiter in the lower
gear. Make sure the engine speed
will not go into the tachometer’s red
zone in the lower gear before
downshifting.
5-speed Manual Transmission
Driving
144
Rapid slowing or speeding-up
can cause loss of control on
slippery surfaces. If you crash,
you can be injured.
Use extra care when driving on
slippery surfaces.
Main Menu
Table of Contents
Drive in the highest gear that lets
the engine run and accelerate
smoothly. This will give you the best
fuel economy and effective emis-
sions control. The following shift
points are recommended:
Shift up
1st to 2nd
2nd to 3rd
3rd to 4th
4th to 5th
Normal acceleration
14 mph (23 km/h)
25 mph (40 km/h)
40 mph (64 km/h)
49 mph (79 km/h)
Before downshifting, make sure the
engine will not go into the
tachometer’s red zone.
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
RPM below the red zone.
Shift up
1st to 2nd
2nd to 3rd
3rd to 4th
4th to 5th
7mph(11km/h)
23 mph (37 km/h)
33 mph (53 km/h)
45 mph (72 km/h)
Cruise from acceleration
Recommended Shift Points Engine Speed Limiter
5-speed Manual Transmission
Driving
145
Main Menu
Table of Contents
Always use the parking brake when
you park your car. The indicator on
the instrument panel shows that the
parking brake is not fully released; it
does not indicate that the parking
brakeisfirmlyset.Makesurethe
parking brake is set firmly or your
car may roll if it is parked on an
incline.
Make sure the moonroof and the
windows are closed.
Turn off the lights.
Place any packages, valuables, etc.,
in the cargo area or take them
with you.
If the car is facing uphill, turn the
front wheels away from the curb and
put the transmission in first gear.
If the car is facing downhill, turn the
front wheels toward the curb and put
the transmission in reverse gear.
Make sure the parking brake is fully
released before driving away.
Driving with the parking brake
partially set can overheat or damage
the rear brakes.
Lockthedoorswiththekeyorthe
remote transmitter.
Never park over dry leaves, tall
grass, or other flammable
materials. The three way catalytic
converter gets very hot, and could
cause these materials to catch on
fire.
Parking Tips
Parking
Driving
146
Main Menu
Table of Contents
Constant application of the brakes
when going down a long hill builds
up heat and reduces their effective-
ness. Use the engine to assist the
brakes by downshifting to a lower
gear and taking your foot off the
accelerator pedal.
Check your brakes after driving
through deep water. Apply the
brakes moderately to see if they feel
normal. If not, apply them gently and
frequently until they do. Since a
longer distance is needed to stop
with wet brakes, be extra cautious
and alert in your driving.
Your brakes may sometimes squeal
or squeak when you apply them
lightly. Do not confuse this with the
brake wear indicators. They make a
very audible ‘‘screeching.’’
When the brake pads need replacing,
you will hear a distinctive metallic
‘‘screeching’’ sound when you apply
the brakes. If you do not have the
brake pads replaced, they will begin
screeching all the time.
Your Honda is equipped with disc
brakes at all four wheels. A power
assist helps reduce the effort needed
on the brake pedal. The ABS helps
you retain steering control when
braking very hard.
Put your foot on the brake pedal only
when you intend to brake. Resting
your foot on the pedal keeps the
brakes applied lightly, causing them
to build up heat. Heat build-up can
reduce how well your brakes work. It
also keeps your brake lights on all
the time, confusing drivers behind
you.
All four brakes have audible brake
wear indicators.
Brake Wear Indicators
The Braking System
Driving
147
Main Menu
Table of Contents
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the car (the left-front brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
Your car has an Anti-lock Brake
System (ABS) as standard
equipment. ABS helps to prevent the
wheels from locking up and skidding
during hard braking, allowing you to
retain steering control.
When the front tires skid, you lose
steering control; the car continues
straightaheadeventhoughyouturn
the steering wheel. The ABS helps to
prevent lock-up and helps you retain
steering control by pumping the
brakes rapidly; much faster than a
person can do it.
Brake System Design Anti-lock Brakes
Driving
The Braking System
148
FFrroonntt
Main Menu
Table of Contents
this defeats the
purpose of the ABS. Let the ABS
work for you by always keeping firm,
steady pressure on the brake pedal
as you steer away from the hazard.
This is sometimes referred to as
You will feel a pulsation in the brake
pedal when the ABS activates, and
you may hear some noise. This is
normal; it is the ABS rapidly
pumping the brakes.
Activation varies with the amount of
traction your tires have. On dry
pavement, you will need to press on
thebrakepedalveryhardbeforeyou
activate the ABS. However, you may
feel the ABS activate immediately if
you are trying to stop on snow or ice.
such as trying to take a
corner too fast or making a sudden
lane change. Always drive at a safe,
prudent speed for the road and
weather conditions.
it
only helps with steering control
during braking. You should always
maintain a safe following distance
from other vehicles.
Always steer moderately
when you are braking hard. Severe
or sharp steering wheel movement
can still cause your car to veer into
oncoming traffic or off the road.
on loose or
uneven surfaces, such as gravel or
snow, than a car without anti-lock.
Slow down and allow a greater
distance between cars under those
conditions.
‘‘stomp and steer.’’
You should never pump the
brake pedal;
ABS will not prevent a skid that
results from changing direction
abruptly,
ABS does not reduce the time or
distance it takes to stop the car;
ABS cannot prevent a loss of
stability.
A car with ABS may require a
longer distance to stop
Important Safety Reminders
The Braking System
Driving
149
Main Menu
Table of Contents
＊＊
＊＊
The ABS is self-checking. If anything
goes wrong, the ABS indicator on
the instrument panel comes on (see
page ). This means the anti-lock
function of the braking system has
shut down. The brakes still work like
a conventional system without anti-
lock, providing normal stopping
ability. You should have the dealer
inspect your car as soon as possible.
60
ABS Indicator
The Braking System
Driving
150
UU..SS.. iinnddiiccaattoorr sshhoowwnn
AABBSS IINNDDIICCAATTOORR
Main Menu
Table of Contents
−− Being able to see
clearly in all directions and being
visible to other drivers are important
in all weather conditions. This is
more difficult in bad weather. To be
seen more clearly during daylight
hours, turn on your headlights.
Inspect your windshield wipers and
washers frequently. Keep the wind-
shield washer reservoir full of the
proper fluid. Have the windshield
wiper blades replaced if they start to
streak the windshield or leave parts
unwiped. Use the defrosters and air
conditioning to keep the windows
from fogging up on the inside (see
page ).
Exercise extra caution when driving
in rain after a long dry spell. After
months of dry weather, the first
rains bring oil to the surface of the
roadway, making it slippery.
Rain, fog, and snow conditions re-
quire a different driving technique
because of reduced traction and
visibility. Keep your car well-
maintained and exercise greater
caution when you need to drive in
bad weather.
Always drive
slower than you would in dry
weather. It takes your car longer to
react, even in conditions that may
seem just barely damp. Apply
smooth, even pressure to all the
controls. Abrupt steering wheel
movements or sudden, hard appli-
cation of the brakes can cause loss of
control in wet weather. Be extra
cautious for the first few miles
(kilometers) of driving while you
adjust to the change in driving
conditions. This is especially true in
snow. A person can forget some
snow-driving techniques during the
summer months. Practice is needed
to relearn those skills.
101
VisibilityDriving Technique
Driving in Bad Weather
Driving
151
Main Menu
Table of Contents
− Check your tires
frequently for wear and proper
pressure. Both are important in
preventing ‘‘hydroplaning’’ (loss of
traction on a wet surface). In the
winter, mount snow tires on all four
wheels for the best handling.
Watch road conditions carefully,
they can change from moment to
moment. Wet leaves can be as slip-
pery as ice. ‘‘Clear’’ roads can have
patches of ice. Driving conditions
can be very hazardous when the
outside temperature is near freezing.
The road surface can become
covered with areas of water puddles
mixed with areas of ice, so your
traction can change without warning.
Be careful when downshifting. If
traction is low, you can lock up the
drive wheels for a moment and cause
askid.
Be very cautious when passing, or
beingpassedbyothervehicles.The
spray from large vehicles reduces
your visibility, and the wind buffeting
can cause you to lose control.
Your vehicle is not designed to tow a
trailer. Attempting to do so can void
your warranties.
Traction Towing a Trailer
Driving
Driving in Bad Weather, Towing a Trailer
152
Main Menu
Table of Contents
This section also includes
Maintenance Schedules for normal
driving and severe driving conditions,
a Maintenance Record, and instruc-
tions for simple maintenance tasks
you may want to take care of
yourself.
If you have the skills and tools to per-
form more complex maintenance
tasks on your Honda, you may want
to purchase the Service Manual. See
page for information on how to
obtain a copy, or see your Honda
dealer.
This section explains why it is
important to keep your car well
maintained and how to follow basic
maintenance safety precautions.
......................Maintenance Safety . 154
.Important Safety Precautions . 155
.................Maintenance Schedule . 156
...Required Maintenance Record . 163
.......Owner Maintenance Checks . 165
..............................Fluid Locations . 166
......................................Engine Oil . 167
..................................Adding Oil . 167
....................Recommended Oil . 167
..............................Synthetic Oil . 168
....................................Additives . 168
.....Changing the Oil and Filter . 169
.............................Cooling System . 171
............Adding Engine Coolant . 171
.......Replacing Engine Coolant . 173
....................Windshield Washers . 176
.......................Transmission Fluid . 177
................Brake and Clutch Fluid . 177
............................Brake System . 178
...........................Clutch System . 178
.....................Air Cleaner Element . 179
....................................Hood Latch . 181
....................................Spark Plugs . 181
..............................Replacement . 181
............................Specifications . 183
...........................................Battery . 184
.................................Wiper Blades . 186
..............Air Conditioning System . 189
..................DustandPollenFilter .190
.....................................Drive Belts . 192
...............................................Tires . 193
......................................Inflation . 193
Recommended Tire Pressures
...........for Normal Driving . 194
Tire Pressure Adjustment
....for High Speed Driving . 194
..................................Inspection . 195
..............................Maintenance . 195
.............................Tire Rotation . 196
...Replacing Tires and Wheels . 197
......................Wheels and Tires . 198
..........................Winter Driving . 198
.............................Snow Tires . 199
............................Tire Chains . 199
.............................................Lights . 200
.....................Headlight Aiming . 202
........................Replacing Bulbs . 202
...........................Storing Your Car . 212
265
Maintenance
Maintenance
153
Main Menu
Some of the most important safety
precautions are given here. However,
we cannot warn you of every
conceivable hazard that can arise in
performing maintenance. Only you
can decide whether or not you
should perform a given task.
This section includes instructions for
simple maintenance tasks, such as
checking and adding oil. Any service
items not detailed in this section
should be performed by a Honda
technician or other qualified
mechanic.
Regularly maintaining your car is the
best way to protect your investment.
Proper maintenance is essential to
your safety and the safety of your
passengers. It will also reward you
with more economical, trouble-free
driving and help reduce air pollution.
Maintenance
Maintenance Safety
154
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
Improperly maintaining this car
or failing to correct a problem
before driving can cause a
crash in which you can be
seriously hurt or killed.
Always follow the inspection
and maintenance
recommendations and
schedules in this owner’s
manual.
Main Menu
Table of Contents
Be sure
there is adequate ventilation
whenever you operate the engine.
Let the
engine and exhaust system cool
before touching any parts.
Do
not run the engine unless in-
structed to do so.
Read the instructions before you
begin, and make sure you have the
tools and skills required.
To reduce the possibility of fire or
explosion, be careful when working
around gasoline or batteries. Use a
commercially available degreaser or
parts cleaner, not gasoline, to clean
parts. Keep cigarettes, sparks, and
flames away from the battery and all
fuel-related parts.
Before you begin any maintenance,
make sure your car is parked on
level ground and that the parking
brake is set. Also, be sure the engine
is off. This will help to eliminate
several potential hazards:
You should wear eye protection and
protective clothing when working
near the battery or when using
compressed air.
When adding or replacing fluids
within the engine compartment, such
as oil and coolant, be careful of
spillage.
This may lead to damage parts in the
engine compartment.
Maintenance Safety
Maintenance
Important Safety Precautions
Carbon monoxide poisoning
from engine exhaust.
Burns from hot parts.
Injury from moving parts.
155
Main Menu
Table of Contents
−
The Maintenance Schedule specifies
how often you should have your car
serviced and what things need
attention. It is essential that you have
your car serviced as scheduled to
retain its high level of safety,
dependability, and emissions control
performance.
The services and time or distance
intervals shown in the maintenance
schedule assume you will use your
car as normal transportation for
passengers and their possessions.
You should also follow these
recommendations:
Avoidexceedingyourcar’sload
limit.Thisputsexcessstresson
the engine, brakes, and many
other parts of your car. The load
limit is shown on the label on the
driver’s doorjamb.
Operate your car on reasonable
roads within the legal speed limit.
Service your car according to the
time and mileage periods on one of
the Maintenance Schedules on the
following pages. Select the schedule
for ‘‘Severe Conditions’’ if most of
your driving is done under one or
more of the conditions listed on that
page. Otherwise, follow the schedule
for ‘‘Normal Conditions.’’
Drive your car regularly over a
distance of several miles
(kilometers).
Always use unleaded gasoline with
the proper octane rating (see page
).
Follow the
Maintenance Schedule for Severe
Conditions if you drive your car
MAINLY under one or more of the
following conditions.
Driving less than 5 miles (8 km)
per trip or, in freezing
temperatures, driving less than 10
miles (16 km) per trip.
Driving in extremely hot [over
90°F (32°C)] conditions.
128
Maintenance Schedule
Maintenance
Which Schedule to Follow:
U.S. Owners
156
Main Menu
Table of Contents
＃
−
U.S. Vehicles:
According to state and federal
regulations, failure to perform
maintenance on the items marked
with will not void your emissions
warranties. However, Honda
recommends that all maintenance
services be performed at the
recommended time or mileage
period to ensure long-term reliability.
We recommend the use of genuine
Honda parts and fluids whenever you
have maintenance done. These are
manufactured to the same high-
quality standards as the original
components, so you can be confident
of their performance and durability.
Your authorized Honda dealer
knows your car best and can provide
competent, efficient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualified service facility or
person who is skilled in this type of
automotive service. Keep all the
receipts as proof of completion, and
have the person who does the work
fill out the Maintenance Record.
Check your warranty booklet for
more information.
Extensive idling or long periods of
stop-and-go driving, such as a taxi
or a commercial delivery vehicle.
Driving with a roof rack, or driving
in mountainous conditions.
Driving on muddy, dusty, or de-
iced roads.
NOTE: If you only OCCASIONALLY
or NEVER, drive under a ‘‘severe’’
condition, you should follow the
Maintenance Schedule for Normal
Conditions.
Follow the
Maintenance Schedule for Severe
Conditions.
Maintenance
Maintenance Schedule
Maintenance, replacement or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certified’’ to EPA
standards.
Canadian Owners
157
Main Menu
Table of Contents
−
＃
＃
＃
Maintenance
158
Service at the indicated distance or time whichever comes first. miles x 1,000
km x 1,000
months
10
16
50
80
70
112
110
176
Check oil and coolant at each fuel stop
20
32
30
48
40
64
60
96
80
128
100
160
Check engine oil and coolant
Replace engine oil
Rotate tires (Check tire inflation and condition at least once per month)
Replace engine oil filter
Inspect front and rear brakes
Check parking brake adjustment
Visually inspect the following items:
Tie rod ends, steering gear box and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect and adjust drive belts
Replace dust and pollen filter
Replace transmission fluid
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Inspect idle speed
Replace engine coolant
Replace brake fluid
120
192
90
144
Service the following items at the recommended intervals.
Every 30,000 miles (48,000 km)
Every 110,000 miles (176,000 km)
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisy
Every 110,000 miles (176,000 km) or 7 years
At 120,000 miles (192,000 km) or 10 years,
then every 60,000 miles (96,000 km) or 5 years
Every 3 years (independent of mileage)
See information on maintenance and emissions warranty, last column, page .
24 48 7212 36 60
: 157
Maintenance Schedule for Normal Conditions
Main Menu
Table of Contents
−
−
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
＃
＃
＃
Maintenance
159
U.S. Owners
Canadian Owners
A, B, C, D
A
B
C
D
Refer to page to determine which schedule to use.
Use the Maintenance Schedule for Severe Conditions.
Service at the indicated distance or time, whichever comes first. Do the items in as required for each distance/time.
10,000 mi/16,000 km/1 yr
20,000 mi/32,000 km/1 yr
30,000 mi/48,000 km
30,000 mi/48,000 km/2 yrs
40,000 mi/64,000 km/2 yrs
3yrs
50,000 mi/80,000 km/3 yrs
60,000 mi/96,000 km
60,000 mi/96,000 km/3 yrs
70,000 mi/112,000 km/4 yrs
80,000 mi/128,000 km/4 yrs
90,000 mi/144,000 km
90,000 mi/144,000 km/5 yrs
100,000 mi/160,000 km/5 yrs
110,000 mi/176,000 km
6yrs
110,000 mi/176,000 km/6 yrs
110,000 mi/176,000 km/7 yrs
120,000 mi/192,000 km
120,000 mi/192,000 km/6 yrs
120,000 mi/192,000 km/10 yrs
Do items in A.
Do items in A, B.
Do item in D.
Do items in A, C.
Do items in A, B.
Replace brake fluid (independent of mileage).
Do items in A.
Do item in D.
DoitemsinA,B,C.
Do items in A.
Do items in A, B.
Do item in D.
Do items in A, C.
Do items in A, B.
Inspect valve clearance, cold engine.
Replace spark plugs.
Replace brake fluid (independent of mileage).
Do items in A.
Inspect idle speed.
Do item in D.
Replace transmission fluid.
Replace engine coolant, then replace every
60,000mi/96,000km/5yrs.
Replace engine oil.
Rotate tires (follow pattern on page 196 ).
Replace engine oil filter.
Inspect front and rear brakes.
Check parking brake adjustment.
Inspect tie rod ends, steering gear box and boots.
Inspect suspension components.
Inspect driveshaft boots.
Inspect brake hoses and lines (including ABS).
Check all fluid levels, condition of fluids, and check
for leaks.
Inspect exhaust system.
Inspect fuel lines and connections.
Inspect and adjust drive belts.
Replace dust and pollen filter.
Replace air cleaner element every 30,000 mi/48,000
km (independent of time).
:
156
See information on maintenance and emissions warranty, last
column, page .
Check engine oil and coolant at each fuel stop.
Check and adjust valve clearance, cold engine, only if noisy.
NOTE:
157
Maintenance Schedule for Normal Conditions (listed by distance/time)
Main Menu
Table of Contents
−
＊
＃
＃＃
＊
Maintenance
160
Service at the indicated distance or time whichever comes first. miles x 1,000
km x 1,000
months
10
16
50
80
70
112
110
176
20
32
30
48
40
64
60
96
80
128
100
160
120
192
90
144
Check engine oil and coolant
Replace engine oil
Rotate tires (Check tire inflation and condition at least once per month)
Replace engine oil filter
Inspect front and rear brakes
Lubricate all hinges, locks, and latches
Visually inspect the following items:
Tie rod ends, steering gear box and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Visually inspect the following items:
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system, Fuel lines and connections
Lights and controls, Vehicle underbody
Inspect and adjust drive belts
Replace dust and pollen filter
Replace transmission fluid
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Inspect idle speed
Replace engine coolant
Replace brake fluid
Service the following items at the recommended intervals.
Every 110,000 miles (176,000 km)
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisy
Every 110,000 miles (176,000 km) or 7 years
At 120,000 miles (192,000 km) or 10 years,
then every 60,000 miles (96,000 km) or 5 years
Every 3 years (independent of mileage)
See dust and pollen filter on page for replacement information under special driving conditions.
See information on maintenance and emissions warranty, last column, page .
Check oil and coolant at each fuel stop
Every 15,000 miles (24,000 km) in dusty conditions,
otherwise use normal schedule
Replace every 5,000 miles (8,000 km) or 6 months
24 48 7212 36 60
:
: 157
190
Maintenance Schedule for Severe Conditions
Main Menu
Table of Contents
−
−
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
□
＃
＃
＊
CONTINUED
Maintenance
161
U.S. Owners
Canadian Owners
A, B, C, D, E
A
B
C
D
E
Refer to page to determine which schedule to use.
Use the Maintenance Schedule for Severe Conditions.
Service at the indicated distance or time, whichever comes first. Do the items in as required for each distance/time.
5,000 mi/8,000 km
10,000 mi/16,000 km/1 yr
15,000 mi/24,000 km
20,000 mi/32,000 km/1 yr
25,000 mi/40,000 km
30,000 mi/48,000 km
30,000 mi/48,000 km/2 yrs
35,000 mi/56,000 km
40,000 mi/64,000 km/2 yrs
45,000 mi/72,000 km
3yrs
50,000 mi/80,000 km/3 yrs
55,000 mi/88,000 km
60,000 mi/96,000 km
60,000 mi/96,000 km/3 yrs
65,000 mi/104,000 km
70,000 mi/112,000 km/4 yrs
75,000 mi/120,000 km
80,000 mi/128,000 km/4 yrs
85,000 mi/136,000 km
90,000 mi/144,000 km
90,000 mi/144,000 km/5 yrs
Do items in A.
Do items in A, B.
Do items in A, E.
DoitemsinA,B,C.
Do items in A.
Do item in E.
DoitemsinA,B,D.
Do items in A.
DoitemsinA,B,C.
Do items in A, E.
Replace brake fluid (independent of mileage).
Do items in A, B.
Do items in A.
Do item in E.
Replace transmission fluid.
DoitemsinA,B,C,D.
Do items in A.
Do items in A, B.
Do items in A, E.
DoitemsinA,B,C.
Do items in A.
Do item in E.
DoitemsinA,B,D.
Replace engine oil.
Replace engine oil filter.
Inspect front and rear brakes.
Rotate tires (follow pattern on page 196 ).
Lubricate all hinges, locks, and latches with
multipurpose grease.
Inspect tie rod ends, steering gear box and boots.
Inspect suspension components.
Inspect driveshaft boots.
Check parking brake adjustment.
Inspect brake hoses and lines (including ABS).
Check all fluid levels, condition of fluids, and check
for leaks.
Inspect exhaust system.
Inspect fuel lines and connections.
Check all lights.
Inspect the underbody.
Inspect and adjust drive belts.
Replace dust and pollen filter .
Replace air cleaner element every 15,000 mi/
24,000 km (independent of time) under dusty
conditions, otherwise use Normal Conditions
schedule.
156
Maintenance Schedule for Severe Conditions (listed by distance/time)
Main Menu
Table of Contents
□
□
□
□
□
□
□
＊
＃
Maintenance
162
See dust and pollen filter on page for replacement information
under special driving conditions.
See information on maintenance and emissions warranty, last
column, page .
Check engine oil and coolant at each fuel stop.
Check and adjust valve clearance, cold engine, only if noisy.
NOTE:
:
:
190
157
Do items in A.
DoitemsinA,B,C.
Do items in A, E.
Replace brake fluid (independent of mileage).
Inspect valve clearance, cold engine.
Replace spark plugs.
Do items in A, B.
Inspect idle speed.
Do items in A.
Do item in E.
Replace transmission fluid.
DoitemsinA,B,C,D.
Replace brake fluid (independent of mileage).
Replace engine coolant, then replace every
60,000mi/96,000km/5yrs.
95,000 mi/152,000 km
100,000 mi/160,000 km/5 yrs
105,000 mi/168,000 km
6yrs
110,000 mi/176,000 km
110,000 mi/176,000 km/6 yrs
110,000 mi/176,000 km/7 yrs
115,000 mi/184,000 km
120,000 mi/192,000 km
120,000 mi/192,000 km/6 yrs
9yrs
120,000 mi/192,000 km/10 yrs
Maintenance Schedule for Severe Conditions (listed by distance/time)
Main Menu
Table of Contents
CONTINUED
Maintenance
Required Maintenance Record (for Normal and Severe Schedules)
163
5,000 mi
10,000 mi
15,000 mi
20,000 mi
25,000 mi
30,000 mi
35,000 mi
40,000 mi
45,000 mi
50,000 mi
55,000 mi
60,000 mi
Signature or dealer stamp Signature or dealer stamp
8,000 km
16,000 km
24,000 km
32,000 km
(or 1 year)
40,000 km
48,000 km
56,000 km
64,000 km
(or 2 years)
72,000 km
80,000 km
88,000 km
96,000 km
(or 3 years)
You or the servicing dealer can record all completed maintenance here, whether you follow the schedule for normal conditions (page ) or severe
conditions (page ). Keep the receipts for all work done on your vehicle.
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
Date
Date
Date
Date
Date
Date Date
Date
Date
Date
Date
Date
158
160
Main Menu
Table of Contents
Maintenance
Required Maintenance Record (for Normal and Severe Schedules)
164
65,000 mi
70,000 mi
75,000 mi
80,000 mi
85,000 mi
90,000 mi
95,000 mi
100,000 mi
105,000 mi
110,000 mi
115,000 mi
120,000 mi
Signature or dealer stamp Signature or dealer stamp
104,000 km
112,000 km
120,000 km
128,000 km
(or 4 years)
136,000 km
144,000 km
152,000 km
160,000 km
(or 5 years)
168,000 km
176,000 km
184,000 km
192,000 km
(or 6 years)
mi/km
mi/km
mi/km
mi/km
mi/km
mi/km mi/km
mi/km
mi/km
mi/km
mi/km
mi/km
Date
Date
Date
Date
Date
Date Date
Date
Date
Date
Date
Date
Main Menu
Table of Contents
−
−
−
−
−
−
Youshouldcheckthefollowing
items at the specified intervals. If
you are unsure of how to perform
any check, turn to the page given.
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
youfillthefueltank.Seepage .
Tires Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
.
Windshield washer fluid Check
the level in the reservoir monthly.
If weather conditions cause you to
use the washers frequently, check
the reservoir each time you stop
for fuel. See page .
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
turn signals, brake lights, and
license plate lights monthly. See
page .
Brakes Check the fluid level
monthly. See page .
132
133
176
193
177
200
Owner Maintenance Checks
Maintenance
165
Main Menu
Table of Contents
Fluid Locations
Maintenance
166
EENNGGIINNEE
CCOOOOLLAANNTT
RREESSEERRVVOOIIRR
EENNGGIINNEE OOIILL
FFIILLLL CCAAPP
RRAADDIIAATTOORR CCAAPP
WWAASSHHEERR FFLLUUIIDD
((BBlluuee ccaapp))
EENNGGIINNEE OOIILL
DDIIPPSSTTIICCKK
((OOrraannggee hhaannddllee))
BBRRAAKKEE FFLLUUIIDD
((GGrraayy ccaapp))
CCLLUUTTCCHH FFLLUUIIDD
((GGrraayy ccaapp))
Main Menu
Table of Contents
To add oil, unscrew and remove the
engine oil fill cap on top of the valve
cover. Pour in the oil, and install the
engine oil fill cap. Tighten it securely.
Wait a few minutes and recheck the
oil level. Do not fill above the upper
mark; you could damage the engine.
Make sure the API Certification Seal
says ‘‘For Gasoline Engines.’’Oil is a major contributor to your
engine’s performance and longevity.
Always use a premium-grade 5W-20
detergent oil displaying the API
Certification Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements.
Honda Motor Oil is the preferred
5W-20 lubricant for your vehicle. It is
highly recommended that you use
Honda Motor Oil in your vehicle for
optimum engine protection.
CONTINUED
Recommended OilAdding Oil
Engine Oil
Maintenance
167
EENNGGIINNEE OOIILL FFIILLLL CCAAPP
AAPPII SSEERRVVIICCEE LLAABBEELL
Main Menu
Table of Contents
You may use a synthetic motor oil if
it meets the same requirements
given for a conventional motor oil: it
displays the API Certification Seal,
and it is the proper weight as shown
on the chart. When using synthetic
oil, you must follow the oil and filter
change intervals given in the
maintenance schedule.
The SAE number tells you the oil’s
viscosity or weight. Select the oil for
your vehicle according to this chart.
5W-20 oil is formulated for year-
round protection of your Honda, to
improve cold weather starting, and
to help your engine use less fuel.
If 5W-20 oil is not available, a 5W-30
oil may be used. However, it should
be replaced with 5W-20 at the next
oil change.
Your Honda does not require any oil
additives. Additives may adversely
affect your engine’s or transmission’s
performance and durability.
Engine Oil
Maintenance
AdditivesSynthetic Oil
168
AAmmbbiieenntt TTeemmppeerraattuurree
Main Menu
Table of Contents
Remove the oil filter and let the
remaining oil drain. A special
wrench (available from your
Honda dealer) is required to
remove the filter.
Install a new oil filter according to
instructions that come with it.
Open the hood and remove the
engine oil fill cap. Remove the oil
drain bolt and washer from the
bottom of the engine. Drain the oil
into an appropriate container.
Run the engine until it reaches
normal operating temperature,
then shut it off.
Always change the oil and filter
accordingtothetimeanddistance
(miles/kilometers) recommenda-
tions in the maintenance schedule.
The oil and filter collect contami-
nants that can damage your engine if
they are not removed regularly.
Changing the oil and filter requires
special tools and access from
underneath the car. The car should
be raised on a service station-type
hydraulic lift for this service. Unless
you have the knowledge and proper
equipment, you should have this
maintenance done by a skilled
mechanic.
Tightening torque:
1.
2.
4.
3.
CONTINUED
Changing the Oil and Filter
Engine Oil
Maintenance
169
OOIILL DDRRAAIINN BBOOLLTT WWAASSHHEERR
OOIILL FFIILLTTEERR
9 lbf·ft (12 N·m , 1.2 kgf·m)
Main Menu
Table of Contents
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten it to:
Refill the engine with the recom-
mended oil.
Engine oil change capacity
(including filter):
Let the engine run for several
minutes and check the drain bolt
and oil filter for leaks.
Turn off the engine, let it sit for
several minutes, then check the oil
level. If necessary, add oil to bring
the level to the upper mark on the
dipstick.
Replace the engine oil fill cap.
Start the engine. The oil pressure
indicator light should go out within
five seconds. If it does not, turn off
the engine and reinspect your
work.
9.
8.
7.
6.
5.
Engine Oil
Maintenance
170
33 lbf·ft (44 N·m , 4.5 kgf·m)
4.4 US qt (4.2
, 3.7 Imp qt)
Improper disposal of engine oil can be
harmf ul to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.
Main Menu
Table of Contents
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system for leaks.
The coolant you add should always
be a mixture of 50 percent antifreeze
and 50 percent water. Never add
straight antifreeze or plain water.
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
Always use Honda All Season
Antifreeze/Coolant Type 2. This
coolant is pre-mixed with 50 percent
antifreeze and 50 percent water. It
does not require any additional
mixing.
If it is not available, you may use
another major-brand non-silicate
coolant as a temporary replacement.
Make sure it is a high-quality coolant
recommended for aluminum engines.
However, continued use of any non-
Honda coolant can result in
corrosion, causing the cooling
system to malfunction or fail. Have
the cooling system flushed and
refilled with Honda antifreeze/
coolant as soon as possible.
CONTINUED
Adding Engine Coolant
Cooling System
Maintenance
171
RREESSEERRVVEE TTAANNKK
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
Remove the radiator cap by
pushing down and turning
counterclockwise.
Turn the radiator cap counter-
clockwise, without pressing down
on it, until it stops. This relieves
any pressure remaining in the
cooling system.
Make sure the engine and radiator
are cool.
Pour coolant into the reserve tank.
Fill it to halfway between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Put the radiator cap back on.
Tighten it fully.
The coolant level should be up to
the base of the filler neck. Add
coolant if it is low.
Do not add any rust inhibitors or
other additives to your car’s cooling
system. They may not be compatible
with the coolant or engine compo-
nents.
2.
3.
4.
5.
6.
1.
Cooling System
Maintenance
172
RRAADDIIAATTOORR CCAAPP
RREESSEERRVVEE TTAANNKK
Main Menu
Table of Contents
CONTINUED
Draining the coolant requires access
to the underside of the car. Unless
you have the tools and knowledge,
you should have this maintenance
done by a skilled mechanic.
Remove the radiator cap.
Turn the ignition ON (II). Turn
the temperature control dial to
maximum heat. Turn off the
ignition. Open the hood. Make
sure the engine and radiator are
cool to the touch.
Thecoolingsystemshouldbe
completely drained and refilled with
new coolant according to the time
and distance recommendations in
the maintenance schedule. Only use
Honda All Season Antifreeze/
Coolant Type 2.
Before draining the coolant,
remove the cover under the
radiator.
Use a Phillips-head screwdriver to
remove the two bolts, and remove
the nine holding clips from the
cover (5 clips on the bottom and 4
clips on the side) with a flat-tipped
screwdriver. Then pull the cover
away.
1. 3.
2.
Replacing Engine Coolant
Cooling System
Maintenance
173
Main Menu
Table of Contents
Loosen the drain plug on the
bottom of the radiator. Drain the
coolant into an appropriate
container.
Disengage the holding clip at the
bottom of the reserve tank.
Remove the drain cap and install a
rubber hose. Drain the coolant
into an appropriate container.
When the coolant stops draining,
tightenthedrainplugatthe
bottom of the radiator.
Remove the rubber hose and
reinstall the drain cap securely.
Tighten the drain cap with the
holding clip securely.
Put the cover back in place and
tighten the bolts securely.
Reinstall the nine holding-clips and
lock each clip in place by pushing
on its center.
6.
7.
4. 5. 8.
9.
Maintenance
Cooling System
174
HHOOLLDDIINNGG CCLLIIPP
DDRRAAIINN CCAAPP
DDRRAAIINN PPLLUUGG
Main Menu
Table of Contents
If necessary, fill the reserve tank
to the MAX mark. Install the
reserve tank cap.
Install the radiator cap, and
tighten it fully.
Start the engine and hold it at
1,500 rpm until the radiator fan
comes on. Turn off the engine.
Check the coolant level in the
radiator and add coolant if needed.
Remove the radiator cap. Fill the
radiator with coolant up to the
base of the filler neck.
Start the engine and let it run until
the radiator fan comes on two
times. Then stop the engine.
Pour Honda All Season
Antifreeze/Coolant Type 2 into
the radiator up to the base of the
filler neck. This coolant is a
mixture of 50 percent antifreeze
and 50 percent water. Pre-mixing
is not required.
The cooling system capacity is:
Install the radiator cap, and
tighten it to the first stop.
Fill the reserve tank to the MAX
mark. Install the reserve tank cap.
Check the level in the radiator,
add coolant if needed.
Start the engine and let it run for
about 30 seconds. Then turn off
the engine.
10.
19.
18.
17.
16.
15.11.
12.
13.
14.
Cooling System
Maintenance
175
RREESSEERRVVEE TTAANNKK
FFiillll uupp ttoo hheerree
5.3 (1.40 US gal , 1.17 Imp gal)
Main Menu
Table of Contents
Check the level in the windshield
washer reservoir at least monthly
during normal usage. In bad weather,
when you use the washers often,
check the level every time you stop
for fuel. This reservoir supplies the
windshield and rear window washers.
Fill the reservoir with a good-quality
windshield washer fluid. This
increases the cleaning capability and
prevents freezing in cold weather.
When you refill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition the blade edges.
The windshield washer reservoir is
located behind the left headlight.
Check the windshield washer fluid
level as follows:
Check the fluid level in the tube. If
the fluid level is low, fill the
reservoir with windshield washer
fluid.
The low washer level indicator will
light when the level is low (see page
).
Cover the small hole in the center
of the cap with your finger and
pull up until the tube is fully
exposed.
Unfasten the reservoir cap.1.
2.
3.
60
On Canadian models
Windshield Washers
Maintenance
176
FFlluuiidd lleevveell
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir.
Antif reeze can damage your car’s paint,
while a vinegar/water solution can
damage the windshield washer pump.
Use only commercially-available
windshield washer f luid.
Main Menu
Table of Contents
Check the fluid level in the reser-
voirs monthly. There are up to two
reservoirs, depending on the model.
They are:
The transmission should be drained
and refilled with new fluid according
to the time and distance recommen-
dations in the maintenance schedule.
If Honda MTF is not available, you
may use an API service SG, SH or SJ
grade motor oil with a viscosity of
SAE 10W-30 or 10W-40 as a
temporary replacement. An SG
grade is preferred, but an SH or SJ
grade may be used if SG is not
available. However, motor oil does
not contain the proper additives and
continued use can cause stiffer
shifting. Replace as soon as it is
convenient.
Brake fluid reservoir
Clutch fluid reservoir
The brake fluid should be replaced
according to the time recommenda-
tion in the maintenance schedule.
Check the fluid level with the
transmission at normal operating
temperature and the car sitting on
level ground. Remove the
transmission filler bolt and carefully
feel inside the bolt hole with your
finger. The fluid level should be up
to the edge of the bolt hole. If it is
not, add genuine Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the hole. Reinstall
the filler bolt and tighten it securely.
CONTINUED
Brake and Clutch Fluid
Transmission Fluid, Brake and Clutch Fluid
Maintenance
177
CCoorrrreecctt lleevveell
FFIILLLLEERR BBOOLLTT
Main Menu
Table of Contents
The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake fluid to bring it up to that level.
Use the same fluid specified for the
brake system.
Low fluid level can indicate a leak in
the clutch system. Have this system
inspected as soon as possible.
The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected for leaks or
worn brake pads.
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 fluid, from a sealed
container, as a temporary
replacement. However, the use of
any non-Honda brake fluid can cause
corrosion and decrease the life of the
system. Have the brake system
flushed and refilled with Honda
Heavy Duty Brake Fluid DOT 3 as
soon as possible.
Brake fluid marked DOT 5 is not
compatible with your car’s braking
system and can cause extensive
damage.
Clutch SystemBrake System
Brake and Clutch Fluid
Maintenance
178
MMAAXX
MMIINN
MMIINN
MMAAXX
Main Menu
Table of Contents
The air cleaner element should be
replaced according to the time and
distance recommendations in the
maintenance schedule.
To replace it:
The air cleaner element is inside the
air cleaner housing in the engine
compartment.
Loosen the five bolts with a
Phillips-head screwdriver or
wrench and lift up the air cleaner
housing cover.
Move the air cleaner housing
cover sideways. Next, remove the
breather tube from the air cleaner
housing.
1.
2.
CONTINUED
Replacement
Air Cleaner Element
Maintenance
179
BBOOLLTT
BBOOLLTT
BBRREEAATTHHEERR
TTUUBBEE
Main Menu
Table of Contents
Move the air cleaner housing
cover up and to the right to lift it
away from the base.
Carefully clean the inside of the
air cleaner housing with a damp
rag.
Place the new air cleaner element
in the air cleaner housing.
Reinstall the air cleaner housing
cover and the duct. Tighten the
five bolts.
Move the air cleaner housing
cover to the left, and then lift up
the right side.
Remove the old air cleaner
element.
3. 4.
5.
8.
6.
7.
Air Cleaner Element
Maintenance
180
AAIIRR CCLLEEAANNEERR EELLEEMMEENNTT
Main Menu
Table of Contents
Clean the hood latch assembly with a
mild cleaner, then lubricate it with a
multipurpose grease. Lubricate all
the moving parts (as shown),
including the pivot. Follow the time
and distance recommendations in
the Maintenance Schedule. If you
are not sure how to clean and grease
the latch, contact your Honda dealer.
The spark plugs in your car should
be replaced according to the time
and distance recommendations in
the maintenance schedule.
Remove the four nuts with a
wrench, then remove the coil
cover.
Clean up any dirt and oil that have
collected around the ignition coils.
1.
2.
CONTINUED
Replacement
Hood Latch Spark Plugs
Hood Latch, Spark Plugs
Maintenance
181
LLAATTCCHH AASSSSEEMMBBLLYY
NNUUTTSS NNUUTTSS
Main Menu
Table of Contents
Torque the spark plug. (If you do
not have a torque wrench, tighten
the spark plug two-thirds of a turn
after it contacts the cylinder head.)
Tightening torque:Put the new spark plug into the
socket, then screw it into the hole.
Screw it in by hand so you do not
crossthread it.
Remove the spark plug with a 16
mm (five-eighths inch) spark plug
socket.
Remove the ignition coil.
Disconnect the wire connector
from the ignition coil by pushing
on the lock tab and pulling on the
connector. Pull on the plastic
connector, not the wires.
Use a wrench to remove the bolt
holding the ignition coil. Pull the
ignition coil up slightly.
8.
7.
6.3.
4.
5.
Spark Plugs
Maintenance
182
BBOOLLTT
IIGGNNIITTIIOONN CCOOIILL LLOOCCKK TTAABB
CCOONNNNEECCTTOORR
13 lbf·ft (18 N·m , 1.8 kgf·m)
Main Menu
Table of Contents
＋
−
Install the ignition coil into the
hole.
Repeat this procedure for the
other three spark plugs.
Reinstall the coil cover, and
tighten the four nuts.
Connect the wire connector to the
ignition coil. Make sure it locks in
place.
Push the ignition coil down all the
way. Install the bolt.
Spark Plug Gap:
Tightening torque:
NGK:
DENSO:
9.
10.
11.
12.
13.
Spark Plugs
Maintenance
Specifications:
183
0.04 in (1.1 mm)
IZFR6K-11
SKJ20DR-M11
7 lbf·ft (9.8 N·m , 1.0 kgf·m)
0
0.1 mm
Tighten the spark plugs caref ully. A
spark plug that is too loose can
overheat and damage the engine.
Overtightening can cause damage to
the threads in the cylinder head.
Main Menu
Table of Contents
Check the battery terminals for
corrosion (a white or yellowish
powder). To remove it, cover the
terminals with a solution of baking
soda and water. It will bubble up and
turn brown. When this stops, wash it
off with plain water. Dry off the
battery with a cloth or paper towel.
Coat the terminals with grease to
help prevent future corrosion.
Check the battery condition by
looking at the test indicator window
on the battery.
The label on the battery explains the
test indicator’s colors.
Check the condition of your car’s
battery monthly. You should check
the color of the test indicator window,
and for corrosion on the terminals.
Battery posts,
terminals and related accessories
contain lead and lead compounds.
Maintenance
Battery
WARNING:
Wash hands after handling.
184
TTEESSTT IINNDDIICCAATTOORR WWIINNDDOOWW
Main Menu
Table of Contents
−
If the terminals are severely cor-
roded, clean them with baking soda
and water. Then use a wrench to
loosen and remove the cables from
the terminals. Always disconnect the
negative ( ) cable first and recon-
nect it last. Clean the battery termi-
nals with a terminal cleaning tool or
wire brush. Reconnect and tighten
the cables, then coat the terminals
with grease.
If you need to connect the battery to
a charger, disconnect both cables to
prevent damage to the car’s
electrical system.
If your car’s battery is disconnected
or goes dead, the audio system will
disableitself.Thenexttimeyouturn
on the radio you will see ‘‘ ’’ in
the frequency display. Use the
Preset buttons to enter the five-digit
code (see page ).123
Battery
Maintenance
185
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.
Charging the battery with the cables
connected can seriously damage your
car’s electronic controls. Detach the
battery cables bef ore connecting the
battery to a charger.
Main Menu
Table of Contents
Disconnect the blade assembly
fromthewiperarmbypushingin
the lock tab. Hold it in while you
push the blade assembly toward
thebaseofthearm.
Raise the wiper arm off the
windshield.
Check the condition of the wiper
blades at least every six months.
Look for signs of cracking in the
rubber, or areas that are getting
hard. Replace the blades if you find
these signs, or if they leave streaks
and unwiped areas when used.
To replace a front wiper blad:
Raise the driver’s side first, then
the passenger’s side.
2.
1.
Maintenance
Wiper Blades
186
LLOOCCKK TTAABB
WWIIPPEERR AARRMMSS
Main Menu
Table of Contents
Remove the blade from its holder
by grasping the tabbed end of the
blade. Pull firmly until the tabs
come out of the holder.
Examine the new wiper blades. If
they have no plastic or metal rein-
forcement along the back edge,
remove the metal reinforcement
strips from the old wiper blade and
install them in the slots along the
edge of the new blade.
Slide the new wiper blade into the
holder until the tabs lock.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm down against
the windshield.
Lower the passenger’s side first,
then the driver’s side.
3. 4.
5.
6.
7.
Maintenance
Wiper Blades
187
BBLLAADDEE
RREEIINNFFOORRCCEEMMEENNTT
BBLLAADDEE
Main Menu
Table of Contents
Slide the blade out of the holder.
To replace a rear wiper blade:
Pull one end of the blade out from
the holder.
Examine the new wiper blade. If it
has no plastic or metal rein-
forcement along the back edge,
remove the metal reinforcement
strips from the old wiper blade and
install them in the slots along the
edge of the new blade.
Slide the new blade into the holder.
Make sure it is engaged in the slot
along its full length.
Insert both ends of the blade into
the holder. Make sure they are
secure.
Lower the wiper arm.
Raise the wiper arm off the rear
window.
3.
4.
5.
6.
7.
1.
2.
Maintenance
Wiper Blades
188
RREEIINNFFOORRCCEEMMEENNTT
BBLLAADDEE
Main Menu
Table of Contents
Periodically check the engine’s
radiator and air conditioning
condenser for leaves, insects, and
dirt stuck to the front surface. These
block the air flow and reduce cooling
efficiency. Use a light spray from a
hose or a soft brush to remove them.
If the air conditioning does not get as
cold as before, have your dealer
check the system. Recharge the
system with Refrigerant HFC-134a
(R-134a). (See Specifications on page
.)
Run the air conditioning at least once
a week during the cold weather
months. Run it for at least ten
minutes while you are driving at a
steady speed with the engine at
normal operating temperature. This
circulates the lubricating oil con-
tained in the refrigerant.
Your car’s air conditioning is a sealed
system. Any major maintenance,
such as recharging, should be done
by a qualified mechanic. You can do
a couple of things to make sure the
air conditioning works efficiently. 251
Air Conditioning System
Maintenance
189
AAIIRR CCOONNDDIITTIIOONNIINNGG
CCOONNDDEENNSSEERR
Whenever you have the air conditioning
system serviced, make sure the service
f acility uses a ref rigerant recycling
system. This system captures the
ref rigerant f or reuse. Releasing
ref rigerant into the atmosphere can
damage the environment.
The condenser and radiator f ins bend
easily. Only use a low-pressure spray
or sof t-bristle brush to clean them.
Main Menu
Table of Contents
The air conditioning filter removes
pollen and dust that is brought in
from the outside through the heating
andcoolingsystem.
This filter should be replaced every
30,000 miles (48,000 km) under
normal conditions. It should be
replaced every 15,000 miles (24,000
km) if you drive primarily in urban
areas that have high concentrations
of soot in the air from industry and
diesel-powered vehicles. Replace it
more often if air flow from the
heating and cooling system becomes
less than usual.
The dust and pollen filter is located
behind the glove box.
Remove the dust and pollen filter
cover by pushing up on the lock
tab, then pivoting up the cover.To replace it:
Open the glove box. Remove the
hooks on the side panels by
pushingontheendofeachhook
fromtheinsideoftheglovebox.
Pivot the glove box out of the way.
1.
2.
Maintenance
Dust and Pollen Filter
Replacement
190
LLOOCCKK TTAABB
CCOOVVEERR
HHOOOOKKSS
PPUUSSHH
Main Menu
Table of Contents
Reinstall the dust and pollen filter
cover.
Remove the first filter by pulling it
straight out of the air conditioning
unit. Remove the second filter by
sliding it to the left, then pulling it
out.
Install the dust and pollen filters
into the air conditioning unit.
Make sure the ‘‘AIR FLOW’’
arrows on the filter point
downward.
Pivot the glove box up into
position. Install the tabs back in
place.
Close the glove box.
If you are not sure how to replace
the dust and pollen filters, have them
replaced by your Honda dealer.
5.
6.
7.
3.
4.
Dust and Pollen Filter
Maintenance
191
DDUUSSTT AANNDD PPOOLLLLEENN FFIILLTTEERRSS
Main Menu
Table of Contents
If the pointer is out of this range or
you see signs of wear, have the drive
belt replaced by your Honda dealer
as soon as possible.
An auto-tensioner adjusts the tension
of the drive belt. The pointer on the
auto-tensioner should point at the
square depression in the arm.
Drive Belts
Maintenance
Drive Belts
192
PPOOIINNTTEERR
PPrrooppeerr rraannggee
Main Menu
Table of Contents
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.
To safely operate your car, your tires
must be the proper type and size, in
good condition with adequate tread,
and correctly inflated. The following
pages give more detailed information
on how and when to check air
pressure, how to inspect your tires
for damage and wear, and what to do
when your tires need to be replaced.
Keeping the tires properly inflated
provides the best combination of
handling, tread life, and riding
comfort. Underinflated tires wear
unevenly, adversely affect handling
and fuel economy, and are more
likely to fail from being overheated.
Overinflated tires can make your car
ride more harshly, are more prone to
damage from road hazards, and wear
unevenly.
Use a gauge to measure the air
pressure at least once a month. Even
tires that are in good condition may
lose one to two psi (10 to 20 kPa, 0.1
to 0.2 kgf/cm ) per month.
Remember to check the spare tire at
thesametimeyoucheckallthe
other tires.
Check the pressure in the tires when
they are cold. This means the car
has been parked for at least three
hours. If you have to drive the car
before checking the tire pressure,
the tires can still be considered
‘‘cold’’ if you drive less than 1 mile
(1.6 km).
If you check the pressure when the
tires are hot (the car has been driven
several miles), you will see readings
4 to 6 psi (30 to 40 kPa, 0.3 to 0.4
kgf/cm ) higher than the cold
reading. This is normal. Do not let
air out to match the specified cold
pressure. The tire will be
underinflated.
CONTINUED
Inflation
Tires
Maintenance
193
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
Main Menu
Table of Contents
Youshouldgetyourowntire
pressure gauge and use it whenever
you check your tire pressures. This
will make it easier for you to tell if a
pressure loss is due to a tire problem
and not due to a variation between
gauges.
The following chart shows the
recommended cold tire pressures for
most normal driving conditions and
speeds.
Thecompactsparetirepressureis:
These pressures are also given on
thetireinformationlabelonthe
driver’s doorjamb.
Tubeless tires have some ability to
self-seal if they are punctured.
However, because leakage is often
very slow, you should look closely
for punctures if a tire starts losing
pressure.
Honda strongly recommends that
you not drive faster than posted
speed limits and conditions allow. If
you decide it is safe to drive at high
speeds, be sure to adjust the cold tire
pressuresasshownbelow.Ifyoudo
not adjust the tire pressure, exces-
sive heat can build up and cause
sudden tire failure.
Tire Size Cold Tire Pressure
for Normal Driving
Tire Size
Cold Tire Pressure
for Speeds over 100
mph (160 km/h)
Front:
Rear:
Front:
Rear:
Recommended Tire Pressures for
Normal Driving
Tire Pressure Adjustment for High
Speed Driving
Tires
Maintenance
194
195/60R15 88V
33 psi (230 kPa , 2.3
kgf/cm )
29 psi (200 kPa , 2.0
kgf/cm
)
36 psi (250 kPa , 2.5
kgf/cm
)
35 psi (240 kPa , 2.4
kgf/cm
)
195/60R15 88V
60 psi (420 kPa , 4.2 kgf/cm )
Main Menu
Table of Contents
Every time you check inflation, you
should also examine the tires for
damage, foreign objects, and wear.
Youshouldlookfor:
Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitheroftheseconditions.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see fabric or cord.
Excessive tread wear.
In addition to proper inflation,
correct wheel alignment helps to
decrease tire wear. If you find a tire
is worn unevenly, have your dealer
check the wheel alignment.
The tires were properly balanced by
the factory. They may need to be
rebalanced at some time before they
are worn out. Have your dealer
check the tires if you feel a consis-
tent vibration while driving. A tire
should always be rebalanced if it is
removed from the wheel for repair.
Your car’s tires have wear indicators
molded into the tread. When the
tread wears down to that point, you
will see a 1/2 inch (12.7 mm) wide
band running across the tread. This
shows there is less than 1/16 inch
(1.6 mm) of tread left on the tire. A
tire that is this worn gives very little
traction on wet roads. You should
replace the tire if you can see the
tread wear indicator in three or more
places around the tire.
Make sure the installer balances the
wheels when you have new tires
installed. This increases riding
comfort and tire life. Your car’s
original tires were dynamic or ‘‘spin’’
balanced at the factory. For best
results, have the installer perform a
dynamic balance.
Inspection Maintenance
Tires
Maintenance
195
IINNDDIICCAATTOORR LLOOCCAATTIIOONN MMAARRKKSS
TTRREEAADD WWEEAARR IINNDDIICCAATTOORRSS
Main Menu
Table of Contents
When shopping for replacement
tires, you may find that some tires
are ‘‘directional.’’ This means they
are designed to rotate only in one
direction. If you use directional tires,
they should be rotated only front-to-
back.
To help increase tire life and
distribute wear more evenly, you
should have the tires rotated every
10,000 miles (16,000 km). Move the
tires to the positions shown in the
chart each time they are rotated.
Tire Rotation
Maintenance
Tires
196
FFrroonntt FFrroonntt
((FFoorr NNoonn--ddiirreeccttiioonnaall
TTiirreess aanndd WWhheeeellss))
((FFoorr DDiirreeccttiioonnaall
TTiirreess aanndd WWhheeeellss))
Improper wheel weights can damage
your car’s aluminum wheels. Use only
Genuine Honda wheel weights f or
balancing.
Main Menu
Table of Contents
It is best to replace all four tires at
thesametime.Ifthatisnotpossible
or necessary, then replace the two
front tires or the two rear tires as a
pair. Replacing just one tire can
seriously affect your car’s handling.
The tires that came with your car
were selected to match the perform-
ance capabilities of the car while
providing the best combination of
handling, ride comfort, and long life.
Youshouldreplacethemwithradial
tires of the same size, load range,
speed rating, and maximum cold tire
pressure rating (as shown on the
tire’s sidewall). Mixing radial and
bias-ply tires on your car can reduce
its braking ability, traction, and
steering accuracy.
Tires
Maintenance
Replacing Tires and Wheels
197
Installing improper tires on your
car can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
Main Menu
Table of Contents
＋
Wheels:
Tires:
See page for information about
DOT Tire Quality Grading.
Tires that are marked ‘‘M S’’ or
‘‘All Season’’ on the sidewall have an
all-weather tread design. They
should be suitable for most winter
driving conditions. Tires without
these markings are designed for
optimum traction in dry conditions.
They may not provide adequate
performance in winter driving.
For the best performance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
TheABSworksbycomparingthe
speed of the wheels. When replacing
tires, use the same size originally
supplied with the car. Tire size and
construction can affect wheel speed
and may cause the system to work
inconsistently.
If you ever need to replace a wheel,
make sure the wheel’s specifications
match those of the original wheel
that came on your car. Replacement
wheels are available at your Honda
dealer.
252
Tires
Maintenance
Wheels and Tires Winter Driving
198
15x6J
195/60R15 88V
Main Menu
Table of Contents
Mount snow chains on your vehicle
when warranted by driving condi-
tions or required by local laws. Make
sure the chains are the correct size
for your tires. Install them only on
the front tires. If metal chains are
used, they must be SAE class ‘‘S.’’
Cable type traction devices can also
be used.
When installing chains, follow the
manufacturer’s instructions and
mount them as tightly as you can.
Drive slowly with chains installed. If
you hear the chains contacting the
body or chassis, stop and investigate.
Make sure the chains are installed
tightly, and that they are not
contacting the brake lines or
suspension. Remove the chains as
soon as you begin driving on cleared
roads.
If you mount snow tires on your
Honda, make sure they are radial
tires of the same size and load range
as the original tires. Mount snow
tiresonallfourwheelstobalance
your car’s handling in all weather
conditions. Keep in mind the traction
provided by snow tires on dry roads
may not be as high as your car’s
original equipment tires. You should
drive cautiously even when the roads
areclear.Checkwiththetiredealer
for maximum speed recommenda-
tions.
Snow Tires Tire Chains
Tires
Maintenance
199
Chains of the wrong size or that are
improperly installed can damage your
car’s brake lines, suspension, body, and
wheels. Stop driving if you hear the
chains hitting any part of the car.
Main Menu
Table of Contents
Check the operation of your car’s
exterior lights at least once a month.
A burned out bulb can create an
unsafe condition by reducing your
car’s visibility and the ability to
signal your intentions to other
drivers.
Lights
Maintenance
200
HHEEAADDLLIIGGHHTT
SSIIDDEE MMAARRKKEERR LLIIGGHHTT SSIIDDEE TTUURRNN SSIIGGNNAALL
PPAARRKKIINNGG LLIIGGHHTT
TTUURRNN SSIIGGNNAALL
Main Menu
Table of Contents
Check the following:
Ifyoufindanybulbsareburnedout,
replace them as soon as possible.
Refer to the chart on page to
determinewhattypeofreplacement
bulb is needed.
Headlights (low and high beam)
Parking lights
Taillights
Brake lights
High-mount brake light
Turn signals
Back-up lights
Hazard light function
License plate lights
Side marker lights
Daytime running lights
(Canadian models)
251
Lights
Maintenance
201
TTUURRNN SSIIGGNNAALL
LLIIGGHHTT
SSIIDDEE MMAARRKKEERR
LLIIGGHHTT
HHIIGGHH--MMOOUUNNTT BBRRAAKKEE LLIIGGHHTT
BBAACCKK--UUPP
LLIIGGHHTT
LLIICCEENNSSEE PPLLAATTEE
LLIIGGHHTTSS
SSTTOOPP//TTAAIILLLLIIGGHHTT
Main Menu
Table of Contents
Open the hood.
Remove the electrical connector
from the bulb by pulling the
connector straight back.
Your car has halogen headlight
bulbs, one on each side. When
replacing a bulb, handle it by its steel
base and protect the glass from
contactwithyourskinorhard
objects. If you touch the glass, clean
it with denatured alcohol and a clean
cloth.
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area, readjustment may be
required. Adjustment of the
headlights should be performed by a
Honda technician or other qualified
mechanic.
1.
2.
Lights
Maintenance
Replacing a Headlight BulbHeadlight Aiming
202
WWEEAATTHHEERR SSEEAALLBBUULLBB
HHOOLLDD--DDOOWWNN WWIIRREE CCOONNNNEECCTTOORR
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
Main Menu
Table of Contents
Remove the rubber weather seal
by pulling on the tab.
Insert the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place and clip the end into
the slot.
Install the rubber seal over the
back of the headlight assembly.
Make sure it is right side up; it is
marked ‘‘TOP.’’
Push the electrical connector onto
the tabs of the new bulb. Make
sure it locks in place.
Turn on the headlights to test the
new bulb.
Use a flat-tipped screwdriver to
remove the holding clip from the
inner fender.
Pull the inner fender cover back.
Unclip the hold-down wire from its
slot by pushing it in and up. Pivot
it out of the way and remove the
bulb.
If you are changing the bulb on
the driver’s side, start the engine,
turn the steering wheel all the way
to the right, and turn off the
engine. If you are changing the
bulb on the passenger’s side, turn
the steering wheel to the left.
3.
4.
5.
6.
7.
1.
3.
2.
CONTINUED
Lights
Maintenance
Replacing a Front Turn Signal
Bulb
203
HHOOLLDDIINNGG CCLLIIPP
Main Menu
Table of Contents
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Remove the burned out bulb from
thesocketbypushingitinand
turning the bulb counterclockwise
until it unlocks.
Install the new bulb in the socket.
Turn it clockwise to lock it in place.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Put the inner fender cover in place.
Install the holding clip. Lock it in
placebypushingonthecenter.
Front bumper: Push the front
edge of the side marker lens
toward the rear of the vehicle. The
front edge will pop out of the
bumper.
Rear bumper: Push the rear edge
ofthesidemarkerlenstowardthe
front of the vehicle. The rear edge
will pop out of the bumper.
4.
5.
6.
7.
8.
9.
1.
Lights
Maintenance
Replacing a Side Marker Bulb
204
Main Menu
Table of Contents
Open the hood. The front parking
light is next to the headlight bulb.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Place the tabbed end of the side
marker assembly into the bumper
first, then the looped end. Press on
the looped end to get the assembly
to snap back in place.
Testthelightstomakesurethe
new bulb is working.
Put the socket back into its hole in
the lens and turn it clockwise until
it locks.
Push the new bulb straight into
the socket until it bottoms.
Pull the bulb straight out of its
socket.
Turn the socket one-quarter turn
counterclockwise to remove it
from the lens.
Turn on the parking lights and
check that the new bulb is
working.
1.
2.
3.
4.
5.
3.
4.
5.
6.
2. Replacing a Front Parking Light
Bulb
Lights
Maintenance
205
Main Menu
Table of Contents
Open the hatch. Determine which bulb, taillight,
stop/taillight, back-up light, side
marker light or turn signal is
burned out. Remove the socket for
that bulb by turning counterclock-
wise.
Remove the socket for that bulb
by turning it one-quarter turn
counterclockwise.
Remove the burned out bulb from
thesocketbypushingitinand
turning the bulb counterclockwise
until it unlocks.
Install the new bulb in the socket.
Reinstall the socket in the tail-light
assembly and turn it clockwise to
lock it in place.
Testthelightstomakesurethe
new bulb is working. Reinstall the
cover over the taillight assembly.
Remove the cover from the inside
panel by carefully prying on its
upper front edge with a small flat-
tipped screwdriver.
1. 3.
2.
4.
5.
6.
7.
8.
Replacing Rear Bulbs
Lights
Maintenance
206
CCOOVVEERR
Main Menu
Table of Contents
Open the hatch.
Put your fingers between the
interior trim and the hatch glass
on either side of the high-mount
brake light. Carefully pull down on
the trim to unsnap the clips from
the hatch. Work your way toward
each end of the trim. Remove the
trim.
Remove the bulb holder from the
light assembly by pushing the tabs
on both sides and pulling the bulb
holder down.
Pull the bulb straight out of its
bulb holder. Push the new bulb in
until it bottoms in the bulb holder.
1.
3.2.
4.
Replacing the High-mount Brake
Light Bulb
Lights
Maintenance
207
BBUULLBB HHOOLLDDEERR
Main Menu
Table of Contents
Push the new bulb straight into
the socket until it bottoms.
Pull the bulb straight out of its
socket.
Put the socket back into its hole in
the lens and turn it clockwise until
it locks.
Put the side turn signal assembly
back into the body, rear first. Push
on the front edge until it snaps into
place.
Pushthefrontofthesideturn
signal assembly toward the rear of
the car until it pops out of the body.
Turn the socket one-quarter turn
counterclockwise to remove it
from the lens.
Push the bulb holder into the light
assembly until it locks in place.
Testthelightstomakesurethe
new bulb is working.
Testthelightstomakesurethe
new bulb is working.
Line up the clips on the interior
trim with the corresponding holes
in the hatch.Push on the trim to
snap it back in place.
1.
2.
3.
5.
6.
4.
6.
7.
5.
Lights
Maintenance
Replacing a Side Turn Signal Bulb
208
Main Menu
Table of Contents
Slide the lens to the right until the
left side of the lens pops out of the
body. Pull out the light assembly.
Remove the lens from the socket
by pulling the lens while squeezing
the tabs on both sides of the
socket.
Pull the bulb straight out of its
socket. Push the new bulb in until
it bottoms in the socket.
Put the lens back on the bulb
holder and push it until it latches.
Slide the right side of the light
assembly into the hole. Push on
theleftsidetolatchtheassembly
into place.
Turn on the parking lights and
check that the new bulb is
working.
1.
3.
2.
6.
4.
5.
Lights
Maintenance
Replacing a Rear License Plate
Bulb
209
Main Menu
Table of Contents
The ceiling lights and spotlights
come apart the same way, but they
do not use the same type of bulbs.
Front ceiling light/spotlight:
Pry on the front edge of the lens in
the middle.
Center ceiling light:
Pry on the side edge of the lens in
the middle.
Removethelensbycarefully
prying on the edge of the lens with
a fingernail file or a small flat-tip
screwdriver. Do not pry on the
edge of the housing around the
lens.
Remove the bulb by pulling it
straight out of its metal tabs.
Push the new bulb into the metal
tabs. Snap the lens back in place.
1.
2.
3.
Lights
Maintenance
Replacing Ceiling and Spotlight
Bulbs
210
CCEENNTTEERR CCEEIILLIINNGG LLIIGGHHTTFFRROONNTT CCEEIILLIINNGG LLIIGGHHTT//SSPPOOTT LLIIGGHHTT
Main Menu
Table of Contents
Put the light assembly back into
the hole, rear side first. Push on
the front side until it snaps into
place.
Pull the bulb straight out of the
holder. Push the new bulb straight
into the holder until it bottoms.
Open the hatch.
Remove the luggage area light
assembly by using a small flat-
tipped screwdriver wrapped with a
cloth to pry carefully on the front
edge of the assembly.
1. 2.
3.
Lights
Maintenance
Replacing the Cargo Area Light
Bulb
211
Main Menu
Table of Contents
Block the rear wheels.
Fill the fuel tank.
Change the engine oil and filter
(see page ).
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc. are
completely dry.
If you need to park your car for an
extended period (more than one
month), there are several things you
should do to prepare it for storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your car back on the road. If
possible, store your car indoors.
If the car is to be stored for a
longer period, it should be
supported on jackstands so the
tires are off the ground.
Leave one window open slightly (if
the car is being stored indoors).
Coverthecarwitha‘‘breathable’’
cover, one made from a porous
material such as cotton.
Nonporous materials, such as
plastic sheeting, trap moisture,
which can damage the paint.
Disconnect the battery.
Support the front and rear wiper
blade arms with a folded towel or
ragsotheydonottouchthe
windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and hatch seals. Also, apply a body
wax to the painted surfaces that
mate with the door and hatch seals.
If possible, run the engine for a
while periodically (preferably once
amonth).
If you store your car for 12 months
or longer, have your Honda dealer
perform the inspections called for in
the 24 months/30,000 miles (48,000
km) maintenance schedule (Normal
Conditions) as soon as you take it
out of storage (see page ). The
replacements called for in the
maintenance schedule are not
needed unless the car has actually
reached that time or mileage.Leave the parking brake off. Put
the transmission in Reverse.
169
158
Storing Your Car
Maintenance
212
Main Menu
Table of Contents
Regular cleaning and polishing of
your Honda helps to keep it ‘‘new’’
looking. This section gives you hints
on how to clean your car and
preserve its appearance: the paint,
brightwork, wheels and interior. Also
included are several things you can
do to help prevent corrosion.
.................................Exterior Care . 214
.....................................Washing . 214
............................Roof Antenna . 215
.......................................Waxing . 215
....................Aluminum Wheels . 216
..........................Paint Touch-up . 216
..................................Interior Care . 216
...................................Carpeting . 216
.................................Floor Mats . 217
.........................................Fabric . 217
...........................................Vinyl . 217
.......................................Leather . 218
...................................Seat Belts . 218
....................................Windows . 219
..........................Air Fresheners . 219
....................Corrosion Protection . 219
.................................Body Repairs . 220
Appearance Care
Appearance Care
213
Main Menu
Fill a bucket with cool water. Mix
in a mild detergent, such as
dishwashing liquid or a product
made especially for car washing.
When you have washed and rinsed
the whole exterior, dry it with a
chamois or soft towel. Letting it
air-dry will cause dulling and water
spots.
Only use the solvents and cleaners
recommendedinthisOwner’s
Manual.
Frequent washing helps preserve
your car’s beauty. Dirt and grit can
scratch the paint, while tree sap and
bird droppings can permanently ruin
the finish.
Wash your car in a shady area, not in
direct sunlight. If the car is parked in
the sun, move it into the shade and
let the exterior cool down before you
start.
Rinse the car thoroughly with cool
water to remove loose dirt.
As you dry the car, inspect it for
chips and scratches that could allow
corrosion to start. Repair them with
touch-up paint (see page ).
Wash the car using the water and
detergent solution and a soft-
bristle brush, sponge, or soft cloth.
Start at the top and work your way
down. Rinse frequently.
Check the body for road tar, tree
sap, etc. Remove these stains with
tar remover or turpentine. Rinse it
off immediately so it does not
harm the finish. Remember to re-
wax these areas, even if the rest of
the car does not need waxing.
216
Exterior Care
Appearance Care
Washing
214
Chemical solvents and strong cleaners
can damage the paint, metal, and
plastic on your car.
Main Menu
Table of Contents
−
−
Polishes Polishes and cleaner/
waxes can restore the shine to paint
that has oxidized and lost some of its
shine. They normally contain mild
abrasives and solvents that remove
the top layer of the finish. You
should use a polish on your Honda if
the finish does not have its original
shine after using a wax.
Cleaning tar, insects, etc. with
removers also takes off the wax.
Remember to re-wax those areas,
even if the rest of the car does not
need waxing.Your car is equipped with an antenna
mounted on the roof. Before using a
‘‘drive-through’’ car wash, make sure
you remove the antenna by
unscrewing it by hand. This prevents
the antenna from being damaged by
the car wash brushes.
Afterward, reinstall the antenna and
tighten it securely by hand.
Always wash and dry the whole car
before waxing it. You should wax
your car, including the metal trim,
whenever water sits on the surface
in large patches. It should form into
beads or droplets after waxing.
You should use a quality liquid or
paste wax. Apply it according to the
instructions on the container. In
general, there are two types of
products:
Waxes A wax coats the finish and
protects it from damage by exposure
to sunlight, air pollution, etc. You
should use a wax on your Honda
when it is new.
Exterior Care
Appearance Care
Roof Antenna Waxing
215
Main Menu
Table of Contents
Clean your Honda’s aluminum alloy
wheels as you do the rest of the
exterior.Washthemwiththesame
solution, and rinse them thoroughly.
The wheels have a protective clear-
coat that keeps the aluminum from
corroding and tarnishing. Using
harsh chemicals, including some
commercial wheel cleaners, or stiff
brushes can damage this clear-coat.
Only use a mild detergent and soft
brush or sponge to clean the wheels.
Your dealer has touch-up paint to
match your car’s color. The color
code is printed on a sticker on the
driver’s doorjamb. Take this code to
your dealer so you are sure to get
the correct color.
Inspect your car frequently for chips
or scratches in the paint. Repair
them right away to prevent corrosion
of the metal underneath. Use the
touch-up paint only on small chips
and scratches. More extensive paint
damage should be repaired by a
professional.
Vacuum the carpeting frequently to
remove dirt. Ground-in dirt will make
the carpet wear out faster.
Periodically shampoo the carpet to
keep it looking new. Use one of the
foam-type carpet cleaners on the
market. Follow the instructions that
come with the cleaner, applying it
with a sponge or soft brush. Keep
thecarpetingasdryaspossibleby
not adding water to the foam.
Aluminum Wheels Paint Touch-up Carpeting
Appearance Care
Exterior Care, Interior Care
216
Main Menu
Table of Contents
The Honda driver’s floor mat that
came with your car was designed to
be hooked over the floor mat anchor.
This keeps the floor mat from sliding
forward and possibly interfering with
the pedals.
If you remove the floor mat, make
sure to re-anchor it when you put it
back in your car.
If you replace it, use a genuine
Honda floor mat that is designed to
be used with the floor mat anchors in
your car.
If you use a non-Honda floor mat in
the driver’s footwell, make sure it
fits properly and that it can be used
with the floor mat anchor.
Do not put additional floor mats on
top of the anchored mat, otherwise
the additional mats may slide
forward and interfere with the pedals.
Vacuum dirt and dust out of the
material frequently. For general
cleaning, use a solution of mild soap
and lukewarm water, letting it air dry.
To clean off stubborn spots, use a
commercially-available fabric cleaner.
Test it on a hidden area of the fabric
first, to make sure it does not bleach
or stain the fabric. Follow the
instructions that come with the
cleaner.
Remove dirt and dust with a vacuum
cleaner. Wipe the vinyl with a soft
cloth dampened in a solution of mild
soap and water. Use the same
solution with a soft-bristle brush on
more difficult spots. You can also use
commercially-available spray or
foam-type vinyl cleaners.
Optional in U.S.
Interior Care
Appearance Care
Floor Mats Fabric
Vinyl
217
Main Menu
Table of Contents
Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
Vacuum dirt and dust from the
leather frequently. Pay particular
attention to the pleats and seams.
Clean the leather with a soft cloth
dampened with clear water, then
buff it with a clean, dry cloth. If
further cleaning is needed, use a
soap specifically for leather, such as
saddle soap. Apply this soap with a
damp,softcloth.Wipedownand
buff as described above.
If you use a leather cleaner, wipe it
off quickly with a soft and dry cloth.
Never leave a cloth soaked with
leather cleaner on any part of the
interior. If left for a long time, some
leather cleaners may cause
discoloration or cracking of interior
trim or fabric.
If your seat belts get dirty, you can
use a soft brush with a mixture of
mild soap and warm water to clean
them. Do not use bleach, dye, or
cleaning solvents. They can weaken
the belt material. Let the belts air-
drybeforeyouusethecar.
Appearance Care
Interior Care
Leather Seat Belts
218
LLOOOOPP
Main Menu
Table of Contents
Repair chips and scratches in the
paint as soon as you discover them.
Clean the windows, inside and out,
with a commercially-available glass
cleaner. You can also use a mixture
of one part white vinegar to ten parts
water. This will remove the haze that
builds up on the inside of the
windows. Use a soft cloth or paper
towels to clean all glass and clear
plastic surfaces. If you use a liquid air freshener,
make sure you fasten it securely so it
does not spill as you drive.
If you want to use an air freshener/
deodorizer in the interior of your car,
it is best to use a solid type. Some
liquid air fresheners contain chemi-
cals that may cause parts of the
interior trim and fabric to crack or
discolor.
Two factors normally contribute to
causing corrosion in your car:
Moisture trapped in body cavities.
Dirtandroadsaltthatcollectsin
hollowsontheundersideofthe
car stays damp, promoting
corrosion in that area.
Removal of paint and protective
coatings from the exterior and
underside of the car.
Many corrosion-preventive measures
are built into your Honda. You can
help keep your car from corroding
by performing some simple periodic
maintenance:
1.
2.
CONTINUED
Windows Air Fresheners Corrosion Protection
Interior Care, Corrosion Protection
Appearance Care
219
The rear window def ogger wires are
bonded to the inside of the glass.
Wiping vigorously up-and-down can
dislodge and break the def ogger wires.
When cleaning the rear window, use
gentle pressure and wipe side-to-side.
Main Menu
Table of Contents
Inspect and clean out the drain
holes in the bottom of the doors
and body.
Check the floor coverings for
dampness. Carpeting and floor
mats may remain damp for a long
time, especially in winter. This
dampness can eventually cause
the floor panels to corrode.
Make sure the repair facility uses
genuine Honda replacement body
parts. Some companies make sheet
metal pieces that seem to duplicate
the original Honda body parts, but
are actually inferior in fit, finish, and
corrosion resistance. Once installed,
they do not give the same high-
quality appearance.
When reporting your collision to the
insurance company, tell them you
want genuine Honda parts used in
the repair. Although most insurers
recognize the quality of original
parts, some may try to specify that
the repairs be done with other
available parts. You should investi-
gate this before any repairs have
begun.
Body repairs can affect your car’s
resistance to corrosion. If your car
needs repairs after a collision, pay
close attention to the parts used in
the repair and the quality of the
work.
Takeyourcartoyourauthorized
Honda dealer for inspection after the
repairs are completed. Your dealer
canmakesurethatqualitymaterials
were used, and that corrosion-
preventive coatings were applied to
all repaired and replaced parts.
Use a high-pressure spray to clean
the underside of your car. This is
especially important in areas that
useroadsaltinwinter.Itisalsoa
good idea in humid climates and
areas subject to salt air.
Have the corrosion-preventive
coatings on the underside of your
car inspected and repaired
periodically.
Body Repairs
Corrosion Protection, Body Repairs
Appearance Care
220
Main Menu
Table of Contents
This section covers the more-
common problems that motorists
experience with their vehicles. It
gives you information about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also find instructions
on getting your car towed.
......................Compact Spare Tire . 222
....................Changing a Flat Tire . 223
..........If Your Engine Won’t Start . 228
Nothing Happens or the
Starter Motor Operates
............................Very Slowly . 228
The Starter Operates
................................Normally . 229
................................Jump Starting . 230
............If Your Engine Overheats . 232
.........Low Oil Pressure Indicator . 234
..........Charging System Indicator . 235
.......Malfunction Indicator Lamp . 236
...........................Readiness Codes . 237
...............Brake System Indicator . 238
..................Closing the Moonroof . 239
..............................................Fuses . 240
..........Checking and Replacing . 241
......................Emergency Towing . 245
Taking Care of the Unexpected
Taking Care of the Unexpected
221
Main Menu
Follow these precautions whenever
you are using the compact spare tire:
Thecompactsparetirehasashorter
tread life than a regular tire. Replace
it when you can see the tread wear
indicator bars. The replacement
shouldbethesamesizeanddesign
tire, mounted on the same wheel.
Thecompactsparetireisnot
designed to be mounted on a regular
wheel, and the compact wheel is not
designed for mounting a regular tire.
Check the inflation pressure of the
compact spare tire every time you
check the other tires. It should be
inflated to:
Do not exceed 50 mph (80 km/h)
under any circumstances.
This tire gives a harsher ride and
less traction on some road sur-
faces than the regular tire. Use
greater caution while driving on
this tire.
Do not mount snow chains on the
compact spare.
Your car has a compact spare tire
that takes up less space. Use this
sparetireasatemporaryreplace-
ment only. Get your regular tire
repaired or replaced and put it back
on your car as soon as you can.
The wheel of the compact spare
tire is designed especially to fit
your car. Do not use your spare
tire on another vehicle unless it is
thesamemakeandmodel.
Compact Spare Tire
Taking Care of the Unexpected
222
IINNDDIICCAATTOORR LLOOCCAATTIIOONN MMAARRKK
TTRREEAADD WWEEAARR IINNDDIICCAATTOORR BBAARR
60 psi (420 kPa , 4.2 kgf/cm )
Main Menu
Table of Contents
If you have a flat tire while driving,
stop in a safe place to change it.
Stopping in traffic or on the shoulder
of a busy road is dangerous. Drive
slowly along the shoulder until you
gettoanexitoranareatostopthat
is far away from the traffic lanes.
Open the hatch. Raise the cargo
area floor by lifting up on the back
edge.
Park the car on firm, level and
non-slippery ground away from
traffic. Put the transmission in
Reverse. Apply the parking brake.
Turn on the hazard warning lights
and turn the ignition switch to
LOCK (0). Have all the
passengers get out of the car while
you change the tire.
Take the tool bag out of the spare
tire well. Take the jack out of the
tool bag.
Unscrew the wing bolt and take
the spare tire out of its well.
2.
3.
1.
4.
5.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
223
SSPPAARREE TTIIRREE
TTOOOOLL BBAAGG
CCAARRGGOO AARREEAA FFLLOOOORR
The car can easily roll off the
jack, seriously injuring anyone
underneath.
Follow the directions for
changing a tire exactly, and
never get under the car when it
is supported only by the jack.
Use the jack that came with your car. If
you try to raise another car with this
jack or use another jack to raise your
car, the car or jack can be damaged.
Main Menu
Table of Contents
Locate the jacking point nearest
thetireyouneedtochange.Place
the jack under the jacking point.
Turn the end bracket clockwise
until the top of the jack contacts
the jacking point. Make sure the
jacking point tab is resting in the
jack notch.
Loosen the four wheel nuts 1/2
turn with the wheel wrench.
Use the extension and wheel
wrench as shown to raise the car
until the flat tire is off the ground.
6. 7. 8.
Taking Care of the Unexpected
Changing a Flat Tire
224
JJAACCKKIINNGG PPOOIINNTT
WWHHEEEELL
WWRREENNCCHH EEXXTTEENNSSIIOONN
Main Menu
Table of Contents
CONTINUED
Remove the wheel nuts and flat
tire. Temporarily place the flat tire
on the ground with the outside
surface of the wheel facing up.
You could scratch the wheel if you
putitfacedown.
Before mounting the spare tire,
wipeanydirtoffthemounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully,itmaybehotfrom
driving.
Put on the spare tire. Put the
wheel nuts back on finger-tight,
then tighten them in a crisscross
pattern with the wheel wrench
until the wheel is firmly against
the hub. Do not try to tighten
them fully.
9. 10.
11.
Changing a Flat Tire
Taking Care of the Unexpected
225
BBRRAAKKEE HHUUBB
Main Menu
Table of Contents
Lower the car to the ground and
remove the jack.
Remove the center cap before
storing the flat tire in the spare
tire well.
Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
facility.
Tighten the wheel nuts to:
12.
13.
14.
Changing a Flat Tire
Taking Care of the Unexpected
226
CCEENNTTEERR CCAAPP
80 lbf·ft (108 N·m , 11 kgf·m)
Main Menu
Table of Contents
Place the flat tire face down in the
spare tire well.
Remove the spacer cone from the
wing bolt, turn it over, and put it
back on the bolt.
Securetheflattirebyscrewing
the wing bolt back into its hole.
Store the jack and tool kit back in
the spare tire well.
Store the center cap in the spare
tire well. Make sure it does not get
scratched or damaged.
Lower the cargo area floor, then
close the hatch.
15.
16.
17.
18. 19.
20.
Changing a Flat Tire
Taking Care of the Unexpected
227
WWIINNGG BBOOLLTT
SSPPAACCEERR CCOONNEE
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
Main Menu
Table of Contents
Diagnosing why your engine won’t
start falls into two areas, depending
on what you hear when you turn the
key to START (III):
You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
faster than normal, but the engine
does not start up and run.
When you turn the ignition switch to
START (III), you do not hear the
normal noise of the engine trying to
start. You may hear a clicking sound
or series of clicks, or nothing at all.
Check these things:
Check the transmission interlock.
The clutch pedal must be pushed
all the way to the floor or the
starter will not operate.
Turn the ignition switch to ON (II).
Turn on the headlights and check
their brightness. If the headlights
are very dim or don’t light at all,
the battery is discharged. See
on page .230
Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting
Taking Care of the Unexpected
If Your Engine Won’t Start
228
Main Menu
Table of Contents
Turn the ignition switch to START
(III). If the headlights do not dim,
check the condition of the fuses. If
thefusesareOK,thereisproba-
bly something wrong with the
electrical circuit for the ignition
switch or starter motor. You will
need a qualified technician to
determine the problem. (See
on page .)
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is dis-
charged or the connections are
corroded. Check the condition of
the battery and terminal connec-
tions (see page ). You can
then try jump starting the car from
a booster battery (see page ).
In this case, the starter motor’s
speed sounds normal, or even faster
than normal, when you turn the
ignition switch to START (III), but
the engine does not run.
Do you have fuel? Turn the
ignition switch to ON (II) for a
minute and watch the fuel gauge.
The low fuel level warning light
may not be working, so you were
not reminded to fill the tank.
There may be an electrical
problem, such as no power to the
fuel pump. Check all the fuses
(see page ).
Your car has the Immobilizer
System. You should use a
properly-coded master or valet key
to start the engine (see page ).
A key that is not properly coded
will cause the immobilizer system
indicator in the dash panel to blink
rapidly.
Are you using the proper starting
procedure? Refer to
on page .
Ifyoufindnothingwrong,youwill
need a qualified technician to find
the problem. See
on page .
245
184
230
143
245
74 241
If Your Engine Won’t Start
Taking Care of the Unexpected
Emergency Towing
The Starter Operates Normally
Starting the
Engine
Emergency
Towing
229
Main Menu
Table of Contents
＋
＋
To jump start your car, follow these
directions closely:
Open the hood and check the
physical condition of the battery
(see page ). In very cold
weather, check the condition of
the electrolyte. If it seems slushy
or like ice, do not try jump starting
until it thaws.
Turn off all the electrical acces-
sories: heater, A/C, stereo system,
lights, etc.
Put the transmission in Neutral or
Park, and set the parking brake.
Connect one jumper cable to the
positive ( ) terminal on your
Honda’s battery. Connect the
other end to the positive ( )
terminal on the booster battery.
If your car’s battery has run down,
you may be able to start the engine
by using a booster battery. Although
this seems like a simple procedure,
you should take several precautions.
1.
2.
3.
184
Taking Care of the Unexpected
Jump Starting
230
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme cold, the
electrolyte inside can f reeze.
Attempting to jump start with a f rozen
battery can cause it to rupture.
Main Menu
Table of Contents
−
Connect the second jumper cable
to the negative ( ) terminal on
the booster battery. Connect the
other end to the grounding strap
as shown. Do not connect this
jumper cable to any other part of
the engine.
If the booster battery is in another
vehicle, have an assistant start
that vehicle and run it at a fast idle.
Start your car. If the starter motor
still operates slowly, check the
jumper cable connections to make
sure they have good metal-to-
metal contact.
The numbers in the illustration show
you the order to connect the jumper
cables. Make sure to disconnect the
cables in the reverse order.
Once your car is running, discon-
nectthenegativecablefromyour
car, then from the booster battery.
Disconnect the positive cable from
your car, then the booster battery.
Keep the ends of the jumper cables
away from each other and any metal
on the car until all are disconnected.
Otherwise, you may cause an
electrical short.
5.
7.
4.
6.
Jump Starting
Taking Care of the Unexpected
231
BBOOOOSSTTEERR BBAATTTTEERRYY
Main Menu
Table of Contents
If you see steam and/or spray
coming from under the hood, turn
off the engine.
If you do not see steam or spray,
leave the engine running and
watch the temperature gauge. If
the high heat is due to overloading
(climbing a long, steep hill on a
hot day with the A/C running, for
example), the engine should start
to cool down almost immediately.
If it does, wait until the tempera-
ture gauge comes down to the mid-
point then continue driving.
Safely pull to the side of the road.
Put the transmission in Neutral or
Park, and set the parking brake.
Turn off the heating and cooling
system and all other accessories.
Turn on the hazard warning
indicators.
The pointer of your car’s tempera-
ture gauge should stay in the mid-
range under most conditions. It may
go higher if you are driving up a long
steep hill on a very hot day. If it
climbs to the red mark, you should
determine the reason.
Your car can overheat for several
reasons, such as lack of coolant or a
mechanical problem. The only
indication may be the temperature
gauge climbing to or above the red
mark. Or you may see steam or
spray coming from under the hood.
In either case, you should take
immediate action.
1.
2.
3.
If Your Engine Overheats
Taking Care of the Unexpected
232
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
Driving with the temperature gauge
pointer at the red mark can cause
serious damage to your engine.
Main Menu
Table of Contents
If the temperature gauge stays at
the red mark, turn off the engine.
Wait until you see no more signs
of steam or spray, then open the
hood.
If you don’t find an obvious leak,
check the coolant level in the
radiator reserve tank (see page
). If the level is below the
MIN mark, add coolant to halfway
between the MIN and MAX marks.
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
If there was no coolant in the
reserve tank, you may also have to
add coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the tempera-
ture gauge, or lower, before check-
ing the radiator.
Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the first stop. This
releases any remaining pressure in
the cooling system. After the
pressure releases, push down on
the cap and turn it until it comes
off.
Start the engine and set the
temperature control dial to
maximum. Add coolant to the
radiator up to the base of the filler
neck. If you do not have the
proper coolant mixture available,
you can add plain water.
Remember to have the cooling
system drained and refilled with
the proper mixture as soon as you
can.
Look for any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you find a leak, it
must be repaired before you
continue driving (see
on page ).
Put the radiator cap back on
tightly. Run the engine and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair. (See
on page .)
4.
5.
6.
7.
8.
9.
10.
11.
12.
245
133
245
Emergency
Towing
Emergency
Towing
If Your Engine Overheats
Taking Care of the Unexpected
233
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
This indicator should light when the
ignition switch is ON (II), and go out
after the engine starts. It should
never come on when the engine is
running. If it starts flashing, it
indicates that the oil pressure
dropped very low for a moment, then
recovered. If the indicator stays on
with the engine running, it shows
that the engine has lost oil pressure
and serious engine damage is
possible. In either case, you should
take immediate action.
Safely pull off the road and shut
off the engine. Turn on the hazard
warning indicators.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
Letthecarsitforaminute.Open
the hood and check the oil level
(see page ). Although oil level
and oil pressure are not directly
connected, an engine that is very
low on oil can lose pressure during
cornering and other driving
maneuvers.
Start the engine and watch the oil
pressure indicator. If the light
does not go out within ten seconds,
turn off the engine. There is a
mechanical problem that needs to
be repaired before you can
continue driving. (See
on page .)
1.
2.
3.
4.
132
167
245
Emergency
Towing
Low Oil Pressure Indicator
Taking Care of the Unexpected
234
LLOOWW OOIILL PPRREESSSSUURREE IINNDDIICCAATTOORR
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn of f
the engine as soon as you can saf ely get
the car stopped.
Main Menu
Table of Contents
This indicator should come on when
the ignition switch is ON (II), and go
out after the engine starts. If it
comes on brightly when the engine
is running, it indicates that the
charging system has stopped
charging the battery.
By eliminating as much of the
electrical load as possible, you can
drive several miles (kilometers)
before the battery is too discharged
to keep the engine running. Drive to
a service station or garage where
you can get technical assistance.
Immediately turn off all electrical
accessories: radio, heater, A/C, rear
defogger, cruise control, etc. Try not
to use other electrically-operated
controls such as the power windows.
Keep the engine running and take
extra care not to stall it. Starting the
engine will discharge the battery
rapidly.
Charging System Indicator
Taking Care of the Unexpected
235
CCHHAARRGGIINNGG SSYYSSTTEEMM IINNDDIICCAATTOORR
Main Menu
Table of Contents
Youshouldalsohavethedealer
inspect your car if this indicator
comes on repeatedly, even though it
may turn off as you continue driving.
This indicator should light when the
ignition switch is ON (II), and go out
after the engine starts. If it comes on
at any other time, it indicates one of
the engine’s emissions control
systems may have a problem. Even
though you may feel no difference in
your car’s performance, it can
reduce your fuel economy and cause
your car to put out excessive
emissions. Continued operation may
cause serious damage.
If you have recently refueled your
car, the cause of this indicator
coming on could be a loose or
missing fuel fill cap. Check the cap
and tighten it until it clicks several
times. Replace the fuel fill cap if it is
missing. Tightening the cap will not
make the indicator turn off
immediately; it takes at least one
driving trip.
If the indicator remains on, or the
fuel cap was not loose or missing,
have the car checked by the dealer
as soon as possible. Drive
moderately until the dealer has
inspected the problem. Avoid full-
throttle acceleration and driving at
high speed.
Malfunction Indicator Lamp
Taking Care of the Unexpected
236
MMAALLFFUUNNCCTTIIOONN IINNDDIICCAATTOORR LLAAMMPP
If you keep driving with the
malf unction indicator lamp on, you can
damage your car’s emissions controls
and engine. Those repairs may not be
covered by your car’s warranties.
Main Menu
Table of Contents
Your car has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics for the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.
If your car’s battery has been
disconnected or gone dead, these
codes are erased. It takes several
days of driving under various
conditions to set the codes again.
If possible, do not take your car for a
state emissions test until the
readiness codes are set. To check if
they are set, turn the ignition ON (II),
but do not start the engine. The
Malfunction Indicator Lamp will
come on for 20 seconds. If it then
goes off, the readiness codes are set.
If it blinks 5 times, the readiness
codes are not set. See State
Emissions Testing on page .259
Readiness Codes
Malfunction Indicator Lamp
Taking Care of the Unexpected
237
Main Menu
Table of Contents
＊＊
＊＊
If you must drive the car a short
distance in this condition, drive
slowly and cautiously.
Slow down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the
longer distance needed to stop, it is
hazardous to drive the car. You
should have it towed, and repaired as
soon as possible. (See
on page .)
However, if the brake pedal does not
feel normal, you should take
immediate action. Because of the
brake system’s dual-circuit design, a
problem in one part of the system
will still give you braking at two
wheels. You will feel the brake pedal
go down much farther before the car
begins to slow down, and you will
have to press harder on the pedal.
The distance needed to stop will be
much longer.
If it comes on at any other time, it
indicates a problem with the car’s
brake system. In most cases, the
problem is a low fluid level in the
brake fluid reservoir. Press lightly on
the brake pedal to see if it feels
normal. If it does, check the brake
fluid level the next time you stop at a
service station (see page ). If the
fluid level is low, take the car to your
dealer and have the brake system
inspected for leaks or worn brake
pads.
The Brake System Indicator
normallycomesonwhenyouturn
the ignition switch ON (II). It is a
reminder to check the parking brake.
It comes on and stays lit if you do not
fully release the parking brake.
245
178
Brake System Indicator
Taking Care of the Unexpected
Emergency
Towing
238
BBRRAAKKEE SSYYSSTTEEMM IINNDDIICCAATTOORR
TThhee UU..SS.. iinnddiiccaattoorr sshhoowwnn
Main Menu
Table of Contents
Remove the wrench. Reinstall the
round plug.
To remove the round plug in the
center of the headliner, turn the
plug by using a screwdriver or
coin, then pry it out. Make sure to
align the tabs on the round plug to
the notches on the ceilling as
shown in the illustration.
If the electric motor will not close
the moonroof, do the following:
Check the fuse for the moonroof
motor (see page ). If the fuse
is blown, replace it with one of the
same or lower rating.
Try closing the moonroof. If the
new fuse blows immediately or the
moonroof motor still does not
operate, you can close the
moonroof manually.
Get the moonroof wrench out of
the tool kit in the cargo area.
Insert the moonroof wrench into
the socket behind this plug. Turn
the wrench until the moonroof is
fully closed.
1.
2.
3.
4.
5.
6.
240
Closing the Moonroof
Taking Care of the Unexpected
239
Front
RROOUUNNDD PPLLUUGG SSOOCCKKEETT
Main Menu
Table of Contents
All the electrical circuits in your car
have fuses to protect them from a
short circuit or overload. These
fuses are located in two fuse boxes.
The interior fuse box is underneath
the steering column. To open it, turn
the knobs as shown.
The under-hood fuse box is located
in the back of the engine
compartment on the left side. To
open it, push the tabs as shown.
Fuses
Taking Care of the Unexpected
240
IINNTTEERRIIOORR
UUNNDDEERR--HHOOOODD
Main Menu
Table of Contents
If something electrical in your car
stops working, the first thing you
should check for is a blown fuse.
Determine from the chart on pages
and , or the diagram on the
fuse box lid, which fuse or fuses
control that component. Check those
fuses first, but check all the fuses
before deciding that a blown fuse is
not the cause. Replace any blown
fuses and check the component’s
operation.
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover from the fuse
box.
Check each of the large fuses in
the under-hood fuse box by
looking through the top at the wire
inside. Removing these fuses
requires a Phillips-head screw-
driver.
Check the smaller fuses in the
under-hood fuse box and all the
fuses in the interior fuse box by
pulling out each fuse with the fuse
puller provided in the interior fuse
box.
3.
1.
2.
4.
243 244
CONTINUED
Checking and Replacing Fuses
Fuses
Taking Care of the Unexpected
241
BBLLOOWWNN
FFUUSSEE
FFUUSSEE PPUULLLLEERR
Main Menu
Table of Contents
Look for a burned wire inside the
fuse. If it is burned, replace it with
oneofthesparefusesofthesame
rating or lower.
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your car.
Leave the blown fuse in that
circuit and have your car checked
by a qualified mechanic.
If you cannot drive the car without
fixing the problem, and you do not
have a spare fuse, take a fuse of the
same rating or a lower rating from
one of the other circuits. Make sure
youcandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as
soon as you can.
5.
6.
Fuses
Taking Care of the Unexpected
242
BBLLOOWWNN
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a replace-
ment f use with the proper rating f or the
circuit, install one with a lower rating.
Main Menu
Table of Contents
＊
＊
No. Amps. Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20A
15A
7.5A
20A
10A
15A
15A
20A
10A
40A
30A
40A
40A
40A
15A
20A
15A
60A
80A
40A
50A
Condenser Fan
Small Light
Interior Light
Cooling Fan
Hazard
FI ECU
Horn, Stop
ABS (F/S)
Back Up
ABS Motor
Rear Demister
Heater Motor
Power Window
Option
Left Headlight
Door Lock
Right Headlight
Main Fuse EPS
Main Fuse Battery
Main Fuse Ignition
On Canadian models
Fuses
Taking Care of the Unexpected
243
UNDER-HOOD FUSE BOX
Main Menu
Table of Contents
−
−
−
−
−
＊
＊
＊
＊
＊
＊
No. Amps.
No. Amps. Circuits Protected
Circuits Protected
1
2
3
4
5
6
7
8
9
10
15A
20A
(10A)
10A
7.5A
(20A)
7.5A
10A
7.5A
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
7.5A
(7.5A)
10A
10A
(20A)
15A
15A
7.5A
30A
20A
20A
ABS
Daytime Running Lights
SRS
Power Mirror
Not Used
Heated Seat
Fuel Pump
ACC Cigarette Lighter
Turn Signal Lights
Front Wiper
Not Used
Front Passenger’s Power
Window
Driver’s Power Window
Not Used
Not Used
Ignition Coil
LAF Heater
Daytime Running Lights
Alternator
Not Used
Power Window Relay
Moonroof
ACC Radio
Rear Wiper
Meter
For some types
Taking Care of the Unexpected
Fuses
244
INTERIOR FUSE BOX
Main Menu
Table of Contents
−
−
−
There are three popular types of
professional towing equipment.
The tow
truck uses two pivoting arms that go
under the tires (front or rear) and lift
them off the ground. The other two
tires remain on the ground.
If your car needs to be towed, call a
professional towing service or, if you
belong to one, an organization that
provides roadside assistance. Never
tow your car behind another vehicle
with just a rope or chain. It is very
dangerous.
The operator
loads your car on the back of a truck.
The tow
truck uses metal cables with hooks
on the ends. These hooks go around
parts of the frame or suspension and
the cables lift that end of the car off
the ground. Your car’s suspension
and body can be seriously damaged.
If your Honda cannot be transported
by flat-bed, it should be towed by
wheel-lift equipment with the front
wheels off the ground. If due to
damage, your car must be towed
with the front wheels on the ground,
do the following:
Release the parking brake.
Shift the transmission to Neutral.
With the front wheels on the ground,
it is best to tow the car no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If your car is equipped with a front
spoiler, remove it before towing so it
is not damaged.
Wheel-lift Equipment
Flat-bed Equipment
Sling-type Equipment
This is
an acceptable way to tow your
Honda.
This is the best way to transport
your Honda.
This method of towing is
unacceptable.
Emergency Towing
Taking Care of the Unexpected
245
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine, your car must be transported
with the f ront wheels of f the ground.
Main Menu
Table of Contents
If you decide to tow your car with all
four wheels on the ground, make
sure you use a properly-designed and
attached tow bar. Prepare the car for
towing as described above, and leave
the ignition switch in Accessory (I)
so the steering wheel does not lock.
Make sure the radio and any items
plugged into the accessory power
socket are turned off so they do not
rundownthebattery.
Emergency Towing
Taking Care of the Unexpected
246
Trying to lif t or tow your car by the
bumpers will cause serious damage.
The bumpers are not designed to
support the car’s weight.
The steering system can be damaged if
the steering wheel is locked. Leave the
ignition switch in Accessory (I), and
make sure the steering wheel turns
f reely bef ore you begin towing.
Main Menu
Table of Contents
Thediagramsinthissectiongive
you the dimensions and capacities of
your Honda, and the locations of the
identification numbers. It also
includes information you should
know about your vehicle’s tires and
emissions control systems.
................Identification Numbers . 248
................................Specifications . 250
DOT Tire Quality Grading
......................(U.S. Vehicles) . 252
.................................Treadwear . 252
......................................Traction . 252
.............................Temperature . 253
.........................Oxygenated Fuels . 254
......Driving in Foreign Countries . 255
.......................Emissions Controls . 256
.....................The Clean Air Act . 256
Crankcase Emissions Control
....................................System . 256
Evaporative Emissions Control
....................................System . 256
Onboard Refueling Vapor
................................Recovery . 256
...Exhaust Emissions Controls . 257
....................PGM-FI System . 257
Ignition Timing Control
................................System . 257
Three Way Catalytic
...........................Converter . 257
....................Replacement Parts . 257
..Three Way Catalytic Converter . 258
..............State Emissions Testing . 259
....Testing of Readiness Codes . 259
Technical Information
Technical Information
247
Main Menu
Your car has several identifying
numbers located in various places.
The Vehicle Identification Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
car for warranty purposes. It is also
necessary for licensing and insuring
your car. The easiest place to find
the VIN is on a plate fastened to the
top of the dashboard. You can see it
by looking through the windshield
on the driver’s side. It is also on the
Certification label attached to the
driver’s doorjamb, and is stamped on
the engine compartment bulkhead.
The VIN is also provided in bar code
on the Certification label.
Identification Numbers
Technical Information
248
VVEEHHIICCLLEE IIDDEENNTTIIFFIICCAATTIIOONN NNUUMMBBEERR
CCEERRTTIIFFIICCAATTIIOONN LLAABBEELL
Main Menu
Table of Contents
The Engine Number is stamped into
the engine block.
The Transmission Number is on a
label on top of the transmission.
Identification Numbers
Technical Information
249
EENNGGIINNEE NNUUMMBBEERR
MMAANNUUAALL
TTRRAANNSSMMIISSSSIIOONN
NNUUMMBBEERR
Main Menu
Table of Contents
＊
＊
Specifications
Technical Information
250
Dimensions
Weights
Engine
Capacities
67.1 in (1,705 mm)
54.1 in (1,375 mm)
101.2 in (2,570 mm)
57.8 in (1,468 mm)
57.8 in (1,469 mm)
3.39 x 3.54 in (86.0 x 86.0 mm)
121.9 cu-in (1,998 cm
)
9.8 : 1
13.2 US gal (50
, 11.0 Imp gal)
1.35 US gal (5.1
, 1.12 Imp gal)
164.2 in (4,170 mm)Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
See the certification label attached
to the driver’s doorjamb.
Fuel tank
Engine
coolant
Engine oil
Manual
transmission
fluid
Windshield
washer reservoir
1.80 US gal (6.8 , 1.50 Imp gal)
4.4 US qt (4.2 , 3.7 Imp qt)
4.2 US qt (4.0
, 3.5 Imp qt)
5.6 US qt (5.3
, 4.7 Imp qt)
1.6 US qt (1.5
, 1.3 Imp qt)
1.8 US qt (1.7
, 1.5 Imp qt)
2.6 US qt (2.5
, 2.2 Imp qt)
0.13 US gal (0.5
, 0.11 Imp gal)
See spark plug maintenance
section page 183 .
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
Water cooled 4-stroke DOHC
i-VTEC 4-cylinder gasoline engine
Front
Rear
Approx.
Change
Manual
Total
Manual
Change
Without filter
Total
Change
Total
1:
1
Including filter
Main Menu
Table of Contents
−−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
Specifications
Technical Information
251
Air Conditioning Alignment
Tires
Lights
Battery
Fuses
HFC-134a (R-134a)
21.2 22.9 oz (500 550 g)
SP-10
12 V
12 V
60/55 W (HB2)
21 W
0.00 in (0.0 mm)
0.08 in (2.0 mm)
0°
45°
1°33’
195/60R15 88V
T125/7D15 95M
Refrigerant type
Charge quantity
Lubricant type
Toe-in
Camber
Caster
Size
Pressure 33 psi (230 kPa , 2.3 kgf/cm
)
29 psi (200 kPa , 2.0 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm
)
Headlights (HI/LO)
Front turn signal
Front parking light
Side turn signal light
Front side marker
Rear turn signal lights
Stop/Taillights
Rear side marker lights
Back-up lights
High-mount brake light
License plate lights
Front ceiling light
Center ceiling light
12 V
12 V
12 V
12 V
21 W
21/5 W
2CP12 V
12 V 21 W
12 V
12 V
12 V
5W
5W
5W
Capacity
Interior
Under-hood
See page 244 or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 243 or the fuse box
cover.
12 V 45 AH/20 HR
3CP
3CP
2CP
8W12 V
12 V
Front
Rear
Front
Rear
Front
Front/Rear
Spare
Front
Rear
Spare
Main Menu
Table of Contents
The tires on your car meet all U.S.
Federal Safety Requirements. All
tires are also graded for treadwear,
traction, and temperature perform-
ance according to Department of
Transportation (DOT) standards.
The following explains these
gradings.
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specified government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative performance of
tires depends upon the actual condi-
tions of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices and differences in
road characteristics and climate.
The traction grades, from highest to
lowest, are AA, A, B, and C. These
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specified government test surfaces
of asphalt and concrete. A tire
marked C may have poor traction
performance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
Quality grades can be found where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.
DOT Tire Quality Grading (U.S. Vehicles)
Treadwear Traction
Uniform Tire Quality Grading
Treadwear 200
Traction AA
Temperature A
Technical Information
252
Main Menu
Table of Contents
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger car
tires must meet under the Federal
Motor Vehicle Safety Standard No.
109. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the
minimum required by law.
Warning: The temperature grade for
this tire is established for a tire that
is properly inflated and not over-
loaded. Excessive speed, underinfla-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
failure.
Technical Information
Temperature
DOT Tire Quality Grading (U.S. Vehicles)
253
Main Menu
Table of Contents
Some conventional gasolines are
being blended with alcohol or an
ether compound. These gasolines
are collectively referred to as
oxygenated fuels. To meet clean air
standards, some areas of the United
States and Canada use oxygenated
fuels to help reduce emissions.
If you use an oxygenated fuel, be
sure it is unleaded and meets the
minimum octane rating requirement.
Before using an oxygenated fuel, try
to confirm the fuel’s contents. Some
states/provinces require this
informationtobepostedonthe
pump.
If you notice any undesirable
operating symptoms, try another
service station or switch to another
brand of gasoline.
Fuel system damage or performance
problems resulting from the use of
an oxygenated fuel containing more
than the percentages of oxygenates
given above are not covered under
warranty.(Methyl Tertiary Butyl
Ether)
You may use gasoline containing up
to 15 percent MTBE by volume.
(ethyl or grain alcohol)
You may use gasoline containing up
to 10 percent ethanol by volume.
Gasoline containing ethanol may be
marketed under the name ‘‘Gasohol.’’
The following are the U.S. EPA and
Canadian CGSB approved
percentages of oxygenates:
(methyl or wood
alcohol)
Your vehicle was not designed to use
fuel that contains methanol.
Methanol can corrode metal parts in
the fuel system, and also damage
plastic and rubber components. This
damage would not be covered by
your warranties.
Oxygenated Fuels
Technical Information
MTBE
ETHANOL
METHANOL
254
Main Menu
Table of Contents
If you are planning to take your
Honda outside the U.S. or Canada,
contact the tourist bureaus in the
areas you will be traveling in to find
out about the availability of unleaded
gasoline with the proper octane
rating.
If unleaded gasoline is not available,
be aware that using leaded gasoline
in your Honda will affect perfor-
mance and fuel mileage, and damage
its emissions controls. It will no
longer comply with U.S. and
Canadian emissions regulations, and
will be illegal to operate in North
America. To bring your car back into
compliance will require the replace-
ment of several components, such as
theoxygensensorsandthethree
way catalytic converter. These re-
placements are not covered under
warranty.
Driving in Foreign Countries
Technical Information
255
Main Menu
Table of Contents
＊
＊
The United States Clean Air Act
sets standards for automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
Scheduled maintenance is on page
.
In Canada, Honda vehicles comply
with the Canadian Motor Vehicle
Safety Standards (CMVSS) for
Emissions valid at the time they are
manufactured.
The burning of gasoline in your car’s
engine produces several byproducts.
Some of these are carbon monoxide
(CO), oxides of nitrogen (NOx) and
hydrocarbons (HC). Gasoline
evaporating from the tank also
produces hydrocarbons. Controlling
the production of NOx, CO, and HC
is important to the environment.
Under certain conditions of sunlight
and climate, NOx and HC react to
form photochemical ‘‘smog.’’ Carbon
monoxide does not contribute to
smog creation, but it is a poisonous
gas.
Your car has a Positive Crankcase
Ventilation System. This keeps
gasses that build up in the engine’s
crankcase from going into the
atmosphere. The Positive Crankcase
Ventilation valve routes them from
the crankcase back to the intake
manifold. They are then drawn into
the engine and burned.
As gasoline evaporates in the fuel
tank, an evaporative emissions
control canister filled with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is off. After
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The Onboard Refueling Vapor
Recovery (ORVR) system captures
the fuel vapors during refueling. The
vapors are adsorbed in a canister
filled with activated carbon. While
driving, the fuel vapors are drawn
into the engine and burned off.
158
The Clean Air Act
Crankcase Emissions Control
System
Evaporative Emissions Control
System
Onboard Refueling Vapor
Recovery
Emissions Controls
Technical Information
256
Main Menu
Table of Contents
The exhaust emissions controls
include three systems: PGM-FI,
Ignition Timing Control and Three
Way Catalytic Converter. These
three systems work together to
control the engine’s combustion and
minimize the amount of HC, CO, and
NOx that comes out the tailpipe. The
exhaust emissions control systems
are separate from the crankcase and
evaporative emissions control
systems. The emissions control systems are
covered by warranties separate from
the rest of your car. Read your
warranty manual for more informa-
tion.
The emissions control systems are
designed and certified to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Genuine Honda replacement parts or
their equivalent for repairs. Using
lower quality parts may increase the
emissions from your car.
The PGM-FI System uses sequential
multiport fuel injection.
It has three subsystems: Air Intake,
Engine Control, and Fuel Control.
The Engine Control Module (ECM)
uses various sensors to determine
how much air is going into the
engine. It then controls how much
fuel to inject under all operating
conditions.
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO and NOx produced.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), dinitrogen
(N ), and water vapor.
2
2
Exhaust Emissions Controls Replacement Parts
PGM-FI System
Ignition Timing Control System
Three Way Catalytic Converter
Emissions Controls
Technical Information
257
Main Menu
Table of Contents
The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter is referred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter ineffective.
Keep the engine tuned-up.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on fire any com-
bustible materials that come near it.
Park your car away from high grass,
dry leaves, or other flammables.
A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
formance. Follow these guidelines to
protect your car’s three way catalytic
converter.
Have your car diagnosed and
repaired if it is misfiring, back-
firing, stalling, or otherwise not
running properly.
Three Way Catalytic Converter
Technical Information
258
TTHHRREEEE WWAAYY CCAATTAALLYYTTIICC CCOONNVVEERRTTEERR
Main Menu
Table of Contents
If you take your vehicle for a state
emissions test shortly after the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics for the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing facility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle re-tested within the
next two or three days, you can
condition the vehicle for re-testing
by doing the following.
Make sure the gas tank is nearly,
but not completely, full (around
3/4).
Make sure the vehicle has been
parked with the engine off for 8
hours or more.
Make sure the ambient
temperature is between 20° and
95°F.
Without touching the accelerator
pedal, start the engine and let it
idle for 20 seconds.
Keep the vehicle on Neutral.
Increase the engine speed to 2,000
rpm and hold it there until the
temperature gauge rises to at least
1/4ofthescale(approximately3
minutes).
CONTINUED
Testing of Readiness Codes
State Emissions Testing
Technical Information
259
Main Menu
Table of Contents
Then drive in city/suburban
traffic for at least 10 minutes.
When traffic conditions allow, let
the vehicle coast for several
seconds without using the
accelerator pedal or the brake
pedal.
If the testing facility determines the
readiness codes are still not set, see
your Honda dealer.
Select a nearby lightly traveled
major highway where you can
maintain a speed of 50 to 60 mph
(80to97km/h)foratleast20
minutes. Drive on the highway in
5th.Donotusethecruisecontrol.
When traffic allows, drive for 90
seconds without moving the
accelerator pedal. (Vehicle speed
may vary slightly; this is okay.) If
you cannot do this for a
continuous 90 seconds because of
traffic conditions, drive for at least
30 seconds, then repeat it two
more times (for a total of 90
seconds).
State Emissions Testing
Technical Information
260
Main Menu
Table of Contents
Customer Relations
................................Information . 262
....................Warranty Coverages . 263
Reporting Safety Defects
..........................(U.S. Vehicles) . 264
.....................Authorized Manuals . 265
Warranty and Customer Relations
Warranty and Customer Relations
261
Main Menu
Honda dealership personnel are
trained professionals. They should
be able to answer all your questions.
If you encounter a problem that your
dealership does not solve to your
satisfaction, please discuss it with
the dealership’s management. The
Service Manager or General
Manager can help. Almost all
problems are solved in this way.
If you are dissatisfied with the
decision made by the dealership’s
management, contact your Honda
Customer Relations Office.
U.S. Owners:
Canadian Owners:
In Puerto Rico and the U.S. Virgin
Islands:
When you call or write, please give
us this information:
Vehicle Identification Number
(see page )
Name and address of the dealer
who services your car
Date of purchase
Mileage on your car
Your name, address, and tele-
phone number
A detailed description of the
problem
Name of the dealer who sold the
car to you
248
Customer Relations Information
Warranty and Customer Relations
262
CUSTOMER RELATIONS
RELATIONS AVEC LA CLIENTÉLE
Honda Canada Inc.
715 Milner Avenue
Toronto, ON
M1B 2K8
Tel: 1-888-9-HONDA-9
Fax: Toll-free 1-877-939-0909
Toronto (416) 287-4776
Bella International
P.O. Box 190816
San Juan, Puerto Rico 00919-0816
(787) 250-4318
American Honda Motor Co.
Honda Automobile Customer Service
Mail Stop 500-2N-7D
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 999-1009
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
Your new Honda is covered by these
warranties:
provides prorated
coverage for a replacement battery
purchased from a Honda dealer.
a seat
belt that fails to function properly is
covered for the useful life of the
vehicle.
covers all genuine
Honda replacement parts against
defects in materials and workman-
ship.
Genuine Honda Accessories are
covered under this warranty. Time
and mileage limits depend on the
type of accessory and other factors.
Please read your warranty manual
for details.
all exterior body panels are
covered for rust-through from the
inside for the specified time period
with no mileage limit.
covers
your new vehicle, except for the
battery, emissions control systems,
and accessories, against defects in
materials and workmanship.
provides
coverageforaslongasthepur-
chaser of the muffler owns the car.
these two
warranties cover your vehicle’s emis-
sions control systems. Time, mileage,
and coverage are conditional. Please
read the warranty manual for exact
information.
this warranty gives up
to 100 percent credit toward a
replacement battery.
Restrictions and exclusions apply to
all these warranties. Please read the
2002 Honda Warranty Information
booklet that came with your car for
precise information on warranty
coverages. Your Honda’s original
tires are covered by their
manufacturer. Tire warranty infor-
mation is in a separate booklet.
Please refer to the 2002 Warranty
Manual that came with your car.
Replacement Battery Limited
Warranty
Seat Belt Limited Warranty
Replacement Parts Limited
Warranty
Accessory Limited Warranty
Rust Perforation Limited Warranty
New Car Limited Warranty
Replacement Muffler Lifetime
Limited Warranty
Emissions Control Systems Defects
Warranty and Emissions
Performance Warranty
Original Equipment Battery Limited
Warranty
U.S. Owners
Canadian Owners
Warranty Coverages
Warranty and Customer Relations
263
Main Menu
Table of Contents
To contact NHTSA, you may either
call the Auto Safety Hotline toll-free
at 1-800-424-9393 (or 366-0123 in
Washington D.C. area) or write to:
NHTSA, U.S. Department of
Transportation, Washington,
D.C. 20590. You can also obtain
other information about motor
vehicle safety from the Hotline.
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying American Honda Motor
Co., Inc.
If NHTSA receives similar com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or
American Honda Motor Co., Inc.
Warranty and Customer Relations
Reporting Safety Defects (U.S. Vehicles)
264
Main Menu
Table of Contents
−
＊
＊
＊
＊
２
０
０
２
Ｈ
Ｏ
Ｎ
The following publications covering the operation and
servicing of your vehicle can be obtained from Helm
Incorporated, either by filling out the attached form or,
for credit card holders, calling the toll-free phone number
on the form. For manuals prior to the year shown below,
contact Helm Incorporated, P.O. Box 07280, Detroit,
Michigan 48207, or call 1-800-782-4356.
Valid only for sales within the U.S. Canadian owners should
contact their authorized Honda dealer.
Authorized Manuals
Purchasing Factory Authorized Manuals
(U.S. only)
265
ORDER TOLL FREE: 1-800-782-4356
OR
(NOTE: For Credit Card Holder Orders Only)
MINIMUM CREDIT CARD PURCHASE $10.00
Publication
Form Number
61S5T00
61S5T00EL
61S5T30
31S5T600
HON-R
Price
Each
$65.00
$45.00
$42.00
$32.00
FREE
Form Description
2002 Honda Civic Si
Service Manual
2002 Honda Civic Si
Electrical Troubleshooting Manual
2002 Honda Civic Si
Body Repair Manual
2002 Honda Civic Si
Owner’s Manual
Order Form for Previous Years-
Indicate Year and Model Desired
PUBLICATION NUMBER
VEHICLE MODEL
Name Year
Qty
Price
Each
Total
Price
GRAND TOTAL
HANDLING CHARGE
Mich. Purchases
Add 6% Sales Tax
TOTAL MATERIAL
$6.00
Monday-Friday 8:00 A.M. 6:00 P.M. EST
By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail to
Helm Incorporated at the address shown on the back of the order form.
Prices are subject to change without
notice and without incurring obligation.
Orders are mailed within 10 days. Please
allow adequate time for delivery.
Prices are subject to change without notice and without incurring
obligation.
Main Menu
Table of Contents
−
−
−
Ｓ
Ｈ
Ｉ
Ｐ
Ｔ
Ｏ
Ｐ
Ａ
Ｙ
Ｍ
Ｅ
Ｎ
Ｔ
This manual complements the Service Manual by
providing in-depth troubleshooting information for each
electrical circuit in your vehicle.
This manual describes the procedures involved in the
replacement of damaged body parts.
This manual covers maintenance and recommended
procedures for repair to engine and chassis components.
It is written for the Journeyman mechanic, but is simple
enough for most mechanically-inclined owners to under-
stand.
Authorized Manuals
Service Manual:
Electrical Troubleshooting Manual:
Body Repair Manual:
266
NOTE: Dealers and Companies please provide dealer or company name,
and also the name of the person to whose attention the shipment should
be sent. For purchases outside U.S.A. please write to the address shown
below for a quotation.
P.O. BOX 07280·DETROIT, MICHIGAN 48207·1-800-782-4356
Customer Name
Attention
Apartment Number
State & Zip Code
City
Daytime Telephone Number
Check or money order enclosed payable to Helm Inc U.S. funds only.
Do not send cash
Master
Card
VISA Check here if your billing address is different
from the shipping address shown above.
Account Number
Expiration: Mo. Yr.
CUSTOMER SIGNATURE
DATE
Street Address No P.O. Box Number
()
These Publications cannot be returned for credit without receiving advance authorization within 14
days of delivery. On returns, a restocking fee may be applied against the original order.
Main Menu
Table of Contents
CONTINUED
...Accessories and Modifications . 135
................................Accessories . 135
.Additional Safety Precautions . 136
............................Modifications . 136
ACCESSORY (Ignition Key
.......................................Position) . 74
...............Accessory Power Socket . 92
Adding
................................Brake Fluid . 178
...............................Clutch Fluid . 178
..........................Engine Coolant . 171
..................................Engine Oil . 167
....Manual Transmission Fluid . 177
........Windshield Washer Fluid . 176
Additional Information About
.......................Your Seat Belts . 43
......................Lap/Shoulder Belt . 43
...............Seat Belt Maintenance . 45
..Seat Belt System Components . 43
Additional Information About
...........................Your Airbags . 46
...Additional Safety Precautions . 51
How the Side Airbag off Indicator
.......................................Works . 49
How Your Front Airbags
.........................................Work . 46
....................Airbag Components . 46
....................Additives, Engine Oil . 168
Adjustments
..........................Head Restraints . 82
.........................................Mirrors . 88
.............................................Seats . 81
...........................Steering Wheel . 71
...............................Airbag (SRS) . 9, 46
.....................Air Cleaner Element . 179
................Air Conditioning System . 96
..............................Maintenance . 189
............................................Usage . 96
.........................Air Outlets (Vents) . 98
.......................Air Pressure, Tires . 193
..................High Speed Driving . 194
.........................Normal Driving . 194
.......................Alcohol in Gasoline . 254
......................................Antifreeze . 171
Anti-theft Steering Column
..............................................Lock . 74
..........................Appearance Care . 213
................................Audio System . 104
Battery
Charging System
...........................Indicator . 58, 235
............................Jump Starting . 230
..............................Maintenance . 184
............................Specifications . 251
..............................Before Driving . 127
....................................Belts,Seat .8,43
.............................Beverage Holder . 90
.................................Body Repairs . 220
Brakes
.............Break-in, New Linings . 128
...........................................Fluid . 177
.....................Light, Burned-out . 207
.........................................Parking . 89
.................System Indicator . 59, 238
........................Wear Indicators . 147
.............................Braking System . 147
........................Break-in, New Car . 128
..Brightness Control, Instruments . 67
........................Brights, Headlights . 66
Index
A
B
I
Main Menu
Bulb Replacement
..........................Back-up Lights . 206
...............................Brake Light . 207
................Front Parking Lights . 205
........Front Side Marker Lights . 204
.................................Headlights . 202
.........High-mount Brake Light . 207
.............................Interior Light . 210
.................License Plate Lights . 209
..................Side Marker Lights . 204
...........Side Turn Signal Lights . 208
............................Specifications . 251
....................Turn Signal Lights . 203
..............................Bulbs, Halogen . 202
.........Cables, Jump Starting With . 230
............................Capacities Chart . 250
.............Carbon Monoxide Hazard . 52
...........................Cargo Area Cover . 84
.............................Carrying Cargo . 137
Cassette Player
............................................Care . 122
...................................Operation . 119
..............CAUTION, Explanation of . ii
...................................CD Changer . 115
.......................................CD Player . 113
........................Certification Label . 248
............................................Chains . 199
Change Oil
........................................How to . 169
......................................When to . 158
....................Changing a Flat Tire . 223
............Changing Engine Coolant . 173
...Charging System Indicator . 58, 235
Checking
.....................Battery Condition . 184
................................Brake Fluid . 178
...............................Clutch Fluid . 178
.................................Drive Belts . 192
..........................Engine Coolant . 133
..................................Engine Oil . 132
..........................................Fuses . 240
....Manual Transmission Fluid . 177
............Checklist, Before Driving . 142
.....................................Child Safety . 20
....................Cleaner Element, Air . 179
Cleaning
......................Alumium Wheels . 216
...................................Carpeting . 216
......................................Exterior . 214
.........................................Fabric . 217
.......................................Interior . 217
.......................................Leather . 218
...................................Seat Belts . 218
...........................................Vinyl . 217
....................................Windows . 219
.........................Clock, Setting the . 109
...................................Clutch Fluid . 178
........................CO in the Exhaust . 256
............Cold Weather, Starting in . 143
..............................Compact Spare . 222
.............Controls, Instruments and . 55
Coolant
........................................Adding . 171
....................................Checking . 133
.........................Proper Solution . 171
...................................Replacing . 173
...................Temperature Gauge . 64
....................Corrosion Protection . 219
Crankcase Emissions Control
........................................System . 256
...............................Cruise Control . 124
Index
C
II
Main Menu
CONTINUED
................DANGER, Explanation of . ii
...................................Dashboard . 2, 56
................Daytime Running Lights . 67
...........Dead Battery, What to Do . 230
............Defects, Reporting Safety . 264
........................Defog and Defrost . 101
................Defogger, Rear Window . 70
..............Defrosting the Windows . 101
....................................Dimensions . 250
...............Dimming the Headlights . 66
Dipstick
..................................Engine Oil . 132
..........................Directional Signals . 68
.....Disabled, Towing Your Car If . 245
........Disc Brake Wear Indicators . 147
.....................Disposal of Used Oil . 170
Doors
..............Locking and Unlocking . 75
..........DOT Tire Quality Grading . 252
Downshifting, 5-speed Manual
.............................Transmission . 144
.....................................Drive Belts . 192
...........Driver and Passenger Safety . 5
...........................................Driving . 141
....................................Economy . 134
.........................In Bad Weather . 151
................In Foreign Countries . 255
..............................Economy, Fuel . 134
............Emergencies on the Road . 221
.............Battery, Jump Starting . 230
...........Brake System Indicator . 238
................Changing a Flat Tire . 223
.....Charging System Indicator . 235
..................Checking the Fuses . 241
.....Low Oil Pressure Indicator . 234
...Malfunction Indicator Lamp . 236
..................Overheated Engine . 232
...........................Emergency Brake . 89
......................Emergency Flashers . 70
......................Emergency Towing . 245
.......................Emissions Controls . 256
Engine
............................................Belts . 192
....Coolant Temperature Gauge . 64
Malfunction Indicator
................................Lamp . 59, 236
........Oil Pressure Indicator . 58, 234
..............Oil, What Kind to Use . 167
...............................Overheating . 232
............................Specifications . 250
...................Engine Speed Limiter . 145
......................Ethanol in Gasoline . 254
.Evaporative Emissions Controls . 256
...............................Exhaust Fumes . 52
Expectant Mothers, Use of Seat
........................................Belts by . 18
..................Exterior,Cleaningthe .214
............................Fabric, Cleaning . 217
.....................................Fan, Interior . 96
Features, Comfort and
................................Convenience . 95
....................Filling the Fuel Tank . 129
Filter
................................Air Cleaner . 179
...............................................Oil . 169
Index
E
F
D
III
Main Menu
...Identification Number, Vehicle . 248
......If Your Car Has to be Towed . 245
Ignition
..............................................Keys . 72
...........................................Switch . 72
5-speed Manual Transmission
...............Checking Fluid Level . 179
................................Shifting the . 144
.............Flashers, Hazard Warning . 70
...................Flat Tire, Changing a . 223
Fluids
..........................................Brake . 177
.........................................Clutch . 177
..............Manual Transmission . 177
..................Windshield Washer . 176
FM Stereo Radio
...................................Reception . 111
...........................Folding Rear Seat . 83
.....Foreign Countries, Driving in . 255
..........................Four-way Flashers . 70
Front End, Towing by
................Emergency Wrecker . 245
.................................................Fuel . 128
......................Fill Door and Cap . 129
...........................................Gauge . 63
................Octane Requirement . 128
...............................Oxygenated . 254
........................Reserve Indicator . 60
........................Tank, Filling the . 129
.....................Fuses, Checking the . 240
...............Gas Mileage, Improving . 134
..........................................Gasohol . 254
.........................................Gasoline . 128
...............Fuel Reserve Indicator . 60
...........................................Gauge . 63
................Octane Requirement . 128
........................Tank, Filling the . 129
................Gas Station Procedures . 129
Gauges
Engine Coolant
...........................Temperature . 64
...............................................Fuel . 63
Gearshift Lever Positions
5-speed Manual
.........................Transmission . 144
..............................Glass Cleaning . 219
........................................Glove Box . 90
.............Halogen Headlight Bulbs . 202
Hatch
.................................Opening the . 80
..............Hazard Warning Flashers . 70
Headlights
............Daytime Running Lights . 67
..................High Beam Indicator . 59
...........High Beams, Turning on . 66
............Low Beams, Turning on . 66
........................Reminder Beeper . 66
........Replacing Halogen Bulbs . 202
...................................Turning on . 66
..............................Head Restraints . 82
.......................Heating and Cooling . 96
.............High Altitude, Starting at . 143
.................High-Low Beam Switch . 66
....................................Hood Latch . 181
.......................Hood, Opening the . 130
..............................................Horn .3,65
.......Hot Coolant, Warning about . 171
...........................Hydraulic Clutch . 178
.................................Hydroplaning . 152
Index
G
H
I
IV
Main Menu
CONTINUED
............Timing Control System . 257
.........Important Safety Precautions . 6
Indicator Lights, Instrument
.............................................Panel . 57
...............................Infant Restraint . 28
...................Inflation, Proper Tire . 193
..................High Speed Driving . 194
.........................Normal Driving . 194
...................................Inside Mirror . 88
.............................Inspection, Tire . 195
............................Instrument Panel . 57
........Instrument Panel Brightness . 67
...........................Interior Cleaning . 216
...................................Interior Light . 93
........................................Introduction . i
........................Jacking up the Car . 224
.......................................Jack, Tire . 223
................................Jump Starting . 230
..................................................Keys . 72
..................New Vehicle Break-in . 128
.....................Normal Shift Speeds . 145
..................NOTICE, Explanation of . ii
...............Numbers, Identification . 248
.......................Label, Certification . 248
.................Lane Change, Signaling . 68
..........................Lap/Shoulder Belt . 43
.........Leaking of Exhaust into Car . 52
Lights
....................Bulb Replacement . 202
.......................................Indicator . 57
.........................................Parking . 89
..................................Turn Signal . 68
.....................................Load Limit . 138
......LOCK (Ignition Key Position) . 74
Locks
.......Anti-theft Steering Column . 74
............................Fuel Fill Door . 129
............................................Hatch . 80
........................Low Coolant Level . 133
.........................Low Fuel Indicator . 60
...Lower Gear, Downshifting to a . 144
...Low Oil Pressure Indicator . 58, 234
...Lubricant Specifications Chart . 250
.........................................Luggage . 137
..................................Maintenance . 153
...Owner Maintenance Checks . 165
.................................Record . 163-164
..........................................Safety . 154
.............................Schedule . 158-162
.Malfunction Indicator Lamp . 59, 236
...................Manual Transmission . 144
........Manual Transmission Fluid . 177
...............................Meters, Gauges . 63
...................Methanol in Gasoline . 254
..........................Mirrors, Adjusting . 88
Index
J
K
LM
N
V
Main Menu
...Octane Requirement, Gasoline . 128
.........................................Odometer . 63
...............................Odometer, Trip . 63
Oil
........................Change, How to . 169
......................Change, When to . 158
......................Checking Engine . 132
..............Pressure Indicator . 58, 234
...........ON (Ignition Key Position) . 74
Onboard Refueling Vapor
....................................Recovery . 256
.........................Opening the Hatch . 80
........................Opening the Hood . 130
..Operation in Foreign Countries . 255
..............................Outside Mirrors . 88
....................Overheating, Engine . 232
.......Owner Maintenance Checks . 165
.........................Oxygenated Fuels . 254
..............................Paint Touch-up . 216
..............Panel Brightness Control . 67
...........................................Parking . 146
.................................Parking Brake . 89
Parking Brake and Brake
.................System Indicator . 59, 238
.................................Parking Lights . 66
..Parking Over Things that Burn . 258
.............................PGM-FI System . 257
..................Polishing and Waxing . 215
..............................Power Windows . 85
............Pre-Drive Safety Checklist . 11
.........Pregnancy, Using Seat Belts . 18
............................Protecting Adults . 12
...Additional Safety Precautions . 18
.....Advice for Pregnant Women . 18
........................Protecting Children . 20
.......................Protecting Infants . 28
.......Protecting Larger Children . 35
.........Protecting Small Children . 32
Using Child Seats with
.....................................Tethers . 39
...................Radiator Overheating . 232
...Radio/Cassette Sound System . 104
..........................Rear End Towing . 245
..Rear Lights, Bulb Replacement . 206
............................Rear Seat Access . 82
..........................Rear Seat, Folding . 83
............................Rear View Mirror . 88
.................Rear Window Defogger . 70
....................Rear Window Washer . 69
.......................Rear Window Wiper . 69
...............Reclining the Seat Backs . 81
.......Recommended Shift Speeds . 145
.............................Reminder Lights . 57
Replacement Information
.................Air Cleaner Element . 179
..........................Engine Coolant . 173
................Engine Oil and Filter . 169
..........................................Fuses . 241
................................Light Bulbs . 202
....................................Schedule . 156
................................Spark Plugs . 181
...........................................Tires . 197
.............................Wiper Blades . 186
Replacing Seat Belts After a
............................................Crash . 45
Reserve Tank, Engine
...............................Coolant . 133, 171
...............................Restraint, Child . 20
................................Rotation, Tire . 196
Index
P
R
O
VI
Main Menu
＊＊
CONTINUED
..................................Safety Belts . 8, 43
.........Safety Defects, Reporting . 264
.................................Safety Features . 7
...........................................Airbags . 9
..................................Door Locks . 11
..........................Head Restraints . 10
.......................................Seat Belts . 8
.....................Seats & Seat-Backs . 10
.............Safety Labels, Location of . 53
...............................Safety Messages . ii
Seat Belts, Additional
..............................Information . 43
......................Lap/Shoulder Belt . 43
...............Seat Belt Maintenance . 45
..Seat Belt System Components . 43
.....................................Seat Belts . 8, 43
.....................................Cleaning . 218
................................Maintenance . 45
Reminder Light and
................................Beeper . 43, 58
...................System Components . 43
..........Tether Anchorage Points . 39
...............Use During Pregnancy . 18
...Wearing a Lap/Shoulder Belt . 15
........................Seats, Adjusting the . 82
...............................Serial Number . 248
...........................Service Intervals . 158
...........................Service Manual . 265
.........Service Station Procedures . 129
..........................Setting the Clock . 109
Shifting
The 5-speed Manual
.........................Transmission . 144
Side Marker Lights, Bulb
.........................Replacement in . 204
...............................Signaling Turns . 68
.....................................Snow Tires . 199
...................Solvent-type Cleaners . 214
................................Sound System . 104
Spare Tire
......................................Inflating . 222
............................Specifications . 251
................Spark Plugs, Replacing . 181
....................Specifications Charts . 250
...................................Speedometer . 63
..........SRS, Additional Information . 46
...Additional Safety Precautions . 50
....................Airbag Components . 46
.............................Airbag Service . 49
How the Side Airbag Cutoff
...........Indicator Light Works . 49
How the SRS Indicator
.......................................Works . 48
How Your Front Airbags Work . 46
...How Your Side Airbags Work . 48
.............................SRS Indicator . 48, 58
....START (Ignition Key Position) . 74
.......................Starting the Engine . 143
In Cold Weather at High
..................................Altitude . 143
................With a Dead Battery . 230
........Steam Coming from Engine . 232
Steering Wheel
..................................Adjustment . 71
.............Anti-theft Column Lock . 74
...................Stereo Sound System . 104
...........................Storing Your Car . 212
Supplemental Restraint
..................................System .9,46
......................................Servicing . 49
.........................SRS Indicator . 48, 58
...................System Components . 46
..................................Synthetic Oil . 168
Index
S
VII
Main Menu
＊
.....................................Tachometer . 64
......Taillights, Changing Bulbs in . 206
Taking Care of the
...............................Unexpected . 221
....................................Tape Player . 119
Technical Descriptions
......DOT Tire Quality Grading . 252
..Driving in Foreign Countries . 255
.....Emissions Control Systems . 256
.....................Oxygenated Fuels . 254
Three Way Catalytic
...............................Converter . 258
.......................Temperature Gauge . 64
..............Tether Anchorage Points . 39
..Three Way Catalytic Converter . 258
..........................Time, Setting the . 109
....................................Tire Chains . 199
.........Tire, How to Change a Flat . 223
...............................................Tires . 193
..............................Air Pressure . 193
.........................Checking Wear . 195
..........................Compact Spare . 222
......DOT Tire Quality Grading . 252
......................................Inflation . 193
..................................Inspection . 195
...................................Replacing . 197
......................................Rotating . 196
...........................................Snow . 199
............................Specifications . 251
................................Tire Chains . 199
...................Tools, Tire Changing . 223
Towing
.....................................A Trailer . 152
................Emergency Wrecker . 245
Transmission
Checking Fluid Level,
...................................Manual . 177
...........................Fluid Selection . 177
..............Identification Number . 248
..................Shifting the Manual . 144
.....................................Treadwear . 252
.......................................Trip Meter . 63
....................................Turn Signals . 68
.....................Underside, Cleaning . 219
Unexpected, Taking Care
..........................................of the . 221
....Uniform Tire Quality Grading . 252
........................Unleaded Gasoline . 128
.....................Upholstery Cleaning . 218
.......Used Oil, How to Dispose of . 170
.................Vehicle Capacity Load . 138
......................Vehicle Dimensions . 250
....Vehicle Identification Number . 248
.............................Vehicle Storage . 212
........................................Ventilation . 99
.................................................VIN . 248
...............................Vinyl Cleaning . 217
..................................Viscosity, Oil . 168
Warning Beepers
..............................Headlights on . 66
.............................Key in Ignition . 74
...............................Seat Belts . 43, 58
.............WARNING, Explanation of . ii
.........Warning Labels, Location of . 53
..................Warranty Coverages . 263
Washer, Windshield
........Checking the Fluid Level . 176
Index
T
U
V
W
VIII
Main Menu
＊
.......................................Indicator . 60
.....................................Operation . 69
.........................................Washing . 214
..................Waxing and Polishing . 215
Wheels
...............Adjusting the Steering . 71
............Alignment and Balance . 195
..........................Compact Spare . 222
......................................Wrench . 224
Windows
.....................................Cleaning . 219
...........................Rear, Defogger . 70
Windshield
.......................................Cleaning . 69
...................................Defroster . 101
Wipers, Windshield
.......................Changing Blades . 186
.....................................Operation . 68
....................................Worn Tires . 195
.....Wrecker, Emergency Towing . 245
U.S. and Canada only
Index
IX
Main Menu
Service Information Summary
Gasoline: Tire Pressure (measured cold):5-speed Manual Transmission
Fluid:
Fuel Tank Capacity:
Recommended Engine Oil:
Brake Fluid:
Front:
Rear:
Honda Manual Transmission
Fluid preferred, or an API service
SG, SH or SJ, SAE 10W-30 or
10W-40 motor oil as a temporary
replacement (see page ).
Unleaded gasoline, pump octane
number of 86 or higher.
13.2 US gal (50
, 11.0 Imp gal)
Oil change capacity (including
filter):
4.4 US qt (4.2
, 3.7 Imp qt)
33 psi (230 kPa , 2.3 kgf/cm
)
API Certified ‘‘For Gasoline
Engines’’ Oil, SAE 5W-20 viscosity
(see page ).
Oil change capacity (including
differential):
1.6 US qt (1.5
, 1.3 Imp qt)
Honda Heavy Duty Brake Fluid
DOT 3 preferred, or a DOT 3 or
DOT 4 brake fluid as a temporary
replacement (see page ).
Spare Tire:
60 psi (420 kPa , 4.2 kgf/cm
)
30 psi (210 kPa , 2.1 kgf/cm
)
167
177
144
Main Menu
