2005 Insight Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through this reference.
For a printed owner's manual, click on authorized manuals or go to www.helminc.com.
Contents
Introduction ......................................................................................................................................... i
A Few Words About Safety.................................................................................................................ii
Your Vehicle at a Glance.....................................................................................................................4
Driver and Passenger Safety ..............................................................................................................7
Seat belts, SRS, and child protection
Instruments and Controls.................................................................................................................41
Indicators, gauges, dashboard, and steering column
Comfort and Convenience Features ................................................................................................73
Climate, audio, steering wheel, security, cruise control, and HomeLink
Before Driving....................................................................................................................................93
Fuel, vehicle break-in, and cargo loading
Driving ..............................................................................................................................................107
Engine and transmission operation
Maintenance.....................................................................................................................................125
Schedules, fluid checking, minor services, and vehicle storage
Taking Care of the Unexpected......................................................................................................165
Flat tire, dead battery, overheating, fuses
Technical Information.....................................................................................................................191
Vehicle specifications, tires, fuels, and emissions controls
Warranty and Customer Relations (U.S. and Canada Only).......................................................203
Warranty and contact information
Authorized Manuals (U.S. only)......................................................................................................207
How to order
Index...................................................................................................................................................... I
Service Information Summary
Fluid capacities and tire pressures
Owner's Identification Form
This Owner’s Manual should be
considered a permanent part of the
vehicle and should remain with the
vehicle when it is sold.
The information and specifications
included in this publication were in
effect at the time of approval for
printing. Honda Motor Co., Ltd.
reserves the right, however, to
discontinue or change specifications
or design at any time without notice
and without incurring any obligation
whatsoever.
This Owner’s Manual covers all
models of the Insight. You may find
descriptions of equipment and
features that are not on your
particular model.
Owner’s Identification
OWNER
ADDRESS
V. I. N.
DELIVERY DATE
DEALER NAME DEALER NO.
ADDRESS
OWNER’S SIGNATURE
DEALER’S SIGNATURE
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
(Date sold to original retail purchaser)
STREET
CITY STATE/PROVINCE ZIP CODE/
POSTAL CODE
Main Menu
One of the best ways to enhance the enjoyment of your new Honda is to
read this manual. In it, you will learn how to operate its driving controls and
convenience items. Afterwards, keep this owner’s manual in your vehicle so
youcanrefertoitatanytime.
Several warranties protect your new Honda. Read the warranty booklet
thoroughly so you understand the coverages and are aware of your rights
and responsibilities.
Maintaining your vehicle according to the schedules given in this manual
helps to keep your driving trouble-free while it preserves your investment.
When your vehicle needs maintenance, keep in mind that your Honda
dealer’s staff is specially trained in servicing the many systems unique to
your Honda. Your Honda dealer is dedicated to your satisfaction and will be
pleased to answer any questions and concerns.
Congratulations! Your selection of a 2005 Honda Insight was a wise
investment. It will give you years of driving pleasure.
As you read this manual, you will
find information that is preceded by
a symbol. This
information is intended to help you
avoid damage to your vehicle, other
property, or the environment.
California Proposition 65 Warning
This product contains
or emits chemicals known to the
State of California to cause cancer
and birth defects or other
reproductive harm.
Event Data Recorders
This vehicle is equipped with one or
more recording devices commonly
referred to as event data recorders
or sensing and diagnostic modules.
Introduction
WARNING:
i
Main Menu
−
−
−
−
−
−
Your safety, and the safety of others,
is very important. And operating this
vehicle safely is an important
responsibility.
To help you make informed
decisions about safety, we have
provided operating procedures and
other information on labels and in
this manual. This information alerts
you to potential hazards that could
hurt you or others.
Of course, it is not practical or
possible to warn you about all the
hazards associated with operating or
maintaining your vehicle. You must
use your own good judgement.
You will find this important safety information in a variety of forms,
including:
This entire book is filled with important safety information please read it
carefully.
how to use this vehicle correctly and safely.
such as Driver and Passenger Safety.
such as Important Safety Reminders or Important
Safety Precautions.
These signal words mean:
preceded by a safety alert symbol and one of
three signal words: , , or .
on the vehicle.
AFewWordsAboutSafety
Instructions
Safety Section
Safety Headings
Safety Messages
Safety Labels
DANGER WARNING CAUTION
ii
You CAN be HURT if you don’t follow
instructions.
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
Main Menu
＊
＊

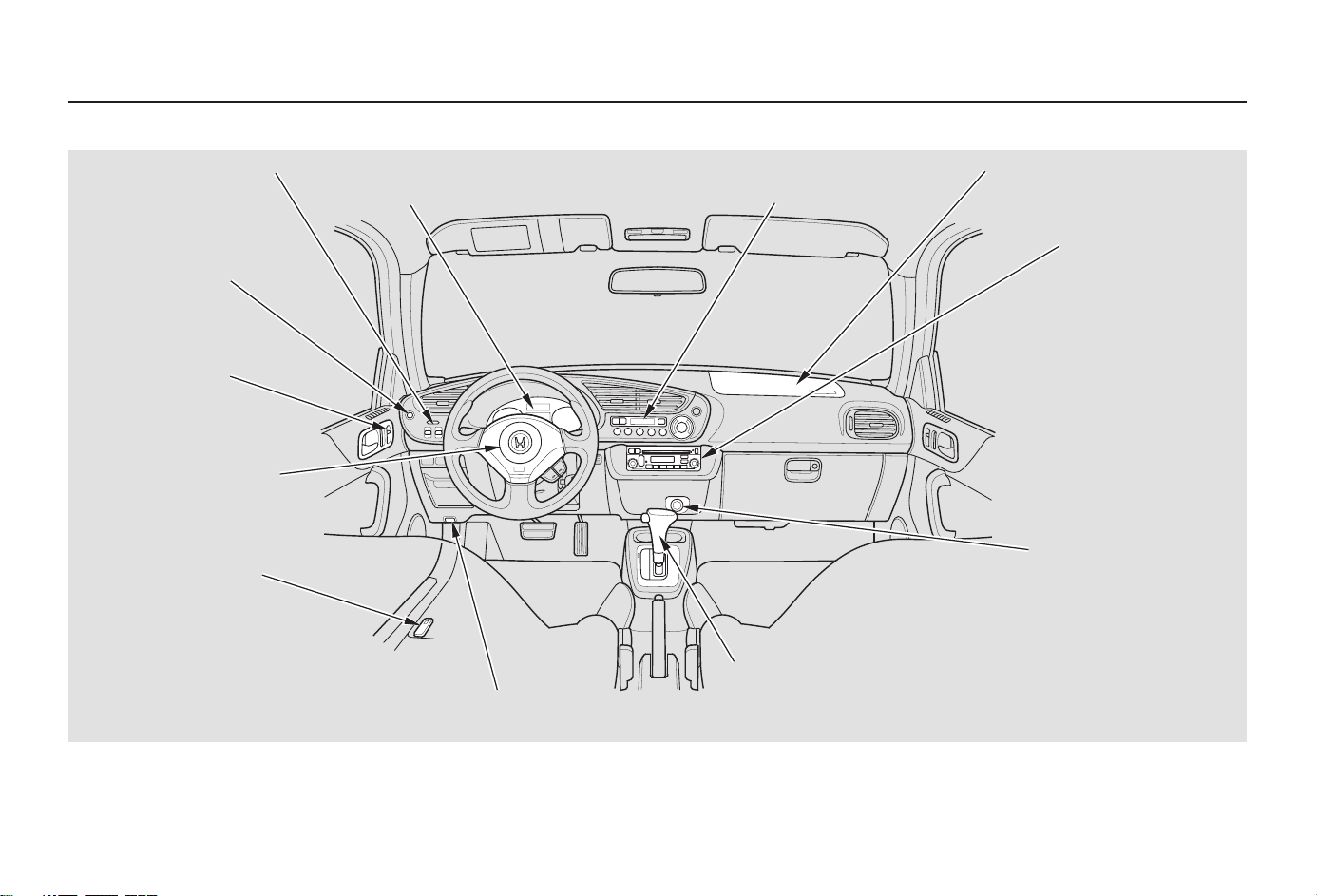

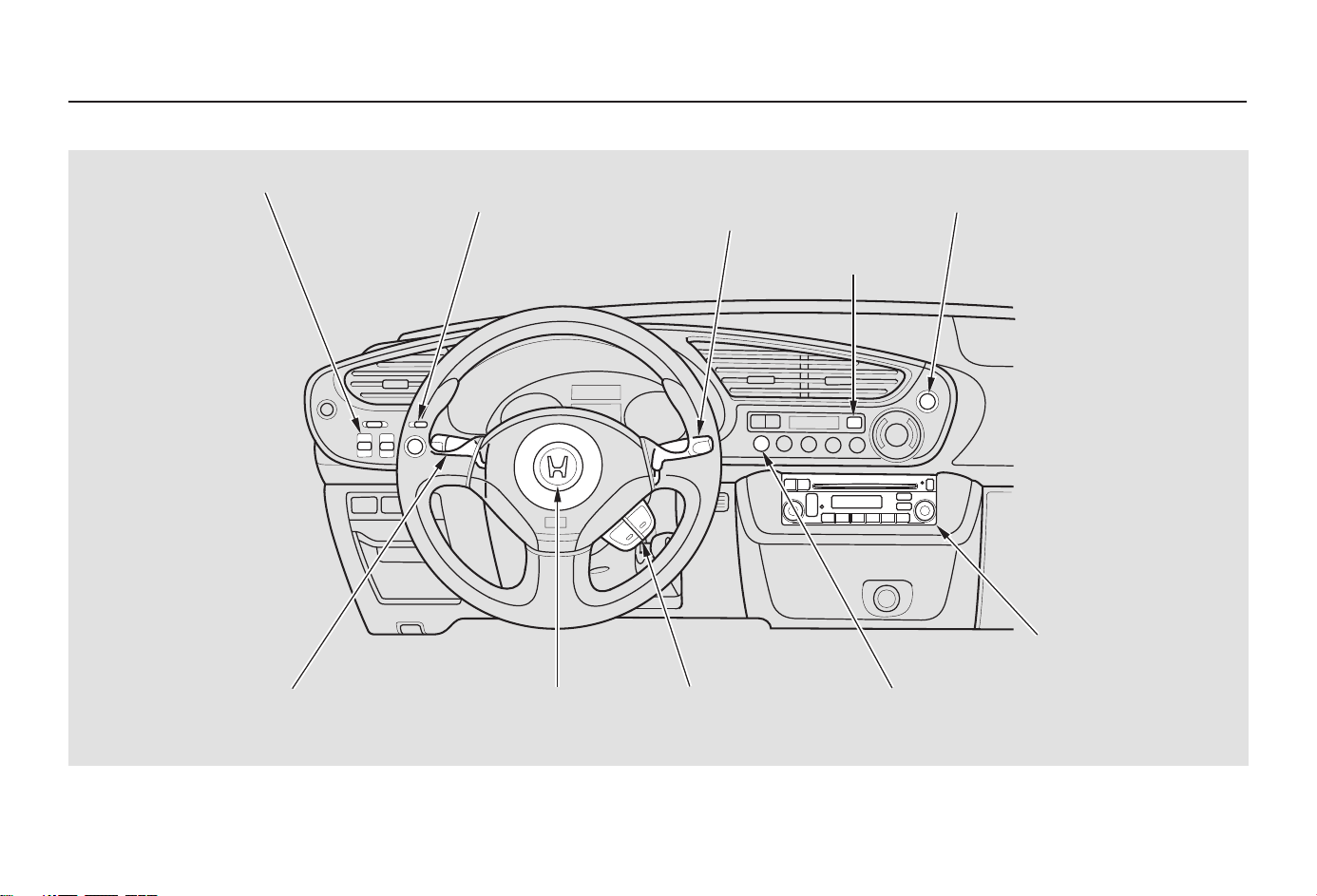

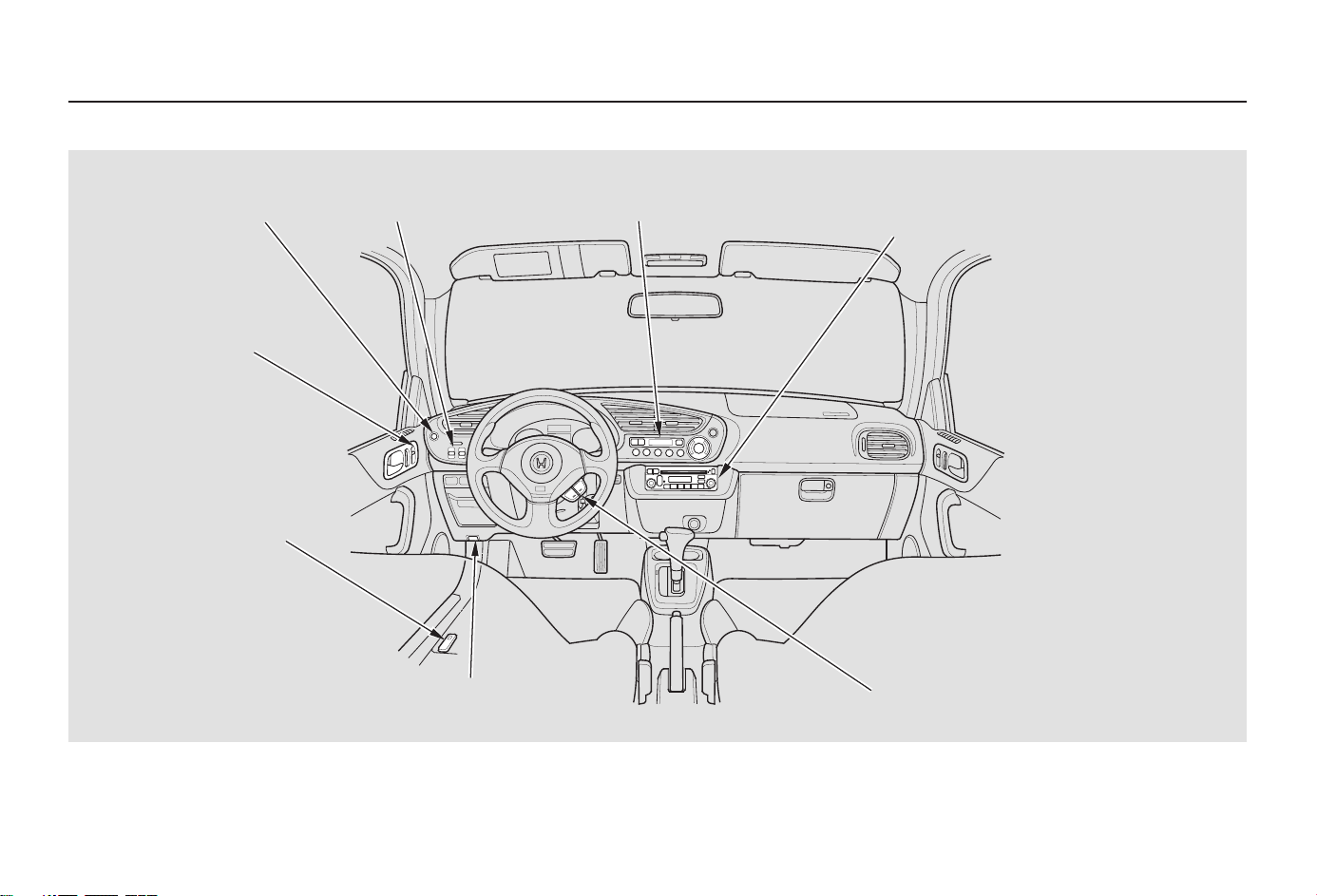

Your Vehicle at a Glance
4
U.S. model
DOOR LOCK
FUEL FILL
DOOR RELEASE
HOOD RELEASE HANDLE
AUTOMATIC TRANSMISSION (CVT)
MANUAL TRANSMISSION
DIGITAL CLOCK
AUDIO SYSTEM
GAUGES
FCD SELECT
BUTTON
ACCESSORY
POWER SOCKET
INSTRUMENT PANEL INDICATORS
HEATING/COOLING
CONTROLS
POWER WINDOW
SWITCHES
(P. 95)
DRIVER’S FRONT
AIRBAG
(P. 21)
(P. 62)
(P. 51)
(P. 67)
(P. 48)
(P. 43)
(P. 74, 78)
PASSENGER’S FRONT
AIRBAG
(P. 21)
(P. 91)
(P. 71)
(P. 113)
(P. 110)(P. 96)
(P. 80)
Main Menu
＊
＊
Your Vehicle at a Glance
Your Vehicle at a Glance
5
U.S. model
MIRROR CONTROLS
POWER WINDOW
SWITCHES
HEADLIGHTS/TURN SIGNALS
HORN
REAR WINDOW DEFOGGER
WINDSHIELD WIPERS/WASHERS
ECON BUTTON
DRIVING MODE BUTTONS (CVT)
HAZARD WARNING
BUTTON
AUDIO SYSTEM
(P. 68)
(P. 55)
(P. 75)
(P. 57)
(P. 80)
(P. 58)
(P. 115)
(P. 54)
(P. 56)
(P. 67)
Main Menu
6
Main Menu
−
This section gives you important
information about how to protect
yourself and your passenger. It
shows you how to use seat belts. It
explains how your airbags work. And
it tells you how to properly restrain
children in your vehicle.
.........Important Safety Precautions . 8
.......Your Vehicle’s Safety Features . 9
.....................................Seat Belts . 10
.........................................Airbags . 11
.........Protecting Adults and Teens . 12
.....1. Close and Lock the Doors . 12
......................2. Adjust the Seats . 12
............3. Adjust the Seat-Backs . 13
4. Fasten and Position the
.............................Seat Belts . 14
5. Maintain a Proper Sitting
................................Position . 15
.....Advice for Pregnant Women . 16
...Additional Safety Precautions . 17
Additional Information About Your
.................................Seat Belts . 18
..Seat Belt System Components . 18
......................Lap/Shoulder Belt . 18
Automatic Seat Belt
...........................Tensioners . 19
...............Seat Belt Maintenance . 19
Additional Information About
...........................Your Airbags . 21
......Airbag System Components . 21
How Your Front Airbags
.........................................Work . 21
..How the SRS Indicator Works . 23
.............................Airbag Service . 23
...Additional Safety Precautions . 24
Protecting Children
.................General Guidelines . 25
All Children Must Be
...............................Restrained . 25
Your Vehicle is Not
Recommended for Child
..........................Passengers . 26
The Passenger’s Front Airbag
................Poses Serious Risks . 26
...Additional Safety Precautions . 28
.............Protecting Small Children . 29
.....................Selecting a Child Seat . 30
....................Installing a Child Seat . 30
...........Protecting Larger Children . 34
...............Checking Seat Belt Fit . 34
..................Using a Booster Seat . 35
When Can a Larger Child
...............Ride in This Vehicle . 36
...Additional Safety Precautions . 37
.............Carbon Monoxide Hazard . 38
...................................Safety Labels . 39
Driver and Passenger Safety
Driver and Passenger Safety
7
Main Menu
−
You’ll find many safety
recommendations throughout this
section, and throughout this manual.
Therecommendationsonthispage
are the ones we consider to be the
most important.
A seat belt is your best protection in
all types of collisions. Airbags are
designed to supplement seat belts,
not replace them. So even though
your vehicle is equipped with airbags,
make sure you and your passenger
always wear your seat belts, and
wear them properly (see page ).
Since all children are safest in the
back seat of a vehicle, and your
vehicle does not have a back seat, we
recommend that you do not carry a
child passenger.
If an older child must ride in this
vehicle, follow all child safety
instructions and warnings in this
manual (see pages ).
While airbags can save lives, they
can cause serious or fatal injuries to
occupants who sit too close to them,
or are not properly restrained.
Infants, young children, and short
adults are at the greatest risk. Be
sure to follow all instructions and
warnings in this manual.
Alcohol and driving don’t mix. Even
one drink can reduce your ability to
respond to changing conditions, and
your reaction time gets worse with
every additional drink. So don’t drink
and drive, and don’t let your friends
drink and drive, either.
Excessive speed is a major factor in
crash injuries and deaths. Generally,
the higher the speed, the greater the
risk, but serious injuries can also
occur at lower speeds. Never drive
faster than is safe for current
conditions, regardless of the
maximum speed posted.
Having a tire blowout or a
mechanical failure can be extremely
hazardous. To reduce the possibility
of such problems, check your tire
pressures and condition frequently,
and perform all regularly scheduled
maintenance (see page ).
14
25 37
127
Important Safety Precautions
Always Wear Your Seat Belt
Your Vehicle is Not
Recommended for Child
Passengers
Be Aware of Airbag Hazards
Don’t Drink and Drive
Control Your Speed
Keep Your Vehicle in Safe
Condition
Due to the passenger’s airbag hazard,
you should never carry an infant in a
rear-facing child seat in this vehicle.
8
Main Menu
Table of Contents
Your vehicle is equipped with many
features that work together to
protect you and your passenger
during a crash.
Some features do not require any
action on your part. These include a
strong aluminum framework that
forms a safety cage around the
passenger compartment; front and
rear crush zones, a collapsible
steering column; and tensioners that
tighten the seat belts in a crash.
However, you and your passenger
can’t take full advantage of these
features unless you remain sitting in
a proper position and
. In fact, some safety
features can contribute to injuries if
they are not used properly.
The following pages explain how you
cantakeanactiveroleinprotecting
yourself and your passenger.
Your Vehicle’s Safety Features
always wear
your seat belts
Driver and Passenger Safety
9
(1)
(2)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)

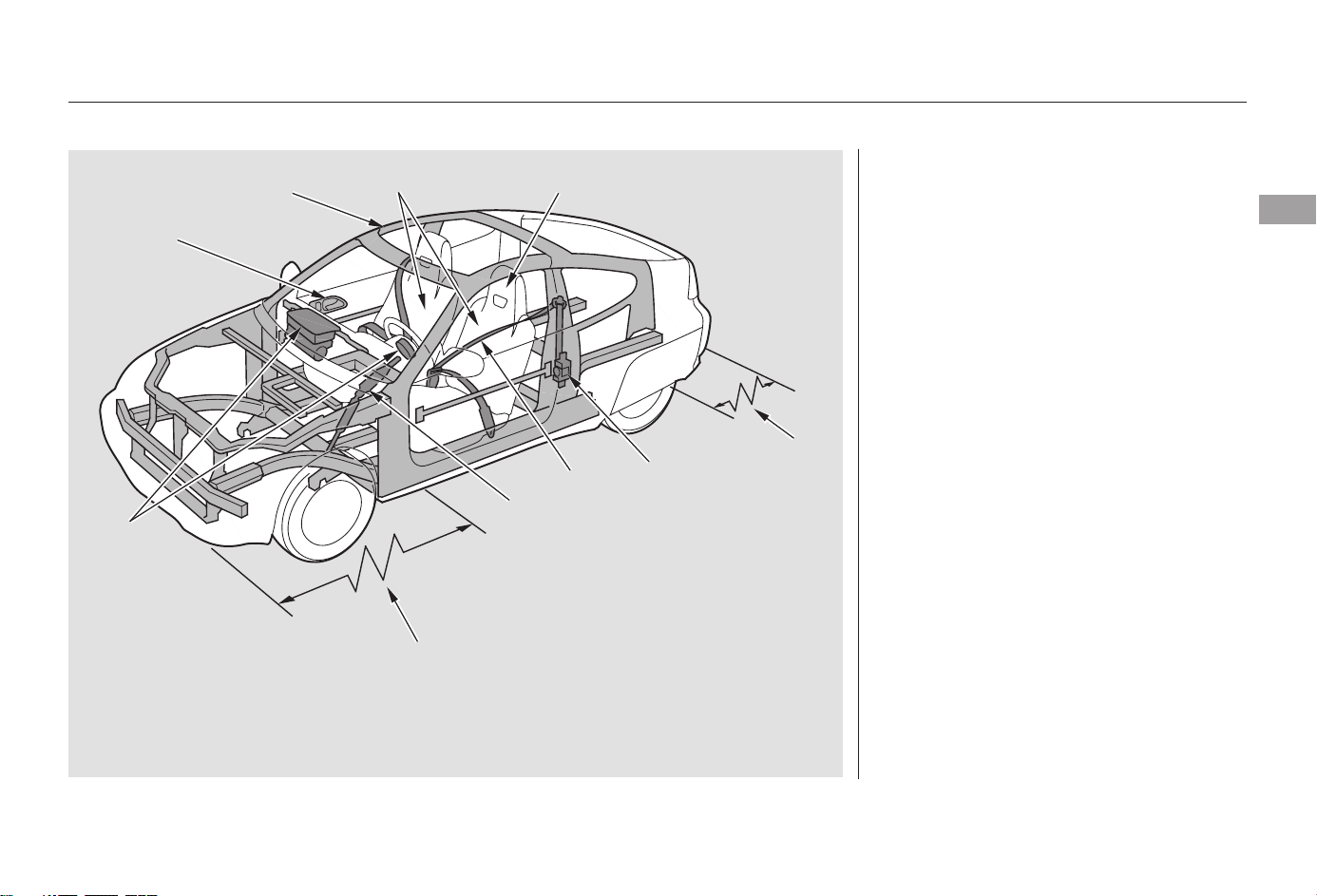

(1) Safety Cage
(2) Crush Zones
(3) Seats and Seat-Backs
(4) Head Restraints
(5) Collapsible Steering Column
(6) Seat Belts
(7) Seat Belt Tensioners
(8) Airbags
(9) Door Locks
Main Menu
Table of Contents
Your vehicle is equipped with seat
belts in both seating positions.
Your seat belt system also includes
an indicator on the instrument panel
to remind you and your passenger to
fasten your seat belts.
Keep you from being thrown out
of the vehicle.
Help keep you in a good position
should the airbags ever deploy. A
good position reduces the risk of
injury from an inflating airbag and
allows you to get the best
advantage from the airbag.
Of course, seat belts cannot
completely protect you in every
crash.Butinmostcases,seatbelts
can reduce your risk of serious
injury.
Seat belts have proven to be the
singlemosteffectivesafetydevice
for adults and larger children.
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
In addition, most states and all
Canadian provinces require you to
wear seat belts.
When properly worn, seat belts:
Keep you connected to the vehicle
so you can take advantage of the
vehicle’s built-in safety features.
Help protect you in almost every
type of crash, including frontal,
side, and rear impacts and
rollovers.
Help keep you from being thrown
against the inside of the vehicle
and against the other occupant.
Always wear
your seat belt, and make sure you
wear it properly.
Your Vehicle’s Safety Features
Seat Belts
Why Wear Seat Belts
What you should do:
10
Not wearing a seat belt properly
increases the chance of serious
injury or death in a crash, even
though your vehicle has airbags.
Be sure you and your
passenger always wear seat
belts and wear them properly.
Main Menu
Table of Contents

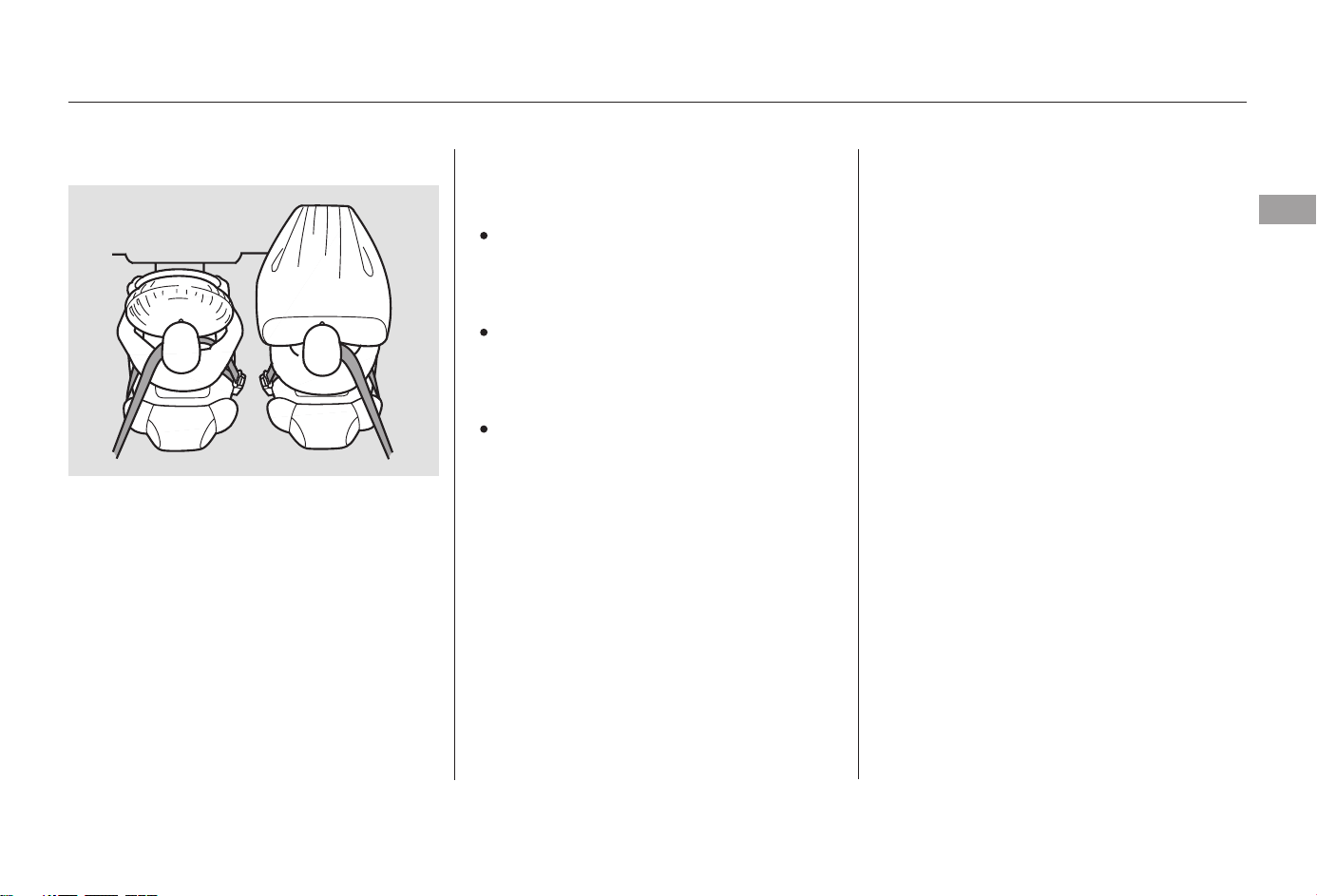

Your vehicle has a Supplemental
Restraint System (SRS) with front
airbags to help protect the heads and
chests of the driver and a passenger
during a moderate to severe frontal
collision (see page for more
information on how your airbags
work).
The most important things you need
to know about your airbags are:
They are designed to supplement
the seat belts.
To do their job, airbags must
inflate with tremendous force. So
while airbags help save lives, they
can cause minor injuries or more
serious or even fatal injuries if
occupants are not properly
restrained or sitting properly.
Always wear
your seat belt properly, and sit
upright and as far back from the
steering wheel as possible while
allowing full control of the vehicle. A
passenger should move the seat as
far back from the dashboard as
possible.
The rest of this section gives more
detailed information about how you
can maximize your safety.
Remember, however, that no safety
system can prevent all injuries or
deaths that can occur in a severe
crash, even when seat belts are
properly worn and the airbags deploy.
21
Your Vehicle’s Safety Features
Airbags
Airbags do not replace seat belts.
Front airbags offer no protection
in side impacts, rear impacts,
rollovers, or minor collisions.
Airbags can pose serious hazards.
What you should do:
Driver and Passenger Safety
11
Main Menu
Table of Contents
−
If you sit too close to the steering
wheel or dashboard, you can be
seriously injured by an inflating
airbag, or by striking the steering
wheel or dashboard.
The following pages provide
instructions on how to properly
protect the driver, an adult
passenger or teenage child large
enough and mature enough to drive
or ride in your vehicle. See pages
for important guidelines on
how to properly protect a small or
larger child.

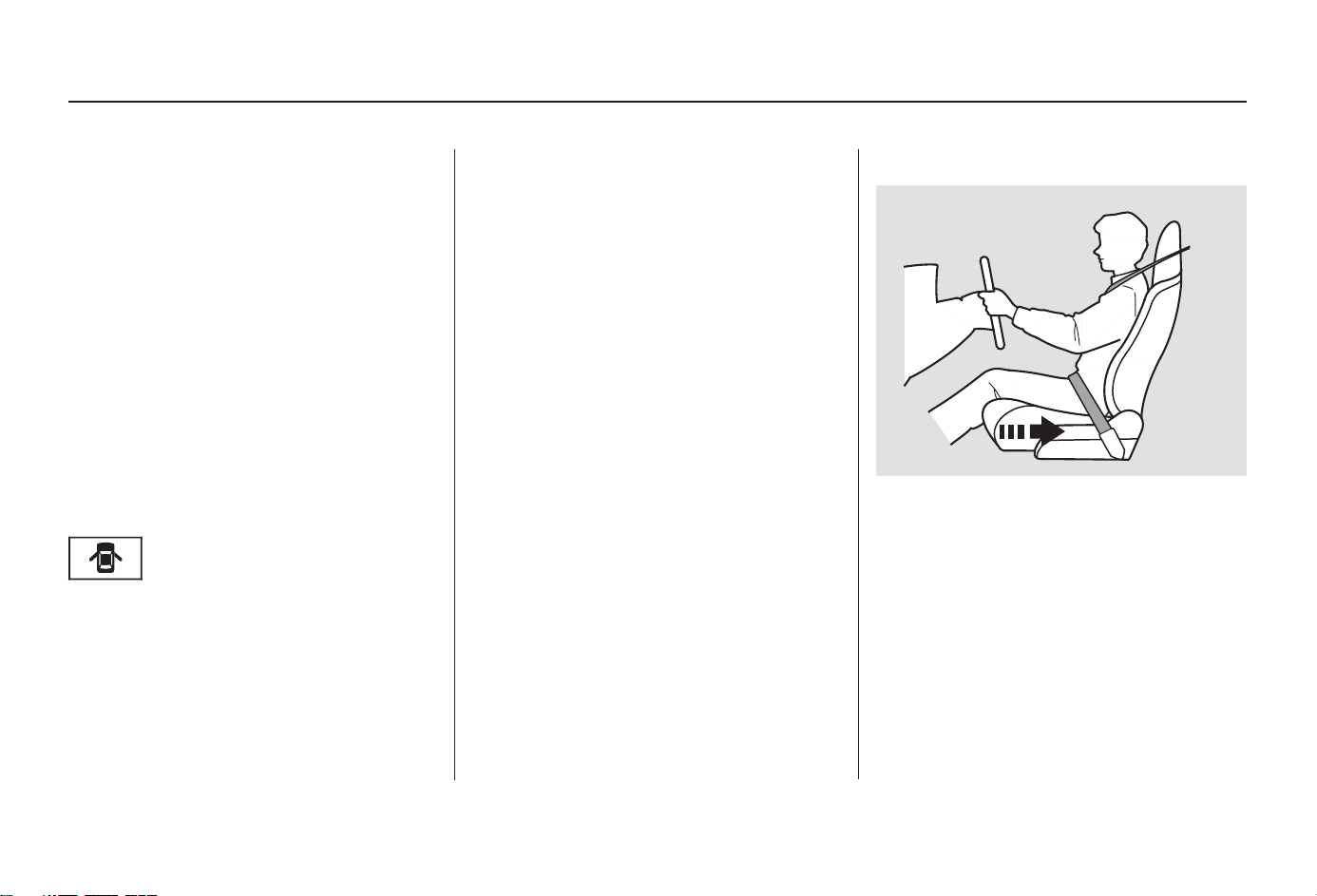

Adjust the driver’s seat as far to the
rear as possible while allowing you to
maintain full control of the vehicle.
Have a passenger adjust his or her
seat as far to the rear as possible.
After everyone has entered the
vehicle, be sure the doors are closed
and locked.
Locking the doors reduces the
chance of someone being thrown out
of the vehicle during a crash, and it
helps prevent a passenger from
accidentally opening a door and
falling out.
Locking the doors also helps prevent
an outsider from unexpectedly
opening a door when you come to a
stop.
Your vehicle has a door monitor
indicator on the instrument panel to
indicate when either door or the
hatch is not tightly closed.

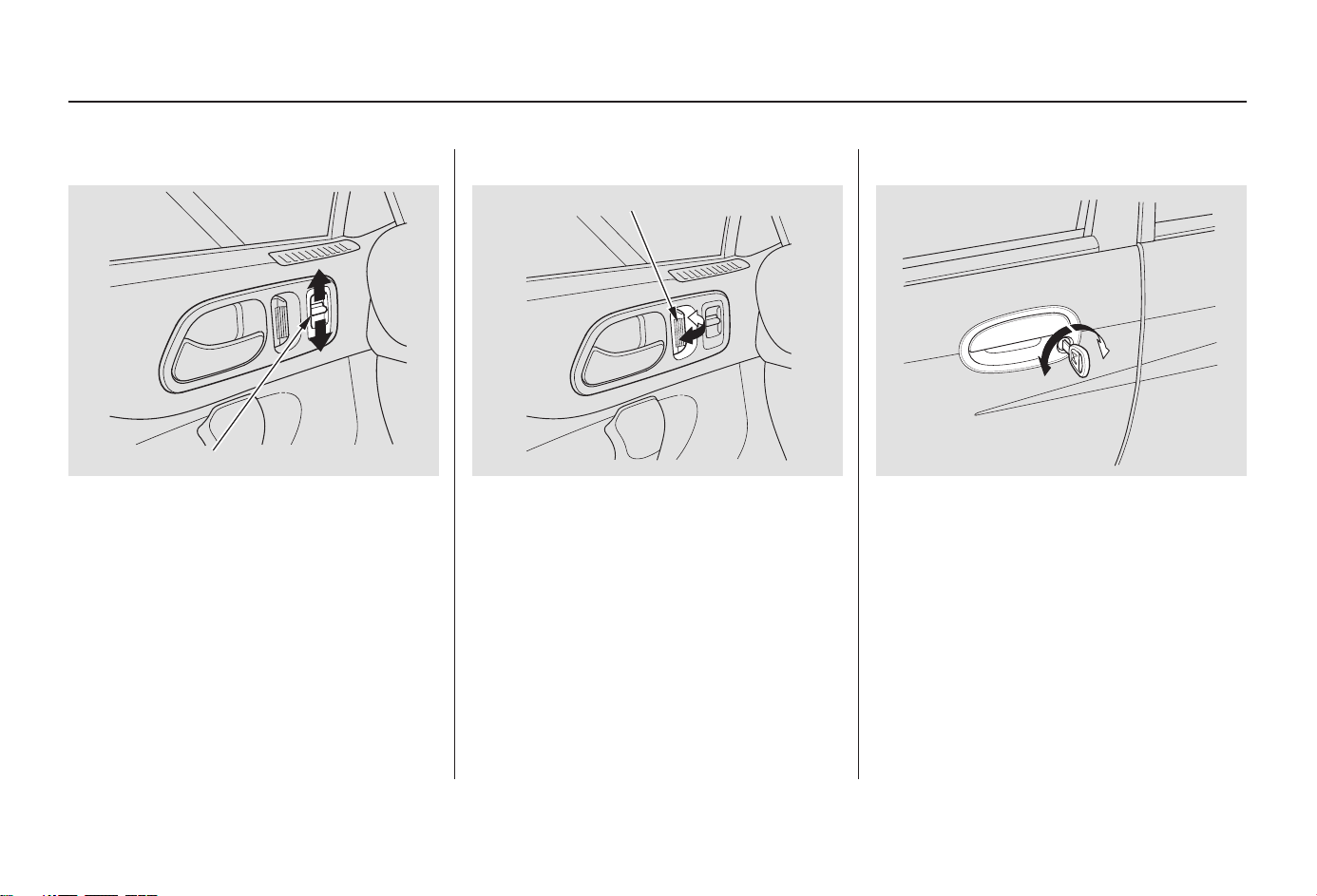

See page for how to lock the
doors, and page for how the
monitor indicator works.
25 37
62
46
Protecting Adults and Teens
Adjust the SeatsIntroduction
Close and Lock the Doors1.
2.
12
Main Menu
Table of Contents

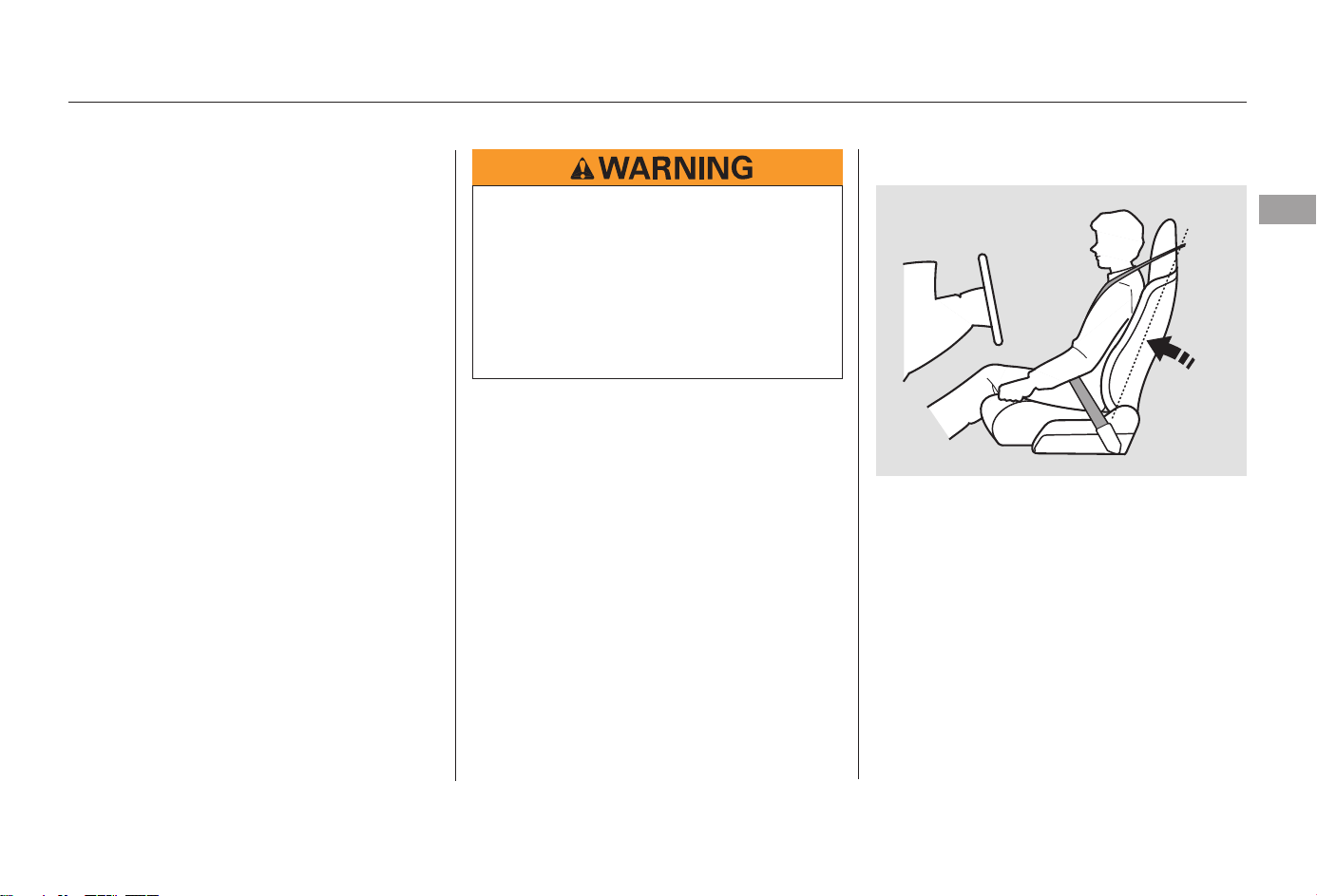

Adjust the driver’s seat-back to a
comfortable, upright position,
leaving ample space between your
chest and the airbag cover in the
center of the steering wheel.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that drivers
allow at least 10 inches (25 cm)
between the center of the steering
wheel and the chest.
A passenger should also adjust their
seat-back to a comfortable, upright
position.
If you cannot get far enough away
from the steering wheel and still
reach the controls, we recommend
that you investigate whether some
type of adaptive equipment may help.
Once your seat is adjusted correctly,
rock it back and forth to make sure
the seat is locked in position.
See page for how to adjust the
seats.
66
CONTINUED
Protecting Adults and Teens
Adjust the Seat-Backs3.
Driver and Passenger Safety
13
Sitting too close to a front
airbag can result in serious
injury or death if the front
airbags inflate.
Always sit as far back from the
front airbags as possible.
Main Menu
Table of Contents

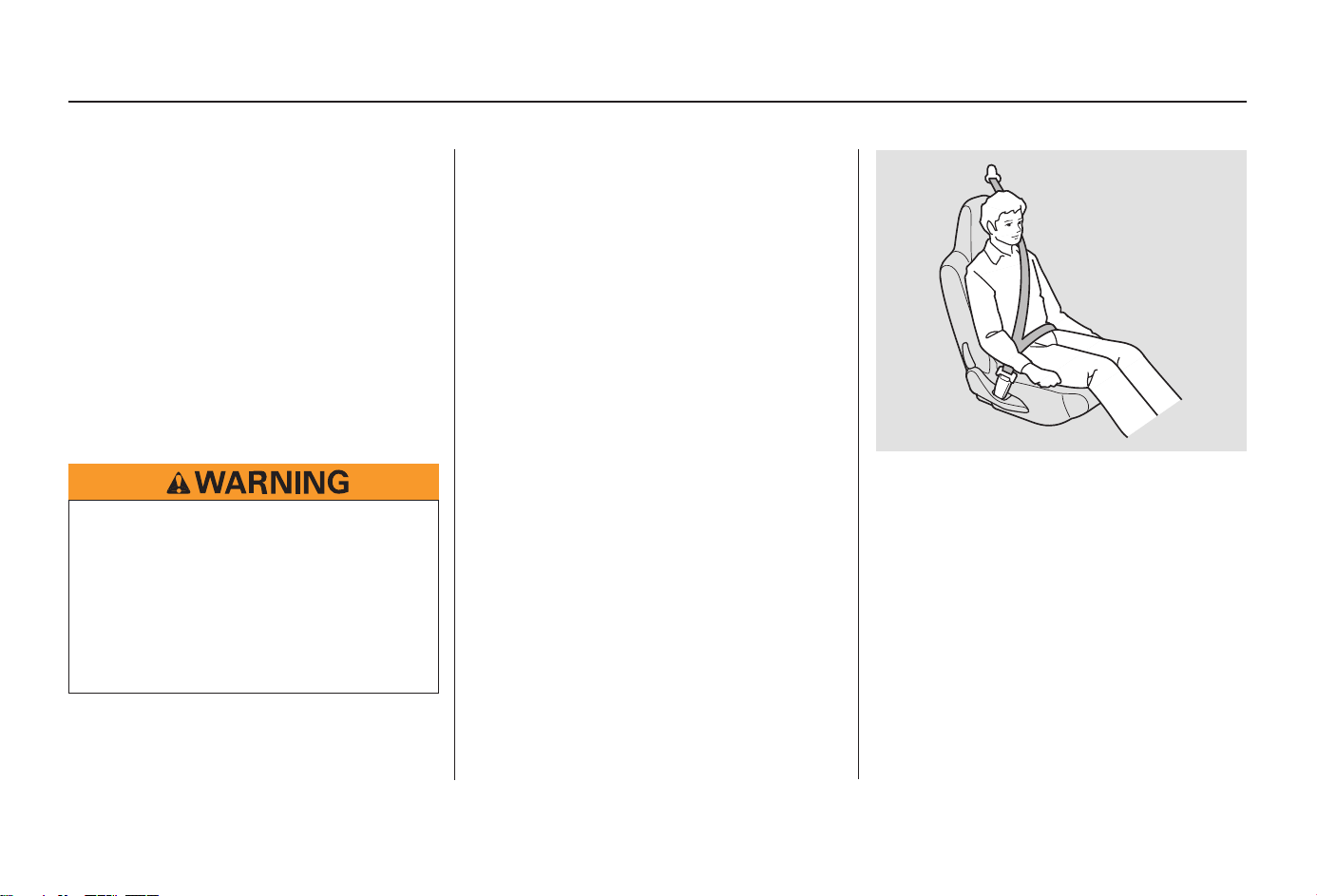

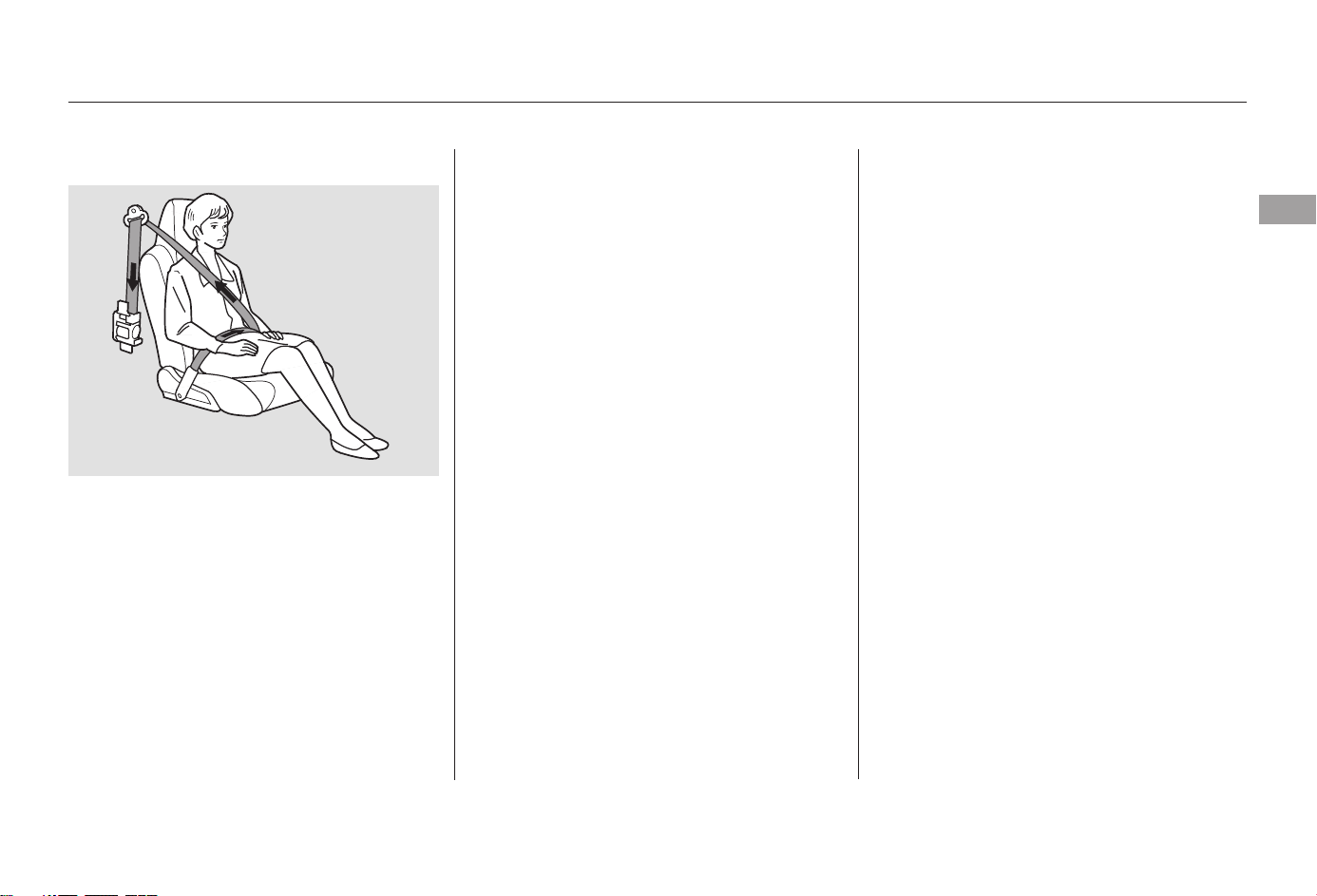

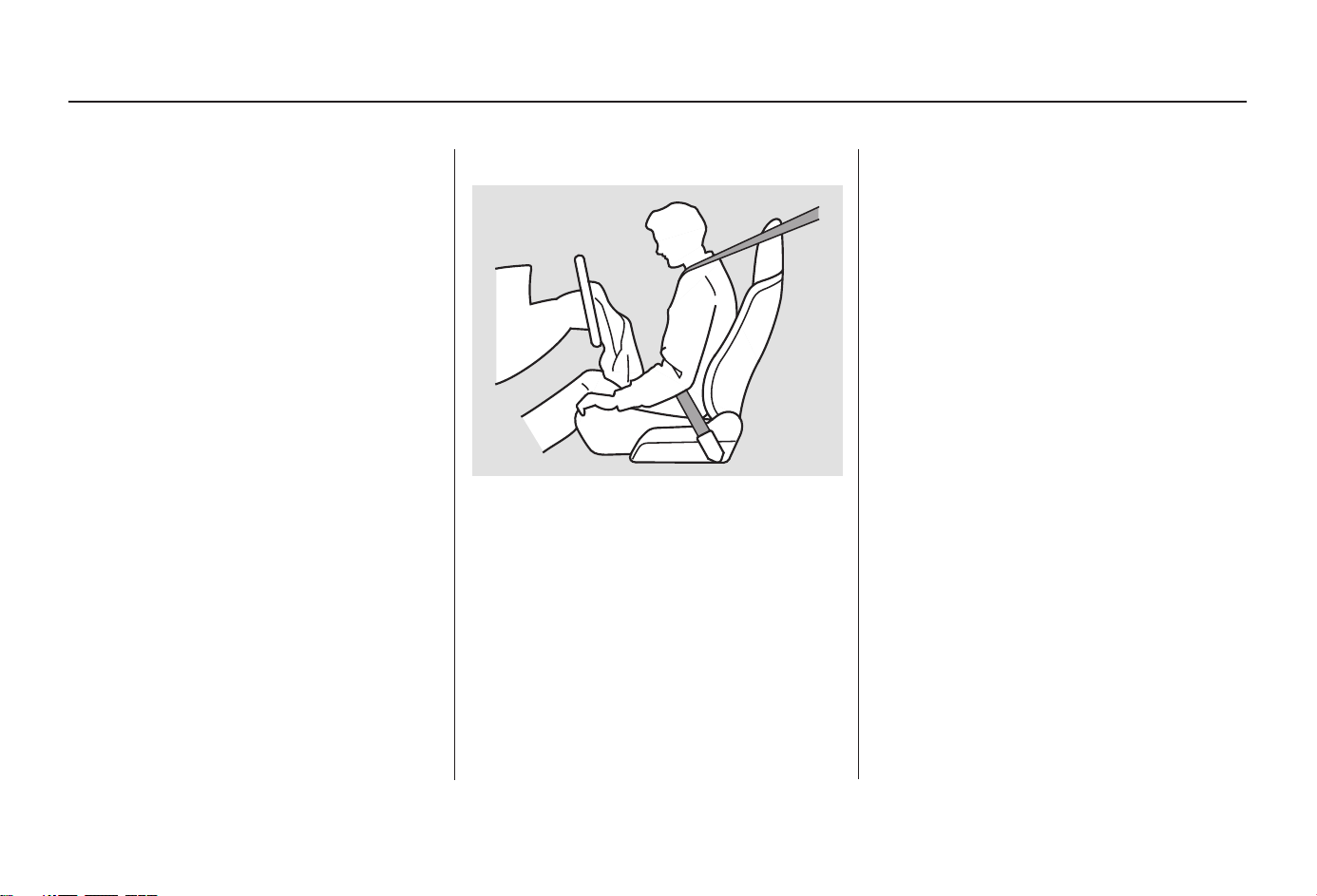

Position the lap part of the belt as
low as possible across your hips,
then pull up on the shoulder part of
the belt so the lap part fits snugly.
This lets your strong pelvic bones
take the force of a crash and reduces
the chance of internal injuries.
Insert the latch plate into the buckle,
then tug on the belt to make sure the
belt is securely latched. Check that
the belt is not twisted, because a
twisted belt can cause serious
injuries in a crash.
Reclining a seat-back so that the
shoulder part of the belt no longer
rests against the occupant’s chest
reduces the protective capability of
the belt. It also increases the chance
of sliding under the belt in a crash
and being seriously injured. The
farther a seat-back is reclined, the
greater the risk of injury.
See page for how to adjust the
seat-backs.
66
Protecting Adults and Teens
Fasten and Position the Seat
Belts
4.
14
Reclining the seat-back too far
can result in serious injury or
death in a crash.
Adjust the seat-back to an
upright position, and sit well
back in the seat.
Main Menu
Table of Contents
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways,
or puts one or both feet up, the
chance of injury during a crash is
greatly increased.
After occupants have adjusted their
seats and put on seat belts, it is very
important that they continue to sit
upright, well back in their seats, with
their feet on the floor, until the
vehicle is parked and the engine is
off.
If a seat belt does not seem to work
properly, it may not protect the
occupant in a crash.
Using a seat
belt that is not working properly can
result in serious injury or death.
Have your dealer check the belt as
soon as possible.
See page for additional
information about your seat belts
and how to take care of them.
If necessary, pull up on the belt again
to remove any slack, then check that
the belt rests across the center of
your chest and over your shoulder.
This spreads the forces of a crash
over the strongest bones in your
upper body.
This could cause
very serious injuries in a crash. 18
CONTINUED
Protecting Adults and Teens
Maintain a Proper Sitting
Position
5.
No one should sit in a seat with an
inoperative seat belt.
Never place the shoulder portion of a
lap/shoulder belt under your arm or
behind your back.
Driver and Passenger Safety
15
Improperly positioning the seat
belts can cause serious injury
or death in a crash.
Make sure all seat belts are
properly positioned before
driving.
Main Menu
Table of Contents

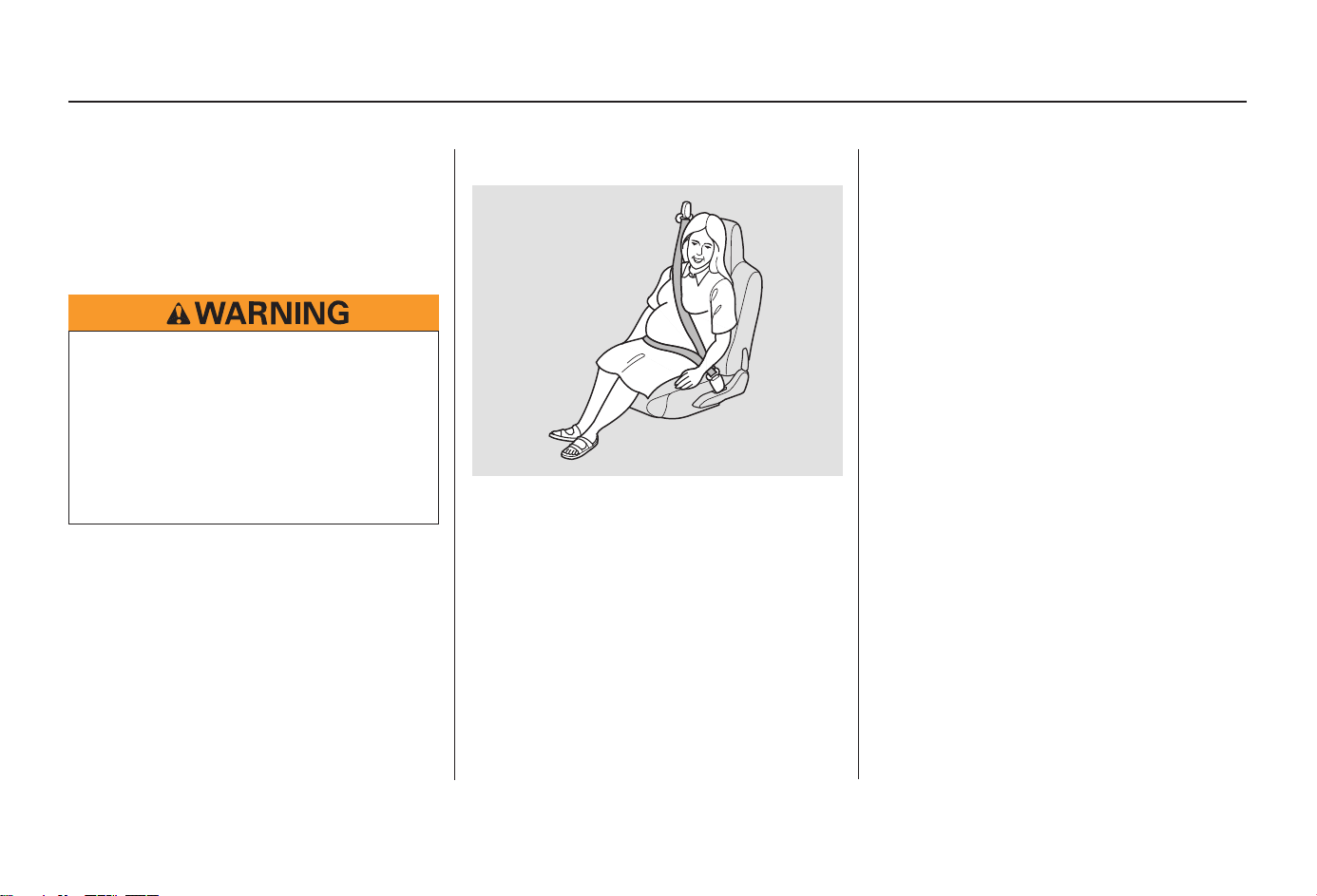

When driving, remember to sit
upright and adjust the seat as far
back as possible while allowing full
control of the vehicle. When riding
as a passenger, adjust the seat as far
back as possible.
This will reduce the risk of injuries
to both you and your unborn child
that can be caused by a crash or an
inflating front airbag.
Each time you have a checkup, ask
your doctor if it’s okay for you to
drive.If you are pregnant, the best way to
protect yourself and your unborn
child when driving or riding in a
vehicle is to always wear a seat belt,
and keep the lap part of the belt as
low as possible across the hips.
In addition, an occupant who is out of
position can be seriously or fatally
injured in a crash by striking interior
parts of the vehicle or being struck
by an inflating front airbag.
Protecting Adults and Teens
Advice for Pregnant Women
16
Sitting improperly or out of
position can result in serious
injury or death.
Always sit upright, well back in
the seat, with your feet on the
floor.
Main Menu
Table of Contents
If they do, they
could be very seriously injured in a
crash.
Devices intended to improve
occupant comfort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
thebeltandincreasethechanceof
serious injury in a crash.
If your
hands or arms are close to an
airbag cover, they could be injured
if the airbag inflates.
Objects on
the covers marked ‘‘SRS AIRBAG’’
could interfere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inflate.
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp object in
your mouth, can result in injuries
if your front airbag inflates.
Additional Safety Precautions
Two people should never use the
same seat belt.
Do not put any accessories on seat
belts.
Keep your hands and arms away
from the airbag covers.
Do not attach or place objects on
the front airbag covers.
Do not place hard or sharp objects
between yourself and a front
airbag.
Protecting Adults and Teens
Driver and Passenger Safety
17
Main Menu
Table of Contents
Both seat belts have an emergency
retractor. In normal driving, the
retractor lets you move freely in your
seat while it keeps some tension on
the belt. During a collision or sudden
stop, the retractor automatically
locks the belt to help restrain your
body.

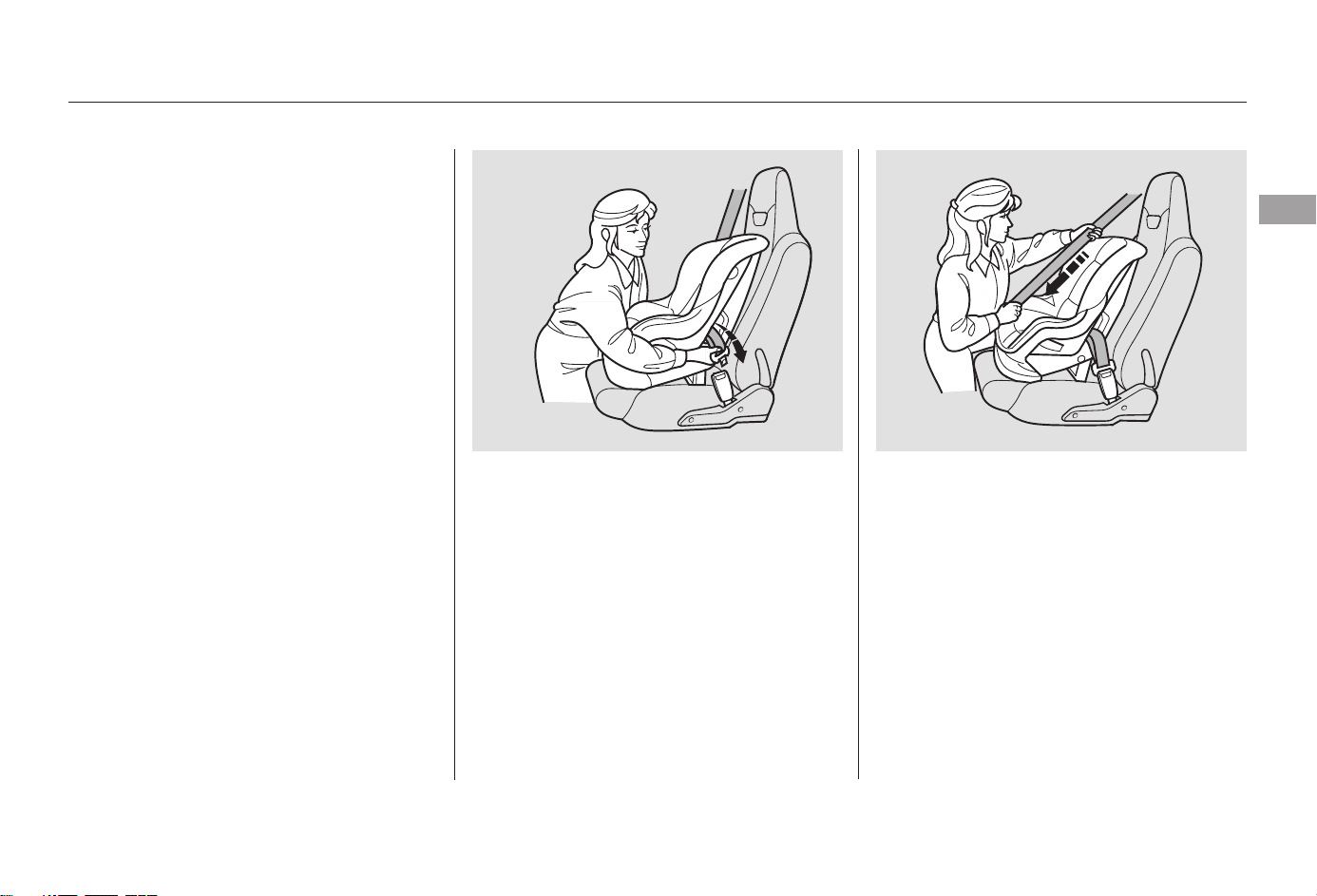

The passenger’s seat belt has an
additional locking mechanism that
must be activated to secure a
forward-facing child seat (see page
).
To deactivate the locking
mechanism, unlatch the buckle and
let the seat belt fully retract. To
refasten the seat belt, pull it out only
as far as needed.
If the shoulder part of the belt is
pulled all the way out, the locking
mechanism will activate. The belt
will retract, but it will not allow the
passenger to move freely.
The lap and shoulder belt goes over
your shoulder, across your chest,
and across your hips.
To fasten the belt, insert the latch
plate into the buckle, then tug on the
belt to make sure the buckle is
latched (see page for how to
properly position the belt).
To unlock the belt, push the red
PRESSbuttononthebuckle.Guide
the belt across your body so that it
retracts completely. After exiting the
vehicle, be sure the belt is out of the
way and will not get closed in the
door.
Your seat belt system includes lap/
shoulder belts in both seating
positions. These belts are equipped
with automatic seat belt tensioners.
If you continue driving without
fastening your seat belt, the beeper
will sound and the indicator will flash
again at regular intervals.
The seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you to fasten your seat belt.
If you turn the ignition switch to ON
(II) before fastening your seat belt,
the beeper will sound, and the
indicator will flash. If you do not
fasten your seat belt before the
beeper stops, the indicator will stop
flashing but remain on.
14
31
Additional Information About Your Seat Belts
Lap/Shoulder BeltSeat Belt System Components
18
Main Menu
Table of Contents
For safety, you should check the
condition of your seat belts regularly.
Honda provides a lifetime warranty
on seat belts for U.S. models. See
your
booklet for details.
The tensioners are designed to
activate primarily in frontal collisions,
andtheyshouldactivateinany
collision severe enough to cause
airbag inflation.
However, the tensioners can be
activated during a collision in which
the front airbags do not deploy. In
this case, the airbags would not be
needed, but the additional restraint
could be helpful.
When the tensioners are activated,
the seat belts will remain tight until
they are unbuckled in the normal
manner.
For added protection, the seat belts
are equipped with automatic seat
belt tensioners. When activated, the
tensioners immediately tighten the
beltstohelpholdthedriveranda
passenger in place.
Pull each belt out fully and look for
frays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. Any belt that
is not in good condition or not
working properly will not provide
good protection and should be
replaced as soon as possible.
If a seat belt is worn during a crash,
it must be replaced by your dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
Honda Warranty Information
CONTINUED
Additional Information About Your Seat Belts
Seat Belt MaintenanceAutomatic Seat Belt Tensioners
Driver and Passenger Safety
19
Main Menu
Table of Contents
The dealer should also inspect the
anchors for damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
For information on how to clean your
seat belts, see page .151
Additional Information About Your Seat Belts
20
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
Main Menu
Table of Contents
Your airbag system includes:
Automatic seat belt tensioners
(see page ).
Sensors that can detect a
moderate to severe frontal
collision.
Two SRS (Supplemental Restraint
System) front airbags. The driver’s
airbag is stored in the center of
the steering wheel; the passenger’s
airbag is stored in the dashboard.
Both are marked ‘‘SRS AIRBAG.’’
A sophisticated electronic system
that continually monitors and
records information about the
sensors, the control unit, and the
airbag activators when the ignition
switch is in the ON (II) position.
An indicator on the instrument
panel that alerts you to a possible
problem with your airbags,
sensors, or seat belt tensioners
(see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.

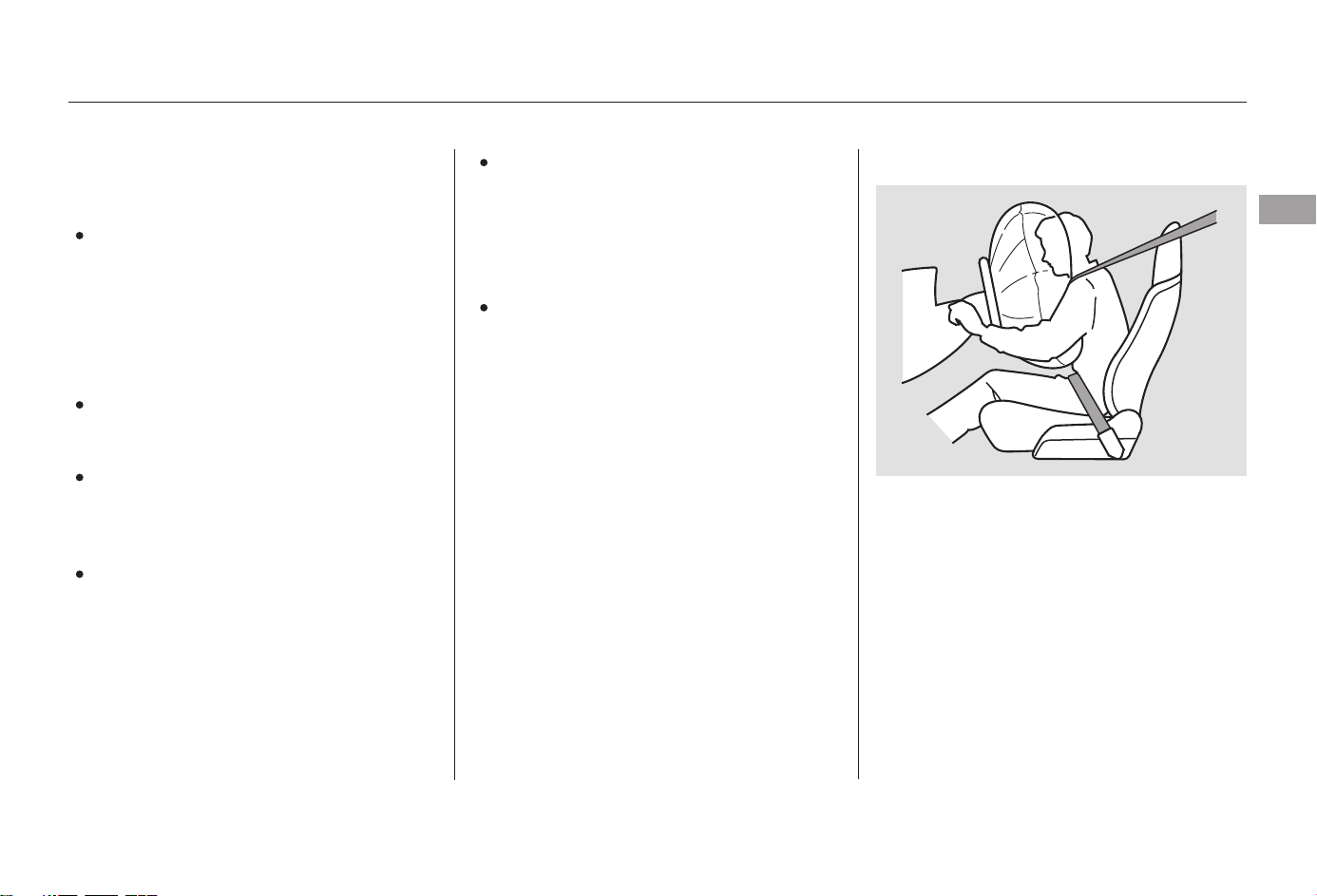

If you ever have a moderate to
severe frontal collision, sensors will
detect the vehicle’s rapid
deceleration.
If the rate of deceleration is high
enough, the control unit will instantly
inflate the driver’s and passenger’s
front airbags.
19
23
CONTINUED
Airbag System Components How Your Front Airbags Work
Additional Information About Your Airbags
Driver and Passenger Safety
21
Main Menu
Table of Contents
During a frontal crash, your seat belt
restrains your lower body and torso,
and the airbag helps protect your
head and chest.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
sufficient protection, and the
supplemental protection offered by
the airbag would be minimal.
The total time for inflation and
deflation is one-tenth of a second, so
fast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.
After a crash, you may see what
looks like smoke. This is actually
powder from the airbag’s surface.
Although the powder is not harmful,
people with respiratory problems
may experience some temporary
discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do
so.
After inflating, the front airbags will
immediately deflate, so they won’t
interfere with the driver’s visibility,
or the ability to steer or operate
other controls.
Although both airbags normally
inflate within a split second of each
other, it is possible for only one
airbag to deploy.
Additional Information About Your Airbags
22
Main Menu
Table of Contents
The SRS indicator alerts
you to a potential problem
with your airbags or seat belt
tensioners (see page ).
If the indicator comes on at any
other time, or does not come on at all,
you should have the system checked
by your dealer. For example:
If the indicator stays on after the
engine starts.
When you turn the ignition switch to
ON (II), this indicator will come on
briefly then go out. This tells you the
system is working properly.
If the SRS indicator does not come
on after you turn the ignition
switch to ON (II).
If the indicator comes on or
flashesonandoffwhileyoudrive.
If you see any of these indications,
the airbags and seat belt tensioners
may not work properly when you
need them.
Your airbag system is virtually
maintenance-free, and there are no
parts you can safely service.
However, you must have your
vehicle serviced if:
Any airbag
that has deployed must be
replaced, along with the control
unit and seat belt tensioner. Do
not try to remove or replace any
airbag by yourself.
This must be done by your dealer
or a knowledgeable body shop.
Take your vehicle to an
authorized dealer as soon as
possible. If you ignore this
indication, your airbags may not
operate properly.
19
How the SRS Indicator Works Airbag Service
An airbag ever inflates.
The SRS indicator alerts you to a
problem.
Additional Information About Your Airbags
Driver and Passenger Safety
23
Ignoring the SRS indicator can
result in serious injury or death
if the airbag systems or
tensioners do not work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS indicator alerts you to
a possible problem.
Main Menu
Table of Contents
Together, airbags and
seat belts provide the best
protection.
Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
Additional Information About Your Airbags
Donotattempttodeactivateyour
airbags.
Do not tamper with airbag
components or wiring for any
reason.
Additional Safety Precautions
24
Main Menu
Table of Contents
−
−
−
Children depend on adults to protect
them. However, despite their best
intentions, many adults do not know
how to protect child
passengers.
If you ever need to drive with a child
in your vehicle, be sure to read this
section. It begins with important
general guidelines, then presents
special information for infants, small
children and larger children.
Each year, many children are injured
or killed in vehicle crashes because
they are either unrestrained or not
properly restrained. In fact, vehicle
accidents are the number one cause
of the death of children ages 12 and
under.
To reduce the number of child
deaths and injuries, every state and
Canadian province requires that
infants and children be properly
restrained when they ride in a
vehicle.
(see pages
).
(see pages
).
30 32
34
37
properly
All Children Must Be Restrained
Anychildwhoistoosmalltoweara
seat belt must be restrained in an
approved child seat that is properly
secured to the vehicle

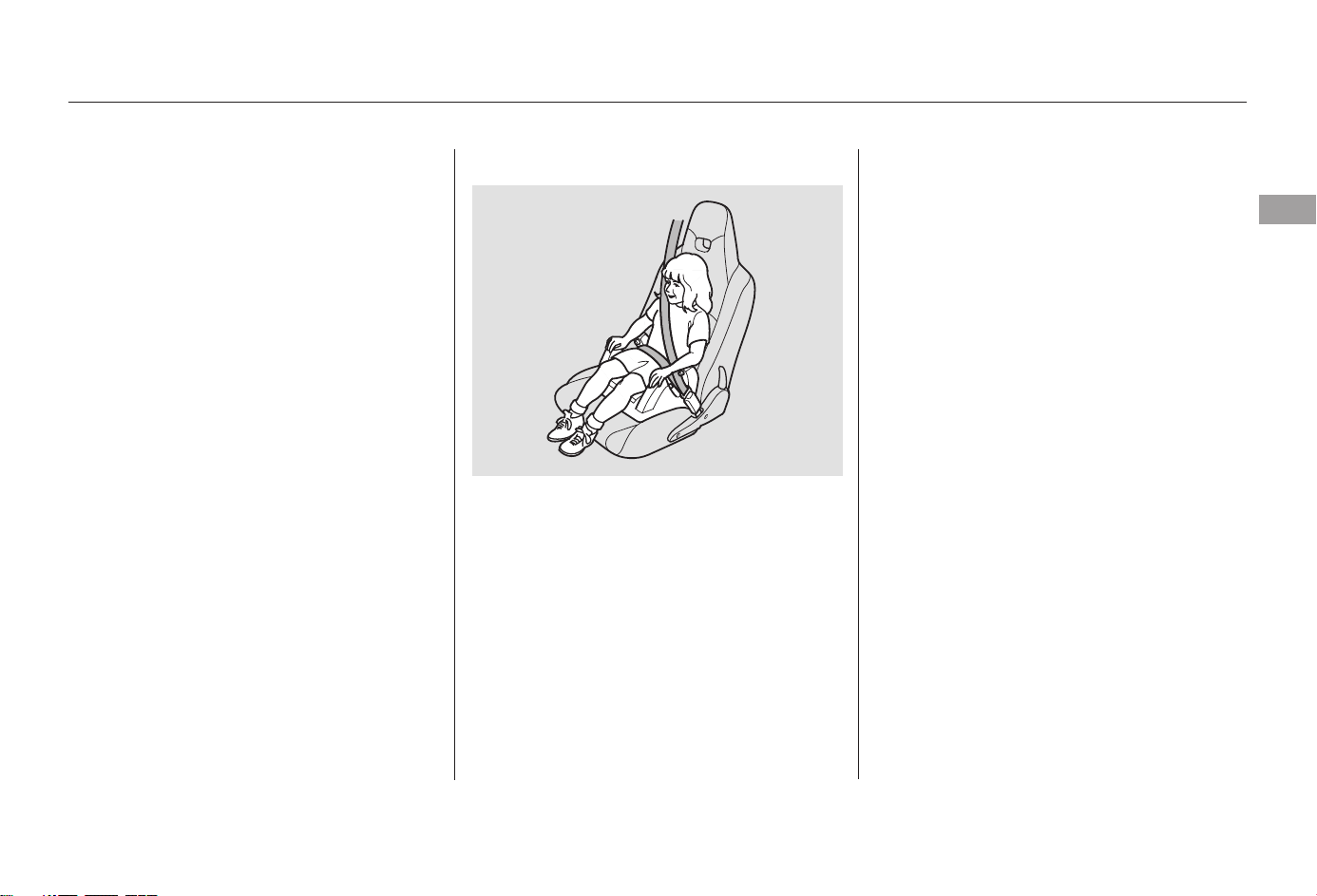

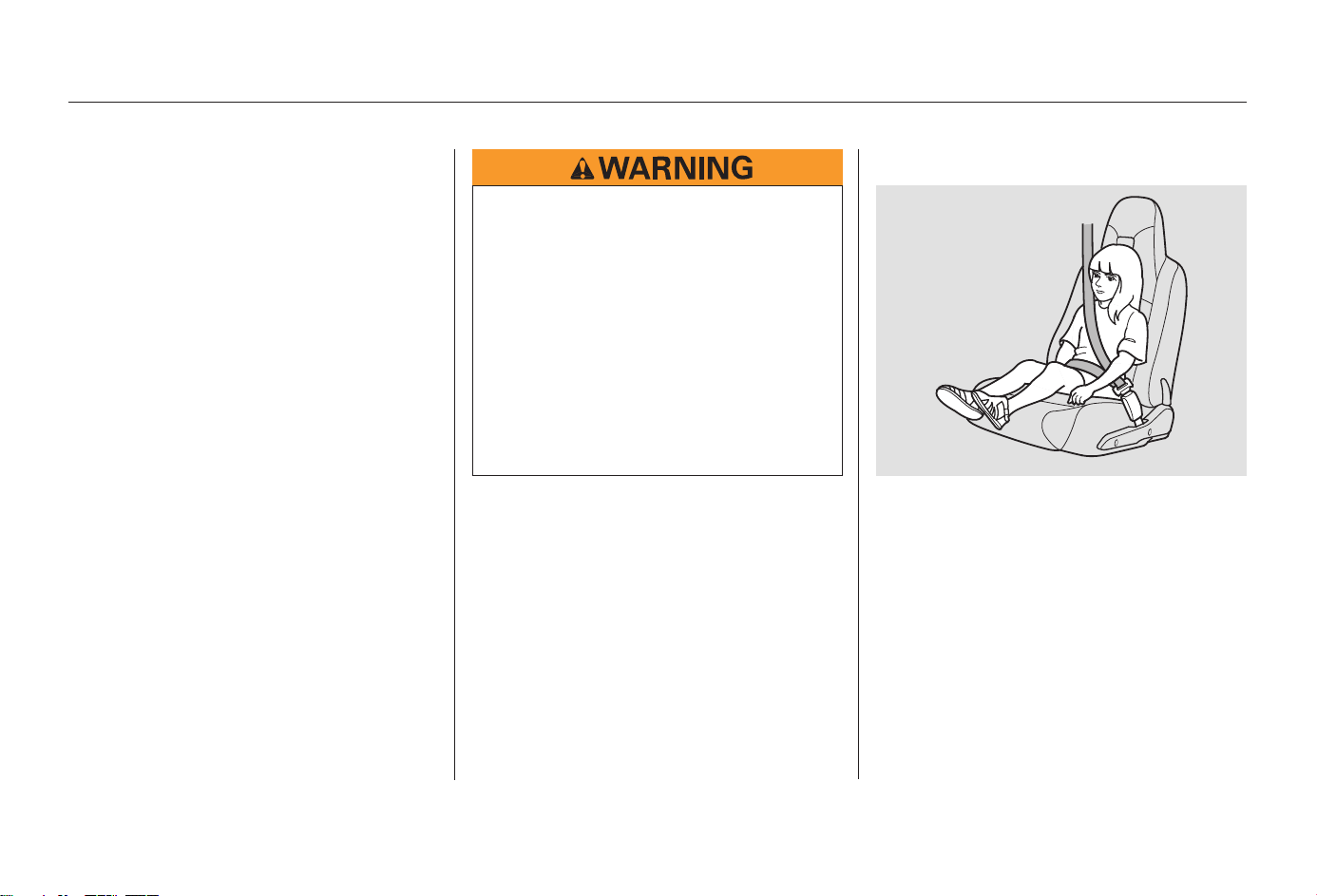

A larger child must be restrained
with a lap/shoulder belt and ride on
a booster seat until the seat belt fits
him or her properly
Protecting Children General Guidelines
Driver and Passenger Safety
25
Children who are unrestrained
or improperly restrained can be
seriously injured or killed in a
crash.
Any child too small for a seat
belt should be properly
restrained in a child seat. A
larger child should be properly
restrained with a seat belt and
use a booster seat if necessary.
Main Menu
Table of Contents
−
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in a back seat.
Since this vehicle does not have a
back seat, we strongly recommend
that you do not carry any child who
is not large enough or mature
enough to ride in front (see page ).
Front airbags have been designed to
help protect adults in a moderate to
severe frontal collision. To do this,
the passenger’s airbag is quite large,
and it can inflate with enough force
to cause very serious injuries.
If the airbag inflates, it
can hit the back of the child seat
with enough force to kill or very
seriously injure an infant.
If the vehicle seat is too
farforward,orthechild’sheadis
thrown forward during a collision, an
inflating front airbag can strike the
child with enough force to kill or
very seriously injure a small child.
If a larger child must
ride in this vehicle, see page for
important guidelines on how to
decide when a child is ready to ride
in front and how to properly protect
the child.
36
36
Protecting Children General Guidelines
Your Vehicle is Not
Recommended for Child
Passengers
The Passenger’s Front Airbag
Poses Serious Risks
Infants
Never put a rear-facing child seat in
this vehicle.
Small Children
Placing a forward-facing child seat in
the passenger’s seat can be
hazardous.
Larger Children
Children who have outgrown child
seats are also at risk of being injured
or killed by an inf lating passenger’s
front airbag.
26
Main Menu
Table of Contents
−

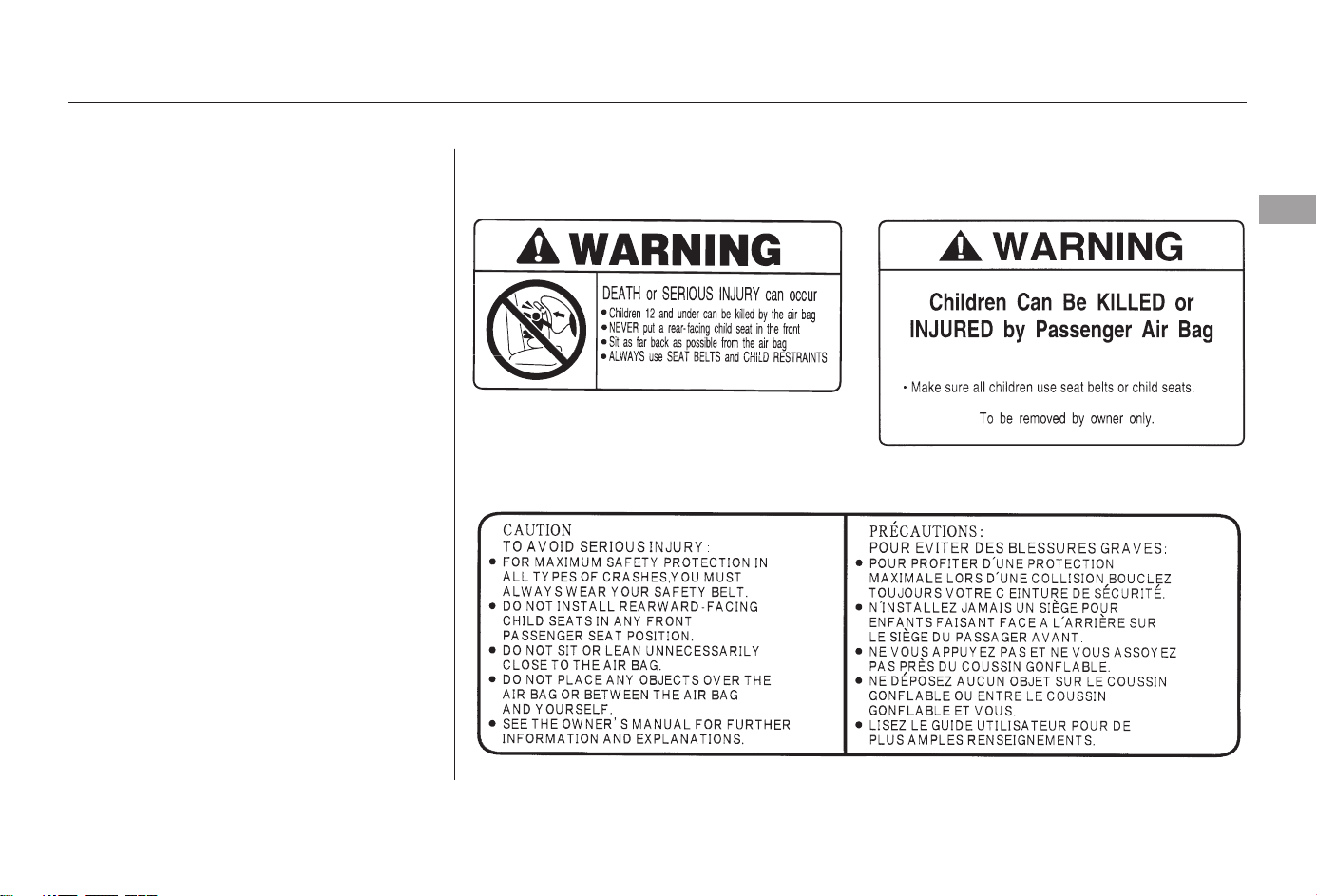

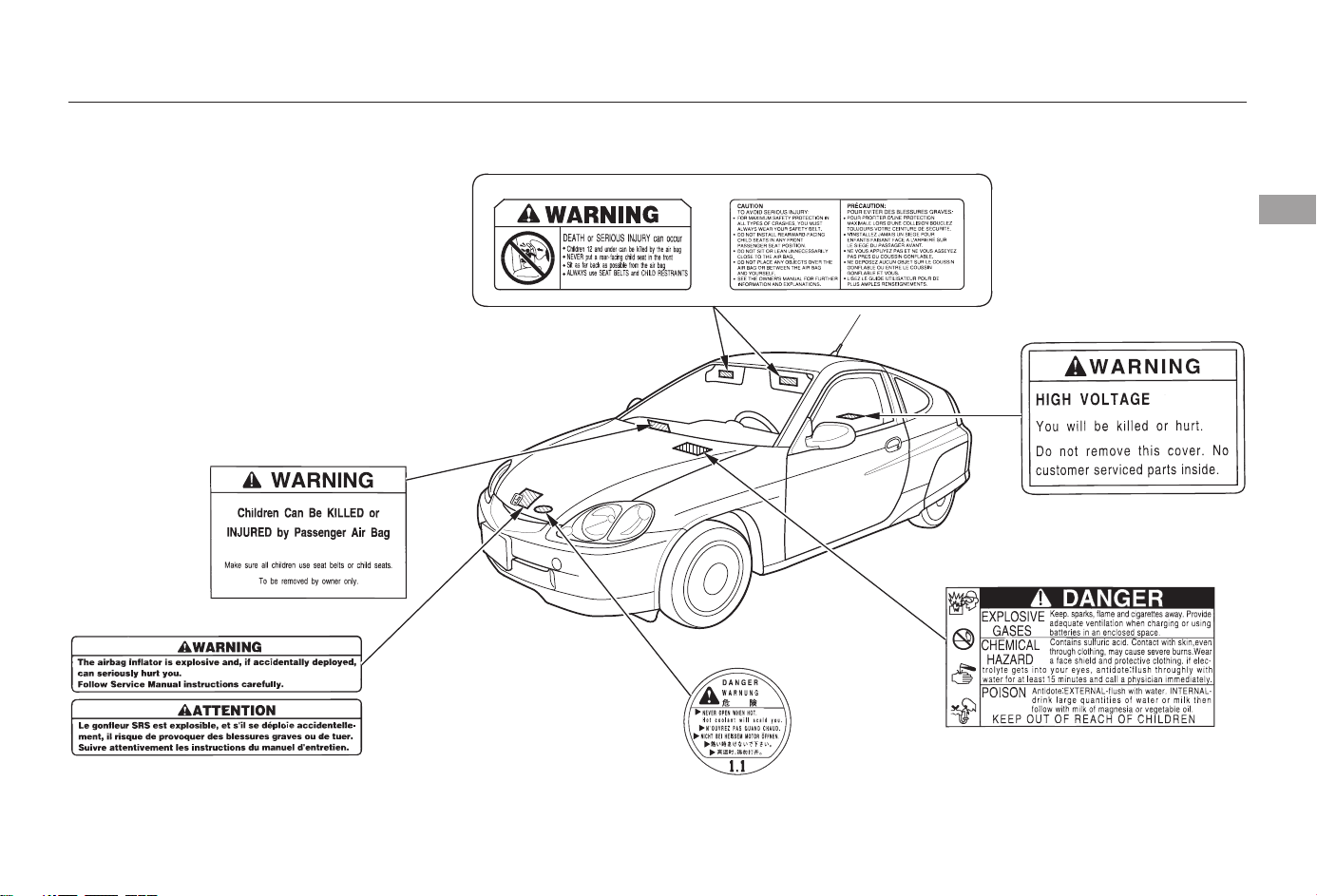

To remind you of the passenger’s
airbag hazards, your vehicle has
warninglabelsonthedashboard
(U.S. models) and on the driver’s and
passenger’s visors. Please read and
follow the instructions on these
labels.
U.S. Models
Canadian Models
Protecting Children General Guidelines
Driver and Passenger Safety
Sun Visor
Sun Visor
Dashboard
27
Main Menu
Table of Contents
−
If you are not wearing a seat
belt in crash, you could be thrown
forward and crush the child
against the dashboard. If you are
wearing a seat belt, the child can
be torn from your arms and be
seriously hurt or killed.
If they do, they
could be very seriously injured in a
crash.
Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous.
Even very young
children learn how to unlock
vehicle doors, turn on the ignition
switch, and open the trunk, which
can lead to accidental injury or
death.
For example, a small child left in a
vehicle on a hot day can die from
heatstroke. A child left alone with
the key in the ignition switch can
accidentally set the vehicle in
motion, possibly injuring
themselves or others.
During a crash, the
belt could press deep into the child
and cause serious or fatal injuries.
Children who play in vehicles can
accidentally get trapped inside.
Teach your children not to play in
or around vehicles.
Additional Safety Precautions
Protecting Children General Guidelines
Never hold a small child on your
lap.
Never let two children use the
same seat belt.
Do not leave children alone in a
vehicle.
Keep vehicle keys and remote
transmitters out of the reach of
children.
Never put a seat belt over yourself
and a child.
Lock both doors and the hatch
when your vehicle is not in use.
28
Main Menu
Table of Contents
Because an inflating airbag can
seriously injure or kill small children,
we recommend that you do not carry
a small child as a passenger in this
vehicle.
If you decide to transport a small
child in this vehicle, be sure to move
the passenger seat as far to the rear
as possible, and follow the
instructions and guidelines in the
following pages.
We also recommend that a small
child use the child seat as long as
possible, until the child reaches the
weight or height limit for the seat.
A child who is at least one year old
and who fits within the child seat
maker’s weight and height limits,
should be restrained in a forward-
facing, upright child seat.

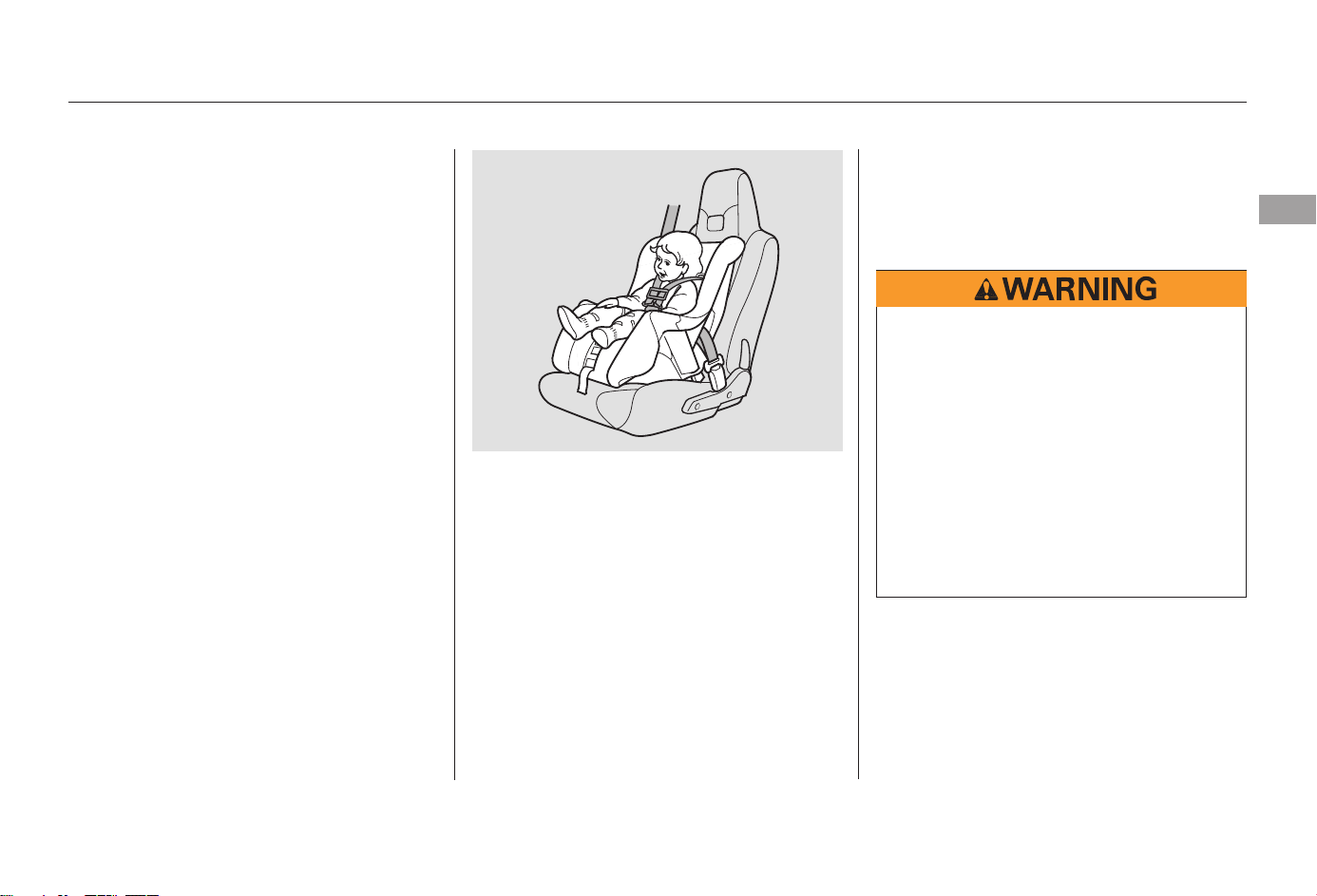

Of the different seats available, we
recommend those that have a five-
point harness system as shown.
Protecting Small Children
Driver and Passenger Safety
29
Placing a forward-facing child
seat in the passenger’s seat
can result in serious injury or
death if the airbag inflates.
Ifyoumustplaceaforward-
facing child seat in the
passenger’s seat, move the
vehicle seat as far back as
possible and properly restrain
the child.
Main Menu
Table of Contents
To provide proper protection, a child
seat should meet three
requirements:
Look for FMVSS
213 or CMVSS 213 on the box.
Before purchasing a child seat, or
using a previously purchased one, we
recommend that you test the seat to
make sure it fits properly in the
passenger’s seat.
After selecting a proper child seat,
there are three main steps in
installing a child seat:
All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt. A child
whose seat is not properly secured
to the vehicle can be endangered
in a crash.
After installing a child
seat, push and pull the seat
forward and from side to side to
verify that it is secure.
A child seat secured with a seat
belt should be installed as firmly
as possible. However, it does not
need to be ‘‘rock solid.’’ Some side-
to-side movement can be expected
and should not reduce the child
seat’s effectiveness.
If the child seat is not secure, use
a different style of child seat that
can be firmly secured.
Make sure the child is properly
strappedinthechildseat
according to the child seat maker’s
instructions. A child who is not
properly secured in a child seat
canbeseriouslyinjuredinacrash.
The following pages provide
guidelines on how to properly install
a forward-facing child seat.
Selecting a Child Seat Installing a Child Seat
The child seat should meet U.S. or
Canadian Motor Vehicle Saf ety
Standard 213.
The child seat should be of the
proper type and size to fit the child.
The child seat should fit the
passenger’s seat.
Properly secure the child seat to
the vehicle.
Make sure the child seat is firmly
secured.
Secure the child in the child seat.
1.
2.
3.
1.
2.
3.
Selecting a Child Seat, Installing a Child Seat
30
Main Menu
Table of Contents
With the child seat in position,
route the belt through the child
seat according to the seat maker’s
instructions, then insert the latch
plate into the buckle.
To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor.
In this vehicle, a child seat must be
secured to the vehicle with the lap
part of the lap/shoulder belt. In
addition, the passenger’s lap/
shoulder belt has a locking
mechanism that must be activated to
secure a child seat.
Move the vehicle seat to the rear-
most position. Moving the seat as
far back as possible reduces the
chance of a child being injured or
killed if the passenger’s airbag
inflates. After the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
the belt out, it is not locked and
you will need to repeat these steps.
1.
2.
3.
4.
CONTINUED
Installing a Child Seat
Driver and Passenger Safety
31
Main Menu
Table of Contents

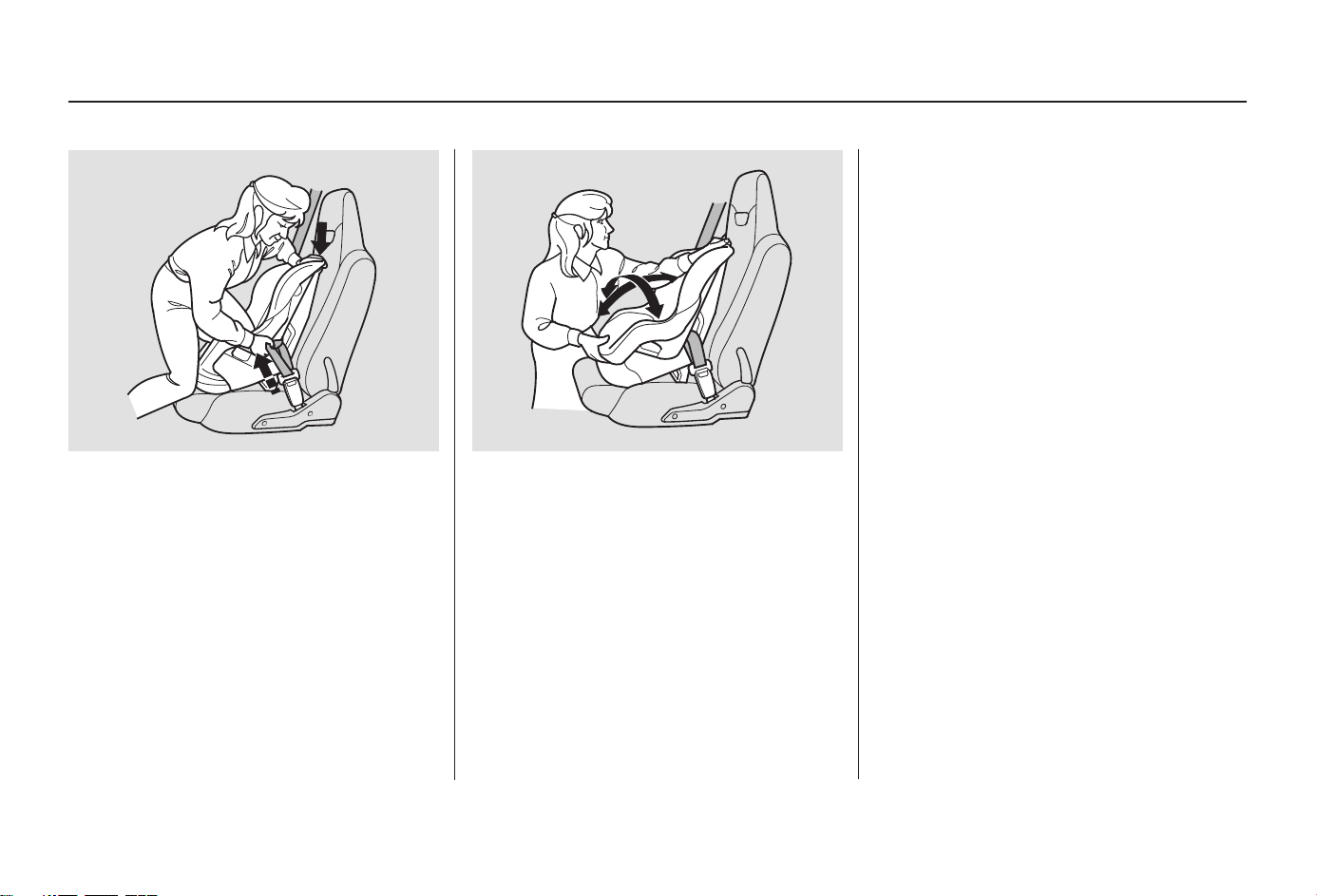

To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt.
Push and pull the child seat
forward and from side to side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract fully, then repeat these
steps.
To deactivate the locking
mechanism and remove a child seat,
unlatch the buckle, unroute the seat
belt, and let the belt fully retract.
After confirming that the belt is
locked, grab the shoulder part of
the belt near the buckle and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.
5. 6.
Installing a Child Seat
32
Main Menu
Table of Contents

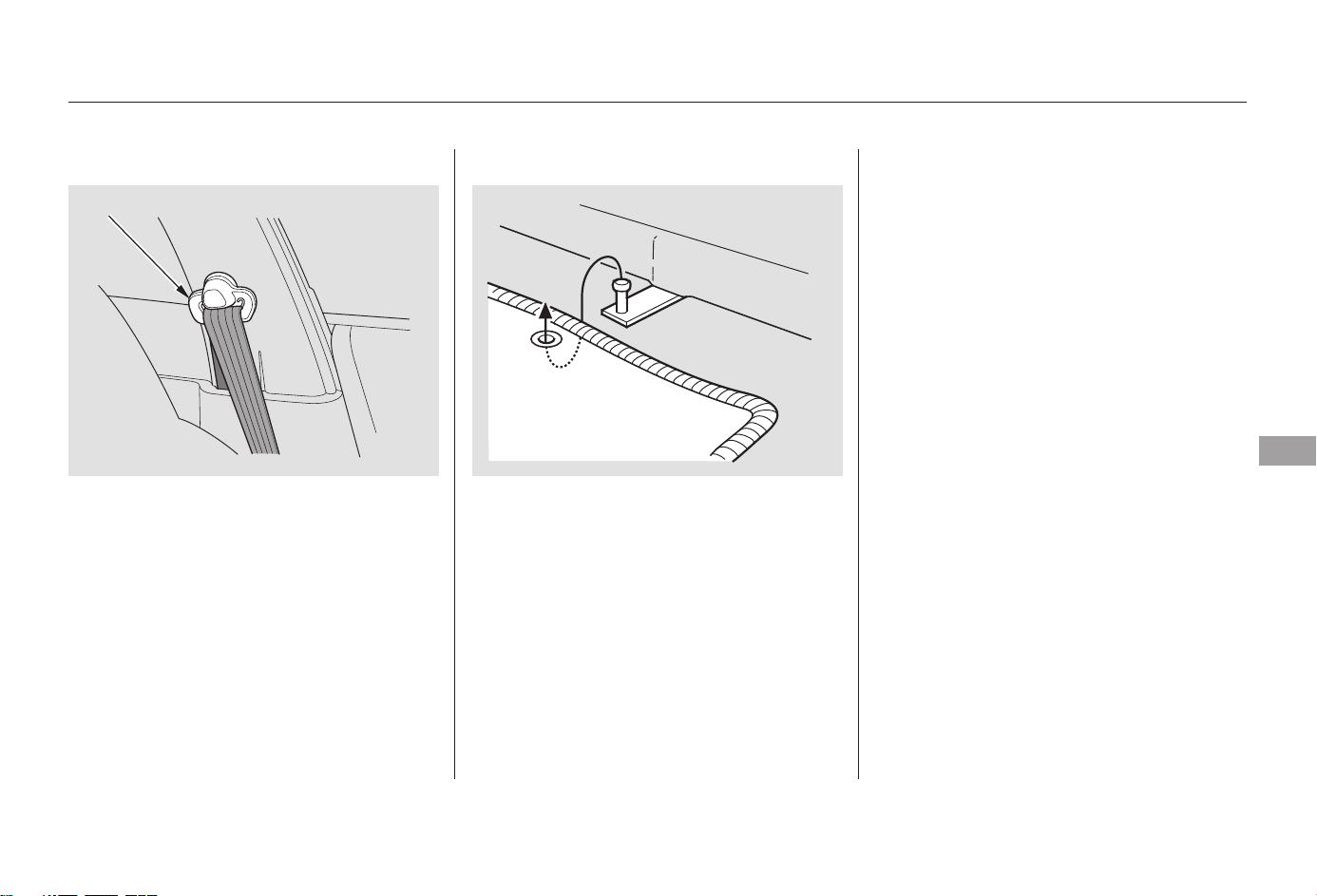

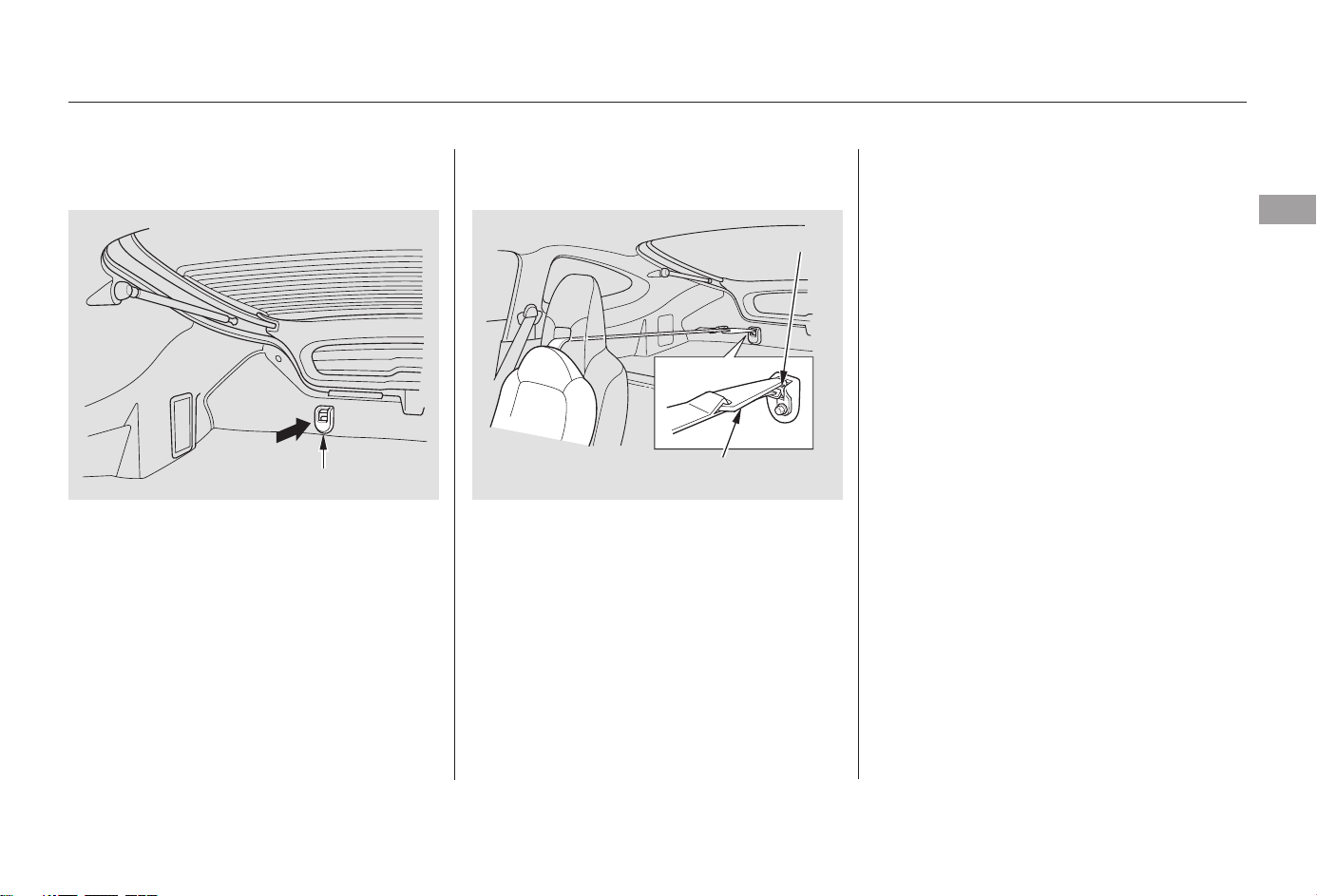

A child seat with a tether can be
installed in the passenger’s seat,
using the anchorage point shown
above.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.
Attach the tether strap hook to the
anchor, making sure the strap is
not twisted, then tighten the strap
according to the seat maker’s
instructions.
After properly securing the child
seat with the lap/shoulder belt
(see page ), route the tether
strapthroughtheholeoftheseat-
back.
1.
2.
31
Installing a Child Seat
Installing a Child Seat with a
Tether
Driver and Passenger Safety
33
ANCHORAGE POINT
TETHER STRAP HOOK
ANCHOR
Main Menu
Table of Contents
When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster seat and wear a lap/shoulder
belt.
To determine if a lap/shoulder belt
properly fits a child, have the child
put on the seat belt, then ask
yourself:
Does the child sit all the way back
against the seat?
Do the child’s knees bend
comfortably over the edge of the
seat?
Since this vehicle does not have a
back seat, we recommend that you
do not carry a larger child, age 12 or
under, as a passenger.
However, the following pages
provide guidelines to help you decide
when a given child may ride in this
vehicle, and how to properly protect
the child.
1.
2.
Checking Seat Belt Fit
Protecting Larger Children
34
Allowing a larger child age 12 or
under to ride in the vehicle can
result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ride in the
vehicle, move the vehicle seat
as far back as possible, use a
booster seat if needed, have
the child sit up properly and
wear the seat belt properly.
Main Menu
Table of Contents
Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this for the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. A child who has outgrown a forward-
facing child seat should use a
booster seat until the lap/shoulder
belt fits them properly without the
booster.
Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intend
to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster meets federal
safety standards and that you follow
the booster seat maker’s instructions.
If a child who uses a booster seat
ridesinthisvehicle,movethe
vehicle seat as far to the rear as
possible, and be sure the child is
wearing the seat belt properly.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.
3.
4.
5.
Using a Booster Seat
Protecting Larger Children
Driver and Passenger Safety
35
Main Menu
Table of Contents
If you decide that a child can safely
ride in this vehicle, be sure to:
Carefully read the owner’s manual,
and make sure you understand all
seat belt instructions and all safety
information.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the floor.
Check that the child’s seat belt is
properly and securely positioned.
Supervise the child. Even mature
children sometimes need to be
reminded to fasten the seat belts
or sit properly.
As noted earlier, the National
Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under ride properly
restrained in a back seat.
If the passenger’s front airbag
inflates in a moderate to severe
frontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
Physically, a child must be large
enough for the lap/shoulder belt to
properly fit (see page ). If the seat
belt does not fit properly, with or
without the child sitting on a booster,
the child should not sit in this vehicle.
To safely ride in this vehicle, a child
must be able to follow the rules,
including sitting properly, and
wearing the seat belt properly
throughout ride.
Of course, children vary widely. And
while age may be one indicator of
when a child can safely ride in front,
there are other important factors you
should consider.
34
When Can a Larger Child Ride in
This Vehicle
Physical Size
Maturity
Protecting Larger Children
36
Main Menu
Table of Contents
This could result in
serious neck injuries during a crash.
This could cause
very serious injuries during a crash.
It also increases the chance that the
child will slide under the belt in a
crash and be injured.
If they do, they could
be very seriously injured in a crash.
Devices intended to improve a
child’s comfort or reposition the
shoulder part of a seat belt can make
the belt less effective and increase
the chance of serious injury in a
crash.
Additional Safety Precautions
Do not let a child wear a seat belt
across the neck.
Do not let a child put the shoulder
part of a seat belt behind the back or
under the arm.
Two children should never use the
same seat belt.
Do not put any accessories on a seat
belt.
Protecting Larger Children
Driver and Passenger Safety
37
Main Menu
Table of Contents
Your vehicle’s exhaust contains
carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.
With the hatch open, airflow can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
hatch open, open all the windows,

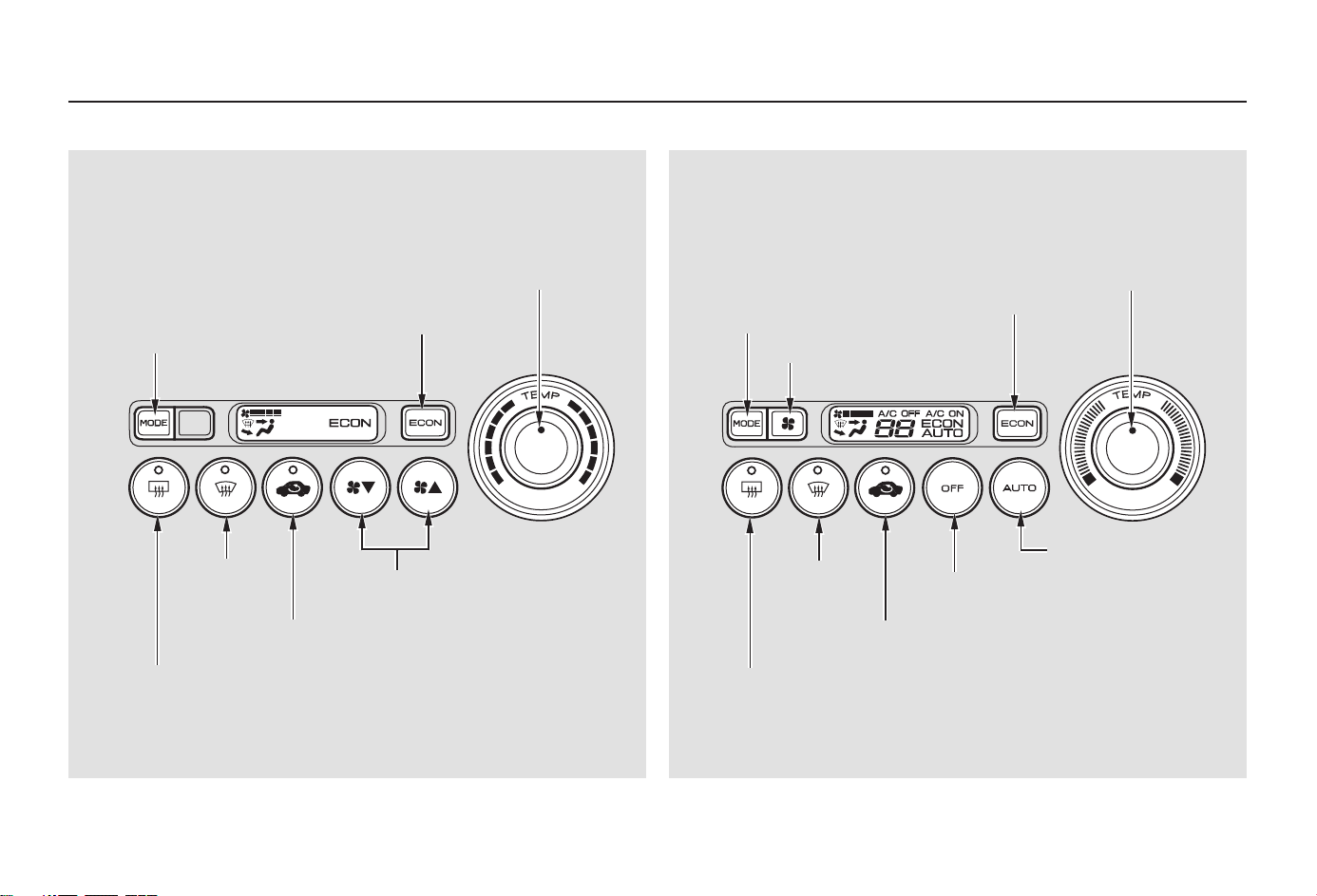

and set the heating/climate control
system as shown below.
If you must sit in your parked vehicle,
even in an unconfined area, with the
engine running, adjust the heating/
climate control system as follows:
Select the fresh air mode.
Select the mode.
Turn the fan on high speed.
Set the temperature control to a
comfortable setting.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
The vehicle is raised for an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside.
Have the exhaust system inspected
for leaks whenever:
1.
2.
3.
4.
Carbon Monoxide Hazard
38
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
Main Menu
Table of Contents

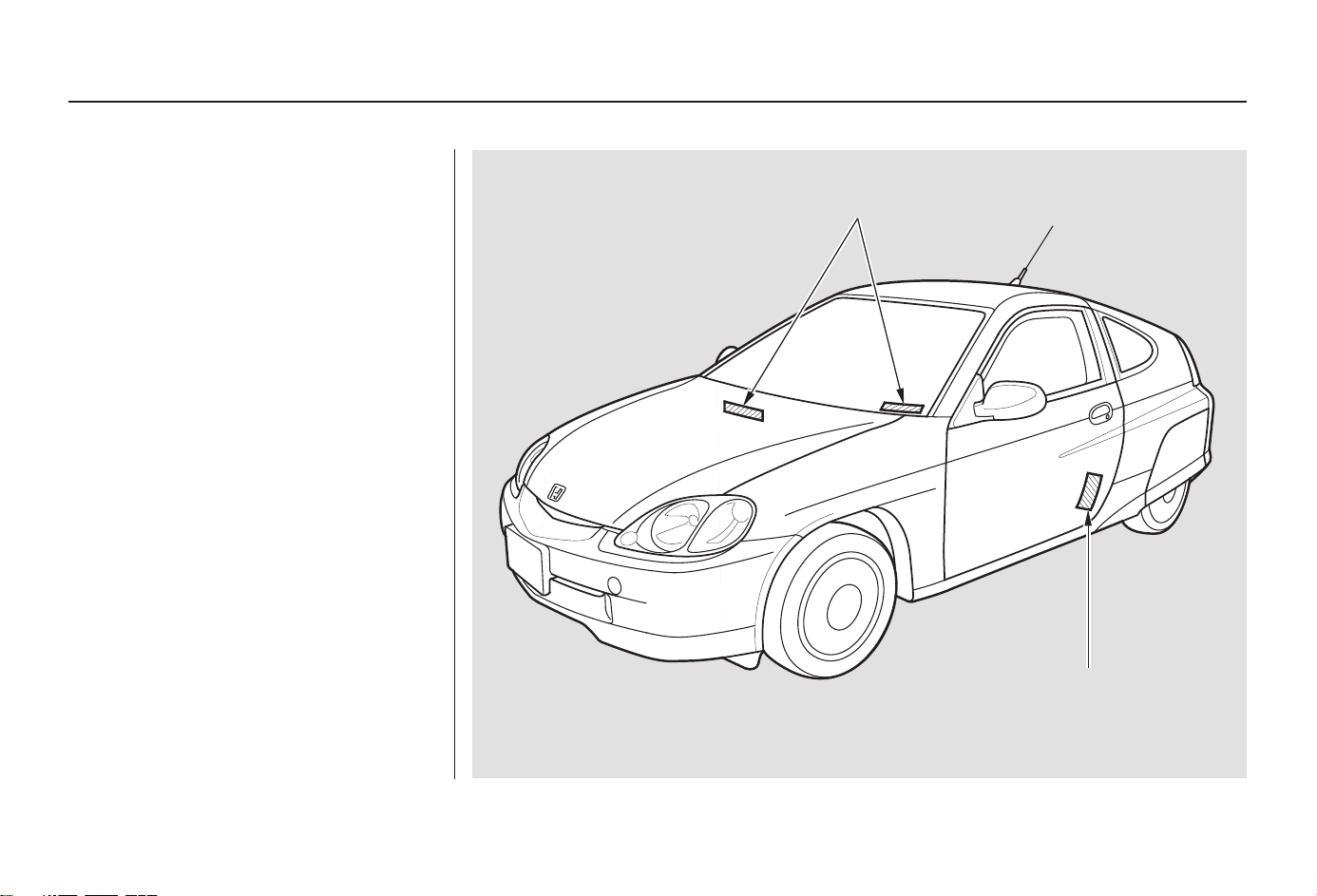

These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury. Read these labels carefully.
If a label comes off or becomes hard
to read (except for the U.S.
dashboard label which may be
removed by the owner), contact your
dealer for a replacement.
U.S. models Canadian models
U.S. models only
Safety Labels
Driver and Passenger Safety
39
BATTERY
SUN VISOR
HOOD
RADIATOR CAP
DASHBOARD
Main Menu
Table of Contents
40
Main Menu
This section gives information about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach.
...........................Control Locations . 42
............................Instrument Panel . 43
..........Instrument Panel Indicators . 44
.............................................Gauges . 48
..................................Fuel Gauge . 49
...................Temperature Gauge . 49
.....................................Odometer . 49
..............Display Change Button . 49
.................Current Fuel Mileage . 50

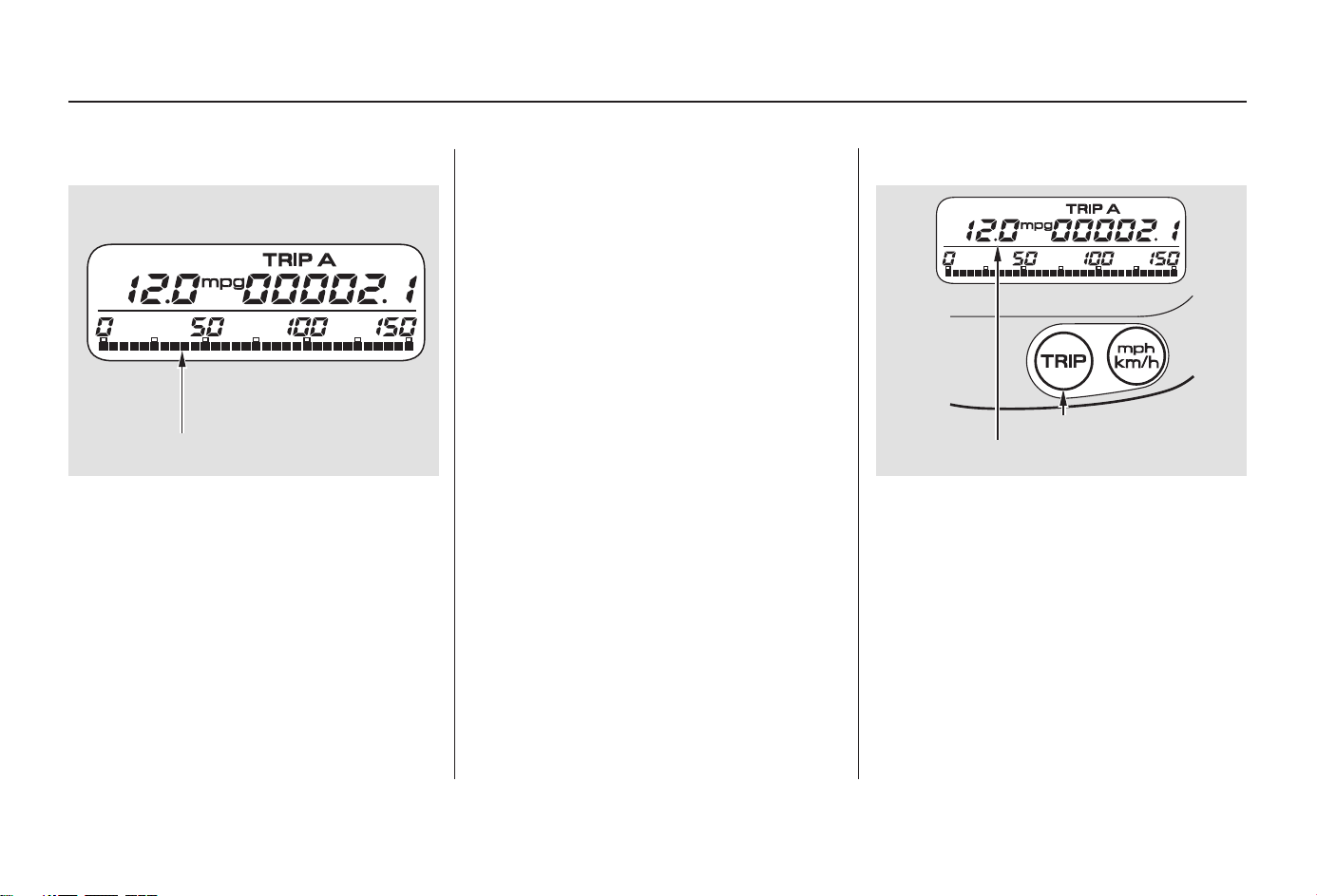

.................................Trip Meters . 50
................................Trip Mileage . 50
Segment Distance and Fuel
....................................Mileage . 51
................Lifetime Fuel Mileage . 51
Turning Off the Mileage
....................................Displays . 52
..................Battery Level Gauge . 53
................Charge/Assist Gauge . 53
Controls Near the Steering
...........................................Wheel . 54

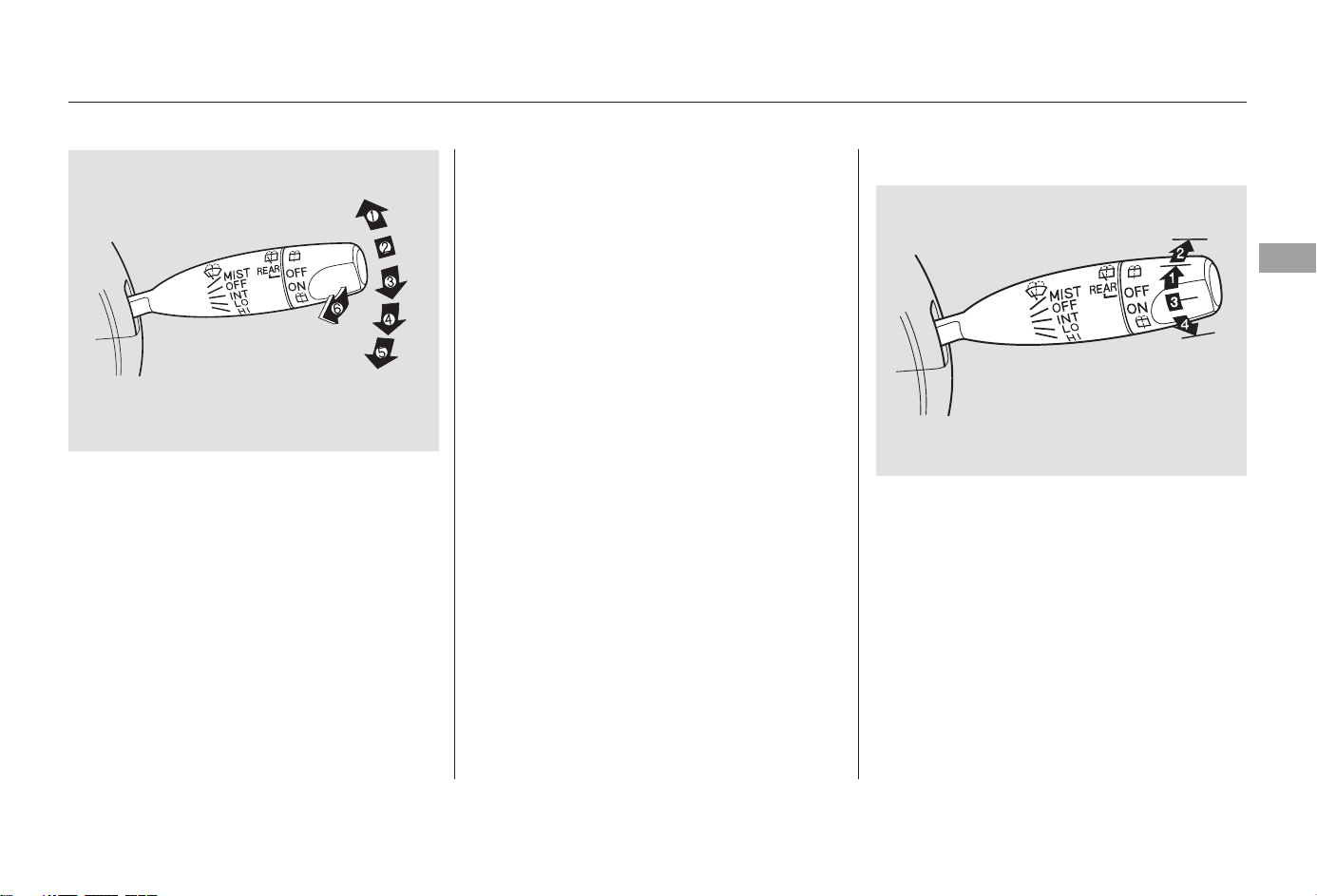

.Windshield Wipers and Washers . 55
...........Turn Signal and Headlights . 56
........Instrument Panel Brightness . 57

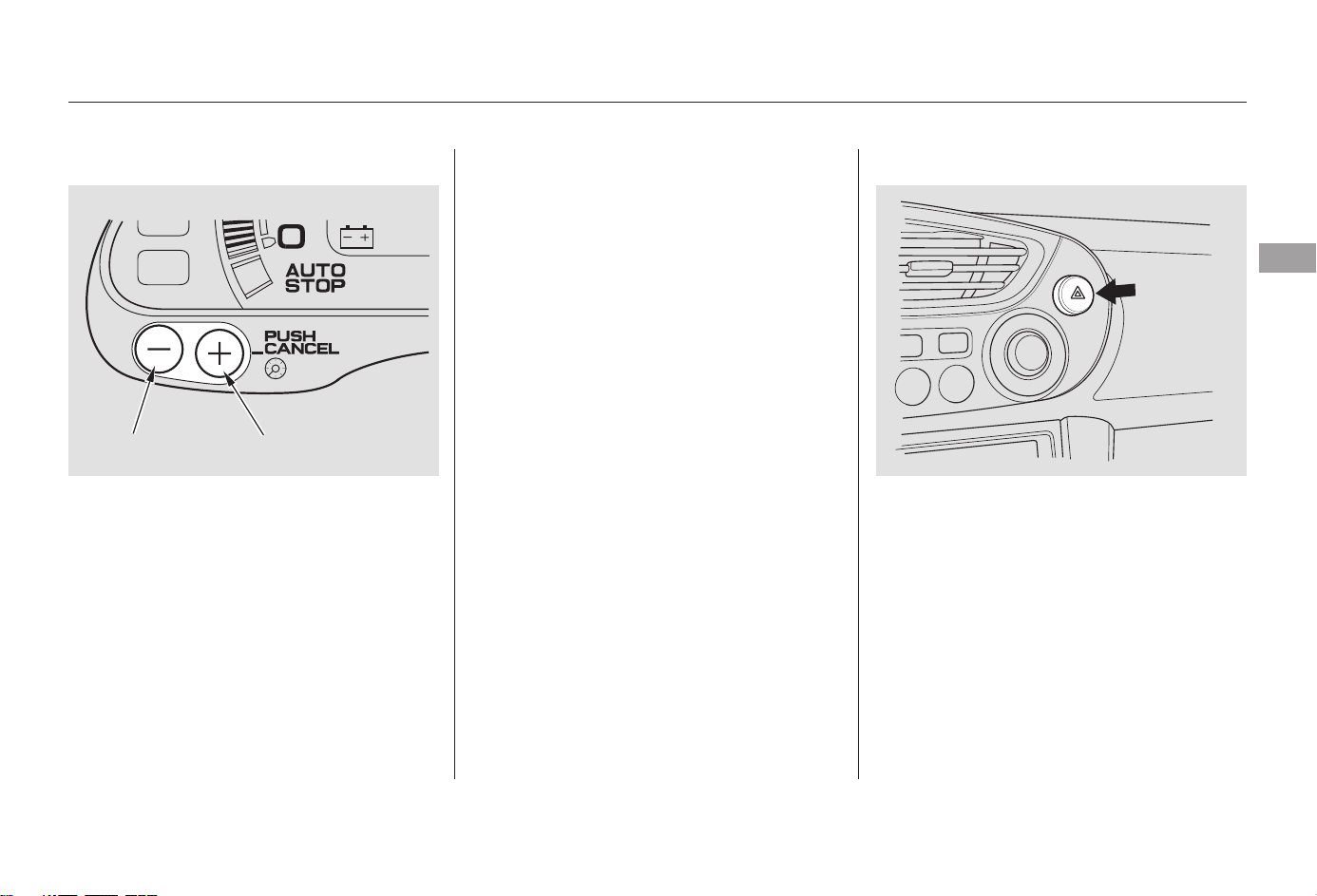

.................Hazard Warning Button . 57
.................Rear Window Defogger . 58
...............................Keys and Locks . 59
........................Immobilizer System . 60
................................Ignition Switch . 61
......................................Door Locks . 62

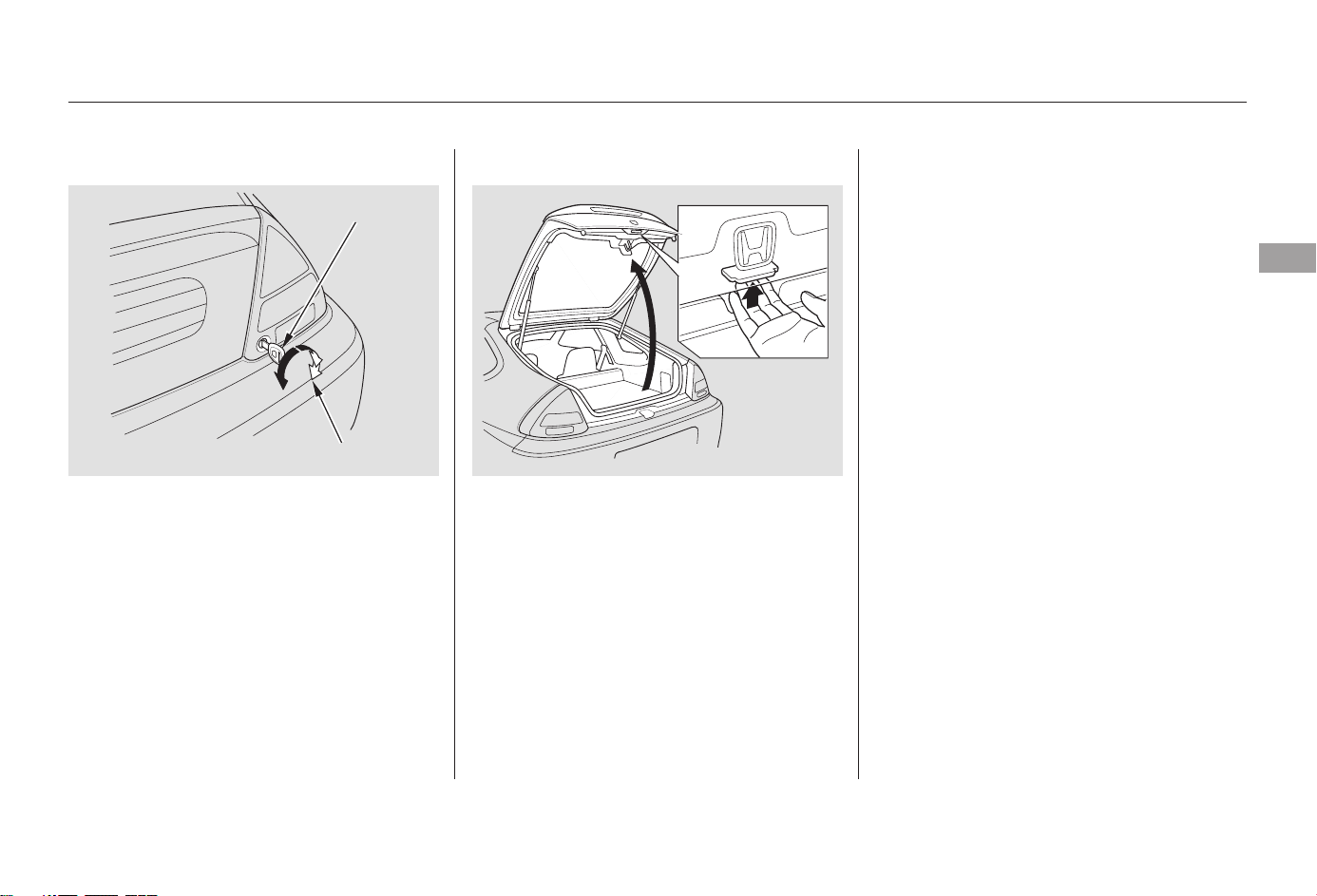

................................................Hatch . 63
.......................Remote Transmitter . 64
.................................................Seats . 66
..............................Power Windows . 67
.............................................Mirrors . 68
.................................Parking Brake . 69
...........Interior Convenience Items . 70

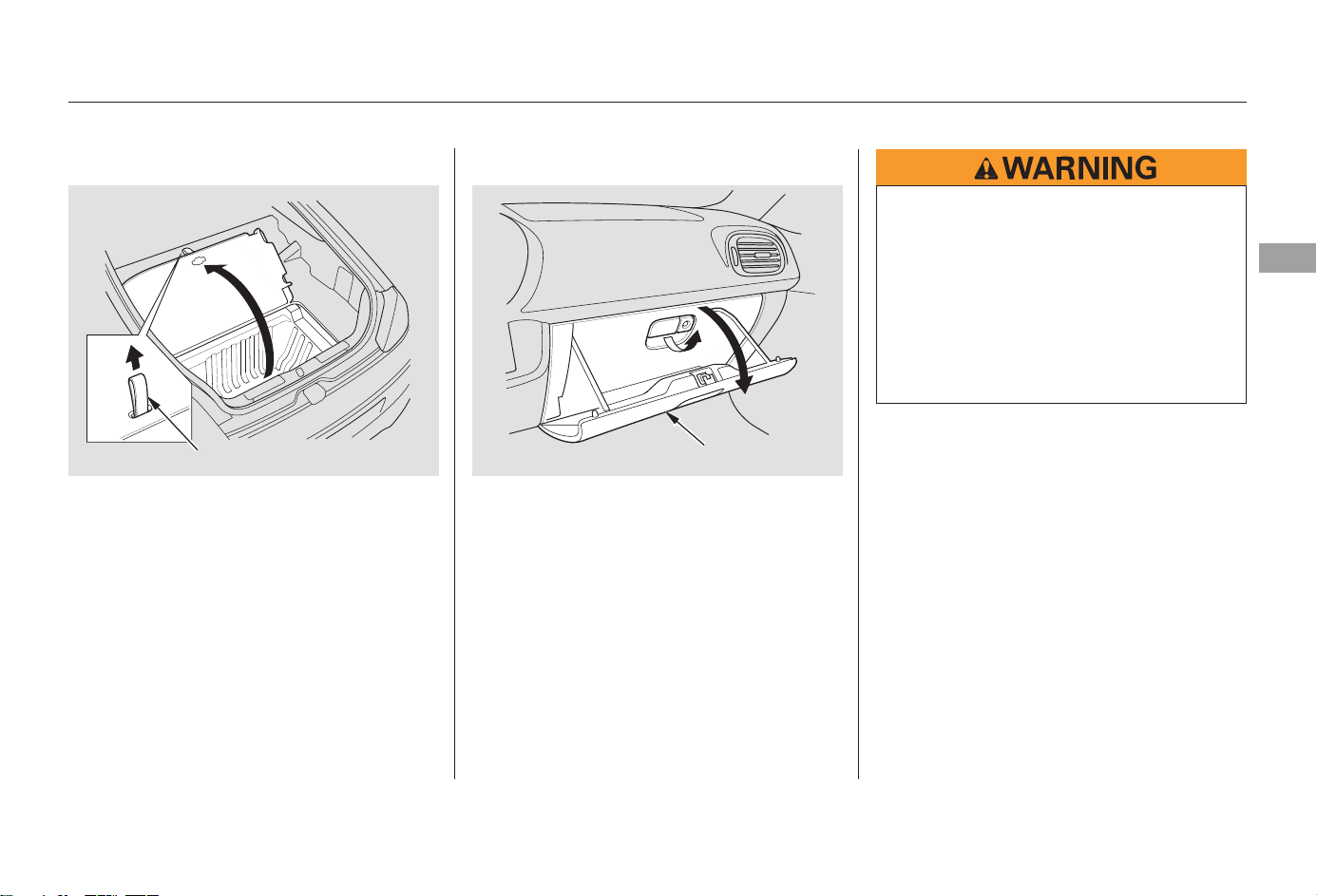

.................................Storage Box . 71
.........................Beverage Holder . 71
....................................Glove Box . 71
...........Accessory Power Socket . 71

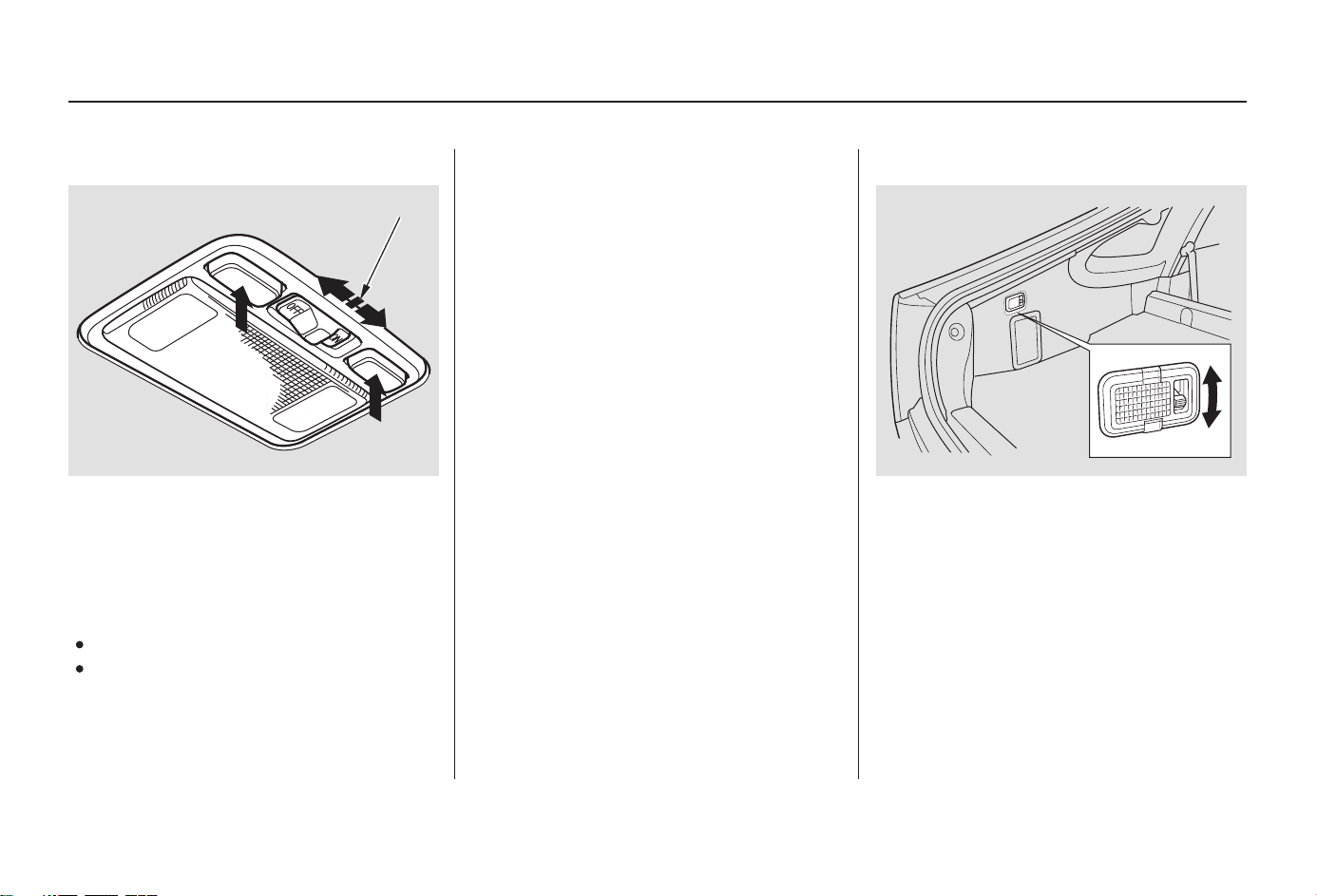

.................................Interior Lights . 72
Instruments and Controls
Instruments and Controls
41
Main Menu
＊
＊
＊

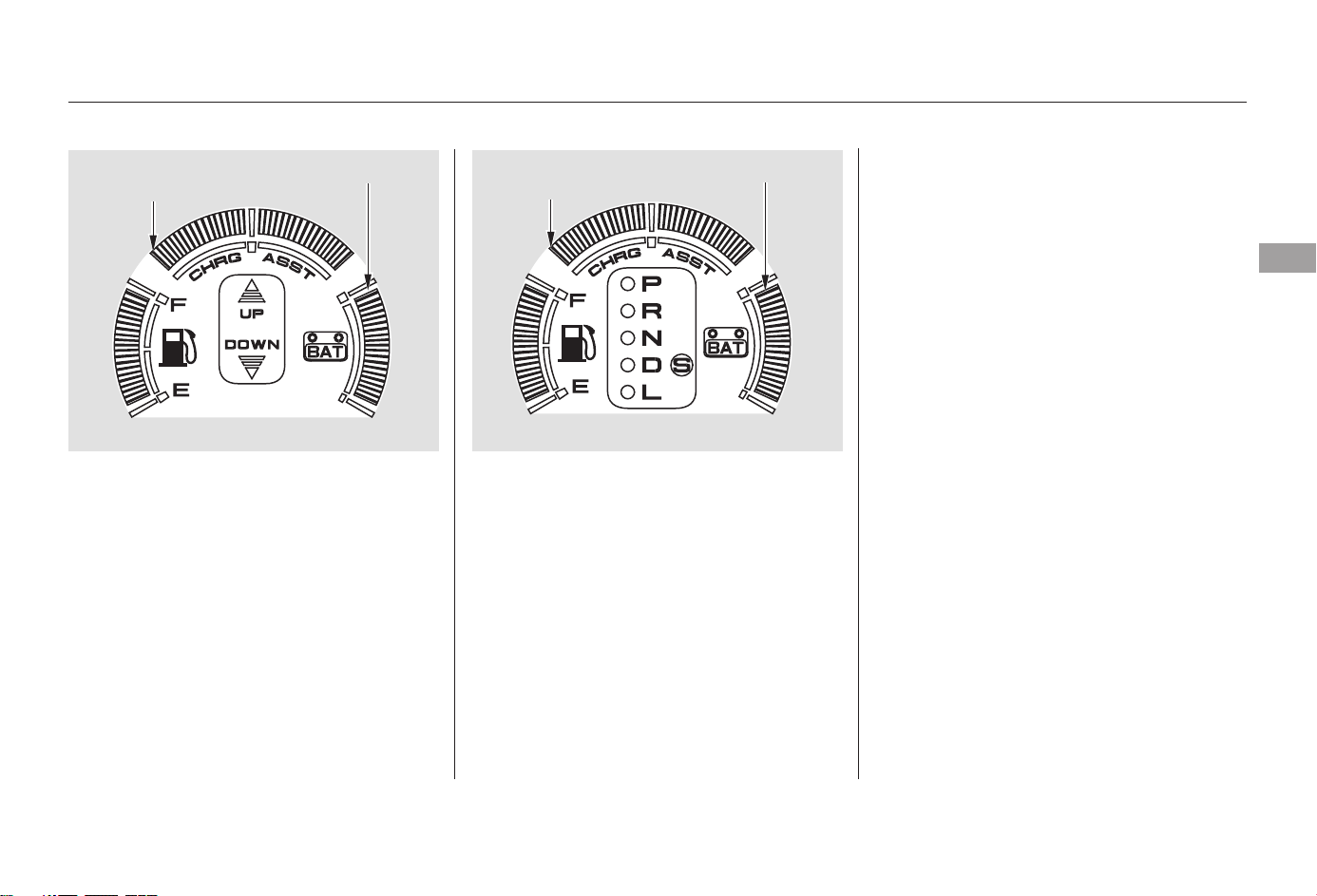

＊ Shift Lever Position Indicators on CVT model (P. )
The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.1:
2 : 113

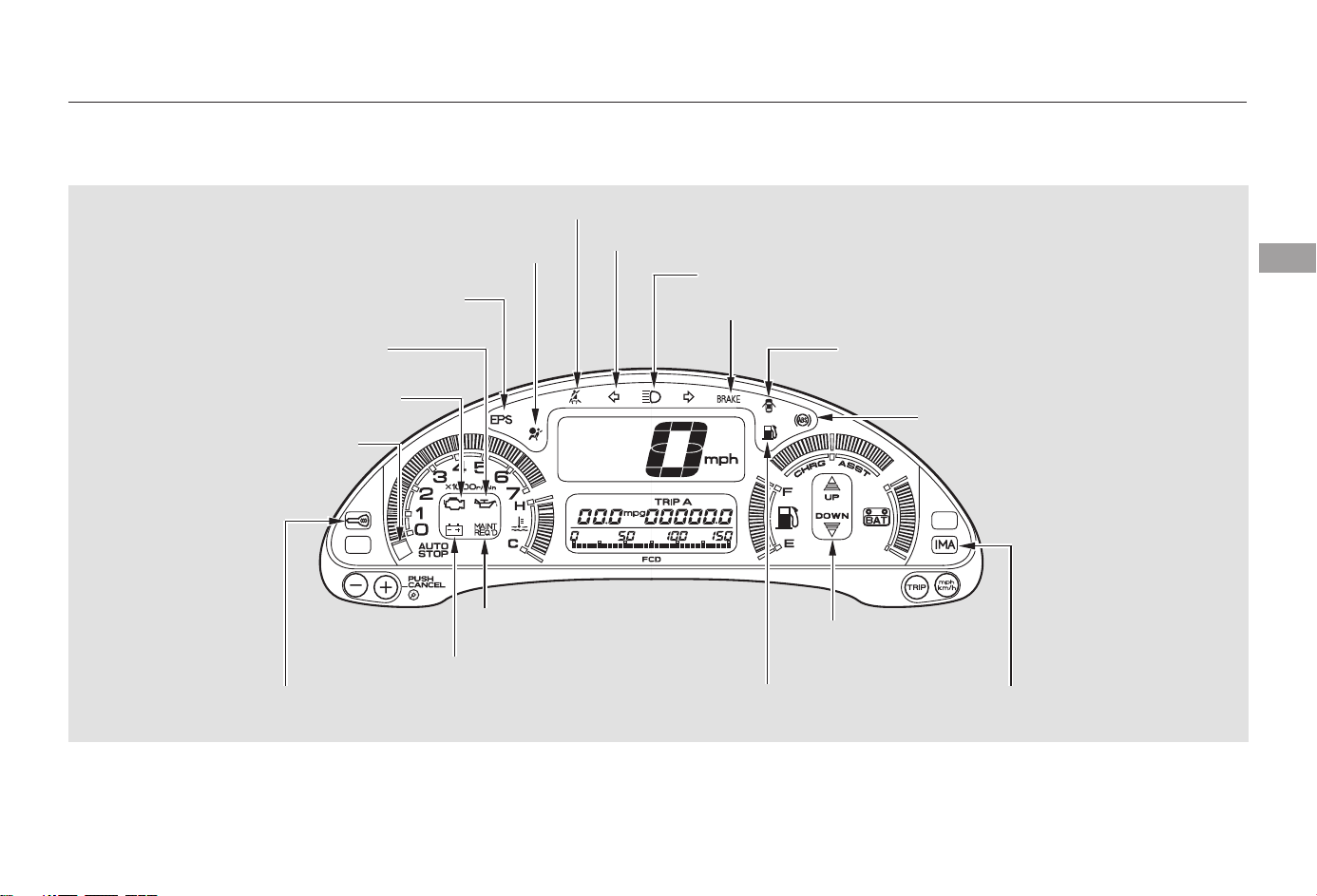

Instrument Panel
Manual Transmission shown
Instruments and Controls
43
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
ELECTRIC POWER STEERING INDICATOR
LOW OIL PRESSURE INDICATOR
MALFUNCTION INDICATOR LAMP

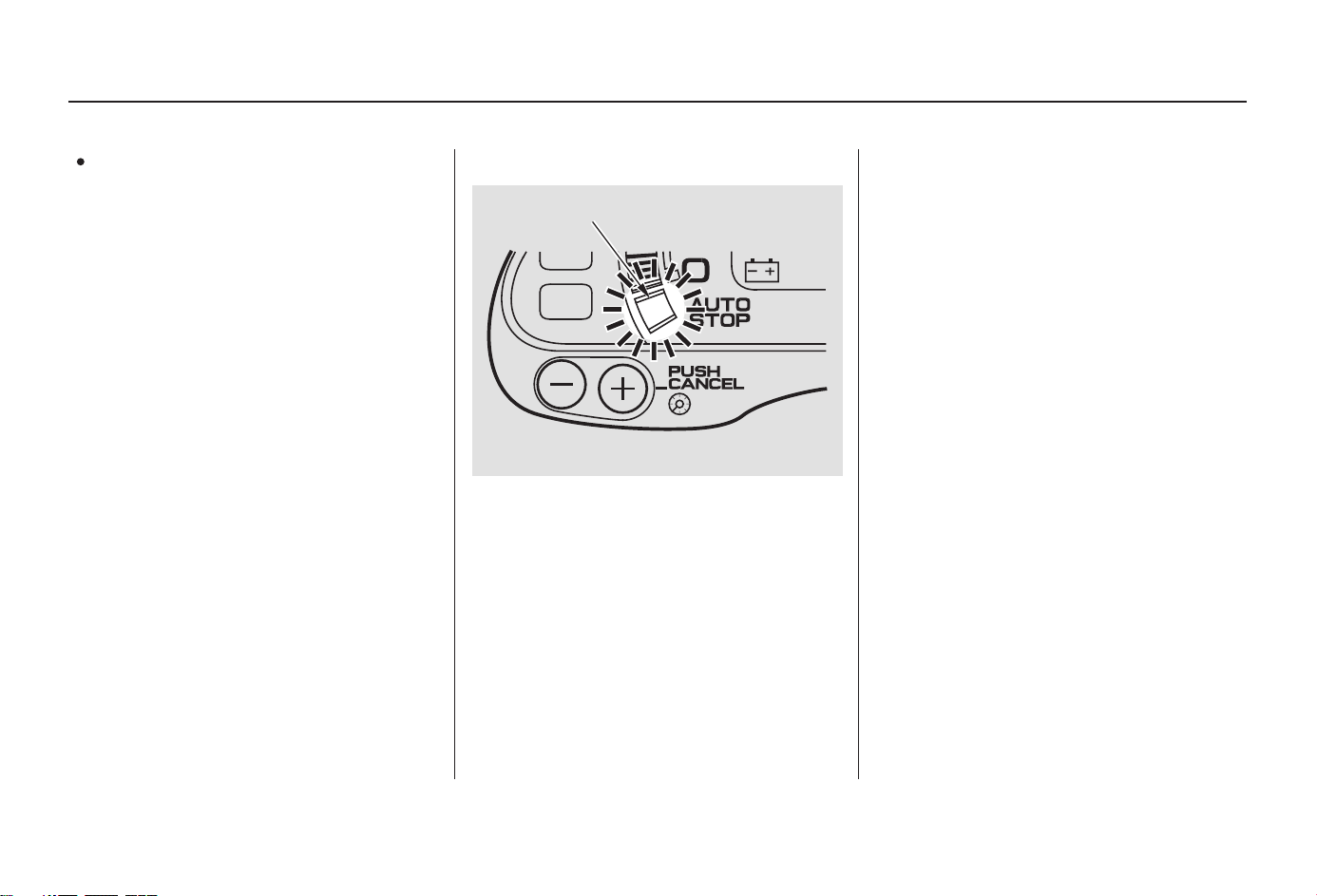

AUTO IDLE STOP INDICATOR
IMMOBILIZER SYSTEM INDICATOR
CHARGING SYSTEM INDICATOR
MAINTENANCE
REQUIRED INDICATOR
LOW FUEL INDICATOR
IMA SYSTEM INDICATOR
HIGH BEAM INDICATOR
TURN SIGNAL AND HAZARD WARNING INDICATORS
DOOR AND HATCH OPEN INDICATOR
SEAT BELT REMINDER INDICATOR
PARKING BRAKE AND BRAKE SYSTEM INDICATOR
ANTI-LOCK BRAKE SYSTEM (ABS)
INDICATOR
SHIFT UP/SHIFT DOWN
INDICATORS
(P. 46)
(P. 112, 119)
(P. 180)
(P. 44, 179)
(P. 46)
(P. 44)
(P. 44)
(P. 45)
(P. 46)
(P. 45)
(P. 46)
(P. 45)
(P. 111)
(P. 44)(P. 46)
(P. 44, 180)
(P. 47)
1
2
Main Menu
Table of Contents
The instrument panel has many
indicators to give you important
information about your vehicle. The engine can be severely damaged
if this indicator flashes or stays on
when the engine is running. For
more information, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more information,
see page .
This indicator normally comes on for
a few seconds when you turn the
ignition switch to ON (II). If it comes
on at any other time, it indicates a
problem in the Integrated Motor
Assist (IMA) system. Have the
vehicle checked by the dealer as
soon as possible.
(Manual Transmission)
See pages and .
See page .
(Automatic Transmission)
See page .
This indicator comes on when you
turn the ignition switch to ON (II). It
reminds you and your passenger to
fasten your seat belts. A beeper also
sounds if you have not fastened your
seat belt.
If you continue driving without
fastening your seat belt, the beeper
sounds and the indicator flashes
again at regular intervals.
If you turn the ignition switch to ON
(II) before fastening your seat belt,
the beeper sounds and the indicator
flashes. If you do not fasten your
seat belt before the beeper stops, the
indicator stops flashing but remains
on.
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates a potential problem with
your front airbags or automatic seat
belt tensioners. For more
information, see page .
179
180
111
113
112 119
23
Instrument Panel Indicators
Seat Belt Reminder
Indicator
Supplemental Restraint
System Indicator
Low Oil Pressure
Indicator
Charging System
Indicator
IMA System Indicator

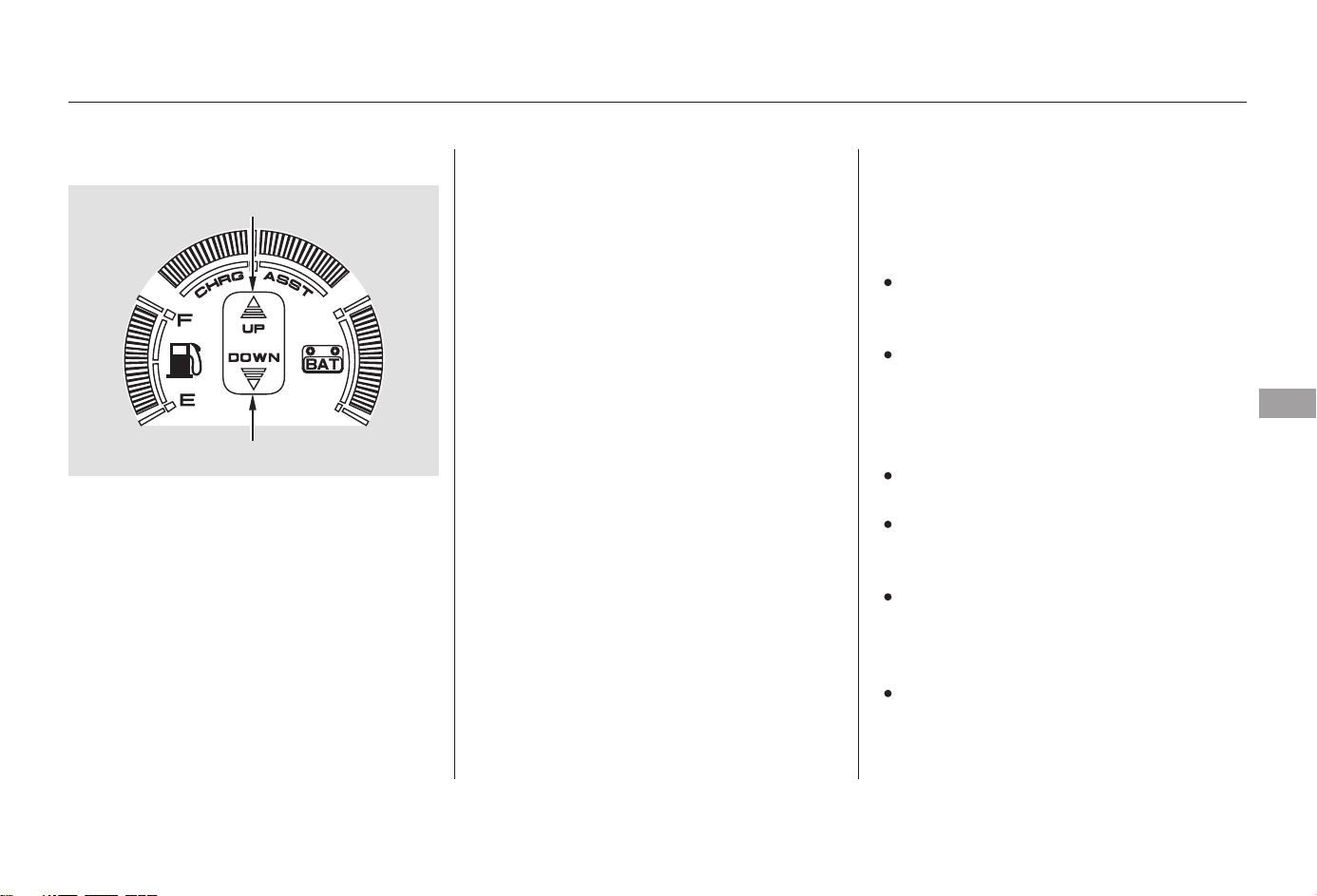

Shift Up/Shift Down Indicators
Auto Idle Stop Indicator

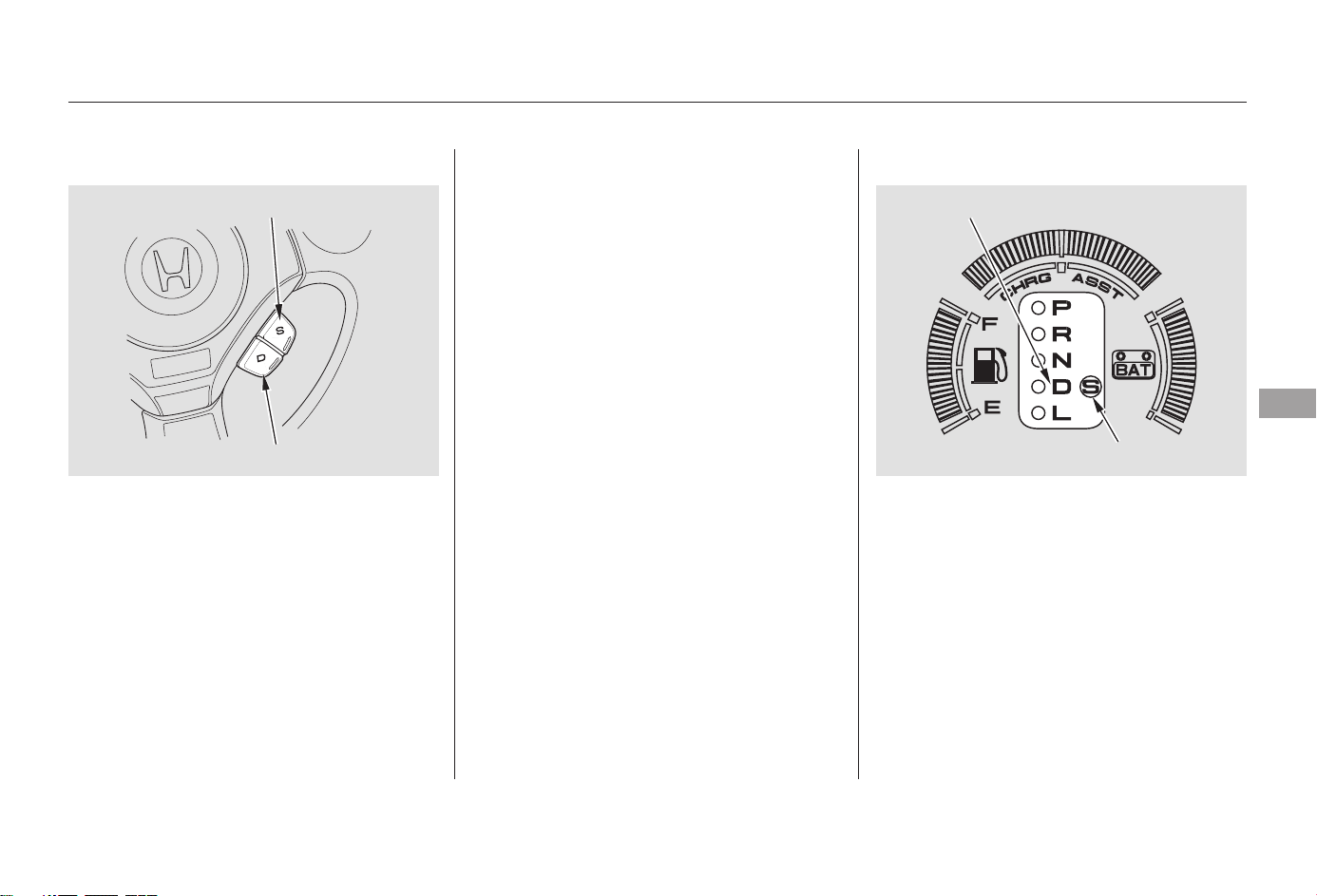

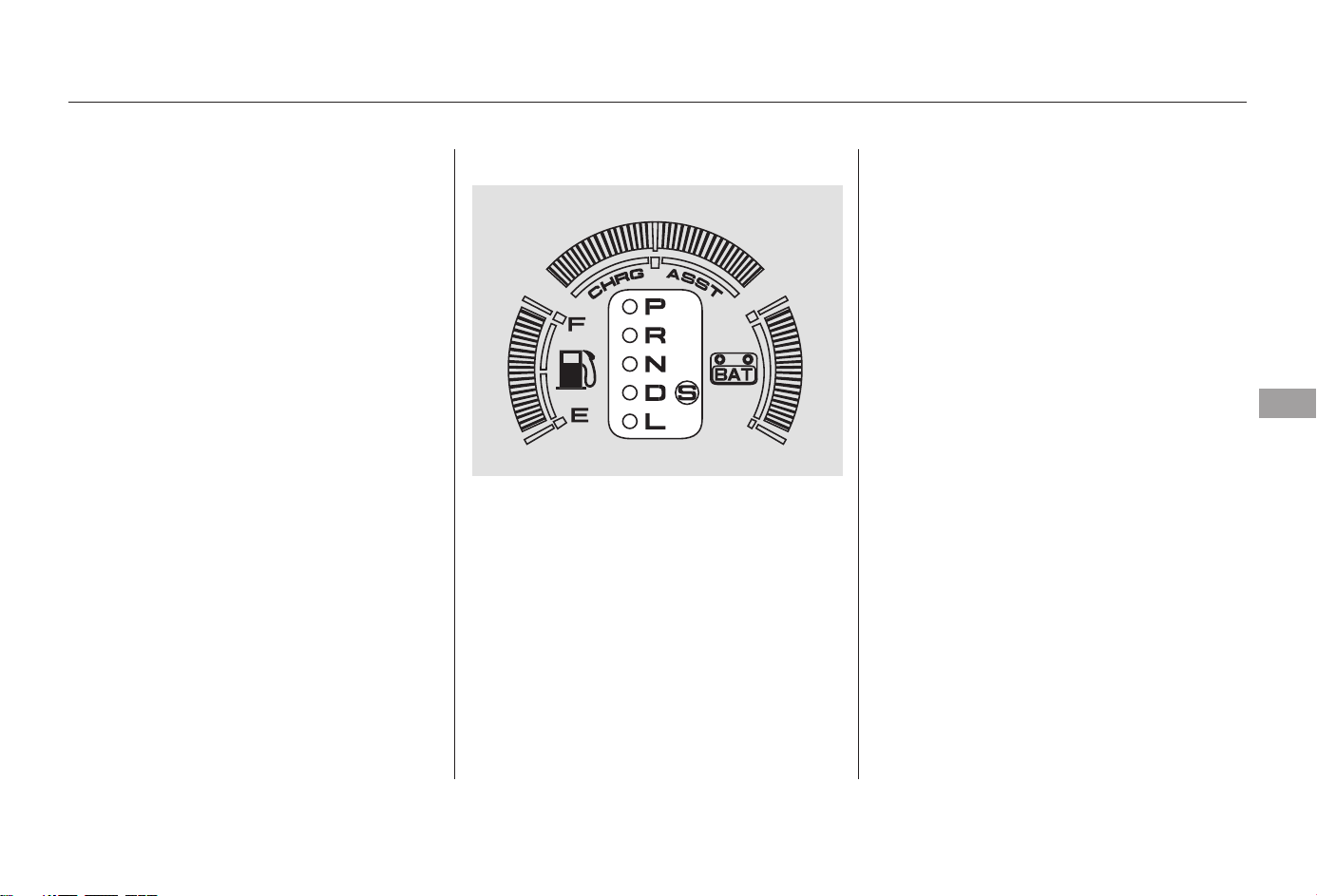

Shift Lever Position Indicators
44
Main Menu
Table of Contents
This indicator has two functions:
If it remains lit after you fully
release the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more information, see
page .
See page .
Itcomesonwhenyouturnthe
ignition switch to ON (II). It is a

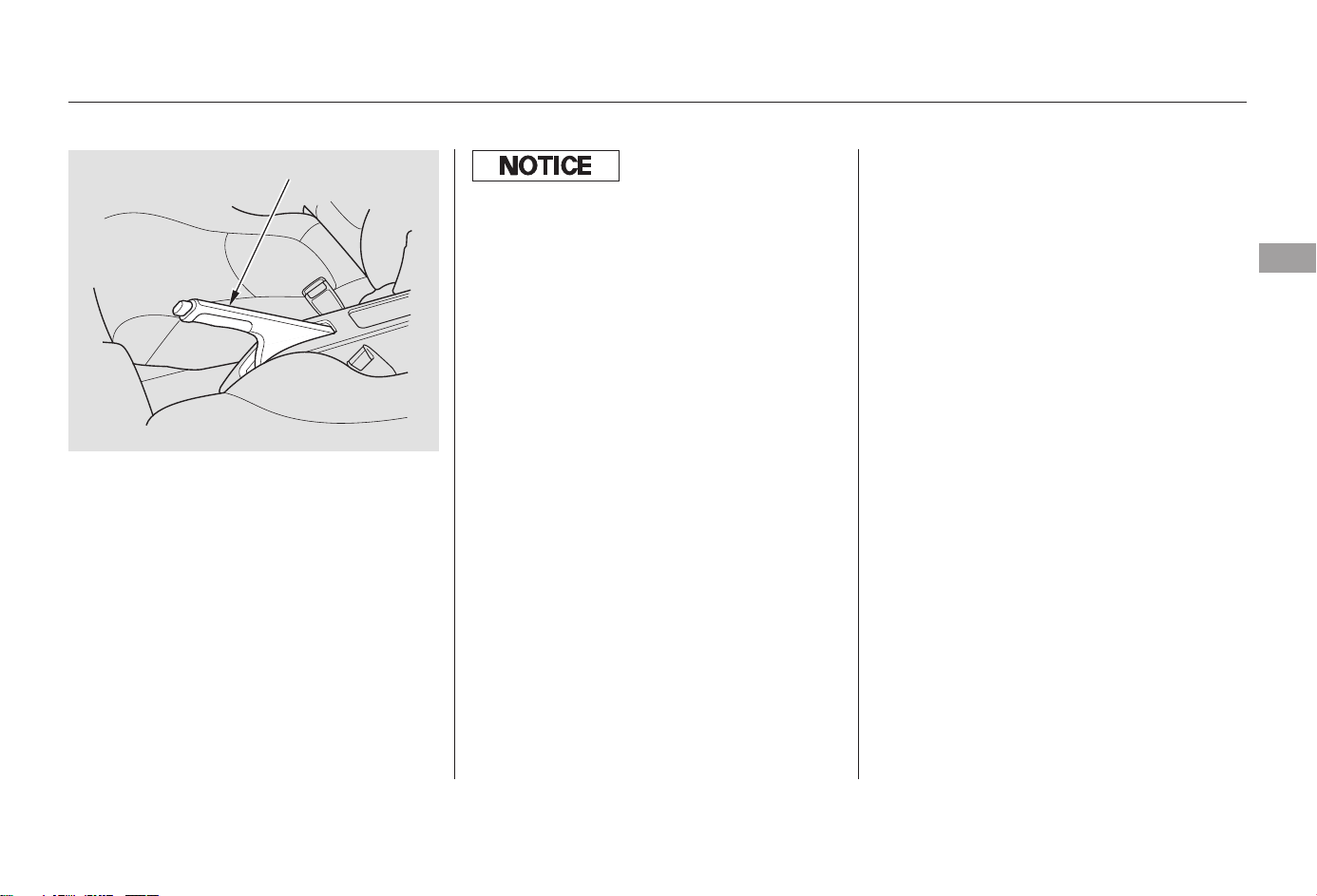

reminder to check the parking
brake. Driving with the parking
brake not fully released can
damage the brakes and tires.
The left or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicator does not
blink or blinks rapidly, it usually
means one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signal indicators
blink. All turn signals on the outside
of the vehicle should flash.
This indicator normally comes on for
a few seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem with
theABS.Ifthishappens,haveyour
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock function. For more
information, see page .
2.
1.
182
180
148 122
Instrument Panel Indicators
Parking Brake and Brake System
Indicator
Malfunction Indicator
Lamp
Turn Signal and Hazard Warning
Indicators
Anti-lock Brake System
(ABS) Indicator
Instruments and Controls
45
U.S. Canada
Main Menu
Table of Contents
This indicator also blinks several
times when you turn the ignition
switch from ON (II) to ACCESSORY
(I) or LOCK (0).
This indicator comes on if either
door or the hatch is not closed
tightly.
This indicator comes on as a
reminder that you must refuel soon.
This indicator normally comes on
when you turn the ignition switch to
ON (II) and goes off after the engine
starts. If it comes on at any other
time, there is a problem in the
electric power steering system. If
this happens, stop the vehicle in a
safe place, and turn off the engine.
Reset the system by restarting the
engine, and watch the EPS indicator.
If it does not go off, or comes back
on again while driving, take the
vehicle to your dealer to have it
checked. With the indicator on, the
EPSisturnedoff,makingthevehicle
harder to steer.
This indicator comes on with the
high beam headlights. For more
information, see page .
This indicator comes on for a few
seconds when you turn the ignition
switch to ON (II). It will then go off
if you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink,
and the engine will not start (see
page ).
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go off if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
56
6056
Canadian models only
Instrument Panel Indicators
High Beam Indicator Immobilizer System
Indicator
Door and Hatch Open
Indicator
Low Fuel Indicator
Electric Power Steering
(EPS) Indicator
‘‘Daytime Running
Lights’’ Indicator
46
Main Menu
Table of Contents
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
Refer to the maintenance schedule
for normal and severe driving
conditions on pages and .
When the distance driven since the
last scheduled maintenance reaches
6,000 miles (9,600 km), the indicator
starts blinking. If you exceed 7,500
miles (12,000 km), the indicator
stays on.

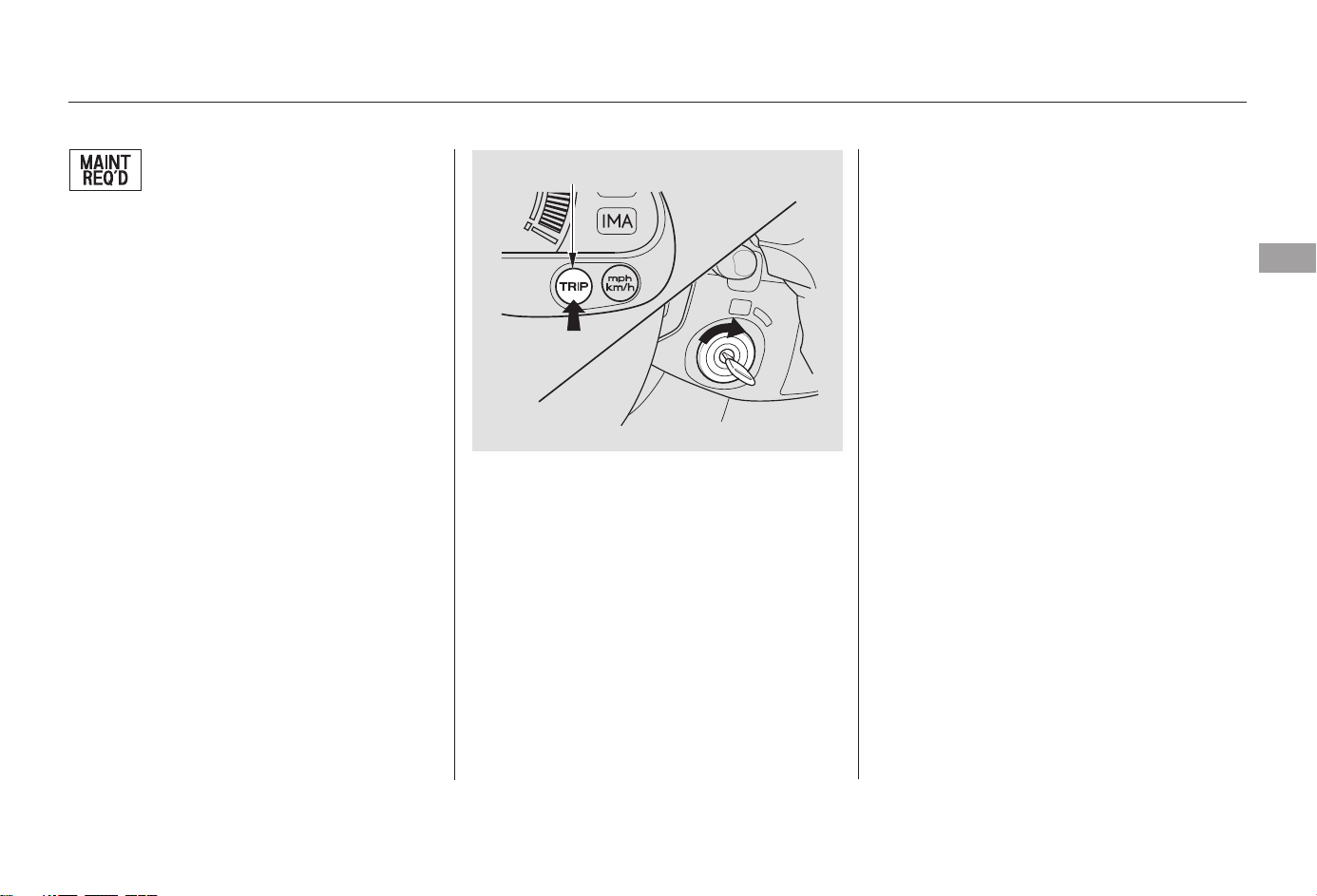

Your dealer will reset this indicator
after completing the scheduled
maintenance. If this maintenance is
done by someone other than your
dealer, reset the indicator as follows.
Turn off the engine.
Press and hold the TRIP button in
the instrument panel, then turn
the ignition switch to ON (II).
Hold the button for about 10
seconds until the indicator goes
off.
1.
2.
3.
129 130
Instrument Panel Indicators
Maintenance Required
Indicator
Instruments and Controls
47
TRIP BUTTON
Main Menu
Table of Contents

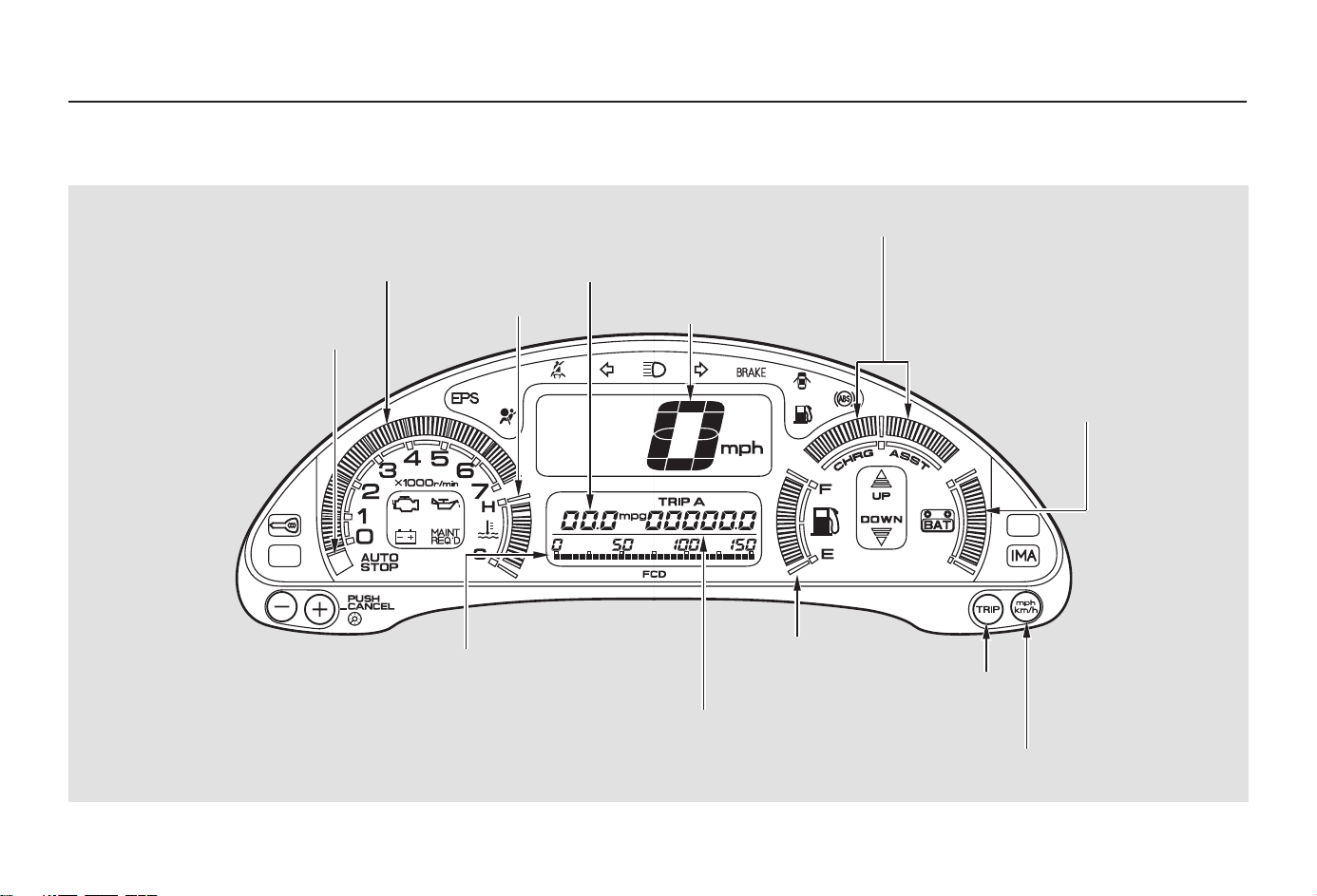

Gauges
Manual Transmission shown
48
CURRENT FUEL MILEAGE DISPLAY
DISPLAY CHANGE BUTTON
TRIP BUTTON
IMA CHARGE/ASSIST GAUGE
FUEL MILEAGE DISPLAY
AUTO IDLE STOP INDICATOR
BATTERY LEVEL
GAUGE
TEMPERATURE
GAUGE
SPEEDOMETER
TRIP METER/ODOMETER
FUEL GAUGE
TACHOMETER
Main Menu
Table of Contents
This shows how much fuel you have.
It may show slightly more or less
than the actual amount.
This shows the temperature of the
engine’s coolant. During normal
operation, the reading should be in
the middle of the gauge. In severe
driving conditions, the reading may
reach near the red mark. If it
reaches the red mark, pull safely to
thesideoftheroad.Turntopage
for instructions and precautions
on checking the engine’s cooling
system.
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
Push the Display Change button to
switch the speedometer, trip meter,
and odometer reading between miles
per hour and kilometers per hour.
177
Gauges
Fuel Gauge Temperature Gauge Odometer
Display Change Button
Instruments and Controls
49
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
Main Menu
Table of Contents
This display shows the current, or
instantaneous fuel mileage you are
getting. (U.S.: miles per hour and
mpg, Canada: kilometer per hour
and l/100 km)
You can turn off this display at any
time. See page .
The trip meters show the number of
miles or kilometers driven since you
last reset them.
There are two trip meters: Trip A
and Trip B. Each trip meter works
independently, so you can keep track
of two different distances. To change
the display to show Trip A, Trip B, or
the odometer, press the Trip button
repeatedly.
To reset a trip meter, display it, then
press and hold the Trip button until
the numbers reset to 0.0.
When you reset a trip meter, the
average fuel mileage for that trip
meter also resets.
When a trip meter is displayed, the
average fuel mileage you have been
getting during that trip is shown in
the Fuel Mileage display. This
number is updated once per minute.
This display can be turned off at any
time. See page .
52
52
Gauges
Current Fuel Mileage Trip Meters Trip Mileage
50
CURRENT FUEL MILEAGE
TRIP MILEAGE (TRIP A)
TRIP BUTTON
Main Menu
Table of Contents

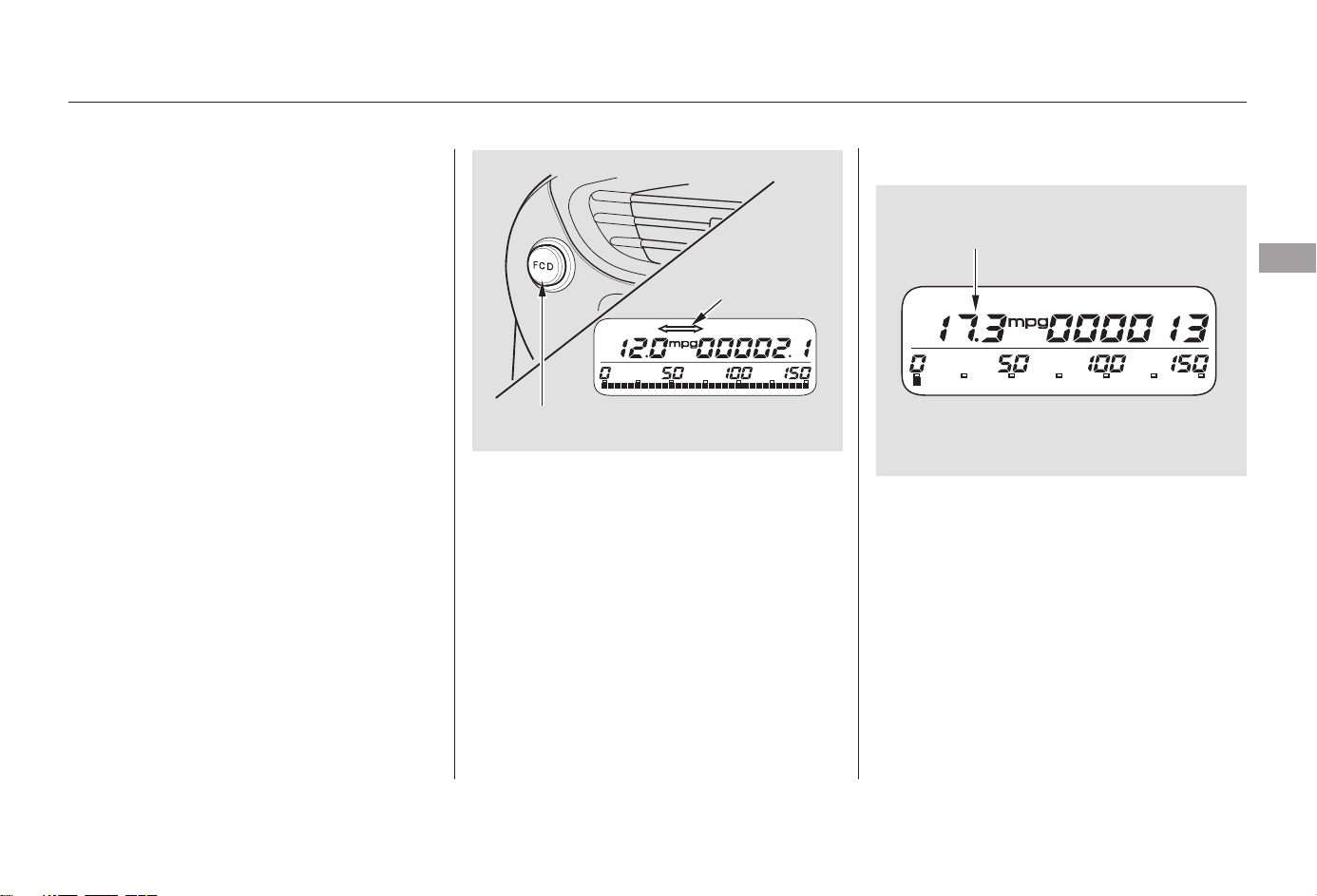

Press the FCD select button to
display the distance and average fuel
mileage for a segment of a trip. The
Segment Display indicator will come
on to remind you that this is the
segment distance and fuel mileage
display.
To reset the display, press and hold
the FCD Select button until the
display resets to zero and dashes.
The system then begins displaying
the distance and average fuel
mileage from that point. The display
is updated once per minute.
To switch between the segment
display and the Trip Meter/
Odometer display, press and release
the FCD Select button.
When the odometer is displayed, the
Fuel Mileage display shows the
lifetime fuel mileage. This is the
average fuel mileage your vehicle
has gotten since the last time the
display was reset.
CONTINUED
Gauges
Segment Distance and Fuel
Mileage
Lifetime Fuel Mileage
Instruments and Controls
51
LIFETIME FUEL MILEAGE
FUEL CONSUMPTION DISPLAY (FCD)
SELECT BUTTON
SEGMENT
DISPLAY
INDICATOR
Main Menu
Table of Contents
To reset this display, turn the
ignition switch to ON (II), the
transmission is in neutral or Park
(CVT),andtheparkingbrakeisset.
Use the Trip button to display the
odometer. Then press and hold the
Trip button until the Lifetime Fuel
Mileage Display begins to blink
(approximately five seconds).
Release the Trip button, then press it
again while the display is blinking
andholdituntilthedisplayclearsto
dashes.
You can temporarily turn off the
Current Fuel Mileage and Fuel
Mileage displays.
To turn them off:
Turn the ignition switch to ON (II),
the transmission is in neutral or
Park (CVT), and the parking
brake is set.
Use the Trip button to select Trip
A, Trip B, or the odometer.
Press and hold the FCD Select
button for approximately three
seconds. The Current Fuel
Mileage display will turn off.
Press and hold the FCD Select
button again. The Fuel Mileage
display for the meter you are
displaying (Trip A, Trip B, or
odometer) will turn off.
Use the Trip button to select
another mileage display.
To turn off the other trip meters,
select the meter with the Trip
button, and hold the FCD select
button.
Although the displays are turned off,
the average fuel mileages continue
to be calculated. The displays will
turn back on when you press and
hold the FCD Select button again.
1.
3.
4.
2.
5.
6.
Gauges
Turning Off the Mileage Displays
52
Main Menu
Table of Contents
This gauge shows you the state of
charge of the battery for the
Integrated Motor Assist (IMA). This
battery is recharged by the engine,
anddischargedbytheIMAwhenit
is assisting the engine with powering
the vehicle.
The gauge reading may drop near
the bottom under driving conditions
that require assist for a long time,
such as prolonged acceleration or
climbing a long hill. The engine will
recharge the battery as you continue
driving.
If the battery is mostly discharged,
the Auto Idle Stop function is
disabled (see pages and ).
This gauge shows the status of the
Integrated Motor Assist (IMA). If
the indicator is on the left side of the
gauge, the IMA battery is being
charged. If the indicator is on the
right side of the gauge, the IMA is
assisting the engine.
111 118
Gauges
Battery Level Gauge
Charge/Assist Gauge
Instruments and Controls
53
BATTERY LEVEL
GAUGE
IMA CHARGE/
ASSIST GAUGE
BATTERY LEVEL
GAUGE
IMA CHARGE/
ASSIST GAUGE
With 5-speed
With CVT (U.S. only)
Main Menu
Table of Contents
＊
＊
To use the horn, press the pad around the ‘‘H’’ logo.:

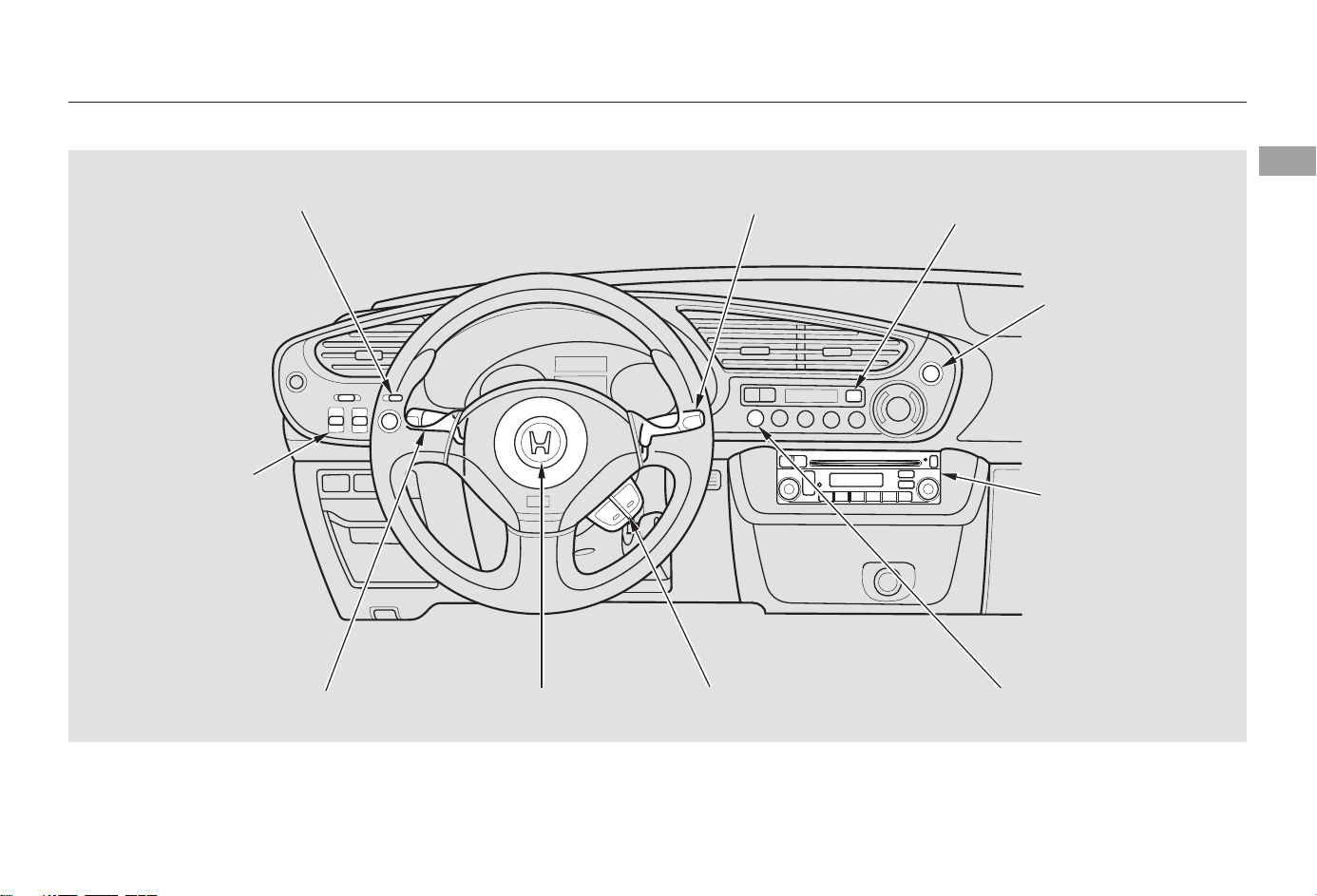

Controls Near the Steering Wheel
54
WINDSHIELD
WIPERS/WASHERS
HORN
ECON BUTTON
POWER WINDOW SWITCHES
HEADLIGHTS/TURN SIGNALS
DRIVING MODE BUTTONS
(CVT model only)
REAR WINDOW
DEFOGGER
MIRROR CONTROLS
AUDIO SYSTEM
HAZARD WARNING BUTTON
(P. 67) (P. 68)
(P. 55)
(P. 75)
(P. 57)
(P. 80)
(P. 58)
(P. 115)
(P. 56)
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield Washers
Push the right lever up or down to
select a position.
The wipers are not activated.
The wipers run at low speed.
The wipers run at high speed.
The wipers run at high
speed until you release the lever.
The wipers operate every
few seconds. In low speed and high
speed, the wipers run continuously.
Pull the
wiper control lever toward you and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
Rotate the switch clockwise to
turn the rear window wiper ON.
Hold past ON to turn the window
wiper on and the window washer
to spray.
OFF
Rotate the switch
counterclockwise to spray the
window washer without activating
the wiper.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
OFF
Rear Window Wiper and Washer
LO
HI
MIST
INT
Windshield Washer
Windshield Wipers and Washers
Instruments and Controls
55
Main Menu
Table of Contents
−−
−

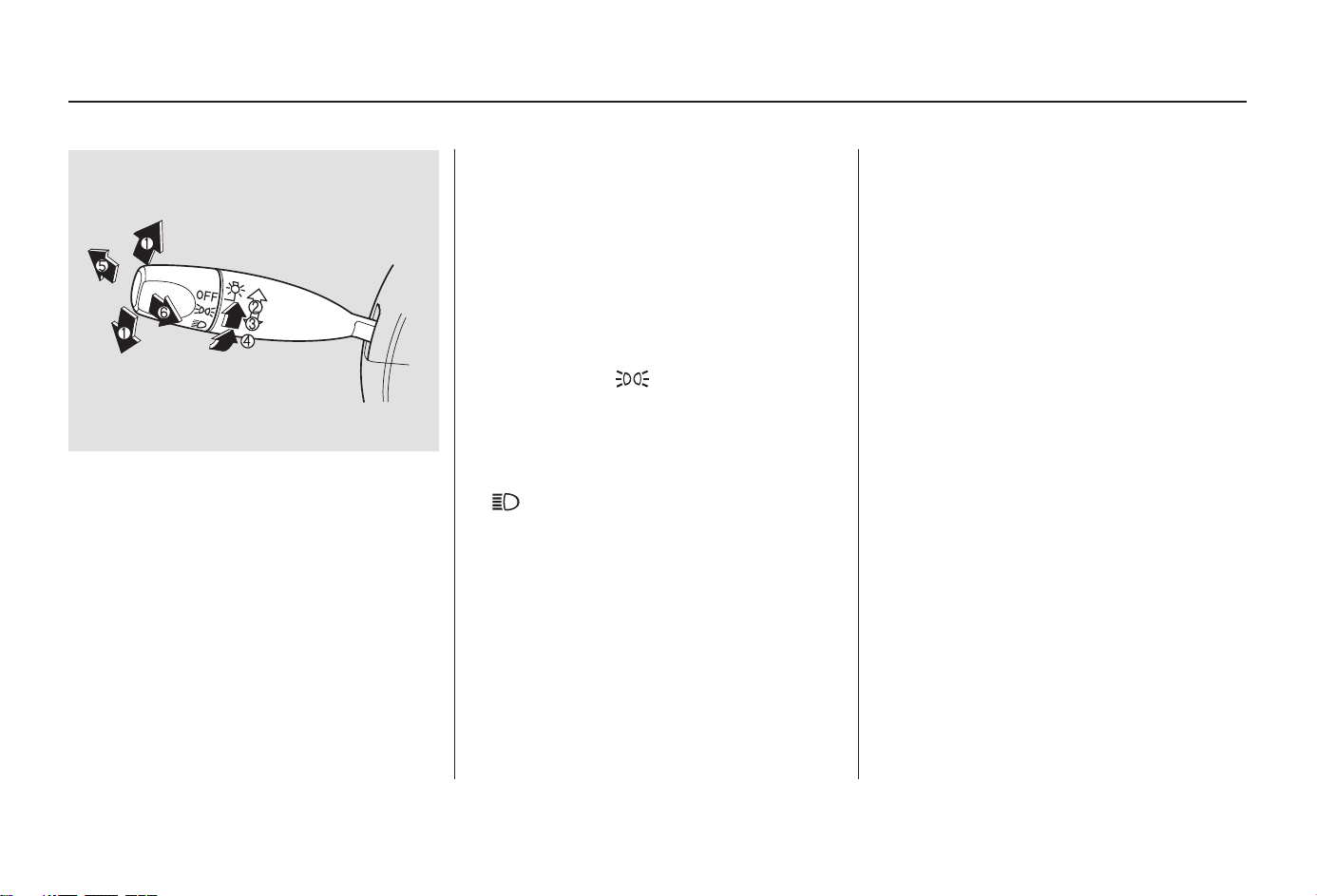

Push down on the
left lever to signal a left turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to
center when you release it or
complete a turn.
Push the lever
forward until you hear a click to turn
on the high beams. The blue high
beam indicator will come on (see
page ). Pull the lever back to
return to the low beams.
The headlights revert to normal
operation when you turn them on
with the switch.
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
switch off, even if you set the
parking brake.
To flash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
Turn Signal
OFF
Parking and interior lights
Headlights on
High Beams
Flashhighbeams
Turning the
switch to the position turns on
the parking lights, taillights,
instrument panel lights, side-marker
lights, and rear license plate lights.
Turning the switch to the
position turns on the
headlights. If you leave the lights on
with the key removed from the
ignition switch, you will hear a
reminder tone when you open the
driver’s door.
1.
2.
3.
4.
5.
6.
46
Turn Signal High Beams
(Canadian Models)
Daytime Running Lights
Headlights On
Turn Signal and Headlights
56
Main Menu
Table of Contents
＋−
＋−
−＋
The buttons in the lower left corner
of the instrument panel adjust the
brightness of the display in six steps.
Push the or button five times
to see the full range.
Thedisplaydimswhentheparking
lights or headlights are turned on.
Adjust the brightness to the desired
level with the headlight switch off,
and also with the headlight switch on.
Both settings will remain at those
levels until you change them.
With the headlight switch on, you
can switch the display to full daytime
brightness by pushing and holding
the button. Push the button to
return the display to the original
brightness.
Push the button to the right of the
center vents to turn on the hazard
warning lights (four-way flashers).
This causes all four outside turn
signals and both indicators in the
instrument panel to flash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traffic, or if your vehicle is disabled.
Instrument Panel Brightness, Hazard Warning Button
Instrument Panel Brightness Hazard Warning Button
Instruments and Controls
57
BUTTON BUTTON
Main Menu
Table of Contents

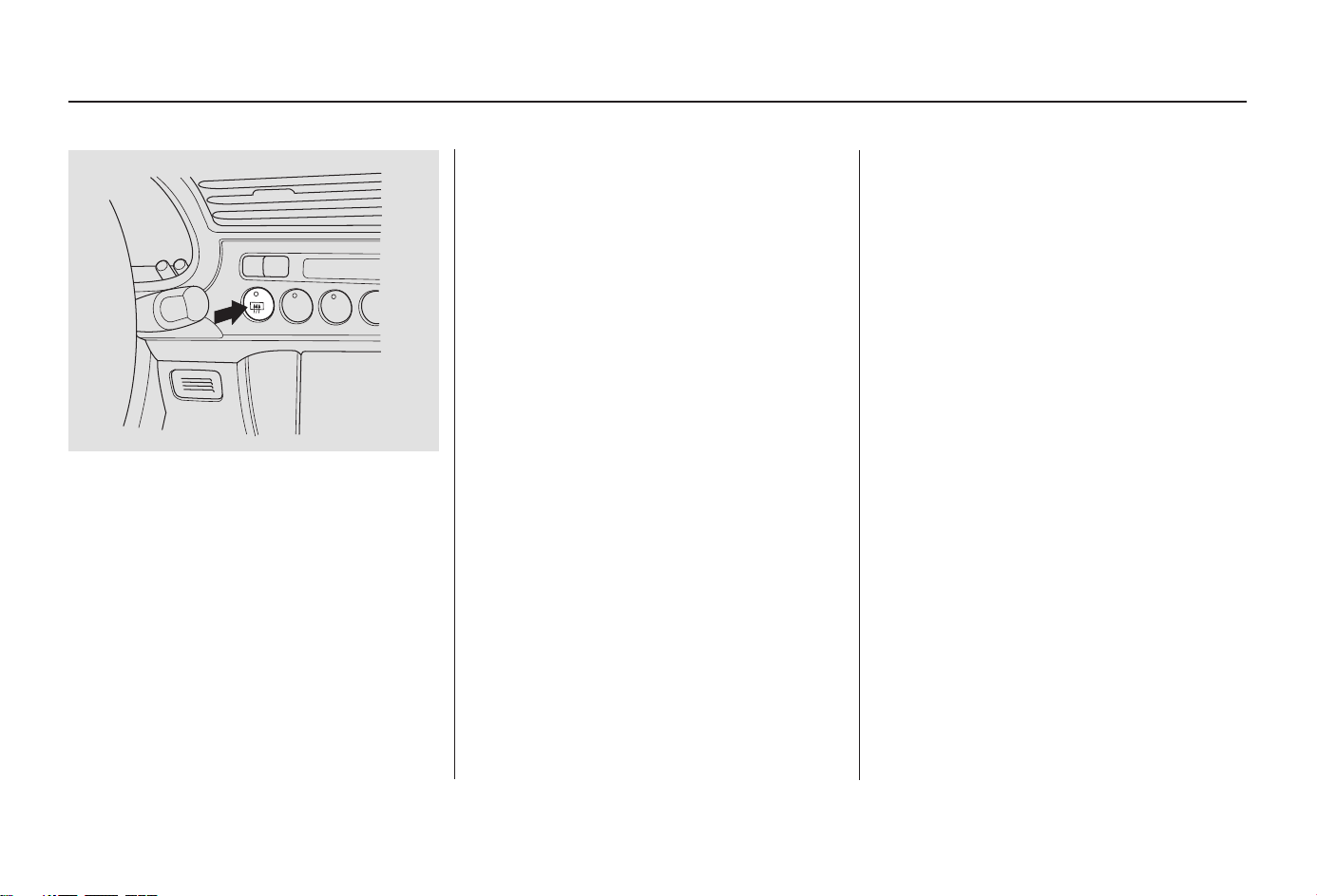

The rear window defogger will clear
fog, frost, and thin ice from the
window. Push the defogger button to
turn it on and off. The indicator in
the button comes on to show the
defogger is on. If you do not turn it
off, the defogger will shut itself off
after about 25 minutes. It also shuts
off when you turn off the ignition
switch. You have to turn it on again
when you restart the vehicle.
The rear window defogger turns on
automatically when you turn the
ignition switch to ON (II) if the
outside temperature is below 32°F (0
°C), or if the engine is at ambient
temperature. The indicator in the
button does not light.
It will also turn off automatically
after 25 minutes.
Make sure the rear window is clear
and you have good visibility before
starting to drive.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side to side.
Rear Window Defogger
Automatic Operation
Manual Operation
58
Main Menu
Table of Contents
The master key fits all the locks on
your vehicle.
The valet key works only in the
ignition and the door locks. You can
keep the glove box and the hatch
locked when you leave your vehicle
and the valet key at a parking facility.
Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a lost key replaced. Use
only Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.
Protect the keys from direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away from liquids.
If they get wet, dry them
immediately with a soft cloth.
The keys do not contain batteries.
Do not try to take them apart.
Keys and Locks
Instruments and Controls
59
KEY
NUMBER
TAG
VALET
KEY
(GREY)
MASTER
KEYS
(BLACK)
Main Menu
Table of Contents
When you turn the ignition switch to
ON (II), the immobilizer system
indicator should come on for a few
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
fob) is near the ignition switch when
you insert the key.
If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undriveable.
The immobilizer system protects
your vehicle from theft. If an
improperly-coded key (or other
device) is used, the engine’s fuel
system is disabled.
If you have lost your key and cannot
start the engine, contact your dealer.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Immobilizer System
60
Main Menu
Table of Contents
−
−
−
−

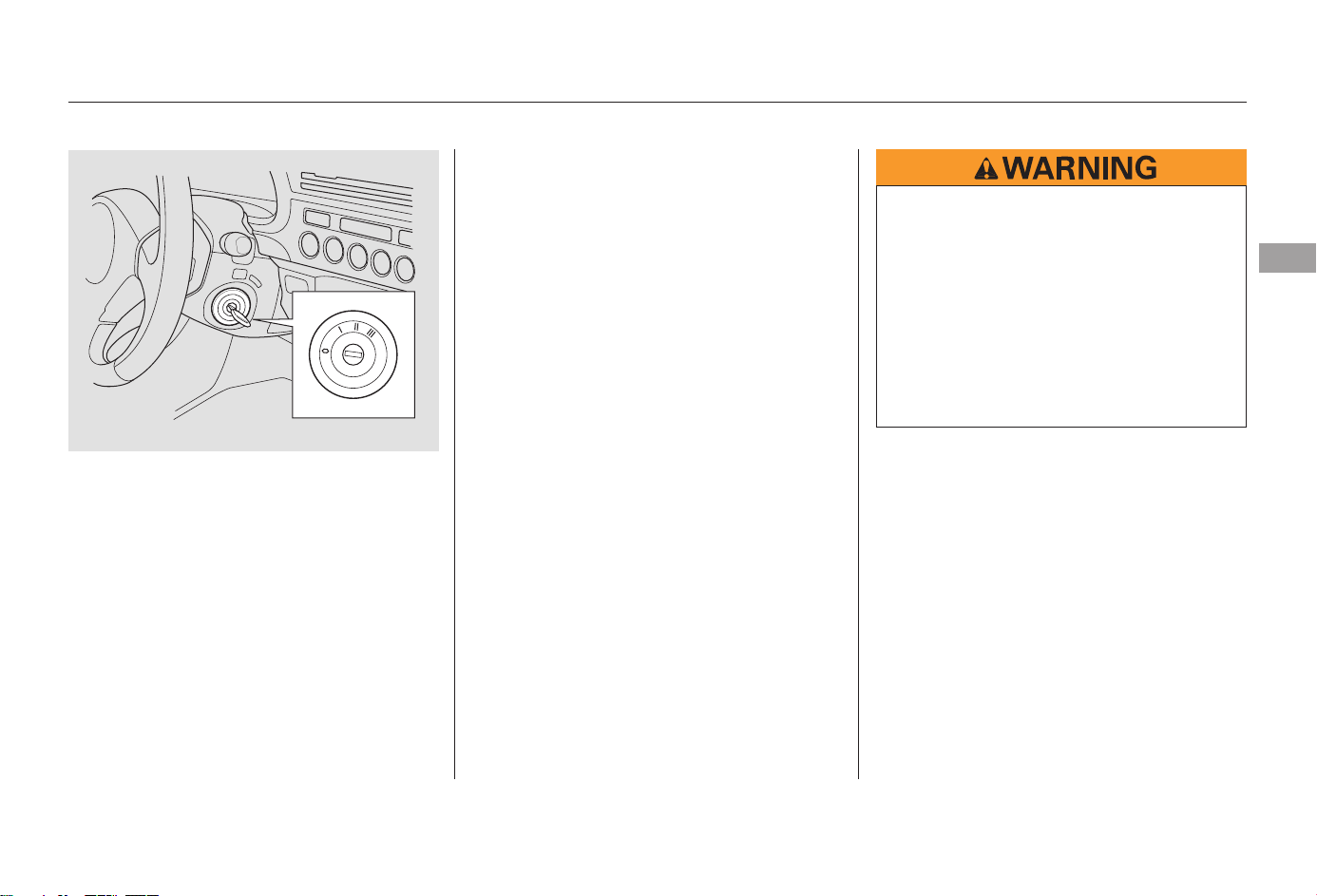

The ignition switch has four
positions: LOCK (0), ACCESSORY
(I), ON (II), and START (III).
If the front wheels are turned, the
anti-theft lock may make it difficult
to turn the key. Firmly turn the
steering wheel to the left or right as
you turn the key.
You can insert or
remove the key only in this position.
To turn the key, push it in slightly. If
your vehicle has an automatic
transmission, the shift lever must
also be in park.
You can
operate the audio system and the
accessory power socket in this
position.
This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch from ACCESSORY
(I) to ON (II).
Use this position
only to start the engine. The switch
returns to ON (II) when you let go of
the key.
You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
thedriver’sdoor.Removethekeyto
turn off the beeper.
If your vehicle has an automatic
transmission, the shift lever must be
in Park before you can remove the
key from the ignition switch.
Ignition Switch
LOCK (0)
ACCESSORY (I)
ON (II)
START (III)
Instruments and Controls
61
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control of the
vehicle.
Remove the key from the
ignition switch only when
parked.
Main Menu
Table of Contents
The doors can also be locked and
unlocked from the outside with the
key.
Each door has a lock tab next to the
inside door handle. Push the tab in to
lock the door, and pull it out to
unlock.
To lock the passenger’s door when
getting out of the vehicle, push the
lock tab in and close the door. To
lock the driver’s door, pull the door
handle and push the lock tab in.
Release the handle, then close the
door.

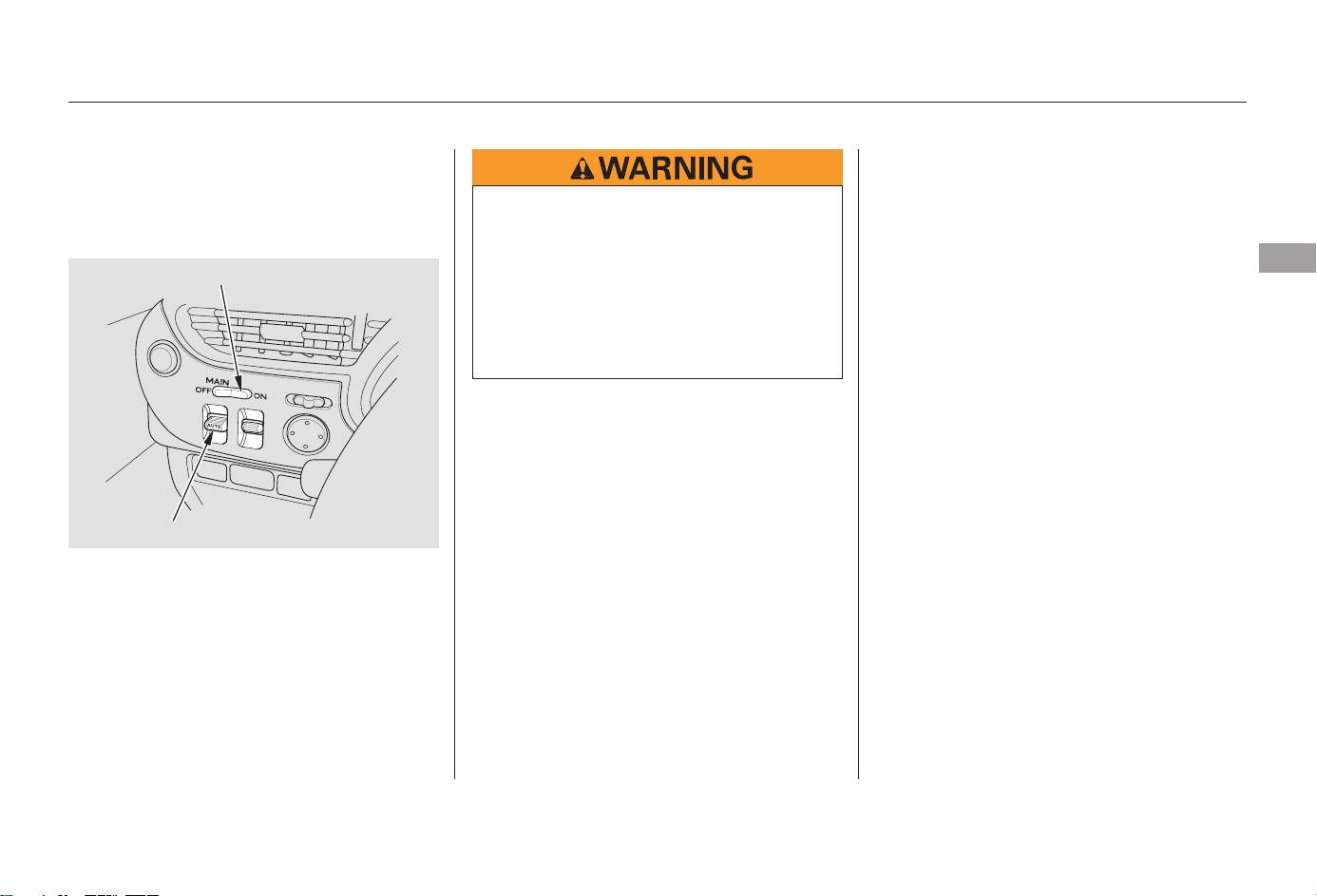

The master door lock switch allows
control of all door and hatch locks
from the driver’s door. Push the
switch down to lock both doors and
the hatch, and up to unlock them.
Door LocksPower Door Locks
Door Locks
62
LOCK TAB
MASTER DOOR LOCK SWITCH
Unlock
Lock
Main Menu
Table of Contents
If you need to use this procedure to
open the hatch, your vehicle may be
developing a problem. Have the
vehicle checked by your dealer.
If an unlocked hatch does not open,
turn the key clockwise past the
unlock position. Open the hatch as
youholdthekeyinthatposition.
Keep the hatch closed at all times
while driving to avoid damaging it
and to prevent exhaust gas from
getting into the interior. See
on page .
To open the hatch, push the lever
behind the hatch’s back edge. To
close the hatch, push down on the
back edge.
Usethemasterkeytolockand
unlock the hatch. The valet key does
not work in this lock.
To lock the hatch, turn the key
counterclockwise. To unlock the
hatch, turn it clockwise.
38
Hatch
Carbon
Monoxide Hazard
Hatch
Instruments and Controls
63
MASTER KEY
UNLOCK POSITION
Main Menu
Table of Contents
−
−−
Press this button once to
lock both doors and the rear hatch.
Some exterior lights will flash. When
you push LOCK twice within 5
seconds, you will hear a horn to
verify that the doors and the rear
hatch are locked. You cannot lock
them if either door is not fully closed
or the key is in the ignition switch.
Press this button once
to unlock the driver’s door. Some
exterior lights will flash twice. Push
it twice to unlock the passenger’s
door, and rear hatch. If you do not
open either door or the rear hatch
within 30 seconds, they will
automatically relock.
The interior light (if the interior light
switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
either door or the rear hatch, the
light will go out in about 30 seconds,
and the doors and the rear hatch will
automatically relock. If you relock
the doors and the rear hatch with the
remote transmitter before 30
seconds have elapsed, the light will
go off immediately.
Avoid dropping or throwing the
transmitter.
Pressthisbuttonfor
about 1 second to attract attention;
the horn will sound and the exterior
lights will flash for about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to ON (II).
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.
Do not immerse the transmitter in
any liquid.
Protect the transmitter from
extreme temperature.
Remote Transmitter
LOCK
UNLOCK PANIC
Remote Transmitter Care
64
UNLOCK
BUTTON
LED LOCK
BUTTON
PANIC
BUTTON
Main Menu
Table of Contents
＋
▽
◎

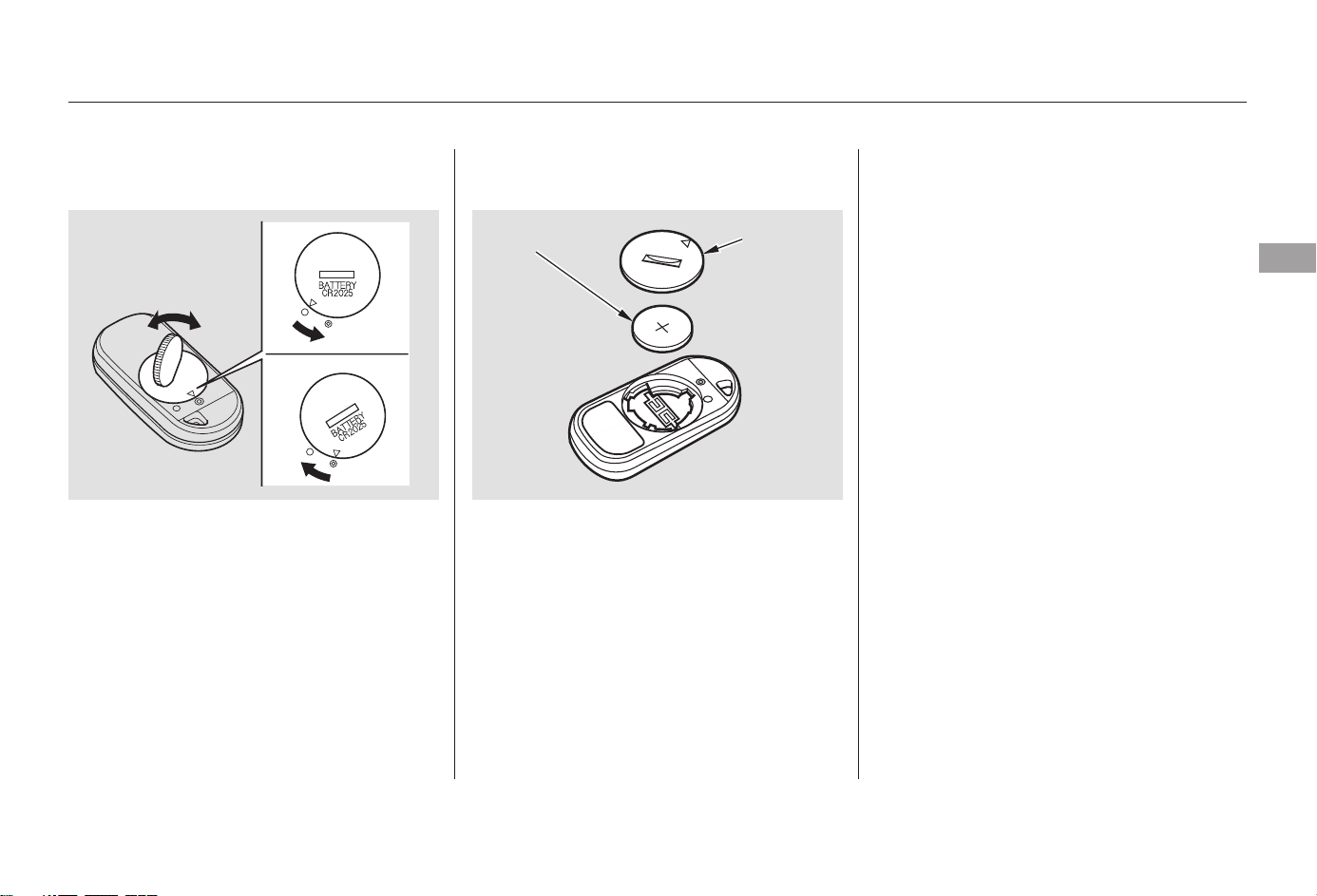

Battery type: CR2025
If it takes several pushes on the
button to lock or unlock the doors
and the rear hatch, replace the
battery as soon as possible.
To replace the battery, remove the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the side facing
up. Align the mark on the cover
with the mark on the
transmitter. Set the cover in place,
andturnitclockwise.
As required by the FCC:
This device complies with Part 15 of the
FCC rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must
accept any interference that may cause
undesired operation of the device.
Remote Transmitter
Replacing the Transmitter
Battery
Instruments and Controls
65
Open
Close
BATTERY
ROUND
COVER
Main Menu
Table of Contents
−See pages for important safety
information and warnings about how to
properly position the seats and seat-
backs.
12 14

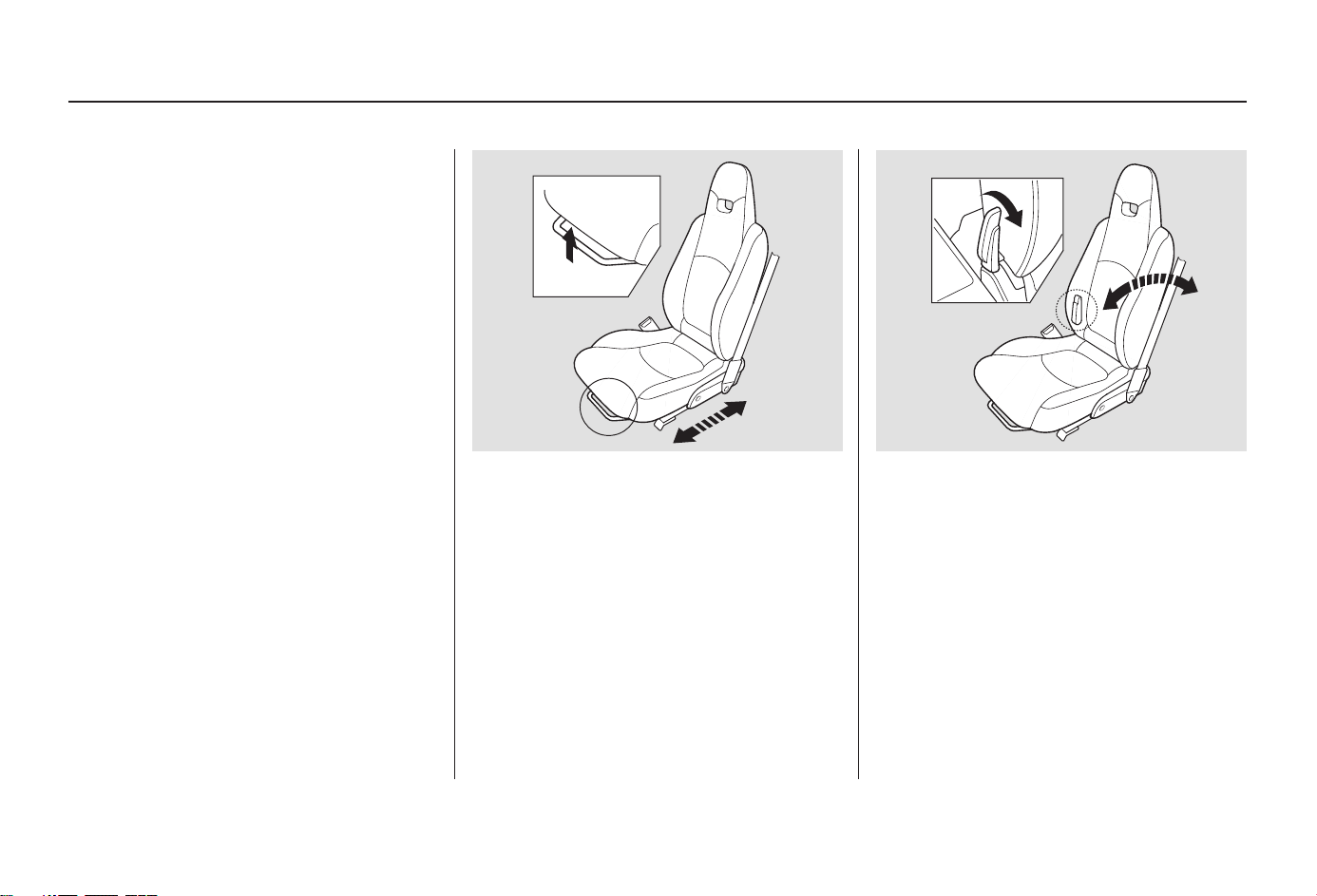

Make all seat adjustments before
you start driving.
To adjust the seat forward and
backward, pull up on the lever under
the seat cushion’s front edge. Move
the seat to the desired position and
releasethelever.Trytomovethe
seat to make sure it is locked in
position.
To change the seat-back angle, push
forward the lever next to the seat
bolster, on the side of the seat-back.
Seats
66
Main Menu
Table of Contents
−
Your vehicle’s windows are
electrically-powered. Turn the
ignition switch to ON (II) to raise or
lower either window.
There is a master power window
control panel on the dashboard. To
open the passenger’s window, push
down on the switch and hold it down
until the window reaches the desired
position. To close the window, push
up on the window switch. Release
the switch when the window gets to
the position you want.
To open the driver’s
window fully, push the window
switch firmly down and release it.
The window automatically goes all
the way down. To stop the window
from going all the way down, push
up on the window switch briefly. To
open the driver’s window only
partially, push the window switch
down lightly and hold it. The window
will stop as soon as you release the
switch.
The AUTO function only works to
lower the driver’s window. To raise
the window, you must push the
window switch up and hold it until
the window reaches the desired
position.
The MAIN switch controls power to
the passenger’s window. With this
switch off, the passenger’s window
cannot be raised or lowered. The
MAIN switch does not affect the
driver’s window. Keep the MAIN
switch off when you have a child in
the vehicle so the child does not get
injured by operating the window
unintentionally.
Power Windows
AUTO
Instruments and Controls
67
MAIN SWITCH
DRIVER’S WINDOW SWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passenger is
away from the window before
closing it.
Main Menu
Table of Contents

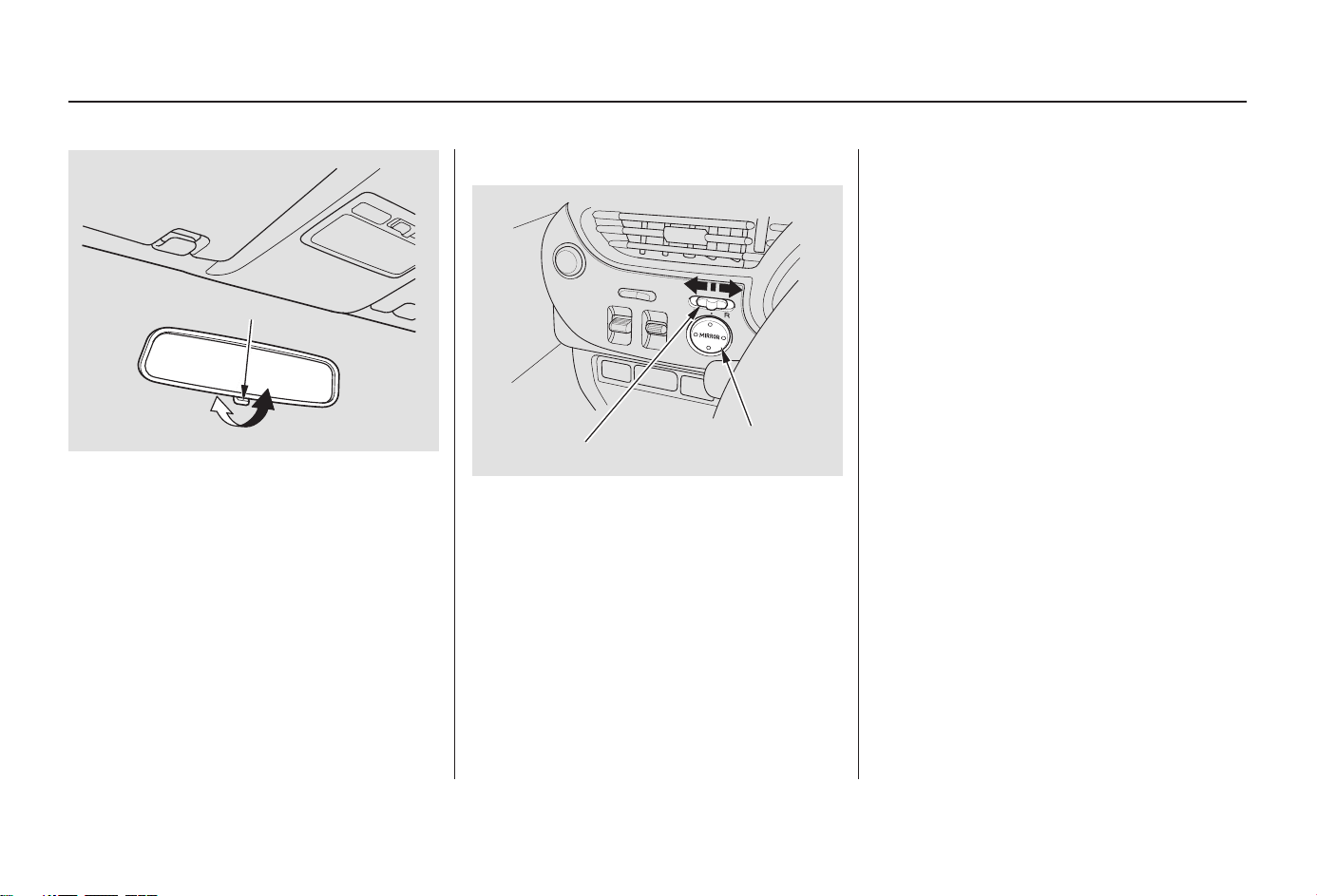

Keeptheinsideandoutsidemirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare from headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
Turn the ignition switch to ON (II).
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you finish, move the
selector switch to the center (off)
position. This turns the
adjustment switch off to keep your
settings.
1.
2.
3.
4.
Mirrors
Adjusting the Power Mirrors
68
TAB
ADJUSTMENT
SWITCH
SELECTOR SWITCH
Main Menu
Table of Contents
To apply the parking brake, pull the
lever up fully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is fully released (see page ).45
Parking Brake
Instruments and Controls
69
PARKING BRAKE LEVER
Driving the vehicle with the parking
brake applied can damage the rear
brakes and axles.
Main Menu
Table of Contents

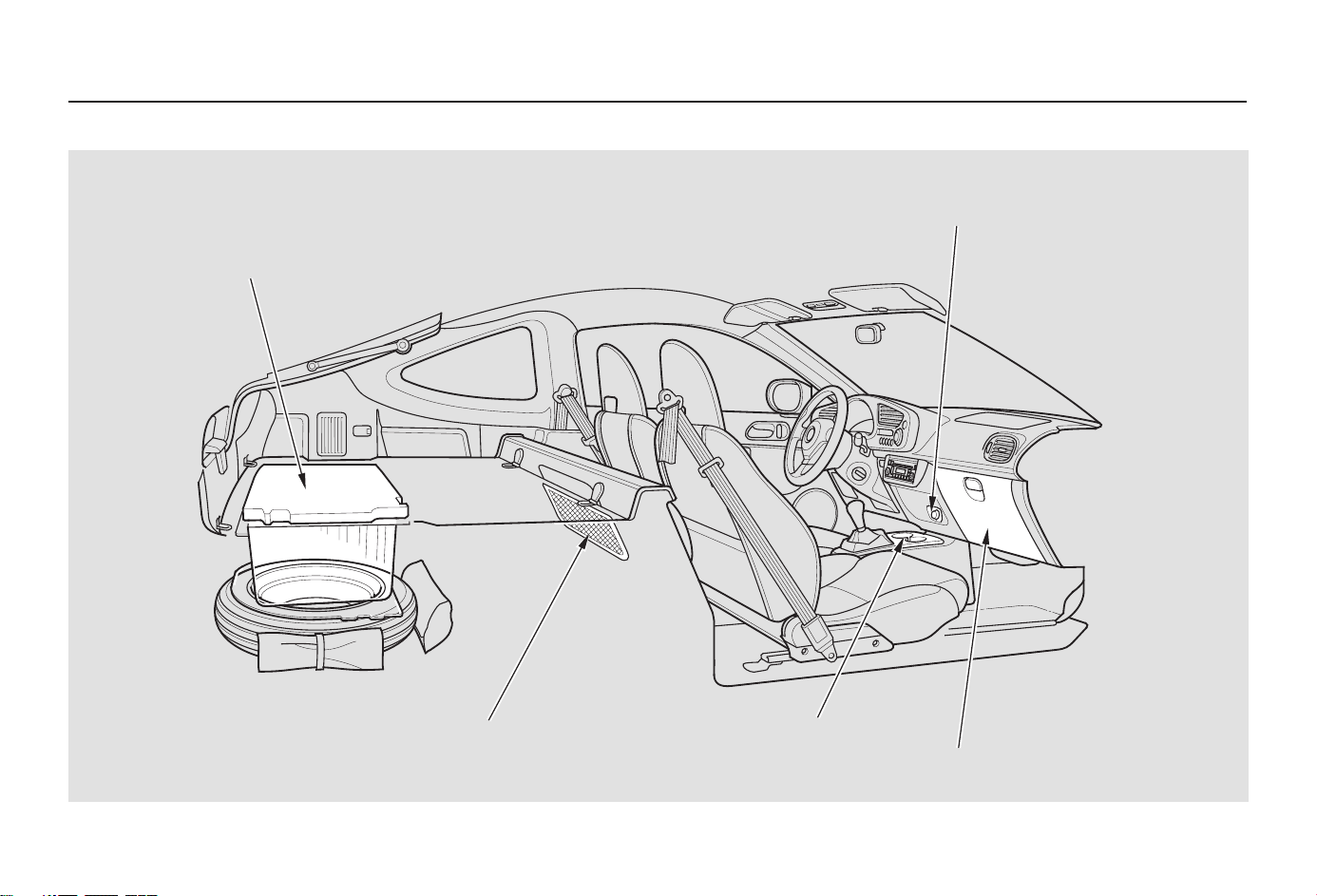

Interior Convenience Items
70
BEVERAGE HOLDER
STORAGE BOX
ACCESSORY POWER SOCKET
GLOVE BOX
REAR CENTER POCKET
Main Menu
Table of Contents
To open the storage box, pull the
strap.
Open the glove box by pulling the
bottom of the handle. Close it with a
firm push. Lock or unlock the glove
box with the master key.
To use the accessory power socket,
pull up the cover. The ignition switch
must be in ACCESSORY (I) or ON
(II).
This socket is intended to supply
power for 12 volt DC accessories
that are rated 120 watts or less (10
amps).
They will not power an automotive
type cigarette lighter element.
Be careful when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passenger. Spilled liquids can also
damage the upholstery, carpeting,
and electrical components in the
interior.
Interior Convenience Items
Storage Box
Beverage Holder
Glove Box
Accessory Power Socket
Instruments and Controls
71
STRAP
GLOVE BOX
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
Main Menu
Table of Contents
The ceiling light has a three-position
switch; ON, Door Activated, and
OFF. In the Door Activated (center)
position, the light comes on when
you:
The ceiling light also contains two
spotlights. Push the button next to
the light to turn it on and off. You
can use the spotlights at all times.
The cargo area light has a two-
position switch. In the OFF (down)
position, the light does not come on.
In the ON (up) position, the light
comes on when you open the hatch.
Open either door or the rear hatch.
Unlock the doors and the rear
hatch with the remote transmitter.
Interior Lights
Ceiling Light Cargo Area Light
72
DOOR ACTIVATED
OFF
ON
Main Menu
Table of Contents
＊
＊
The heating and air conditioning
systems in your vehicle provide a
comfortable driving environment in
all weather conditions.
The standard audio system has
many features. This section de-
scribes those features and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
...............Vents, Heating, and A/C . 74
..............................ECON Button . 75
.To Cool or Heat Automatically . 78

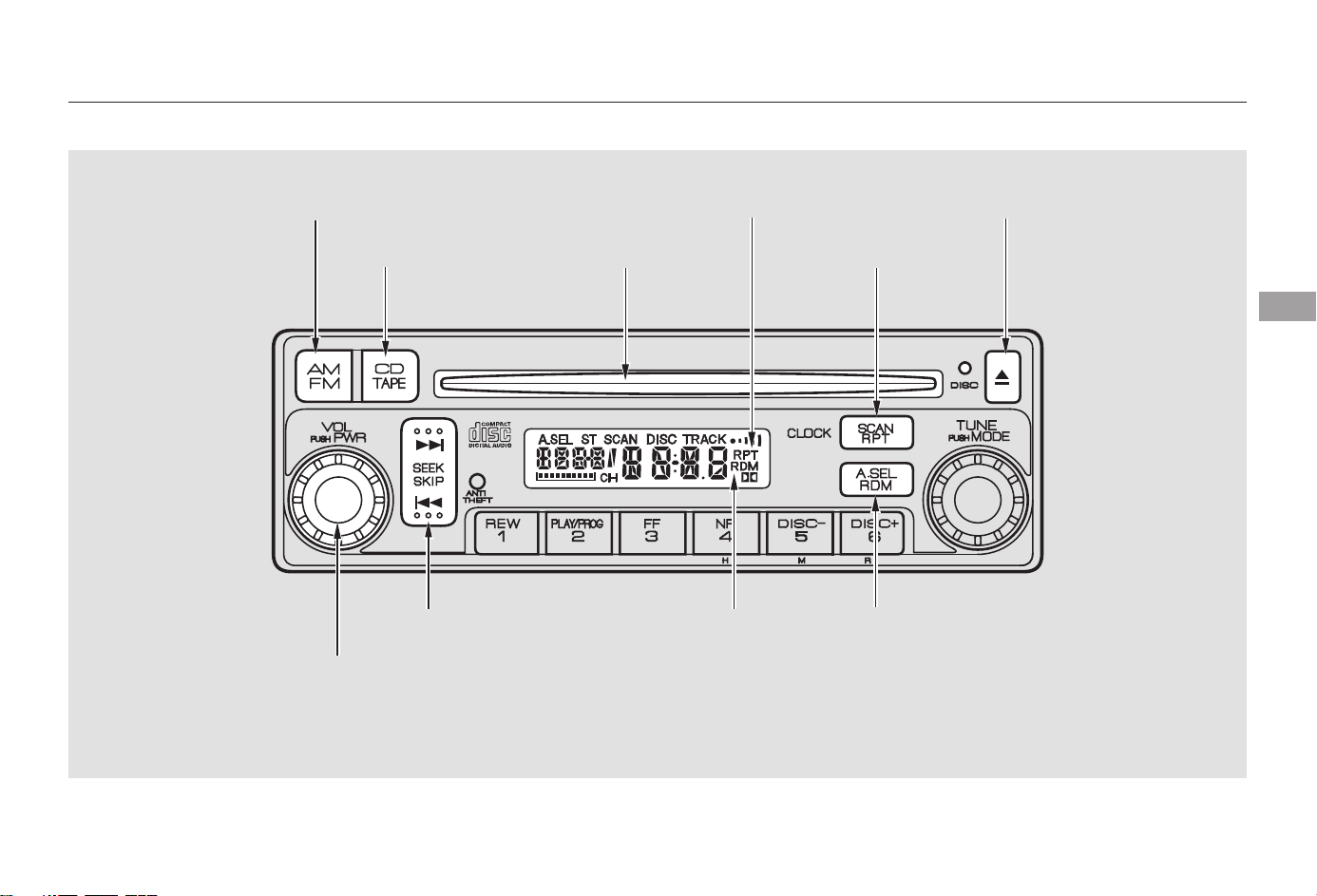

............................Playing the Radio . 80
..............................Radio Reception . 83
....................................Playing a CD . 85
.....................................CD Changer . 87

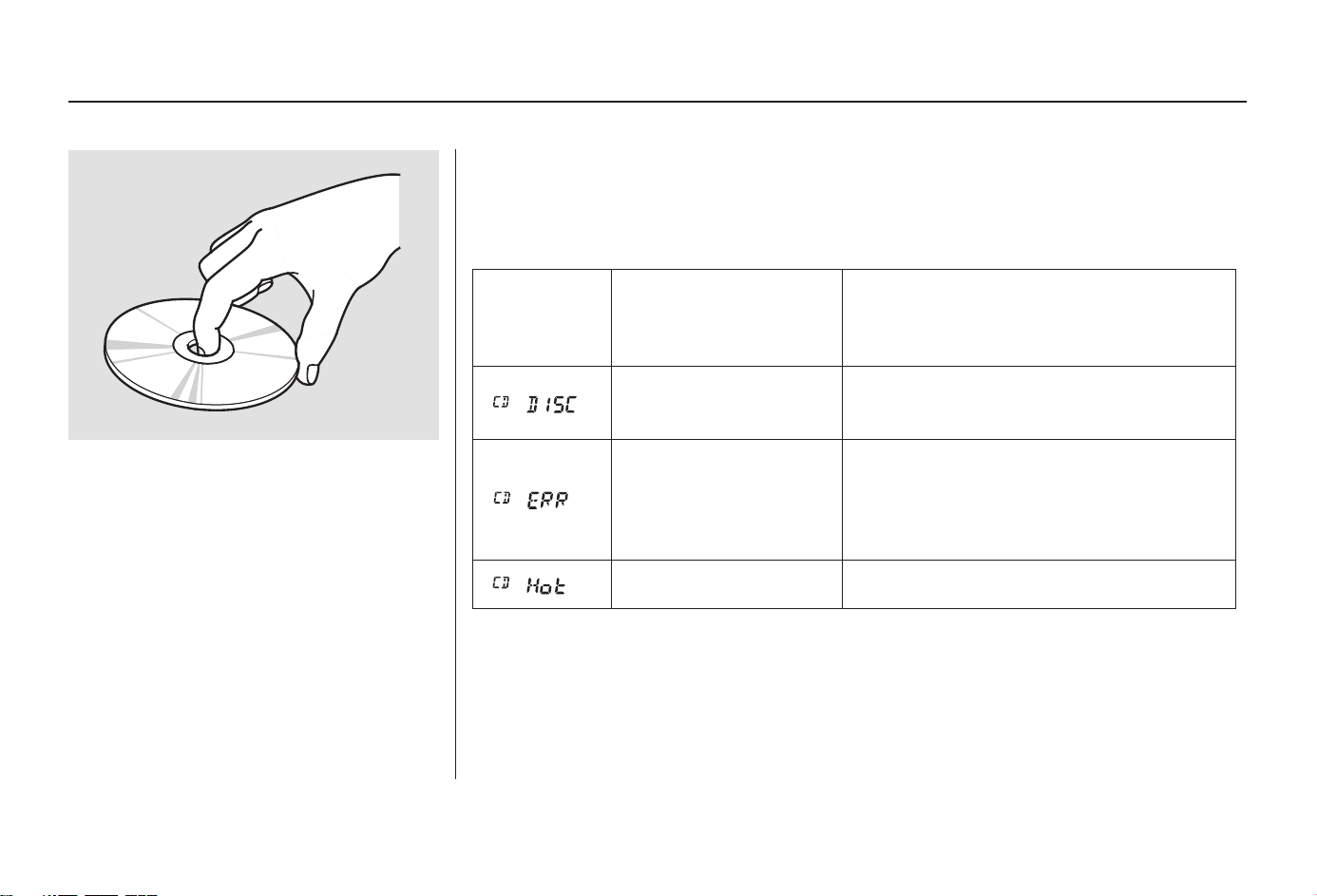

......................Protecting Your CDs . 87
...........CD Player Error Messages . 88
.......CD Changer Error Messages . 89
...................Radio Theft Protection . 90
............................Setting the Clock . 91
Air conditioning is standard on
vehicles with automatic transmission
(CVT) and standard on most manual
transmissions.
Features
Features
73
Main Menu
Vents, Heating, and A/C
74
TEMPERATURE
CONTROL DIAL
DEFROST
BUTTON
FAN CONTROL BUTTONS
RECIRCULATION BUTTON
REAR WINDOW DEFOGGER BUTTON
DEFROST
BUTTON
RECIRCULATION BUTTON
ECON BUTTON
FAN CONTROL BUTTON
AUTO BUTTON
OFF BUTTON
REAR WINDOW DEFOGGER BUTTON
MODE CONTROL
BUTTON
MODE CONTROL
BUTTON
TEMPERATURE
CONTROL DIAL
ECON BUTTON
On vehicles without climate control
On vehicles with climate control
Main Menu
Table of Contents
On vehicles with automatic
transmission (CVT), see page for
Automatic Climate Control and
Manual Operations information.
You can manually select the fan
speed by pressing the fan control
button ( / or ). The
fanspeedisshownbybarsinthe
display.
Turning this dial clockwise increases
the temperature of the airflow.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
This button turns the rear window
defogger off and on (see page ).
Press the mode control button to
select the vents the air flows from.
Some air will flow from the
dashboard corner vents in all modes.
Air flows from the center
and corner vents in the dashboard.
ThesystemshouldbeleftinFresh
Air mode under almost all conditions.
Keeping the system in Recirculation
mode, can cause the windows to fog
up.
If the A/C is on when this button is
pressed, the auto idle stop works
only if the outside temperature is
above 41°F (5°C).
IfthecoolingprovidedinECON
mode is not adequate, press the Auto
button (see page ).
When the recirculation indicator is
on, air from the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in from the outside of the
vehicle (fresh air mode).
The outside air intakes for the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
78
58
78
CONTINUED
Vents, Heating, and A/C
Fan Control
Temperature Control Dial
Rear Window Defogger Button
ECON Button
Mode Control Button
Recirculation Button
Features
75
Main Menu
Table of Contents
The flow-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear window.
On vehicles with automatic
transmission (CVT), make sure the
display shows A/C OFF.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes before you
feel warm air coming through the
system.
Select and Fresh Air mode.
Set the fan to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Airflow is divided between
the vents in the dashboard and the
floor vents.
Airflow is divided between
the floor vents and the defroster
vents at the base of the windshield.
Air flows from the defroster
vents at the base of the windshield.
When mode is selected, the
auto idle stop function will not
activate. you can
cool it down more rapidly by partially
opening the windows, turning on the
AUTO, and setting the fan to
maximum speed in Fresh Air mode.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn off the A/C until the gauge
reads normally.
Air flows from the floor
vents.
Set the temperature to the lower
limit.
Select and Fresh Air mode.
Set the fan to the desired speed.
When you select or ,
the system automatically switches to
Fresh Air mode and turns on the
A/C (on climate control model only).
Turn on the ECON mode by
pressing the ECON button. The
display shows A/C ON. Press the
ECON button again to turn the
ECON mode off.
Make sure the temperature is set
to maximum cool.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the fan to the desired speed.
1.
2.
3.
1.
2.
3.
49
1.
2.
3.
4.
5.
If the interior is very warm,
On vehicles with automatic
transmission (CVT)
Vents, Heating, and A/C
Ventilation
Using the Heater
Using the A/C in ECON Mode
76
Main Menu
Table of Contents
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
This setting is suitable for all driving
conditions whenever the outside
temperature is above 32°F (0°C).
Select . The system
automatically switches to Fresh
Air mode. On vehicles with
climate control, the system also
turns on the A/C. The A/C
indicator will not come on, if it was
off to start with.
Select .
Set the fan and temperature
controls to the maximum level.
For your safety, make sure you have
a clear view through all the windows
before driving.
To remove fog from the inside of the
windows:
Set the fan to the desired speed.
Select , the system
automatically switches to Fresh
Air mode. On vehicles with
climate control, the system also
turns on the A/C. The A/C
indicator will not come on, if it was
off to start with.
Adjust the temperature control
dial so the airflow feels warm.
Select to help clear the
rear window.
When mode is selected, the
auto idle stop function will not
activate.
When you switch to another mode
from , the A/C stays on.
Press the ECON button to turn it off.
When you turn off by
pressing the button again, the
system returns to its former settings.
Turn the fan on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial to your preference.
To clear the windows faster, you can
close the dashboard corner vents by
rotating the wheel next to them. This
will send more warm air to the
windshield defroster vents. Once the
windshield is clear, select the Fresh
Air mode to avoid fogging the
windows.
1.
2.
3.
4.
1.
2.
3.
1.
2.
3.
4.
On vehicles with climate control
Vents, Heating, and A/C
To Remove Exterior Frost or Ice
From the Windows
To Defog and Defrost
To Dehumidify the Interior
Features
77
Main Menu
Table of Contents
The Automatic Climate Control
system can adjust the fan speed and
airflow levels to maintain the interior
temperature you select.
Press the Auto button.
Set the desired temperature by
turning the Temperature Control
dial. You will see AUTO in the
system’s display.
When the system is in fully
automatic mode, the auto idle stop
function will not be activated.
The system automatically selects the
proper mix of conditioned and/or
heated air to raise or lower the
interior temperature to the
temperature you selected.
If you set the temperature to its
lower limit or its highest limit, the
system runs at full cooling or heating
only. It does not regulate the interior
temperature.
In cold weather, the fan will not
come on automatically until the
heater starts to develop warm air.
You can manually select various
functions of the automatic climate
controlsystemwhenitisinAUTO.
All other features remain
automatically controlled.
Making any manual selection causes
thewordAUTOinthedisplaytogo
out.
To shut off the system completely,
turn off the fan and turn the
temperature control dial all the way
to the left.
If you press OFF, the Climate
Control system shuts off completely.
Keep the system completely off
for short periods only.
To keep stale air and mustiness
from collecting, you should have
the fan running at all times.
1.
2.
On vehicles with manual transmissionOn vehicles with automatic
transmission (CVT)
On vehicles with automatic
transmission (CVT)
On vehicles with automatic
transmission (CVT)
On vehicles with automatic
transmission (CVT)
Vents, Heating, and A/C
To Cool or Heat Automatically
Using Automatic Climate Control
Manual Operation
To Turn Everything Off
78
Main Menu
Table of Contents

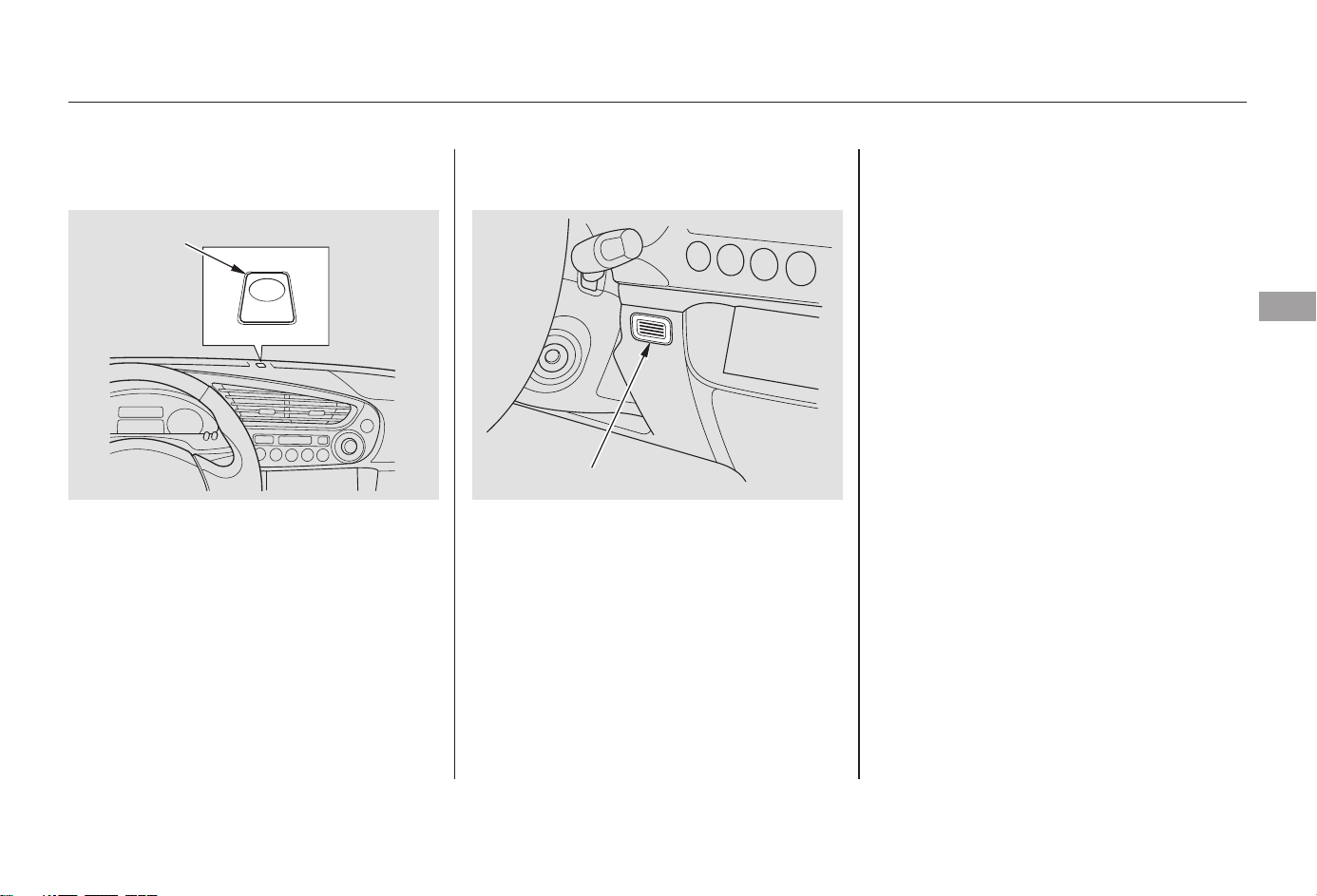

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Vents, Heating, and A/C
Sunlight and Temperature
Sensors
Features
79
SUNLIGHT SENSOR
TEMPERATURE SENSOR
Main Menu
Table of Contents

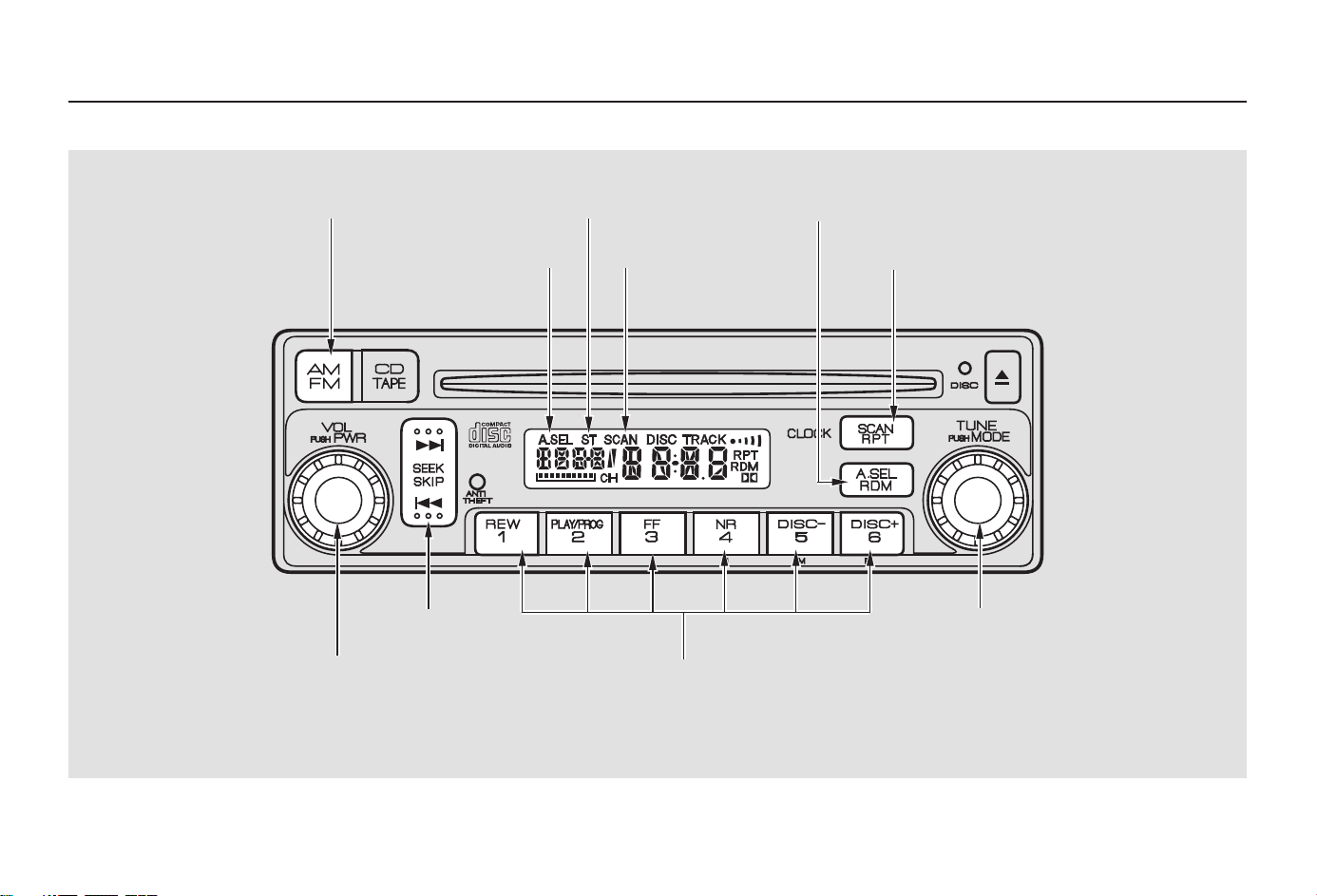

Playing the Radio
80
SEEK BAR
PWR/VOL KNOB
TUNE KNOB
STEREO INDICATOR
SCAN BUTTON
PRESET BUTTONS
AM/FM BUTTON
SCAN INDICATORAUTO SELECT INDICATOR
AUTO SELECT BUTTON
Main Menu
Table of Contents
−
−
−
−
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob or the AM/FM
button. Adjust the volume by turning
the PWR/VOL knob.
The band and frequency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
You can use these five methods to
find radio stations on a selected
band: the
preset buttons, and .
Use the TUNE knob to
tune the radio to a desired frequency.
Turn the knob right to tune to a
higher frequency, or left to tune to a
lower frequency.
The SEEK function
searches up and down from the
current frequency to find a station
with a strong signal. To activate it,
press the or side of the
bar, then release it.
Each preset button can
store one frequency on AM, and two
frequencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two frequencies with each preset
button.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pickapresetbutton,andholdit
until you hear a beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
The preset frequencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio fuse is
removed.
The SCAN function
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan for
a station with a strong signal. When
it finds one, it will stop and play that
station for about 5 seconds.
If you do nothing, the system will
scan for the next strong station and
play it for 5 seconds. When it plays a
station you want to listen to, press
the SCAN button again.
1.
2.
3.
4.
CONTINUED
Playing the Radio
To Play the Radio
To Select a Station
TUNE,SEEK,SCAN,
AUTO SELECT
TUNE
SEEK
Preset
SCAN
Features
81
Main Menu
Table of Contents
−
−
−
−
−
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A. SEL button. ‘‘A.SEL’’
flashes in the display, and the system
goes into scan mode for several
seconds. It stores the frequencies of
six AM, and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed after
pressing a preset button if Auto
Select cannot find a strong station
for every preset button.
press the
A. SEL button. This restores the
presets you originally set.
If you do not like the stations Auto
Select has stored, you can store
other frequencies on the preset
buttons as previously described.
Adjust the Balance, or side-
to-side strength of the sound.
Adjust the Fader, or the
front-to-back strength of the sound.
AdjusttheTrebleinthe
sound.
Adjust the Bass in the sound.
Turn the knob to adjust the setting.
When the level reaches the center,
you will see a ‘‘C’’ in the display. The
system will return to the audio
display in about 5 seconds.
You can use the instrument panel
brightness control buttons to adjust
the illumination of the audio system
(see page ). The audio system
illuminates when the parking lights
are on, even if the radio is off.
Press the MODE (TUNE) knob
repeatedly to display the Bass (BAS),
Treble (TRE), Fader (FAD), and
Balance (BAL) settings.
57
To turn off auto select,
AUTO SELECT
Adjusting the Sound
BAL
FAD
TRE
BAS
Audio System Lighting
Playing the Radio
82
Main Menu
Table of Contents
The radio can receive the complete
AM and FM bands.
Those bands cover these frequen-
cies:
AM band: 530 to 1,710 kilohertz
FM band: 87.7 to 107.9 megahertz
How well the radio receives stations
is dependent on many factors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
Driving very near the transmitter of
a station that is broadcasting on a
frequency close to the frequency of
the station you are listening to can
also affect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
Radio stations on the AM band are
assigned frequencies at least ten
kilohertz apart (530, 540, 550).
Stations on the FM band are
assigned frequencies at least 0.2
megahertz apart (87.9, 88.1, 88.3).
Stations must use these exact
frequencies. It is fairly common for
stations to round-off the frequency in
their advertising, so your radio could
display a frequency of 100.9 even
though the announcer may identify
the station as ‘‘FM101.’’

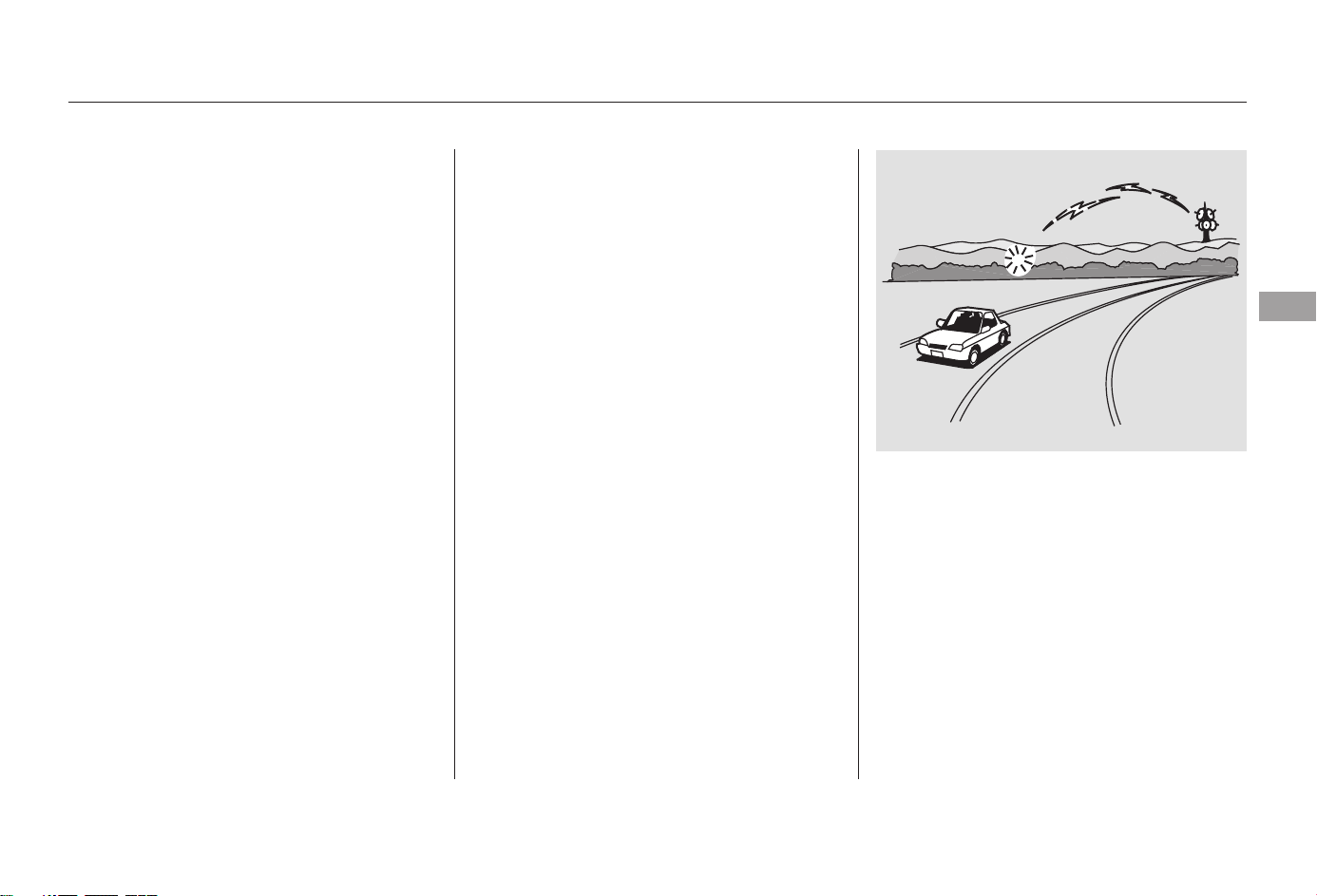

A radio station’s signal gets weaker
as you get farther away from its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker and the
stationdriftinginandout.Ifyouare
listening to an FM station, you will
see the stereo indicator flickering off
and on as the signal weakens.
Eventually, the stereo indicator will
go off and the sound will fade
completely as you get out of range of
the station’s signal.
CONTINUED
Radio Frequencies Radio Reception
Radio Reception
Features
83
Main Menu
Table of Contents

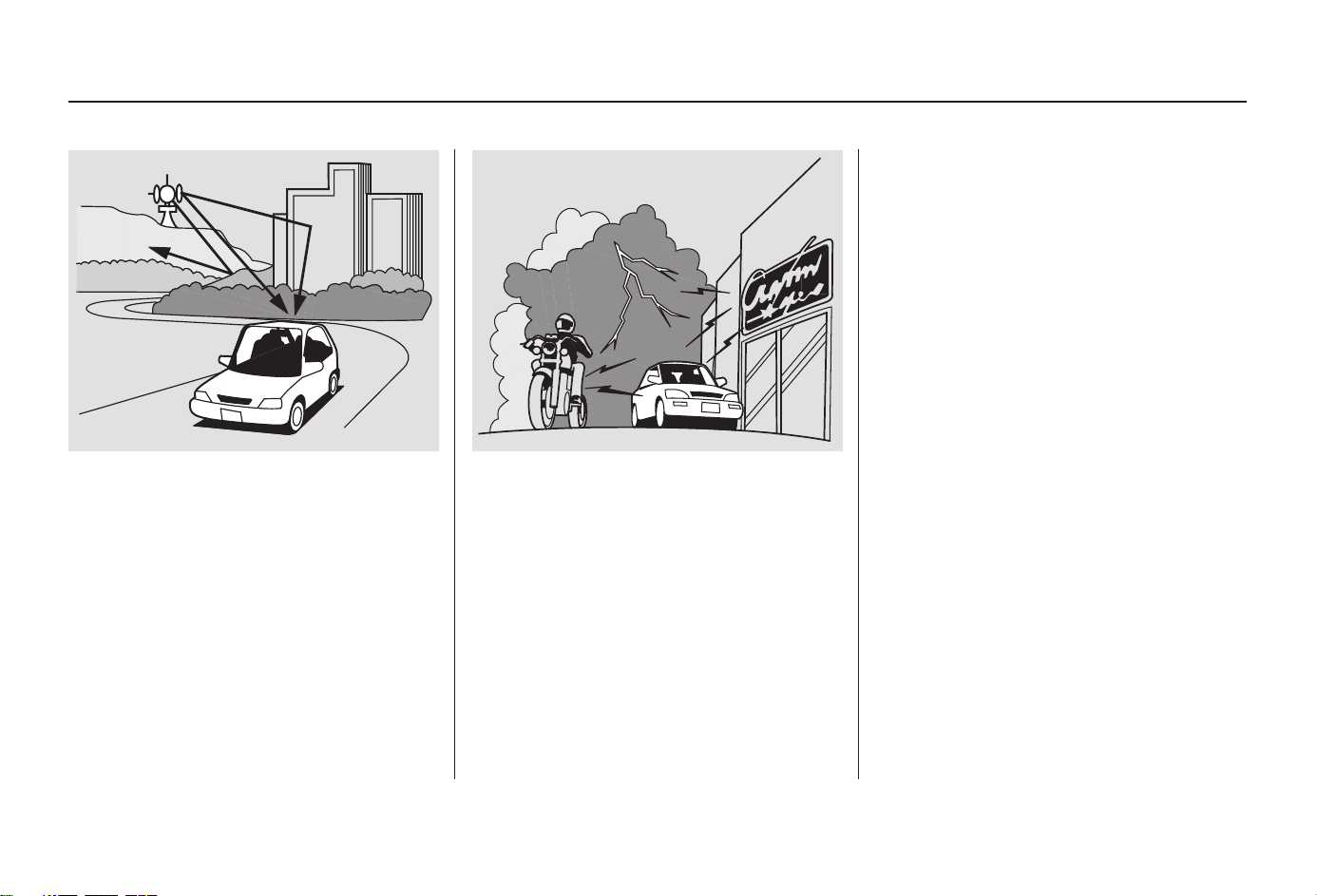

Radio signals, especially on the FM
band, are deflected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal from the station’s transmitter,
and the deflected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.
Radio reception can be affected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interference from passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.
Radio Reception
84
Main Menu
Table of Contents
Playing a CD
Features
85
PWR/VOL KNOB
REPEAT BUTTON
REPEAT INDICATOR EJECT BUTTON
RANDOM BUTTONRANDOM INDICATORSEEK/SKIP BAR
CD SLOT
AM/FM BUTTON
CD BUTTON
Main Menu
Table of Contents
−
−
−
With the ignition switch in the
ACCESSORY (I) or ON (II) position,
insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way and begin to play it. The
number of the track playing is shown
in the display. The system will
continuously play a CD until you
change modes.
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it from the slot,
the system will automatically reload
the CD after 15 seconds and put it in
pause mode. To begin playing, press
the CD button.
Each time you press and
releasethe sideoftheskipbar,
the player skips forward to the
beginning of the next track. Press
and release the side of the bar
to skip backward to the beginning of
the current track. Press it again to
skip to the beginning of the previous
track.
To move rapidly within a track, press
and hold the or side. You
will see CUE or REW in the display.
Press the AM/FM button to switch
to the radio while a CD is playing.
Press the CD button to play the CD.
If you turn the system off while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition
switch, the CD will stay in the drive.
When you turn the system back on,
the CD will begin playing where it
left off.
To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press it again to turn it off.
This feature plays the
tracks in random order. To activate
Random Play, press and release the
RDM button. You will see RDM in
the display. Press it again to return
to normal play.
ToPlayaCD ToStopPlayingaCDSKIP
REPEAT
RANDOM
Playing a CD
86
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
Main Menu
Table of Contents
−＋
When a CD is not being played, store
it in its case to protect it from dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
To clean a CD, use a clean soft cloth.
Wipe across the CD from the center
to the outside edge.
AnewCDmayberoughonthe
inner and outer edges. The small
plastic pieces causing this roughness
can flake off and fall on the re-
cording surface of the CD, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
Never try to insert foreign objects in
the CD player or the magazine.
An optional six disc CD changer is
available for your vehicle. This CD
changer uses the same controls used
for the in-dash CD player.
Load the desired CDs in the
magazine, and load the magazine in
the changer according to the
instructions that came with the unit.
To select the CD changer, press the
CD button. The CD and track
numbers will be displayed. To select
a different CD, use the preset 5
(DISC ) or preset 6 (DISC )
button. If you select an empty slot in
the magazine, the changer will, after
finding that slot empty, try to load
the CD in the next slot.
When using CD-R discs, use only
high quality CDs labeled for audio
use.
CD-RW discs will not work in this
unit.
When recording a CD-R, the
recording must be closed for it to
be used by the system.
Play only standard round CDs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.
Handle your CDs properly to
prevent damage and skipping.
CONTINUED
Protecting CDs
General Information
Protecting Your CDsOperating the Optional CD
Changer
CD Changer, Protecting Your CDs
Features
87
Main Menu
Table of Contents
Handle a CD by its edges; never
touch either surface. Do not place
stabilizer rings or labels on the CD.
These, along with contamination
from fingerprints, liquids, and felt-tip
pens, can cause the CD to not play
properly, or possibly jam in the drive.
Error
Message
Cause
If you see an error message in the display while playing a CD, find the cause
in the following chart. If you cannot clear the error message, take the
vehicle to your dealer.
Solution
FOCUS Error
Mechanical Error
High temperature
Press the EJECT button and pull out the CD.
Check if it is inserted correctly in the CD player.
Make sure the CD is not scratched or damaged.
Press the EJECT button and pull out the CD.
Check the CD for damage or deformation.
If the CD cannot be pulled out, or the error
message does not disappear after the CD is
ejected, see your dealer.
Will disappear when the temperature returns to
normal.
Protecting Your CDs, CD Player Error Messages
CD Player Error Messages
88
Main Menu
Table of Contents
If you see an error message in the
display while operating the CD
changer, find the cause in the chart
to the right. If you cannot clear the
error message, take the vehicle to
your dealer.
Error
Message
Cause Solution
FOCUS Error
No CD in the CD
magazine
Mechanical Error
High temperature
No CD magazine in the
CD changer
Press the magazine eject button and pull out
the magazine, check for error message. Insert
the magazine again. If the message does not
disappear or the magazine cannot be pulled out,
see your dealer.
Insert CD.
Press the magazine eject button and pull it out.
Check for error message, and insert the
magazine again. If the error message does not
disappear or the magazine cannot be pulled out,
see your dealer.
Will disappear when the temperature returns to
normal.
Insert CD magazine.
CD Changer Error Messages
Features
89
Main Menu
Table of Contents
Your vehicle’s audio system will
disable itself if it is disconnected
from electrical power for any reason.
To make it work again, you must
enter a specific five-digit code in the
preset buttons. Because there are
hundreds of number combinations
possible from five-digits, making the
system work without knowing the
exact code is nearly impossible.
If your vehicle’s battery is
disconnected or goes dead, or the
radio fuse is removed, the audio
system will disable itself. If this
happens, you will see ‘‘COdE’’ in the
frequencydisplaythenexttimeyou
turn on the system. Use the preset
buttons to enter the five-digit code.
The code is located on the radio code
card included in your Owner’s
Manual kit. When it is entered
correctly, the radio will start playing.
If you make a mistake entering the
code, do not start over; complete the
five-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you are
unsuccessful in ten attempts, you
must then leave the system on for 1
hour before trying again.
You will have to store your favorite
stations in the preset buttons after
the system begins working. Your
original settings were lost when the
power was disconnected.
If you lose the card, you must obtain
the code number from a dealer. To
do this, you will need the system’s
serial number.
Youshouldhavereceivedacardthat
lists your audio system’s code and
serial numbers. It is best to store this
card in a safe place at home. In
addition, you should write the audio
system’s serial number in this
Owner’s Manual.
Radio Theft Protection
90
Main Menu
Table of Contents
If your vehicle’s battery is
disconnected or goes dead, you will
need to set the clock.

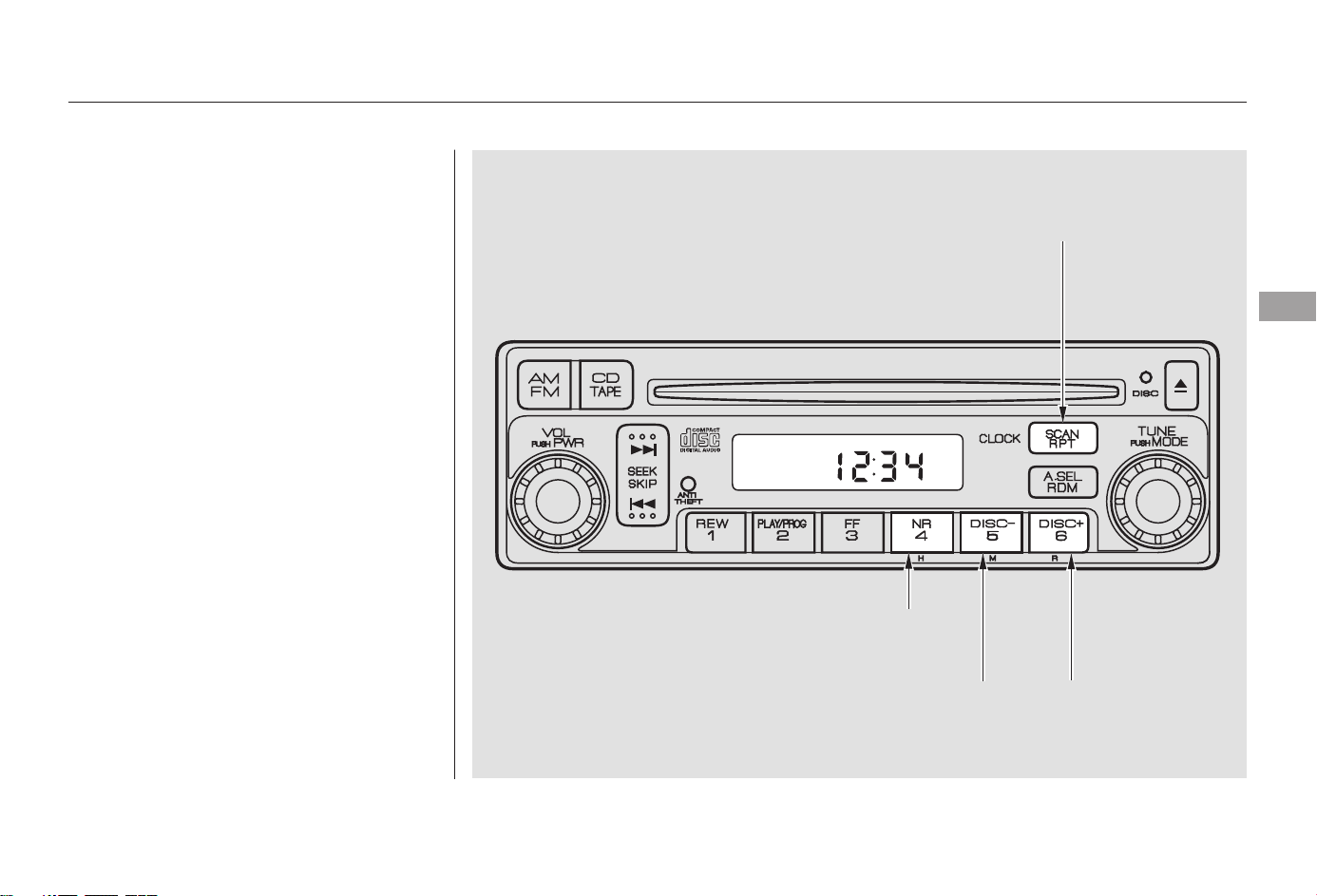

Press and hold the CLOCK button,
and change the hours by pressing
the H (Preset 4) button until the
numbers advance to the desired time.
To change the minutes, press and
hold the CLOCK button, and press
the M (Preset 5 ) button until the
numbers advance to the desired time.
You can quickly set the time to the
nearest hour. If the displayed time is
before the half hour, press and hold
the CLOCK button, and press the R
(Preset 6) button to set the clock
back to the previous hour. If the
displayed time is after the half hour,
the clock sets forward to the
beginning of the next hour.
1:06 will reset to 1:00
1:52 will reset to 2:00
For example:
Setting the Clock
Features
91
M BUTTON RESET BUTTON
CLOCK BUTTON
H BUTTON
Main Menu
Table of Contents
92
Main Menu
Before you begin driving your
vehicle, you should know what
gasoline to use and how to check the
levels of important fluids. You also
need to know how to properly store
luggage or packages. The
information in this section will help
you. If you plan to add any
accessories to your vehicle, please
read the information in this section
first.
...............................Break-in Period . 94
...................Fuel Recommendation . 94
...........Service Station Procedures . 95
......................................Refueling . 95
OpeningandClosingthe
.........................................Hood . 96
.....................................Oil Check . 97
...............Engine Coolant Check . 98
.................................Fuel Economy . 99
..........Improving Fuel Economy . 99
...Accessories and Modifications . 101
................................Accessories . 101
...........Modifying Your Vehicle . 102
.............................Carrying Cargo . 103
...................................Air Intake . 106
Before Driving
Before Driving
93
Main Menu
Help assure your vehicle’s future
reliability and performance by paying
extra attention to how you drive
during the first 600 miles (1,000 km).
During this period:
Avoid full-throttle starts and rapid
acceleration.
Do not change the oil until the
scheduled maintenance time.
Avoidhardbrakingforthefirst
200 miles (300 km).
You should also follow these
recommendations with an
overhauled or exchanged engine, or
when the brakes are replaced.
Use of gasoline with these additives
may adversely affect performance,
and cause the Malfunction Indicator
Lamp on your instrument panel to
come on. If this happens, contact
your dealer for service.
Your vehicle is designed to operate
on unleaded gasoline with a pump
octane number of 86 or higher. Use
of a lower octane gasoline can cause
occasional metallic knocking noises
in the engine and will result in
decreased engine performance.
In addition, in order to maintain good
performance, fuel economy, and
emissions control, we strongly
recommend, in areas where it is
available, the use of gasoline that
does NOT contain manganese-based
fuel additives such as MMT.
Some gasoline today is blended with
oxygenates such as ethanol or
MTBE. Your vehicle is designed to
operate on oxygenated gasoline
containing up to 10 percent ethanol
by volume and up to 15 percent
MTBE by volume. Do not use
gasoline containing methanol.
If you notice any undesirable
operating symptoms, try another
service station or switch to another
brand of gasoline.
For further important fuel-related
information, please refer to your
.
We recommended using a quality
gasoline containing detergent
additives that help prevent fuel
system and engine deposits.
Break-in Period Fuel Recommendation
Quick Start Guide
Break-in Period, Fuel Recommendation
94
Main Menu
Table of Contents
CONTINUED

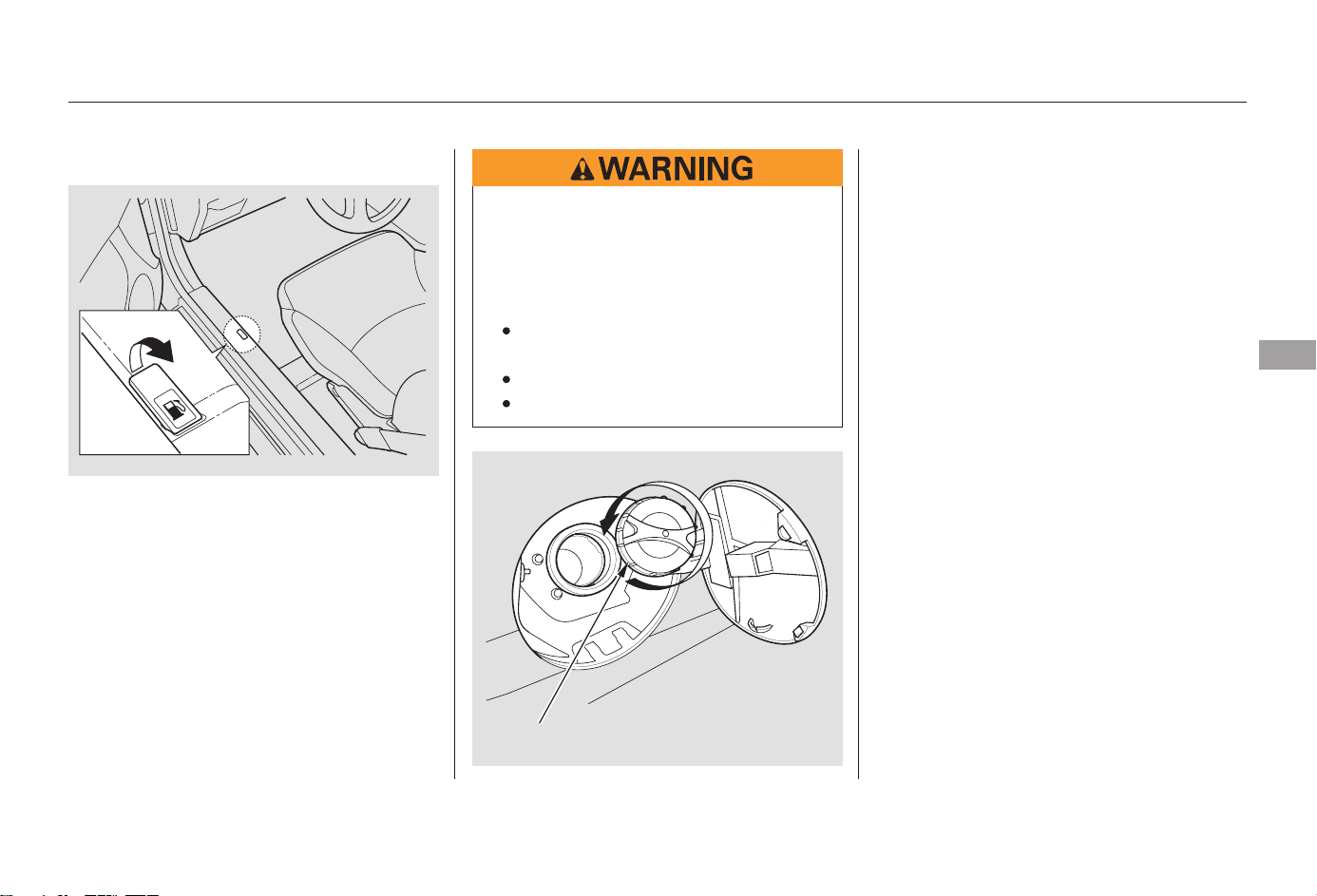

Park with the driver’s side closest
to the service station pump.
Open the fuel fill door by pulling
onthehandletotheleftofthe
driver’s seat.
Removethefuelfillcapslowly.
You may hear a hissing sound as
pressure inside the tank escapes.
Stop filling the tank after the fuel
nozzle automatically clicks off. Do
not try to ‘‘top off’’ the tank. Leave
some room for the fuel to expand
with temperature changes.
even though the tank is not full,
there may be a problem with your
vehicle’s fuel vapor recovery
system. The system helps keep
fuel vapors from going into the
atmosphere. Consult your dealer.
1.
2.
3.
4.
If the fuel nozzle keeps clicking off
Service Station Procedures
Refueling
Before Driving
95
PULL
FUEL FILL CAP
Gasoline is highly flammable
and explosive. You can be
burned or seriously injured
when handling fuel.
Stop the engine and keep
heat, sparks, and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
Main Menu
Table of Contents
Screw the fuel fill cap back on
until it clicks at least three times.
If you do not properly tighten the
cap, the Malfunction Indicator
Lampmaycomeon(seepage
).
Push the fuel fill door closed until
it latches.

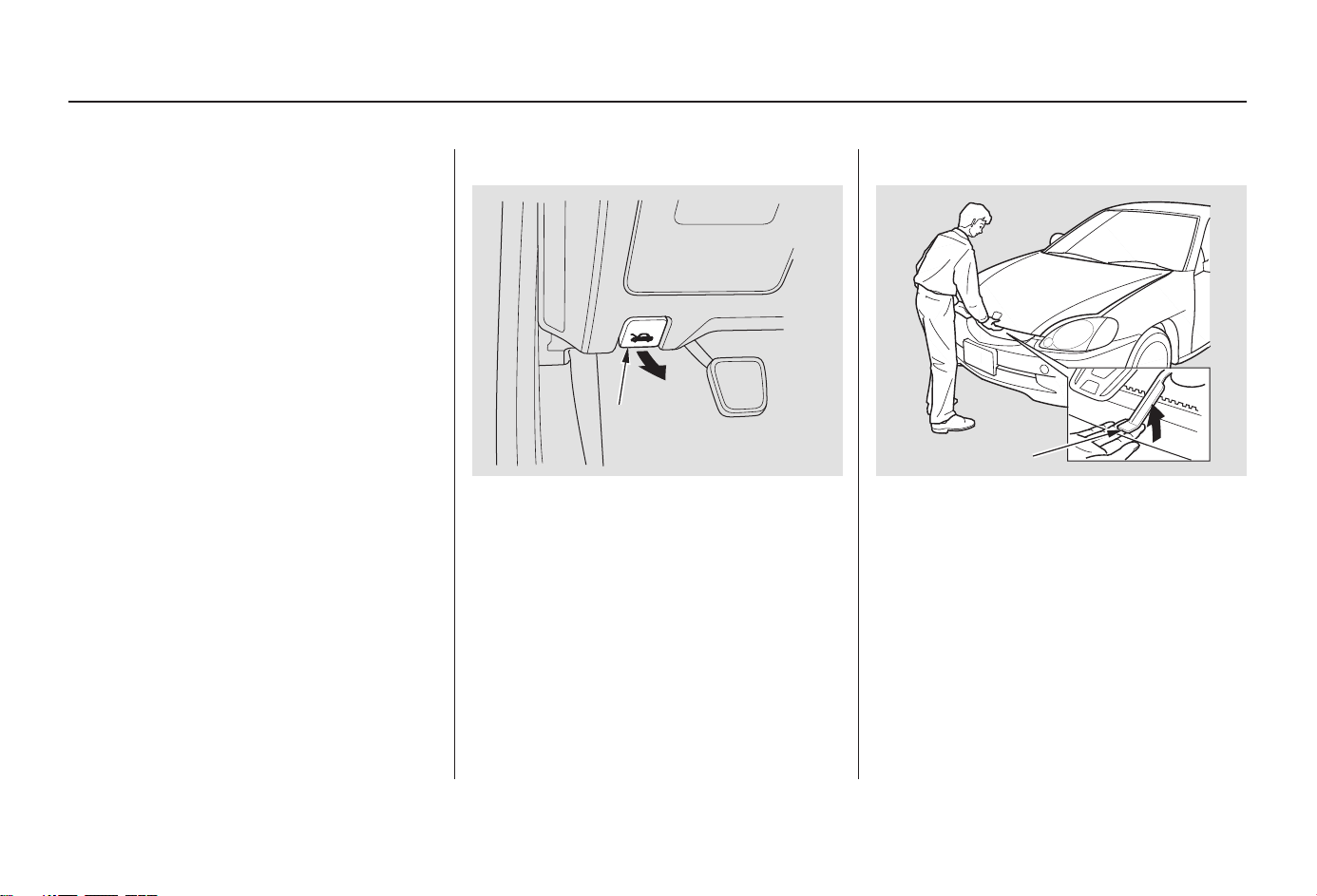

Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower left corner of the dashboard.
The hood will pop up slightly.
Put your fingers under the front
edge of the hood near the center.
Slide your hand to your left until
you feel the hood latch handle.
Push this handle up until it
releases the hood. Lift up the hood.
If the hood latch handle moves
stiffly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated.
1. 2.
5.
6.
180
Service Station Procedures
Opening and Closing the Hood
96
HOOD
RELEASE
HANDLE
LATCH
Main Menu
Table of Contents

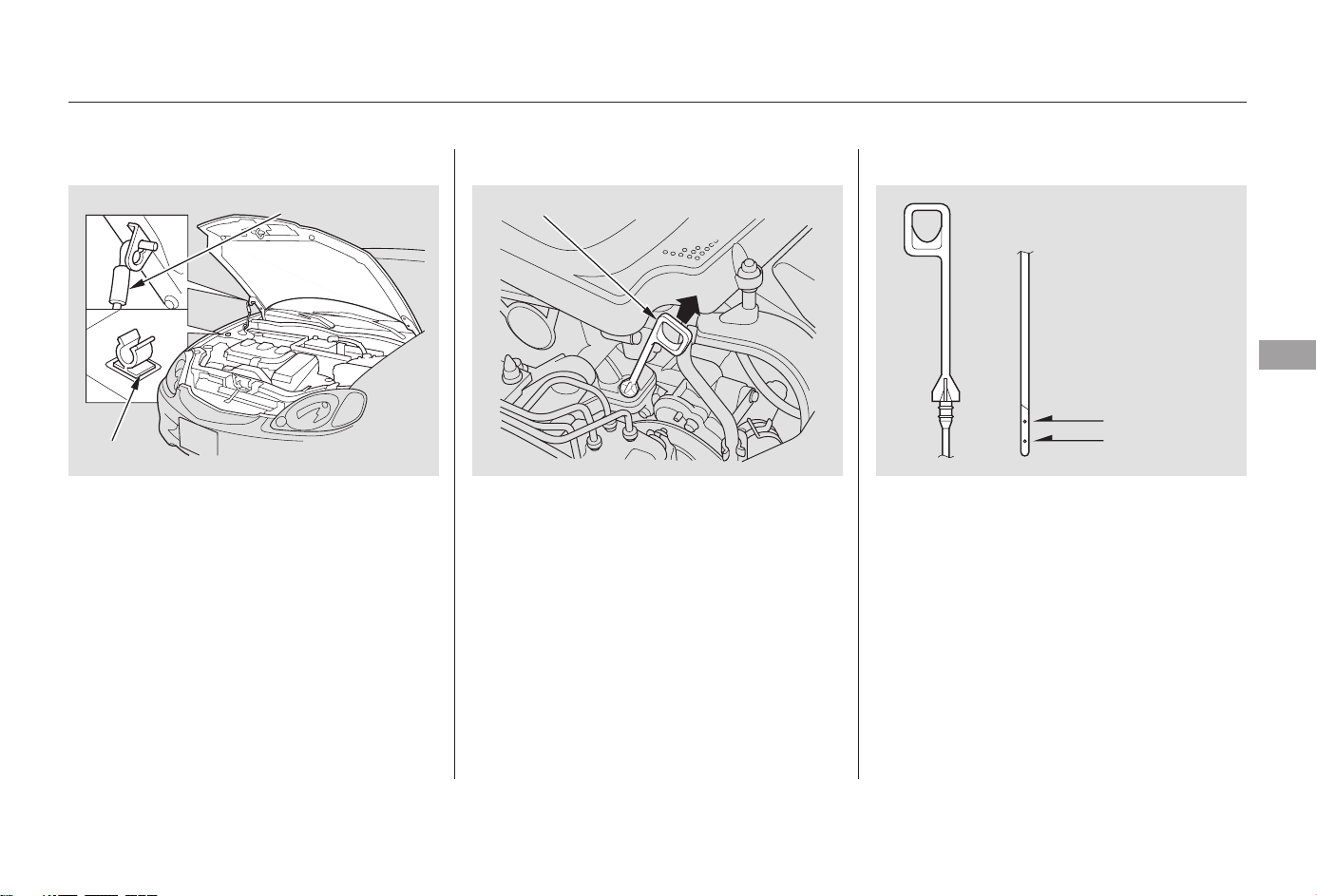

Wait a few minutes after turning the
engine off before you check the oil.
Remove the dipstick (orange
handle).
Wipe off the dipstick with a clean
cloth or paper towel.
Insert it all the way back in its hole.
Remove the dipstick again, and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower mark,
see on page .
Pull the support rod out of its clip,
and insert the end into the
designated hole in the hood.
To close the hood, lift it up slightly to
remove the support rod from the
hole. Put the support rod back into
its holding clip. Lower the hood to
about a foot (30 cm) above the
fender, then let it drop. Make sure it
is securely latched.
3.
3.
1.
2.
4.
135
Oil Check
Adding Oil
Service Station Procedures
Before Driving
97
CLIP
SUPPORT ROD
DIPSTICK
UPPER MARK
LOWER MARK
Main Menu
Table of Contents
Refer to
on page for information
about checking other items on your
vehicle.

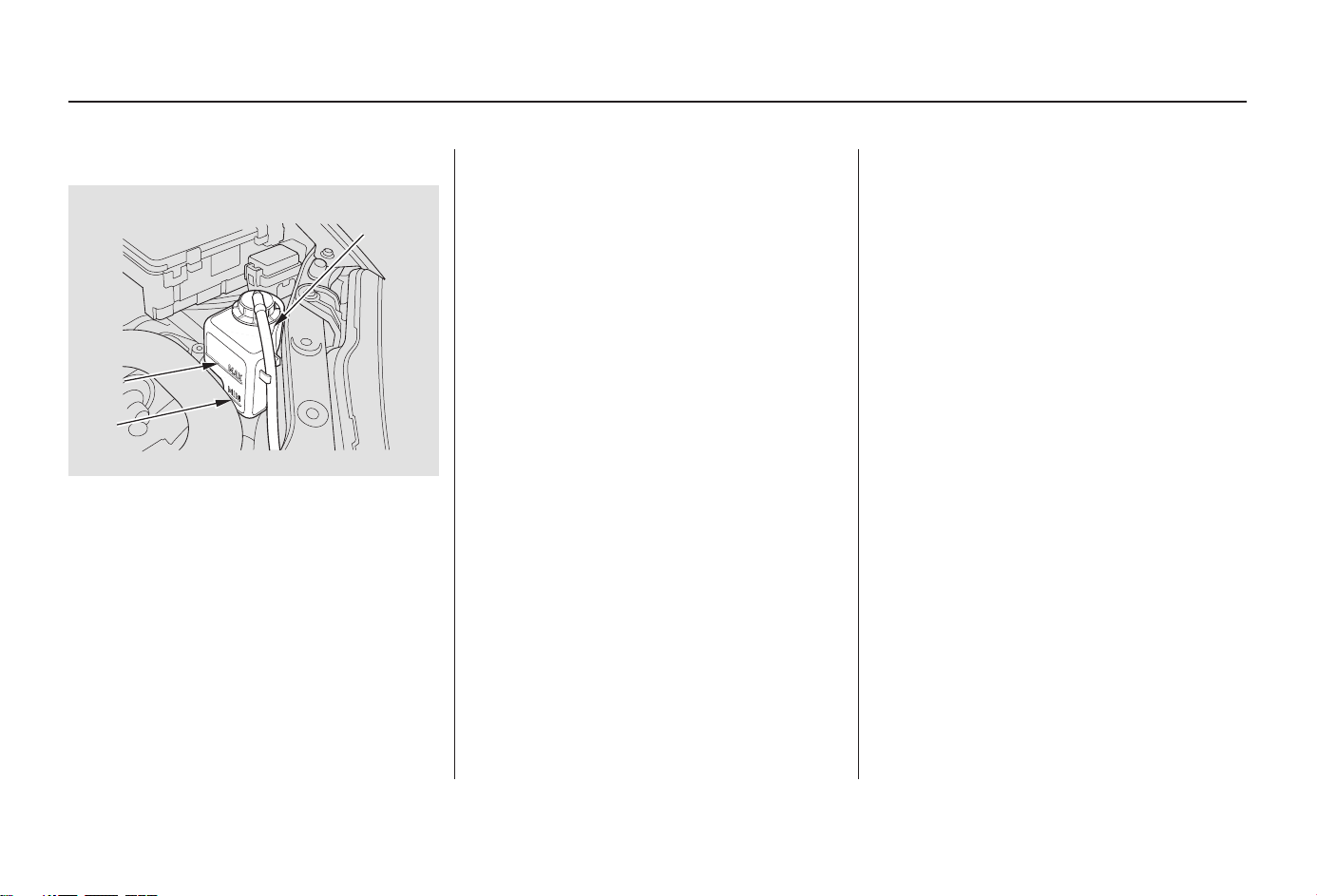

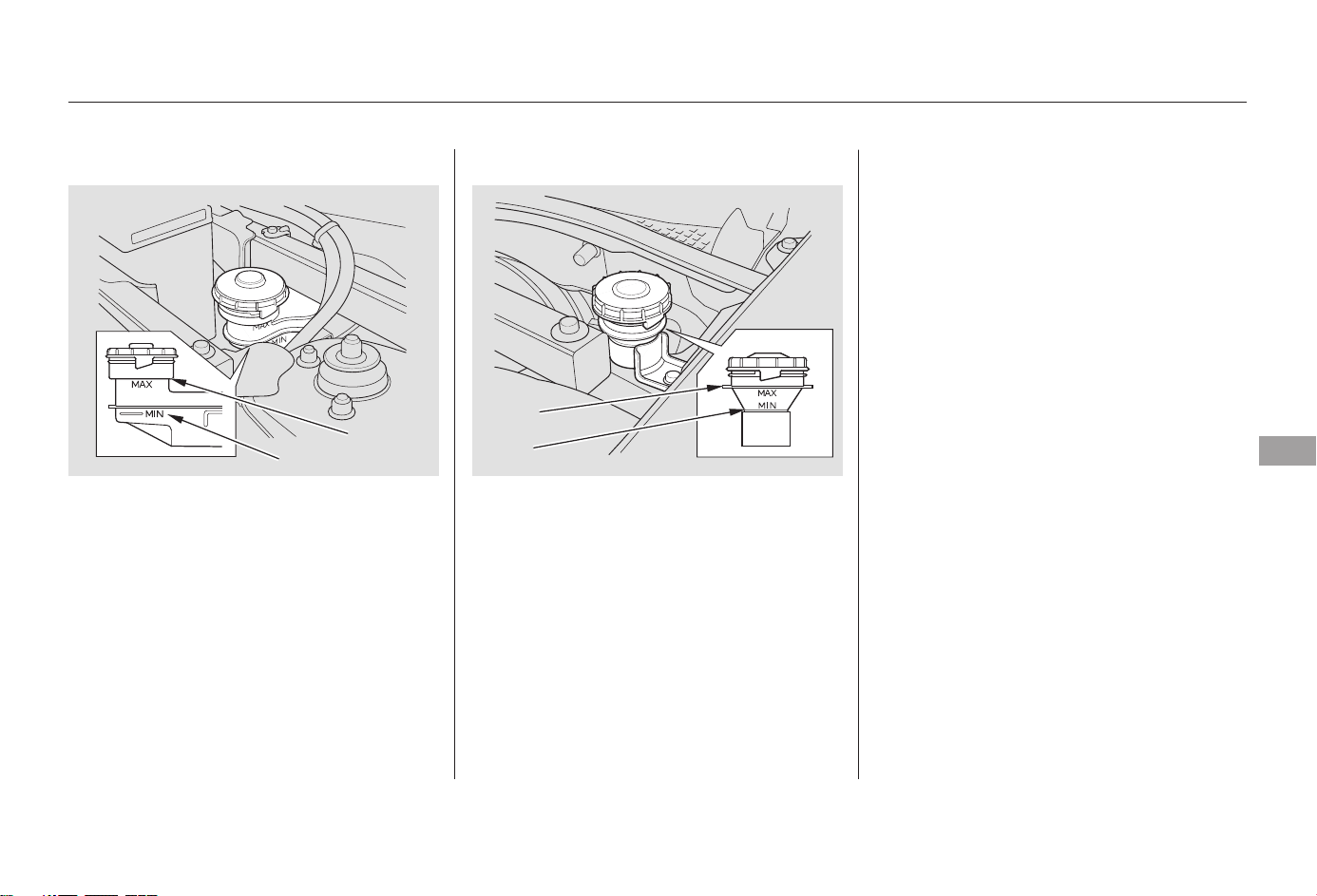

Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page for
information on adding the proper
coolant.
128
139
Service Station Procedures
Engine Coolant Check Owner’s Maintenance
Checks
Adding
Engine Coolant
98
RESERVE
TANK
MAX
MIN
Main Menu
Table of Contents
CONTINUED
Always maintain your vehicle
according to the maintenance
schedule. See
on page
.
Drive moderately. Rapid
acceleration, abrupt cornering,
and hard braking use more fuel.
Always drive in the highest gear
possible.
Try to maintain a constant speed.
Everytimeyouslowdownand
speed up, your vehicle uses extra
fuel.
Shift Up and Shift Down indicators
(5-speed manual transmission
only) on the instrument panel
show when to shift to a higher or
lower gear, so you will keep the
engine operating in its most
economical range.
Wind resistance causes vehicles to
usemorefuelathigherspeeds.
Driving at moderate speeds on the
highway also reduces wind
resistance and conserves fuel.
The current fuel mileage display is
available to drive appropriately and
save the fuel.
Driving in ECON mode, the A/C
off, and using the Auto Idle Stop
function is the most effective way
to get the best fuel economy.
Combine several short trips into
one.
an underinflated tire
causes more ‘‘rolling resistance,’’
which uses more fuel.
The build-up of snow or mud on
your vehicle’s underside adds
weight and rolling resistance.
Frequent cleaning helps your fuel
mileage and reduces the chance of
corrosion.
The fuel efficient, low-viscosity
0W-20 oil recommended for your
Insightisformulatedtohelpthe
engine use less fuel. This oil is
available at your dealer.
128
For example,
Fuel Economy
Improving Fuel Economy
Owner’s
Maintenance Checks
Before Driving
99
Main Menu
Table of Contents
The air conditioning puts an extra
load on the engine which makes it
usemorefuel.Usethefresh-air
ventilation when possible.
If air conditioning is needed, you
can save some fuel by using the
A/C in ‘‘ECON’’ mode. When the
outside temperature is above 41°F
(5°C), this mode allows the Auto
Idle Stop function to shut off the
engine when the vehicle is stopped,
resulting in fuel savings.
You may notice that using the A/C
causes a greater drop in fuel
economy. Although the extra fuel
used by the A/C load on the
engine is no greater than other
vehicles, it is more noticeable
because of your Insight’s excellent
fuel mileage.
Fuel Economy
100
Main Menu
Table of Contents
Your dealer has Honda accessories
that allow you to personalize your
vehicle. These accessories have
been designed and approved for your
vehicle, and are covered by warranty.
When properly installed, cellular
phones, alarms, two-way radios, and
low-powered audio systems should
not interfere with your vehicle’s
computer controlled systems, such
as your airbags and anti-lock brakes.
Before installing any accessory:Modifying your vehicle, or installing
some non-Honda accessories, can
make your vehicle unsafe. Before
you make any modifications or add
anyaccessories,besuretoreadthe
following information.
Be sure electronic accessories do
not overload electrical circuits
(see page ) or interfere with
proper operation.
Make sure the accessory does not
obscure any lights, or interfere
with proper vehicle operation or
performance.
Have the installer contact your
dealer for assistance before
installing any electronic accessory.
If possible, have your dealer
inspect the final installation.
Although non-Honda accessories
may fit on your vehicle, they may not
meet factory specifications, and
could adversely affect your vehicle’s
handling and stability.
185
Accessories
Accessories and Modifications
Before Driving
101
Improper accessories or
modifications can affect your
vehicle’s handling, stability, and
performance, and cause a
crash in which you can be hurt
or killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
Main Menu
Table of Contents
Some examples are:
Larger or smaller wheels and tires
can interfere with the operation of
your vehicle’s anti-lock brakes and
other systems.
Lowering your vehicle with a
non-Honda suspension kit that
significantly reduces ground
clearance can allow the
undercarriage to hit speed bumps
or other raised objects, which
could cause the airbags to deploy.
Raising your vehicle with a
non-Honda suspension kit can
affect the handling and stability.
Non-Honda wheels, because they
are a universal design, can cause
excessive stress on suspension
components.
If you plan to modify your vehicle,
consult your dealer.
Removing parts from your vehicle,
or replacing components with
non-Honda components could
seriously affect your vehicle’s
handling, stability, and reliability. Modifying your steering wheel or
any other part of your vehicle’s
safety systems could make the
systems ineffective.
Modifying Your Vehicle
Accessories and Modifications
102
Main Menu
Table of Contents
＊
＊

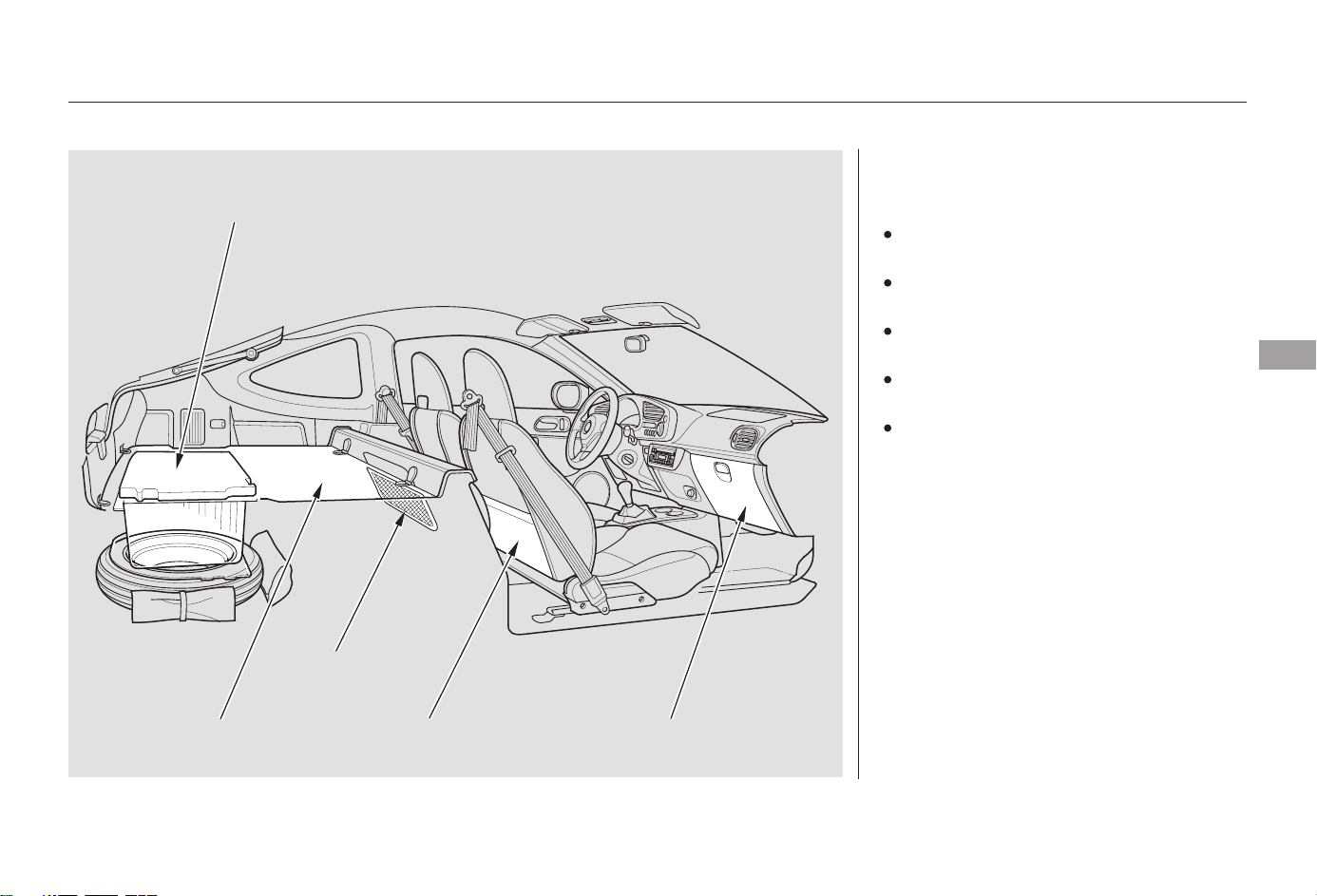

Your vehicle has several convenient
storage areas:
Glove box
Do not store large objects in the
rear center pocket. The objects in
the pocket will be broken when
you adjust the seats backwards.
However, carrying too much cargo,
or improperly storing it, can affect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsafe. Before carrying any
type of cargo, be sure to read the
following pages.
Rear center pocket
Cargo area
Storage box
Seat-back pocket
Carrying Cargo
Before Driving
103
STORAGE BOX
CARGO AREA
REAR CENTER
POCKET
SEAT-BACK POCKET GLOVE BOX
Main Menu
Table of Contents
−×
Determine the combined weight
of luggage and cargo being loaded
on the vehicle. That weight may
not safely exceed the available
cargo and luggage load capacity in
step 4.
Steps for determining correct load
limit:The maximum load for your vehicle
is 400 lbs (185 kg). This figure
includes the total weight of all
occupants, cargo, and accessories.
Locate the statement, ‘‘the
combined weight of occupants and
cargo should never exceed 400
lbs’’ on your vehicle’s placard.
[The placard is on the driver’s
doorjamb.]
Determine the combined weight
of the driver and passenger that
will be riding in your vehicle.
Subtract the combined weight of
the driver and passenger from 400
pounds or 185 kilograms.
The resulting figure equals the
available amount of cargo and
luggage load capacity. For
example, if the maximum load is
400 lbs and there will be two 150 lb.
passengers in your vehicle, the
amount of available cargo and
luggage load capacity is 100 lbs.
[400 300 (2 150) = 100 lbs.]
In addition, the total weight of the
vehicle, all passengers, accessories,
and cargo must not exceed the Gross
Vehicle Weight Rating (GVWR) or
the Gross Axle Weight Rating
(GAWR). Both are on a label on the
driver’s doorjamb.
1.
2.
3.
4.
5.
Load Limits
Carrying Cargo
104
Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
Main Menu
Table of Contents
Store or secure all items that could
be thrown around and hurt
someone during a crash.
Be sure items placed on the floor
behind the seats cannot roll under
the seats and interfere with the
pedals or seat operation.
Distribute cargo evenly on the
floor of the cargo area, placing the
heaviest items on the bottom and
as far forward as possible.
Tie down items that could be
thrown about the vehicle during a
crash or sudden stop.
Do not stack objects higher than
the tops of the seat-backs. They
could block your view and be
thrown about the vehicle during a
crash or sudden stop.
If you carry large items that
prevent you from closing the
hatch, exhaust gas can enter the
passenger area. To avoid the
possibility of
, follow the instructions
on page .
The floor of the storage box is
made of a soft plastic material. It is
not strong enough to stand heavy
goods on it.Keep the glove box closed while
driving. If it is open, a passenger
could injure their knees during a
crash or sudden stop.
38
Carrying Cargo
Carrying Items in the Passenger
Compartment
Carrying Cargo in the Cargo Area
carbon monoxide
poisoning
Before Driving
105
Main Menu
Table of Contents

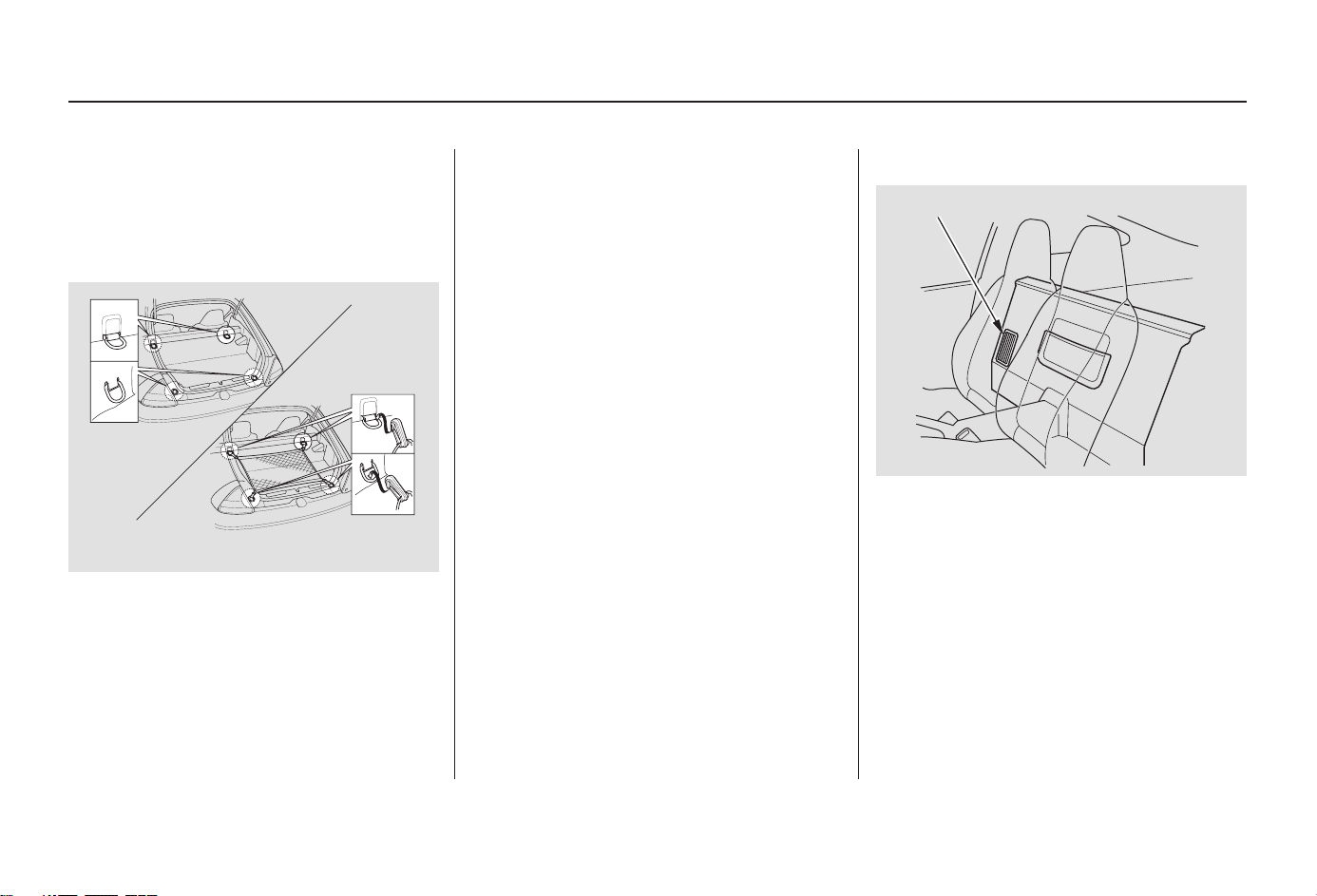

To secure the cargo, you can use the
four cargo hooks on the cargo area.
The illustration shows the location of
each cargo hook.
The cargo net can be used to help
hold down light items in the cargo
area. The cargo net may not prevent
heavy items from being thrown
forwardinacrashorasuddenstop.
Cargo secured with this net should
not exceed 22 lbs (10 kg). Heavy
items should be secured to the cargo
area floor with tie-downs or cinch
straps attached to the cargo hooks.
The air intake for the IMA battery is
located behind the passenger’s seat.
Do not block this air intake with any
cargo.
Do not spill any liquids over the air
intake or put any small foreign
objects in it. This may damage the
IMA battery and the power control
unit.
Carrying Cargo
Cargo Hooks Cargo Net Air Intake
106
AIR INTAKE
Cargo Hooks and Cargo Net
Main Menu
Table of Contents
This section gives you tips on
starting the engine under various
conditions, and how to operate the
manual and automatic transmissions.
It also includes important
information on parking your vehicle,
and the braking system.
........................Preparing to Drive . 108
.......................Starting the Engine . 109
...................Manual Transmission . 110
Shift Up/Shift Down
...............................Indicators . 111
............................Auto Idle Stop . 111
.Automatic Transmission (CVT) . 113
Continuously Variable
............Transmission (CVT) . 113
Shift Lever Position
...............................Indicators . 113
.......................................Shifting . 114
....................Shift Lock Release . 117
............................Auto Idle Stop . 118
...........................................Parking . 120
.............................Braking System . 121
...............Brake System Design . 121
.............Brake Wear Indicators . 121
...............Anti-lock Brakes (ABS) . 122
............................ABS Indicator . 122
...........................Towing a Trailer . 123
Driving
Driving
107
Main Menu
Youshoulddothefollowingchecks
and adjustments before you drive
your vehicle.
Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove frost, snow,
or ice.
Check that the hood is fully closed.
Check the seat adjustment (see
page ).
Check the adjustment of the
inside and outside mirrors (see
page ).
Make sure the doors and the
hatch are securely closed and
locked.
When you start the engine, check
the gauges and indicators in the
instrument panel (see page ).
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure.
Check that any items you may be
carrying are stored properly or
fastened down securely.
Fasten your seat belt. Check that
your passengers have fastened
their seat belts (see page ).
1.
2.
3.
4.
5.
6.
7.
8.
9.
66
68
43
14
Preparing to Drive
108
Main Menu
Table of Contents
Apply the parking brake.
In cold weather, turn off all
electrical accessories to reduce
the drain on the battery.
Push the clutch pedal down all the
way. START (III) does not
function unless the clutch pedal is
pressed.
If the engine does not start within
15 seconds, or starts but stalls
right away, repeat step 4 with the
accelerator pedal pressed halfway
down. If the engine starts, release
pressure on the accelerator pedal
so the engine does not race.
If the engine fails to start, press
the accelerator pedal all the way
downandholdittherewhile
starting to clear flooding. If the
engine still does not start, return
to step 5.
Without touching the accelerator
pedal, turn the ignition key to the
START (III) position. Do not hold
the key in START for more than
15 seconds at a time. If the engine
does not start right away, pause
for at least 10 seconds before
trying again.
Make sure the shift lever is in
Park. Press on the brake pedal.
1.
2.
3.
4.
5.
6.
Manual Transmission:
Automatic Transmission (CVT):
Starting the Engine
Driving
109
Immobilizer System
The immobilizer system protects your
vehicle f rom thef t. If an improperly-
coded key (or other device) is used, the
engine’s f uel system is disabled. See
on page .
The engine is harder to start in cold
weather. Also, the thinner air found at
altitudes above 8,000 f eet (2,400
meters) adds to this problem.
60
Main Menu
Table of Contents
Come to a full stop before you shift
into Reverse. You can damage the
transmission by trying to shift into
Reverse with the vehicle moving.
Push down the clutch pedal, and
pause for a few seconds before
shifting into Reverse, or shift into
one of the forward gears for a
moment. This stops the gears so
they won’t ‘‘grind.’’
When slowing down, you can get
extra braking from the engine by
shifting to a lower gear. This extra
braking can help you maintain a safe
speed and prevent your brakes from
overheating while going down a
steep hill. Before downshifting,
make sure the engine speed will not
go into the tachometer’s red zone in
the lower gear.

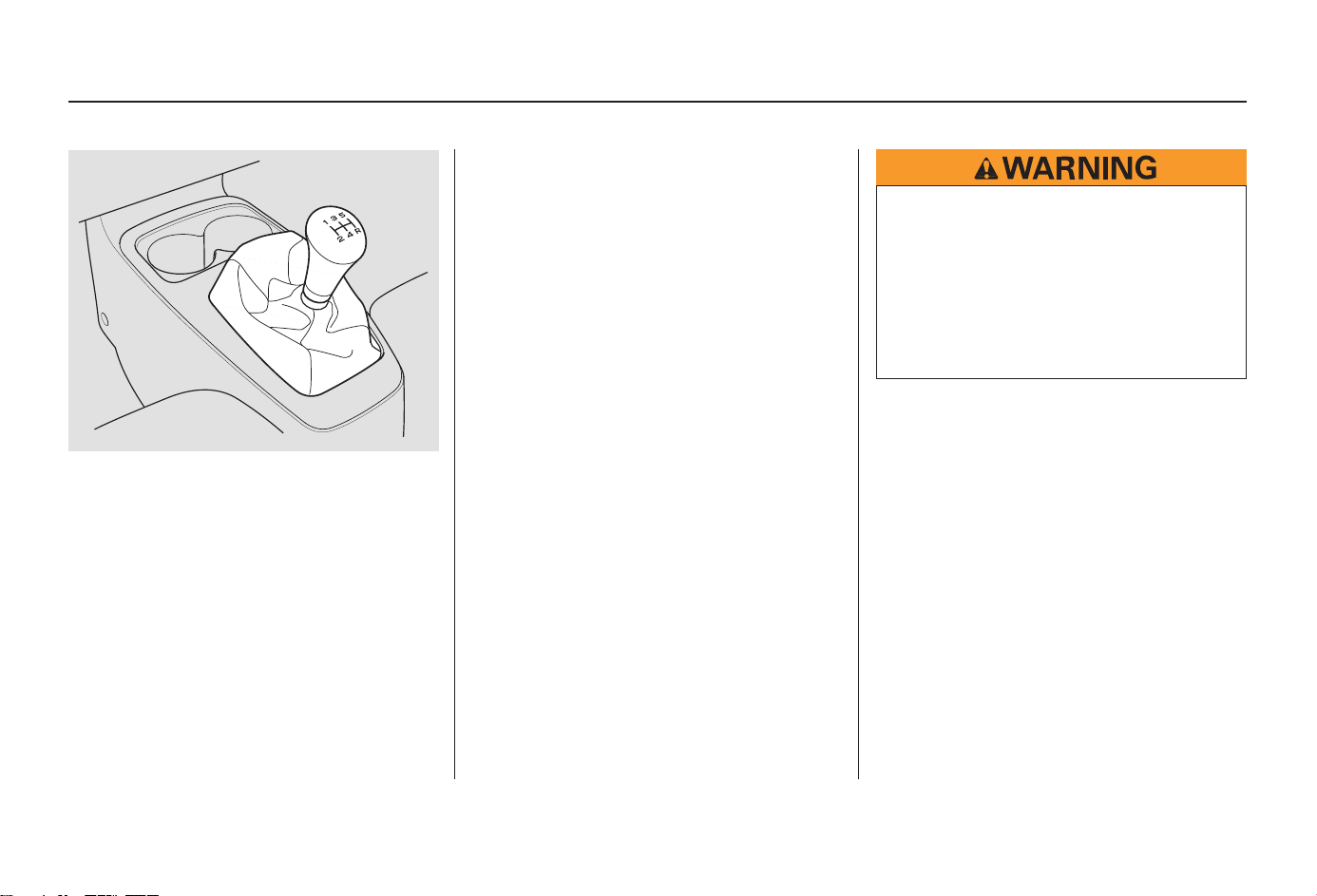

The manual transmission is syn-
chronizedinallforwardgearsfor
smooth operation. It has a lockout so
you cannot shift directly from Fifth
to Reverse. When shifting up or
down,makesureyoupushtheclutch
pedal down all the way, shift to the
next gear, and let the pedal up
gradually. When you are not shifting,
do not rest your foot on the clutch
pedal. This can cause your clutch to
wear out faster.
Manual Transmission
110
Rapid slowing or speeding-up
can cause loss of control on
slippery surfaces. If you crash,
you can be injured.
Use extra care when driving on
slippery surfaces.
Main Menu
Table of Contents
CONTINUED
The Shift Up or Shift Down indicator
will come on at the best time to shift
toahigherorlowergearforthebest
fuel economy. You can achieve the
best fuel economy by accelerating
and decelerating slowly, and shifting
up when prompted.
To maximize fuel economy, under
certain conditions, the engine will
shut off when you come to a stop.
Those conditions are:
The A/C is off, or in ECON mode,
and the outside temperature is
above 41°F (5°C) (see page ).
The engine coolant is nearly up to
normal operating temperature.
The vehicle’s speed is below 19
mph (30 km/h) and you are
pressing on the brake pedal to
come to a stop.
You depress the clutch pedal.
You are not pressing on the
accelerator pedal.
The IMA battery is sufficiently
charged (at least 1/3 on the
battery level gauge).
Before downshifting, make sure the
engine will not go into the
tachometer’s red zone.
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
RPM below the red zone.
Road and traffic conditions may
require you to shift at times other
than those indicated.
The Shift Down indicator prompts
you to shift to a lower gear when you
are climbing a hill faster than 12 mph
(19km/h),losingspeed,and
pressing on the accelerator pedal.
75
Shift Up/Shift Down Indicators Auto Idle Stop
Engine Speed Limiter
Manual Transmission
Driving
111
SHIFT UP INDICATOR
SHIFT DOWN INDICATOR
Main Menu
Table of Contents
There is adequate vacuum reserve
for the power brakes.
The engine will start again
automatically when you shift to first
gear. There is no need to start the
engine with the ignition switch.
It is recommended that you shift to
Neutral and release the clutch pedal
while stopped. Sitting with the clutch
pedal depressed and the shift lever
in gear will cause the engine to
continue running, defeating the fuel
economy benefits of the Auto Idle
Stop function.
During Auto Idle Stop, the IMA
charge and power brake vacuum
reserve is monitored by the system.
If either drops below a desired level,
and the shift lever is in Neutral, the
engine will restart so it can recharge
the IMA battery or replenish the
vacuum supply.
Auto Idle Stop is not active.
Auto Idle Stop is active.
The clutch pedal is depressed.
The transmission is not in gear.
Auto Idle Stop is active.
The clutch is not depressed.
You cannot restart the engine.
You will hear a chime if the door is
open.
When the indicator is off:
When the indicator is on:
When the indicator is blinking:
Auto Idle Stop Indicator
Manual Transmission
112
AUTO IDLE STOP INDICATOR
Main Menu
Table of Contents
Honda’s Continuously Variable
Transmission’s unique design
provides a smooth, constant flow of
power. It is electronically controlled
for more precise operation and
better fuel economy.
These indicators on the instrument
panel show which position the shift
lever is in.
The ‘‘D’’ indicator comes on for a
few seconds when you turn the
ignition switch to ON (II). If it
flashes while driving (in any shift
position), it indicates a possible
problem in the transmission.
If the malfunction indicator lamp
comes on along with the ‘‘D’’
indicator, there is a problem in the
automatic transmission control
system. Avoid rapid acceleration, and
have the transmission checked by
your dealer as soon as possible.
U.S. model
Automatic Transmission (CVT)
Continuously Variable
Transmission (CVT)
Shift Lever Position Indicators
Driving
113
Main Menu
Table of Contents
−
−
−

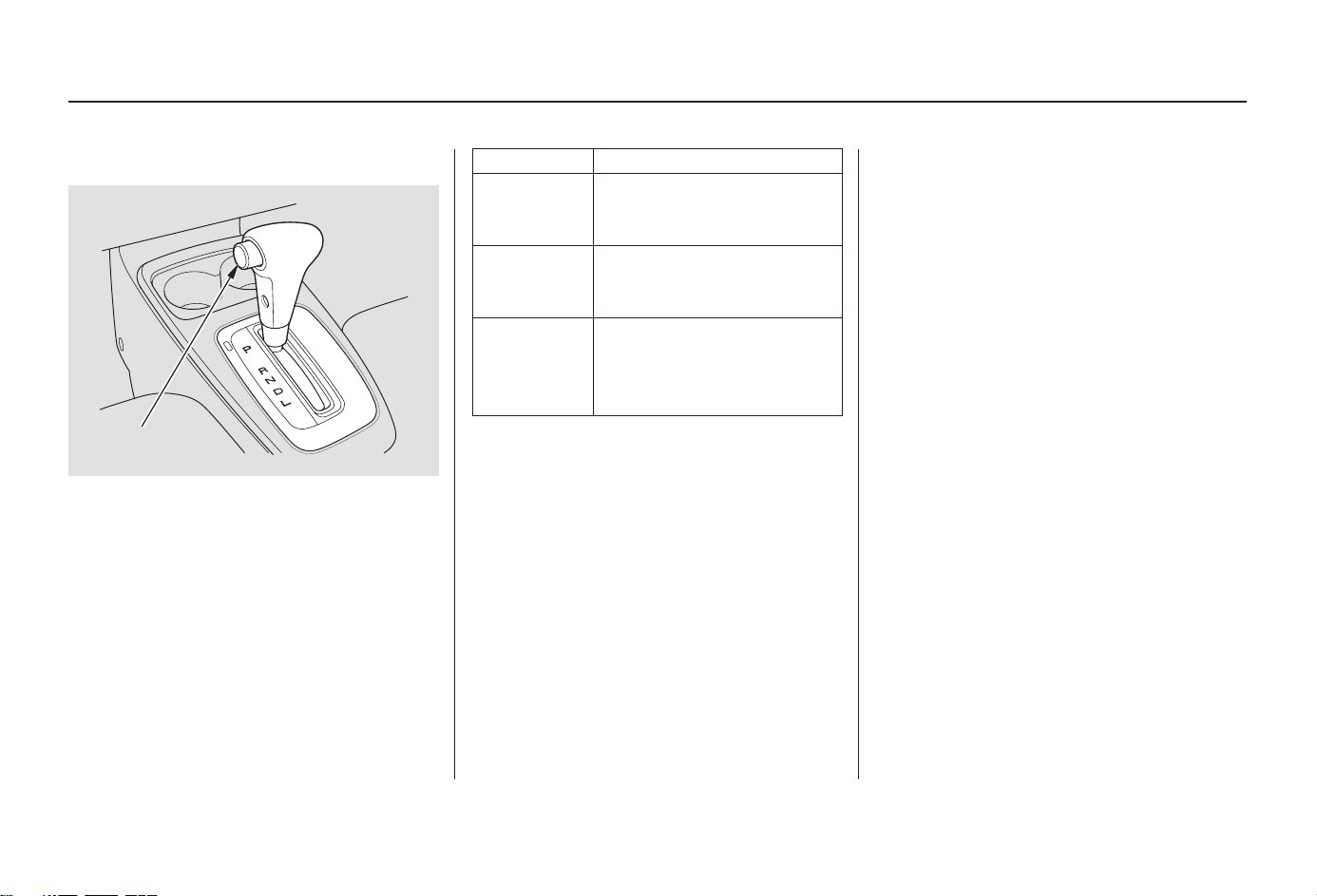

To shift from any position, press
firmly on the brake pedal and press
the release button on the side of the
shiftlever.Youcannotshiftoutof
Park when the ignition switch is in
the LOCK (0) or ACCESSORY (I)
position.
This position mechani-
cally locks the transmission. Use
Park whenever you are turning off or
starting the engine. To shift out of
Park, you must press on the brake
pedal and have your foot off the
accelerator pedal. Press the release
button on the side of the shift lever
to move it.
You must also press the release
button to shift into Park. To avoid
transmission damage, come to a
complete stop before shifting into
Park. The shift lever must be in Park
before you can remove the key from
the ignition switch.
If you have done all of the above and
still cannot move the lever out of
Park, see on
page .
Press the brake
pedal and press the release button
on the side of the shift lever to shift
from Park to Reverse. To shift from
Reverse to Neutral, come to a
completestopandthenshift.
Use Neutral if you
need to restart a stalled engine or if
it is necessary to stop briefly with
the engine idling. Always shift to the
Park position if you need to leave the
vehicle for any reason. Press on the
brake pedal when you are moving
the shift lever from Neutral to
another position.
117
To shift from:
PtoR
RtoP
NtoR
DtoL
NtoD
DtoN
LtoD
RtoN
Do this:
Press the brake pedal and
press the release button on
the lever.
Press the release button on
the lever.
Move the lever.
Automatic Transmission (CVT)
Shifting
Park (P)
Shift Lock Release
Reverse (R)
Neutral (N)
114
RELEASE
BUTTON
Main Menu
Table of Contents
−
−
−
CONTINUED
Use this position for
normal driving. The drive position
has two modes, Drive (D) and
Second (S). You can select the
desired mode with the two select
buttons on the steering wheel. The
‘‘D’’ indicator remains lit in either
mode.
Usethismodefor
everyday driving. The transmission
automatically adjusts to keep the
engine at the best speed for driving
conditions. To help the engine warm
up faster, the transmission will select
ratios that allow the engine to run at
higher speeds when it is cold.
In this mode, the
transmission selects a wider range of
ratios to give better acceleration.
Usethismodefordrivingupor
downhill. Along with the ‘‘D’’
indicator, the ‘‘S’’ indicator comes on
as a reminder.
Automatic Transmission (CVT)
Drive (D)
Drive Mode
Second (S) Mode
Driving
115
DRIVE MODE BUTTON
SECOND MODE BUTTON
‘‘D’’ INDICATOR
‘‘S’’ INDICATOR
Main Menu
Table of Contents
−You can switch into and out of
Second mode with the ignition
switch ON (II) and the shift lever in
D position. If you turn the ignition
switch to ACCESSORY (I) in Second
mode, the mode is switched to Drive.
The ‘‘S’’ indicator also comes on for a
few seconds when you turn the
ignition switch to ON(II).
To shift to Low, press
the release button on the side of the
shift lever. Use Low to get more
power when climbing, and for
maximum engine braking when
going down steep hills.
ForfasteraccelerationwheninDor
L, the transmission will automatically
‘‘kick down’’ to a lower range of
ratios when you push the accelerator
pedal to the floor.
If you exceed the maximum speed
for the gear you are in, the engine
speed will enter into the tachometer’s
red zone. If this occurs, you may feel
the engine cut in and out. This is
caused by a limiter in the engine’s
computer controls. The engine will
run normally when you reduce the
RPM below the red zone.
Automatic Transmission (CVT)
Low (L) Engine Speed Limiter
116
Main Menu
Table of Contents

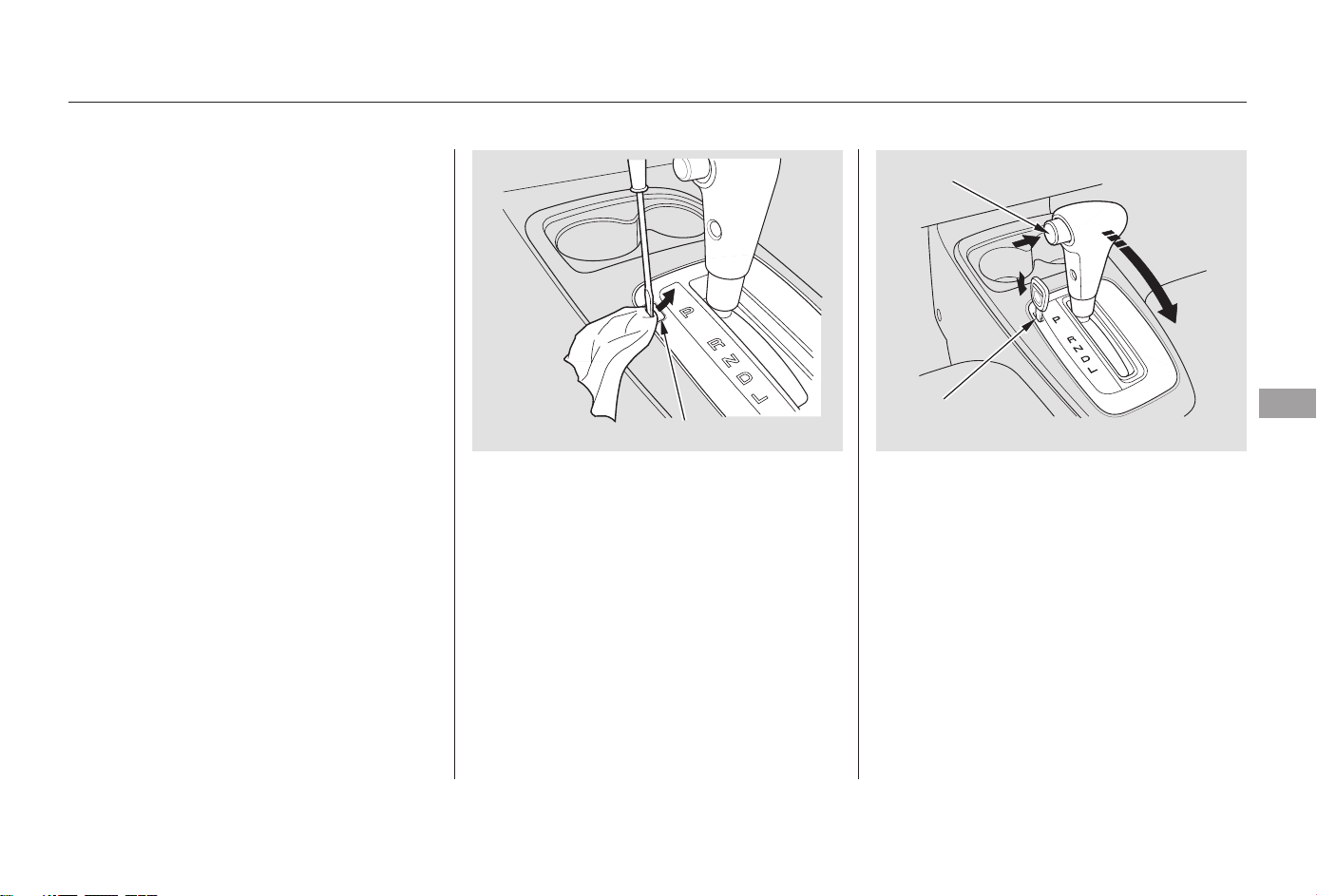

This allows you to move the shift
lever out of Park if the normal
method of pushing on the brake
pedal and pressing the release
button does not work.
Set the parking brake.
Insert the key in the Shift Lock
Release slot.
Push down on the key while you
pressthereleasebuttononthe
shift lever and move the shift lever
out of Park to Neutral.
Remove the key from the Shift
Lock Release slot, then reinstall
thecover.Makesurethenotchon
the cover is on the left side. Press
the brake pedal, and restart the
engine.
If you need to use the Shift Lock
Release, it means your vehicle is
developing a problem. Have the
vehicle checked by your dealer.
Make sure the ignition switch is in
the LOCK (0) position.
Put a cloth on the edge of the Shift
Lock Release slot cover. Using a
small flat-tipped screwdriver or
finger nail file, carefully pry on the
edge of the cover to remove it.
1.
2.
3.
4.
5.
6.
Automatic Transmission (CVT)
Shift Lock Release
Driving
117
RELEASE BUTTON
SHIFT LOCK
RELEASE SLOT
COVER
Main Menu
Table of Contents
To maximize fuel economy, your
Insight has an Auto Idle Stop
function. Under certain conditions,
the engine will shut off when you
come to a stop. Those conditions are:
The engine coolant is nearly up to
normal operating temperature.
The shift lever is in D or N.
You are not pressing on the
accelerator pedal.
The IMA battery is sufficiently
charged (at least 1/3 on the
Battery Level Gauge).
The A/C is off, or in ECON mode,
and the outside temperature is
above 41°F (5°C) (see page ).
There is adequate vacuum reserve
for the power brakes.
When these conditions are met, the
engine will shut off as you are
braking to a stop and the vehicle
speed goes below 5 mph (8 km/h).
The engine will start again when you
release the brake pedal. It will also
restart, even if you are still pressing
the brake pedal, under these
conditions:
You move the shift lever from D
orNtoR,L,orP.
You press the accelerator pedal.
You are on an incline, and the
vehicle begins rolling.
During Auto Idle Stop, the IMA
charge and power brake vacuum
reserve is monitored by the system.
If the vacuum reserve drops below
an optimal level, the engine will
restart to replenish the vacuum
supply. If the IMA charge drops
below an optimal level and the shift
lever is in Neutral or Park (P), the
engine will restart to recharge the
IMA battery.
75
Automatic Transmission (CVT)
Auto Idle Stop
118
Main Menu
Table of Contents

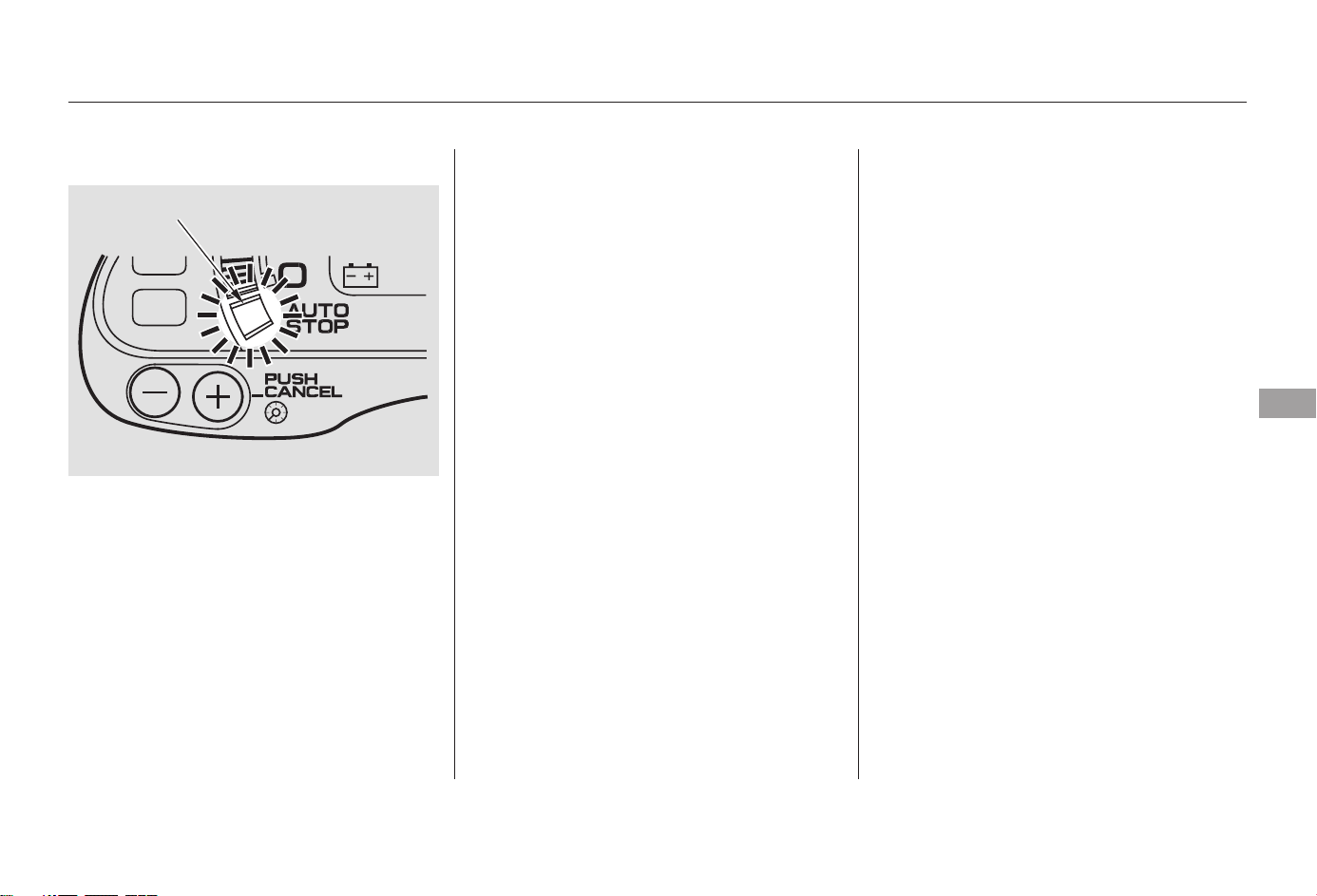

The indicator blinks as a reminder
that the engine has stopped because
of the Auto Idle Stop function. You
cannot restart the engine with the
ignition switch when this indicator is
blinking.
If you open the driver’s door when
Auto Stop is active, the indicator will
blink and you will hear a chime. The
chime will stop when you close the
door.
Always turn the ignition switch to
LOCK (0) and remove the key if you
are getting out of the vehicle.
Automatic Transmission (CVT)
Auto Idle Stop Indicator
Driving
119
AUTO IDLE STOP INDICATOR
Main Menu
Table of Contents
Always use the parking brake when
you park your vehicle. Make sure
the parking brake is set firmly or
your vehicle may roll if it is parked
on an incline.
If your vehicle has an automatic
transmission, set the parking brake
before you put the transmission in
Park. This keeps the vehicle from
moving and putting pressure on the
parking mechanism in the
transmission.
Make sure the windows are closed.
Turn off the lights.
If the vehicle is facing uphill, turn
the front wheels away from the
curb. If you have a manual
transmission, put it in first gear.
Place any packages, valuables, etc.
in the storage box or take them
with you.
Lock the doors and the hatch with
the key or the remote transmitter.
If the vehicle is facing downhill,
turn the front wheels toward the
curb. If you have a manual
transmission, put it in reverse gear.
Make sure the parking brake is
fully released before driving away.
Driving with the parking brake
partially set can overheat or
damage the rear brakes.
Never park over dry leaves, tall
grass, or other flammable
materials. The hot three way
catalytic converter could cause
these materials to catch on fire.
Parking
Parking Tips
120
Main Menu
Table of Contents
Constant application of the brakes
when going down a long hill builds
up heat and reduces their effective-
ness. Use the engine to assist the
brakes by taking your foot off the
accelerator and downshifting to a
lower gear.
Resting your foot on the pedal keeps
the brakes applied lightly, builds up
heat, and reduces their effectiveness.
It also keeps your brake lights on all
the time, confusing drivers behind
you.
Your vehicle is equipped with front
disc brakes. The brakes on the rear
wheels are drum. A power assist
helps reduce the effort needed on
thebrakepedal.TheABShelpsyou
retain steering control when braking
very hard.
The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the left-front brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
If the brake pads need replacing, you
will hear a distinctive, metallic
screeching sound when you apply
the brake pedal. If you do not have
the brake pads replaced, they will
screech all the time. It is normal for
the brakes to occasionally squeal or
squeak when you apply them.
Check the brakes after driving
through deep water. Apply the
brakes moderately to see if they feel
normal. If not, apply them gently and
frequently until they do. Be extra
cautious in your driving.
Braking System
Braking System Design
Brake Wear Indicators
Driving
121
Main Menu
Table of Contents
The anti-lock brake system (ABS)
helps prevent the brakes from
locking up, and helps you retain
steering control by pumping the
brakes rapidly, much faster than a
person can do it.
this defeats the purpose of the ABS.
Let the ABS work for you by always
keeping firm, steady pressure on the
brake pedal as you steer away from
the hazard. This is sometimes
referred to as ‘‘stomp and steer.’’
If the ABS indicator comes on, the
anti-lock function of the braking
system has shut down. The brakes
still work like a conventional system,
but without anti-lock. You should
have your dealer inspect your vehicle
as soon as possible.
You will feel a pulsation in the brake
pedal when the ABS activates, and
you may hear some noise. This is
normal: it is the ABS rapidly
pumpingthebrakes.Ondry
pavement, you will need to press on
thebrakepedalveryhardbeforethe
ABS activates. However, you may
feel the ABS activate immediately if
you are trying to stop on snow or ice.
You should never pump the brake pedal;
Anti-lock Brakes (ABS)
ABS Indicator
122
Main Menu
Table of Contents
It only helps with the
steering control during braking.
Your vehicle is not designed to tow a
trailer, attempting to do so can void
your warranties.
such as trying to take a
corner too fast or making a sudden
lane change.
Always steer moderately
when you are braking hard. Severe
or sharp steering wheel movement
can still cause your vehicle to veer
into oncoming traffic or off the road.
on loose or
uneven surfaces, such as gravel or
snow, than a vehicle without anti-
lock.
Anti-Lock Brakes (ABS), Towing a Trailer
Important Safety Reminders
ABS does not reduce the time or
distance it takes to stop the
vehicle.
Towing a Trailer
ABS will not prevent a skid that
results from changing direction
abruptly,
ABS cannot prevent the loss of
stability.
A vehicle with ABS may require a
longer distance to stop
Driving
123
Main Menu
Table of Contents
124
Main Menu
This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
This section also includes
Maintenance Schedules for normal
driving and severe driving conditions,
a Maintenance Record, and instruc-
tions for simple maintenance tasks
you may want to take care of
yourself.
If you have the skills and tools to per-
form more complex maintenance
tasks on your vehicle, you may want
to purchase the Service Manual. See
page for information on how to
obtain a copy, or see your dealer.
......................Maintenance Safety . 126
.................Maintenance Schedule . 127
....................Maintenance Record . 131
..............................Fluid Locations . 134
........................Adding Engine Oil . 135
.......Recommended Engine Oil . 135
..............................Synthetic Oil . 136
................Engine Oil Additives . 136
.........Changing the Oil and Filter . 136
..............................Engine Coolant . 139
....................Windshield Washers . 141
.......................Transmission Fluid . 142
Automatic Transmission
.....................................(CVT) . 142
..............Manual Transmission . 143
................Brake and Clutch Fluid . 144
.............................................Lights . 146
.......................................Seat Belts . 151
.....................................Floor Mats . 151
..................Dust and Pollen Filter . 152
................................Roof Antenna . 152
..........................Rear Wheel Skirt . 153
.................................Wiper Blades . 153
...............................................Tires . 156
..................Inflation Guidelines . 156
..........................Tire Inspection . 158
.....................Tire Maintenance . 158
.............................Tire Rotation . 159
.........................Replacing Tires . 159
Wheels and Tires
........................Specifications . 160
..........................Winter Driving . 160
.................................Snow Tires . 161
................................Tire Chains . 161
...................Checking the Battery . 162
.............................Vehicle Storage . 163
207
Maintenance
Maintenance
125
Main Menu
All service items not detailed in this
section should be performed by a
certified technician or other qualified
mechanic.
To eliminate potential hazards, read
the instructions before you begin,
and make sure you have the tools
and skills required.
Do
not run the engine unless
instructed to do so.
Some of the most important safety
precautions are given here. However,
we cannot warn you of every
conceivable hazard that can arise in
performing maintenance. Only you
can decide whether or not you
should perform a given task.
Make sure your vehicle is parked
on level ground, the parking brake
is set, and the engine is off.
To clean parts, use a commercially
available degreaser or parts
cleaner, not gasoline.
To reduce the possibility of fire or
explosion, keep cigarettes, sparks,
and flames away from the battery
and all fuel-related parts.
Wear eye protection and
protective clothing when working
with the battery or compressed air.
Be sure there is
adequate ventilation whenever you
operate the engine.
Let the
engine and exhaust system cool
before touching any parts.
Maintenance Safety
Important Safety Precautions
Injury f rom moving parts.
Potential Vehicle Hazards
Carbon Monoxide poison f rom
engine exhaust.
Burns from hot parts.
126
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
Improperly maintaining this
vehicle, or failing to correct a
problem before driving can
cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection
and maintenance
recommendations and
schedules in this owner’s
manual.
Main Menu
Table of Contents
−
−
The maintenance schedule assumes
you will use your vehicle as normal
transportation for passengers and
their possessions. You should also
follow these recommendations:
Avoid exceeding your vehicle’s
load limit. This puts excess stress
on the engine, brakes, and many
other vehicle parts. The load limit
is shown on the tire information
label on the driver’s doorjamb.
Drive your vehicle regularly over a
distance of several miles
(kilometers).
Always use unleaded gasoline with
theproperoctanerating(seepage
).
Service your vehicle according to the
time and mileage periods on one of
the Maintenance Schedules on the
following pages.
Follow the
Maintenance Schedule for Severe
Conditions if you drive your vehicle
MAINLY under one or more of the
following conditions.
Driving less than 5 miles (8 km)
per trip or, in freezing
temperatures, driving less than 10
miles (16 km) per trip.
Driving in extremely hot [over
90°F (32°C)] conditions.
Driving on muddy, dusty, or de-
iced roads.
If you only OCCASIONALLY
drive under a ‘‘severe’’ condition, you
should follow the Maintenance
Schedule for Normal Conditions.
Follow the
Maintenance Schedule for Severe
Conditions.
Driving in mountainous conditions.
Operate your vehicle on
reasonable roads within the legal
speed limit.
Extensive idling or long periods of
stop and go driving.
94
Maintenance Schedule
Which Schedule to Follow:
U.S. Owners
Canadian Owners
Maintenance
127
NOTE:
Main Menu
Table of Contents
＃
−
−
−
−
−
−
Your authorized dealer knows your
vehicle best and can provide
competent, efficient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualified service facility or
skilled person to keep your
warranties in effect. Keep all the
receipts as proof of completion, and
have the person who does the work
fill out the Maintenance Record.
Check your warranty booklet for
more information.
We recommend the use of Honda
parts and fluids whenever you have
maintenance done.
According to state and federal
regulations, failure to perform
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
performed at the recommended time
or mileage period to ensure long-
term reliability.
Youshouldcheckthefollowing
items at the specified intervals. If
you are unsure of how to perform
any check, turn to the appropriate
page listed.
U.S. Vehicles:
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
turn signals, brake lights, and
license plate light monthly. See
page .
Tires Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
.
Brakes Check the fluid level
monthly. See page .
Automatic transmission (CVT)
Check the fluid level monthly. See
page .
Engine coolant level Check the
radiator reserve tank every time
you fill the fuel tank. See page .
Engine oil level Check every
time you fill the fuel tank. See
page .97
98
142
145
156
146
Maintenance Schedule
Servicing Your Vehicle
Owner’s Maintenance Checks
Maintenance,
replacement, or repair of
emissions control devices and
systems may be done by any
automotive repair establishment
or individual using parts that are
‘‘certified’’ to EPA standards.
128
Main Menu
Table of Contents
＃
＃
＃
129
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000
15
24
30
48
45
72
60
96
75
120
90
144
135
216
150
240
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 7,500 miles (12,000 km) or every 1 year, whichever comes first
Every 7,500 miles (12,000 km)
Every 15,000 miles (24,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Inspect every 105,000 miles (168,000 km), otherwise adjust only if noisy
Every 3 years (independent of mileage)
Every 120,000 miles (192,000 km) or every 6 years, whichever comes first
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
See information on maintenance and emissions warranty, last column, page .
105
168
120
192
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page 159 )
Replace engine oil filter
Check front and rear brake wear
Check parking brake adjustment
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace manual transmission fluid
Replace automatic transmission (CVT) fluid
Inspect idle speed
Replace engine coolant
Replace brake fluid
: 128
Maintenance Schedule for Normal Conditions
Main Menu
Table of Contents
＃
＊
＃
＃
＊
130
Service the items listed at the indicated distance (or time, if given).
miles x 1,000
km x 1,000
15
24
30
48
45
72
75
120
135
216
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 3,750 miles (6,000 km) or every 6 months, whichever comes first
Every 7,500 miles (12,000 km)
Every 7,500 miles (12,000 km) or every 6 months, whichever comes first
Every 15,000 miles (24,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions)
Inspect every 105,000 miles (168,000 km), otherwise adjust only if noisy
Every 60,000 miles (96,000 km) or every 3 years, whichever comes first
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years
Every 3 years (independent of mileage)
60
96
90
144
120
192
See information on maintenance and emissions warranty, last column, page .
See dust and pollen filter on page for replacement information under special driving conditions.
105
168
150
240
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Check engine oil and coolant
Check tires
Replace engine oil and oil filter
Rotate tires (follow pattern on page 159 )
Check front and rear brake wear
Inspect the following items:
Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Lubricate all hinges, locks, and latches
Inspect the following items:
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls/vehicle underbody
Inspect drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace manual transmission fluid
Replace automatic transmission (CVT) fluid
Inspect idle speed
Replace engine coolant
Replace brake fluid
:
: 150
128
Maintenance Schedule for Severe Conditions
Main Menu
Table of Contents
(for Normal and Severe Schedules)
CONTINUED
Maintenance Record
Maintenance
131
3,750 mi
7,500 mi
11,250 mi
15,000 mi
18,750 mi
22,500 mi
26,250 mi
30,000 mi
33,750 mi
37,500 mi
41,250 mi
45,000 mi
48,750 mi
52,500 mi
56,250 mi
60,000 mi
6,000 km
12,000 km
18,000 km
24,000 km
30,000 km
36,000 km
42,000 km
48,000 km
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
54,000 km
60,000 km
66,000 km
72,000 km
78,000 km
84,000 km
90,000 km
96,000 km
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
You or the servicing dealer can record all completed maintenance here, whether you follow the schedule for normal conditions (page ) or severe
conditions (page ). Keep the receipts for all work done on your vehicle.130
129
Main Menu
Table of Contents
(for Normal and Severe Schedules)
Maintenance Record
132
63,750 mi
67,500 mi
71,250 mi
75,000 mi
78,750 mi
82,500 mi
86,250 mi
90,000 mi
93,750 mi
97,500 mi
101,250 mi
105,000 mi
108,750 mi
112,500 mi
116,250 mi
120,000 mi
102,000 km
108,000 km
114,000 km
120,000 km
126,000 km
132,000 km
138,000 km
144,000 km
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
150,000 km
156,000 km
162,000 km
168,000 km
174,000 km
180,000 km
186,000 km
192,000 km
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
Main Menu
Table of Contents
(for Normal and Severe Schedules)
Maintenance Record
Maintenance
133
123,750 mi
127,500 mi
131,250 mi
135,000 mi
138,750 mi
142,500 mi
146,250 mi
150,000 mi
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
198,000 km
204,000 km
210,000 km
216,000 km
222,000 km
228,000 km
234,000 km
240,000 km
Main Menu
Table of Contents

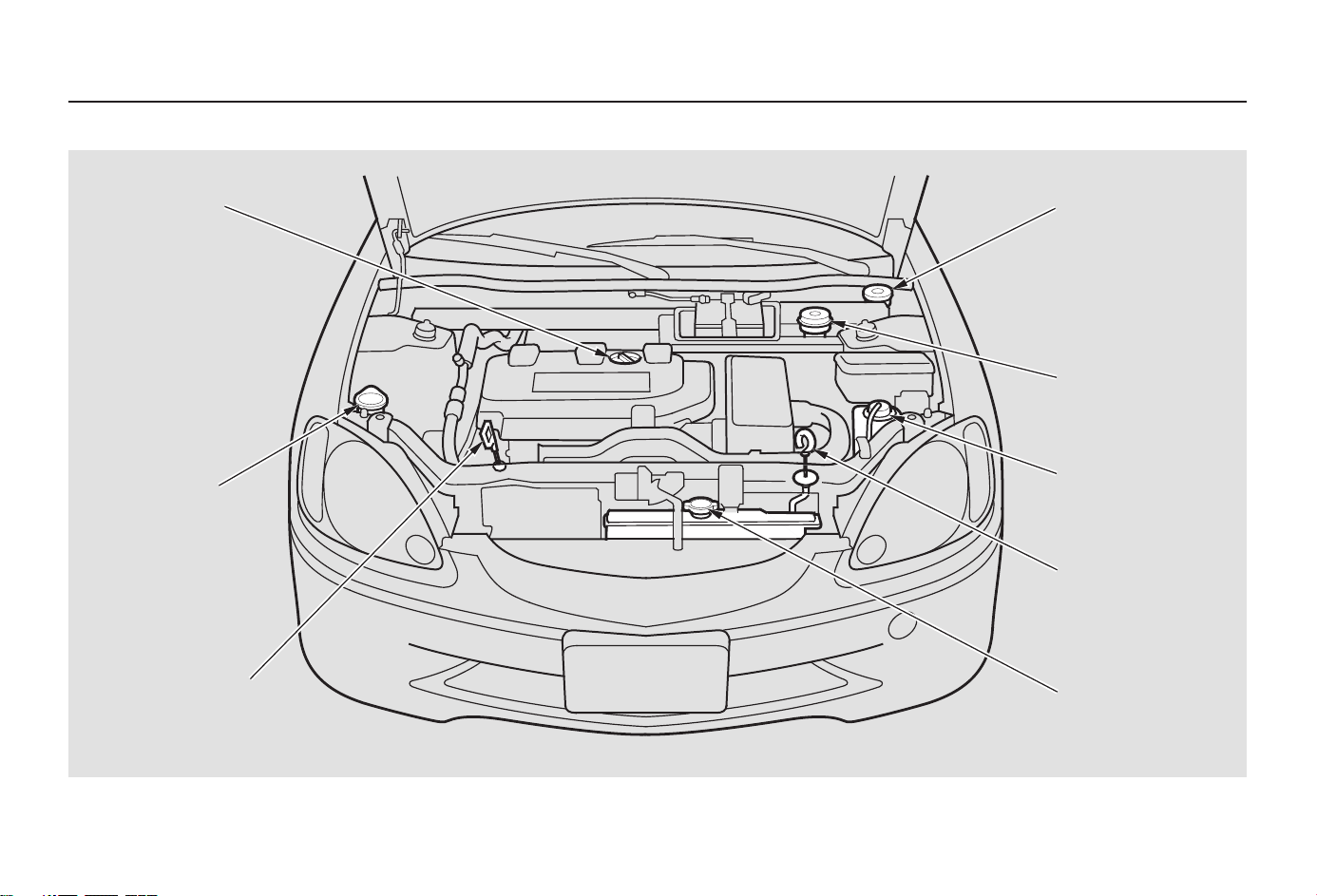

Fluid Locations
134
ENGINE OIL
FILL CAP
WASHER FLUID
(Blue cap)
ENGINE OIL DIPSTICK
(Orange loop)
BRAKE FLUID
(Gray cap)
ENGINE
COOLANT
RESERVOIR
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(CVT)
(Yellow loop)
RADIATOR CAP
CLUTCH FLUID
(Gray cap)
(Manual
Transmission
only)
Main Menu
Table of Contents
CONTINUED

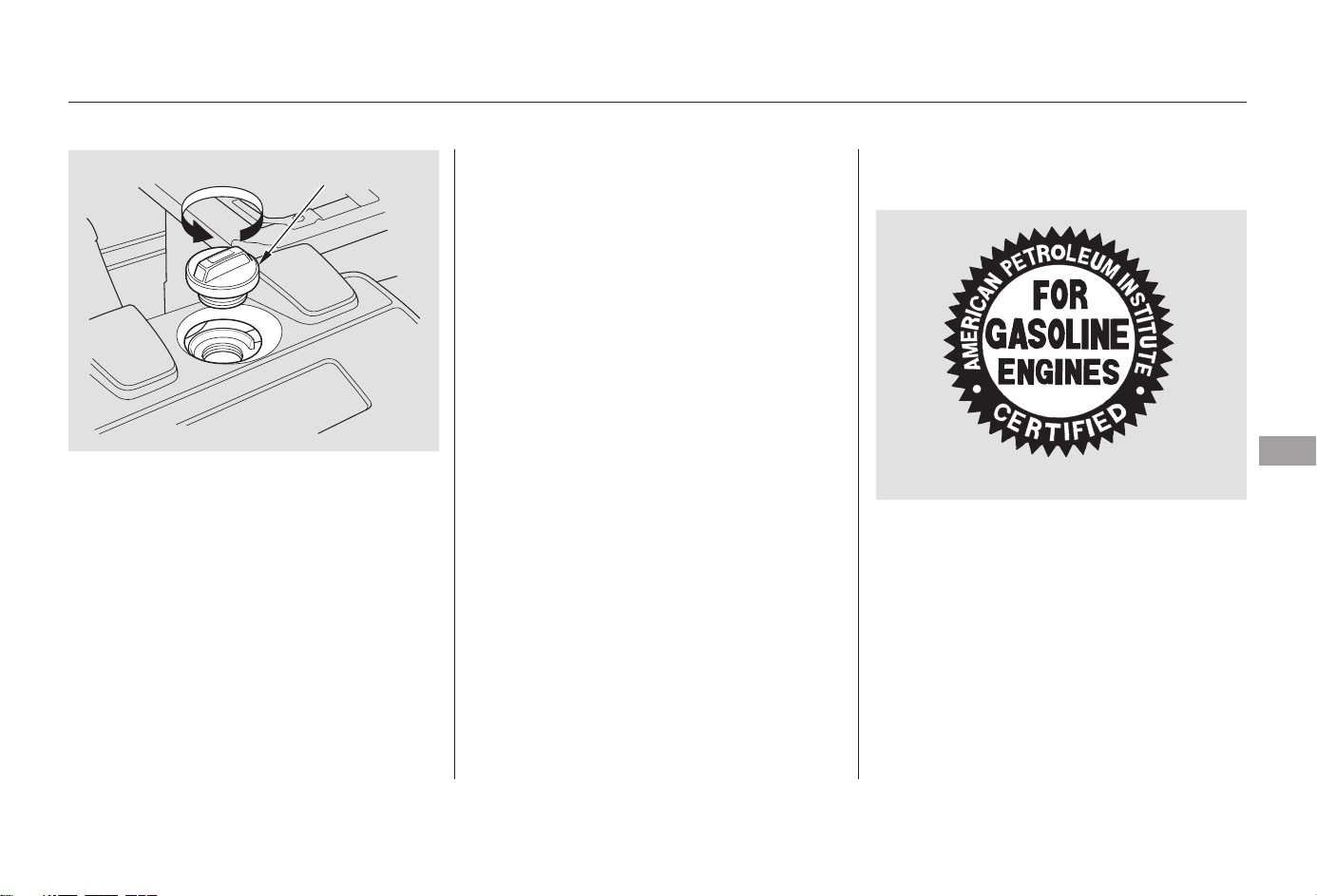

Make sure the API Certification Seal
says ‘‘For Gasoline Engines’’.
Install the engine oil fill cap, and
tighten it securely. Wait a few
minutes, and recheck the oil level.
Do not fill above the upper mark; you
could damage the engine.
Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and carefully so
you do not spill any. Clean up any
spills immediately. Spilled oil could
damage components in the engine
compartment.
Oil is a major contributor to your
engine’s performance and longevity.
Always use a premium-grade
detergent oil displaying the API
Certification Seal. This seal indicates
the oil is energy conserving and that
it meets the American Petroleum
Institute’s latest requirements. It is
highly recommended that you use
Honda Motor Oil in your vehicle for
as long as you own it.
Adding Engine Oil
Recommended Engine Oil
Maintenance
135
ENGINE OIL FILL CAP
API CERTIFICATION SEAL
Main Menu
Table of Contents
The oil viscosity or weight is
provided on the container’s label.
A very low-viscosity, fuel-efficient
0W-20 oil is the preferred engine
lubricant for your Insight. This
special oil is formulated to help your
engine use less fuel. It is available at
your Honda dealer. A 5W-20 oil may
be used if 0W-20 is not available.
You may use a synthetic motor oil if
it meets the same requirements
given for a conventional motor oil: it
displays the API Certification Seal,
and it is the proper weight. You must
follow the oil and filter change
intervals given on the maintenance
schedule.
Your vehicle does not require any oil
additives. Additives may adversely
affect your engine’s or transmission’s
performance and durability.
Always change the oil and filter
according to the recommendations in
the maintenance schedule. The oil
and filter collect contaminants that
can damage your engine if they are
not removed regularly.

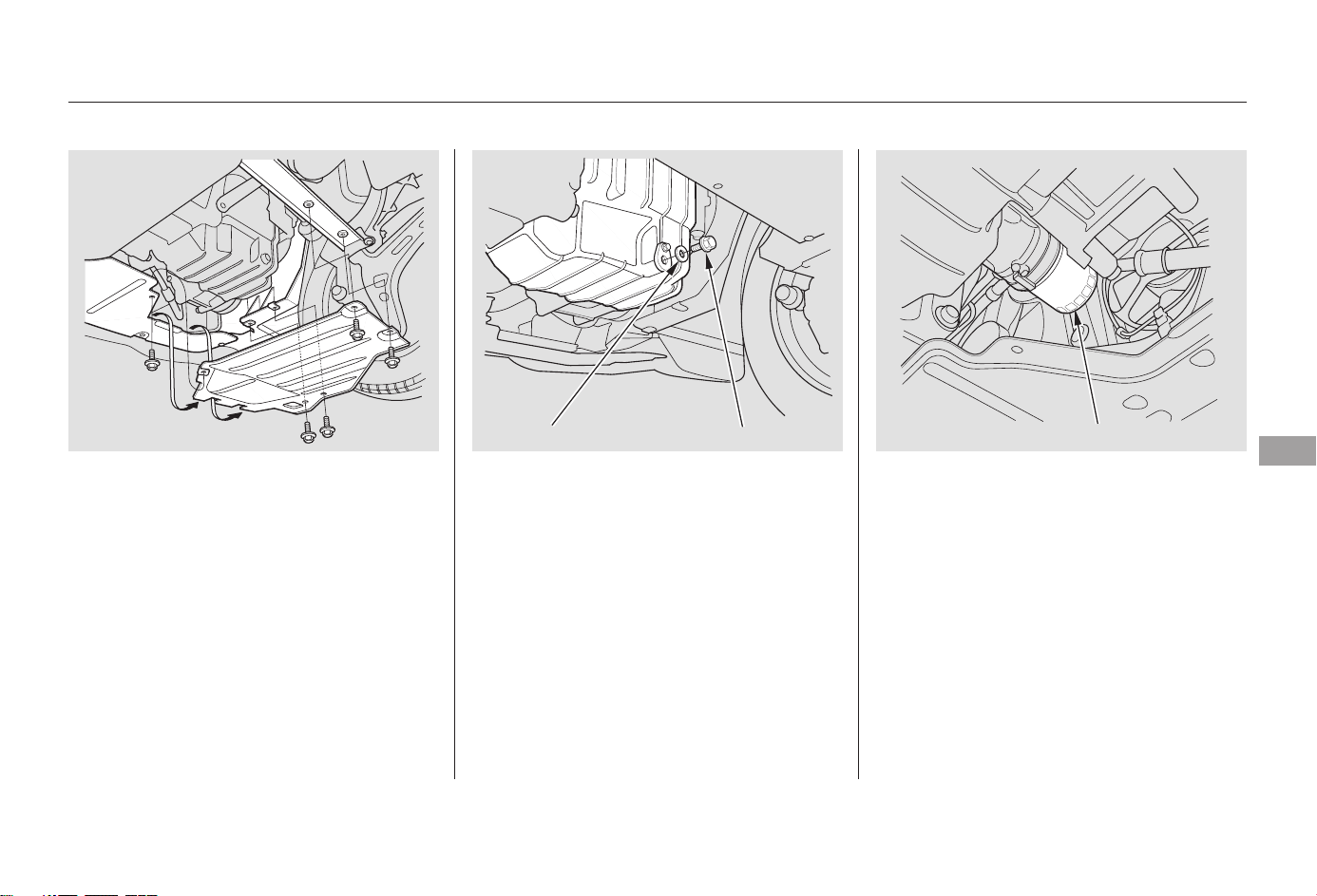

Changing the oil and filter requires
special tools and access from
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lift for this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
Run the engine until it reaches
normal operating temperature,
then shut it off.
1.
Adding Engine Oil, Changing the Oil and Filter
Synthetic Oil
Engine Oil Additives
Changing the Oil and Filter
136
Ambient Temperature
Main Menu
Table of Contents
Open the hood and remove the
engine oil fill cap. Remove the
black cover under the engine.
Remove the oil drain bolt and
washer from the bottom of the
engine. Drain the oil into an
appropriate container.
Do not loosen the smaller bolt
located above the drain bolt.
Install a new oil filter according to
the instructions that come with it.
Make sure to clean off any dirt
and dust on the connecting
surface of a new oil filter.
Remove the oil filter, and let the
remaining oil drain. A special
wrench (available from your
dealer) is required.
2. 3. 4.
5.
CONTINUED
Changing the Oil and Filter
Maintenance
137
WASHER OIL DRAIN BOLT OIL FILTER
Main Menu
Table of Contents
Refill the engine with the
recommended oil.
Engine oil change capacity
(including filter):
Replace the engine oil fill cap.
Start the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn off the
engine, and check your work.
Let the engine run for several
minutes, then check the drain bolt
and oil filter for leaks.
Turn off the engine and let it sit
for several minutes, then check
the oil level on the dipstick. If
necessary, add more oil.
Install the black cover under the
engine.
Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten the drain bolt to:
6.
7.
8.
9.
10.
11.
Changing the Oil and Filter
138
29 lbf·ft (39 N·m , 4.0 kgf·m)
2.6 US qt (2.5
)
Improper disposal of engine oil can be
harmf ul to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container, and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.
Main Menu
Table of Contents
Always use Honda All Season
Antifreeze/Coolant Type 2. This
coolant is pre-mixed with 50 percent
antifreeze and 50 percent water.
Never add straight antifreeze or
plain water.
If Honda antifreeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended for aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malfunction or fail. Have the cooling
system flushed and refilled with
Honda antifreeze/coolant as soon as
possible.
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to between the
MIN and MAX lines. Inspect the
cooling system for leaks.
CONTINUED
Engine Coolant
Maintenance
139
RESERVE TANK
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents

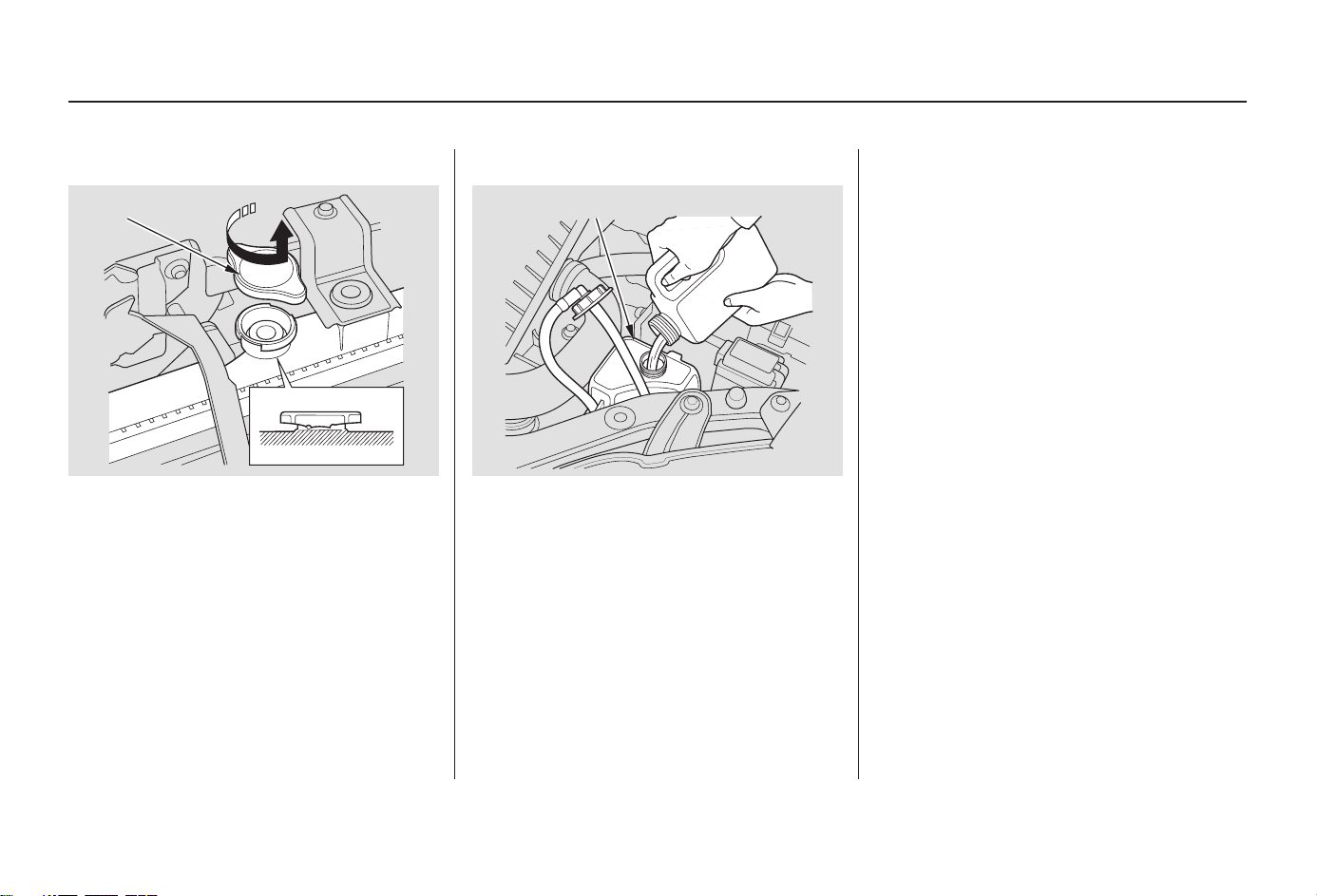

When the radiator and engine are
cool, relieve any pressure in the
cooling system by turning the
radiator cap counterclockwise,
without pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise.
The coolant level should be up to
the base of the filler neck. Add
coolant if it is low.
Put the radiator cap back on, and
tighten it fully.
Pour coolant into the reserve tank.
Fill it to halfway between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.
Pourthecoolantslowlyandcarefully
so you do not spill any. Clean up any
spills immediately; it could damage
components in the engine
compartment.
2.
3.
4.
5.
1.
Engine Coolant
140
RADIATOR CAP RESERVE TANK
Main Menu
Table of Contents

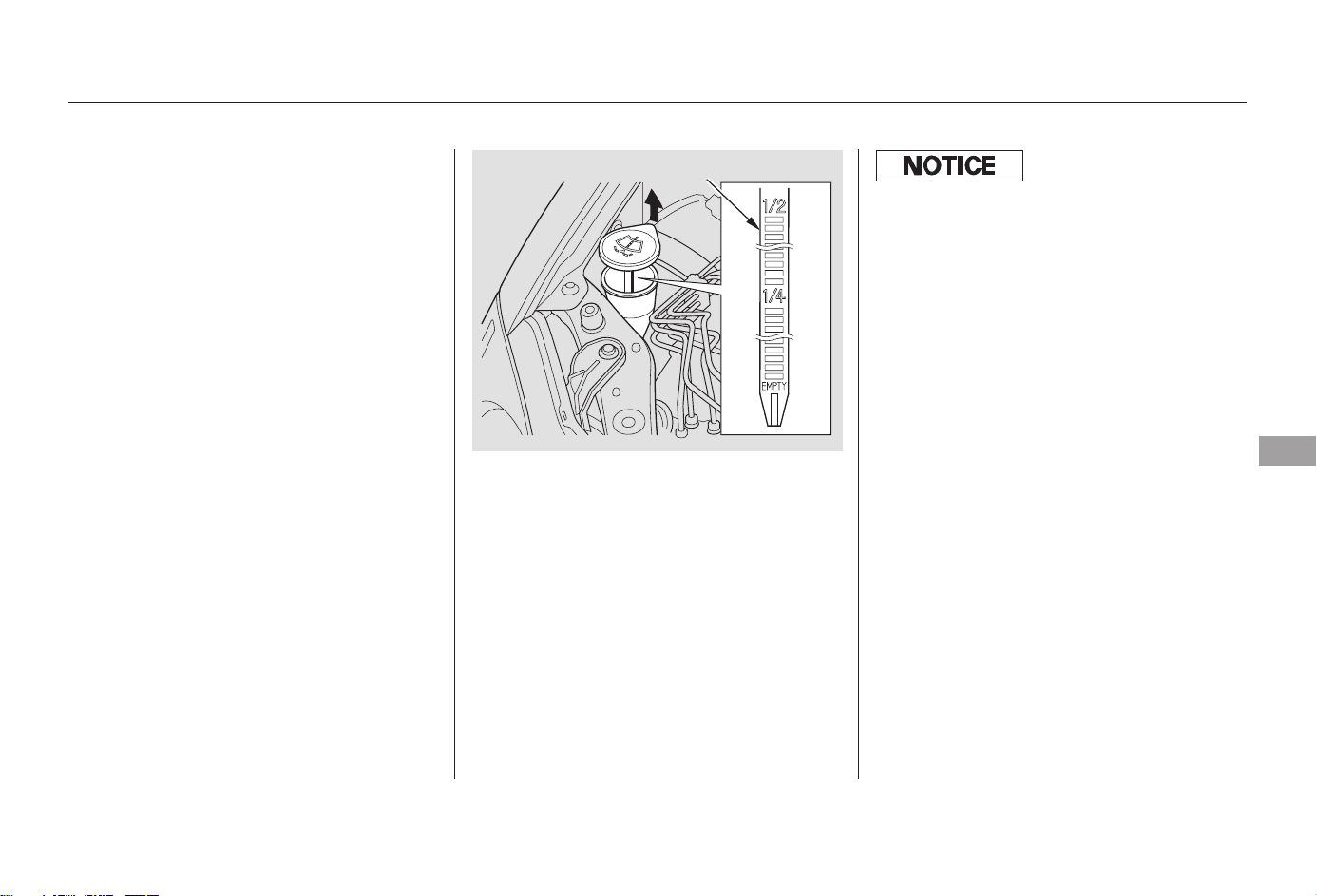

Check the fluid level in the
windshield washer reservoir at least
monthly during normal use. This
reservoir supplies the windshield and
rear window washers.
Check the reservoir’s fluid level by
removing the cap and looking at the
level gauge attached to the cap.
Fill the reservoir with a good-quality
windshield washer fluid. This
increases the cleaning capability and
prevents freezing in cold weather.
When you refill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer fluid
on a clean cloth. This will help to
condition them.
Windshield Washers
Maintenance
141
LEVEL GAUGE
Do not use engine antifreeze or a
vinegar/water solution in the
windshield washer reservoir. Antif reeze
can damage your vehicle’s paint, while
a vinegar/water solution can damage
the windshield washer pump. Use only
commercially-available windshield
washer f luid.
Main Menu
Table of Contents
Park the vehicle on level ground.
With the A/C off, let the engine
run until the radiator cooling fan
cycles on and off twice. Then turn
off the engine.
NOTE: For accurate results, wait at
least 60 seconds, and no more than
90 seconds, after turning off the
engine to check the fluid level.

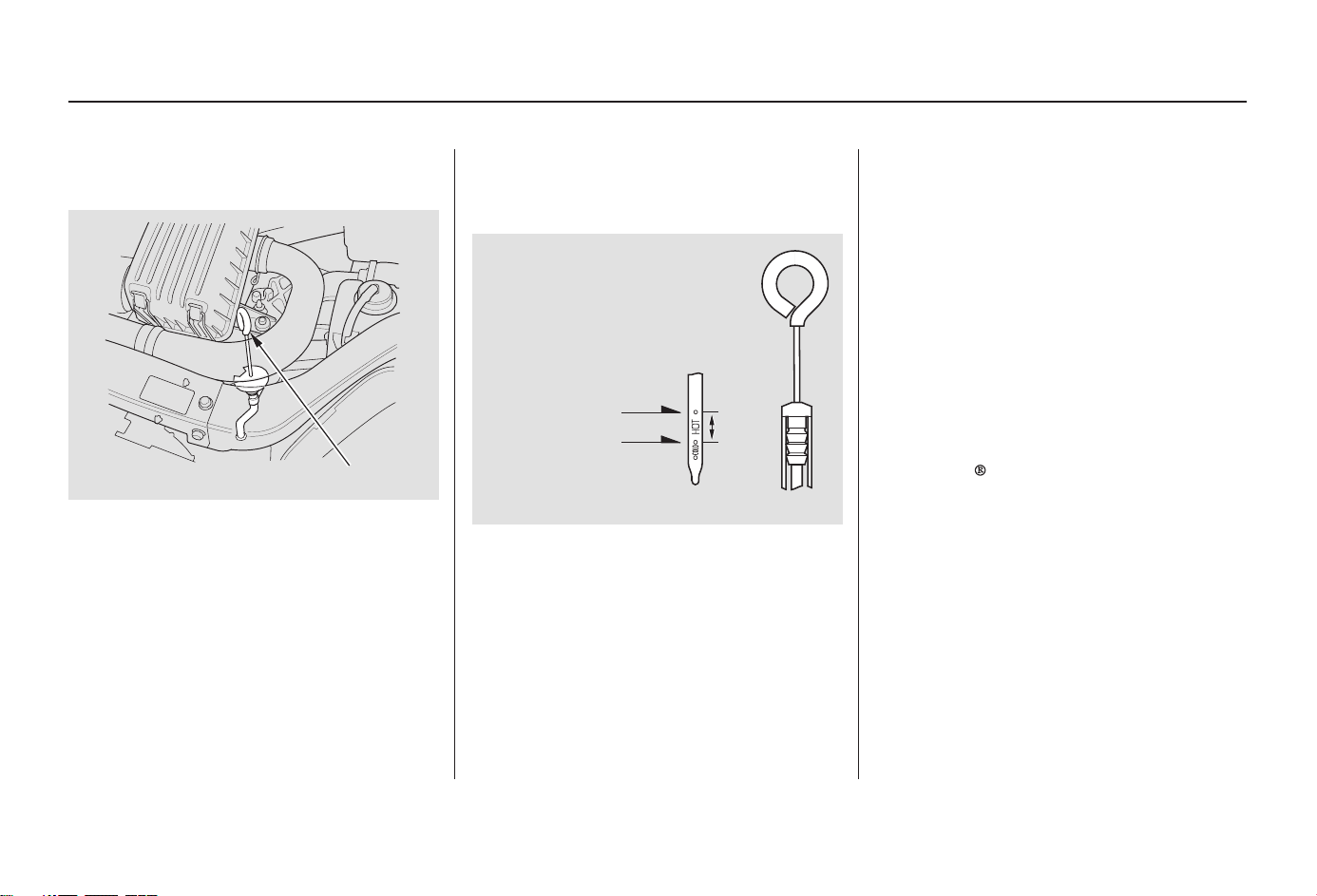

Remove the dipstick (yellow loop)
from the transmission, and wipe it
with a clean cloth.
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
Remove the dipstick and check
the fluid level. It should be
between the upper and lower
marks within the HOT range.
If the level is below the lower
mark, add fluid into the filler hole
to bring it to the upper mark.
Pour the fluid slowly and carefully
so you do not spill any. Clean up
any spills immediately; it could
damage components in the engine
compartment.
Always use Honda ATF-Z1
(Automatic Transmission Fluid). If
it’s not available, you may use a
DEXRON
III automatic
transmission fluid as a temporary
replacement. However, continued
use can affect the shift quality. Have
the transmission flushed and refilled
with Honda ATF-Z1 as soon as it is
convenient.
1.
2.
3.
4.
5.
U.S. model
Transmission Fluid
Automatic Transmission (CVT)
142
UPPER MARK
LOWER MARK
HOT
DIPSTICK
Main Menu
Table of Contents
To thoroughly flush the transmission,
the technician should drain and refill
it with Honda ATF-Z1, then drive the
vehicle for a short distance. Do this
three times. Then drain and refill the
transmission a final time.
Insert the dipstick all the way back
into the transmission securely as
shown in the illustration. If you
added fluid, return to step 1 to
recheck the fluid level.
The transmission should be drained
and refilled with new fluid according
to the time and distance recommen-
dations in the maintenance schedule.
If you are not sure how to add fluid,
contact your dealer.

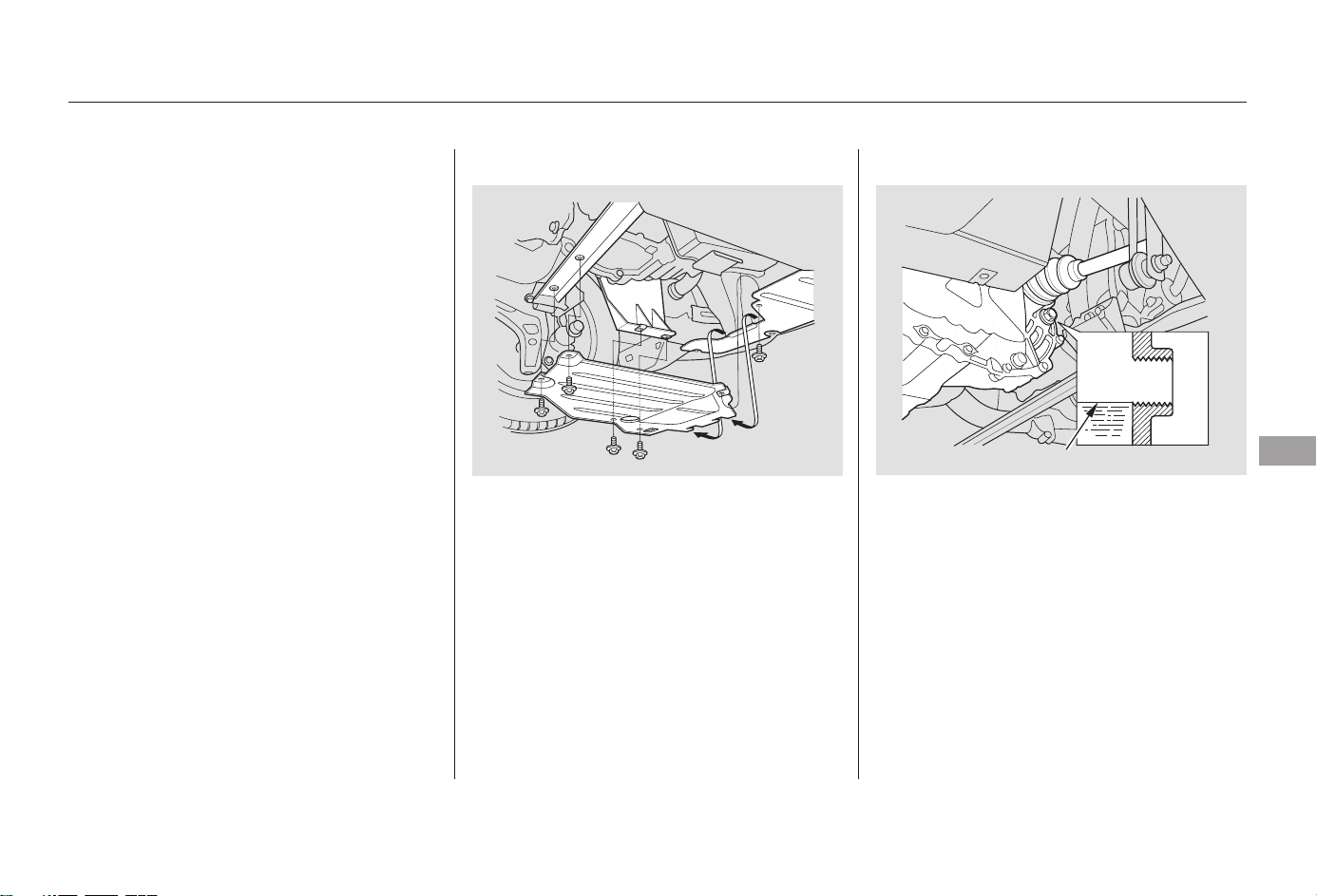

Check the fluid level with the
transmission at normal operating
temperature and the vehicle sitting
on the level ground.
Remove the black cover under the
engine.
Remove the transmission filler bolt,
and carefully feel inside the bolt hole
with your finger. The fluid level
should be up to the edge of the bolt
hole. If it is not, add Honda Manual
Transmission Fluid (MTF) until it
starts to run out of the hole. Reinstall
the filler bolt and tighten it securely.
6.
CONTINUED
Transmission Fluid
Manual Transmission
Maintenance
143
Correct Level
Main Menu
Table of Contents
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 fluid, from a sealed
container, as a temporary
replacement.
Using any non-Honda brake fluid can
cause corrosion and decrease the life
of the system. Have the brake
system flushed and refilled with
Honda Heavy Duty Brake Fluid
DOT 3 as soon as possible.
Check the fluid level in the
reservoirs monthly. There are up to
two reservoirs, depending on the
model. They are:
Brake fluid reservoir (all models)
Clutch fluid reservoir
(manual transmission only)
Replace the brake fluid according to
the recommendation in the
maintenance schedule.
If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certification seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives, and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
The transmission should be drained
and refilled with new fluid according
to the time and distance recommen-
dations in the maintenance schedule.
If you are not sure how to check and
add fluid, contact your dealer.
Brake fluid marked DOT 5 is not
compatible with your vehicle’s
braking system and can cause
extensive damage.
Transmission Fluid, Brake and Clutch Fluid
Brake and Clutch Fluid
144
Main Menu
Table of Contents
The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake fluid to bring it up to that level.
Use the same fluid specified for the
brake system.
The fluid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected for leaks or
worn brake pads.
A low fluid level can indicate a leak
in the clutch system. Have this
system inspected as soon as possible.
Clutch SystemBrake System
Brake and Clutch Fluid
Maintenance
145
MAX
MIN
MAX
MIN
Main Menu
Table of Contents

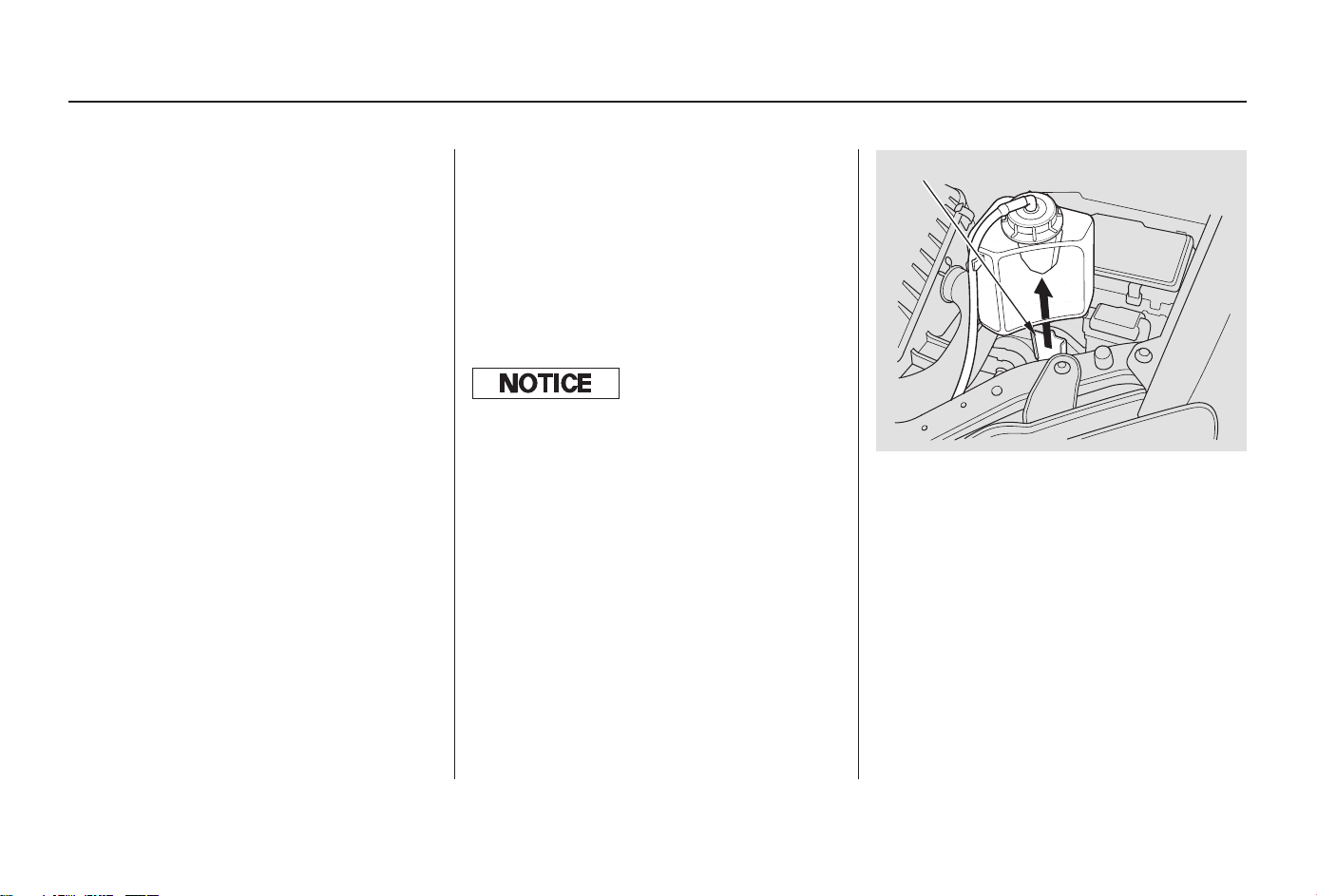

Open the hood.
To change the headlight bulb on
the driver’s side, remove the
engine coolant reservoir tank by
pulling it out of its holder.
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
cargo area, readjustment may be
required. Adjustments should be
performed by your dealer or other
qualified mechanic.
Your vehicle has halogen headlight
bulbs. When replacing a bulb, handle
it by its steel base and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
1.
Lights
Replacing a Headlight BulbHeadlight Aiming
146
HOLDER
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
Main Menu
Table of Contents
CONTINUED

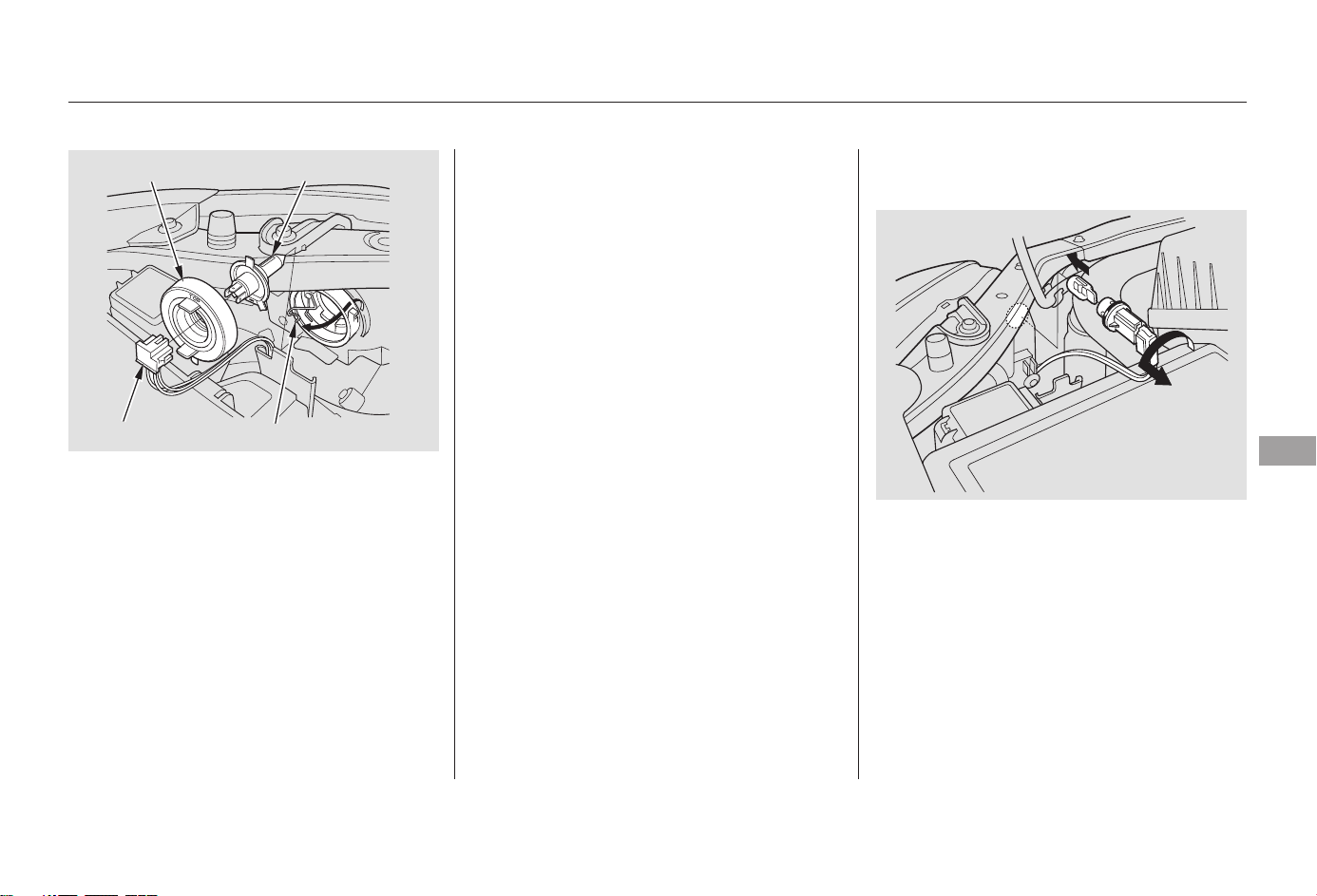

Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket.
Install the new bulb into the
socket.
Unclip the end of the hold-down
wire from its slot. Pivot it out of
the way, and remove the bulb.
Insert the new bulb into the hole,
making sure the tabs are in their
slots. Pivot the hold-down wire
back in place, and clip the end into
the slot.
Install the rubber seal over the
back of the headlight assembly.
Make sure it is right side up; it is
marked ‘‘TOP’’.
Push the electrical connector onto
the tabs of the new bulb. Make
sure it locks in place.
Turn on the headlights to test the
new bulb.
(Driver’s side)
Reinstall the engine coolant
reserve tank.
Remove the electrical connector
from the bulb by squeezing the
connector on both sides to unlock
the tab. Pull the connector straight
off.
Remove the rubber weather seal
by pulling on the tab.
4.
5.
6.
7.
8.
1.
2.
3.
2.
3.
Lights
Replacing a Front Parking Light
Bulb
Maintenance
147
BULB
CONNECTOR
WEATHER SEAL
HOLD-DOWN WIRE
Main Menu
Table of Contents
Install the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.

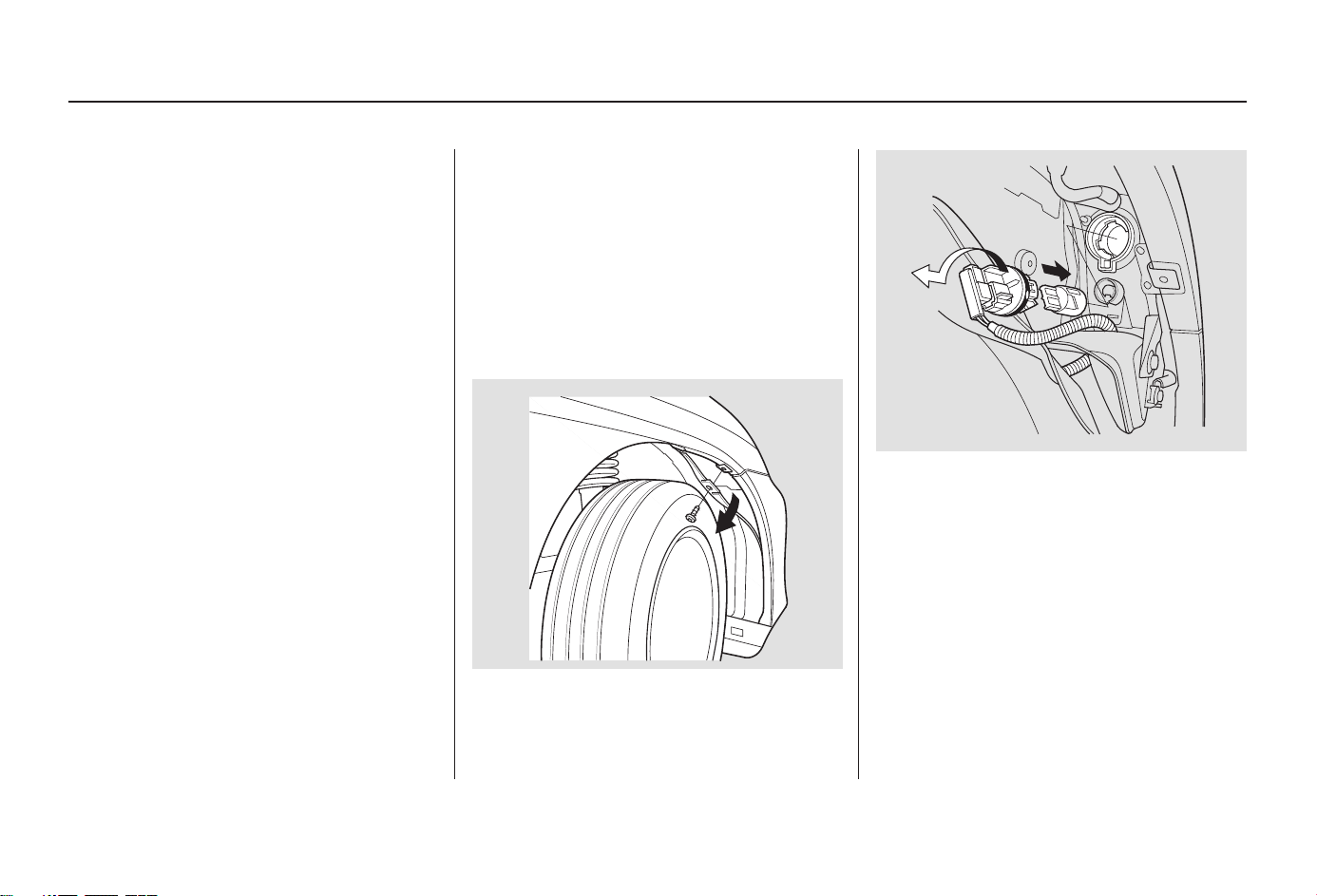

To change the bulb on the driver’s
side, start the engine, turn the
steering wheel all the way to the
right, then turn off the engine. To
change the bulb on the passenger’s
side, turn the steering wheel to the
left.
Use a Phillips-head screwdriver to
remove the screw from the top of
the fender.
Pull the inner fender cover back.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
3.
2.
4.
5.
4.
5.
1.
Lights
Replacing the Front Side Marker/
Turn Signal Light Bulb
148
Main Menu
Table of Contents
Install the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Put the inner fender cover in place.
Tighten the screw securely.

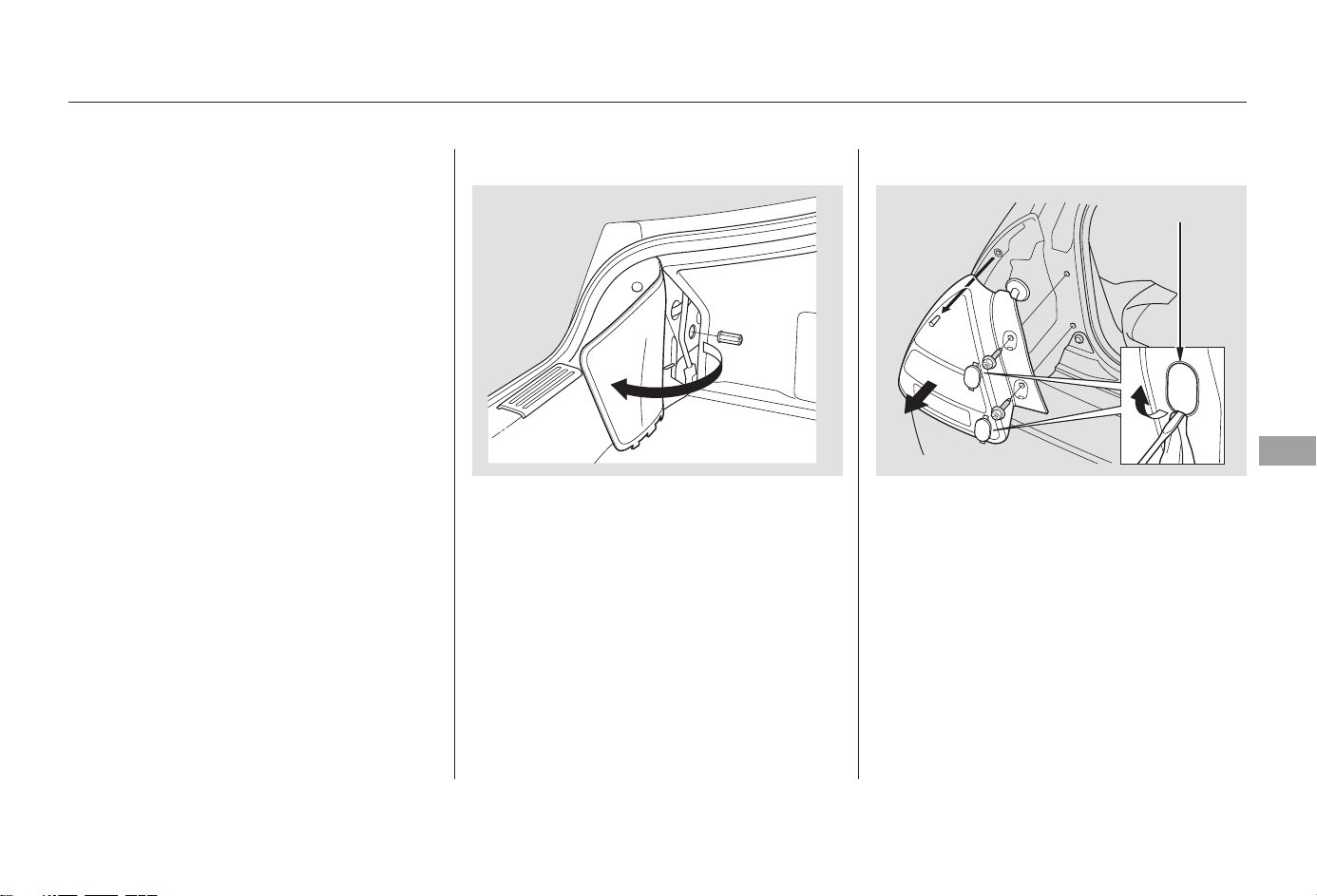

Open the hatch.
Pull the cover back.
Loosen the nut holding the rear
light assembly.
Remove the two covers. Remove
the two screws holding the rear
light assembly. Remove the light
assembly.
3.
2.
4.1.
6.
7.
8.
CONTINUED
Lights
Replacing Rear Bulbs
Maintenance
149
COVER
Main Menu
Table of Contents

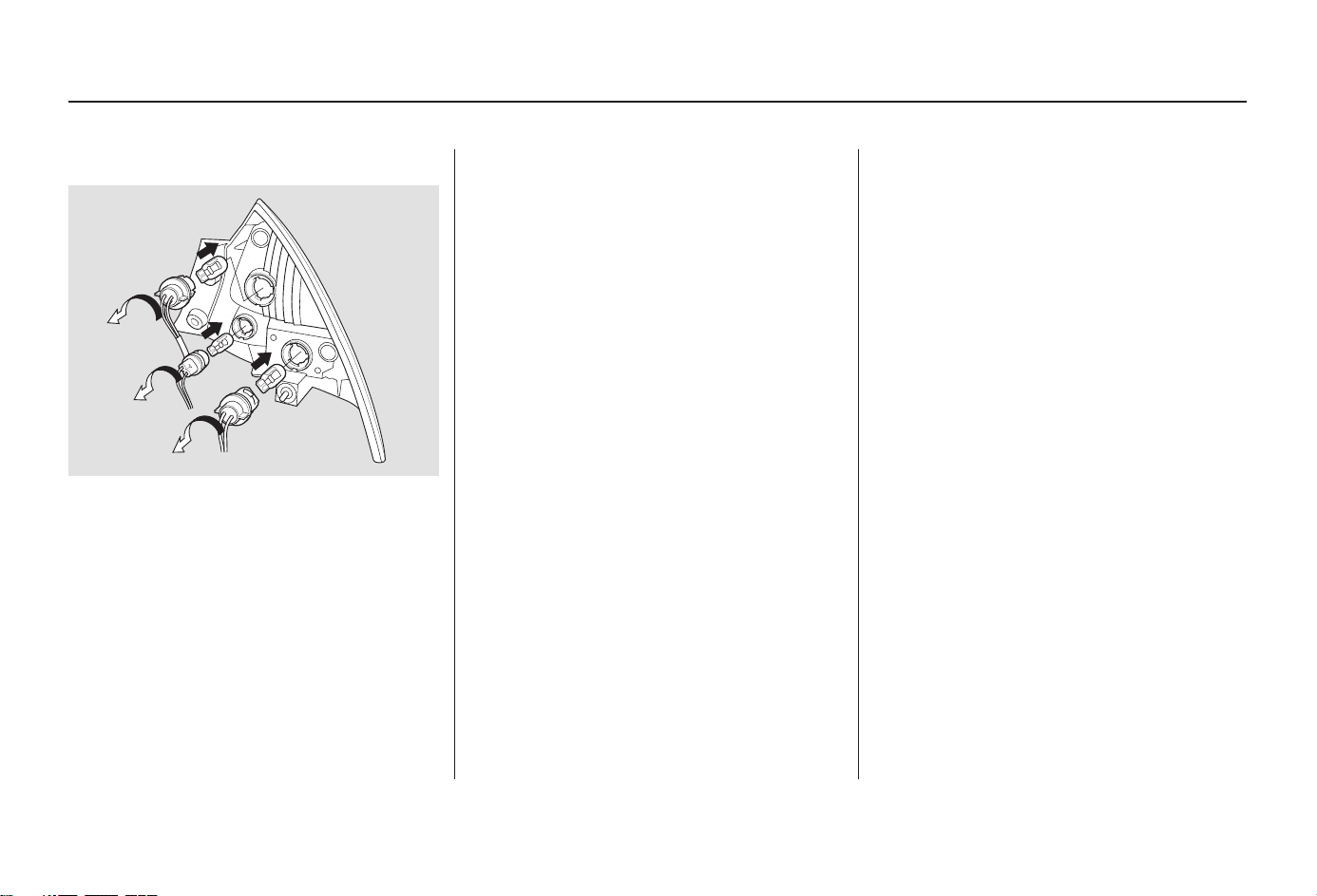

Determine which bulb, brake/
taillight, back-up light, side marker
light or turn signal is burned out.
Remove the socket for that bulb
by turning counterclockwise.
Pull the bulb straight out of its
socket. Push the new bulb straight
into the socket until it bottoms.
Reinstall the socket into the light
assembly by turning it clockwise
until it locks.
Turn on the lights to make sure
the new bulb is working.
Reinstall the light assembly and
tighten the two screws and nut.
Reinstall the two covers in the rear
light assembly.
Put the cover in place in the cargo
area.
9.
5.
6.
11.
10.
8.
7.
Lights
150
Main Menu
Table of Contents
If your seat belts get dirty, use a soft
brush with a mixture of mild soap
and warm water to clean them. Do
not use bleach, dye, or cleaning
solvents. Let the belts air-dry before
you use the vehicle.
Dirt build-up in the loops of the seat
belt anchors can cause the belts to
retract slowly. Wipe the insides of
the loops with a clean cloth
dampened in mild soap and warm
water or isopropyl alcohol.
The driver’s floor mat that came
with your vehicle hooks over the
floor mat anchor. This keeps the
floor mat from sliding forward and
possibly interfering with the pedals.
If you remove these floor mats,
make sure to re-anchor them when
you put them back in your vehicle.
If you use a non-Honda floor mat,
make sure it fits properly and that it
canbeusedwiththefloormat
anchor. Do not put additional floor
mats on top of the anchored mat.
On models equipped
Seat Belts, Floor Mats
Seat Belts Floor Mats
Maintenance
151
LOOP
Main Menu
Table of Contents
Beforeusinganautomaticcarwash,
remove the radio antenna so it does
not get damaged. Remove the
antenna by unscrewing it. When you
reinstall the antenna, tighten it
securely.
The dust and pollen filter removes
pollen and dust from the outside air
the climate control system brings
into the interior. It should be
replaced according to the time and
distance recommendations in the
maintenance schedule.
This filter should be replaced every
30,000 miles (48,000 km) under
normal conditions. It should be
replaced every 15,000 miles (24,000
km) if you drive primarily in urban
areas that have high concentrations
of soot in the air from industry and
diesel-powered vehicles. Replace it
more often if airflow from the
climate control system becomes less
than usual. Have the dust and pollen
filter replaced by your dealer.
Roof AntennaDust and Pollen Filter
Dust and Pollen Filter, Roof Antenna
152
Main Menu
Table of Contents

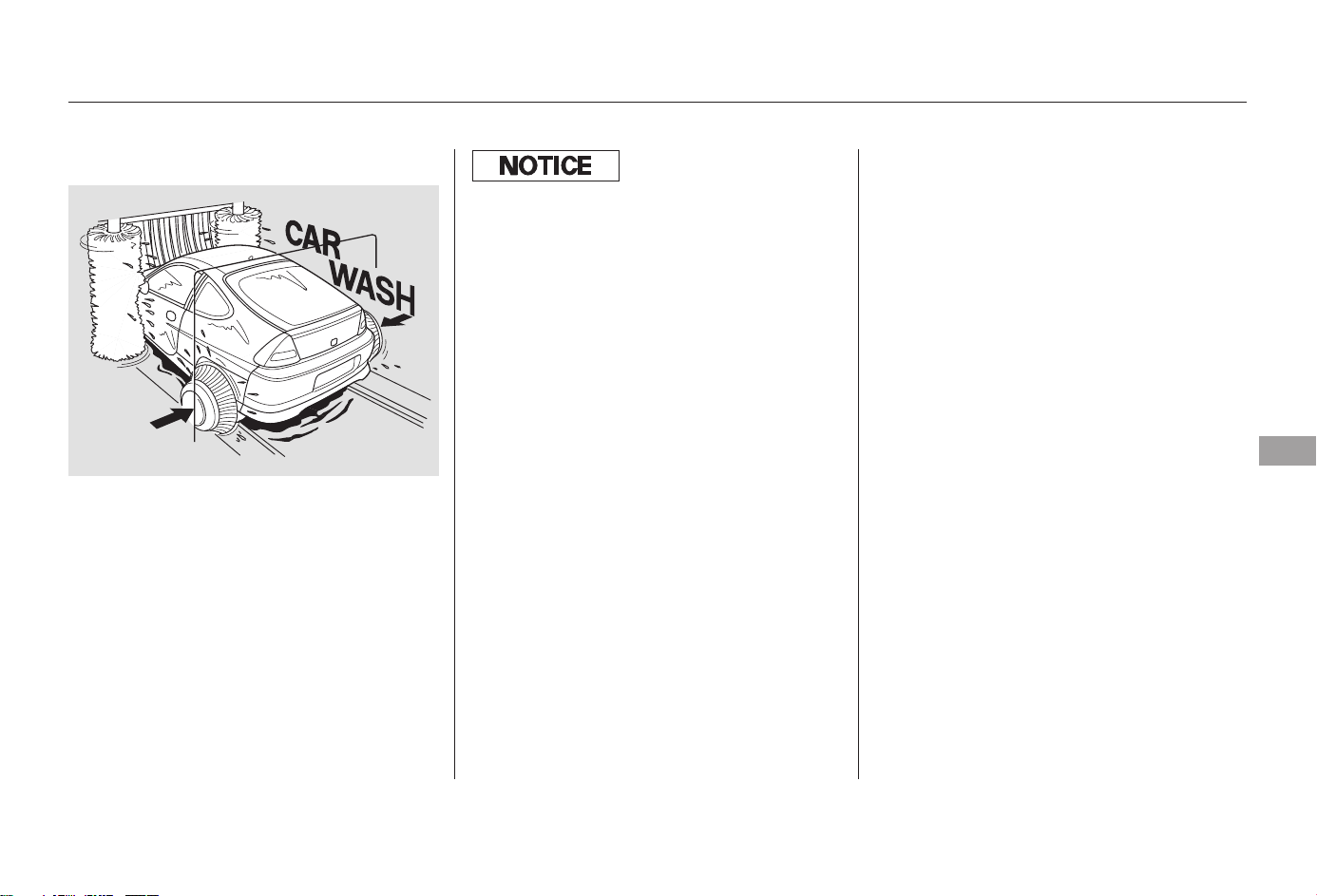

If an automatic car wash has tire
cleaning brushes, remove the skirts
covering the rear wheels so they will
not be damaged. See page for
how to remove and install the skirts.
Check the condition of the wiper
blades at least every six months.
Replace them if you find signs of
cracking in the rubber, and areas
that are getting hard, or if they leave
streaks and unwiped areas when
used.
168
CONTINUED
Rear Wheel Skirt, Wiper Blades
Rear Wheel Skirt Wiper Blades
Maintenance
153
Although almost all exterior panels on
your Honda are made of hardened
aluminum, they may dent more easily
than steel under some conditions.
Exercise care when leaning on or over
any part of the body.
Main Menu
Table of Contents

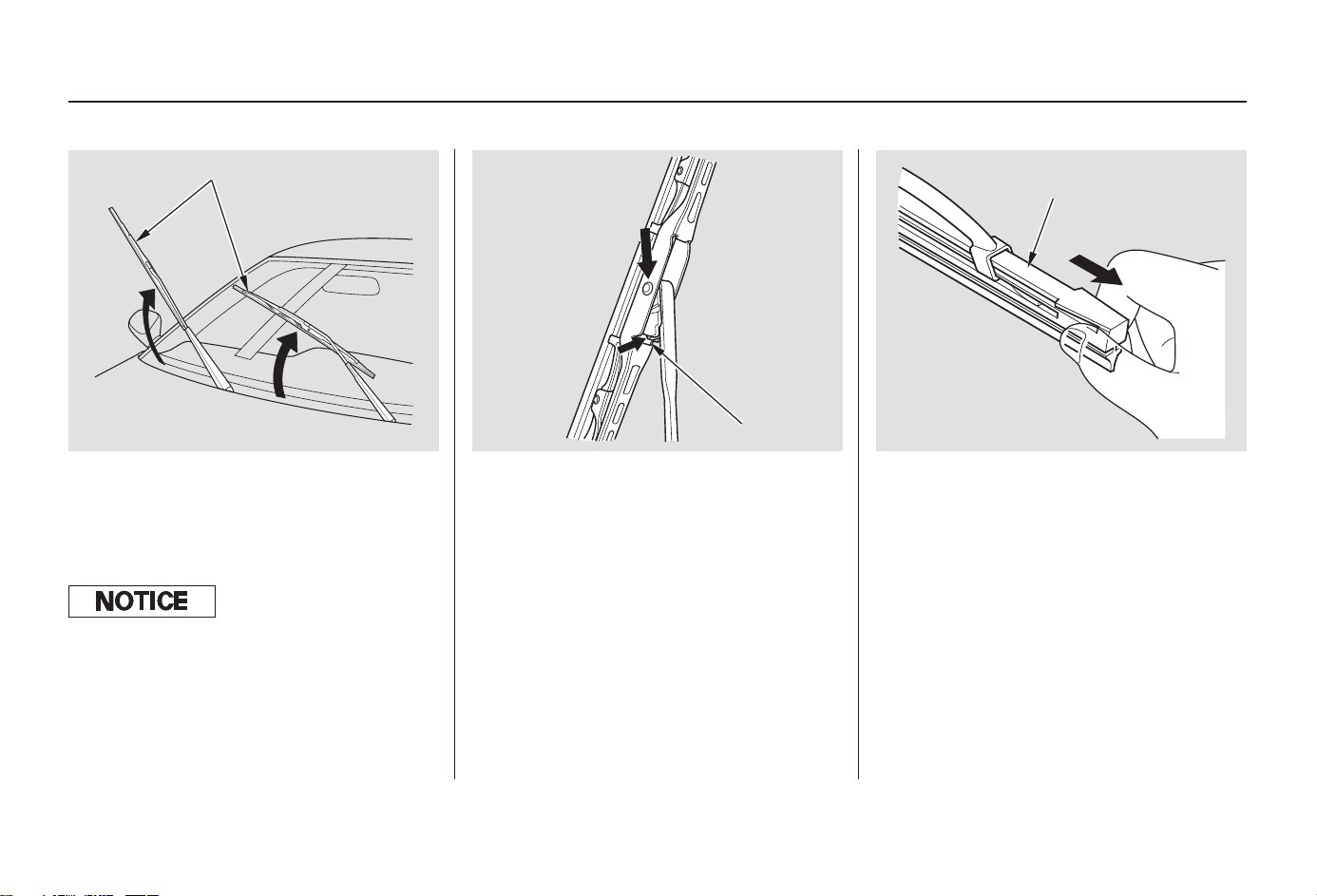

Disconnect the blade assembly
fromthewiperarmbypushingin
the lock tab. Hold the lock tab in
while you push the blade assembly
toward the base of the arm.
Remove the blade from its holder
by grasping the tabbed end of the
blade. Pull firmly until the tabs
come out of the holder.
To replace a front wiper blade:
Raise the wiper arm off the
windshield.
2. 3.
1.
Wiper Blades
154
LOCK TAB
BLADE
WIPER ARMS
Do not open the hood when the wiper
arms are raised, or you will damage the
hood and the wiper arms.
Main Menu
Table of Contents

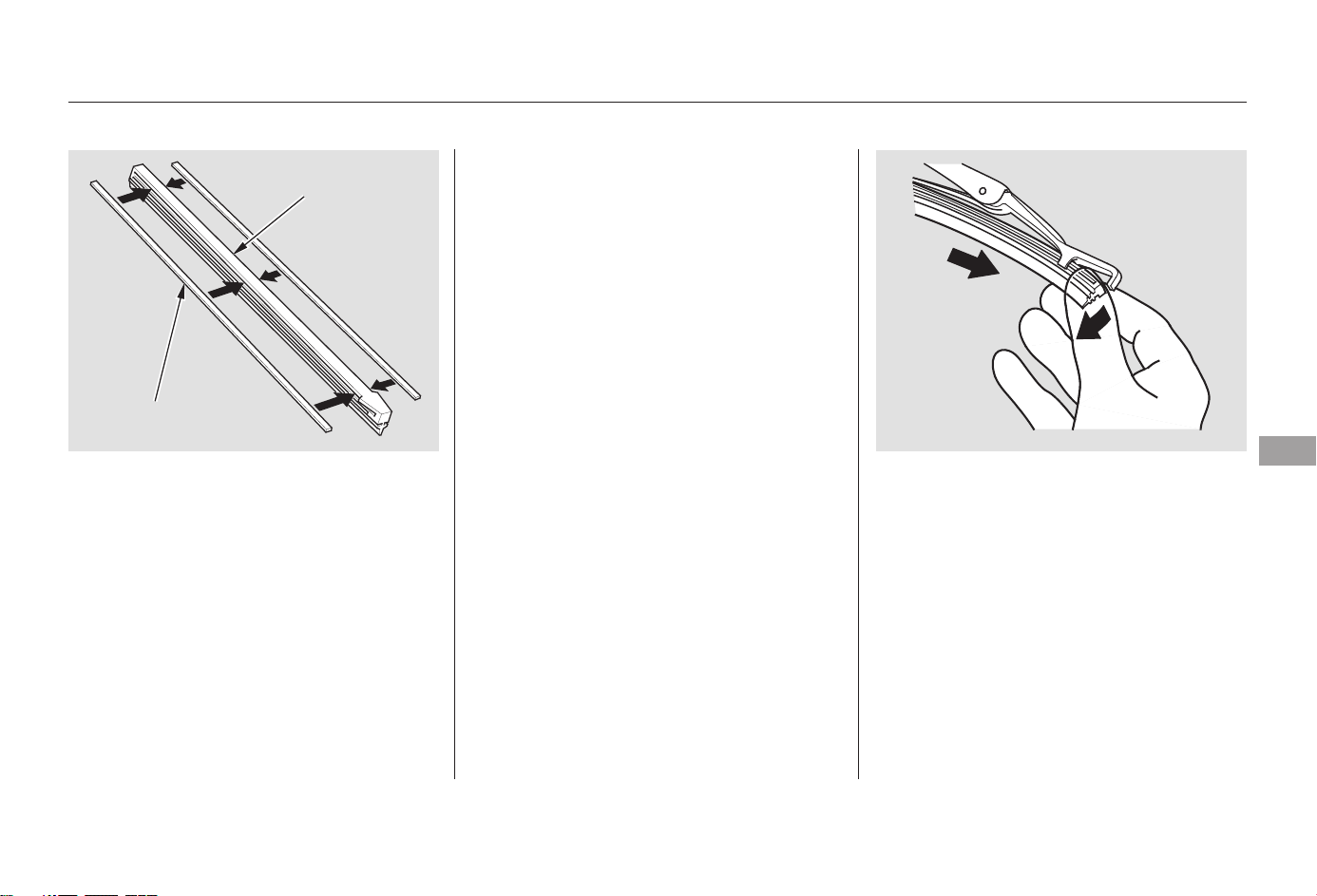

Examine the new wiper blades. If
they have no plastic or metal
reinforcement along the back
edge, remove the metal
reinforcement strips from the old
wiper blade, and install them in
the slots along the edge of the new
blade.
Slide the new wiper blade into the
holder until the tabs lock.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm down against
the windshield.
To replace a rear wiper blade:
Raise the wiper arm off the
windshield.
Pull one end of the blade out from
the holder.
Slide the blade out of the holder.
Slide the new blade into the holder.
Make sure it is engaged in the slot
along its full length.
4.
5.
6.
7.
1.
2.
3.
4.
CONTINUED
Wiper Blades
Maintenance
155
BLADE
REINFORCEMENT
Main Menu
Table of Contents

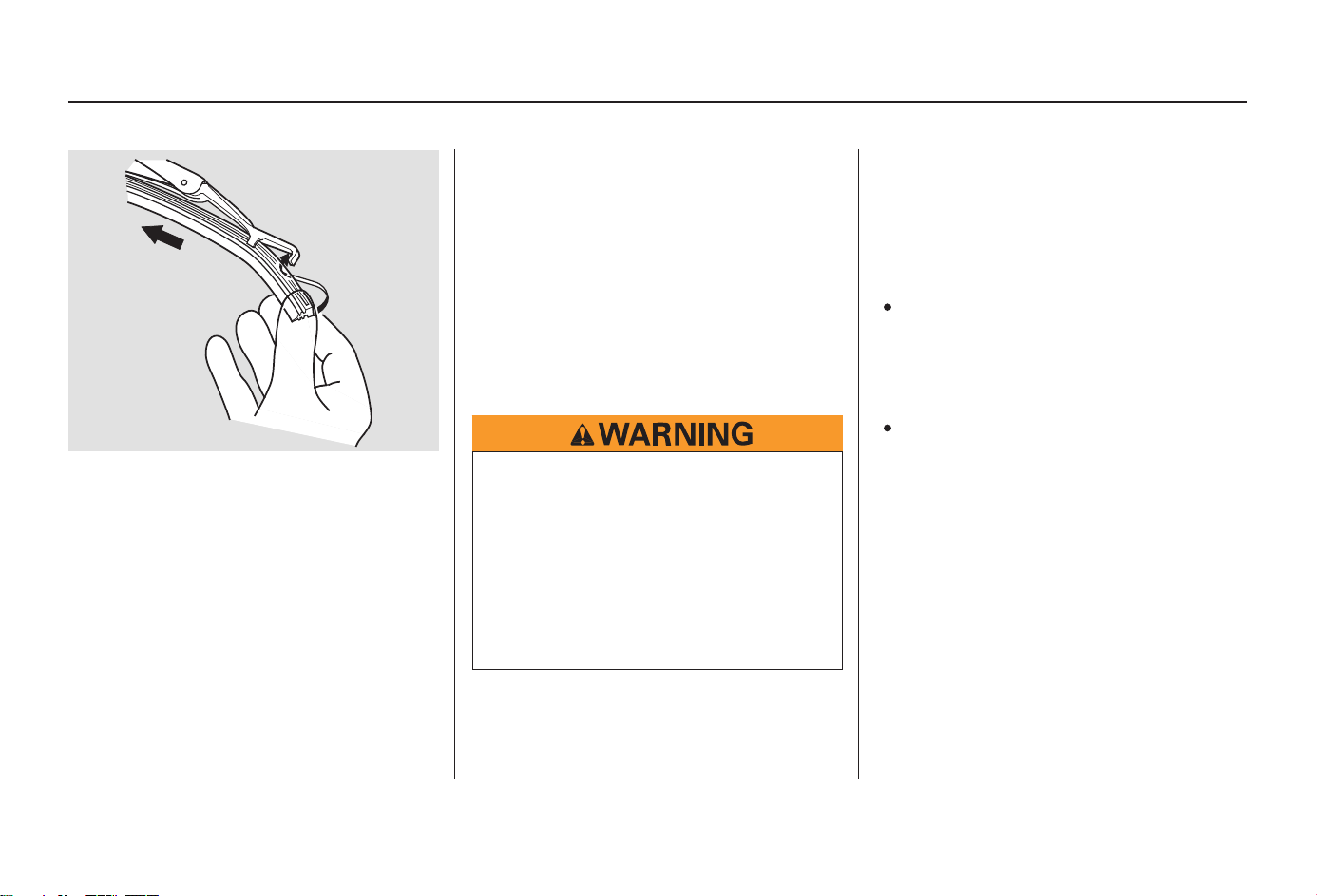

Insert both ends of the blade into
the holder. Make sure they are
secure.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm.
To safely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inflated.
The following pages give more
detailed information on how to take
care of your tires and what to do
when they need to be replaced.
Keeping the tires properly inflated
provides the best combination of
handling, tread life, and riding
comfort.
Underinflated tires wear unevenly,
adversely affect handling and fuel
economy, and are more likely to
fail from being overheated.
Overinflated tires can make your
vehicleridemoreharshly,are
more prone to damage from road
hazards, and wear unevenly.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge.
5.
6.
7.
Wiper Blades, Tires
Tires Inflation Guidelines
156
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
Main Menu
Table of Contents
Use a gauge to measure the air
pressure at least once a month. Even
tires that are in good condition may
lose one to two psi (10 to 20 kPa, 0.1
to 0.2 kgf/cm ) per month.
Remember to check the spare tire at
thesametime.
Check the pressure in the tires when
they are cold. This means the vehicle
has been parked for at least three
hours, or driven less than 1 mile (1.6
km).
If you check the pressure when the
tires are hot [driven for several miles
(kilometers)], you will see readings 4
to6psi(30to40kPa,0.3to0.4
kgf/cm ) higher than the cold
reading. This is normal; do not
release air to match the cold
pressure.
The following chart shows the
recommended cold tire pressures for
most normal driving conditions.
Thecompactsparetirepressureis:
For convenience, the recommended
tire sizes and cold air pressures are
on a label on the driver’s doorjamb.
For additional technical information,
see page .
Add or release air, if needed, to
match the recommended cold tire
pressuresonthispage.
Youshoulduseyourowntire
pressure gauge whenever you check
your tire pressures. This will make it
easier for you to tell if a pressure
loss is due to a tire problem and not
due to a variation between gauges.
While tubeless tires have some
ability to self-seal if they are
punctured, you should look closely
for punctures if a tire starts losing
pressure.
196
Tire Size Cold Tire Pressure
for Normal Driving
Front:
Rear:
Tires
Recommended Tire Pressures
Maintenance
157
60 psi (420 kPa , 4.2 kgf/cm )
38 psi (260 kPa ,
2.6 kgf/cm
)
35 psi (240 kPa ,
2.4 kgf/cm
)
P165/65R14 78S
Main Menu
Table of Contents
Have your dealer check the tires if
you feel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed from the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comfort and tire life. For best results,
have the installer perform a dynamic
balance.
In addition to proper inflation,
correct wheel alignment helps to
decrease tire wear. If you find a tire
is worn unevenly, have your dealer
check the wheel alignment.
Every time you check inflation, you
should also examine the tires for
damage, foreign objects, and wear.
Youshouldlookfor:
Bumps or bulges in the tread or
side of the tire. Replace the tire if
youfindeitheroftheseconditions.
Cuts, splits, or cracks in the side
of the tire. Replace the tire if you
can see fabric or cord.
Excessive tread wear.

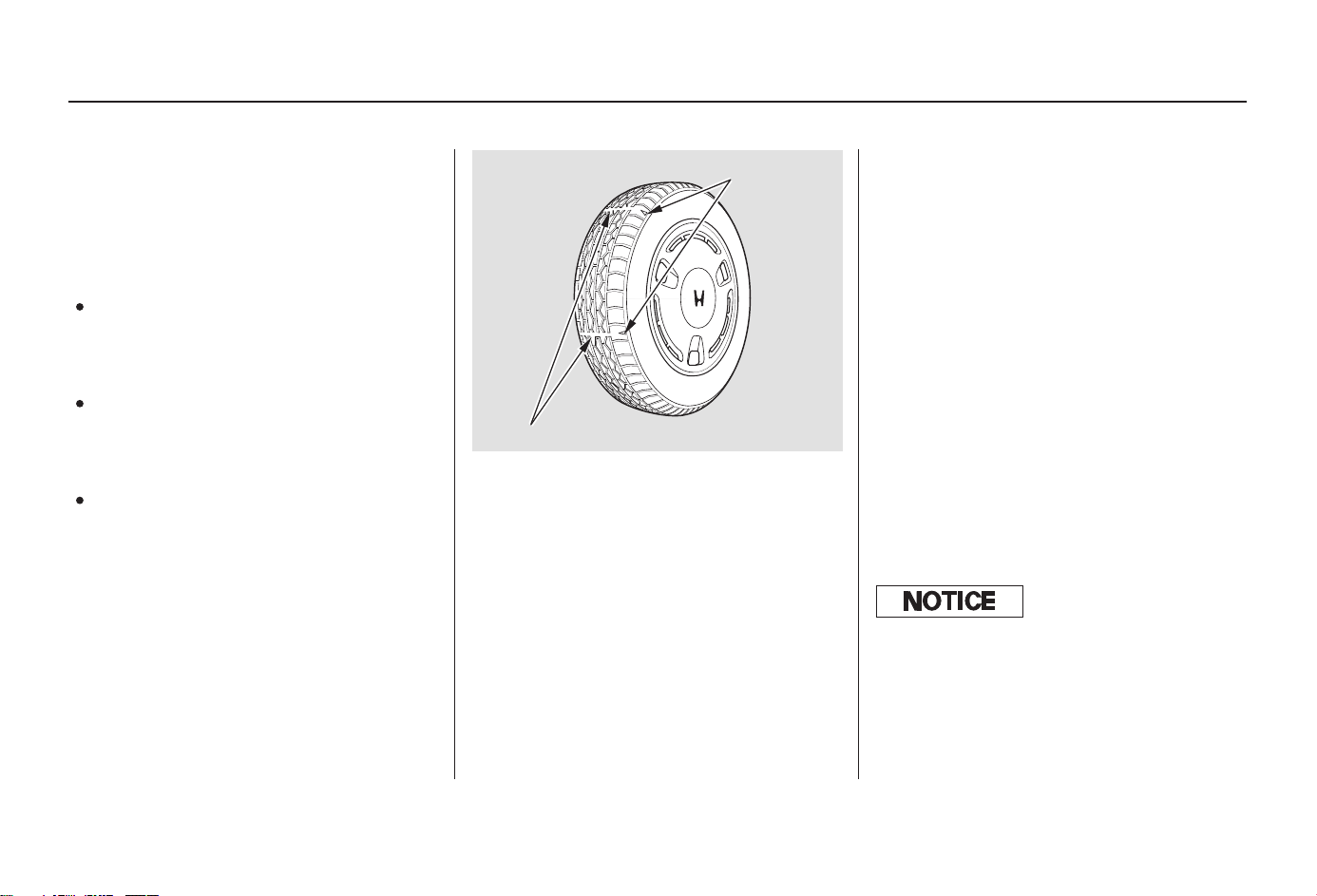

Your tires have wear indicators
molded into the tread. When the
tread wears down to that point, you
will see a 1/2 inch (12.7 mm) wide
band running across the tread. This
shows there is less than 1/16 inch
(1.6 mm) of tread left on the tire. A
tire this worn gives very little
traction on wet roads. You should
replace the tire if you can see the
tread wear indicator in three or more
places around the tire.
Tires
Tire MaintenanceTire Inspection
158
INDICATOR LOCATION MARKS
TREAD WEAR INDICATORS
Improper wheel weights can damage
your vehicle’s aluminum wheels. Use
only Honda wheel weights f or
balancing.
Main Menu
Table of Contents
To help increase tire life and
distribute wear more evenly, rotate
the tires every 7,500 miles (12,000
km). Move the tires to the positions
showninthecharteachtimethey
are rotated. If you purchase
directional tires, rotate only front-to-
back.
Replace your tires with radial tires of
the same size, load range, speed
rating, and maximum cold tire
pressure rating (as shown on the
tire’s sidewall). Mixing radial and
bias-ply tires on your vehicle can
reduce braking ability, traction, and
steering accuracy. Using tires of a
different size or construction can
cause the ABS to work inconsistently.
It is best to replace all four tires at
thesametime.Ifthatisnotpossible
or necessary, replace the two front
tires or two rear tires as a pair.
Replacing just one tire can seriously
affect your vehicle’s handling.
If you ever replace a wheel, make
sure that the wheel’s specifications
match those of the original wheels.
Replacement wheels are available at
your dealer.
TheABSworksbycomparingthe
speed of the wheels. When replacing
tires, use the same size originally
supplied with the vehicle. Tire size
and construction can affect wheel
speed and may cause the system to
work inconsistently.
CONTINUED
Tires
Tire Rotation Replacing Tires
Maintenance
159
Front Front
(For Non-directional
Tires and Wheels)
(For Directional
Tires and Wheels)
Main Menu
Table of Contents
＋
Wheels:
Tires:
Tires marked ‘‘M S’’ or ‘‘All
Season’’ on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best performance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
See page for DOT tire quality
grading information, and page
for tire size information.198
196
Tires
Winter DrivingWheels and Tires Specif ications
160
14x51/2JJ
P165/65R14 78S
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
Main Menu
Table of Contents
If you mount snow tires on your
vehicle, make sure they are radial
tires of the same size and load range
as original tires. Mount snow tires on
all four wheels. The traction
provided by snow tires on dry roads
maybelowerthanyouroriginaltires.
Check with the tire dealer for
maximum speed recommendations.
When installing cables, follow the
manufacturer’s instructions, and
mount them as tight as you can.
Make sure they are not contacting
the brake lines or suspension. Drive
slowly with them installed. If you
hear them coming into contact with
the body or chassis, stop and
investigate. Remove them as soon as
you begin driving on cleared roads.
Because your vehicle has limited tire
clearance, mount only SAE Class ‘‘S’’
cable-type traction devices, with
rubber chain tensioners on the front
tires. Use traction devices only when
required by driving conditions or
local laws. Make sure they are the
correct size for your tires. Metal link-
type ‘‘chains’’ should not be used.
Tires
Snow Tires Tire Chains
Maintenance
161
Traction devices that are the wrong
size or improperly installed can
damage your vehicle’s brake lines,
suspension, body, and wheels. Stop
driving if they are hitting any part of
the vehicle.
Main Menu
Table of Contents
−
Check the terminals for corrosion (a
white or yellowish powder). To
remove it, cover the terminals with a
solution of baking soda and water. It
will bubble up and turn brown. When
this stops, wash it off with plain
water. Dry off the battery with a
cloth or paper towel. Coat the
terminals with grease to help prevent
future corrosion.
If additional battery maintenance is
needed, see your dealer or a
qualified technician.
Battery posts,
terminals, and related accessories
contain lead and lead compounds.
If you need to connect the battery to
a charger, disconnect both cables to
prevent damaging your vehicle’s
electrical system. Always disconnect
the negative ( ) cable first, and
reconnect it last.

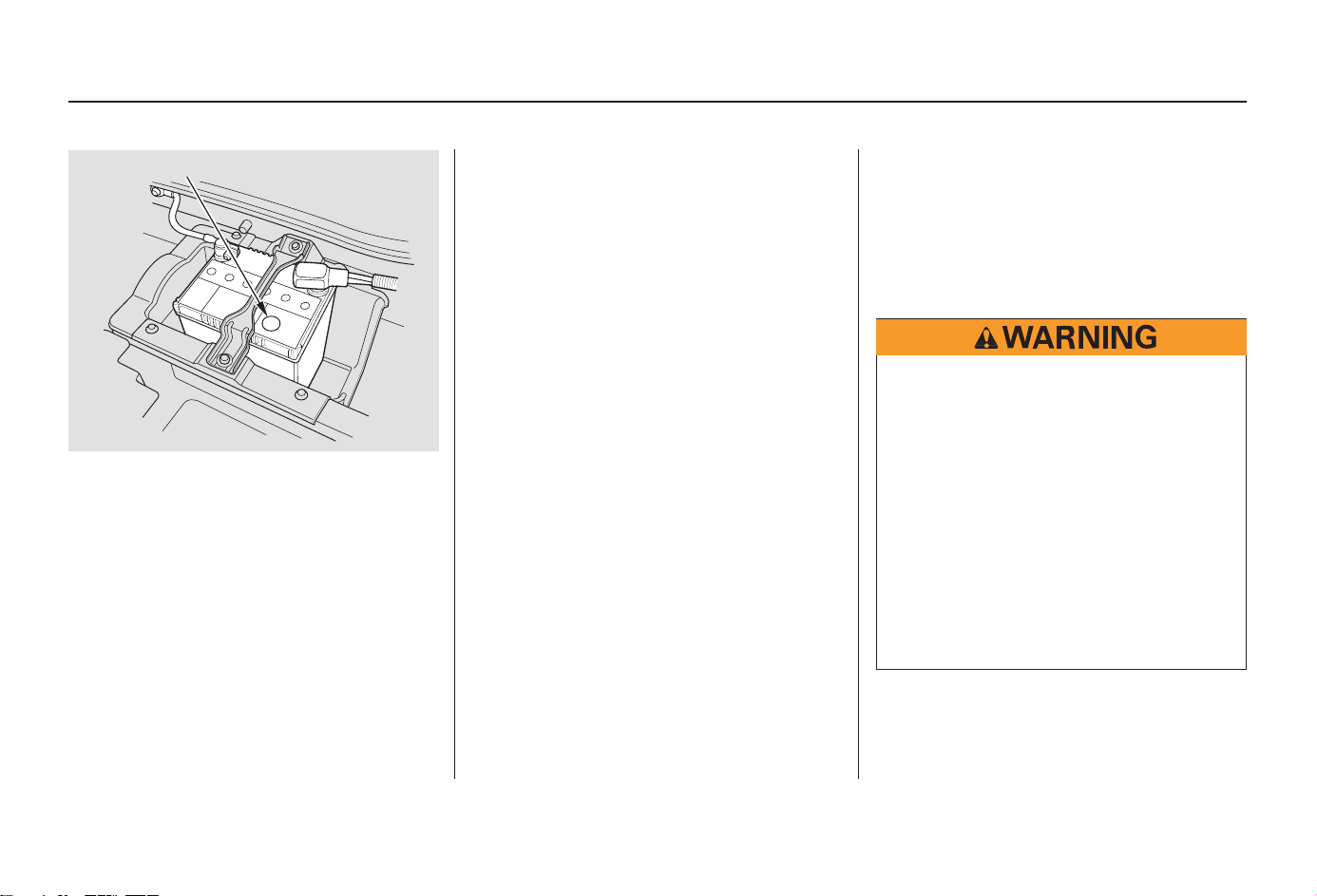

Check the condition of the battery
monthlybylookingatthetest
indicator window. The label on the
battery explains the test indicator’s
colors.
Checking the Battery
WARNING:
Wash your hands after handling.
162
TEST INDICATOR WINDOW
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.
Main Menu
Table of Contents
If you need to park your vehicle for
an extended period (more than one
month), there are several things you
should do to prepare it for storage.
Proper preparation helps prevent
deterioration and makes it easier to
get your vehicle back on the road. If
possible, store your vehicle indoors.
Fill the fuel tank.
Change the engine oil and filter.
Wash and dry the exterior
completely.
Cleantheinterior.Makesurethe
carpeting, floor mats, etc., are
completely dry.
Leave the parking brake off. Put
the transmission in Reverse
(manual) or Park (CVT).
Block the rear wheels.
If the vehicle is to be stored for a
longer period, it should be
supported on jackstands so the
tires are off the ground.
Leave one window open slightly (if
the vehicle is being stored
indoors).
Disconnect the 12 volt battery.
Support the front and rear wiper
blade arms with a folded towel or
ragsotheydonottouchthe
windshield.
To minimize sticking, apply a
silicone spray lubricant to all door
and hatch seals. Also, apply a
vehiclebodywaxtothepainted
surfaces that mate with the door
and hatch seals.
If you store your vehicle for 1 year or
longer, have your dealer perform the
inspections called for in the 2 years/
30,000 miles (48,000 km)
maintenance schedule (Normal
Conditions) as soon as you take it
out of storage (see page ). The
replacements called for in the
maintenance schedule are not
needed unless the vehicle has
actually reached that time or mileage.
Cover the vehicle with a
‘‘breathable’’ cover, one made
from a porous material such as
cotton. Non-porous materials, such
as plastic sheeting, trap moisture,
which can damage the paint.
Reconnect the 12 volt battery and
drive your vehicle every month for
about 30 minutes. This will keep
the IMA battery charged and in
good condition.
129
Vehicle Storage
Maintenance
163
Main Menu
Table of Contents
164
Main Menu
This section covers the more
common problems that motorists
experience with their vehicles. It
gives you information about how to
safely evaluate the problem and what
to do to correct it. If the problem has
stranded you on the side of the road,
you may be able to get going again.
If not, you will also find instructions
on getting your vehicle towed.
......................Compact Spare Tire . 166
....................Changing a Flat Tire . 167
.............If the Engine Won’t Start . 173
Nothing Happens or the
Starter Motor Operates
........................Very Slowly . 173
................................Jump Starting . 175
..............If the Engine Overheats . 177
.........Low Oil Pressure Indicator . 179
..........Charging System Indicator . 180
.......Malfunction Indicator Lamp . 180
...............Brake System Indicator . 182
......................Emergency Towing . 183
......If Your Vehicle Gets Stuck . 184
..............................................Fuses . 185
Checking and Replacing
......................................Fuses . 185
..............................Fuse Locations . 188
Taking Care of the Unexpected
Taking Care of the Unexpected
165
Main Menu

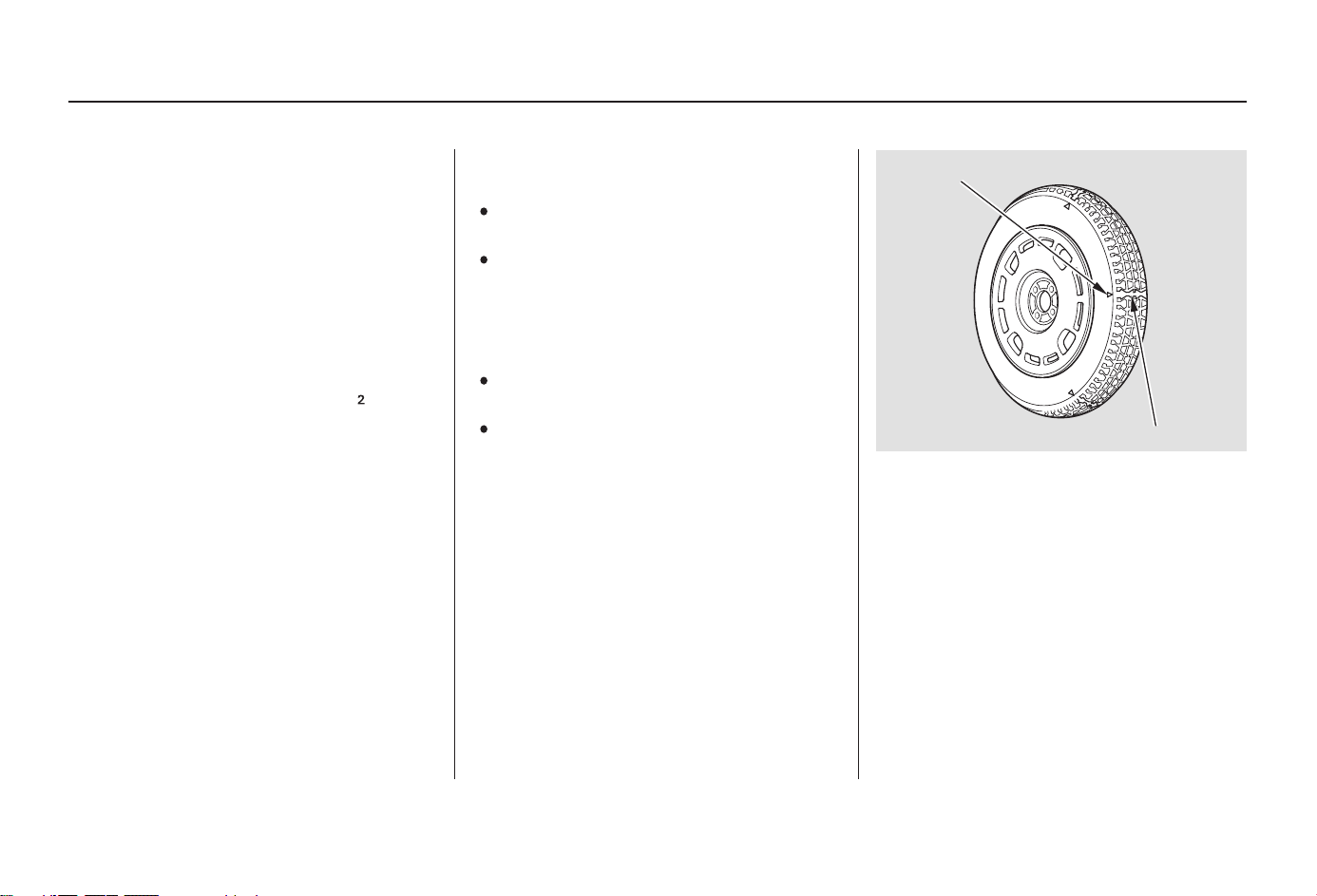

Use the compact spare tire as a
temporary replacement only. Get
your regular tire repaired or replaced,
and put it back on your vehicle as
soon as you can.
Check the compact spare tire
inflation pressure every time you
check the other tires. It should be
inflated to:
Follow these precautions:
Replace the tire when you can see
the tread wear indicator bars. The
replacement should be the same size
and design tire, mounted on the
samewheel.Thesparetireisnot
designed to be mounted on a regular
wheel, and the spare wheel is not
designed for mounting a regular tire.
Never exceed 50 mph (80 km/h).
This tire gives a harsher ride and
less traction on some road sur-
faces. Use greater caution while
driving.
Do not mount snow chains on it.
Do not use your compact spare
tire on another vehicle unless it is
thesamemakeandmodel.
Compact Spare Tire
166
INDICATOR LOCATION MARK
TREAD WEAR INDICATOR BAR
60 psi (420 kPa , 4.2 kgf/cm )
Main Menu
Table of Contents

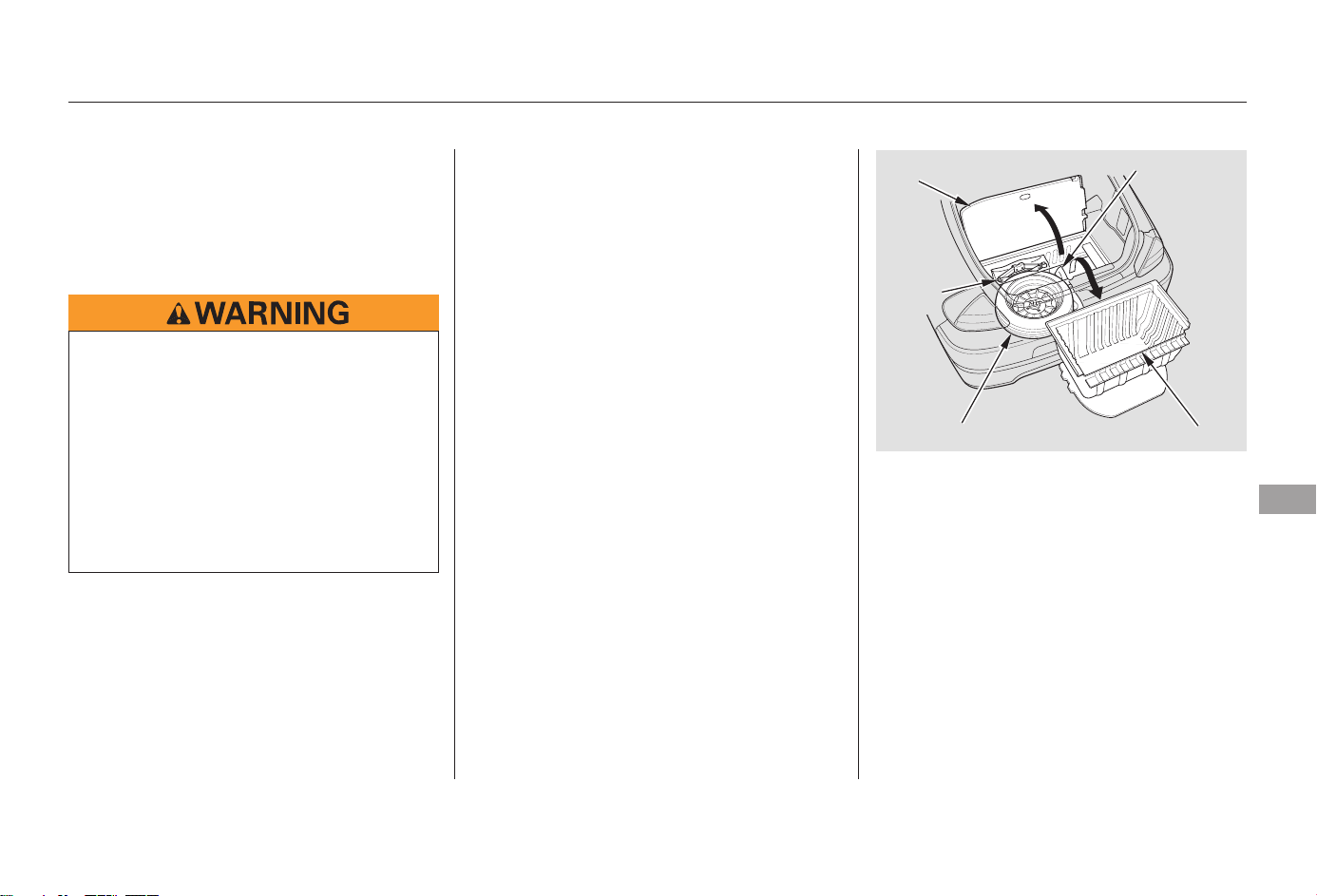

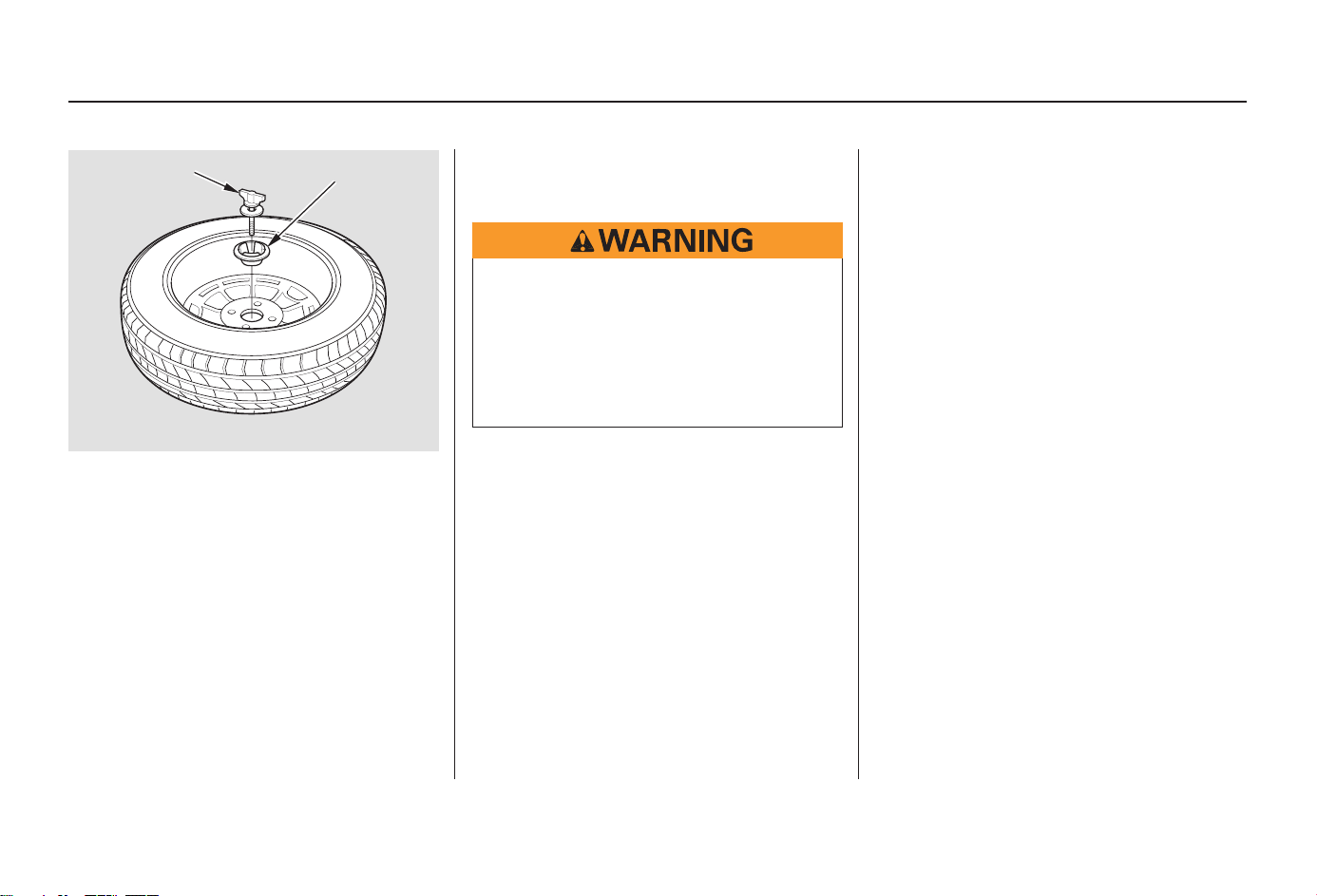

If you have a flat tire while driving,
stop in a safe place to change it.
Drive slowly along the shoulder until
you get to an exit or an area that is
far away from the traffic lanes.
Park the vehicle on firm, level and
non-slippery ground. Put the
transmission in Reverse (5-speed
manual) or Park (CVT). Apply the
parking brake.
Open the hatch. Raise the cargo
area floor by lifting up on the back
edge.
Remove the storage box from the
cargo area well.
Take the tool kit from the spare
tire well. Remove the jack (in the
jack cover) from the inside of the
spare tire.
Unscrew the wing bolt, and take
the spare tire out of its well.
Turn on the hazard warning
indicators, and turn the ignition
switch to LOCK (0). Have your
passenger get out of the vehicle
while you change the tire.
2.
3.
1.
4.
5.
6.
CONTINUED
Changing a Flat Tire
Taking Care of the Unexpected
167
FLOOR BOARD TOOL KIT
STORAGE BOX
SPARE TIRE
JACK
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
Main Menu
Table of Contents
Rear tire only:
Use the end of the extension or a
flat-tipped screwdriver to loosen
the two stud fasteners holding the
rear wheel skirt.
Pull the rear wheel skirt
downward.
Do not catch your clothes or
hands on the hooks on the rear
fender when you replace the
wheel.
Remove the center cap from the
wheel with the end of the
extension or a flat-tipped
screwdriver.
Loosen each wheel nut 1/2 turn
with the wheel nut wrench.
1. 2. 3.
4.
Changing a Flat Tire
168
REAR WHEEL SKIRT
STUD
FASTENER
CENTER CAP
Main Menu
Table of Contents
CONTINUED
Place the jack under the jacking
point nearest the tire you need to
change. It is pointed to by an
arrow molded into the underside
of the body. Turn the end bracket
clockwise until the top of the jack
contacts the jacking point. Make
sure the jacking point tab is
restinginthejacknotch.
Use the extension and wheel
wrench as shown to raise the
vehicle until the flat tire is off the
ground.
Remove the wheel nuts, then
remove the flat tire. Handle the
wheel nuts carefully; they may be
hot from driving. Place the flat tire
on the ground with the outside
surface facing up.
5. 6. 7.
Changing a Flat Tire
Taking Care of the Unexpected
169
JACKING POINT WHEEL NUT WRENCH EXTENSION
Main Menu
Table of Contents
Before mounting the spare tire,
wipeanydirtoffthemounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
Put on the spare tire. Put the
wheel nuts back on finger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is firmly against
the hub. Do not try to tighten
them fully.
Lower the vehicle to the ground
and remove the jack.
8. 9. 10.
Changing a Flat Tire
170
HUB
Main Menu
Table of Contents
▼
●
CONTINUED
Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
facility.
Tighten the wheel nuts to:
Do not catch your clothes or
hands on the hooks on the rear
fender when you replace the
wheel.
To install the rear wheel skirt,
place the skirt against the body.
Line up the slots on the skirt with
the tabs in the body, then push the
skirt upward.
Make sure the wheel skirt is
installed correctly.
Tighten the two stud fasteners.
Alignthe marksonthestud
fastener with the marks on the
wheel skirt.
11. 12. 13.
Changing a Flat Tire
Taking Care of the Unexpected
171
TAB
SLOT
80 lbf·ft (108 N·m , 11 kgf·m)
It is not recommended to drive your
vehicle without the wheel skirts.
It will af f ect the f uel consumption.
Main Menu
Table of Contents
Place the flat tire face down in the
spare tire well.
Remove the spacer cone from the
wing bolt, turn it over, and put it
back on the bolt.
Securetheflattirebyscrewing
the wing bolt back into its hole.
Store the jack and tool kit back in
the spare tire well.
Install the storage box in the cargo
area well.
Lower the cargo area floor, then
close the hatch.
Store the center cap in the spare
tire well. Make sure it does not get
scratched or damaged.
15.
16.
17.
14.
19.
20.
18.
Changing a Flat Tire
172
WING BOLT SPACER CONE
Loose items can fly around the
interior in a crash and could
seriously injure the occupants.
Store the wheel, jack, and tools
securely before driving.
Main Menu
Table of Contents
CONTINUED
Diagnosing why the engine won’t
start falls into two areas, depending
on what you hear when you turn the
key to START (III):
You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
faster than normal, but the engine
does not start up and run.
When you turn the ignition switch to
START (III), you do not hear the
normal noise of the engine trying to
start. You may hear a clicking sound
or series of clicks, or nothing at all.
Check these things:
Check the transmission interlock.
If you have a manual transmission,
the clutch pedal must be pushed
all the way to the floor or the
starter will not operate. With an
automatic transmission, it must be
in Park or Neutral.
Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
Turn the ignition switch to ON (II).
Turn on the headlights, and check
their brightness. If the headlights
areverydimordonotcomeonat
all, the battery is discharged. See
on page .
Turn the ignition switch to START
(III). If the headlights do not dim,
check the condition of the fuses. If
thefusesareOK,thereis
probably something wrong with
the electrical circuit for the
ignition switch or starter motor.
You will need a qualified
technician to determine the
problem (see
on page ).
175
60
183
IftheEngineWon’tStart
Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting
Emergency Towing
Taking Care of the Unexpected
173
Main Menu
Table of Contents
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is
discharged or the connections are
corroded. Check the condition of the
battery and terminal connections
(see page ). You can then try
jump starting the vehicle from a
booster battery (see page ).
In this case, the starter motor’s
speed sounds normal, or even faster
than normal, when you turn the
ignition switch to START (III), but
the engine does not run.
Are you using the proper starting
procedure? Refer to
on page .
Ifyoufindnothingwrong,youwill
need a qualified technician to find
the problem. See
on page .
Do you have fuel? Check the fuel
gauge; the low fuel indicator may
not be working.
There may be an electrical
problem, such as no power to the
fuel pump. Check all the fuses
(see page ).
162
175
109
185
183
IftheEngineWon’tStart
The Starter Operates Normally
Starting the
Engine
Emergency
Towing
174
Main Menu
Table of Contents
＋
＋
Although this seems like a simple
procedure, you should take several
precautions.
You cannot start your vehicle with an
automatic transmission (CVT) by
pushing or pulling it.
Open the hood, and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or frozen, do not try
jump starting until it thaws.
To jump start your vehicle:
Connect one jumper cable to the
positive ( ) terminal on your
battery. Connect the other end to
the positive ( ) terminal on the
booster battery.
Put the transmission in Neutral or
Park, and set the parking brake.
Turn off all the electrical acces-
sories: heater, A/C, climate
control, stereo system, lights, etc.
The numbers in the illustration show
you the order to connect the jumper
cables.
1.
2.
3.
CONTINUED
Jump Starting
Taking Care of the Unexpected
175
BOOSTER BATTERY
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme cold, the
electrolyte inside can f reeze.
Attempting to jump start with a f rozen
battery can cause it to rupture.
Main Menu
Table of Contents
−
Start the vehicle. If the starter
motor still operates slowly, check
that the jumper cables have good
metal-to-metal contact.
Once the vehicle is running,
disconnect the negative cable from
your vehicle, then from the
booster battery. Disconnect the
positive cable from the vehicle,
and then from the booster battery.
Keep the ends of the jumper cables
away from each other and any metal
on the vehicle until everything is
disconnected. Otherwise, you may
cause an electrical short.
If the booster battery is in another
vehicle, have an assistant start
that vehicle and run it at a fast idle.
Connect the second jumper cable
to the negative ( ) terminal on
the booster battery. Connect the
other end to the grounding strap
as shown. Do not connect this
jumper cable to any other part of
the engine.
5.
7.
6.
4.
Jump Starting
176
Main Menu
Table of Contents
CONTINUED
The reading on your vehicle’s
temperature gauge should stay in
the midrange. If it climbs to the red
mark, you should determine the
reason (hot day, driving up a steep
hill, etc.).
If your vehicle overheats, you should
take immediate action. The only
indicationmaybethetemperature
gauge reading reaching the red
mark. Or you may see steam or
spray coming from under the hood.
If you see steam and/or spray
coming from under the hood, turn
off the engine. Wait until you see
no more signs of steam or spray,
then open the hood.
If you do not see steam or spray,
leave the engine running and
watch the temperature gauge. If
the high heat is due to overloading,
the engine should start to cool
down almost immediately. If it
does, wait until the temperature
gauge reading comes down to the
midpoint, then continue driving.
Safely pull to the side of the road.
Put the transmission in Neutral or
Park, and set the parking brake.
Turn off all accessories, and turn
on the hazard warning lights.
If the temperature gauge stays at
the red mark, turn off the engine.
Look for any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you find a leak, it
must be repaired before you
continue driving (see
on page ).
1.
2.
3.
4.
5.
183
IftheEngineOverheats
Emergency
Towing
Taking Care of the Unexpected
177
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
Driving with the temperature gauge
reading at the red mark can cause
serious damage to your engine.
Main Menu
Table of Contents
If you do not find an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.
If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the reading
reaches the middle of the
temperature gauge, or lower,
before checking the radiator.
Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the first stop. After the
pressure releases, push down on
the cap, and turn it until it comes
off.
Start the engine, and set the
temperature control dial to
maximum. Add coolant to the
radiator up to the base of the filler
neck. If you do not have the
proper coolant mixture available,
you can add plain water.
Remember to have the cooling
system drained and refilled with
the proper mixture as soon as you
can.
Put the radiator cap back on
tightly. Run the engine, and watch
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see
on page ).
If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.
6.
7.
8.
9.
11.
10.
183
IftheEngineOverheats
Emergency
Towing
178
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
Main Menu
Table of Contents
This indicator should never
come on when the engine is
running. If it starts flashing or stays
on, the oil pressure has dropped very
low or lost pressure. Serious engine
damage is possible and you should
take immediate action.
Safely pull off the road, and shut
off the engine. Turn on the hazard
warning indicators.
Let the vehicle sit for a minute.
Open the hood, and check the oil
level (see page ). An engine
very low on oil can lose pressure
during cornering and other driving
maneuvers.
If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page ).
Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn off the
engine. There is a mechanical
problem that needs to be repaired
before you can continue driving
(see on page
).
The engine running generates the
oil pressure.
When the auto idle stop is
activated, the engine is stopped,
but the low oil pressure indicator
does not come on.
1.
2.
3.
4.
97
135
183
Low Oil Pressure Indicator
Emergency Towing
Taking Care of the Unexpected
179
Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn of f
the engine as soon as you can saf ely get
the vehicle stopped.
Main Menu
Table of Contents
If you have recently refueled your
vehicle, the indicator could come on
because of a loose or missing fuel fill
cap. Tighten the cap until it clicks at
least three times. Tightening the cap
will not turn the indicator off
immediately; it takes at least three
days of normal driving.
If the indicator remains on, or the
fuel cap was not loose or missing,
have your vehicle checked by the
dealer as soon as possible.
If the indicator comes on
while driving, it means one
of the engine’s emissions control
systems may have a problem. Even
though you may feel no difference in
your vehicle’s performance, it can
reduce your fuel economy and cause
increased emissions. Continued
operation may cause serious damage.
Immediately turn off all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.
If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
Go to a service station or garage
where you can get technical
assistance.
This indicator may also come on
along with the ‘‘D’’ indicator.
Charging System Indicator, Malfunction Indicator Lamp
Malfunction Indicator LampCharging System Indicator
180
If you keep driving with the
Malf unction Indicator Lamp on, you
can damage your vehicle’s emissions
controls and the engine. Those repairs
may not be covered by your vehicle’s
warranties.
Main Menu
Table of Contents
Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics for the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.
If your 12 volt vehicle’s battery has
been disconnected or gone dead,
these codes are erased. It takes at
least three days of driving under
various conditions to set the codes
again.
To check if they are set, turn the
ignition to ON (II), without starting
the engine. The malfunction
indicator lamp will come on for 20
seconds.Ifitthengoesoff,the
readiness codes are set. If it blinks
five times, the readiness codes are
not set. If possible, do not take your
vehicle for a state emissions test
until the readiness codes are set.
Refer to
for more information (see page ).202
Malfunction Indicator Lamp
Readiness Codes
State Emissions Testing
Taking Care of the Unexpected
181
Main Menu
Table of Contents
The brake system
indicator normally
comesonwhenyou
turn the ignition switch to ON (II)
and as a reminder to check the
parking brake. It will stay lit if you do
not fully release the parking brake.
If the brake system indicator comes
on while driving, the brake fluid level
is probably low. Press lightly on the
brake pedal to see if it feels normal.
If it does, check the brake fluid level
thenexttimeyoustopataservice
station (see page ).
If the fluid level is low, take your
vehicle to a dealer, and have the
brake system inspected for leaks or
worn brake pads.
However, if the brake pedal does not
feel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will feel the brake
pedal go down much farther before
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
Slow down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see
on page ).
If you must drive the vehicle a short
distance in this condition, drive
slowly and carefully.
145
183
Brake System Indicator
Emergency
Towing
182
U.S. Canada
Main Menu
Table of Contents
−
−
−
If your vehicle needs to be towed,
call a professional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
There are three popular types of
professional towing equipment.
The operator
loads your vehicle on the back of a
truck.
The tow
truck uses two pivoting arms that go
under the tires (front or rear) and lift
them off the ground. The other two
tires remain on the ground.
The tow
truck uses metal cables with hooks
on the ends. These hooks go around
parts of the frame or suspension and
the cables lift that end of the vehicle
off the ground. Your vehicle’s sus-
pension and body can be seriously
damaged.
If your vehicle cannot be transported
by flat-bed, it should be towed by
wheel-lift equipment with the front
wheels off the ground. If, due to
damage, your vehicle must be towed
with the front wheels on the ground,
do the following:
Release the parking brake.
Shift the transmission to Neutral.
Release the parking brake.
Start the engine.
ShifttoD,thentoN.
Turn off the engine.
With the front wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If your vehicle is equipped with a
front spoiler, remove it before
towing so it is not damaged.
5-speed Manual Transmission:
Automatic Transmission (CVT):
Emergency Towing
Flat-bed Equipment
Wheel-lift Equipment
Sling-type Equipment
This is the best way to trans-
port your vehicle.
This is
an acceptable way to tow your
vehicle.
This method of towing
is unacceptable.
Taking Care of the Unexpected
183
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight.
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine (CVT), your vehicle must be
transported with the f ront wheels off
the ground.
Main Menu
Table of Contents
If your vehicle gets stuck in sand,
mud, or snow, call a towing service
to pull it out (see page ).
For very short distances, such as
freeing the vehicle, you can use the
detachable towing hook that mounts
on the anchor in the front bumper.
To use the towing hook:
Remove the towing hook and
wheel wrench from the tool box.
Remove the cover from the
bumper with the end of the
extension.
Screw the towing hook into the
hole and tighten it securely by
hand.
1.
2.
3.
183
If Your Vehicle Gets Stuck
Emergency Towing
184
Main Menu
Table of Contents
The under-hood fuse box is in the
engine compartment. To open it,
pushthetabsasshown.
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine from the chart on pages
and , or the diagram on the
fuse box lid, which fuse or fuses
control that device. Check those
fuses first, but check all the fuses
before deciding that a blown fuse is
the cause. Replace any blown fuses,
andcheckifthedeviceworks.
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover from the fuse
box.
The interior fuse is underneath the
dashboard on the driver’s side.
Remove the storage pocket by
swinging the lid down, pushing up,
and pulling it straight out of its
hinges.
1.
2.
188 189
CONTINUED
Checking and Replacing Fuses
Fuses
Taking Care of the Unexpected
185
INTERIOR
TAB UNDER-HOOD
Main Menu
Table of Contents
Check the smaller fuses in the
under-hood fuse box and all the
fuses in the interior fuse box by
pulling out each one with the fuse
puller provided in the under-hood
fuse box.
Look for a burned wire inside the
fuse. If it is burned, replace it with
one of the spare fuses of the same
rating or lower.
Check each of the large fuses in
the under-hood fuse box by
looking through the top at the wire
inside. Removing these screws
requires a Phillips-head
screwdriver.
3. 4. 5.
Fuses
186
FUSE
BLOWN
FUSE PULLER
BLOWN
Main Menu
Table of Contents
If the radio fuse is removed, the
audio system will disable itself. The
nexttimeyouturnontheradioyou
will see ‘‘COdE’’ in the frequency
display. Use the preset buttons to
enter the five-digit code (see page
).
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualified mechanic.
If you cannot drive the vehicle
without fixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as
soon as you can.
6.
90
Fuses
Taking Care of the Unexpected
187
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement fuse with the proper rating
f or the circuit, install one with a lower
rating.
Main Menu
Table of Contents
−
−
＊
＊
＊
No. Amps. Circuits Protected No.
No.
Amps.
Amps.
Circuits Protected
Circuits Protected
1
2
3
4
5
6
7
8
9
10
10 A
15 A
20 A
7.5 A
7.5 A
7.5 A
15 A
20 A
7.5 A
20 A
SRS
Fuel Pump, SRS
Front Wiper
FI-ECU
Turn Light
Meter
IG Coil
Power Window, Passenger
Starter Signal
Power Window, Driver
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
7.5 A
10 A
20 A
10 A
7.5 A
7.5 A
7.5 A
7.5 A
10 A
10 A
20 A
7.5 A
7.5 A
10 A
7.5 A
ACC Radio
ACC Socket
Not used
LAF Heater
Small Light
Air Conditioning, R/C
Mirror
Daytime Running Light
Back Up Light
Interior Light
Radio
Daytime Running Light
Door Lock
Tailgate Lock
IMA
Not used
Rear Wiper
Back Light
: Canadian model only
Fuse Locations
188
INTERIOR FUSE BOX
Main Menu
Table of Contents
−
−
No.No. Circuits ProtectedCircuits Protected Amps.Amps.
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
Cooling Fan
Heater Motor
Rear Defroster
ABS F/S
Power Steering
Back Up, ACC
Power Window
IMA ECU
Condenser Fan
Spare Fuse
IG1 Main
Battery
ABS Motor
Hazard
IMA
Horn Stop
Fuel Pump
Left Headlight
Not used
Right Headlight
30 A
40 A
30 A
20 A
40 A
30 A
40 A
7.5 A
20 A
50 A
80 A
30 A
10 A
15 A
10 A
15 A
15 A
15 A
Fuse Locations
Taking Care of the Unexpected
189
UNDER-HOOD FUSE BOX
Main Menu
Table of Contents
190
Main Menu
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle, and the locations of the
identification numbers. It also
includes information you should
know about your vehicle’s tires and
emissions control systems.
................Identification Numbers . 192
................................Specifications . 194
DOT Tire Quality Grading
......................(U.S. Vehicles) . 196
Uniform Tire Quality
..................................Grading . 196
.................................Treadwear . 196
......................................Traction . 196
.............................Temperature . 197
.................................Tire Labeling . 198
.......................Emissions Controls . 199
.....................The Clean Air Act . 199
Crankcase Emissions Control
....................................System . 199
Evaporative Emissions Control
....................................System . 199
Onboard Refueling Vapor
................................Recovery . 199
...Exhaust Emissions Controls . 200
....................PGM-FI System . 200
Ignition Timing Control
................................System . 200
Three Way Catalytic
...........................Converter . 200
....................Replacement Parts . 200
..Three Way Catalytic Converter . 201
..............State Emissions Testing . 202
....Testing of Readiness Codes . 202
Technical Information
Technical Information
191
Main Menu
Your vehicle has several identifying
numbers in various places.
The Vehicle Identification Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
vehicle for warranty purposes. It is
also necessary for licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
Certification label.
Identification Numbers
192
VEHICLE IDENTIFICATION NUMBER
CERTIFICATION LABEL
Main Menu
Table of Contents
The Engine Number is stamped into
the engine block.
The transmission number is on a
label on top of the transmission.
The IMA Motor Number is stamped
on the motor housing.
Identification Numbers
Technical Information
193
ENGINE NUMBER
IMA MOTOR NUMBER
AUTOMATIC TRANSMISSION (CVT)
NUMBER
TRANSMISSION NUMBER
Main Menu
Table of Contents
＊
＊
＊
＊
＊
＊
＊
＊
Specifications
194
Dimensions
Weights
Engine
Capacities
66.7 in (1,695 mm)
53.3 in (1,355 mm)
94.5 in (2,400 mm)
56.5 in (1,435 mm)
52.2 in (1,325 mm)
10.6 US gal (40 )
155.0 in (3,938 mm)
0.61 US gal (2.3
)
ILZFR5A-11
10.3 : 1
10.8 : 1
60.8 cu-in (995 cm
)
2.8x3.21in(72x81.5mm)
0.11 US gal (0.4
)
4.8 US qt (4.5
)
5.8 US qt (5.5
)
3.5 US qt (3.3
)
1.7 US qt (1.6
)
1.6 US qt (1.5
)
3.2 US qt (3.0
)
2.4 US qt (2.3
)
2.6 US qt (2.5
)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Fuel tank
Engine
coolant
Engine oil
Manual transmission
fluid
Automatic transmission
fluid (CVT)
Windshield washer reservoir
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
See the certification label attached
to the driver’s doorjamb.
Water cooled 4-stroke
SOHC VTEC in line
3-cylinder gasoline engine
1.06 US gal (4.0 )
1.03 US gal (3.9
)
Contact your Honda dealer when replacement is necessary.
Front
Rear
Approx.
U.S. model
M/T
CVT
1:
2:
3:
M/T
CVT
Change
Total
Change
Without filter
Total
Change
Total
Change
Total
4 : Excluding the oil remaining in the engine.
1
3
2
4
Including filter
Main Menu
Table of Contents
−−
−
−
−
−
−
−
−
−
−
−
−
−
−
＊
＊
Specifications
Technical Information
195
Air Conditioning
Lights
12 Volt Battery
Alignment
Tires
Fuses
HFC-134a (R-134a)
17.6 19.4 oz (500 550 g)
SP-10
12 V 60/55 W (HB2)
0.00 in (0.0 mm)
0.12 in (3.0 mm)
0°
1°
2°
P165/65R14 78S
T115/70D14 88M
12 V 21 W
12 V 5 W
12 V
12 V
21/5 W
21 W
12 V 18 W
12 V
12 V
5W
5W
12 V
12 V
5W
3.4 W
12V 27Ah/5HR
30 Ah/5 HR12 V
Refrigerant type
Charge quantity
Lubricant type
Headlights (HI/LO)
Front turn signal lights
Front parking lights
Side marker lights
Rear turn signal lights
Brake/Taillights
Back-up lights
Trunk light
License plate light
Interior light
Capacity
Toe-in
Camber
Caster
Size
Pressure
Interior
Under-hood
See page 188 or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 189 or the fuse box
cover.
38 psi (260 kPa , 2.6 kgf/cm
)
35 psi (240 kPa , 2.4 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm
)
Front
Rear
Front
Rear
Front
Front/Rear
Spare
Front
Rear
Spare
U.S. model
M/T
CVT
Main Menu
Table of Contents
−The tires on your vehicle meet all
U.S. Federal Safety Requirements.
All tires are also graded for
treadwear, traction, and temperature
performance according to
Department of Transportation
(DOT) standards. The following
explains these gradings.
Quality grades can be found where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.
The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specified government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative performance of
tires depends upon the actual condi-
tions of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices, and differences in
road characteristics and climate.
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specified government test surfaces
of asphalt and concrete. A tire
marked C may have poor traction
performance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
DOT Tire Quality Grading (U.S. Vehicles)
Uniform Tire Quality Grading
Treadwear 200
Traction AA
Temperature A
Treadwear Traction AA, A, B, C
196
Main Menu
Table of Contents
−
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specified indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire failure. The
grade C corresponds to a level of
performance which all passenger car
tires must meet under the Federal
Motor Vehicle Safety Standard No.
109. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the
minimum required by law.
Warning: The temperature grade for
this tire is established for a tire that
is properly inflated and not over-
loaded. Excessive speed, underinfla-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
failure.
DOT Tire Quality Grading (U.S. Vehicles)
Temperature A,B,C
Technical Information
197
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
−
−The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Rim diameter in inches.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Tire Identification Number (TIN) is
a group of numbers and letters that
look like the following example TIN.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Manufacturer’s
identification mark.
Tire type code.
Date of manufacture.
Whenever tires are replaced, they
should be replaced with tires of the
same size. The following is an
exampleoftiresizewithan
explanation of what each component
means.
Tire construction code (R
indicates radial).
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire width in millimeters.
Vehicletype(Pindicates
passenger vehicle).
P
R
DOT
B97R
FW6X
2202
165
65
14
78
S
Tire Labeling
Tire Size
Tire Identif ication Number
198
DOT B97R FW6X 2202
P165/65R14 78S
Main Menu
Table of Contents
＊
＊
The burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx), and hydrocarbons (HC).
Gasoline evaporating from the tank
also produces hydrocarbons.
Controlling the production of NOx,
CO, and HC is important to the
environment. Under certain
conditions of sunlight and climate,
NOx and HC react to form
photochemical ‘‘smog.’’ Carbon
monoxide does not contribute to
smog creation, but it is a poisonous
gas.
The United States Clean Air Act
sets standards for automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
Scheduled maintenance is on page
.
In Canada, Honda vehicles comply
with the Canadian emission
requirements, as specified in an
agreement with Environment
Canada, at the time they are
manufactured.
Your vehicle has a positive
crankcase ventilation system. This
keeps gasses that build up in the
engine’s crankcase from going into
the atmosphere. The positive
crankcase ventilation valve routes
them from the crankcase back to the
intake manifold. They are then
drawn into the engine and burned.
As gasoline evaporates in the fuel
tank, an evaporative emissions
control canister filled with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is off. After
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The onboard refueling vapor
recovery (ORVR) system captures
the fuel vapors during refueling. The
vapors are adsorbed in a canister
filled with activated carbon. While
driving, the fuel vapors are drawn
into the engine and burned off.
129
Emissions Controls
The Clean Air Act
Crankcase Emissions Control
System
Evaporative Emissions Control
System
Onboard Refueling Vapor
Recovery
Technical Information
199
Main Menu
Table of Contents
The exhaust emissions controls
include three systems: PGM-FI,
ignition timing control, and three
way catalytic converter. These three
systems work together to control the
engine’s combustion and minimize
the amount of HC, CO, and NOx that
comes out the tailpipe. The exhaust
emissions control systems are
separate from the crankcase and
evaporative emissions control
systems.
The PGM-FI system uses sequential
multiport fuel injection. It has three
subsystems: air intake, engine
control, and fuel control. The
powertrain control module (PCM) in
automatic transmission vehicles or
the engine control module (ECM) in
manual transmission vehicles uses
various sensors to determine how
much air is going into the engine. It
then controls how much fuel to inject
under all operating conditions.
The emissions control systems are
designed and certified to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent for repairs. Using lower
quality parts may increase the
emissions from your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual for more informa-
tion.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
2
2
Emissions Controls
Exhaust Emissions Controls Replacement Parts
PGM-FI System
Three Way Catalytic Converter
Ignition Timing Control System
200
Main Menu
Table of Contents
The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter is referred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on fire any com-
bustible materials that come near it.
Parkyourvehicleawayfromhigh
grass, dry leaves, or other flamma-
bles.
A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
formance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter.
Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter ineffective.
Keep the engine tuned-up.
Have your vehicle diagnosed and
repaired if it is misfiring, back-
firing, stalling, or otherwise not
running properly.
Three Way Catalytic Converter
Technical Information
201
THREE WAY CATALYTIC CONVERTER
THREE WAY CATALYTIC CONVERTER
Main Menu
Table of Contents
If you take your vehicle for a state
emissions test shortly after the
battery has been disconnected or
gone dead, it may not pass the test.
This is because of certain ‘‘readiness
codes’’ that must be set in the on-
board diagnostics for the emissions
systems. These codes are erased
when the battery is disconnected,
and set again only after several days
of driving under a variety of
conditions.
If the testing facility determines that
the readiness codes are not set, you
will be requested to return at a later
date to complete the test. If you must
get the vehicle retested within the
next two or three days, you can
condition the vehicle for retesting by
doing the following.
Select a nearby highway where
you can maintain a speed of 50 to
60 mph (80 to 97 km/h) for at
least 20 minutes in D (CVT) or 5th
gear (M/T). When traffic allows,
drive for 90 seconds without
moving the accelerator pedal.
(Vehicle speed may vary slightly;
this is okay.) If you cannot do this
for a continuous 90 seconds, drive
for at least 30 seconds, then repeat
it two more times (for a total of 90
seconds).
Then drive in city/suburban
traffic for at least 10 minutes.
When traffic conditions allow, let
the vehicle coast for several
seconds without using the
accelerator pedal or the brake
pedal.
If the testing facility determines the
readiness codes are still not set, see
your dealer.
Keep the vehicle in Park
(automatic transmission) or
Neutral (manual transmission).
Increase the engine speed to 2,000
rpm,andholditthereuntilthe
temperature gauge rises to at least
1/4ofthescale(about3minutes).
Without touching the accelerator
pedal, start the engine, and let it
idle for 20 seconds.
Make sure the ambient
temperature is between 20° and
95°F.
Make sure the vehicle has been
parked with the engine off for 8
hours or more.
Make sure the gas tank is nearly,
but not completely full (around
3/4).
State Emissions Testing
Testing of Readiness Codes
202
Main Menu
Table of Contents
Honda dealership personnel are
trained professionals. They should
be able to answer all your questions.
If you encounter a problem that your
dealership does not solve to your
satisfaction, please discuss it with
the dealership’s management. The
service manager or general manager
can help. Almost all problems are
solved in this way.
If you are dissatisfied with the
decision made by the dealership’s
management, contact your Honda
Customer Service Office.
U.S. Owners:
Canadian Owners:
In Puerto Rico and the U.S. Virgin
Islands:
Vehicle Identification Number
(see page )
Name and address of the dealer
who services your vehicle
Date of purchase
Mileage on your vehicle
Your name, address, and tele-
phone number
A detailed description of the
problem
Name of the dealer who sold the
vehicle to you
When you call or write, please give
us this information:
192
Customer Service Information
204
American Honda Motor Co., Inc.
Automobile Customer Service
Mail Stop 500-2N-7A
1919 Torrance Boulevard
Torrance, California 90501-2746
Tel: (800) 999-1009
Honda Canada Inc.
715 Milner Avenue
Toronto, ON
M1B 2K8
Tel: 1-888-9-HONDA-9
Fax: Toll-free 1-877-939-0909
Toronto (416) 287-4776
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
(787) 250-4327
CUSTOMER RELATIONS
RELATIONS AVEC LA CLIENTÈLE
Main Menu
Table of Contents
−
−
−
−
−
−
−
−
−
Your new vehicle is covered by these
warranties:
covers your new vehicle, except for
the battery, emissions control
systems, and accessories, against
defects in materials and
workmanship.
these two
warranties cover your vehicle’s
emissions control systems. Time,
mileage, and coverage are
conditional. Please read your
warranty manual for exact
information.
a seat
belt that fails to function properly is
covered for the useful life of the
vehicle.
all exterior body panels are
covered for rust-through from the
inside for the specified time period
with no mileage limit.
Honda accessories are covered
under this warranty. Time and
mileage limits depend on the type of
accessory and other factors. Please
read your warranty manual for
details.
covers all Honda
replacement parts against defects in
materials and workmanship.
provides prorated
coverage for a replacement battery
purchased from your dealer.
provides
coverageforaslongasthepur-
chaser of the muffler owns the
vehicle.
this warranty gives up
to 100 percent credit toward a
replacement battery.
Restrictions and exclusions apply to
all these warranties. Please read the
2005 Honda Warranty Information
booklet that came with your vehicle
for precise information on warranty
coverages. Your vehicle’s original
tires are covered by their
manufacturer. Tire warranty infor-
mation is in a separate booklet.
Please refer to the 2005 Warranty
Manual that came with your vehicle.
Warranty Coverages
U.S. Owners
Canadian Owners
New Vehicle Limited Warranty
Emissions Control Systems Defects
Warranty and Emissions
Performance Warranty
Seat Belt Limited Warranty
Rust Perforation Limited Warranty
Accessory Limited Warranty
Replacement Parts Limited
Warranty
Replacement Battery Limited
Warranty
Replacement Muffler Lifetime
Limited Warranty
Original Equipment Battery Limited
Warranty
Warranty and Customer Relations
205
Main Menu
Table of Contents
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying American Honda Motor
Co., Inc.
If NHTSA receives similar com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or
American Honda Motor Co., Inc.
To contact NHTSA, you may either
call the Auto Safety Hotline toll-free
at 1-800-424-9393 (or 366-0123 in
Washington D.C. area) or write to:
NHTSA, U.S. Department of
Transportation, Washington,
D.C. 20590. You can also obtain
other information about motor
vehicle safety from the Hotline.
Reporting Safety Defects (U.S. Vehicles)
206
Main Menu
Table of Contents
−
＊
＊
＊
＊
２
０
０
５
Ｈ
Ｏ
Ｎ
Valid only for sales within the United States. Canadian
owners should contact their authorized Honda dealer.
The publications shown below can be purchased from Helm
Incorporated. You can order in any of three ways:
Detach and mail the order form on the right half of this page
Call Helm Inc. at 1-800-782-4356
Go online at
If you are interested in other years or models, contact Helm Inc.
at 1-800-782-4356.
(credit card orders only)
Authorized Manuals
Purchasing Factory Authorized Manuals
(U.S. only)
Authorized Manuals
207
ORDER TOLL FREE: 1-800-782-4356
OR
(NOTE: For Credit Card Holder Orders Only)
MINIMUM CREDIT CARD PURCHASE $10.00
Publication
Form Number
61S3Y06
61S3Y06EL
61S3Y30
31S3Y660
31S3YM00
31S3YQ20
HON-R
Form Description
2000-05 Honda Insight
Service Manual
2000-05 Honda Insight
Electrical Troubleshooting Manual
2000-05 Honda Insight
Body Repair Manual
2005 Honda Insight
Owner’s Manual
2005 Honda Insight
Honda Service History
2005 Honda Insight
Quick Start Guide
Order Form for Previous Years-
Indicate Year and Model Desired
Price
Each
$70.00
$50.00
$44.00
$34.00
$12.00
$12.00
FREE
PUBLICATION NUMBER
VEHICLE MODEL
Name Year
Qty
Price
Each
Total
Price
GRAND TOTAL
HANDLING CHARGE
Mich. Purchases
Add 6% Sales Tax
TOTAL MATERIAL
$6.95
Monday-Friday 8:00 A.M. 6:00 P.M. EST
By completing this form you can order the materials desired. You can
pay by check or money order, or charge to your credit card. Mail to
Helm Incorporated at the address shown on the back of the order form.
Prices are subject to change without
notice and without incurring obligation.
Orders are mailed within 10 days. Please
allow adequate time for delivery.
Prices are subject to change without notice and without incurring obligation.
www. helminc. com
Main Menu
Table of Contents
−
−
−
Ｓ
Ｈ
Ｉ
Ｐ
Ｔ
Ｏ
Ｐ
Ａ
Ｙ
Ｍ
Ｅ
Ｎ
Ｔ
This manual covers maintenance and recommended
procedures for repair to engine and chassis components.
It is written for the journeyman mechanic, but is simple
enough for most mechanically-inclined owners to under-
stand.
This manual complements the service manual by
providing in-depth troubleshooting information for each
electrical circuit in your vehicle.
This manual describes the procedures involved in the
replacement of damaged body parts.
Authorized Manuals
Service Manual:
Electrical Troubleshooting Manual:
Body Repair Manual:
208
NOTE: Dealers and Companies please provide dealer or company name,
and also the name of the person to whose attention the shipment should
be sent. For purchases outside U.S.A. please write to the address shown
below for a quotation.
P.O. BOX 07280·DETROIT, MICHIGAN 48207·1-800-782-4356
Customer Name
Attention
Apartment Number
State & Zip Code
City
Daytime Telephone Number
Check or money order enclosed payable to Helm Inc U.S. funds only.
Do not send cash
Master
Card
VISA Check here if your billing address is different
from the shipping address shown above.
Account Number
Expiration: Mo. Yr.
CUSTOMER SIGNATURE
DATE
Street Address No P.O. Box Number
()
These Publications cannot be returned for credit without receiving advance authorization within 14
days of delivery. On returns, a restocking fee may be applied against the original order.
Main Menu
Table of Contents
CONTINUED
Battery
Charging System
...........................Indicator . 44, 180
............................Jump Starting . 175
..............................Maintenance . 162
............................Specifications . 195
................................Before Driving . 93
..................................Belts, Seat . 10, 18
.............................Beverage Holder . 71
..................................Booster Seats . 35
Brakes
...........Anti-lock System (ABS) . 122
................Break-in, New Linings . 94
....................Bulb Replacement . 149
...........................................Fluid . 144
.........................................Parking . 69
.................System Indicator . 45, 182
........................Wear Indicators . 121
.............................Braking System . 121
...................Break-in, New Vehicle . 94
..Brightness Control, Instruments . 57
........................Brights, Headlights . 56
Bulb Replacement
..........................Back-up Lights . 149
..............................Brake Lights . 149
................Front Parking Lights . 147
........Front Side Marker Lights . 148
.................................Headlights . 146
............................Specifications . 195
....................Turn Signal Lights . 148
..............................Bulbs, Halogen . 146
....................................Accessories . 101
ACCESSORY (Ignition Key
.......................................Position) . 61
...............Accessory Power Socket . 71
....................Additives, Engine Oil . 136
.............................Airbag (SRS) . 11, 21
...Airbags, Additional Information . 21
...Additional Safety Precautions . 24
.............................Airbag Service . 23
..How the SRS Indicator Works . 23
How Your Front Airbags
.........................................Work . 21
........................SRS Components . 21
................Air Conditioning System . 74
.....................................Usage . 75, 78
.......................Air Pressure, Tires . 156
.........................Normal Driving . 157
.........................Alcohol in Gasoline . 94
......................................Antifreeze . 139
Anti-lock Brakes (ABS)
...............................Indicator . 45, 122
....................................Operation .122
................Anti-theft, Audio System . 90
Anti-theft Steering Column
..............................................Lock . 61
..................................Audio System . 80
........................Auto Idle Stop . 111, 118
...Automatic Seat Belt Tensioners . 19
..............Automatic Transmission . 113
..........................Capacity,Fluid .194
...............Checking Fluid Level . 142
.......................................Shifting . 114
Shift Lever Position
...............................Indicators . 113
................Shift Lever Positions . 114
....................Shift Lock Release . 117
Index
A
B
INDEX
I
Main Menu
＊
............................Capacities Chart . 194
.............Carbon Monoxide Hazard . 38
.............................Carrying Cargo . 103
..............CAUTION, Explanation of . ii
...........................................CD Care . 87
.............CD Player Error Message . 88
.........CD Changer Error Message . 89
.........................................CD Player . 85
....................................Ceiling Light . 72
........................Certification Label . 192
.................................Chains, Tires . 161
....................Charge/Assist Gauge . 53
................DANGER, Explanation of . ii
...................................Dashboard . 4, 42
................Daytime Running Lights . 56
Daytime Running Lights
.......................................Indicator . 46
.................................Dead Battery . 175
............Defects, Reporting Safety . 206
..........................Defog and Defrost . 77
................Defogger, Rear Window . 58
................Defrosting the Windows . 77
....................................Dimensions . 194
...............Dimming the Headlights . 56
Dipstick
Automatic Transmission
.....................................(CVT) . 142
....................................Engine Oil . 97
..........................Directional Signals . 56
........Disc Brake Wear Indicators . 121
.....................Disposal of Used Oil . 138
..................Display Change Button . 49
Doors
..............Locking and Unlocking . 62
......................Power Door Locks . 62
..........DOT Tire Quality Grading . 196
....................Changing a Flat Tire . 167
Changing Oil
........................................How to . 136
......................................When to . 129
...Charging System Indicator . 44, 180
............Checklist, Before Driving . 108
.....................................Child Safety . 25
..............................Booster Seats . 35
...................................Child Seats . 30
.....Important Safety Reminders . 28
..........................................Infants . 26
............................Large Children . 34
......................Risks with Airbags . 26
.............................Small Children . 29
.........................................Tethers . 33
.........Where Should a Child Sit? . 25
Child Seats
................Installing a Child Seat . 30
....................Selecting Child Seat . 30
..........Tether Anchorage Points . 33
.................................................Clock . 91
...................................Clutch Fluid . 145
........................CO in the Exhaust . 199
............Cold Weather, Starting in . 109
......................Compact Spare Tire . 166
...............Consumer Information . 204
.............Controls, Instruments and . 41
Coolant
........................................Adding . 139
......................................Checking . 98
.........................Proper Solution . 139
...................Temperature Gauge . 49
Crankcase Emissions Control
........................................System . 199
.....................................Cup Holders . 71
.....................Current Fuel Mileage . 50
.............Customer Service Office . 204
Index
DC
II
Main Menu
CONTINUED
Downshifting, Manual
.............................Transmission . 110
...........Driver and Passenger Safety . 7
...........................................Driving . 107
......................................Economy . 99
..................Dust and Pollen Filter . 152
...Malfunction Indicator Lamp . 180
..................Overheated Engine . 177
.......................................Towing . 183
...........................Emergency Brake . 69
......................Emergency Flashers . 57
......................Emergency Towing . 183
.......................Emissions Controls . 199
.............Emissions Testing, State . 202
Engine
....Coolant Temperature Gauge . 49
......Engine Speed Limiter . 111, 116
.........................If It Won’t Start . 173
Malfunction Indicator
................................Lamp . 45, 180
........Oil Pressure Indicator . 44, 179
..............Oil, What Kind to Use . 135
...............................Overheating . 177
............................Specifications . 194
.......................................Starting . 109
........................Ethanol in Gasoline . 94
.Evaporative Emissions Controls . 199
...............................Exhaust Fumes . 38
Expectant Mothers, Use of Seat
........................................Belts by . 16
.....................................Fan, Interior . 75
...........................................Features . 73
......................Filling the Fuel Tank . 95
Filter
.........................Dust and Pollen . 152
...............................................Oil . 136
.............Flashers, Hazard Warning . 57
...................Flat Tire, Changing a . 167
Fluids
Automatic Transmission
.....................................(CVT) . 142
..........................................Brake . 144
.........................................Clutch . 145
..............Manual Transmission . 143
..................Windshield Washer . 141
FM Stereo Radio
.....................................Reception . 83
..........................Four-way Flashers . 57
............................Front Airbags . 11, 21
...................................................Fuel . 94
........................Fill Door and Cap . 95
...........................................Gauge . 49
..................Octane Requirement . 94
.................................Oxygenated . 94
........................Reserve Indicator . 46
..........................Tank, Filling the . 95
.....................Fuses, Checking the . 185
................................Economy, Fuel . 99
............Emergencies on the Road . 165
.............Battery, Jump Starting . 175
...........Brake System Indicator . 182
................Changing a Flat Tire . 167
.....Charging System Indicator . 180
..................Checking the Fuses . 185
.............Hazard Warning Button . 57
............................Jump Starting . 175
.....Low Oil Pressure Indicator . 179
Index
INDEX
E
F
III
Main Menu
.................Gas Mileage, Improving . 99
...........................................Gasoline . 94
...............Fuel Reserve Indicator . 46
...........................................Gauge . 49
..................Octane Requirement . 94
..........................Tank, Filling the . 95
..................Gas Station Procedures . 95
Gauges
...Engine Coolant Temperature . 49
...............................................Fuel . 49
Gearshift Lever Positions
Automatic Transmission
.....................................(CVT) . 113
..............Manual Transmission . 110
........................................Glove Box . 71 ...Identification Number, Vehicle . 192
Ignition
..............................................Keys . 59
...........................................Switch . 61
............Timing Control System . 200
....................IMA System Indicator . 44
.........Important Safety Precautions . 8
.........................................Indicators . 44
.......ABS (Anti-lock Brake) . 45, 122
Brake (Parking and Brake
............................System) . 45, 182
................Charging System . 44, 180
DRL (Daytime Running
......................................Lights) . 46
...................................High Beam . 46
...............................................IMA . 44
........Key (Immobilizer System) . 46
......................................Low Fuel . 46
................Low Oil Pressure . 44, 179
.........................................SRS . 23, 44
Turn Signal and Hazard
...................................Warning . 45
......................................Infant Seats . 26
...................Inflation, Proper Tire . 156
.........................Normal Driving . 157
...................................Inside Mirror . 68
.............................Inspection, Tire . 158
............................Instrument Panel . 43
........Instrument Panel Brightness . 57
.................................Interior Lights . 72
........................................Introduction . i
.............Halogen Headlight Bulbs . 146
Hatch
.................................Opening the . 63
.............Open Monitor Indicator . 46
.................Hazard Warning Button . 57
Headlights
........................................Aiming . 146
.....Daytime Running Lights . 46, 56
..................High Beam Indicator . 46
...........................Reminder Tone . 56
........Replacing Halogen Bulbs . 146
...................................Turning on . 56
.............................................Heating . 76
.............High Altitude, Starting at . 109
.................High-Low Beam Switch . 56
.........................Hood, Opening the . 96
..................................................Horn . 54
...........................Hydraulic Clutch . 145
Index
H
I
G
IV
Main Menu
CONTINUED
.................Jacking up the Vehicle . 169
.......................................Jack, Tire . 167
................................Jump Starting . 175
..................................................Keys . 59
.......................Label, Certification . 192
.................Lane Change, Signaling . 56
....................Lap/Shoulder Belt . 14, 18
....................Lifetime Fuel Mileage . 51
Lights
....................Bulb Replacement . 146
.....................................Indicators . 44
.........................................Parking . 56
..................................Turn Signal . 56
.....................................Load Limit . 104
......LOCK (Ignition Key Position) . 61
Locks
.......Anti-theft Steering Column . 61
..............................Fuel Fill Door . 95
............................................Hatch . 62
.................................Power Door . 62
..........................Low Coolant Level . 98
.........................Low Fuel Indicator . 46
...Lower Gear, Downshifting to a . 110
...Low Oil Pressure Indicator . 44, 179
...Lubricant Specifications Chart . 194
...........Luggage, Storing (Cargo) . 103
..................................Maintenance . 125
Owner’s Maintenance
...................................Checks . 128
........................................Record . 131
......................Required Indicator . 47
..........................................Safety . 126
....................................Schedule . 127
.Malfunction Indicator Lamp . 45, 180
...................Manual Transmission . 110
...............Checking Fluid Level . 143
................................Shifting the . 110
........Manual Transmission Fluid . 143
.........................Meters, Gauges . 43, 48
..........................Mirrors, Adjusting . 68
...............Modifying Your Vehicle . 102
...................Neutral Gear Position . 114
....................New Vehicle Break-in . 94
..................NOTICE, Explanation of . ii
...............Numbers, Identification . 192
.....Octane Requirement, Gasoline . 94
.........................................Odometer . 49
...............................Odometer, Trip . 50
Oil
........................Change, How to . 136
......................Change, When to . 129
........................Checking Engine . 97
..............Pressure Indicator . 44, 179
Selecting Proper Viscosity
......................................Chart . 136
...........ON (Ignition Key Position) . 61
Onboard Refueling Vapor
....................................Recovery . 199
.........................Opening the Hatch . 63
..............................Outside Mirrors . 68
Index
M
N
O
J
K
L
INDEX
V
Main Menu
＊
....................Overheating, Engine . 177
....Owner’s Maintenance Checks . 128
...........................Oxygenated Fuels . 94
...................Radiator Overheating . 177
...............Radio/CD Sound System . 80
...........................Readiness Codes . 202
..Rear Lights, Bulb Replacement . 149
............................Rear View Mirror . 68
.................Rear Window Defogger . 58
....................Rear Window Washer . 55
.......................Rear Window Wiper . 55
...............Reclining the Seat Backs . 66
.............................Reminder Lights . 44
.......................Remote Transmitter . 64
Replacement Information
..............Dust and Pollen Filter . 152
................Engine Oil and Filter . 136
.................................Floor Mats . 151
..........................................Fuses . 185
................................Light Bulbs . 146
....................................Schedule . 129
...................................Seat Belts . 151
...........................................Tires . 159
.............................Wiper Blades . 153
Replacing Seat Belts After a
............................................Crash . 19
Reserve Tank, Engine
.................................Coolant . 98, 139
...............................Restraint, Child . 25
..................Reverse Gear Position . 114
................................Roof Antenna . 152
................................Rotation, Tire . 159
................................Safety Belts . 10, 18
.........Safety Defects, Reporting . 206
.................................Safety Features . 9
.........................................Airbags . 11
.....................................Seat Belts . 10
.............Safety Labels, Location of . 39
...............................Safety Messages . ii
..............Panel Brightness Control . 57
........................Park Gear Position . 114
...........................................Parking . 120
.................................Parking Brake . 69
Parking Brake and Brake
.................System Indicator . 45, 182
.................................Parking Lights . 56
..Parking Over Things that Burn . 120
............................Playing the Radio . 80
....................................Playing a CD . 85
.............................PGM-FI System . 200
..................Power Socket Location . 70
..............................Power Windows . 67
.........Pregnancy, Using Seat Belts . 16
.........Protecting Adults and Teens . 12
...Additional Safety Precautions . 17
.....Advice for Pregnant Women . 16
........................Protecting Children . 25
.....................General Guidelines . 25
Using Child Seats with
.....................................Tethers . 33
...........Protecting Larger Children . 34
.............Protecting Small Children . 29
Index
P
R
S
VI
Main Menu
＊
CONTINUED
...................................Seat Belts . 10, 18
...............Additional Information . 18
Automatic Seat Belt
...............................Tensioners . 19
.....................................Cleaning . 151
......................Lap/Shoulder Belt . 18
................................Maintenance . 19
Reminder Indicator and
................................Beeper . 18, 44
...................System Components . 18
...............Use During Pregnancy . 16
...Wearing a Lap/Shoulder Belt . 14
........................Seats, Adjusting the . 66
...............................Serial Number . 192
...........................Service Intervals . 129
...........................Service Manual . 207
...........Service Station Procedures . 95
............................Setting the Clock . 91
...Shift Lever Position Indicators . 113
........................Shift Lock Release . 117
Side Marker Lights, Bulb
......................Replacement . 148, 149
...............................Signaling Turns . 56
.....................................Snow Tires . 161
..................................Sound System . 80
Spare Tire
......................................Inflating . 166
............................Specifications . 195
....................Specifications Charts . 194
.........................................Spotlights . 72
..........SRS, Additional Information . 21
...Additional Safety Precautions . 24
.............................Airbag Service . 23
How the SRS Indicator
.......................................Works . 23
How Your Front Airbags
.........................................Work . 21
........................SRS Components . 21
.............................SRS Indicator . 23, 44
....START (Ignition Key Position) . 61
.......................Starting the Engine . 109
In Cold Weather at High
..................................Altitude . 109
................With a Dead Battery . 175
..............State Emissions Testing . 202
........Steam Coming from Engine . 177
Steering Wheel
.............Anti-theft Column Lock . 61
.....................Stereo Sound System . 80
....................Storing Your Vehicle . 163
Supplemental Restraint
................................System . 11, 21
......................................Servicing . 23
.........................SRS Indicator . 23, 44
...................System Components . 21
..................................Synthetic Oil . 136
......Taillights, Changing Bulbs in . 149
Taking Care of the
...............................Unexpected . 165
Technical Descriptions
......DOT Tire Quality Grading . 196
.....Emissions Control Systems . 199
..........State Emissions Testing . 202
Three Way Catalytic
...............................Converter . 201
.......................Temperature Gauge . 49
..........Temperature, Inside Sensor . 79
..............Tether Anchorage Points . 33
..............................Theft Protection . 90
..Three Way Catalytic Converter . 201
............................Time, Setting the . 91
Index
T
INDEX
VII
Main Menu
＊
＊
.............WARNING, Explanation of . ii
.........Warning Labels, Location of . 39
..................Warranty Coverages . 205
Washer, Windshield
........Checking the Fluid Level . 141
.....................................Operation . 55
Wheels
............Alignment and Balance . 158
..........................Compact Spare . 166
......................................Wrench . 169
Windows
.......................................Cleaning . 55
..................Operating the Power . 67
...........................Rear, Defogger . 58
Windshield
.......................................Cleaning . 55
.....................................Defroster . 77
.......................................Washers . 55
Wipers, Windshield
.......................Changing Blades . 153
.....................................Operation . 55
....................................Worn Tires . 158
.....Wrecker, Emergency Towing . 183
....................................Tire Chains . 161
.........Tire, How to Change a Flat . 167
...........................Tire Information . 198
.................................Tire Labeling . 198
...............................................Tires . 156
..............................Air Pressure . 157
.........................Checking Wear . 158
..........................Compact Spare . 166
......DOT Tire Quality Grading . 196
......................................Inflation . 156
..................................Inspection . 158
..............................Maintenance . 158
...................................Replacing . 159
......................................Rotating . 159
...........................................Snow . 161
............................Specifications . 195
................................Tire Chains . 161
...................Tools, Tire Changing . 167
Towing
.....................................A Trailer . 123
................Emergency Wrecker . 183
.......................Traction Devices . 161
Transmission
Checking Fluid Level,
..................Automatic (CVT) . 142
Checking Fluid Level,
...................................Manual . 143
..................Fluid Selection . 142, 143
..............Identification Number . 193
..................Shifting the Manual . 110
.....................................Treadwear . 196
.....................................Trip Meters . 50
....................................Trip Mileage . 50
....................................Turn Signals . 56
Unexpected, Taking Care
..........................................of the . 165
....Uniform Tire Quality Grading . 196
..........................Unleaded Gasoline . 94
.......Used Oil, How to Dispose of . 138
.................Vehicle Capacity Load . 104
......................Vehicle Dimensions . 194
....Vehicle Identification Number . 192
.............................Vehicle Storage . 163
.................................................VIN . 192
..................................Viscosity, Oil . 136
U.S. and Canada only
Index
U
V
W
VIII
Main Menu
Service Information Summary
Gasoline:
Fuel Tank Capacity:
Recommended Engine Oil:
Automatic Transmission Fluid
(CVT):
Brake Fluid:
Tire Pressure (measured cold):
Manual Transmission Fluid:
10.6 US gal (40
)
2.6 US qt (2.5
)
5.8 US qt (5.5
)
Unleaded gasoline, pump octane
number of 86 or higher.
API Premium grade 0W-20
detergent oil (see page ).
Oil change capacity (including
filter):
Use Honda ATF-Z1 (Automatic
Transmission Fluid) only.
Capacity:
Honda Heavy Duty Brake Fluid
DOT 3 preferred, or a DOT 3 or
DOT 4 brake fluid as a temporary
replacement (see page ).
Front:
Rear:
Spare Tire:
Honda Manual Transmission
Fluid preferred, or an SAE 10W-30
or 10W-40 motor oil as a
temporary replacement (see page
).
Capacity (including differential):
1.6 US qt (1.5
)
38 psi (260 kPa , 2.6 kgf/cm
)
35 psi (240 kPa , 2.4 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm
)
135
144
143
Main Menu
