REFRIGERATOR
FREEZER
www.lg.com
ENGLISH
P/No.:MFL63264217
2
Important
(In the UK Only)
The wires in this mains lead are coloured in accordance with the following code:
As the colours of the wires in the mains lead of this apparatus may not
correspond with the coloured markings identifying the terminals in your plug,
proceed as follows:
The wire which is coloured Green and Yellow must be connected to the
terminal in the plug which is marked with the letter E or by the earth symbol
( ) or coloured Green or Green and Yellow.
The wire which is coloured Blue must be connected to the terminal which is
marked with the letter N or coloured Black.
The wire which is coloured Brown must be connected to the terminal which
is marked with the letter L or coloured Red.
If a 13 amp(BS 1363) plug is used, fit a 13 amp BS 1362 fuse.
GREEN AND YELLOW:EARTH
BLUE:NEUTRAL
BROWN:LIVE
This appliance must be earthed
3
4
4
13
14
15
15
19
21
22
23
24
26
27
30
31
32
Refrigerator compartment
Chill compartment
220-240V/50Hz.
Energy-Saving Method
Energy-Saving
Method
4
5
Prevent the power cord from being squeezed or imprinted
if the refrigerator is pushed in after the power plug is
extracted during the installation.
It becomes the cause of fire or electric shock. When moving
your appliance away from the wall, be careful not to roll over
or damage the power cord.
Do not allow the power plug to face upward or to be
squeezed at the back of the refrigerator.
The dedicated outlet should be used.
• Using several devices at one outlet may cause fire.
• The electric leakage breaker may damage food and
the dispenser may be leaked.
Water may be flown into or the plug may be damaged,
which causes fire or electric shock.
6
Do not allow the power cord bent or pressed by the
heavy object to be damaged.
Do not extend or modify the length of the power
plug.
It may damage the power cord to cause fire or electric
shock.
It causes electric shock or fire by the electric damage
of the power cord or others.
• It may cause electric shock or injury.
• When replacing the interior lamp of the refrigerator,
make sure that the rubber ring for preventing the
electric spark within the socket is not taken off.
Unplug the power plug when cleaning, handling or
replacing the interior lamp of the refrigerator.
Do not pull out the cord or touch the power plug
with wet hands.
• It may cause electric shock or injury.
Remove water or dust from the power plug and insert
it with the ends of the pins securely connected.
Dust, water or unstable connection may fire or electric
shock.
Make sure of grounding.
Consult a qualified electrician or service person if
the grounding instructions are not completely
understood, or if you have doubts on whether the
appliance is properly grounded or not.
The incorrect grounding may cause breakdown and
electric shock.
Be sure to use grounded exclusive proper voltage consent for the
power plug.
It becomes the cause of fire.
It may cause electric shock or short circuit to fire.
Pull out the power plug not by grasping the cord but
the plug of its end.
7
When the power cord or the power plug is damaged
or the holes of the outlet are loosed, do not use them.
It may cause electric shock or short circuit to make fire.
Wait for 5 minutes or longer when reconnecting
the plug.
It may cause the operation of the freezer to fail.
If the supply cord is damaged, it must be replaced by the manufacturer
or its service agent or a similarly qualified person in order to avoid any
hazard.
Do not place the heavy object or the dangerous object
(container with liquid) on the refrigerator.
It may be dropped to cause injury, fire or electric shock
when opening or closing the door.
Do not install the refrigerator in the wet place or the
place which water or rain splashes.
Deterioration of insulation of electric parts may cause
electric leakage.
Do not cling to the door or the shelves of the door
or the home bar of the freezer or the cool chamber.
It may make the refrigerator fallen down or damage
the hands. Especially, do not allow the children to do
the above.
Prevent children from entering the product.
It may endanger the life of a child if the child enters
the refrigerator.
Opening and closing the door of the refrigerator vigorously may
cause the stored food in the refrigerator basket to fall by shock and
hurt the foot, so take precautions.
8
Don’t insert the hands into the automatic ice maker.
(Only for the model with the automatic ice maker)
It may cause injury.
禁止
Do not place the lit candle within the fridge-freezer
to deodorize. Do not use drier to dry the inside, nor
light a candle to remove odor.
It may cause explosion or fire.
Do not place flower vase, cup, cosmetics, medicine
or any container with water on the refrigerator.
Avoid the heating devices. Install in places away
from the fire such as the place where flammable
gas is leaked.
It may cause fire.
Do not store the medicine or the academic materials
at the refrigerator.
Do not use the combustible spray near the
refrigerator.
When the material with the strict temperature control
is stored, it may be deteriorated or it may make an
unexpected reaction to cause any risk.
It may cause fire.
It may cause fire, electric shock or injury by dropping
down.
9
Use the submerged refrigerator after checking it.
It may cause electric shock or fire.
In case of thunder and lightning, or not in use for a
long period of time, detach the power plug.
There is a danger of electric shock or fire.
• The explosion by spark may cause fire or burn.
• Because this refrigerator uses natural gas (isobutene,
R600a) as the environment-friendly refrigerant, even
a small amount (80~90g) is combustible. When the
gas is leaked by the severe damage during delivering,
installing or using the refrigerator, any spark may
cause fire or burn.
When gas is leaked, do not touch the refrigerator
or the outlet and ventilate the room immediately.
Do not spray water at the outside or the inside of
the refrigerator or do not clean it with benzene or
thinner.
When any strange smell or smoke is detected
from the refrigerator, disconnect the power plug
immediately and contact to the service center.
Deterioration of insulation of electric parts may cause
electric shock or fire.
It may cause fire.
Do not allow any person except the qualified
engineer to disassemble, repair or alter the
refrigerator.
It may cause injury, electric shock or fire.
10
When disposing the refrigerator, remove the packing
material from the door or take off the doors but leave
the shelves in place so that children may not easily
climb inside.
It many cause to lock out the child.
Installing it on the unstable place may cause death by
falling down the refrigerator when opening or closing
the door.
Do not use the refrigerator for non-domestic
purpose (storing medicine or testing material,
using at the ship, etc.).
It may cause an unexpected risk such as fire,
electric shock, deterioration of stored material or
chemical reaction.
Install the refrigerator on the solid and level floor.
It may cause electric shock or injury.
Do not insert the hands or the metal stick into the exit
of cool air, the cover, the bottom of the refrigerator,
the heatproof grill (exhaust hole) at the backside.
When you want to dispose the large living waste such as
electric home appliance and furniture, you’d better contact
the local down block office.
When you want to dispose the refrigerator, contact to
the down-block office.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
Supply the automatic ice maker only with drinkable
water. (Only for the model with the automatic ice
maker) .
· Otherwise, it may cause a risk.
11
Violating this direction may cause injury or damage house or furniture.
Always be careful, please.
Do not touch food or containers at the freezer with
wet hands.
It may cause frostbite.
When the electricity is off for long time, remove ice
from the ice box.
· Ice may melt due to long-time power failure.
Do not put bottle in the freezer.
It may freeze the contents to break the bottle to cause
injury.
Do not place the food in disorder inside the refrigerator.
The food may fall during opening and closing the door of the refrigerator
and hurt people.
The iron plate of the bottom may cause injury.
Do not insert the hands into the bottom of the
refrigerator.
Carry the refrigerator with the handle bar at the
bottom of the front and the top of the rear.
Otherwise, your hands may be slipped to cause injury.
Because the product is heavy, carrying it alone may
hurt people or accidents may occur.
Because opening or closing the door of the
refrigerator may cause injury to the person around
it, be careful, please.
Opening or closing the door may cause feet or hands
to be caught in the chink in door or the child to be get
hurt by the corner.
Do not put any living animal in the refrigerator.
12
13
Door rack
Multi-air Flow Duct
Door rack
Bottle Door rack
Water tank
Chill
Compartment (1 or 2)
Automatic
ice maker
Freezer Compartment
(Top)
Vegetable drawer
Bottle Door rack
Freezer Compartment
(Bottom)
General shelf
(1 or 2)
Folder shelf (optional)
Ice box
Leveling screw
Small drawer
Sliding Tray
Transparent shallow
draw in the freezer
Note
Rotating Plate
Parts, features, and options vary by model. Your model may not include
every option.
14
1. Select a good location.Place your fridge-freezer where
it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight
or moisture.
3. To ensure proper air circulation around the
fridge -freezer, please maintain sufficient space
on both the sides as well as top and maintain at
least 2 inches (5cm) from the rear wall.
4.Secure the unit to the wall to prevent accidental
tip-over.
5. To avoid vibration, the unit must be leveled. If
required, adjust the leveling screws to
compensate for the uneven floor. The front
should be slightly higher than the rear to aid in
door closing. Leveling screws can be turned
easily by tipping the cabinet slightly.Turn the
leveling screws counterclockwise ( ) to lower
the unit, clockwise( ) to raise it.
6. In case the doors incline downwards after the
refrigerator is installed and foods are placed,
adjust the parallelism of the doors as illustrated
4 – 5 days after the installation. Before
adjusting the adjustable feet, open the bottom
freezer compartment drawer.
7. Clean your fridge-freezer thoroughly and wipe
off all dust accumulated during shipping.
8. Install accessories such as ice box, etc., in
their proper places. They are packed together
to prevent possible damage during shipment.
Raise
Lower
15
Type-1
Type-2
Lock Button
Temperature
adjustment button
for Refrigerator
compartment
Temperature
Adjustment button
for freezer
compartment
Temperature
Adjustment button
for Chill
compartment
Function display board
FRIDGE
FREEZER
CHILL
CHILD
LOCK
2 SECS
FRIDGE
FREEZER
REF/FRZ
ECO
ECO
CHILD
LOCK
2 SECS
FRIDGE
FREEZER
CHILL
CHILD
LOCK
2 SECS
16
You can adjust temperature of the freezer compartment,
refrigerator compartment and chill compartment.
When you press” “ button, the temperature of
refrigerator compartment is repeated in the following
order:
When you press” “ button, the temperature of
chill compartment is repeated in the following order:
4°C → 5°C → 6°C → 7°C → 8°C → ECO → 2°C → 3°C
→ 4°C
4°C → ECO →- 4°C → -3°C → -2°C → -1°C → 0°C
→ 1°C → 2°C → 3°C → 4°C
Chill compartment temperature adjustment
Refrigerator compartment temperature adjustment
Freezer compartment temperature adjustment
How to adjust the
temperature in
the refrigerator
compartment
How to adjust the
temperature in
the chill
compartment
How to adjust the
temperature in
the freezer
compartment
When you press” “ button, the temperature of
freezer compartment is repeated in the following order:
FRIDGE
FRIDGE
CHILL
CHILL
FREEZR
FREEZR
Note
The actual inner temperature varies depending on the food status, as the
indicated setting temperature is a target temperature, not actual
temperature within refrigerator.
Refrigeration function is weak in the initial time. Please adjust temperature
as above after using refrigerator for minimum 2~3 days.
-18°C → -19°C → -20°C → -21°C → -22°C → -23°C →
-24°C → -26°C(SUPER) → -16°C → -17°C → -18°C
17
Function
Refrigerator
“ECO”
Super Freezer
In order to save electricity when no food needs to be stored in the refrigerator
compartment, you can select the Refrigerator ECO function, that is, to turn off
the refrigerator compartment.
To put the chill compartment in the stop state, press “ ” repeatedly
until “ECO” lights up.
Set super freezing: press “ ” key. The panel will display “-26℃” and
“SUPER” indicating it is in the super freezing state.
Cancel super freezing: press “ ” key. The panel displays a temperature
other than “-26℃” indicating it is not in the super freezing state any more.
When the super freezing time is reached, it exits the super freezing state
automatically and restores the set freezing temperature of “-21℃”.
Please select this function for prompt freezer.
FRIDGE
FREEZR
CHILL
CHILL
FREEZR
FREEZR
FRIDGE
ECO
ECO
To put the refrigerator in the stop state, press “ ” repeatedly until “ECO”
lights up.
Chill
“ECO”
In order to save electricity when no food needs to be stored in the chill
compartment you can select the chill compartment ECO function, that is,
to turn off the chill compartment.
CHILD
LOCK
2 SECS
18
Function
Lock
• Pressing this button stops operation of other buttons.
• Locking or Unlocking is repeated whenever pressing the “ ” button.
(For “Locking” or “UnLocking” press the “ ” button for 2 secs.)
• When you use the “ ” button, you can not use any other button, Until
you unlock the refrigerator. When you press the other buttons when the
refrigerator is locked, the “ ” will flash 3 times to notify the current
lock condition.
Memory feature
When the power comes on again after a power failure, it is able to recall the
last settings of refrigerator temperature, Refrigerator ECO, freezing temperature,
chill compartment ECO and chill compartment temperature.
However, the Super Freezing can not be memorized. If the unit is in the Super
Freezing state when the power is off, the freezing temperature will be set to
“-21°C” after the power is recovered.
•
When the refrigerator compartment door, chill compartment drawer or
freezer upper drawer is left open or not closed completely for more than 1
minute, it sounds 3 times every 30 seconds. If the doors are not closed
properly after 6 minutes, the alarm stops.
•
If the warning sound remains after the refrigerator door, chill compartment
drawer or freezer upper drawer is closed, contact your local service center.
LOCK UNLOCK
Self-diagnosis function operates when a problem occurs in the unit. When an
error occurs in the unit. Immediately contact the service center without turning
the power OFF. If the power is OFF, it will take the engineer longer to find out
where the fault occurs.
The pressing of any function buttons will not alter the temperature setting
when a fault occurs.
CHILD
LOCK
2 SECS
CHILD
LOCK
2 SECS
CHILD
LOCK
2 SECS
CHILD
LOCK
2 SECS
19
How to make ice
Ice making
Fill water in the water tank
1. Take out the water tank when its
water level is below the water
supply line.
* It is recommended to wash the
water tank once a week.
2. Unscrew the cap of the water
tank in the direction of the OPEN
mark as shown in the picture.
4. Tighten the cap of the water tank
in the direction of the CLOSE mark
as shown in the picture.
3. Pour in water until the MAX line
is reached. The water level
should not exceed the MAX line.
* Only fill with drinkable water.
water tank
5. Fit the water tank and push it back
until a “click” sound is heard.
* Water can not be supplied properly
if the water tank is not in right
position.
OPEN
20
Ice making
Make ice
6. Turn the switch of the ice maker
to ON to start ice making.
• If you want to speed up the ice making, adjust the freezer temperature
to “-26°C(SUPER)”;
•
When the ice bin is full of ice, the ice maker stops making ice automatically;
• If you don’t need to make ice, turn the ice maker switch to (OFF).
If you want to make ice again, turn the switch to (ON);
• To fill up the ice bin, the ice maker need to make ice for 10 times (8
pieces at a time), which takes approximately one day but may differ
depending on certain conditions such as how often and how long the
doors are opened;
• A Liter of water is adequate for 8 times of automatic ice making.
Cautions on
ice making
• If the unit is used for the first time or has not been used for a long period of
time, be sure to clean it before making ice and do not eat the first batch of ice.
•
Do not use other drinks (barley tea, juice etc.) to make ice, otherwise it
may cause a problem.
7. When the ice bin is full, the ice
comes in touch with the sensing
lever and the ice maker stops
making ice automatically.
8. Remove the ice bin by pulling it
out gently. When replace the ice
bin after ice is removed, make
sure it is fixed securely.
Sensing lever
21
Refrigerator compartment
Basket
In order to store tall foods, move the door shelves to change the height
between the shelves.
General Shelf
In order to store tall foods, move the shelves to change the height between
them.
Remove the shelf by lifting it upwards, and then install it at desired position.
Lift the inside of the shelf and pull it out to remove the shelf. Install the
removed shelf at desired position.
Folder Shelf
(optional)
Rotating
Plate
The door can not be closed
when the rotating plate is in
this position.
The door can be closed when
the rotating plate is in this
position.
The door can not be closed when the rotating plate is in the raised position.
It must be put back to its original position to close the door.
In order to store tall foods, lift the front of the folder shelf and push it in to
make it overlap with the inner shelf.
Note
Remove the items on the shelf before moving it.
Note
To prevent dew drops form, choose rotating plates equipped with heater.
It is normal for rotating plate to generate heat and this does not have
effect on the foods.
22
Chill compartment
Sliding Tray
Chill
compartment
TYPE-1
TYPE-2
Adjust the position of the small drawers according to the size of the food.
According to the type of the foods which need to be stored in the chill
compartment, place them separately in 2 drawers.
The sliding tray can slide freely to avoid the
inconvenience of accessing the foods placed at
the rear side of the shelf.
23
Energy-Saving Method
•
Install the fridge in a shady,cool and well-ventilated place.
•
Do not open and close the door frequently if not necessary.
•
Please do not keep the door open for a long time, close door in the shortest
time.
•
Allow hot food to cool prior to storing
•
Too much food are not advised to be put in. Enough space should be kept
for cool air circulating freely.
•
Do not set the temperature of refrigerator lower than needed.
•
Do not put the food near the temperature sensor.
•
Food need’t store is not advised to be put in.
•
Place the deep-frozen food for thawing intorefrigerator; they can be used for
cooling the refrigerator.（Applicabe to some models only）
•
Clean up the back cover and anti-condensation pipe termly (once a year) to
make sure heat exchange in gear.（Applicabe to some models only）
•
Do not block air vents with food.（ Applicabe to some models only
24
Location on foods
Suggestion on food storage
Door rack
1
1
2
3
6
7
8
9
11
12
10
13
14
4
5
Bottle door rack
2
General self (1 or 2)
3
Vegetable drawer
5
Small tray
6
Water tank
7
Sliding Tray
8
Folder shelf (optional)
4
Suggestions
on refrigerator
storage
Store small packages
of milk or spices.
Store water and
beverage.
Store refrigerated food
(The foods should be
kept a certain distance
between each other
and the air outlet should
never be blocked by the foods.)
요
구
르
트
균
For instructions on
how to use, refer to
the tips. (See page 21.)
(The foods should be kept a certain
distance between each other and
the air outlet should never be
blocked by the foods.)
Store fruits and
vegetables.
Store small packages
of food or eggs.
Store water for ice making. For instructions on how to use,
refer to the tips. (See page 22.)
(The foods should be kept a
certain distance between each
other and the air outlet should
never be blocked by the foods.)
TYPE-2TYPE-1
Refrigerator
Compartment
Chill
Compartment
Freezer
Compartment
25
Suggestion on food storage
Drawer (1 or 2)
9
Drawer (top)
10
Ice maker
11
Small drawer
12
Transparent shallow draw in
the freezer compartment
14
Drawer (bottom)
13
Suggestions
on chill
compartment
Suggestions
on freezer
compartment
Store frozen food for a
long time.
For instructions on
how to make ice,
refer to the user
guide.
Store frozen foods of
small size.
Store frozen foods
of large size.
Store small packages of small food.
Store highly perishable foods.
26
Suggestion on food storage
Chill
compartment
Note
Store highly perishable foods.
27
General shelf
and Folder shelf
Door rack
Vegetable drawer
Grasp the door rack tightly with one hand and
tap it from bottom with another hand to remove
the door rack;
Pull the vegetable drawer all the way out, then
lift the outside of the drawer and pull it out.
Care and maintenance
Sliding Tray
• Lift the inside of the shelf and pull it out to
remove the shelf;
• Wash the removed shelf with water and wipe it
clean using a dry soft cloth;
• Install the shelf in the reverse order.
• Pull the sliding tray all the way out, then lift
the outside of the tray and pull it out to remove
the sliding tray;
• Install the sliding tray in the reverse order.
Note
28
Care and maintenance
The drawer of
chill
compartment
The drawer(top)
of freezer
compartment
1. For some models, small drawer should be taken out beforehand.
2. Pull the drawer all the way out, lift the outside of the whole set of the
drawers and pull out slightly, then lift the white plastic drawer and take it
out.
3. Install the white plastic drawer in reverse order, then install the small
drawer. Pay attention to the direction when installing the small drawer.
SMALL DRAWER
• Pull the drawer all the way out, then lift the
white plastic drawer to take it out.
• Install the white plastic drawer in the reverse
order.
Note
• If the whole set of the drawers has been removed, please refer to the
install method of freezer lower drawer.
• The small drawer is applicable to some models only. Pay attention to the
direction when installing the small drawer. It can not be closed if
installed in reverse direction.
29
Note
Water tank
1. Pull out the water tank in the refrigerator;
2. Remove the cover of the water tank;
3. Remove the rubber sealing pad on the edges
of the water tank;
4. Reassemble in the reverse direction
Care and maintenance
Pay attention to the direction when installing the transparent shallow
drawer. It can not be closed if installed in the reverse direction.
4. Install the whole set of drawer, keeping the rollers of the drawer underneath
the rollers of the compartment;
5. Install the transparent shallow drawer.
The drawer
(bottom)
of freezer
compartment
1. Pull the drawer of the freezer (lower) all the way out;
2. Remove the transparent shallow drawer;
3. Lift the whole set of drawer and pull out to remove it;
30
Care and maintenance
Be sure to unplug the power.
Always remove power cord from the wall outlet prior to cleaning in the
vicinity of electrical parts (lamps, switches, controls, etc.).
Wipe up excess moisture with a sponge or cloth to prevent water or liquid
from getting into any electrical part and causing an electric shock.
Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong
alkaline solutions, flammable or toxic cleaning liquids on any surface.
Do not touch frozen surfaces with wet or damp hands, because damp object
will stickor adhere to extremely cold surfaces.
Warranty period of Linear Compressor :
Ten(10) years from the date of original retail purchase.
Part only (Consumer will be charged for labor)
Noises associated with normal operation and failure to follow instructions
found in the use and care and installation guides or operating the unit in an
unsuitable environment will not be covered under this warranty.
31
Lighting specifications of this product: refrigerator compartment lamp power:
DC12V/1.5W
Chill compartment lamp: DC12V/0.75W.
When the ice
maker is not to
be used for
a long time
• Discard the water in the water tank;
• Remove the ice cubes and water in the ice bin;
• Turn the switch of the ice maker to OFF position.
Care and maintenance
Replace
the lamp
In case the lamp is damaged, contact service center to replace it. Never
replace it by yourself.
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it means
the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from
the municipal waste stream via designated collection facilities appointed by
the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please
contact your city office, waste disposal service or the shop where you
purchased the product.
32
Care and maintenance

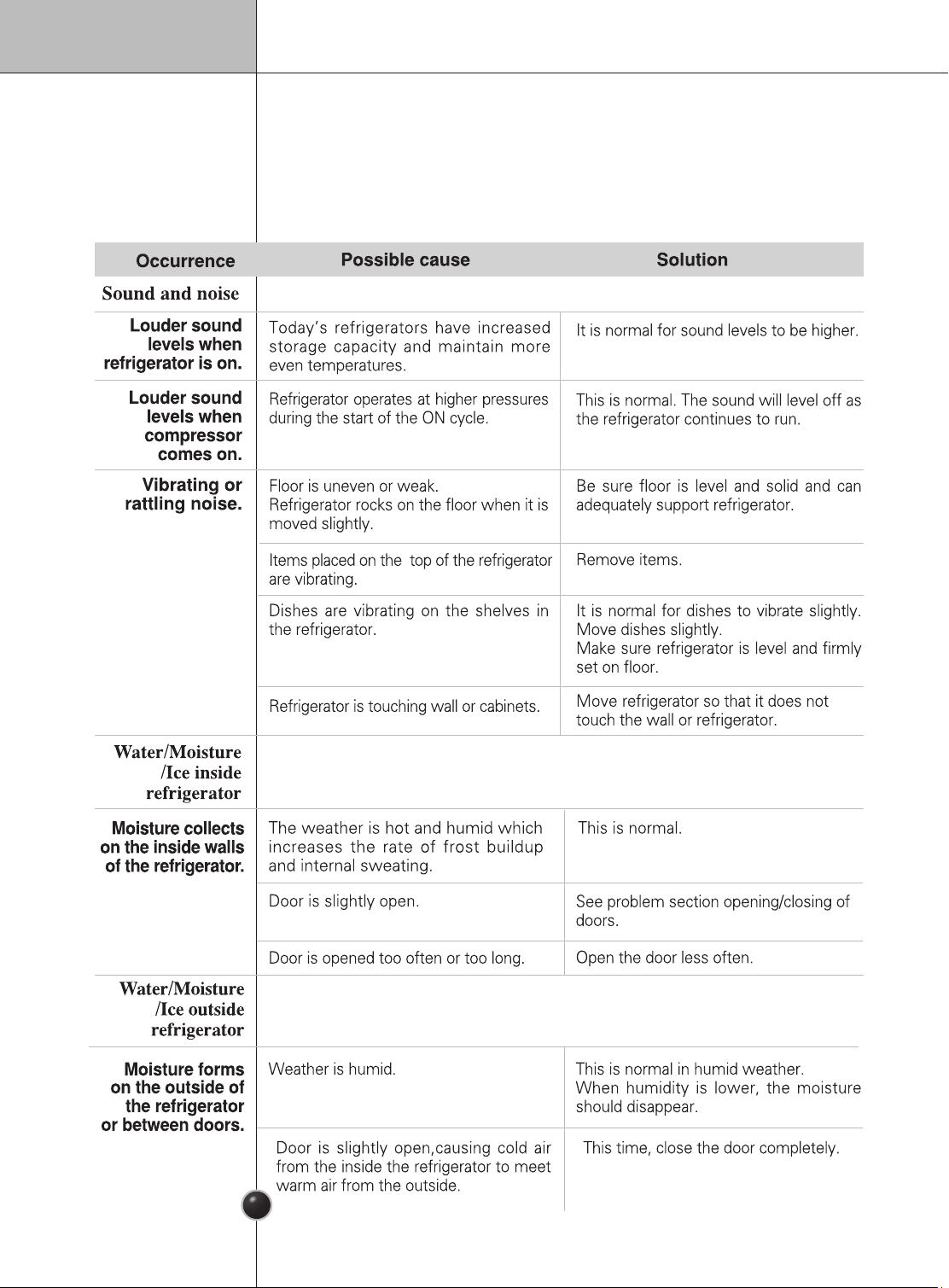

Trouble shooting
Wait for a while until the refrigerator
compartment, chill compartment
and freezer compartment reach the
set temperature.
Gaps may be formed on the
refrigerator compartment door,
chill compartment drawer or
freezer compartment drawer
The gaskets of the refrigerator
compartment door, chill
compartment drawer or freezer
compartment drawer is dirty, worn or
deformed.
Refrigerator
does not run
33
Care and maintenance
Trouble shooting
The freezer compartment
is too cold but the
temperatures in other
compartments are normal
The refrigerator compartment
is too cold but the
temperatures in other
compartments are normal
The chill compartment is
too cold but the temperatures
in other compartments are
normal
Chill compartment temperature
is set too cold.
Refigerator temperature is set too
cold.
Freezer temperature is set too
cold.
Set the chill control to
a warmer setting.
The refrigerator compartment is
too warm but the temperatures
in other compartments are normal
The chill compartment is too
warm but the temperatures in
other compartments are normal
The refrigerator compartment is set to
a high temperature or in refrigerator
compartment ECO state.
The chill compartment is set to
a high temperature or in chill
compartment ECO state.
The temperature in
refrigerator
compartment, chill
compartment or freezer
compartment is too high
Chill compartment temperature
is set too warm.
Set the chill compartment temperature
to a colder setting until the chill
compartment temperature is satisfactory.
Set the refrigerator temperature to
a colder setting until the refrigerator
temperature is satisfactory.
Set the freezer temperature to
a colder setting until the freezer
temperature is satisfactory.
Freezer temperature is set too
warm.
Set the chill control to a colder
setting.
34
Care and maintenance
Trouble shooting
35
Care and maintenance
Trouble shooting
The ice cubes have an odor.
• Has the water tank been cleaned
weekly? Clean the water tank.
• Check if the ice cubes are tainted by
foods with strong odor in the
compartment.
• The interiors of ice bin and the unit
need cleaning.
• It requires the unit to cool down
sufficiently to make ice.
• Check if the water tank contains water.
• Check if the water tank is installed in
position.
• Check if the ice maker switch in the
freezer compartment is turned to ON
position.
No ice or little ice is made.
Ice maker problems
Close the door or drawer gently.
Remove the food that blocks the drawer
or reduce the amount of food in the
drawer.
The door or drawer is closed with so
much force that other drawers and
door are opened.
The drawer is stuck by packing bag or
the food in the drawer is too heavy.
The door or drawer
is not closed tightly
The drawer is hard
to pull out or can
not be closed tightly
36
Memo
