Read this manual carefully. It contains important safety information.
This is an adult vehicle only.
Operation is prohibited for those under 16 years of age.
Owner's Manual
for Maintenance and Safety
Sportsman® 500
Tractor
1
WELCOME
Thank you for purchasing a POLARIS vehicle, and welcome to our
world-wide family of POLARIS enthusiasts. Be sure to visit us online at
www.polaris.com for the latest news, new product introductions,
upcoming events, career opportunities and more.
Here at POLARIS we proudly produce an exciting line of utility and
recreational products.
• Snowmobiles
• All-terrain vehicles (ATVs)
• Low emission vehicles (LEVs)
• RANGER® utility vehicles
• RZR® sport vehicles
• VICTORY® motorcycles
• GEM® vehicles
We believe POLARIS sets a standard of excellence for all utility and
recreational vehicles manufactured in the world today. Many years of
experience have gone into the engineering, design, and development of
your POLARIS vehicle.
For safe and enjoyable operation of your vehicle, be sure to follow the
instructions and recommendations in this owner’s manual. Your manual
contains instructions for minor maintenance, but information about
major repairs is outlined in the POLARIS Service Manual and should be
performed only by a factory certified Master Service Dealer® (MSD)
technician.
Your POLARIS dealer knows your vehicle best and is interested in your
total satisfaction. Be sure to return to your dealership for all of your
service needs during, and after, the warranty period.
2
POLARIS® and SPORTSMAN® are registered trademarks of POLARIS Industries Inc.
Copyright 2013 POLARIS Sales Inc. All information contained within this publication
is based on the latest product information at the time of publication. Due to constant
improvements in the design and quality of production components, some minor
discrepancies may result between the actual vehicle and the information presented in
this publication. Depictions and/or procedures in this publication are intended for
reference use only. No liability can be accepted for omissions or inaccuracies. Any
reprinting or reuse of the depictions and/or procedures contained within, whether whole
or in part, is expressly prohibited.
The original instructions for this vehicle are in English. Other languages are provided as
translations of the original instructions.
Printed in U.S.A.
2014 SPORTSMAN 500 Tractor Owner’s Manual
P/N 9924305
3
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Features and Controls. . . . . . . . . . . . . . . . . . . 20
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Winch Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Emission Control Systems . . . . . . . . . . . . . . . 74
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 130
POLARIS Products. . . . . . . . . . . . . . . . . . . . . 132
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . 133
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Maintenance Log . . . . . . . . . . . . . . . . . . . . . . 141
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
4
INTRODUCTION
The following signal words and symbols appear throughout this manual
and on your vehicle. Your safety is involved when these words and
symbols are used. Become familiar with their meanings before reading
the manual.
The safety alert symbol indicates a potential personal injury hazard.
DANGER
A DANGER indicates a hazardous situation that, if not avoided, will result in
death or serious injury.
WARNING
A WARNING indicates a hazardous situation that, if not avoided, could result in
death or serious injury.
CAUTION
A CAUTION indicates a hazardous situation that, if not avoided, could result in
minor or moderate injury.
NOTICE
A NOTICE indicates a situation that could result in property damage.
The Prohibition Safety Sign indicates an action NOT to take in order
to avoid a hazard.
The Mandatory Action Sign indicates an action that NEEDS to be
taken to avoid a hazard.
5
INTRODUCTION
Failure to follow the warnings in this manual can result in serious injury or death.
A POLARIS Tractor is not a toy and can be hazardous to operate. A collision or
rollover can occur quickly, even during routine maneuvers, if you fail to take
proper precautions.
• Read this owner’s manual. Understand all safety warnings, precautions and
operating procedures before operating a POLARIS Tractor.
• Never operate this vehicle without proper instruction. Take a training course.
• This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited for anyone
under 16 years of age.
• This vehicle is approved for OFF-ROAD TOWING ONLY. Operating a Tractor/
trailer combination on public roads is prohibited. See your POLARIS dealer
about configuring the vehicle to be certified to tow a trailer on-road.
• This tractor prohibits the installation of a front-end loader.
WARNING
6
INTRODUCTION
Vehicle Identification Numbers
Record your vehicle's identification numbers and key number in the
spaces provided. Remove the spare key and store it in a safe place. An
ignition key can be duplicated only by ordering a POLARIS key blank
(using your key number) and mating it with one of your existing keys.
The ignition switch must be replaced if all keys are lost.
Vehicle Model Number: ___________________________________________________
Frame VIN: ____________________________________________________________
Engine Serial Number: ___________________________________________________
Key Number: ___________________________________________________________
####
VIN
Engine Serial Number
Key Number
CE Mark
7
SAFETY
Safety Training
Never operate this vehicle without proper instruction. Take a training
course.
For more information about safety, contact an authorized POLARIS
dealer or visit the POLARIS web site at www.polaris.com.
Read and understand your owner's manual, which includes valuable
information about all aspects of your vehicle, including safe operating
procedures.
Ride responsibly. Know all laws and regulations concerning the
operation of this vehicle in your area.
Equipment Modifications
The warranty on your POLARIS Tractor may be terminated if any
equipment has been added, or if any modifications have been made, that
increase speed or power. The addition of certain accessories, including
(but not limited to) mowers, blades, tires, sprayers and large racks may
change vehicle handling. Use only POLARIS-approved accessories.
Know their function and effect on the vehicle.
8
SAFETY

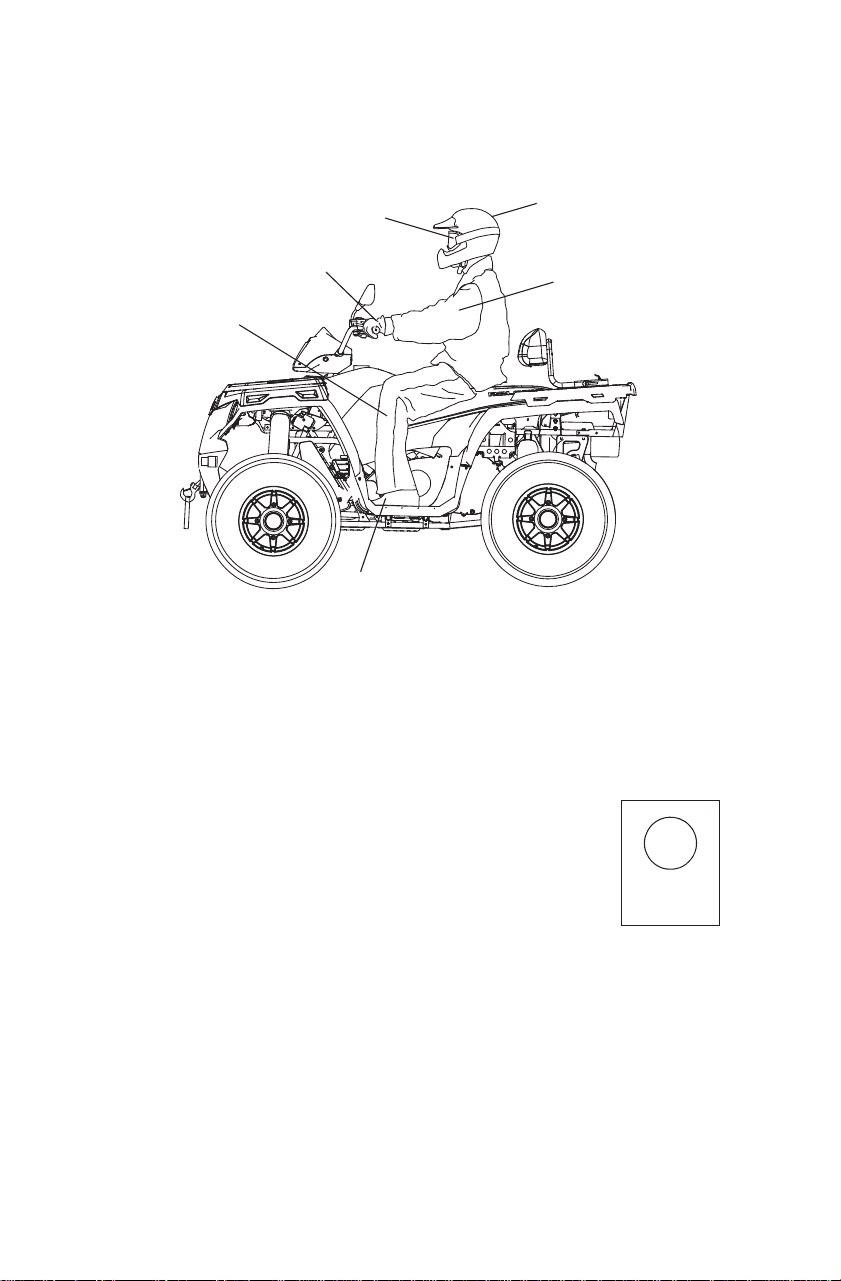

Safe Riding Gear
Always wear protective clothing to reduce the chance of injury.
Helmet
Always wear a helmet that meets or exceeds established safety
standards.
Approved helmets in the USA and Canada bear a U.S. Department of
Transportation (DOT) label.
Approved helmets in Europe, Asia and Oceania
bear the ECE 22.05 label. The ECE mark consists
of a circle surrounding the letter E, followed by the
distinguishing number of the country which has
granted approval. The approval number and serial
number will also be displayed on the label.
Helmet
Eye Protection
Gloves
Boots
Long Pants
Long
Sleeves
E
4
051039
0006.31
9
SAFETY
Safe Riding Gear
Eye Protection
Do not depend on eyeglasses or sunglasses for eye protection.
Whenever riding a POLARIS vehicle, always wear shatterproof goggles
or use a shatterproof helmet face shield. POLARIS recommends
wearing approved Personal Protective Equipment (PPE) bearing
markings such as VESC 8, V-8, Z87.1, or CE. Make sure protective eye
wear is kept clean.
Gloves
Off-road style gloves with knuckle pads are the best for comfort and
protection.
Boots
The best footwear is a pair of sturdy over-the-calf boots with low heels.
Clothing
Always wear long sleeves and long pants to protect arms and legs.
Riding pants with kneepads and a jersey with shoulder pads provide the
best protection.
10
SAFETY
Rider Safety
Serious injury or death can result if you do not follow the instructions and
procedures listed here and throughout this manual.
Read and understand all warnings, cautions and
operating procedures in this manual and on the safety
labels before operating the Tractor.
Never operate a Tractor without proper instruction.
Take a training course. Beginners should receive
training from a certified instructor. Contact an
authorized POLARIS Tractor dealer or visit the
POLARIS web site at www.polaris.com.
Never permit others to operate the Tractor unless
they have read and understand this manual and all
product labels, and have completed a certified safety training course.
Never allow anyone under 16 years of age to operate
this vehicle.
Gasoline is highly flammable and explosive under certain conditions.
• Use extreme caution whenever handling gasoline.
• Refuel with the engine stopped. Refuel outdoors or in a well-ventilated area.
• Never fill a fuel container while it's on the vehicle. Static electricity between
the rack and container could cause a spark.
• Do not smoke or allow open flames or sparks in or near the area where
refueling is performed or where gasoline is stored.
• Do not overfill the tank. Do not fill the tank neck.
• If gasoline spills on your skin or clothing, immediately wash it off with soap
and water and change clothing.
WARNING
<
1
6
1
6
1
6
11
SAFETY
Rider Safety
Engine exhaust contains poisonous carbon monoxide and can cause loss of
consciousness resulting in severe injury or death. Never run an engine in an
enclosed area.

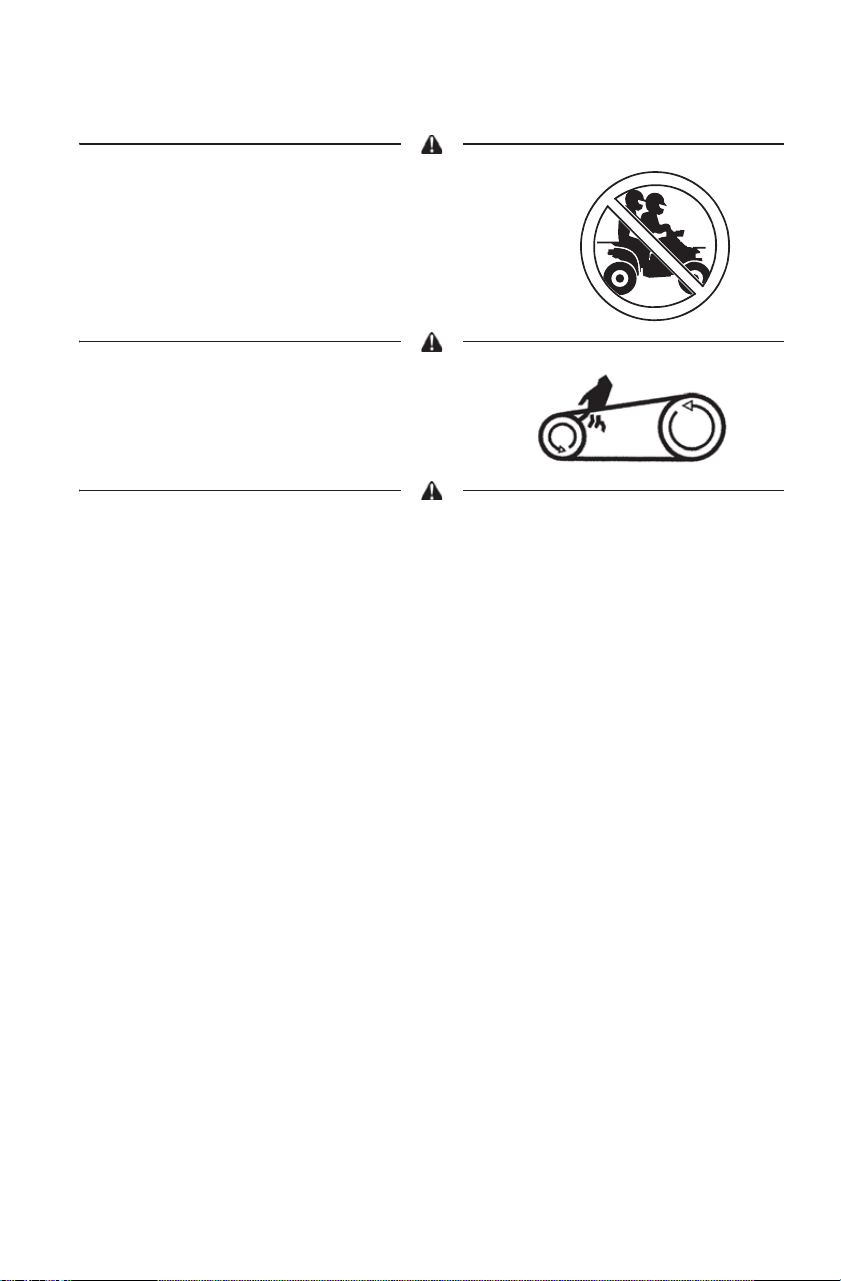

Never carry a passenger on this vehicle.
Always wear an approved helmet that fits
properly. Wear eye protection (goggles or face
shield), gloves, boots, long sleeves and long
pants.
Never consume alcohol or drugs before or
while operating a Tractor.
Never operate at excessive speeds. Travel
and turn at speeds appropriate for the terrain,
visibility, operating conditions and your
experience.
12
SAFETY
Rider Safety
Always inspect your Tractor before each
use to verify that it's in safe operating
condition. Follow the inspection and
maintenance procedures outlined in this
manual. See page 43.
Keep both hands on the handlebars. Keep
both feet on the footrests.
Always travel slowly when operating on
unfamiliar terrain. Use extra caution.
Always follow the procedures outlined in
this manual for turning. See page 47.
Never turn sharply at excessive speeds,
which can lead to vehicle overturn.
13
SAFETY
Rider Safety
If a Tractor has been involved in an accident, always have an authorized
POLARIS dealer inspect the entire vehicle for possible damage, including (but
not limited to) brake, throttle and steering systems.
Never attempt jumps or other stunts.

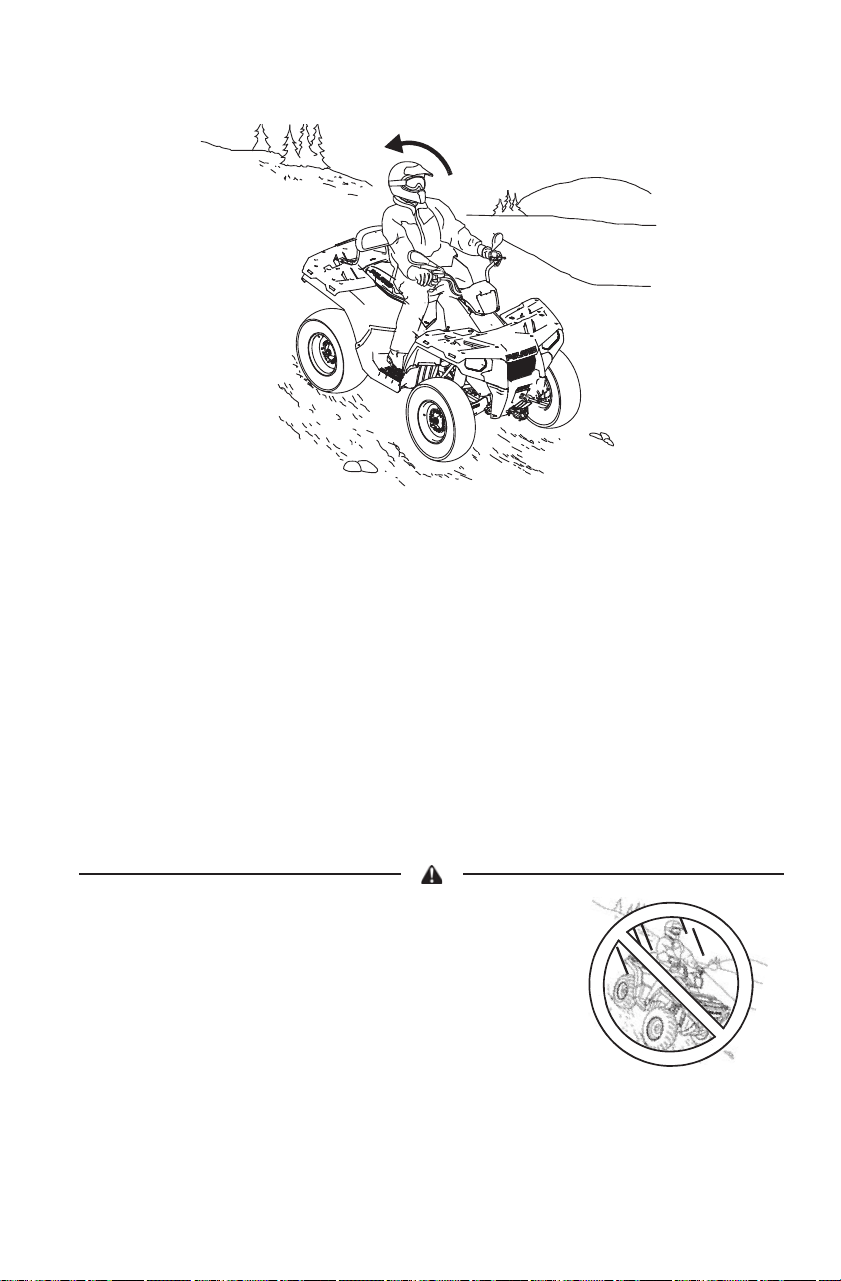

Always follow the procedures outlined in this
manual for driving on hills. See page 48.

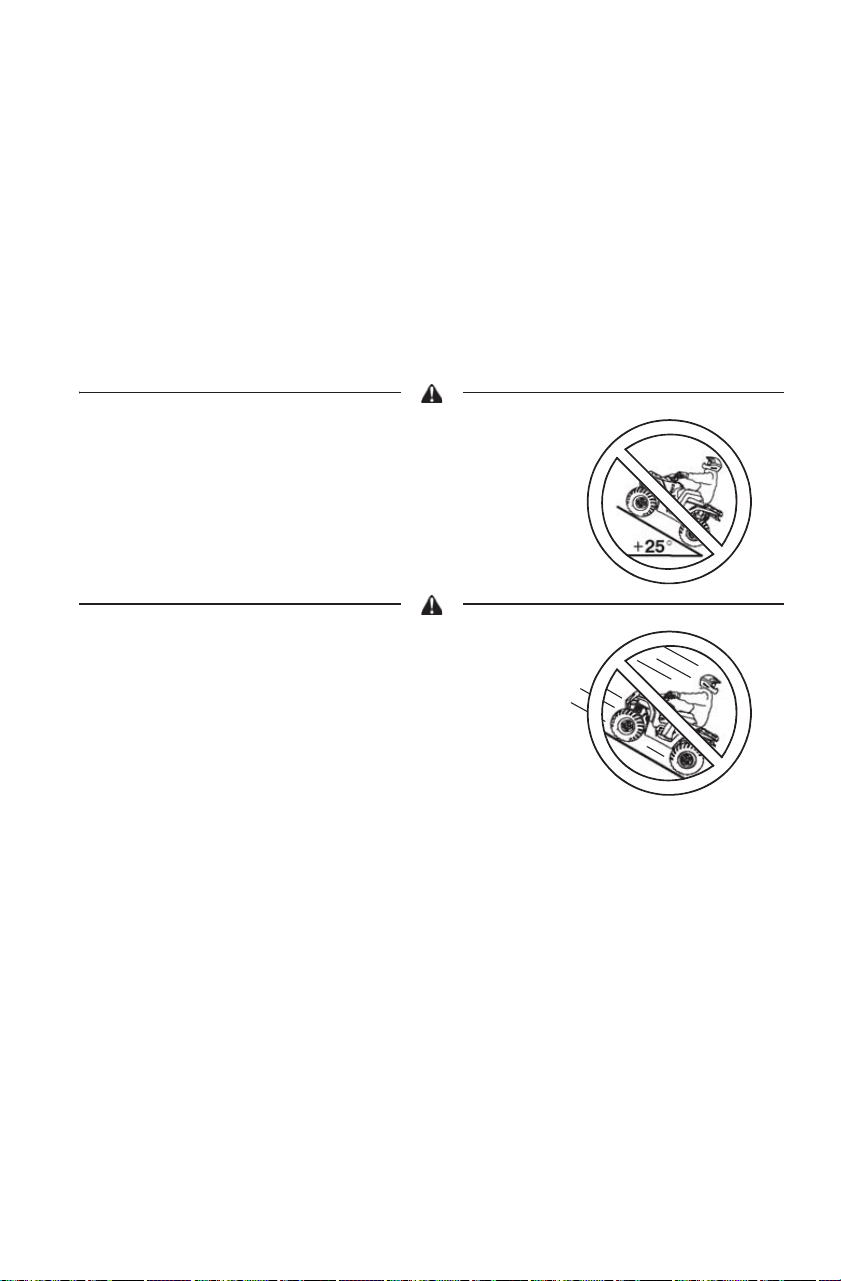

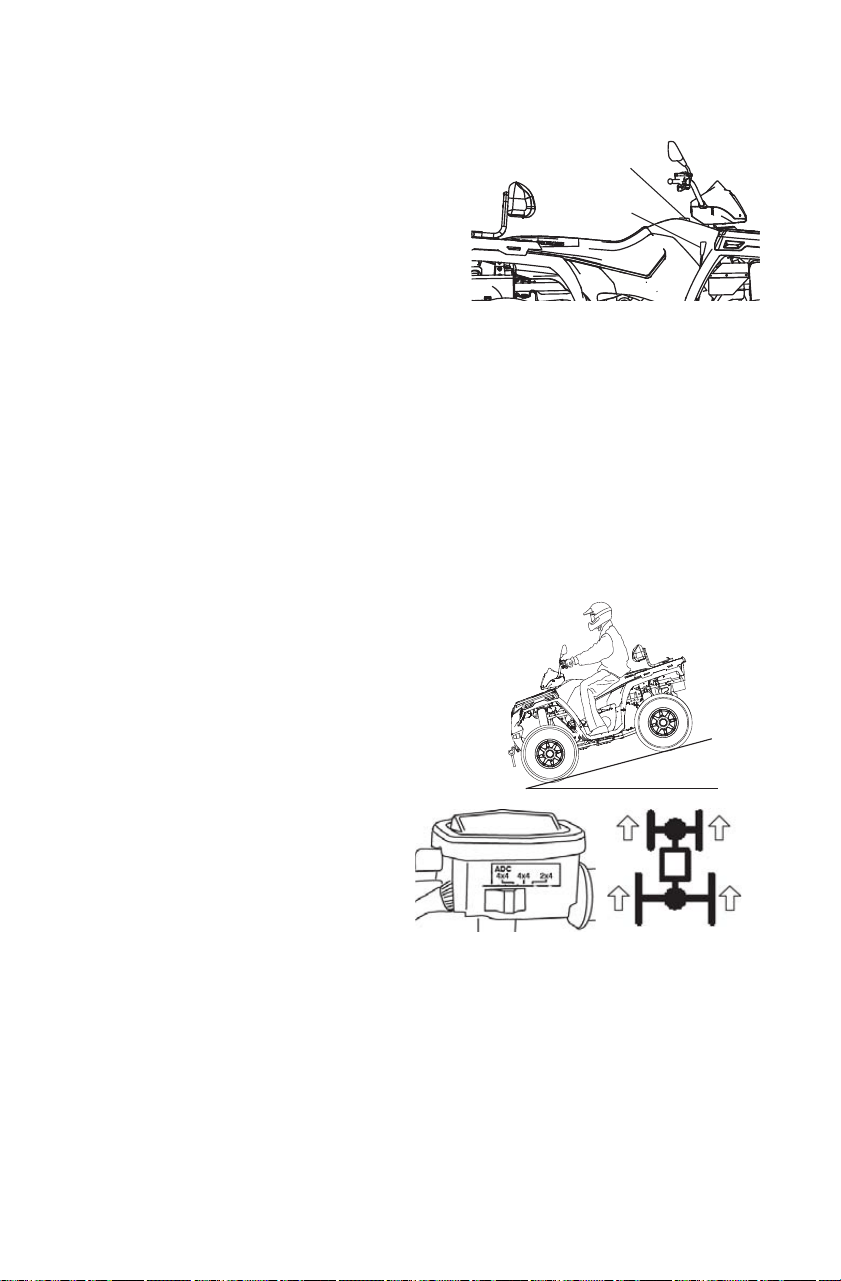

Never operate on hills too steep for the
Tractor or for your abilities. Practice on
smaller hills before attempting larger hills.
Avoid climbing hills steeper than 25°.
Always move the 4X4 switch to ADC 4X4
before ascending or descending a hill.
Always follow the procedures outlined in this
manual for driving downhill and for braking
on hills. See page 51.

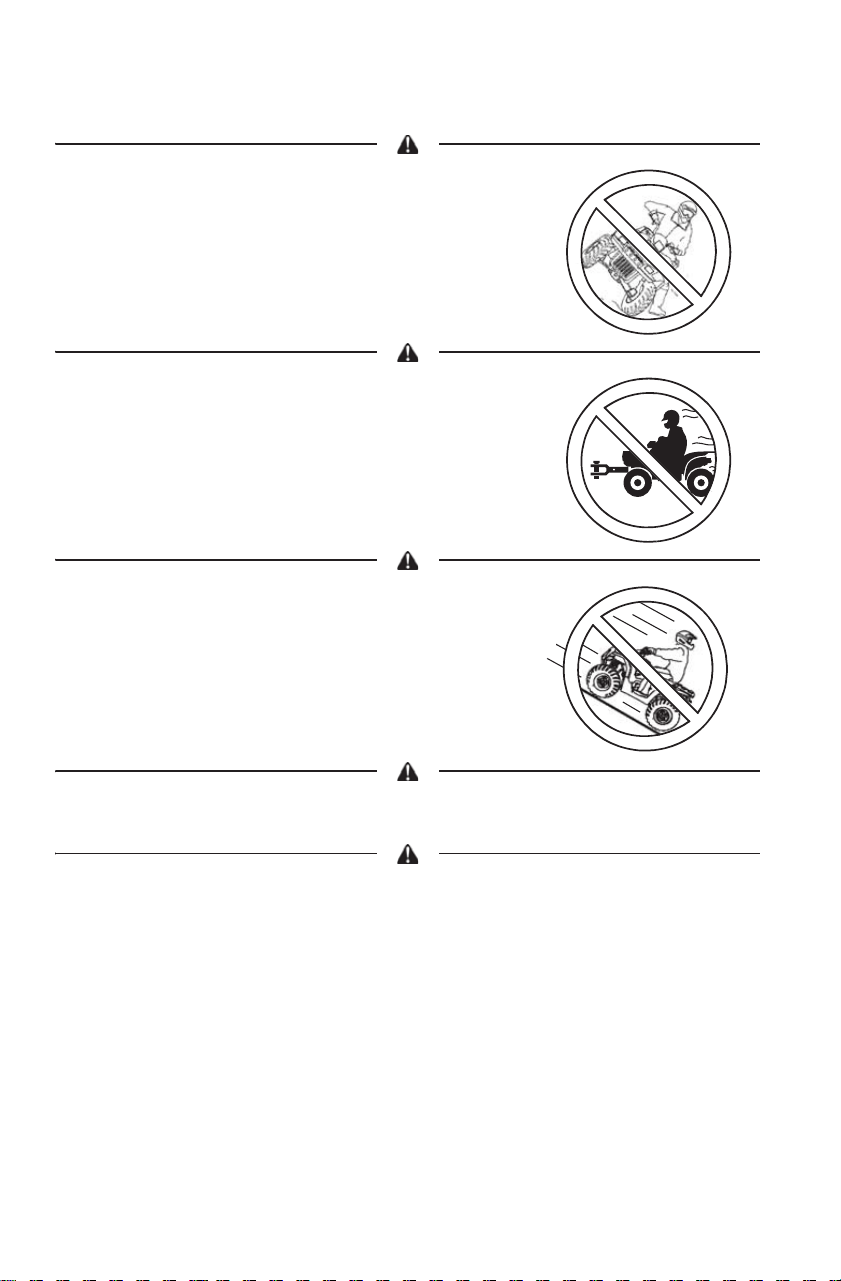

14
SAFETY
Rider Safety
Always follow the procedures outlined in this

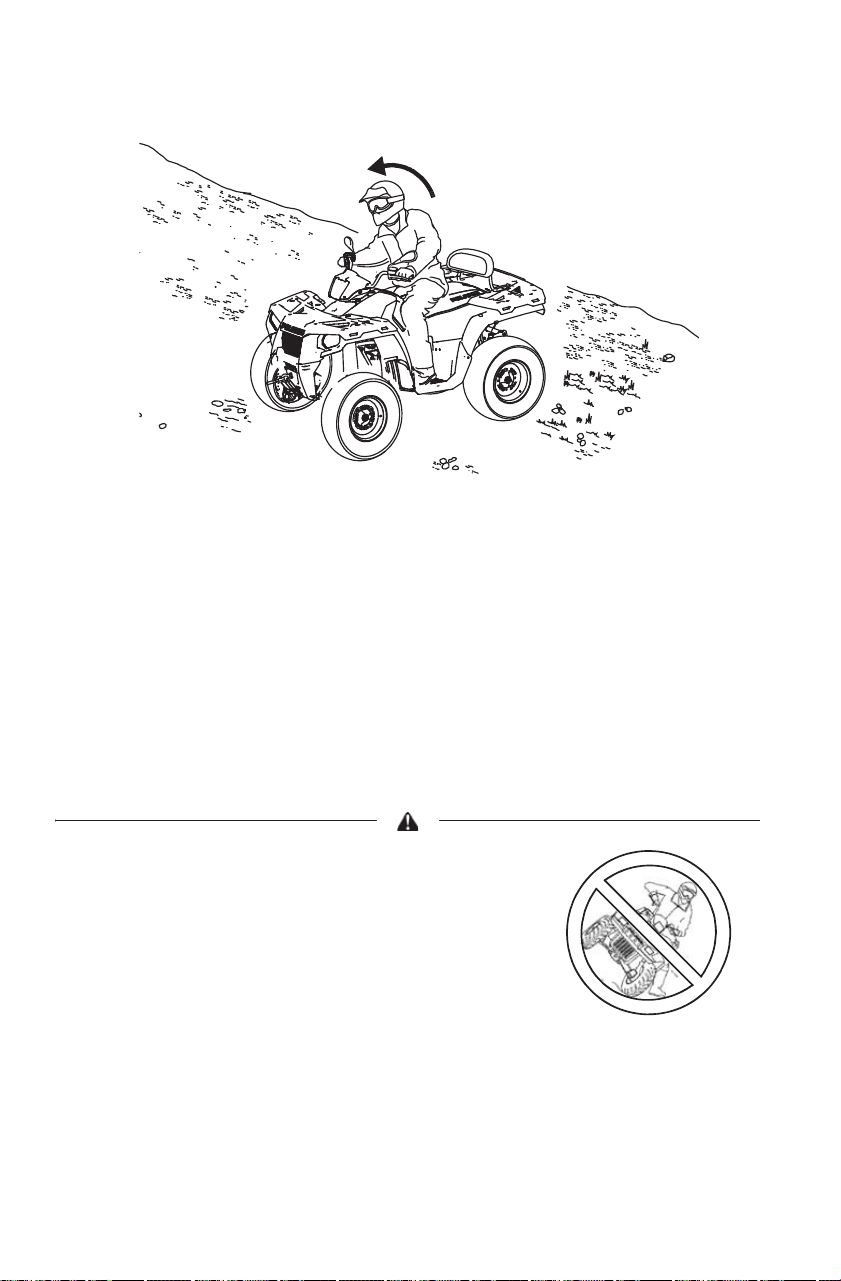

manual for crossing the side of a hill. See
page 50.
Never attempt to turn the Tractor around on
any hill until you've mastered (on level
ground) the turning technique outlined in this
manual.
Use the front hitch for vehicle recovery or
towing only. Always remove the front hitch
before operating in forward gear. See page
28.
Always follow the procedures outlined in this
manual for braking if you stall or roll
backwards while climbing a hill. Never back
down a hill. See page 52.

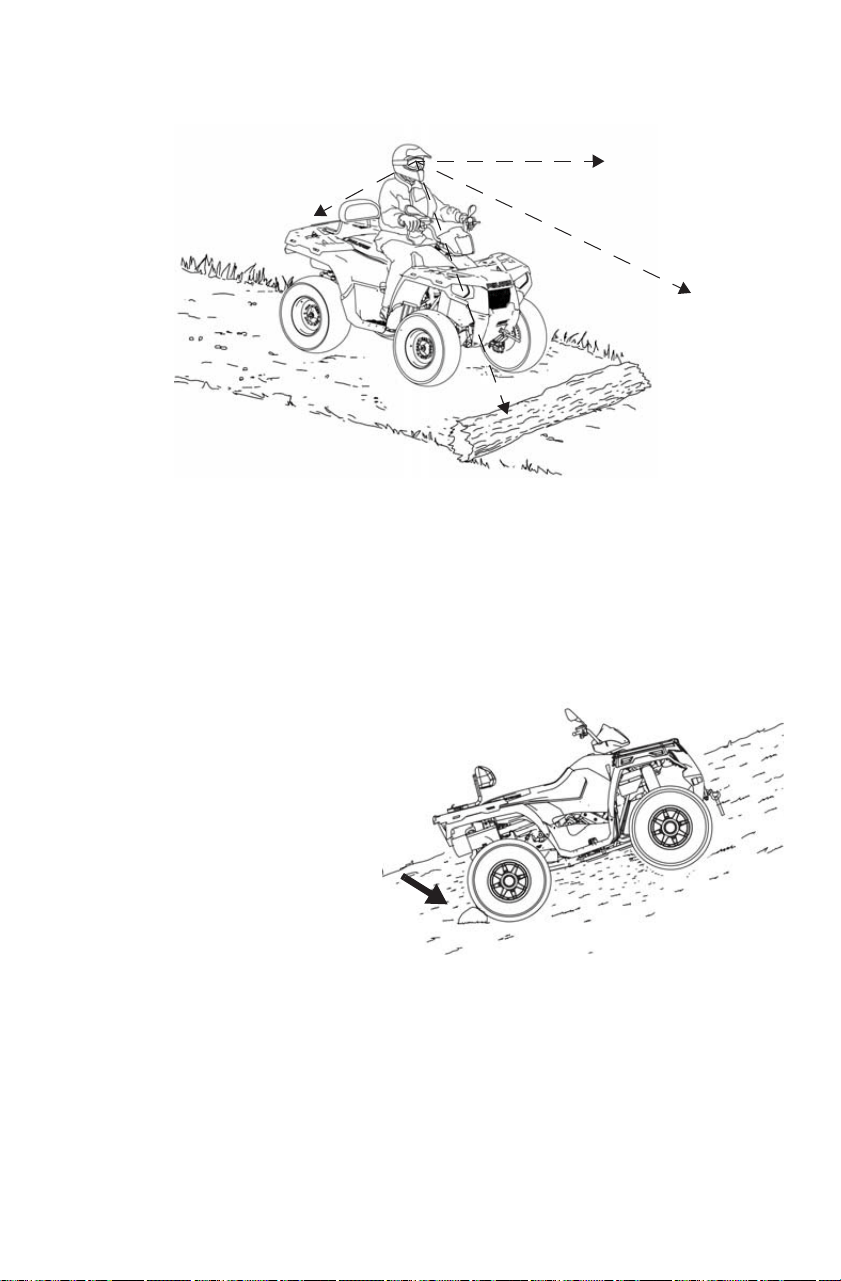

Always follow the procedures outlined in this manual for operating over
obstacles. See page 57.
Always follow the procedures outlined in this manual for driving in reverse. See
page 58.
15
SAFETY
Rider Safety

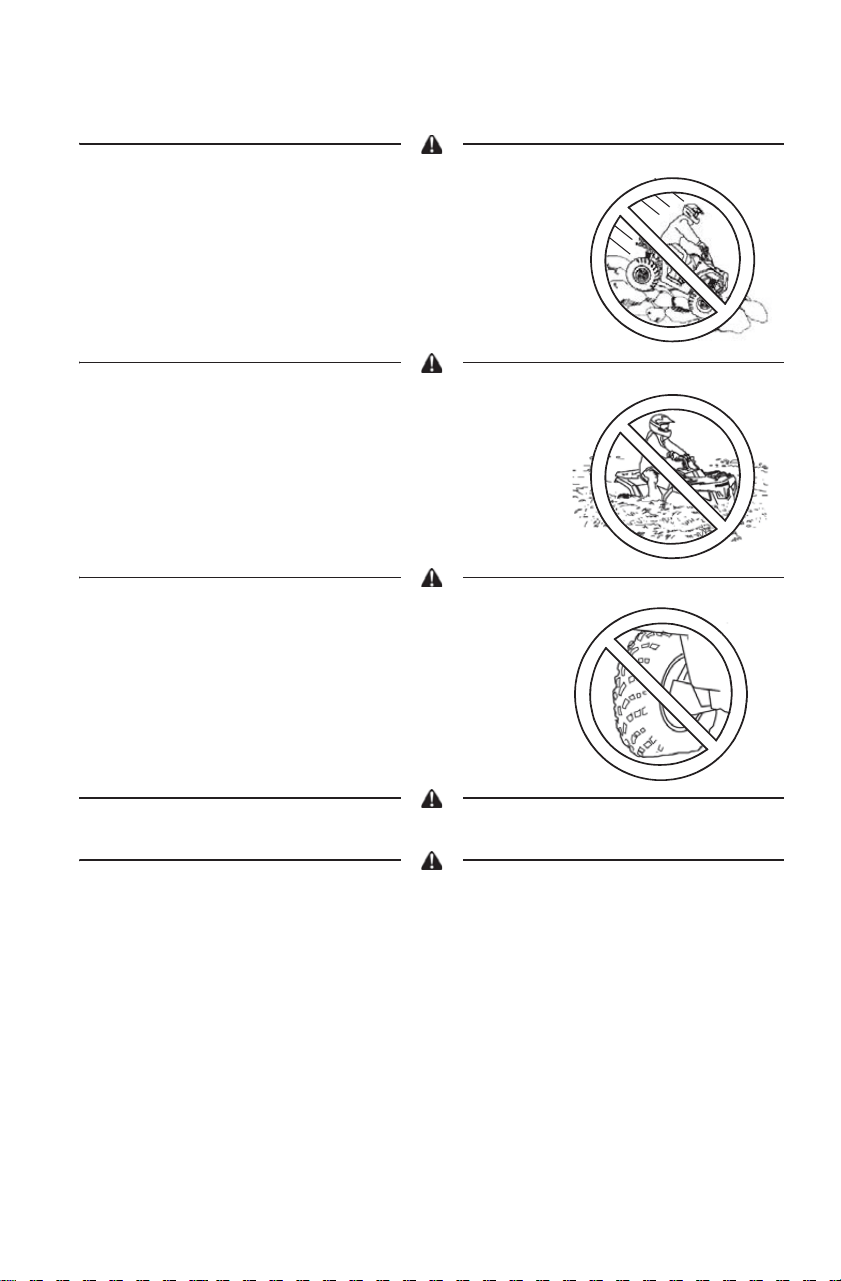

Always follow the procedures outlined in this
manual for operating on slippery or loose
surfaces. Use extra caution. Always avoid
skidding or sliding. See page 56.
Always follow the procedures outlined in this
manual for driving through water. Never drive
through deep or fast-flowing water. See page
54.
Always use the size and type of tires
specified for your vehicle. Maintain the
proper tire pressure.
Never modify a Tractor through improper installation or use of accessories.
Never exceed the stated load capacity for your vehicle. Cargo must be properly
distributed and securely attached. Reduce speed and follow the instructions in
this manual for carrying cargo or towing. Allow a greater distance for braking.
16
SAFETY
Rider Safety

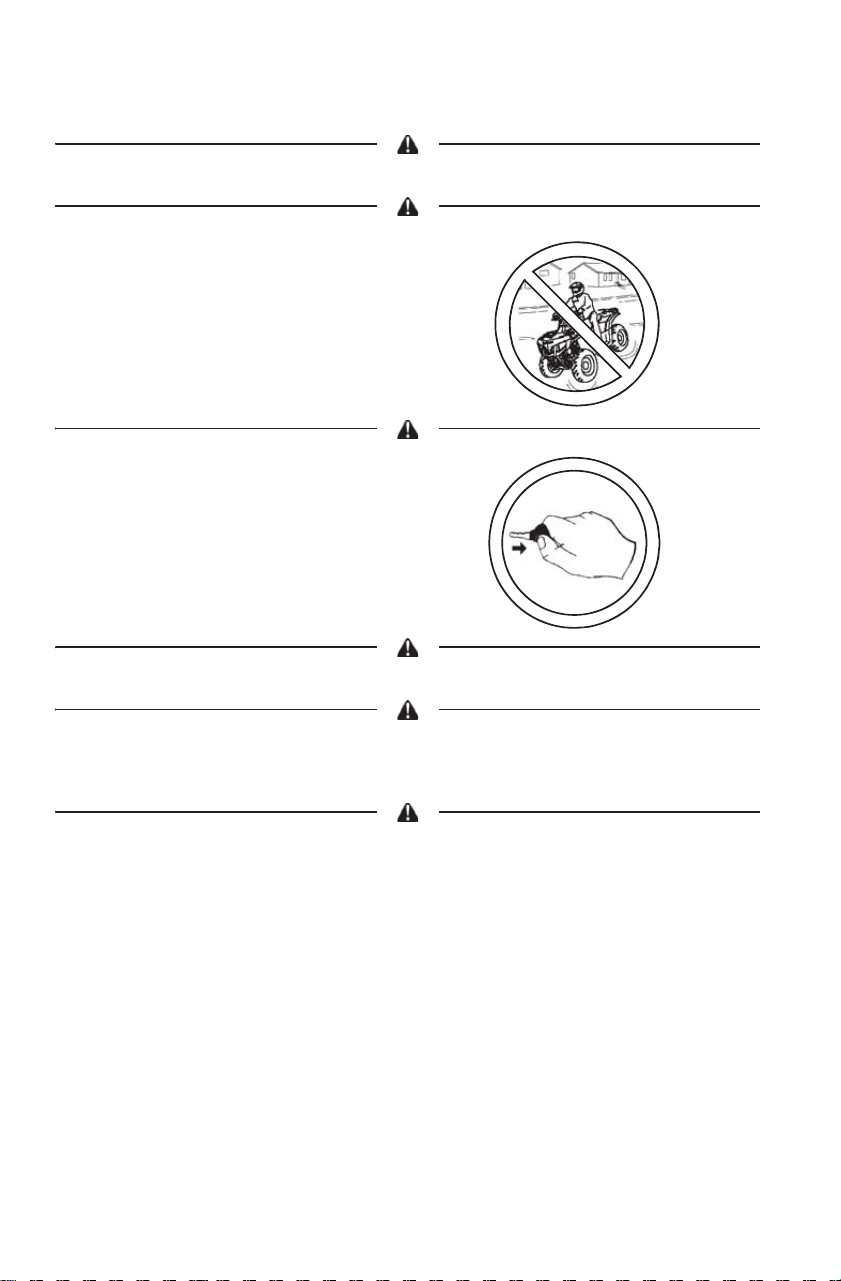

Never operate the Tractor on a frozen body of water.
Operating on paved surfaces may
affect the handling and control of the
Tractor and could result in loss of
control. Avoid sudden turns or swift
movement of the handlebars.
Always remove the ignition key when
the vehicle is not in use to prevent
unauthorized use or accidental
starting.
Always unlock the steering before starting the engine. See page 27.
Hot components can cause serious burns and fire. Do not touch hot exhaust
system components. Always keep combustible materials away from the exhaust
system.
This vehicle is not equipped with an Occupant Protection Device capable of
protecting the operator from falling objects. Please be aware of your
surroundings at all times when operating this vehicle.
For more information about Tractor safety,
contact an authorized POLARIS Tractor dealer or visit
the POLARIS web site at www.polaris.com.
17
SAFETY
Safety Labels and Locations
Warning labels have been placed on the vehicle for your protection.
Read and follow the instructions on each label carefully. If a label
becomes illegible or comes off, contact your POLARIS dealer to
purchase a replacement. Replacement safety labels are provided by
POLARIS at no charge. The part number is printed on the label.
The following pages repeat the information found on each label.
General Alert
(Multi-Lingual)
Before you operate this
vehicle, read the
owner’s manual.
7173025
Hill Operation/Hitch Alert
• Never operate this vehicle on HILLS steeper than 25 degrees 25
°.
• To prevent flip-over on hilly terrain, when going up or down, use throttle and
brakes gradually.
7175814
General
Alert
Hill Operation
and Hitch Alert
Age 16 Alert
<
1
6
1
6
1
6
18
SAFETY
Safety Labels and Locations
Tire Pressure/Load Alert
TIRE PRESSURE IN PSI (kPa): FRONT 5 (34.5) REAR 5 (34.5)
MAXIMUM WEIGHT CAPACITY 420 LBS. (191 kg)
INCLUDES WEIGHT OF OPERATOR, CARGO AND ACCESSORIES.
Read Owner's Manual for more detailed loading information.
7174877
Override Warning
WARNING
Improper use of override button can lead to loss of control resulting in severe
injury or death. Do not activate override while throttle is engaged. Always apply
throttle gradually while in reverse.
7175486
4X4 (AWD) Caution
Do not push switch to engage 4X4 (AWD) if the rear wheels are spinning. This
may cause severe drive shaft and clutch damage.
7175485
Reverse Override
Alert
“No Passenger”
Warning
Rack
Warning
Rack
Warning
Tire Pressure/
Load Alert
Clutch
Cover Alert
19
SAFETY
Safety Labels and Locations
“No Passenger” Warning
WARNING
NEVER ride as a passenger.
Passengers can cause a loss of control, resulting in
SEVERE INJURY or DEATH.
7175378
Clutch Cover Alert
NO STEP
7173030
Rack Warning
WARNING
• DO NOT TOW FROM RACK OR BUMPER. Vehicle damage or tipover may
result causing severe injury or death. Tow only from tow hooks or hitch.
• Max. Rack Loads: Front 90 lbs. (41 kg) Rear 180 lbs. (82 kg)
7172572
20
FEATURES AND CONTROLS
Switches
Master Light Switch
The master light switch must be in the ON position to allow operation of
the headlights, parking lights and taillights.
Momentary High Beam Switch
Press this switch with your left forefinger to activate the headlight high
beam. The lights will return to low beam when the switch is released.
Winch Switch
See page 62 for winch information.
Mode/Reverse Override Switch
Press the switch to toggle through the speedometer display modes
(except in reverse). See page 33. To gain additional power while
operating in reverse, press the override switch before opening the
throttle. This will cancel the reverse speed limit function.
The reverse override switch also acts as a MODE switch when held
down for approximately one half second. See the instrument cluster
information beginning on page 33.
Tip: The override switch will not function as a MODE switch if the transmission
is in reverse.
Activating the override switch while the throttle is open can cause loss of control.
Do not activate the override switch while the throttle is open.
Mode/Reverse
Override Switch
Main Key
Switch
4X4 Switch
Winch Switch
Momentary High-Beam
Switch
Work Light
Switch
Master Light
Switch
21
FEATURES AND CONTROLS
Switches

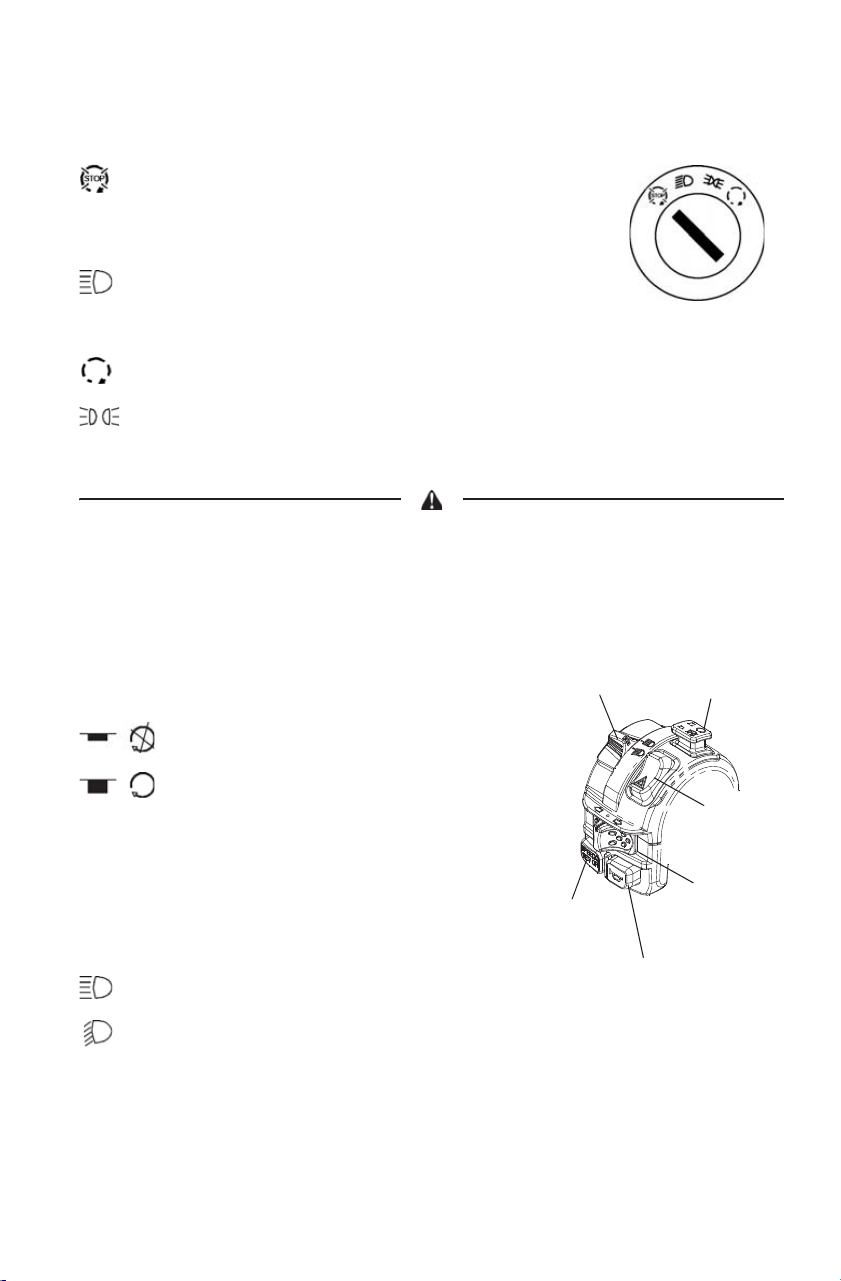

Main Key Switch
End all electrical power to the vehicle.
Press the Engine Stop Switch to cut power to
the engine.
The LIGHTS ON position turns the headlights
on. The master light switch must be on and the
engine stop switch must be in the RUN position.
Start the engine. The headlights are not on in this position.
After starting the engine, release the key switch to the PARKING
LIGHTS ON position. The parking lights and taillights are on in
this position.
Do not attach a large key fob or key ring to the main switch. It may contact the
gas tank cap when turning, causing an interruption to the electrical system and
an unexpected engine shut-down during operation. This could result in serious
injury or death.
Engine Stop Switch
The engine will not start or run when the
switch is in the OFF position.
OFF (STOP)
RUN
Light Switch (High/Low Beam)
Use the light switch to change the
headlights from high beam to low beam.
The master light switch must be on to
operate the headlights.
High Beam
Low Beam
Override
Switch
Engine
Stop
Switch
Light
Switch
Horn
Switch
Hazard
Switch
Turn
Signal
Switch
22
FEATURES AND CONTROLS
Switches
Work Light Switch
The work light switch controls a light
located in the pod. Use the light when
additional light is needed at the front of
the vehicle, but turn the work light off
when driving the vehicle (on-road).
Turn Signal Switch
Push the toggle switch either left
or right to activate the corresponding
turn signal light. The indicator on the
pod will also flash. Return the toggle to the center position and push it
inward to end the signal.
Hazard Warning Switch
Push the hazard warning switch
to cause all turn signal lights to
flash simultaneously. Use this
feature to alert others of an
emergency or other situation
requiring caution.
Horn Switch
Press the horn switch to sound
the horn.
4X4 Switch
Use the 4X4 switch to engage
ADC 4X4, 4X4 or 2X4. See page
30. The vehicle automatically
engages 4X4 when operating in
reverse if the 4X4 switch is set to
either 4X4 position.
Turn
Indicators
Work Light
Switch
Horn
Switch
Hazard
Switch
Turn
Signal
Switch
4X4 Switch
23
FEATURES AND CONTROLS
Mirrors
Use the mirrors to assist in traffic maneuvers. Always check and adjust
the mirrors before driving the Tractor.
Throttle Lever
Failure to check or maintain proper operation of the throttle system can result in
an accident if the throttle lever sticks during operation. Check the lever for
proper operation before starting the engine. Check occasionally during
operation.
Do not start or operate a Tractor with sticking or improperly operating throttle
controls. Contact your dealer for repair if throttle problems arise.
Press the throttle lever to increase
engine speed and vehicle movement.
Release the lever to reduce engine
speed and vehicle movement.
Throttle Release Switch
The throttle release switch
causes the engine to stop if
the throttle cable sticks in
an open position when the
operator releases the
throttle lever.
The throttle release switch stops the engine in the event of a throttle system
malfunction. Do not modify this safety feature or replace it with other throttle
mechanisms.
Throttle Release Switch
24
FEATURES AND CONTROLS

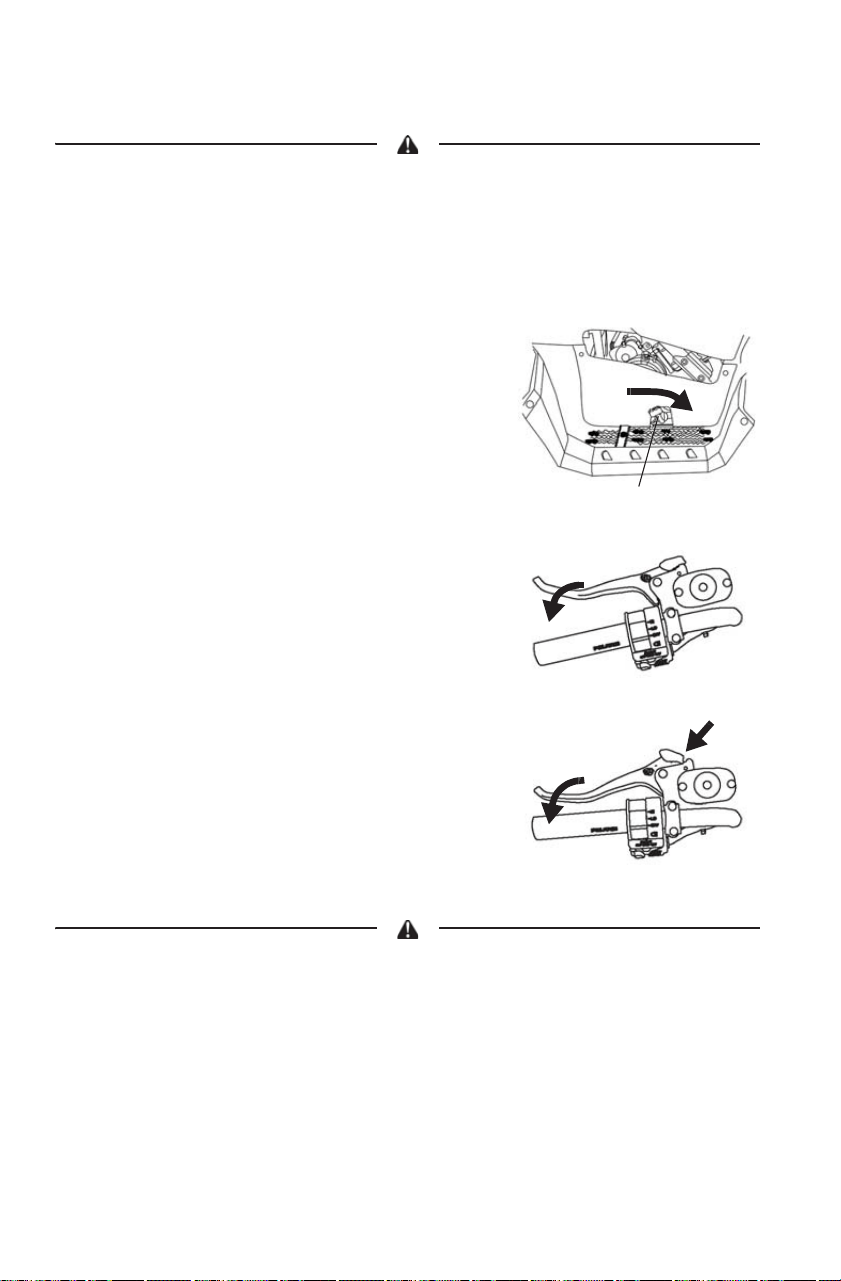

Brakes
Aggressively applying the brakes when backing down a hill may cause rear
tipover. Aggressively applying the brakes while moving forward may cause the
rear wheels to skid and result in loss of control. Read this owner's manual and
understand the operation of all brake systems on this vehicle. Always use
caution whenever applying the brakes.
Foot Brake
The all-wheel foot brake is located on the
right footrest. The foot brake operates both
front and rear brakes. Press the brake pedal
down with your foot to apply the all-wheel
brakes. If the rear wheels begin to skid or
slide while using the foot brake, reduce
brake pressure.
Hand Brake Lever
The hand brake operates both front and rear
brakes. Squeeze the brake lever toward the
handlebar to apply the all-wheel brakes. If
the rear wheels begin to skid or slide while
using the brake, reduce lever pressure.
Parking Brake
1. Place the transmission in PARK.
2. Squeeze the brake lever toward the
handlebar. Push the parking brake lock
forward to engage the lock. Release the
brake lever.
3. To release the parking brake lock,
squeeze and release the brake lever.
Operating the vehicle while the parking brake is engaged could result in an
accident and serious injury or death. Always release the parking brake lock
before operating.
Foot Brake
25
FEATURES AND CONTROLS
Seat
Seat Load Adjustment

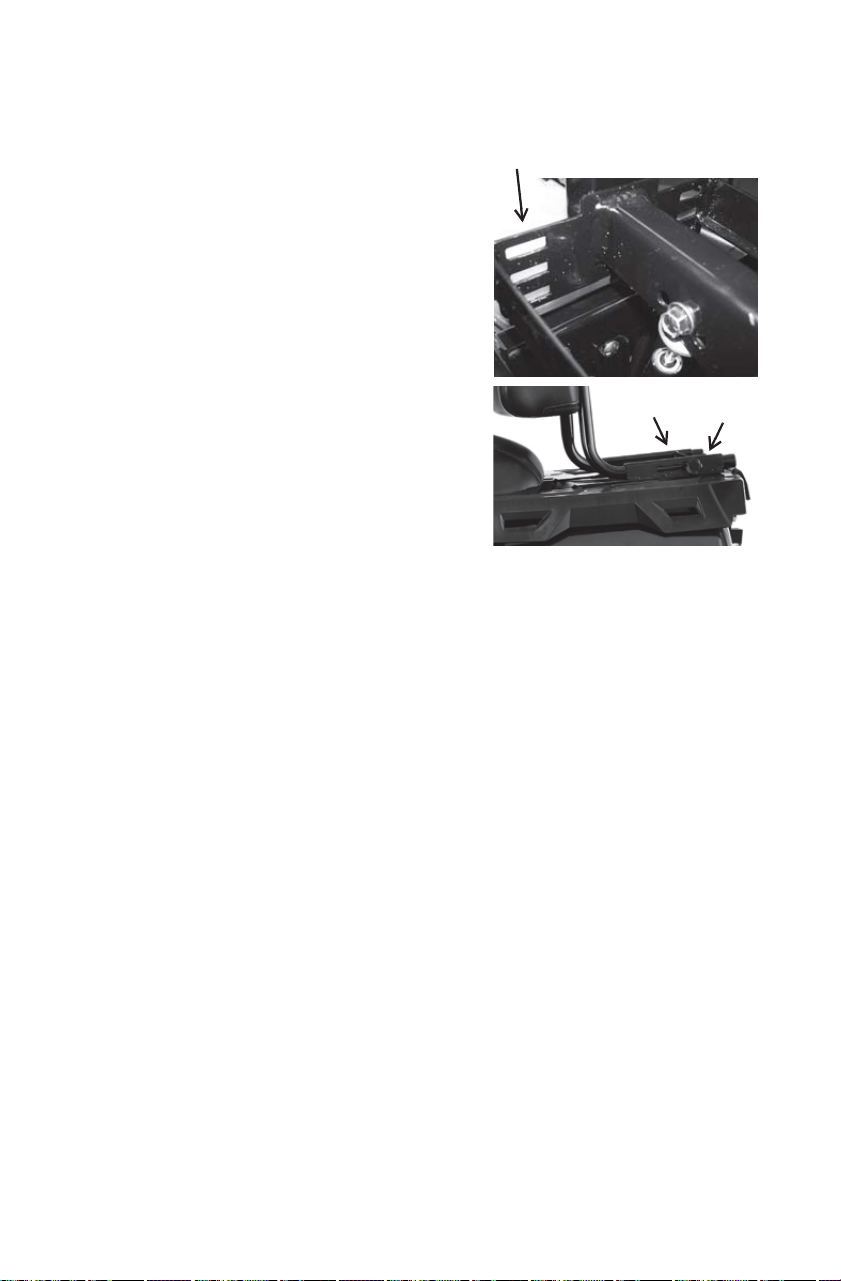

Adjust the seat spring for the comfort of a lighter or heavier operator.
Reach under the rear rack to access the adjuster. Tighten the spring for
heavier riders. Loosen the spring for lighter riders.
Use the following table to determine the best preload measurement for
rider weight. Measure preload between the adjuster plate and the lower
spring retainer.
The tractor seat fulfills Directive 78/764/EEC.
Rider Weight Preload Measurement
Up to 39 kg 0 mm
39-94 kg 0-32 mm
Over 94 kg 32-64 mm
Driver's seat, type Seat One:
e11*78/764*2006/96*2056*00
Load Adjuster
Measure Preload
(shown with seat removed)
26
FEATURES AND CONTROLS
Seat
Seat Removal
Lift the latch bar at the rear of the seat
to release the latch. Tilt the seat slightly
rearward to disengage the seat tabs
from the rear seat base slots. Remove
the seat.
Make sure the seat is securely installed
before operating.
Seat Height Adjustment
To raise or lower the seat, remove the
seat and reposition the seat tabs in one
of the rear seat base slots. Make sure the
seat is securely installed before
operating.
Backrest Adjustment
Loosen the backrest knobs on each side
of the backrest mount and slide the
backrest forward or rearward to the
desired position. Tighten the knobs
securely.
Height Adjustment Slots
Backrest Knobs
27
FEATURES AND CONTROLS

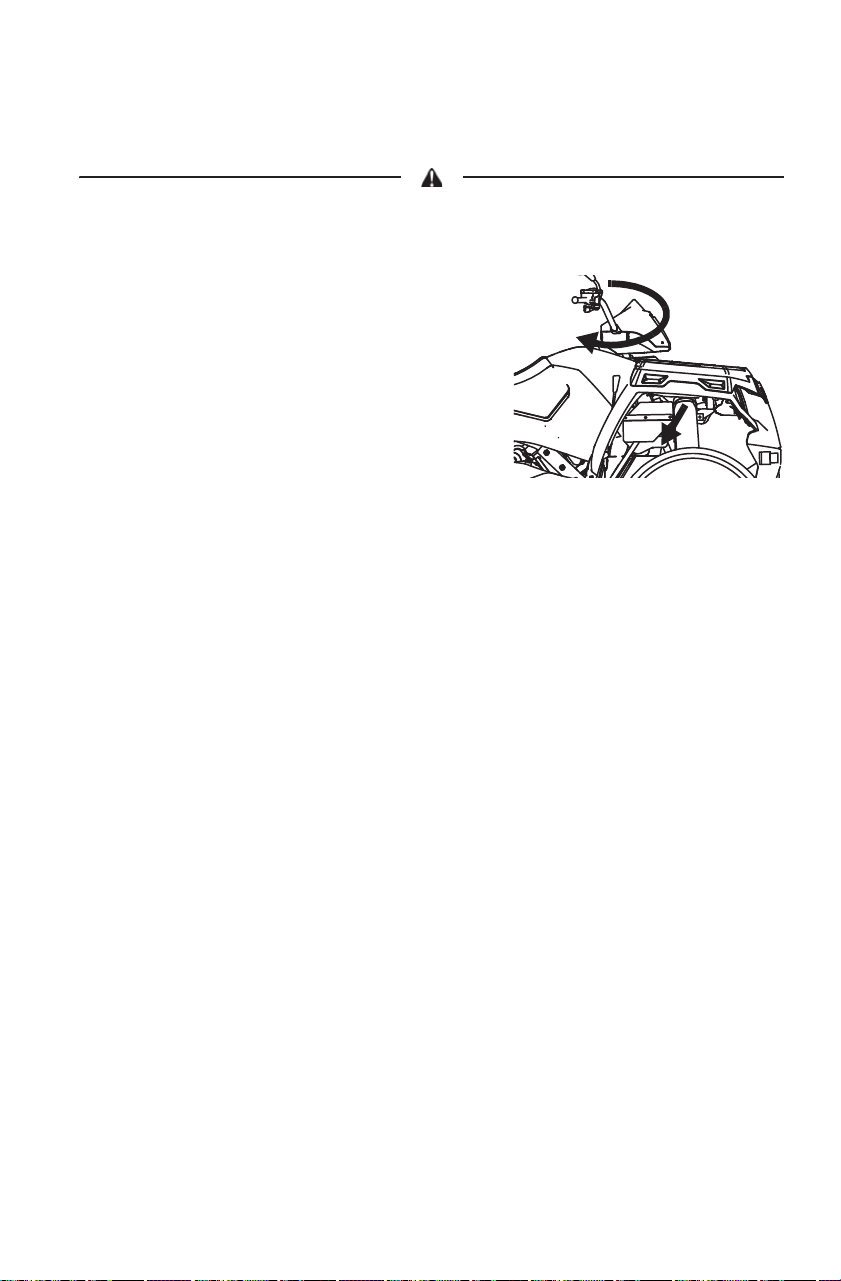

Steering Lock
Lock the steering to prevent unauthorized use or theft of the vehicle.
The handlebars are locked in the fully turned position when the steering is
locked. Always unlock the steering before starting the engine.
1. Turn the handlebars to the full right or
full left position.
2. Insert the steering lock key and turn it
clockwise. Remove the key.
3. Place the steering lock keys in a safe
place. The lock must be replaced if the
keys are lost.
4. Reverse the procedure to unlock the
steering.
Fuel Tank Cap
Remove the fuel tank cap to add fuel to the fuel tank. Use either leaded
or unleaded gasoline with a minimum pump octane of 87. Do not use E-
85 fuel.
28
FEATURES AND CONTROLS
Hitches
See page 130 for hitch weight capacities.
Front Hitch
Use the front hitch for vehicle recovery or towing only. Do not use the
front hitch for any other purpose. Always remove the front hitch before
operating in forward gear.
Rear Hitch
Hitch specifications may differ from vehicle capacity specifications. Do
not exceed the hitch and towing capacities specified for this vehicle. See
page 130.
Use the rear hitch for towing a trailer. See pages 59-61 for procedures.
Rear Hitch Specifications
Material 1021 M Steel
Fasteners 1008K Steel (Main Pin and Receiver Pin)
Weld Length and Positions 3 mm fillet, both sides, all around
Maximum Vertical Load 75 kg (on coupling point)
Maximum Towable Mass 750 kg
Approval # e11*89/173*2006/26*2073*xx
29
FEATURES AND CONTROLS
Hitches

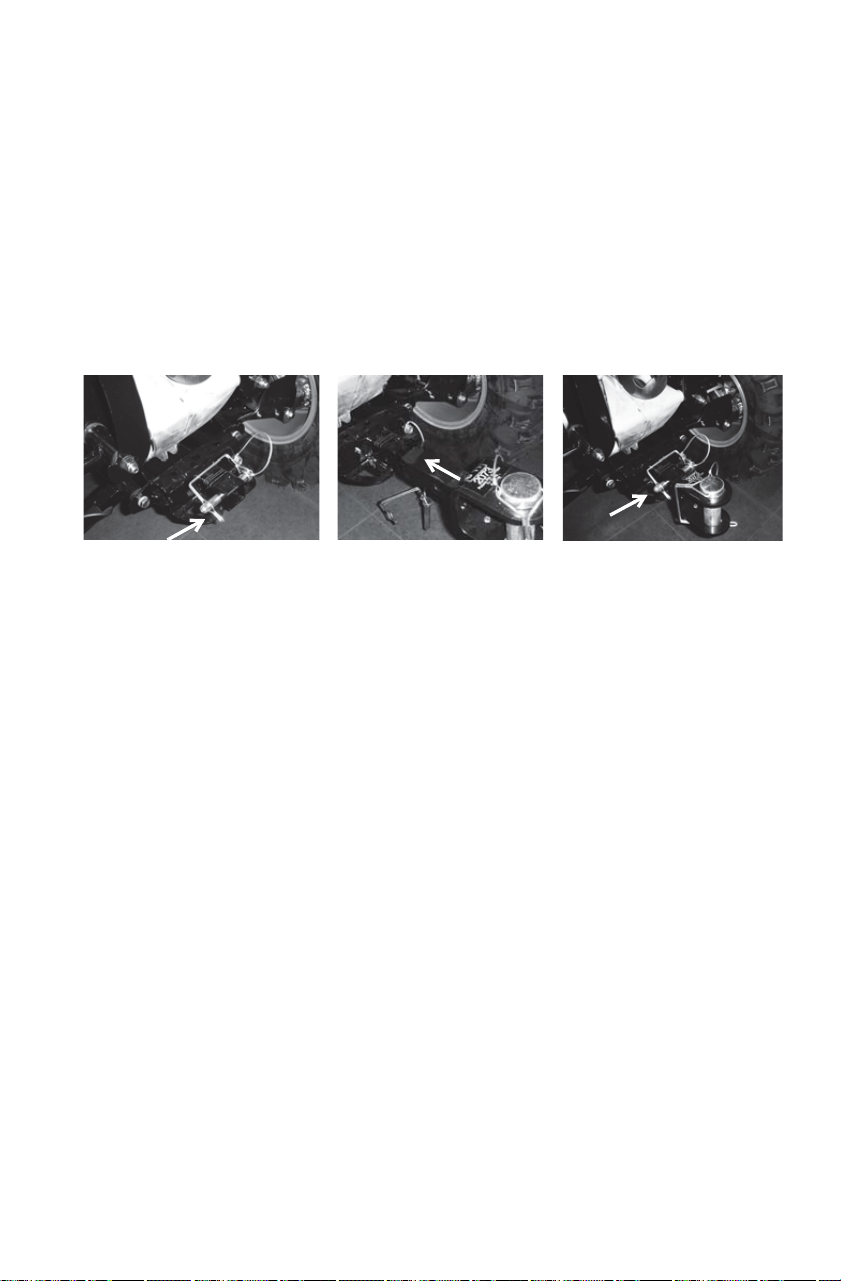

Hitch Installation/Removal
1. Release the wire lock from the 12.7 mm pin and remove the pin.
2. Install the hitch to the receiver.
3. Install the 12.7 mm pin through the bore of both the receiver and the
hitch. Secure the wire lock. Make sure the hitch assembly is secure
at that the wire lock is properly engaged over the pin.
4. To remove the hitch, release the wire lock, remove the hitch,
reinstall the pin to the receiver and secure the wire lock.
Step 2Step 1 Step 3
30
FEATURES AND CONTROLS
Automatic Transmission Gear Selector
The transmission gear selector is located
on the right side of the vehicle.
H: High Gear
L: Low Gear
N: Neutral
R: Reverse
P: Park
Whenever the vehicle is left unattended, always place the transmission
in PARK. The transmission is locked when it’s in PARK.
NOTICE: Shifting gears with the engine speed above idle or while the vehicle is
moving can cause transmission damage.
Belt Life
To extend belt life, use LOW forward gear when pulling a heavy load at
less than 11 km/h for extended periods and when operating uphill at a
slow speed.

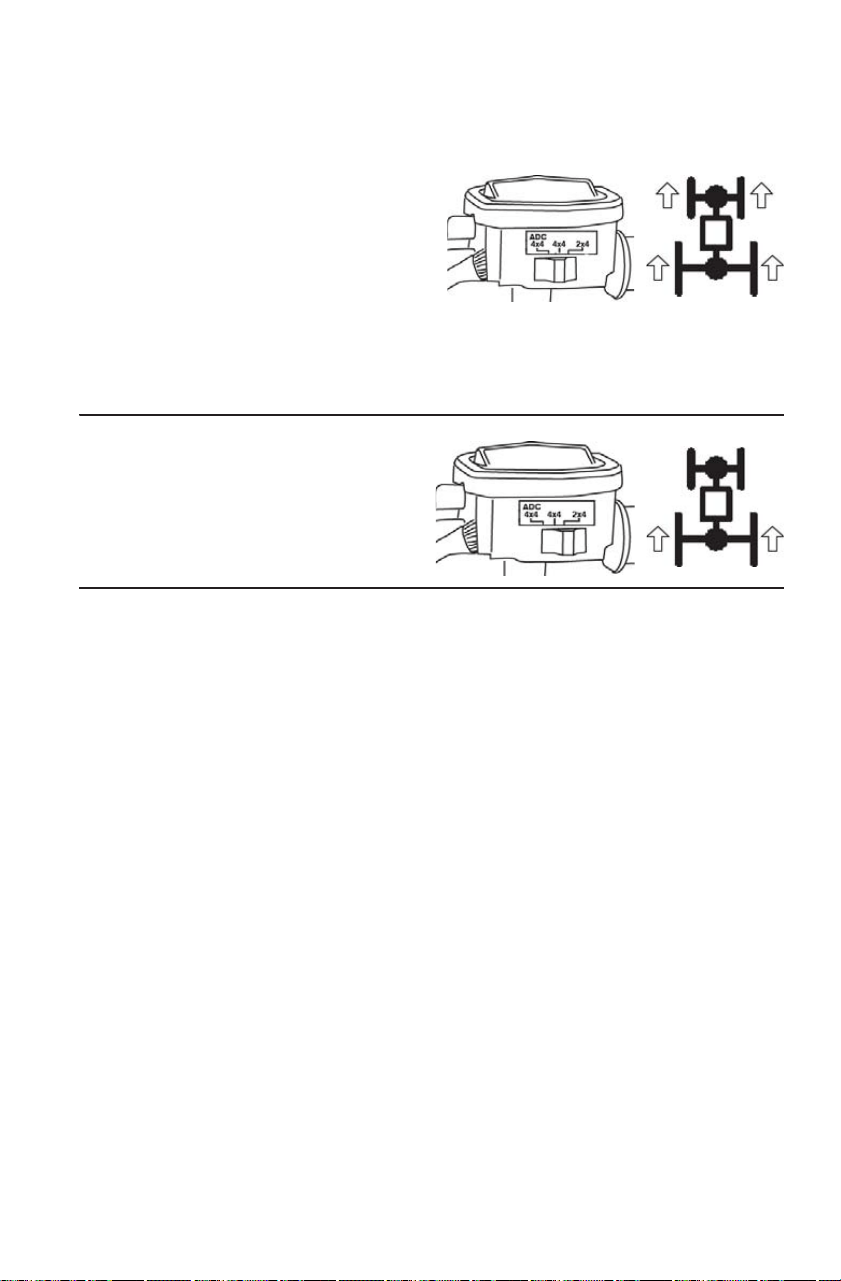

All Wheel Drive (4X4) System
The All Wheel Drive system is
controlled by the 4X4 switch.
ADC 4X4
When the switch is on ADC 4X4,
the ADC system allows engine
braking to all four wheels when
the vehicle descends a hill or
incline. Always move the 4X4
switch to ADC 4X4 before
ascending or descending a hill.
See page 32.
Gear
Selector
Fuel Tank
Cap
31
FEATURES AND CONTROLS
All Wheel Drive (4X4) System
4X4
When the switch is on 4X4, the
vehicle is in 4X4, and the 4X4
indicator light in the instrument
cluster will be on.
When in 4X4, the demand drive
unit will automatically engage
any time the rear wheels lose traction. When the rear wheels regain
traction, the demand drive unit will automatically disengage. There is no
limit to the length of time the vehicle may remain in 4X4.
2X4
When the switch is on 2X4, the
vehicle is in two-wheel drive at
all times.
Engaging 4X4
The 4X4 switch may be turned on or off while the vehicle is moving.
4X4 will not engage until engine speed is below 3100 RPM. 4X4
remains engaged until the switch is turned off. There is no limit to the
length of time the vehicle may remain in 4X4.
If the switch is turned off while the demand drive unit is engaged, it will
not disengage until the rear wheels regain traction. Engage 4X4 before
getting into situations where maximum traction is needed. If the rear
wheels are spinning, release the throttle before switching to 4X4.
NOTICE: Switching to 4X4 or ADC 4X4 while the rear wheels are spinning may
cause severe drive shaft and gearcase damage. Always switch to
4X4 or ADC 4X4 while the rear wheels have traction or are at rest.
32
FEATURES AND CONTROLS
Active Descent Control (ADC) System
The ADC system allows engine braking to all four wheels when the
vehicle descends a hill or incline. Always move the 4X4 switch to ADC
4X4 before ascending or descending a hill.
Engaging Active Descent Control
The ADC system will automatically engage when all four of the
following conditions occur:
• The 4X4 switch must be in the ADC 4X4 position
• Vehicle speed must be 24 km/h or less
• The throttle must be closed (throttle lever released)
• The transmission must be in gear (high, low or reverse)
Disengaging Active Descent Control
The ADC system will automatically disengage if at least one of the
following conditions occur:
• The 4X4 switch is moved out of the ADC 4X4 position
• Vehicle speed exceeds 24 km/h
• The throttle is open (throttle is applied)
• The transmission is shifted to neutral or park
33
FEATURES AND CONTROLS

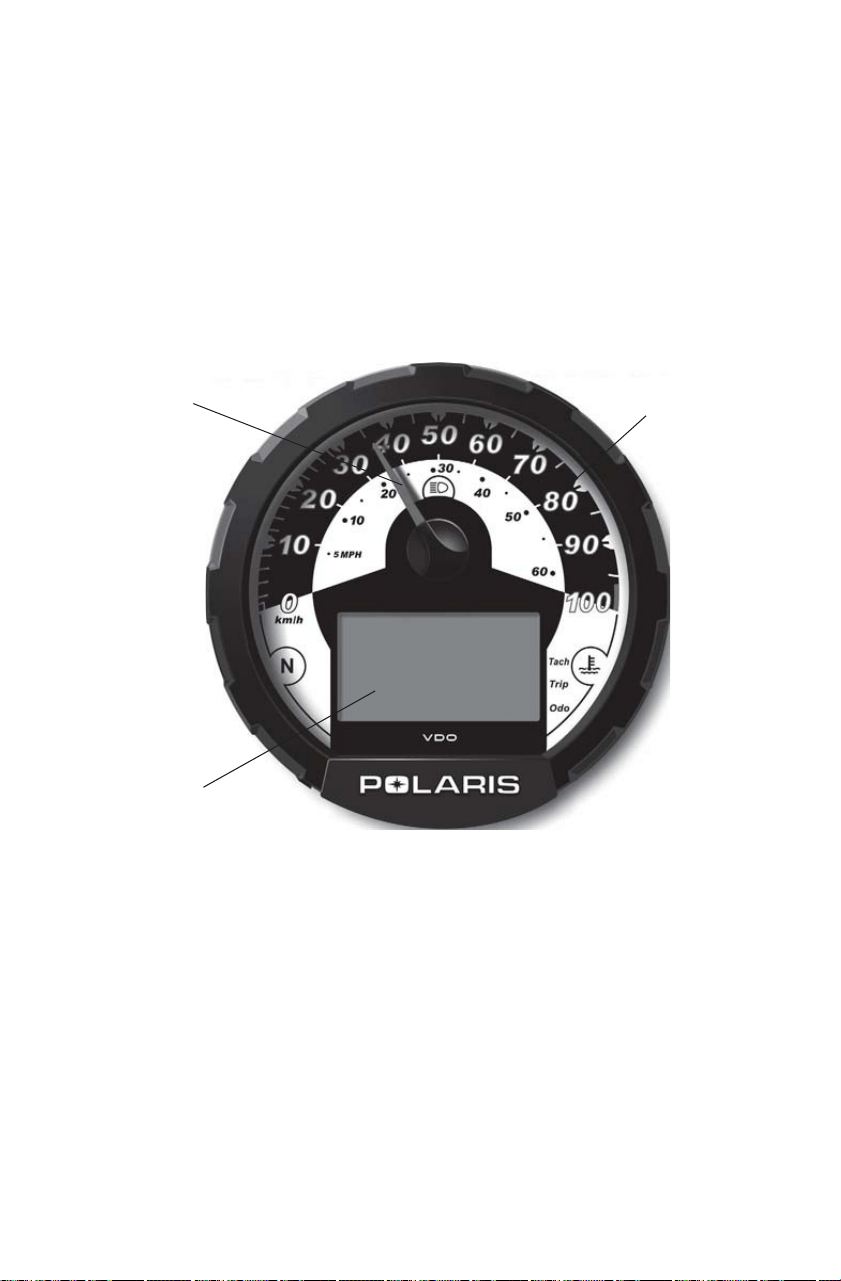

Instrument Cluster
The instrument cluster senses vehicle speed from the transmission. In
addition to showing vehicle speed, the speedometer needle flashes when
a warning condition exists.
The instrument cluster measures distance in miles or kilometers, as well
as hours of operation. It also includes a reverse speed limiter function
that limits the vehicle's speed to approximately 11-14 km/h. Refer to
page 20 for additional information.
NOTICE: High water pressure may damage vehicle components. Wash the
vehicle by hand or with a garden hose using mild soap.
Certain products, including insect repellents and chemicals, will
damage the speedometer lens and other plastic surfaces. Do not use
alcohol to clean the instrument cluster. Do not allow insect sprays to
contact the lens. Immediately clean off any gasoline that splashes on
the instrument cluster.
Rider
Information
Center
Speedometer
Needle
Speedometer
34
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
The rider information center is located in the instrument cluster. All
segments will light up for 2.5 seconds at start-up. If the instrument
cluster fails to illuminate, a battery over-voltage may have occurred and
the instrument cluster may have shut off to protect the electronic
speedometer. If this occurs, take the vehicle to your POLARIS dealer
for proper diagnosis.
1. Gear Indicator - This
indicator displays gear
shifter position:
H = High Gear
L = Low Gear
N = Neutral
R = Reverse Gear
P = Park
2. 4X4 Indicator - This
indicator illuminates
when the 4X4 switch is
on either ADC 4X4 or
4X4.
3. Engine Hour Display Indicator
4. Service Interval/Diagnostic Mode Indicator
5. Odometer/Tachometer/Tripmeter/ Hour Meter
6. Fuel Gauge - The segments of the fuel gauge show the level of fuel
in the fuel tank. When the last segment clears, a low fuel warning is
activated. All segments will flash, FUEL will display in the LCD,
and the speedometer needle will blink. Refuel immediately.
7. Check Engine Warning Indicator - This indicator serves two
purposes. The word HOT displays if the engine overheats. It also
appears if an EFI-related fault occurs. Do not operate the vehicle if
this warning appears. Serious engine damage could result.
8. Mode Indicator
1
2
34
5
6
8
7
35
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Standard Modes
Use the MODE button to toggle through the mode options. The reverse
override button is also the MODE button. See page 20. The transmission
cannot be in reverse when using this feature.
Odometer Mode
The odometer records the miles or kilometers traveled by the Tractor.
Trip Meter Mode
The trip meter records the miles or kilometers traveled by the Tractor on
each trip if it's reset before each trip. To reset the trip meter, select the
trip meter mode. Press and hold the mode button (override button) until
the total changes to 0. In the Rider Information Center, the trip meter
display contains a decimal point, but the odometer displays without a
decimal point.
Hour Meter Mode
This mode logs the total hours the engine has been in operation.
Tachometer Mode
The engine RPM is displayed digitally. Small fluctuations in the RPM
from day to day may be normal because of changes in humidity,
temperature and elevation.
36
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Diagnostic Mode
The wrench icon will display when the gauge is in the diagnostic mode.
To exit the diagnostic mode, turn the key switch off and on. Any
movement of the tires will also cause the gauge to exit the diagnostic
mode.
To enter the diagnostics mode:
1. Turn the key switch off and wait 10 seconds.
2. Lock the parking brake.
3. Place the transmission in neutral.
4. Hold the mode/reverse override button and turn the key switch on.
Release the switch as soon as the display is activated.
5. Use the mode button to toggle through the diagnostic screens.
37
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Diagnostic Mode
Battery Voltage Screen
View this screen to check battery voltage level.
Tachometer Screen
View the tachometer to check engine speed.
4X4 Diagnostic Screen
The gauge indicates whether or not current is flowing through the 4X4
coil (only on models with switchable 4X4). This screen is for
informational purposes only. Please see your dealer for all major repairs.
Gear Circuit Diagnostic Screen
This screen displays the resistance value (in ohms) being read at the
gear switch input of the gauge. This screen is for informational purposes
only. Please see your dealer for all major repairs.
Programmable service interval
When the hours of engine operation equal the programmed service
interval setting, the wrench icon will flash for 5 seconds each time the
engine is started. When this feature is enabled, it provides a convenient
reminder to perform routine maintenance. See page 38.
The service interval is programmed at 50 hours at the factory.
38
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Diagnostic Mode
Programmable service interval
To enable or disable the service interval:
1. Enter the diagnostic mode.
2. Toggle to the service interval screen.
3. Press and hold the mode button for about 7 seconds, until either ON
or OFF appears in the Rider Information Center, depending on your
preference.
To reset the service interval:
1. Enter the diagnostic mode.
2. Toggle to the service interval screen.
3. Press and hold the mode button for 2-3 seconds, until the wrench
icon flashes. Release the button.
4. Press and release the mode button once to advance the setting by
one hour. Press and hold the mode button to advance the hours
quickly. If you scroll past the intended number, press and hold the
button until the hours cycle back to zero.
5. When the desired setting is displayed, wait until the wrench icon
stops flashing. The new service interval is now programmed.
39
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Diagnostic Mode
Miles/Kilometers toggle
The display in the tripmeter and odometer can be changed to display
either standard or metric units of measurement.
1. Enter the diagnostic mode.
2. Toggle to the screen that displays either kilometers (KM) or miles
(MP).
3. Press and hold the mode button until the letters flash, then press and
release the button once. When the display stops flashing, the mode
has been set.
Downloading Codes
The EFI diagnostic mode is for informational purposes only. Please see
your POLARIS dealer for all major repairs.
See page 41 for Blink Codes and Failure Descriptions. Use the
following procedure to download blink codes (failure codes) from the
EFI module.
1. Place the transmission in
PARK. Stop the engine.
Turn the key switch to the
ON position.
2. Turn the key switch off and
on three times in less than
five seconds. The word
“WAIt” will appear on the
screen.
40
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Downloading Codes
3. The Check Engine icon will blink once, pause, then blink twice
(blink code 12) to begin the diagnostic sequence. The EFI module is
now searching for blink codes. If a code exists, the Check Engine
icon will flash the code.
4. Count the number of times the Check Engine icon flashes.
Example: For the two blink codes 42 and 36, the Check Engine icon will
flash 4 times, pause, then flash 2 times (code 42), then pause longer,
blink 3 times, pause, and blink 6 times (code 36).
5. A code 61 will signal the end of the sequence. If no blink codes are
found, only codes 12 and 61 will appear during the sequence. The
word “WAIt” will remain on the screen through this entire process.
Code Definitions
Open Load:
There is a break in the wires that lead to the item listed in
the chart (injector, fuel pump, etc.), or the item has failed.
Short-to-Ground:
The wire is shorted to ground between the electronic
control unit and the item listed in the chart.
Shorted Load:
The wires leading to the item listed in the chart are
shorted together, or the item has shorted internally.
Short-to-Battery:
The wire leading from the item listed in the chart to
the electronic control unit is shorted to a wire at battery voltage.
41
FEATURES AND CONTROLS
Instrument Cluster
Rider Information Center
Downloading Codes
Blink
Code
Failure Description
12 BEGIN SEQUENCE
22 Throttle Position Sensor Low
22 Throttle Position Sensor High
25 Gear Sensor Signal
31 System Voltage Low
31 System Voltage High
36 Ignition Coil A Prim/Sec Circuit Malfunction: Open Load/Short-to-Ground
36 Ignition Coil A Prim/Sec Circuit Malfunction: Shorted Load/Short-to-Battery
37 Ignition Coil B Prim/Sec Circuit Malfunction: Open Load/Short-to-Ground
37 Ignition Coil B Prim/Sec Circuit Malfunction: Shorted Load/Short-to-Battery
41 Air Temp Sensor Low Voltage
41 Air Temp Sensor High Voltage
42 Engine Coolant Temp Low Voltage
42 Engine Coolant Temp High Voltage
44 Crank Position Sensor Circuit Fault
45 Barometric Pressure/Manifold Air Pressure Sensor Low
46 Barometric Pressure/Manifold Air Pressure Sensor High
47 IAC Stepper Motor: Open Load
47 IAC Stepper Motor: Short-to-Ground
51 Injector Circuit Malfunction - Cyl 1: Open Load/Short-to-Ground
51 Injector Circuit Malfunction - Cyl 1: Shorted Load/Short-to-Battery
52 Injector Circuit Malfunction - Cyl 2: Open Load/Short-to-Ground
52 Injector Circuit Malfunction - Cyl 2: Shorted Load/Short-to-Battery
55 MIL Circuit: Open Load/Short-to-Ground
55 MIL Circuit: Shorted Load/Short-to-Battery
56 Fuel Pump: Open Load/Short-to-Ground
56 Fuel Pump: Shorted Load/Short-to-Battery
58 Fan Circuit: Open Load/Short-to-Ground
58 Fan Circuit: Shorted Load/Short-to-Battery
59 ADC: Open Load/Short-to-Ground
59 ADC: Shorted Load/Short-to-Battery
63 Starter Enable: Open Load/Short-to-Ground
63 Starter Enable: Shorted Load/Short-to-Battery
72 Gear Sensor Signal
73 4X4: Open Load/Short-to-Ground
73 4X4: Shorted Load/Short-to-Battery
61 END SEQUENCE
42
OPERATION
Break-In Period
The break-in period for your new POLARIS Tractor is the first ten hours
of operation, or the time it takes to use the first two full tanks of
gasoline. No single action on your part will increase the life and
performance of your Tractor more than following the procedures for a
proper break-in. Careful treatment of a new engine and drive
components will result in more efficient performance and longer life for
these components.
Do not operate at full throttle or high speeds for extended periods during
the first three hours of use.
Engine and Drivetrain Break-in
1. Fill the fuel tank with the recommended fuel. See page 27.
2. Check the engine oil level. See page 80. Add oil if necessary.
3. Select an open area that allows room to familiarize yourself with
vehicle operation and handling.
4. Drive slowly. Vary the throttle positions. Do not operate at sustained
idle.
5. Perform regular checks on fluid levels, controls and areas outlined
on the daily pre-ride inspection checklist. See page 43.
6. Pull only light loads.
7. Change both the oil and the filter at 25 hours or one month,
whichever comes first.
8. Check fluid levels of transmission and all gearcases after the first 25
hours of operation and every 100 hours thereafter.
PVT Break-in (Clutches/Belt)
Break in the clutches and belt by operating at slower speeds during the
break-in period as recommended. Pull only light loads. Avoid
aggressive acceleration and high speed operation during the break-in
period.
If a belt fails, always clean away all debris when replacing the belt.
43
OPERATION
Pre-Ride Checklist
Item Remarks Page
Hand brake/lever travel Ensure proper operation 97
Foot brake Ensure proper operation 97
Brake fluid Ensure proper level 97
Front suspension Inspect, lubricate if necessary 79
Rear suspension Inspect, lubricate if necessary 79
Steering/steering lock Unlock the steering; ensure free oper-
ation
27
Steering Ensure free operation -
Tires Inspect condition and pressure 102
Wheels/fasteners Inspect, ensure fastener tightness 102
103
Frame nuts, bolts, fasteners Inspect, ensure tightness -
Fuel and oil Ensure proper levels 27
80
Coolant level (if applicable) Ensure proper level 92
93
Coolant hoses (if applicable) Inspect for leaks -
Throttle Ensure proper operation 23
101
Indicator lights/switches Ensure operation 20
Engine stop switch Ensure proper operation 21
Mirrors Adjust for best side/rear vision 23
Air filter, pre-filter Inspect, clean 104
Air box sediment tube Drain deposits whenever visible -
Headlamp Check operation, apply POLARIS
dielectric grease when lamp is
replaced
107
Brake light/taillight Check operation, apply POLARIS
dielectric grease when lamp is
replaced
108
Riding gear Wear approved helmet, goggles, and
protective clothing
8
ADC Fluid Ensure proper level 90
Front Hitch Remove the front hitch (if installed) 28
Winch Inspect cable and switch 62-73
44
OPERATION

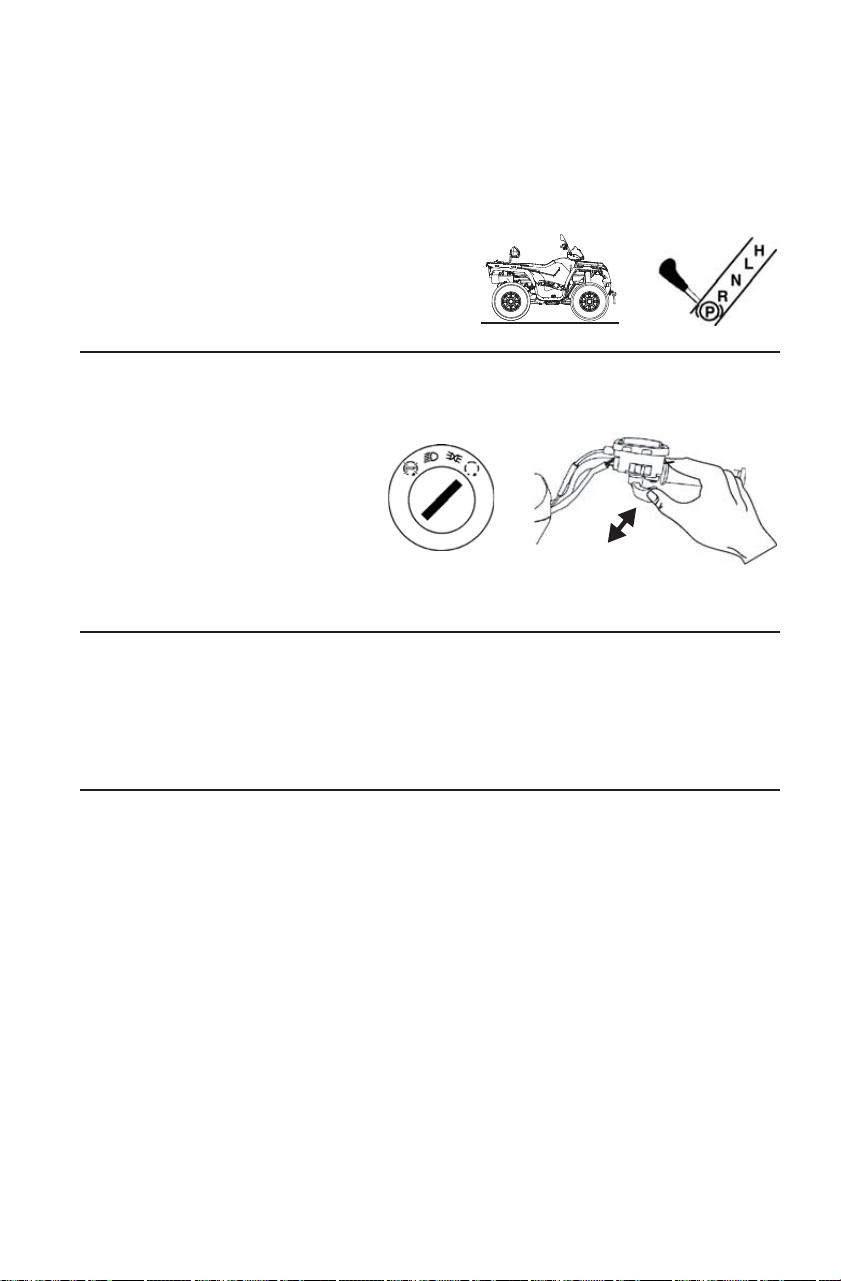

Starting the Engine
NOTICE: Operating the vehicle immediately after starting could cause engine
damage. Allow the engine to warm up for several minutes before
operating.
1. Position the vehicle on a level
surface.
2. Place the transmission in PARK
(or neutral).
3. Depress hand brake and board the tractor by stepping onto the
running board, and straddle the tractor seat.
4. Apply the brakes.
5. Move the engine stop switch to RUN.
6. Do not press the throttle while starting the engine.
7. Turn the ignition key past the PARKING
LIGHTS ON position to engage the
starter. Activate the starter for a
maximum of five seconds, releasing the
key when the engine starts.
8. If the engine does not start, release the
starter and wait five seconds.
9. Repeat steps 7 and 8 until the engine
starts.
Stopping the Engine
1. Apply the brakes to stop the vehicle.
2. Place the transmission in PARK.
3. Turn the ignition key to the STOP (OFF) position or press the
engine stop switch down to stop the engine.
45
OPERATION
Leaving the Tractor
1. Position the vehicle on a level surface.
2. Place the transmission in PARK.
3. Turn engine power off and remove the key.
4. Dismount the vehicle.
Cold Weather Operation
Internal engine condensation increases as outside temperatures
decrease. If the vehicle is used year-round, check the oil level
frequently. A rising oil level could indicate condensation in the bottom
of the oil tank, which can lead to engine damage. Any condensation
must be drained.
Always operate the engine long enough to reach operating temperature,
which reduces condensation. See your POLARIS dealer for engine
heater kits, which provide quicker warm-ups and easier starting in cold
weather.
PVT Operation
When To Use Low Range and High Range
Condition Range to Use
Operating at speeds less than 11 km/h Low
Towing heavy loads Low
Operating in rough or rugged terrain Low
Operating at speeds greater than 11 km/h High
46
OPERATION

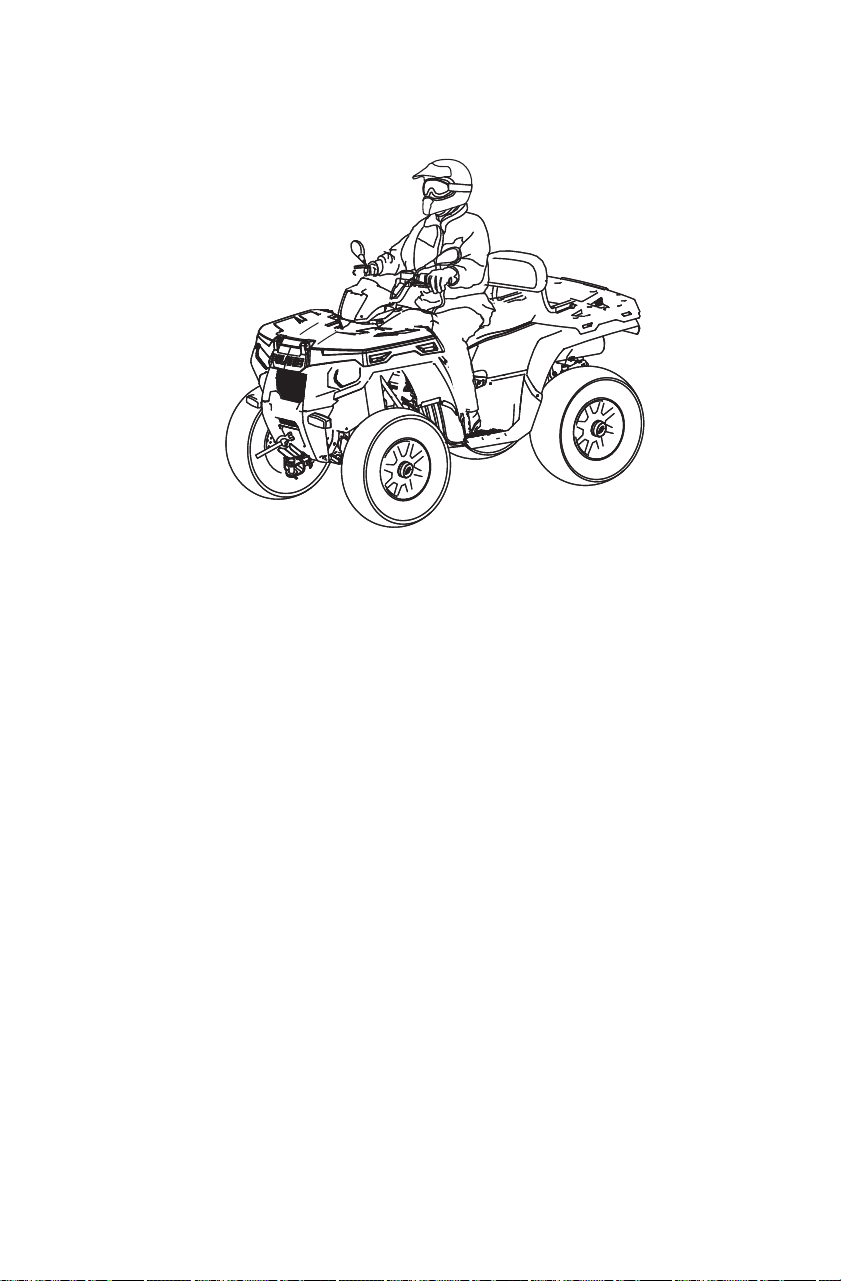

Driving Procedures
1. Wear protective riding gear. See page 8.
2. Perform the pre-ride inspection. See page 43.
3. Sit upright. Keep your feet on the footrests. Keep both hands on the
handlebars.
4. Start the engine and allow it to warm up.
5. Apply the brakes.
6. Shift the transmission into gear.
7. Check your surroundings and determine your path of travel.
8. Release the brakes.
9. Slowly squeeze the throttle lever toward the handlebar to begin
driving.
10. Drive slowly. Practice maneuvering and using the throttle and
brakes on level surfaces.
47
OPERATION
Turning the Vehicle
1. Before turning, activate
a turn signal to alert
others of your intentions.
Activate the left signal
before a left turn.
Activate the right signal
before a right turn.
2. Steer in the direction of
the turn, leaning your
upper body to the inside
of the turn while
supporting your weight
on the outer footrest.
Use the same leaning
technique for turning in
reverse.
3. Never turn quickly when
carrying cargo.
4. Practice making turns at
slow speeds before
attempting to turn at
faster speeds.
Always follow the procedures
outlined in this manual for turning.
Never turn sharply at excessive
speeds, which can lead to vehicle
rollover.
48
OPERATION
Driving Uphill
Whenever traveling uphill, follow these precautions:
1. Always move the 4X4 switch to ADC 4X4 before ascending or
descending a hill. See page 32.
2. Avoid steep hills (25° maximum).
3. Avoid hills with slippery or loose surfaces.
4. Keep both feet on the footrests.
5. Shift body weight uphill.
6. Drive straight uphill.
7. Proceed at a steady rate of speed to avoid stalling.
8. Be alert. Be prepared to take emergency action. This may include
dismounting quickly.
9. Never open the throttle suddenly or make sudden gear changes.
10. Never go over the top of a hill at high speed.
25° Maximum
49
OPERATION
Driving Uphill
If all forward speed is lost:
Keep your weight uphill.
If the vehicle begins rolling downhill, never apply engine power. Never
apply the brakes aggressively while rolling backwards.
1. Apply the brakes gradually.
2. When fully stopped, lock the hydraulic parking brake.
3. Dismount on the uphill side, or on the left side if the vehicle is
pointed straight uphill.
4. Use the K-turn to turn around. See page 52.
Always follow the procedures outlined in this
manual for climbing hills. Avoid climbing hills
steeper than 25°.
Always follow the procedures outlined in this
manual for braking if you stall or roll
backwards while climbing a hill. Never back
down a hill.
50
OPERATION
Driving on a Sidehill (Sidehilling)
Avoid crossing the side of a hill (sidehilling) if possible. If sidehilling is
necessary, follow these precautions:
1. Slow down.
2. Avoid hills with slippery or loose surfaces.
3. Avoid crossing the sides of steep hills.
4. Shift your weight uphill.
5. Keep your feet on the footrests.
6. If the vehicle begins to tip, quickly turn the front wheel downhill, if
possible, or dismount on the uphill side immediately!
Always follow the procedures outlined in this
manual for crossing the side of a hill.
Never attempt to turn the Tractor around on
any hill until you've mastered (on level
ground) the turning technique outlined in this
manual.
51
OPERATION
Driving Downhill
When driving downhill, follow these precautions:
1. Always move the 4X4 switch to ADC 4X4 before ascending or
descending a hill. See page 32.
2. Avoid steep hills (25° maximum).
3. Avoid hills with slippery or loose surfaces.
4. Never drive downhill at high speed. Slow down.
5. Drive straight downhill. Avoid driving downhill at an angle, which
can cause the vehicle to pitch sharply to one side.
6. Shift your weight rearward.
7. Apply the brakes slightly to aid in slowing.
Always follow the procedures outlined in this
manual for driving downhill and for braking
on hills.
52
OPERATION
Turning Around on a Hill (K-Turn)
If the vehicle stalls while climbing a hill, never back it down the hill!
Use the K-turn to turn around.
1. Stop the vehicle. Keep your weight uphill.
2. Always move the 4X4 switch to ADC 4X4 before ascending or
descending a hill. See page 32.
3. Lock the hydraulic parking brake.
4. Leave the transmission in forward gear. Turn the engine off.
5. Dismount on the uphill side, or on the left side if the vehicle is
pointed straight uphill.
6. Stay uphill of the vehicle and turn the handlebars full left.
7. Squeeze the brake lever to release the parking brake.
8. Slowly release the brake lever and allow the vehicle to roll around
to your right until it's pointing across the hill or slightly downward.
2.4 m
53
OPERATION
Turning Around on a Hill (K-Turn)
9. Lock the hydraulic parking brake.
10. Remount from the uphill side. Keep your weight uphill.
11. Apply the foot brake.
12. With the transmission still in forward, start the engine.
13. Squeeze and release the brake lever to release the parking brake.
14. Release the foot brake and drive slowly downhill. Control speed
with either the hand or foot brake until the vehicle is on level
ground.
Always follow the procedures outlined in this
manual for climbing hills. Avoid climbing hills
steeper than 25°.
Always follow the procedures outlined in this
manual for braking if you stall or roll
backwards while climbing a hill. Never back
down a hill.
54
OPERATION
Driving Through Water
Follow these procedures when driving through water:
1. Check water depth and current before crossing.
2. Choose a crossing where both banks have gradual inclines.
3. Drive slowly. Avoid rocks and obstacles.
4. Avoid operating in water deeper than the bottom of the footrests. If
it's unavoidable, travel slowly, balance your weight carefully and
avoid sudden movements. Maintain a slow and steady forward
motion. Do not make sudden turns, stops or throttle changes.
5. Wet brakes may have reduced stopping ability. Dry the brake pads
by driving slowly and applying the brakes lightly several times until
braking action is normal.
Maximum
Depth
55
OPERATION
Driving Through Water
If your vehicle becomes fully immersed, and it's impossible to take it to
a dealer before starting it, follow the steps described on page 112. Have
the vehicle serviced by your dealer promptly.
Always follow the procedures outlined in this
manual for driving through water. Never drive
through deep or fast-flowing water.
If the vehicle stops while fully submerged, major engine damage can result if the
machine is not thoroughly inspected. Take the vehicle to your dealer before
starting the engine.
56
OPERATION
Driving on Slippery Surfaces
Always follow the procedures outlined in this manual for operating on slippery or
loose surfaces. Use extra caution. Always avoid skidding or sliding.
Whenever driving on slippery or loose surfaces such as wet trails,
gravel, snow or ice, follow these precautions:
1. Slow down before driving onto slippery surfaces.
2. Engage 4X4 before wheels begin to lose traction.
3. Be alert. Watch the trail.
4. Avoid quick, sharp turns.
5. Correct a skid by turning the handlebars in the direction of the skid
and shifting your body weight forward.
6. Never apply the brakes during a skid.
NOTICE: Severe damage to drive train may occur if 4X4 is engaged while the
wheels are spinning. Engage 4X4 when the wheels have traction.
Sideways
skid
Turn in
direction of
skid
57
OPERATION
Driving Over Obstacles
1. Always check for obstacles before operating in a new area.
2. Be alert. Watch the terrain. Use extra caution.
3. Never operate over large obstacles.
4. Avoid hazards such as logs, rocks and low branches.
Parking on an Incline
Avoid parking on an incline.
If it's unavoidable, follow
these precautions:
1. Stop the engine.
2. Place the transmission
in PARK.
3. Always block the rear
wheels on the downhill
side.
58
OPERATION
Driving in Reverse
Follow these precautions when operating in reverse:
1. Always check for obstacles or people behind the vehicle before
backing.
2. Avoid backing downhill.
3. Drive slowly. Apply the brakes lightly for stopping.
4. Avoid turning at sharp angles.
5. Never open the throttle suddenly.
6. Do not use the override switch unless additional power is required
for vehicle movement. Use with caution.
NOTICE: Excessive throttle operation while in the speed limit mode may cause
fuel to build in the exhaust, resulting in engine popping and/or engine
damage.
59
OPERATION
Hauling Cargo
Overloading the vehicle or carrying or towing cargo improperly can alter vehicle
handling and may cause loss of control or brake instability. Always follow these
precautions when hauling cargo.
• Read and understand the load distribution warnings listed on the vehicle
warning labels.
• NEVER EXCEED THE MAXIMUM WEIGHT CAPACITY of the vehicle. When
determining the weight you are adding to the vehicle, include the weight of
the operator, accessories, loads in the racks and the load on the trailer
tongue. The combined weight of these items must not exceed the maximum
weight capacity.
• REDUCE SPEED AND ALLOW GREATER DISTANCES FOR BRAKING
WHEN HAULING CARGO OR TOWING. Use extreme caution when applying
brakes. Avoid situations that require backing downhill.
• When operating over rough or hilly terrain, reduce speed, cargo and towed
load to maintain stable driving conditions.
• DO NOT BLOCK THE FRONT HEADLIGHT BEAM when carrying loads on
the front rack.
• CARRY LOADS AS LOW ON THE RACK AS POSSIBLE. Carrying a load
high on the rack raises the center of gravity of the vehicle and creates a less
stable operating condition. Reduce load weight when cargo is high. Secure
off-centered loads that cannot be centered and operate with extra caution.
• CARRYING A LOAD on only one rack may cause the vehicle to overturn.
Split the load between the front rack and rear rack, with 1/3 in the front and 2/
3 in the back. Do not exceed load capacities. See specifications beginning on
page 130.
• SECURE ALL LOADS BEFORE OPERATING. Unsecured loads can create
unstable operating conditions, which could result in loss of control of the
vehicle.
• OPERATE ONLY WITH STABLE AND SAFELY ARRANGED LOADS. When
handling off-centered loads that cannot be centered, securely fasten the load
and operate with extra caution. Always attach the tow load to the hitch point
designated for your vehicle.
• USE EXTREME CAUTION when operating with loads that extend over the
rack sides. Stability and maneuverability may be adversely affected, causing
the vehicle to overturn.
• TOWING is approved OFF-ROAD ONLY. Operating a Tractor/trailer
combination on public roads is prohibited.
• TOWING SPEED should never exceed 16 km/h. Never exceed 8 km/h when
towing loads in rough terrain, while cornering, or while ascending or
descending hills.
60
OPERATION
Hauling Cargo
Always read and understand the load distribution warning labels on the
vehicle. Never exceed the weight capacities specified for this vehicle.
Towing Loads
Follow the instructions listed below before towing a trailer.
Stay clear from the area between the tractor and the trailed vehicle.
Towing is approved OFF-ROAD ONLY. Operating a Tractor/trailer
combination on public roads is prohibited. See your POLARIS dealer
about configuring the vehicle to be certified to tow a trailer on-road. Do
not tow any trailer on a grade steeper than 15°.
• Use the front hitch for vehicle recovery or towing only. Always
remove the front hitch before operating in forward gear.
• The combination of rear rack cargo weight and tongue weight must
not exceed the rear rack capacity.
• The total load (operator, accessories, cargo and weight on hitch) must
not exceed the maximum weight capacity of the vehicle.
Capacities Rear Hitch Front Hitch
Maximum Towed Load (Level Ground) 557 kg 386 kg
Maximum Vertical Hitch Weight 55 kg 39 kg
1/3
2/3
61
OPERATION
Hauling Cargo
Towing Loads
Using an improper hitch or exceeding the maximum
tongue weight capacity can result in serious damage
to the vehicle and will void your warranty. Never
install a hitch longer than 10 cm. Never install
automotive accessories on your POLARIS Tractor.
Always install POLARIS-approved (or equivalent)
accessories designed for Tractor use.
Towing Tractor
• In order to properly tow the Tractor, install the front receiver hitch.
• Only connect tow strap to POLARIS approved front hitch pin. Be
sure to lock pin before towing.
• Place the tractor in NUETRAL before towing.
• Always tow at low speeds.
Maximum
10 cm
62
WINCH GUIDE
These safety warnings and instructions apply if your vehicle came
equipped with a winch or if you choose to add an accessory winch to
your vehicle.
Improper winch use can result in SEVERE INJURY or DEATH. Always follow all
winch instructions and warnings in this manual.
Your winch may have a cable made of either wire rope or specially
designed synthetic rope. The term “winch cable” will be used for either
unless noted otherwise.
Winch Safety Precautions
1. Read all sections of this manual.
2. Never use alcohol or drugs before or while operating the winch.
3. Never allow children under 16 years of age to operate the winch.
4. Always wear eye protection and heavy gloves when operating the
winch.
5. Always keep body, hair, clothing and jewelry clear of the winch
cable, fairlead and hook when operating winch.
6. Never attempt to “jerk” a load attached to the winch with a moving
vehicle. See the Shock Loading section on page 71.
7. Always keep the area around the vehicle, winch, winch cable and
load clear of people (especially children) and distractions while
operating the winch.
8. Always turn the vehicle ignition power OFF when it and the winch
are not being used.
9. Always be sure that at least five (5) full turns of winch cable are
wrapped around the winch drum at all times. The friction provided
by this wrapped cable allows the drum to pull on the winch cable
and move the load.
10. Always apply your vehicle’s park brake and/or park mechanism to
hold the vehicle in place during winching. Use wheel chocks if
needed.
WARNING
63
WINCH GUIDE
Winch Safety Precautions
11. Always align the vehicle and winch with the load directly in front of
the vehicle as much as possible. Avoid winching with the winch
cable at an angle to the winching vehicle’s centerline whenever
possible.
12. If winching at an angle is unavoidable, follow these precautions:
A. Look at the winch drum occasionally. Never let the winch cable “stack”
or accumulate at one end of the winch drum. Too much winch cable at
one end of the winch drum can damage the winch and the winch cable.
B. If stacking occurs, stop winching. Follow step 15 on page 69 to feed
and rewind the cable evenly before continuing the winch operation.
13. Never winch up or down at sharp angles. This can destabilize the
winching vehicle and possibly cause it to move without warning.
14. Never attempt to winch loads that weigh more than the winch’s
rated capacity.
15. The winch motor may become hot during winch use. If you winch
for more than 45 seconds, or if the winch stalls during operation,
stop winching and permit the winch to cool down for 10 minutes
before using it again.
16. Never touch, push, pull or straddle the
winch cable while winching a load.
17. Never let the winch cable run through
your hands, even if wearing heavy
gloves.
18. Never release the clutch on the winch
when the winch cable is under load.
19. Never use the winch for lifting or
transporting people.
64
WINCH GUIDE
Winch Safety Precautions
20. Never use the winch to hoist or suspend a vertical load.
21. Never immerse or submerse your winch in water. Take your winch
to your dealer for service if this occurs.
22. Always inspect your winch and winch cable before each use.
23. Never winch the hook fully into the winch. This can cause damage
to winch components.
24. Unplug the remote control from the vehicle when the winch is not in
use to prevent inadvertent activation and use by unauthorized
persons.
25. Never grease or oil the winch cable. This will cause the winch cable
to collect debris that will shorten the life of the cable.
65
WINCH GUIDE
Winch Operation
Read the Winch Safety Precautions in the preceding pages before using
your winch.
Tip: Consider practicing the operation and use of your winch before you actually
need to use it in the field.
Improper winch use can result in SEVERE INJURY or DEATH. Always follow all
winch instructions and warnings in this manual.
Each winching situation is unique.
• Take your time to think through the winching you are about to do.
• Proceed slowly and deliberately.
• Never hurry or rush during winching.
• Always pay attention to your surroundings.
• You may need to change your winching strategy if it is not working.
• Always remember that your winch is very powerful.
• There are simply some situations that you and your winch will not be able
to deal with. Do not be afraid to ask others to help when this happens.
1. Always inspect the vehicle, winch, winch cable and winch controls
for any signs of damage or parts in need of repair or replacement
before each use. Pay particular attention to the first 3 feet (1 meter)
of winch cable if the winch is being used (or has been used) for lift-
ing an accessory plow assembly. Promptly replace any worn or
damaged cable.
2. Never operate a winch or a vehicle in need of repair or service.
3. Always apply your vehicle’s
park brake and/or park
mechanism to hold the vehicle
in place during winching. Use
wheel chocks if needed.
WARNING
Hook Strap
66
WINCH GUIDE
Winch Operation
4. Always use the hook strap when
handling the hook.
WARNING! Never put your fingers into
the hook. This could lead to SEVERE
INJURY.
A. Attach the hook itself onto the
load or use a tow strap or chain
to secure the load to the winch
cable.
Tip: A “tow strap” is NOT intended to stretch. A “recovery strap” is designed to
stretch.
WARNING! Never use a recovery strap when winching due to the excessive
energy that can be released if the winch cable breaks. This can result in
SEVERE INJURY or DEATH. See the Shock Loading section on page 71.
B. Never hook the winch cable back onto itself. This will damage the
winch cable and may result in winch cable failure.
WARNING! Replace the winch cable at the first sign of damage to prevent
SEVERE INJURY or DEATH in the event of failure. For your safety, always
replace POLARIS winch parts (including the cable) with genuine POLARIS
replacement parts available at your authorized POLARIS dealer.
C. If possible, keep the winch cable aligned with the centerline of the
winching vehicle. This will help the spooling of the winch cable and
reduce the load on the fairlead.
D. If freeing a stuck vehicle by attaching to a tree, use an item such as a
tow strap to avoid damaging the tree during winch operation. Sharp
cables and chains can damage and even kill trees. Please remember
to TreadLightly® (treadlightly.org).
E. Before operating the winch, be sure
that the safety latch on the winch
cable hook is fully seated when the
load is attached.
F. Never operate your winch with a
damaged hook or latch. Always
replace damaged parts before using
the winch.
NO YES
NO
YES
67
WINCH GUIDE
Winch Operation
5. Never remove the hook strap from the hook.
6. Release the winch clutch and pull out the winch cable.
7. Pulling out as much cable as possible maximizes the winch’s pulling
capacity. Always be sure that at least five (5) full turns of winch
cable are wrapped around the winch drum at all times. The friction
provided by this wrapped cable allows the drum to pull on the
winch cable and move the load.
8. Read and adhere to the following information for winch damping to
ensure safe winch use.
A. In order to absorb energy that could be released by a winch cable
failure, always place a “damper” on the winch cable. A damper can be
a heavy jacket, tarp, or other soft, dense object. A damper can absorb
much of the energy released if a winch cable breaks when winching.
Even a tree limb can help as a damper if no other items are available to
you.
B. Lay the damper on top of the mid-point of the winch cable length that is
spooled out.
C. On a long pull, it may be necessary to stop winching so that the
damper can be repositioned to the new mid-point of the winch cable.
Always release the tension on the winch cable before repositioning the
damper.
D. Avoid being directly in line with the winch cable whenever possible.
Also, never permit others to stand near or in line with the winch cable
during winch operation.
9. Never hook the winch cable back onto itself. This will damage the
winch cable and may result in winch cable failure.
10. Never use straps, chains or other rigging items that are damaged or
worn.
68
WINCH GUIDE
Winch Operation
11. The ONLY time a winch-equipped vehicle should be moving when
using the winch is when that vehicle itself is stuck. The winch-
equipped vehicle should NEVER be in motion to “shock” load the
winch cable in an attempt to move a second stuck vehicle. See the
Shock Loading section on page 71. For your safety, always follow
these guidelines when winching a vehicle free:
A. Release the winch clutch and spool out the necessary length of winch
cable.
B. Align the winch cable as close as possible to the winching vehicle’s
centerline.
C. Attach the winch cable hook to the anchor point or the stuck vehicle’s
frame following instructions in this manual.
D. Re-engage the clutch on the winch.
E. Slowly winch in the slack in the winch cable.
F. Select the proper vehicle gear to propel the stuck vehicle in the
direction of winching.
G. Shift to the lowest gear available on the stuck vehicle.
H. Slowly and carefully apply vehicle throttle and winch together to free
the vehicle.
I. Stop winching as soon as the stuck vehicle is able to propel itself
without the help of the winch.
J. Detach the winch cable hook.
K. Rewind the winch cable evenly back onto the winch drum following the
instructions in this manual.
12. Never attempt to winch another stuck vehicle by attaching the
winch cable to a suspension component, brush guard, bumper or
cargo rack. Vehicle damage may result. Instead, attach the winch to
a strong portion of the vehicle frame or hitch.
69
WINCH GUIDE
Winch Operation
13. Extensive winching will run down the battery on the winching
vehicle. Let the winching vehicle’s engine run while operating the
winch to prevent the battery from running low if winching for long
periods.
14. The winch motor may become hot during winch use. If you winch
for more than 45 seconds, or if the winch stalls during operation,
stop winching and permit the winch to cool down for 10 minutes
before using it again.
15. After winching is complete, especially if winching at an angle, it
may be necessary to re-distribute the winch cable across the winch
drum. You will need an assistant to perform this task.
A. Release the clutch on the winch.
B. Feed out the winch cable that is unevenly bunched up in one area.
C. Re-engage the winch clutch.
D. Have an assistant pull the winch cable tightly with about 100 lbs. (45
kg) of tension using the hook strap.
E. Slowly winch the cable in while your assistant moves the end of the
winch cable back and forth horizontally to evenly distribute the winch
cable on the drum.
F. Doing this reduces the chances of the winch cable “wedging” itself
between lower layers of winch cable.
70
WINCH GUIDE
Winch Cable Care
For your safety, always replace POLARIS winch parts (including the
cable) with genuine POLARIS replacement parts available at your
authorized POLARIS dealer.
WARNING! Use of worn or damaged cable could lead to sudden failure and
SEVERE INJURY.
1. Always inspect your winch before each use. Inspect for worn or
loose parts including mounting hardware. Never use the winch if
any part needs repair or replacement.
2. Always inspect your winch cable before each use. Inspect for worn
or kinked winch cable.
A. A kinked winch cable made of
wire rope is shown at right. Even
after being “straightened out,”
this cable has already been
permanently and severely
damaged. Promptly discontinue
use of a winch cable in this
condition.
B. A kinked winch cable made of
wire rope that has been
“straightened out” is shown at
right. Even though it may look
usable, the cable has been
permanently and severely damaged. It can no longer transmit the load
that it could prior to kinking. Promptly discontinue use of a winch cable
in this condition.
C. A winch cable made of
synthetic rope should be
inspected for signs of fraying.
Replace the cable if fraying is
observed (shown at right).
Promptly discontinue use of a
winch cable in this condition.
D. Also replace the winch cable if there are fused or melted fibers. Such
an area of the synthetic rope will be stiff and appear smooth or glazed.
Promptly discontinue use of a winch cable in this condition.
A
B
C
71
WINCH GUIDE
Shock Loading
WARNING! Your winch cable is very strong but it is NOT designed for dynamic,
or “shock” loading. Shock loading may tension a winch cable beyond its strength
and cause the cable to break. The end of a broken winch cable under such high
loading can cause SEVERE INJURY or DEATH to you and other bystanders.
Winch cables are designed to NOT absorb energy. This is true of both
wire-rope and synthetic-rope winch cables.
1. Never attempt to “jerk” a load with the winch. For example, never
take up slack in the winch cable by moving the winching vehicle in
an attempt to move an object. This is a dangerous practice. It gener-
ates high winch cable loads that may exceed the strength of the
cable. Even a slowly moving vehicle can create large shock loads in
a winch cable.
WARNING! SEVERE INJURY or DEATH can result from a broken winch cable.
2. Never quickly turn the winch ON and OFF repeatedly (“jogging”).
This puts extra load on the winch, winch cable, and generates
excessive heat from the motor. This is a form of shock loading.
3. Never tow a vehicle or other object with your winch. Towing an
object with a winch produces shock loading of the cable even when
towing at slow speeds. Towing from a winch also positions the
towing force high on the vehicle. This can cause instability of the
vehicle and possibly lead to an accident.
72
WINCH GUIDE
Shock Loading
4. Never use recovery straps with your winch. Recovery straps are
designed to stretch and can store energy. This stored energy in the
recovery strap is released if a winch cable fails making the event
even more hazardous. Similarly, never use elastic “bungie” cords
for winching.
5. Never use the winch to tie down a vehicle to a trailer or other
transportation vehicle. This type of use also causes shock loading
that can cause damage to the winch, winch cable, or vehicles used.
Your winch cable is designed and tested to withstand the loads
produced by the winch motor when operated from a stationary
vehicle. Always remember that the winch and winch cable are NOT
designed for shock loading.
73
WINCH GUIDE
Winch Maintenance and Service Safety
WARNING! Improper or lack of winch maintenance and service could lead to
SEVERE INJURY or DEATH. Always follow all winch instructions and warnings
in this manual.
1. Always inspect your winch before each use. Inspect for worn or
kinked winch cable. Also inspect for worn or loose parts including
mounting hardware.
2. Permit your winch motor to cool down prior to servicing your
winch.
3. Never work on your winch without first disconnecting the battery
connections to prevent accidental activation of the winch.
4. For your safety, always replace POLARIS winch parts (including
the cable) with genuine POLARIS replacement parts available at
your authorized POLARIS dealer.
5. Some winch models use wire rope as the winch cable. Other
winches use a specially designed synthetic rope as the winch cable.
6. Never replace a synthetic-rope winch cable with a consumer-grade
polymer rope such as can be purchased in a hardware store.
Although they may look similar, they are NOT alike. A polymer
rope not designed for winch use will stretch and store excessive
energy when winching.
WARNING! Failure of a stretched rope under winching conditions will release
all of the stored energy. This will increase the chances of SEVERE INJURY or
DEATH.
74
EMISSION CONTROL SYSTEMS
Noise Emission Control System
Do not modify the engine, intake or exhaust components, as doing so
may affect compliance with governmental noise level requirements.
Spark Arrester
Your POLARIS vehicle has a spark arrester that was designed for on-
road and off-road operation. It is required that this spark arrester remain
installed and functional when the vehicle is operated.
Exhaust Emission Control System
Exhaust emissions are controlled by engine design. An electronic fuel
injection (EFI) system controls fuel delivery. The engine and EFI
components are set at the factory for optimal performance and are not
adjustable.
Electromagnetic Interference
This spark ignition system complies with USA requirements, Canadian
ICES-002 and EMC requirements of European directives 97/24/EC and
2004/108/EC.
Noise Declaration
Tractor Approval Extension 3, dated 12 Aug 11.
Driver Perceived level: 83.7 dBA per 2006/26.
Moving 83.1 dBA per 2006/26.
Vibration Declaration
Tractor confirms to 78/764/EEC: Agricultural Tractors Drivers Seat.
75
MAINTENANCE
Periodic Maintenance Chart
Maintenance intervals in the following chart are based upon average
riding conditions. Vehicles subjected to severe use must be inspected
and serviced more frequently.
The programmable service interval mode on the instrument cluster will
help determine when maintenance service is due. See page 33.
Record maintenance and service in the Maintenance Log beginning on
page 141.
Service and adjustments are important for proper vehicle operation. If
you're not familiar with safe service and adjustment procedures, have a
qualified dealer perform these operations.
Severe Use Definition
• Frequent immersion in mud, water or sand
• Racing or race-style high RPM use
• Prolonged low speed, heavy load operation
• Extended idle
• Short trip cold weather operation
Pay special attention to the oil level. A rise in oil level during cold
weather can indicate contaminants collecting in the oil sump or
crankcase. Change oil immediately if the oil level begins to rise.
Monitor the oil level, and if it continues to rise, discontinue use and
determine the cause or see your dealer.
NOTE:This vehicle does not have hydraulic hoses.
76
MAINTENANCE
Periodic Maintenance Chart
Maintenance Chart Key
Improperly performing the procedures marked with a “D” could result in
component failure and lead to serious injury or death. Have an authorized
POLARIS dealer perform these services.
Perform all services at whichever maintenance interval is reached first.
Symbol Description
Ź Perform these operations more often for vehicles subjected to severe use.
D Have an authorized POLARIS dealer perform these services.
Item Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Kilometers
Steering -
Pre-Ride
-
Inspect and make
adjustments as need ed.
See Pre-Ride Checklist on
page 43.
Front suspension - -
Rear suspension - -
Tires - -
Brake fluid level - -
Brake lever - -
Foot brake - -
Brake system - -
Passenger seat
lock-out
--
Wheels/fasteners - -
Frame fasteners - -
Ź Engine oil level - -
Winch - - See pages 62-73.
Ź Air filter, pre-filter - Daily - Inspect; clean often; replace
as needed
Ź Air box sediment
tube
- Daily - Drain deposits when visible
Coolant - Daily - Check level daily, change
coolant every 2 years
Ź ADC fluid - Daily - Check level daily, add as
needed
Headlight/taillight/
work light
- Daily - Check operation; apply
dielectric grease if replacing
lamps
77
MAINTENANCE
Periodic Maintenance Chart
Item Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Kilometers
Ź Air filter,main
element
- Weekly - Inspect; replace as needed
Ź
D
Brake pad wear 10 Monthly 160 Inspect periodically
Battery 20 Monthly 320 Check terminals; clean; test
Ź Engine oil change
(break-in)
25 1 M 400 Perform a break-in oil change
at one month
Ź Demand drive fluid
(extreme use)
25 1 M 400 Change fluid every 25 hours
if ADC is subjected to
extreme use. See page 88.
Ź Demand drive fluid 25 1 M 400 Break-in oil level check
Ź Rear gearcase oil
(if equipped)
25 1 M 400 Break-in oil level check
Ź Transmission oil 25 1 M 400 Break-in oil level check
Ź Engine breather
filter (if equipped)
25 Monthly 400 Inspect; clean if needed
Ź General lubrication 50 3 M 800 Lubricate all fittings, pivots,
cables, etc.
Shift linkage 50 6 M 800 Inspect, lubricate, adjust
D Steering 50 6 M 800 Lubricate
Ź Front suspension 50 6 M 800 Lubricate
Ź Rear suspension 50 6 M 800 Lubricate
D Throttle cable/
throttle release
switch
50 6 M 800 Inspect; adjust; lubricate;
replace if necessary
Throttle body
intake duct
50 6 M 800 Inspect duct for proper
sealing/air leaks
Drive belt 50 6 M 800 Inspect; adjust; replace as
needed
Cooling system 50 6 M 800 Inspect coolant strength
seasonally; pressure test
system yearly
Ź Engine oil change 100 6 M 1600 Perform a break-in oil change
at one month
Ź Oil filter change 100 6 M 1600 Replace with oil change
Ź Oil tank vent hose
(if equipped)
100 6 M 1600 Inspect routing, condition
78
MAINTENANCE
Periodic Maintenance Chart
Ź Perform these procedures more often for vehicles subjected to severe use.
D Have an authorized POLARIS dealer perform these services.
Item Maintenance Interval
(whichever comes first)
Remarks
Hours Calendar Kilometers
Ź Demand drive fluid
(normal use)
100 12 M 1600 Change fluid
Ź Rear gearcase oil 100 12 M 1600 Change fluid
Ź Transmission oil 100 12 M 1600 Change fluid
D Valve clearance 100 12 M 1600 Inspect; adjust
D Fuel system 100 12 M 1600 Check for leaks at tank cap,
lines, filter, pump; replace
lines every 2 years
Ź Radiator 100 12 M 1600 Inspect; clean external
surfaces
Ź Cooling hoses 100 12 M 1600 Inspect for leaks
Ź Engine mounts 100 12 M 1600 Inspect
Exhaust muffler/
pipe
100 12 M 1600 Inspect
D Spark plug 100 12 M 1600 Inspect; replace as needed
Ź Wiring 100 12 M 1600 Inspect for wear, routing,
security; apply dielectric
grease to connectors
subjected to water, mud, etc.
D Clutches (drive
and driven)
100 12 M 1600 Inspect; clean; replace worn
parts
D Front wheel
bearings
100 12 M 1600 Inspect; replace as needed
D Brake fluid 200 24 M 3200 Change every two years
D ADC fluid 200 24 M 3200 Change every two years
Ź
D
Fuel filter 200 24 M 3200 Replace every 2 years, more
often under severe use
Spark arrester 300 36 M 4800 Clean out
D Toe adjustment - Inspect periodically; adjust
when parts are replaced
Headlight aim - Adjust as needed
79
MAINTENANCE
Lubrication Guide
Check and lubricate all components at the intervals outlined in the
Periodic Maintenance Chart beginning on page 75. Items not listed in
the chart should be lubricated at the General Lubrication interval.
The a-arms and upper control arms are lubricated at the factory, and no
additional lubrication will be needed. However, if these components are
subjected to severe use, grease zerks have been provided for additional
lubrication at the user's discretion.
Item Lube Capacity at
Fluid Change
Method
Engine Oil PS-4 5W-50 4-Cycle Oil 2 qt. (1.9 l) See page 80.
Brake Fluid DOT 4 Brake Fluid --- See page 94.
Transmission Oil AGL Gearcase
Lubricant &
Transmission Fluid
32 oz. (948 ml) See page 86.
Demand Drive
Fluid (Front
Gearcase)
Demand Drive Fluid 9.3 oz. (275 ml) See page 88.
ADC Fluid Demand Drive Fluid --- See page 90.
Front Prop Shaft
Yoke
U-Joint Grease --- Grease fittings (3
pumps maximum)
every 800 km, before
long periods of
storage, or after
pressure washing or
submerging.
Front Prop Shaft Yoke
80
MAINTENANCE
Engine Oil
Oil Recommendations
Always change the oil filter whenever changing oil.
POLARIS recommends the use of POLARISPS-4 Full Synthetic 5W-50
4-cycle oil or a similar oil for this engine. Oil may need to be changed
more frequently if POLARIS oil is not used. Always use 5W-50 oil.
Follow the manufacturer's recommendations for ambient temperature
operation.
NOTICE: Mixing brands or using a non-recommended oil may cause serious
engine damage. Always use a recommended oil. Never substitute or
mix oil brands.
Oil Specifications
Lubricant Capacity Drain Plug Torque
PS-4 5W-50 4-Cycle Oil 1.9 liters 19-23 N-m
81

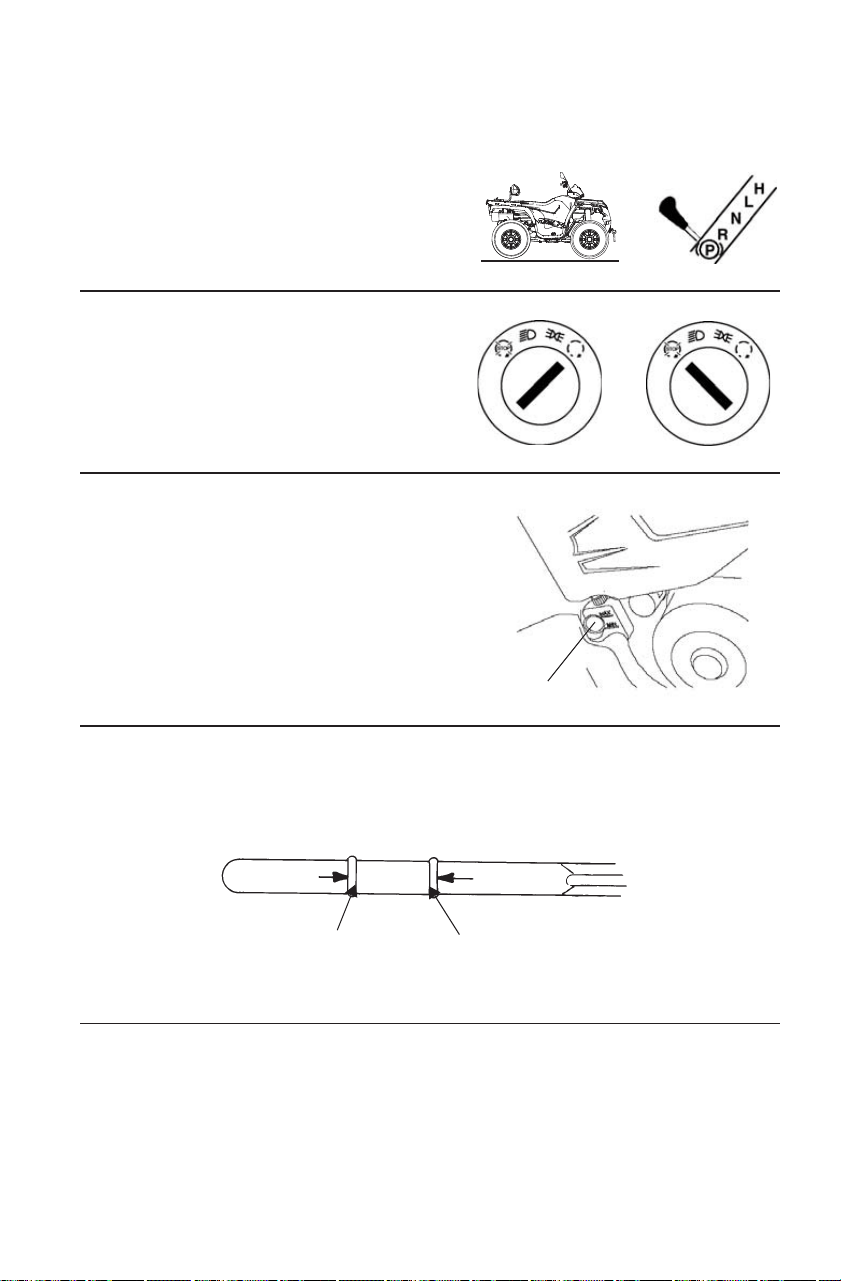

MAINTENANCE
Engine Oil
Oil Level
1. Position the vehicle on a level
surface.
2. Place the transmission in PARK.
3. Start the engine. Allow it to idle
for 30 seconds.
4. Stop the engine.
5. Remove the dipstick.
Wipe it dry with a clean
cloth.
6. Reinstall the dipstick
completely.
7. Remove the dipstick and check the oil level. Add oil as needed.
Maintain the oil level in the safe range. Do not overfill.
8. Reinstall the dipstick.
Dipstick
Safe
Add Oil
Safe Range
{
82
MAINTENANCE
Engine Oil

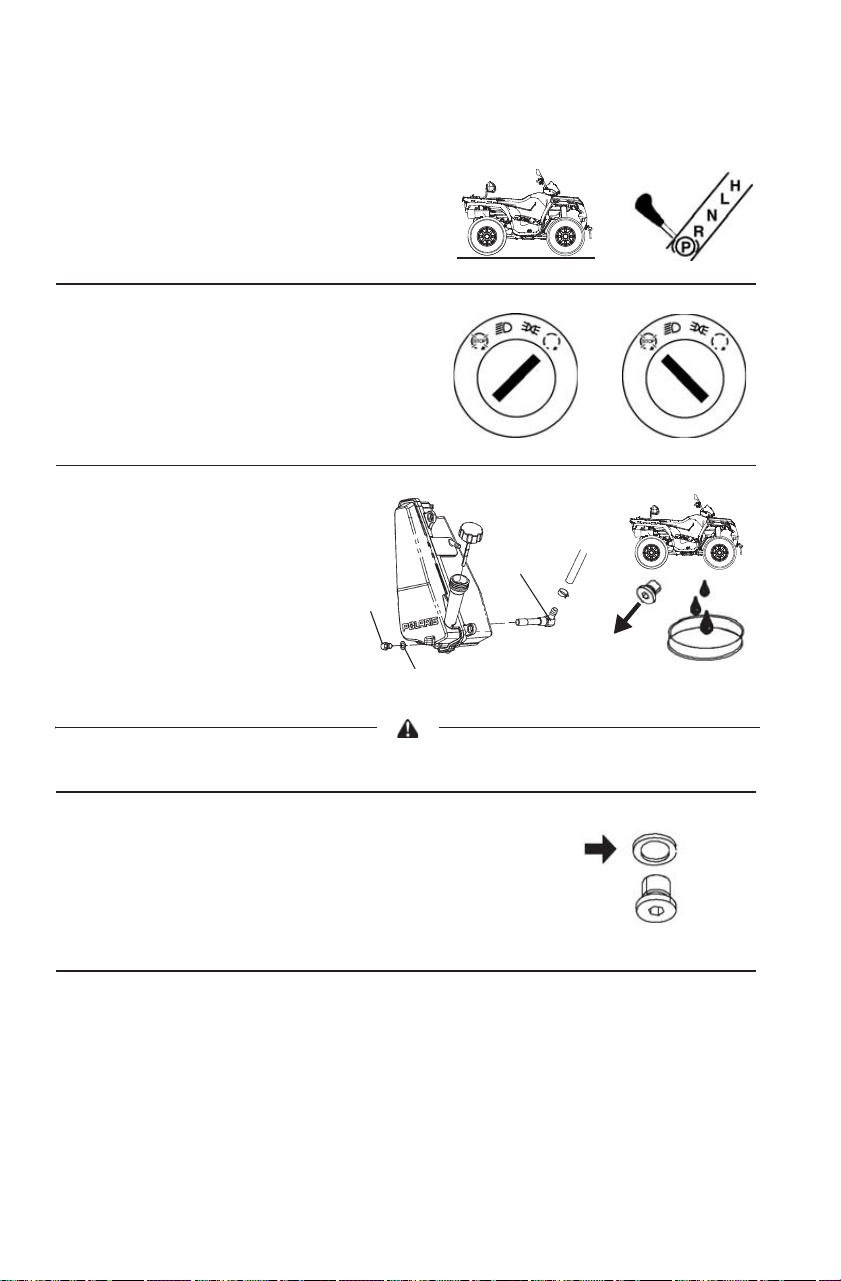

Oil and Filter Change
1. Position the vehicle on a level
surface.
2. Place the transmission in PARK.
3. Start the engine. Allow it to idle
for 30 seconds.
4. Stop the engine.
5. Clean the area
around the drain
plug.
6. Place a drain pan
under the oil tank.
7. Remove the drain
plug.
8. Drain the oil.
Hot oil may result in serious burns. Do not allow hot oil to contact skin.
9. Clean the drain plug. Reinstall the drain
plug with a new sealing washer.
10. Torque to specification. See page 80.
Drain
Plug
New Sealing Washer
Screen
Fitting
83
MAINTENANCE
Engine Oil
Oil and Filter Change
11. Disconnect the lower oil
delivery hose and remove the
screen fitting from the oil tank.
Clean the fitting. Seal the
fitting threads with LOCTITE
PST 505 or PTFE seal tape.
12. Reinstall the screen fitting and
rotate the fitting clockwise a
minimum of 2 1/2 turns into the
tank threads. Continue to rotate
the fitting until the nipple of the
fitting aligns with the mark on the tank. Do not over-tighten.
Maximum torque for the screen fitting is 34 N-m.
13. Reattach the oil line.
14. Place towels under the oil filter.
Using an oil filter wrench, turn the
filter counter-clockwise to remove it.
15. Clean the filter sealing area on the
crankcase.
16. Lubricate the filter o-ring. Check to make
sure the o-ring is in good condition.
17. Install the new oil filter. After the filter
contacts the crankcase surface, turn it 1/2
turn by hand.
18. Approximately one cup of engine oil will remain in the crankcase.
To drain, remove the drain plug on the lower right side of the
crankcase.
TIP: The sealing surfaces on the drain plug and crankcase should be clean and
free of burrs, nicks or scratches.
19. Reinstall the drain plug. Torque to 19 N-m.
Alignment Mark
84
MAINTENANCE
Engine Oil
Oil and Filter Change
20. Remove the dipstick.
21. Add 1.9 liters of recommended
oil.
TIP: If the sump is not drained, add
about 1.6 liters initially.
22. Reinstall the dipstick.
23. Place the transmission in PARK.
24. Prime the oil pump using the procedure
on page 85.
25. Stop the engine. Check for oil leaks.
26. Check the oil level.
Add oil as needed.
Maintain the oil level
in the safe range. Do
not overfill.
27. Reinstall the dipstick.
28. Discard used oil and
filter properly.
Safe
Add Oil
Safe Range
{
85
MAINTENANCE
Engine Oil
Oil and Filter Change
Oil Pump Priming
This priming procedure must be
performed whenever the oil hose
connection between the oil tank and
pump inlet has been disconnected.
1. Clamp the vent line 5 cm from
the oil tank, between the end of
the oil tank vent fitting and the
vent line's pressure relief slit.
2. Start the engine. Allow it to idle
for 10-20 seconds.
3. Remove the vent line clamp. If the line is bled properly, you should
hear a rush of air. If you do not hear a rush of air, repeat the priming
procedure.
Clamp
Pressure
Relief Slit
Tank
5 cm
86
MAINTENANCE
Transmission Oil
Maintain the oil level at the bottom of the fill plug hole threads. Use the
recommended oil.
See page 132 for the part numbers of POLARIS products.
Transmission Oil Recommendations
Transmission Oil Level
1. Position the vehicle on a level
surface.
2. Place the transmission in PARK.
3. Remove the fill plug.
4. Check the oil level. Add
the recommended oil as
needed. Do not overfill.
5. Reinstall the fill plug.
Torque to specification.
Lubricant Oil Change
Capacity
Fill Plug
Torque
Drain Plug
Torque
AGL Gearcase Lubricant &
Transmission Fluid
948 ml 30 N-m 30 N-m
Oil Level
87
MAINTENANCE
Transmission Oil
Transmission Oil Change
1. Position the vehicle on a level
surface.
2. Place the transmission in PARK.
3. Remove the fill plug.
4. Remove the drain plug.
5. Drain the oil into a drain pan.
6. Clean the drain plug.
7. Reinstall the drain plug.
Torque to specification. See
page 86.
8. Add the recommended oil.
9. Reinstall the fill plug. Torque to specification. See page 86.
10. Check for leaks.
11. Discard used oil properly.
Drain Plug
88
MAINTENANCE
Front Gearcase (Demand Drive) Fluid
Fluid Recommendations
Change the front gearcase fluid every 25 hours if the ADC unit is
exposed to extreme use. Extreme use includes any of the following:
• operation in ADC mode for prolonged periods
• constant ADC operation on hilly or mountainous terrain
• ADC is the primary mode of all-wheel-drive operation
TIP: If the front gearcase is makes excessive noise during ADC operation,
change the demand drive fluid. If the noise continues, please see your
POLARIS dealer for service.
Use the recommended fluid.
Use of other fluids may
result in improper operation
of components. See page
132 for the part numbers of
POLARIS products.
Maintain the fluid level at
the bottom of the fill hole
threads.
Fluid Level
1. Position the vehicle on a level
surface.
2. Place the transmission in PARK.
3. Remove the fill plug.
4. Add the recommended demand drive fluid as needed.
5. Reinstall the fill plug. Torque to specification.
Gearcase Lubricant Capacity Fill Plug
Torque
Drain Plug
Torque
Demand Drive
Unit
Demand Drive Fluid 275 ml 11-14 N-m 15 N-m
Drain Plug
Fill Plug
Fill Level
89
MAINTENANCE
Front Gearcase (Demand Drive) Fluid
Fluid Change
1. Position the vehicle on a level
surface.
2. Place the transmission in PARK.
3. Remove the fill plug.
4. Remove the drain plug.
Drain the fluid into a drain
pan.
5. Clean the drain plug.
6. Reinstall the drain plug. Torque
to specification. See page 88.
7. Add the recommended fluid.
8. Reinstall the fill plug. Torque to
specification.
9. Check for leaks.
10. Discard used oil properly.
90
MAINTENANCE

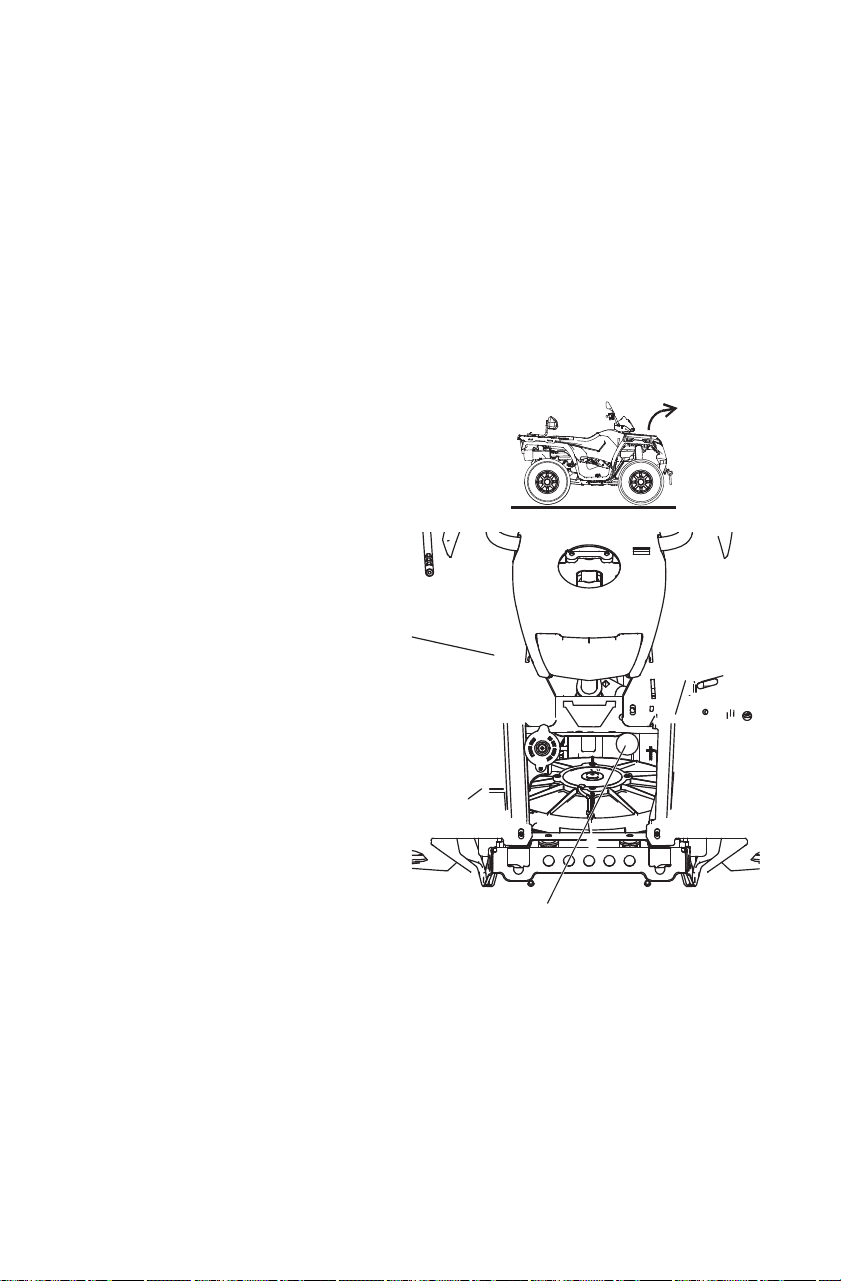

Active Descent Control (ADC) Fluid
The ADC fluid reservoir is located under the front box. The reservoir
cap is yellow.
NOTICE: Change the ADC fluid every 25 hours if the ADC unit is exposed to
extreme use. Extreme use includes operation in ADC mode for
prolonged periods or in environments that necessitate primary
operation in ADC mode.
We recommend the use of POLARIS Demand Drive Fluid. See page
132 for the part numbers of POLARIS products.
Fluid Level
1. Position the vehicle on a level
surface.
2. Open the front box cover.
3. Remove the access panel
screws. Squeeze the outer
edges of the panel inward to
remove the panel.
4. View the fluid level in the
reservoir.
5. Remove the cap and add the
recommended fluid as needed.
DO NOT use brake fluid.
6. Maintain the fluid level
between the minimum and
maximum marks. Do not
overfill.
7. Reinstall the access panel and
secure the front box cover.
ADC Fluid
Reservoir
91
MAINTENANCE
Active Descent Control (ADC) Fluid
Fluid Change
1. Position the vehicle on a level surface. Before performing the fluid
change, allow the vehicle to sit for at least 30 minutes.
2. Thoroughly clean the areas around and on the ADC reservoir and
bleeder valves (one on each side of the differential).
3. Remove the reservoir cap and diaphragm assembly. Use a shop
towel or suction tool to remove debris from the fluid and reservoir.
TIP: Debris in the reservoir may result in inadequate bleeding and reduced
performance of the system.
4. Fill the reservoir to the maximum line with fresh recommended
fluid.
5. Remove the protective caps from the bleeder valves.
6. Slowly loosen one of the valves (turn counter-clockwise) and allow
fluid and trapped air to flow from the fitting. Close the valve when
clean fluid begins to flow. Repeat this step for the remaining valve.
IMPORTANT: Close the bleeder valves before the reservoir fluid level drops
below the minimum fill line. Adding fluid to an empty reservoir will result in
trapped air. If the level drops below the minimum line, add fluid to the maximum
line and repeat step 6 before proceeding.
7. Torque the valves to 80 in. lbs. (9 N-m). Reinstall the valve caps.
8. Add fresh recommended fluid to the reservoir until the level is
between the minimum and maximum marks. Make sure the
reservoir is free of debris.
9. Reinstall the cap securely. Clean up any drips or spills.
92

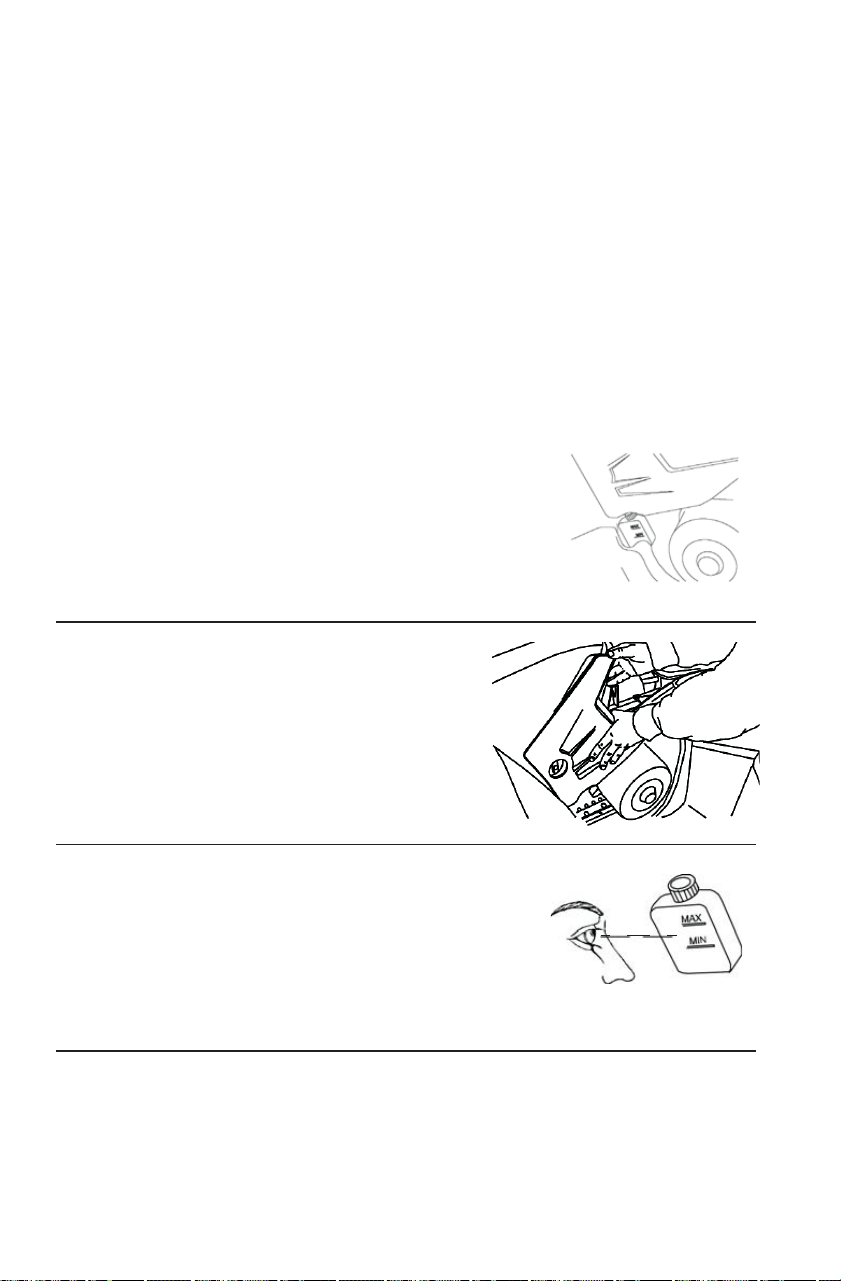

MAINTENANCE
Cooling System
Any time the cooling system has been drained for maintenance or repair,
replace the coolant with a fresh mixture of antifreeze and water. Drain
the cooling system every two years. Add fresh coolant.
POLARIS recommends the use of POLARIS Antifreeze 60/40 premix
or a 50/50 mixture of high quality aluminum compatible anti-freeze/
coolant and distilled water. POLARIS Antifreeze is already premixed
and ready to use. Do not dilute with water. See page 132 for the part
numbers of POLARIS products.
Always follow the manufacturer's mixing recommendations for the
freeze protection required in your area.
Recovery Bottle Coolant
Some coolant level drop on new machines is
normal, as the system is purging itself of trapped
air. Add coolant as needed.
Check the coolant level in the radiator any time
the recovery bottle has run dry. Add coolant as
needed.
1. Check the coolant level when the
fluid is cool.
2. Remove the left side panel. See page
100.
3. View the coolant level. Maintain the
coolant level between the minimum
and maximum marks on the bottle
(when the fluid is cool).
4. Add coolant as needed.
5. Reinstall the side panel.
93

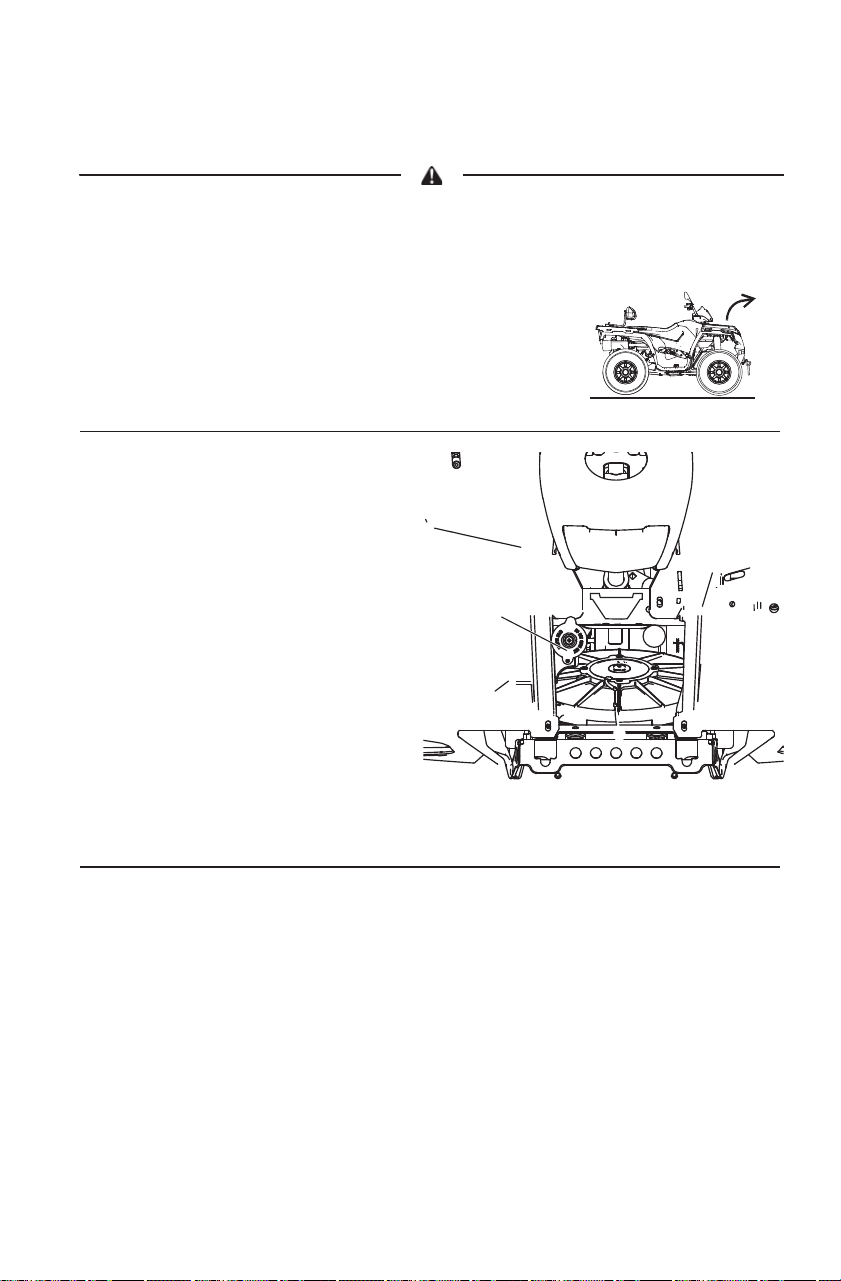

MAINTENANCE
Cooling System
Radiator Coolant
Escaping steam can cause severe burns. Never remove the pressure cap while
the engine is warm or hot.
1. Open the front box cover.
2. Remove the access panel screws. Squeeze
the outer edges of the panel inward to
remove the panel.
3. Remove the radiator pressure
cap.
4. If coolant is not visible,
slowly add coolant through
the radiator filler neck.
5. Reinstall the pressure cap.
Use of a non-standard
pressure cap will not allow
the recovery system to
function properly. Contact
your dealer for the correct
replacement part.
6. Reinstall the access panel
and secure the front box
cover.
Radiator
Cap
94
MAINTENANCE
Brake Fluid
Check brake fluid levels for both brake systems before each ride.
Always maintain brake fluid at the recommended level. Do not overfill.
The brakes should feel firm when they're applied. Spongy or weak
brakes may indicate a fluid leak or low fluid level. A low fluid level
may also mean that brake pads are worn and need to be replaced. Do not
operate the vehicle with spongy or weak brakes. See your dealer for
service.
Operating the Tractor with a spongy brake can result in loss of braking, which
could cause an accident. Never operate the Tractor with spongy-feeling brakes.
If the fluid level is low add DOT 4 brake fluid only. See page 132 for the
part numbers of POLARIS products.
An over-full master cylinder may cause brake drag or brake lock-up, which could
result in serious injury or death. Maintain brake fluid at the recommended level.
Do not overfill.
Under normal operation, the diaphragm extends into the reservoir as
fluid level drops. If the fluid level is low and the diaphragm is not
extended, a leak is likely and the diaphragm should be replaced. To
ensure proper diaphragm operation, always fill the reservoir as needed
whenever the cover is loosened or removed. Do not overfill.
Never store or use a partial bottle of brake fluid. Brake fluid is hygroscopic,
meaning it rapidly absorbs moisture from the air. The moisture causes the
boiling temperature of the brake fluid to drop, which can lead to early brake fade
and the possibility of accident or severe injury. After opening a bottle of brake
fluid, always discard any unused portion.
95
MAINTENANCE
Brake Fluid
Hand Brake
The master cylinder is
located on the left handlebar.
Maintain the fluid level 6
mm below the top edge of
the master cylinder. Do not
overfill.
1. Position the vehicle on a
level surface. Make sure
the handlebars are straight.
2. View the fluid level
through the indicator
window (eye) on the top of
the master cylinder. The
eye will appear dark when
the fluid level is full. When
fluid is low, the eye will be
clear.
3. Add the recommended fluid as needed. Do not overfill.
Master
Cylinder
Indicator
Window
Full
Low
96
MAINTENANCE
Brake Fluid
Foot Brake
The foot brake fluid reservoir is located under the seat.
1. Position the vehicle on a level
surface.
2. Remove the seat.
3. View the fluid level in the
reservoir.
4. Remove the cap and add the
recommended fluid as needed.
5. Maintain the fluid level
between the minimum and
maximum marks. Do not
overfill.
6. Reinstall the reservoir cap.
7. Reinstall the seat.
Minimum
Maximum
Brake Fluid
Reservoir
97
MAINTENANCE
Brakes
The front and rear brakes are hydraulic disc brakes, activated by
applying the foot brake. The handlebar brake is also hydraulic. Both
brake systems are self-adjusting.
Brake Inspections
Perform the following checks to keep the brake systems in good
operating condition. Check more often if brakes are used heavily under
normal operation.
1. Always keep brake fluid at an adequate
level. See page 94.
2. Check the brake systems regularly for
fluid leaks.
3. Check the brakes for excessive travel
or spongy feel.
4. Check the friction pads for wear,
damage and looseness. Replace the
pads when the friction material is worn
to 1 mm.
5. Check the security and surface
condition of the disc. Clean any grease using a recommended brake
cleaner or alcohol. Do not use spray lubricants or other petroleum-
based products. If you discover any damage (cracks, excessive
corrosion, warping) see your dealer for service before operating.
1 mm
98
MAINTENANCE
Toe Alignment
Do not attempt to adjust alignment. All steering adjustments should be
performed by an authorized POLARIS dealer.
Use the following procedure to check the toe alignment of the vehicle.
The recommended toe alignment is 3-6 mm toe out.
1. Position the vehicle on a
level surface.
2. Place the handlebars in a
straight-ahead position.
3. Tie a length of string
between two stands as
shown in the illustration.
Position the stands so
that the string is flush
with the side of the rear
tire.
TIP: If available, you may use a
long straight-edge instead
of string.
4. Measure the distance
from the string to the
rim at the front (1) and
rear (2) of the front rim.
The rear measurement should be 2-3 mm more than the front
measurement on each side of the vehicle to obtain the
recommended 3-6 mm toe out alignment.
5. Repeat the measurement procedure on the other side of the vehicle.
6. If you discover improper alignment, see your POLARIS dealer for
service.
String
Stand
2
1
99
MAINTENANCE
Steering Assembly
Check the steering assembly of the vehicle periodically for loose nuts
and bolts. If loose nuts and bolts are found, see your POLARIS dealer
for service before operating the vehicle.
Handlebar Adjustment
The handlebars can be adjusted for rider preference.
Improper adjustment of the handlebars or incorrect torquing of the adjuster
block tightening bolts can cause limited steering or loosening of the handlebars,
resulting in loss of control. Follow the adjustment procedures exactly, or see
your POLARIS dealer for service.
1. Remove the upper headlight pod.
2. Loosen the four handlebar bolts.
3. Adjust the handlebar to the desired
height.
4. Be sure the handlebars do not
contact the gas tank or any other
part of the machine when turned
fully to the left or right.
5. Torque the front two bolts to 14-17
N-m, then torque the rear two
bolts. A gap of up to 3 mm will
remain at the rear of the clamp
blocks.
Rear Spring
The rear shock absorber spring is
adjusted by rotating the adjuster
either clockwise or counter-clockwise
to increase or decrease spring tension.
14-17 N-m
Adjuster
100

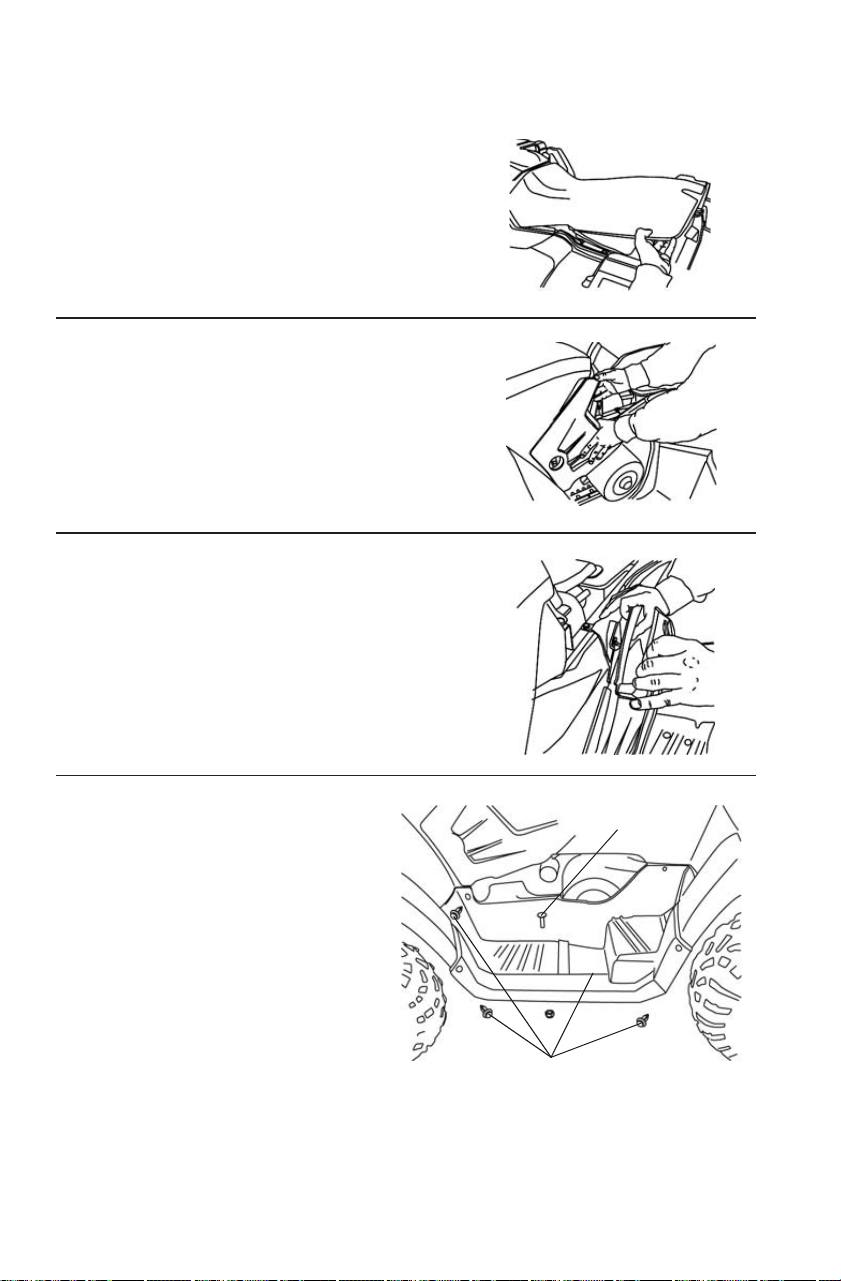

MAINTENANCE
Side Panel Removal
1. Remove the seat.
2. Grasp the rear of the side panel
near the rear cab.
3. With a firm motion, pull the
panel outward to disengage the
side panel from the grommet.
4. Pull the panel downward and
rearward to remove it.
Footwell Removal
1. Remove the six screws on
the bottom of the footwell.
2. Use a flat screwdriver or
sidecutters to remove the
plastic rivets securing the
footwell to the fenders.
3. Remove the footwell.
Screws
Rivets
101
MAINTENANCE
Throttle Cable Freeplay
Adjust throttle cable freeplay at the handlebar.
1. Locate the throttle cable adjuster
at the handlebar.
2. Squeeze the end of the
rubber boot and slide it far
enough to expose the end of
the inline cable adjuster.
3. Loosen the adjuster lock nut.
4. Rotate the boot to turn the
adjuster until 1.6-3.2 mm of
freeplay is achieved at the
thumb lever. Move the
throttle lever back and forth
while adjusting.
5. Tighten the lock nut.
6. Squeeze the end of the
rubber boot and slide it
over the cable adjuster to
its original position.
7. Engine RPM should not increase when steering is turned full left or
right. Readjust cable freeplay if this occurs.
Boot
Lock Nut
Adjuster
1.6-3.2 mm
102
MAINTENANCE
Tires
Operating your vehicle with worn tires, improperly inflated tires, non-standard
tires or improperly installed tires will affect vehicle handling and could cause an
accident. Always follow all tire maintenance procedures as outlined in this
manual and on the labels on the vehicle. Always use original equipment size
and type when replacing tires.
Refer to the specifications section beginning on page 130 for
recommended tire type, size and pressure.
Tire Tread Depth
Always replace tires
when tread depth is
worn to 3 mm or less.
Front Wheel Hub Tightening
Front wheel bearing tightness and spindle nut retention are critical
component operations. All service must be performed by your
authorized POLARIS dealer.
Wheel Nut Torque Specifications
Check the wheel nut torques occasionally and when they've been
loosened for maintenance service.
Nut Type Nut Torque
Lug Nut 41 N-m
PLUS 1/4 TURN
2-Piece Flange Nut 37 N-m
3 mm
103
MAINTENANCE
Tires
Wheel Removal/Installation and Jack Point
1. Position the vehicle on a level
surface.
2. Place the transmission in PARK.
3. Loosen the wheel nuts
slightly.
4. Place a suitable stand under
the footrest frame to raise the
wheel slightly off the ground.
5. Remove the wheel nuts.
6. Remove the wheel.
7. Place the wheel on the hub.
8. Install the wheel nuts finger tight.
9. Lower the vehicle to the ground.
10. Torque the wheel nuts to specification.
See torque chart on page 102.
1. To fully lift the vehicle off the ground, place a suitable jack stand in
the location listed above, as well as a jack under the rear axle, on
each side of the frame. This gives you 4 jacking points.
104
MAINTENANCE
Fuel Filter
The in-line fuel filter should be replaced by your dealer after every 100
hours of operation or annually. Do not attempt to clean the fuel filter.
Air Filter
Always clean and replace the air and breather filters at the intervals
outlined in the Periodic Maintenance Chart beginning on page 75.
1. Position the vehicle on a level
surface.
2. Place the transmission in PARK.
3. Remove the seat.
4. Release the air box
cover clips.
5. Remove the air
box cover.
6. Loosen the hose
clamp.
7. Remove the filter.
8. Remove the pre-filter
from the filter.
9. Wash the pre-filter in soapy water. Rinse and air dry. Replace the
filter if needed.
10. Reverse the steps to reinstall all components.
Main Filter
Pre-Filter
105
MAINTENANCE
Breather Filter/Hose
The breather filter is on the hose between the engine and air box.
1. Remove the left side panel.
See page 100.
2. Remove the hose clamps from
the filter and pull the filter out of
the hoses.
3. Inspect the filter for debris. Blow
gently through the filter in the
direction of the arrow to check
for clogging. Replace a damaged
or clogged filter.
4. Check the hoses for cracks, deterioration, abrasion, or leaks.
Replace as needed.
5. Reinstall the filter and hose clamps. The filter is effective with the
arrow pointing in either direction.
NOTICE: Operation of your vehicle without a breather filter can cause engine
damage.
Breather Filter
106

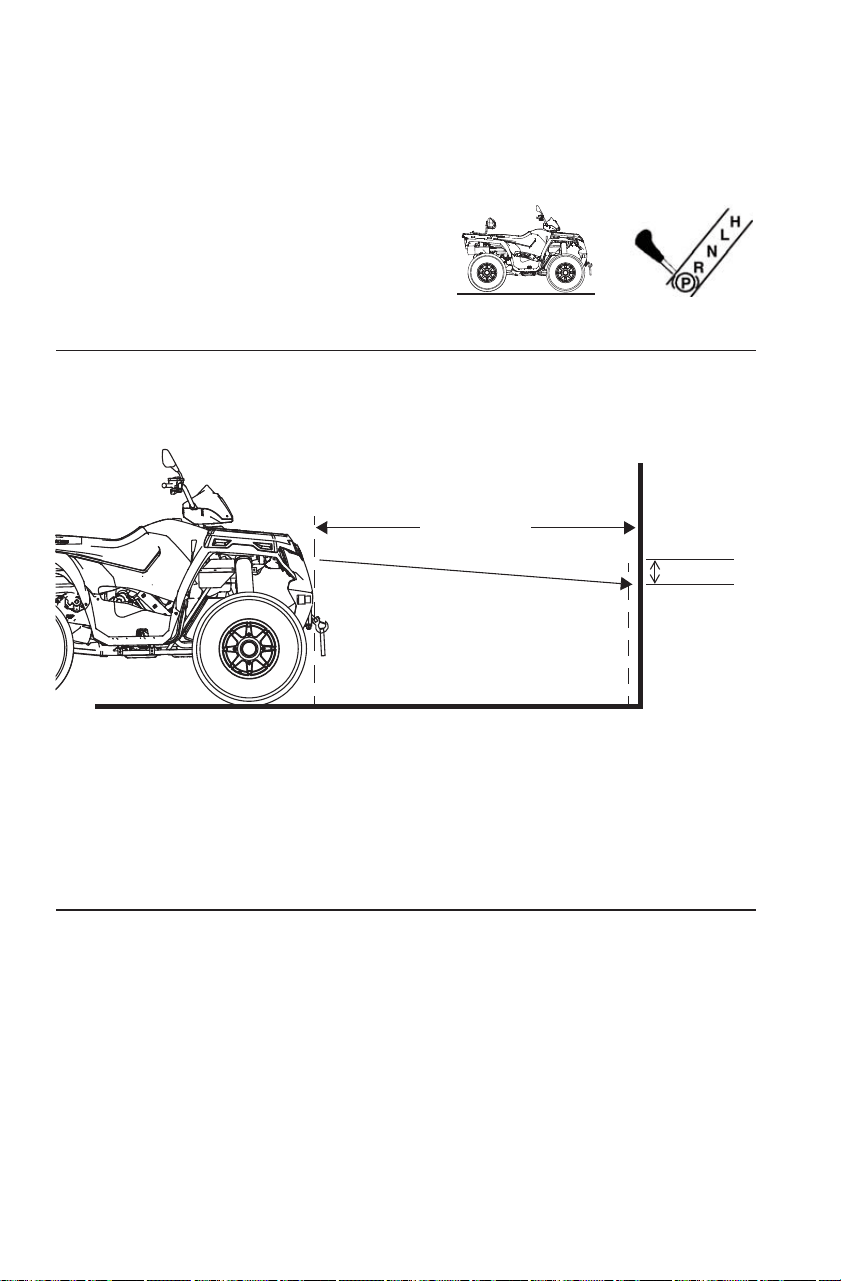

MAINTENANCE
Lights
High Beam Adjustment
The headlight beam can be adjusted slightly upward or downward.
1. Position the vehicle on a level
surface. The headlight should be
approximately 7.6 m from a
wall.
2. Place the transmission in PARK.
3. Measure the distance from the floor to the center of the headlight
and make a mark on the wall at the same height. Include rider
weight on the seat when measuring.
4. Start the engine.Turn the headlight switch to high beam.
5. Observe the headlight aim on the wall. The most intense part of the
headlight beam should be 5 cm below the mark on the wall.
6. Tighten or loosen the lower headlight screws to adjust the beam
upward or downward or to the left or right.
7.6 m
5 cm
X
X
107

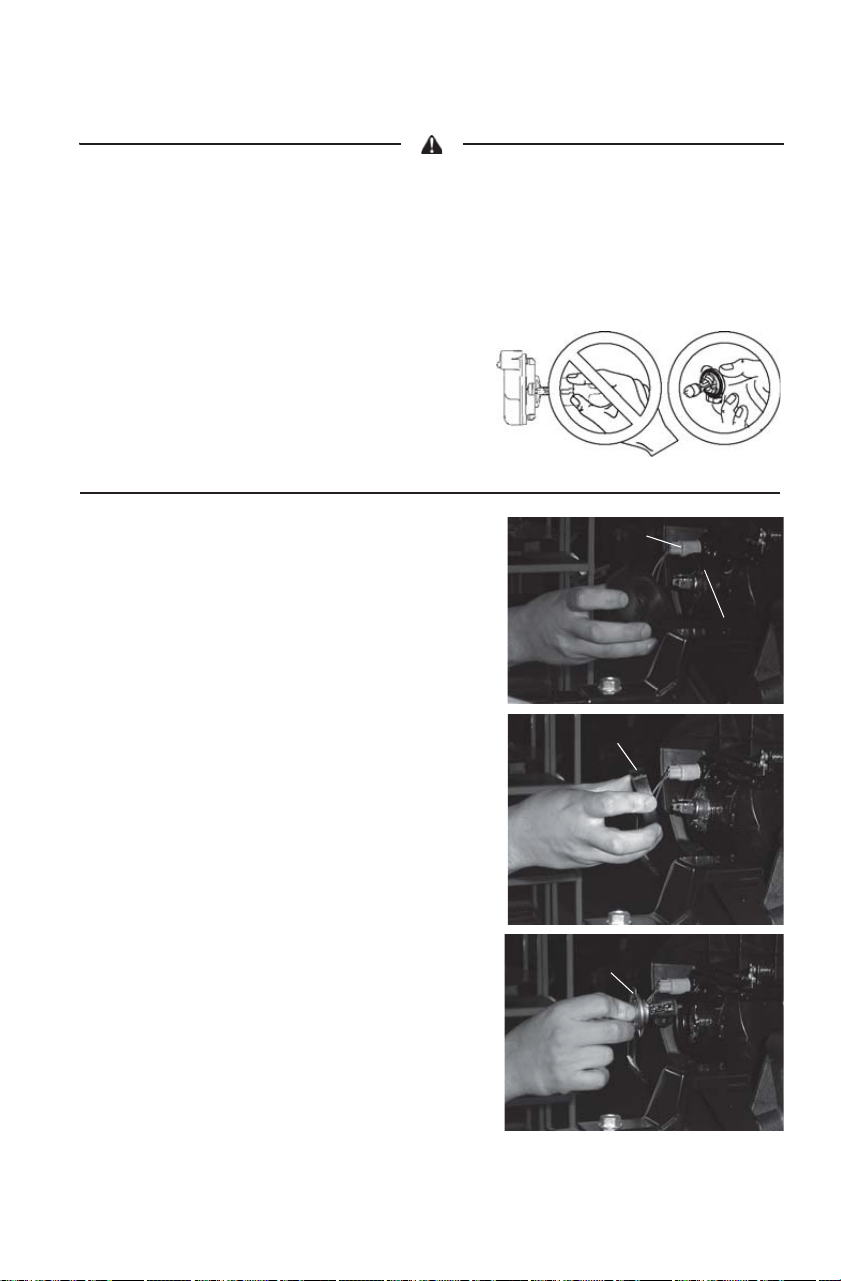

MAINTENANCE
Lights
Poor lighting can result in loss of control or an accident. Lights become dirty
during normal operation. Wash the headlights and taillights frequently.
Hot components can cause serious burns to skin. Do not service the headlamps
until they've cooled.
Headlight/Parking Light Lamp Replacement
When servicing a halogen lamp, do
not touch the lamp with bare fingers.
Oil from your skin leaves a residue,
causing a hot spot that will shorten
the life of the lamp. Hold the plastic
part of the lamp.
1. Place the transmission in PARK.
2. Reach under the front bumper area
to locate the lighting connectors.
3. Parking Light Lamp: Disconnect
the harness connector. Turn the
socket counter-clockwise 1/8 turn
and remove the lamp assembly.
Pull the lamp straight out to
remove it from the socket.
4. Headlight Lamp: Disconnect the
harness connector. Remove the
rubber cover from the back of the
headlight. Press and turn the
locking collar counter-clockwise
(left headlight) or clockwise (right
headlight) to release the lamp
assembly.
5. Install the new lamp. Apply a small
amount of dielectric grease to the
lamp socket or terminals.
6. Reverse all steps to reassemble
components.
Parking Light
Collar
Socket
Headlamp
108
MAINTENANCE
Lights
Taillight/Brake Light/Signal Light Lamp Replacement
1. Place the transmission in PARK.
2. Rotate the light socket counter-
clockwise to remove it.
3. Remove the lamp.
4. Apply dielectric grease to the socket.
5. Install the new lamp. Test the lamp
for proper operation.
6. Reinstall all components in reverse order.
Front Turn Signal Lamp Replacement
If a front turn signal light becomes inoperable, use a Phillips
screwdriver to remove the lens cover screws. Remove the lens cover and
replace the spent lamp with a new lamp. Always use a P21W (21 watt)
lamp.
109
MAINTENANCE
Fuse Replacement
If the engine stops or will not start, or
if you experience other electrical
failures, a fuse may need replacement.
Spare fuses are provided in the rear
storage box.
1. Open the front box cover.
2. Remove the access panel screws.
Squeeze the outer edges of the
panel inward to remove the panel.
3. Remove the suspect fuse from the
fuse panel. Install a new fuse with
the same amperage.
4. Reinstall the access panel and
secure the front box cover.
Fuse Feature Supported
5A Speedometer
15A Electronic Fuel Injection
20A (Main Fuse) Ignition, Lighting
20A Accessories, 12V Power Receptacle
Fuse Panel
Fuses
5or61520 20
110
MAINTENANCE
Spark Plugs
Spark Plug Recommendations
Refer to the specifications section beginning on page 130 for the
recommended spark plug type and gap for your vehicle. Torque spark
plugs to specification.
Spark Plug Inspection
Spark plug condition is indicative of engine operation. Check the spark
plug firing end condition after the engine has been warmed up and the
vehicle has been driven at higher speeds. Immediately check the spark
plug for correct color.
Normal Spark Plug
The normal insulator tip is tan or brown. There will be few combustion
deposits. The electrodes are not burned or eroded. This indicates the
proper type and heat range for the engine and the service.
The tip should not be white. A white insulator tip indicates overheating,
caused by use of an improper spark plug or incorrect throttle body
adjustments.
Wet Fouled Spark Plug
The wet fouled insulator tip is black. A damp oil film covers the firing
end. There may be a carbon layer over the entire nose. Generally, the
electrodes are not worn. General causes of fouling are excessive oil
consumption, use of non-recommended oil or incorrect throttle body
adjustments.
Plug Condition Torque Specification
New Spark Plug 12-15 N-m
Previously Installed Spark Plug 23-27 N-m
111

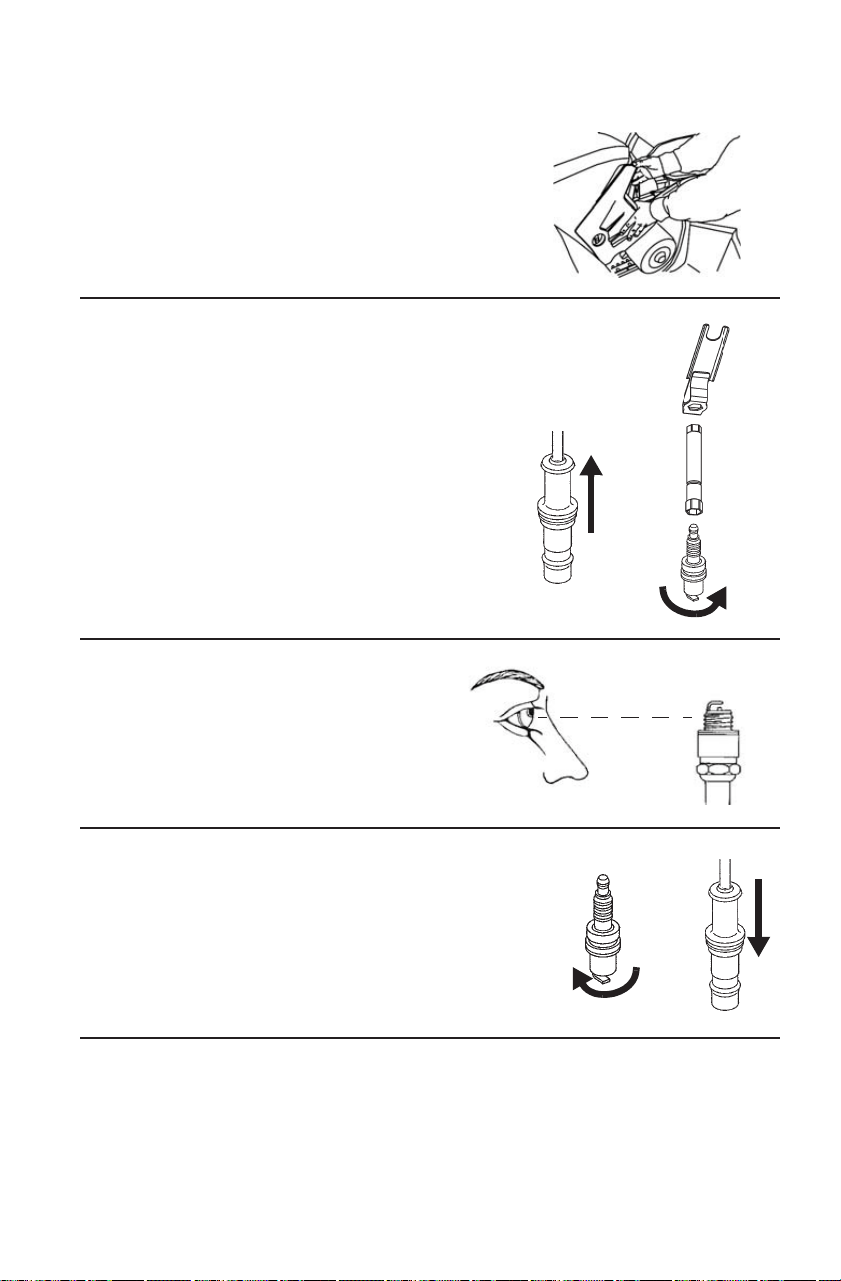

MAINTENANCE
Spark Plugs
Spark Plug Removal
1. Remove the left side panel.
See page 100.
2. Remove the spark plug cap.
3. Use the spark plug wrench
to remove the spark plug.
Turn the plug counter-
clockwise to remove it.
4. Inspect the electrodes for
wear and carbon buildup.
Replace worn or fouled
plugs. Verify that the gap is
at specification before
installation.
5. Reinstall the spark plug.
Torque to specification. See
page 110.
6. Reinstall the spark plug cap.
112

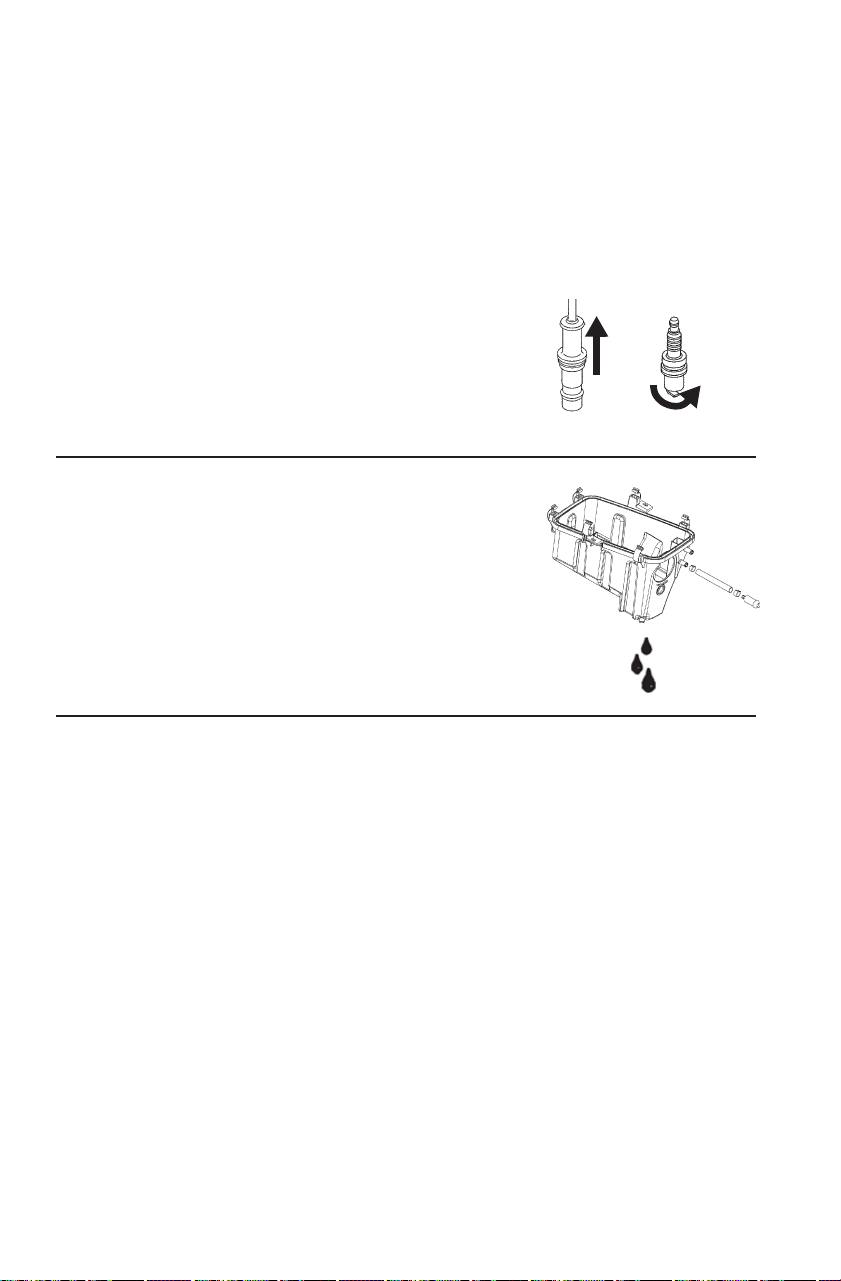

MAINTENANCE
Vehicle Immersion
If your vehicle has been totally submerged in water and it's impossible
to have it serviced before further operation, perform the following
procedure.
NOTICE: If the vehicle stops while fully submerged, major engine damage can
result if the machine is not thoroughly inspected. Take the vehicle to
your dealer before starting the engine.
1. Move the vehicle out of the water.
2. Remove the spark plug.
3. Drain any water found in the air box.
113

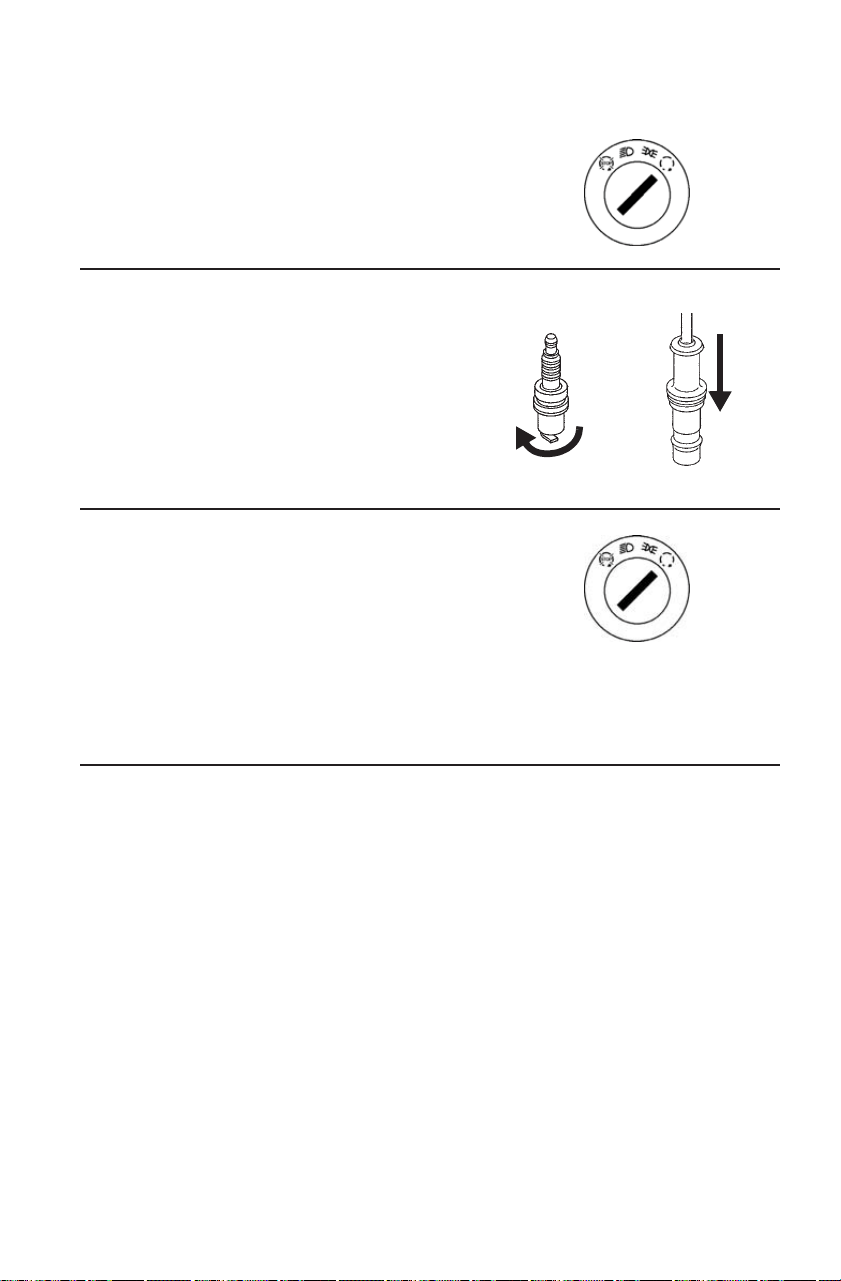

MAINTENANCE
Vehicle Immersion
4. Turn the ignition key past the
PARKING LIGHTS position to
engage the starter. Engage the
starter for only 2-3 seconds.
5. Dry the spark plug. Reinstall the
plug or install a new plug.
6. Torque to specification. See page
110.
7. Attempt to start the engine. If
necessary, repeat the drying
procedure.
8. Have the vehicle serviced by
your dealer promptly, whether
you succeed in starting it or not.
9. If water has been ingested into the PVT, follow the procedure on
page 117 for drying out the PVT.
114
MAINTENANCE
Spark Arrester
Failure to heed the following warnings while servicing the spark arrester could
result in serious injury or death. Never run the engine in an enclosed area.
Remove any combustible materials from the area. Wear eye protection and
leather work gloves. Do not stand behind or in front of the vehicle while purging.
Never go under the vehicle while it's inclined.
The exhaust system can get extremely hot. Do not perform service on the spark
arrester while the system is hot. Allow components to cool sufficiently before
proceeding.
Occasionally, the spark arrester may accumulate carbon, which can
restrict the exhaust if left unattended. Purge the spark arrester.
1. Position the vehicle on a level
surface.
2. Place the transmission in PARK.
3. Remove the arrester
clean-out plug from the
bottom of the muffler.
4. Start the engine.
5. Quickly squeeze and
release the throttle lever
several times to purge
carbon from the system.
115
MAINTENANCE
Spark Arrester
6. If carbon comes out of the
exhaust, cover or plug the exhaust
outlet. Wear protective gloves.
7. Lightly tap on the exhaust pipe
with a rubber mallet while
repeating step 5.
8. If particles are still suspected to
be in the muffler, elevate the rear
of the vehicle 30 cm higher than
the front. Block the wheels.
9. Place the transmission in PARK.
Repeat steps 5 to 7 until no more
particles are expelled.
10. Stop the engine. Allow the
arrester to cool.
11. Reinstall the arrester plug and remove the exhaust outlet cover or
plug.
30 cm
116
MAINTENANCE
PVT System
Do not modify any component of the PVT system. Doing so may reduce its
strength so that a failure may occur at a high speed. The PVT system has been
precision balanced. Any modification will cause the system to be out of balance,
creating vibration and additional loads on components.
The PVT system rotates at high speeds, creating large amounts of force on
clutch components. Extensive engineering and testing has been conducted to
ensure the safety of this product. However, as the owner, you have the following
responsibilities to make sure this system remains safe:
• Always follow all recommended maintenance procedures. Always look for
and remove debris inside and around the clutch and vent system when
replacing the belt.
• See your dealer as outlined in the owner's manual.
• This PVT system is intended for use on POLARIS products only. Do not
install it in any other product.
• Always make sure the PVT housing is securely in place during operation.
117
MAINTENANCE
PVT System
PVT Drying
There may be some instances when water is accidently ingested into the
PVT system. Dry it out before operating.
1. Position the vehicle on a level
surface.
2. Place the transmission in PARK.
3. Remove the drain plug. Allow the water to drain completely.
Reinstall the drain plug.
4. Start the engine.
5. Apply varying throttle
for 10-15 seconds to
expel the moisture and
air-dry the belt and
clutches. Do not hold
the throttle wide open for more than 10 seconds.
6. Allow the engine RPM to settle to idle speed, then shift the
transmission to the lowest available range.
7. Test for belt slippage. If the belt slips, repeat the process.
8. Take the vehicle to your dealer for service as soon as possible.
118
MAINTENANCE
Battery
Battery electrolyte is poisonous. It contains sulfuric acid. Serious burns can
result from contact with skin, eyes or clothing.
Antidote:
External: Flush with water.
Internal: Drink large quantities of water or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Call physician immediately.
Eyes: Flush with water for 15 minutes and get prompt medical attention.
Batteries produce explosive gases. Keep sparks, flame, cigarettes, etc. away.
Ventilate when charging or using in an enclosed space. Always shield eyes
when working near batteries. KEEP OUT OF REACH OF CHILDREN.
Your vehicle may have either a sealed battery, which requires little
maintenance, or a conventional battery. A sealed battery can be
identified by its flat covers on the top of the battery. A conventional
battery has six filler caps on the top of the battery.
Always keep battery terminals and connections free of corrosion. If
cleaning is necessary, remove corrosion with a stiff wire brush. Wash
with a solution of one tablespoon baking soda and one cup water. Rinse
well with tap water and dry off with clean shop towels. Coat the
terminals with dielectric grease or petroleum jelly. Be careful not to
allow cleaning solution or tap water into a conventional battery.
119
MAINTENANCE
Battery
Improperly connecting or disconnecting battery cables can result in an explosion
and cause serious injury or death. When removing the battery, always
disconnect the negative (black) cable first. When reinstalling the battery, always
connect the negative (black) cable last.
Battery Removal
1. Place the transmission in PARK. Disconnect the battery hold-down
strap. Remove the battery cover (if equipped).
2. On conventional batteries, remove the battery vent tube.
3. Disconnect the black (negative) battery cable first. Disconnect the
red (positive) battery cable last.
4. Lift the battery out of the vehicle. Be careful not to tip a
conventional battery sideways, which could spill electrolyte. If
electrolyte spills, immediately wash it off with a solution of one
tablespoon baking soda and one cup water to prevent damage to the
vehicle.
Battery Installation
1. Ensure that the battery is fully charged. Place the battery in the
battery holder.
2. With conventional batteries, install the battery vent tube. The vent
tube must be free of obstructions and securely installed. Route the
tube away from the frame and vehicle body to prevent contact with
electrolyte.
Battery gases could accumulate in an improperly installed vent tube and cause
an explosion, resulting in serious injury or death. Always ensure that the vent
tube is free of obstructions and is securely installed as recommended.
120
MAINTENANCE
Battery
Battery Installation
3. On conventional batteries, coat the terminals with dielectric grease
or petroleum jelly.
4. Connect and tighten the red (positive) cable first. Connect and
tighten the black (negative) cable last.
5. Install the battery cover (if equipped). Secure the battery hold-down
strap.
6. Verify that cables are properly routed. Cables should be safely
tucked away at the front and rear of the battery.
Battery Storage
Whenever the vehicle is not used for a period of three months or more,
remove the battery from the vehicle, ensure that it's fully charged, and
store it out of the sun in a cool, dry place. Check battery voltage each
month during storage and recharge as needed to maintain a full charge.
POLARIS recommends maintaining battery charge by using a
POLARIS Battery Tender charger or by charging about once a month to
make up for normal self-discharge. Battery Tender can be left connected
during the storage period, and will automatically charge the battery if
the voltage drops below a pre-determined point. See page 132 for the
part numbers of POLARIS products.
121
MAINTENANCE
Battery
Battery Fluid (Conventional Battery)
Check the battery fluid level often.
Maintain the fluid level between the upper
and lower level marks.
Add only distilled water. Tap water
contains minerals that are harmful to a
battery.
Battery Charging (Conventional
Battery)
1. Remove the battery from the vehicle to
prevent damage from leaking or spilled
electrolyte during charging. See page 119.
2. Charge the battery with a charging output no larger than 1/10 of the
battery’s amp/hr rating. Charge as needed to raise the specific
gravity to 1.270 or greater.
3. Reinstall the battery. See page 119. Make sure the positive terminal
is toward the front of the vehicle.
Battery Charging (Sealed Battery)
The following battery charging instructions apply only to the
installation of a sealed battery. Read all instructions before proceeding
with the installation of this battery.
The sealed battery is already filled with electrolyte and has been sealed
and fully charged at the factory. Never pry the sealing strip off or add
any other fluid to this battery.
The single most important thing about maintaining a sealed battery is to
keep it fully charged. Since the battery is sealed and the sealing strip
cannot be removed, you must use a voltmeter or multimeter to measure
DC voltage.
Lower
Mark
Upper
Mark
122
MAINTENANCE
Battery
Battery Charging (Sealed Battery)
For a refresh charge, follow all instructions carefully.
1. Check the battery voltage with a voltmeter or multimeter. A fully
charged battery will register 12.8 V or higher.
2. If the voltage is less than 12.8 volts, recharge the battery at 1.2 amps
or less until battery voltage is 12.8 or greater. When using an
automatic charger, refer to the charger manufacturer's instructions
for recharging. When using a constant current charger, use the
following guidelines for recharging.
An overheated battery may explode, causing severe injury or death. Always
watch charging times carefully. Stop charging if the battery becomes very warm
to the touch. Allow it to cool before resuming charging.
Always verify battery condition before and 1-2 hours after the end of
charging.
State of
Charge
Voltage Action
Charge Time
(Using constant current
charger @ standard amps
specified on top of battery)
100% 12.8-13.0 volts None, check at 3
mos. from date of
manufacture
None required
75%-100% 12.5-12.8 volts May need slight
charge, if no
charge given,
check in 3 months
3-6 hours
50%-75% 12.0-12.5 volts Needs charge 5-11 hours
25%-50% 11.5-12.0 volts Needs charge At least 13 hours,
verify state of charge
0%-25% 11.5 volts or less Needs charge with
desulfating charger
At least 20 hours
123
MAINTENANCE
Cleaning and Storage
Washing the Vehicle
Keeping your POLARIS vehicle clean will not only improve its
appearance but it can also extend the life of various components.
High water pressure may damage components. POLARIS recommends
washing the vehicle by hand or with a garden hose, using mild soap.
Certain products, including insect repellents and chemicals, will damage
plastic surfaces. Do not allow these types of products to contact the
vehicle.
1. Use a professional-type washing cloth, cleaning the upper body first
and the lower parts last.
2. Rinse with clean water frequently.
3. Dry surfaces with a chamois to prevent water spots.
Washing Tips
• Avoid the use of harsh cleaners, which can scratch the finish.
• Do not use a power washer to clean the vehicle.
• Do not use medium to heavy duty compounds on the finish.
• Always use clean cloths and pads for cleaning and polishing. Old or
reused cloths and pads may contain dirt particles that will scratch the
finish.
124
MAINTENANCE
Cleaning and Storage
Washing the Vehicle
If a high pressure water system is used for cleaning (not recommended),
exercise extreme caution. The water may damage components and could
remove paint and labels. Avoid directing the water stream at the
following items:
• Wheel bearings
• Radiator
• Transmission seals
•Brakes
• Cab and body panels
• Labels and decals
• Electrical components and wiring
If an informational or graphic label becomes illegible or comes off,
contact your POLARIS dealer to purchase a replacement. Replacement
safety labels are provided by POLARIS at no charge.
Grease all zerk fittings immediately after washing. Allow the engine to
run for a while to evaporate any water that may have entered the engine
or exhaust system.
Polishing the Vehicle
POLARIS recommends the use of common household aerosol furniture
polish for polishing the finish on your POLARIS vehicle. Follow the
instructions on the container.
Polishing Tips
• Avoid the use of automotive products, some of which can scratch the
finish of your vehicle.
• Always use clean cloths and pads for cleaning and polishing. Old or
reused cloths and pads may contain dirt particles that will scratch the
finish.
125
MAINTENANCE
Cleaning and Storage
Chrome Wheel Care (if equipped)
Proper maintenance will protect chrome wheels from corrosion,
preserve wheel life and ensure a "like new" appearance for many years.
Chrome wheels exposed to road salt (or salt in the air in coastal areas)
are more susceptible to corrosion if not properly cleaned. Clean chrome
wheels more often if they're exposed to salt or other corrosive elements.
1. Wash chrome wheels frequently. Use a mild detergent. Never use
abrasive cleaners on plated or painted surfaces.
2. Rinse well with clear water. Soap, detergents, salt, dirt, mud and
other elements can cause corrosion.
3. Polish the clean chrome wheels periodically. Use an automotive
grade chrome polish.
4. Routinely and liberally apply a weather resistant wax to each
polished chrome wheel. Choose a product suitable for chrome
finishes. Read and follow the product labels and instructions.
Removing Corrosion
If light rust is found on the chrome finish, use steel wool (#0000-OTT
grade) to remove it. Gently rub the affected areas with the steel wool
until the corrosion has been removed. Clean and polish the wheel as
outlined above.
126
MAINTENANCE
Cleaning and Storage
Storage Tips
NOTICE: Starting the engine during the storage period will disturb the
protective film created by fogging and damage could occur. Never
start the engine during the storage period.
Clean the Exterior
Make any necessary repairs and clean the vehicle as recommended. See
page 123.
Stabilize the Fuel
1. Fill the fuel tank.
2. Add POLARIS Carbon Clean fuel treatment or POLARIS Fuel
Stabilizer. Follow the instructions on the container for the
recommended amount. Carbon Clean removes water from fuel
systems, stabilizes fuel and removes carbon deposits from pistons,
rings, valves and exhaust systems.
3. Allow the engine to run for 15-20 minutes to allow the stabilizer to
disperse through the entire fuel delivery system.
Oil and Filter
Change the oil and filter. See page 82.
Air Filter / Air Box
1. Inspect and clean (or replace) the pre-cleaner and air filter. See page
104.
2. Clean the air box.
3. Clean or replace the breather filter. See page 105.
4. Drain the sediment tube.
127
MAINTENANCE
Cleaning and Storage
Storage Tips
Fluid Levels
Inspect the fluid levels. Add or change fluids as recommended in the
Periodic Maintenance Chart beginning on page 75.
• Demand drive unit (front gearcase)
• ADC fluid (change every two years)
• Rear gearcase (if equipped)
• Transmission
• Brake fluid (change every two years and any time the fluid looks dark
or contaminated)
• Coolant (test strength/fill)
Fog the Engine
1. Treat the fuel system with POLARIS Carbon Clean. See page 126.
2. Remove the spark plug. Pour 30-45 ml of engine oil into the plug
holes.
3. Reinstall the spark plug. Torque to specification.
4. Apply dielectric grease to the inside of each spark plug cap.
Reinstall the caps.
5. Turn the engine over several times using electric start. Oil will be
forced in and around the piston rings and ring lands, coating the
cylinder with a protective film of fresh oil.
6. If POLARIS fuel system additive is not used, the fuel tank, fuel
lines, and injectors should be completely drained of gasoline.
128
MAINTENANCE
Cleaning and Storage
Storage Tips
Inspect and Lubricate
Inspect all cables and lubricate all areas of the vehicle as recommended
in the Periodic Maintenance Chart beginning on page 75.
Battery Storage
See pages 120-121 for storage and charging procedures.
Storage Area/Covers
1. Set the tire pressure and safely support the vehicle with the tires
slightly off the ground.
2. Be sure the storage area is well ventilated.
3. Cover the vehicle with a genuine POLARIS cover. Do not use
plastic or coated materials. They do not allow enough ventilation to
prevent condensation, and may promote corrosion and oxidation.
Accessories
Auxiliary power outlets provide 12-volt power for operating
accessories. Accessory outlets are available for all models. POLARIS
also has a wide range of additional accessories available for your
vehicle. Always install accessories that are approved for Tractor use.
Please see your POLARIS dealer.
129
MAINTENANCE
Transporting the Vehicle
Follow these procedures when transporting the vehicle.
1. Stop the engine.
2. Place the transmission in PARK.
3. Secure the fuel cap, oil cap and
seat.
4. Remove the key to prevent loss
during transporting.
5. Always tie the frame of the Tractor to
the transporting unit securely with
suitable straps or rope. Do not attach
tie straps to the front A-arm bolt pockets, racks or handlebars.
Towing a Disabled Vehicle
If towing the vehicle is necessary, shift the transmission into neutral for
better mobility and to prevent damage to the belt.
Always attach the tow rope to the frame of the Tractor.
130
SPECIFICATIONS
* Based on EU Directive 76/432/EC
SPORTSMAN 500 Tractor
Maximum Weight Capacity 420 lbs. (191 kg) (includes operator, cargo, acces-
sories, tongue weight)
Dry Weight 345 kg +/- 7% based on configuration
Front Rack/Storage Box Capacity 90 lbs. (41 kg)
Rear Rack Capacity 180 lbs. (82 kg)
Rear Hitch Tongue Capacity 120 lbs. (54.4 kg) (Rear rack capacity and tongue
weight not to exceed 180 lbs./82 kg)
Rear Hitch Towing Capacity 1225 lbs. (555 kg) on level ground
Front Hitch Tongue Capacity 85 lbs. (39 kg) (Front rack capacity and tongue
weight not to exceed 90 lbs./41 kg)
Front Hitch Towing Capacity 850 lbs. (386 kg)
Unbraked Trailer Towing
Capacity*
1786 lbs. (810 kg)
Overall Length 83 in. (211 cm)
Overall Width 48 in. (122 cm)
Overall Height 48 in. (122 cm)
Wheelbase 50.75 in. (128.9 cm)
Ground Clearance 11 in. (28 cm)
Minimum Turning Radius 65 in. (165 cm) unloaded
Fuel Capacity 4.12 gal. (15.6 l)
Engine Oil Capacity 2 qts. (1.9 l)
Coolant Capacity 2.7 qts. (2.5 l)
Demand Drive Fluid Capacity 9.3 oz. (275 ml)
Transmission Oil Capacity 32 oz. (948 ml)
Engine EH50PLE
Displacement 498 cc
Bore x Stroke 92mm x 75mm
Alternator Output 350 w
Compression Ratio 10.2:1
Fuel System Electronic Fuel Injection
Ignition System Electronic Ignition
Ignition Timing 10 +/- 1 BTDC @ idle
Spark Plug NGK BKR6E
Spark Plug Gap .035+0.0/-0.004 in. (0.9+0.0/-0.1 mm)
Lubrication System Dry Sump
Driving System Type
Automatic PVT (POLARIS Variable Transmission)
131
SPECIFICATIONS
Clutching (EBS Models)
*EBS models require no helix/spring adjustment
SPORTSMAN 500 Tractor
Front Suspension MacPherson strut with 8.2" (21 cm) travel
Rear Suspension Progressive rate with 9.5" (24 cm) travel
Transmission Automatic EBS (Engine Braking System)
w/E-Z Shift H/L/N/R/P
Gear Reduction, Low 23.91:1
Gear Reduction, Reverse 21.74:1
Gear Reduction, High 10.57:1
Drive Ratio, Front 3.82:1
Tires/Pressure, Front 25x8-12 / 5 psi (34.5 kPa)
Tires/Pressure, Rear 25x12.5-12 / 5 psi (34.5 kPa)
Brake, Hand All-wheel hydraulic disc
Brake, Foot Rear-wheel hydraulic disc
Brake, Parking Transmission park lock and hydraulic lock, all
wheel
Winch Front permanent Installed winch with 2500 Lbs,
1,125 Kg Capacity
Headlight 2 dual beam on bumper (55/60 watt)
Work Lights 50 watts
Parking Lights 5 watts
Taillights 8.26 watts
Brake Light 26.9 watts
Instrument Cluster LCD
Altitude Shift
Weight
Drive Clutch
Spring
Driven
Clutch
Spring
Helix*
Meters
(Feet)
0-1800
(0-6000)
10 WHF
PN 5632283
Blue/Green
PN 7041157
White/Yellow
PN 7041635
EBS
PN 5131674
1800-3700
(6000-12000)
10 RH
PN 5630709
Blue/Green
PN 7041157
White/Yellow
PN 7041635
EBS
PN 5131674
132
POLARIS PRODUCTS
Part
Number
Description
Engine Lubricant
2870791 Fogging Oil (12 oz. Aerosol)
2876244 PS-4 Full Synthetic 5W-50 4-Cycle Oil (.95 l)
2876245 PS-4 Full Synthetic 5W-50 4-Cycle Oil (3.8 l)
Gearcase / Transmission Lubricants
2878068 AGL Full Synthetic Gearcase Lubricant & Transmission Fluid
(.95 l)
2878069 AGL Full Synthetic Gearcase Lubricant & Transmission Fluid
(3.8 l)
2877922 Demand Drive Fluid (.95 l)
2877923 Demand Drive Fluid (3.8 l)
2870465 Pump for 3.8 liter jug
Coolant
2871534 Polaris Antifreeze 60/40 Premix (.95 l)
2871323 Polaris Antifreeze 60/40 Premix (3.8 l)
Grease / Specialized Lubricants
2871312 Grease Gun Kit, Premium All Season
2871322 All Season Grease (89 ml cartridge)
2871423 All Season Grease (414 ml cartridge)
2871460 Premium Starter Grease
2871515 U-Joint Grease (89 ml)
2871551 U-Joint Grease (414 ml)
2871329 Dielectric Grease (Nyogel™)
Additives / Miscellaneous
2871326 Carbon Clean
2870652 Fuel Stabilizer
2872189 DOT4 Brake Fluid
2871956 Loctite™ 565 Thread Sealant
2859044 POLARIS Battery Tender™ Charger
133
TROUBLESHOOTING
Drive Belt Wear/Burn
Possible Cause Solution
Driving onto a pickup or
tall trailer in high range
Use low range.
Starting out going up a
steep incline
Use low range or turn around using the K-turn (see page
52).
Driving at low RPM or
ground speed (5-11 kmh)
Drive at a higher speed or use low range more frequently.
Insufficient warm-up at
low ambient tempera-
tures
Warm the engine at least 5 minutes. With the transmission
in neutral, advance the throttle to about 1/8 throttle in
short bursts, 5 to 7 times. The belt will become more flex-
ible and prevent belt burning.
Slow/easy clutch engage-
ment
Use the throttle quickly and effectively.
Towing/pushing at low
RPM/low ground speed
Use low range only.
Utility use/plowing Use low range only.
Stuck in mud or snow Shift the transmission to low range. Carefully use fast,
aggressive throttle application to engage clutch.
WARNING: Excessive throttle may cause loss of control
and vehicle rollover.
Climbing over large
objects from a stopped
position
Belt slippage from water
or snow ingestion into the
PVT system
Dry out the PVT. See page 117. Inspect clutch seals for
damage if repeated leaking occurs.
Clutch malfunction See your POLARIS dealer.
Slippage from failure to
warm up belt
Always warm up the belt by operating below 40 km/h for
1.5 km (8 km or more when temperature is below freez-
ing).
Poor engine performance Check for fouled plugs or foreign material in gas tank or
fuel lines. See your dealer.
Wrong or missing belt Install the recommended belt.
Improper break-in Always break in a new belt and/or clutch. See page 42.
134
TROUBLESHOOTING
Engine Does Not Rotate
Engine Rotates, Fails to Start
Engine Backfires
Possible Cause Solution
Low battery voltage Recharge the battery to 12.8 VDC
Loose battery connections Check all connections and tighten
Loose solenoid connections Check all connections and tighten
Possible Cause Solution
Out of fuel Refuel
Clogged fuel filter Replace the filter
Water is present in fuel Drain the fuel system and refuel
Old or non-recommended fuel Replace with fresh recommended fuel
Fouled or defective spark plug(s) Inspect plugs and replace if necessary
No spark to spark plug Inspect plugs, verify stop switch is on
Water or fuel in crankcase Immediately see your POLARIS dealer
Low battery voltage Recharge the battery to 12.8 VDC
Mechanical failure See your dealer
Possible Cause Solution
Weak spark from spark plug Inspect, clean and/or replace spark
plug(s)
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Old or non-recommended fuel
Loose ignition connections Check all connections and tighten
Water present in fuel Replace with fresh recommended fuel
Incorrectly installed spark plug wires See your dealer
Incorrect ignition timing See your dealer
Mechanical failure See your dealer
135
TROUBLESHOOTING
Engine Pings or Knocks
Engine Runs Irregularly, Stalls or Misfires
Possible Cause Solution
Poor quality or low octane fuel Replace with recommended fuel
Incorrect ignition timing See your dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Possible Cause Solution
Fouled or defective spark plug(s) Inspect, clean and/or replace spark
plug(s)
Worn or defective spark plug wires See your dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plugs
Loose ignition connections Check all connections and tighten
Water present in fuel Replace with new fuel
Low battery voltage Recharge battery to 12.8 VDC
Kinked or plugged fuel tank vent line Inspect and replace
Incorrect fuel Replace with recommended fuel
Clogged air filter Inspect and clean or replace
Reverse speed limiter malfunction See your dealer
Throttle release switch malfunction See your dealer
Other mechanical failure See your dealer
Possible Lean Fuel Cause Solution
Low or contaminated fuel Add or change fuel, clean the fuel system
Low octane fuel Replace with recommended fuel
Clogged fuel filter Replace filter
Kinked or plugged fuel vent line Inspect and replace (if equipped)
Possible Rich Fuel Cause Solution
Fuel is very high octane Replace with lower octane fuel
Stopping/starting without adequate
warm-up
Allow engine to warm up before operat-
ing and/or stopping
Incorrect fuel Replace with recommended fuel
Clogged air filter Inspect and clean or replace
136
TROUBLESHOOTING
Engine Stops or Loses Power
Engine Overheating
Possible Cause Solution
Out of fuel Refuel, cycle key to ON position three
times for 5 seconds each, then start
Kinked or plugged fuel vent line Inspect and replace (if equipped)
Water is present in fuel Replace with fresh recommended fuel
Old or non-recommended fuel Replace with fresh recommended fuel
Fouled or defective spark plug(s) Inspect, clean and/or replace spark
plug(s)
Worn or defective spark plug wires See your dealer
Incorrect spark plug gap or heat range Set gap to specs or replace plug
Loose ignition connections Check all connections and tighten
Low battery voltage Recharge the battery to 12.8 VDC
Clogged air filter Inspect and clean or replace
Reverse speed limiter malfunction See your dealer
Throttle release switch malfunction See your dealer
Other mechanical failure See your dealer
Overheated engine Clean radiator screen and core, clean
engine exterior, see your dealer
Possible Cause Solution
Debris lodged in screen Remove and clean the screen. Pull on the
top portion of the screen, then remove the
lower portion.
Plugged Radiator Use a garden hose to flush any debris
from the radiator fins. NOTE: High
pressure washers can deform the radiator
fins and reduce cooling efficiency.
137
WARRANTY
LIMITED WARRANTY
POLARIS Sales Inc., 2100 Highway 55, Medina, MN 55340 (POLARIS) gives a TWO
YEAR LIMITED WARRANTY on all components of your POLARIS vehicle against
defects in material or workmanship. POLARIS further warrants that the spark arrestor in
this product will meet the efficiency requirements of USFS standard 5100-1C for at least
1000 hours when subjected to normal use and when maintenance and installation are in
accordance with POLARIS recommendations.
This warranty covers parts and labor charges for repair or replacement of defective parts
and begins on the date of purchase by the original retail purchaser. This warranty is
transferable to another owner during the warranty period through a POLARIS dealer,
but any such transfer will not extend the original term of the warranty. The duration of
this warranty may vary by international region based upon local laws and regulations.
REGISTRATION
At the time of sale, the Warranty Registration Form must be completed by your dealer
and submitted to POLARIS within ten days of purchase. Upon receipt of this
registration, POLARIS will record the registration for warranty. No verification of
registration will be sent to the purchaser as the copy of the Warranty Registration Form
will be your proof of warranty coverage. If you have not signed the original registration
and received the customer copy, please contact your dealer immediately. NO
WARRANTY COVERAGE WILL BE ALLOWED UNLESS YOUR VEHICLE IS
REGISTERED WITH POLARIS. Initial dealer preparation and set-up of your vehicle is
very important in ensuring trouble-free operation. Purchasing a machine in the crate or
without proper dealer set-up will void your warranty coverage.
WARRANTY COVERAGE AND EXCLUSIONS:
LIMITATIONS OF WARRANTIES AND REMEDIES
This POLARIS limited warranty excludes any failures that are not caused by a defect in
material or workmanship. THIS WARRANTY DOES NOT COVER CLAIMS OF
DEFECTIVE DESIGN. This warranty also does not cover acts of God, accidental
damage, normal wear and tear, abuse or improper handling. This warranty also does not
cover any vehicle, component, or part that has been altered structurally, modified,
neglected, improperly maintained, or used for purposes other than for which it was
designed.
This warranty excludes damages or failures resulting from: improper lubrication;
improper engine timing; improper fuel; surface imperfections caused by external stress,
heat, cold or contamination; operator error or abuse; improper component alignment,
tension, adjustment or altitude compensation; snow, water, dirt or other foreign
substance ingestion/contamination; improper maintenance; modified components; use
of aftermarket or unapproved components, accessories, or attachments; unauthorized
repairs; or repairs made after the warranty period expires or by an unauthorized repair
center.
138
WARRANTY
LIMITATIONS OF WARRANTIES AND REMEDIES
This warranty excludes damages or failures caused by abuse, accident, fire, or any other
cause other than a defect in materials or workmanship and provides no coverage for
consumable components, general wear items, or any parts exposed to friction surfaces,
stresses, environmental conditions and/or contamination for which they were not
designed or not intended, including but not limited to the following items:
Lubricants and Fluids
1. Mixing oil brands or using non-recommended oil may cause engine damage. We
recommend the use of POLARIS engine oil.
2. Damage or failure resulting from the use of non-recommended lubricants or fluids is
not covered by this warranty.
This warranty provides no coverage for personal loss or expense, including mileage,
transportation costs, hotels, meals, shipping or handling fees, product pick-up or
delivery, replacement rentals, loss of product use, loss of profits, or loss of vacation or
personal time.
THE EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY SHALL BE,
AT POLARIS’ OPTION, REPAIR OR REPLACEMENT OF ANY DEFECTIVE
MATERIALS, COMPONENTS, OR PRODUCTS. THE REMEDIES SET FORTH IN
THIS WARRANTY ARE THE ONLY REMEDIES AVAILABLE TO ANY PERSON
FOR BREACH OF THIS WARRANTY. POLARIS SHALL HAVE NO LIABILITY
TO ANY PERSON FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES OF ANY DESCRIPTION, WHETHER ARISING OUT OF EXPRESS OR
IMPLIED WARRANTY OR ANY OTHER CONTRACT, NEGLIGENCE, OR
OTHER TORT OR OTHERWISE. THIS EXCLUSION OF CONSEQUENTAL,
INCIDENTAL, AND SPECIAL DAMAGES IS INDEPENDENT FROM AND SHALL
SURVIVE ANY FINDING THAT THE EXCLUSIVE REMEDY FAILED OF ITS
ESSENTIAL PURPOSE.
THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE IS
EXCLUDED FROM THIS LIMITED WARRANTY. ALL OTHER IMPLIED
WARRANTIES (INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTY OF MERCHANTABILITY) ARE LIMITED IN DURATION TO THE
ABOVE TWO YEAR WARRANTY PERIOD. POLARIS DISCLAIMS ALL
EXPRESS WARRANTIES NOT STATED IN THIS WARRANTY. SOME STATES DO
NOT PERMIT THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR ALLOW LIMITATIONS ON THE DURATION
OF IMPLIED WARRANTIES, SO THE ABOVE LIMITATIONS MAY NOT APPLY
TO YOU IF INCONSISTENT WITH CONTROLLING STATE LAW.
• Wheels and tires • Finished and unfinished surfaces
• Suspension components • Carburetor/Throttle body components
• Brake components • Engine components
• Seat components • Drive belts
• Clutches and components • Hydraulic components and fluids
• Steering components • Circuit breakers/Fuses
• Batteries • Electronic components
• Light bulbs/Sealed beam lamps • Spark plugs
• Filter • Sealants
• Lubricants • Coolants
• Bushings • Bearings
139
WARRANTY
HOW TO OBTAIN WARRANTY SERVICE
If your vehicle requires warranty service, you must take it to a POLARIS Servicing
Dealer. When requesting warranty service you must present your copy of the Warranty
Registration From to the dealer. (THE COST OF TRANSPORTATION TO AND
FROM THE DEALER IS YOUR RESPONSIBILITY). POLARIS suggests that you use
your original selling dealer; however, you may use any POLARIS Servicing Dealer to
perform warranty service.
In the country where your product was purchased:
Warranty or Service Bulletin repairs must be done by an authorized POLARIS dealer. If
you move or are traveling within the country where your product was purchased,
Warranty and Service Bulletin repairs may be requested from any authorized POLARIS
dealer that sells the same line as your product.
Outside the country where your product was purchased:
If you are traveling temporarily outside the country where your product was purchased,
you should take your product to an authorized POLARIS dealer. You must show the
dealer photo identification from the country of the selling dealer’s authorized location as
proof of residence. Upon residence verification, the servicing dealer will be authorized
to perform the warranty repair.
If you move:
If you move to another country, be sure to contact POLARIS Customer Assistance and
the customs department of the destination country before you move. Product
importation rules vary considerably from country to country. You may be required to
present documentation of your move to POLARIS in order to continue your warranty
coverage. You may also be required to obtain documentation from POLARIS in order to
register your product in your new country. You should warranty register your product at
a local POLARIS dealer in your new country immediately after you move to continue
your warranty coverage and to ensure that you receive information and notices regarding
your vehicle.
If you purchase from a private party:
If you purchase a POLARIS product from a private party, to be kept and used outside of
the country in which the product was originally purchased, all warranty coverage will be
denied. You must nonetheless register your product under your name and address with a
local POLARIS dealer in your country to ensure that you receive safety information and
notices regarding your product.
140
WARRANTY
EXPORTED PRODUCTS
EXCEPT WHERE SPECIFICALLY REQUIRED BY LAW, THERE IS NO
WARRANTY OR SERVICE BULLETIN COVERAGE ON THIS PRODUCT IF IT IS
SOLD OUTSIDE THE COUNTRY OF THE SELLING DEALER’S AUTHORIZED
LOCATION. This policy does not apply to products that have received authorization for
export from POLARIS. Dealers may not give authorization for export. You should
consult an authorized dealer to determine this product’s warranty or service coverage if
you have any questions. This policy does not apply to products registered to government
officials or military personnel on assignment outside the country of the selling dealer’s
authorized location. This policy does not apply to Safety Bulletins.
NOTICE
If your product is registered outside of the country where it was purchased and you have
not followed the procedure set above, your product will no longer be eligible for
warranty or service bulletin coverage of any kind, other than safety bulletins. Products
registered to Government officials or military personnel on assignment outside of the
country where the product was purchased will continue to be covered by the Limited
Warranty.
Please work with your dealer to resolve any warranty issues. Should your dealer require
any additional assistance, they will contact the appropriate person at POLARIS.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state or in different countries. If any of the above terms are void
because of federal, state, local law, all other warranty terms will remain in effect.
141
MAINTENANCE LOG
Present this section of your manual to your dealer each time your vehicle is serviced.
This will provide you and future owners with an accurate log of maintenance and
services performed.
DATE KILOMETERS
OR HOURS
TECHNICIAN SERVICE PERFORMED / COMMENTS
142
MAINTENANCE LOG
DATE KILOMETERS
OR HOURS
TECHNICIAN SERVICE PERFORMED / COMMENTS
143
MAINTENANCE LOG
DATE KILOMETERS
OR HOURS
TECHNICIAN SERVICE PERFORMED / COMMENTS
144
INDEX
0-9
4X4 System . . . . . . . . . . . . . . . . . 30-31
A
Accessories . . . . . . . . . . . . . . . . . . 128
Active Descent Control Fluid . . . 90-91
Active Descent Control System. . . . 32
ADC System . . . . . . . . . . . . . . . . . . 32
Air Filter . . . . . . . . . . . . . . . . . . . . 104
All Wheel Drive Switch. . . . . . . . . . 22
All Wheel Drive System . . . . . . . 30-31
B
Backrest Adjustment . . . . . . . . . . . . 26
Battery . . . . . . . . . . . . . . . . . . 118-122
Charging (Conventional Battery) 121
Charging (Sealed Battery) . 121-122
Fluid (Conventional Battery) . . 121
Installation . . . . . . . . . . . . . 119-120
Removal . . . . . . . . . . . . . . . . . . 119
Storage . . . . . . . . . . . . . . . . . . . 120
Belt Life. . . . . . . . . . . . . . . . . . . . . . 30
Boots . . . . . . . . . . . . . . . . . . . . . . . . . 9
Brake Fluid . . . . . . . . . . . . . . . . . 94-96
Brake Inspections. . . . . . . . . . . . . . . 97
Brake Light . . . . . . . . . . . . . . . . . . 108
Brake Maintenance . . . . . . . . . . . . . 97
Brake, Foot . . . . . . . . . . . . . . . . 24, 96
Brake, Hand. . . . . . . . . . . . . . . . 24, 95
Brake, Parking . . . . . . . . . . . . . . . . . 24
Brakes . . . . . . . . . . . . . . . . . . . . 24, 97
Break-In Period . . . . . . . . . . . . . . . . 42
Breather Filter . . . . . . . . . . . . . . . . 105
Breather Hose . . . . . . . . . . . . . . . . 105
C
Cargo . . . . . . . . . . . . . . . . . . . . . . 60-61
Cargo Loading . . . . . . . . . . . . . . . . . 59
Chrome Wheel Care . . . . . . . . . . . 125
Cleaning and Storage. . . . . . . . 123-128
C
Clothing . . . . . . . . . . . . . . . . . . . . . . . . 9
Clutching . . . . . . . . . . . . . . . . . . . . . 131
Cold Weather Operation . . . . . . . . . . 45
Coolant Bottle . . . . . . . . . . . . . . . . . . 92
Coolant, Radiator. . . . . . . . . . . . . . . . 93
Cooling System . . . . . . . . . . . . . . 92-93
Corrosion Removal, Chrome. . . . . . 125
D
Demand Drive Fluid . . . . . . . . . . 88-89
Disengaging Active Descent Control 32
Drive Belt Wear/Burn . . . . . . . . . . . 133
Drivetrain Break-In . . . . . . . . . . . . . . 42
Driving Downhill. . . . . . . . . . . . . . . . 51
Driving in Reverse. . . . . . . . . . . . . . . 58
Driving on a Sidehill . . . . . . . . . . . . . 50
Driving on Slippery Surfaces . . . . . . 56
Driving Over Obstacles . . . . . . . . . . . 57
Driving Procedures . . . . . . . . . . . . . . 46
Driving Through Water . . . . . . . . 54-55
Driving Uphill . . . . . . . . . . . . . . . 48-49
Driving with a Passenger. . . . . . . . . . 47
E
Electromagnetic Interference. . . . . . . 74
Engaging 4X4 . . . . . . . . . . . . . . . . . . 31
Engaging Active Descent Control. . . 32
Engine Break-In. . . . . . . . . . . . . . . . . 42
Engine Fogging . . . . . . . . . . . . . . . . 127
Engine Oil . . . . . . . . . . . . . . . . . . 80-85
Equipment Modifications . . . . . . . . . . 7
Exhaust Emission Control System . . 74
Eye Protection . . . . . . . . . . . . . . . . . . . 9
F
Fluid
Active Descent Control. . . . . . 90-91
Brake. . . . . . . . . . . . . . . . . . . . 94-96
Demand Drive. . . . . . . . . . . . . 88-89
Engine Oil. . . . . . . . . . . . . . . . 80-85
Front Gearcase . . . . . . . . . . . . 88-89
Transmission. . . . . . . . . . . . . . 86-87
145
INDEX
F
Fluid Change
ADC Fluid . . . . . . . . . . . . . . . . . . 91
Demand Drive . . . . . . . . . . . . . . . 89
Engine Oil . . . . . . . . . . . . . . . 82-85
Front Gearcase . . . . . . . . . . . . . . . 89
Transmission . . . . . . . . . . . . . . . . 87
Fluid Level
ADC Fluid . . . . . . . . . . . . . . . . . . 90
Brake Fluid. . . . . . . . . . . . . . . 95-96
Demand Drive . . . . . . . . . . . . . . . 88
Engine Oil . . . . . . . . . . . . . . . . . . 81
Front Gearcase . . . . . . . . . . . . . . . 88
Transmission . . . . . . . . . . . . . . . . 86
Fluid Recommendations
ADC Fluid . . . . . . . . . . . . . . . . . . 90
Demand Drive . . . . . . . . . . . . . . . 88
Engine Oil . . . . . . . . . . . . . . . . . . 80
Front Gearcase . . . . . . . . . . . . . . . 88
Transmission . . . . . . . . . . . . . . . . 86
Foot Brake. . . . . . . . . . . . . . . . . . 24, 96
Footwell Removal. . . . . . . . . . . . . . 100
Front Gearcase Fluid. . . . . . . . . . 88-89
Fuel Filter . . . . . . . . . . . . . . . . . . . . 104
Fuel Tank Cap. . . . . . . . . . . . . . . . . . 27
Fuel Valve. . . . . . . . . . . . . . . . . . . . . 27
Fuse Replacement. . . . . . . . . . . . . . 109
G
Gear Selector. . . . . . . . . . . . . . . . . . . 30
Gloves. . . . . . . . . . . . . . . . . . . . . . . . . 9
H
Hand Brake . . . . . . . . . . . . . . . . . . . . 95
Handlebar Adjustment . . . . . . . . . . . 99
Hauling Cargo. . . . . . . . . . . . . . . 59-61
Hazard Warning Switch . . . . . . . . . . 22
Headlight Lamp . . . . . . . . . . . . . . . 107
Helmet. . . . . . . . . . . . . . . . . . . . . . . . . 8
High Beam Adjustment . . . . . . . . . 106
High Beam Switch, Momentary . . . . 20
High Range Use . . . . . . . . . . . . . . . . 45
Hitches . . . . . . . . . . . . . . . . . . . . 28-29
Horn Switch . . . . . . . . . . . . . . . . . . . 22
Hub Tightening. . . . . . . . . . . . . . . . 102
I
Immersion. . . . . . . . . . . . . . . . . . . . 113
Immersion Maintenance . . . . . . . . . 112
Instrument Cluster . . . . . . . . . . . 33-41
J
Jack Point . . . . . . . . . . . . . . . . . . . . 103
K
Key Switch . . . . . . . . . . . . . . . . . . . . 21
K-Turn . . . . . . . . . . . . . . . . . . . . 52-53
L
Leaving the Engine. . . . . . . . . . . . . . 45
Light Switch . . . . . . . . . . . . . . . . . . . 20
Light Switch, High/Low Beam. . . . . 21
Light Switch, Master . . . . . . . . . . . . 20
Lights . . . . . . . . . . . . . . . . . . . 106-108
Brake Light . . . . . . . . . . . . . . . . 108
Front Signal Light . . . . . . . . . . . 108
Front Turn Signal. . . . . . . . . . . . 108
Headlight Lamp . . . . . . . . . . . . . 107
High Beam Adjustment . . . . . . . 106
Parking Light Lamp . . . . . . . . . . 107
Position Light Lamp . . . . . . . . . 107
Rear Signal Light. . . . . . . . . . . . 108
Taillight . . . . . . . . . . . . . . . . . . . 108
Low Range Use. . . . . . . . . . . . . . . . . 45
Lubrication Guide. . . . . . . . . . . . . . . 79
M
Maintenance Chart . . . . . . . . . . . 75-78
Mirrors . . . . . . . . . . . . . . . . . . . . . . . 23
Mode Switch. . . . . . . . . . . . . . . . . . . 20
Modifications . . . . . . . . . . . . . . . . . . . 7
N
Noise Emission Control System . . . . 74
146
INDEX
O
Oil
Engine. . . . . . . . . . . . . . . . . . . 80-85
Transmission. . . . . . . . . . . . . . 86-87
Oil Change
Engine. . . . . . . . . . . . . . . . . . . 82-85
Transmission. . . . . . . . . . . . . . . . 87
Oil Level
Engine. . . . . . . . . . . . . . . . . . . . . 81
Transmission. . . . . . . . . . . . . . . . 86
Oil Pump Priming . . . . . . . . . . . . . . 85
Oil Recommendations
Engine Oil. . . . . . . . . . . . . . . . . . 80
Transmission. . . . . . . . . . . . . . . . 86
Override Switch. . . . . . . . . . . . . . . . 20
P
Parking Brake . . . . . . . . . . . . . . . . . 24
Parking on an Incline. . . . . . . . . . . . 57
Periodic Maintenance Chart . . . . 75-78
Polaris Product List . . . . . . . . . . . . 132
Polishing the Vehicle. . . . . . . . . . . 124
Pre-Ride Checklist. . . . . . . . . . . . . . 43
PVT Break-In. . . . . . . . . . . . . . . . . . 42
PVT Operation. . . . . . . . . . . . . . . . . 45
PVT System. . . . . . . . . . . . . . . 116-117
R
Reverse Operation . . . . . . . . . . . . . . 58
Reverse Override Switch. . . . . . . . . 20
Rider Information Center. . . . . . . 34-41
Rider Safety . . . . . . . . . . . . . . . . . 10-16
Riding Gear . . . . . . . . . . . . . . . . . . . 8-9
S
Safety Labels . . . . . . . . . . . . . . . . 17-19
Safety Training . . . . . . . . . . . . . . . . . 7
Safety, Winch Maintenance. . . . . . . 73
Seat . . . . . . . . . . . . . . . . . . . . . . . 25-26
Backrest Adjustment. . . . . . . . . . 26
Height Adjustment . . . . . . . . . . . 26
Load Adjustment. . . . . . . . . . . . . 25
Seat Removal. . . . . . . . . . . . . . . . . . 26
Service Interval Programming. . . . . 38
Severe Use . . . . . . . . . . . . . . . . . . . . 75
S
Shock Loading the Winch . . . . . . 71-72
Side Panel Removal. . . . . . . . . . . . . 100
Sidehilling . . . . . . . . . . . . . . . . . . . . . 50
Signal Light, Front. . . . . . . . . . . . . . 108
Signal Light, Rear . . . . . . . . . . . . . . 108
Signal Words . . . . . . . . . . . . . . . . . . . . 4
Spark Arrester . . . . . . . . . . . . . 114-115
Spark Arrester Requirements. . . . . . . 74
Spark Plug Inspection . . . . . . . . . . . 110
Spark Plug Recommendations. . . . . 110
Spark Plug Torque Specification. . . 110
Spark Plugs . . . . . . . . . . . . . . . 110-111
Specifications. . . . . . . . . . . . . . 130-131
Spring Adjustment, Rear Shock . . . . 99
Starting the Engine . . . . . . . . . . . . . . 44
Steering Assembly. . . . . . . . . . . . . . . 99
Steering Lock. . . . . . . . . . . . . . . . . . . 27
Stopping the Engine. . . . . . . . . . . . . . 44
Storage. . . . . . . . . . . . . . . . . . . 123-128
Storage Tips. . . . . . . . . . . . . . . 126-128
Switches . . . . . . . . . . . . . . . . . . . 20-22
4X4 Switch . . . . . . . . . . . . . . . . . . 22
Engine Stop Switch. . . . . . . . . . . . 21
Hazard Warning . . . . . . . . . . . . . . 22
Headlight Switch . . . . . . . . . . . . . 21
Horn . . . . . . . . . . . . . . . . . . . . . . . 22
Light Switch . . . . . . . . . . . . . . . . . 21
Main Key Switch . . . . . . . . . . . . . 21
Master Light Switch . . . . . . . . . . . 20
Mode/Reverse Override Switch . . 20
Momentary High Beam Switch . . 20
Turn Signal . . . . . . . . . . . . . . . . . . 22
Winch Switch . . . . . . . . . . . . . . . . 20
Work Light . . . . . . . . . . . . . . . . . . 22
T
Taillight . . . . . . . . . . . . . . . . . . . . . . 108
Throttle Cable Freeplay. . . . . . . . . . 101
Throttle Lever . . . . . . . . . . . . . . . . . . 23
Throttle Release Switch. . . . . . . . . . . 23
Tire Tread Depth . . . . . . . . . . . . . . . 102
Tires . . . . . . . . . . . . . . . . . . . . 102-103
Wheel Installation. . . . . . . . . . . . 103
Wheel Nut Torque . . . . . . . . . . . 102
Wheel Removal . . . . . . . . . . . . . 103
147
INDEX
T
Toe Alignment . . . . . . . . . . . . . . . . . 98
Towing a Disabled Vehicle. . . . . . . 129
Towing Capacities . . . . . . . . . . . . . . 60
Towing Loads . . . . . . . . . . . . . . . 60-61
Towing Tractor . . . . . . . . . . . . . . . . . 61
Training, Safety . . . . . . . . . . . . . . . . . 7
Transmission. . . . . . . . . . . . . . . . . . . 30
Transmission Oil. . . . . . . . . . . . . 86-87
Transporting the Vehicle . . . . . . . . 129
Turn Signal Switch . . . . . . . . . . . . . . 22
Turning Around on a Hill . . . . . . 52-53
Turning the Vehicle . . . . . . . . . . . . . 47
V
Vehicle Identification Numbers . . . . . 6
Vehicle Immersion . . . . . . . . . 112-113
VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
W
Warning Symbols . . . . . . . . . . . . . . . . 4
Washing the Vehicle. . . . . . . . 123-124
Wheel Nut Torque Specifications. . 102
Winch Cable Care. . . . . . . . . . . . . . . 70
Winch Maintenance/Service Safety . 73
Winch Operation. . . . . . . . . . . . . 65-69
Winch Safety Precautions. . . . . . 62-64
Winch Shock Loading . . . . . . . . 71-72
For your nearest Polaris dealer,
Call 1-800-POLARIS (765-2747)
or visit www.polaris.com
Polaris Industries Inc.,
2100 Hwy. 55, Medina, MN 55340
U.S.A.
Part No. 9924305 Revision 02
Printed in U.S.A.
*9924305 *
GB
D
E
F
I
FI
P
S
Before you operate this vehicle, read the
owner’s manual.
Lesen Sie die Bedienungsanleitung bevor Sie
dieses Fahrzeug fahren.
Antes de conducir este vehículo, lea el
Manual del propietario.
Lire le Manuel du propriétaire avant d’utiliser
ce véhicule.
Prima di usare il veícolo, leggete il Manuale di
istruzioni.
Lue aina käyttöohjekirja ennen tämän
ajoneuvon käyttöä.
Antes de utilizar este veículo, leia o Manual do
proprietário.
Innan du kör detta fordon, läs
Handboken.
