User Guide
1
Chapter 1
Getting Started
Contents
Chapter 1. Getting Started
3 Before You Start
6 Safety Precautions
21 Proper Posture During Computer Use
24 Overview
30 Turning the Computer On and O
Chapter 2. Using Windows 8
33 What is Microsoft Windows 8?
34 Screen At a Glance
36 Using the Charms
38 Using Apps
42 Windows Hot Key Function
Chapter 3. Using the computer
44 Using the Touch Screen
52 Micro SD Card Slot (Optional)
54 Connecting an External Display Device
57 Adjusting the Volume
59 LCD Brightness Control
60 Wireless Network (Optional)
62 Mobile broadband (Wireless WAN, Optional)
63 NFC (Near Field Communication)
(for corresponding models only)
65 Using the Keyboard Dock (Optional)

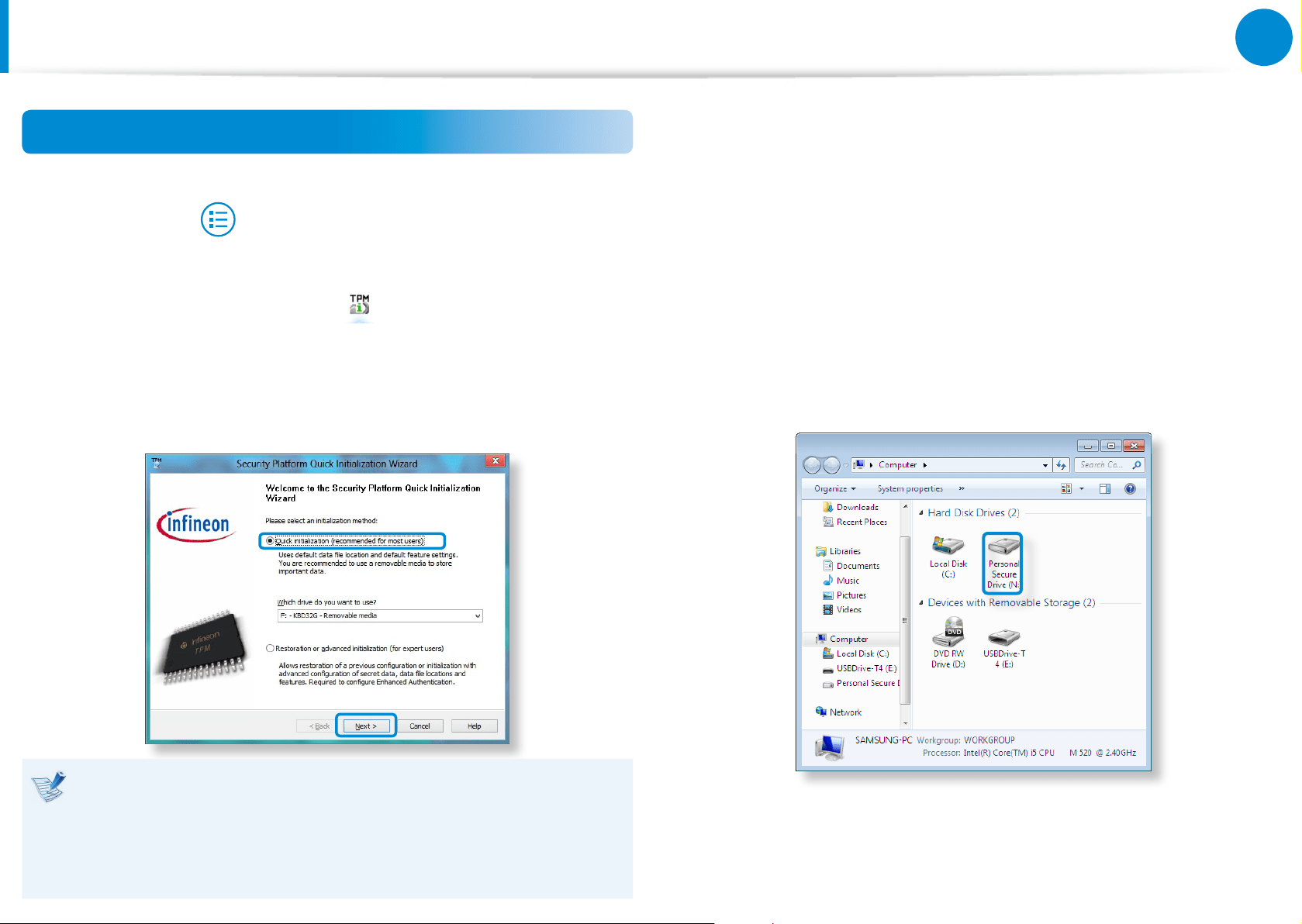

71 Using the TPM Security Device (Optional)
80 Using the Multimedia App (Optional)

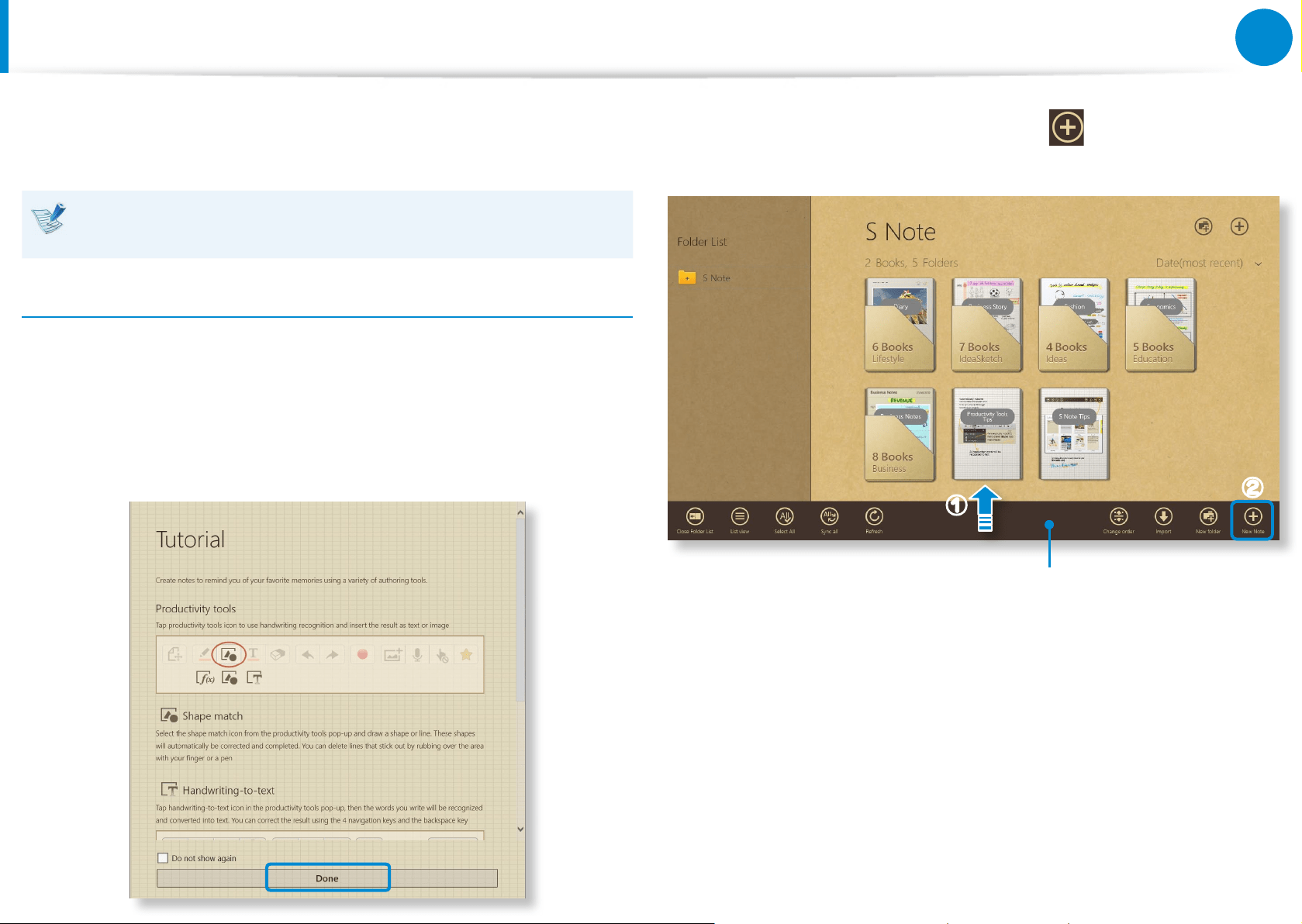

84 Using the S Note app (S Note, Optional)
88 Samsung Software Update
89 Diagnosing the Computer Status and
Troubleshooting
Chapter 4. Settings and Upgrade
91 BIOS Setup
93 Setting a Boot Password
96 Changing the Boot Priority
97 Battery
Chapter 5. Troubleshooting
102 Recovering/Backing up the Computer (Optional)
108 Reinstalling Windows (Optional)
111 Q&A
Chapter 6. Appendix
118 Important Safety Information
120 Replacement Parts and Accessories
122 Regulatory Compliance Statements
137 WEEE Symbol Information
138 Samsung Packaging Take-Back Program
139 TCO Certied (for corresponding models only)
140 Product Specications
142 Glossary
146 Index
3
Chapter 1
Getting Started
Before You Start
Before reading the User Guide, rst check the following
information.
Optional items, some devices and software referred to in •
the User Guide may not be provided and/or changed by
upgrade.
Note that the computer environment referred in the User
Guide may not be the same as your own environment.
The pictures used for the cover and the main body in the •
User Manual are those of the representative model of each
series and may dier from the actual appearance of the
product.
This guide decribes procedures for using both the mouse •
and the S Pen.
In this manual ‘click’ means ‘one press with the S Pen’.
The User Guide describes information on the basis of the •
touch screen.
This manual has been written for the Windows 8 operating •
system. The descriptions and gures may dier depending
on the installed operating system.
The User guide supplied with this computer may vary •
depending on your model.
Software Usage Instructions
In the • Start screen, slightly drag the top edge of the
screen toward the center.
Click the corresponding program in the All Apps
menu item.
Alternatively, start the program from Quick Starter.
You can install • Quick Starter through the SW Update.
4
Chapter 1
Getting Started
Before You Start
Safety Precaution Notations
Icon Notation Description
Warning
Failure to follow instructions marked with
this symbol, may cause personal injury
and or fatality.
Caution
Failure to follow instructions marked with
this symbol, may cause slight injury to
yourself or damage your property.
Text Notations
Icon Notation Description
Caution
Content included in this section includes
information required about the function.
Note
Content included in this section includes
helpful information to use the function.
Copyright
© 2013 Samsung Electronics Co., Ltd.
Samsung Electronics Co., Ltd. owns the copyright of this manual.
No part of this manual may be reproduced or transmitted in any
form or by any means, electronic or mechanical, without the
consent of Samsung Electronics Co., Ltd.
The information in this document is subject to change without
notice due to improving the performance of the product.
Samsung Electronics shall not be liable for any data loss. Please
take care to avoid losing any important data and backup your data
to prevent any such data loss.
OS and Software Support
If you change the product’s factory OS (Operating System) to
another OS or if you install software which is not supported by the
product’s original factory OS, you will not receive any technical
support, product exchange or refund. And a fee will be charged
when requesting a service.
Please use your computer with the original factory OS. If you
install an OS other than the factory OS, data may be deleted or the
computer may not start.
4
5
Chapter 1
Getting Started
Performance Information and Restriction
This computer automatically maintains the CPU and GPU clock •
speed at every moment to control the heating and power
consumption of the computer for minimum performance
degradation.
For best computer performance:
1. Connect the AC adapter.
2. Launch Settings software, and select General > Max.
Performance Mode > Activate max. performance mode.
Online games and some games(3D,2D) may not be supported •
and Full HD video and some high bit rate HD video playback
may be slow and stutter on this computer.
About the Product Capacity Representation
Standard
About the capacity representation of the storage
The capacity of the storage device (HDD, SSD) of the manufacturer
is calculated assuming that 1KB=1,000 Bytes.
However, the operating system (Windows) calculates the storage
device capacity assuming that 1KB=1,024 Bytes, and therefore the
capacity representation of the HDD in Windows is smaller than the
actual capacity due to the dierence in capacity calculation.
(E.g. For a 80GB HDD, Windows represents the capacity as 74.5GB,
80x1,000x1,000x1,000 byte/(1,024x1,024x1,024)byte = 74.505GB)
Windows may also display a smaller hard disk capacity due
to some hidden functions or software programs such as the
Recovery program.
About Memory Capacity Representation
The memory capacity reported in Windows is less than the actual
capacity of memory.
This is because BIOS or a video adapter uses a portion of memory
or claims it for further use.
(E.g. For 1GB(=1,024MB) memory installed, Windows may report
the capacity as 1,022MB or less)
Before You Start
6
Chapter 1
Getting Started
Installation Related
Do not install the product in places exposed
to humidity such as bathrooms.
There is a danger of electric shock. Use the
product within the operating conditions
specied in the Manufacturers User Guide.
Keep the plastic bags out of the reach of
children.
There is a danger of suocation.
Keep a distance of 15cm or more between
the computer and the wall and do not place
any objects between them.
This may increase the internal temperature of
the computer and may cause an injury.
Safety Precautions
Do not install the computer on a slant or a
place prone to vibrations, or avoid using the
computer in that location for a long time.
This increases the risk that a malfunction or
damage to the product will occur.
Be careful that people are not exposed to
the computer’s ventilator, adapter, etc., as
they generate heat over a long period of
time when your PC is powered on.
Exposing a part of your body close to the heat
from the vent or AC adapter for long periods of
time may cause a burn.
Avoid blocking the vent at the bottom or
side of the computer when using it on a bed
or cushion.
If the vent is blocked, there is a danger of
damaging the computer or overheating the
inside of the computer.
For your security and to prevent damage, please read the
following safety instructions carefully.
Since this is commonly applied to Samsung computers,
some pictures may dier from actual products.
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
Ver 3.3
6
7
Chapter 1
Getting Started
G
If the power cord or power outlet makes a
noise, disconnect the power cord from the
wall outlet and contact a service center.
There is a danger of electric shock or re
hazard.
Do not use a damaged or loose main plug or
power cord or power outlet.
There is a danger of electric shock or re
hazard.
Plug the power cord rmly into the power
outlet and AC adapter.
Failure to do so may cause re hazard.
Do not unplug the power cord by pulling
the cable only.
If the cord is damaged, it may cause electric
shock.
Do not bend the power cord excessively or
do not place a heavy object over the power
cord. It is especially important to keep the
power cord out of reach of infants and pets.
If the cord is damaged, it may cause electric
shock or re.
Power Related
The power plug and wall outlet gures may dier
depending on the country specications and the product
model.
Do not touch the main plug or power cord
with wet hands.
There is a danger of electric shock.
Do not exceed the standard capacity
(voltage/current) of a multiplug or power
outlet extension when using it for the
product.
There is a danger of electric shock or re
hazard.
Safety Precautions
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
8
Chapter 1
Getting Started
Connect the power cord to an outlet or
multiple power plug (extended cable) with
a ground terminal.
Failure to do so may result in electric shock.
When the power supply is ungrounded, the
current may leak resulting in electric shock.
If water or another substance enters
the power input jack, AC adapter or the
computer, disconnect the power cord and
contact the service center.
If the notebook computer has an external
type (removable) battery, separate the
battery also.
Damage to the device within the computer
may cause electric shock or re hazard.
Keep the power cord or outlet clean so that
they are not covered with dust.
Failure to do so may result in re.
AC Adapter Usage Precautions
Connect the power cord to the AC adapter
rmly.
Otherwise, there is a danger of re due to an
incomplete contact.
Use only the AC adapter supplied with the
product.
Using another adapter may cause the screen to
icker.
Do not place heavy objects on top of or step
onto the power cord or AC adapter to avoid
damaging the power cord or AC adapter.
If the cord is damaged, there is a danger of
electric shock or re.
Unplug the wall-mount AC adapter (adapter
and plug intergrated type) from the wall
outlet while holding the body and pulling it
in the direction of the arrow.
If you unplug the adapter by holding and
pulling the cable, the adapter may be damaged
and an electric shock, explosive sound or spark
may occur as a result.
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
Safety Precautions
8
9
Chapter 1
Getting Started
Battery Usage Related
Please charge the battery fully before using the
computer for the rst time.
Keep the battery out of the reach of infants
and pets, as they could put the battery into
their mouths.
There is a danger of electric shock or choking.
Use an authorized battery and AC adapter
only.
Please use an authorized battery and adapter
approved by Samsung Electronics.
Unauthorized batteries and adapters may not
meet the proper safety requirements and may
cause problems or malfunctions and result in
an explosion or re.
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
Safety Precautions
Do not use the computer in a badly
ventilated location such as on bedding, on
a pillow or cushion, etc, and do not use it in
a location such as a room with oor heating
as it may cause the computer to overheat.
Take care that the computer vents (on the side
or the bottom) are not blocked especially in
these environments. If the vents are blocked,
the computer may overheat and it may cause a
computer problem, or even an explosion.
Do not use the computer in a humid
location such as a bathroom or sauna.
Please use the computer within the
recommended temperature and humidity
ranges (10 - 35ºC, 20 - 80% RH)
Do not close the LCD panel and put the
computer into your bag to move it when it is
still turned on.
If you put the computer into your bag without
turning it o, the computer may overheat and
there is a danger of re. Shut the computer
down properly before moving it.
10
Chapter 1
Getting Started
Cutting the Power to the Internal Battery
(for corresponding models only)
For products with built-in batteries, customers cannot remove •
the battery.
In the case of ooding, lightning or explosions, you can cut •
the battery power by inserting an object such as a paper clip
into the [Emergency Hole] at the bottom of the computer.
Disconnect the AC adapter and insert an object such as a •
paper clip into the hole at the bottom of the computer to cut
the battery power.
In the case of ooding, lightning or explosions, cut
the battery power, do not reconnect the AC adapter,
and immediately contact Samsung Electronics so that
the appropriate countermeasures can be taken.
Never heat the product (or battery) or put
the product (or battery) into a re. Do not
put or use the product (or battery) in a hot
location such as a sauna, inside a vehicle
exposed to the heat, and so on.
There is a danger of an explosion or re.
Take care not to allow metal objects such as
a key or clip to touch the battery terminal
(metal parts).
If a metal object touches the battery terminals,
it may cause excessive current ow and it may
damage the battery, or result in a re.
If liquid leaks out of the product (or
battery) or there is a funny smell coming
from the product (or battery), remove the
the product (or battery) the computer and
contact a service center.
There is a danger of an explosion or re.
To use the computer safely, replace a dead
battery with a new, authorized battery.
Safety Precautions
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
10
11
Chapter 1
Getting Started
Safety Precautions
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
Thereafter, if you connect the AC adapter, the battery power •
will be supplied again.
Do not cut the battery power under normal •
conditions.
This may result in data loss or a product •
malfunction.
The location of the Emergency Hole may dier depending
on the model.
Usage Related
Disconnect all cables connected to the
computer before cleaning it. If your
notebook is an external & removable
battery type, remove the external battery.
There is a danger of electric shock or damage
to the product.
Do not connect a phone line connected to a
digital phone to the modem.
There is a danger of a electric shock, re or
damage to the product.
Do not place any container lled with water or
chemicals over or near the computer.
If water or chemicals enter the computer, this
may cause re or electric shock.
If the computer is broken or dropped,
disconnect the power cord and contact a
service center for a safety check.
If the notebook computer has an external
type (removable) battery, separate the
battery also.
Using a broken computer may cause electric
shock or re hazard.
12
Chapter 1
Getting Started
Upgrade Related
Be sure to upgrade the computer by
yourself only if you have sucient
knowledge and ability.
If this is not the case, ask for assistance from
the service center or an authorized engineer
for the upgrade.
Be sure to upgrade only the parts specied
in the user manual according to the
procedures described in the user manual.
Do not disassemble any other parts or devices
by yourself. There is a danger of a electric
shock, re or damage to the product.
Never disassemble the power supply or AC
adapter.
There is a danger of electric shock.
When removing the RTC (Real Time Clock)
battery, keep it out of the reach of children
as they could touch and/or swallow it.
There is a danger of choking. If a child has
swallowed it, contact a doctor immediately.
Avoid direct sunlight when the computer
is in an air-tight location such as inside a
vehicle.
There is a danger of a re hazard. The computer
may overheat and also present opportunity to
thieves.
Do not use your computer for long
periods of time while any part of your
body is making direct contact with it. The
temperature of the product may increase
during normal operation.
This may result in harming or burning your skin.
Do not touch the computer vents or the
connected AC adapter for extended periods
while the computer is on.
Contact with the vent or the connected AC
adapter for extended periods may result in low-
temperature burns, such as redness on the skin.
Safety Precautions
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
12
13
Chapter 1
Getting Started
Security and Movement Related
Follow the instructions for the relevant
location (e.g., airplane, hospital, etc.) when
using a wireless communication device
(wireless LAN, Bluetooth, etc.).
Avoid exposing a drive to magnetic elds.
Security devices with magnetic elds in-
clude airport walk-through devices and se-
curity wands.
The airport security devices that check car-
ry-on luggage, such as conveyor belts, use
x-rays instead of magnetism and will not
damage a drive.
When carrying the notebook computer
with other items, such as the adapter,
mouse, books, etc, take care not to press
anything against the notebook computer.
If a heavy object is pressed against the
notebook computer, a white spot or stain may
appear on the LCD. Therefore, take care not to
apply any pressure to the notebook.
In this case, place the notebook computer
in a separate compartment away from other
objects.
Before upgrading the computer, be sure
to shutdown the computer rst and then
separate all connected cables. If the
notebook computer has an external type
(removable) battery, separate the battery,
too.
Failure to do so may cause electric shock.
Safety Precautions
Warning
Failure to follow instructions marked with this symbol may
cause personal injury and even fatality.
14
Chapter 1
Getting Started
Safety Precautions
Installation Related
Do not block the ports (holes), vents, etc. of the product and
do not insert objects.
Damage to a component within the computer may cause electric
shock or re.
When using the computer with it lying on its side, place it so
that the vents face upwards.
Failure to do so may cause the internal temperature of the
computer to rise and the computer to malfunction or halt.
Do not place a heavy object over the product.
This may cause a problem with the computer. In addition, the
object may fall and cause injury, or damage the computer.
Battery Usage Related
Dispose of worn-out batteries properly.
There is a danger of re or explosion.•
The battery disposal method may dier depending on •
your country and region. Dispose of the used battery in an
appropriate way.
Do not throw or disassemble the battery and do not put it
into water.
This may cause an injury, re or explosion.
Use only a battery authorized by Samsung Electronics.
Failure to do so may cause an explosion.
Avoid contact with metal objects such as car keys or clips
when keeping or carrying a battery.
Contact with a metal may cause excessive current and a high
temperature and may damage the battery or cause a re.
Charge the battery according to the instructions in the manual.
Failure to do so may cause an explosion or re from damage to
the product.
Do not heat the product (or battery) or expose it to heat (e.g.,
inside a vehicle during the summer).
There is a danger of explosion or re.
Caution
Failure to follow instructions marked with this symbol may
cause slight injury or damage to the product.
14
15
Chapter 1
Getting Started
Usage Related
Do not place a candle, light a cigar, etc. over or on the
product.
There is a danger of re.
Use a wall outlet or multi-plug with a grounding part.
Failure to do so may cause electric shock hazard.
Make sure to have the product tested by a safety service
engineer after repairing the product.
Authorized Samsung Repair Centers will carry out safety checks
after a repair. Using a repaired product without testing it for
safety may cause an electric shock or re.
In case of lightning, immediately turn the system o,
disconnect the power cord from the wall outlet and phone
line from the modem. Do not use a modem or phone.
There is a danger of electric shock or re.
Do not use your computer and AC-Adapter on your lap or
soft surfaces.
If the computer temperature increases, there is a danger of
burning yourself.
Connect only permitted devices to the connectors or ports of
the computer.
Failure to do so may cause electric shock and re.
Close the LCD panel only after checking if the notebook
computer is turned o.
The temperature may rise and cause overheating and
deformation of the product.
Do not press the Eject Button while the CD-ROM drive is in
operation.
You might lose data and the disk might be suddenly ejected and
could cause an injury.
Do not drop or knock the product.
This may result in injury or damage to the data.
Do not touch the antenna with an electricity facility such as
the power outlet.
There is a danger of electric shock.
When handling computer parts, follow the instructions on
the manual supplied with the parts.
Failure to do so may cause damage to the product.
Safety Precautions
Caution
Failure to follow instructions marked with this symbol may
cause slight injury or damage to the product.
16
Chapter 1
Getting Started
If the computer emits smoke, or there is a burning smell,
disconnect the power plug from the wall outlet and contact
a service center immediately. If your notebook is an external
& removable battery type, remove the external battery.
There is a danger of re.
Do not use a damaged or modied CD.
There is a danger of damaging the product or personal injury.
Do not insert your ngers into the PC Card Slot.
There is a danger of injury or electric shock.
Use recommended computer cleansing solution when
cleaning the product and only use the computer when it is
completely dried.
Failure to do so may cause electric shock or re.
Emergency disk eject method using paperclip should not
be used while the disk is in motion. Make sure to use the
emergency disk eject method only when the Optical Disk
Drive has stopped.
There is a danger of injury.
Do not place your face close to the Optical Disk Drive tray
when it is operating.
There is a danger of injury due to an abrupt ejection.
Check CDs for cracks and damage prior to use.
It may damage the disc and cause problems with the device and
injury to the user.
Do not leave the product in a location exposed to magnetic
elds.
A magnetic eld may cause the product to work abnormally or •
the battery to discharge.
The information saved on the magnetic tape of a credit card, •
phone card, bankbook, transportation tickets and so on can be
damaged by a computer’s electromagnetic eld.
Use the pen only for the original purpose. Do not poke in the
eye or ear with the pen, and do not put the pen in the mouth.
There is a danger of injury.
Safety Precautions
Caution
Failure to follow instructions marked with this symbol may
cause slight injury or damage to the product.
16
17
Chapter 1
Getting Started
Upgrade Related
Carefully touch a part or device of the product.
Failing to do so may result in damage to the product or injury.
Take care not to throw or drop a computer part or device.
Failing to do so may result in damage to the product or injury.
After the disassembly, be sure to close the cover and then
connect the power.
Failing to do so may result in an electric shock from the exposed
circuit.
Use parts authorized by Samsung Electronics only.
It may damage the product or result in re.
Never disassemble or repair the product by yourself.
If the product is modied, disassembled or repaired by the user,
the warranty is expired, a service fee will be charged and there is
a danger of an accident.
Be sure to use an authorized Samsung Electronics service center.
To connect a device that is not manufactured or authorized
by Samsung Electronics, inquire at your service center
before connecting the device.
There is a danger of damaging the product.
Security and Movement Related
When moving the product, turn the power o and separate
all connected cables rst.
The product might be damaged or users may trip over the cables.
For long periods of not using the notebook computer,
discharge the battery and separate the battery from the
computer (for external & removable battery type).
The battery will be preserved at its best condition.
Do not operate or watch the computer while driving a
vehicle.
There is a danger of a trac accident. Please concentrate on
driving.
Safety Precautions
Caution
Failure to follow instructions marked with this symbol may
cause slight injury or damage to the product.
18
Chapter 1
Getting Started
Cautions on Preventing Data Loss
(Storage device Management)
Take care not to damage the data on a storage device.
A storage device is so sensitive to external impact that an •
external impact may cause loss of data on the surface of the
disk.
Take extra care, because moving the computer or an impact •
on the computer when it is turned on may damage the data of
the storage device.
The company is not liable for any loss of data on the storage •
device.
Causes that may damage the data of a storage device and
the storage device itself.
The data may be lost when an external impact is applied to the •
disk while disassembling or assembling the computer.
The data may be lost when the computer is turned o or reset •
by a power failure while the storage device is operating.
The data may be lost and irrecoverable due to a computer virus •
infection.
The data may be lost if the power is turned o while running a •
program.
Sudden impact or movement to the computer while the •
storage device is operating may cause les to be corrupted or
bad sectors on the storage device.
To prevent data loss due to damage to the storage device,
please backup your data frequently.
Safety Precautions
Caution
Failure to follow instructions marked with this symbol may
cause slight injury or damage to the product.
18
19
Chapter 1
Getting Started
Safety Precautions
Using the Power Supply in an Airplane
Since the power outlet type diers depending on the type of
airplane, connect the power appropriately.
Since the representative gures of the power plug and
the auto adapter are used, they may dier from the actual
parts.
When Using the AC Power Plug
Connect the power plug pins perpendicular into the center of the
power outlet.
If the plug pins are not inserted into the center of the holes, the •
plug pins are only inserted up to half their length. In this case,
reconnect the power plug.
You have to insert the power plug into the outlet when the •
power indicator (LED) of the power outlet is lit green. If the
power is connected properly, the power indicator (LED)
remains green.
Otherwise, the power indicator (LED) is turned o. In this case,
unplug the power, check if the power indicator (LED) is green,
and then reconnect the power plug.
Wrong Example
Good Example
220V Power Plug 110V Power Plug
Center
Holes
Power Indicator (LED)
20
Chapter 1
Getting Started
Safety Precautions
When Using the Auto Adapter
When a cigar socket is provided, you have to use the auto adapter
(optional). Insert the cigar plug of the auto adapter into the cigar
socket and connect the DC plug of the auto adapter to the power
input port of the computer.
Auto Adapter
In-ight Cigar SocketCigar PlugDC Plug
When Using the Airplane Charging Coverter
Depending on the airplane, you have to use the auto adapter
and charging converter. Connect the airplane charging converter
(optional) to the auto adapter (optional) and then insert the
airplane power input jack into the power outlet.
Charging
Converter
1
Connect this end to
the auto adapter.
Connect the airplane power
input jack to the power
outlet of the airplane.
2
20
21
Chapter 1
Getting Started
Proper Posture During Computer Use
Maintaining a proper posture during computer use is very
important to prevent physical harm.
The following instructions are about maintaining a proper posture
during computer use developed through human engineering.
Please read and follow them carefully when using the computer.
Otherwise, the probability of (RSI: Repetitive Strain Injury) from
repeated operations may increase and serious physical harm may
be caused.
The instructions in this manual have been prepared so that •
they can be applied within the coverage of general users.
If the user is not included in the coverage, the •
recommendation is to be applied according to the user’s
needs.
Proper Posture
Adjust the heights of desks and chairs appropriate to your
height.
The heights are to be adjusted so that your arm forms a right
angle when you place your hand over the keyboard while sitting
down on a chair.
Adjust the height of chair so that your heel is comfortably placed
on the oor.
Do not use the computer while you are lying down, but only •
while you are sitting down.
Do not use the computer on your lap. If the computer •
temperature increases, there is a danger of burning yourself.
Work while keeping your waist straight.•
Use a chair with a comfortable back.•
Keep the center of your leg weight not on the chair but on •
your feet when you are sitting on a chair.
To use the computer while talking over the telephone, use a •
headset. Using the computer with the phone on your shoulder
is bad for posture.
Keep frequently used items within a comfortable work range •
(where you can reach them with your hands).
22
Chapter 1
Getting Started
Proper Posture During Computer Use
Eye Position
Keep the monitor or LCD away from your eyes by at least
50cm.
Adjust the height of the monitor and the LCD screen so that its •
top height is equal to or lower than your eyes.
Avoid setting the monitor and LCD excessively bright.•
Keep the monitor and LCD screen clean.•
If you wear glasses, clean them before using the computer.•
When entering contents printed on a paper into the computer, •
use a static paper holder so that the height of the paper is
almost equal to that of the monitor.
Hand Position
Keep your arm at a right angle as shown by the gure.
Keep the line from your elbow to your hand straight.•
Do not place your palm over the keyboard while typing.•
Do not hold the mouse with excessive force.•
Do not press the touch screen with excessive force.•
It is recommended connecting an external keyboard and •
mouse when using the computer for long periods of time.
22
23
Chapter 1
Getting Started
Proper Posture During Computer Use
Volume Control (Headphones and Speakers)
Check your volume rst to listen to music.
Check your
volume!
Check if the volume is too loud before using headphones.•
It is not recommended using headphones for long periods of •
time.
Any deviation from the equalizer default setting could cause •
hearing impairment.
The default setting can be changed through software and •
driver updates without your intervention. Please check the
equalizer default setting before rst usage.
To prevent possible hearing damage, do not listen at high volume
levels for long periods.
Use Time (Break Time)
Take a break for 10 minutes or more after a 50-minute period •
when working for more than one hour.
Illumination
Do not use the computer in dark locations. The illumination •
level for computer use must be as bright so for reading a book.
Indirect illumination is recommended. Use a curtain to prevent •
reection on the LCD screen.
Operation Condition
Do not use the computer in hot and humid locations.•
Use the computer within the allowed temperature and •
humidity range specied in the User Guide.
24
Chapter 1
Getting Started
Overview
Front View
The pictures used for the cover and the main body in the User
Manual are those of the representative model of each series.
Therefore the colors and appearance of the pictures may
dier from the actual appearance of the product depending
on the model.
3
1 2
5
4
6
1
Illumination Sensor
(for corresponding
models only)
Using the illumination sensor, the LCD
screen brightness is automatically adjusted
depending on the ambient illumination.
If you cover the illumination sensor with
your hand, the LCD screen will become
dimmer. Therefore, please take care that
you do not cover the sensor when you use
the computer.
2
Camera operating
indicator (Optional)
This indicates the camera operating status.
3 Camera (Optional)
Using this camera, you can take still
pictures and record video.
You can take a picture or make a movie
using the Charms > Start > Camera.
4 Speaker A device used to generate sound.
5 Touch Screen
This is a touch screen that shows the
output from the computer.
6
Home button
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
Switches the screen between the Start
screen and the currently running app/
program.
If no app/software is currently running,
the Desktop is displayed.
If you press the Home button
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
while charging, when your PC is
powered o, the battery indicator is
displayed on the screen for a moment.
24
25
Chapter 1
Getting Started
Overview
Right View
2
1
1
S Pen (for
corresponding
models only)
A pen used to enter information on the
touch screen.
2
S Pen Slot (for
corresponding
models only)
You can keep the S Pen in the S Pen slot.
26
Chapter 1
Getting Started
Overview
Left View
1
2
1
Volume Control
Button
Controls the volume.
2
Micro HDMI Port
(Optional)
This is the port for a micro HDMI.
You can enjoy digital video and audio by
connecting the computer to a TV.
You can connect a VGA adapter
(optional).
26
27
Chapter 1
Getting Started
Overview
Top View
21
3 5 6 7 8 94
1
Ear-set / headset
Jack
This is the jack for connecting an ear-set or
headset.
2 Microphone You can use the built-in microphone.
3 Power Button Turns the computer on and o.
4 Power Button LED
When the computer is on, the power
button LED is lit.
5
Rotation Lock
Locks the screen rotation so that the
screen does not automatically rotate
according to the orientation function of
the product.
6 USB Port
This port is to connect a USB device.
B l u e : USB 3.0 Port
Black: USB 2.0 Port
For Windows XP, the USB 3.0 feature
may be restricted.
7 Fan Vents
The internal heat of the computer is
emitted through these holes.
If the vents are blocked the computer
may overheat.
Avoid blocking the vents as this may
be dangerous.
8
Micro SD Card Slot
This slot is for micro SD cards.
9
SIM Card Slot
(Optional)
This slot is for SIM cards.
28
Chapter 1
Getting Started
Bottom View
1 2
1 DC Jack
A jack to connect the AC adapter that
supplies power to the computer.
2
Dock Connector
(Optional)
A connector to the keyboard dock
(optional).
Overview
28
29
Chapter 1
Getting Started
Rear View
1
2
1 Camera (Optional)
Using this camera, you can take still
pictures and record video.
You can take a picture or make a movie
using the Charms > Start > Camera.
2
NFC Antenna
(for corresponding
models only)
Provides NFC features for near eld
communication for various application
services.
If you replace the bottom of the product, the model name,
serial number and some logos etched into the bottom of the
product will no longer be there.
For more information, please ask for assistance from the
service center.
Overview
30
Chapter 1
Getting Started
Turning the Computer On and O
Turning the computer on
1
Connect the AC adapter.
2
Press and hold the Power button
for a moment to turn the
computer on.
3
Power button LED is lit while the computer is turned on.
LED
About Windows Activation
When you turn the computer on for the rst time, the Windows
activation screen appears.
Follow the activation procedures according to the instructions on
the screen to use the computer.
Adjusting the screen brightness
When the computer runs on battery power, the LCD brightness is
automatically set to low.
1
Slightly drag from the right edge of the screen toward the
center to display the Charms menu.
2
Increase the bar by pressing the Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Screen .
30
31
Chapter 1
Getting Started
Turning the computer o
Since the procedures to turn the computer o may dier •
depending on the installed operating system, please turn
the computer o according to the procedures for the
purchased operating system.
Save all your data before clicking on • Shut down.
1
Slightly drag from the right edge of the screen toward the
center to display the Charms menu.
2
Click Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Power
⦽
> Shut down.
If you want to power o your computer when you are logged
out, unlock the screen and click Power
⦽
> Shut down.
Turning the Computer On and O
33
Chapter 2
Using Windows 8
What is Microsoft Windows 8?
Microsoft Windows 8 (hereafter referred to as Windows) is an
operating system that is required for operating a computer.
To use your computer optimally, you need to know how to use it
properly. Therefore, It is better to learn how to use Windows by
utilizing Windows Help and Support.
The screen may appear somewhat dierent depending on •
the model and the operating system.
Since this guide has been prepared based on Windows •
8, some of the instructions may dier depending on the
version. It may also be modied without prior notice.
Displaying Help
Move the pointer on the screen to the top or bottom right edge of
the screen to view the Charm menu.
Alternatively, slightly drag the right edge inward with your nger
to view the Charm menu.
Select Charm menu > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Help.
If you are connected to the internet, you can access the most
recent online Help.
Searching
for Help
Get Started
You can view basic instructions on how to use
your computer including new function(s) for the
Windows OS.
Internet &
networking
After connecting to the network, you can check
the Help section required to use the internet.
Security, privacy,
& accounts
You can check the Help information required
to protect your computer and personal
information.
34
Chapter 2
Using Windows 8
Screen At a Glance
Windows 8 provides both the new Start screen mode and the
Desktop mode of the existing OS.
Start Screen Desktop
Start Screen
When you turn on the computer, the Start screen is displayed,
which allows you to use the applications (Application, App,
hereafter referred to as an App) at the same location.
5
6
7
4
3
3
2
1
1 Start Screen Refers to the default Start screen of Windows 8.
2 App Refers to the apps that are currently installed.
3
Displaying the
Charms
The Charms is hidden at the right of the
screen. Place your mouse pointer at the edge
of the top or bottom right of the screen to
display the Charms.
Alternatively, slightly drag the right edge
inward with your nger to view the Charm
menu.
4 User Account This refers to the currently used user account.
5 Charms
This refers to the menu that allows you to use
functions such as Search, Share, Start, Device
and Settings.
6 Desktop Switches to Desktop mode.
7 Camera Allows you to take pictures or make a movie.
34
35
Chapter 2
Using Windows 8
Screen At a Glance
Desktop
This provides similar functions to those provided by the Desktop
in prior Windows versions.
3
4
2
2
1
1 Desktop Refers to the Desktop.
2
Displaying the
Charms
The Charms is hidden at the right of the
screen. Place your mouse pointer at the edge
of the top or bottom right of the screen to
display the Charms.
Alternatively, slightly drag the right edge
inward with your nger to view the Charm
menu.
3 Charms
This refers to the menu that allows you to use
functions such as Search, Share, Start, Device
and Settings.
4
Switching to the
Start Screen
Click the corner of the bottom left of the
screen to switch to the Start screen.
Displaying Documents and Files
Click Windows Explorer in the taskbar on the Desktop to
search for documents and les.
36
Chapter 2
Using Windows 8
The Charms is a new type of menu that combines the Start menu
with the Control Panel of existing Windows.
The Charms allows you to quickly congure the device(s)
connected to your computer, search for App(s)/le(s), and use the
sharing function, etc.
Activating the Charms
Slightly drag the right edge inward with your nger to view the
Charm menu.
Alternatively, tap the top or bottom right edge of the screen to
view the Charm menu.
Charms
Displaying
the Charms
Menu
Displaying
the Charms
Menu
Search
Share
Star t
Device
Settings
If you want to search for a program or le in the App(s)/
Settings/File(s), simply enter a keyword in the Search
charm and start Search.
You can also search within an App or on the Web.
Search
Share
Star t
Device
Settings
You can use this menu to transfer a picture or le to
another user. You can easily share pictures or les with
other users simply by associating multiple Apps with the
Share charm.
Search
Share
Star t
Device
Settings
You can move to the Start screen.
Search
Share
Star t
Device
Settings
As this allows you to move directly to a desired device,
you can handle tasks such as importing pictures from
a digital camera, streaming a video to your TV or
transferring les to a device on the current screen.
Search
Share
Star t
Device
Settings
The Settings charm allows you to perform basic tasks
such as adjusting the volume, turning o the PC, etc.
If you select the Settings charm while a specic App is
running, the settings for the currently running App are
displayed.
Using the Charms
36
37
Chapter 2
Using Windows 8
Using the Charms
Changing the Settings
Frequently used Windows menus are collected.
Click the Charms > Settings.
Icon Name Function Description
⦽
Wireless
Network
You can connect to a wireless network.
Select a wireless network to connect
to.
⦽
Adjusting the
Volume
You can adjust the volume or mute the
sound.
한
Screen You can adjust the screen brightness.
⦽
Notice
You can set the interval at which an
App sends notices.
⦽
Power
You can turn o your computer or
select the Power Options.
⦽
Keyboard
You can set the Language or launch
Touch keyboard.

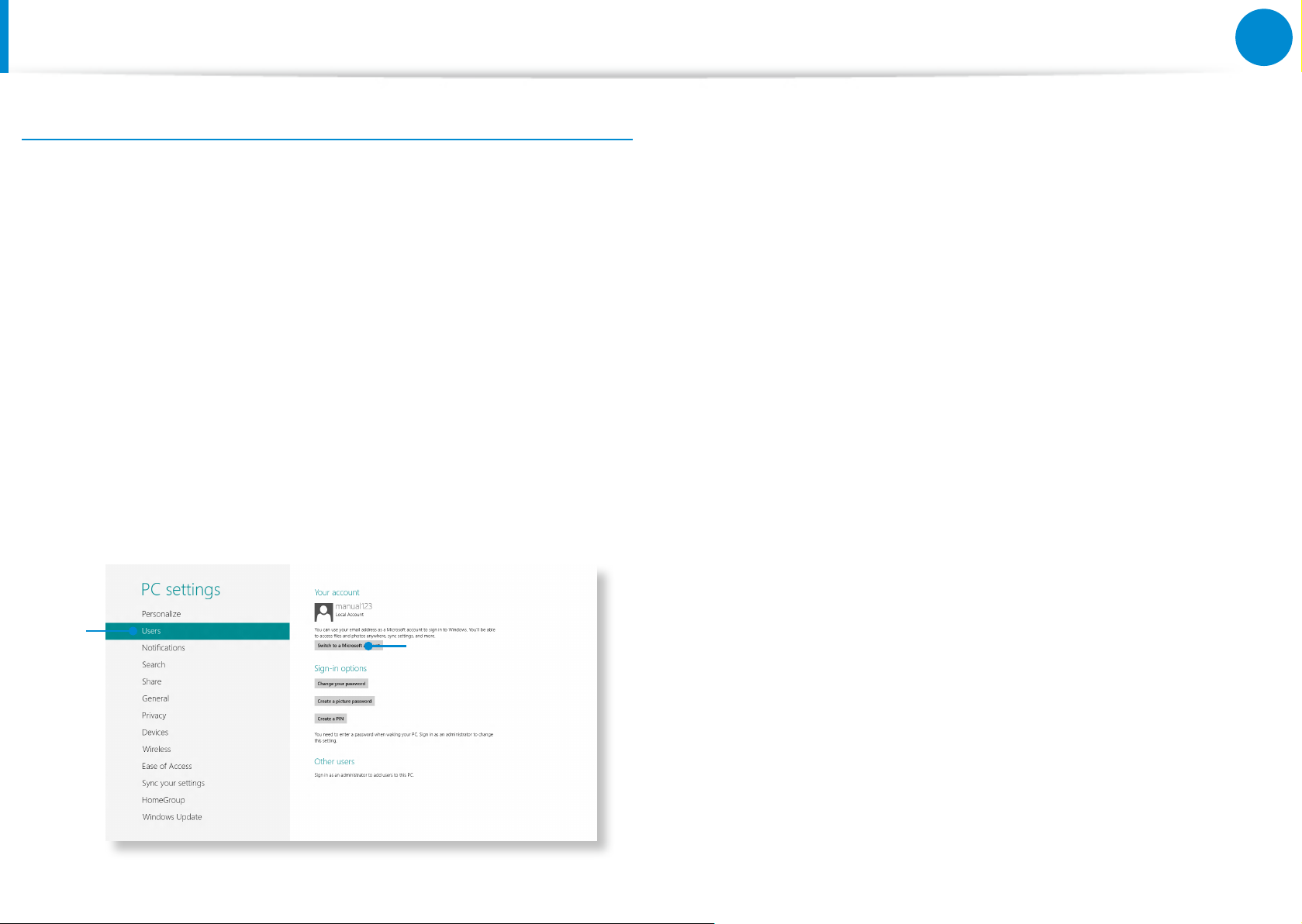

Change PC settings
You can change more settings.
38
Chapter 2
Using Windows 8
Using Apps
An App refers to an application program (hereafter referred to as
an App). In a larger sense, it refers to all the software programs
installed on the operating system.
Windows 8 provides basic Apps for frequently performed tasks.
Starting/Exiting an App
Click on an App in the Start screen to activate it.
To exit the App
1
Move your mouse pointer to the top of the screen.
Your mouse pointer changes to a hand shape.
2
Click and hold your mouse button and then drag it to the
bottom of the screen. The App moves downward and
disappears and exits.
1
2
Using Apps
You can use the following function with the mouse.
Displaying Currently Running App(s)
1
Move your mouse pointer to the top left corner of the screen
to display the last run App.
2
Then, move your mouse pointer down to display a list of the
currently running Apps in order.
38
39
Chapter 2
Using Windows 8
Using Apps
3
Click on an App in that list or drag it to the center of the
screen. Now, you can check the selected App which is
currently running.
Right-click over the App in the list and click Close to exit the
App.
1
2
Running Two Apps at the Same Time
1
Select the Apps in the Start screen.
2
Move your mouse pointer to the top of the screen. Your
mouse pointer changes to a hand shape.
3
If you click and hold your mouse button and move left or
right, you can split the screen to display multiple Apps.
4
Move the Screen Split Bar to change the screen split ratio.
Supported screen split ratios are 3:7 or 7:3.
Ex) If you run the Weather App and Store App at the same time
Screen
Split Bar
Weather
App
Store App
40
Chapter 2
Using Windows 8
Adding/Removing an App to/from the Start Screen
In the Start screen, slightly drag the top edge of the screen
inward.
Click All Apps at the bottom of the screen to display all the
Apps that are currently installed.
1
If you right-click over the App to be added, the relevant menu
is activated at the bottom of your screen.
2
Click Pin to start or Unpin from Start .
Ex) When removing an App in the Start screen
1
2
Using the Windows Store
If you run the App Store in the Start screen, the Apps in the
Windows Store are displayed.
However, a Microsoft account is required to purchase App(s) in the
Windows Store.
Continue after registering your Microsoft Account in the
Charms.
Samsung cannot solve errors occuring with other apps
installed from the Windows Store. Contact customer support
for the app directly.
Using Apps
40
41
Chapter 2
Using Windows 8
Conguring your Microsoft Account
A Microsoft Account allows you to synchronize your settings with
other device(s) running Windows 8 online allowing you to share
le(s) or settings.
You should register a Microsoft Account to download or purchase
App(s) from the Store.
1
Run the Charms and click Settings > Change PC Settings.
2
Click Users > Your account > Switch to a Microsoft
account.
3
Register your account through the following relevant
procedures.
1
2
Using Apps
42
Chapter 2
Using Windows 8
Windows Hot Key Function
You can use the following convenient hot keys in Windows 8.
You can use the following function when an external-type
keyboard is connected.
Function Hot Keys Function Description
Displaying the Start
Screen
Windows Key Switches to Start mode.
Displaying the
Desktop
Windows Key + D
Switches to Desktop
mode.
Running the
Charms
Windows Key + C Activates the Charms.
Locking the Screen Windows Key + L Locks the screen.
Opening the Ease
of Access Center
Windows Key + U
Opens the Ease of Access
Center conguration.
Opening the
Second Screen
Settings
Windows Key + P
Opens the External
Monitor Settings menu.
Function Hot Keys Function Description
Opening the
Advanced
Management Tool
Windows Key + X
Opens the Advanced
Management Tool.
Exit App Alt + F4
Exits the currently
running App.
Using the Touch Screen 44
Micro SD Card Slot (Optional) 52
Connecting an External Display Device 54
Adjusting the Volume 57
LCD Brightness Control 59
Wireless Network (Optional) 60
Mobile broadband (Wireless WAN, Optional) 62
NFC (Near Field Communication)
(for corresponding models only) 63
Using the Keyboard Dock (Optional) 65
Using the TPM Security Device (Optional) 71
Using the Multimedia App (Optional) 80
Using the S Note app (S Note, Optional) 84
Samsung Software Update 88
Diagnosing the Computer Status and Troubleshooting 89
Chapter 3.
Using the computer
44
Chapter 3.
Using the computer
You can use the computer using the touch screen only, without using the keyboard and mouse.
The touch screen function is only supported for models which have the function installed at the factory.
Operate the touch screen using your nger or the S Pen. Other tools such as a ballpoint pen are not recognized and using sharp •
objects may damage or scratch the surface of the LCD.
Since touching the touch screen with a conductive material such as a metallic object may cause a malfunction, take care not to •
touch the screen with this kind of object.
If your model provides S Pen, you can use it for this feature. You can additionally purchase S Pen, of necessary.•
Using the Touch Screen
This function is provided by touch screen models running Windows 8 and will only work for some applications.•
In addition, note that the supported functions are dependant on the application.•
You can use the S Pen (sold separately) as you use your ngers. The descriptions here are for using your ngers.•
Learning basic touch screen operations
You can easily learn how to use the touch screen conveniently.
Touch Operation Function Description
Dragging from the right edge
toward the center
Displays the Charms menu which is hidden at the right of the screen.
Using the Touch Screen
44
45
Chapter 3.
Using the computer
Using the Touch Screen
Touch Operation Function Description
Dragging from the left edge
toward the center
Displays the last run App.
Dragging from the bottom edge
upward
or
from the top edge downward
Displays the options for the currently running application.
Touching slightly
(Clicking)
Slightly press with your nger to select an item.
(If you slightly touch a specic menu, option, application icon, etc. on
the screen, the corresponding capability is activated.)
Touching twice
(Double-clicking)
Slightly press twice with your nger to select an item.
Touching and dragging
Moves the selected target or moves to the next page.
You can draw a picture or write some letters with this operation.
46
Chapter 3.
Using the computer
Touch Operation Function Description
Rotating with more than 2 ngers Rotates the selected target.
Spreading 2 ngers widely
or
bringing them towards each other
Zooms in or out of the target.
Touching and holding for a while
(Right-clicking your mouse)
Provides the same function as right-clicking your mouse button.
Displays the additional options which can be set for the selected
target or more detailed information.
Touching and dragging 2 ngers
up/down, left/right
(Scrolling)
Moves up/down, left/right. Provides the same function as scrolling
your mouse.
Using the Touch Screen
46
47
Chapter 3.
Using the computer
Using the S Pen (for corresponding models only)
If a S Pen is supplied with the product, you can operate the
computer with the pen instead of your ngers.
You can use the S pen as you would use your ngers.
Taking Out the S Pen
Take out your S Pen toward the right.
After using the S Pen, keep it in the S Pen slot.
S Pen structure and functions
Pen button
Pen tip
Pen tip
Ring
Pen tip
(Use this to perform the role
of the left mouse button)
This performs the function of your
nger tip when you touch the screen.
Pen button
(Use this to perform the role
of the right mouse button.)
If you press the pen button when the S
Pen tip is on the screen, circles appear
around the pointer on the screen.
Touch the screen with the S Pen while
holding down the pen button.
This performs the right-click function.
Using the Touch Screen
48
Chapter 3.
Using the computer
Using the Touch Screen
Replacing the pen tip
If the pen tip is damaged, you can replace the pen tip as follows:
1
Hold the pen tip by inserting it into the hole of the ring and
remove the tip by pulling it out.
2
Insert the new pen tip into the S Pen.
Take care so that the pen tip does not spring out when taking
it out.
Screen Calibration
When the pointer on the screen does not precisely match the
points you touch, calibrate the touch screen using the Tablet PC
Settings menu.
The calibration process for the touch screen may dier depending
on the operating system and may not be available in some
operating systems. The following descriptions assume the
Windows 8 operating system.
1
Click Charms menu on the Desktop > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
>
Control Panel > Hardware and Sound > Tablet PC
Settings > Calibrate.
48
49
Chapter 3.
Using the computer
Using the Touch Screen
2
Select the screen type to calibrate. If the Calibration screen
appears, touch the point represented by the “+” mark and
then remove your nger.
The “+” mark appears sequentially from the top left to the
bottom right of the screen.
3
When the Do you want to save the calibration data?
window appears, click Yes.
The touch screen input points are calibrated.
Entering Characters
You can enter characters using the keyboard and the Tablet PC
Input Panel.
Entering characters may dier depending on the operating system
and is not supported by some operating systems.
If you are using your computer for a long period of time, it is
recommended using the keyboard.
Entering characters is explained using an example with notepad.
Using the Tablet PC Input Panel
The Tablet PC Input Panel is an onscreen keyboard provided by
Windows.
Follow the descriptions and illustrations on how to use the touch
keyboard and handwriting mode.
1
In the Start screen, slightly drag the top edge of the screen
toward the center.
Press All Apps > Notepad.
2
Put your hand on the Notepad screen to display the cursor.
50
Chapter 3.
Using the computer
Using the Touch Screen
3
On the Desktop, press the at the right of the taskbar to
display the Tablet PC Input Panel.
Touch Keyboard
Touch Keyboard
(displays the Numeric Key Pad in the middle.)
Handwriting Mode
[Input Mode]
Entering characters using the Touch Keyboard
The Touch keyboard has the standard keyboard layout which
allows you to select keys to enter characters.
1
Press the Touch Keyboard icon in the Tablet PC Input
Panel.
2
Press the keys to enter your characters.
50
51
Chapter 3.
Using the computer
Using the Touch Screen
Entering characters in Handwriting Mode
You can enter characters by writing them in the Handwriting
Mode Input Panel on the touch screen.
Handwriting Mode may not be available in some languages.
1
Press the Handwriting Mode icon in Tablet PC Input
Panel.
2
Write characters in the input area of the Handwriting Mode
Input Panel on the touch screen.
3
Press the Insert button to enter characters.
Touch screen use precautions
Use the touch screen with clean and dry hands. In a humid •
environment, remove the moisture from your hands and the
touch screen surface before use.
Avoid directly spraying liquid cleansing solution onto the touch •
screen. The liquid solution may enter the touch screen through
the bottom edge.
When using a liquid cleansing solution, dampen a cloth in
the solution and clean the screen with the cloth (a cleansing
solution or cloth containing abrasives may damage the touch
screen.)
Do not apply a severe impact to the touch screen or press the •
screen with a sharp object such as a ball-point pen.
This may damage the touch screen.
If your nger only touches the touch screen slightly, your touch •
may not be recognized.
If you wish to use a pen, please use the provided S Pen (sold •
separately). Otherwise, the computer may not work properly.
Take care that you do not drop the S Pen as this may damage •
the pen tip.
When pressing the touch screen, press over an item precisely •
taking care not to press other items.
If the touch screen is contaminated by a foreign substance •
such as a bug or water, the touch screen will not work properly.
52
Chapter 3.
Using the computer
Micro SD Card Slot
(Optional)
You can only use the micro SD card slot for micro SD cards.
You can use micro SD cards as removable disks and conveniently
exchange data with digital devices such as a digital camera, digital
camcorder, MP3, etc.
You have to additionally purchase a micro SD card with the •
necessary capacity depending on your requirements.
You can use a micro SD card just like any data storage •
device.
A copyright protection function is not supported.
Since you can lose a card when moving the computer, •
keep the card separately.
The gures used for the description are of a representative •
model. Therefore the gures may dier from the real ones.
Using the card
1
Open the micro SD card slot cover and insert the micro SD
card.
Micro SD Card Slot
2
The following message appears on the top right. Click to
open the folder and click View Files.
If a message appears to notify you of any problem, click the
corresponding window > Continue without Scanning. You
can perform the following process described in No. 3.
3
Windows Explorer runs on the Desktop. You can save, move
and delete data on the corresponding drive.
52
53
Chapter 3.
Using the computer
Micro SD Card Slot
(Optional)
To remove a memory card
Press the card until it pops up, then pull it out by holding the end
of the card.
To format a memory card
When using the memory card for the rst time, you must format
the card before using it.
Formatting a card deletes all data saved on the card. If the
card includes data, backup the data before formatting it.
1
Click the Windows Explorer icon in the taskbar on the
Desktop.
2
Right-click over a card drive with the touchpad and select
Format.
3
Click Start to the formatting.
To use a card to exchange data with a digital device such •
as a digital camera, formatting the data using the digital
device is recommended.
When you try to use a card, which is formatted in the •
computer, in another digital device, you may have to
format the card again in the device.
If the write-protect tab is in the • Lock position, you cannot
format, write or delete data on the card.
Take care when you insert or remove a micro SD card. The •
micro SD card may be damaged when not treated carefully.
54
Chapter 3.
Using the computer
Connecting an External Display Device
If you connect an external display device such as a monitor, TV,
projector, etc., you can view the picture on the wider screen of the
external device when you give a presentation or watch a video or
movie.
Connecting to the monitor port (Optional)
Connect an external monitor, TV, or projector that supports the
D-SUB interface to display the image on a wider screen.
You can give better presentations by connecting the computer to
a projector.
The VGA adapter is optional and to be be purchased.
1
Open the monitor port and connect the VGA adapter.
Connect the VGA cable (15-pin) to the connected VGA
adapter and then connect the other end of the VGA cable to
the D-SUB port of the monitor or the TV.
x
External
Monitor
TV
Projector
z
VGA
Adapter
2
Connect the power cord of the connected monitor, TV or
projector and turn the power on.
Change your TV to external device mode when connecting to
the TV.
54
55
Chapter 3.
Using the computer
3
Select Charms menu > Devices
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Second Screen.
Select a desired monitor mode.
3&ִփ
ـࢿ
ࢠ
ѿءִփ
PC screen only
The contents are only displayed on the PC
monitor (current device).
3&ִփ
ـࢿ
ࢠ
ѿءִփ
Duplicate
The contents of the current device are displayed
on the external device as well.
3&ִփ
ـࢿ
ࢠ
ѿءִփ
Extend
The screen of the current device is expanded to
the external device.
3&ִփ
ـࢿ
ࢠ
ѿءִփ
Second screen only
The contents are displayed only on the screen of
the external device.
Alternatively, to set up dual view:
Open the Display Settings window in the Control Panel,
select Monitor 2 and select the Expand to t to this
monitor checkbox to set dual view. For more detailed
information, refer to the Windows online help.
Connecting through the Micro HDMI port
(Optional)
By connecting the computer to a TV with a HDMI port, you can
enjoy both a high visual quality and a high sound quality.
After connecting a TV through HDMI, you have to congure the
screen and sound.
You have to additionally purchase the HDMI to micro HDMI
cable.
1
Connect the HDMI to micro HDMI cable to the HDMI port of
the TV.
External
Monitor
TV
Projector
HDMI to
micro HDMI
Connecting an External Display Device
56
Chapter 3.
Using the computer
This is only supported for models that support a TV output •
port (HDMI).
When a TV provides more than one HDMI port, connect •
the computer to the DVI IN port.
When connecting the computer to a TV, switch the •
external input mode of the TV to HDMI.
2
Select Charms menu > Devices
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Second Screen.
Select a desired monitor mode.
3&ִփ
ـࢿ
ࢠ
ѿءִփ
PC screen only
The contents are only displayed on the PC
monitor (current device).
3&ִփ
ـࢿ
ࢠ
ѿءִփ
Duplicate
The contents of the current device are displayed
on the external device as well.
3&ִփ
ـࢿ
ࢠ
ѿءִփ
Extend
The screen of the current device is expanded to
the external device.
3&ִփ
ـࢿ
ࢠ
ѿءִփ
Second screen only
The contents are displayed only on the screen of
the external device.
External Monitor / TV is not supported in the DOS Command
Prompt window.
Connecting an External Display Device
56
57
Chapter 3.
Using the computer
Adjusting the Volume
You can adjust the volume using the volume control button and
the volume control program.
Adjusting the volume with the buttons
You can control the volume by pressing the volume control button
on the left side of the computer.
+
-
Adjusting the Volume using the Volume
Adjustment Program
Click the Charms menu > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
>
⦽
to adjust the control
bar.
Mute
Using the Sound Recorder
The procedures to record sound using the Windows Recorder are
described below.
1
Connect a microphone to the microphone jack.
Or use built-in microphone.
2
Right-click over the Volume icon on the taskbar and select
Recording Device.
3
Check if the microphone is set as the default recording
device.
If this is the case, it is already set as the default device. If not,
right-click over the microphone and select Set default.
4
Right-click over the Charms menu > Start
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
to click All
Apps > Sound Recorder. Then press Start Recording to
record.
58
Chapter 3.
Using the computer
Using SoundAlive (Optional)
The SoundAlive function enables you to experience more
stereophonic sound using stereo speakers.
SoundAlive is only supported in Windows 8.•
The software programs provider may vary, depending on •
your computer model.
In addition, some pictures may dier from actual product •
depending on the computer model and software version.
1
On the Desktop, click the Charms menu > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
>
Control Panel > Hardware and Sound > Sound.
2
Right-click over the Speakers and select Properties.
3
Select the SoundAlive tab and select one of the modes.
Connecting and using a Ear-set / headset Jack
When there is no sound after connecting an earset or headset,
congure the settings as follows.
1
On the Desktop, click the Charms menu > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
>
Control Panel > Hardware and Sound > Sound > Play tab.
2
Select the Speakers (Realtek High Denition Audio), click
Set Default and click OK.
Using the Microphone (Optional)
You can optimize the microphone’s performance for a single user
only or for sharing with others.
1
On the notication area of the taskbar, right-click the Audio
Manager icon , and then click Sound Manager.
2
On the Microphone tab, select an option to enable, and then
click OK.
. Narrow: The computer recognizes sound only from a front
45 degree angle. Select this option if only a single user uses
the microphone.
. Wide: The computer recognizes sound from any front angle
so that the microphone can be shared with other people.
However, this option may cause noise.
Adjusting the Volume
58
59
Chapter 3.
Using the computer
LCD Brightness Control
The screen brightness is automatically set to the brightest
level when AC power is connected and the brightness is
automatically set dimmer when the computer runs on battery
power to extend the battery use time.
Controlling the Brightness Using the Keyboard
1
Click the Charms menu > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Screen
Adjustment icon
한
.
2
Adjust the brightness with the screen brightness control bar.
Saving battery power consumption•
Decreases the LCD brightness when the computer
is running on battery power to save battery power
consumption.
LCD bad pixels principle of computer•
Samsung observes the specications regarding strict
quality and reliability of LCD. But in spite of that, it is
inevitable that there might be a small number of bad
pixels. A large number of bad pixels can cause problems in
appearance, but a small number of pixels doesn’t aect the
computer performance.
Therefore Samsung observes and manages the following
dot principles:
- Bright dot : 2 or less
- Black dot : 4 or less
- Combination of Bright and Dark : 4 or less
Instructions for Cleaning the LCD
Clean the LCD panel with a soft cloth lightly moistened with
computer cleansing detergent moving in one direction.
Cleaning the LCD panel with excessive force can damage the
LCD.
60
Chapter 3.
Using the computer
A wireless network (Wireless LAN) environment is a network
environment that enables communication between multiple
computers at home or a small-size oce through wireless LAN
devices.
The screen gures and terms may dier depending on the •
model.
The descriptions below are for computer models with •
a Wireless LAN card or device. A Wireless LAN device is
optional.
The pictures in this manual may dier from the actual
product depending on your wireless LAN device model.
If the wireless LAN is turned o, select • Settings > Wireless
Network and set it to ON.
What is an Access Point (AP)?
An AP is a network device that bridges wired and wireless
LANs, and corresponds to a wireless hub in a wired network.
You can connect multiple wireless LAN installed computers
to an AP.
Wireless Network
(Optional)
60
61
Chapter 3.
Using the computer
Wireless Network
(Optional)
Connecting to a Wireless LAN
If there is an AP, you can connect to the Internet via the AP using
the Wireless LAN connection method provided by Windows.
1
If you click the Charms menu > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Network
Connections icon, a list of available APs appears.
If you select an AP to connect to, the Connect button
appears.
AP List
2
Click Connect.
If a network key is set for the AP, enter the network key and
then click OK.
For the network key, please ask your network administrator.
3
When the AP connection is completed, Connected is
displayed next to the corresponding AP. You can now use the
wireless network.
62
Chapter 3.
Using the computer
Mobile broadband
(Wireless WAN, Optional)
A wireless wide area network (WWAN) is a mobile broadband
network that is available in mobile phone service areas.
The descriptions below are for computer models with •
mobile broadband devices. A mobile broadband device is
optional.
Depending on the version of the operating system, some •
functions may not be provided or dierent functions may
be provided.
The pictures in this manual may dier from the actual •
product depending on your WWAN device model.
For more information on the mobile broadband network, •
contact the network provider.
You must activate the SIM before you connect to the •
mobile broadband.
To nd the hardware information for the SIM activation,
open the Charms and click Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Change PC
settings > Wireless > View mobile broadband hardware
information. You can check IMEI, phone number, and SIM
ICC ID information.
To set a SIM card’s PIN for security, open the • Charms and
click Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Network. Press and hold the carrier
name and click View link properties > Secure.
1
Click Charms > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Network to display available
mobile broadband networks as shown below.
If there are no available network service providers listed
under Mobile broadband, turn o the computer, and insert
the SIM card correctly, and then turn on the computer.
2
Select a carrier, and then click Connect.
Clicking Connect in a foreign country activates automatic
data roaming. Therefore, you may be charged for the data
usage.
3
If the Prole settings screen appears, follow the onscreen
instructions to enter the required information.
4
The network connection is established and Internet access is
available.
62
63
Chapter 3.
Using the computer
NFC
(Near Field Communication) (for corresponding models only)
About NFC (Near Field Communication)
This is a set of standards to establish radio communications •
within a short distance (usually no more than 10 centimeters).
You can share the contents safely and conveniently without
any cumbersome setup process.
Various features such as video/photo transfers, P2P games, •
mobile payments, reading/writing tags, NFC device
communications and so on can be utilized depending on the
NFC device.
You can use the NFC function on devices that have the NFC •
mark.
For more information on how to use the device, refer to the
User Guide of the device.
Simultaneously sharing a website between two
computers
This section describes how to connect two NFC computers.
You can connect a website displayed on computer A with
computer B at the same time.
1
Open a website on computer A using Internet Explorer.
2
On computer A, select Charm menu > Device
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Sent
by Tap.
3
Put the NFC antenna of the NFC computer B into
contact with the NFC antenna of computer A.
4
If the following message appears on the B computer, tap on
the screen.
5
Now, the website contents in computer A are delivered to
computer B.
You can see the computer A’s website on the computer B’s
Internet Explorer.
64
Chapter 3.
Using the computer
NFC
(Near Field Communication) (for corresponding models only)
Connecting a device
This section describes how to connect an NFC-supported
Bluetooth speaker.
1
Turn the computer on. Turn the Bluetooth speaker on.
2
Put the NFC mark of the speaker into contact with the NFC
antenna at the back of the computer.
3
The device connection conrmation message appears at the
top right of the screen. Tap on the message.
Connect the device according to the instructions on the
screen.
4
The device is connected. You can now use the speaker.
Select Charm menu > Settings > Change PC Settings >
Device
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
to view the connected device.
Restrictions
You can make only one-to-one connection between NFC •
devices at a time.
Because the NFC function is not compatible between Windows •
and Android operating systems, only the URL of the NFC
function is transferred to an Android-based mobile device that
is connected to the computer.
64
65
Chapter 3.
Using the computer
Use this keyboard dock only with models that support it.
You can use the USB port for external connections while enjoying
the convenience of a keyboard.
You have to purchase the keyboard dock separately.•
Specications are subject to change without notice . •
The images shown may vary.•
Front View
Computer Connector Release button
Keyboard
USB 2.0 portUSB 2.0 port Touchpad
Status LEDs
DC Jack
Status LEDs
1 Caps Lock
CAPS LOCK LED indicates the capital lock
function. You can enable or disable this
function with the Caps Lock key on the
keyboard.
On:• The English text you type is in capital
letters.
O:• The English text you type is in
lowercase letters.
2 Power
Power LED indicates the status of your
computer and keyboard dock.
On:• The computer and the keyboard dock
are successfully connected.
Blinking:• The Computer and the keyboard
dock are not connected properly. Separate
the devices and install the computer again.
O:• The computer is in the sleep mode
or has no power source. Press the power
button to wake up the computer.
Using the Keyboard Dock
(Optional)
66
Chapter 3.
Using the computer
Using the Keyboard Dock
(Optional)
Installing/Separating
Attaching the computer
1
Align the keyboard dock’s connectors and the computer and
insert the computer into the docking slot.
z
x
c
2
When the keyboard dock and the computer are properly
connected, the keyboard dock power indicator is turned
on.
The keyboard dock can operate only on the battery power of
the computer.
Separating the Computer
Pull the computer upward by hand while pushing the keyboard
dock’s release button with the other hand.
The keyboard dock may not operate properly due to
impurities on the connectors. Make sure that the connectors
are dust-free before connecting the computer to the
keyboard dock.
66
67
Chapter 3.
Using the computer
Using the Keyboard Dock
(Optional)
Shortcut Keys
Shortcut key functions and procedures are discussed in the following sections.
Press both the Fn key and hot key at the same time.
Alternatively, press the Fn Lock key as well as a hot key to use the hot key functions more easily.
►
Method 1
+
Shortcut Keys
►
Method 2
1
2
Shortcut Keys
68
Chapter 3.
Using the computer
Using the Keyboard Dock
(Optional)
Shortcut Keys Name Function
Settings The Samsung software control program, the Settings, is launched.
Screen Brightness
Control
Controls the screen brightness.
CRT/LCD
Switches the screen output to the LCD or external monitor when an external monitor (or TV)
is connected to the computer.
Touchpad
Turns the Touchpad function on or o.
When using an external mouse only, you can turn the Touchpad o.
Mute Press this button to turn the audio on or o.
Volume Control Controls the volume.
Airplane Mode
Turns all wireless network devices on or o.
(Only for models with a wireless network device.)
68
69
Chapter 3.
Using the computer
Using the Keyboard Dock
(Optional)
Touchpad
The touchpad on this keyboard dock has the same functionality as
a typical laptop’s touchpad.
In Windows 8, you can use the additional gestures as shown
below:
Charms Menu Activating Function
If you place your nger on the right edge of the touch pad and
drag your nger toward the center, the Charms menu appears.
Displaying Additional Menu(s) of a Currently Running
App
Place your nger at the edge of the top area on the touch pad and
drag your nger toward the center, and the menu of the currently
running App appears.
Last Run Window Opening Function
Place your nger on the left edge of the touch pad and drag
your nger towards the center to activate a previously operating
program from among the currently running programs.
70
Chapter 3.
Using the computer
The Scroll Function
This function is the same as the scroll area of the Touchpad.
If you place two ngers over the Touchpad and move them up,
down, left or right, the screen is scrolled up, down, left or right
accordingly.
or
Zoom Functions
If you place two ngers over the Touchpad together or apart, the
current image or text is zoomed in or out.
Zoom-out
Zoom-in
or
Using the Keyboard Dock
(Optional)
70
71
Chapter 3.
Using the computer
Using the TPM Security Device
(Optional)
A TPM (Trusted Platform Module) security device is a security
solution that protects your personal information by saving
the user authentication data on the TPM chip installed on the
computer.
To use the TPM security device, you have to initialize the TPM chip
in the BIOS Setup, initialize the TPM program, and then register
the user.
This function is only supported for models with TPM •
(security chip).
For more information, refer to the online help for the •
program.
The program version described in this manual is subject to •
change and the screenshots and terms used in this manual
may dier from the actual product.
Setting Up the TPM
To use the TPM function, you have to complete the following
steps.
1
Initializing the TPM chip
Initializes the authentication information saved on the TPM
chip.
2
Installing the TPM program
Installs the TPM program.
3
Registering the TPM program
Registers the TPM program.
If you complete the steps above, you can use the TPM function.
72
Chapter 3.
Using the computer
Initializing the TPM chip
When you use the TPM function for the rst time or you want to
register the user again, you have to initialize the TPM chip.
Initializing the TPM chip erases all authentication •
information saved on the TPM chip. Any decision to
initialize must be taken carefully.
To initialize the TPM chip again while the TPM function is •
in use, you have to decrypt any existing les and folders
encrypted by the TPM function rst. Otherwise, you
will not be able to access the les and folders after re-
initialization.
1
Restart the computer. When the Samsung logo screen
appears, press the Home button
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
several times.
2
When the BIOS Setup screen appears, select Security > TPM
Conguration and set the TPM Device item to Enabled.
TPM Device
Aptio Setup Utility - Copy (C) 2012 American Megatrends, Inc.
Disabled
Enabled
Enabled
3
Set TPM Status to Clear.
TPM Device
TPM State
Security Chip State
Aptio Setup Utility - Copy (C) 2012 American Megatrends, Inc.
Enabled
No Change
Clear
Enabled & Activate
Deactivate & Disable
Clear
Using the TPM Security Device
(Optional)
72
73
Chapter 3.
Using the computer
4
Select Save to save the changes.
5
If the system automatically restarts and the Samsung logo
screen appears, press the Home button
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
several times.
6
Select Security > TPM Conguration and set the TPM
Device item to Enabled.
Set the TPM State to Enable & Activate.
TPM Device
TPM State
Security Chip State
Aptio Setup Utility - Copy (C) 2012 American Megatrends, Inc.
Enabled
Enabled & Activate
Clear
Enabled & Activate
Deactivate & Disable
Clear
7
Select Save to save the changes.
8
The computer automatically restarts. Initialization of the TPM
chip has been completed. Now, install the TPM program and
register the TPM program.
Installing the TPM program
You can install the TPM program as follows. Install the program
according to the procedures below.
This program is only provided for models with Recovery and
the TPM function.
1
When the computer is o, press the Power button while
holding down the Volume (+) button.
Select Recovery to enter software recovery mode.
2
Select System Software. If the message box appears, click
Yes.
The computer boots up in Windows.
3
If you move to the Desktop screen, the SW Update program
runs.
Select TPM Host SW and click Install Now.
If the system software media is supplied with the product,
you can install the program by using the system software
media (only when supplied.)
4
After the installation, if you click OK, the computer restarts.
Using the TPM Security Device
(Optional)
74
Chapter 3.
Using the computer
Using the TPM Security Device
(Optional)
Registering the TPM program
1
Right-click over the Start screen.
Click All Apps > Inneon Security Platform Solution
> Security Platform Management > User Settings. (Run as
administrator)
Alternatively, double-click the icon on the Taskbar and
run initialization with administrator authority.
2
The security authentication settings begin with the
Initialization Wizard. When the Initialization Wizard appears,
click Next.
If the status not initialized message appears, click Yes.
If you backup the emergency recovery le to an external
storage device according to the instructions of the
Initialization Wizard, you can use the TPM security device
more safely.
3
Select a Security Platform Feature and set a basic user
password.
4
Complete the registration according to the instructions.
5
The user registration for the TPM program has been
completed. You can encrypt les and folders by using
the encryption le system, and use les and folders to be
encrypted by creating or copying them to the virtual drive.
The virtual drive is created in the following location.
74
75
Chapter 3.
Using the computer
Using the TPM Security Device
(Optional)
Using the TPM program
For more information about using the TPM program, refer to
the online help for the program.
Encrypting a le (folder)
This function enables encrypting les and folders. You can safely
protect documents through the Encrypt File System (EFS).
The Encrypt File System(EFS) function is supported by the
following operating systems.
Windows XP Professional •
Windows Vista Business / Enterprise / Ultimate•
Windows 7 Professional / Enterprise / Ultimate •
Windows 8 Pro / Enterprise•
1
Right-click over the folder (or le) to be encrypted, and select
Encrypt from the pop-up menu.
2
If the Conrm Attribute Changes window appears, select
the range to apply the encryption to and click OK.
(This dialog box only appears when the folder is encrypted.)
If the current operating system is Windows 8/7/Vista, the user
account control window appears. In this case, click Continue.
76
Chapter 3.
Using the computer
Using the TPM Security Device
(Optional)
3
In the user authentication window, enter the Basic user
password you entered when registering the user and click
OK.
4
You will be able to conrm that the color of the folder (le)
name in the encrypted folder has been changed to green.
Opening an encrypted folder (le)
1
Double-click an encrypted folder (le).
2
If the user authentication window appears, enter the basic
user password you entered when registering the user and
click OK.
3
The folder (le) opens.
76
77
Chapter 3.
Using the computer
Using the TPM Security Device
(Optional)
Decrypting an encrypted folder (le)
1
Right-click over an encrypted folder (le) and select Decrypt
from the pop-up window.
2
If the user authentication window appears, enter the basic
user password you entered when registering the user and
click OK.
3
The folder (le) is decrypted.
Using the virtual drive (Personal Secure Drive: PSD)
The virtual drive (PSD) is a virtual space to save and manage
condential data. In the created virtual drive (PSD), you can create
les and folders as with a normal drive (e.g. drive C:) and you can
use condential data saved on another drive by copying the data
to the virtual drive (PSD).
When the virtual drive (PSD) does not appear
You can only use the virtual drive (PSD) when you have selected
the Personal Secure Drive (PSD) option during the program
registration.
If you have not selected the option during the registration,
complete the following steps.
1
Right-click over the Start screen.
Click All Apps > Inneon Security Platform Solution >
Security Platform Management > User Settings > Security
Platform Features.
2
When the Initialization Wizard appears, select Personal
Secure Drive (PSD) and enter the user password.
3
Click Next several times according to the instructions of the
Initialization Wizard to nish the wizard.
78
Chapter 3.
Using the computer
Using the TPM Security Device
(Optional)
When the virtual drive (PSD) is not loaded
To use the virtual drive (PSD), the virtual drive (PSD) should be
loaded rst. If it is not loaded, you can load it according to the
procedures below.
1
Right-click over the Security Platform icon in the system
tray of the Taskbar and select Personal Secure Drive > Load
from the pop-up menu.
2
In the load window, enter the basic user password and click
OK.
3
If you click on Windows Explorer in the Taskbar on the
Desktop screen, you can conrm that the Personal Secure
Drive has been created.
Note that when you have copied condential data to the PSD,
the original data les are not encrypted.
When you have to register again (to erase the
authentication information on the TPM chip)
To register a user again, you need to delete the existing
authentication information saved on the TPM chip and then clear
the TPM chip.
Register the user in the following order.
1
Delete the virtual drive.
2
Delete the existing authentication information saved on the
TPM chip.
78
79
Chapter 3.
Using the computer
Using the TPM Security Device
(Optional)
Deleting the virtual drive
If a virtual drive has been created, you have to delete the virtual
drive before deleting the existing authentication information
saved on the TPM chip.
1
Right-click over > and click Personal Secure Drive >
Create/Manage.
2
Click Next.
3
Enter the password that you entered when registering the
TPM program and click Next.
4
Select Delete selected PSD and click Next.
5
Select “I want to permanently delete my Personal
Secure Drive without saving an unencrypted copy of its
contents.” and click Next.
6
Click Next and then Finish.
7
Now the virtual drive has been deleted.
Deleting the existing authentication information saved
on the TPM chip.
1
On the desktop, select the Charms menu > Settings >
Control Panel > Programs > Uninstall a program >
Inneon TPM Professional Package. Then click Uninstall.
2
If the message window appears, click Yes to remove the
program.
3
If the Inneon Security Platform message appears, click No.
4
Click the Windows Explorer icon in the taskbar on the
Desktop.
5
In View > Options > Folder Options > View > Hidden les
and folders item, select the Show hidden les, folders, and
drives option and click OK.
6
Click the Start > Computer > Drive C: > ProgramData
folder and delete the Inneon folder.
7
Now the TPM Program has been deleted.
To use the TPM function, please repeat the procedures of the
TPM chip initialization process.
80
Chapter 3.
Using the computer
Using the Multimedia App
(Optional)
You can enjoy photo, video and music les with the S Camera, S
Gallery and S Player apps.
S Camera
You can take photos and record videos with the S
Camera app, and view them directly in this app.
S Gallery
Only photos or videos recorded with the S Camera
app can be viewed with the S Camera app.
S Player
You can view the photo, video and music les saved
on the computer.
Depending on the version of the program, some functions
may not be provided or dierent functions may be provided.
Third-party software related services
For descriptions about and service requests for third-party •
software, please contact the relevant manufacturer.
Some troubleshooting actions in response to service •
requests may not work depending on the software
manufacturer.
You can launch an app in the Start screen.
80
81
Chapter 3.
Using the computer
You can enjoy photo, video and music les with the S Camera, S
Gallery and S Player apps.
S Camera
You can take photos and record videos with the S
Camera app, and view them directly in this app.
S Gallery
Only photos or videos recorded with the S Camera
app can be viewed with the S Camera app.
S Player
You can view the photo, video and music les saved
on the computer.
Depending on the version of the program, some functions
may not be provided or dierent functions may be provided.
Third-party software related services
For descriptions about and service requests for third-party •
software, please contact the relevant manufacturer.
Some troubleshooting actions in response to service •
requests may not work depending on the software
manufacturer.
You can launch an app in the Start screen.
Using the Multimedia App
(Optional)
Using the S Camera app
1
Tap Charm menu > Start
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> S Camera.
Zoom in/out
Camera mode (Photo
, Video )
preview
Front/rear
Take a picture/
Record a video
Photo settings
2
For a model that provides 2 cameras (one on the front, the
other on the back), Press the Front / Rear camera selection
button to determine the camera to be used.
3
To take a picture, slide the camera mode bar into the Photo
position.
To make a video recording, slide the camera mode bar to the
Video position.
4
Tap on Take a picture/Record a video to take a picture
or record a video.
5
You can view the picture or video using the Picture preview
or S Gallery app.
The S Camera app is not available in Desktop mode.
Precautions while taking a picture or video
Do not take a picture or video of others without their •
consent.
Do not take a picture or video in locations where this is not •
allowed.
Do not take picture or videos in locations where you may •
infringe on others’ privacy or condential information may
be exposed.
82
Chapter 3.
Using the computer
Using the Multimedia App
(Optional)
Using the S Gallery app
1
Tap Charm menu > Start
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> S Gallery.
2
You can view the pictures and videos taken by the S Camera.
In addition, you can apply special eects to the pictures using
the photo editing function.
You can take a picture in the S Gallery app by tapping the
Camera icon.
Editing a photo
1
Select Picture preview.
Drag it upward slightly from the bottom center.
If the options menu appears, select Edit .
82
83
Chapter 3.
Using the computer
Using the S Gallery app
1
Tap Charm menu > Start
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> S Gallery.
2
You can view the pictures and videos taken by the S Camera.
In addition, you can apply special eects to the pictures using
the photo editing function.
You can take a picture in the S Gallery app by tapping the
Camera icon.
Editing a photo
1
Select Picture preview.
Drag it upward slightly from the bottom center.
If the options menu appears, select Edit .
Using the Multimedia App
(Optional)
2
Select an eect to be applied to the photo.
E.g. If you select Draw
Close
UndoLine preview
Line thickness Save
Color
Erase/Draw
Frame
Draw
Stamp
Using the S Player app
1
Tap Charm menu > Start
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> S Player.
My Photos
My Music
My Videos
My photo list
Music playlist Slideshow
2
Select a menu to enjoy photo, video and music les.
Some les may not be played depending on their format.
84
Chapter 3.
Using the computer
Using the S Note app
(S Note, Optional)
You can design your note using various formats such as idea
writing, recipe, diary, travel sketch and so on.
Depending on the version of the program, some functions
may not be provided or dierent functions may be provided.
Creating a note
1
Select S Note in the Start screen.
2
The S Note app is launched and the S Note guide appears.
Tap Finish.
3
From the Appbar, tap the New note .
Appbar
z
x
84
85
Chapter 3.
Using the computer
You can design your note using various formats such as idea
writing, recipe, diary, travel sketch and so on.
Depending on the version of the program, some functions
may not be provided or dierent functions may be provided.
Creating a note
1
Select S Note in the Start screen.
2
The S Note app is launched and the S Note guide appears.
Tap Finish.
3
From the Appbar, tap the New note .
Appbar
z
x
Using the S Note app
(S Note, Optional)
4
Various note format options will appear.
Select a format.
5
Create a note using the Menu.
E.g. When you selected Recipe
Exit S Note
Tap and hold to change
the photos or contents.
Menu Hide menu
Add a page
Text, diagrams, and formulas Eraser Voice memo
Undo / Redo Record sketch
Preview / edit Favorites
Using pens and conguring the
pen tools
Entering text through the Keypad
and style settings
Insert a gure Turn the S Pen on or o
86
Chapter 3.
Using the computer
Using the S Note app
(S Note, Optional)
►
Inserting a gure (photo)
We will describe inserting a photo as an example.
z
Tap the icon.
x
Select the gure insertion method.
c
If you tap on Take a picture, the picture taking screen appears.
Tap on the screen to take a picture.
v
If the photo has been taken, tap OK.
b
The photo is inserted into the recipe screen. Adjust the size
and location of the photo.
n
Inserting a gure is completed.
You can also insert various items such as text boxes, clipart, etc.
►
Recording a voice memo
z
Tap the icon.
x
The voice memo window appears. Tap the Record button.
c
When the recording is complete, tap the Stop button.
v
The recording is complete. To make a new recording, tap
Replace.
6
When creating a note is completed, drag the bottom center
upward.
Tap Save to nish creating the note.
7
Tap the icon to exit the note app. Then you can view the
newly created note icon.
86
87
Chapter 3.
Using the computer
Using the S Note app
(S Note, Optional)
Sending a note via email
1
Slightly drag the note to be sent via email downward in the
folder. The note is selected.
2
Select Charm menu > Share > Email.
3
Send an email according to the instructions below.
You need a Microsoft account to use the email app.•
To register a note to an app other than the email app, •
select Charm menu > Settings > Change PC Settings >
Sharing and set the App to be used for sharing option to
On.
Printing a note
1
Slightly drag the note to be printed downward in the folder.
The note is selected.
2
Select Appbar > More > Print.
Alternatively, select Charm menu > Device and select a
printing device.
3
Print the note according to the instructions.
88
Chapter 3.
Using the computer
Samsung Software Update
SW Update is a software program that searches for Samsung
software programs and drivers installed when you purchased the
computer and helps you update any drivers or programs.
You can check updatable les before performing the •
update only when you are connected to the internet.
SW Update does not provide any updates for device drivers •
or software programs installed separately by the user.
1
Right-click over the Start screen.
Click SW Update in the All Apps menu item.
2
If the program is running for the rst time, the User
Agreement for personal information use appears.
Click Agree.
3
The SW Update program runs.
Select the items that you want to update before proceeding
with the update process.
Software
Update
Software List
88
89
Chapter 3.
Using the computer
Diagnosing the Computer Status and Troubleshooting
The Support Center program, which is Samsung’s computer’s
troubleshooting guide, supports diagnosing the system and has a
FAQ for frequently occurring problem(s).
Support Center may not be provided or may be a dierent
version depending on the model.
1
Right-click over the Start screen.
Click Support Center in the All Apps menu item.
2
Support Center is activated and starts diagnosing your
computer.
After the diagnosing process is nished, the System Status
menu displays a list of the current problems to be solved as
shown.
FAQ for
computer’s
major problems
Diagnosing
Computer and
Troubleshooting
Searching for
computer’s problems
3
You can solve a problem by clicking the Troubleshoot button
for the problem.
91
Chapter 4.
Settings and Upgrade
BIOS Setup
The BIOS Setup enables you to congure your computer hardware
according to your needs.
Use the BIOS setup to change the booting priority, or add a •
new device.
Since incorrect settings may cause your system to •
malfunction or crash, take care when conguring the BIOS.
The functions of the BIOS setup are subject to change for •
product function enhancement purposes.
The BIOS Setup menus and items may dier depending on •
your computer model.
Entering the BIOS Setup
1
Shut the computer down.
2
Press the computer’s Power button.
If the Samsung logo screen appears, press the Home button
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
.
3
After a moment, the BIOS setup screen appears.
The items in the BIOS setup may dier depending on the
product.
92
Chapter 4.
Settings and Upgrade
The BIOS Setup Screen
Select each Setup menu by tapping it and conguring each of the
settings.
System Time >
System Date >
SATA Port 1 SanDisk SSD U100 126GB
CPU Vender Intel(R)
CPU Type Core Core(TM) i5-3317U CPU
CPU Speed 1.70 GHz
CPU VT (VT-x) Supported
Total Memory 4096 MB
BIOS Version E00AAT.017.120804.dg
MICOM Version E00AAT.017
Aptio Setup Utility - Copy (C) 2012 American Megatrends, Inc.
Setup Menu
Setup Items
Help
Help for the selected item
appears automatically.
Setup Menu Description
SysInfo
This is a description about the basic
specications of the computer.
Advanced
Using this menu, you can congure the major
chipsets and additional functions.
Security
Used to congure security functions, including
passwords.
Boot
This menu enables you to congure peripherals
and booting related settings such as the boot
priority.
Boot to Device Enables booting from a peripheral device.
BIOS Setup
92
93
Chapter 4.
Settings and Upgrade
Setting a Boot Password
If you set a password, you have to enter the password when you
turn the computer on or enter the BIOS Setup.
By conguring a password, you can restrict system access to
authorized users only and protect data and les saved on the
computer.
The password setting provides the following 3 sub menus.•
(Supervisor Password, User Password and HDD Password)
Do not lose or forget your password. •
Do not let others know your password.•
If you forget the Supervisor Password or HDD Password, •
you will need to request assistance from the service center.
In this case, a service fee will be charged.
When you forget the User Password, you can disable •
the Supervisor Password, and the User Password is also
automatically disabled.
The screen images and terms may dier from actual •
product depending on the computer model and driver
version.
Setting a Supervisor Password
If you set a Supervisor Password, you need to enter the password
when you turn the computer on or enter the BIOS Setup.
Setting only the Supervisor Password and User Password is not
very secure. You can use an HDD Password as well to increase the
security level.
1
Select the Security menu in the BIOS Setup.
2
In the Set Supervisor Password item, press <Enter>.
Aptio Setup Utility - Copy (C) 2012 American Megatrends, Inc.
Supervisor Password Clear
User Password Clear
HDD Password Clear
Set Supervisor Password >
Set User Password >
Set HDD Password >
Power On Boot On
TPM Configuration >
94
Chapter 4.
Settings and Upgrade
Setting a Boot Password
3
Enter a password, press <Enter>, re-enter the password for
conrmation, and press <Enter> again.
The password can be up to 8 alphanumeric characters.
Special characters are not allowed.
4
The supervisor password has been set.
The supervisor password is required to turn the computer on
or to enter the BIOS Setup.
For some models, if the password entered message appears
in the Setup Notice window, the settings are not complete
until the <Enter> key is pressed.
Setting a User Password
Using the User Password, you can turn the computer on but you
cannot change the major settings of the BIOS Setup because you
cannot enter the BIOS Setup.
This helps prevent unauthorized access to the major settings in
the BIOS Setup menu.
Before conguring a user password, a supervisor password must
have been congured. Deactivating the supervisor password also
deactivates the user password.
In the Set User Password item, press <Enter> and complete the
procedures from Step 3 of Setting a Supervisor Password.
Setting Up a Boot Password
To setup a boot password, the administrator password (Set
Supervisor Password) should be set in advance.
Set the Password on boot item to Enabled.
Once a boot password is set, you have to enter a password to boot
up the computer.
Be sure to remember the password for later use.
94
95
Chapter 4.
Settings and Upgrade
Setting a Boot Password
Setting up a Hard Disk Drive Password (Optional)
If you set a password for a hard disk drive, it cannot be accessed
from another computer.
Press <Enter> in the Set HDD Password item and dene a
password as described in Step 3 of the Setting up the Supervisor
Password.
The hard disk drive password setting function is not •
provided for some models.
Changing the hard disk drive password•
For security purposes, you can only change a hard disk
drive password after restarting the computer by pressing
the computer Power button.
If you cannot change the hard disk drive password or the
HDD Password Frozen message appears when entering
the BIOS Setup and then selecting Security > HDD
Password, press the Power button to turn the computer
on again.
Deactivating the Password
1
Press <Enter> on the password to be deactivated. For
example, to deactivate a supervisor password in the Set
Supervisor Password item, press <Enter>.
2
In the Enter Current Password item, enter the currently
congured password and press <Enter>.
3
Leave the Enter New Password item eld empty, and press
<Enter>.
4
Leave the Conrm New Password eld empty, and press
<Enter>.
The password is deactivated.
For some models the password is only canceled if the
<Enter> key is pressed in the Setup Notice window.
96
Chapter 4.
Settings and Upgrade
Changing the Boot Priority
The computer is congured so that it boots from the HDD with
priority, by default.
This section will show you how to change the setting so that the
computer boots from a USB device.
The screen image and terms may change depending on the
model and the device driver version.
1
Connect the USB device.
2
If the computer restarts and the Samsung logo screen
appears, press the Home button
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
.
3
Enter the BIOS Setup. Select the Boot menu in the BIOS
Setup.
Aptio Setup Utility - Copy (C) 2012 American Megatrends, Inc.
Boot Device Priority >
Secure Boot Off
OS Mode Selection
Smart Battery Calibration >
UEFI OS
4
Set the Boot Device Priority > Boot Option #1 item on the
right screen to USB device.
Aptio Setup Utility - Copy (C) 2012 American Megatrends, Inc.
Boot Option Priorities
Boot Option #1
xxx
5
Select Save and then Yes.
6
The computer will restart.
Now, the boot priority has been changed so that the device
will boot from the USB device with priority.
96
97
Chapter 4.
Settings and Upgrade
Battery
Please refer to the following instructions when running the
computer on battery power without connecting the AC power.
This computer is equipped with an internal battery.
Precautions
Users cannot remove or replace the internal battery. •
To remove or replace the battery, use an authorized •
service center in order to protect the product and
users. You will be charged for this service.
Use only chargers specied in the User Manual.•
Never heat the battery pack, put it near or in a re or use at •
a temperature higher than 60°C, as this may cause re.
Please refer to the system operation environment of •
this manual and operate and store the battery at room
temperature.
Before using the computer for the rst time, make sure to
connect the AC adapter and charge the battery completely.
The location of the internal battery
Charging the Battery
Connect the AC adapter to the power input jack of the computer.
The battery will start charging.
98
Chapter 4.
Settings and Upgrade
Battery
Measuring the Remaining Battery Charge
You can view the battery charge status by completing the
following procedures.
Conrming the battery charge in the Taskbar
Disconnect the AC adapter and move the mouse cursor over
the battery icon in the system tray of the Taskbar to conrm the
remaining battery charge.
Checking when the computer is o
If you press the Home button
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
while charging, when your PC is
powered o, the battery indicator is displayed on the screen for a
moment.
Alternatively, if you connect the AC adapter when the computer
is o, the remaining battery charge is briey displayed on the
screen.
Battery Usage Time Information
A battery is an expendable supply, so when using it over a long
time, the capacity/battery life is shortened. If the battery life is
reduced to under half of its initial time, we recommend purchasing
a new battery.
When not using the battery for a long time, store the battery after
charging it to 30-40% of its capacity. This extends the battery life
time.
98
99
Chapter 4.
Settings and Upgrade
Battery
Extending the Battery Usage Time
Decreasing the LCD Brightness
1
Click the Charms menu > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
> Screen icon.
2
Dims the screen.
Using the power management program
This program helps you use the battery more eciently
and supports the power mode optimized for the operating
environment.
1
Click Charms menu on the Desktop > Settings
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
>
Control Panel > Hardware and Sound > Power Options.
Alternatively, right-click the power measuring device icon
in the notication area of the taskbar and select Power
Options.
2
If the following screen appears, select one of the modes.
100
Chapter 4.
Settings and Upgrade
Battery
Using the Battery Calibration Function
When charging/discharging the battery repeatedly for a short time
only, the battery usage time may be reduced by the dierence
between the actual battery charge and the remaining charge
display.
In this case, the actual battery charge and the remaining charge
display will be the same by discharging the battery completely
using the Battery Calibration function, and then recharging it
again.
The screen images and terms may dier from actual product
depending on the computer model and driver version.
1
Shut down the computer and remove the AC adapter.
2
After pressing the Power button, if the Samsung logo screen
appears, press the Home button
áᔪ
Ŗᮁ
᯲
ᰆ⊹
ᖅᱶ
several times.
3
If you select Boot > Smart Battery Calibration, calibration is
performed.
Aptio Setup Utility - Copy (C) 2012 American Megatrends, Inc.
Boot Device Priority >
Secure Boot Off
OS Mode Selection
Smart Battery Calibration >
UEFI OS
To stop the process, press the Home button.
This process takes approximately 3 to 5 hours to nish
depending on the capacity and the remaining battery charge.
102
Chapter 5.
Troubleshooting
Recovering/Backing up the Computer
(Optional)
When a problem occurs with your computer, you can easily
restore your computer using the Recovery program. Alternatively,
you can back up your computer so that you can restore it to your
preferred state at any time.
If the computer fails to boot up, press the Power button
x
while holding down the Volume button (+)
z
to restore the
computer. Alternatively, if you have connected an external USB
keyboard (optional), you can restore the computer by pressing the
F4 key on the keyboard.
x
z
Recovery Introduction
Help
Recover
Back Up
Function Description
Recover Restores the entire Windows drive.
Back Up You can back up your entire Windows drive.
102
103
Chapter 5.
Troubleshooting
Recovery• may not be provided or may be a dierent
version depending on the model.
Some functions may dier slightly or be excluded •
depending on the version. Refer to the program's Help
section for more information.
For models whose hard disk or SSD capacity is less than 64 •
GB, the Recovery program is not provided.
An ODD (CD/DVD drive, etc.) is not supported by the •
Recovery program.
Since restoring the system deletes all data and user-•
installed programs saved after your last restore point, it is
advisable to back up any important data before restoring
your system.
Pressing the • F4 key is equivalent to pressing the Power
button while holding down the Volume (+) button.
Hereafter, the F4 key operation described in this manual
can be simulated by pressing the Power and Volume (Up)
buttons.
Recovering
You can restore the computer settings to the factory default
settings if the computer fails to boot up, or if you encounter a
serious problem with the computer.
1
- If Windows does not start
Press the power button while holding down the volume
button (+). The computer enters restoration mode.
- In the Start screen after the computer boots up
Right-click over the Start screen. Click Recovery in the All
Apps
menu item.
2
If the initial menu screen appears, click Recover.
Select a recovery point and click Recover.
If you set the User Data Maintenance to ON, the computer is
restored while maintaining the current user data.
Recovering/Backing up the Computer
(Optional)
104
Chapter 5.
Troubleshooting
3
Recover is performed based on the screen instructions.
If the recover is completed, you can use your computer
normally.
Recovering after a Backup
You can recover your computer after you have backed up your
computer to a separate drive or external storage device.
Backing up
1
To back up your computer to an external storage device,
connect the external storage device and select the relevant
drive.
2
Click Backup in the Recovery Home screen.
Select the drive to save and click Backup.
You cannot select a DVD drive.
Select the drive
to save to.
3
The backup process is performed based on the instructions.
Recovering/Backing up the Computer
(Optional)
104
105
Chapter 5.
Troubleshooting
Recovering
You can recover your computer using the backup from the above
process.
1
If the backup image is saved to an external storage device,
connect the device.
2
Start Recovery and click Recover.
3
Select a Recover Option and click Recover.
Select a point to recover.
4
The recover is performed based on the screen instructions.
You can use your computer after the recover is completed.
To copy the external storage disk
When you replace a storage device such as the HDD, SSD, etc.
(hereafter referred to as a hard disk) built into your computer, you
can move your existing data to the new storage device easily and
safely.
The new storage device must have sucient capacity to save
your existing data.
You need to purchase an external hard USB connector
separately to connect the hard disk and your computer.
1
You need to purchase an external hard USB connector
separately to connect the hard disk and your computer.
2
Start Recovery and click Disk copy .
Recovering/Backing up the Computer
(Optional)
106
Chapter 5.
Troubleshooting
3
Select an option in Disk recovery Point and click Disk copy.
4
The data on the current hard disk is saved to the new hard
disk.
5
If the data is completely saved, open the hard disk cover at
the bottom of your computer and replace the existing hard
disk with the new one.
If you cannot open the cover at the bottom of the computer,
contact the Samsung Service Center to request assistance.
In this case, you may be charged for the relevant service.
6
Your computer is now equipped with a new hard disk.
The new hard disk now contains all data from the old hard
disk with the same settings.
Recovering/Backing up the Computer
(Optional)
106
107
Chapter 5.
Troubleshooting
Recovering/Backing up the Computer
(Optional)
Computer Recovery Function in Windows 8
If a problem occurs with your computer, the recovery program
allows you to restore your computer to the default settings.
For models where the SSD is less than 64GB, use the Windows
System Restore function instead of the Recovery program.
1
Click the Charms menu > Settings > Change PC Settings >
General.
2
Click the Start button for Refresh.... or Remove.....
Refresh....
If your PC does not work properly, you can
restore your PC while keeping your media
les such as your photo, video and music
les, etc. as well as your personal documents.
Remove….
You can remove all items in your PC and
reinstall Windows again.
You should back up the les in the following folders
before using the PC Recovery function since these les
are not kept.
\Windows, \Program les, \Program les(x86), \ProgramData,
OEM Folder (ex) c:\samsung), \User\<user name>\AppData
3
Follow the onscreen instructions to proceed with the
recovery process.
If the recovery is complete, you can use your computer
normally.
You can restore required Samsung software programs
through All Apps > SW Update.
108
Chapter 5.
Troubleshooting
Reinstalling Windows
(Optional)
You can reinstall Windows using the SYSTEM RECOVERY MEDIA
for Windows when Windows is no longer working properly.
(For models supplied with a SYSTEM RECOVERY MEDIA.)
These descriptions are for Windows 7/8 and Windows Vista and for
supported models only.
A • SYSTEM RECOVERY MEDIA may not be supplied
depending on your computer model.
If you cannot start Windows, or if you want to delete •
all existing data and reinstall Windows, install Windows
according to the descriptions in [Reinstalling when
Windows does not start].
Some pictures may dier from actual product.•
These descriptions may dier depending on the operating •
system.
Reinstalling Windows may delete data (les and programs) •
saved on the hard disk drive.
Make sure to backup all important data. Samsung •
Electronics shall not be held liable for any loss of data.
Reinstalling in Windows
1
Insert the SYSTEM RECOVERY MEDIA into the CD drive.
2
If the Select Windows Installation window appears, click
Install Now. When the Select Update window appears, click
on the relevant item.
If you select • Go online to get the latest updates for
installation in the Select Update window, the latest
updates are installed and Step 4 follows. At this time, the
computer must be connected to the Internet.
For Windows 7/8, the screen asking for the operating •
system to be installed may appear depending on the
version. If you click the Next button, the screen of Step
3appears.
3
If the User Agreement screen appears, select I accept the
license terms and then click Next.
For Windows 7/8, this screen may not appear depending on
the version.
108
109
Chapter 5.
Troubleshooting
Reinstalling Windows
(Optional)
4
The following window appears, select an installation option.
If you click Custom, the procedures from Step 5 continue
sequentially.
If you click Upgrade, the procedures from Step 6 continue
sequentially.
For Windows 7/8, this screen may not appear depending •
on the version.
Custom•
Select this option to Reinstall Windows. You have to
reinstall all necessary device drivers and programs after
the Custom installation. In addition, unnecessary folders
and les may remain on the hard disk drives after the
installation (e.g. C:\ Windows.old, etc.).
Upgrade•
Select this option to Upgrade Windows while maintaining
current les, congurations and programs. Although you
therefore do not need to reinstall the device drivers and
programs, some programs may not work properly after the
upgrade.
5
When a window appears asking for the location to install the
operating system to, select a disk drive partition and click the
Next button.
Drive D includes an area to save the backup image used
by Recovery program. Installing Windows to drive C is
recommended.
When previous Windows installation les are in the selected
partition, a message appears informing you that the les and
folders will be moved to the Windows. old folder. Click the
OK button.
6
The Windows installation continues.
The computer will restart 3 times during the installation.
If the Press any key to boot from CD or DVD... message
appears after a restart, do not press any button.
7
Register a user according to the instructions on the Windows
screen.
8
When the registration is complete, the Windows Desktop
screen appears.
For a smooth computer operation, installing the necessary
software installation is recommended.
110
Chapter 5.
Troubleshooting
Reinstalling Windows
(Optional)
Reinstalling when Windows does not start
When Windows does not start, boot up with the SYSTEM
RECOVERY MEDIA and from there you can reinstall Windows.
1
Insert the SYSTEM RECOVERY MEDIA into the DVD drive
and restart the computer.
2
If the Press any key to boot from CD or DVD... message
appears while booting, press any key on the keyboard.
3
After a while, the Options windows such as Language, Time,
Keyboard, etc. appear. Conrm the settings and click the
Next button.
4
If the Select Windows Installation window appears, click
Install Now.
For Windows 7/8, the screen asking for the operating system
to be installed may appear depending on the version. If you
click the Next button, the screen of Step 5 appears.
5
If the User Agreement screen appears, select I accept the
license terms and then click Next.
For Windows 7/8, this screen may not appear depending on
the version.
6
When the window asking for the installation type appears,
click Custom.
For Windows 7/8, this screen may not appear depending on
the version.
7
When a window appears asking for the location to install the
operating system to, select the partition of the disk drive and
then click the Next button.
Drive D includes an area to save the backup image used
by Recovery program. Installing Windows to drive C is
recommended.
A If you click • Drive Options (Advanced), you can delete,
format, create or expand a partition. Click on a function
and proceed according to the instructions on the screen.
When previous Windows installation les are in the •
selected partition, a message appears informing you that
the les and folders will be moved to the Windows.old
folder. Click the OK button.
8
The subsequent steps are the same as those from Step 7 of
Installing in Windows.
110
111
Chapter 5.
Troubleshooting
You can look for potential problems that may occur with the
system and view the relevant solutions. Also, you may look up any
reference(s) required while operating the computer.
Recovery Related
Q1
What is a Recovery Area?
A
Samsung computers have an additional partition to recover
computers or save backup les. (Only for models with the
Recovery.)
This partition is called a Recovery Area and it includes a
recovery image that comprises of the OS and application
programs.
Q2
The capacity representation of the hard disk
drive(HDD) in Windows is dierent from the product
specications.
A
The capacity of the storage device (HDD) of the
manufacturer is calculated assuming that 1KB=1,000 Bytes.
However, the operating system (Windows) calculates the
storage device capacity assuming that 1KB=1,024 Bytes,
and therefore the capacity representation of the HDD in
Windows is smaller than the actual capacity.
The capacity representation in Windows may be smaller
than the actual capacity because some programs occupy a
certain area of the HDD outside of Windows.
For models with Recovery, the HDD capacity representation
in Windows may be smaller than the actual capacity because
Recovery uses a hidden area of about 5~20GB of the HDD
to save the recovery image, and that hidden area is not
counted towards the total size available to Windows.
The size of Recovery varies by models because of the
dierent size of applied programs.
Q3
What is a recovery image?
A
This refers to the computer status (including operating
system, specic driver(s), software(s), etc.) which is converted
to a data image. It is required to recover your computer and
is embedded in the computer's hard disk. However, this is
not provided for storage devices where the capacity is less
than 64 GB due to the small capacity.
Q&A
112
Chapter 5.
Troubleshooting
Q4
How can I restore a computer that does not have the
Recovery program?
A
You can restore the computer using the system recovery
function provided by Windows.
Refer to the Restore Functionality item in the Help section
for more details.
Windows 8 Related
Q1
I cannot nd the Start button on the Desktop.
A
There's no Start button in Windows 8.
You can use the Control Panel, PC-running menu(s), etc. by
activating the Charms menu.
Q2
I cannot nd the computer's Shutdown button.
A
Click the Charms menu > Settings > Power to display the
Power Options menu.
Click Shutdown.
Q3
The App disappeared in the Start screen.
A
Click the Charms menu > Search to display all installed
Apps. Right-click over the corresponding App to select in a
Tile in the Start Screen.
Q4
Since I'm familiar with Windows 7, I would like the
Desktop screen to appear as it does in Windows 7.
A
Currently, there is no way to set the Desktop to appear by
default.
Press the Windows key + D key simultaneously to reveal
the Desktop when the Start screen appears. This is currently
the only workaround.
Q5
How can I install a printer driver?
A
Run your driver installation le and follow the corresponding
instructions. You can install it in the same method as the
existing OS.
Refer to your printer manual for detailed instructions for
each model.
Q&A
112
113
Chapter 5.
Troubleshooting
Q&A
Q6
How can I uninstall the driver?
A
On the Desktop, click Charms menu > Settings > Control
Panel > Programs and Features.
Click the program. Then click uninstall.
Q7
How can I change the screen settings, environment
settings, type size, color, and so on?
A
Click Charms menu > Settings > Change PC Settings >
Personalization. You can set the OS settings such as the
screen design, etc.
To congure your computer in detail, click the Charms
menu in Desktop > Settings > Control Panel.
You can congure your computer in the same way as
existing Windows systems.
Q8
Active X does not run in Internet Explorer on the Start
screen.
A
Since Internet Explorer on the Start screen complies with the
HTML5 web standards, it does not support Active X. However,
Internet Explorer on the Desktop supports Active X.
►
How to activate Active X:
If you right-click over the Internet Explorer, the following
window appears. Press the button and click View on the
Desktop. Active X is now enabled.
Q9
I want to remove the pre-installed Windows 8
operating system and install a dierent OS.
A
If you want to install a dierent operating system on your
PC, you need to change the BIOS settings rst.
For more information, visit http://www.samsung.com and
go to Customer Support > Troubleshooting. Search for
Windows 8 and look through the list of search results for the
relevant issue.
114
Chapter 5.
Troubleshooting
Q&A
Display Related
Q1
The Desktop displayed on the TV after connecting via
the HDMI port does not t the screen.
A
Go to the Graphics Control Panel to adjust the screen
settings.
►
For Intel graphics cards
Right-click over the Desktop and go to Graphics Properties
> Display > General. Adjust the Horizontal Ratio and
Vertical Ratio settings to t your screen and click OK.
►
For AMD graphics cards
1. Right-click over the Desktop and select Graphics
Properties > Desktop and Display > My Digital Flat
Panel > Expansion Options (Digital Flat Panel).
2. Adjust the control bar to t the TV corners and click Apply.
Sound Related
Q1
I cannot hear any sound from the TV after connecting
via the HDMI port.
A
1. Right-click over the taskbar on the Desktop and click Play
Device.
2. Change the option to Digital Audio (HDMI), HDMI device,
HDMI Output or another option and click Set as Default.
Then click OK.
114
115
Chapter 5.
Troubleshooting
Q&A
Touch screen Related
Q1
The screen is abnormally displayed when the touch
screen has been rotated.
A
The screen rotation function may not work properly
depending on the application.
To x the screen orientation, press the Rotation Lock
button.
Q2
The letters on the computer screen overlap.
A
If the font size is set to large, the letters on the screen may
overlap.
In this case, select Settings > Touch Tuning > DPI Settings
and set the text size to Basic.
USB keyboard / Device Related
Q1
A USB device is not recognized in the BIOS Setup
A
In the BIOS Setup, select Advanced > Fast BIOS Mode and
change the setting to O and restart the computer. Then
you will be able to use the USB device.
Q2
I connected a USB keyboard and pressed F2 during
the booting sequence, but the BIOS Setup screen does
not appear.
A
If the Advanced > Fast BIOS Mode item in the BIOS Setup
menu is set to O, the USB keyboard is not recognized.
In this case, you can enter the BIOS Setup using one of the
buttons of the computer.
Press the computer's power button. If the Samsung logo
screen appears, press the Home button.
The BIOS Setup screen appears.
116
Chapter 5.
Troubleshooting
Multimedia App Related
Q1.
Where are the photos and videos taken by the S
Camera saved?
A
The photos and videos you took are saved in Library >
Photo > Camera Roll.
Q2.
I can only make a recording up to 3 hours with the S
Camera.
A
When you make a recording, the Windows 8 OS asks
the application to stop after 3 hours. To make a longer
recording, make a recording for 3 hours, stop the recording
and then start a new recording. This allows you to make
another 3 hour recording. The recording time limit may
dier depending on the operating system.
Q3.
I can play a le saved on an external storage device
but cannot add the le to the playlist in the S Player.
A
The application is designed so that only les in the Library
can be added to the playlist.
Q4.
Although I turned the volume up to the maximum in
the S Player, the volume is still low.
A
Click on the Speaker icon in the system tray at the bottom
right of the Desktop screen and turn up the volume in the
popup window.
The volume of the S Player controls the volume of the S
Player application only and not the volume of the system
sound.
Others
Q1
You can congure your computer in the same way as
existing Windows systems.
A
If you want to start your computer in DOS via a USB device,
set the Fast BIOS Mode item in the Advanced menu in the
BIOS Setup to On before using this feature.
Q&A
118
Chapter 6
Appendix
Safety Instructions
Your system is designed and tested to meet the latest standards
for safety of information technology equipment. However, to
ensure safe use of this product, it is important that the safety
instructions marked on the product and in the documentation are
followed.
Always follow these instructions to help guard against
personal injury and damage to your system.
Setting Up your System
Read and follow all instructions marked on the product and in •
the documentation before you operate your system. Retain all
safety and operating instructions for future use.
Do not use this product near water or a heat source such as a •
radiator.
Set up the system on a stable work surface.•
The product should be operated only with the type of power •
source indicated on the rating label.
Ensure that the electrical outlet you are using to power your •
equipment is easily accessible in case of re or short circuit.
If your computer has a voltage selector switch, make sure that •
the switch is in the proper position for your area.
Openings in the computer case are provided for ventilation. •
Do not block or cover these openings. Make sure you provide
adequate space, at least 6 inches (15 cm), around the system
for ventilation when you set up your work area. Never insert
objects of any kind into the computer ventilation openings.
Ensure that the fan vents on the bottom of the casing are clear •
at all times. Do not place the computer on a soft surface, doing
so will block the bottom vents.
If you use an extension cord with this system, make sure that the •
total power rating on the products plugged into the extension
cord does not exceed the extension cord power rating.
For Notebooks with glossy display bezels the user should •
consider the placement of the Notebook as the bezel may
cause disturbing reections from surrounding light and bright
surfaces.
Important Safety Information
Ver 3.3
118
119
Chapter 6
Appendix
Care During Use
Do not walk on the power cord or allow anything to rest on it.•
Do not spill anything on the system. The best way to avoid •
spills is to not eat or drink near your system.
Some products have a replaceable CMOS battery on the •
system board. There is a danger of explosion if the CMOS
battery is replaced incorrectly. Replace the battery with the
same or equivalent type recommended by the manufacturer.
Dispose of batteries according to the manufacturers
instructions. If the CMOS battery requires replacement insure
that a qualied technician performs the task.
When the computer is turned o, a small amount of electrical •
current still ows through the computer.
To avoid electrical shock, always unplug all power cables,
remove the battery and modem cables from the wall outlets
before cleaning the system.
Unplug the system from the wall outlet and refer servicing to •
qualied personnel if:
– The power cord or plug is damaged.
– Liquid has been spilled into the system.
– The system does not operate properly when the operating
instructions are followed.
– The system was dropped or the casing is damaged.
– The system performance changes.
The Instruction On Safety Operation of NotePC
1.
When installing and operating devices please refer to safety
requirements in the user guide.
2.
Devices can be used only with the equipment specied in the
technical specications of the devices.
3. If any smell of burning or smoke is detected from the computer
the unit should be switched o and battery removed. The unit
should be checked by a qualied technician before reuse.
4.
Service and repair of devices should be carried out by
authorized service centers.
5.
Do not allow your portable computer to operate with the base
resting directly on exposed skin for extended periods of time.
The surface temperature of the base will rise during normal
operation (particularly when AC Power is present). Allowing
sustained contact with exposed skin can cause discomfort or
eventually a burn.
Important Safety Information
120
Chapter 6
Appendix
Replacement Parts and Accessories
Use only replacement parts and accessories recommended by
manufacturer.
To reduce the risk of re, use only No. 26 AWG or larger
telecommunications line cord.
Do not use this product in areas classied as hazardous.
Such areas include patient care areas of medical and dental
facilities, oxygen rich environments, or industrial areas.
Battery Disposal
Do not put rechargeable batteries or products powered by
non-removable rechargeable batteries in the garbage.
Contact the Samsung Helpline for information on how to dispose
of batteries that you cannot use or recharge any longer.
Follow all local regulations when disposing of old batteries.
THERE IS A RISK OF EXPLOSION IF BATTERY IS REPLACED BY
AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
Laser Safety
All systems equipped with CD or DVD drives comply with the
appropriate safety standards, including IEC 60825-1. The laser
devices in these components are classied as “Class 1 Laser
Products” under a US Department of Health and Human Services
(DHHS) Radiation Performance Standard. Should the unit ever
need servicing, contact an authorized service location.
Laser Safety Note:•
Use of controls or adjustments or performance of
procedures other than those specied in this manual
may result in hazardous radiation exposure. To prevent
exposure to laser beams, do not try to open the enclosure
of a CD or DVD drive.
Class 1M laser radiation when operating part is open.•
Do not view directly with optical instruments.
Class 3B invisible laser radiation when open.•
Avoid exposure to the beam.
120
121
Chapter 6
Appendix
Replacement Parts and Accessories
Connect and Disconnect the AC adapter
The socket-outlet shall be installed near the equipment and shall
be easily accessible.
Do not unplug the power cord by pulling the cable only.
Power Cord Requirements
The power cord set (wall plug, cable and AC adapter plug) you
received with your computer meets the requirements for use in
the country where you purchased your equipment.
Power cord sets for use in other countries must meet the
requirements of the country where you use the computer. For
more information on power cord set requirements, contact your
authorized dealer, reseller, or service provider.
General Requirements
The requirements listed below are applicable to all countries:
All power cord sets must be approved by an acceptable •
accredited agency responsible for evaluation in the country
where the power cord set will be used.
The power cord set must have a minimum current capacity •
of 7 A and a nominal voltage rating of 125 or 250 volts AC, as
required by each country’s power system. (USA ONLY)
The appliance coupler must meet the mechanical conguration •
of an EN 60 320/IEC 320 Standard Sheet C7 (or C5) connector,
for mating with appliance inlet on the computer.
122
Chapter 6
Appendix
Regulatory Compliance Statements
Wireless Guidance
(If tted with 2.4G band or 5G band)
Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4GHz/5GHz Band, may
be present (embedded) in your notebook system. The following
section is a general overview of considerations while operating a
wireless device.
Additional limitations, cautions, and concerns for specic countries
are listed in the specic country sections (or country group
sections). The wireless devices in your system are only qualied for
use in the countries identied by the Radio Approval Marks on the
system rating label. If the country you will be using the wireless
device in, is not listed, please contact your local Radio Approval
agency for requirements. Wireless devices are closely regulated
and use may not be allowed.
The RF eld strength of the wireless device or devices that may
be embedded in your notebook are well below all international
RF exposure limits as known at this time. Because the wireless
devices (which may be embedded into your notebook) emit less
energy than is allowed in radio frequency safety standards and
recommendations, manufacturer believes these devices are safe
using. Regardless of the power levels, care should be taken to
minimize human contact during normal operation.
Some circumstances require restrictions on wireless devices.
Examples of common restrictions are listed on the next page:
Radio frequency wireless communication can interfere •
with equipment on commercial aircraft. Current aviation
regulations require wireless devices to be turned o while
traveling in an airplane.
802.11ABGN (also known as wireless Ethernet or Wi) and
Bluetooth communication devices are examples of devices
that provide wireless communication.
In environments where the risk of interference to other •
devices or services is harmful or perceived as harmful,
the option to use a wireless device may be restricted or
eliminated. Airports, Hospitals, and Oxygen or ammable
gas laden atmospheres are limited examples where use
of wireless devices may be restricted or eliminated. When
in environments where you are uncertain of the sanction
to use wireless devices, ask the applicable authority for
authorization prior to use or turning on the wireless device.
Every country has dierent restrictions on the use of •
wireless devices. Since your system is equipped with
a wireless device, when traveling between countries
with your system, check with the local Radio Approval
authorities prior to any move or trip for any restrictions on
the use of a wireless device in the destination country.
If your system came equipped with an internal embedded •
wireless device, do not operate the wireless device unless
all covers and shields are in place and the system is fully
assembled.
122
123
Chapter 6
Appendix
Regulatory Compliance Statements
Wireless devices are not user serviceable. Do not modify •
them in any way. Modication to a wireless device will void
the authorization to use it. Please contact manufacturer for
service.
Only use drivers approved for the country in which •
the device will be used. See the manufacturer System
Restoration Kit, or contact manufacturer Technical Support
for additional information.
United States of America
USA and Canada Safety Requirements and Notices
Do not touch or move antenna while the unit is transmitting or
receiving.
Do not hold any component containing the radio such that the
antenna is very close or touching any exposed parts of the body,
especially the face or eyes, while transmitting.
Do not operate the radio or attempt to transmit data unless the
antenna is connected; if not, the radio may be damaged.
Use in specic environments:
The use of wireless devices in hazardous locations is limited by the
constraints posed by the safety directors of such environments.
The use of wireless devices on airplanes is governed by the Federal
Aviation Administration (FAA).
The use of wireless devices in hospitals is restricted to the limits
set forth by each hospital.
Explosive Device Proximity Warning
Do not operate a portable transmitter (such as a wireless
network device) near unshielded blasting caps or in an
explosive environment unless the device has been modied
to be qualied for such use.
124
Chapter 6
Appendix
Use On Aircraft Caution
Regulations of the FCC and FAA prohibit airborne operation
of radio-frequency wireless devices because their signals
could interfere with critical aircraft instruments.
Other Wireless Devices
Safety Notices for Other Devices in the Wireless Network:
Refer to the documentation supplied with wireless Ethernet
adapters or other devices in the wireless network.
The Part 15 radio device operates on a non-interference basis
with other devices operating at this frequency. Any changes
or modication to said product not expressly approved by
Intel could void the user’s authority to operate this device.
Unintentional Emitter per FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:(1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply
with the limits for a Class B digital device pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy. If not installed
and used in accordance with the instructions, it may cause
harmful interference. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and •
receiver.
Connect the equipment into an outlet on a circuit dierent •
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician •
for help.
Regulatory Compliance Statements
124
125
Chapter 6
Appendix
If necessary, the user should consult the dealer or an experienced
radio/television technician for additional suggestions. The user
may nd the following booklet helpful: “Something About
Interference.”
This is available at FCC local regional oces. Our company is not
responsible for any radio or television interference caused by
unauthorized modications of this equipment or the substitution
or attachment of connecting cables and equipment other than
those specied by our company. The correction will be the
responsibility of the user. Use only shielded data cables with this
system.
Intentional emitter per FCC Part 15
(If tted with 2.4G band or 5G band)
Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4GHz/5GHz Band, may
be present (embedded) in your notebook system. This section is
only applicable if these devices are present. Refer to the system
label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualied for
use in the United States of America if an FCC ID number is on the
system label.
This device is restricted to indoor use due to its operation in the
5.15 to 5.25 GHz frequency range. FCC requires this product to be
used indoors for the frequency range 5.15 to 5.25 GHz to reduce
the potential for harmful interference to co-channel Mobile
Satellite systems. High power radars are allocated as primary users
of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar
stations can cause interference with and /or damage this device.
Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation of the device.
Wireless devices are not user serviceable. Do not modify
them in any way.
Modication to a wireless device will void the authorization
to use it. Contact manufacturer for service.
Regulatory Compliance Statements
126
Chapter 6
Appendix
Health and safety information
Exposure to Radio Frequency (RF) Signals
Certication Information (SAR)
This product can contain an embedded radio transmitter and
receiver. It is designed and manufactured not to exceed the
exposure limits for radio frequency (RF) energy set by the Federal
Communications Commission (FCC) of the U.S. government. These
FCC exposure limits are derived from the recommendations of two
expert organizations, the National Council on Radiation Protection
and Measurement (NCRP) and the Institute of Electrical and
Electronics Engineers (IEEE). In both cases, the recommendations
were developed by scientic and engineering experts drawn from
industry, government, and academia after extensive reviews of the
scientic literature related to the biological eects of RF energy.
The exposure limit set by the FCC for wireless devices employs a
unit of measurement known as the Specic Absorption Rate (SAR).
The SAR is a measure of the rate of absorption of RF energy by the
human body expressed in units of watts per kilogram (W/kg). The
FCC requires wireless devices to comply with a safety limit of 1.6
watts per kilogram (1.6 W/kg). The FCC exposure limit incorporates
a substantial margin of safety to give additional protection to the
public and to account for any variations in measurements.
SAR tests are conducted using standard operating positions
accepted by the FCC with the wireless transmitting at its highest
certied power level in all tested frequency bands. Although the
SAR is determined at the highest certied power level, the actual
SAR level of the device while operating can be well below the
maximum value. This is because the device is designed to operate
at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
Before a new model is available for sale to the public, it must
be tested and certied to the FCC that it does not exceed the
exposure limit established by the FCC. Tests for each model are
performed in positions and locations (e.g. at the bottom on the
body) as required by the FCC.
For body worn operation, this model has been tested and meets
the FCC RF exposure guidelines when used with Samsung
accessory designated for this product. Non-compliance with the
above restrictions may result in violation of FCC RF exposure
guidelines.
SAR information on this and other model can be viewed on-line
at http://www.fcc.gov/oet/ea/fccid/. This site uses this product FCC
ID number on the outside of the product. Sometimes it may be
necessary to remove the battery pack to nd the number. Once
you have the FCC ID number for a particular product, follow the
instructions on the website and it should provide values for typical
or maximum SAR for a particular product.
Regulatory Compliance Statements
126
127
Chapter 6
Appendix
Canada
Unintentional Emitter per ICES-003
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the radio
interference regulations of Industry Canada.
Le présent appareil numérique n’émet pas de bruits
radioélectriques dépassant les limitesapplicables aux appareils
numériques de Classe B prescrites dans le règlement sur le
brouillage radioélectrique édicté par Industrie Canada.
Intentional Emitter per RSS 210
This device complies with RSS 210 of Industry Canada. Operation
is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of this
device.”
L‘ utilisation de ce dispositif est autorisée seulement aux
conditions suivantes : (1) il ne doit pas produire de brouillage et (2)
l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage
radioélectrique reçu, même si ce brouillage est susceptible de
compromettre le fonctionnement du dispositif.
The term “IC” before the equipment certication number only
signies that the Industry Canada technical specications were
met. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (EIRP) is not more than that required
for successful communication. To prevent radio interference
to the licensed service, this device is intended to be operated
indoors and away from windows to provide maximum shielding.
Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
Pour empecher que cet appareil cause du brouillage au service
faisant l’objet d’une licence, il doit etre utilize a l’interieur et devrait
etre place loin des fenetres an de Fournier un ecram de blindage
maximal. Si le matriel (ou son antenne d’emission) est installe a
l’exterieur, il doit faire l’objet d’une licence.
(If tted with 2.4G band or 5G band)
Low power, Radio LAN type devices (radio frequency (RF) wireless
communication devices), operating in the 2.4GHz/5GHz Band, may
be present (embedded) in your notebook system. This section is
only applicable if these devices are present. Refer to the system
label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualied for
use in Canada if an Industry Canada ID number is on the system
label.
When using IEEE 802.11a wireless LAN, this product is restricted to
indoor use due to its operation in the 5.15- to 5.25-GHz frequency
Regulatory Compliance Statements
128
Chapter 6
Appendix
range. Industry Canada requires this product to be used indoors
for the frequency range of 5.15 GHz to 5.25 GHz to reduce the
potential for harmful interference to co-channel mobile satellite
systems. High power radar is allocated as the primary user of the
5.25- to 5.35-GHz and 5.65 to 5.85-GHz bands. These radar stations
can cause interference with and/or damage to this device.
The maximum allowed antenna gain for use with this device
is 6dBi in order to comply with the E.I.R.P limit for the 5.25- to
5.35 and 5.725 to 5.85 GHz frequency range in point-to-point
operation.
The power output of the wireless device (or devices), which may
be embedded in your notebook, is well below the RF exposure
limits as set by Industry Canada.
Operation of this device is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation of the device.
To prevent radio interference to licensed service, this device
is intended to be operated indoors and away from windows
to provide maximum shielding. Equipment (or its transmit
antenna) that is installed outdoors is subject to licensing.
Wireless devices are not user serviceable. Do not modify
them in any way. Modication to a wireless device will void
the authorization to use it. Contact manufacturer for service.
(Si l’appareil est équipé d’une bande 2,4 G ou 5 G)
Des dispositifs de basse puissance, de type radio LAN
(périphériques de communication sans l par radiofréquence
RF) fonctionnant sur une bande de 2.4GHz/5GHz sont peut-
être intégrés dans votre appareil. Cette section est applicable
uniquement si ces dispositifs sont présents. Consultez l’étiquette
du système pour vériez la présence de dispositifs sans l.
Les dispositifs sans l qui peuvent être intégrés dans votre système
sont uniquement aptes pour une utilisation au Canada si l’étiquette
du système présente un nombre d’identication d’Industrie
Canada.
En cas d’utilisation d’un LAN sans l IEEE 802.11a, ce produit ne
peut être utilisé qu’à l’intérieur en raison de son fonctionnement
dans une plage des fréquences allant de 5,15 à 5,25 GHz. Industrie
Canada exige l’utilisation de ce produit à l’intérieur pour une
plage des fréquences allant de 5,15 à 5,25 GHz an de réduire
les éventuelles interférences nuisibles avec les systèmes mobiles
par satellite du même canal. Le radar de grande puissance est
considéré comme l’utilisateur principal des bandes de 5,25 à 5,35
GHz et de 5,65 à 5,85 GHz. Ces stations radar peuvent provoquer
des interférences avec ce périphérique et/ou l’endommager.
Le gain d’antenne maximum autorisé avec ce périphérique est
de 6 dBi an de respecter la limite de P.I.R.E. pour une plage des
fréquences de 5,25 à 5,35 GHz et de 5,725 à 5,85 GHz dans un
fonctionnement point à point.
Regulatory Compliance Statements
128
129
Chapter 6
Appendix
La sortie de puissance du dispositif sans l (ou des dispositifs) qui
peut être intégré dans votre système est bien inférieure aux limites
d’exposition de RF établies par Industrie Canada.
Son utilisation est soumise aux deux conditions suivantes : 1) ce
dispositif ne peut pas provoquer d’interférences nuisibles et 2
2) ce dispositif doit accepter toute interférence reçue, y compris
les interférences qui peuvent provoquer des anomalies dans le
système.
An de prévenir des interférences de radio au service
autorisé, ce dispositif est prévu pour être utilisé à l’intérieur et
éloigné des fenêtres pour fournir une protection maximum.
Un équipement (ou son antenne de transmission) qui est
installé à l’extérieur est sujet à une autorisation.
Les dispositifs sans l ne peuvent pas être réparés par
l’utilisateur. Ne les modiez en aucune façon. La modication
d’un dispositif sans l annulera votre autorisation à son
utilisation. Contactez le fabricant pour la réparation.
Brazil
Este produto esta homologado pela ANATEL, de acordo com
os procedimentos regulamentados pela Resolucao 242/2000, e
atende aos requisitos tecnicos aplicados.
Este equipamento opera em caráter secundário, isto é, não
tem direito a proteção contra interferência prejudicial, mesmo
de estações do mesmo tipo, e não pode causar interferência a
sistemas operando em caráter primário.
European Union
European Union CE Marking and Compliance Notices
Products intended for sale within the European Union are marked
with the Conformité Européene (CE) Marking, which indicates
compliance with the applicable Directives and European standards
and amendments identied below. This equipment also carries
the Class 2 identier.
The following information is only applicable to systems labeled
with the CE mark .
Regulatory Compliance Statements
130
Chapter 6
Appendix
European Directives
This Information Technology Equipment has been tested and
found to comply with the following European directives:
EMC Directive 2004/108/EC•
Low Voltage Directive 2006/95/EC•
R&TTE Directive 1999/5/EC•
European Radio Approval Information
(for products tted with EU-approved radio devices)
This Product is a Notebook computer; low power, Radio LAN type
devices (radio frequency (RF) wireless communication devices),
operating in the 2.4GHz/5GHz band, may be present (embedded)
in your notebook system which is intended for home or oce use.
This section is only applicable if these devices are present. Refer to
the system label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualied for
use in the European Union or associated areas if a CE mark
with a Notied Body Registration Number and the Alert Symbol is
on the system label.
The power output of the wireless device or devices that may be
embedded in you notebook is well below the RF exposure limits
as set by the European Commission through the R&TTE directive.
The low band 5.15 - 5.35 GHz is for indoor use only.
See 802.11b and 802.11g restrictions for specic countries
or regions within countries under the heading “European
Economic Area Restrictions” below.
Regulatory Compliance Statements
130
131
Chapter 6
Appendix
EU R&TTE Compliance Statements
Česky
[Czech]
Samsung tímto prohlašuje, že tento Notebook
PC je ve shodě se základními požadavky a
dalšími příslušnými ustanoveními směrnice
1999/5/ES.
Dansk
[Danish]
Undertegnede Samsung erklærer herved, at
følgende udstyr Notebook PC overholder de
væsentlige krav og øvrige relevante krav i
direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt Samsung, dass sich das Gerät
Notebook PC in Übereinstimmung mit den
grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG bendet.
Eesti
[Estonian]
Käesolevaga kinnitab Samsung seadme
Notebook PC vastavust direktiivi 1999/5/
EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
English
Hereby, Samsung, declares that this Notebook
PC is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente Samsung declara
que el Notebook PC cumple con los requisitos
esenciales y cualesquiera otras disposiciones
aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Samsung ΔΗΛΩΝΕΙ ΟΤΙ
Notebook PC ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ
ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente Samsung déclare que l’appareil
Notebook PC est conforme aux exigences
essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente Samsung dichiara che questo
Notebook PC è conforme ai requisiti essenziali
ed alle altre disposizioni pertinenti stabilite
dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo Samsung deklarē, ka Notebook PC atbilst
Direktīvas 1999/5/EK būtiskajām prasībām un
citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo Samsung deklaruoja, kad šis Notebook PC
atitinka esminius reikalavimus ir kitas 1999/5/
EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart Samsung dat het toestel
Notebook PC in overeenstemming is met
de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, Samsung, jiddikjara li dan
Notebook PC jikkonforma mal-ħtiāijiet
essenzjali u ma provvedimenti oħrajn relevanti
li hemm d-Dirrettiva 1999/5/EC.
Regulatory Compliance Statements
132
Chapter 6
Appendix
Magyar
[Hungarian]
Alulírott, Samsung nyilatkozom, hogy a
Notebook PC megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv
egyéb elõírásainak.
Polski
[Polish]
Niniejszym Samsung oświadcza, Ŝe Notebook
PC jest zgodny z zasadniczymi wymogami oraz
pozostałymi stosownymi postanowieniami
Dyrektywy 1999/5/EC.
Português
[Portuguese]
Samsung declara que este Notebook PC está
conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
Samsung izjavlja, da je ta Notebook PC v skladu
z bistvenimi zahtevami in ostalimi relevantnimi
določili direktive 1999/5/ES.
Slovensky
[Slovak]
Samsung týmto vyhlasuje, že Notebook PC
spĺňa základné požiadavky a všetky príslušné
ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
Samsung vakuuttaa täten että Notebook
PC tyyppinen laite on direktiivin 1999/5/
EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar Samsung att denna Notebook
PC står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta
bestämmelser som framgår av direktiv 1999/5/
EG.
Íslenska
[Icelandic]
Hér með lýsir Samsung yr því að Notebook PC
er í samræmi við grunnkröfur og aðrar kröfur,
sem gerðar eru í tilskipun 1999/5/EC.
Norsk
[Norwegian]
Samsung erklærer herved at utstyret Notebook
PC er i samsvar med de grunnleggende krav og
øvrige relevante krav i direktiv 1999/5/EF.
Türkiye
[Türkçe]
Bu belge ile, Samsung bu Notebook PC’nin
1999/5/EC Yönetmeliğinin temel gerekliliklerine
ve ilgili hükümlerine uygun olduğunu beyan
eder.
Regulatory Compliance Statements
132
133
Chapter 6
Appendix
To view the EU Declaration of Conformity for this product (in
English only), go to: http://www.samsung.com/uk/support/main/
supportMain.do or http://www.samsung.com/uk/support then
search the model number of the product.
If the Declaration of Conformity for the model you are interested
in is not available on our web-site, please contact your distributor
or below address.
doc.eu@samsung.com
Manufacturer Information
Samsung Electronics Co., Ltd.
416, Maetan-3Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do,
443-742, Korea
Samsung Electronics Suzhou Computer Co., Ltd.
No. 198, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province,
215021, China
Tel: +86-512-6253-8988
Samsung Electronics Vietnam Co., Ltd.
Yen Phong 1, I.P Yen Trung Commune, Yen Phong Dist., Bac Ninh
Province, Vietnam
For the web or the phone number of Samsung Service Centre, see
the Warranty or contact the retailer where you purchased your
product.
European Economic Area Restrictions
Local Restriction of 802.11b/802.11g Radio Usage
[Note to integrator: The following statements on local restrictions
must be published in all end-user documentation provided with
the system or product incorporating the wireless product.]
Due to the fact that the frequencies used by 802.11b/802.11g
wireless LAN devices may not yet be harmonized in all
countries, 802.11b/802.11g products are designed for use
only in specic countries or regions, and are not allowed
to be operated in countries or regions other than those of
designated use.
As a user of these products, you are responsible for ensuring
that the products are used only in the countries or regions
for which they were intended and for verifying that they
are congured with the correct selection of frequency and
channel for the country or region of use. Any deviation from
permissible settings and restrictions in the country or region
of use could be an infringement of local law and may be
punished as such.
Regulatory Compliance Statements
134
Chapter 6
Appendix
The European variant is intended for use throughout the European
Economic Area. However, authorization for use is further restricted
in particular countries or regions within countries, as follows:
General
European standards dictate maximum radiated transmit power
of 100 mW eective isotropic radiated power (EIRP) and the
frequency range 2400 – 2483.5 MHz.
The low band 5.15 - 5.35 GHz is for indoor use only.
Belgium
The product may be used outdoors, but for outdoor transmissions
over a distance of 300m or more, a license from the BIPT is
required.
This restriction should be indicated in the manual as follows:
Dans le cas d’une utilisation privée, à l’extérieur d’un bâtiment, au-
dessus d’un espace public, aucun enregistrement n’est nécessaire
pour une distance de moins de 300m. Pour une distance
supérieure à 300m un enregistrement auprès de l’IBPT est requise.
Pour une utilisation publique à l’extérieur de bâtiments, une
licence de l’IBPT est requise. Pour les enregistrements et licences,
veuillez contacter l’IBPT.
France
The low band 5.15 - 5.35 GHz is for indoor use only.
RTC CAUTION
CAUTION : Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended
by the manufacturer. Discard used batteries according to the
Manufacturer’s instruction.
Attention: Danger d’explosion si les piles sont mal palcées.
Remplacez les piles usagées uniquement par des piles de type
identique ou équivalent recommandees par is fabriquant. Otez les
piles usagées selon les instructions du fabriquant.
Adapter Information
Vendor CHICONY
Company Name CHICONY POWER TECHNOLOGY CO.,LTD
Adapter Model Name A12- 0 40 N1A
Regulatory Compliance Statements
134
135
Chapter 6
Appendix
RF Exposure (for corresponding 3G models only)
General Statement on RF energy
Your wireless WAN embedded PC contains a transmitter and a
receiver. When it is ON, it receives and transmits RF energy. When
you communicate with your Notebook PC, the system handling
your connection controls the power level at which your Notebook
PC transmits.
Specic Absorption Rate (SAR) certication information
This wireless WAN embedded PC is included a radio transmitter
and receiver. It is designed not to exceed the limits for exposure
to radio waves recommended by international guidelines.
These guidelines were developed by the independent scientic
organization ICNIRP and include safety margins designed to assure
the protection of all persons, regardless of age and health.
The guidelines use a unit of measurement known as the Specic
Absorption Rate, or SAR. The SAR limit for mobile devices is 2.0 W/
kg and the highest SAR value for this device when tested at the
body was 0.565 W/kg. (SAR measurement distance is 0 cm from
the phantom)
As SAR is measured utilizing the devices highest transmitting
power the actual SAR of this device while operating is typically
below that indicated above. This is due to automatic changes to
the power level of the device to ensure it only uses the minimum
level required to reach the network.
The World Health Organization has stated that present scientic
information does not indicate the need for any special precautions
for the use of mobile devices. They note that if you want to reduce
your exposure then you can do so by limiting the length of calls to
keep the mobile devices away from the head and body.
Limiting exposure to radio frequency (RF) elds
For individuals concerned about limiting their exposure to
RF elds, the World Health Organisation (WHO) provides the
following advice:
Precautionary measures: Present scientic information does not
indicate the need for any special precautions for the use of the
Notebook PC. If individuals are concerned, they might choose
to limit their own or their children’s RF exposure by limiting the
length of connections.
Further information on this subject can be obtained from the
WHO home page http://www.who.int/peh-emf
WHO Fact sheet 193: June 2000.
Regulatory Compliance Statements
136
Chapter 6
Appendix
Regulatory Compliance Statements
Declaration of Conformity
(for corresponding 3G models only)
Product details
For the following
Product : Notebook PC (Tablet PC)
Model(s) : XE700T1C
Declaration & Applicable standards
We hereby declare, that the product above is in compliance with
the essential requirements of the R&TTE Directive (1999/5/EC) by
application of the standards below.
This product also meets the essential requirements and other
relevant provisions of the EMC Directive (2004/108/EC) and the
LVD Directive (2006/95/EC).
EN 60950-1:2006+A11:2009/A1:2010/A12:2011 EN 62311 : 2008
EN 55022:2006+A1:2007 EN 55024:1998+A1:2001+A2:2003
EN 61000-3-2:2006+A2:2009 EN 61000-3-3:2008
EN 301 489-01 V1.9.2 (09-2011) EN 301 489-03 V1.4.1 (2002)
EN 301 489-07 V1.3.1 (11-2005) EN 301 489-17 V2.1.1 (05-2009)
EN 301 489-24 V1.5.1 (10-2010) EN 300 328 V1.7.1 (10-2006)
EN 300 440-1 V1.6.1 (08-2010) EN 301 893 V1.6.1 (11-2011)
EN 300 440-2 V1.4.1 (08-2010) EN 301 511 V9.0.2 (03-2003)
EN 302 291-1 V1.1.1 EN 301 908-1 V5.2.1 (05-2011)
EN 302 291-2 V1.1.1 EN 301 908-2 V5.2.1 (07-2011)
and the Eco-Design Directive (2009/125/EC) implemented by
Regulations (EC) No 1275/2008 for standby and o mode electric
power consumption and (EC) No 278/2009 for external power
supplies and the Directive (2011/65/EU) on the restriction of the
use of certain hazardous substances in electrical and electronic
equipment.
Representative in the EU
(YEAR TO BEGIN AFFIXING CE MARKING 2012)
Samsung Electronics Euro QA Lab.
Blackbushe Business Park
Saxony Way, Yateley, Hampshire
GU46 6GG, UK
02 October 2012
(Place and date of issue)
Joong-Hoon Choi/Lab. Manager
(Name and signature of authorized person)
136
137
Chapter 6
Appendix
WEEE Symbol Information
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that
the product and its electronic accessories (e.g. charger, headset, USB
cable) should not be disposed of with other household waste at the
end of their working life.
To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate these items from
other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government oce, for details
of where and how they can take these items for environmentally safe
recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for
disposal.
India Only
For more information on safe disposal and recycling visit our
website www.samsung.com/in or contact our Helpline numbers -
18002668282, 180030008282.
Pb
Correct disposal of batteries in this product
(Applicable in countries with separate collection systems)
This marking on the battery, manual or packaging indicates that
the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked,
the chemical symbols Hg, Cd or Pb indicate that the battery contains
mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances
can cause harm to human health or the environment.
To protect natural resources and to promote material re-use, please
separate batteries from other types of waste and recycle them
through your local, free battery return system.
USA ONLY
This Perchlorate warning applies only to primary CR
(Maganese Dioxide) Lithium coin cells in the product sold or
distributed ONLY in California USA.
“Perchlorate Material- special handling may apply, See www.dtsc.
ca.gov/hazardouswaste/perchlorate.”
Dispose unwanted electronics through an approved recycler.
To nd the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect Or call, (877) 278-0799
For battery recycling go to call2recycle.org; or call 1-877-723-1297
Warning : This product contains chemicals known to the state of
California to cause cancer and reproductive toxicity.
138
Chapter 6
Appendix
In partnering with select recyclers, Samsung oers packaging
take-back at no cost to you.
Simply call the following number for the locations nearest you.
CRT Processing, LLC
(877) 278-0799
Kathy Severson – Logistics contact
Dispose unwanted electronics through an approved recycler.
To nd the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect Or call, (877) 278-0799
Samsung Packaging Take-Back Program
138
139
Chapter 6
Appendix
TCO Certied
(for corresponding models only)
Congratulations!
This product is designed for both you and the planet!
The product you have just purchased carries the
TCO Certied label. This ensures it is designed,
manufactured and tested according to some of
the strictest quality and environmental
requirements in the world. This makes for a high performance
product, designed with the user in focus that also minimizes the
impact on the climate and our natural environment.
TCO Certied is a third party veried program, where every
product model is tested by an accredited impartial test laboratory.
TCO Certied represents one of the toughest certications for ICT
products worldwide.
Some of the Usability features of TCO Certied Tablets
Visual Ergonomics for image quality is tested to ensure top •
performance and reduce sight and strain problems. Important
parameters are Resolution, Luminance, Contrast, Reection
and Colour characteristics
Products are tested according to rigorous safety standards at •
impartial laboratories
Electric and Magnetic eld emissions as low as normal •
household background levels
Workload ergonomics to ensure a good physical environment•
Some of the Environmental features of TCO Certied Tablets
Production facilities have an Environmental Management •
System (EMAS or ISO 14001)
Low energy consumption to minimize climate impact•
Mercury free•
Restrictions on Chlorinated and Brominated ame retardants, •
plasticizers, plastics and heavy metals such as cadmium and
lead (RoHS compliance)
Both product and product packaging is prepared for recycling•
The brand owner oers take-back options•
Corporate Social Responsibility
The brand owner demonstrates the product is manufactured
under working practices that promote good labour relations and
working conditions.
The Criteria Document can be downloaded from our web site.
The criteria included in this label have been developed by TCO
Development in co-operation with scientists, experts, users as
well as manufacturers all over the world. Since the end of the
1980s TCO has been involved in inuencing the development of IT
equipment in a more user and environmentally friendly direction.
Our ICT product labeling system began in 1992 and is now
requested by users and ICT-manufacturers all over the world.
For more information, please visit
www.tcodevelopment.com
140
Chapter 6
Appendix
The system specications may dier depending on the derived
models.
For detailed system specications, refer to the product catalogue.
CPU
(Optional)
Intel® i3/i5 (Core) / Pentium Processor
Intel® Celeron Processor
Main Memory
Memory type: DDR3 SDRAM on board
Main Chipset
(Optional)
Intel HM76
Intel NM70
Storage Device SSD
Graphics (Optional)
Intel HD Graphics (Internal)
Intel HD Graphics 4000 (Internal)
Operating
Environment
Temperature: -5~40°C for storage,
10~35°C when operating
Humidity: 5~90% for storage,
20~80% when operating
AC/DC Rating
Input: 100-240VAC, 50 ~ 60Hz,
Output: 12VDC 3.33A
PC Rating 12VDC 3.33A (40W)
Optional components may not be provided or dierent •
components may be provided depending on the computer
model.
The system specications are subject to change without •
notice.
The Storage device capacity of a computer in which •
Recovery program is installed, is represented as smaller
than the product specication.
The amount of memory that Windows can use may be •
smaller than the actual amount of memory available.
Replacing or adding a memory module for this product is •
not supported due to the product design.
To replace the storage device(SSD) of this product, please
ask for assistance from the service center.
Product Specications
140
141
Chapter 6
Appendix
Product Specications
Registered Trademarks
Samsung is a registered trademark of Samsung Co., Ltd.
Intel, Core/Pentium are registered trademarks of the Intel
Corporation.
Microsoft, MS-DOS, and Windows are registered trademarks of the
Microsoft Corporation.
The terms HDMI and HDMI High-Denition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
All other product or company names mentioned herein are
registered trademarks of their respective companies.
HDMI
142
Chapter 6
Appendix
Glossary
The Glossary lists the terminologies used in this User Guide. For terminologies other than these, look in Windows Help.
Backup
A way to save the current data to restore it later if necessary.
A backup is a way to restore computer data when the data or
computer is damaged.
Chargeable USB
This program enables supplying power to a specic USB port when
the system is in power saving mode, hibernation mode or o.
Client
This refers to a computer that uses a shared network resource
provided by a server.
DDR SDRAM
(Double Data Rate Synchronous Dynamic Random Access Memory)
DRAM is a memory type whose cells consist of a capacitor and
transistor manufactured at a low price. SDRAM is a memory type
whose performance has been improved by synchronizing the clock
with the external CPU clock. DDR SDRAM is a memory type whose
performance has been improved by doubling the operating speed
of the SDRAM and is widely used nowadays. This computer uses
DDR SDRAM.
Device Manager
An administrative tool used to manage computer devices. You can
add or remove hardware or update a device driver using the Device
Manager.
DHCP (Dynamic Host Conguration Protocol)
This refers to automatically allocating IP addresses to the users on
the network by the network administrators.
Direct X
An application interface developed to enable Windows application
programs to access hardware devices at a very high speed. Since
the operating speed of graphics, memory and sound cards must be
very fast to provide high quality video and sound for games, Direct
X enables faster control and interaction between applications and
hardware devices. By using Direct X, the multimedia performance
of Windows has been hugely improved.
Driver
Software that interacts between the hardware and the operating
system. An operating system knows the hardware information
and controls the hardware. In general, a driver is supplied with the
corresponding hardware device.
D-sub (D-subminiature)
This is the cable connecting a general CRT monitor and the
computer. Analog video is output through this cable.
142
143
Chapter 6
Appendix
DVD (Digital Versatile Disk)
DVD was developed to replace CD (compact disk). Although the
shape and size of the disc are the same as that of a CD, the capacity
of a DVD is at least 4.7GB while the capacity of a CD is 600MB. DVD
video is digital unlike VHS (analog) video and supports MPEG2
compression and digital audio. To play a DVD, a DVD drive is
required.
Firewall
A security system used to protect an internal network or intranet
from external networks through an authentication procedure.
HDMI
This is a digital video / audio interface specication that transmits
video and audio signals over a single cable.
Hibernation Mode
A power mode that saves all data in memory to the hard disk and
turns the CPU and hard disk o. When canceling Hibernation Mode,
all application programs that were running are restored to their last
state.
Icon
This refers to a small image that represents a le that users can use.
IEEE802.XX
This is a set fo specications developed by the 802 committee of
IEEE for the LAN connection method called XX.
LAN (Local Area Network)
A communications network connecting computers, printers and
other devices within a local area such as within a building. A LAN
enables all connected devices to interact with other devices on the
network. The current LAN uses the Ethernet media access control
method developed in the early 1980s. To connect to an Ethernet, a
network card called a LAN card, Ethernet card or network interface
card is required. To exchange data between computers, a protocol
is required besides the hardware equipment. Windows uses TCP/IP
as the default protocol.
LCD (Liquid Crystal Display)
There are Passive Matrix and Active Matrix LCD types. This
computer uses the Active Matrix type LCD called a TFT LCD. Since
an LCD is implemented by transistors instead of a cathode-ray tube
unlike a CRT, its size can be slim. And because it does not blink, it
reduces eye strain.
Glossary
144
Chapter 6
Appendix
Network
A group of computers and devices, such as printers and scanners,
connected by a communications link. A network can be either
small or large and can be connected permanently through cables
or temporarily through telephone lines or wireless links. The
biggest network is the Internet, a worldwide network.
Network Administrator
A user who plans, congures and manages network operations.
Sometimes, a network administrator is called a system
administrator.
Notication Area
This refers to the right area of the Taskbar including program icons
such as the volume control, the power options and the time.
Partition
This refers to the act or practice of dividing the storage space of
a hard disk drive into separate data areas known as partitions. If a
100GB hard disk drive is partitioned into 2 x 50GB partitions, the
hard disk drive can be used as if there are 2 hard disk drives.
PCMCIA( Personal Computer Memory Card International
Association) card
This is an extended card slot specication for mobile computers
such as a notebook computer. Not only a memory, device but also
most peripherals such as hard disk drives, LAN cards, etc. can be
connected to this card slot.
Protocol
A protocol is a set of rules used by computers to communicate with
each other across a network. A protocol is a convention or standard
that controls or enables the connection, communication, and
data transfer between computing endpoints. It denes the data
transmission procedures and the transmission medium for more
ecient network functions.
Quick Launch
This refers to a toolbar that can be congured so that you can
launch a program such as Internet Explorer or display the Windows
Desktop with one click. You can add any icon to the quick launch
area of the Taskbar and launch frequently used program by clicking
that icon.
Server
In general, a server refers to a computer that provides shared
resources for network users.
Glossary
144
145
Chapter 6
Appendix
Share
This refers to setting a resource of a computer such as a folder or
printer so that other users can also use it.
Shared Folder
A folder that can be used by other users on the network.
Sleep Mode
A power mode that enables computers to save power consumption
when they are not being used. When a computer is in Sleep Mode,
the data on the computer memory is not saved to the hard disk. If
the power is turned o, the data in memory will be lost.
System File
System Files refer to les that are read and used by the Windows
operating system. In general, system les must not be deleted or
moved.
TCP/IPv4
This is a 4 byte (32 bit) address system separated into each byte
(8 bits) by a dot and each byte is represented as a decimal number.
USB (Universal Serial Bus)
This refers to a serial interface standard developed to replace the
conventional interface standards such as Serial and PS/2.
The data transmission specications are one of the interface
standards used to connect a computer to peripheral devices.
These specications include USB 1.0, 1.1, 2.0 and 3.0.
It is appropriate to support peripheral devices that require high
data rates such as an AV device, secondary HDD or CD-RW.
The higher the version (e.g. USB 3.0), the higher the data rate
provided.
Windows Media Player
A multimedia program included with Windows. Using this
program, you can play a media le, create an audio CD, listen to a
radio broadcast, search and manage media les, and copy les to a
portable device, etc.
Glossary
146
Chapter 6
Appendix
Index
A
AP 60
B
Battery 97
BIOS Setup 91
Booting Priority 96
C
Charge 97
Click 43
D
Double-Click 43
Drag 43
Dual View 54
L
LCD Brightness 59
M
Monitor Connection / Output 54
Micro SD Card Slot 52
O
Overview 24
P
Password 93
Product Specications 140
R
Recorder 57
Recovery 102
S
Safety Precautions 6
Scroll 44
Supervisor Password 93
Support Center 89
SW Update 88
U
User Password 94
V
Volume Control 57
W
Wireless Network 60
