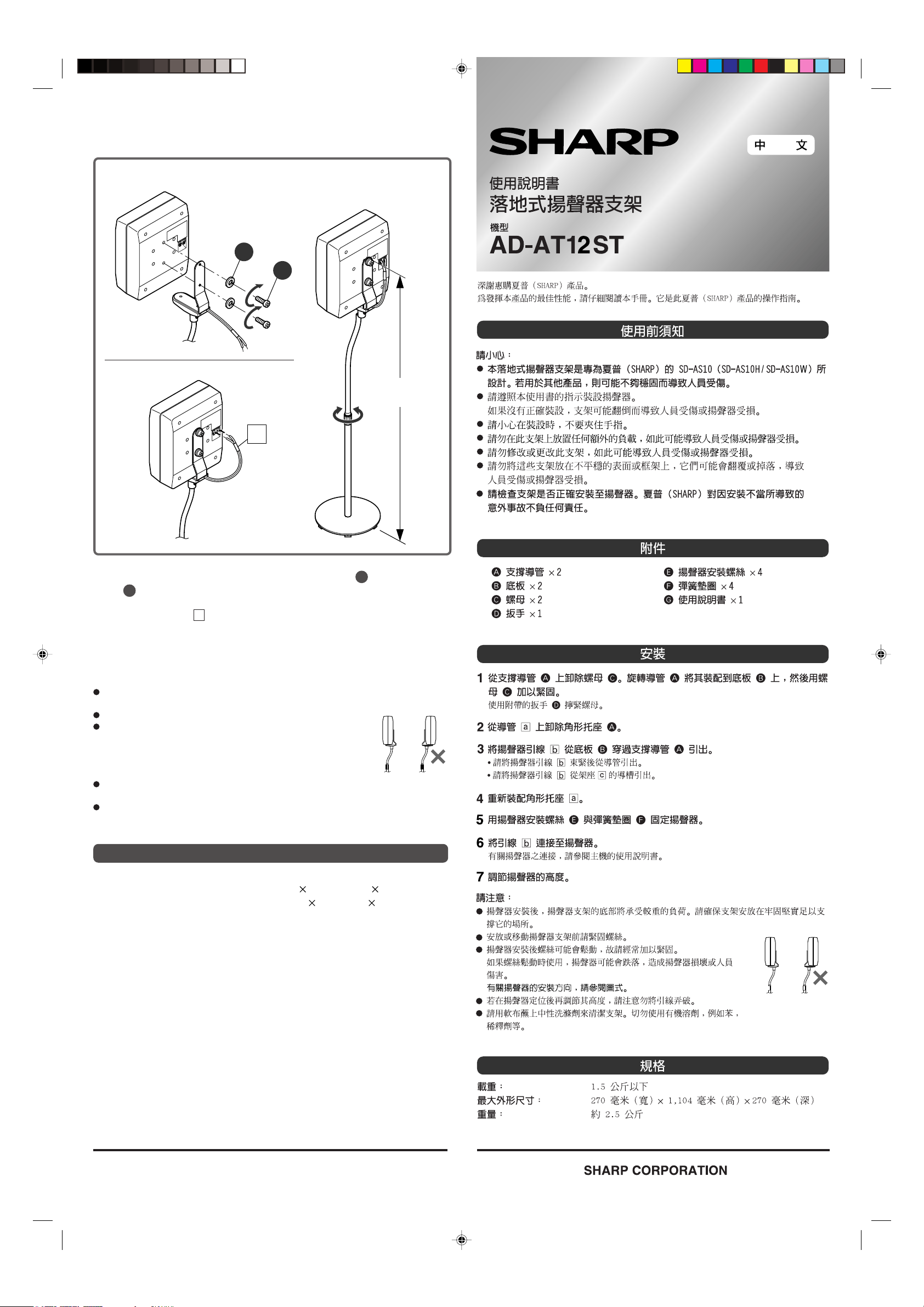

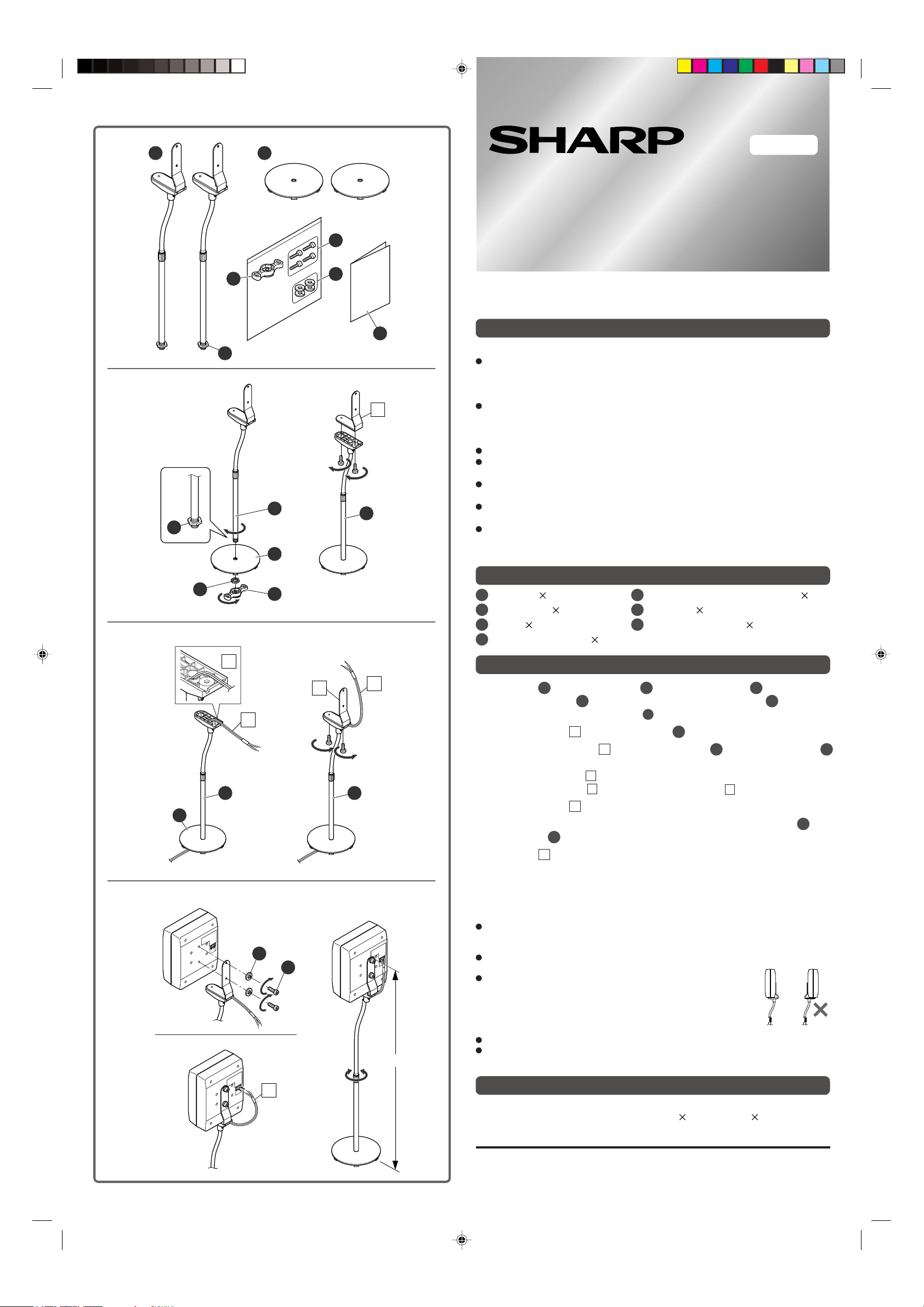

Mounting
A
B
D
C
C
12
A
a
1 Remove the nut C from the support pipe A . Turn the pipe A to assemble
to the bottom plate
B and fasten it with the nut C .
Use the supplied wrench
D for tightening.
2 Remove the angle
a from the pipe A .
B
b
c
34
AA
a
b
3 Lead the speaker cable b through the support pipe A from the bottom
plate B .
• Lead the speaker cable b through the pipe whilst it is contracted.
• Lead the speaker cable b along the groove on the holder c .
4 Attach the angle
a again.
TINSZA037SJZZ
04K N YT
1
INSTRUCTION MANUAL
FLOOR SPEAKER STAND
MODEL
AD-AT12ST
Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please read this manual carefully.
It will guide you in operating your SHARP product.
Precautions
Caution:
This floor speaker stand is designed exclusively for SHARP’s SD-AS10
(SD-AS10H/SD-AS10W). Use with other products may result in instability
causing injury.
Mount the speaker observing instructions in this manual.
If it is not mounted properly, the stand may fall over leading to injury or damage to
the speaker.
Be careful not to pinch your fingers whilst mounting.
Do not put any extra load on the stand. It may cause injury or damage to the
speaker.
Do not modify or change the stand. It may cause injury or damage to the speaker.
Do not place these stands on unstable surface or frame. They may fall over or fall
off, causing injury or damage to the speaker.
Check that the stands are mounted to speakers properly. SHARP is not
liable for accidents caused by improper mounting.
Included parts
A
B
G
D
F
C
E
A Support Pipe 2 E Speaker Mounting Screw 4
B Bottom Plate 2 F Spring Washer 4
C Nut 2 G Instruction Manual 1
D Wrench 1
ENGLISH
Printed in China
Geduckt in China
Imprimé en Chine
Impreso en China
